Online bus pass management system
This document proposes an online bus management system to address problems with the current physical bus pass system. The proposed system would allow citizens to generate and renew bus passes online through a web application or mobile app without having to wait in long queues. It would use QR codes embedded in digital passes that could be scanned by conductors using mobile devices to verify passes. The system aims to save time for citizens and make the pass issuance and renewal process more convenient. It would use technologies like PHP, JavaScript, MySQL database, and QR code scanning.
In this document
Powered by AI
The system aims to modernize bus management for users by providing an online platform.
Key problems: long waiting lines, complicated procedures, and use of physical tickets.
Introduction of an online bus pass generation application for user convenience and reduced wait times.
Development of web and mobile applications with features like user accounts and QR code scanning.
Frontend includes login, pass issuance, and renewal features; backend consists of a secure database.
Similar UI as web app, including PDF pass generation and QR code.
Bus conductors will use QR code scanners for on-the-spot verification of user passes.
Technologies involved: HTML, PHP, JavaScript, and secure protocols for database transactions.
Overview of various papers on online bus pass systems, their technologies, advantages, and disadvantages.
First two papers reviewed highlight advantages like time-saving but also mention security concerns.
Next three papers reiterate similar benefits of online bus pass systems alongside their limitations.
Motivation for developing an online bus pass system to enhance user experience.
Advantages include time efficiency and affordability; disadvantages include OS compatibility issues.
Outlines the digitization goal of the bus pass system and the intended audience for the software.
Describes the functions the system will support, such as issuing electronic passes and online payments.
Highlights the intended functionalities of the application to alleviate manual bus pass issuance hassle.
Functional and non-functional requirements for the application, focusing on user needs and reliability.
Lists the tech stack needed for both web-based and Android applications.
Specifies the necessary hardware and performance standards for the application.

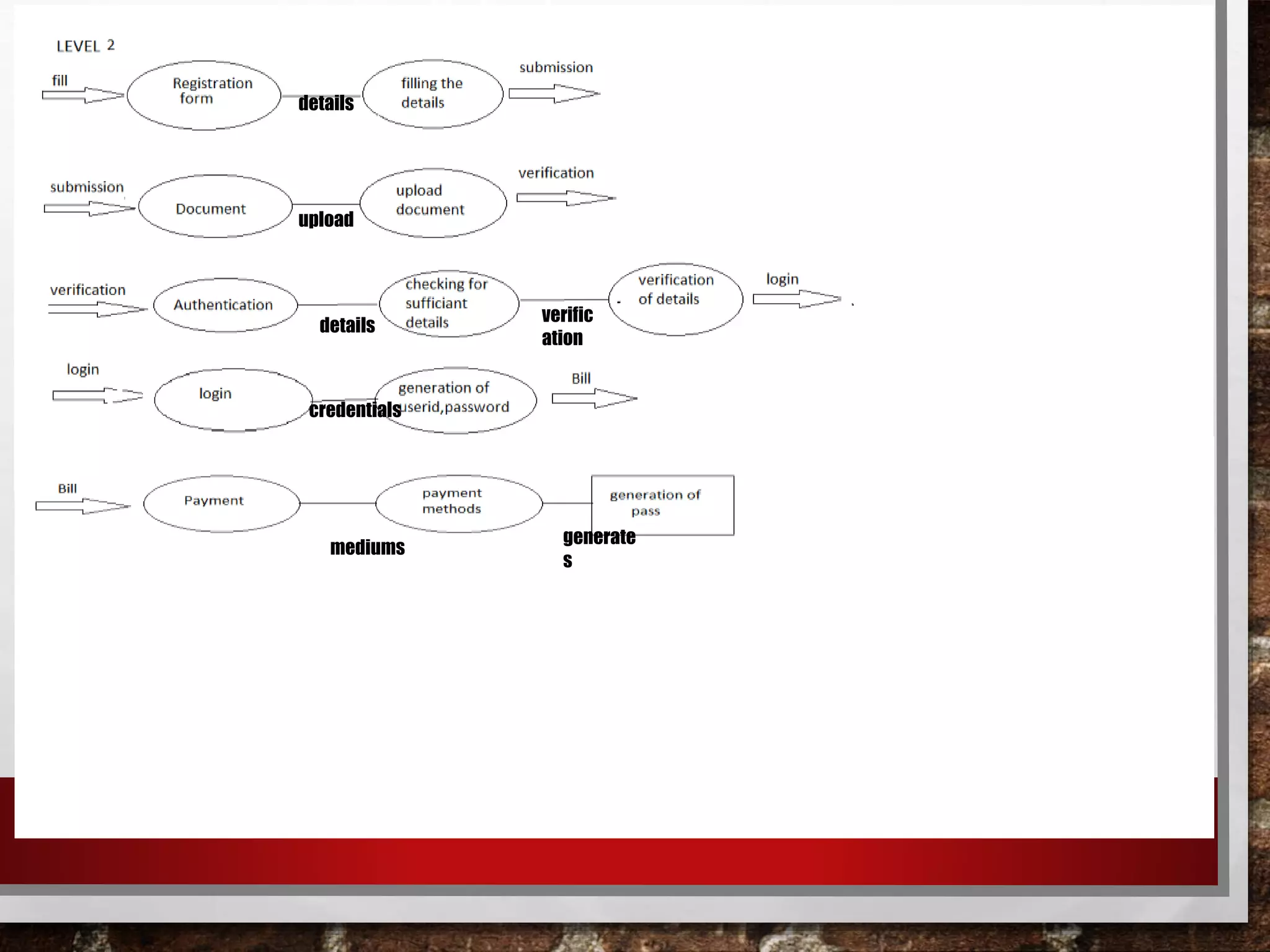

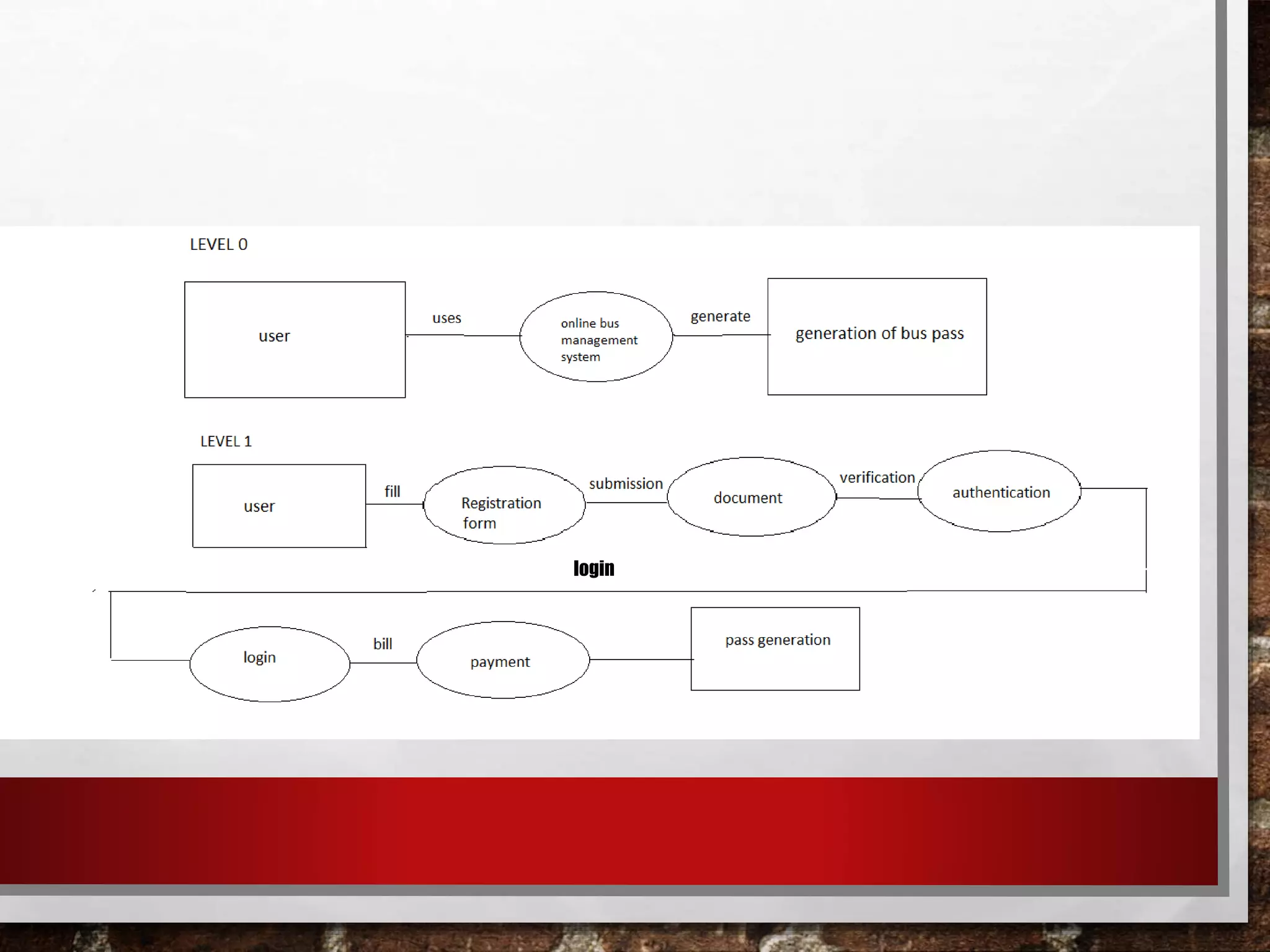

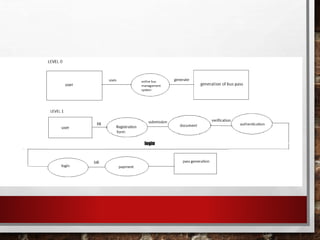

Visual representation of the data flow within the online bus management system.
Details the login process for the bus management system.
Explanation of user verification through various methods in the system.

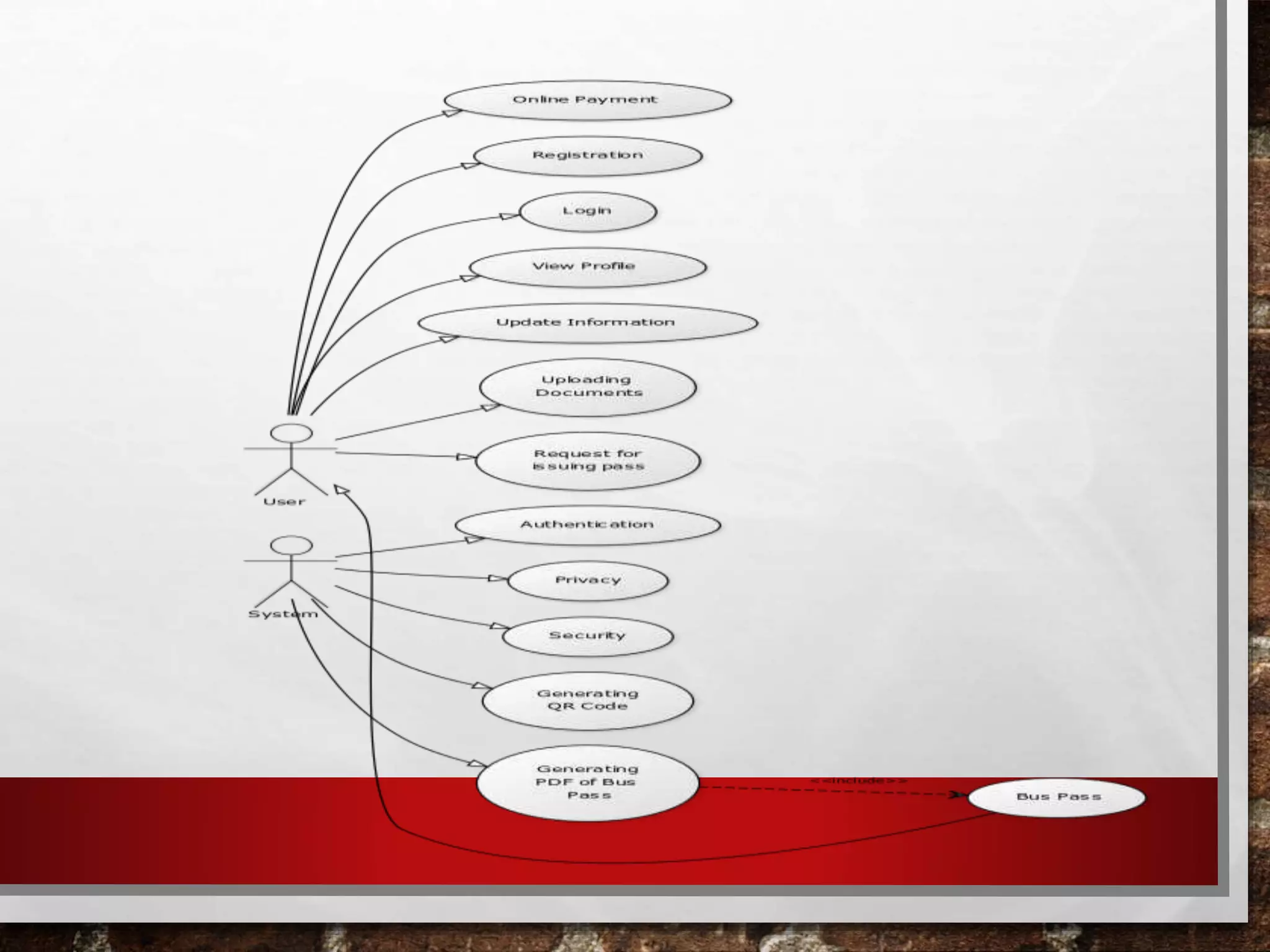

Presents specific use cases relevant to the bus pass application.

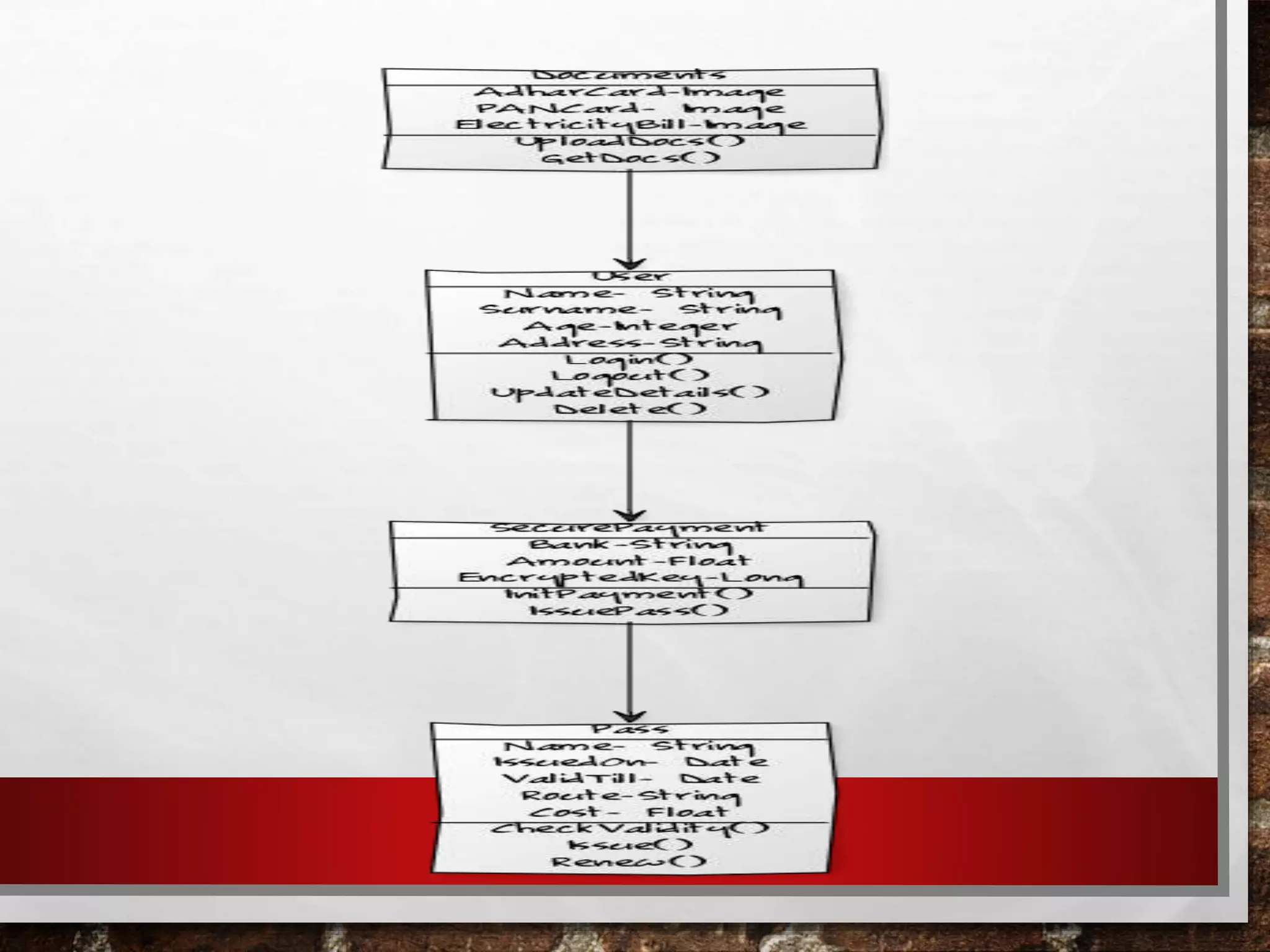

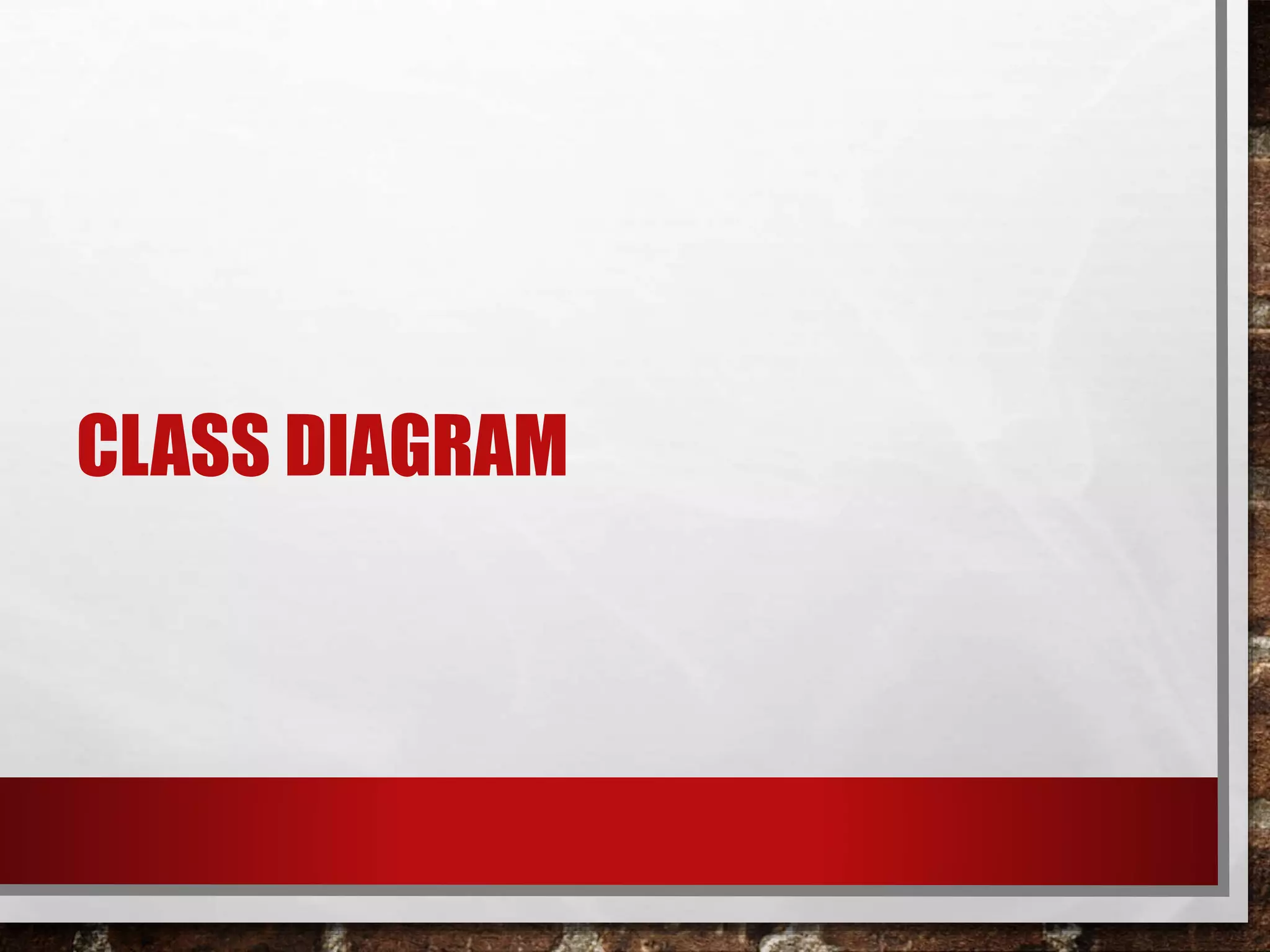

Depicts the class structure and relationships within the bus management system.

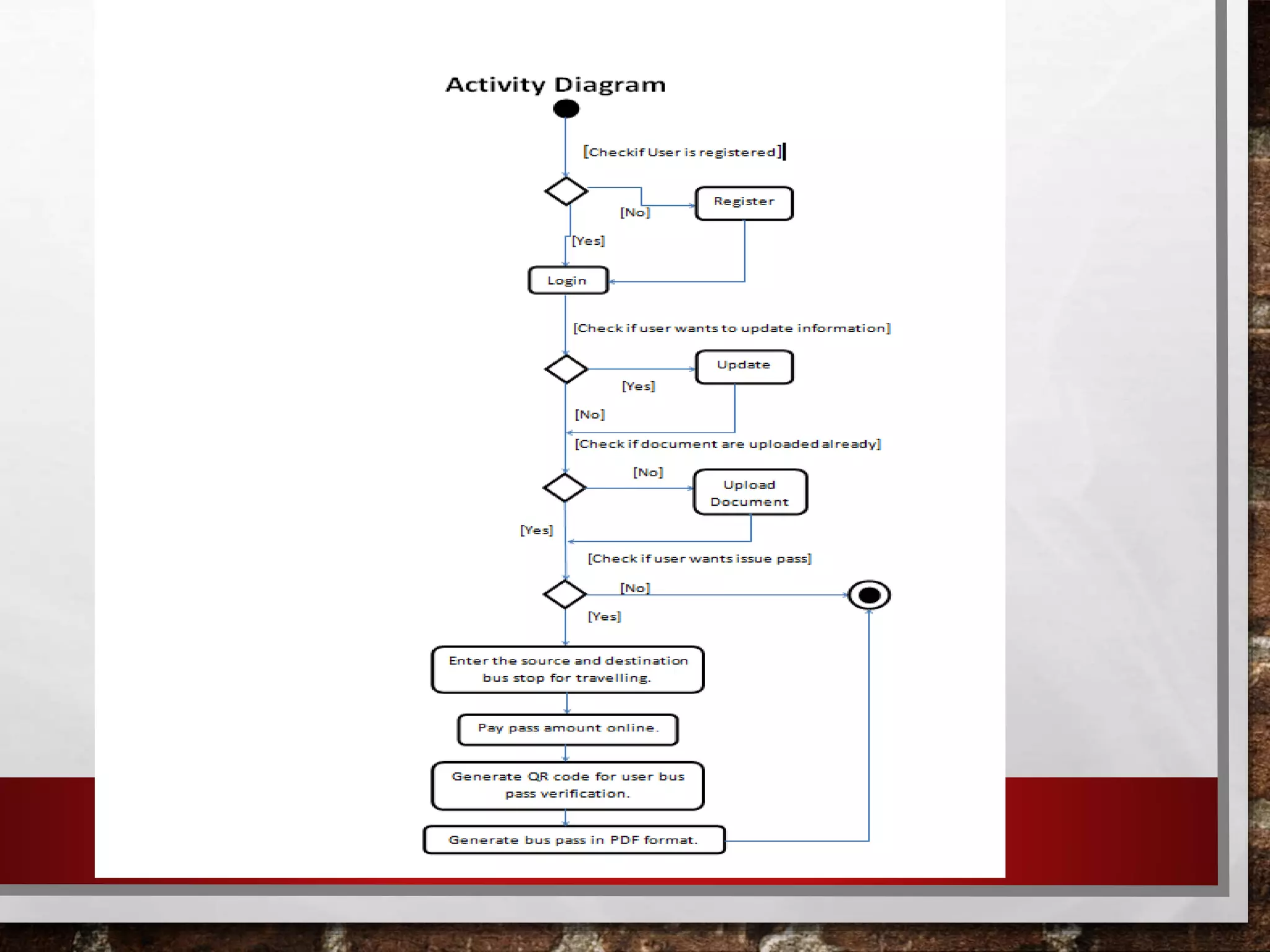

Illustrates user activities and interactions with the system.

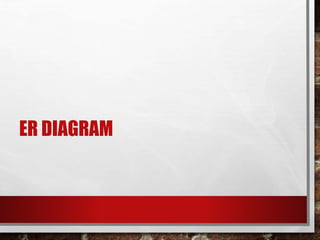

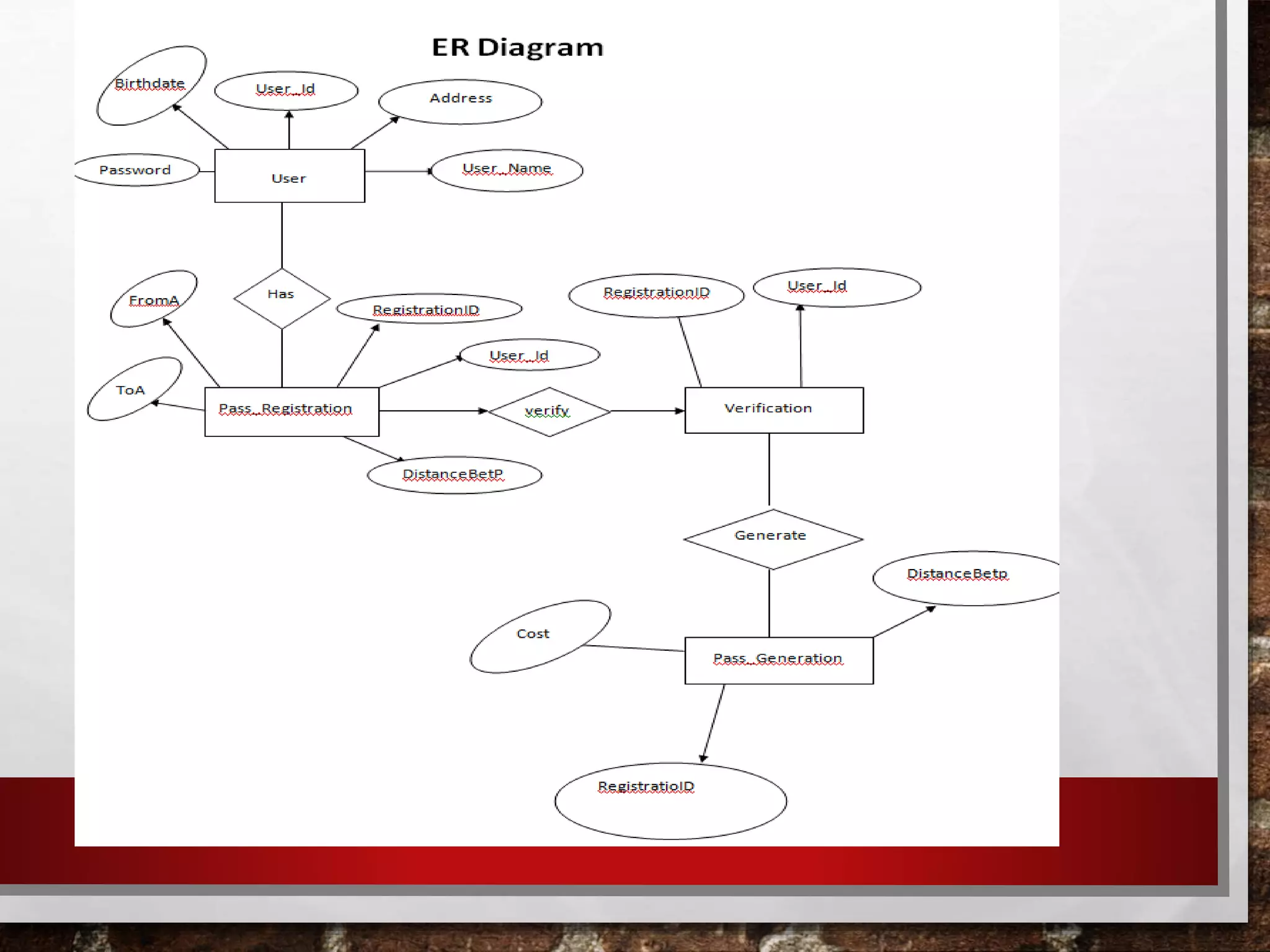

Shows the database relationships pertaining to the online bus management system.
Wraps up the presentation with gratitude.
More Related Content
Similar to Online bus pass management system
Online bus pass management system
- 1.

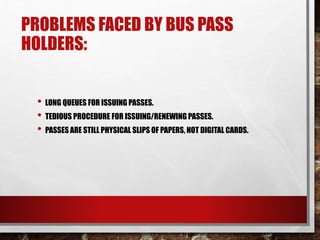

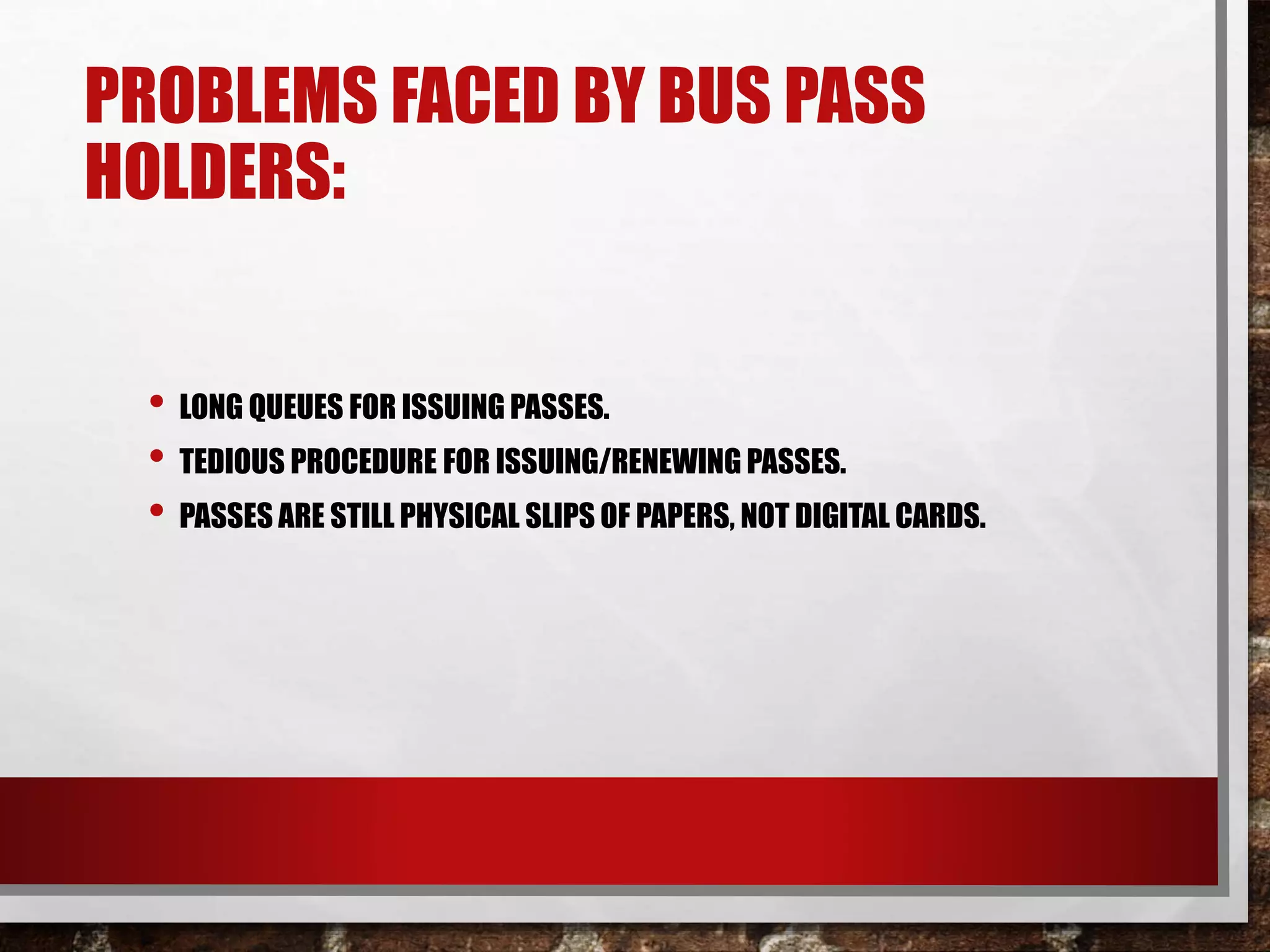

- 2. PROBLEMS FACED BYBUS PASS HOLDERS: • LONG QUEUES FOR ISSUING PASSES. • TEDIOUS PROCEDURE FOR ISSUING/RENEWING PASSES. • PASSES ARE STILL PHYSICAL SLIPS OF PAPERS, NOT DIGITAL CARDS.

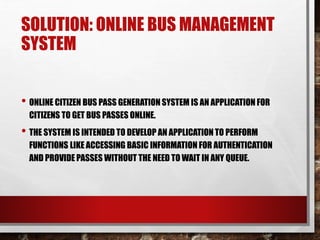

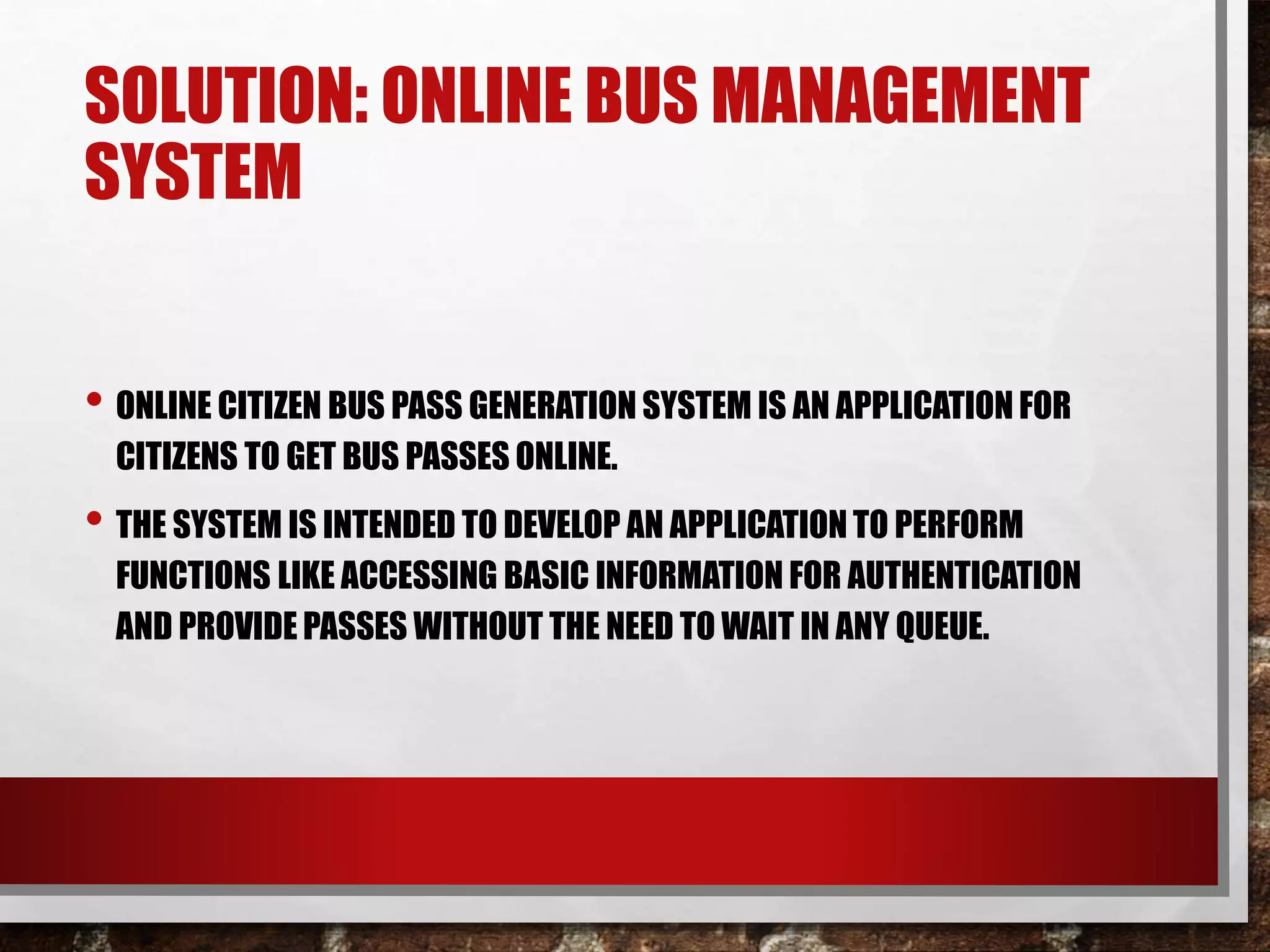

- 3. SOLUTION: ONLINE BUSMANAGEMENT SYSTEM • ONLINE CITIZEN BUS PASS GENERATION SYSTEM IS AN APPLICATION FOR CITIZENS TO GET BUS PASSES ONLINE. • THE SYSTEM IS INTENDED TO DEVELOP AN APPLICATION TO PERFORM FUNCTIONS LIKE ACCESSING BASIC INFORMATION FOR AUTHENTICATION AND PROVIDE PASSES WITHOUT THE NEED TO WAIT IN ANY QUEUE.

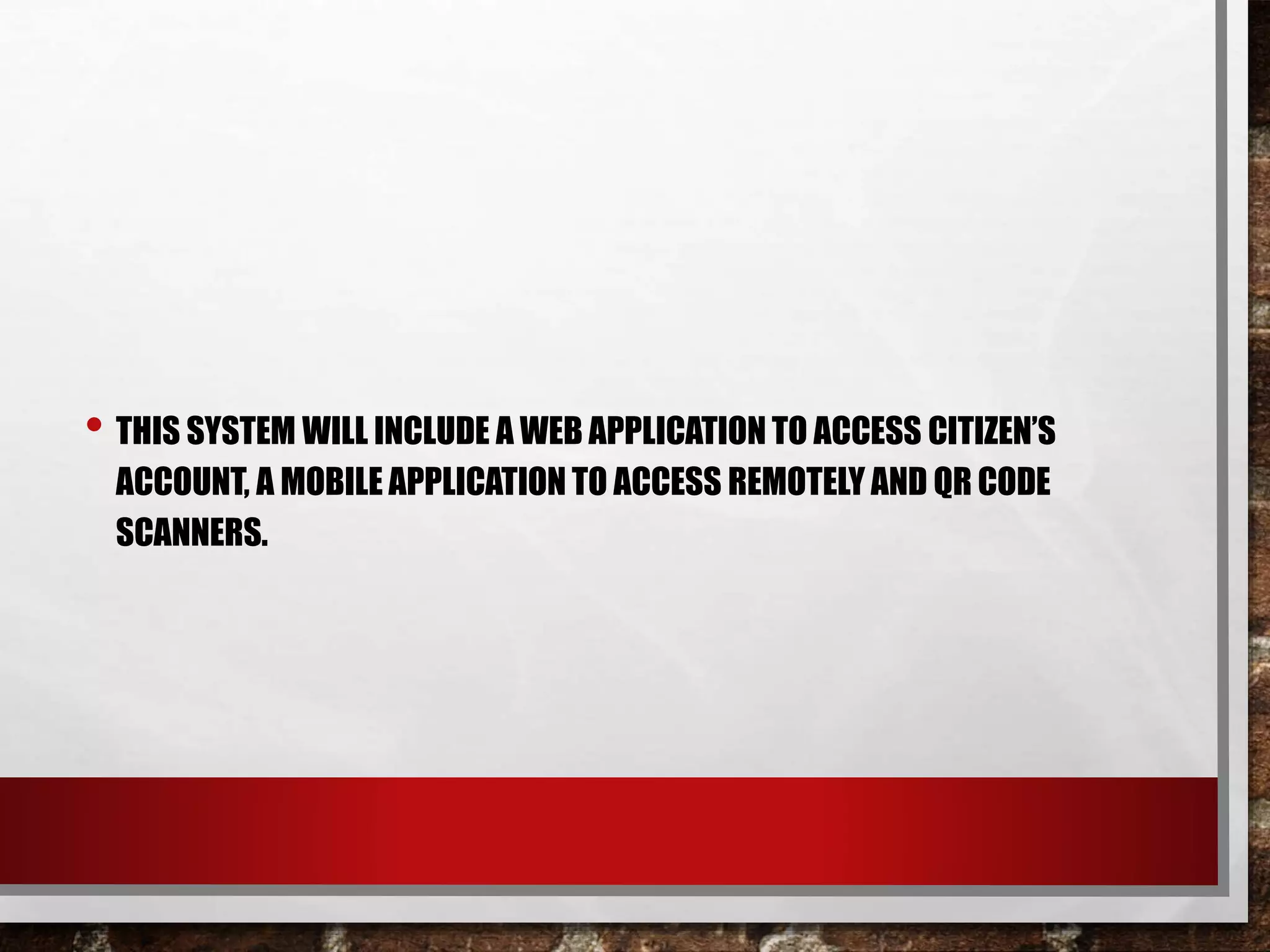

- 4. • THIS SYSTEMWILL INCLUDE A WEB APPLICATION TO ACCESS CITIZEN’S ACCOUNT, A MOBILE APPLICATION TO ACCESS REMOTELY AND QR CODE SCANNERS.

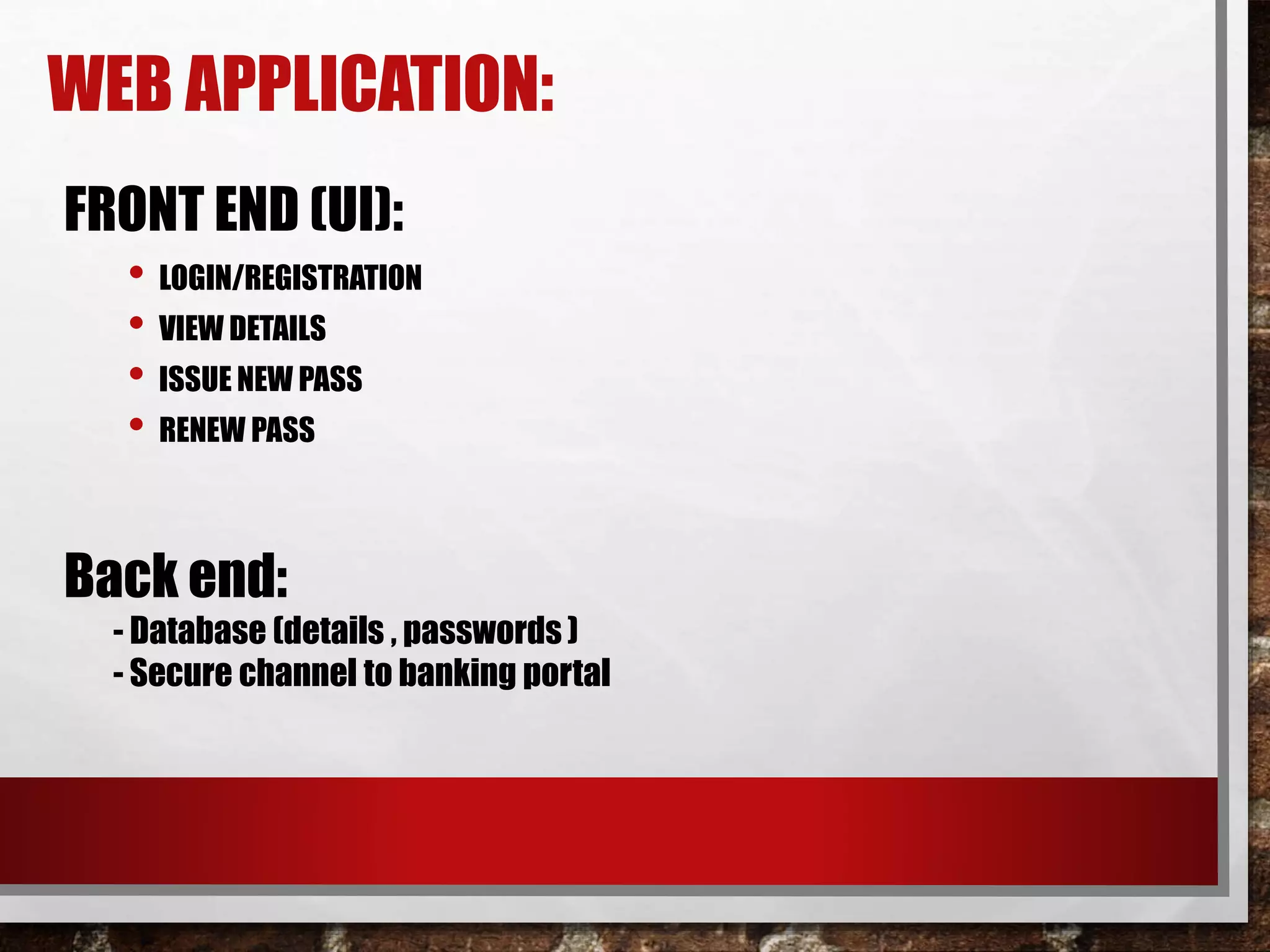

- 5. WEB APPLICATION: FRONT END(UI): • LOGIN/REGISTRATION • VIEW DETAILS • ISSUE NEW PASS • RENEW PASS Back end: - Database (details , passwords ) - Secure channel to banking portal

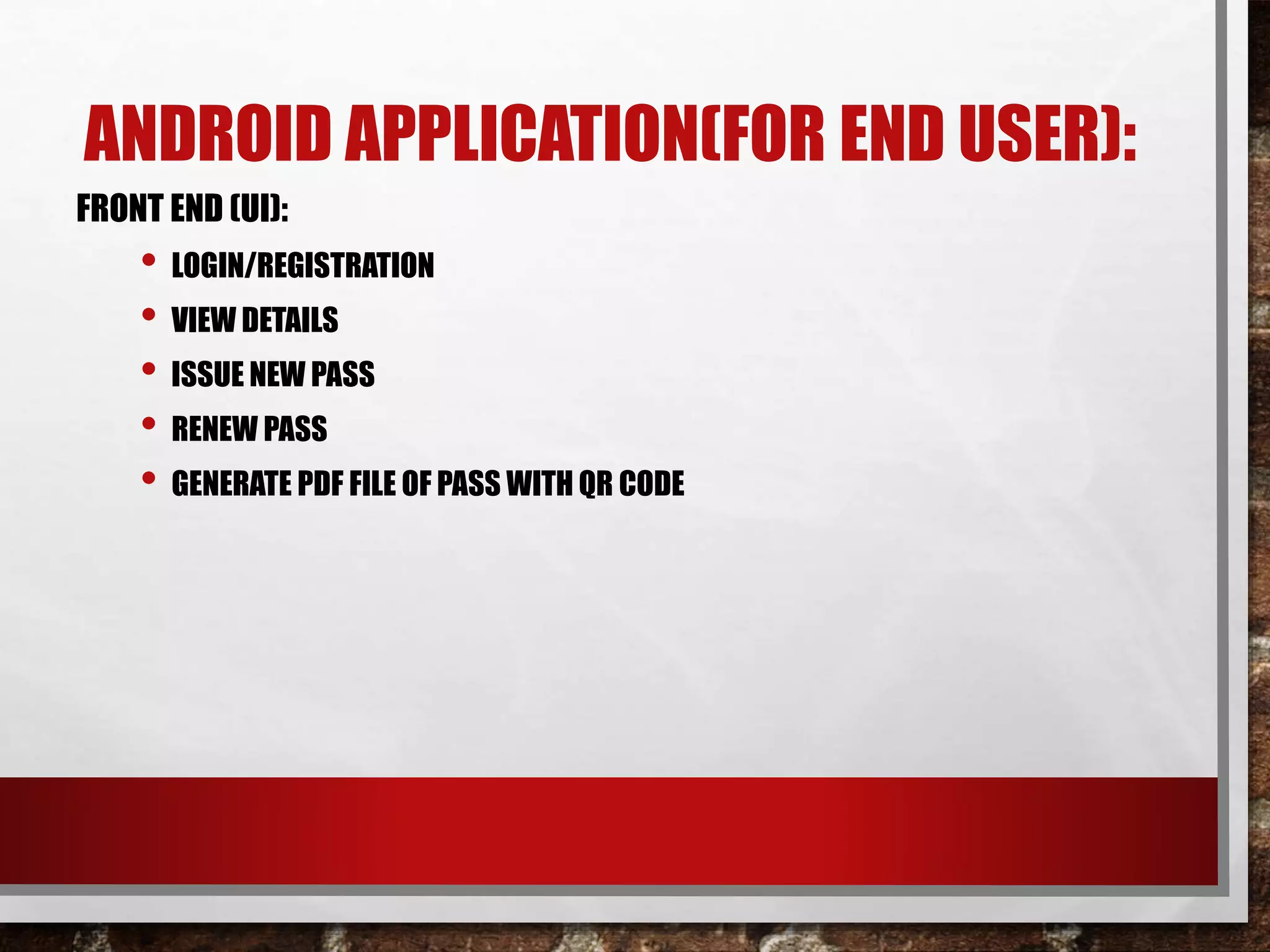

- 6. ANDROID APPLICATION(FOR ENDUSER): FRONT END (UI): • LOGIN/REGISTRATION • VIEW DETAILS • ISSUE NEW PASS • RENEW PASS • GENERATE PDF FILE OF PASS WITH QR CODE

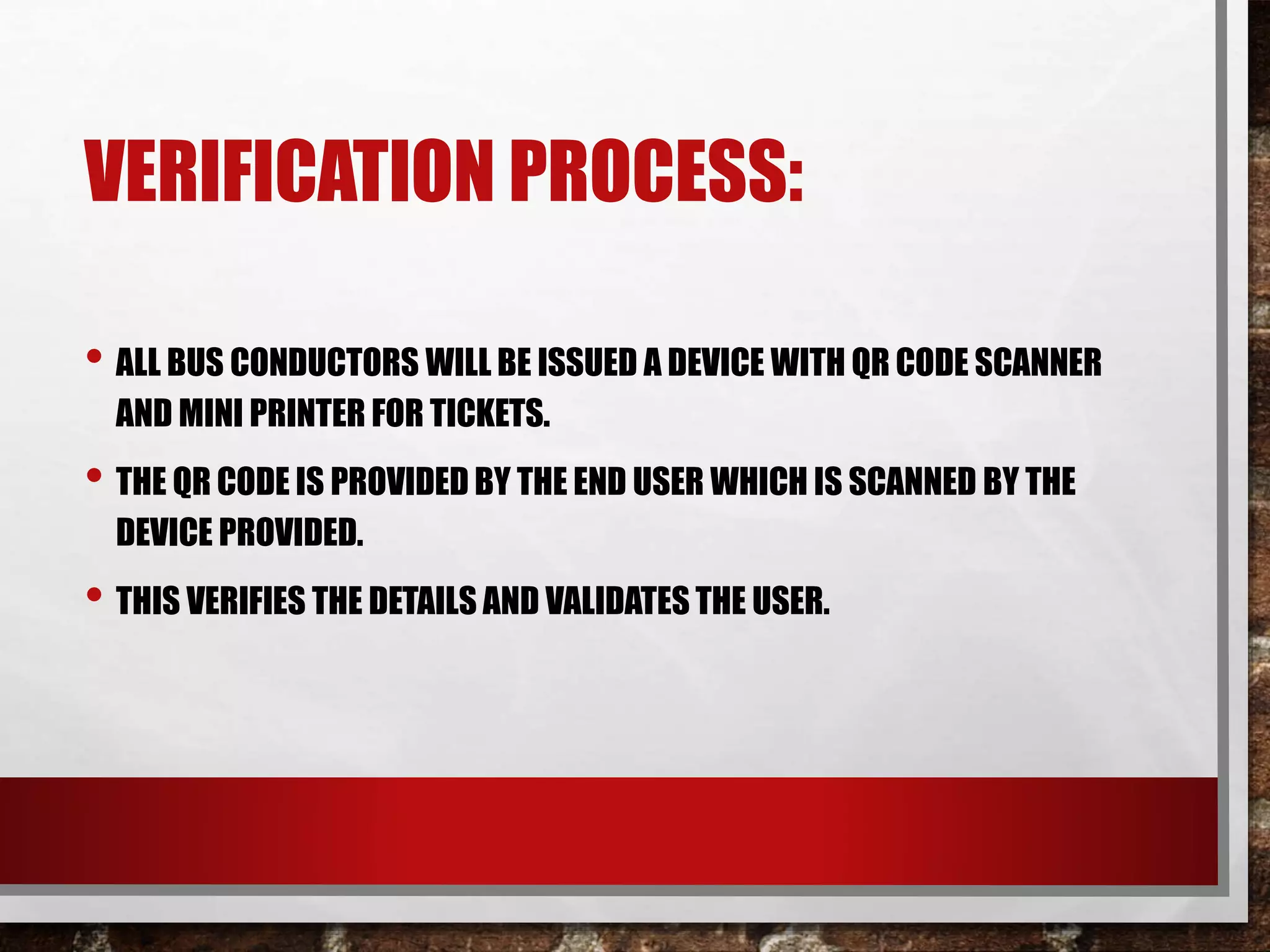

- 7. VERIFICATION PROCESS: • ALLBUS CONDUCTORS WILL BE ISSUED A DEVICE WITH QR CODE SCANNER AND MINI PRINTER FOR TICKETS. • THE QR CODE IS PROVIDED BY THE END USER WHICH IS SCANNED BY THE DEVICE PROVIDED. • THIS VERIFIES THE DETAILS AND VALIDATES THE USER.

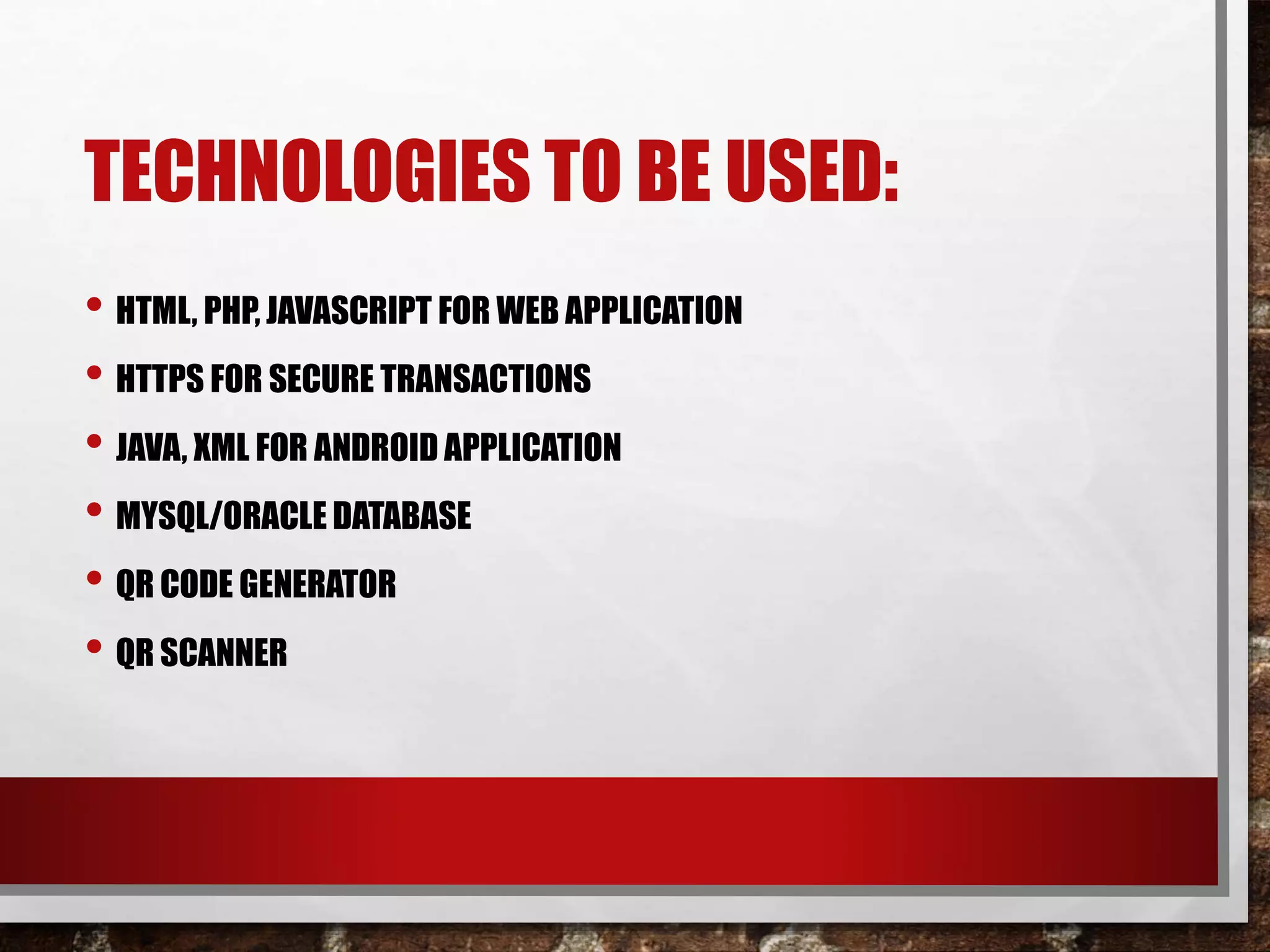

- 8. TECHNOLOGIES TO BEUSED: • HTML, PHP, JAVASCRIPT FOR WEB APPLICATION • HTTPS FOR SECURE TRANSACTIONS • JAVA, XML FOR ANDROID APPLICATION • MYSQL/ORACLE DATABASE • QR CODE GENERATOR • QR SCANNER
- 9.

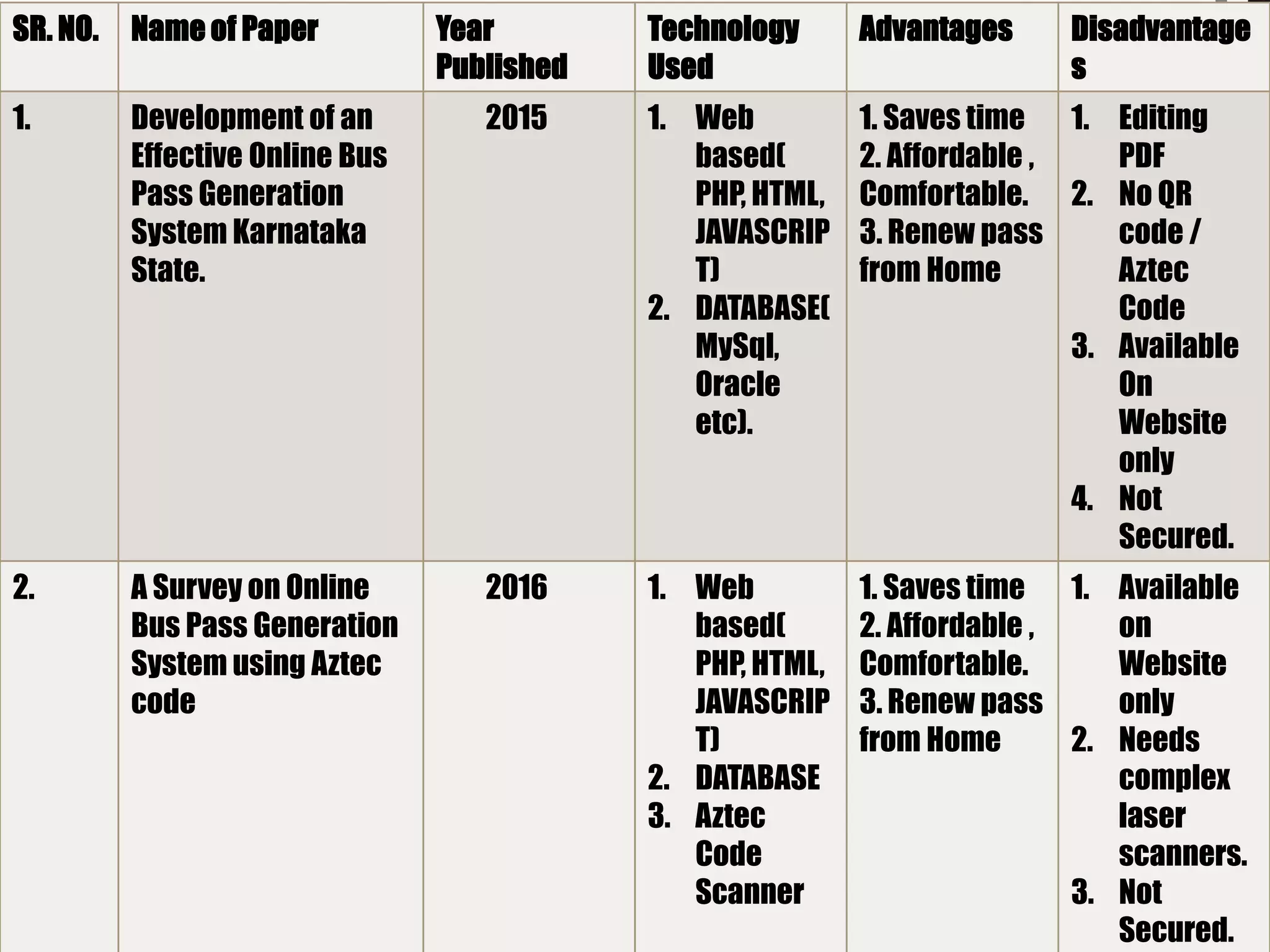

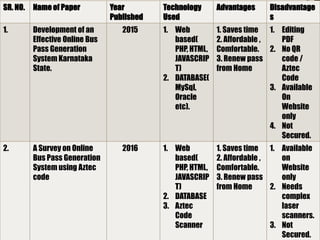

- 10. SR. NO. Nameof Paper Year Published Technology Used Advantages Disadvantage s 1. Development of an Effective Online Bus Pass Generation System Karnataka State. 2015 1. Web based( PHP, HTML, JAVASCRIP T) 2. DATABASE( MySql, Oracle etc). 1. Saves time 2. Affordable , Comfortable. 3. Renew pass from Home 1. Editing PDF 2. No QR code / Aztec Code 3. Available On Website only 4. Not Secured. 2. A Survey on Online Bus Pass Generation System using Aztec code 2016 1. Web based( PHP, HTML, JAVASCRIP T) 2. DATABASE 3. Aztec Code Scanner 1. Saves time 2. Affordable , Comfortable. 3. Renew pass from Home 1. Available on Website only 2. Needs complex laser scanners. 3. Not Secured.

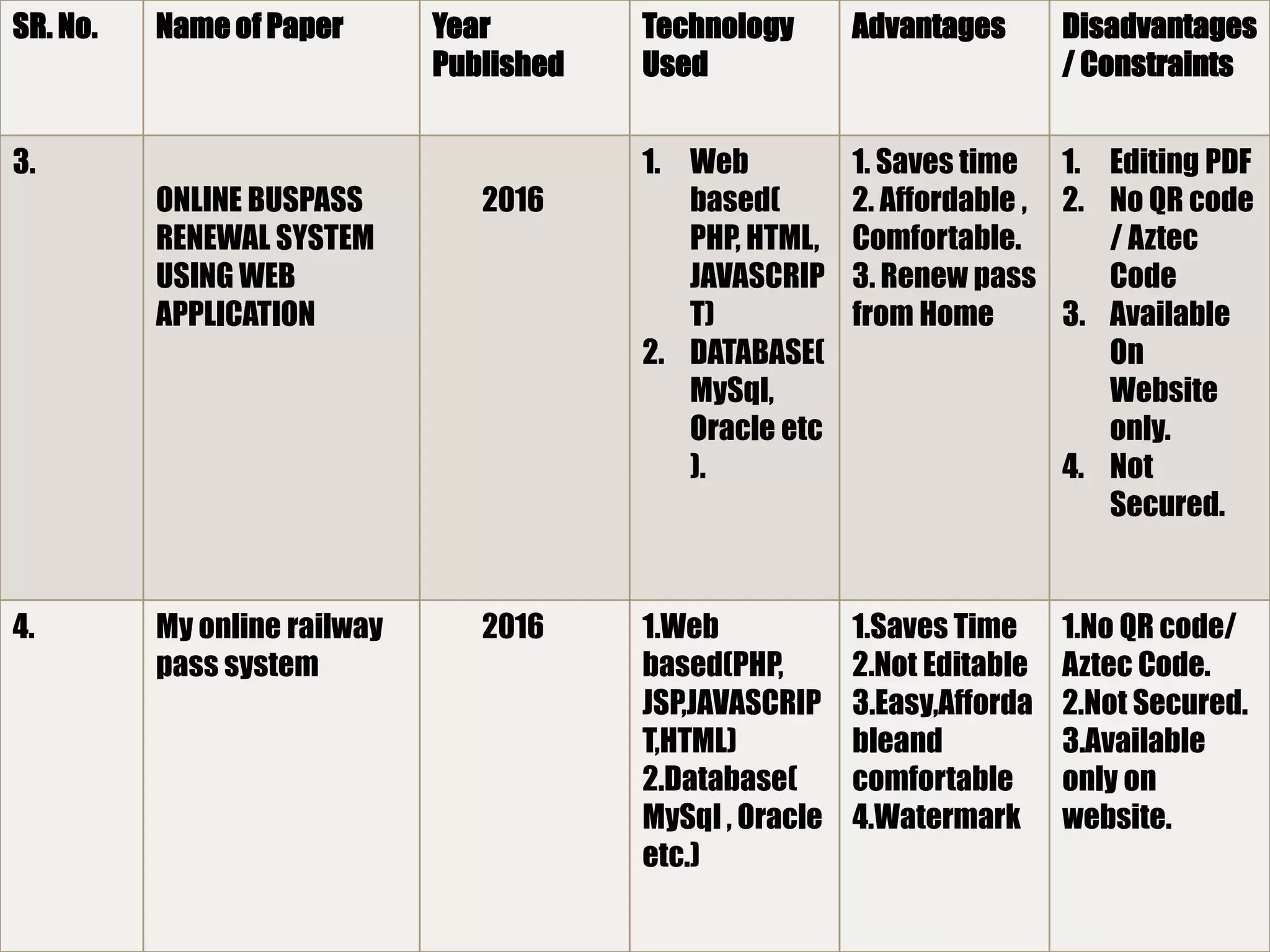

- 11. SR. No. Nameof Paper Year Published Technology Used Advantages Disadvantages / Constraints 3. ONLINE BUSPASS RENEWAL SYSTEM USING WEB APPLICATION 2016 1. Web based( PHP, HTML, JAVASCRIP T) 2. DATABASE( MySql, Oracle etc ). 1. Saves time 2. Affordable , Comfortable. 3. Renew pass from Home 1. Editing PDF 2. No QR code / Aztec Code 3. Available On Website only. 4. Not Secured. 4. My online railway pass system 2016 1.Web based(PHP, JSP,JAVASCRIP T,HTML) 2.Database( MySql , Oracle etc.) 1.Saves Time 2.Not Editable 3.Easy,Afforda bleand comfortable 4.Watermark 1.No QR code/ Aztec Code. 2.Not Secured. 3.Available only on website.

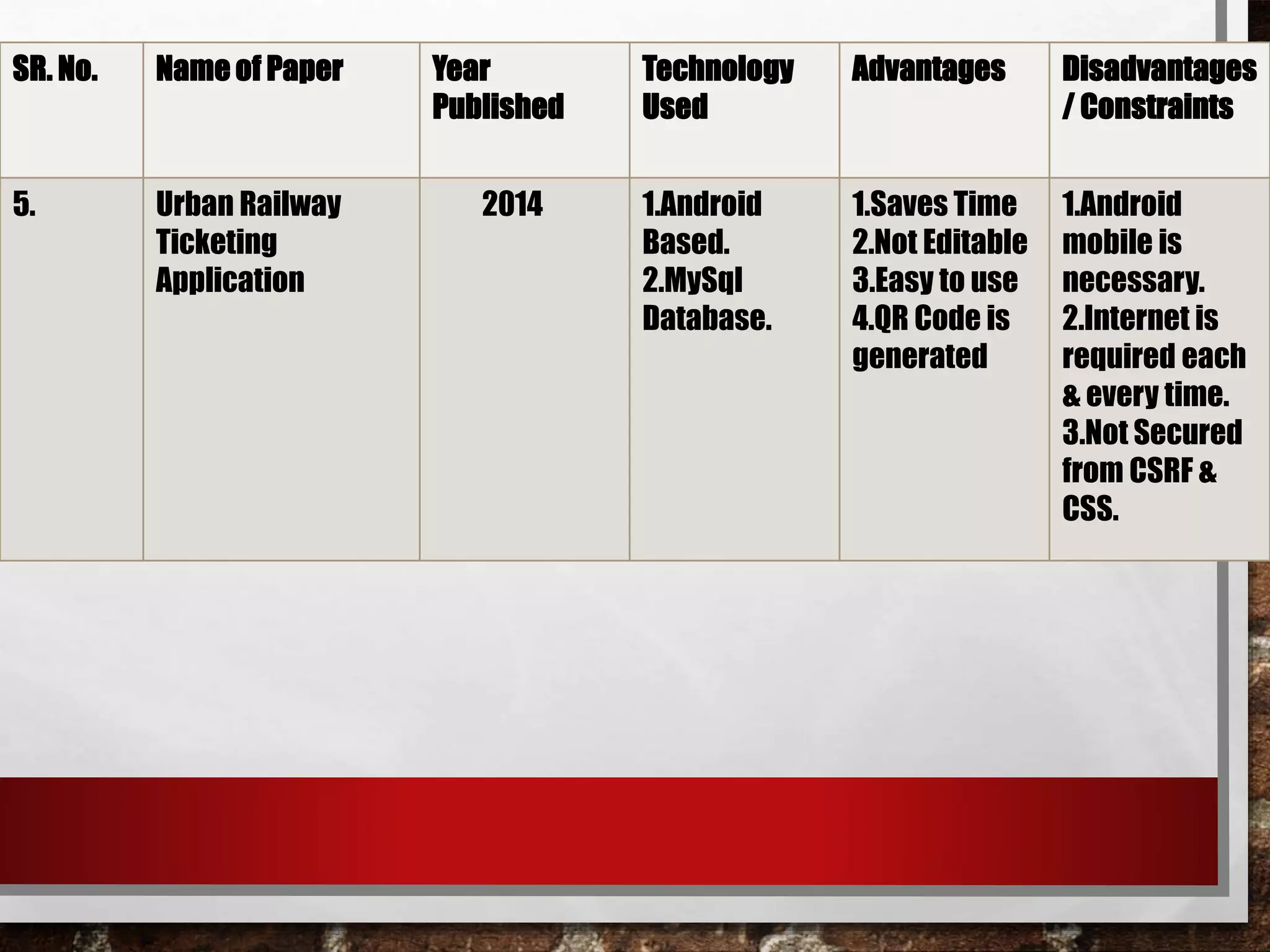

- 12. SR. No. Nameof Paper Year Published Technology Used Advantages Disadvantages / Constraints 5. Urban Railway Ticketing Application 2014 1.Android Based. 2.MySql Database. 1.Saves Time 2.Not Editable 3.Easy to use 4.QR Code is generated 1.Android mobile is necessary. 2.Internet is required each & every time. 3.Not Secured from CSRF & CSS.
- 13.

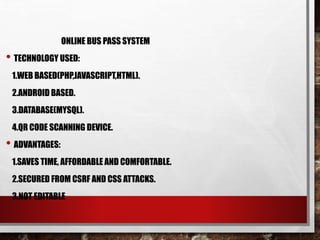

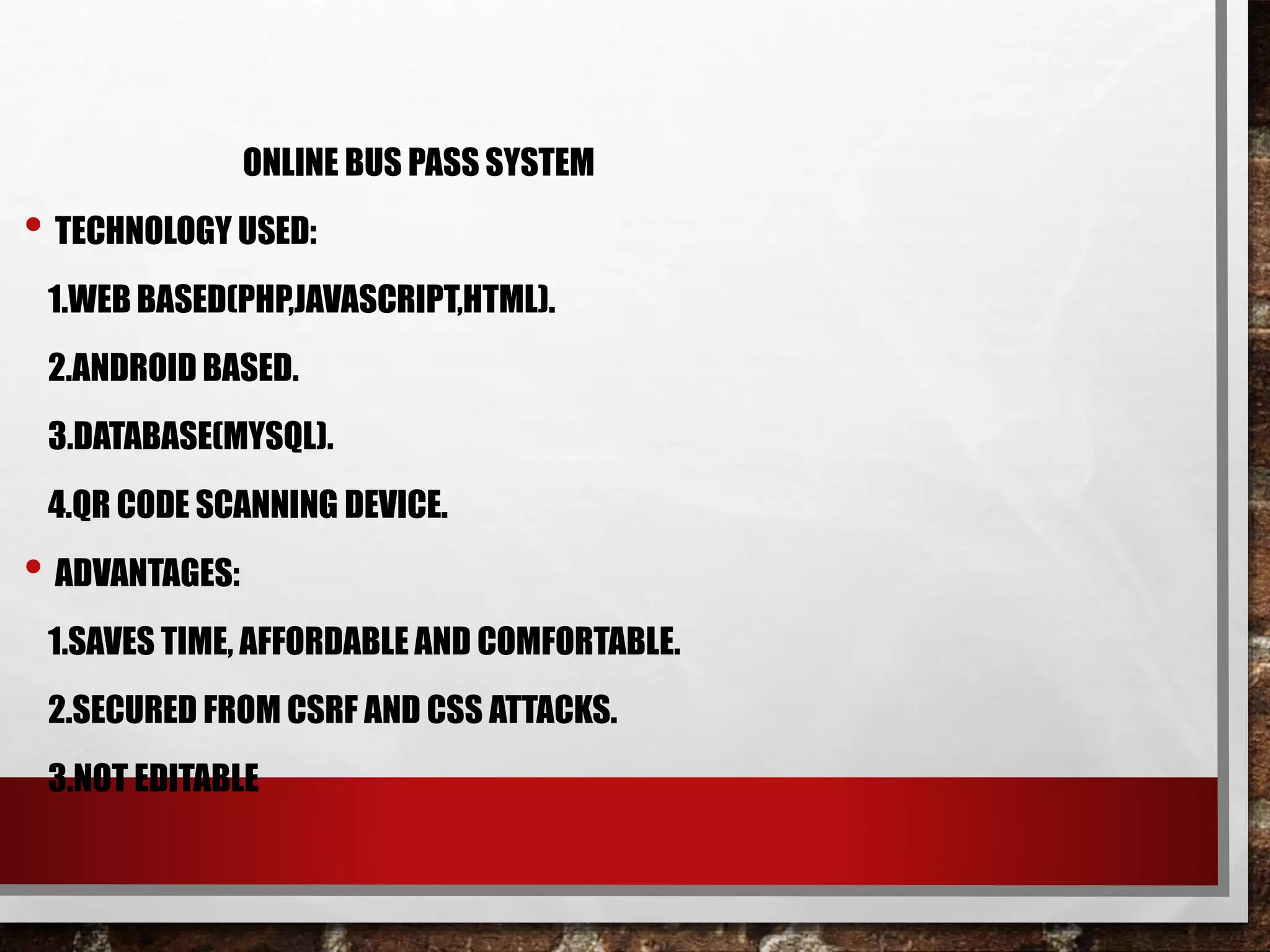

- 14. ONLINE BUS PASSSYSTEM • TECHNOLOGY USED: 1.WEB BASED(PHP,JAVASCRIPT,HTML). 2.ANDROID BASED. 3.DATABASE(MYSQL). 4.QR CODE SCANNING DEVICE. • ADVANTAGES: 1.SAVES TIME, AFFORDABLE AND COMFORTABLE. 2.SECURED FROM CSRF AND CSS ATTACKS. 3.NOT EDITABLE

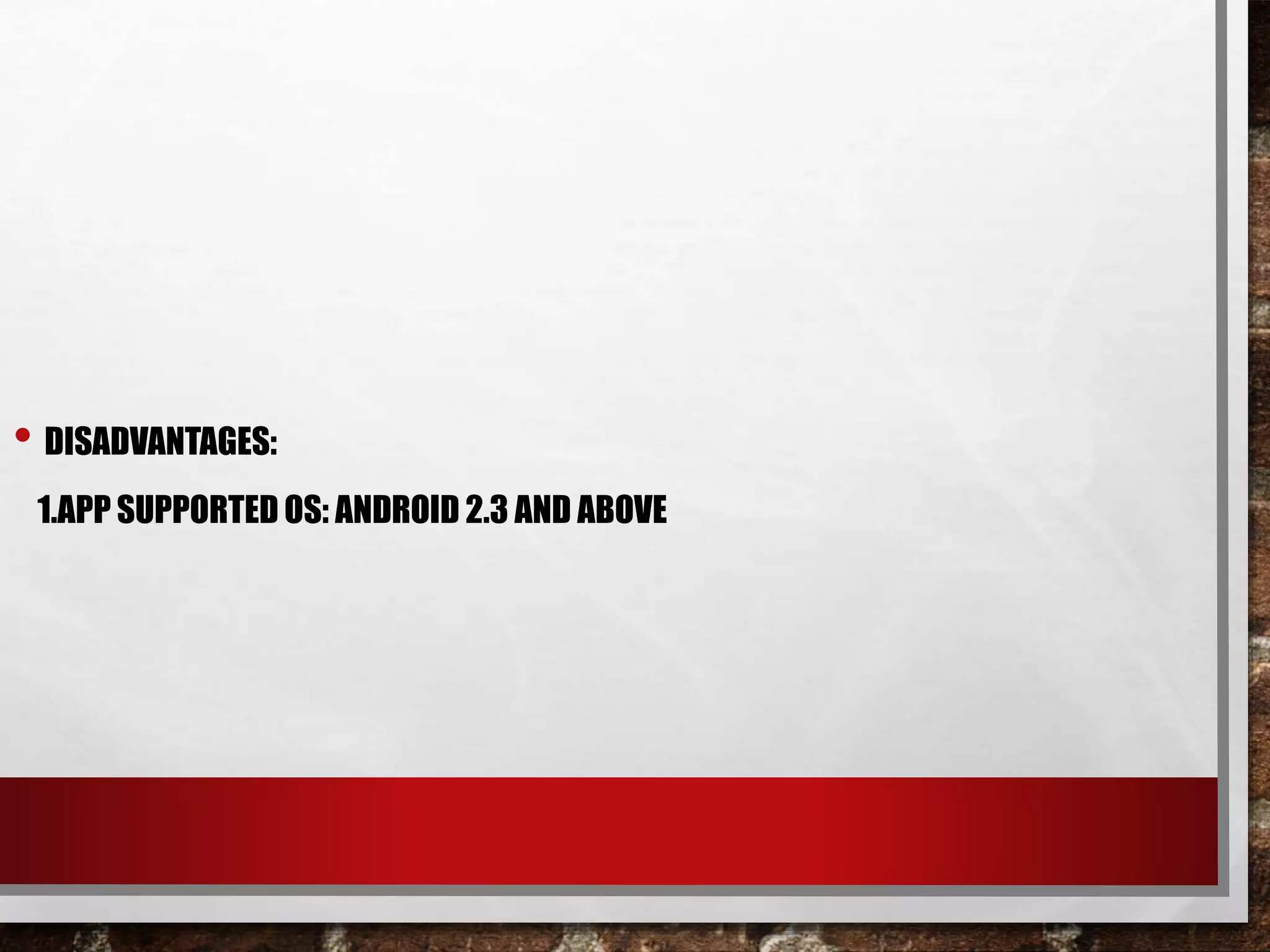

- 15. • DISADVANTAGES: 1.APP SUPPORTEDOS: ANDROID 2.3 AND ABOVE

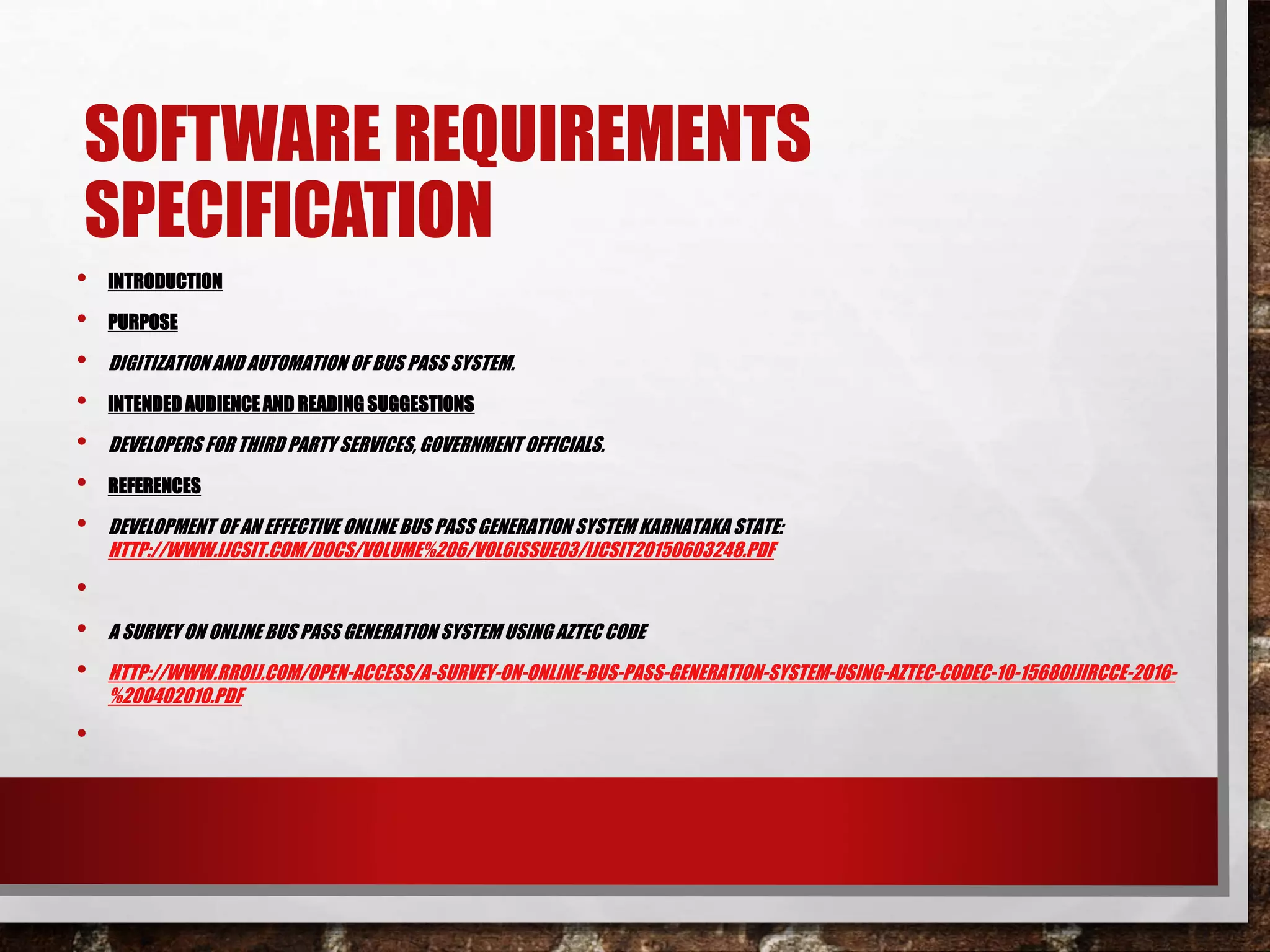

- 16. SOFTWARE REQUIREMENTS SPECIFICATION • INTRODUCTION •PURPOSE • DIGITIZATIONAND AUTOMATION OF BUS PASS SYSTEM. • INTENDED AUDIENCEAND READING SUGGESTIONS • DEVELOPERS FOR THIRD PARTY SERVICES, GOVERNMENT OFFICIALS. • REFERENCES • DEVELOPMENT OF AN EFFECTIVE ONLINE BUS PASS GENERATION SYSTEM KARNATAKA STATE: HTTP://WWW.IJCSIT.COM/DOCS/VOLUME%206/VOL6ISSUE03/IJCSIT20150603248.PDF • • A SURVEY ON ONLINE BUS PASS GENERATION SYSTEM USING AZTEC CODE • HTTP://WWW.RROIJ.COM/OPEN-ACCESS/A-SURVEY-ON-ONLINE-BUS-PASS-GENERATION-SYSTEM-USING-AZTEC-CODEC-10-15680IJIRCCE-2016- %200402010.PDF •

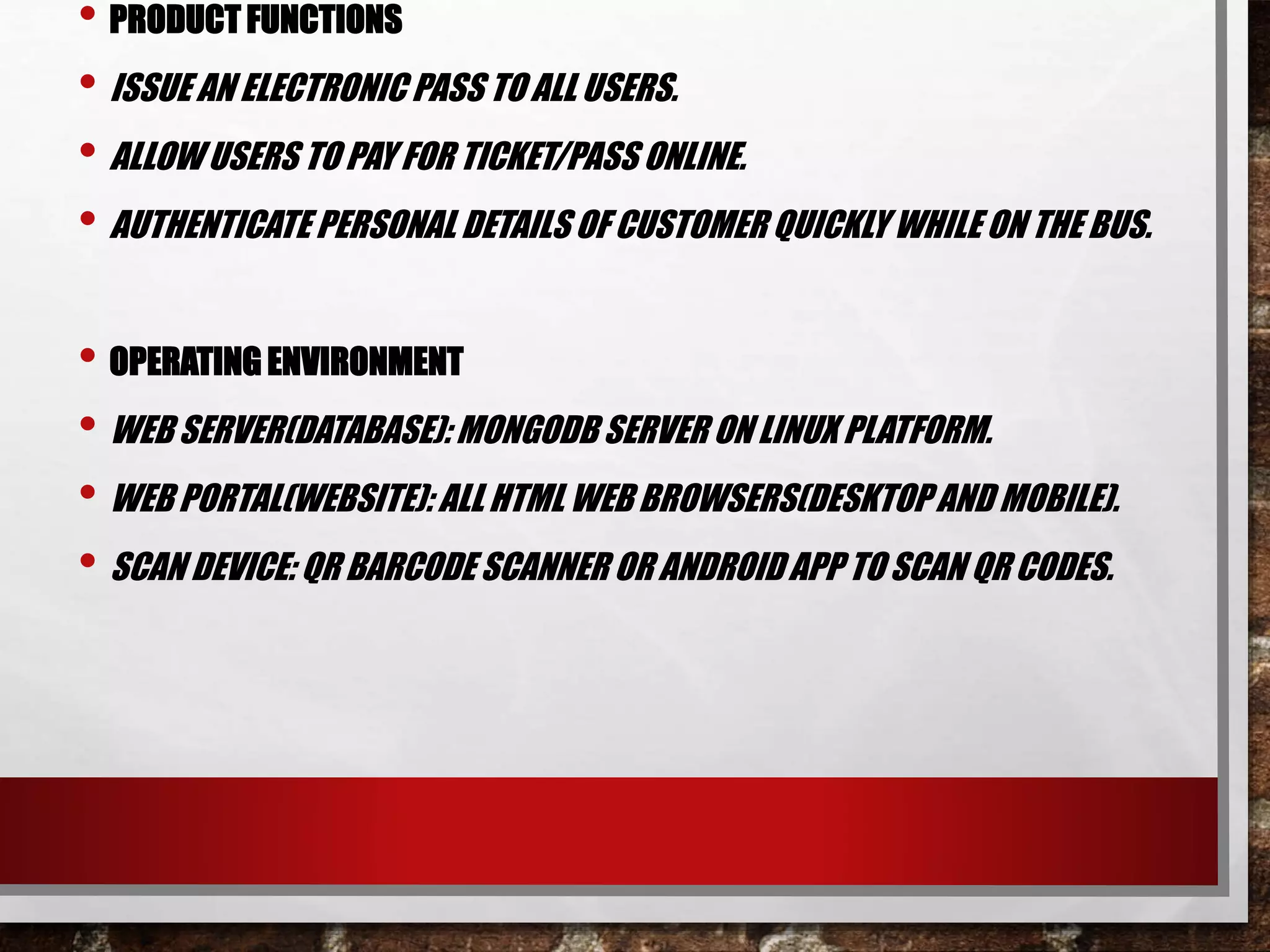

- 17. • PRODUCT FUNCTIONS •ISSUE AN ELECTRONIC PASS TO ALL USERS. • ALLOW USERS TO PAY FOR TICKET/PASS ONLINE. • AUTHENTICATE PERSONAL DETAILS OF CUSTOMER QUICKLY WHILE ON THE BUS. • OPERATING ENVIRONMENT • WEB SERVER(DATABASE): MONGODB SERVER ON LINUX PLATFORM. • WEB PORTAL(WEBSITE): ALLHTML WEB BROWSERS(DESKTOPAND MOBILE). • SCAN DEVICE: QR BARCODESCANNER OR ANDROIDAPP TO SCAN QR CODES.

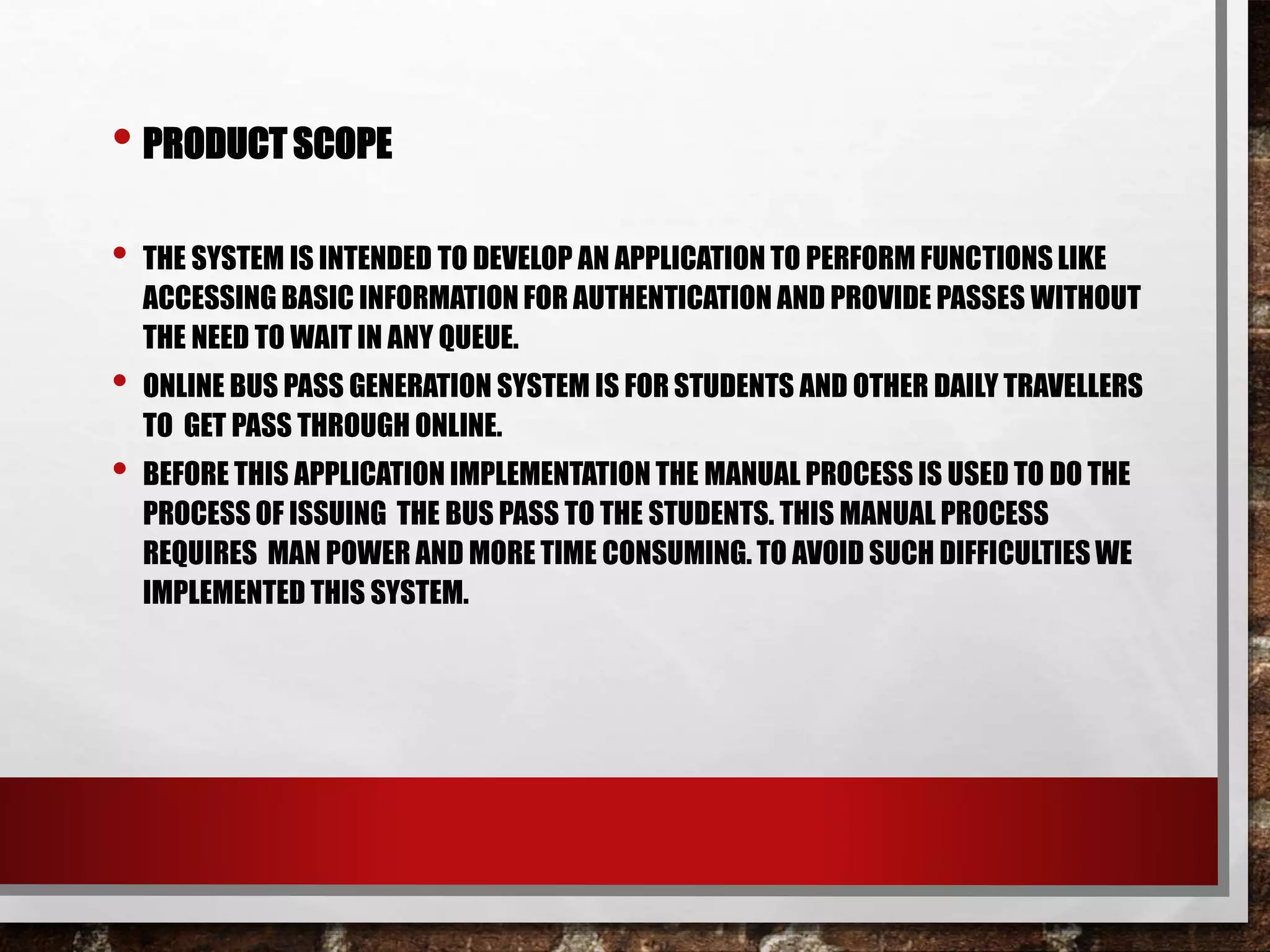

- 18. • PRODUCT SCOPE •THE SYSTEM IS INTENDED TO DEVELOP AN APPLICATION TO PERFORM FUNCTIONS LIKE ACCESSING BASIC INFORMATION FOR AUTHENTICATION AND PROVIDE PASSES WITHOUT THE NEED TO WAIT IN ANY QUEUE. • ONLINE BUS PASS GENERATION SYSTEM IS FOR STUDENTS AND OTHER DAILY TRAVELLERS TO GET PASS THROUGH ONLINE. • BEFORE THIS APPLICATION IMPLEMENTATION THE MANUAL PROCESS IS USED TO DO THE PROCESS OF ISSUING THE BUS PASS TO THE STUDENTS. THIS MANUAL PROCESS REQUIRES MAN POWER AND MORE TIME CONSUMING. TO AVOID SUCH DIFFICULTIES WE IMPLEMENTED THIS SYSTEM.

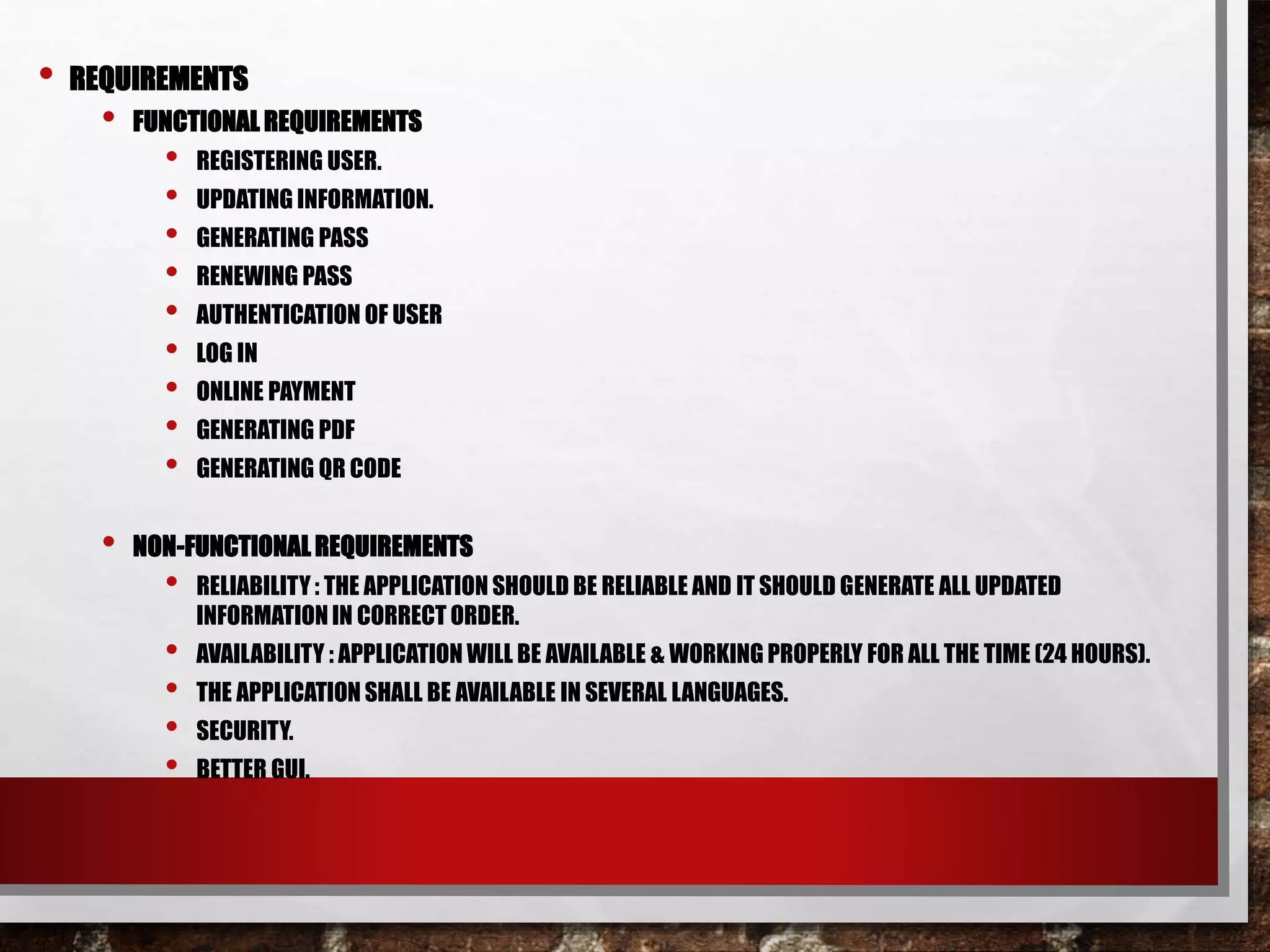

- 19. • REQUIREMENTS • FUNCTIONALREQUIREMENTS • REGISTERING USER. • UPDATING INFORMATION. • GENERATING PASS • RENEWING PASS • AUTHENTICATION OF USER • LOG IN • ONLINE PAYMENT • GENERATING PDF • GENERATING QR CODE • NON-FUNCTIONALREQUIREMENTS • RELIABILITY : THE APPLICATION SHOULD BE RELIABLE AND IT SHOULD GENERATE ALL UPDATED INFORMATION IN CORRECT ORDER. • AVAILABILITY : APPLICATION WILL BE AVAILABLE & WORKING PROPERLY FOR ALL THE TIME (24 HOURS). • THE APPLICATION SHALL BE AVAILABLE IN SEVERAL LANGUAGES. • SECURITY. • BETTER GUI.

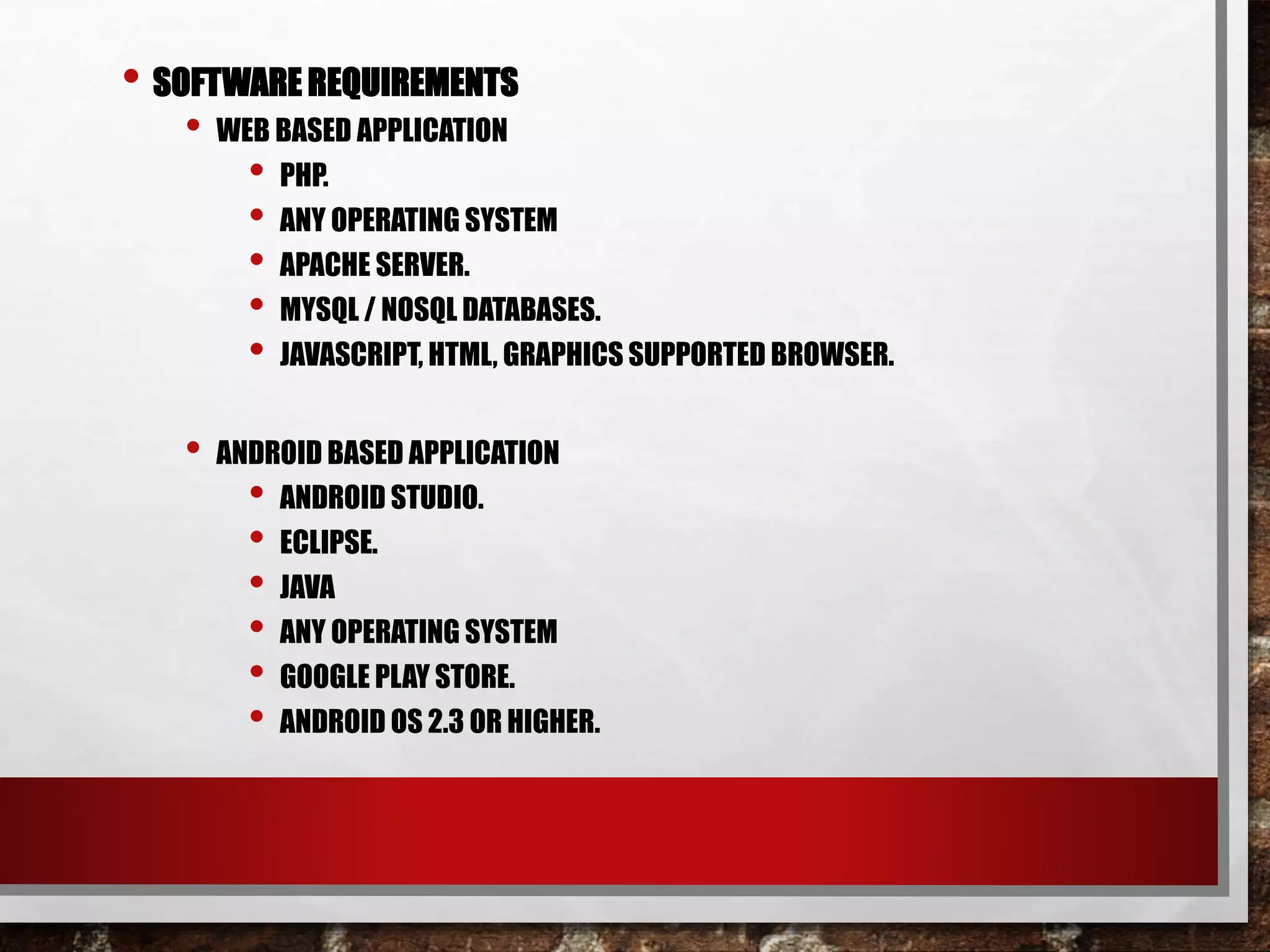

- 20. • SOFTWARE REQUIREMENTS •WEB BASED APPLICATION • PHP. • ANY OPERATING SYSTEM • APACHE SERVER. • MYSQL / NOSQL DATABASES. • JAVASCRIPT, HTML, GRAPHICS SUPPORTED BROWSER. • ANDROID BASED APPLICATION • ANDROID STUDIO. • ECLIPSE. • JAVA • ANY OPERATING SYSTEM • GOOGLE PLAY STORE. • ANDROID OS 2.3 OR HIGHER.

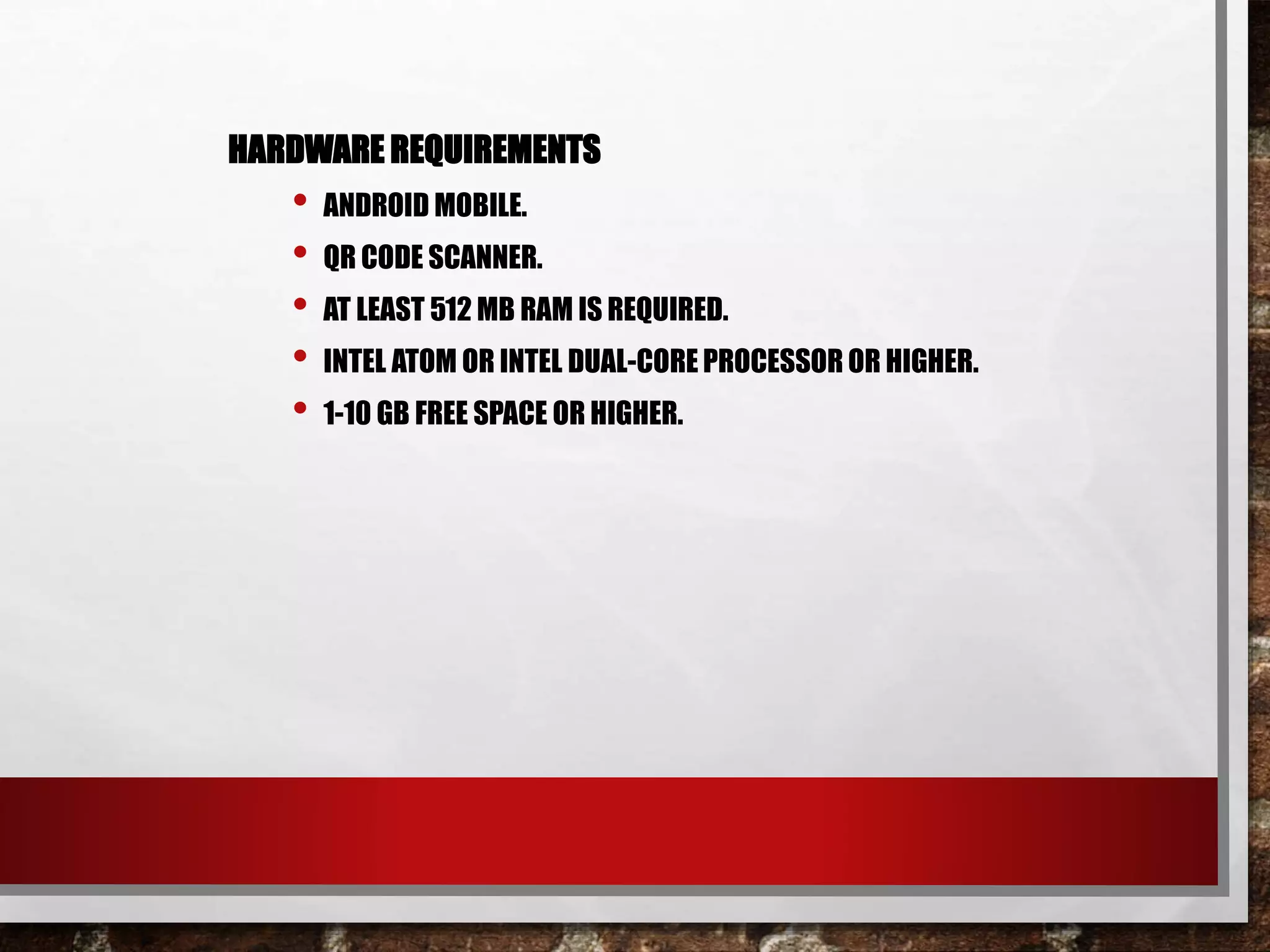

- 21. HARDWARE REQUIREMENTS • ANDROIDMOBILE. • QR CODE SCANNER. • AT LEAST 512 MB RAM IS REQUIRED. • INTEL ATOM OR INTEL DUAL-CORE PROCESSOR OR HIGHER. • 1-10 GB FREE SPACE OR HIGHER.
- 22.
- 23.
- 24.
- 25.
- 27.
- 29.
- 31.
- 33.
