Uploaded byVikram G Hosakote
OpenStack with OpenDaylight
This document outlines an agenda for a DevNet workshop on using OpenStack with OpenDaylight. The agenda includes installing OpenStack, installing OpenDaylight, configuring OpenStack to use OpenDaylight, verifying the system works, troubleshooting, and a Q&A session. OpenDaylight is an open source SDN controller that can provide advanced networking capabilities for OpenStack deployments by managing network endpoints and traffic through plugins like Neutron/ML2. Both projects are complex to install but integrating them can enable significant benefits for advanced networking in OpenStack clouds.
More Related Content
Similar to OpenStack with OpenDaylight
OpenStack with OpenDaylight
- 2. DevNet Workshop – OpenStackwith OpenDaylight Charles Eckel, Open Source Developer Evangelist Vikram Hosakote, Software Engineer DEVNET-2041

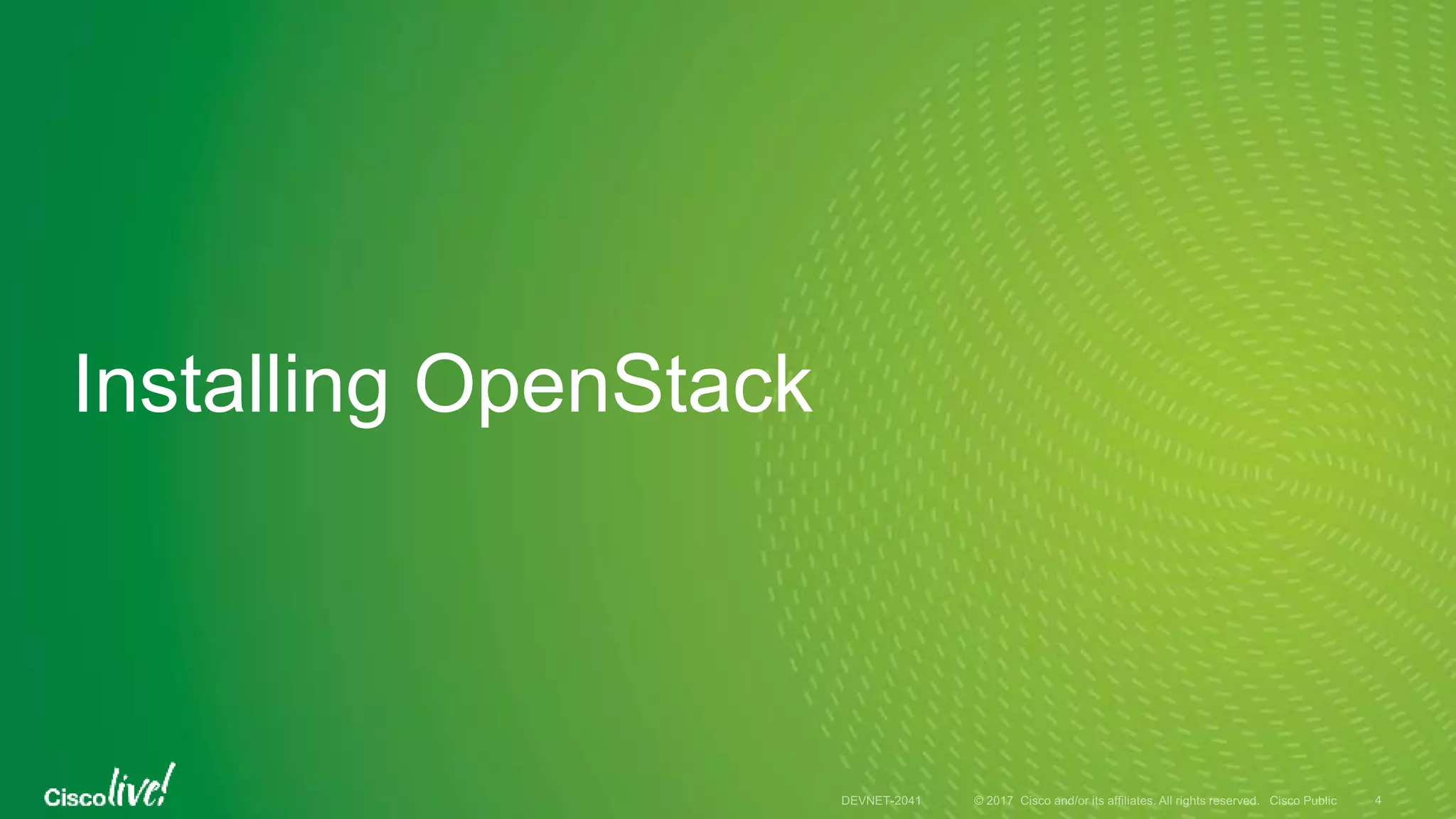

- 3. • Installing OpenStack •Installing OpenDaylight • Configuring OpenStack to use OpenDaylight • Verifying the entire system works • Troubleshooting and debugging • Q&A Agenda
- 4.

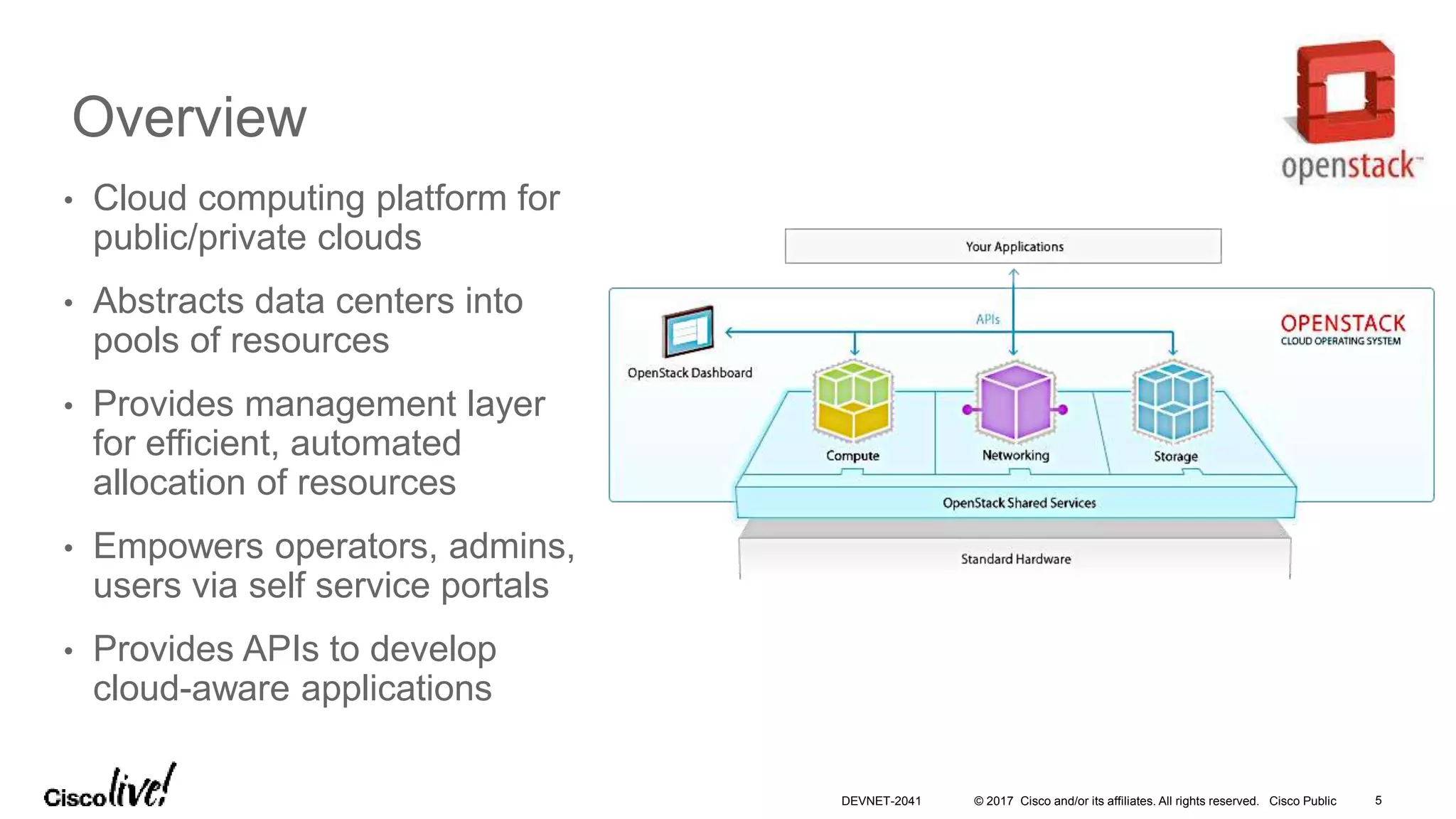

- 5. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Overview • Cloud computing platform for public/private clouds • Abstracts data centers into pools of resources • Provides management layer for efficient, automated allocation of resources • Empowers operators, admins, users via self service portals • Provides APIs to develop cloud-aware applications DEVNET-2041 5

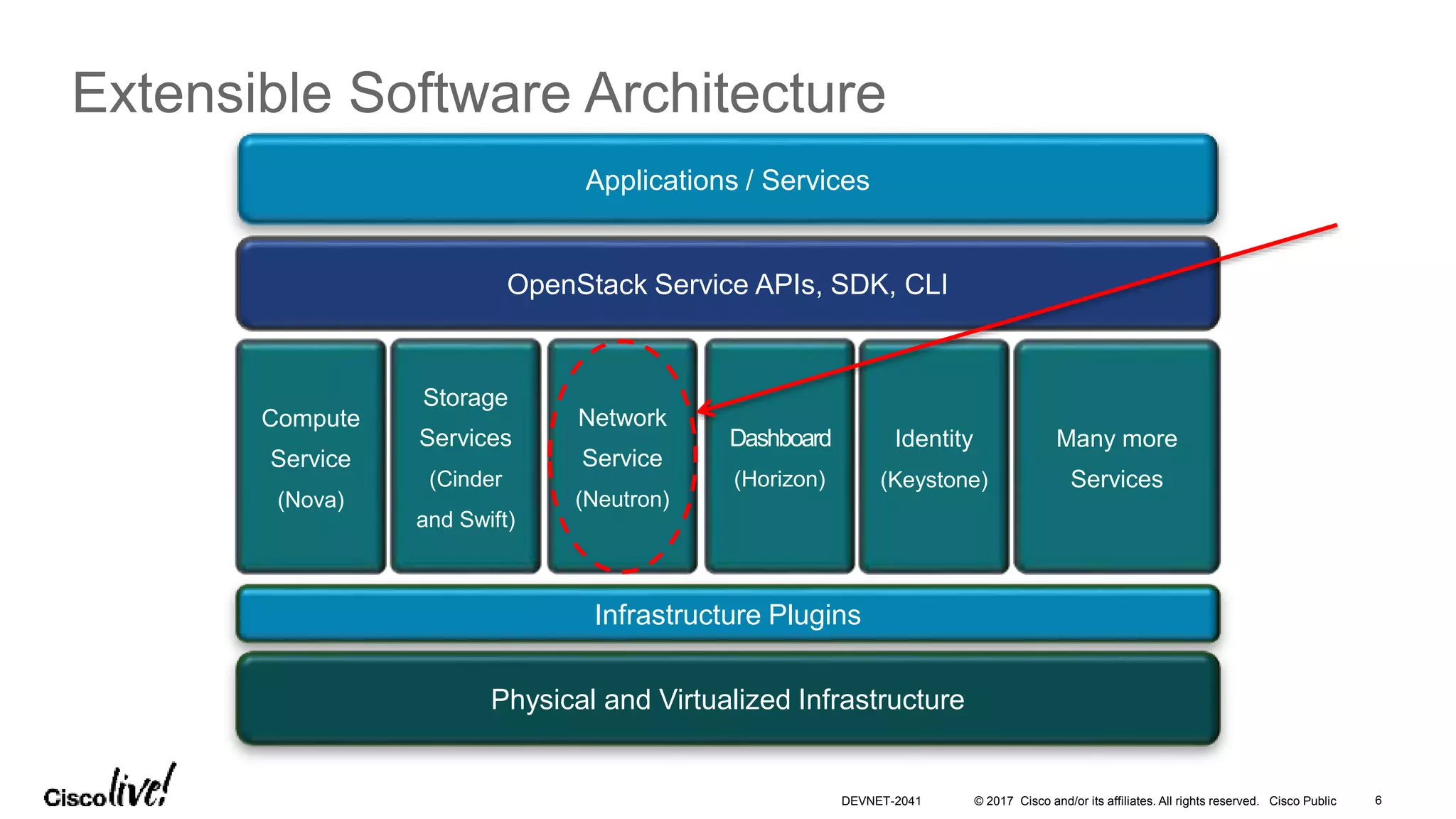

- 6. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Extensible Software Architecture Applications / Services Physical and Virtualized Infrastructure OpenStack Service APIs, SDK, CLI Infrastructure Plugins Compute Service (Nova) Storage Services (Cinder and Swift) Network Service (Neutron) Many more Services Dashboard (Horizon) Identity (Keystone) DEVNET-2041 6

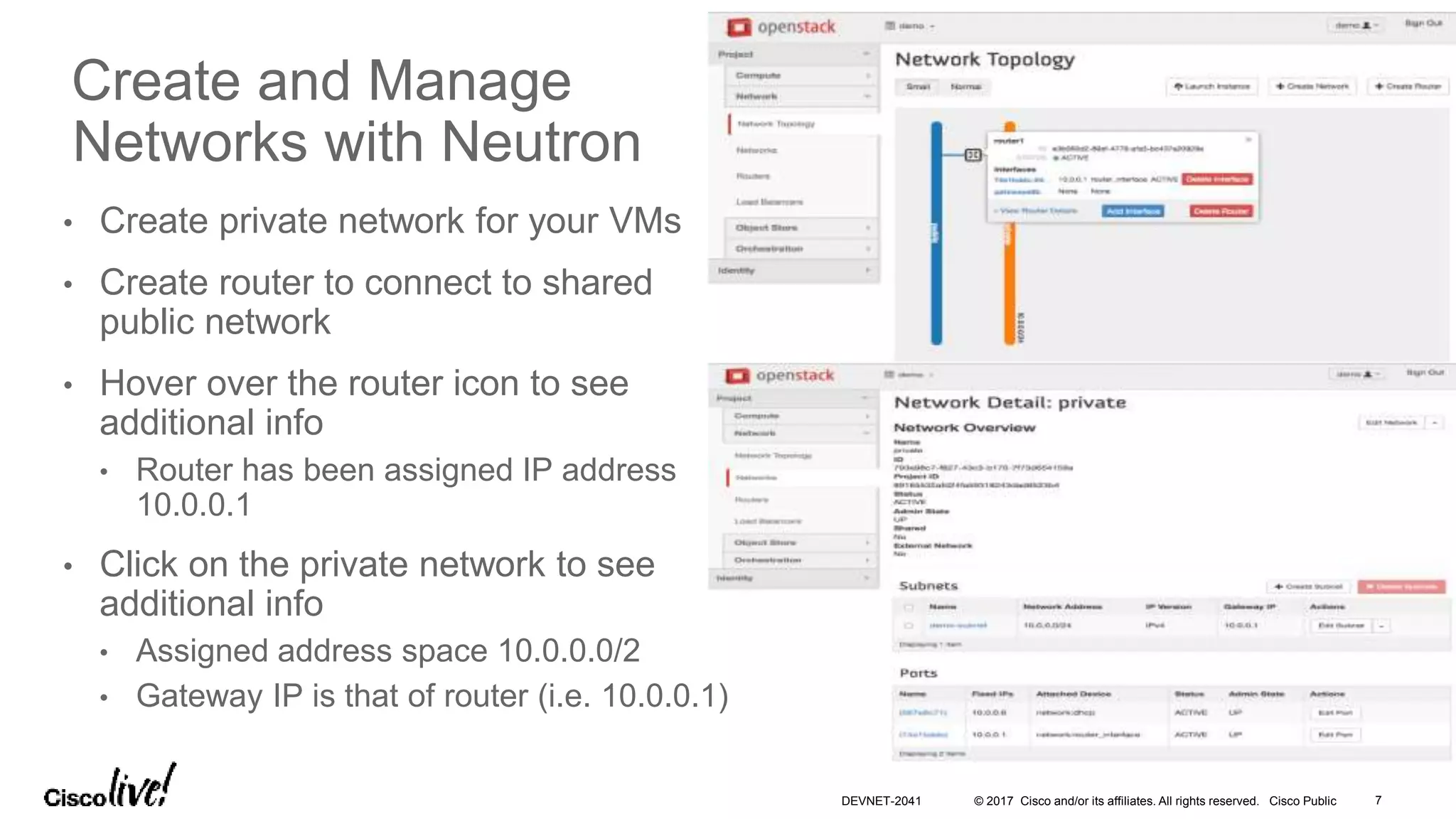

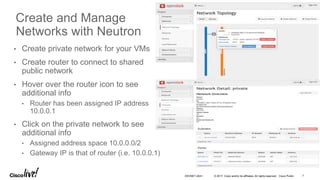

- 7. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public • Create private network for your VMs • Create router to connect to shared public network • Hover over the router icon to see additional info • Router has been assigned IP address 10.0.0.1 • Click on the private network to see additional info • Assigned address space 10.0.0.0/2 • Gateway IP is that of router (i.e. 10.0.0.1) Create and Manage Networks with Neutron DEVNET-2041 7
- 8.

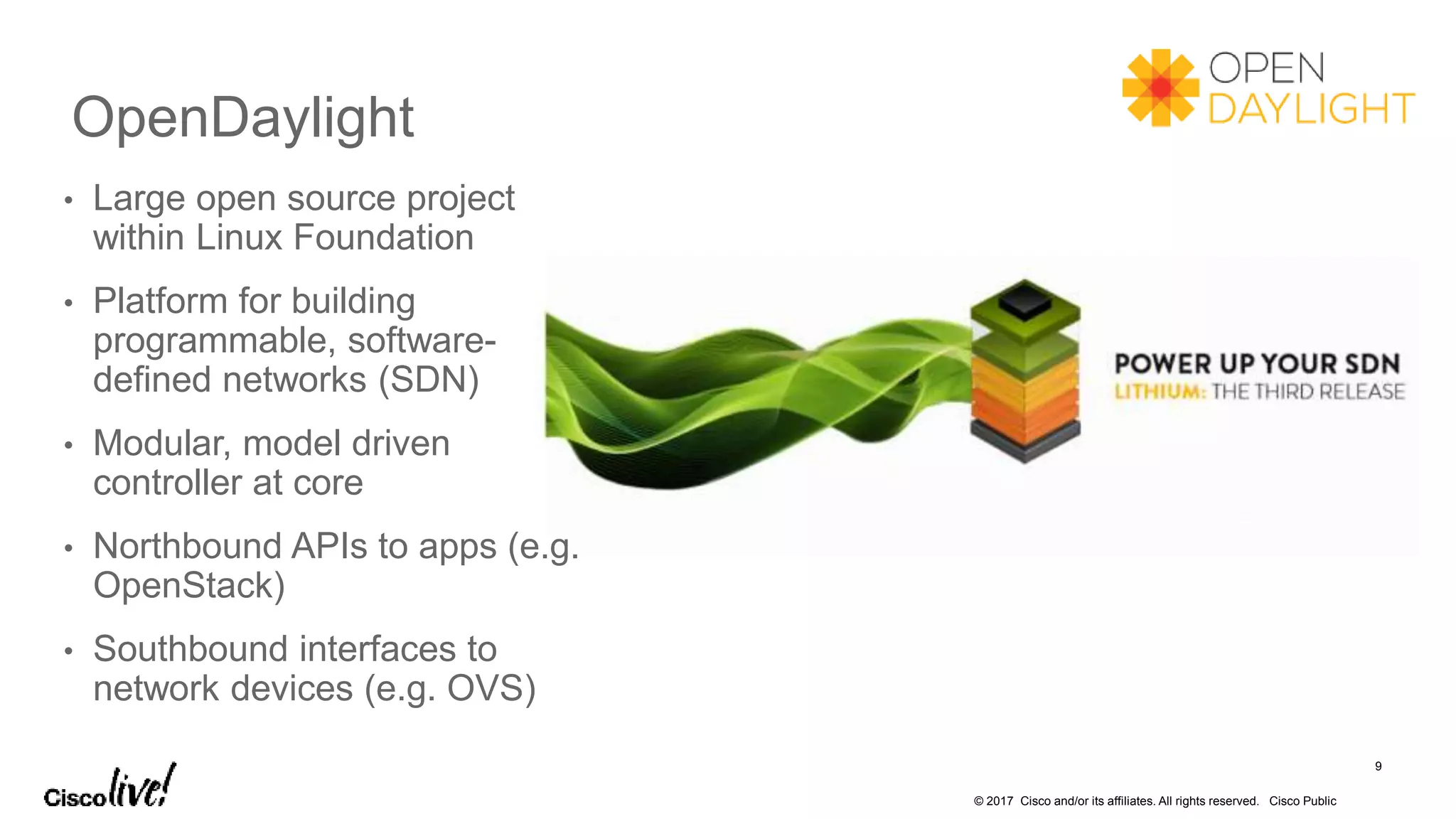

- 9. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public OpenDaylight 9 • Large open source project within Linux Foundation • Platform for building programmable, software- defined networks (SDN) • Modular, model driven controller at core • Northbound APIs to apps (e.g. OpenStack) • Southbound interfaces to network devices (e.g. OVS)

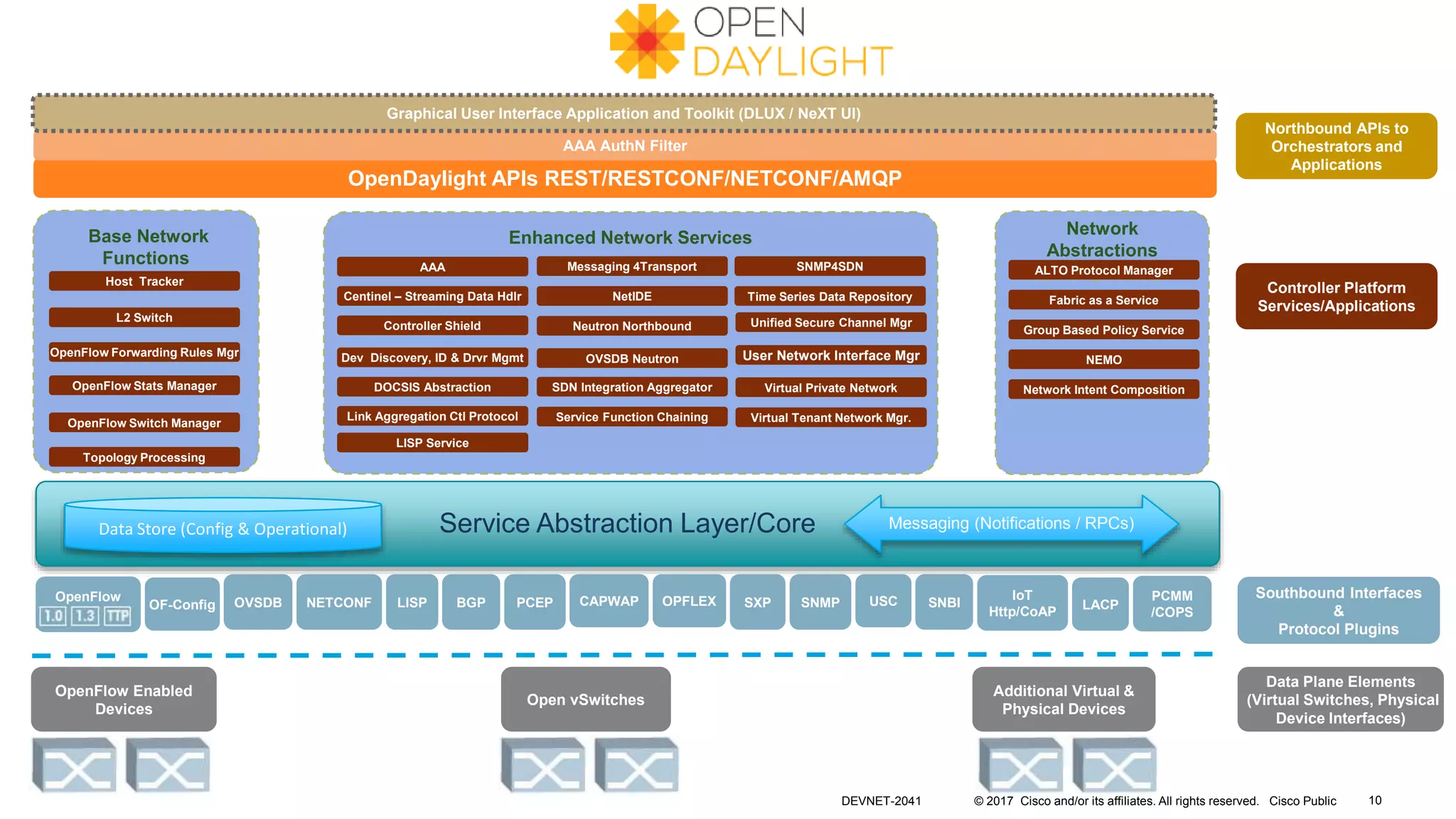

- 10. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public 10DEVNET-2041 Service Abstraction Layer/Core OpenFlow Enabled Devices Open vSwitches Additional Virtual & Physical Devices Data Plane Elements (Virtual Switches, Physical Device Interfaces) Controller Platform Services/Applications OVSDB NETCONF PCMM /COPS SNBILISP BGP PCEP SNMPSXP Southbound Interfaces & Protocol Plugins OpenFlow USCCAPWAP OPFLEX Base Network Functions OpenFlow Stats Manager OpenFlow Switch Manager OpenFlow Forwarding Rules Mgr L2 Switch Host Tracker Topology Processing OpenDaylight APIs REST/RESTCONF/NETCONF/AMQP Data Store (Config & Operational) Messaging (Notifications / RPCs) LACP AAA AuthN Filter Network Abstractions (Policy/Intent)ALTO Protocol Manager Network Intent Composition Group Based Policy Service Fabric as a Service NEMO Graphical User Interface Application and Toolkit (DLUX / NeXT UI) IoT Http/CoAPOF-Config Enhanced Network Services AAA Neutron Northbound SDN Integration Aggregator Time Series Data Repository Service Function Chaining Virtual Private Network Virtual Tenant Network Mgr. Unified Secure Channel Mgr OVSDB NeutronDev Discovery, ID & Drvr Mgmt LISP Service DOCSIS Abstraction SNMP4SDN Link Aggregation Ctl Protocol Controller Shield User Network Interface Mgr Centinel – Streaming Data Hdlr NetIDE Messaging 4Transport Northbound APIs to Orchestrators and Applications

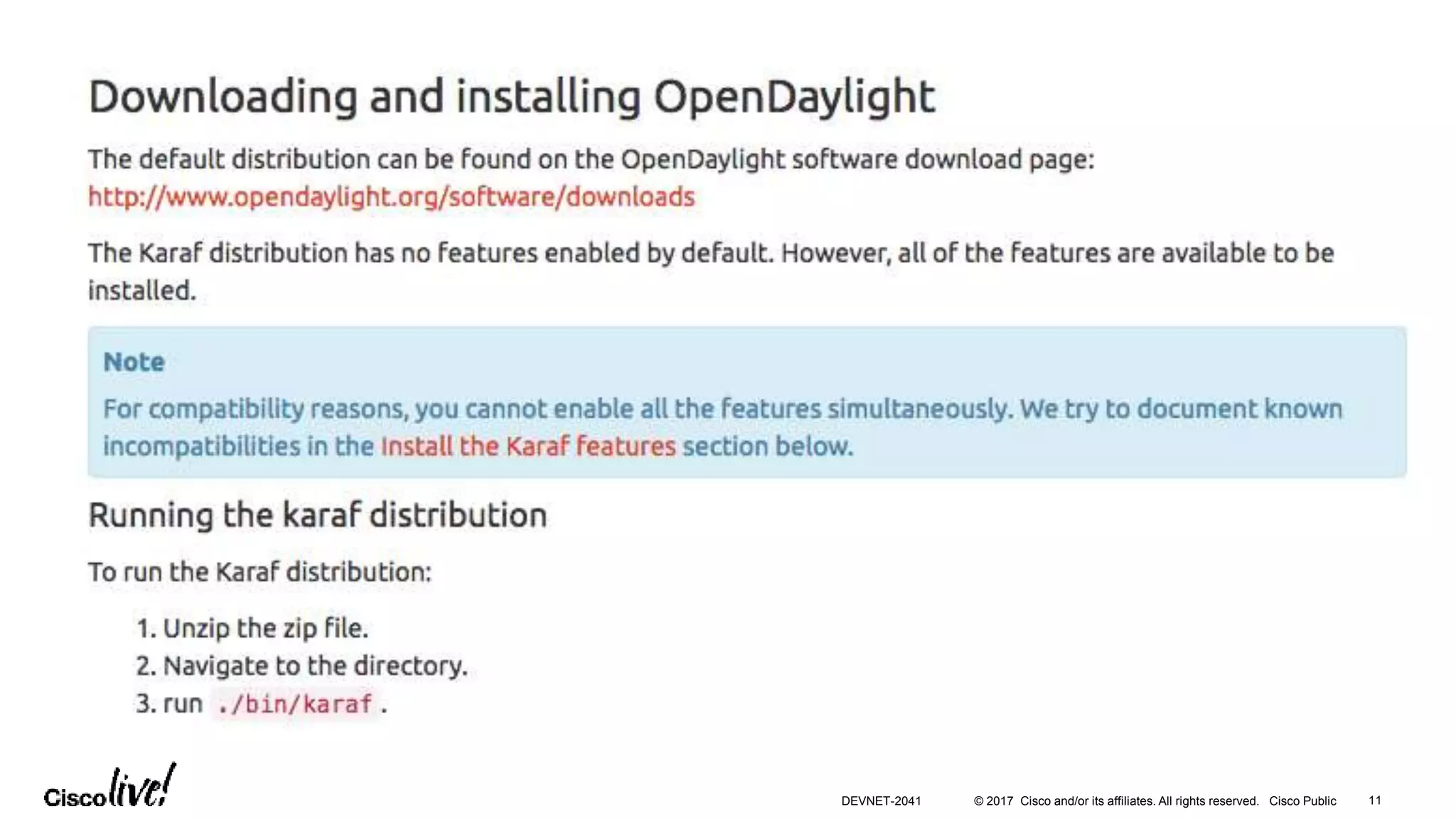

- 11. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public 11DEVNET-2041

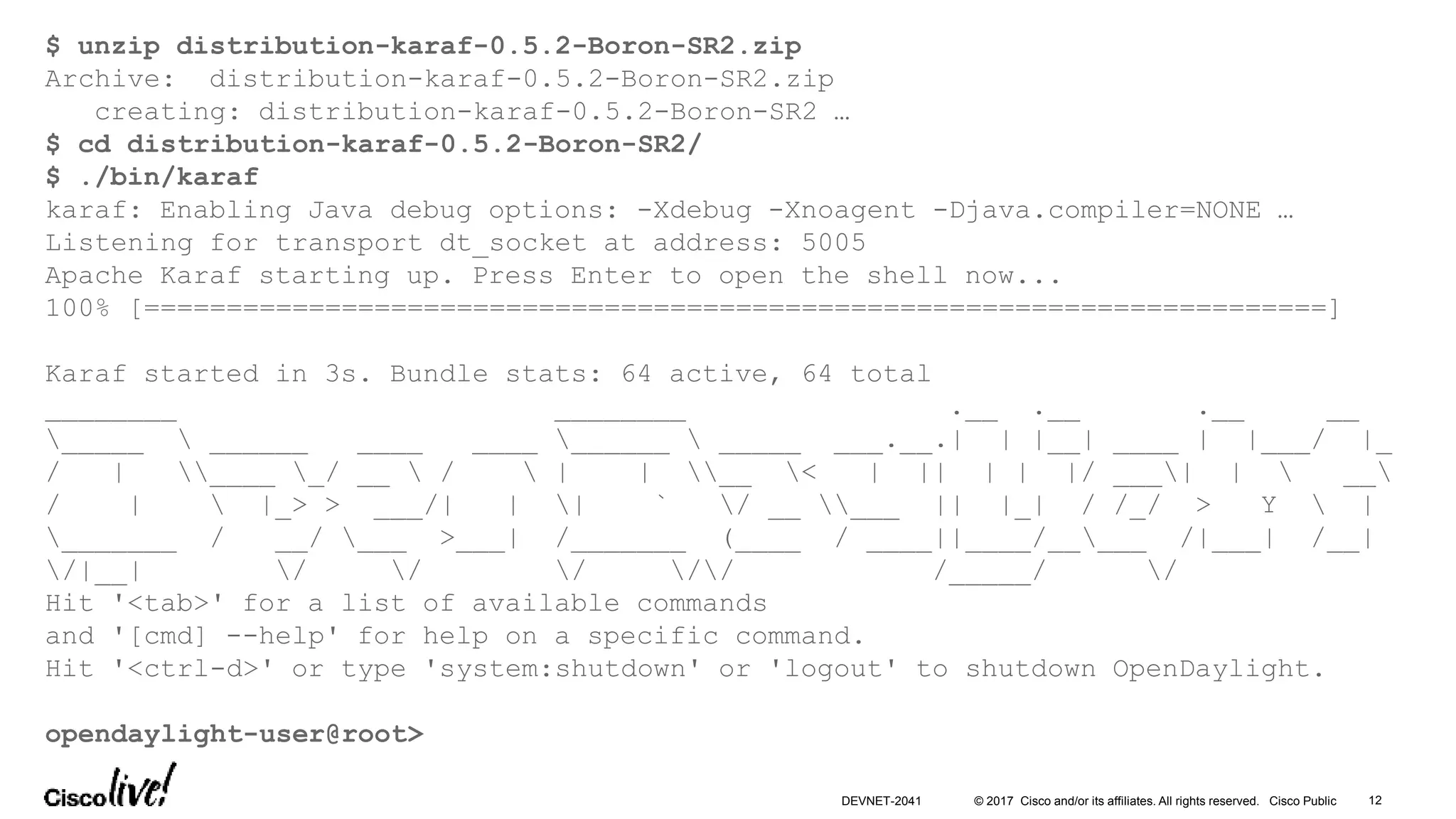

- 12. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public 12DEVNET-2041 $ unzip distribution-karaf-0.5.2-Boron-SR2.zip Archive: distribution-karaf-0.5.2-Boron-SR2.zip creating: distribution-karaf-0.5.2-Boron-SR2 … $ cd distribution-karaf-0.5.2-Boron-SR2/ $ ./bin/karaf karaf: Enabling Java debug options: -Xdebug -Xnoagent -Djava.compiler=NONE … Listening for transport dt_socket at address: 5005 Apache Karaf starting up. Press Enter to open the shell now... 100% [========================================================================] Karaf started in 3s. Bundle stats: 64 active, 64 total ________ ________ .__ .__ .__ __ _____ ______ ____ ____ ______ _____ ___.__.| | |__| ____ | |___/ |_ / | ____ _/ __ / | | __ < | || | | |/ ___| | __ / | |_> > ___/| | | ` / __ ___ || |_| / /_/ > Y | _______ / __/ ___ >___| /_______ (____ / ____||____/_____ /|___| /__| /|__| / / / // /_____/ / Hit '<tab>' for a list of available commands and '[cmd] --help' for help on a specific command. Hit '<ctrl-d>' or type 'system:shutdown' or 'logout' to shutdown OpenDaylight. opendaylight-user@root>
- 13. Configuring OpenStack touse OpenDaylight

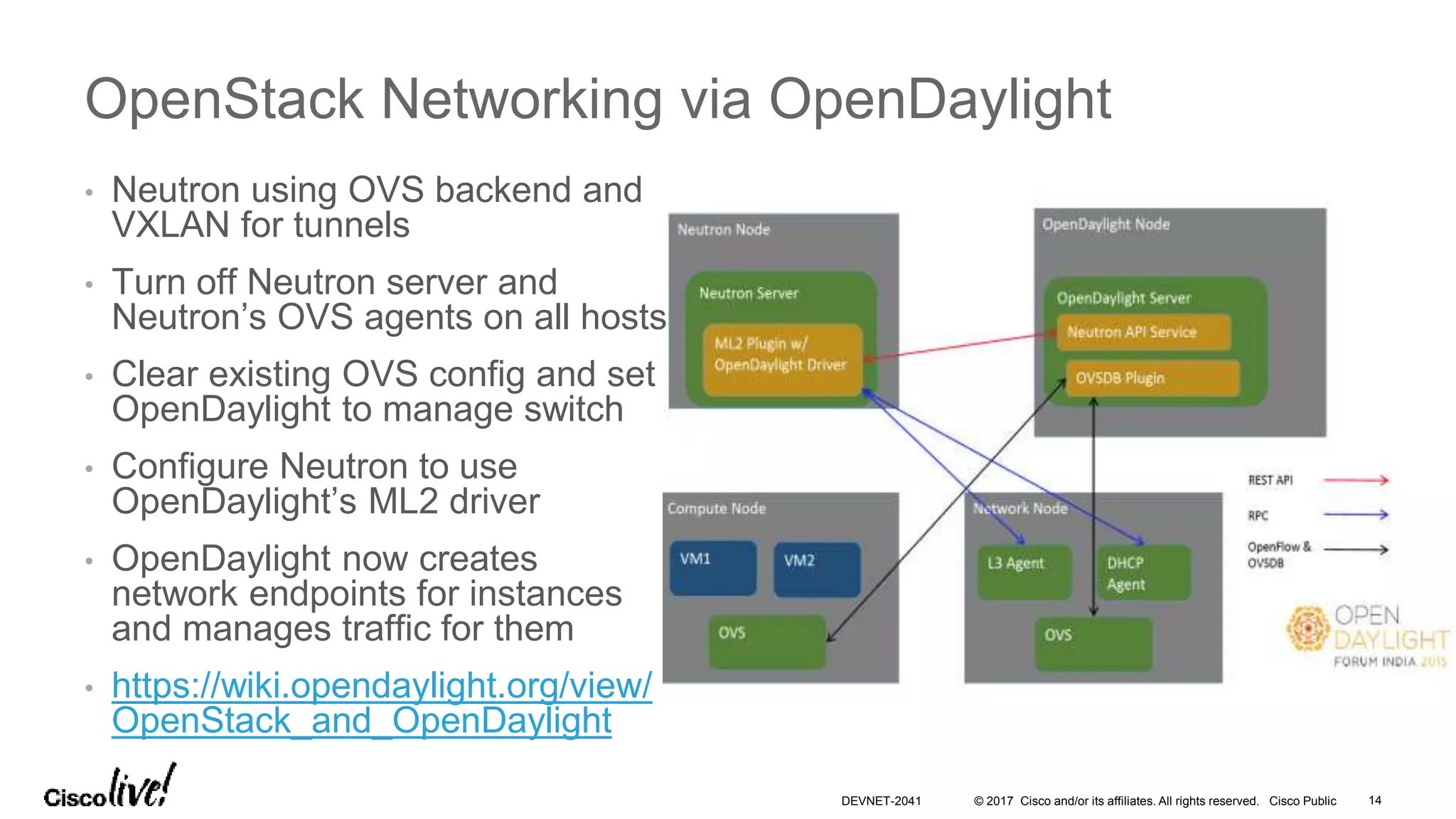

- 14. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public • Neutron using OVS backend and VXLAN for tunnels • Turn off Neutron server and Neutron’s OVS agents on all hosts • Clear existing OVS config and set OpenDaylight to manage switch • Configure Neutron to use OpenDaylight’s ML2 driver • OpenDaylight now creates network endpoints for instances and manages traffic for them • https://wiki.opendaylight.org/view/ OpenStack_and_OpenDaylight OpenStack Networking via OpenDaylight DEVNET-2041 14
- 15. Verifying the entiresystem works
- 16.
- 17.

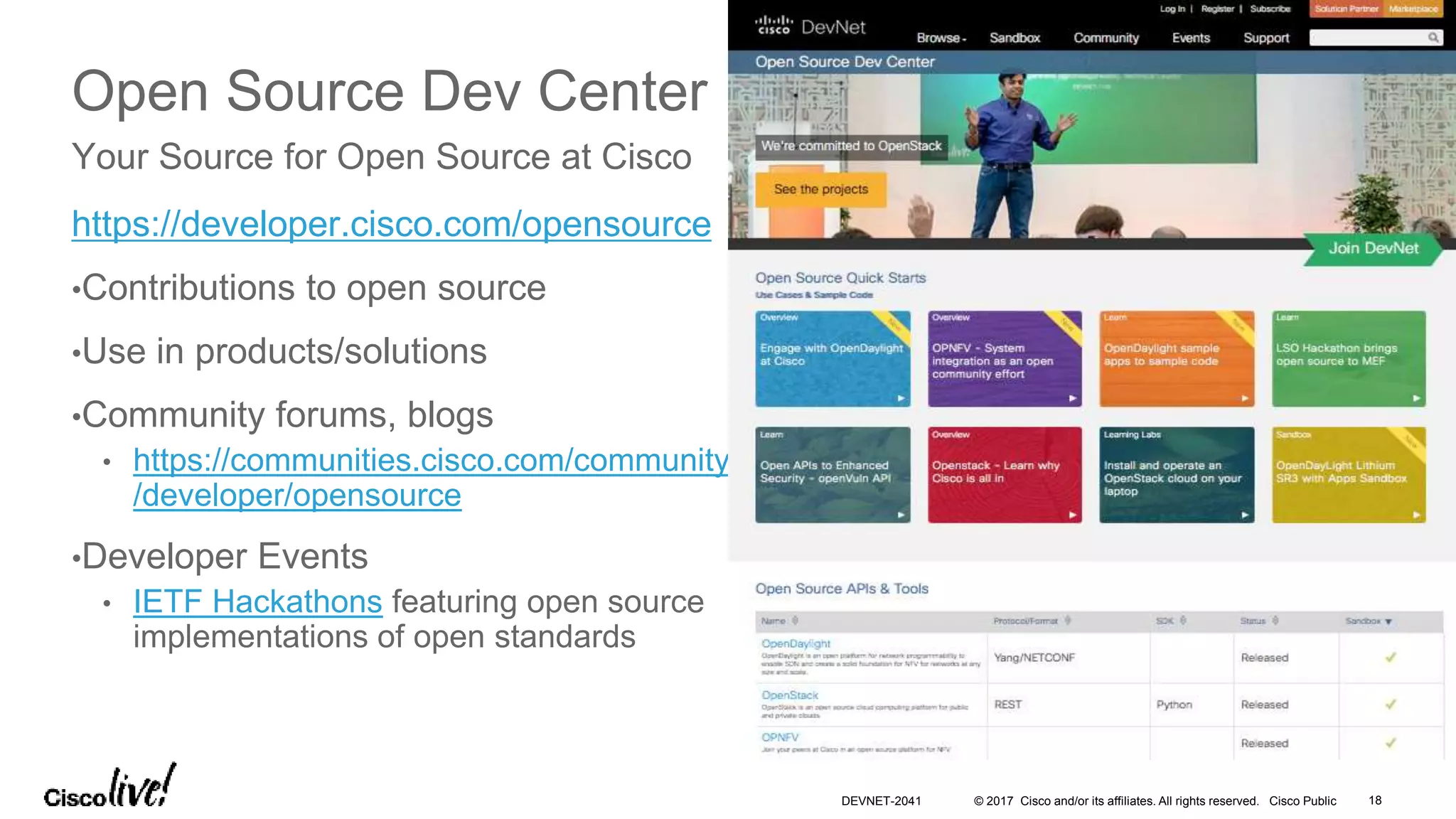

- 18. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Open Source Dev Center https://developer.cisco.com/opensource •Contributions to open source •Use in products/solutions •Community forums, blogs • https://communities.cisco.com/community /developer/opensource •Developer Events • IETF Hackathons featuring open source implementations of open standards Your Source for Open Source at Cisco DEVNET-2041 18

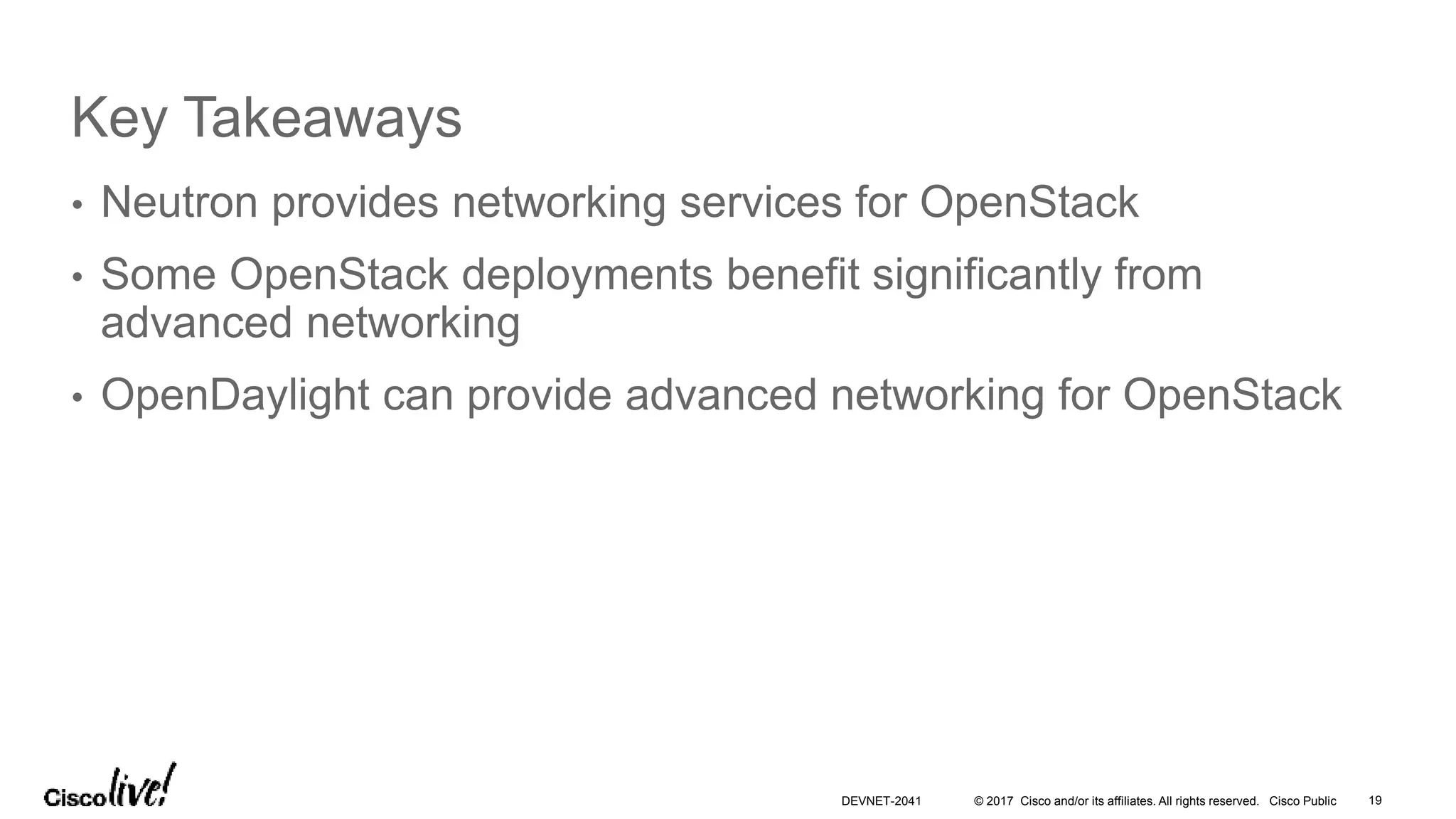

- 19. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Key Takeaways • Neutron provides networking services for OpenStack • Some OpenStack deployments benefit significantly from advanced networking • OpenDaylight can provide advanced networking for OpenStack DEVNET-2041 19

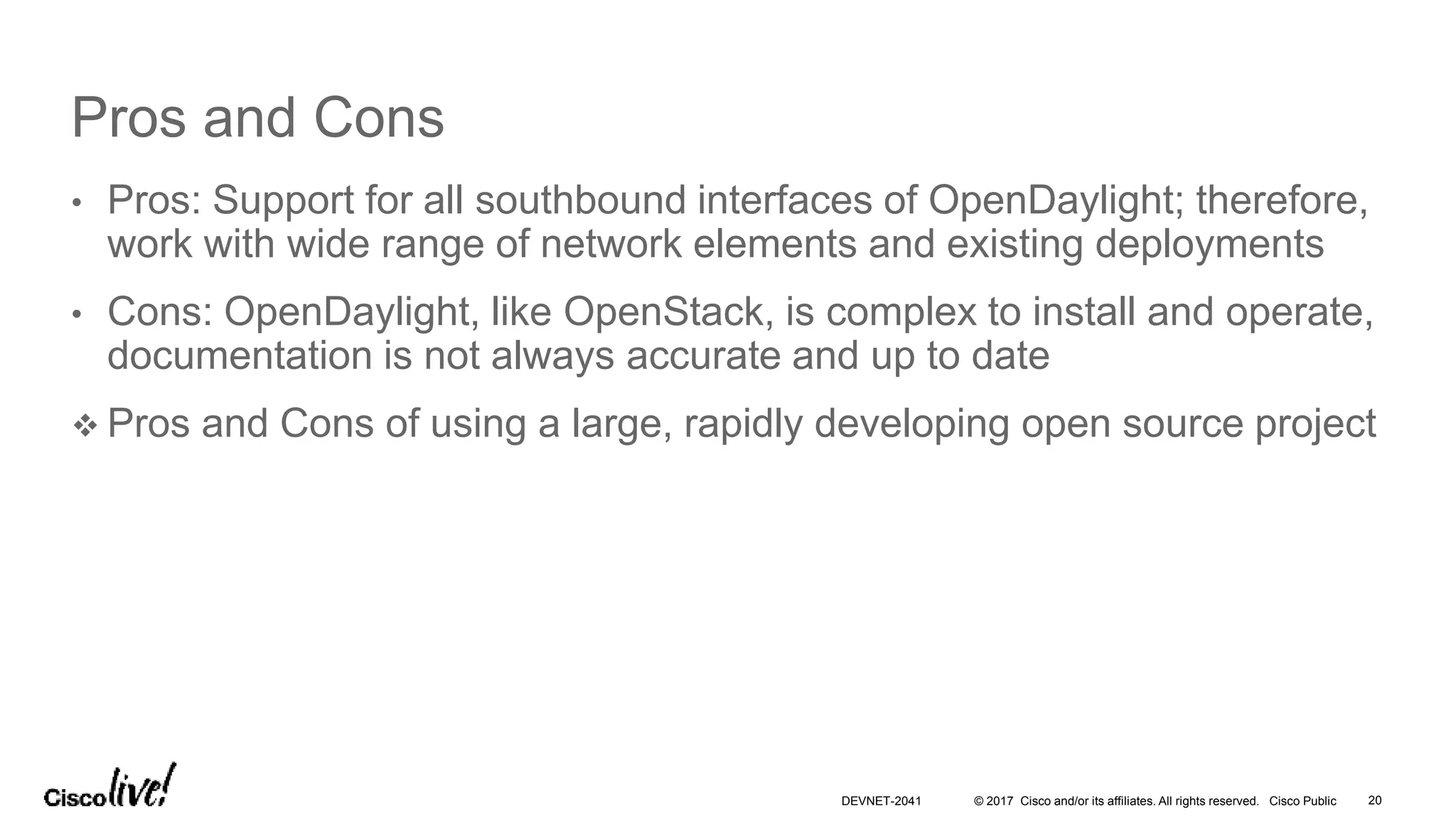

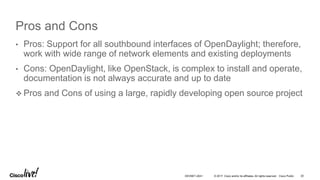

- 20. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Pros and Cons • Pros: Support for all southbound interfaces of OpenDaylight; therefore, work with wide range of network elements and existing deployments • Cons: OpenDaylight, like OpenStack, is complex to install and operate, documentation is not always accurate and up to date Pros and Cons of using a large, rapidly developing open source project DEVNET-2041 20

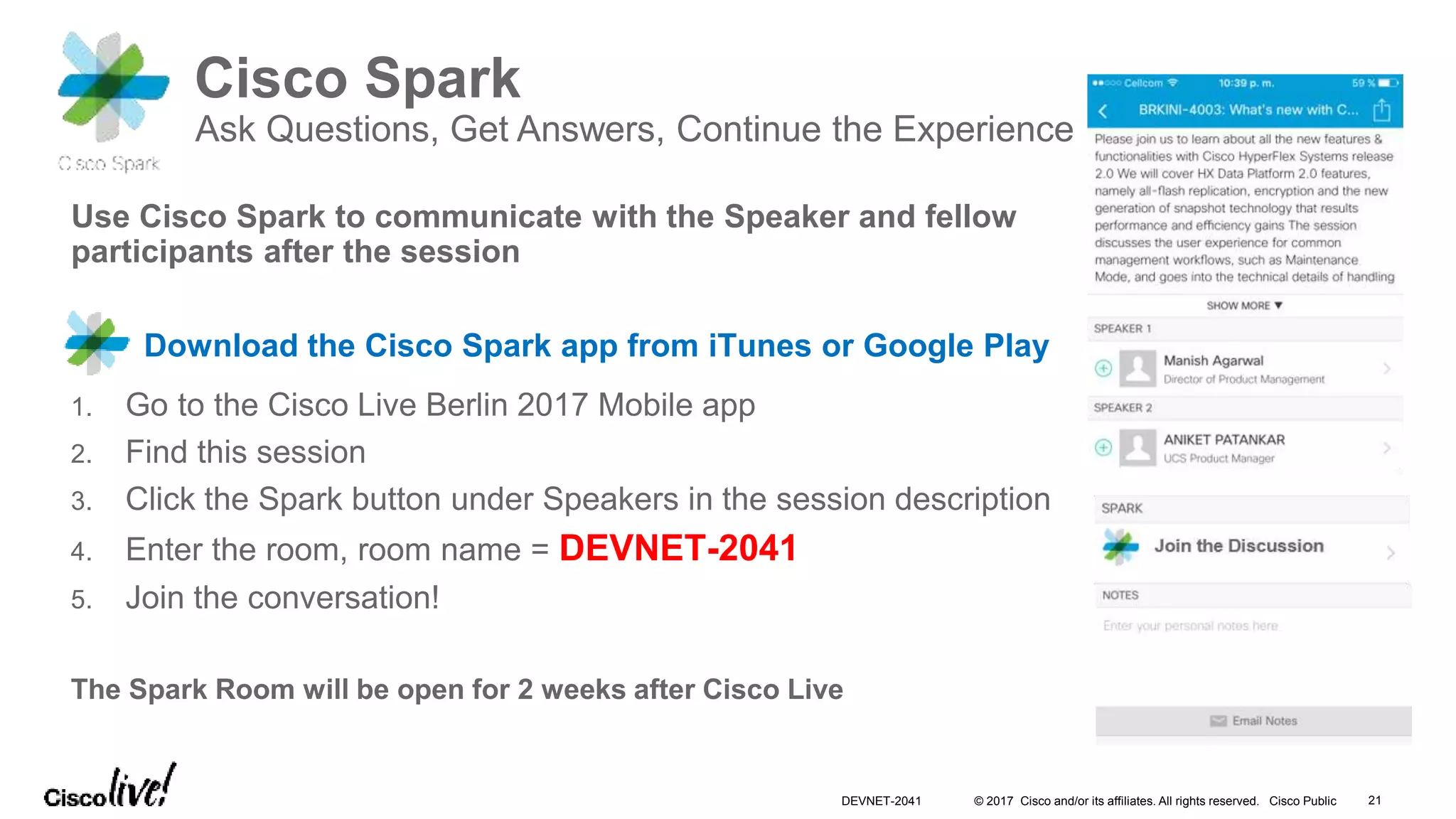

- 21. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Cisco Spark Ask Questions, Get Answers, Continue the Experience Use Cisco Spark to communicate with the Speaker and fellow participants after the session Download the Cisco Spark app from iTunes or Google Play 1. Go to the Cisco Live Berlin 2017 Mobile app 2. Find this session 3. Click the Spark button under Speakers in the session description 4. Enter the room, room name = DEVNET-2041 5. Join the conversation! The Spark Room will be open for 2 weeks after Cisco Live 21DEVNET-2041

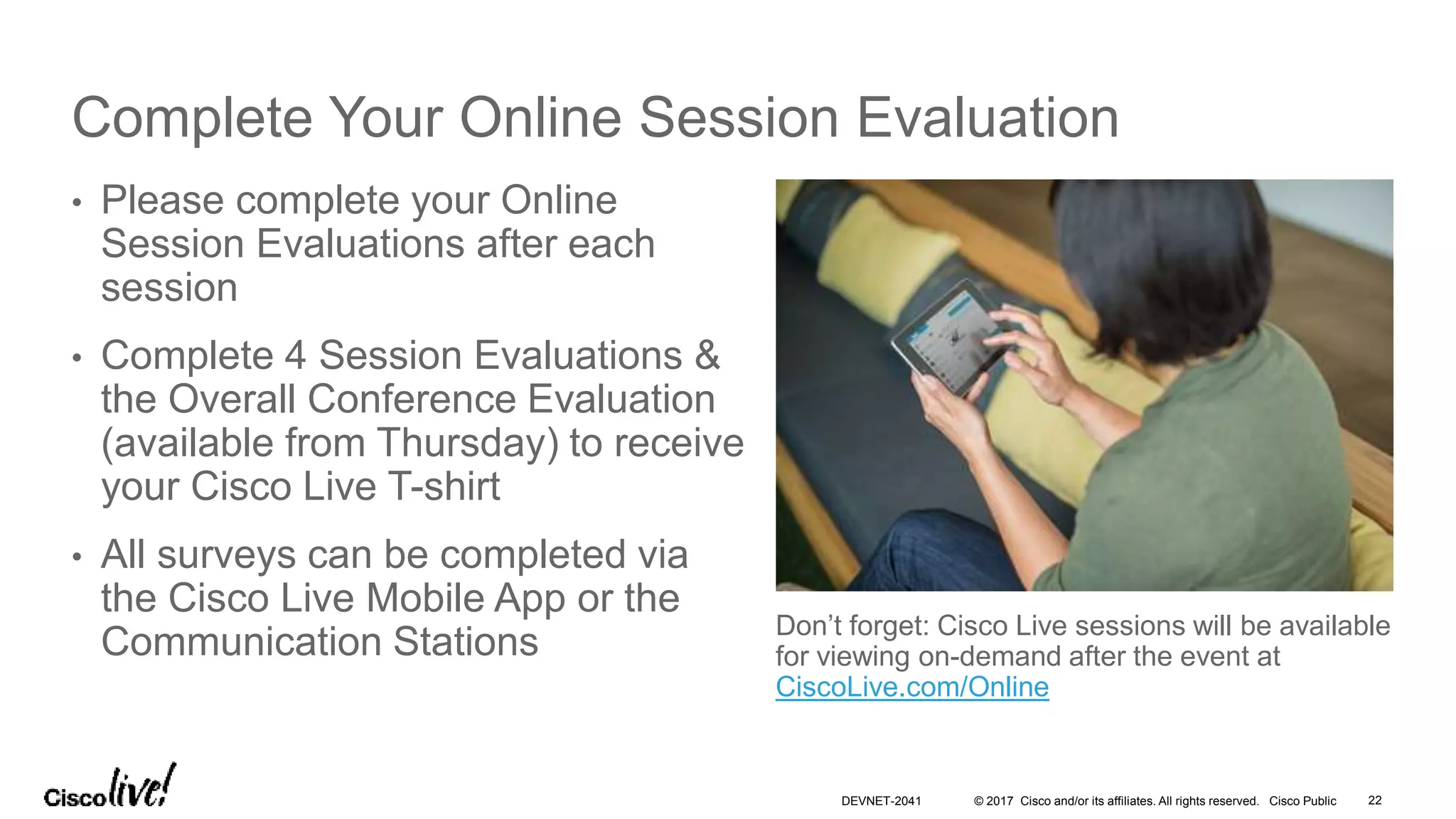

- 22. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Complete Your Online Session Evaluation Don’t forget: Cisco Live sessions will be available for viewing on-demand after the event at CiscoLive.com/Online • Please complete your Online Session Evaluations after each session • Complete 4 Session Evaluations & the Overall Conference Evaluation (available from Thursday) to receive your Cisco Live T-shirt • All surveys can be completed via the Cisco Live Mobile App or the Communication Stations DEVNET-2041 22

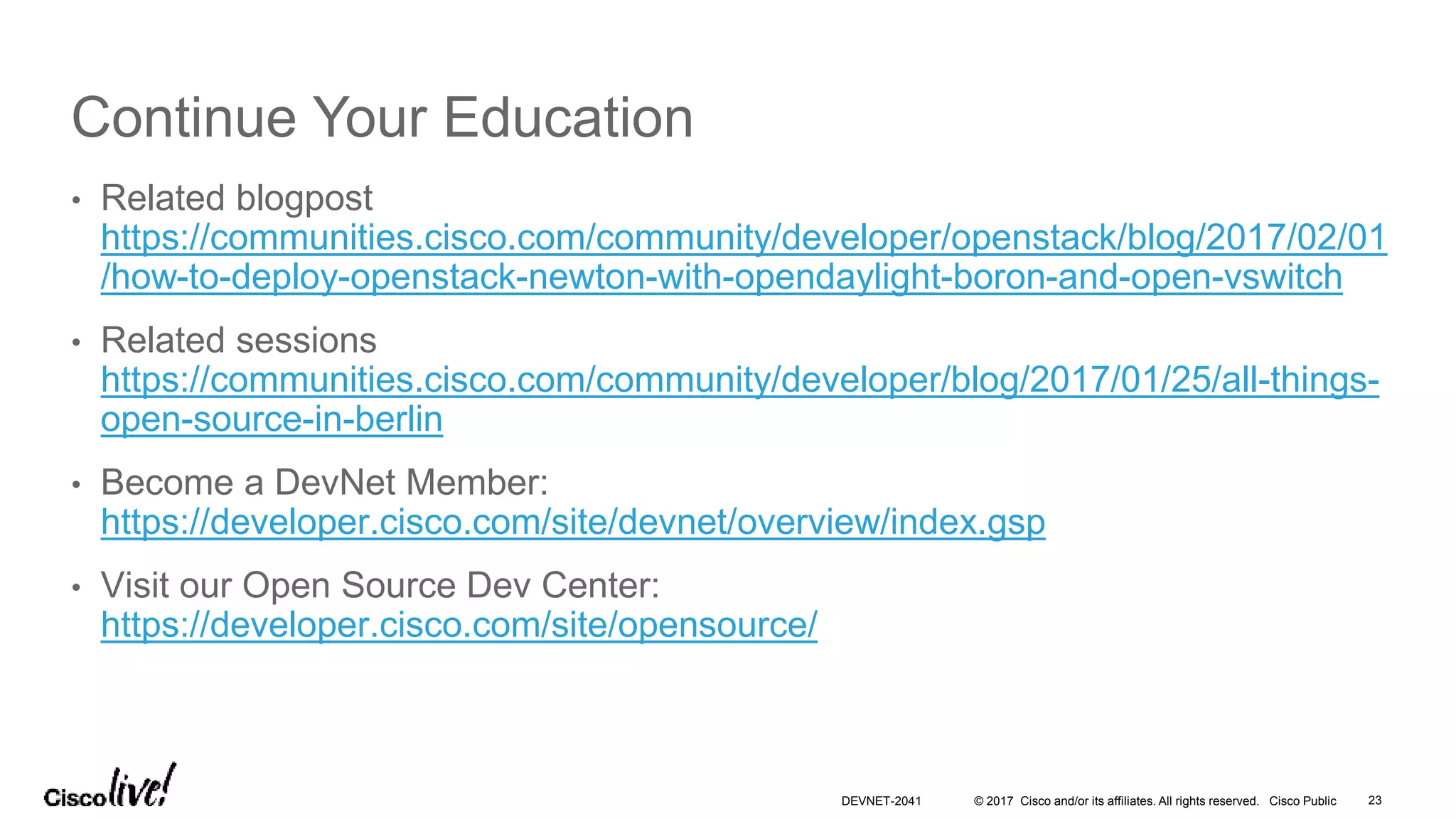

- 23. © 2017 Ciscoand/or its affiliates. All rights reserved. Cisco Public Continue Your Education • Related blogpost https://communities.cisco.com/community/developer/openstack/blog/2017/02/01 /how-to-deploy-openstack-newton-with-opendaylight-boron-and-open-vswitch • Related sessions https://communities.cisco.com/community/developer/blog/2017/01/25/all-things- open-source-in-berlin • Become a DevNet Member: https://developer.cisco.com/site/devnet/overview/index.gsp • Visit our Open Source Dev Center: https://developer.cisco.com/site/opensource/ DEVNET-2041 23
- 24.
- 25.
Editor's Notes
- #7 Collection of services that focus on different aspects of a cloud Dashboard (Horizon) – provides portal for uses to view and interact with their cloud Core Services for Compute (Nova), Storage (Cinder), and Network (Neutron) Infrastructure plugins to allow core services to talk to underlying physical/virtual infrastructure – similar to drivers in an operating system Common set of APIs across all service
- #10 Large open source project Focus is Software-Defined Networking (SDN) Modular, model driven controller at core Northbound APIs to apps, e.g. to OpenStack neutron Southbound interfaces to network devices, e.g. OVSDB to OpenvSwitches
- #11 Software Defined Networking (SDN) Controller Platform for network aware apps Northbound APIs to apps (e.g. OpenStack) Southbound APIs to network devices (e.g. OpenVSwitch)
- #15 When using OpenDaylight as the Neutron back-end, ODL expects to be the only source of truth for Open vSwitch configuration. Because of this, it is necessary to remove existing OpenStack and Open vSwitch configurations to give OpenDaylight a clean slate. Configure Neutron to use OpenDaylight’s ML2 driver
