GIDS 2012: PaaSing a Java EE Application

PaaSing a Java EE Application
Arun Gupta, Java EE & GlassFish Guy
blogs.oracle.com/arungupta, @arungupta
1 Copyright © 2012, Oracle and/or its affiliates. All rights reserved.

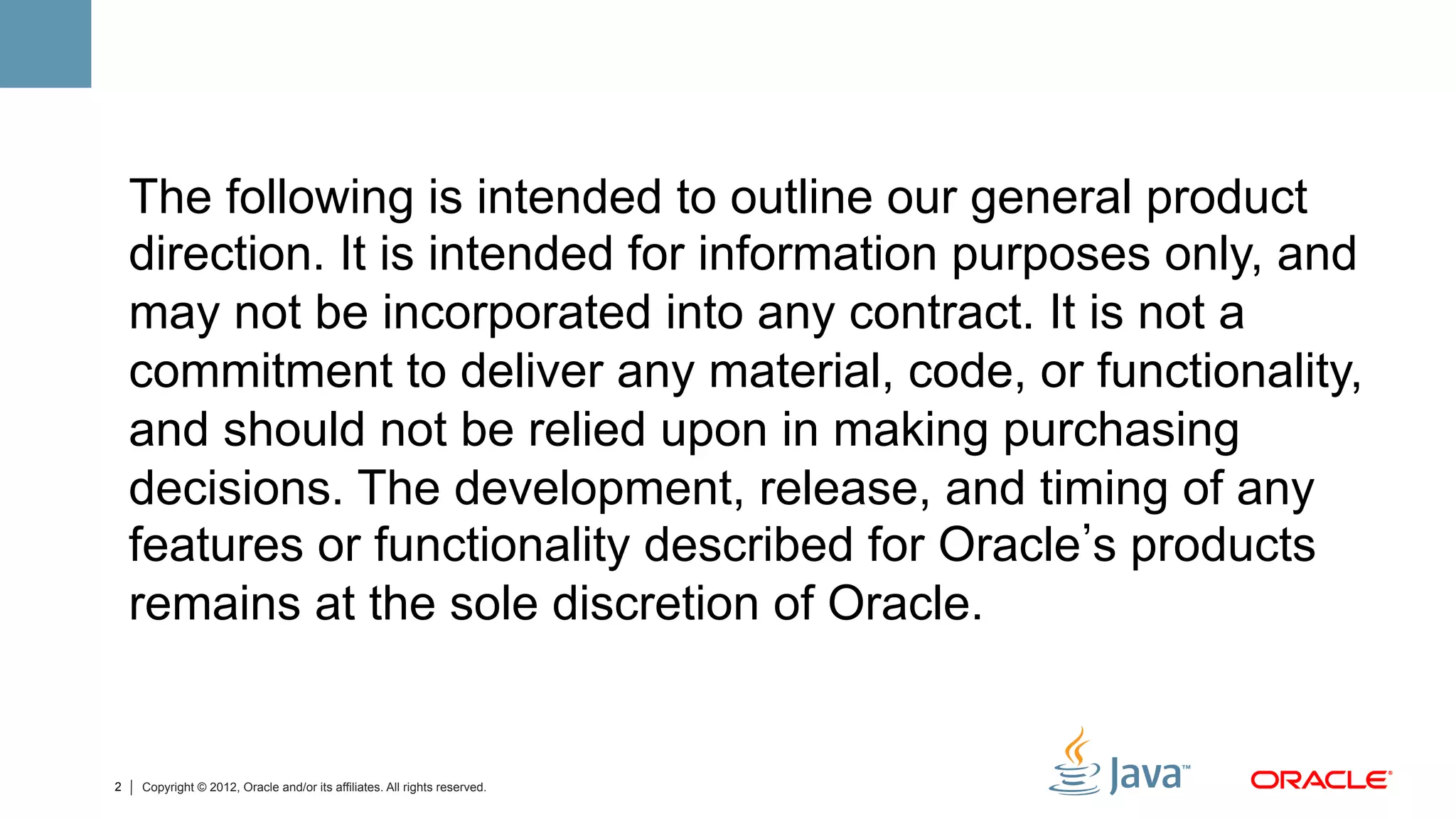

The following is intended to outline our general product
direction. It is intended for information purposes only, and
may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functionality,
and should not be relied upon in making purchasing
decisions. The development, release, and timing of any
features or functionality described for Oracle s products
remains at the sole discretion of Oracle.

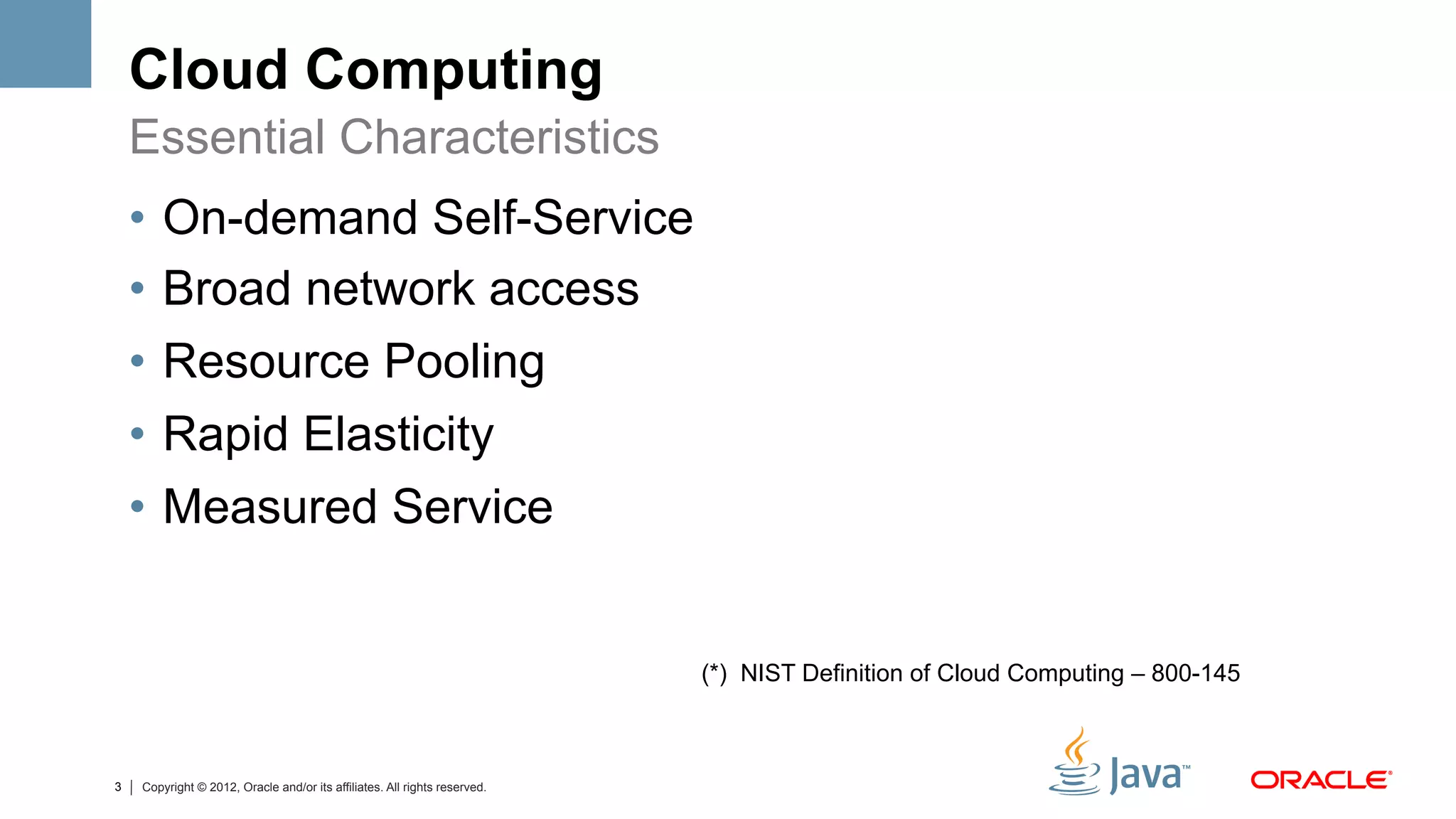

Cloud Computing
Essential Characteristics
•  On-demand Self-Service
•  Broad network access
•  Resource Pooling
•  Rapid Elasticity
•  Measured Service

(*) NIST Definition of Cloud Computing – 800-145

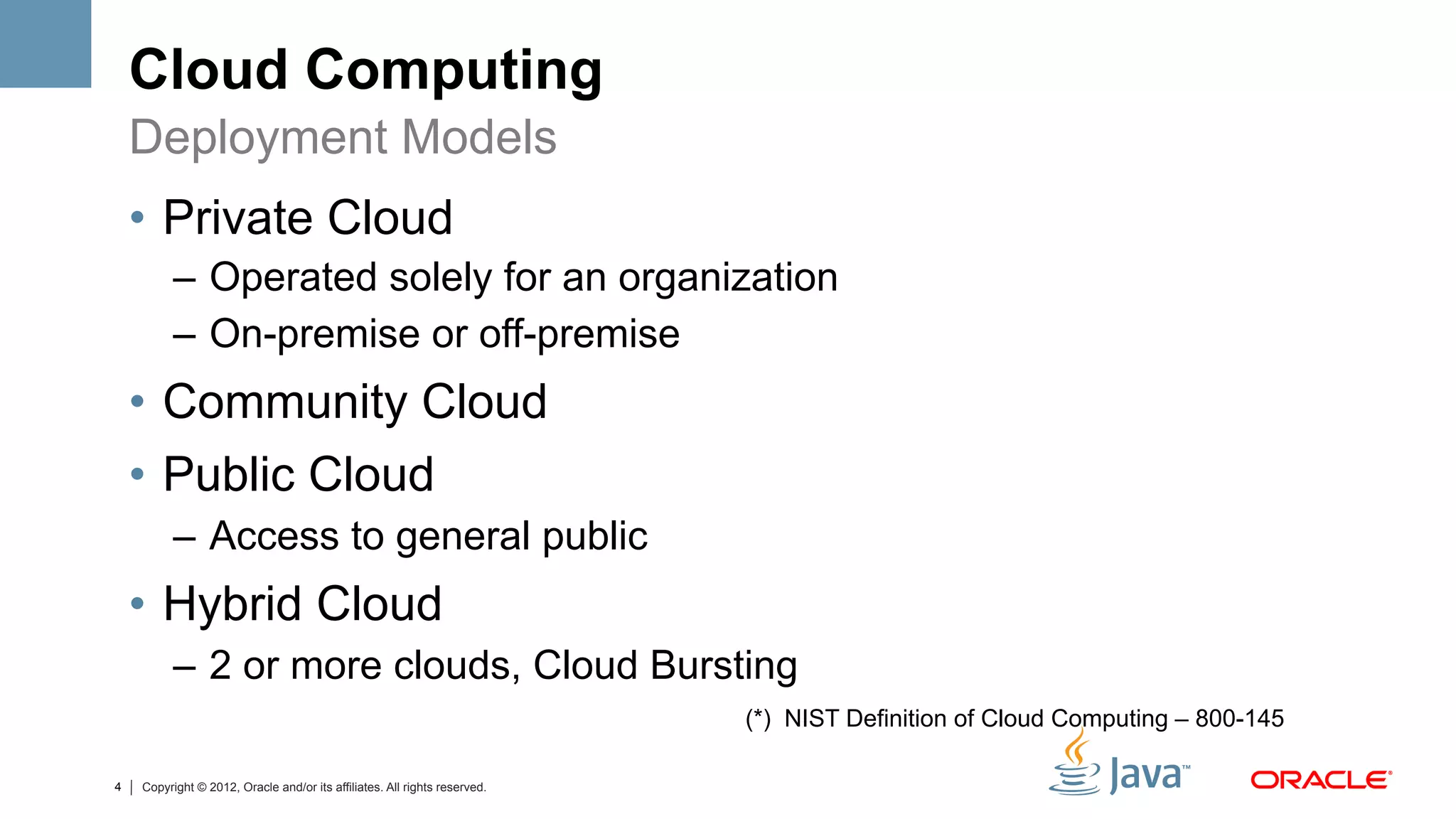

Cloud Computing
Deployment Models
•  Private Cloud
–  Operated solely for an organization
–  On-premise or off-premise
•  Community Cloud
•  Public Cloud
–  Access to general public
•  Hybrid Cloud
–  2 or more clouds, Cloud Bursting

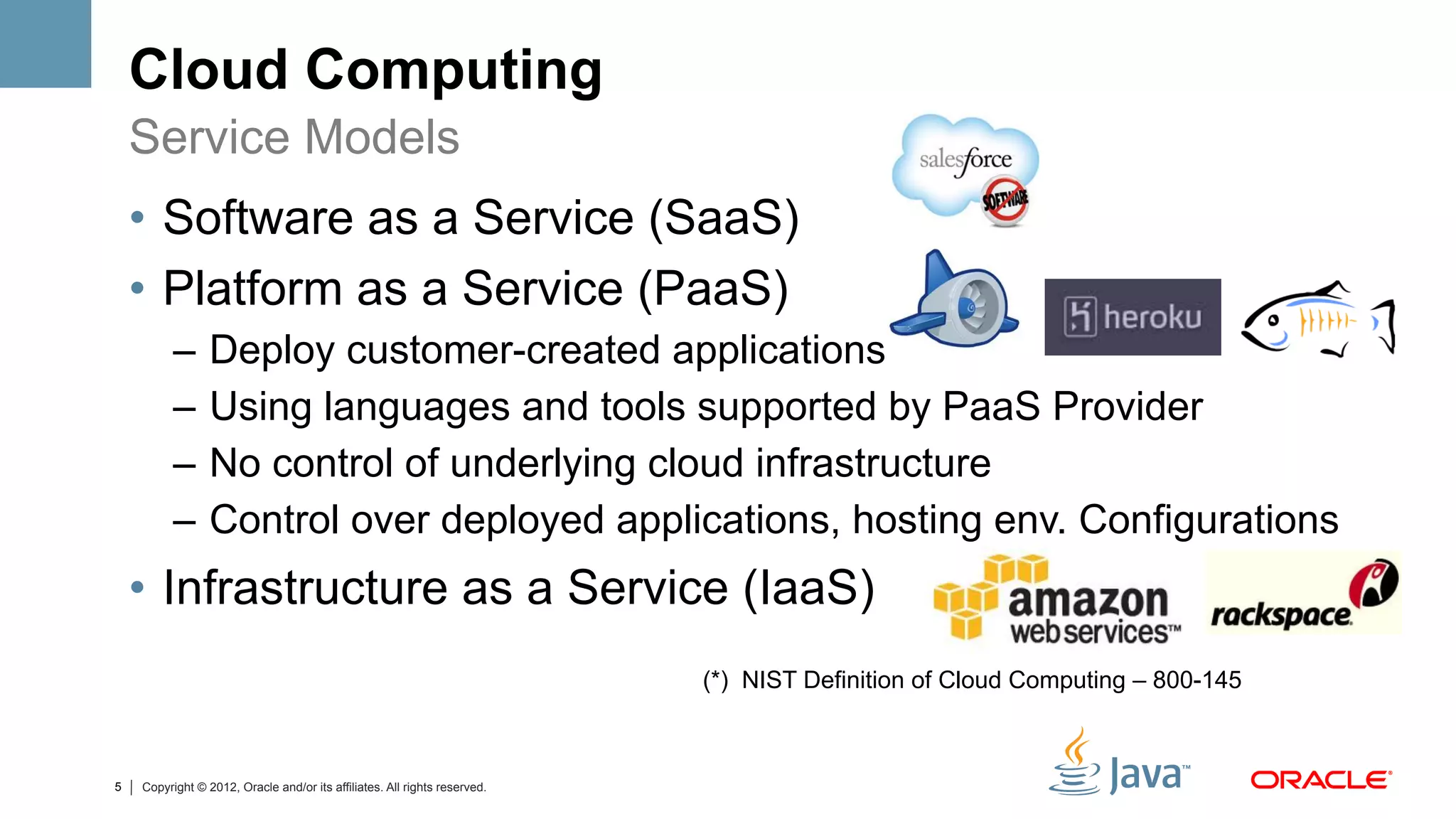

Cloud Computing
Service Models
•  Software as a Service (SaaS)
•  Platform as a Service (PaaS)
–  Deploy customer-created applications
–  Using languages and tools supported by PaaS Provider
–  No control of underlying cloud infrastructure
–  Control over deployed applications, hosting env. Configurations
•  Infrastructure as a Service (IaaS)

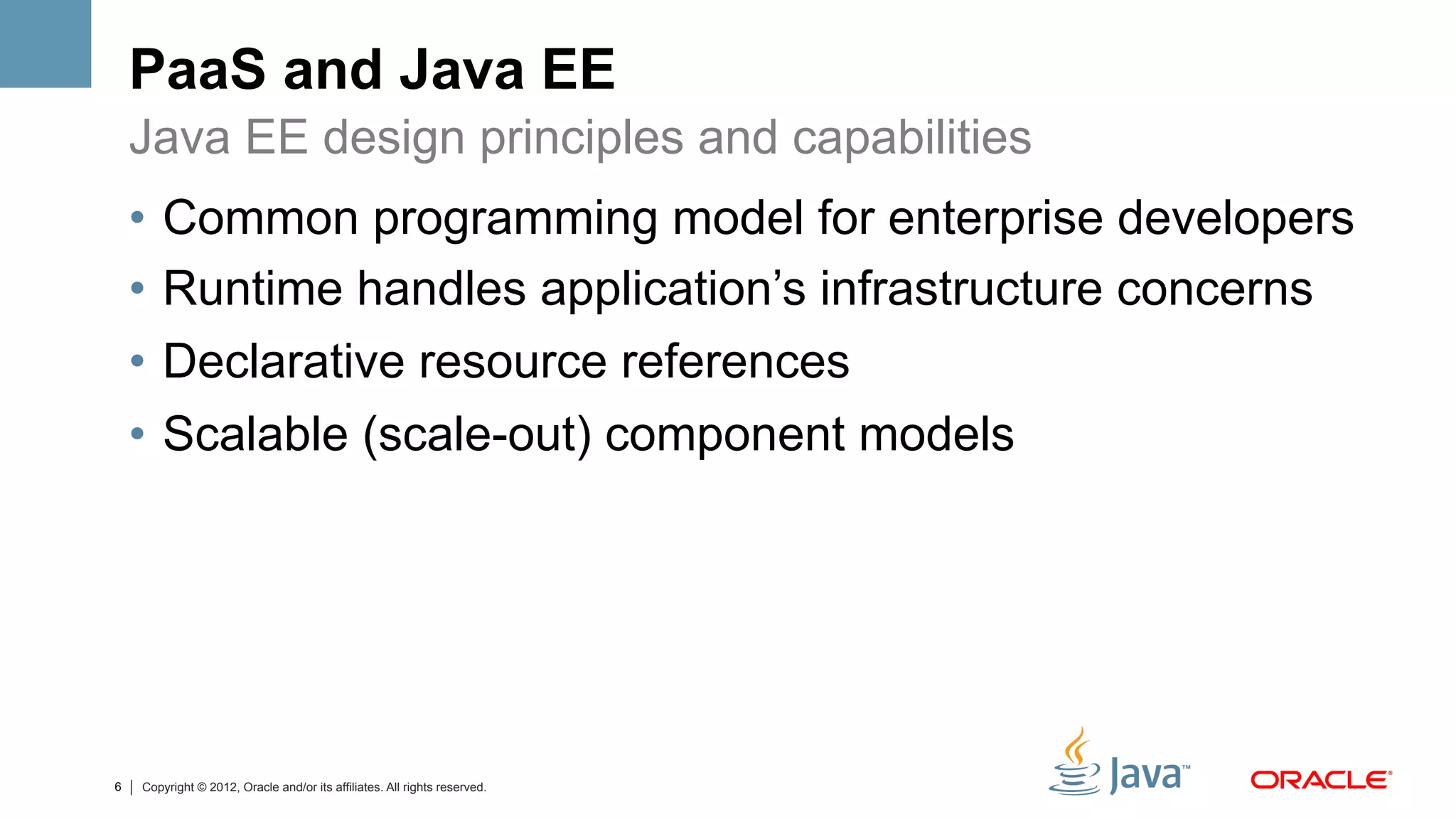

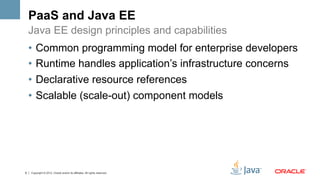

PaaS and Java EE
Java EE design principles and capabilities
•  Common programming model for enterprise developers
•  Runtime handles application’s infrastructure concerns
•  Declarative resource references
•  Scalable (scale-out) component models

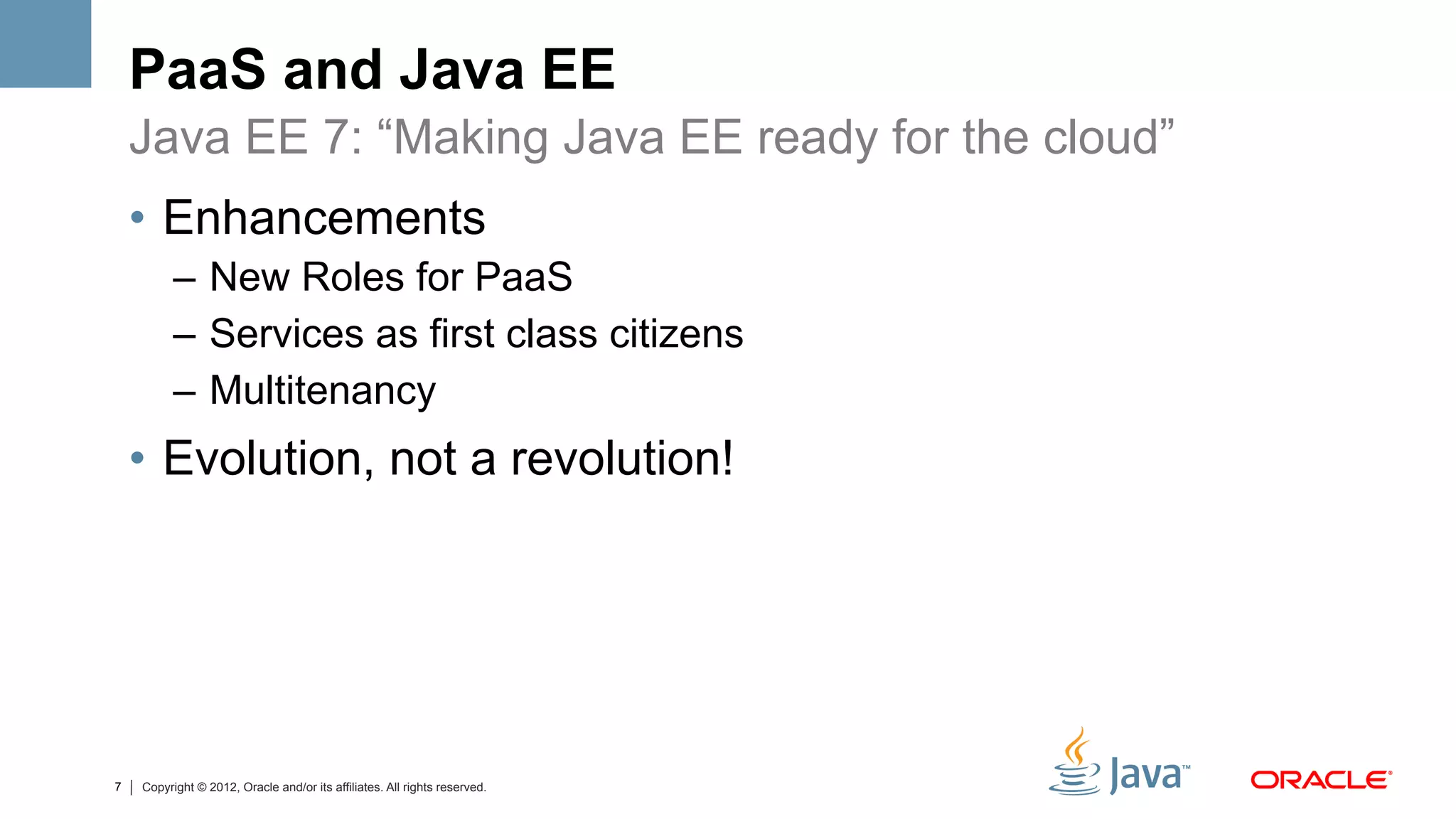

PaaS and Java EE
Java EE 7: “Making Java EE ready for the cloud”
•  Enhancements
–  New Roles for PaaS
–  Services as first class citizens
–  Multitenancy
•  Evolution, not a revolution!

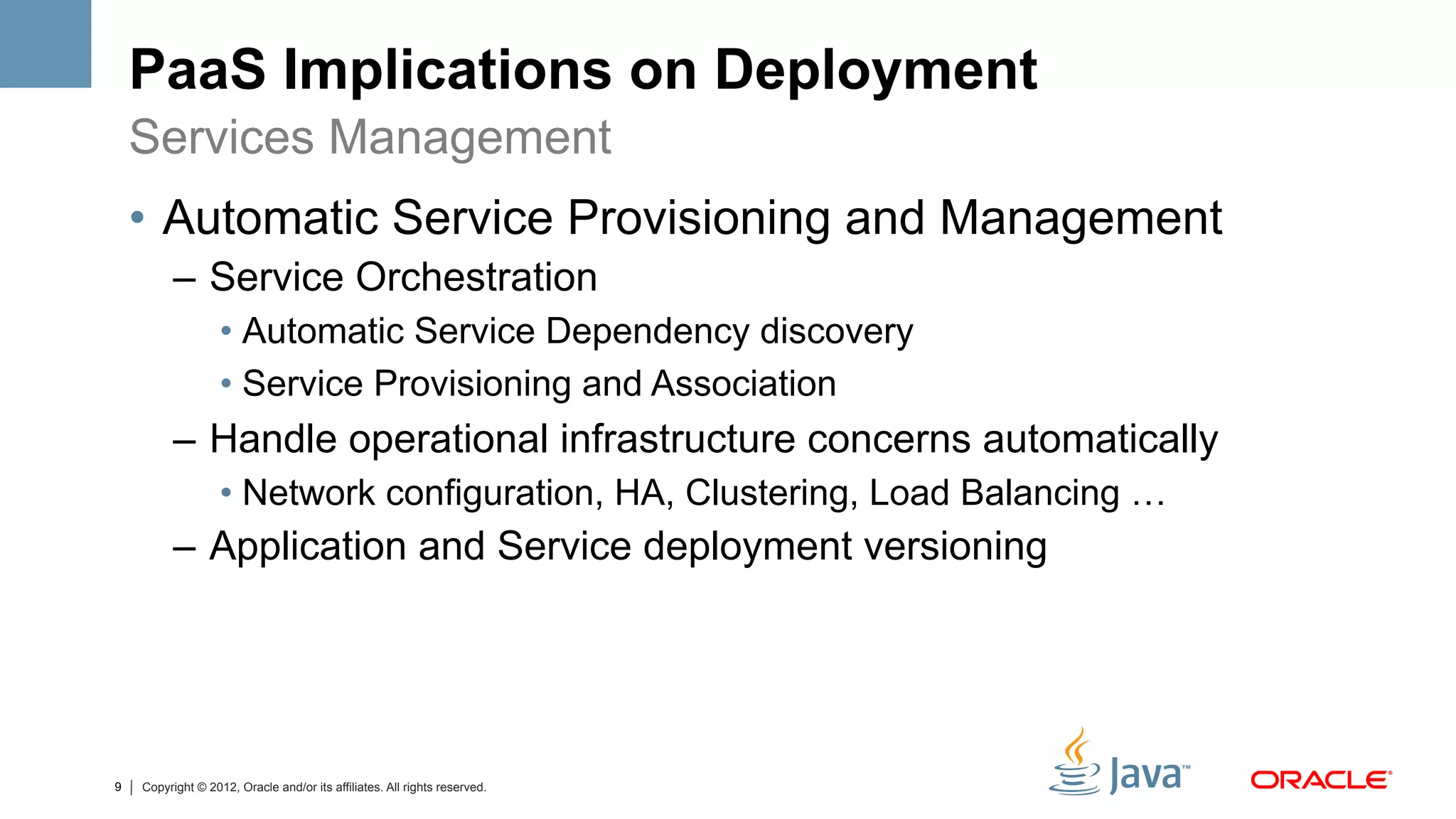

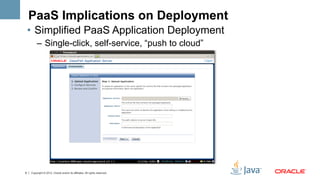

PaaS Implications on Deployment
•  Simplified PaaS Application Deployment
–  Single-click, self-service, “push to cloud”

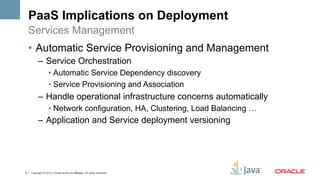

Services Management
•  Automatic Service Provisioning and Management
–  Service Orchestration
•  Automatic Service Dependency discovery
•  Service Provisioning and Association
–  Handle operational infrastructure concerns automatically
•  Network configuration, HA, Clustering, Load Balancing …
–  Application and Service deployment versioning

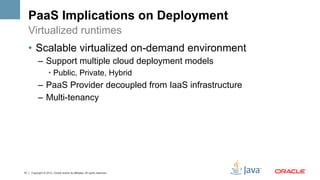

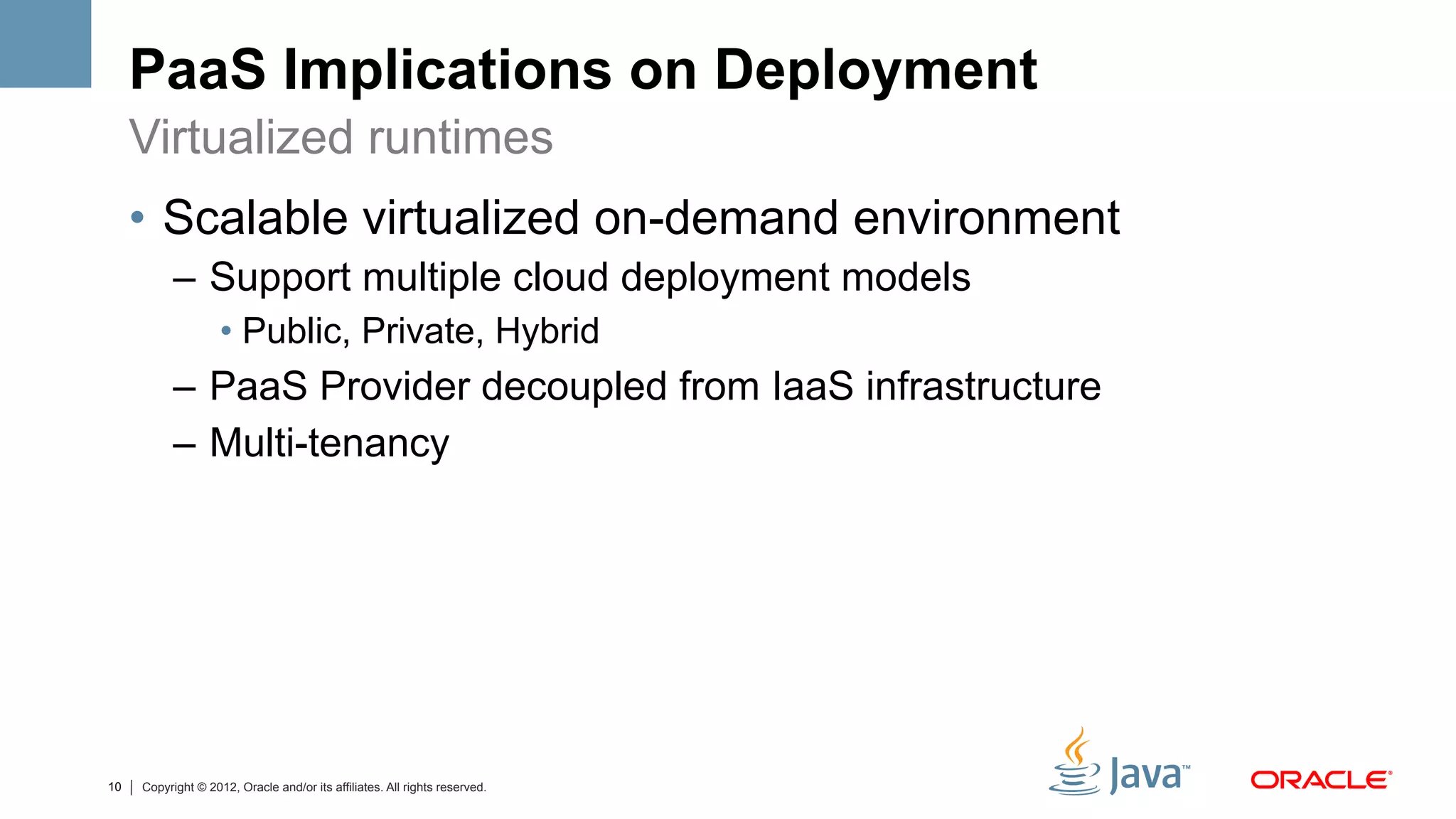

Virtualized runtimes
•  Scalable virtualized on-demand environment
–  Support multiple cloud deployment models
•  Public, Private, Hybrid
–  PaaS Provider decoupled from IaaS infrastructure
–  Multi-tenancy

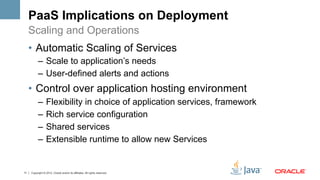

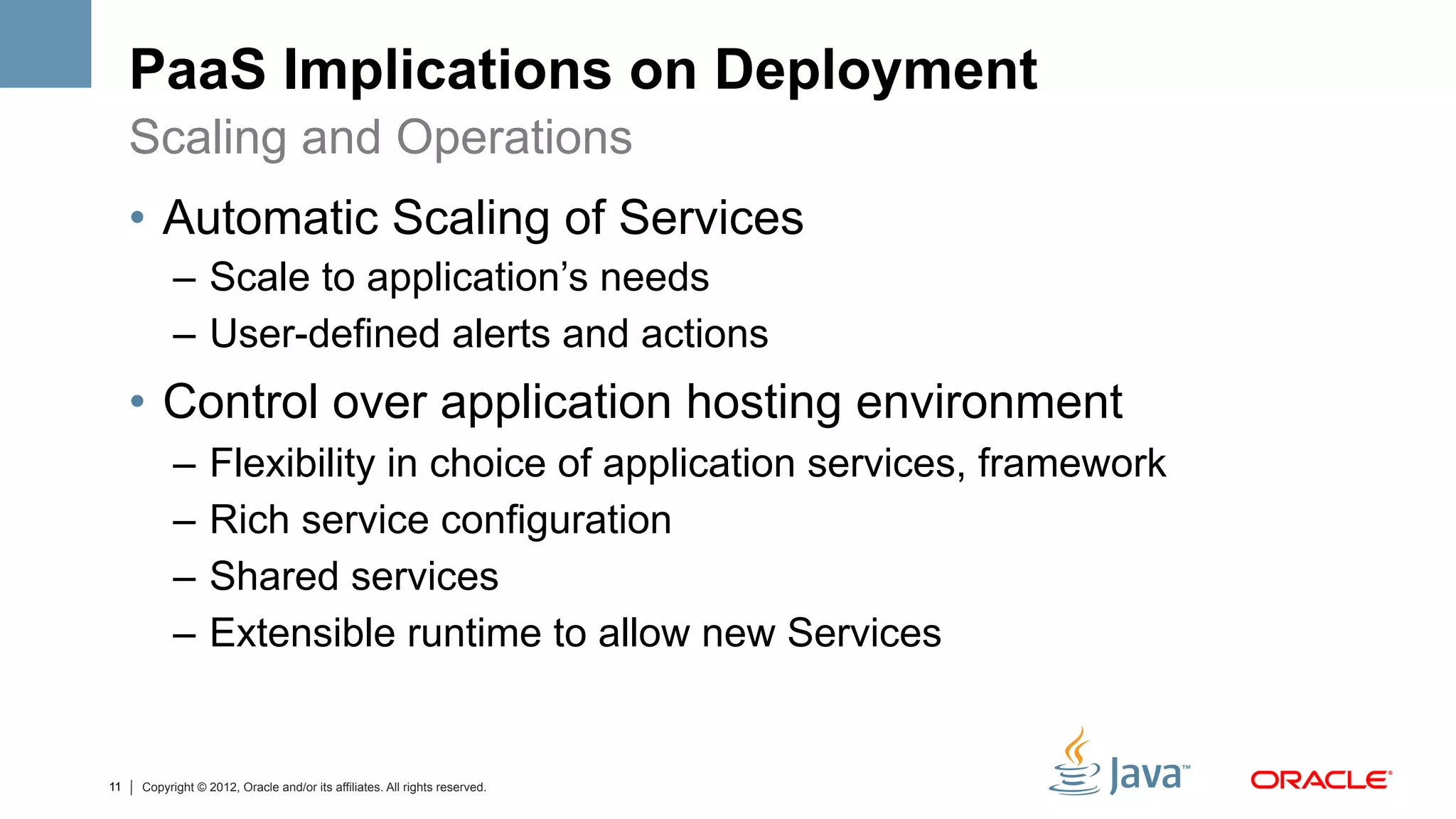

Scaling and Operations
•  Automatic Scaling of Services
–  Scale to application’s needs
–  User-defined alerts and actions
•  Control over application hosting environment
–  Flexibility in choice of application services, framework
–  Rich service configuration
–  Shared services
–  Extensible runtime to allow new Services

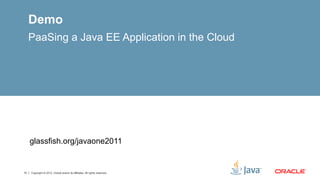

Demo
PaaSing a Java EE Application in the Cloud

glassfish.org/javaone2011

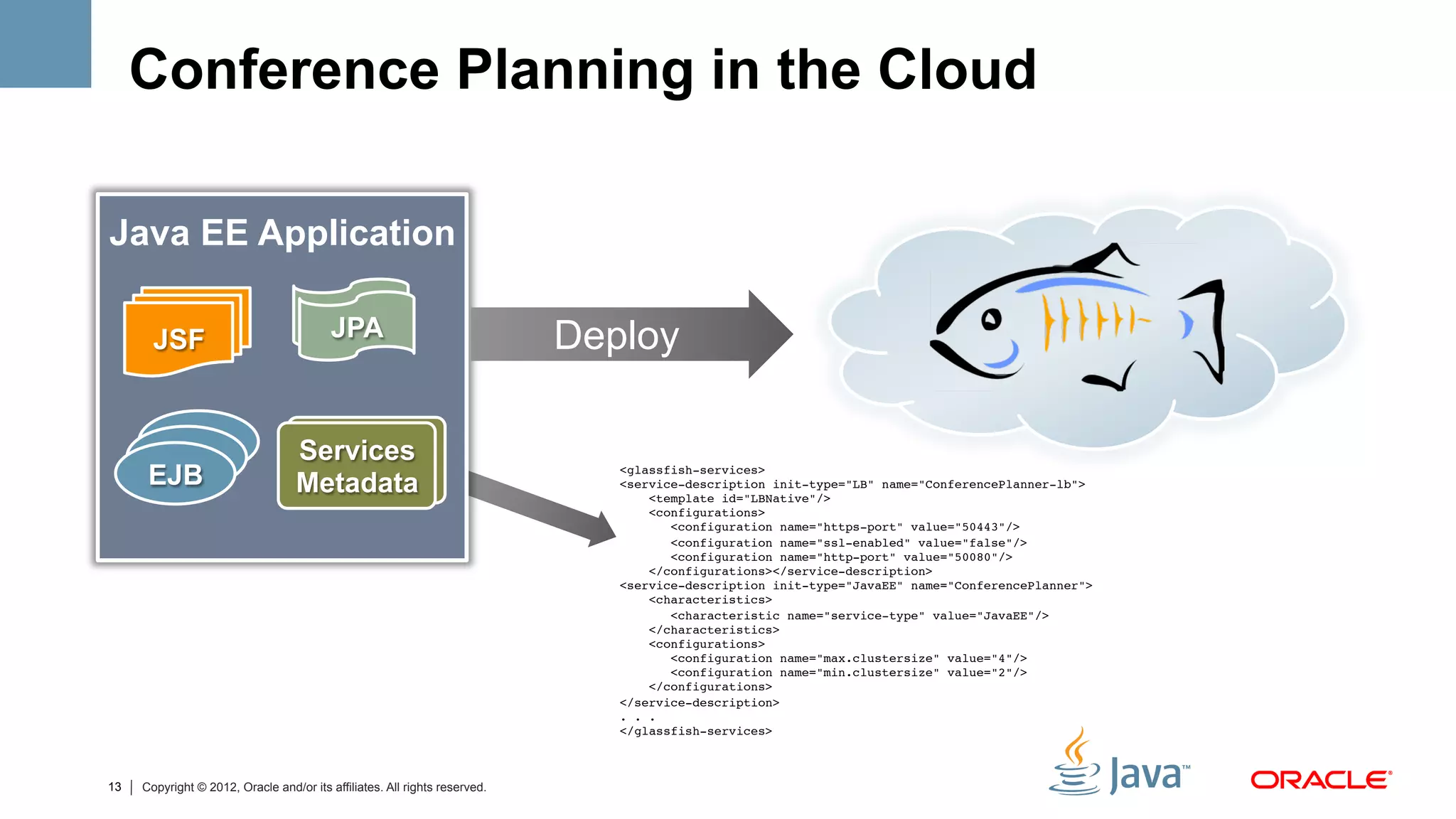

Conference Planning in the Cloud

Java EE Application

JSF JPA Deploy

Services
EJB Metadata
<glassfish-services> 
<service-description init-type="LB" name="ConferencePlanner-lb"> 
<template id="LBNative"/> 
<configurations> 
<configuration name="https-port" value="50443"/> 
<configuration name="ssl-enabled" value="false"/> 
<configuration name="http-port" value="50080"/> 
</configurations></service-description> 
<service-description init-type="JavaEE" name="ConferencePlanner"> 
<characteristics> 
<characteristic name="service-type" value="JavaEE"/> 
</characteristics> 
<configurations> 
<configuration name="max.clustersize" value="4"/> 
<configuration name="min.clustersize" value="2"/> 
</configurations> 
</service-description>"
. . . 
</glassfish-services>"

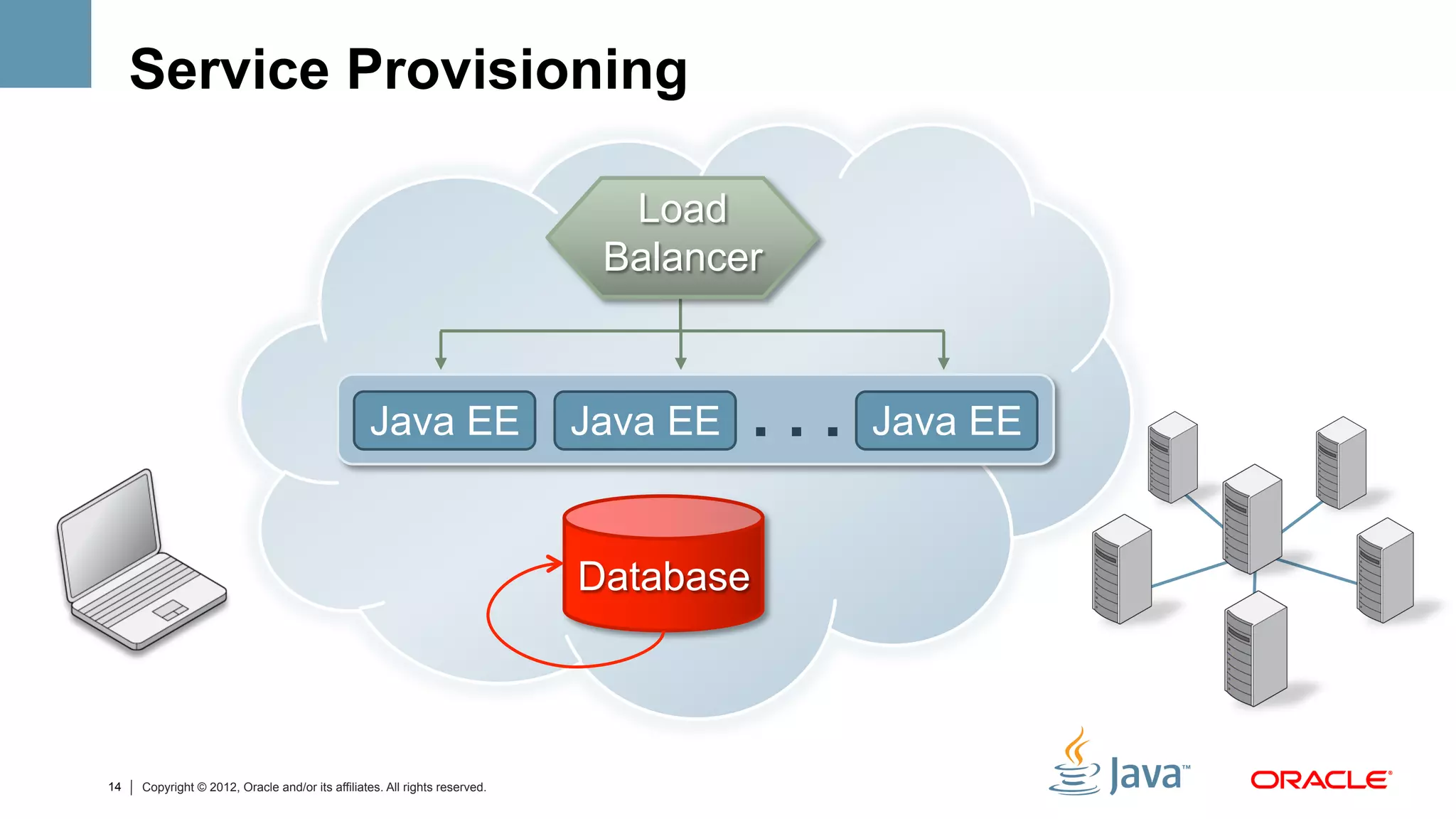

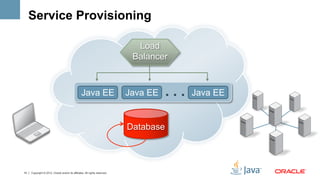

Service Provisioning

Load
Balancer

Java EE Java EE ... Java EE

Database

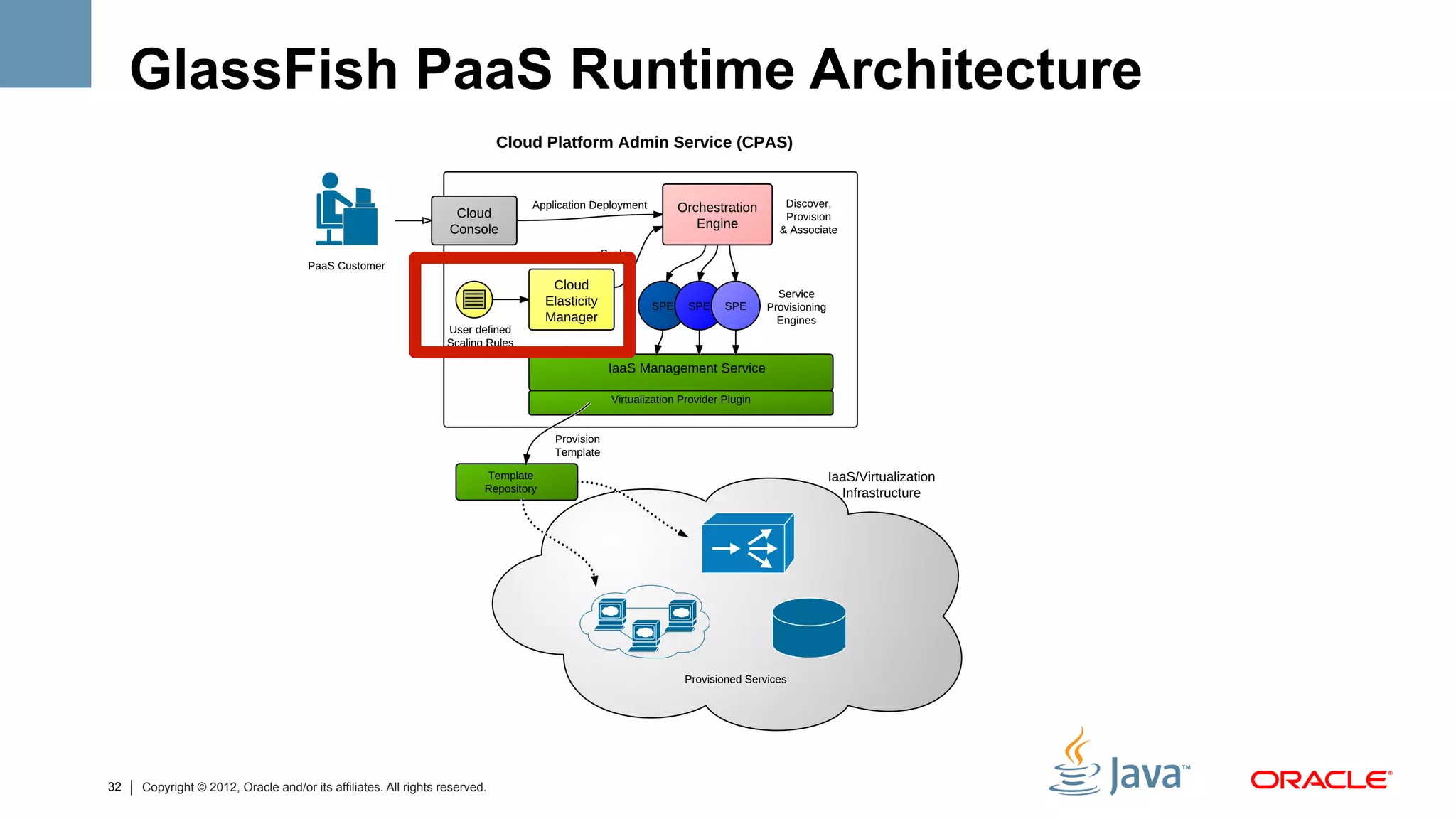

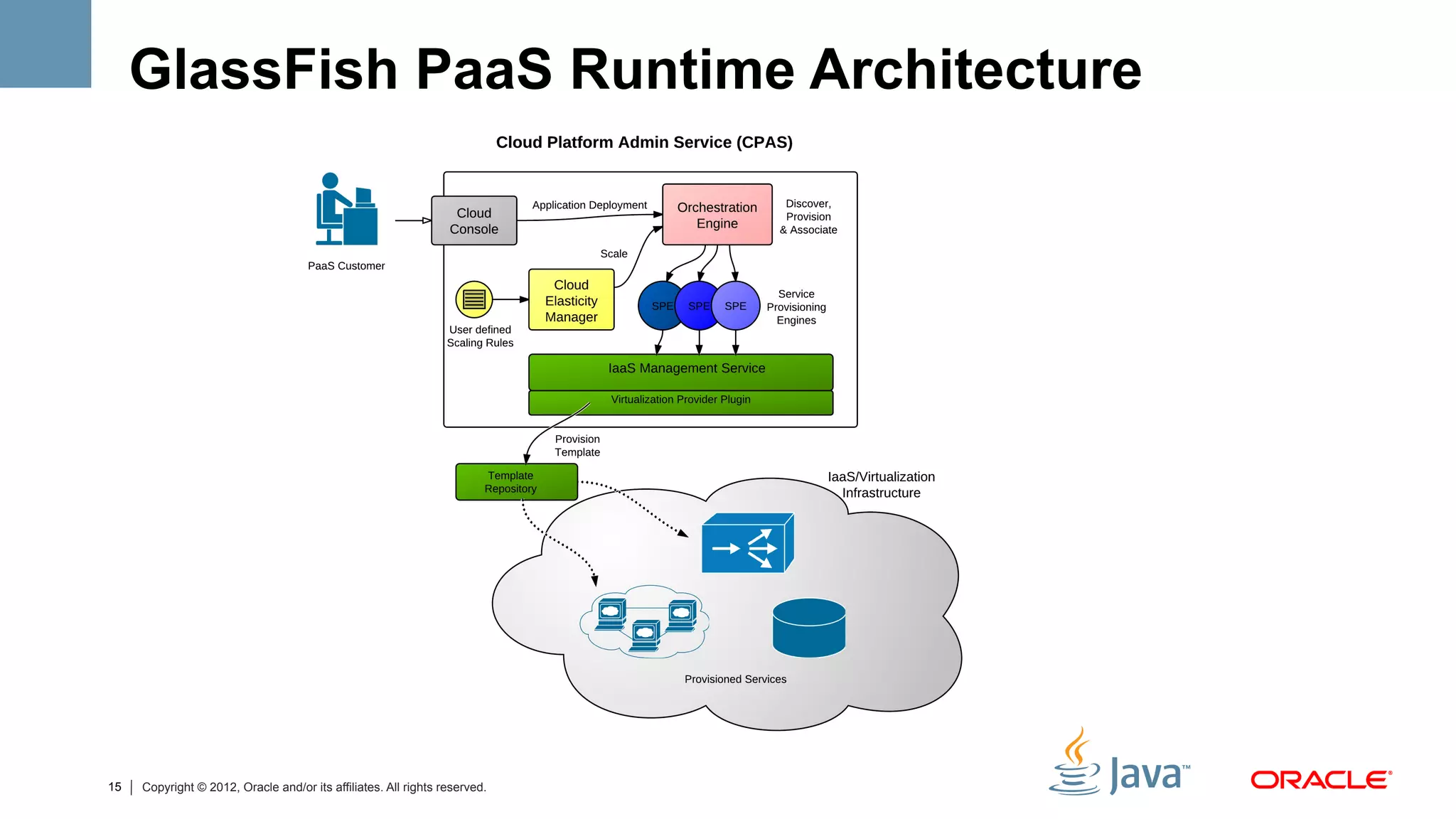

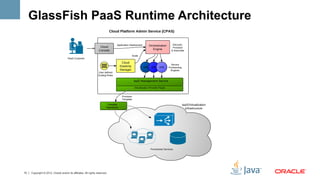

GlassFish PaaS Runtime Architecture

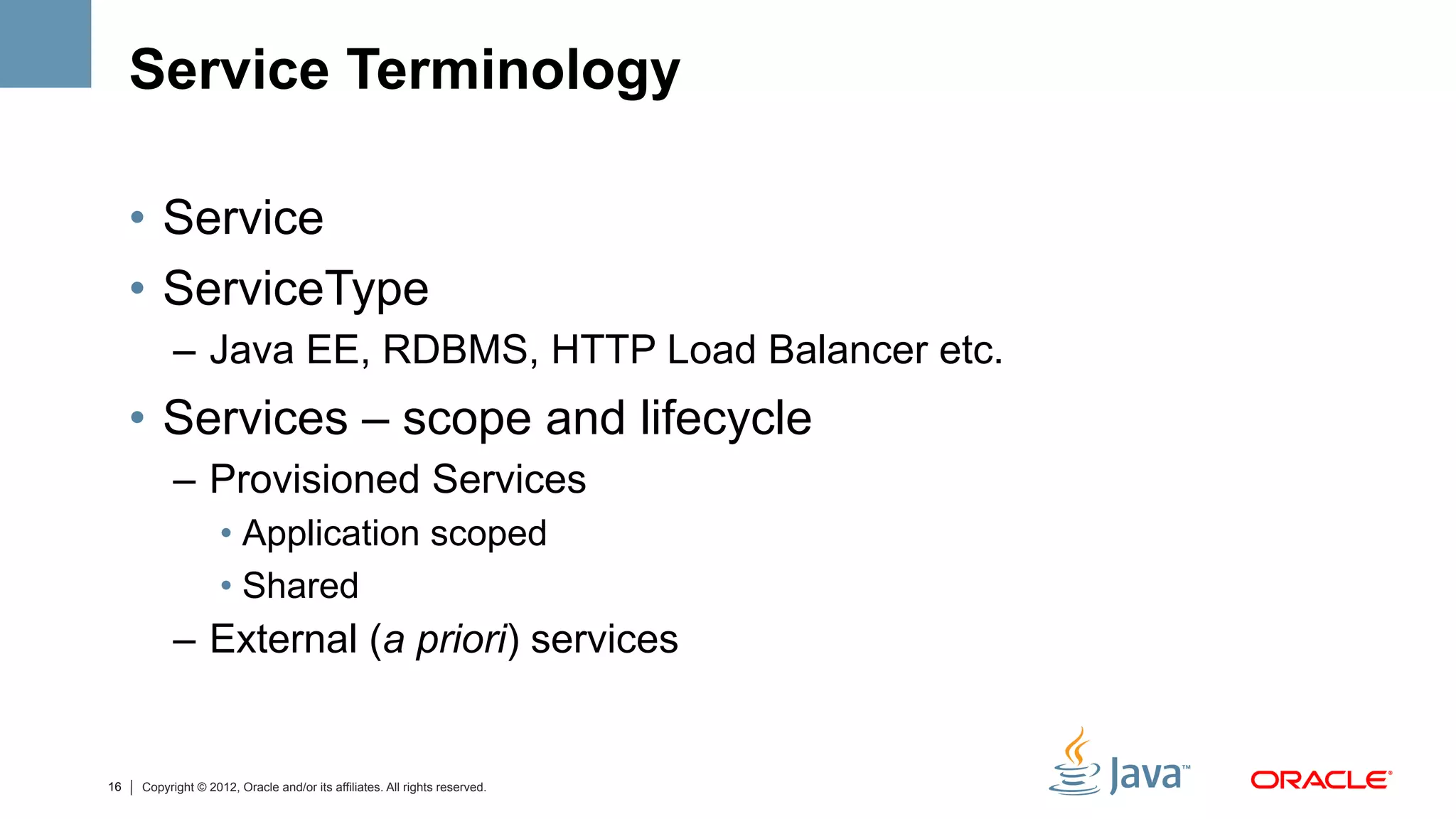

Service Terminology

•  Service
•  ServiceType
–  Java EE, RDBMS, HTTP Load Balancer etc.
•  Services – scope and lifecycle
–  Provisioned Services
•  Application scoped
•  Shared
–  External (a priori) services

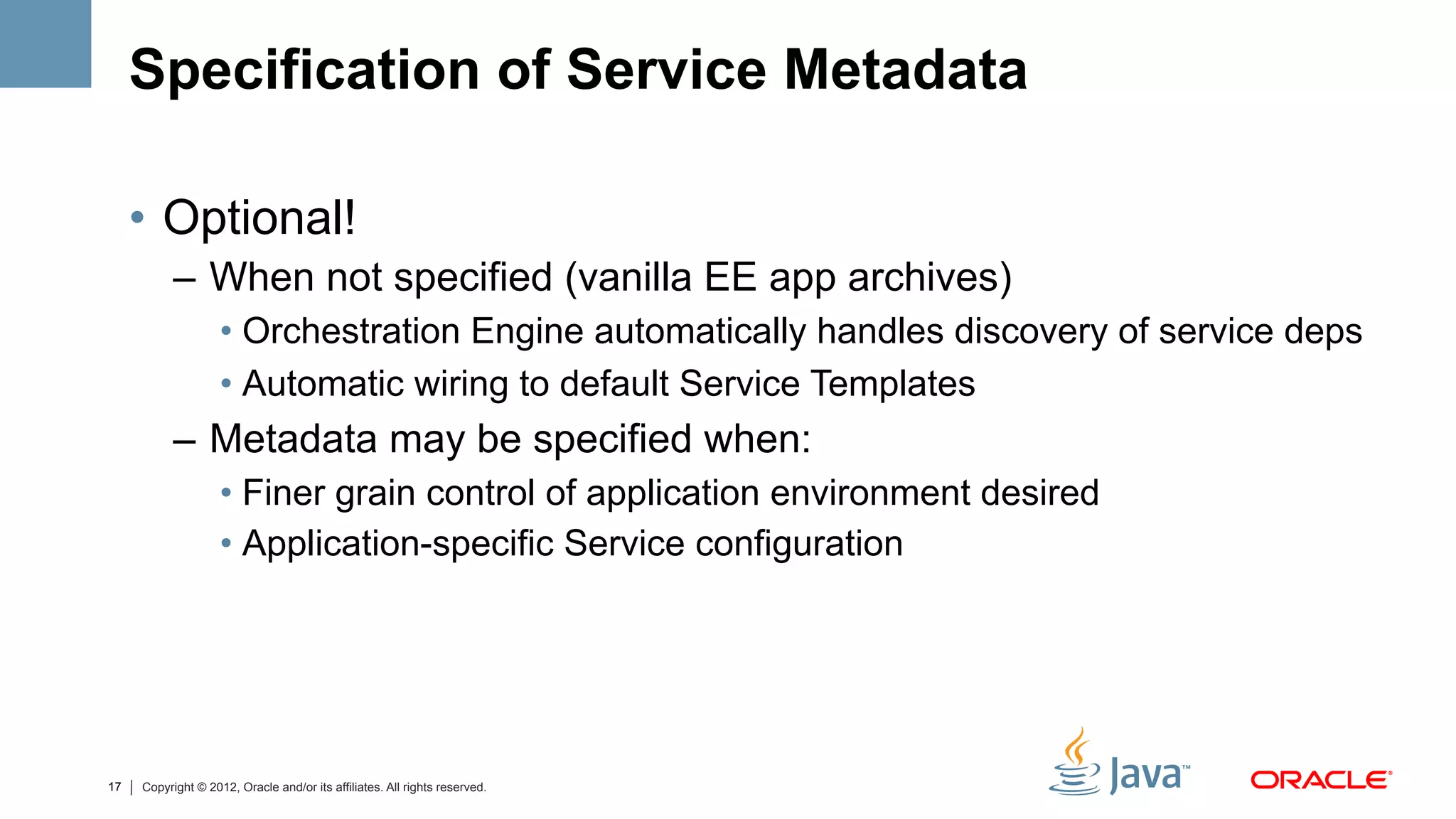

Specification of Service Metadata

•  Optional!
–  When not specified (vanilla EE app archives)
•  Orchestration Engine automatically handles discovery of service deps
•  Automatic wiring to default Service Templates
–  Metadata may be specified when:
•  Finer grain control of application environment desired
•  Application-specific Service configuration

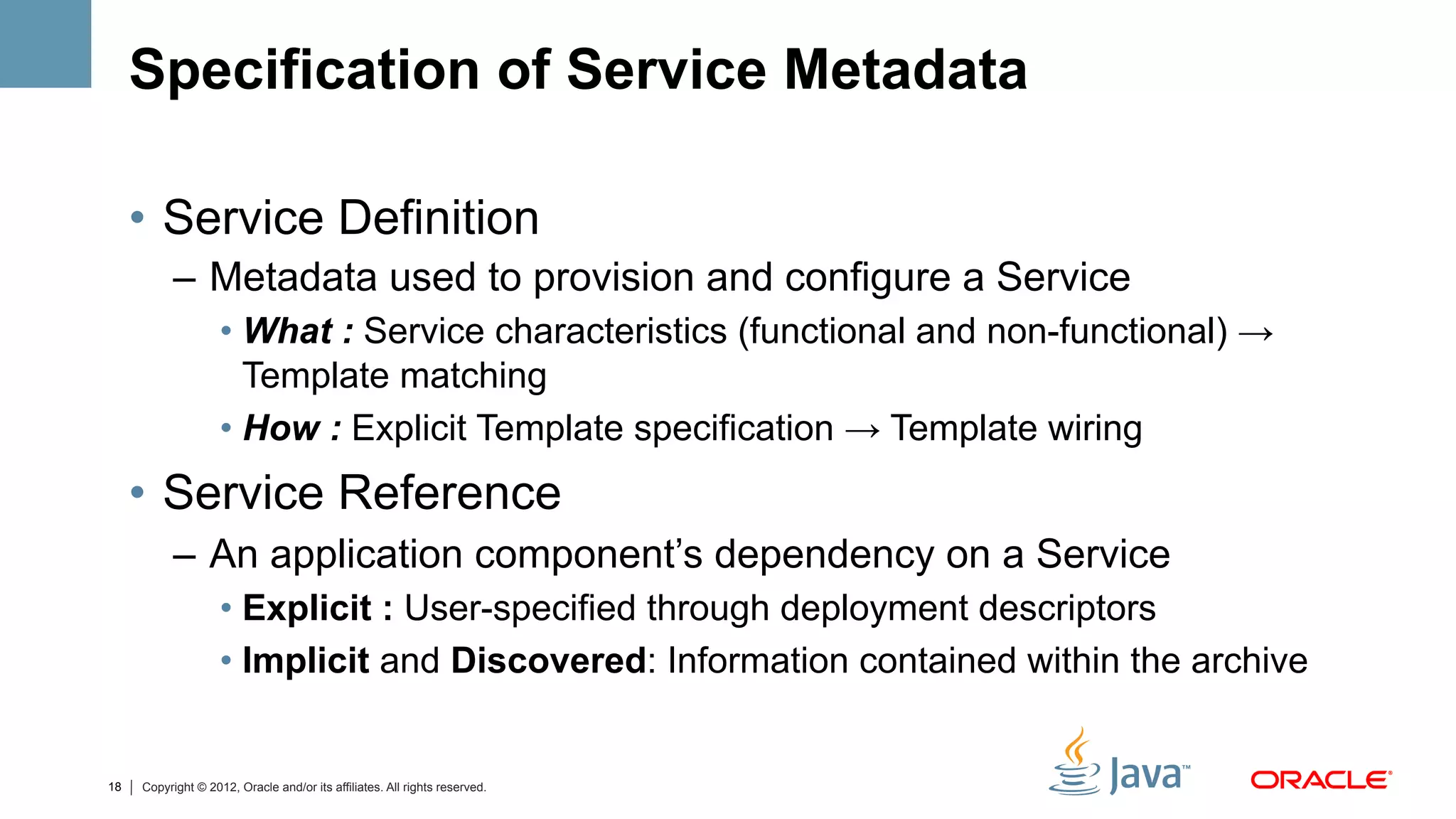

Specification of Service Metadata

•  Service Definition
–  Metadata used to provision and configure a Service
•  What : Service characteristics (functional and non-functional) →
Template matching
•  How : Explicit Template specification → Template wiring
•  Service Reference
–  An application component’s dependency on a Service
•  Explicit : User-specified through deployment descriptors
•  Implicit and Discovered: Information contained within the archive

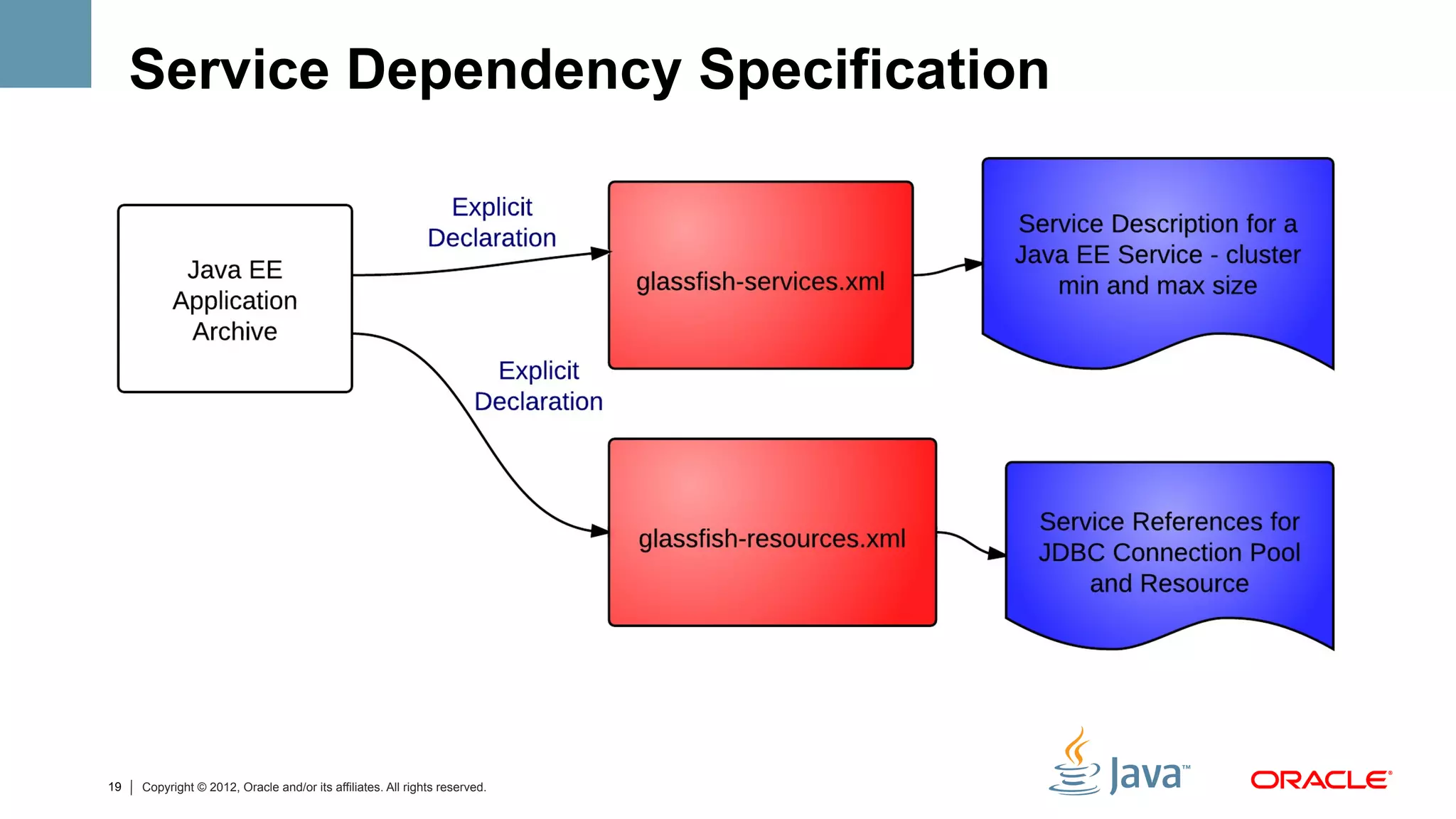

Service Dependency Specification

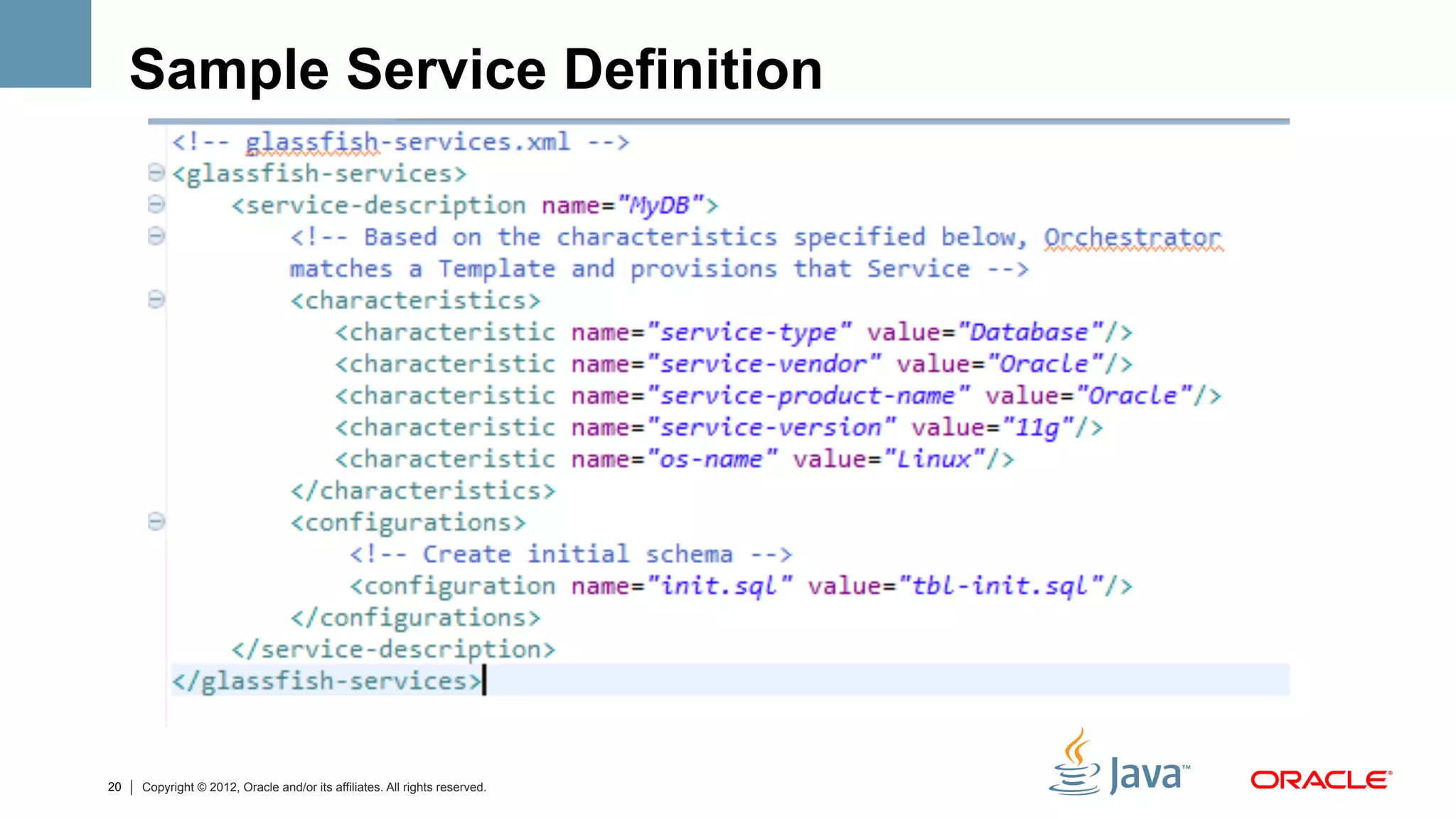

Sample Service Definition

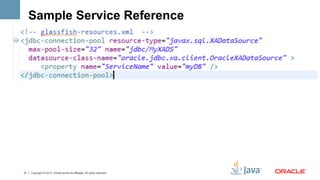

Sample Service Reference

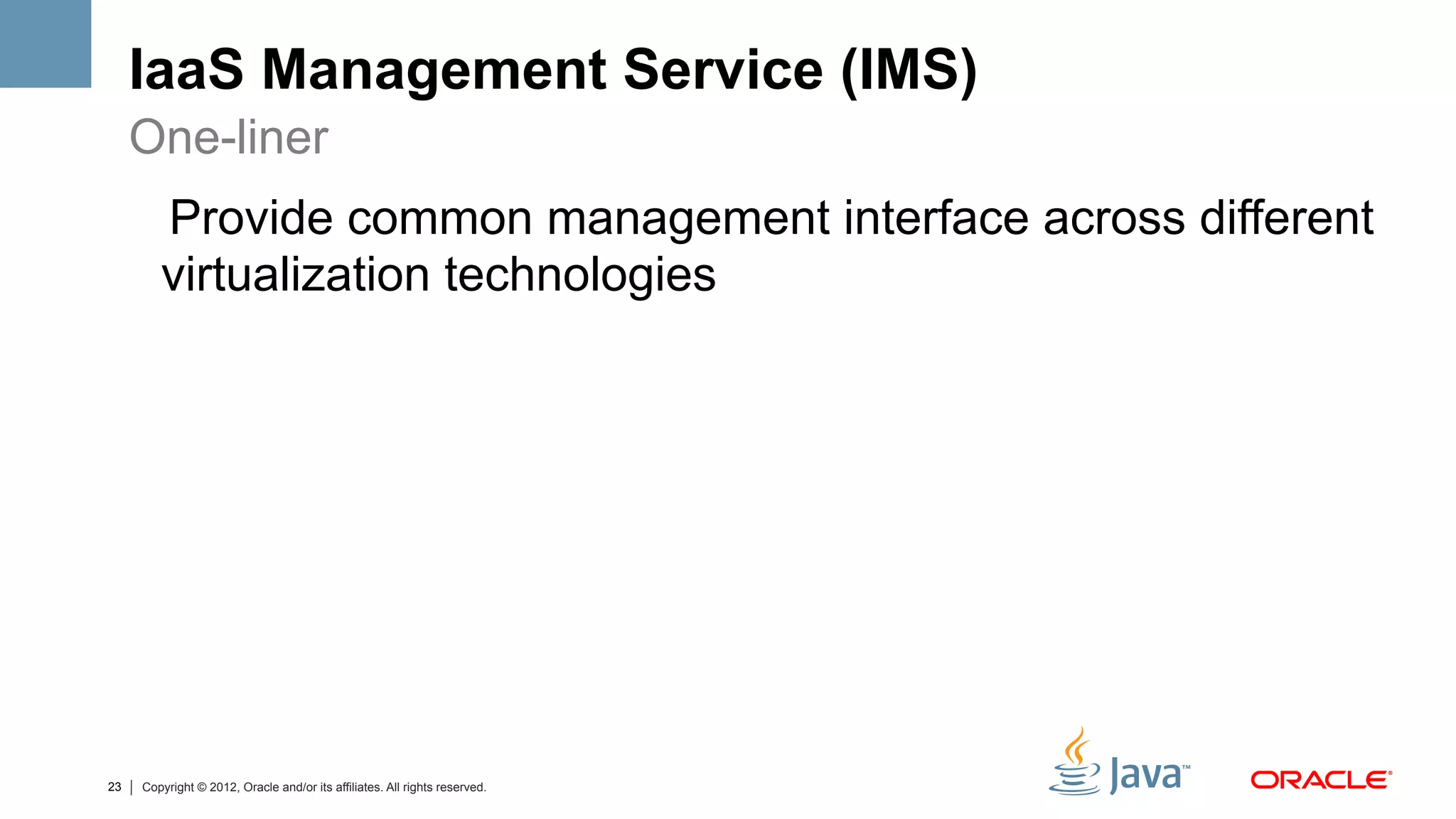

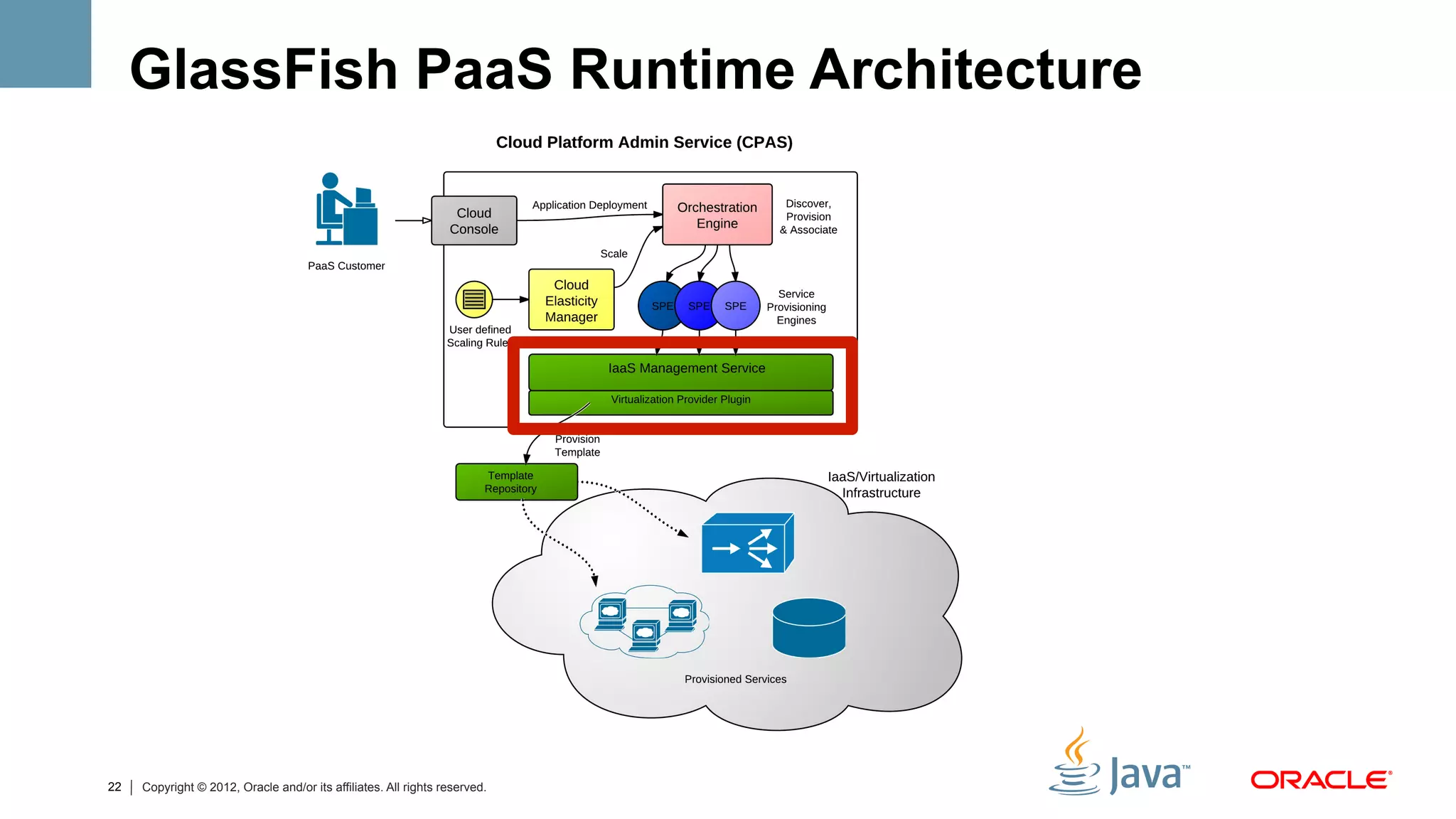

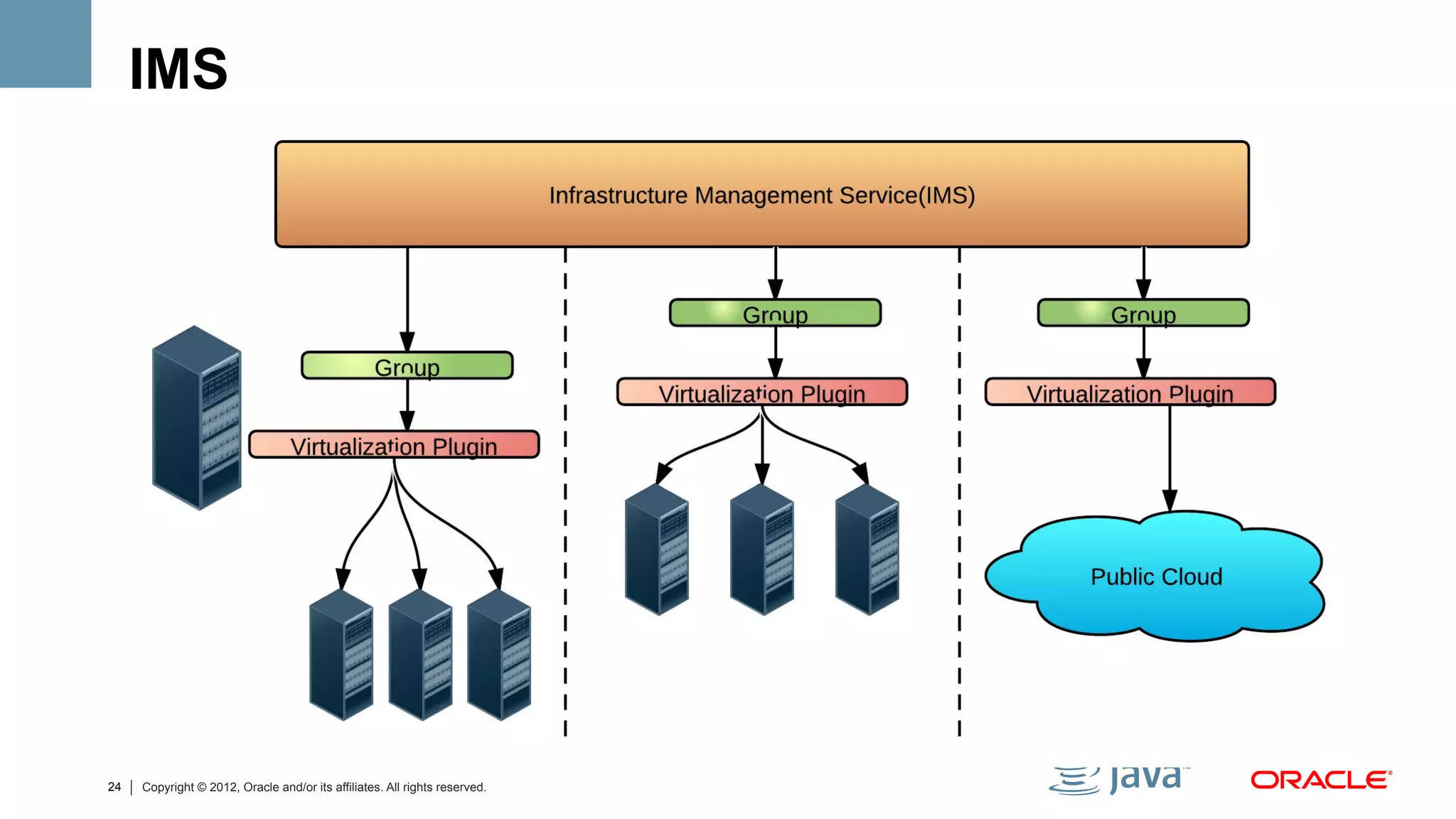

IaaS Management Service (IMS)
One-liner
Provide common management interface across different
virtualization technologies


IMS

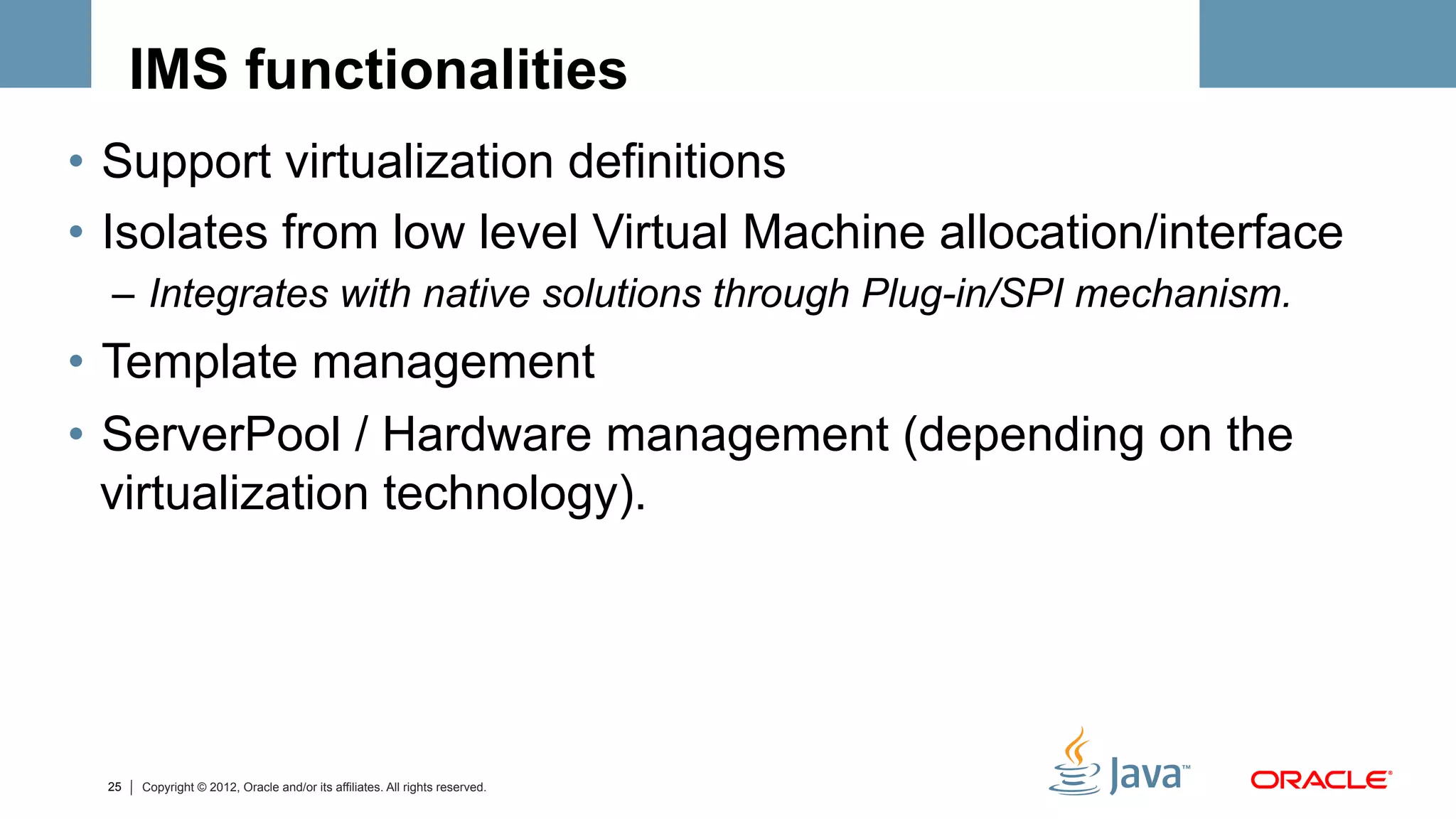

IMS functionalities
•  Support virtualization definitions
•  Isolates from low level Virtual Machine allocation/interface
–  Integrates with native solutions through Plug-in/SPI mechanism.
•  Template management
•  ServerPool / Hardware management (depending on the
virtualization technology).

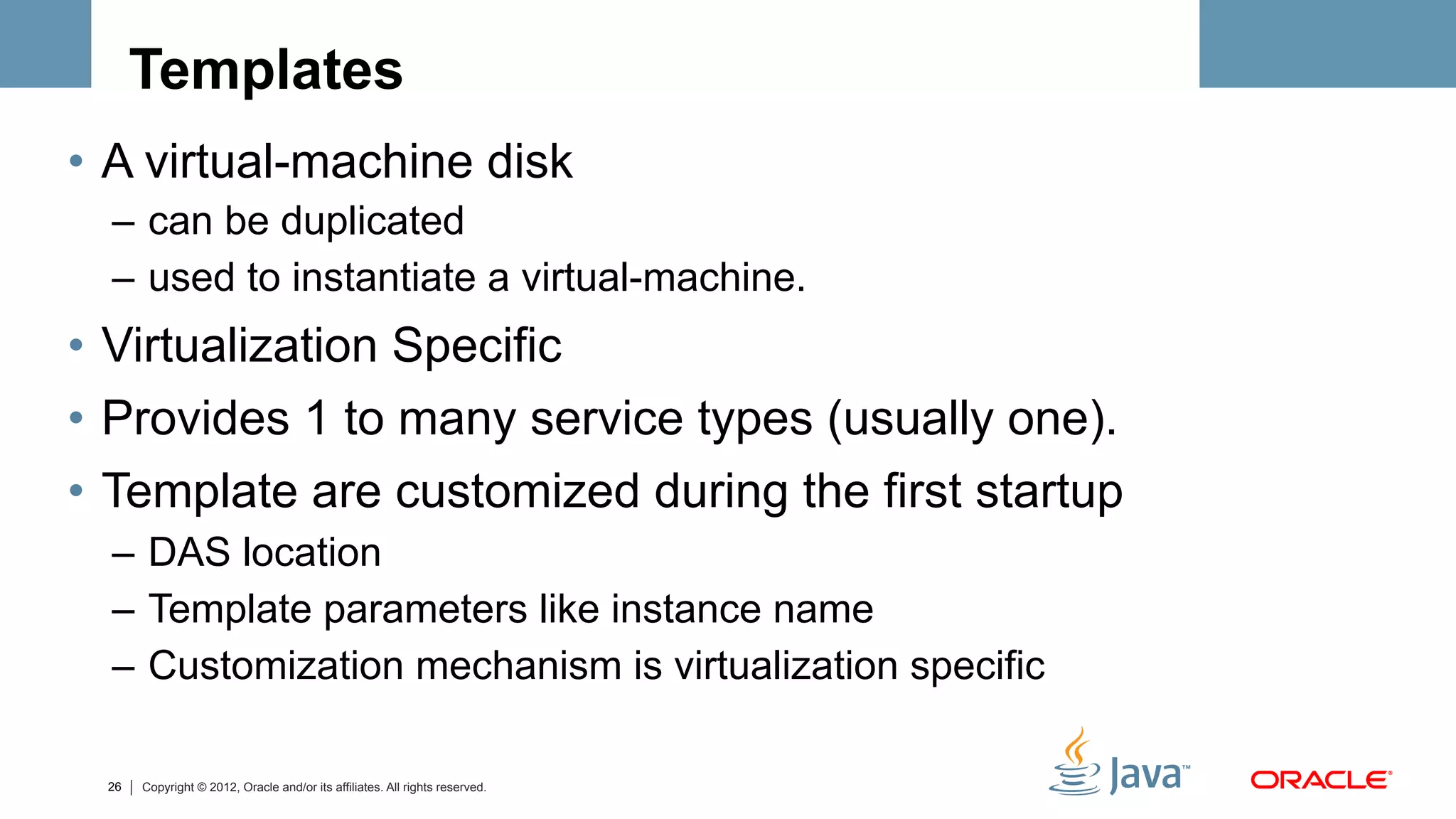

Templates
•  A virtual-machine disk
–  can be duplicated
–  used to instantiate a virtual-machine.
•  Virtualization Specific
•  Provides 1 to many service types (usually one).
•  Template are customized during the first startup
–  DAS location
–  Template parameters like instance name
–  Customization mechanism is virtualization specific

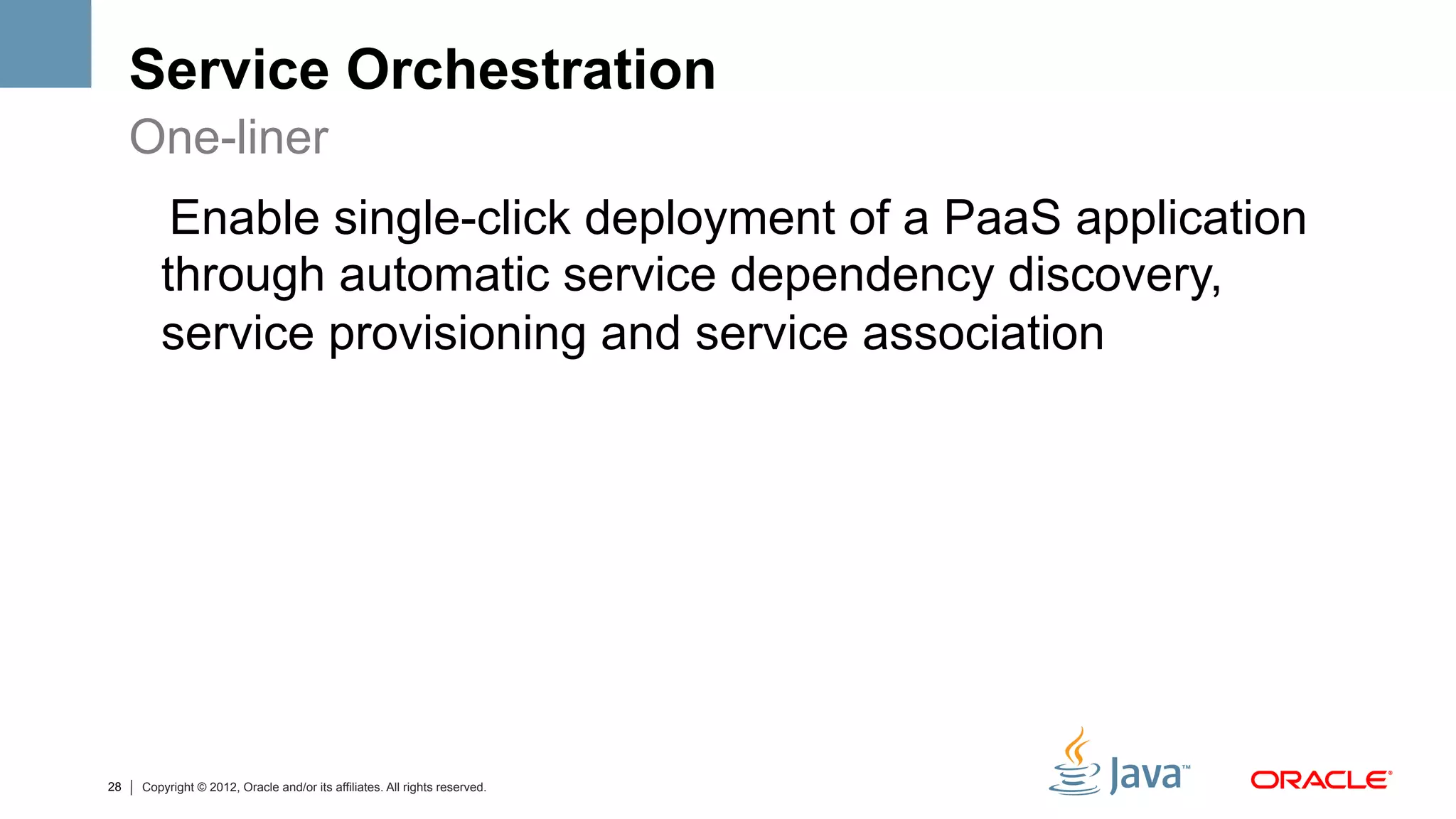

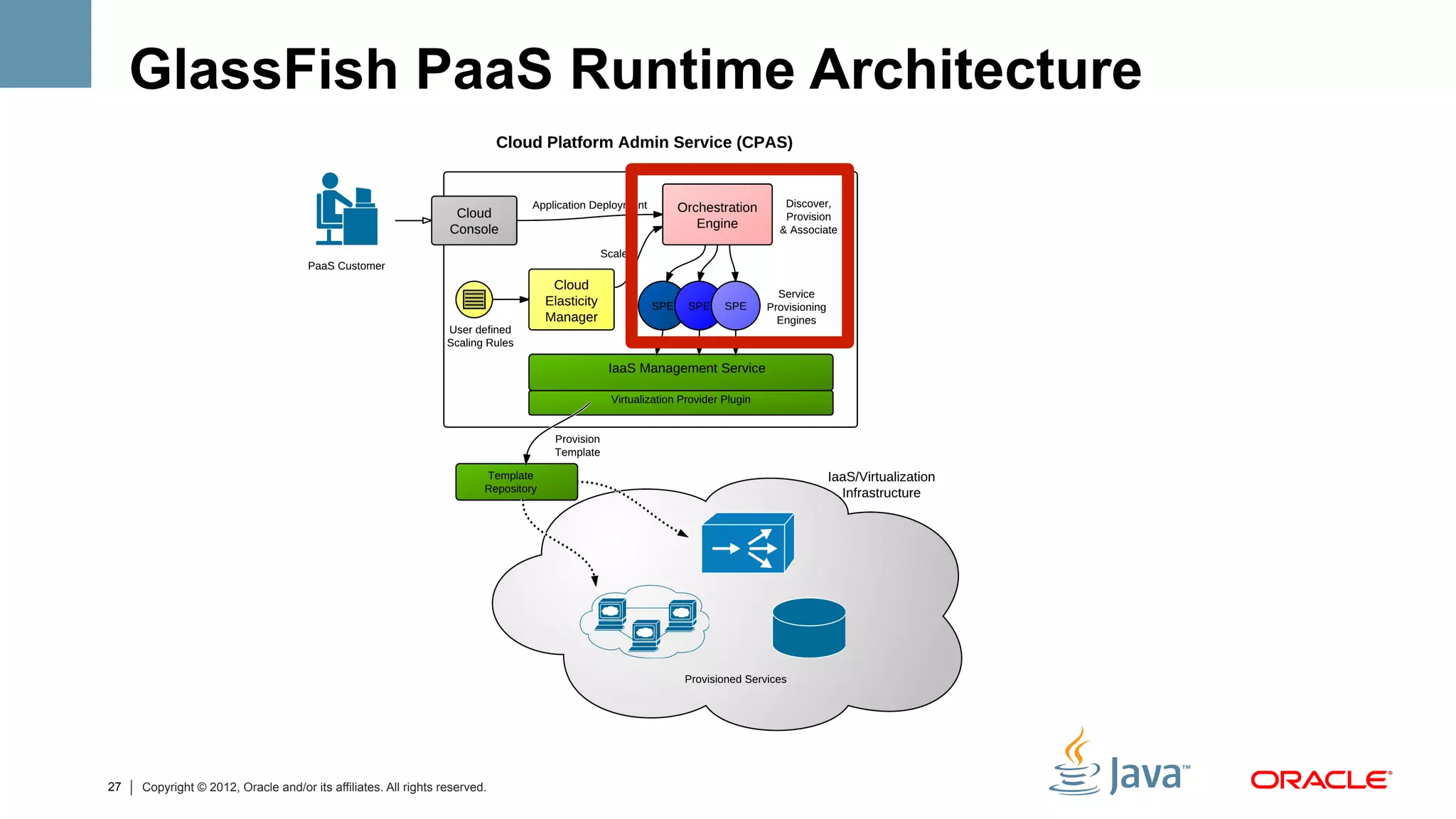

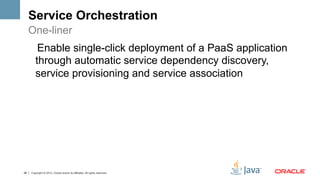

Service Orchestration
One-liner
Enable single-click deployment of a PaaS application
through automatic service dependency discovery,
service provisioning and service association

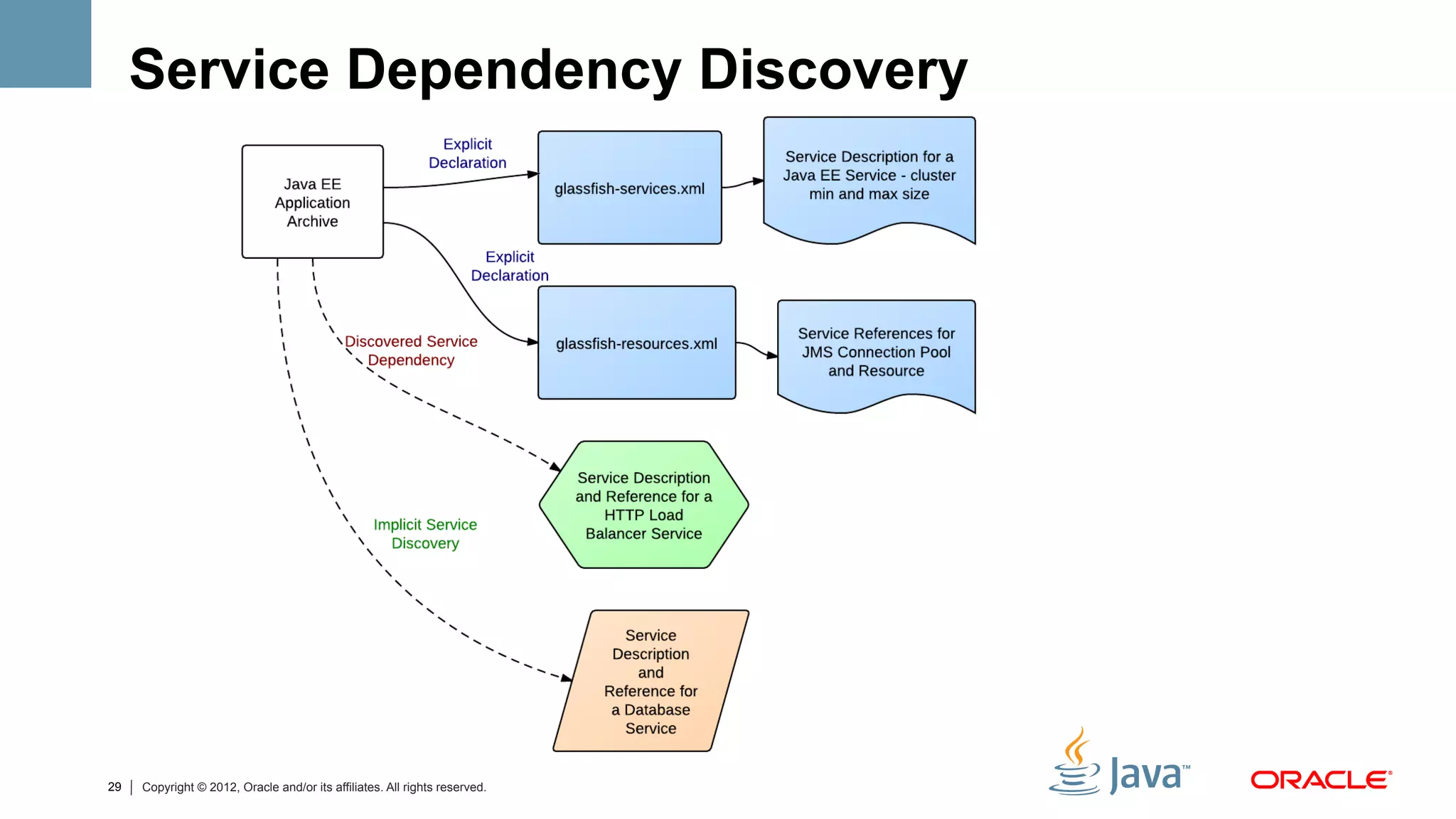

Service Dependency Discovery

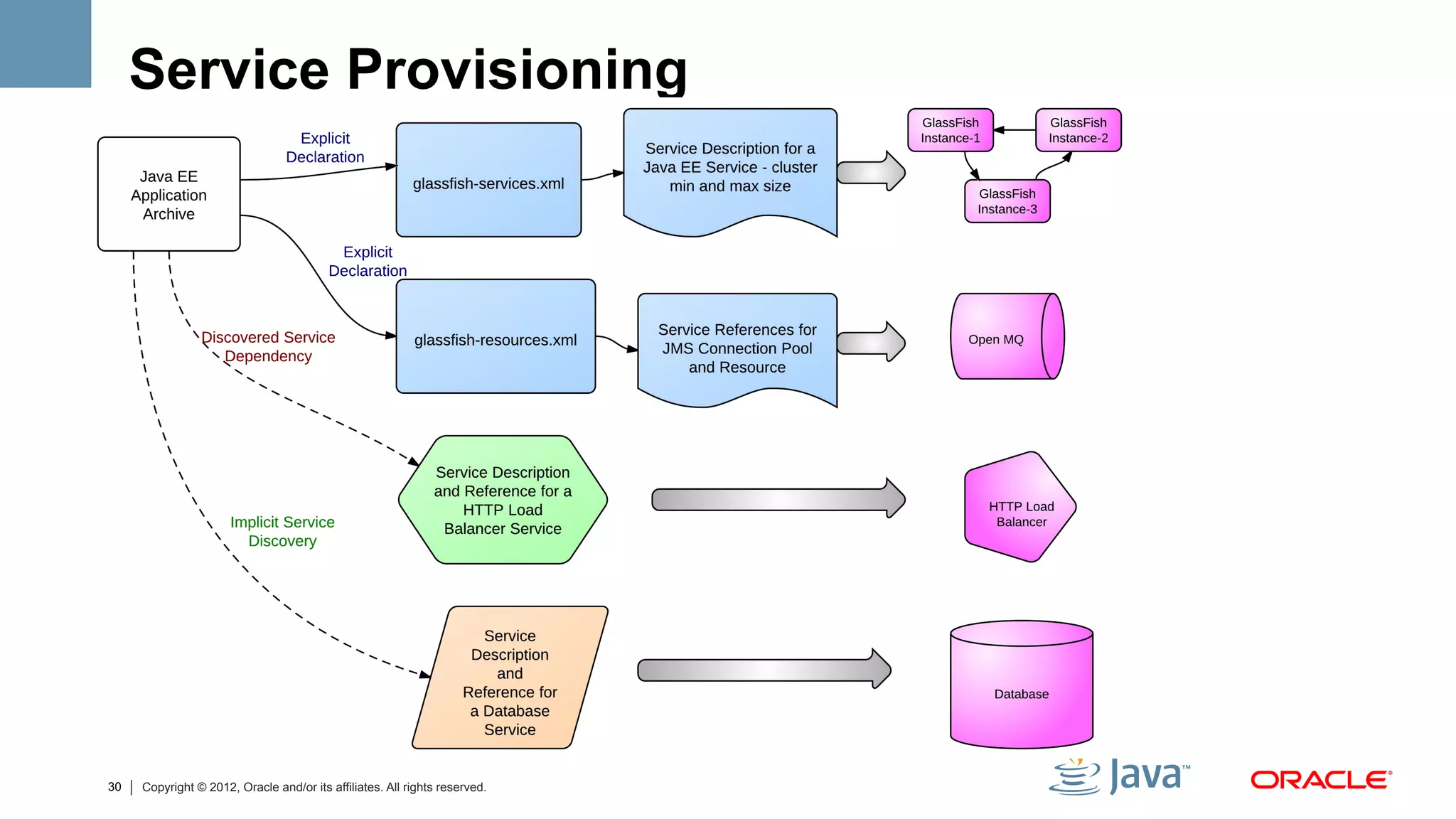

Service Provisioning

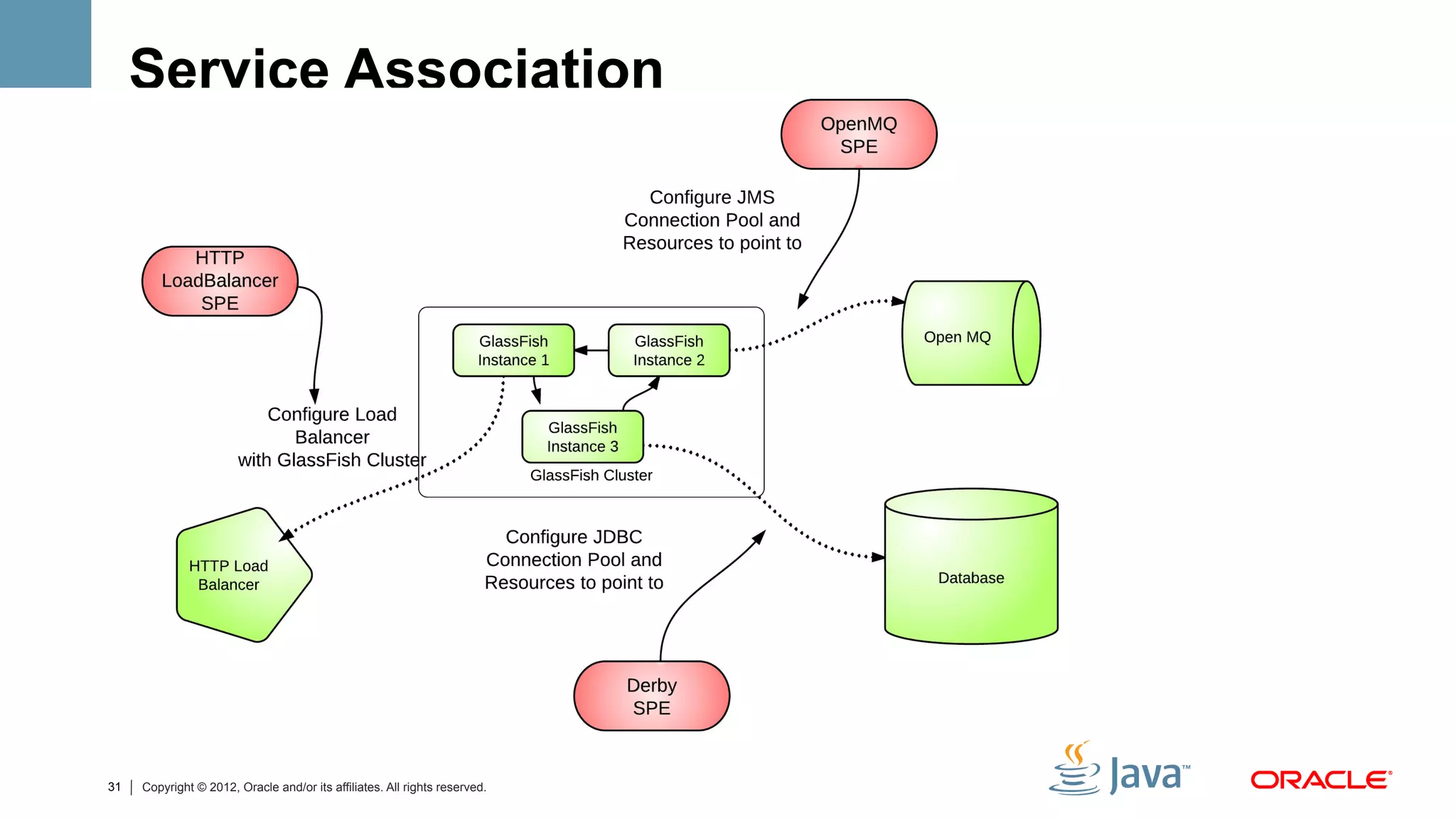

Service Association

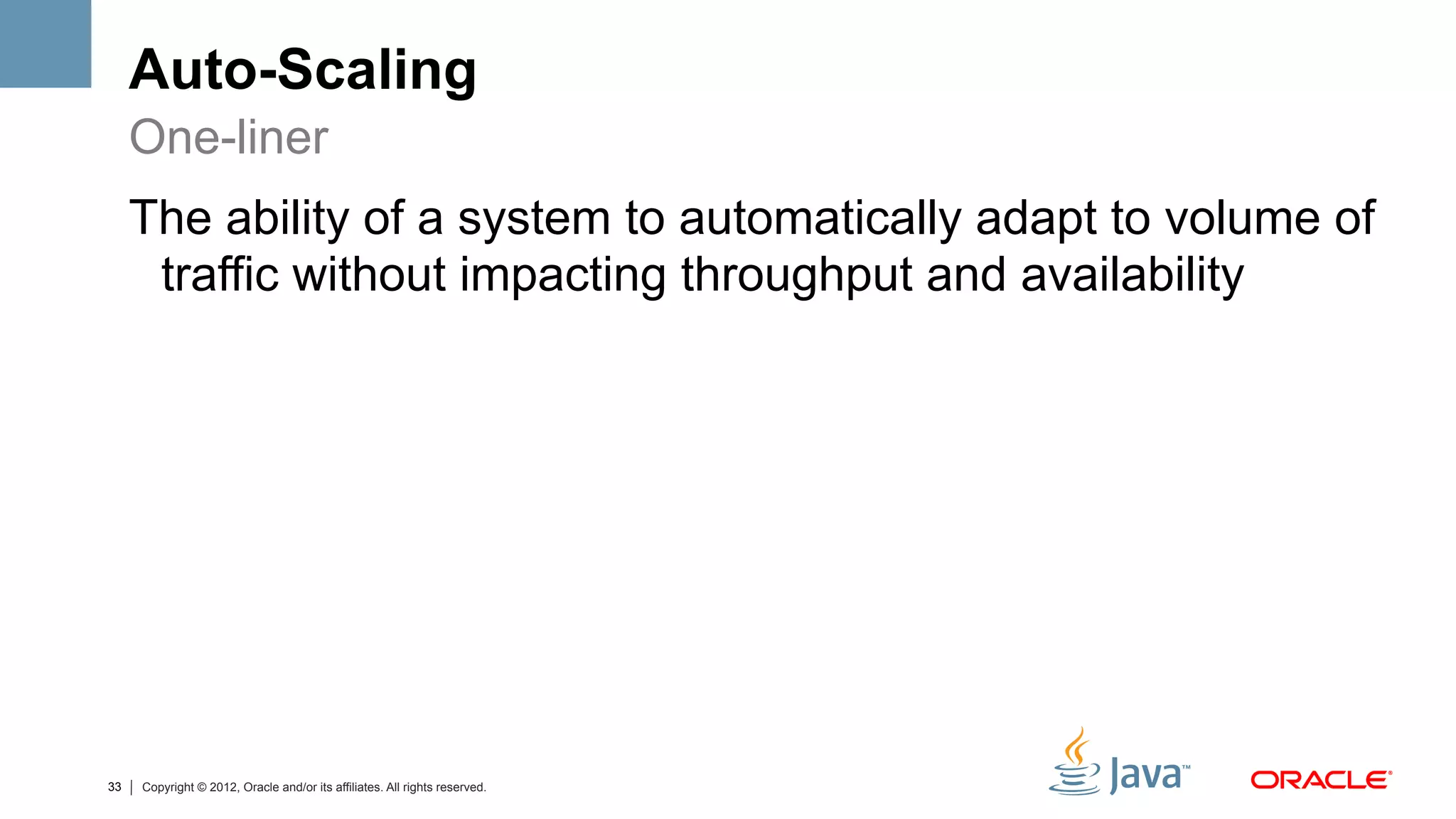

Auto-Scaling
One-liner
The ability of a system to automatically adapt to volume of
traffic without impacting throughput and availability

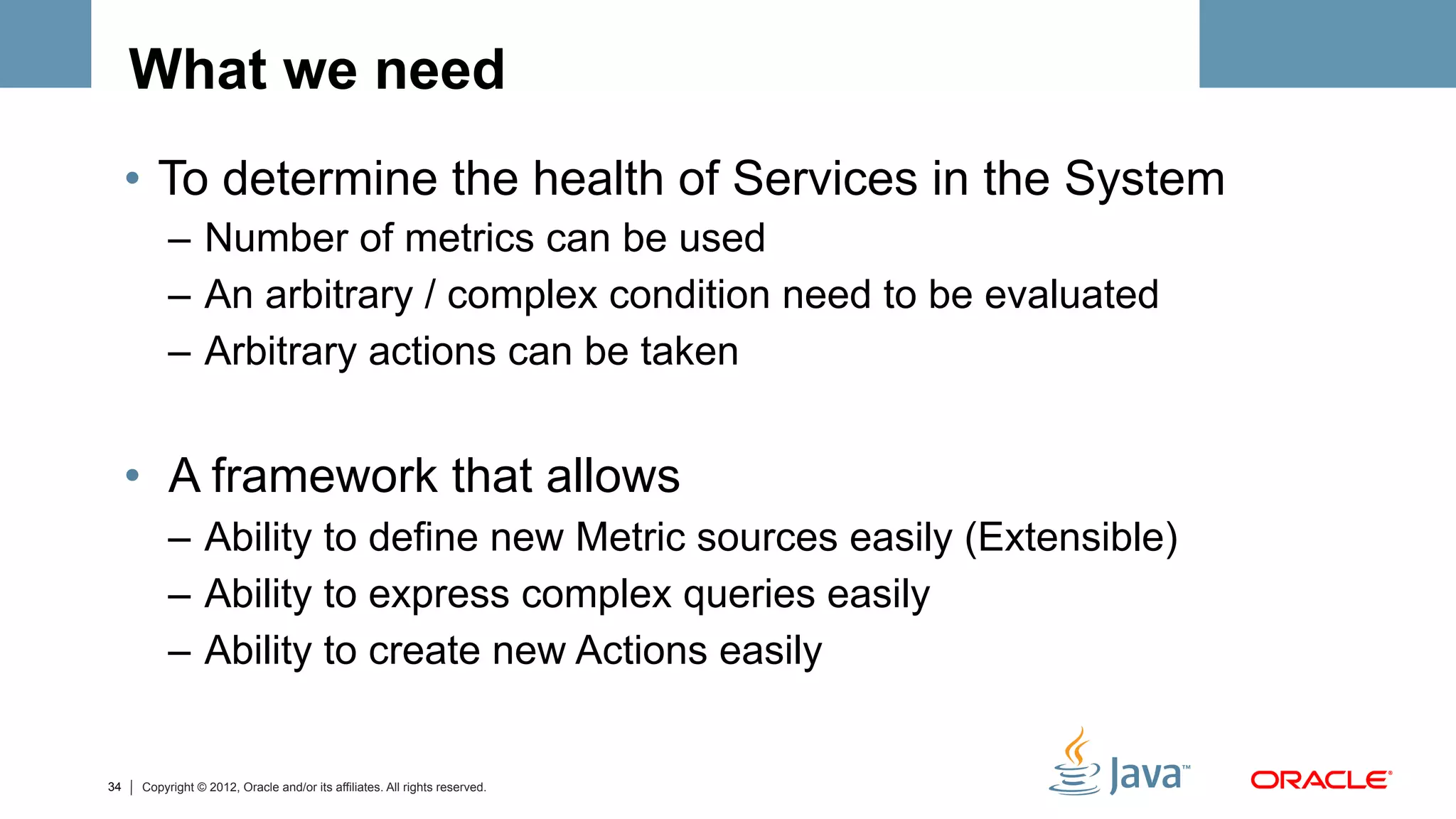

What we need
•  To determine the health of Services in the System
–  Number of metrics can be used
–  An arbitrary / complex condition need to be evaluated
–  Arbitrary actions can be taken

•  A framework that allows
–  Ability to define new Metric sources easily (Extensible)
–  Ability to express complex queries easily
–  Ability to create new Actions easily

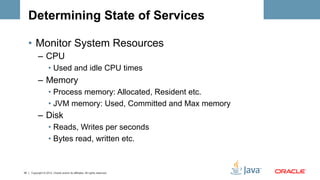

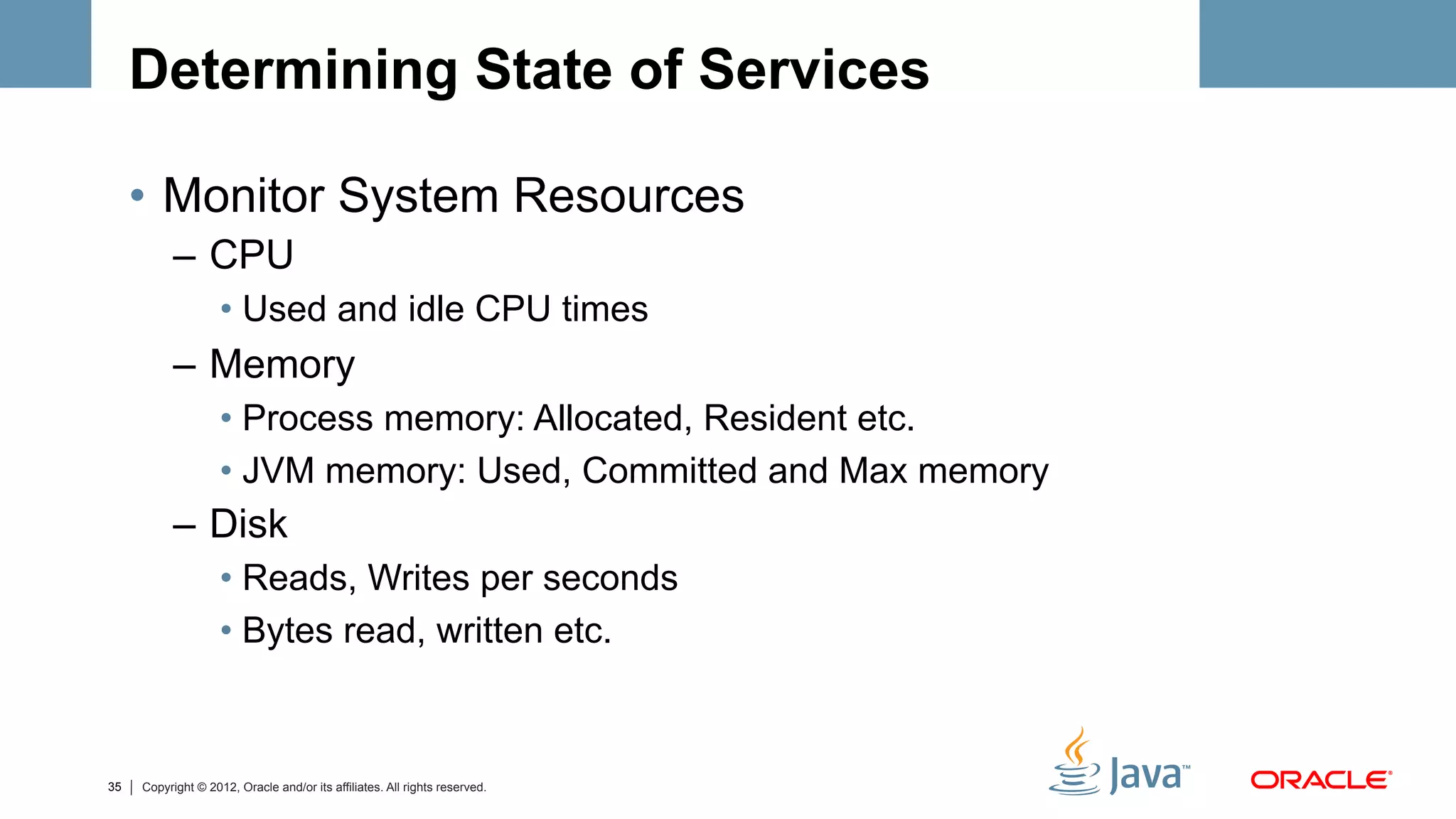

Determining State of Services

•  Monitor System Resources
–  CPU
•  Used and idle CPU times
–  Memory
•  Process memory: Allocated, Resident etc.
•  JVM memory: Used, Committed and Max memory
–  Disk
•  Reads, Writes per seconds
•  Bytes read, written etc.

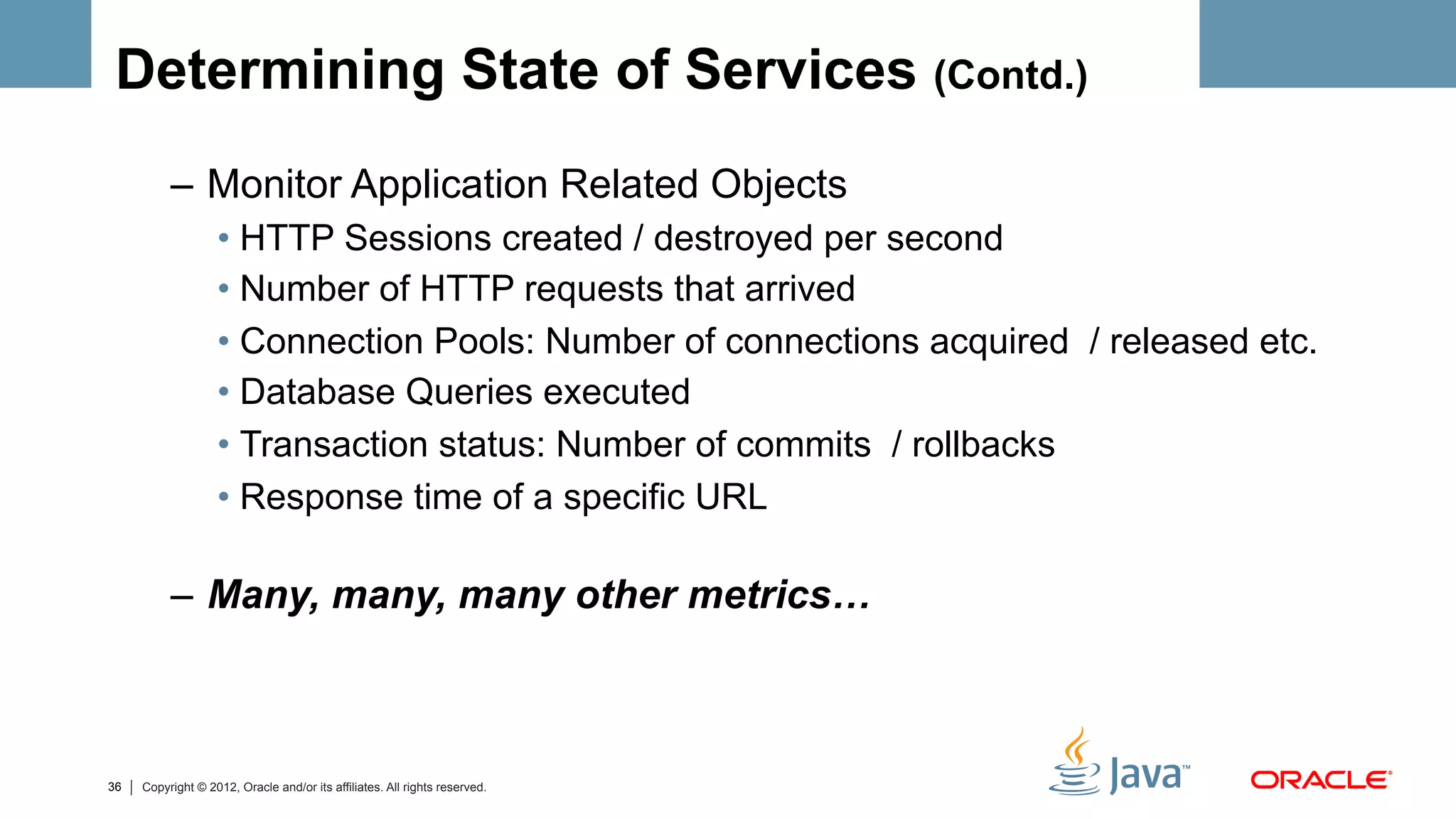

Determining State of Services (Contd.)
–  Monitor Application Related Objects
•  HTTP Sessions created / destroyed per second
•  Number of HTTP requests that arrived
•  Connection Pools: Number of connections acquired / released etc.
•  Database Queries executed
•  Transaction status: Number of commits / rollbacks
•  Response time of a specific URL

–  Many, many, many other metrics…

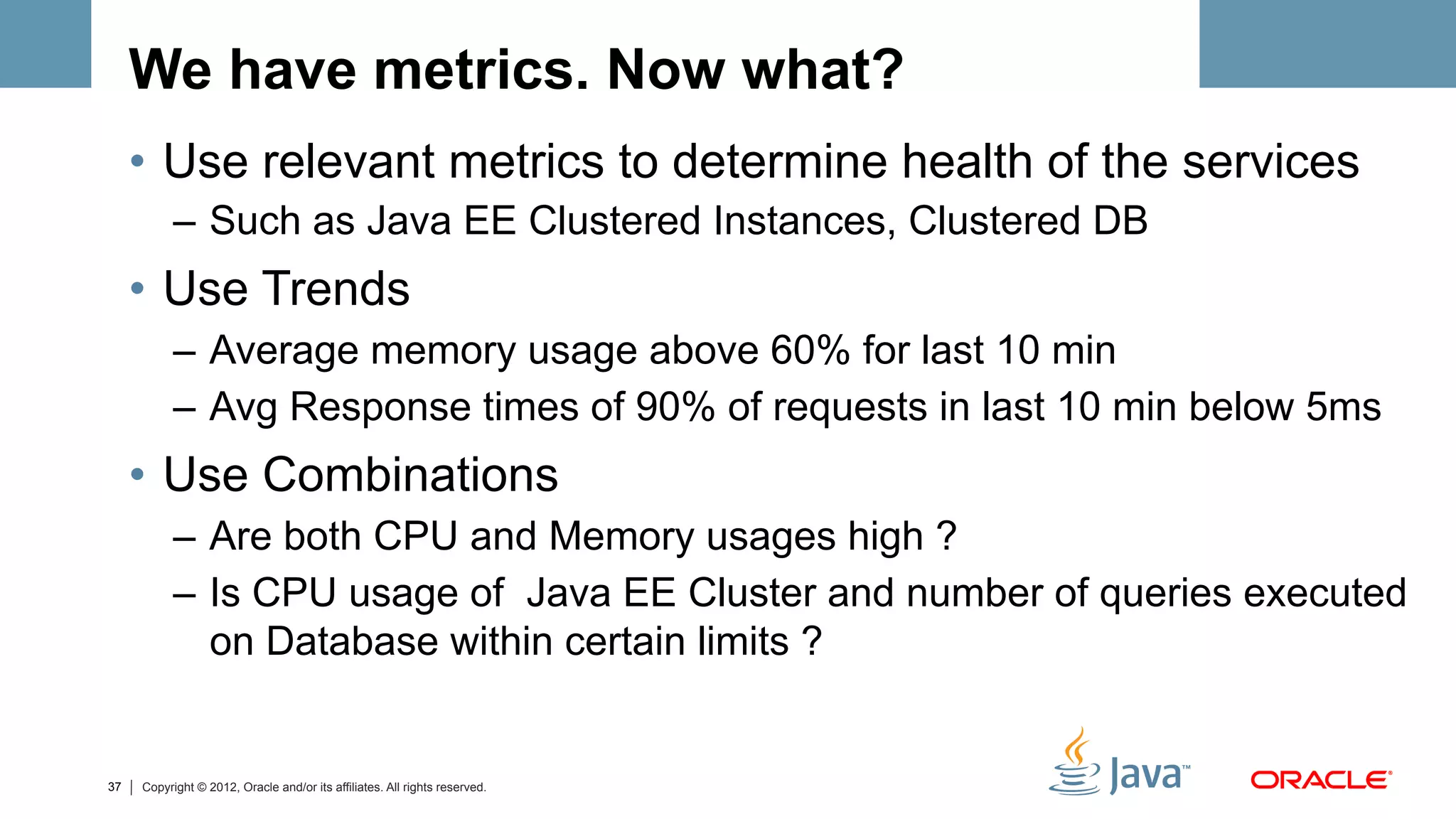

We have metrics. Now what?
•  Use relevant metrics to determine health of the services
–  Such as Java EE Clustered Instances, Clustered DB
•  Use Trends
–  Average memory usage above 60% for last 10 min
–  Avg Response times of 90% of requests in last 10 min below 5ms
•  Use Combinations
–  Are both CPU and Memory usages high ?
–  Is CPU usage of Java EE Cluster and number of queries executed
on Database within certain limits ?

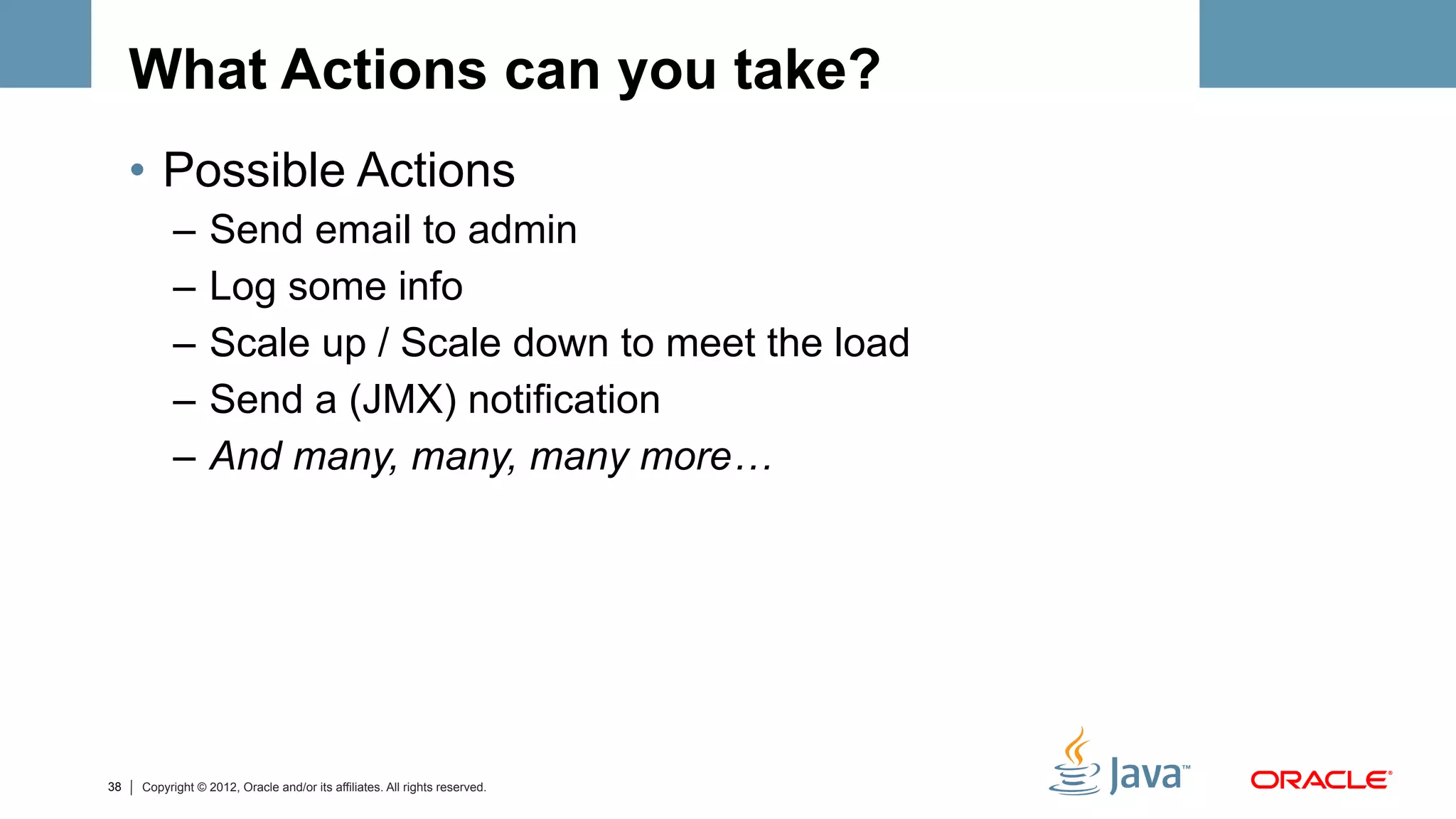

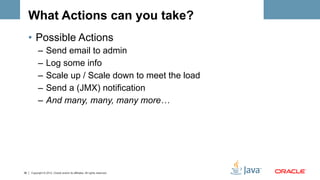

What Actions can you take?
•  Possible Actions
–  Send email to admin
–  Log some info
–  Scale up / Scale down to meet the load
–  Send a (JMX) notification
–  And many, many, many more…

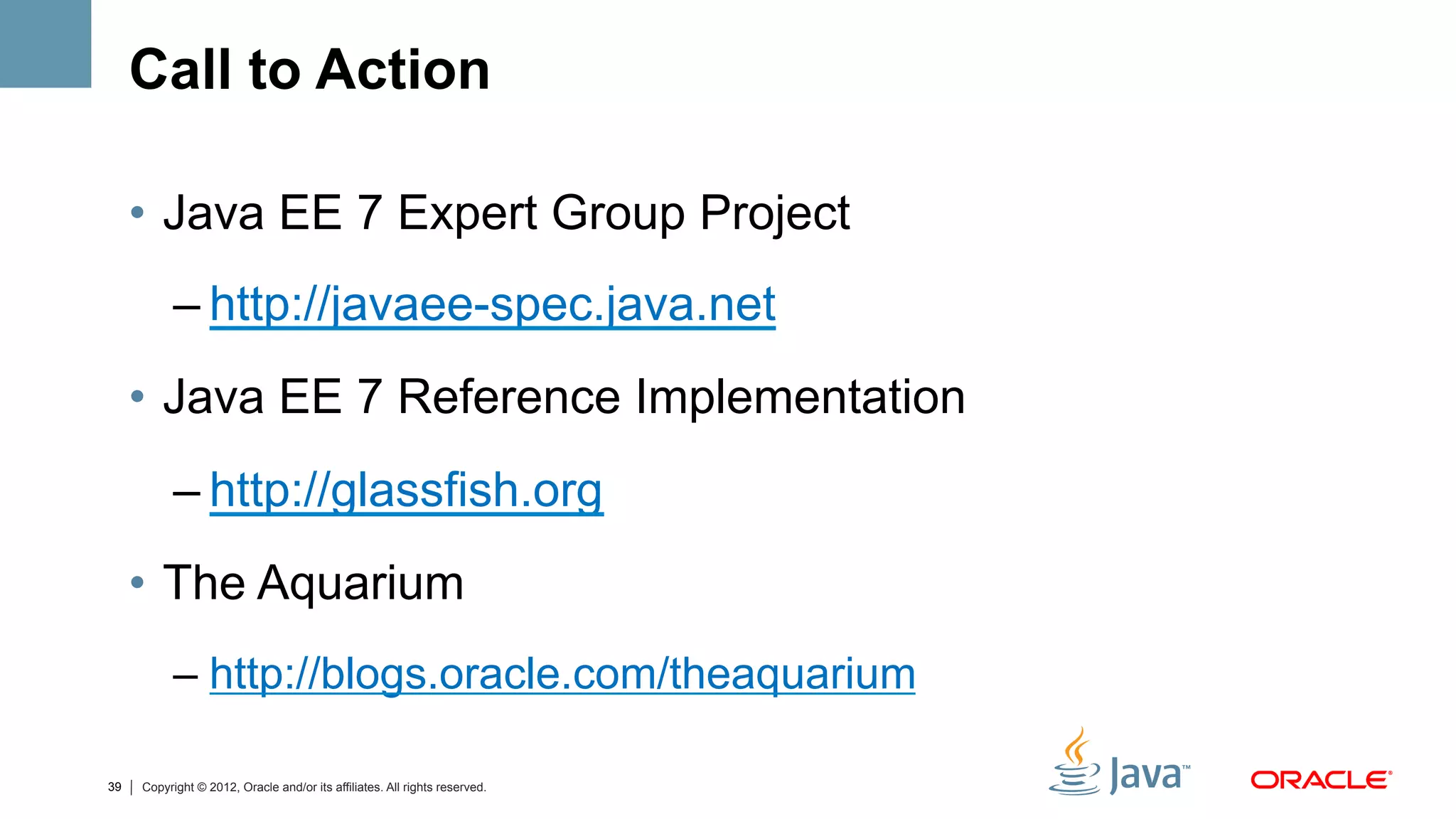

Call to Action

•  Java EE 7 Expert Group Project
– http://javaee-spec.java.net
•  Java EE 7 Reference Implementation
– http://glassfish.org
•  The Aquarium
–  http://blogs.oracle.com/theaquarium


PaaSing a Java EE Application
Arun Gupta, Java EE & GlassFish Guy
blogs.oracle.com/arungupta, @arungupta
