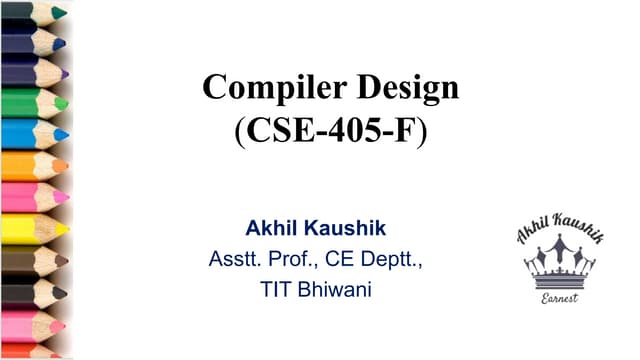

- 1. Akhil Kaushik Asstt. Prof.,CE Deptt., TIT Bhiwani Parsing Introduction

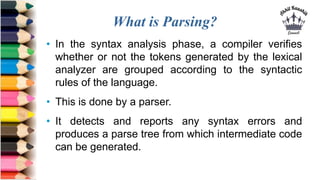

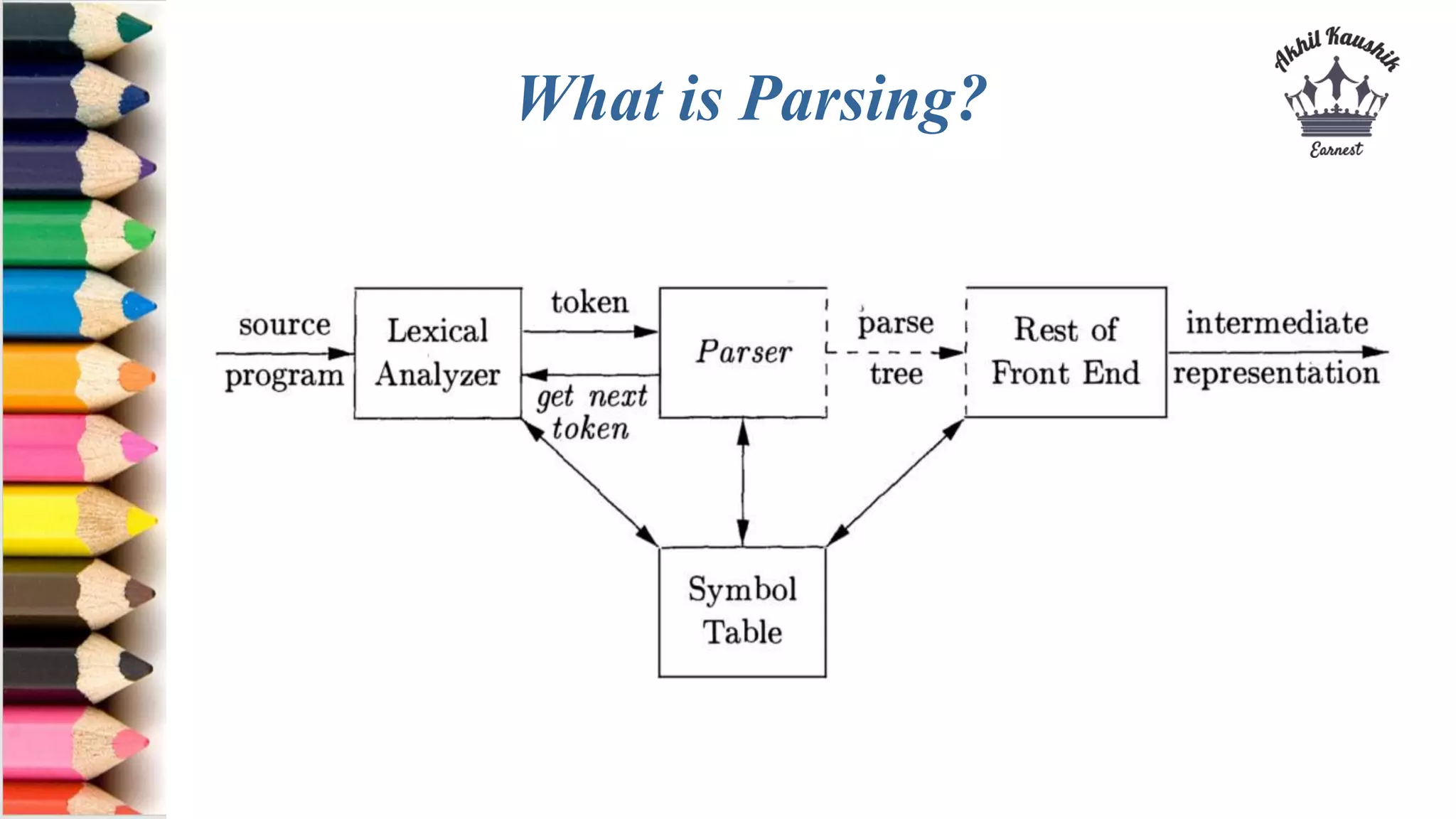

- 2. What is Parsing? •In the syntax analysis phase, a compiler verifies whether or not the tokens generated by the lexical analyzer are grouped according to the syntactic rules of the language. • This is done by a parser. • It detects and reports any syntax errors and produces a parse tree from which intermediate code can be generated.
- 3.

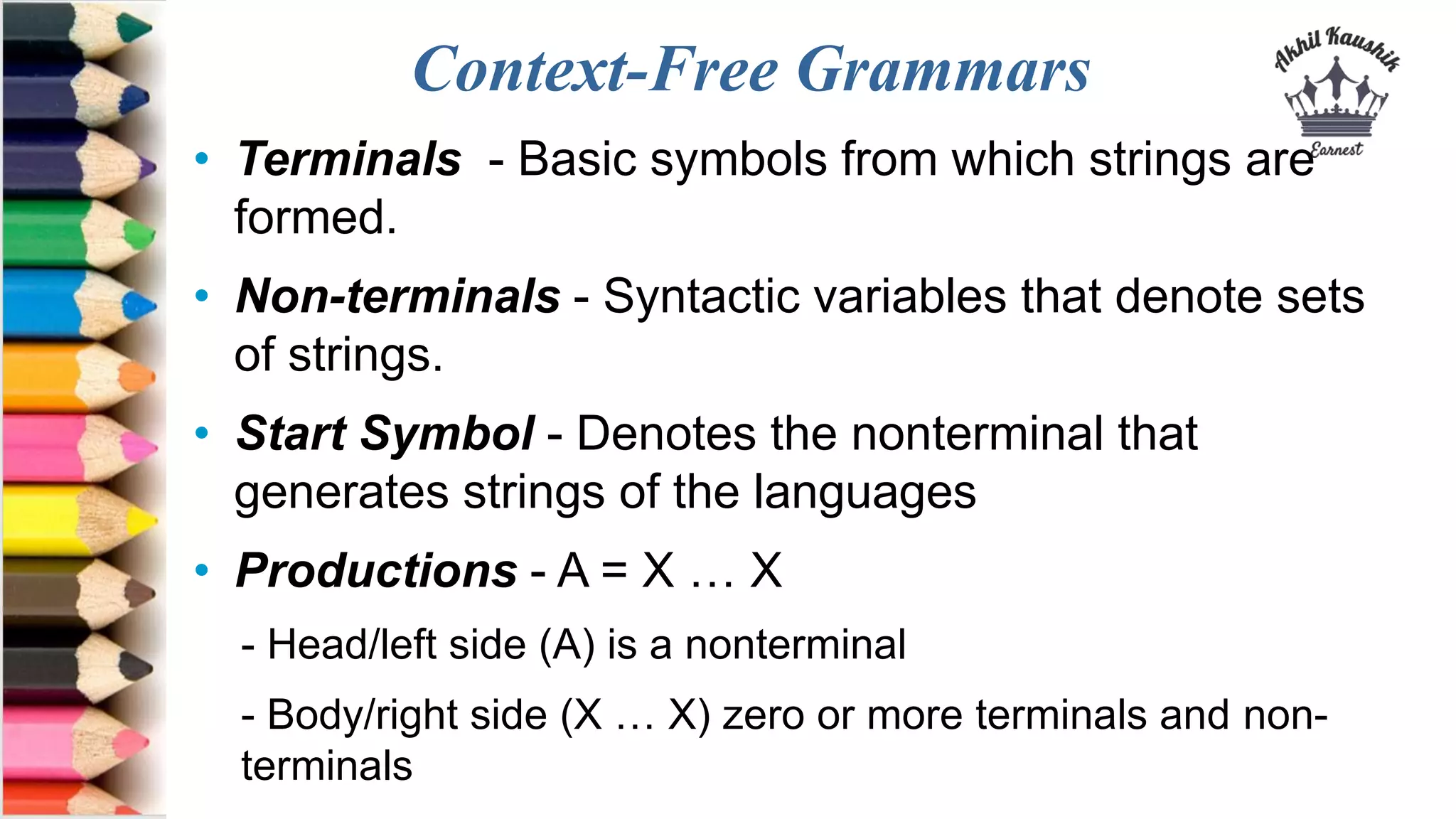

- 4. Context-Free Grammars • Terminals- Basic symbols from which strings are formed. • Non-terminals - Syntactic variables that denote sets of strings. • Start Symbol - Denotes the nonterminal that generates strings of the languages • Productions - A = X … X - Head/left side (A) is a nonterminal - Body/right side (X … X) zero or more terminals and non- terminals

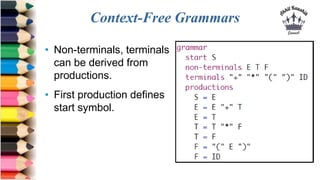

- 5. Context-Free Grammars • Non-terminals,terminals can be derived from productions. • First production defines start symbol.

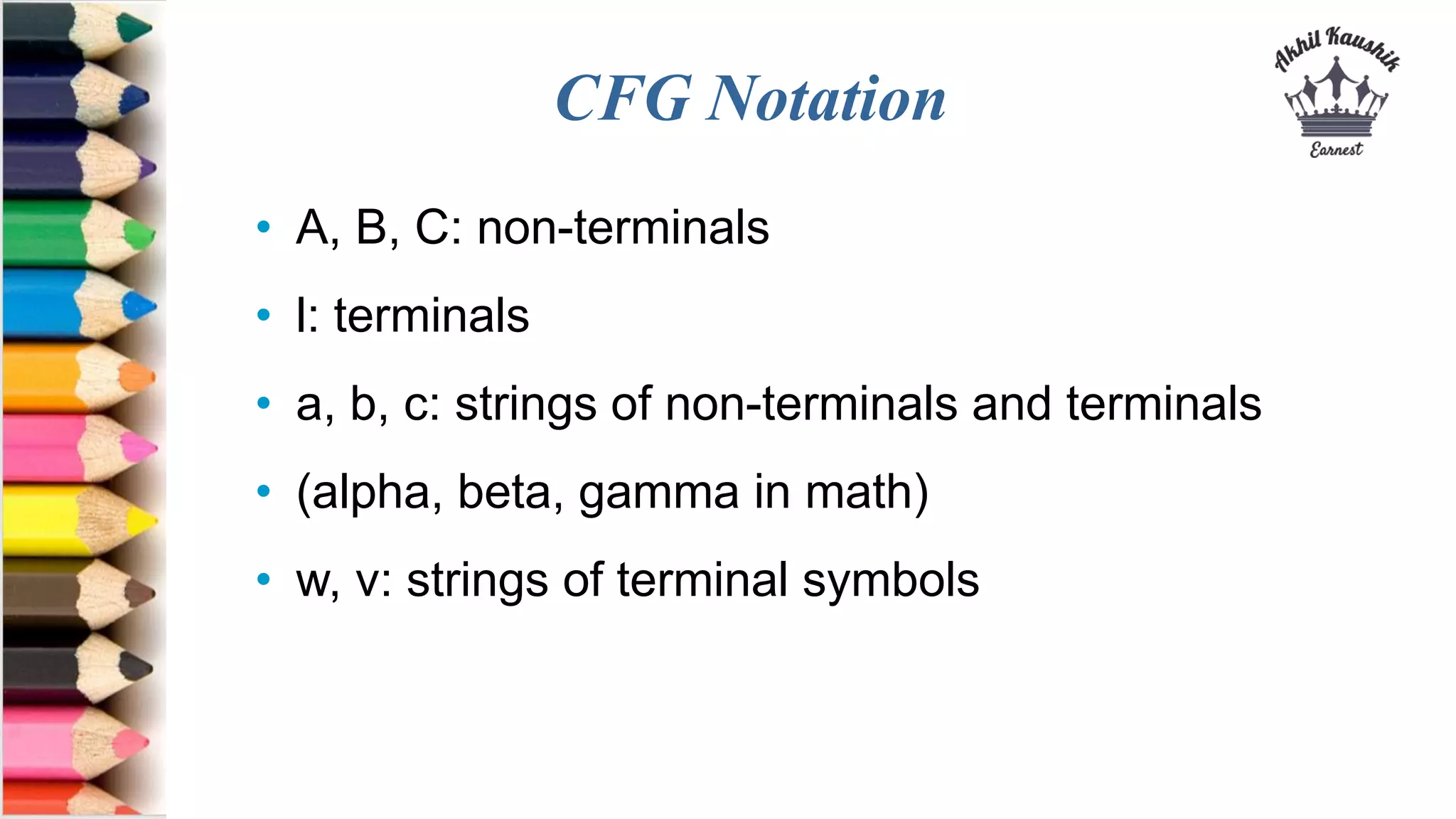

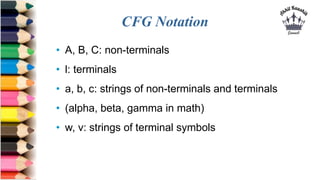

- 6. CFG Notation • A,B, C: non-terminals • l: terminals • a, b, c: strings of non-terminals and terminals • (alpha, beta, gamma in math) • w, v: strings of terminal symbols

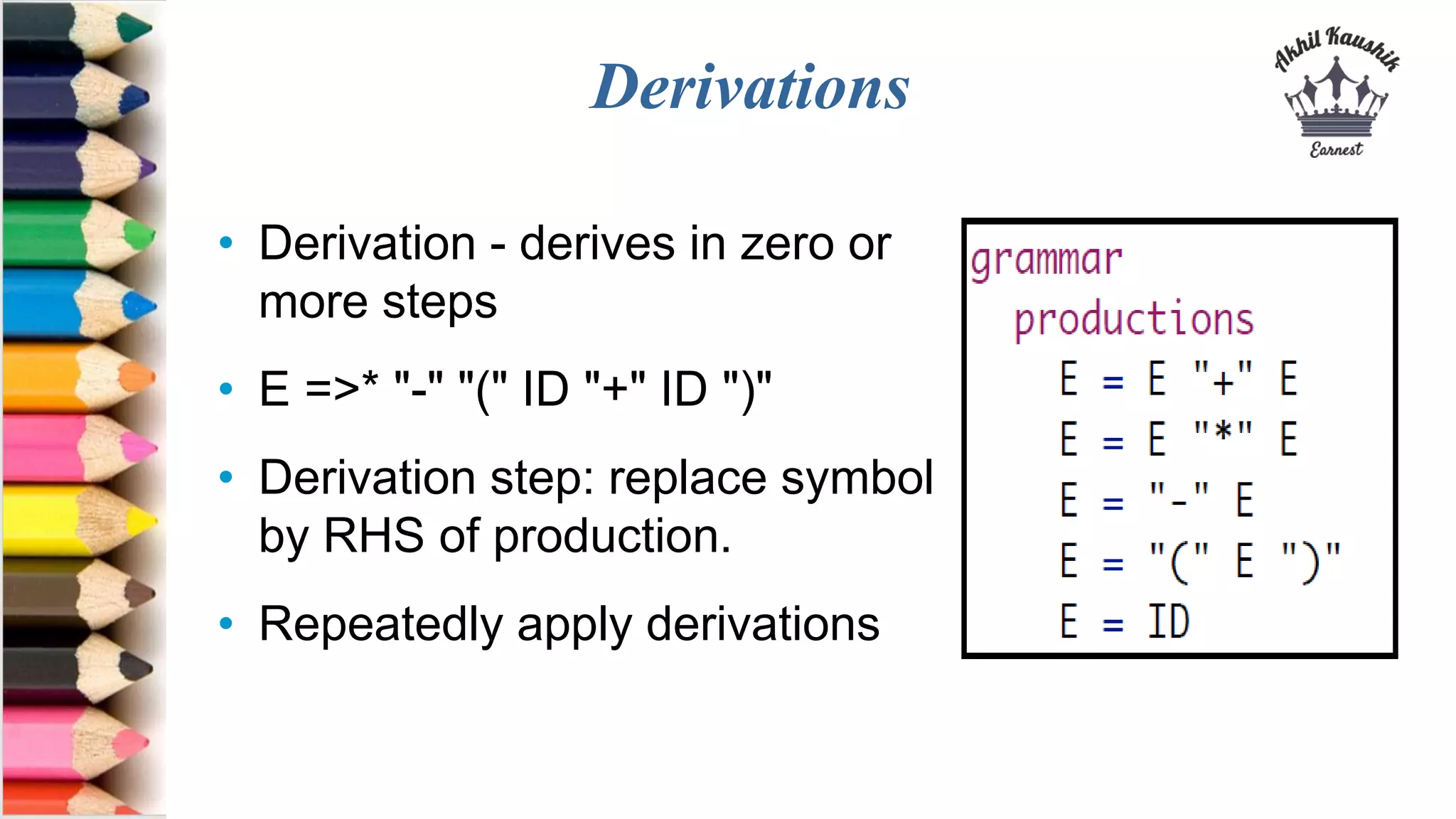

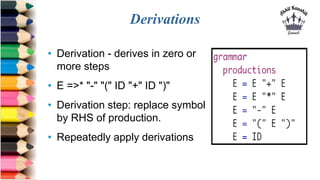

- 7. Derivations • Derivation -derives in zero or more steps • E =>* "-" "(" ID "+" ID ")" • Derivation step: replace symbol by RHS of production. • Repeatedly apply derivations

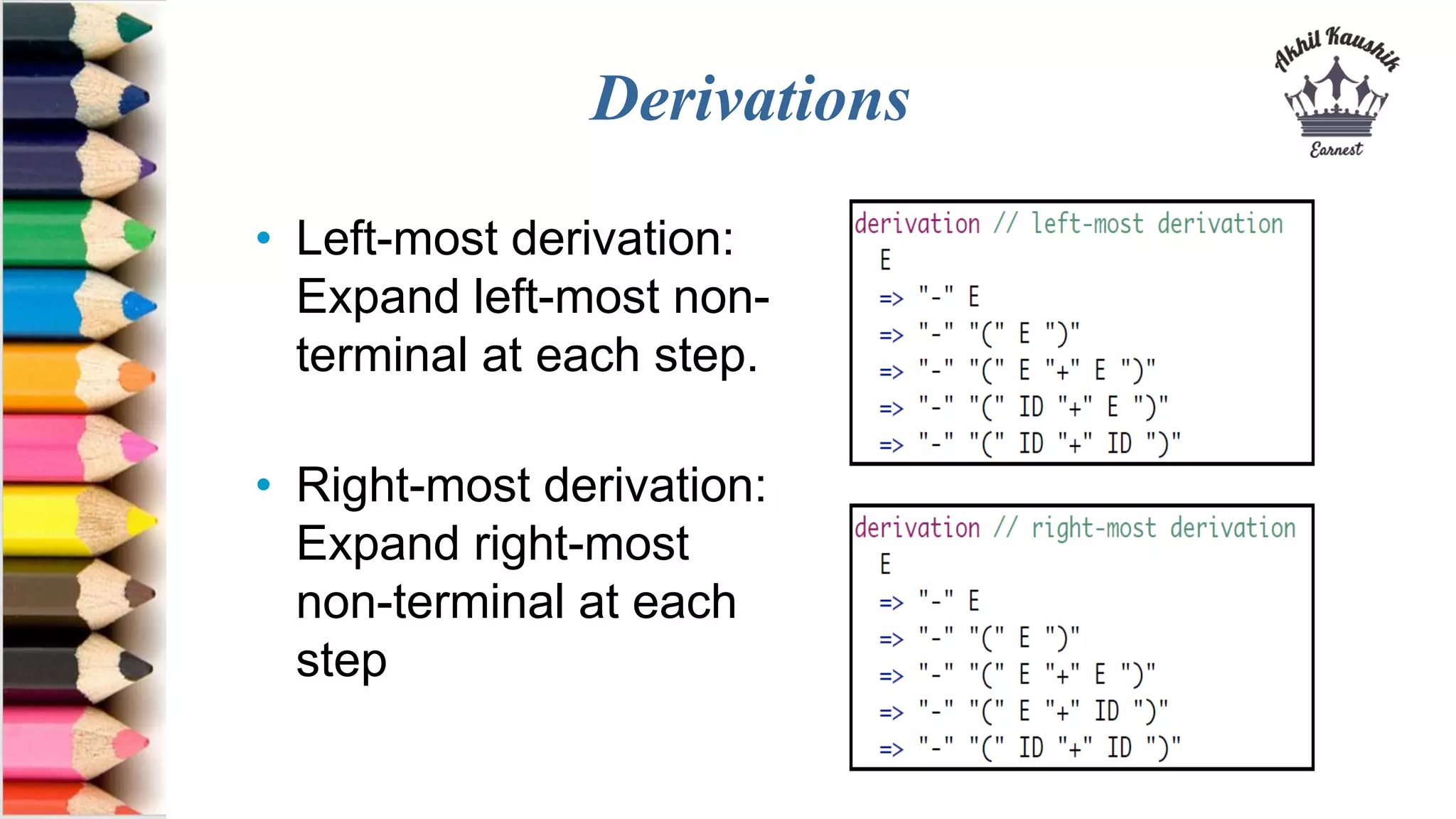

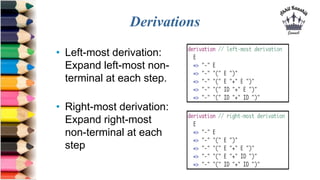

- 8. Derivations • Left-most derivation: Expandleft-most non- terminal at each step. • Right-most derivation: Expand right-most non-terminal at each step

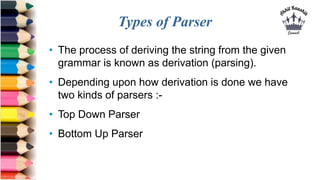

- 9. Types of Parser •The process of deriving the string from the given grammar is known as derivation (parsing). • Depending upon how derivation is done we have two kinds of parsers :- • Top Down Parser • Bottom Up Parser

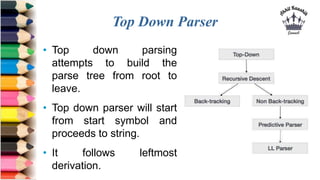

- 10. Top Down Parser •Top down parsing attempts to build the parse tree from root to leave. • Top down parser will start from start symbol and proceeds to string. • It follows leftmost derivation.

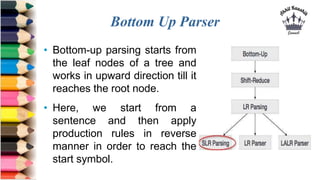

- 11. Bottom Up Parser •Bottom-up parsing starts from the leaf nodes of a tree and works in upward direction till it reaches the root node. • Here, we start from a sentence and then apply production rules in reverse manner in order to reach the start symbol.

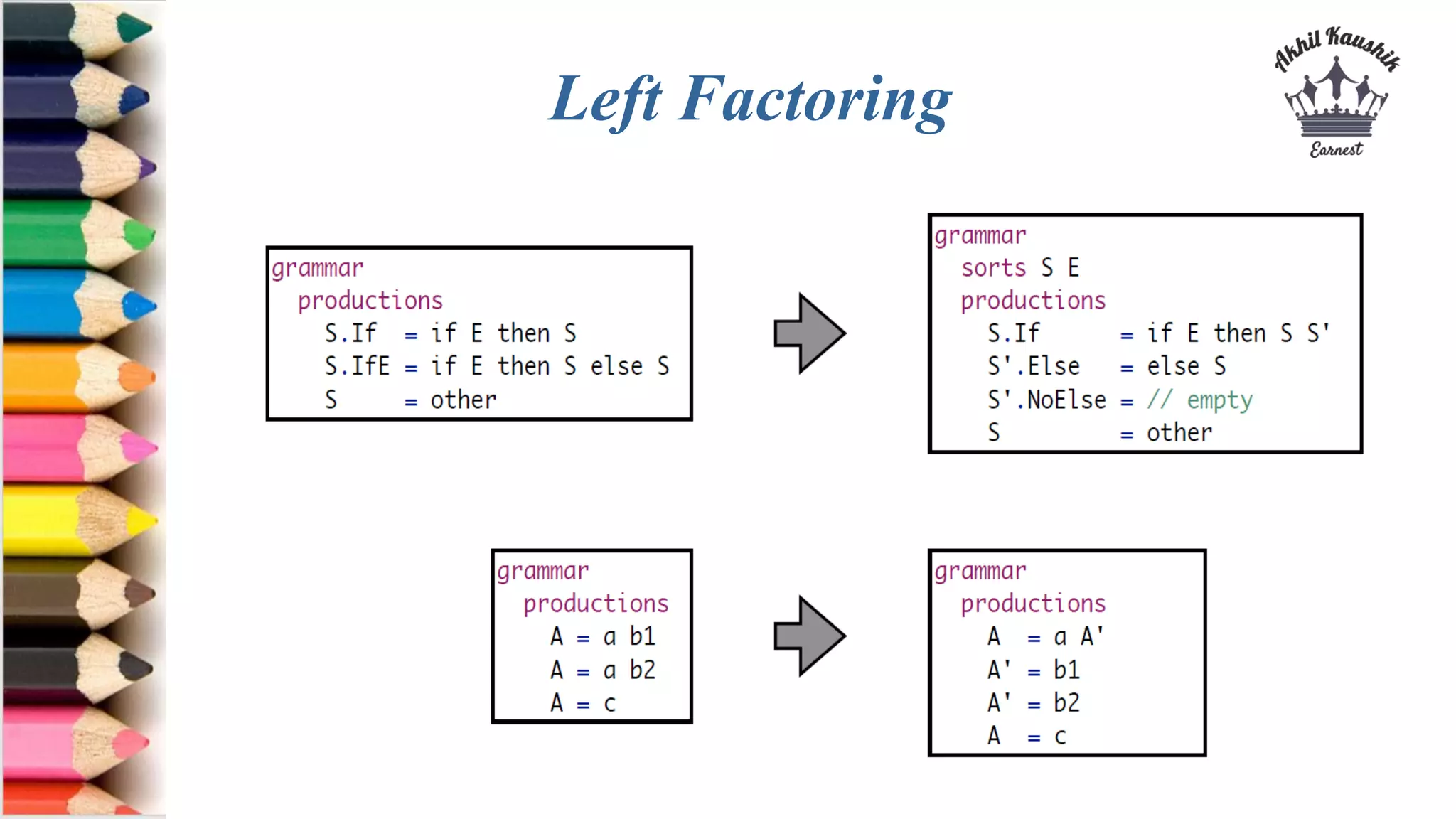

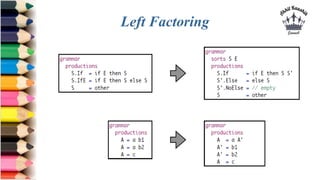

- 12.

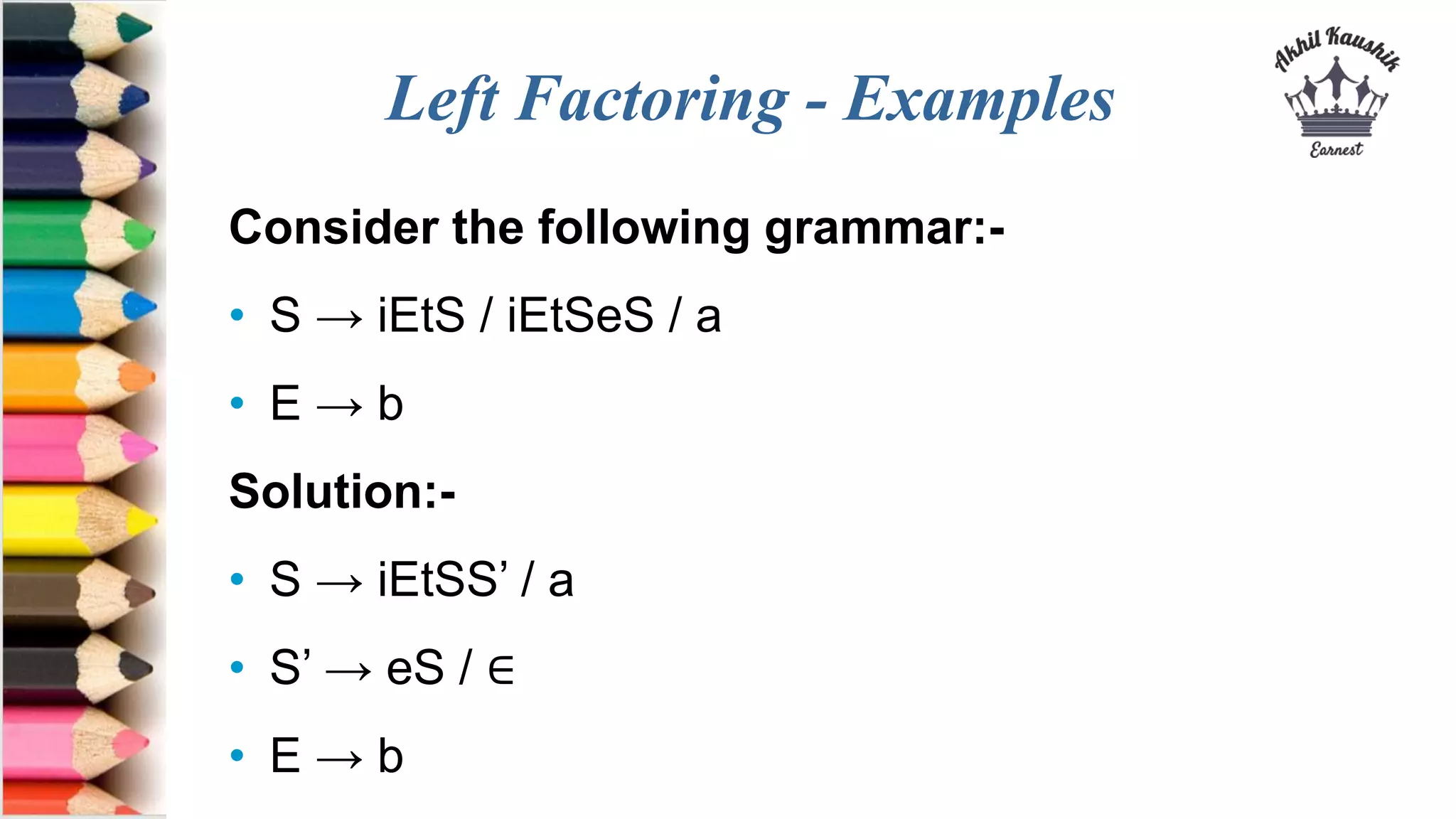

- 13. Left Factoring -Examples Consider the following grammar:- • S → iEtS / iEtSeS / a • E → b Solution:- • S → iEtSS’ / a • S’ → eS / ∈ • E → b

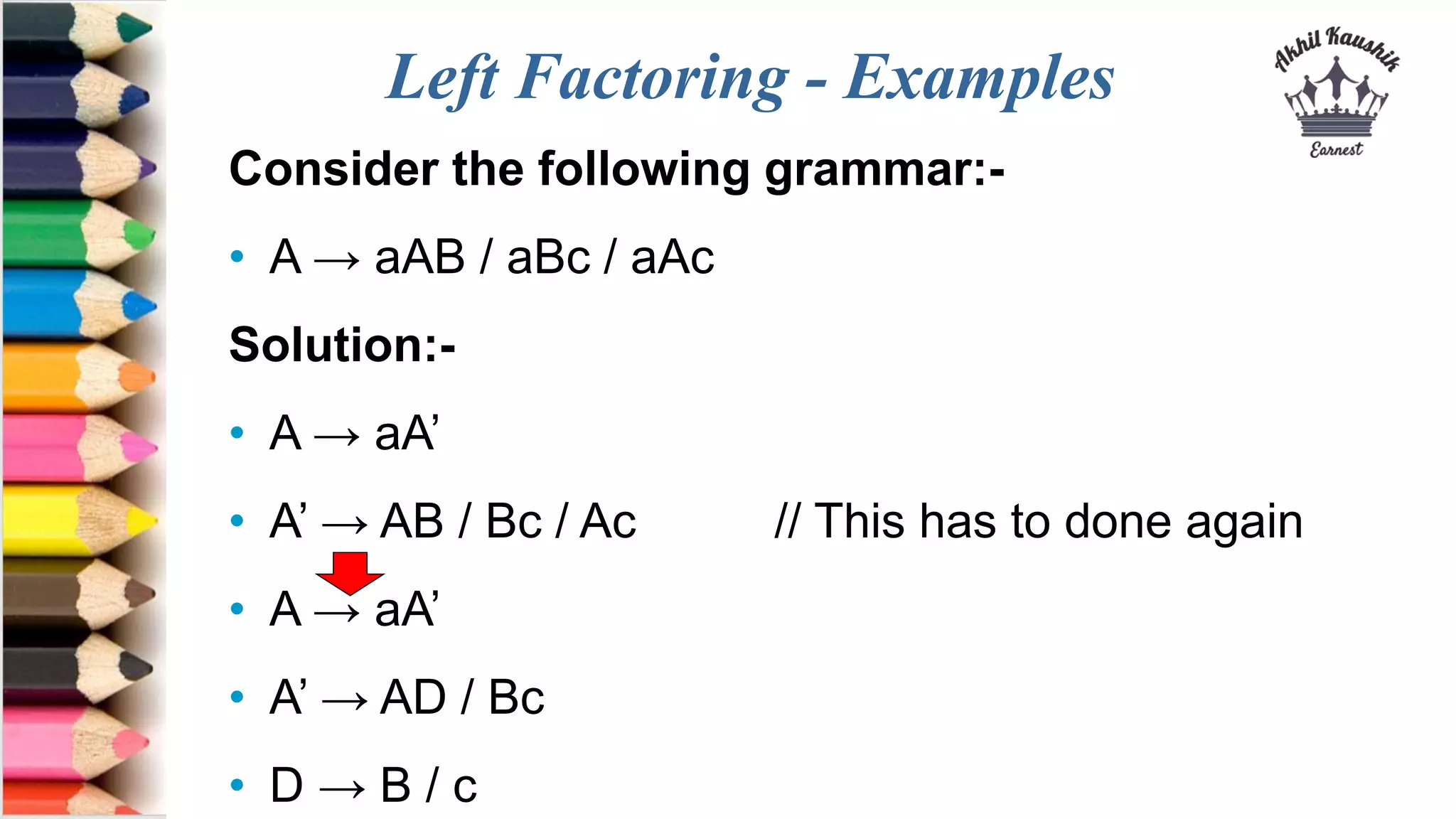

- 14. Left Factoring -Examples Consider the following grammar:- • A → aAB / aBc / aAc Solution:- • A → aA’ • A’ → AB / Bc / Ac // This has to done again • A → aA’ • A’ → AD / Bc • D → B / c

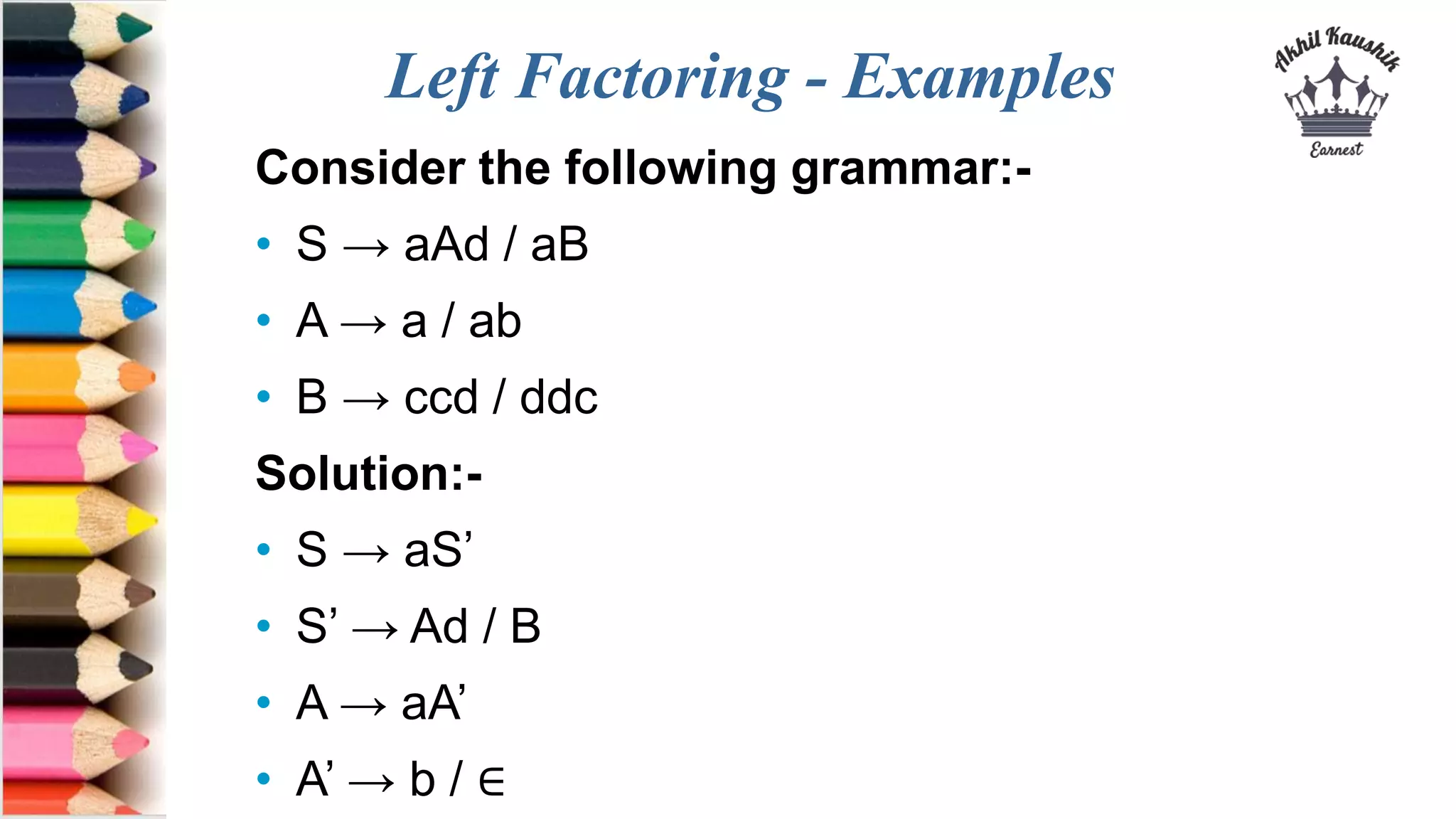

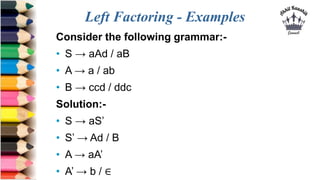

- 15. Left Factoring -Examples Consider the following grammar:- • S → aAd / aB • A → a / ab • B → ccd / ddc Solution:- • S → aS’ • S’ → Ad / B • A → aA’ • A’ → b / ∈

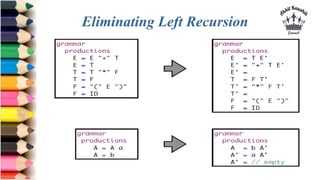

- 16.

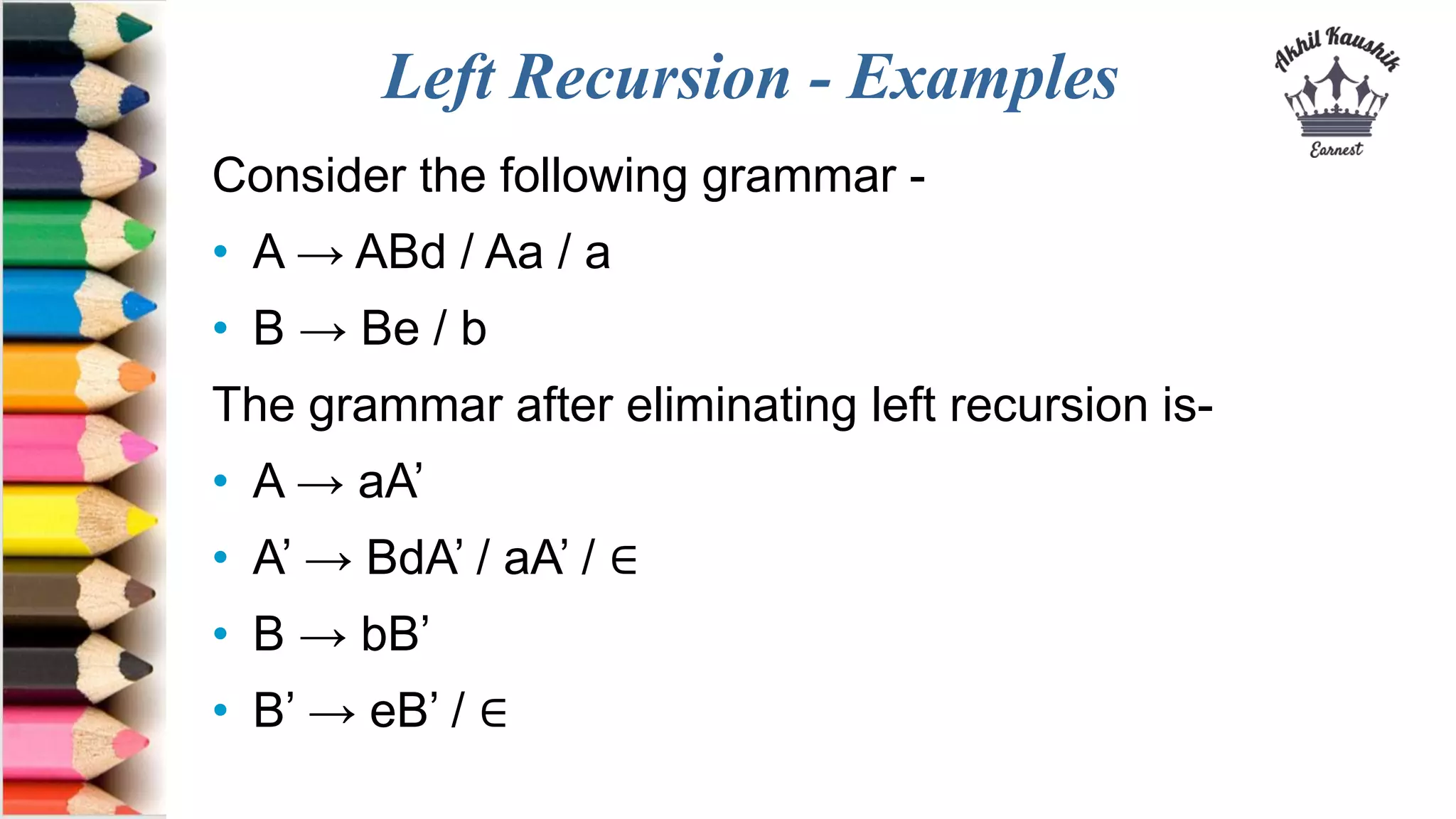

- 17. Left Recursion -Examples Consider the following grammar - • A → ABd / Aa / a • B → Be / b The grammar after eliminating left recursion is- • A → aA’ • A’ → BdA’ / aA’ / ∈ • B → bB’ • B’ → eB’ / ∈
- 18. Left Recursion -Examples Consider the following grammar and eliminate left recursion- • E → E + E / E x E / a The grammar after eliminating left recursion is- • E → aA • A → +EA / xEA / ∈

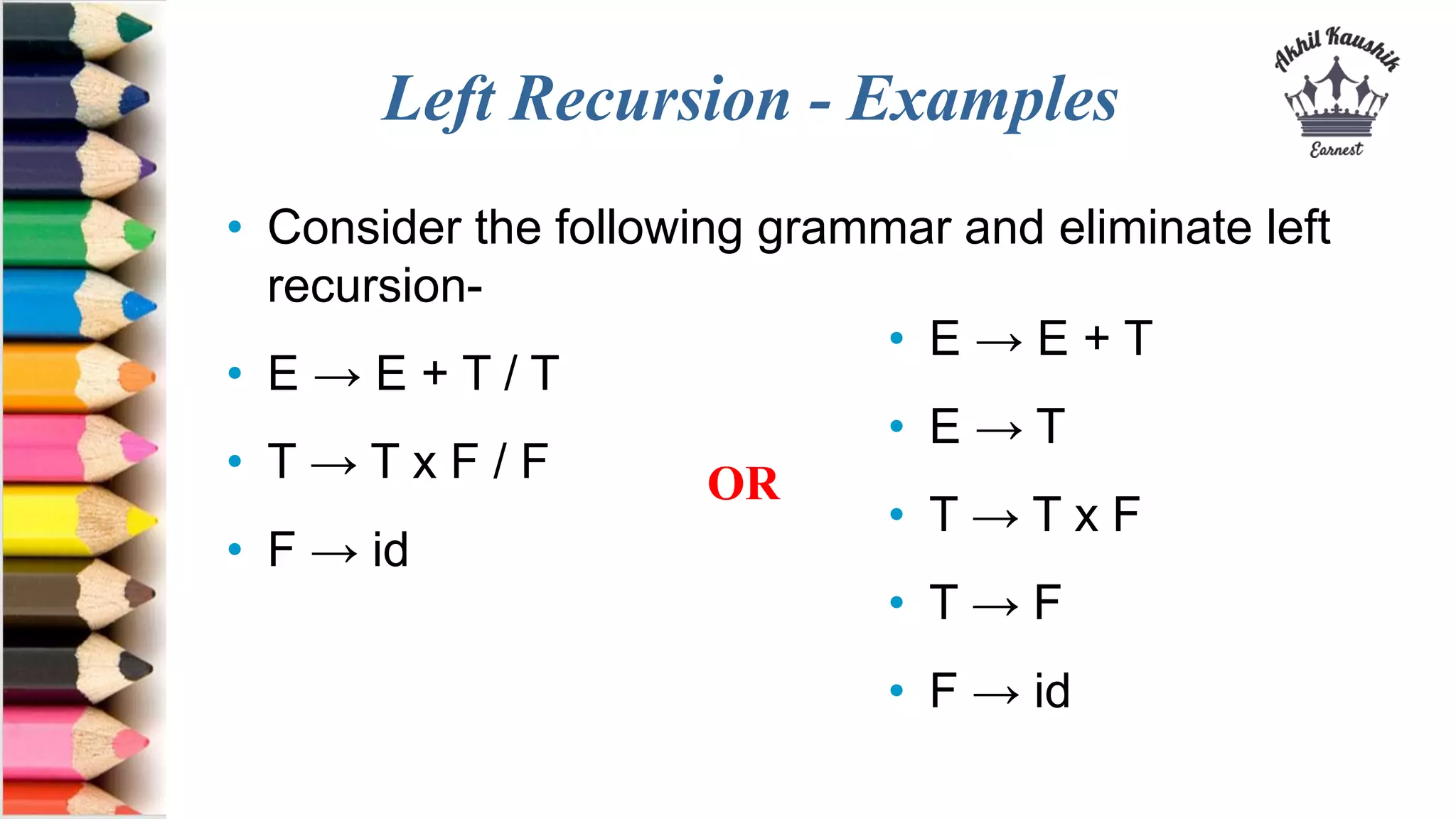

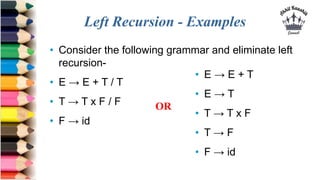

- 19. Left Recursion -Examples • Consider the following grammar and eliminate left recursion- • E → E + T / T • T → T x F / F • F → id • E → E + T • E → T • T → T x F • T → F • F → id OR

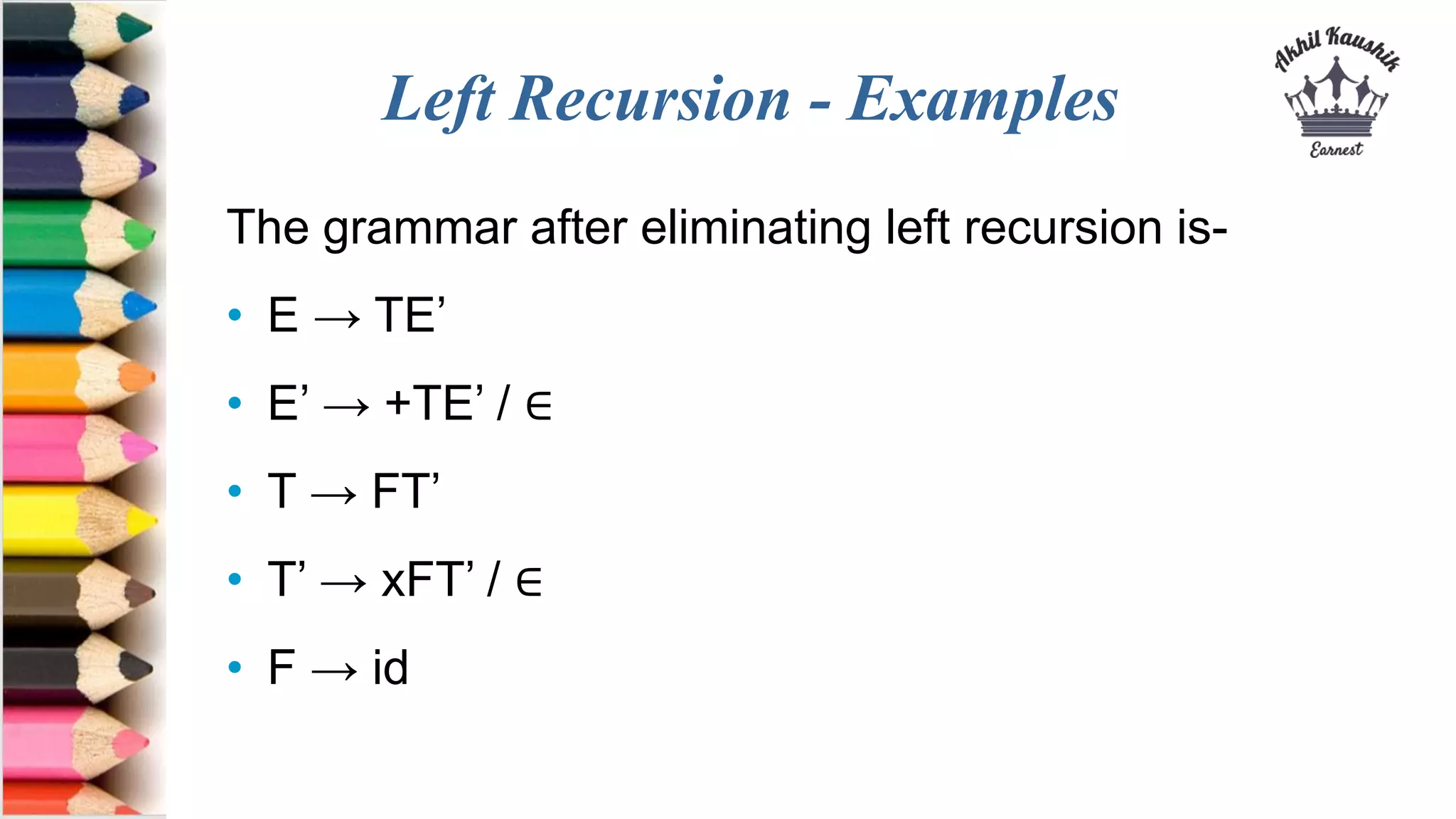

- 20. Left Recursion -Examples The grammar after eliminating left recursion is- • E → TE’ • E’ → +TE’ / ∈ • T → FT’ • T’ → xFT’ / ∈ • F → id

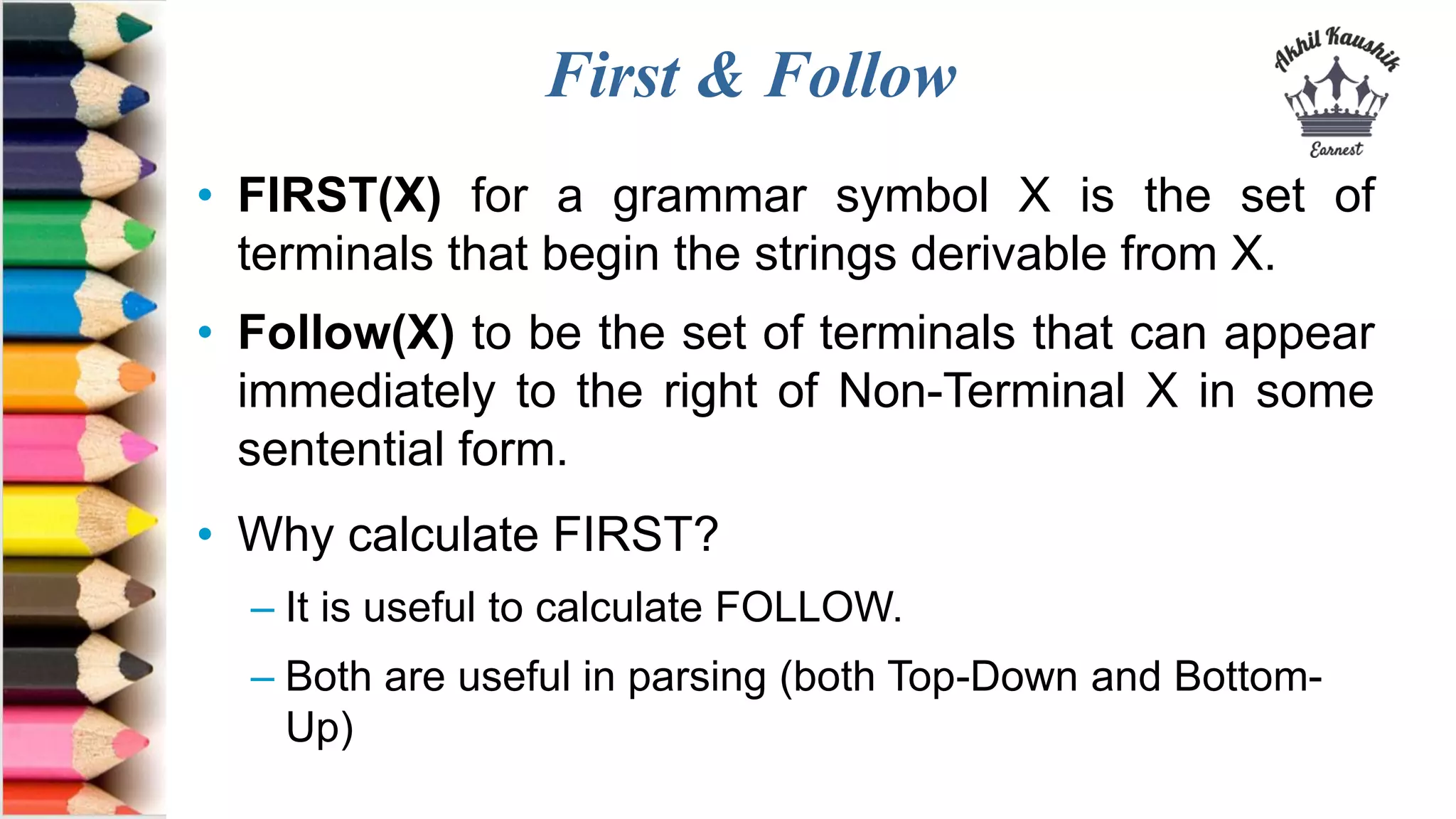

- 21. First & Follow •FIRST(X) for a grammar symbol X is the set of terminals that begin the strings derivable from X. • Follow(X) to be the set of terminals that can appear immediately to the right of Non-Terminal X in some sentential form. • Why calculate FIRST? – It is useful to calculate FOLLOW. – Both are useful in parsing (both Top-Down and Bottom- Up)

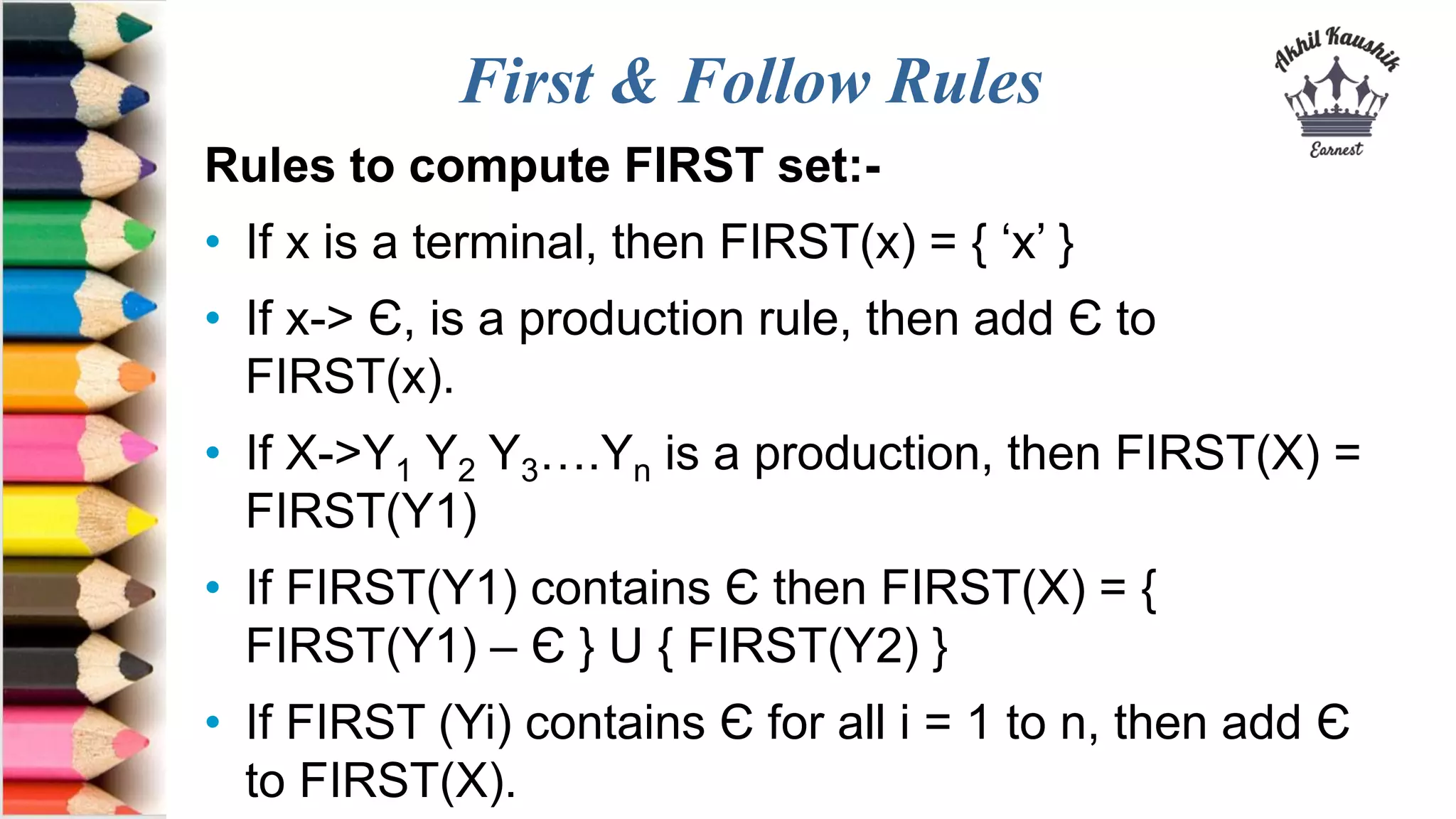

- 22. First & FollowRules Rules to compute FIRST set:- • If x is a terminal, then FIRST(x) = { ‘x’ } • If x-> Є, is a production rule, then add Є to FIRST(x). • If X->Y1 Y2 Y3….Yn is a production, then FIRST(X) = FIRST(Y1) • If FIRST(Y1) contains Є then FIRST(X) = { FIRST(Y1) – Є } U { FIRST(Y2) } • If FIRST (Yi) contains Є for all i = 1 to n, then add Є to FIRST(X).
- 23. First - Examples Calculatethe first functions for the given grammar- • S → aBDh • B → cC • C → bC / ∈ • D → EF • E → g / ∈ • F → f / ∈

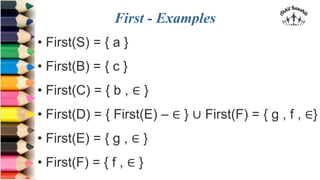

- 24. First - Examples •First(S) = { a } • First(B) = { c } • First(C) = { b , ∈ } • First(D) = { First(E) – ∈ } ∪ First(F) = { g , f , ∈} • First(E) = { g , ∈ } • First(F) = { f , ∈ }

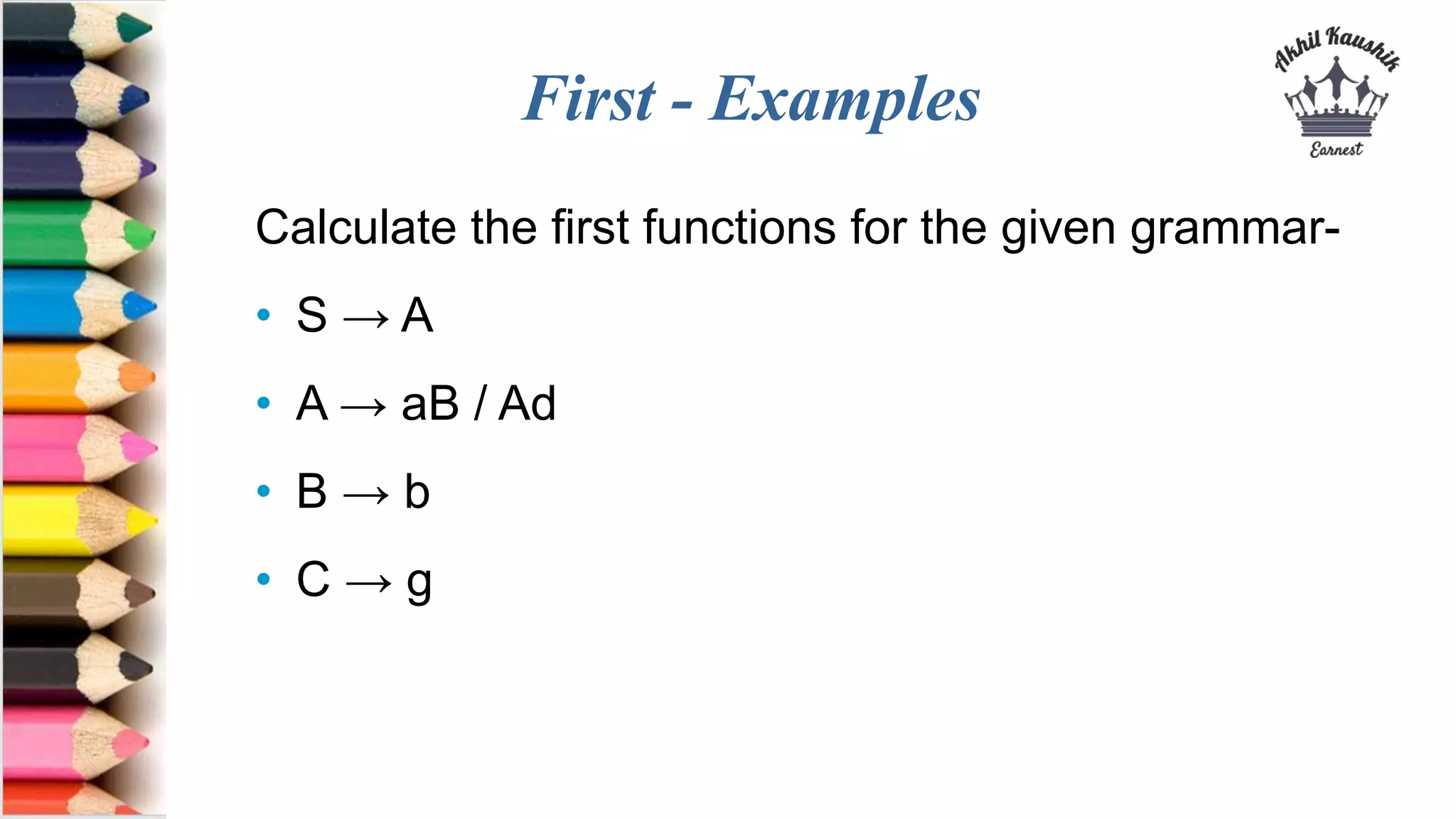

- 25. First - Examples Calculatethe first functions for the given grammar- • S → A • A → aB / Ad • B → b • C → g

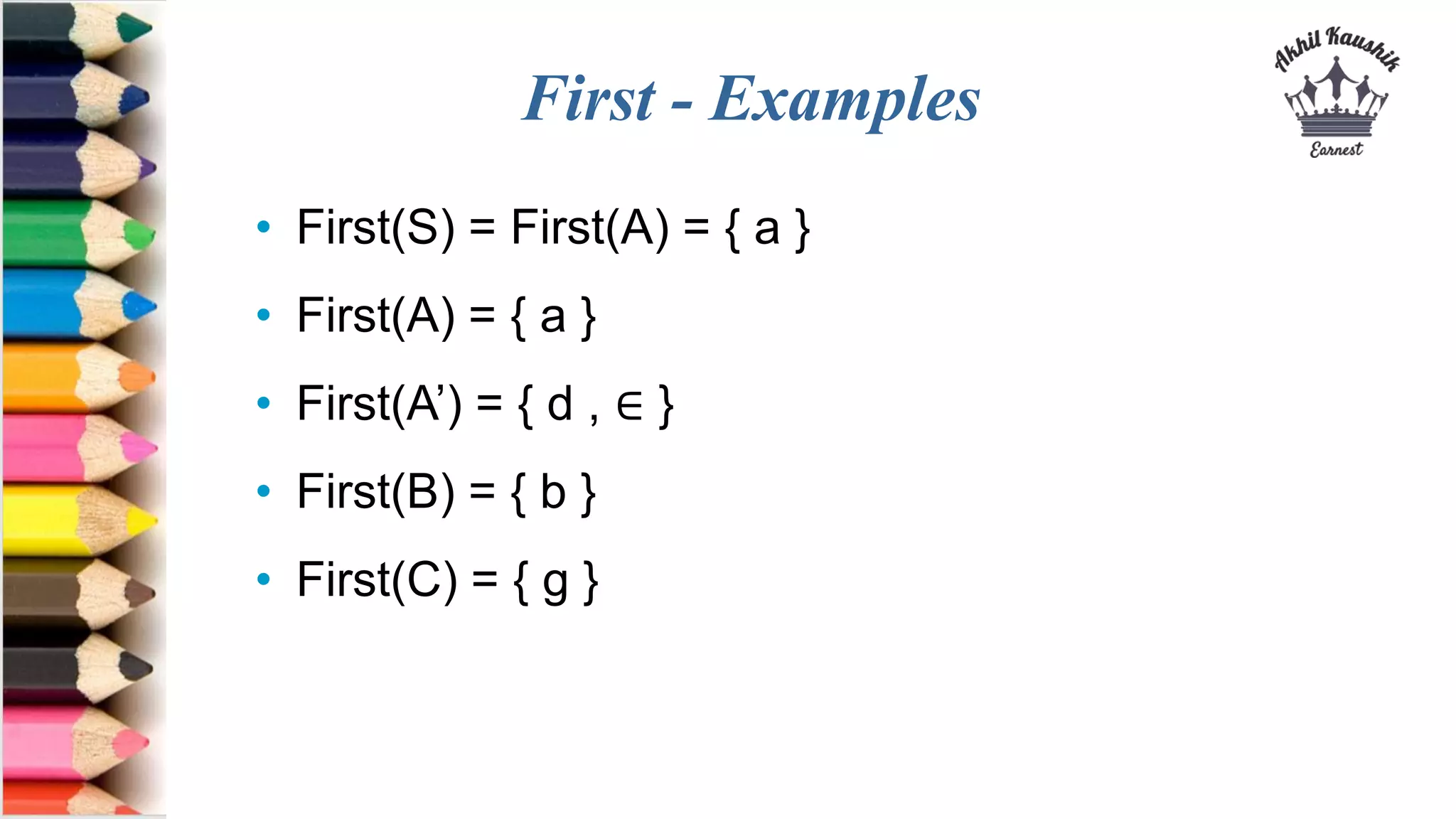

- 26. First - Examples •First(S) = First(A) = { a } • First(A) = { a } • First(A’) = { d , ∈ } • First(B) = { b } • First(C) = { g }

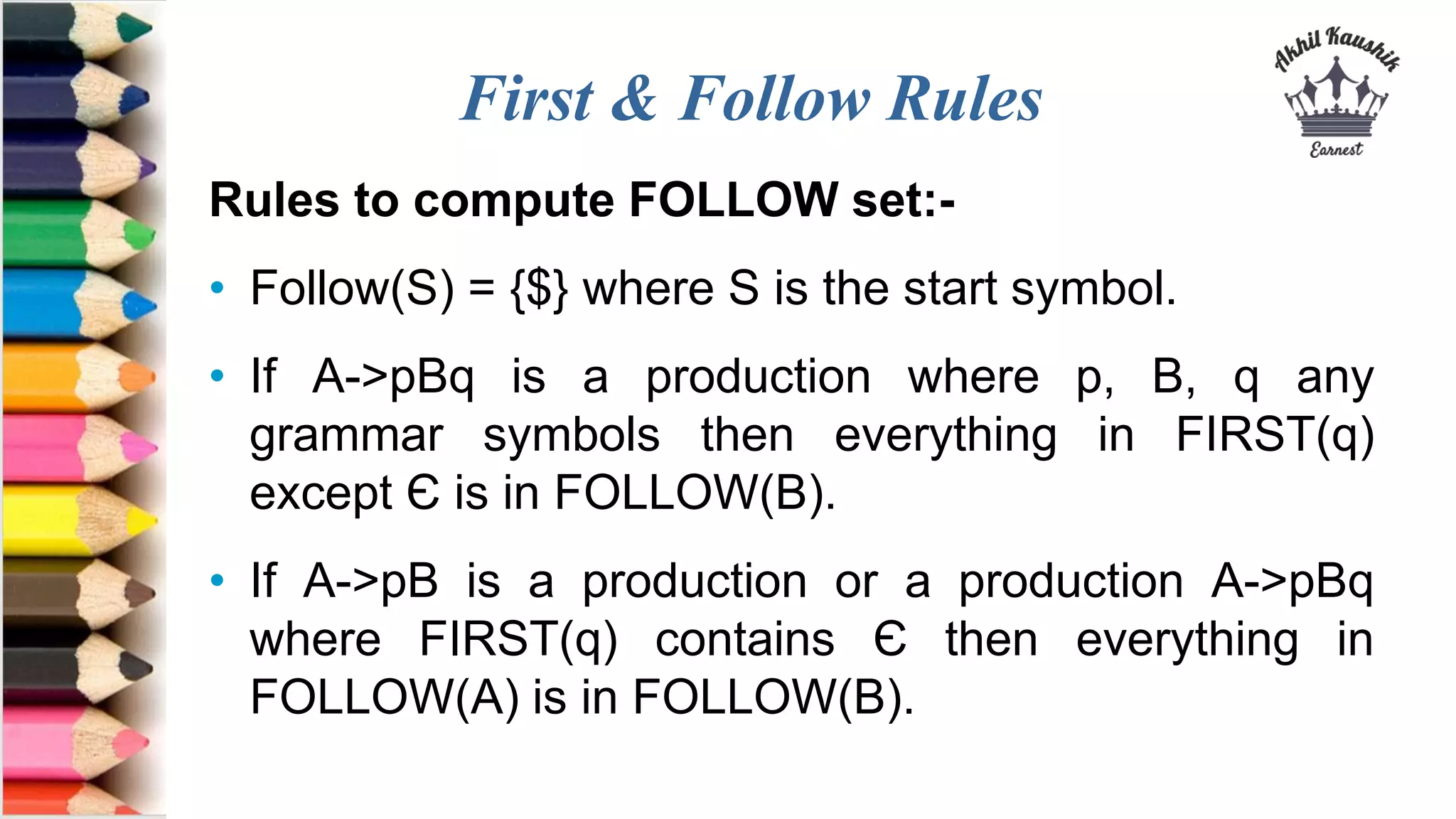

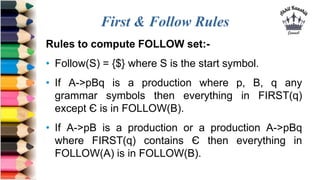

- 27. First & FollowRules Rules to compute FOLLOW set:- • Follow(S) = {$} where S is the start symbol. • If A->pBq is a production where p, B, q any grammar symbols then everything in FIRST(q) except Є is in FOLLOW(B). • If A->pB is a production or a production A->pBq where FIRST(q) contains Є then everything in FOLLOW(A) is in FOLLOW(B).

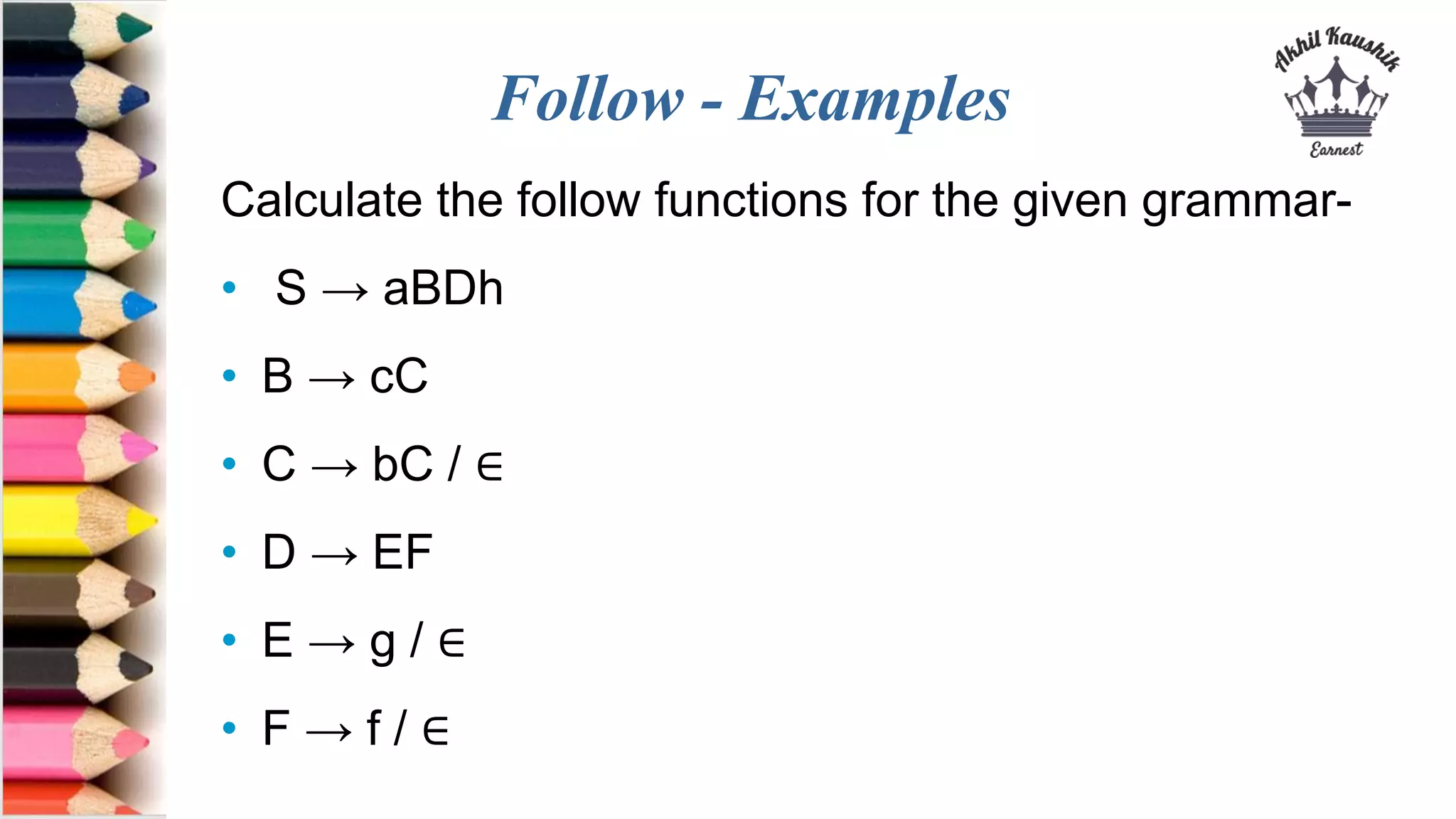

- 28. Follow - Examples Calculatethe follow functions for the given grammar- • S → aBDh • B → cC • C → bC / ∈ • D → EF • E → g / ∈ • F → f / ∈

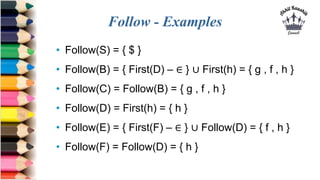

- 29. Follow - Examples •Follow(S) = { $ } • Follow(B) = { First(D) – ∈ } ∪ First(h) = { g , f , h } • Follow(C) = Follow(B) = { g , f , h } • Follow(D) = First(h) = { h } • Follow(E) = { First(F) – ∈ } ∪ Follow(D) = { f , h } • Follow(F) = Follow(D) = { h }
- 30. Follow - Examples Calculatethe follow functions for the given grammar- • S → A • A → aB / Ad • B → b • C → g

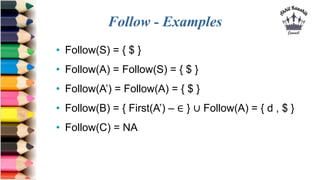

- 31. Follow - Examples •Follow(S) = { $ } • Follow(A) = Follow(S) = { $ } • Follow(A’) = Follow(A) = { $ } • Follow(B) = { First(A’) – ∈ } ∪ Follow(A) = { d , $ } • Follow(C) = NA

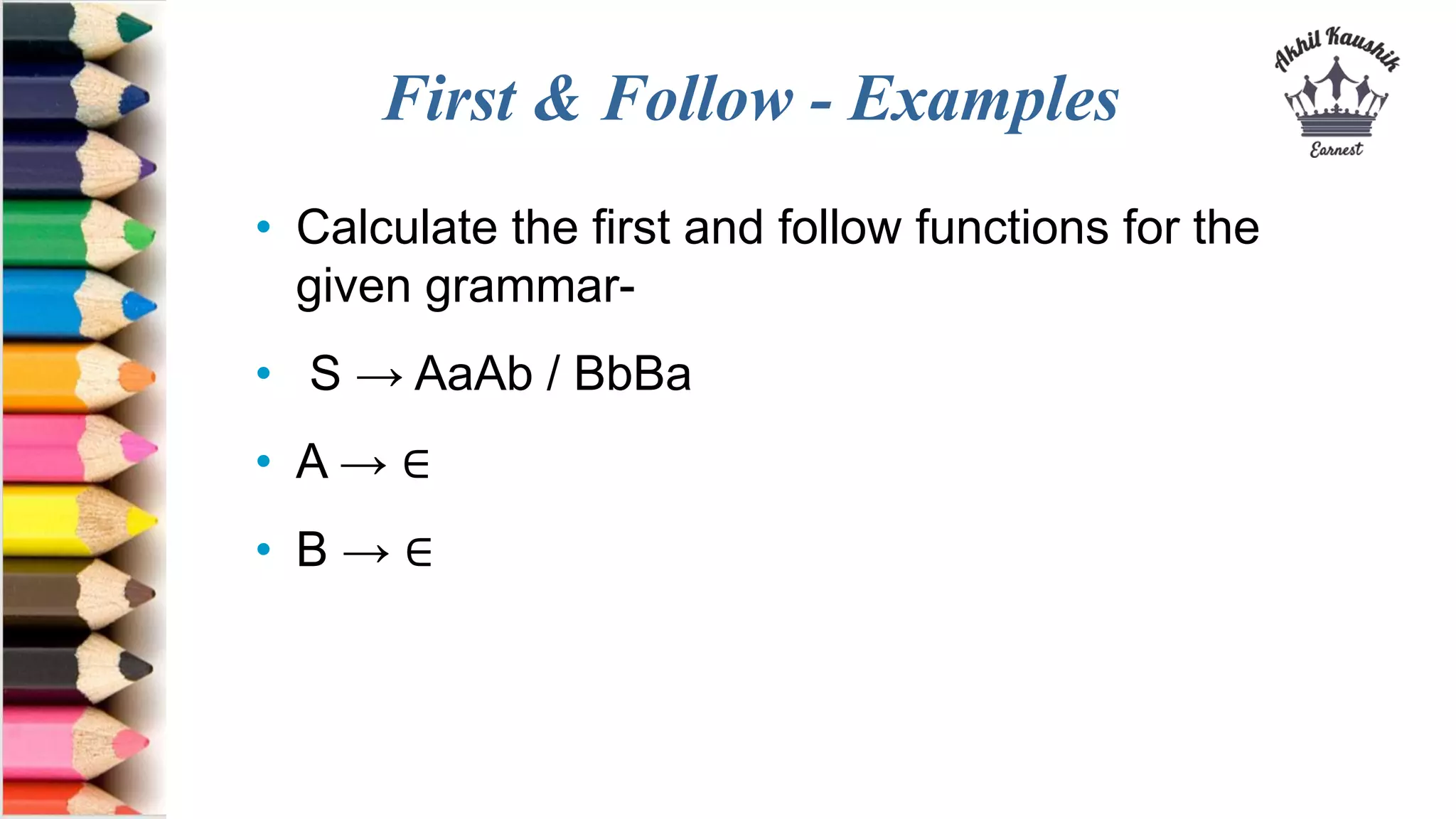

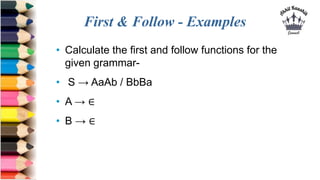

- 32. First & Follow- Examples • Calculate the first and follow functions for the given grammar- • S → AaAb / BbBa • A → ∈ • B → ∈

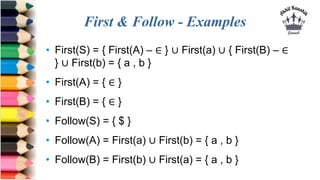

- 33. First & Follow- Examples • First(S) = { First(A) – ∈ } ∪ First(a) ∪ { First(B) – ∈ } ∪ First(b) = { a , b } • First(A) = { ∈ } • First(B) = { ∈ } • Follow(S) = { $ } • Follow(A) = First(a) ∪ First(b) = { a , b } • Follow(B) = First(b) ∪ First(a) = { a , b }

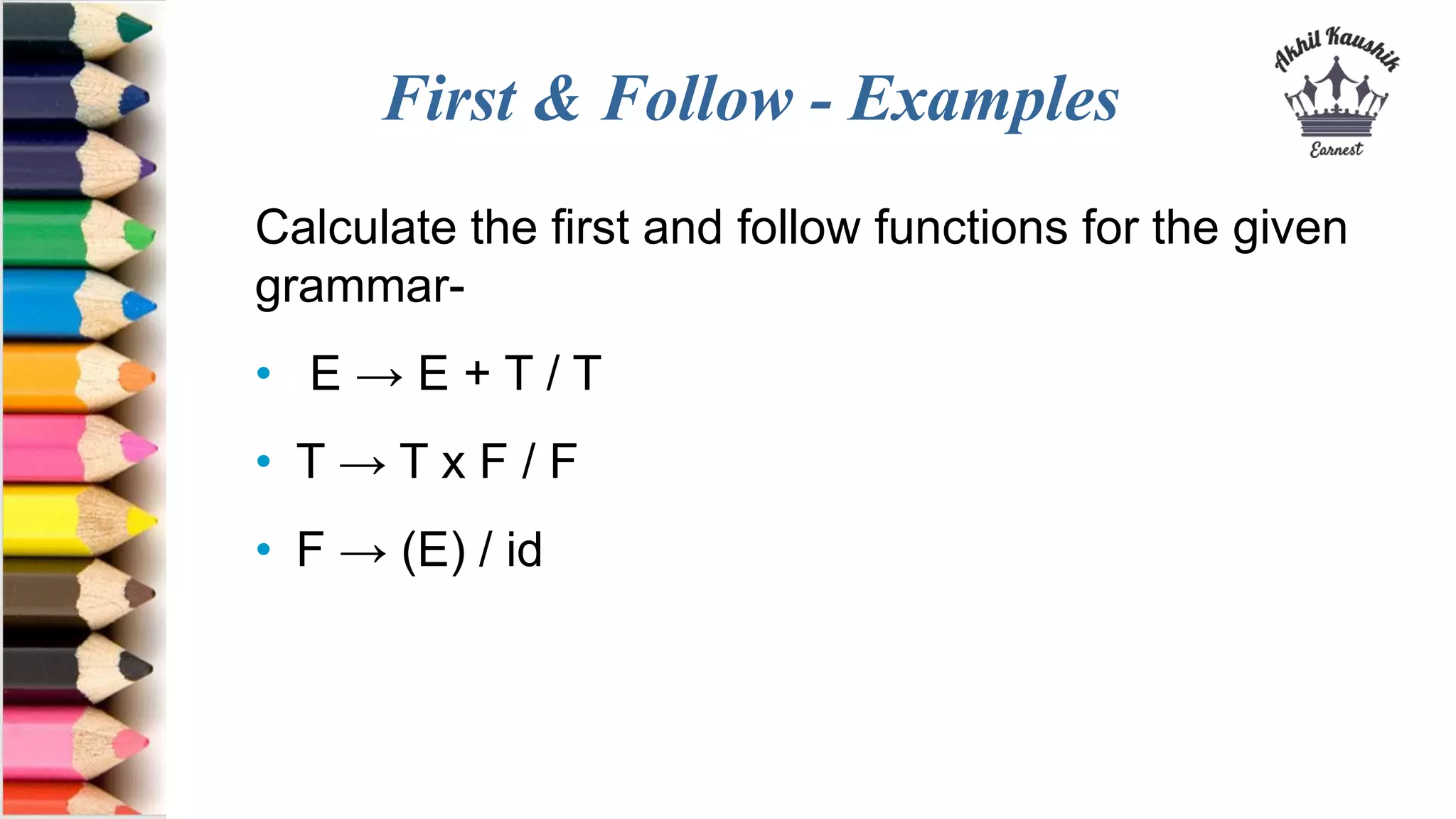

- 34. First & Follow- Examples Calculate the first and follow functions for the given grammar- • E → E + T / T • T → T x F / F • F → (E) / id

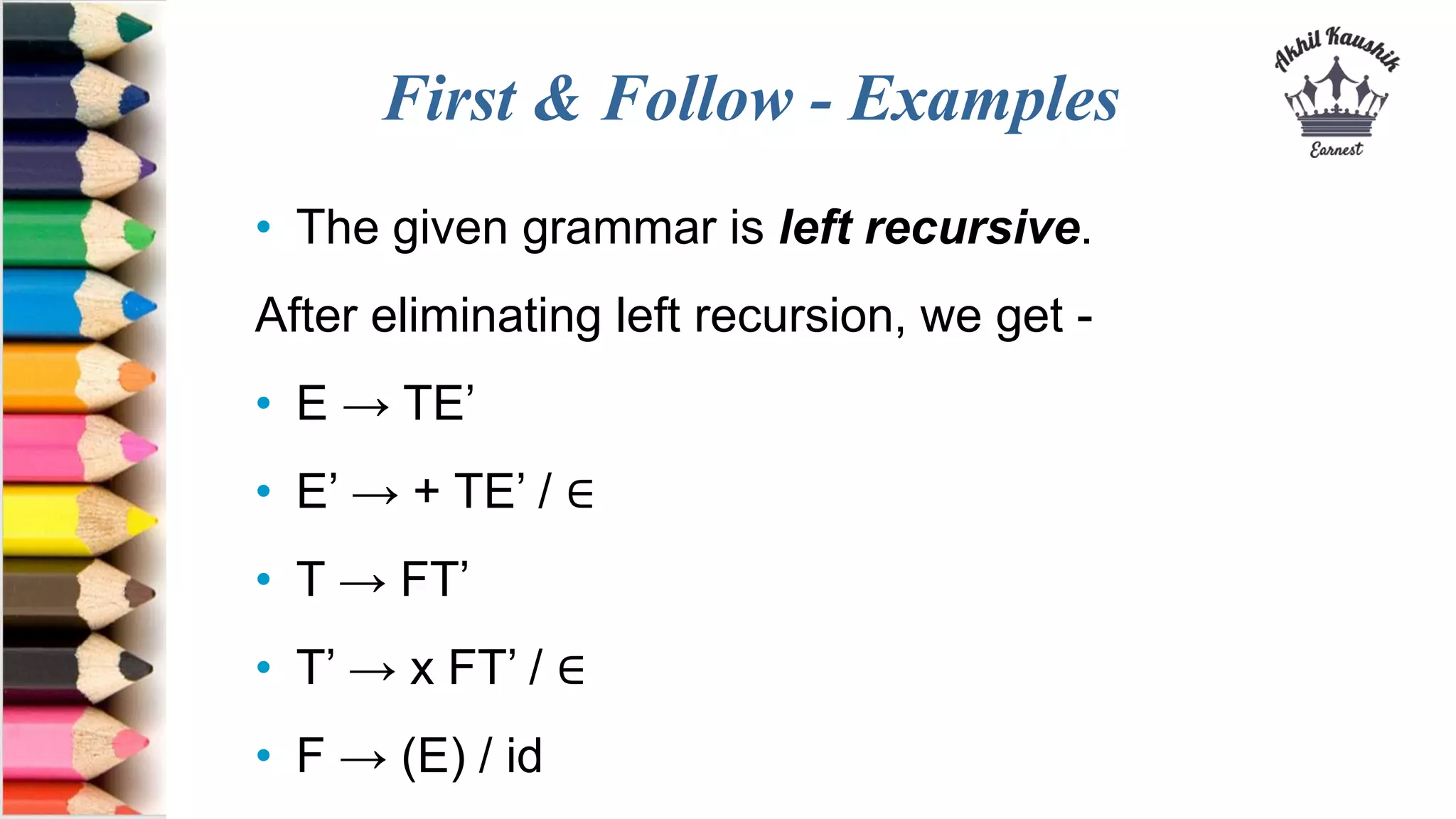

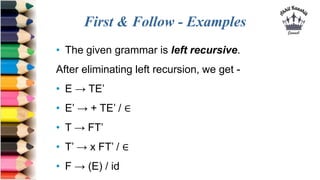

- 35. First & Follow- Examples • The given grammar is left recursive. After eliminating left recursion, we get - • E → TE’ • E’ → + TE’ / ∈ • T → FT’ • T’ → x FT’ / ∈ • F → (E) / id

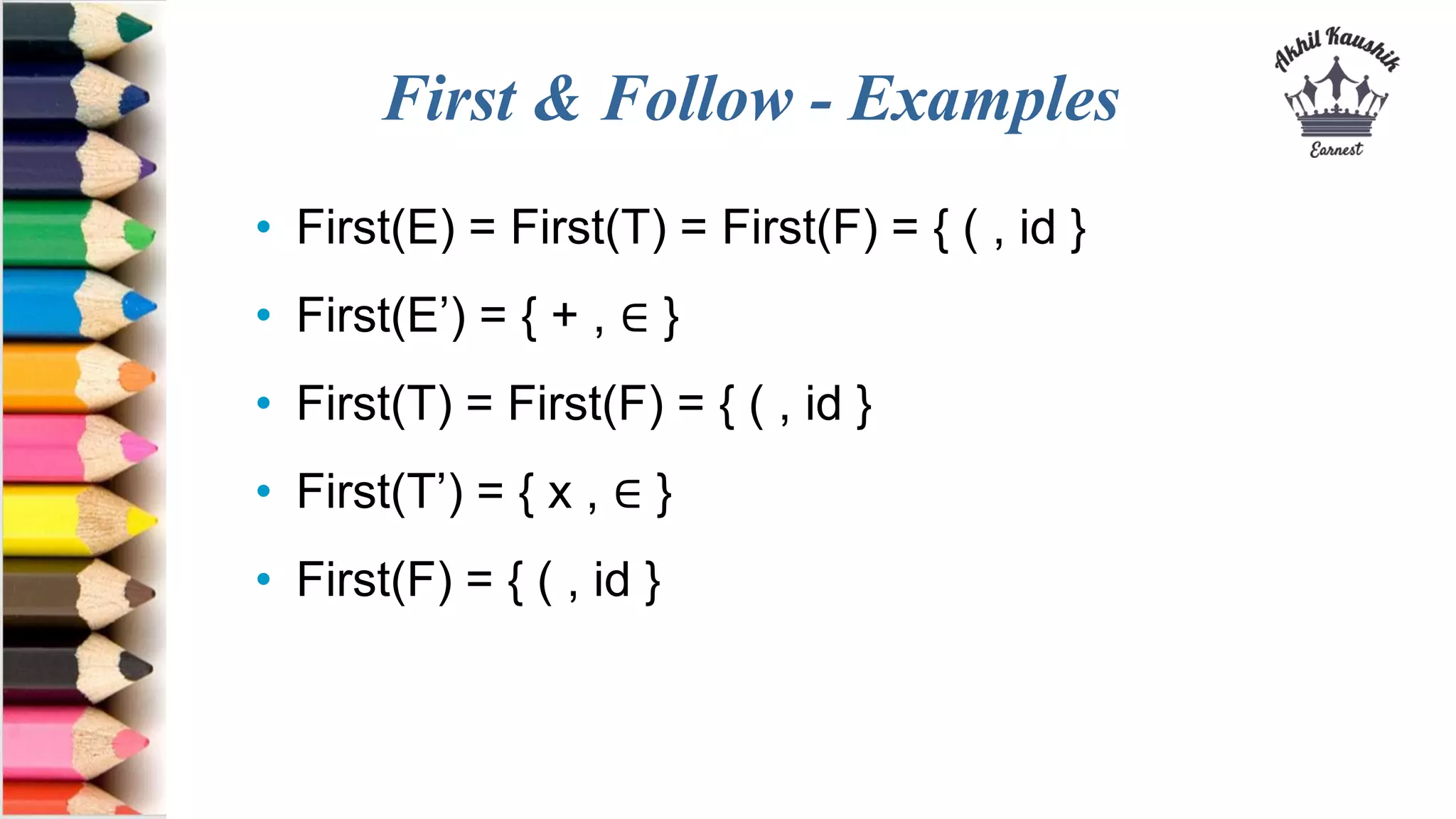

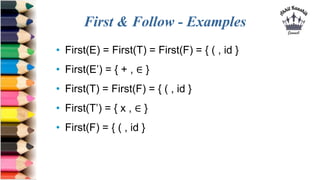

- 36. First & Follow- Examples • First(E) = First(T) = First(F) = { ( , id } • First(E’) = { + , ∈ } • First(T) = First(F) = { ( , id } • First(T’) = { x , ∈ } • First(F) = { ( , id }

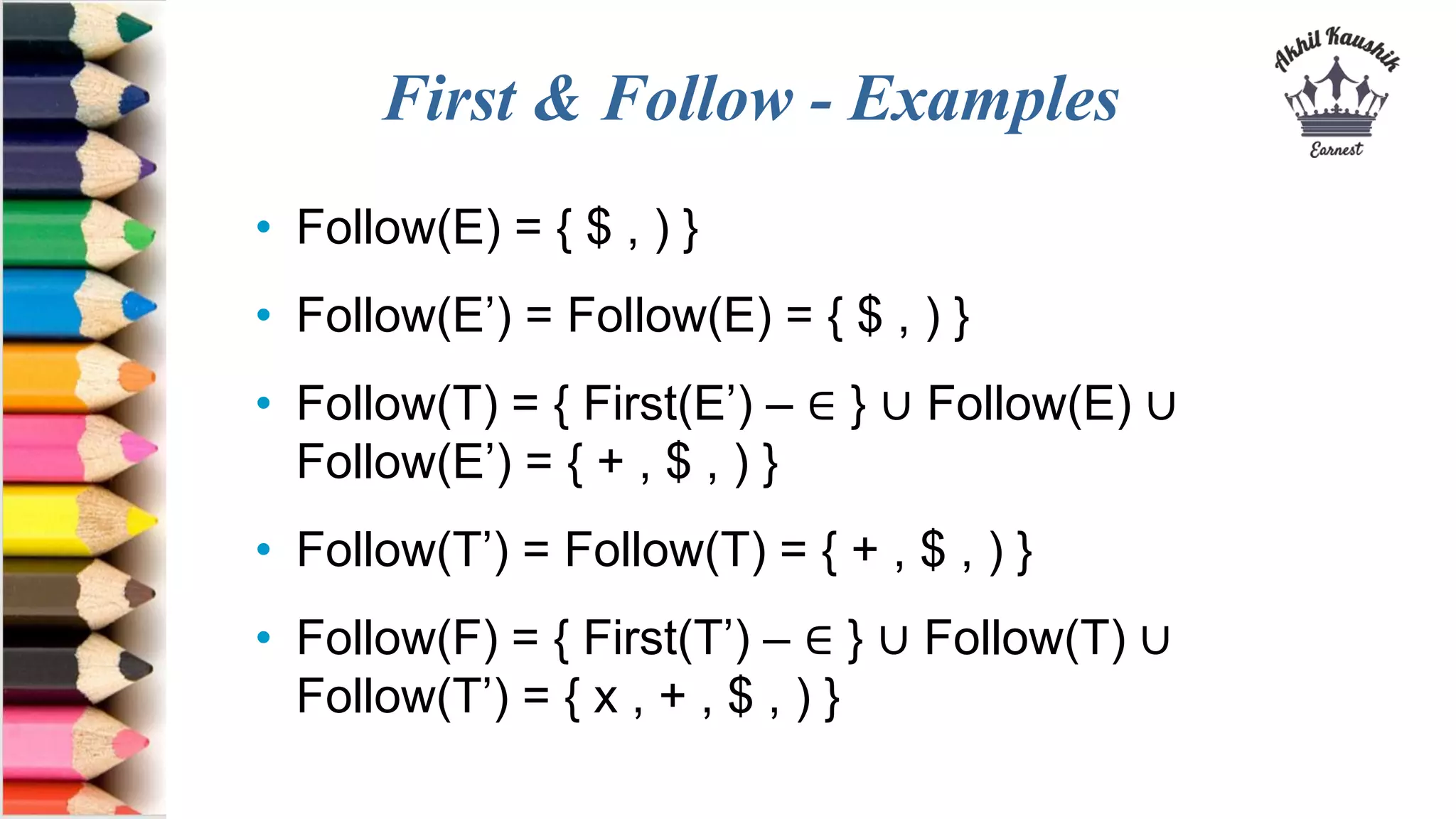

- 37. First & Follow- Examples • Follow(E) = { $ , ) } • Follow(E’) = Follow(E) = { $ , ) } • Follow(T) = { First(E’) – ∈ } ∪ Follow(E) ∪ Follow(E’) = { + , $ , ) } • Follow(T’) = Follow(T) = { + , $ , ) } • Follow(F) = { First(T’) – ∈ } ∪ Follow(T) ∪ Follow(T’) = { x , + , $ , ) }
- 38. Akhil Kaushik akhilkaushik05@gmail.com 9416910303 CONTACT MEAT: Akhil Kaushik akhilkaushik05@gmail.com 9416910303 THANK YOU !!!
