Patterns & Practices of Microservices
- 1.

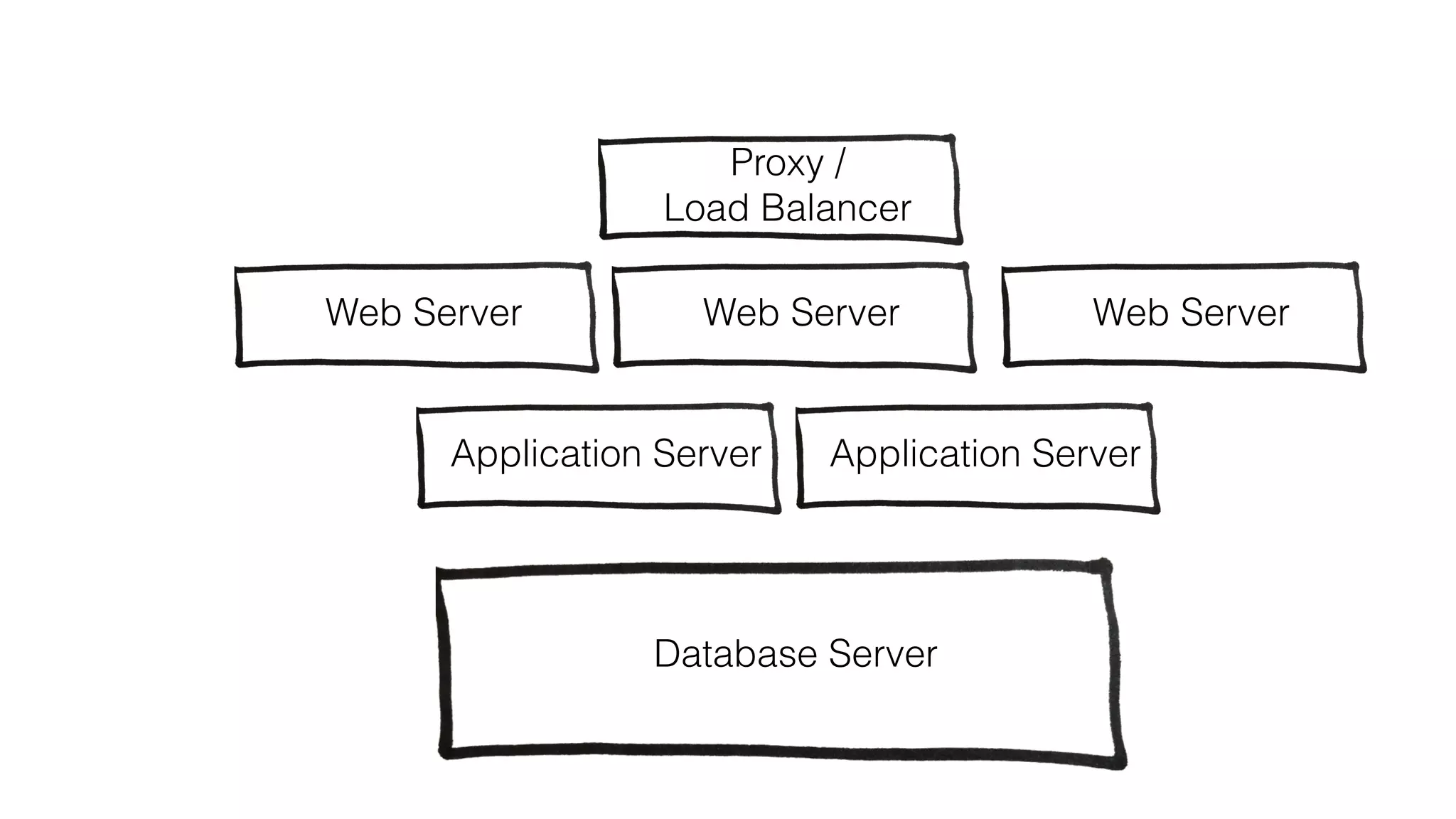

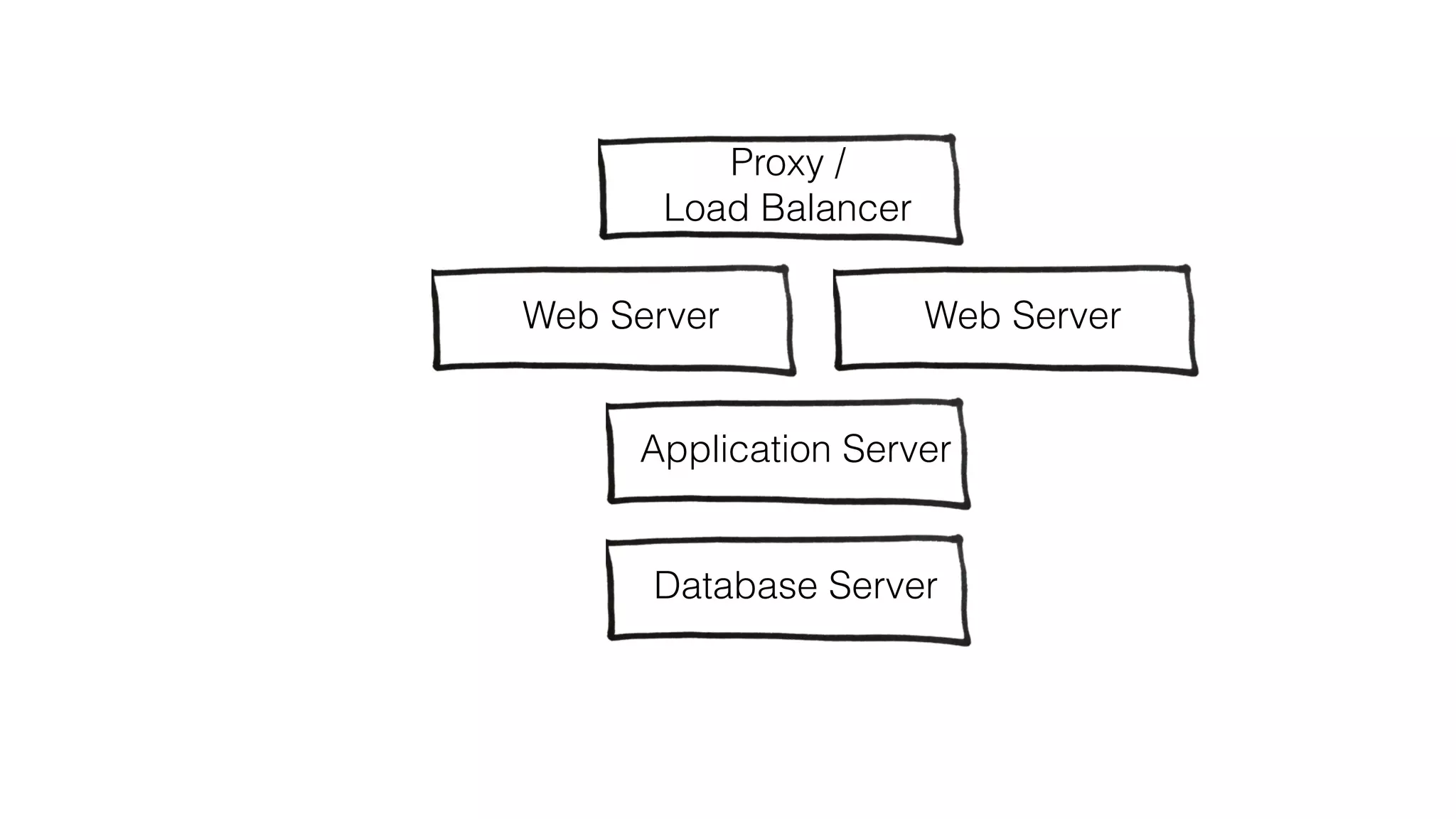

- 2. Proxy / LoadBalancer Web Server Database Server Application Server Web Server ~4 YEARS
- 3. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server ~3 YEARS

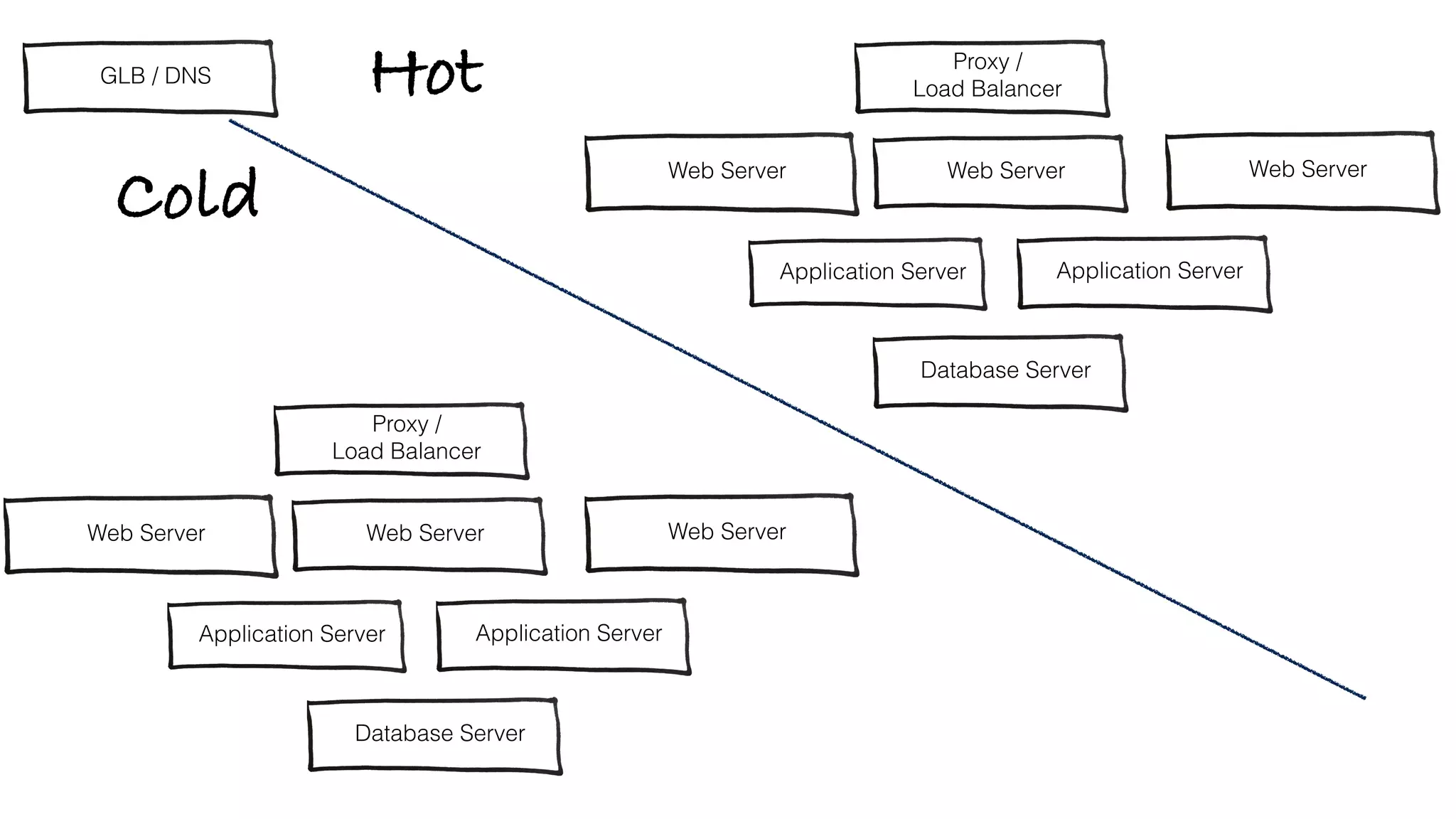

- 4. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Hot Cold Database Server ~2 YEARS

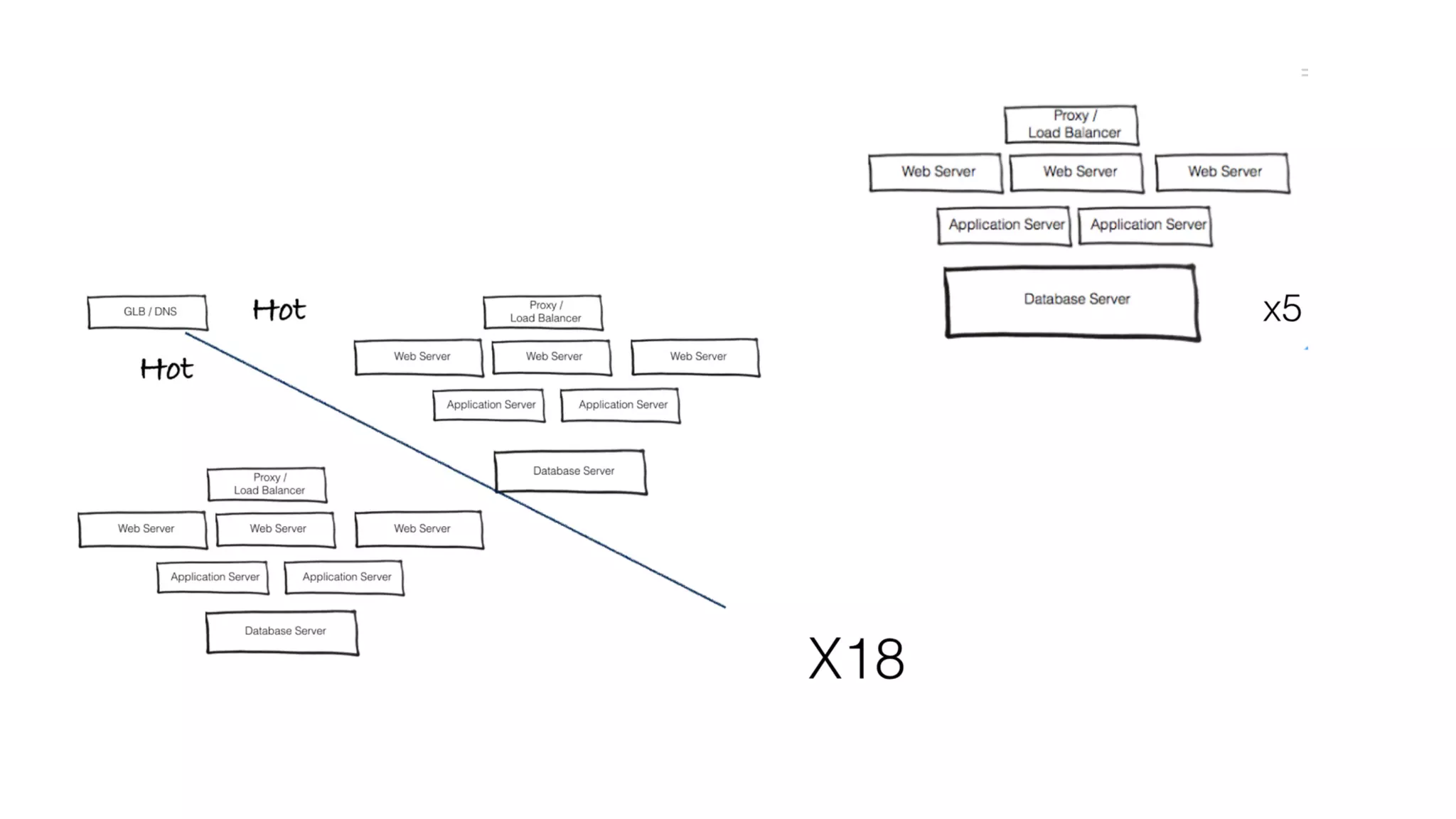

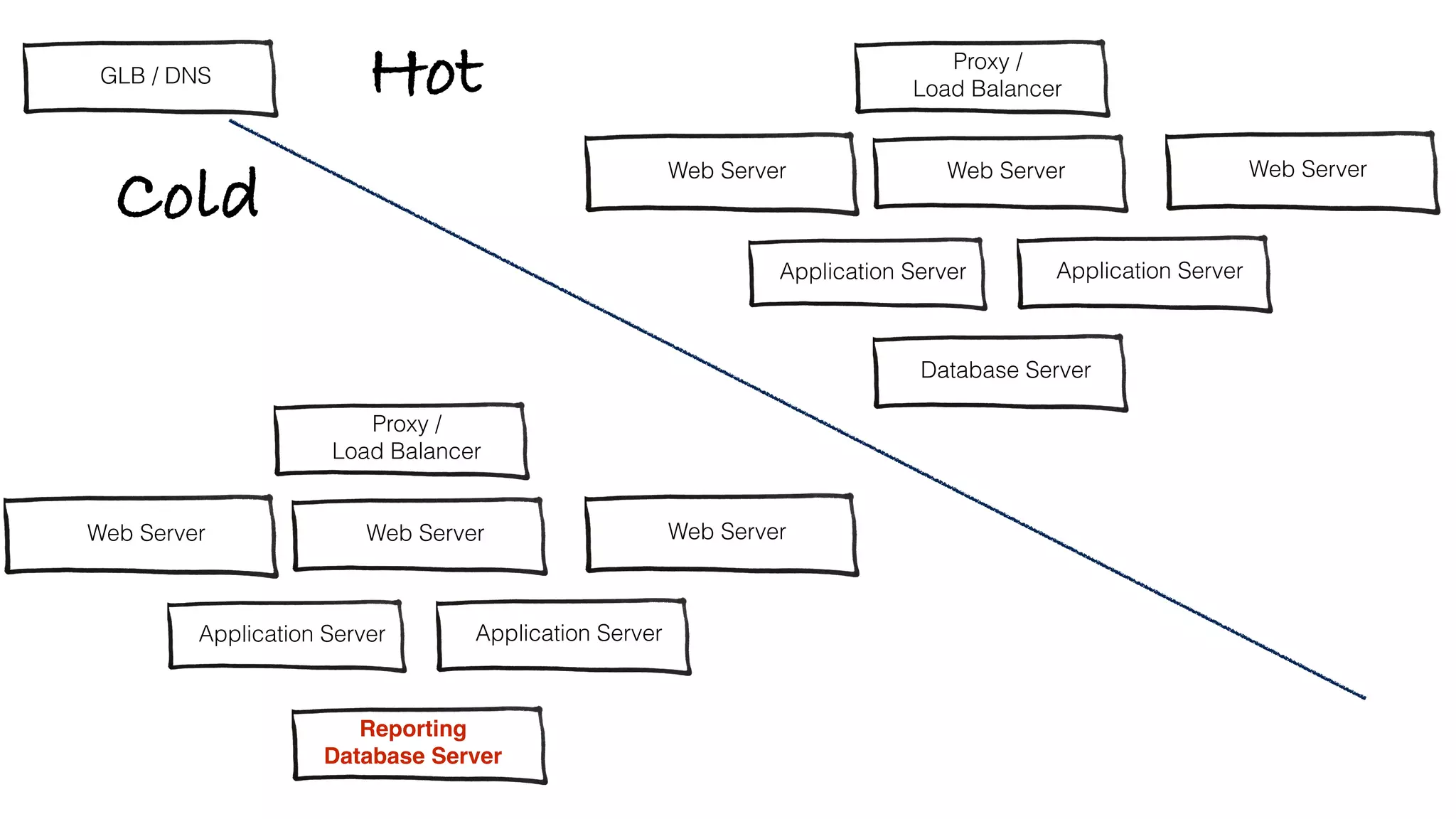

- 5. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Hot Cold GLB / DNS Reporting Database Server ~2 YEARS

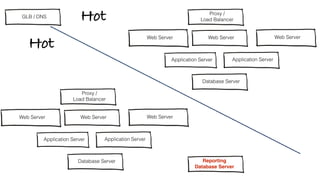

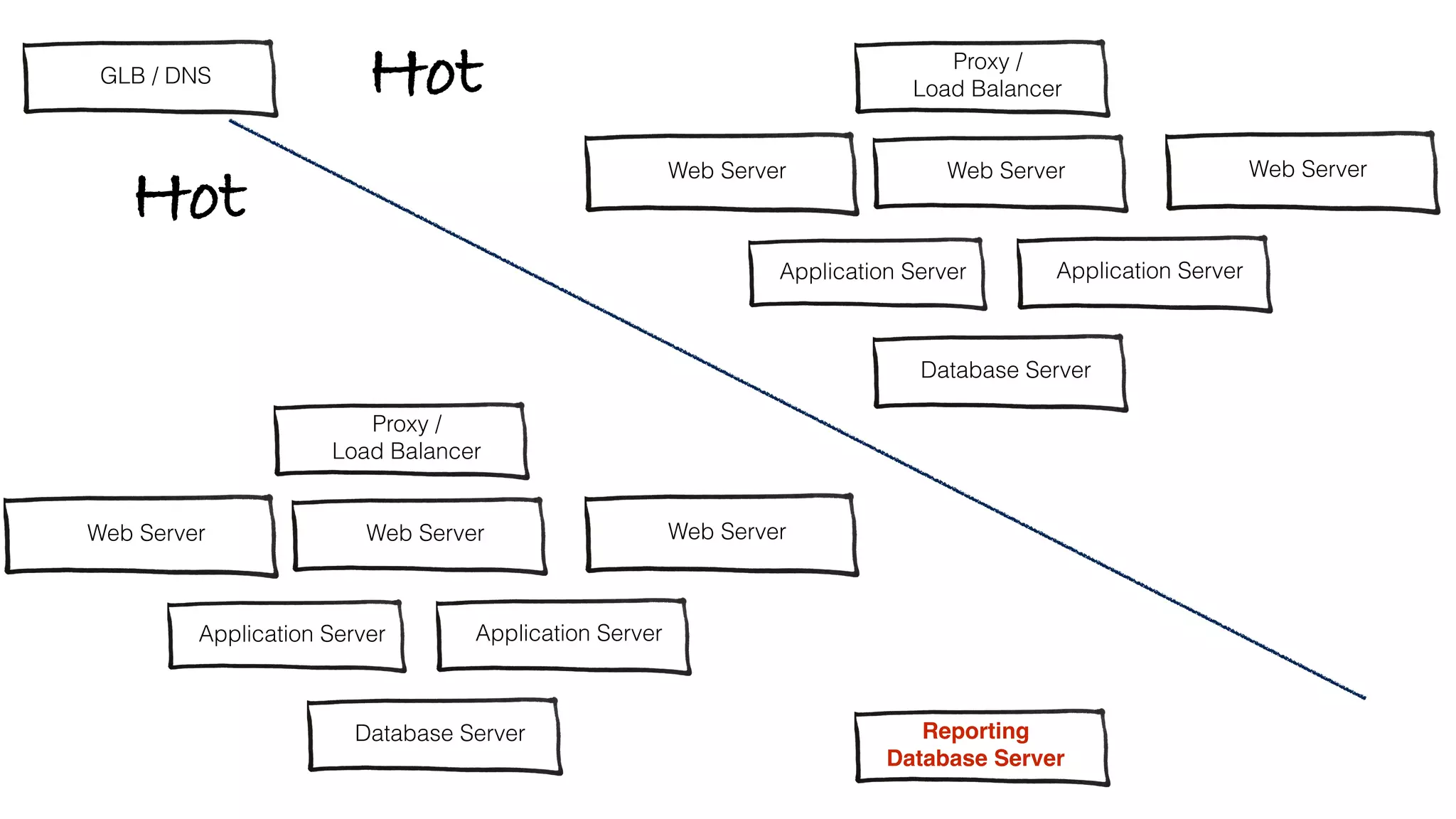

- 6. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Reporting Database Server Hot Hot Database Server GLB / DNS ~2 YEARS
- 7.
- 8.
- 9.
- 10. W E SL E Y R E I S Z San Francisco / London / New York CHAIR QCON
- 13. “Loosely coupled ServiceOriented Architecture with Bounded Contexts” -Adrian Cockcroft, Microservices Thoughtleader IF EVERY SERVICE HAS TO BE UPDATED AT THE SAME TIME IT’S NOT LOOSELY COUPLED IF YOU HAVE TO KNOW TOO MUCH ABOUT SURROUNDING SERVICES YOU DON’T HAVE A BOUNDED CONTEXT. SEE THE DOMAIN DRIVEN DESIGN BOOK BY ERIC EVANS.
- 14.
- 15. CONS PROS • Monitoring/Logging becomesmore important than ever. • You trade code simplicity for operational complexity. • Easy to chase the latest shiny technology / mix new languages & tech in. • Another dimension to scale the application. • Easier to have different services use data persistence most appropriate for the use case. • Easier to reason about moving applications to the cloud. • Easier to have a developer understand the portion of the system and contribute • Easier to test & deploy a single service. • Cascading failures can cause problems. • Orchestration can become complex

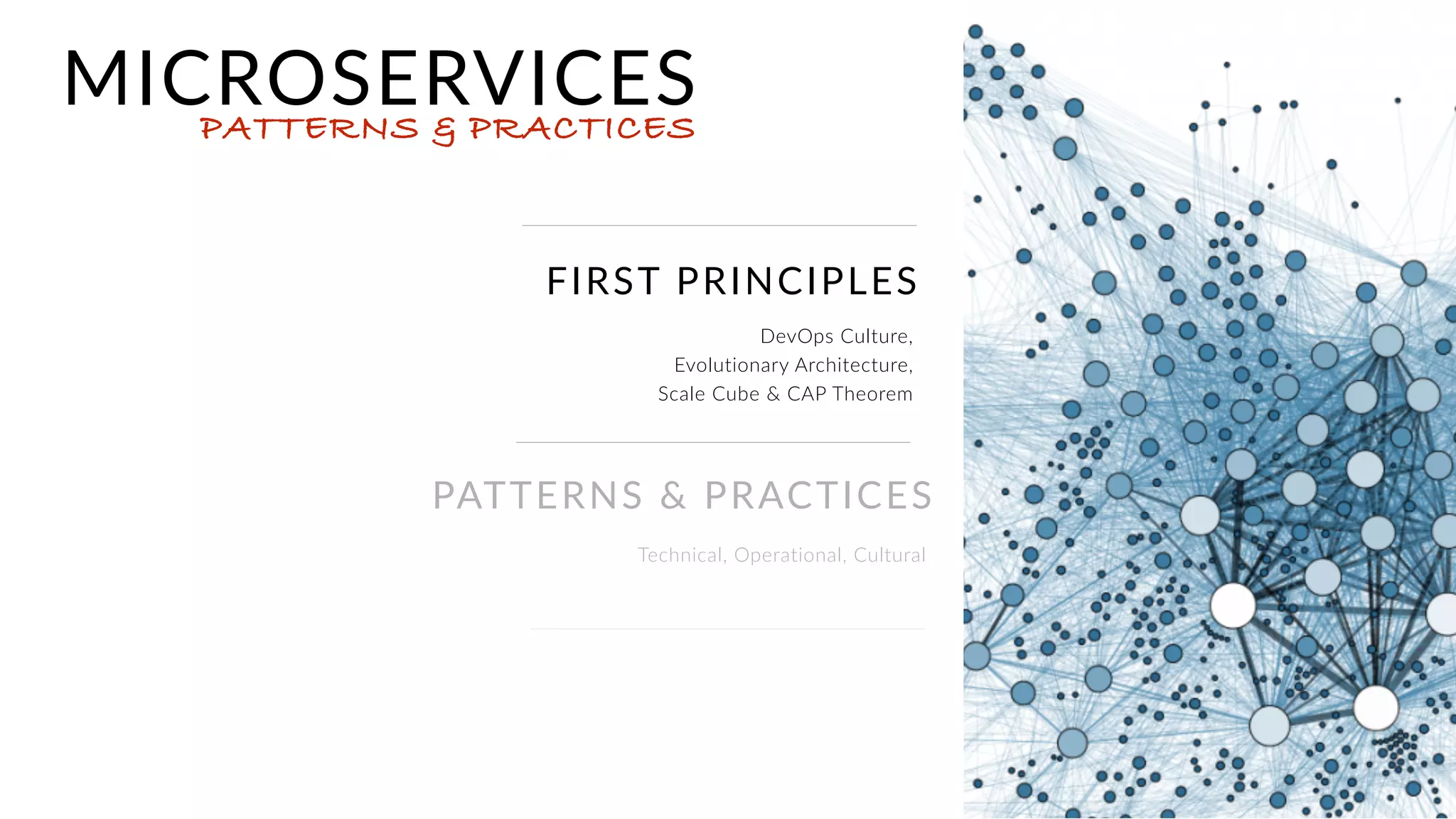

- 16. FIRST PRINCIPLES DevOps Culture, EvolutionaryArchitecture, Scale Cube & CAP Theorem MICROSERVICESPATTERNS & PRACTICES PATTERNS & PRACTICES Technical, Operational, Cultural

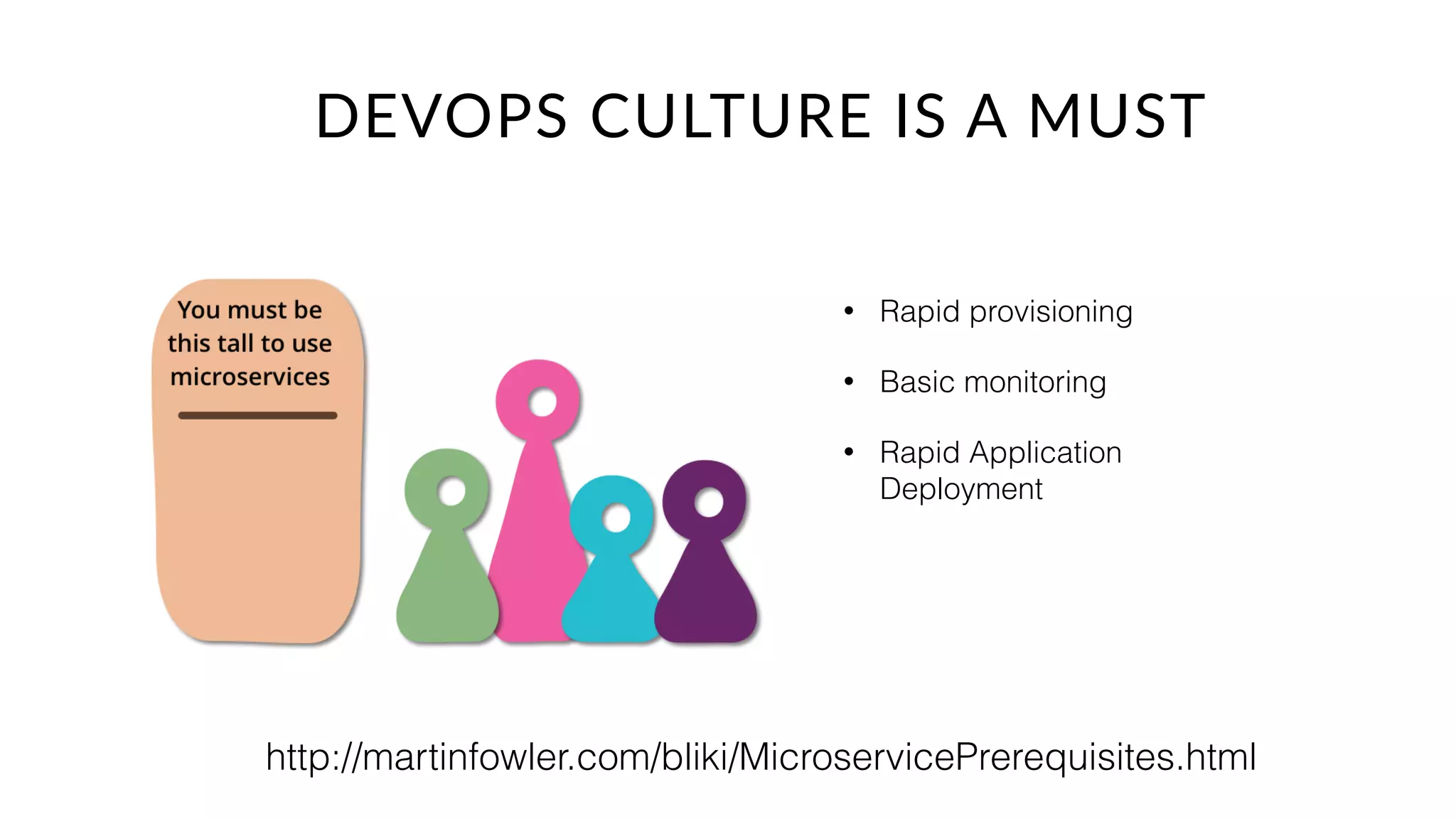

- 17. DEVOPS CULTURE ISA MUST • Rapid provisioning • Basic monitoring • Rapid Application Deployment http://martinfowler.com/bliki/MicroservicePrerequisites.html
- 18. “Signing up forMicroservices is signing up for evolutionary architecture. There’s no point where you’re just done.” -Josh Evans, Director of Operations Engineering @Netflix

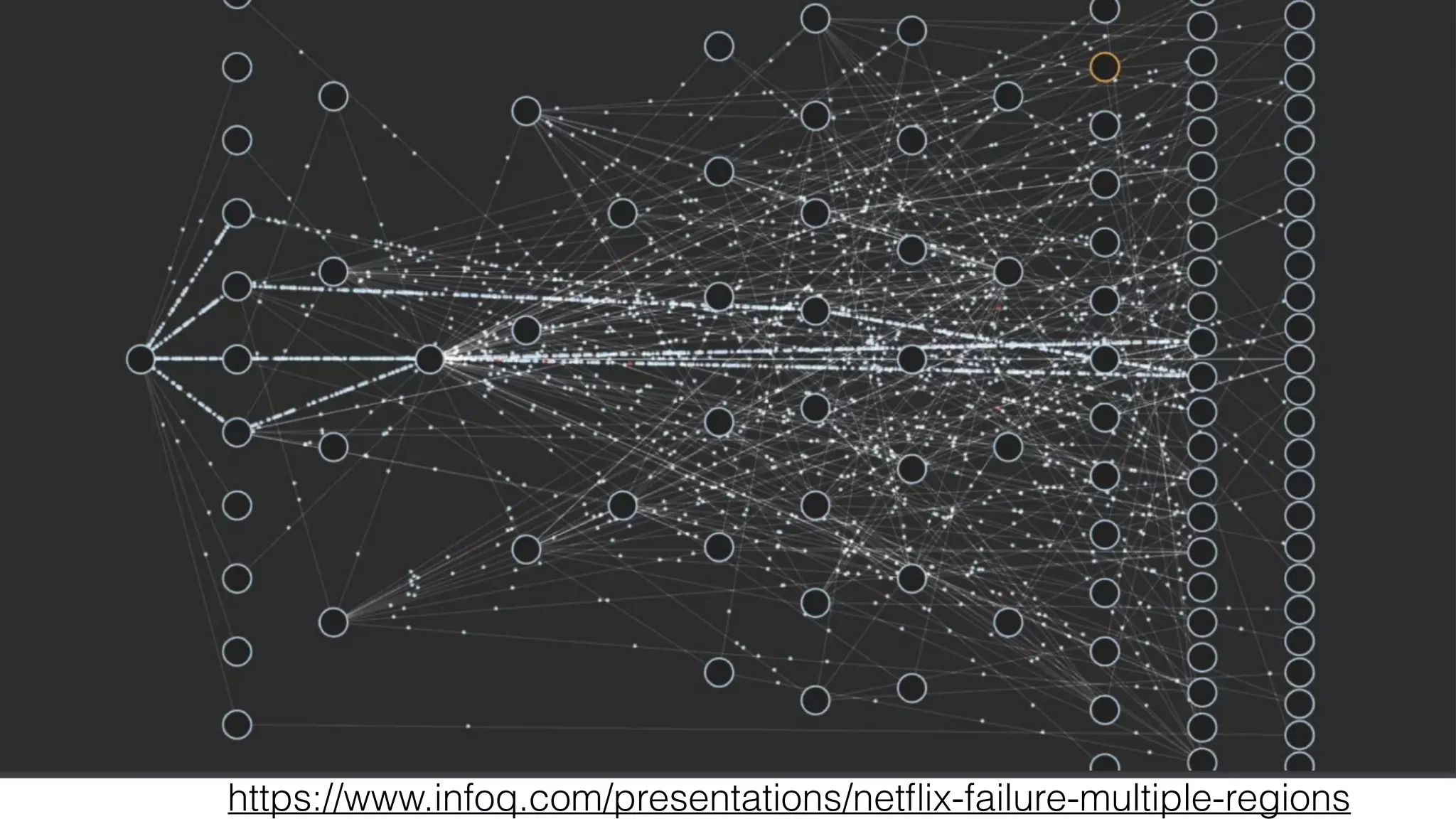

- 19. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Reporting Database Server Hot Hot Database Server GLB / DNS
- 20.

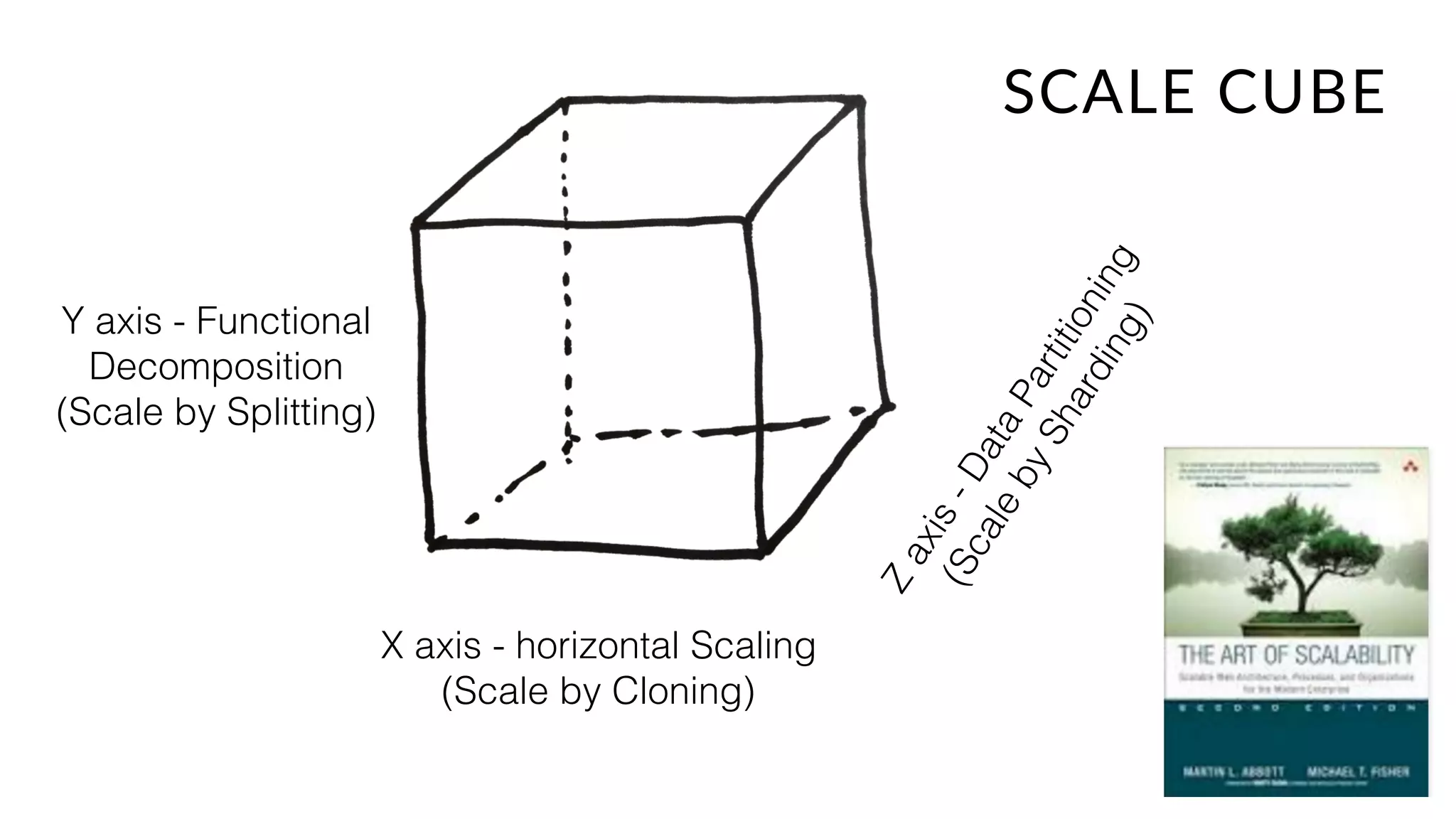

- 21. SCALE CUBE X axis- horizontal Scaling (Scale by Cloning) Z axis-DataPartitioning (ScalebySharding) Y axis - Functional Decomposition (Scale by Splitting)
- 22. The CAP theoremis the idea that a distributed computing system is not able to provide partition tolerance, consistency and availability at the same time.

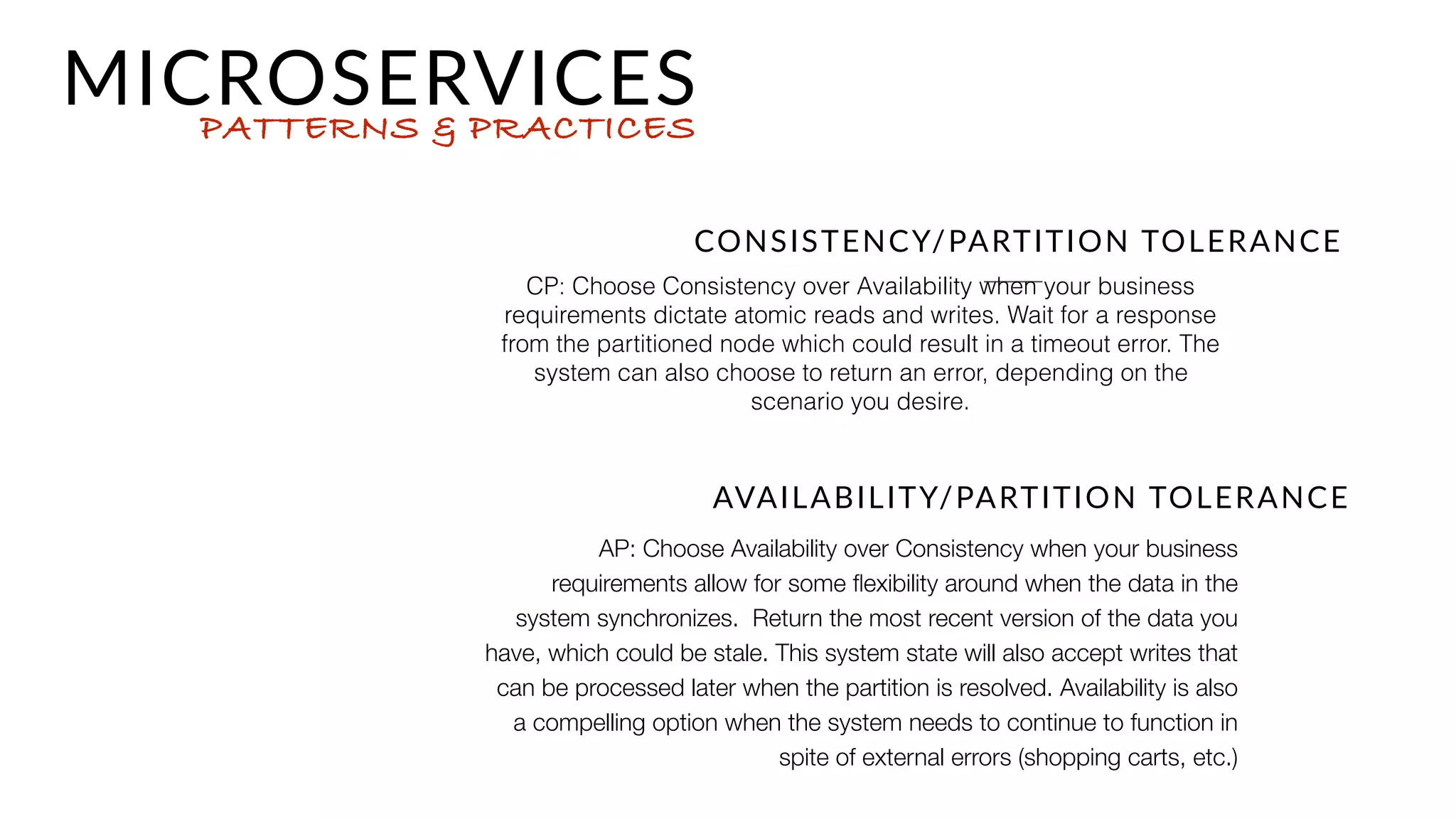

- 23. MICROSERVICESPATTERNS & PRACTICES AVAILABILITY/PARTITIONTOLERANCE CONSISTENCY/PARTITION TOLERANCE CP: Choose Consistency over Availability when your business requirements dictate atomic reads and writes. Wait for a response from the partitioned node which could result in a timeout error. The system can also choose to return an error, depending on the scenario you desire. AP: Choose Availability over Consistency when your business requirements allow for some flexibility around when the data in the system synchronizes. Return the most recent version of the data you have, which could be stale. This system state will also accept writes that can be processed later when the partition is resolved. Availability is also a compelling option when the system needs to continue to function in spite of external errors (shopping carts, etc.)

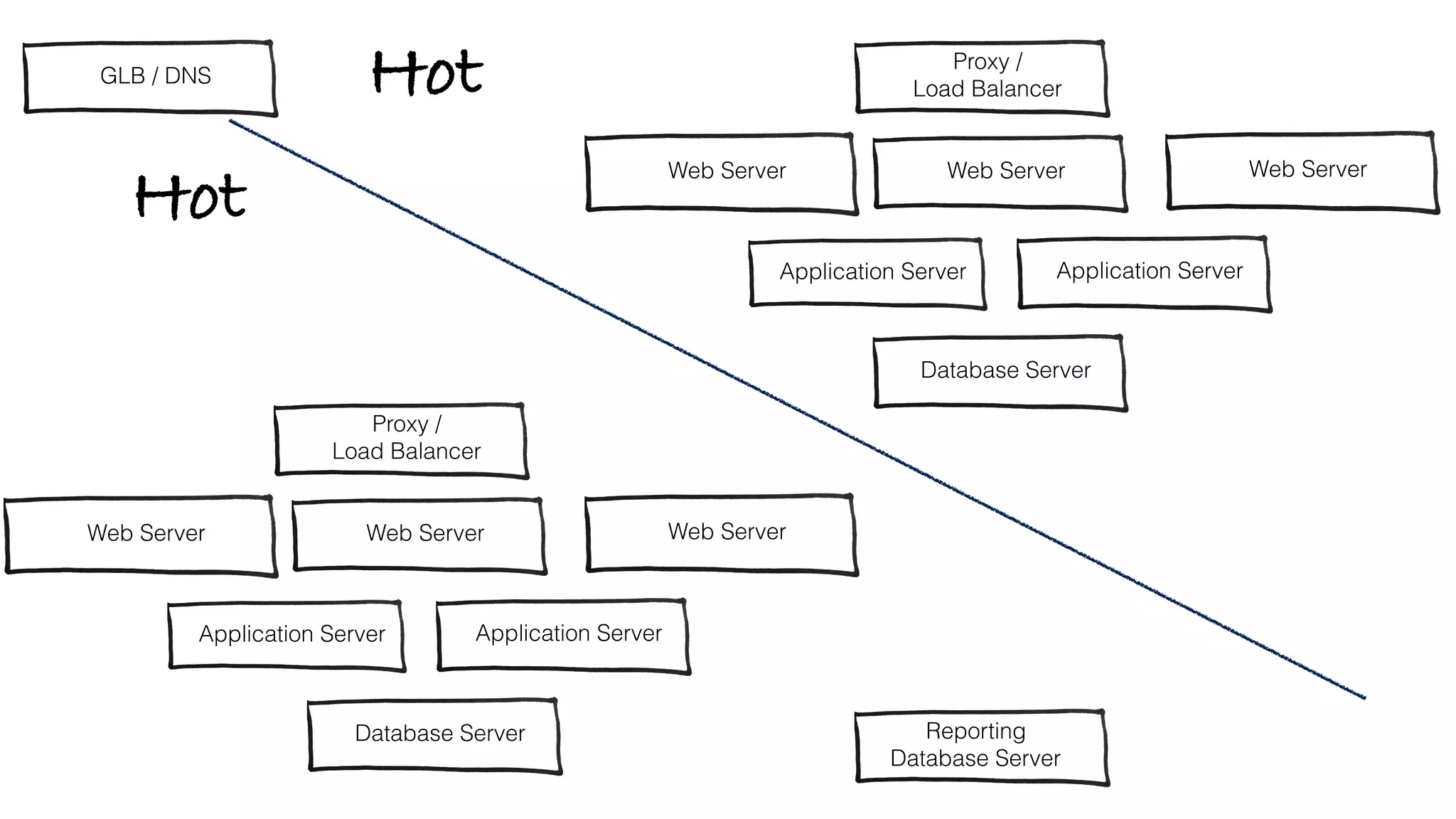

- 24. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Reporting Database Server Hot Hot Database Server GLB / DNS

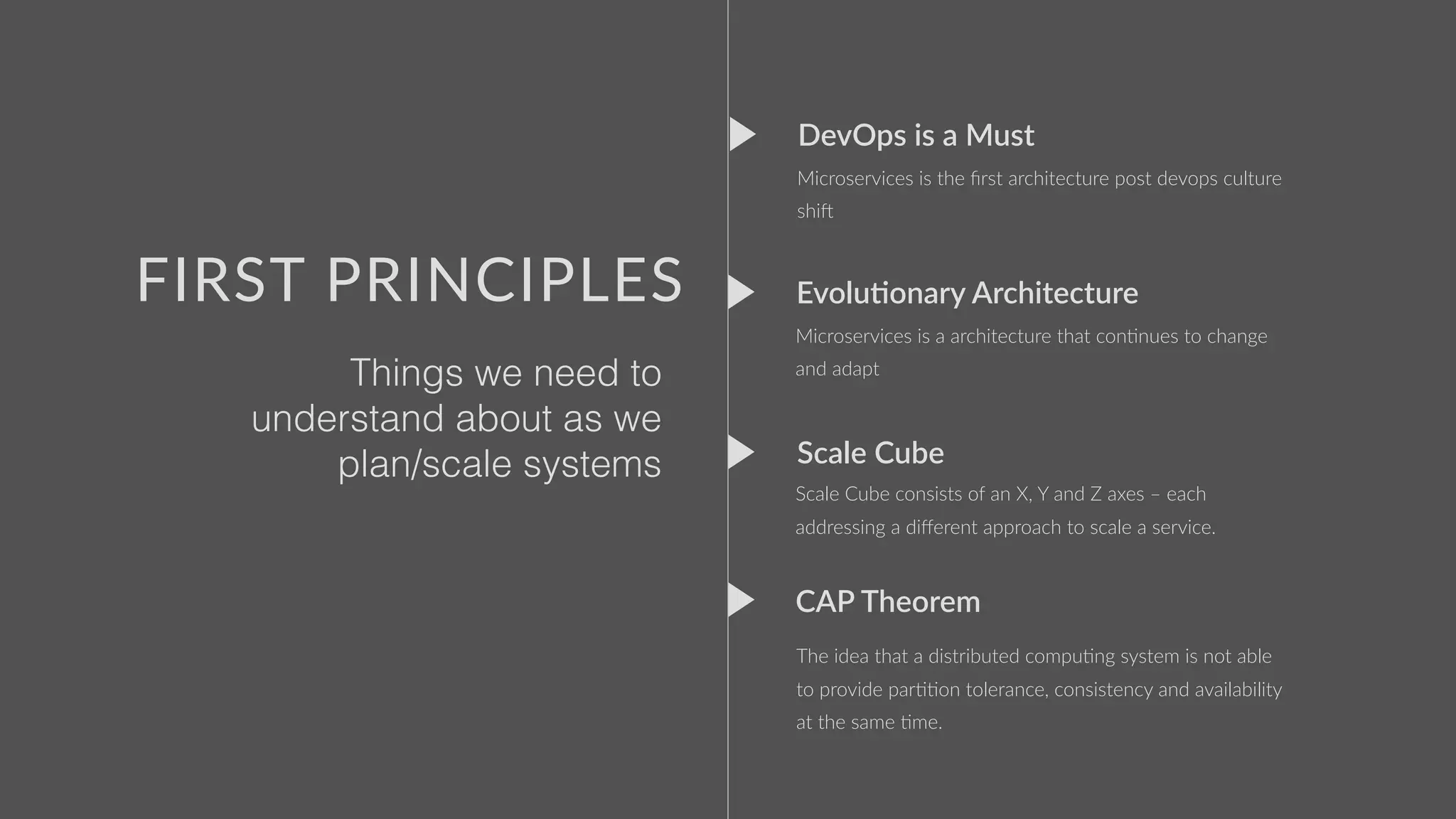

- 25. Evolu&onary Architecture Scale Cube CAPTheorem Microservices is a architecture that conFnues to change and adapt Scale Cube consists of an X, Y and Z axes – each addressing a different approach to scale a service. The idea that a distributed compuFng system is not able to provide parFFon tolerance, consistency and availability at the same Fme. FIRST PRINCIPLES Things we need to understand about as we plan/scale systems DevOps is a Must Microservices is the first architecture post devops culture shiP
- 26. TECHNICAL Tools, Event Sourcing,CQRS, Circuit Breaker, Retrys OPERATIONAL Observability, Containers, Polyglot CULTURAL DevOps Culture, Conway’s Law MICROSERVICESPATTERNS & PRACTICES 1 2 3

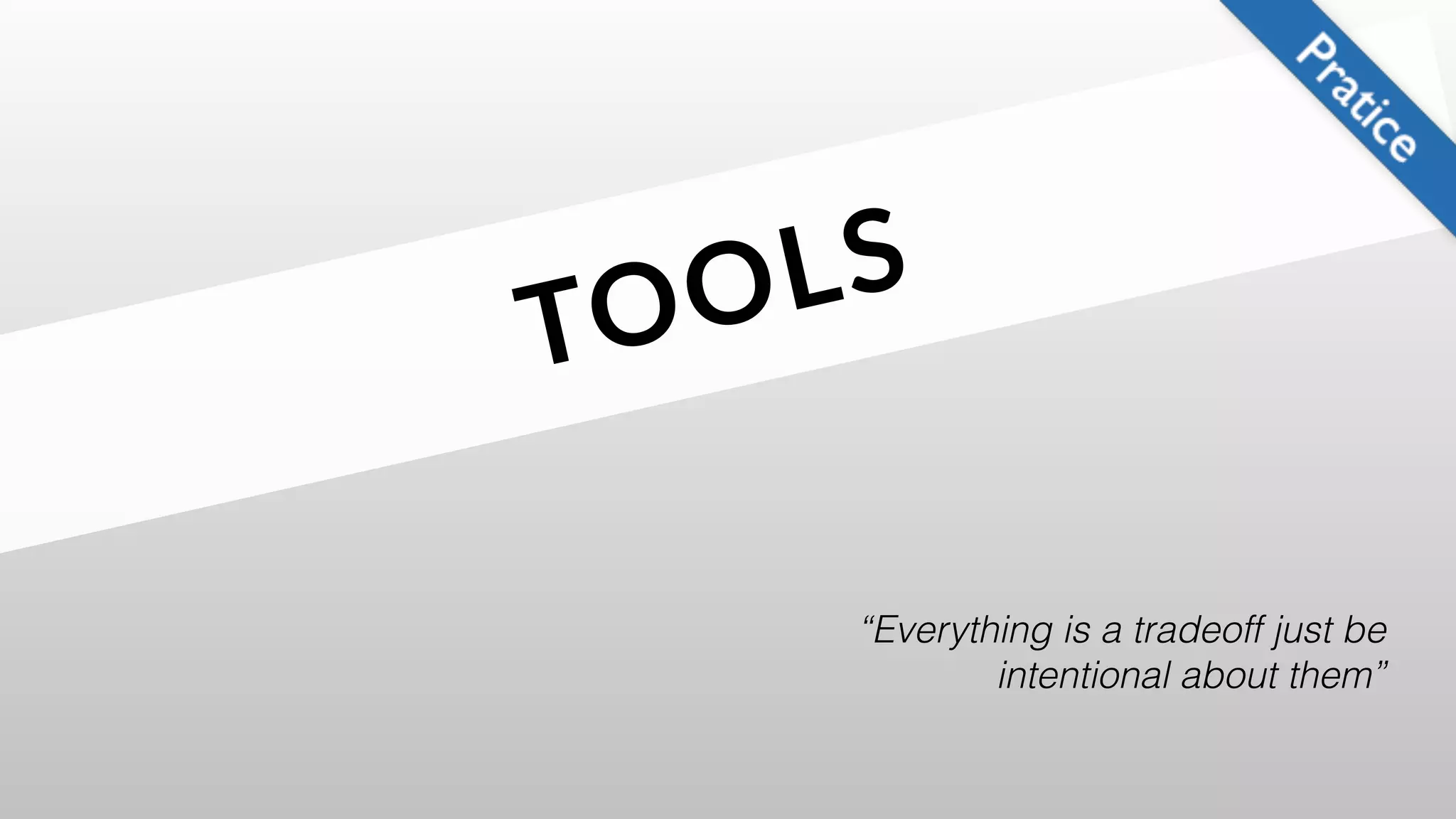

- 27. TOOLS “Everything is atradeoff just be intentional about them”

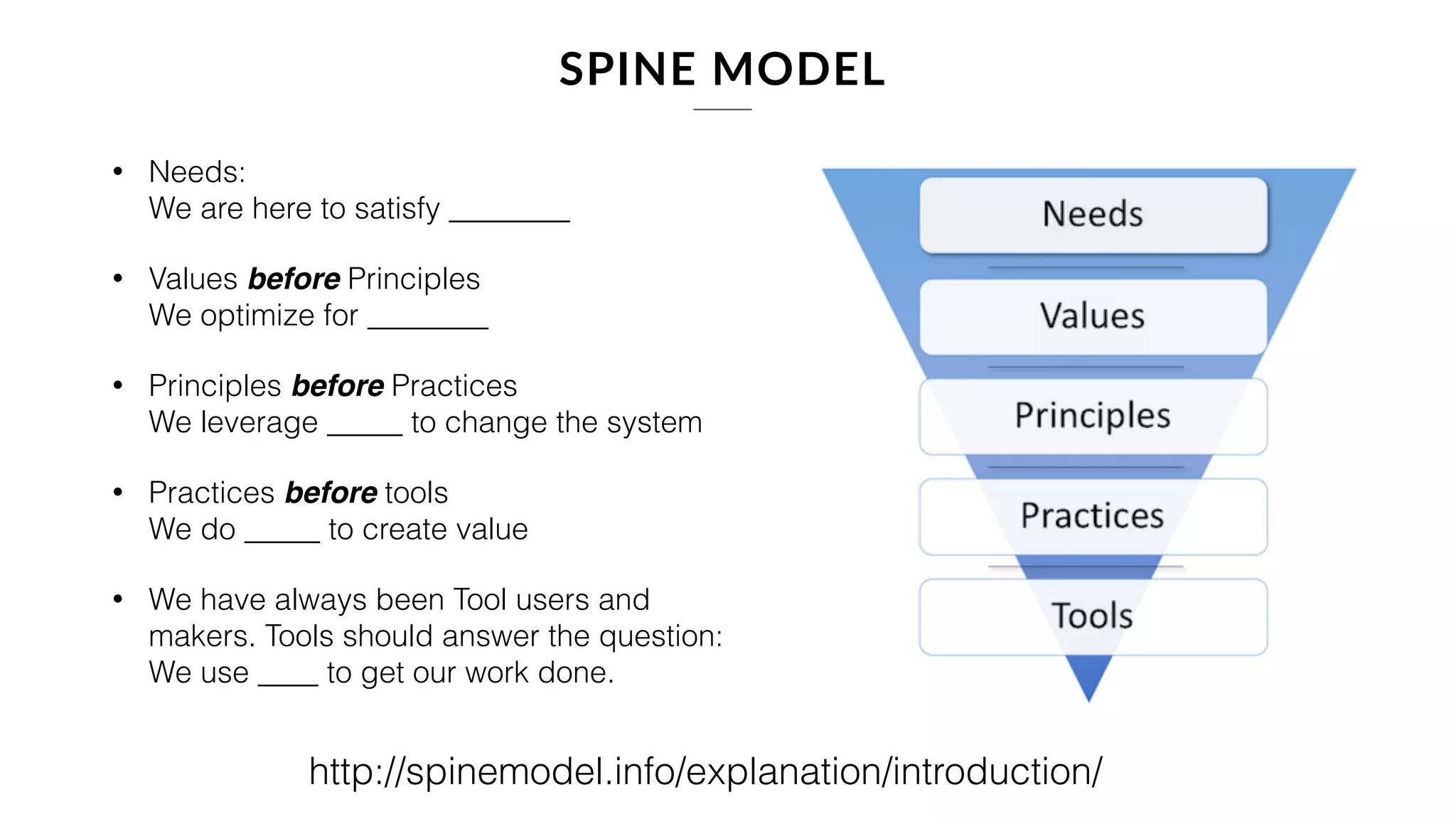

- 28. SPINE MODEL • Needs: We are here to satisfy ________ • Values before Principles We optimize for ________ • Principles before Practices We leverage _____ to change the system • Practices before tools We do _____ to create value • We have always been Tool users and makers. Tools should answer the question: We use ____ to get our work done. http://spinemodel.info/explanation/introduction/
- 29. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Reporting Database Server Hot Hot Database Server GLB / DNS

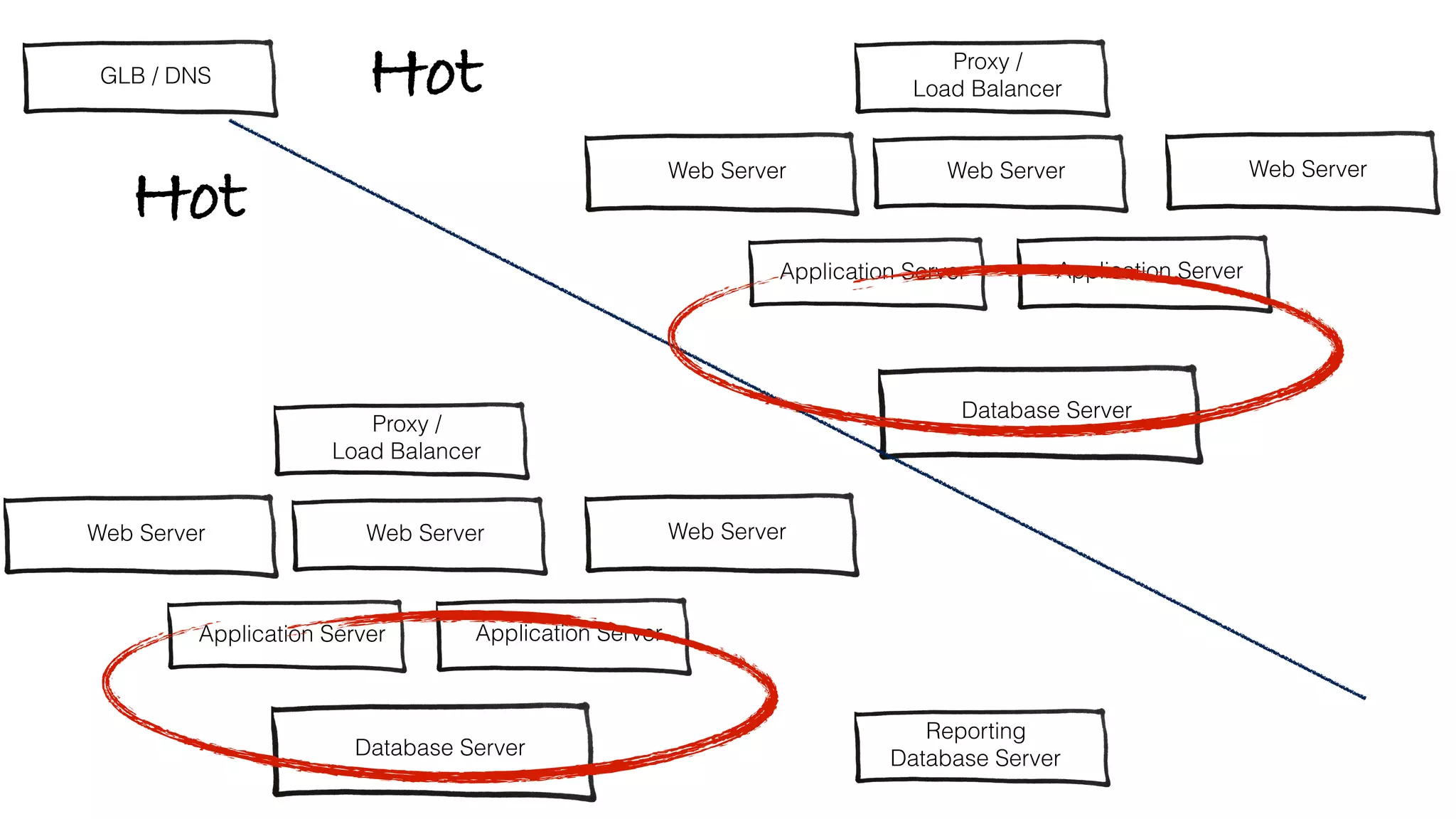

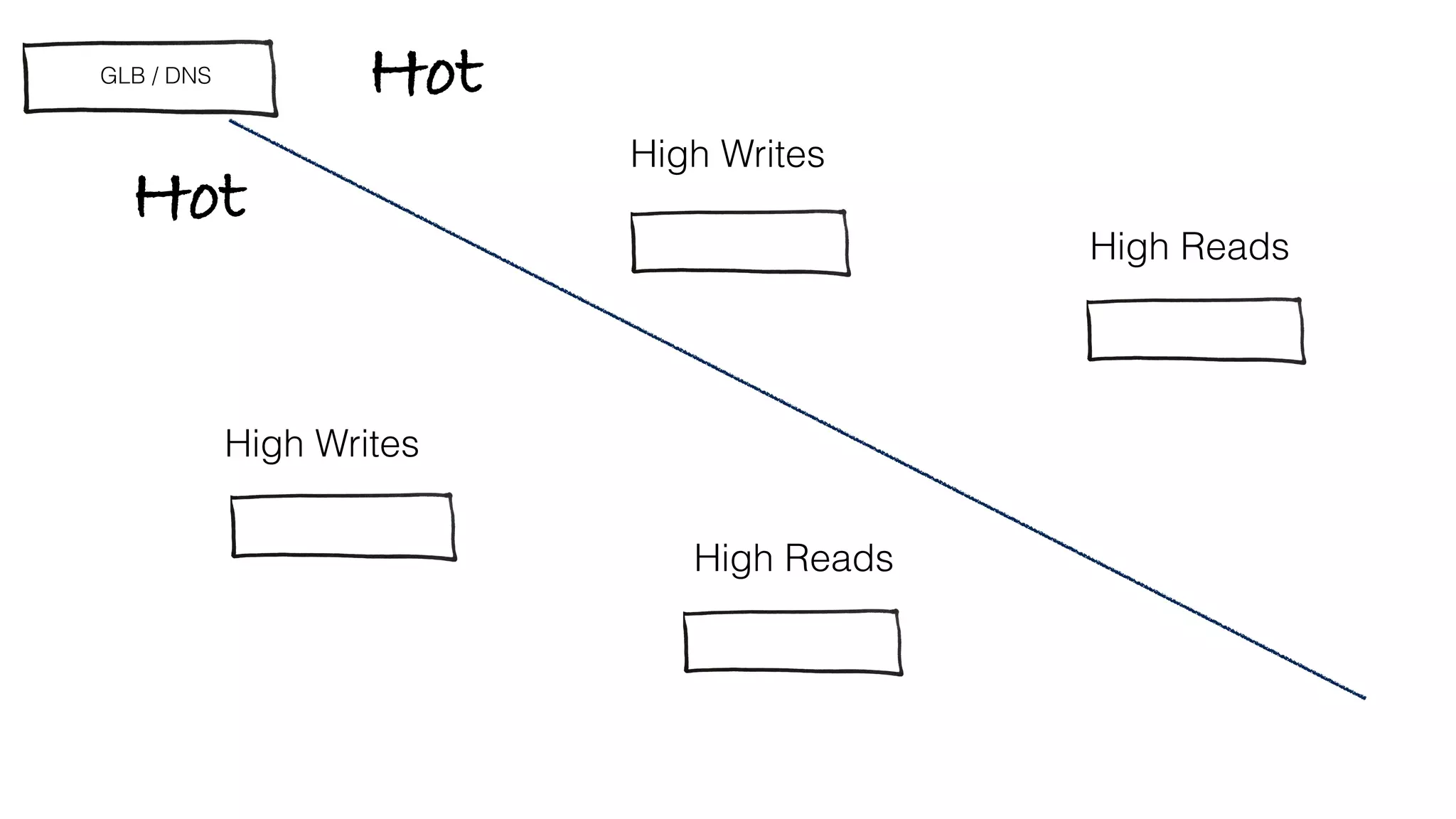

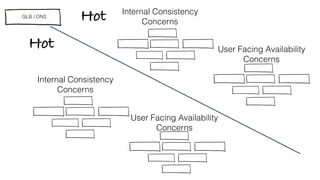

- 30. Hot Hot GLB / DNS UserFacing Availability Concerns Internal Consistency Concerns User Facing Availability Concerns Internal Consistency Concerns

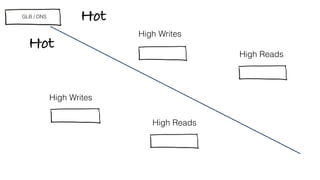

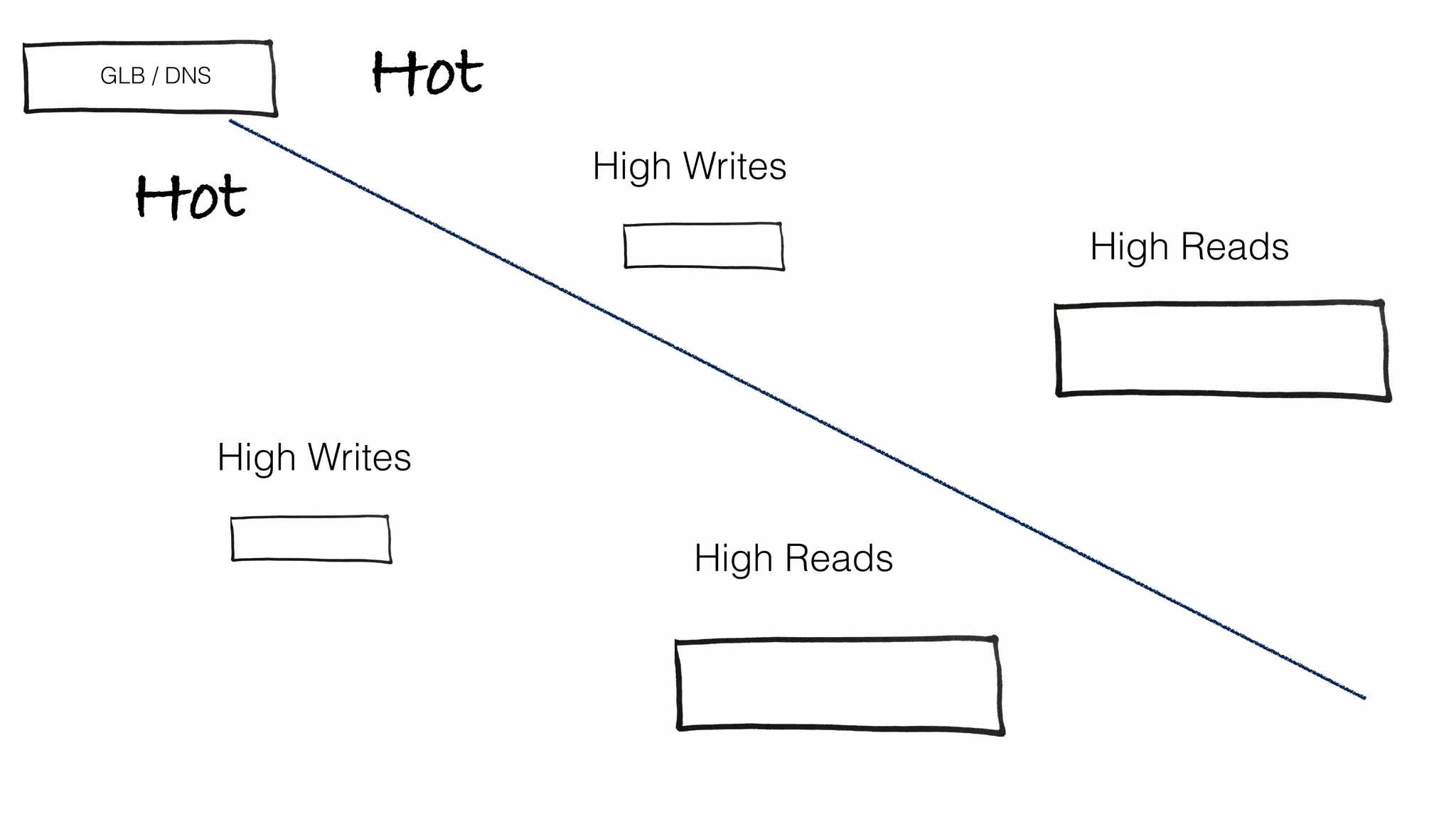

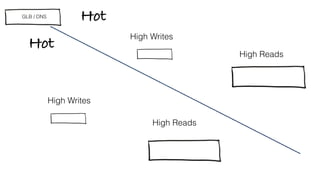

- 31. Hot Hot GLB / DNS HighReads High Writes High Reads High Writes
- 32. Hot Hot GLB / DNS HighReads High Writes High Reads High Writes

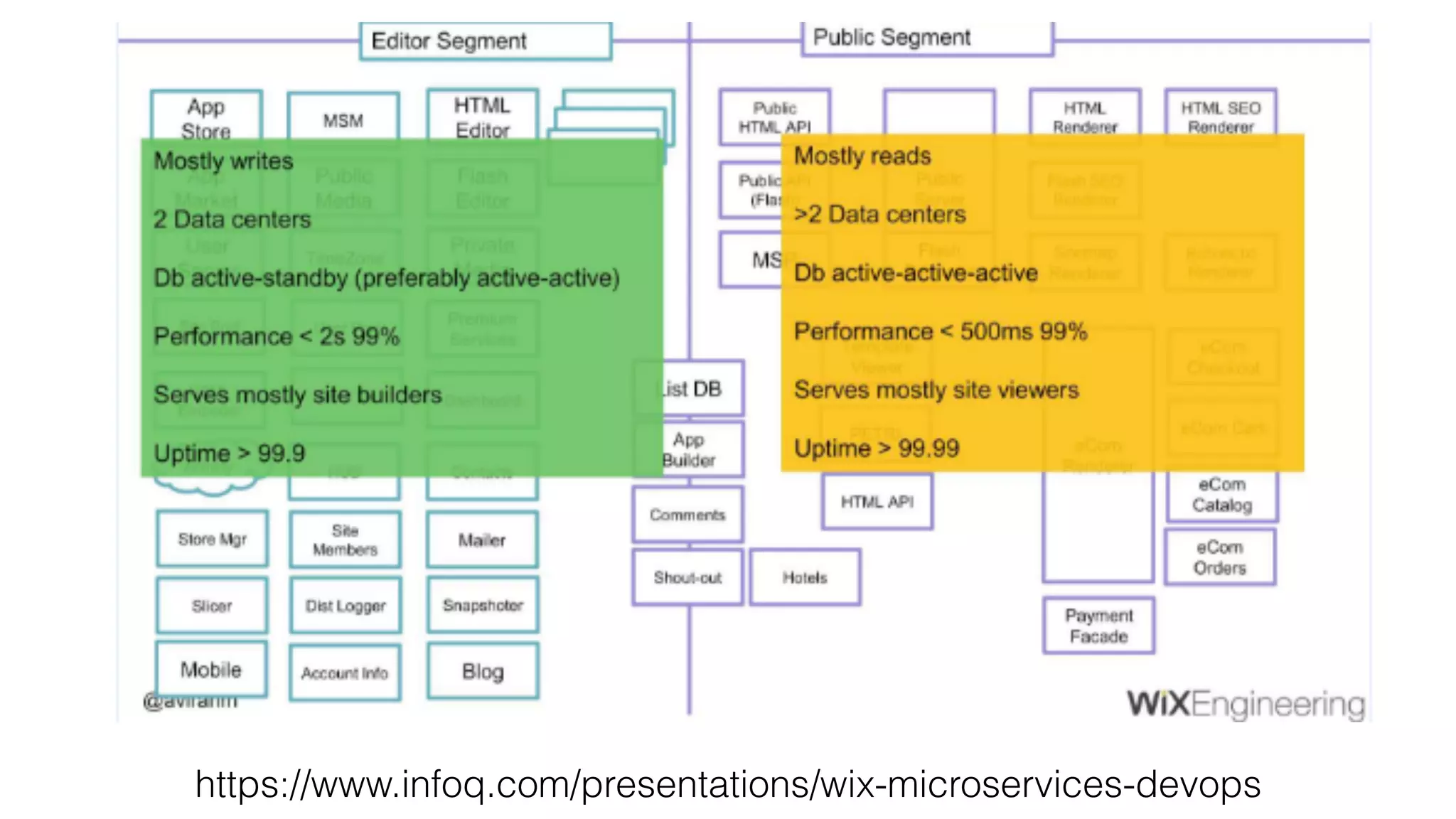

- 33.

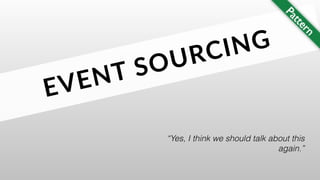

- 34. EVENT SOURCING “Yes, Ithink we should talk about this again.”

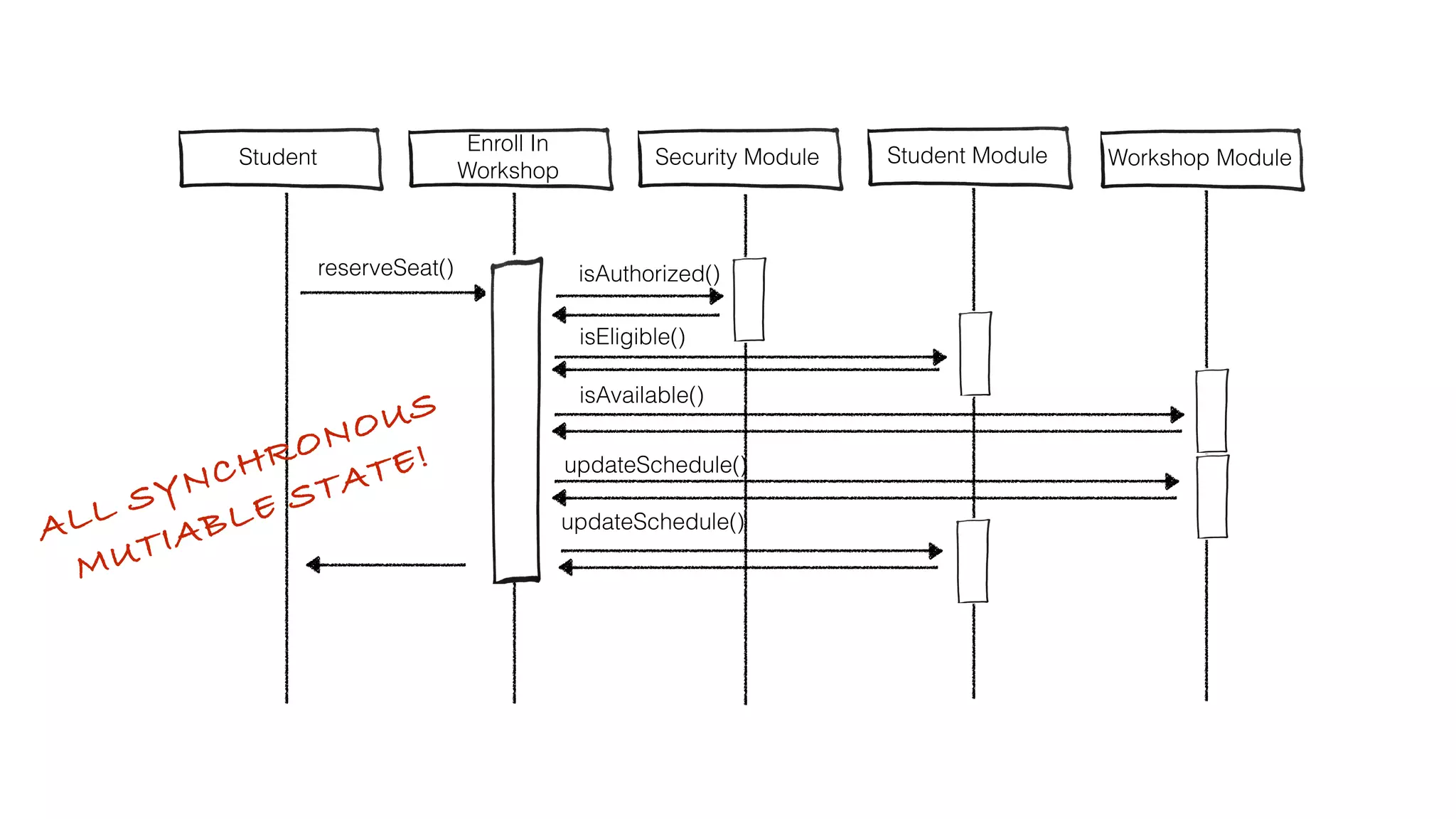

- 35. Student Enroll In Workshop SecurityModule Student Module Workshop Module reserveSeat() isAuthorized() isEligible() isAvailable() updateSchedule() updateSchedule() ALL SYNCHRONOUS MUTIABLE STATE!

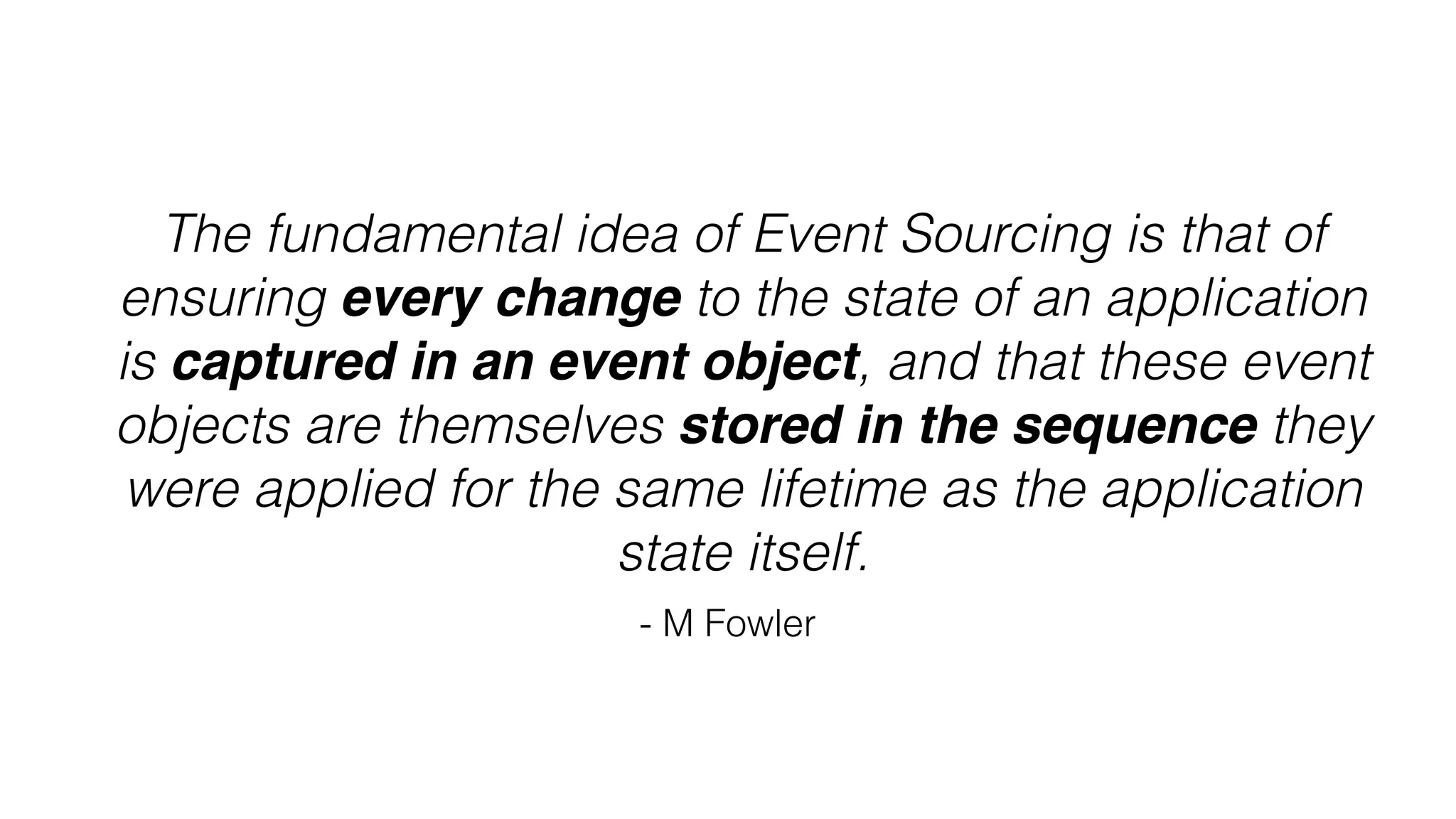

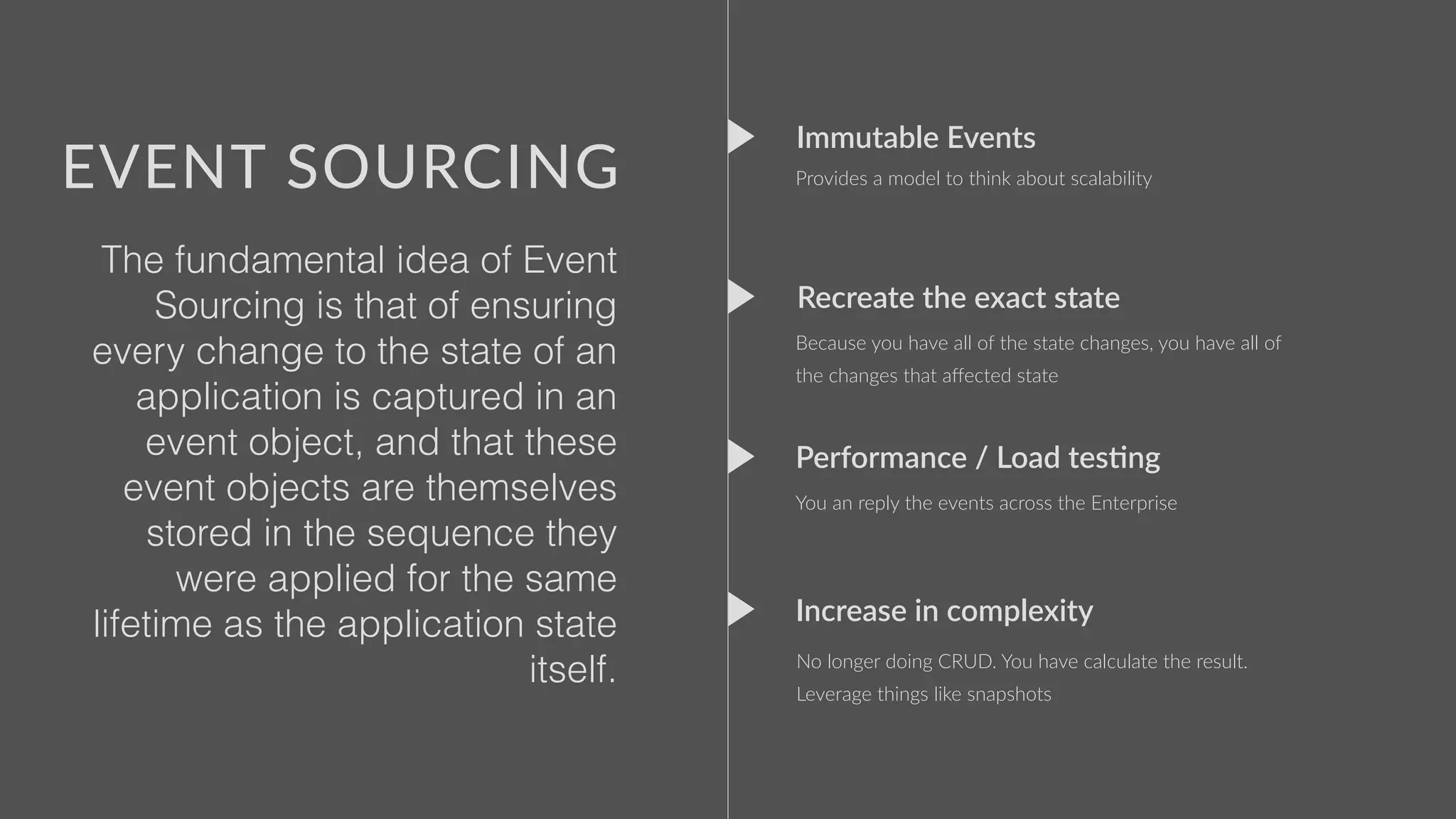

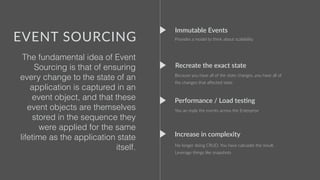

- 36. The fundamental ideaof Event Sourcing is that of ensuring every change to the state of an application is captured in an event object, and that these event objects are themselves stored in the sequence they were applied for the same lifetime as the application state itself. - M Fowler

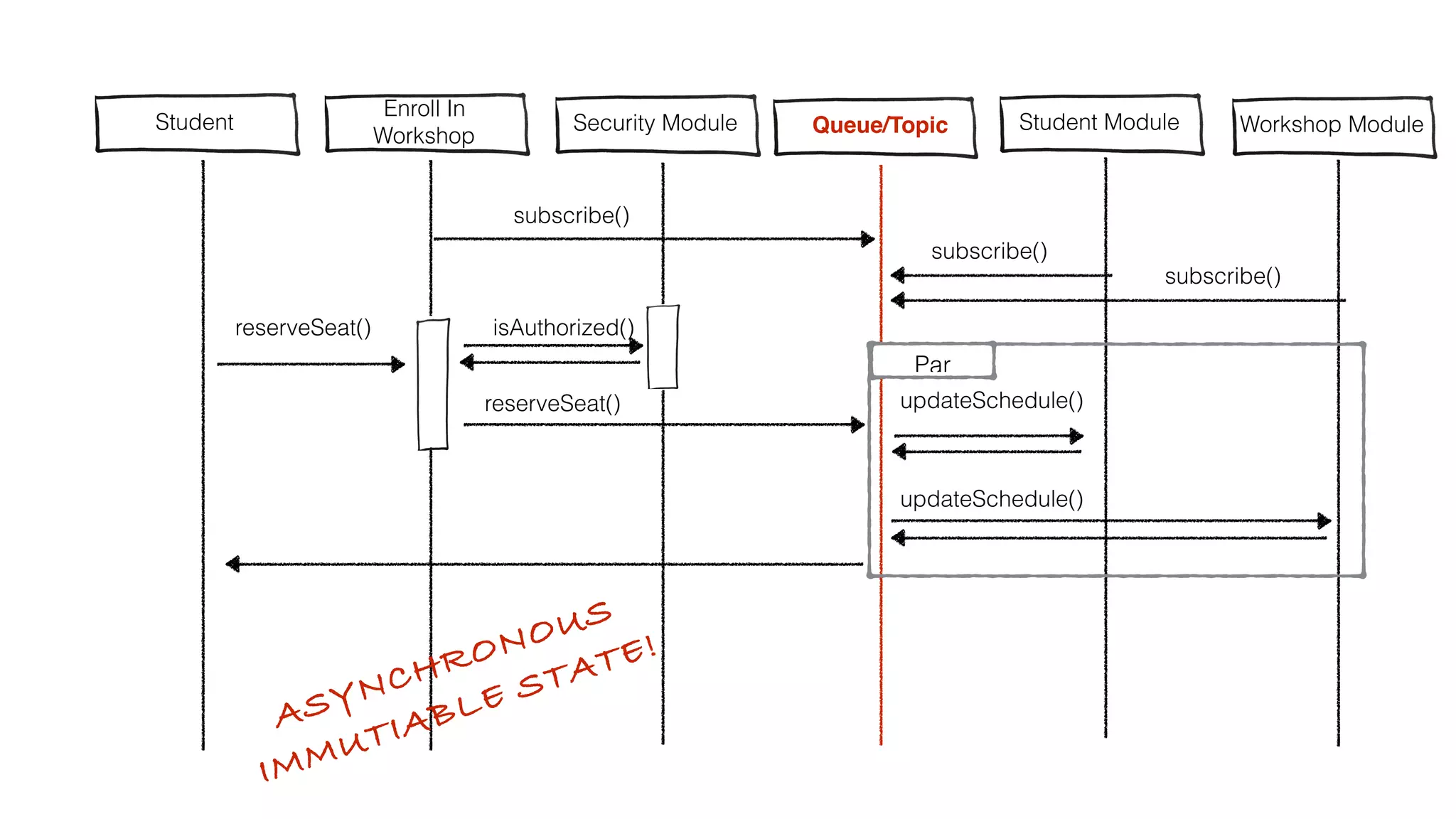

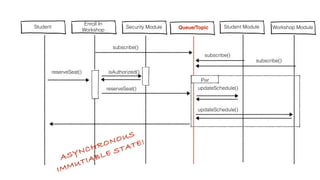

- 37. Student Enroll In Workshop SecurityModule Student Module Workshop ModuleQueue/Topic subscribe() subscribe() subscribe() reserveSeat() isAuthorized() reserveSeat() ASYNCHRONOUS IMMUTIABLE STATE! updateSchedule() updateSchedule() Par
- 38. Immutable Events Recreate theexact state Increase in complexity Performance / Load tes&ng Provides a model to think about scalability Because you have all of the state changes, you have all of the changes that affected state No longer doing CRUD. You have calculate the result. Leverage things like snapshots You an reply the events across the Enterprise EVENT SOURCING The fundamental idea of Event Sourcing is that of ensuring every change to the state of an application is captured in an event object, and that these event objects are themselves stored in the sequence they were applied for the same lifetime as the application state itself.
- 39. CQRS “Decouple queries fromCommands to scale each independently.”

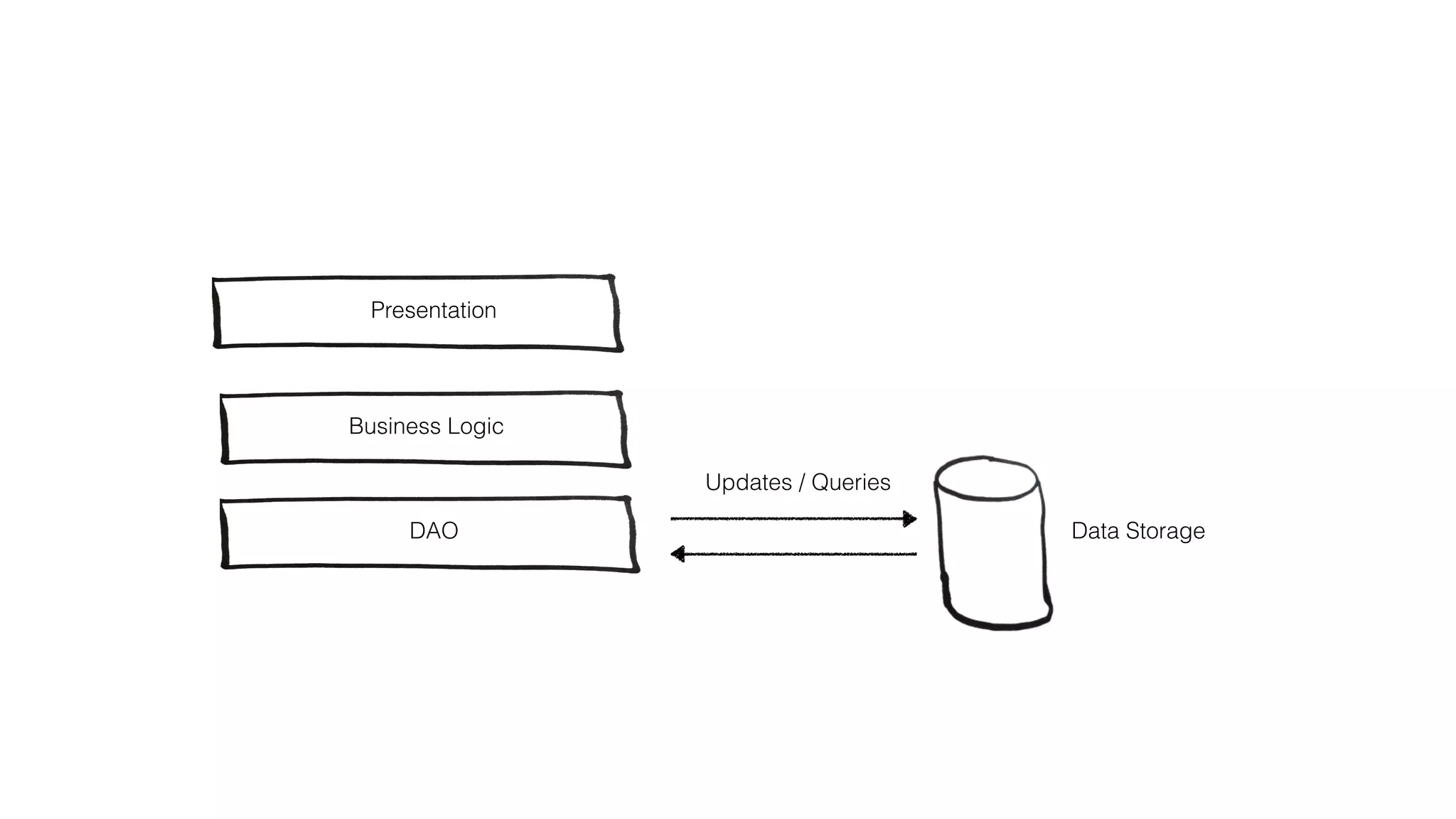

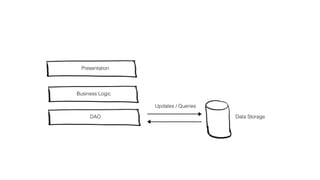

- 40. Presentation Business Logic DAO DataStorage Updates / Queries

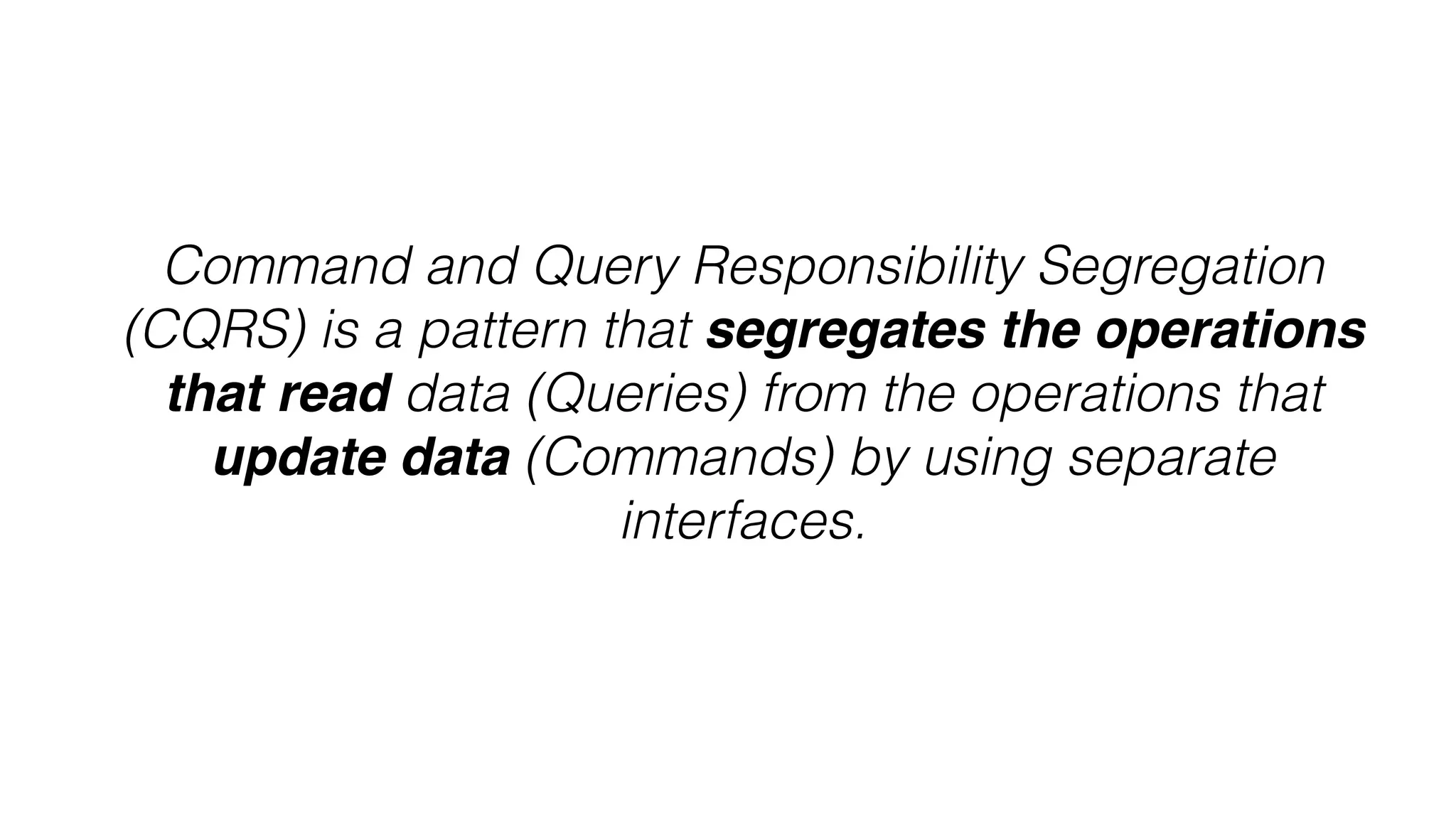

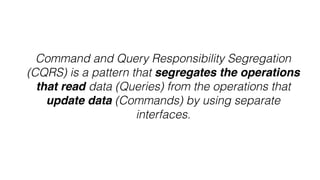

- 41. Command and QueryResponsibility Segregation (CQRS) is a pattern that segregates the operations that read data (Queries) from the operations that update data (Commands) by using separate interfaces.

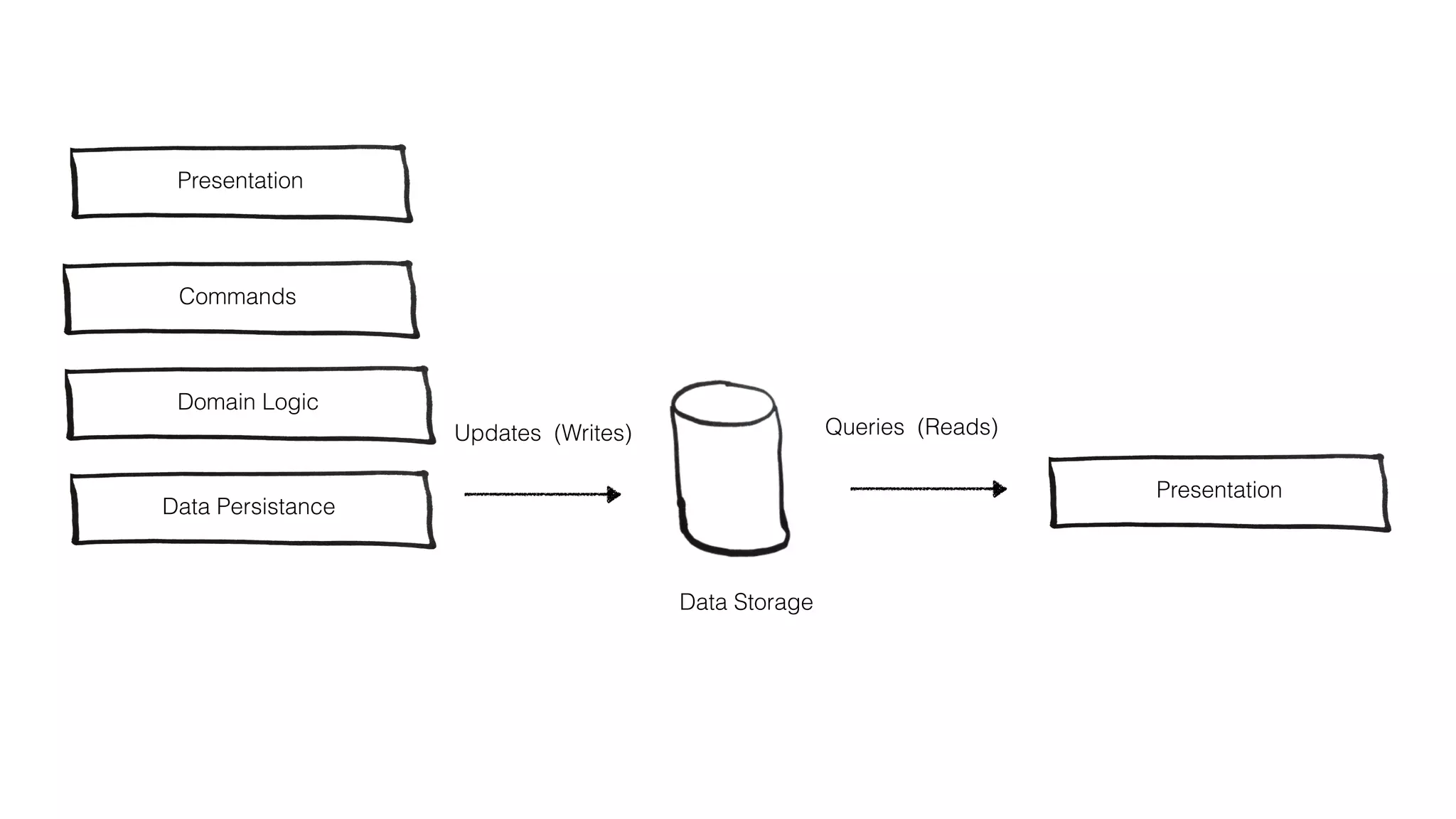

- 42. Presentation Commands Data Persistance Data Storage Updates(Writes) Domain Logic Queries (Reads) Presentation

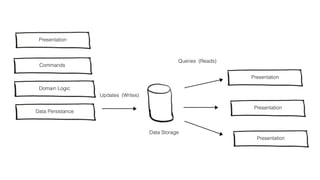

- 43. Presentation Commands Data Persistance Data Storage Updates(Writes) Domain Logic Queries (Reads) Presentation Presentation Presentation

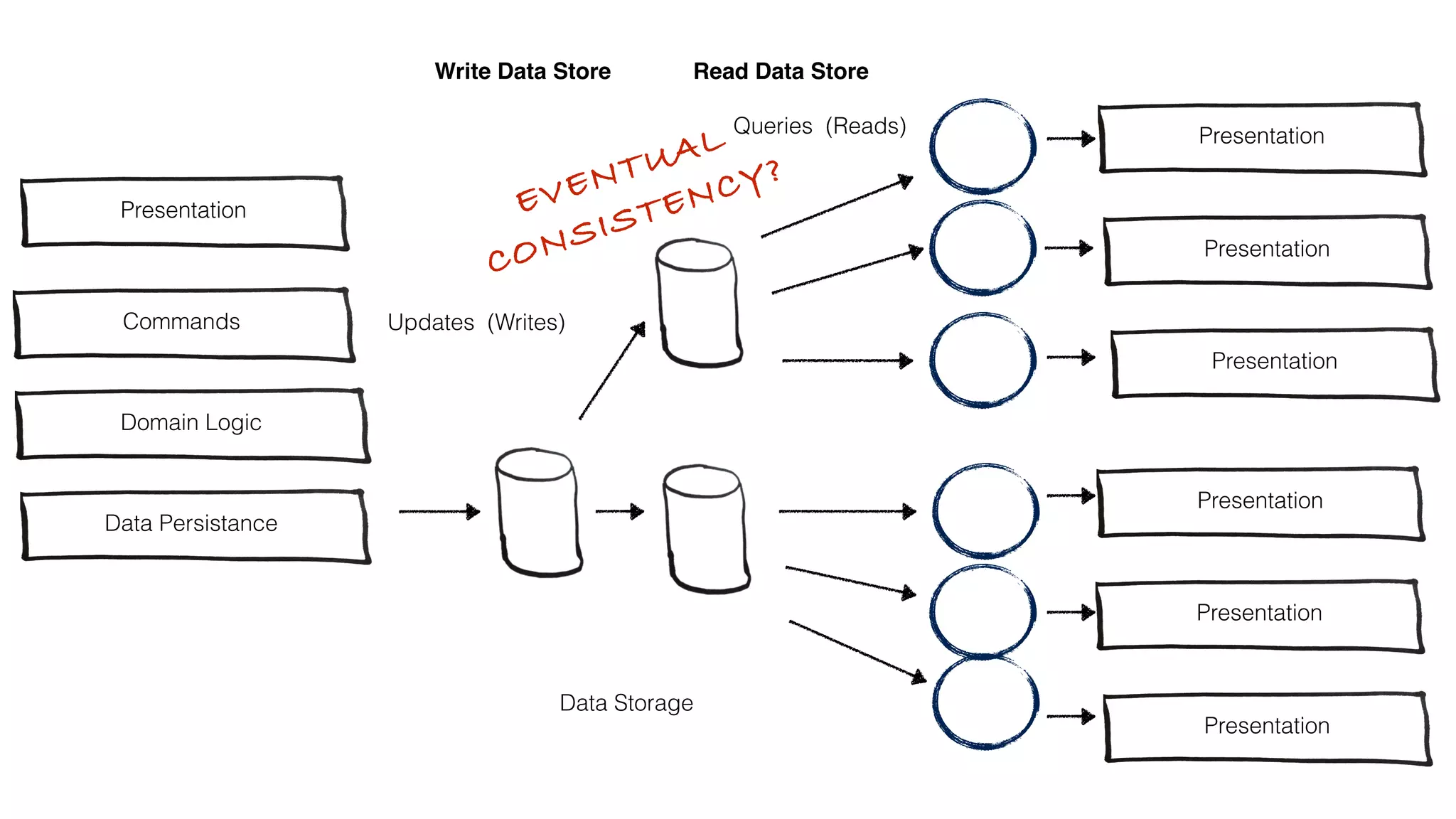

- 44. Presentation Commands Data Persistance Data Storage Updates(Writes) Domain Logic Queries (Reads) Presentation Presentation Presentation Presentation Presentation Presentation Read Data StoreWrite Data Store EVENTUAL CONSISTENCY?

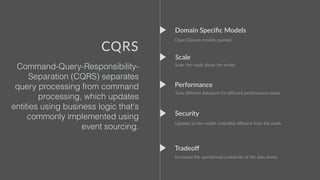

- 45. Domain Specific Models Scale Tradeoff Performance CleanDomain models queried Scale the reads above the writes Increased the operaFonal complexity of the data stores Tune different datastore for different performance needs CQRS Command-Query-Responsibility- Separation (CQRS) separates query processing from command processing, which updates entities using business logic that's commonly implemented using event sourcing. Security Updates to the model controlled different from the reads
- 46. CIRCUIT BREAKER “Decouple queriesfrom Commands to scale each independently.”

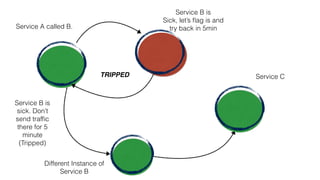

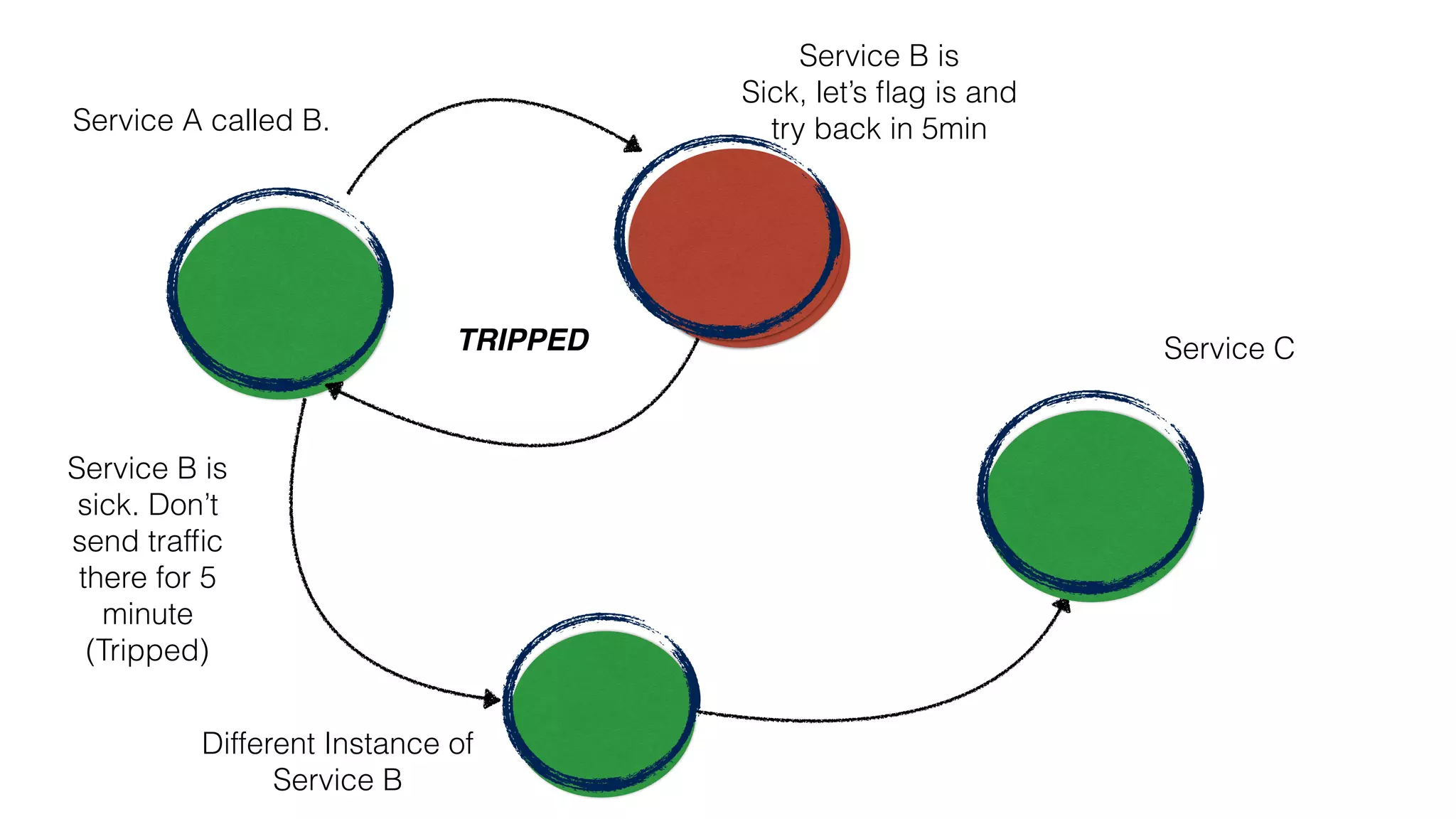

- 47. Service A calledB. TRIPPED Service B is Sick, let’s flag is and try back in 5min Service C Different Instance of Service B Service B is sick. Don’t send traffic there for 5 minute (Tripped)

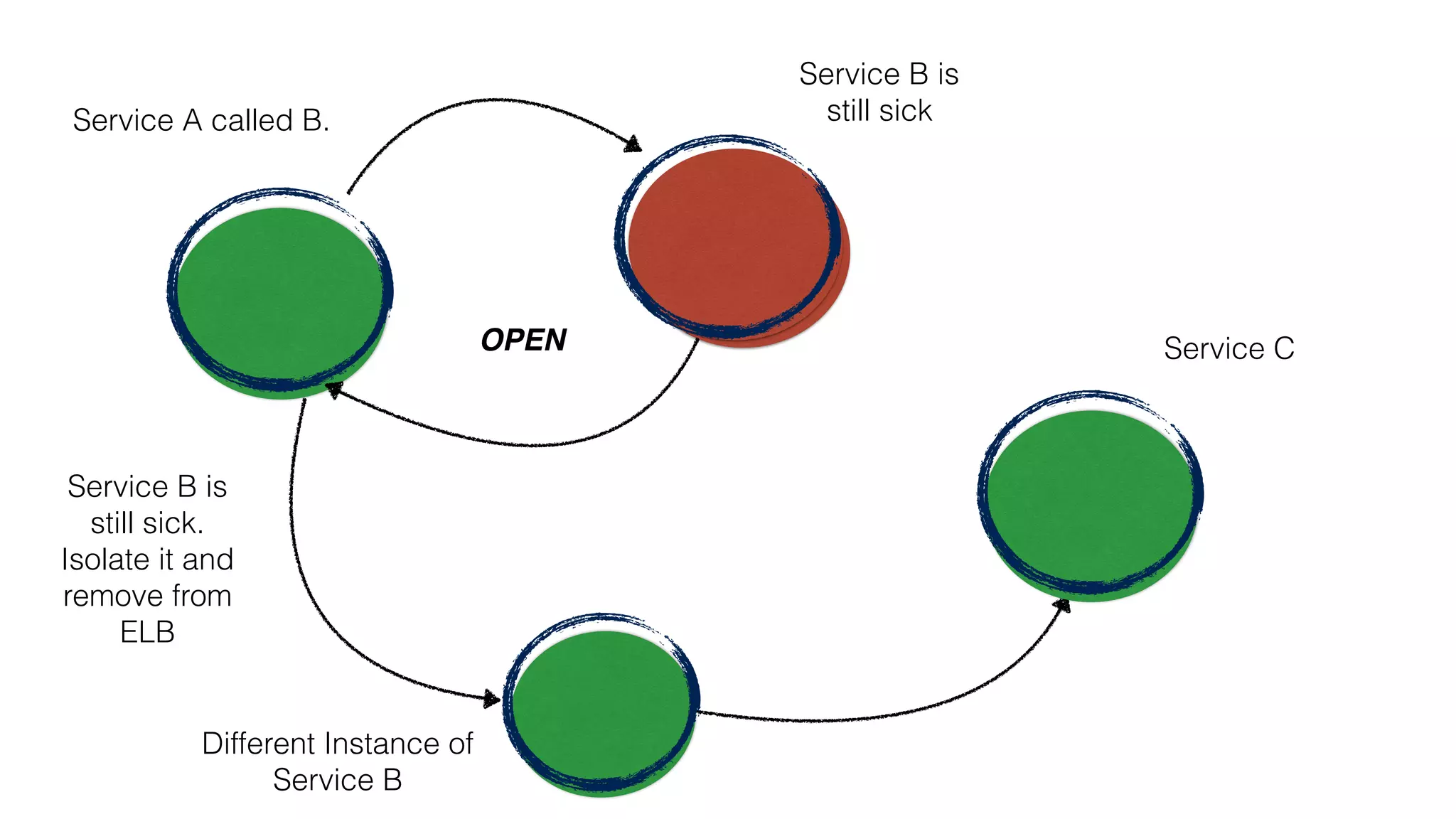

- 48. Service A calledB. OPEN Service B is still sick Service C Different Instance of Service B Service B is still sick. Isolate it and remove from ELB
- 49. Service responds normally. Service C After5 minutes. Traffic back to service B. Closed set the flag to closed. Nothing else to do. service B responded correctly,

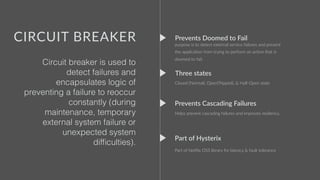

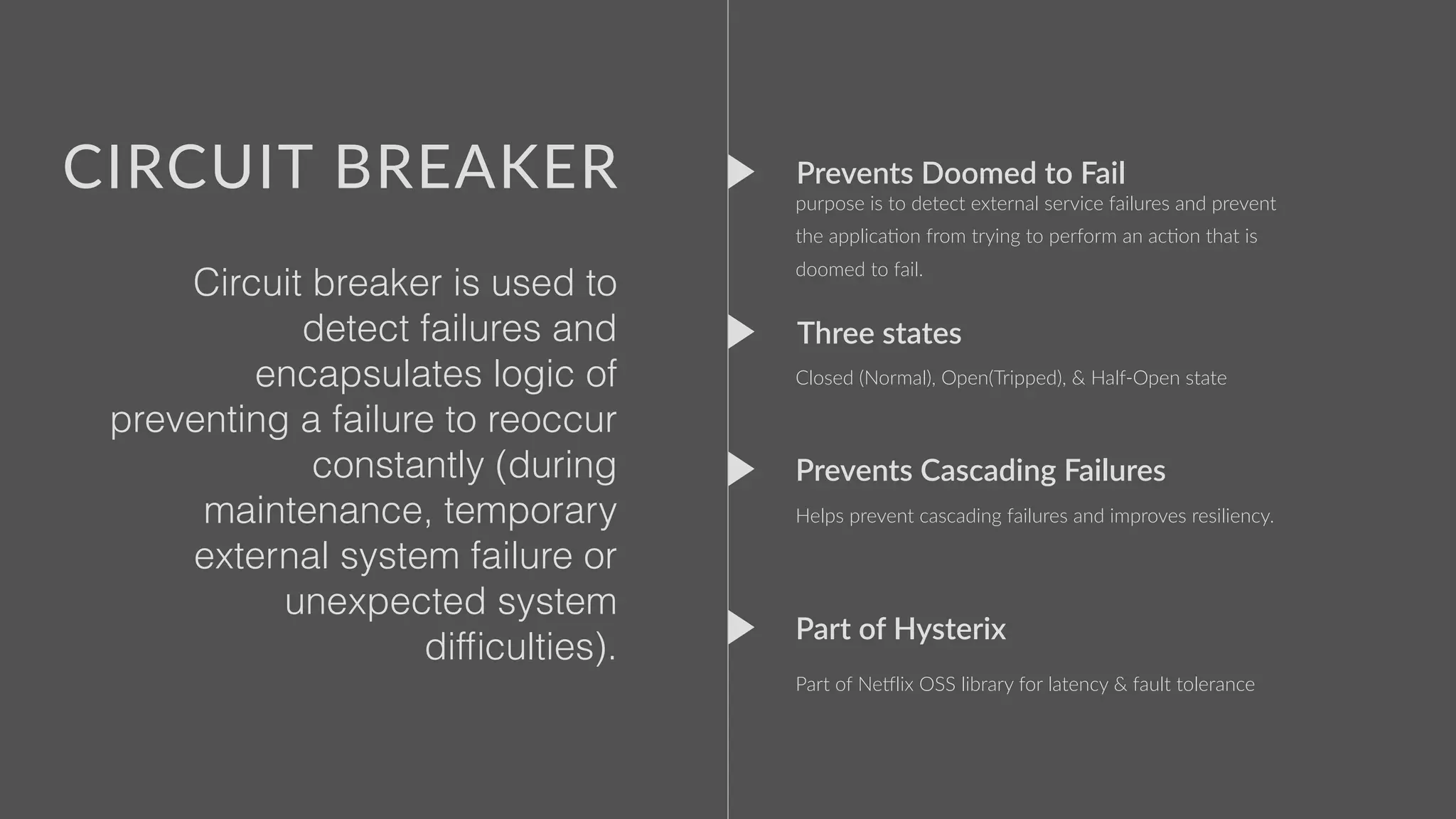

- 50. Prevents Doomed toFail Three states Prevents Cascading Failures purpose is to detect external service failures and prevent the applicaFon from trying to perform an acFon that is doomed to fail. Closed (Normal), Open(Tripped), & Half-Open state Helps prevent cascading failures and improves resiliency. CIRCUIT BREAKER Circuit breaker is used to detect failures and encapsulates logic of preventing a failure to reoccur constantly (during maintenance, temporary external system failure or unexpected system difficulties). Part of Hysterix Part of Nelix OSS library for latency & fault tolerance

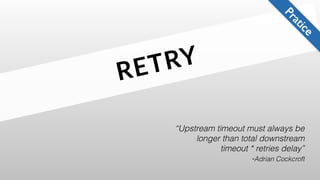

- 51. RETRY “Upstream timeout mustalways be longer than total downstream timeout * retries delay” -Adrian Cockcroft

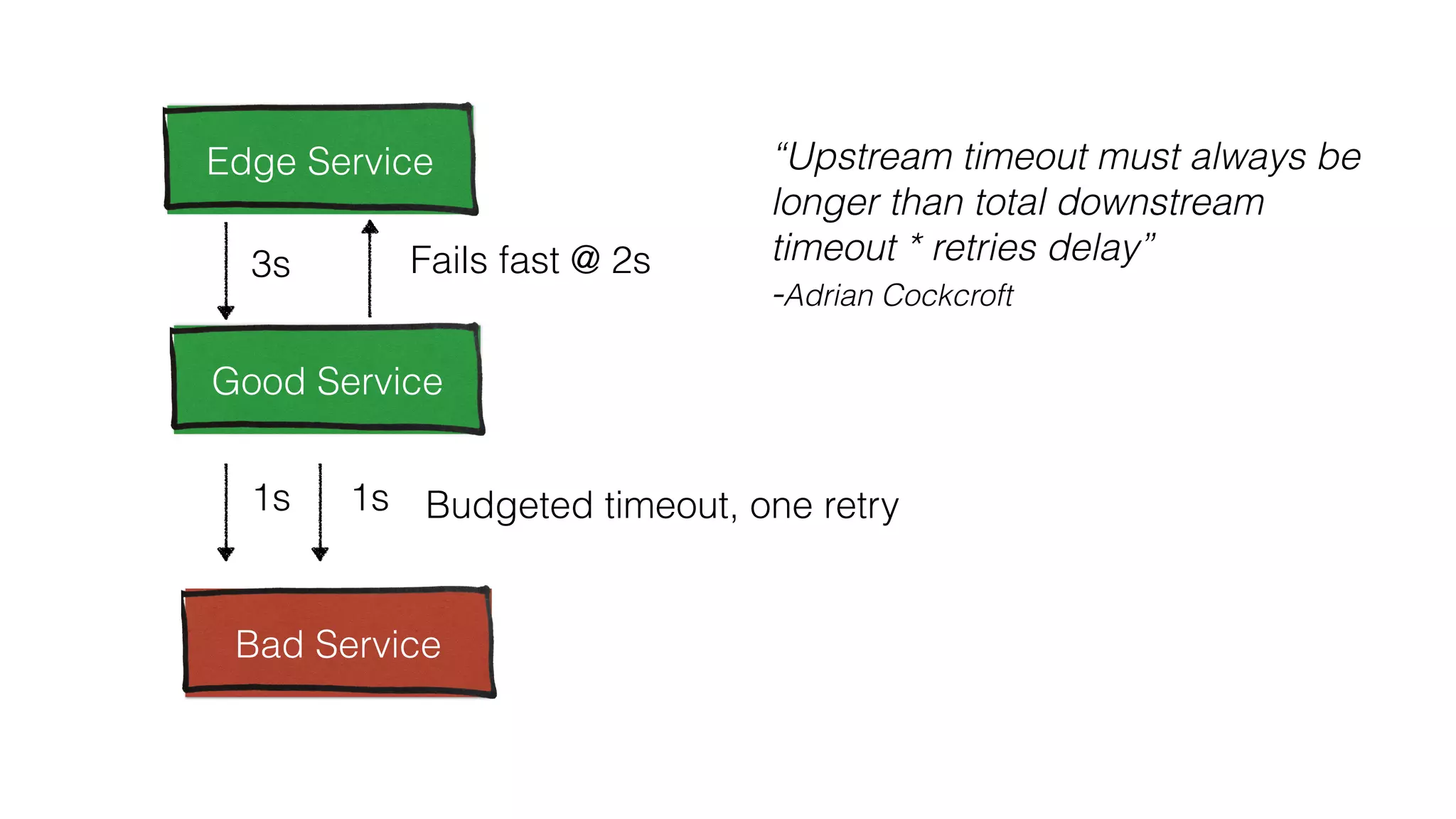

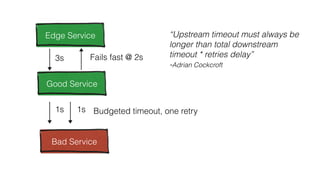

- 52. Bad Service Good Service EdgeService 3s 1s 1s Fails fast @ 2s “Upstream timeout must always be longer than total downstream timeout * retries delay” -Adrian Cockcroft Budgeted timeout, one retry

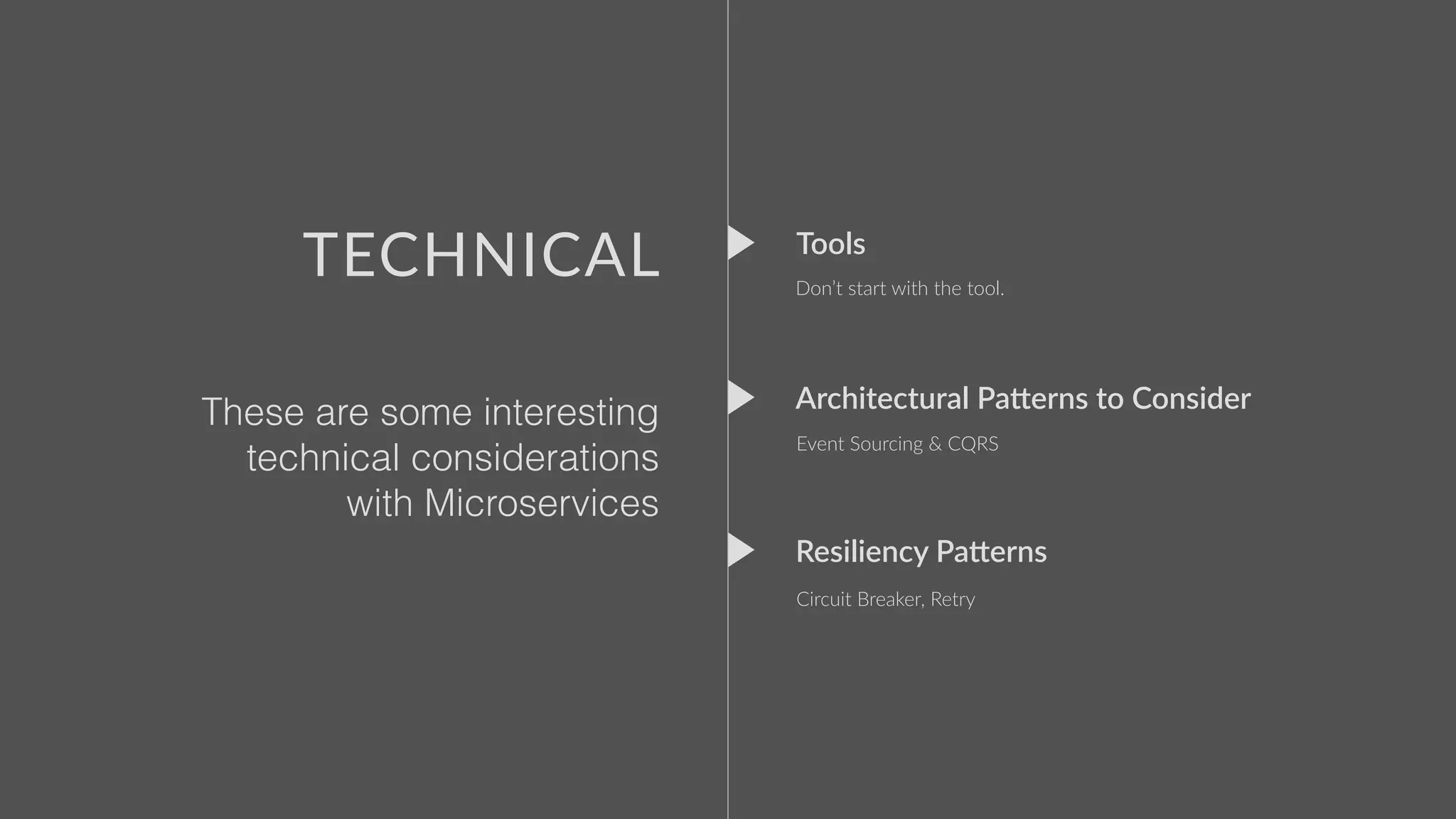

- 53. Tools Resiliency PaIerns Architectural PaIernsto Consider Don’t start with the tool. Circuit Breaker, Retry Event Sourcing & CQRS TECHNICAL These are some interesting technical considerations with Microservices

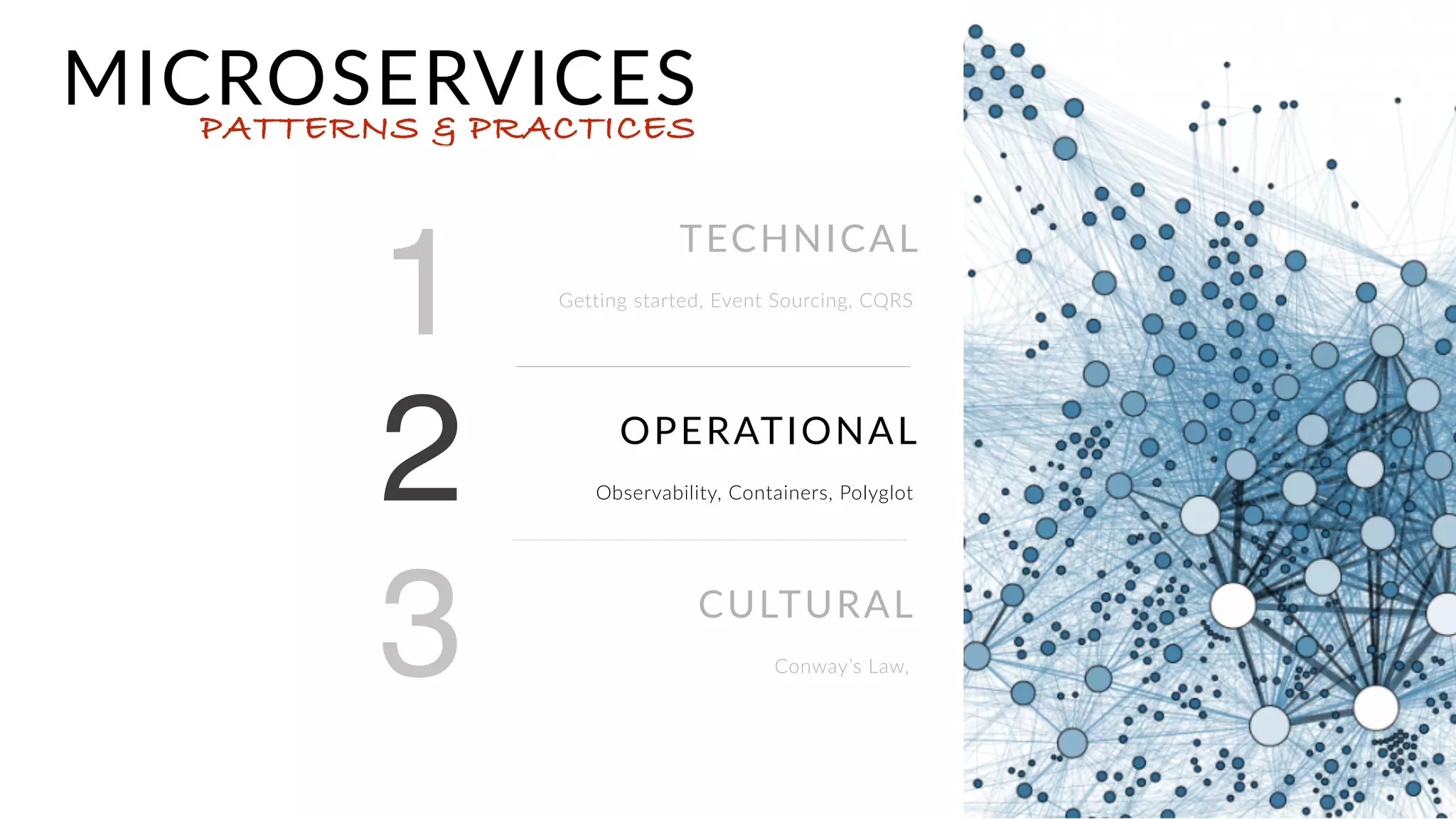

- 54. TECHNICAL Getting started, EventSourcing, CQRS OPERATIONAL Observability, Containers, Polyglot CULTURAL DevOps Culture, Conway’s Law, MICROSERVICESPATTERNS & PRACTICES 1 2 3

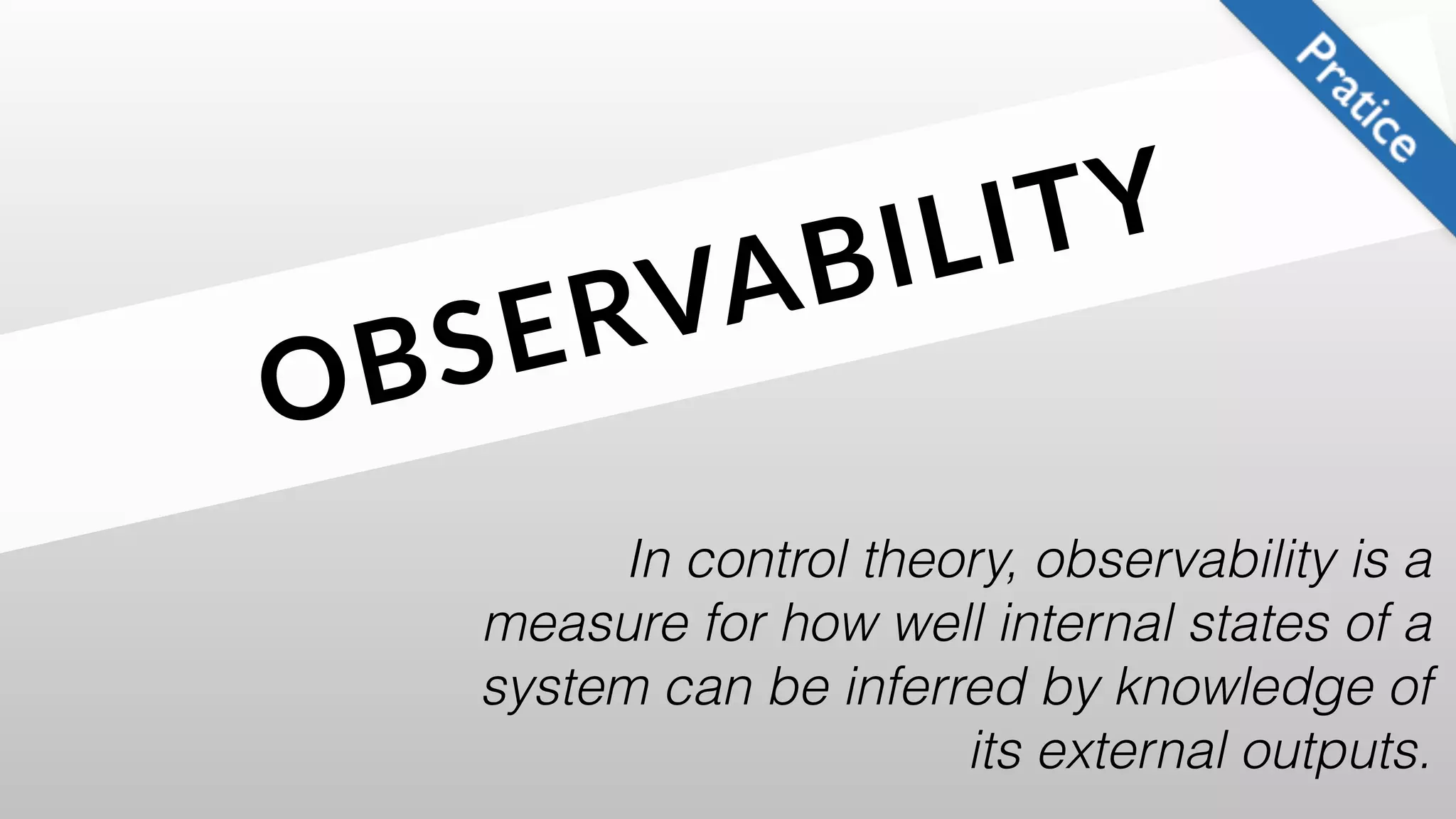

- 55. OBSERVABILITY In control theory,observability is a measure for how well internal states of a system can be inferred by knowledge of its external outputs.

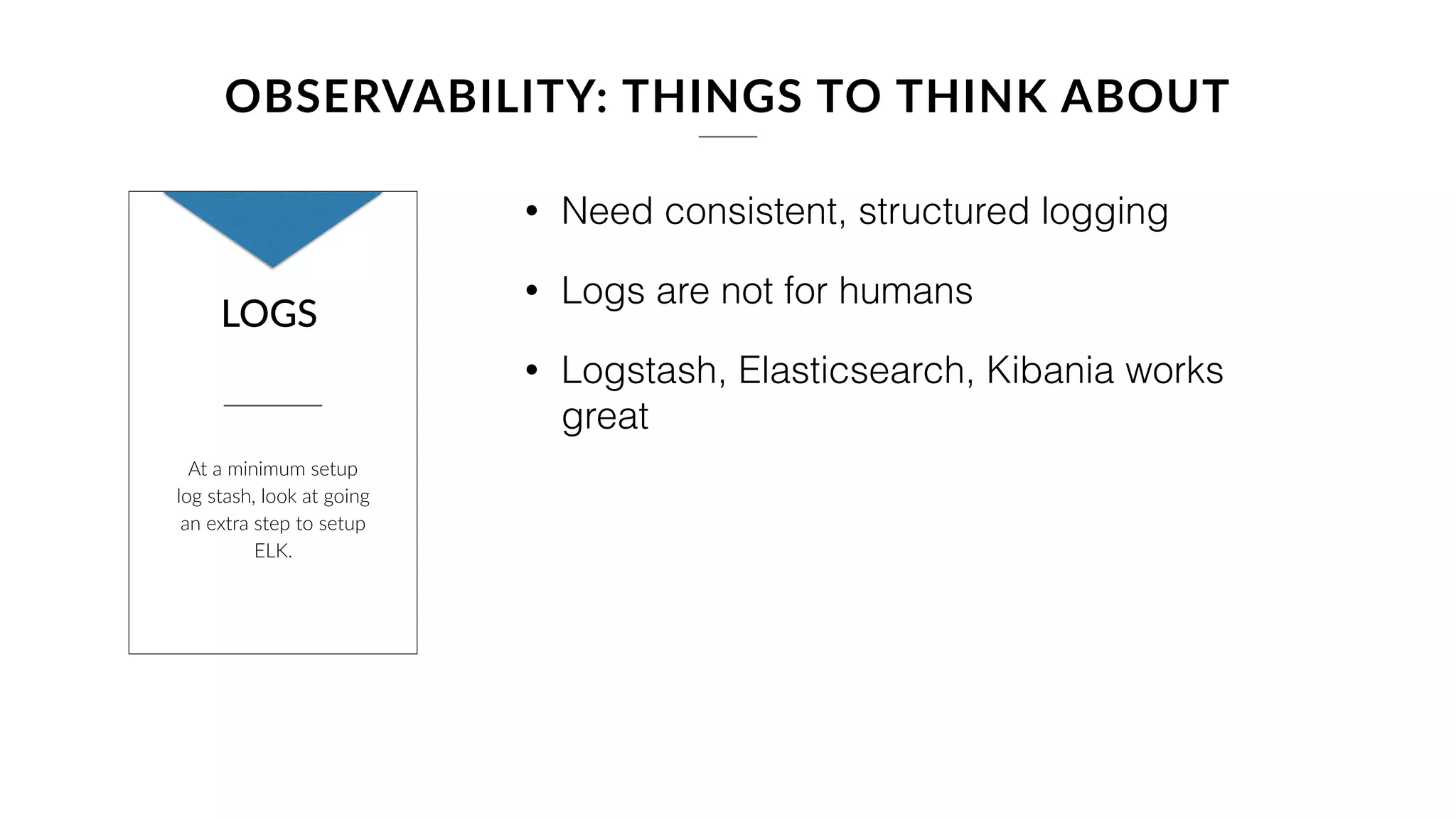

- 56. At a minimumsetup log stash, look at going an extra step to setup ELK. OBSERVABILITY: THINGS TO THINK ABOUT LOGS • Need consistent, structured logging • Logs are not for humans • Logstash, Elasticsearch, Kibania works great

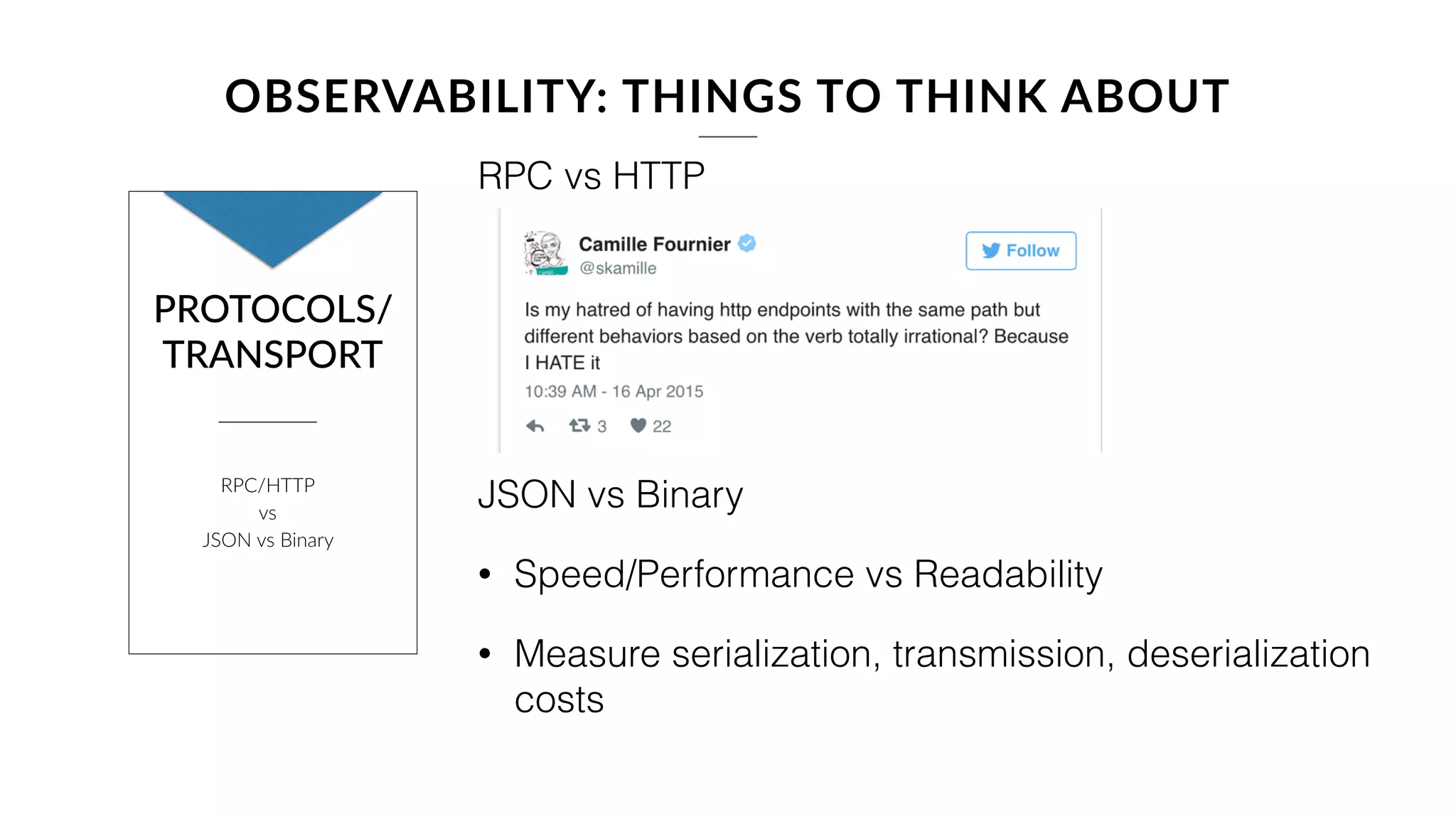

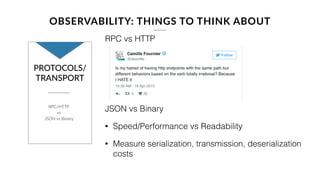

- 57. OBSERVABILITY: THINGS TOTHINK ABOUT PROTOCOLS/ TRANSPORT RPC/HTTP vs JSON vs Binary RPC vs HTTP JSON vs Binary • Speed/Performance vs Readability • Measure serialization, transmission, deserialization costs

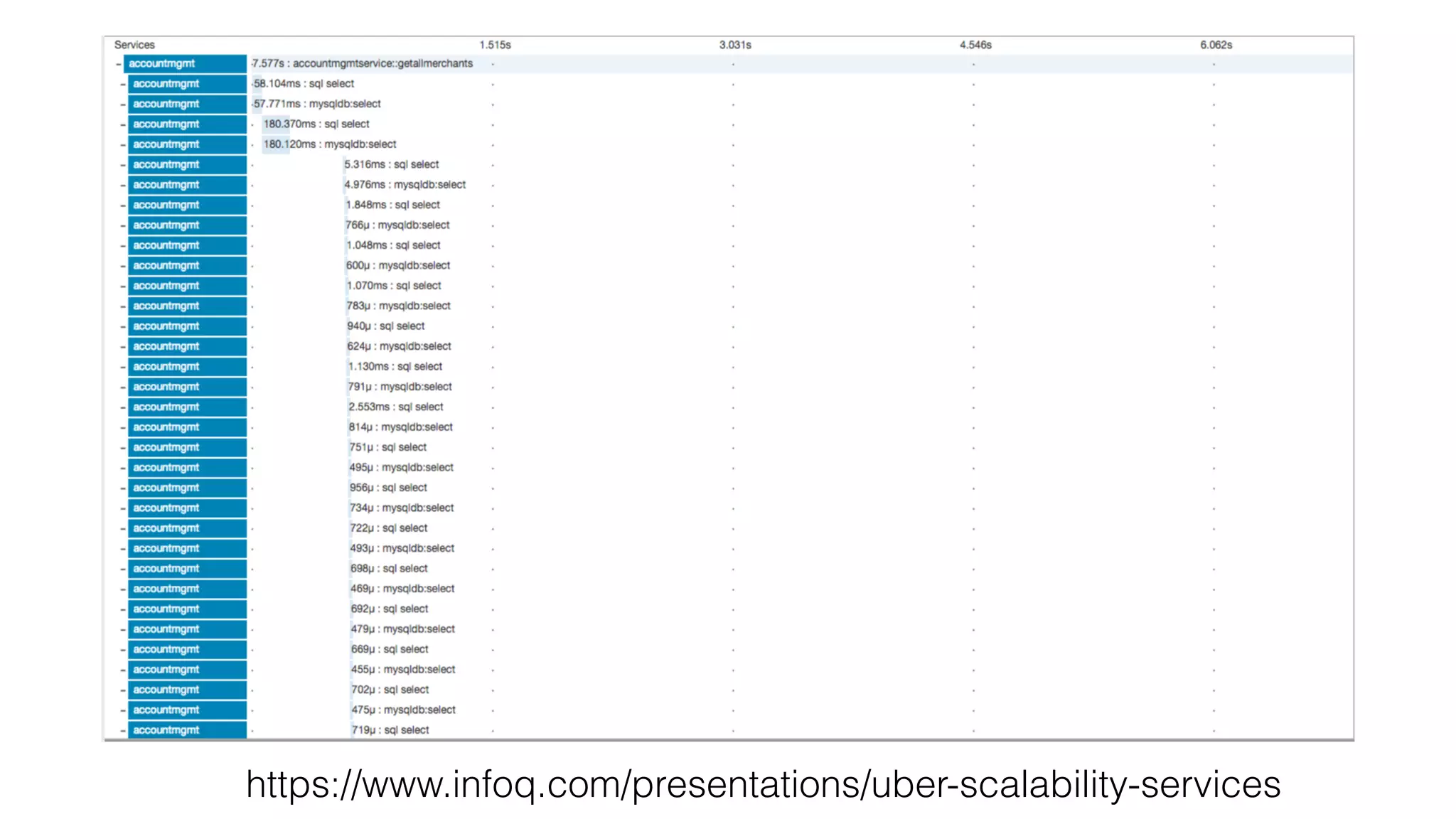

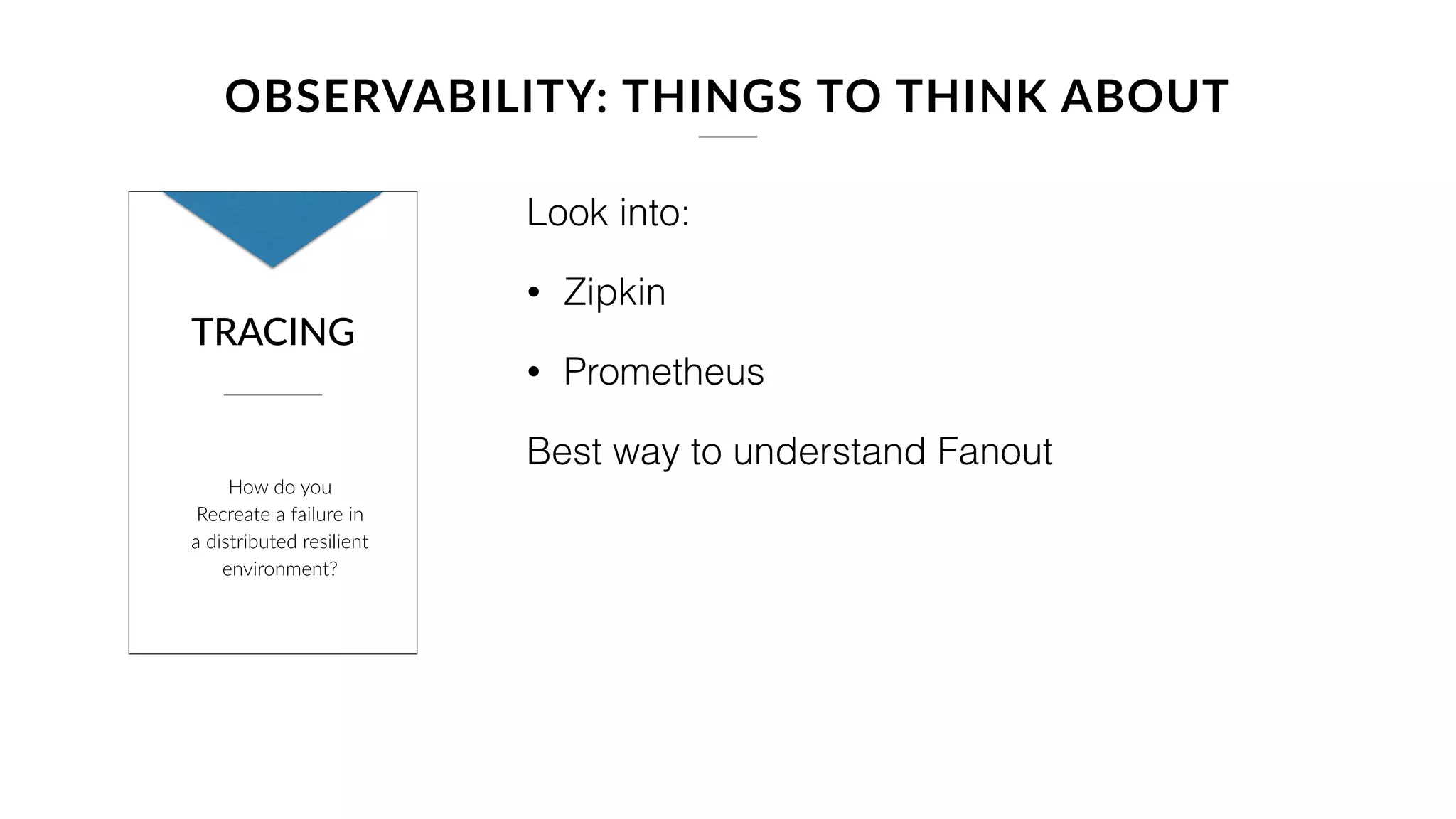

- 58. OBSERVABILITY: THINGS TOTHINK ABOUT How do you Recreate a failure in a distributed resilient environment? TRACING Look into: • Zipkin • Prometheus Best way to understand Fanout

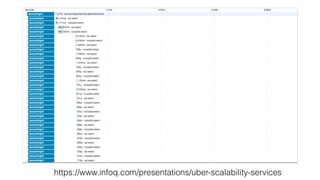

- 59.
- 60. CONTAINERS “What do youfeel is the most disruptive (or at least potentially disruptive technology)?”
- 61. POLYGLOT More challenges thanthey thought…

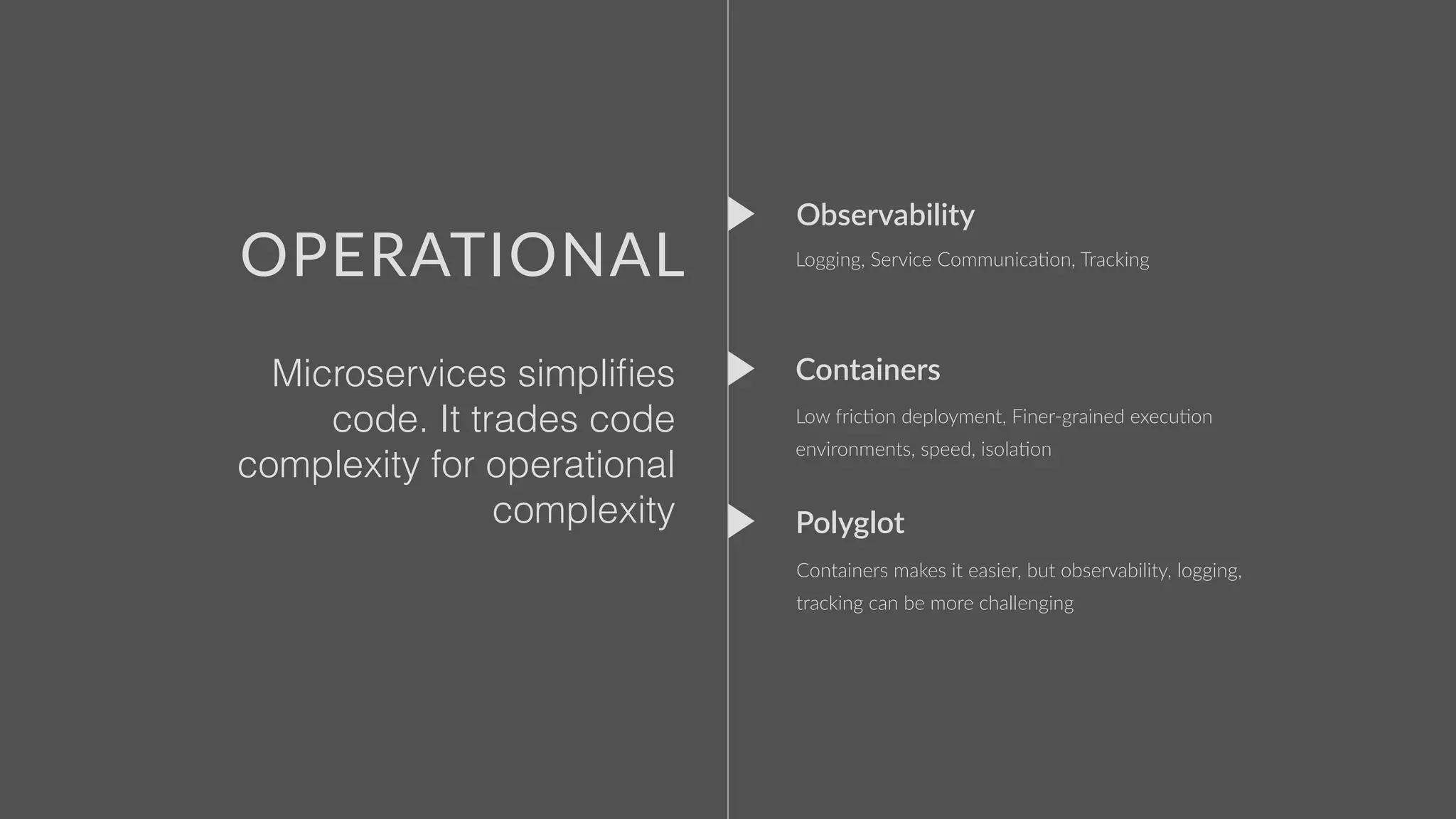

- 62. Observability Polyglot Containers Logging, Service CommunicaFon,Tracking Containers makes it easier, but observability, logging, tracking can be more challenging Low fricFon deployment, Finer-grained execuFon environments, speed, isolaFon OPERATIONAL Microservices simplifies code. It trades code complexity for operational complexity

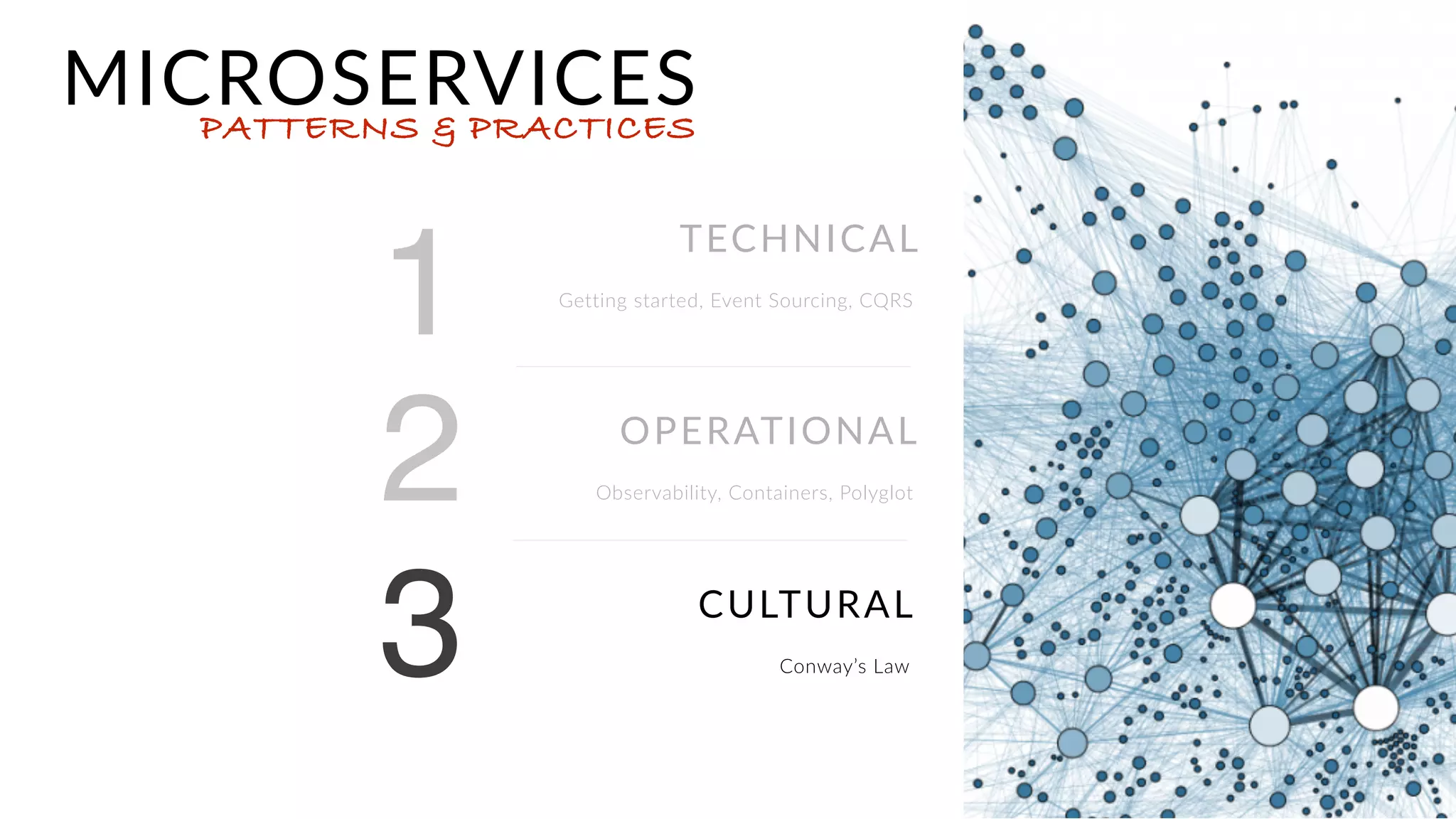

- 63. TECHNICAL Getting started, EventSourcing, CQRS OPERATIONAL Observability, Containers, Polyglot CULTURAL DevOps Culture, Conway’s Law MICROSERVICESPATTERNS & PRACTICES 1 2 3

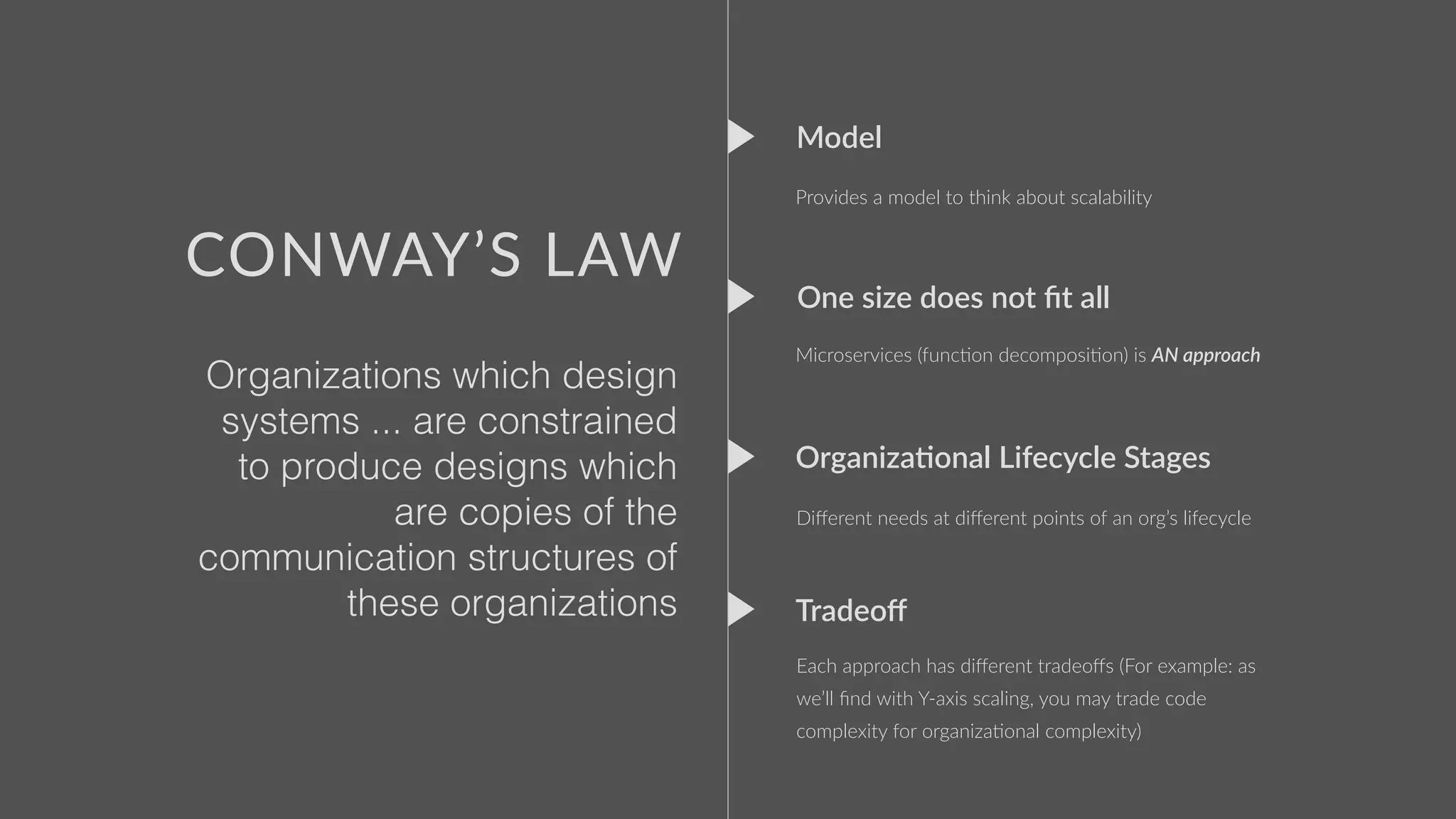

- 64. CONWAY'S LAW “Organizations whichdesign systems ... are constrained to produce designs which are copies of the communication structures of these organizations” -Conway
- 65. Model One size doesnot fit all Tradeoff Organiza&onal Lifecycle Stages Provides a model to think about scalability Microservices (funcFon decomposiFon) is AN approach Each approach has different tradeoffs (For example: as we’ll find with Y-axis scaling, you may trade code complexity for organizaFonal complexity) Different needs at different points of an org’s lifecycle CONWAY’S LAW Organizations which design systems ... are constrained to produce designs which are copies of the communication structures of these organizations
- 66. So what doI wish I knew before starting the push to Microservices?

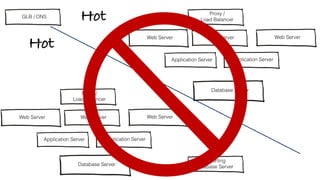

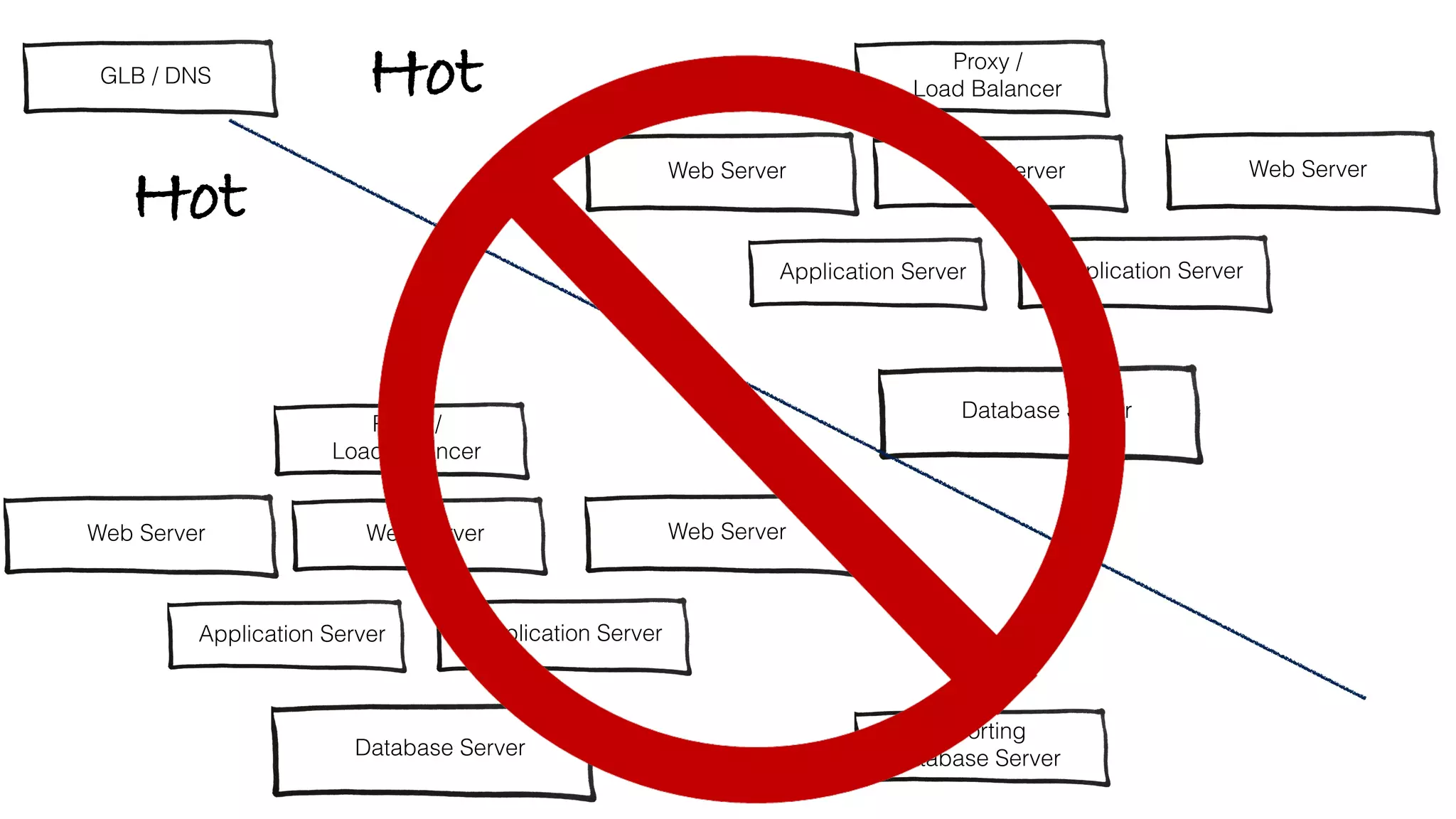

- 67. Proxy / LoadBalancer Web Server Database Server Application Server Web Server Web Server Application Server Proxy / Load Balancer Web Server Application Server Web Server Web Server Application Server Reporting Database Server Hot Hot Database Server GLB / DNS

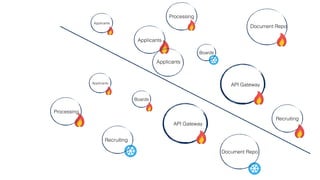

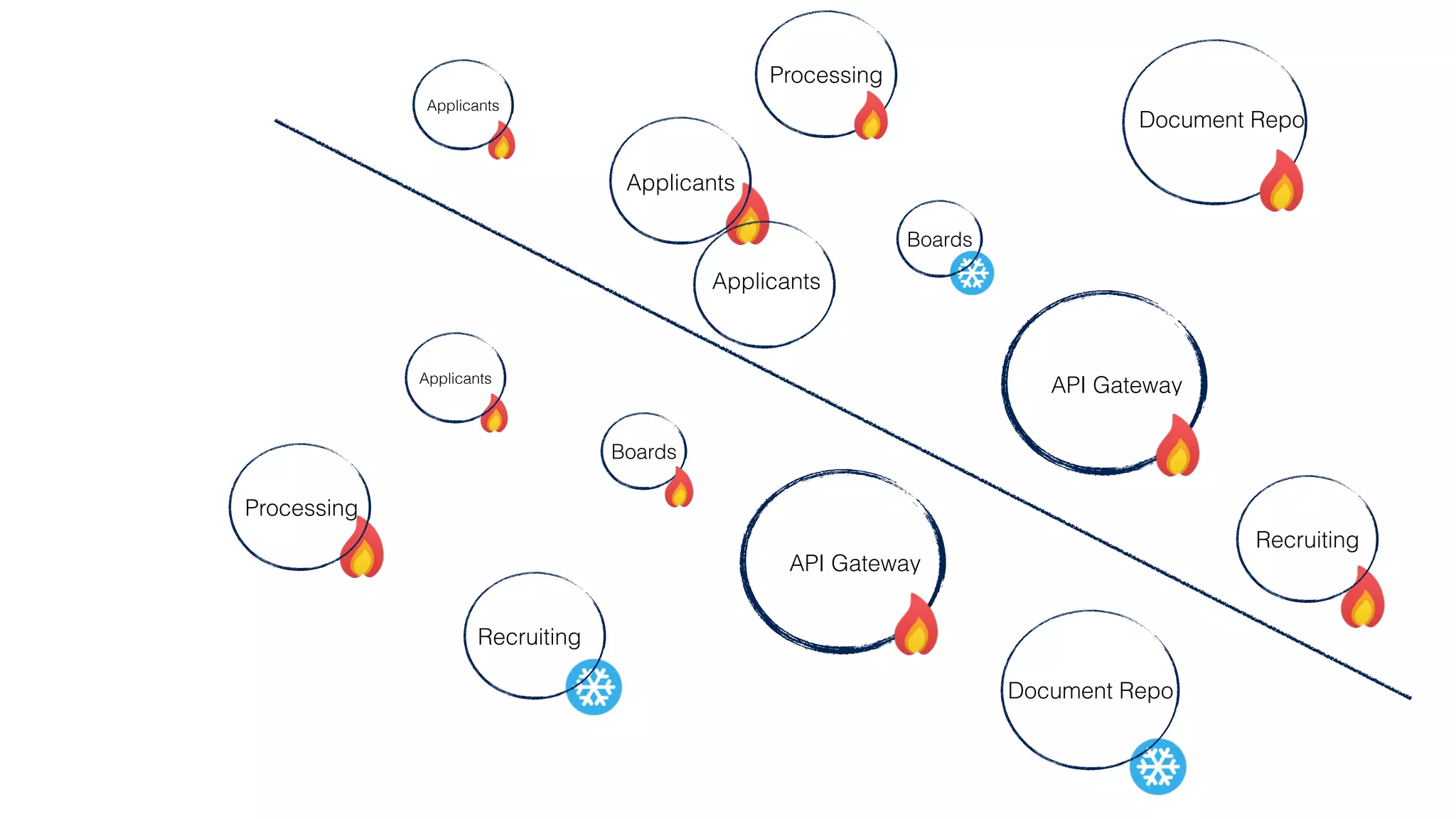

- 68. Document Repo Recruiting Processing Boards Applicants Recruiting Processing Document Repo Applicants Applicants APIGateway API Gateway Applicants Boards
- 69.

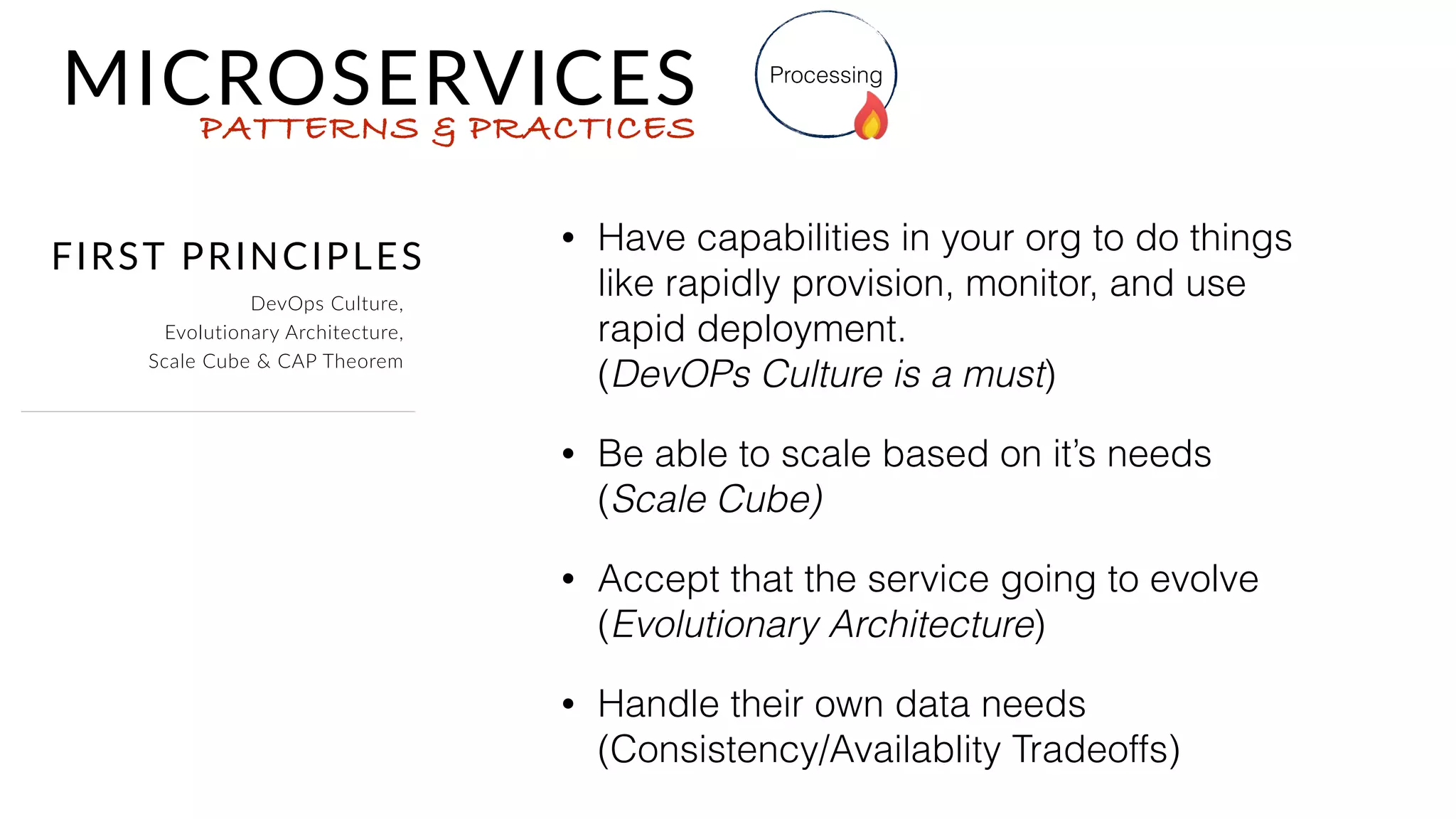

- 70. FIRST PRINCIPLES MICROSERVICESPATTERNS &PRACTICES • Have capabilities in your org to do things like rapidly provision, monitor, and use rapid deployment. (DevOPs Culture is a must) • Accept that the service going to evolve (Evolutionary Architecture) • Handle their own data needs (Consistency/Availablity Tradeoffs) • Be able to scale based on it’s needs (Scale Cube) Processing DevOps Culture, Evolutionary Architecture, Scale Cube & CAP Theorem

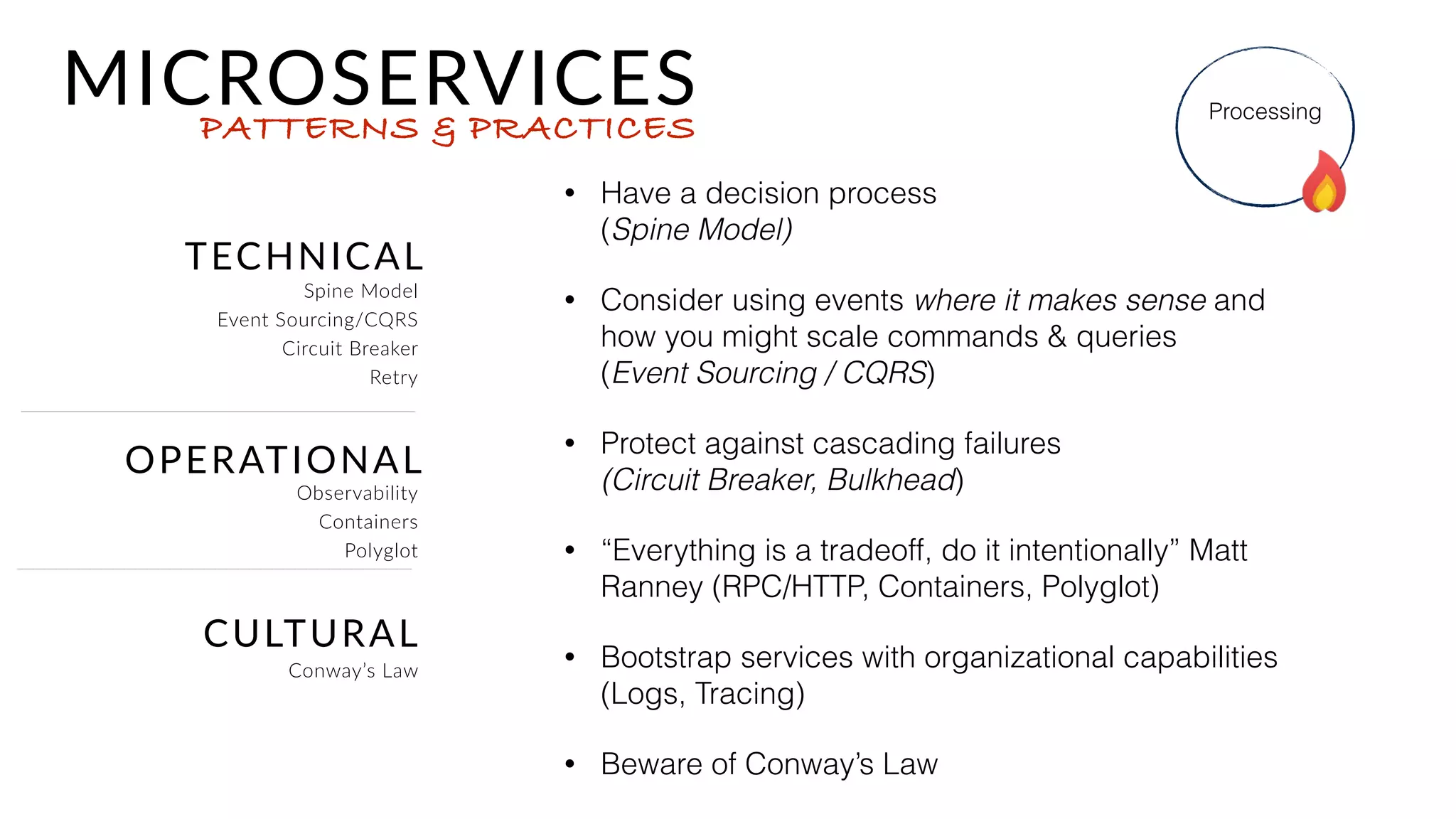

- 71. TECHNICAL Spine Model Event Sourcing/CQRS CircuitBreaker Retry OPERATIONAL Observability Containers Polyglot CULTURAL Conway’s Law MICROSERVICESPATTERNS & PRACTICES Processing • Have a decision process (Spine Model) • Consider using events where it makes sense and how you might scale commands & queries (Event Sourcing / CQRS) • Protect against cascading failures (Circuit Breaker, Bulkhead) • “Everything is a tradeoff, do it intentionally” Matt Ranney (RPC/HTTP, Containers, Polyglot) • Bootstrap services with organizational capabilities (Logs, Tracing) • Beware of Conway’s Law
- 72. CONS PROS • Monitoring/Logging becomesmore important than ever. • You trade code complexity for operational complexity. • Easy to chase the latest shiny technology / mix new languages & tech in. • Another dimension to scale the application. • Easier to have different services use data persistence most appropriate for the use case. • Easier to reason about moving applications to the cloud. • Easier to have a developer understand the portion of the system and contribute • Easier to test & deploy a single service. • Cascading failures can cause problems. • Orchestration can become complex
- 73. “If you don’tend up regretting your early technology decisions, you probably over engineered.” - Randy Shoup, Engineering Director @StitchFix MICROSERVICESPATTERNS & PRACTICES
- 74.
