Planning for the Horizontal: Scaling Node.js Applications

PLANNING FOR THE
HORIZONTAL
SCALING NODE.JS APPLICATIONS

TheReddest Brandon Cannaday brandon@modulus.io

Thursday, April 4, 13

ME

HOSTING, DATA, STATS FOR NODE.JS

modulus.io

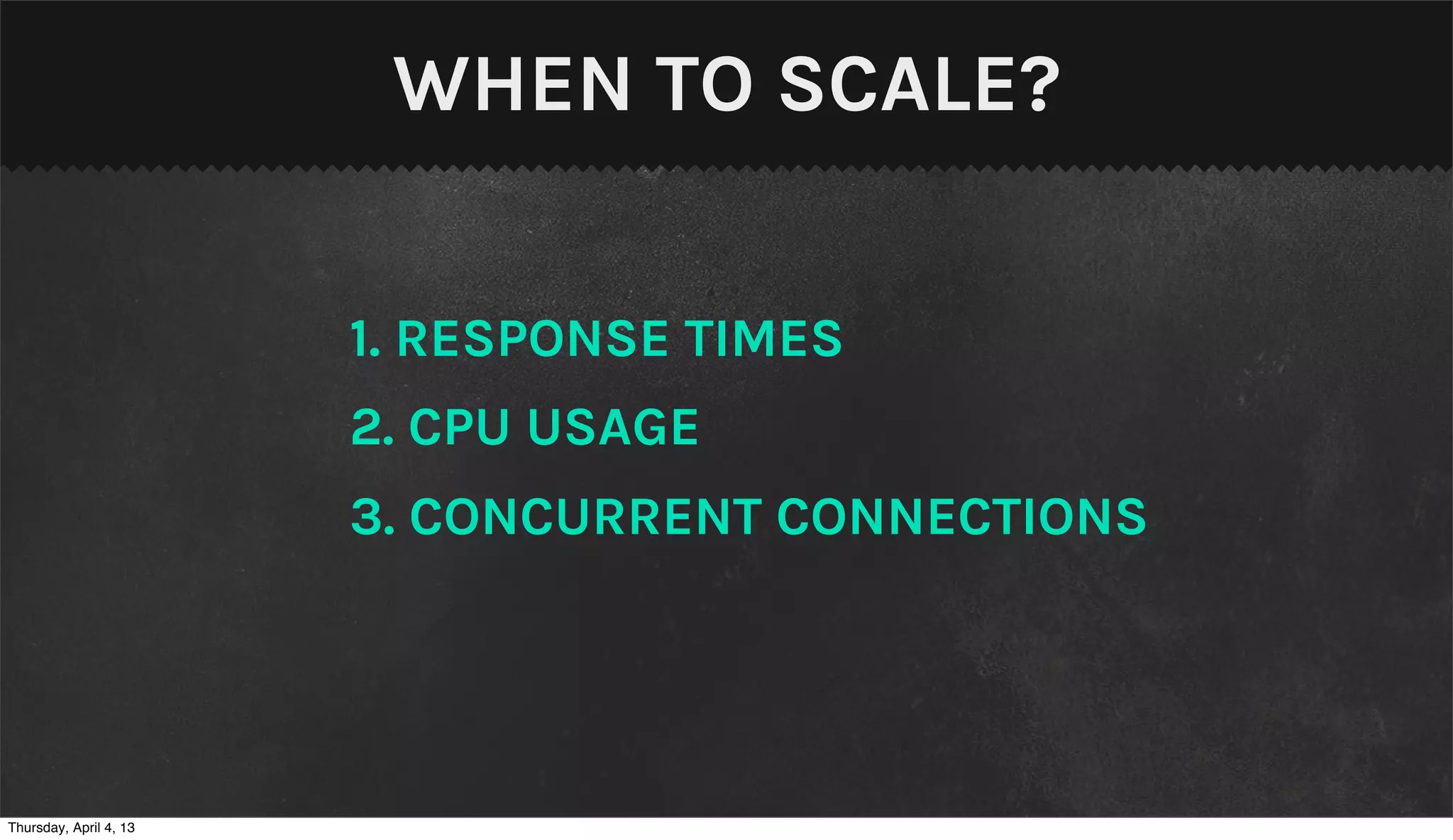

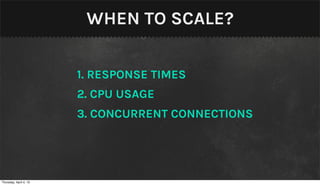

WHEN TO SCALE?

1. RESPONSE TIMES
2. CPU USAGE
3. CONCURRENT CONNECTIONS

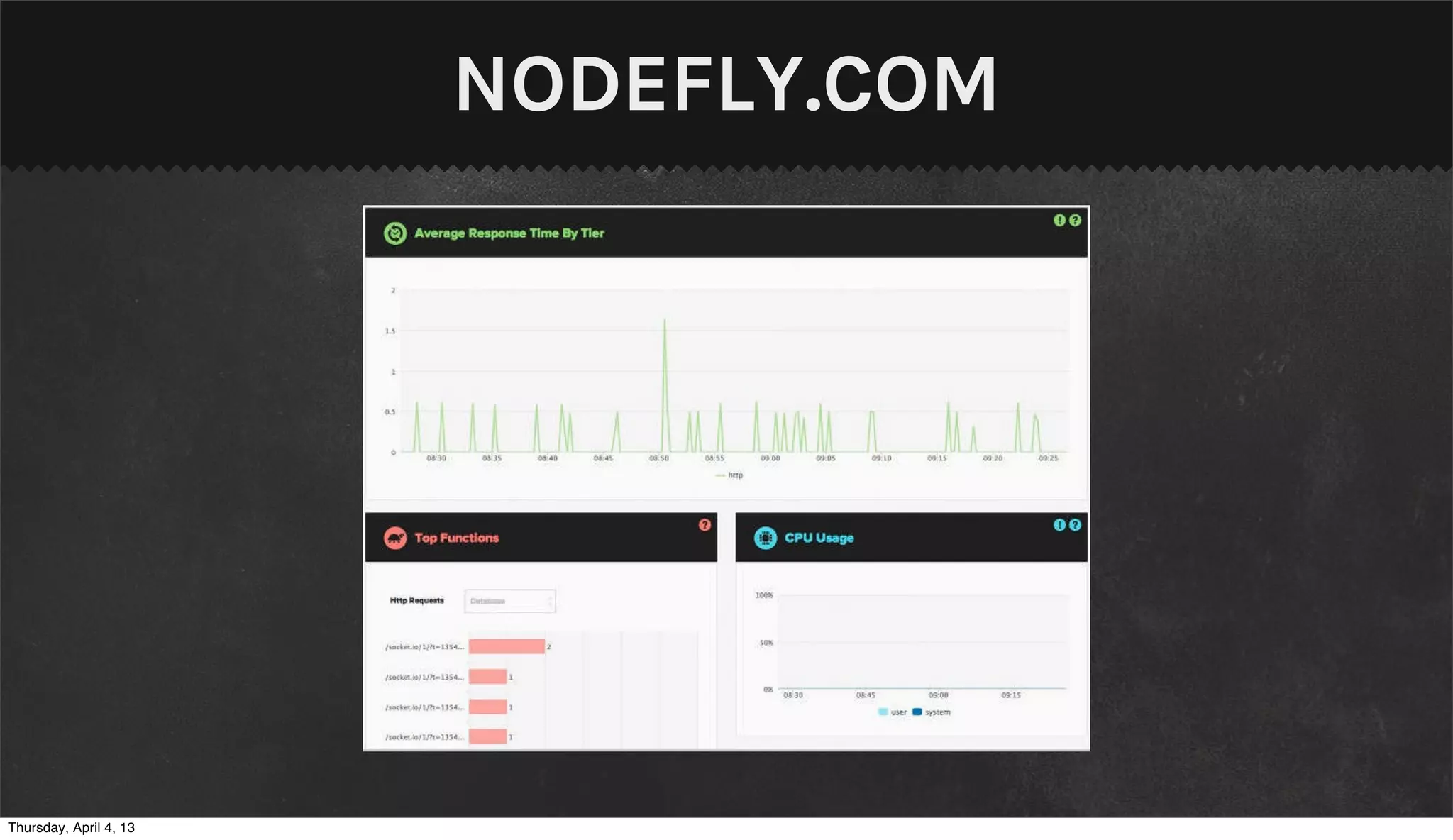

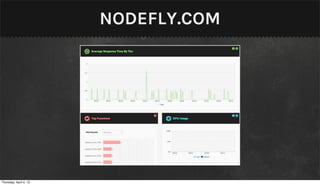

NODEFLY.COM

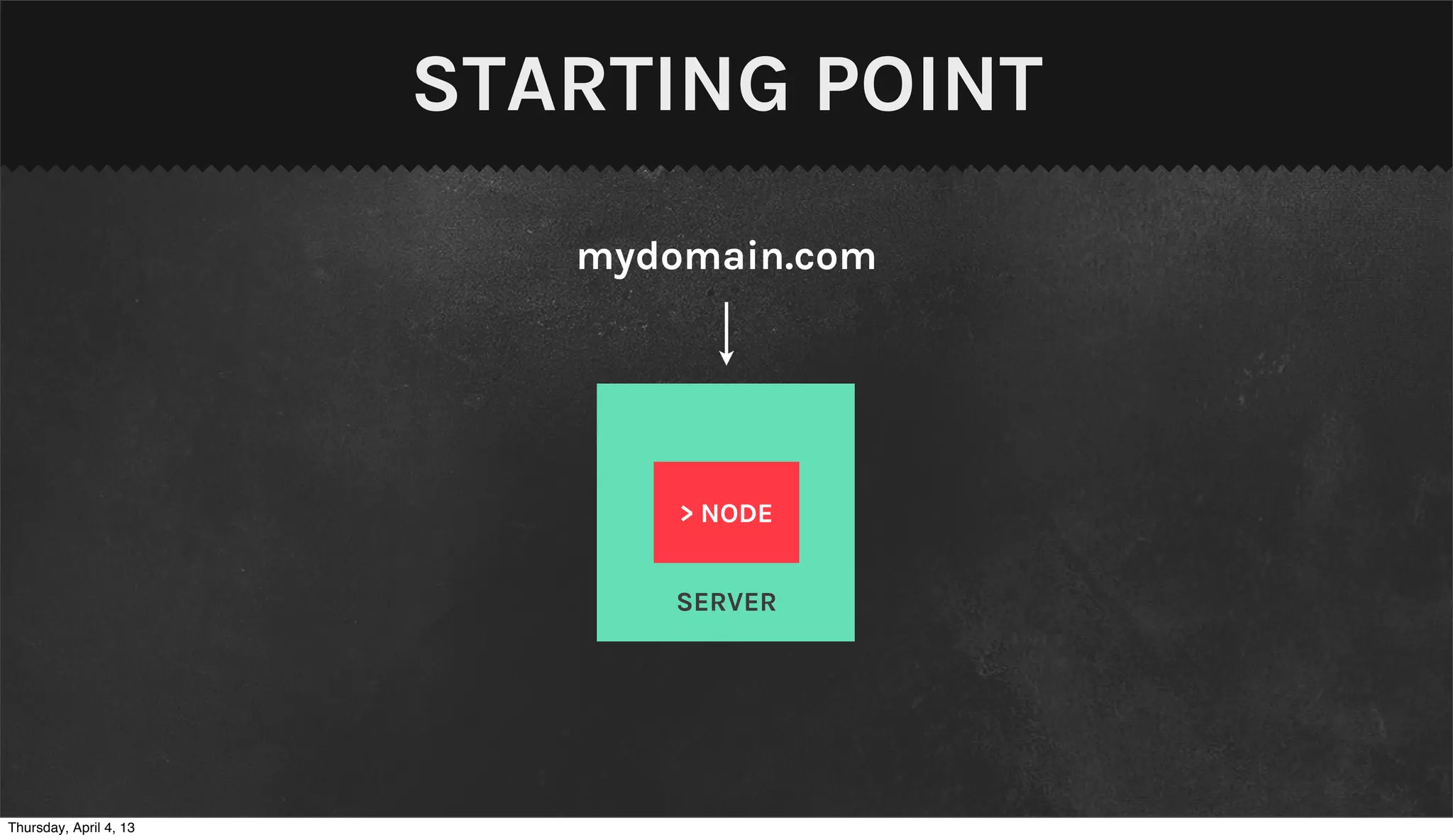

STARTING POINT
mydomain.com

> NODE

SERVER

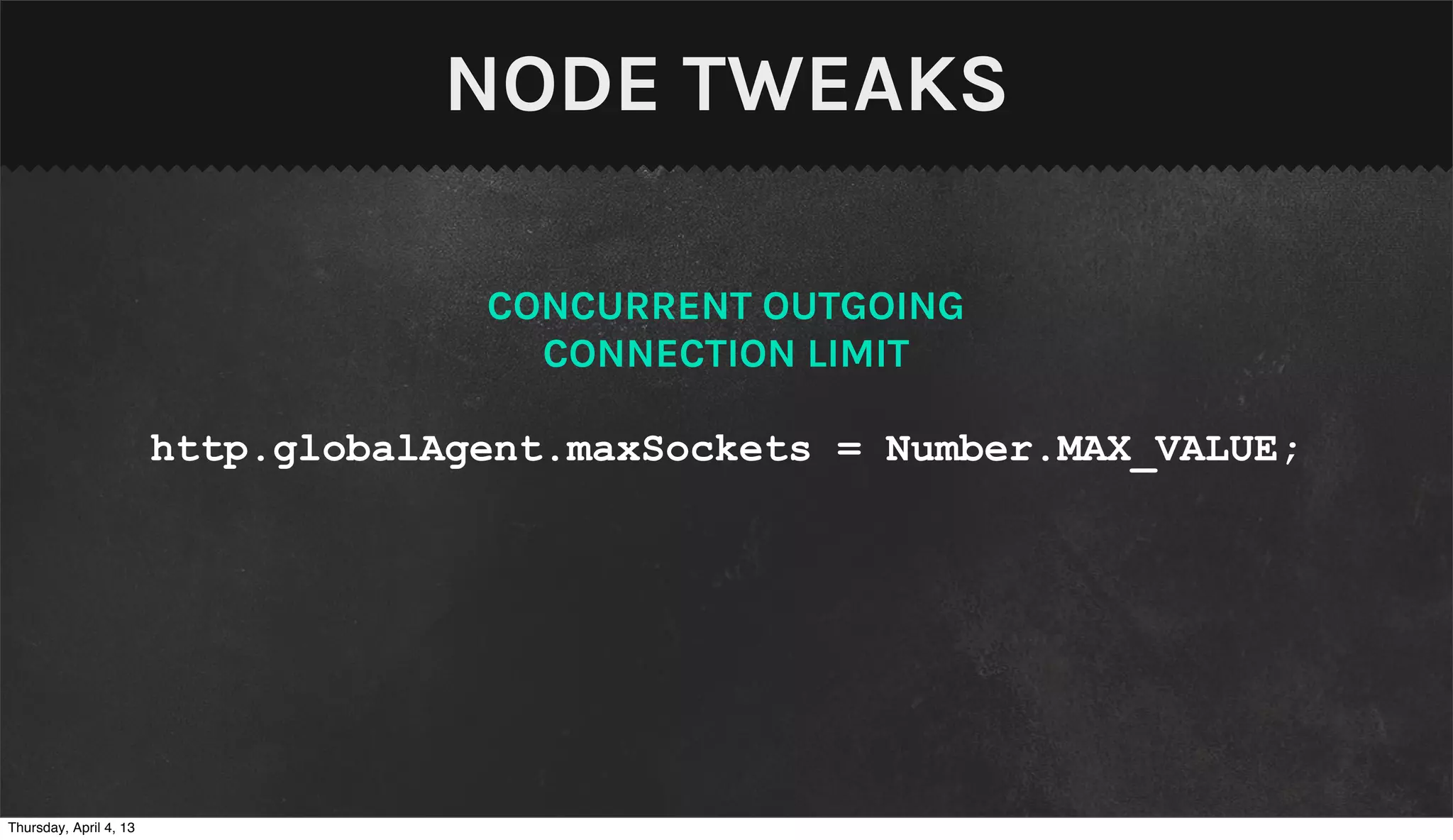

NODE TWEAKS

CONCURRENT OUTGOING
CONNECTION LIMIT

http.globalAgent.maxSockets = Number.MAX_VALUE;

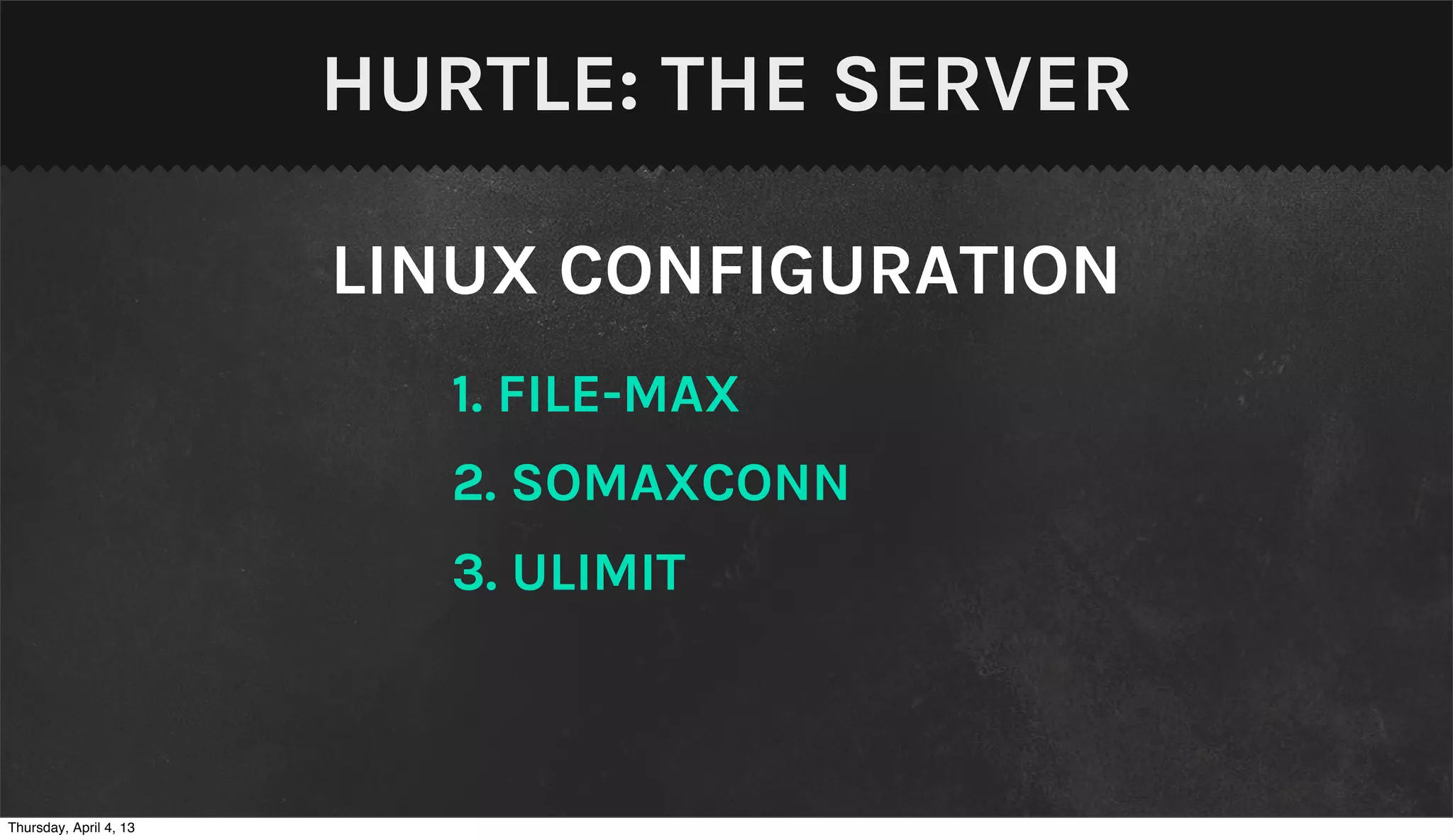

HURTLE: THE SERVER

LINUX CONFIGURATION
1. FILE-MAX
2. SOMAXCONN
3. ULIMIT

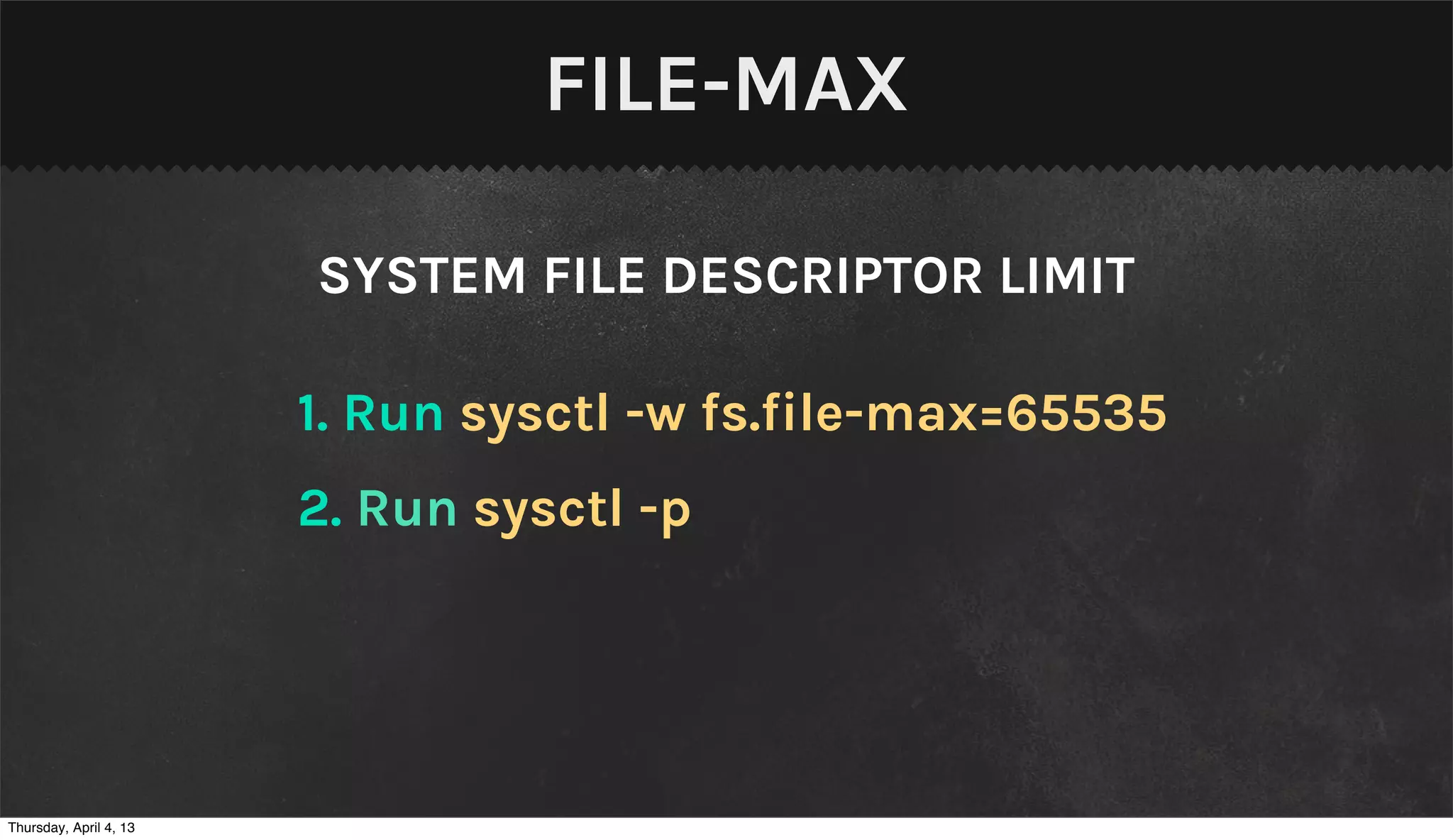

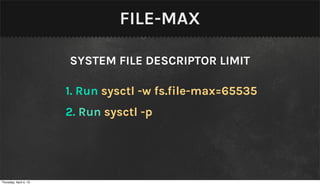

FILE-MAX

SYSTEM FILE DESCRIPTOR LIMIT

1. Run sysctl -w fs.file-max=65535
2. Run sysctl -p

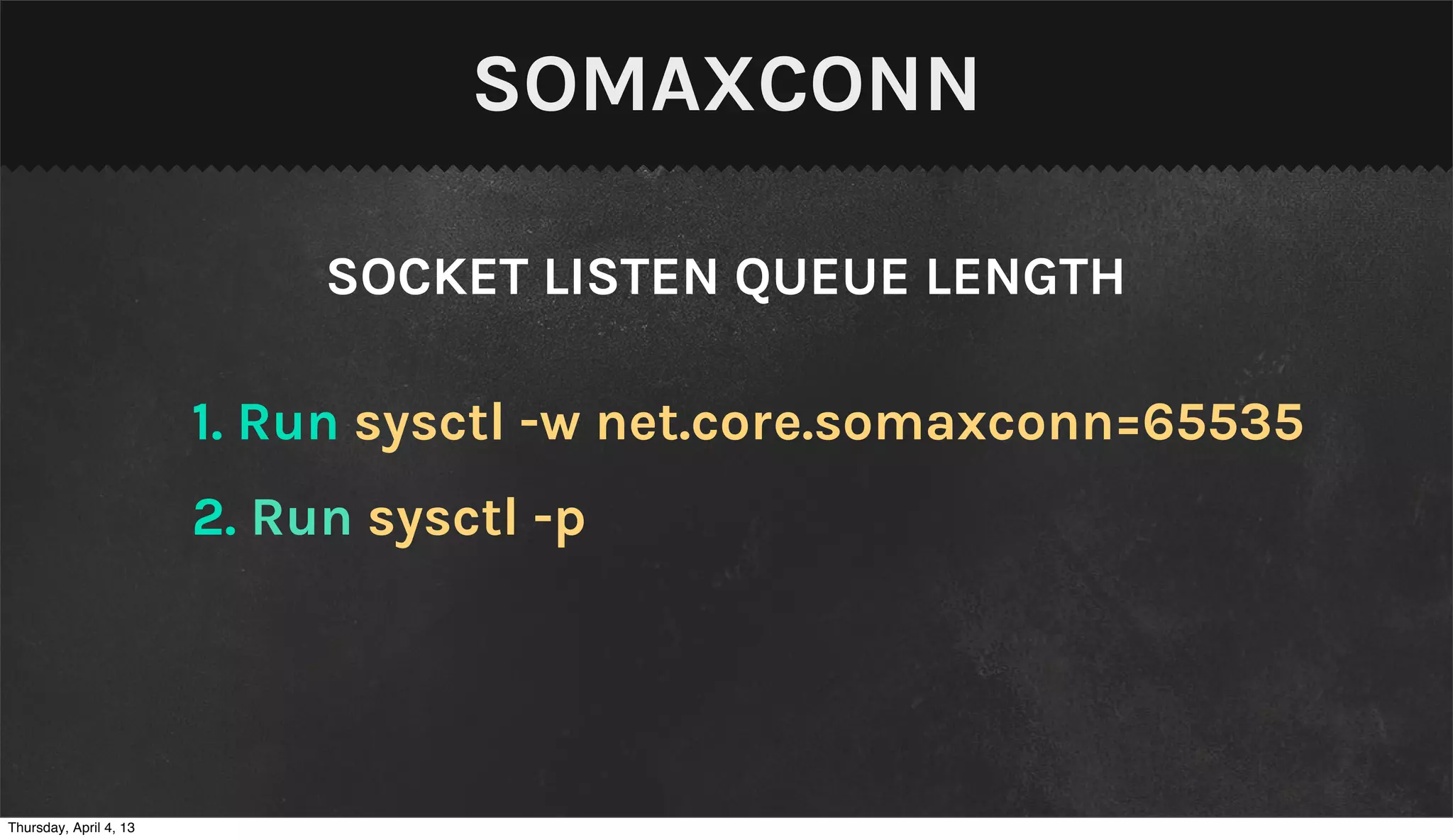

SOMAXCONN

SOCKET LISTEN QUEUE LENGTH

1. Run sysctl -w net.core.somaxconn=65535
2. Run sysctl -p

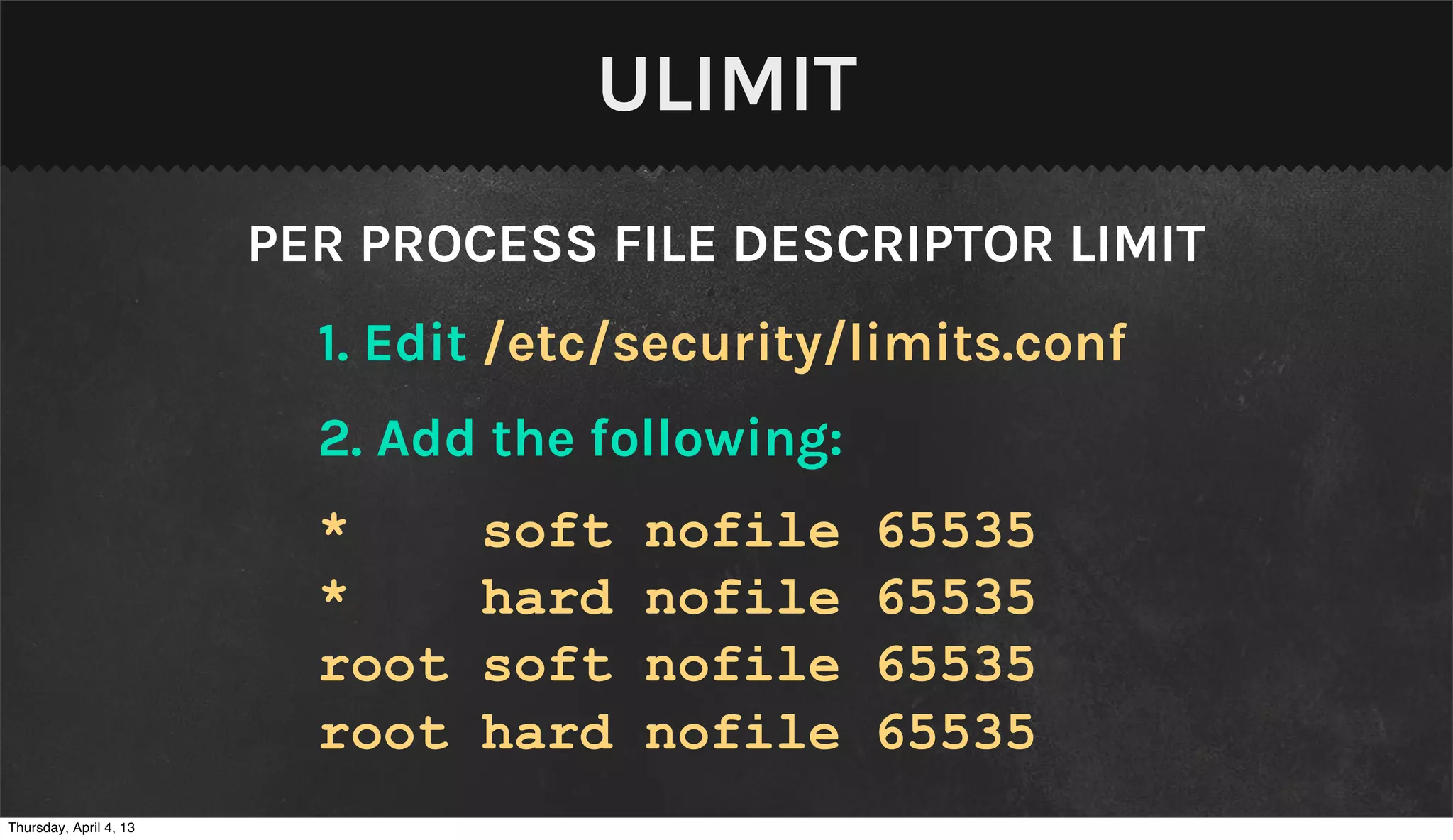

ULIMIT
PER PROCESS FILE DESCRIPTOR LIMIT
1. Edit /etc/security/limits.conf
2. Add the following:
* soft nofile 65535
* hard nofile 65535
root soft nofile 65535
root hard nofile 65535

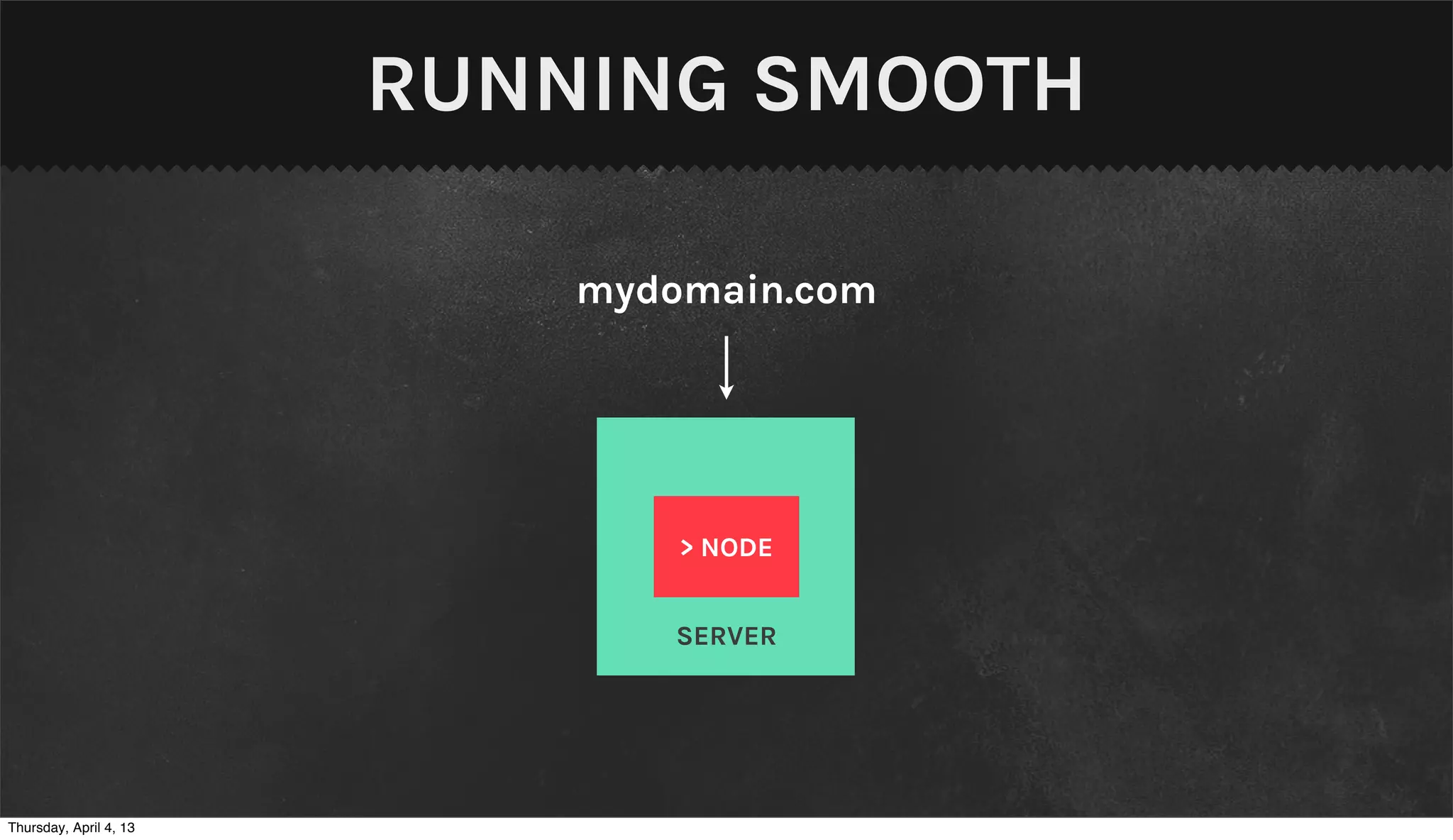

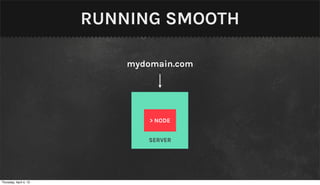

RUNNING SMOOTH

mydomain.com

> NODE

SERVER

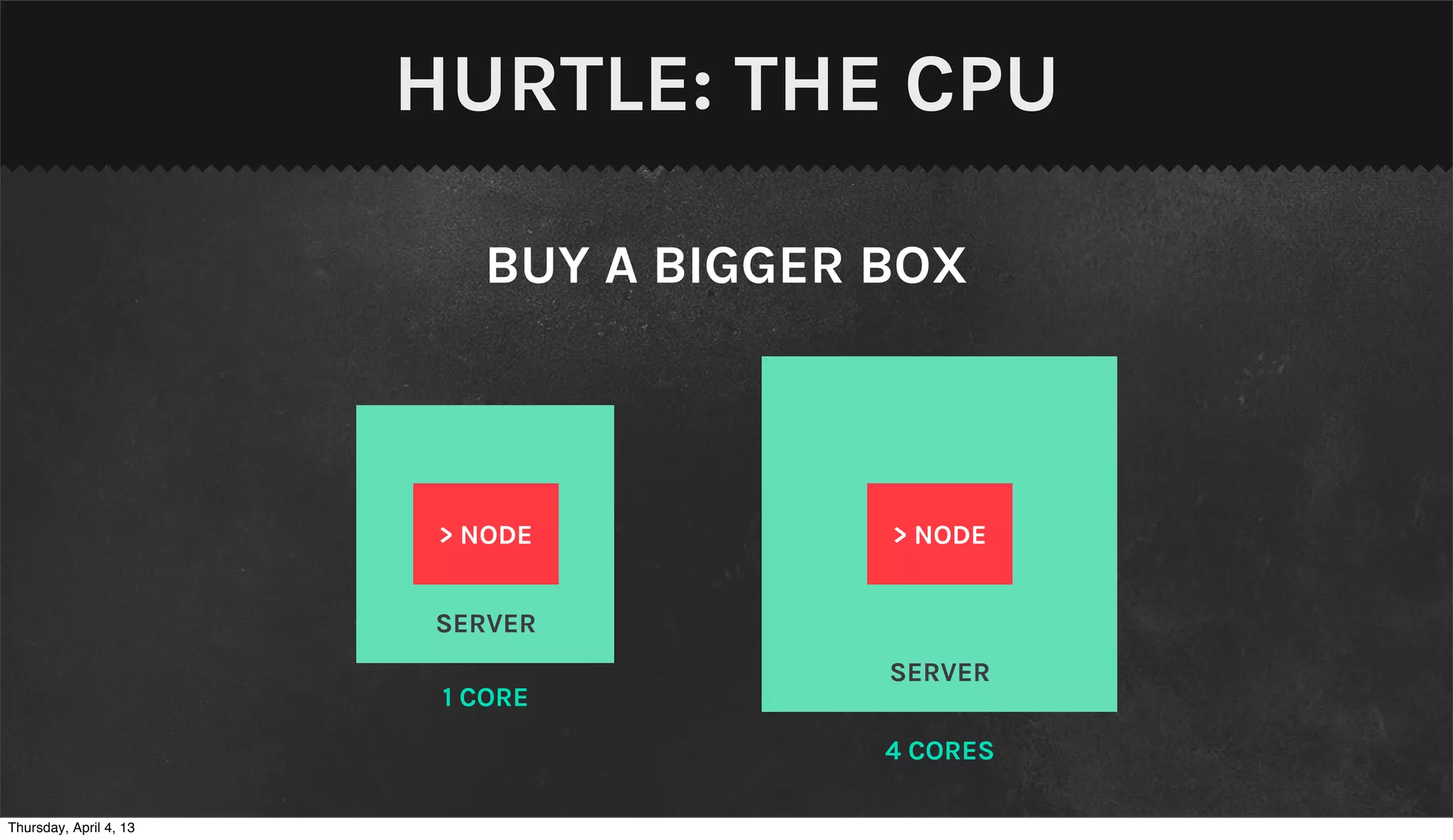

HURTLE: THE CPU

BUY A BIGGER BOX

> NODE > NODE

SERVER
SERVER
1 CORE
4 CORES

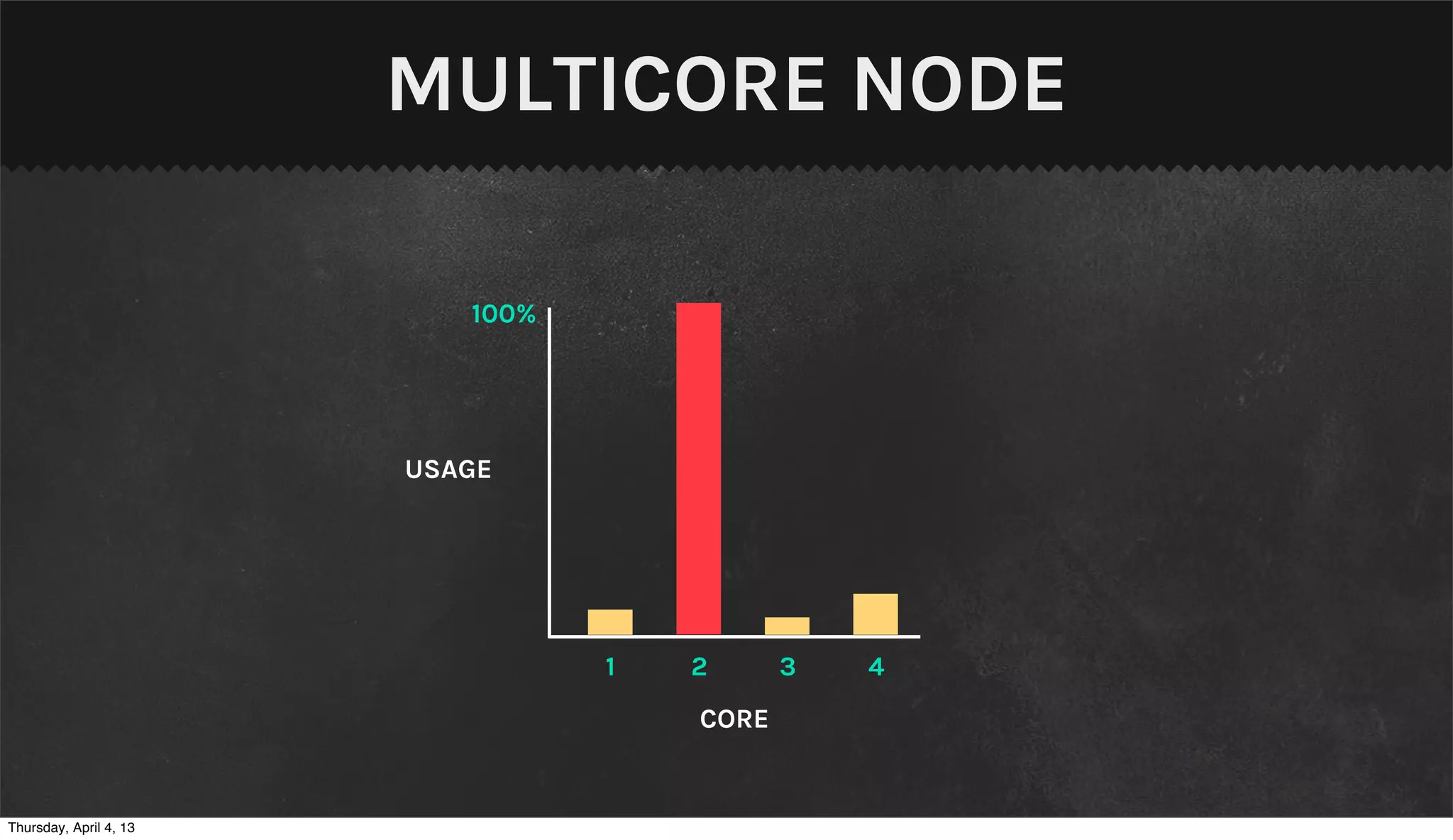

MULTICORE NODE

100%

USAGE

1 2 3 4
CORE

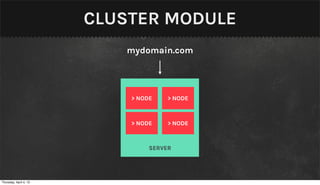

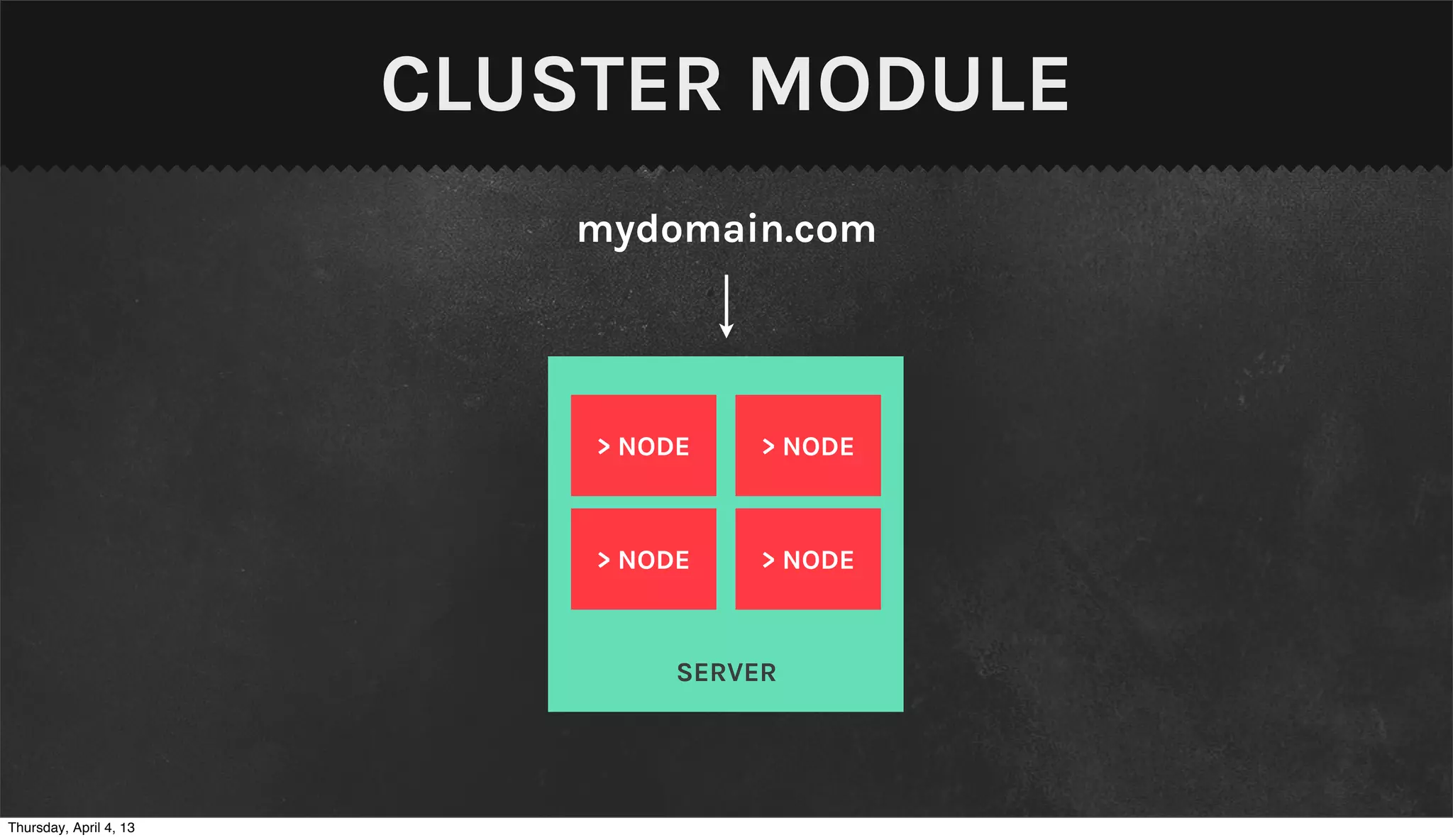

CLUSTER MODULE
mydomain.com

> NODE > NODE

> NODE > NODE

SERVER

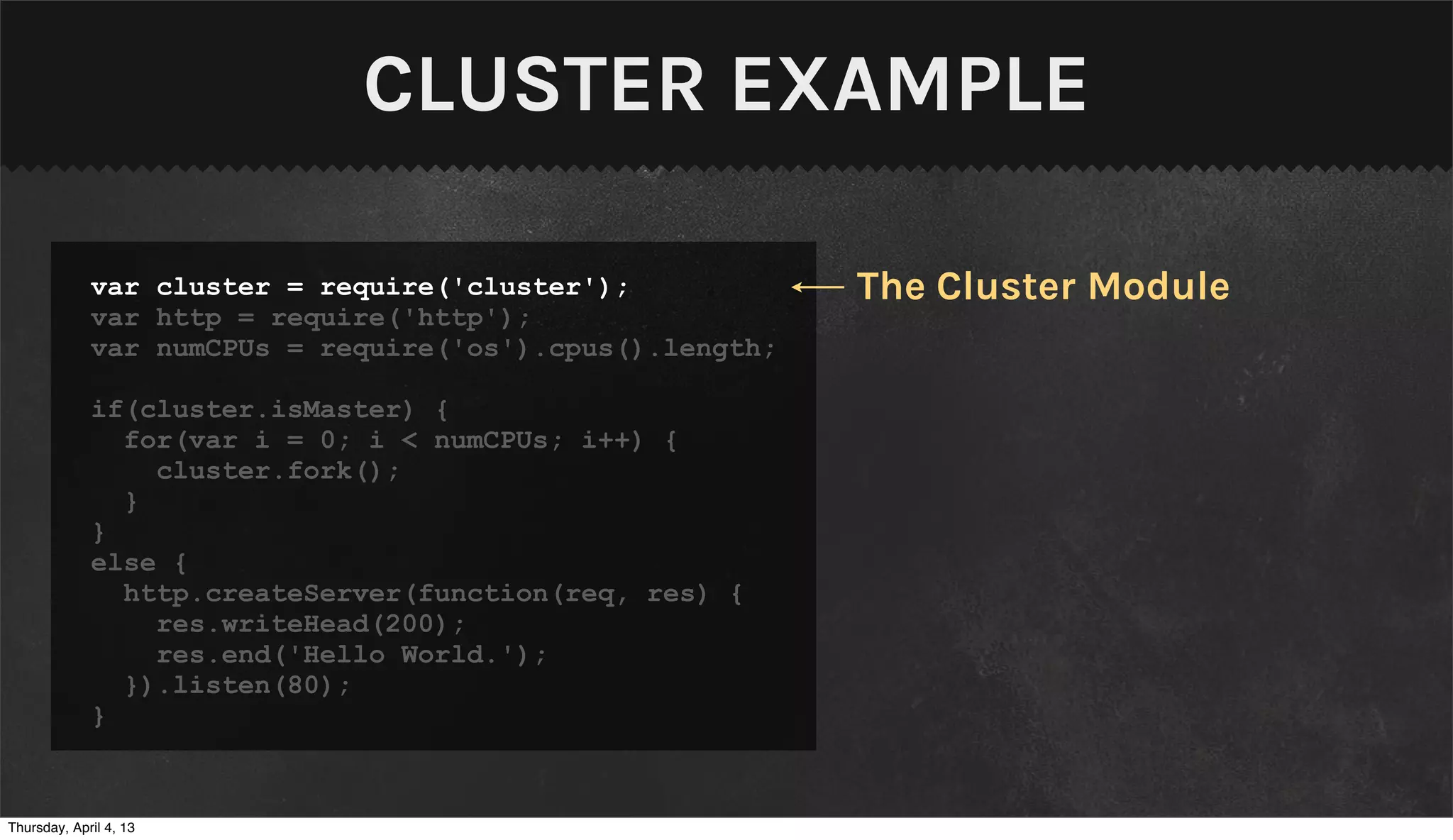

CLUSTER EXAMPLE

var cluster = require('cluster'); The Cluster Module
var http = require('http');
var numCPUs = require('os').cpus().length;

if(cluster.isMaster) {
for(var i = 0; i < numCPUs; i++) {
cluster.fork();
}
}
else {
http.createServer(function(req, res) {
res.writeHead(200);
res.end('Hello World.');
}).listen(80);
}

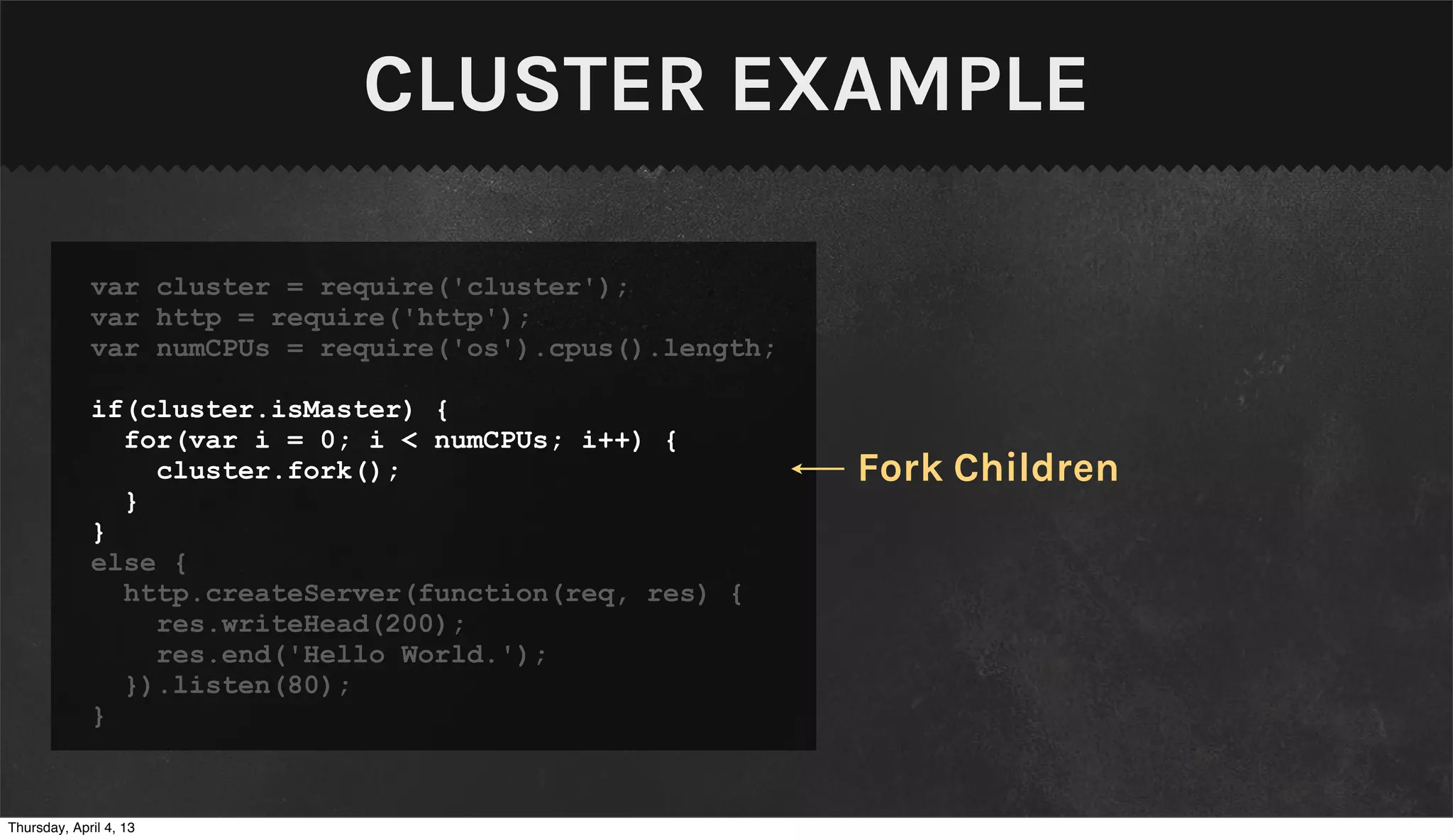

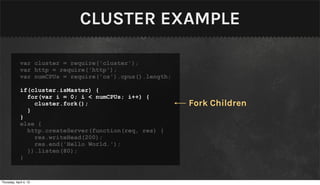

CLUSTER EXAMPLE

var cluster = require('cluster');

cluster.fork(); Fork Children
}
}
else {
http.createServer(function(req, res) {
res.writeHead(200);
}).listen(80);
}

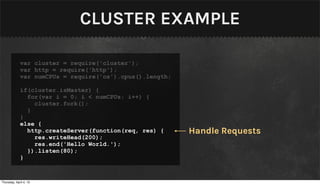

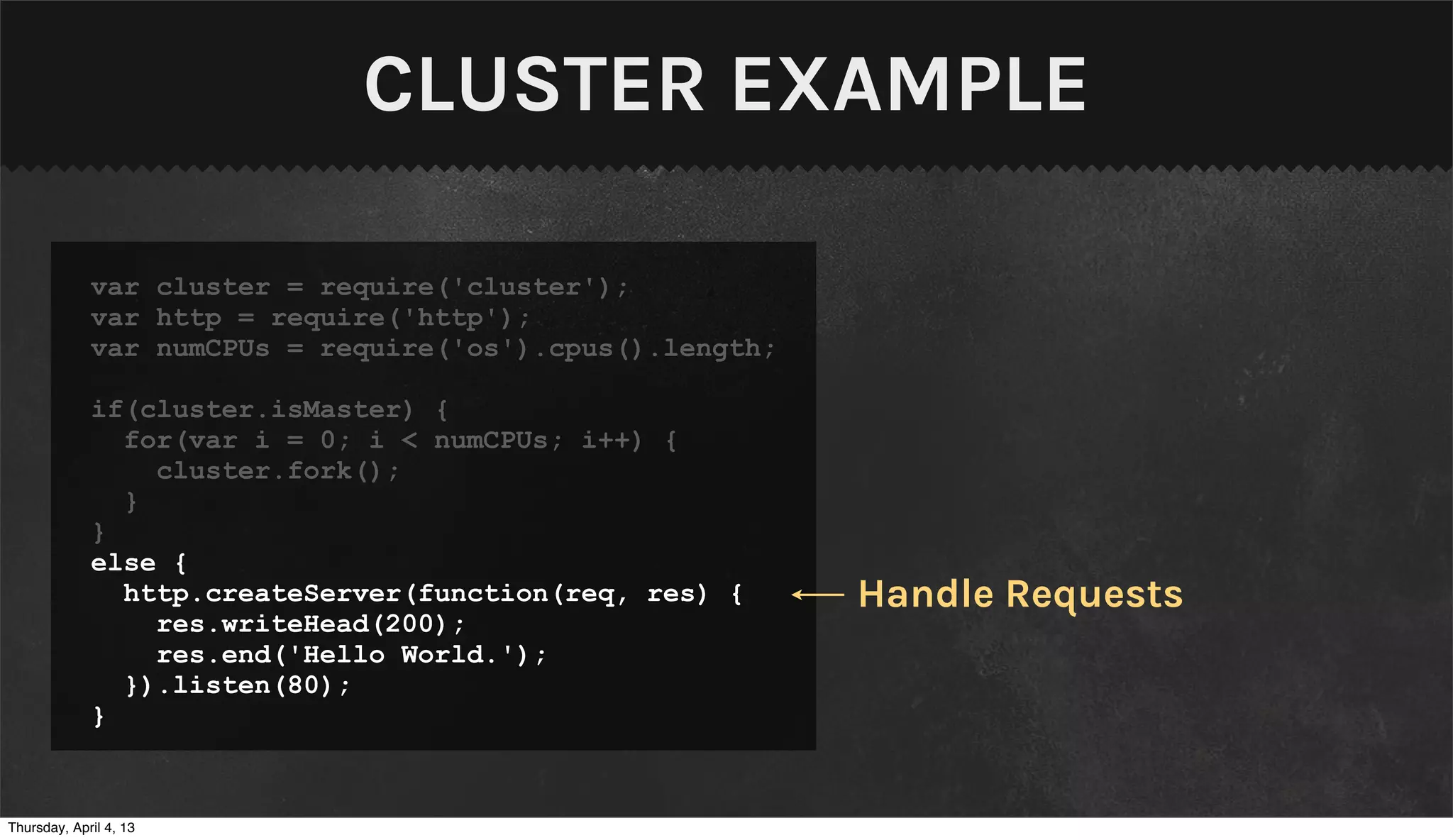

CLUSTER EXAMPLE

var cluster = require('cluster');

cluster.fork();
}
}
else {
http.createServer(function(req, res) { Handle Requests
res.writeHead(200);
}).listen(80);
}

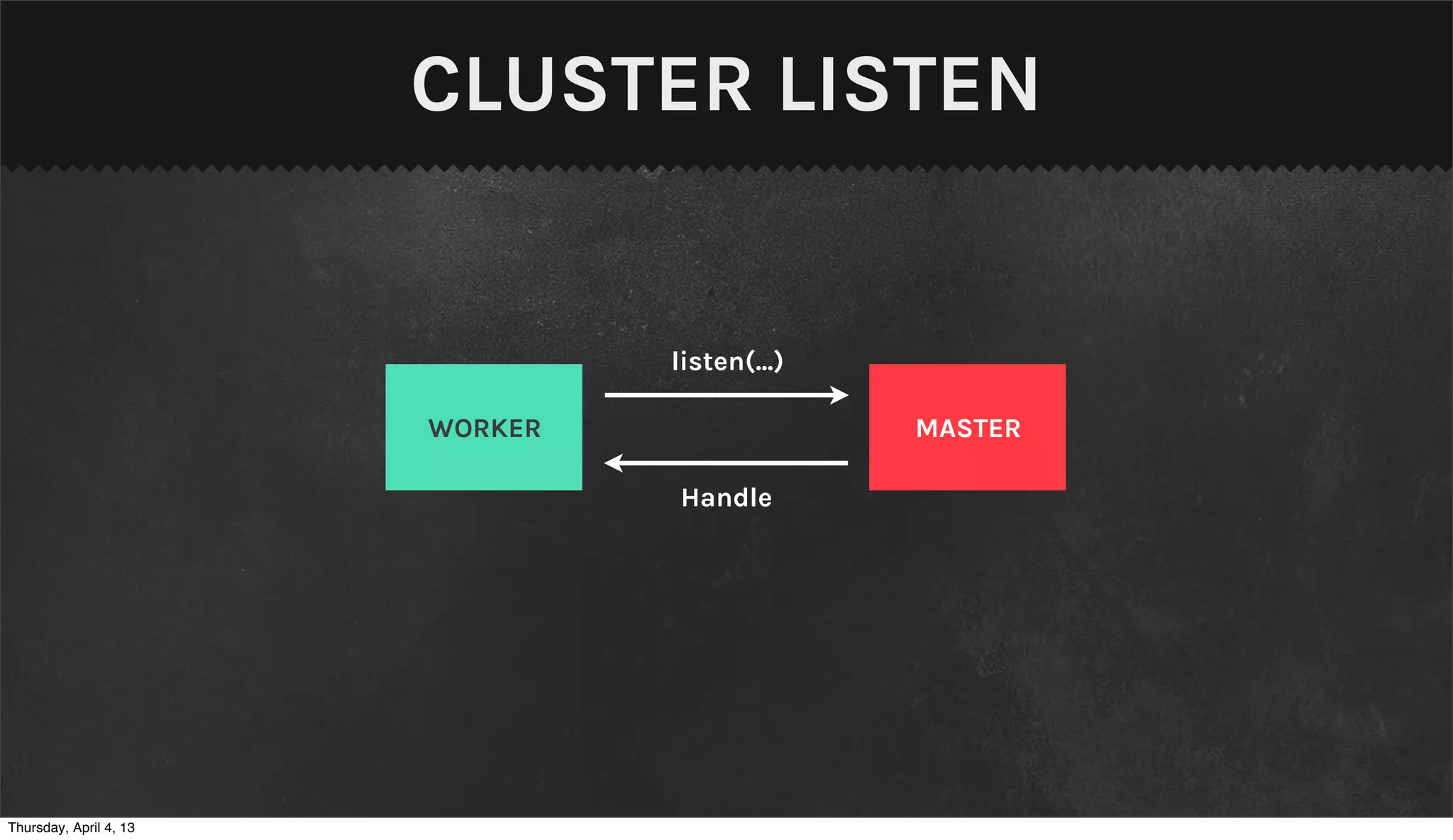

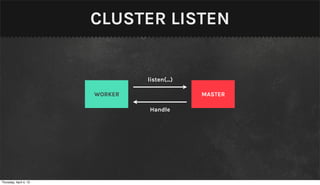

CLUSTER LISTEN

listen(...)

WORKER MASTER

Handle

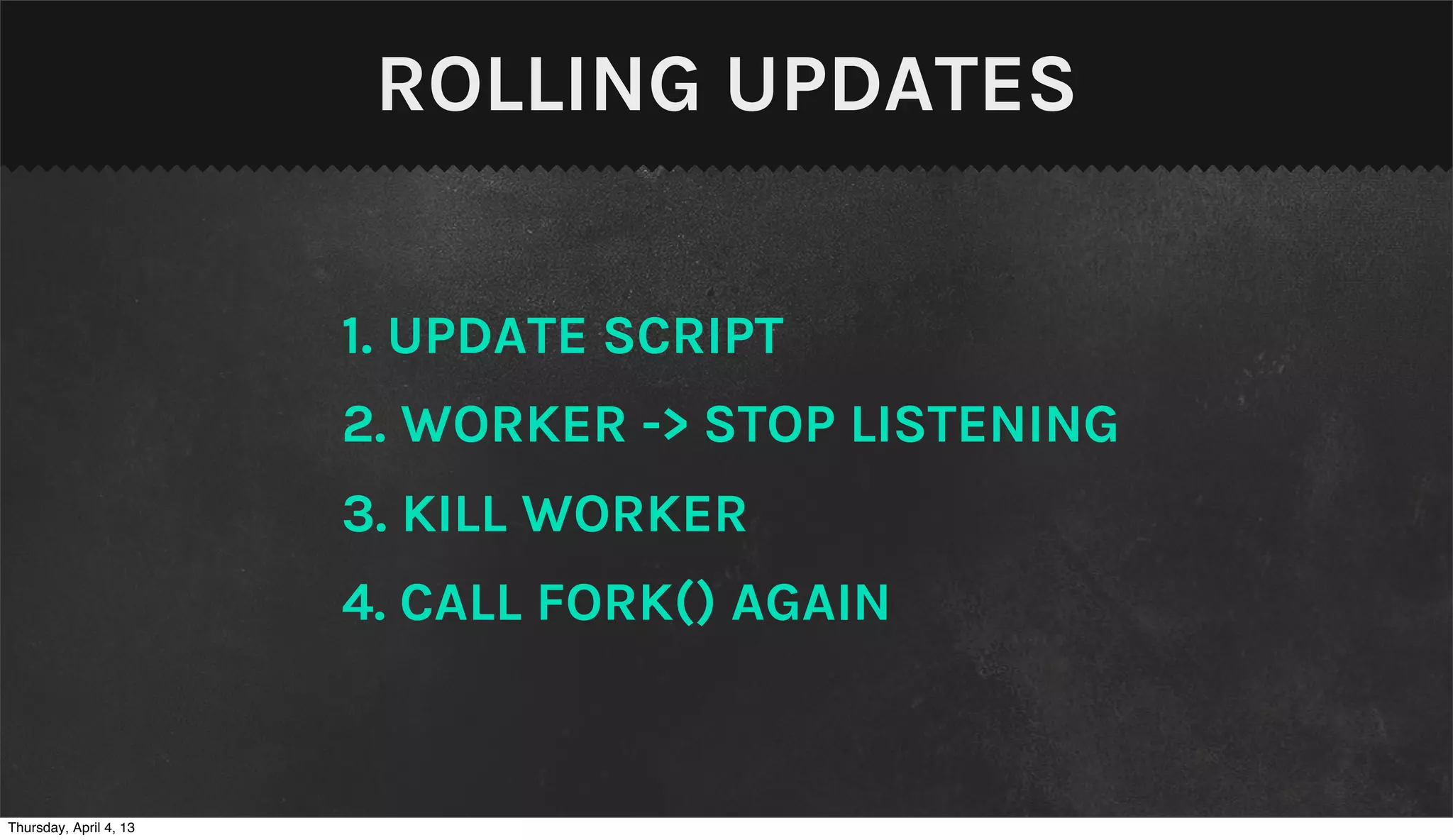

ROLLING UPDATES

1. UPDATE SCRIPT
2. WORKER -> STOP LISTENING
3. KILL WORKER
4. CALL FORK() AGAIN

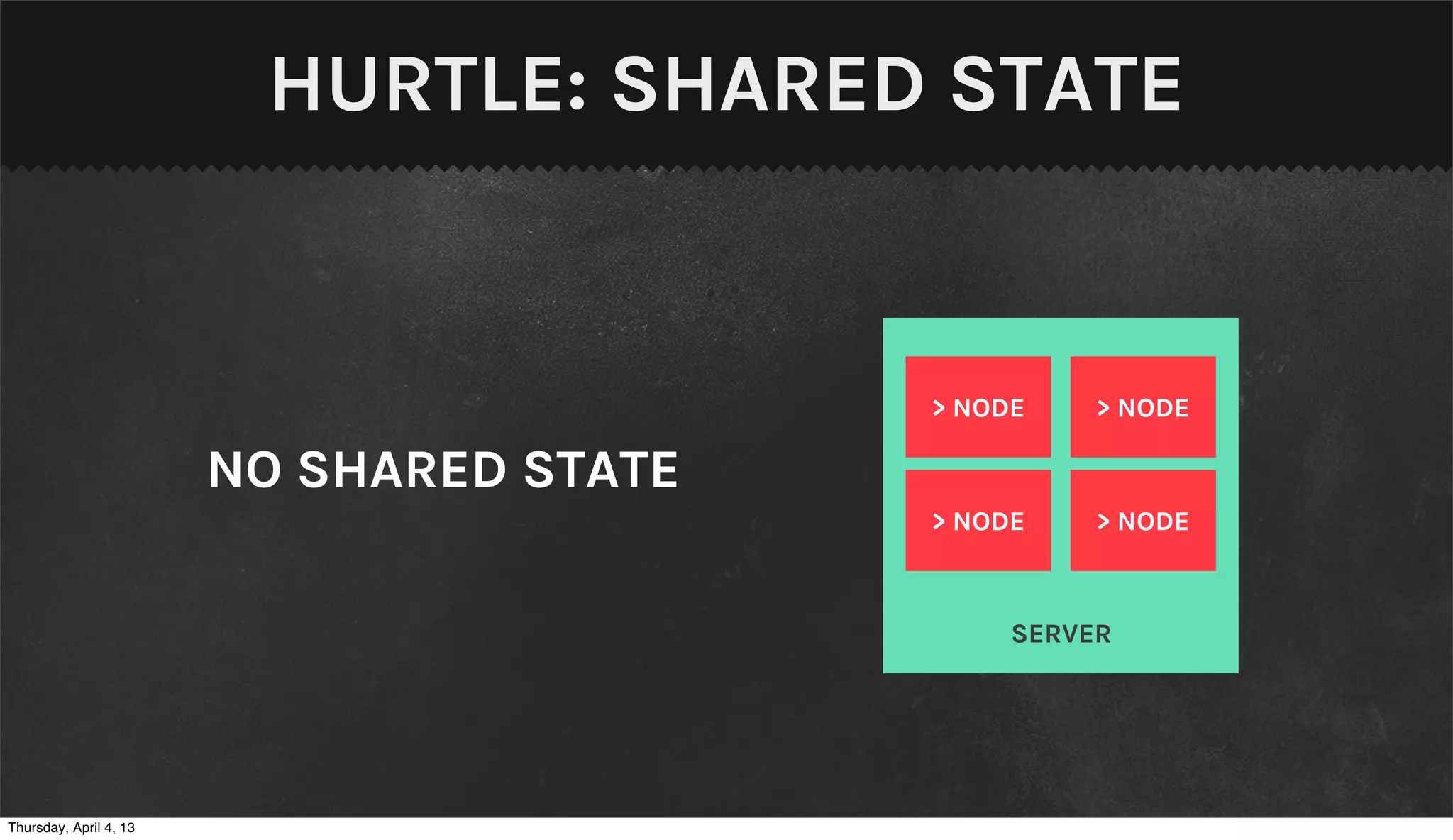

HURTLE: SHARED STATE

> NODE > NODE

NO SHARED STATE
> NODE > NODE

SERVER

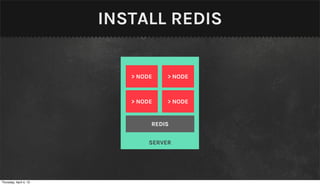

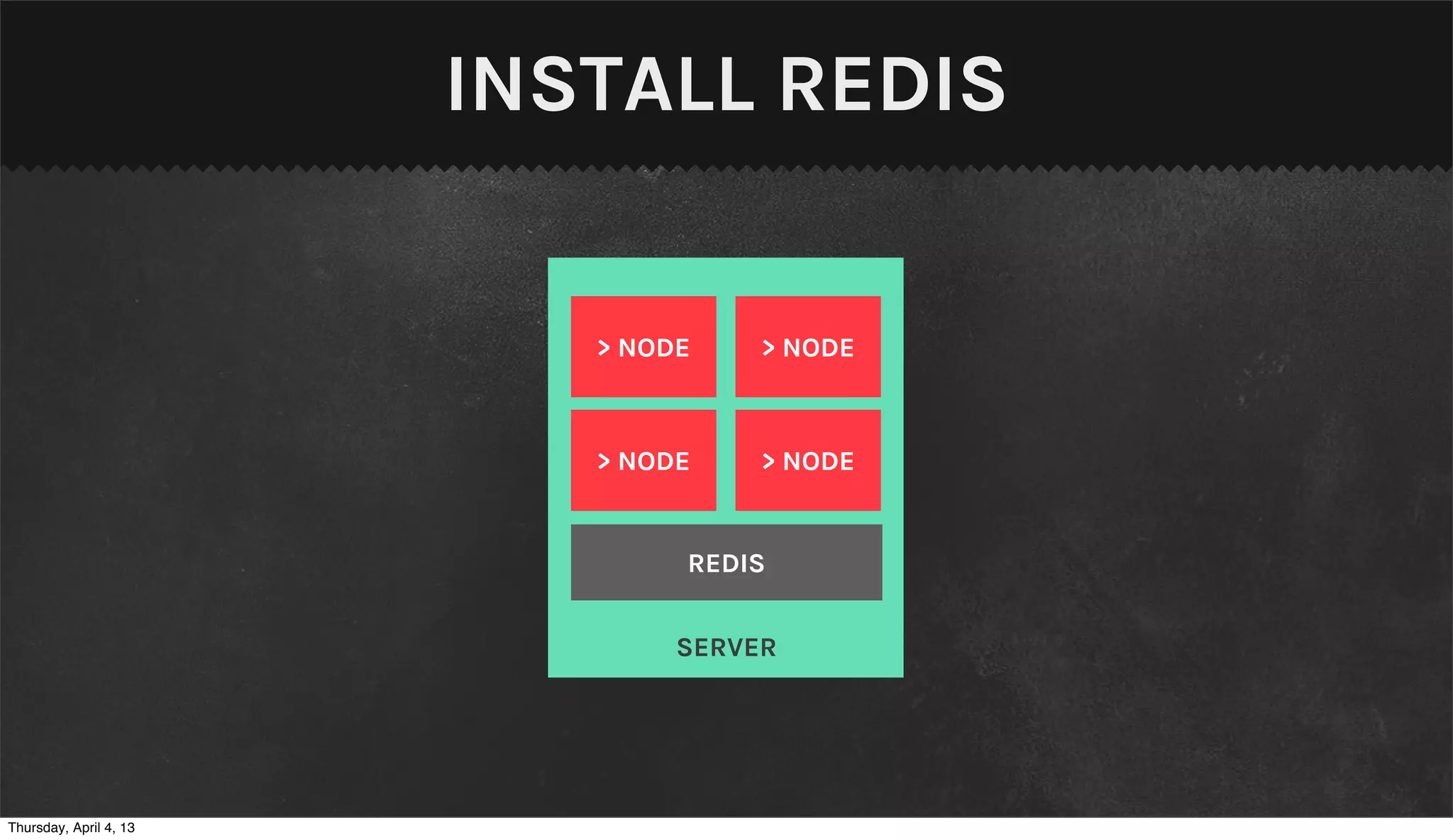

INSTALL REDIS

> NODE > NODE

> NODE > NODE

REDIS

SERVER

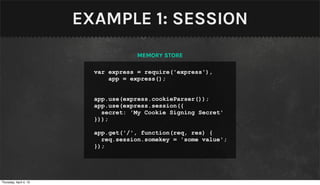

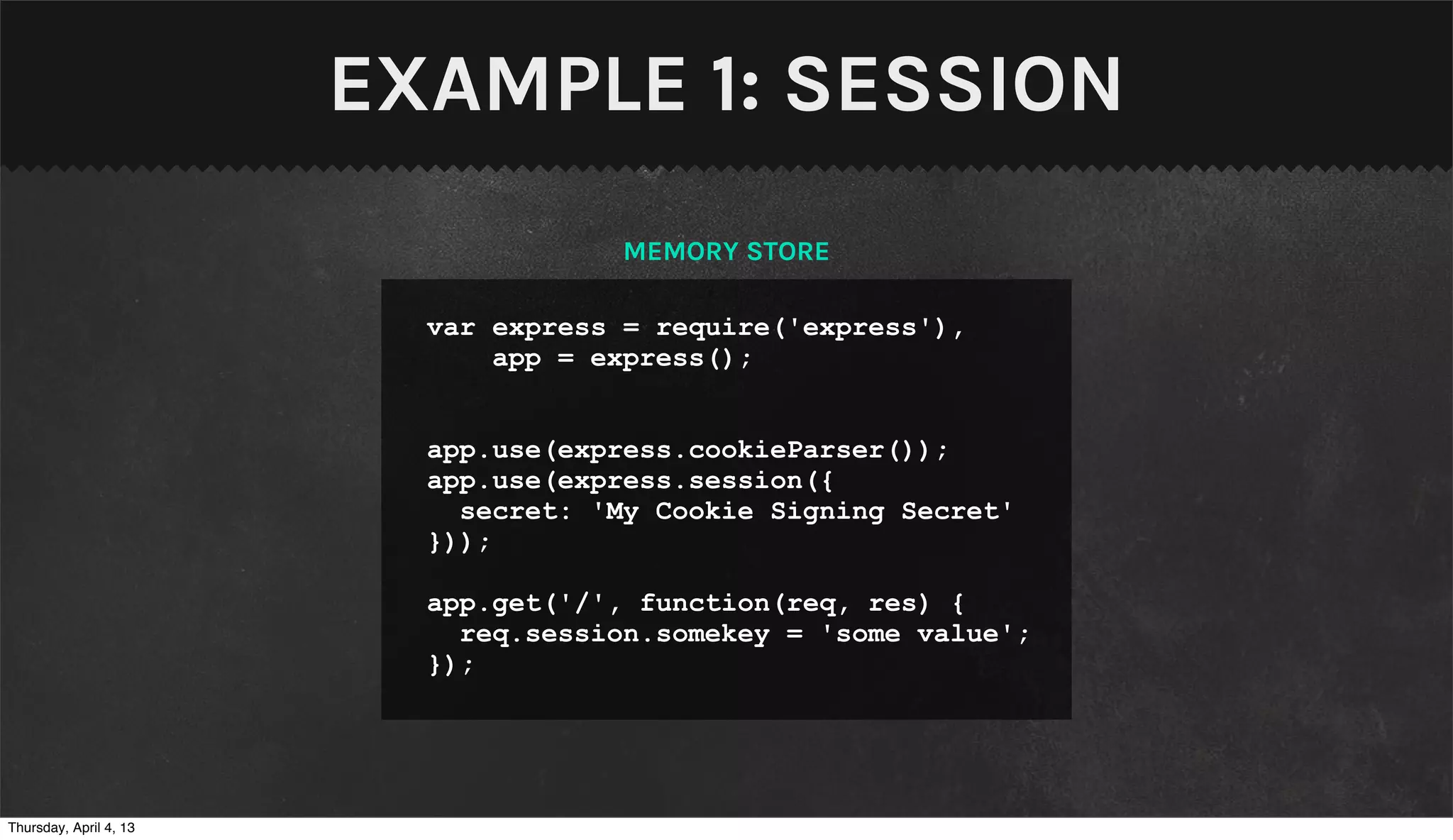

EXAMPLE 1: SESSION
MEMORY STORE

var express = require('express'),
app = express();

app.use(express.cookieParser());
app.use(express.session({
secret: 'My Cookie Signing Secret'
}));

app.get('/', function(req, res) {
req.session.somekey = 'some value';
});

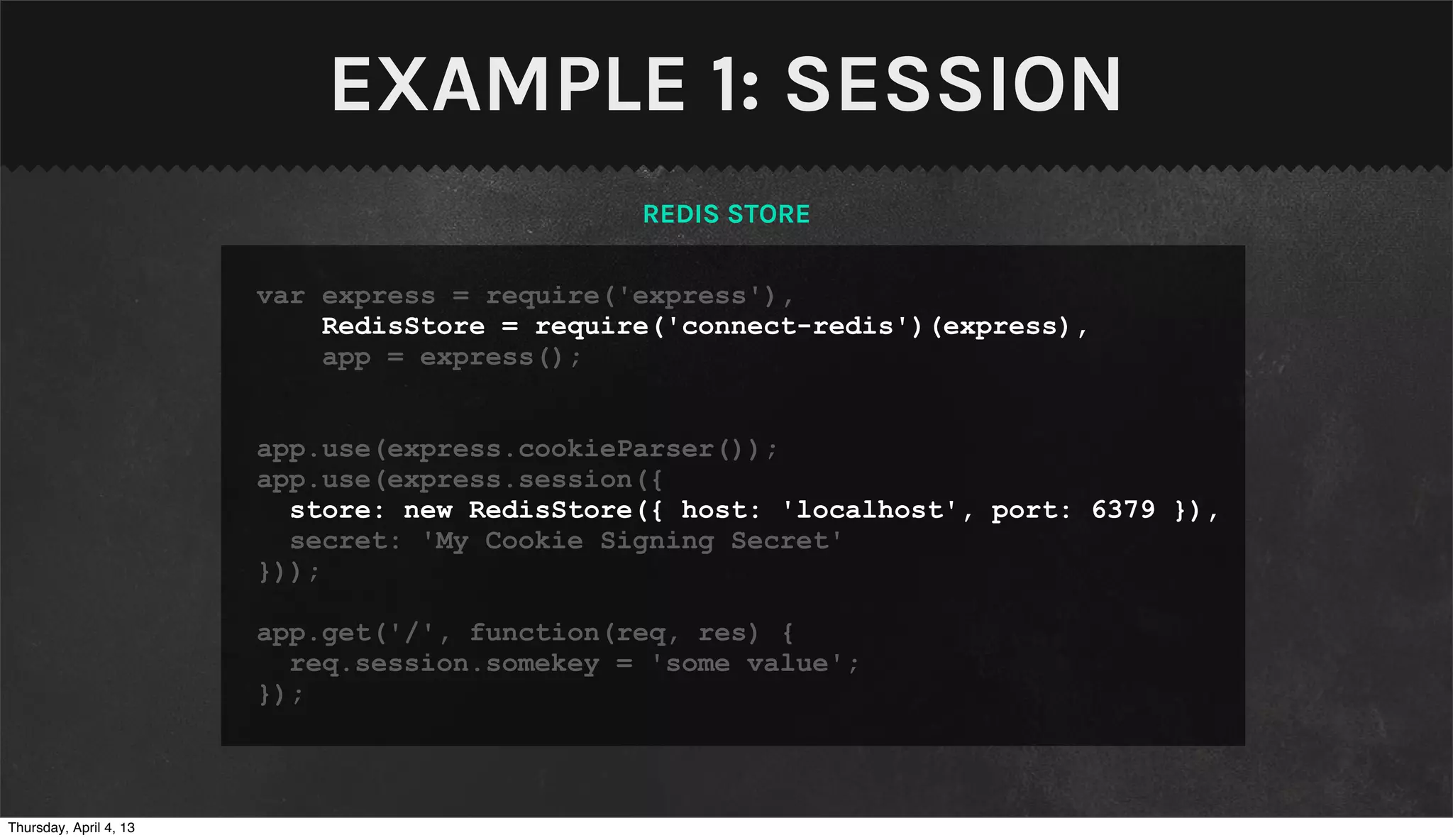

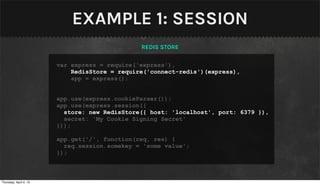

EXAMPLE 1: SESSION
REDIS STORE

var express = require('express'),
RedisStore = require('connect-redis')(express),
app = express();

app.use(express.cookieParser());
app.use(express.session({
store: new RedisStore({ host: 'localhost', port: 6379 }),
secret: 'My Cookie Signing Secret'
}));

app.get('/', function(req, res) {
req.session.somekey = 'some value';
});

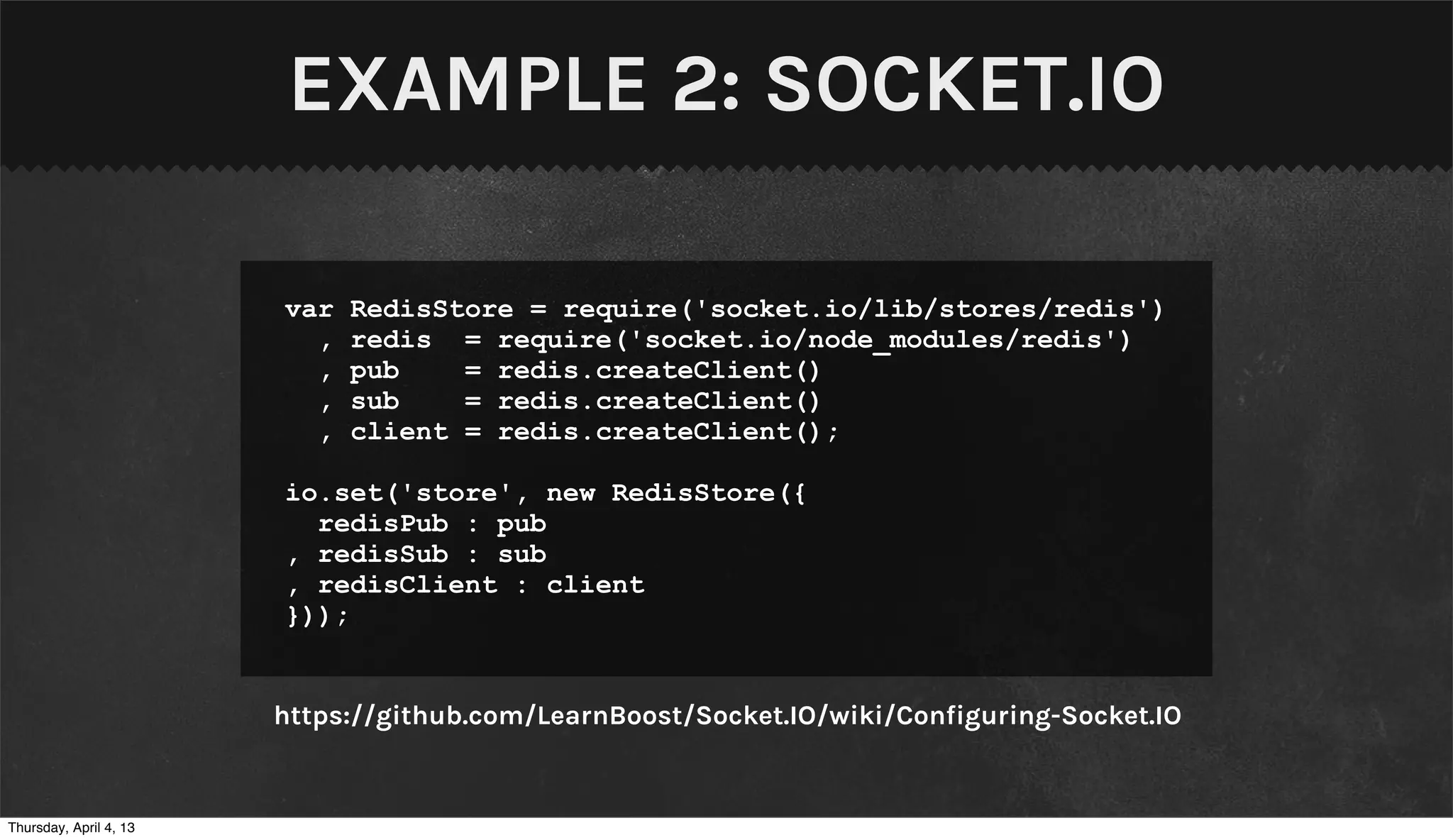

EXAMPLE 2: SOCKET.IO

var RedisStore = require('socket.io/lib/stores/redis')
, redis = require('socket.io/node_modules/redis')
, pub = redis.createClient()
, sub = redis.createClient()
, client = redis.createClient();

io.set('store', new RedisStore({
redisPub : pub
, redisSub : sub
, redisClient : client
}));

https://github.com/LearnBoost/Socket.IO/wiki/Configuring-Socket.IO

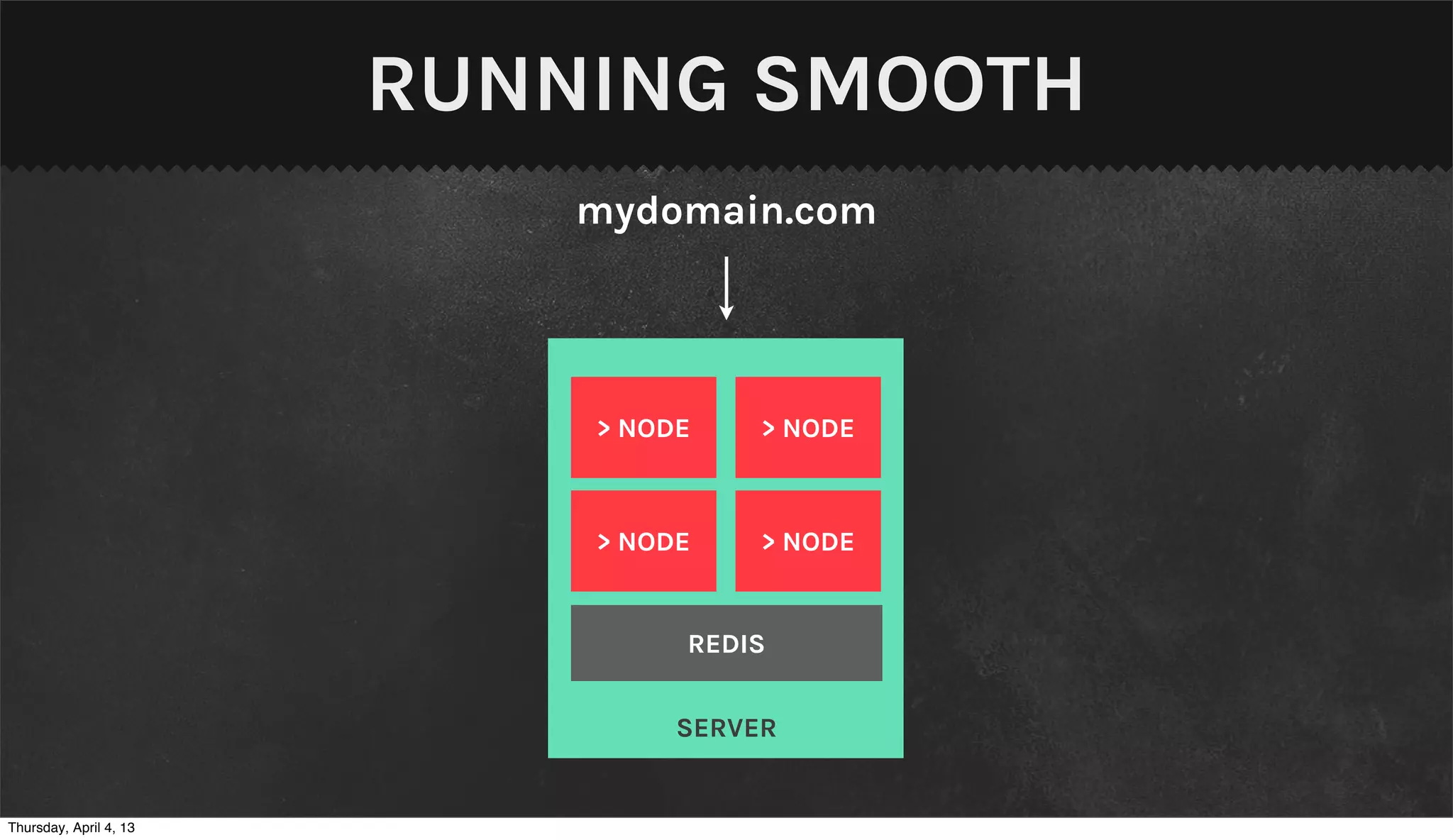

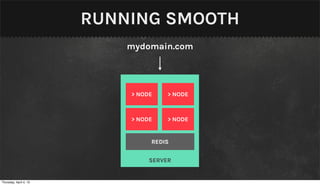

RUNNING SMOOTH
mydomain.com

> NODE > NODE

> NODE > NODE

REDIS

SERVER

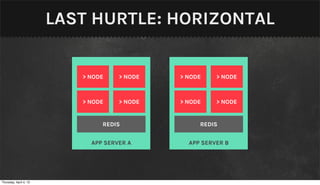

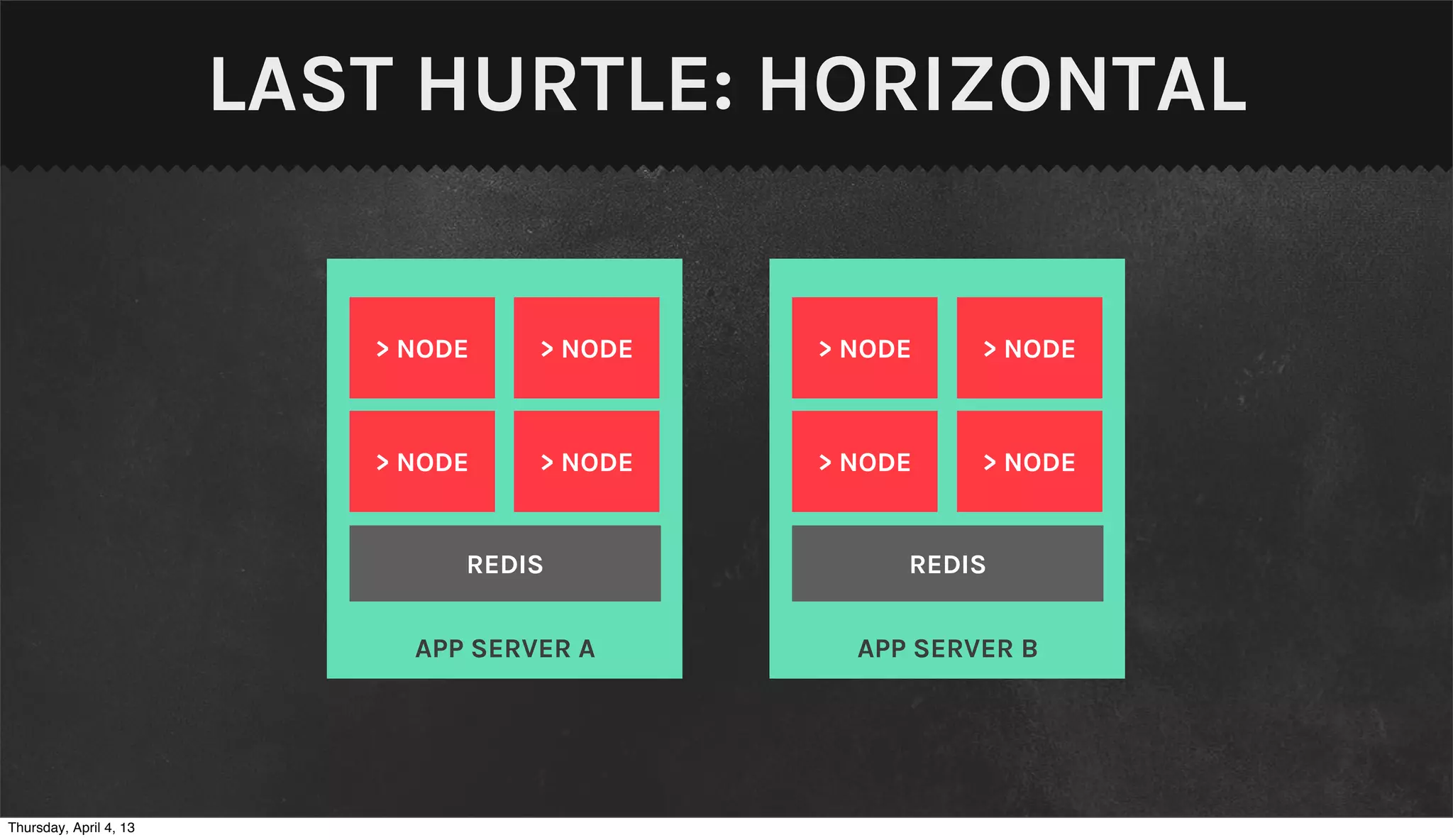

LAST HURTLE: HORIZONTAL

> NODE > NODE > NODE > NODE


REDIS REDIS

APP SERVER A APP SERVER B

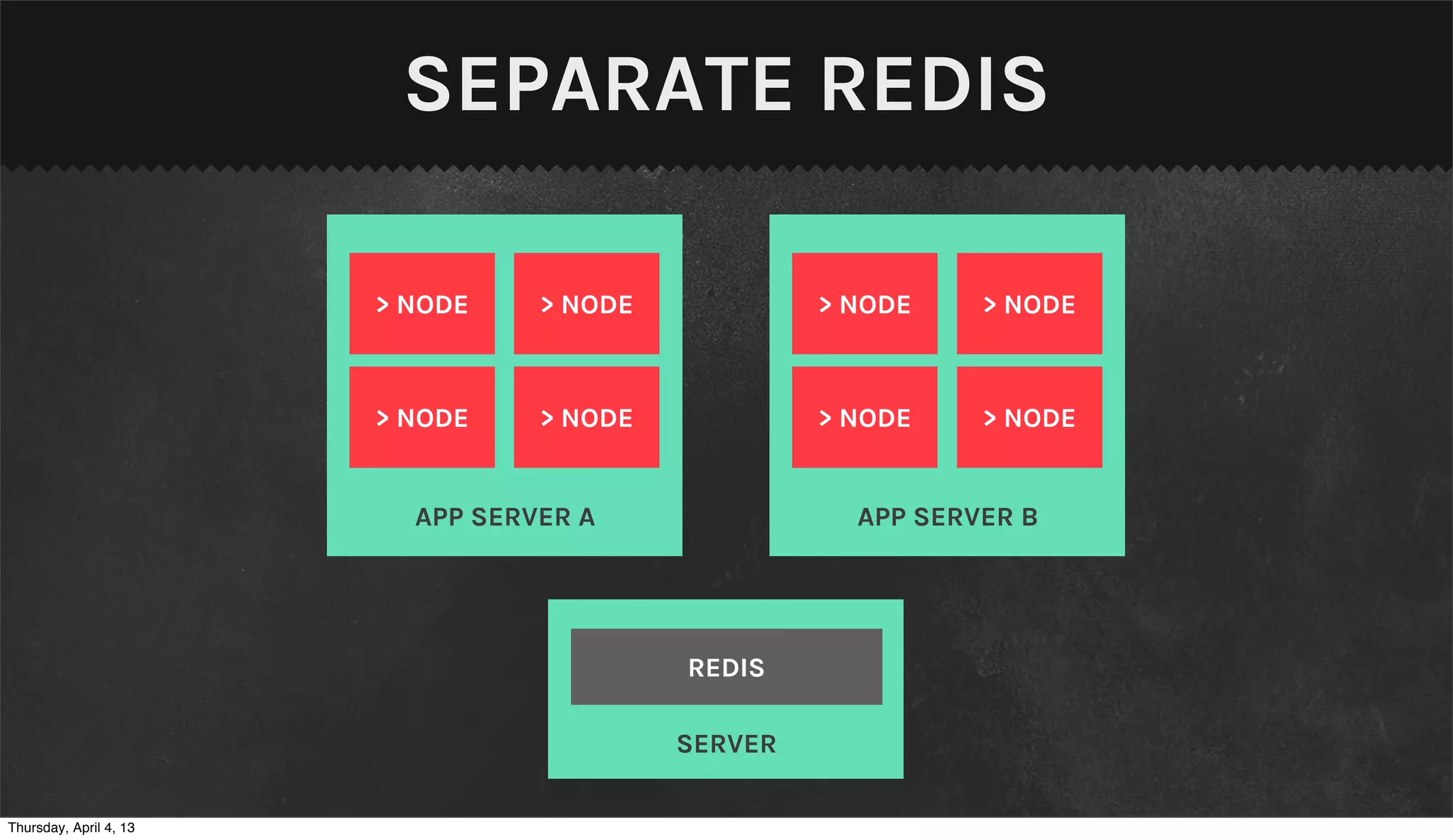

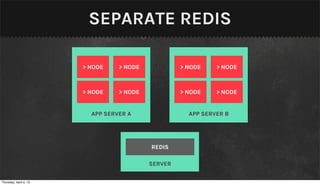

SEPARATE REDIS




REDIS

SERVER

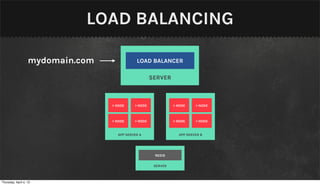

LOAD BALANCING

mydomain.com LOAD BALANCER

SERVER




REDIS

SERVER

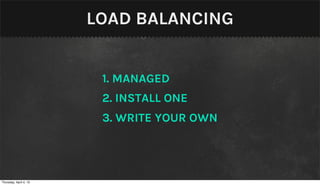

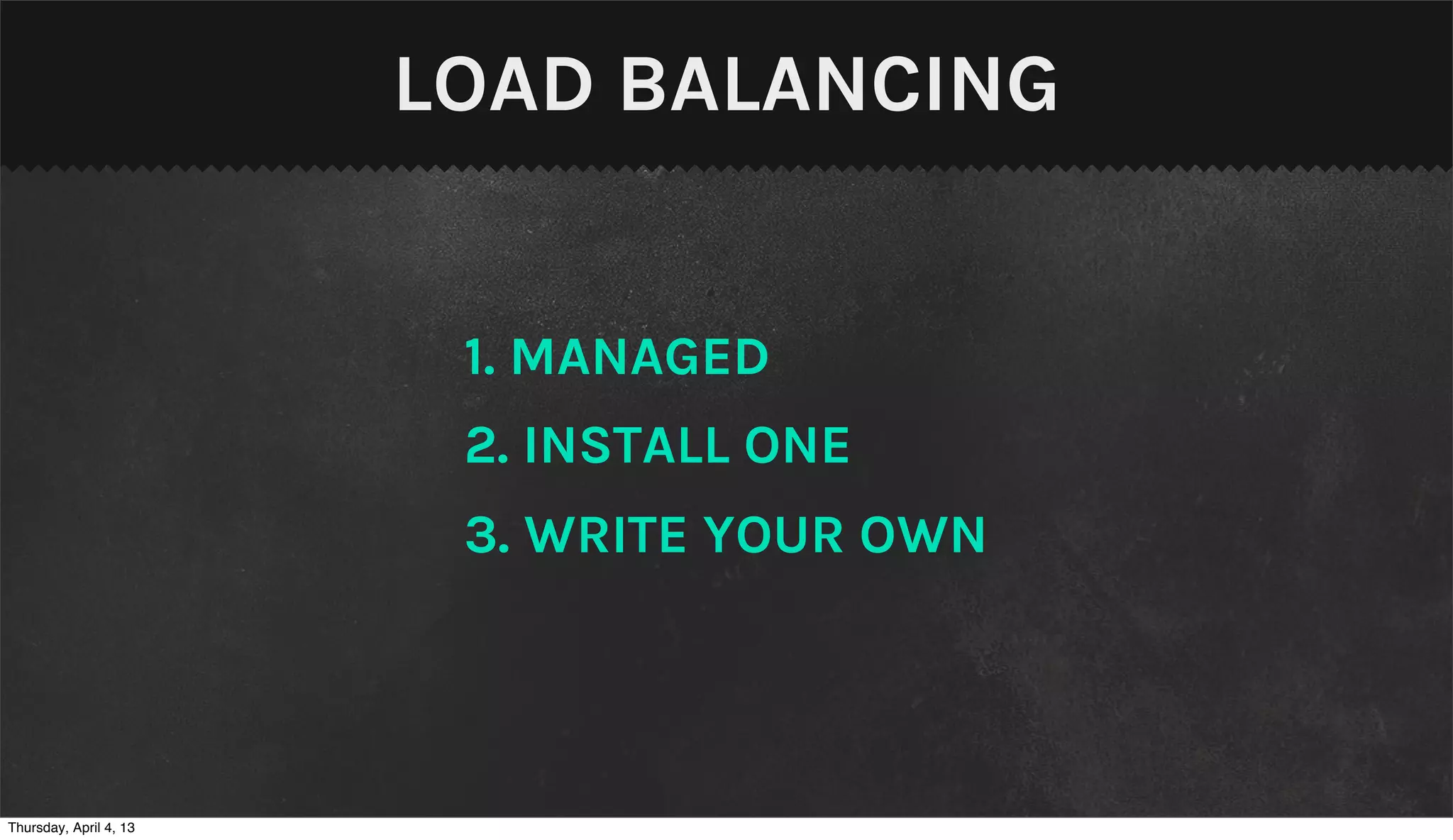

LOAD BALANCING

1. MANAGED
2. INSTALL ONE
3. WRITE YOUR OWN

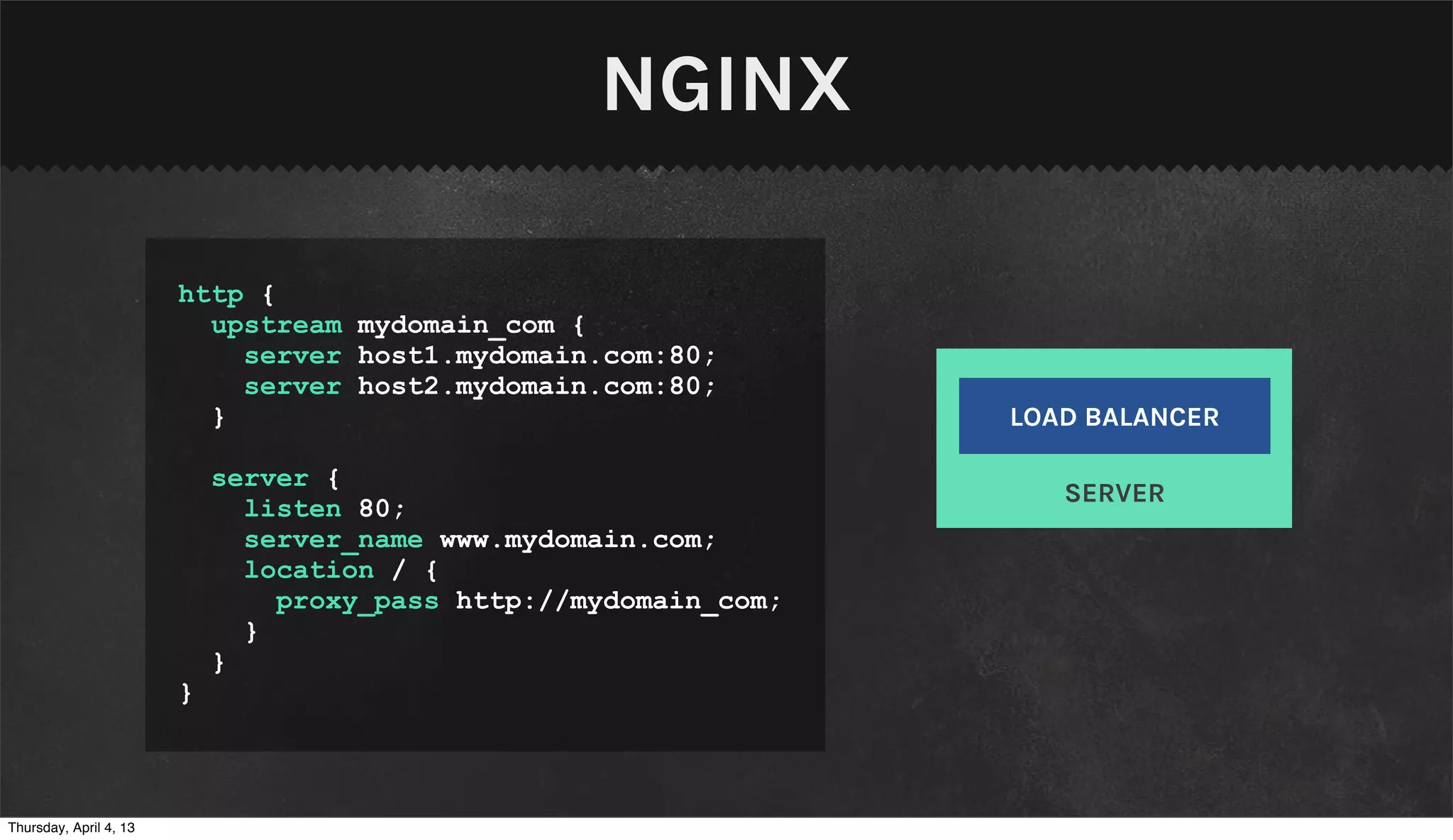

NGINX

http {
upstream mydomain_com {
server host1.mydomain.com:80;
} LOAD BALANCER

server {
SERVER
listen 80;
server_name www.mydomain.com;
location / {
proxy_pass http://mydomain_com;
}
}
}


WRITE ONE

https://github.com/substack/bouncy

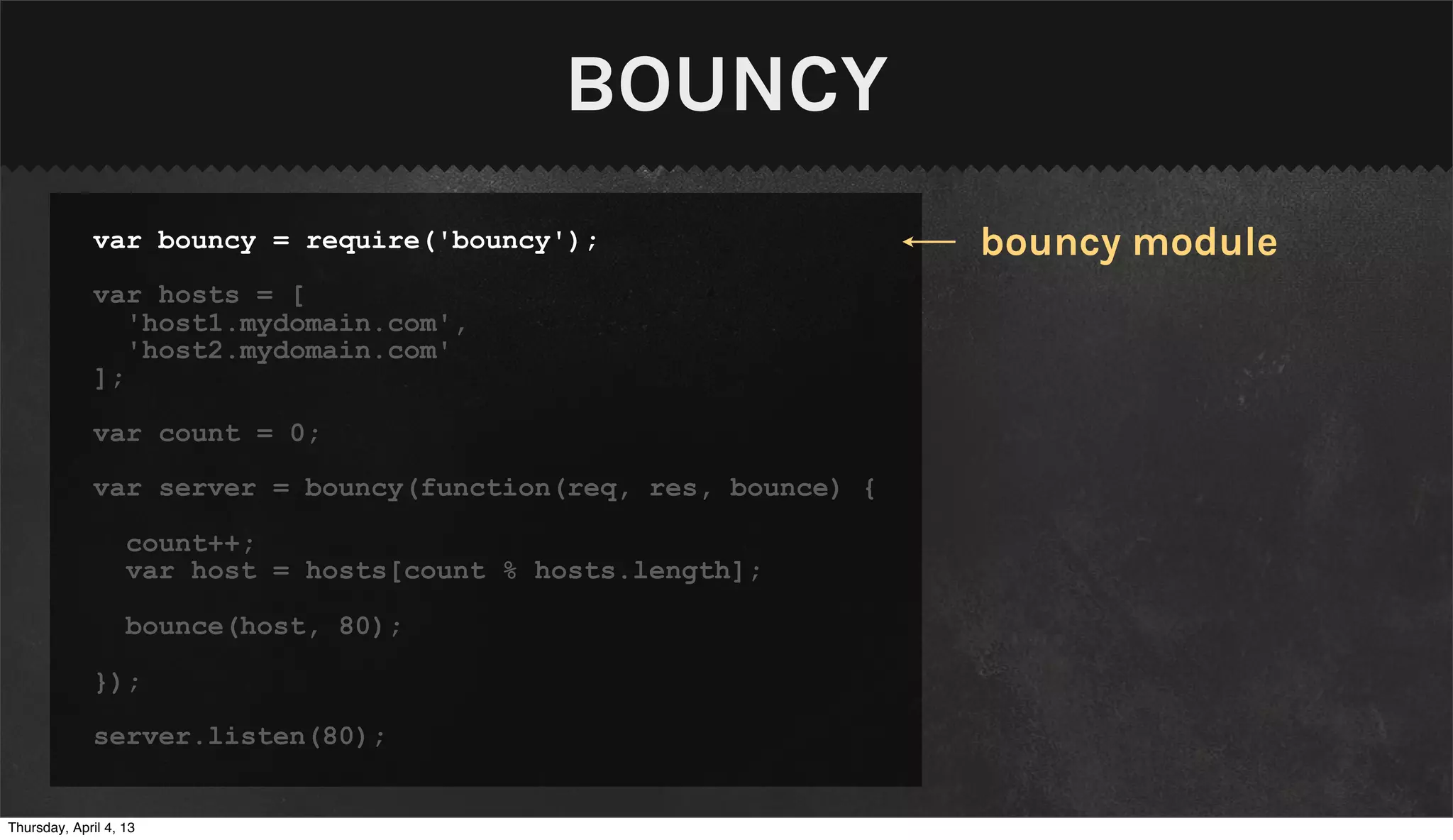

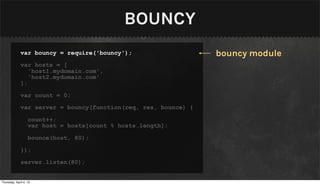

BOUNCY
var bouncy = require('bouncy'); bouncy module
var hosts = [
'host1.mydomain.com',
'host2.mydomain.com'
];

var count = 0;

var server = bouncy(function(req, res, bounce) {

count++;
var host = hosts[count % hosts.length];

bounce(host, 80);

});

server.listen(80);

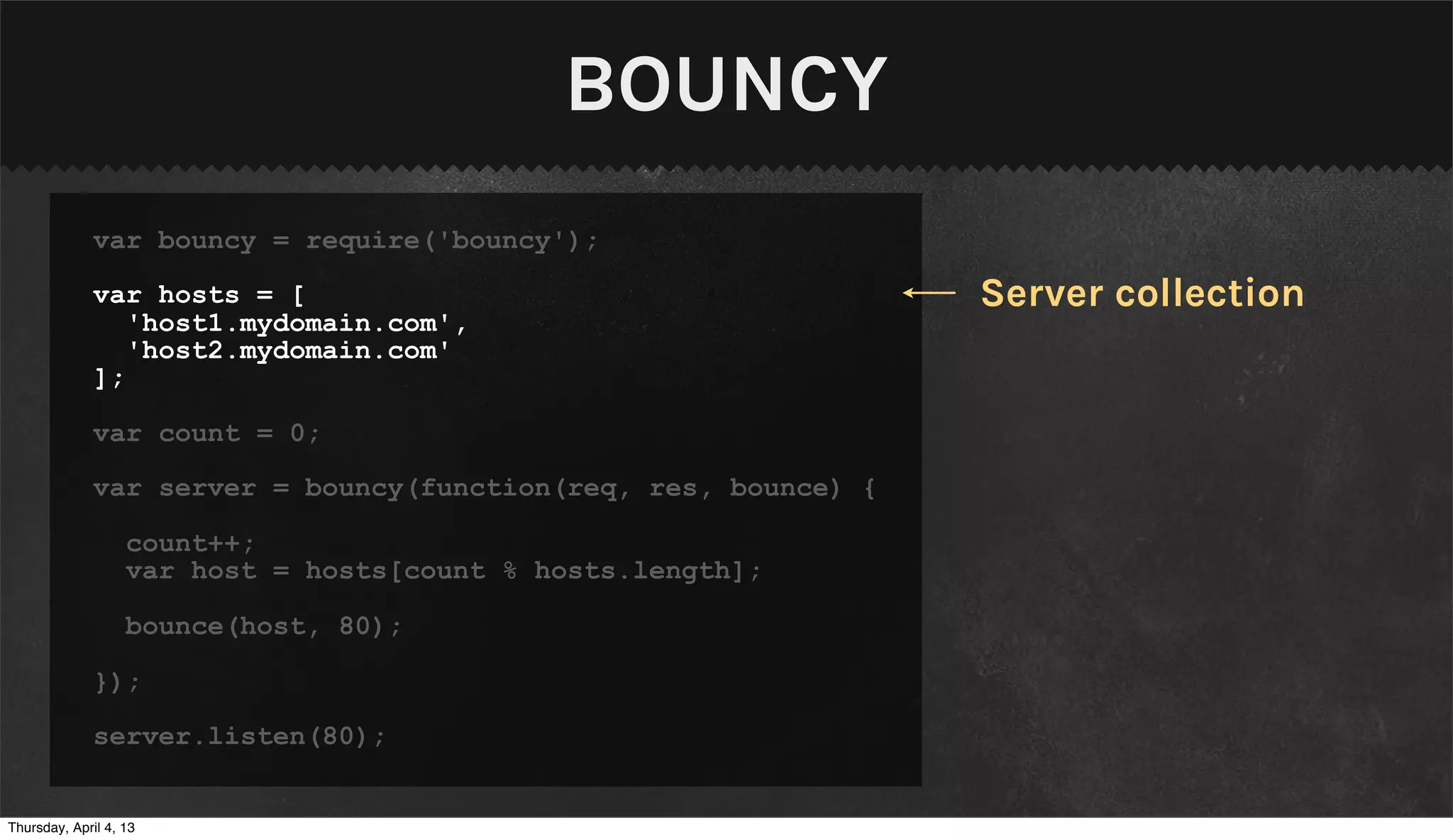

BOUNCY
var bouncy = require('bouncy');

var hosts = [ Server collection
];

var count = 0;


count++;

bounce(host, 80);

});

server.listen(80);

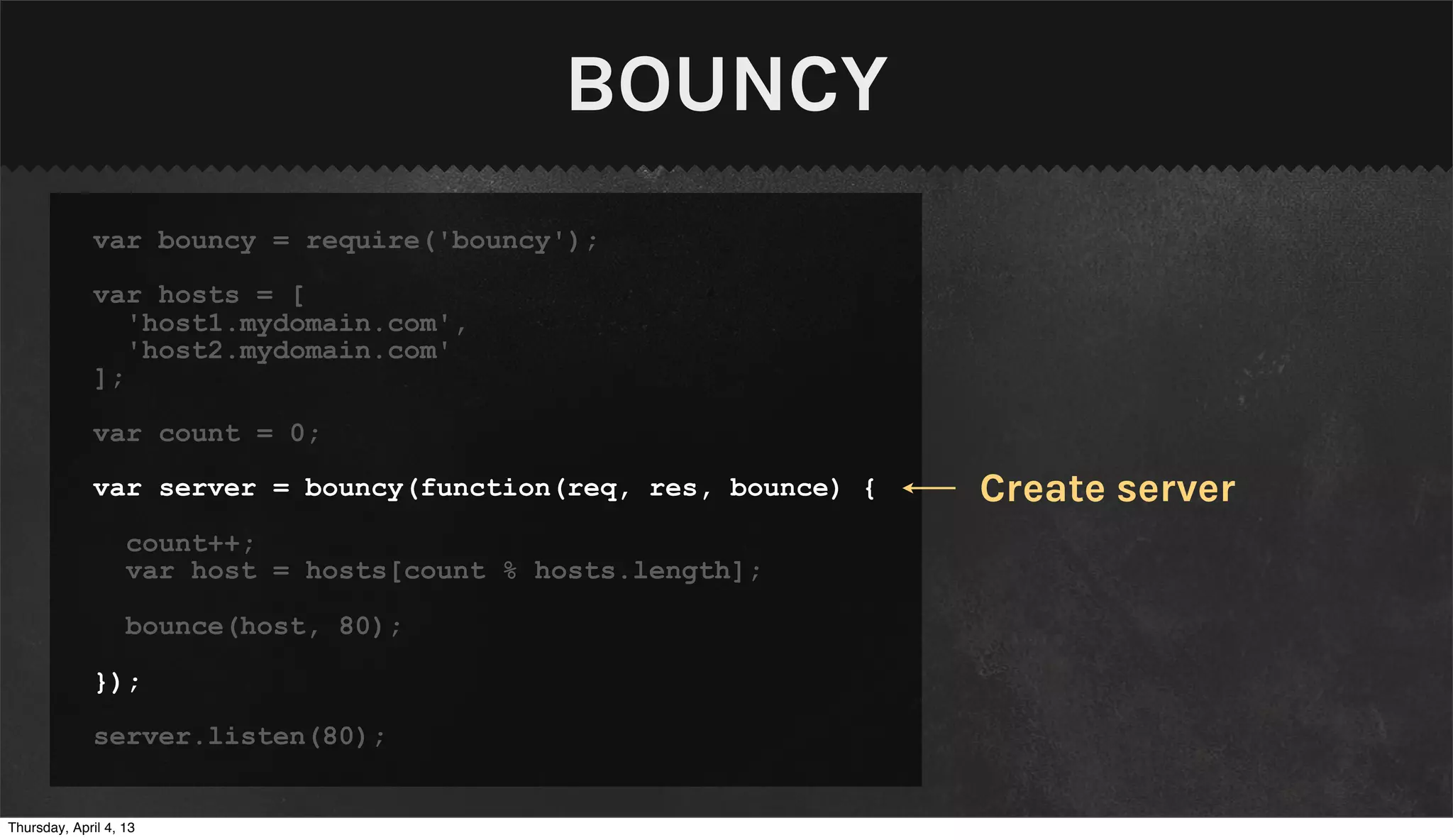

BOUNCY

var hosts = [
];

var count = 0;

var server = bouncy(function(req, res, bounce) { Create server
count++;

bounce(host, 80);

});

server.listen(80);

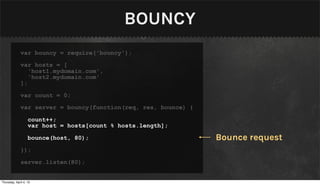

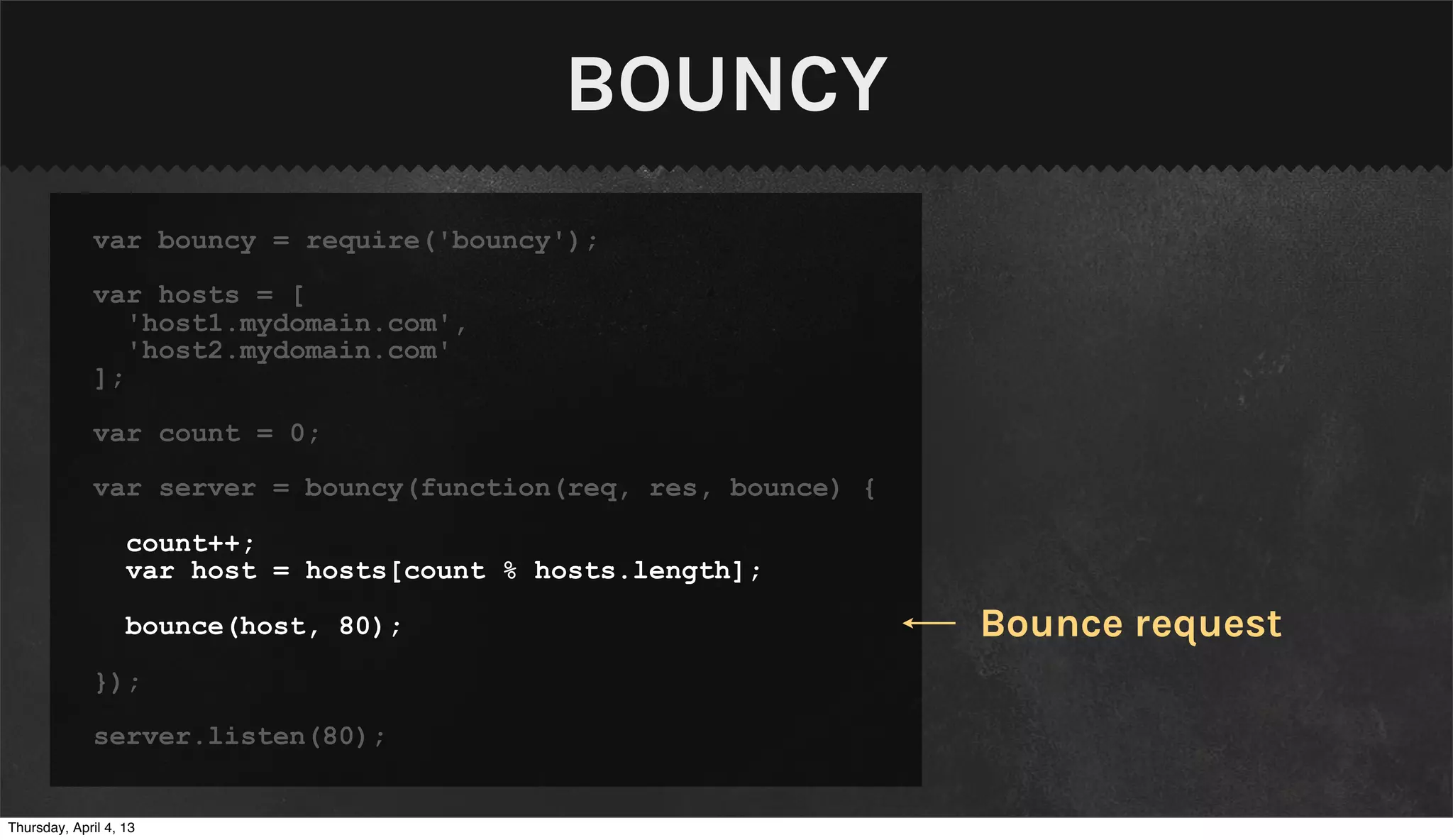

BOUNCY

var hosts = [
];

var count = 0;


count++;

bounce(host, 80); Bounce request
});

server.listen(80);


AFFINITY

SESSION AFFINITY
STICKY SESSIONS
SEND THE SAME PERSON
BACK TO THE SAME SERVER

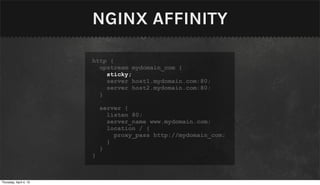

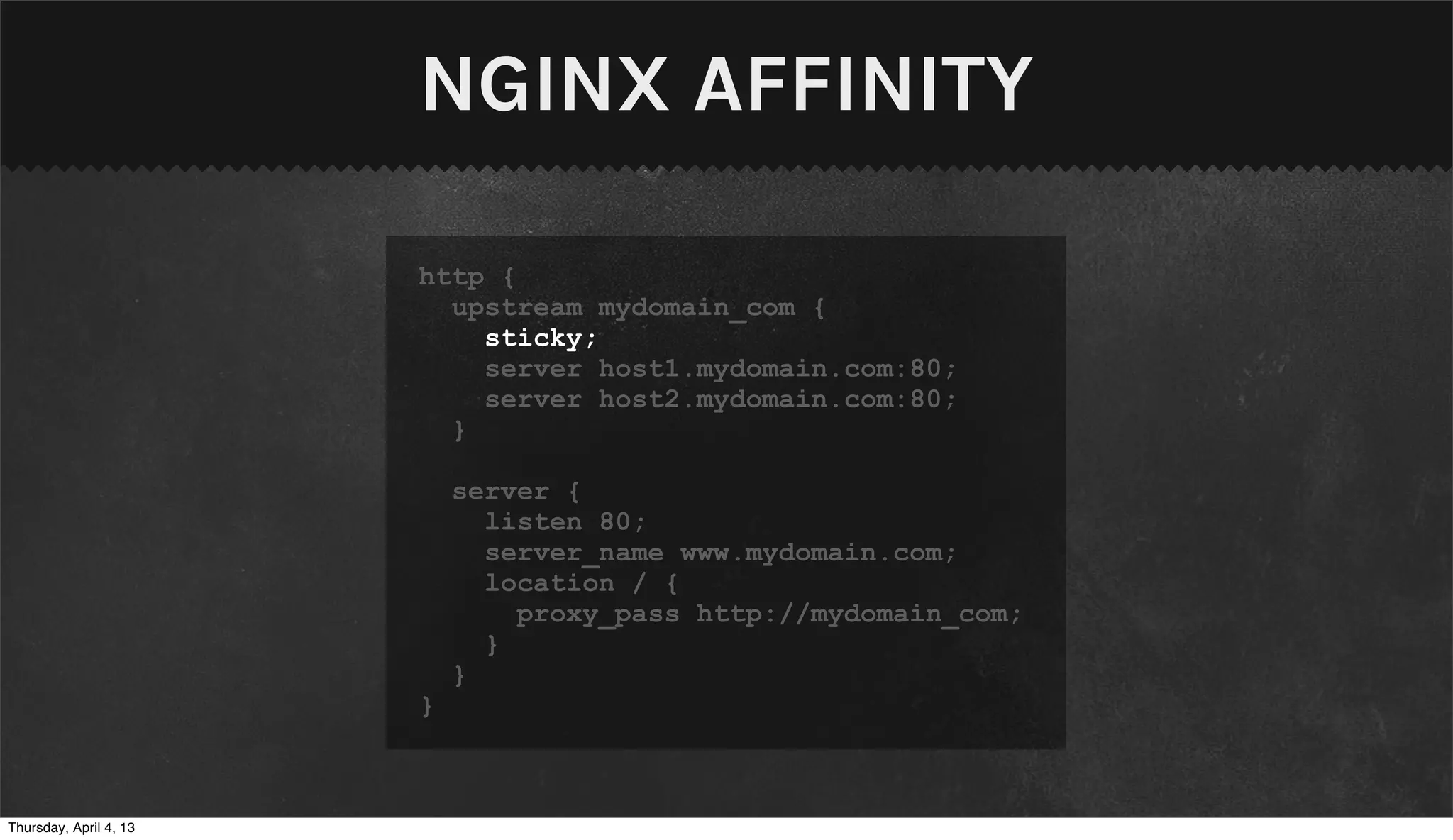

NGINX AFFINITY

http {
upstream mydomain_com {
sticky;
}

server {
listen 80;
server_name www.mydomain.com;
location / {
proxy_pass http://mydomain_com;
}
}
}

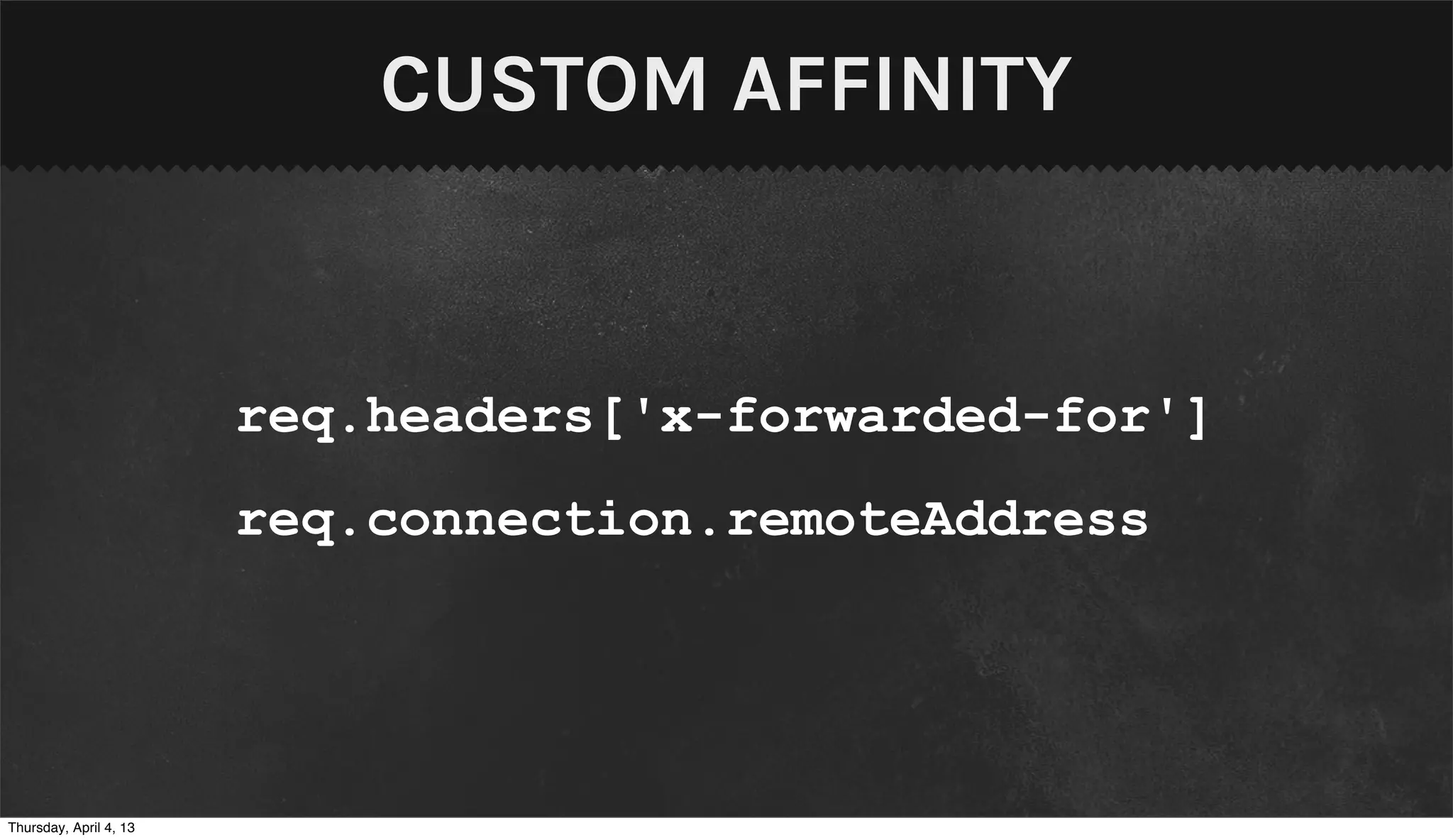

CUSTOM AFFINITY

req.headers['x-forwarded-for']
req.connection.remoteAddress

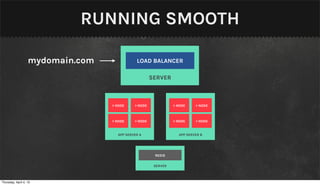

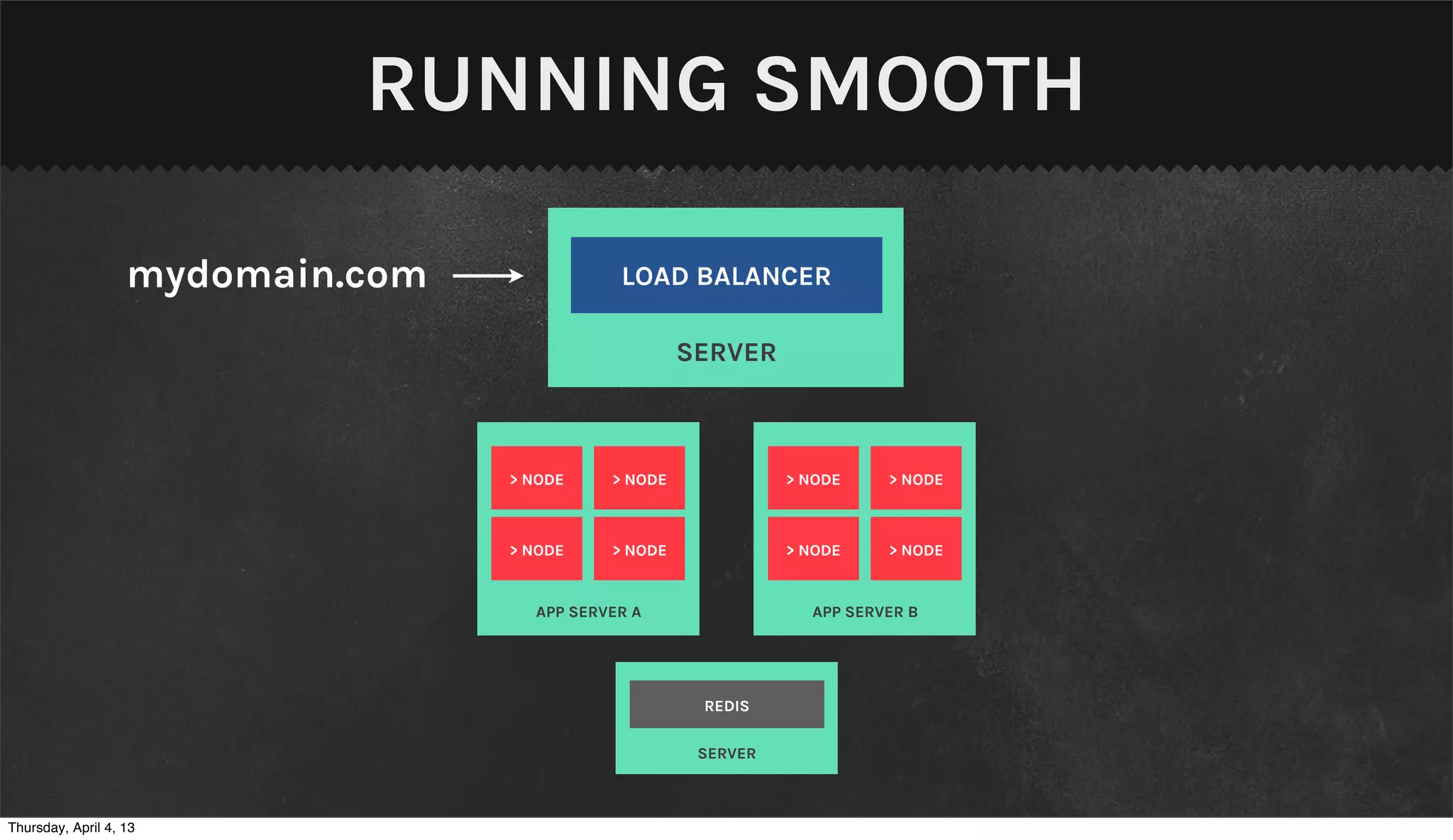

RUNNING SMOOTH

mydomain.com LOAD BALANCER

SERVER




REDIS

SERVER

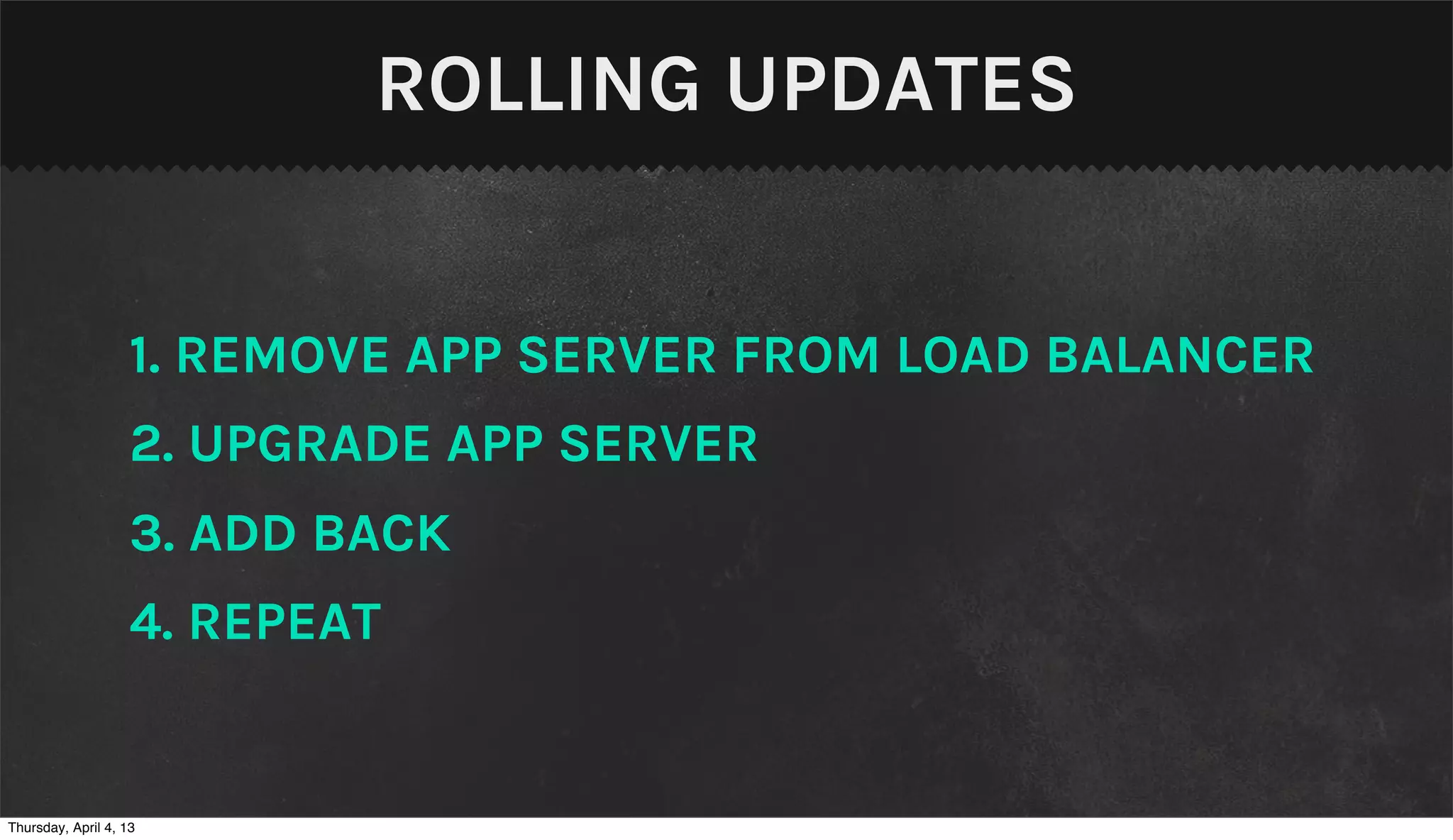

ROLLING UPDATES

1. REMOVE APP SERVER FROM LOAD BALANCER
2. UPGRADE APP SERVER
3. ADD BACK
4. REPEAT

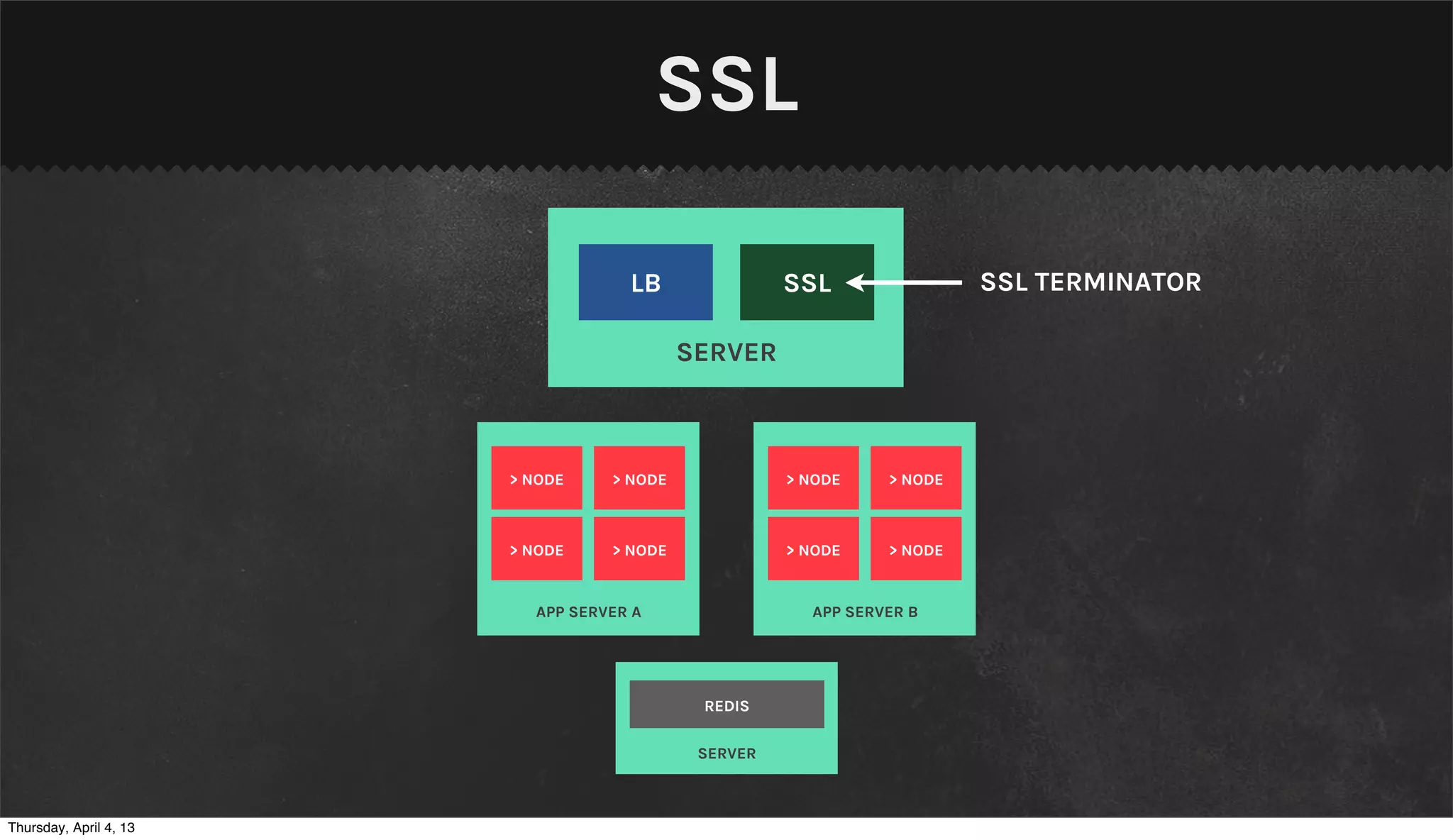

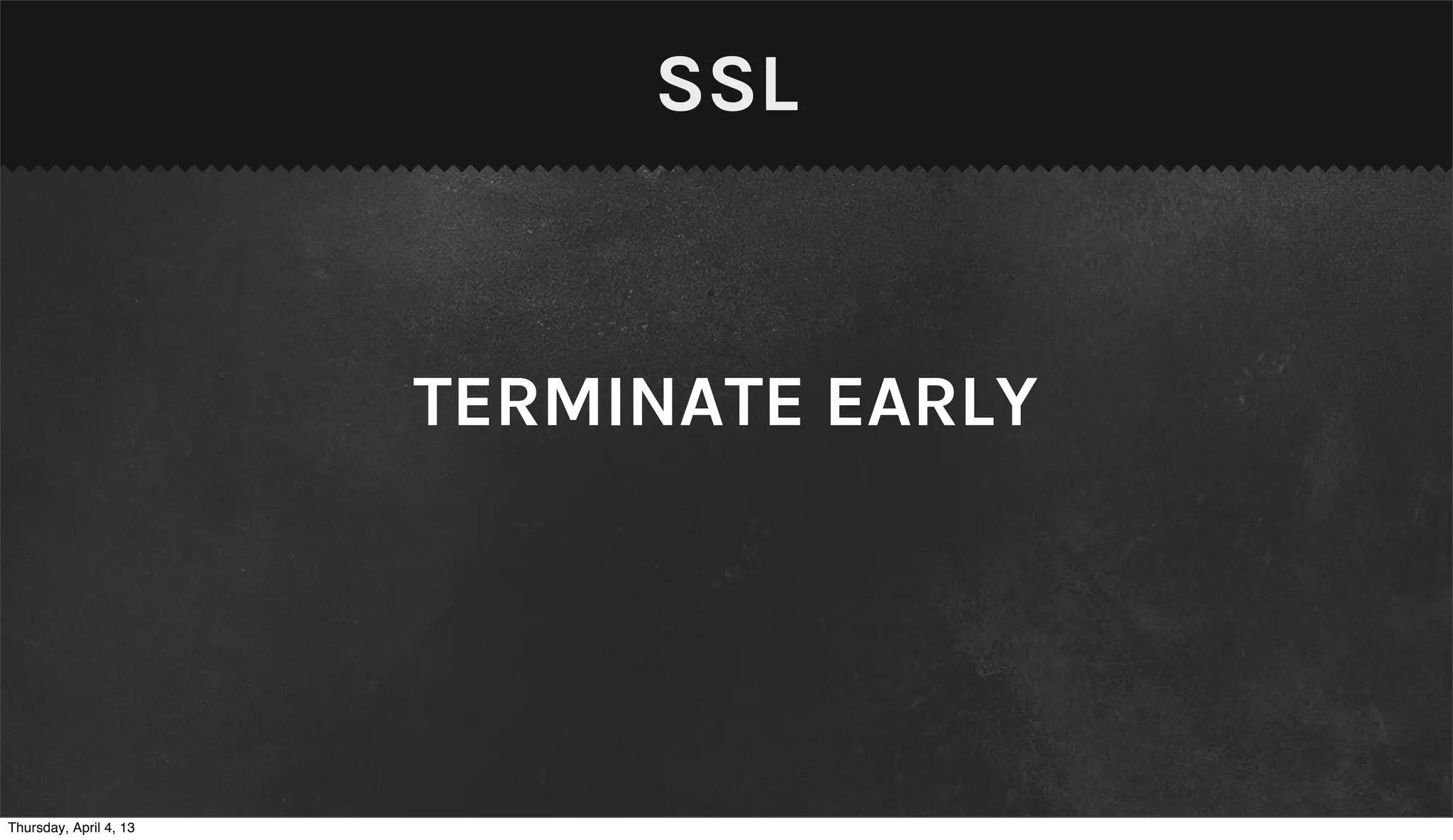

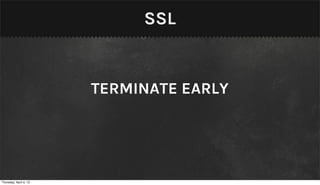

SSL

TERMINATE EARLY


SSL

LB SSL SSL TERMINATOR

SERVER




REDIS

SERVER

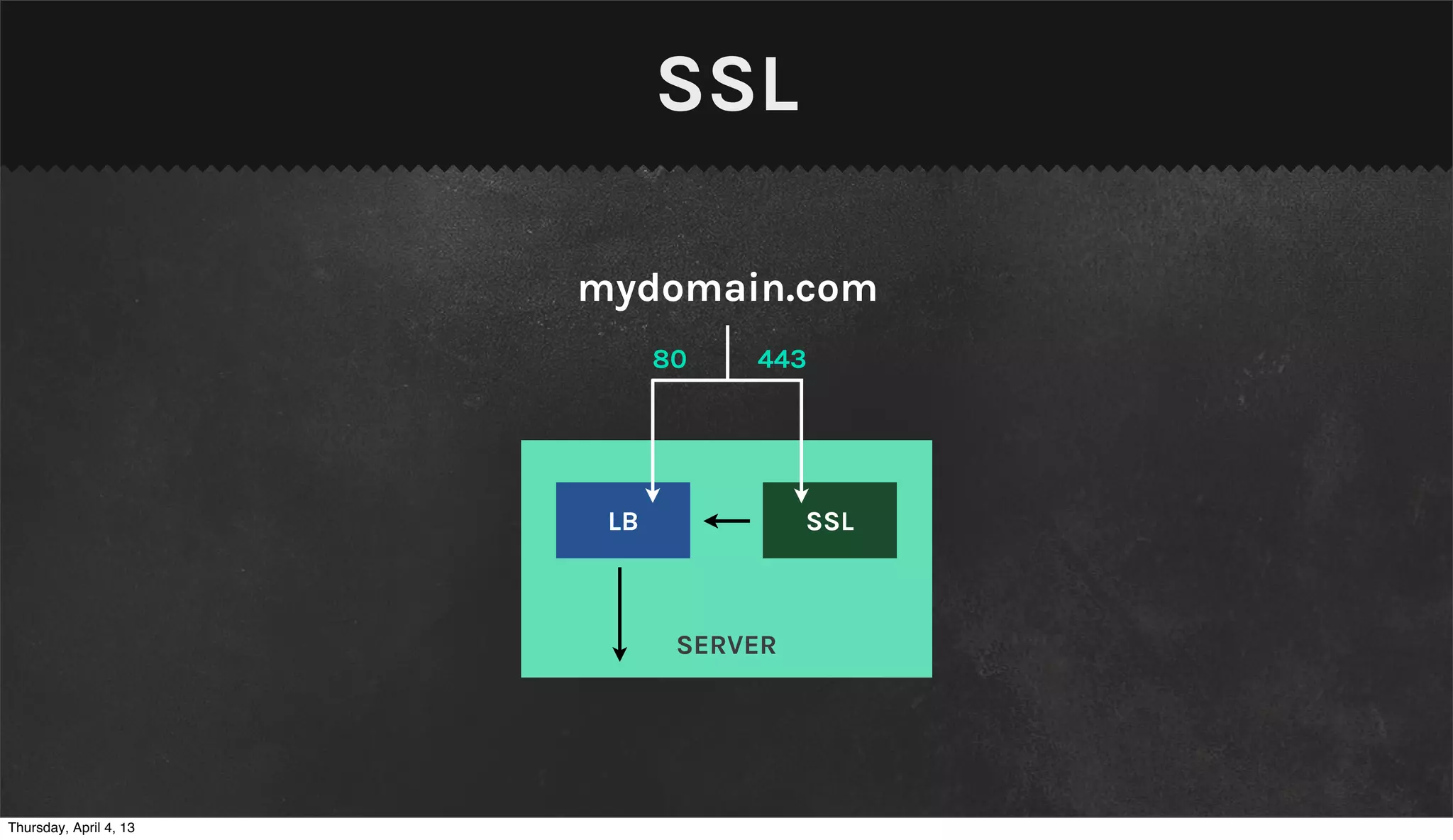

SSL

mydomain.com
80 443

LB SSL

SERVER

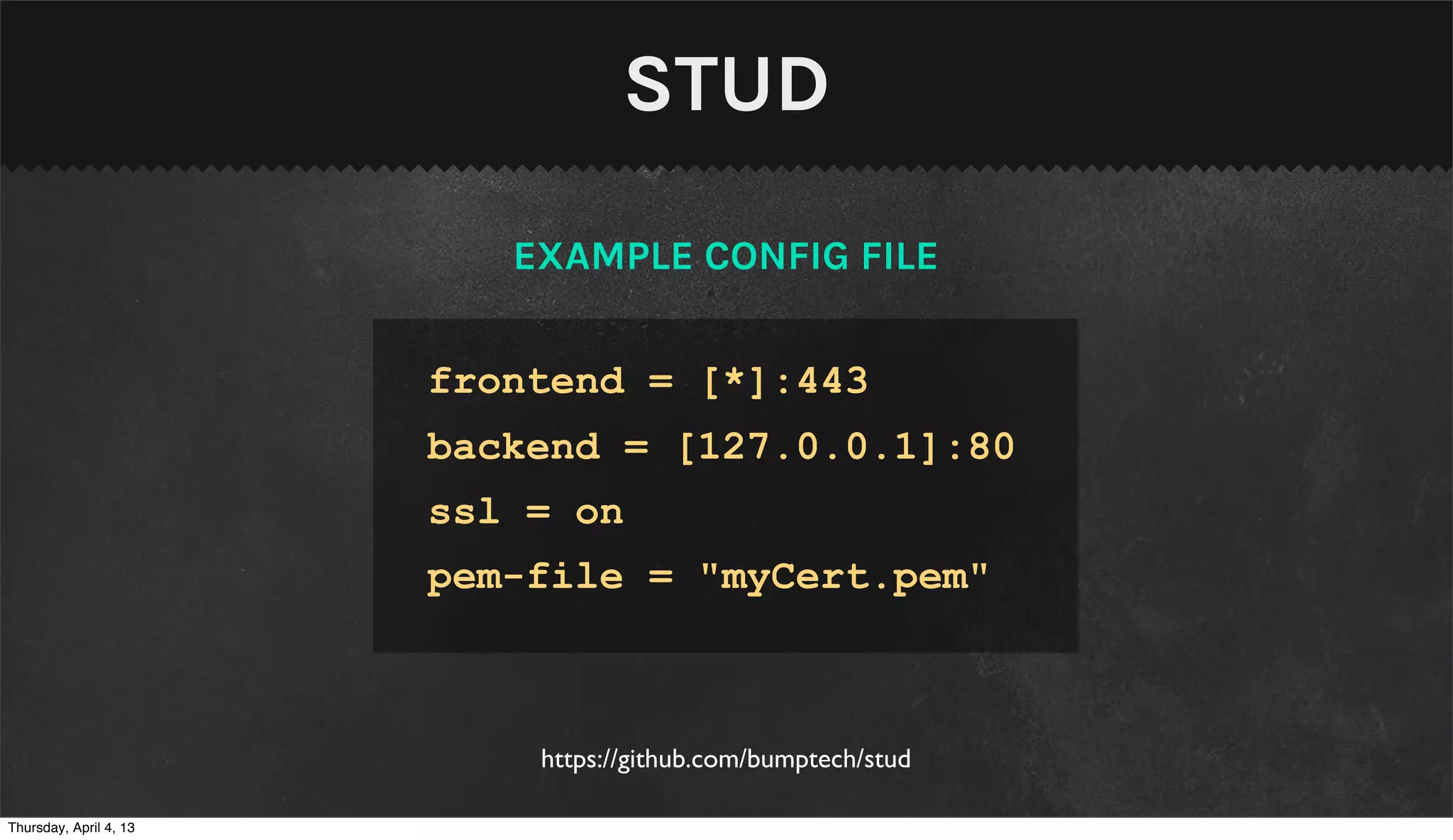

STUD
EXAMPLE CONFIG FILE

frontend = [*]:443
backend = [127.0.0.1]:80
ssl = on
pem-file = "myCert.pem"

https://github.com/bumptech/stud

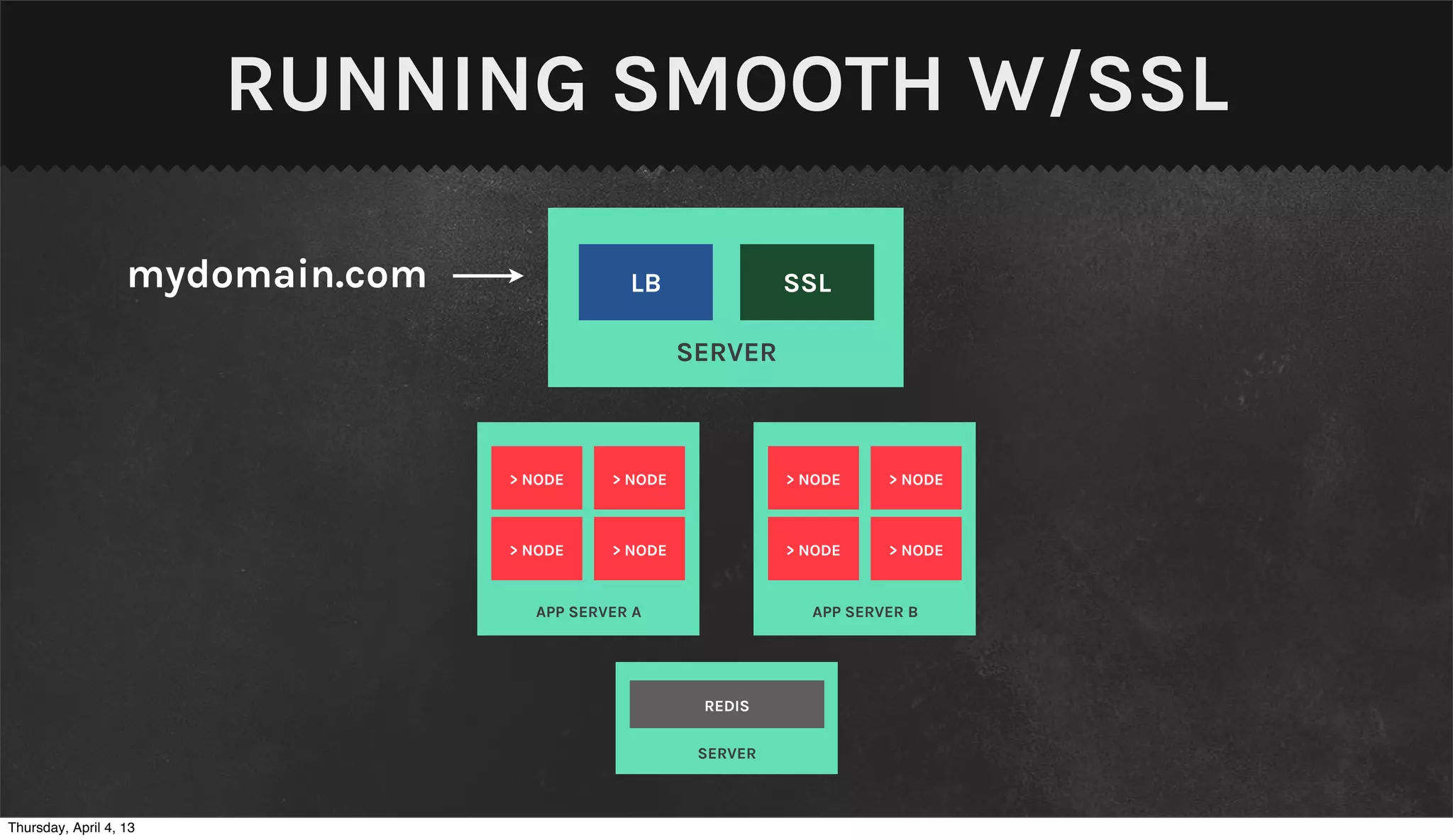

RUNNING SMOOTH W/SSL

mydomain.com LB SSL

SERVER




REDIS

SERVER

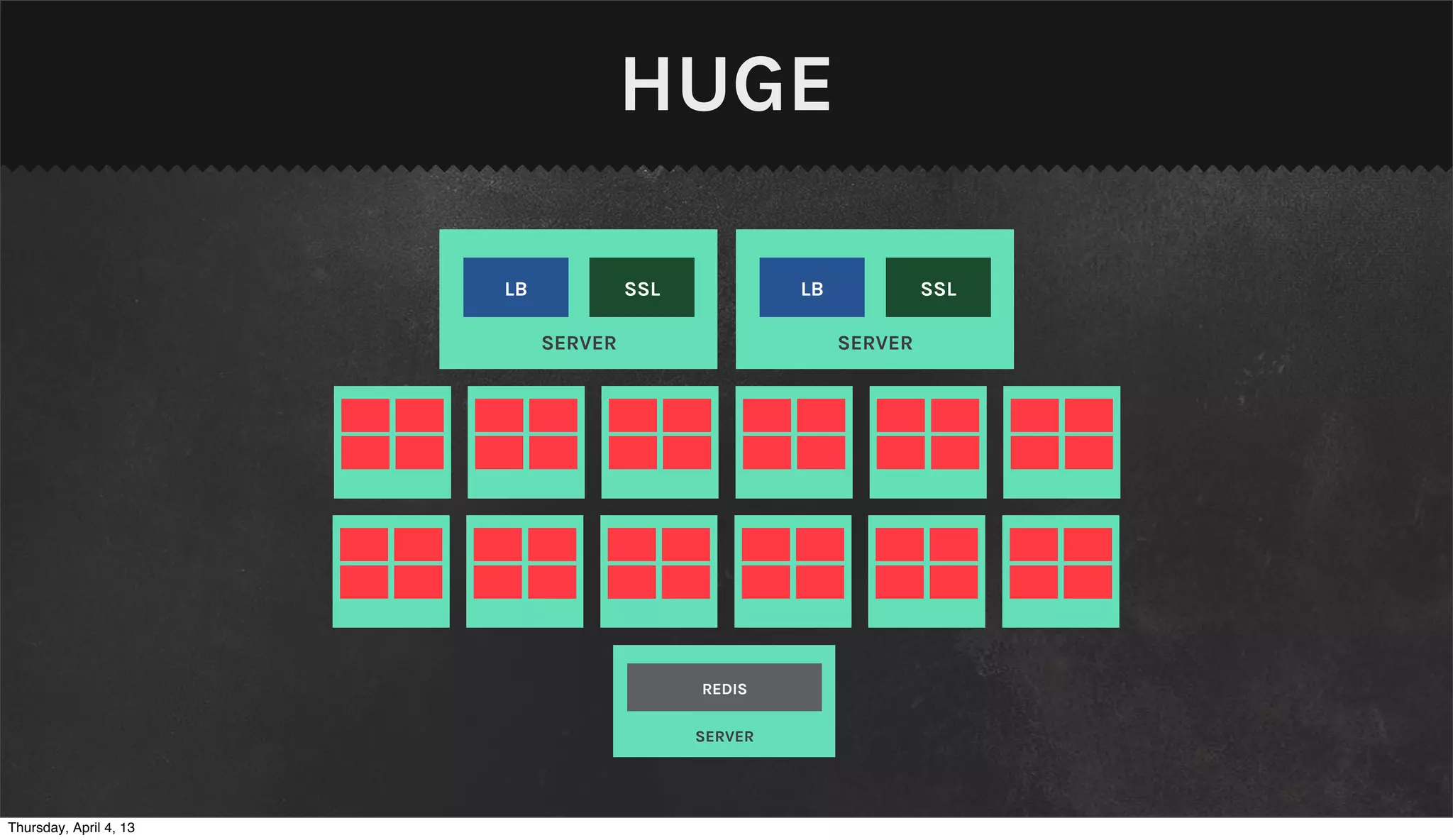

HUGE

LB SSL LB SSL

SERVER SERVER

REDIS

SERVER

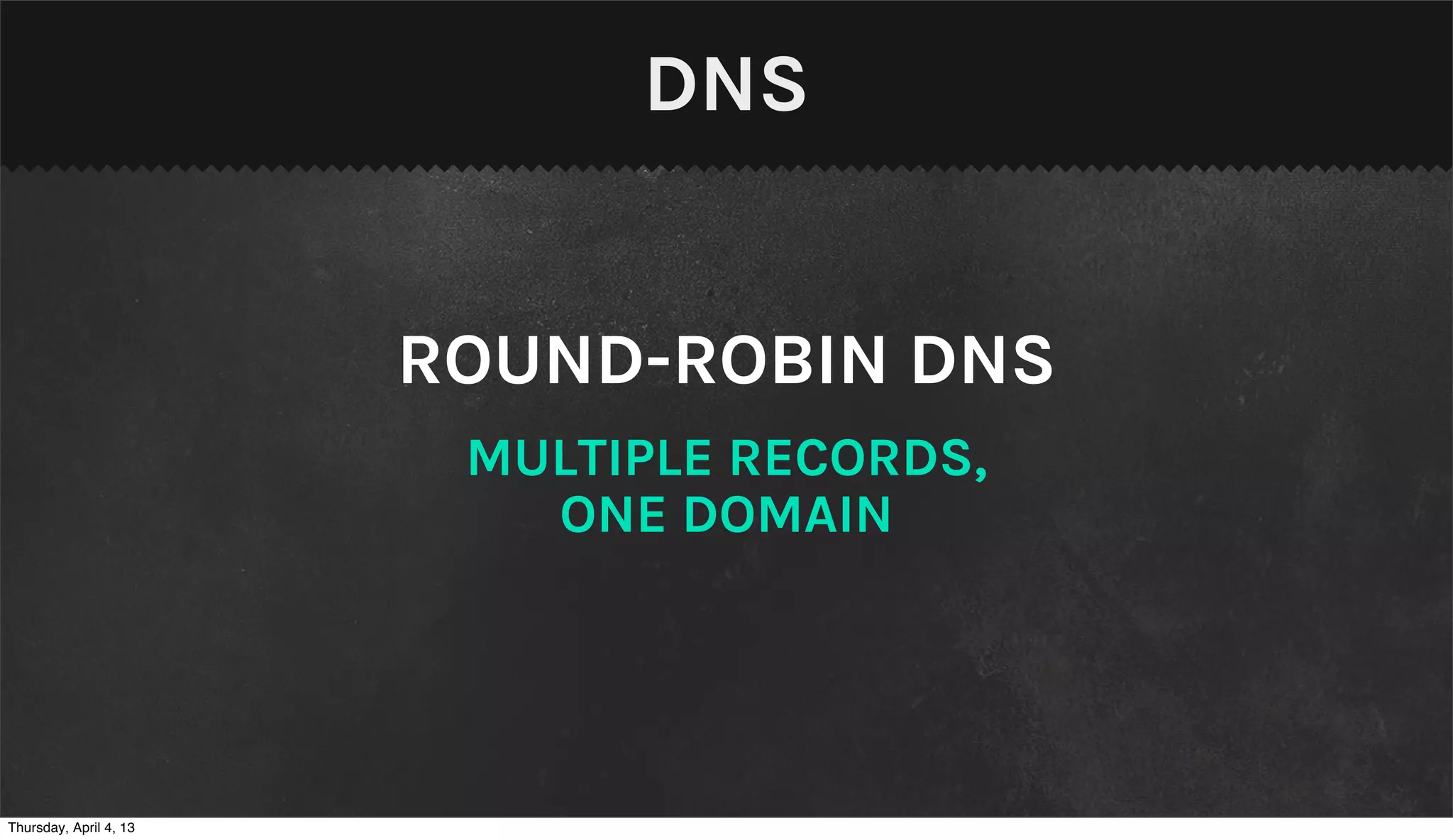

DNS

ROUND-ROBIN DNS
MULTIPLE RECORDS,
ONE DOMAIN

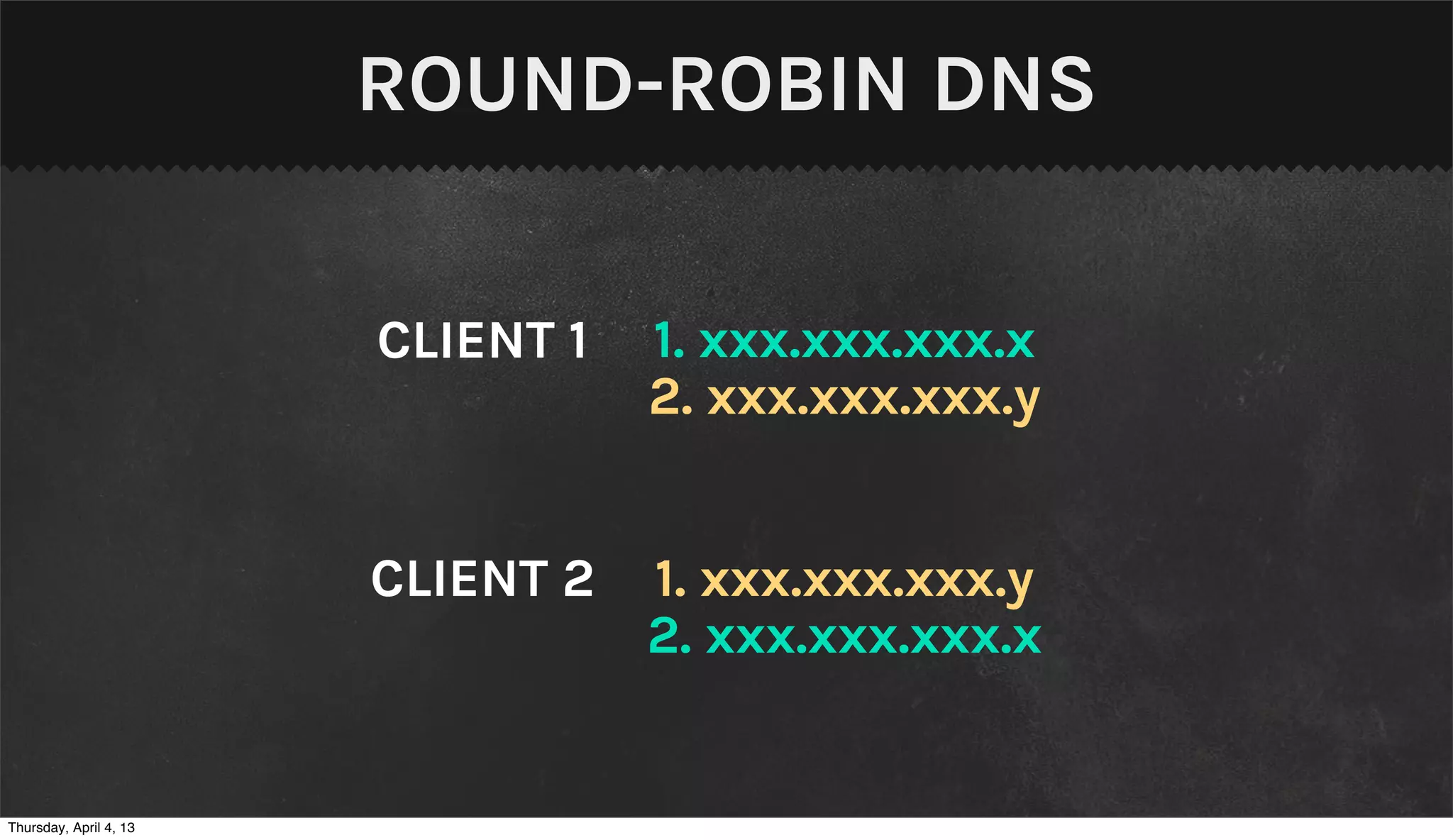

ROUND-ROBIN DNS

CLIENT 1 1. xxx.xxx.xxx.x
2. xxx.xxx.xxx.y

CLIENT 2 1. xxx.xxx.xxx.y
2. xxx.xxx.xxx.x

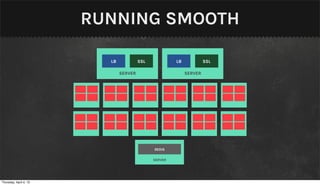

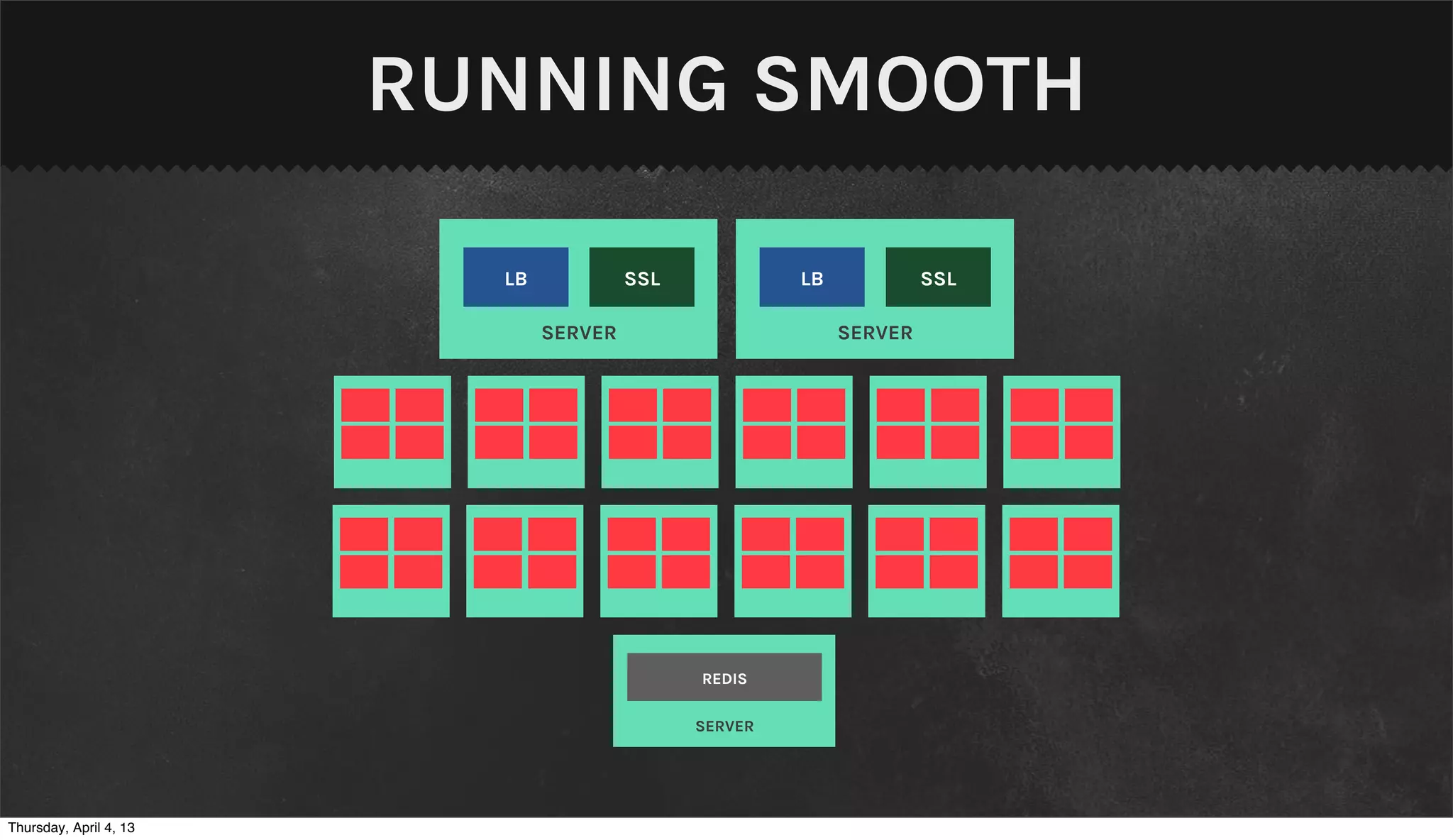

RUNNING SMOOTH

LB SSL LB SSL

SERVER SERVER

REDIS

SERVER

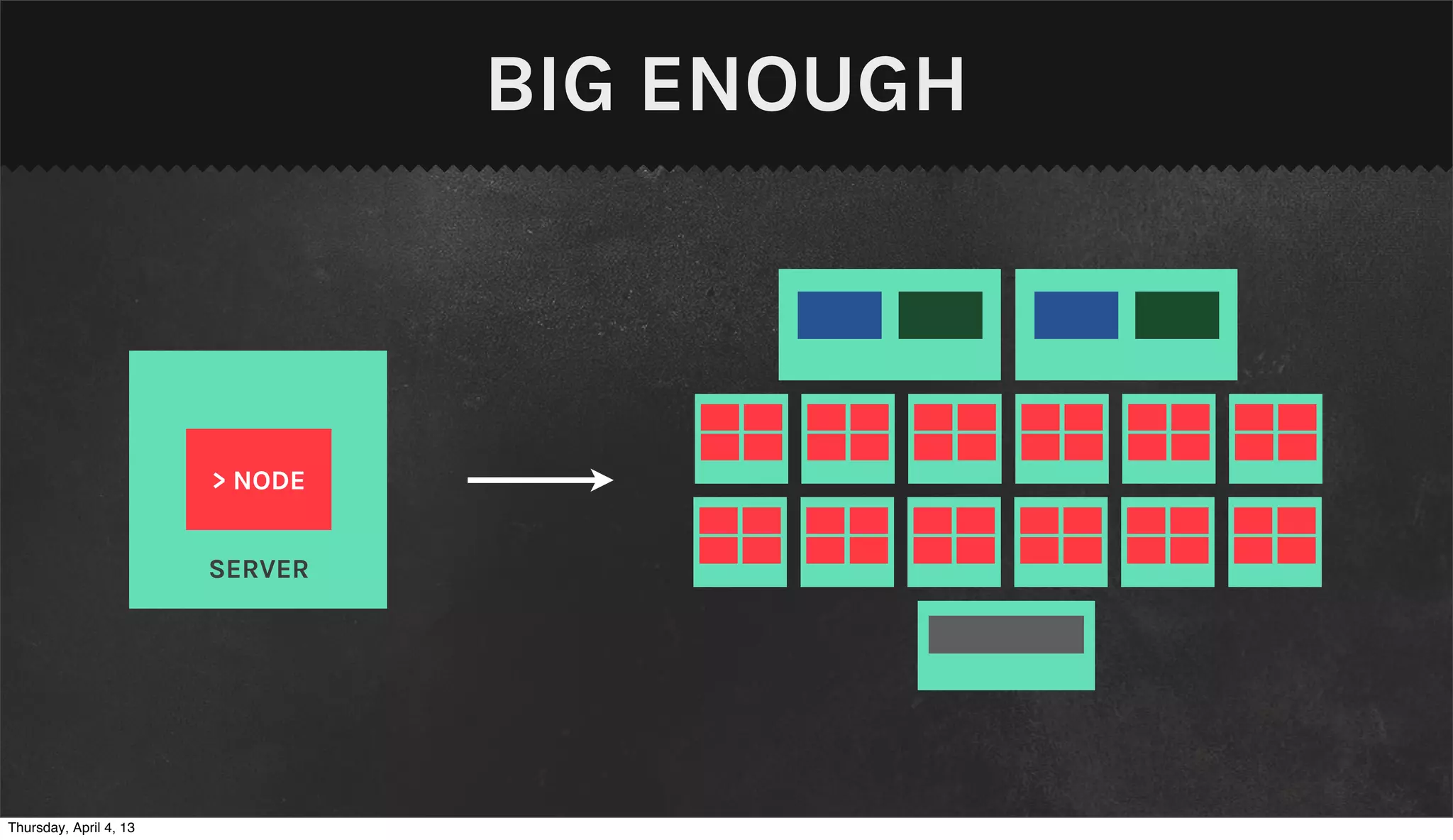

BIG ENOUGH

> NODE

SERVER
