Oracle Exalogic Elastic Cloud
Gregor Raýman – gregor.rayman@oracle.com
A&C Fusion Middleware Specialist

reserved.

TRANSACTION VOLUMES ARE EXPLODING
2.3 Billion People
on the Internet
32 Sales per Second
on Amazon
2.2 Billion
Smart Meter
Transactions Daily
60 Billion US Debit/ Credit
Transactions/Year
5 Billion
US Mobile Text
Messages Daily
1.5 Million People
Processed Daily
on US Borders
340 Million
Tweets Daily
reserved.

YOUR BUSINESS CAN’T AFFORD TO MISS A BEAT
1 second delay
in page load time = 16% 7%
CUSTOMER
SATISFACTION CONVERSIONS
reserved.

reserved.
ARE YOUR BUSINESS
APPLICATIONS KEEPING UP?

reserved.
7 Copyright © 2011, Oracle and/or its affiliates.All rights Insert Information Protection Policy Classification from Slide 8
reserved.
WHAT DOES IT TAKE TO DELIVER
APPLICATIONS SUCCESSFULLY?
AT LOW COST
BUILT ON OPEN STANDARDS
EASE OF DEPLOYMENT
RUNTIME EXCELLENCE
INTEGRATED MANAGEMENT

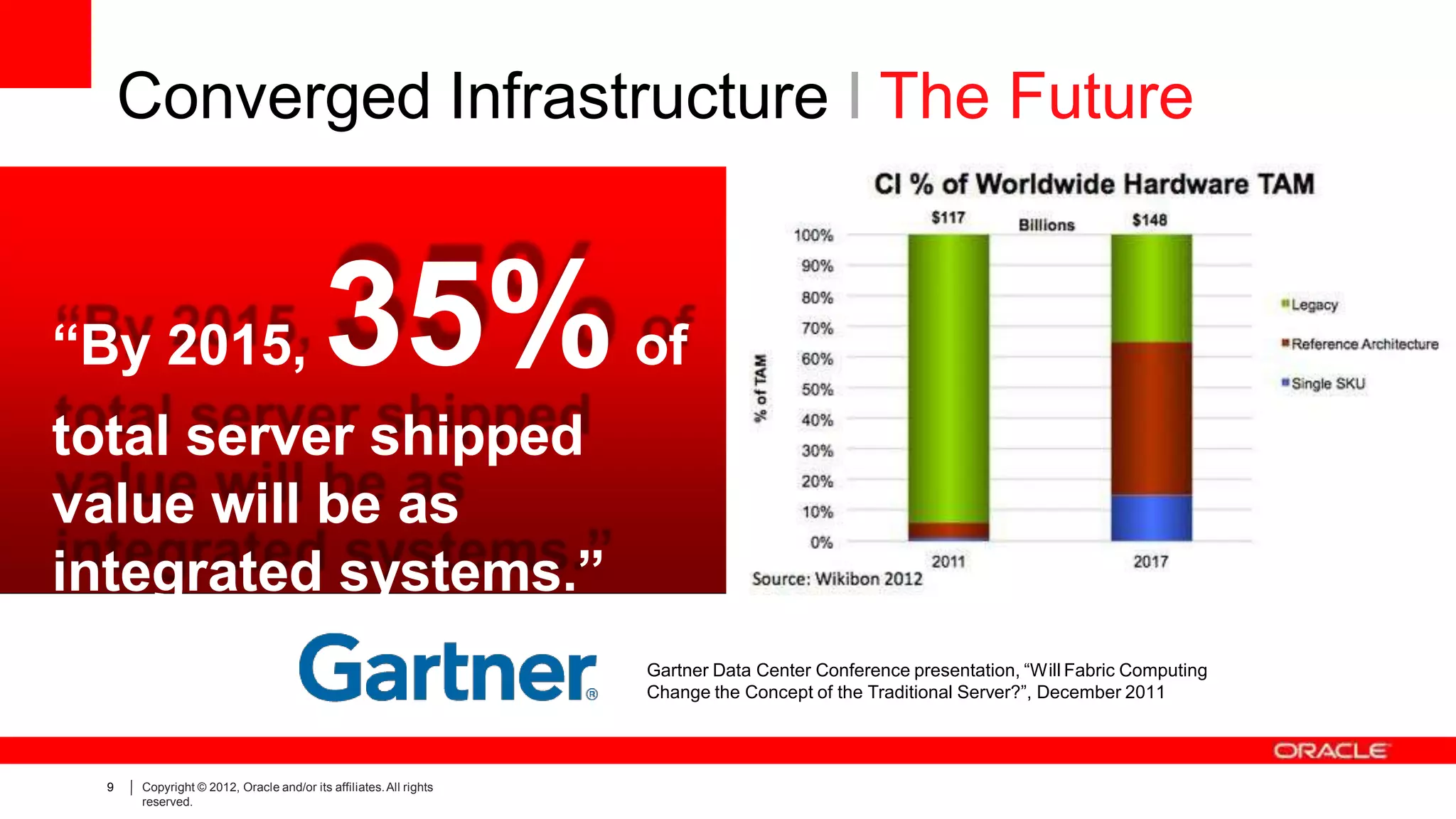

“By 2015, 35%of
total server shipped
value will be as
integrated systems.”
Converged Infrastructure I The Future
Gartner Data Center Conference presentation, “Will Fabric Computing
Change the Concept of the Traditional Server?”, December 2011
reserved.

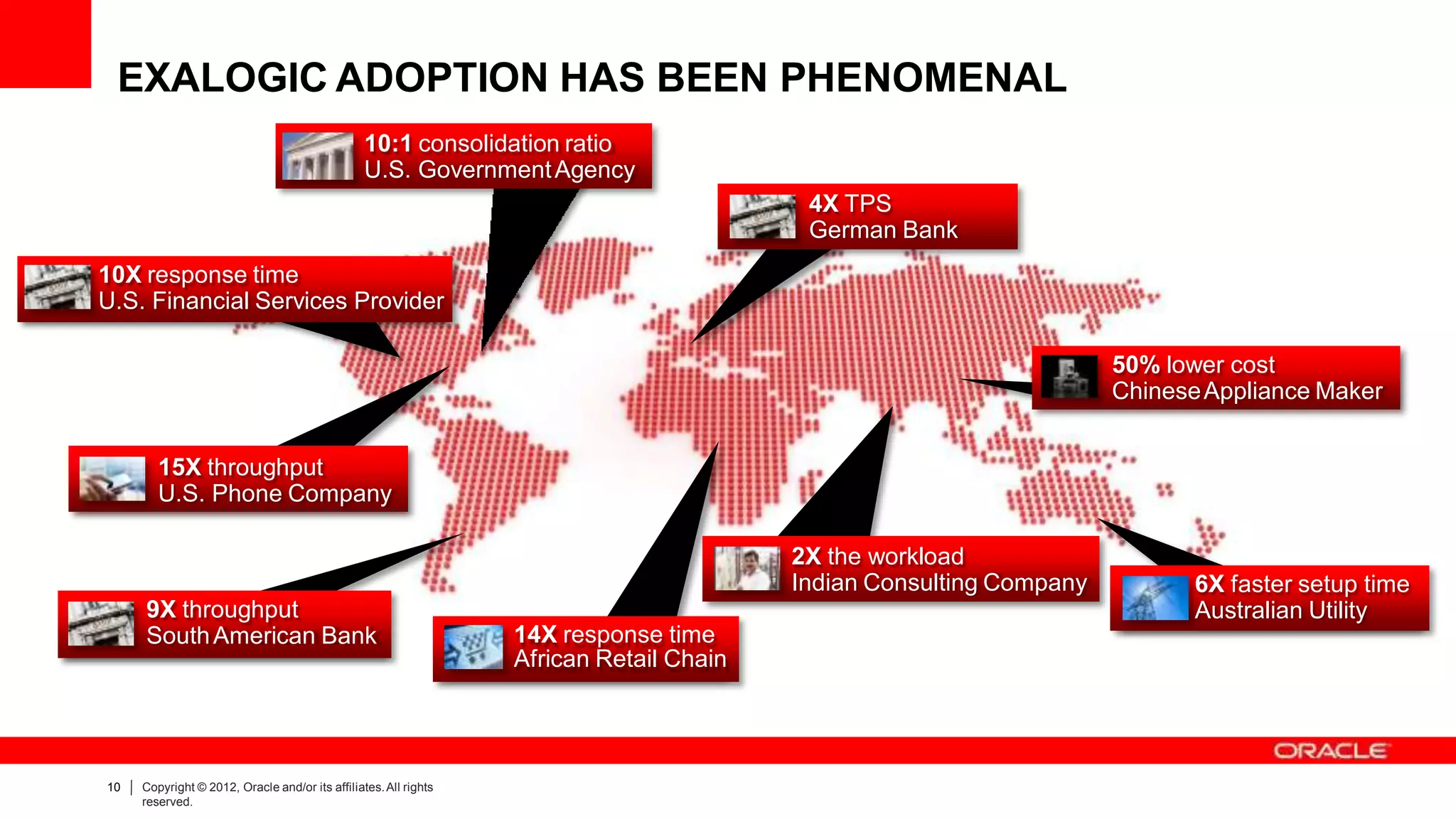

EXALOGIC ADOPTION HAS BEEN PHENOMENAL
10:1 consolidation ratio
U.S. GovernmentAgency
10X response time
U.S. Financial Services Provider
15X throughput
U.S. Phone Company
9X throughput
SouthAmerican Bank 14X response time
African Retail Chain
6X faster setup time
Australian Utility
2X the workload
Indian Consulting Company
50% lower cost
ChineseAppliance Maker
4X TPS
German Bank
reserved.

reserved.
PARTNER SOLUTIONS
CERTIFIED ON EXALOGIC
340
NEW PERFORMANCE RECORD SET
FOR EVERY APPLICATION TESTED

reserved.
12 Copyright © 2011, Oracle and/or its affiliates.All rights Insert Information Protection Policy Classification from Slide 8
reserved.
70,000
APPLICATIONS CUSTOMERS RELY ON ORACLE
WHO BETTER TO CREATE A GREAT
APPLICATIONS PLATFORM THAN ORACLE?
60+APPLICATIONS BENCHMARKED

13 Copyright © 2012, Or
reserved.
acle and/or its affiliates.All rights
ORACLE EXALOGIC ELASTIC CLOUD I DESIGN GOALS
EXTREME PERFORMANCE FOR
JAVA APPLICATIONS
EXTREME PERFORMANCE FOR
ORACLE BUSINESS APPLICATIONS
NATIVELY LEVERAGES EXADATA
BEST CONSOLIDATION PLATFORM

reserved.
THE NEXT PHASE IN BUSINESS
APPLICATIONS EVOLUTION
1
SEIZE
MARKET
OPPORTUNITIES
2
LOWER
BUSINESS
RISK
3
REDUCE
COST AND
COMPLEXITY

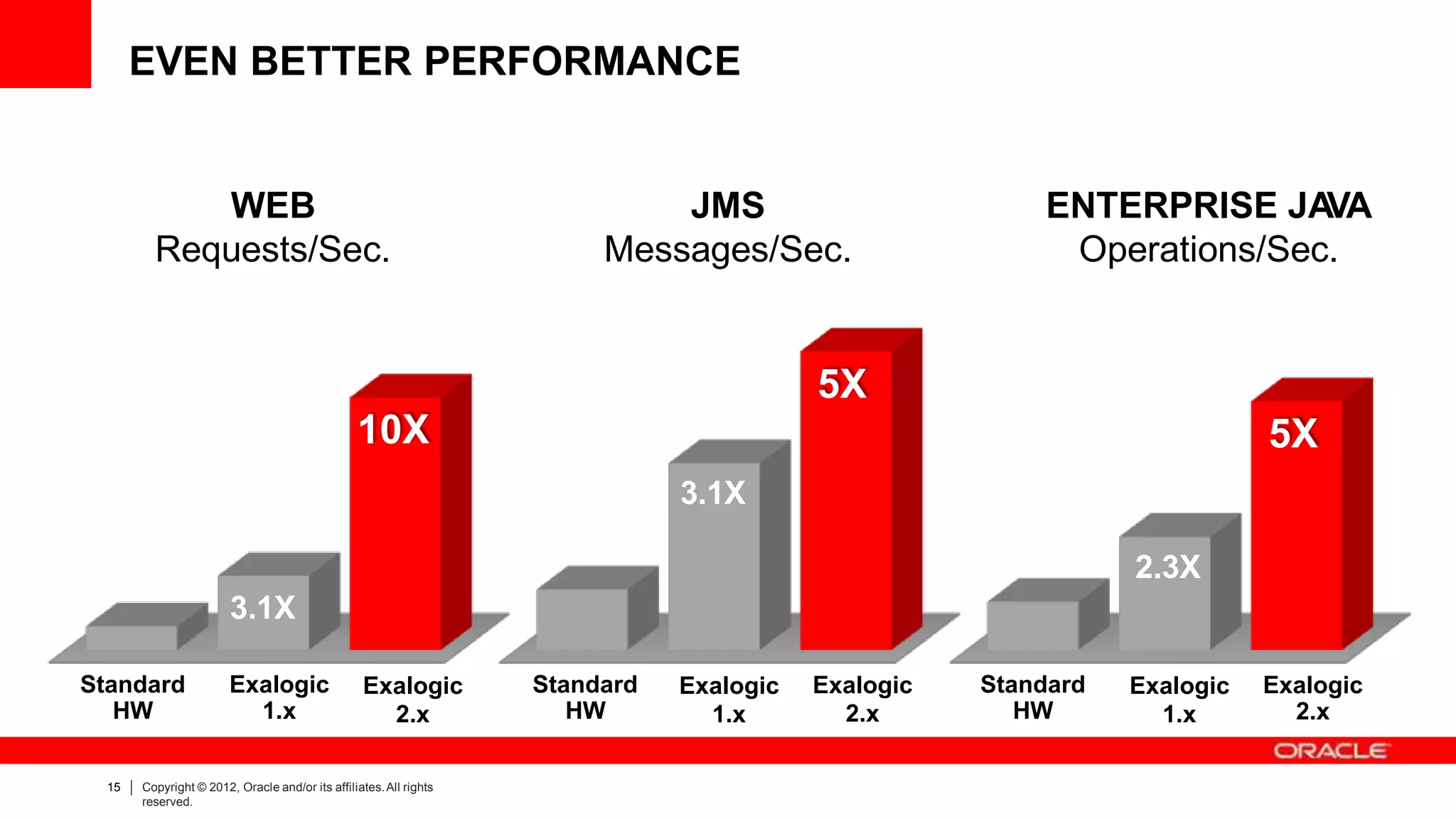

EVEN BETTER PERFORMANCE
10X
3.1X
2.3X
3.1X
Standard
HW
Exalogic
1.x
WEB
Requests/Sec.
JMS
Messages/Sec.
ENTERPRISE JAVA
Operations/Sec.
Standard
HW
Standard
HW
5X
5X
reserved.
Exalogic
2.x
Exalogic
1.x
Exalogic
2.x
Exalogic
1.x
Exalogic
2.x

Exalogic
Elastic
Cloud

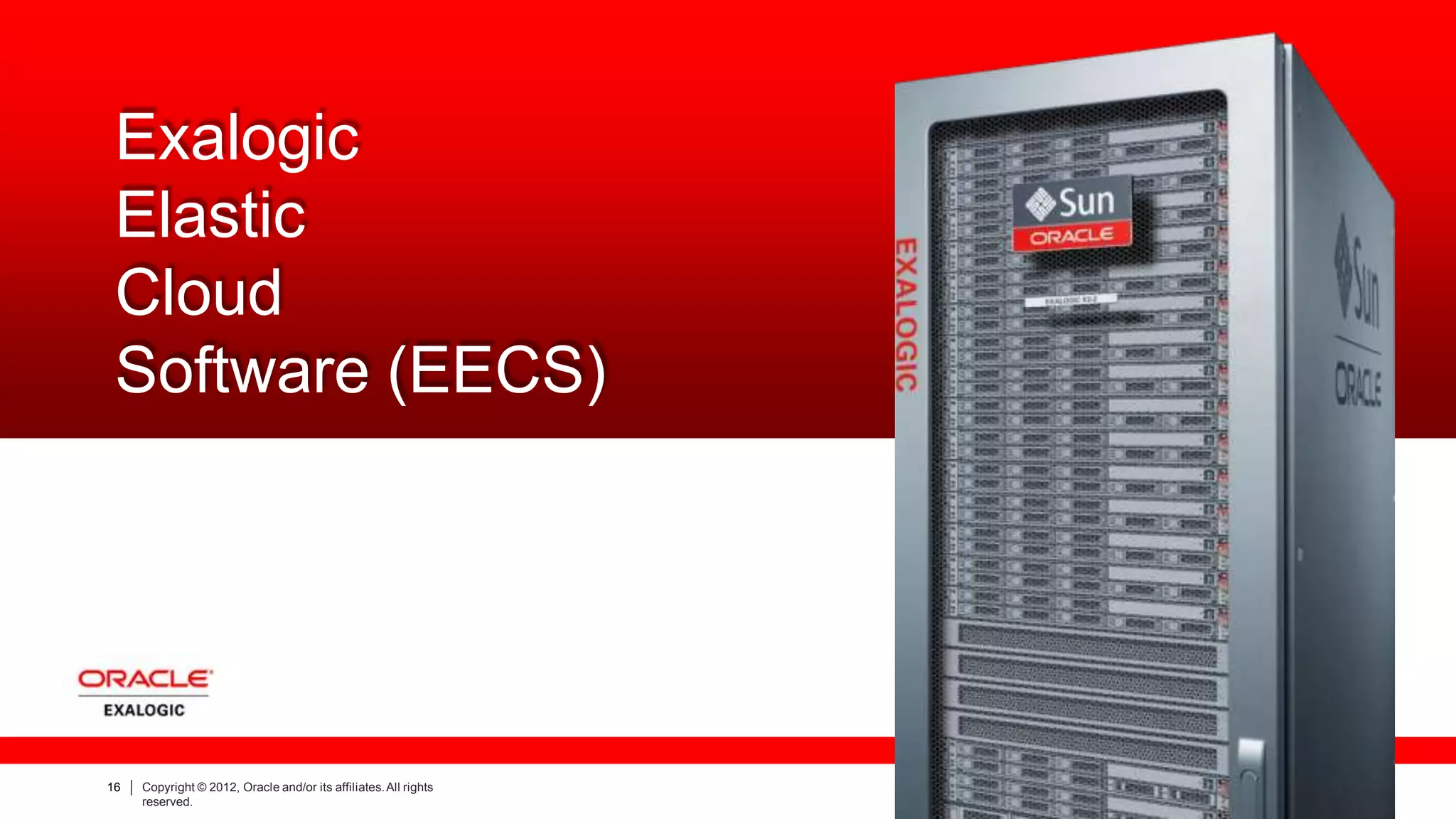

Software (EECS)
reserved.

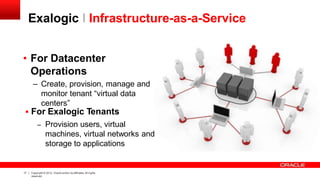

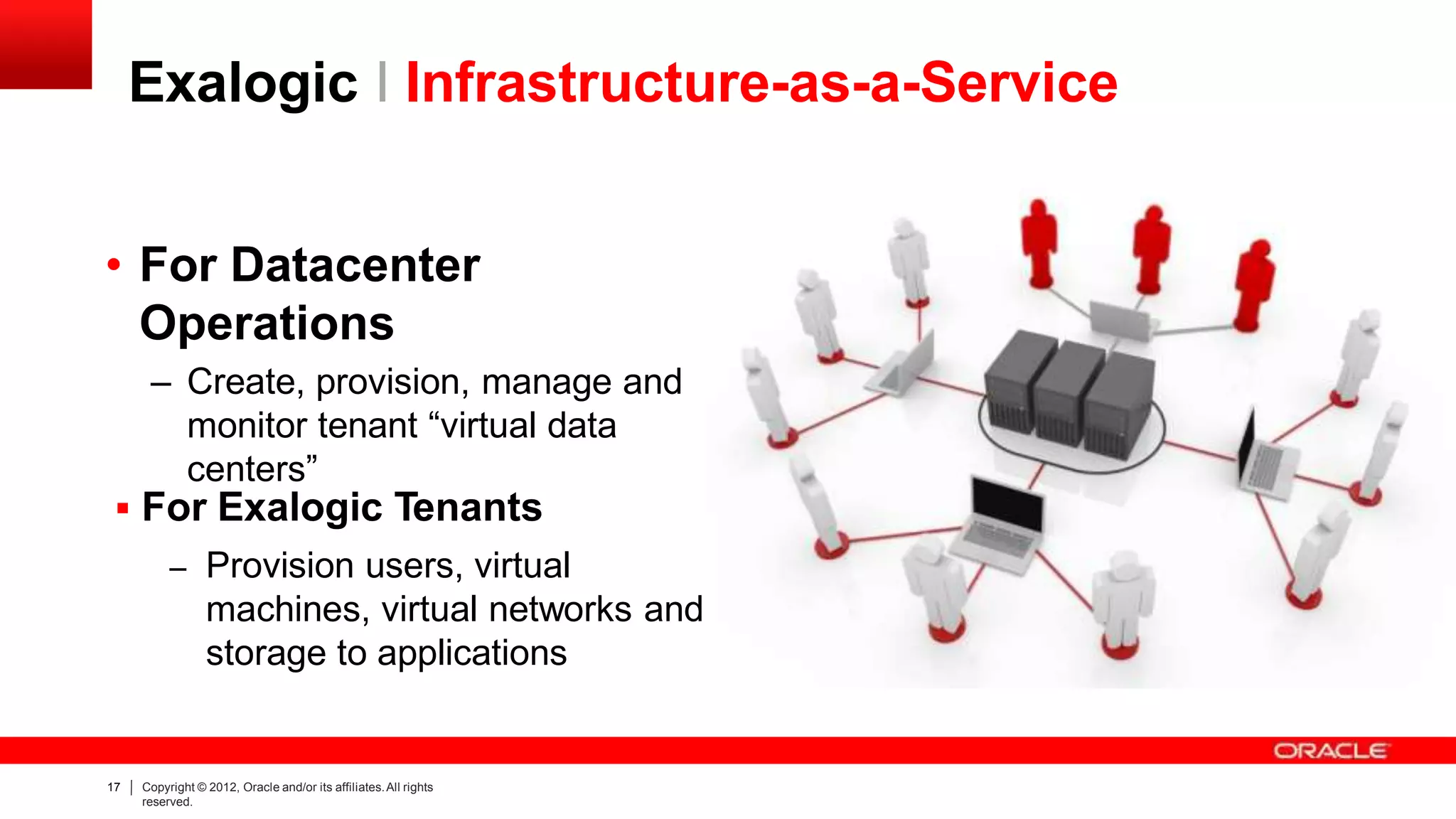

Exalogic I Infrastructure-as-a-Service
• For Datacenter
Operations
– Create, provision, manage and
monitor tenant “virtual data
centers”
 For Exalogic Tenants
– Provision users, virtual
machines, virtual networks and
storage to applications
reserved.

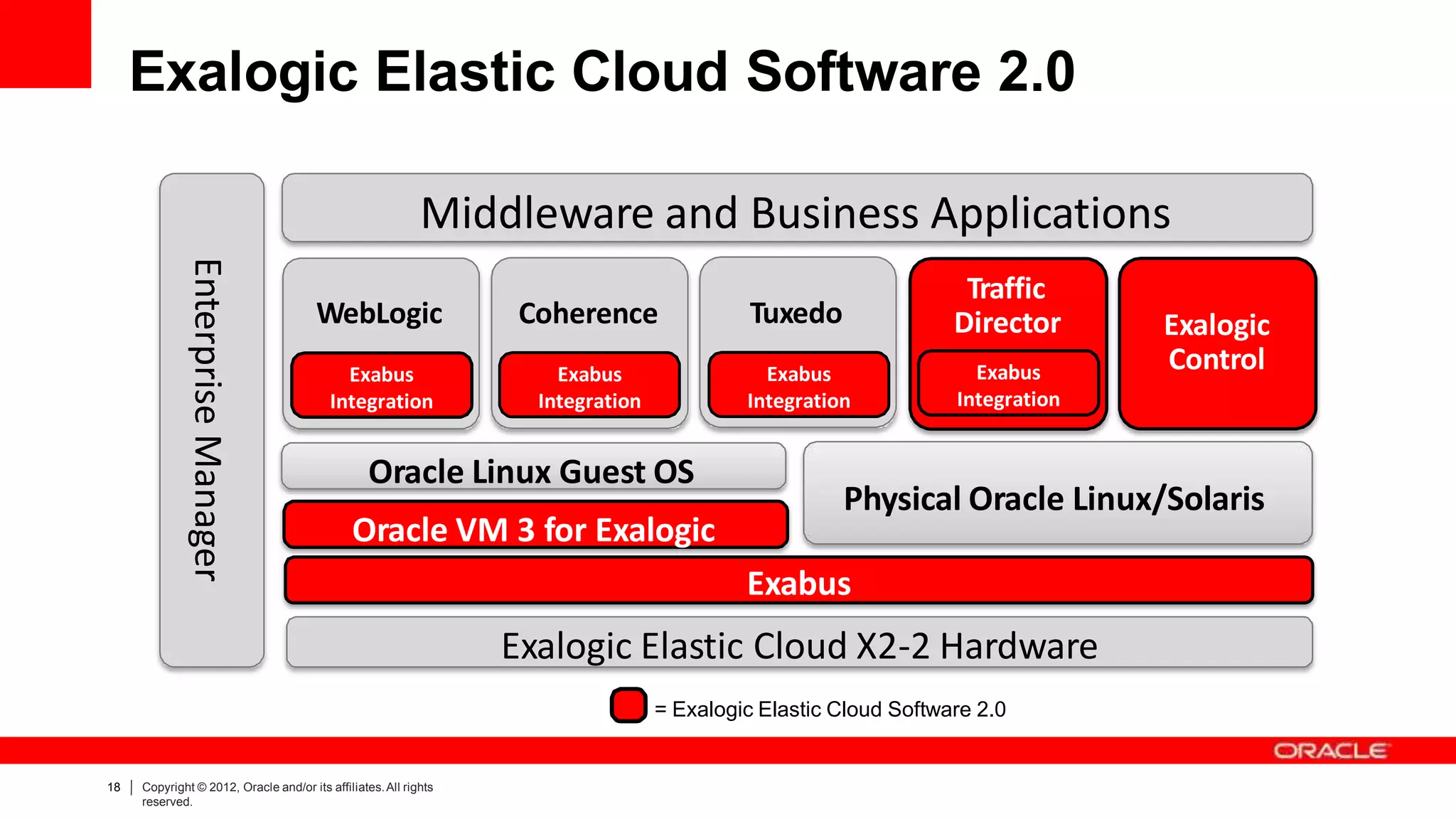

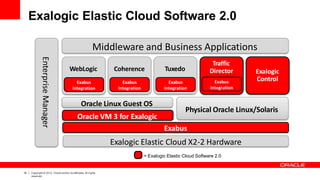

Exalogic Elastic Cloud Software 2.0
= Exalogic Elastic Cloud Software 2.0
EnterpriseManager
Middleware and Business Applications
CoherenceWebLogic Tuxedo
Exabus
Integration
Traffic
Director
Exabus
Integration
Exabus
Integration
Exabus
Integration
Exalogic

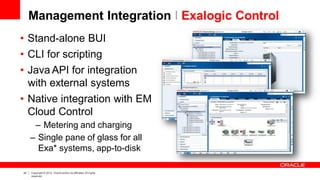

Control
Exabus
Exalogic Elastic Cloud X2-2 Hardware
Oracle VM 3 for Exalogic
Physical Oracle Linux/Solaris
Oracle Linux Guest OS
reserved.

Standard Hardware I/O
Application Buffer Application Buffer
TCPTCP IPIP
TraTransportnspor
t Kernel
20% Buffer Copies
40% Transport Processing
40 % Kernel Context Switches

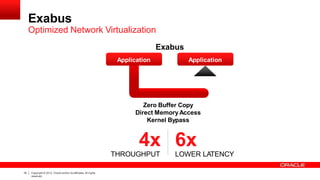

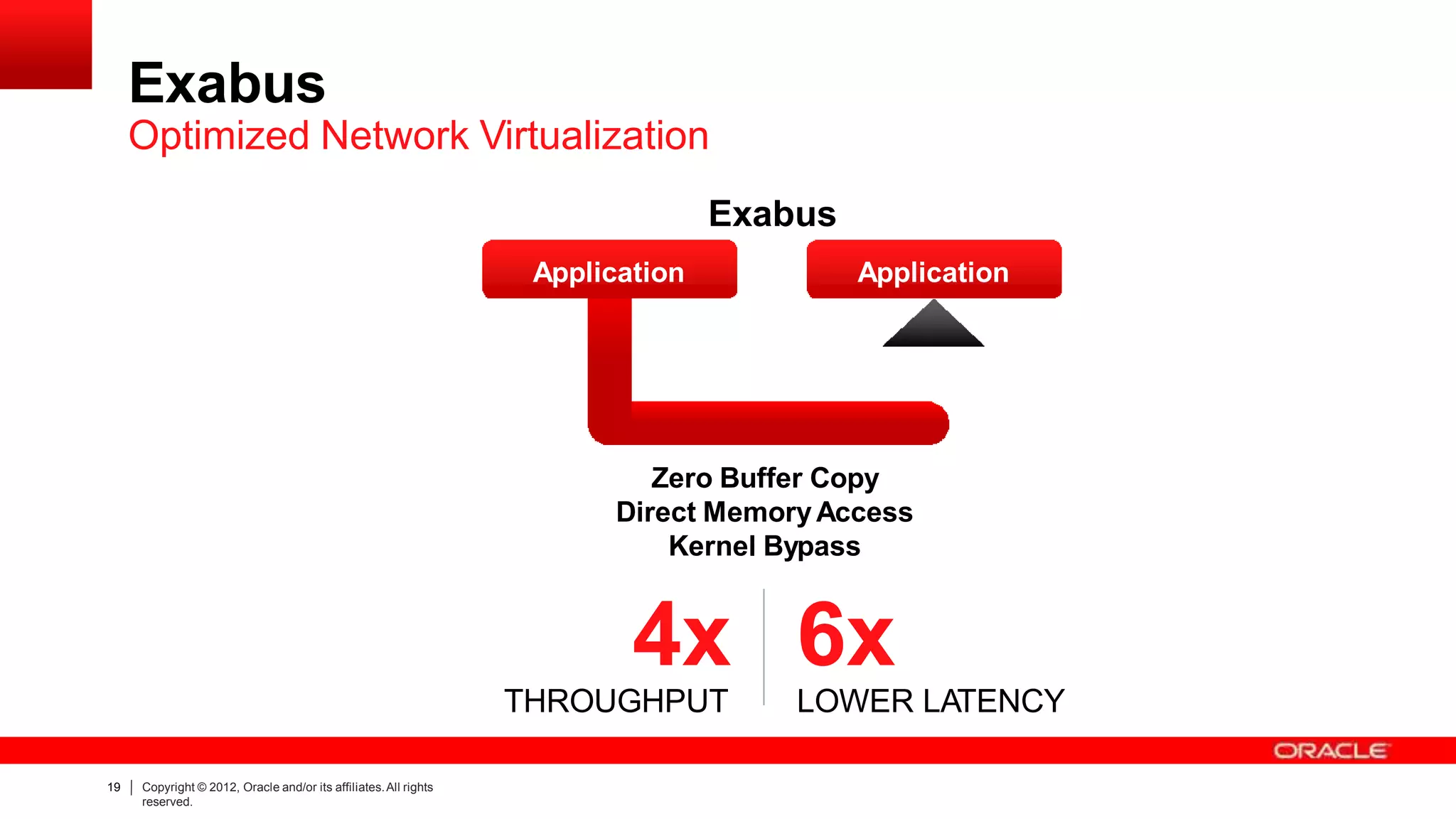

Exabus
Optimized Network Virtualization
Exabus
Zero Buffer Copy
Direct MemoryAccess
Kernel Bypass
4x
THROUGHPUT
6x
LOWER LATENCY
Application Application
reserved.

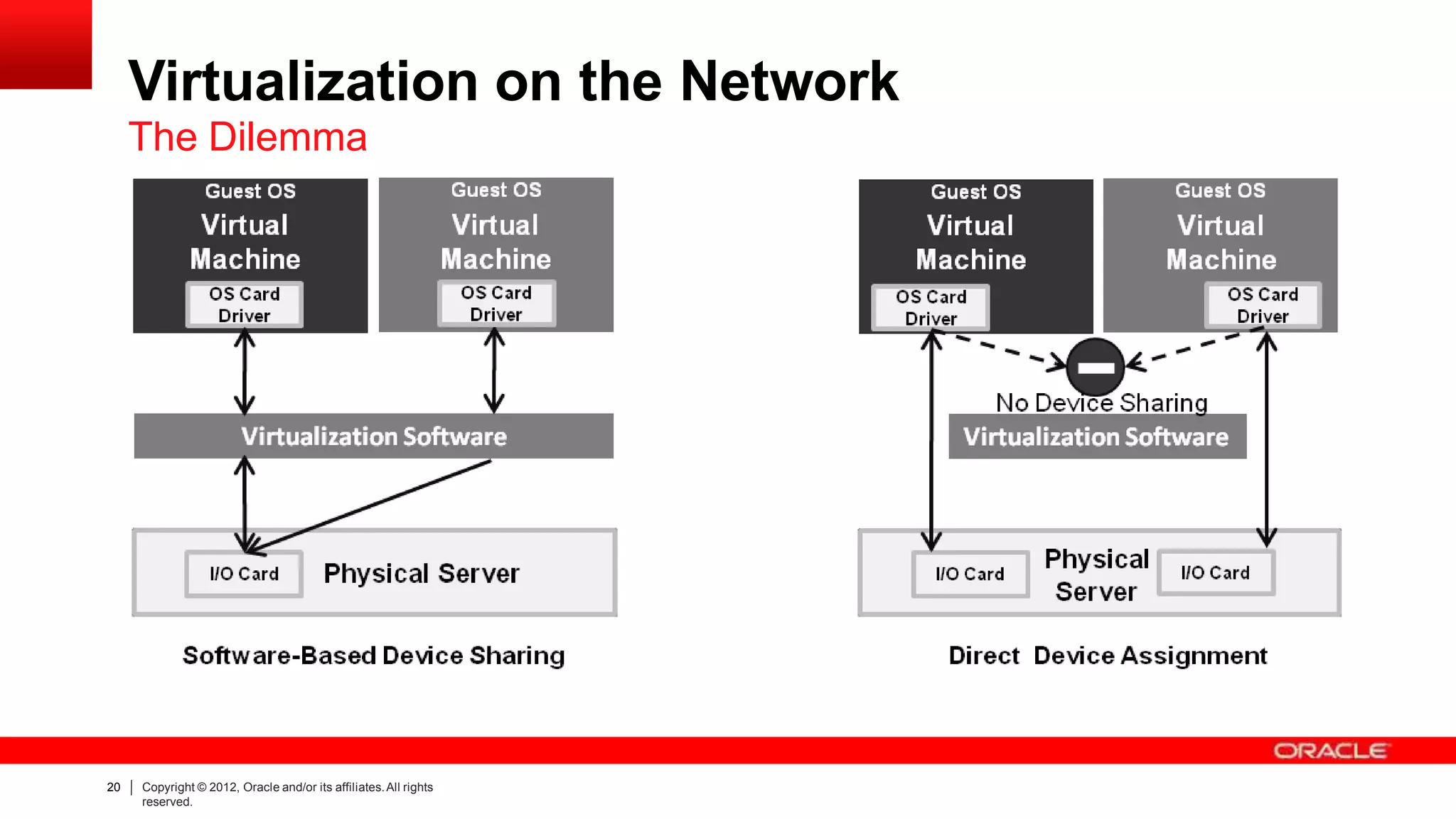

Virtualization on the Network
The Dilemma
reserved.

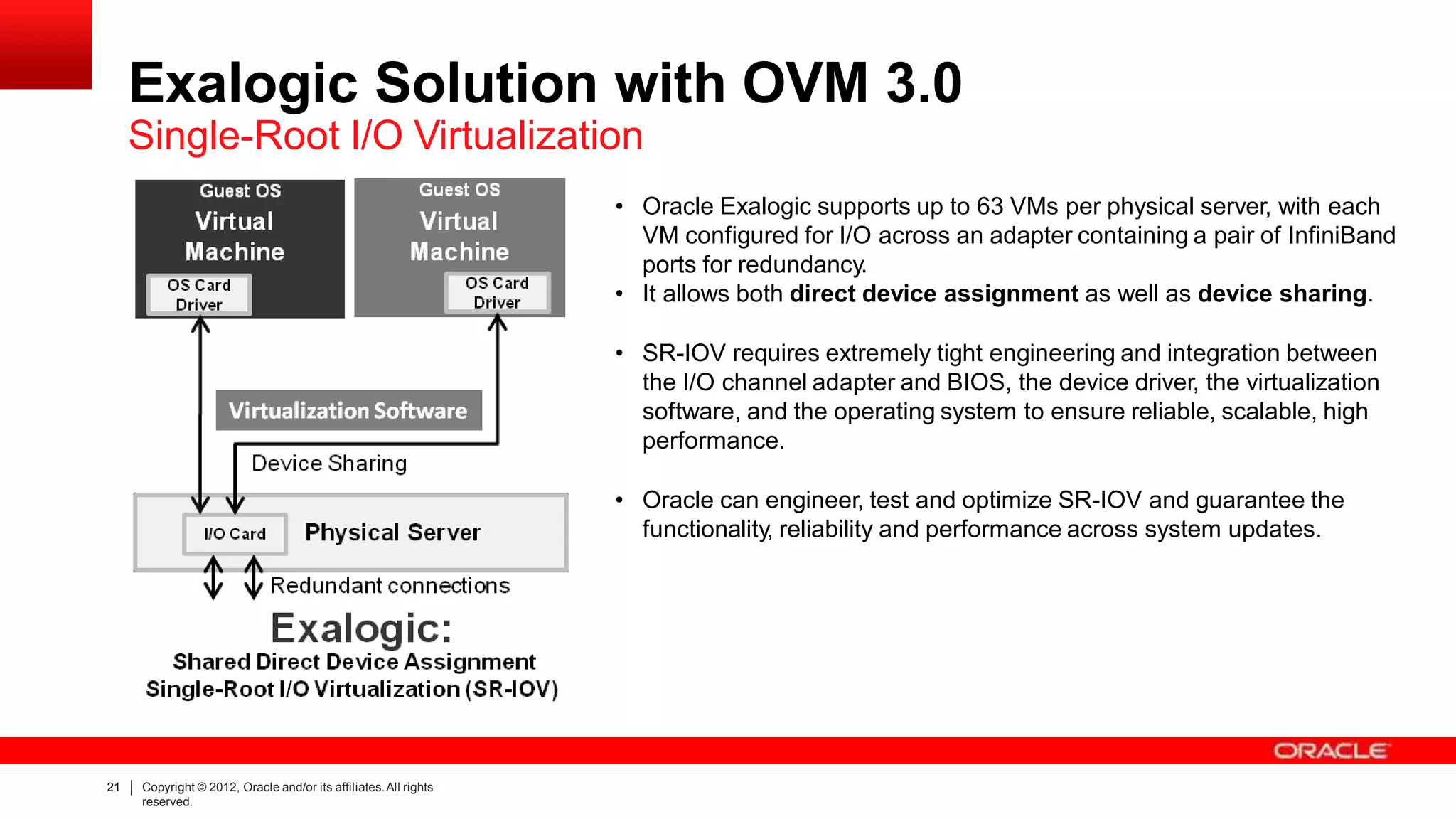

Exalogic Solution with OVM 3.0
Single-Root I/O Virtualization
• Oracle Exalogic supports up to 63 VMs per physical server, with each
VM configured for I/O across an adapter containing a pair of InfiniBand
ports for redundancy.
• It allows both direct device assignment as well as device sharing.
• SR-IOV requires extremely tight engineering and integration between
the I/O channel adapter and BIOS, the device driver, the virtualization
software, and the operating system to ensure reliable, scalable, high
performance.
• Oracle can engineer, test and optimize SR-IOV and guarantee the
functionality, reliability and performance across system updates.
reserved.

Exalogic Bare
Metal Exalogic
Virtualized
COTS
Virtualized Exalogic
Virtualized

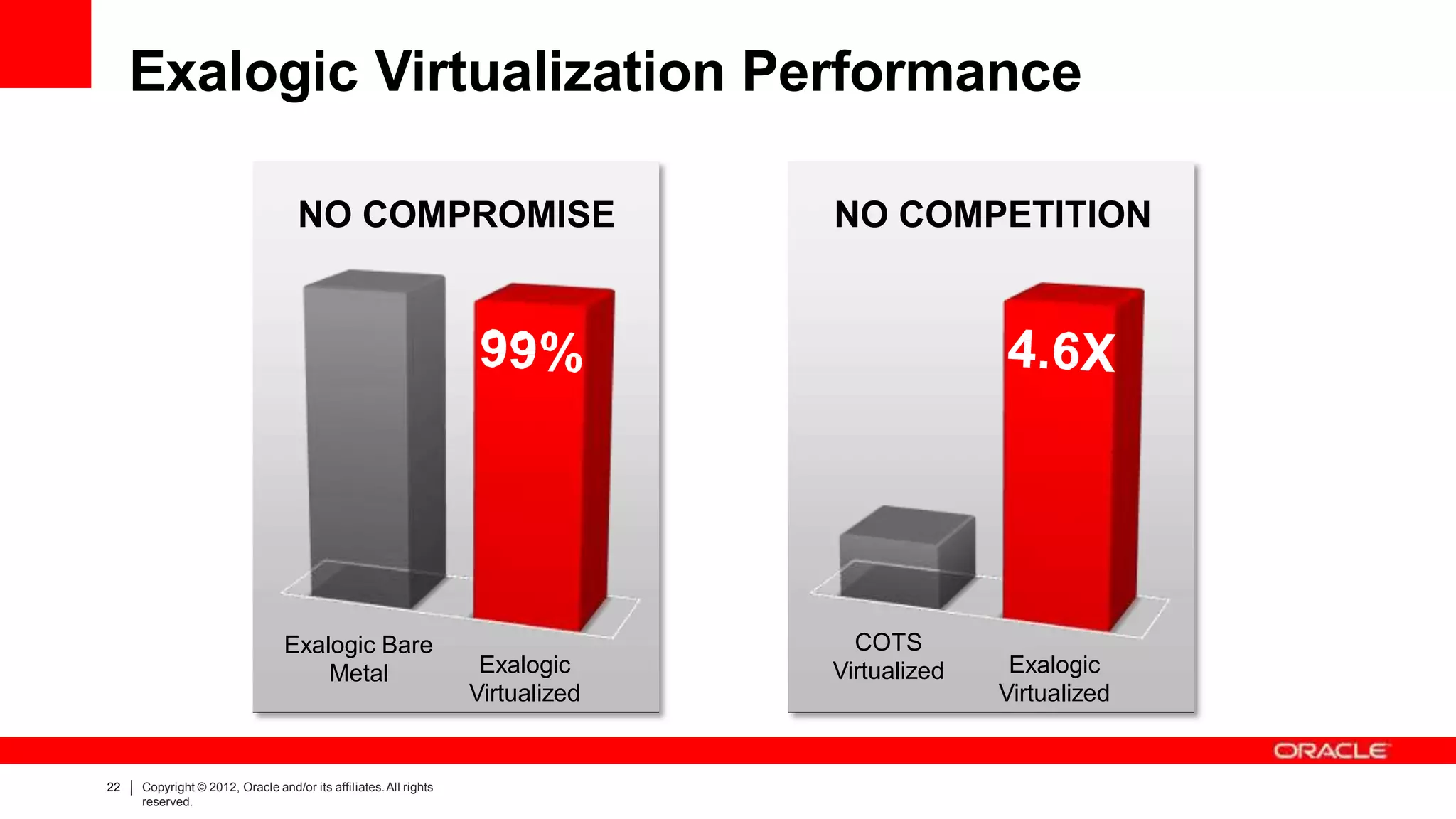

Exalogic Virtualization Performance
NO COMPROMISE
reserved.
NO COMPETITION

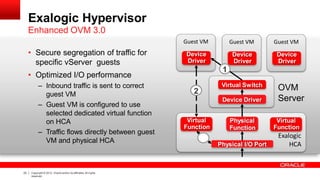

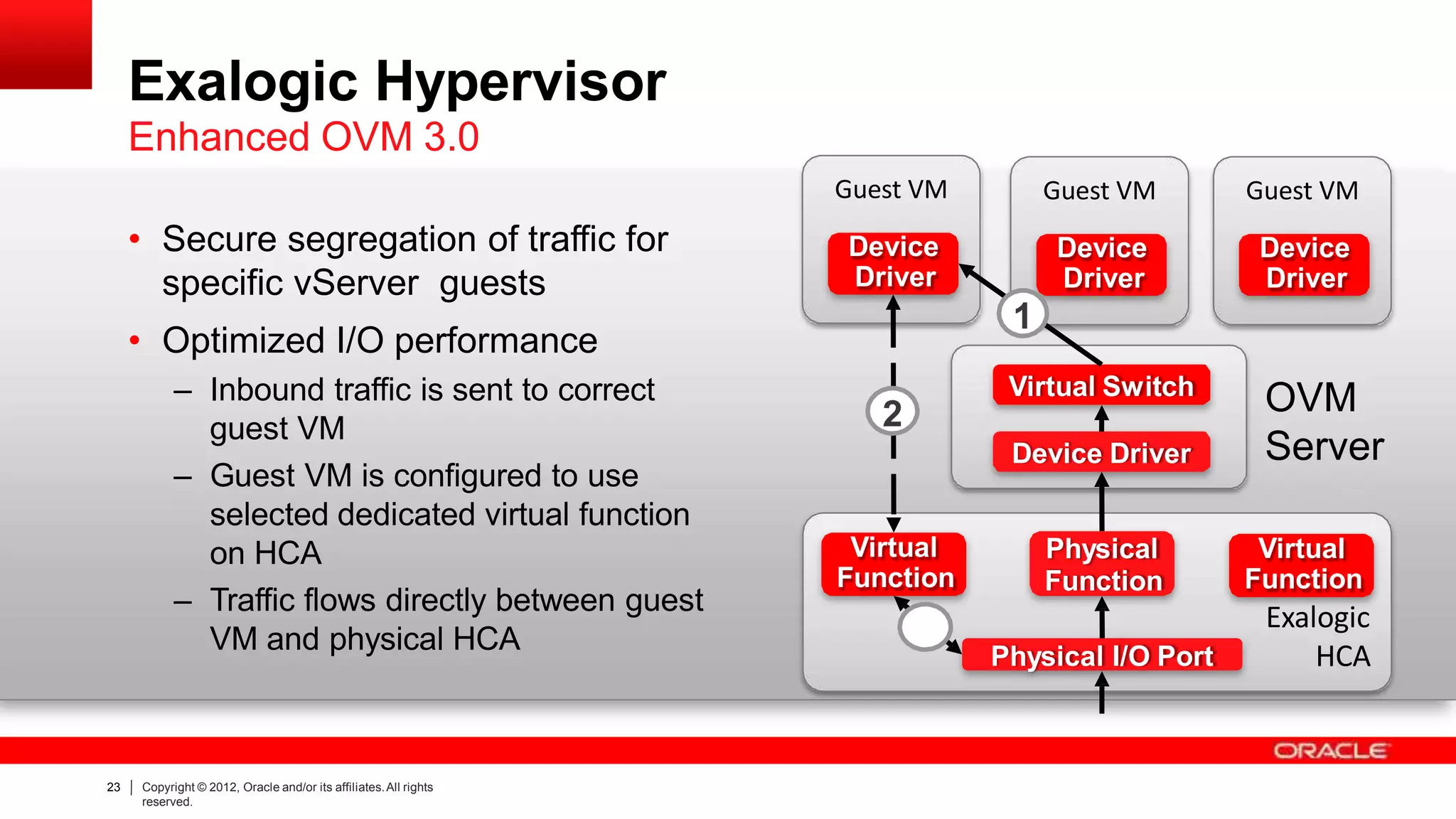

Exalogic Hypervisor
Enhanced OVM 3.0
• Secure segregation of traffic for
specific vServer guests
• Optimized I/O performance
– Inbound traffic is sent to correct
guest VM
– Guest VM is configured to use
selected dedicated virtual function
on HCA
– Traffic flows directly between guest
VM and physical HCA
Virtual
Function
Exalogic
HCA
Guest VM Guest VM Guest VM
Virtual Switch
Device Driver
Virtual
Function
3
Physical
Function
OVM
Server
Device
Driver
Physical I/O Port
Device
Driver
Device
Driver
1
2
reserved.

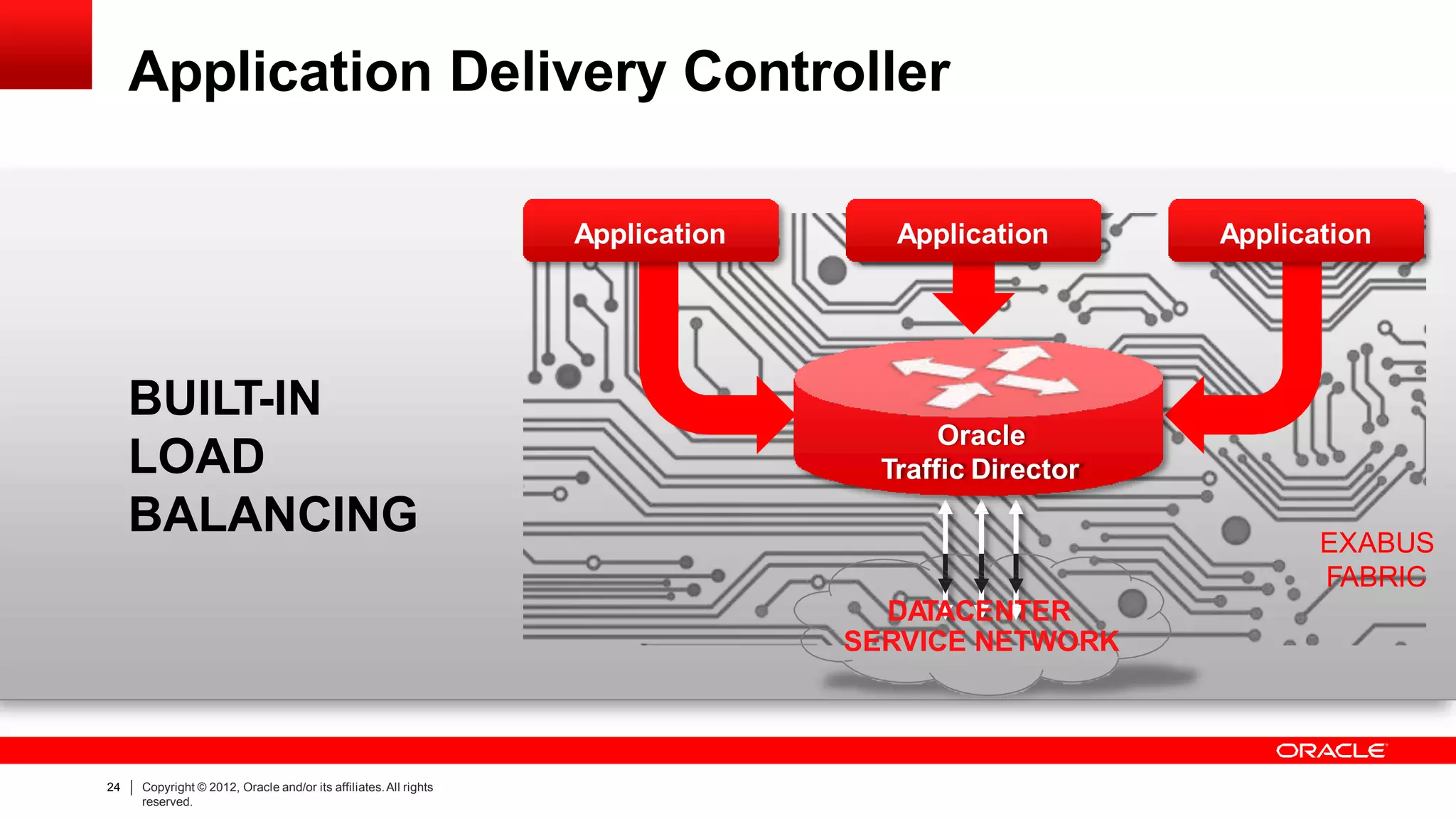

Application Delivery Controller
BUILT-IN
LOAD
BALANCING
Application ApplicationApplication
Oracle
Traffic Director
DATACENTER
SERVICE NETWORK
EXABUS
FABRIC
reserved.

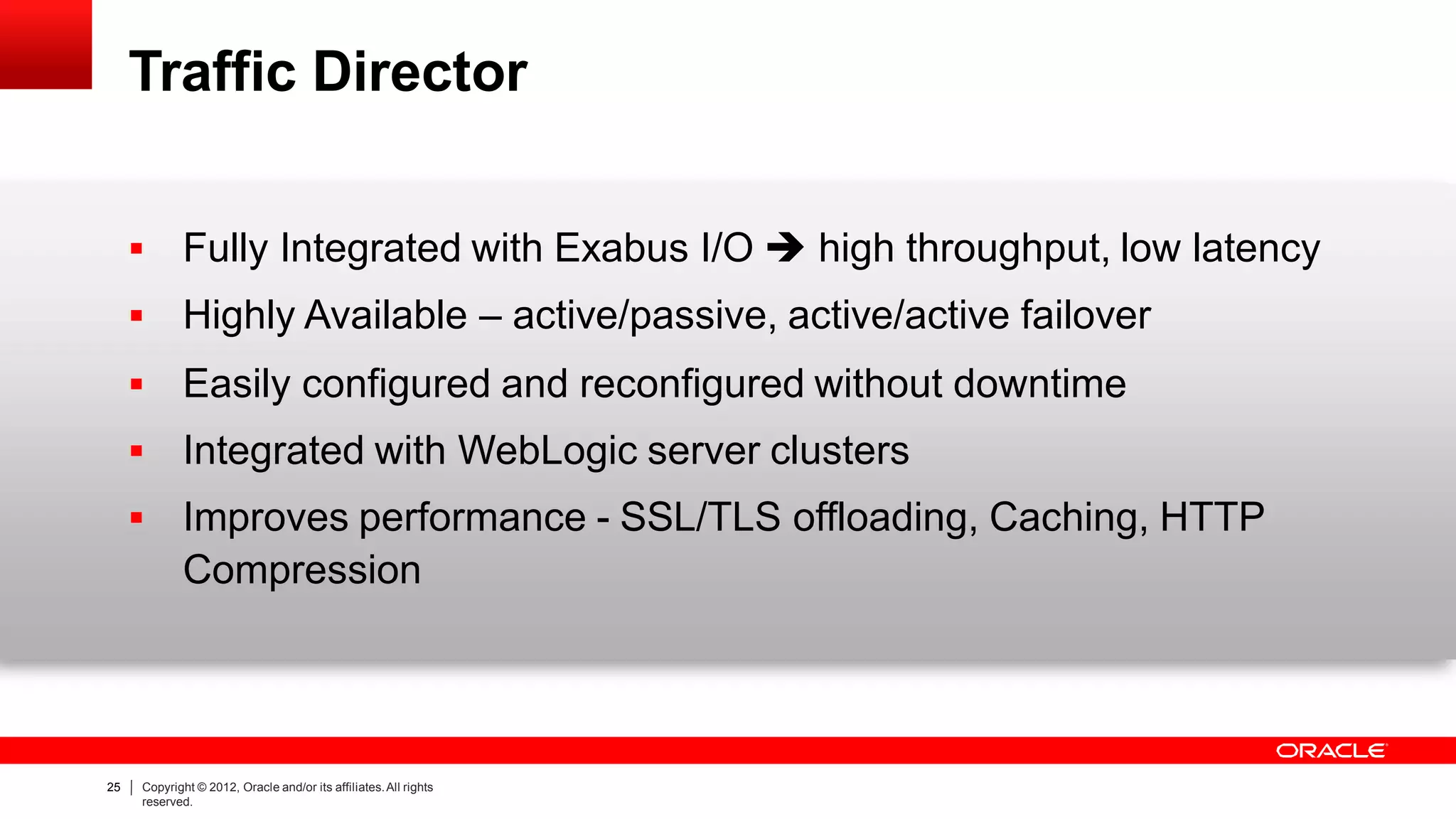

Traffic Director
reserved.
 Fully Integrated with Exabus I/O  high throughput, low latency
 Highly Available – active/passive, active/active failover
 Easily configured and reconfigured without downtime
 Integrated with WebLogic server clusters
 Improves performance - SSL/TLS offloading, Caching, HTTP
Compression

EXABUS
FABRIC
Application
Oracle
Traffic Director
DATACENTER
SERVICE NETWORK

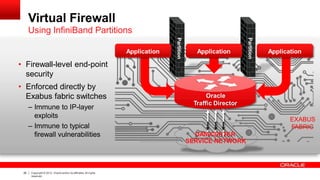

Virtual Firewall
Using InfiniBand Partitions
• Firewall-level end-point
security
• Enforced directly by
Exabus fabric switches
– Immune to IP-layer
exploits
– Immune to typical
firewall vulnerabilities
Partition
Partition
Application Application
reserved.

WebLogic, Coherence
& Tuxedo
Optimizations for
Exalogic
reserved.

JSP Compiler
Servlet Container
WebLogic Core
JRockit/HotSpot
Sockets Direct
Protocol
Uses Byte Buffers instead of static byte arrays
Uses Byte Buffers instead of copying into temporary
buffers
Uses Byte Buffer-awarestreams instead of Kernel
level chunked streams

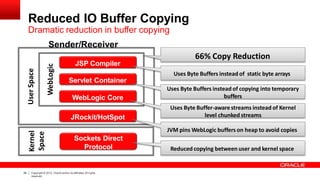

66% Copy Reduction
JVM pins WebLogic buffers on heap to avoid copies
Dramatic reduction in buffer copying
Sender/Receiver
reserved.

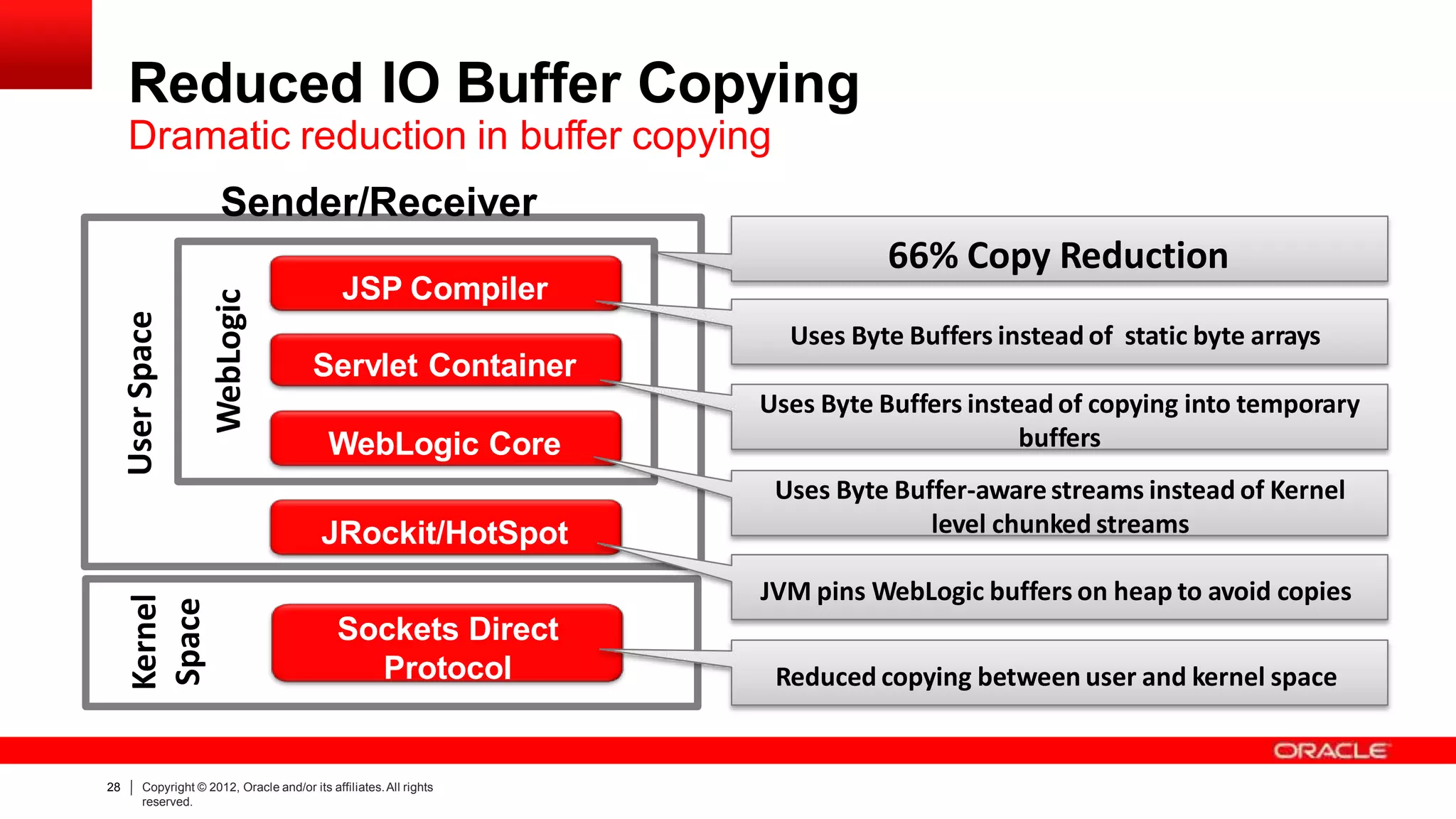

Reduced copying between user and kernel space
UserSpaceKernel
Space
WebLogic
Reduced IO Buffer Copying

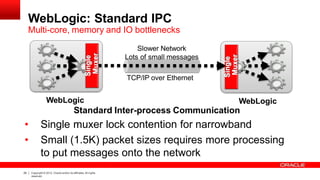

WebLogic: Standard IPC
Multi-core, memory and IO bottlenecks
Slower Network
Lots of small messages
TCP/IP over Ethernet
reserved.

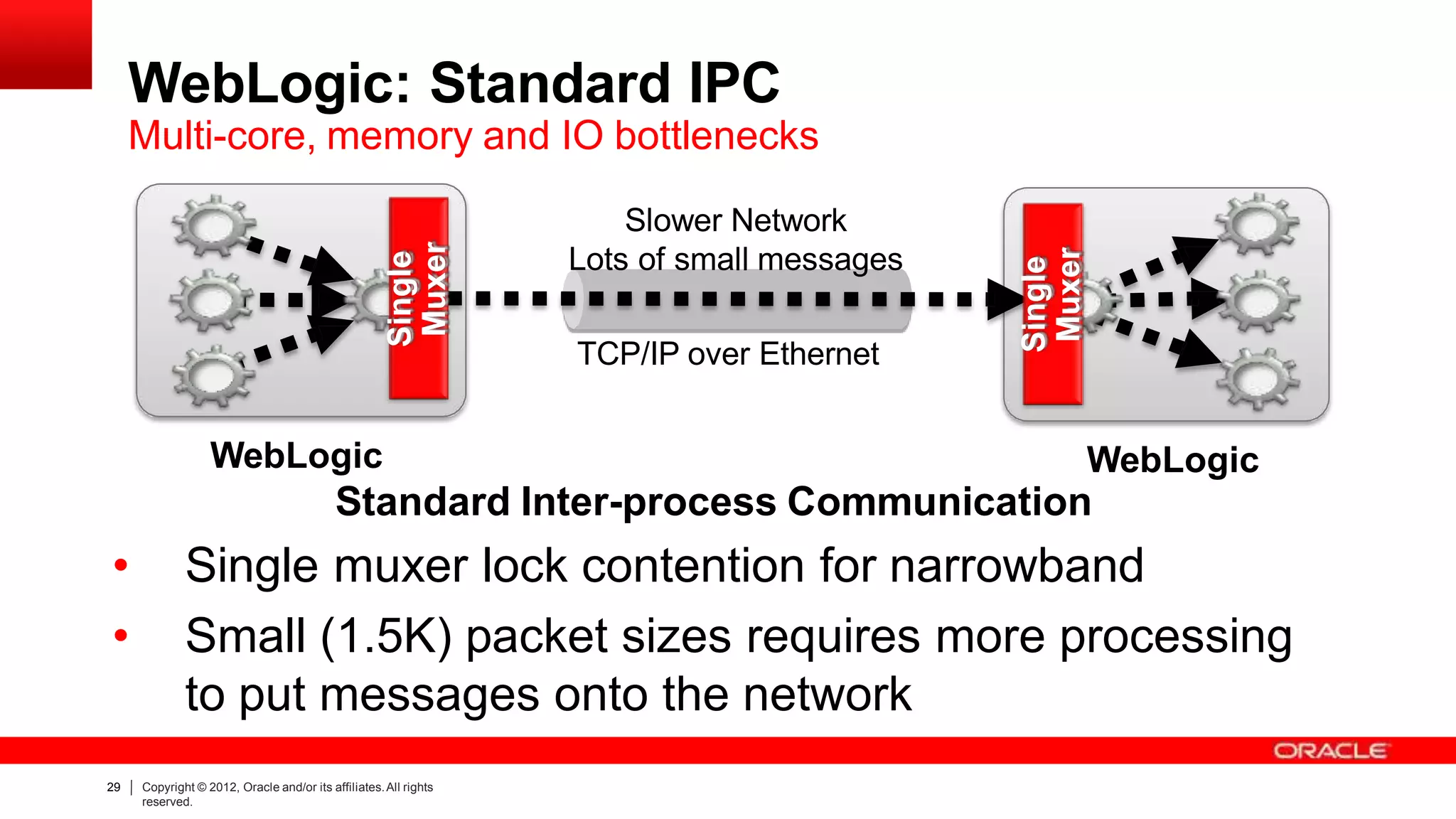

Standard Inter-process Communication
• Single muxer lock contention for narrowband
• Small (1.5K) packet sizes requires more processing
to put messages onto the network
WebLogic WebLogic
Single
Muxer
Single
Muxer

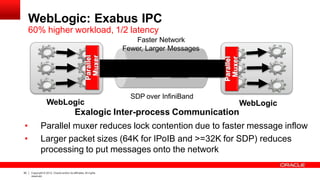

WebLogic: Exabus IPC
60% higher workload, 1/2 latency
Faster Network
Fewer, Larger Messages
reserved.

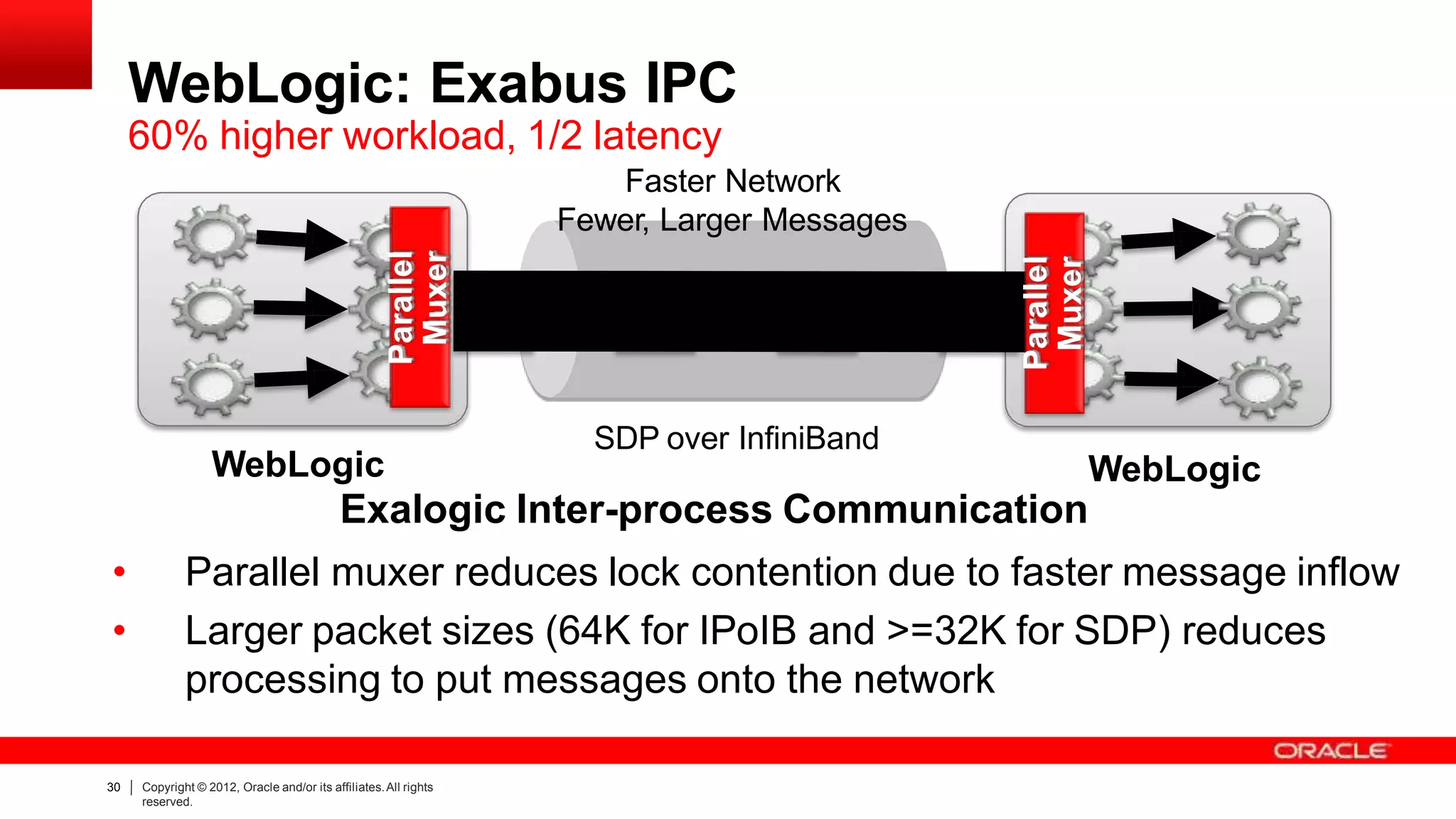

Exalogic Inter-process Communication
• Parallel muxer reduces lock contention due to faster message inflow
• Larger packet sizes (64K for IPoIB and >=32K for SDP) reduces
processing to put messages onto the network
WebLogic WebLogic
SDP over InfiniBand
Parallel
Muxer
Parallel
Muxer

Standard WebLogic WebLogic Server on Exalogic
WebLogic Server WebLogic Server
Read/write 4K standalone chunks Read/write collections of 4K chunks

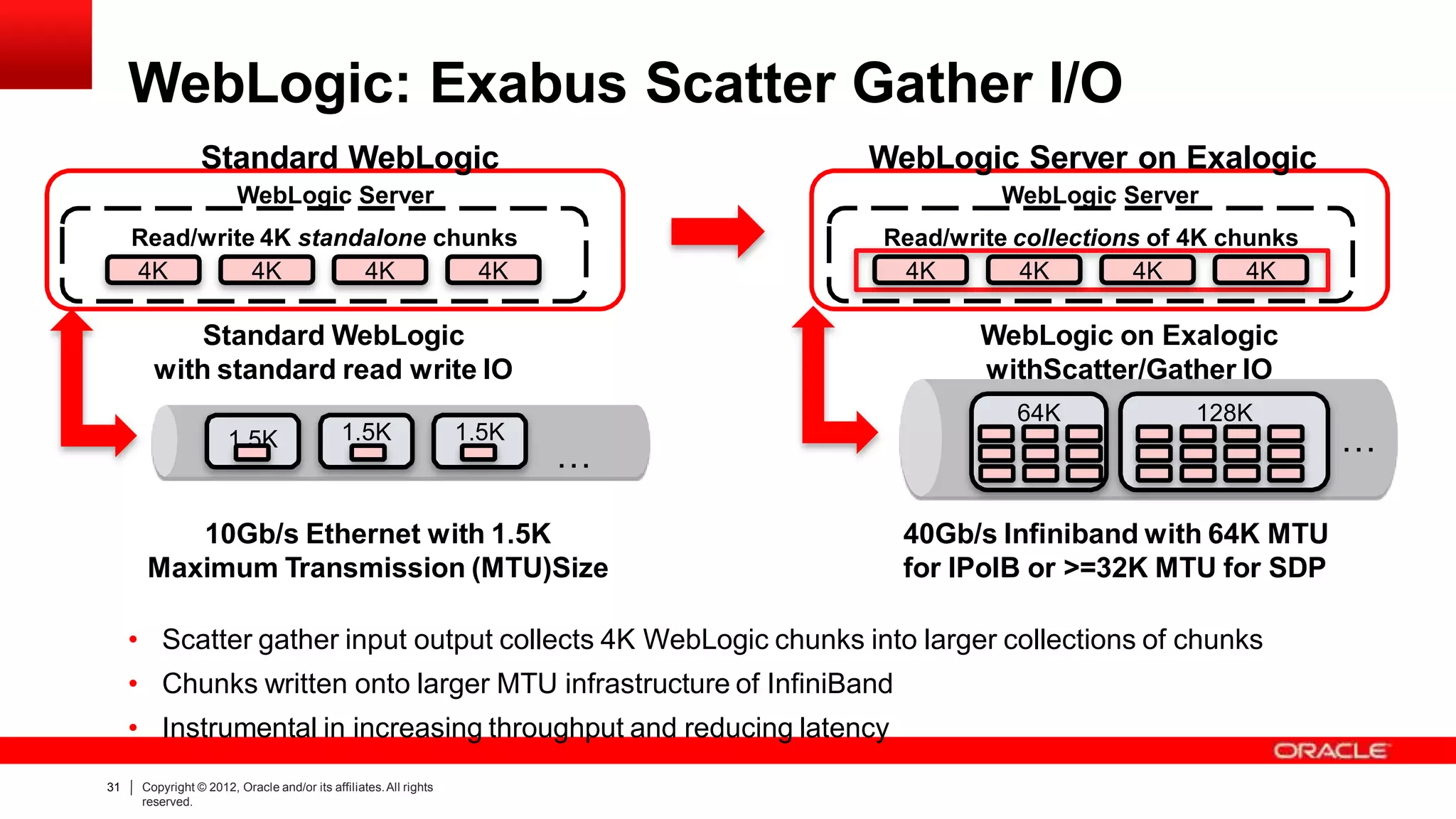

WebLogic: Exabus Scatter Gather I/O
• Scatter gather input output collects 4K WebLogic chunks into larger collections of chunks
• Chunks written onto larger MTU infrastructure of InfiniBand
• Instrumental in increasing throughput and reducing latency
1.5K 1.5K 1.5K
4K 4K 4K 4K
Standard WebLogic
with standard read write IO
10Gb/s Ethernet with 1.5K
Maximum Transmission (MTU)Size
…
4K 4K 4K 4K
WebLogic on Exalogic
withScatter/Gather IO
64K 128K
40Gb/s Infiniband with 64K MTU
for IPoIB or >=32K MTU for SDP
…
reserved.

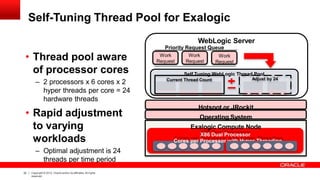

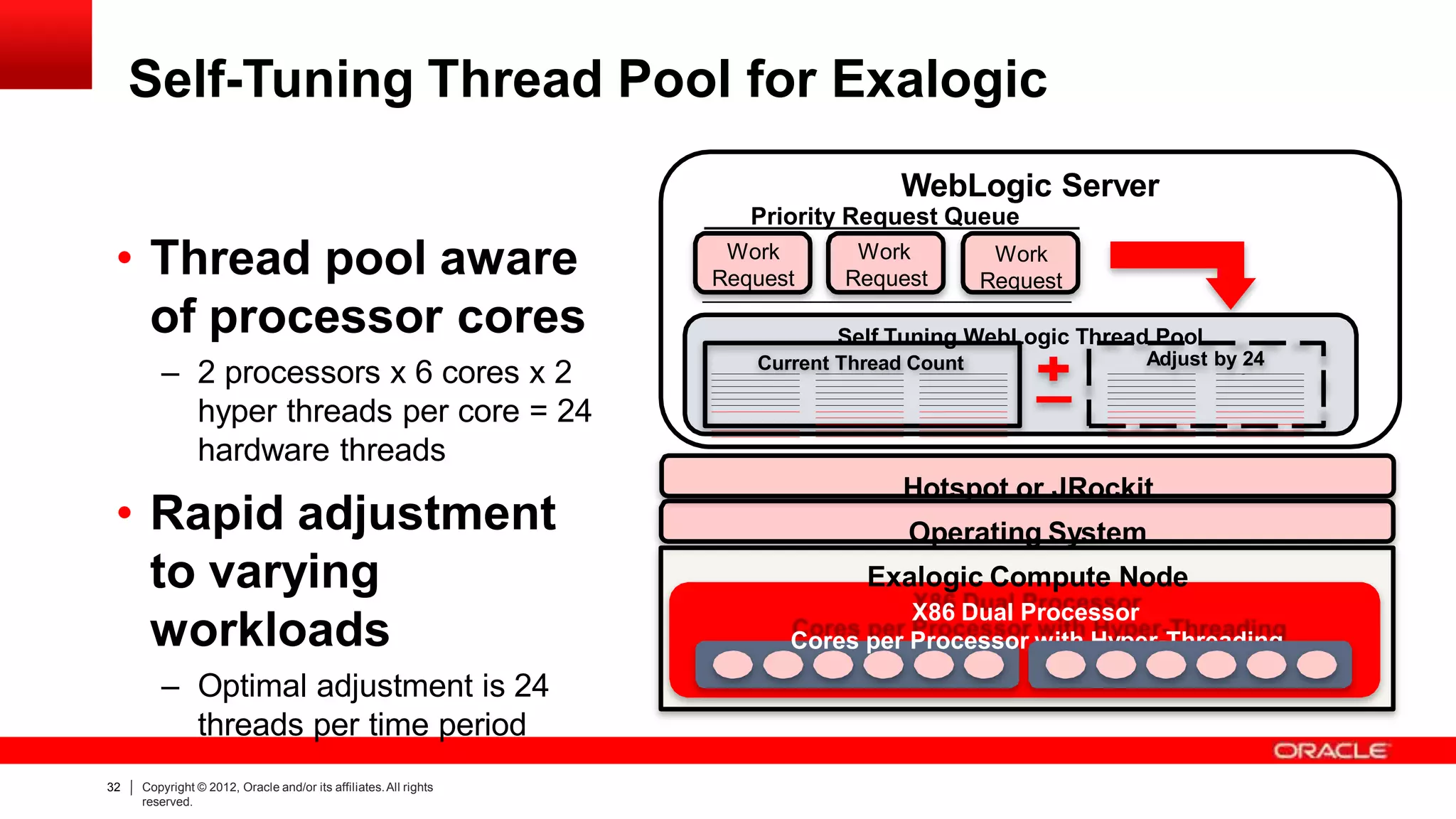

Self-Tuning Thread Pool for Exalogic
• Thread pool aware
of processor cores
– 2 processors x 6 cores x 2
hyper threads per core = 24
hardware threads
• Rapid adjustment
to varying
workloads
– Optimal adjustment is 24
threads per time period
Hotspot or JRockit
Operating System
Exalogic Compute Node
X86 Dual Processor
Cores per Processor with Hyper-Threading
WebLogic Server
Priority Request Queue
Work
Request
Self Tuning WebLogic Thread Pool
Work
Request
Work
Request
Adjust by 24_
Current Thread Count
reserved.

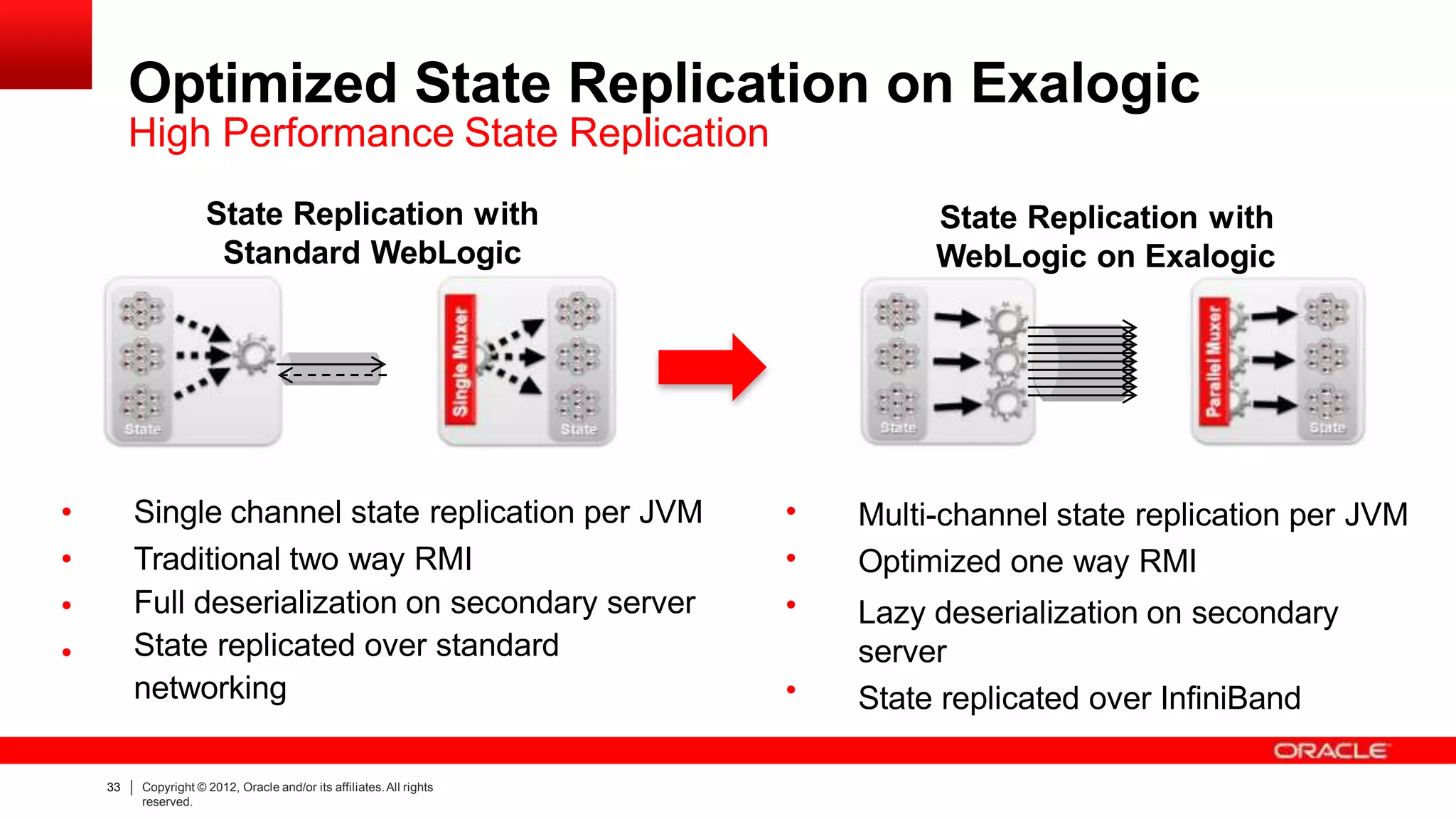

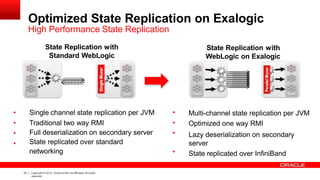

Optimized State Replication on Exalogic
High Performance State Replication
•
•
•
•
Single channel state replication per JVM
Traditional two way RMI
Full deserialization on secondary server
State replicated over standard
networking
State Replication with
Standard WebLogic
State Replication with
WebLogic on Exalogic
•
•
•
Multi-channel state replication per JVM
Optimized one way RMI
Lazy deserialization on secondary
server
State replicated over InfiniBand•
reserved.

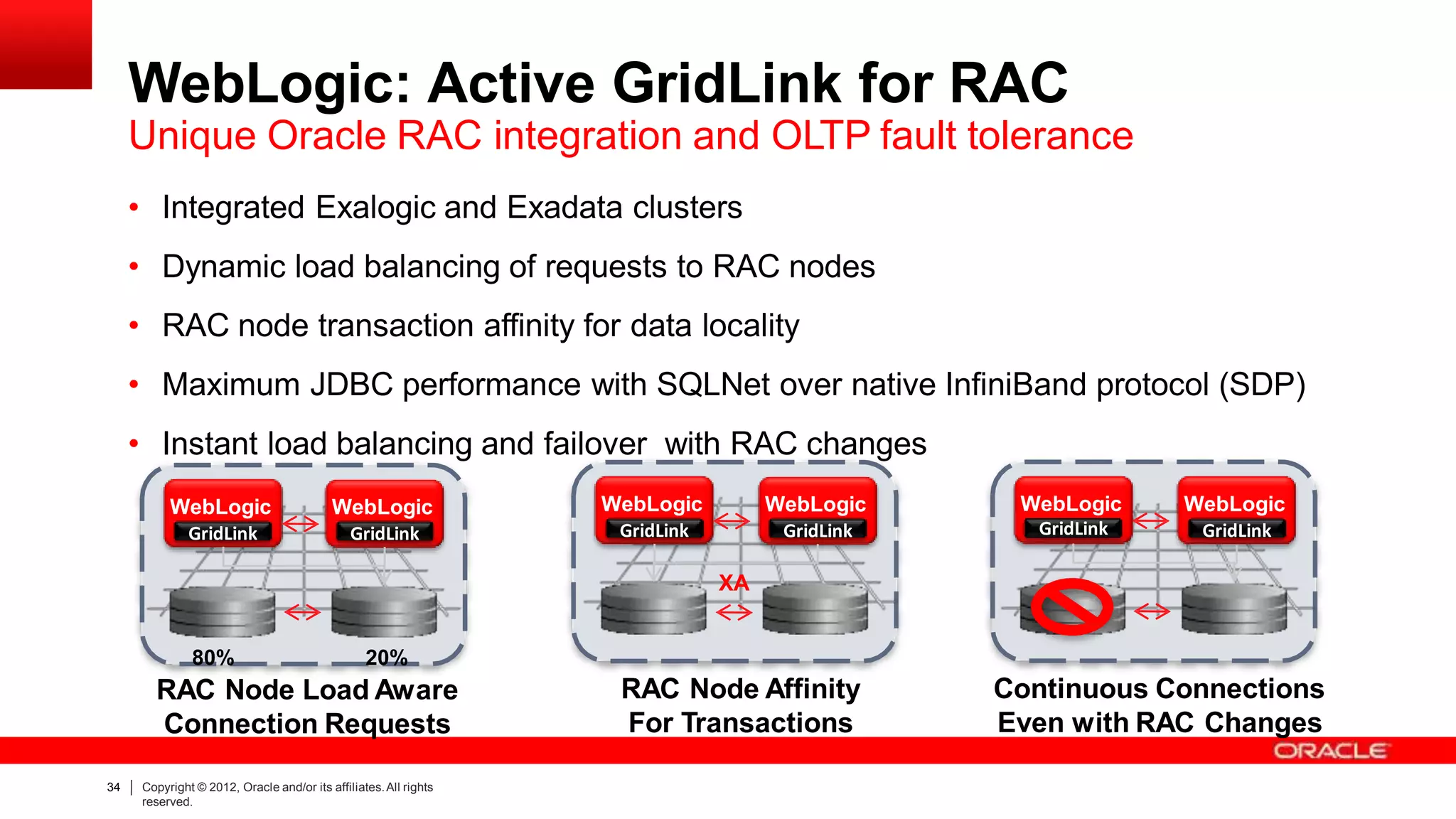

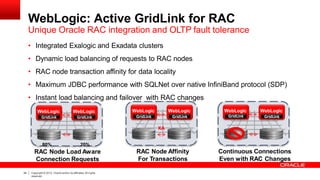

WebLogic: Active GridLink for RAC
Unique Oracle RAC integration and OLTP fault tolerance
• Integrated Exalogic and Exadata clusters
• Dynamic load balancing of requests to RAC nodes
• RAC node transaction affinity for data locality
• Maximum JDBC performance with SQLNet over native InfiniBand protocol (SDP)
• Instant load balancing and failover with RAC changes
WebLogic
GridLink
WebLogic
GridLink
80% 20%
RAC Node Load Aware
Connection Requests
WebLogic
GridLink
WebLogic
GridLink
RAC Node Affinity
For Transactions
XA
WebLogic
GridLink
WebLogic
GridLink
Continuous Connections
Even with RAC Changes
reserved.

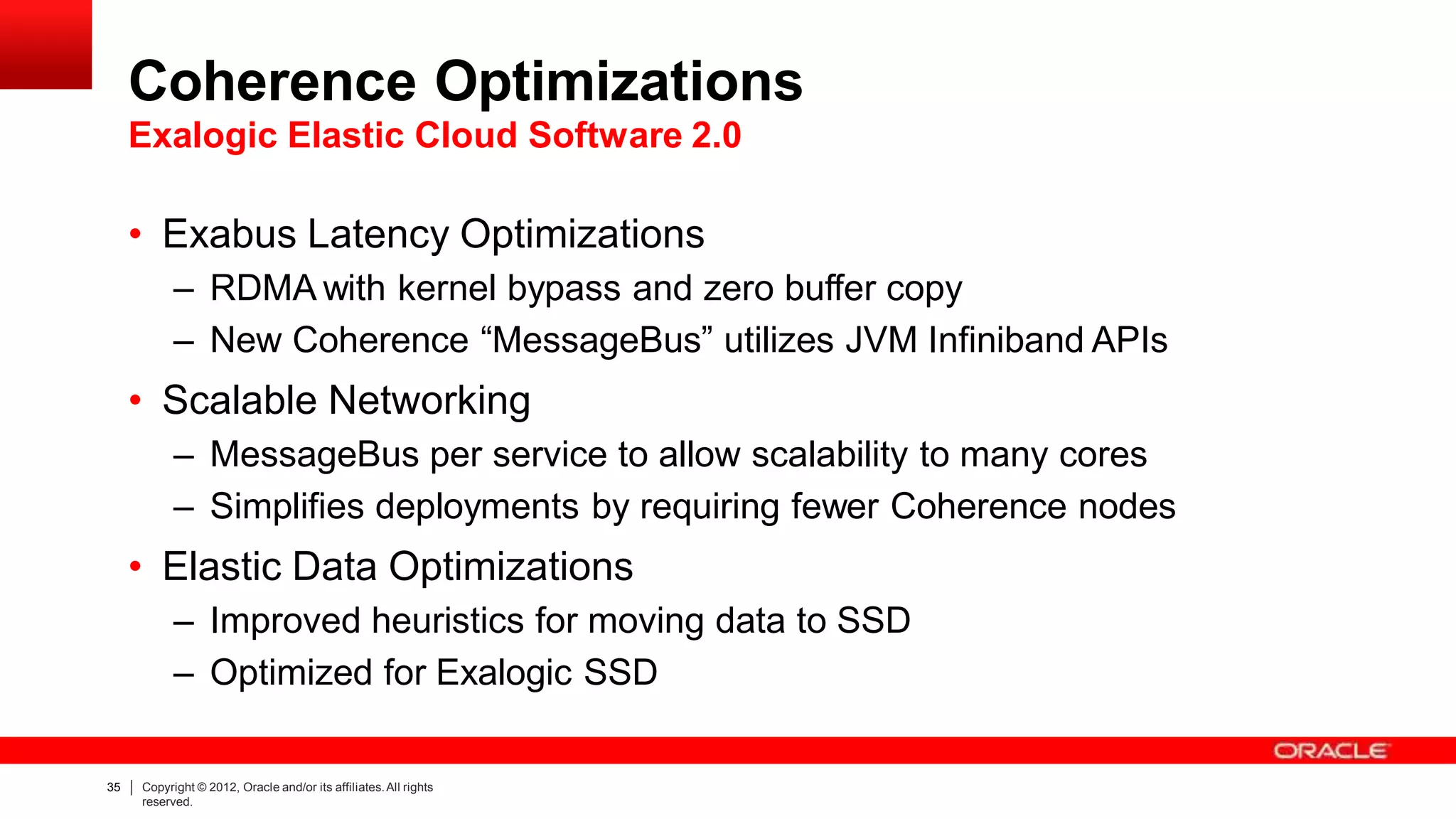

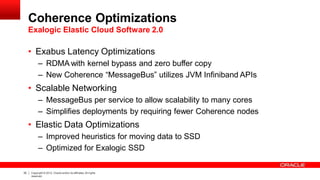

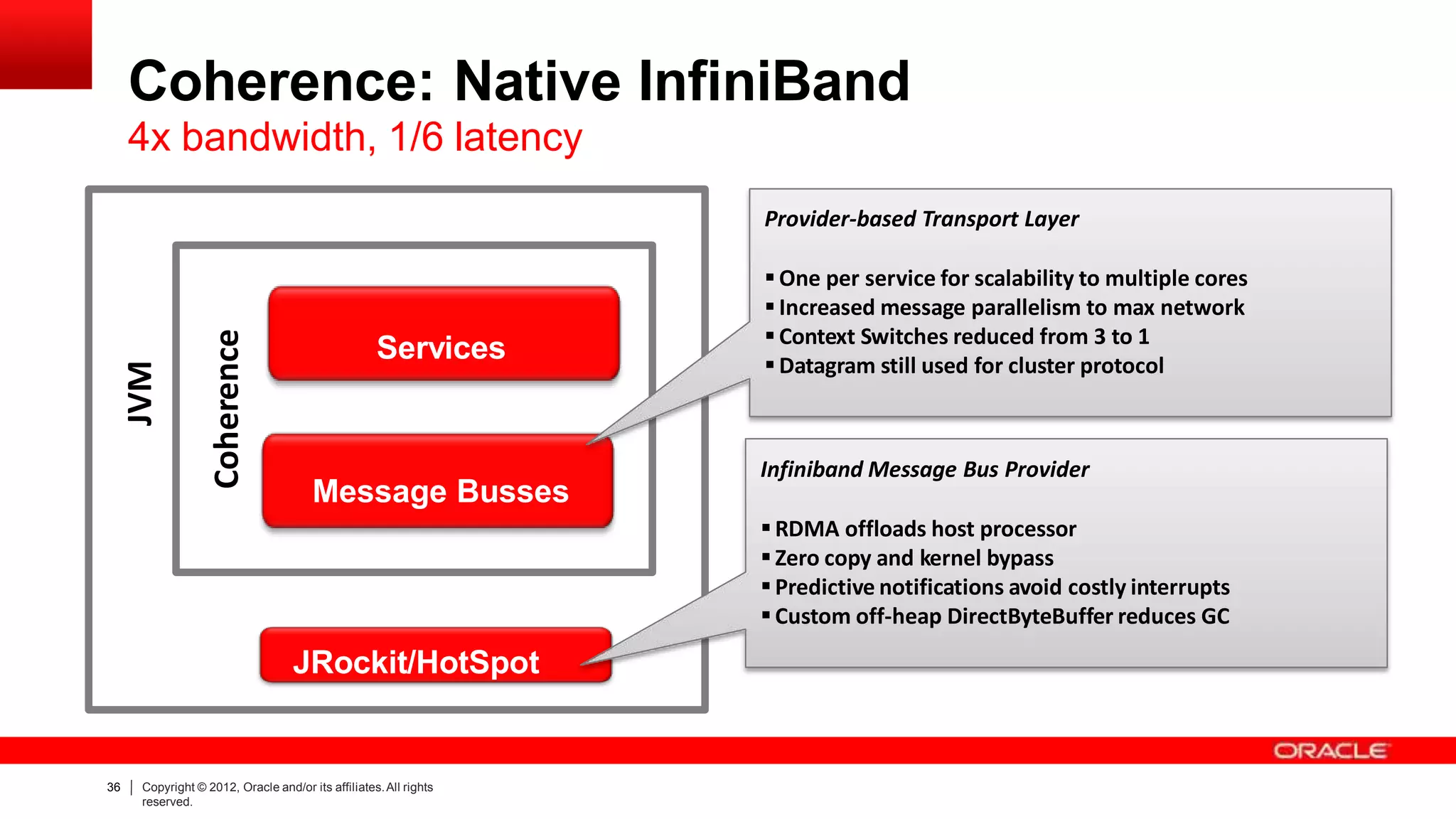

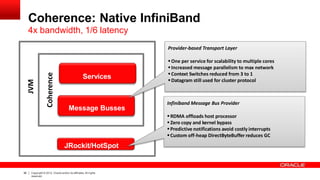

Coherence Optimizations
Exalogic Elastic Cloud Software 2.0
reserved.

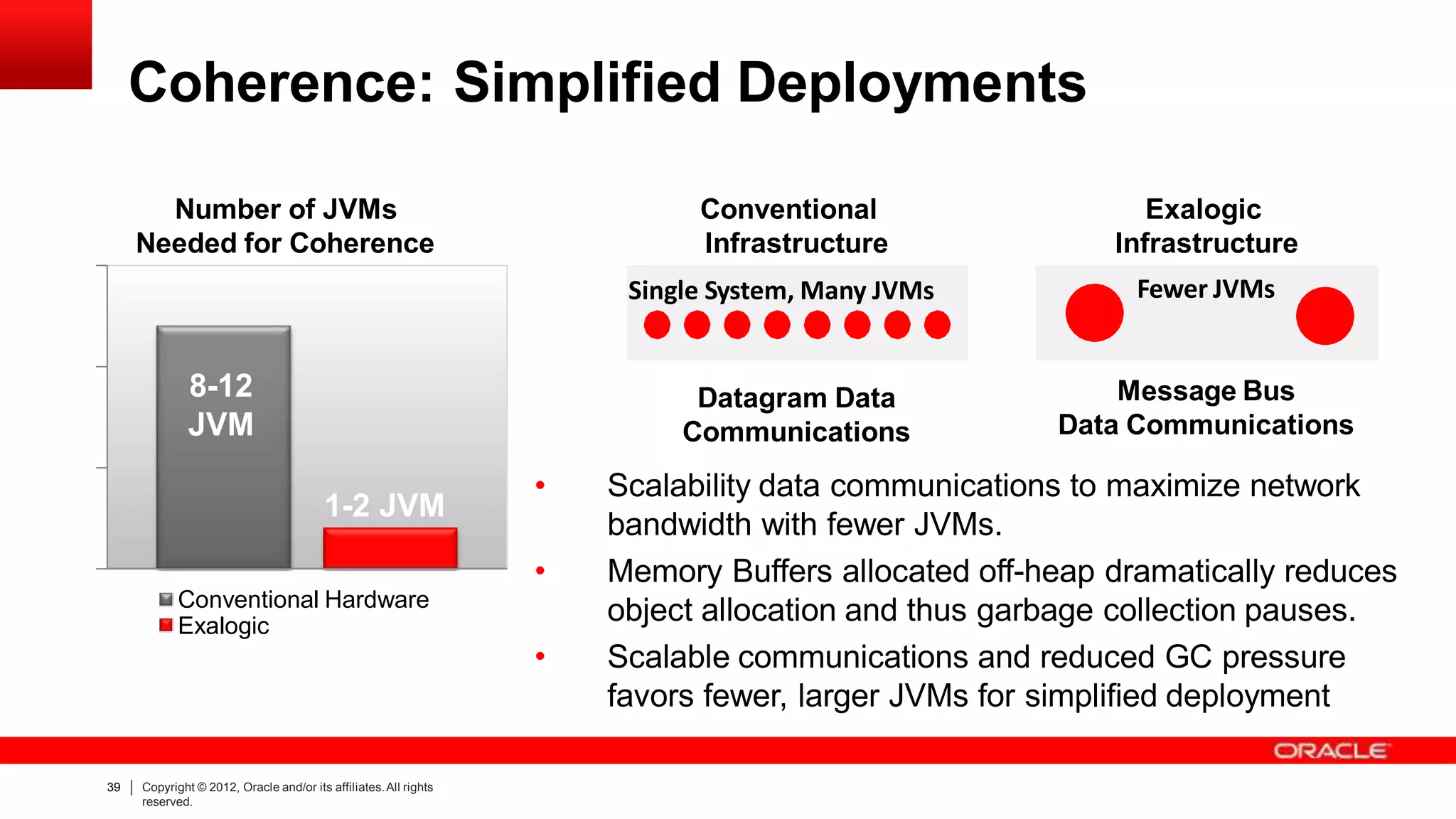

• Exabus Latency Optimizations
– RDMA with kernel bypass and zero buffer copy
– New Coherence “MessageBus” utilizes JVM Infiniband APIs
• Scalable Networking

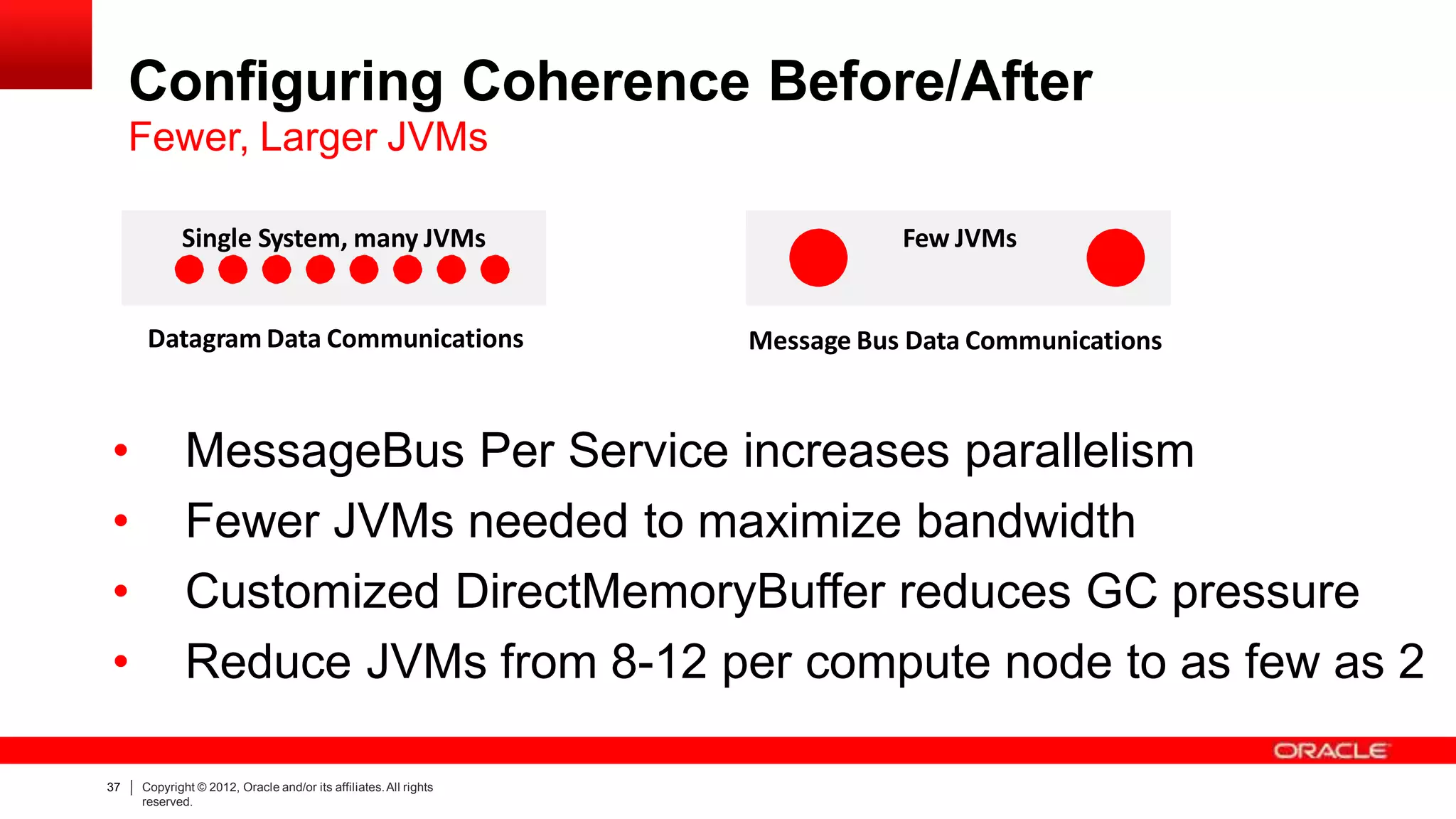

– MessageBus per service to allow scalability to many cores
– Simplifies deployments by requiring fewer Coherence nodes
• Elastic Data Optimizations
– Improved heuristics for moving data to SSD
– Optimized for Exalogic SSD

Message Busses
JRockit/HotSpot
Provider-based Transport Layer
One per service for scalability to multiple cores
Increased message parallelism to max network
Context Switches reduced from 3 to 1
Datagram still used for cluster protocol
JVM
Coherence
Coherence: Native InfiniBand
4x bandwidth, 1/6 latency
Services
Infiniband Message Bus Provider
RDMA offloads host processor
Zero copy and kernel bypass
Predictive notifications avoid costly interrupts
Custom off-heap DirectByteBuffer reduces GC
reserved.

Configuring Coherence Before/After
Fewer, Larger JVMs
Datagram Data Communications
Single System, many JVMs
Message Bus Data Communications
Few JVMs
• MessageBus Per Service increases parallelism
• Fewer JVMs needed to maximize bandwidth
• Customized DirectMemoryBuffer reduces GC pressure
• Reduce JVMs from 8-12 per compute node to as few as 2
reserved.

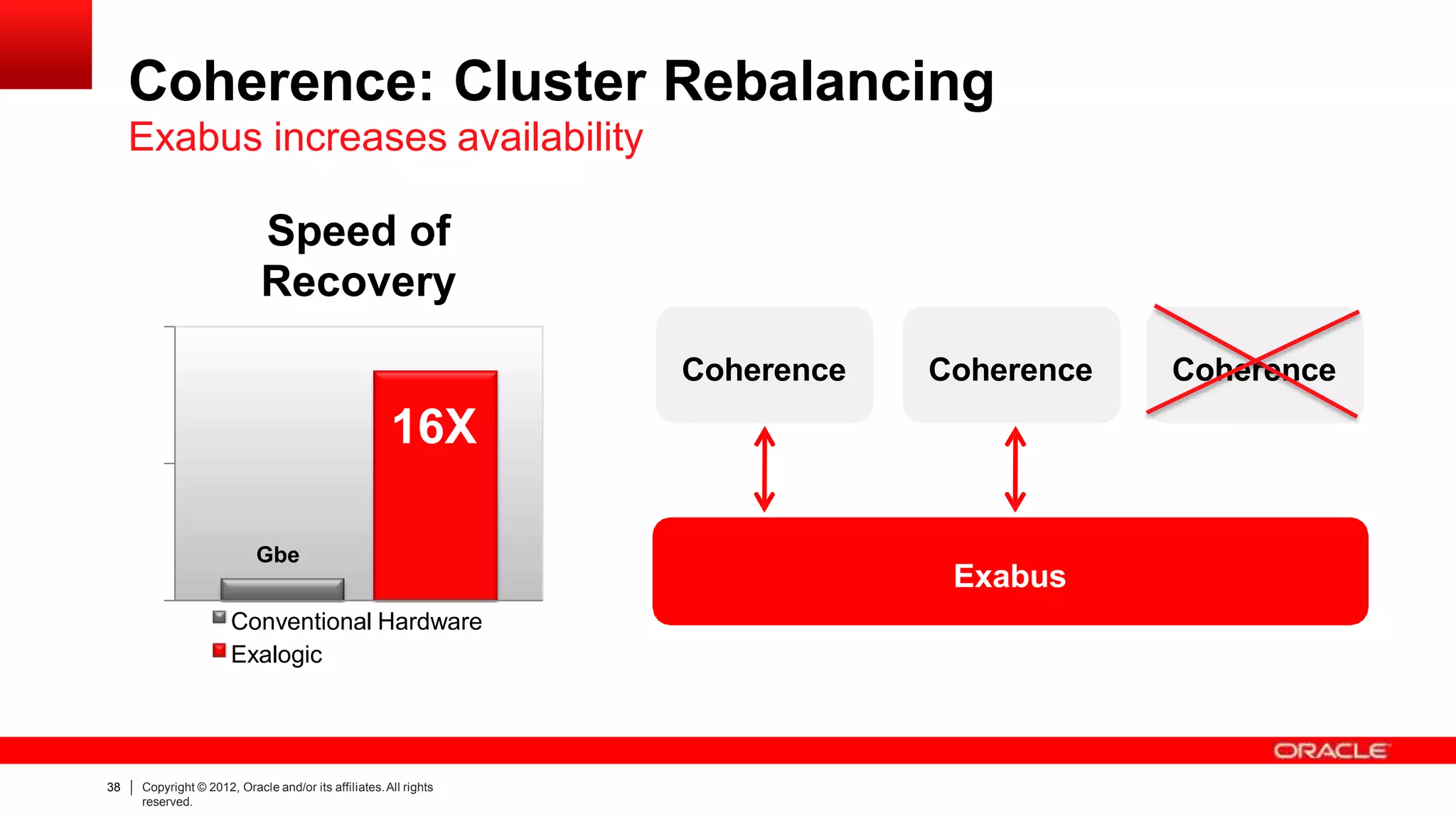

Coherence: Cluster Rebalancing
Exabus increases availability
Speed of
Recovery
Conventional Hardware
Exalogic
16X
Gbe
Exabus
Coherence CoherenceCoherence
reserved.

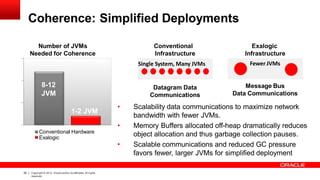

Coherence: Simplified Deployments
Conventional Hardware
Exalogic
1-2 JVM
8-12
JVM
Datagram Data
Communications
Single System, Many JVMs
Message Bus
Data Communications
Fewer JVMs
Conventional
Infrastructure
reserved.
Exalogic
Infrastructure
Number of JVMs
Needed for Coherence
• Scalability data communications to maximize network
bandwidth with fewer JVMs.
Memory Buffers allocated off-heap dramatically reduces
object allocation and thus garbage collection pauses.
Scalable communications and reduced GC pressure
favors fewer, larger JVMs for simplified deployment
•
•

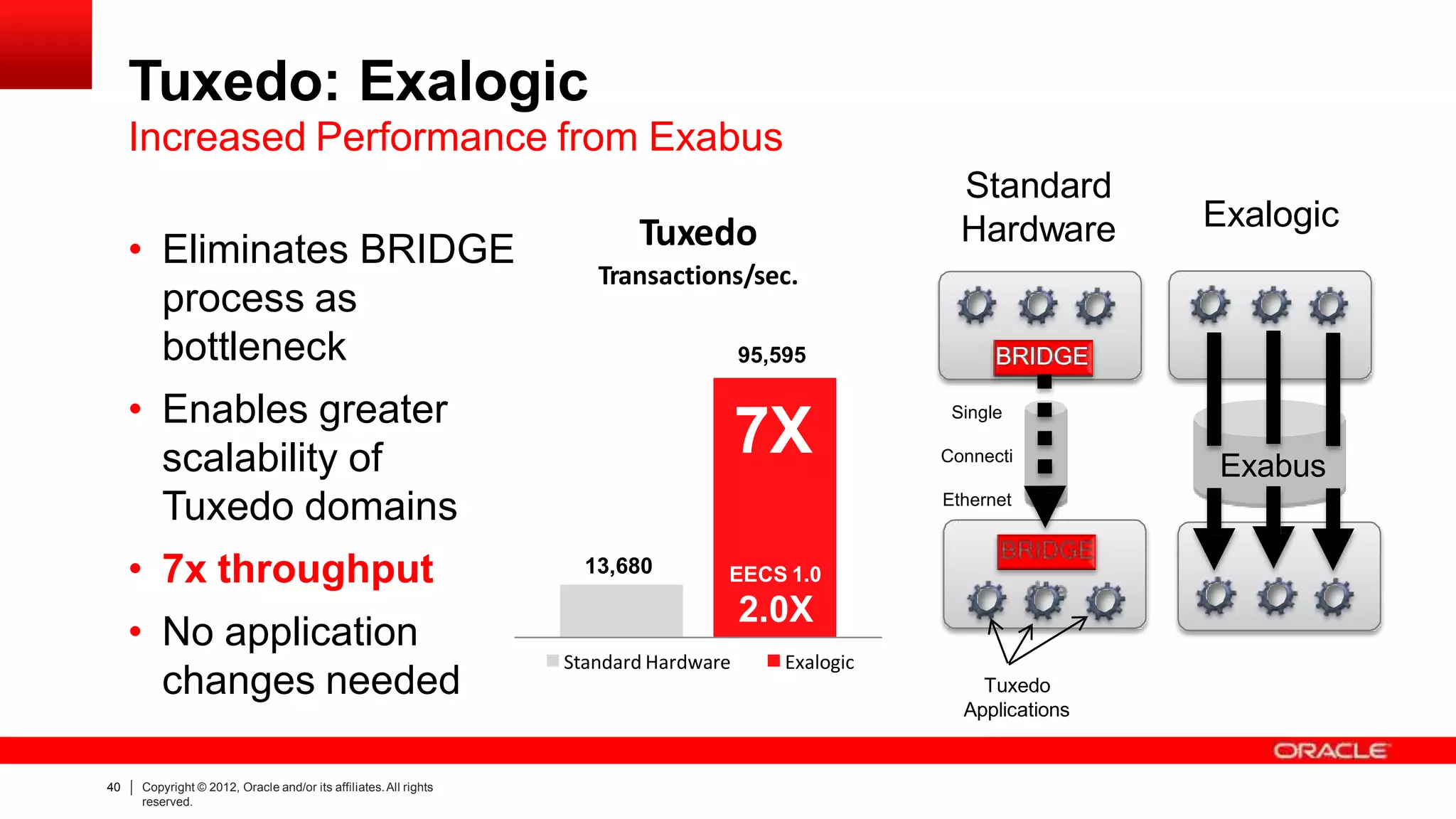

Tuxedo: Exalogic
Increased Performance from Exabus
• Eliminates BRIDGE
process as
bottleneck
• Enables greater
scalability of
Tuxedo domains
• 7x throughput
• No application
changes needed
Tuxedo
Transactions/sec.
Standard Hardware Exalogic
7X
13,680
95,595
EECS 1.0
2.0X
Standard
Hardware Exalogic
Tuxedo
Applications
BRIDGE
Single
Connecti
Ethernet
Exabus
reserved.

reserved.
Consolidate applications onto a single platform
Simplify operations via integrated management
REDUCE COST AND COMPLEXITY

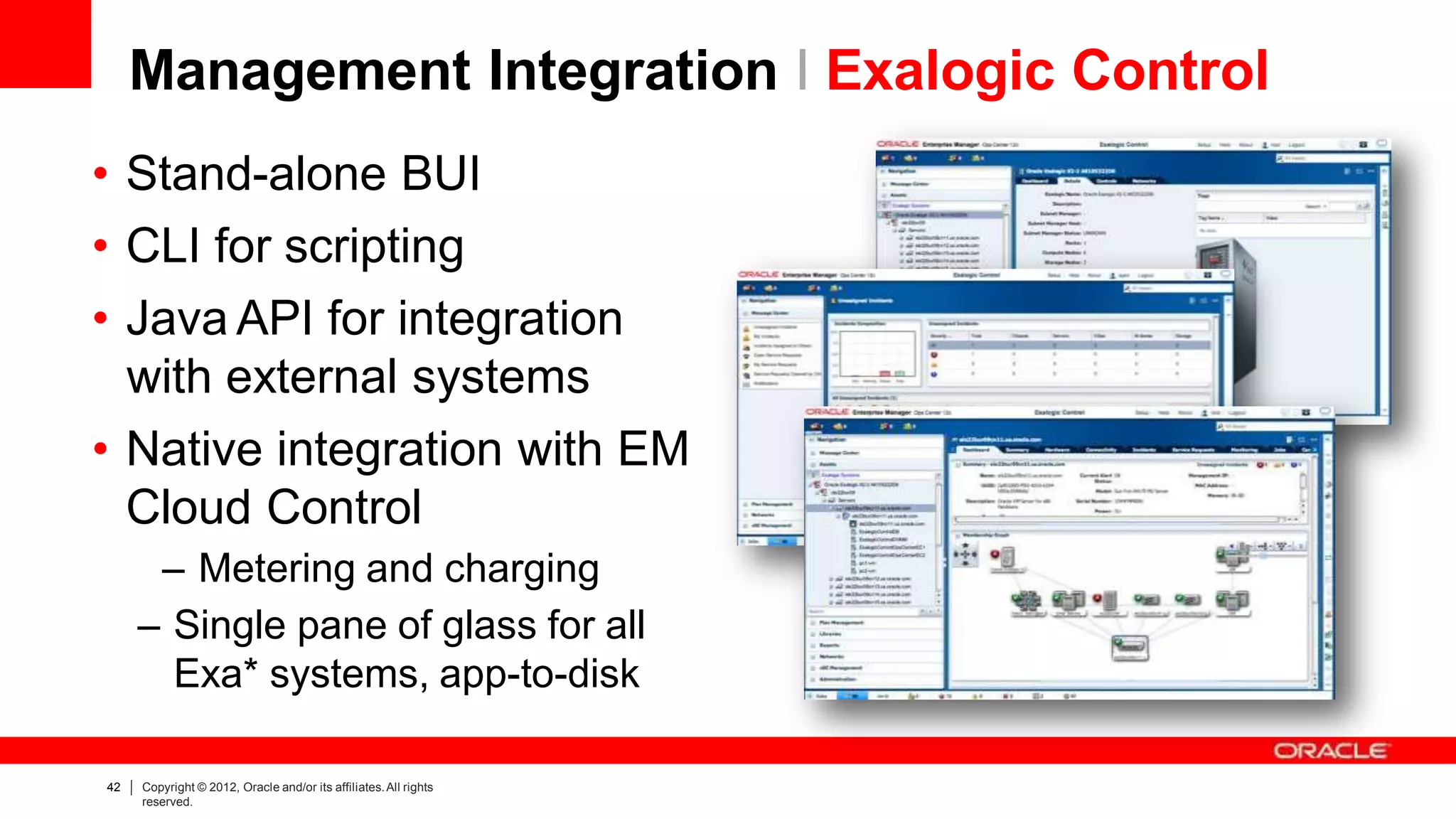

Management Integration I Exalogic Control
• Stand-alone BUI
• CLI for scripting
• Java API for integration
with external systems
• Native integration with EM
Cloud Control
– Metering and charging
– Single pane of glass for all
Exa* systems, app-to-disk
reserved.

Virtual Assemblies for
Exalogic
reserved.

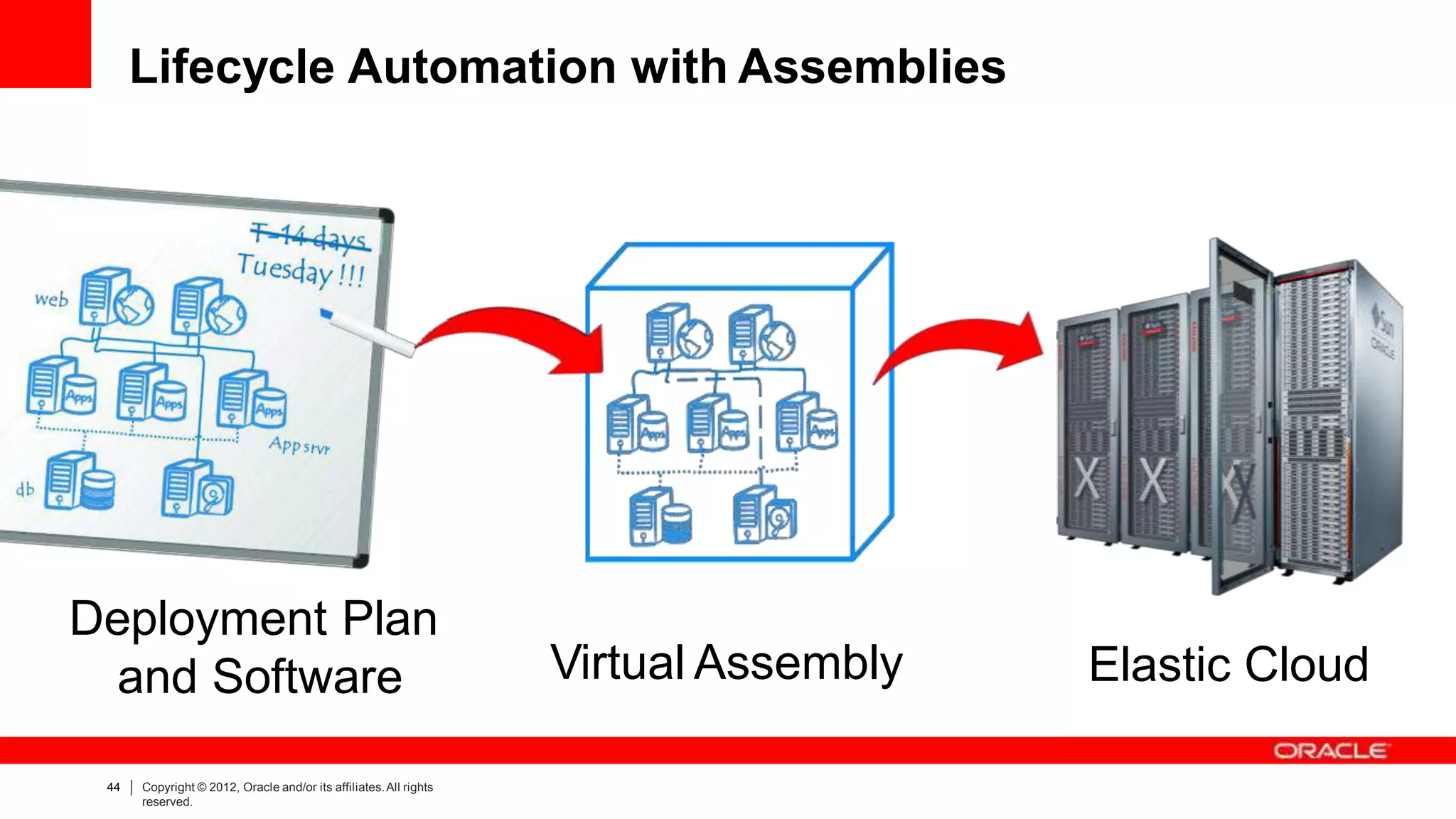

Lifecycle Automation with Assemblies
Virtual Assembly
Deployment Plan
and Software Elastic Cloud
reserved.

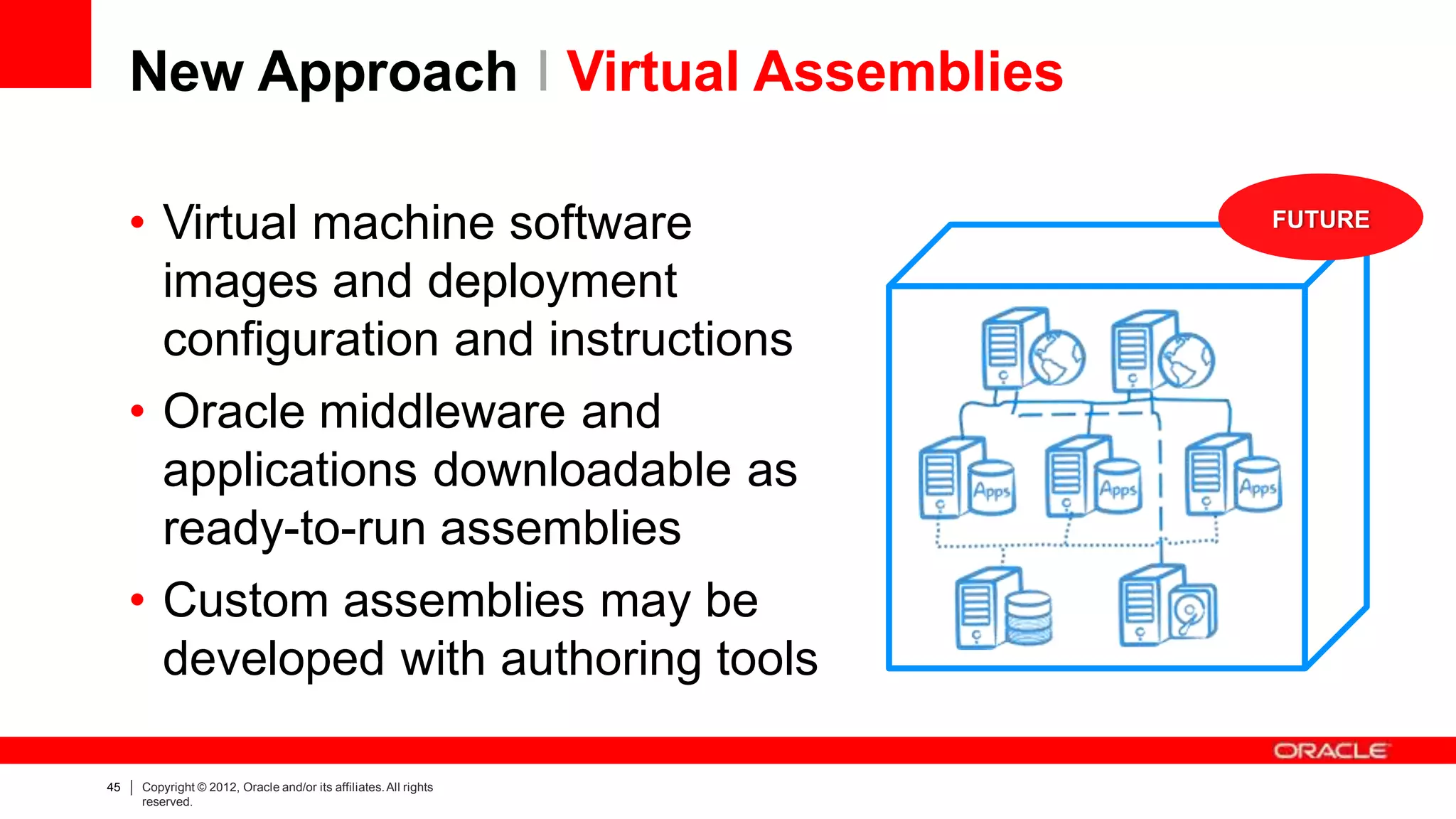

New Approach I Virtual Assemblies
• Virtual machine software
images and deployment
configuration and instructions
• Oracle middleware and
applications downloadable as
ready-to-run assemblies
• Custom assemblies may be
developed with authoring tools
FUTURE
reserved.

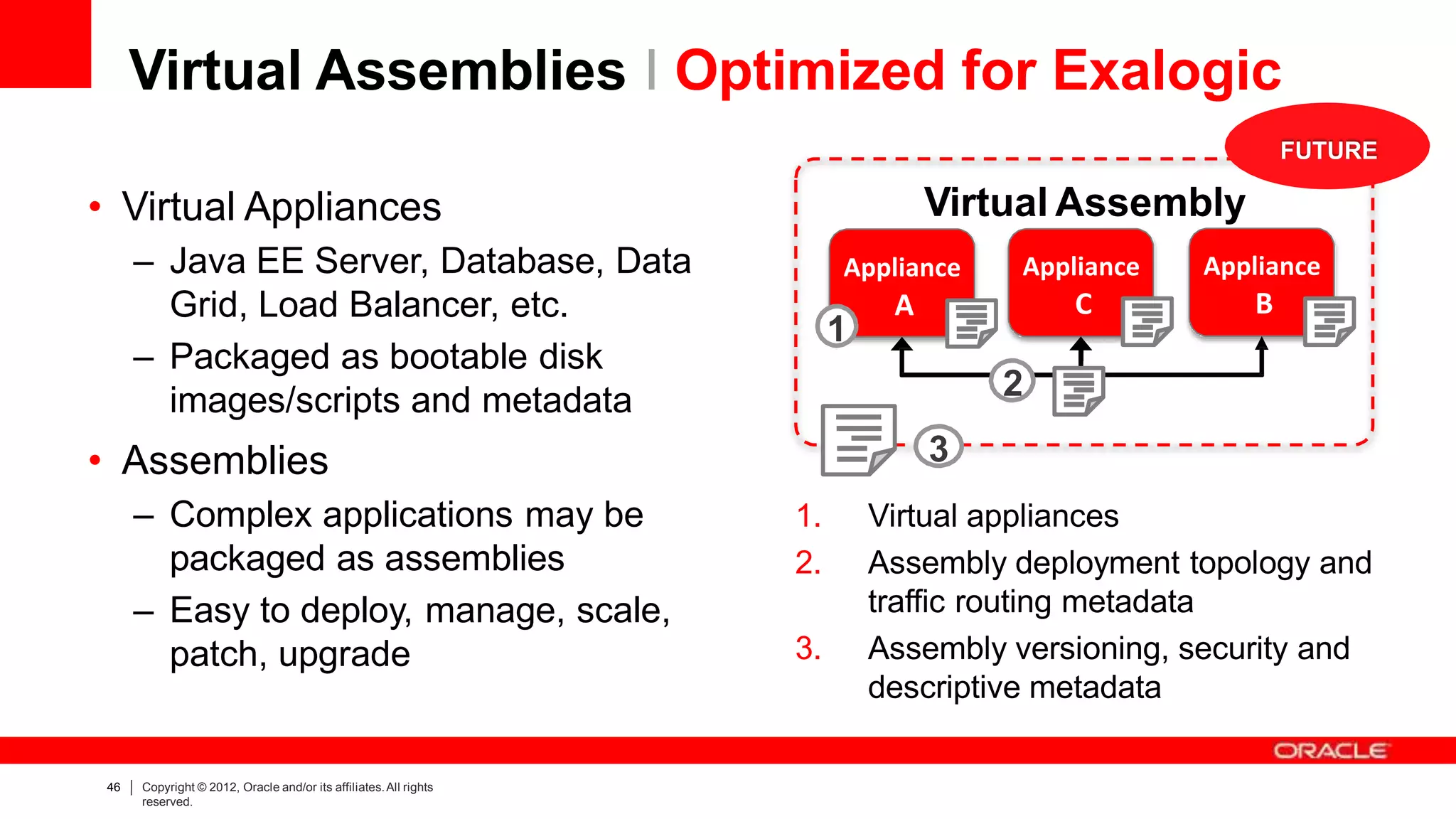

Virtual Assemblies I Optimized for Exalogic
• Virtual Appliances
– Java EE Server, Database, Data
Grid, Load Balancer, etc.
– Packaged as bootable disk
images/scripts and metadata
• Assemblies
– Complex applications may be
packaged as assemblies
– Easy to deploy, manage, scale,
patch, upgrade
Appliance
A
Appliance
B
Appliance
C
1
2
1. Virtual appliances
2. Assembly deployment topology and
traffic routing metadata
3. Assembly versioning, security and
descriptive metadata
3
FUTURE
Virtual Assembly
reserved.

reserved.
Run on a platform optimized for your applications
Protect sensitive data with true application isolation
LOWER BUSINESS RISK

HIGHEST LEVEL OF SERVICE IN THE INDUSTRY
• 5 Minute SLA
• System Monitored 24/7 by Oracle Support
• Oracle Performs System Patching
• No Additional Cost for Premier Support
customers
ORACLE PLATINUM SERVICES
reserved.

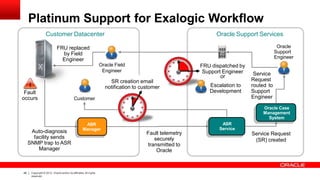

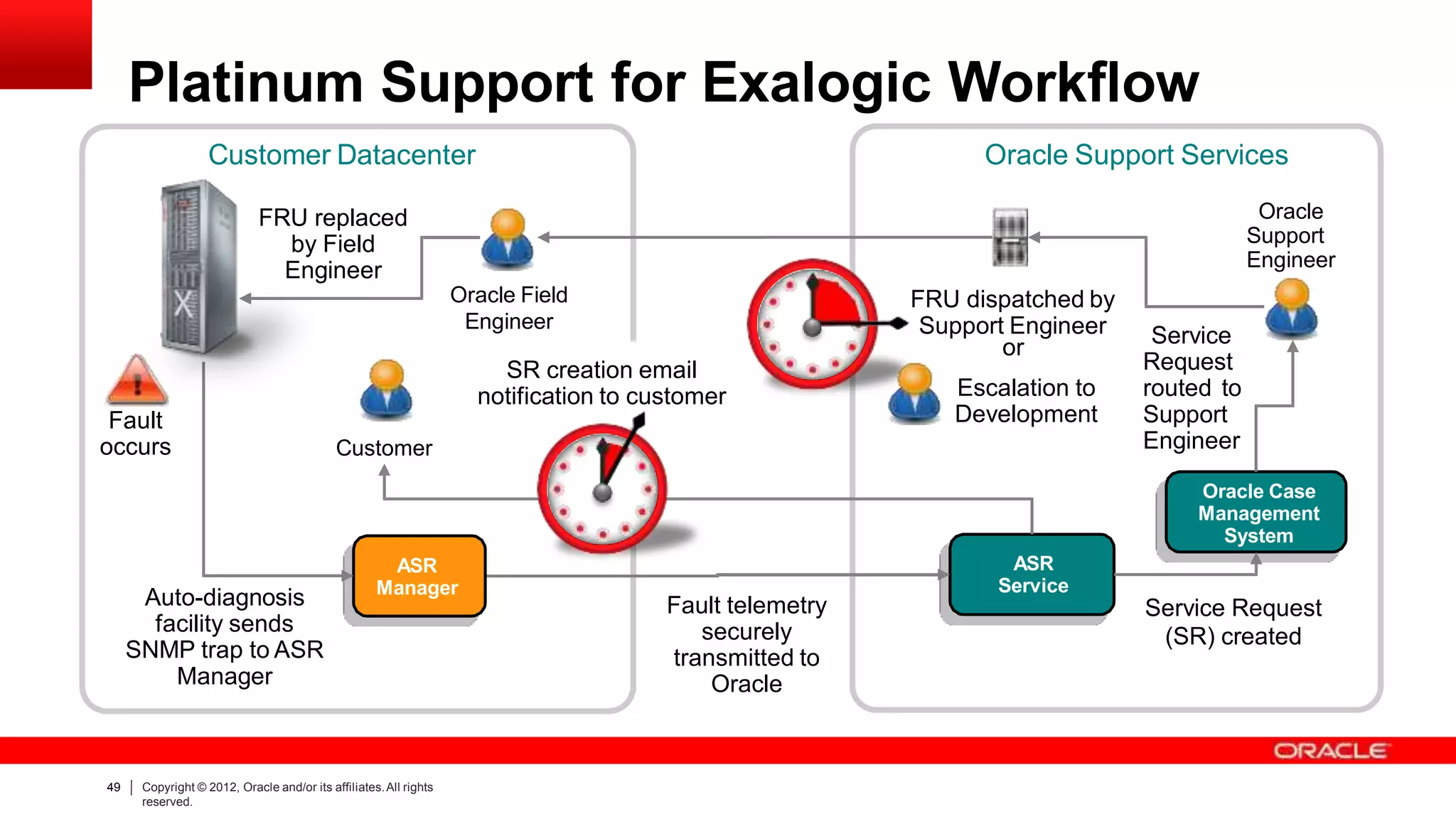

Platinum Support for Exalogic Workflow
Customer Datacenter
Customer
Oracle Field
Engineer
FRU replaced
by Field
Engineer
Fault
occurs
Oracle Support Services
Oracle
Support
Engineer
FRU dispatched by
Support Engineer
or
Escalation to
Development
Service
Request
routed to
Support
Engineer
Oracle Case
Management
System
Service Request
(SR) created
ASR
Service
Auto-diagnosis
facility sends
SNMP trap to ASR
Manager
SR creation email
notification to customer
Fault telemetry
securely
transmitted to
Oracle
ASR
Manager
reserved.

Program for 3rd party application certification
on exalogic
Special access to test facilities and oracle
expert support
Two levels of participation

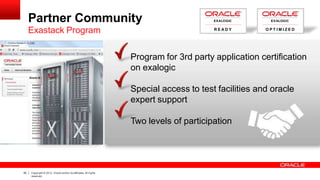

Partner Community
Exastack Program R E A D Y O P T I M I Z E D
reserved.

Product Specialists
Oracle ISV Migration Center
http://www.oracle.com/partners/en/
most-popular-resources/
imc-team-179835.html
http://blogs.oracle.com/
IMC
http://twitter.com/
oracleimc
http://www.youtube.com/
OracleIMCteam
http://www.slideshare.net/
oracle_imc_team
https://mix.oracle.com/
groups/24961
 Expertise offered to Partner Hubs
 Knowledge Exchange & Guidance
 Focused on Upgrades & Migrations
 Promoting OPN ExaStack Program
 Advanced Hands-On Workshops
 2 Partners Webcasts /Month
 Over 250 projects completed in FY12
reserved.

reserved.

Presentation oracle exalogic elastic cloud

More Related Content

What's hot

Similar to Presentation oracle exalogic elastic cloud

More from solarisyougood

Recently uploaded

Presentation oracle exalogic elastic cloud
