4.exalogic ferhat final
- 1. <Insert Picture Here> OracleExalogic Elastic Cloud

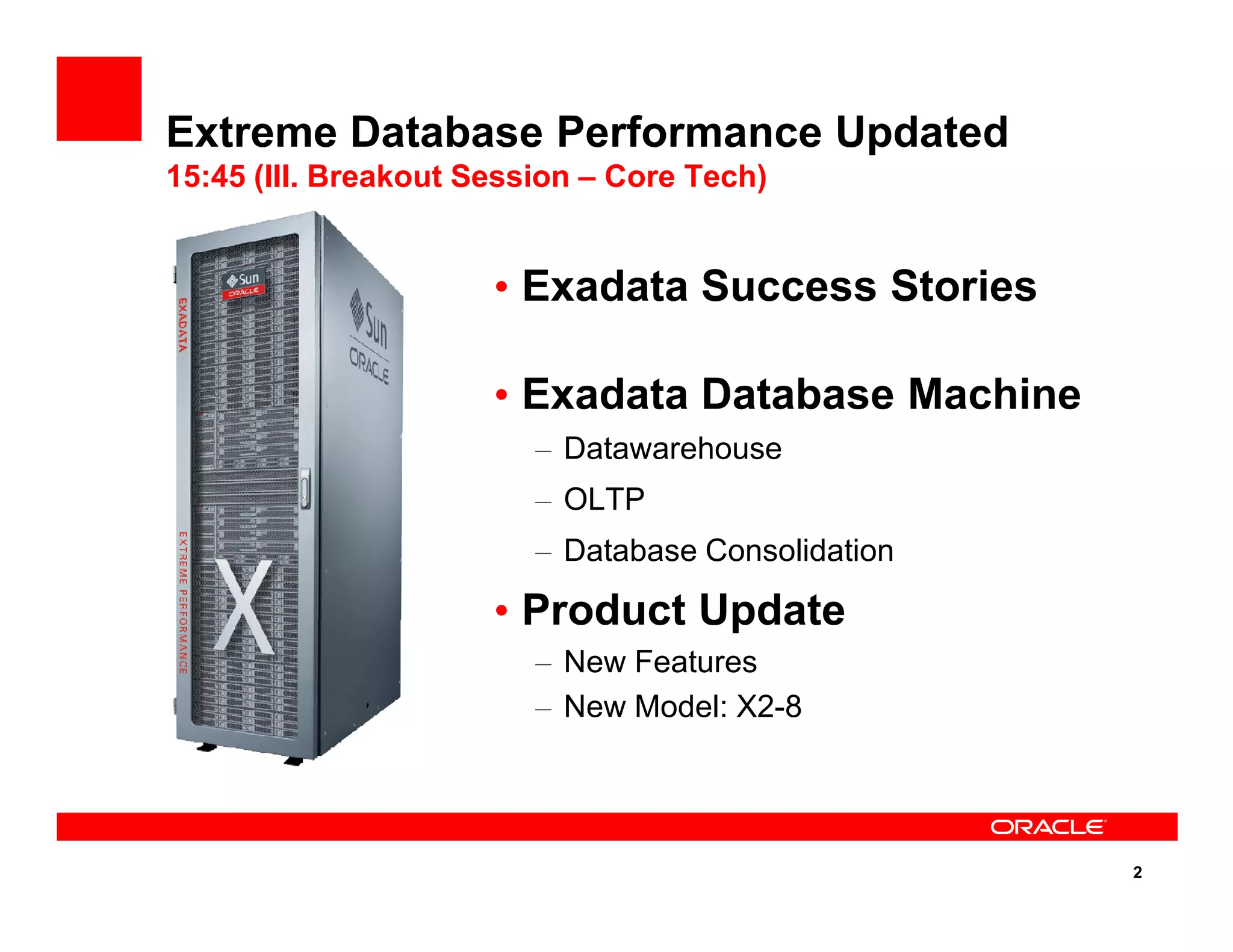

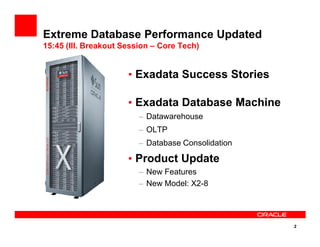

- 2. • Exadata SuccessStories • Exadata Database Machine – Datawarehouse Extreme Database Performance Updated 15:45 (III. Breakout Session – Core Tech) 2 – OLTP – Database Consolidation • Product Update – New Features – New Model: X2-8

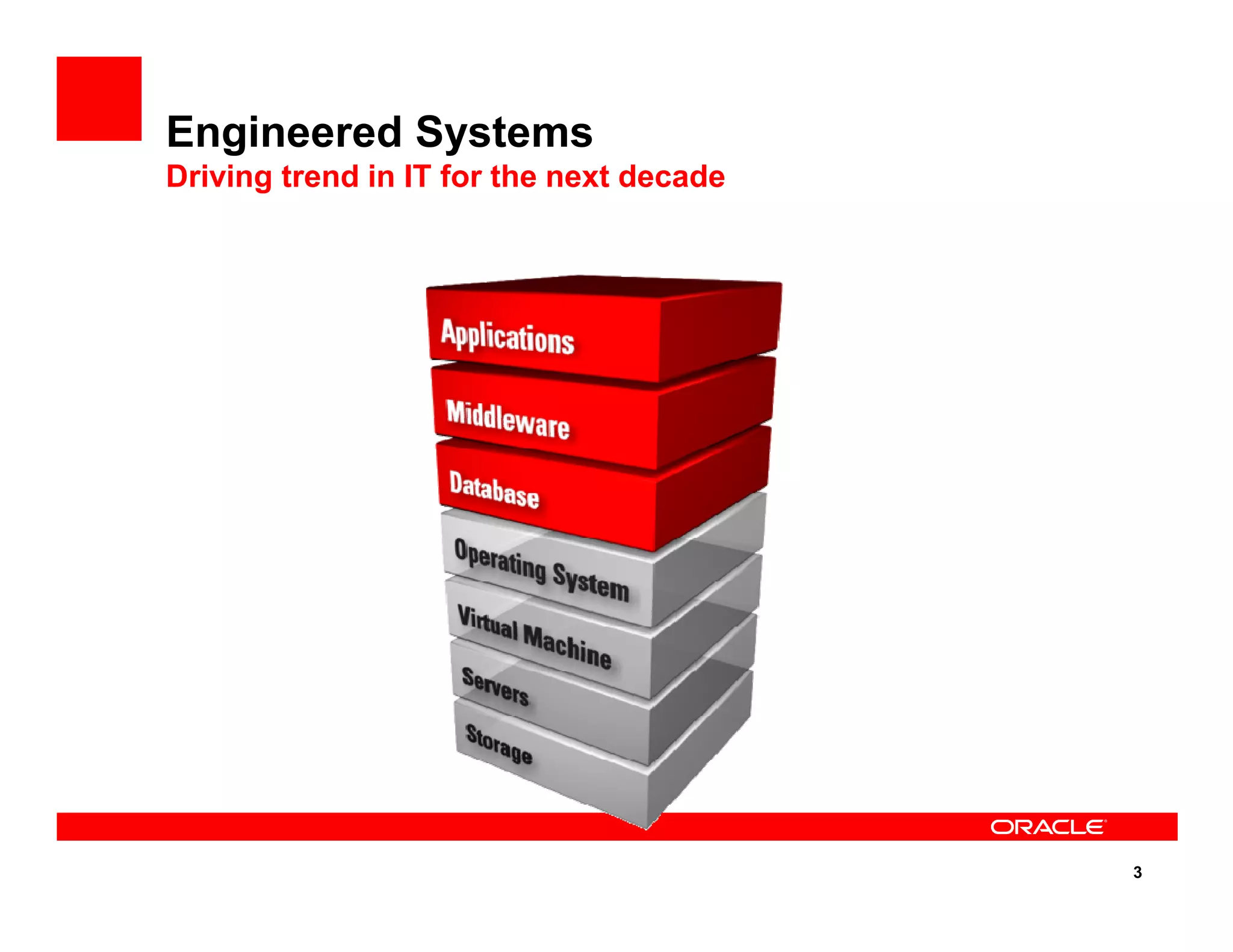

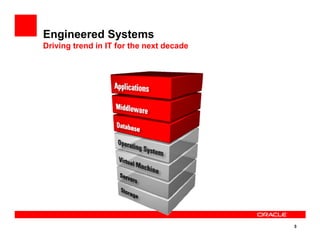

- 3. Engineered Systems Driving trendin IT for the next decade 3

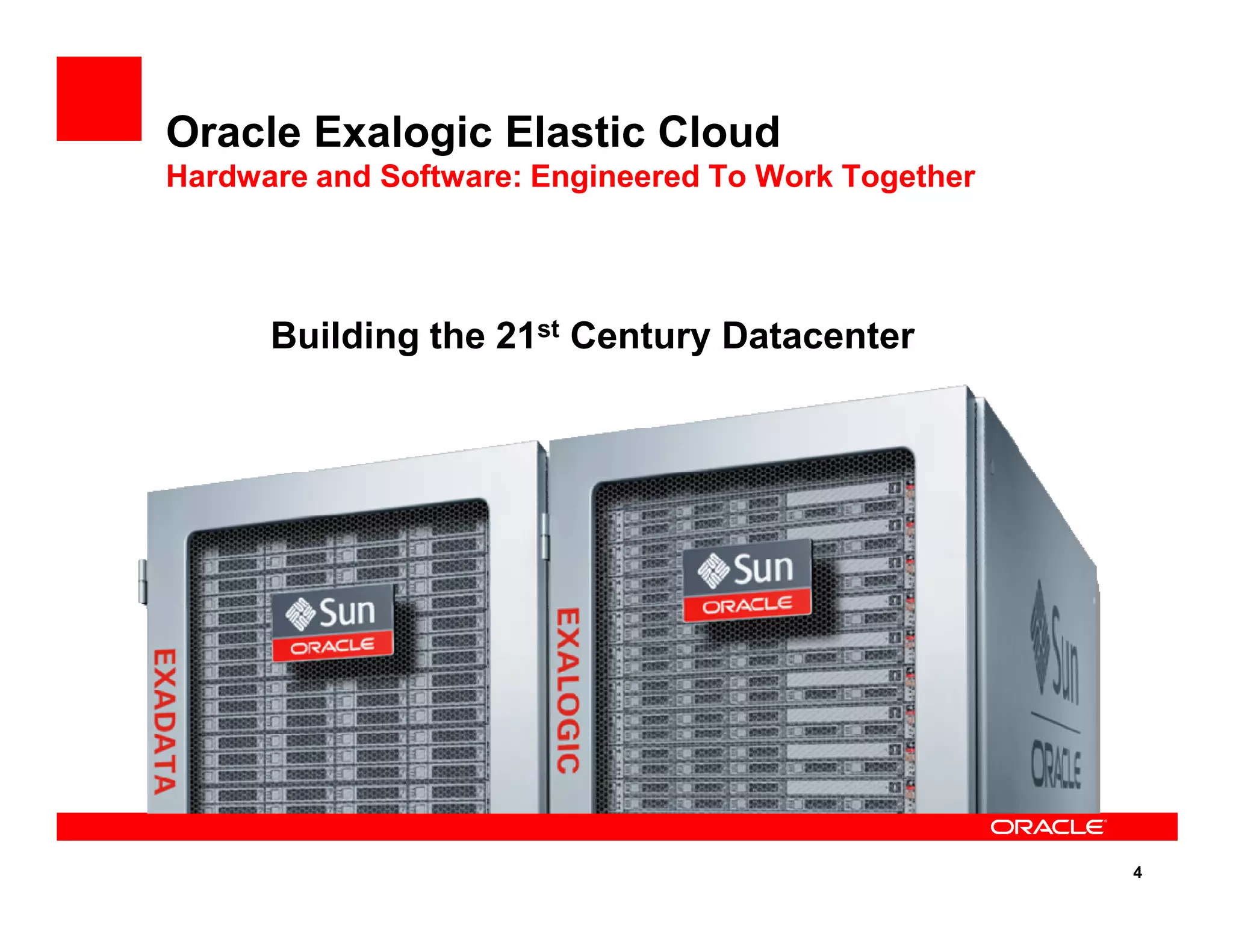

- 4. Oracle Exalogic ElasticCloud Hardware and Software: Engineered To Work Together Building the 21st Century Datacenter 4

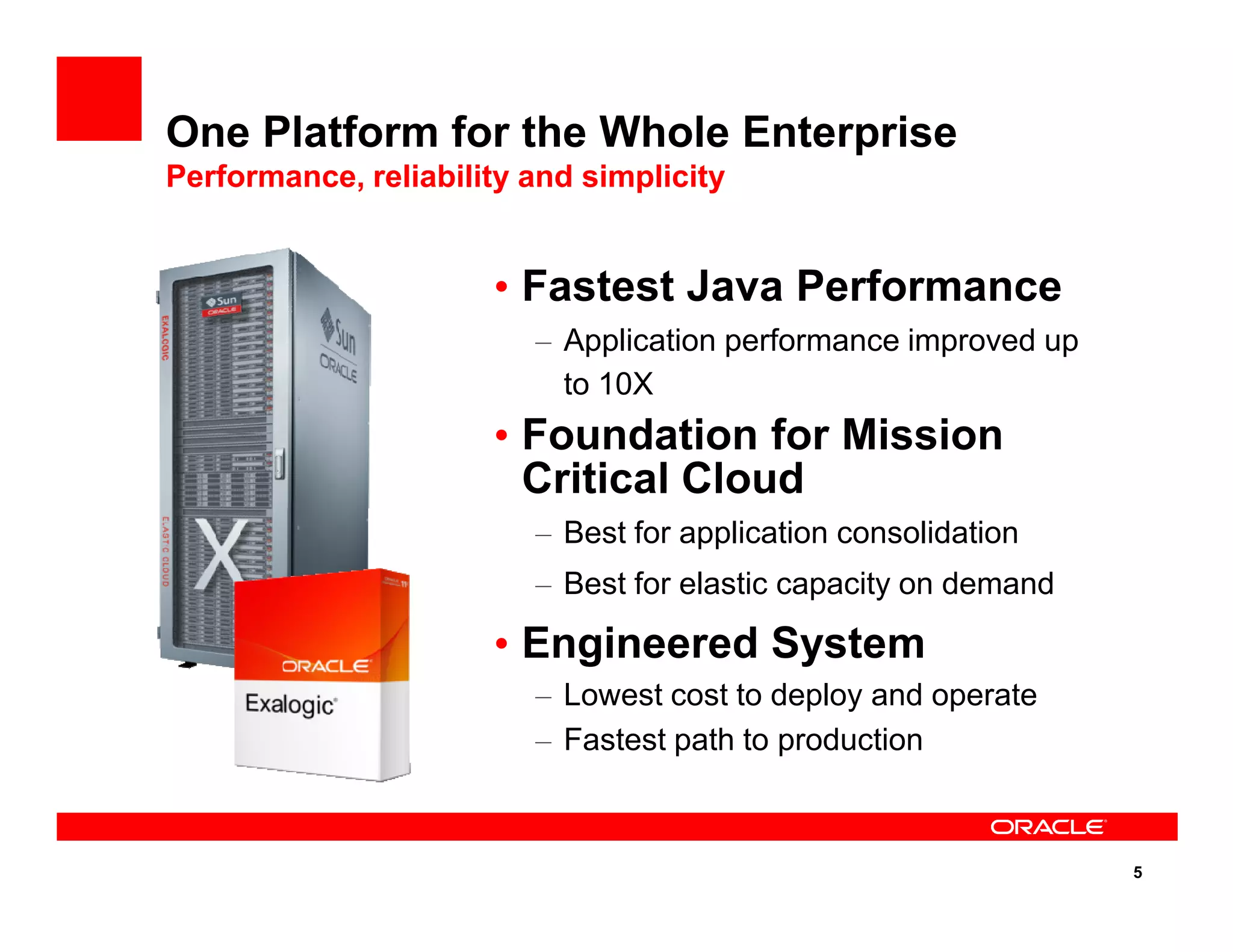

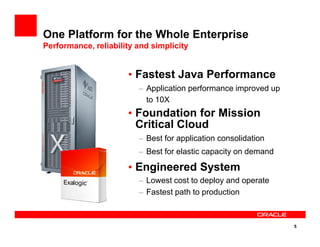

- 5. • Fastest JavaPerformance – Application performance improved up to 10X • Foundation for Mission Critical Cloud One Platform for the Whole Enterprise Performance, reliability and simplicity 5 Critical Cloud – Best for application consolidation – Best for elastic capacity on demand • Engineered System – Lowest cost to deploy and operate – Fastest path to production

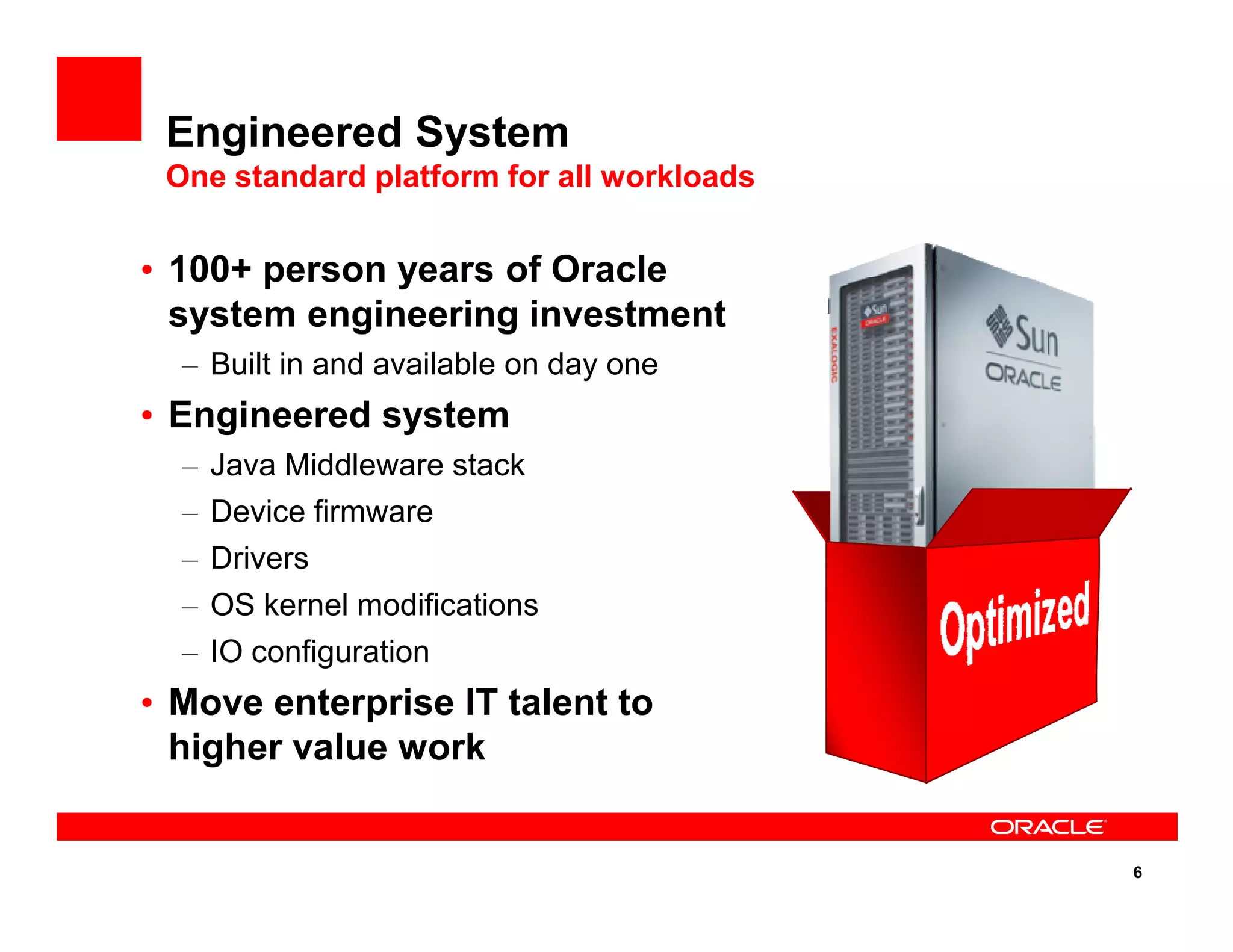

- 6. Engineered System One standardplatform for all workloads • 100+ person years of Oracle system engineering investment – Built in and available on day one • Engineered system – Java Middleware stack 6 – Java Middleware stack – Device firmware – Drivers – OS kernel modifications – IO configuration • Move enterprise IT talent to higher value work

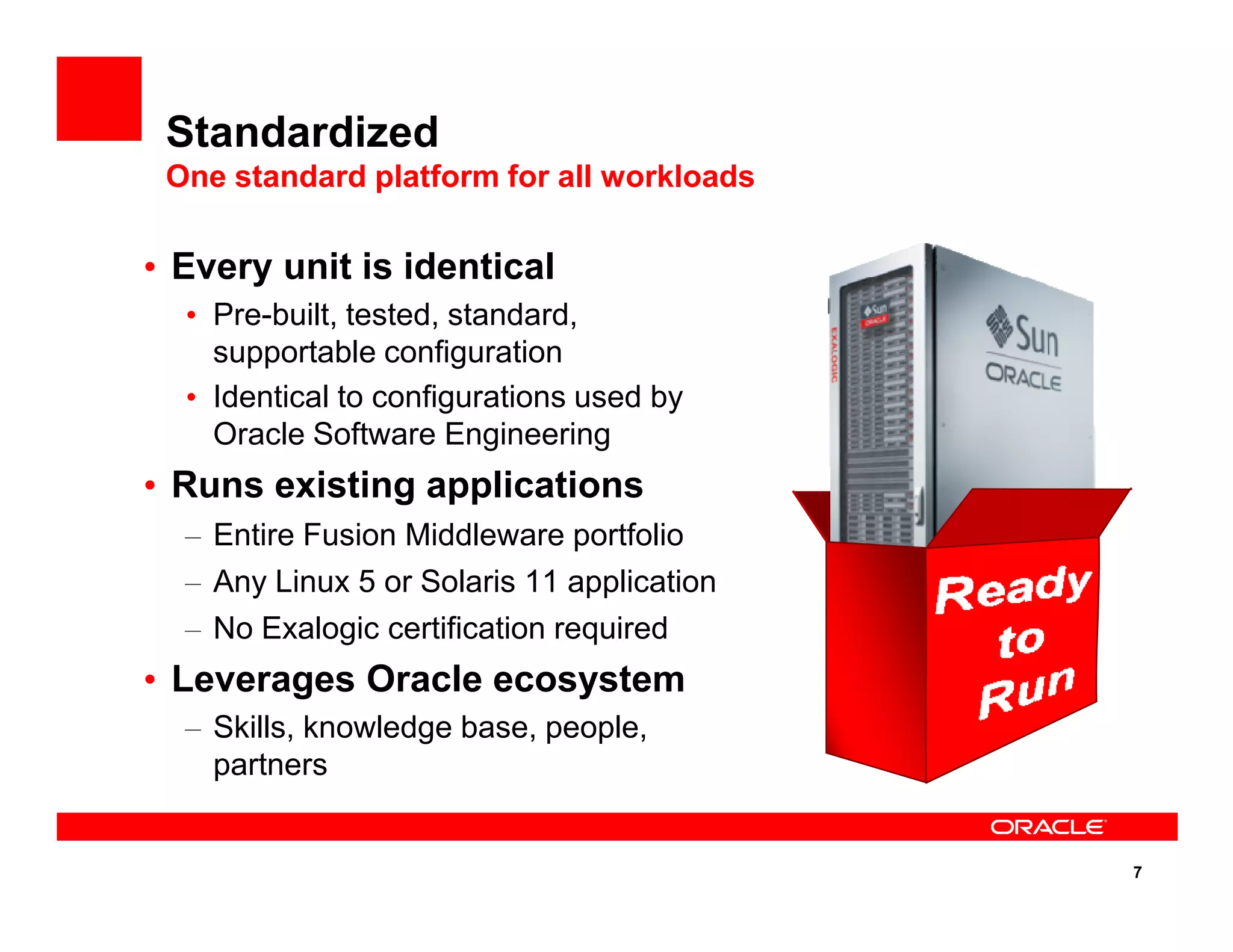

- 7. • Every unitis identical • Pre-built, tested, standard, supportable configuration • Identical to configurations used by Oracle Software Engineering • Runs existing applications Standardized One standard platform for all workloads 7 • Runs existing applications – Entire Fusion Middleware portfolio – Any Linux 5 or Solaris 11 application – No Exalogic certification required • Leverages Oracle ecosystem – Skills, knowledge base, people, partners

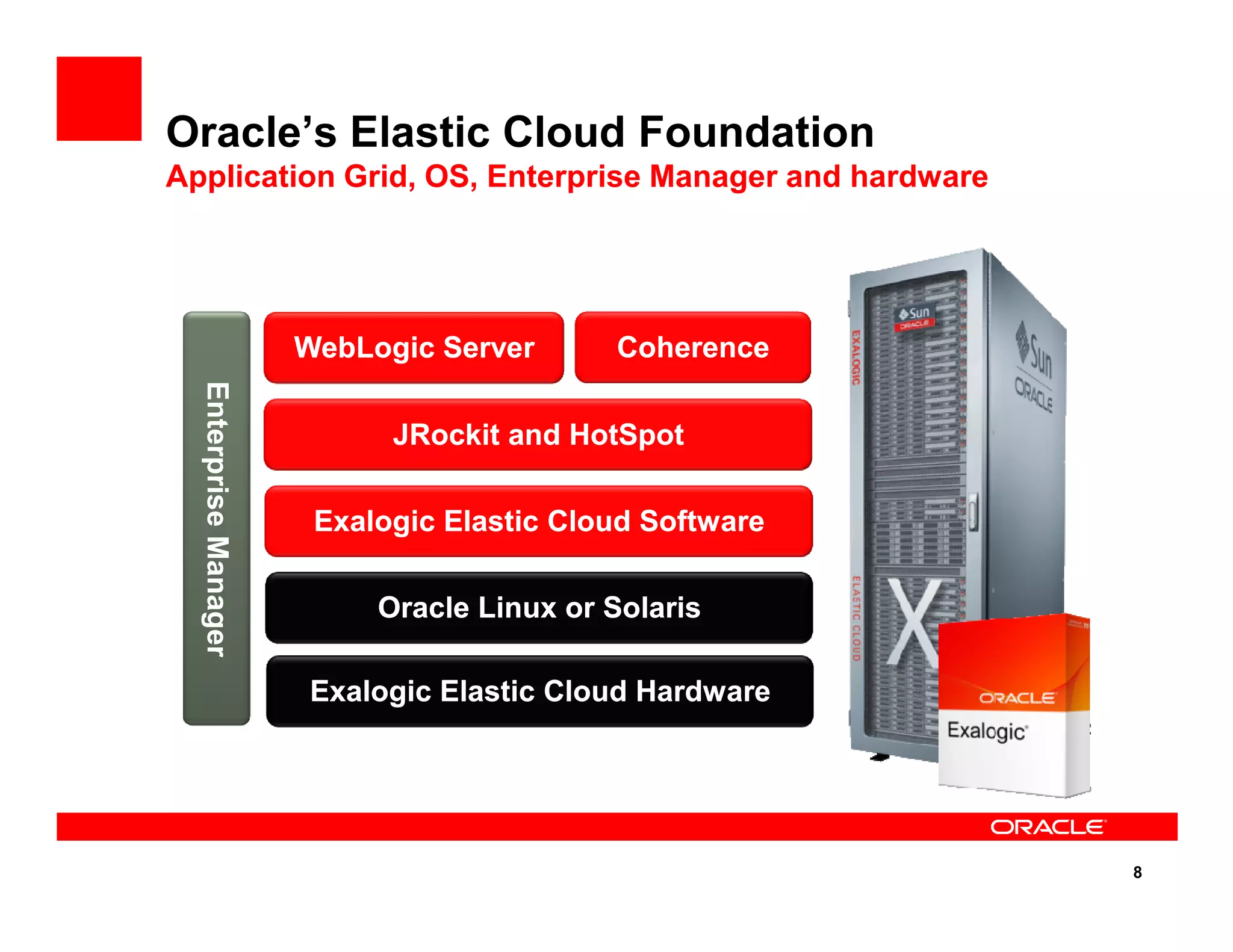

- 8. Oracle’s Elastic CloudFoundation Application Grid, OS, Enterprise Manager and hardware JRockit and HotSpotJRockit and HotSpot WebLogic ServerWebLogic Server CoherenceCoherence EnterpriseManager 8 EL X2-2 Oracle Linux or SolarisOracle Linux or Solaris Exalogic Elastic Cloud SoftwareExalogic Elastic Cloud Software EnterpriseManager Exalogic Elastic Cloud HardwareExalogic Elastic Cloud Hardware

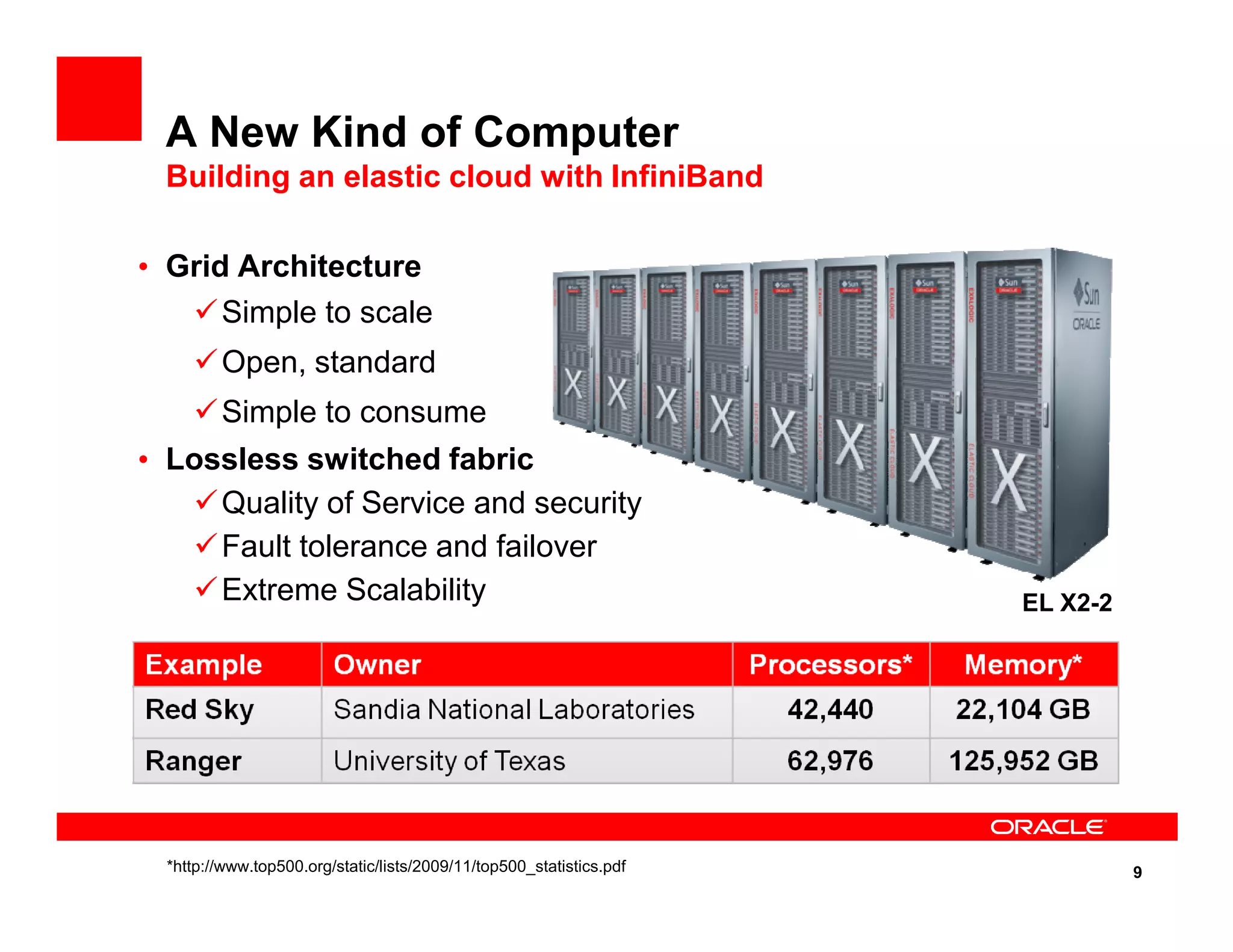

- 9. A New Kindof Computer Building an elastic cloud with InfiniBand • Grid Architecture Simple to scale Open, standard Simple to consume • Lossless switched fabric 9 Quality of Service and security Fault tolerance and failover Extreme Scalability EL X2-2 *http://www.top500.org/static/lists/2009/11/top500_statistics.pdf

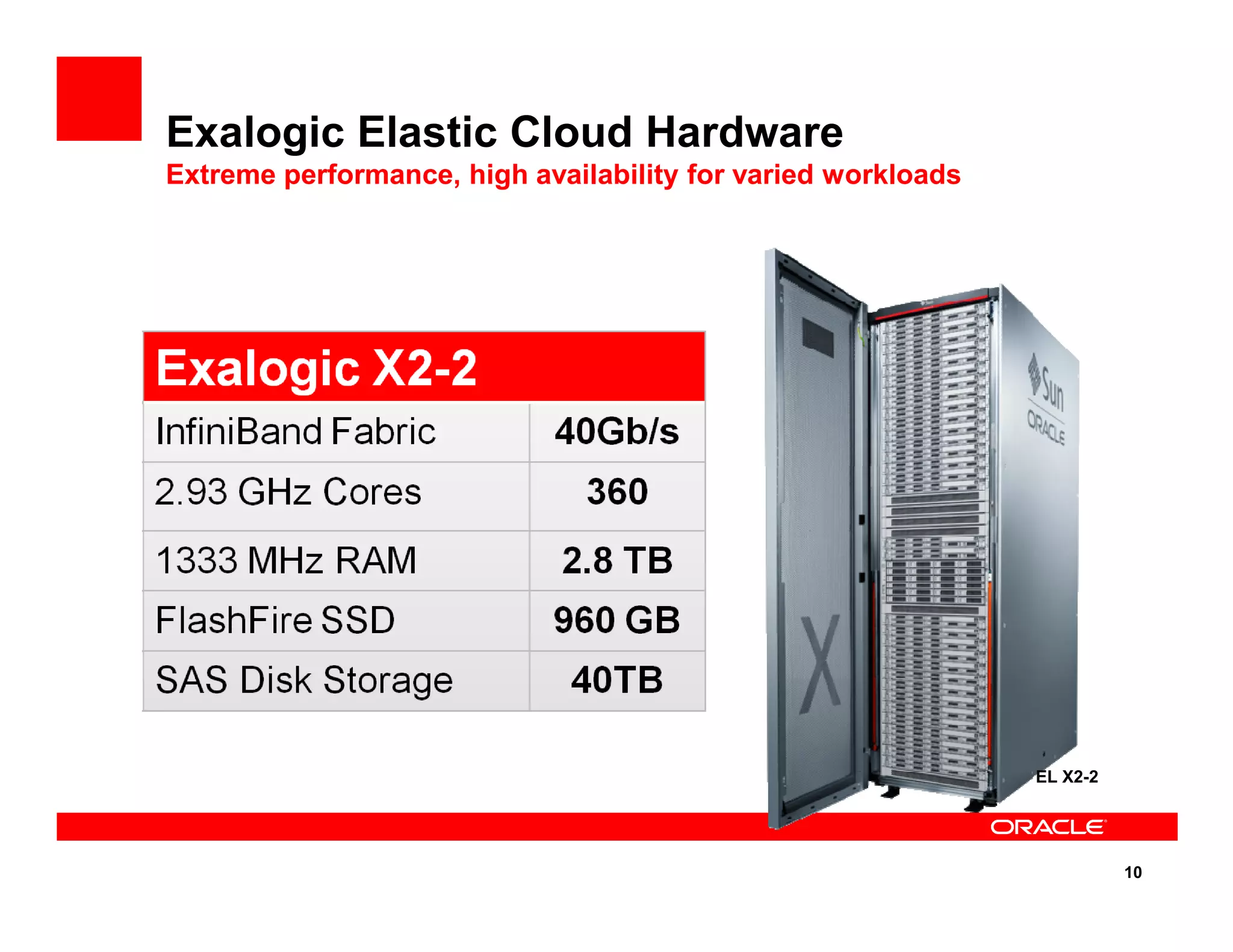

- 10. Exalogic Elastic CloudHardware Extreme performance, high availability for varied workloads 10 EL X2-2

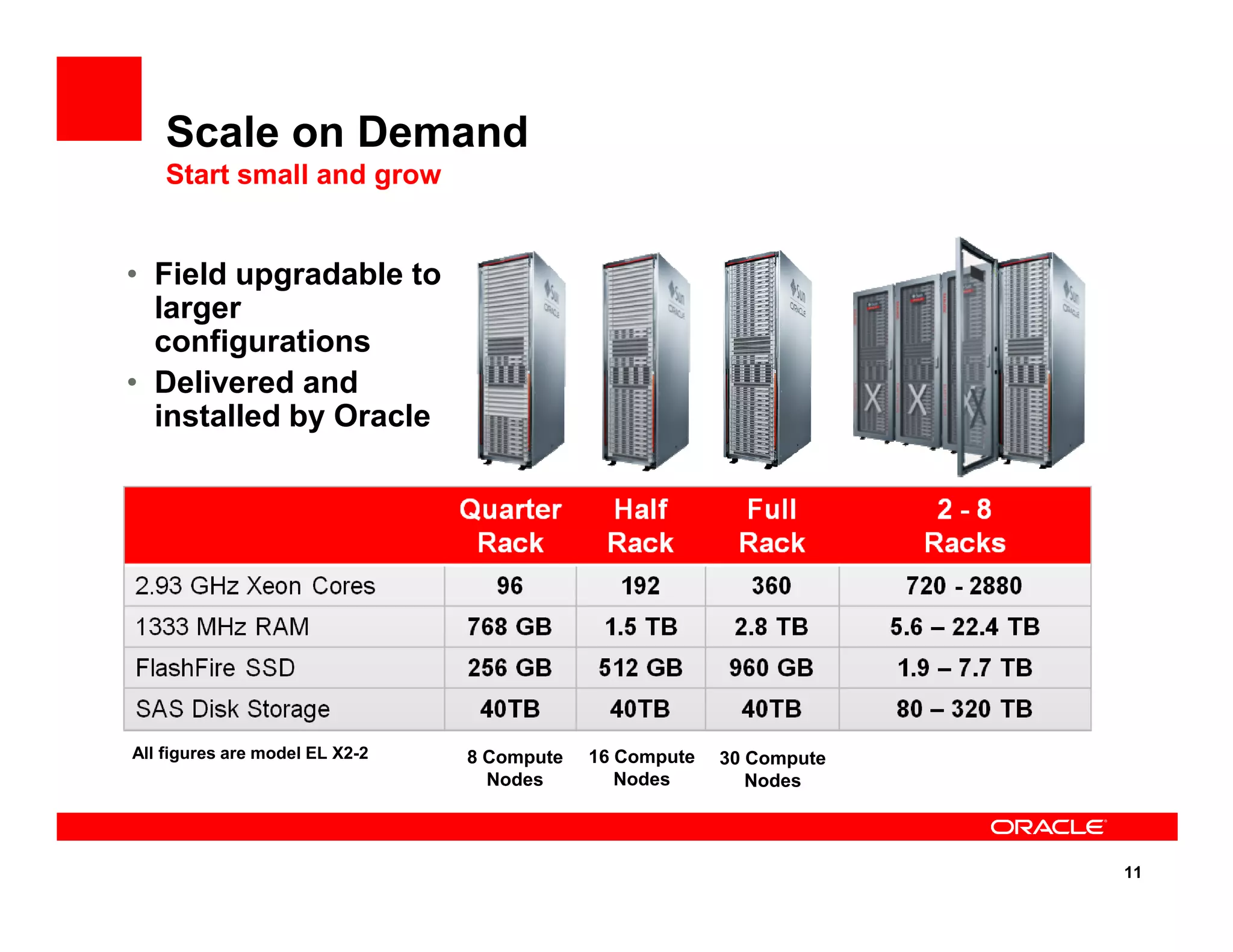

- 11. Scale on Demand Startsmall and grow • Field upgradable to larger configurations • Delivered and installed by Oracle 11 All figures are model EL X2-2 8 Compute Nodes 16 Compute Nodes 30 Compute Nodes

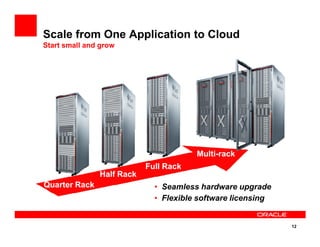

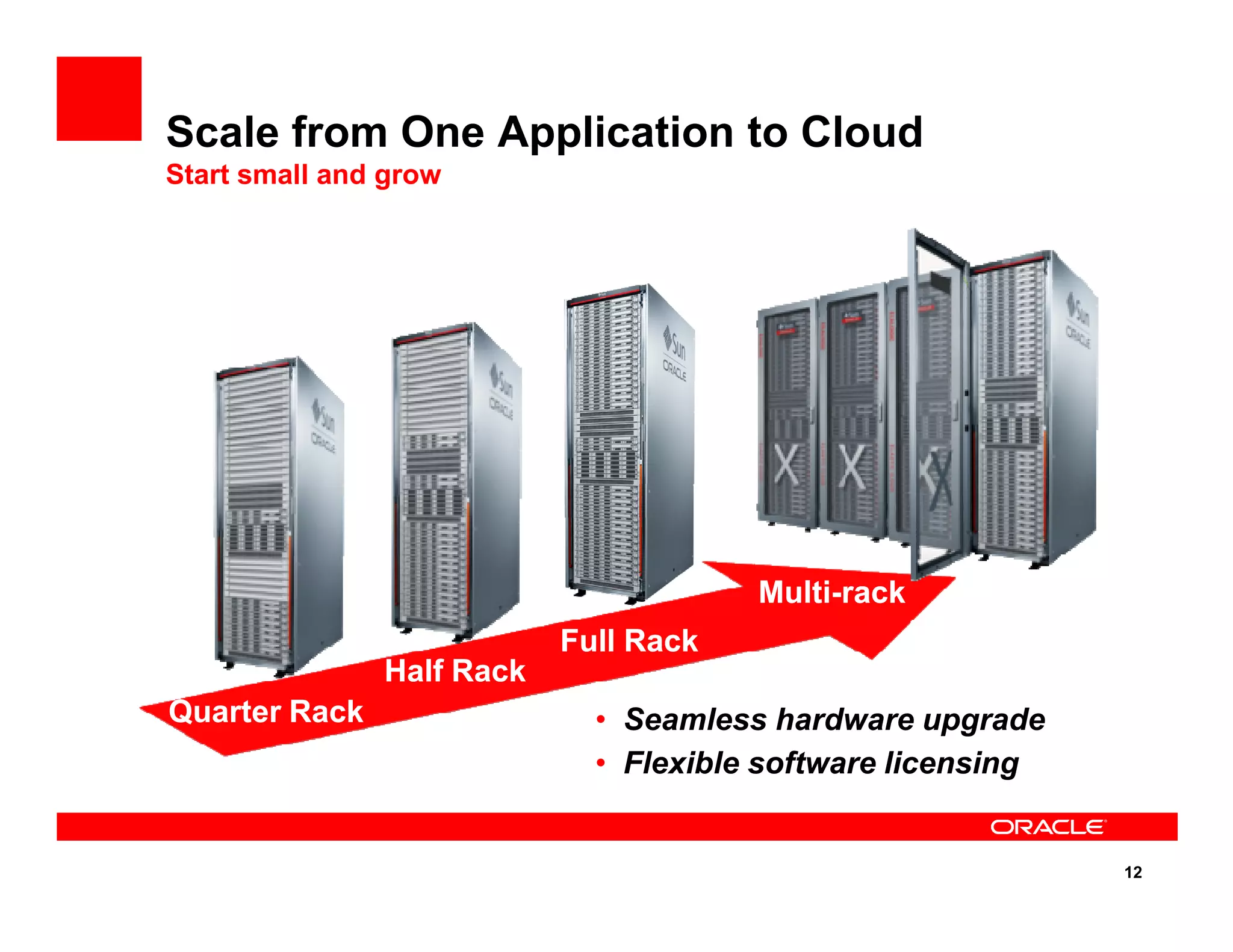

- 12. Scale from OneApplication to Cloud Start small and grow 12 Quarter RackQuarter Rack Half RackHalf Rack Full RackFull Rack MultiMulti--rackrack • Seamless hardware upgrade • Flexible software licensing

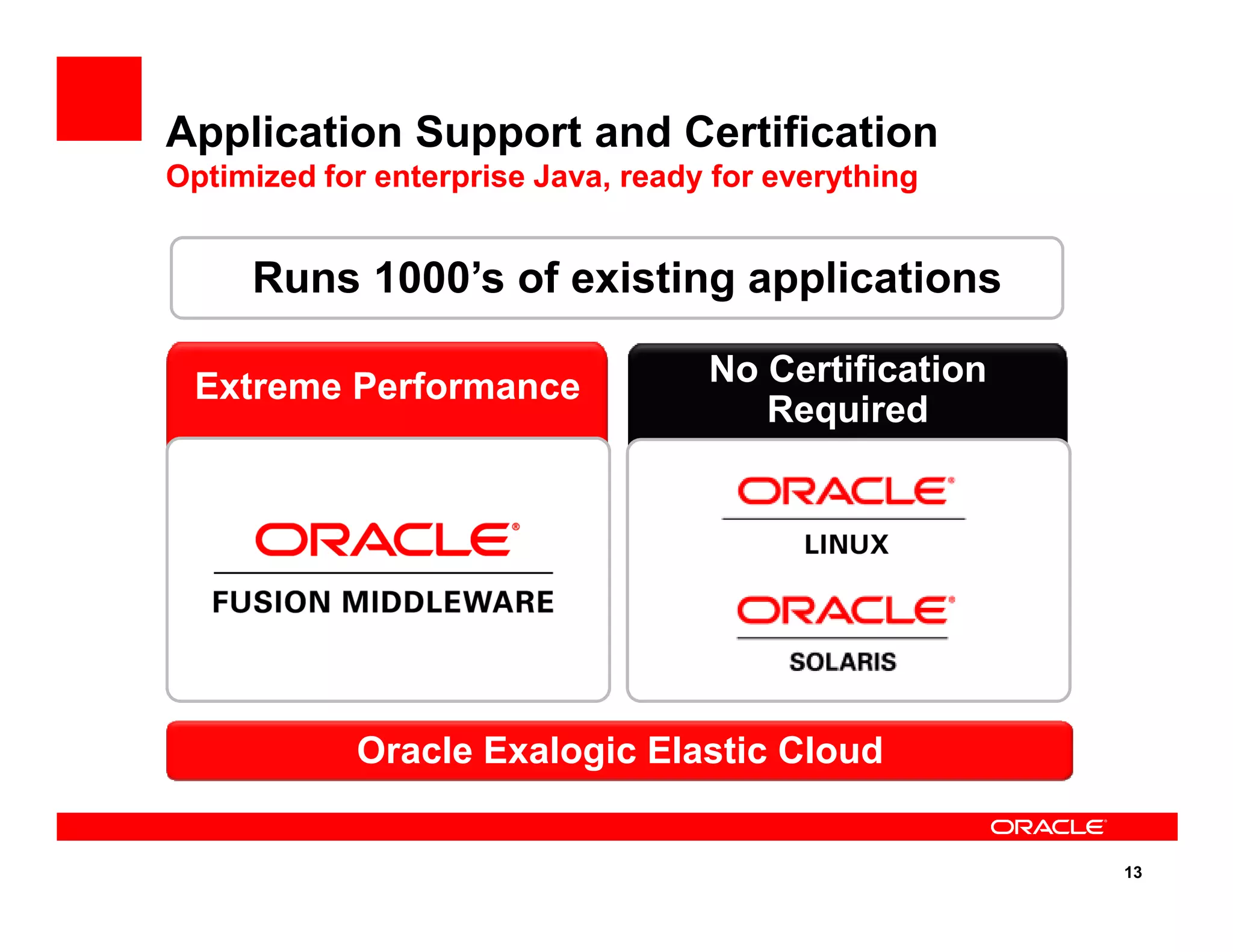

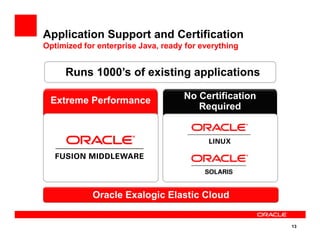

- 13. Application Support andCertification Optimized for enterprise Java, ready for everything Extreme Performance No Certification Required Runs 1000’s of existing applications 13 Oracle Exalogic Elastic Cloud

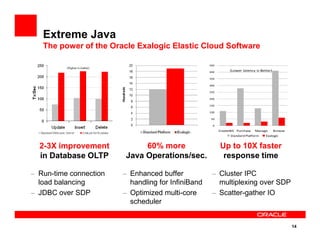

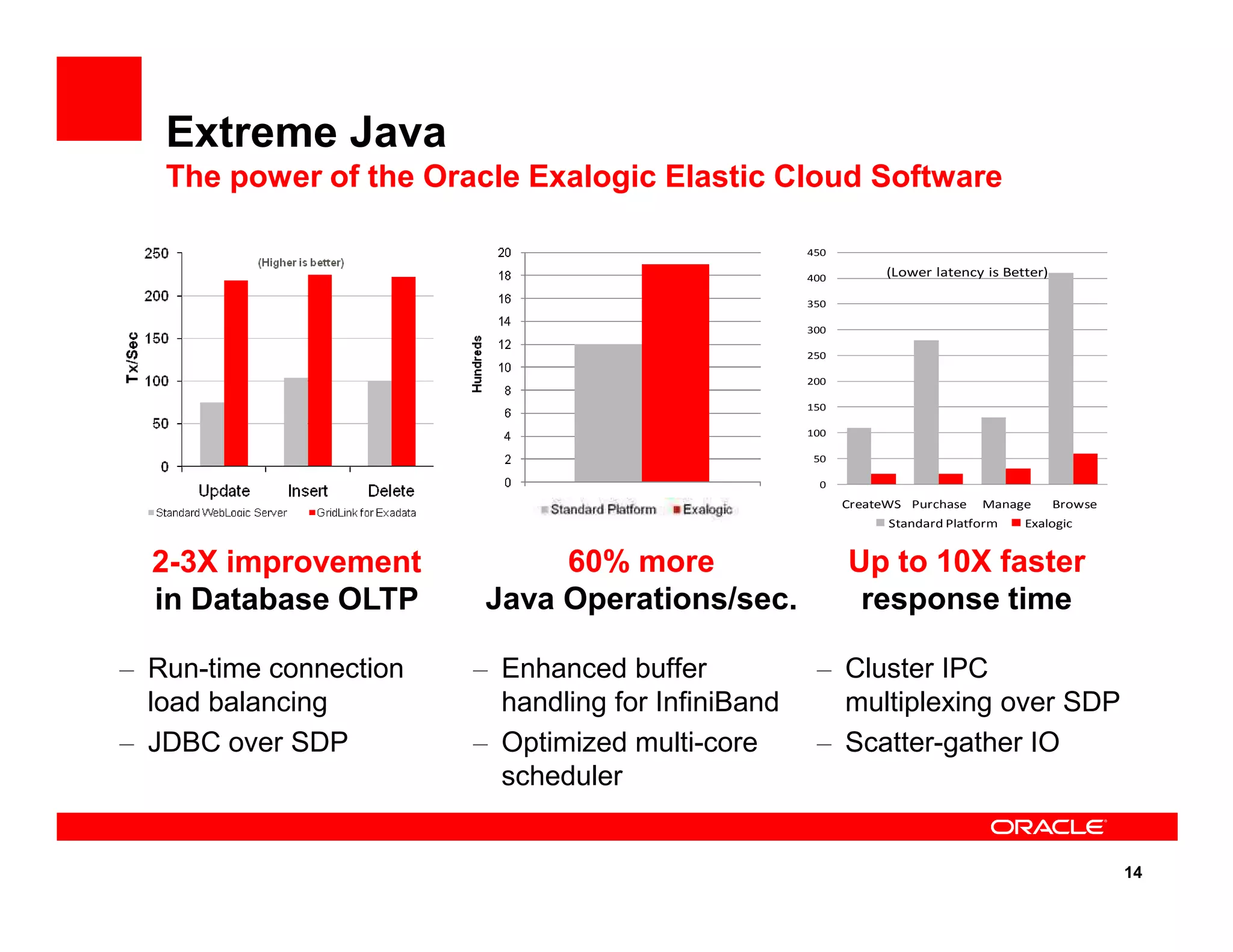

- 14. Extreme Java The powerof the Oracle Exalogic Elastic Cloud Software 50 100 150 200 250 300 350 400 450 (Lower latency is Better) 14 2-3X improvement in Database OLTP 60% more Java Operations/sec. – Run-time connection load balancing – JDBC over SDP – Enhanced buffer handling for InfiniBand – Optimized multi-core scheduler – Cluster IPC multiplexing over SDP – Scatter-gather IO 0 CreateWS Purchase Manage Browse Standard Platform Exalogic Up to 10X faster response time

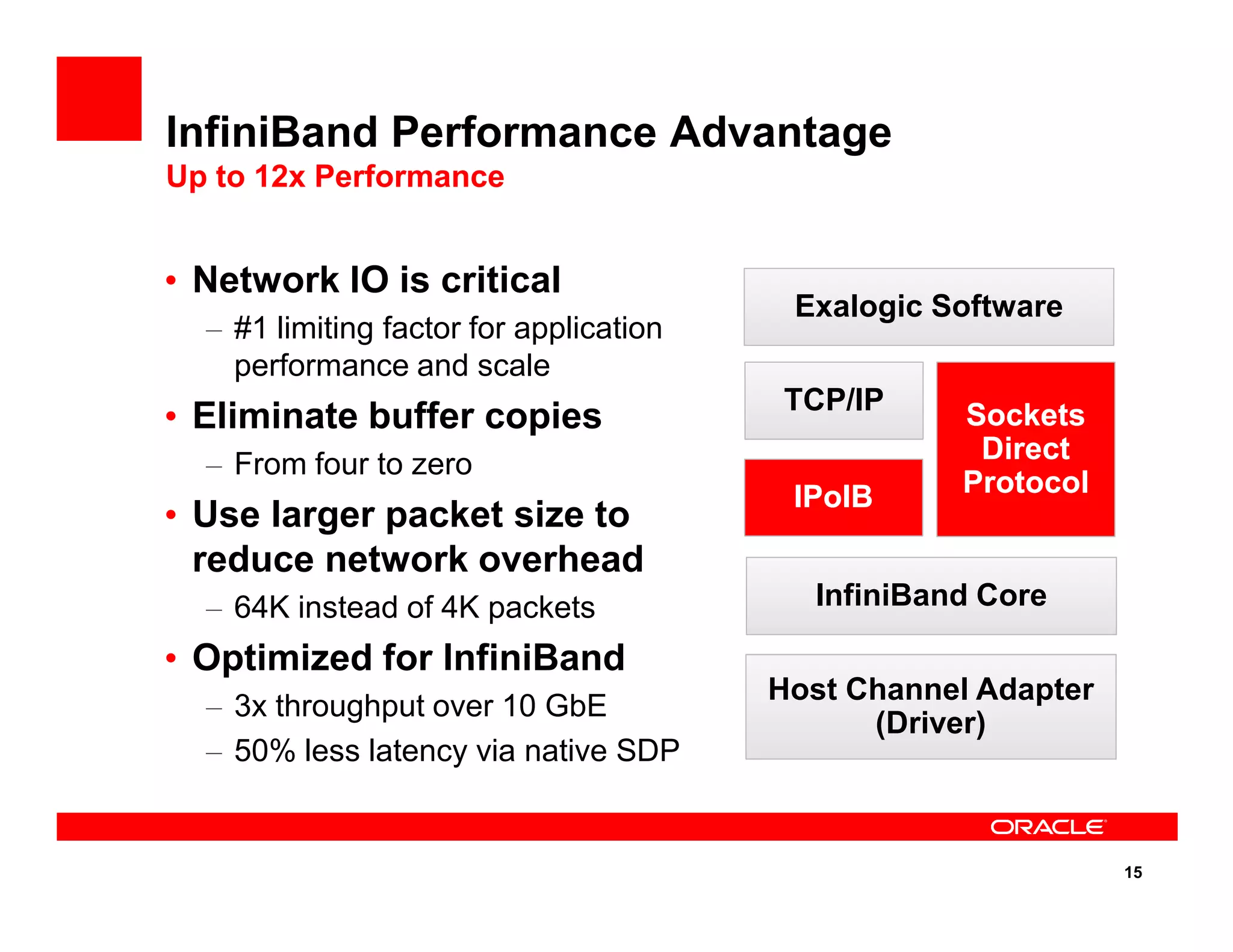

- 15. InfiniBand Performance Advantage Upto 12x Performance • Network IO is critical – #1 limiting factor for application performance and scale • Eliminate buffer copies – From four to zero TCP/IP SocketsSockets DirectDirect ProtocolProtocol Exalogic Software 15 – From four to zero • Use larger packet size to reduce network overhead – 64K instead of 4K packets • Optimized for InfiniBand – 3x throughput over 10 GbE – 50% less latency via native SDP Host Channel Adapter (Driver) InfiniBand Core IPoIBIPoIB ProtocolProtocol

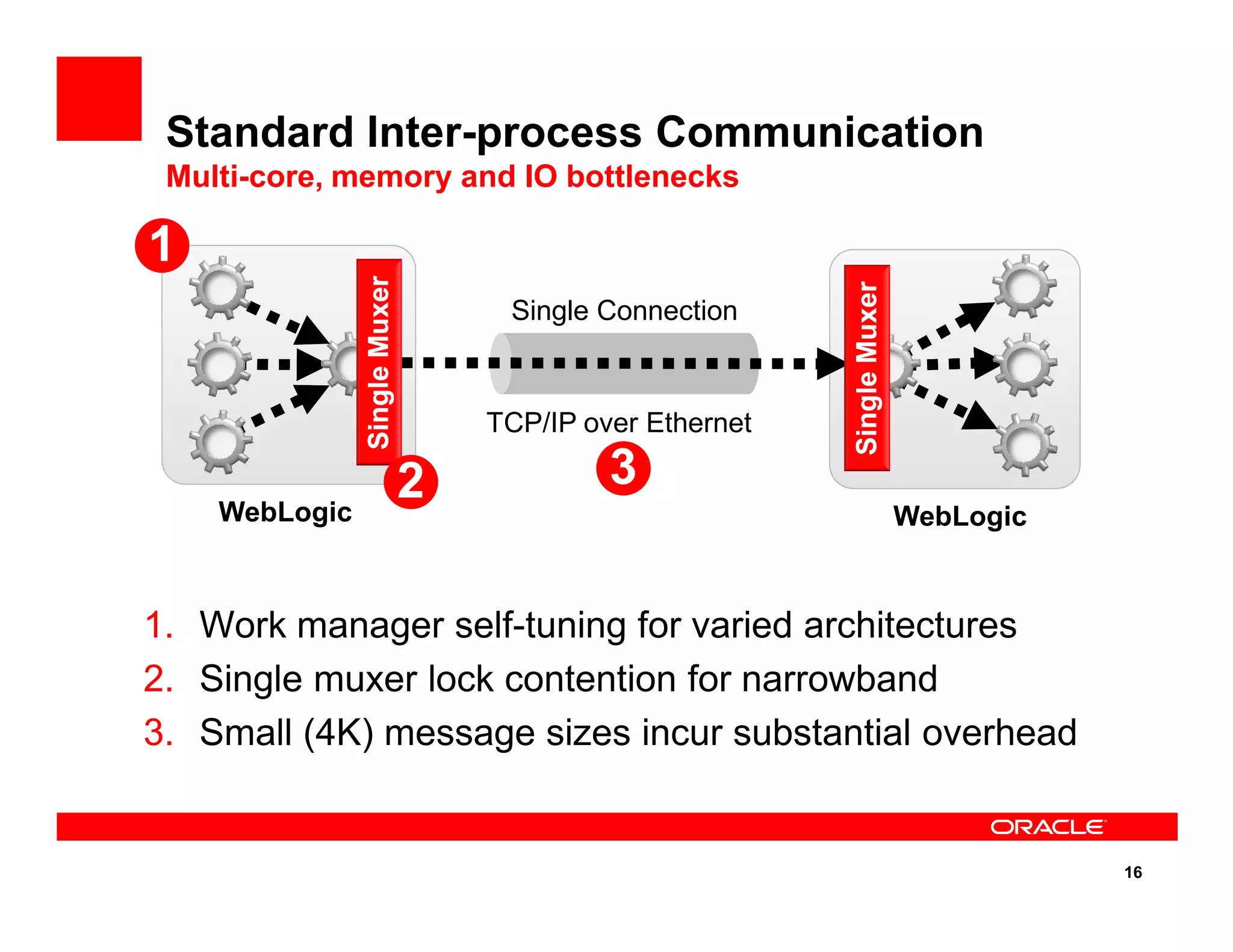

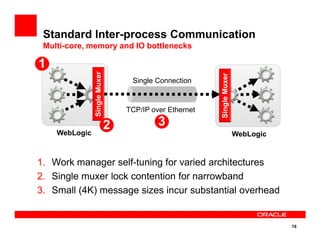

- 16. Standard Inter-process Communication Multi-core,memory and IO bottlenecks TCP/IP over Ethernet SingleMuxerSingleMuxer SingleMuxerSingleMuxer Single Connection 1111 2222 3333 16 1. Work manager self-tuning for varied architectures 2. Single muxer lock contention for narrowband 3. Small (4K) message sizes incur substantial overhead WebLogic WebLogic 2222 3333

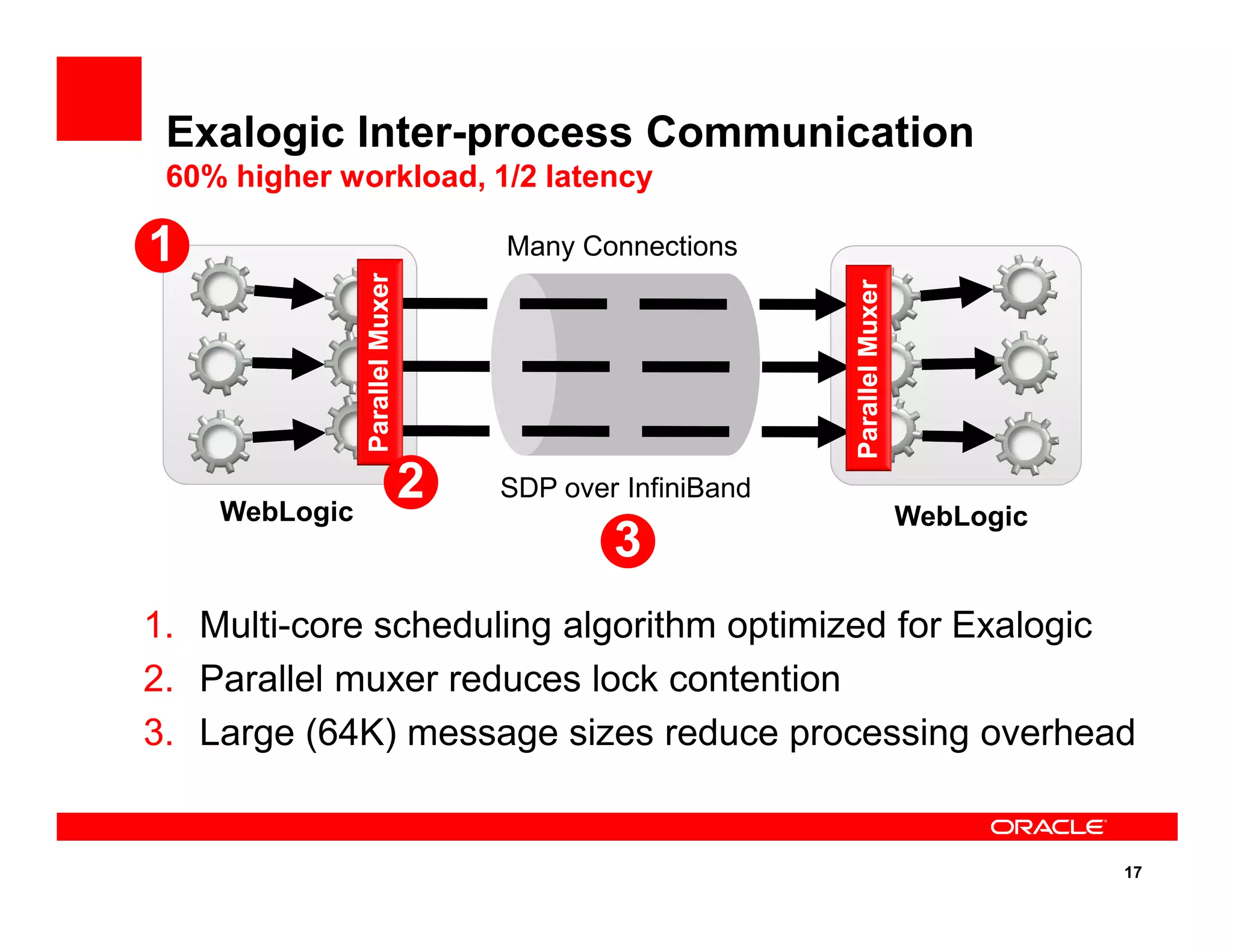

- 17. Exalogic Inter-process Communication 60%higher workload, 1/2 latency SDP over InfiniBand ParallelMuxerParallelMuxer ParallelMuxerParallelMuxer Many Connections1111 2222 17 1. Multi-core scheduling algorithm optimized for Exalogic 2. Parallel muxer reduces lock contention 3. Large (64K) message sizes reduce processing overhead WebLogic WebLogic SDP over InfiniBand2222 3333

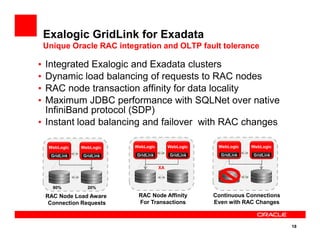

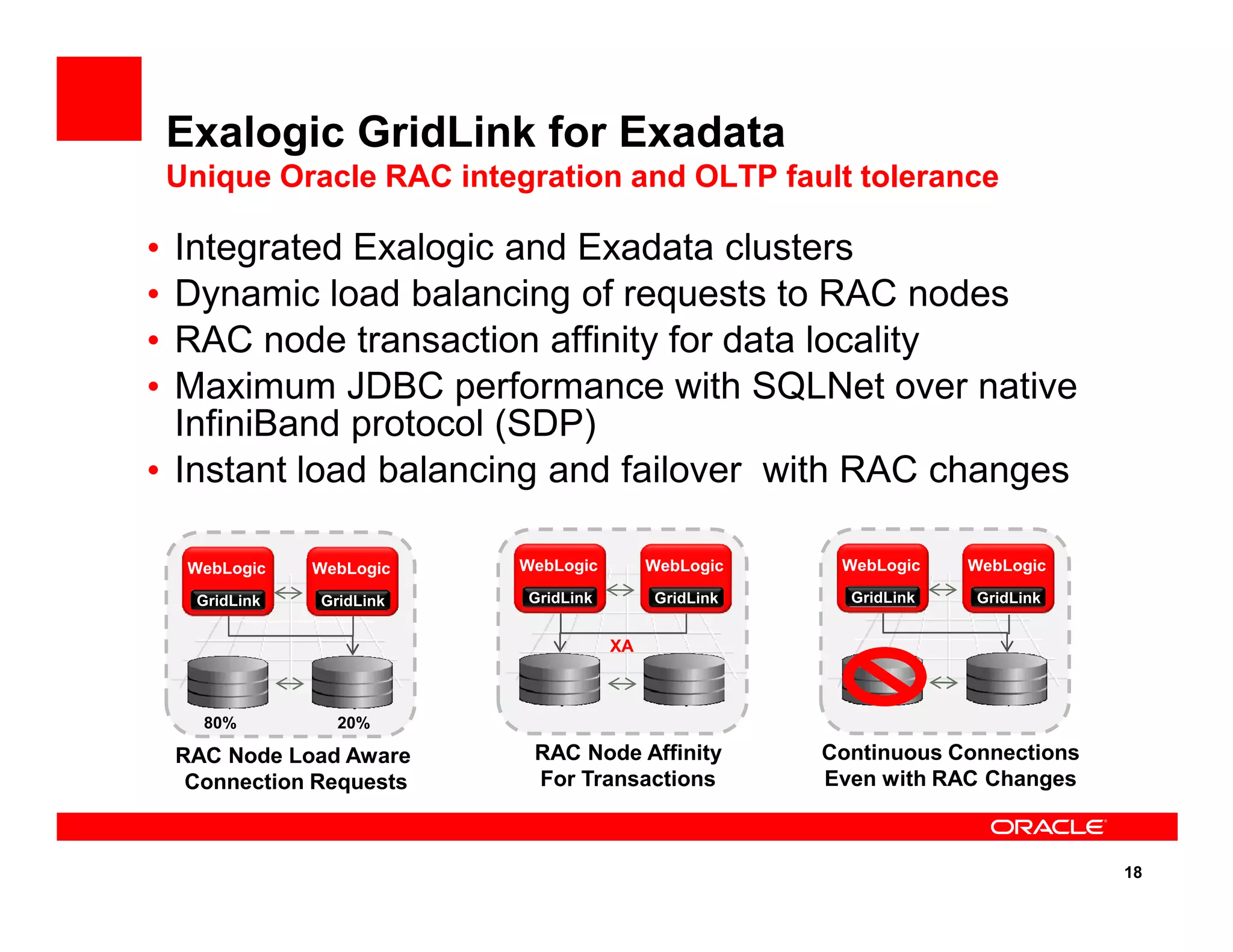

- 18. Exalogic GridLink forExadata Unique Oracle RAC integration and OLTP fault tolerance • Integrated Exalogic and Exadata clusters • Dynamic load balancing of requests to RAC nodes • RAC node transaction affinity for data locality • Maximum JDBC performance with SQLNet over native InfiniBand protocol (SDP) • Instant load balancing and failover with RAC changes 18 • Instant load balancing and failover with RAC changes GridLink WebLogic GridLink WebLogic 80% 20% RAC Node Load Aware Connection Requests GridLink WebLogic GridLink WebLogic RAC Node Affinity For Transactions XA GridLink WebLogic GridLink WebLogic Continuous Connections Even with RAC Changes

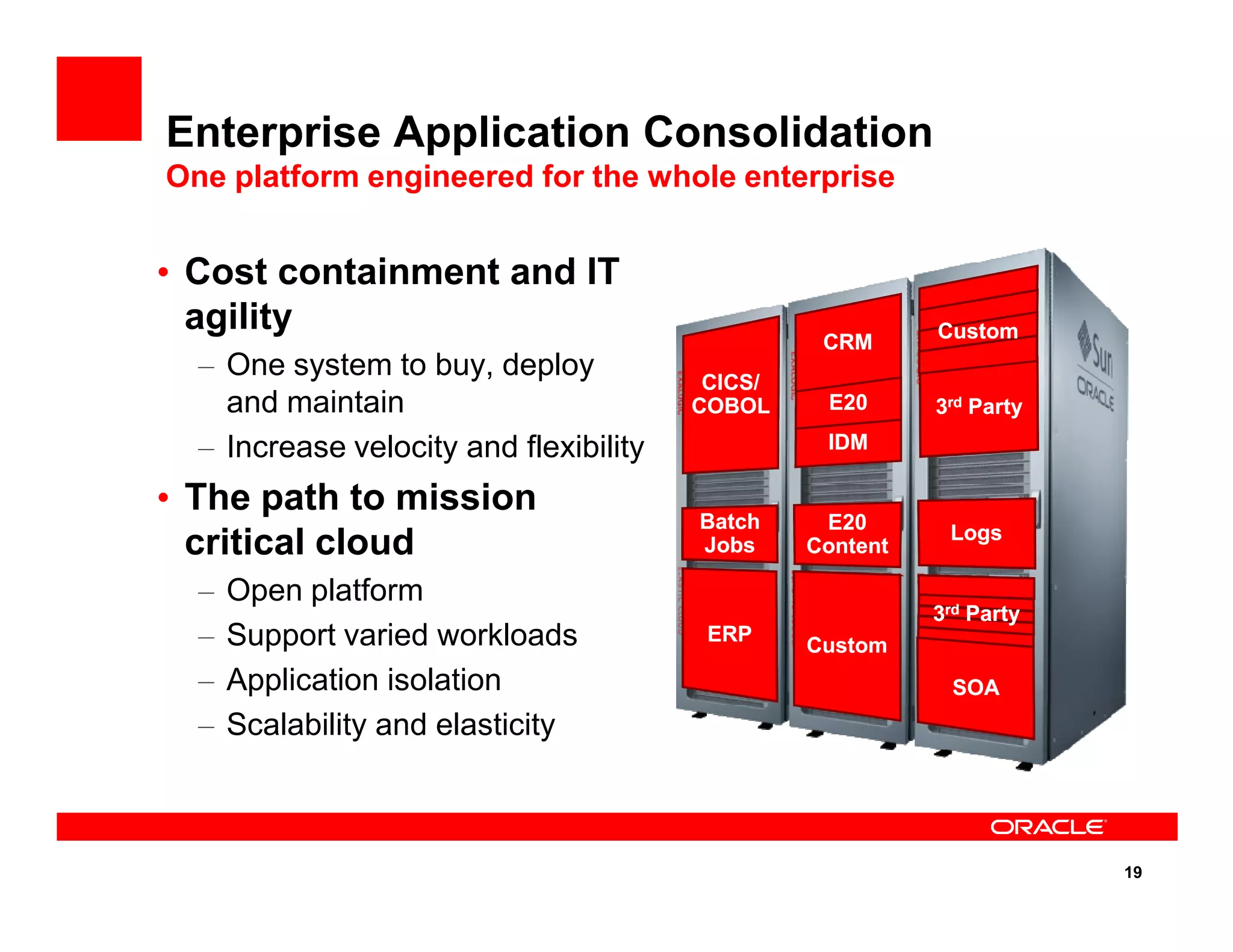

- 19. Enterprise Application Consolidation Oneplatform engineered for the whole enterprise • Cost containment and IT agility – One system to buy, deploy and maintain – Increase velocity and flexibility • The path to mission 33rdrd PartyParty CICS/CICS/ COBOLCOBOL CRMCRM IDMIDM E20E20 CustomCustom 19 • The path to mission critical cloud – Open platform – Support varied workloads – Application isolation – Scalability and elasticity CustomCustom LogsLogs BatchBatch JobsJobs ERPERP SOASOA E20E20 ContentContent 33rdrd PartyParty

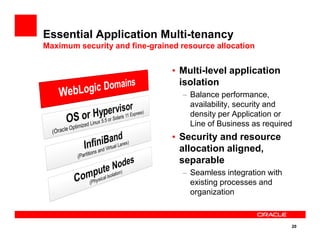

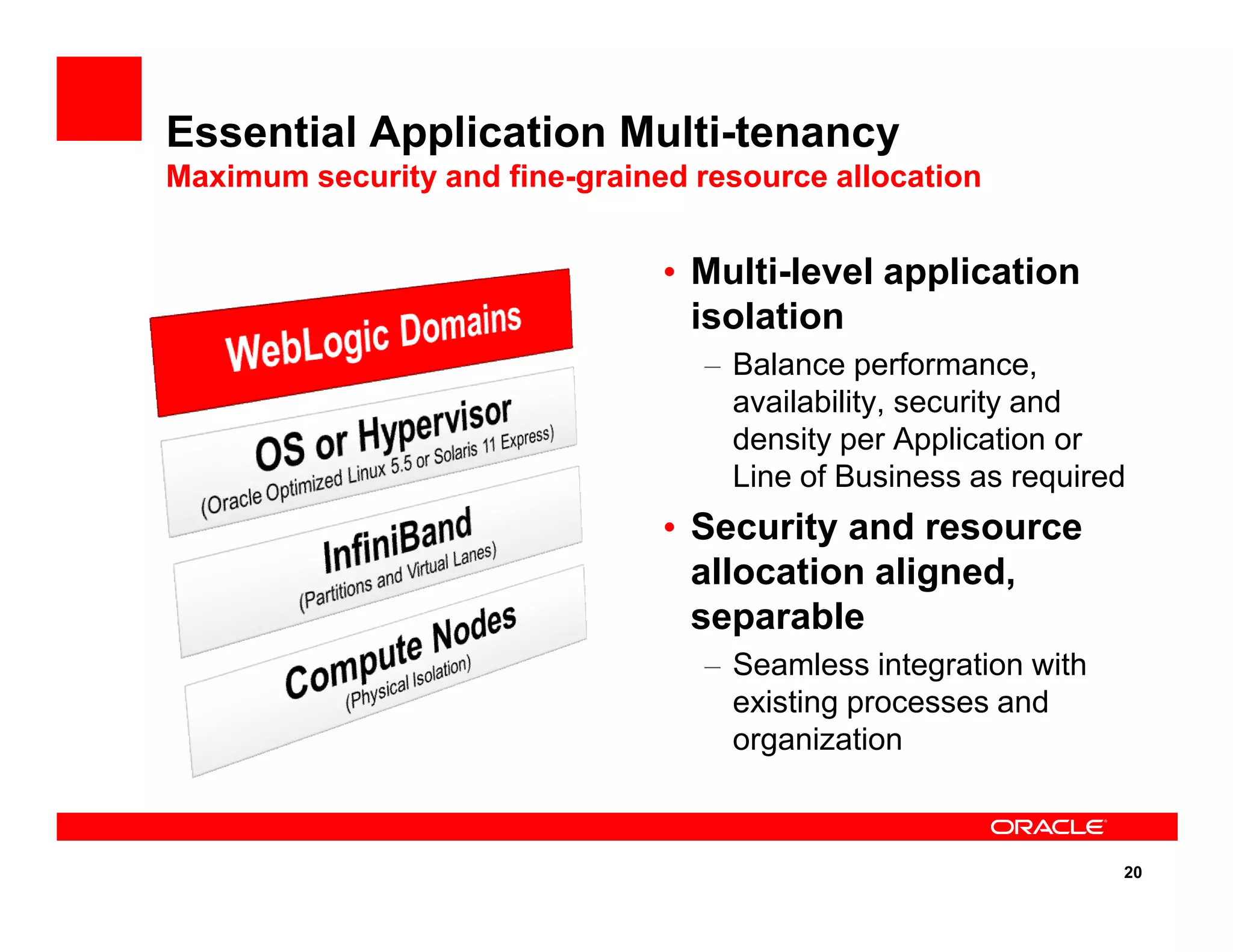

- 20. Essential Application Multi-tenancy Maximumsecurity and fine-grained resource allocation • Multi-level application isolation – Balance performance, availability, security and density per Application or Line of Business as required 20 Line of Business as required • Security and resource allocation aligned, separable – Seamless integration with existing processes and organization

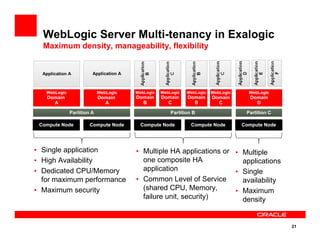

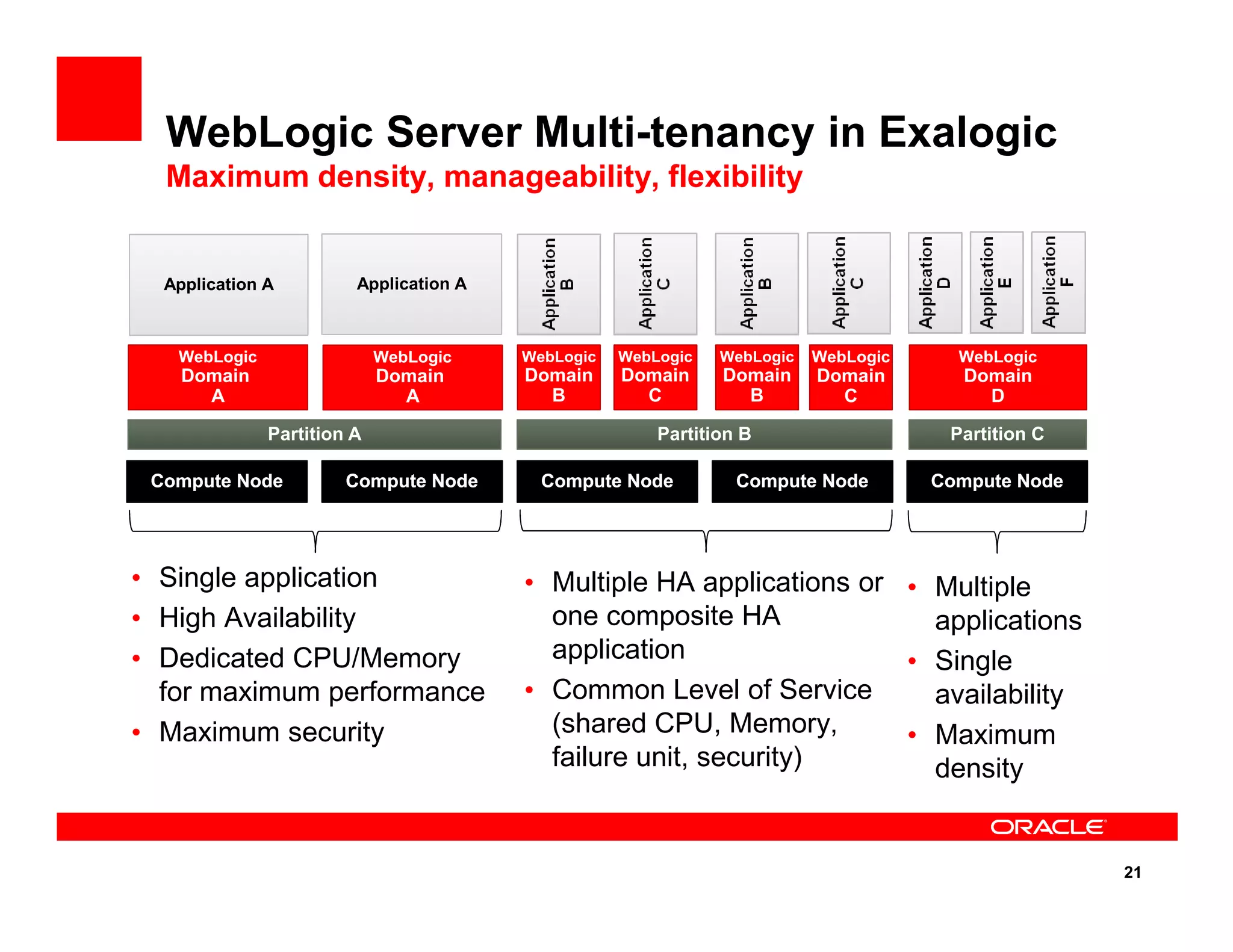

- 21. WebLogic Server Multi-tenancyin Exalogic Maximum density, manageability, flexibility Compute NodeCompute Node Compute NodeCompute Node Compute NodeCompute Node Compute NodeCompute NodeCompute NodeCompute Node Partition A Partition CPartition B WebLogic Domain A WebLogic Domain B WebLogic Domain D WebLogic Domain B WebLogic Domain C WebLogic Domain C Application A Application A WebLogic Domain A 21 Compute NodeCompute Node Compute NodeCompute Node Compute NodeCompute Node Compute NodeCompute NodeCompute NodeCompute Node • Single application • High Availability • Dedicated CPU/Memory for maximum performance • Maximum security • Multiple HA applications or one composite HA application • Common Level of Service (shared CPU, Memory, failure unit, security) • Multiple applications • Single availability • Maximum density
- 22. Out of ControlConfiguration Management 22 Extreme Pain? Get Extreme Control!

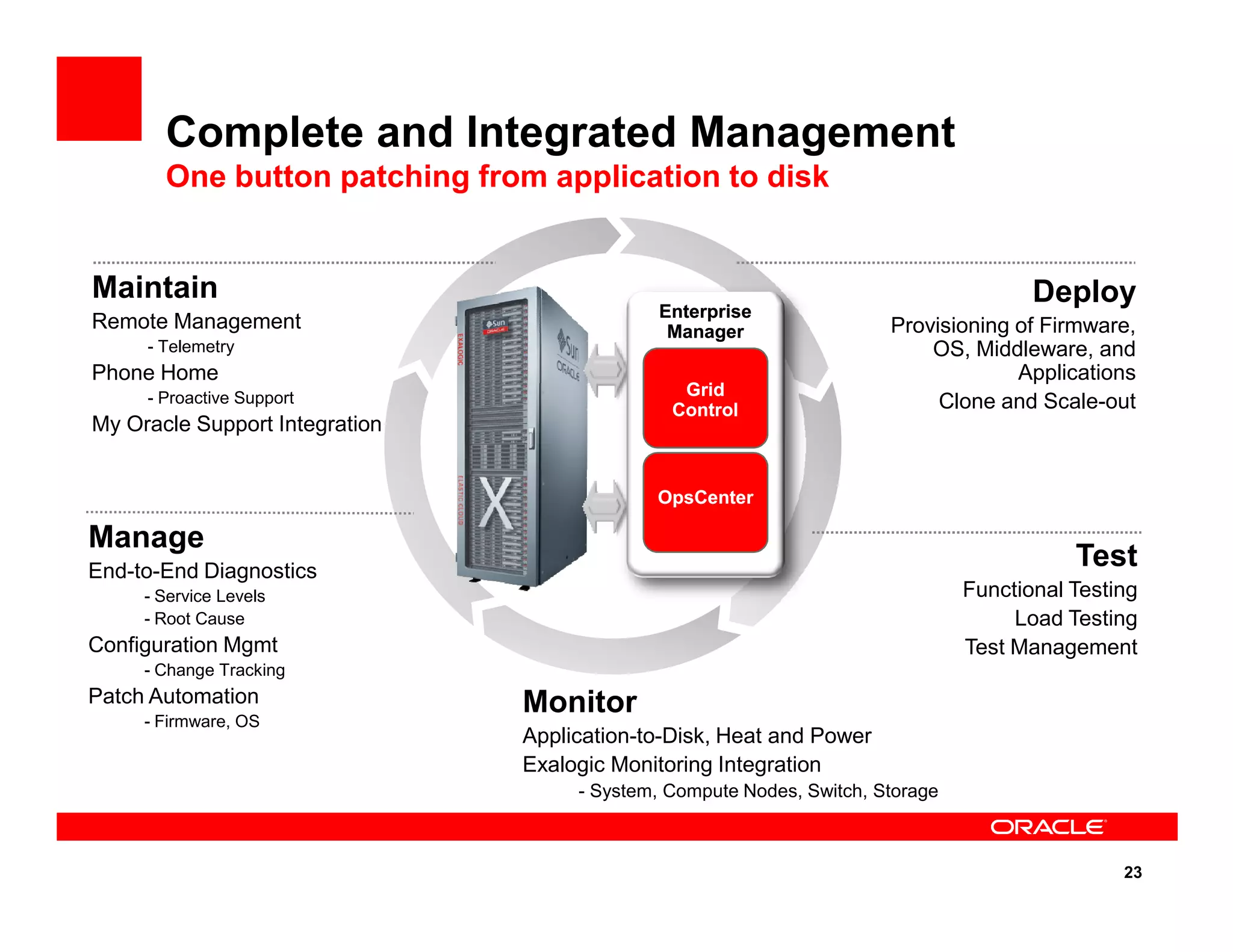

- 23. Complete and IntegratedManagement One button patching from application to disk Deploy Provisioning of Firmware, OS, Middleware, and Applications Clone and Scale-out Maintain Remote Management - Telemetry Phone Home - Proactive Support My Oracle Support Integration GridGrid ControlControl EnterpriseEnterprise ManagerManager 23 Test Functional Testing Load Testing Test Management Manage End-to-End Diagnostics - Service Levels - Root Cause Configuration Mgmt - Change Tracking Patch Automation - Firmware, OS Monitor Application-to-Disk, Heat and Power Exalogic Monitoring Integration - System, Compute Nodes, Switch, Storage OpsCenterOpsCenter

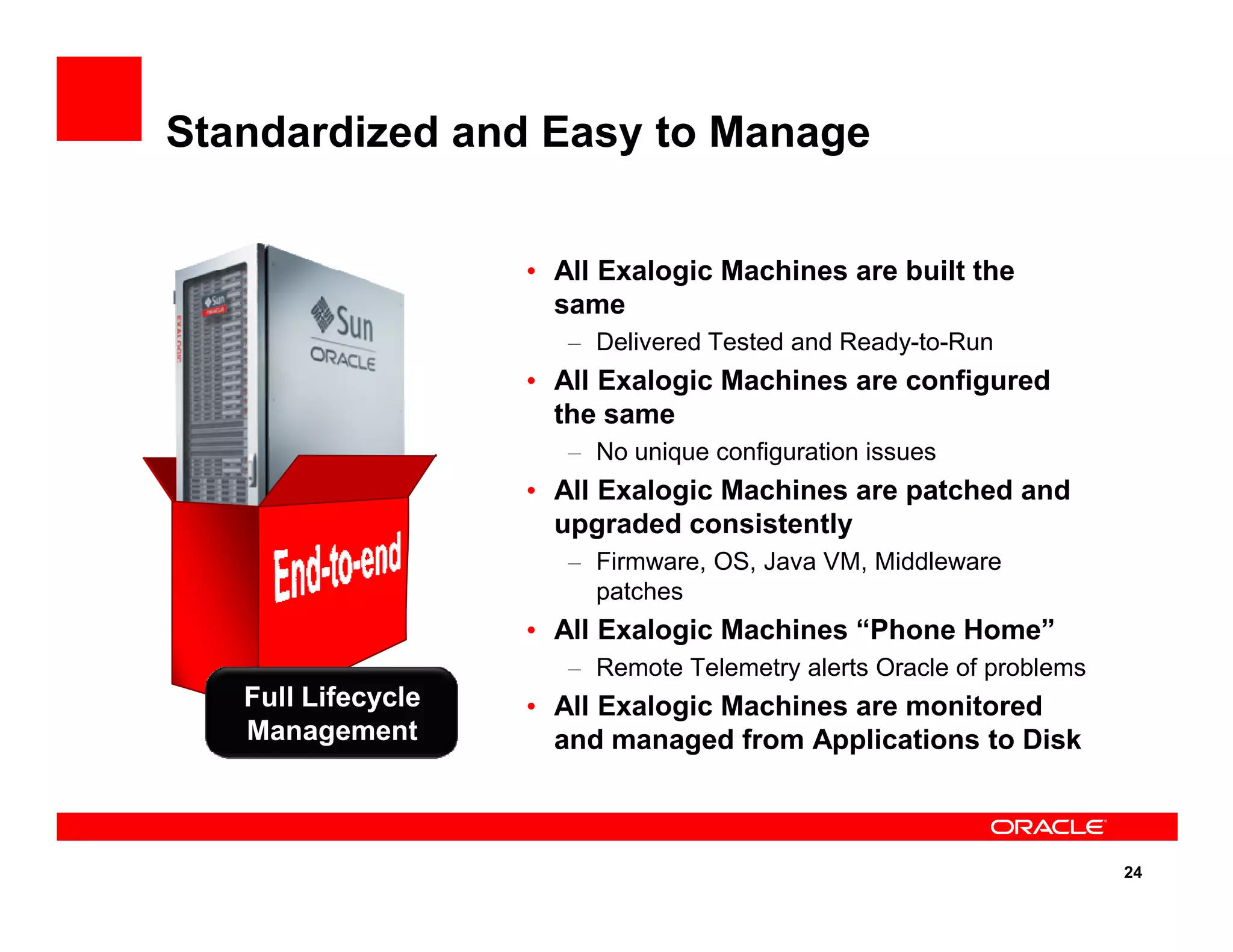

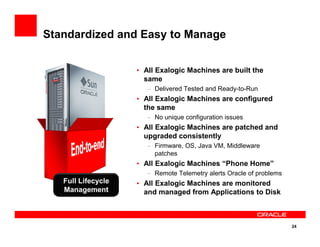

- 24. Standardized and Easyto Manage • All Exalogic Machines are built the same – Delivered Tested and Ready-to-Run • All Exalogic Machines are configured the same – No unique configuration issues • All Exalogic Machines are patched and 24 • All Exalogic Machines are patched and upgraded consistently – Firmware, OS, Java VM, Middleware patches • All Exalogic Machines “Phone Home” – Remote Telemetry alerts Oracle of problems • All Exalogic Machines are monitored and managed from Applications to Disk Full Lifecycle Management

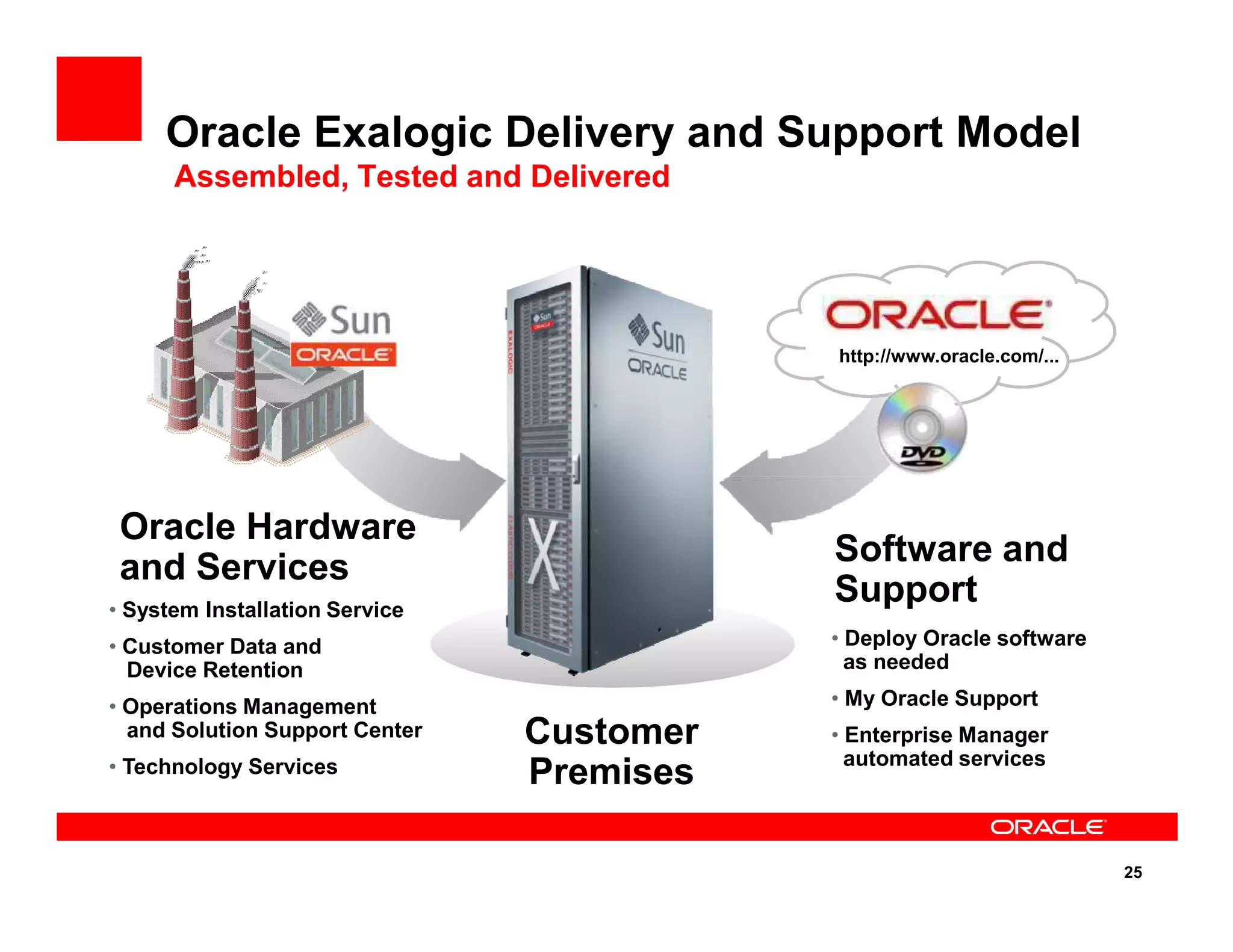

- 25. Oracle Exalogic Deliveryand Support Model Assembled, Tested and Delivered http://www.oracle.com/... 25 Customer Premises Software and Support Oracle Hardware and Services • System Installation Service • Customer Data and Device Retention • Operations Management and Solution Support Center • Technology Services • Deploy Oracle software as needed • My Oracle Support • Enterprise Manager automated services

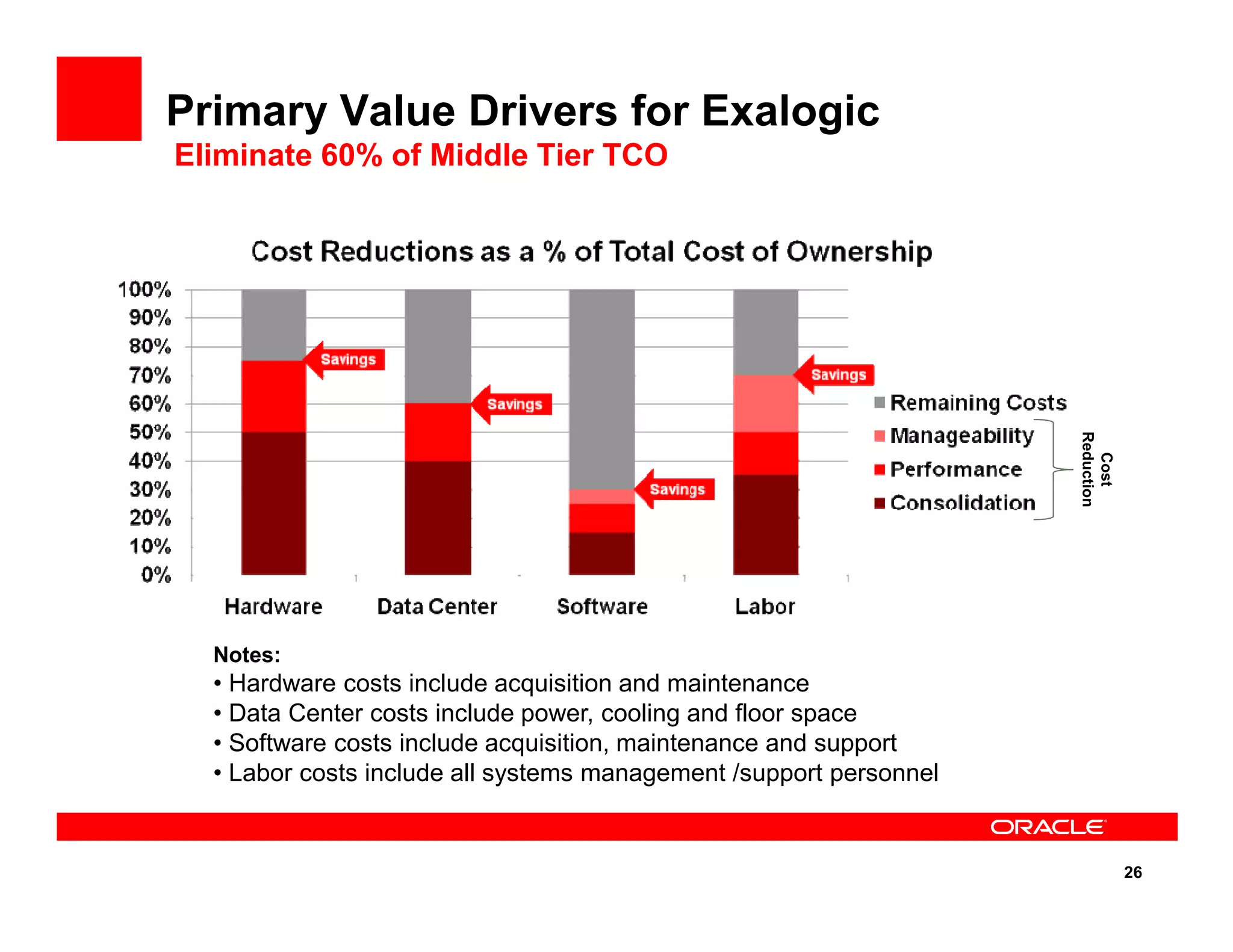

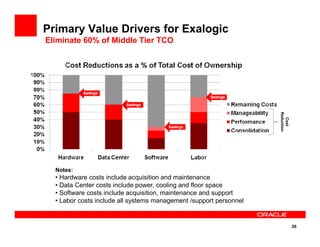

- 26. Primary Value Driversfor Exalogic Eliminate 60% of Middle Tier TCO Cost Reduction 26 Notes: • Hardware costs include acquisition and maintenance • Data Center costs include power, cooling and floor space • Software costs include acquisition, maintenance and support • Labor costs include all systems management /support personnel Cost Reduction

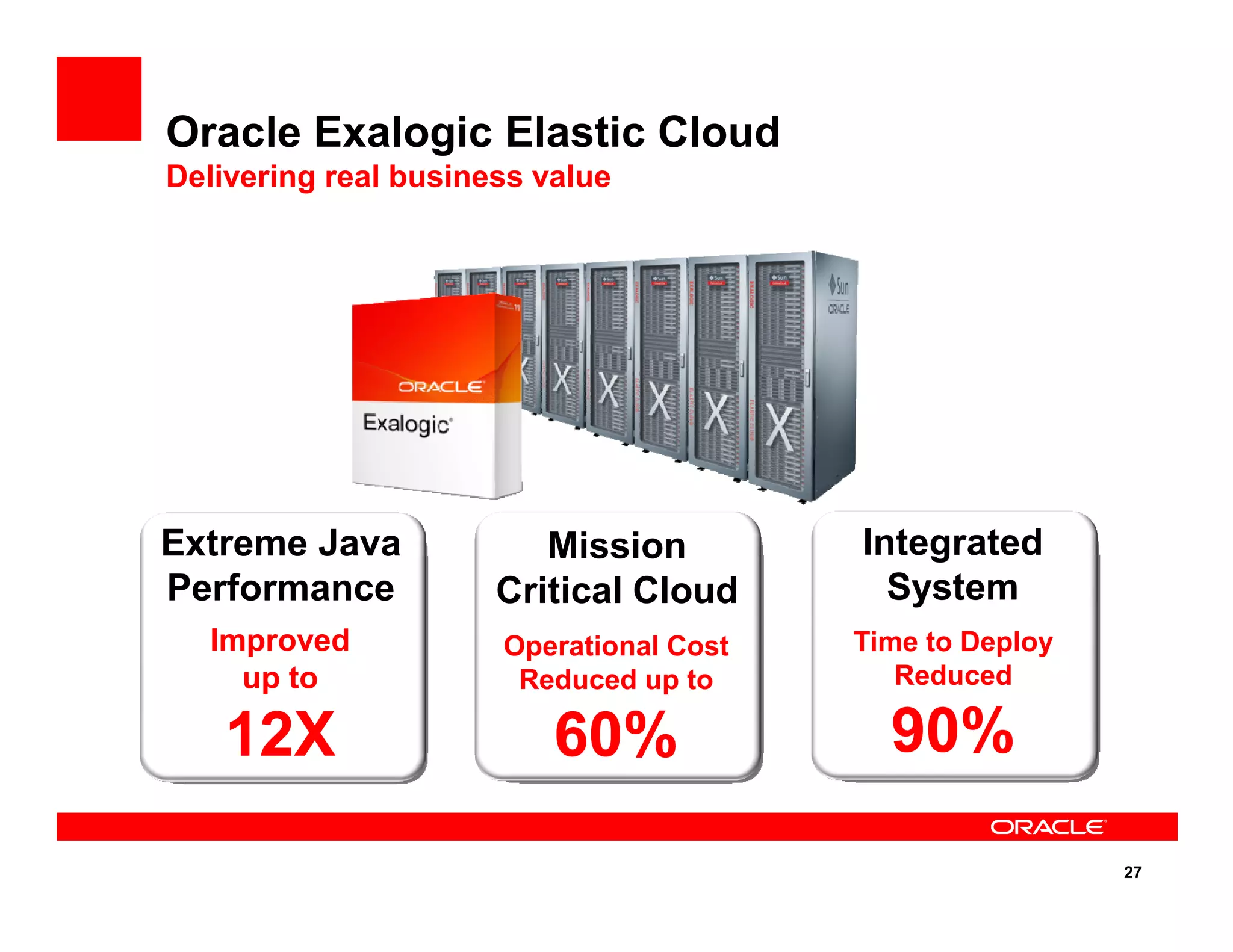

- 27. Oracle Exalogic ElasticCloud Delivering real business value 27 Mission Critical Cloud Operational Cost Reduced up to 60%60% Integrated System Time to Deploy Reduced 90%90% Extreme Java Performance Improved up to 12X12X
