Rabin Karp Algorithm

Rabin Karp Algorithm

• 1.
  RABIN-KARP ALGORITHM
• 2.
  INTRODUCTION:- Rabin–Karp algorithm orKarp–Rabin algorithm is a string searching algorithm created by Richard M.Karp and Michael O.Rabin (1987) . Richard Manning Karp Born: January 3, 1935 Michael Oser Rabin Born: September 1, 1931
• 3.

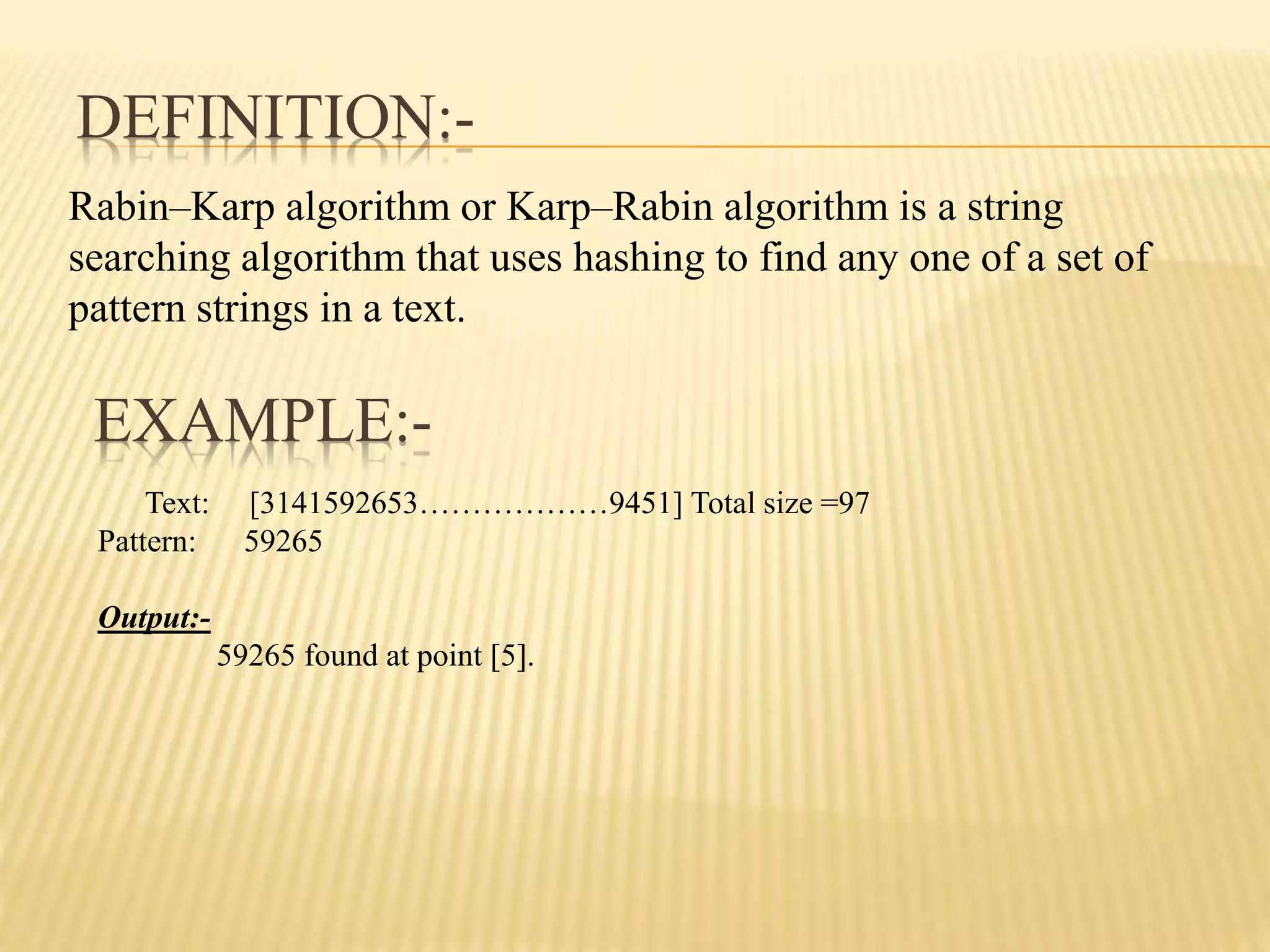

  EXAMPLE:- Rabin–Karp algorithm orKarp–Rabin algorithm is a string searching algorithm that uses hashing to find any one of a set of pattern strings in a text. DEFINITION:- Text: [3141592653………………9451] Total size =97 Pattern: 59265 Output:- 59265 found at point [5].
• 4.

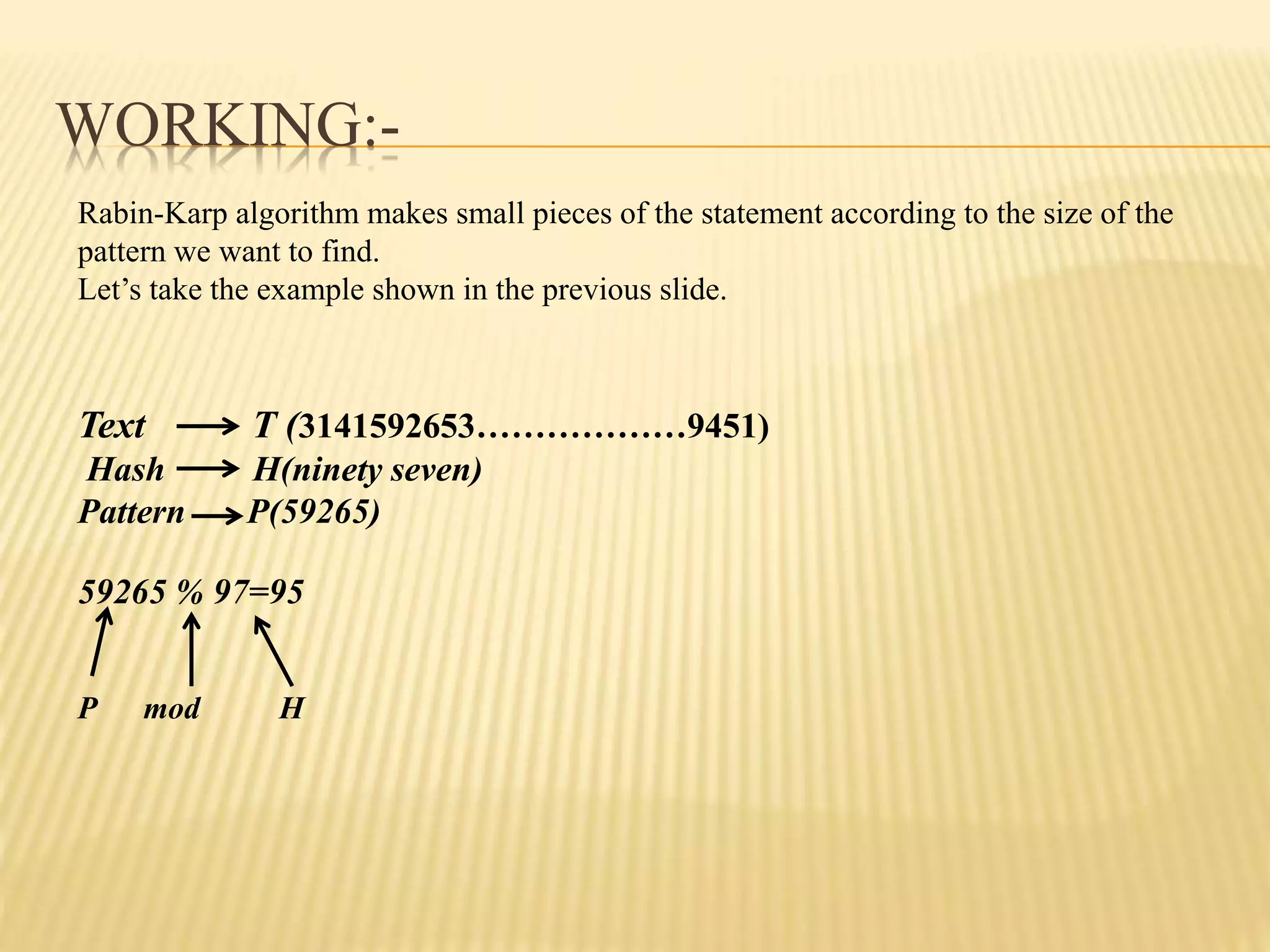

  WORKING:- Rabin-Karp algorithm makessmall pieces of the statement according to the size of the pattern we want to find. Let’s take the example shown in the previous slide. Text T (3141592653………………9451) Hash H(ninety seven) Pattern P(59265) 59265 % 97=95 P mod H
• 5.

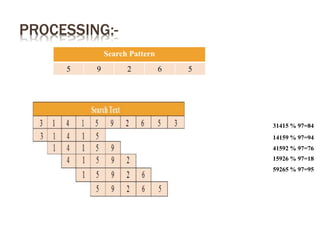

  PROCESSING:- Search Pattern 5 92 6 5 31415 % 97=84 14159 % 97=94 41592 % 97=76 15926 % 97=18 59265 % 97=95
• 6.

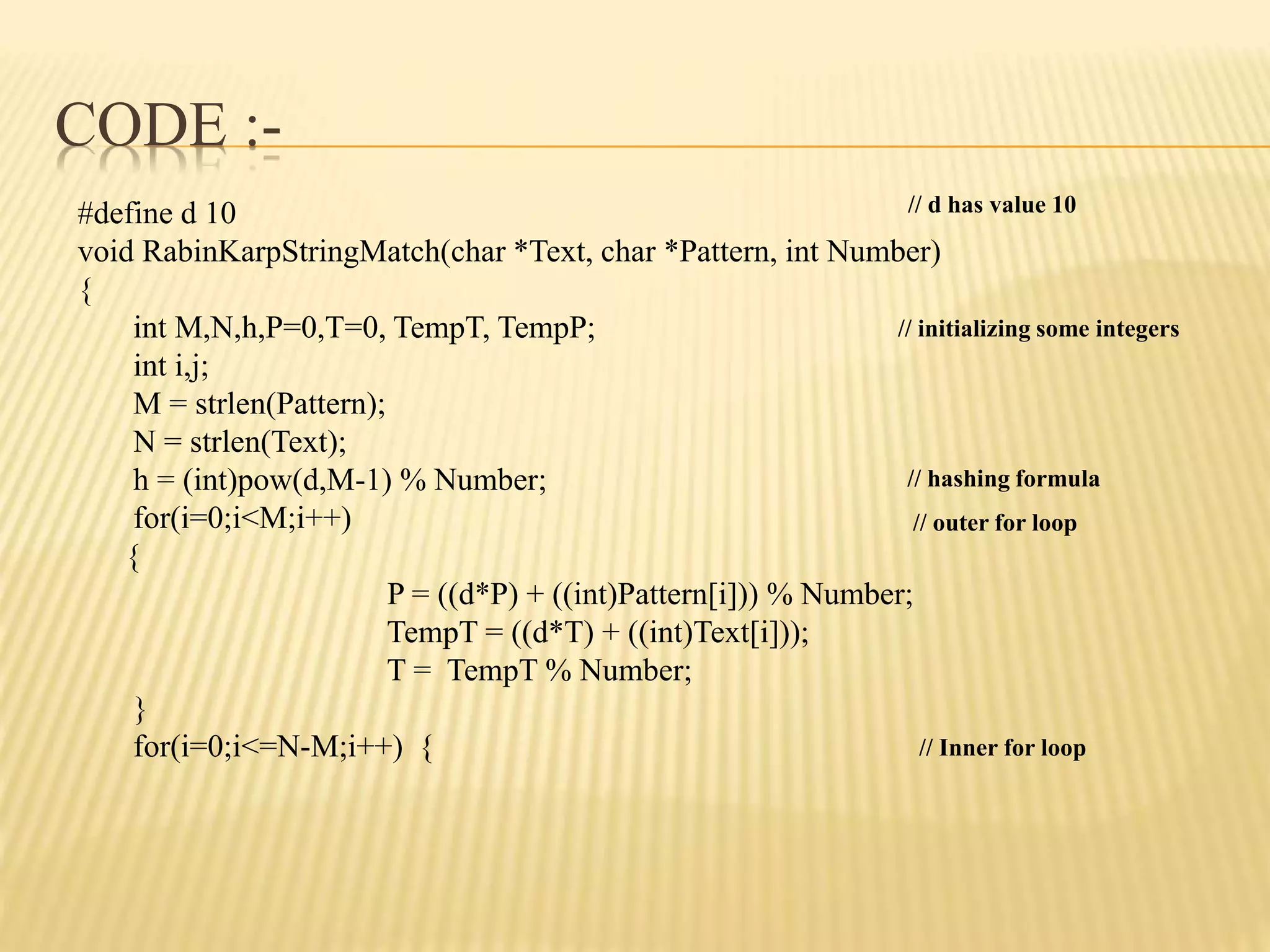

  CODE :- #define d10 void RabinKarpStringMatch(char *Text, char *Pattern, int Number) { int M,N,h,P=0,T=0, TempT, TempP; int i,j; M = strlen(Pattern); N = strlen(Text); h = (int)pow(d,M-1) % Number; for(i=0;i<M;i++) { P = ((d*P) + ((int)Pattern[i])) % Number; TempT = ((d*T) + ((int)Text[i])); T = TempT % Number; } for(i=0;i<=N-M;i++) { // d has value 10 // initializing some integers // hashing formula // outer for loop // Inner for loop
• 7.

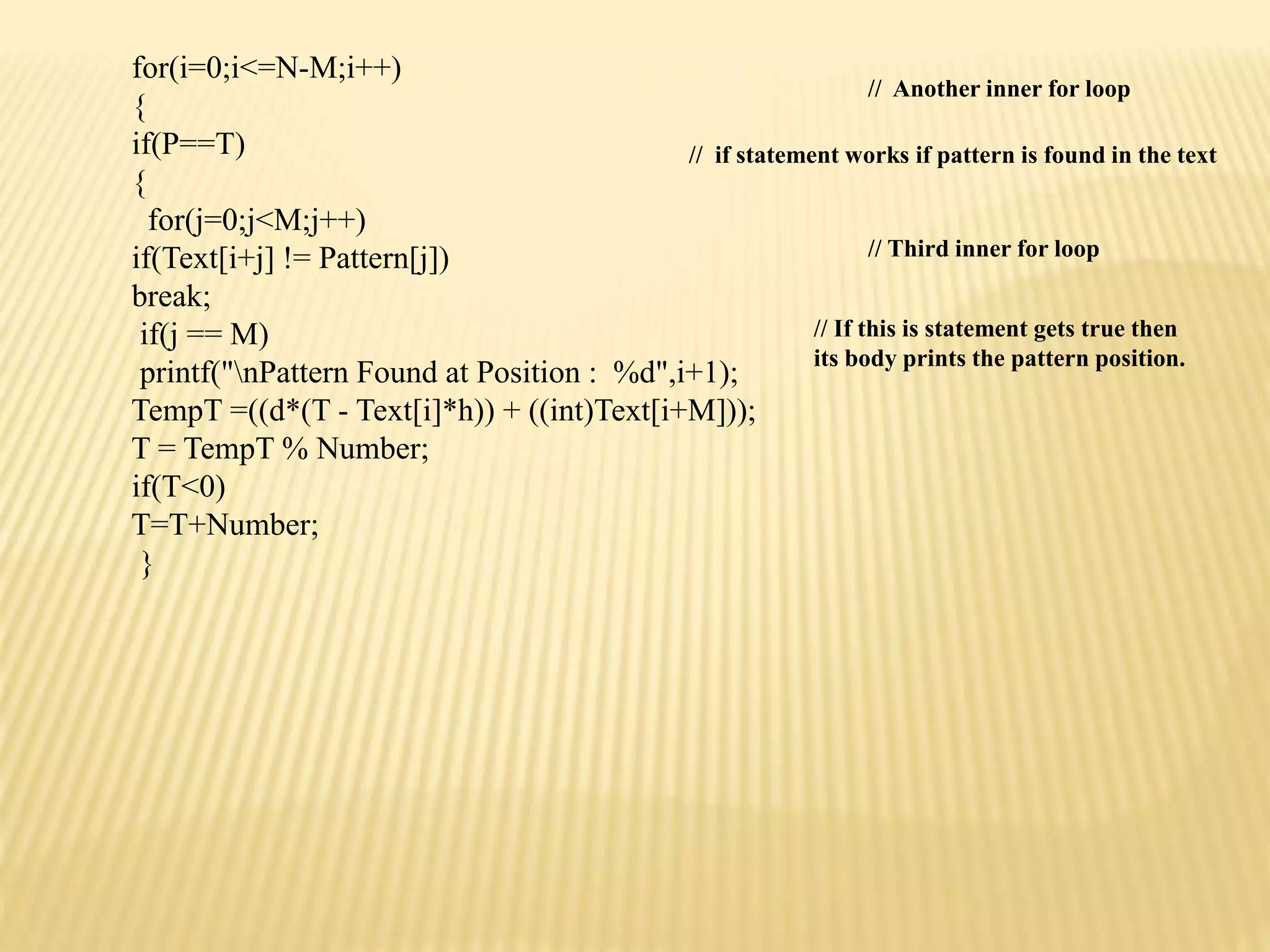

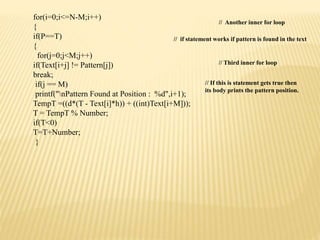

  for(i=0;i<=N-M;i++) { if(P==T) { for(j=0;j<M;j++) if(Text[i+j] != Pattern[j]) break; if(j== M) printf("nPattern Found at Position : %d",i+1); TempT =((d*(T - Text[i]*h)) + ((int)Text[i+M])); T = TempT % Number; if(T<0) T=T+Number; } // Another inner for loop // if statement works if pattern is found in the text // Third inner for loop // If this is statement gets true then its body prints the pattern position.
• 8.

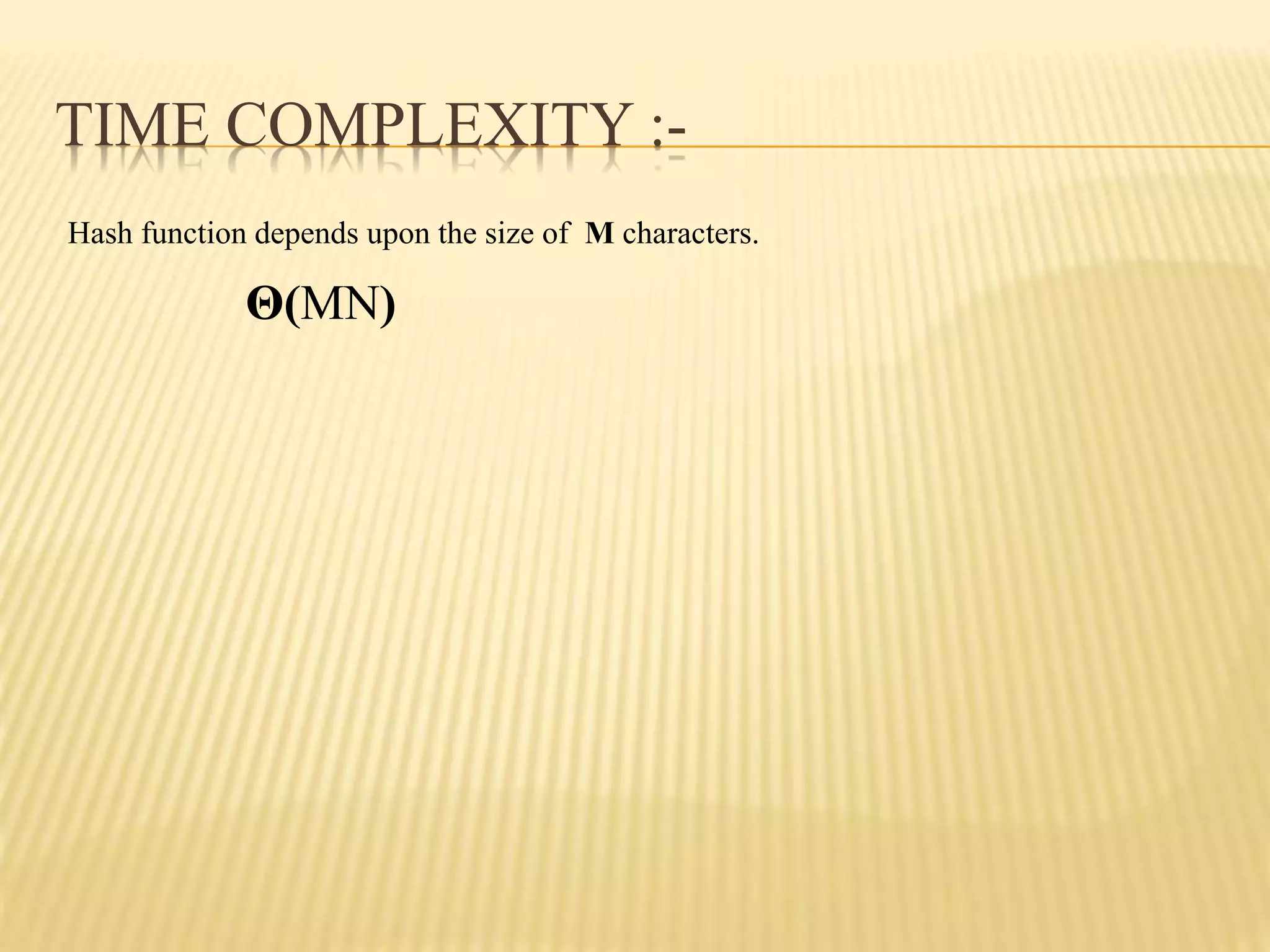

  TIME COMPLEXITY :- Hashfunction depends upon the size of M characters. Θ(MN)
