Rich Web Interfaces with JSF2 - An Introduction
- 1. Rich Web Interfaces withJSF2 An Introduction ! Eduardo Mendonça November 2013 http://www.slideshare.net/eduardo_mendonca/rich-web-interfaces-with-jsf2-an-introduction
- 2. It all beganwith HTML…

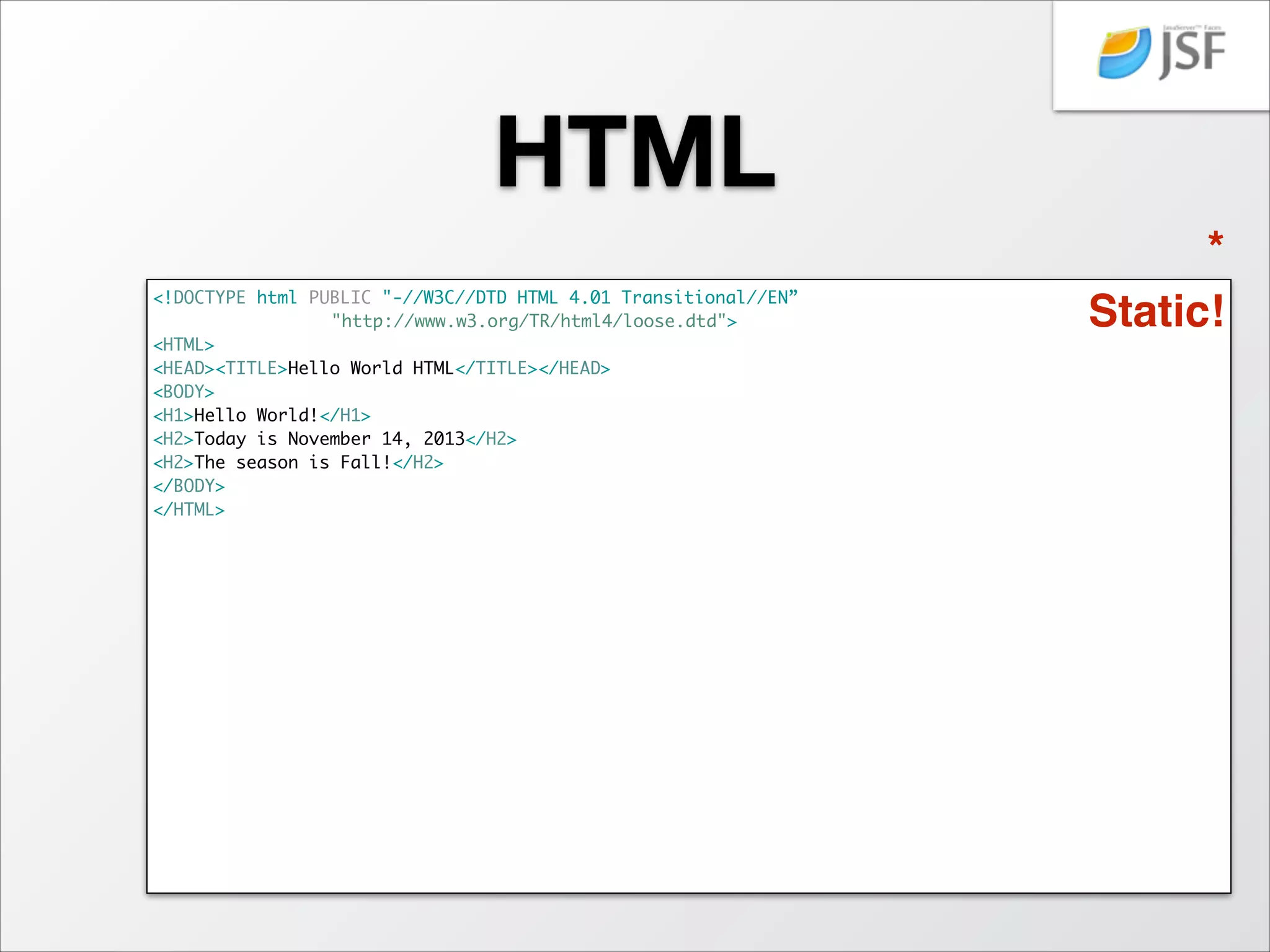

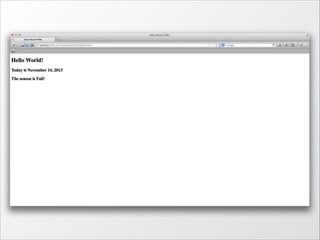

- 4. HTML <!DOCTYPE html PUBLIC"-//W3C//DTD HTML 4.01 Transitional//EN” "http://www.w3.org/TR/html4/loose.dtd"> <HTML> <HEAD><TITLE>Hello World HTML</TITLE></HEAD> <BODY> <H1>Hello World!</H1> <H2>Today is November 14, 2013</H2> <H2>The season is Fall!</H2> </BODY> </HTML> ! ! * Static!
- 5.

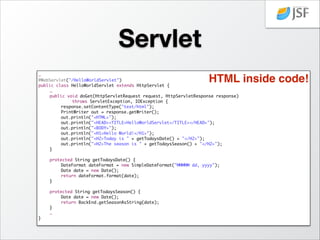

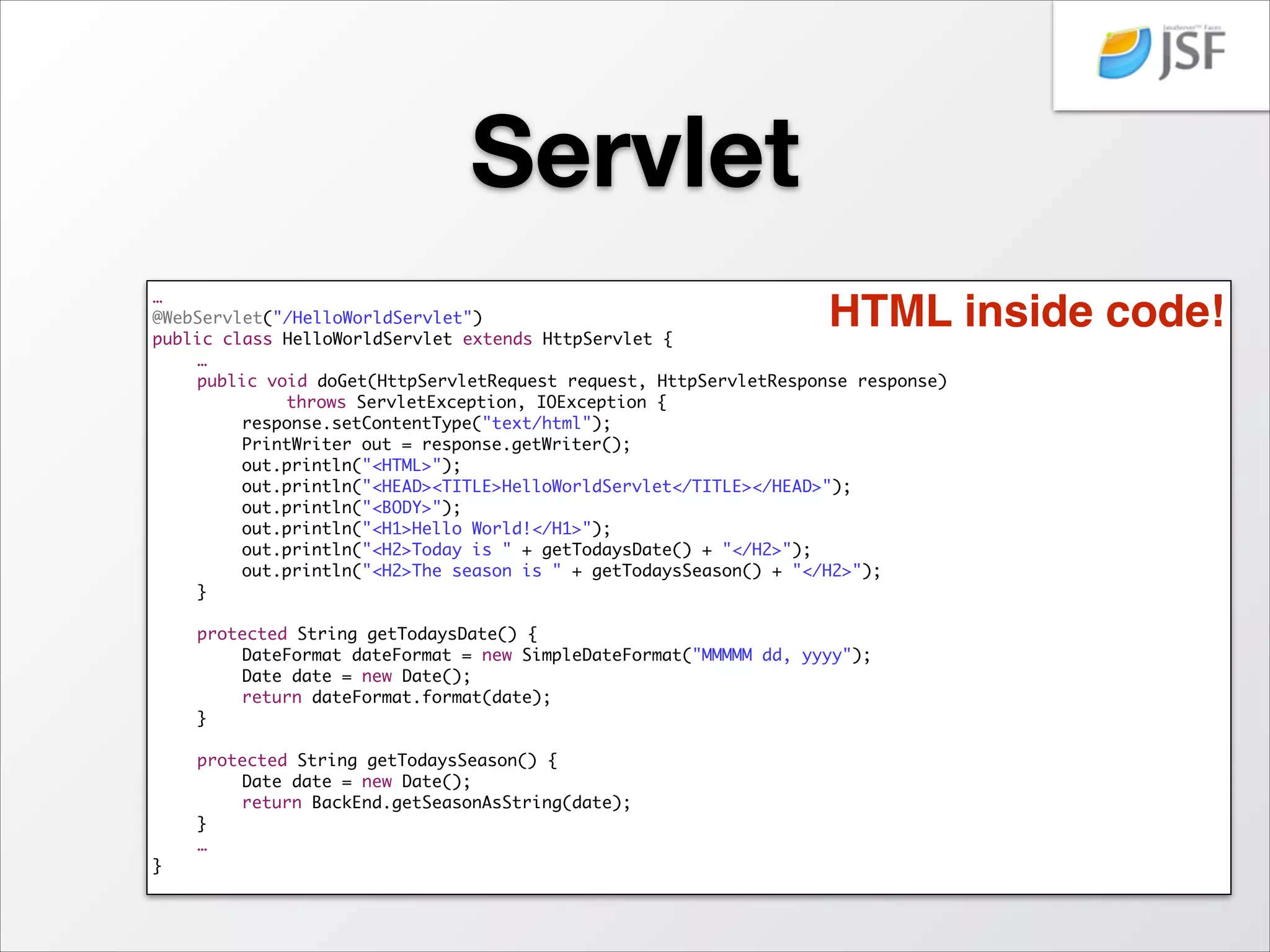

- 6. Servlet … @WebServlet("/HelloWorldServlet") public class HelloWorldServletextends HttpServlet { … public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { response.setContentType("text/html"); PrintWriter out = response.getWriter(); out.println("<HTML>"); out.println("<HEAD><TITLE>HelloWorldServlet</TITLE></HEAD>"); out.println("<BODY>"); out.println("<H1>Hello World!</H1>"); out.println("<H2>Today is " + getTodaysDate() + "</H2>"); out.println("<H2>The season is " + getTodaysSeason() + "</H2>"); } protected String getTodaysDate() { DateFormat dateFormat = new SimpleDateFormat("MMMMM dd, yyyy"); Date date = new Date(); return dateFormat.format(date); } protected String getTodaysSeason() { Date date = new Date(); return BackEnd.getSeasonAsString(date); } … } HTML inside code!

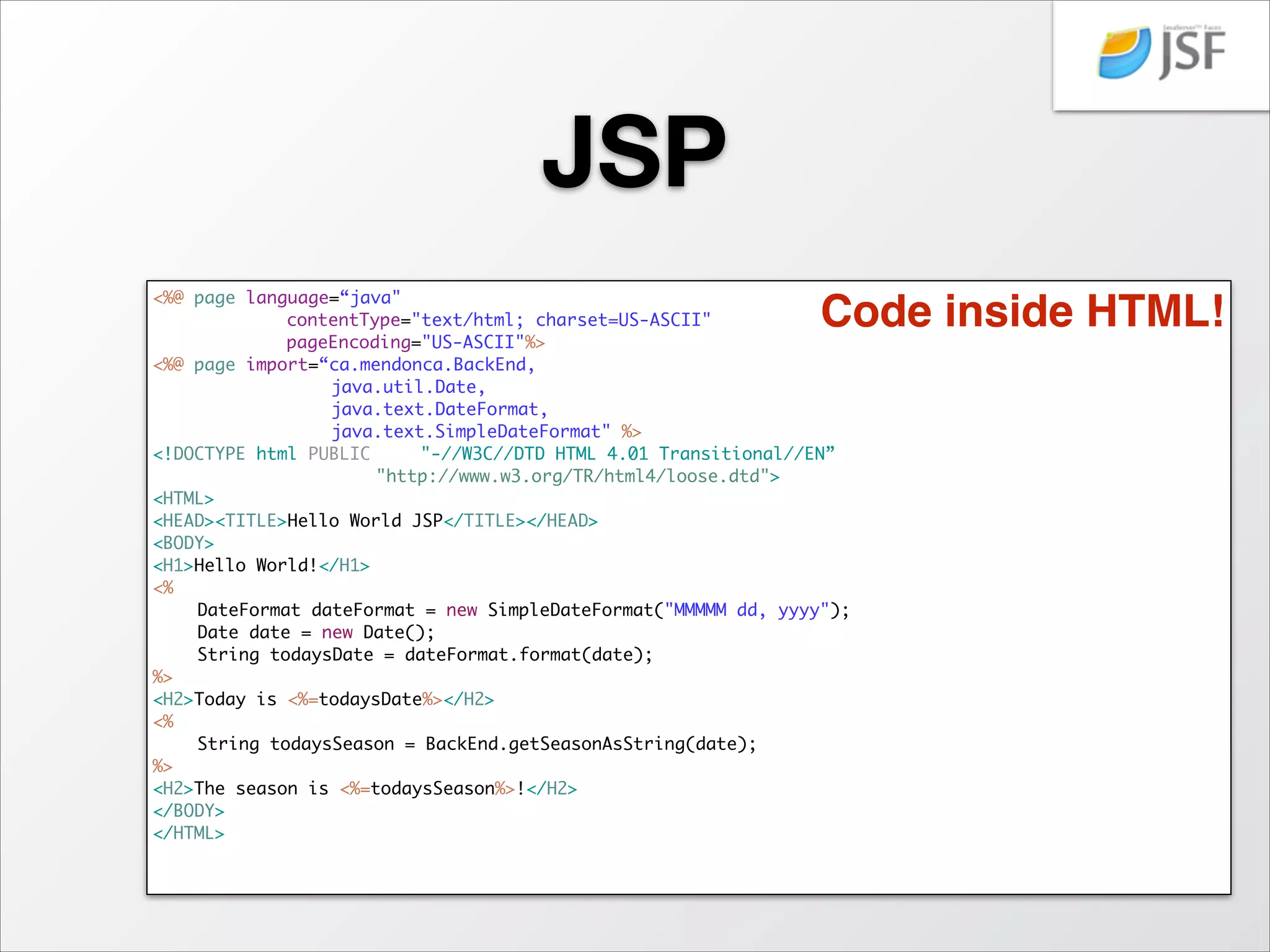

- 7. JSP <%@ page language=“java" contentType="text/html;charset=US-ASCII" pageEncoding="US-ASCII"%> <%@ page import=“ca.mendonca.BackEnd, java.util.Date, java.text.DateFormat, java.text.SimpleDateFormat" %> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN” "http://www.w3.org/TR/html4/loose.dtd"> <HTML> <HEAD><TITLE>Hello World JSP</TITLE></HEAD> <BODY> <H1>Hello World!</H1> <% DateFormat dateFormat = new SimpleDateFormat("MMMMM dd, yyyy"); Date date = new Date(); String todaysDate = dateFormat.format(date); %> <H2>Today is <%=todaysDate%></H2> <% String todaysSeason = BackEnd.getSeasonAsString(date); %> <H2>The season is <%=todaysSeason%>!</H2> </BODY> </HTML> Code inside HTML! ! !

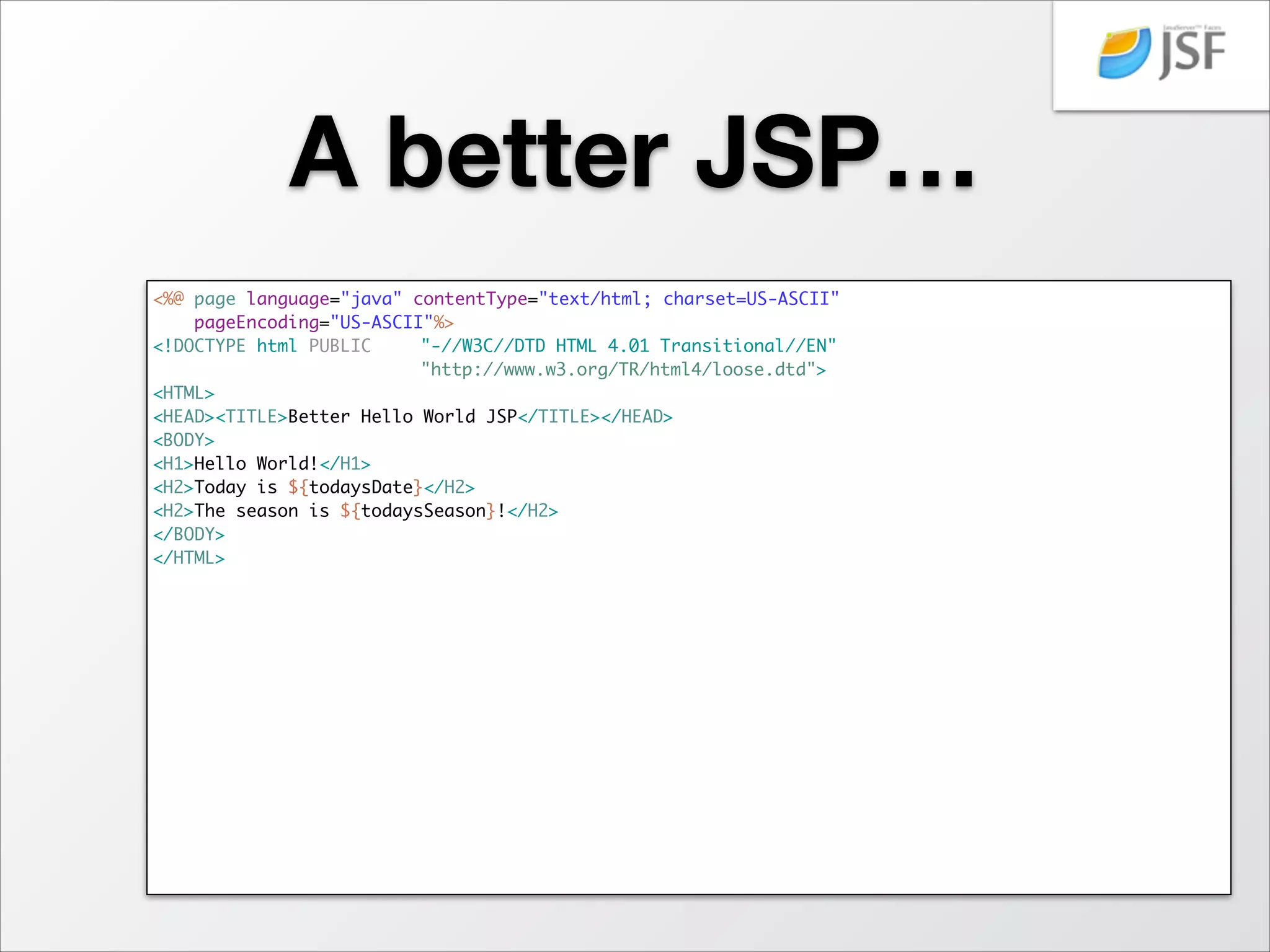

- 8. A better JSP… <%@page language="java" contentType="text/html; charset=US-ASCII" pageEncoding="US-ASCII"%> <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd"> <HTML> <HEAD><TITLE>Better Hello World JSP</TITLE></HEAD> <BODY> <H1>Hello World!</H1> <H2>Today is ${todaysDate}</H2> <H2>The season is ${todaysSeason}!</H2> </BODY> </HTML>

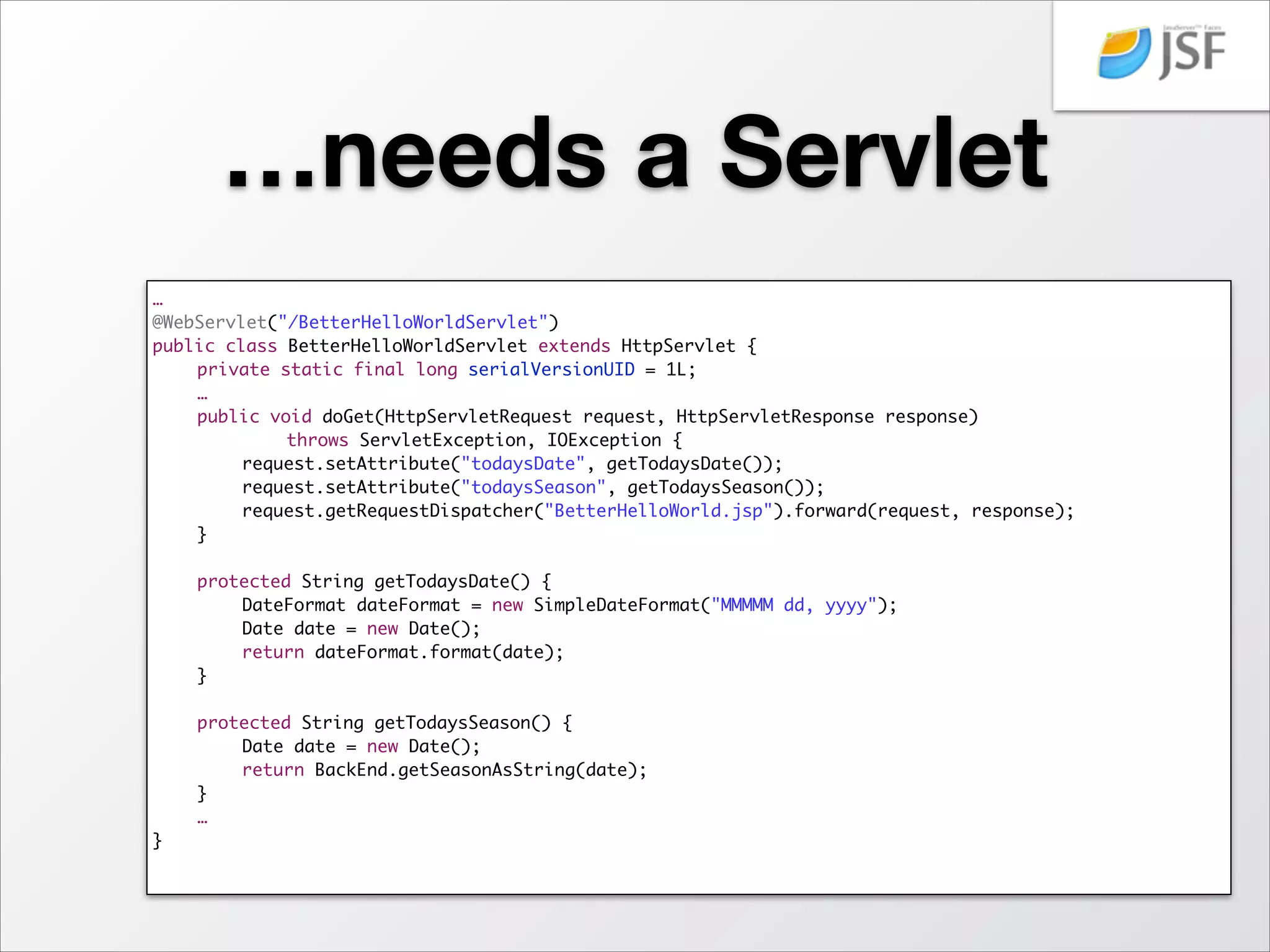

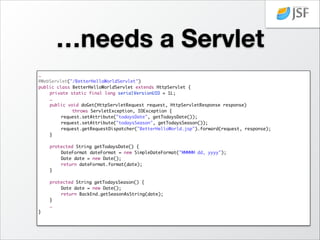

- 9. …needs a Servlet … @WebServlet("/BetterHelloWorldServlet") publicclass BetterHelloWorldServlet extends HttpServlet { private static final long serialVersionUID = 1L; … public void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException { request.setAttribute("todaysDate", getTodaysDate()); request.setAttribute("todaysSeason", getTodaysSeason()); request.getRequestDispatcher("BetterHelloWorld.jsp").forward(request, response); } protected String getTodaysDate() { DateFormat dateFormat = new SimpleDateFormat("MMMMM dd, yyyy"); Date date = new Date(); return dateFormat.format(date); } protected String getTodaysSeason() { Date date = new Date(); return BackEnd.getSeasonAsString(date); } … }

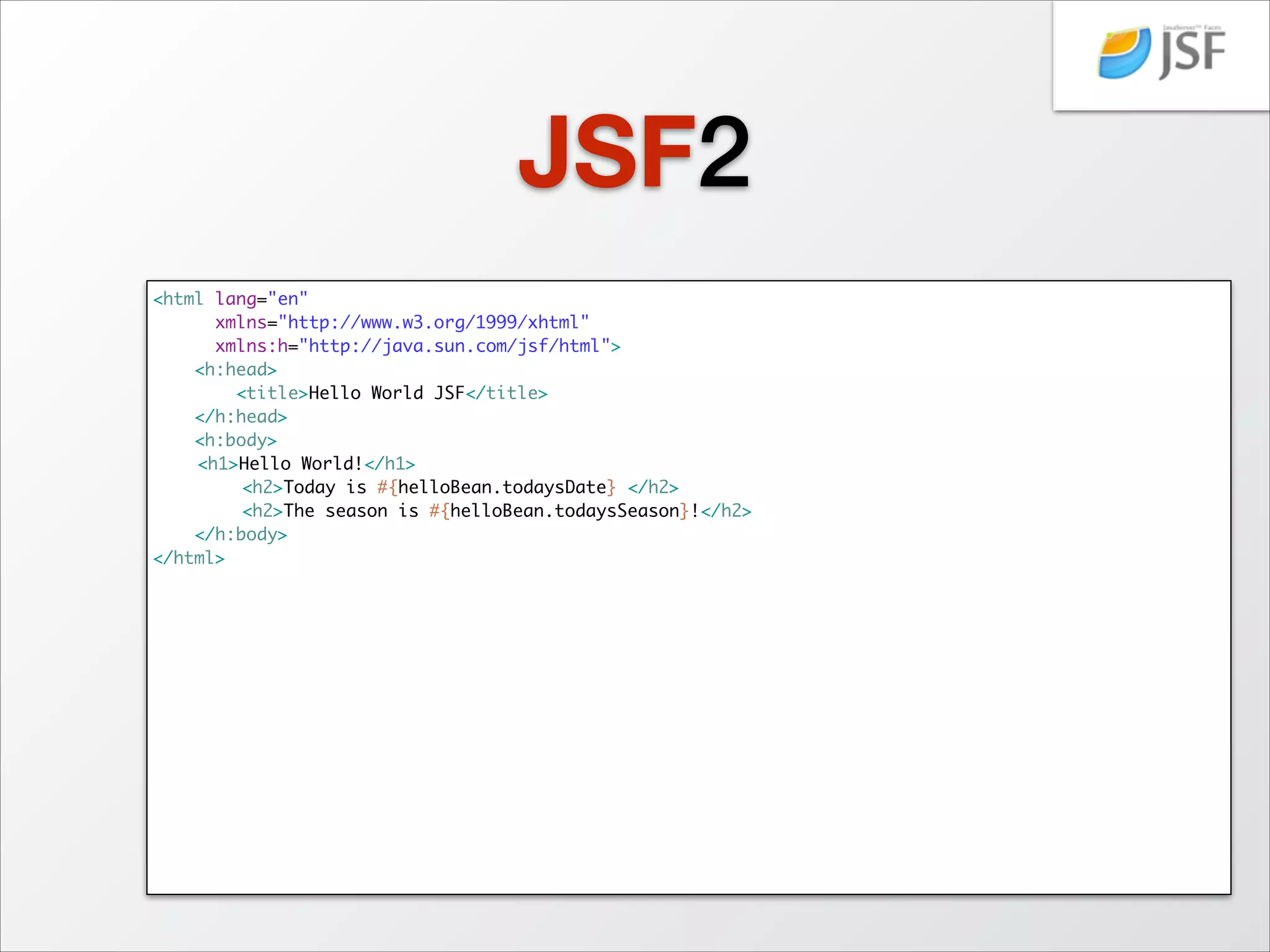

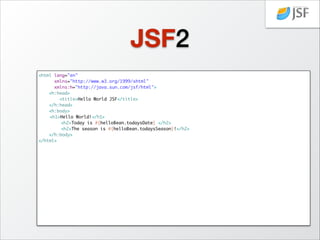

- 10. JSF2 <html lang="en" xmlns="http://www.w3.org/1999/xhtml" xmlns:h="http://java.sun.com/jsf/html"> <h:head> <title>Hello WorldJSF</title> </h:head> <h:body> <h1>Hello World!</h1> <h2>Today is #{helloBean.todaysDate} </h2> <h2>The season is #{helloBean.todaysSeason}!</h2> </h:body> </html>

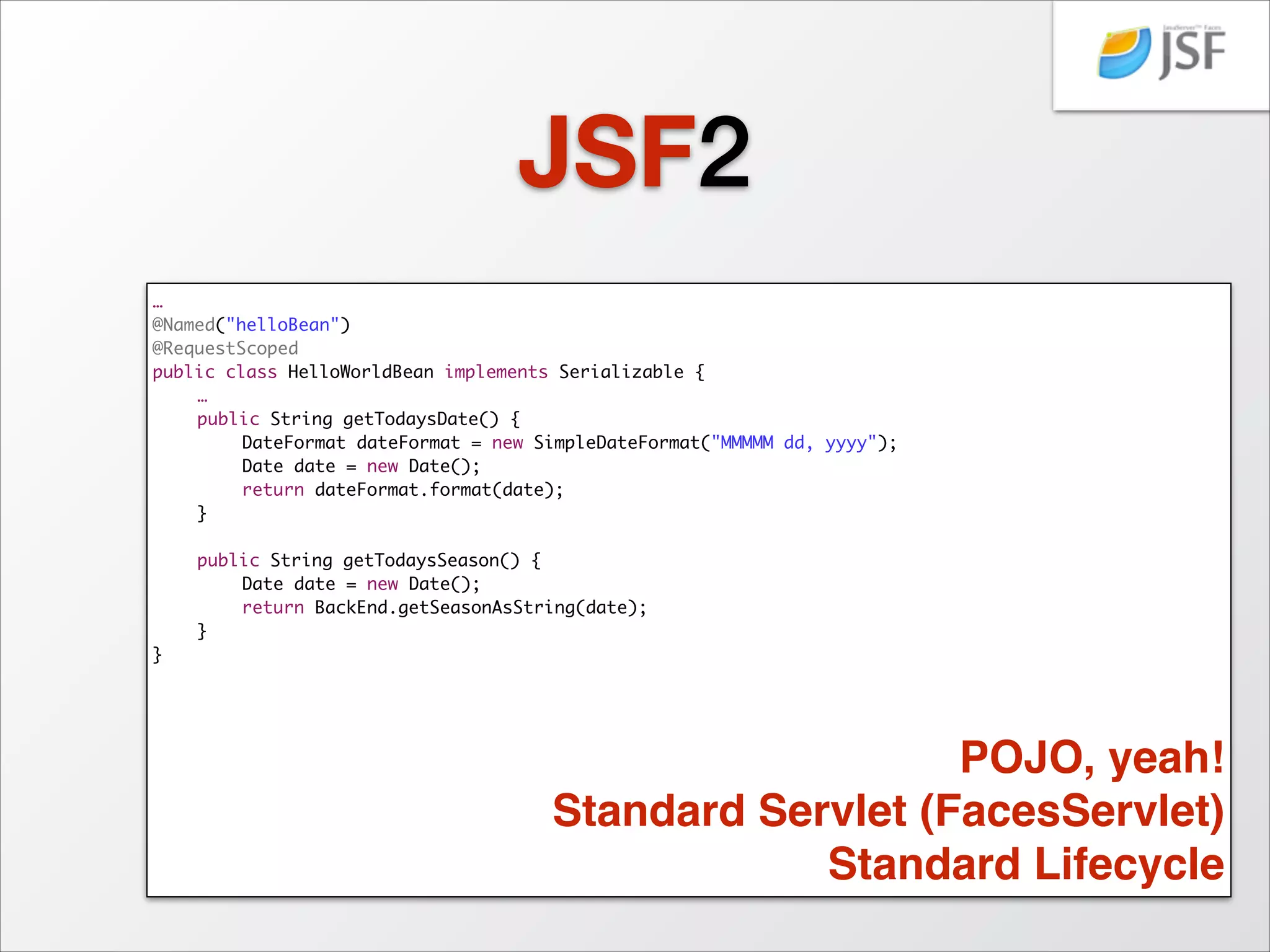

- 11. JSF2 … @Named("helloBean") @RequestScoped public class HelloWorldBeanimplements Serializable { … public String getTodaysDate() { DateFormat dateFormat = new SimpleDateFormat("MMMMM dd, yyyy"); Date date = new Date(); return dateFormat.format(date); } public String getTodaysSeason() { Date date = new Date(); return BackEnd.getSeasonAsString(date); } } POJO, yeah!! Standard Servlet (FacesServlet)! Standard Lifecycle
- 12. OK, is thatit?

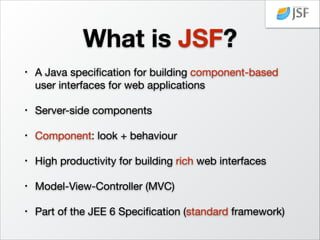

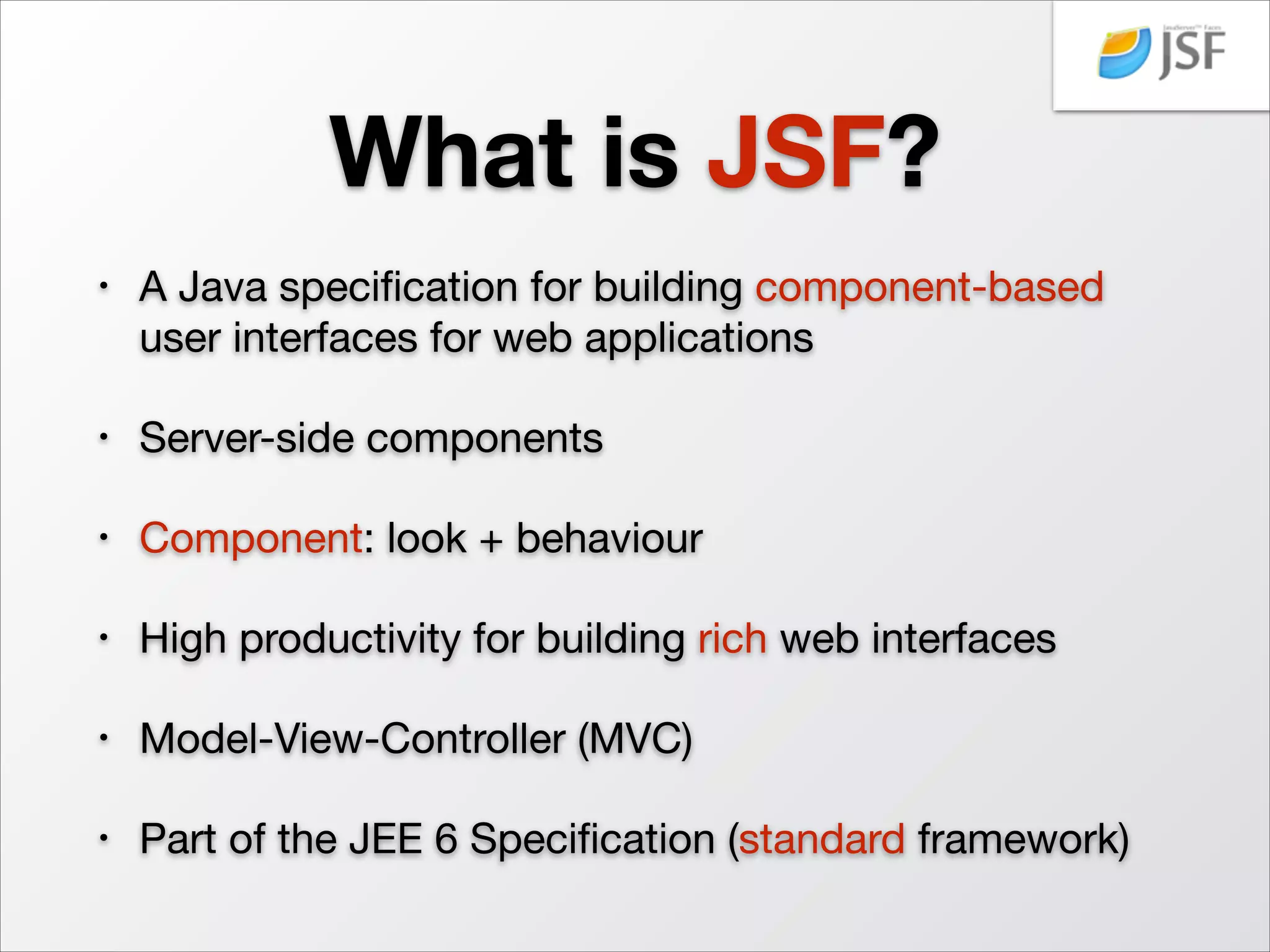

- 13. What is JSF? • AJava specification for building component-based user interfaces for web applications • Server-side components • Component: look + behaviour • High productivity for building rich web interfaces • Model-View-Controller (MVC) • Part of the JEE 6 Specification (standard framework)
- 14.
- 15.
- 16.
- 17.
- 18.
