RuleML 2015 Constraint Handling Rules - What Else?

1.
Constraint Handling Rules- What Else? Thom Fr¨uhwirth University of Ulm, Germany Thom Fr¨uhwirth Constraint Handling Rules

2.

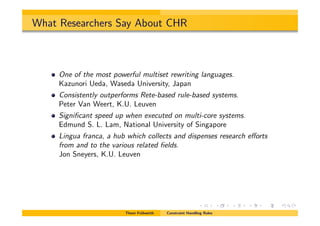

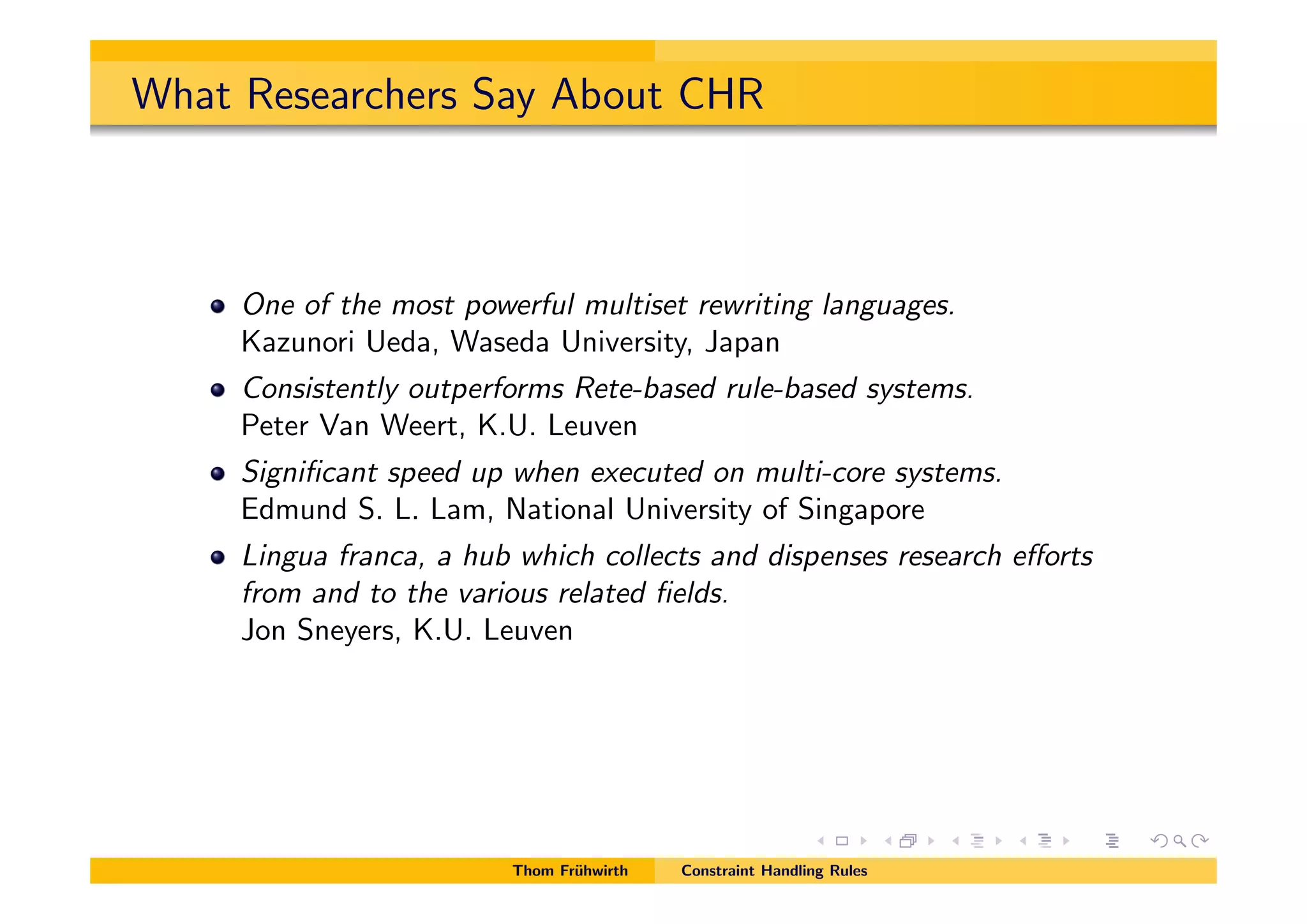

What Researchers SayAbout CHR One of the most powerful multiset rewriting languages. Kazunori Ueda, Waseda University, Japan Consistently outperforms Rete-based rule-based systems. Peter Van Weert, K.U. Leuven Significant speed up when executed on multi-core systems. Edmund S. L. Lam, National University of Singapore Lingua franca, a hub which collects and dispenses research e↵orts from and to the various related fields. Jon Sneyers, K.U. Leuven Thom Frühwirth Constraint Handling Rules

3.

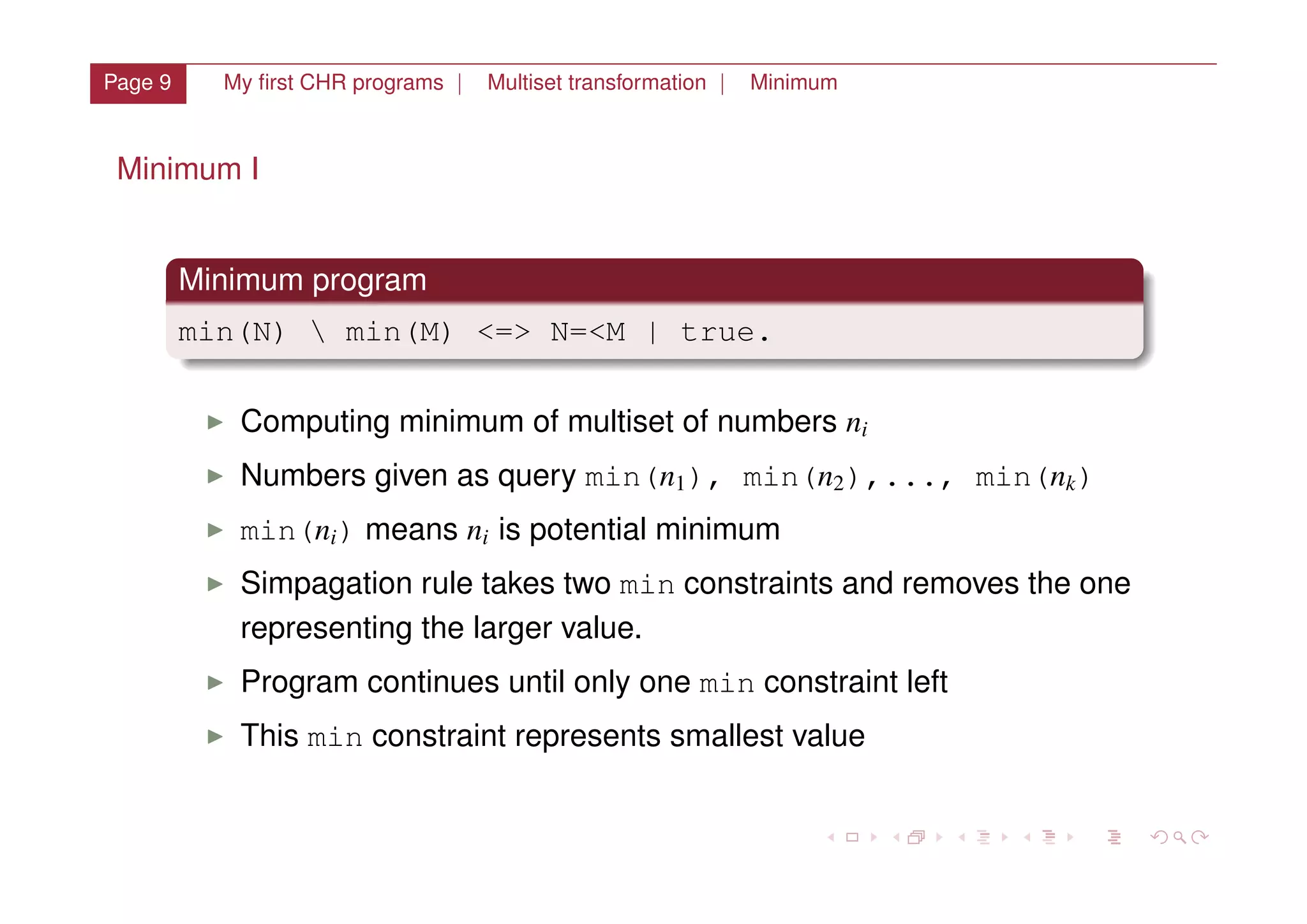

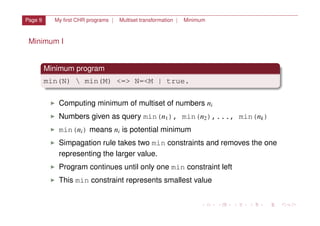

Page 9 Myﬁrst CHR programs | Multiset transformation | Minimum Minimum I Minimum program min(N) min(M) <=> N=<M | true. I Computing minimum of multiset of numbers ni I Numbers given as query min(n1), min(n2),..., min(nk) I min(ni) means ni is potential minimum I Simpagation rule takes two min constraints and removes the one representing the larger value. I Program continues until only one min constraint left I This min constraint represents smallest value

4.

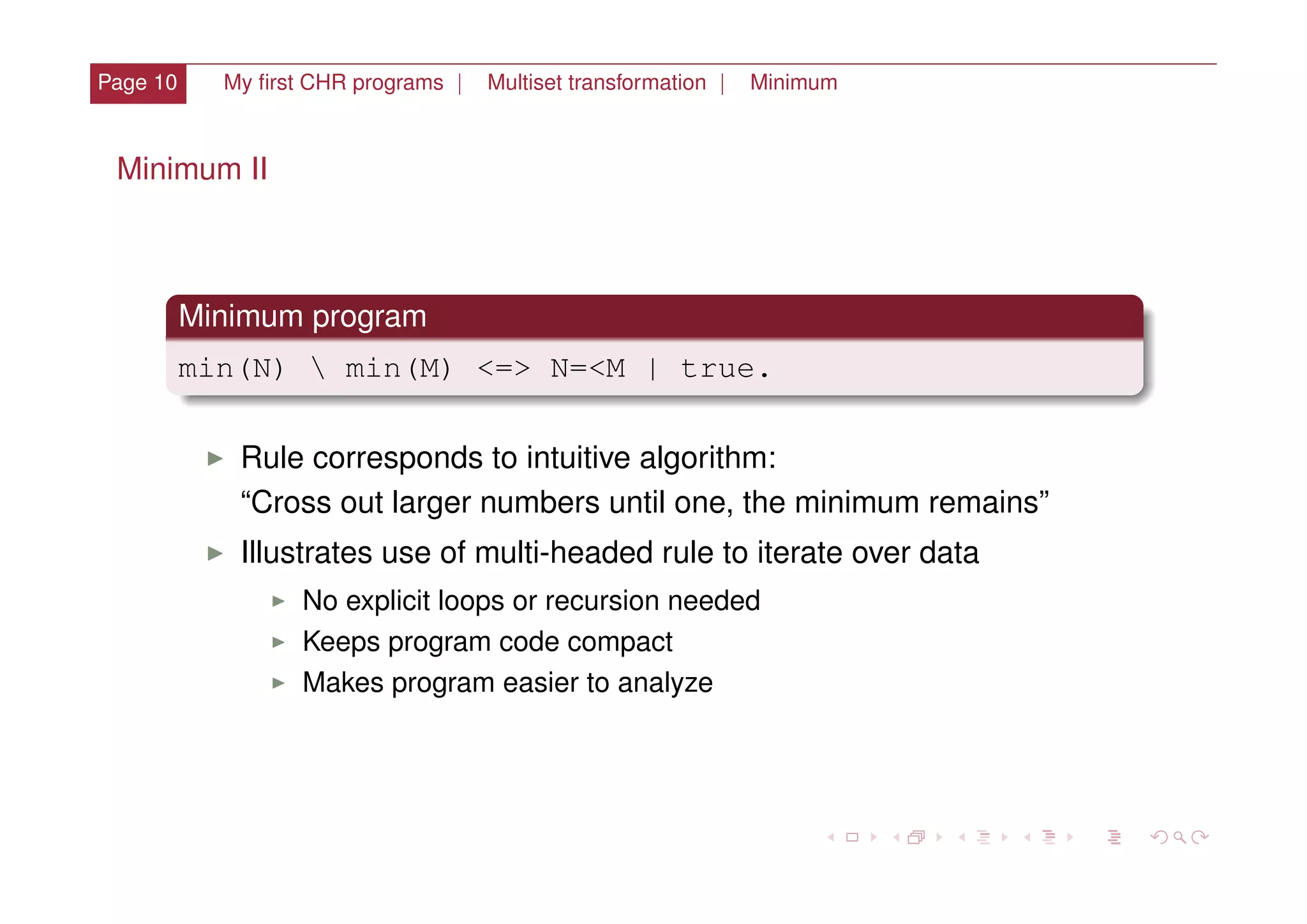

Page 10 Myﬁrst CHR programs | Multiset transformation | Minimum Minimum II Minimum program min(N) min(M) <=> N=<M | true. I Rule corresponds to intuitive algorithm: “Cross out larger numbers until one, the minimum remains” I Illustrates use of multi-headed rule to iterate over data I No explicit loops or recursion needed I Keeps program code compact I Makes program easier to analyze

5.

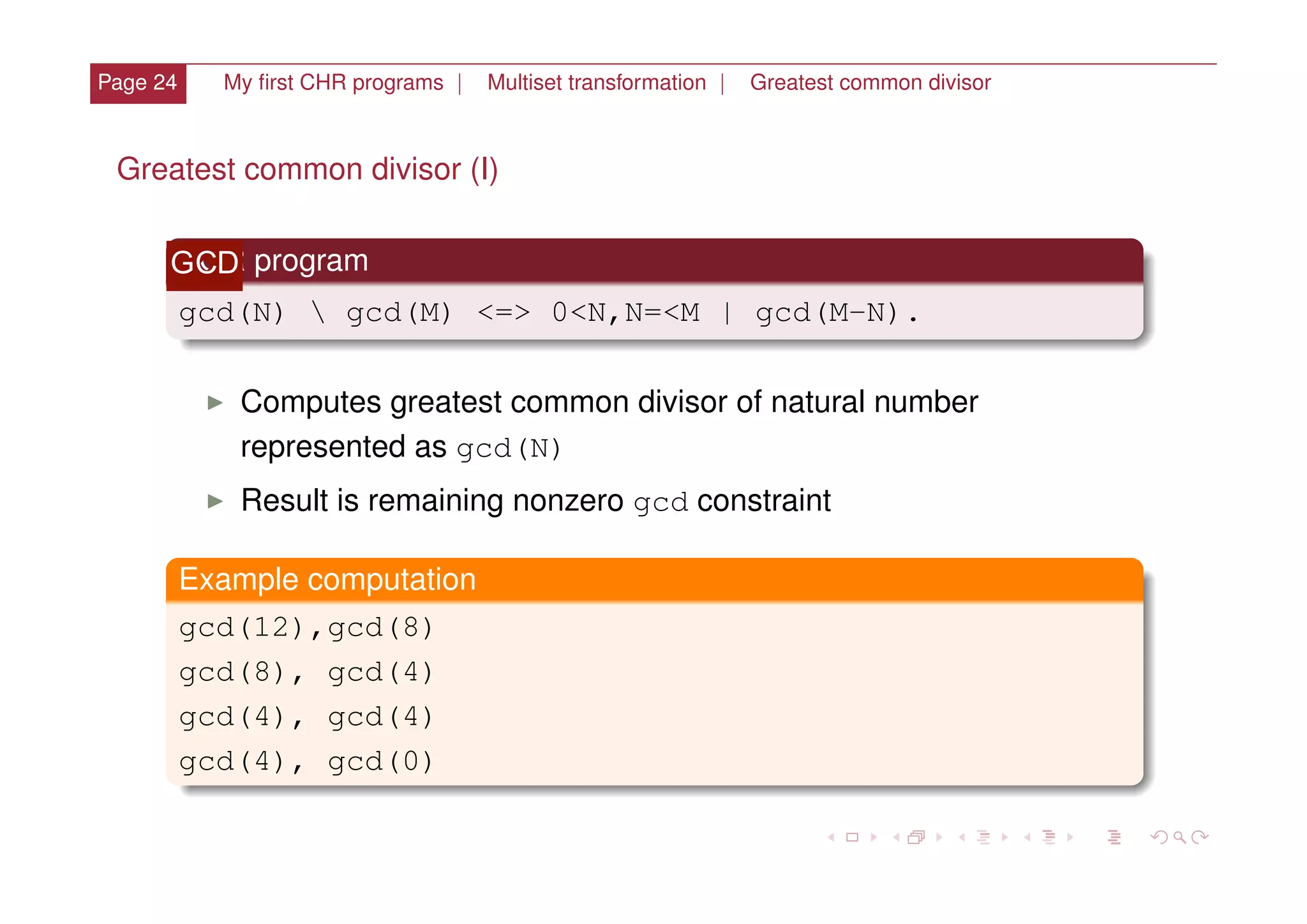

Page 24 Myﬁrst CHR programs | Multiset transformation | Greatest common divisor Greatest common divisor (I) XOR program gcd(N) gcd(M) <=> 0<N,N=<M | gcd(M-N). I Computes greatest common divisor of natural number represented as gcd(N) I Result is remaining nonzero gcd constraint Example computation gcd(12),gcd(8) gcd(8), gcd(4) gcd(4), gcd(4) gcd(4), gcd(0) GCD

6.

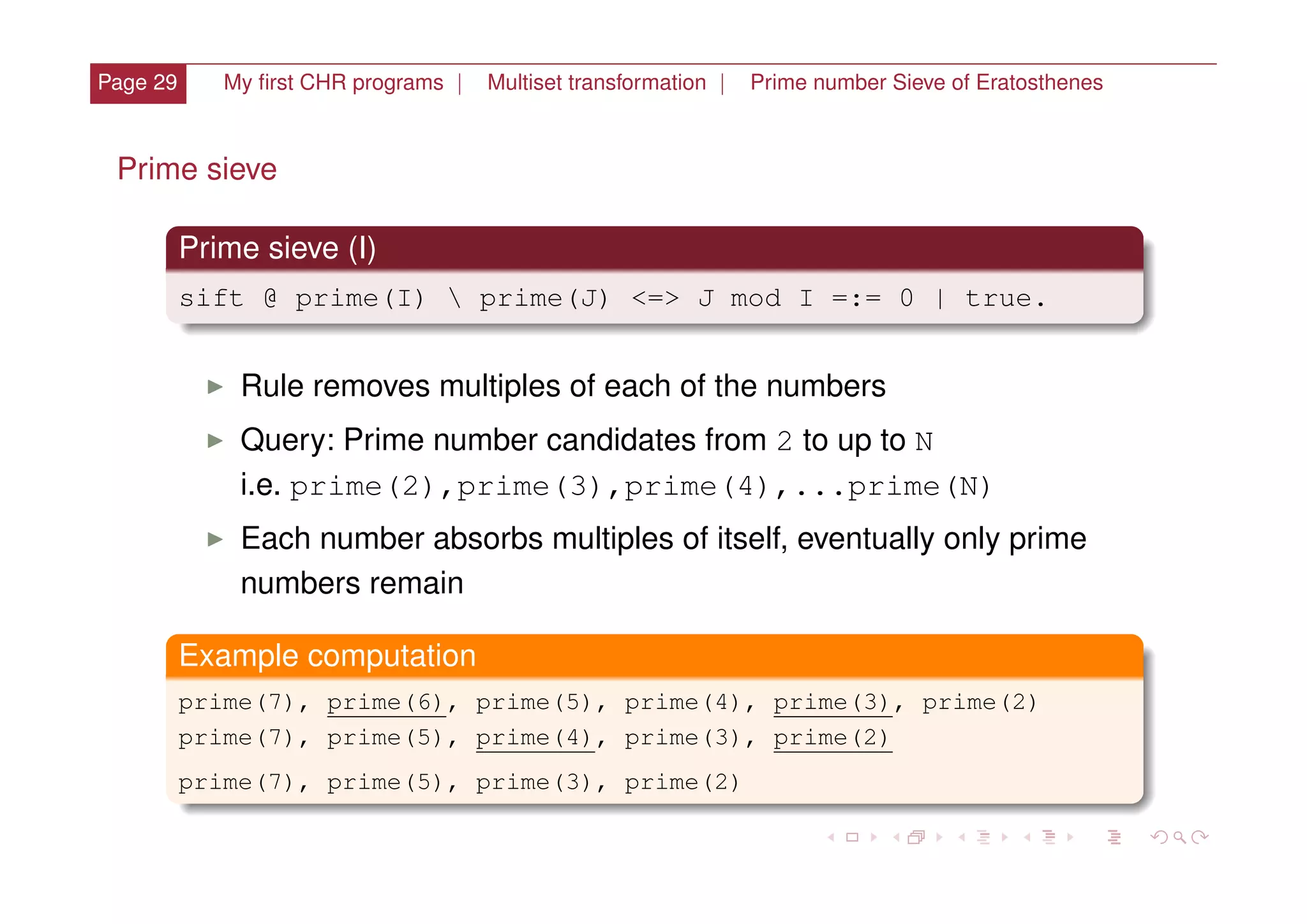

Page 29 Myﬁrst CHR programs | Multiset transformation | Prime number Sieve of Eratosthenes Prime sieve Prime sieve (I) sift @ prime(I) prime(J) <=> J mod I =:= 0 | true. I Rule removes multiples of each of the numbers I Query: Prime number candidates from 2 to up to N i.e. prime(2),prime(3),prime(4),...prime(N) I Each number absorbs multiples of itself, eventually only prime numbers remain Example computation prime(7), prime(6), prime(5), prime(4), prime(3), prime(2) prime(7), prime(5), prime(4), prime(3), prime(2) prime(7), prime(5), prime(3), prime(2)

7.

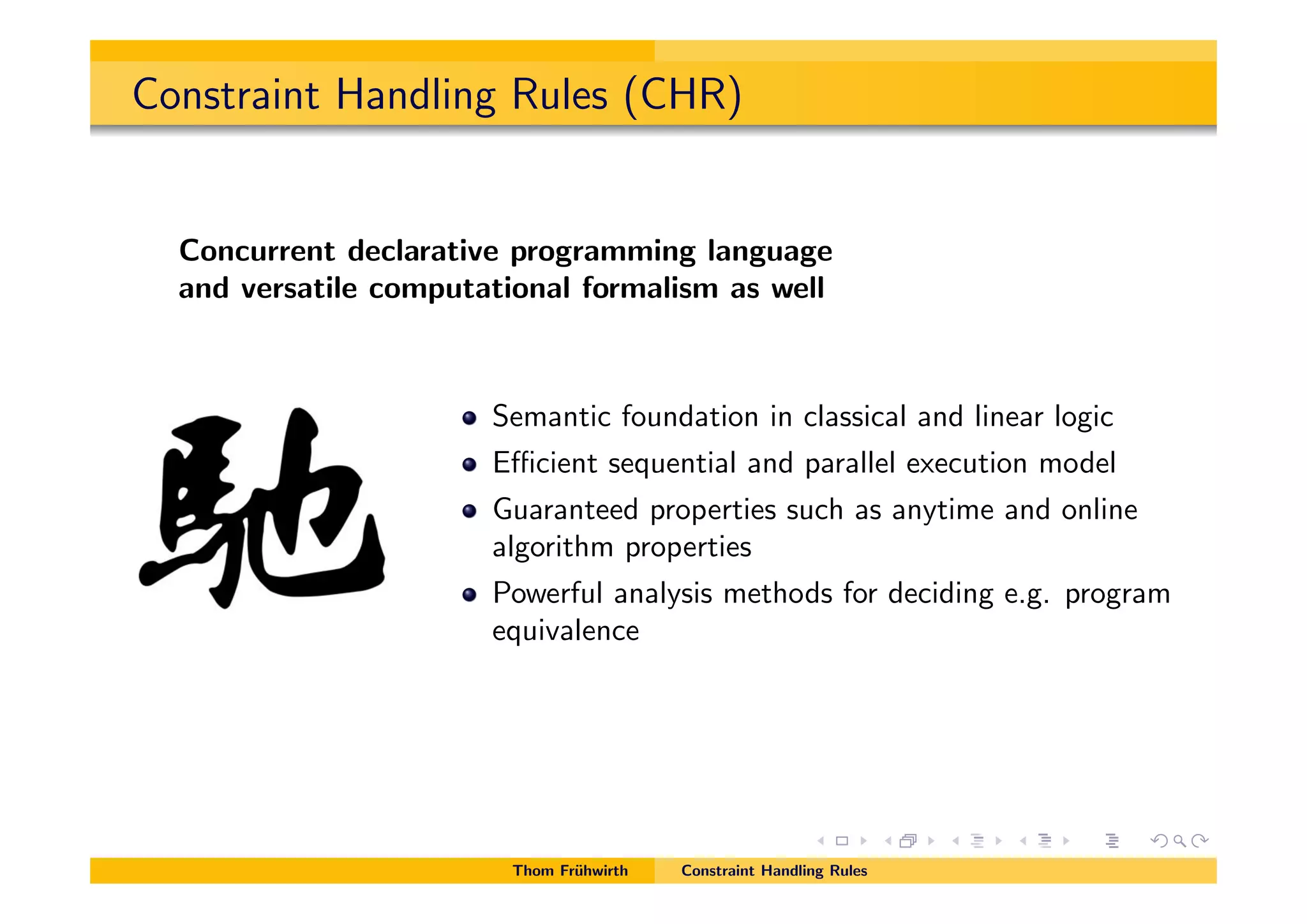

Constraint Handling Rules(CHR) Concurrent declarative programming language and versatile computational formalism as well Semantic foundation in classical and linear logic E cient sequential and parallel execution model Guaranteed properties such as anytime and online algorithm properties Powerful analysis methods for deciding e.g. program equivalence Thom Fr¨uhwirth Constraint Handling Rules

8.

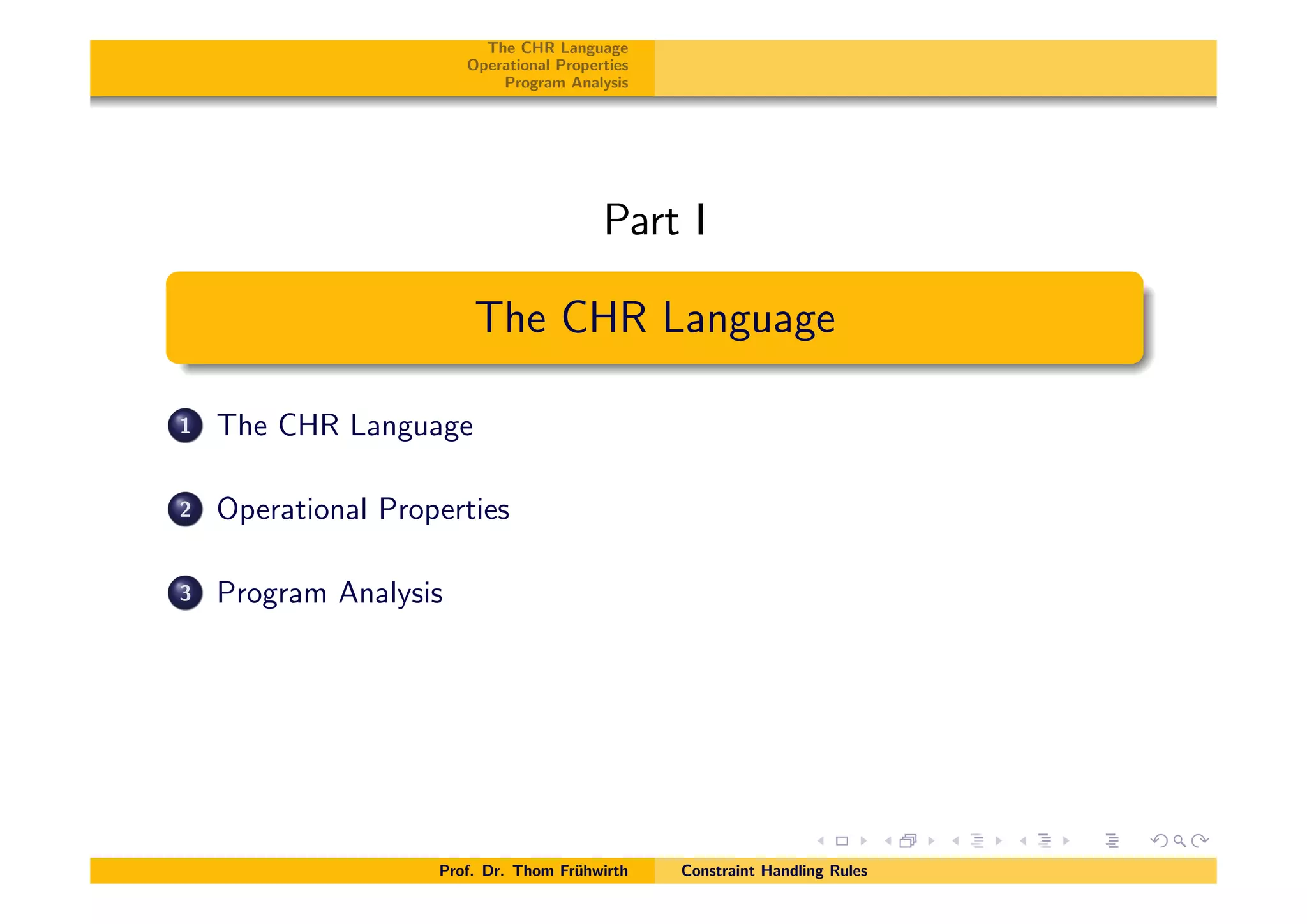

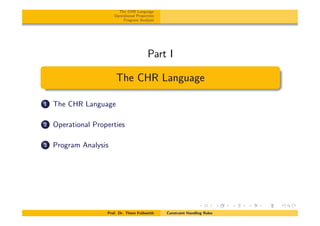

The CHR Language OperationalProperties Program Analysis Part I The CHR Language 1 The CHR Language 2 Operational Properties 3 Program Analysis Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

9.

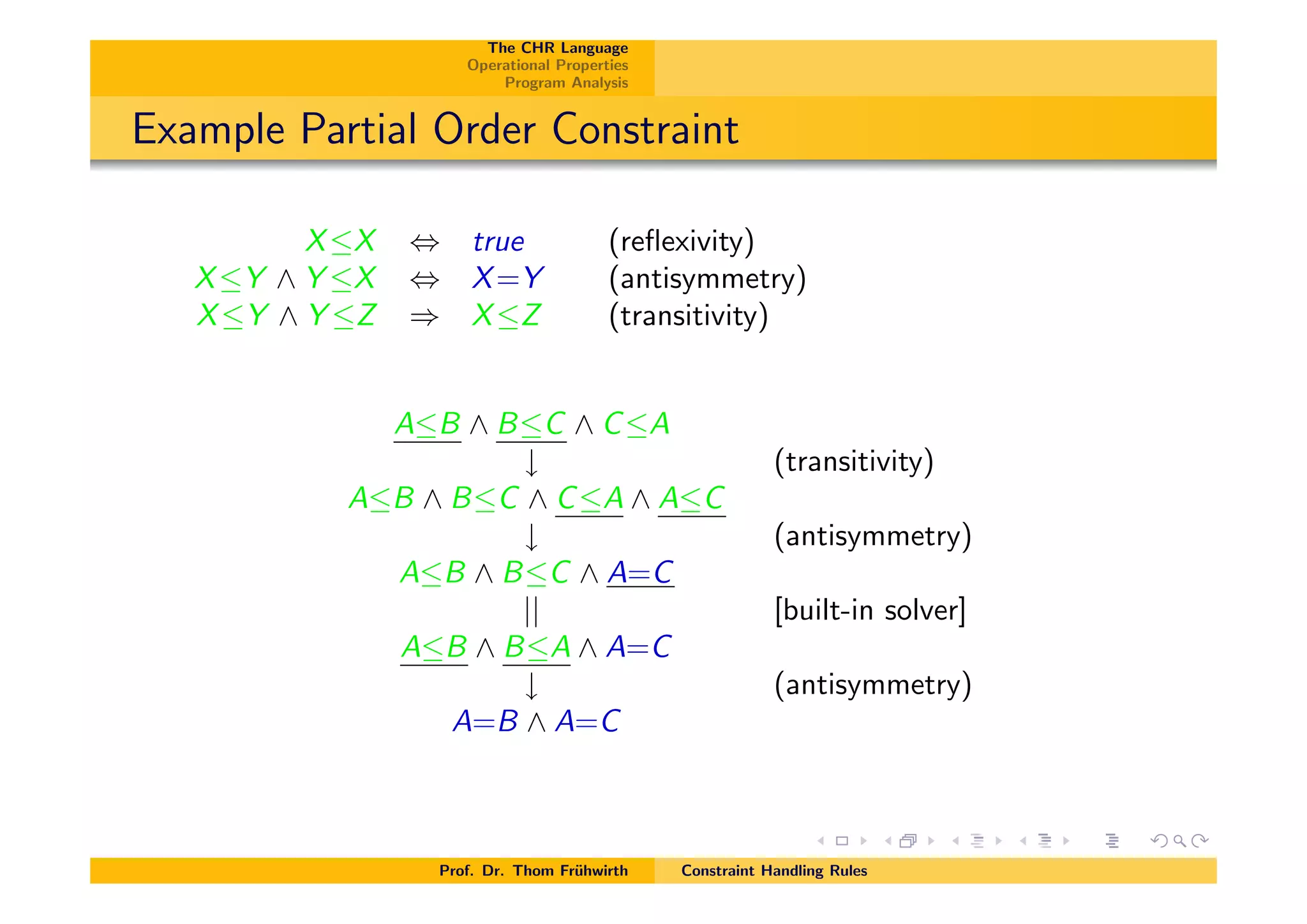

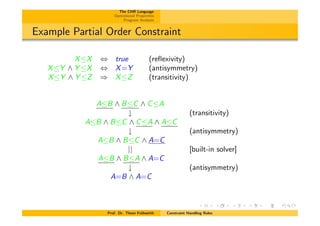

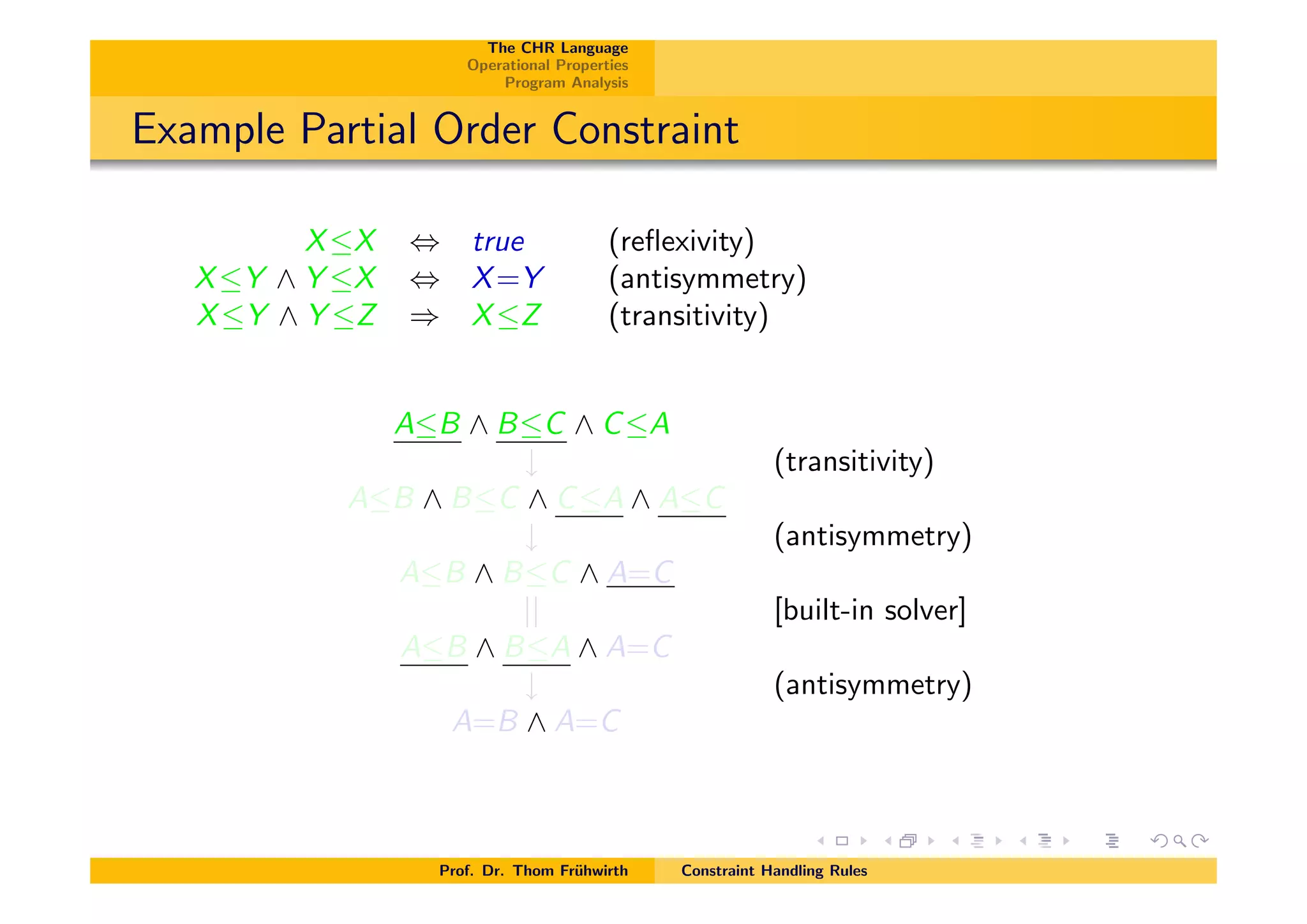

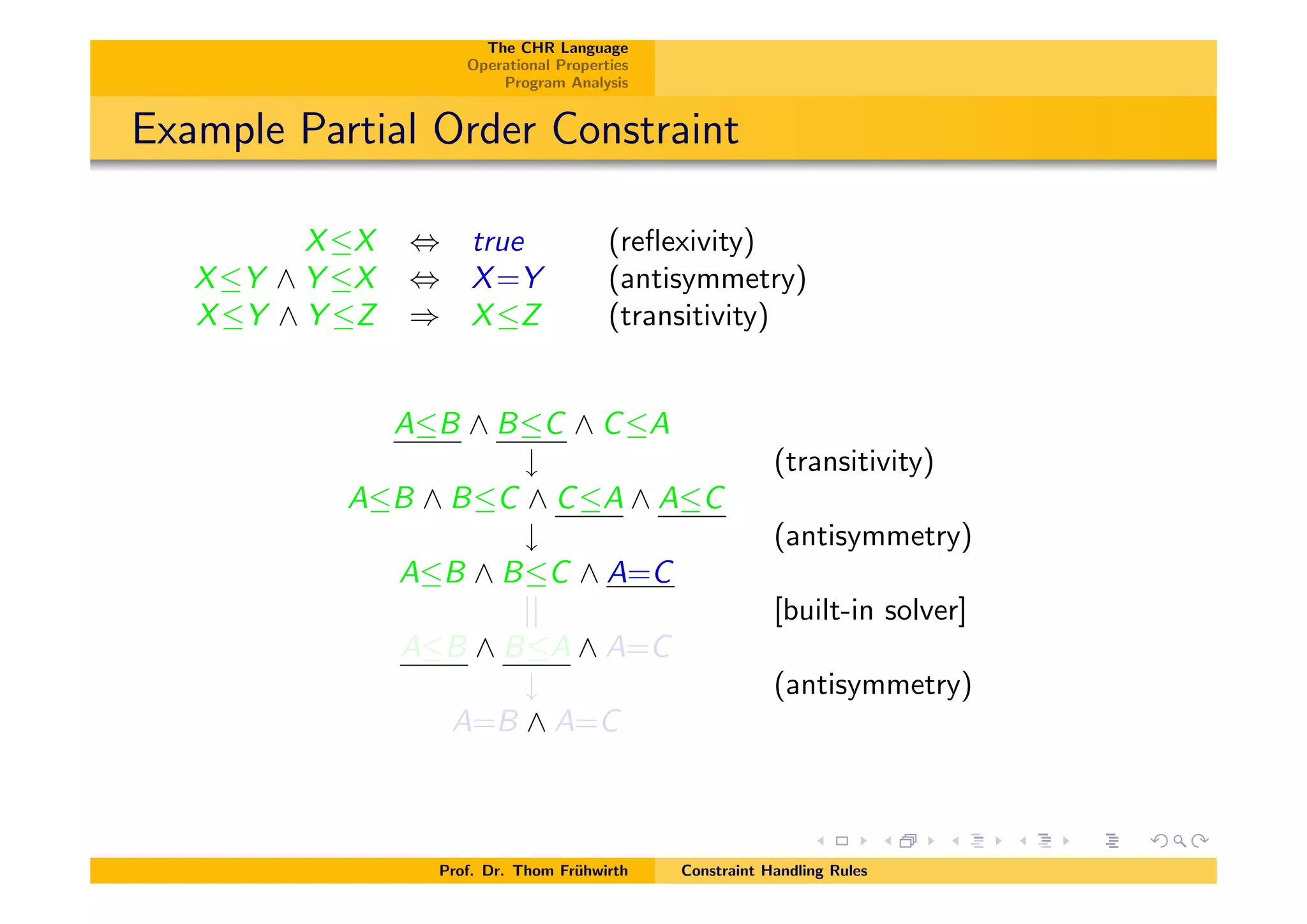

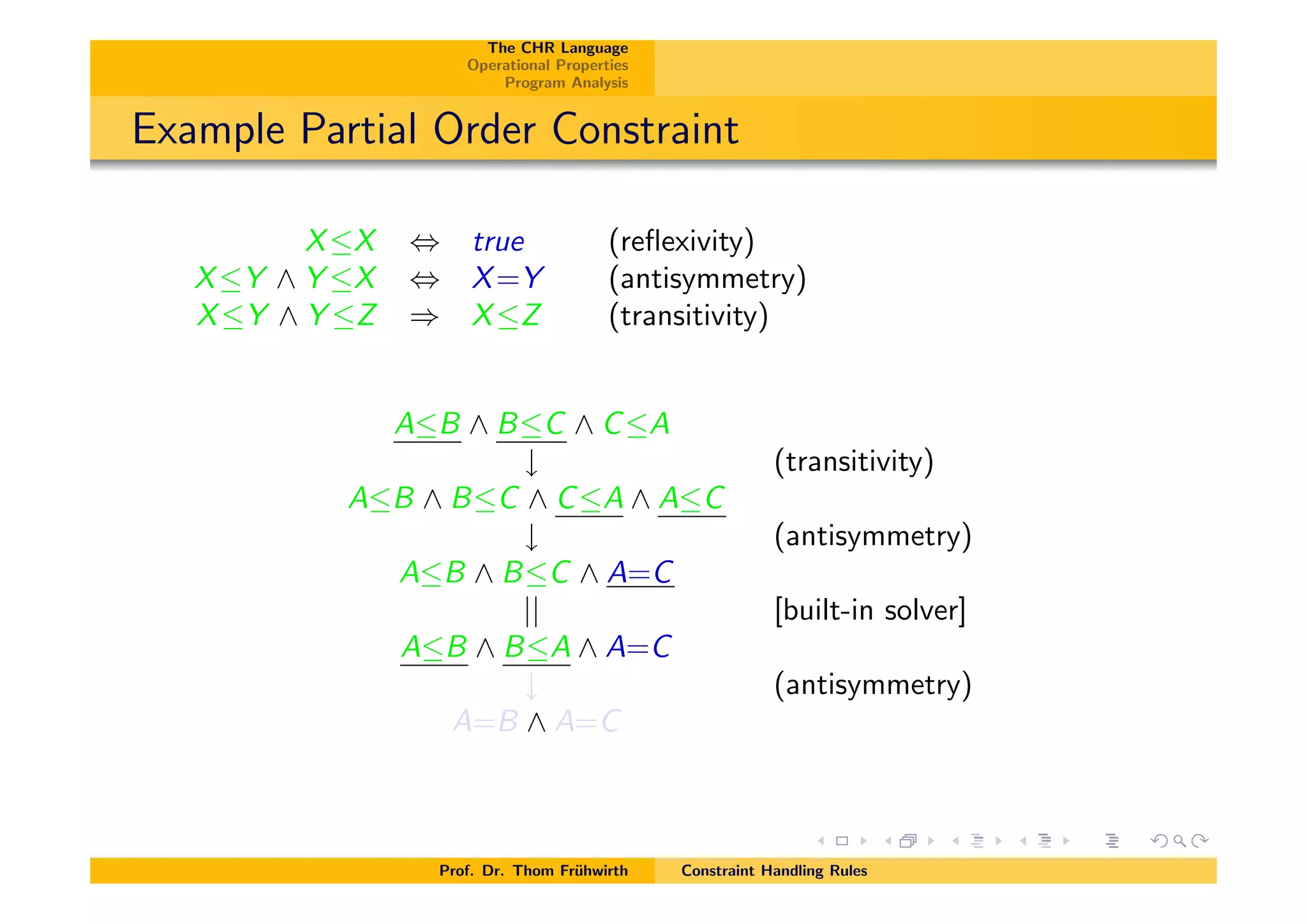

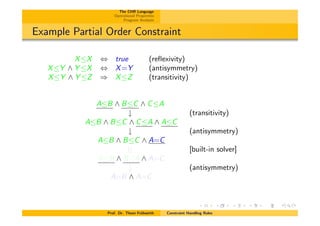

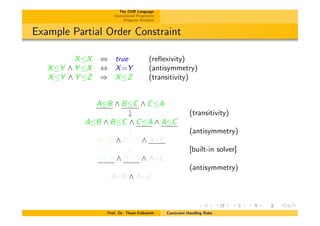

The CHR Language OperationalProperties Program Analysis Example Partial Order Constraint XX , true (reﬂexivity) XY ^ Y X , X=Y (antisymmetry) XY ^ Y Z ) XZ (transitivity) AB ^ BC ^ CA # (transitivity) AB ^ BC ^ CA ^ AC # (antisymmetry) AB ^ BC ^ A=C || [built-in solver] AB ^ BA ^ A=C # (antisymmetry) A=B ^ A=C Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

10.

11.

12.

13.

14.

15.

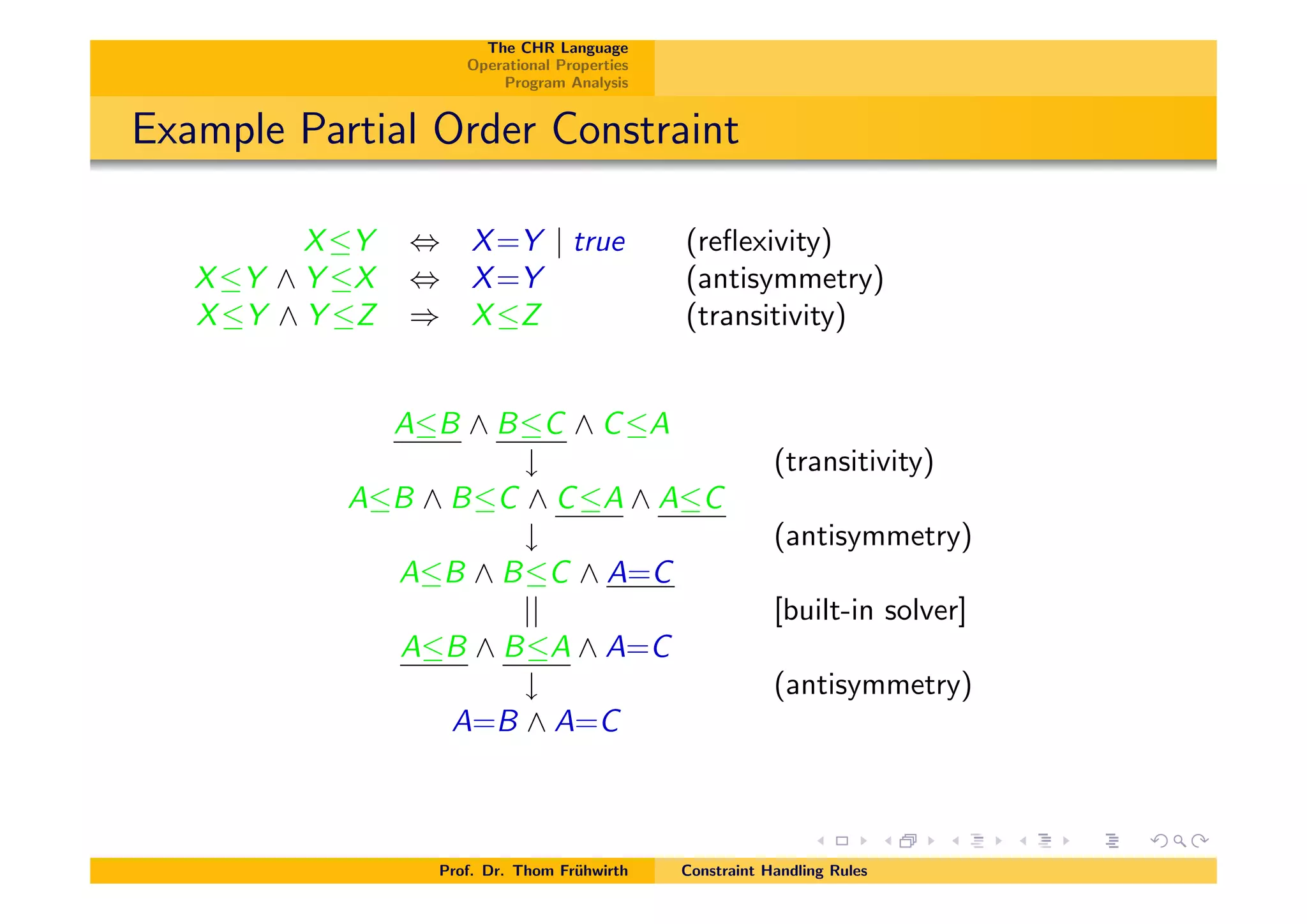

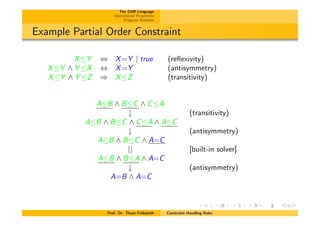

The CHR Language OperationalProperties Program Analysis Example Partial Order Constraint XY , X=Y | true (reﬂexivity) XY ^ Y X , X=Y (antisymmetry) XY ^ Y Z ) XZ (transitivity) AB ^ BC ^ CA # (transitivity) AB ^ BC ^ CA ^ AC # (antisymmetry) AB ^ BC ^ A=C || [built-in solver] AB ^ BA ^ A=C # (antisymmetry) A=B ^ A=C Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

16.

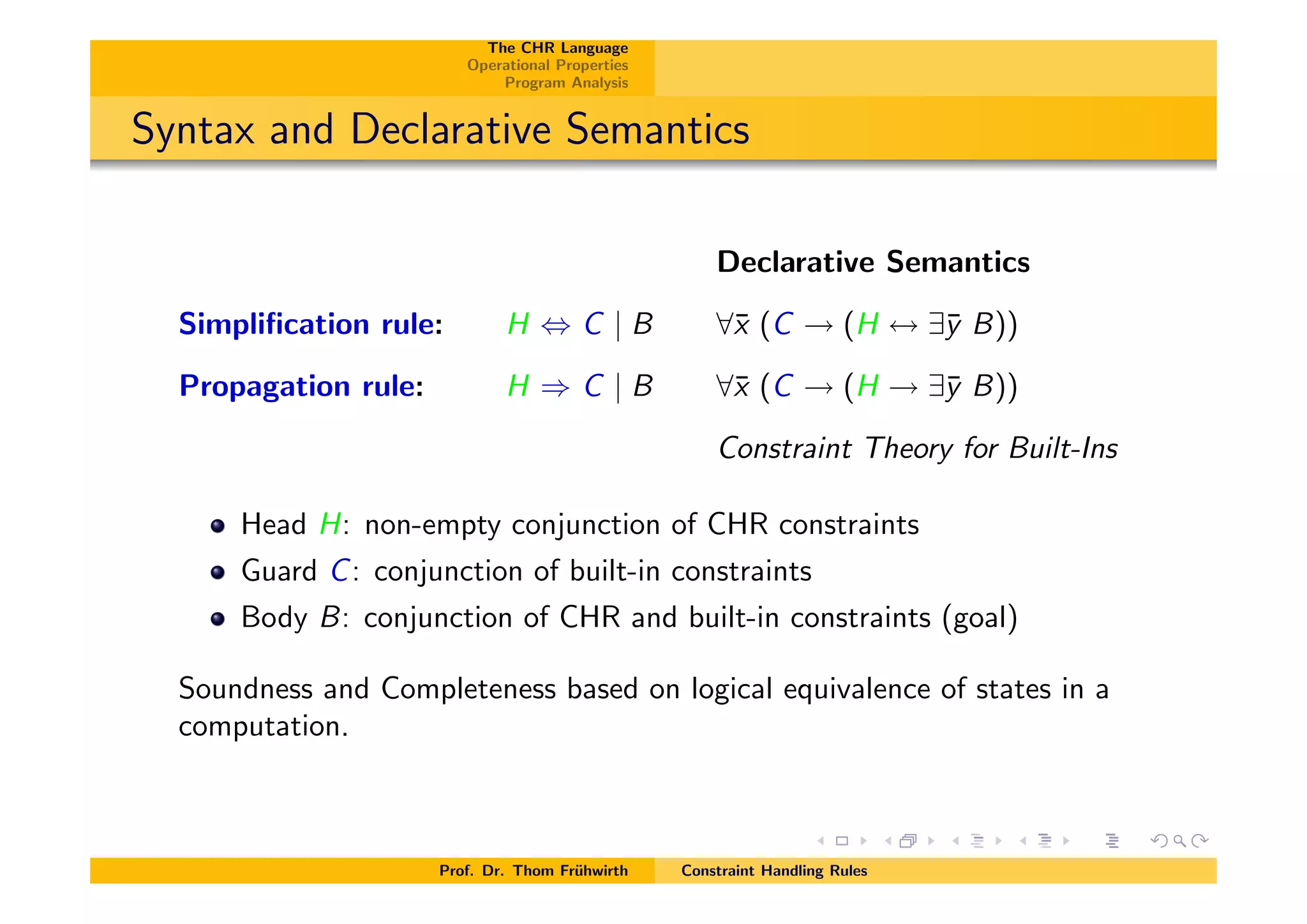

The CHR Language OperationalProperties Program Analysis Syntax and Declarative Semantics Declarative Semantics Simpliﬁcation rule: H , C | B 8¯x (C ! (H $ 9¯y B)) Propagation rule: H ) C | B 8¯x (C ! (H ! 9¯y B)) Constraint Theory for Built-Ins Head H: non-empty conjunction of CHR constraints Guard C: conjunction of built-in constraints Body B: conjunction of CHR and built-in constraints (goal) Soundness and Completeness based on logical equivalence of states in a computation. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

17.

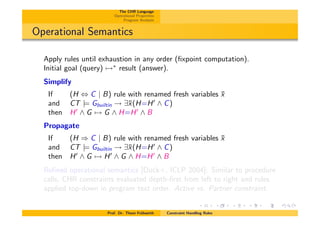

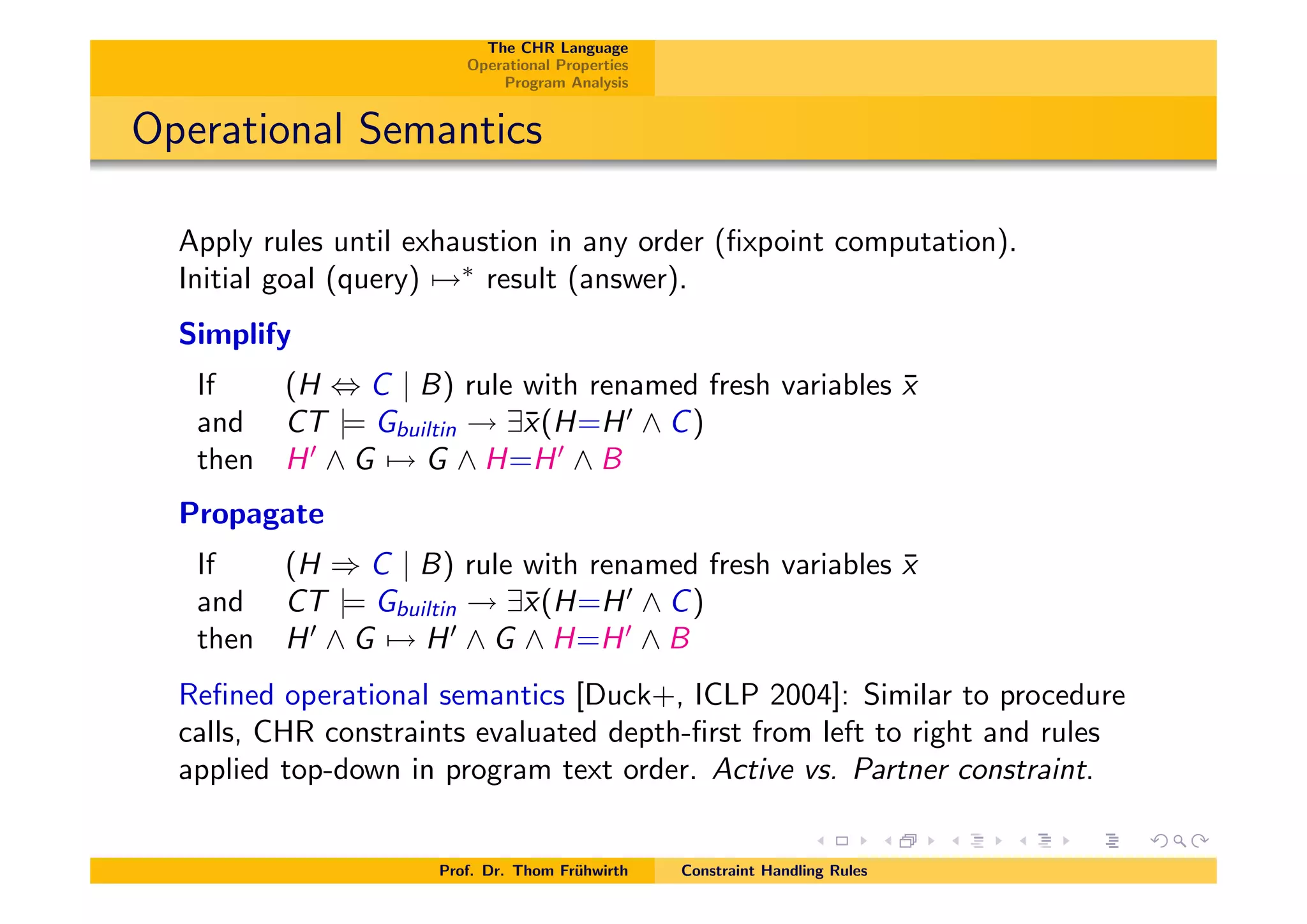

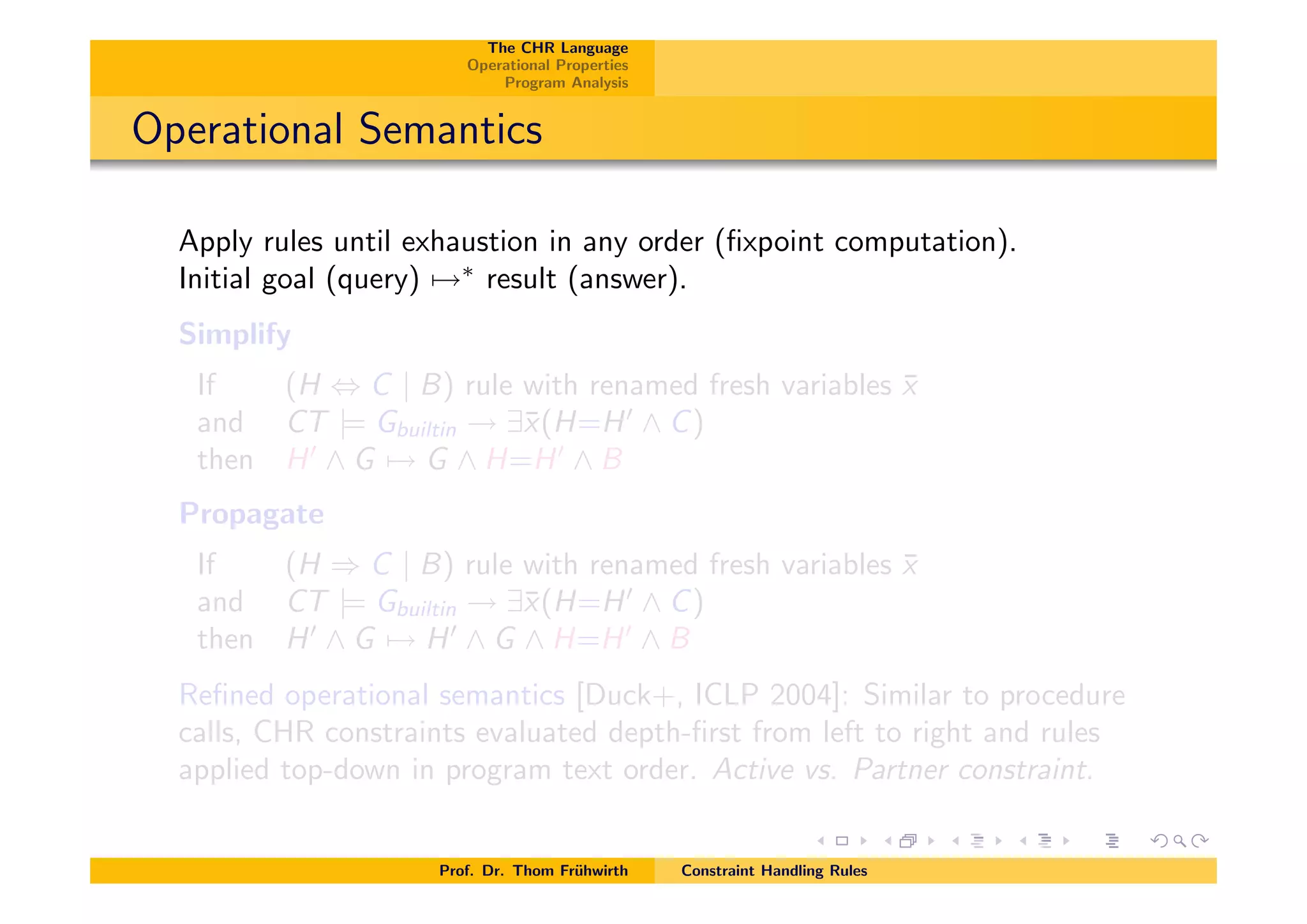

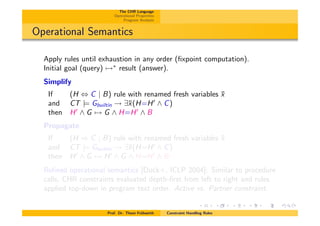

The CHR Language OperationalProperties Program Analysis Operational Semantics Apply rules until exhaustion in any order (fixpoint computation). Initial goal (query) 7!⇤ result (answer). Simplify If (H , C | B) rule with renamed fresh variables ¯x and CT |= Gbuiltin ! 9¯x(H=H0 ^ C) then H0 ^ G 7! G ^ H=H0 ^ B Propagate If (H ) C | B) rule with renamed fresh variables ¯x and CT |= Gbuiltin ! 9¯x(H=H0 ^ C) then H0 ^ G 7! H0 ^ G ^ H=H0 ^ B Refined operational semantics [Duck+, ICLP 2004]: Similar to procedure calls, CHR constraints evaluated depth-first from left to right and rules applied top-down in program text order. Active vs. Partner constraint. Prof. Dr. Thom Frühwirth Constraint Handling Rules

18.

19.

20.

21.

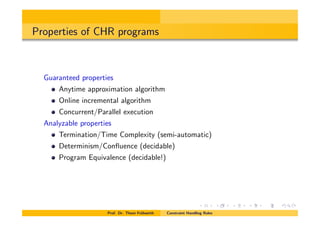

Properties of CHRprograms Guaranteed properties Anytime approximation algorithm Online incremental algorithm Concurrent/Parallel execution Analyzable properties Termination/Time Complexity (semi-automatic) Determinism/Conﬂuence (decidable) Program Equivalence (decidable!) Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

22.

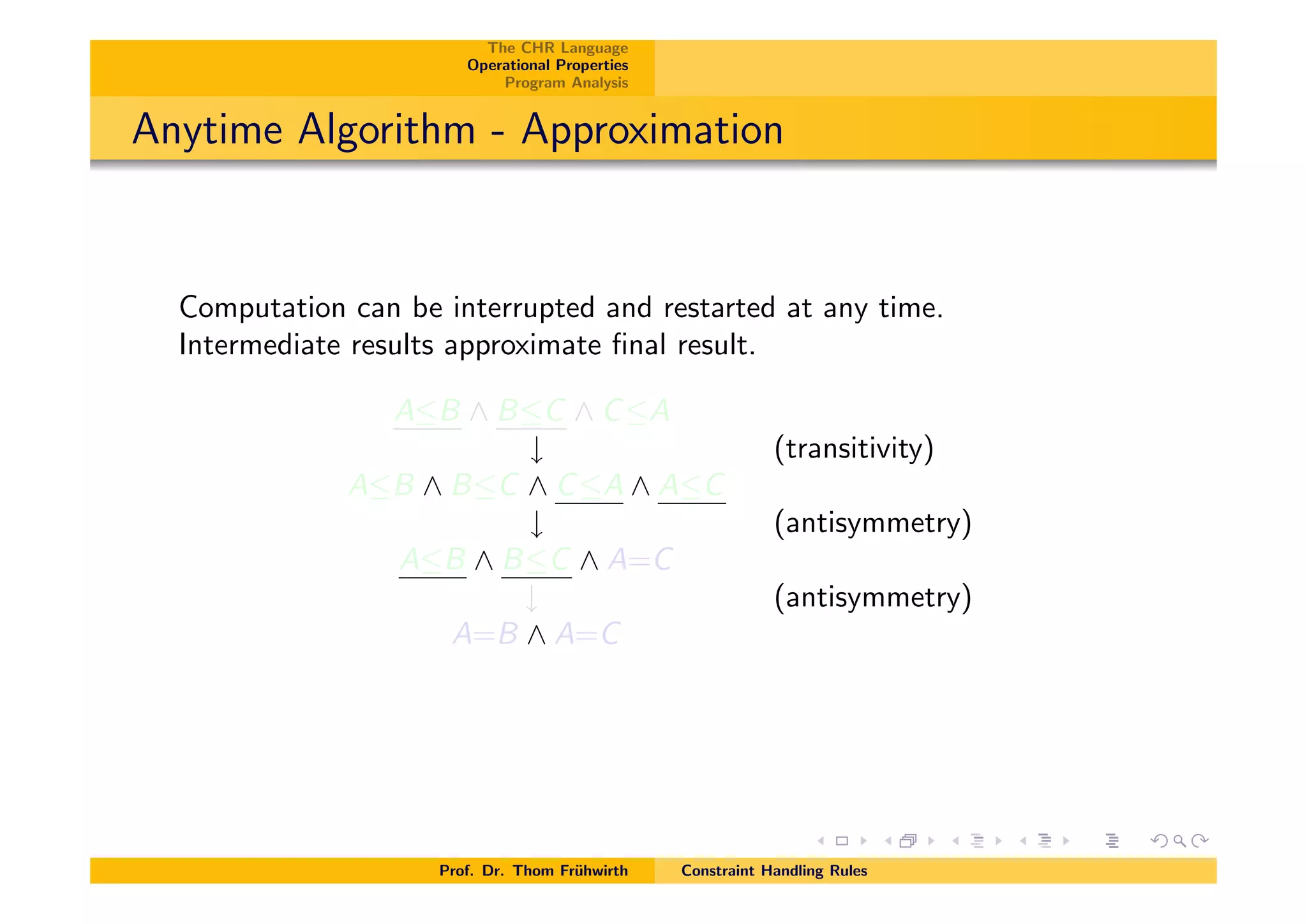

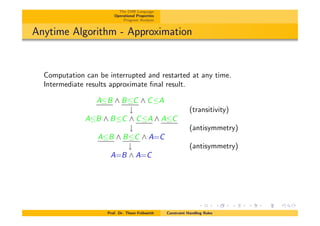

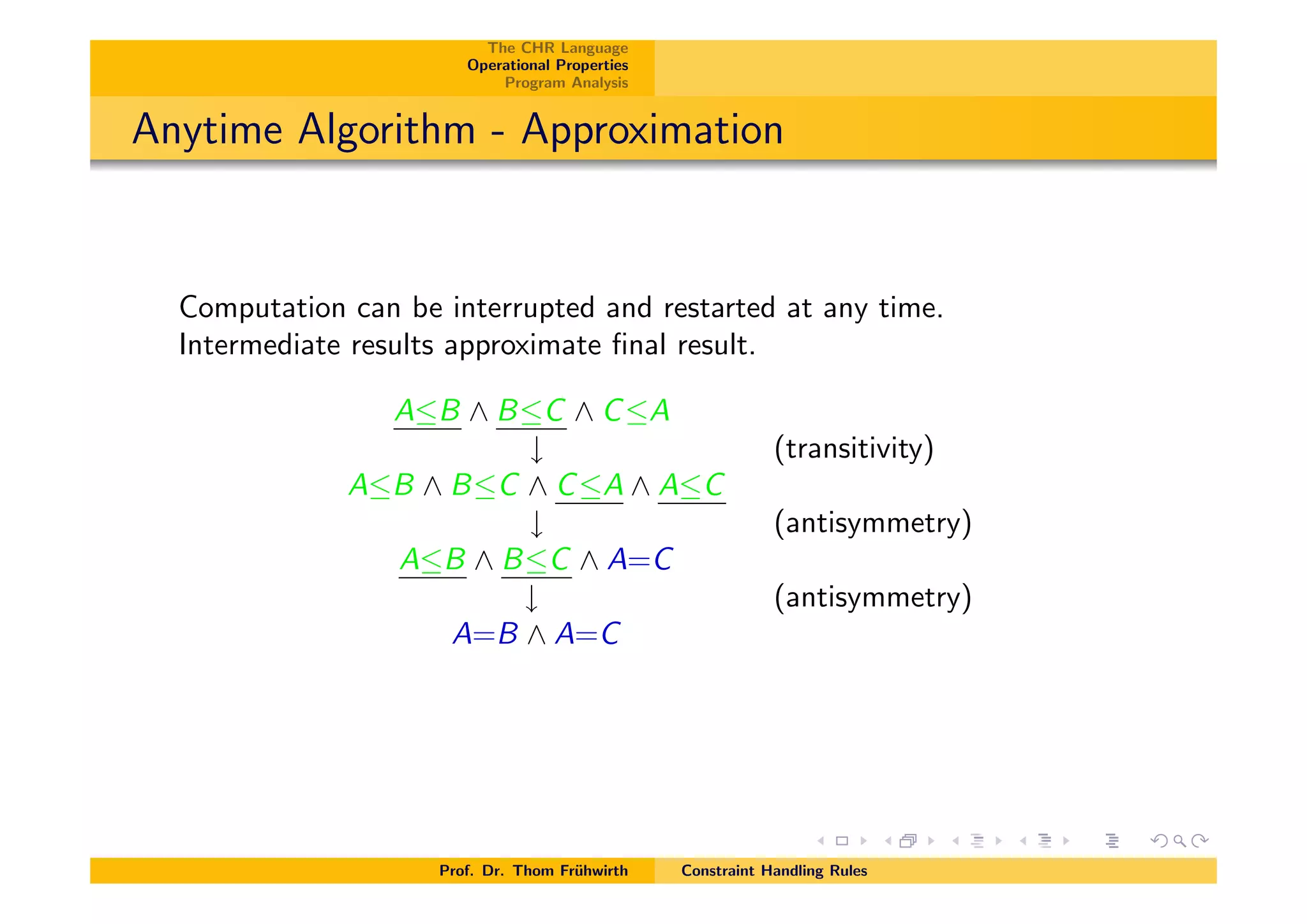

The CHR Language OperationalProperties Program Analysis Anytime Algorithm - Approximation Computation can be interrupted and restarted at any time. Intermediate results approximate ﬁnal result. AB ^ BC ^ CA # (transitivity) AB ^ BC ^ CA ^ AC # (antisymmetry) AB ^ BC ^ A=C # (antisymmetry) A=B ^ A=C Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

23.

24.

25.

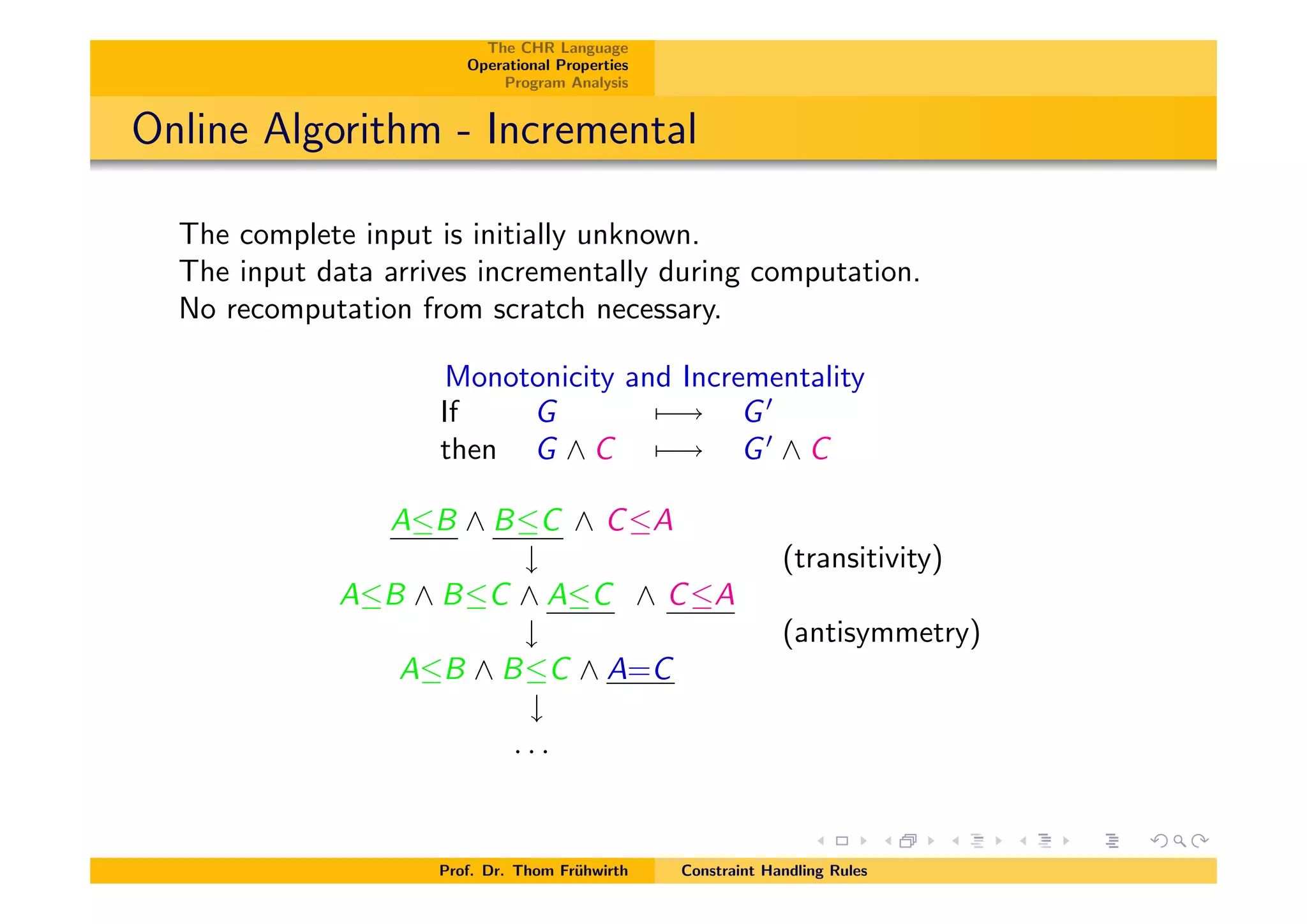

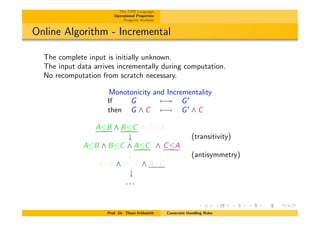

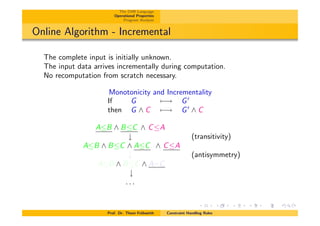

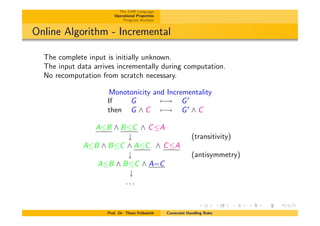

The CHR Language OperationalProperties Program Analysis Online Algorithm - Incremental The complete input is initially unknown. The input data arrives incrementally during computation. No recomputation from scratch necessary. Monotonicity and Incrementality If G 7 ! G0 then G ^ C 7 ! G0 ^ C AB ^ BC ^ CA # (transitivity) AB ^ BC ^ AC ^ CA # (antisymmetry) AB ^ BC ^ A=C # . . . Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

26.

27.

28.

29.

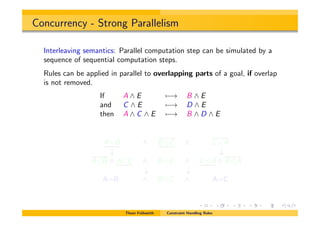

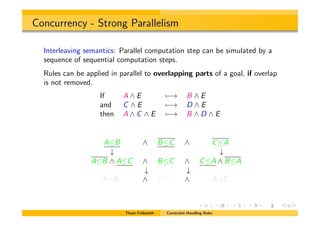

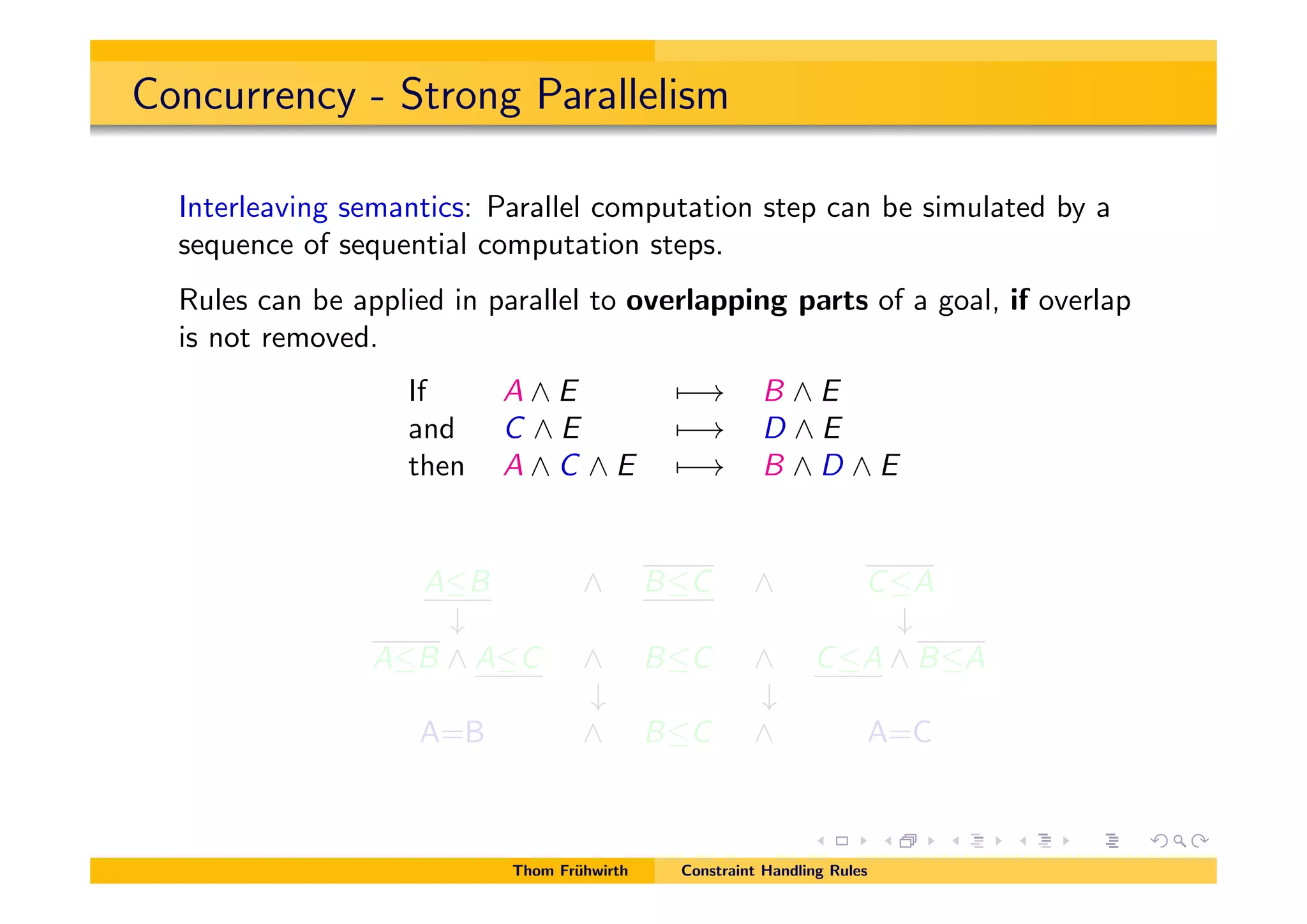

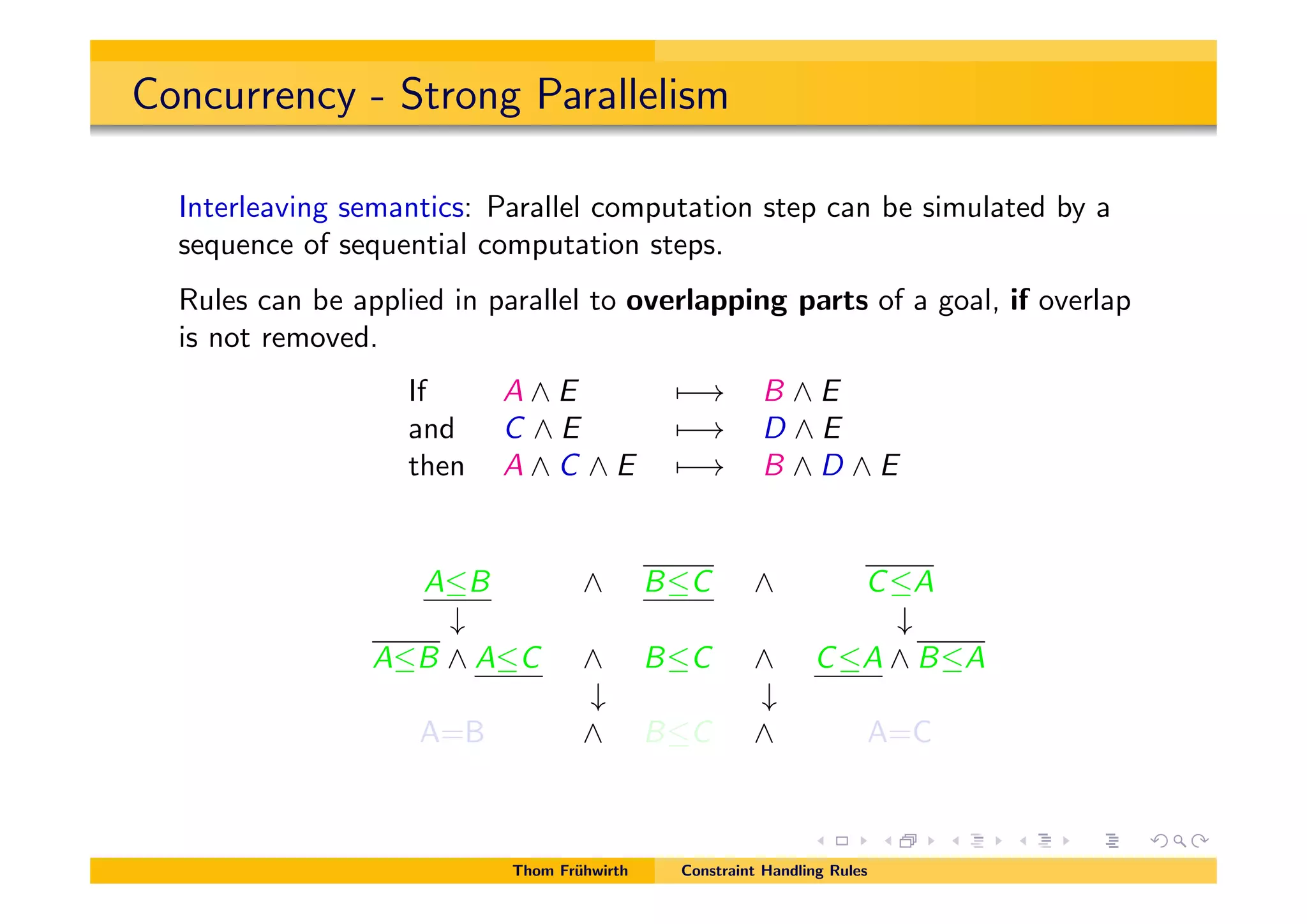

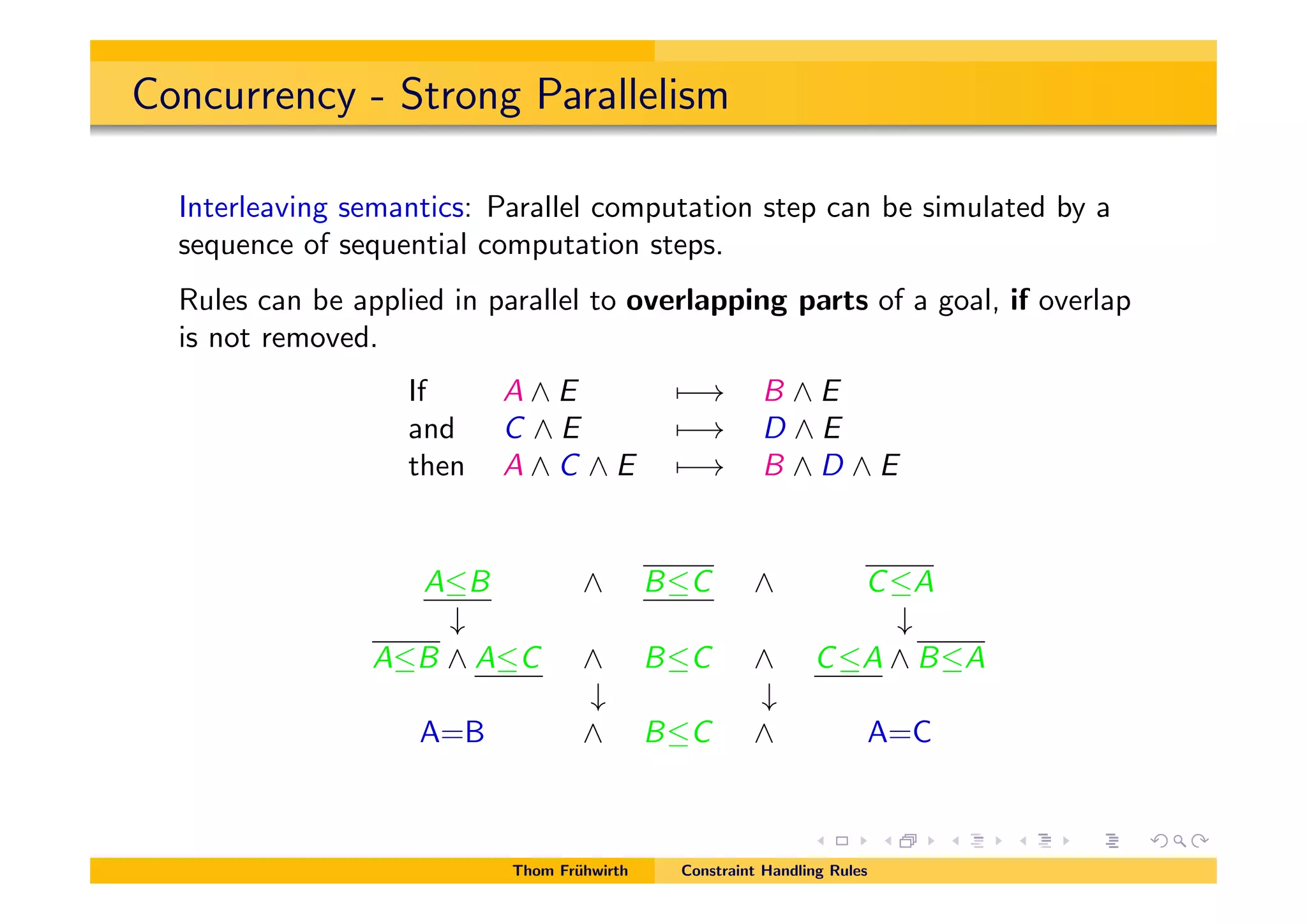

Concurrency - StrongParallelism Interleaving semantics: Parallel computation step can be simulated by a sequence of sequential computation steps. Rules can be applied in parallel to overlapping parts of a goal, if overlap is not removed. If A ^ E 7 ! B ^ E and C ^ E 7 ! D ^ E then A ^ C ^ E 7 ! B ^ D ^ E AB ^ BC ^ CA # # AB ^ AC ^ BC ^ CA ^ BA # # A=B ^ BC ^ A=C Thom Fr¨uhwirth Constraint Handling Rules

30.

31.

32.

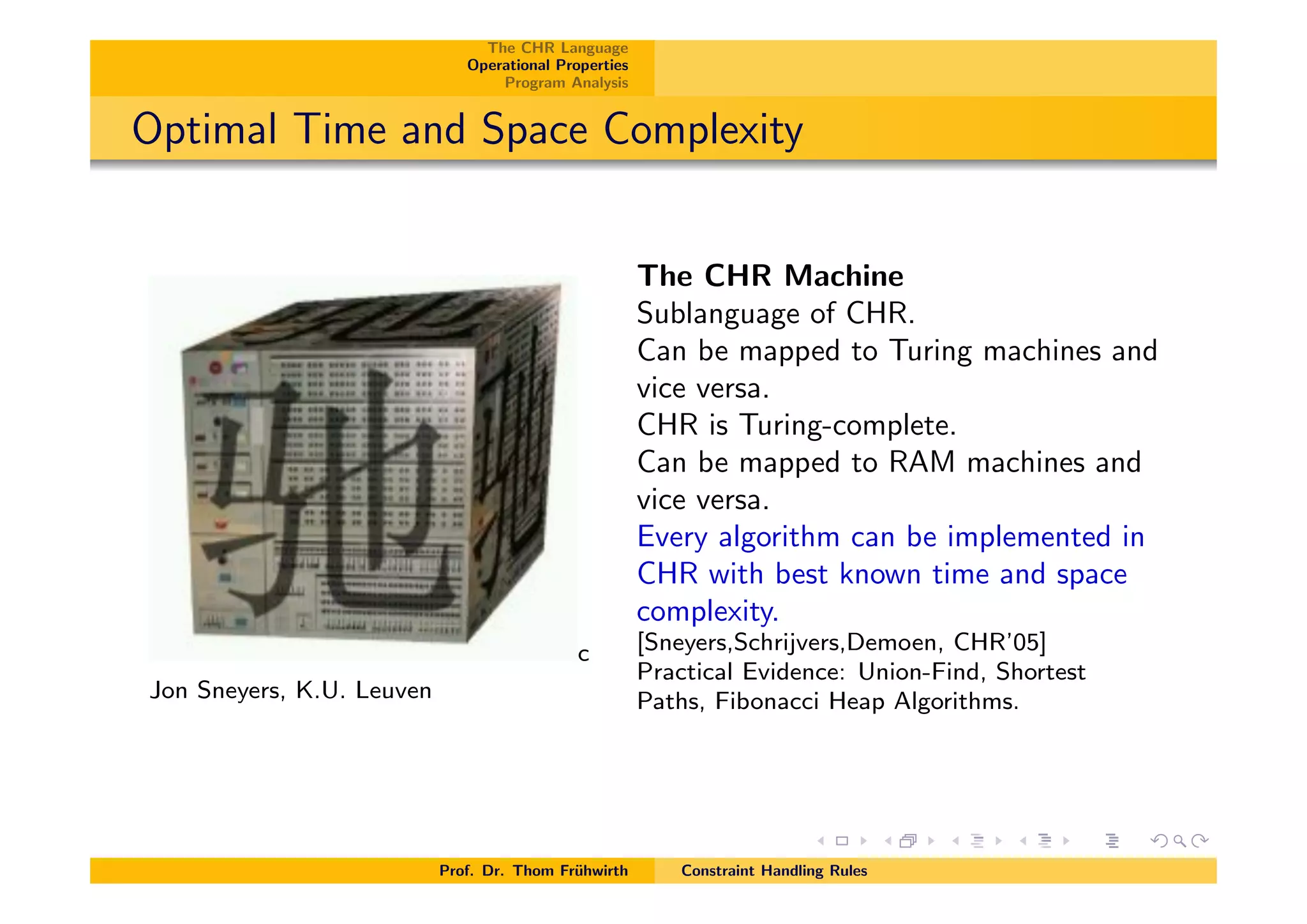

The CHR Language OperationalProperties Program Analysis Optimal Time and Space Complexity c Jon Sneyers, K.U. Leuven The CHR Machine Sublanguage of CHR. Can be mapped to Turing machines and vice versa. CHR is Turing-complete. Can be mapped to RAM machines and vice versa. Every algorithm can be implemented in CHR with best known time and space complexity. [Sneyers,Schrijvers,Demoen, CHR’05] Practical Evidence: Union-Find, Shortest Paths, Fibonacci Heap Algorithms. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

33.

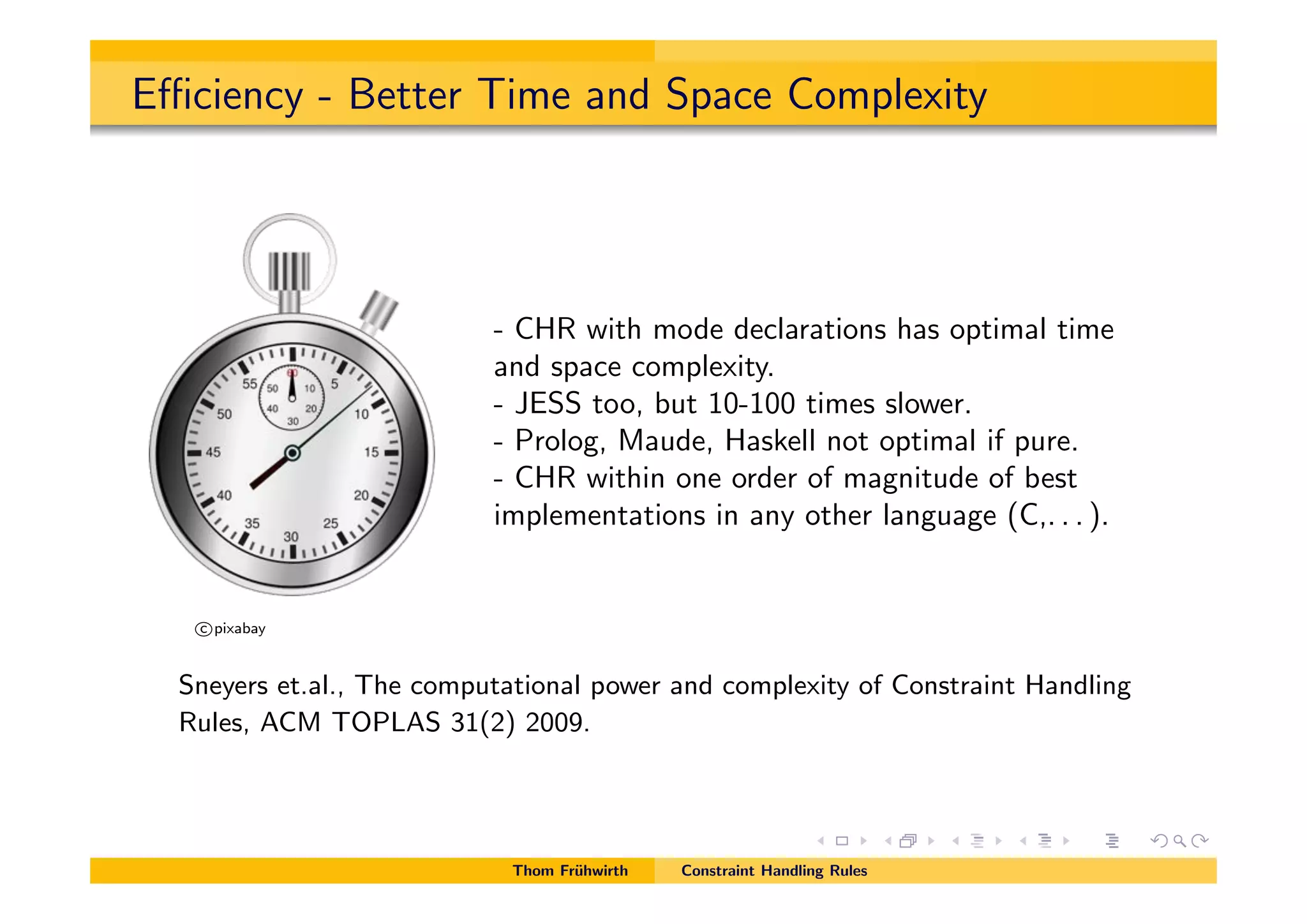

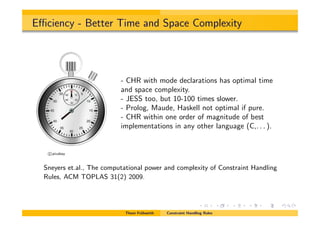

E ciency -Better Time and Space Complexity c pixabay - CHR with mode declarations has optimal time and space complexity. - JESS too, but 10-100 times slower. - Prolog, Maude, Haskell not optimal if pure. - CHR within one order of magnitude of best implementations in any other language (C,. . . ). Sneyers et.al., The computational power and complexity of Constraint Handling Rules, ACM TOPLAS 31(2) 2009. Thom Fr¨uhwirth Constraint Handling Rules

34.

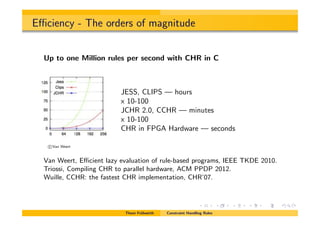

E ciency -The orders of magnitude Up to one Million rules per second with CHR in C c Van Weert JESS, CLIPS — hours x 10-100 JCHR 2.0, CCHR — minutes x 10-100 CHR in FPGA Hardware — seconds Van Weert, E cient lazy evaluation of rule-based programs, IEEE TKDE 2010. Triossi, Compiling CHR to parallel hardware, ACM PPDP 2012. Wuille, CCHR: the fastest CHR implementation, CHR’07. Thom Fr¨uhwirth Constraint Handling Rules

35.

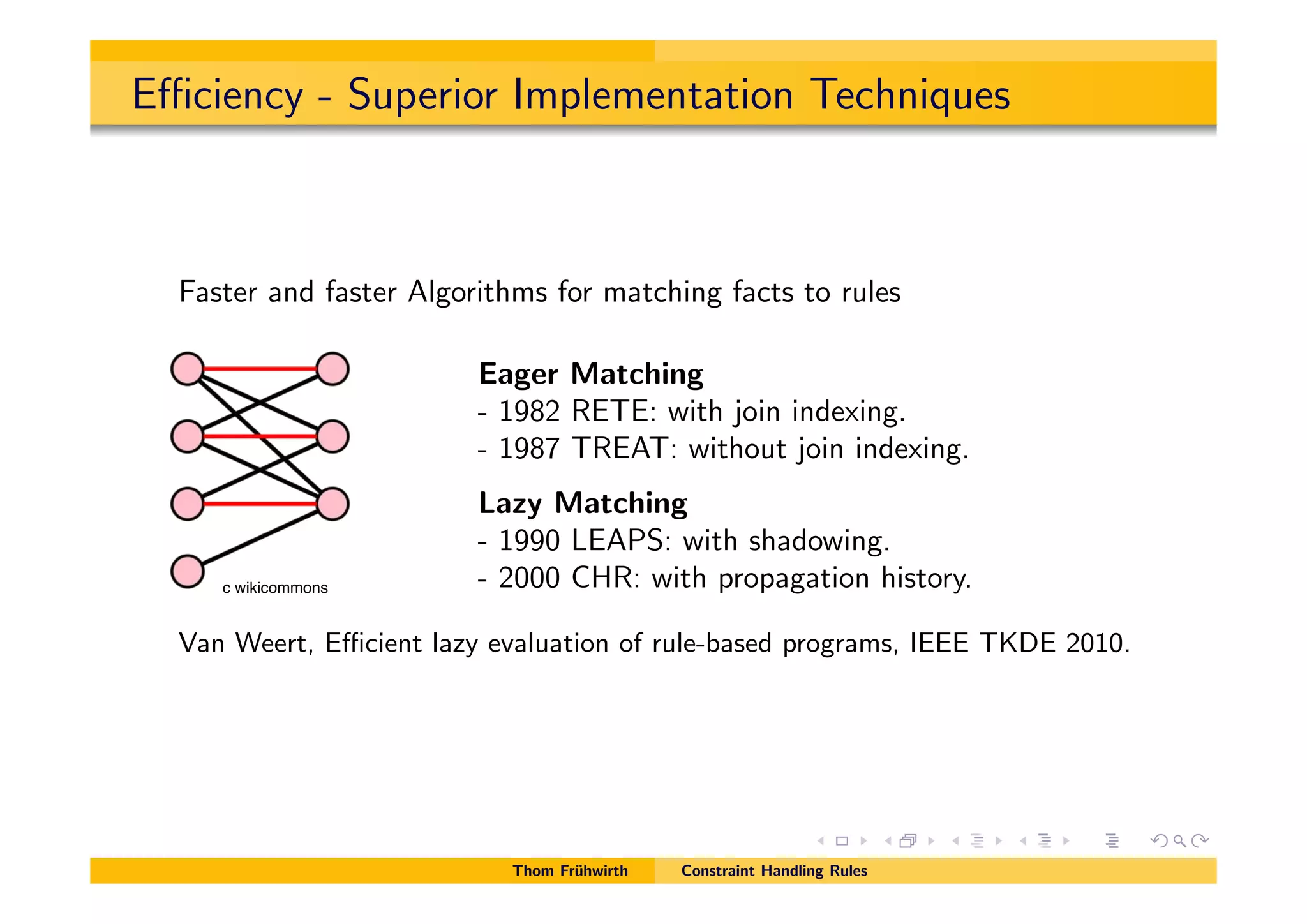

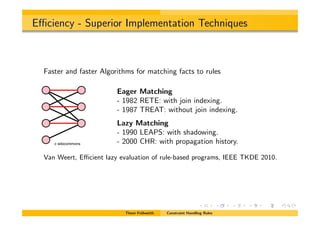

E ciency -Superior Implementation Techniques Faster and faster Algorithms for matching facts to rules Eager Matching - 1982 RETE: with join indexing. - 1987 TREAT: without join indexing. Lazy Matching - 1990 LEAPS: with shadowing. - 2000 CHR: with propagation history. Van Weert, E cient lazy evaluation of rule-based programs, IEEE TKDE 2010. Thom Fr¨uhwirth Constraint Handling Rules c wikicommons

36.

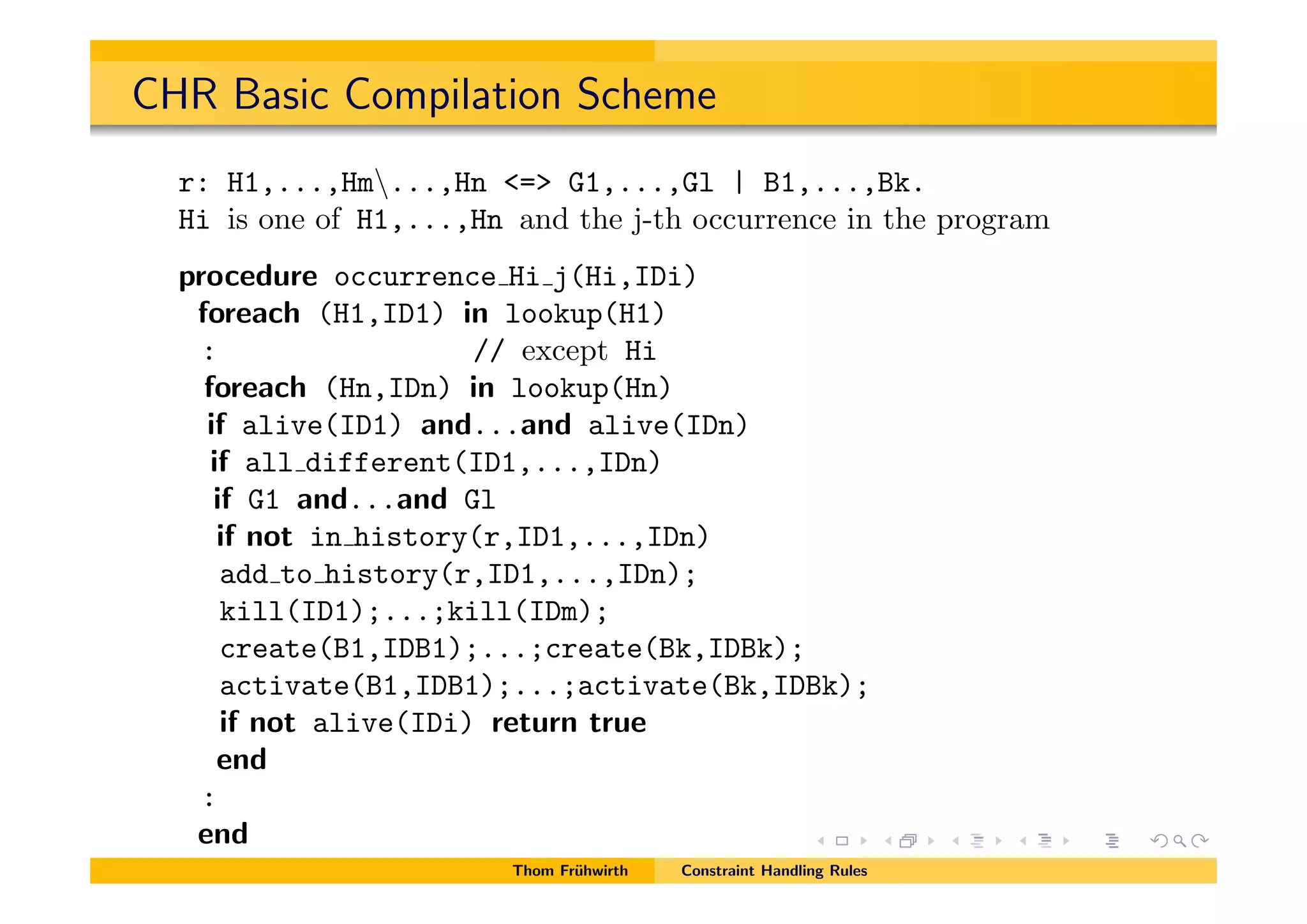

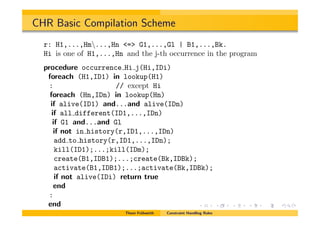

CHR Basic CompilationScheme r: H1,...,Hm...,Hn <=> G1,...,Gl | B1,...,Bk. Hi is one of H1,...,Hn and the j-th occurrence in the program procedure occurrence Hi j(Hi,IDi) foreach (H1,ID1) in lookup(H1) : // except Hi foreach (Hn,IDn) in lookup(Hn) if alive(ID1) and...and alive(IDn) if all different(ID1,...,IDn) if G1 and...and Gl if not in history(r,ID1,...,IDn) add to history(r,ID1,...,IDn); kill(ID1);...;kill(IDm); create(B1,IDB1);...;create(Bk,IDBk); activate(B1,IDB1);...;activate(Bk,IDBk); if not alive(IDi) return true end : end Thom Fr¨uhwirth Constraint Handling Rules

37.

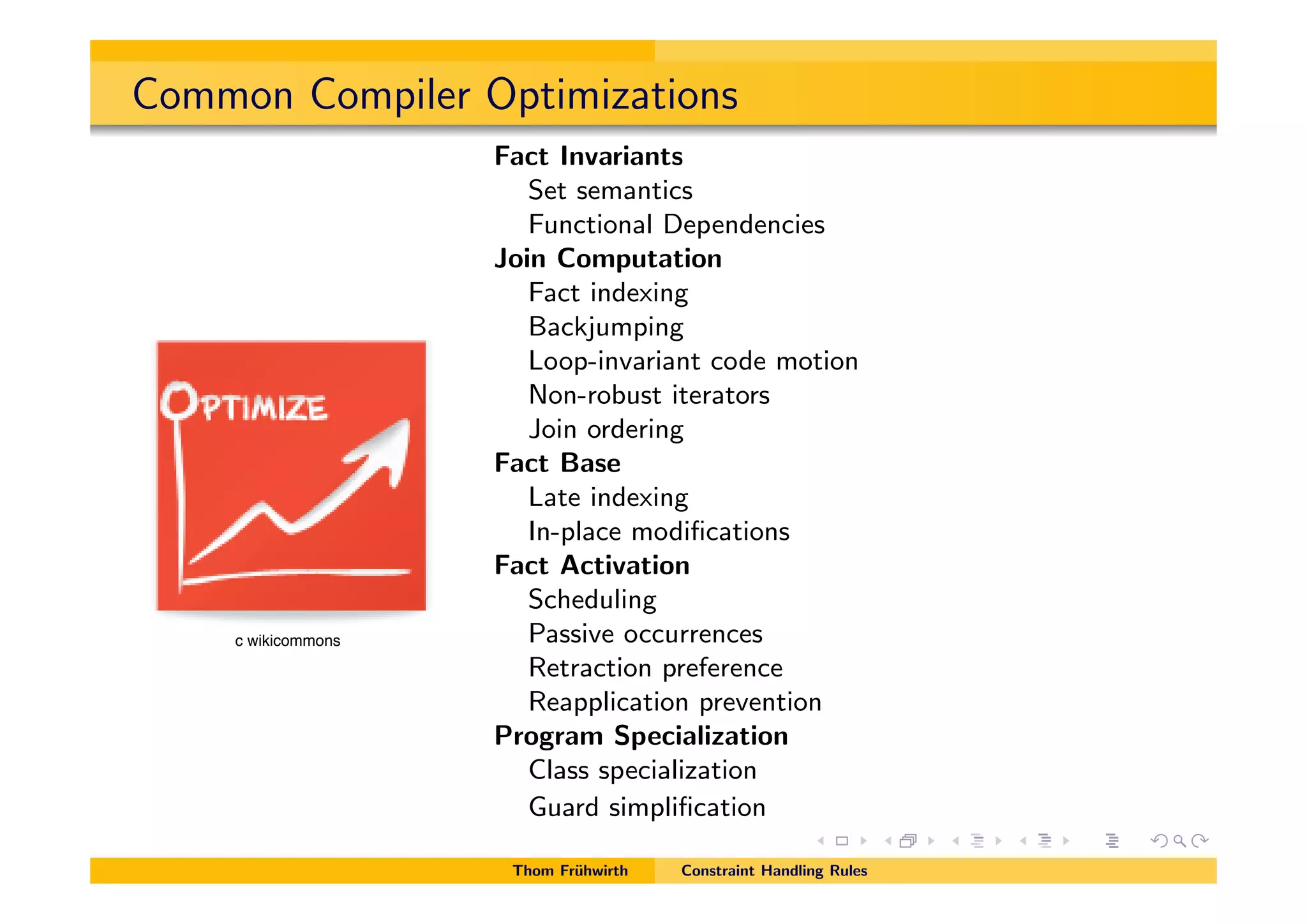

Common Compiler Optimizations FactInvariants Set semantics Functional Dependencies Join Computation Fact indexing Backjumping Loop-invariant code motion Non-robust iterators Join ordering Fact Base Late indexing In-place modifications Fact Activation Scheduling Passive occurrences Retraction preference Reapplication prevention Program Specialization Class specialization Guard simplification Thom Frühwirth Constraint Handling Rules c wikicommons

38.

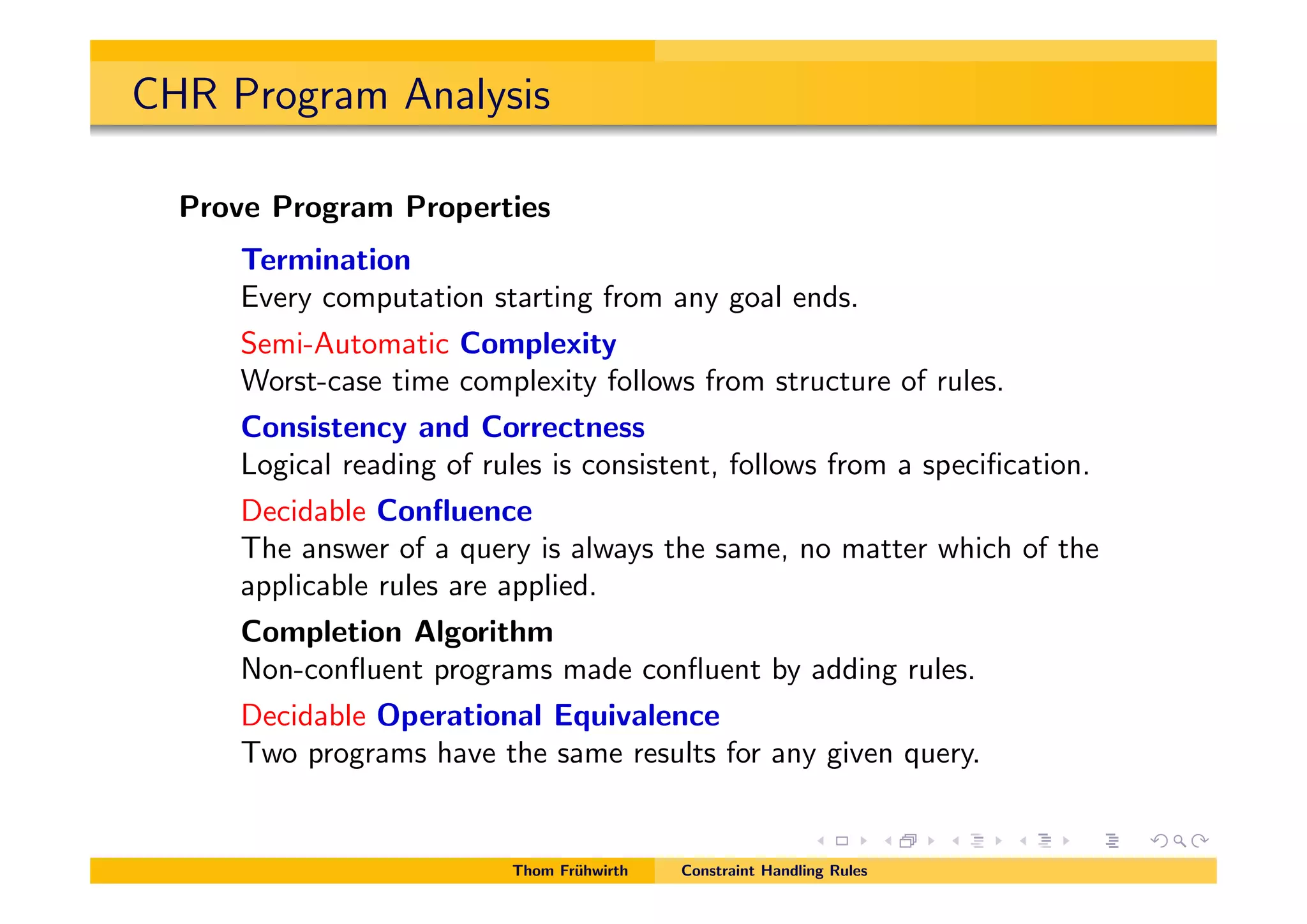

CHR Program Analysis ProveProgram Properties Termination Every computation starting from any goal ends. Semi-Automatic Complexity Worst-case time complexity follows from structure of rules. Consistency and Correctness Logical reading of rules is consistent, follows from a specification. Decidable Confluence The answer of a query is always the same, no matter which of the applicable rules are applied. Completion Algorithm Non-confluent programs made confluent by adding rules. Decidable Operational Equivalence Two programs have the same results for any given query. Thom Frühwirth Constraint Handling Rules

39.

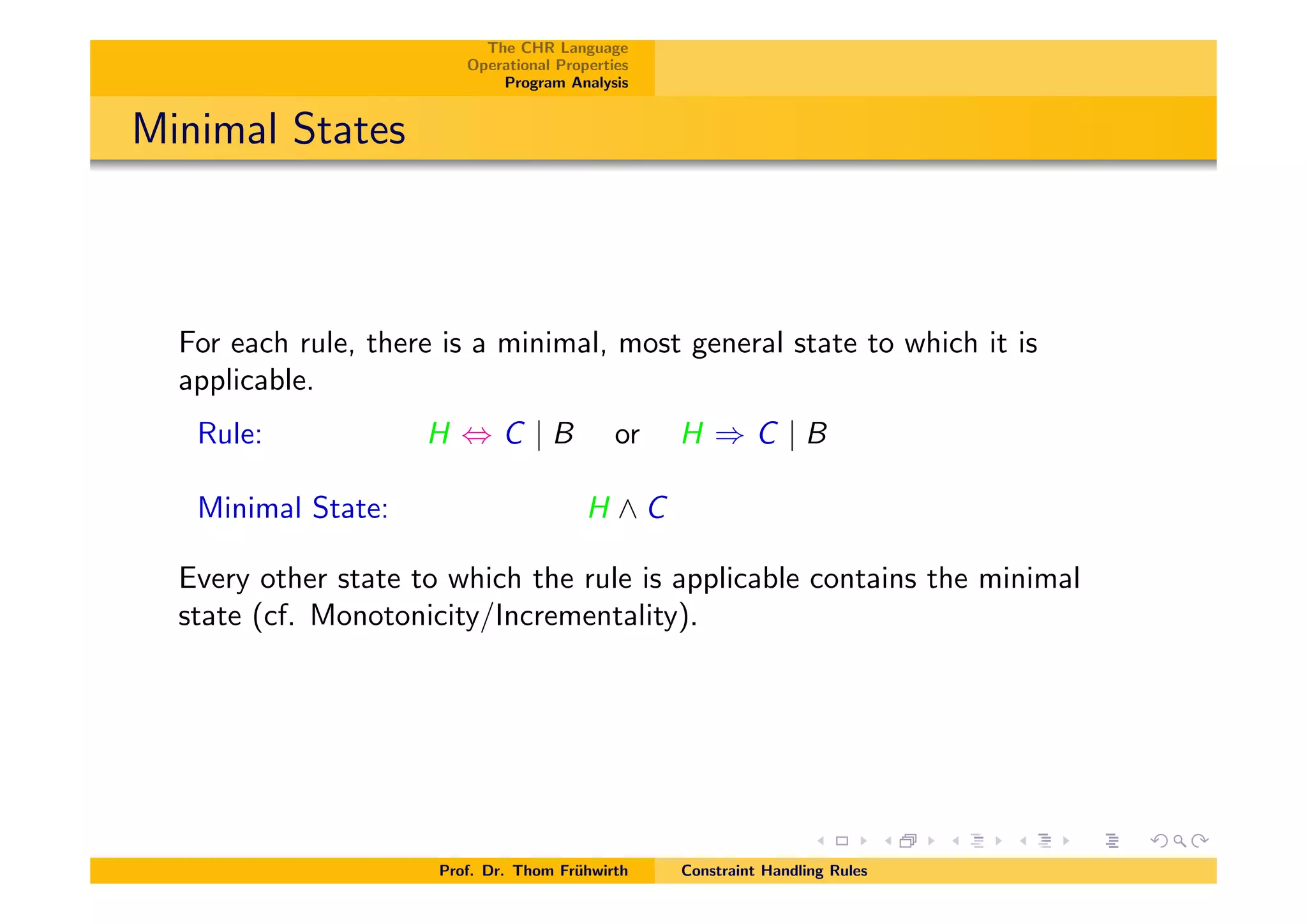

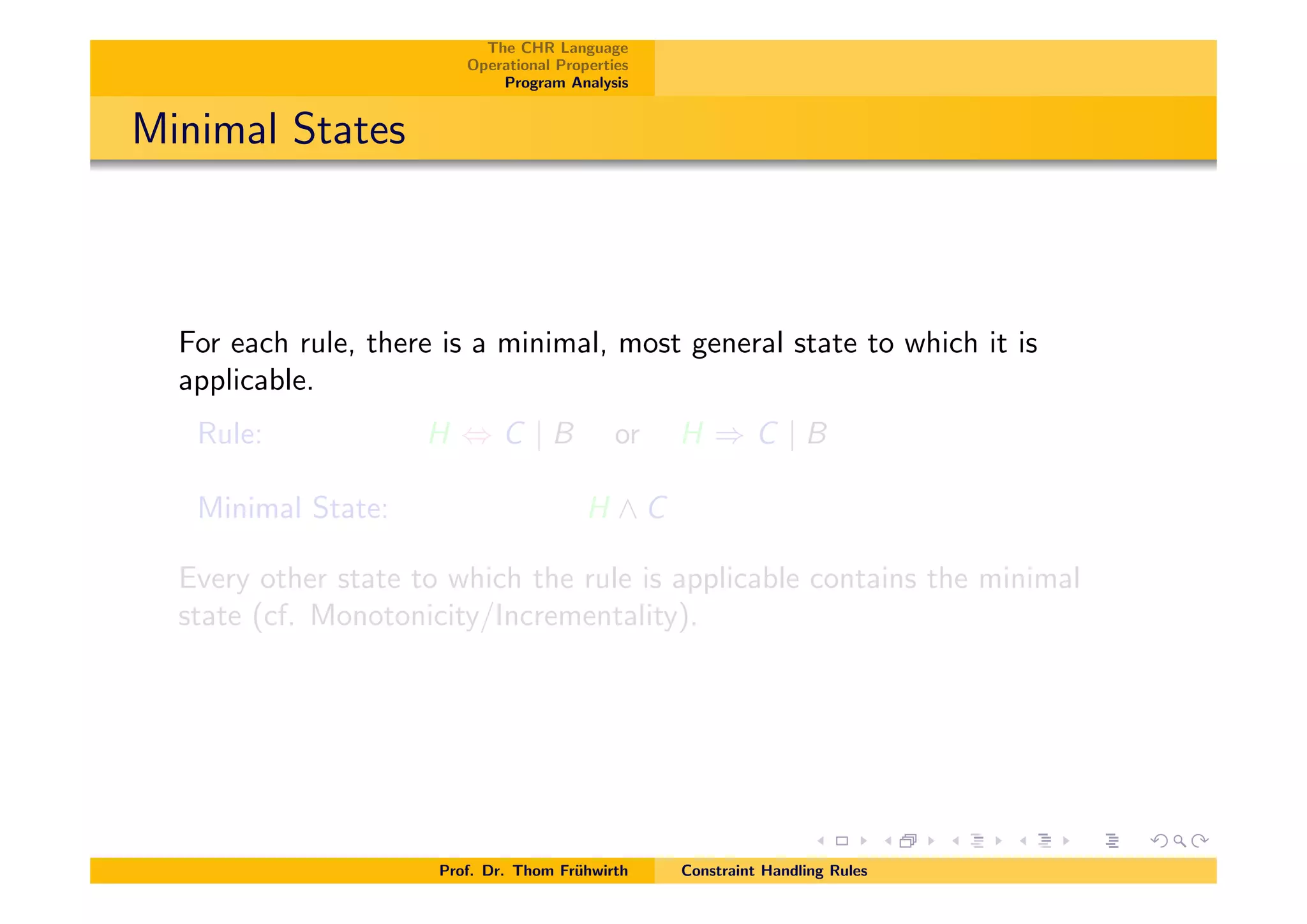

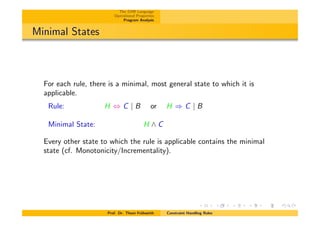

The CHR Language OperationalProperties Program Analysis Minimal States For each rule, there is a minimal, most general state to which it is applicable. Rule: H , C | B or H ) C | B Minimal State: H ^ C Every other state to which the rule is applicable contains the minimal state (cf. Monotonicity/Incrementality). Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

40.

41.

42.

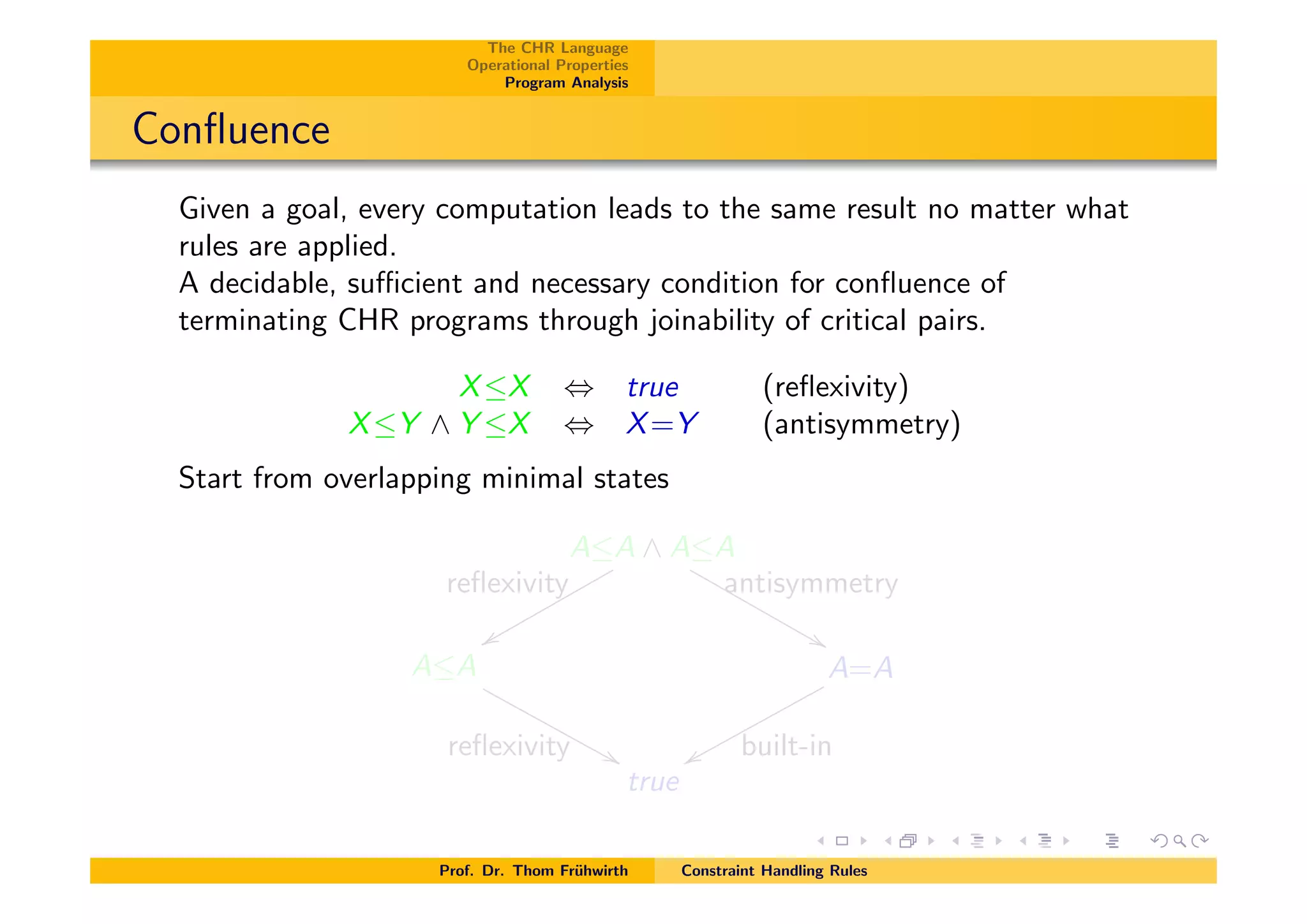

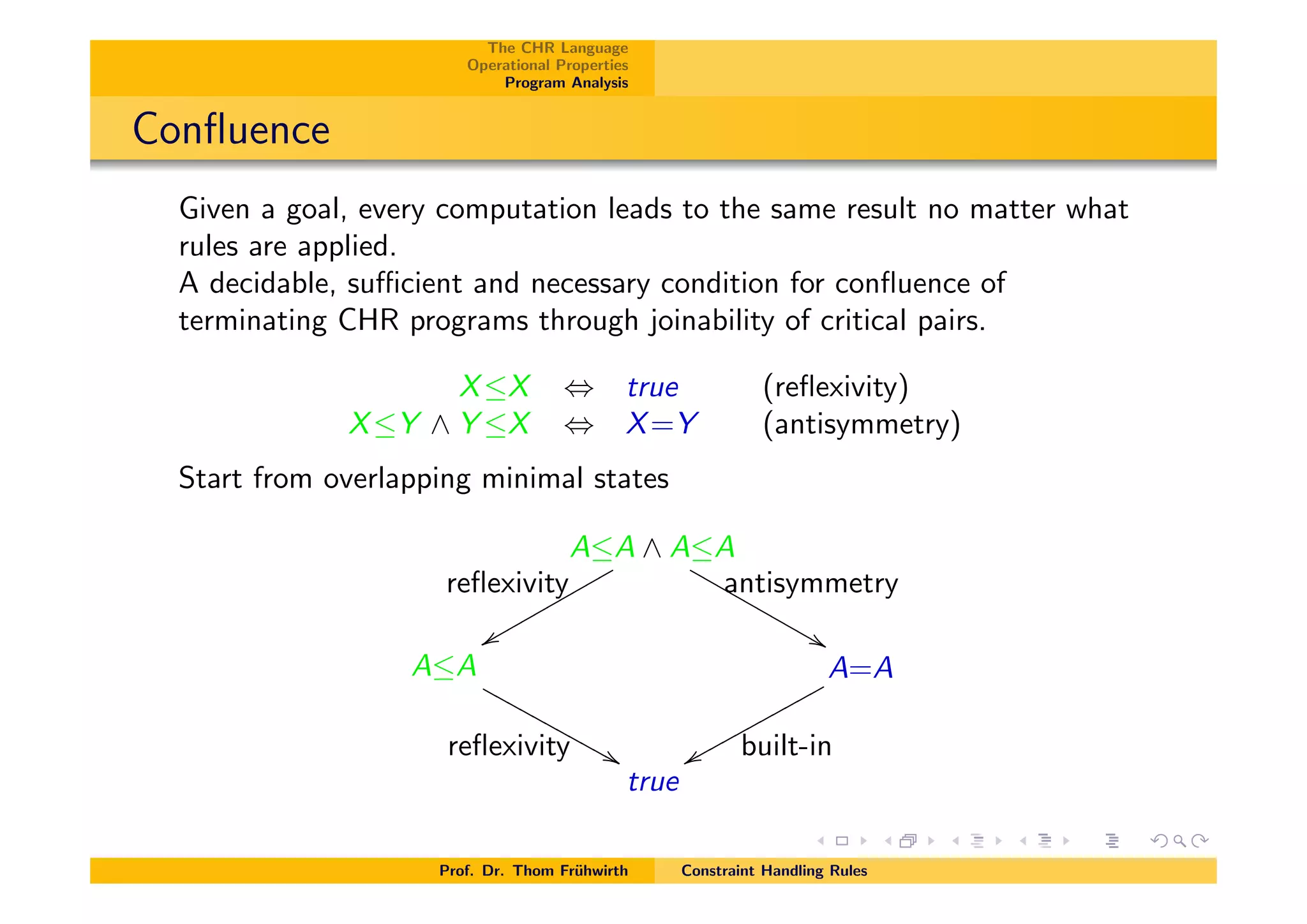

The CHR Language OperationalProperties Program Analysis Confluence Given a goal, every computation leads to the same result no matter what rules are applied. A decidable, su⌅cient and necessary condition for confluence of terminating CHR programs through joinability of critical pairs. XX , true (reflexivity) XY ^ Y X , X=Y (antisymmetry) Start from overlapping minimal states AA ^ AA reflexivity xxqqqqqqqqqq antisymmetry &&MMMMMMMMMM AA reflexivity &&MMMMMMMMMMM A=A built-inxxqqqqqqqqqqq true Prof. Dr. Thom Frühwirth Constraint Handling Rules

43.

44.

45.

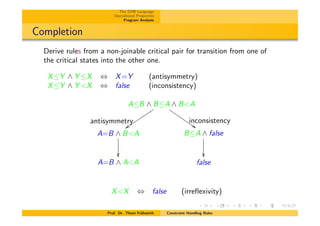

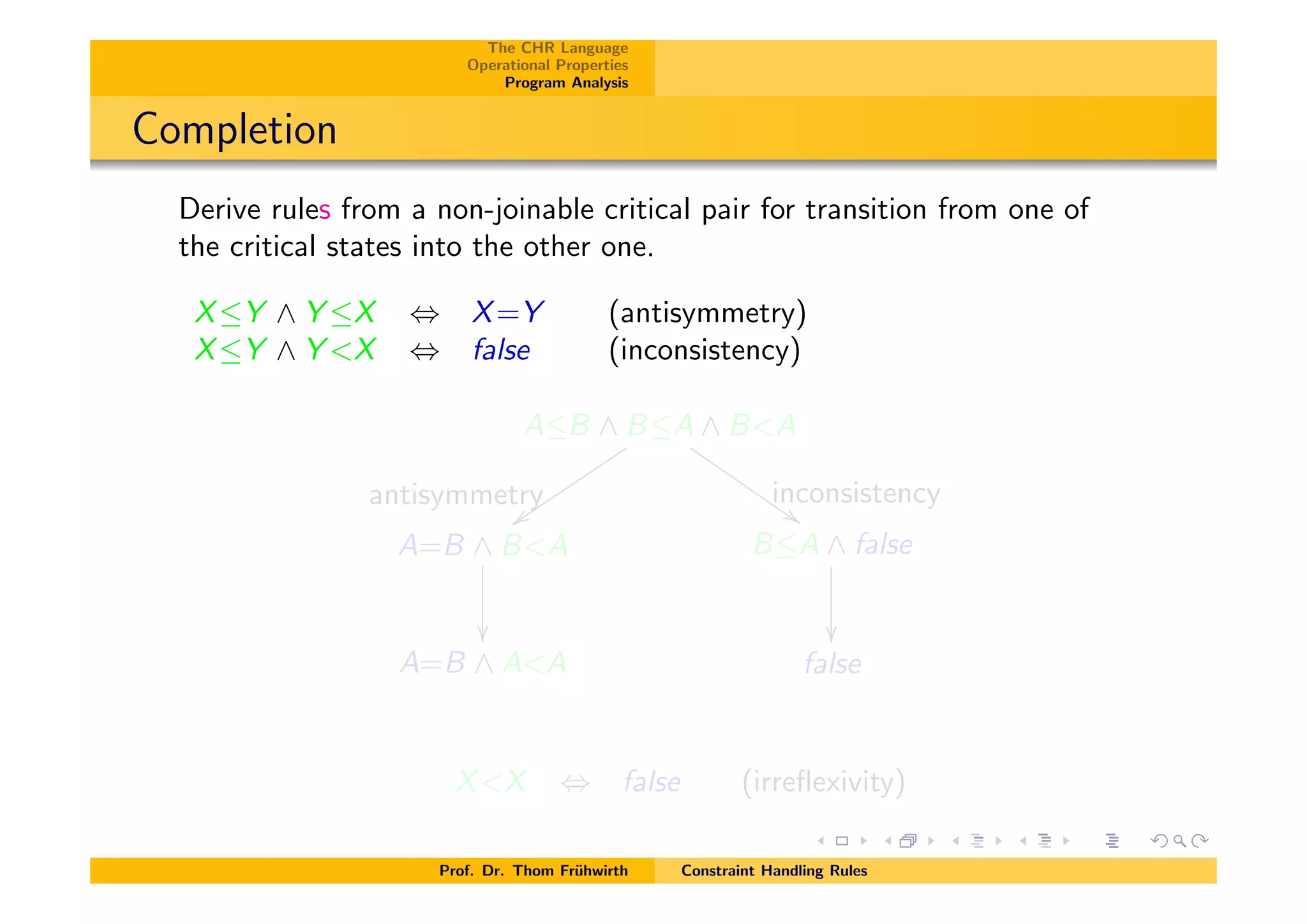

The CHR Language OperationalProperties Program Analysis Completion Derive rules from a non-joinable critical pair for transition from one of the critical states into the other one. XY ^ Y X , X=Y (antisymmetry) XY ^ Y <X , false (inconsistency) AB ^ BA ^ B<A antisymmetry zzttttttttt inconsistency $$IIIIIIIII A=B ^ B<A ✏✏ BA ^ false ✏✏ A=B ^ A<A false X<X , false (irreﬂexivity) Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

46.

47.

48.

49.

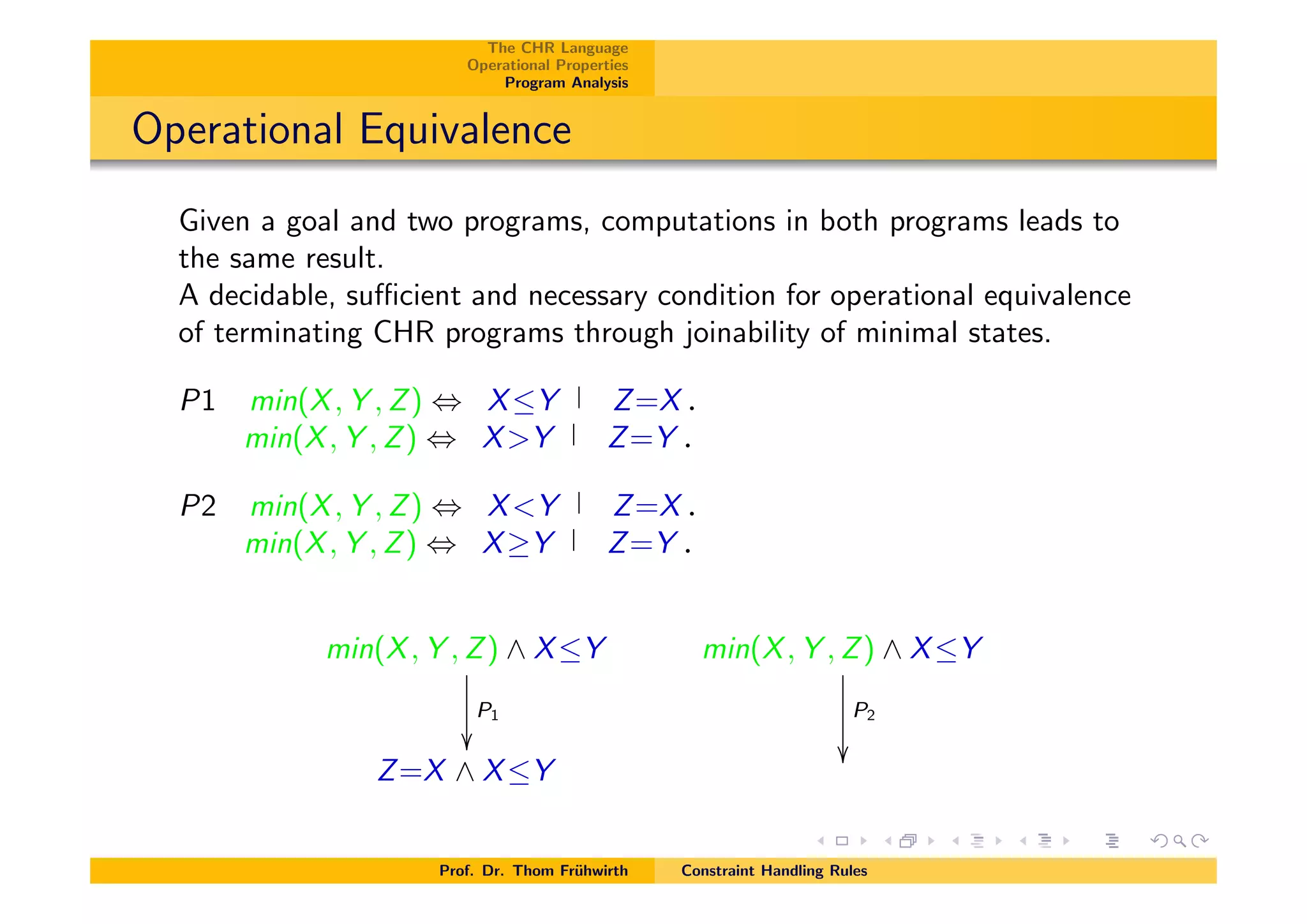

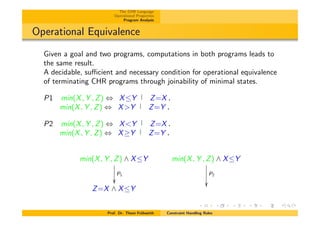

The CHR Language OperationalProperties Program Analysis Operational Equivalence Given a goal and two programs, computations in both programs leads to the same result. A decidable, su⌅cient and necessary condition for operational equivalence of terminating CHR programs through joinability of minimal states. P1 min(X, Y , Z) , XY Z=X. min(X, Y , Z) , X>Y Z=Y . P2 min(X, Y , Z) , X<Y Z=X. min(X, Y , Z) , X Y Z=Y . min(X, Y , Z) ^ XY P1 ✏✏ min(X, Y , Z) ^ XY P2 ✏✏ Z=X ^ XY Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

50.

51.

52.
Example Programs Constraint Solvers PartII Example Programs 4 Example Programs 5 Constraint Solvers Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

53.

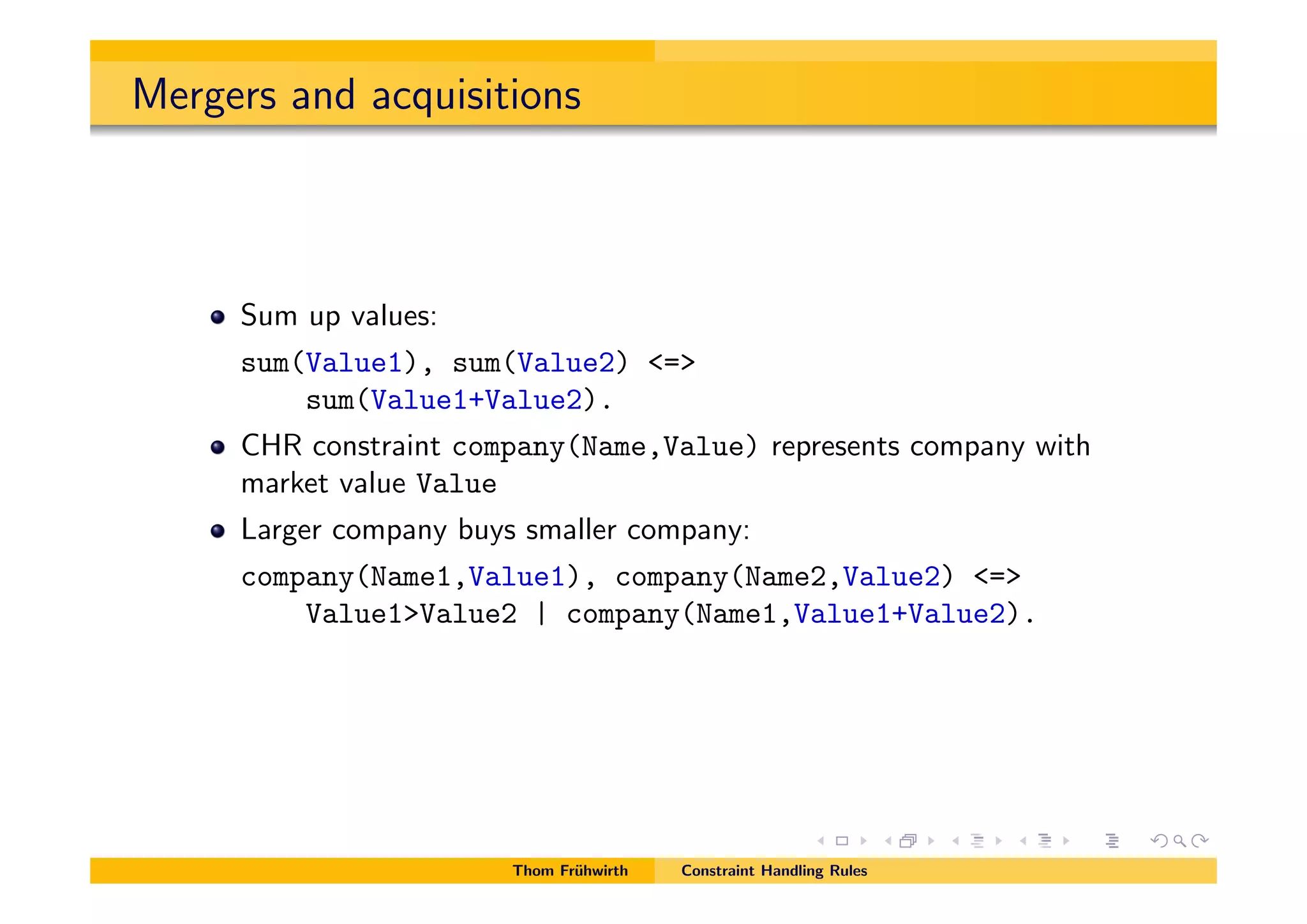

Mergers and acquisitions Sumup values: sum(Value1), sum(Value2) <=> sum(Value1+Value2). Thom Fr¨uhwirth Constraint Handling Rules

54.
Mergers and acquisitions Sumup values: sum(Value1), sum(Value2) <=> sum(Value1+Value2). CHR constraint company(Name,Value) represents company with market value Value Larger company buys smaller company: company(Name1,Value1), company(Name2,Value2) <=> Value1>Value2 | company(Name1,Value1+Value2). Thom Fr¨uhwirth Constraint Handling Rules

55.

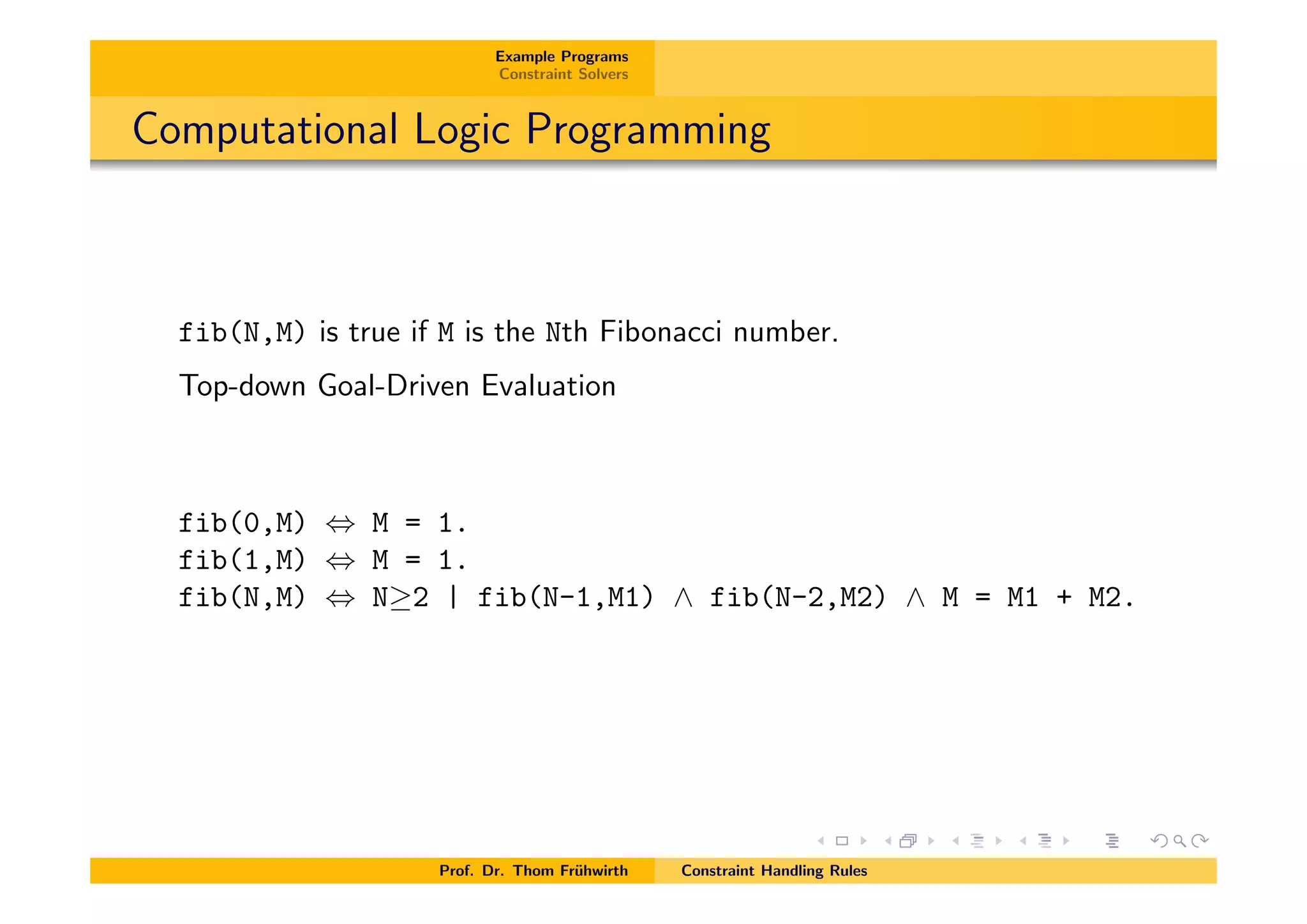

Example Programs Constraint Solvers ComputationalLogic Programming fib(N,M) is true if M is the Nth Fibonacci number. Top-down Goal-Driven Evaluation fib(0,M) , M = 1. fib(1,M) , M = 1. fib(N,M) , N 2 | fib(N-1,M1) ^ fib(N-2,M2) ^ M = M1 + M2. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

56.
Example Programs Constraint Solvers ComputationalLogic Programming fib(N,M) is true if M is the Nth Fibonacci number. Top-down Goal-Driven Evaluation with Tabling (Memoisation) fib(N,M1) ^ fib(N,M2) , M1 = M2 ^ fib(N,M1). fib(0,M) ) M = 1. fib(1,M) ) M = 1. fib(N,M) ) N 2 | fib(N-1,M1) ^ fib(N-2,M2) ^ M = M1 + M2. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

57.

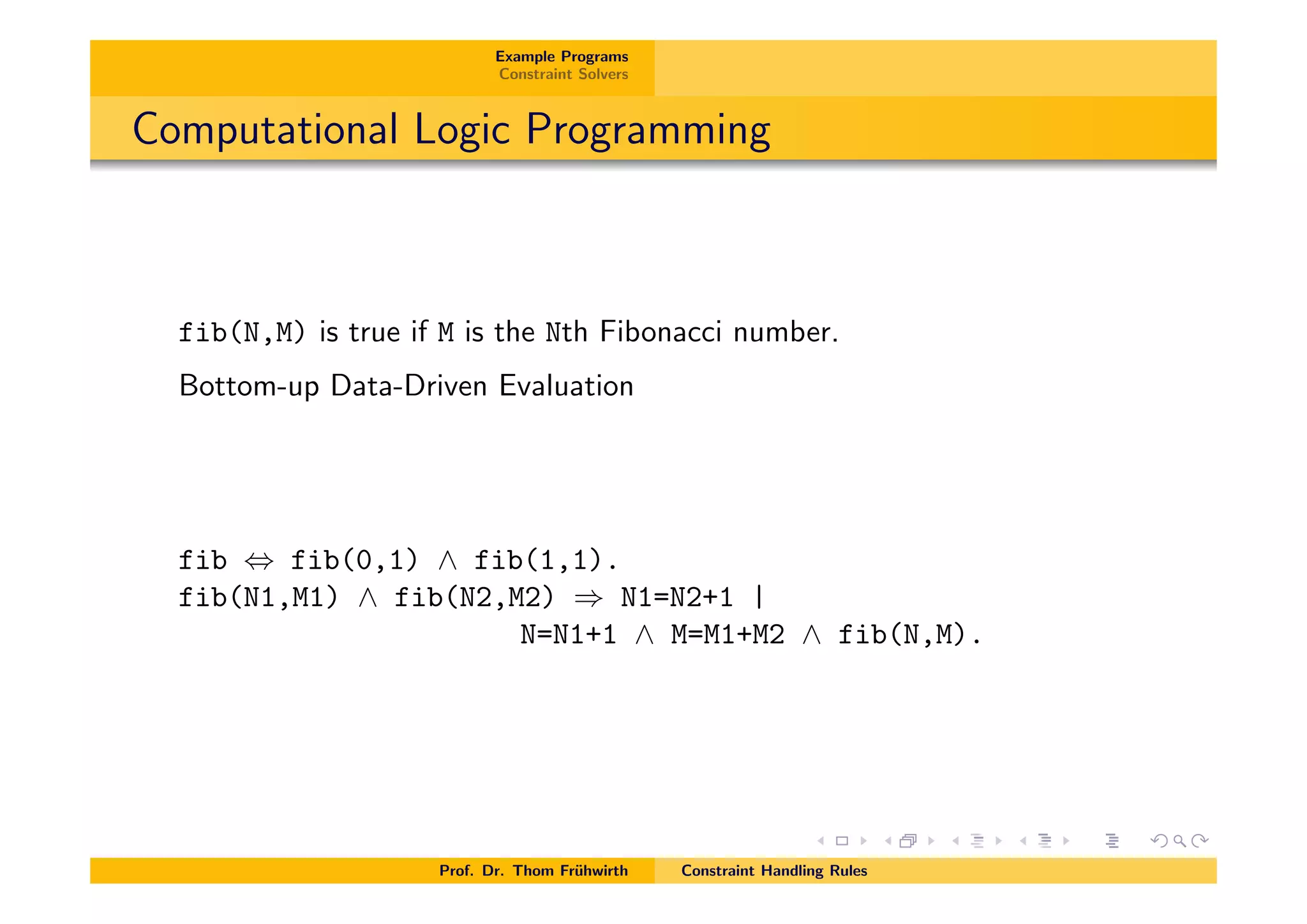

Example Programs Constraint Solvers ComputationalLogic Programming fib(N,M) is true if M is the Nth Fibonacci number. Bottom-up Data-Driven Evaluation fib , fib(0,1) ^ fib(1,1). fib(N1,M1) ^ fib(N2,M2) ) N1=N2+1 | N=N1+1 ^ M=M1+M2 ^ fib(N,M). Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

58.
Example Programs Constraint Solvers ComputationalLogic Programming fib(N,M) is true if M is the Nth Fibonacci number. Bottom-up Data-Driven Evaluation with Termination fib(Max) ) fib(0,1) ^ fib(1,1). fib(Max) ^ fib(N1,M1) ^ fib(N2,M2) ) Max>N1 ^ N1=N2+1 | N=N1+1 ^ M=M1+M2 ^ fib(N,M). Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

59.

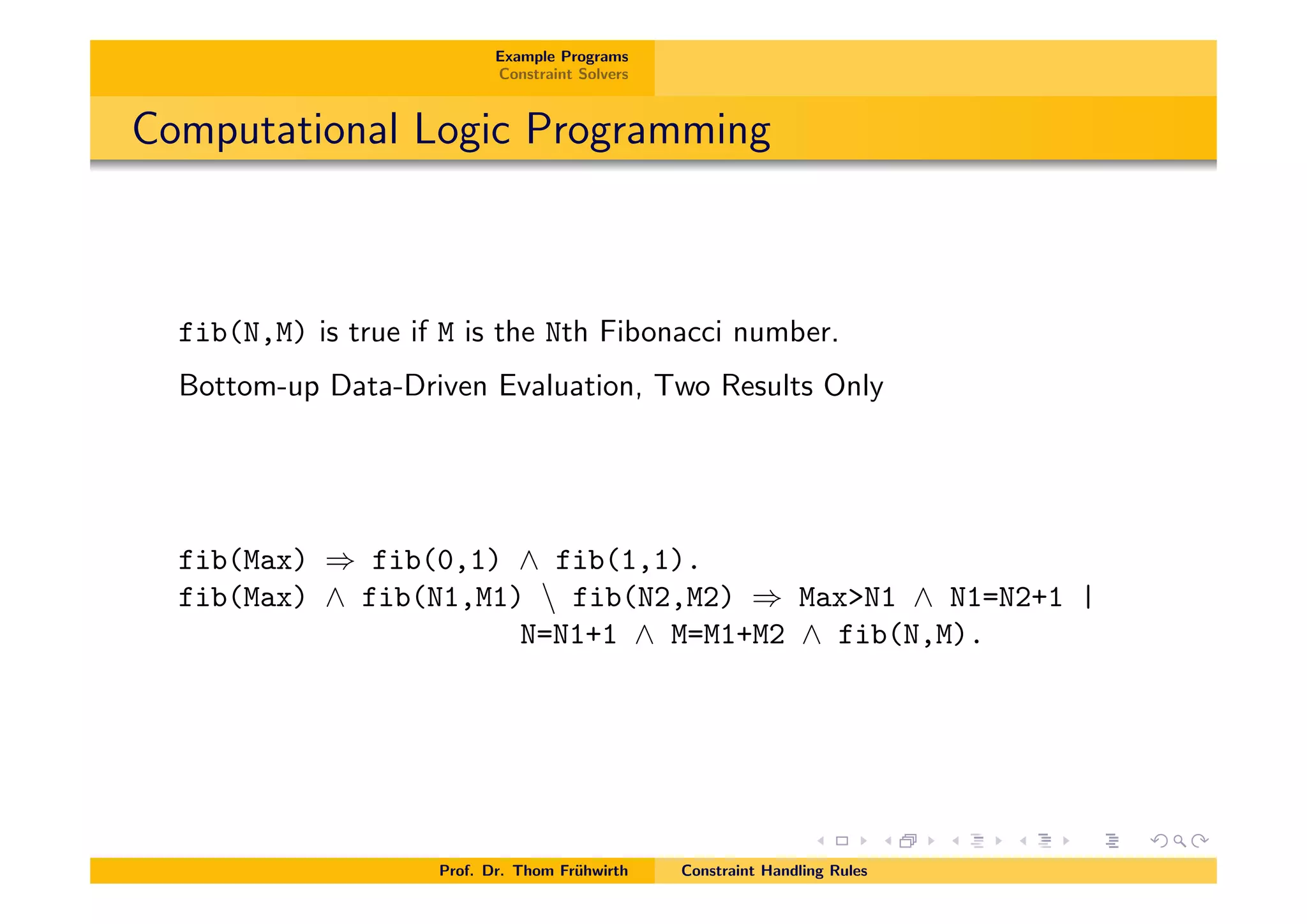

Example Programs Constraint Solvers ComputationalLogic Programming fib(N,M) is true if M is the Nth Fibonacci number. Bottom-up Data-Driven Evaluation, Two Results Only fib(Max) ) fib(0,1) ^ fib(1,1). fib(Max) ^ fib(N1,M1) fib(N2,M2) ) Max>N1 ^ N1=N2+1 | N=N1+1 ^ M=M1+M2 ^ fib(N,M). Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

60.

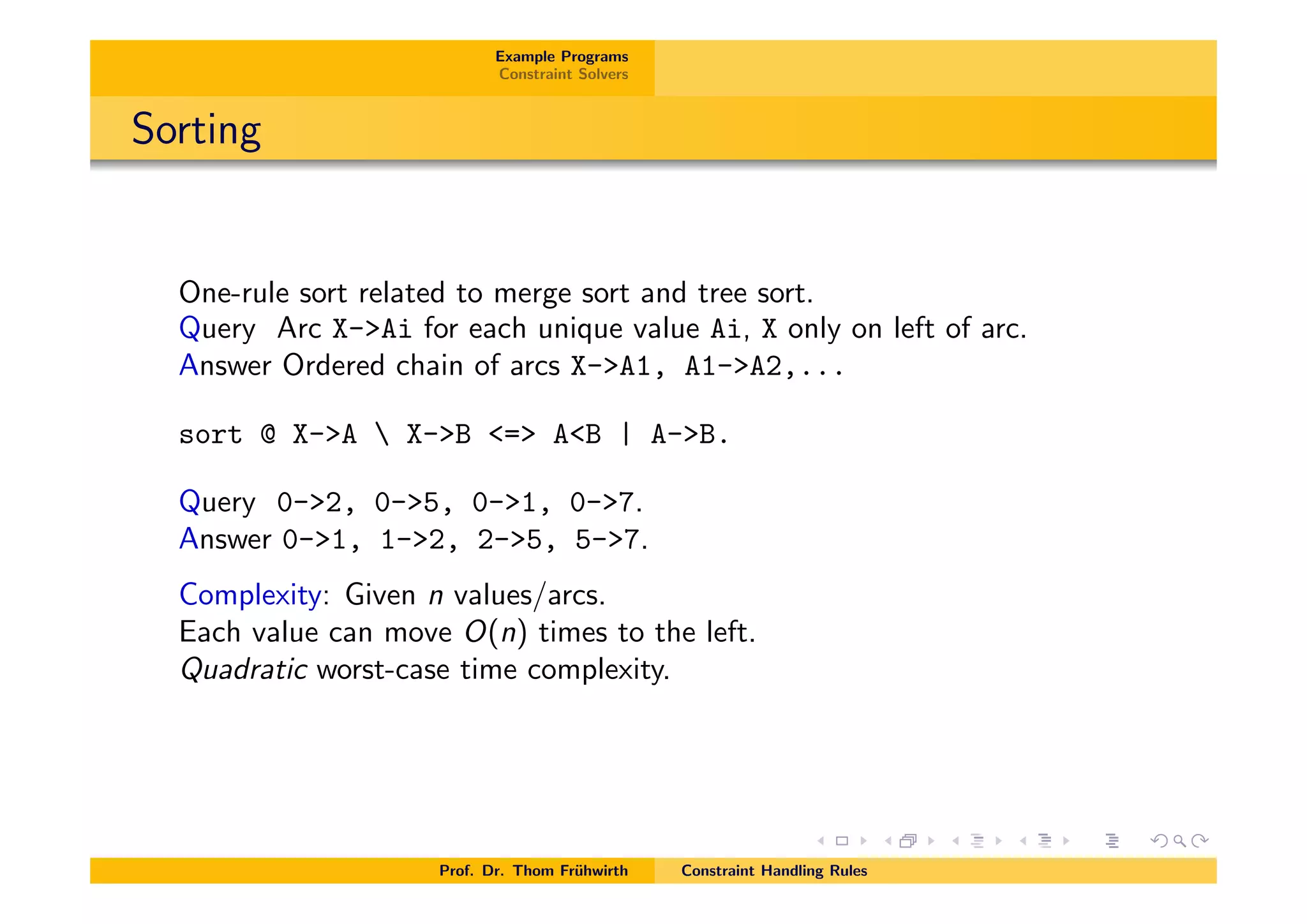

Example Programs Constraint Solvers Sorting One-rulesort related to merge sort and tree sort. Query Arc X->Ai for each unique value Ai, X only on left of arc. Answer Ordered chain of arcs X->A1, A1->A2,... sort @ X->A X->B <=> A<B | A->B. Query 0->2, 0->5, 0->1, 0->7. Answer 0->1, 1->2, 2->5, 5->7. Complexity: Given n values/arcs. Each value can move O(n) times to the left. Quadratic worst-case time complexity. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

61.

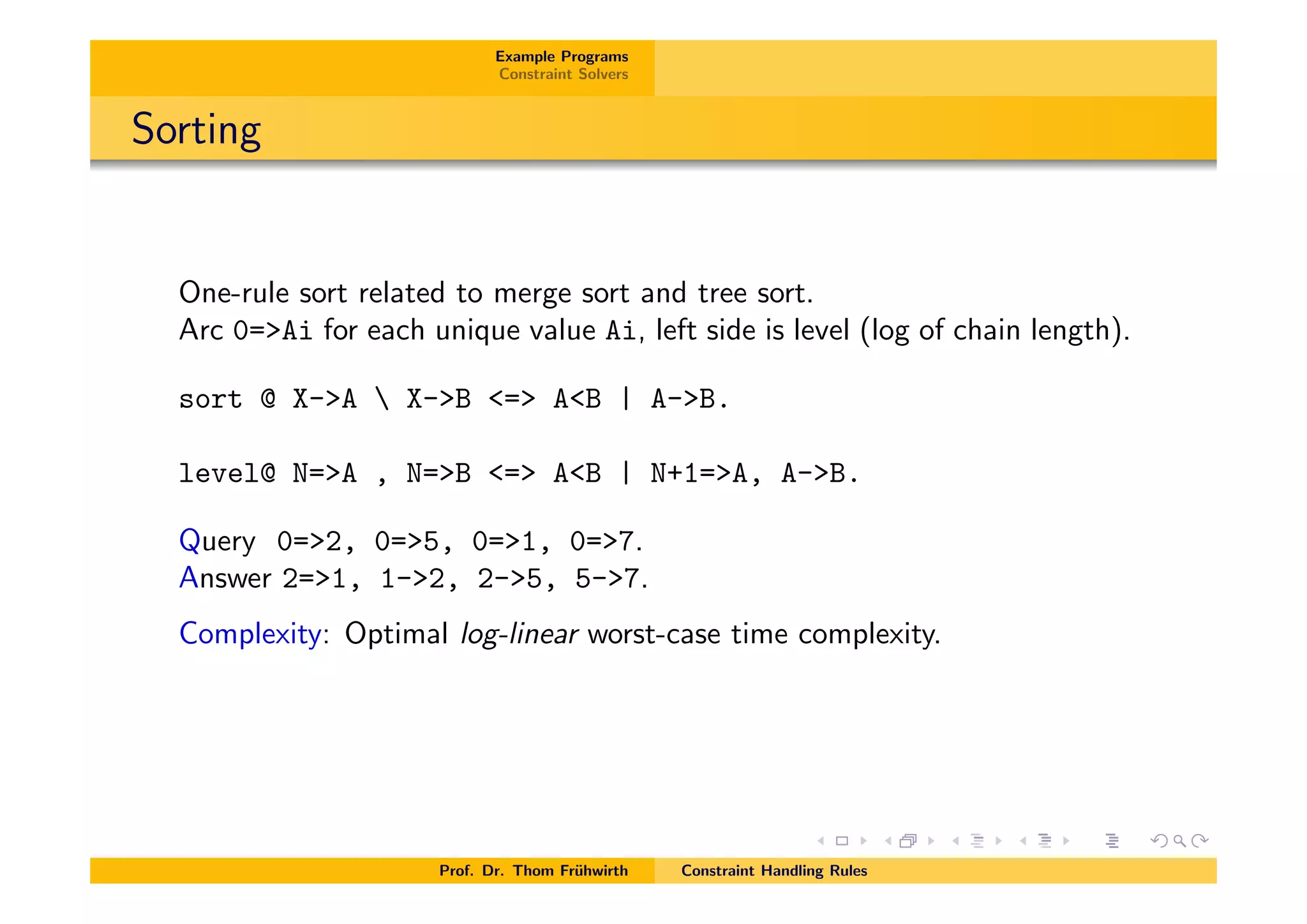

Example Programs Constraint Solvers Sorting One-rulesort related to merge sort and tree sort. Arc 0=>Ai for each unique value Ai, left side is level (log of chain length). sort @ X->A X->B <=> A<B | A->B. level@ N=>A , N=>B <=> A<B | N+1=>A, A->B. Query 0=>2, 0=>5, 0=>1, 0=>7. Answer 2=>1, 1->2, 2->5, 5->7. Complexity: Optimal log-linear worst-case time complexity. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

62.

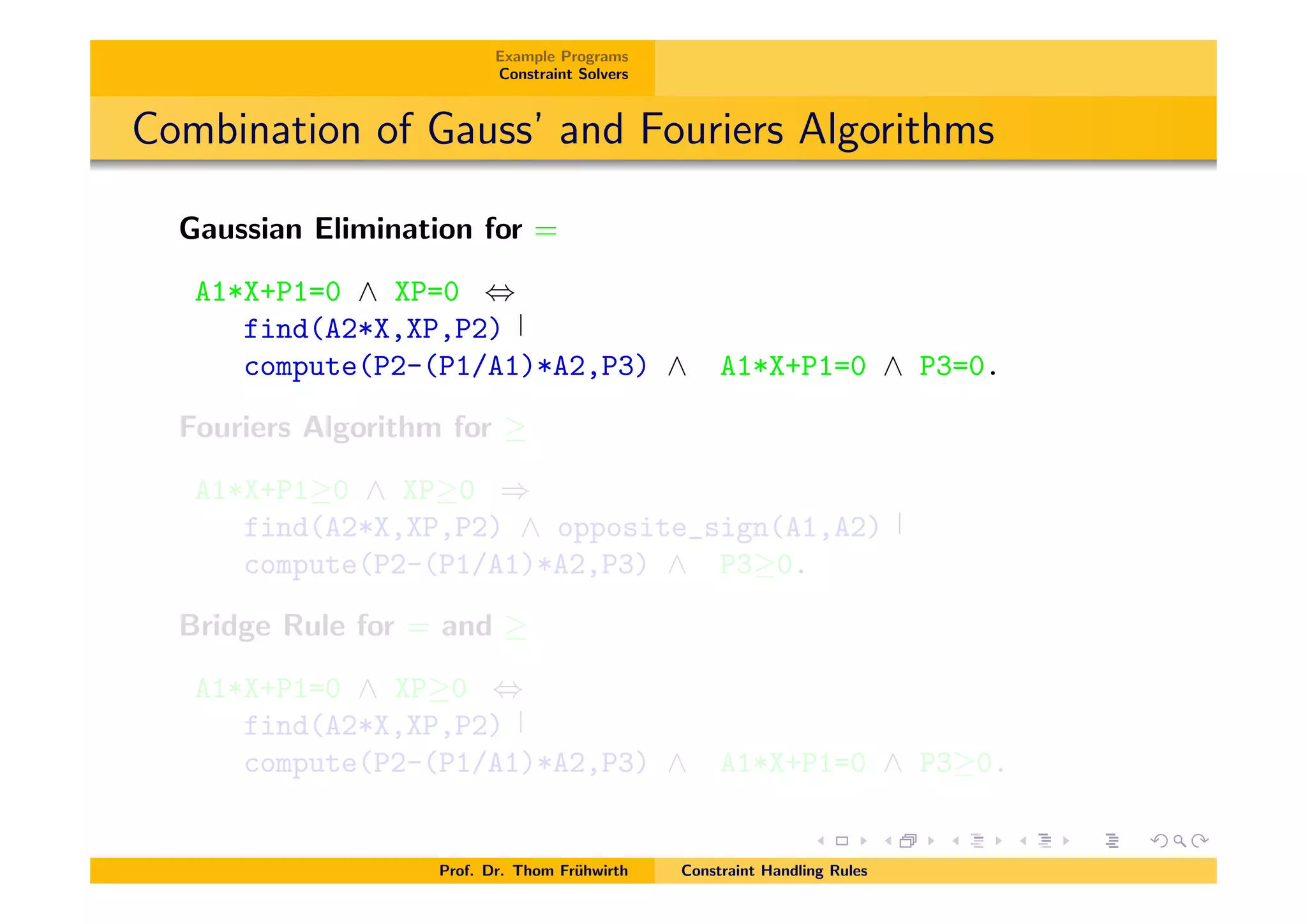

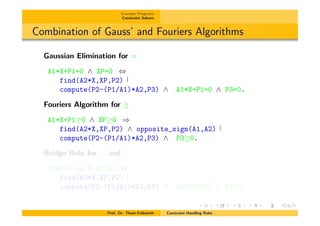

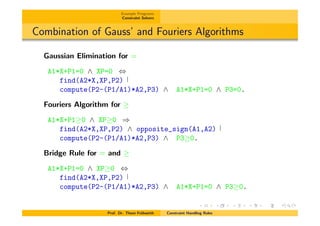

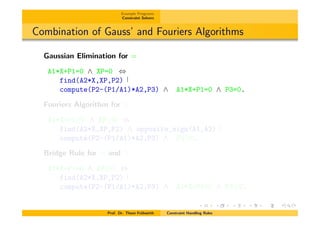

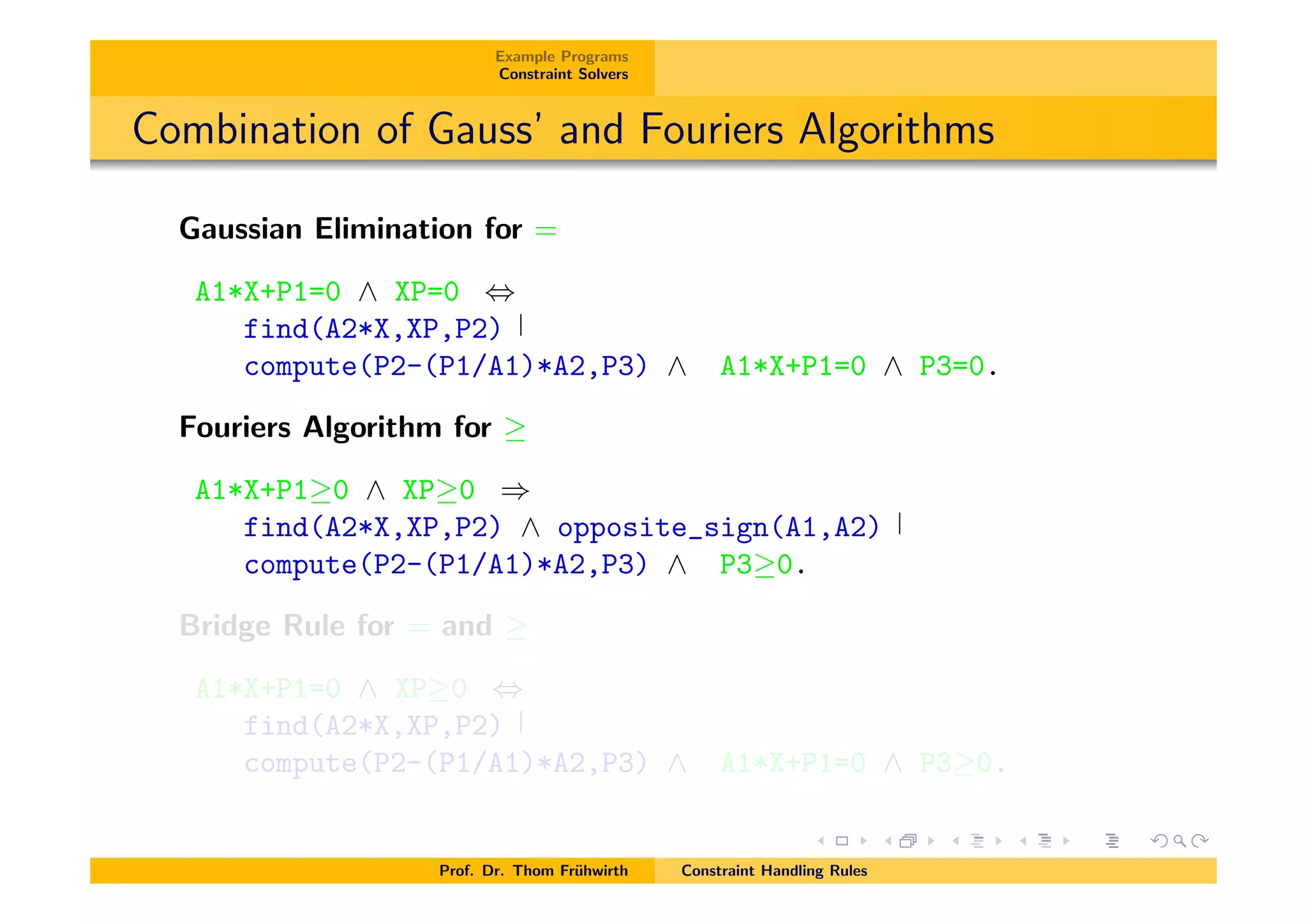

Example Programs Constraint Solvers Combinationof Gauss’ and Fouriers Algorithms Gaussian Elimination for = A1*X+P1=0 ^ XP=0 , find(A2*X,XP,P2) compute(P2-(P1/A1)*A2,P3) ^ A1*X+P1=0 ^ P3=0. Fouriers Algorithm for A1*X+P1 0 ^ XP 0 ) find(A2*X,XP,P2) ^ opposite_sign(A1,A2) compute(P2-(P1/A1)*A2,P3) ^ P3 0. Bridge Rule for = and A1*X+P1=0 ^ XP 0 , find(A2*X,XP,P2) compute(P2-(P1/A1)*A2,P3) ^ A1*X+P1=0 ^ P3 0. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

63.

64.

65.

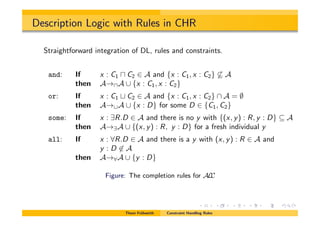

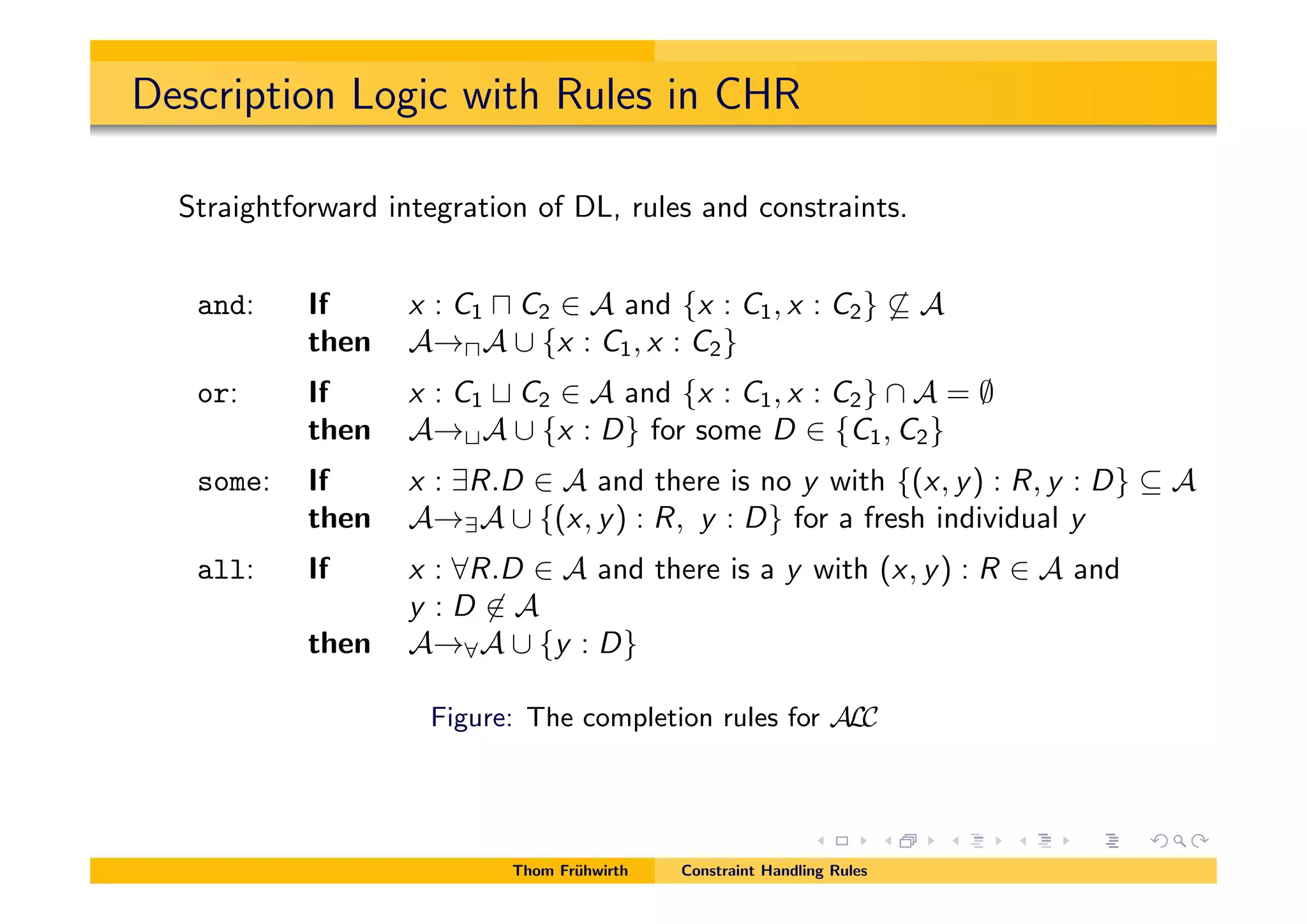

Description Logic withRules in CHR Straightforward integration of DL, rules and constraints. and: If x : C1 u C2 2 A and {x : C1, x : C2} 6✓ A then A!uA [ {x : C1, x : C2} or: If x : C1 t C2 2 A and {x : C1, x : C2} A = ; then A!tA [ {x : D} for some D 2 {C1, C2} some: If x : 9R.D 2 A and there is no y with {(x, y) : R, y : D} ✓ A then A!9A [ {(x, y) : R, y : D} for a fresh individual y all: If x : 8R.D 2 A and there is a y with (x, y) : R 2 A and y : D 62 A then A!8A [ {y : D} Figure: The completion rules for ALC Thom Fr¨uhwirth Constraint Handling Rules

66.

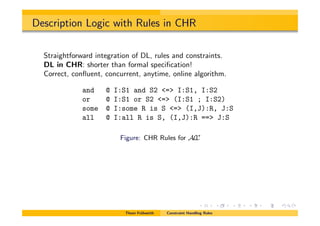

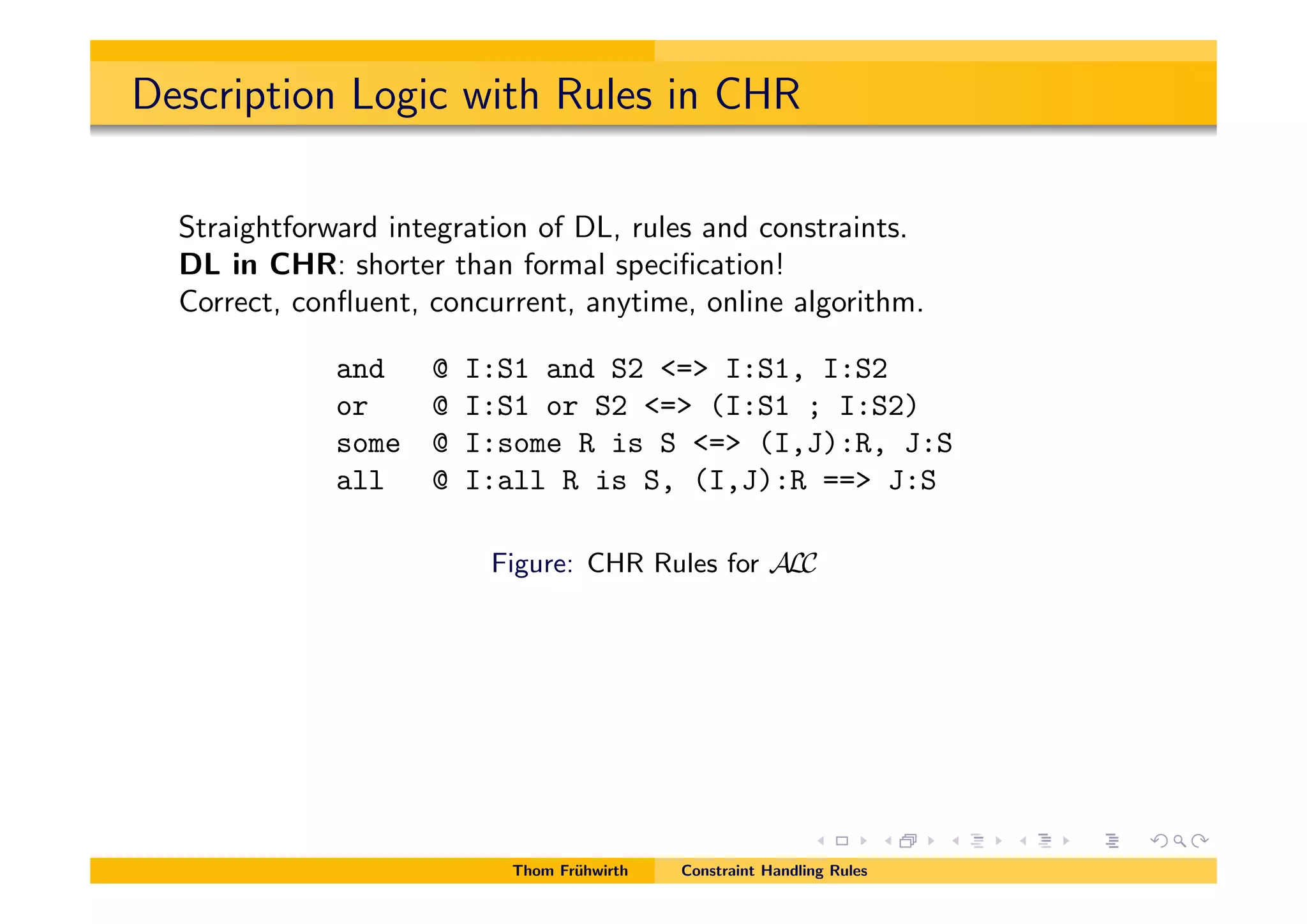

Description Logic withRules in CHR Straightforward integration of DL, rules and constraints. DL in CHR: shorter than formal specification! Correct, confluent, concurrent, anytime, online algorithm. and @ I:S1 and S2 <=> I:S1, I:S2 or @ I:S1 or S2 <=> (I:S1 ; I:S2) some @ I:some R is S <=> (I,J):R, J:S all @ I:all R is S, (I,J):R ==> J:S Figure: CHR Rules for ALC Thom Frühwirth Constraint Handling Rules

67.

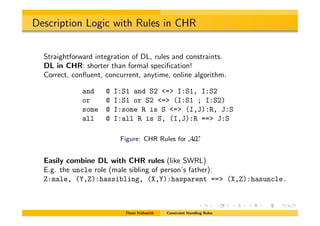

Description Logic withRules in CHR Straightforward integration of DL, rules and constraints. DL in CHR: shorter than formal specification! Correct, confluent, concurrent, anytime, online algorithm. and @ I:S1 and S2 <=> I:S1, I:S2 or @ I:S1 or S2 <=> (I:S1 ; I:S2) some @ I:some R is S <=> (I,J):R, J:S all @ I:all R is S, (I,J):R ==> J:S Figure: CHR Rules for ALC Easily combine DL with CHR rules (like SWRL) E.g. the uncle role (male sibling of person’s father): Z:male, (Y,Z):hassibling, (X,Y):hasparent ==> (X,Z):hasuncle. Thom Frühwirth Constraint Handling Rules

68.

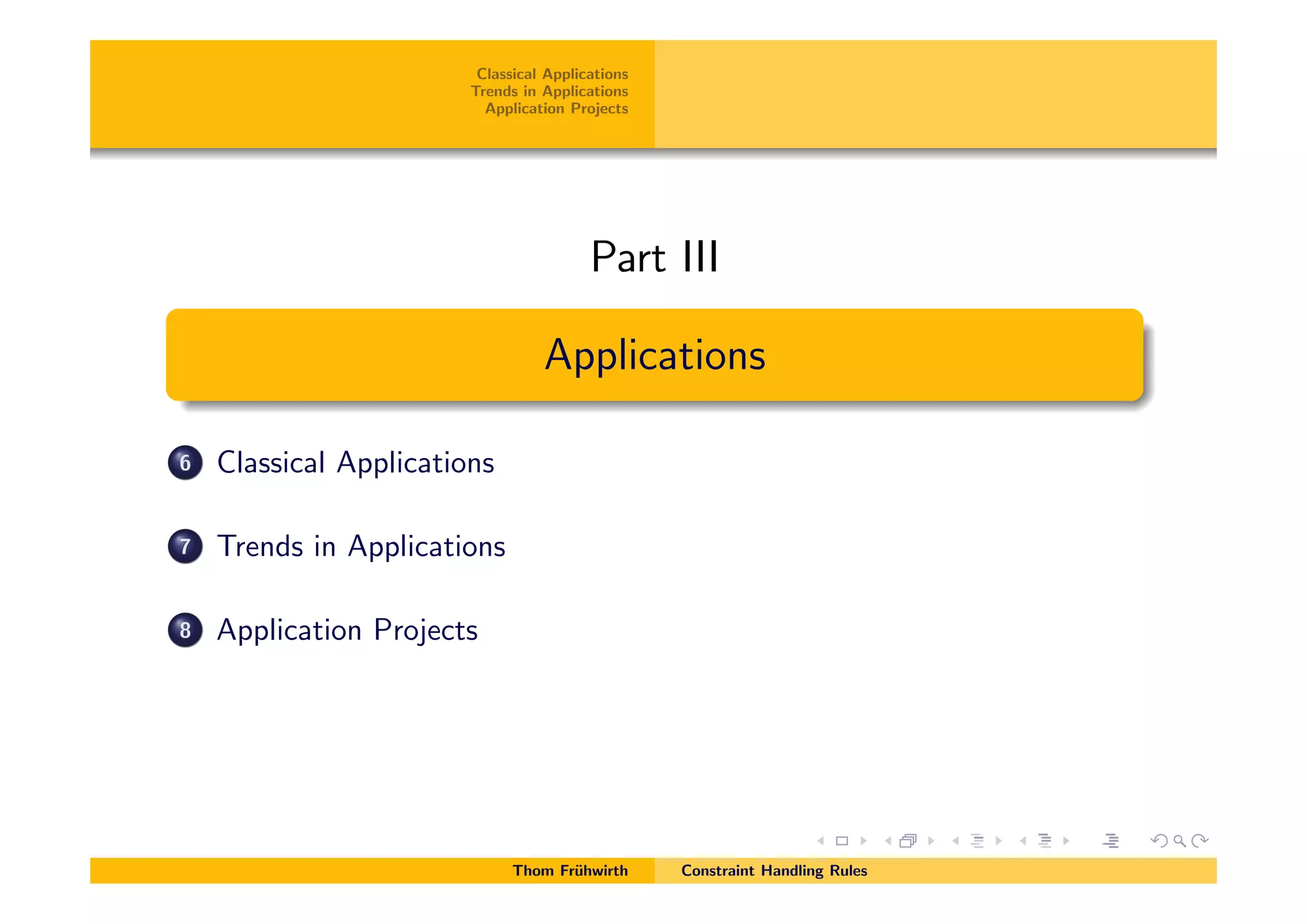

Classical Applications Trends inApplications Application Projects Part III Applications 6 Classical Applications 7 Trends in Applications 8 Application Projects Thom Fr¨uhwirth Constraint Handling Rules

69.

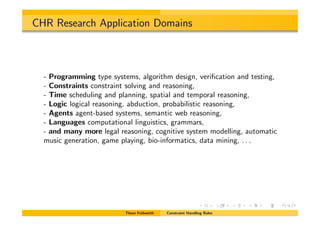

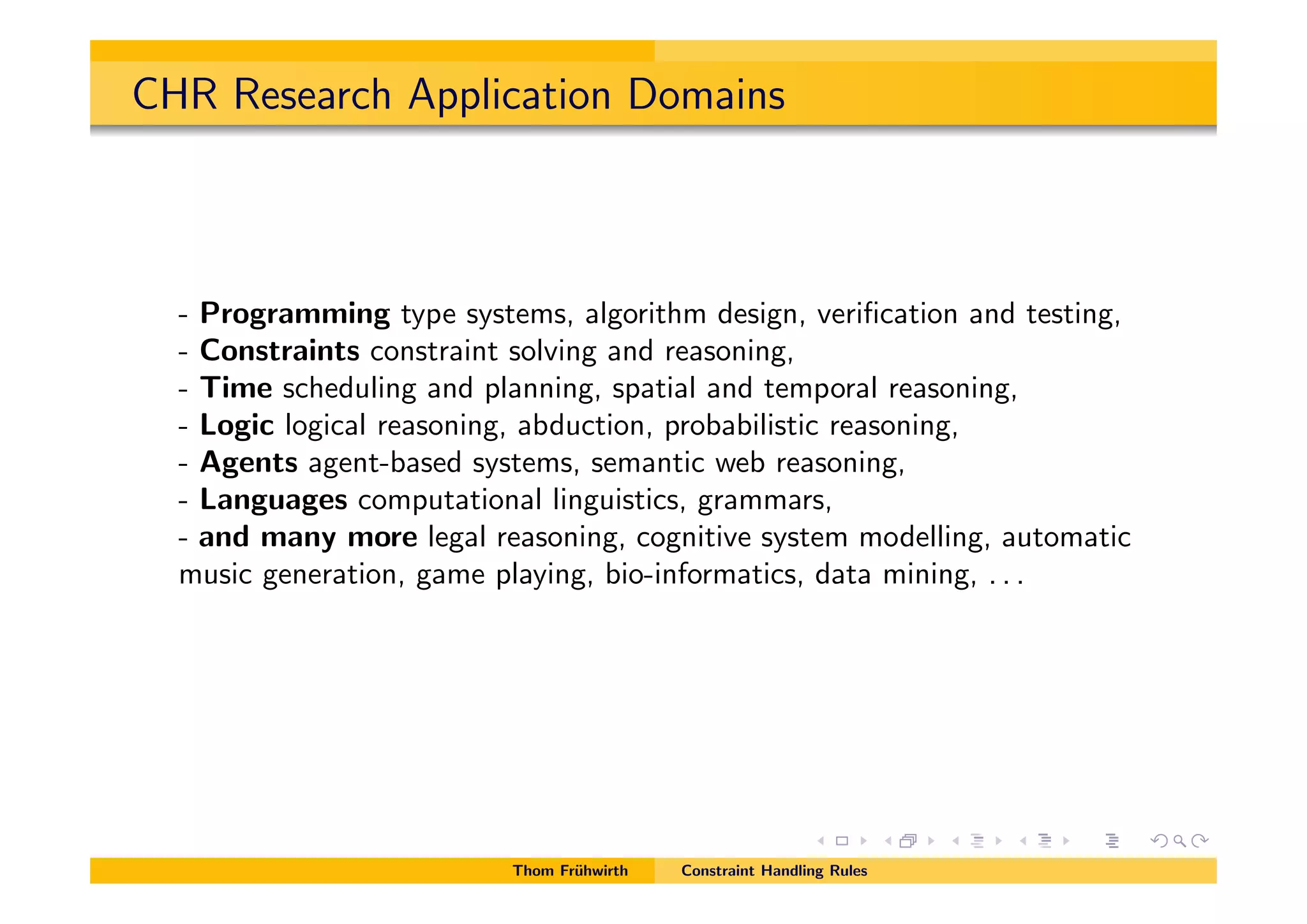

CHR Research ApplicationDomains - Programming type systems, algorithm design, veriﬁcation and testing, - Constraints constraint solving and reasoning, - Time scheduling and planning, spatial and temporal reasoning, - Logic logical reasoning, abduction, probabilistic reasoning, - Agents agent-based systems, semantic web reasoning, - Languages computational linguistics, grammars, - and many more legal reasoning, cognitive system modelling, automatic music generation, game playing, bio-informatics, data mining, . . . Thom Fr¨uhwirth Constraint Handling Rules

70.

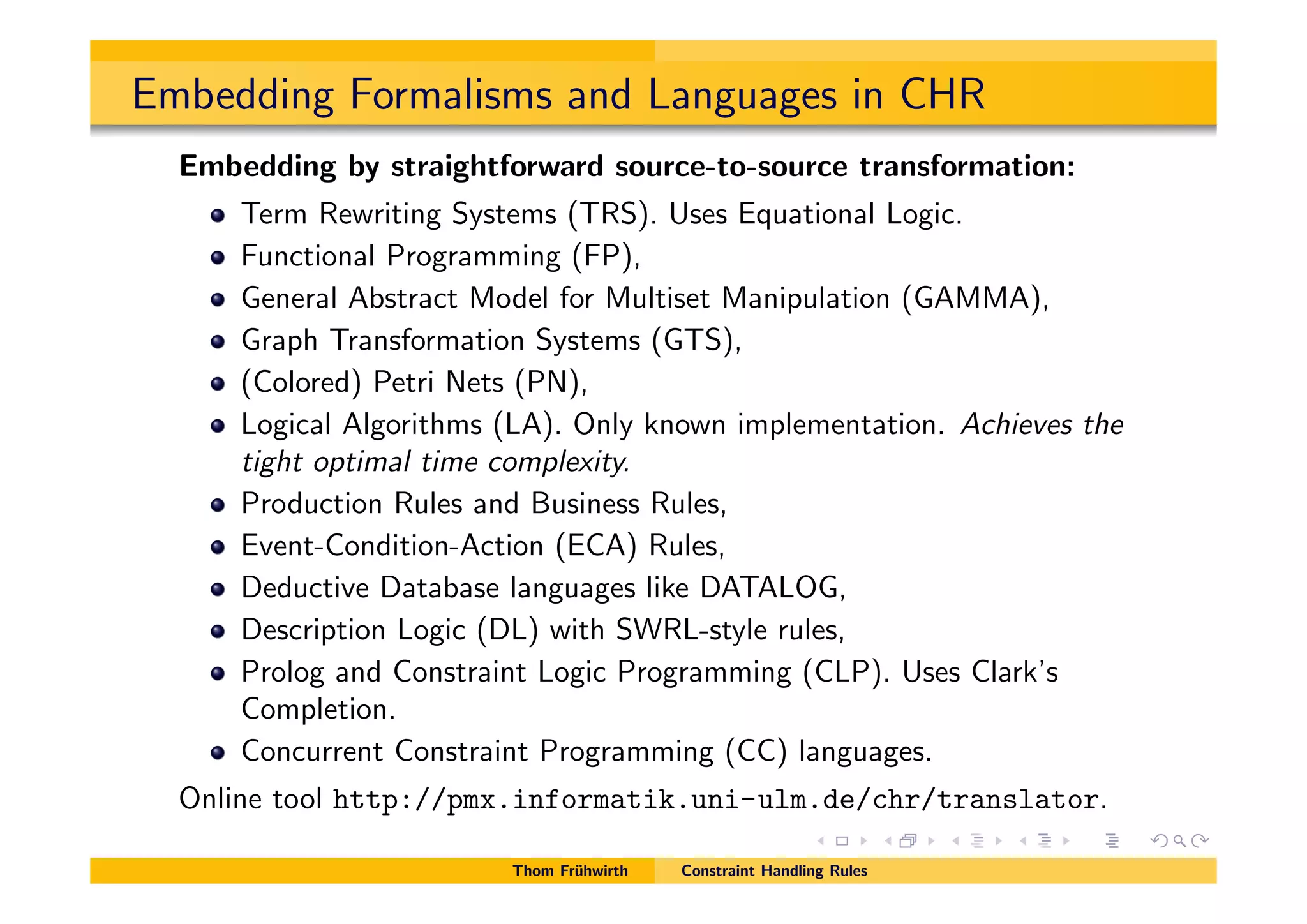

Embedding Formalisms andLanguages in CHR Embedding by straightforward source-to-source transformation: Term Rewriting Systems (TRS). Uses Equational Logic. Functional Programming (FP), General Abstract Model for Multiset Manipulation (GAMMA), Graph Transformation Systems (GTS), (Colored) Petri Nets (PN), Logical Algorithms (LA). Only known implementation. Achieves the tight optimal time complexity. Production Rules and Business Rules, Event-Condition-Action (ECA) Rules, Deductive Database languages like DATALOG, Description Logic (DL) with SWRL-style rules, Prolog and Constraint Logic Programming (CLP). Uses Clark’s Completion. Concurrent Constraint Programming (CC) languages. Online tool http://pmx.informatik.uni-ulm.de/chr/translator. Thom Fr¨uhwirth Constraint Handling Rules

71.

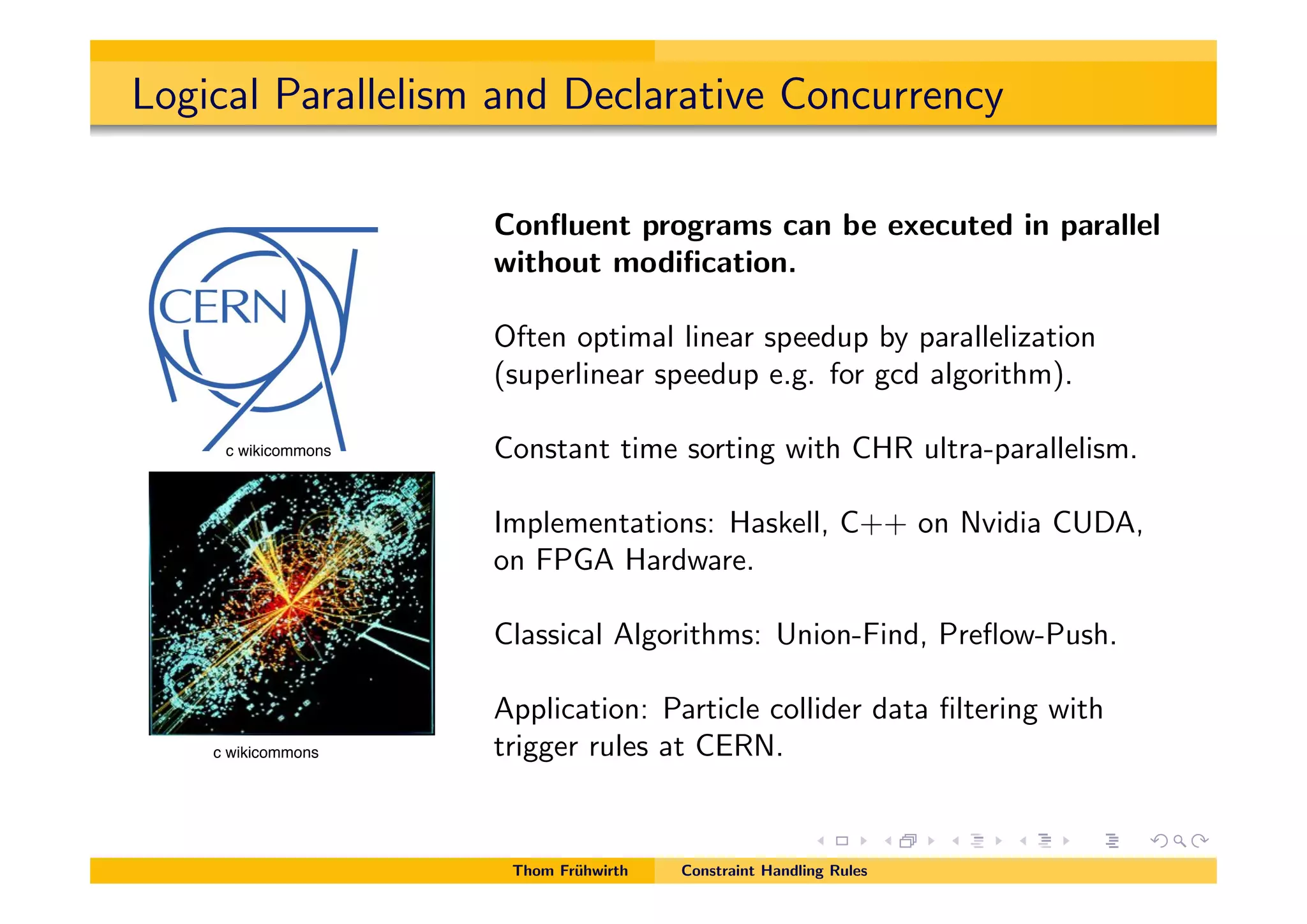

Logical Parallelism andDeclarative Concurrency Confluent programs can be executed in parallel without modification. Often optimal linear speedup by parallelization (superlinear speedup e.g. for gcd algorithm). Constant time sorting with CHR ultra-parallelism. Implementations: Haskell, C++ on Nvidia CUDA, on FPGA Hardware. Classical Algorithms: Union-Find, Preflow-Push. Application: Particle collider data filtering with trigger rules at CERN. Thom Frühwirth Constraint Handling Rules c wikicommons c wikicommons

72.

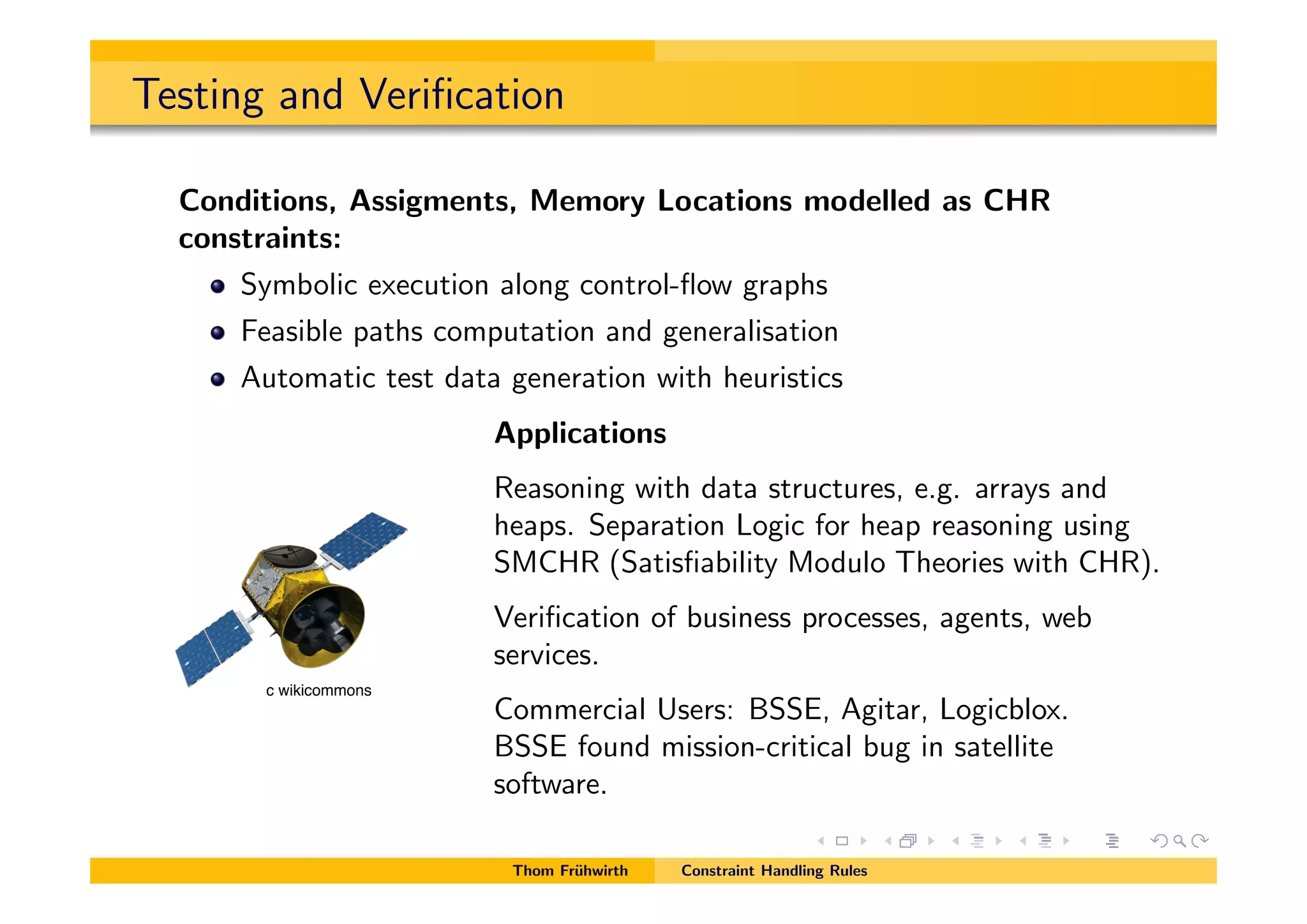

Testing and Verification Conditions,Assigments, Memory Locations modelled as CHR constraints: Symbolic execution along control-flow graphs Feasible paths computation and generalisation Automatic test data generation with heuristics Applications Reasoning with data structures, e.g. arrays and heaps. Separation Logic for heap reasoning using SMCHR (Satisfiability Modulo Theories with CHR). Verification of business processes, agents, web services. Commercial Users: BSSE, Agitar, Logicblox. BSSE found mission-critical bug in satellite software. Thom Frühwirth Constraint Handling Rules c wikicommons

73.

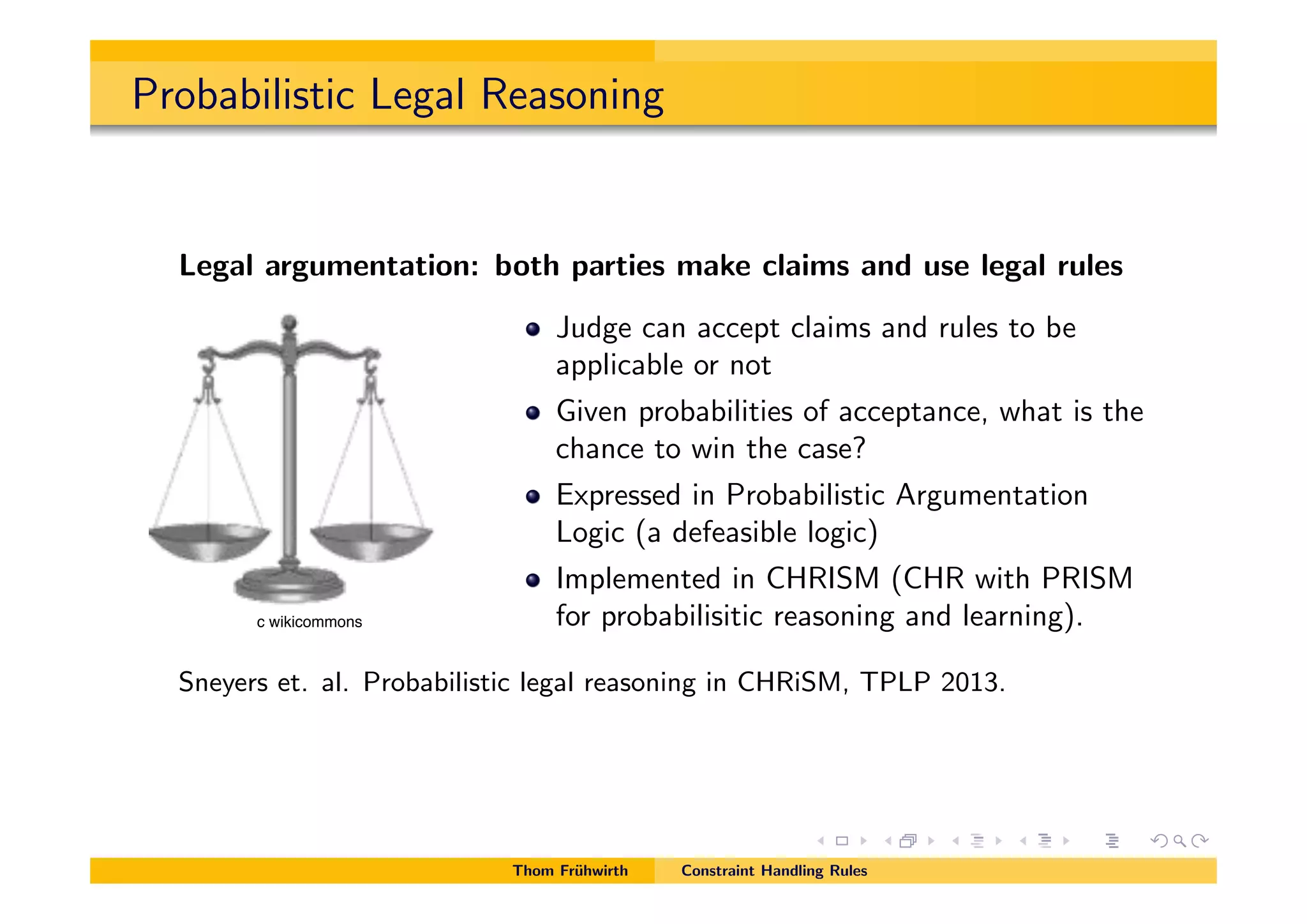

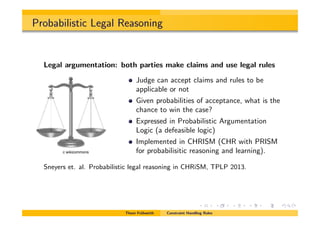

Probabilistic Legal Reasoning Legalargumentation: both parties make claims and use legal rules Judge can accept claims and rules to be applicable or not Given probabilities of acceptance, what is the chance to win the case? Expressed in Probabilistic Argumentation Logic (a defeasible logic) Implemented in CHRISM (CHR with PRISM for probabilisitic reasoning and learning). Sneyers et. al. Probabilistic legal reasoning in CHRiSM, TPLP 2013. Thom Fr¨uhwirth Constraint Handling Rules c wikicommons

74.

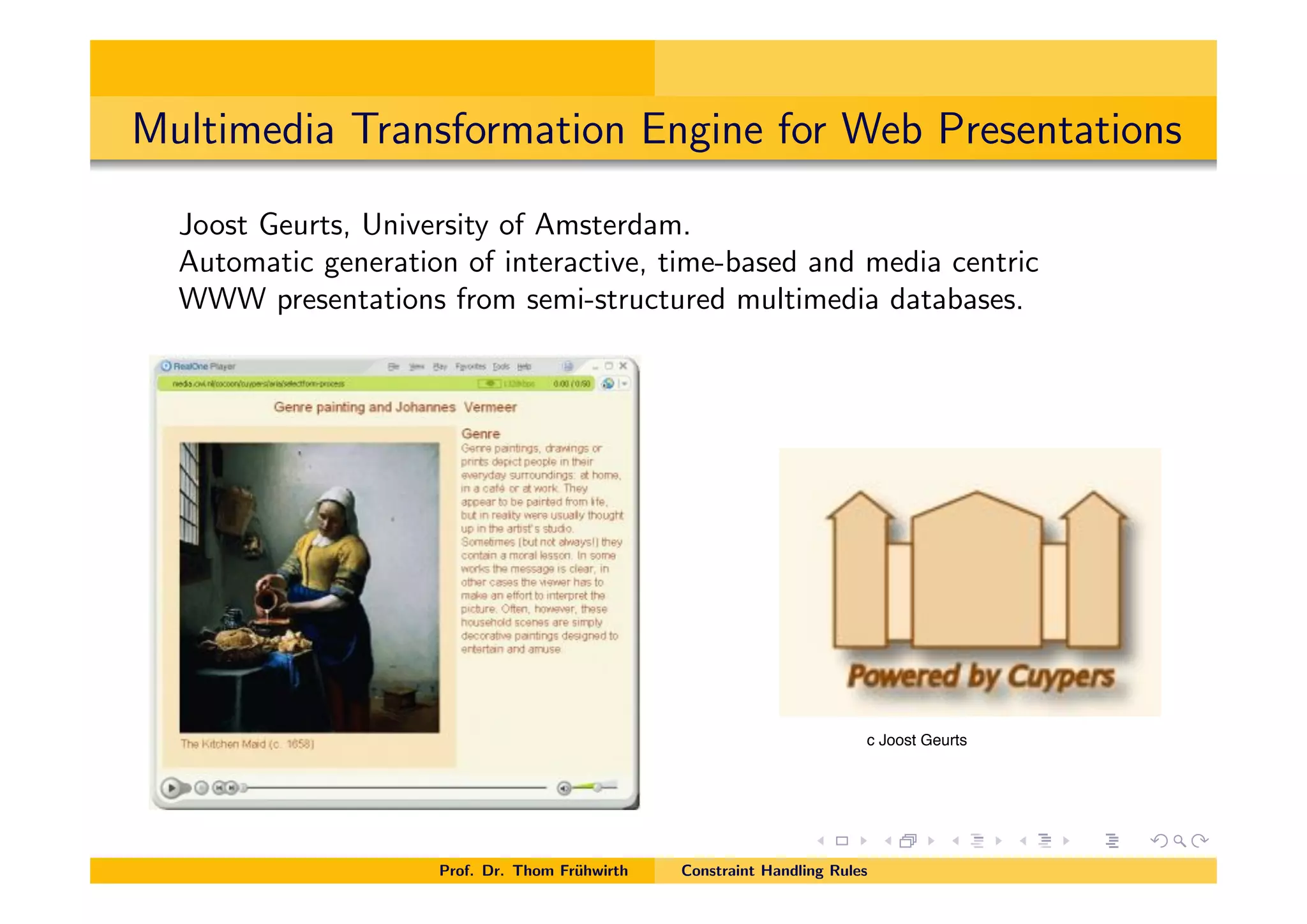

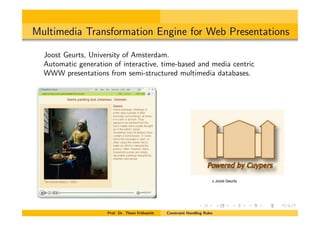

Multimedia Transformation Enginefor Web Presentations Joost Geurts, University of Amsterdam. Automatic generation of interactive, time-based and media centric WWW presentations from semi-structured multimedia databases. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules c Joost Geurts

75.

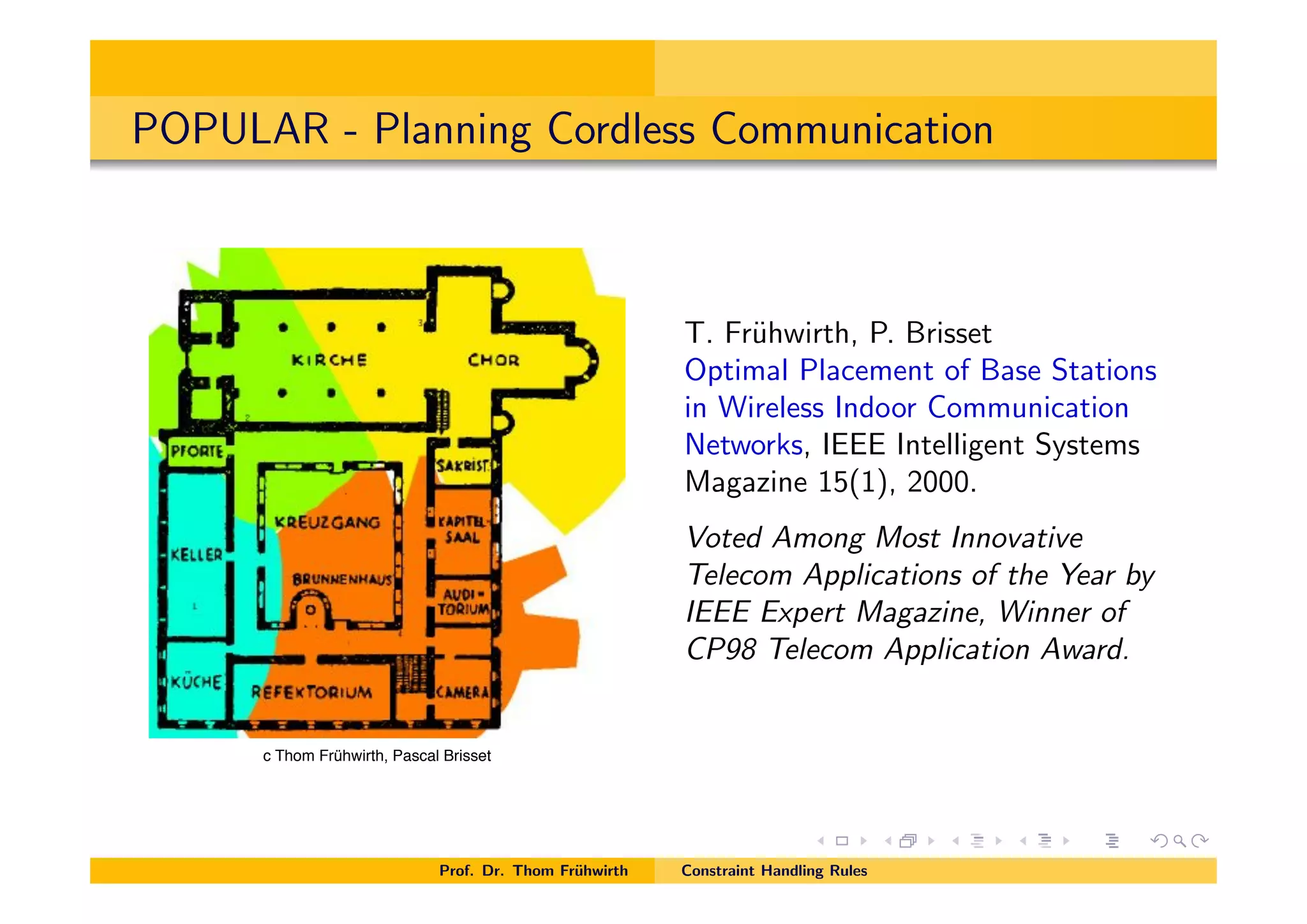

POPULAR - PlanningCordless Communication T. Fr¨uhwirth, P. Brisset Optimal Placement of Base Stations in Wireless Indoor Communication Networks, IEEE Intelligent Systems Magazine 15(1), 2000. Voted Among Most Innovative Telecom Applications of the Year by IEEE Expert Magazine, Winner of CP98 Telecom Application Award. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules c Thom Frühwirth, Pascal Brisset

76.

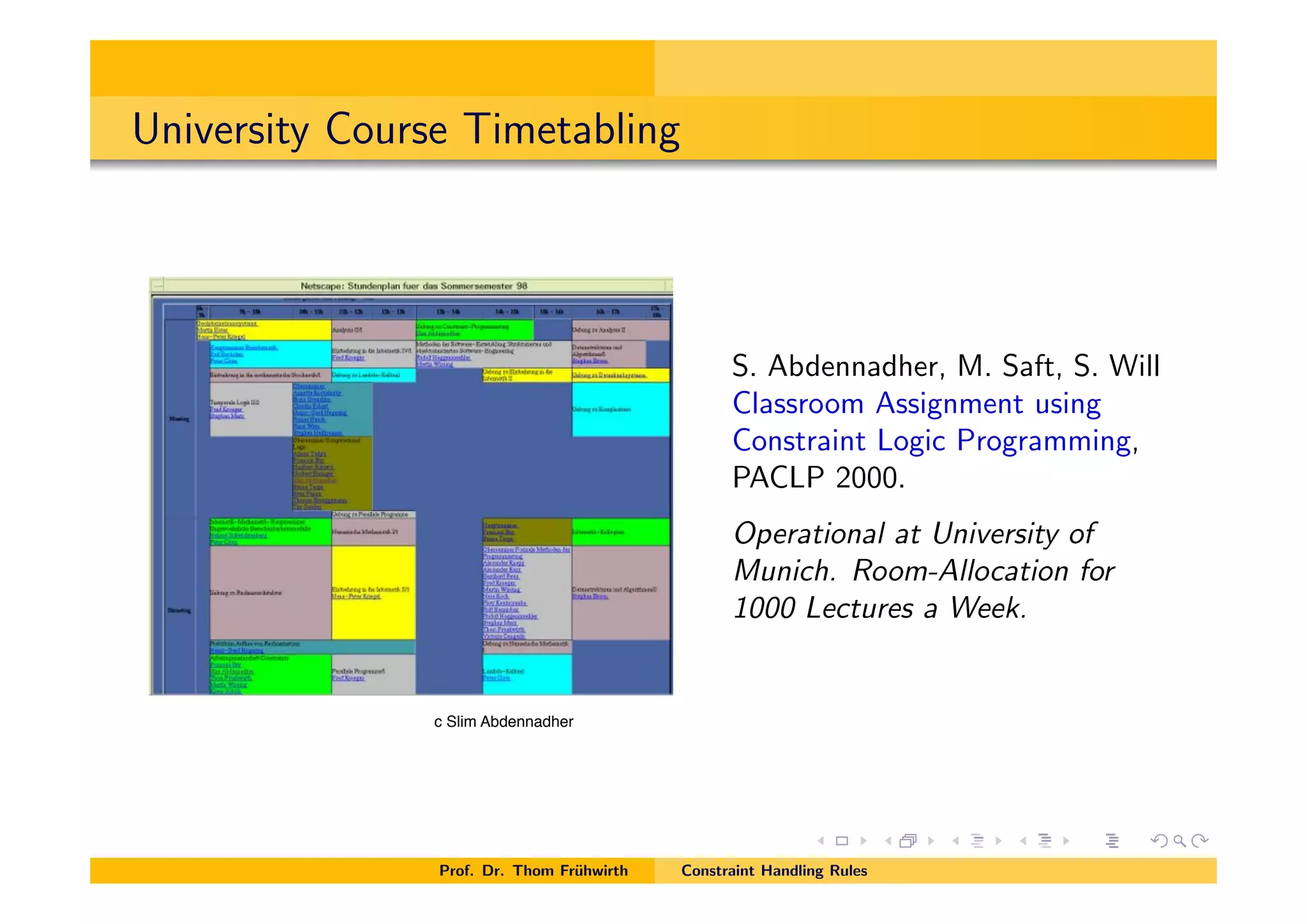

University Course Timetabling S.Abdennadher, M. Saft, S. Will Classroom Assignment using Constraint Logic Programming, PACLP 2000. Operational at University of Munich. Room-Allocation for 1000 Lectures a Week. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules c Slim Abdennadher

77.

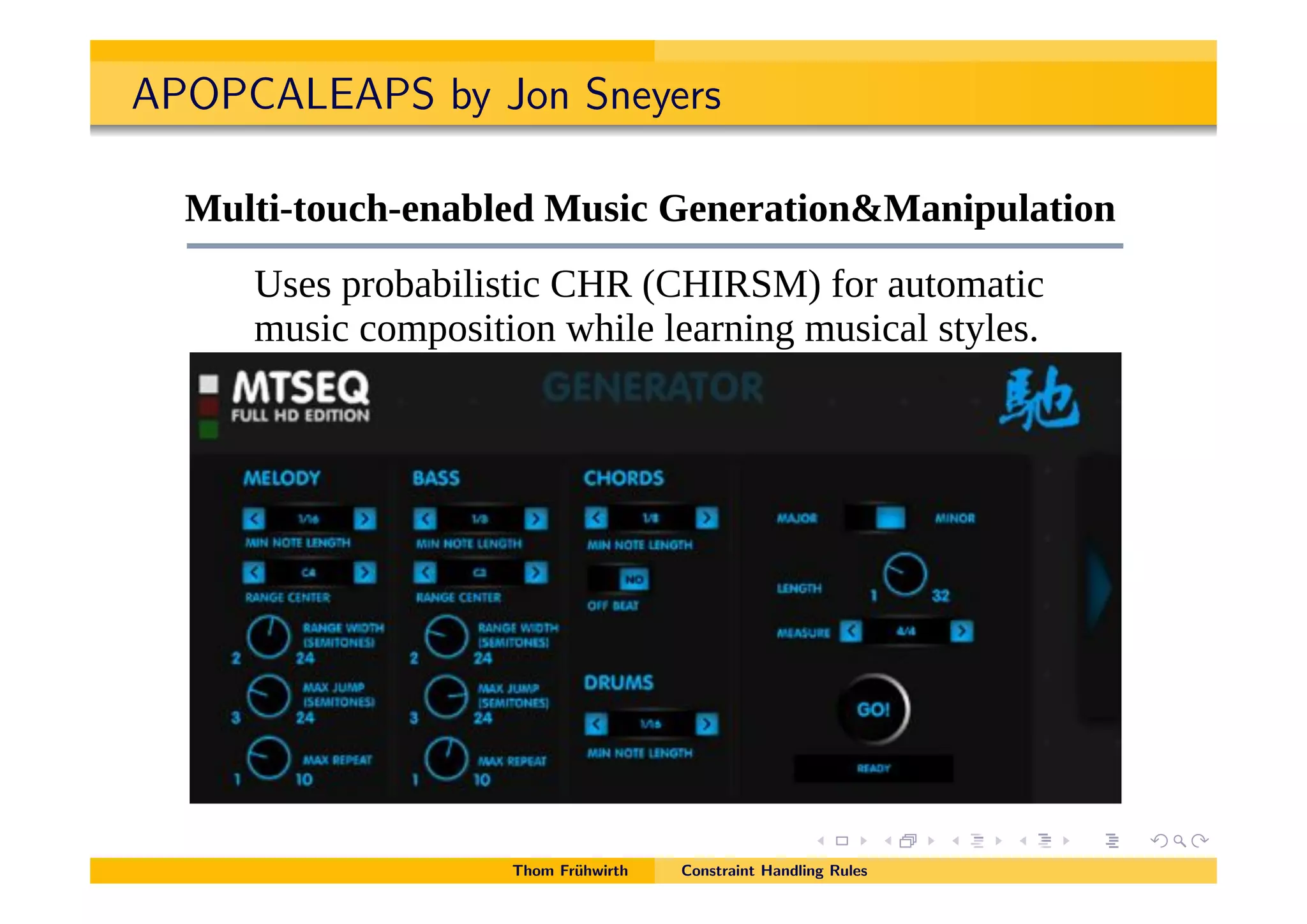

APOPCALEAPS by JonSneyers !"#!$#%& '()*+,-*-./.0123*41567*8*-./.0123*957:2/*0;<*=77(:20>:5;/ %T !"#$#%&%'()*$+(,-. !"#$%&$'"()&*+,-#*./!"0%(/1*+*2,$%'+3!,+%4"#,$%'+ '/./*715U0U:(:/>:2*+,-*H+,V-?WJ*D51*06>5)0>:2* )6/:2*25)75/:>:5;*E3:(.*(.01;:;C*)6/:20(*/>P(./# Thom Fr¨uhwirth Constraint Handling Rules

78.

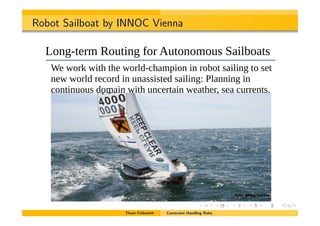

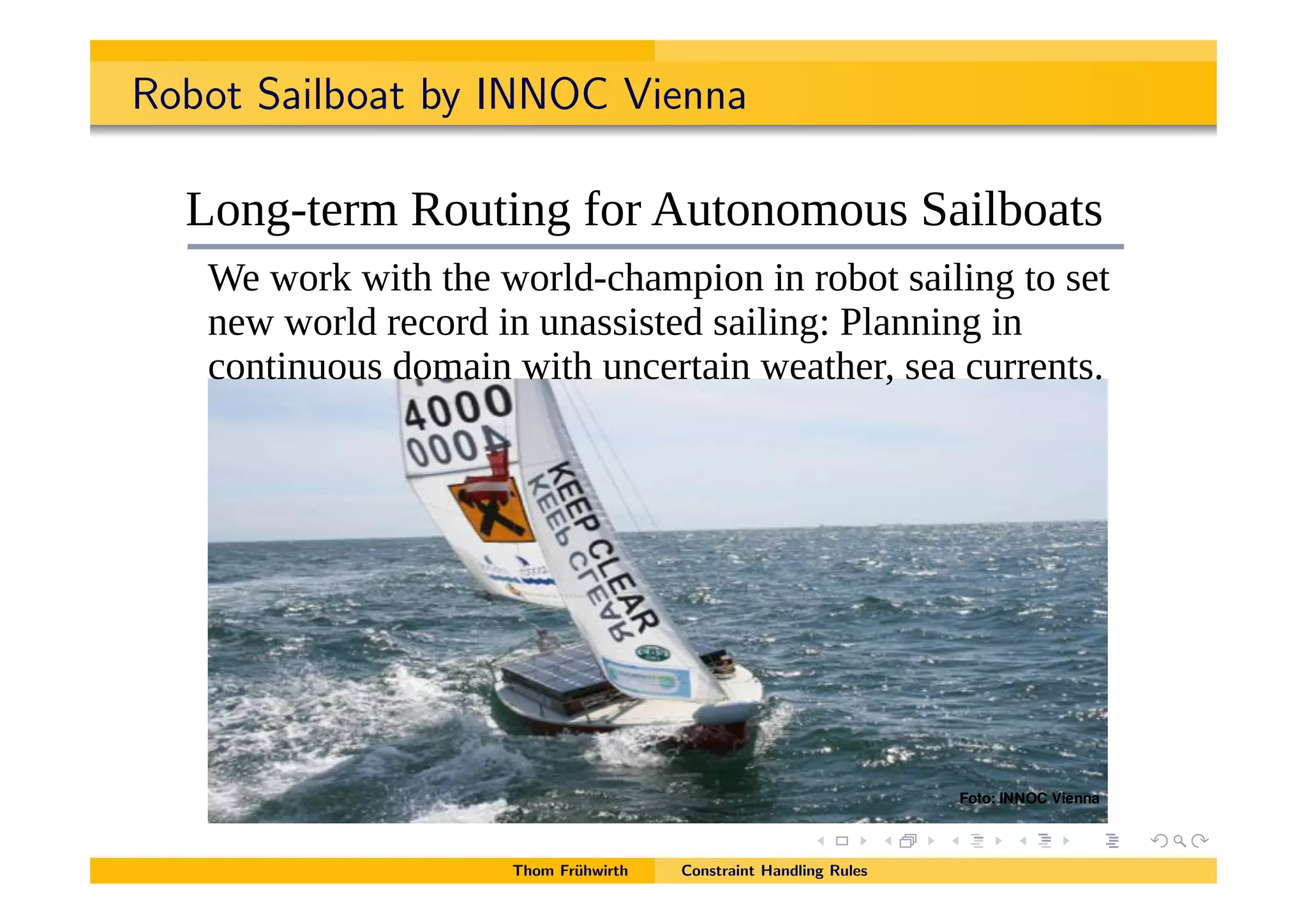

Robot Sailboat byINNOC Vienna !"#!$#%& '()*+,-*-./.0123*41567*8*-./.0123*957:2/*0;<*=77(:20>:5;/ %" !"#$#%&%'()*$+(,-. R5;C8>.1)*-56>:;C*D51*=6>5;5)56/*?0:(U50>/ X.*E51A*E:>3*>3.*E51(<8230)7:5;*:;*15U5>*/0:(:;C*>5*/.>* ;.E*E51(<*1.251<*:;*6;0//:/>.<*/0:(:;CY*Z(0;;:;C*:;* 25;>:;656/*<5)0:;*E:>3*6;2.1>0:;*E.0>3.1O*/.0*2611.;>/# Foto: INNOC Vienna Thom Fr¨uhwirth Constraint Handling Rules

79.
Long-Term Routing usingWeather and Current Forcests Langbein, Stelzer, Fr¨uhwirth. Robotic Sailing 2011, Springer LNCS. Thom Fr¨uhwirth Constraint Handling Rules

80.

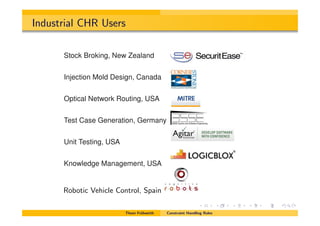

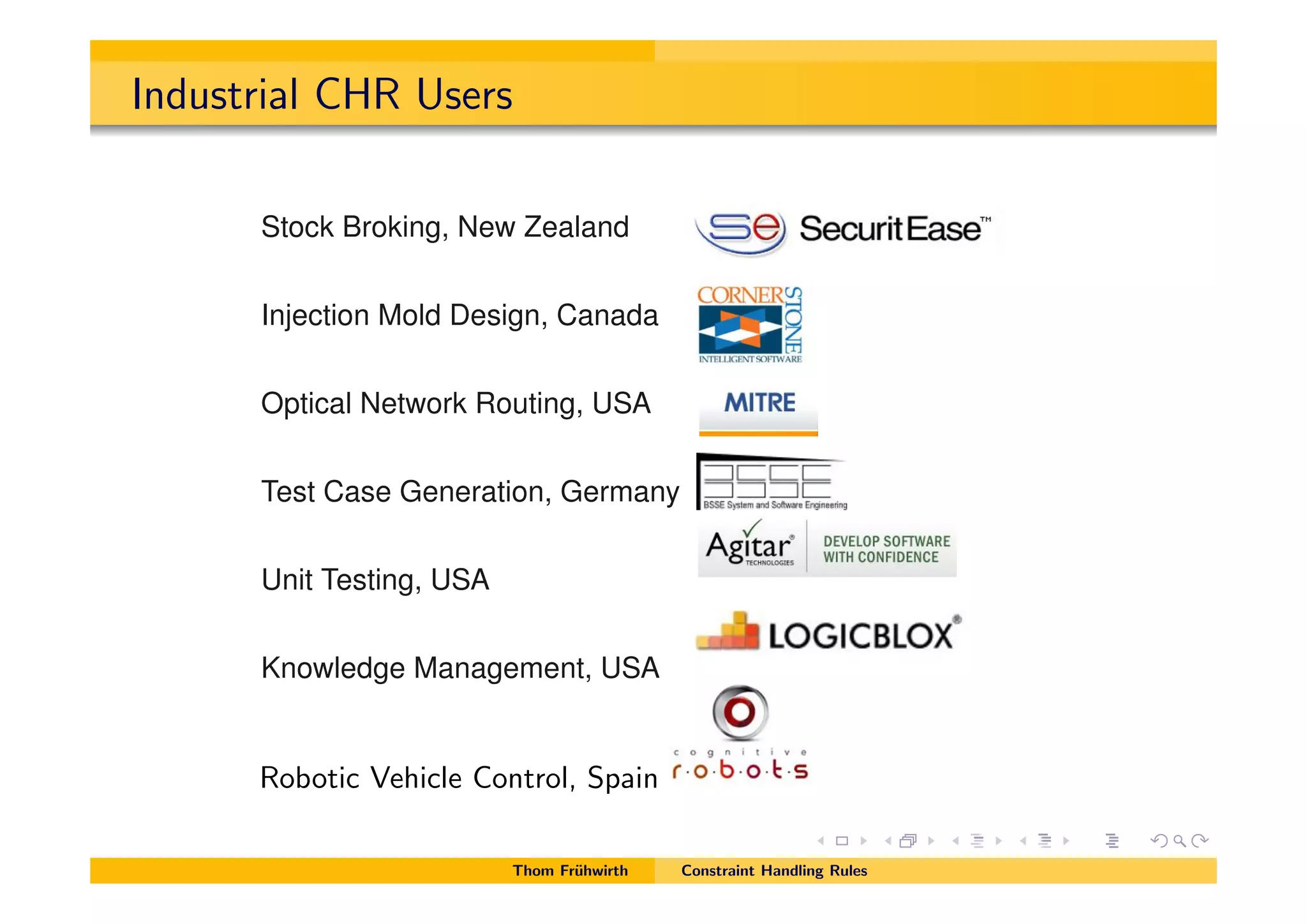

Industrial CHR Users CommercialCHR Users Stock Broking, New Zealand Injection Mold Design, Canada Optical Network Routing, USA Test Case Generation, Germany Unit Testing, USA Knowledge Management, USA Robotic Vehicle Control, Spain Thom Fr¨uhwirth Constraint Handling Rules

81.

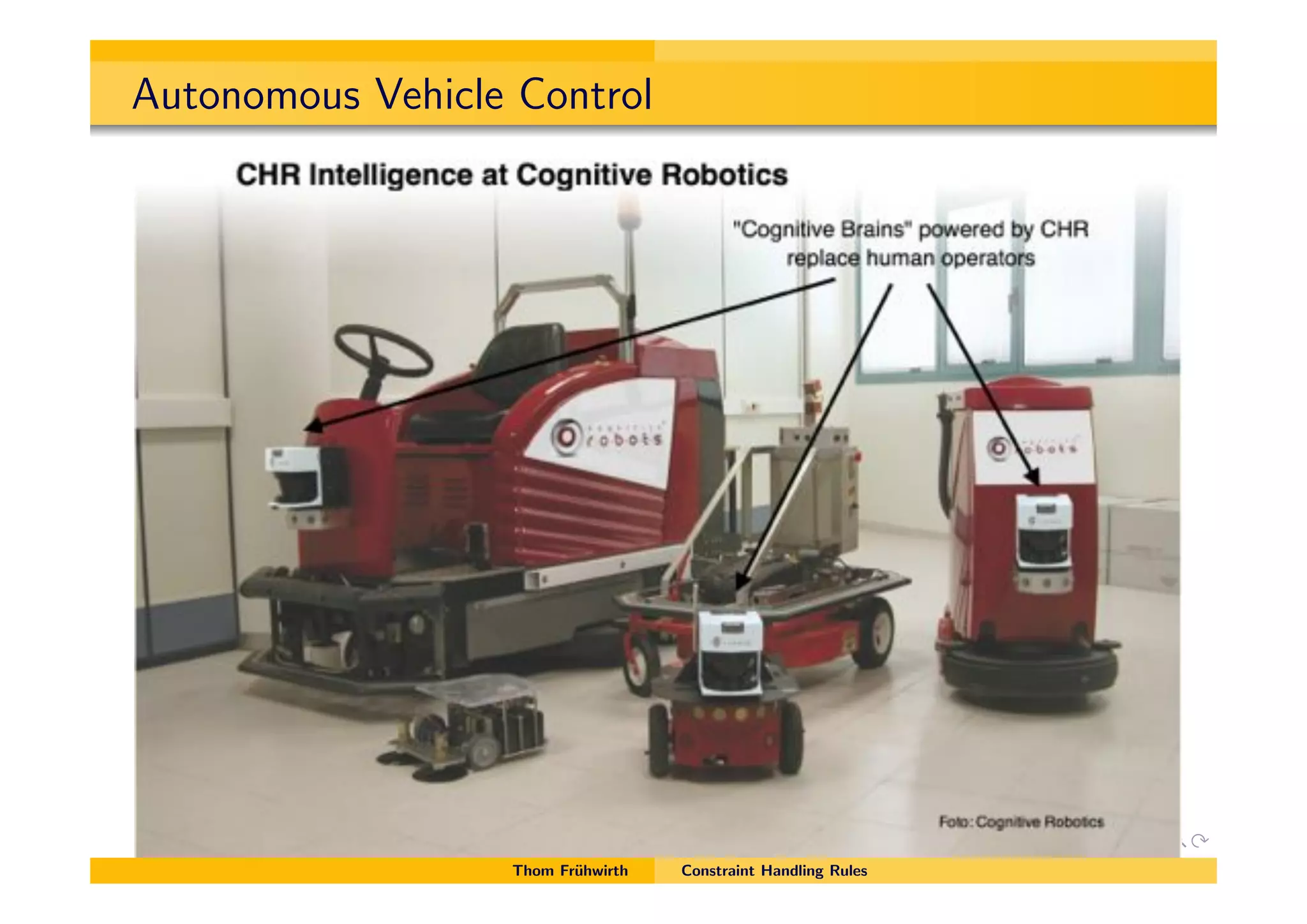

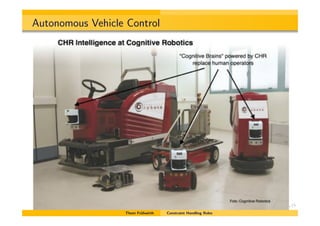

Autonomous Vehicle Control ThomFr¨uhwirth Constraint Handling Rules

82.

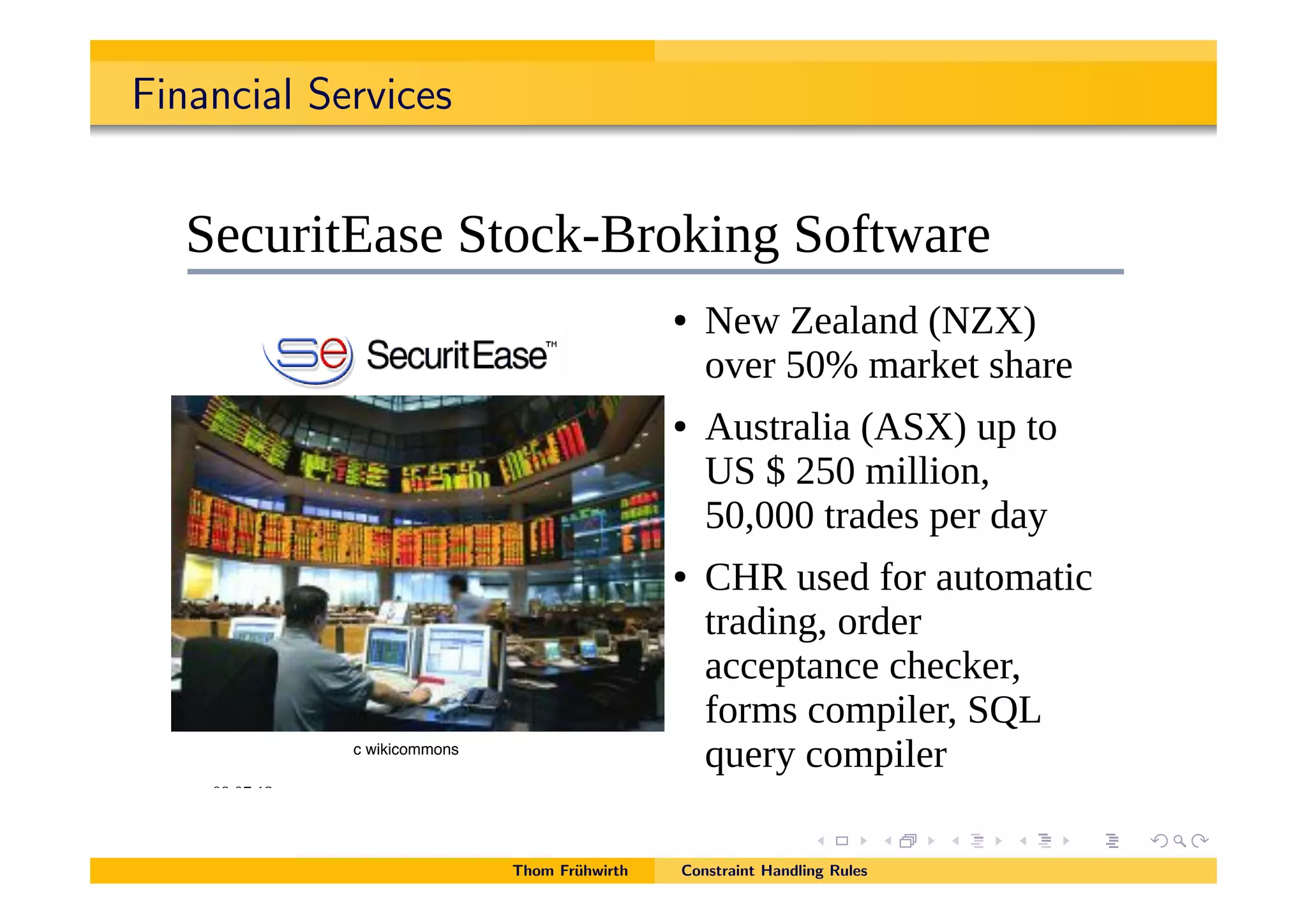

Financial Services !"#!$#%& '()*+,-*-./.0123*41567*8*-./.0123*957:2/*0;<*=77(:20>:5;/%$ !"#$#%&%'()*$+(,-. ?.261:>@0/.*?>52A8B15A:;C*?5D>E01. ! F.E*G.0(0;<*HFGIJ* 5K.1*L!M*)01A.>*/301. ! =6/>10(:0*H=?IJ*67*>5* '?*N*&L!*):((:5;O* L!O!!!*>10<./*7.1*<0P ! +,-*6/.<*D51*06>5)0>:2* >10<:;CO*51<.1* 022.7>0;2.*23.2A.1O* D51)/*25)7:(.1O*?QR* S6.1P*25)7:(.1 Thom Fr¨uhwirth Constraint Handling Rules c wikicommons

83.

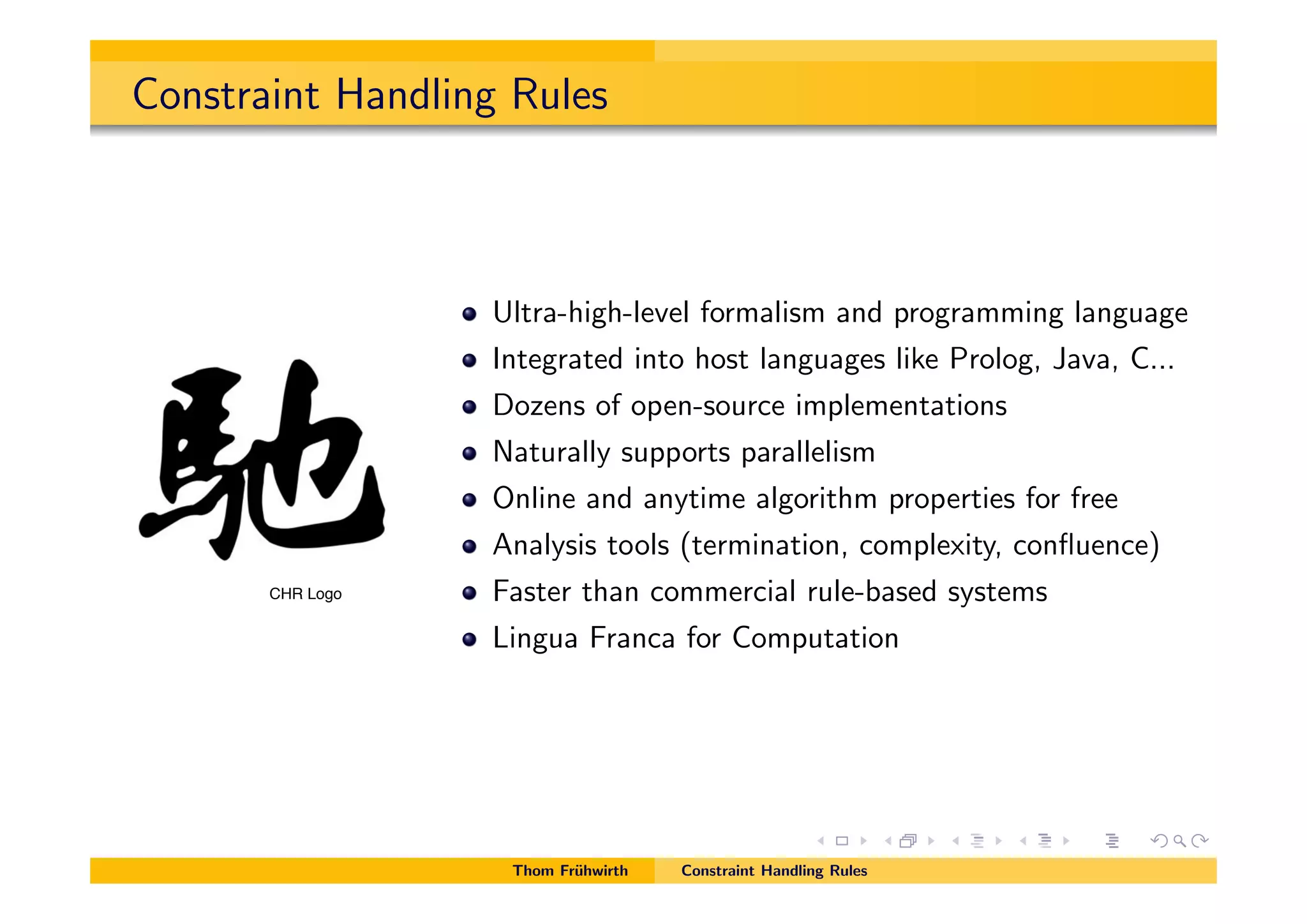

Constraint Handling Rules Ultra-high-levelformalism and programming language Integrated into host languages like Prolog, Java, C... Dozens of open-source implementations Naturally supports parallelism Online and anytime algorithm properties for free Analysis tools (termination, complexity, conﬂuence) Faster than commercial rule-based systems Lingua Franca for Computation Thom Fr¨uhwirth Constraint Handling Rules CHR Logo

84.
Getting Started withConstraint Handling Rules Search the Internet/Web for ”Constraint Handling Rules” Play with CHR at http://chrjs.net/ Thom Fr¨uhwirth Constraint Handling Rules

85.
MAKE YOUR OWNRULES. CONSTRAINT HANDLING RULES

86.

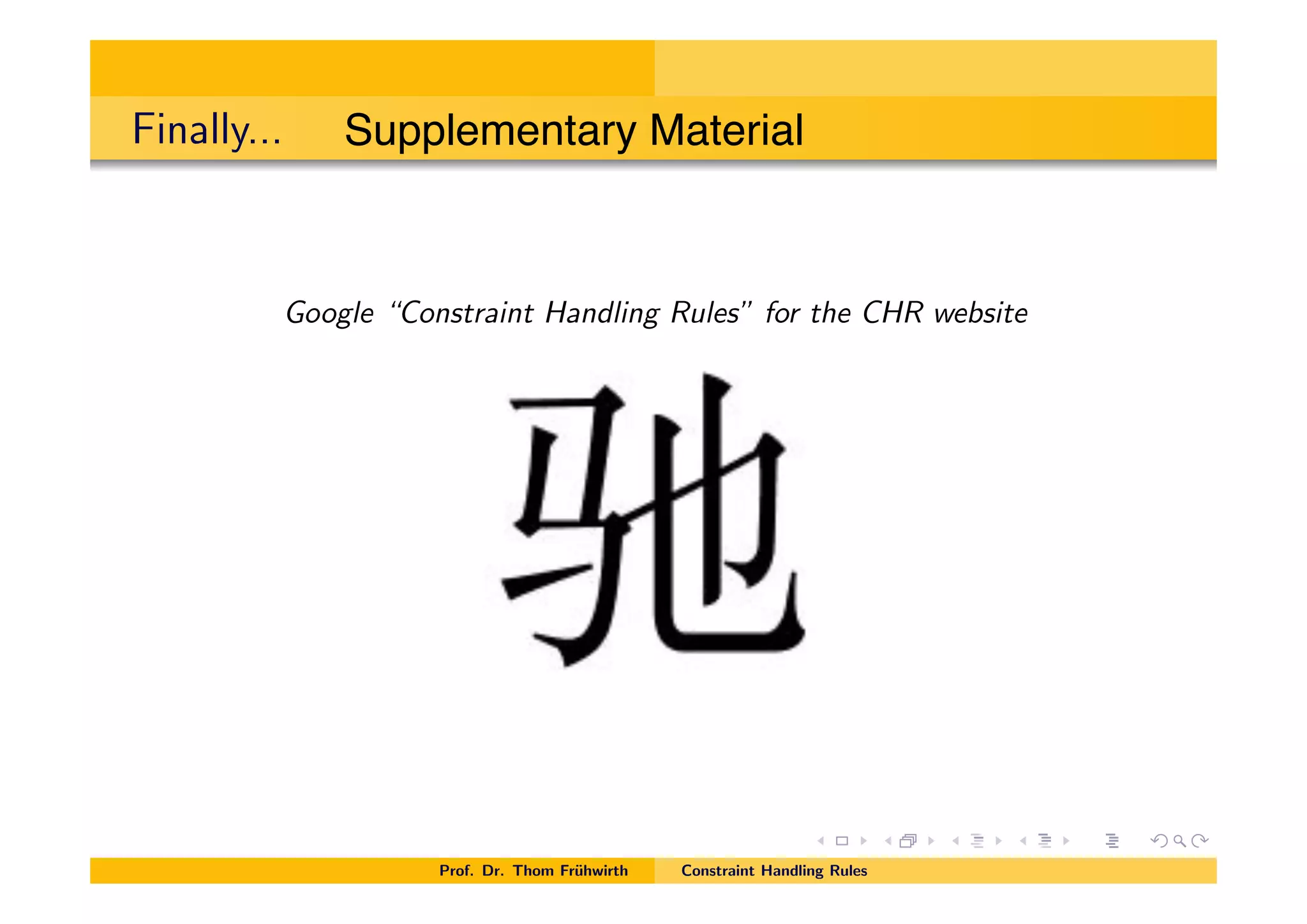

Finally... Google “Constraint HandlingRules” for the CHR website Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules Supplementary Material

87.

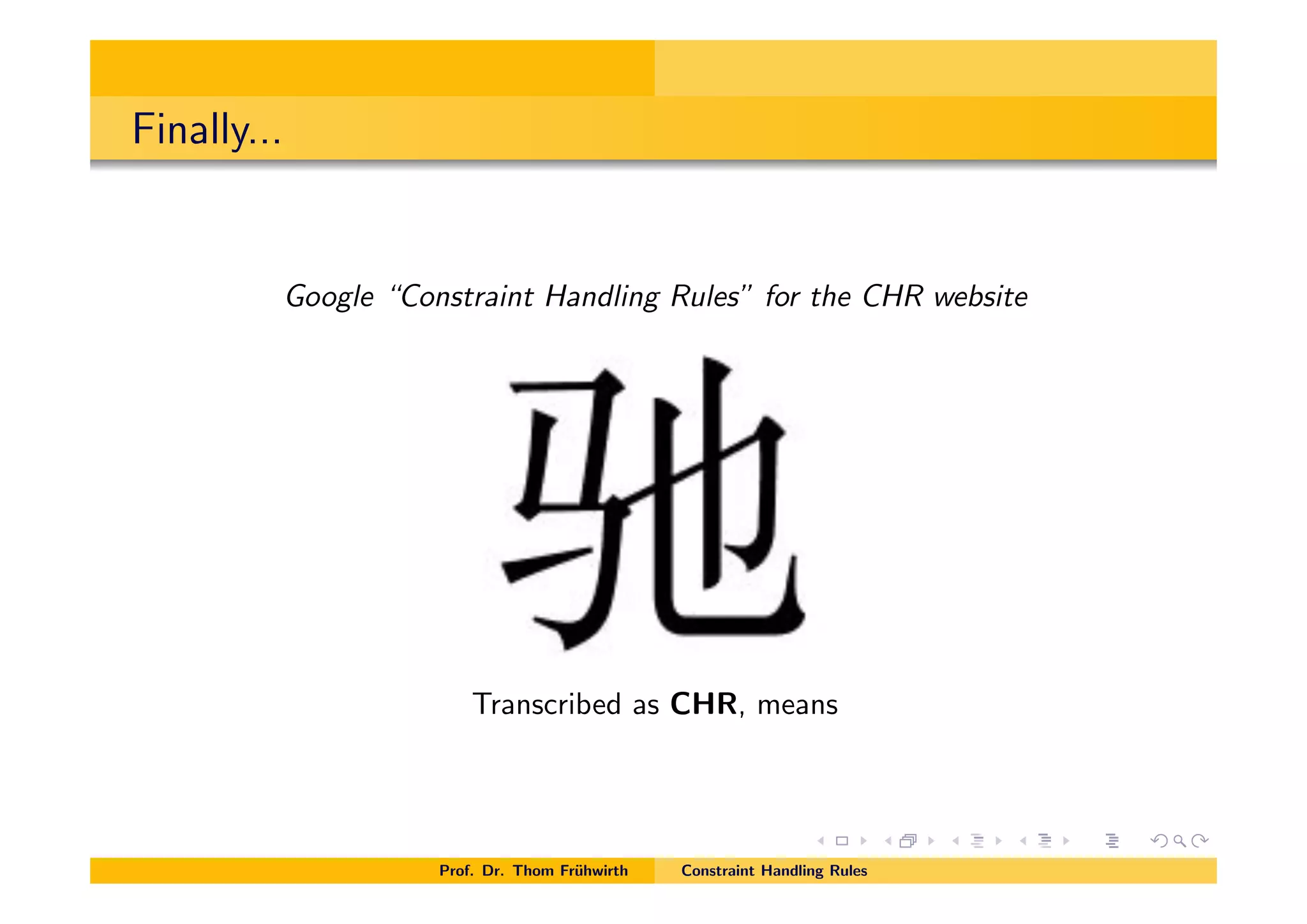

Finally... Google “Constraint HandlingRules” for the CHR website Transcribed as CHR, means Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

88.

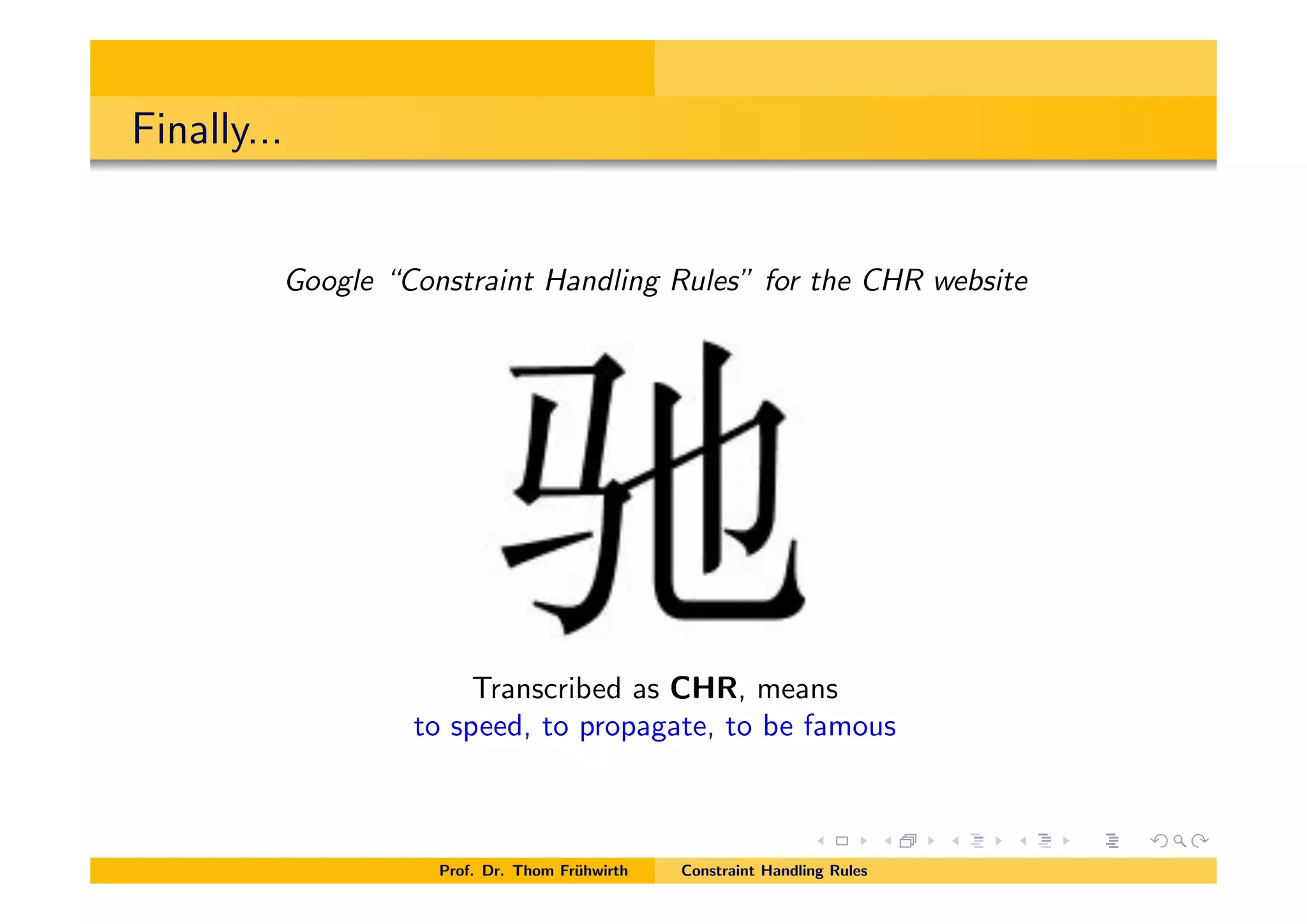

Finally... Google “Constraint HandlingRules” for the CHR website Transcribed as CHR, means to speed, to propagate, to be famous Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

89.

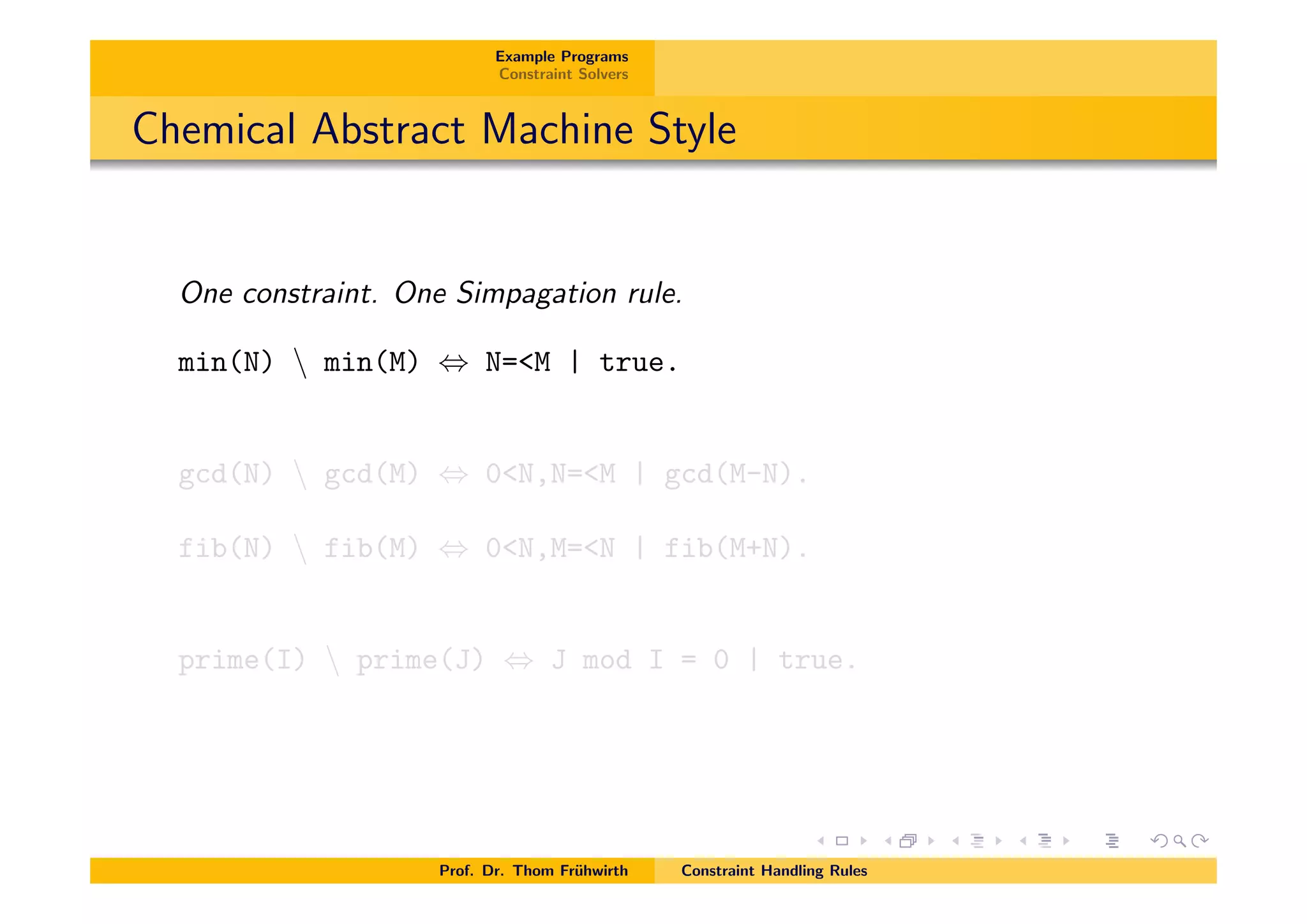

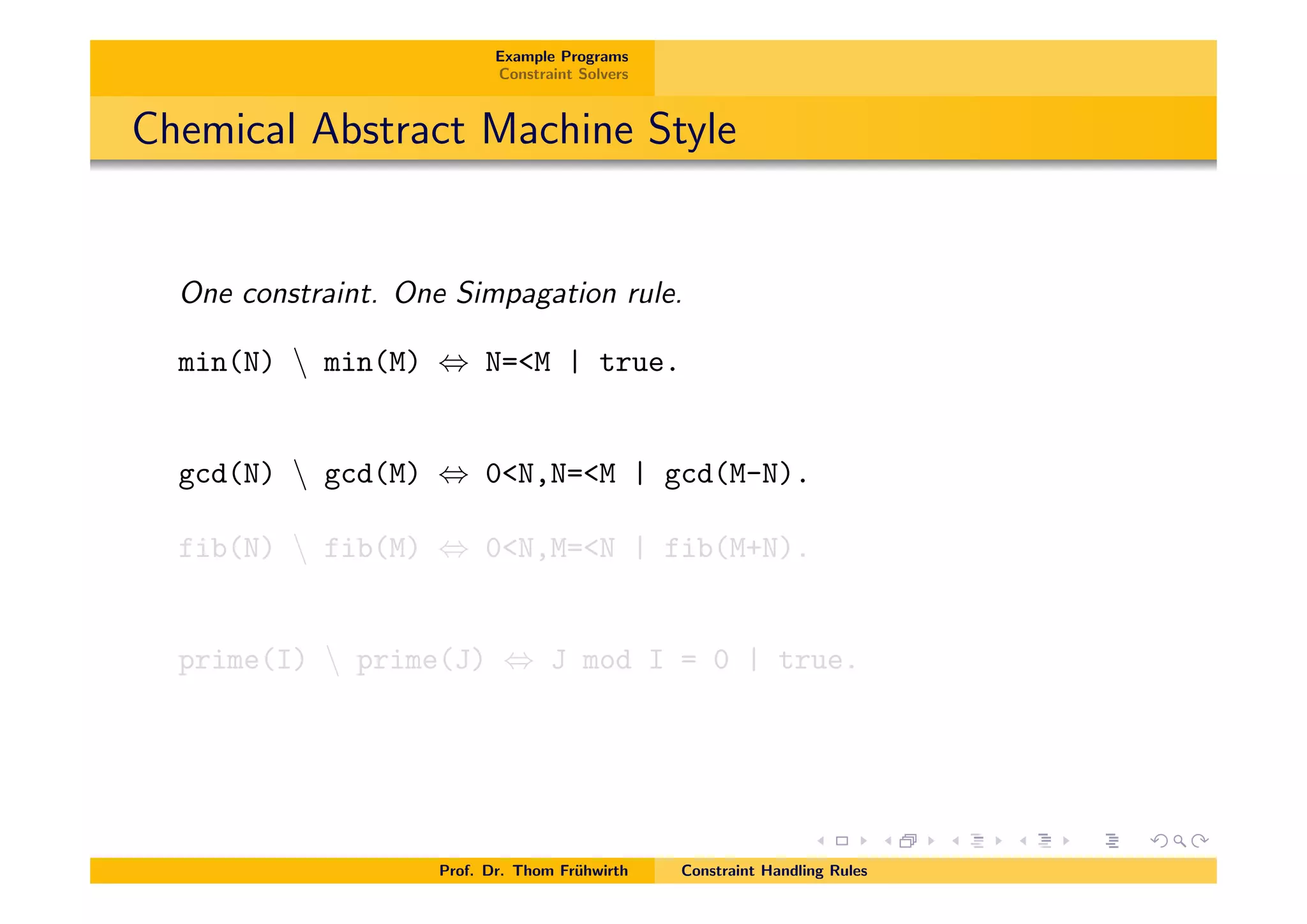

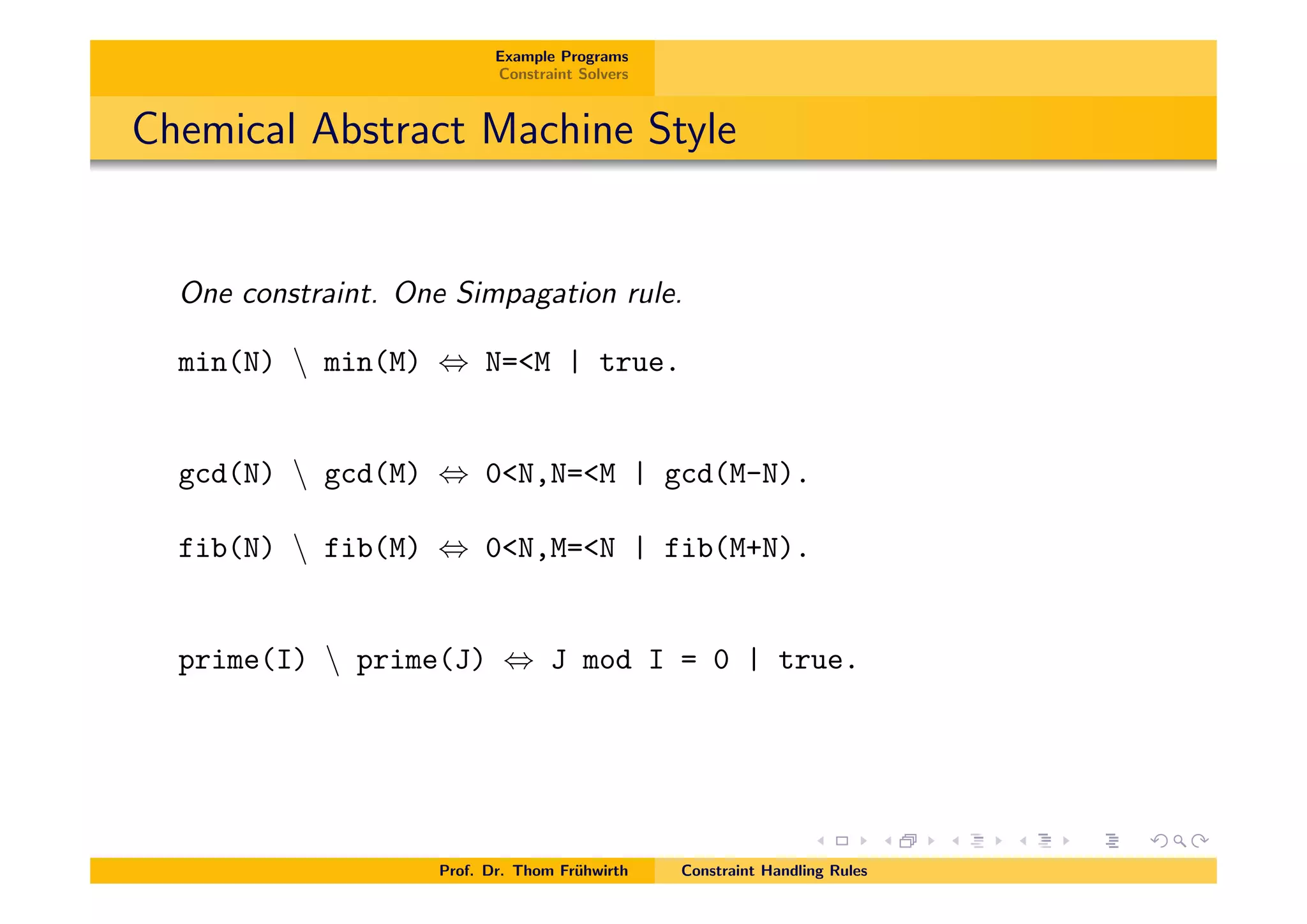

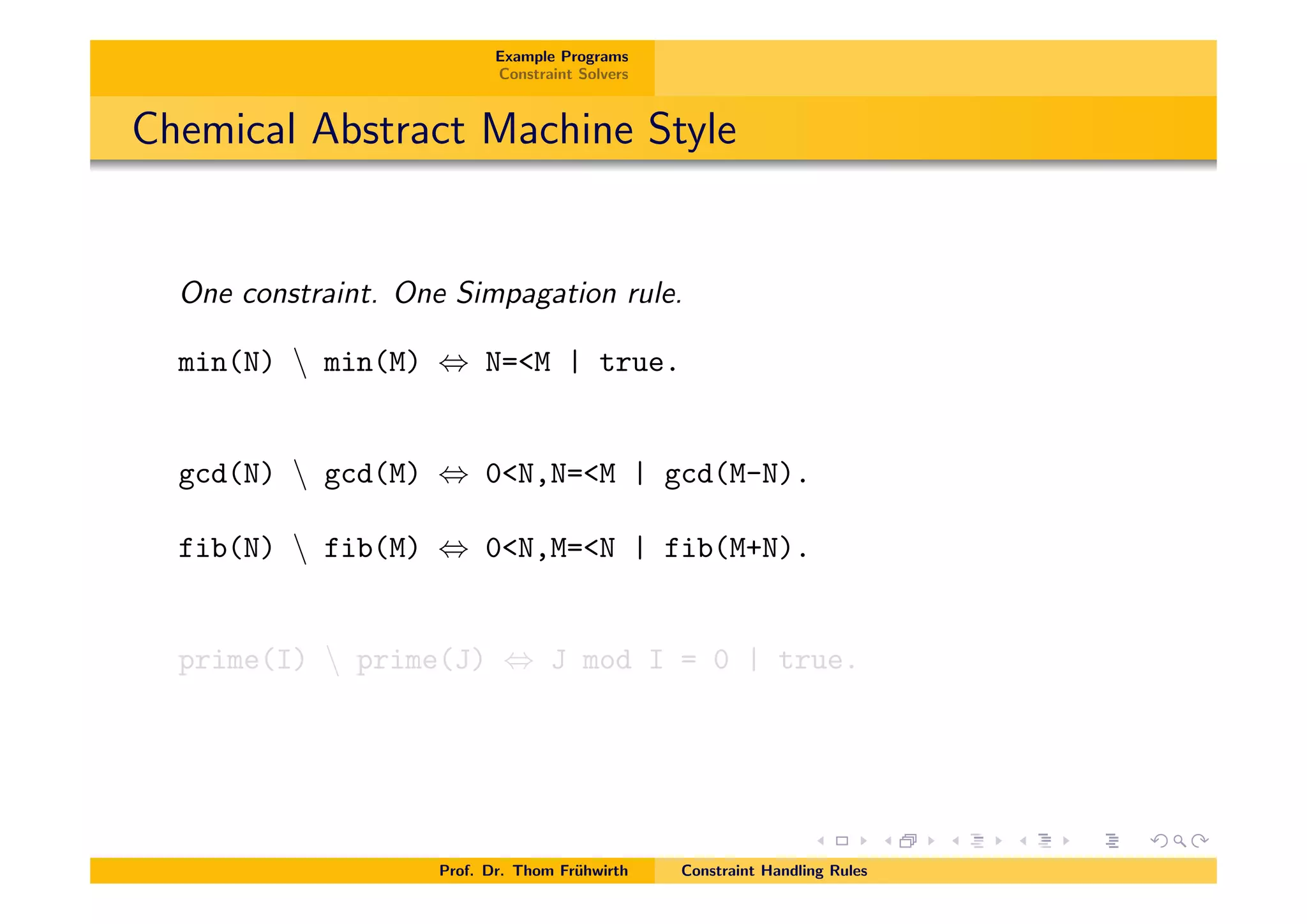

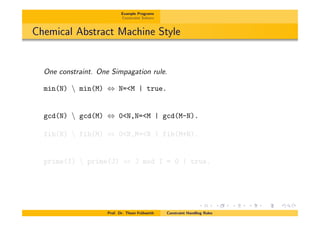

Example Programs Constraint Solvers ChemicalAbstract Machine Style One constraint. One Simpagation rule. min(N) min(M) , N=<M | true. gcd(N) gcd(M) , 0<N,N=<M | gcd(M-N). fib(N) fib(M) , 0<N,M=<N | fib(M+N). prime(I) prime(J) , J mod I = 0 | true. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

90.

91.

92.

93.

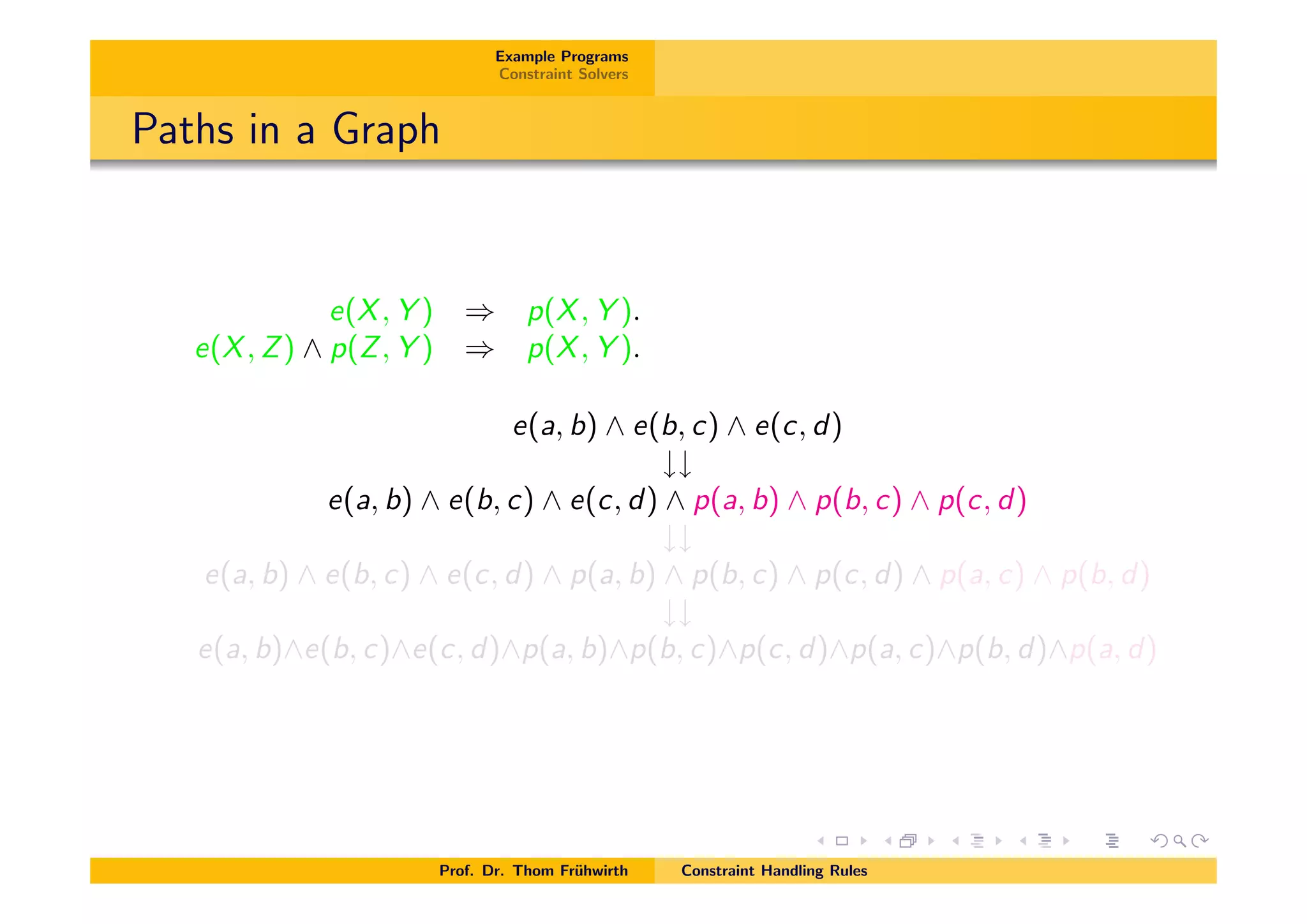

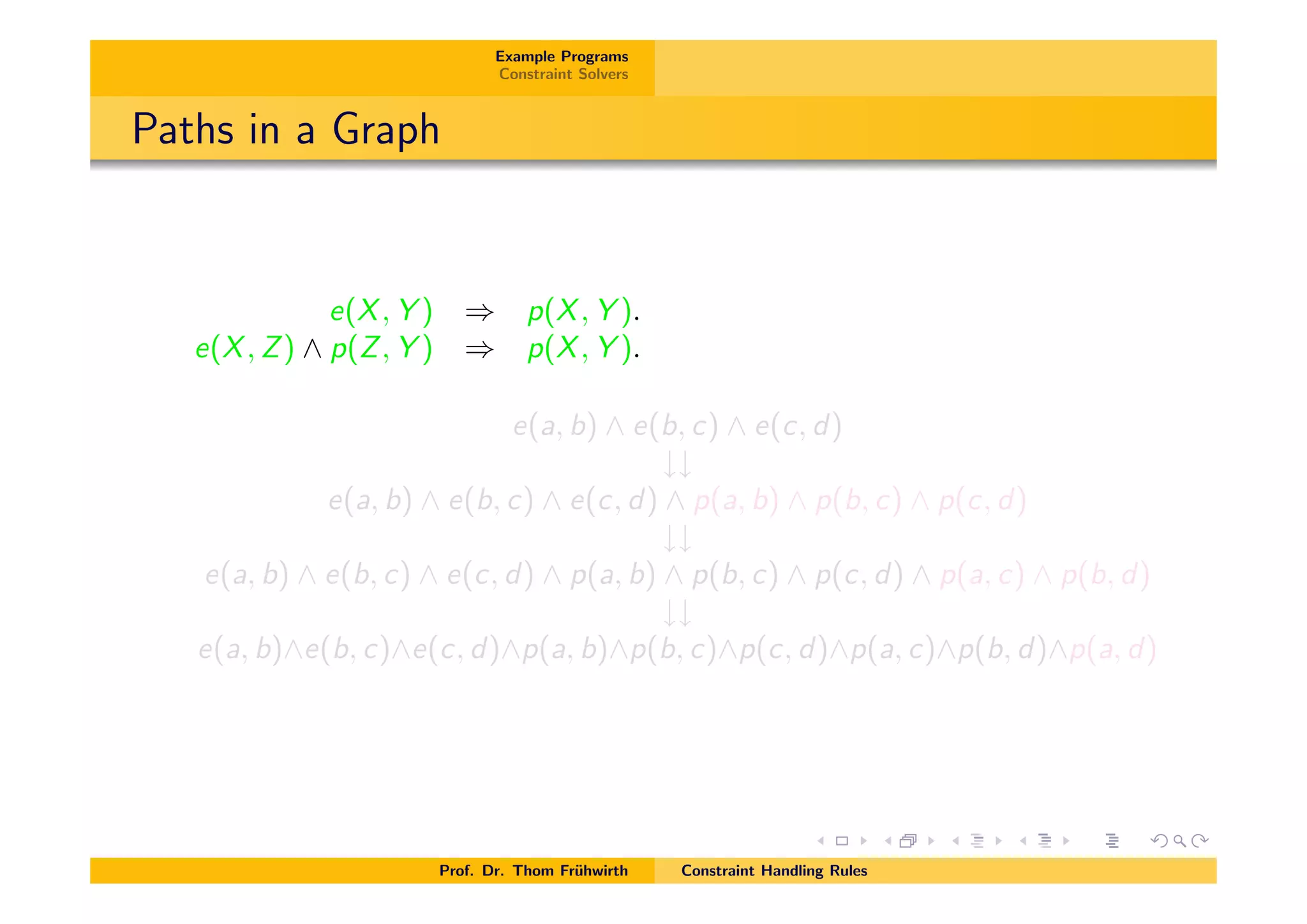

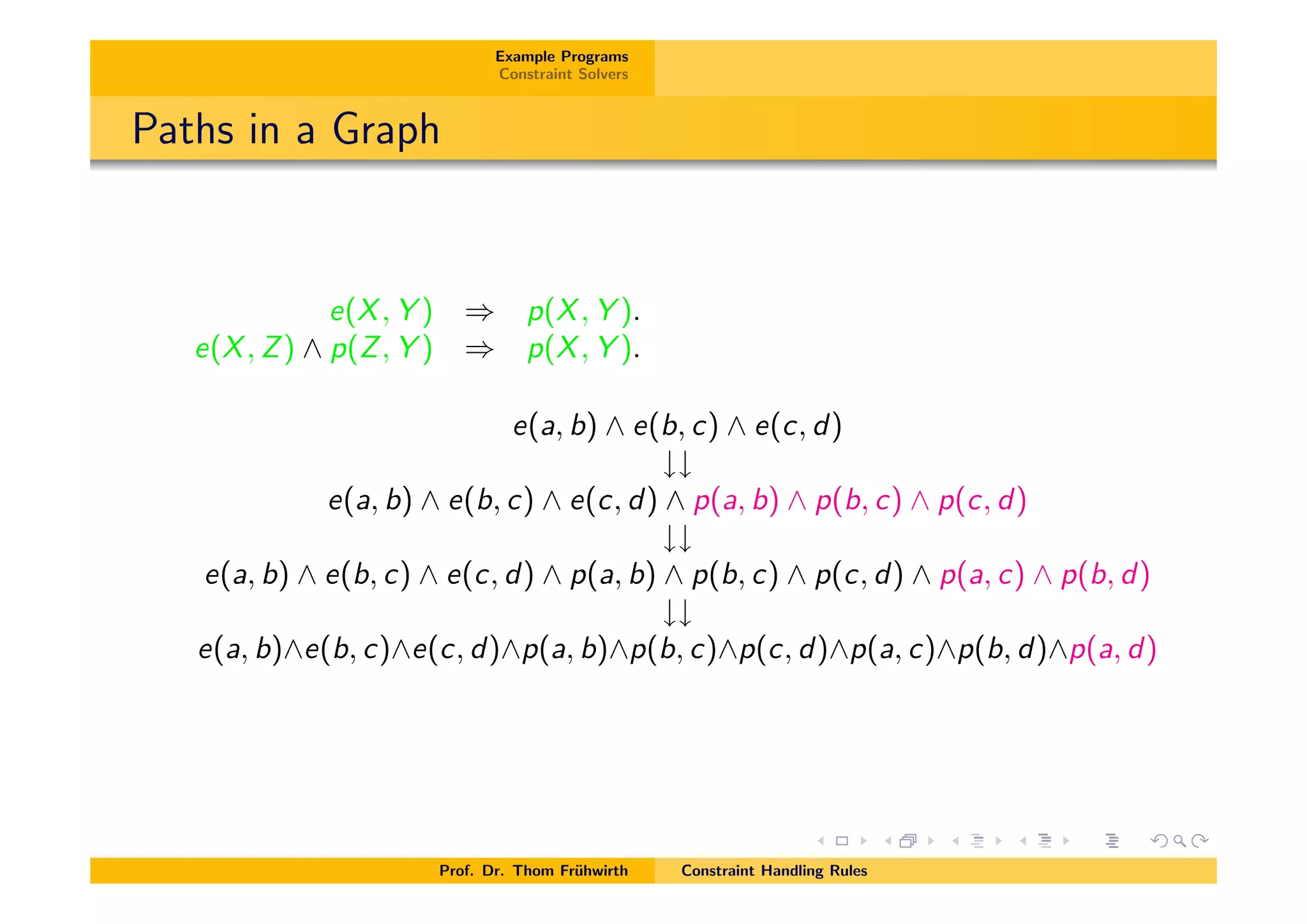

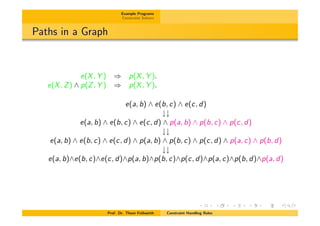

Example Programs Constraint Solvers Pathsin a Graph e(X, Y ) ) p(X, Y ). e(X, Z) ^ p(Z, Y ) ) p(X, Y ). e(a, b) ^ e(b, c) ^ e(c, d) ## e(a, b) ^ e(b, c) ^ e(c, d) ^ p(a, b) ^ p(b, c) ^ p(c, d) ## e(a, b) ^ e(b, c) ^ e(c, d) ^ p(a, b) ^ p(b, c) ^ p(c, d) ^ p(a, c) ^ p(b, d) ## e(a, b)ê(b, c)ê(c, d)^p(a, b)^p(b, c)^p(c, d)^p(a, c)^p(b, d)^p(a, d) Prof. Dr. Thom Frühwirth Constraint Handling Rules

94.

95.

96.

97.

98.

99.

100.

101.

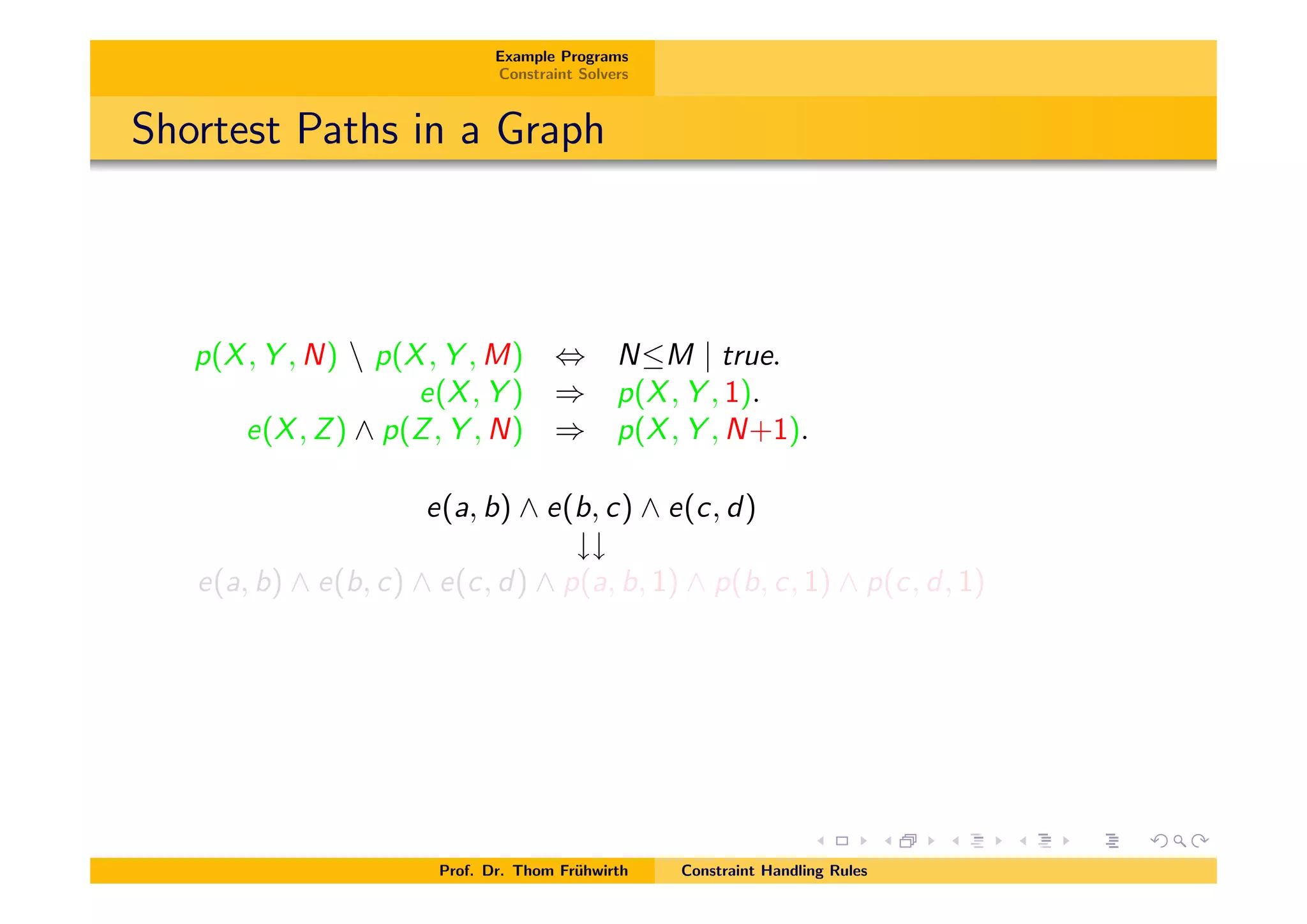

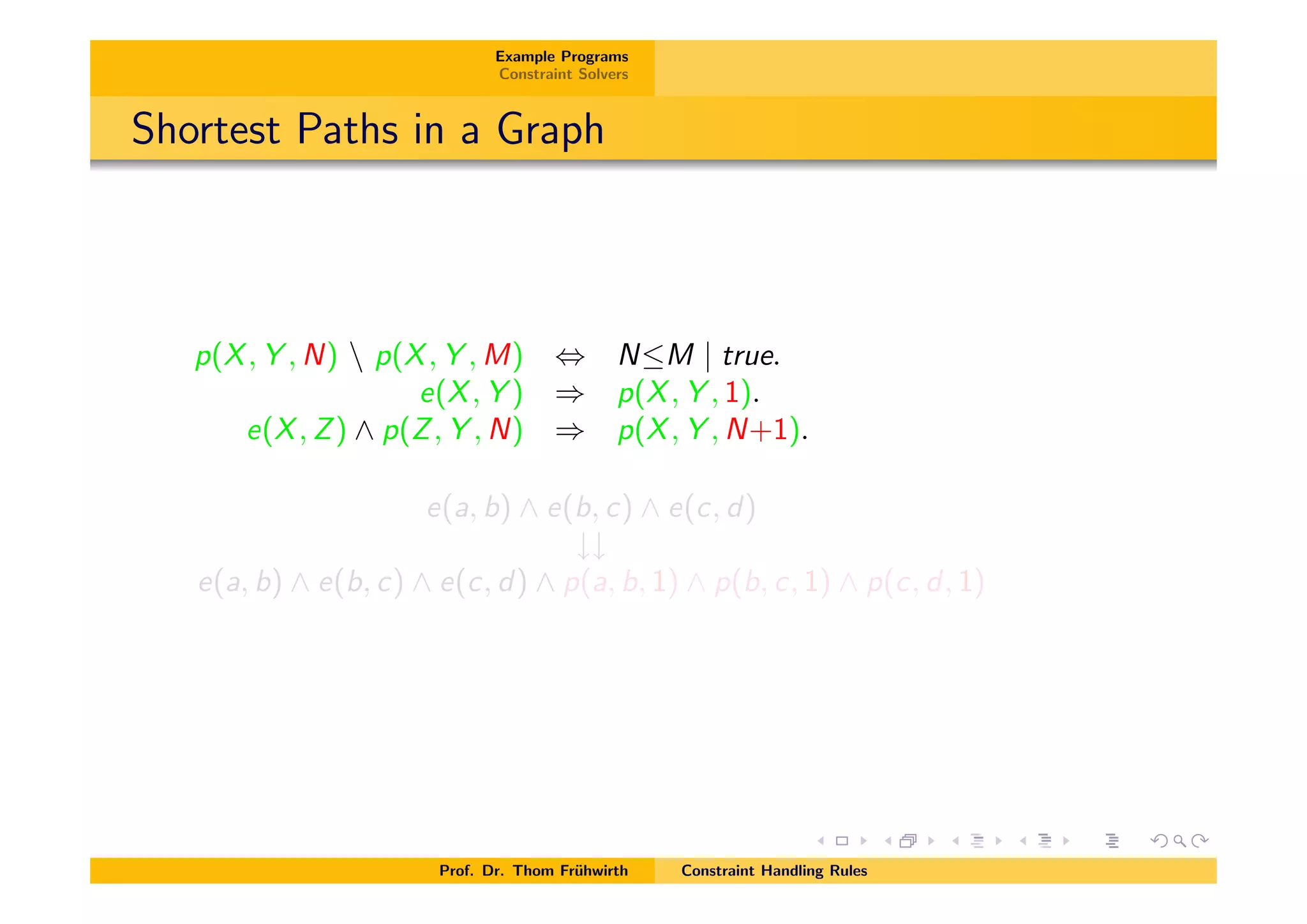

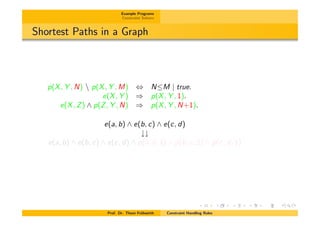

Example Programs Constraint Solvers ShortestPaths in a Graph p(X, Y , N) p(X, Y , M) , NM | true. e(X, Y ) ) p(X, Y , 1). e(X, Z) ^ p(Z, Y , N) ) p(X, Y , N+1). e(a, b) ^ e(b, c) ^ e(c, d) ## e(a, b) ^ e(b, c) ^ e(c, d) ^ p(a, b, 1) ^ p(b, c, 1) ^ p(c, d, 1) Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

102.

103.

104.

105.

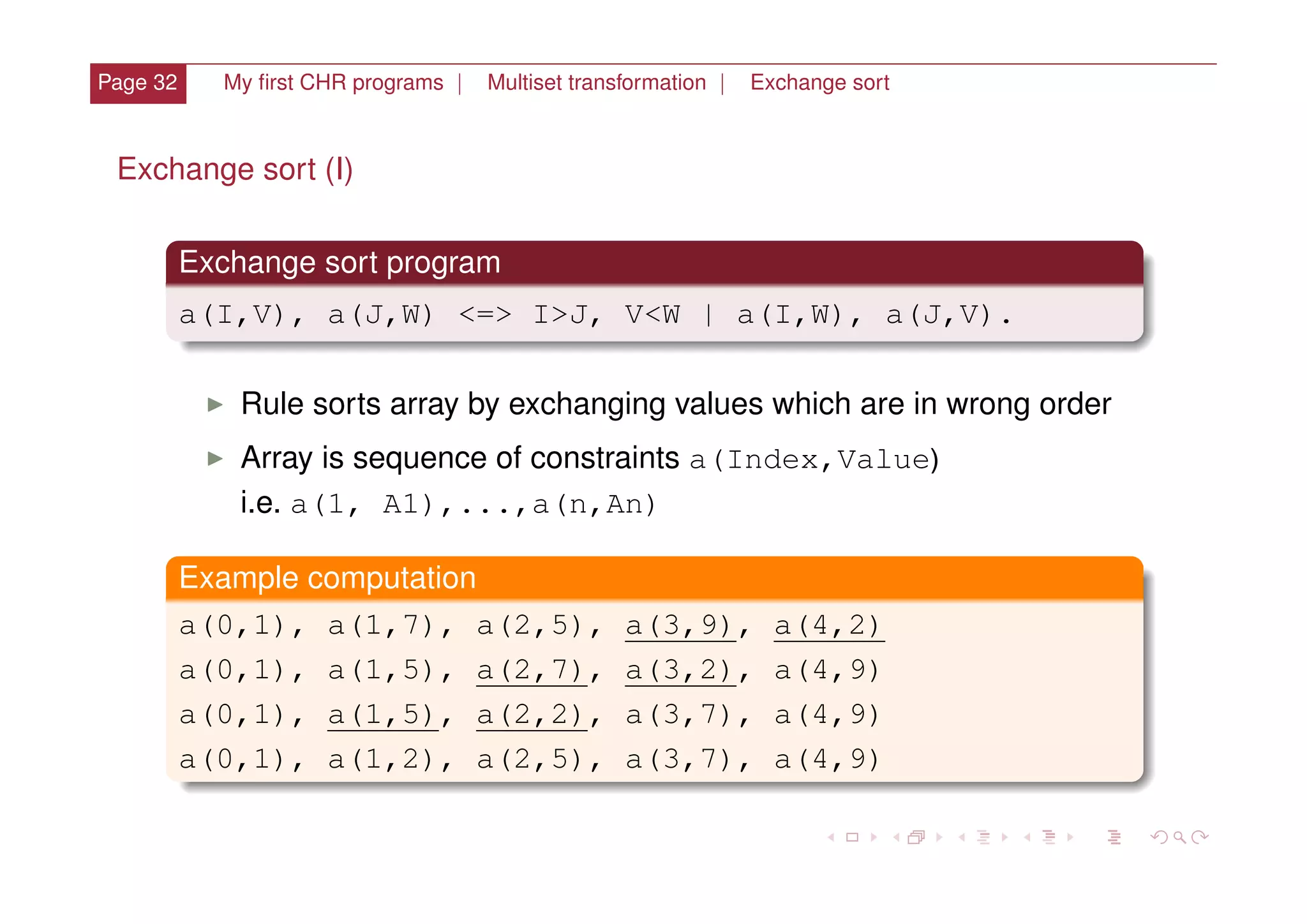

Page 32 Myﬁrst CHR programs | Multiset transformation | Exchange sort Exchange sort (I) Exchange sort program a(I,V), a(J,W) <=> I>J, V<W | a(I,W), a(J,V). I Rule sorts array by exchanging values which are in wrong order I Array is sequence of constraints a(Index,Value i.e. a(1, A1),...,a(n,An) Example computation a(0,1), a(1,7), a(2,5), a(3,9), a(4,2) a(0,1), a(1,5), a(2,7), a(3,2), a(4,9) a(0,1), a(1,5), a(2,2), a(3,7), a(4,9) a(0,1), a(1,2), a(2,5), a(3,7), a(4,9) )

106.

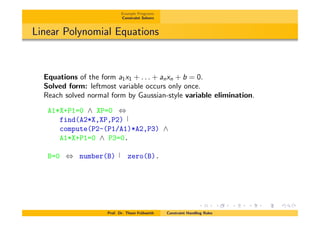

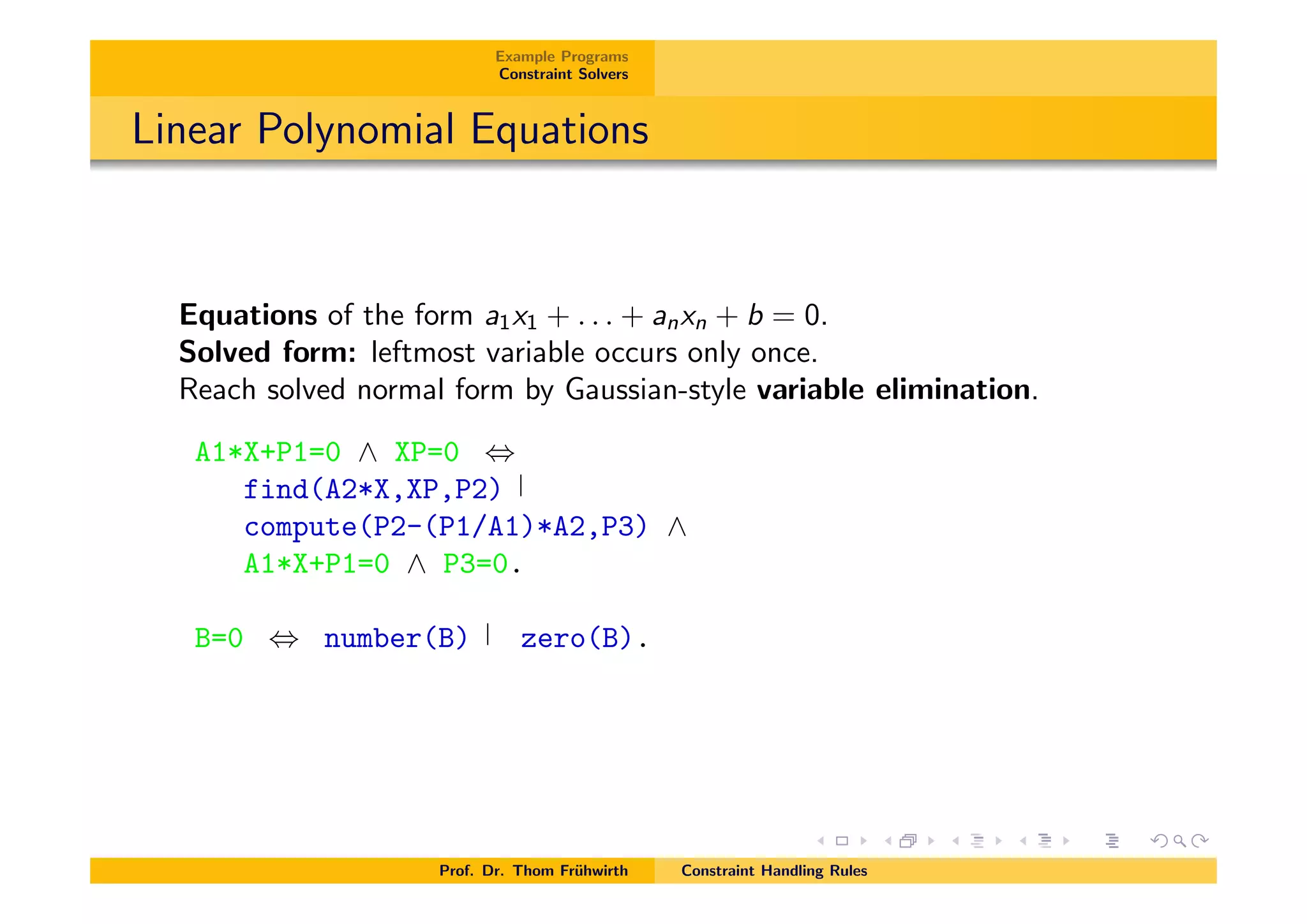

Example Programs Constraint Solvers LinearPolynomial Equations Equations of the form a1x1 + . . . + anxn + b = 0. Solved form: leftmost variable occurs only once. Reach solved normal form by Gaussian-style variable elimination. A1*X+P1=0 ^ XP=0 , find(A2*X,XP,P2) compute(P2-(P1/A1)*A2,P3) ^ A1*X+P1=0 ^ P3=0. B=0 , number(B) zero(B). Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

107.

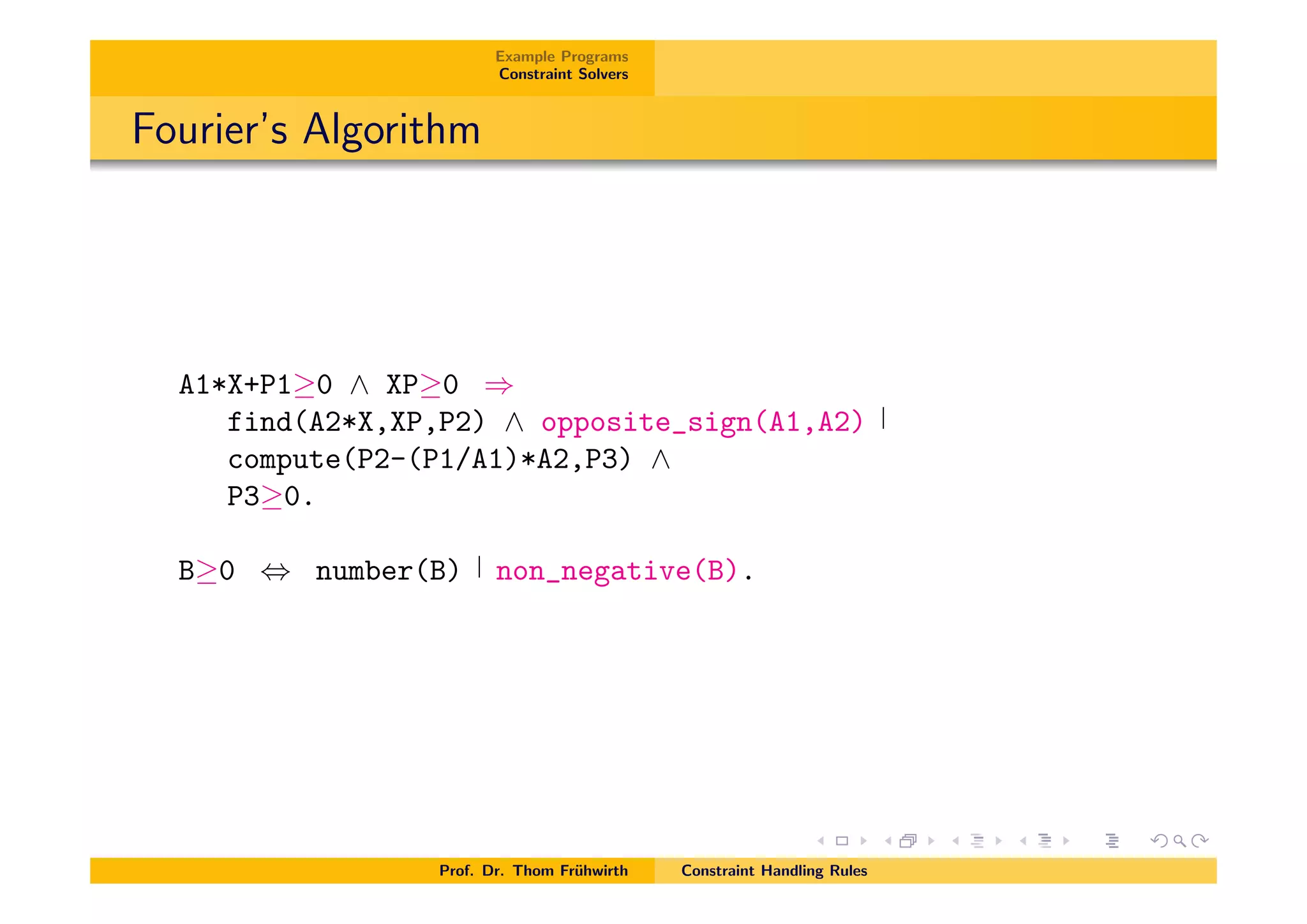

Example Programs Constraint Solvers Fourier’sAlgorithm A1*X+P1 0 ^ XP 0 ) find(A2*X,XP,P2) ^ opposite_sign(A1,A2) compute(P2-(P1/A1)*A2,P3) ^ P3 0. B 0 , number(B) non_negative(B). Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules

108.

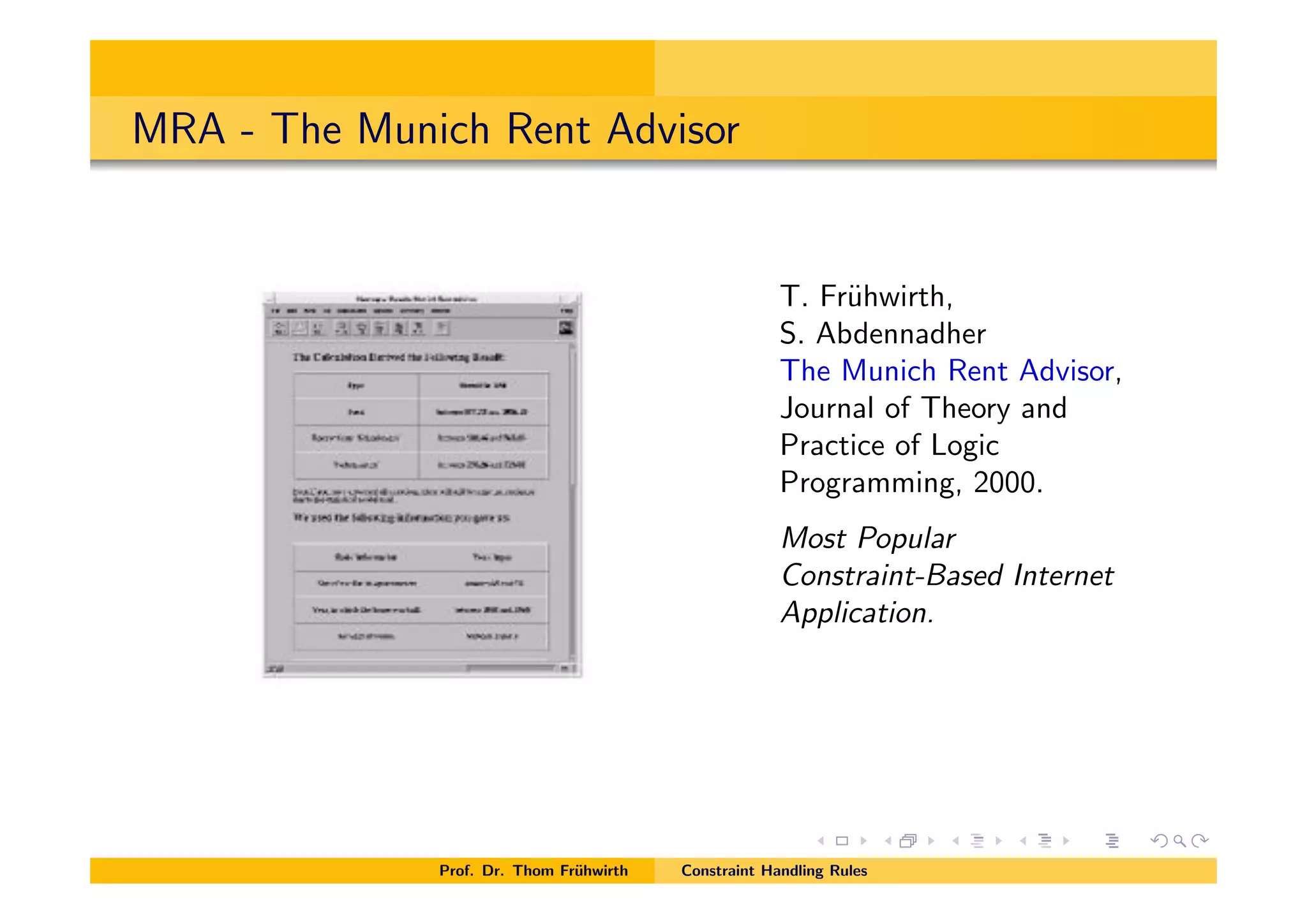

MRA - TheMunich Rent Advisor T. Fr¨uhwirth, S. Abdennadher The Munich Rent Advisor, Journal of Theory and Practice of Logic Programming, 2000. Most Popular Constraint-Based Internet Application. Prof. Dr. Thom Fr¨uhwirth Constraint Handling Rules
