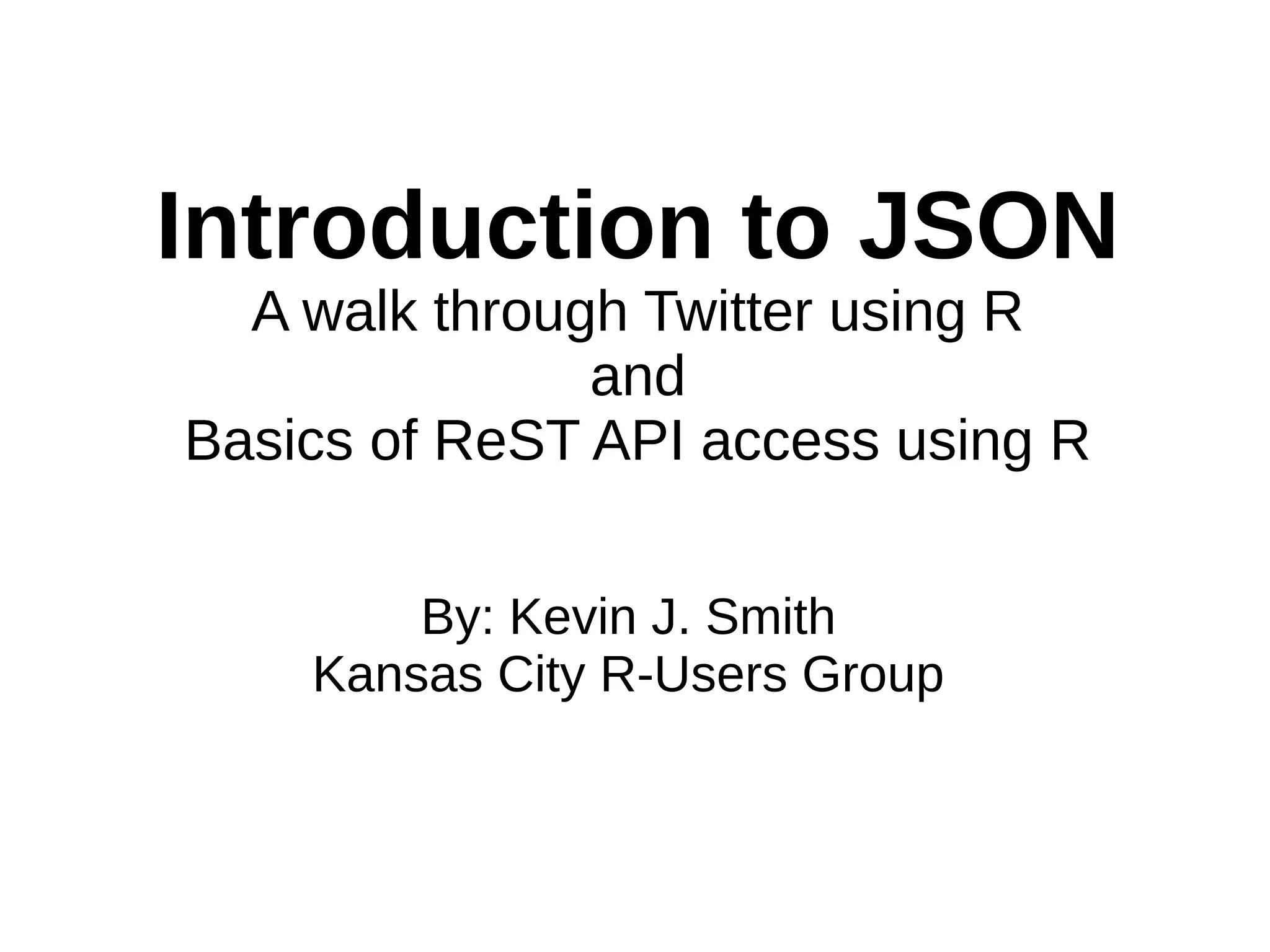

  Introduction to JSON Awalk through Twitter using R and Basics of ReST API access using R By: Kevin J. Smith Kansas City R-Users Group
• 2.

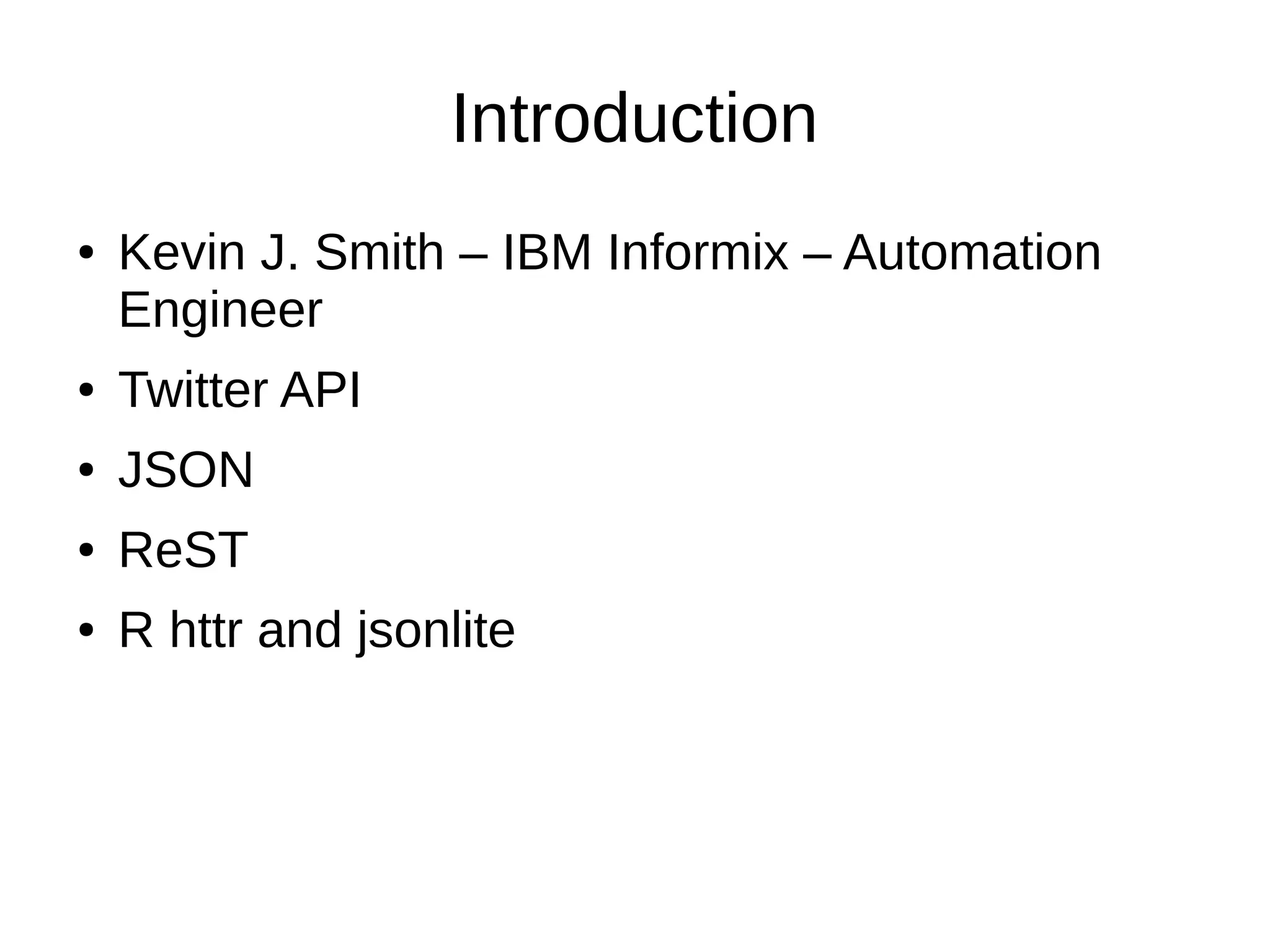

  Introduction ● Kevin J.Smith – IBM Informix – Automation Engineer ● Twitter API ● JSON ● ReST ● R httr and jsonlite
• 3.

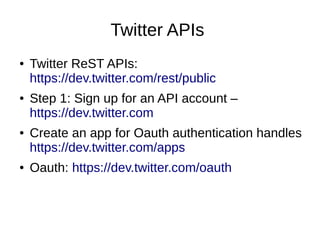

  Twitter APIs ● TwitterReST APIs: https://dev.twitter.com/rest/public ● Step 1: Sign up for an API account – https://dev.twitter.com ● Create an app for Oauth authentication handles https://dev.twitter.com/apps ● Oauth: https://dev.twitter.com/oauth
• 6.

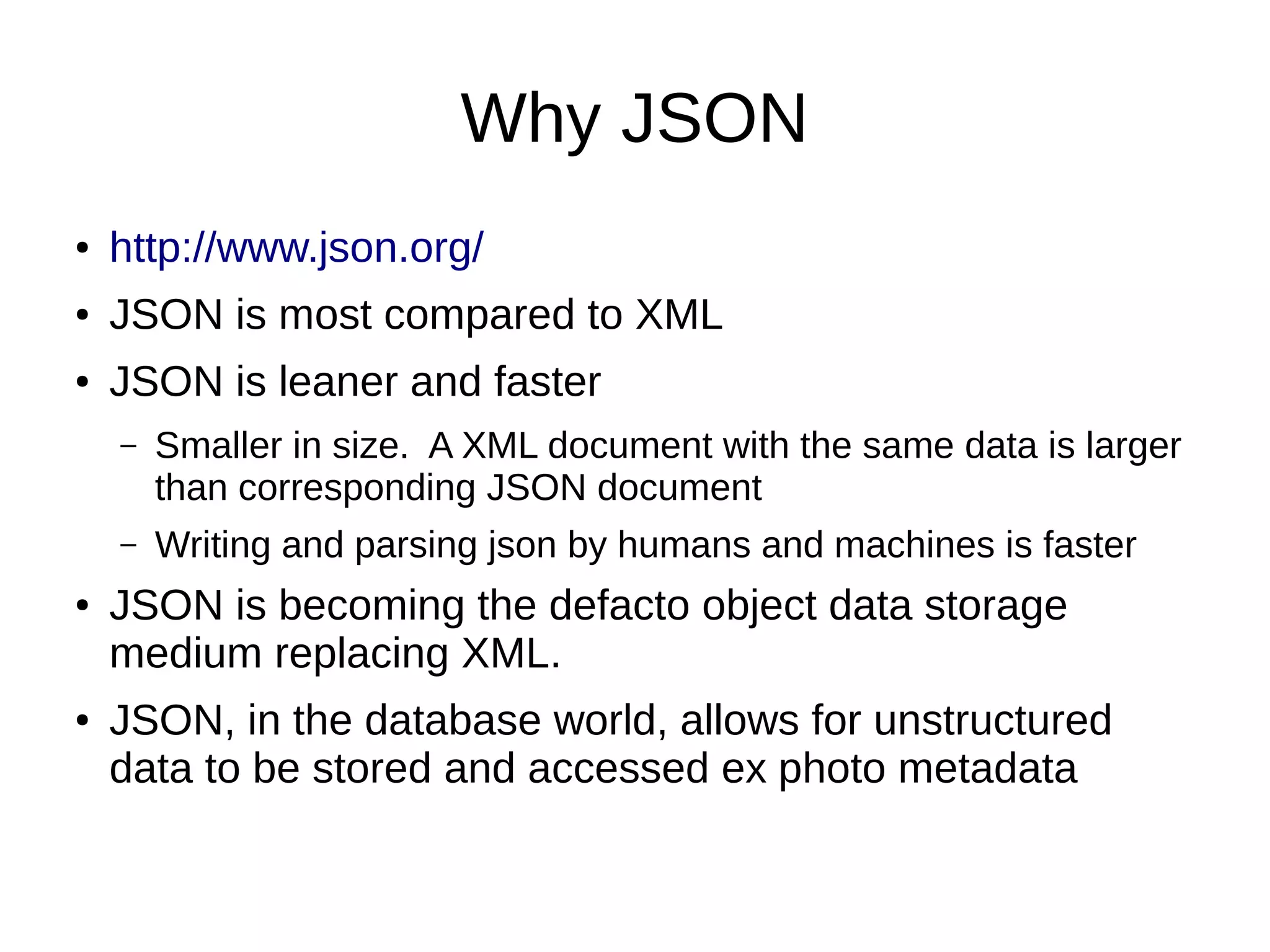

  Why JSON ● http://www.json.org/ ●JSON is most compared to XML ● JSON is leaner and faster – Smaller in size. A XML document with the same data is larger than corresponding JSON document – Writing and parsing json by humans and machines is faster ● JSON is becoming the defacto object data storage medium replacing XML. ● JSON, in the database world, allows for unstructured data to be stored and accessed ex photo metadata
• 7.

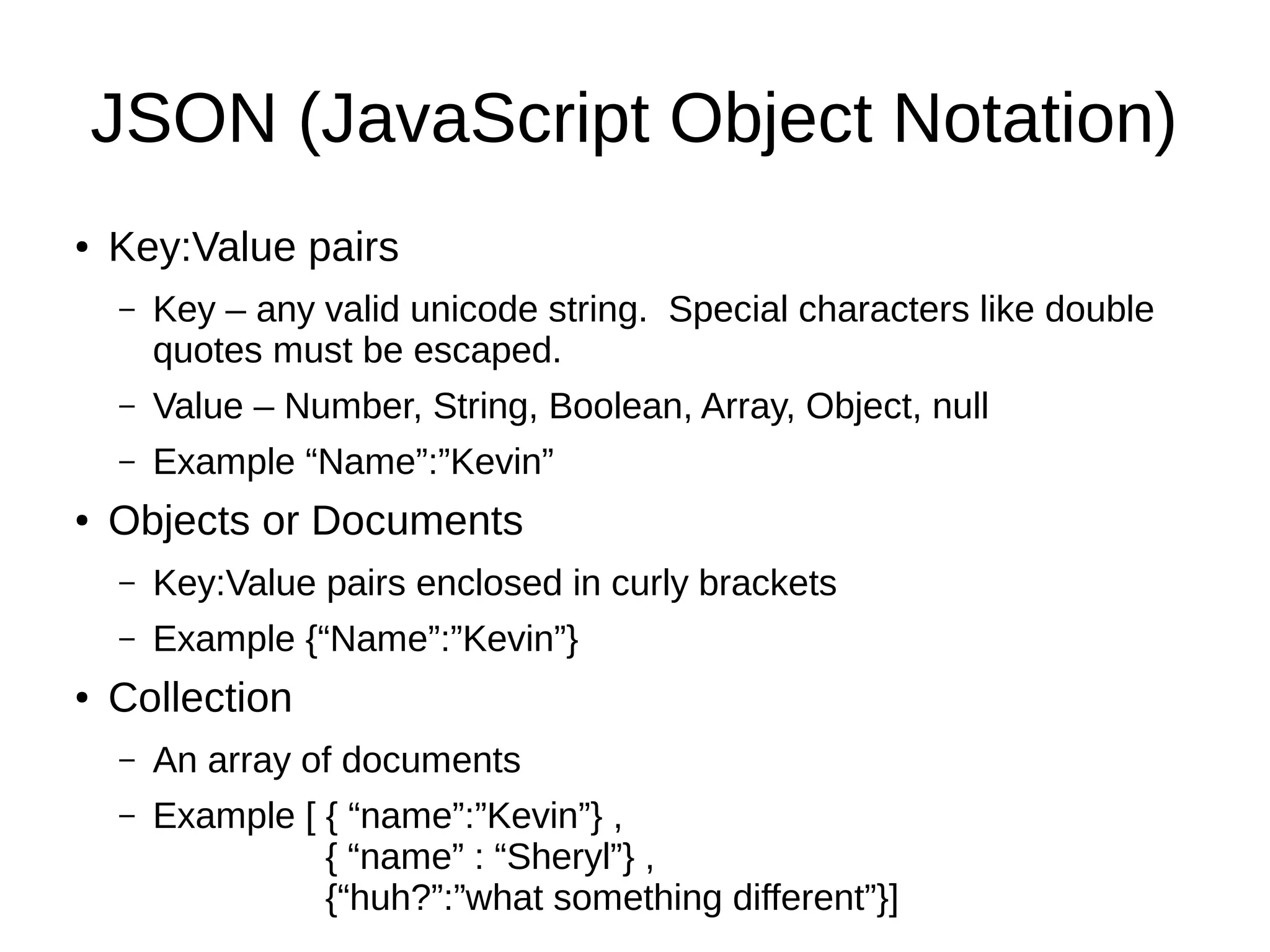

  JSON (JavaScript ObjectNotation) ● Key:Value pairs – Key – any valid unicode string. Special characters like double quotes must be escaped. – Value – Number, String, Boolean, Array, Object, null – Example “Name”:”Kevin” ● Objects or Documents – Key:Value pairs enclosed in curly brackets – Example {“Name”:”Kevin”} ● Collection – An array of documents – Example [ { “name”:”Kevin”} , { “name” : “Sheryl”} , {“huh?”:”what something different”}]
• 8.

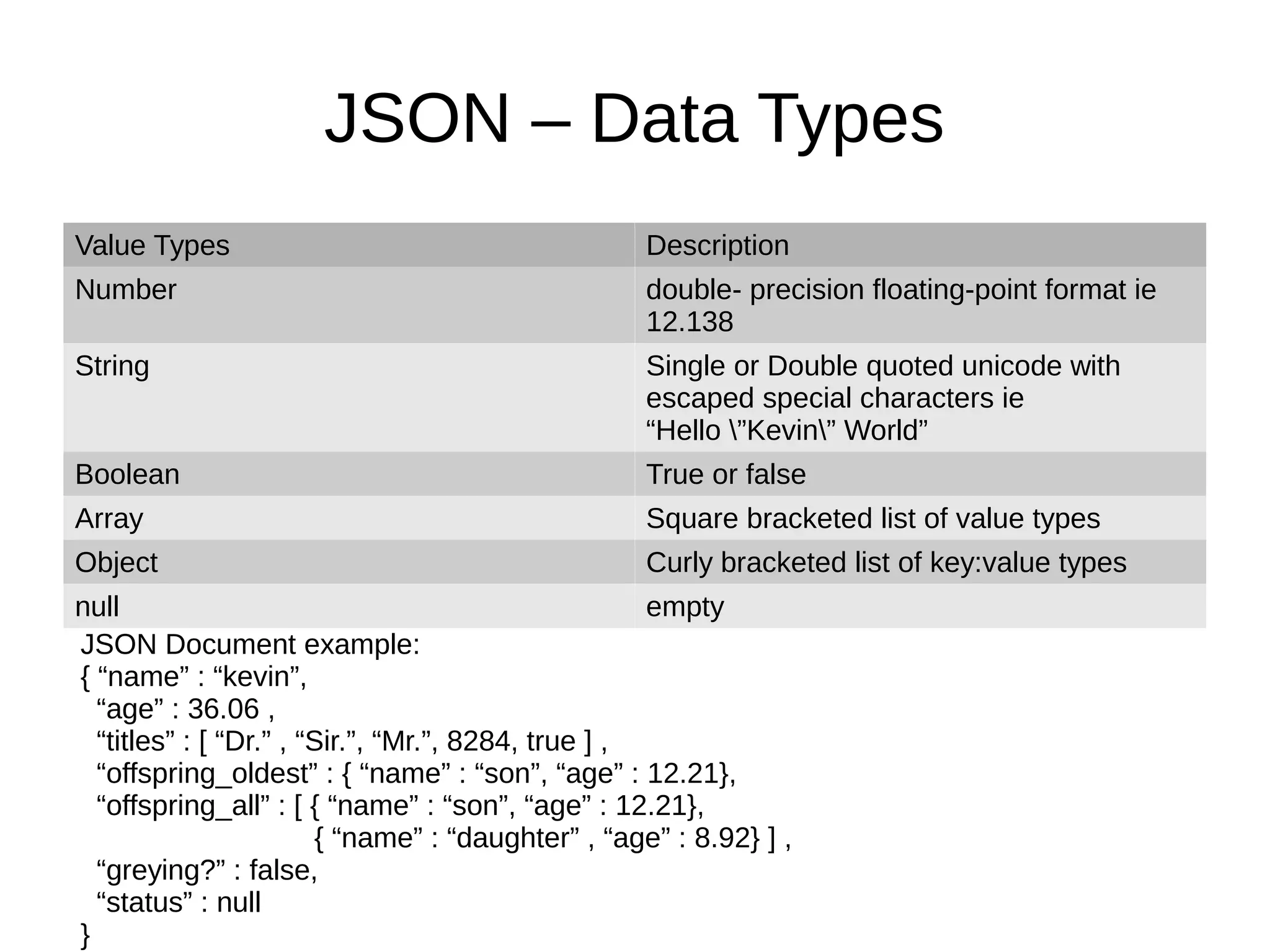

  JSON – DataTypes Value Types Description Number double- precision floating-point format ie 12.138 String Single or Double quoted unicode with escaped special characters ie “Hello ”Kevin” World” Boolean True or false Array Square bracketed list of value types Object Curly bracketed list of key:value types null empty JSON Document example: { “name” : “kevin”, “age” : 36.06 , “titles” : [ “Dr.” , “Sir.”, “Mr.”, 8284, true ] , “offspring_oldest” : { “name” : “son”, “age” : 12.21}, “offspring_all” : [ { “name” : “son”, “age” : 12.21}, { “name” : “daughter” , “age” : 8.92} ] , “greying?” : false, “status” : null }
• 9.

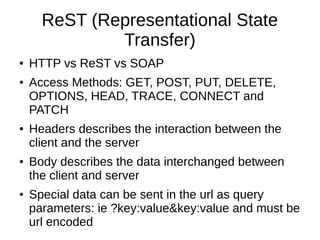

  ReST (Representational State Transfer) ●HTTP vs ReST vs SOAP ● Access Methods: GET, POST, PUT, DELETE, OPTIONS, HEAD, TRACE, CONNECT and PATCH ● Headers describes the interaction between the client and the server ● Body describes the data interchanged between the client and server ● Special data can be sent in the url as query parameters: ie ?key:value&key:value and must be url encoded
• 10.

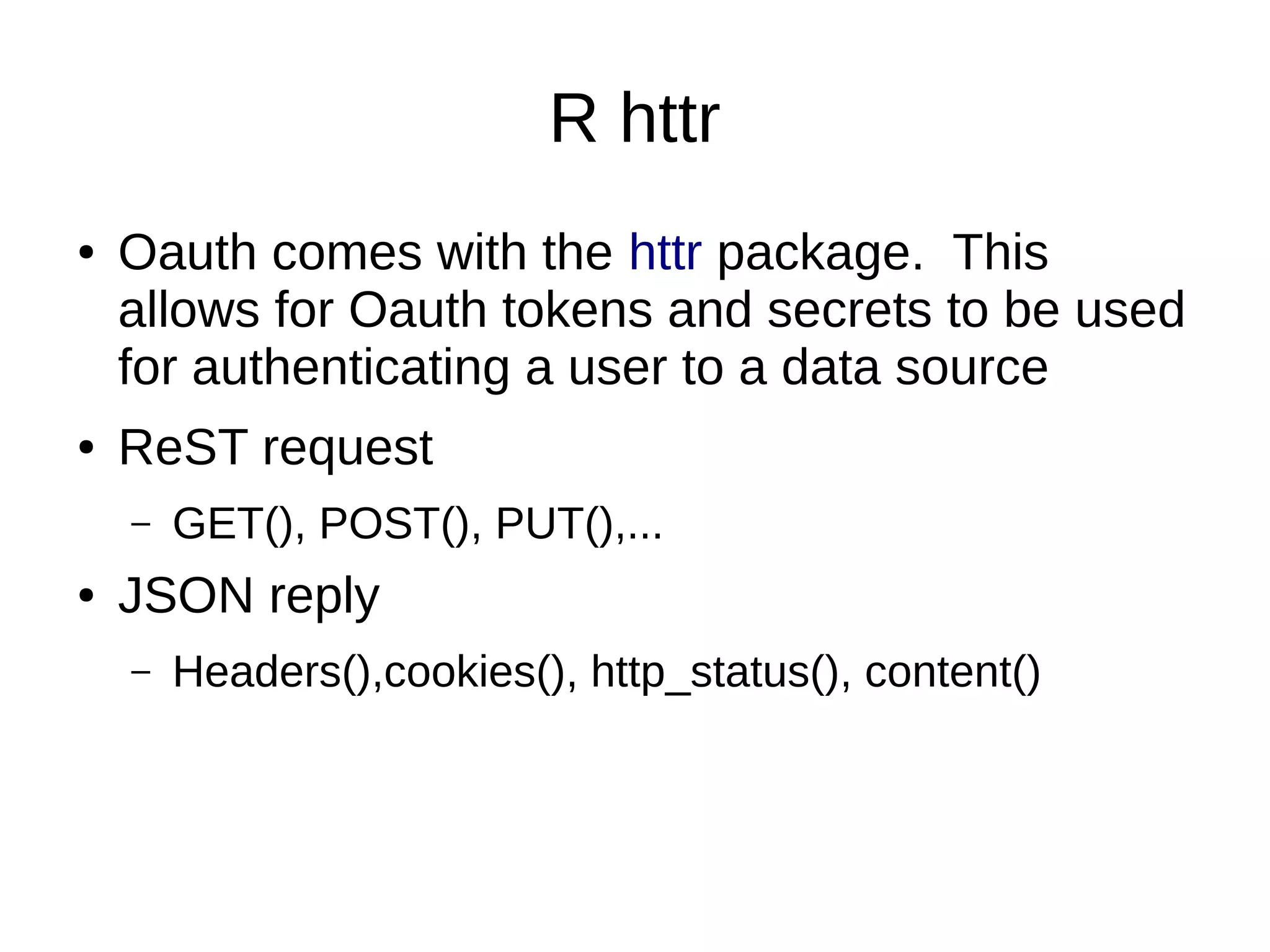

  R httr ● Oauthcomes with the httr package. This allows for Oauth tokens and secrets to be used for authenticating a user to a data source ● ReST request – GET(), POST(), PUT(),... ● JSON reply – Headers(),cookies(), http_status(), content()
• 12.

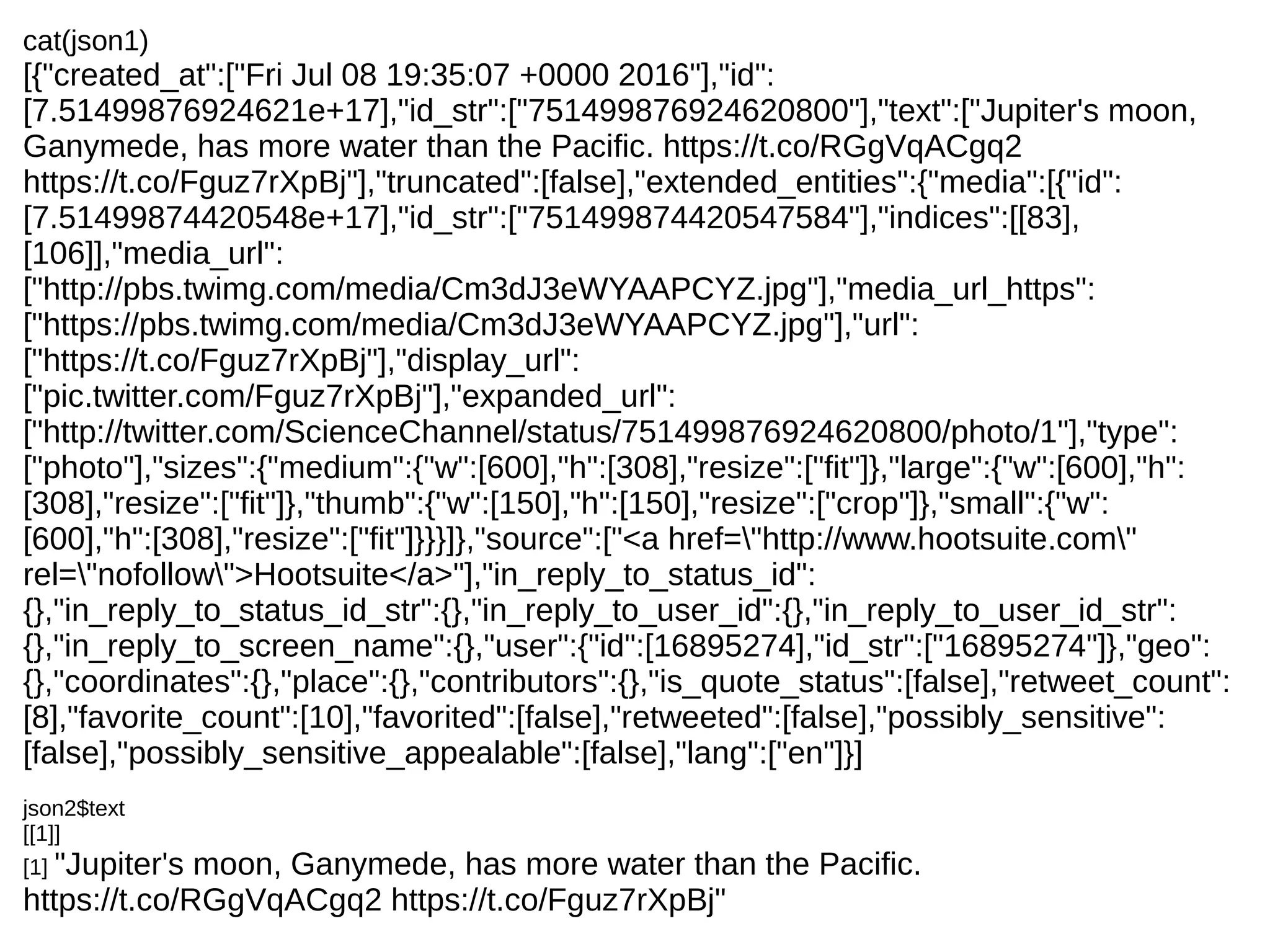

  cat(json1) [{"created_at":["Fri Jul 0819:35:07 +0000 2016"],"id": [7.51499876924621e+17],"id_str":["751499876924620800"],"text":["Jupiter's moon, Ganymede, has more water than the Pacific. https://t.co/RGgVqACgq2 https://t.co/Fguz7rXpBj"],"truncated":[false],"extended_entities":{"media":[{"id": [7.51499874420548e+17],"id_str":["751499874420547584"],"indices":[[83], [106]],"media_url": ["http://pbs.twimg.com/media/Cm3dJ3eWYAAPCYZ.jpg"],"media_url_https": ["https://pbs.twimg.com/media/Cm3dJ3eWYAAPCYZ.jpg"],"url": ["https://t.co/Fguz7rXpBj"],"display_url": ["pic.twitter.com/Fguz7rXpBj"],"expanded_url": ["http://twitter.com/ScienceChannel/status/751499876924620800/photo/1"],"type": ["photo"],"sizes":{"medium":{"w":[600],"h":[308],"resize":["fit"]},"large":{"w":[600],"h": [308],"resize":["fit"]},"thumb":{"w":[150],"h":[150],"resize":["crop"]},"small":{"w": [600],"h":[308],"resize":["fit"]}}}]},"source":["<a href="http://www.hootsuite.com" rel="nofollow">Hootsuite</a>"],"in_reply_to_status_id": {},"in_reply_to_status_id_str":{},"in_reply_to_user_id":{},"in_reply_to_user_id_str": {},"in_reply_to_screen_name":{},"user":{"id":[16895274],"id_str":["16895274"]},"geo": {},"coordinates":{},"place":{},"contributors":{},"is_quote_status":[false],"retweet_count": [8],"favorite_count":[10],"favorited":[false],"retweeted":[false],"possibly_sensitive": [false],"possibly_sensitive_appealable":[false],"lang":["en"]}] json2$text [[1]] [1] "Jupiter's moon, Ganymede, has more water than the Pacific. https://t.co/RGgVqACgq2 https://t.co/Fguz7rXpBj"
• 13.

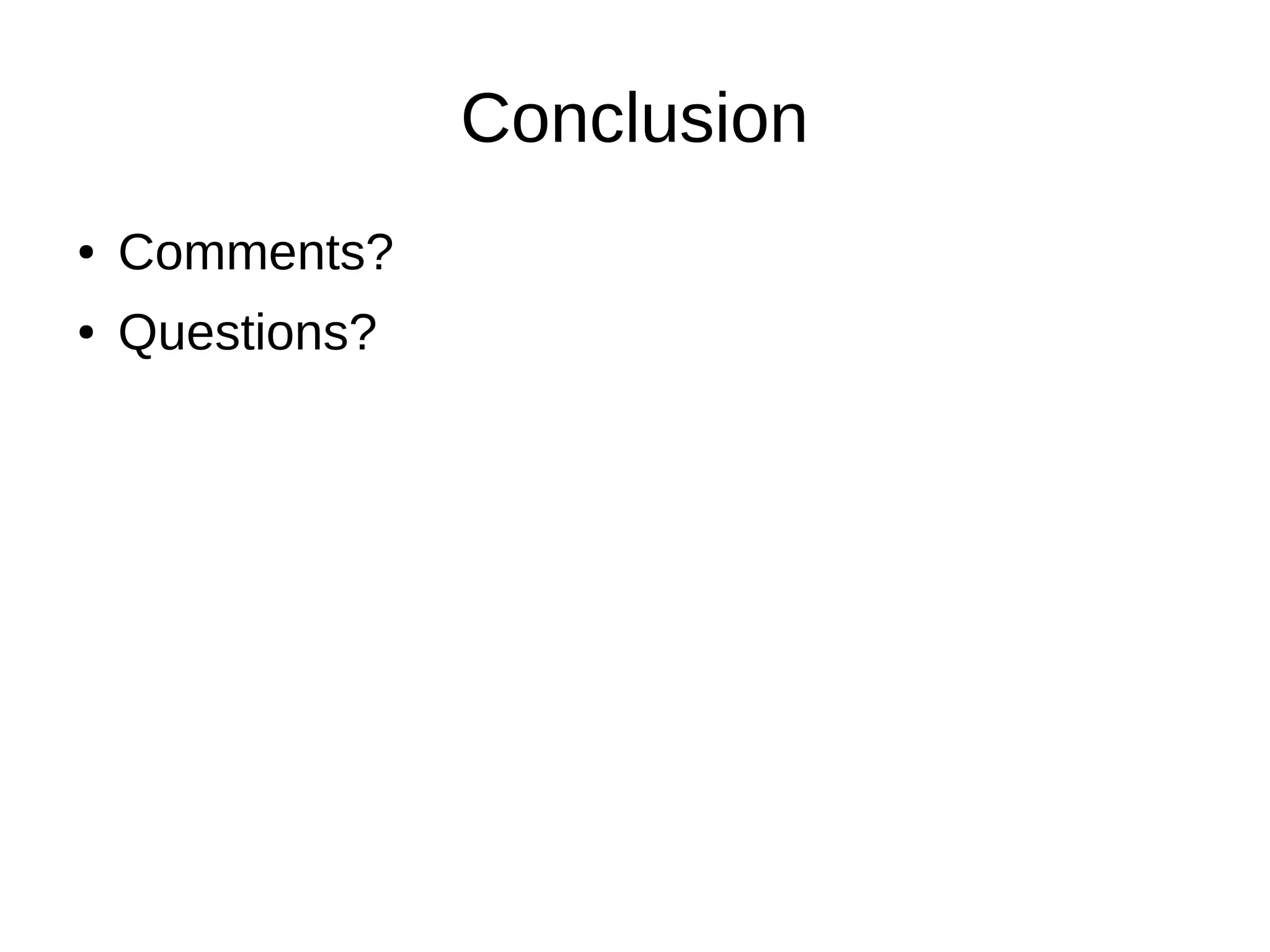

  Conclusion ● Comments? ● Questions?
