Semantic Technology In Oracle Database 12c

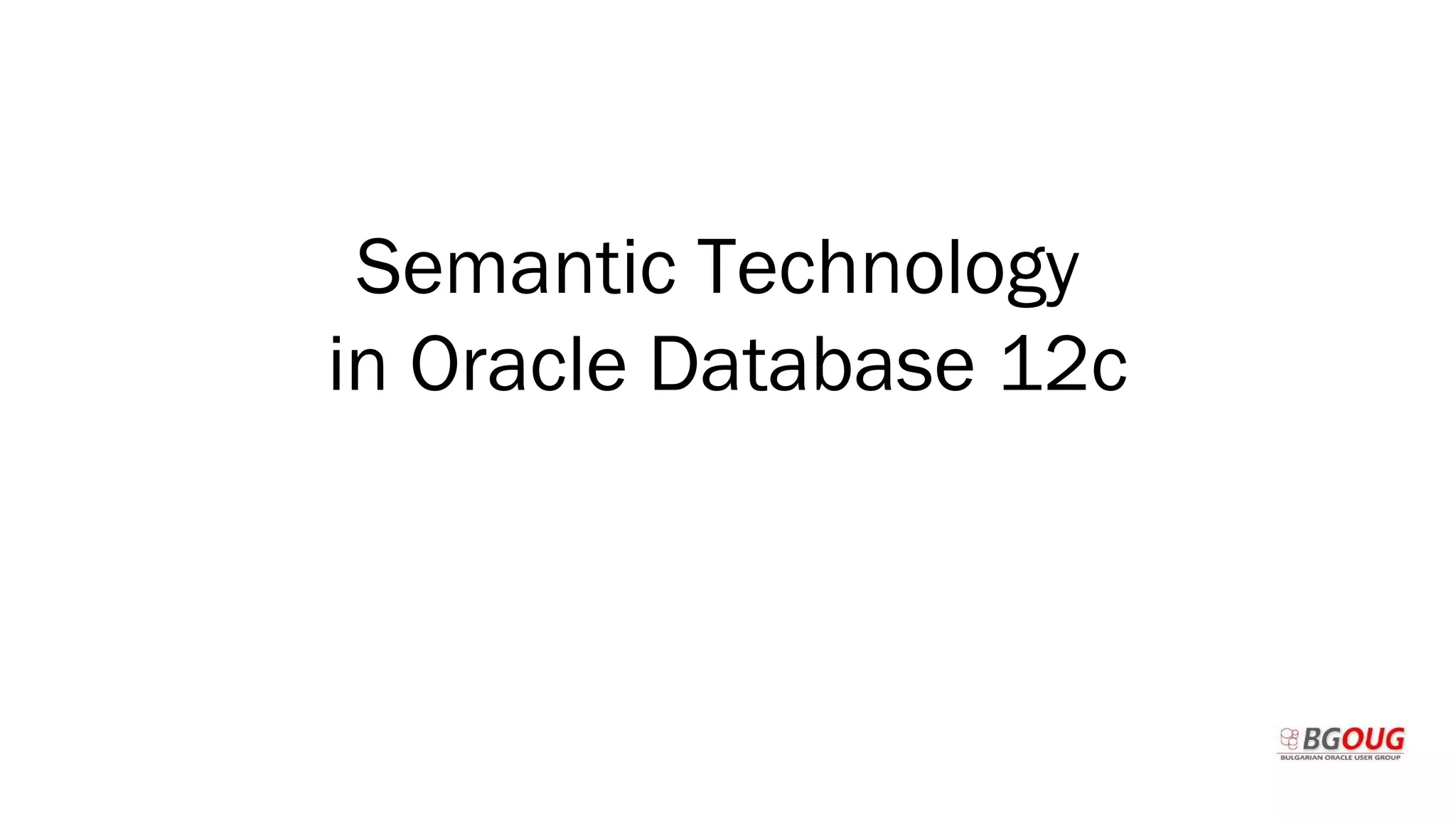

- 1. Semantic Technology in OracleDatabase 12c Martin Toshev

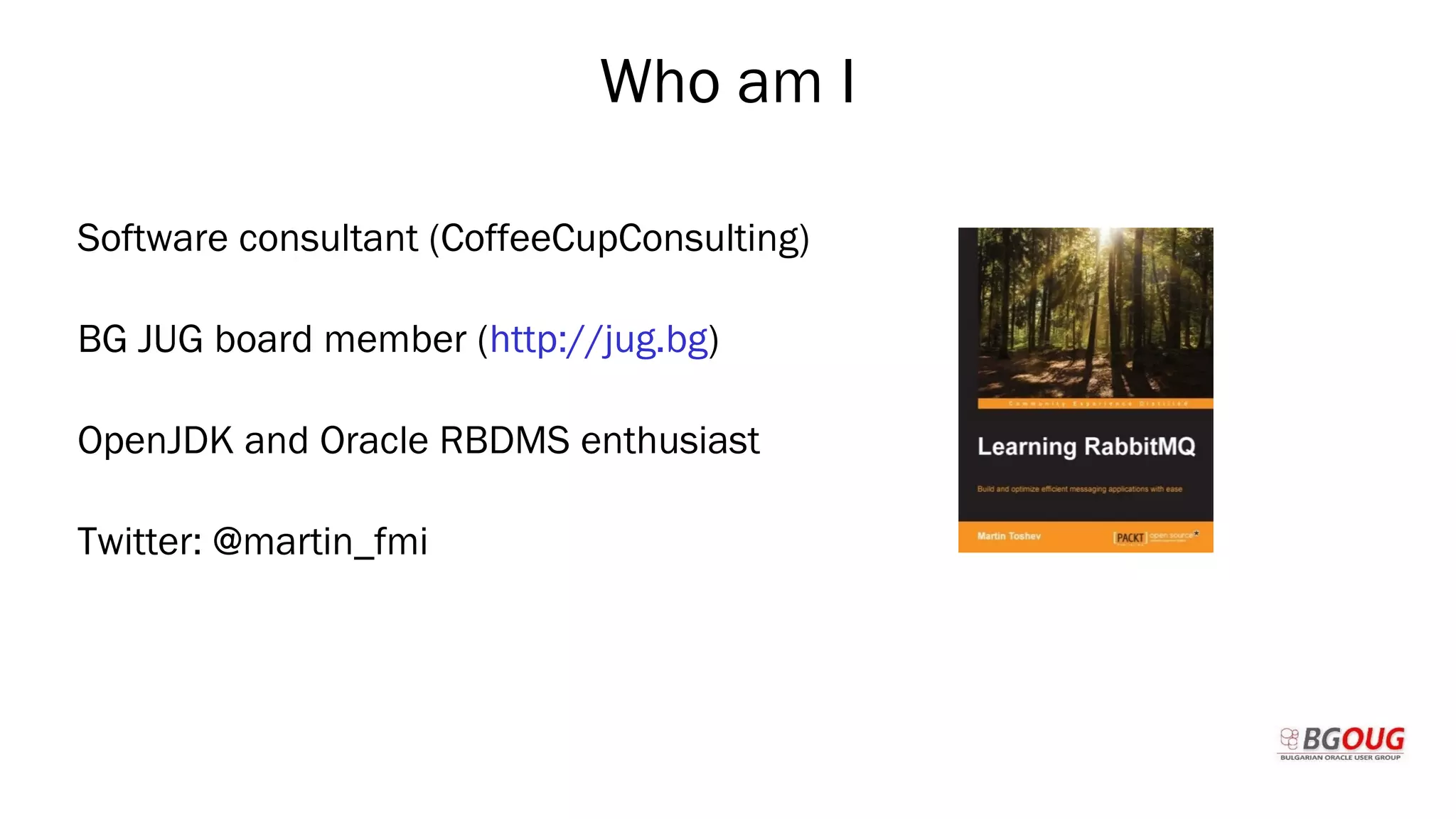

- 2. Who am I Softwareconsultant (CoffeeCupConsulting) BG JUG board member (http://jug.bg) OpenJDK and Oracle RBDMS enthusiast Twitter: @martin_fmi Martin Toshev Prague, 19-20 October 2017

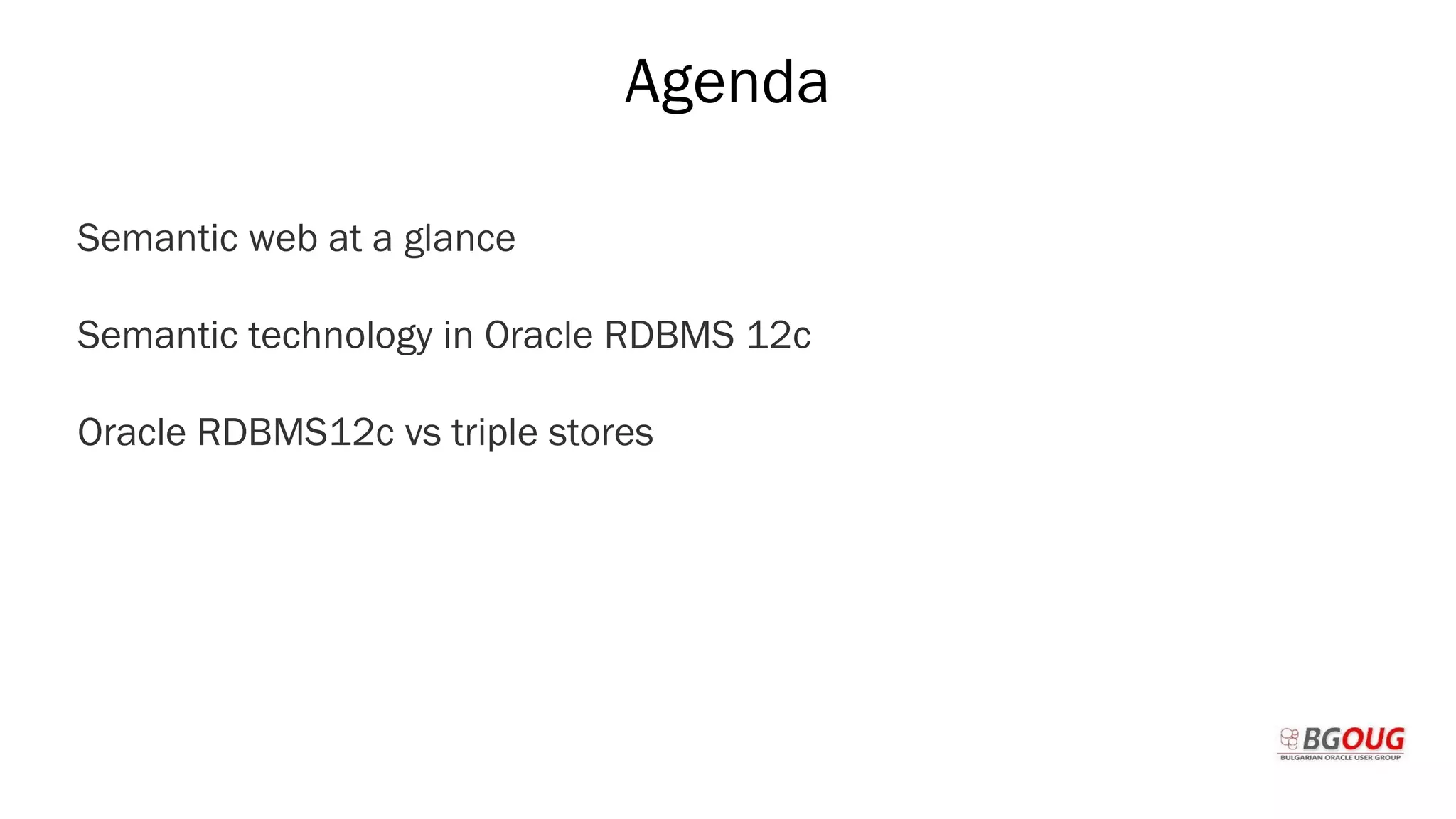

- 3. Agenda Semantic web ata glance Semantic technology in Oracle RDBMS 12c Oracle RDBMS12c vs triple stores Martin Toshev Prague, 19-20 October 2017

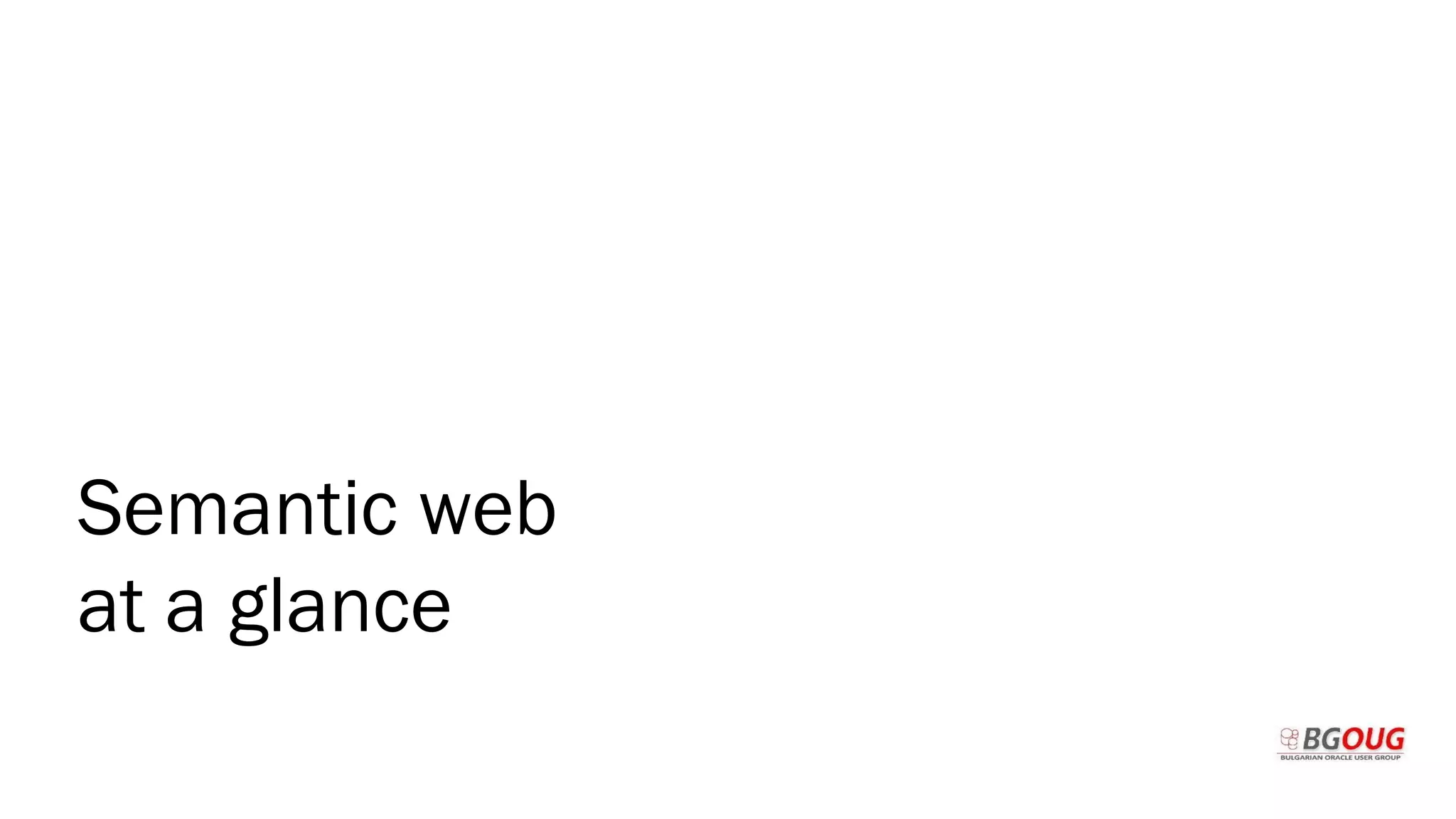

- 4. Semantic web at aglance

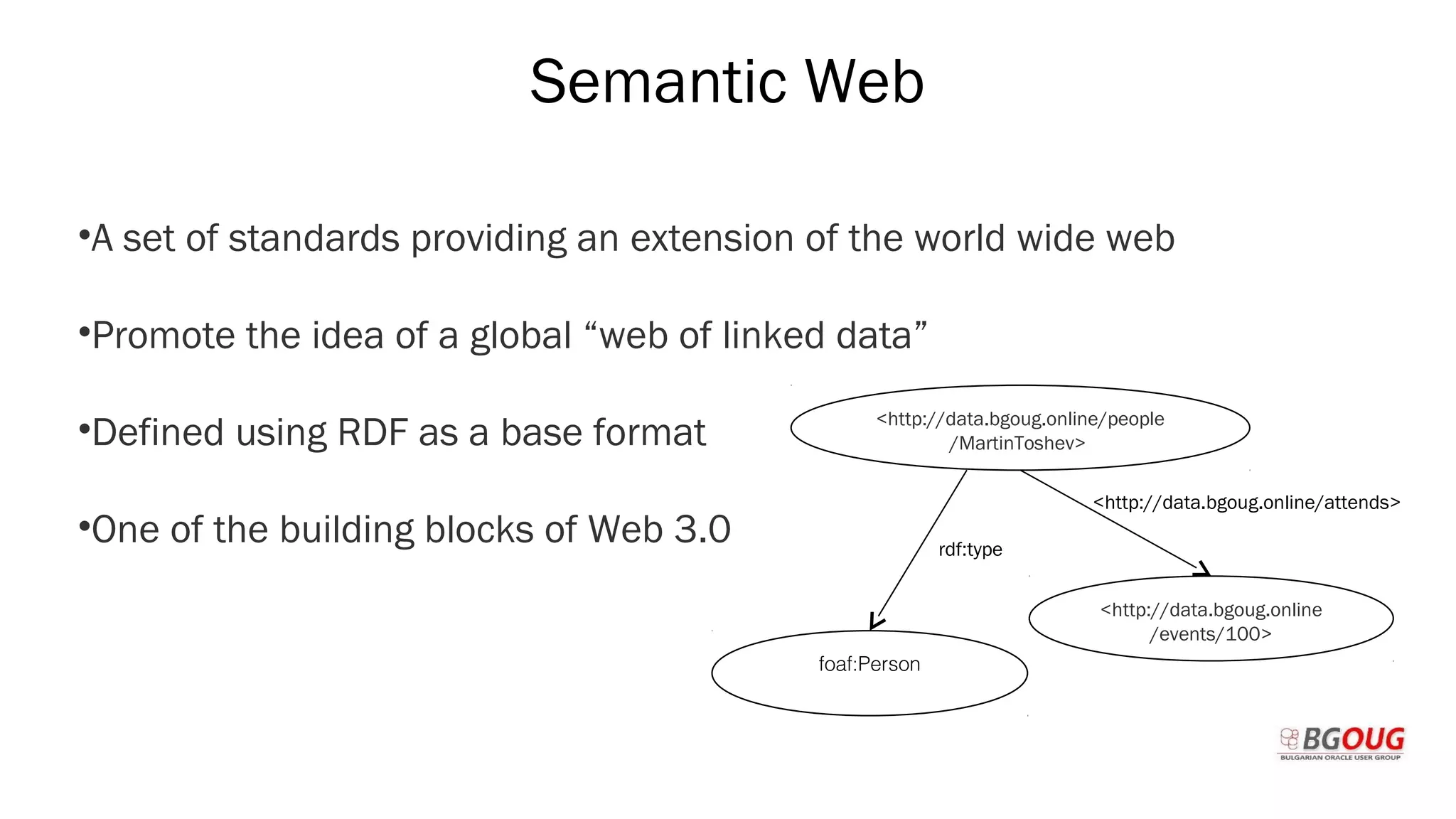

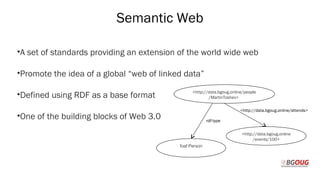

- 5. Semantic Web •A setof standards providing an extension of the world wide web •Promote the idea of a global “web of linked data” •Defined using RDF as a base format •One of the building blocks of Web 3.0 Martin Toshev Prague, 19-20 October 2017 <http://data.bgoug.online/people /MartinToshev> <http://data.bgoug.online /events/100> foaf:Person <http://data.bgoug.online/attends> rdf:type

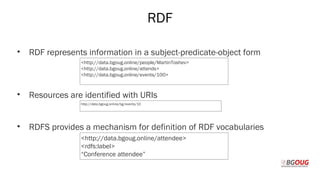

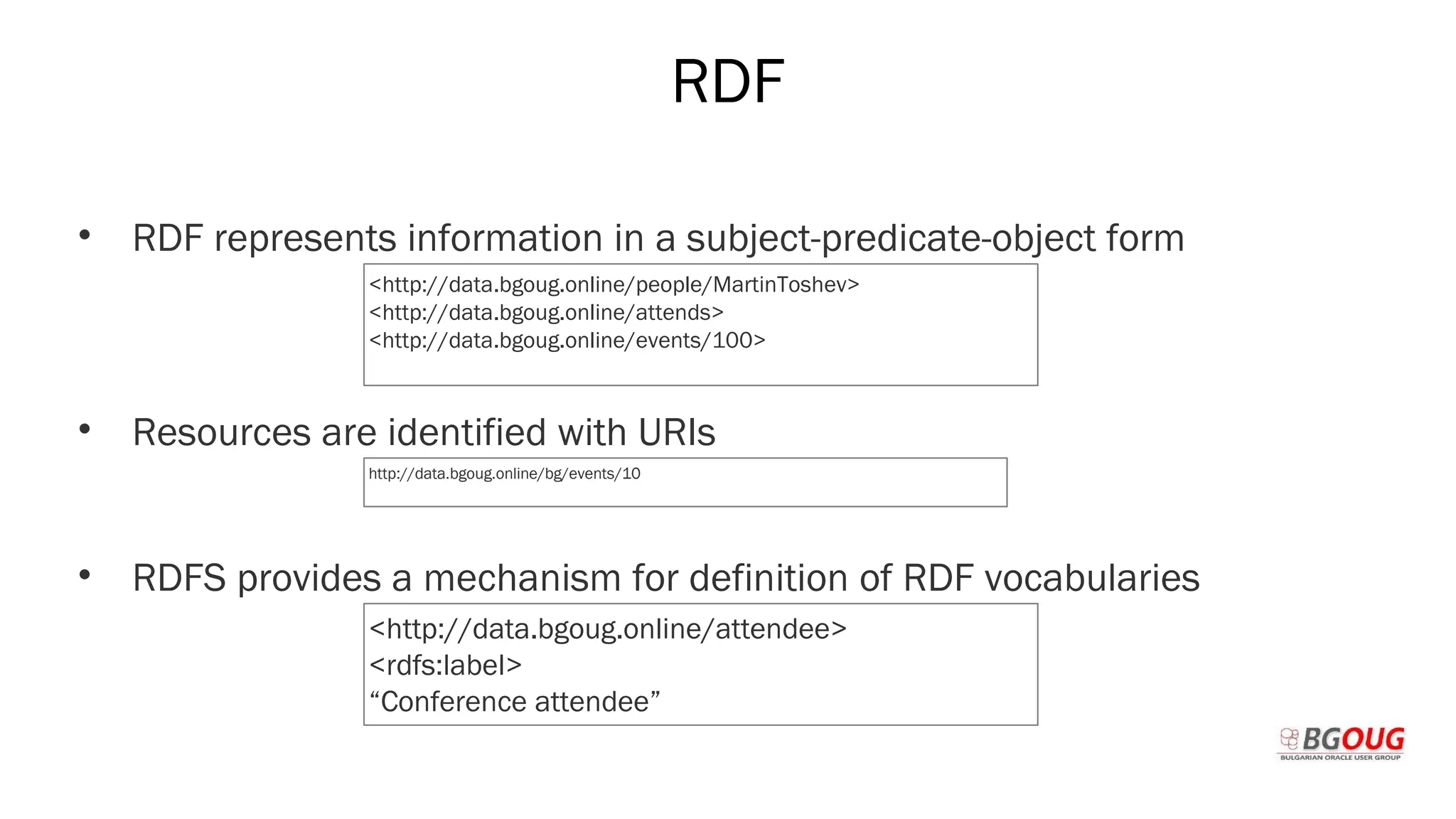

- 6. RDF • RDF representsinformation in a subject-predicate-object form • Resources are identified with URIs • RDFS provides a mechanism for definition of RDF vocabularies Martin Toshev Prague, 19-20 October 2017 <http://data.bgoug.online/people/MartinToshev> <http://data.bgoug.online/attends> <http://data.bgoug.online/events/100> http://data.bgoug.online/bg/events/10 <http://data.bgoug.online/attendee> <rdfs:label> “Conference attendee”

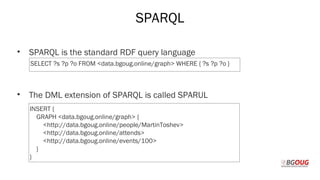

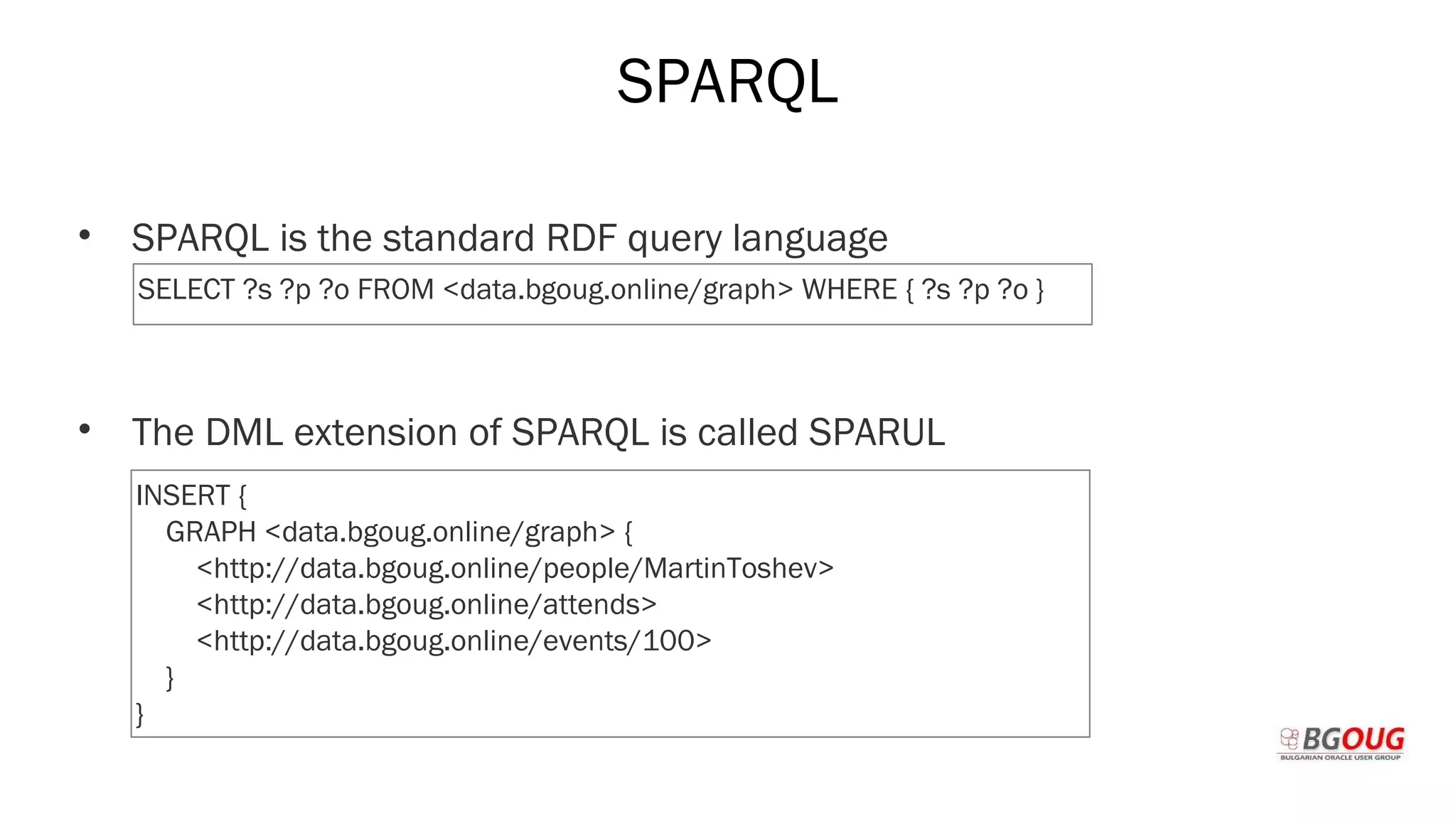

- 7. SPARQL • SPARQL isthe standard RDF query language • The DML extension of SPARQL is called SPARUL Martin Toshev Prague, 19-20 October 2017 SELECT ?s ?p ?o FROM <data.bgoug.online/graph> WHERE { ?s ?p ?o } INSERT { GRAPH <data.bgoug.online/graph> { <http://data.bgoug.online/people/MartinToshev> <http://data.bgoug.online/attends> <http://data.bgoug.online/events/100> } }

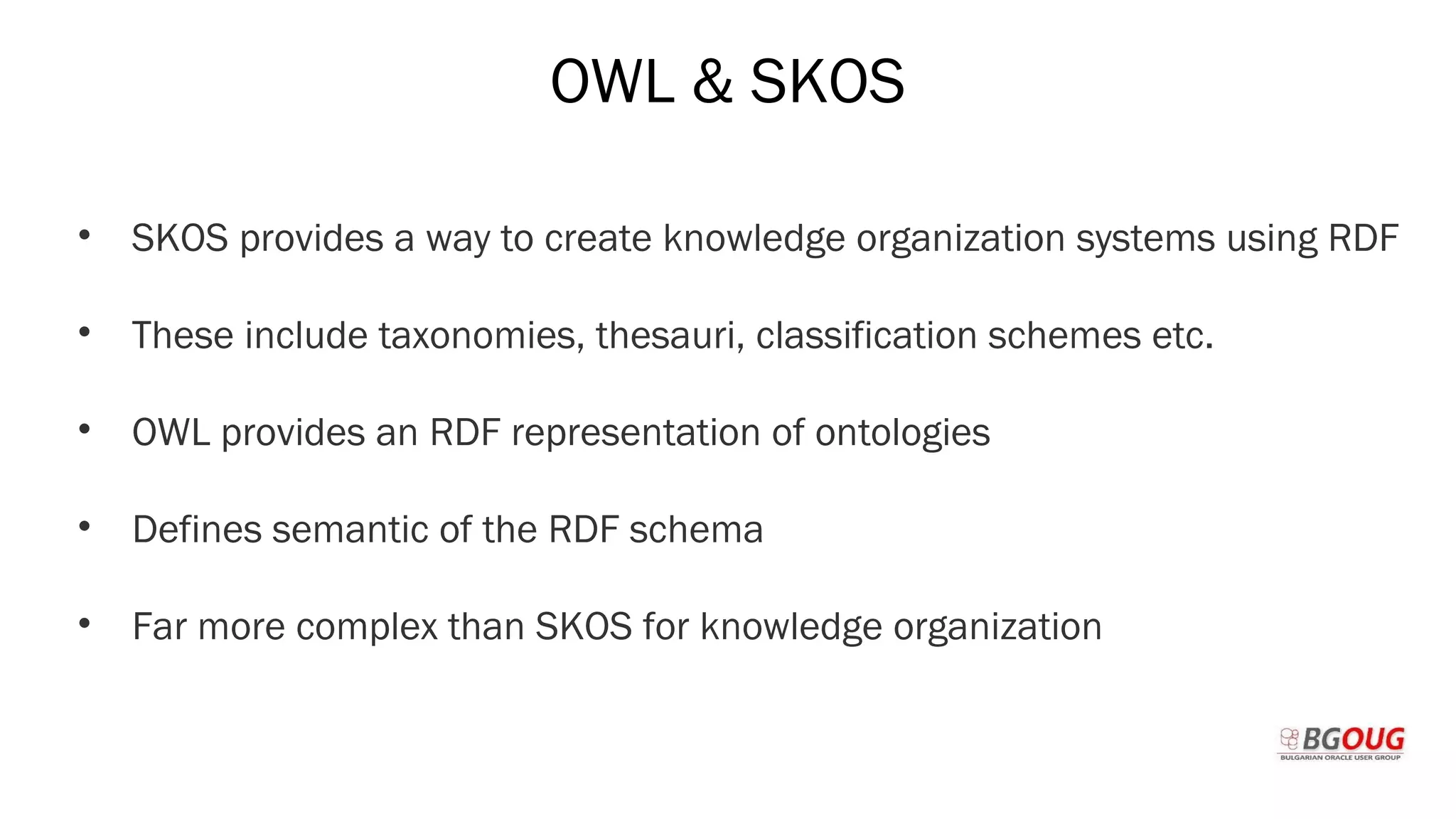

- 8. OWL & SKOS •SKOS provides a way to create knowledge organization systems using RDF • These include taxonomies, thesauri, classification schemes etc. • OWL provides an RDF representation of ontologies • Defines semantic of the RDF schema • Far more complex than SKOS for knowledge organization Martin Toshev Prague, 19-20 October 2017

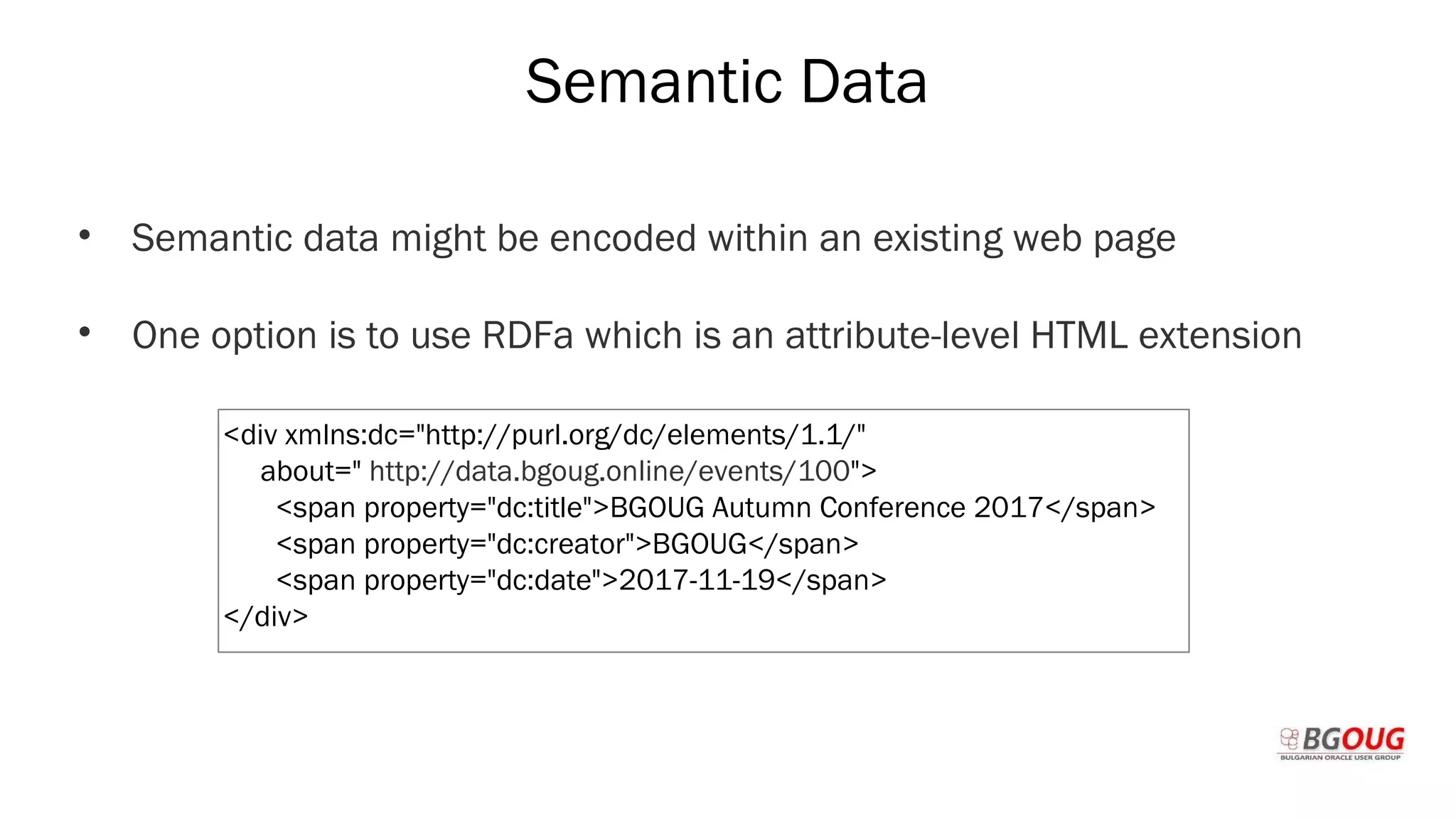

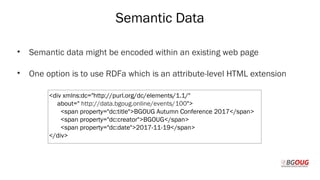

- 9. Semantic Data • Semanticdata might be encoded within an existing web page • One option is to use RDFa which is an attribute-level HTML extension Martin Toshev Prague, 19-20 October 2017 <div xmlns:dc="http://purl.org/dc/elements/1.1/" about=" http://data.bgoug.online/events/100"> <span property="dc:title">BGOUG Autumn Conference 2017</span> <span property="dc:creator">BGOUG</span> <span property="dc:date">2017-11-19</span> </div>

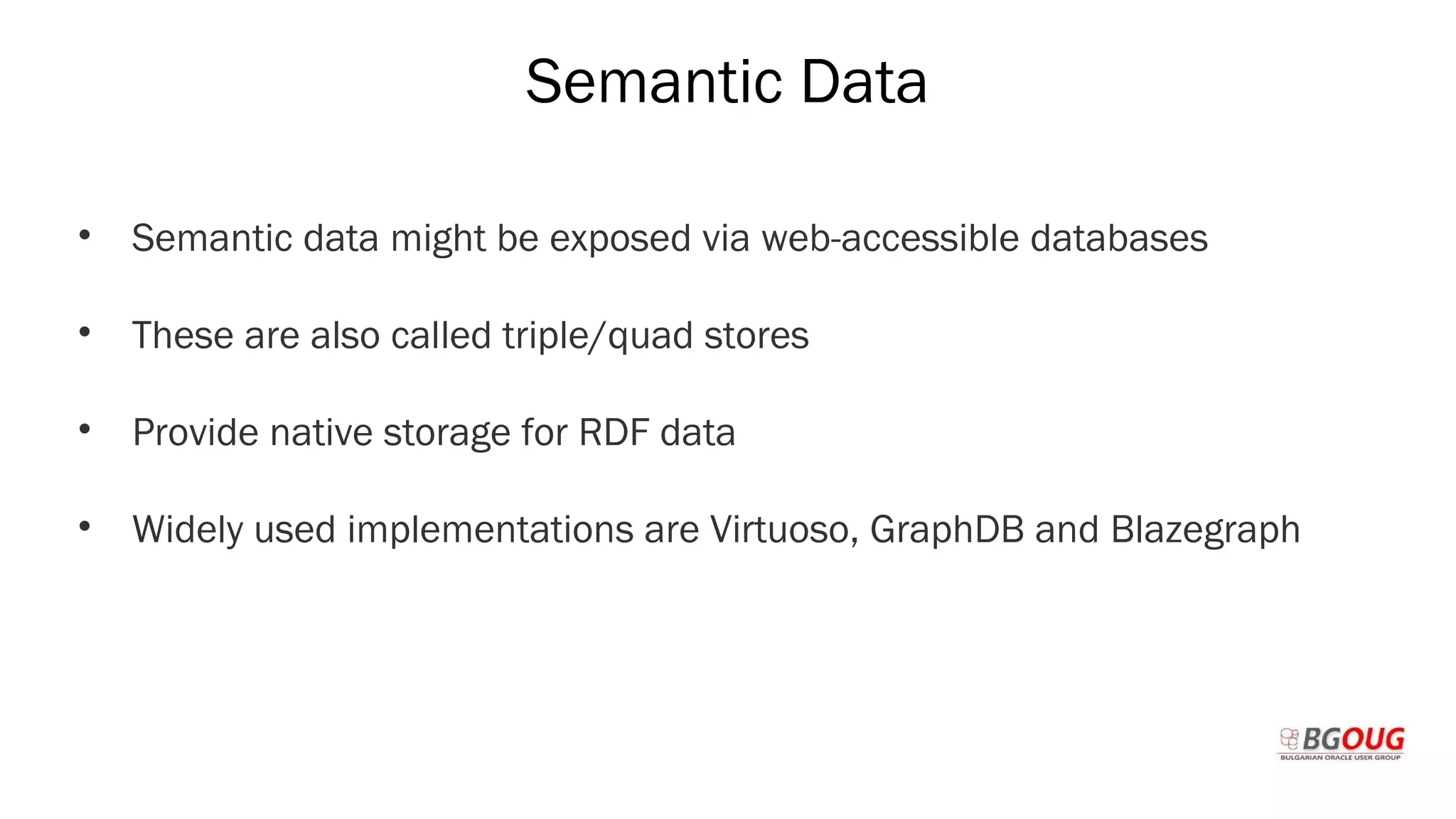

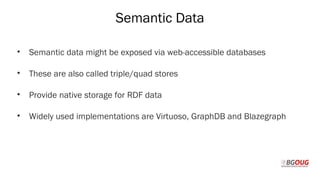

- 10. Semantic Data • Semanticdata might be exposed via web-accessible databases • These are also called triple/quad stores • Provide native storage for RDF data • Widely used implementations are Virtuoso, GraphDB and Blazegraph Martin Toshev Prague, 19-20 October 2017

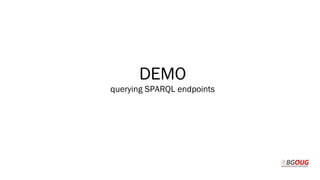

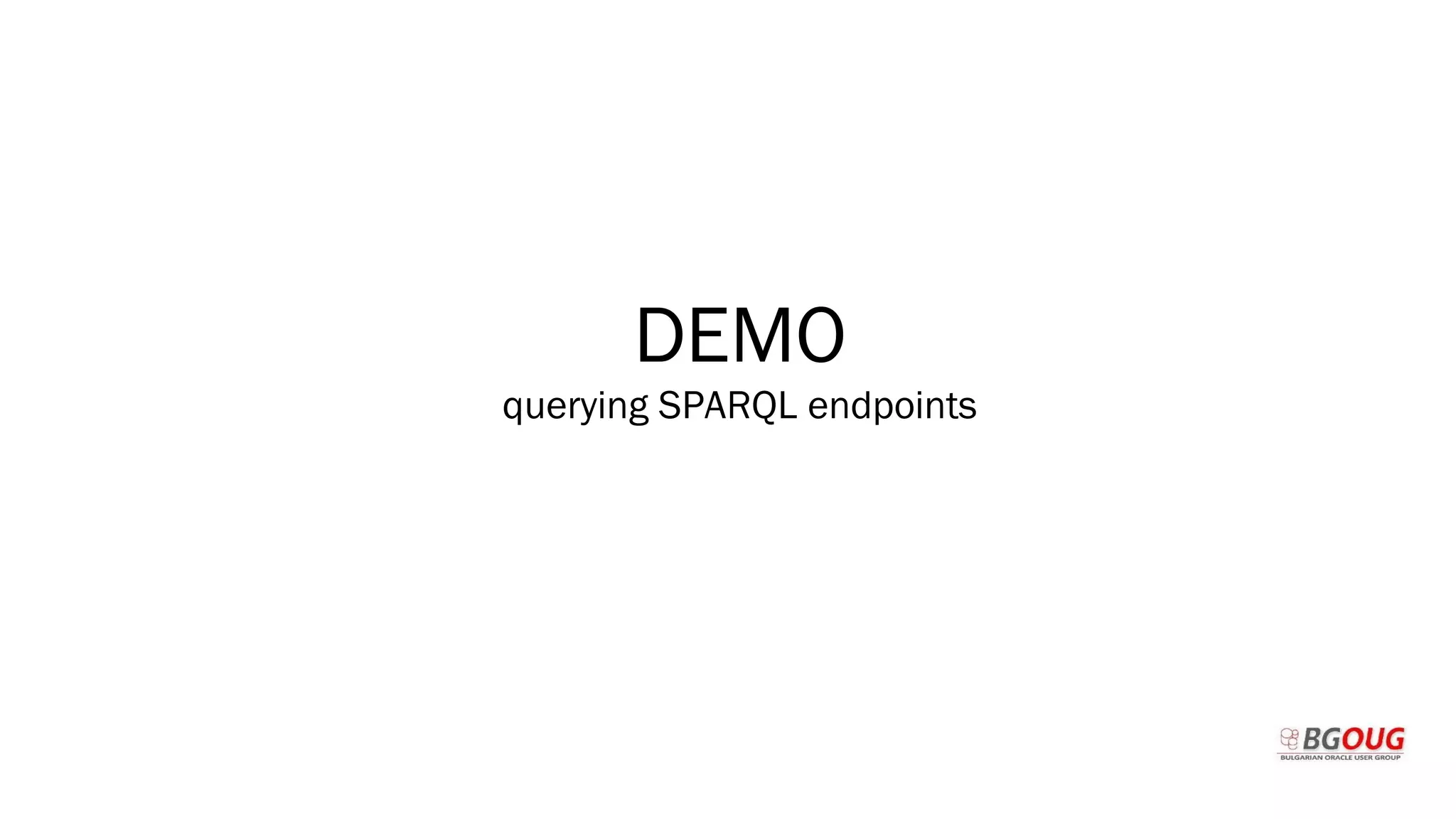

- 11.

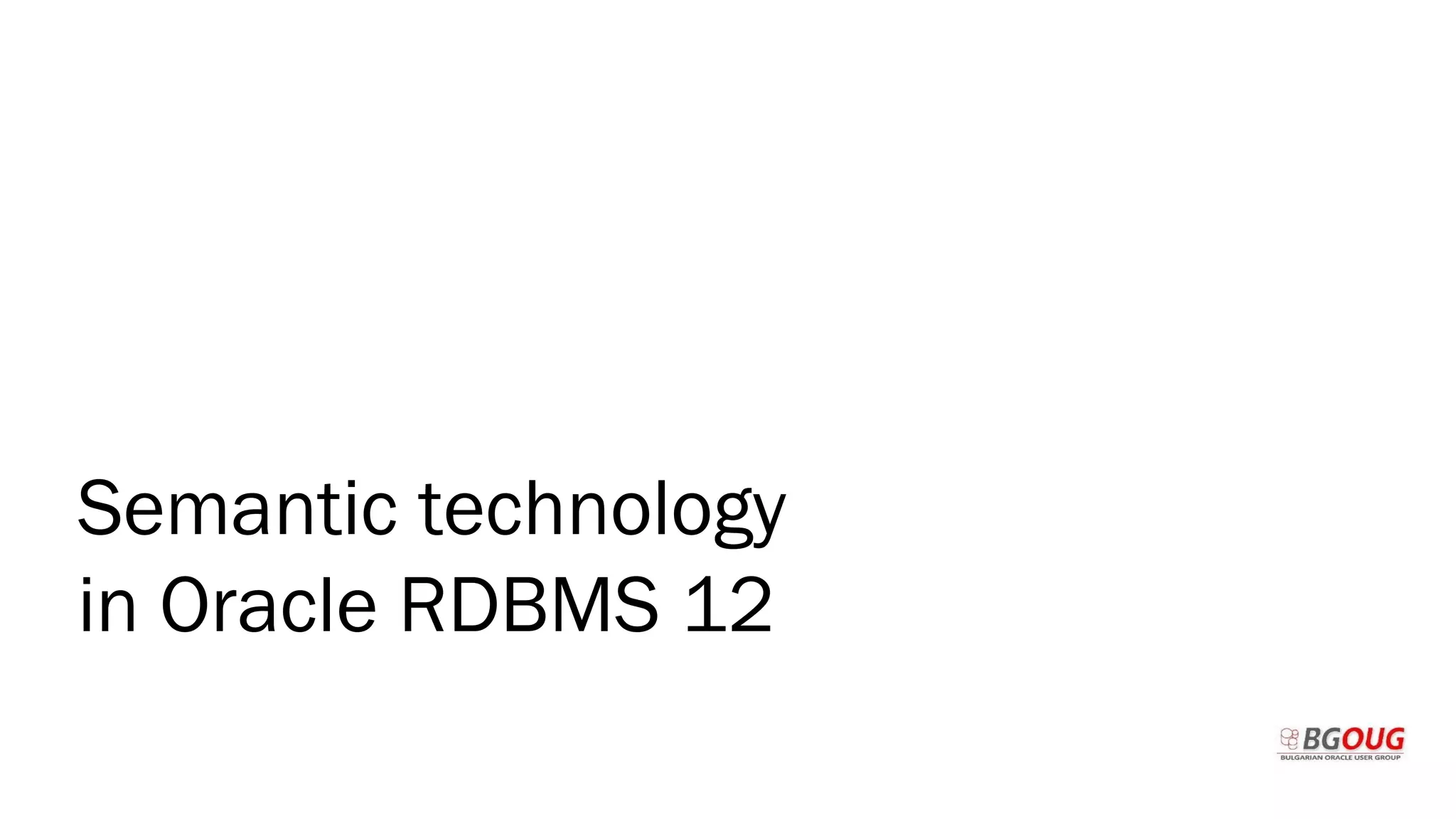

- 12. Semantic technology in OracleRDBMS 12

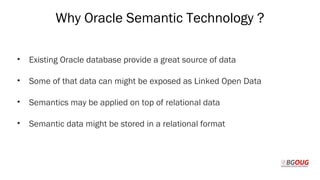

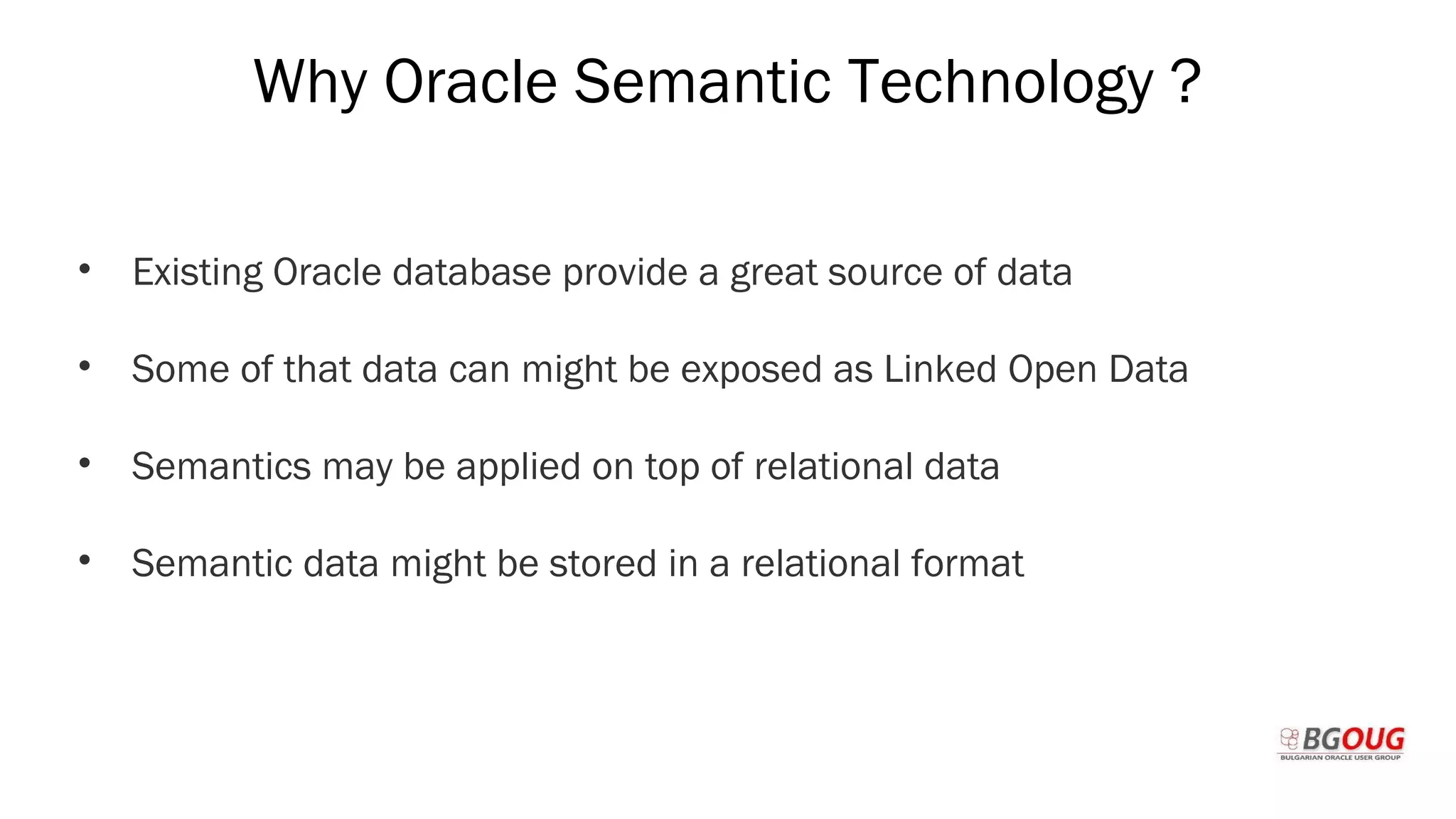

- 13. Why Oracle SemanticTechnology ? • Existing Oracle database provide a great source of data • Some of that data can might be exposed as Linked Open Data • Semantics may be applied on top of relational data • Semantic data might be stored in a relational format Martin Toshev Prague, 19-20 October 2017

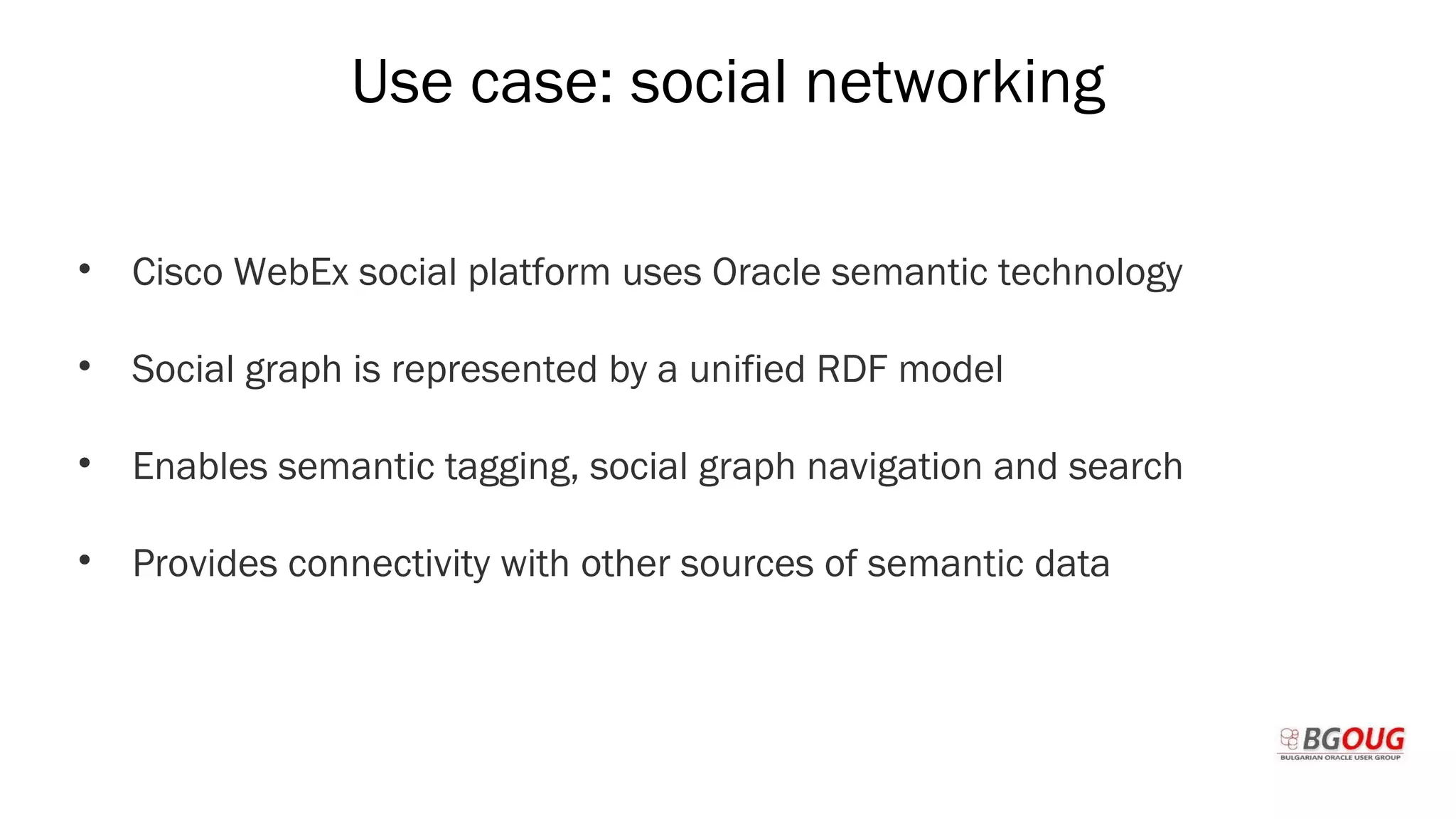

- 14. Use case: socialnetworking • Cisco WebEx social platform uses Oracle semantic technology • Social graph is represented by a unified RDF model • Enables semantic tagging, social graph navigation and search • Provides connectivity with other sources of semantic data Martin Toshev Prague, 19-20 October 2017

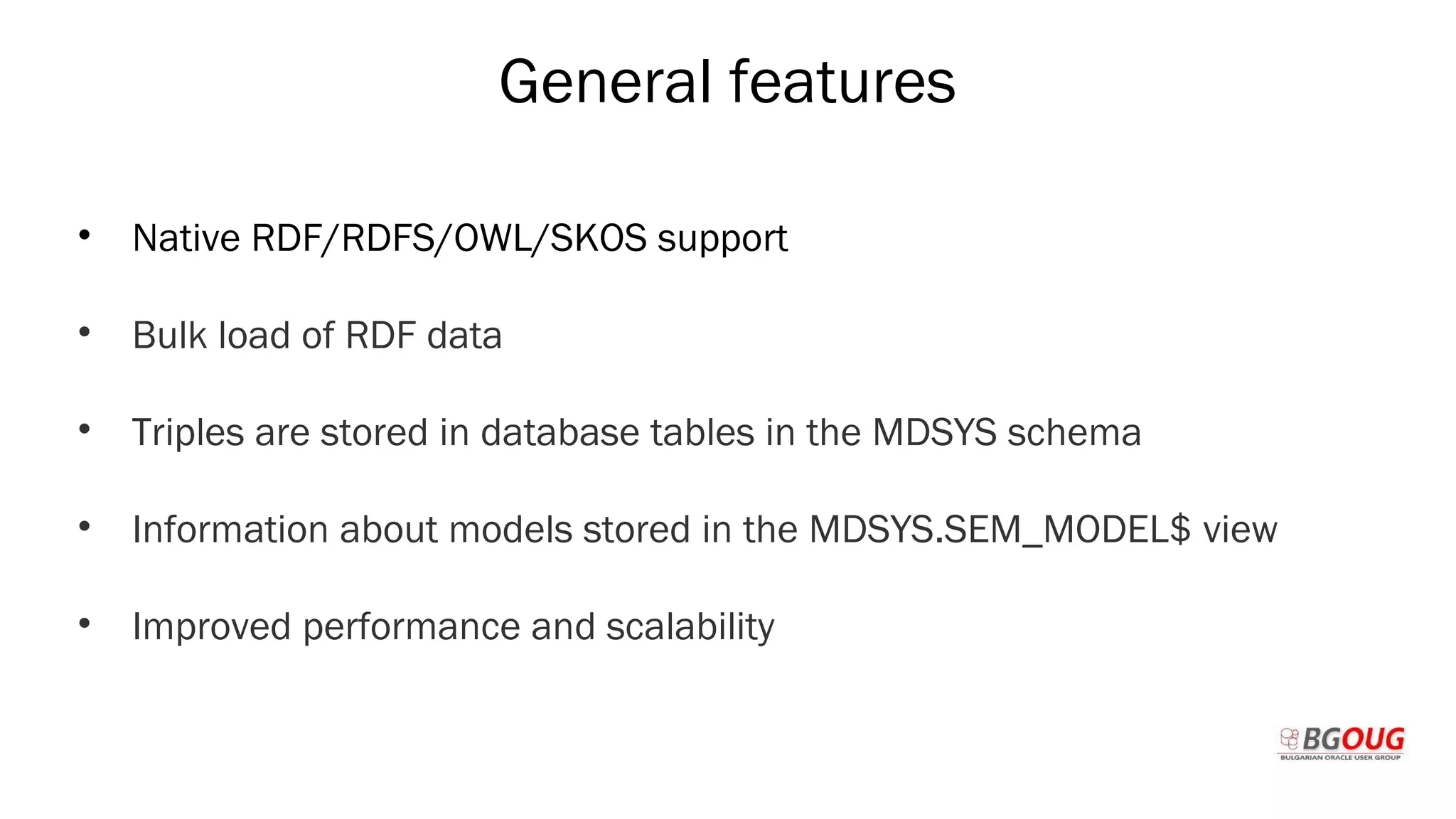

- 15. General features • NativeRDF/RDFS/OWL/SKOS support • Bulk load of RDF data • Triples are stored in database tables in the MDSYS schema • Information about models stored in the MDSYS.SEM_MODEL$ view • Improved performance and scalability Martin Toshev Prague, 19-20 October 2017

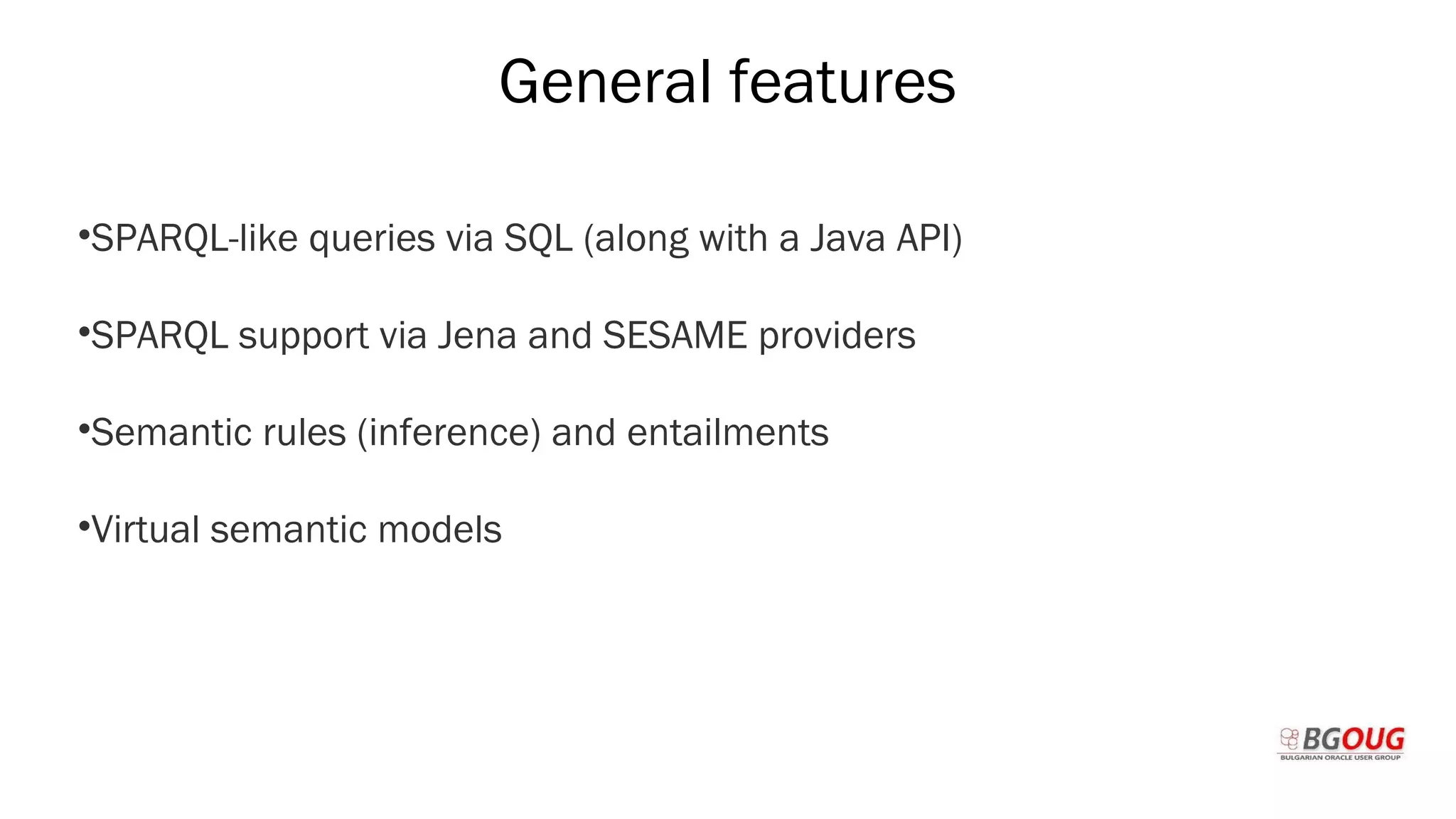

- 16. General features •SPARQL-like queriesvia SQL (along with a Java API) •SPARQL support via Jena and SESAME providers •Semantic rules (inference) and entailments •Virtual semantic models Martin Toshev Prague, 19-20 October 2017

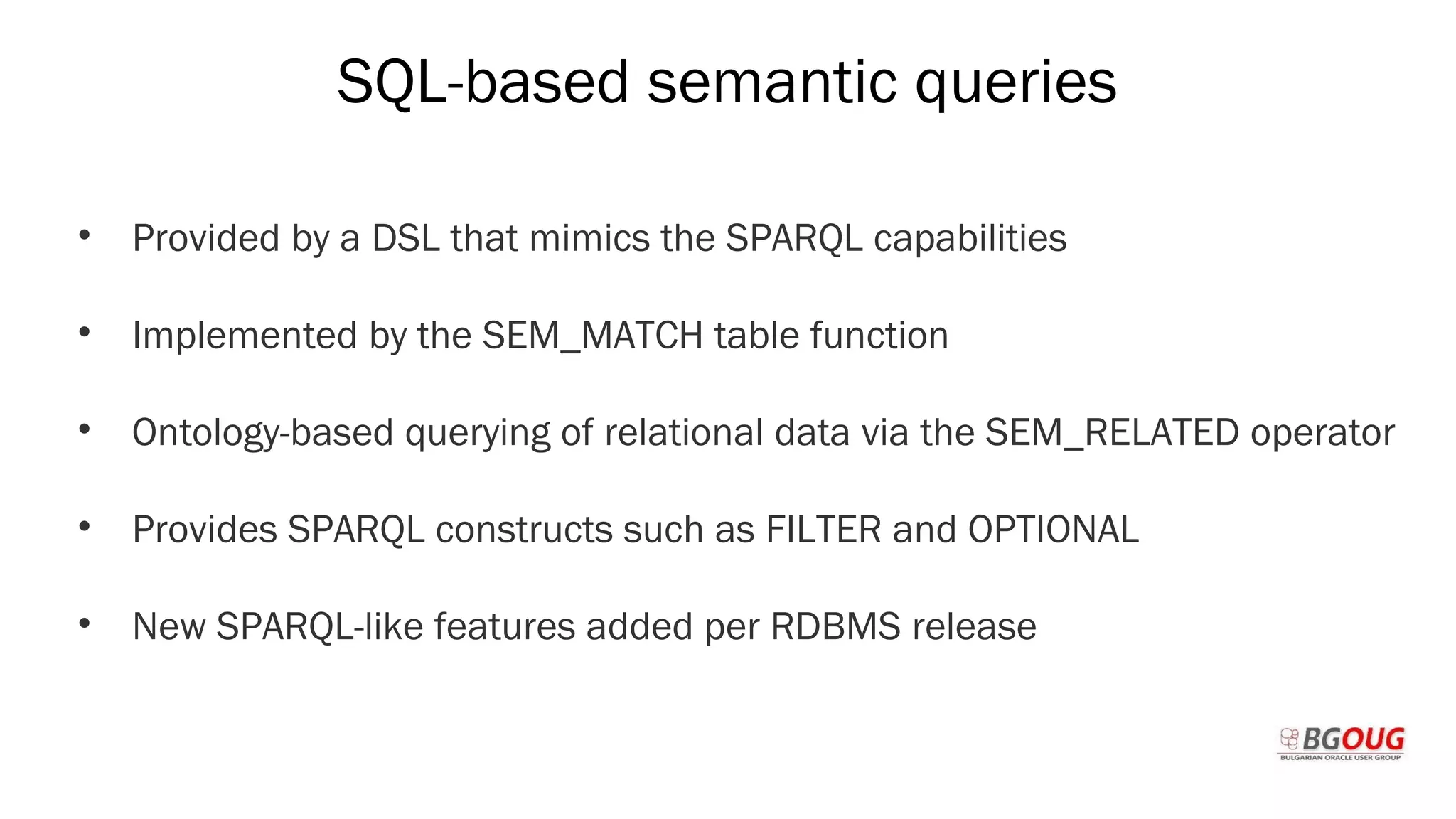

- 17. SQL-based semantic queries •Provided by a DSL that mimics the SPARQL capabilities • Implemented by the SEM_MATCH table function • Ontology-based querying of relational data via the SEM_RELATED operator • Provides SPARQL constructs such as FILTER and OPTIONAL • New SPARQL-like features added per RDBMS release Martin Toshev Prague, 19-20 October 2017

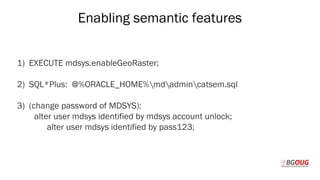

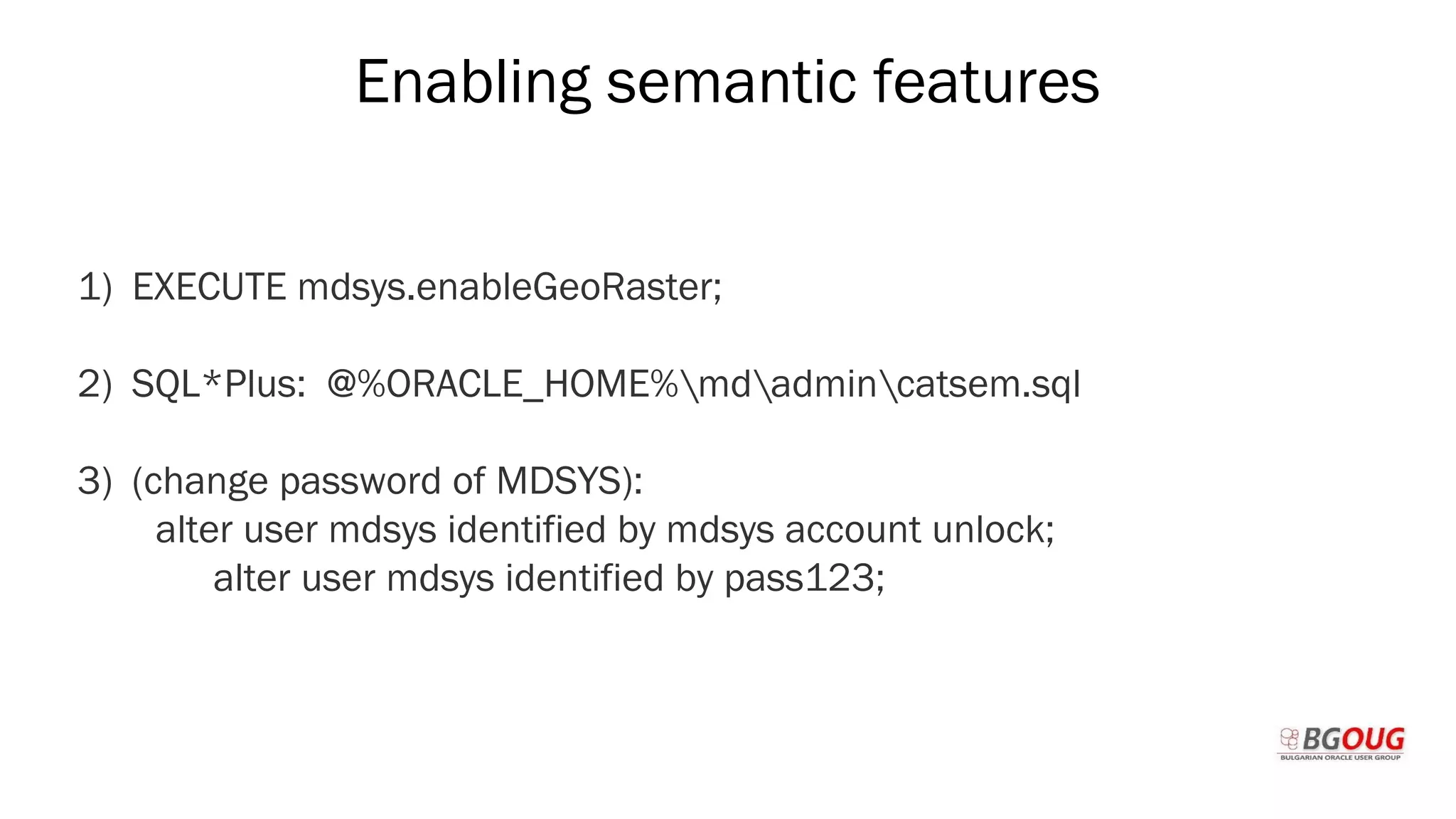

- 18. Enabling semantic features 1)EXECUTE mdsys.enableGeoRaster; 2) SQL*Plus: @%ORACLE_HOME%mdadmincatsem.sql 3) (change password of MDSYS): alter user mdsys identified by mdsys account unlock; alter user mdsys identified by pass123; Martin Toshev Prague, 19-20 October 2017
- 19.

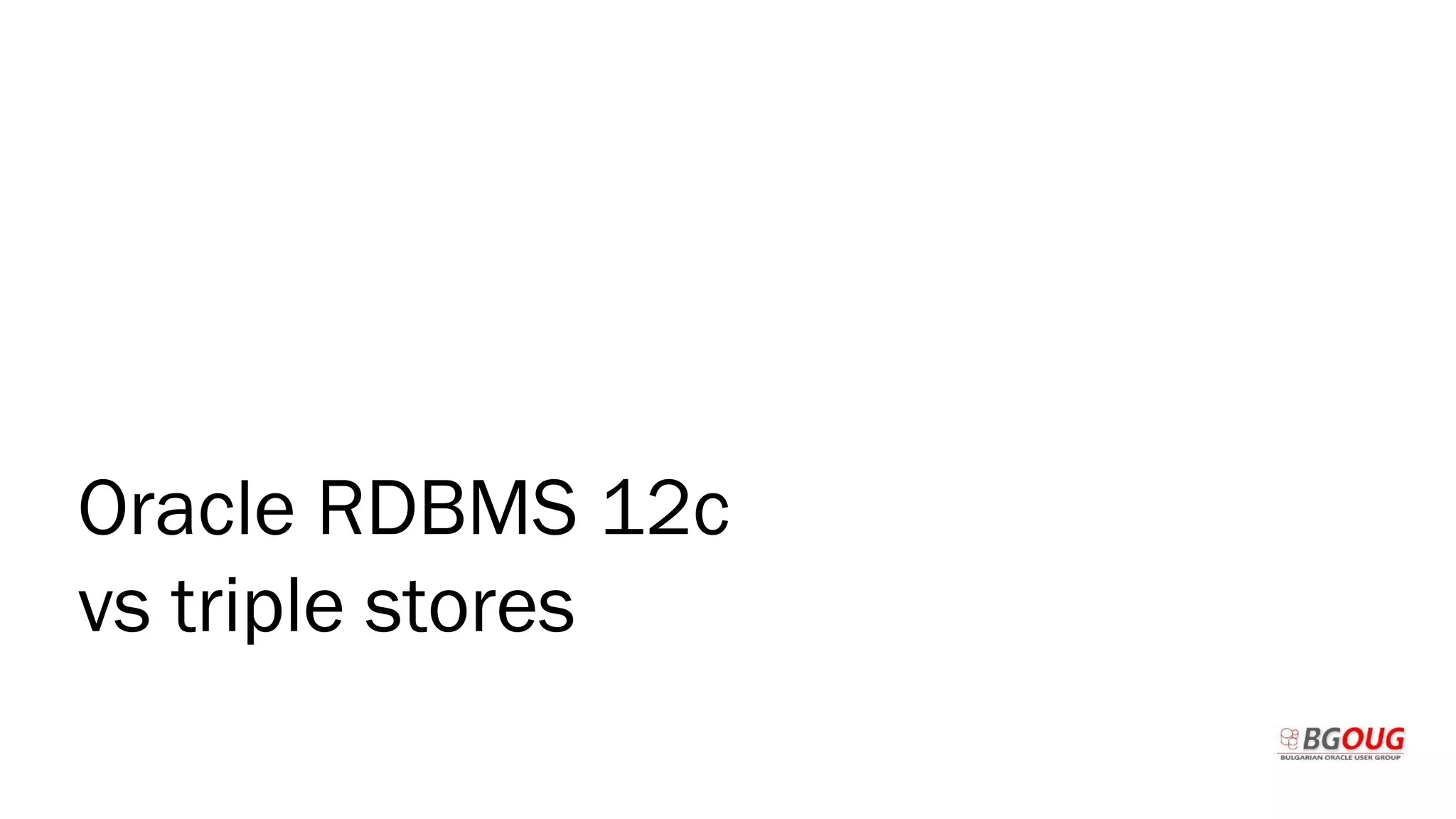

- 20. Oracle RDBMS 12c vstriple stores

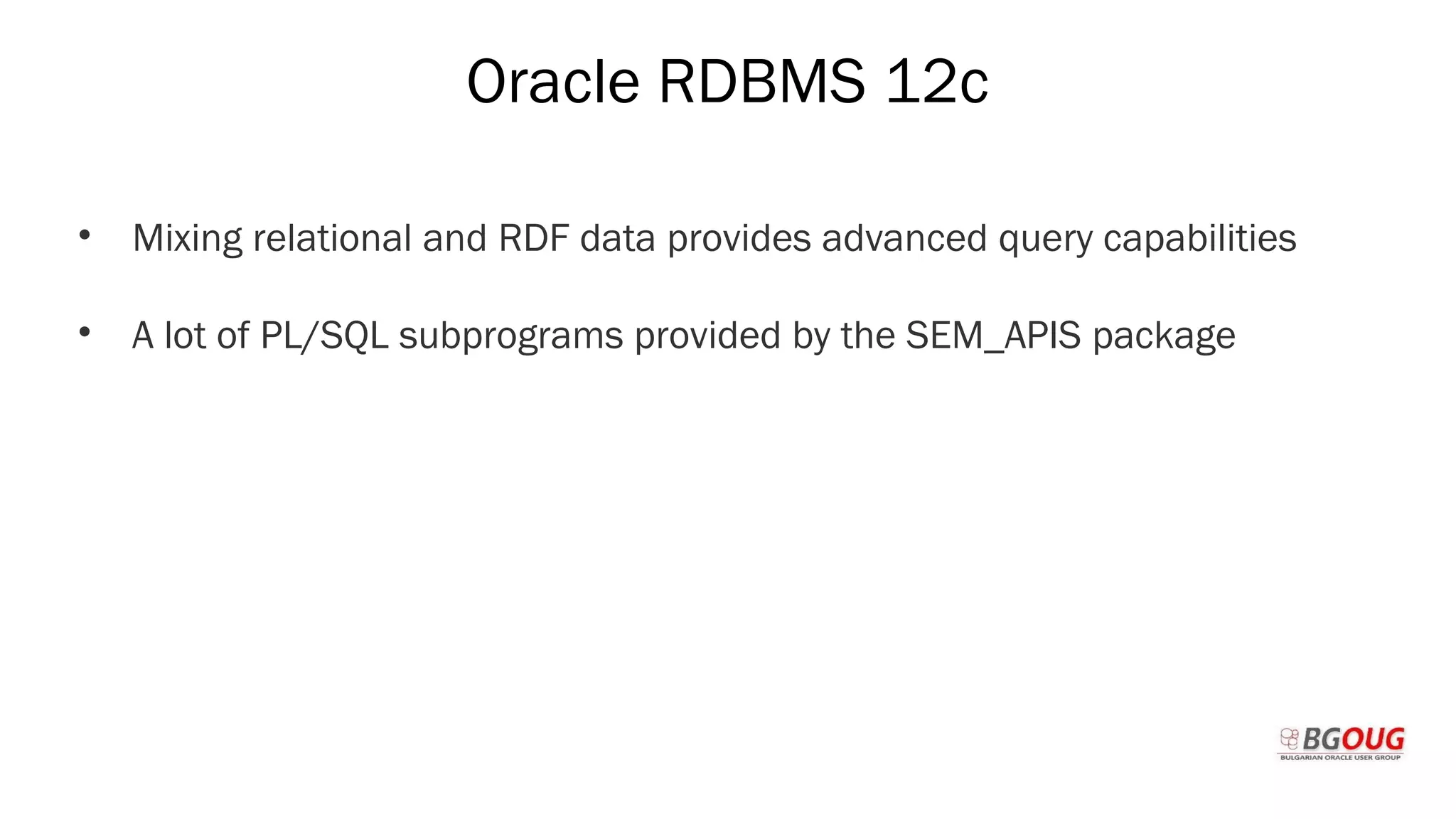

- 21. Oracle RDBMS 12c •Mixing relational and RDF data provides advanced query capabilities • A lot of PL/SQL subprograms provided by the SEM_APIS package Martin Toshev Prague, 19-20 October 2017

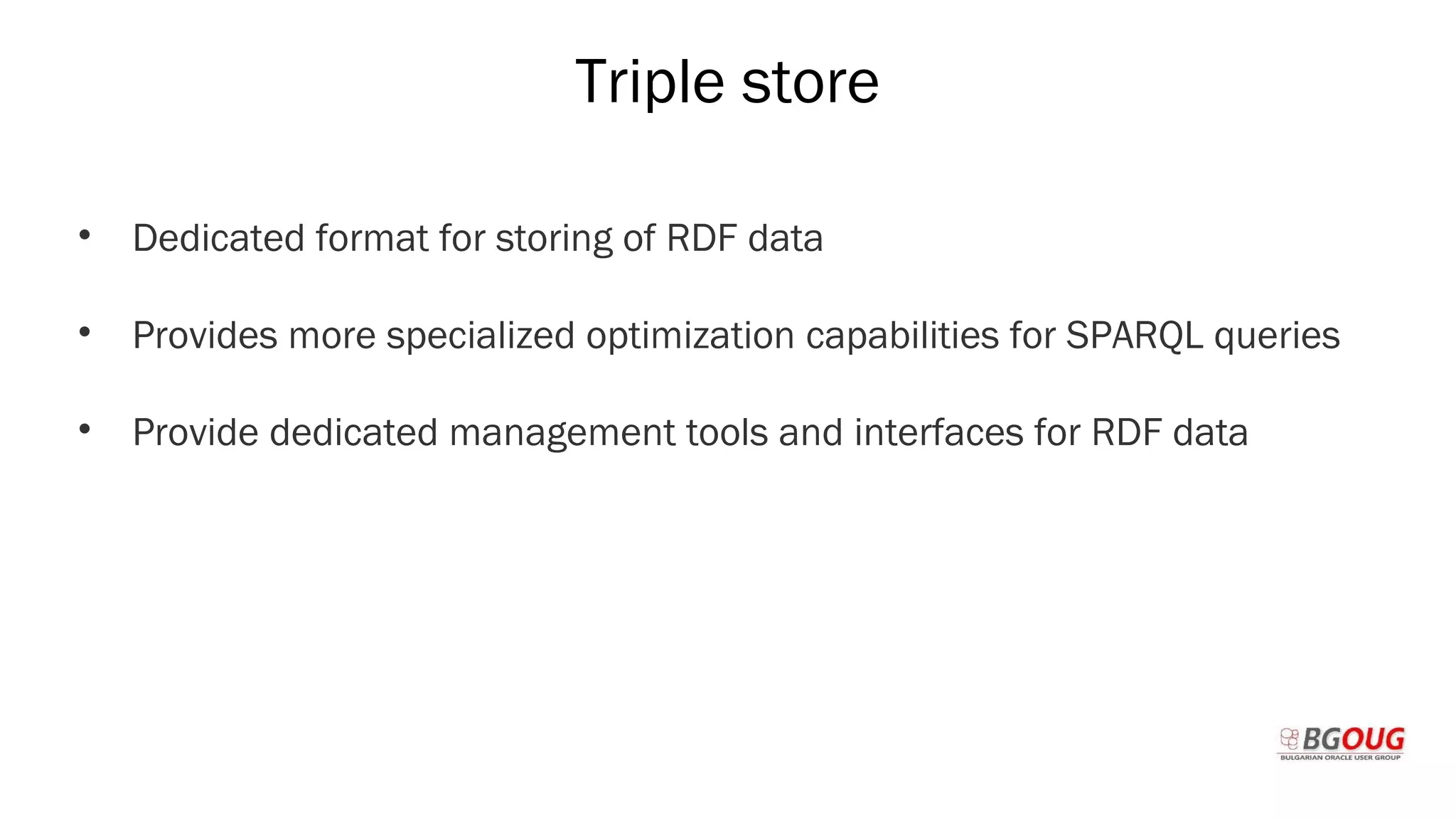

- 22. Triple store • Dedicatedformat for storing of RDF data • Provides more specialized optimization capabilities for SPARQL queries • Provide dedicated management tools and interfaces for RDF data Martin Toshev Prague, 19-20 October 2017

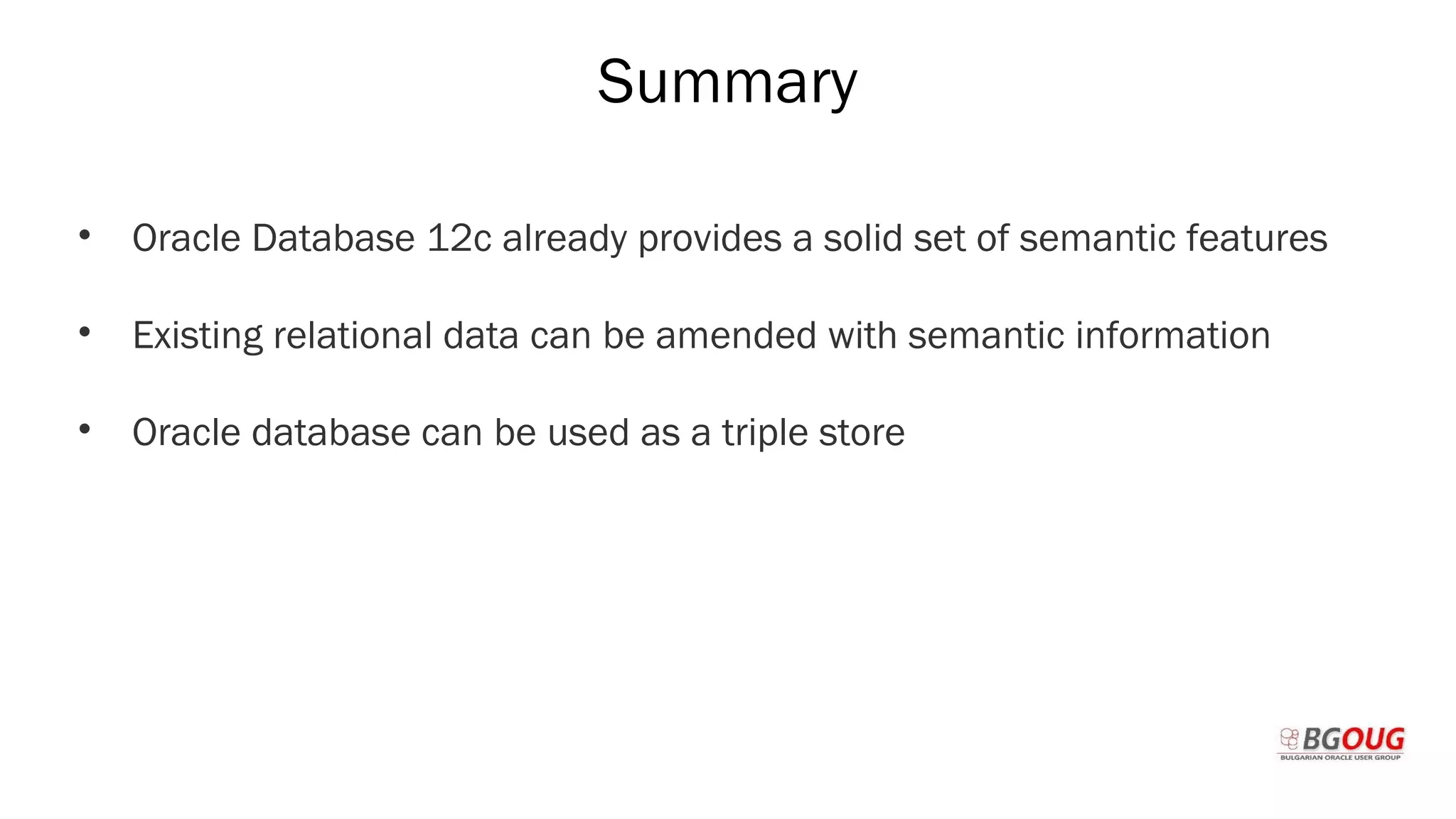

- 23. Summary • Oracle Database12c already provides a solid set of semantic features • Existing relational data can be amended with semantic information • Oracle database can be used as a triple store Martin Toshev Prague, 19-20 October 2017

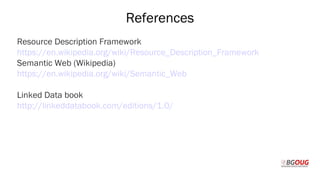

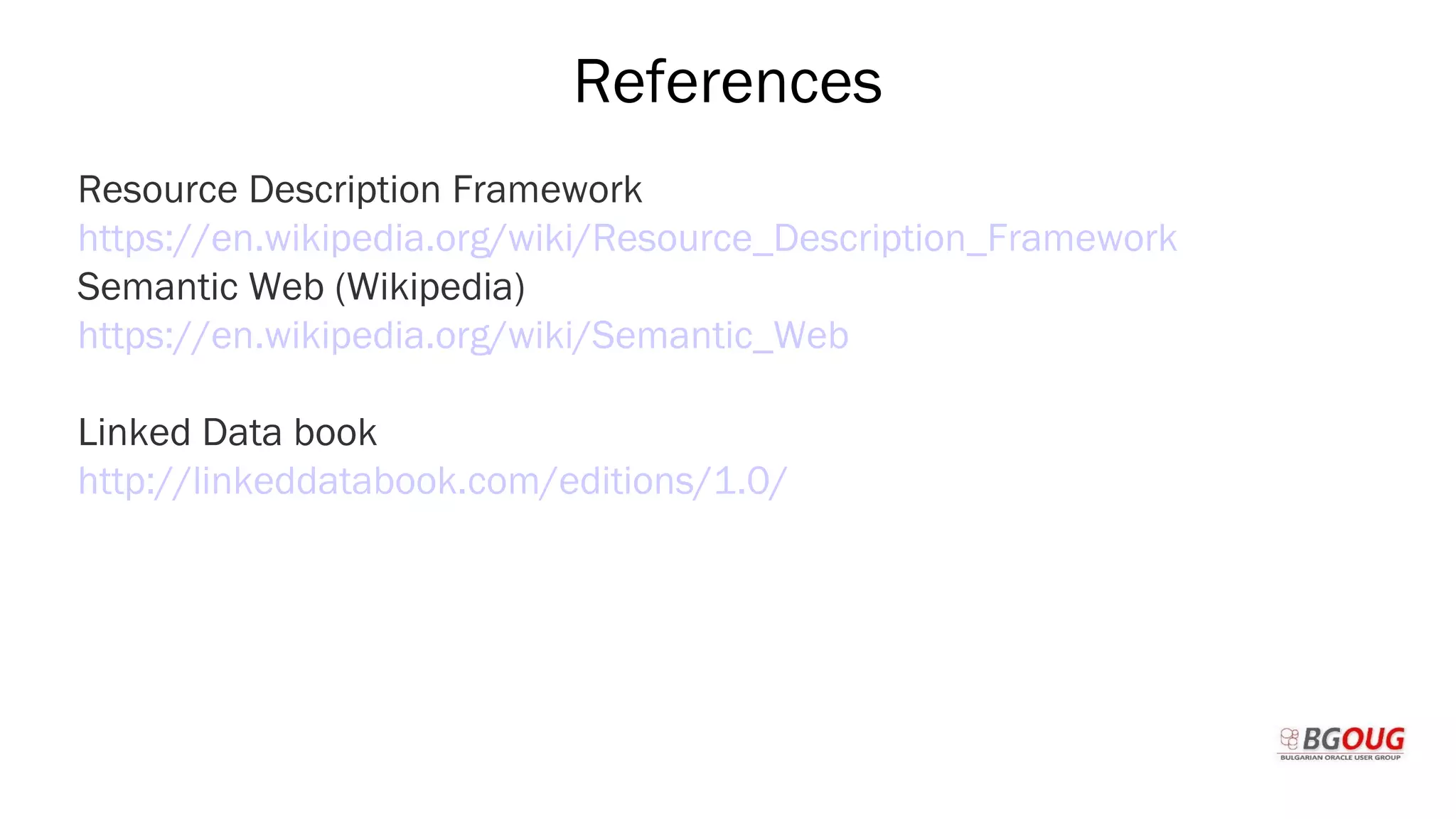

- 24. References Resource Description Framework https://en.wikipedia.org/wiki/Resource_Description_Framework SemanticWeb (Wikipedia) https://en.wikipedia.org/wiki/Semantic_Web Linked Data book http://linkeddatabook.com/editions/1.0/ Martin Toshev Prague, 19-20 October 2017

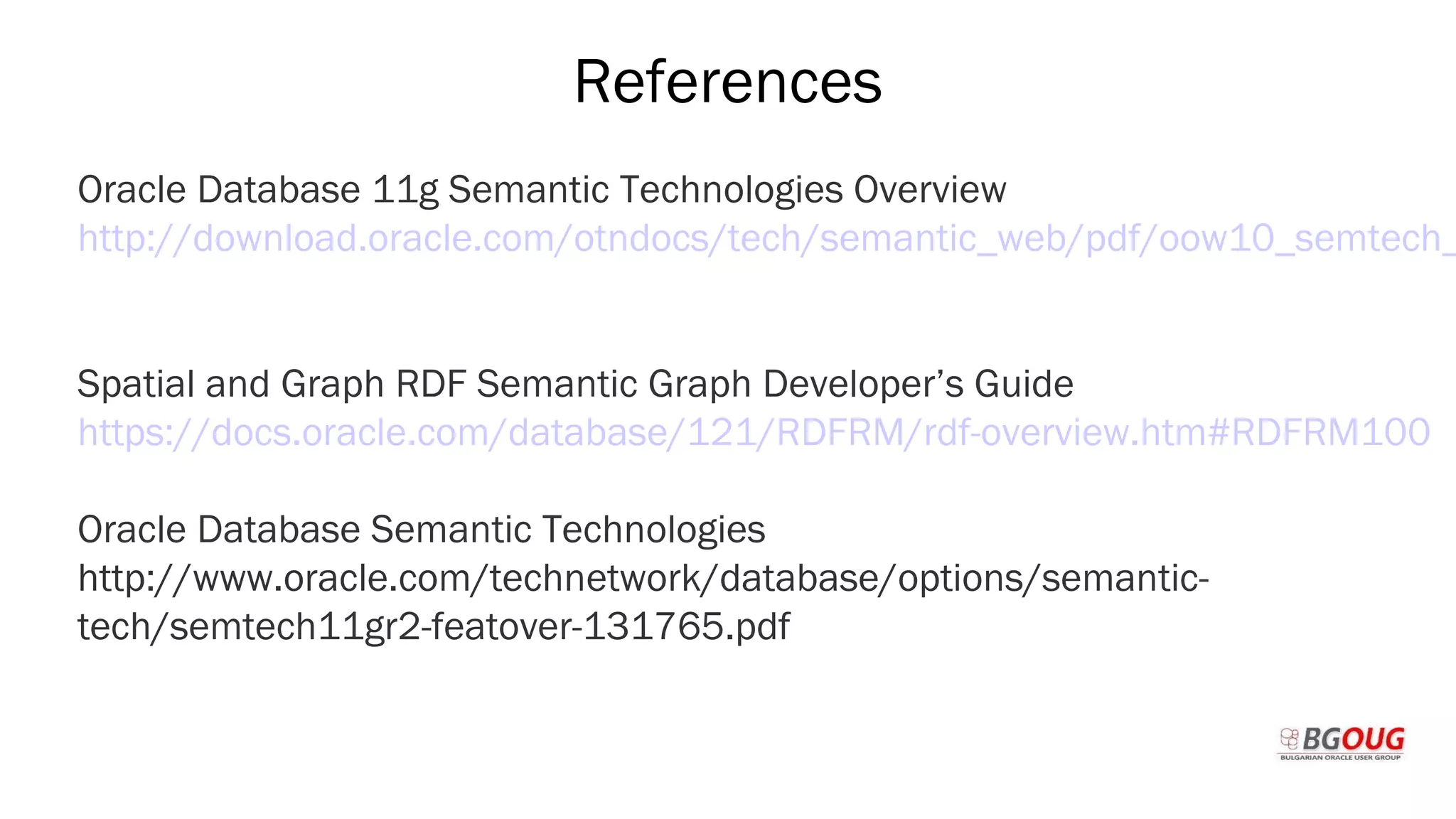

- 25. References Oracle Database 11gSemantic Technologies Overview http://download.oracle.com/otndocs/tech/semantic_web/pdf/oow10_semtech_ Spatial and Graph RDF Semantic Graph Developer’s Guide https://docs.oracle.com/database/121/RDFRM/rdf-overview.htm#RDFRM100 Oracle Database Semantic Technologies http://www.oracle.com/technetwork/database/options/semantic- tech/semtech11gr2-featover-131765.pdf Martin Toshev Prague, 19-20 October 2017

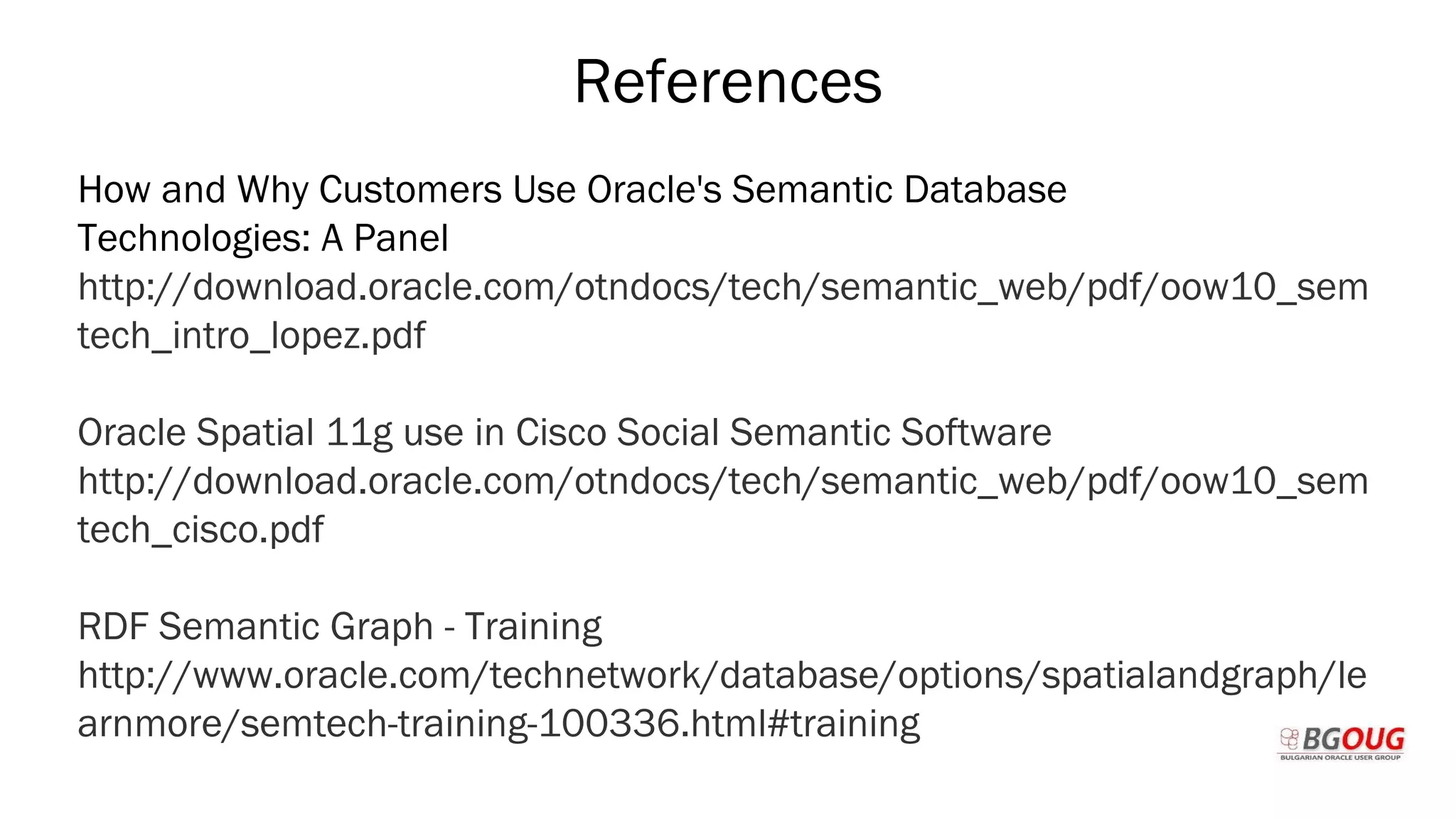

- 26. References How and WhyCustomers Use Oracle's Semantic Database Technologies: A Panel http://download.oracle.com/otndocs/tech/semantic_web/pdf/oow10_sem tech_intro_lopez.pdf Oracle Spatial 11g use in Cisco Social Semantic Software http://download.oracle.com/otndocs/tech/semantic_web/pdf/oow10_sem tech_cisco.pdf RDF Semantic Graph - Training http://www.oracle.com/technetwork/database/options/spatialandgraph/le arnmore/semtech-training-100336.html#training Martin Toshev Prague, 19-20 October 2017

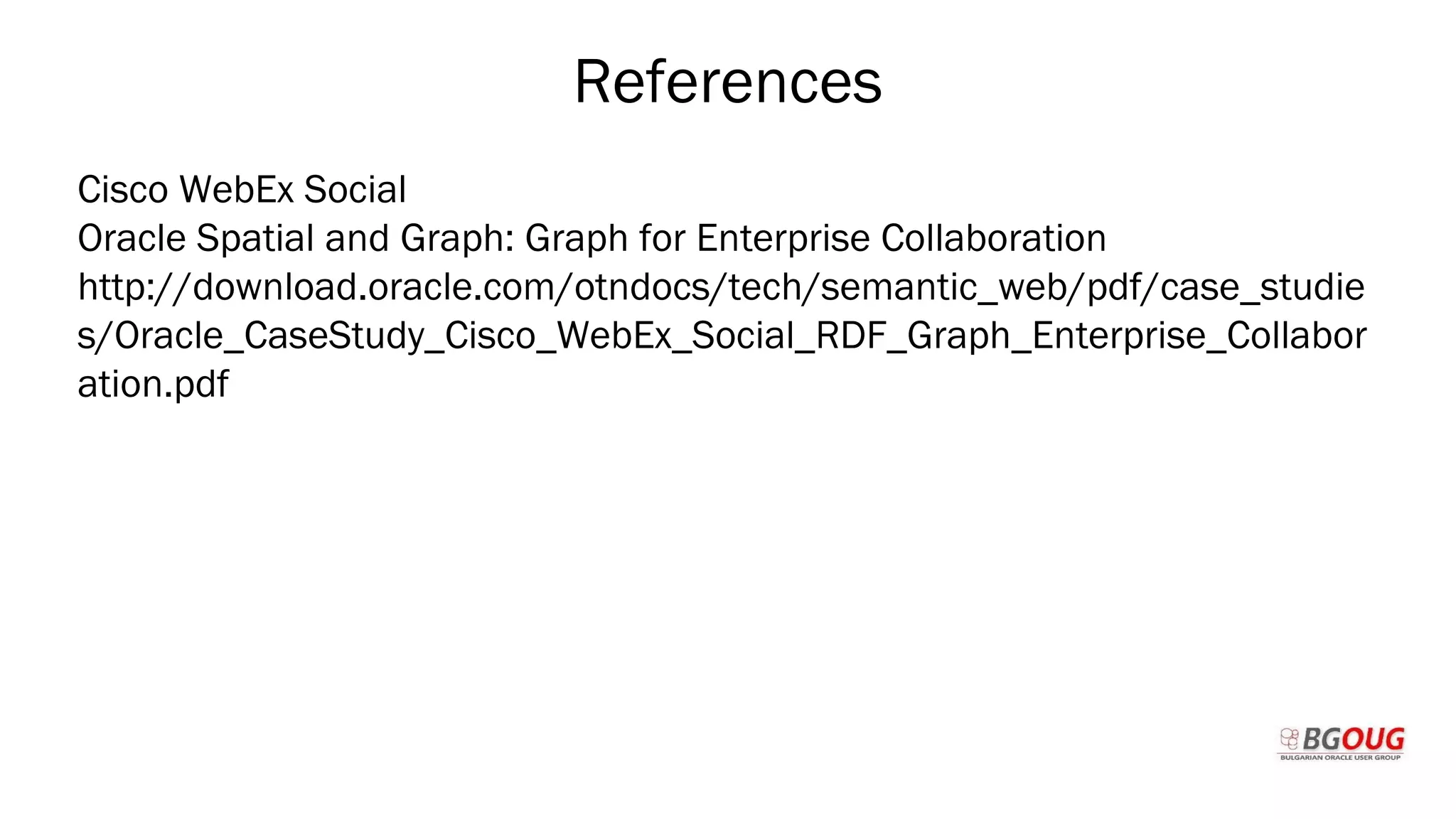

- 27. References Cisco WebEx Social OracleSpatial and Graph: Graph for Enterprise Collaboration http://download.oracle.com/otndocs/tech/semantic_web/pdf/case_studie s/Oracle_CaseStudy_Cisco_WebEx_Social_RDF_Graph_Enterprise_Collabor ation.pdf Martin Toshev Prague, 19-20 October 2017
