Downloaded 136 times
![Example – Video Clip Transcode
// Transcode video files uploaded to an S3 bucket
var async = require('async');
var fs = require('fs');
var exec = require('child_process').exec;
var aws = require('aws-sdk');
var s3 = new aws.S3();
// Lambda entry point
exports.handler = function(event, context) {
var inputVideo = '/tmp/myVideo.avi';
var outputVideo = '/tmp/myVideo.mp4';
var inputBucket = event.Records[0].s3.bucket.name;
var inputKey = event.Records[0].s3.object.key;
var outputBucket = inputBucket + '-out';
var outputKey = inputKey.substr(0,inputKey.length-4) + '.mp4';
// Runs the array of functions in series, each passing their results to the next
async.waterfall([
Set up variables
Serialize steps](https://image.slidesharecdn.com/serverlesscomputingwithawslambda-160311105646/85/Serverless-computing-with-AWS-Lambda-18-320.jpg)
![Example – Video Clip Transcode
// Download the object from S3 into a buffer
function download(next) {
s3.getObject({Bucket: inputBucket, Key: inputKey}, next); },
// Write the buffer to a file
function write(response, next) {
fs.writeFile(inputVideo, response.Body, next); },
// Spawn a process to transcode
function transcode(next) {
exec("./ffmpeg -i " + inputVideo + " -vcodec mpeg4 -b:v 1200k “
+ outputVideo, next); },
// Read the file to a buffer
function read(next) {
fs.readFile(outputVideo, next); },
// Upload the buffer to an object in S3
function upload(objectBuffer, next) {
s3.putObject({Bucket: outputBucket, Key: outputKey, Body: objectBuffer},
context.done); },
], context.fail);
};
Get file from S3
Write to disk
ffmpeg transcode
Read from disk
Upload to S3](https://image.slidesharecdn.com/serverlesscomputingwithawslambda-160311105646/85/Serverless-computing-with-AWS-Lambda-19-320.jpg)
![Example – Video Clip Transcode
// Transcode video files uploaded to an S3 bucket
var async = require('async');
var fs = require('fs');
var exec = require('child_process').exec;
var aws = require('aws-sdk');
var s3 = new aws.S3();
// Lambda entry point
exports.handler = function(event, context) {
var inputVideo = '/tmp/myVideo.avi';
var outputVideo = '/tmp/myVideo.mp4';
var inputBucket = event.Records[0].s3.bucket.name;
var inputKey = event.Records[0].s3.object.key;
var outputBucket = inputBucket + '-out';
var outputKey = inputKey.substr(0,inputKey.length-4) + '.mp4';
// Runs the array of functions in series, each passing their results to the next
async.waterfall([
Set up variables
Serialize steps](https://image.slidesharecdn.com/serverlesscomputingwithawslambda-160311105646/75/Serverless-computing-with-AWS-Lambda-18-2048.jpg)
![Example – Video Clip Transcode
// Download the object from S3 into a buffer
function download(next) {
s3.getObject({Bucket: inputBucket, Key: inputKey}, next); },
// Write the buffer to a file
function write(response, next) {
fs.writeFile(inputVideo, response.Body, next); },
// Spawn a process to transcode
function transcode(next) {
exec("./ffmpeg -i " + inputVideo + " -vcodec mpeg4 -b:v 1200k “
+ outputVideo, next); },
// Read the file to a buffer
function read(next) {
fs.readFile(outputVideo, next); },
// Upload the buffer to an object in S3
function upload(objectBuffer, next) {
s3.putObject({Bucket: outputBucket, Key: outputKey, Body: objectBuffer},
context.done); },
], context.fail);
};
Get file from S3
Write to disk
ffmpeg transcode
Read from disk
Upload to S3](https://image.slidesharecdn.com/serverlesscomputingwithawslambda-160311105646/75/Serverless-computing-with-AWS-Lambda-19-2048.jpg)
Uploaded byApigee | Google Cloud
Serverless computing with AWS Lambda
The document discusses the evolution of cloud computing towards serverless architecture with a focus on AWS Lambda, a serverless and event-driven compute service. It outlines its capabilities, benefits, and various use cases for real-time data processing, highlighting workflows using services such as Amazon S3, Kinesis, and DynamoDB. Additionally, it provides tips for effectively utilizing AWS Lambda, including automation and deployment strategies.
More Related Content
![[AWS Builders] AWS 네트워크 서비스 소개 및 사용 방법 - 김기현, AWS 솔루션즈 아키텍트](https://cdn.slidesharecdn.com/ss_thumbnails/1network-191112092246-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Similar to Serverless computing with AWS Lambda
Serverless computing with AWS Lambda
- 1. Serverless computing withAWS Lambda Matt McClean AWS Solutions Architect 1

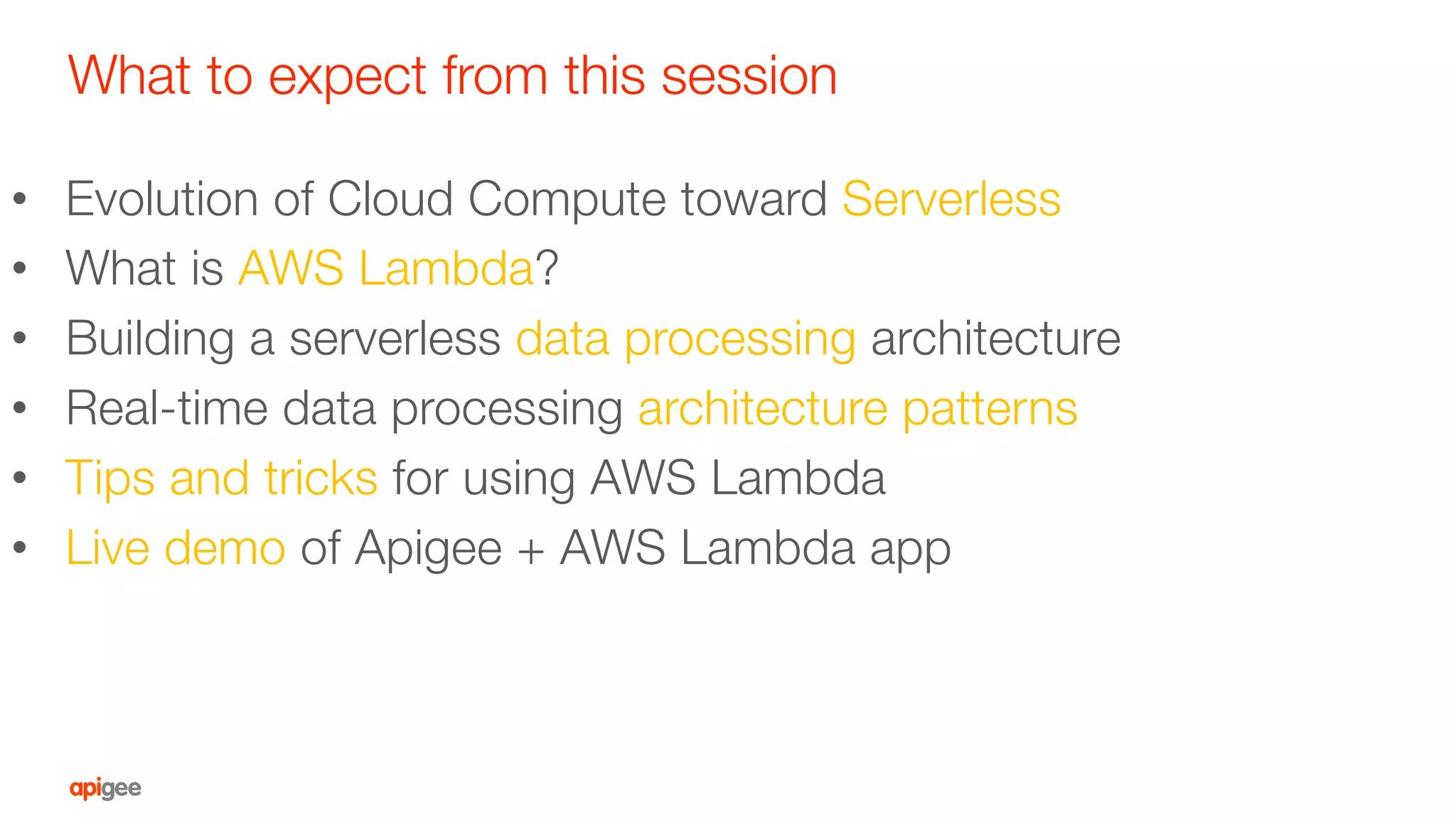

- 2. What to expectfrom this session • Evolution of Cloud Compute toward Serverless • What is AWS Lambda? • Building a serverless data processing architecture • Real-time data processing architecture patterns • Tips and tricks for using AWS Lambda • Live demo of Apigee + AWS Lambda app
- 3. Evolution of CloudCompute towards Serverless 3 ©2016 Apigee. All Rights Reserved.

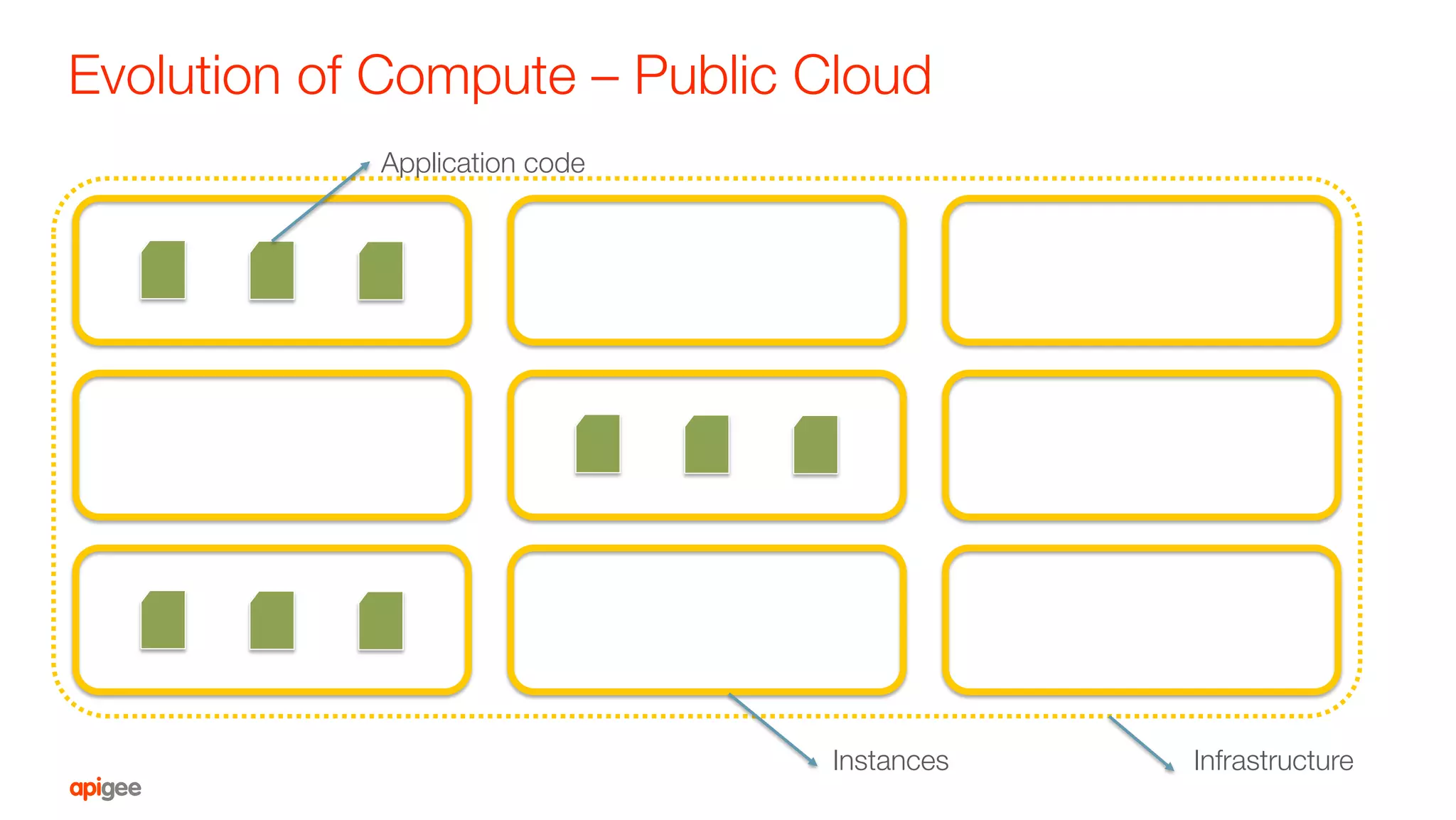

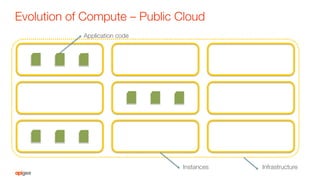

- 4. Evolution of Compute– Public Cloud Infrastructure Instances Application code

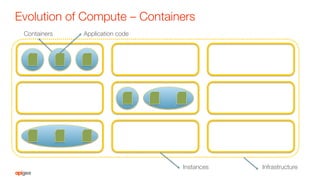

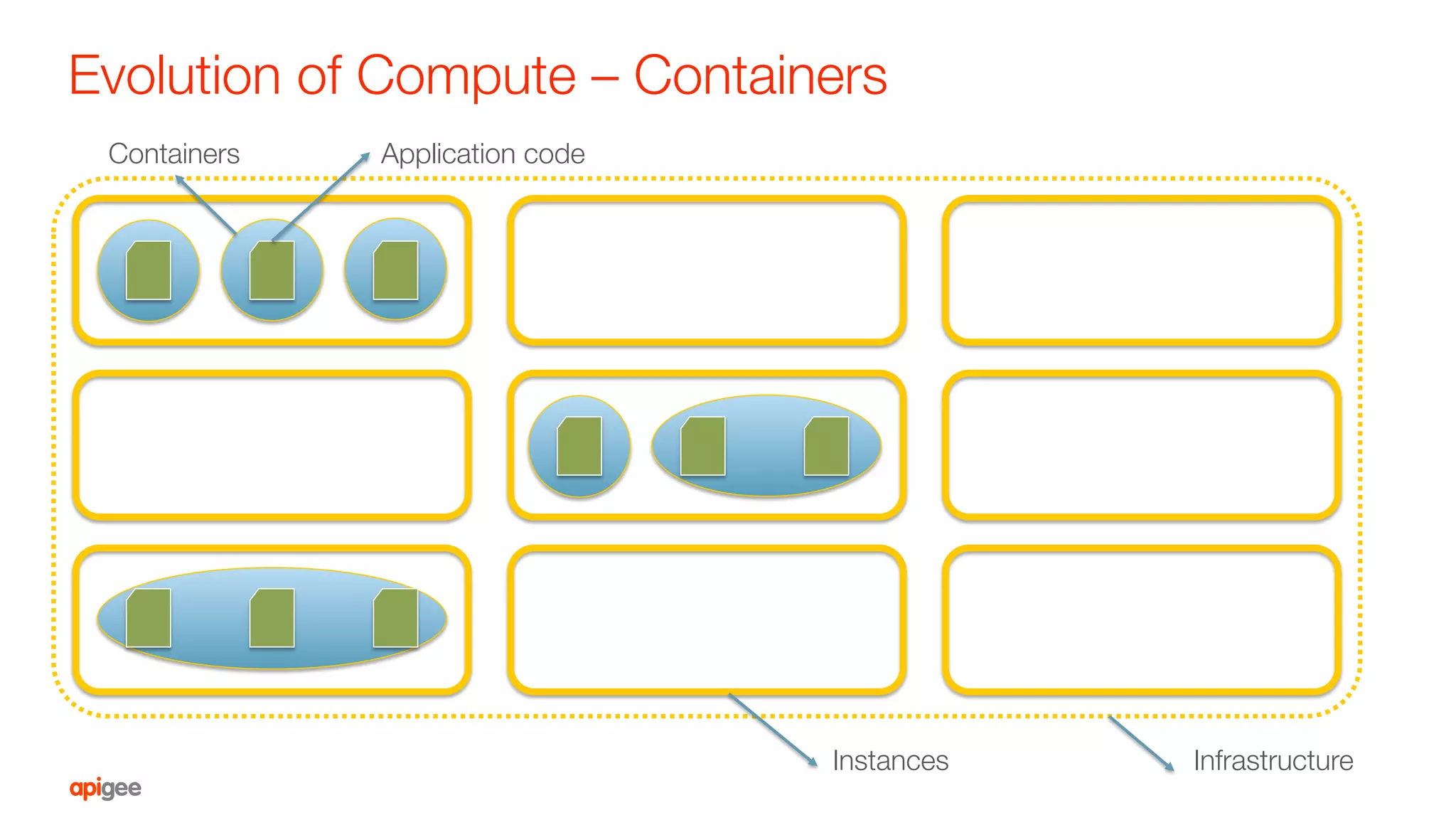

- 5. Evolution of Compute– Containers Infrastructure Instances Application code Containers

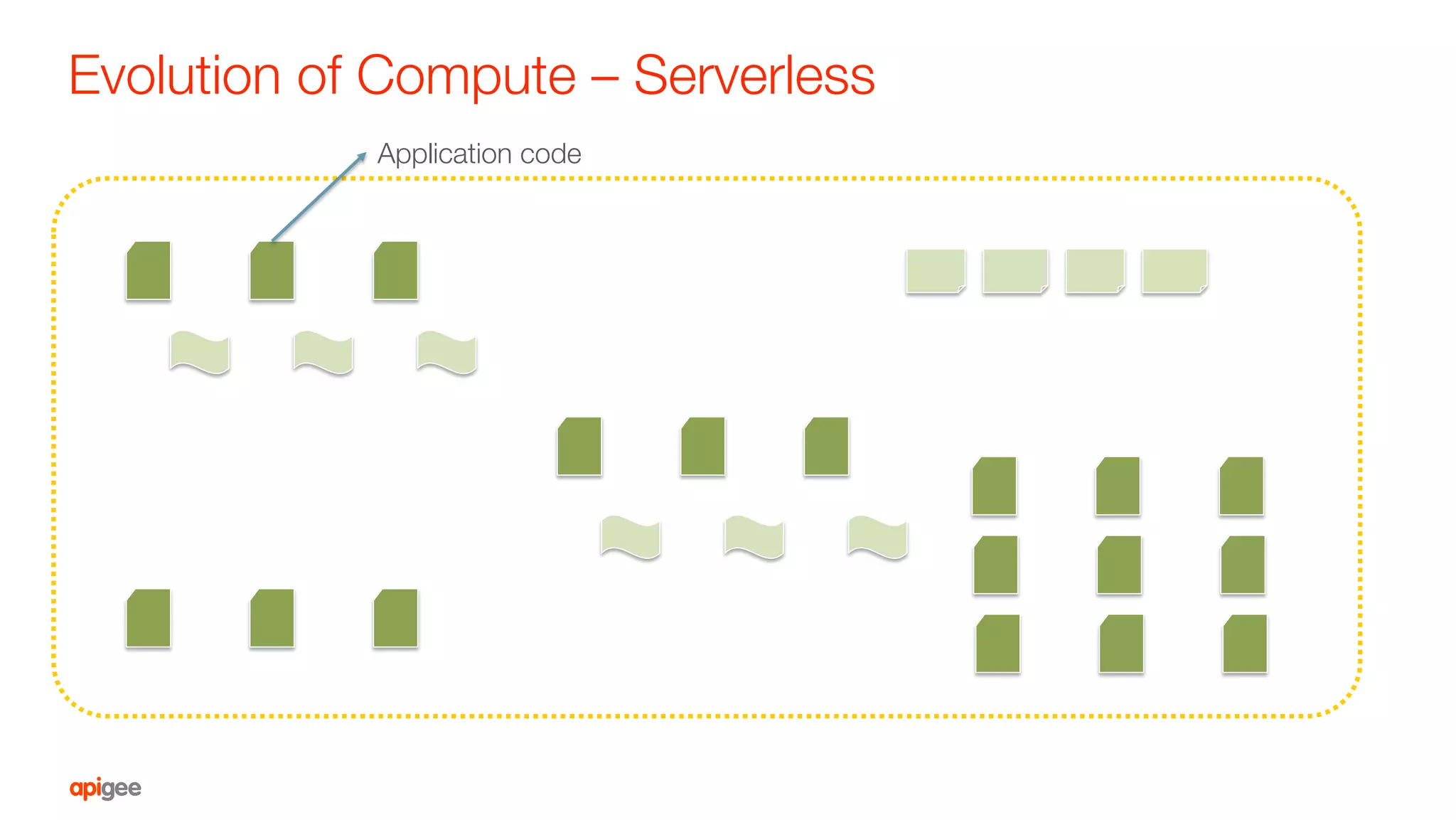

- 6. Evolution of Compute– Serverless Application code

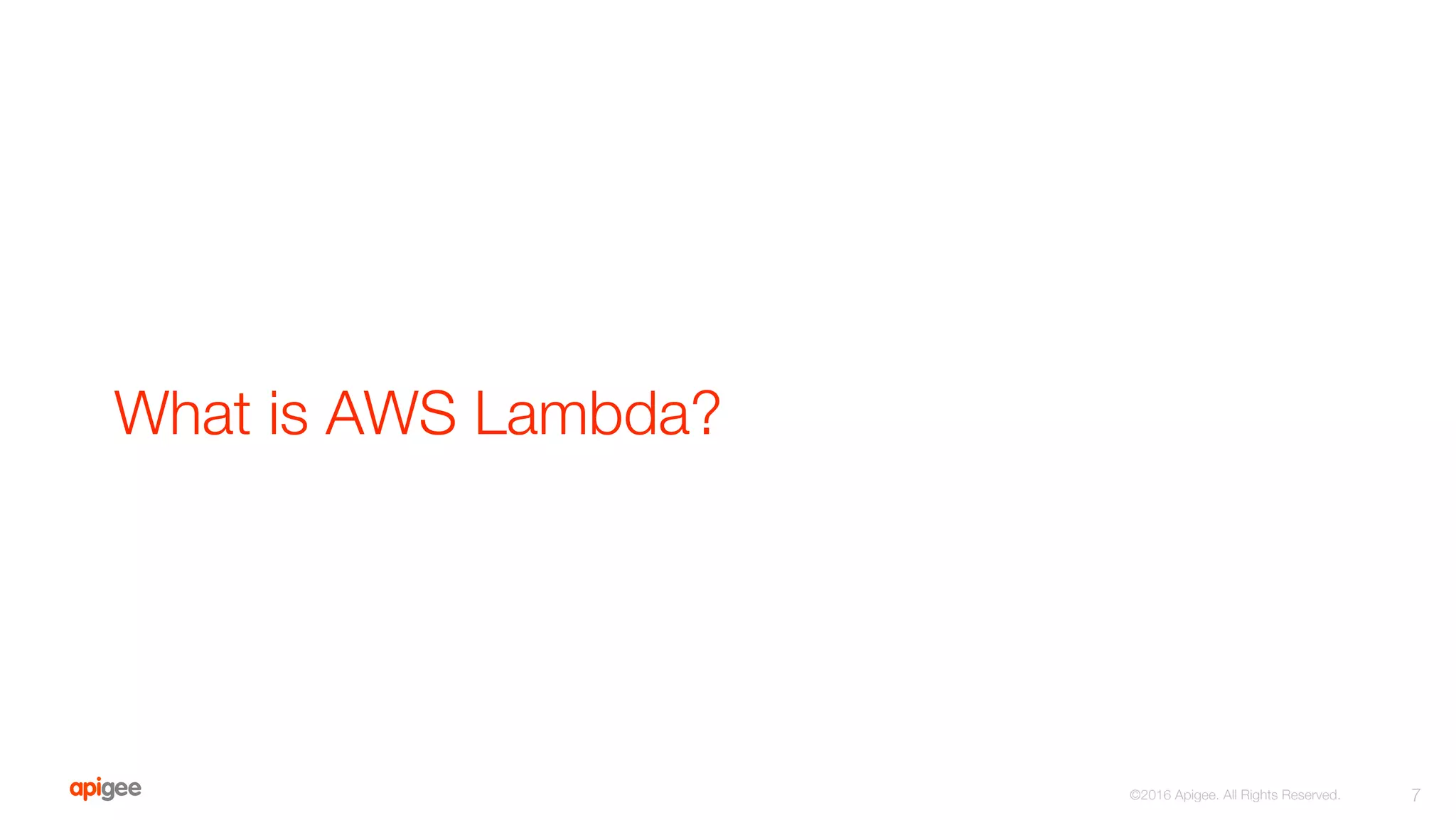

- 7. What is AWSLambda? 7 ©2016 Apigee. All Rights Reserved.
- 8. AWS Lambda Serverless, event-drivencompute service Lambda = microservice without servers

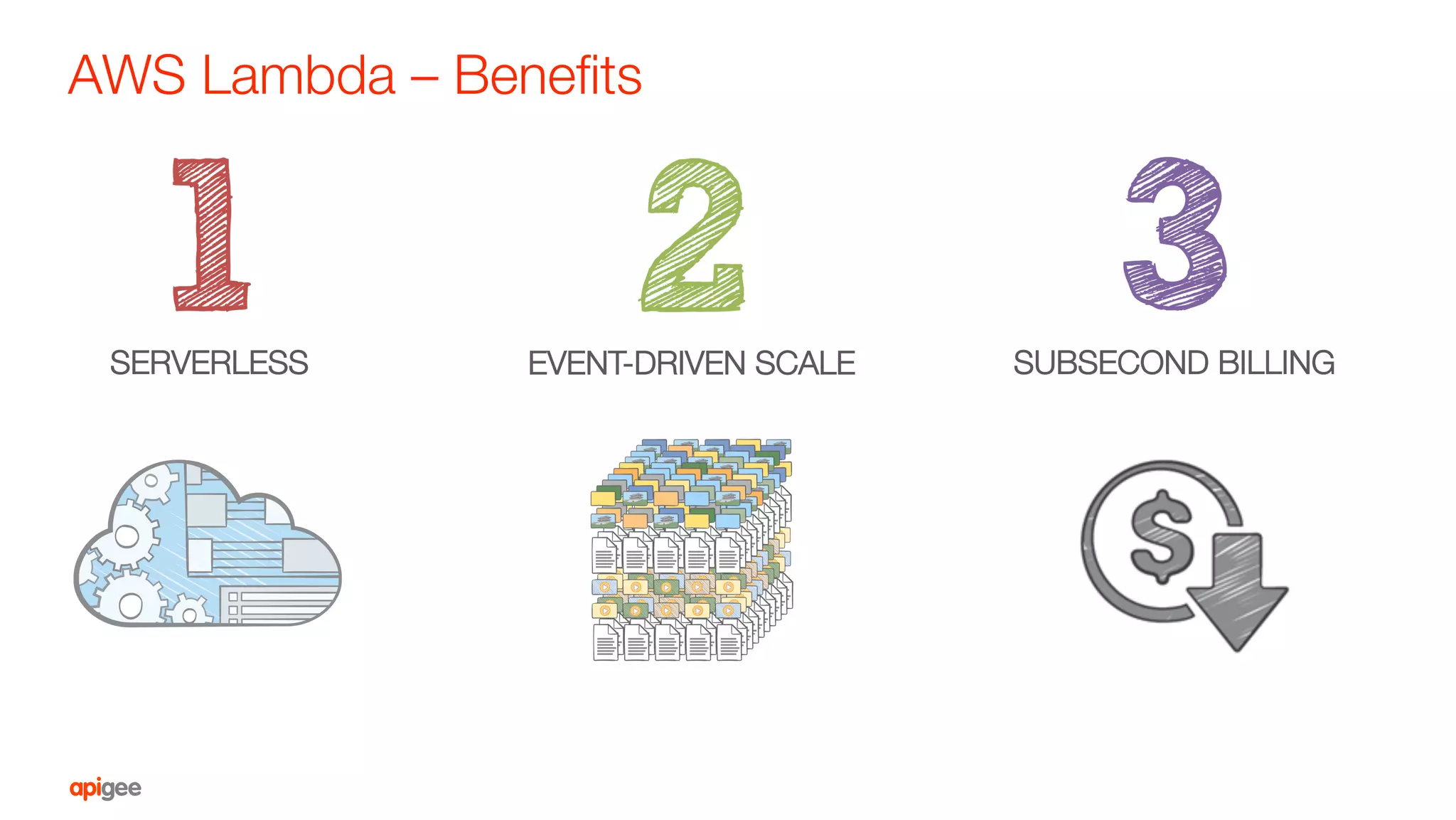

- 9. AWS Lambda –Benefits EVENT-DRIVEN SCALE SERVERLESS SUBSECOND BILLING

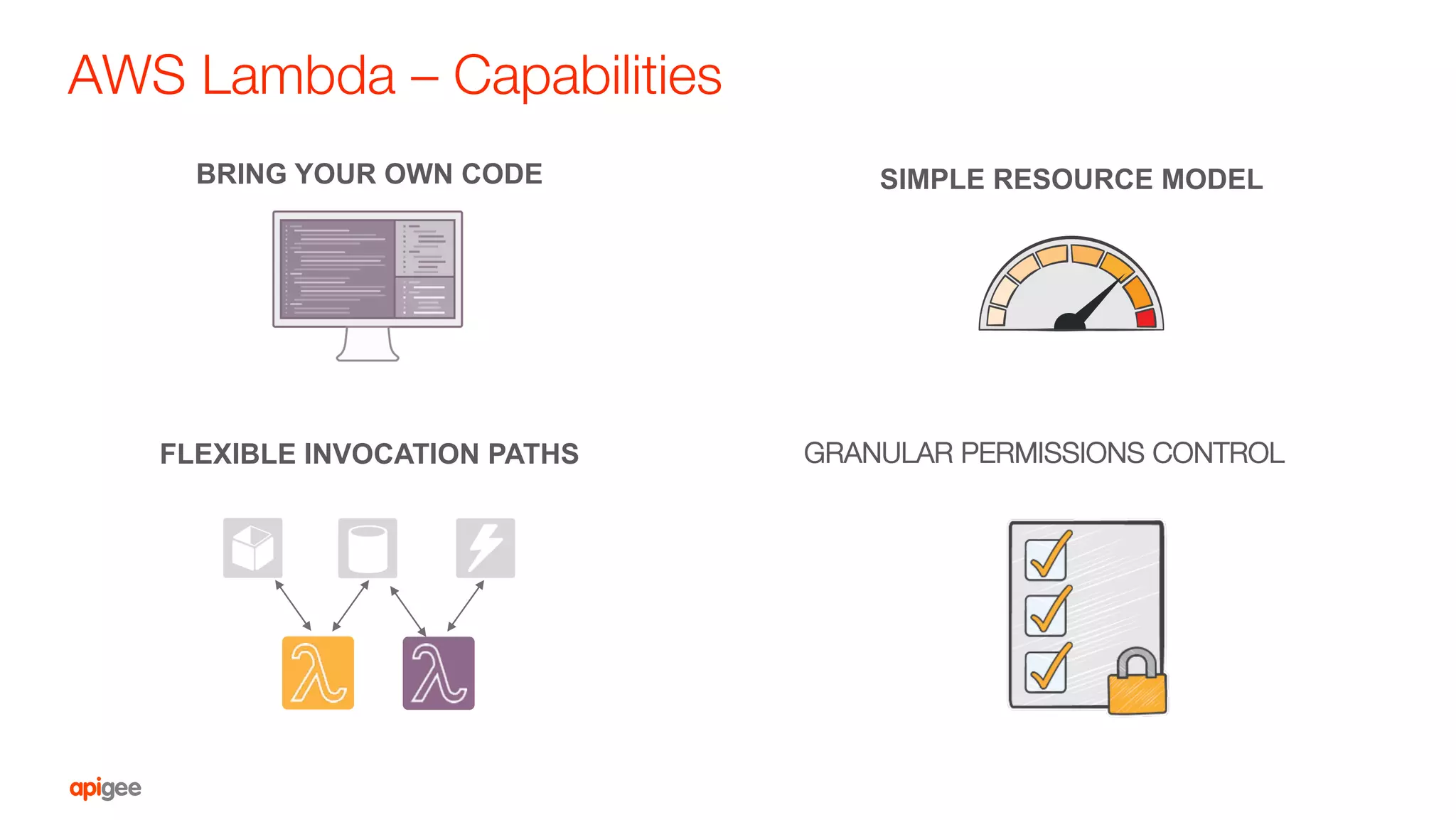

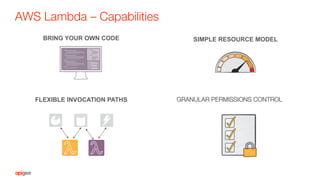

- 10. AWS Lambda –Capabilities BRING YOUR OWN CODE SIMPLE RESOURCE MODEL FLEXIBLE INVOCATION PATHS GRANULAR PERMISSIONS CONTROL

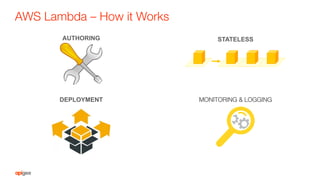

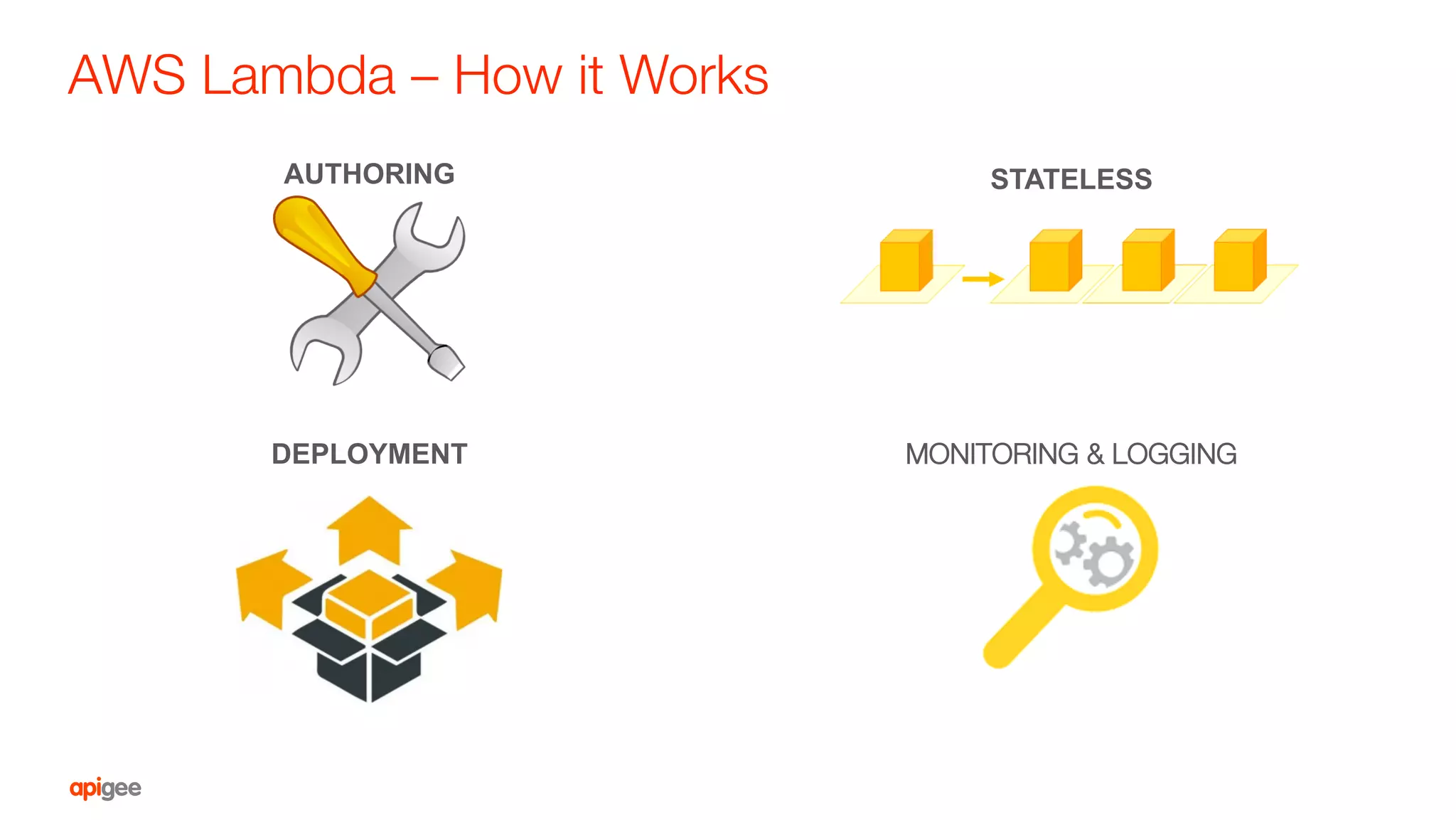

- 11. AWS Lambda –How it Works AUTHORING STATELESS DEPLOYMENT MONITORING & LOGGING
- 12. AWS Lambda –Partner Ecosystem
- 13. Building a ServerlessData Processing Architecture 13 ©2016 Apigee. All Rights Reserved.

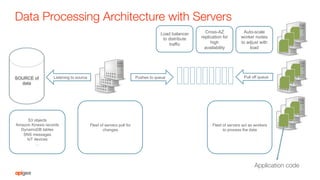

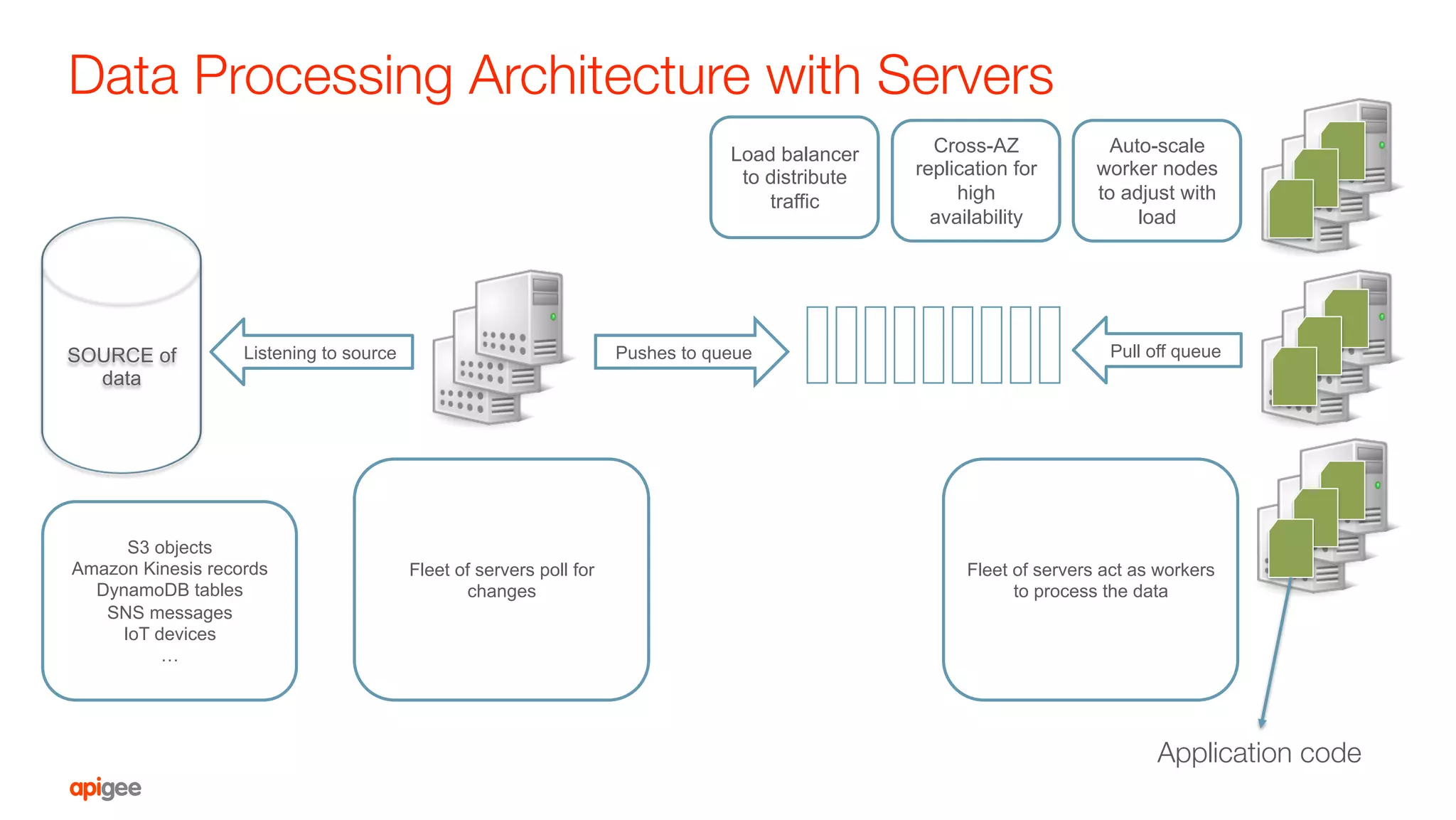

- 14. SOURCE of data Fleet ofservers poll for changes Listening to source Pushes to queue Pull off queue Fleet of servers act as workers to process the data Auto-scale worker nodes to adjust with load S3 objects Amazon Kinesis records DynamoDB tables SNS messages IoT devices … Cross-AZ replication for high availability Load balancer to distribute traffic Data Processing Architecture with Servers Application code

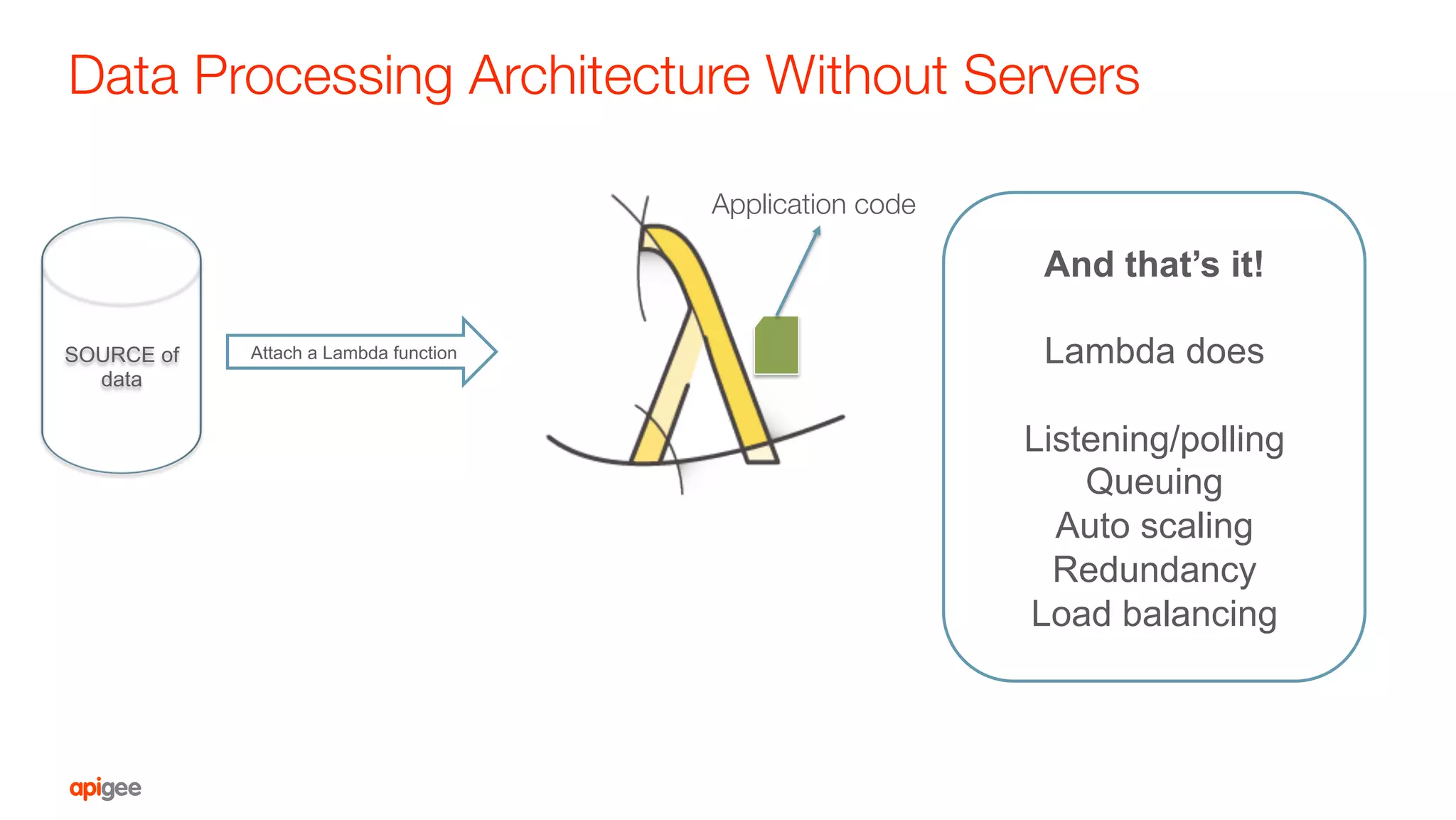

- 15. SOURCE of data Attach aLambda function And that’s it! Lambda does Listening/polling Queuing Auto scaling Redundancy Load balancing Data Processing Architecture Without Servers Application code

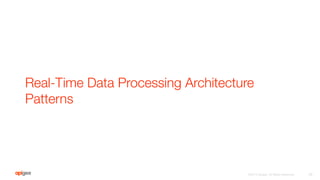

- 16. Real-Time Data ProcessingArchitecture Patterns 16 ©2016 Apigee. All Rights Reserved.

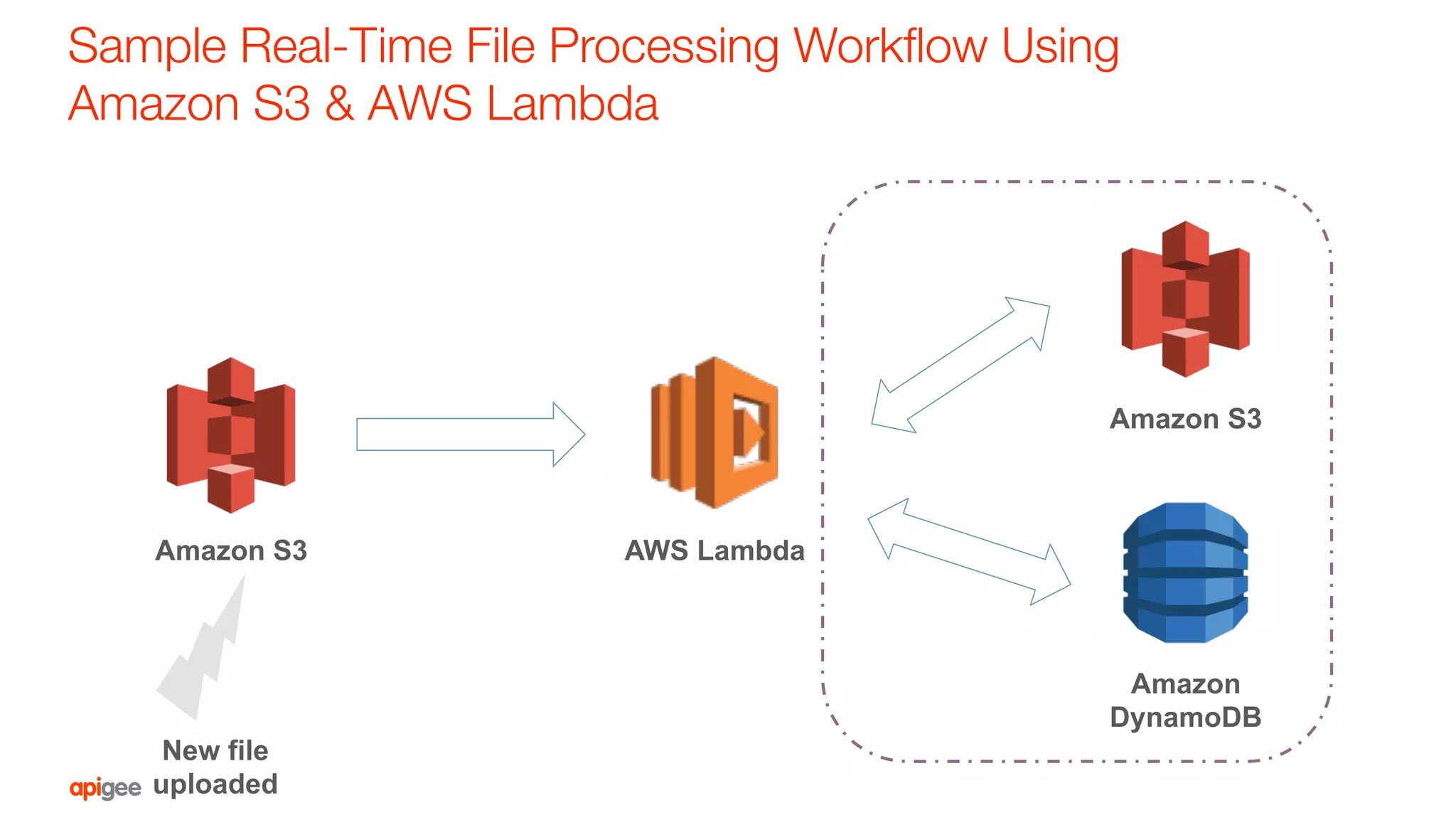

- 17. Sample Real-Time FileProcessing Workflow Using Amazon S3 & AWS Lambda Amazon S3 AWS Lambda Amazon S3 New file uploaded Amazon DynamoDB

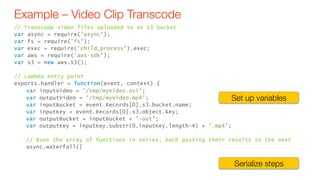

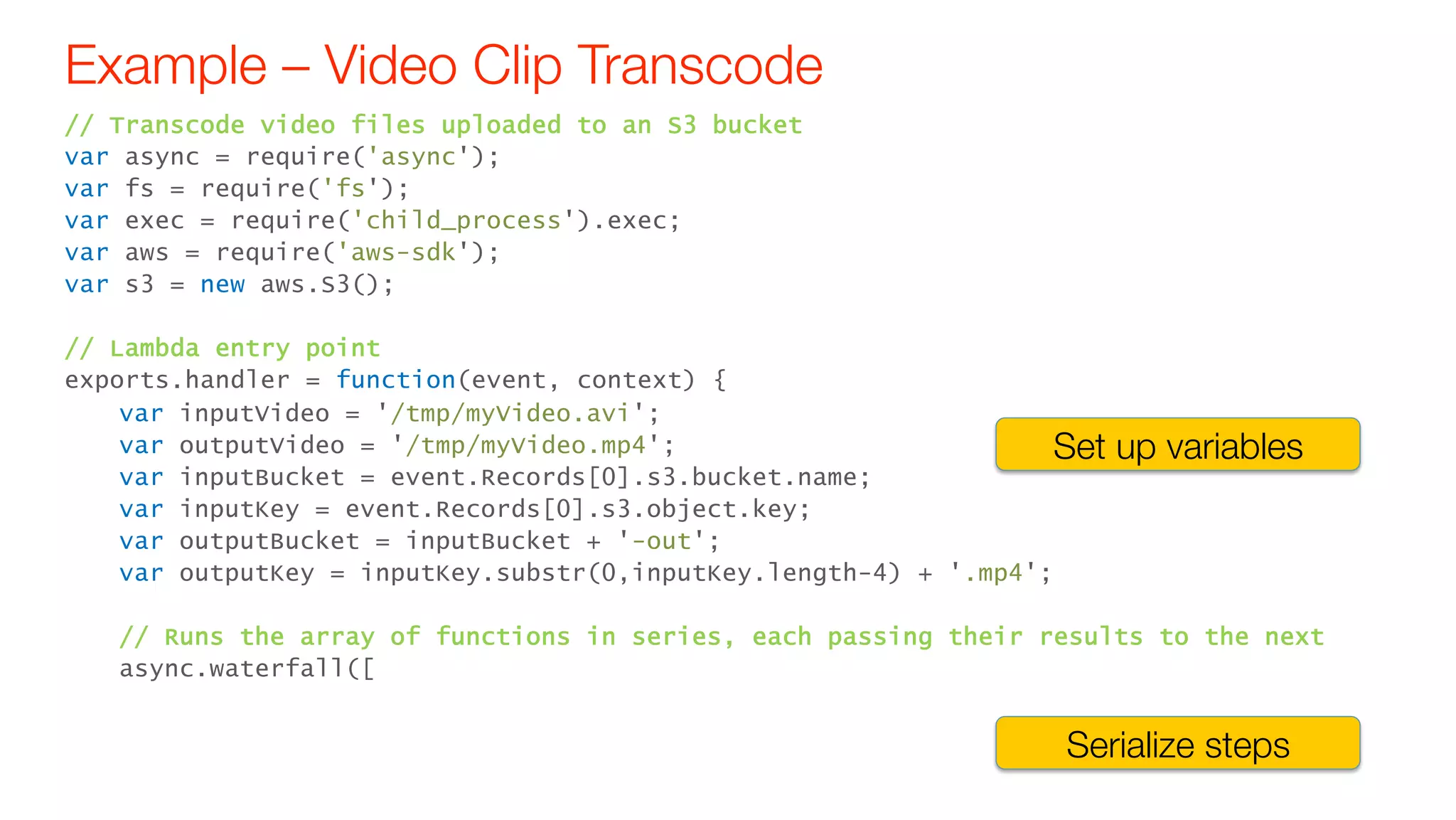

- 18. Example – VideoClip Transcode // Transcode video files uploaded to an S3 bucket var async = require('async'); var fs = require('fs'); var exec = require('child_process').exec; var aws = require('aws-sdk'); var s3 = new aws.S3(); // Lambda entry point exports.handler = function(event, context) { var inputVideo = '/tmp/myVideo.avi'; var outputVideo = '/tmp/myVideo.mp4'; var inputBucket = event.Records[0].s3.bucket.name; var inputKey = event.Records[0].s3.object.key; var outputBucket = inputBucket + '-out'; var outputKey = inputKey.substr(0,inputKey.length-4) + '.mp4'; // Runs the array of functions in series, each passing their results to the next async.waterfall([ Set up variables Serialize steps

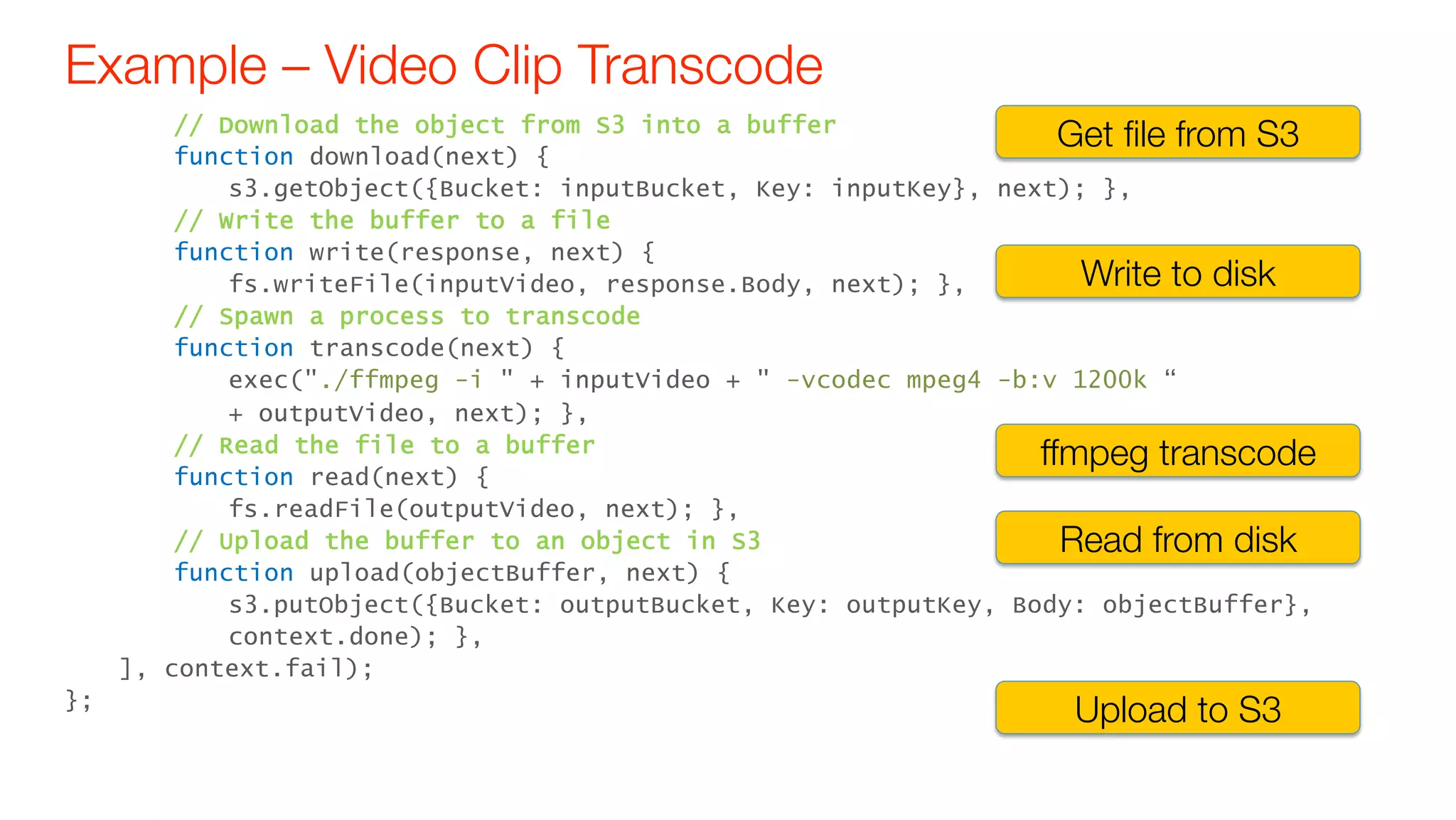

- 19. Example – VideoClip Transcode // Download the object from S3 into a buffer function download(next) { s3.getObject({Bucket: inputBucket, Key: inputKey}, next); }, // Write the buffer to a file function write(response, next) { fs.writeFile(inputVideo, response.Body, next); }, // Spawn a process to transcode function transcode(next) { exec("./ffmpeg -i " + inputVideo + " -vcodec mpeg4 -b:v 1200k “ + outputVideo, next); }, // Read the file to a buffer function read(next) { fs.readFile(outputVideo, next); }, // Upload the buffer to an object in S3 function upload(objectBuffer, next) { s3.putObject({Bucket: outputBucket, Key: outputKey, Body: objectBuffer}, context.done); }, ], context.fail); }; Get file from S3 Write to disk ffmpeg transcode Read from disk Upload to S3

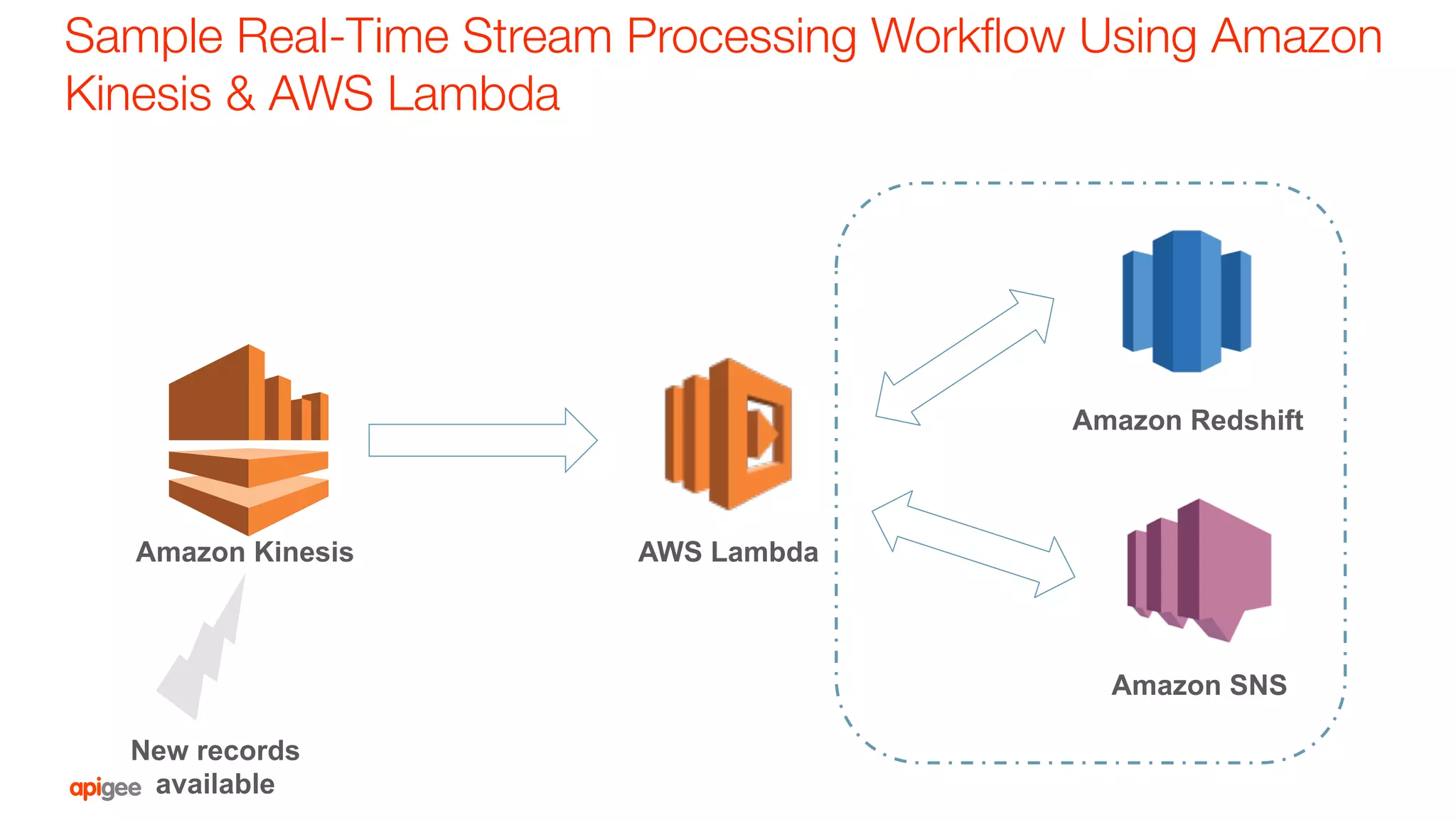

- 20. Sample Real-Time StreamProcessing Workflow Using Amazon Kinesis & AWS Lambda Amazon Kinesis AWS Lambda Amazon Redshift Amazon SNS New records available

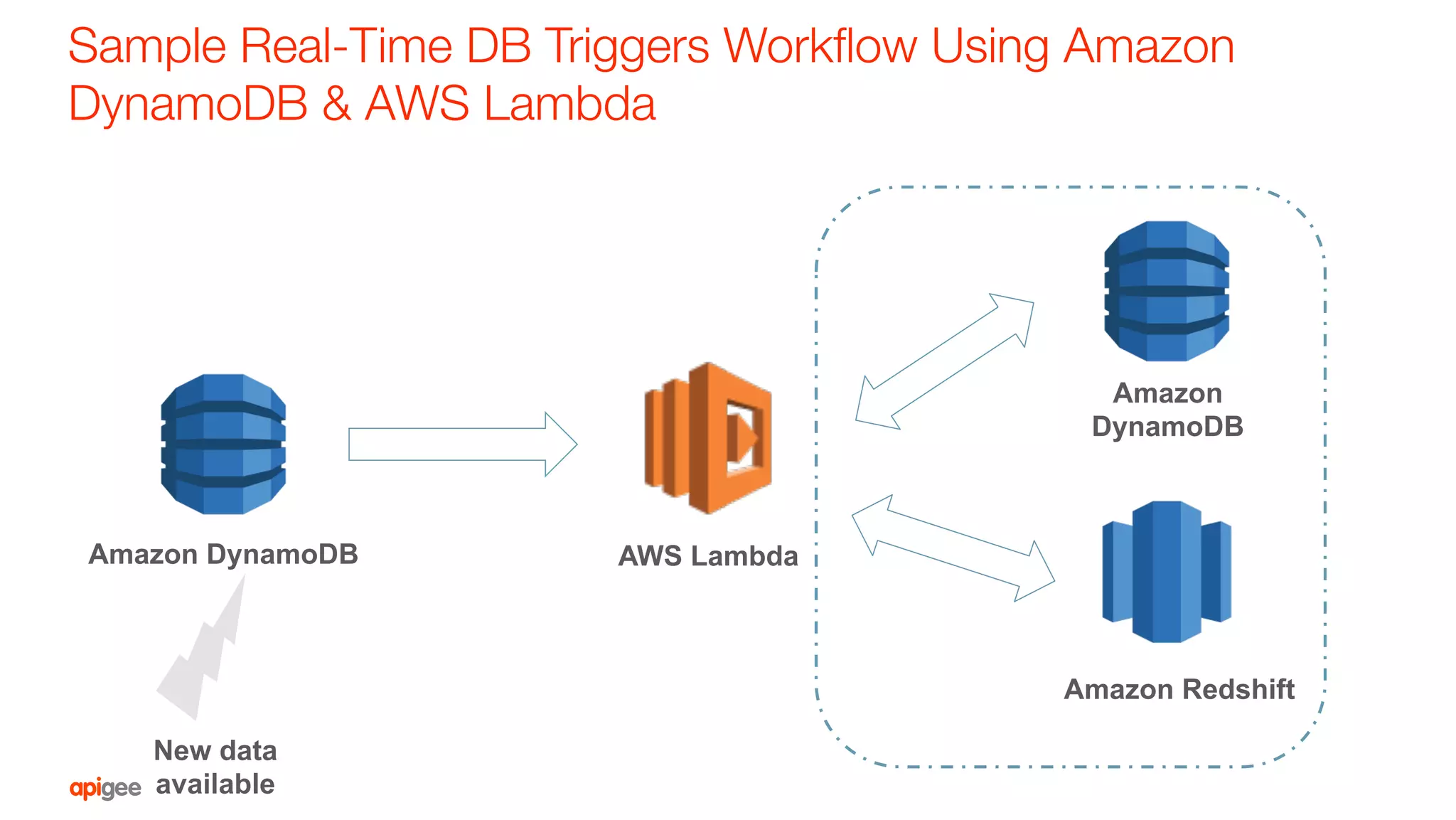

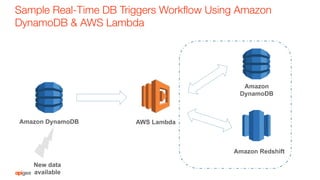

- 21. Sample Real-Time DBTriggers Workflow Using Amazon DynamoDB & AWS Lambda New data available Amazon DynamoDB AWS Lambda Amazon DynamoDB Amazon Redshift

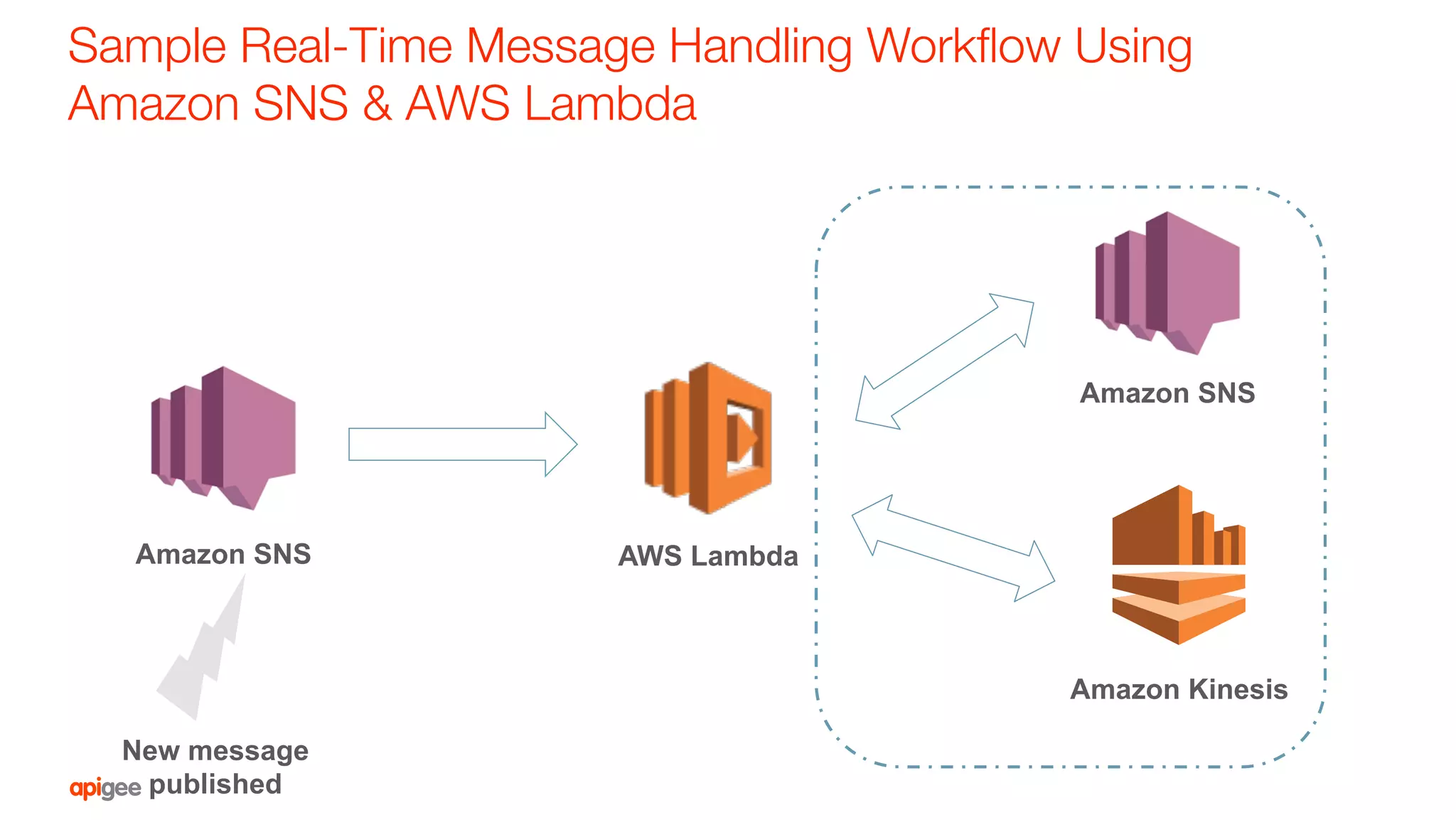

- 22. Sample Real-Time MessageHandling Workflow Using Amazon SNS & AWS Lambda New message published Amazon SNS AWS Lambda Amazon SNS Amazon Kinesis

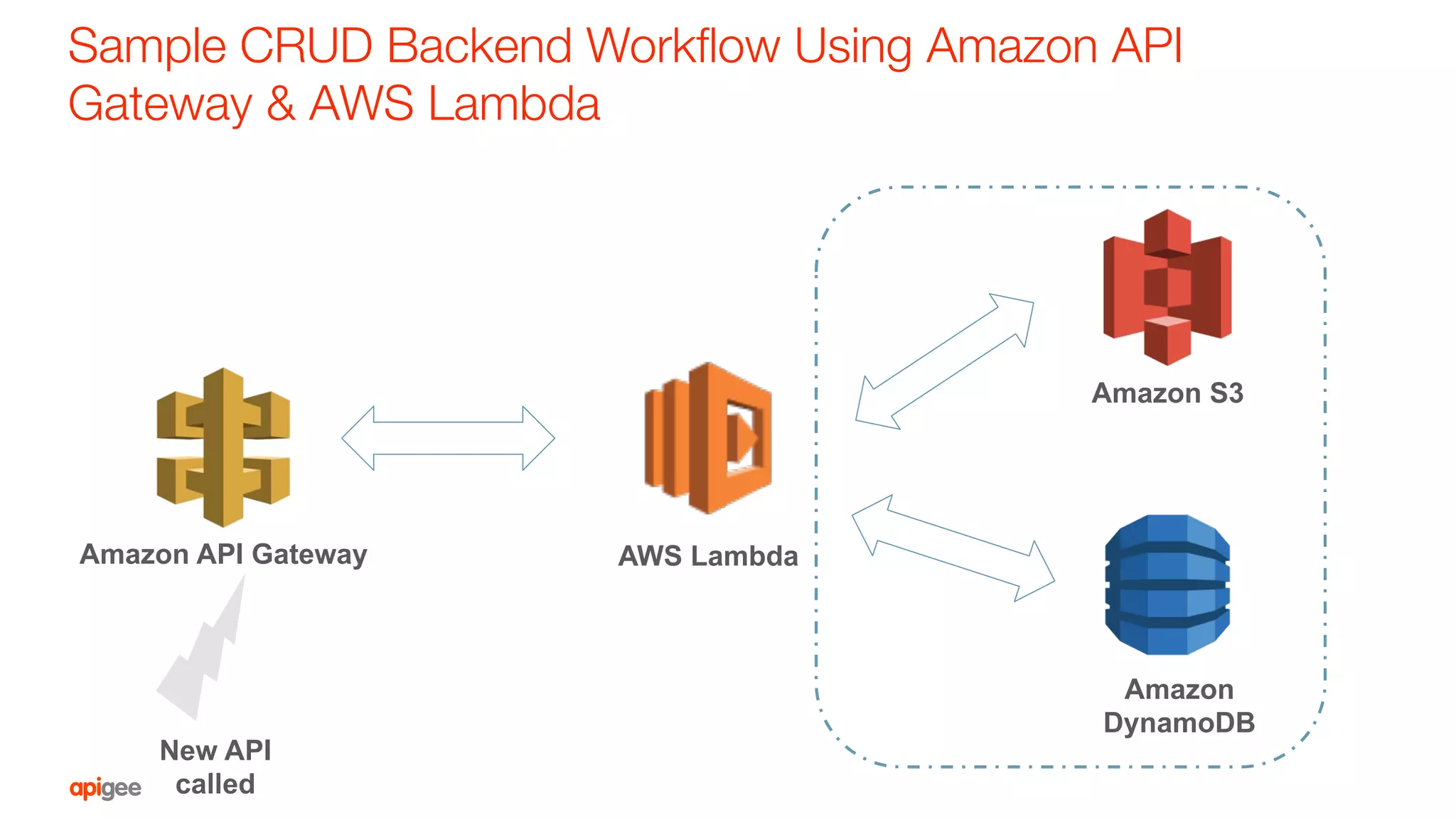

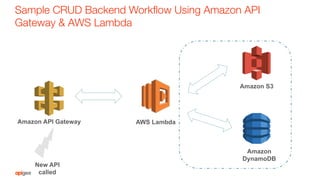

- 23. Sample CRUD BackendWorkflow Using Amazon API Gateway & AWS Lambda New API called Amazon API Gateway AWS Lambda Amazon S3 Amazon DynamoDB

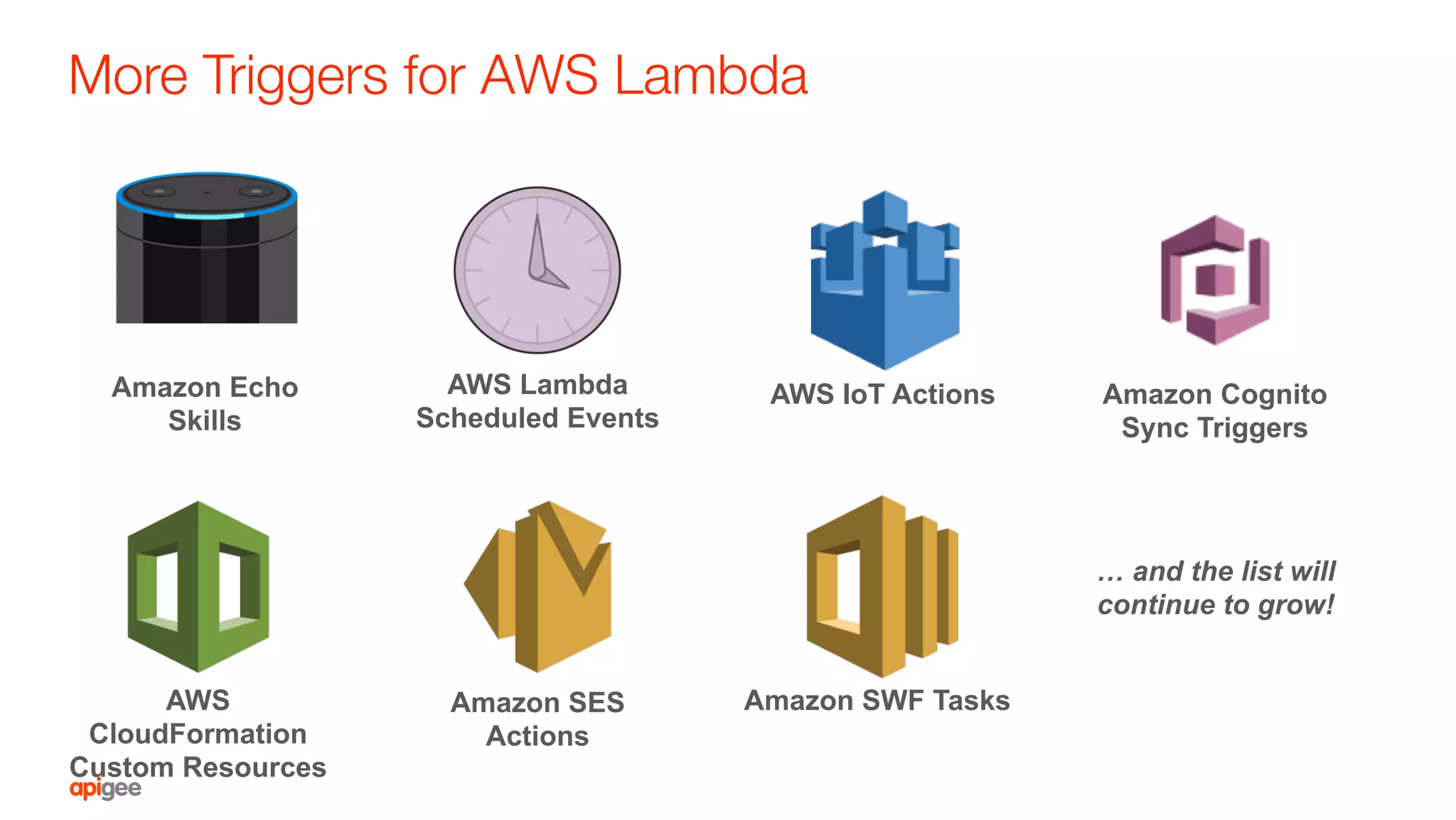

- 24. More Triggers forAWS Lambda AWS CloudFormation Custom Resources Amazon SES Actions Amazon Cognito Sync Triggers … and the list will continue to grow! AWS IoT ActionsAWS Lambda Scheduled Events Amazon Echo Skills Amazon SWF Tasks
- 25. Tips and Tricksfor using AWS Lambda 25 ©2016 Apigee. All Rights Reserved.

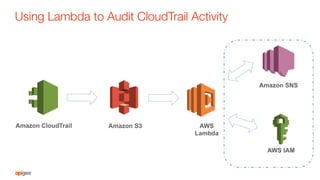

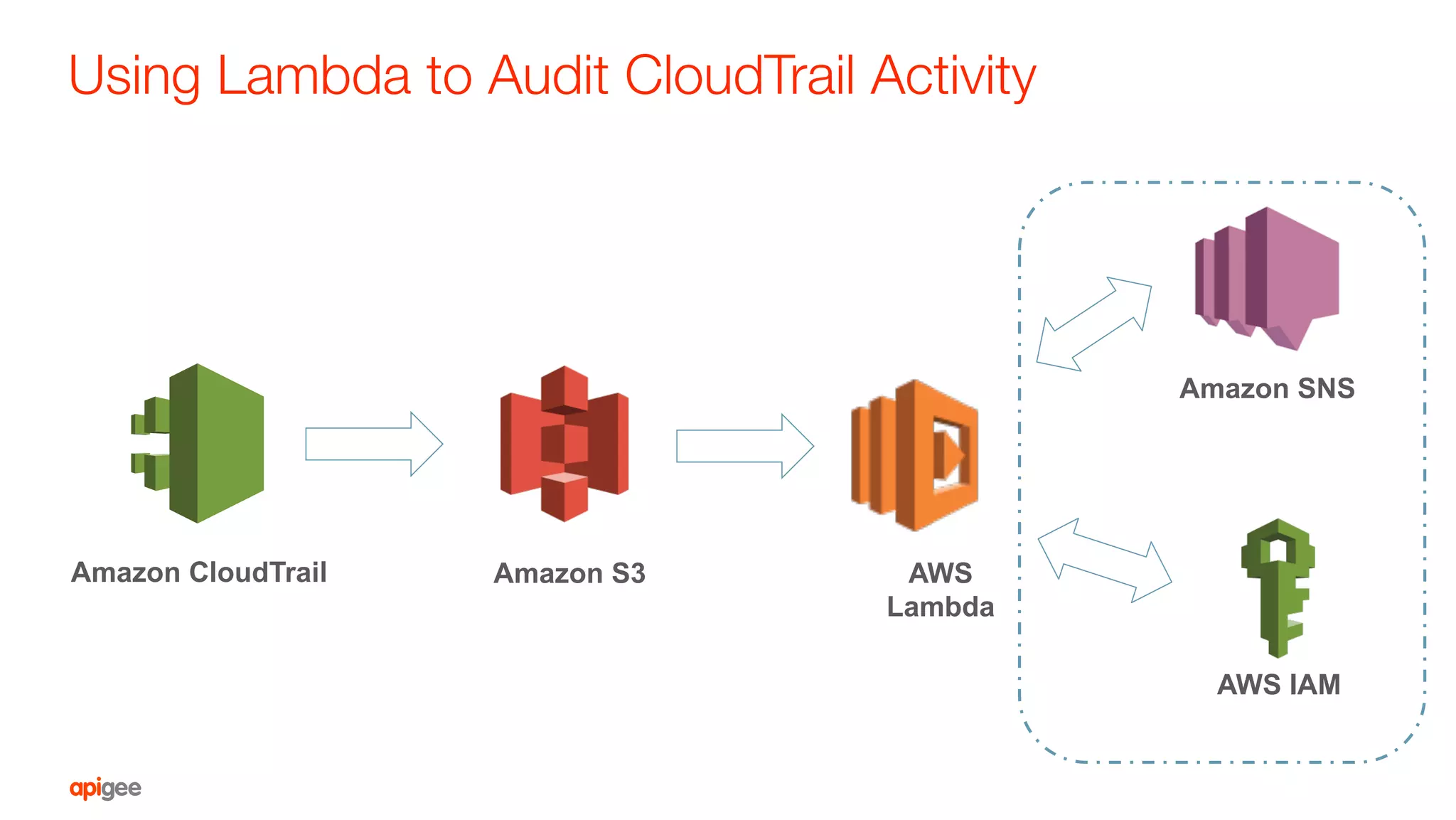

- 26. Using Lambda toAudit CloudTrail Activity AWS Lambda Amazon S3Amazon CloudTrail Amazon SNS AWS IAM

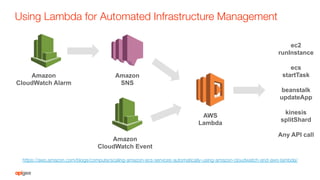

- 27. Using Lambda forAutomated Infrastructure Management AWS Lambda Amazon SNS Amazon CloudWatch Alarm ec2 runInstance ecs startTask beanstalk updateApp kinesis splitShard Any API call https://aws.amazon.com/blogs/compute/scaling-amazon-ecs-services-automatically-using-amazon-cloudwatch-and-aws-lambda/ Amazon CloudWatch Event

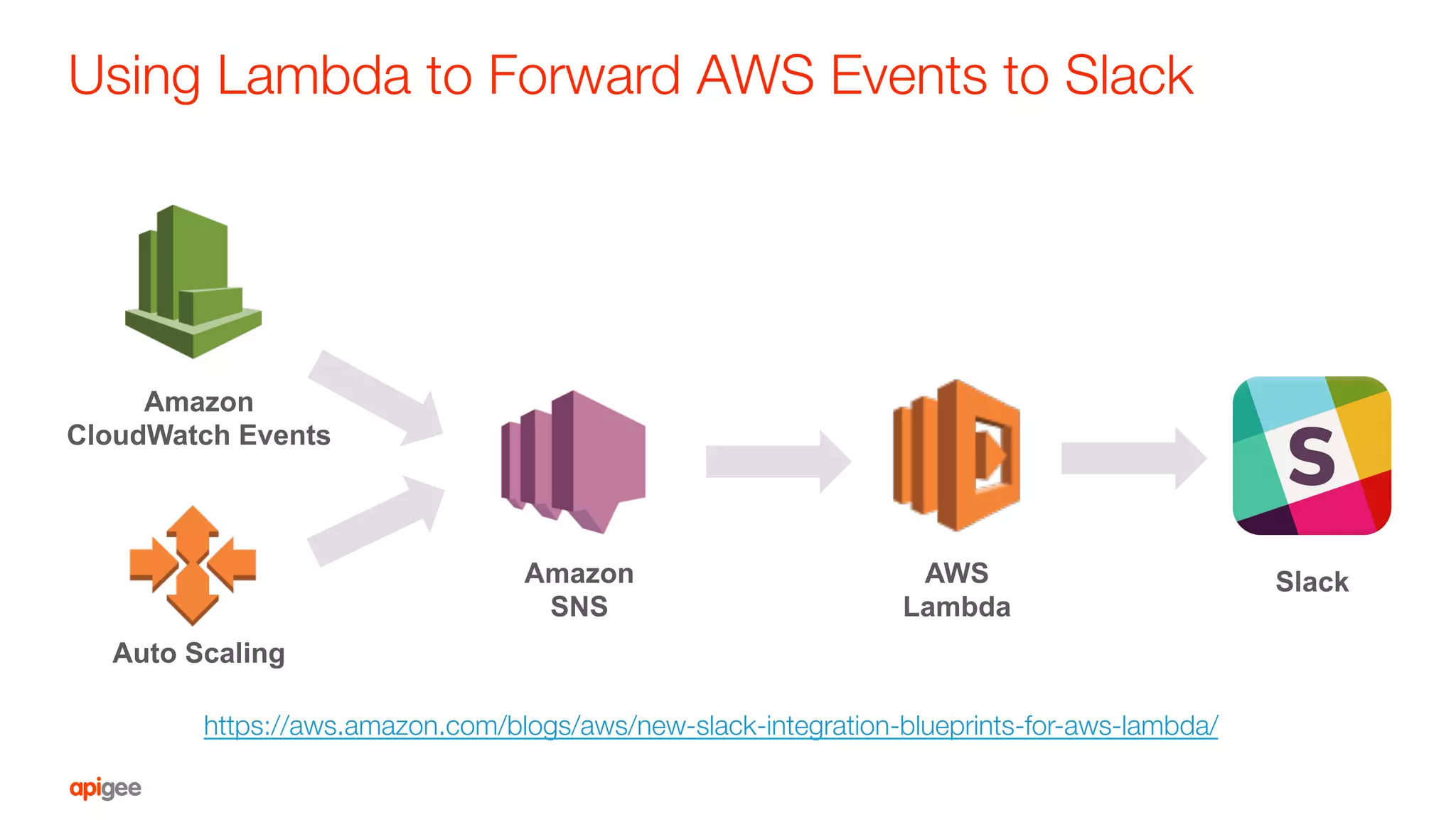

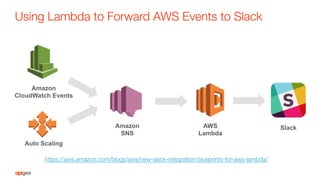

- 28. Using Lambda toForward AWS Events to Slack AWS Lambda Amazon SNS Amazon CloudWatch Events Auto Scaling Slack https://aws.amazon.com/blogs/aws/new-slack-integration-blueprints-for-aws-lambda/

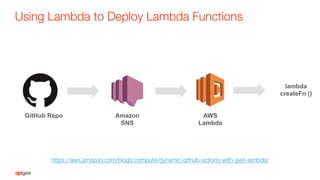

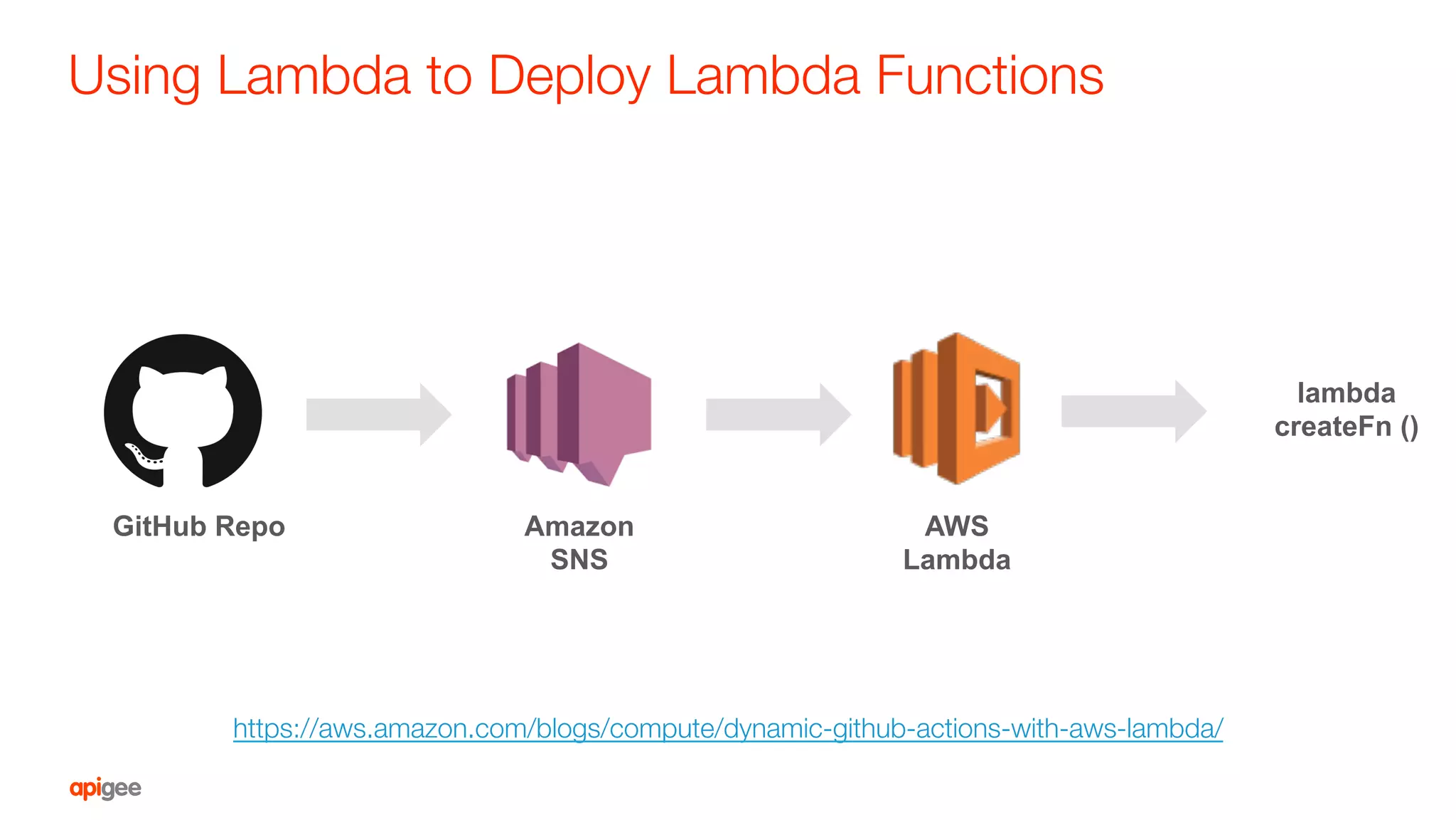

- 29. Using Lambda toDeploy Lambda Functions https://aws.amazon.com/blogs/compute/dynamic-github-actions-with-aws-lambda/ AWS Lambda Amazon SNS GitHub Repo lambda createFn ()

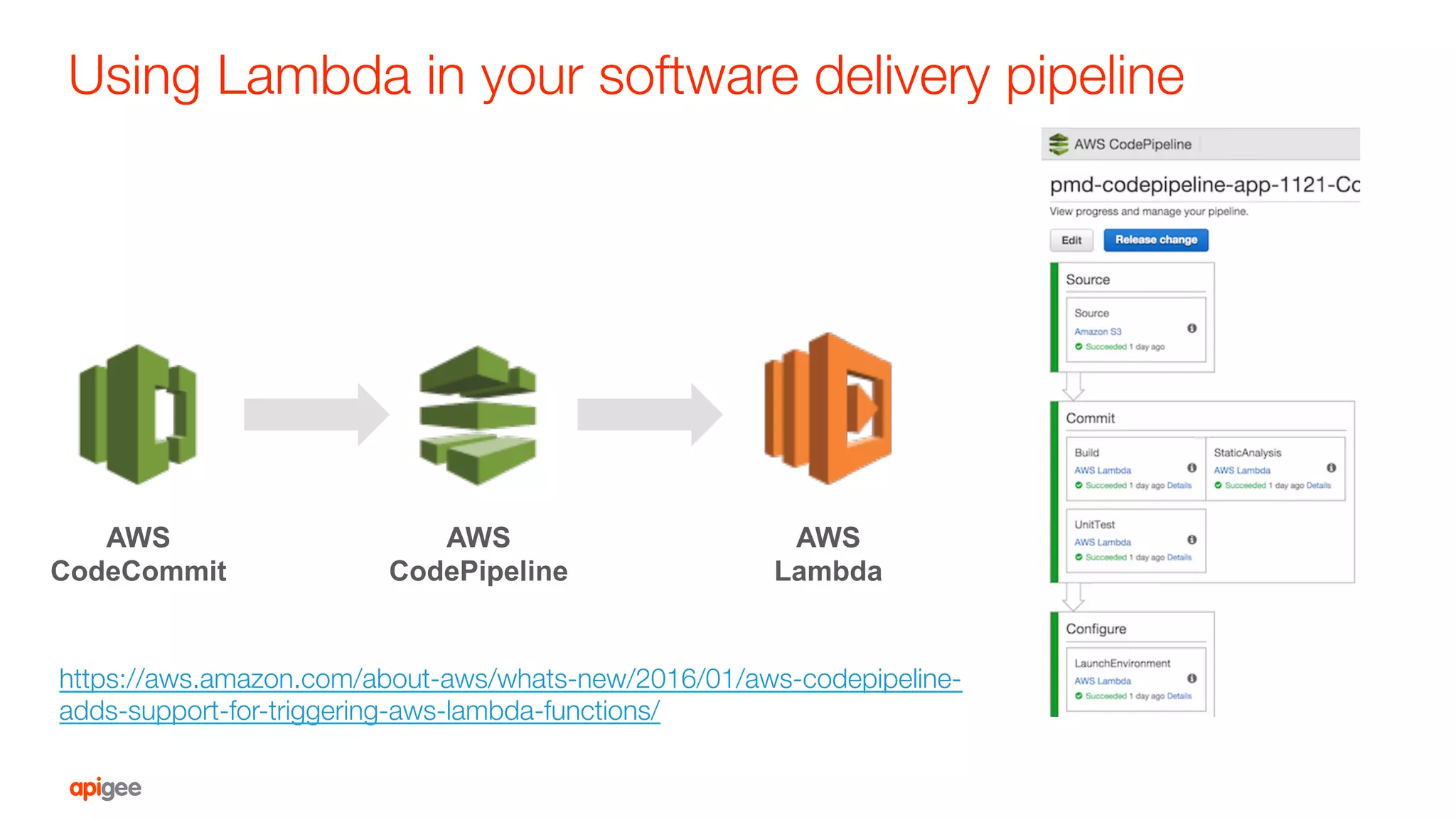

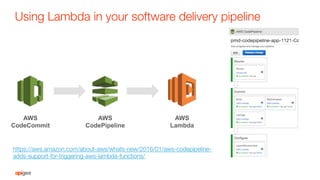

- 30. Using Lambda inyour software delivery pipeline AWS Lambda AWS CodeCommit AWS CodePipeline https://aws.amazon.com/about-aws/whats-new/2016/01/aws-codepipeline- adds-support-for-triggering-aws-lambda-functions/

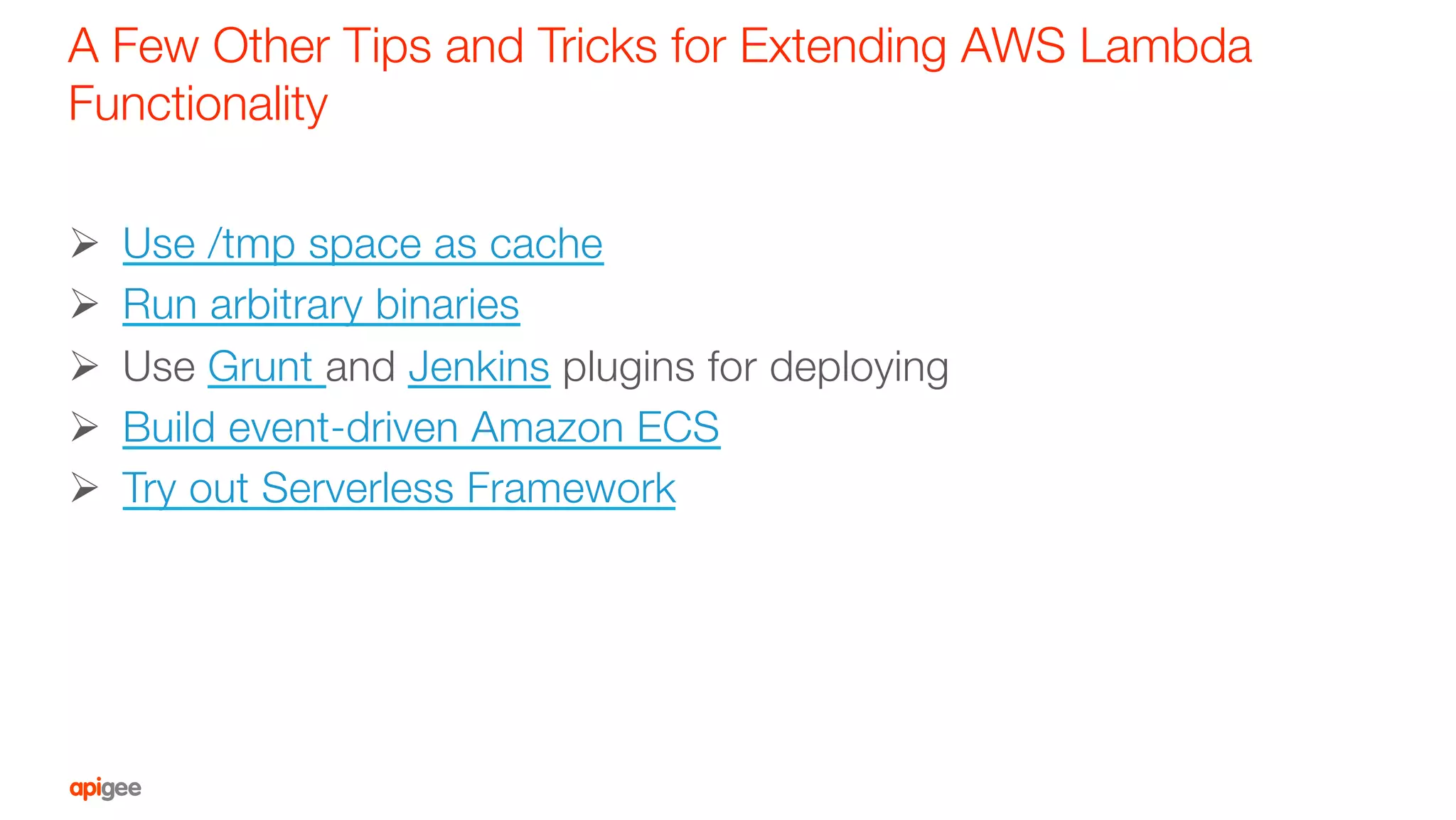

- 31. A Few OtherTips and Tricks for Extending AWS Lambda Functionality Ø Use /tmp space as cache Ø Run arbitrary binaries Ø Use Grunt and Jenkins plugins for deploying Ø Build event-driven Amazon ECS Ø Try out Serverless Framework

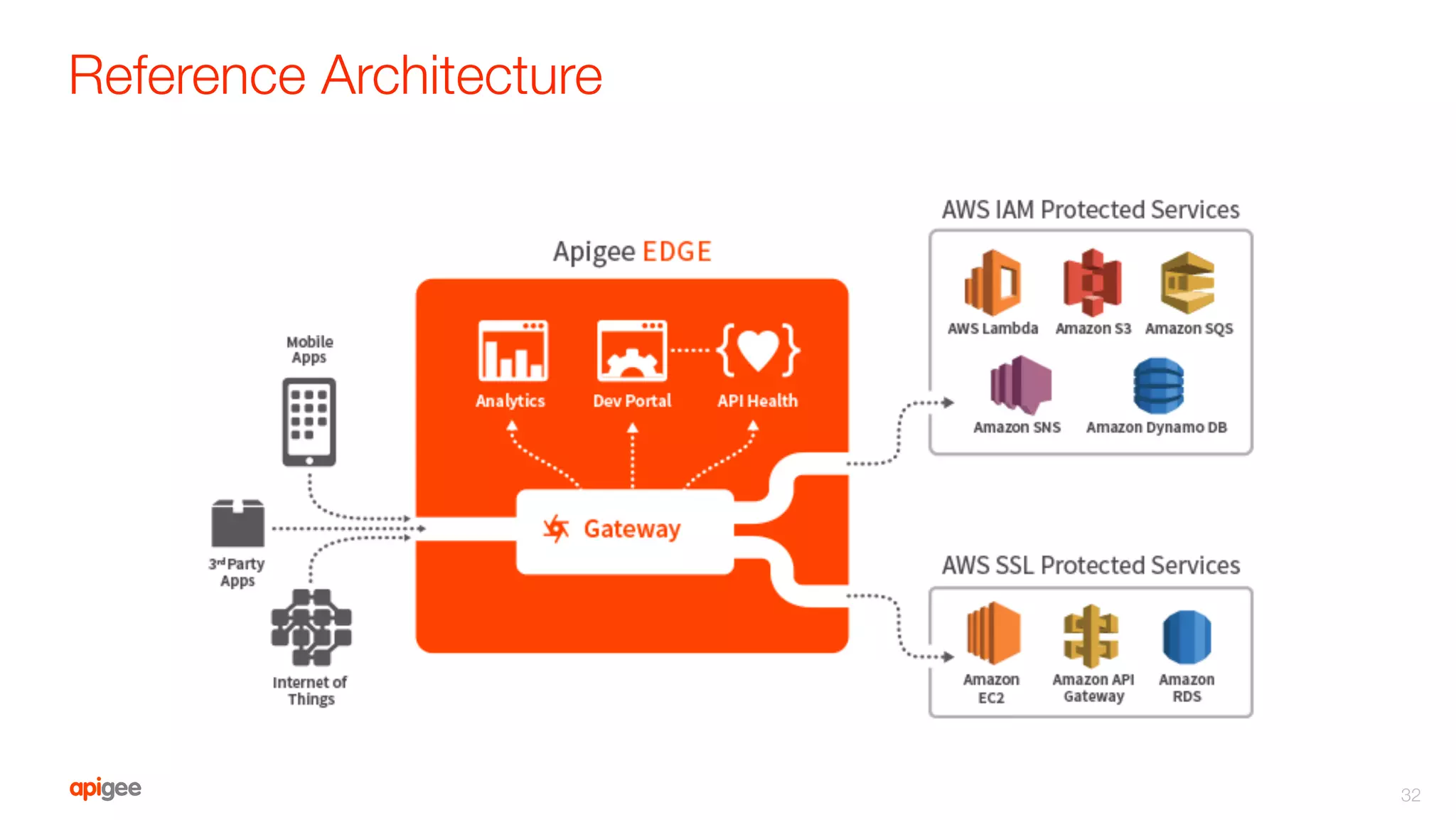

- 32.

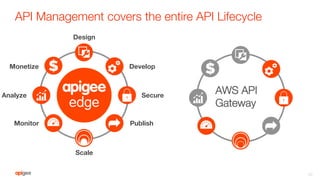

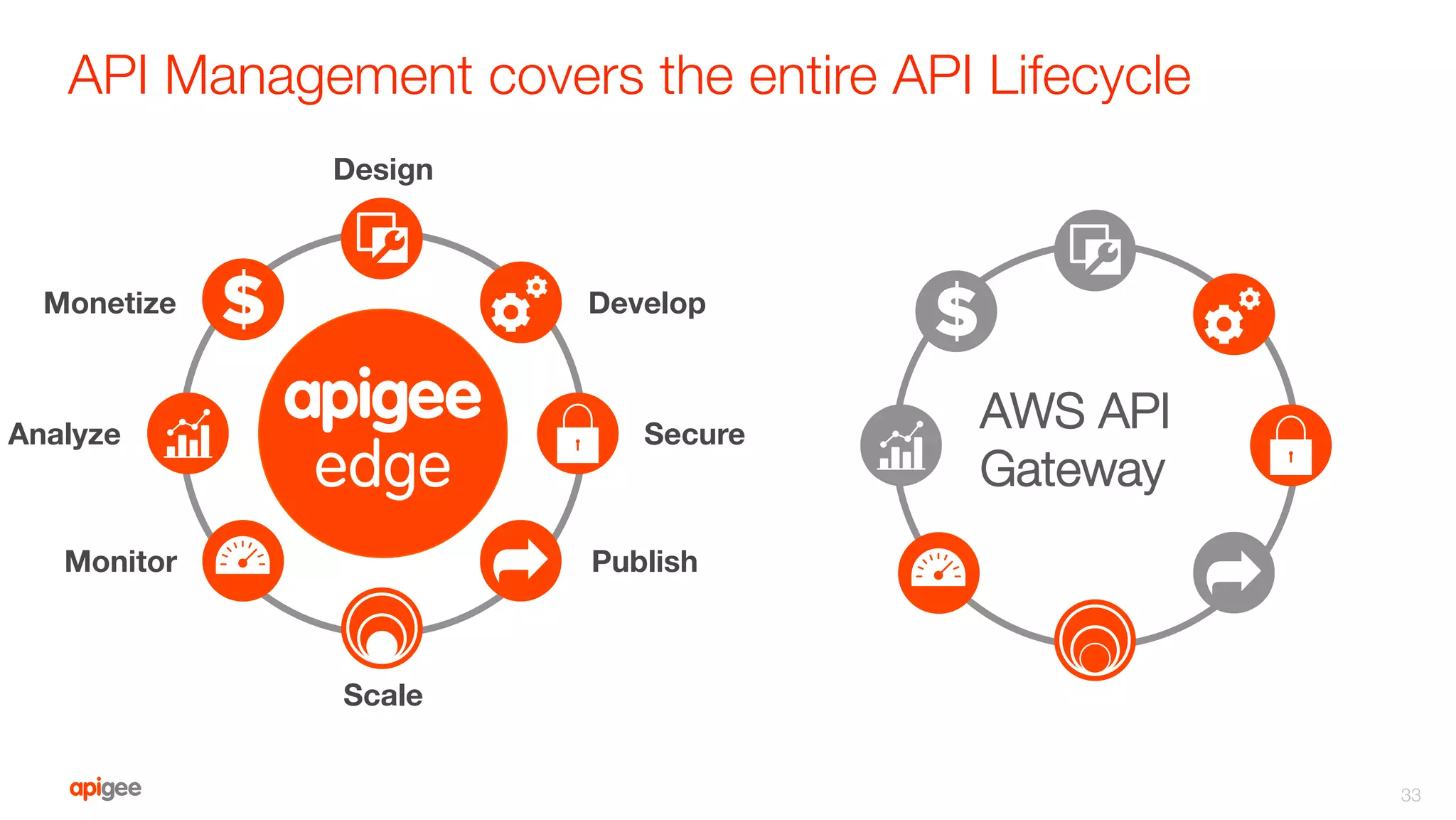

- 33. API Management coversthe entire API Lifecycle 33 Design Develop Secure Publish Monitor Analyze Monetize Scale AWS API Gateway
- 34.

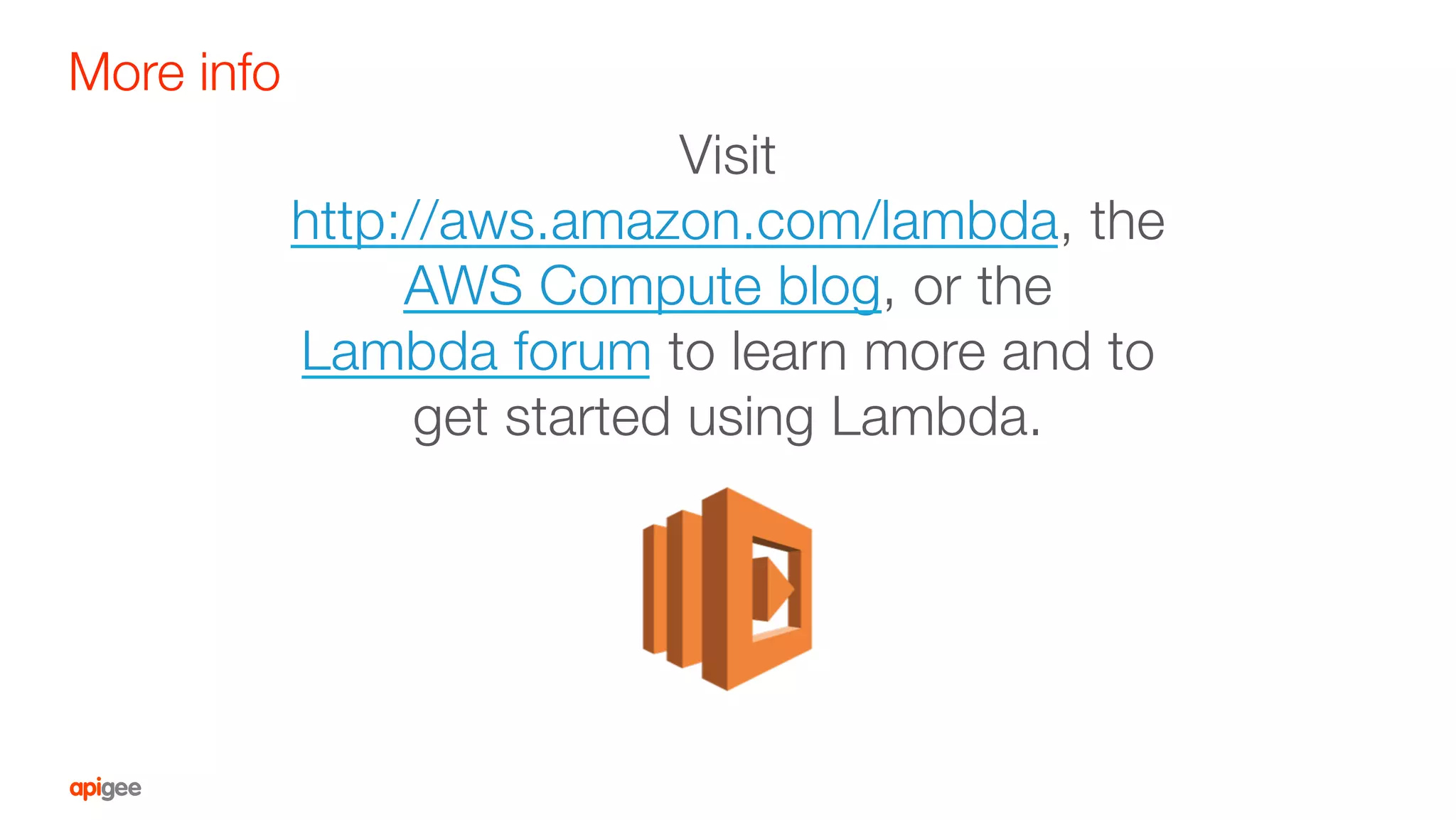

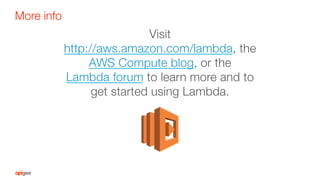

- 35. Visit http://aws.amazon.com/lambda, the AWS Computeblog, or the Lambda forum to learn more and to get started using Lambda. More info
