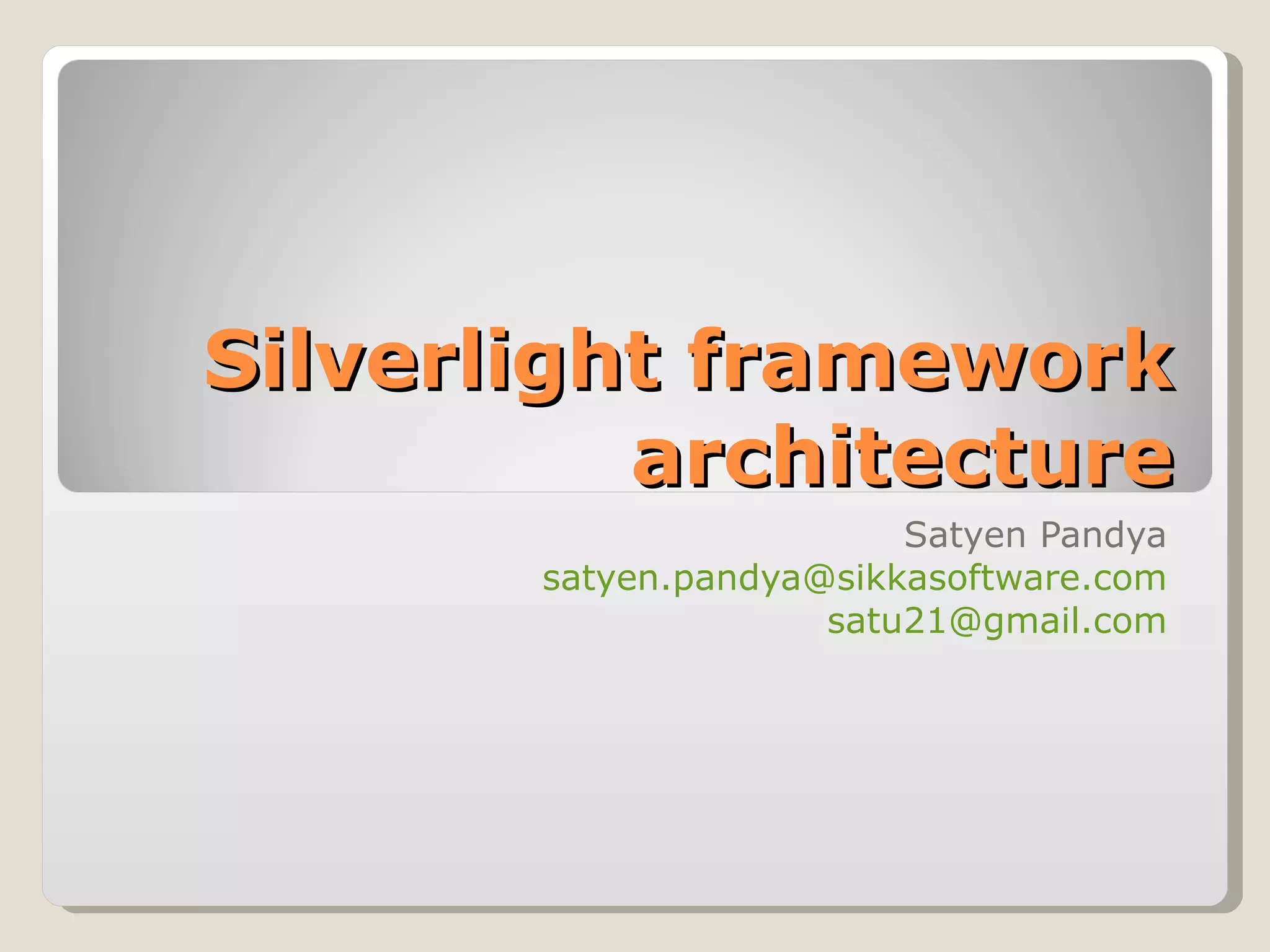

  Silverlight framework architectureSatyen Pandya [email_address] [email_address]
• 2.

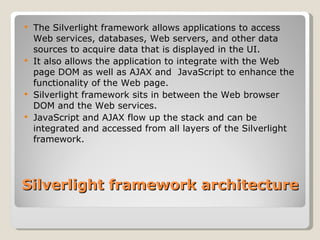

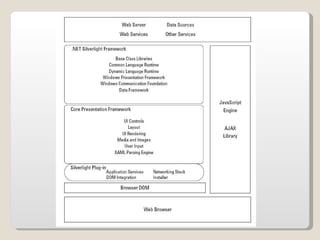

  Silverlight framework architectureThe Silverlight framework allows applications to access Web services, databases, Web servers, and other data sources to acquire data that is displayed in the UI. It also allows the application to integrate with the Web page DOM as well as AJAX and JavaScript to enhance the functionality of the Web page. Silverlight framework sits in between the Web browser DOM and the Web services. JavaScript and AJAX flow up the stack and can be integrated and accessed from all layers of the Silverlight framework.
• 3.

• 4.

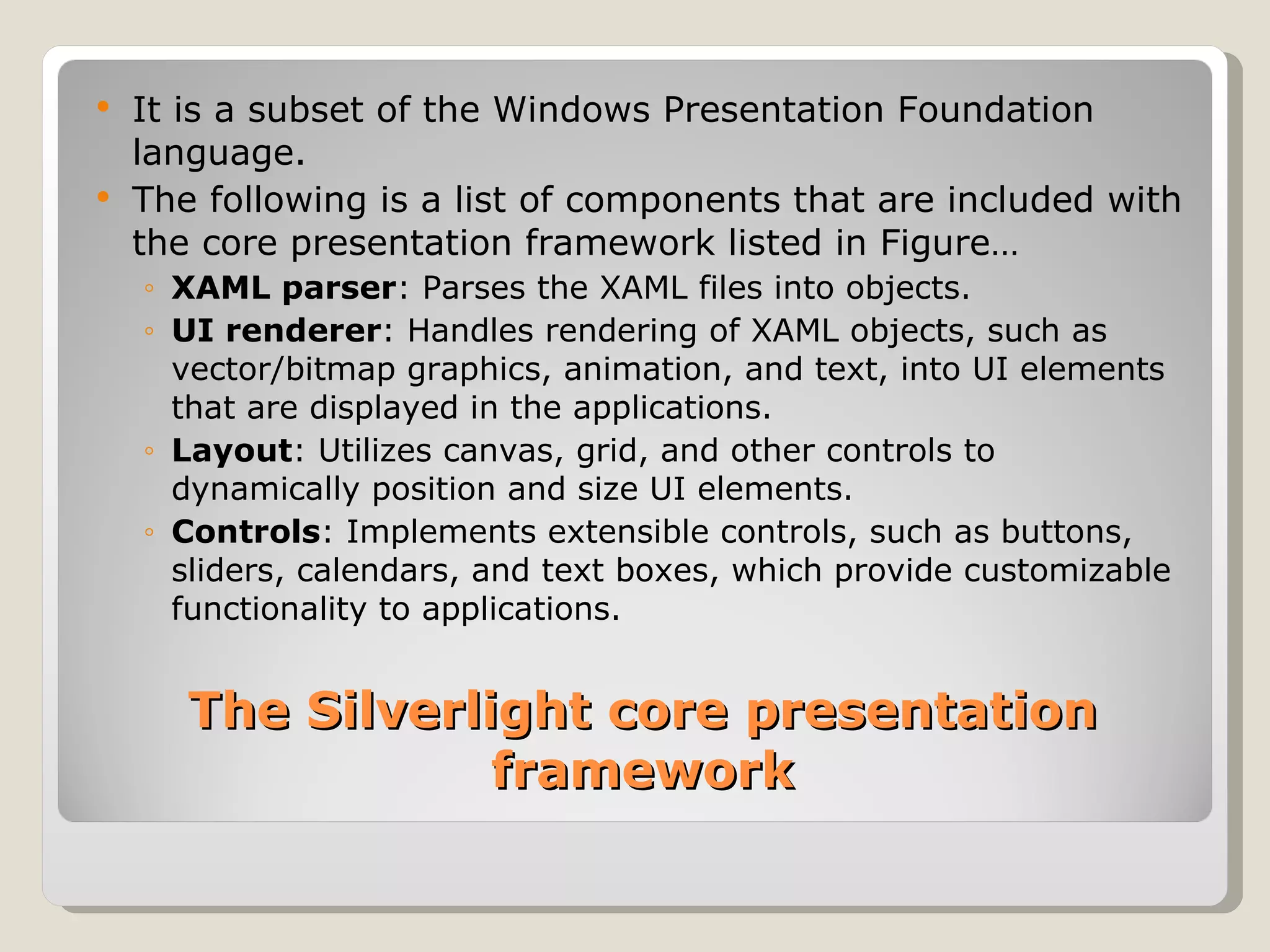

  The Silverlight corepresentation framework It is a subset of the Windows Presentation Foundation language. The following is a list of components that are included with the core presentation framework listed in Figure… XAML parser : Parses the XAML files into objects. UI renderer : Handles rendering of XAML objects, such as vector/bitmap graphics, animation, and text, into UI elements that are displayed in the applications. Layout : Utilizes canvas, grid, and other controls to dynamically position and size UI elements. Controls : Implements extensible controls, such as buttons, sliders, calendars, and text boxes, which provide customizable functionality to applications.
• 5.
  Media pipeline :Provides streaming of audio and video files as well as playback and other management. Data binding : Enables data objects to be directly linked to UI elements in a one-way or two-way relationship. Changes to values can then be reflected automatically using the link. Input : Handles the input from user input devices such as a mouse, keyboard, and other input requests. DRM : Implements digital rights management to protect media files in Web applications. The Silverlight core presentation framework
• 6.

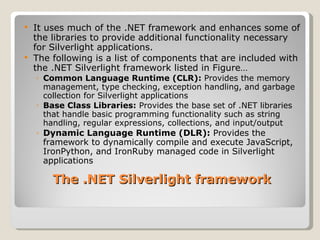

  It uses muchof the .NET framework and enhances some of the libraries to provide additional functionality necessary for Silverlight applications. The following is a list of components that are included with the .NET Silverlight framework listed in Figure… Common Language Runtime (CLR): Provides the memory management, type checking, exception handling, and garbage collection for Silverlight applications Base Class Libraries: Provides the base set of .NET libraries that handle basic programming functionality such as string handling, regular expressions, collections, and input/output Dynamic Language Runtime (DLR): Provides the framework to dynamically compile and execute JavaScript, IronPython, and IronRuby managed code in Silverlight applications The .NET Silverlight framework
• 7.

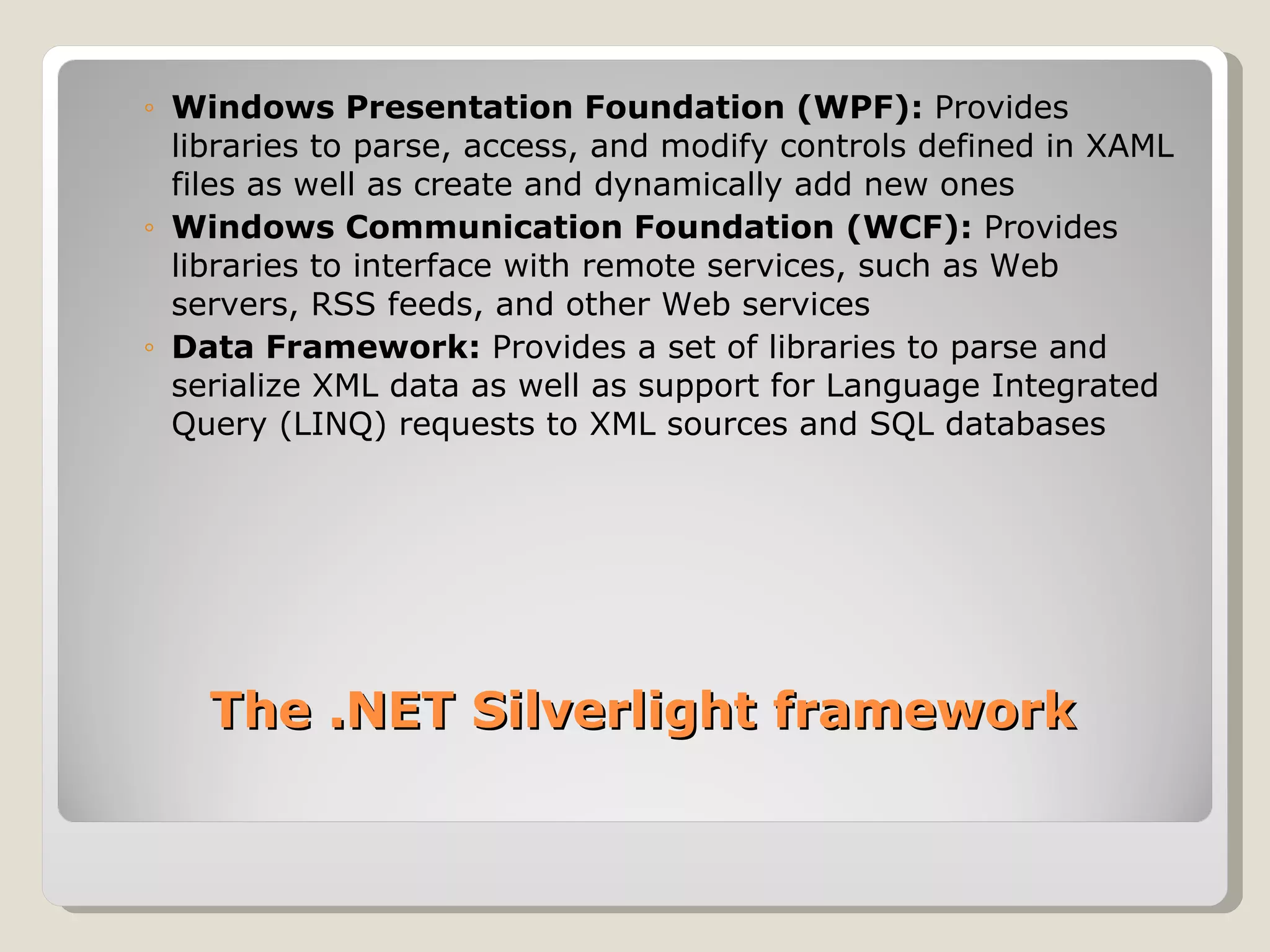

  Windows Presentation Foundation(WPF): Provides libraries to parse, access, and modify controls defined in XAML files as well as create and dynamically add new ones Windows Communication Foundation (WCF): Provides libraries to interface with remote services, such as Web servers, RSS feeds, and other Web services Data Framework: Provides a set of libraries to parse and serialize XML data as well as support for Language Integrated Query (LINQ) requests to XML sources and SQL databases The .NET Silverlight framework
• 8.
  Silverlight application architecture Silverlight applications can be broken down into three distinct components, each of which is written in a different language.
• 9.

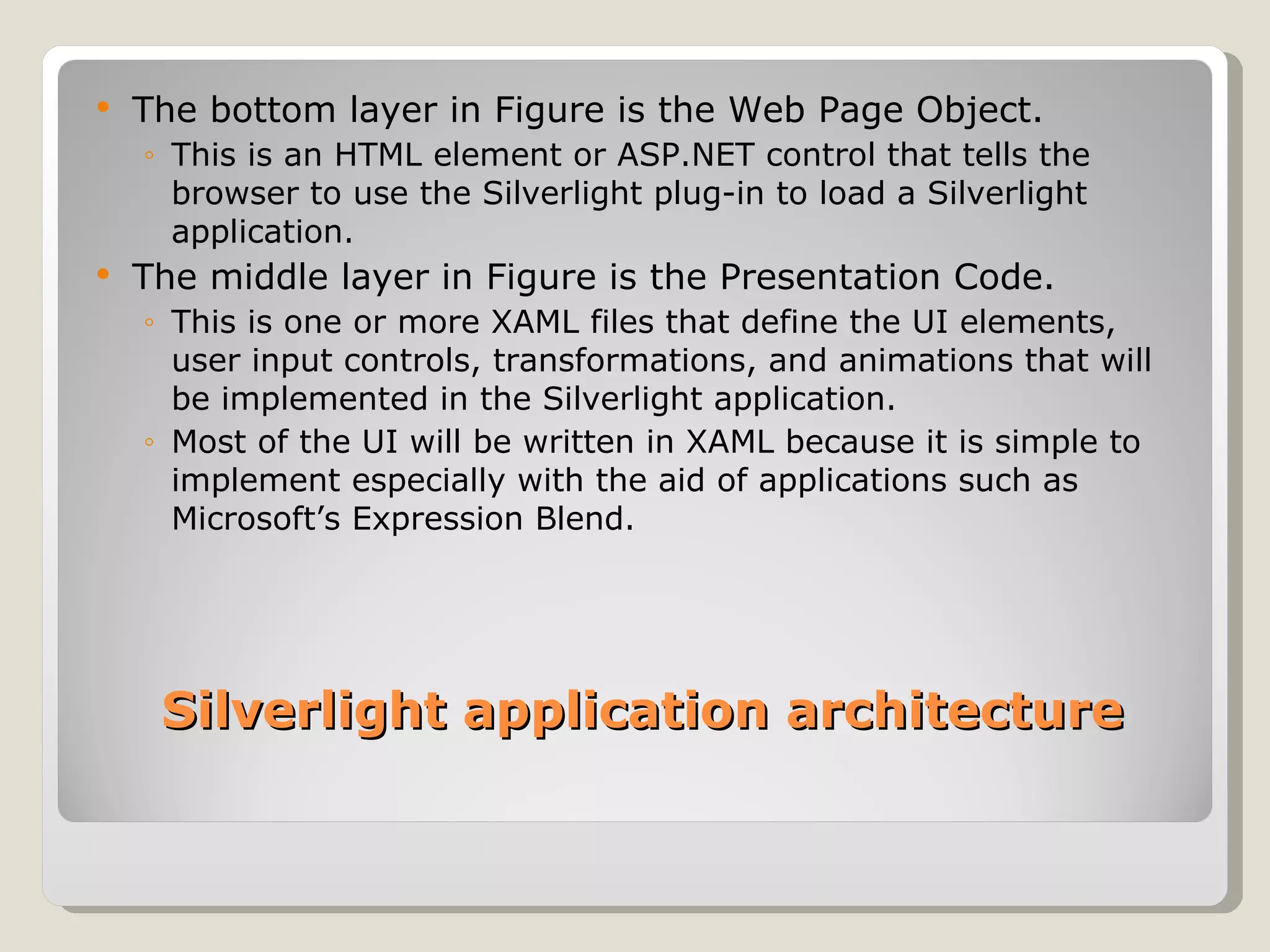

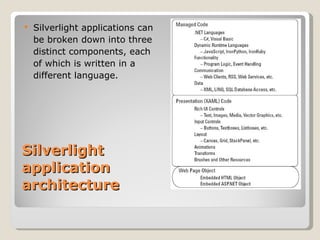

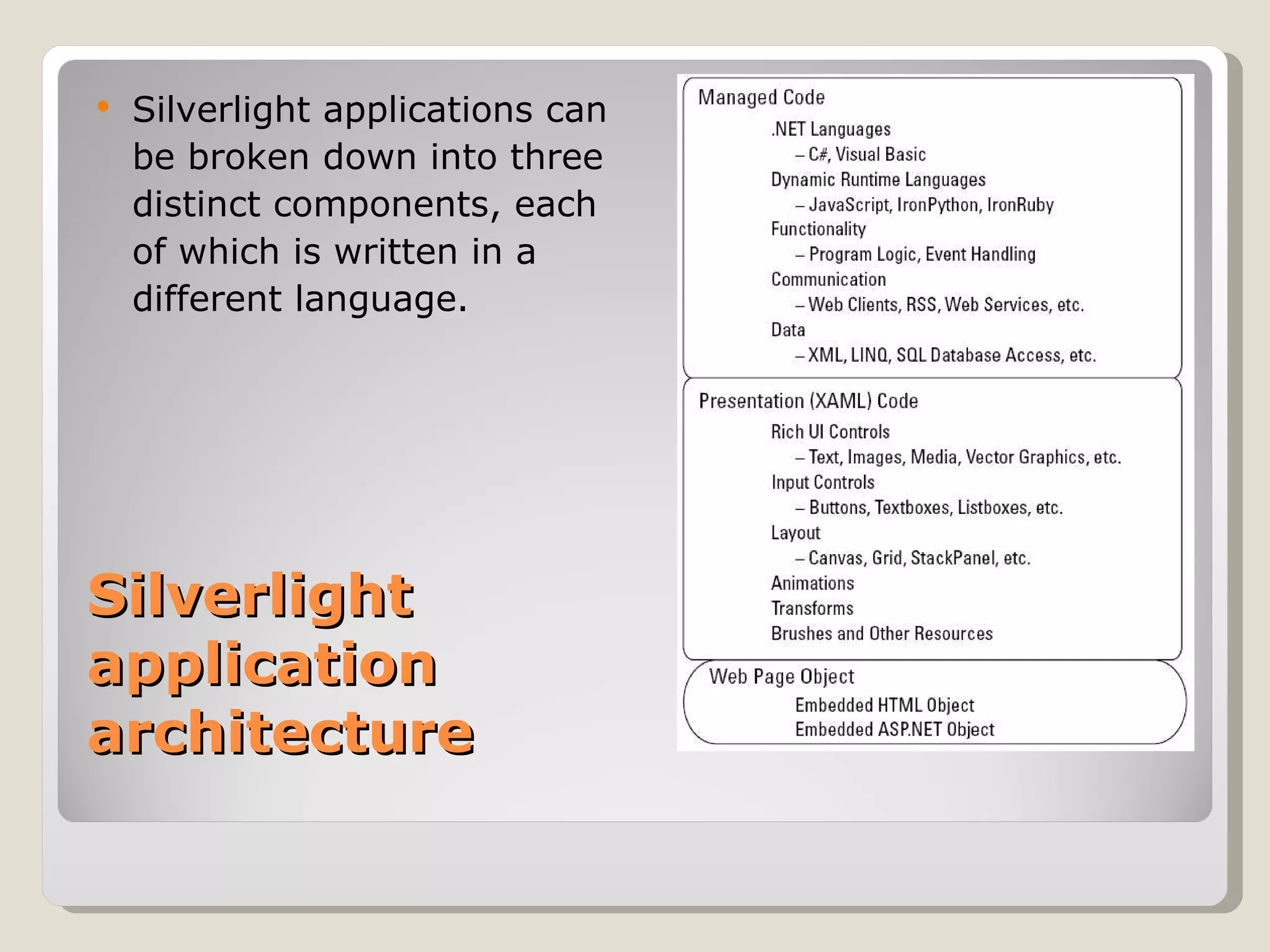

  The bottom layerin Figure is the Web Page Object. This is an HTML element or ASP.NET control that tells the browser to use the Silverlight plug-in to load a Silverlight application. The middle layer in Figure is the Presentation Code. This is one or more XAML files that define the UI elements, user input controls, transformations, and animations that will be implemented in the Silverlight application. Most of the UI will be written in XAML because it is simple to implement especially with the aid of applications such as Microsoft’s Expression Blend. Silverlight application architecture
• 10.

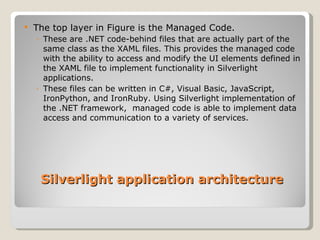

  The top layerin Figure is the Managed Code. These are .NET code-behind files that are actually part of the same class as the XAML files. This provides the managed code with the ability to access and modify the UI elements defined in the XAML file to implement functionality in Silverlight applications. These files can be written in C#, Visual Basic, JavaScript, IronPython, and IronRuby. Using Silverlight implementation of the .NET framework, managed code is able to implement data access and communication to a variety of services. Silverlight application architecture
• 11.
  Thank you… SatyenPandya satyen.pandya@sikkasoftware.com [email_address]
