Smart acceptance GUI tests with Selenium

Smart acceptance GUI
tests with Selenium
>Denys~Zaiats

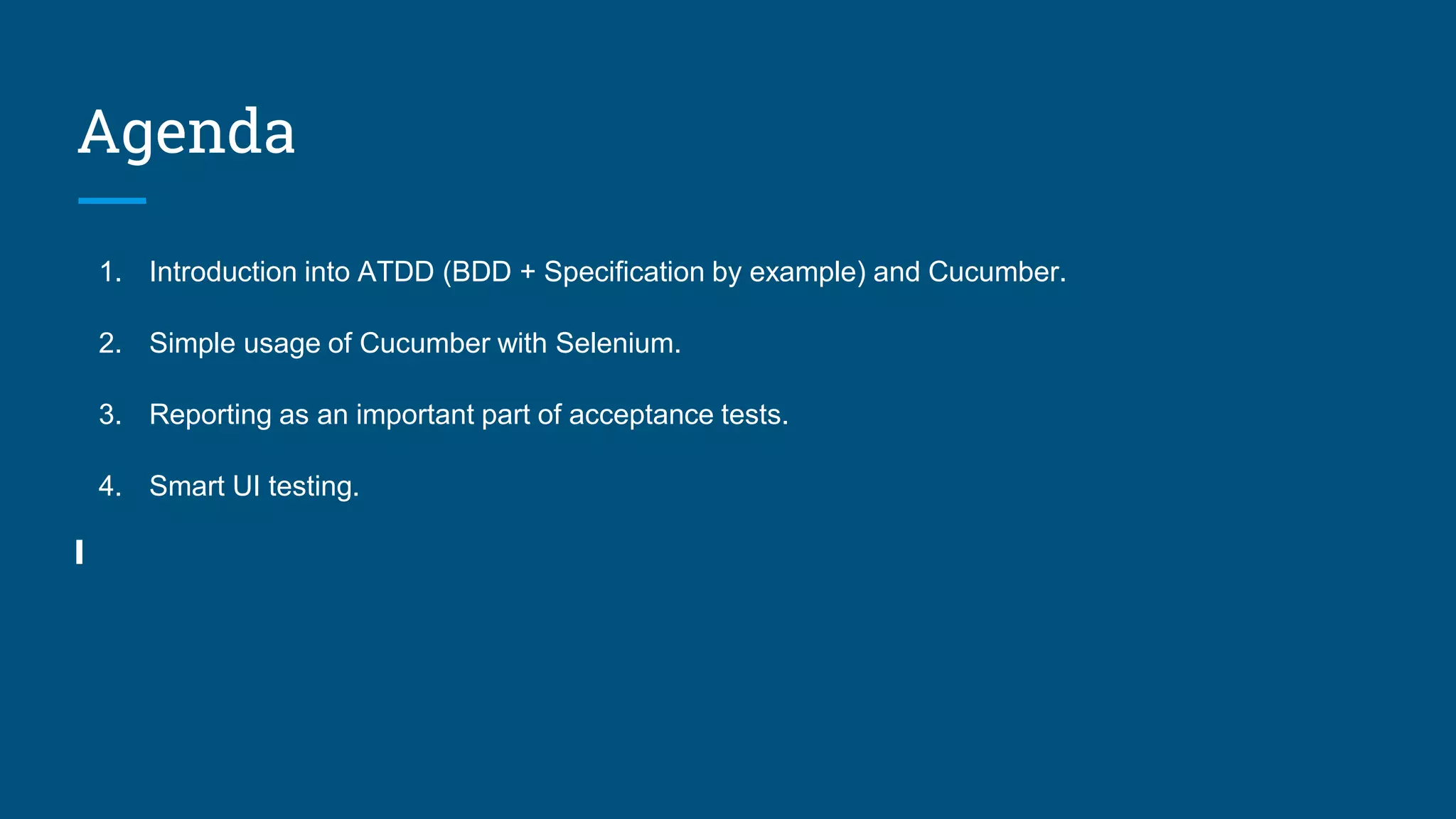

Agenda
1. Introduction into ATDD (BDD + Specification by example) and Cucumber.
2. Simple usage of Cucumber with Selenium.
3. Reporting as an important part of acceptance tests.
4. Smart UI testing.

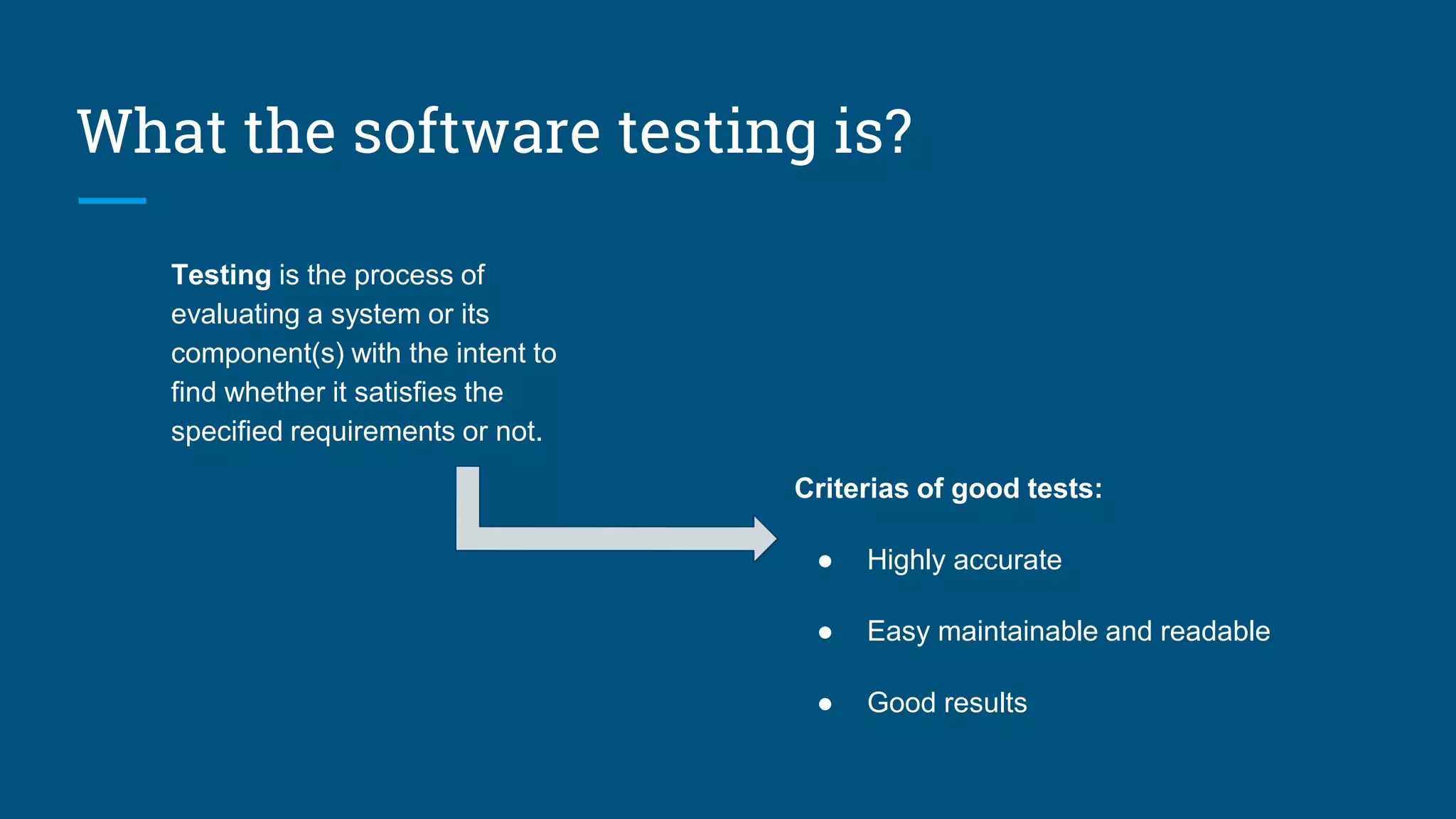

What the software testing is?
Testing is the process of
evaluating a system or its
component(s) with the intent to
find whether it satisfies the
specified requirements or not.
Criterias of good tests:
● Highly accurate
● Easy maintainable and readable
● Good results

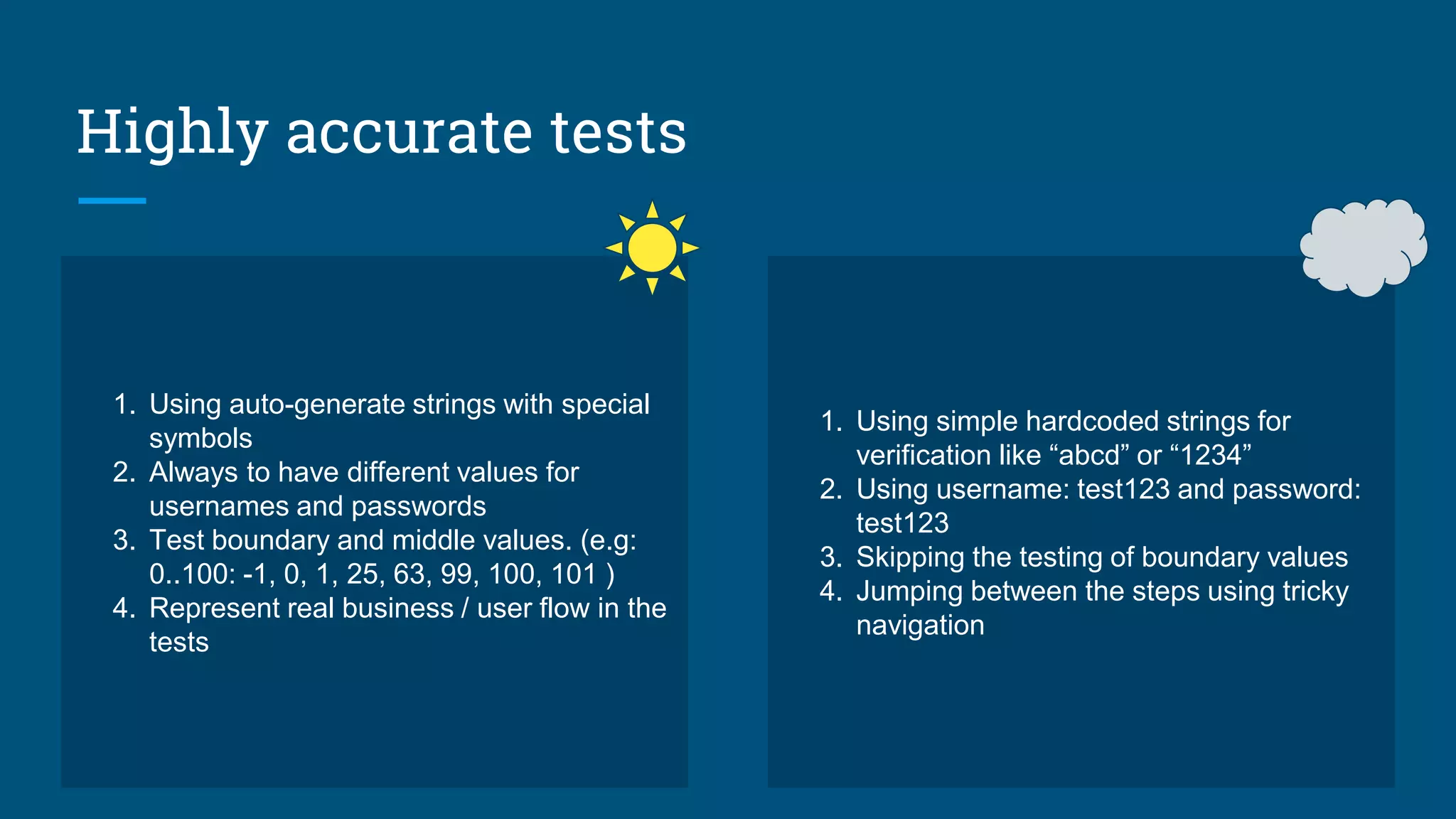

Highly accurate tests
1. Using auto-generate strings with special
symbols
2. Always to have different values for
usernames and passwords
3. Test boundary and middle values. (e.g:
0..100: -1, 0, 1, 25, 63, 99, 100, 101 )
4. Represent real business / user flow in the
tests
1. Using simple hardcoded strings for
verification like “abcd” or “1234”
2. Using username: test123 and password:
test123
3. Skipping the testing of boundary values
4. Jumping between the steps using tricky
navigation

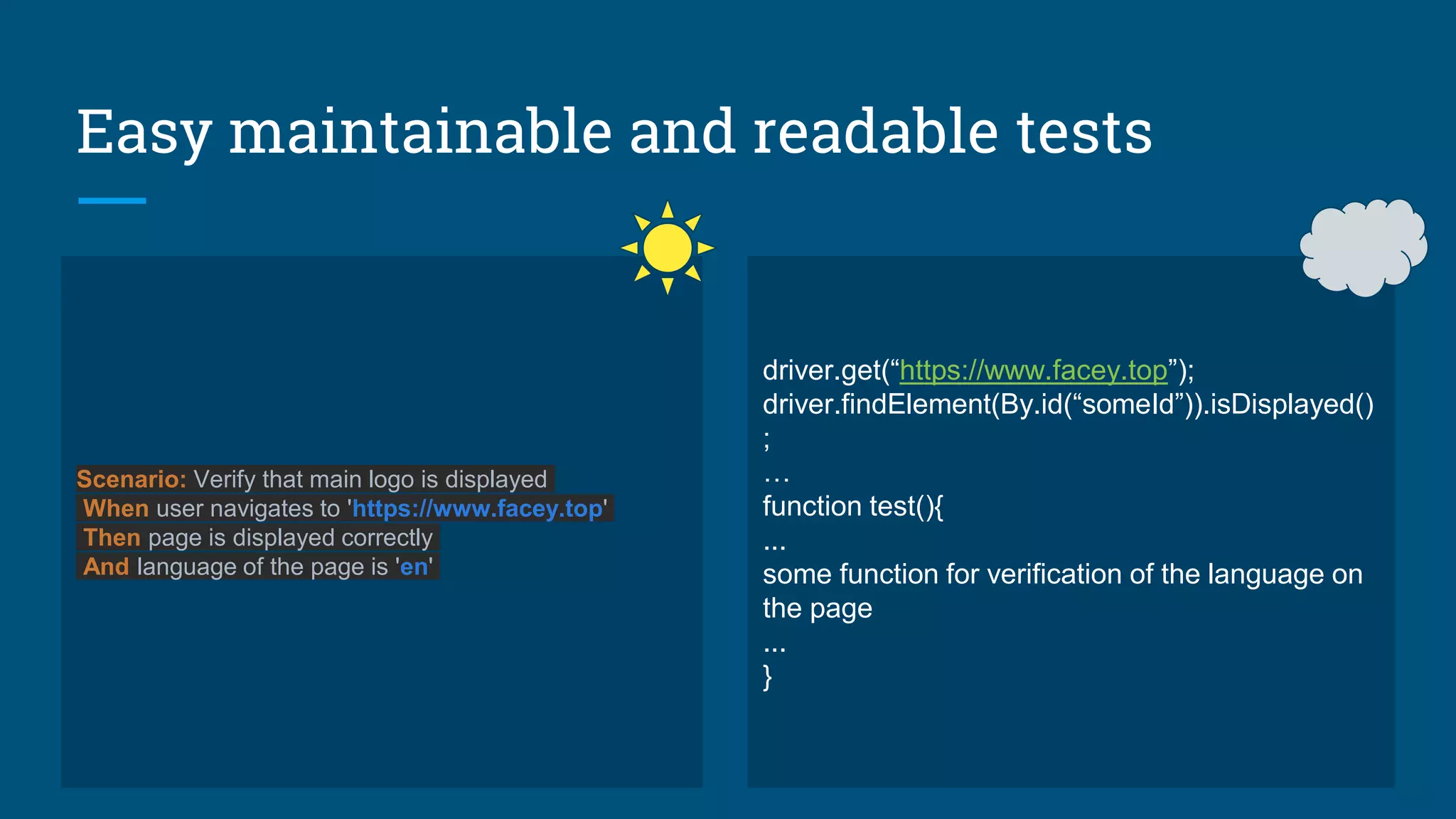

Easy maintainable and readable tests
Scenario: Verify that main logo is displayed
When user navigates to 'https://www.facey.top'
Then page is displayed correctly
And language of the page is 'en'
driver.get(“https://www.facey.top”);
driver.findElement(By.id(“someId”)).isDisplayed()
;
…
function test(){
...
some function for verification of the language on
the page
...
}

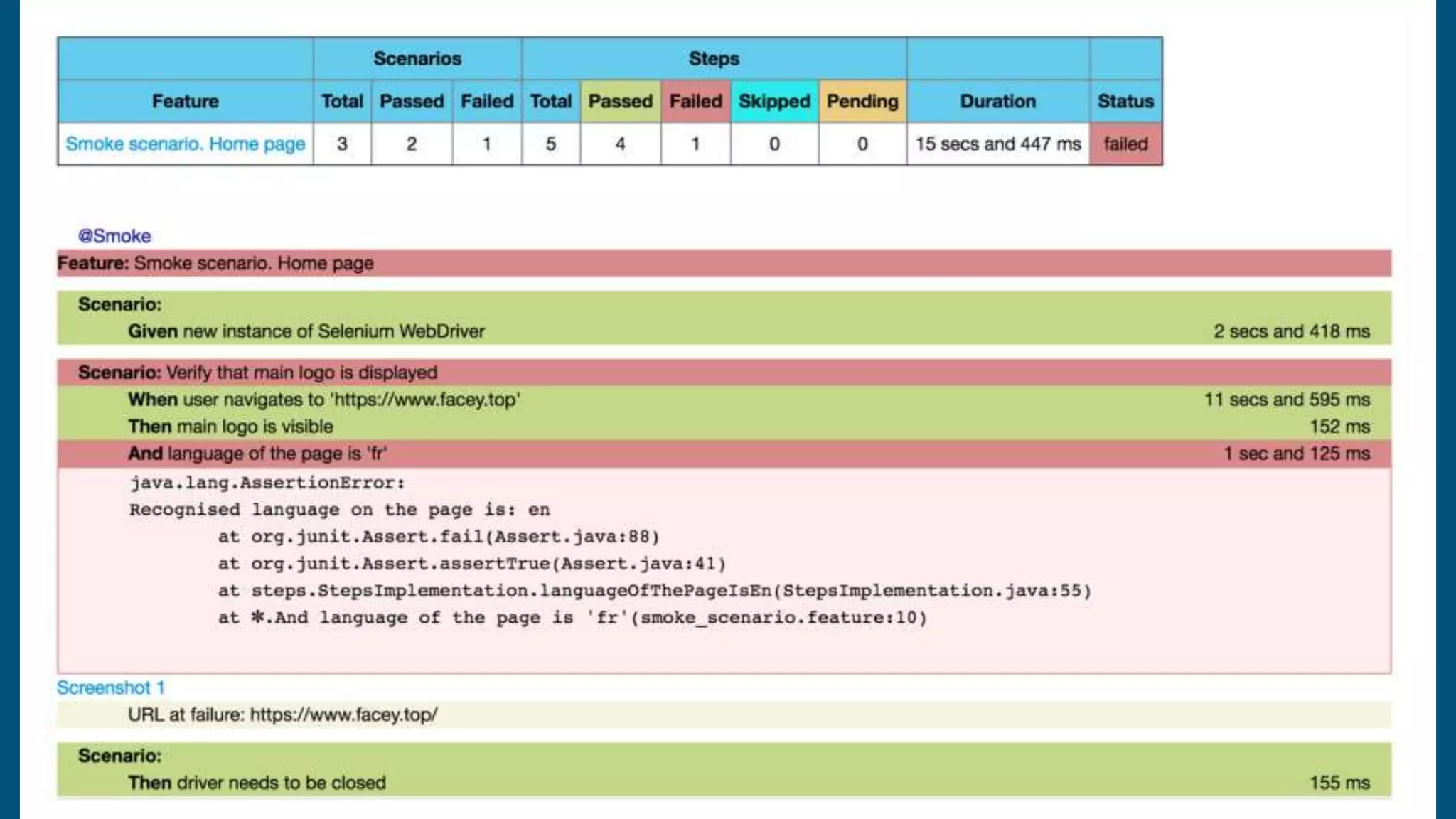

Good results
Loading...
Test set: runner.RunnerMathTest
-------------------------------------------------------------------------------
Tests run: 8, Failures: 2, Errors: 0, Skipped: 0, Time elapsed: 19.809 sec
<<< FAILURE!
And language of the page is 'fr'(Scenario: Verify that main logo is
displayed) Time elapsed: 0.002 sec <<< FAILURE!
java.lang.AssertionError:
Recognised language on the page is: en
at org.junit.Assert.fail(Assert.java:88)
at org.junit.Assert.assertTrue(Assert.java:41)
at
steps.StepsImplementation.languageOfThePageIsEn(StepsImplementatio
n.java:55)
at ✽.And language of the page is 'fr'(smoke_scenario.feature:10)
Scenario: Verify that main logo is displayed Time elapsed: 0.003 sec
<<< FAILURE!
java.lang.AssertionError:
Recognised language on the page is: en
at org.junit.Assert.fail(Assert.java:88)
at org.junit.Assert.assertTrue(Assert.java:41)
at
steps.StepsImplementation.languageOfThePageIsEn(StepsImplementatio
n.java:55)
at ✽.And language of the page is 'fr'(smoke_scenario.feature:10)

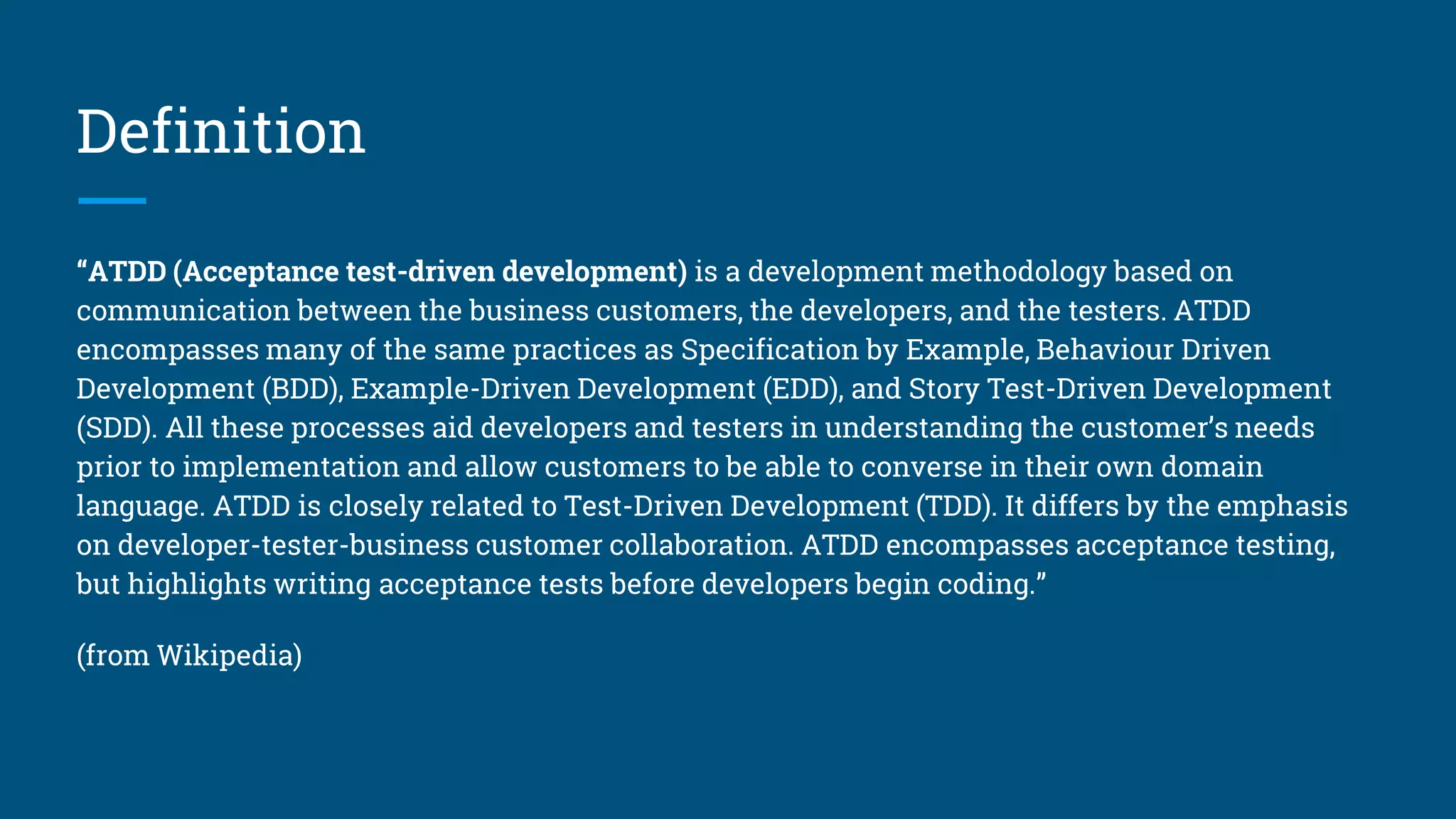

Definition
“ATDD (Acceptance test-driven development) is a development methodology based on
communication between the business customers, the developers, and the testers. ATDD
encompasses many of the same practices as Specification by Example, Behaviour Driven
Development (BDD), Example-Driven Development (EDD), and Story Test-Driven Development
(SDD). All these processes aid developers and testers in understanding the customer’s needs
prior to implementation and allow customers to be able to converse in their own domain
language. ATDD is closely related to Test-Driven Development (TDD). It differs by the emphasis
on developer-tester-business customer collaboration. ATDD encompasses acceptance testing,
but highlights writing acceptance tests before developers begin coding.”
(from Wikipedia)

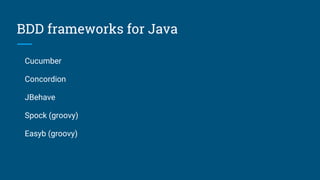

BDD frameworks for Java
Cucumber
Concordion
JBehave
Spock (groovy)
Easyb (groovy)

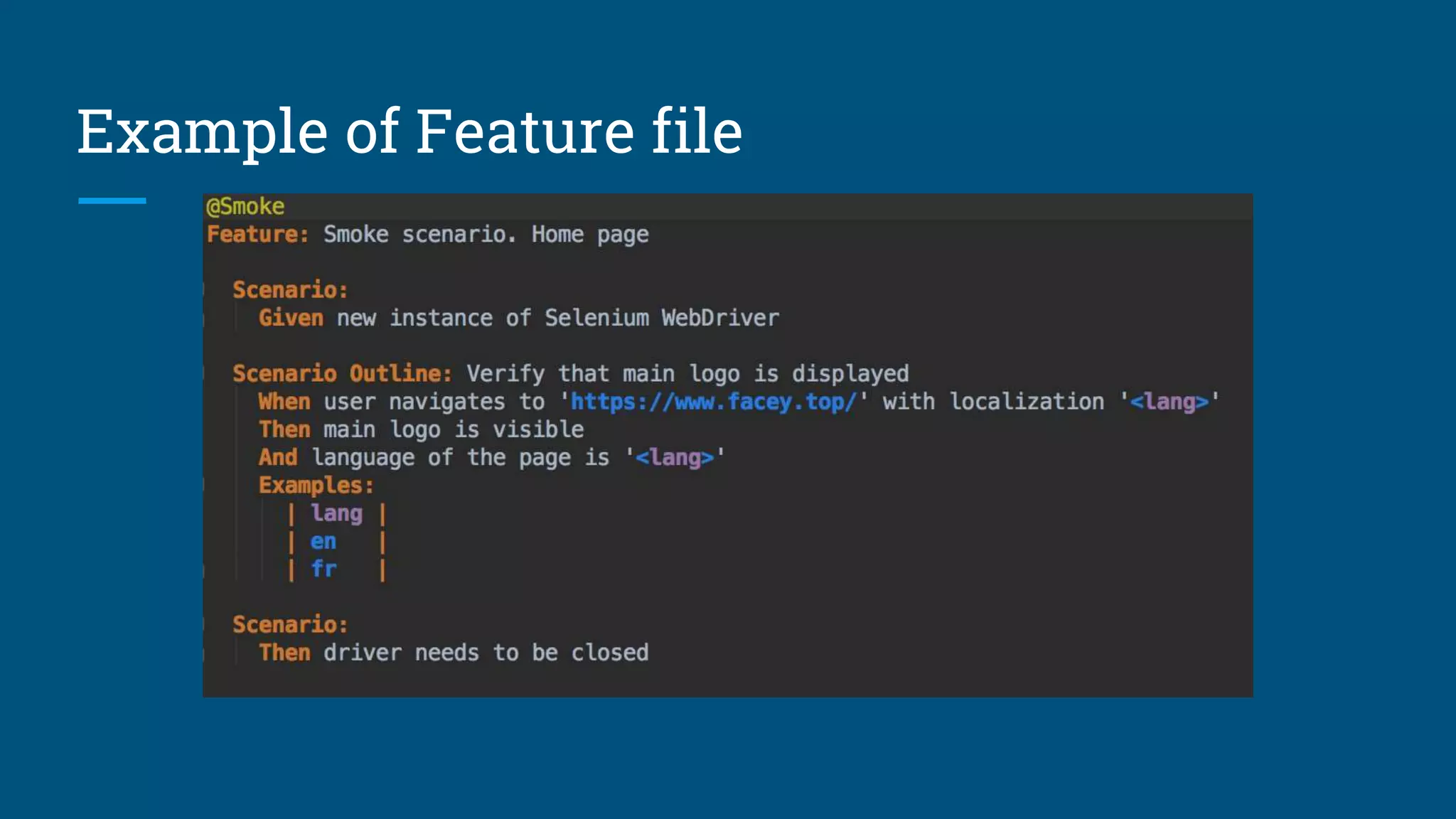

Example of Feature file
Not very clear scenario:
When user click on button
Then everything works

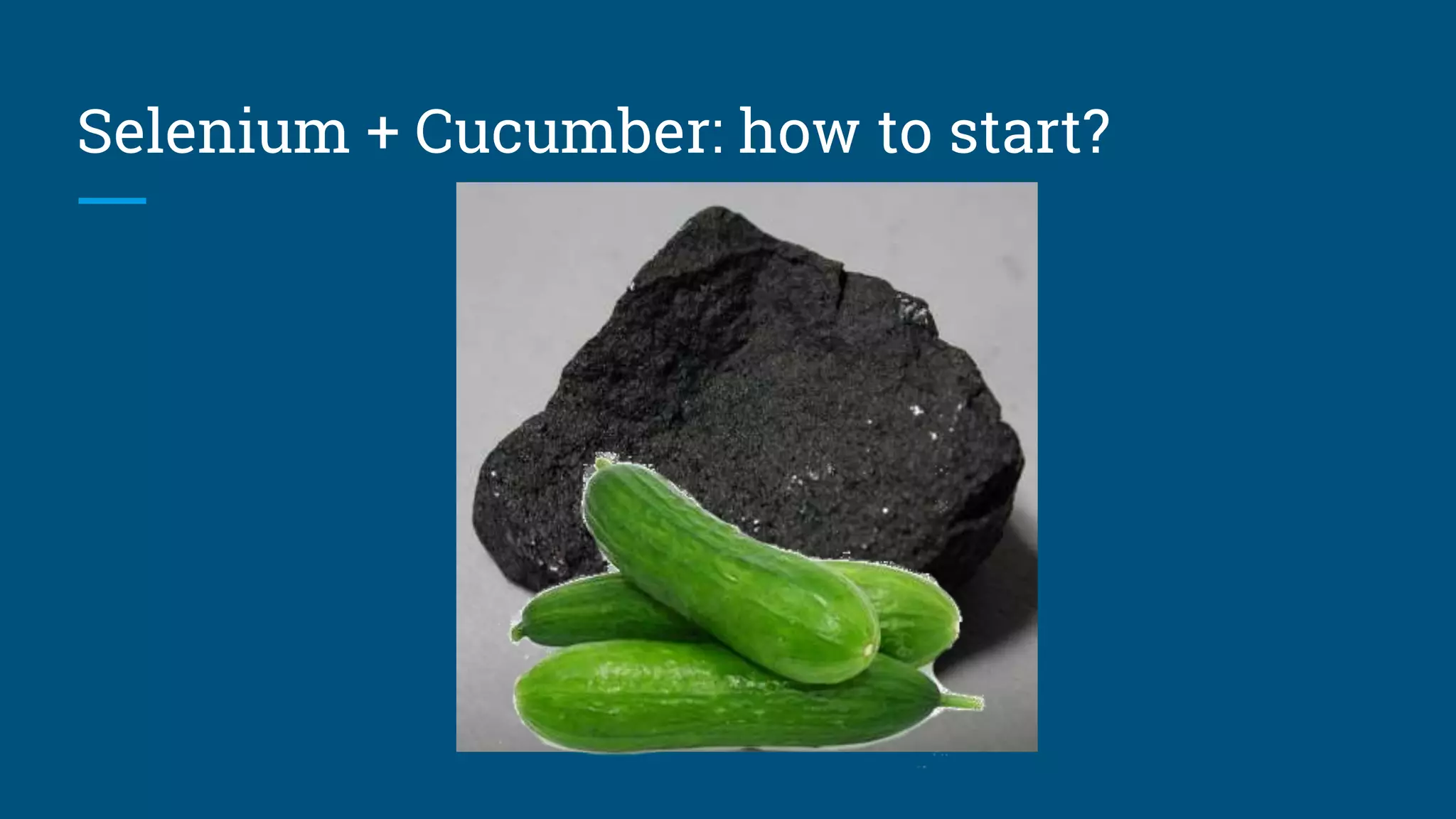

Selenium + Cucumber: how to start?

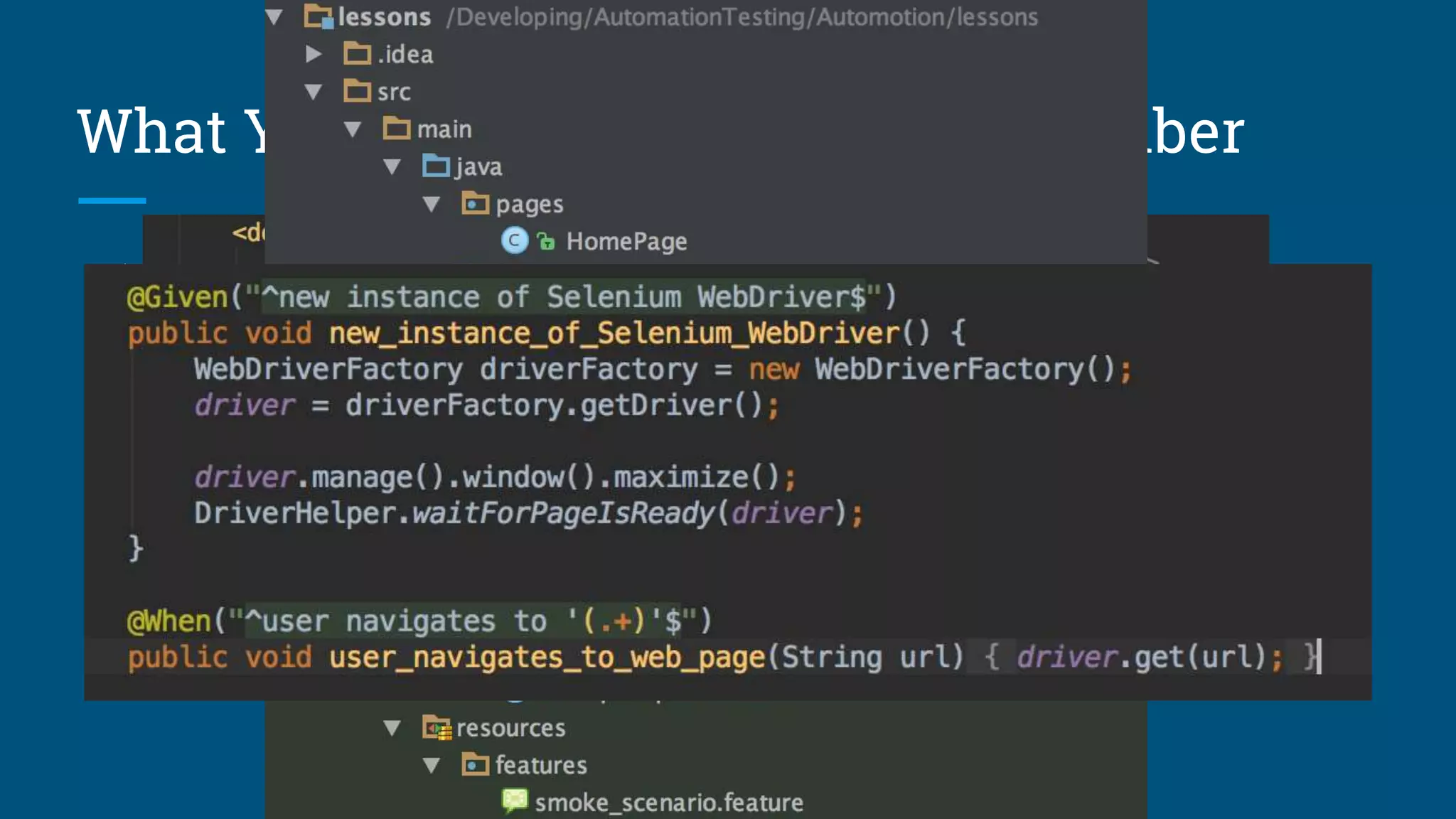

What You need to know about Cucumber
1. Maven dependencies to Cucumber
2. Feature file under “src/test/resources/../features/../”
3. Cucumber test runner
4. Implemented steps

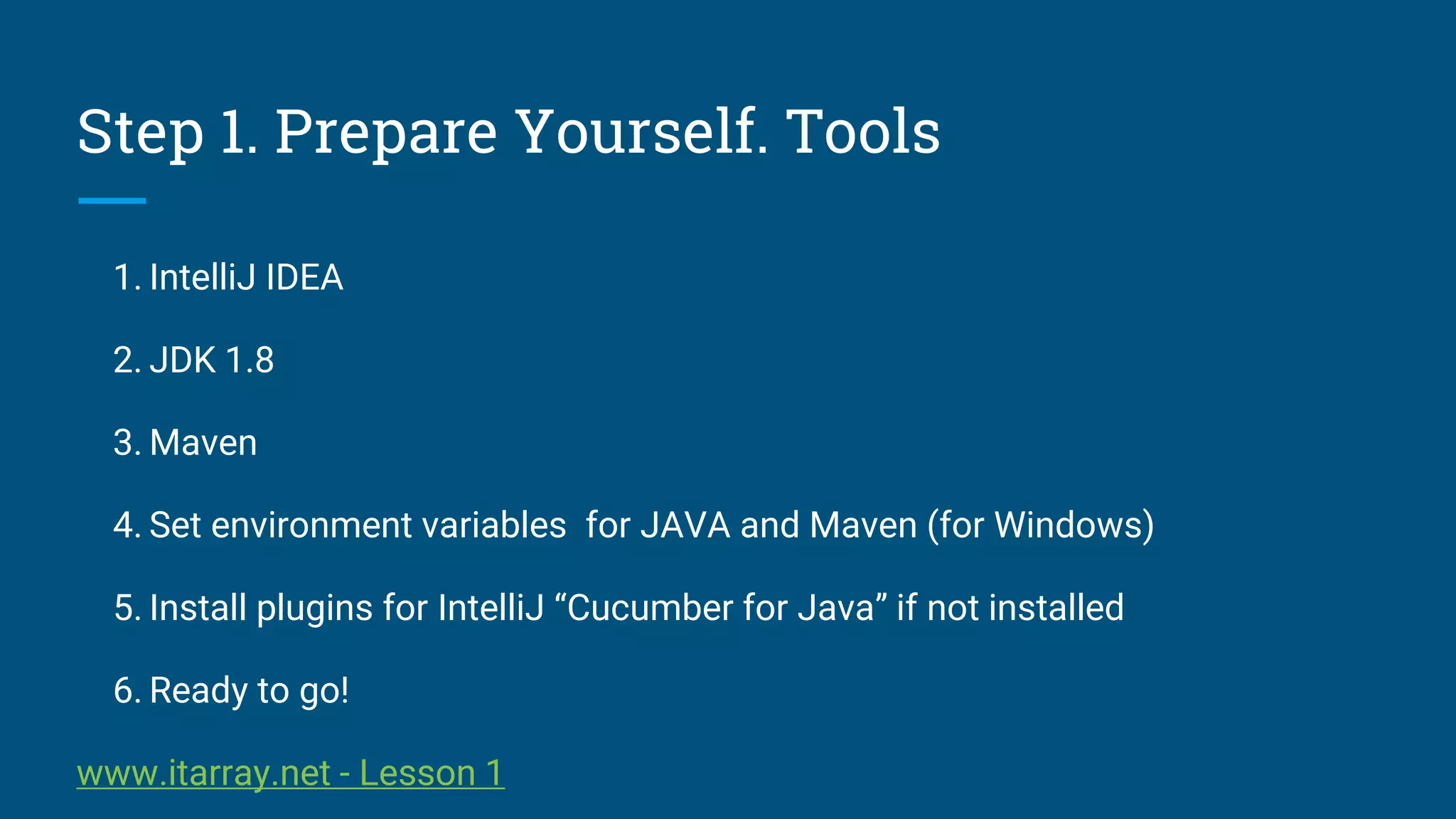

Step 1. Prepare Yourself. Tools
1. IntelliJ IDEA
2. JDK 1.8
3. Maven
4. Set environment variables for JAVA and Maven (for Windows)
5. Install plugins for IntelliJ “Cucumber for Java” if not installed
6. Ready to go!
www.itarray.net - Lesson 1

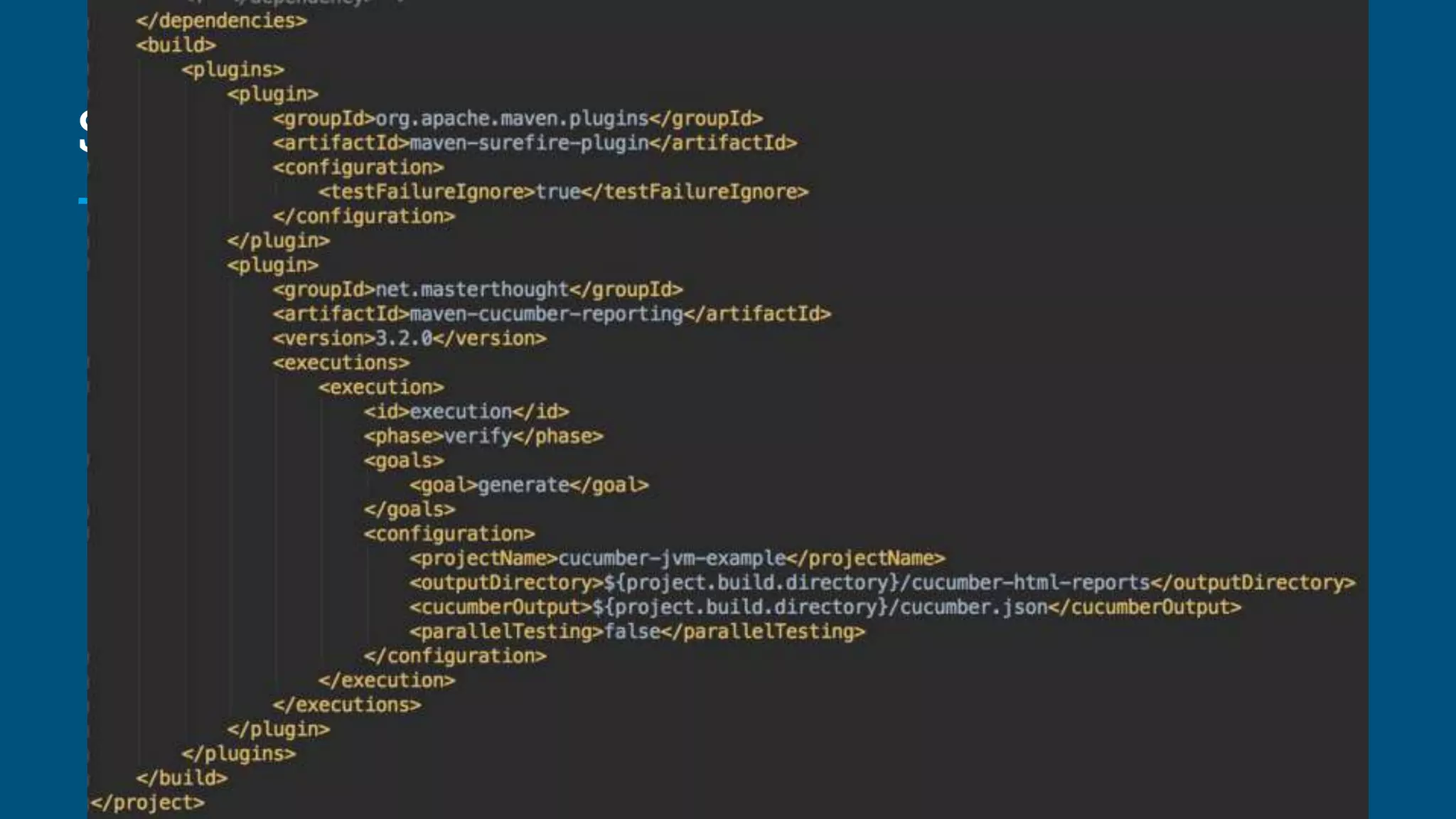

Step 2. Maven dependencies
1. What is pom.xml?
2. Required dependencies for Cucumber and Selenium

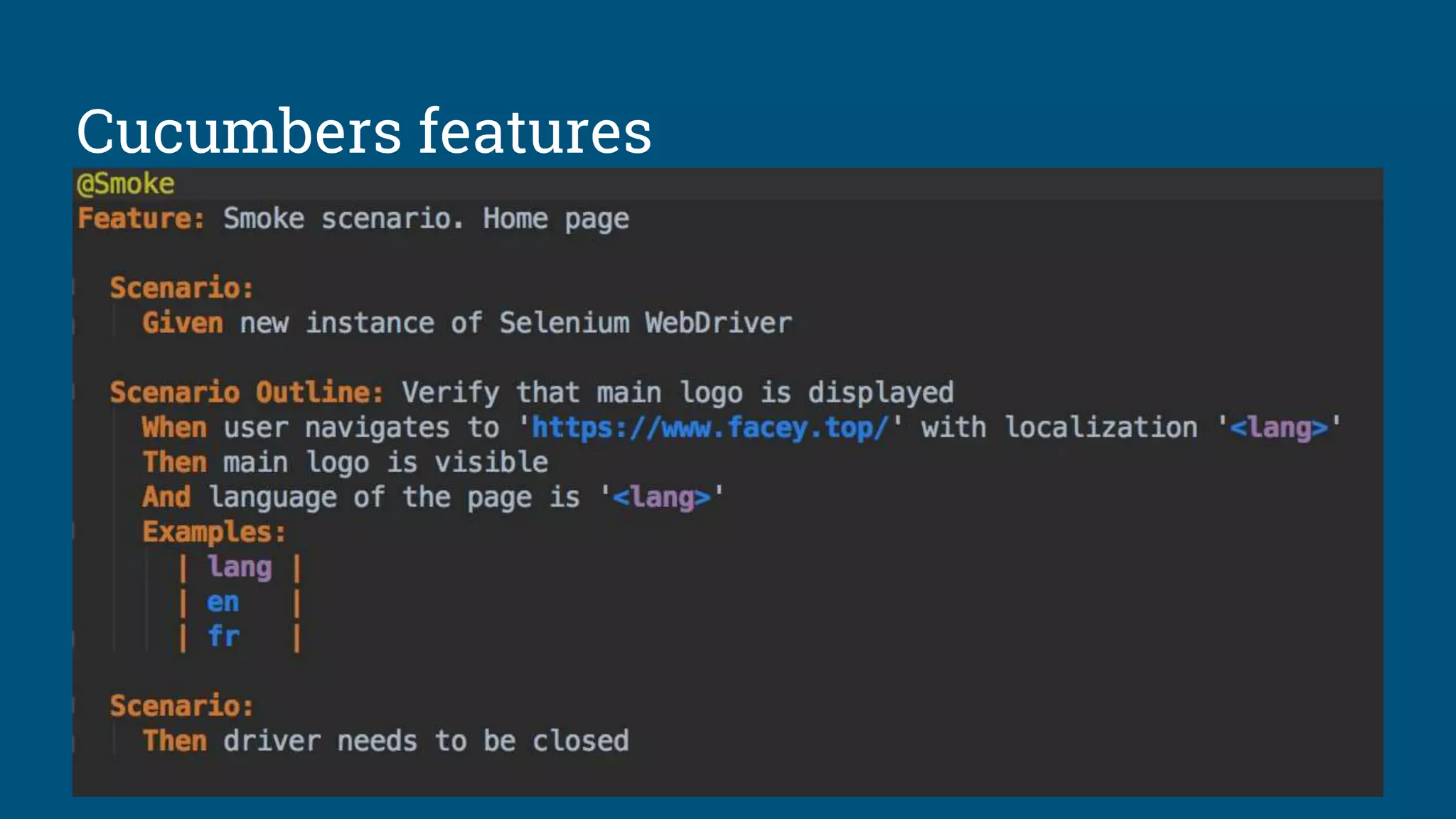

Cucumbers features
1. Tags (@Smoke)
2. Scenario outlines (Tables)

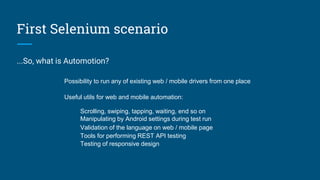

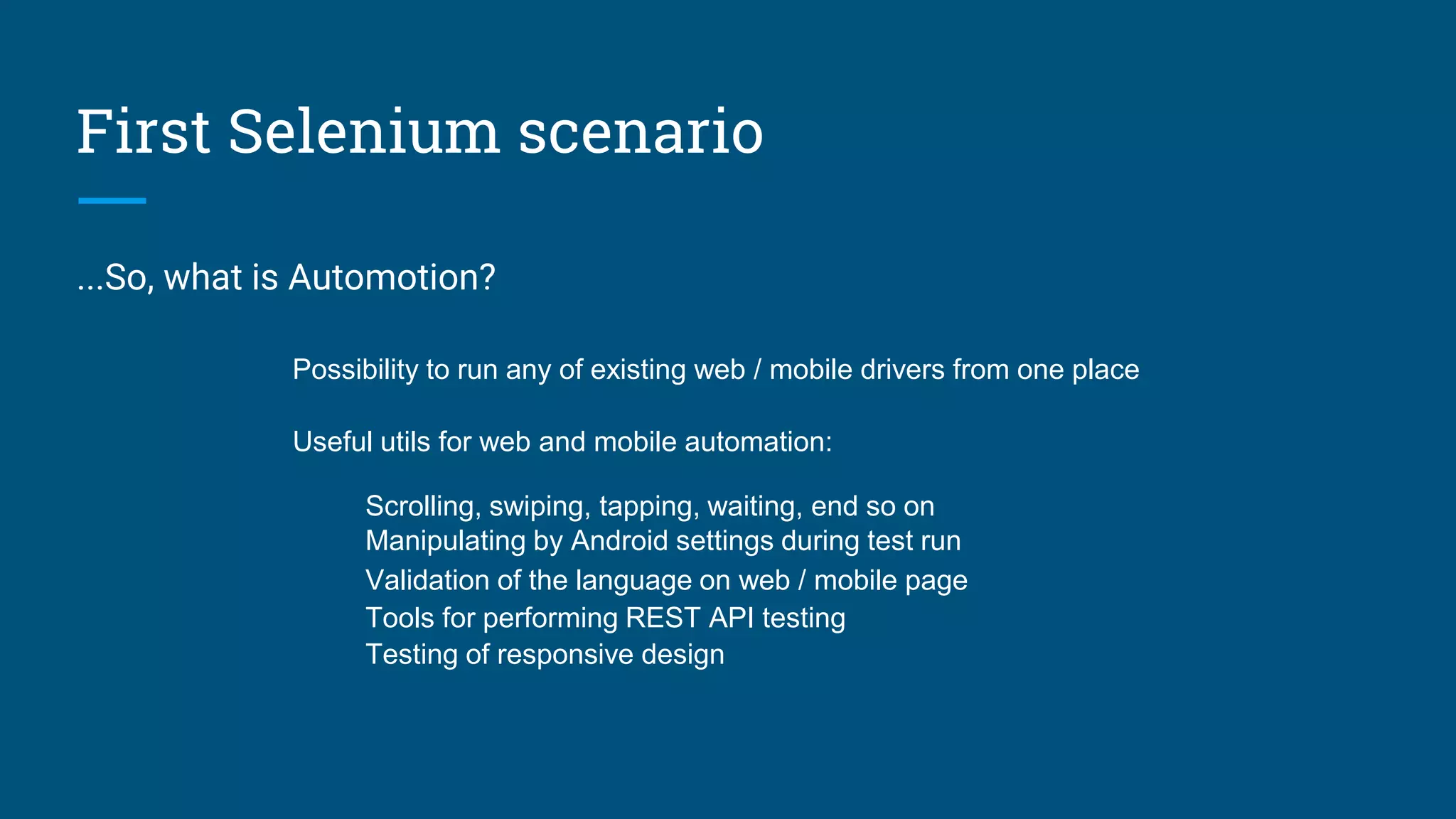

First Selenium scenario
...So, what is Automotion?
Possibility to run any of existing web / mobile drivers from one place
Useful utils for web and mobile automation:
Scrolling, swiping, tapping, waiting, end so on
Manipulating by Android settings during test run
Validation of the language on web / mobile page
Tools for performing REST API testing
Testing of responsive design

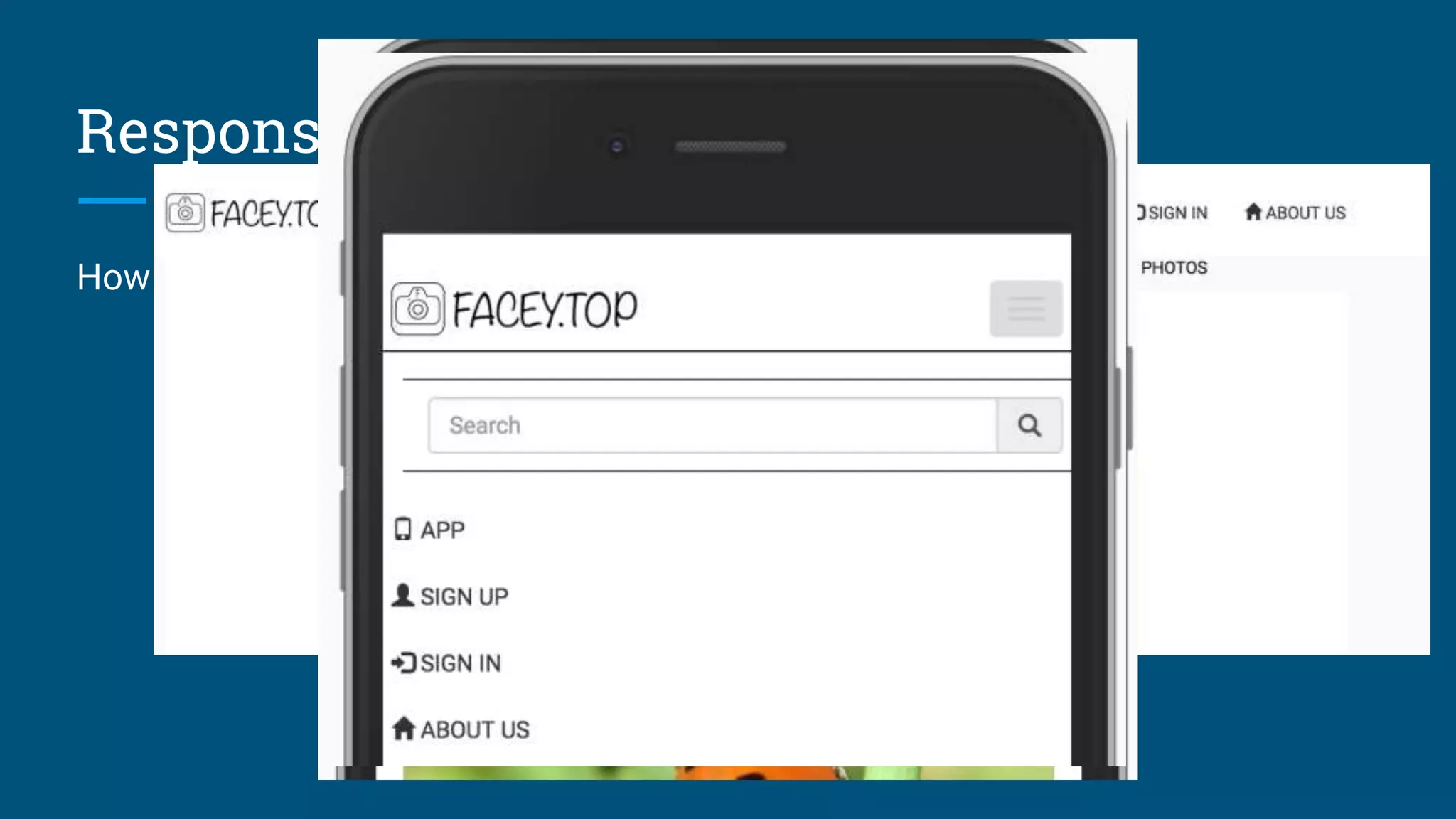

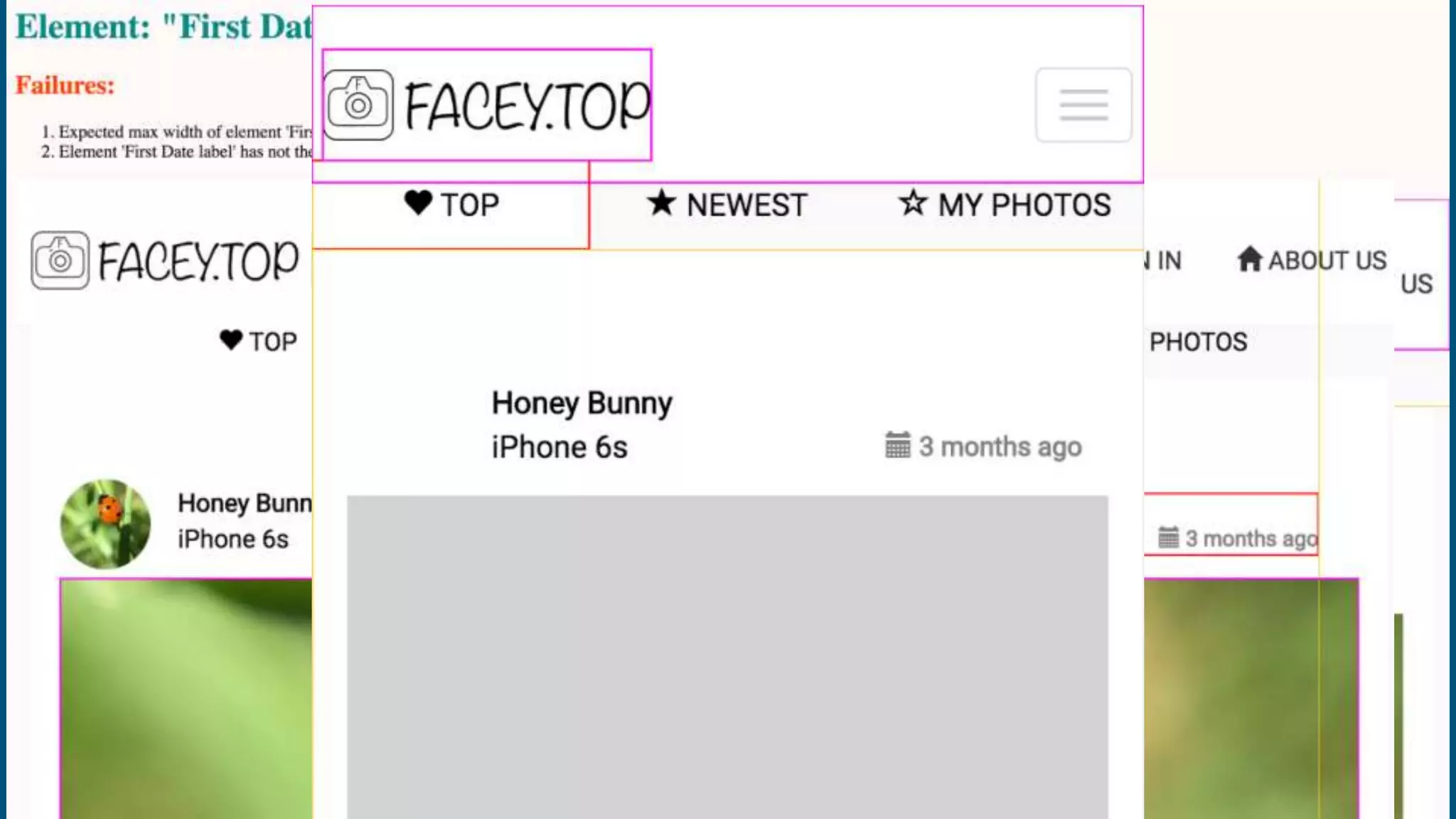

Responsive design
How to test next things like:

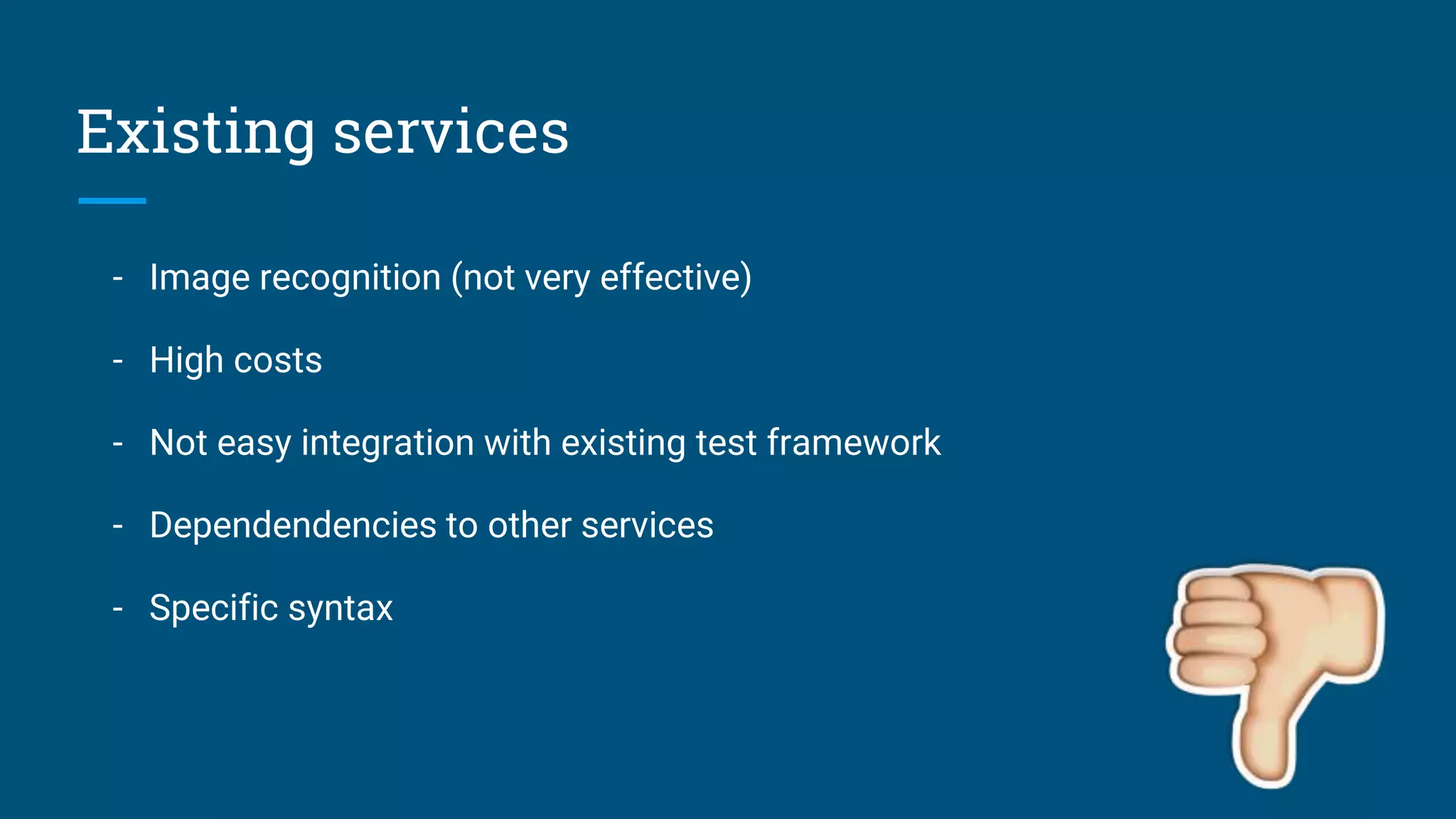

Existing services
- Image recognition (not very effective)
- High costs
- Not easy integration with existing test framework
- Dependendencies to other services
- Specific syntax

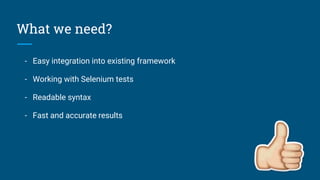

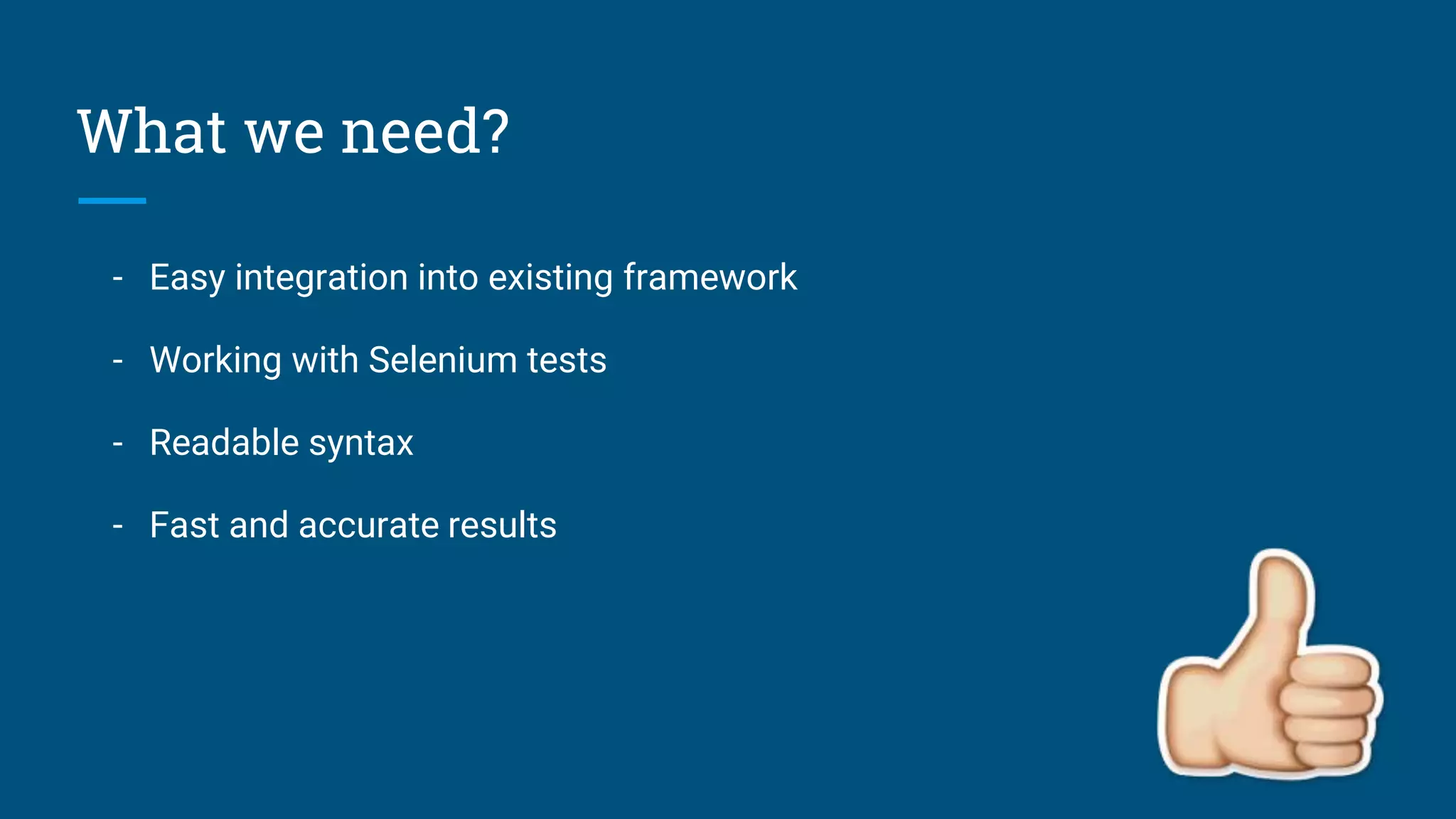

What we need?
- Easy integration into existing framework
- Working with Selenium tests
- Readable syntax
- Fast and accurate results

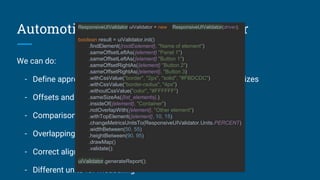

Automotion Responsive UI Validator
We can do:
- Define approximate or precise values for measuring of the sizes
- Offsets and margins
- Comparison with offsets of other elements
- Overlapping (if inside or outside of specific elements)
- Correct alignment
- Different units for measuring
ResponsiveUIValidator uiValidator = new ResponsiveUIValidator(driver);
boolean result = uiValidator.init()
.findElement({rootEelement}, "Name of element")
.sameOffsetLeftAs({element} "Panel 1")
.sameOffsetLeftAs({element} "Button 1")
.sameOffsetRightAs({element} "Button 2")
.sameOffsetRightAs({element}, "Button 3)
.withCssValue("border", "2px", "solid", "#FBDCDC")
.withCssValue("border-radius", "4px")
.withoutCssValue("color", "#FFFFFF")
.sameSizeAs({list_elements},)
.insideOf({element}, "Container")
.notOverlapWith({element}, "Other element")
.withTopElement({element}, 10, 15)
.changeMetricsUnitsTo(ResponsiveUIValidator.Units.PERCENT)
.widthBetween(50, 55)
.heightBetween(90, 95)
.drawMap()
.validate();
uiValidator.generateReport();

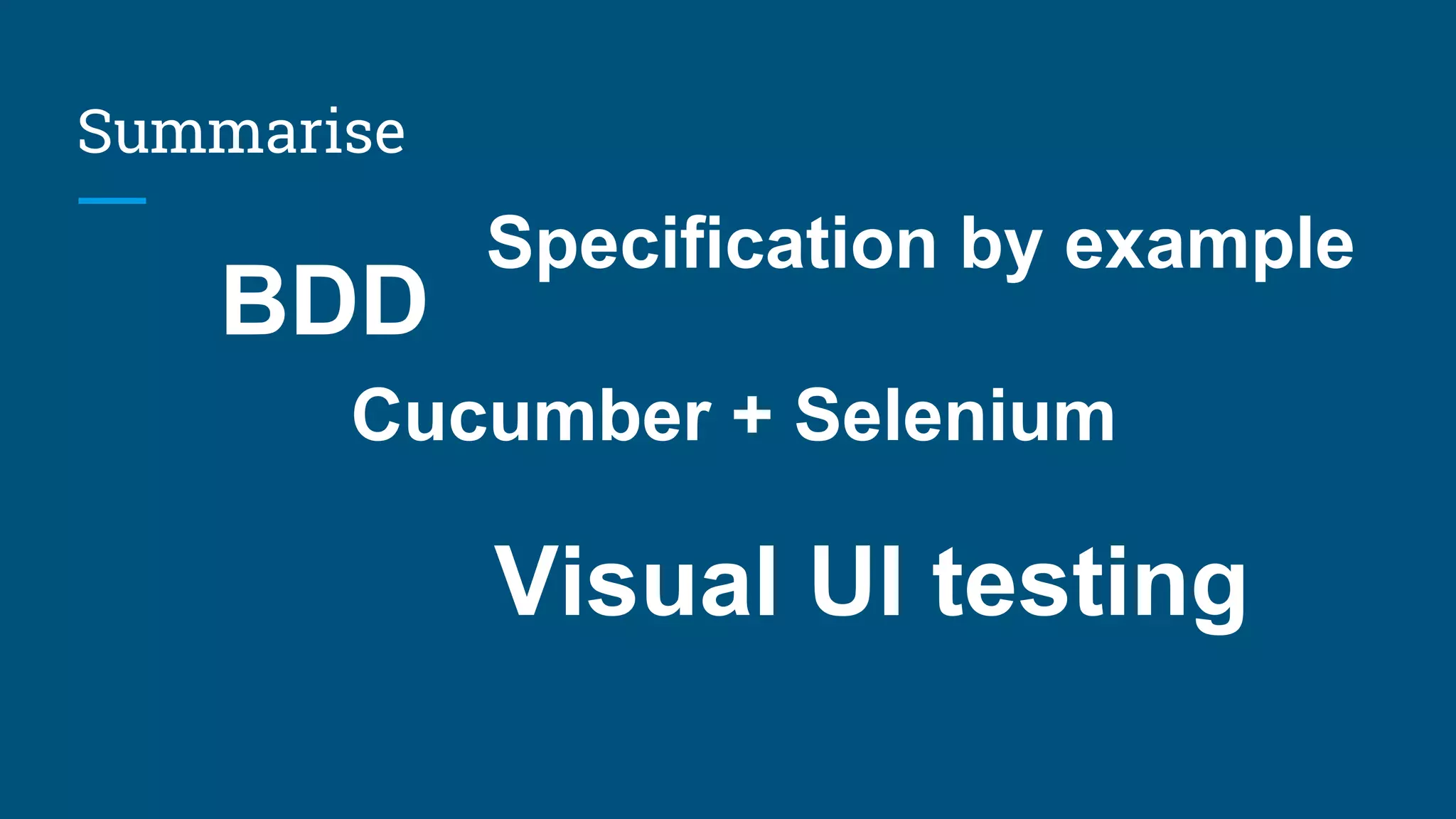

Summarise
BDD
Specification by example
Cucumber + Selenium
Visual UI testing

Questions?
Please, ask me what is unclear for You
