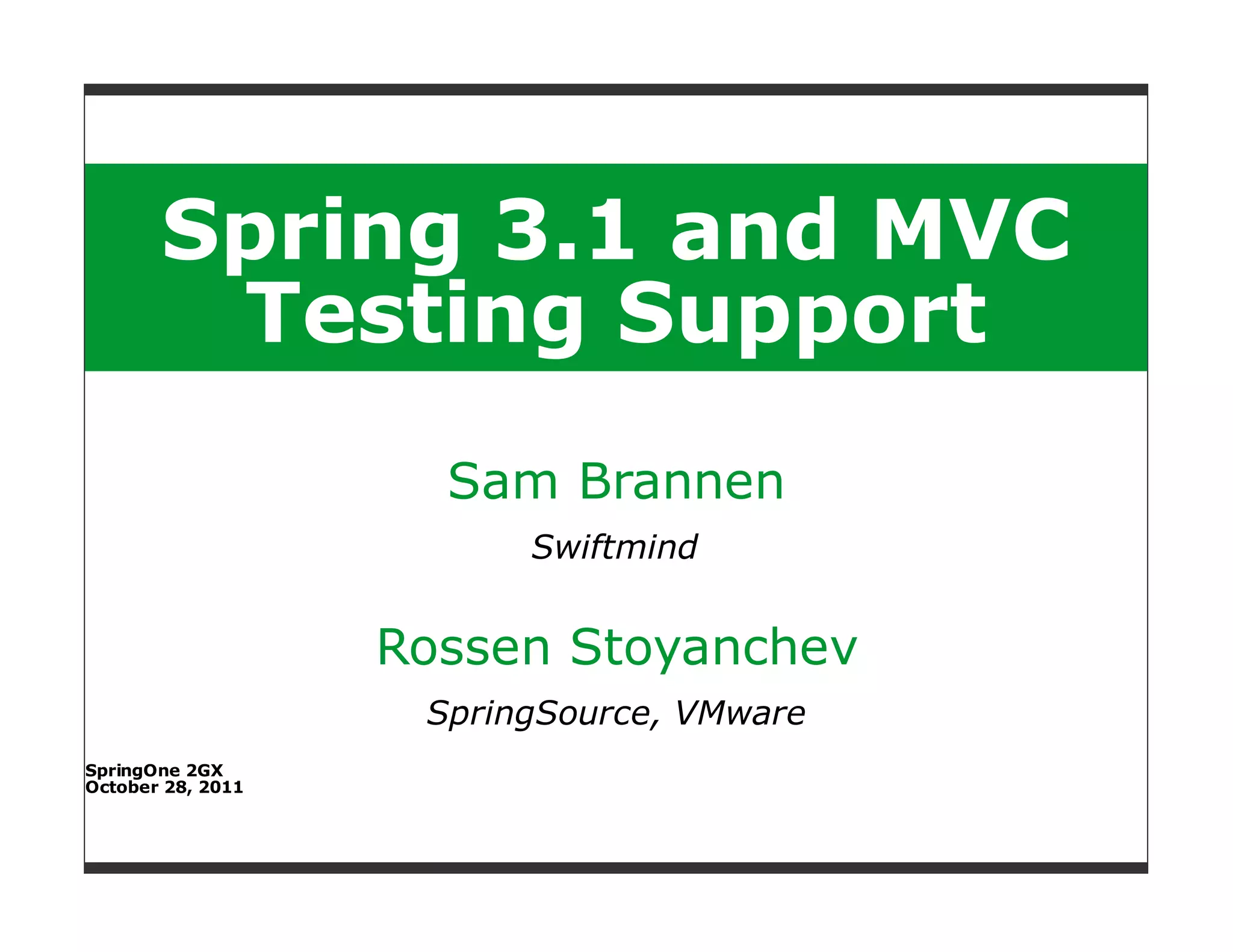

Spring 3.1 and MVC Testing Support

Spring 3.1 and MVC
Testing Support
Sam Brannen
Swiftmind

Rossen Stoyanchev
SpringSource, VMware
SpringOne 2GX
October 28, 2011

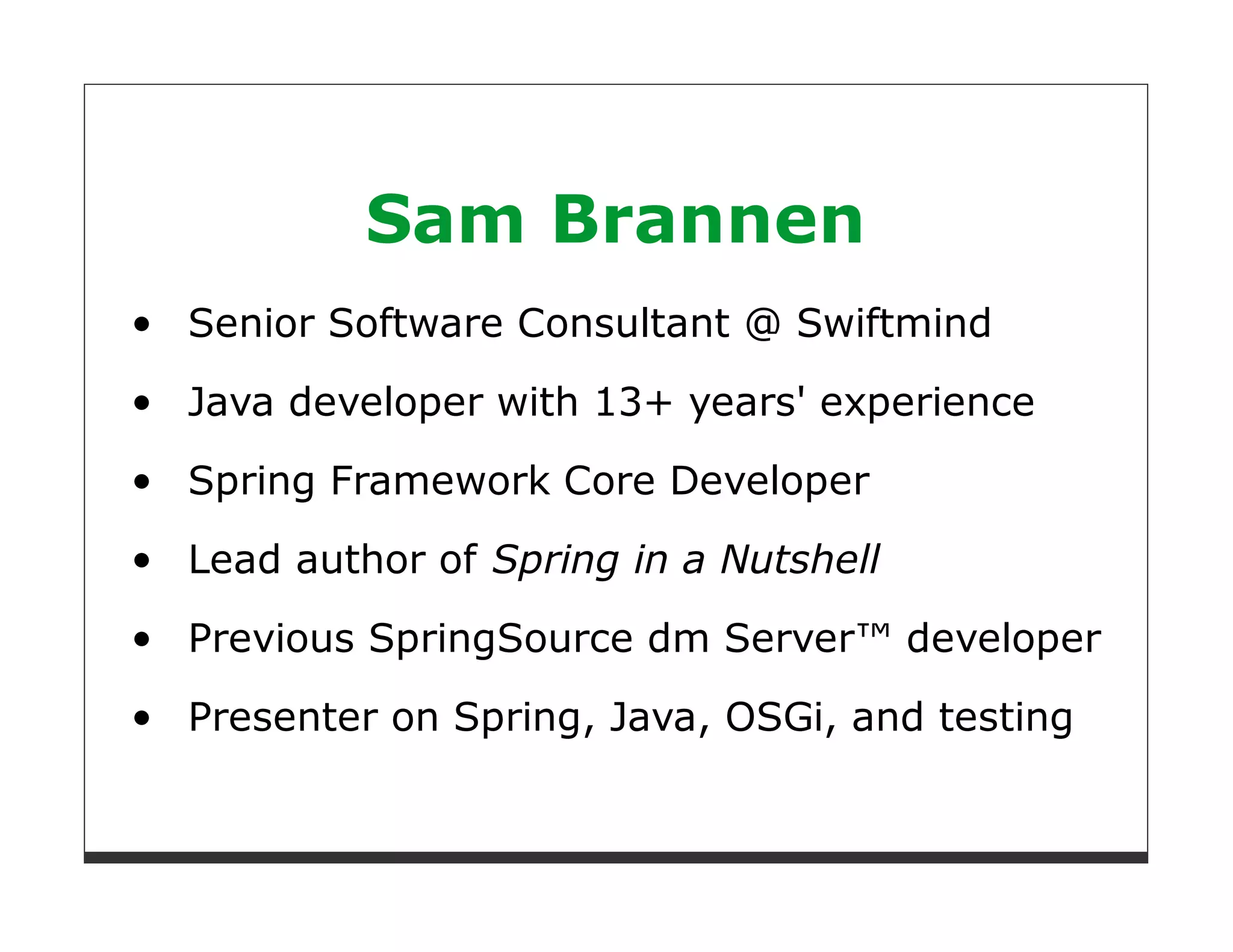

Sam Brannen
Senior Software Consultant @ Swiftmind
Java developer with 13+ years' experience

Spring Framework Core Developer
Lead author of Spring in a Nutshell

Previous SpringSource dm Server™ developer

Presenter on Spring, Java, OSGi, and testing

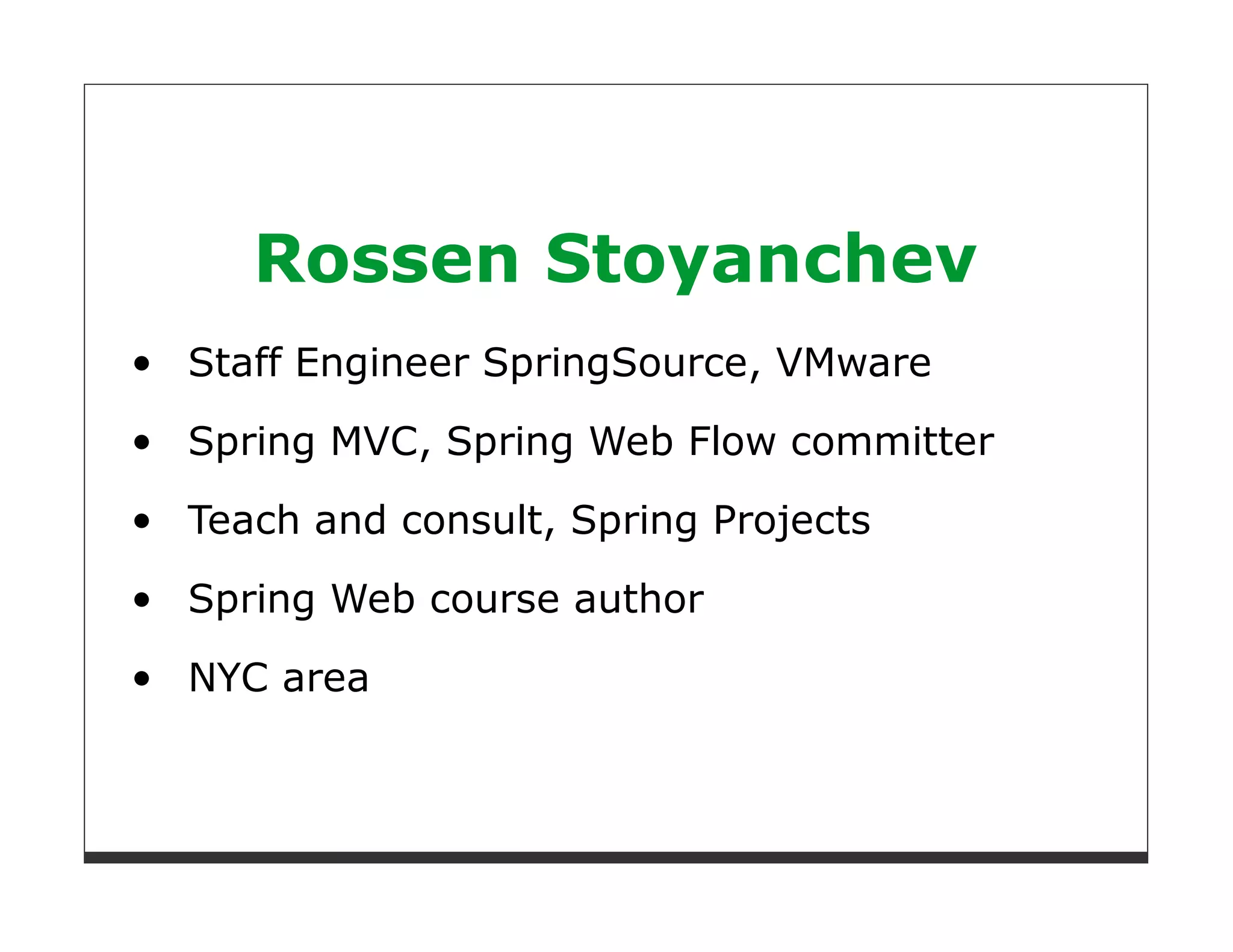

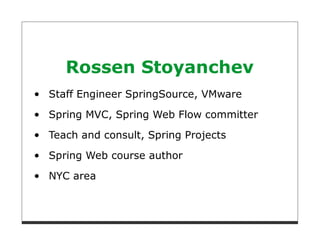

Rossen Stoyanchev
Staff Engineer SpringSource, VMware
Spring MVC, Spring Web Flow committer

Teach and consult, Spring Projects

Spring Web course author
NYC area

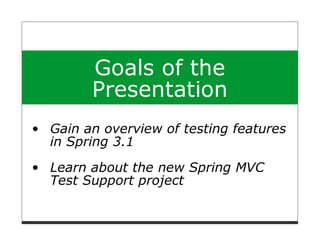

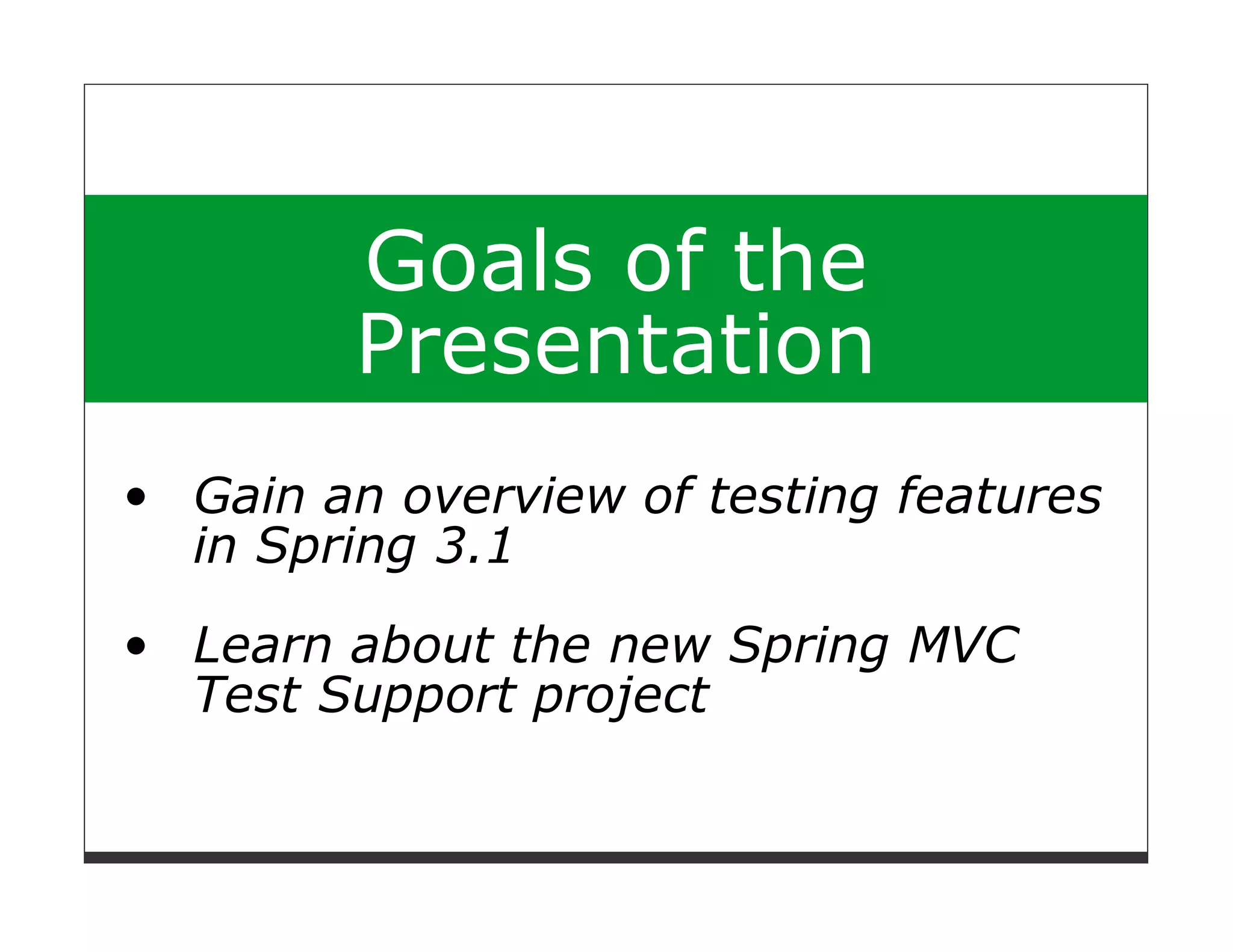

Goals of the
Presentation
Gain an overview of testing features
in Spring 3.1
Learn about the new Spring MVC
Test Support project

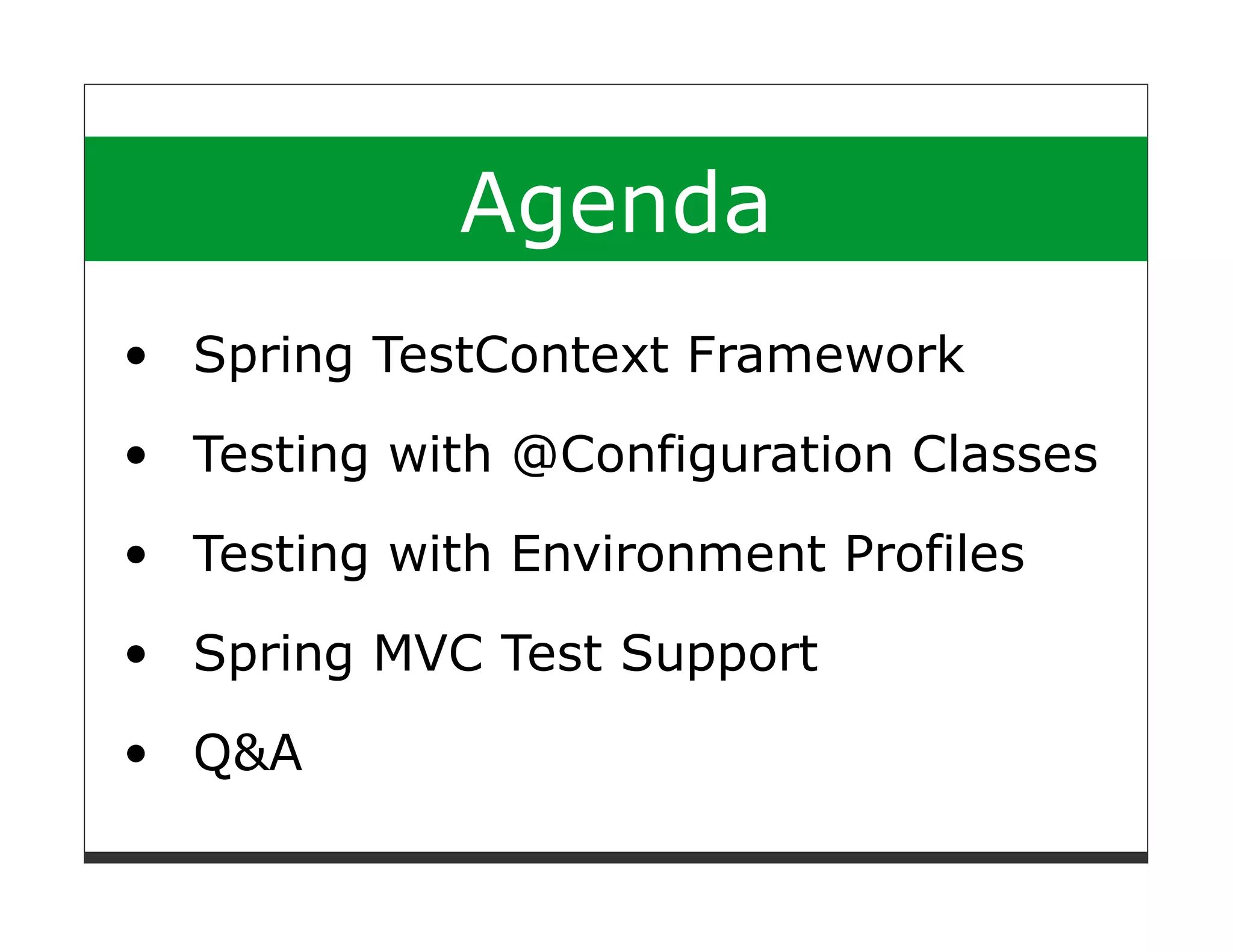

Agenda
Spring TestContext Framework

Testing with @Configuration Classes
Testing with Environment Profiles
Spring MVC Test Support
Q&A

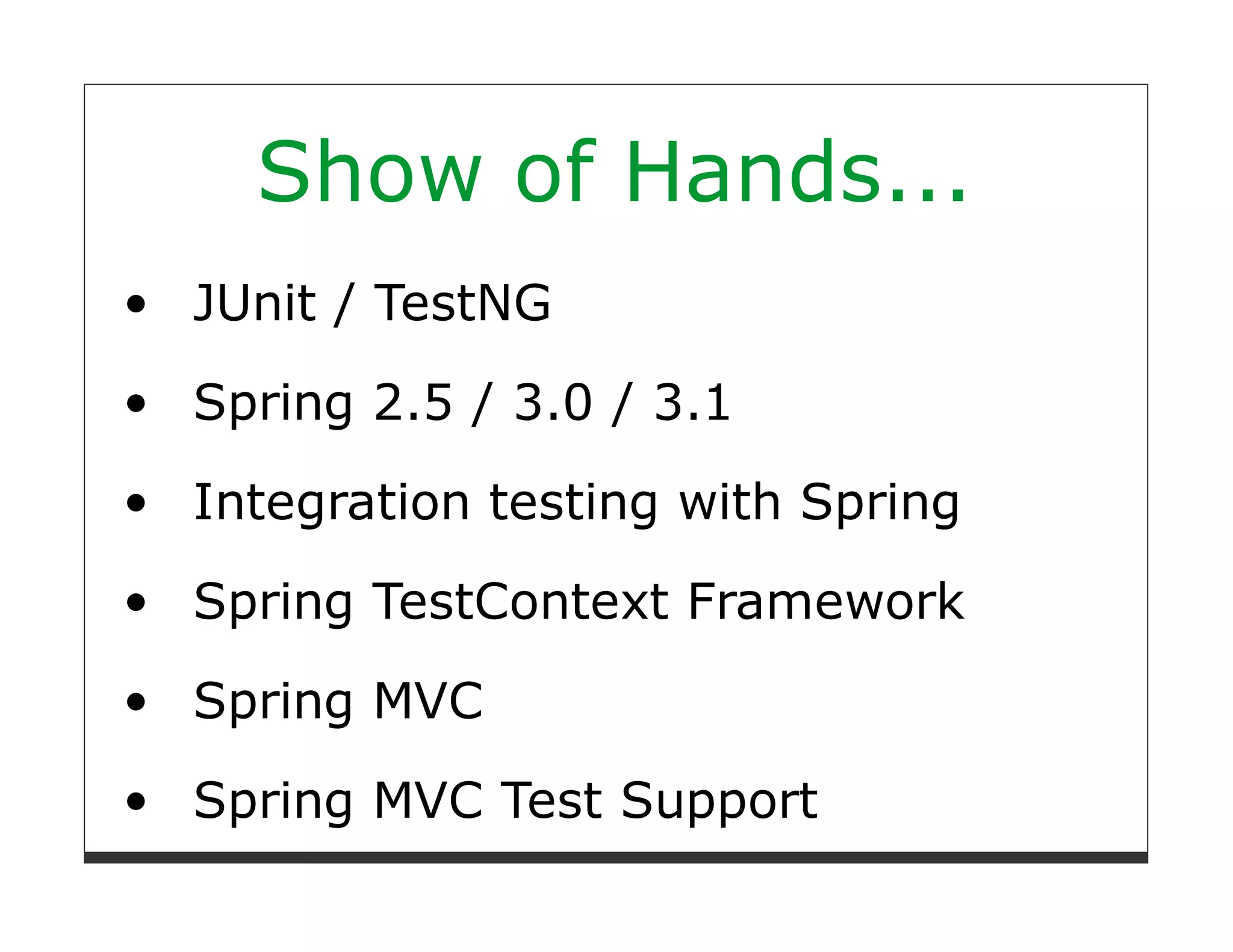

Show of Hands...
JUnit / TestNG
Spring 2.5 / 3.0 / 3.1
Integration testing with Spring

Spring TestContext Framework
Spring MVC
Spring MVC Test Support

Spring TestContext
Framework

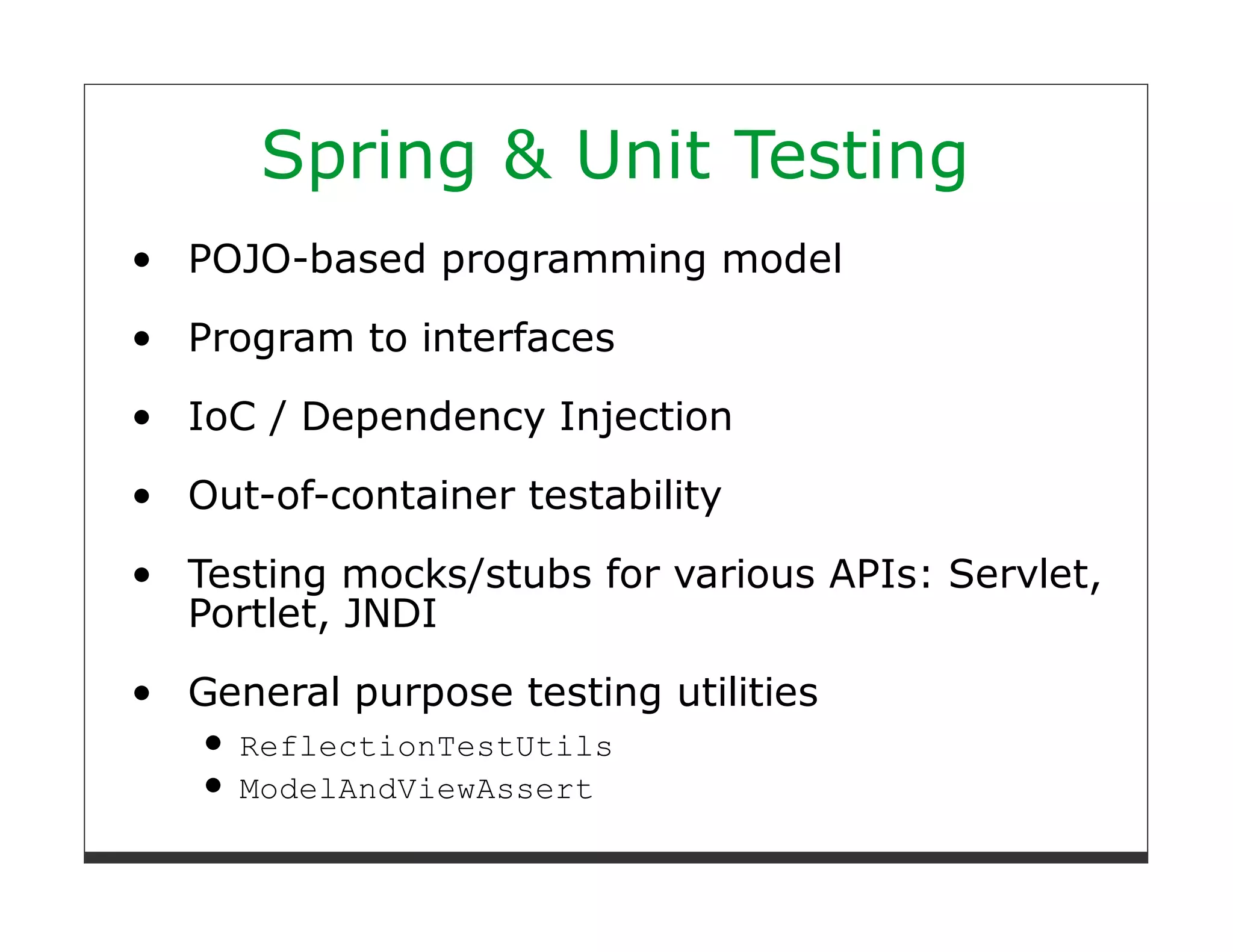

Spring & Unit Testing
POJO-based programming model

Program to interfaces
IoC / Dependency Injection

Out-of-container testability

Testing mocks/stubs for various APIs: Servlet,
Portlet, JNDI

General purpose testing utilities
ReflectionTestUtils
ModelAndViewAssert

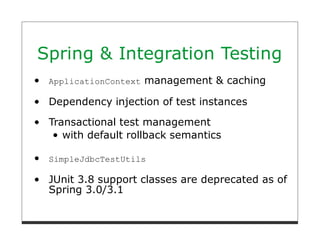

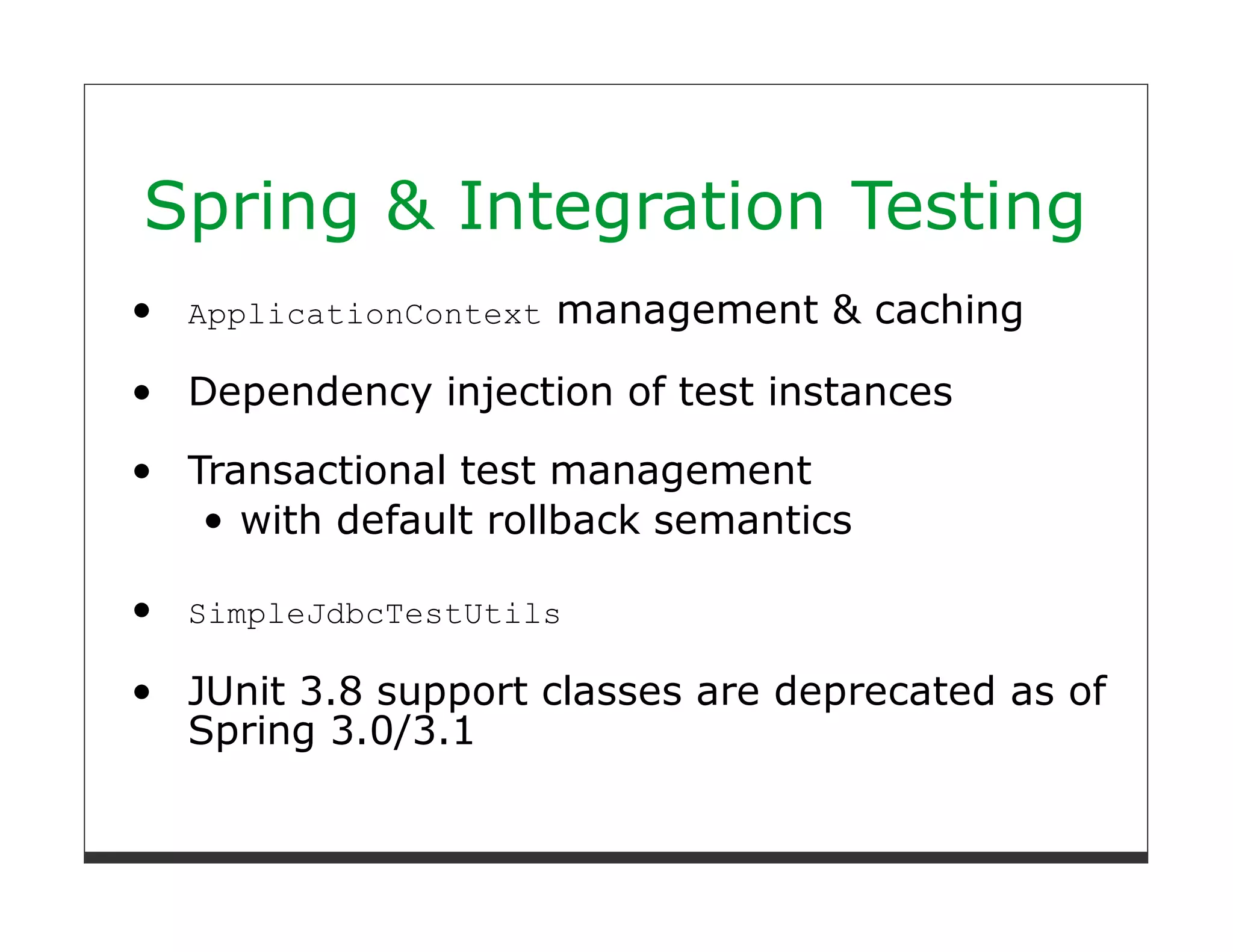

Spring & Integration Testing
ApplicationContext management & caching

Dependency injection of test instances

Transactional test management
with default rollback semantics

SimpleJdbcTestUtils

JUnit 3.8 support classes are deprecated as of
Spring 3.0/3.1

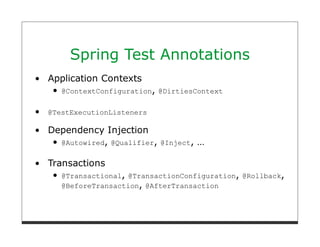

Spring Test Annotations
Application Contexts
@ContextConfiguration, @DirtiesContext

@TestExecutionListeners

Dependency Injection
@Autowired, @Qualifier, @Inject, …

Transactions
@Transactional, @TransactionConfiguration, @Rollback,
@BeforeTransaction, @AfterTransaction

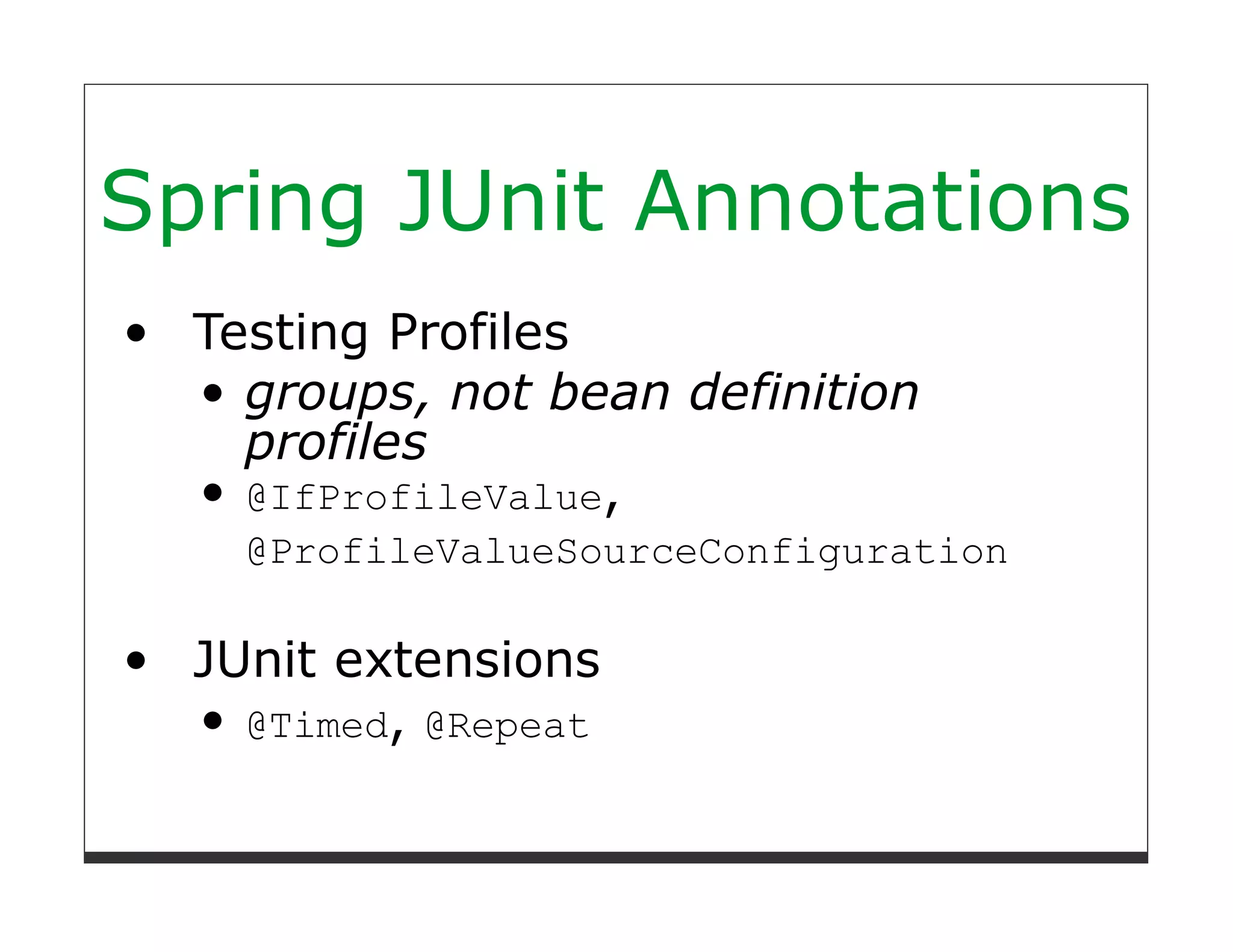

Spring JUnit Annotations
Testing Profiles
groups, not bean definition
profiles
@IfProfileValue,
@ProfileValueSourceConfiguration

JUnit extensions
@Timed, @Repeat

Using the TestContext
Framework
Use the SpringJUnit4ClassRunner for
JUnit 4.5+
Instrument test class with
TestContextManager for TestNG

Extend one of the base classes
Abstract(Transactional)[JUnit4|TestNG]Spri

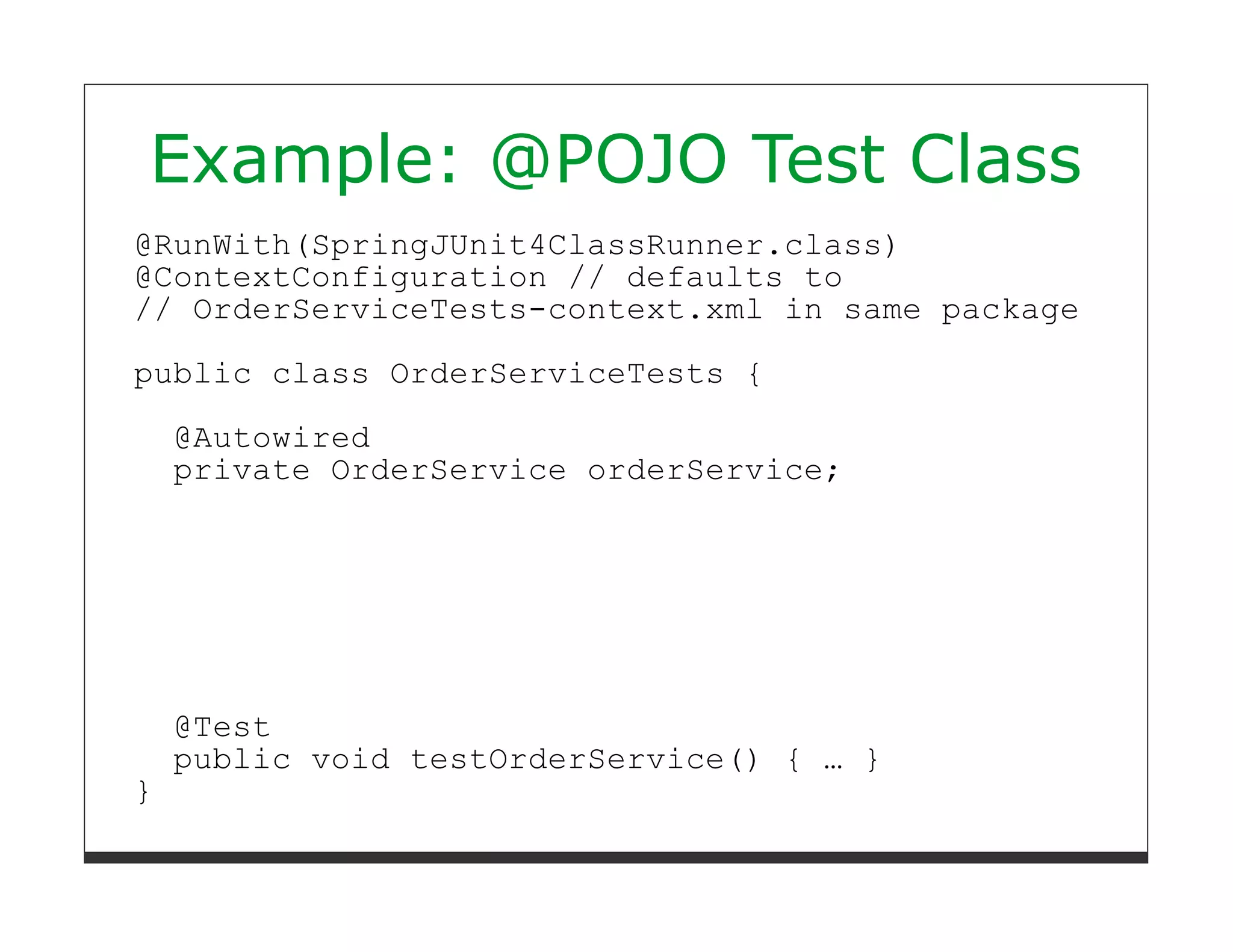

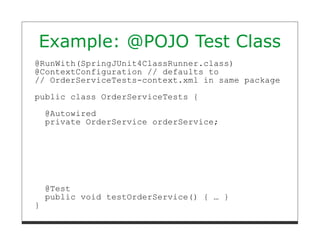

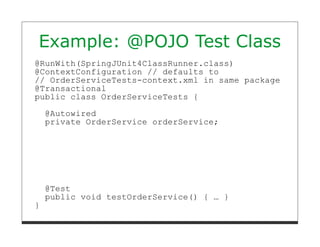

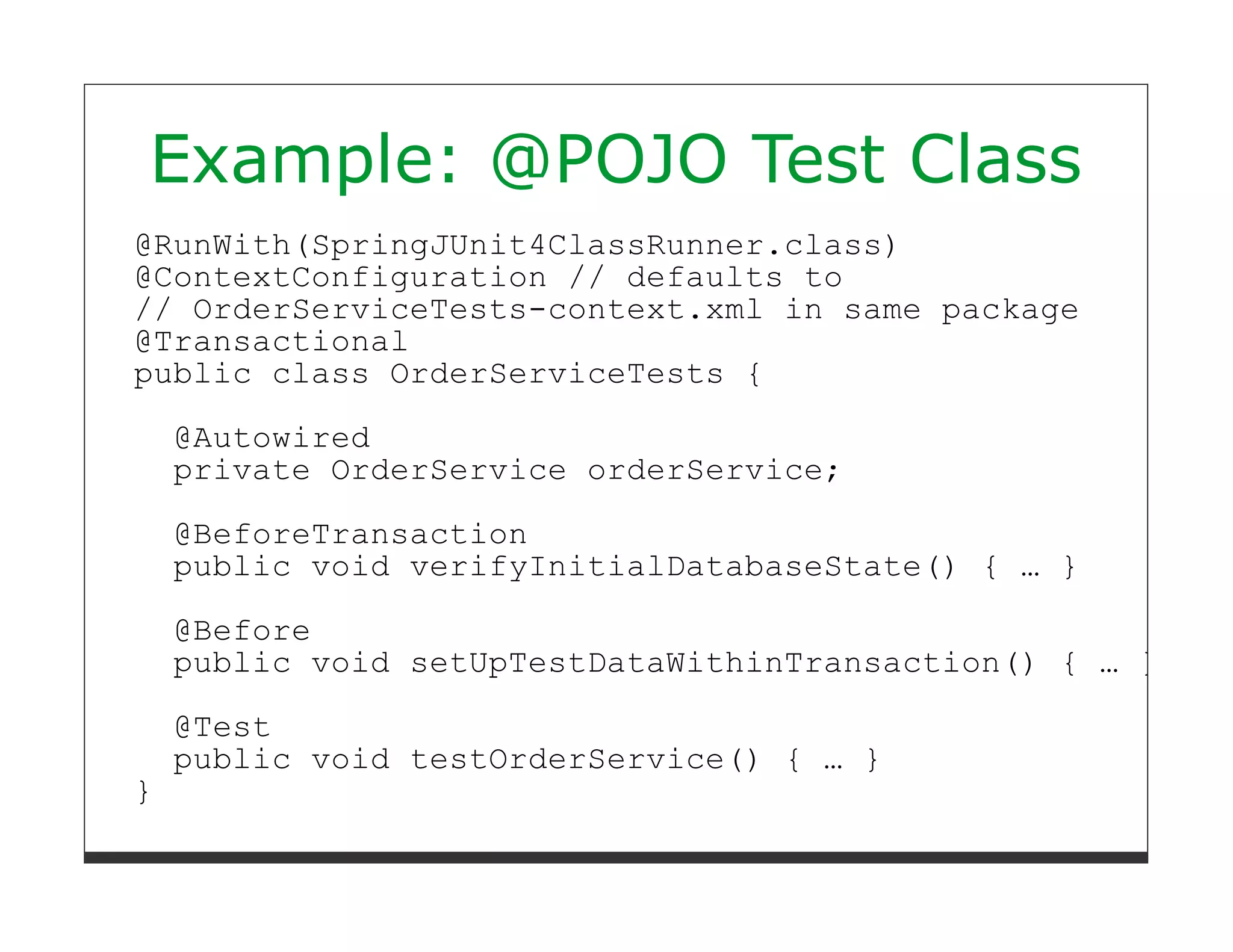

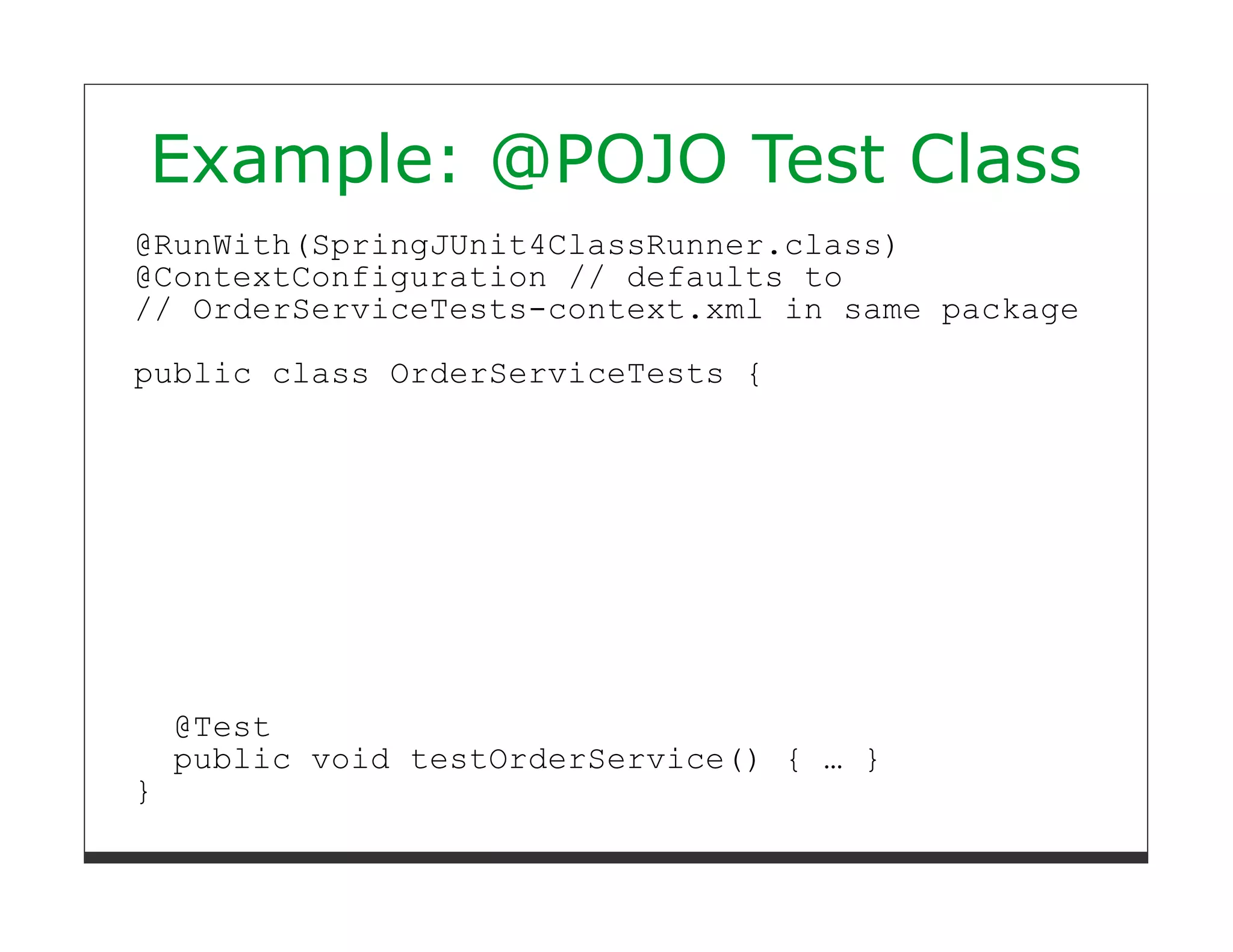

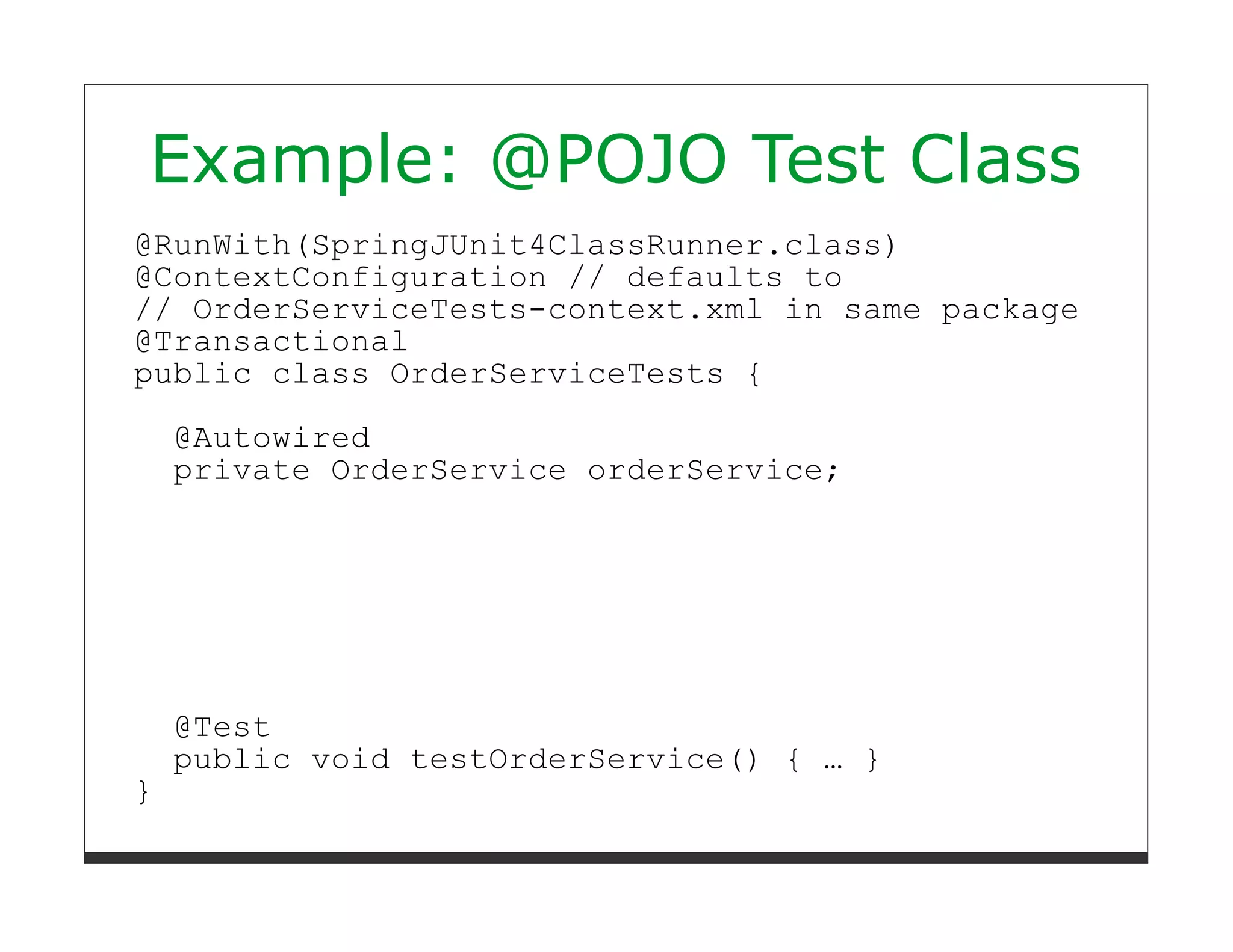

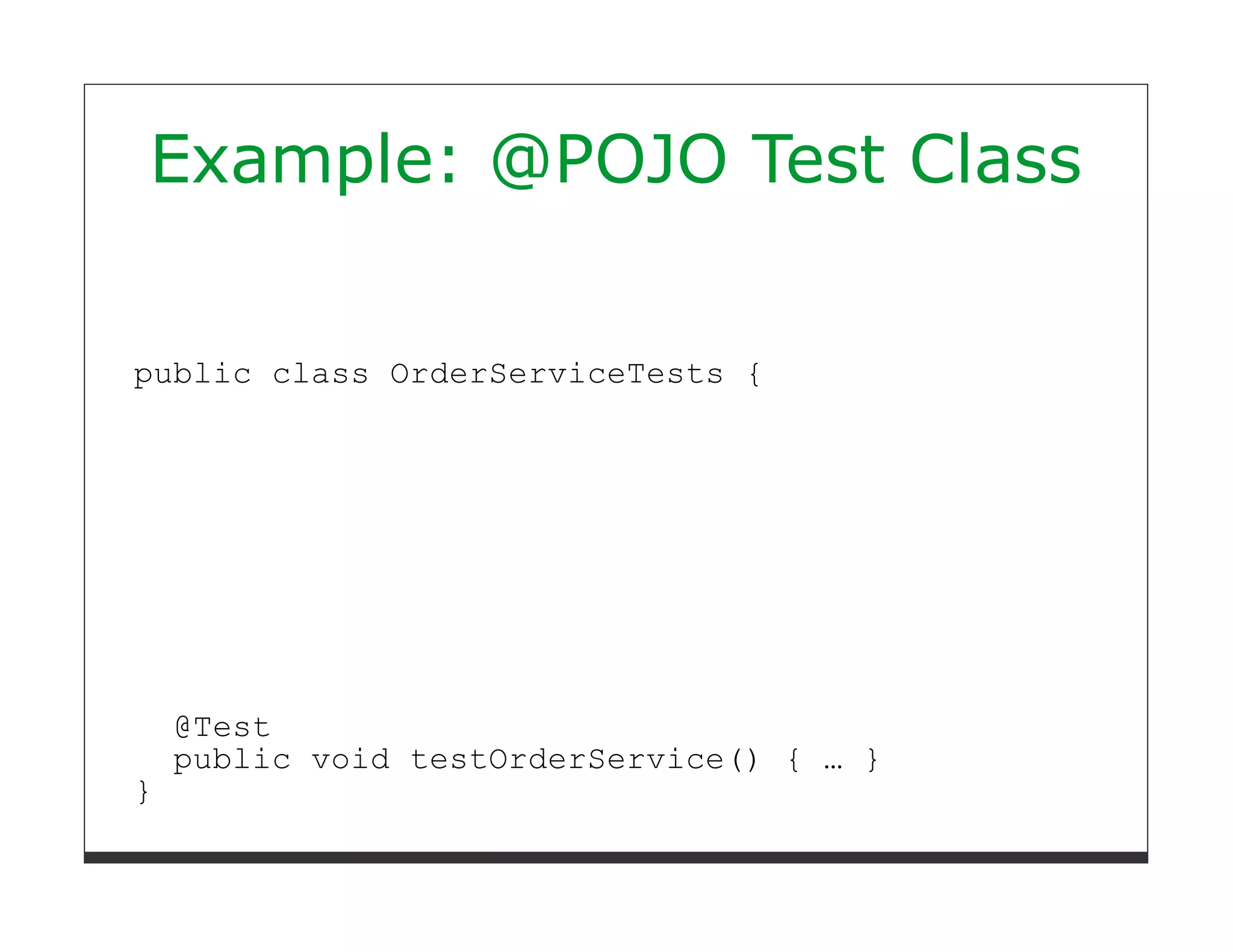

Example: @POJO Test Class

public class OrderServiceTests {

@Test
public void testOrderService() { … }
}

@RunWith(SpringJUnit4ClassRunner.class)


@Test
}

@ContextConfiguration


@Test
}

@ContextConfiguration // defaults to
// OrderServiceTests-context.xml in same package

@Test
}


@Autowired
private OrderService orderService;

@Test
}

@Transactional

@Autowired

@Test
}

@Transactional

@Autowired

@BeforeTransaction
public void verifyInitialDatabaseState() { … }

@Test
}

@Transactional

@Autowired

@BeforeTransaction
public void verifyInitialDatabaseState() { … }

@Before
public void setUpTestDataWithinTransaction() { … }

@Test
}

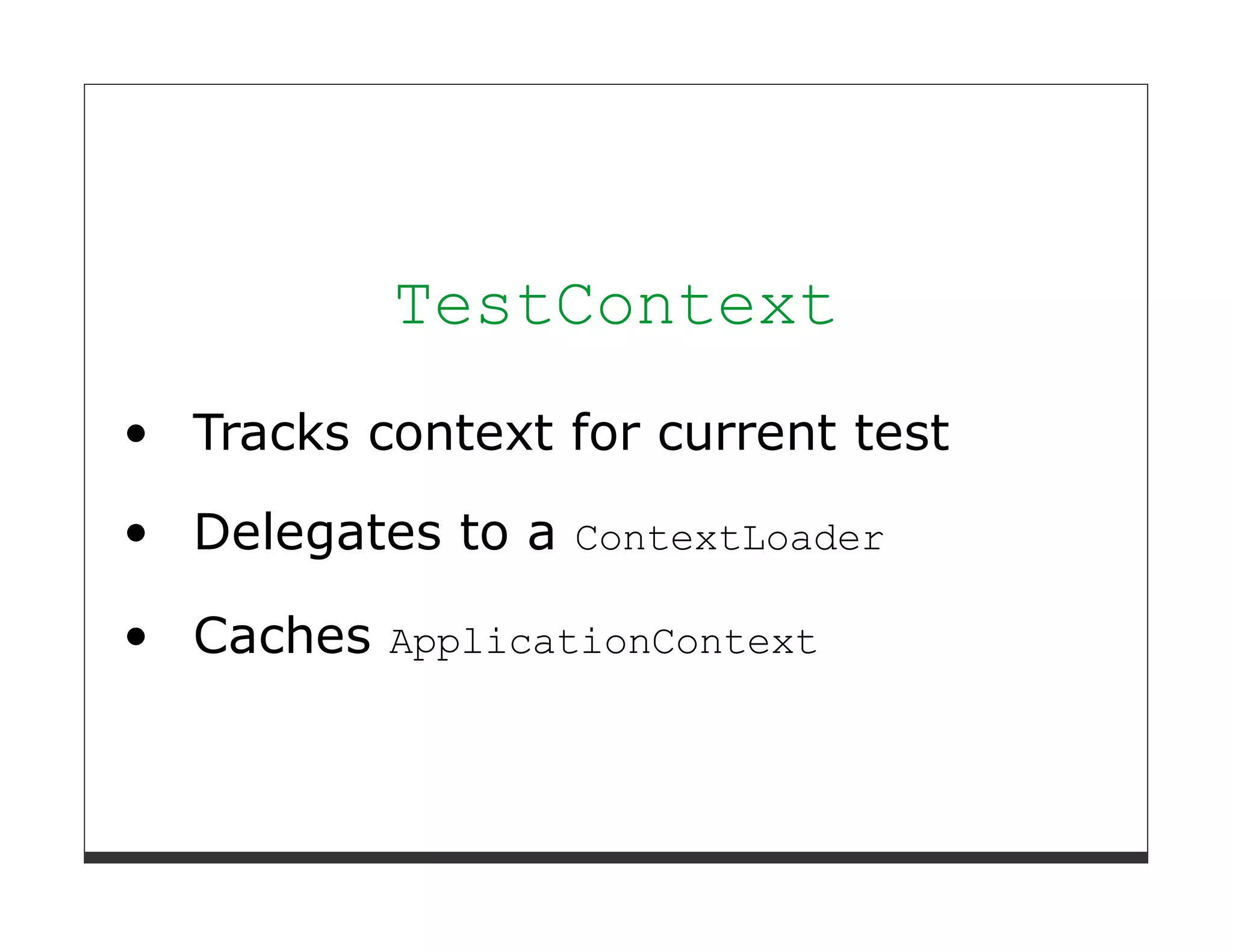

TestContext
Tracks context for current test

Delegates to a ContextLoader

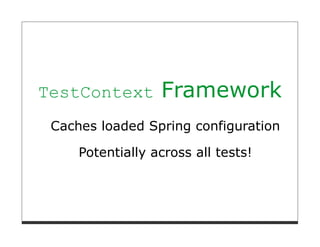

Caches ApplicationContext

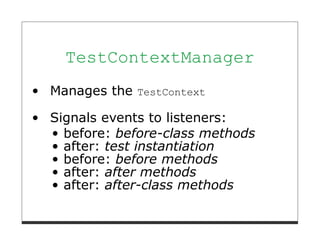

TestContextManager
Manages the TestContext

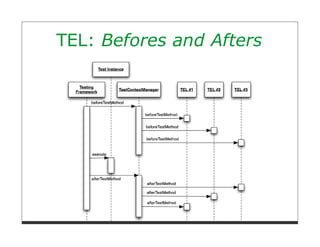

Signals events to listeners:
before: before-class methods
after: test instantiation
before: before methods
after: after methods
after: after-class methods

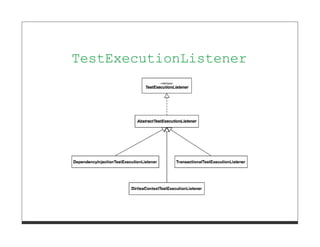

TestExecutionListener SPI
Reacts to test execution events
Receives reference to current TestContext

Out of the box:
DependencyInjectionTestExecutionListener
DirtiesContextTestExecutionListener
TransactionalTestExecutionListener

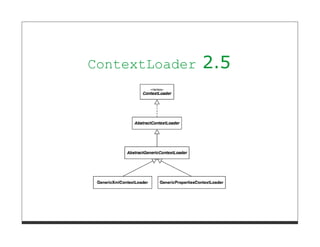

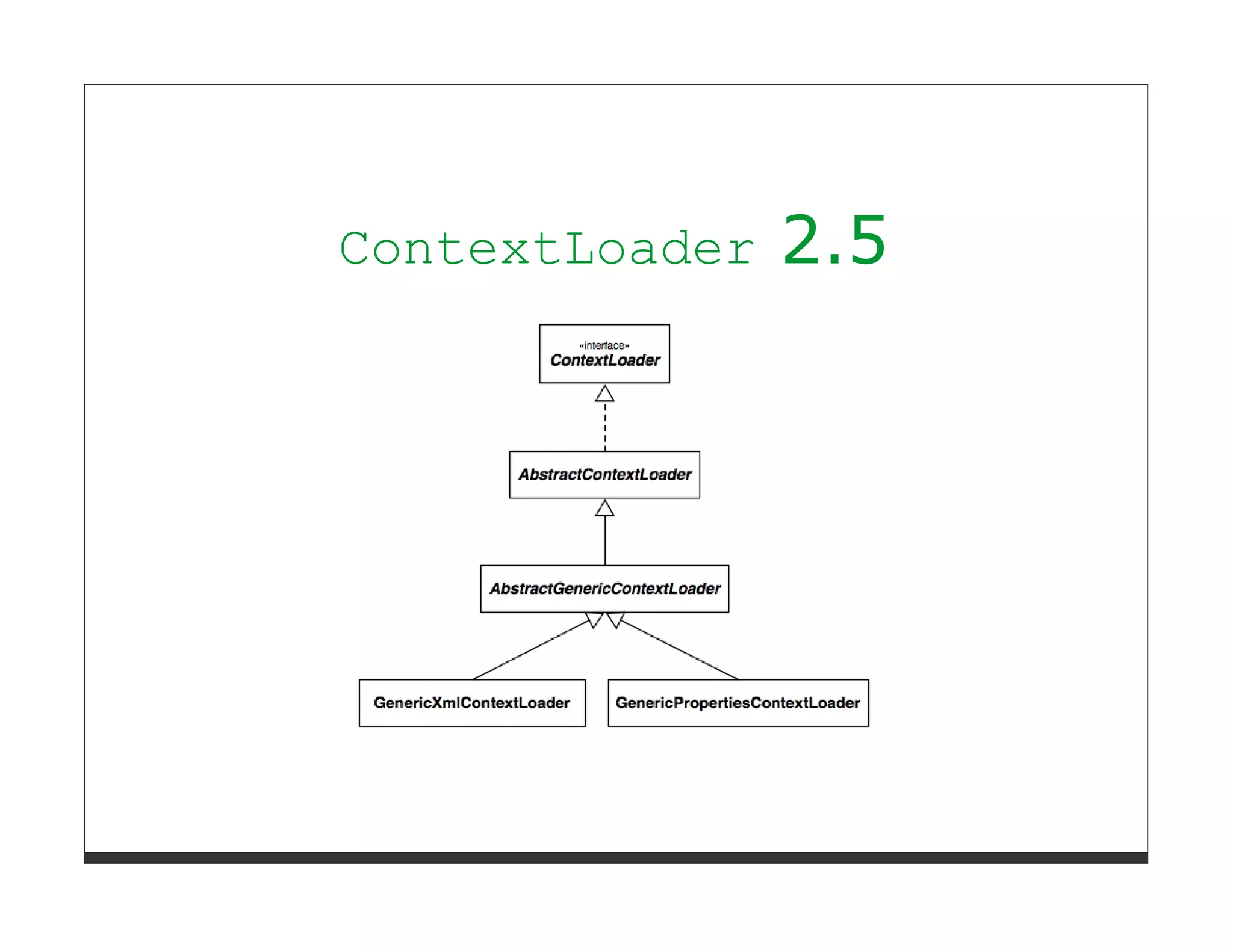

ContextLoader SPI
Strategy for loading application contexts
from resource locations

Out of the box:
GenericXmlContextLoader
GenericPropertiesContextLoader

testing with @Configuration classes

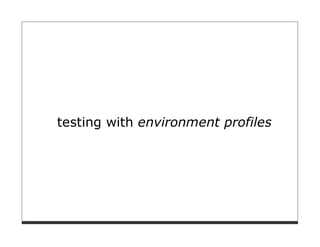

testing with environment profiles

updated context cache key generation

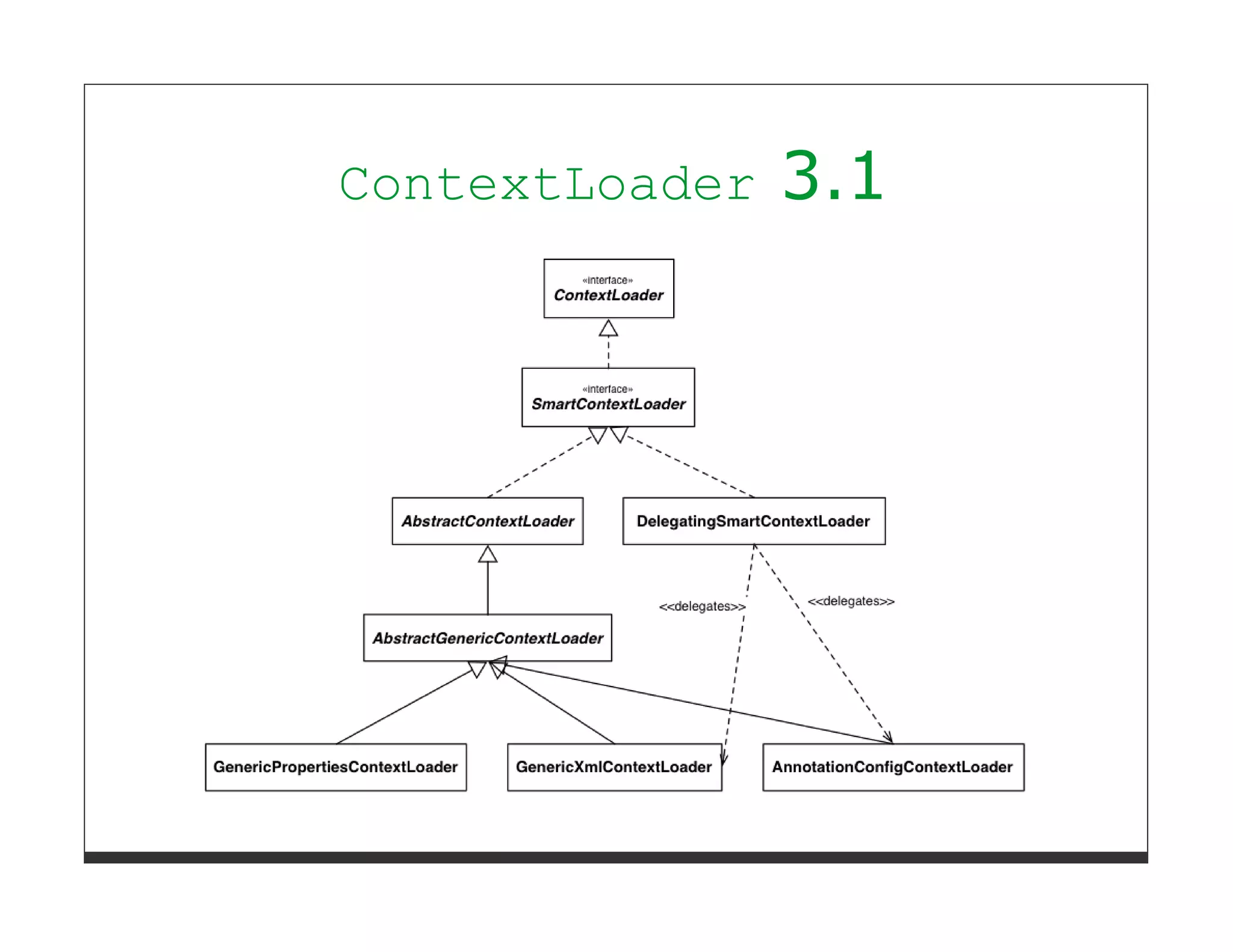

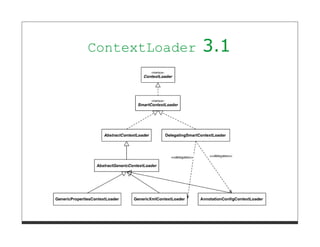

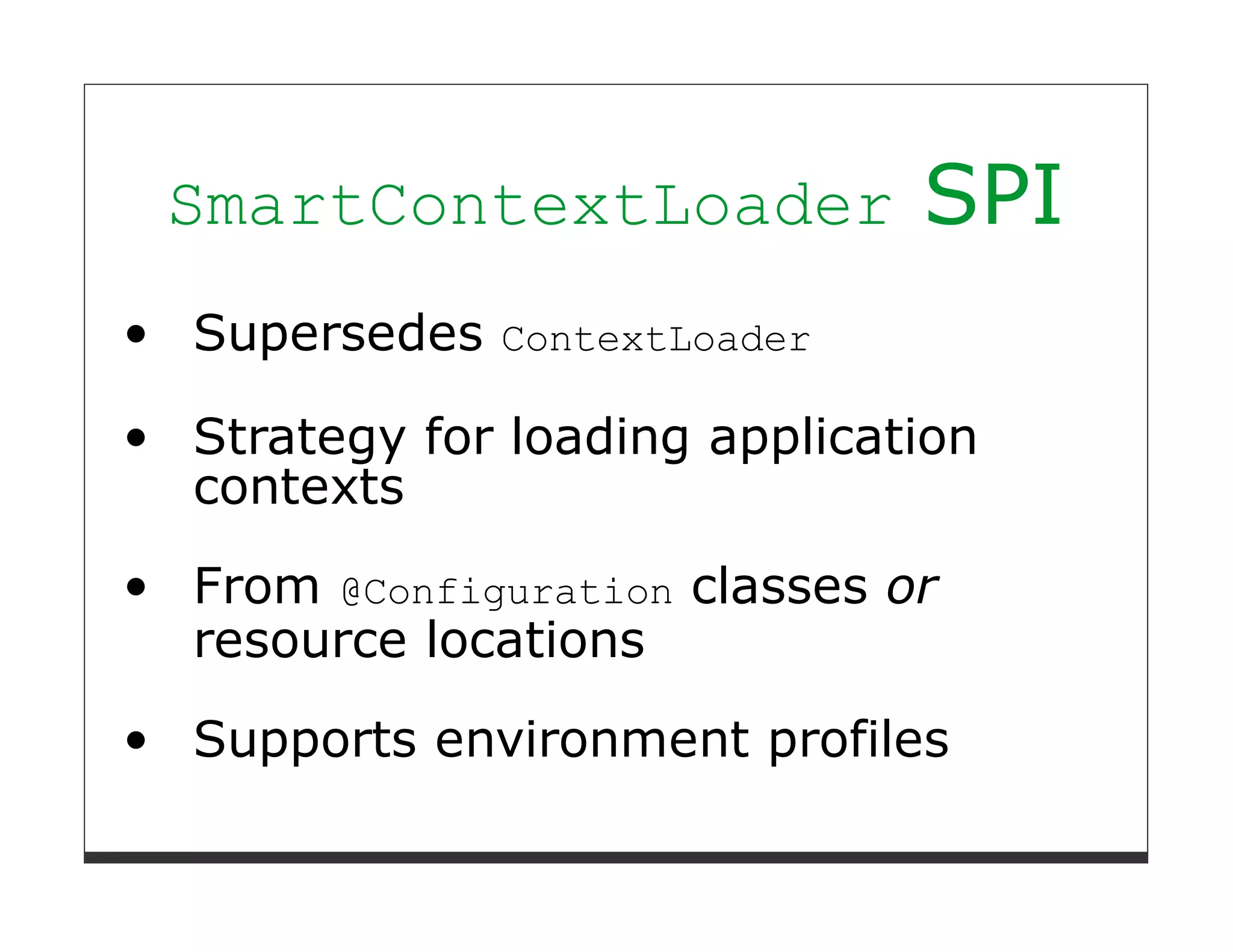

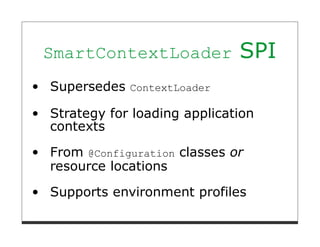

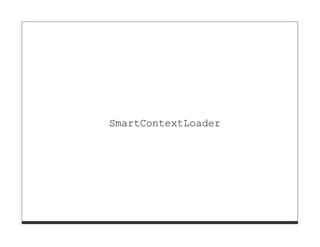

SmartContextLoader SPI
Supersedes ContextLoader

Strategy for loading application
contexts
From @Configuration classes or
resource locations
Supports environment profiles

Implementations
GenericXmlContextLoader

GenericPropertiesContextLoader

AnnotationConfigContextLoader

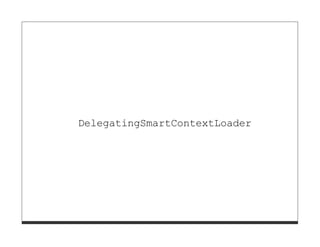

DelegatingSmartContextLoader

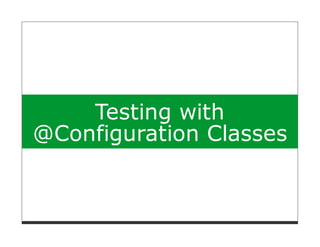

Testing with
@Configuration Classes

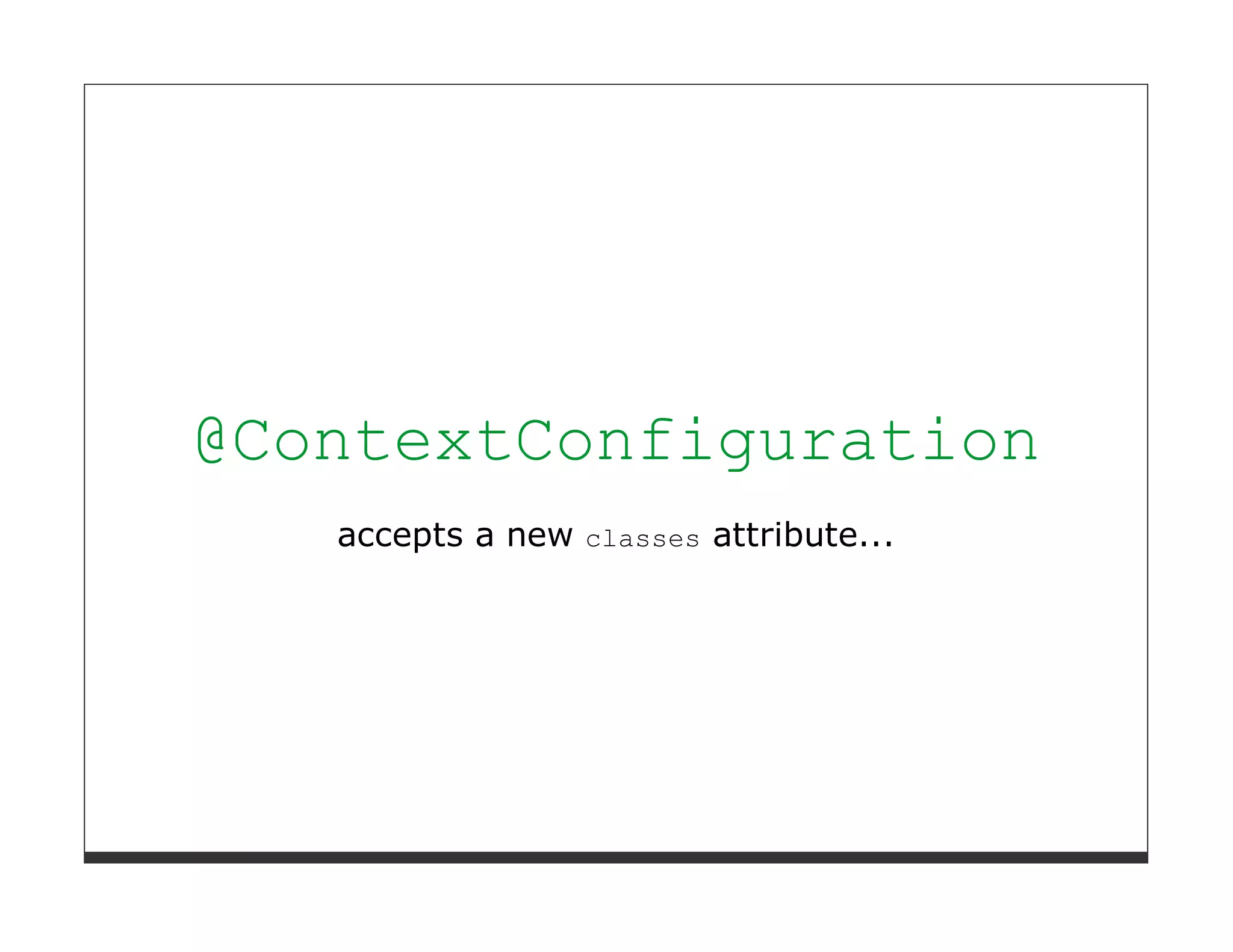

accepts a new classes attribute...

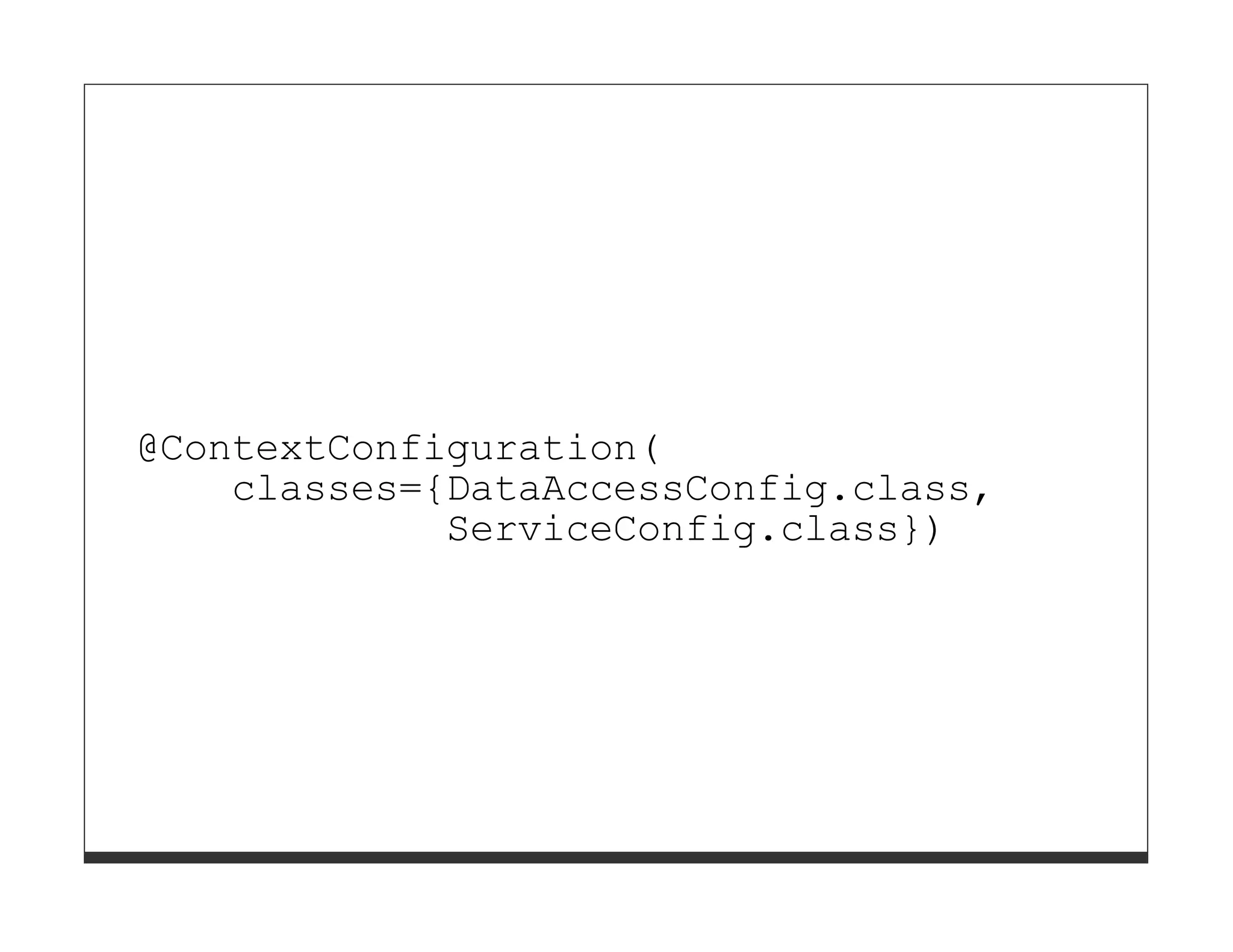

@ContextConfiguration(
classes={DataAccessConfig.class,
ServiceConfig.class})

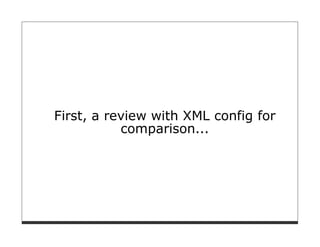

First, a review with XML config for
comparison...

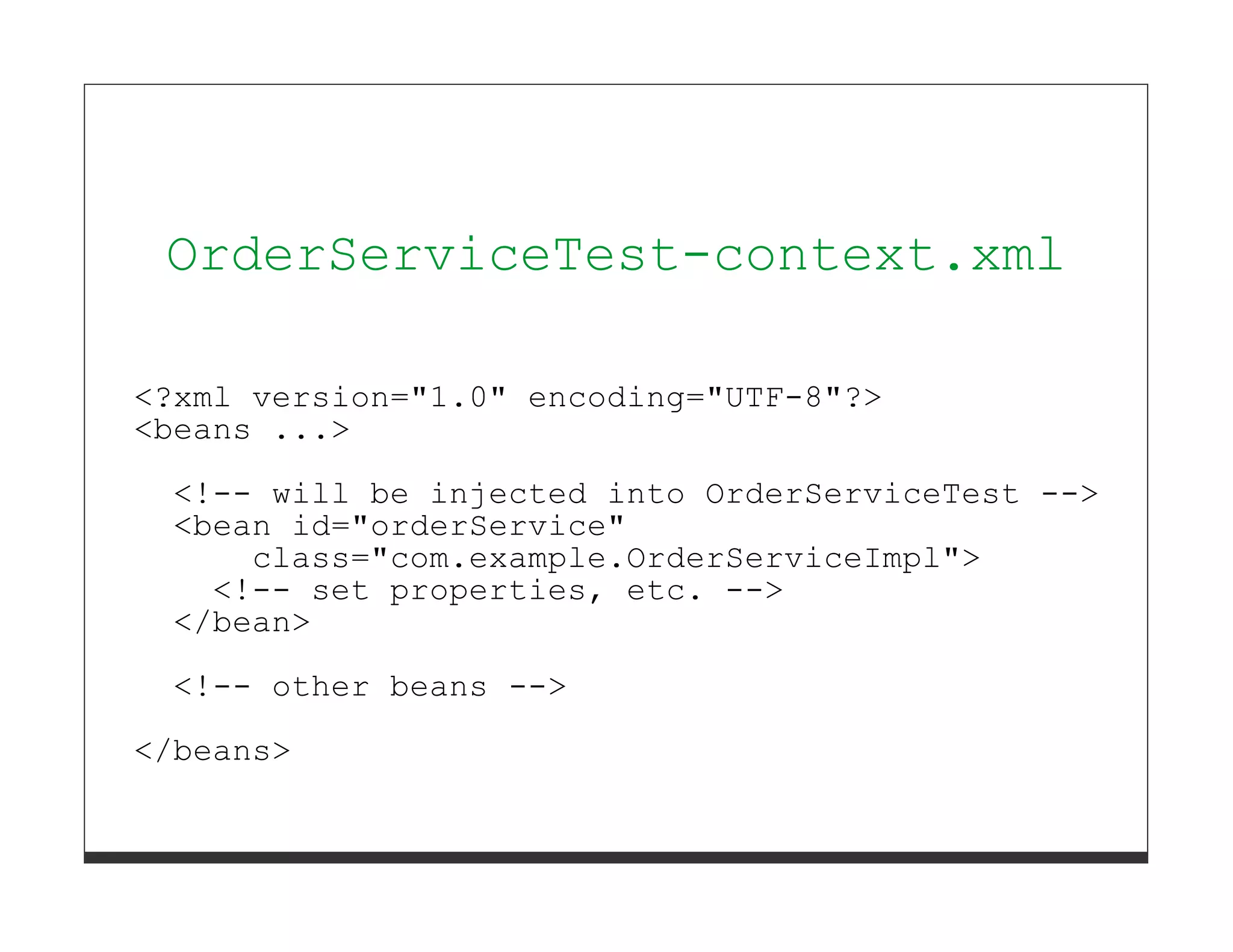

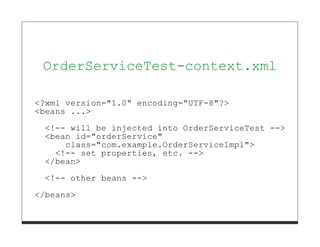

OrderServiceTest-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans ...>


<bean id="orderService"
class="com.example.OrderServiceImpl">

</bean>


</beans>

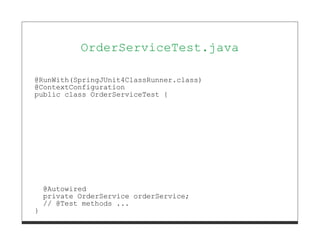

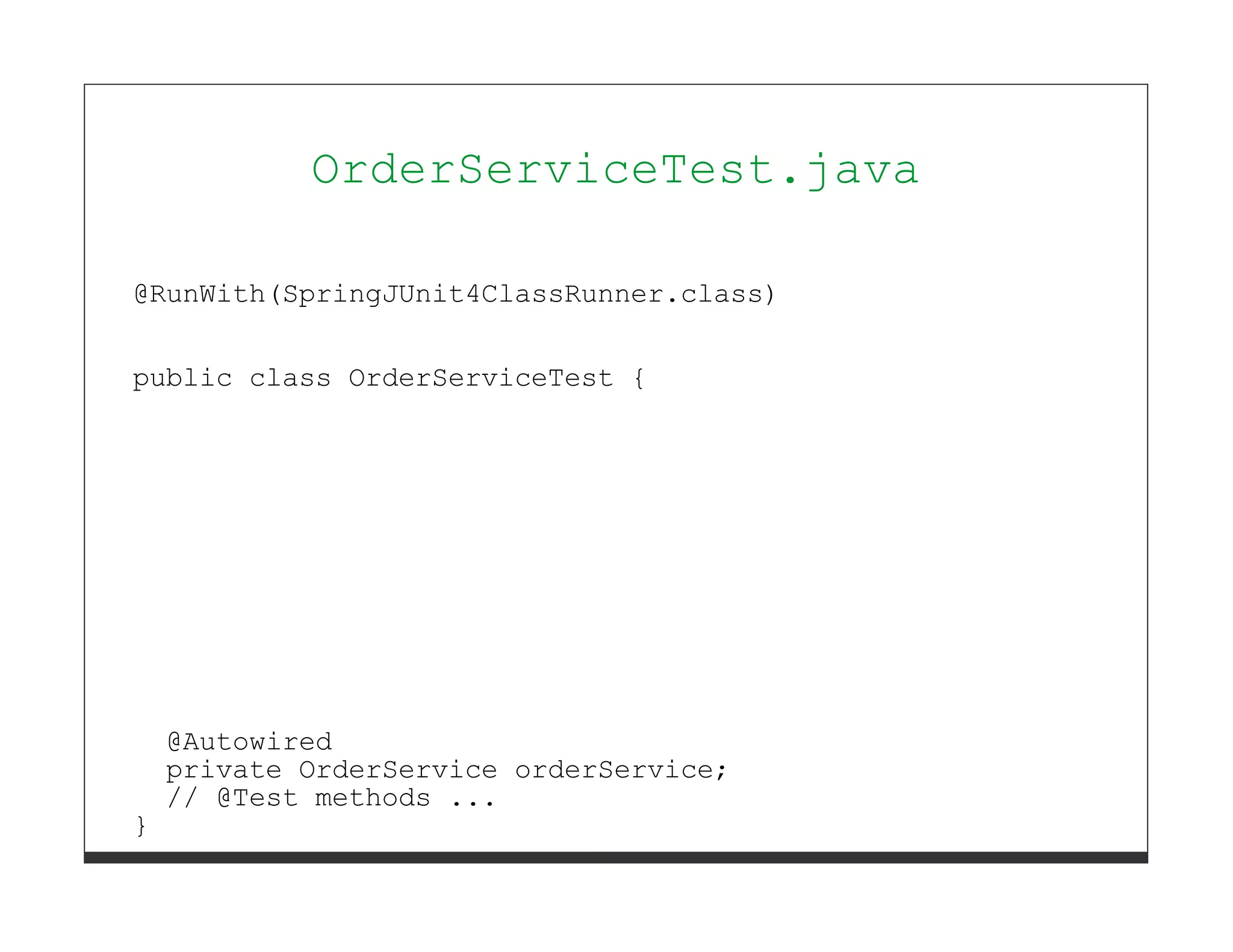

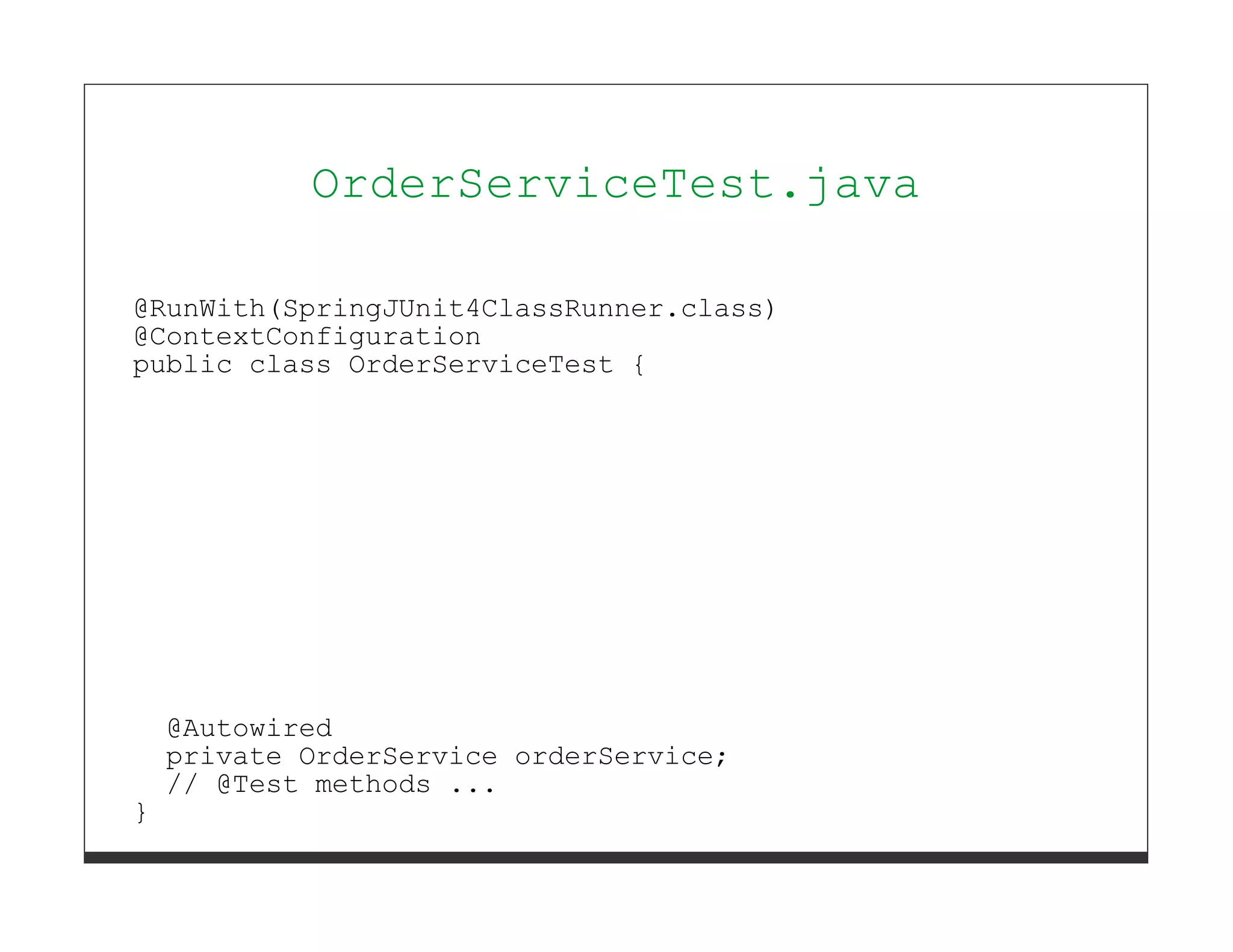

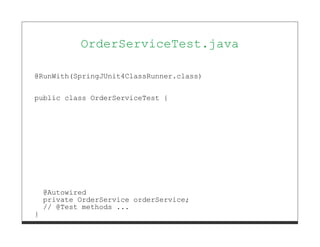

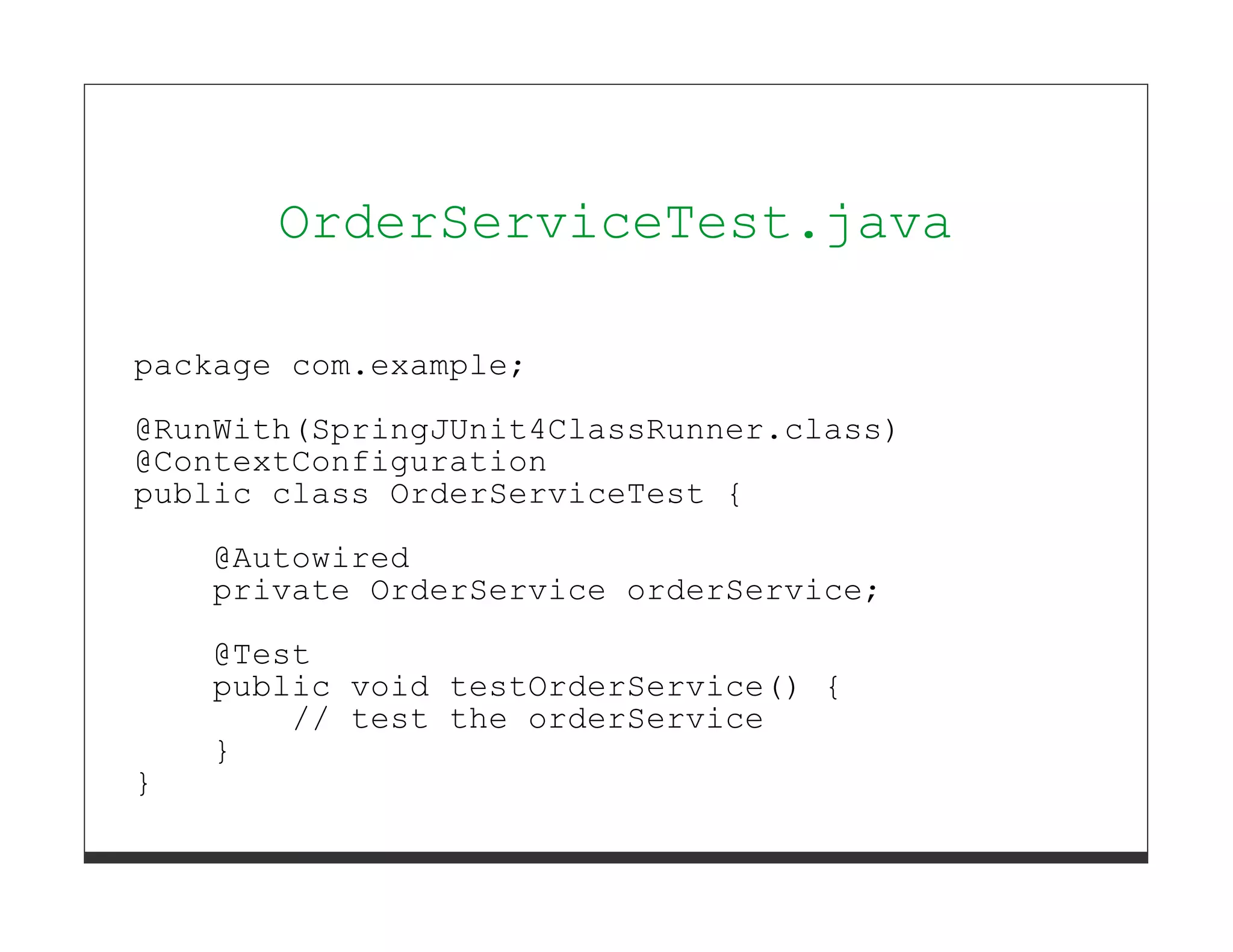

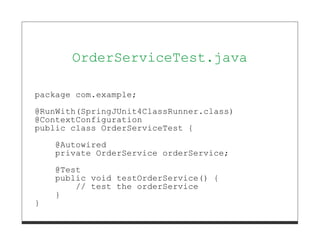

OrderServiceTest.java

package com.example;
public class OrderServiceTest {
@Autowired
@Test
public void testOrderService() {
// test the orderService
}
}

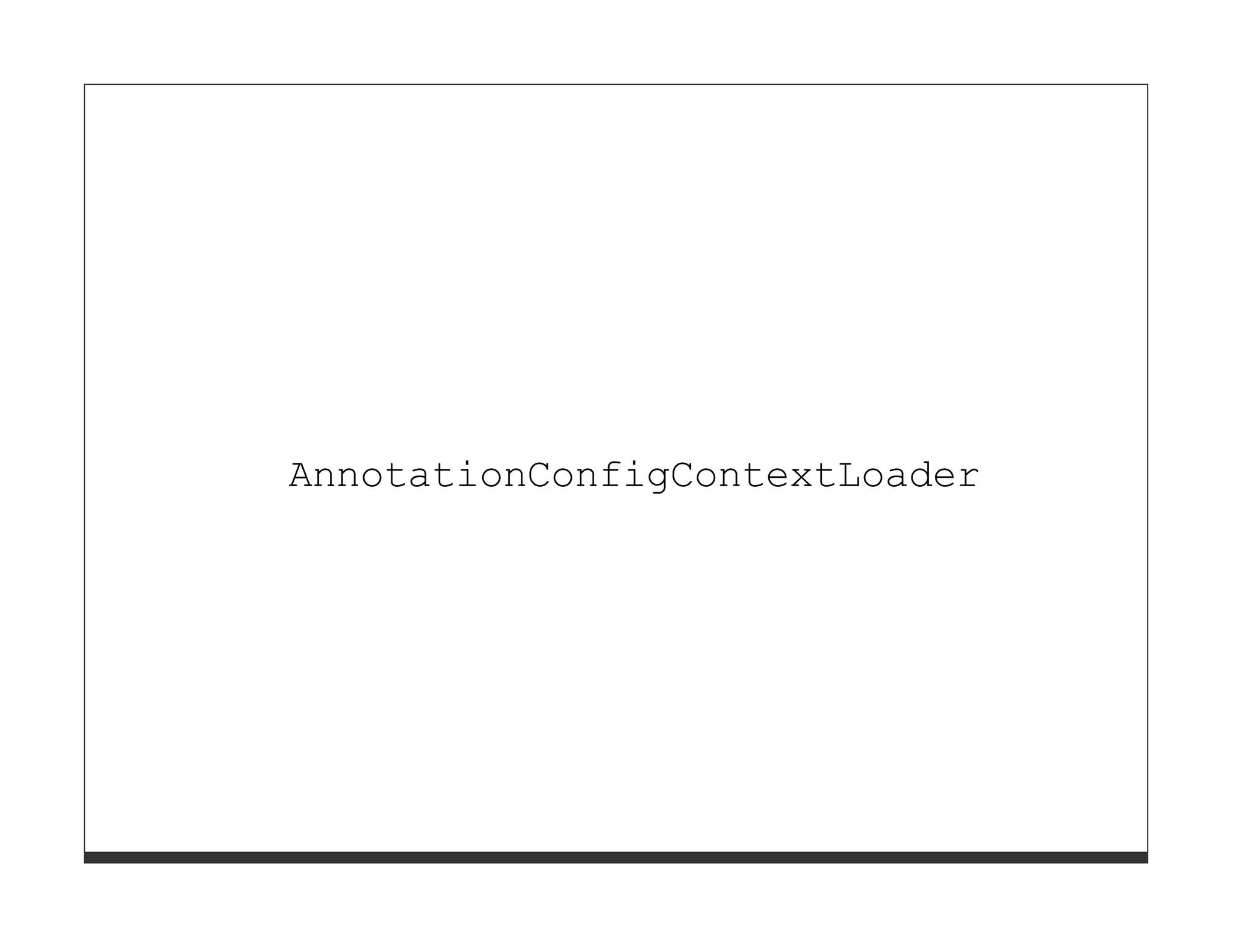

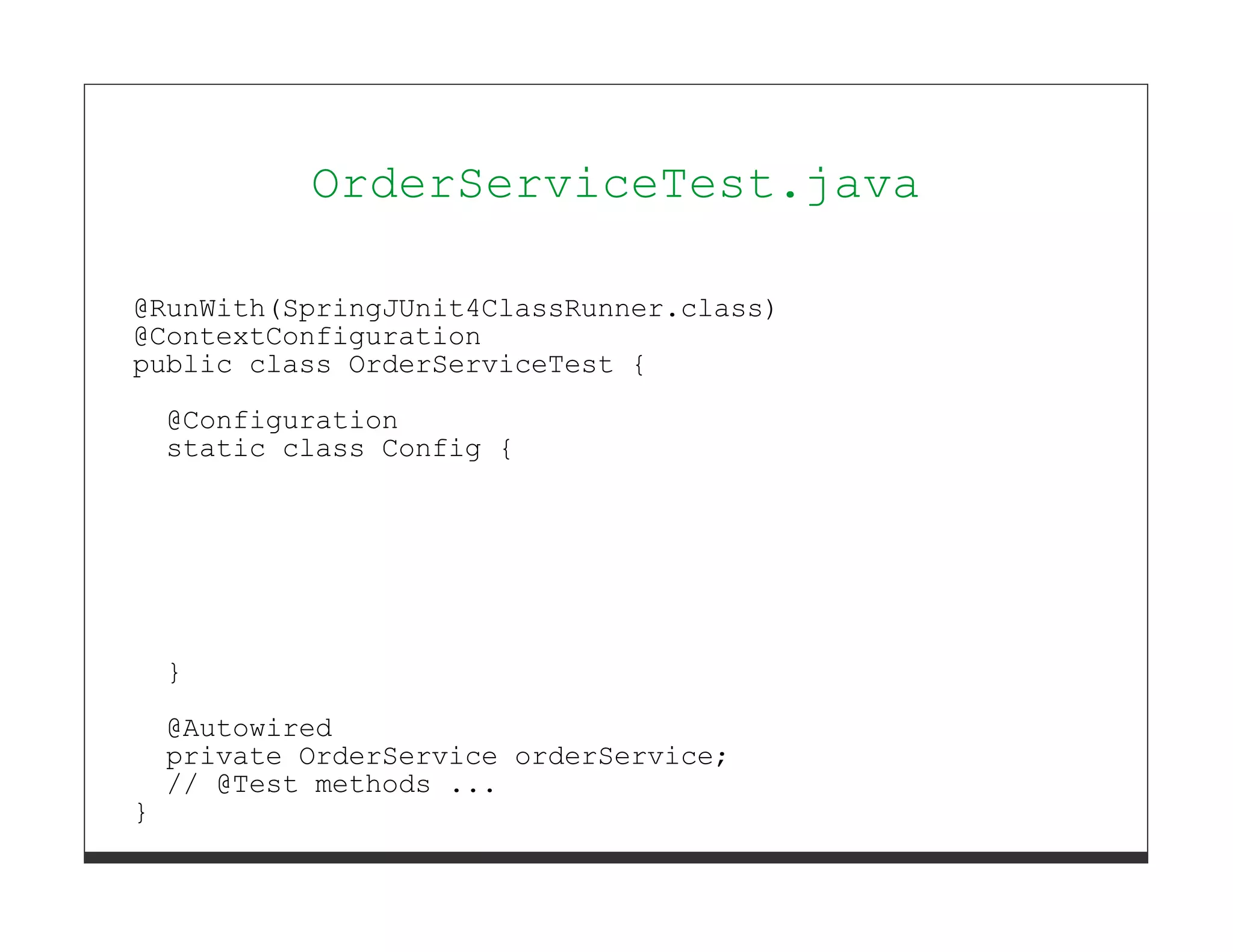

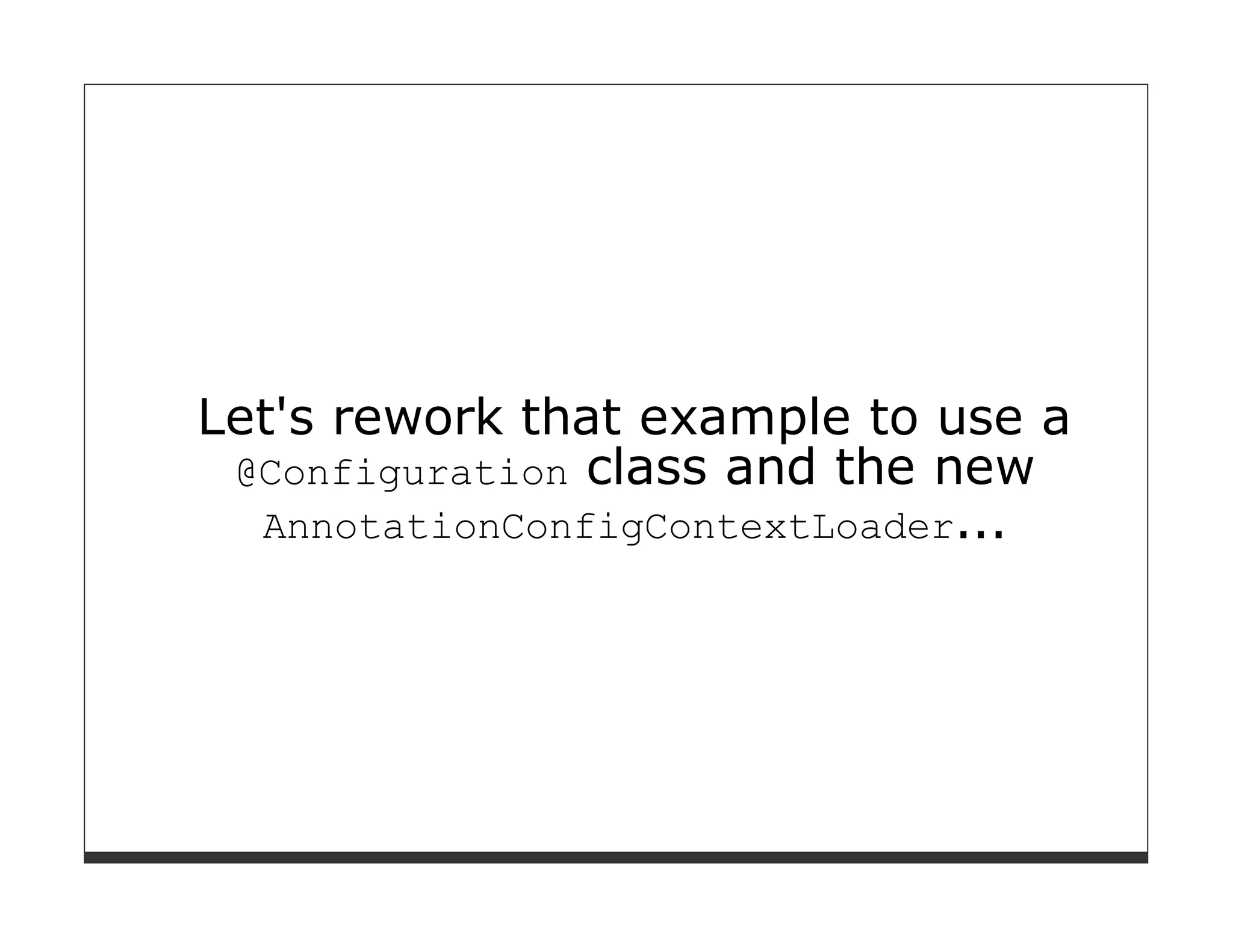

Let's rework that example to use a
@Configuration class and the new
AnnotationConfigContextLoader...




@Autowired
// @Test methods ...
}


loader=AnnotationConfigContextLoader.class)

@Autowired
}



@Autowired
}


@Configuration
static class Config {

}
@Autowired
}



@Configuration
static class Config {
@Bean // will be injected into OrderServiceTest
public OrderService orderService() {
OrderService orderService = new OrderServiceImpl();
// set properties, etc.
return orderService;
}
}
@Autowired
}

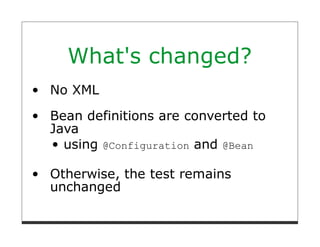

What's changed?
No XML
Bean definitions are converted to
Java
using @Configuration and @Bean

Otherwise, the test remains
unchanged

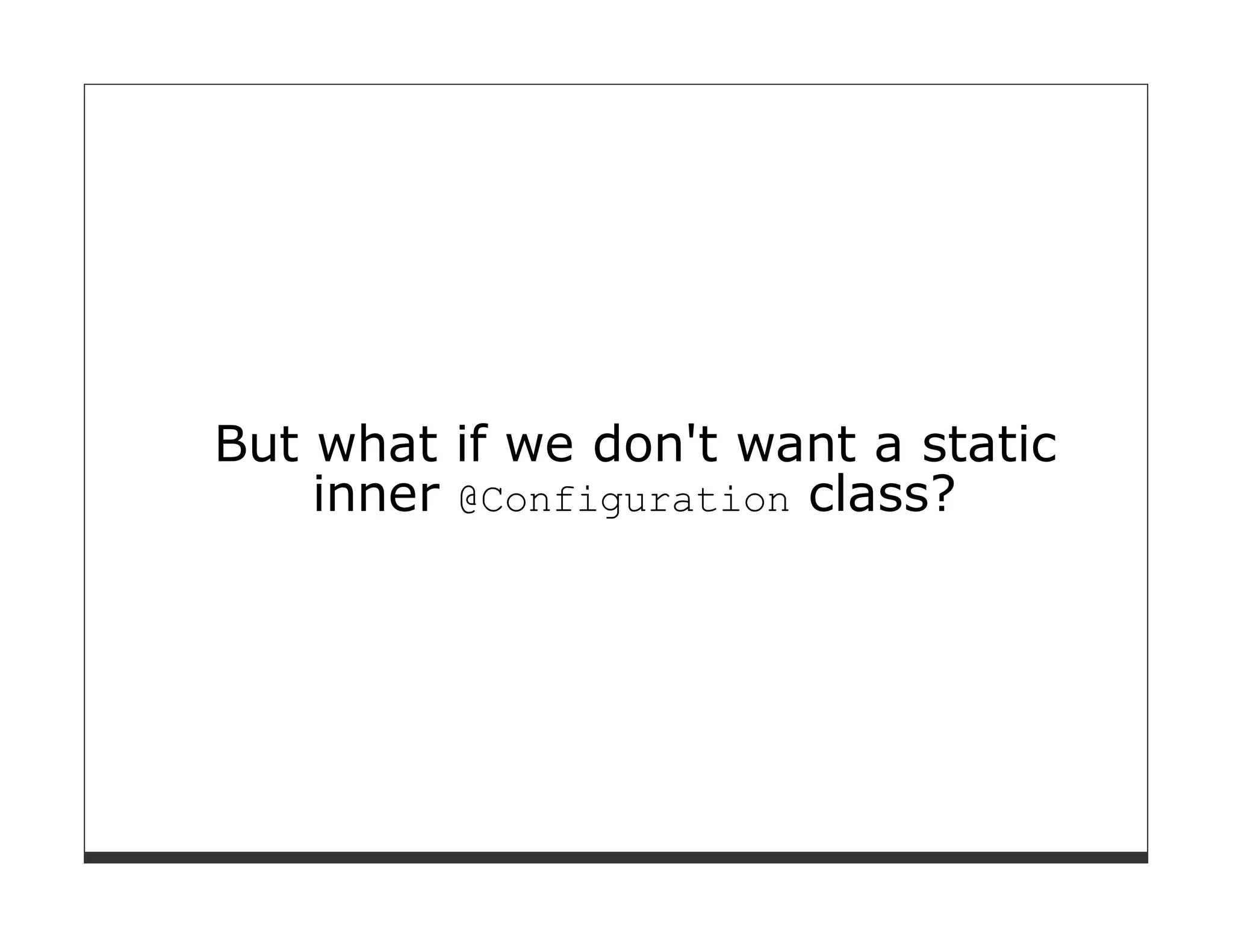

But what if we don't want a static
inner @Configuration class?

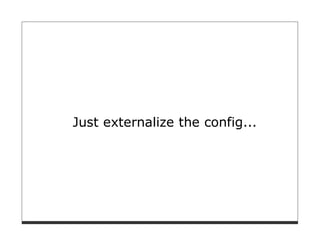

Just externalize the config...

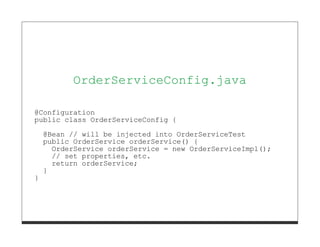

OrderServiceConfig.java

@Configuration
public class OrderServiceConfig {
@Bean // will be injected into OrderServiceTest
public OrderService orderService() {
OrderService orderService = new OrderServiceImpl();
// set properties, etc.
return orderService;
}
}

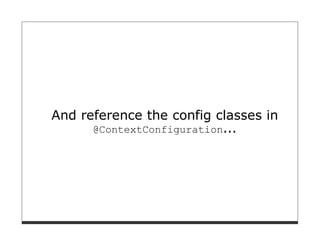

And reference the config classes in
@ContextConfiguration...

OrderServiceConfig.java

@ContextConfiguration(classes=OrderServiceConfig.class)
@Autowired
@Test
public void testOrderService() {
// test the orderService
}
}

@Configuration + XML
Q: How can we combine
@Configuration classes with XML
config?
A: Choose one as the entry point.

That's how it works in production
anyway

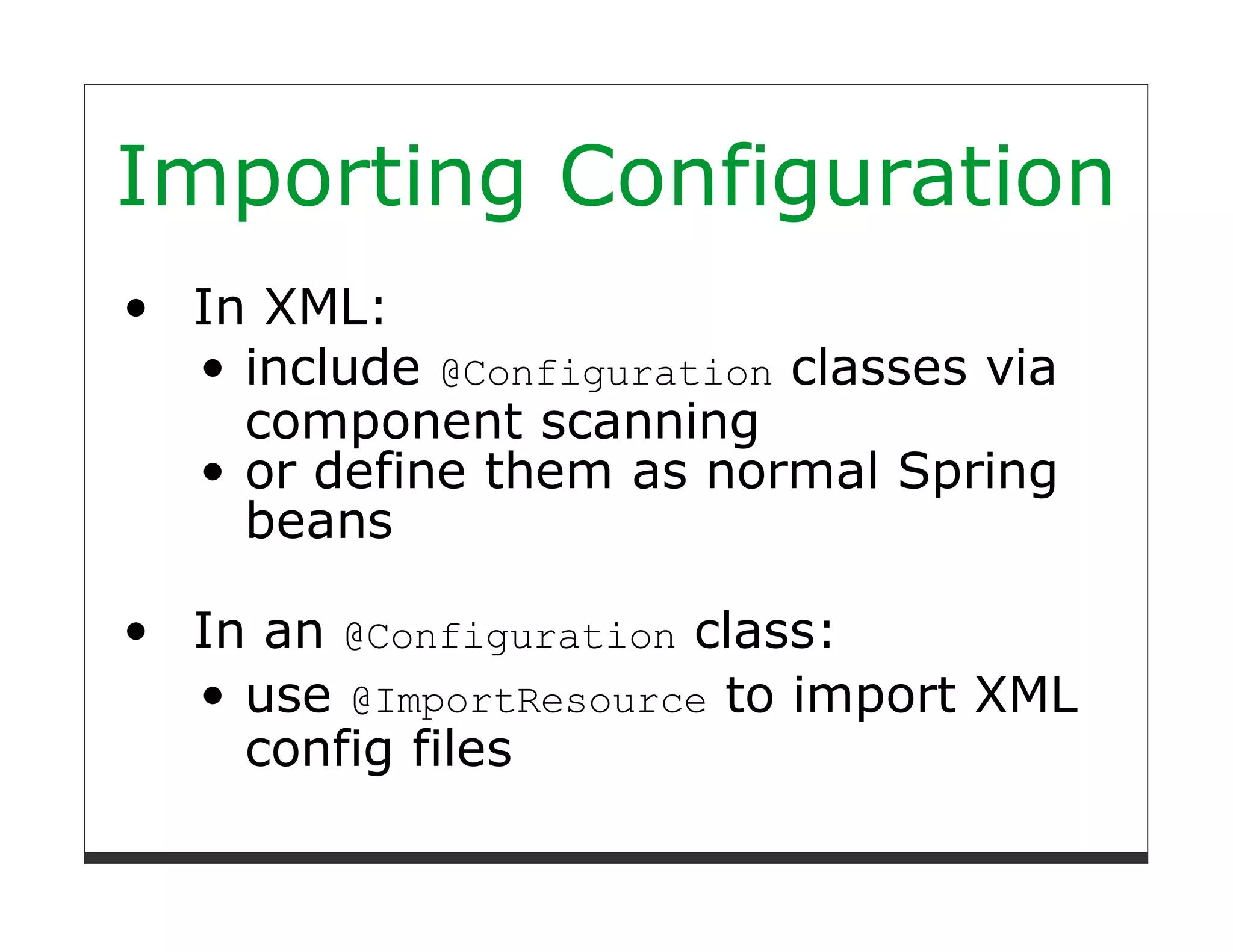

Importing Configuration
In XML:
include @Configuration classes via
component scanning
or define them as normal Spring
beans

In an @Configuration class:
use @ImportResource to import XML
config files

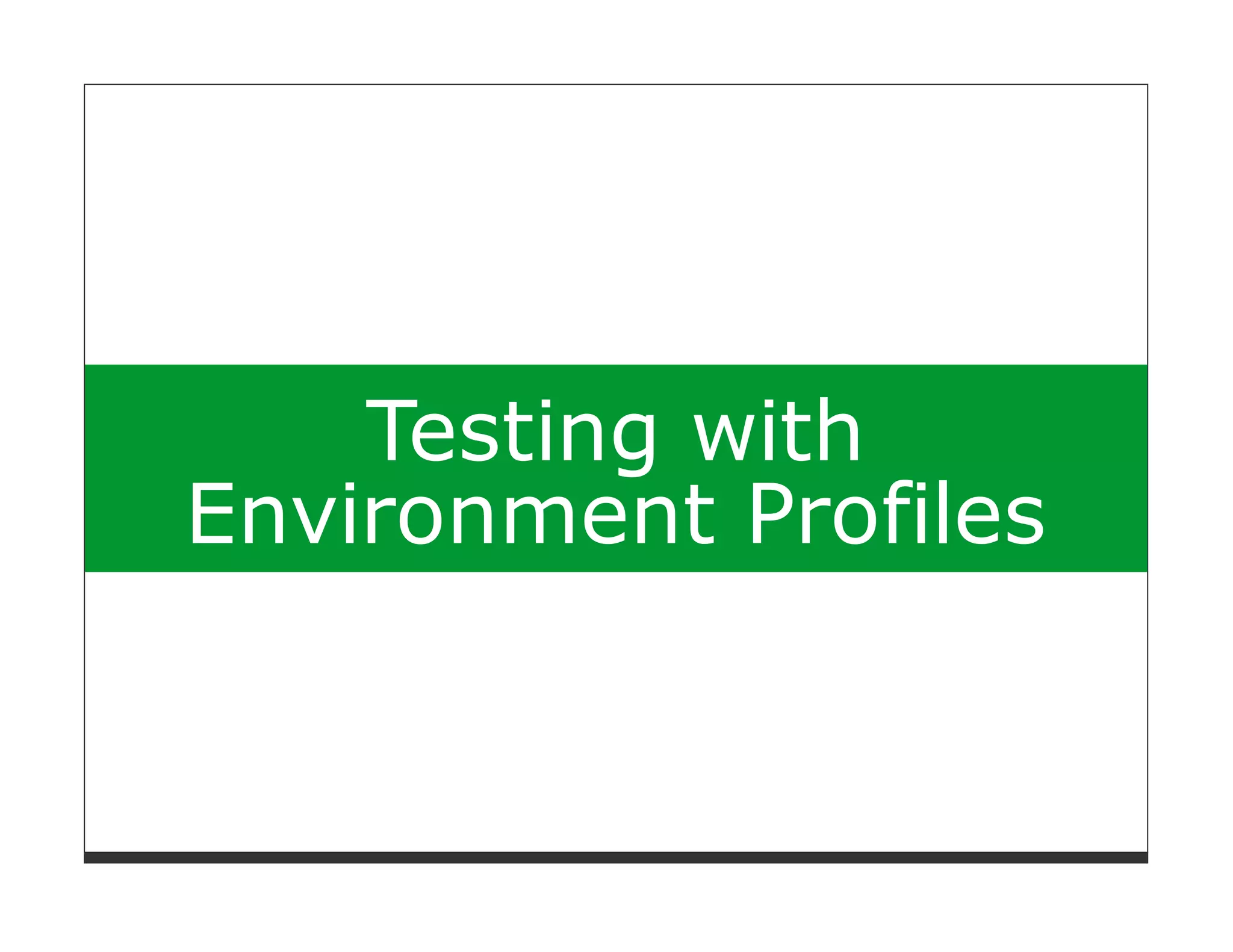

Testing with
Environment Profiles

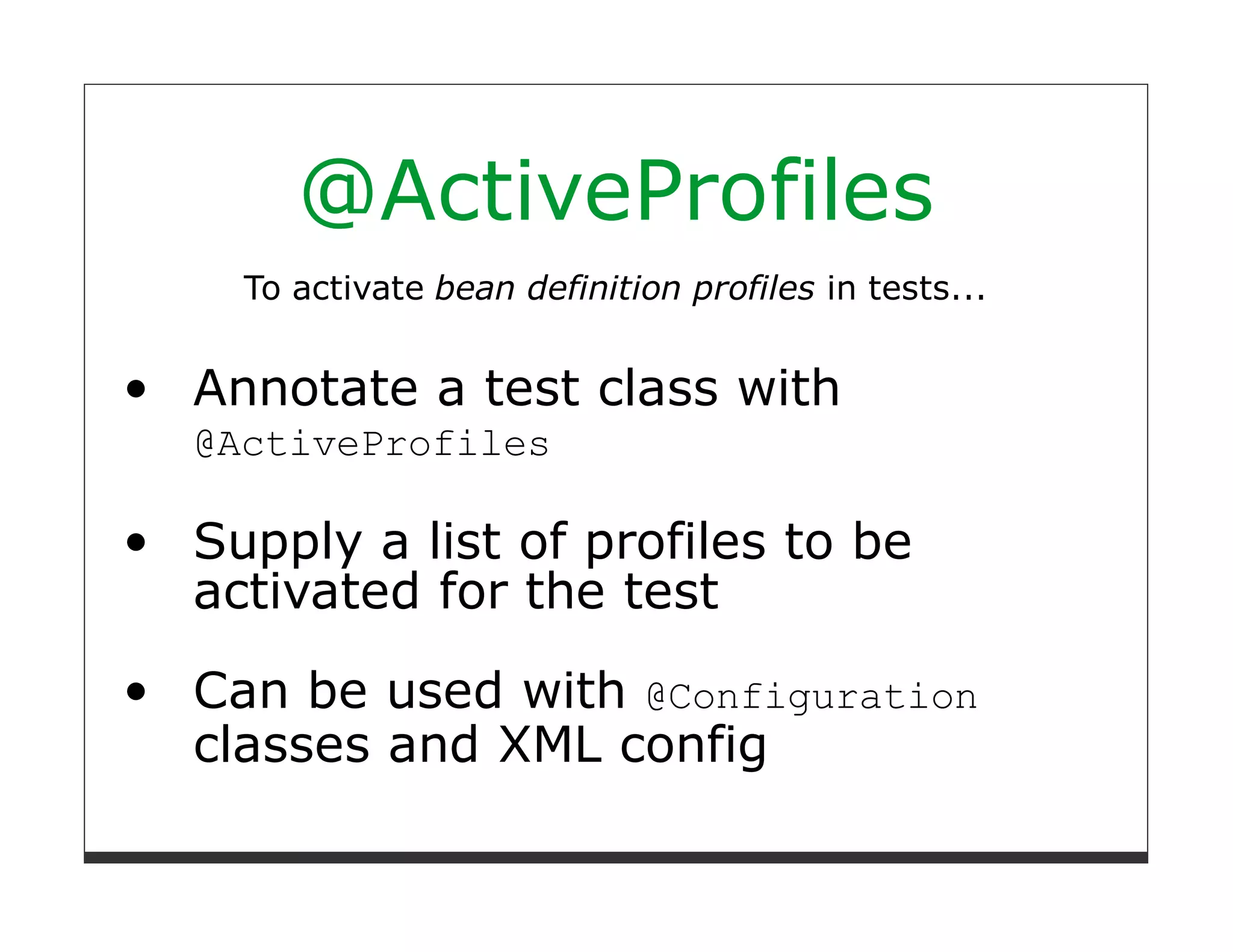

@ActiveProfiles
To activate bean definition profiles in tests...

Annotate a test class with
@ActiveProfiles

Supply a list of profiles to be
activated for the test
Can be used with @Configuration
classes and XML config

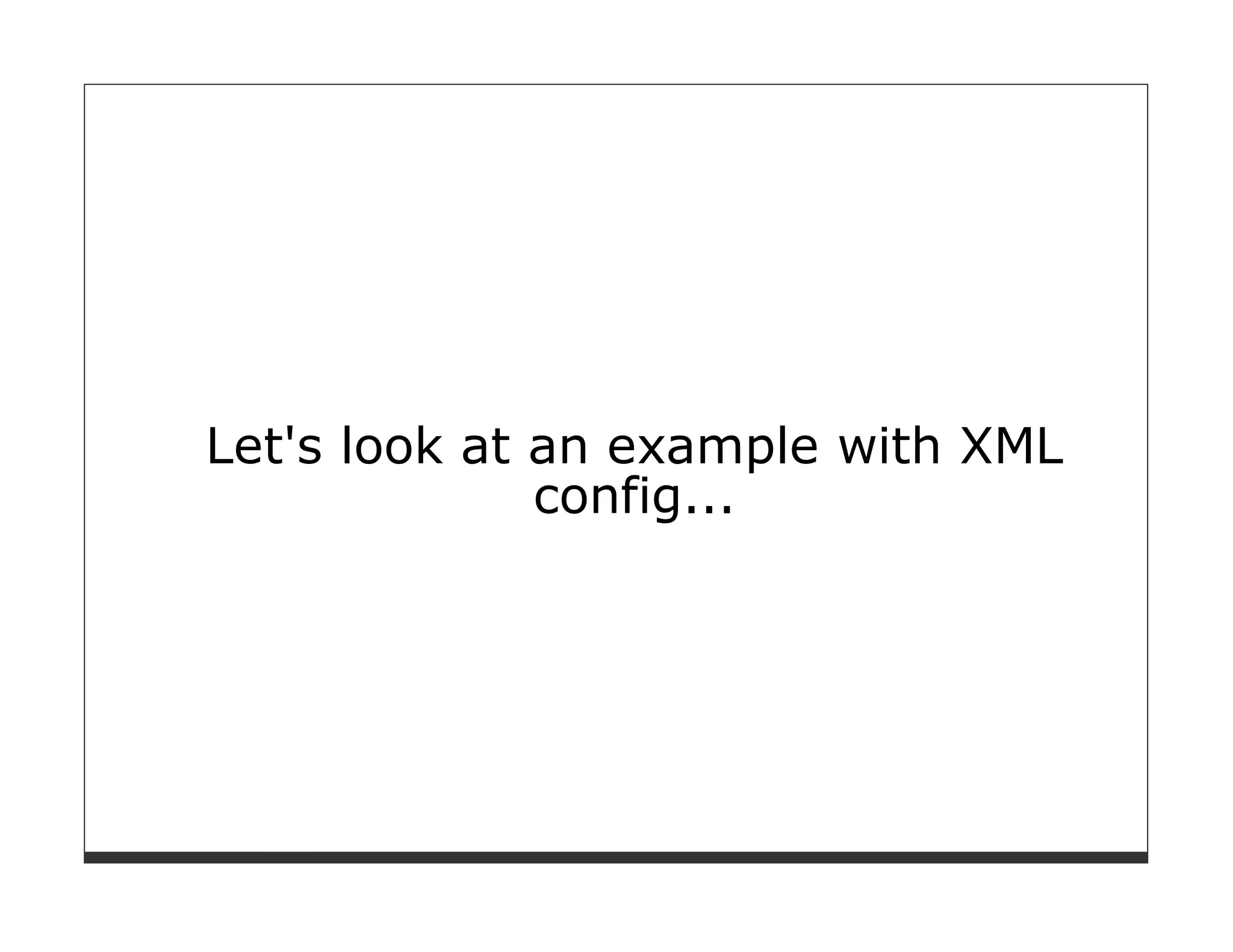

Let's look at an example with XML
config...

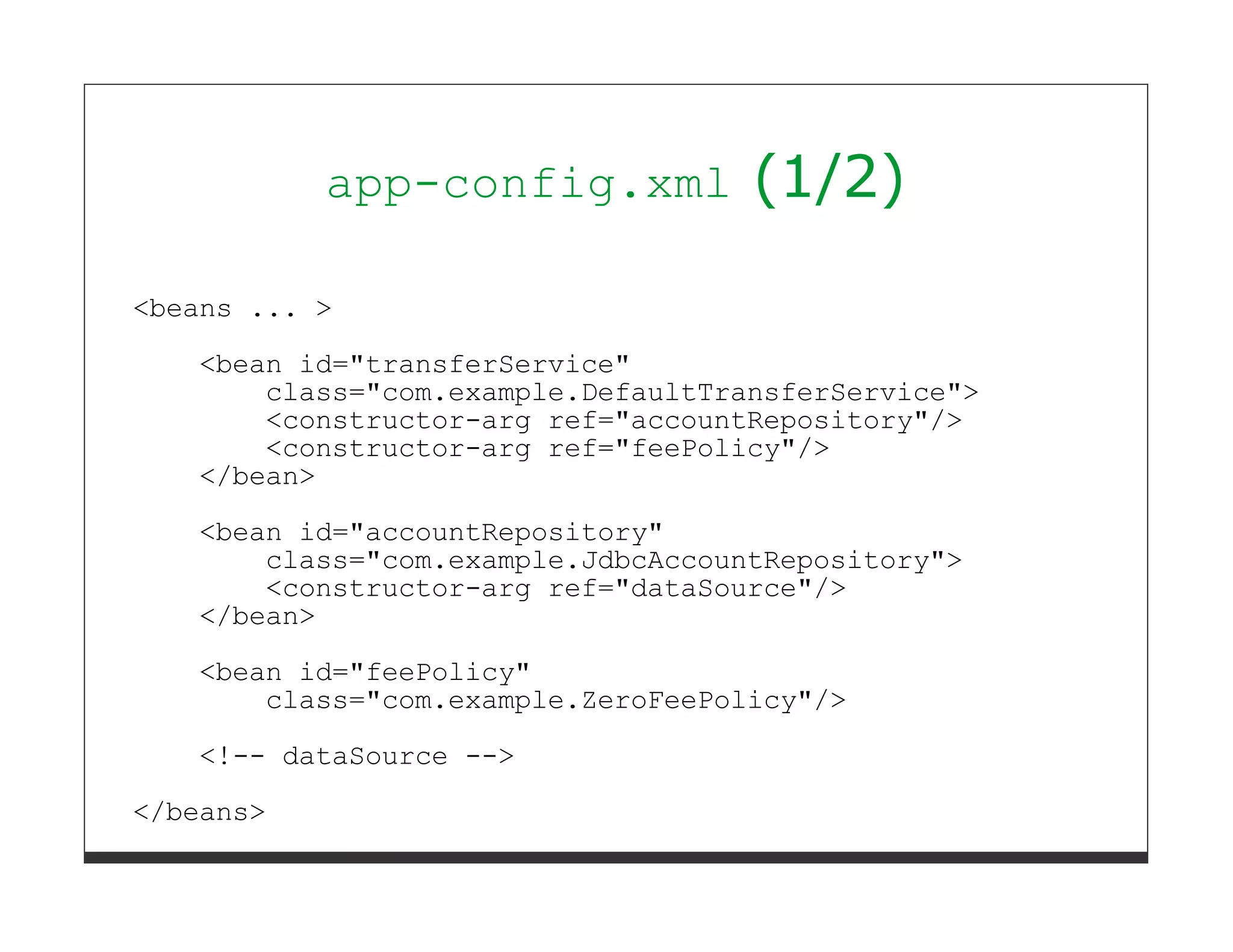

app-config.xml (1/2)

<beans ... >

<bean id="transferService"
class="com.example.DefaultTransferService">
<constructor-arg ref="accountRepository"/>
<constructor-arg ref="feePolicy"/>
</bean>

<bean id="accountRepository"
class="com.example.JdbcAccountRepository">
<constructor-arg ref="dataSource"/>
</bean>
<bean id="feePolicy"
class="com.example.ZeroFeePolicy"/>


</beans>

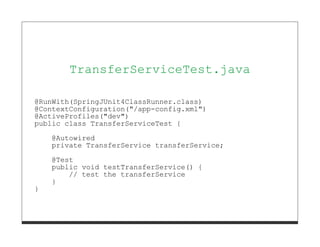

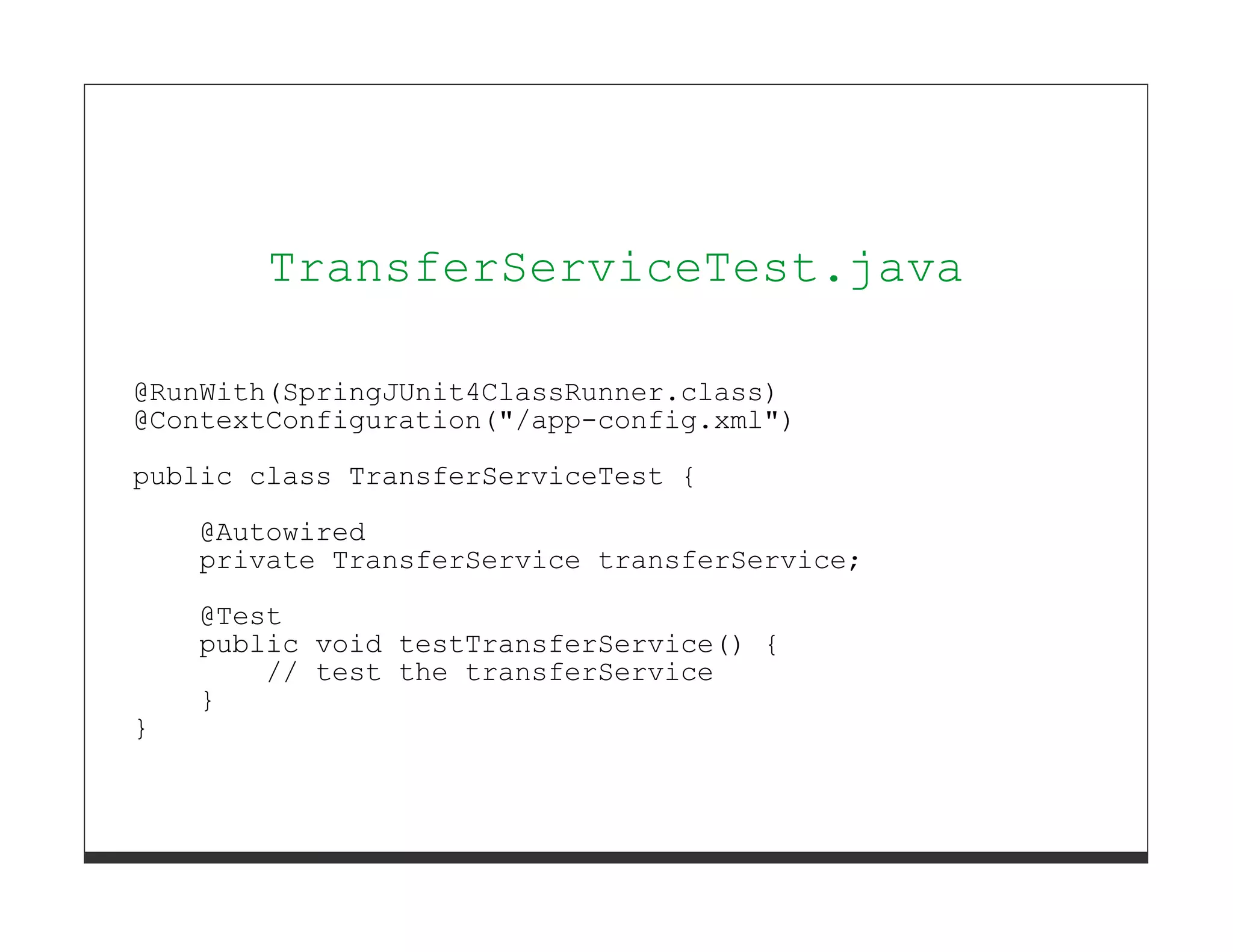

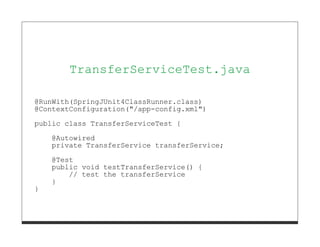

TransferServiceTest.java


public class TransferServiceTest {
@Autowired
private TransferService transferService;
@Test
public void testTransferService() {
// test the transferService
}
}


@ContextConfiguration("/app-config.xml")
@Autowired
@Test
}
}


@ContextConfiguration("/app-config.xml")
@ActiveProfiles("dev")
@Autowired
@Test
}
}

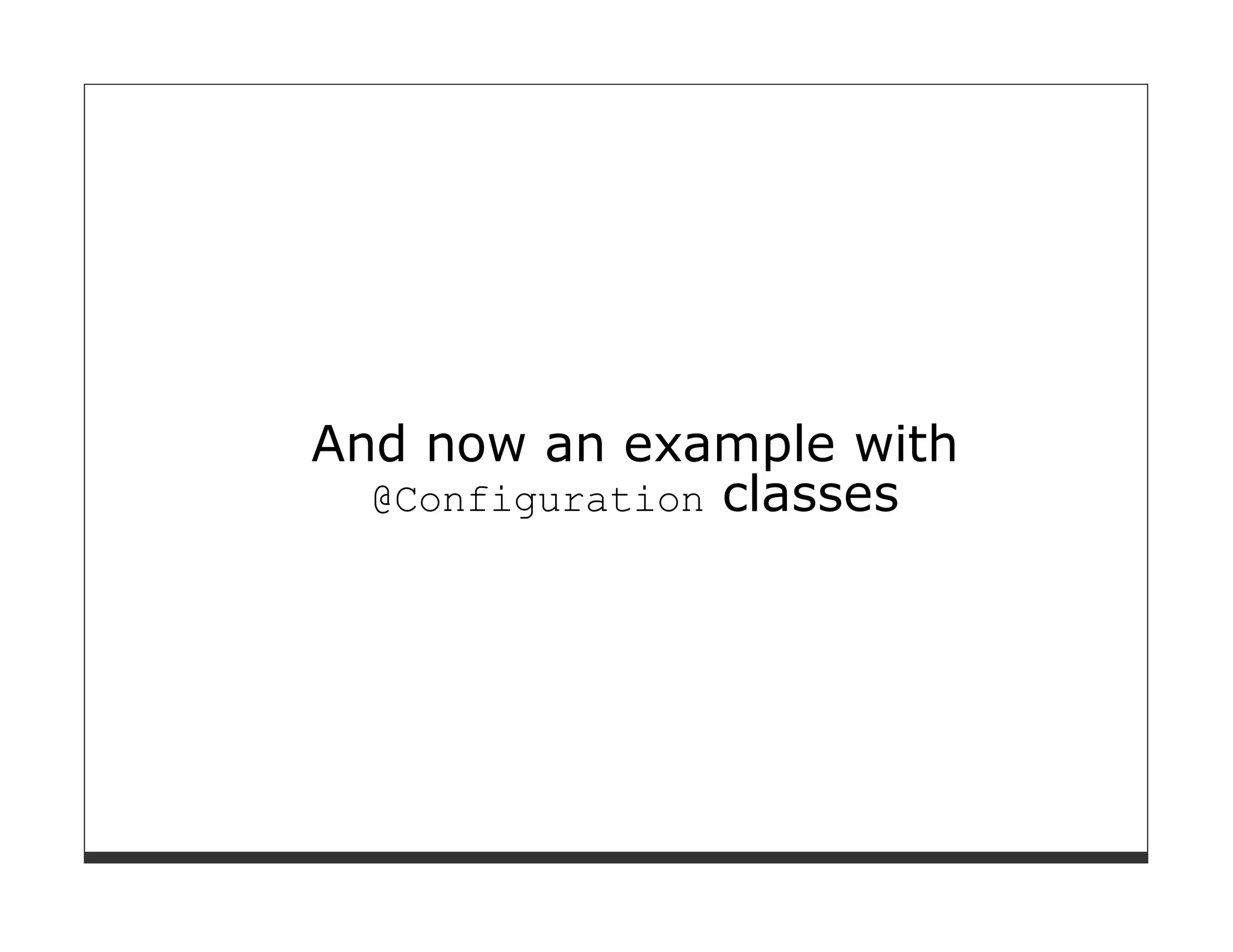

And now an example with
@Configuration classes

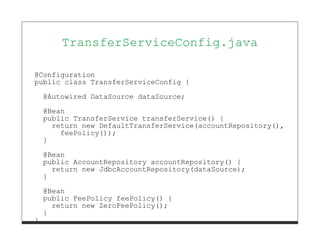

TransferServiceConfig.java

@Configuration
public class TransferServiceConfig {

@Autowired DataSource dataSource;

@Bean
public TransferService transferService() {
return new DefaultTransferService(accountRepository(),
feePolicy());
}
@Bean
public AccountRepository accountRepository() {
return new JdbcAccountRepository(dataSource);
}
@Bean
public FeePolicy feePolicy() {
return new ZeroFeePolicy();
}
}

}

JndiDataConfig.java

@Configuration
@Profile("production")
public class JndiDataConfig {

@Bean
public DataSource dataSource() throws Exception {
Context ctx = new InitialContext();
return (DataSource)
ctx.lookup("java:comp/env/jdbc/datasource");
}
}

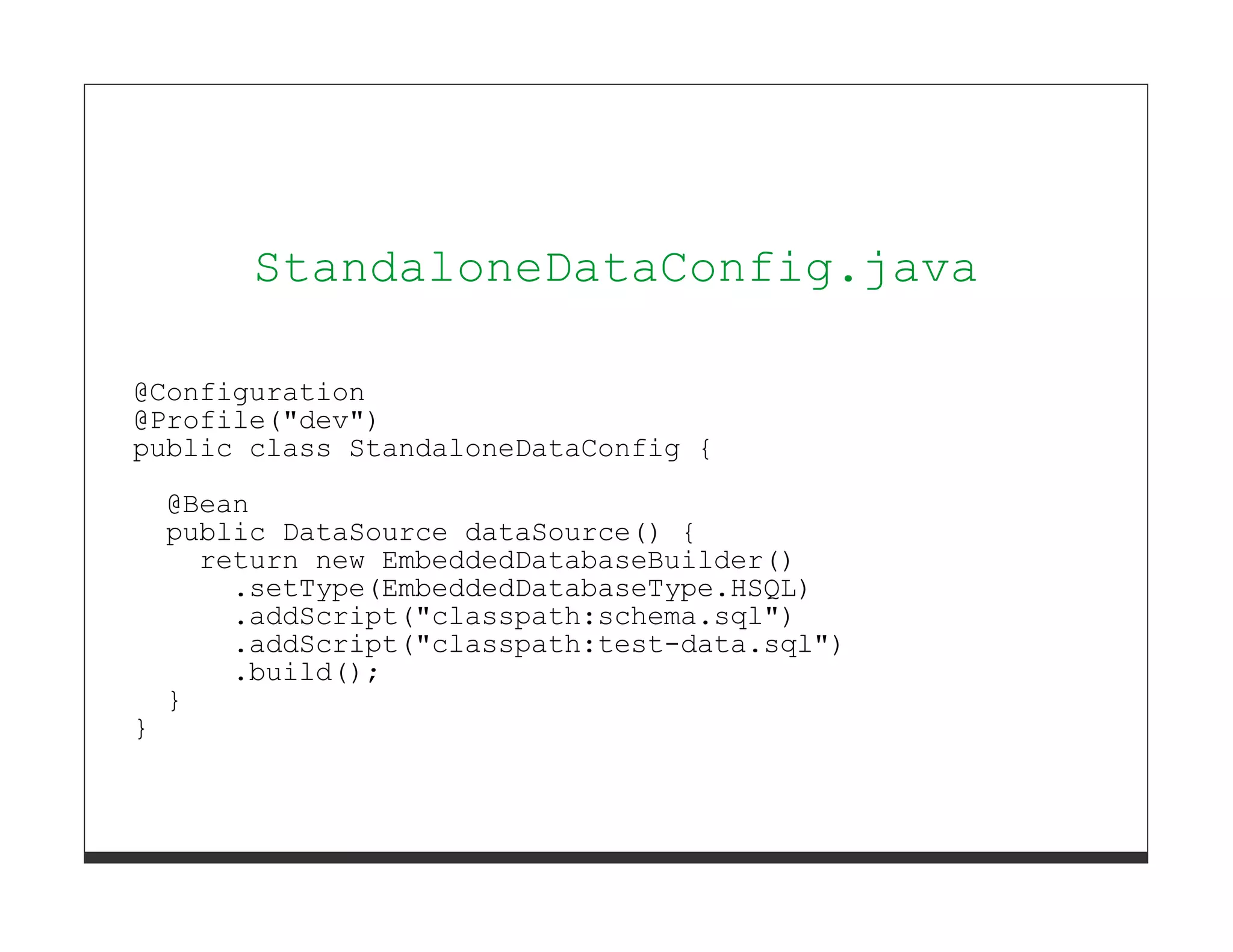

StandaloneDataConfig.java

@Configuration
@Profile("dev")
public class StandaloneDataConfig {
@Bean
public DataSource dataSource() {
return new EmbeddedDatabaseBuilder()
.setType(EmbeddedDatabaseType.HSQL)
.addScript("classpath:schema.sql")
.addScript("classpath:test-data.sql")
.build();
}
}

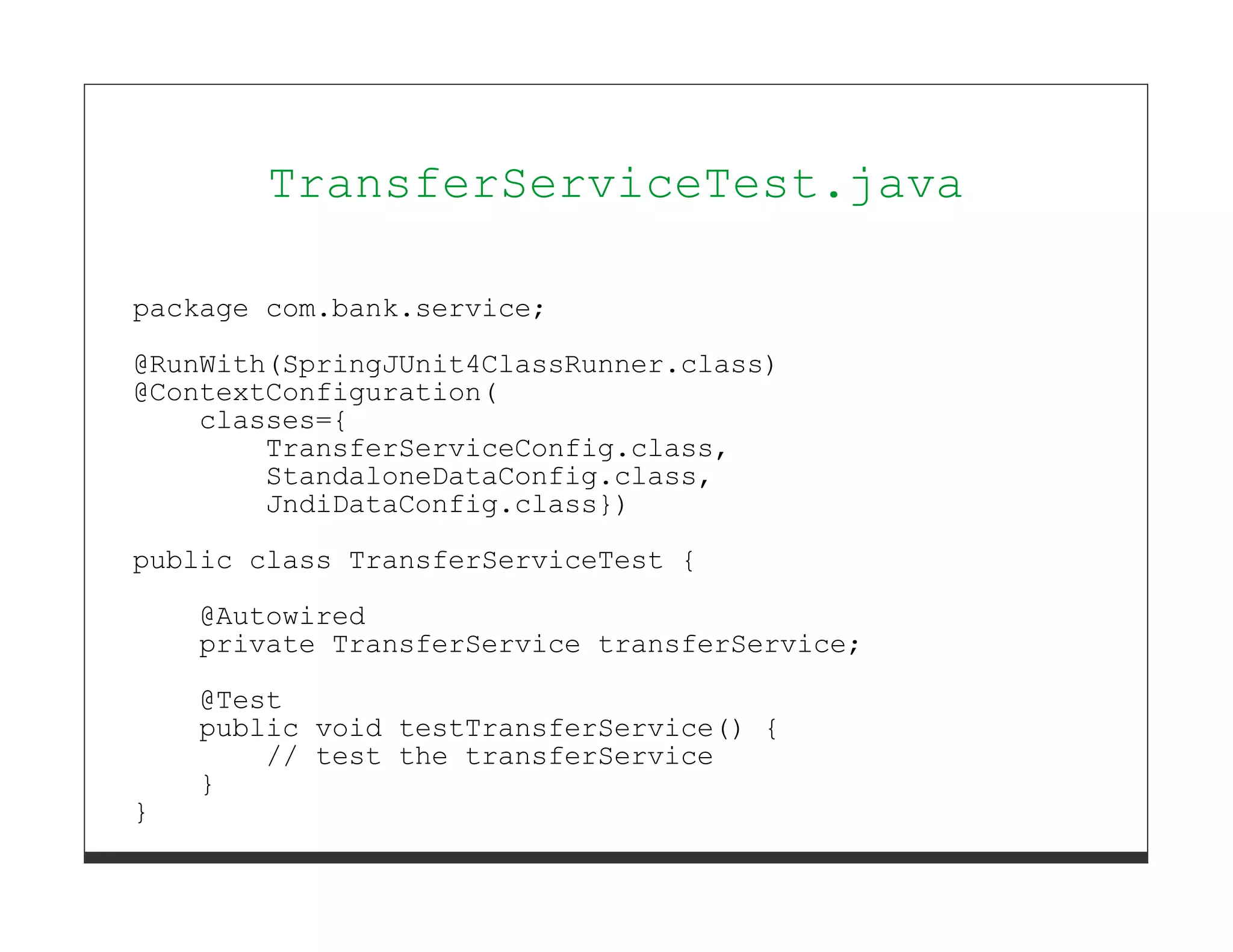

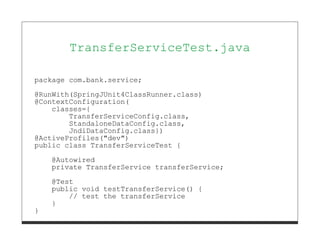

package com.bank.service;


@Autowired

@Test
}
}


classes={
TransferServiceConfig.class,
StandaloneDataConfig.class,
JndiDataConfig.class})
@Autowired

@Test
}
}


classes={
TransferServiceConfig.class,
StandaloneDataConfig.class,
JndiDataConfig.class})
@ActiveProfiles("dev")
@Autowired
@Test
}
}

Active Profile Inheritance
@ActiveProfiles supports inheritance as well

Via the inheritProfiles attribute

See Javadoc for an example

ApplicationContext
Caching

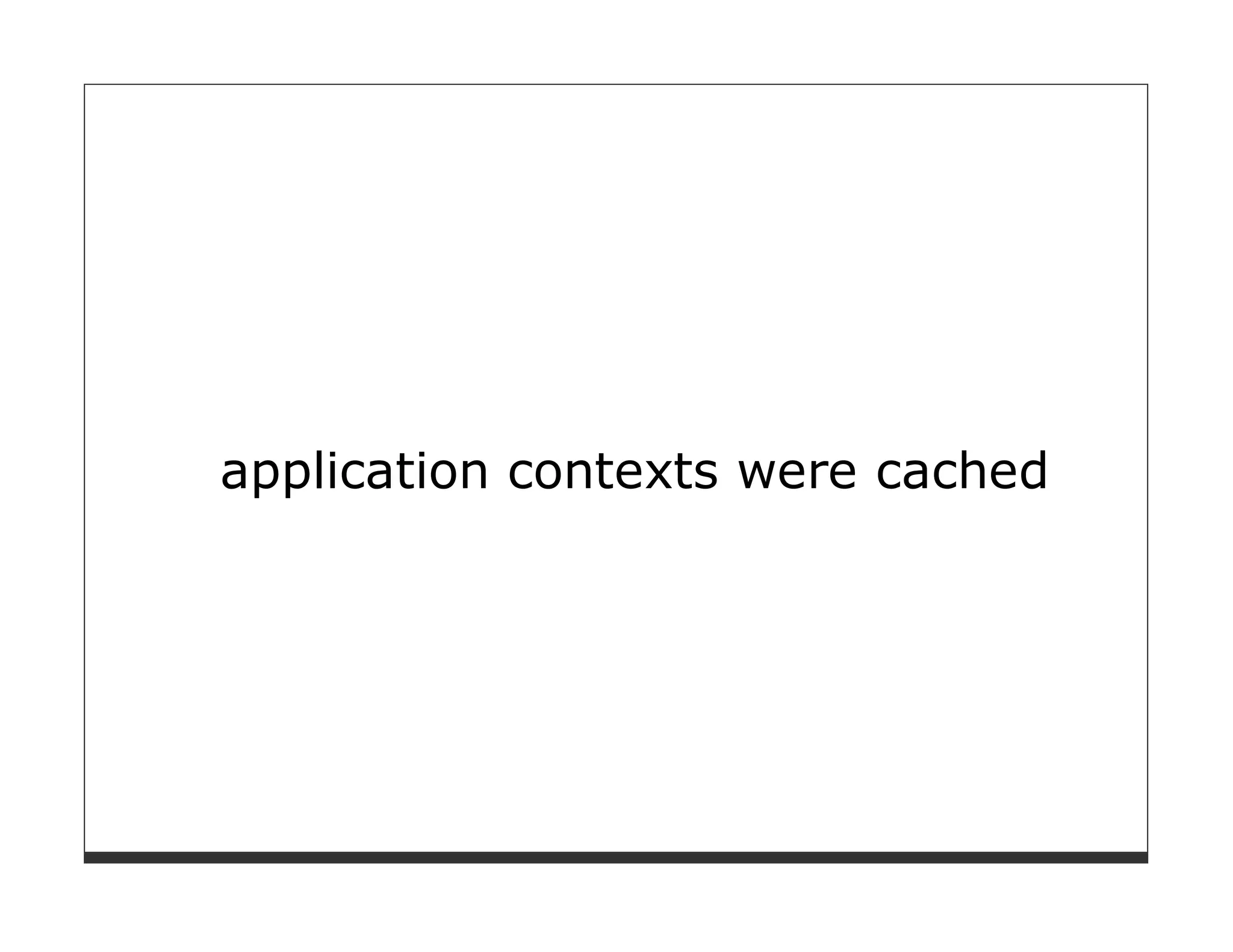

application contexts were cached

but using only resource locations for
the key.

Now there are different
requirements...

New Key Generation Algorithm
The context cache key generation algorithm has been updated to include...

locations (from @ContextConfiguration)

classes (from @ContextConfiguration)

contextLoader (from @ContextConfiguration)

activeProfiles (from @ActiveProfiles)

Summary
The Spring TestContext Framework simplifies
integration testing of Spring-based
applications
Spring 3.1 provides first-class testing support
for:
@Configuration classes
Environment profiles

See the Testing with @Configuration Classes
and Profiles blog for further insight

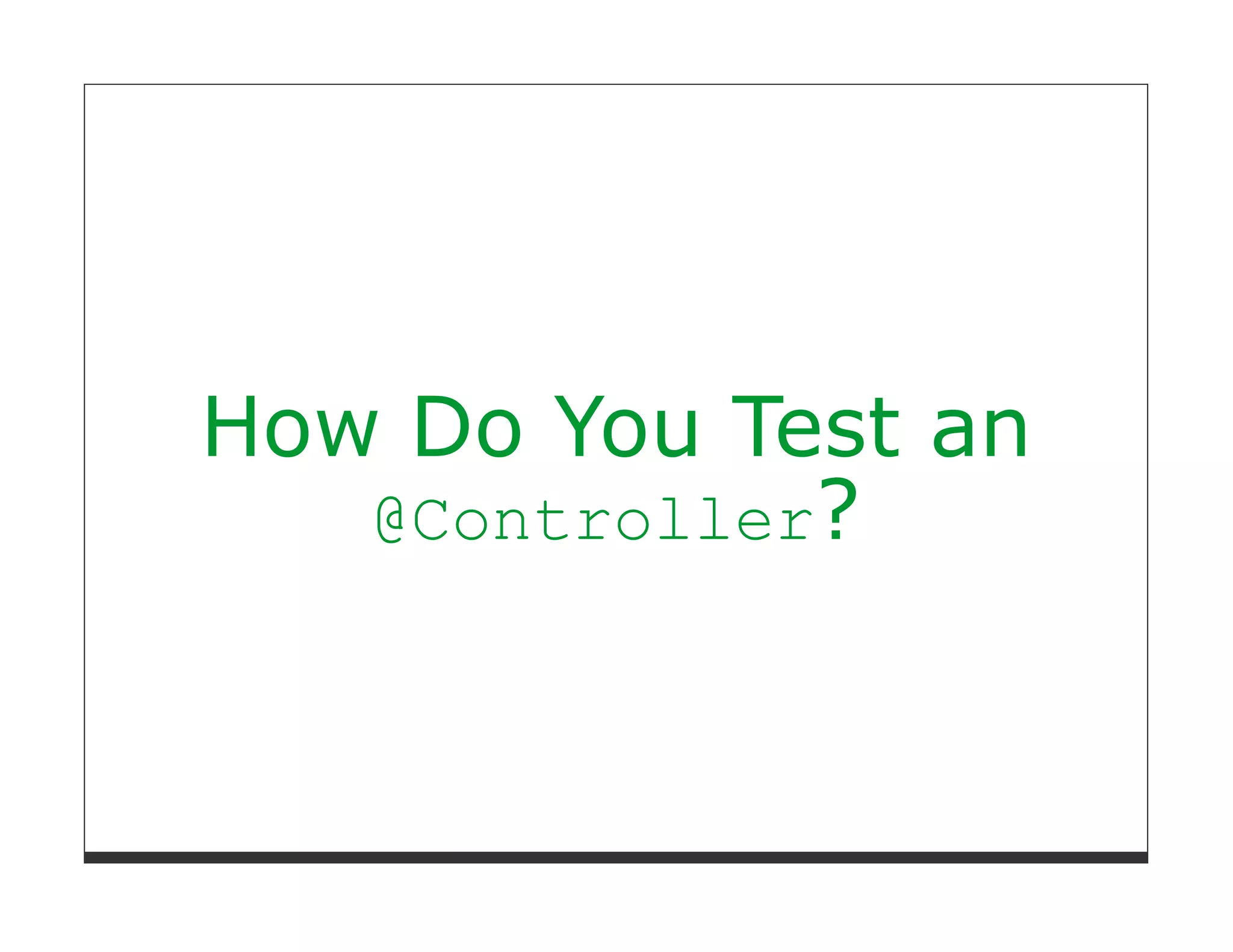

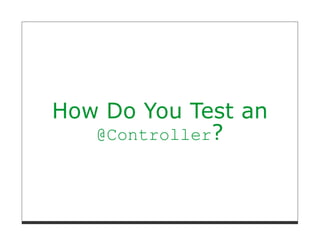

How Do You Test an
@Controller?

@Controller
@RequestMapping("/accounts")
public class AccountController {

// ...
@ModelAttribute
public Account getAccount(String number) {
return this.accountManager.getAccount(number);
}

@RequestMapping(method = RequestMethod.POST)
public String save(@Valid Account account,
BindingResult result) {
if (result.hasErrors()) {
return "accounts/edit";
}
this.accountManager.saveOrUpdate(account);
return "redirect:accounts";
}

}

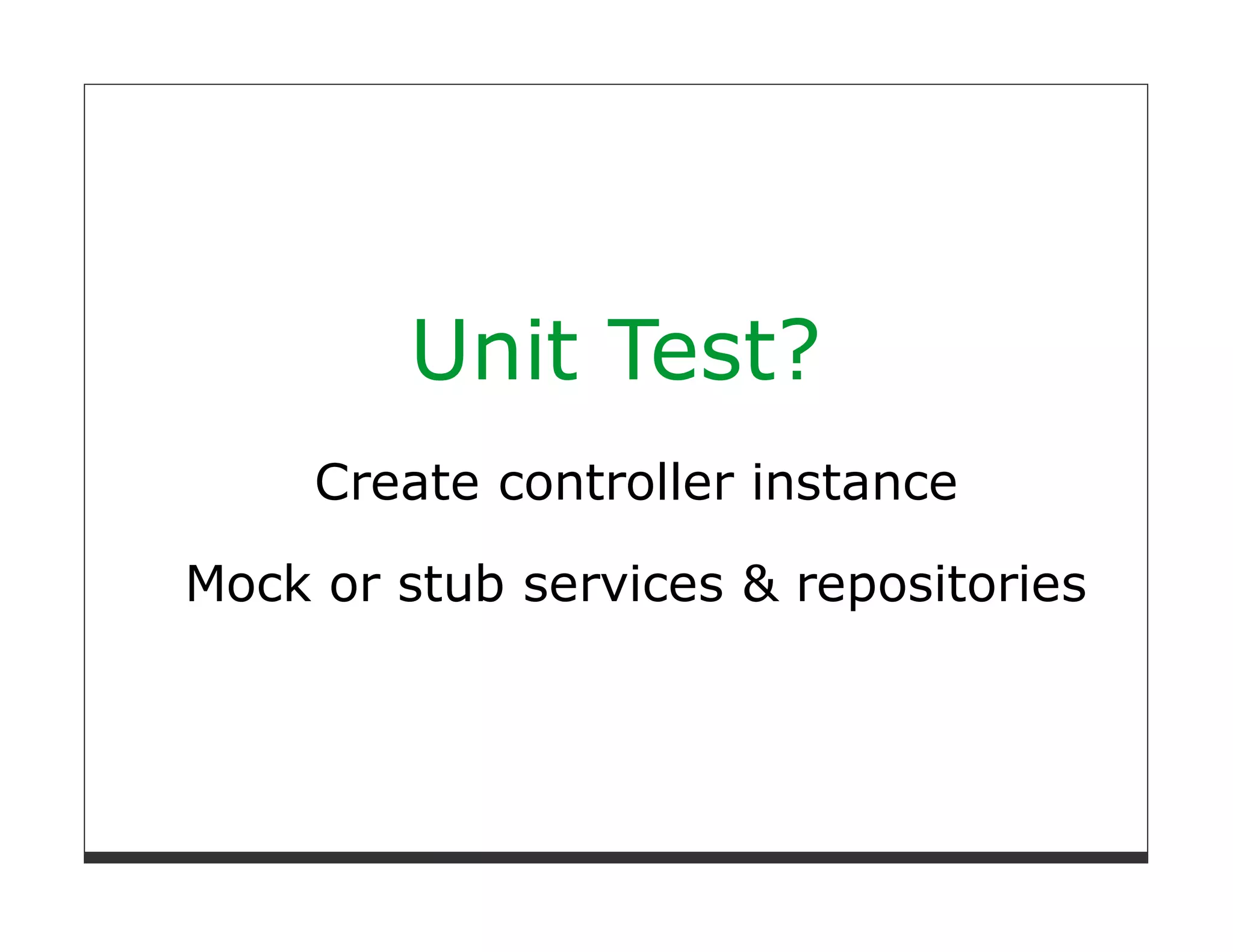

Unit Test?
Create controller instance

Mock or stub services & repositories

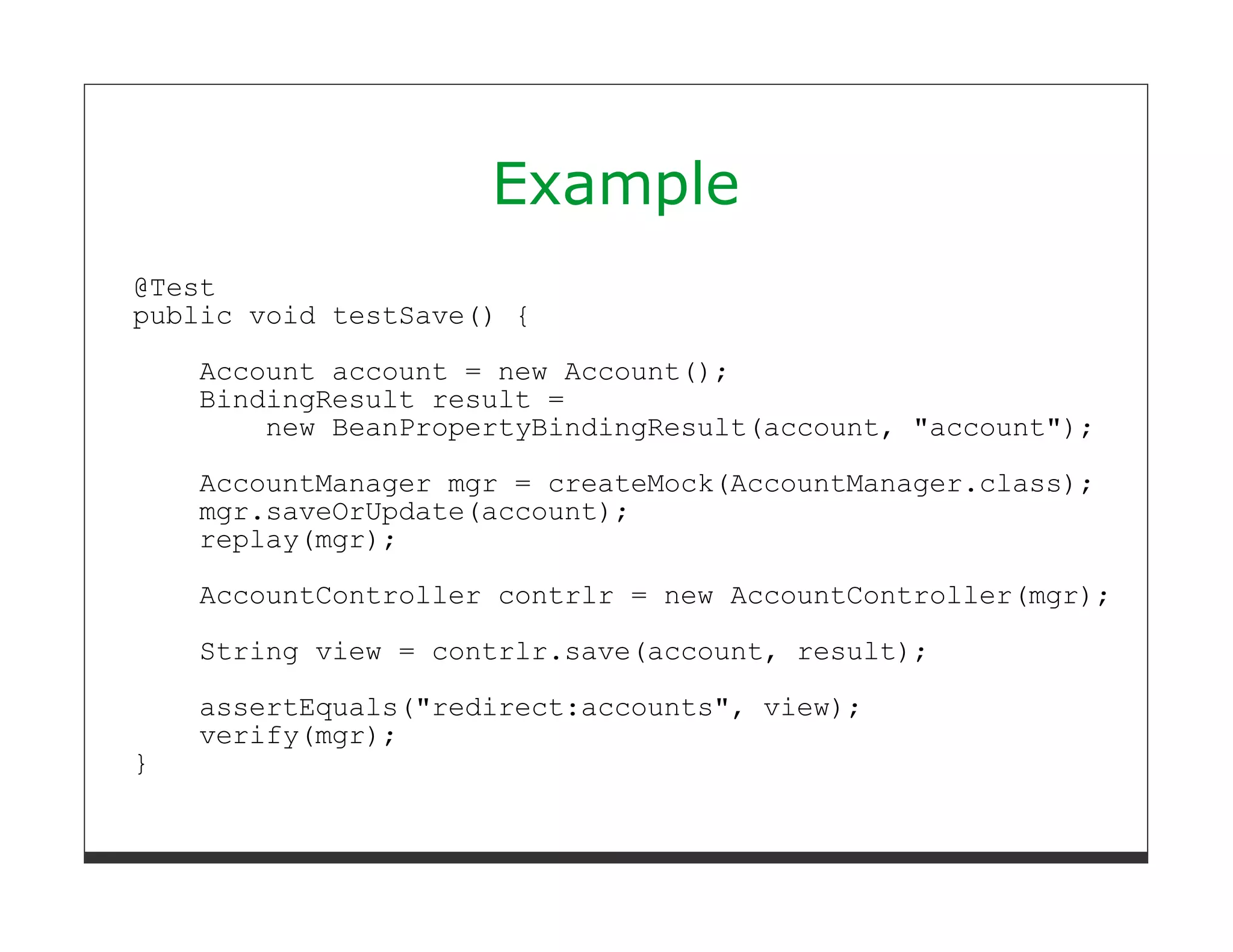

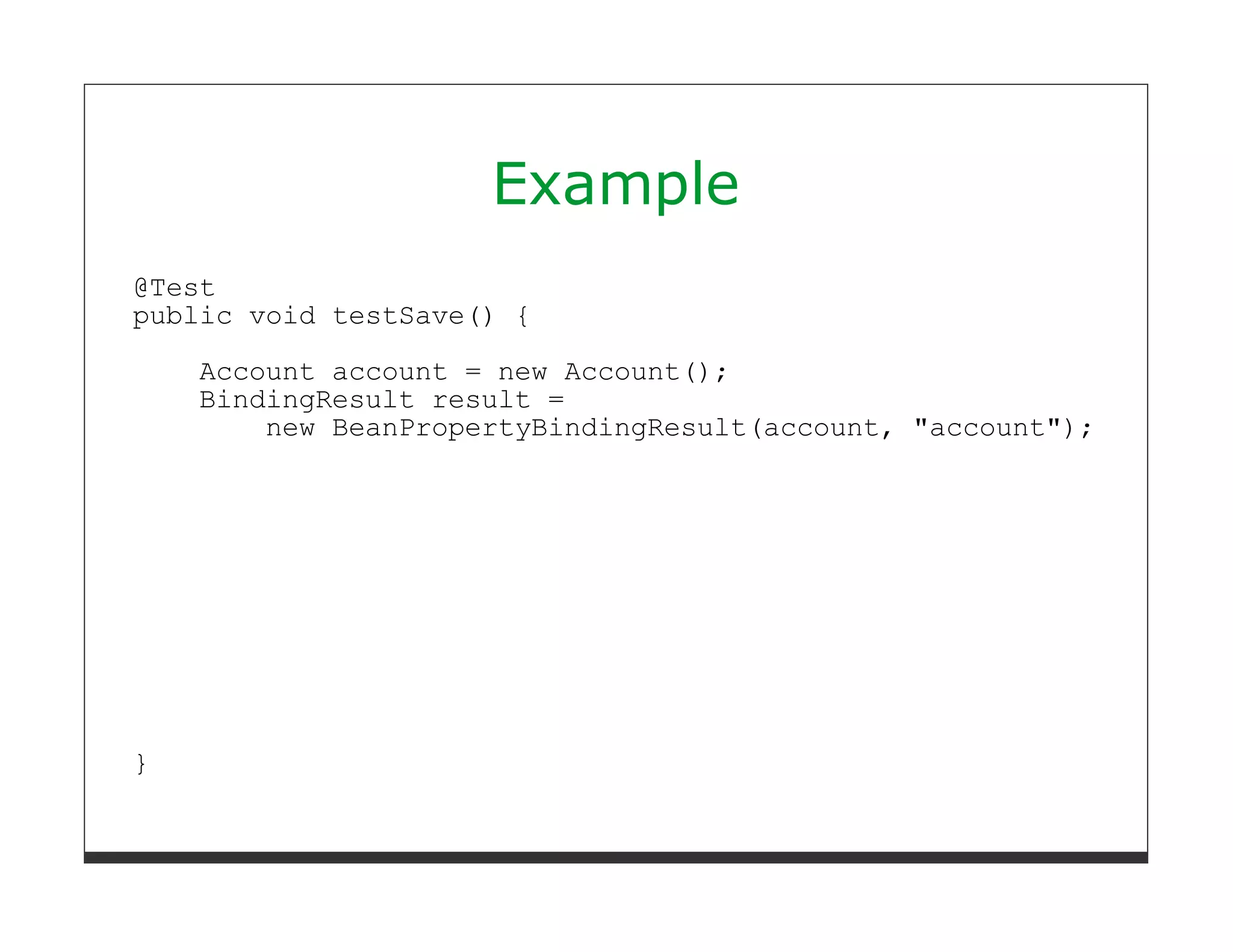

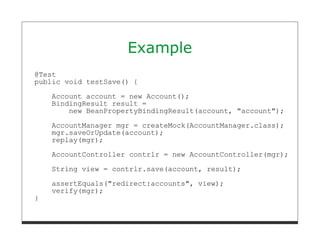

Example
@Test
public void testSave() {
Account account = new Account();
BindingResult result =
new BeanPropertyBindingResult(account, "account");

}

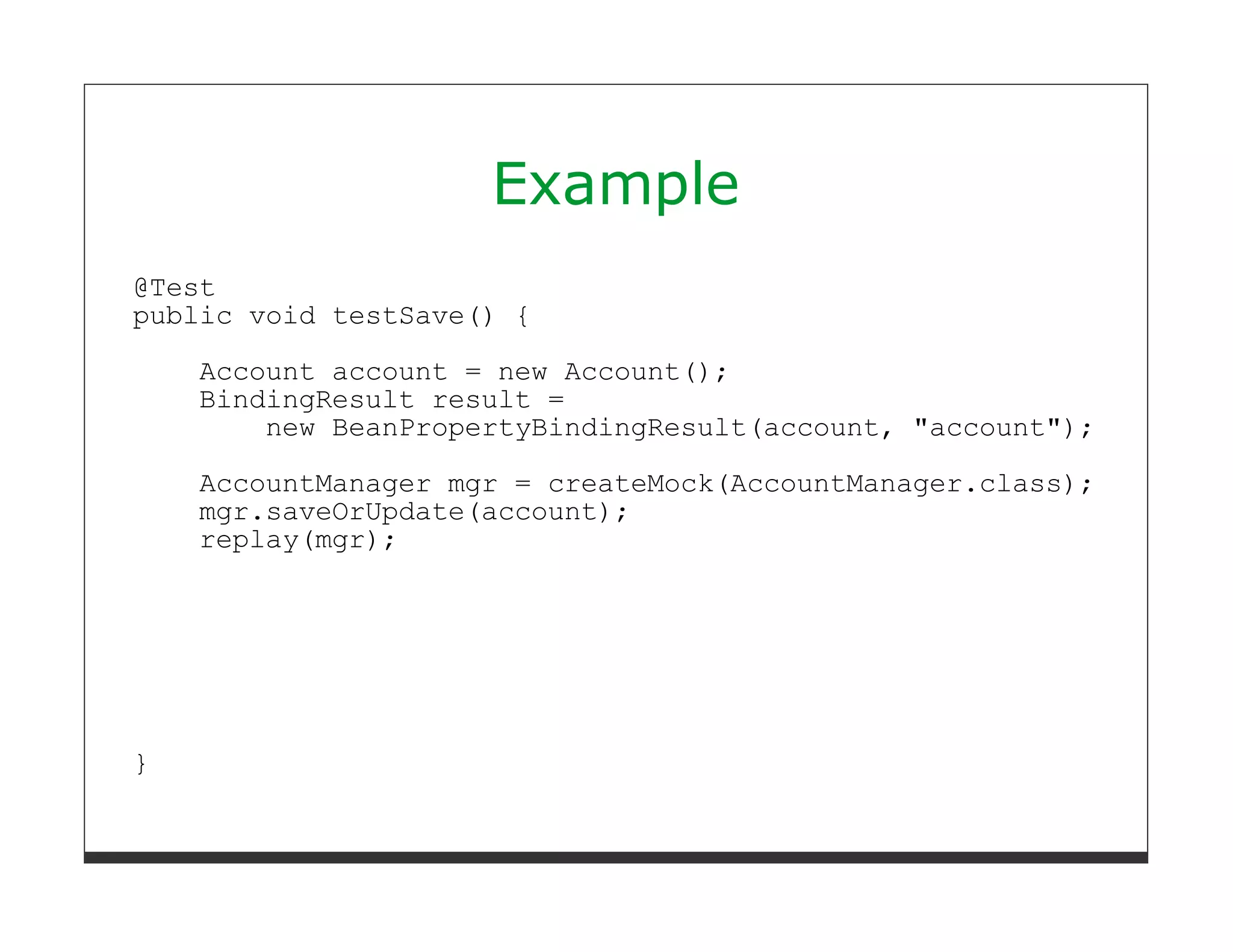

Example
@Test

AccountManager mgr = createMock(AccountManager.class);
mgr.saveOrUpdate(account);
replay(mgr);

}

Example
@Test
replay(mgr);
AccountController contrlr = new AccountController(mgr);
String view = contrlr.save(account, result);

}

Example
@Test
replay(mgr);

assertEquals("redirect:accounts", view);
verify(mgr);
}

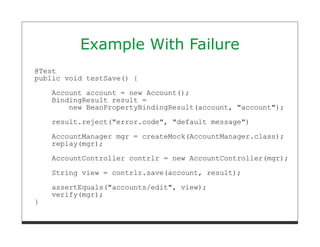

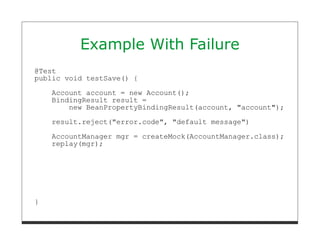

Example With Failure
@Test

result.reject("error.code", "default message")

}

@Test


replay(mgr);

}

@Test

replay(mgr);
assertEquals("accounts/edit", view);
verify(mgr);
}

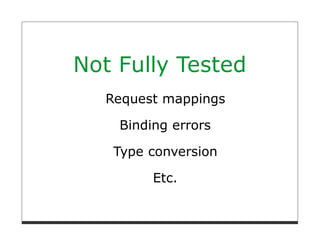

Not Fully Tested
Request mappings

Binding errors

Type conversion

Etc.

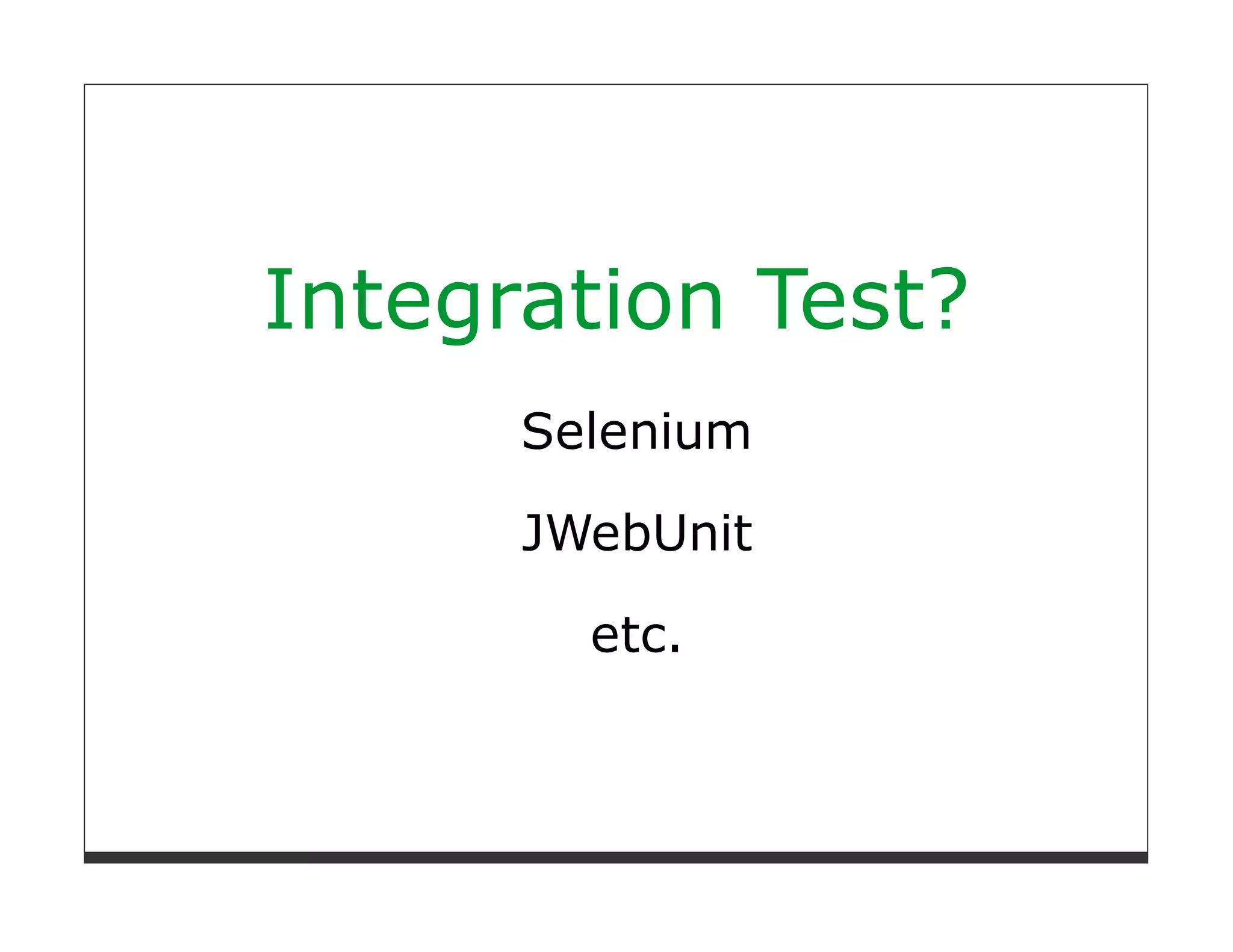

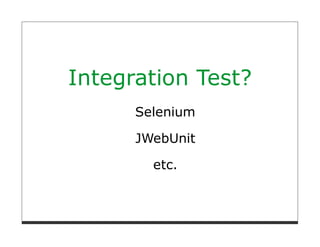

Integration Test?
Selenium

JWebUnit

etc.

It Requires...
A running servlet container

More time to execute

More effort to maintain

Server is a black box

the only way to verify...
Client-side behavior

Interaction with other server instances

Redis, Rabbit, etc.

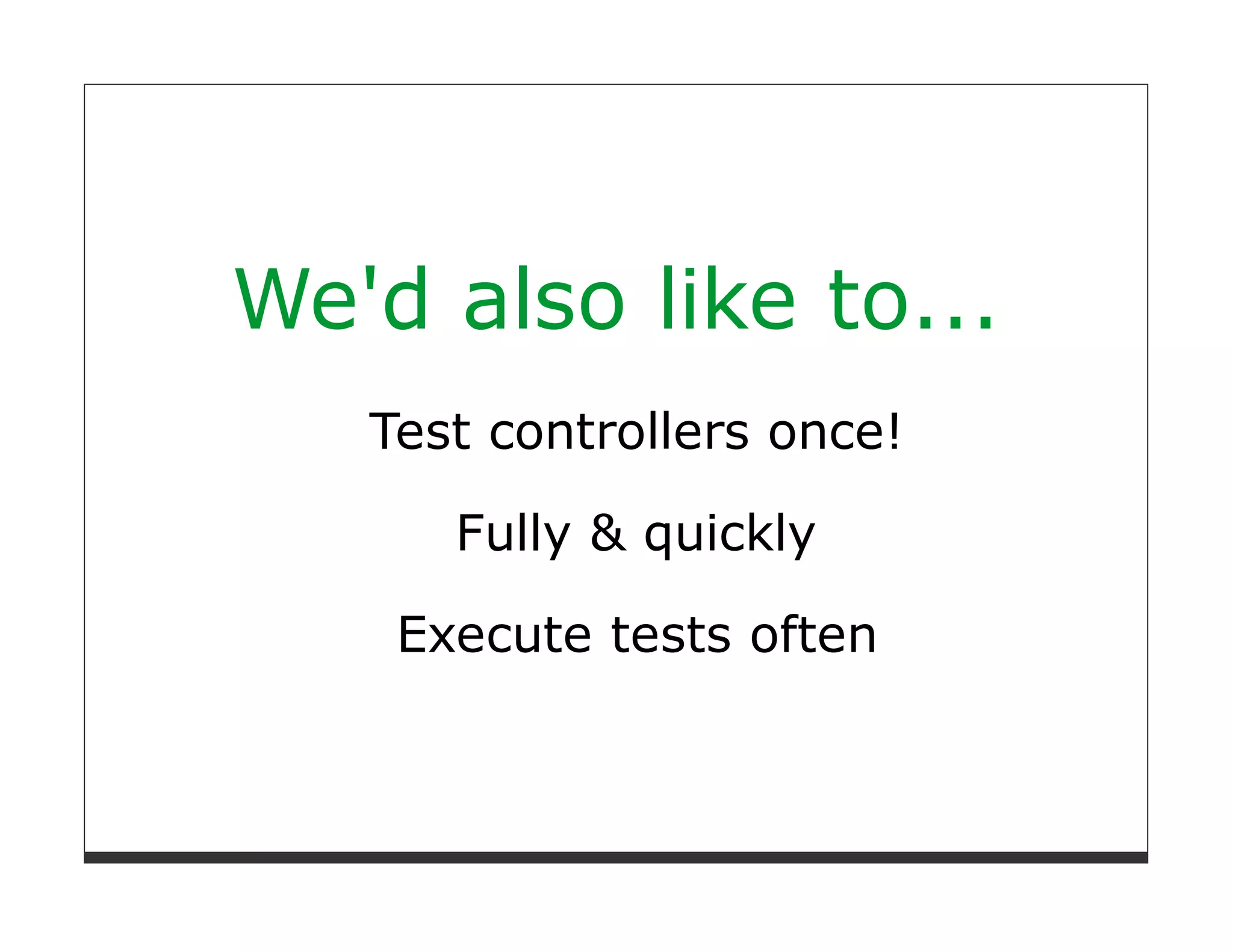

We'd also like to...
Test controllers once!

Fully & quickly

Execute tests often

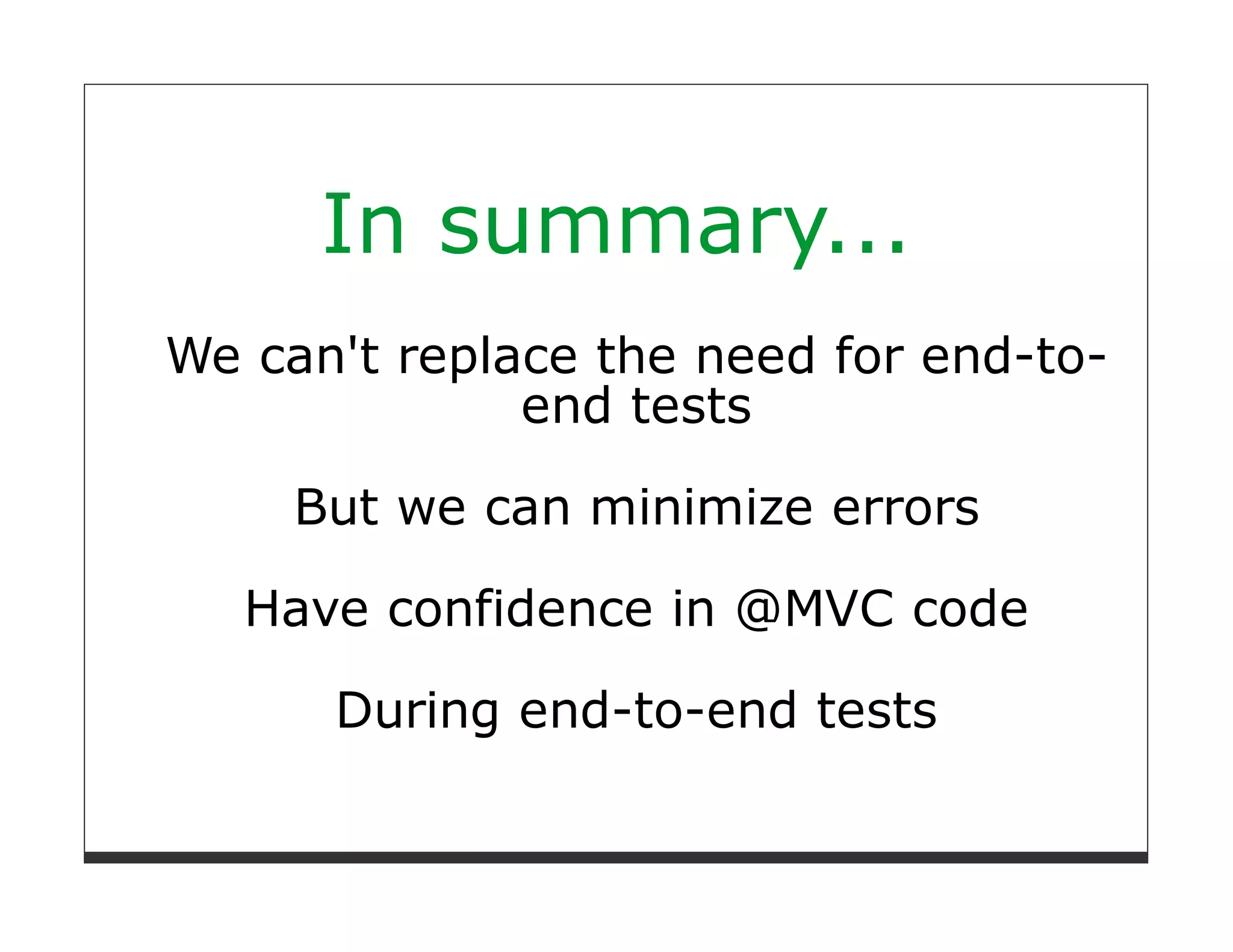

In summary...
We can't replace the need for end-to-
end tests

But we can minimize errors

Have confidence in @MVC code

During end-to-end tests

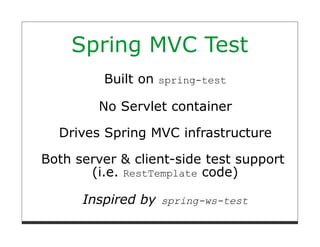

Spring MVC Test
Built on spring-test

No Servlet container

Drives Spring MVC infrastructure

Both server & client-side test support
(i.e. RestTemplate code)

Inspired by spring-ws-test

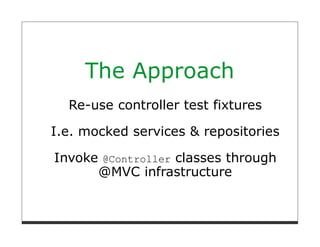

The Approach
Re-use controller test fixtures

I.e. mocked services & repositories

Invoke @Controller classes through
@MVC infrastructure

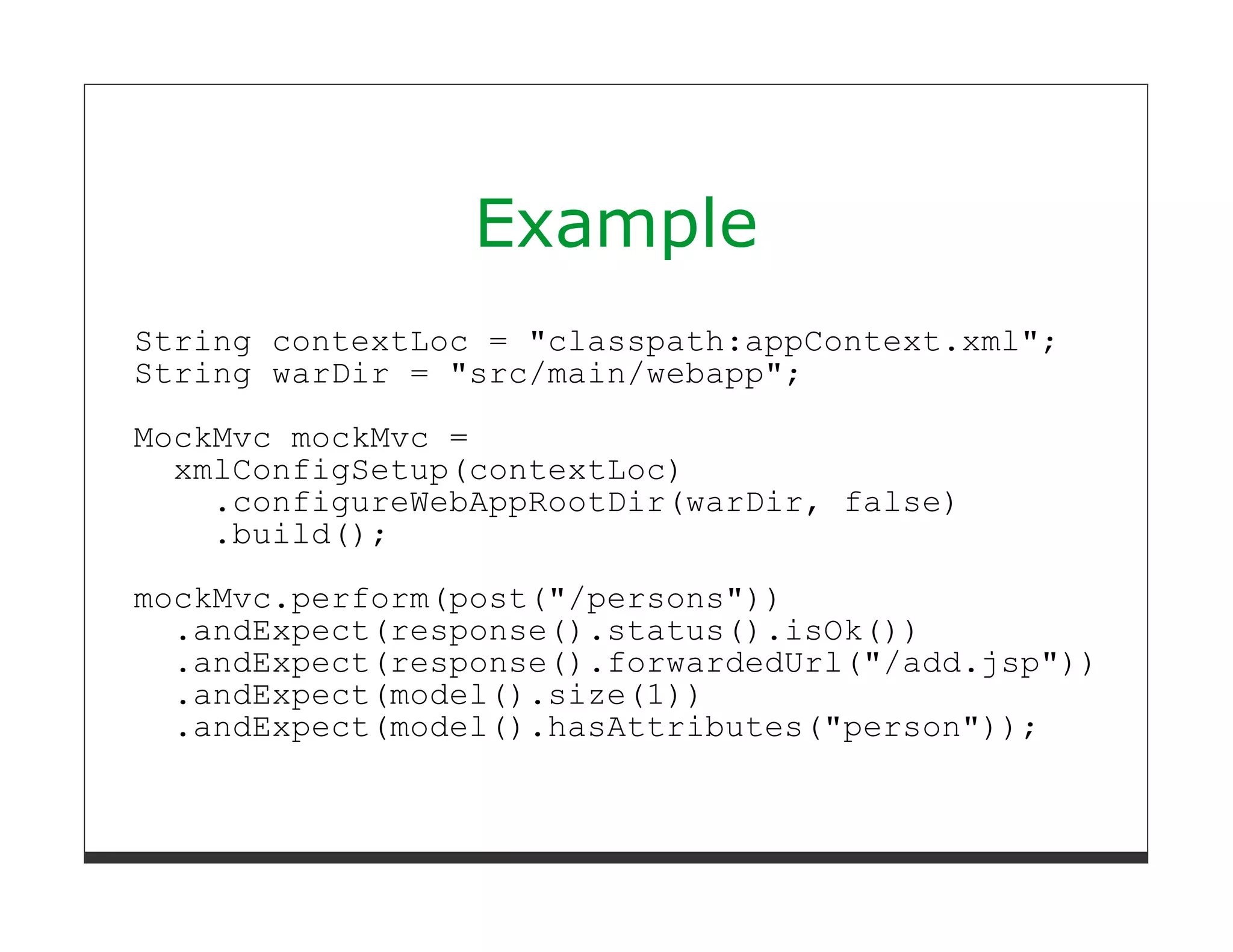

Example
String contextLoc = "classpath:appContext.xml";
String warDir = "src/main/webapp";
MockMvc mockMvc =
xmlConfigSetup(contextLoc)
.configureWebAppRootDir(warDir, false)
.build();

mockMvc.perform(post("/persons"))
.andExpect(response().status().isOk())
.andExpect(response().forwardedUrl("/add.jsp"))
.andExpect(model().size(1))
.andExpect(model().hasAttributes("person"));

Under the Covers
Mock request/response from spring-test

DispatcherServlet replacement

Multiple ways to initialize MVC
infrastructure

Save results for expectations

Ways To Initialize MVC
Infrastructure

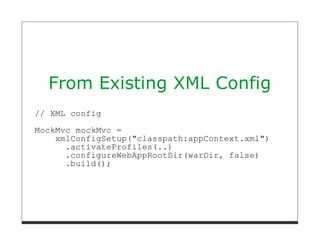

From Existing XML Config
// XML config
MockMvc mockMvc =
xmlConfigSetup("classpath:appContext.xml")
.activateProfiles(..)
.build();

From Existing Java Config
// Java config
MockMvc mockMvc =
annotationConfigSetup(WebConfig.class)
.activateProfiles(..)
.build();

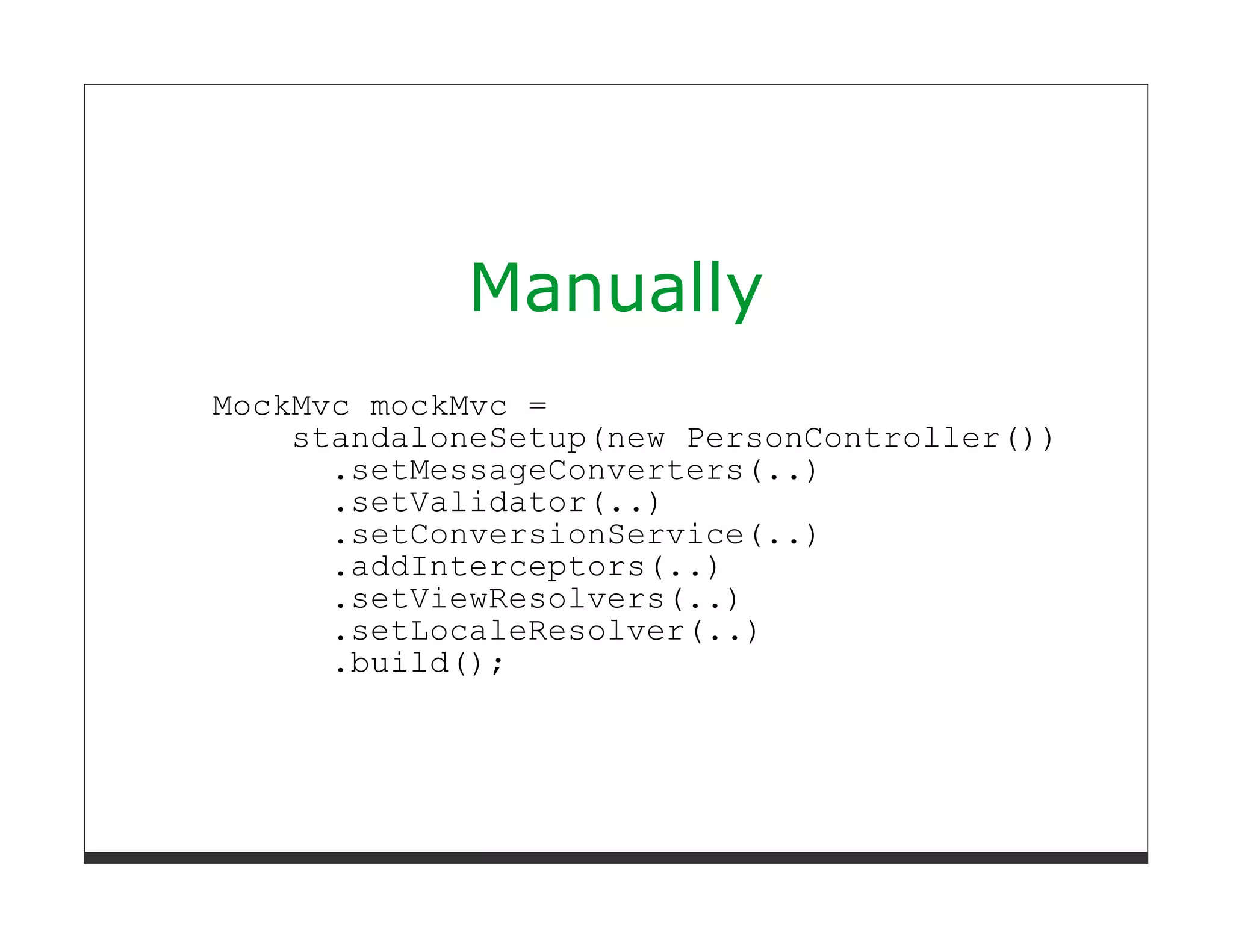

Manually
MockMvc mockMvc =
standaloneSetup(new PersonController())
.setMessageConverters(..)
.setValidator(..)
.setConversionService(..)
.addInterceptors(..)
.setViewResolvers(..)
.setLocaleResolver(..)
.build();

About Manual Setup
MVC components instantiated directly

Not looked up in Spring context

Focused, readable tests

But must verify MVC config separately

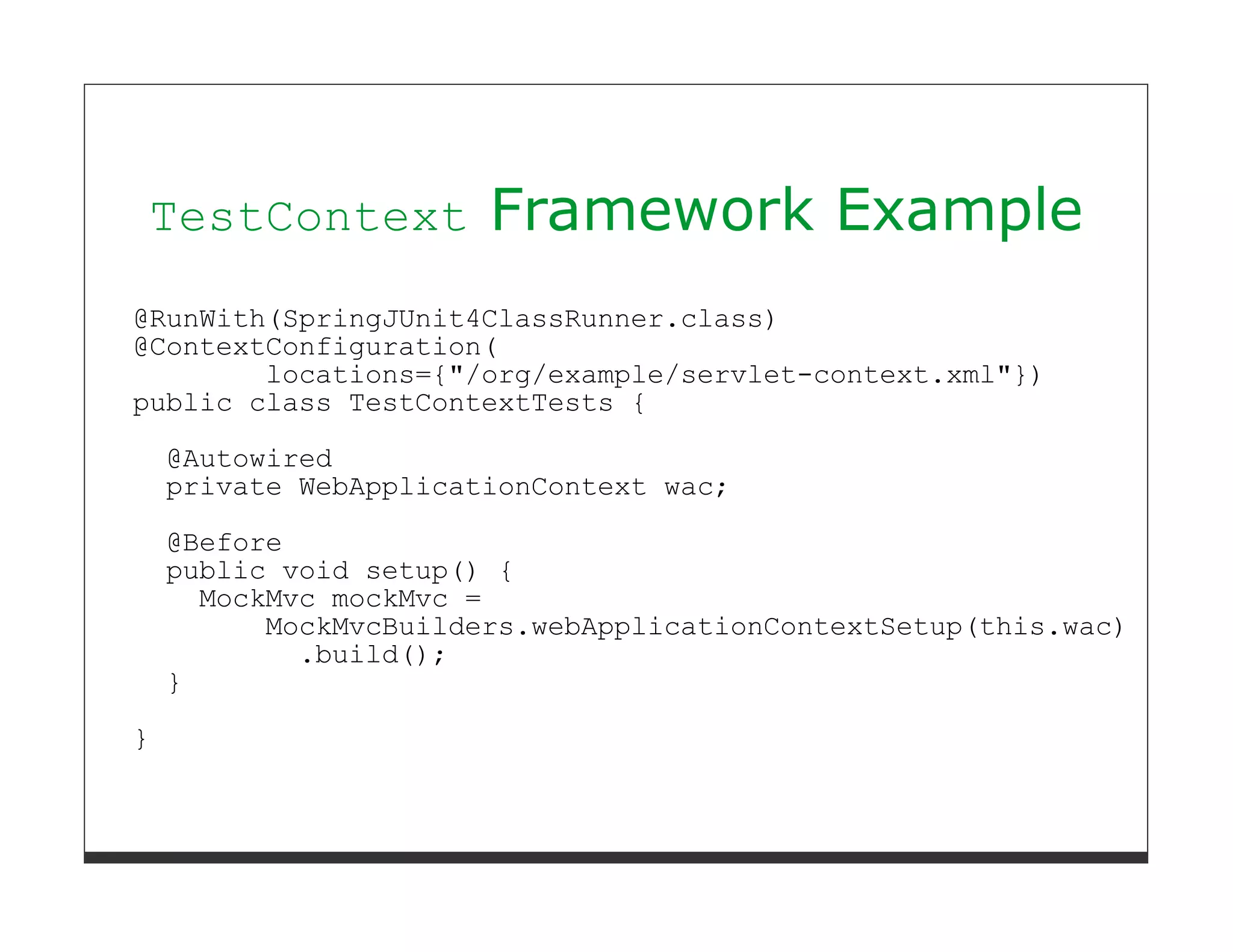

TestContext Framework Example
locations={"/org/example/servlet-context.xml"})
public class TestContextTests {
@Autowired
private WebApplicationContext wac;
@Before
public void setup() {
MockMvc mockMvc =
MockMvcBuilders.webApplicationContextSetup(this.wac)
.build();
}
}

TestContext Framework
Caches loaded Spring configuration

Potentially across all tests!

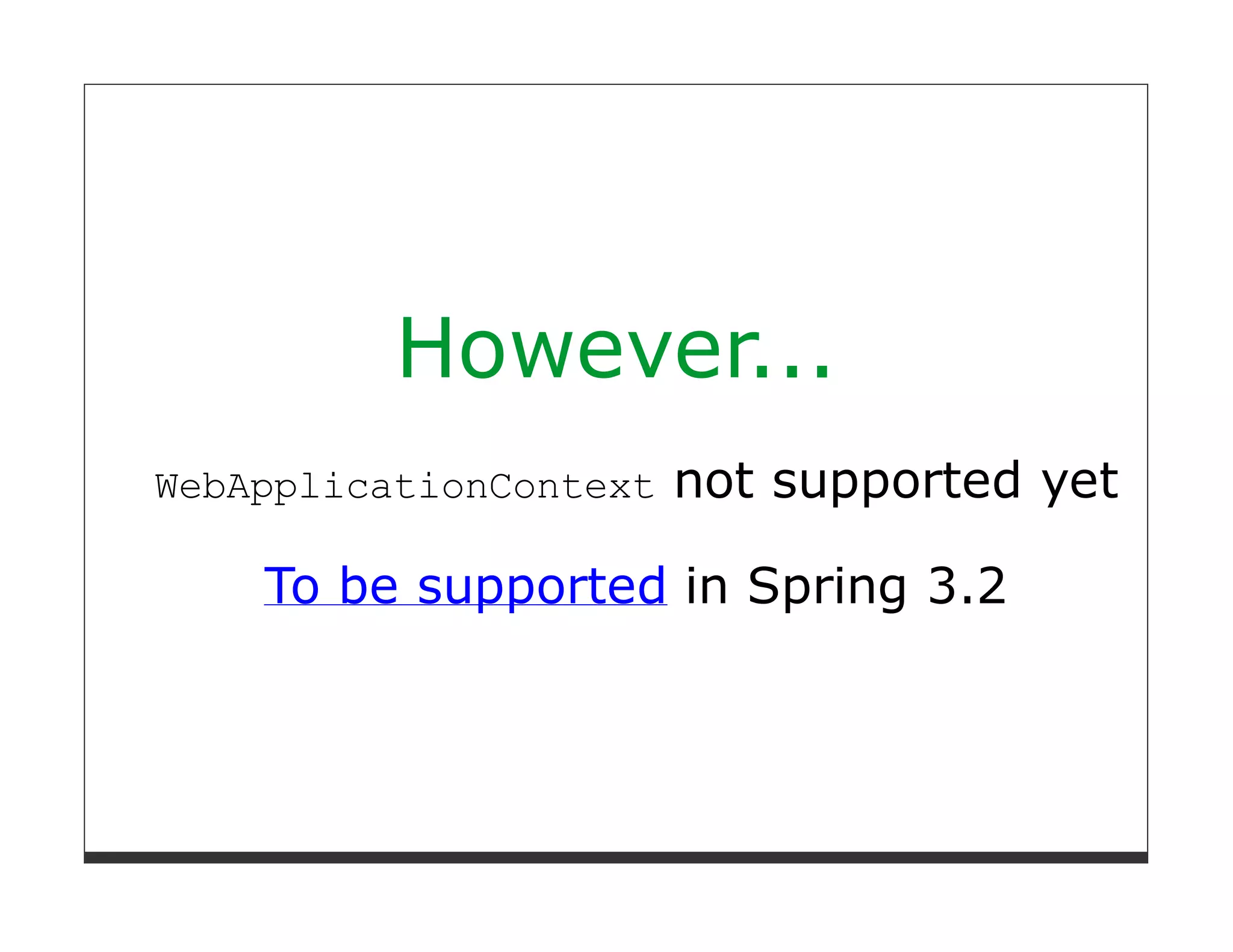

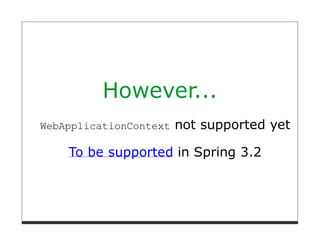

However...
WebApplicationContext not supported yet

To be supported in Spring 3.2

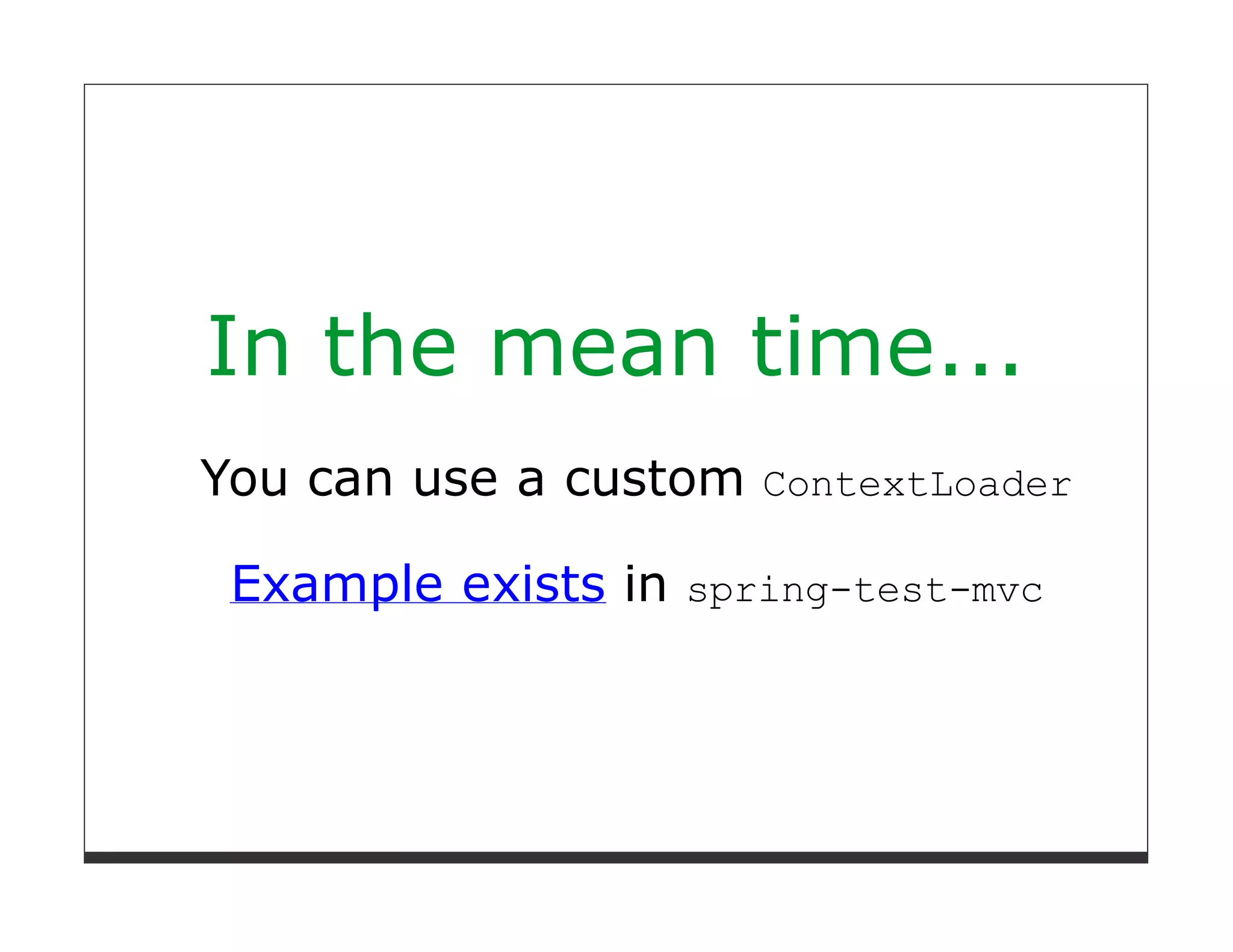

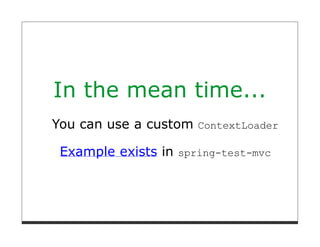

In the mean time...
You can use a custom ContextLoader

Example exists in spring-test-mvc

Step 1
Add static imports

MockMvcBuilders.*

MockMvcRequestBuilders.*

MockMvcResultActions.*

Easy to remember...
MockMvc*

Also in Eclipse...
Add MockMvc* classes in Preferences

Java -> Editor -> Favorites

Helps content assist

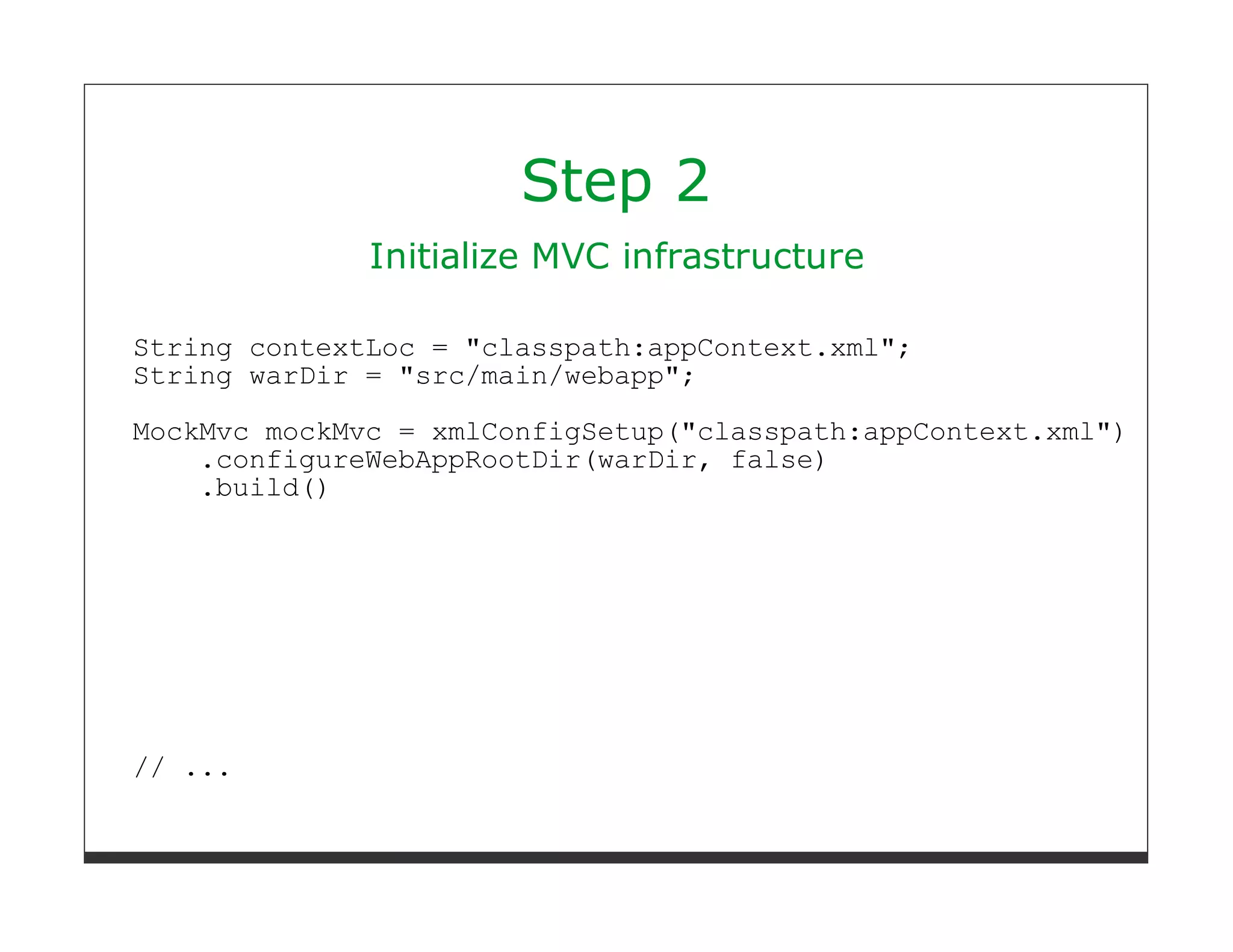

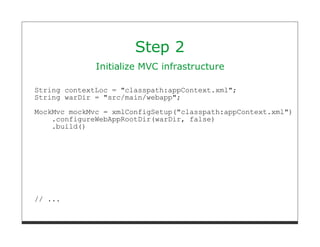

Step 2
Initialize MVC infrastructure

MockMvc mockMvc = xmlConfigSetup("classpath:appContext.xml")
.build()

// ...

Step 3
Build Request

.build()

mockMvc.perform(get("/").accept(MediaType.APPLICATION_XML))

// ...

Step 4
Add Expectations

.build()
.andExpect(response().status().isOk())
.andExpect(response().contentType(MediaType))
.andExpect(response().content().xpath(String).exists())
.andExpect(response().redirectedUrl(String))
.andExpect(model().hasAttributes(String...));

// ...

Step 5
Debug

.build()
.andPrint(toConsole());

// ...

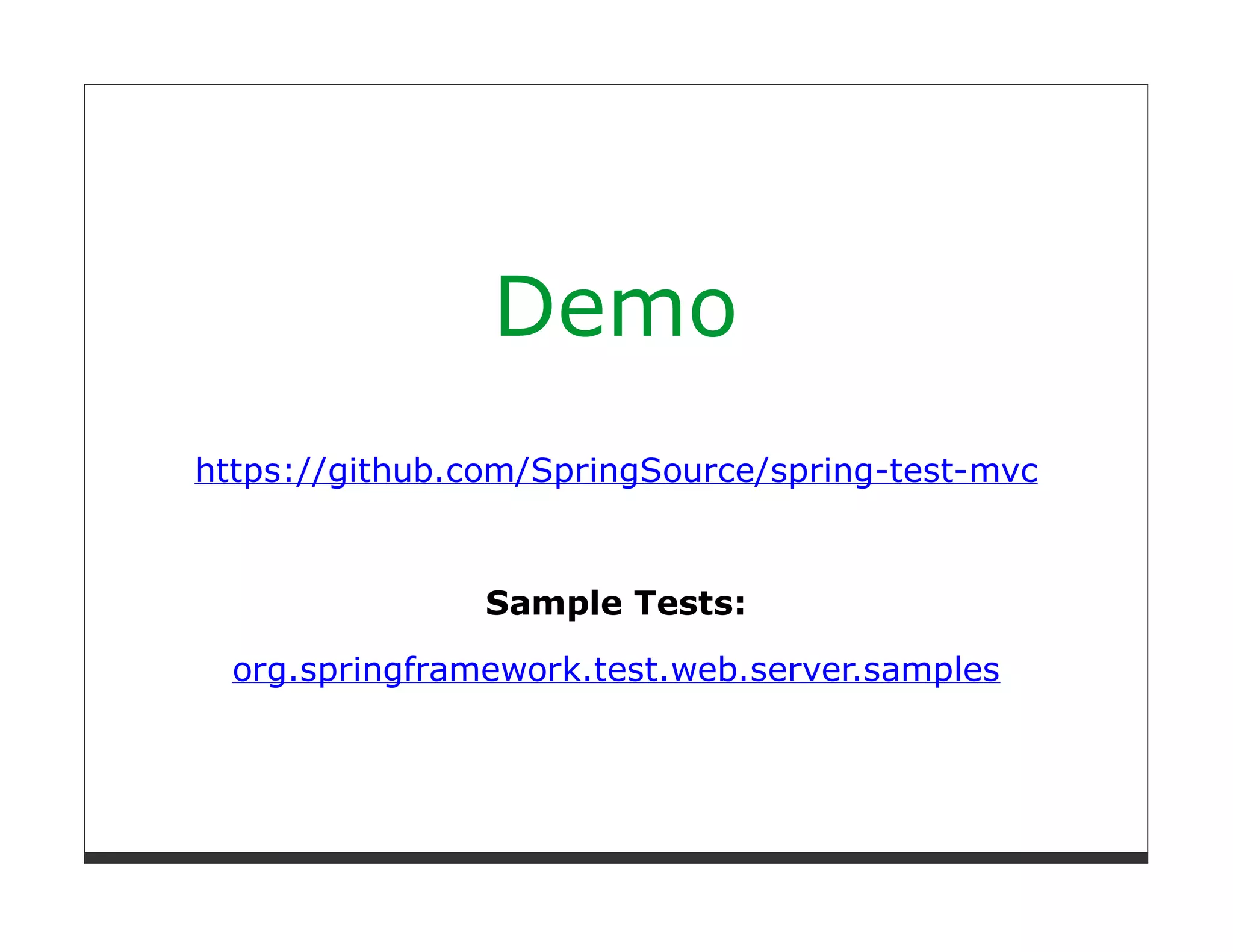

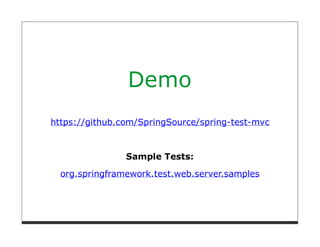

Demo
https://github.com/SpringSource/spring-test-mvc

Sample Tests:

org.springframework.test.web.server.samples

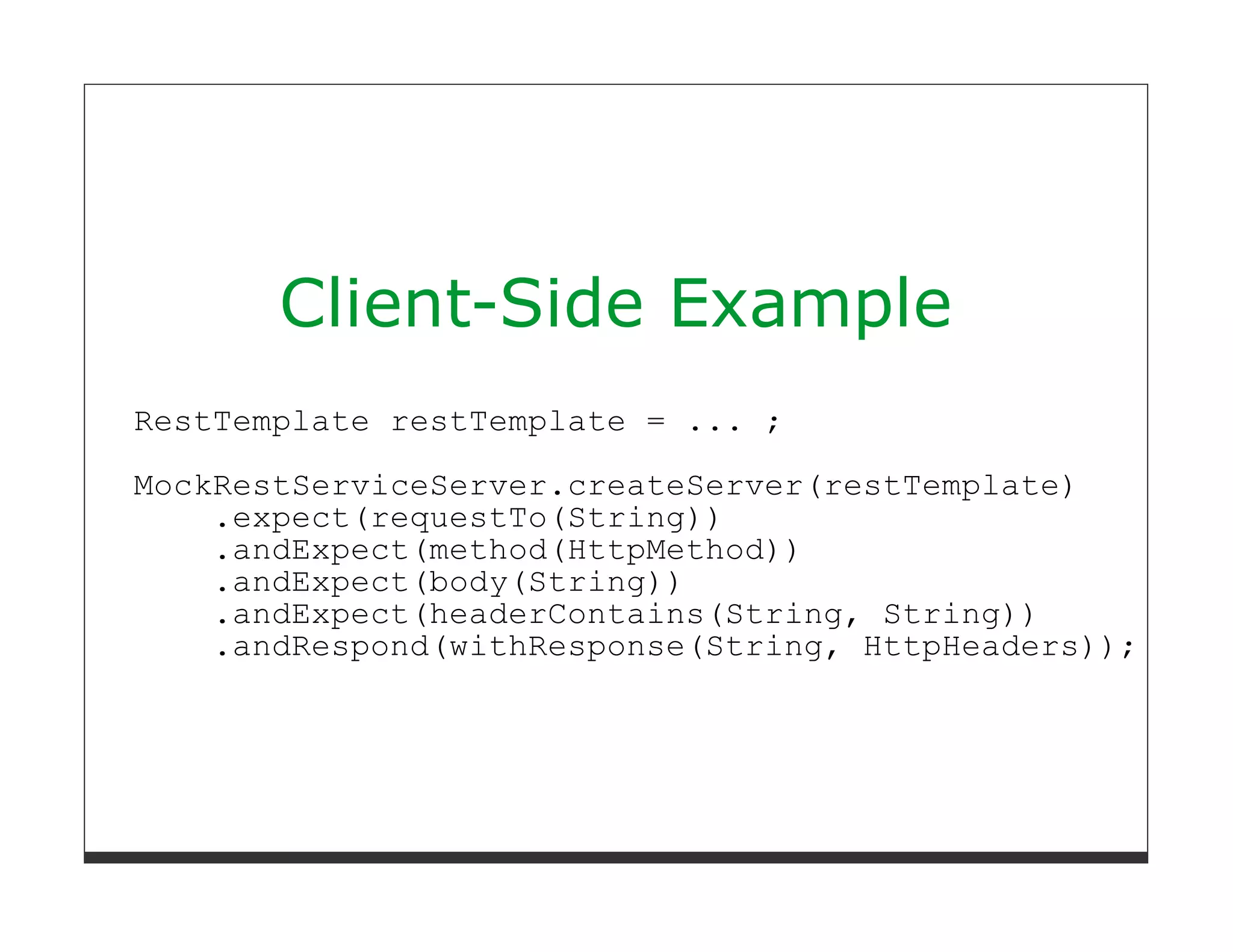

Client-Side Example
RestTemplate restTemplate = ... ;

MockRestServiceServer.createServer(restTemplate)
.expect(requestTo(String))
.andExpect(method(HttpMethod))
.andExpect(body(String))
.andExpect(headerContains(String, String))
.andRespond(withResponse(String, HttpHeaders));

Project Availability
github.com/SpringSource/spring-test-mvc

Request for feedback!

Send comments

Pull requests

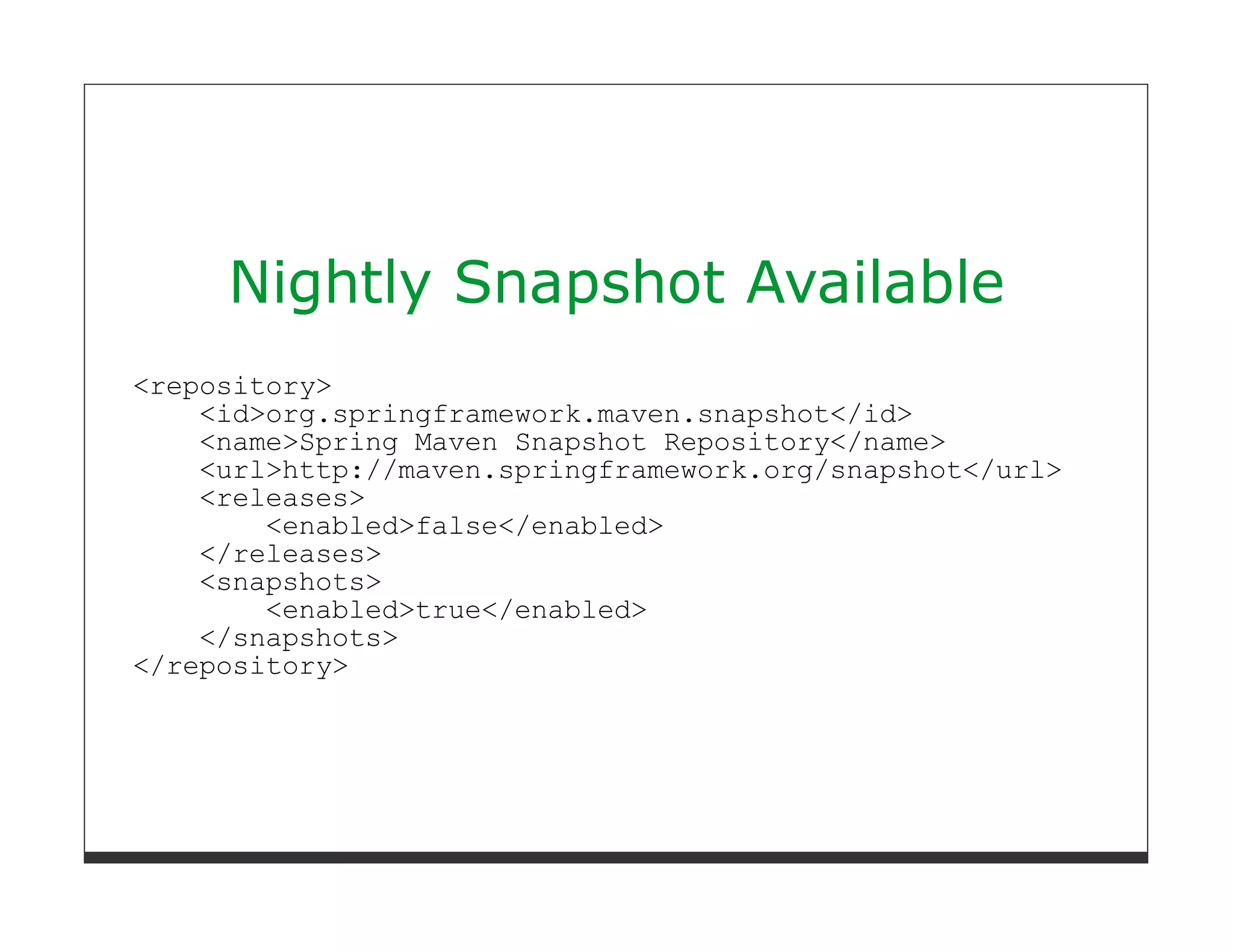

Nightly Snapshot Available
<repository>
<id>org.springframework.maven.snapshot</id>
<name>Spring Maven Snapshot Repository</name>
<url>http://maven.springframework.org/snapshot</url>
<releases>
<enabled>false</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</repository>

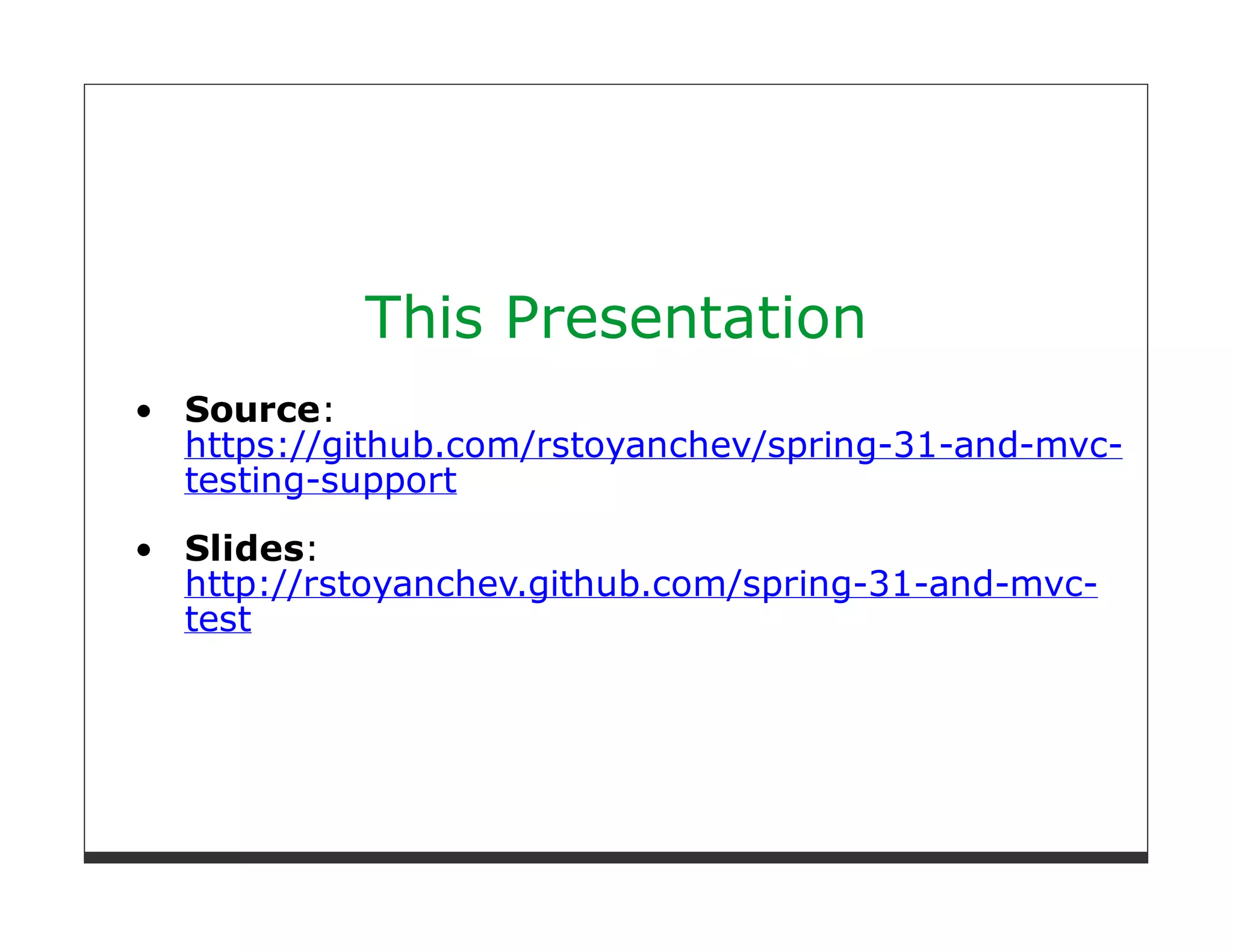

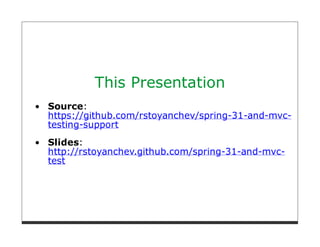

This Presentation
Source:
https://github.com/rstoyanchev/spring-31-and-mvc-
testing-support
Slides:
http://rstoyanchev.github.com/spring-31-and-mvc-
test

Resources for Spring MVC Test
Project Home:
https://github.com/SpringSource/spring-test-mvc
Sample Tests:
org.springframework.test.web.server.samples

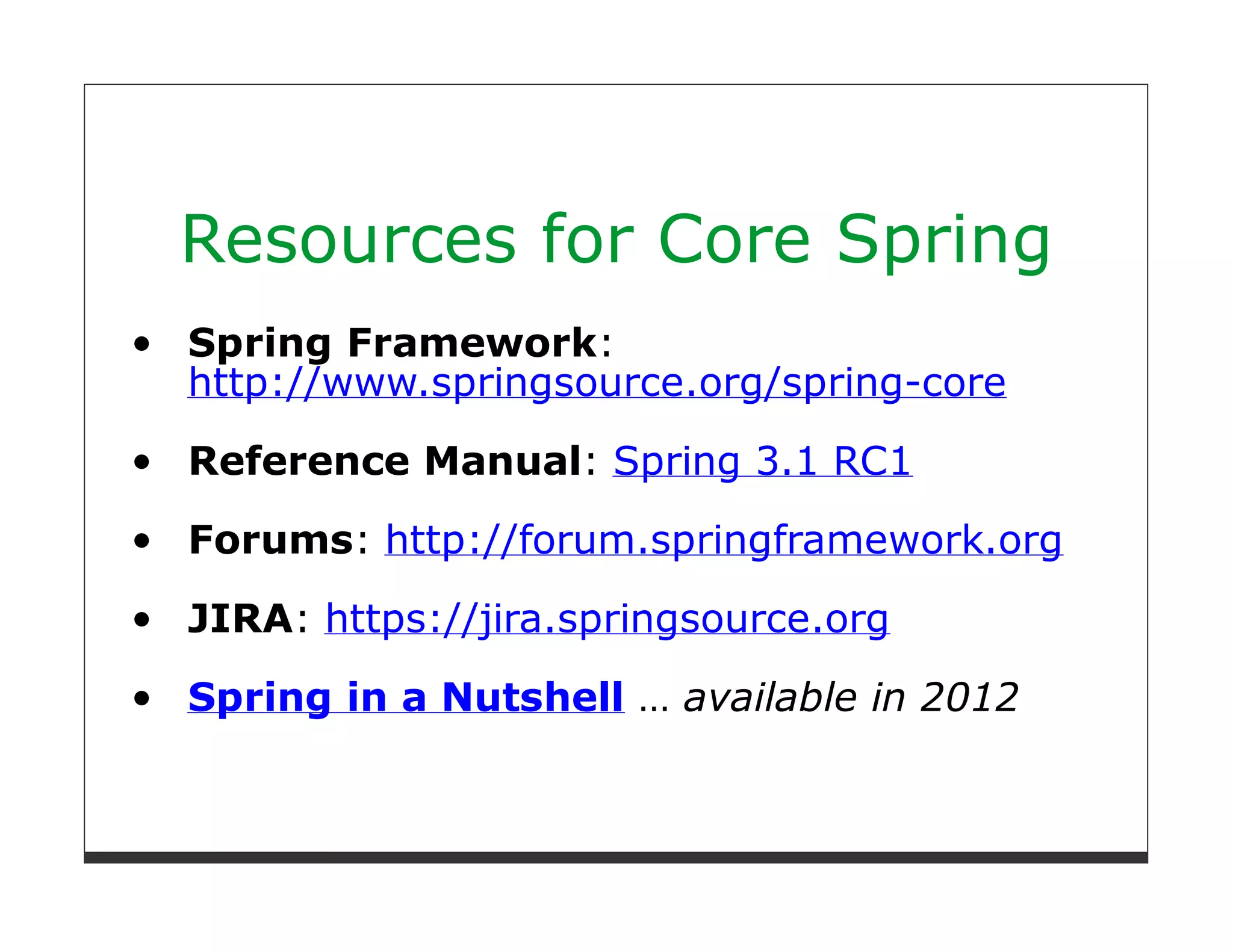

Resources for Core Spring
Spring Framework:
http://www.springsource.org/spring-core
Reference Manual: Spring 3.1 RC1

Forums: http://forum.springframework.org
JIRA: https://jira.springsource.org

Spring in a Nutshell … available in 2012

Q&A
Sam Brannen
Web: Swiftmind.com
Twitter: @sam_brannen

Rossen Stoyanchev
Web: SpringSource.com
Twitter: @rstoya05

Spring 3.1 and MVC Testing Support

In this document

More Related Content

What's hot

Viewers also liked

Similar to Spring 3.1 and MVC Testing Support

More from Sam Brannen

Recently uploaded

Spring 3.1 and MVC Testing Support
