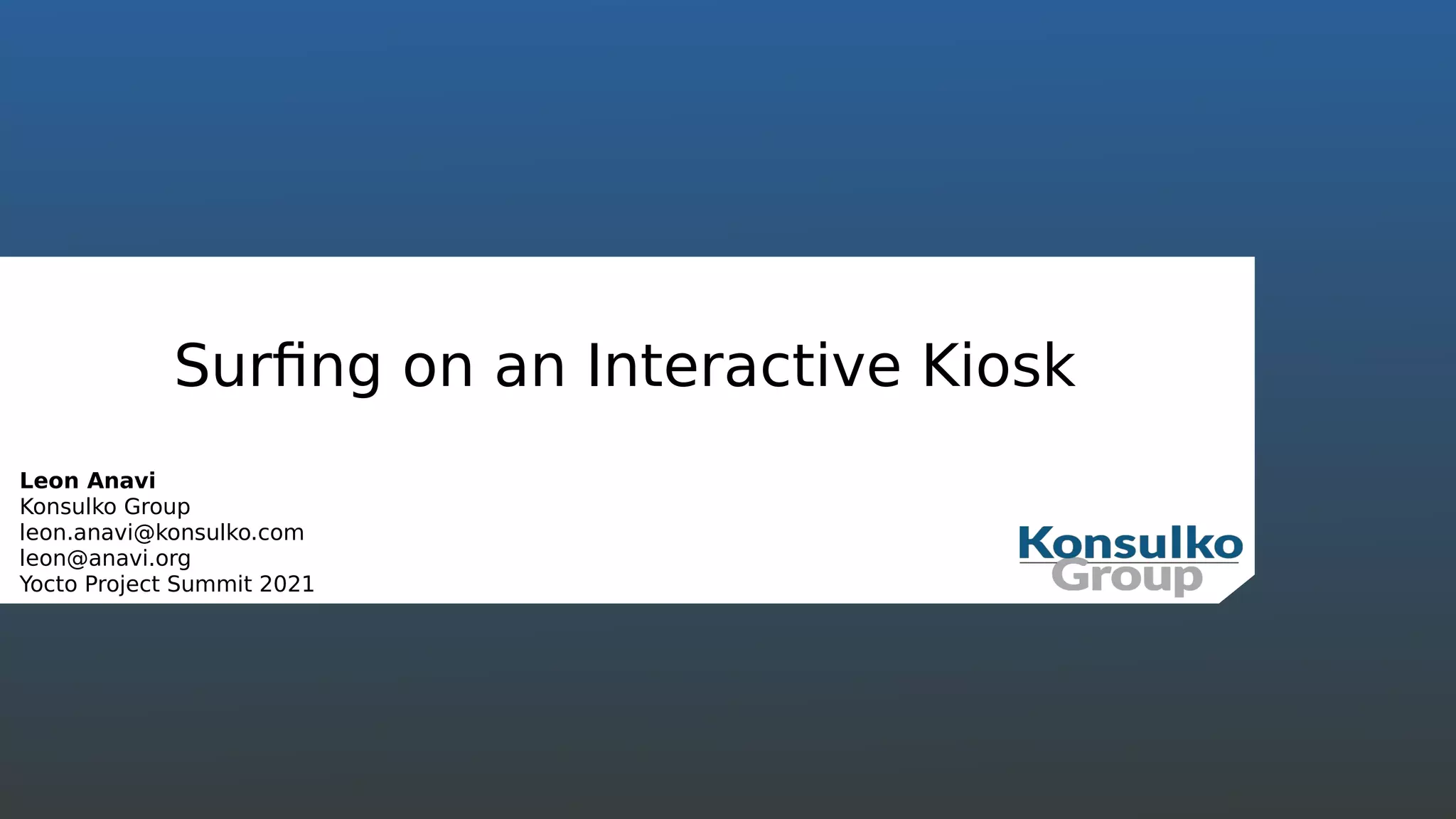

  Surfing on anInteractive Kiosk Leon Anavi Konsulko Group leon.anavi@konsulko.com leon@anavi.org Yocto Project Summit 2021
• 2.

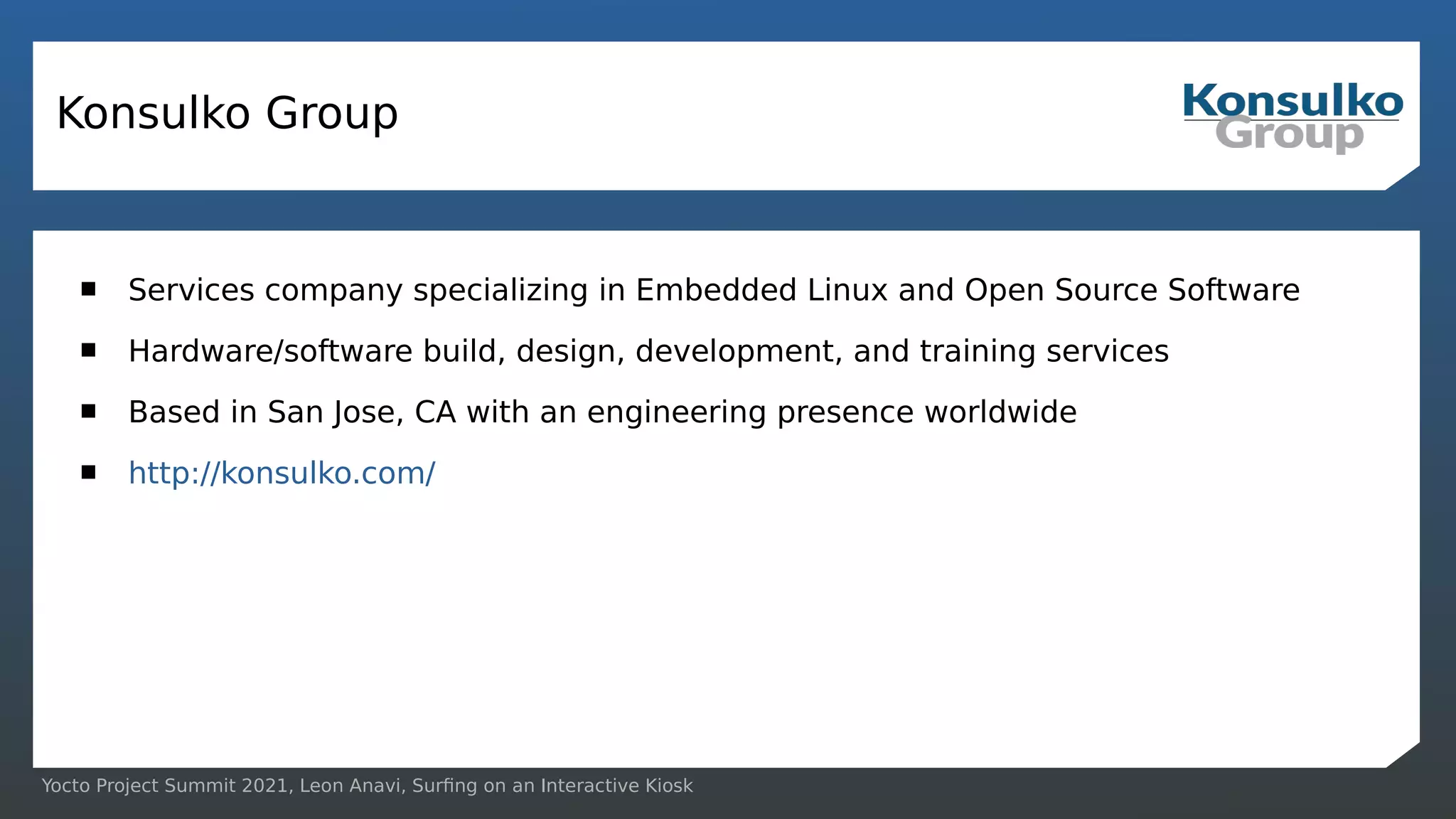

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Konsulko Group  Services company specializing in Embedded Linux and Open Source Software  Hardware/software build, design, development, and training services  Based in San Jose, CA with an engineering presence worldwide  http://konsulko.com/
• 3.

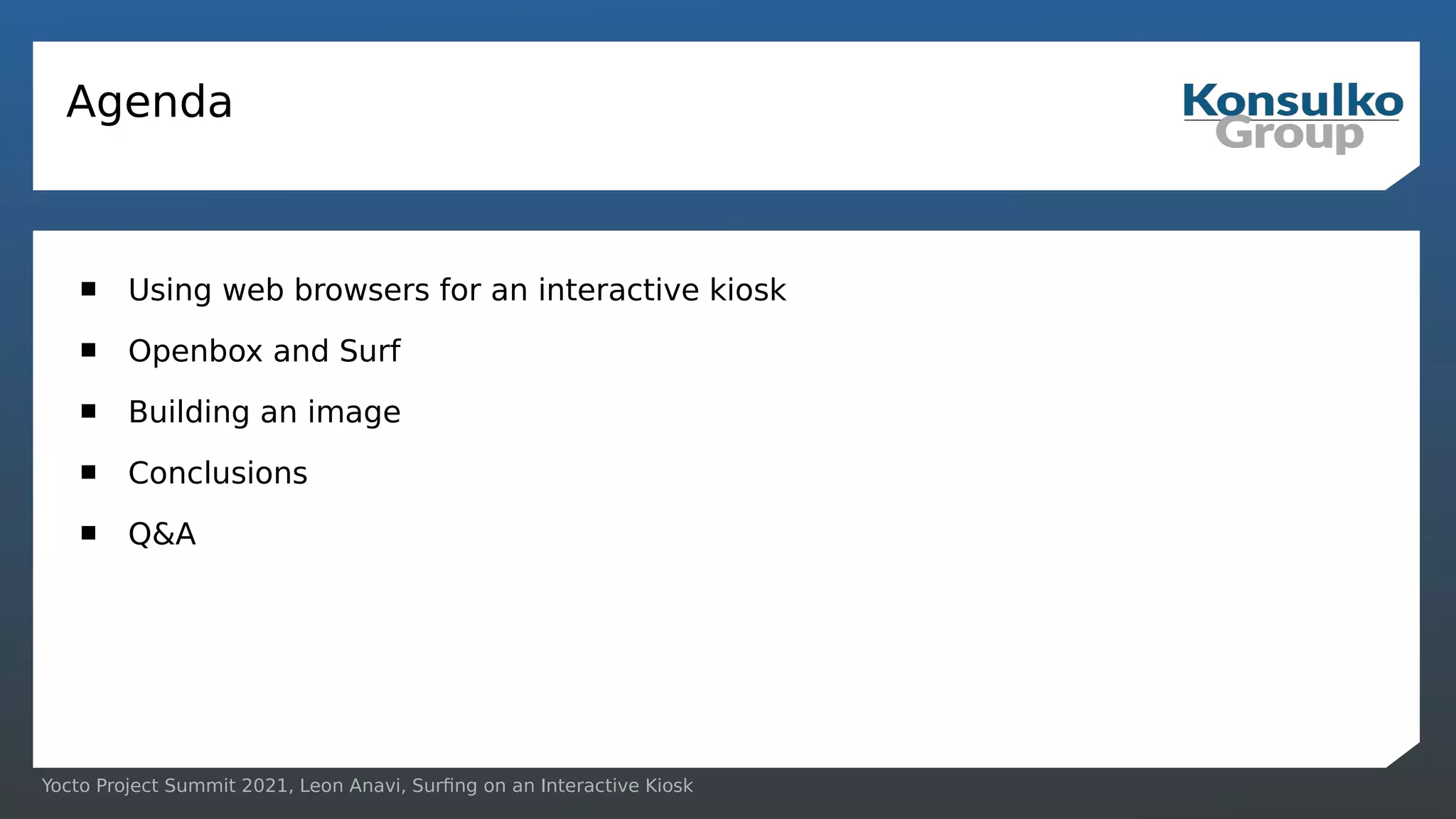

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Agenda  Using web browsers for an interactive kiosk  Openbox and Surf  Building an image  Conclusions  Q&A
• 4.

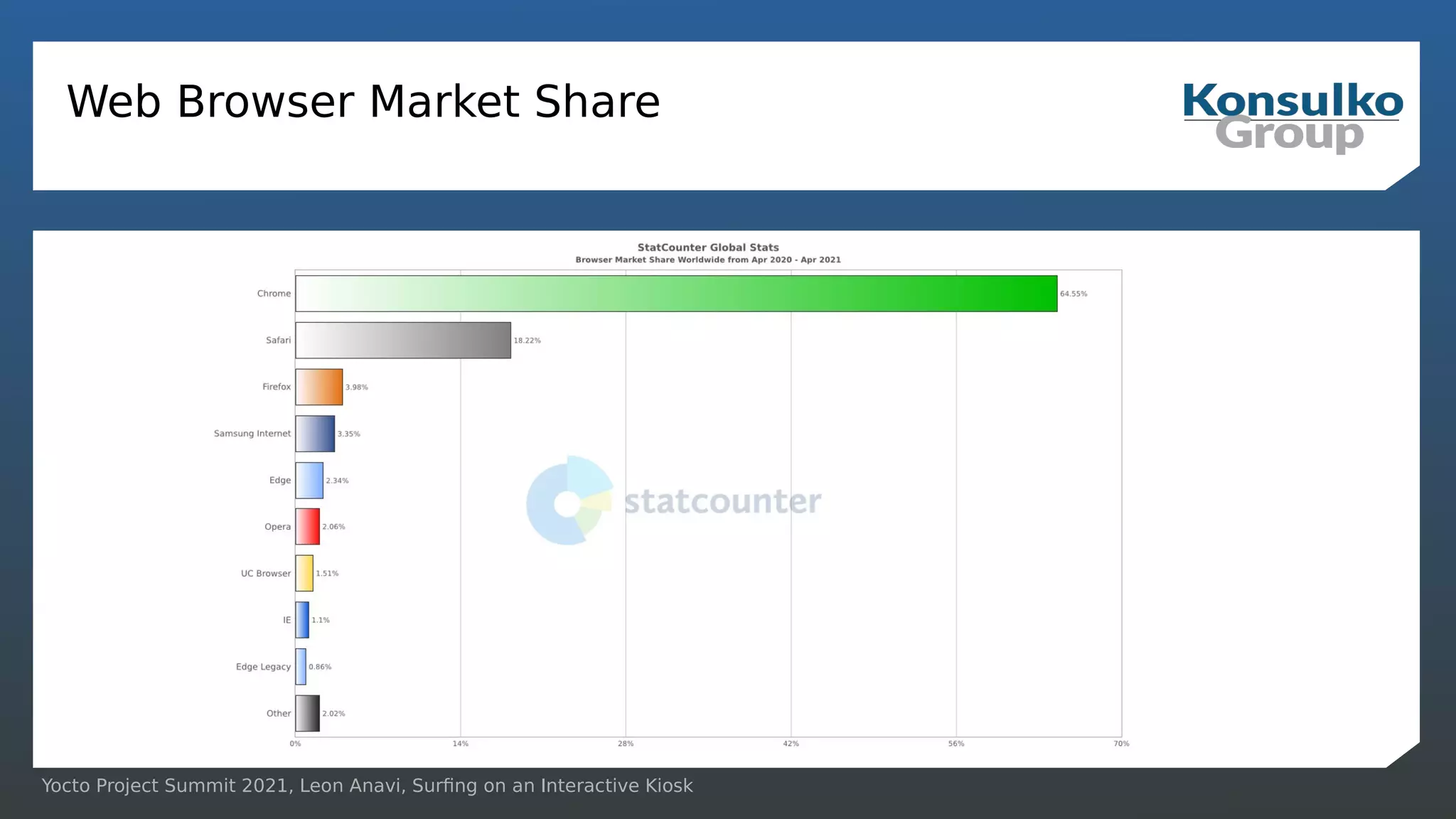

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Web Browser Market Share
• 5.

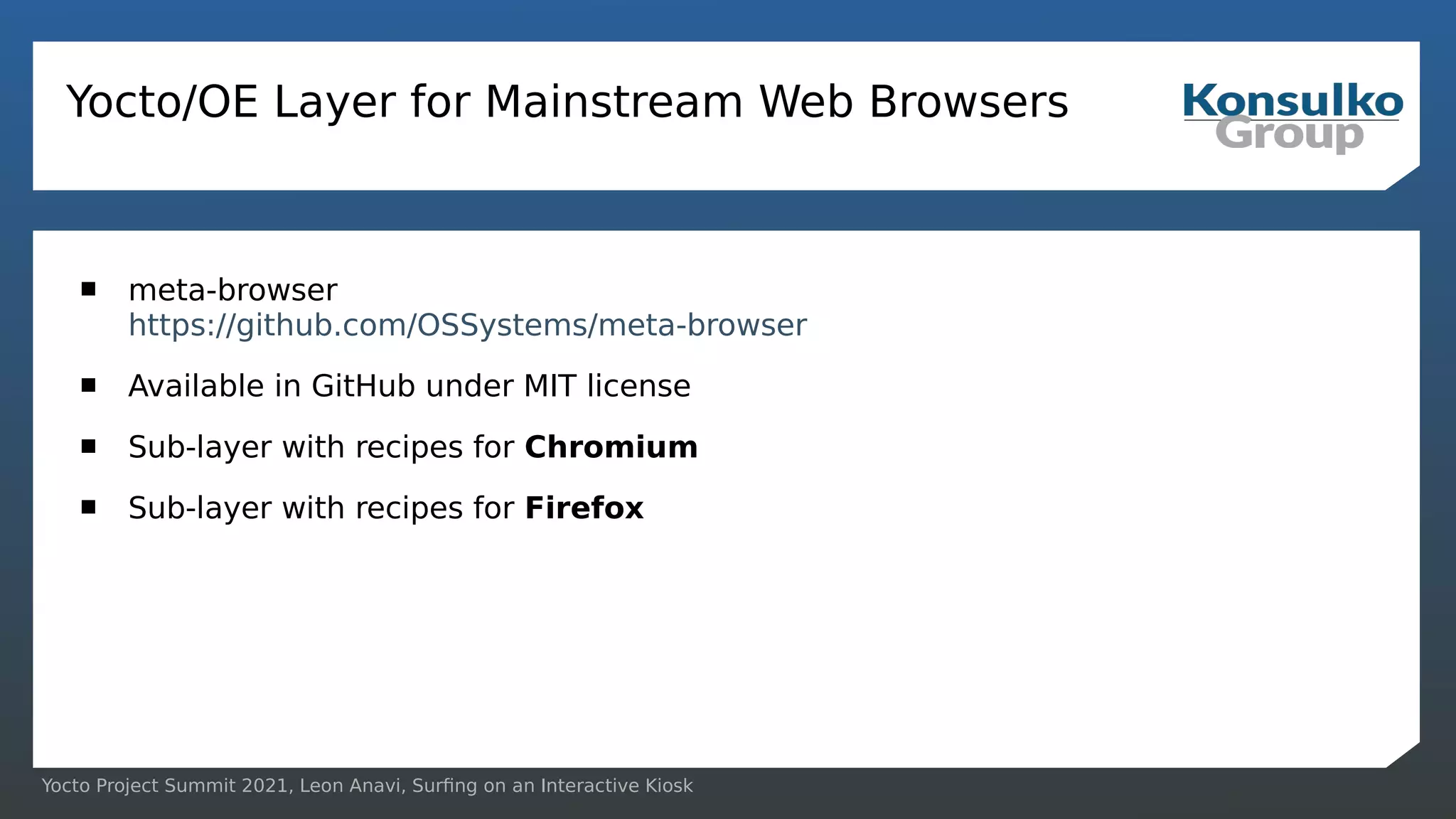

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Yocto/OE Layer for Mainstream Web Browsers  meta-browser https://github.com/OSSystems/meta-browser  Available in GitHub under MIT license  Sub-layer with recipes for Chromium  Sub-layer with recipes for Firefox
• 6.

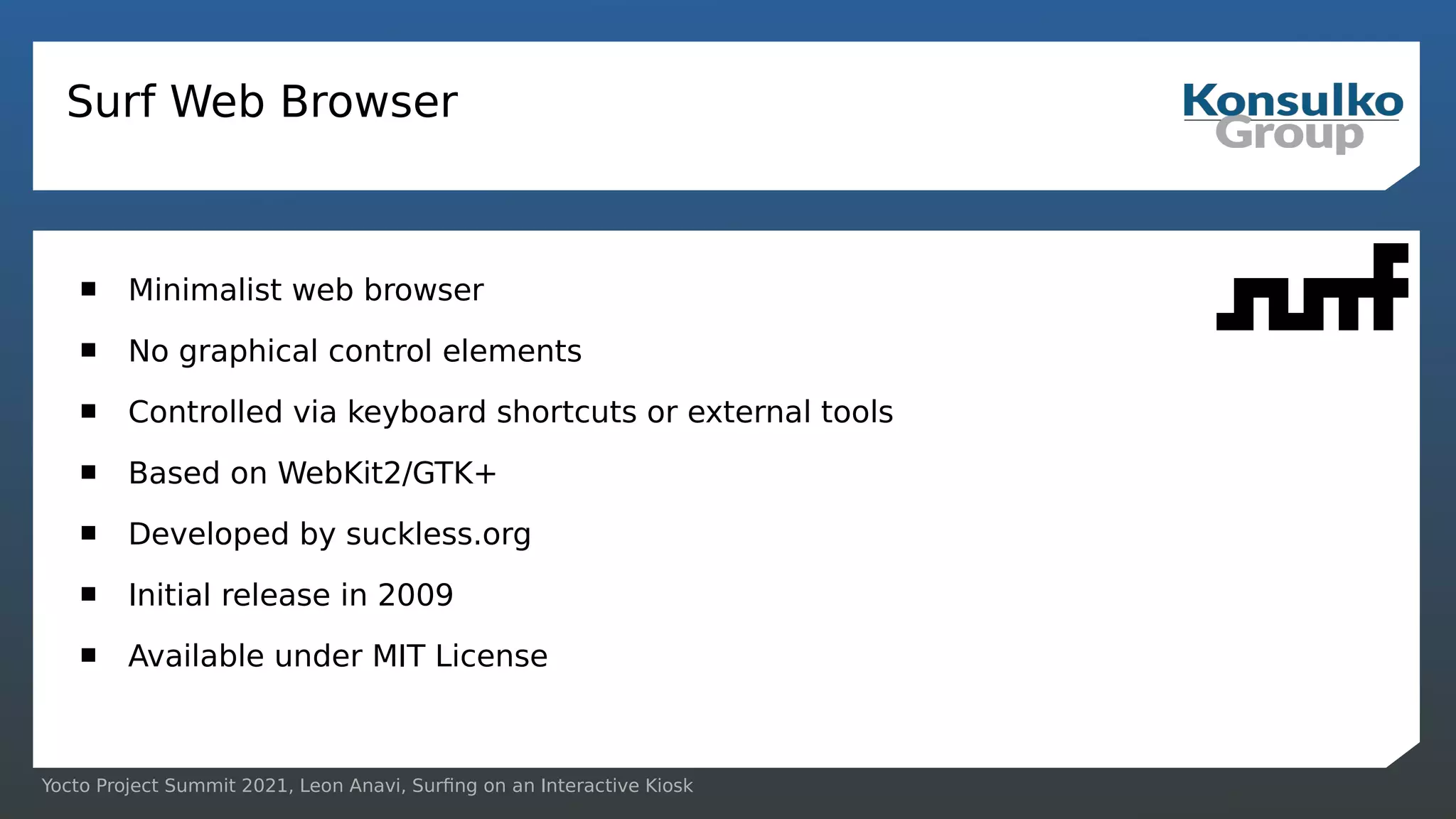

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Surf Web Browser  Minimalist web browser  No graphical control elements  Controlled via keyboard shortcuts or external tools  Based on WebKit2/GTK+  Developed by suckless.org  Initial release in 2009  Available under MIT License
• 7.

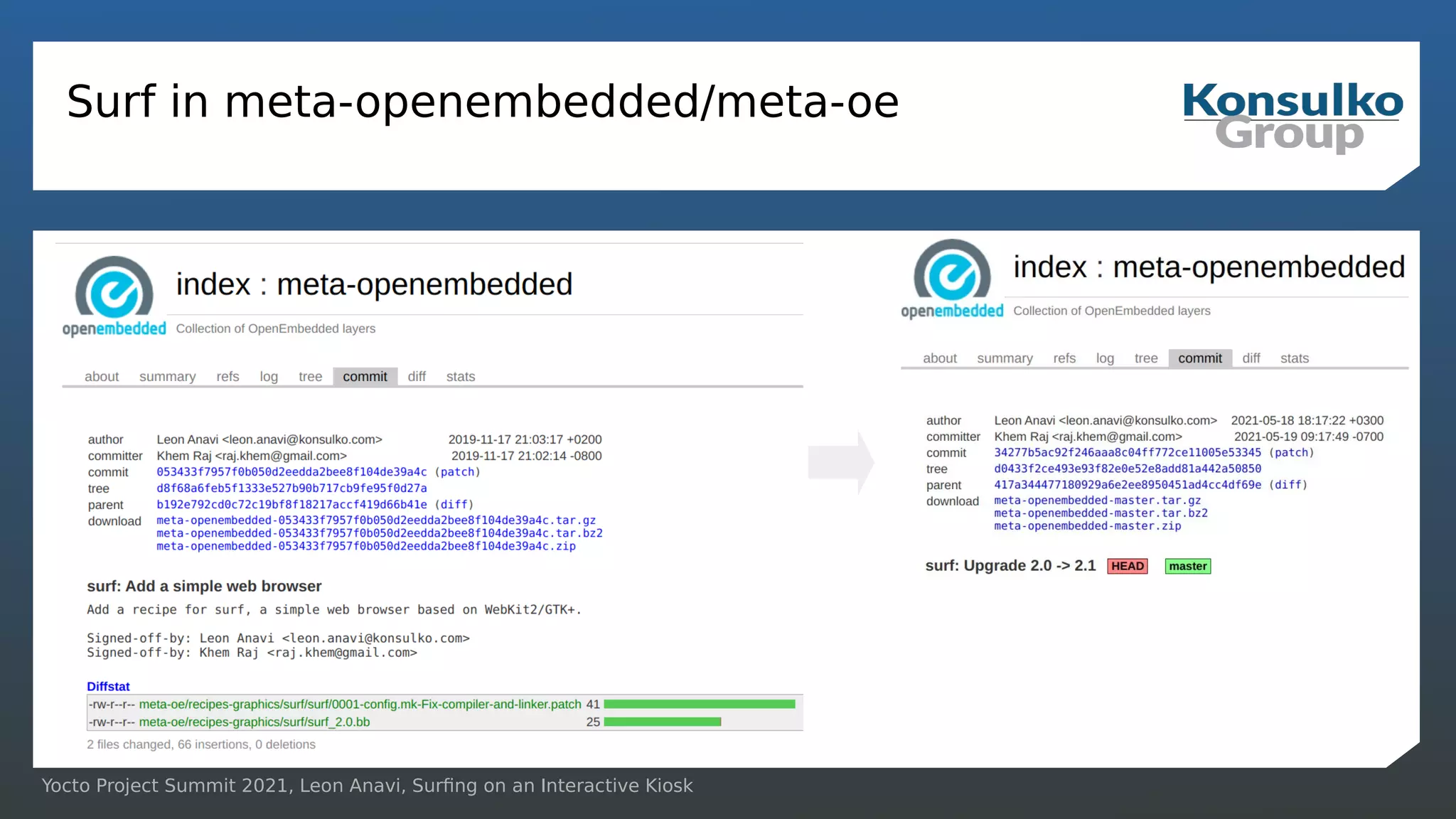

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Surf in meta-openembedded/meta-oe
• 8.

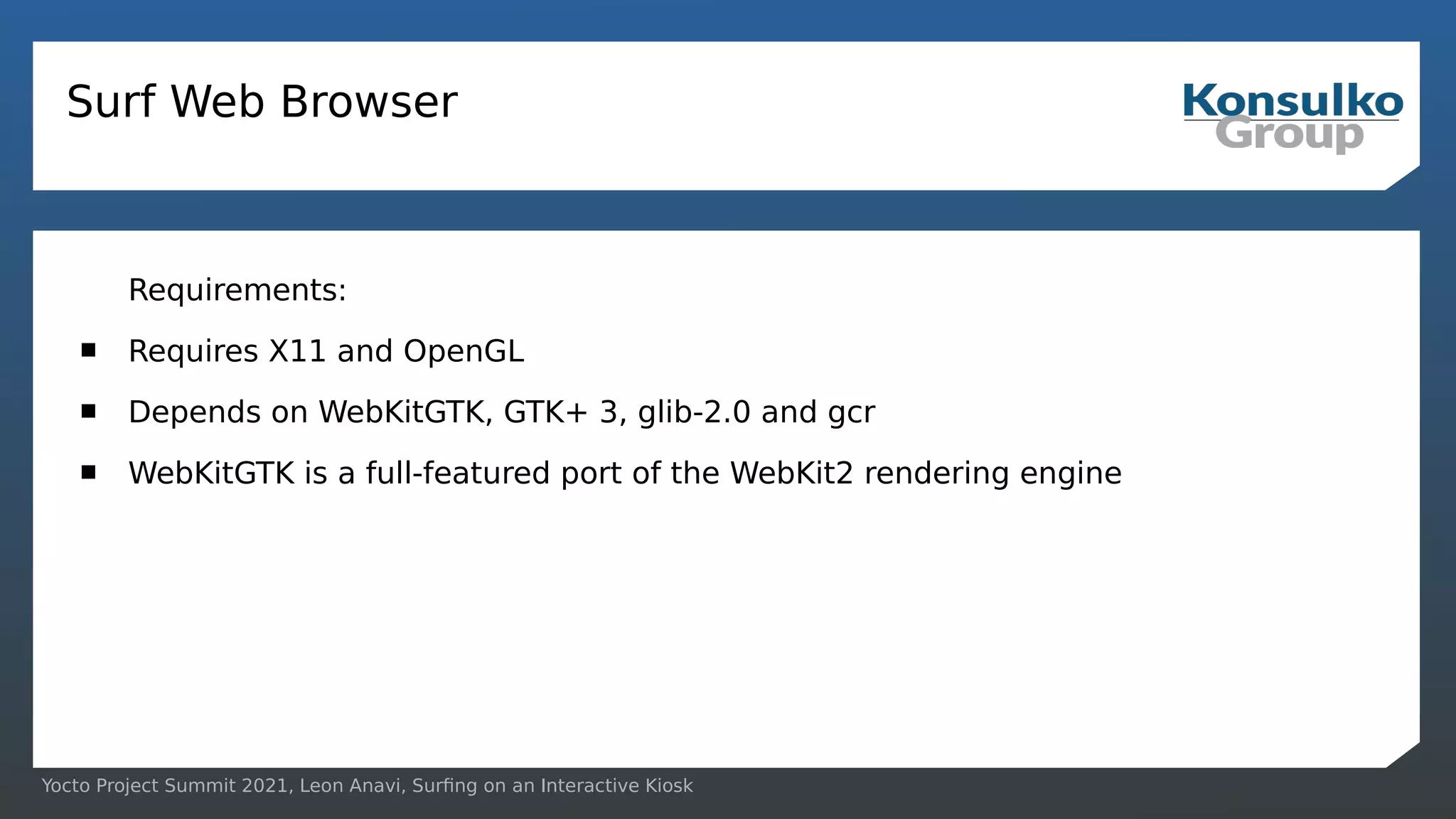

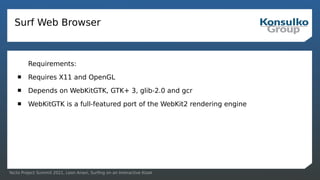

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Surf Web Browser Requirements:  Requires X11 and OpenGL  Depends on WebKitGTK, GTK+ 3, glib-2.0 and gcr  WebKitGTK is a full-featured port of the WebKit2 rendering engine
• 9.

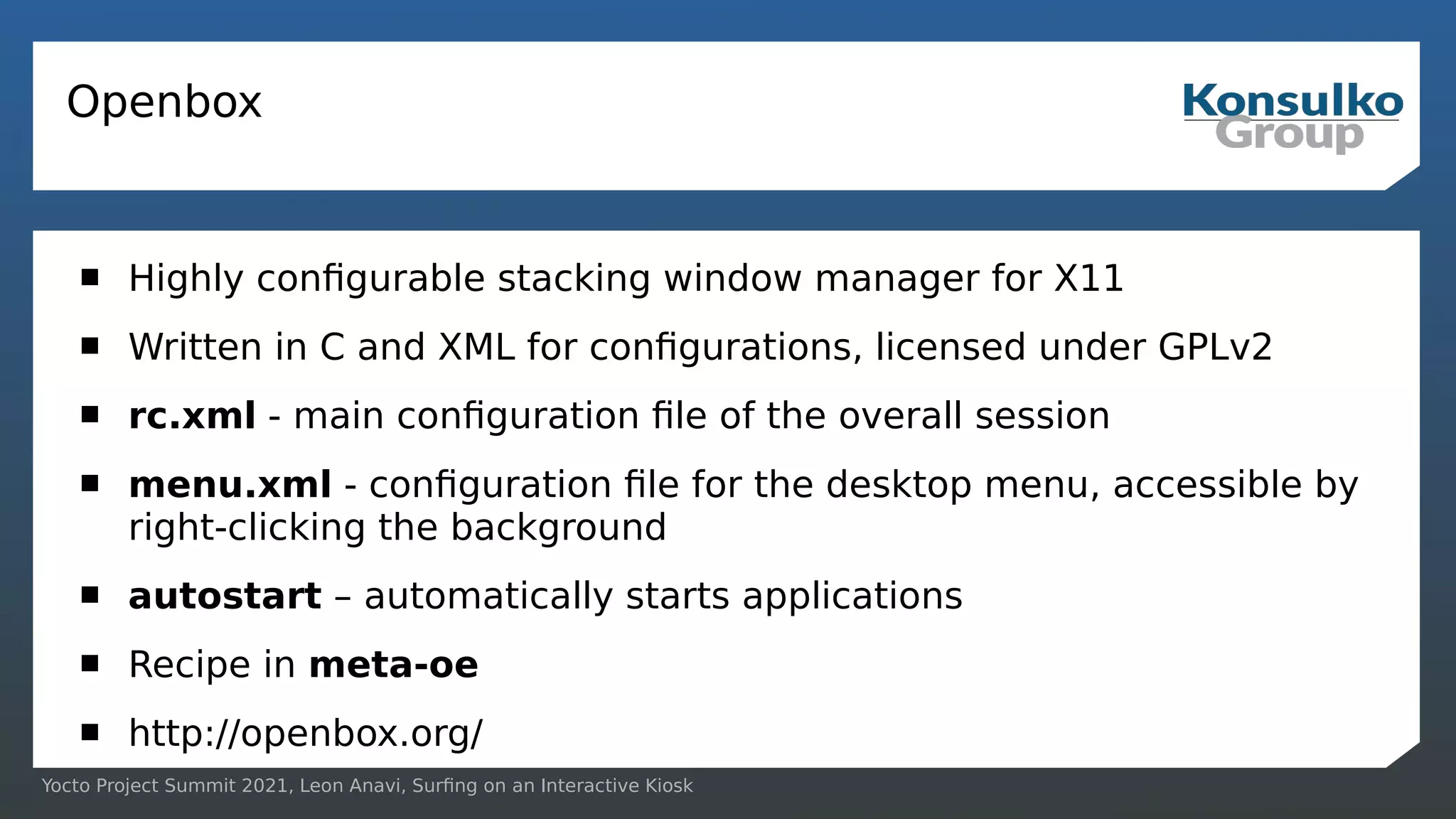

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Openbox  Highly configurable stacking window manager for X11  Written in C and XML for configurations, licensed under GPLv2  rc.xml - main configuration file of the overall session  menu.xml - configuration file for the desktop menu, accessible by right-clicking the background  autostart – automatically starts applications  Recipe in meta-oe  http://openbox.org/
• 10.

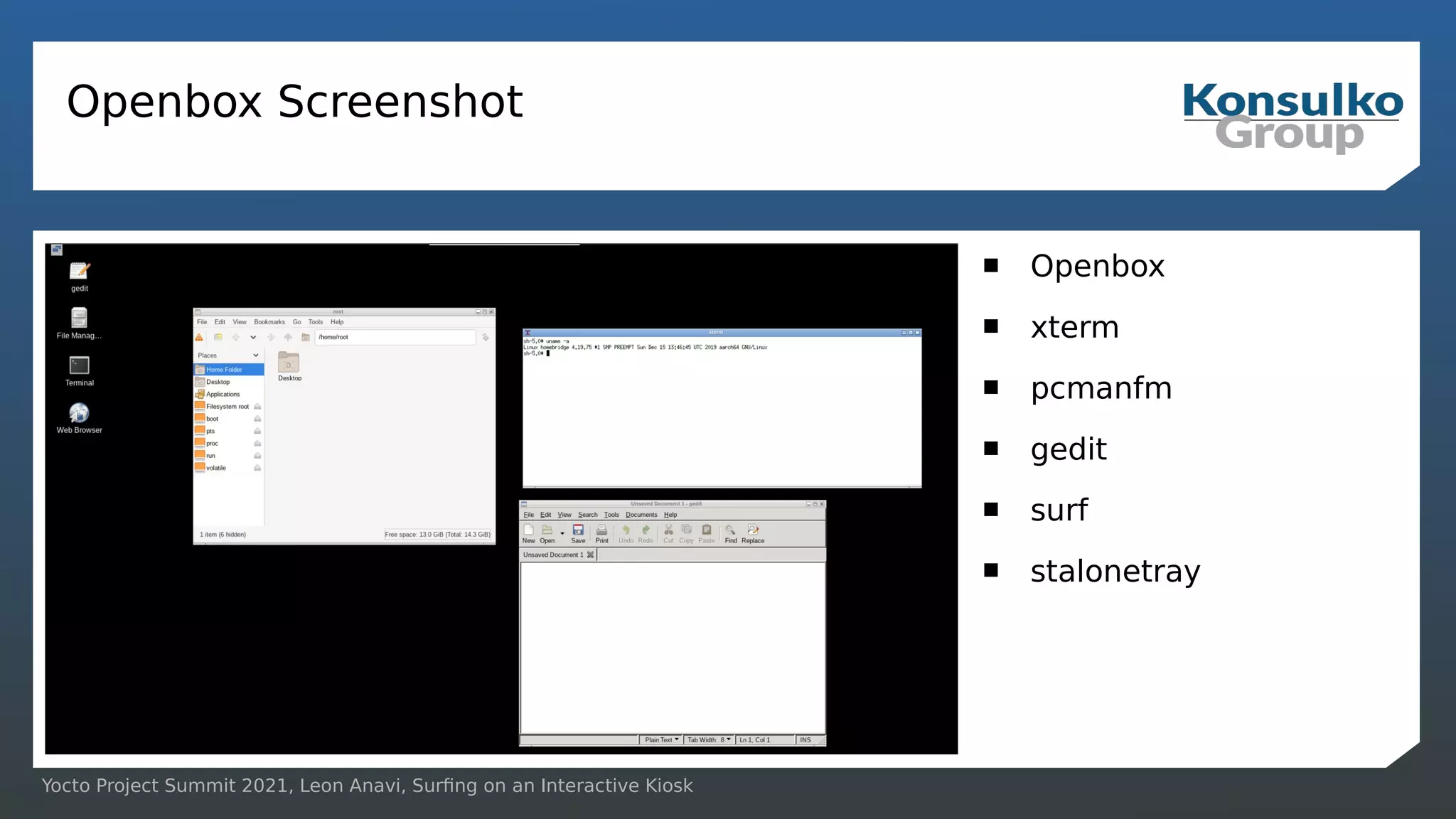

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Openbox Screenshot  Openbox  xterm  pcmanfm  gedit  surf  stalonetray
• 11.

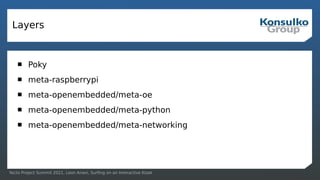

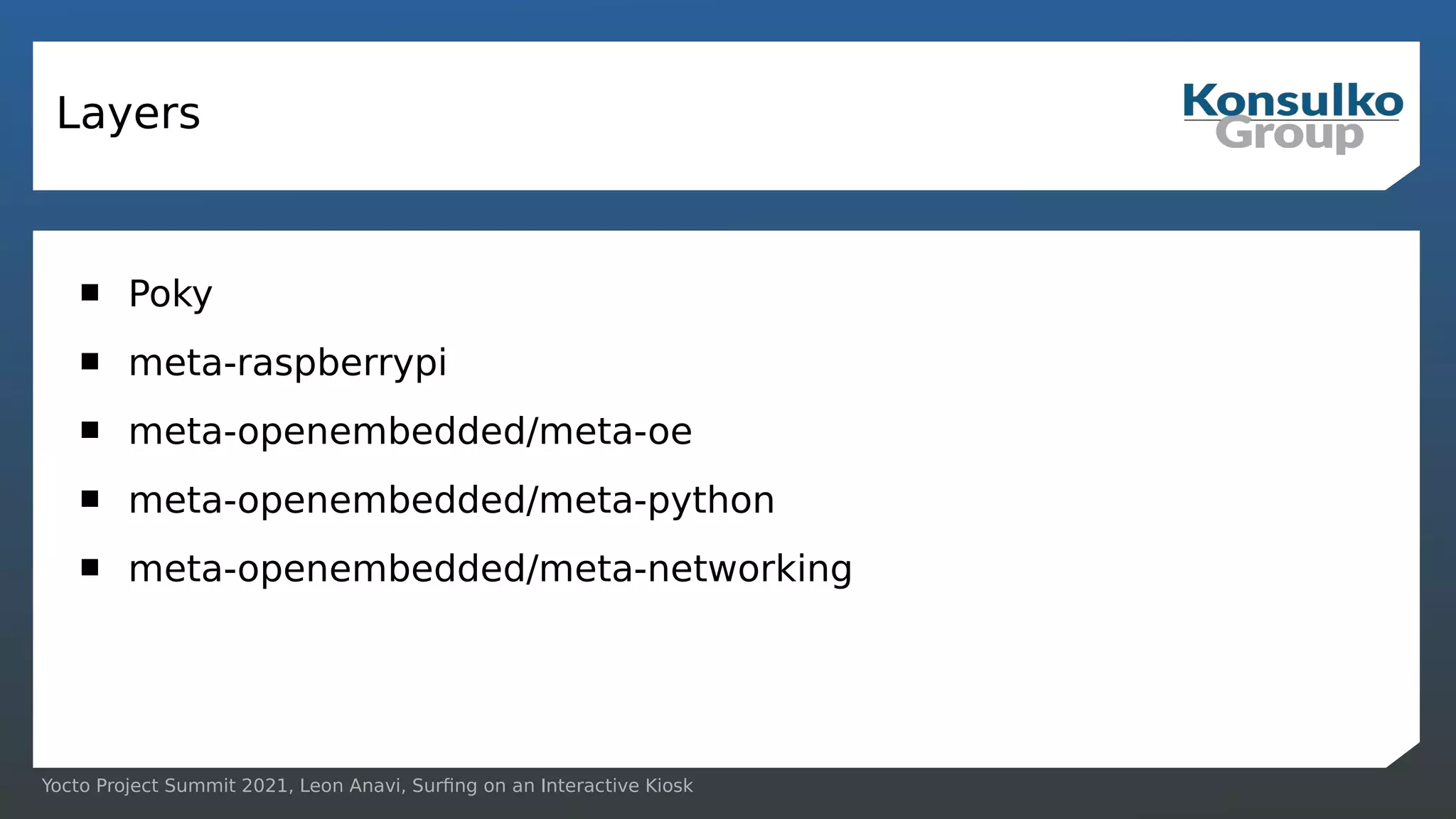

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Layers  Poky  meta-raspberrypi  meta-openembedded/meta-oe  meta-openembedded/meta-python  meta-openembedded/meta-networking
• 12.

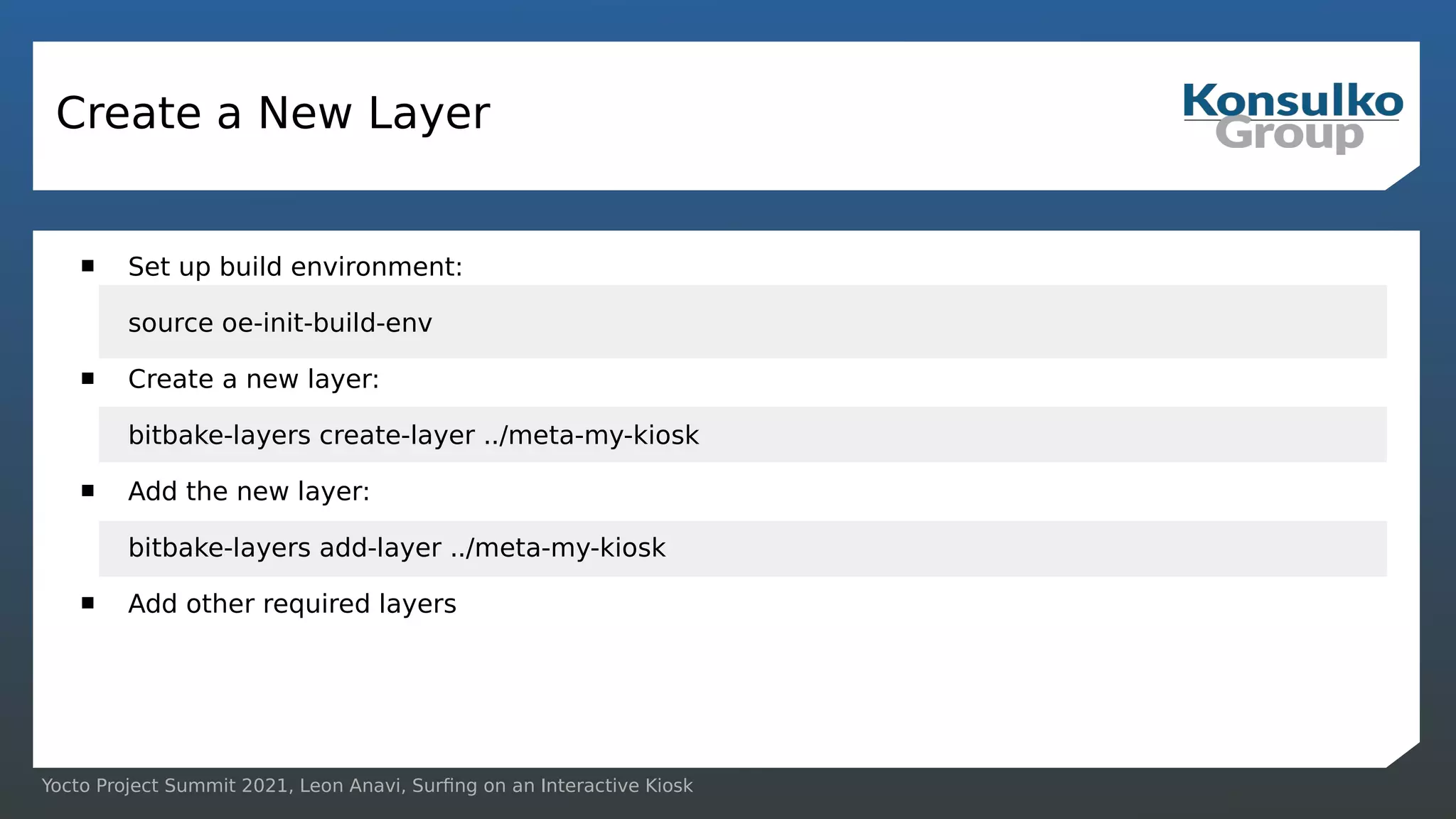

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Create a New Layer  Set up build environment: source oe-init-build-env  Create a new layer: bitbake-layers create-layer ../meta-my-kiosk  Add the new layer: bitbake-layers add-layer ../meta-my-kiosk  Add other required layers
• 13.

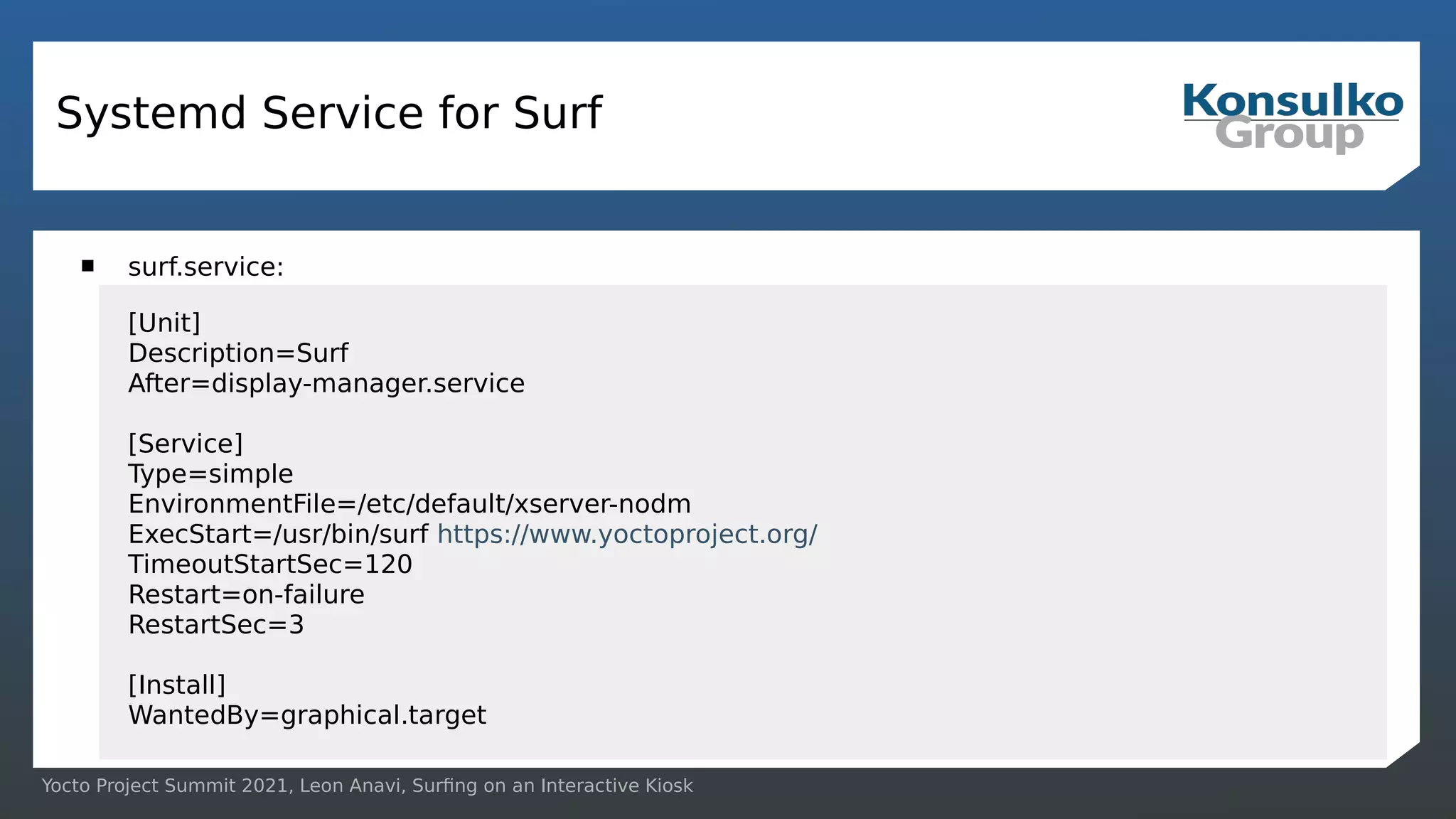

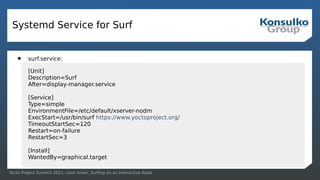

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Systemd Service for Surf  surf.service: [Unit] Description=Surf After=display-manager.service [Service] Type=simple EnvironmentFile=/etc/default/xserver-nodm ExecStart=/usr/bin/surf https://www.yoctoproject.org/ TimeoutStartSec=120 Restart=on-failure RestartSec=3 [Install] WantedBy=graphical.target
• 14.

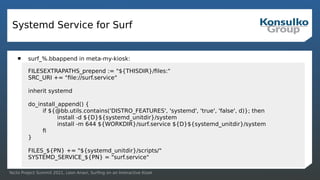

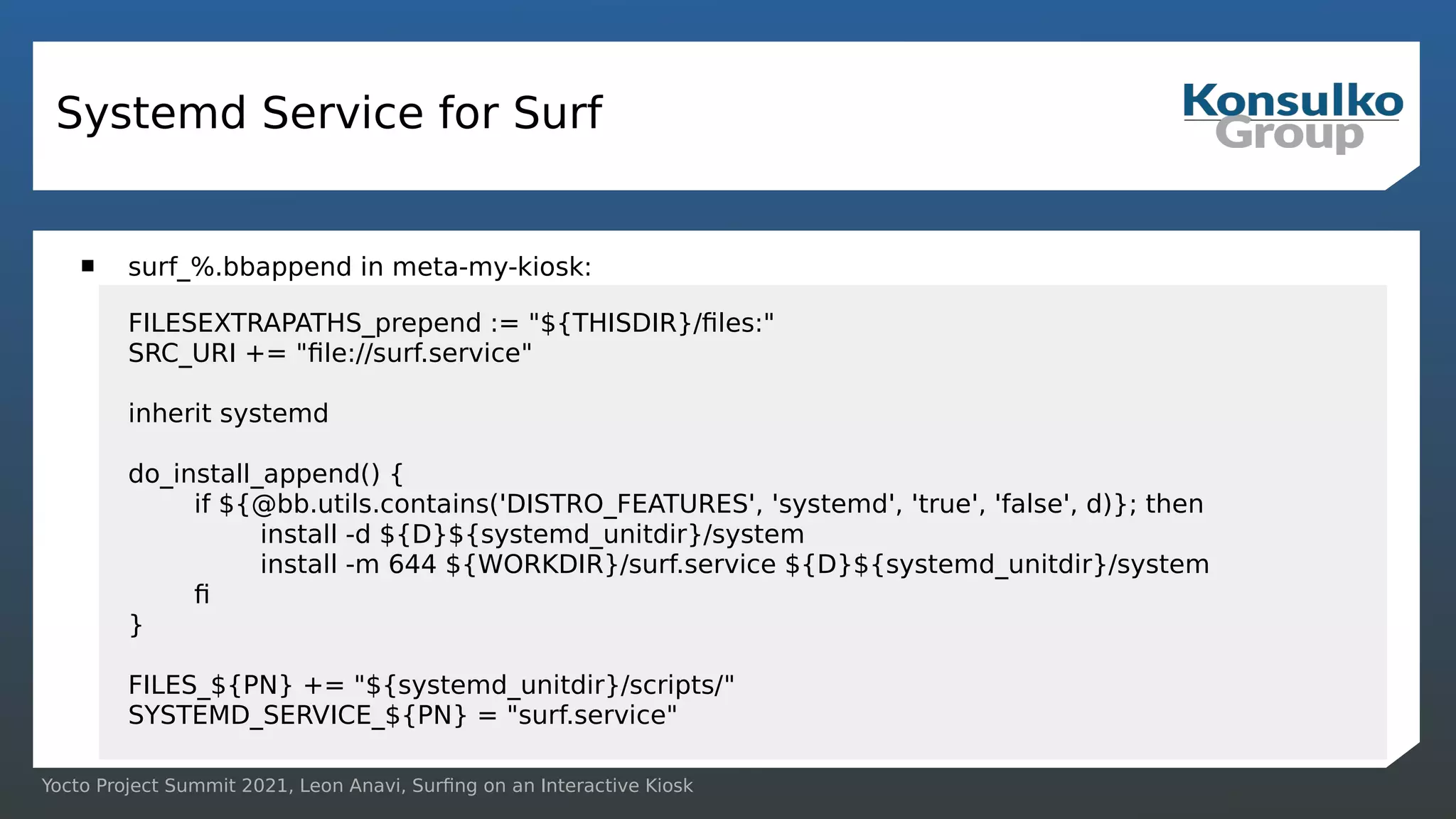

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Systemd Service for Surf  surf_%.bbappend in meta-my-kiosk: FILESEXTRAPATHS_prepend := "${THISDIR}/files:" SRC_URI += "file://surf.service" inherit systemd do_install_append() { if ${@bb.utils.contains('DISTRO_FEATURES', 'systemd', 'true', 'false', d)}; then install -d ${D}${systemd_unitdir}/system install -m 644 ${WORKDIR}/surf.service ${D}${systemd_unitdir}/system fi } FILES_${PN} += "${systemd_unitdir}/scripts/" SYSTEMD_SERVICE_${PN} = "surf.service"
• 15.

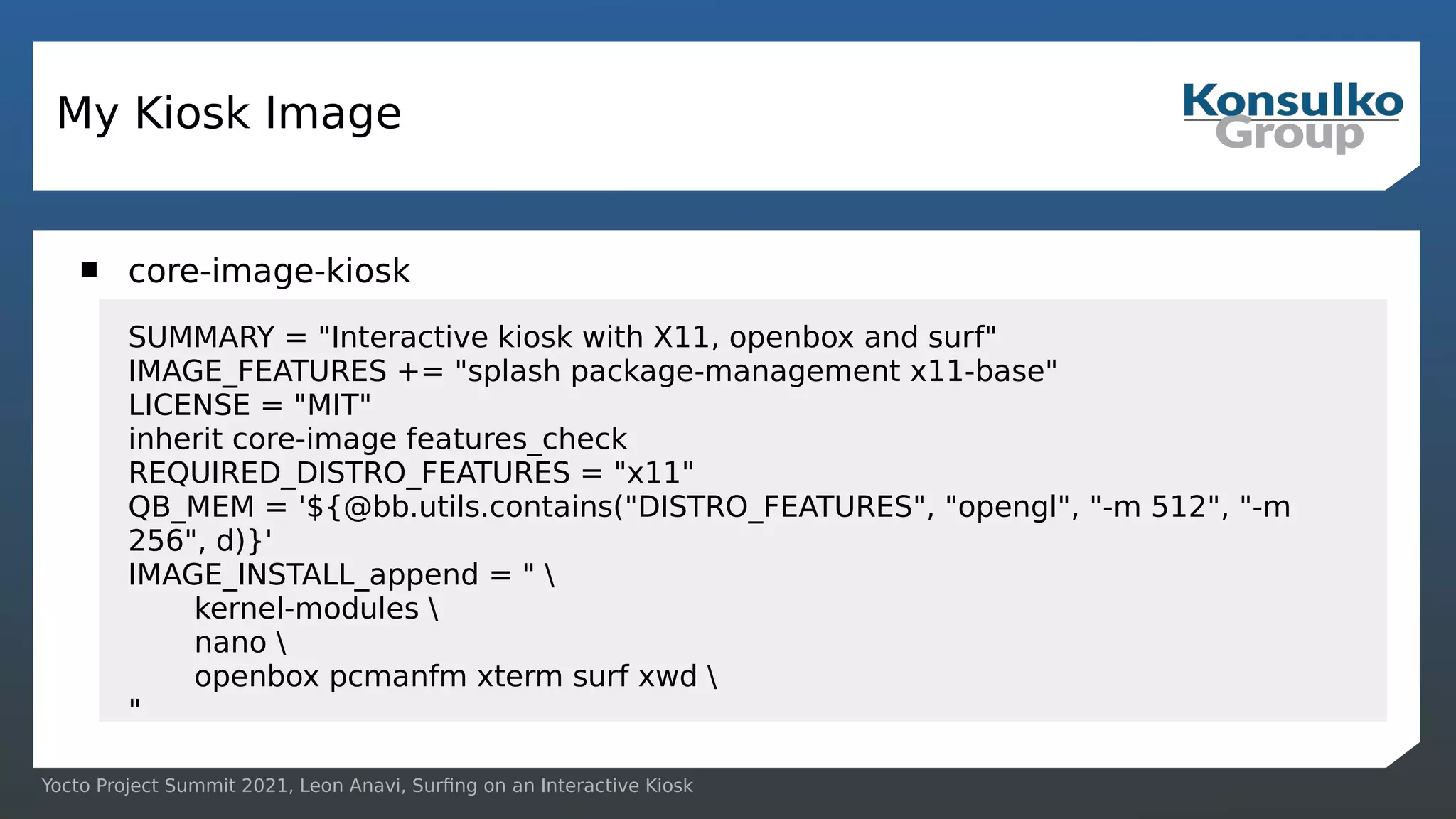

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk My Kiosk Image  core-image-kiosk SUMMARY = "Interactive kiosk with X11, openbox and surf" IMAGE_FEATURES += "splash package-management x11-base" LICENSE = "MIT" inherit core-image features_check REQUIRED_DISTRO_FEATURES = "x11" QB_MEM = '${@bb.utils.contains("DISTRO_FEATURES", "opengl", "-m 512", "-m 256", d)}' IMAGE_INSTALL_append = " kernel-modules nano openbox pcmanfm xterm surf xwd "
• 16.

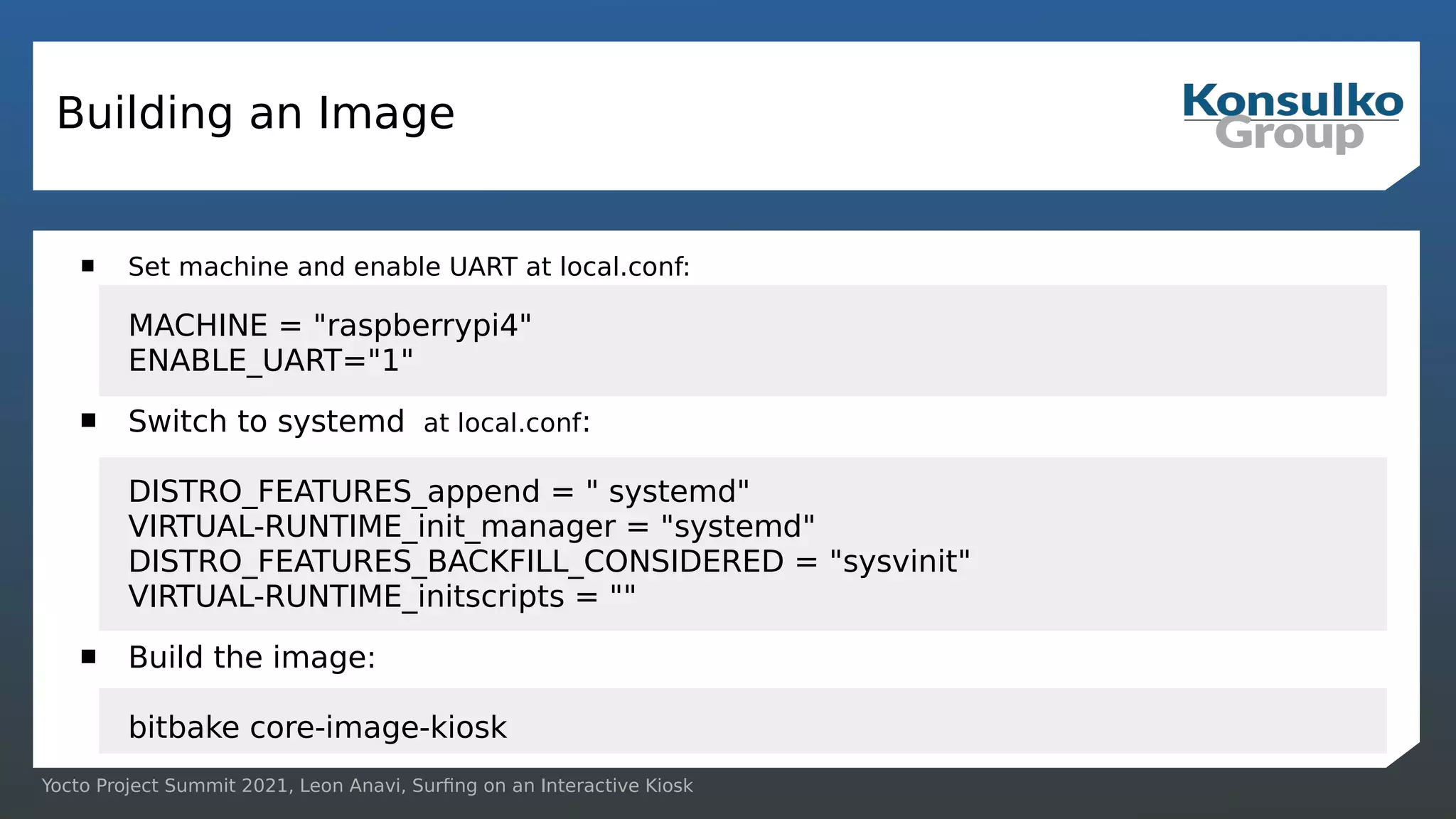

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Building an Image  Set machine and enable UART at local.conf: MACHINE = "raspberrypi4" ENABLE_UART="1"  Switch to systemd at local.conf: DISTRO_FEATURES_append = " systemd" VIRTUAL-RUNTIME_init_manager = "systemd" DISTRO_FEATURES_BACKFILL_CONSIDERED = "sysvinit" VIRTUAL-RUNTIME_initscripts = ""  Build the image: bitbake core-image-kiosk
• 17.

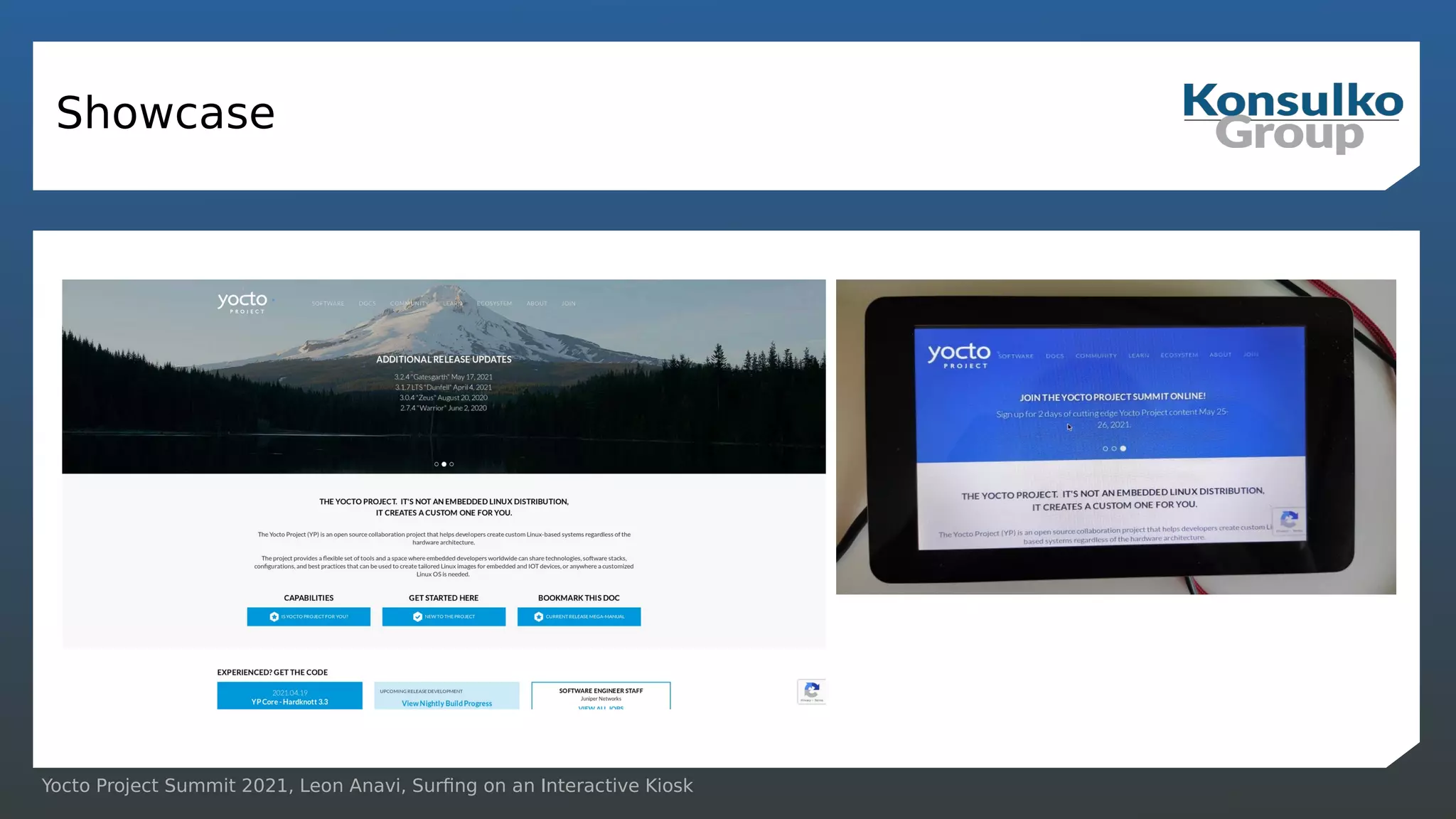

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Showcase
• 18.

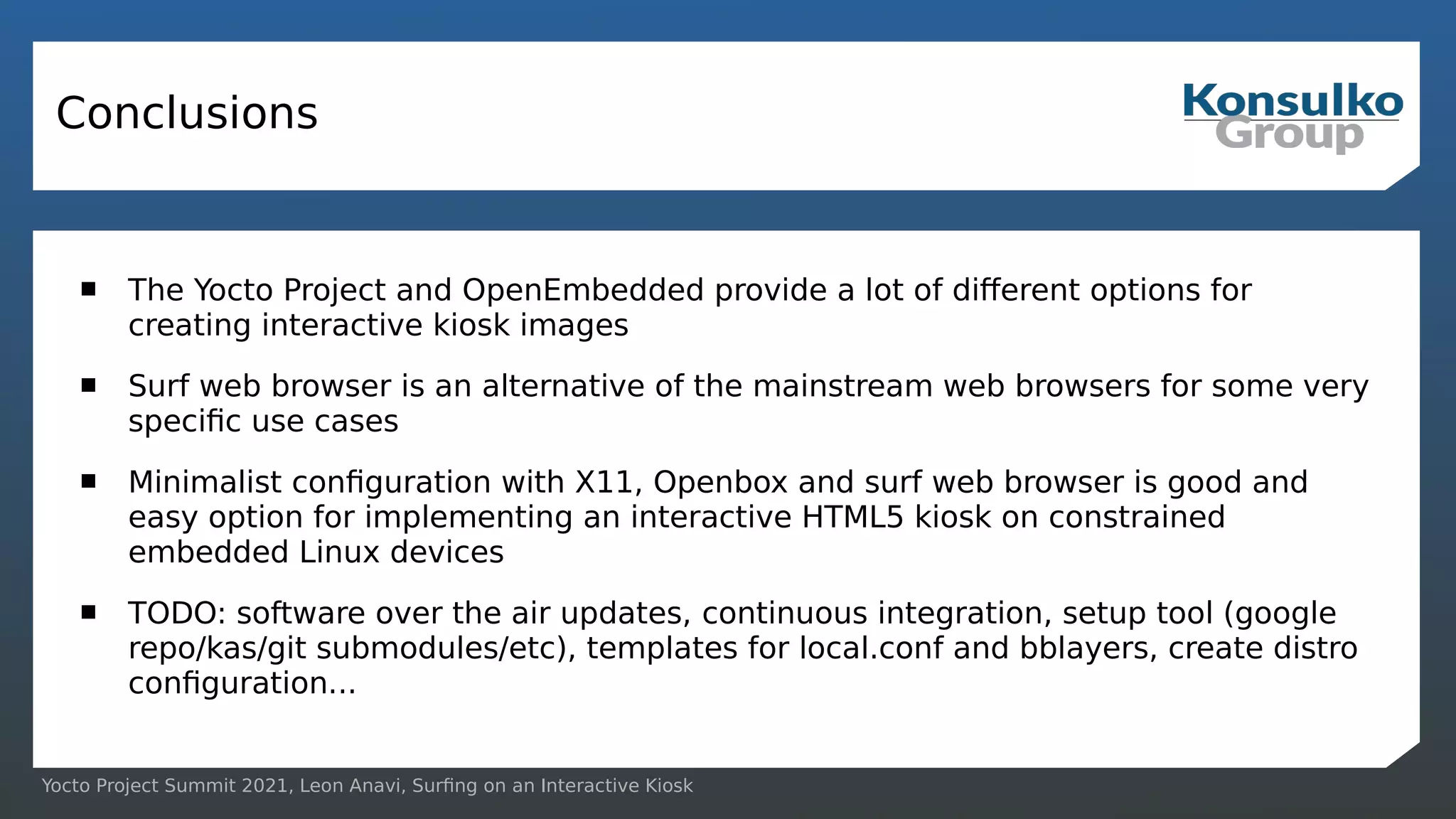

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Conclusions  The Yocto Project and OpenEmbedded provide a lot of different options for creating interactive kiosk images  Surf web browser is an alternative of the mainstream web browsers for some very specific use cases  Minimalist configuration with X11, Openbox and surf web browser is good and easy option for implementing an interactive HTML5 kiosk on constrained embedded Linux devices  TODO: software over the air updates, continuous integration, setup tool (google repo/kas/git submodules/etc), templates for local.conf and bblayers, create distro configuration...
• 19.

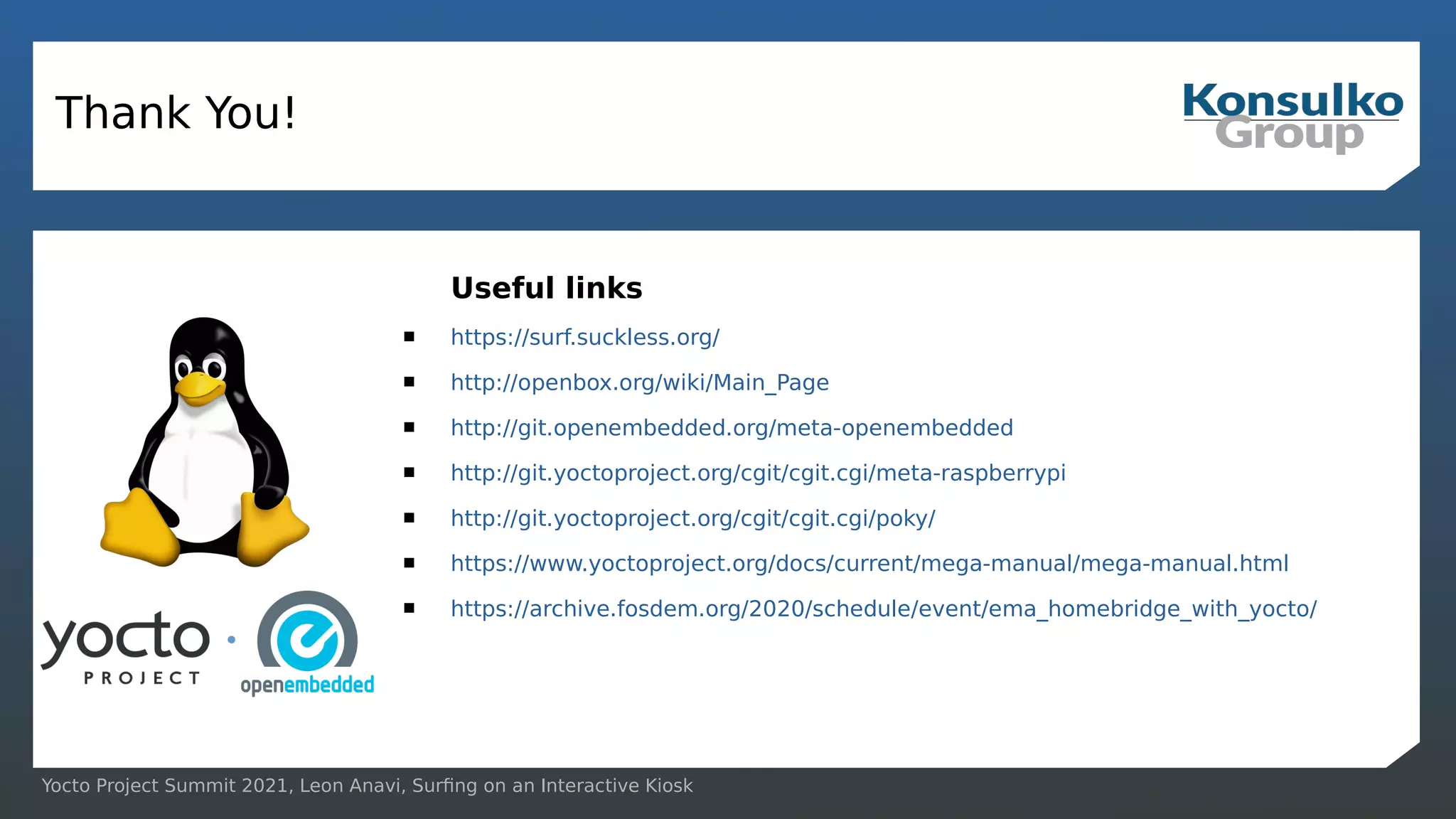

  Yocto Project Summit2021, Leon Anavi, Surfing on an Interactive Kiosk Thank You! Useful links  https://surf.suckless.org/  http://openbox.org/wiki/Main_Page  http://git.openembedded.org/meta-openembedded  http://git.yoctoproject.org/cgit/cgit.cgi/meta-raspberrypi  http://git.yoctoproject.org/cgit/cgit.cgi/poky/  https://www.yoctoproject.org/docs/current/mega-manual/mega-manual.html  https://archive.fosdem.org/2020/schedule/event/ema_homebridge_with_yocto/
