Yocto Project introduction
The document provides an introduction to the Yocto Project, including what it is, its main components, and workflow. It describes the Yocto Project as being comprised of Poky (the build system), tools, and upstreams. Poky contains BitBake (the build engine) and metadata (task configurations and definitions). It outlines the main components, including sub-projects, and compares the Yocto Project to OpenEmbedded. Finally, it summarizes the Yocto Project workflow, which involves configuring the build using recipes and layers then building packages, images, and cross-development toolchains.
In this document
Powered by AI
Introduction to Yocto Project, its components, and comparison with OpenEmbedded.
Core concept of BitBake and how it utilizes recipes for generating custom Linux images.Overview and configuration of Yocto Project's workflow, specifically initial setup commands.
User configurations, metadata, BSPs, and machine configurations essential for building with Yocto.
Explanation of layers, their purpose in extending system functionalities, and how they are configured.
Process of acquiring source code, applying patches, and automating the configuration/compile steps.
Supported packaging formats, generating images from built packages, and customization options.
Generating cross toolchain for application development and preparing the development environment.
Steps for building toolchain installers, using toolchain tarballs, and setting up the development environment.
Methods for extracting the root filesystem for various development purposes.
Providing resources, training materials, and reference manuals for further learning about Yocto.
More Related Content
![[Webinar] An Introduction to the Yocto Embedded Framework](https://cdn.slidesharecdn.com/ss_thumbnails/yoctowebinar-170119220411-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Yocto Project introduction
- 1.

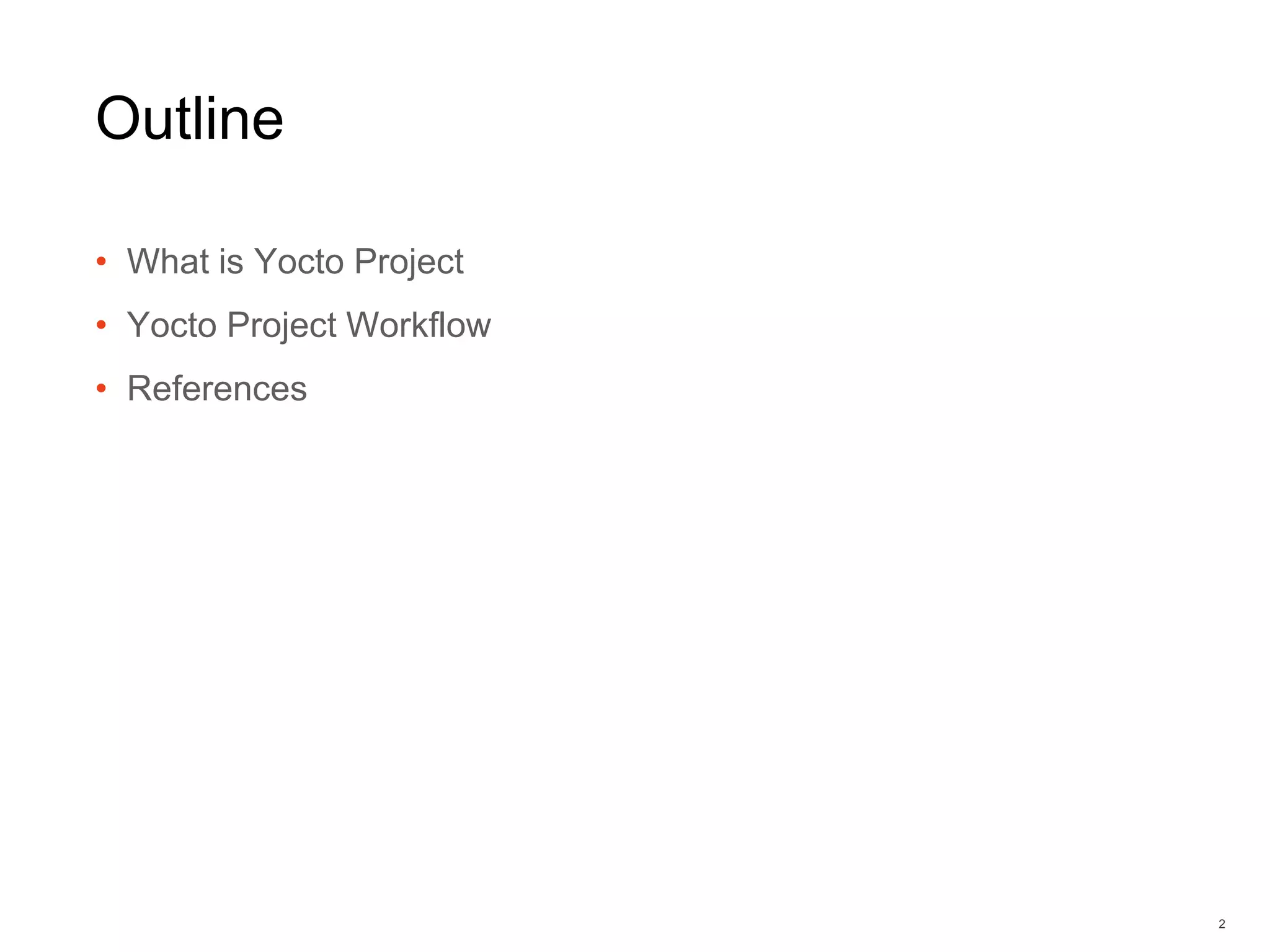

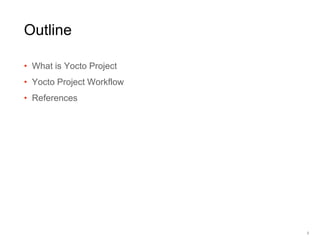

- 2. Outline • What isYocto Project • Yocto Project Workflow • References 2

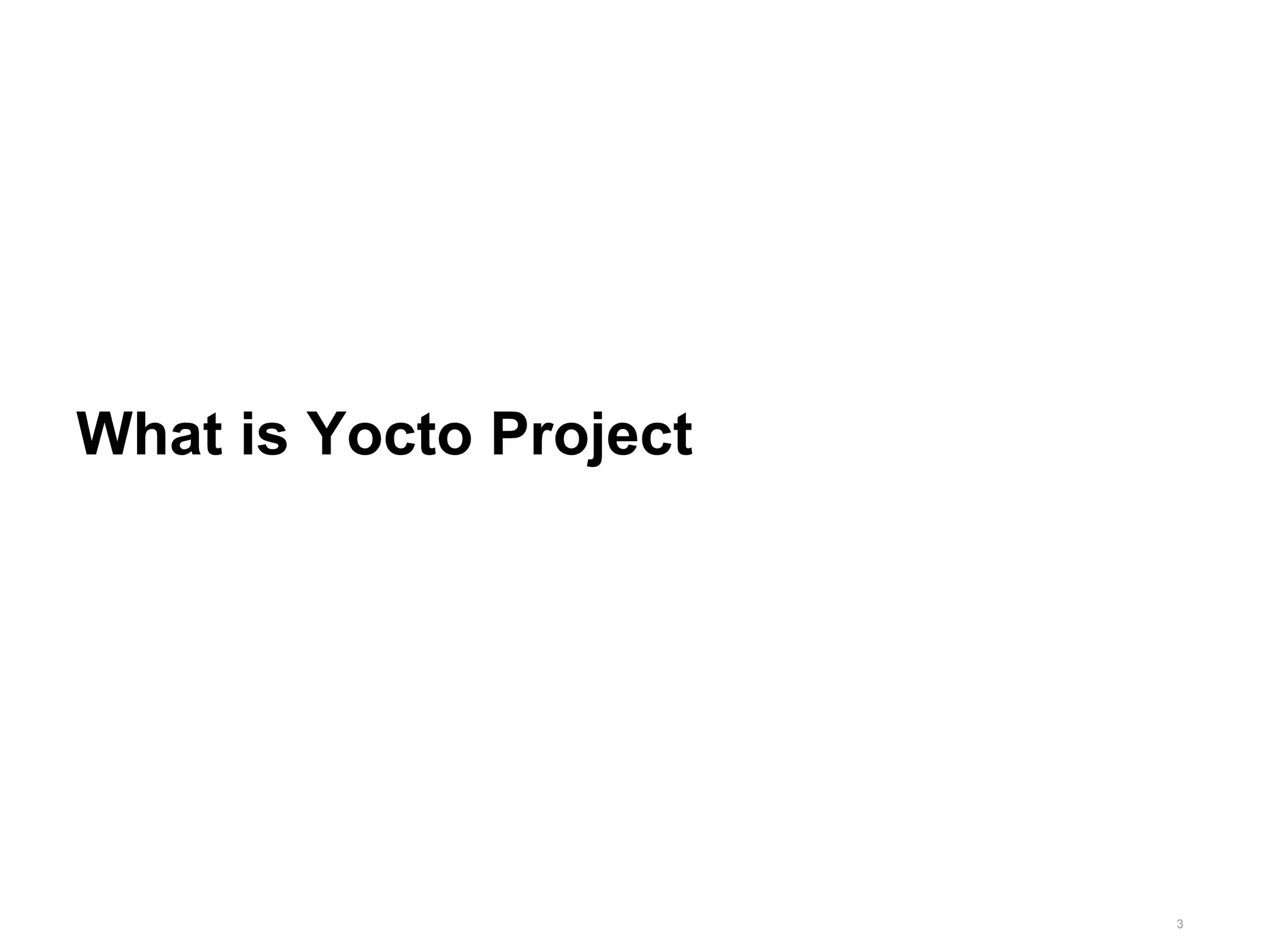

- 3. What is YoctoProject 3

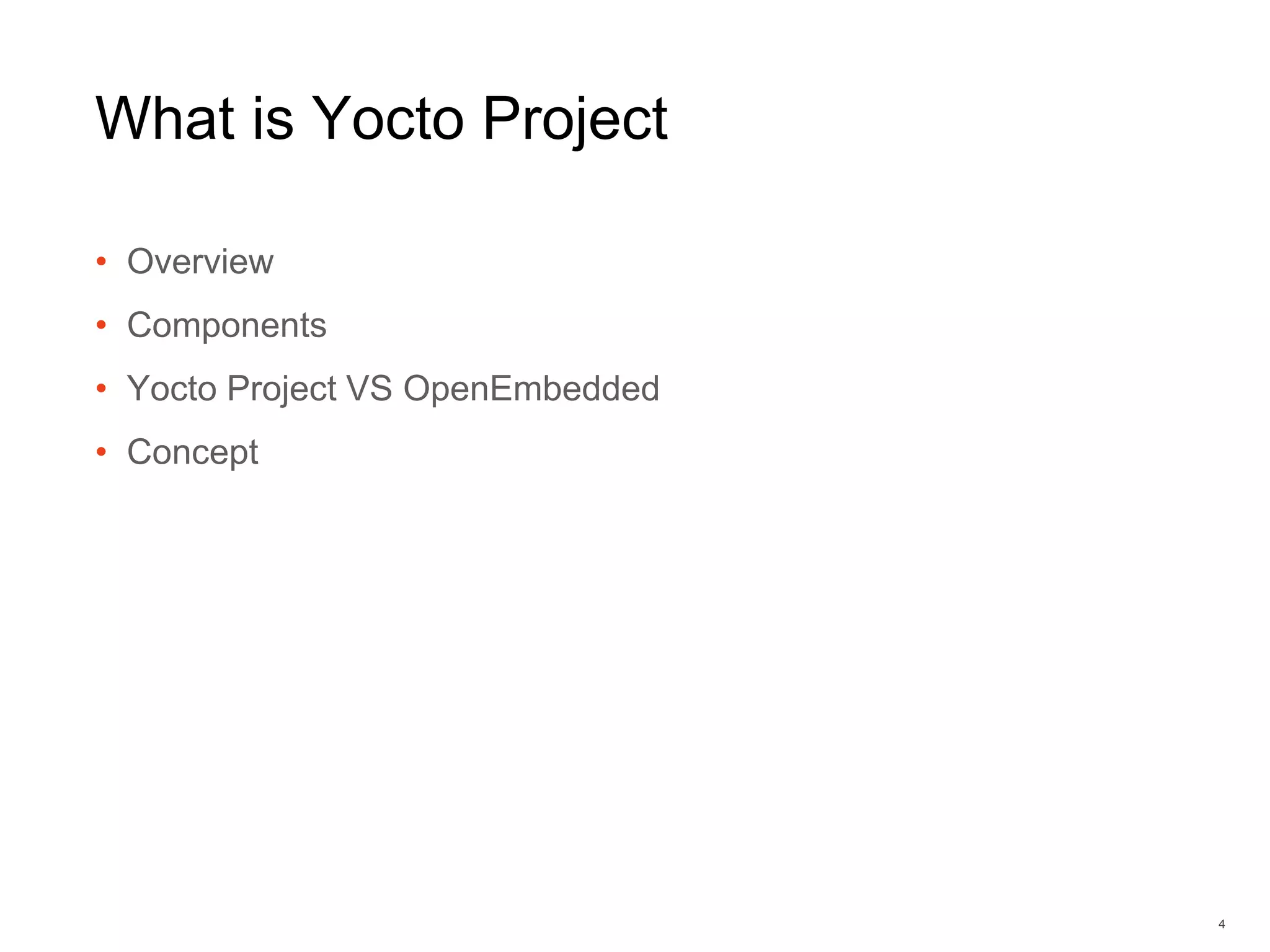

- 4. What is YoctoProject • Overview • Components • Yocto Project VS OpenEmbedded • Concept 4

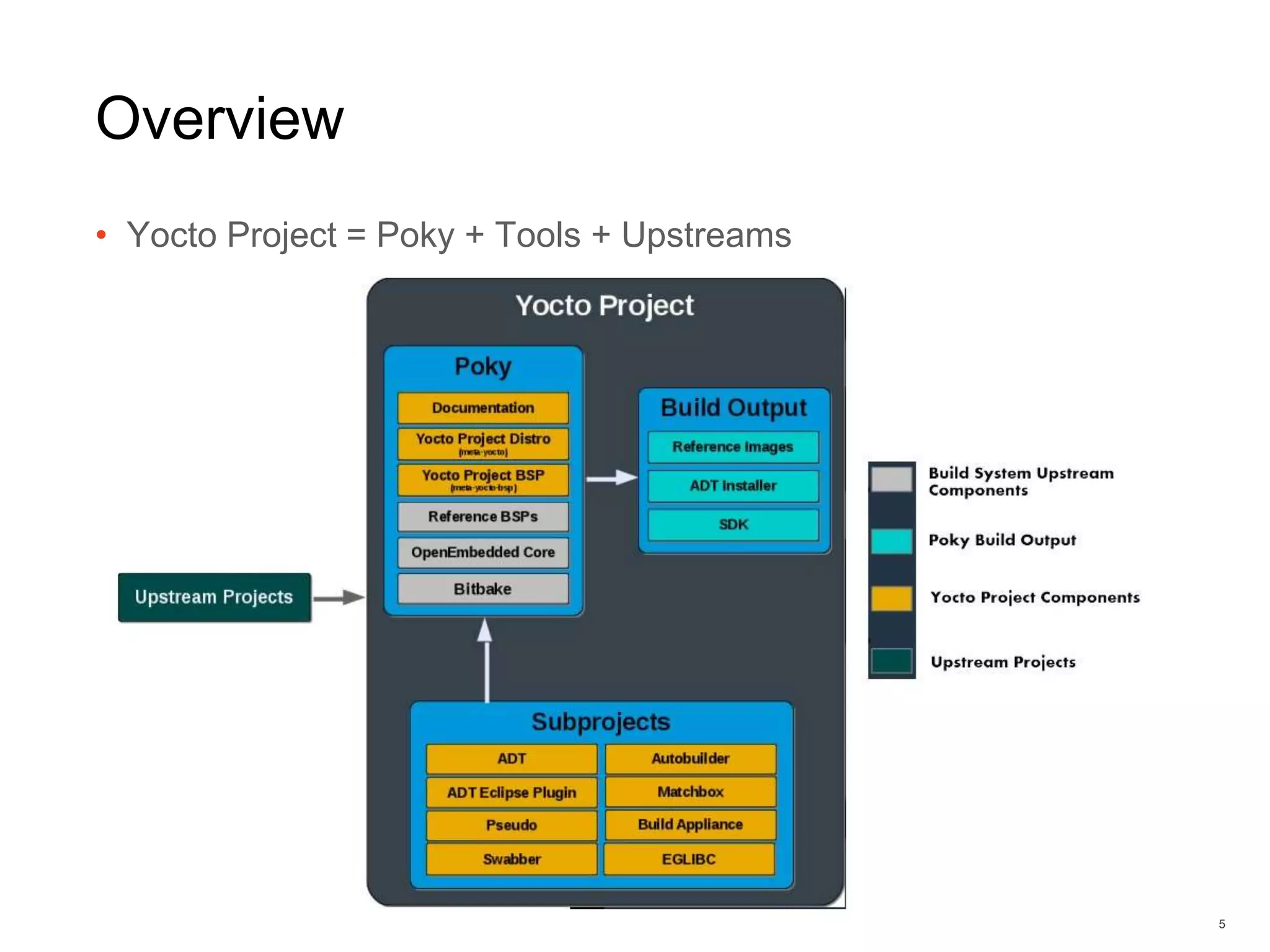

- 5. Overview • Yocto Project= Poky + Tools + Upstreams 5

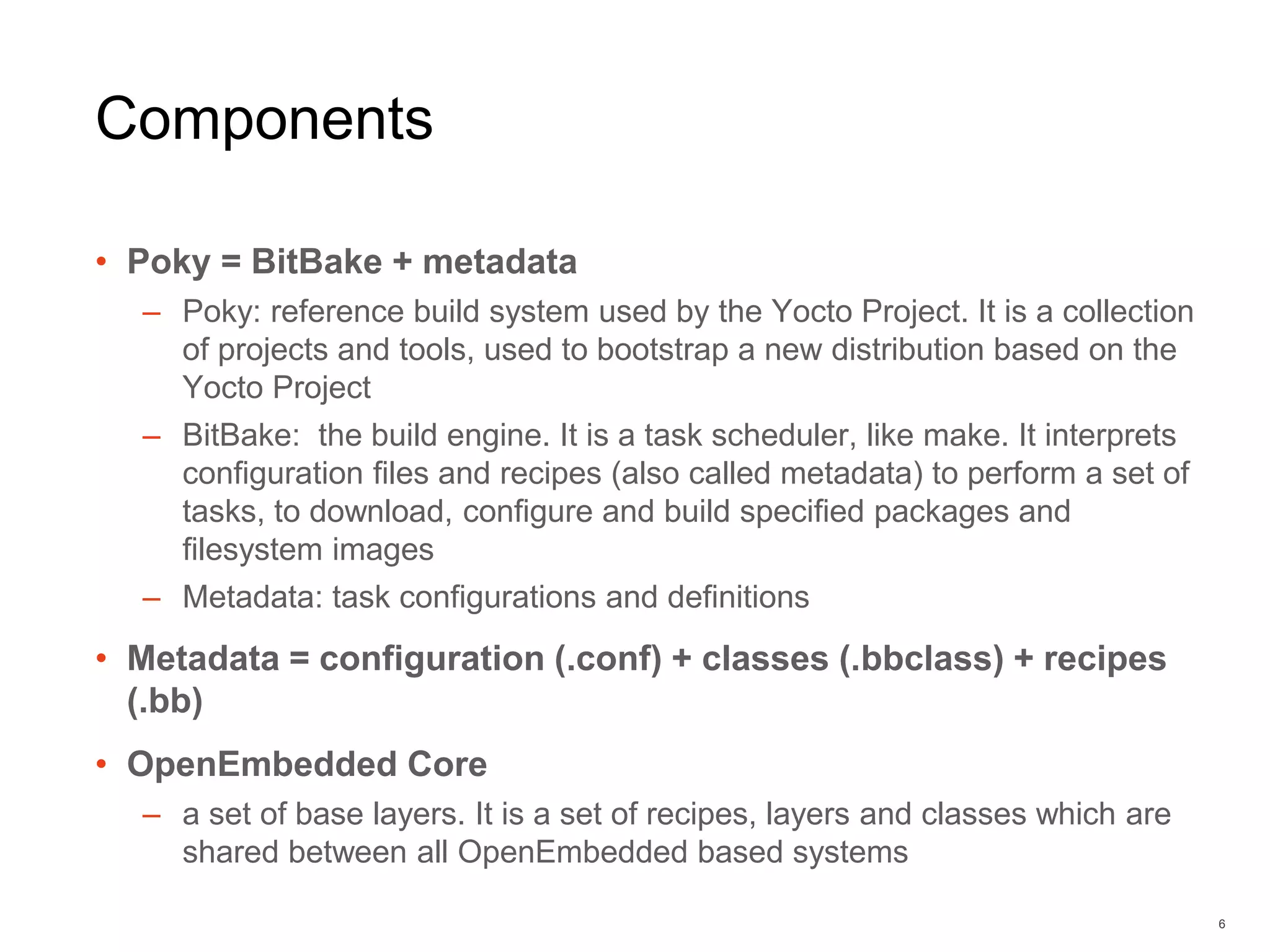

- 6. Components • Poky =BitBake + metadata – Poky: reference build system used by the Yocto Project. It is a collection of projects and tools, used to bootstrap a new distribution based on the Yocto Project – BitBake: the build engine. It is a task scheduler, like make. It interprets configuration files and recipes (also called metadata) to perform a set of tasks, to download, configure and build specified packages and filesystem images – Metadata: task configurations and definitions • Metadata = configuration (.conf) + classes (.bbclass) + recipes (.bb) • OpenEmbedded Core – a set of base layers. It is a set of recipes, layers and classes which are shared between all OpenEmbedded based systems 6

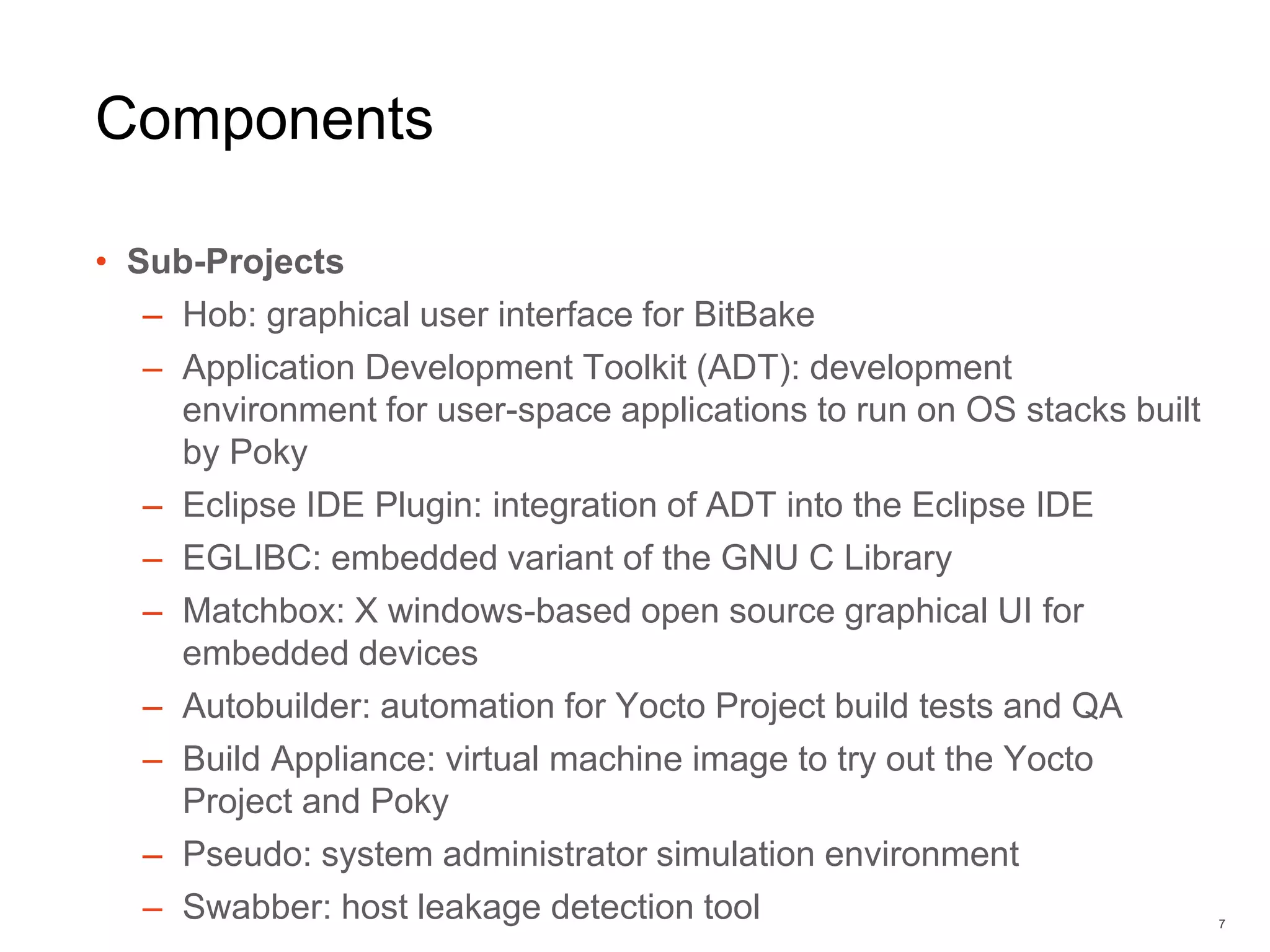

- 7. Components • Sub-Projects – Hob:graphical user interface for BitBake – Application Development Toolkit (ADT): development environment for user-space applications to run on OS stacks built by Poky – Eclipse IDE Plugin: integration of ADT into the Eclipse IDE – EGLIBC: embedded variant of the GNU C Library – Matchbox: X windows-based open source graphical UI for embedded devices – Autobuilder: automation for Yocto Project build tests and QA – Build Appliance: virtual machine image to try out the Yocto Project and Poky – Pseudo: system administrator simulation environment – Swabber: host leakage detection tool 7

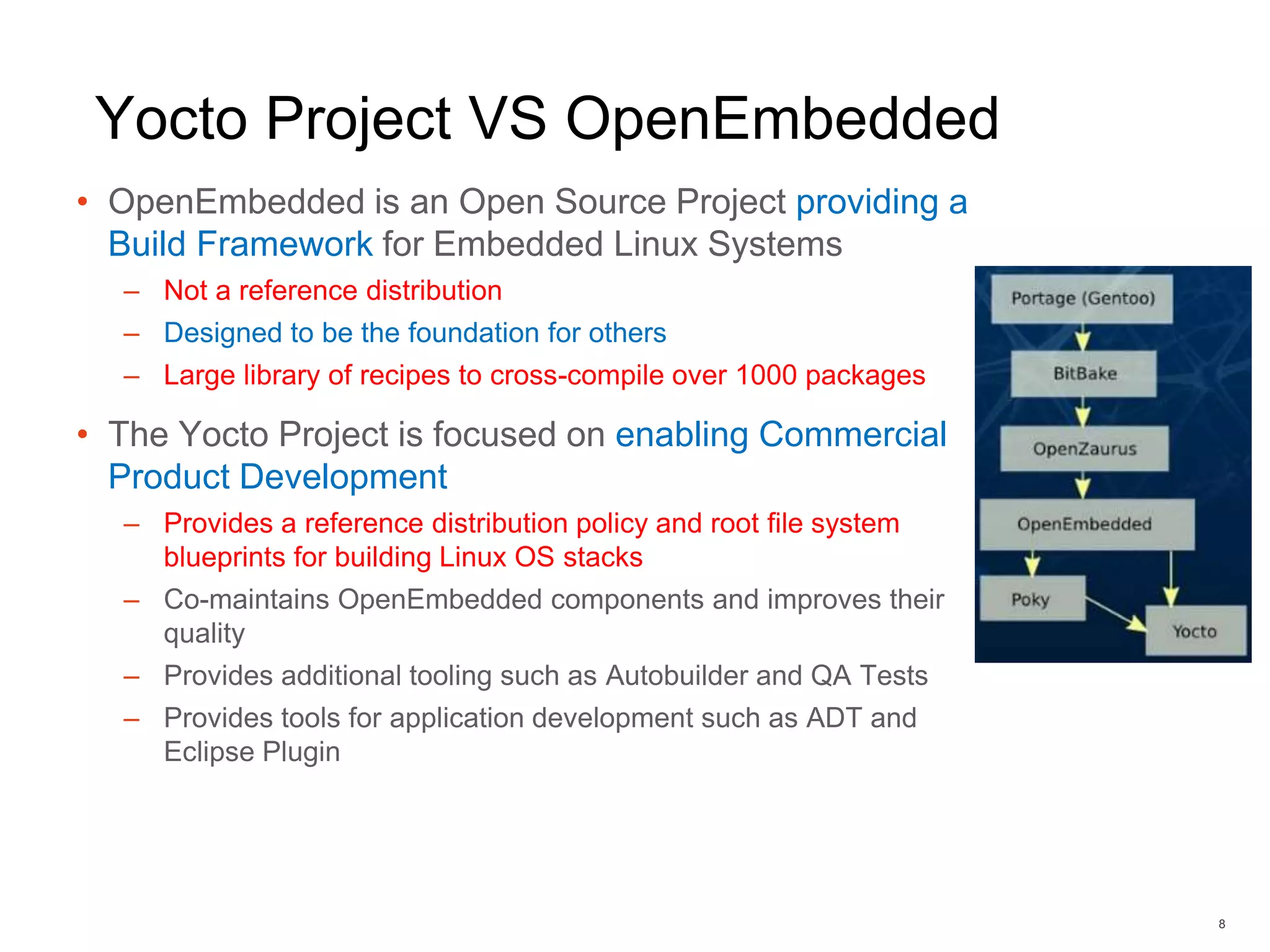

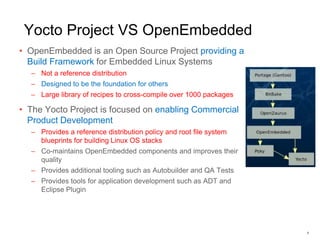

- 8. Yocto Project VSOpenEmbedded • OpenEmbedded is an Open Source Project providing a Build Framework for Embedded Linux Systems – Not a reference distribution – Designed to be the foundation for others – Large library of recipes to cross-compile over 1000 packages • The Yocto Project is focused on enabling Commercial Product Development – Provides a reference distribution policy and root file system blueprints for building Linux OS stacks – Co-maintains OpenEmbedded components and improves their quality – Provides additional tooling such as Autobuilder and QA Tests – Provides tools for application development such as ADT and Eclipse Plugin 8

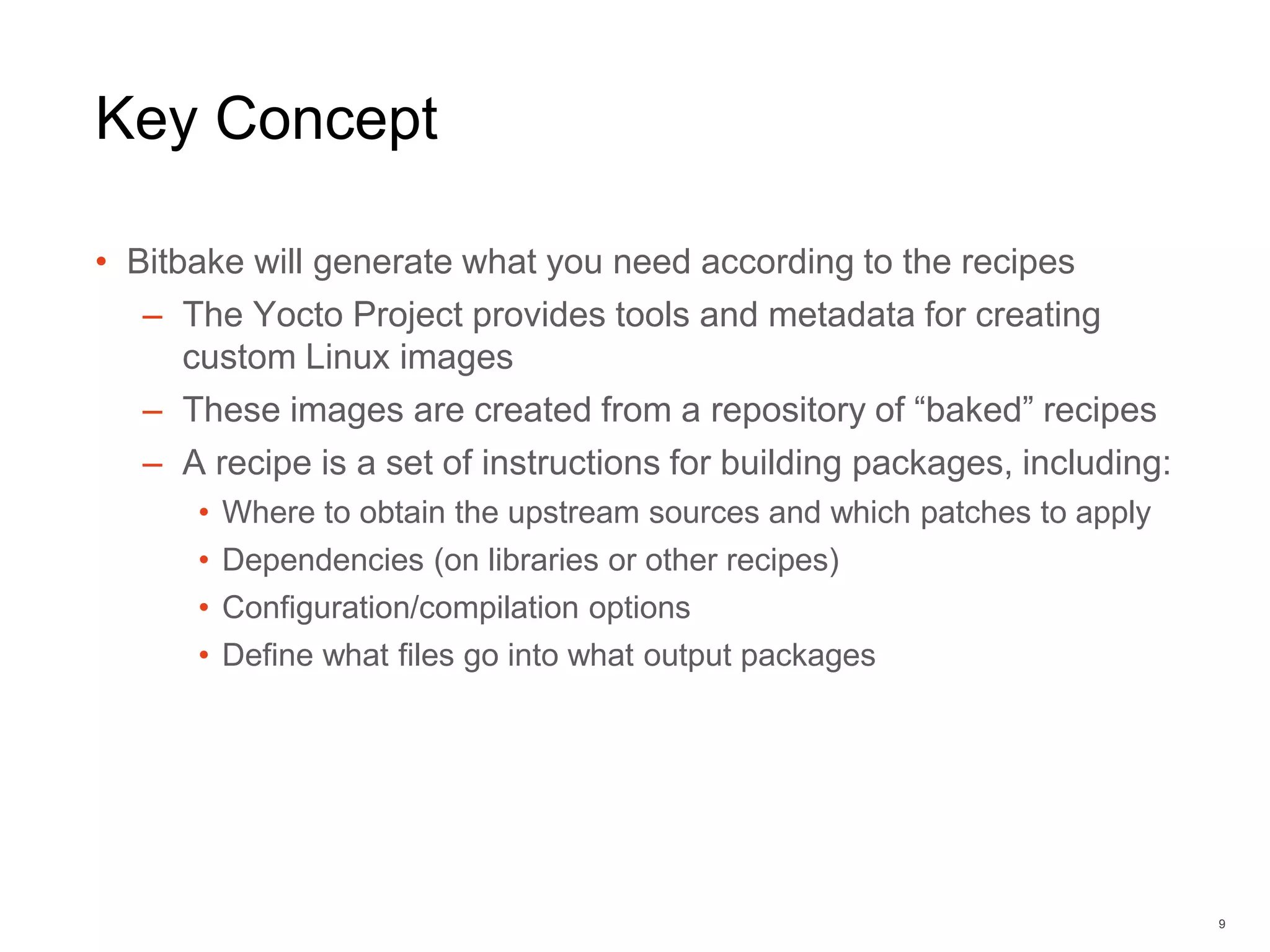

- 9. Key Concept • Bitbakewill generate what you need according to the recipes – The Yocto Project provides tools and metadata for creating custom Linux images – These images are created from a repository of “baked” recipes – A recipe is a set of instructions for building packages, including: • Where to obtain the upstream sources and which patches to apply • Dependencies (on libraries or other recipes) • Configuration/compilation options • Define what files go into what output packages 9

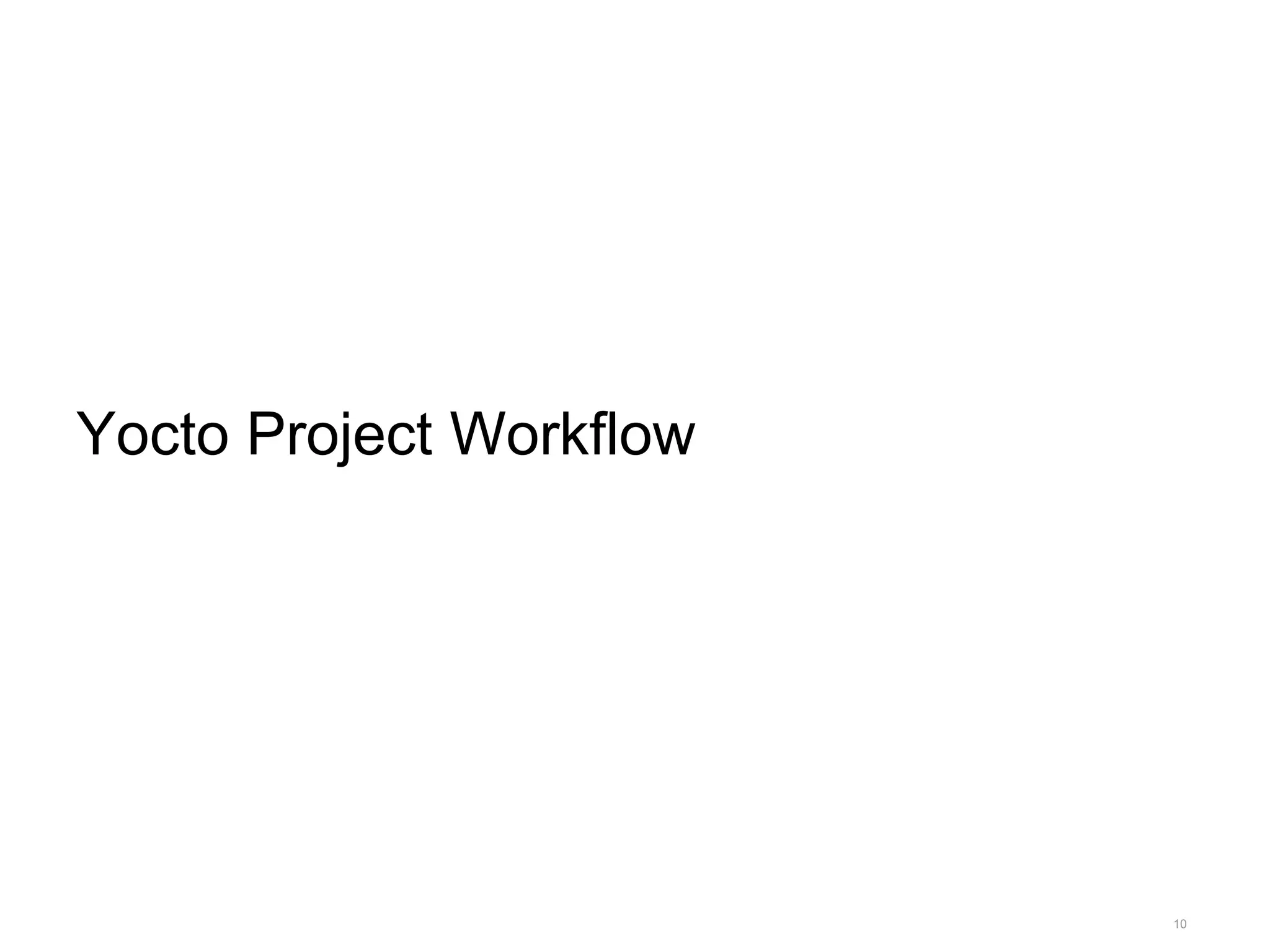

- 10.

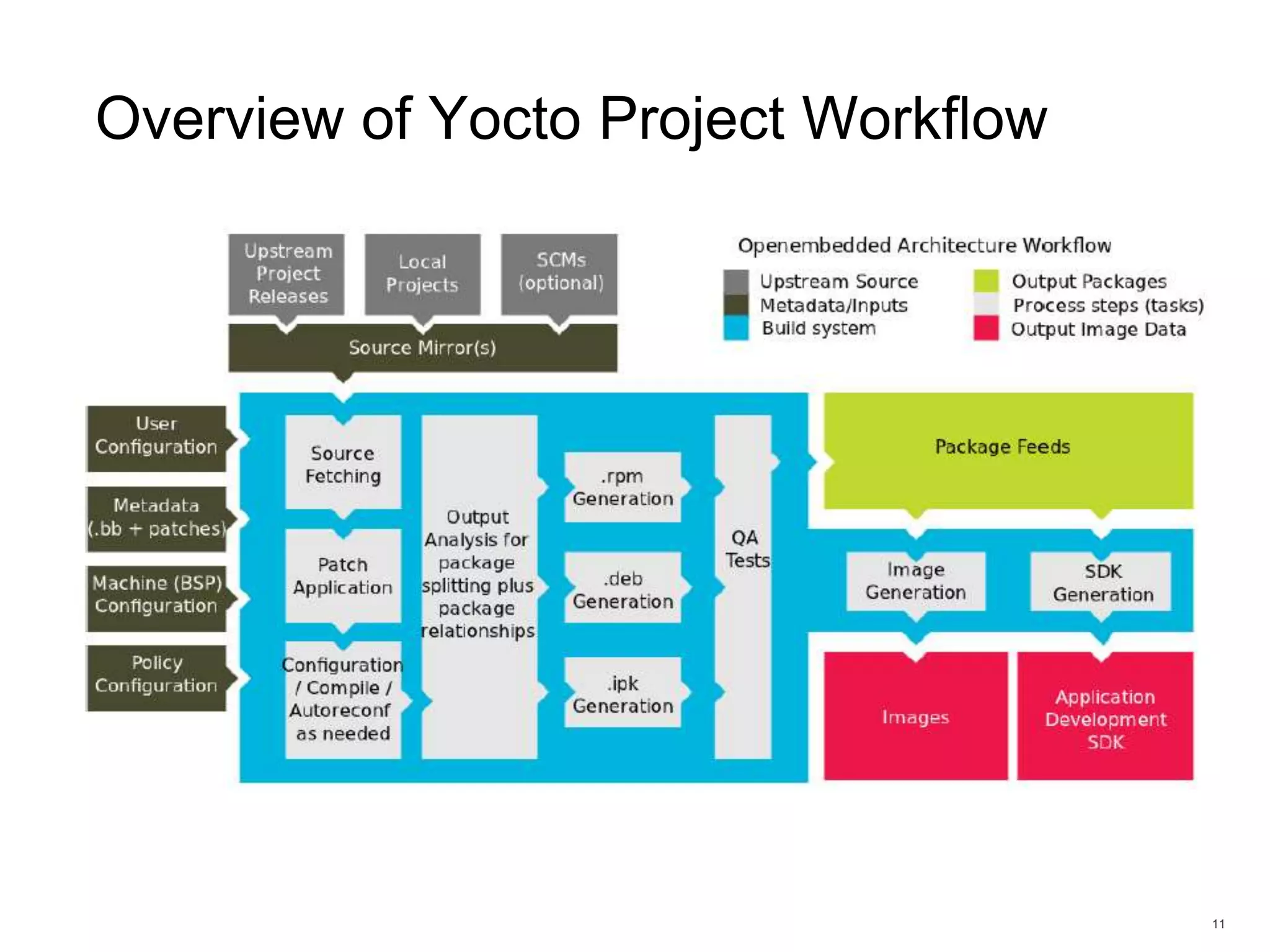

- 11. Overview of YoctoProject Workflow 11

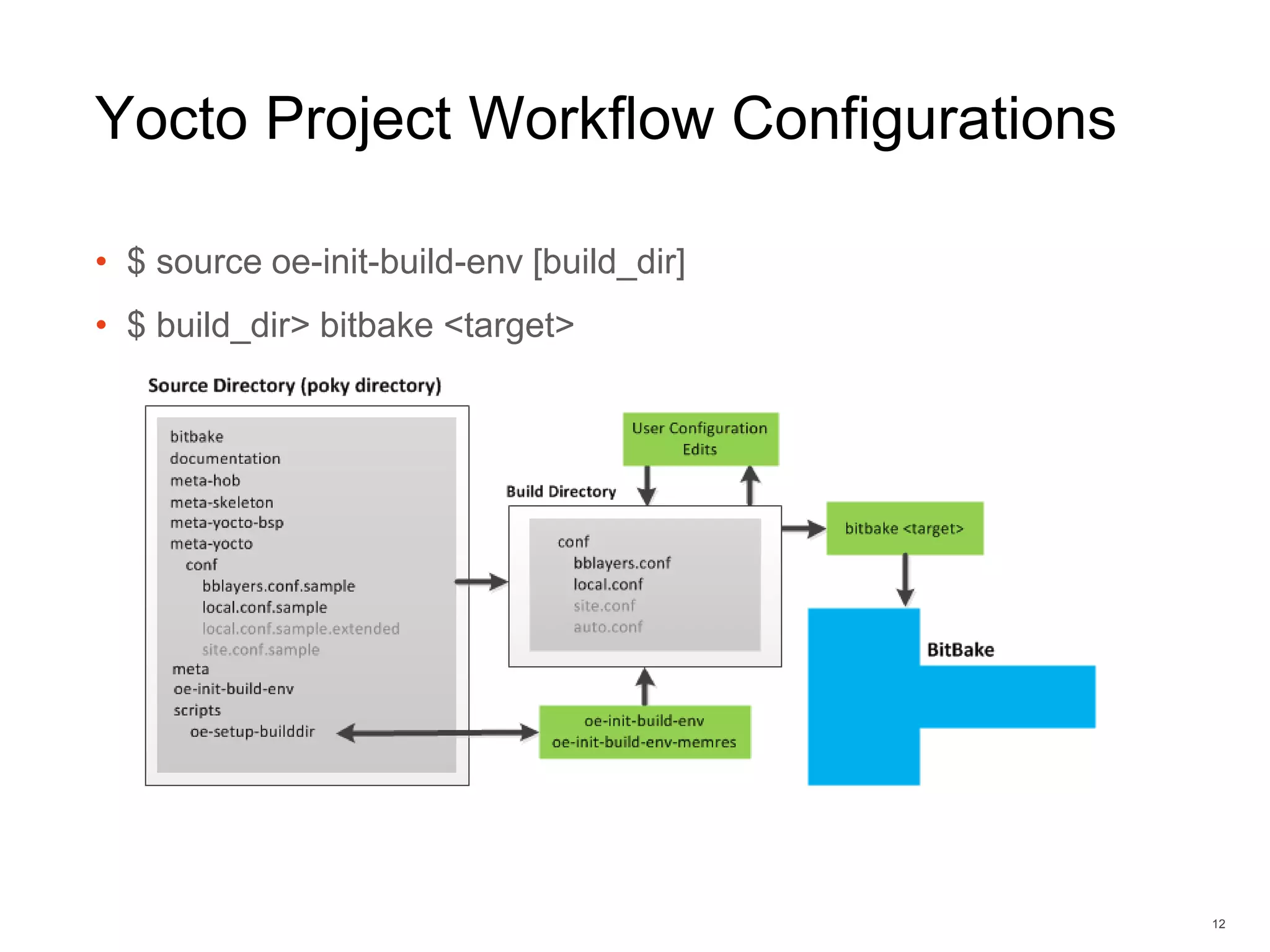

- 12. Yocto Project WorkflowConfigurations • $ source oe-init-build-env [build_dir] • $ build_dir> bitbake <target> 12

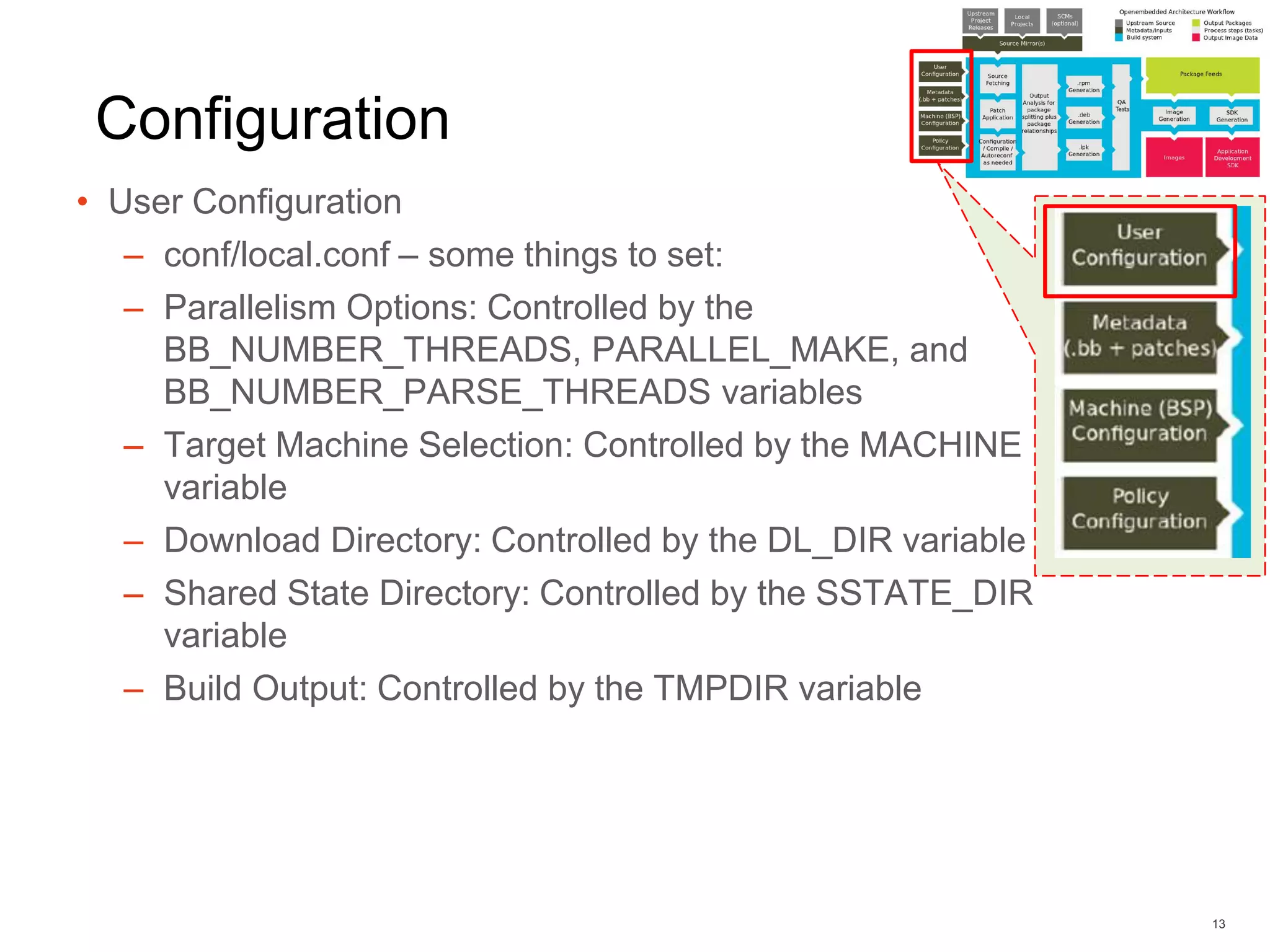

- 13. Configuration • User Configuration –conf/local.conf – some things to set: – Parallelism Options: Controlled by the BB_NUMBER_THREADS, PARALLEL_MAKE, and BB_NUMBER_PARSE_THREADS variables – Target Machine Selection: Controlled by the MACHINE variable – Download Directory: Controlled by the DL_DIR variable – Shared State Directory: Controlled by the SSTATE_DIR variable – Build Output: Controlled by the TMPDIR variable 13

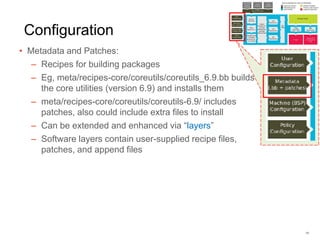

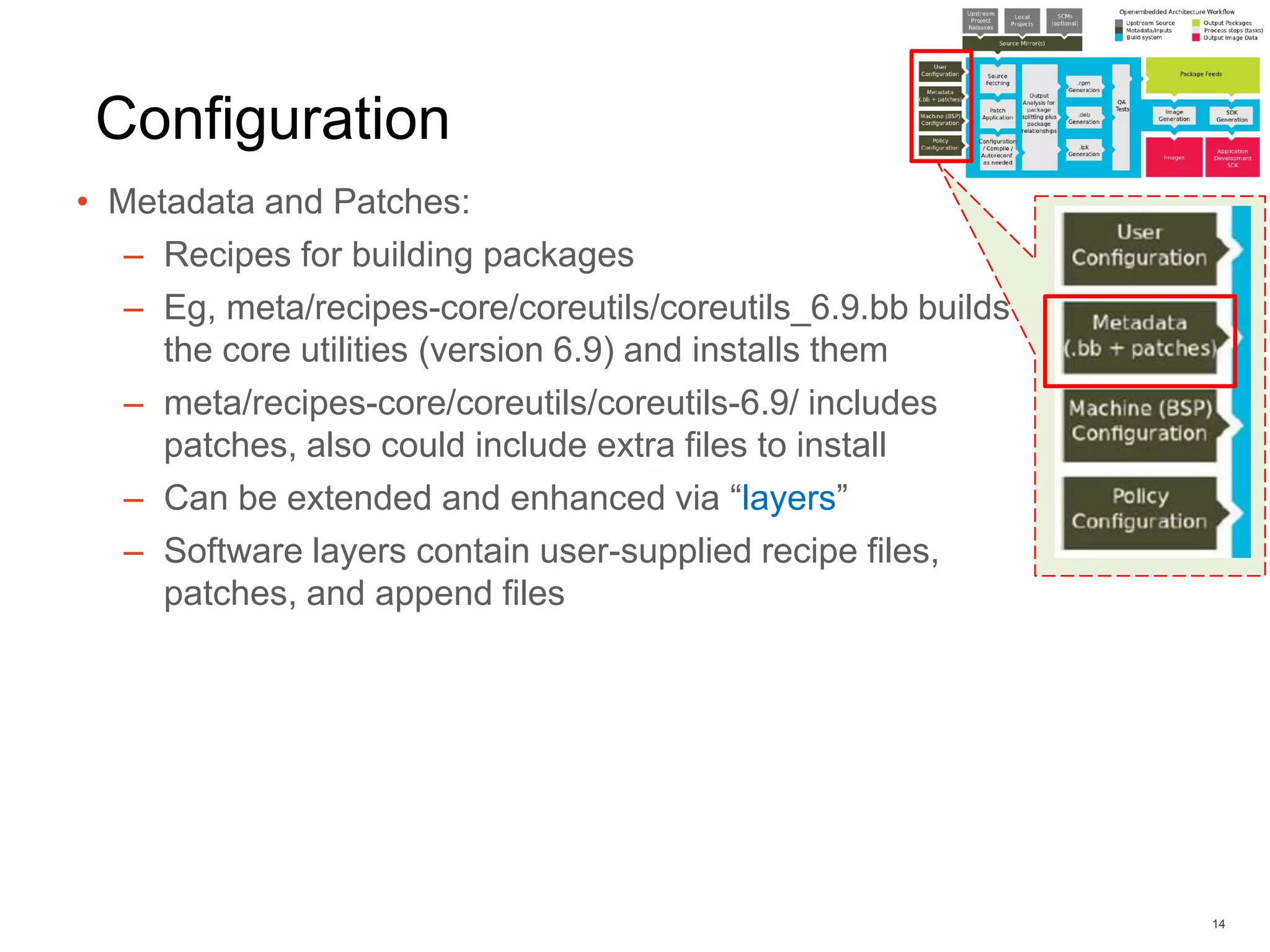

- 14. Configuration • Metadata andPatches: – Recipes for building packages – Eg, meta/recipes-core/coreutils/coreutils_6.9.bb builds the core utilities (version 6.9) and installs them – meta/recipes-core/coreutils/coreutils-6.9/ includes patches, also could include extra files to install – Can be extended and enhanced via “layers” – Software layers contain user-supplied recipe files, patches, and append files 14

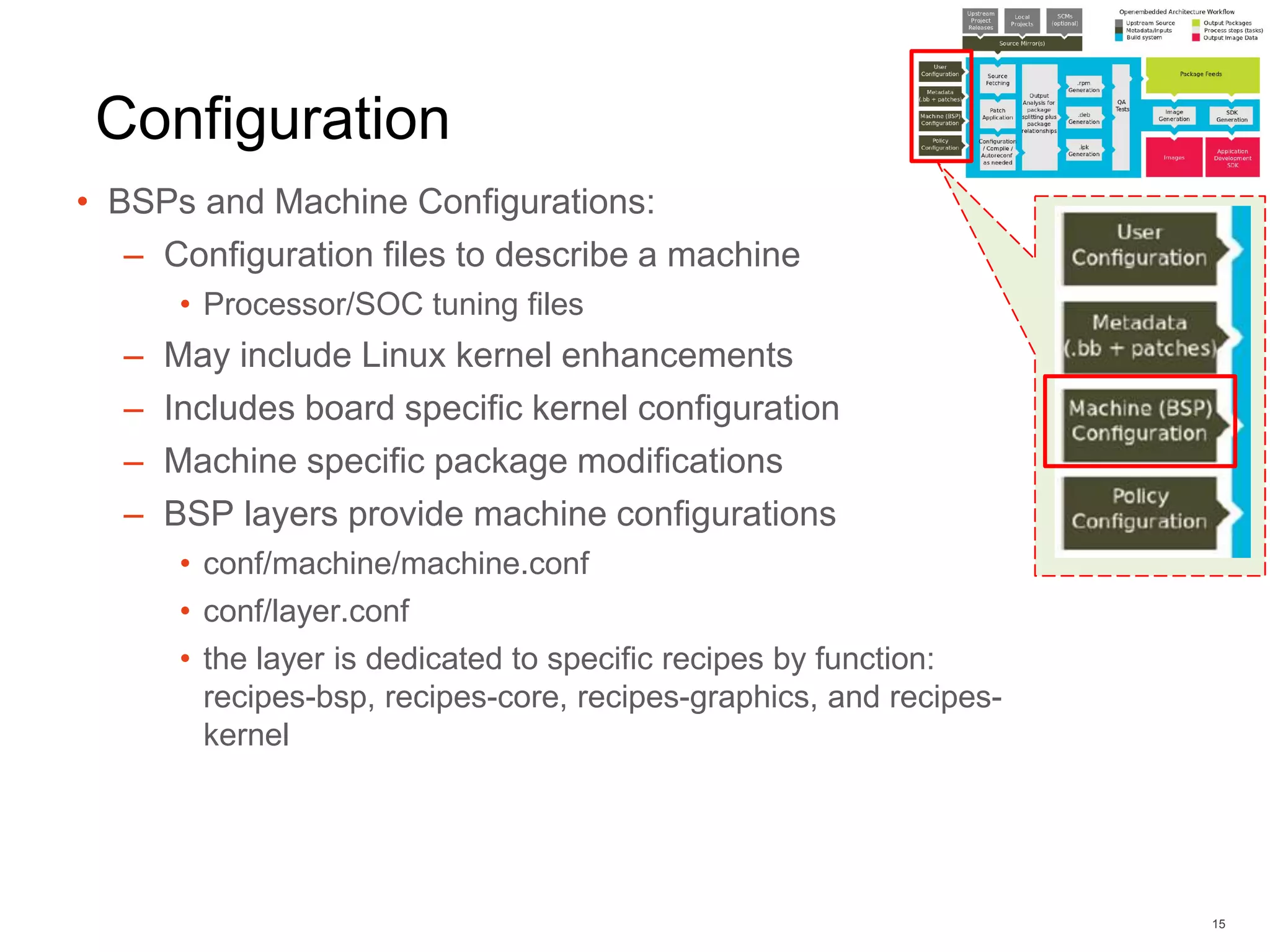

- 15. Configuration • BSPs andMachine Configurations: – Configuration files to describe a machine • Processor/SOC tuning files – May include Linux kernel enhancements – Includes board specific kernel configuration – Machine specific package modifications – BSP layers provide machine configurations • conf/machine/machine.conf • conf/layer.conf • the layer is dedicated to specific recipes by function: recipes-bsp, recipes-core, recipes-graphics, and recipes- kernel 15

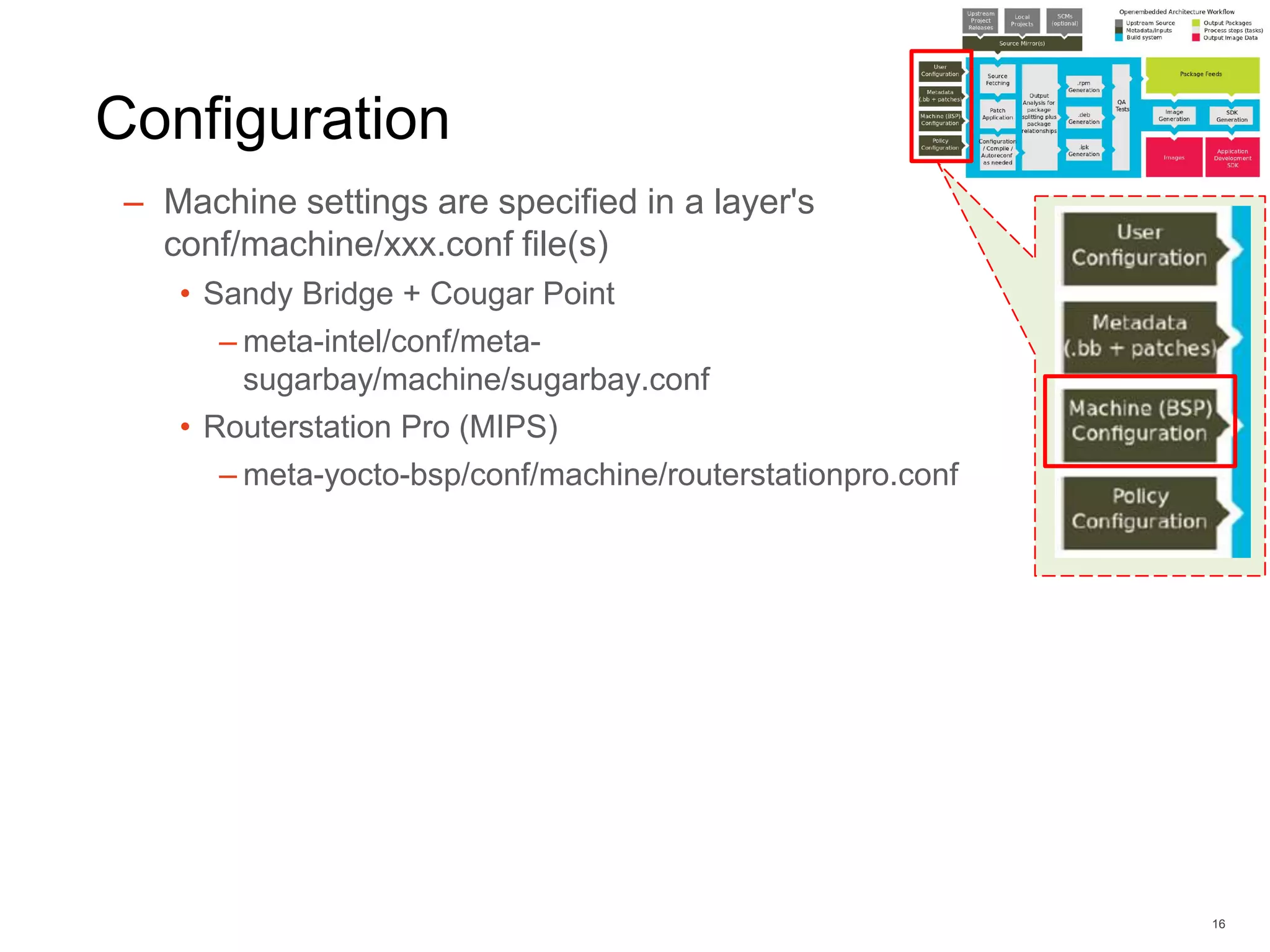

- 16. Configuration – Machine settingsare specified in a layer's conf/machine/xxx.conf file(s) • Sandy Bridge + Cougar Point – meta-intel/conf/meta- sugarbay/machine/sugarbay.conf • Routerstation Pro (MIPS) – meta-yocto-bsp/conf/machine/routerstationpro.conf 16

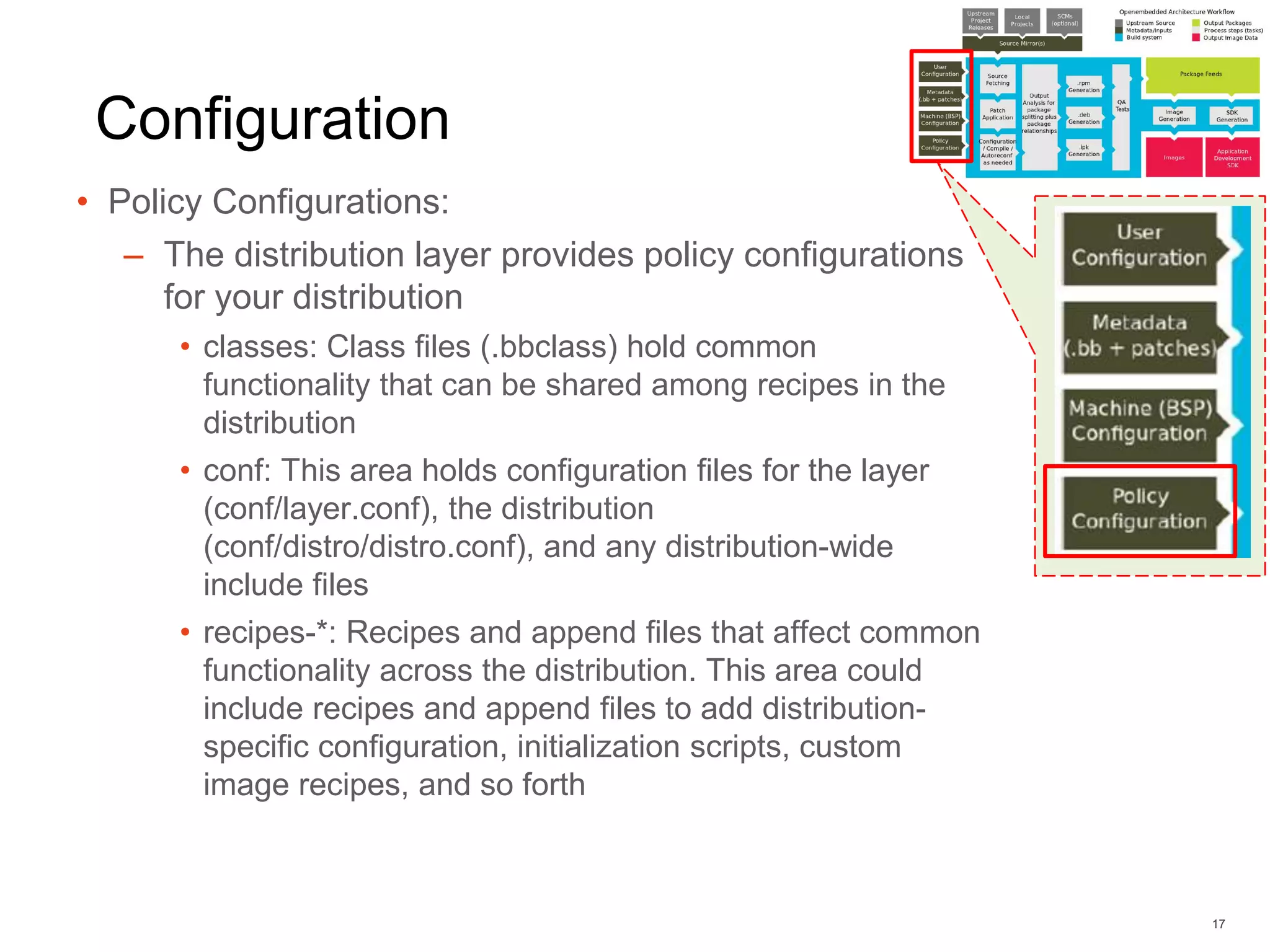

- 17. Configuration • Policy Configurations: –The distribution layer provides policy configurations for your distribution • classes: Class files (.bbclass) hold common functionality that can be shared among recipes in the distribution • conf: This area holds configuration files for the layer (conf/layer.conf), the distribution (conf/distro/distro.conf), and any distribution-wide include files • recipes-*: Recipes and append files that affect common functionality across the distribution. This area could include recipes and append files to add distribution- specific configuration, initialization scripts, custom image recipes, and so forth 17

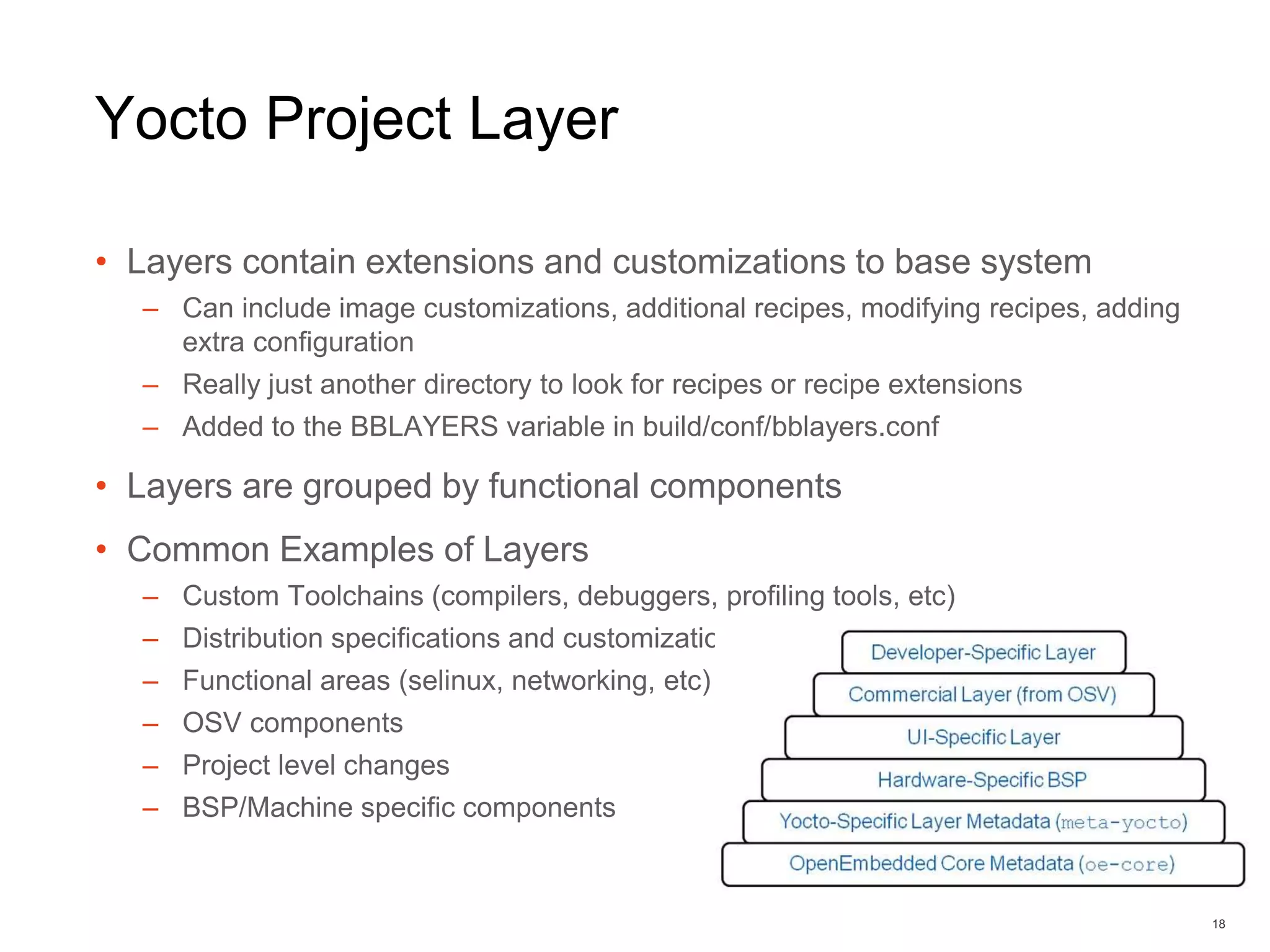

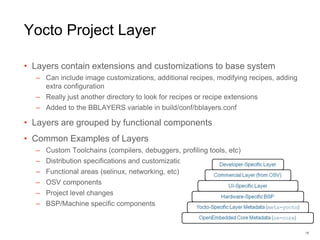

- 18. Yocto Project Layer •Layers contain extensions and customizations to base system – Can include image customizations, additional recipes, modifying recipes, adding extra configuration – Really just another directory to look for recipes or recipe extensions – Added to the BBLAYERS variable in build/conf/bblayers.conf • Layers are grouped by functional components • Common Examples of Layers – Custom Toolchains (compilers, debuggers, profiling tools, etc) – Distribution specifications and customizations – Functional areas (selinux, networking, etc) – OSV components – Project level changes – BSP/Machine specific components 18

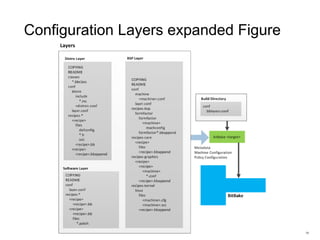

- 19. Configuration Layers expandedFigure 19

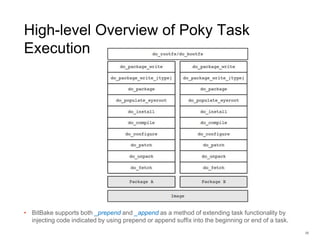

- 20. High-level Overview ofPoky Task Execution • BitBake supports both _prepend and _append as a method of extending task functionality by injecting code indicated by using prepend or append suffix into the beginning or end of a task. 20
- 21. Source Fetching • Recipescall out location of all sources, whether on the internet or local (Look for SRC_URI in *.bb files) • Bitbake can get sources from git, svn, bzr, from tarballs, and many, many more • Versions of packages can be fixed or updated automatically (Add SRCREV_pn- PN = "${AUTOREV}” to local.conf) • Yocto Project sources mirror available as a fallback, if the sources move on the internet 21

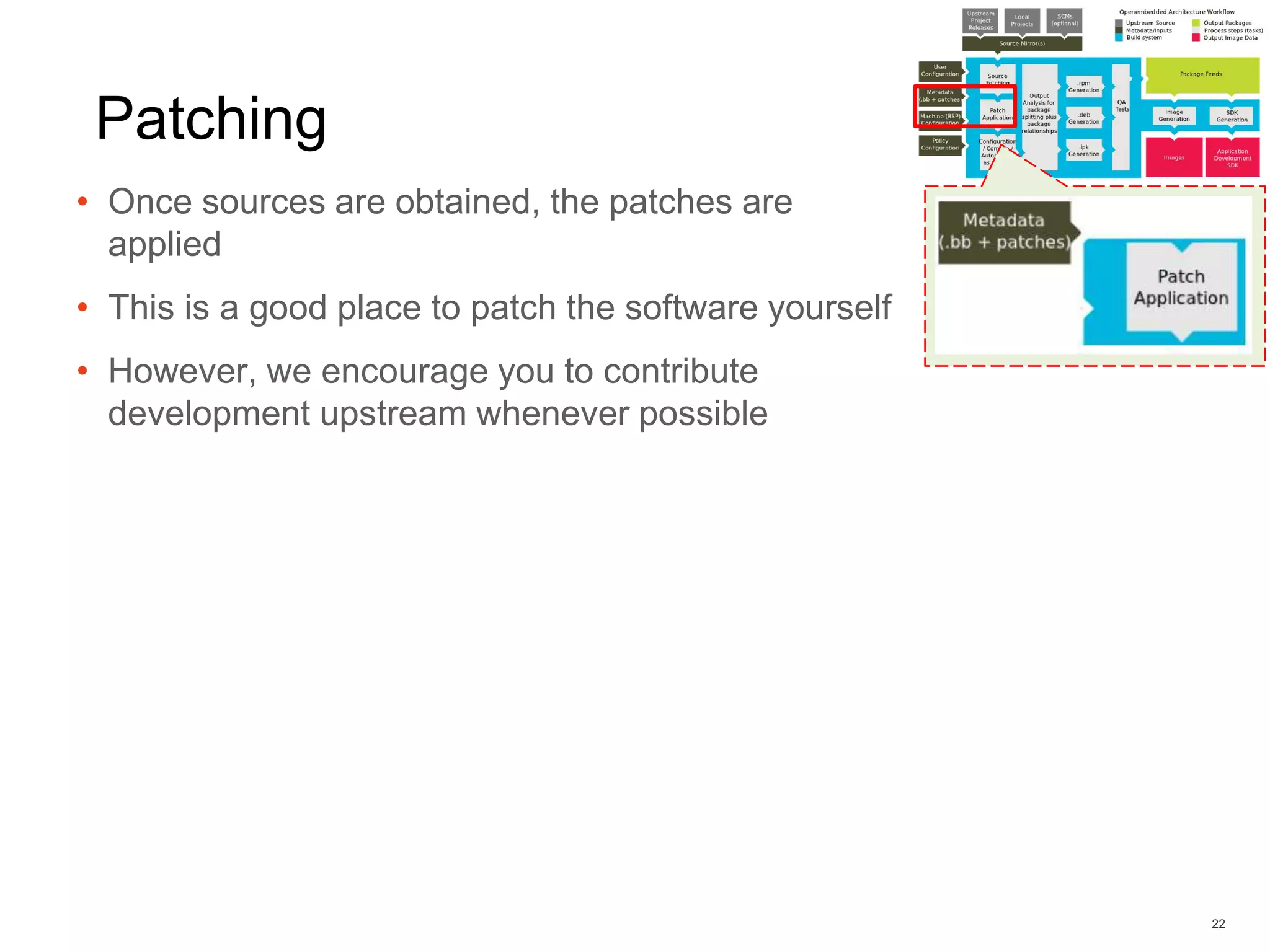

- 22. Patching • Once sourcesare obtained, the patches are applied • This is a good place to patch the software yourself • However, we encourage you to contribute development upstream whenever possible 22

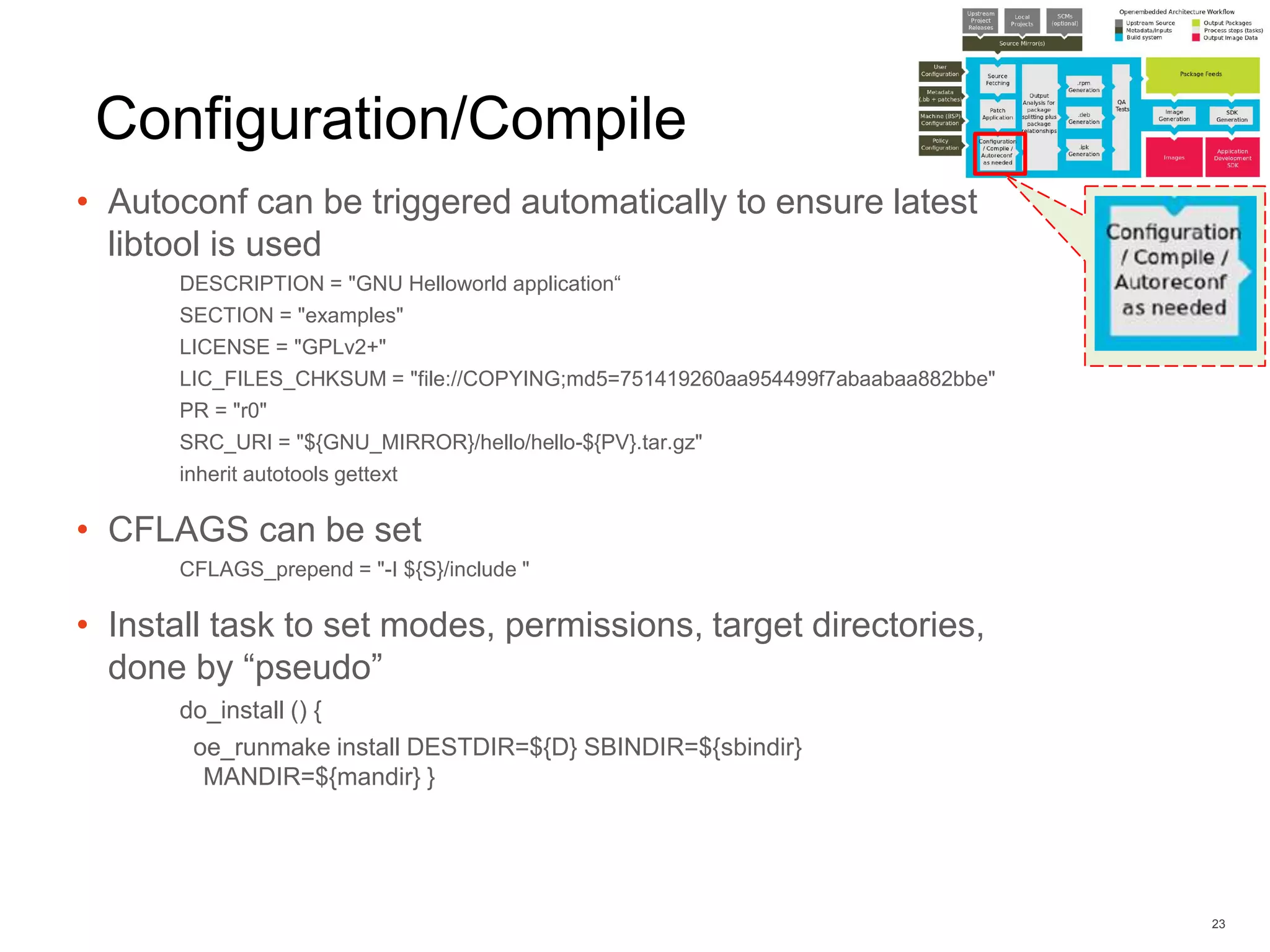

- 23. Configuration/Compile • Autoconf canbe triggered automatically to ensure latest libtool is used DESCRIPTION = "GNU Helloworld application“ SECTION = "examples" LICENSE = "GPLv2+" LIC_FILES_CHKSUM = "file://COPYING;md5=751419260aa954499f7abaabaa882bbe" PR = "r0" SRC_URI = "${GNU_MIRROR}/hello/hello-${PV}.tar.gz" inherit autotools gettext • CFLAGS can be set CFLAGS_prepend = "-I ${S}/include " • Install task to set modes, permissions, target directories, done by “pseudo” do_install () { oe_runmake install DESTDIR=${D} SBINDIR=${sbindir} MANDIR=${mandir} } 23

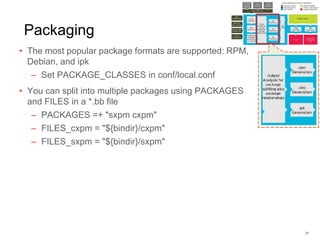

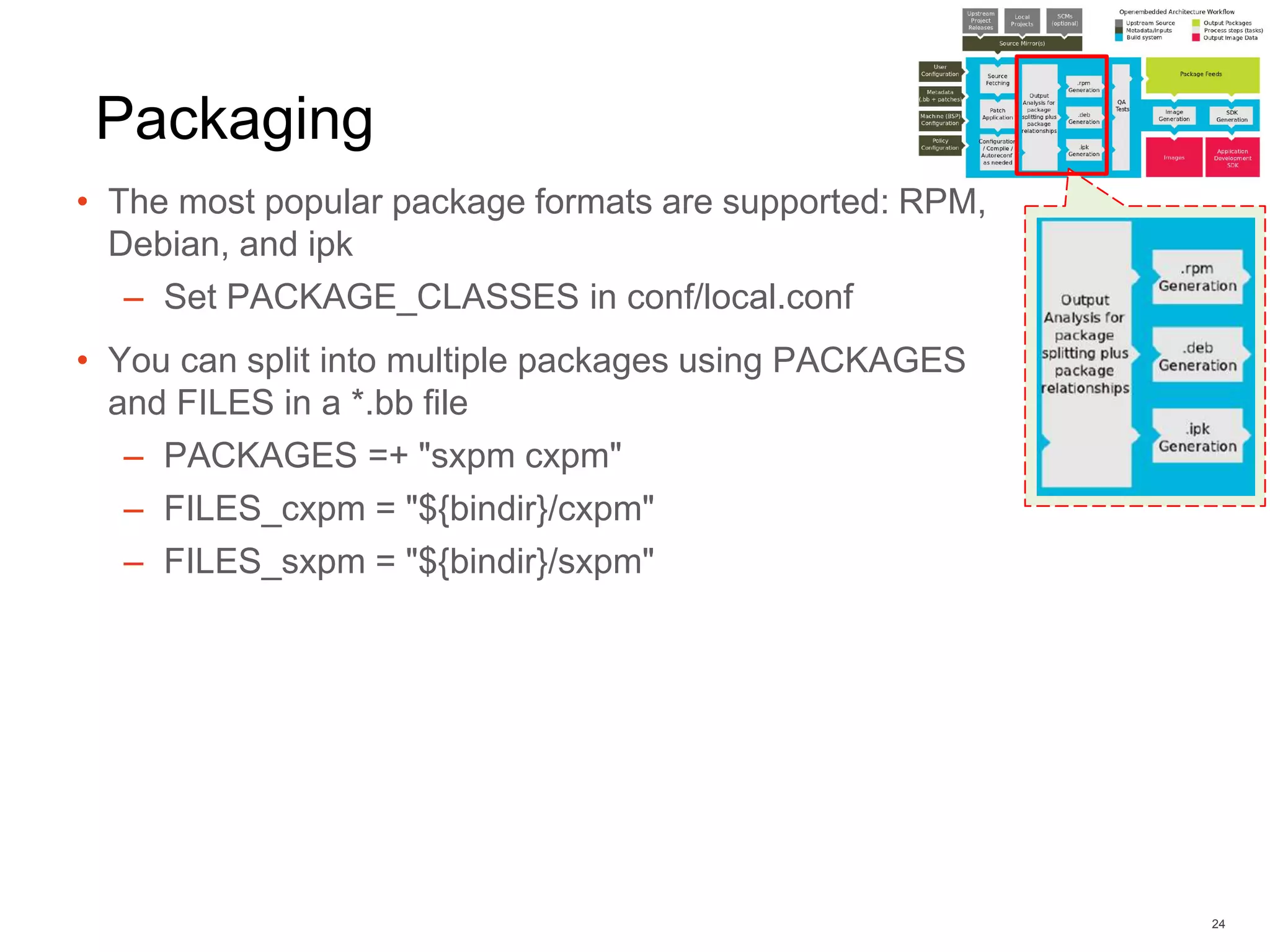

- 24. Packaging • The mostpopular package formats are supported: RPM, Debian, and ipk – Set PACKAGE_CLASSES in conf/local.conf • You can split into multiple packages using PACKAGES and FILES in a *.bb file – PACKAGES =+ "sxpm cxpm" – FILES_cxpm = "${bindir}/cxpm" – FILES_sxpm = "${bindir}/sxpm" 24

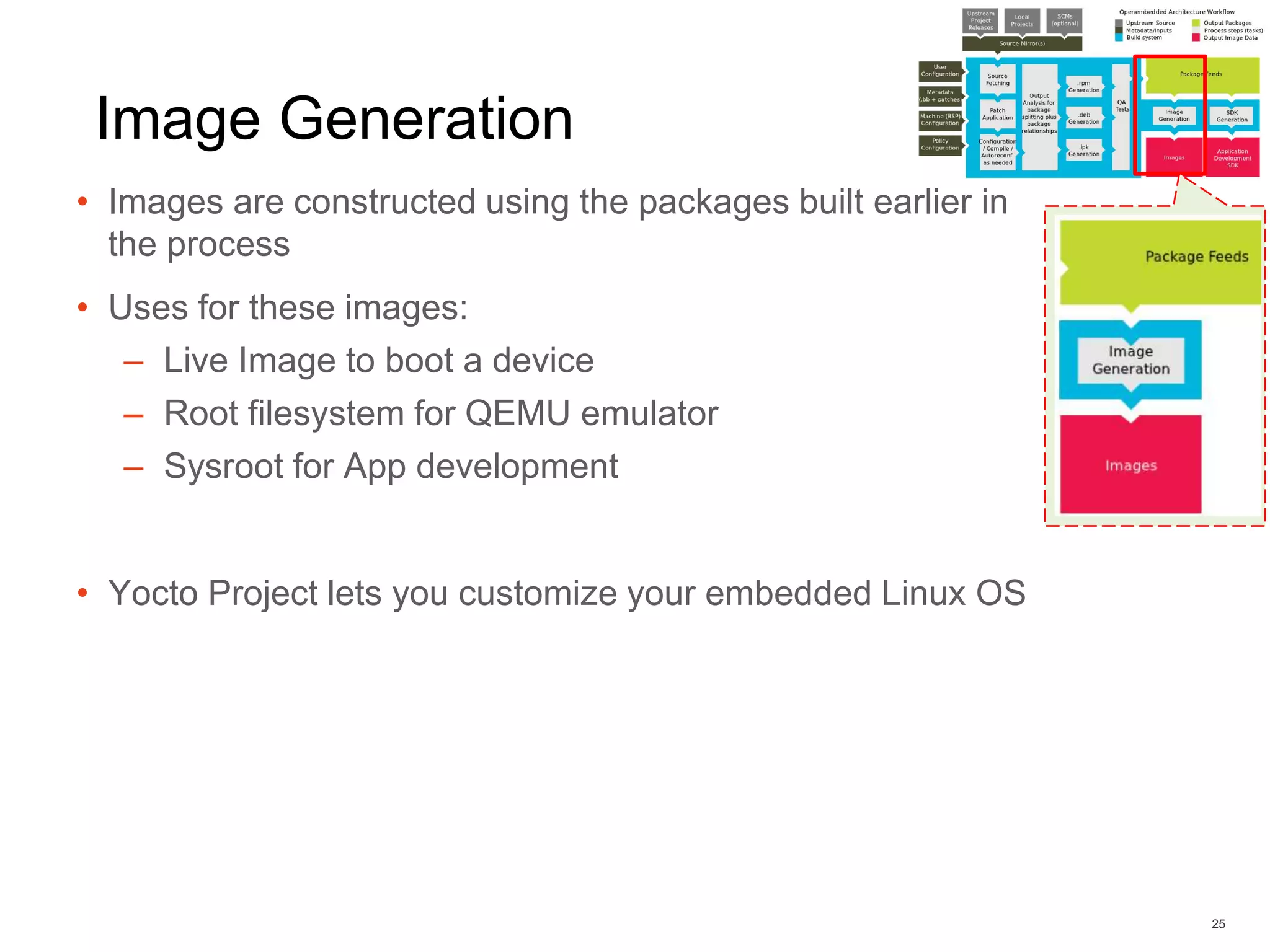

- 25. Image Generation • Imagesare constructed using the packages built earlier in the process • Uses for these images: – Live Image to boot a device – Root filesystem for QEMU emulator – Sysroot for App development • Yocto Project lets you customize your embedded Linux OS 25

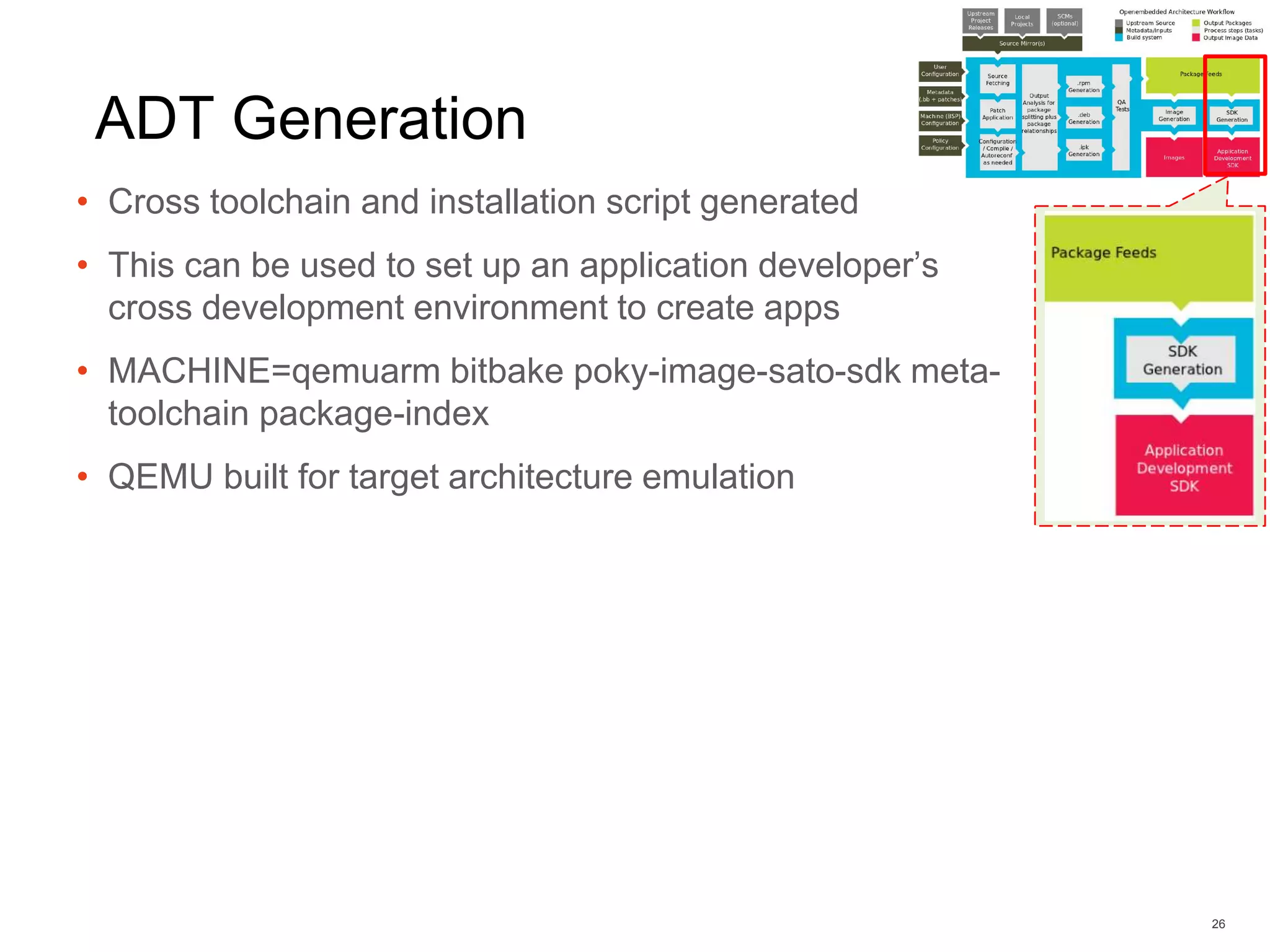

- 26. ADT Generation • Crosstoolchain and installation script generated • This can be used to set up an application developer’s cross development environment to create apps • MACHINE=qemuarm bitbake poky-image-sato-sdk meta- toolchain package-index • QEMU built for target architecture emulation 26

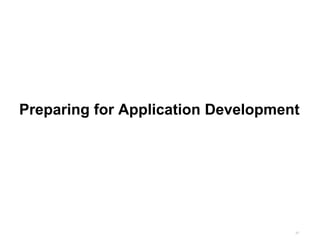

- 27. Preparing for ApplicationDevelopment 27

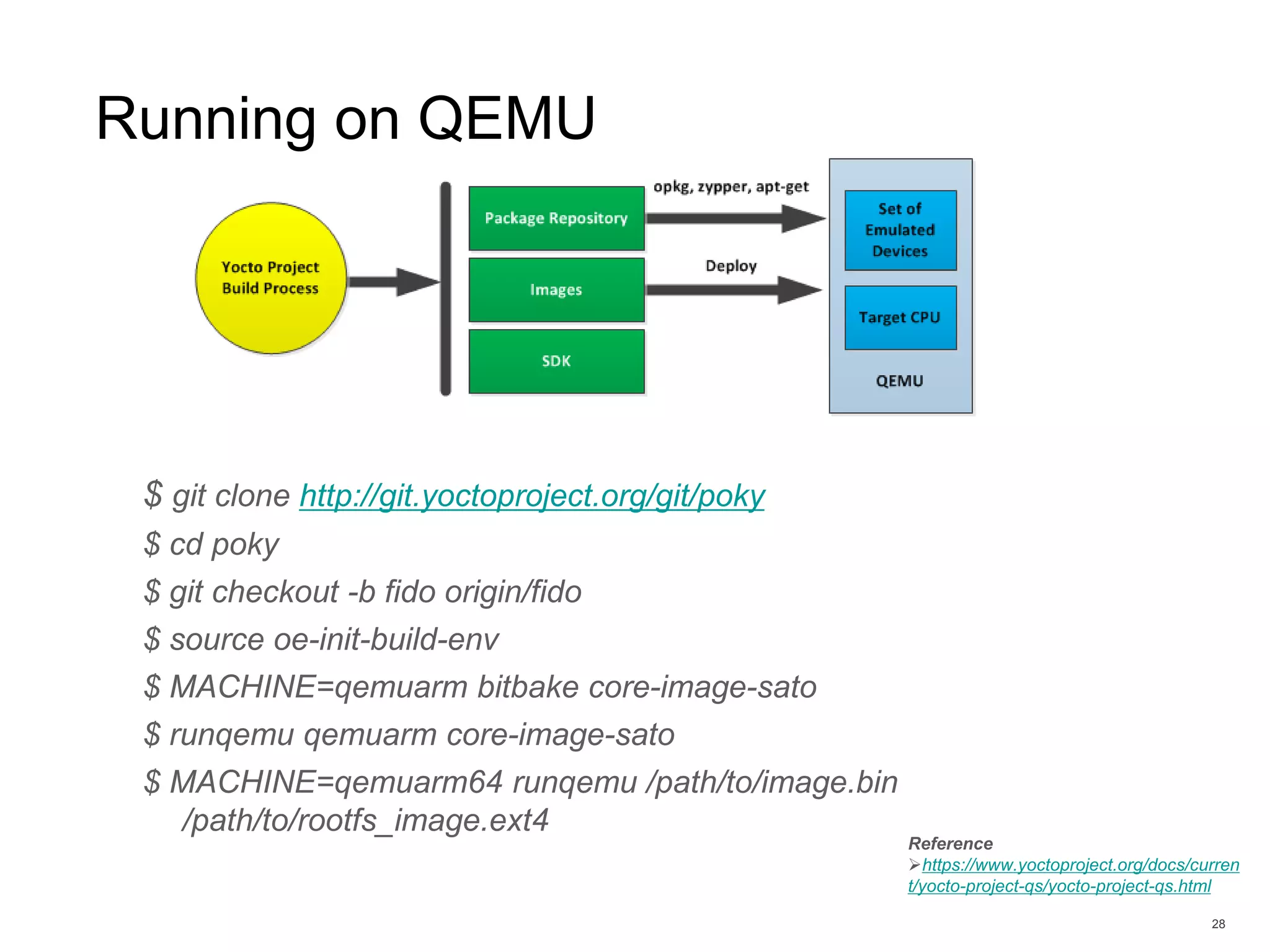

- 28. Running on QEMU $git clone http://git.yoctoproject.org/git/poky $ cd poky $ git checkout -b fido origin/fido $ source oe-init-build-env $ MACHINE=qemuarm bitbake core-image-sato $ runqemu qemuarm core-image-sato $ MACHINE=qemuarm64 runqemu /path/to/image.bin /path/to/rootfs_image.ext4 28 Reference https://www.yoctoproject.org/docs/curren t/yocto-project-qs/yocto-project-qs.html

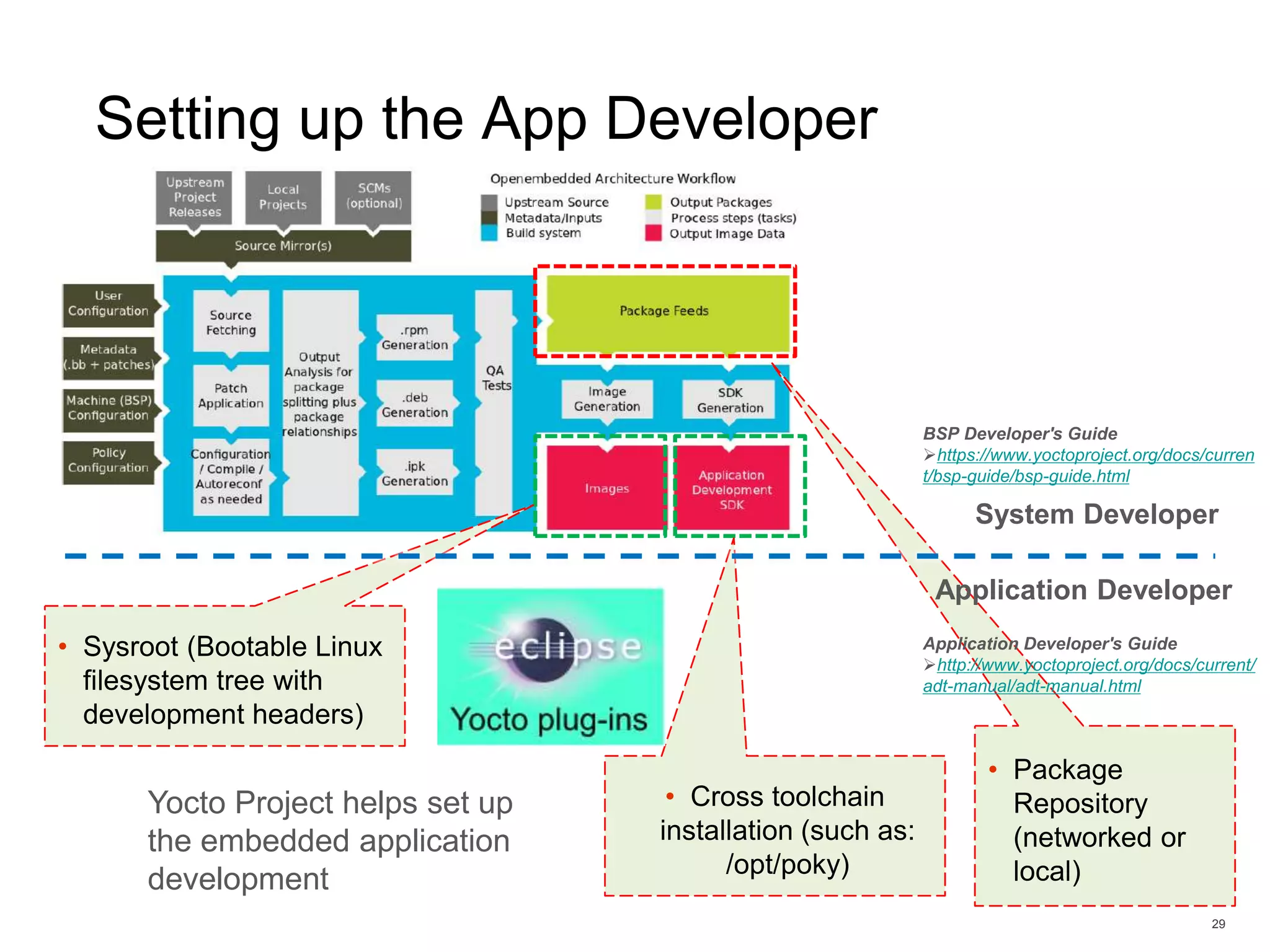

- 29. Setting up theApp Developer 29 • Package Repository (networked or local) • Sysroot (Bootable Linux filesystem tree with development headers) • Cross toolchain installation (such as: /opt/poky) System Developer Application Developer Yocto Project helps set up the embedded application development BSP Developer's Guide https://www.yoctoproject.org/docs/curren t/bsp-guide/bsp-guide.html Application Developer's Guide http://www.yoctoproject.org/docs/current/ adt-manual/adt-manual.html

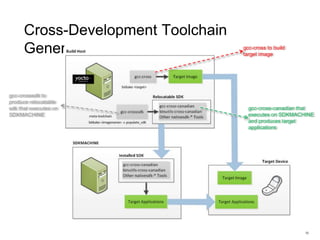

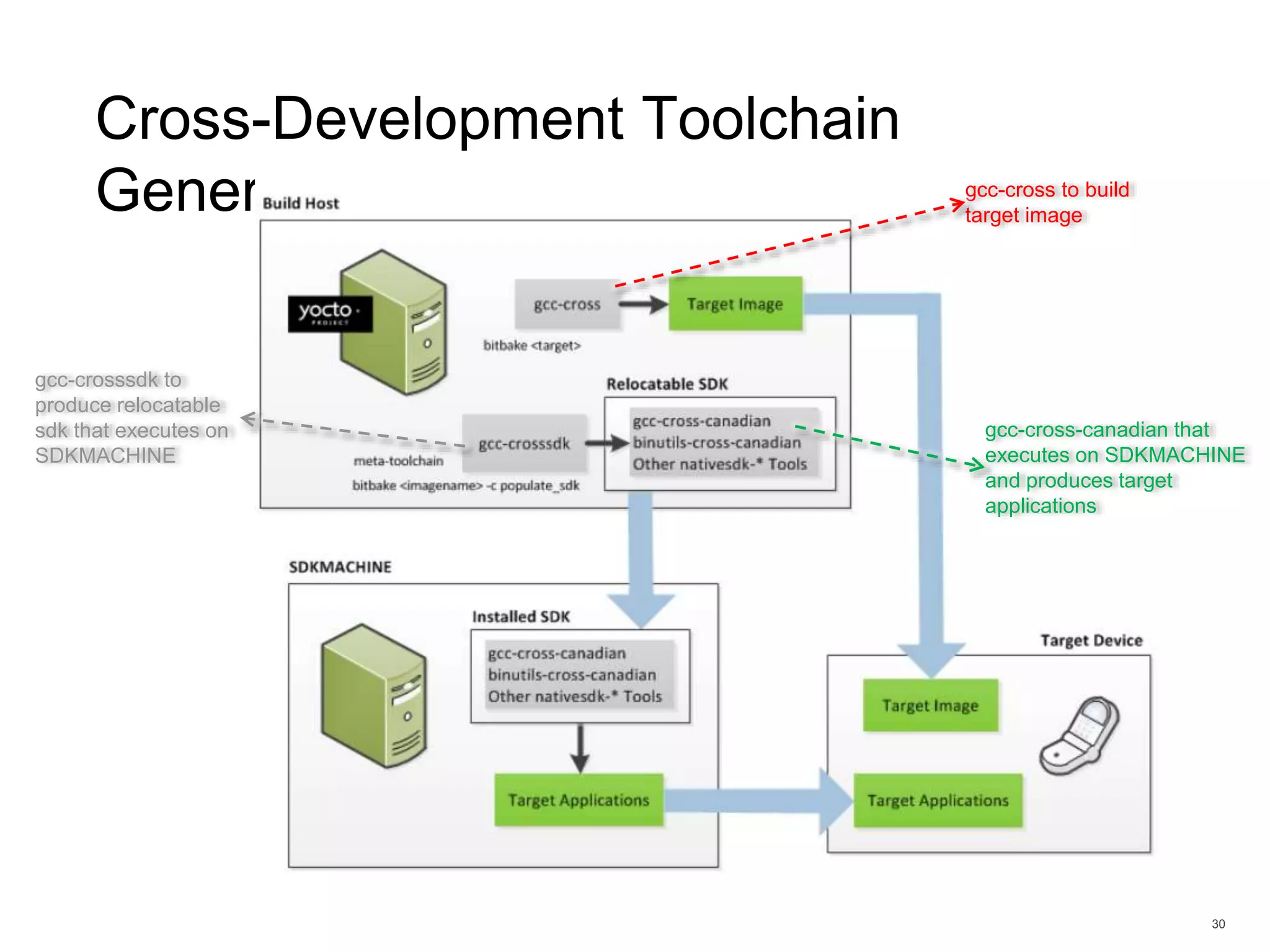

- 30. Cross-Development Toolchain Generation 30 gcc-cross tobuild target image gcc-crosssdk to produce relocatable sdk that executes on SDKMACHINE gcc-cross-canadian that executes on SDKMACHINE and produces target applications

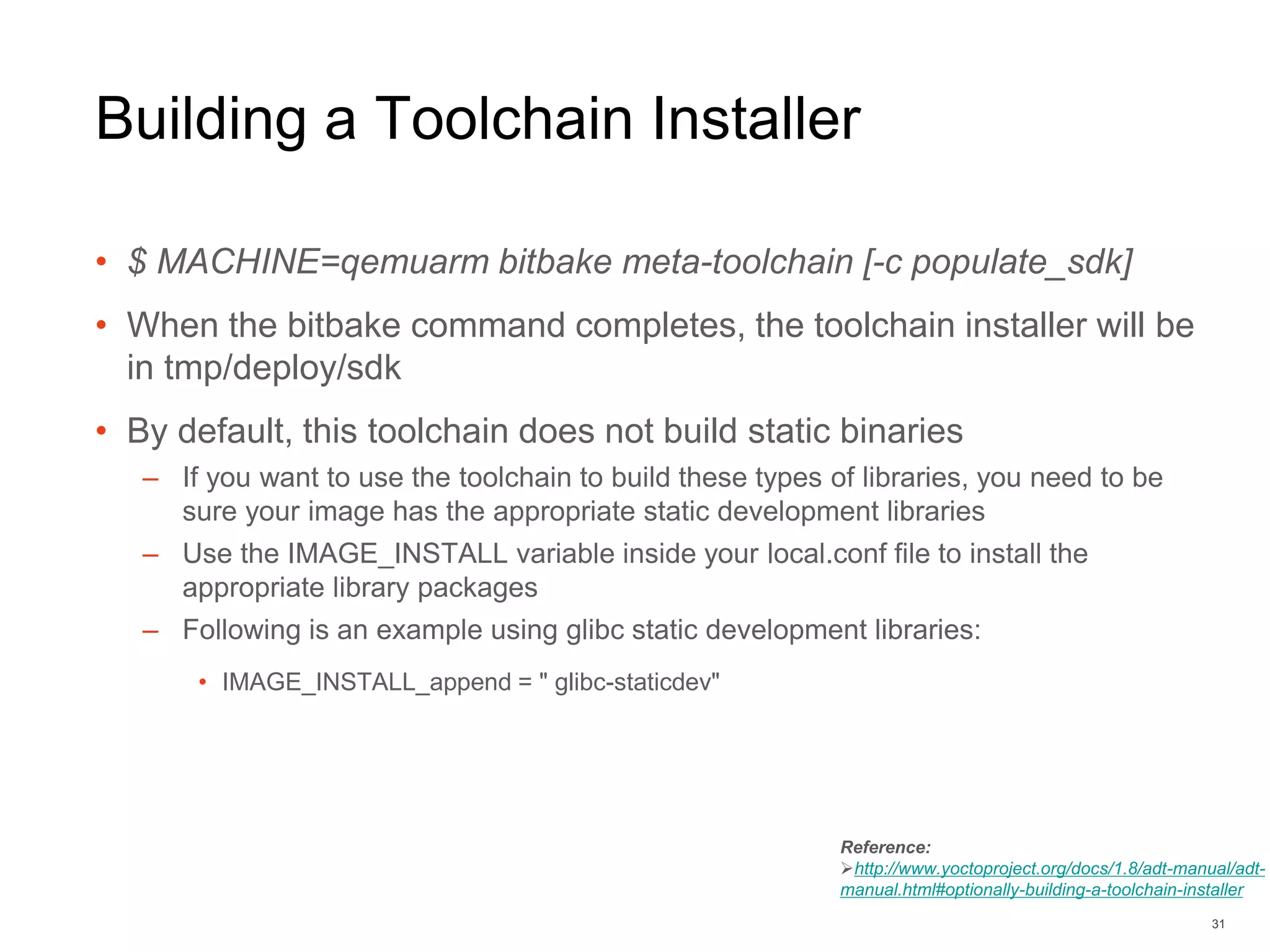

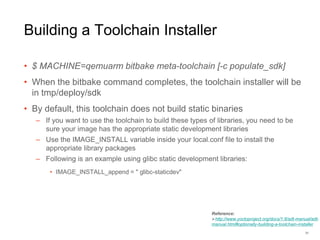

- 31. Building a ToolchainInstaller • $ MACHINE=qemuarm bitbake meta-toolchain [-c populate_sdk] • When the bitbake command completes, the toolchain installer will be in tmp/deploy/sdk • By default, this toolchain does not build static binaries – If you want to use the toolchain to build these types of libraries, you need to be sure your image has the appropriate static development libraries – Use the IMAGE_INSTALL variable inside your local.conf file to install the appropriate library packages – Following is an example using glibc static development libraries: • IMAGE_INSTALL_append = " glibc-staticdev" 31 Reference: http://www.yoctoproject.org/docs/1.8/adt-manual/adt- manual.html#optionally-building-a-toolchain-installer

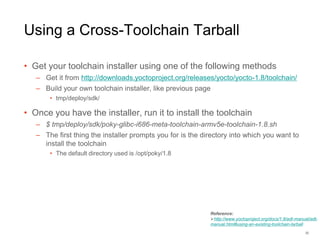

- 32. Using a Cross-ToolchainTarball • Get your toolchain installer using one of the following methods – Get it from http://downloads.yoctoproject.org/releases/yocto/yocto-1.8/toolchain/ – Build your own toolchain installer, like previous page • tmp/deploy/sdk/ • Once you have the installer, run it to install the toolchain – $ tmp/deploy/sdk/poky-glibc-i686-meta-toolchain-armv5e-toolchain-1.8.sh – The first thing the installer prompts you for is the directory into which you want to install the toolchain • The default directory used is /opt/poky/1.8 32 Reference: http://www.yoctoproject.org/docs/1.8/adt-manual/adt- manual.html#using-an-existing-toolchain-tarball

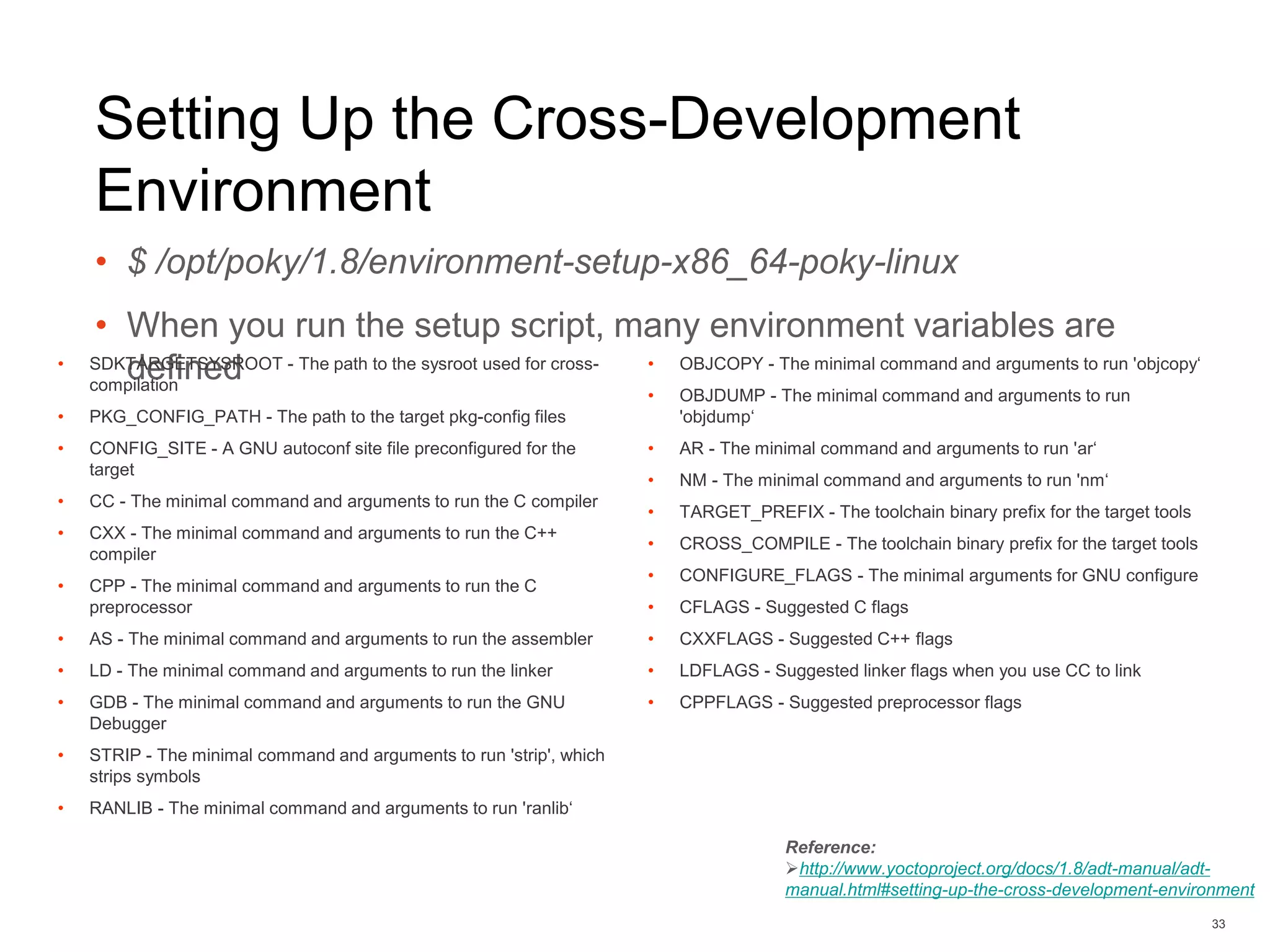

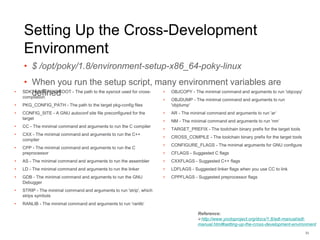

- 33. Setting Up theCross-Development Environment • $ /opt/poky/1.8/environment-setup-x86_64-poky-linux • When you run the setup script, many environment variables are defined 33 Reference: http://www.yoctoproject.org/docs/1.8/adt-manual/adt- manual.html#setting-up-the-cross-development-environment • SDKTARGETSYSROOT - The path to the sysroot used for cross- compilation • PKG_CONFIG_PATH - The path to the target pkg-config files • CONFIG_SITE - A GNU autoconf site file preconfigured for the target • CC - The minimal command and arguments to run the C compiler • CXX - The minimal command and arguments to run the C++ compiler • CPP - The minimal command and arguments to run the C preprocessor • AS - The minimal command and arguments to run the assembler • LD - The minimal command and arguments to run the linker • GDB - The minimal command and arguments to run the GNU Debugger • STRIP - The minimal command and arguments to run 'strip', which strips symbols • RANLIB - The minimal command and arguments to run 'ranlib‘ • OBJCOPY - The minimal command and arguments to run 'objcopy‘ • OBJDUMP - The minimal command and arguments to run 'objdump‘ • AR - The minimal command and arguments to run 'ar‘ • NM - The minimal command and arguments to run 'nm‘ • TARGET_PREFIX - The toolchain binary prefix for the target tools • CROSS_COMPILE - The toolchain binary prefix for the target tools • CONFIGURE_FLAGS - The minimal arguments for GNU configure • CFLAGS - Suggested C flags • CXXFLAGS - Suggested C++ flags • LDFLAGS - Suggested linker flags when you use CC to link • CPPFLAGS - Suggested preprocessor flags

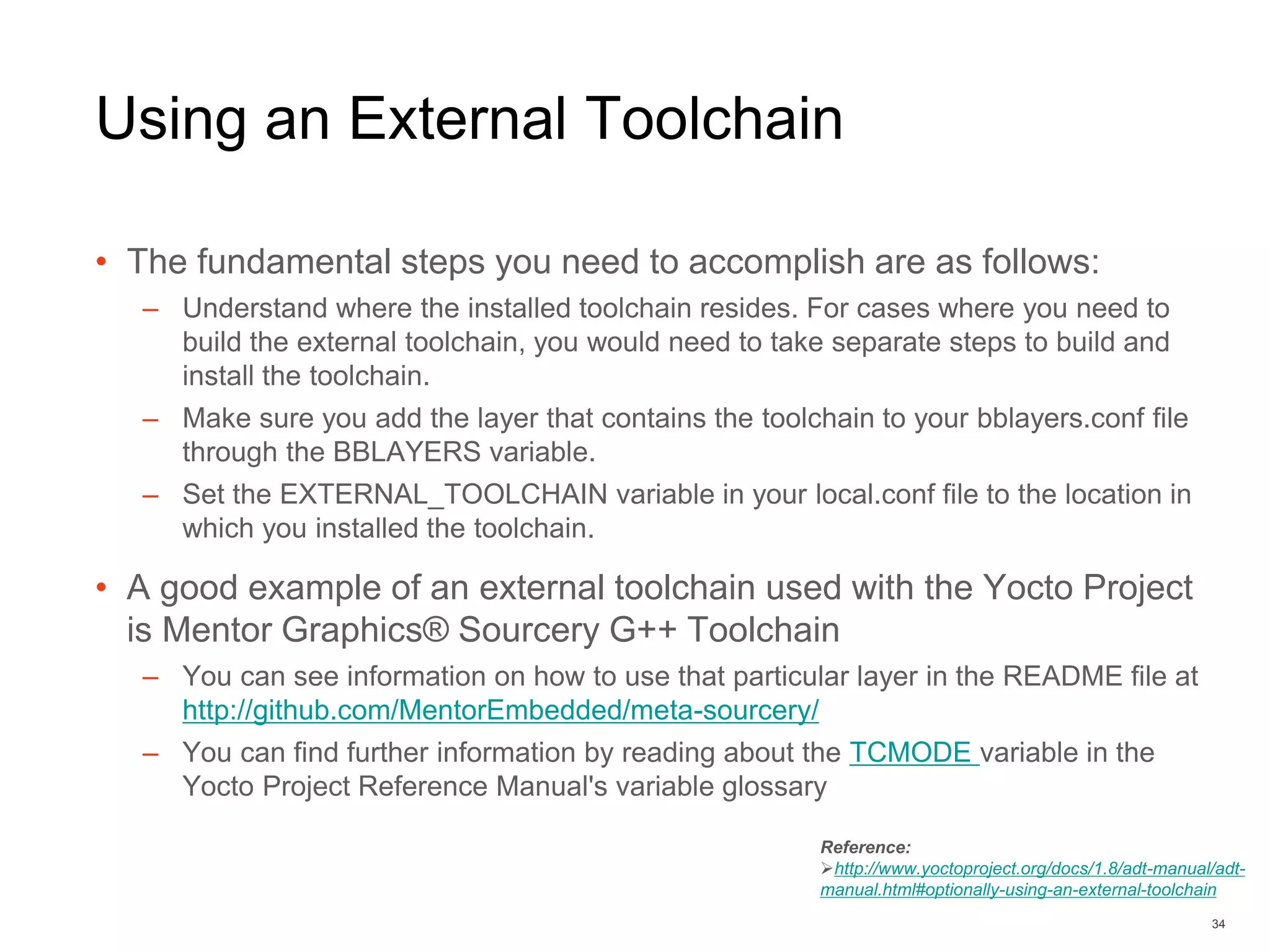

- 34. Using an ExternalToolchain • The fundamental steps you need to accomplish are as follows: – Understand where the installed toolchain resides. For cases where you need to build the external toolchain, you would need to take separate steps to build and install the toolchain. – Make sure you add the layer that contains the toolchain to your bblayers.conf file through the BBLAYERS variable. – Set the EXTERNAL_TOOLCHAIN variable in your local.conf file to the location in which you installed the toolchain. • A good example of an external toolchain used with the Yocto Project is Mentor Graphics® Sourcery G++ Toolchain – You can see information on how to use that particular layer in the README file at http://github.com/MentorEmbedded/meta-sourcery/ – You can find further information by reading about the TCMODE variable in the Yocto Project Reference Manual's variable glossary 34 Reference: http://www.yoctoproject.org/docs/1.8/adt-manual/adt- manual.html#optionally-using-an-external-toolchain

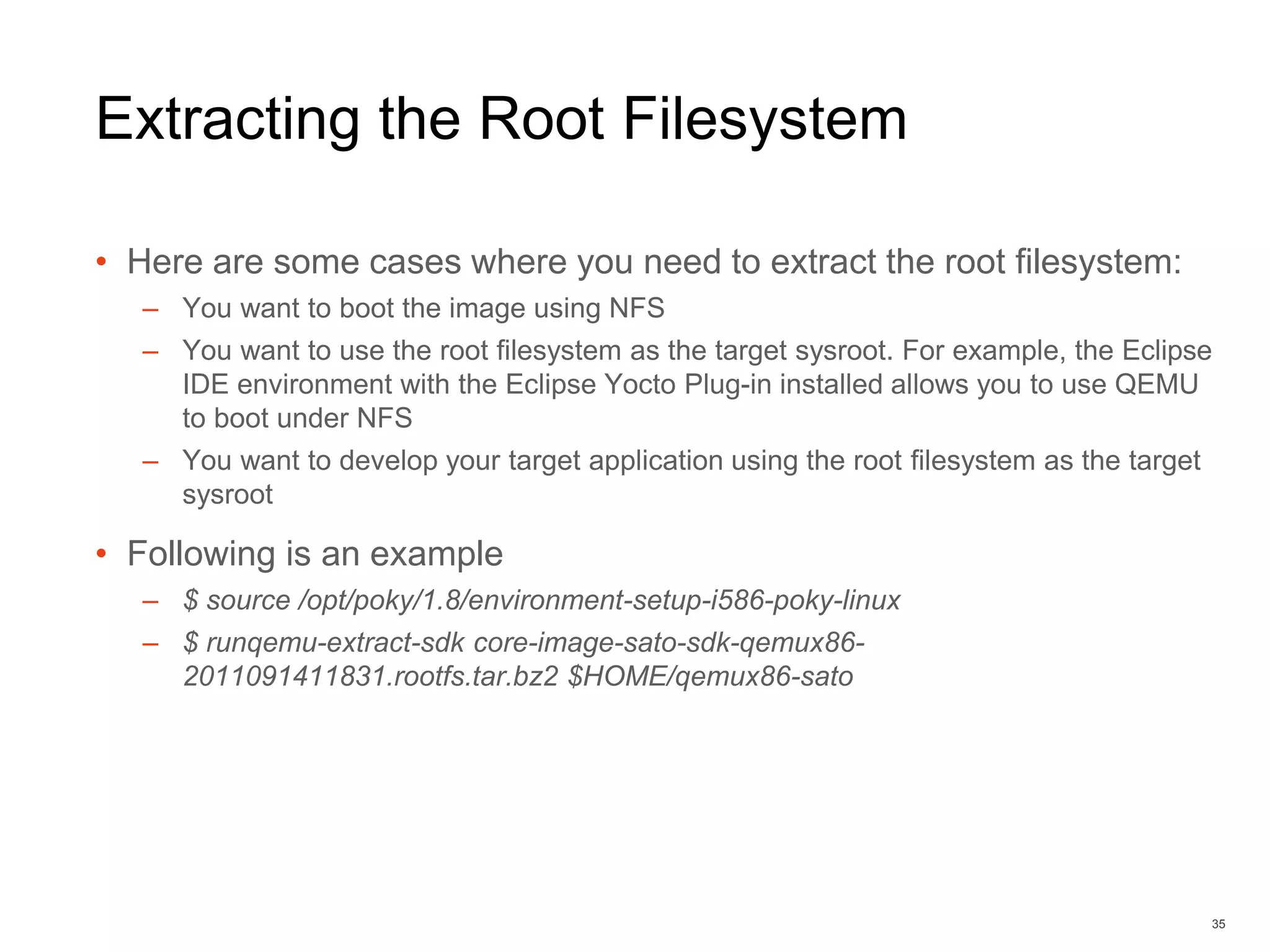

- 35. Extracting the RootFilesystem • Here are some cases where you need to extract the root filesystem: – You want to boot the image using NFS – You want to use the root filesystem as the target sysroot. For example, the Eclipse IDE environment with the Eclipse Yocto Plug-in installed allows you to use QEMU to boot under NFS – You want to develop your target application using the root filesystem as the target sysroot • Following is an example – $ source /opt/poky/1.8/environment-setup-i586-poky-linux – $ runqemu-extract-sdk core-image-sato-sdk-qemux86- 2011091411831.rootfs.tar.bz2 $HOME/qemux86-sato 35

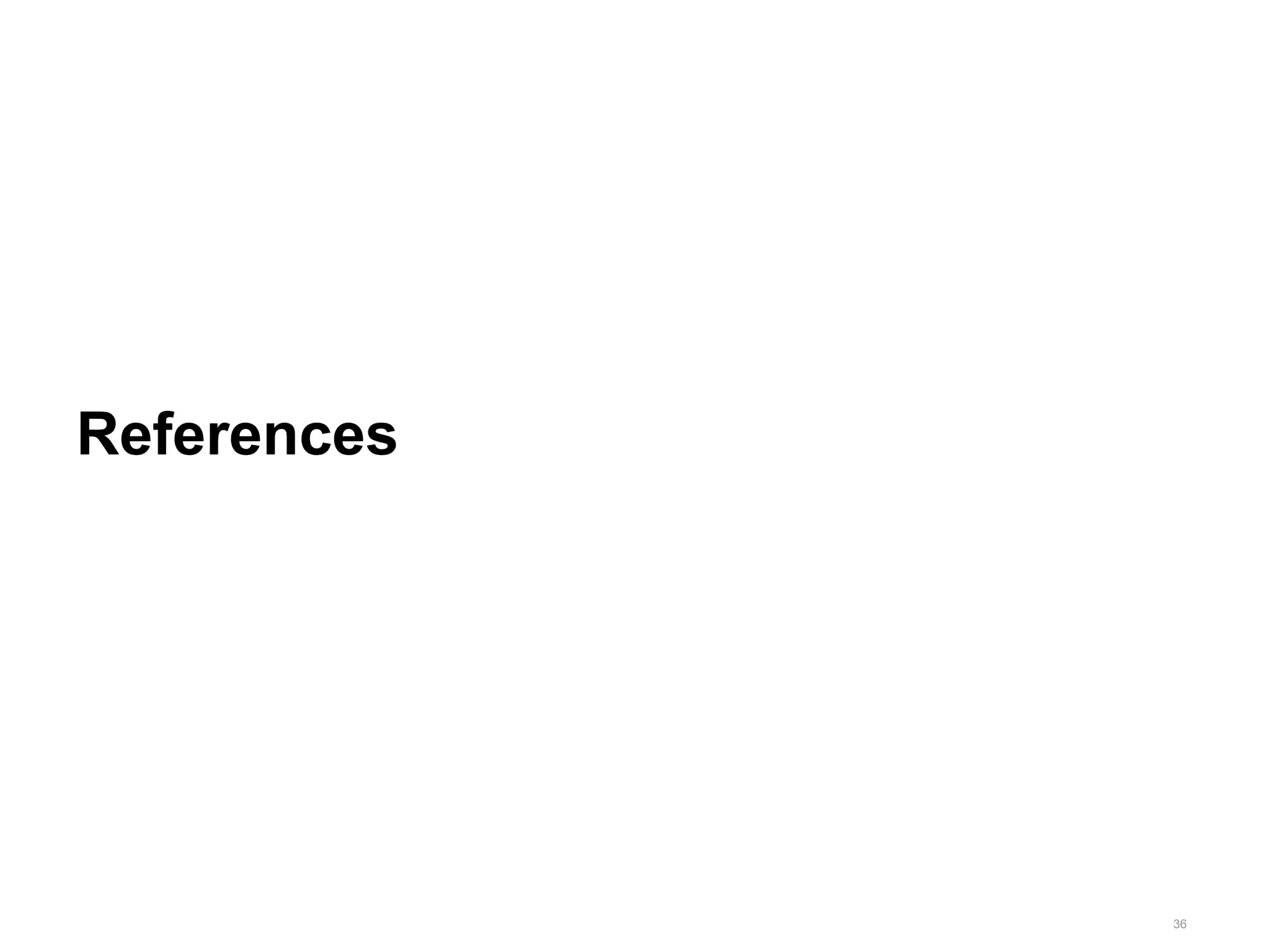

- 36.

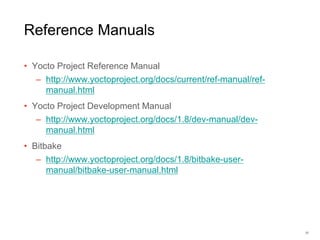

- 37. Reference Manuals • YoctoProject Reference Manual – http://www.yoctoproject.org/docs/current/ref-manual/ref- manual.html • Yocto Project Development Manual – http://www.yoctoproject.org/docs/1.8/dev-manual/dev- manual.html • Bitbake – http://www.yoctoproject.org/docs/1.8/bitbake-user- manual/bitbake-user-manual.html 37

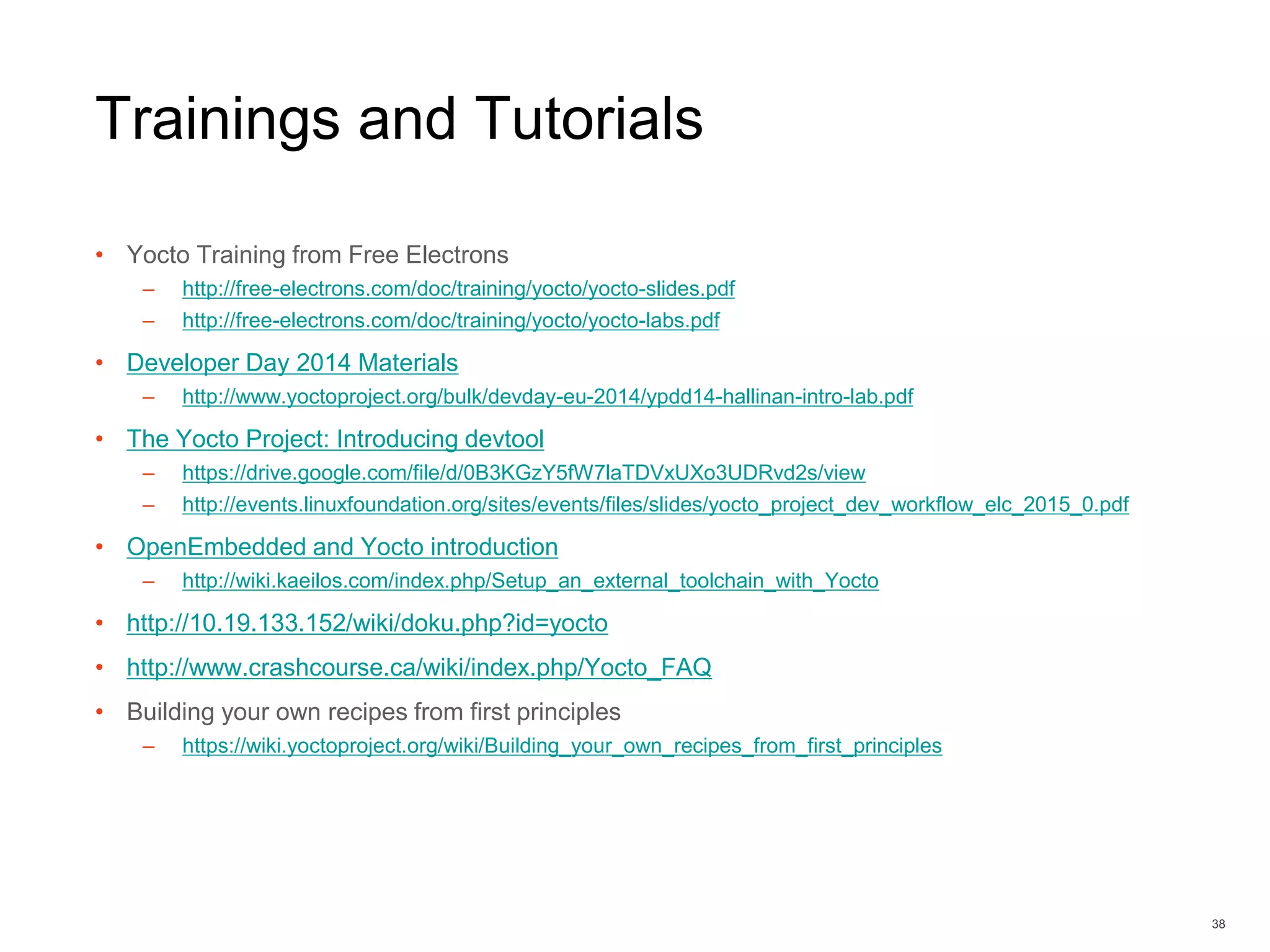

- 38. Trainings and Tutorials •Yocto Training from Free Electrons – http://free-electrons.com/doc/training/yocto/yocto-slides.pdf – http://free-electrons.com/doc/training/yocto/yocto-labs.pdf • Developer Day 2014 Materials – http://www.yoctoproject.org/bulk/devday-eu-2014/ypdd14-hallinan-intro-lab.pdf • The Yocto Project: Introducing devtool – https://drive.google.com/file/d/0B3KGzY5fW7laTDVxUXo3UDRvd2s/view – http://events.linuxfoundation.org/sites/events/files/slides/yocto_project_dev_workflow_elc_2015_0.pdf • OpenEmbedded and Yocto introduction – http://wiki.kaeilos.com/index.php/Setup_an_external_toolchain_with_Yocto • http://10.19.133.152/wiki/doku.php?id=yocto • http://www.crashcourse.ca/wiki/index.php/Yocto_FAQ • Building your own recipes from first principles – https://wiki.yoctoproject.org/wiki/Building_your_own_recipes_from_first_principles 38

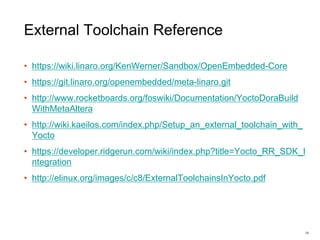

- 39. External Toolchain Reference •https://wiki.linaro.org/KenWerner/Sandbox/OpenEmbedded-Core • https://git.linaro.org/openembedded/meta-linaro.git • http://www.rocketboards.org/foswiki/Documentation/YoctoDoraBuild WithMetaAltera • http://wiki.kaeilos.com/index.php/Setup_an_external_toolchain_with_ Yocto • https://developer.ridgerun.com/wiki/index.php?title=Yocto_RR_SDK_I ntegration • http://elinux.org/images/c/c8/ExternalToolchainsInYocto.pdf 39

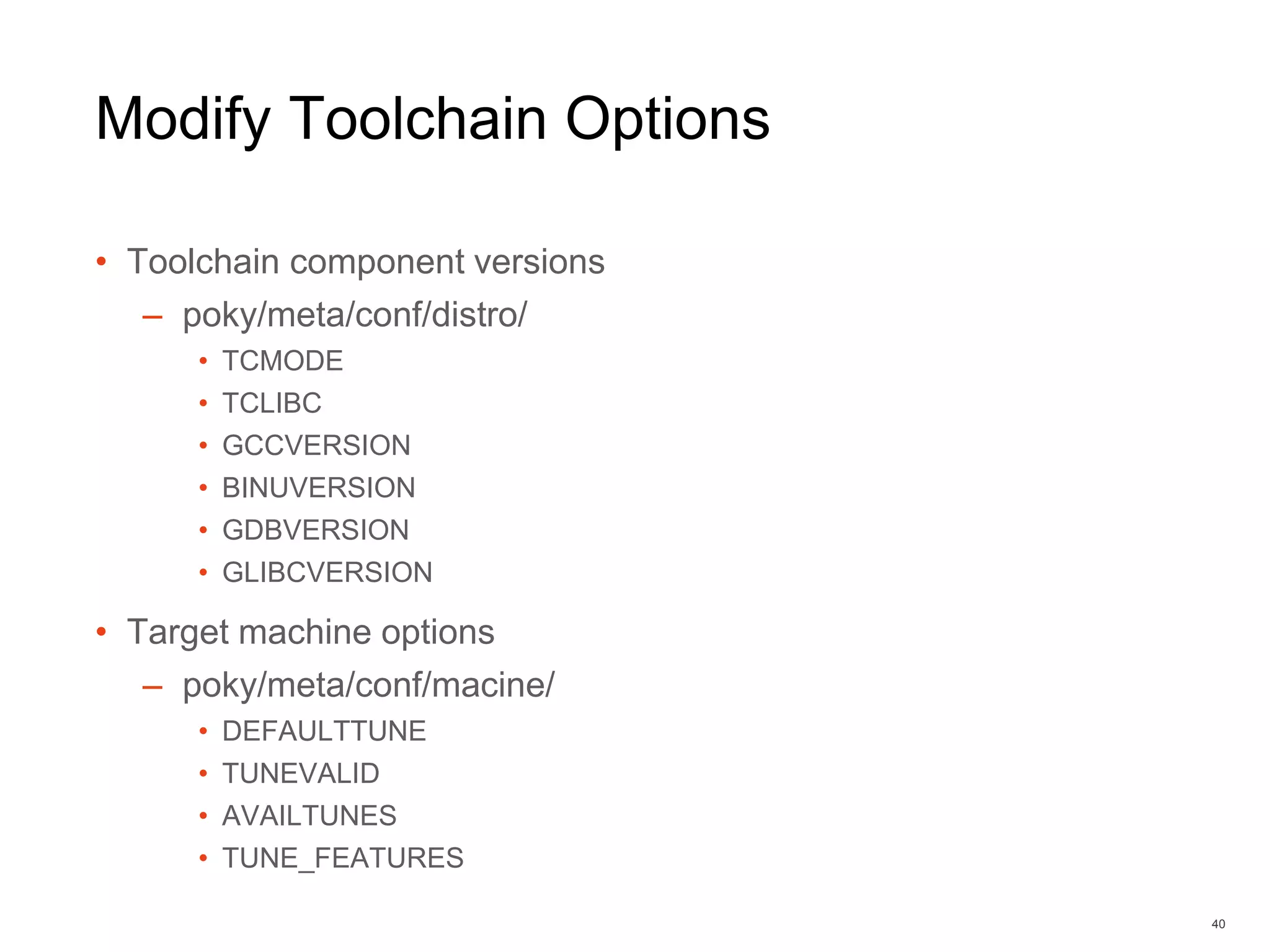

- 40. Modify Toolchain Options •Toolchain component versions – poky/meta/conf/distro/ • TCMODE • TCLIBC • GCCVERSION • BINUVERSION • GDBVERSION • GLIBCVERSION • Target machine options – poky/meta/conf/macine/ • DEFAULTTUNE • TUNEVALID • AVAILTUNES • TUNE_FEATURES 40

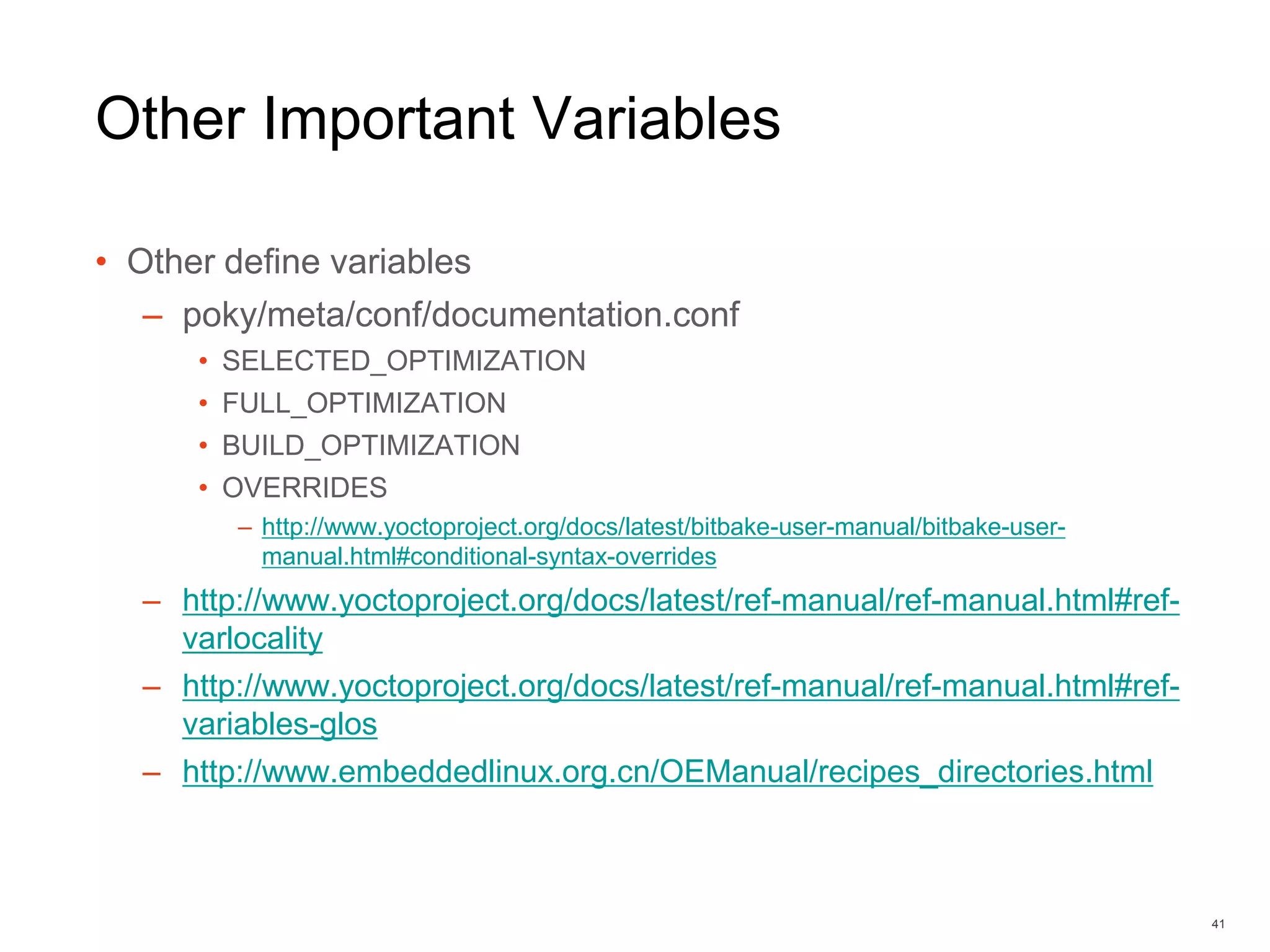

- 41. Other Important Variables •Other define variables – poky/meta/conf/documentation.conf • SELECTED_OPTIMIZATION • FULL_OPTIMIZATION • BUILD_OPTIMIZATION • OVERRIDES – http://www.yoctoproject.org/docs/latest/bitbake-user-manual/bitbake-user- manual.html#conditional-syntax-overrides – http://www.yoctoproject.org/docs/latest/ref-manual/ref-manual.html#ref- varlocality – http://www.yoctoproject.org/docs/latest/ref-manual/ref-manual.html#ref- variables-glos – http://www.embeddedlinux.org.cn/OEManual/recipes_directories.html 41

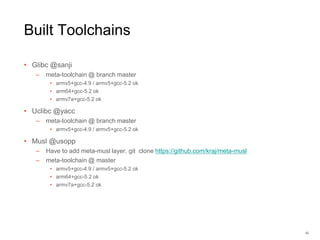

- 42. Built Toolchains • Glibc@sanji – meta-toolchain @ branch master • armv5+gcc-4.9 / armv5+gcc-5.2 ok • arm64+gcc-5.2 ok • armv7a+gcc-5.2 ok • Uclibc @yacc – meta-toolchain @ branch master • armv5+gcc-4.9 / armv5+gcc-5.2 ok • Musl @usopp – Have to add meta-musl layer. git clone https://github.com/kraj/meta-musl – meta-toolchain @ master • armv5+gcc-4.9 / armv5+gcc-5.2 ok • arm64+gcc-5.2 ok • armv7a+gcc-5.2 ok 42

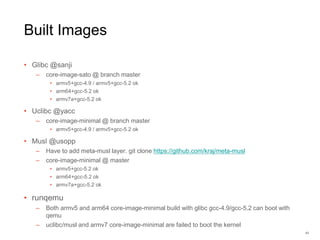

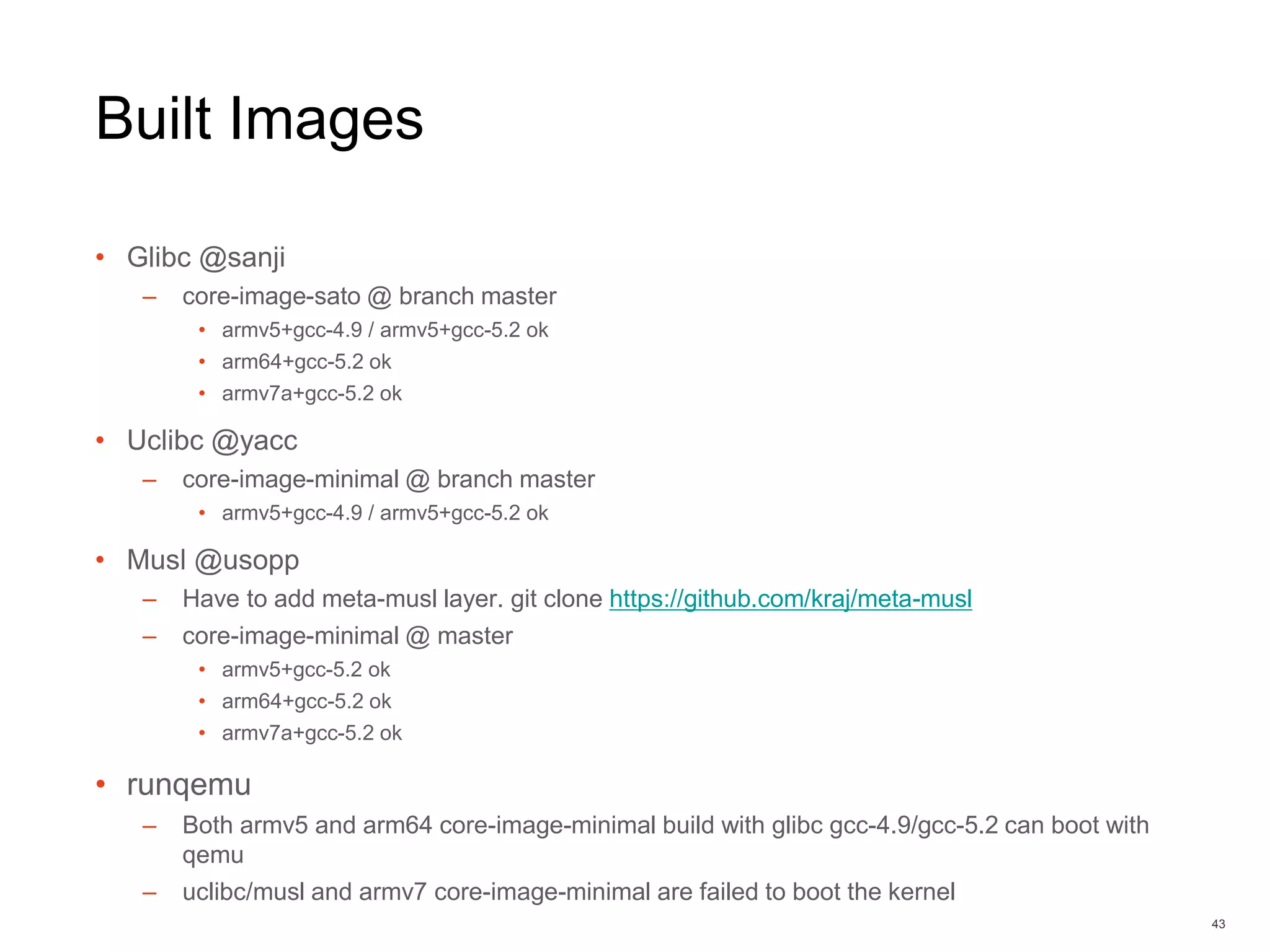

- 43. Built Images • Glibc@sanji – core-image-sato @ branch master • armv5+gcc-4.9 / armv5+gcc-5.2 ok • arm64+gcc-5.2 ok • armv7a+gcc-5.2 ok • Uclibc @yacc – core-image-minimal @ branch master • armv5+gcc-4.9 / armv5+gcc-5.2 ok • Musl @usopp – Have to add meta-musl layer. git clone https://github.com/kraj/meta-musl – core-image-minimal @ master • armv5+gcc-5.2 ok • arm64+gcc-5.2 ok • armv7a+gcc-5.2 ok • runqemu – Both armv5 and arm64 core-image-minimal build with glibc gcc-4.9/gcc-5.2 can boot with qemu – uclibc/musl and armv7 core-image-minimal are failed to boot the kernel 43

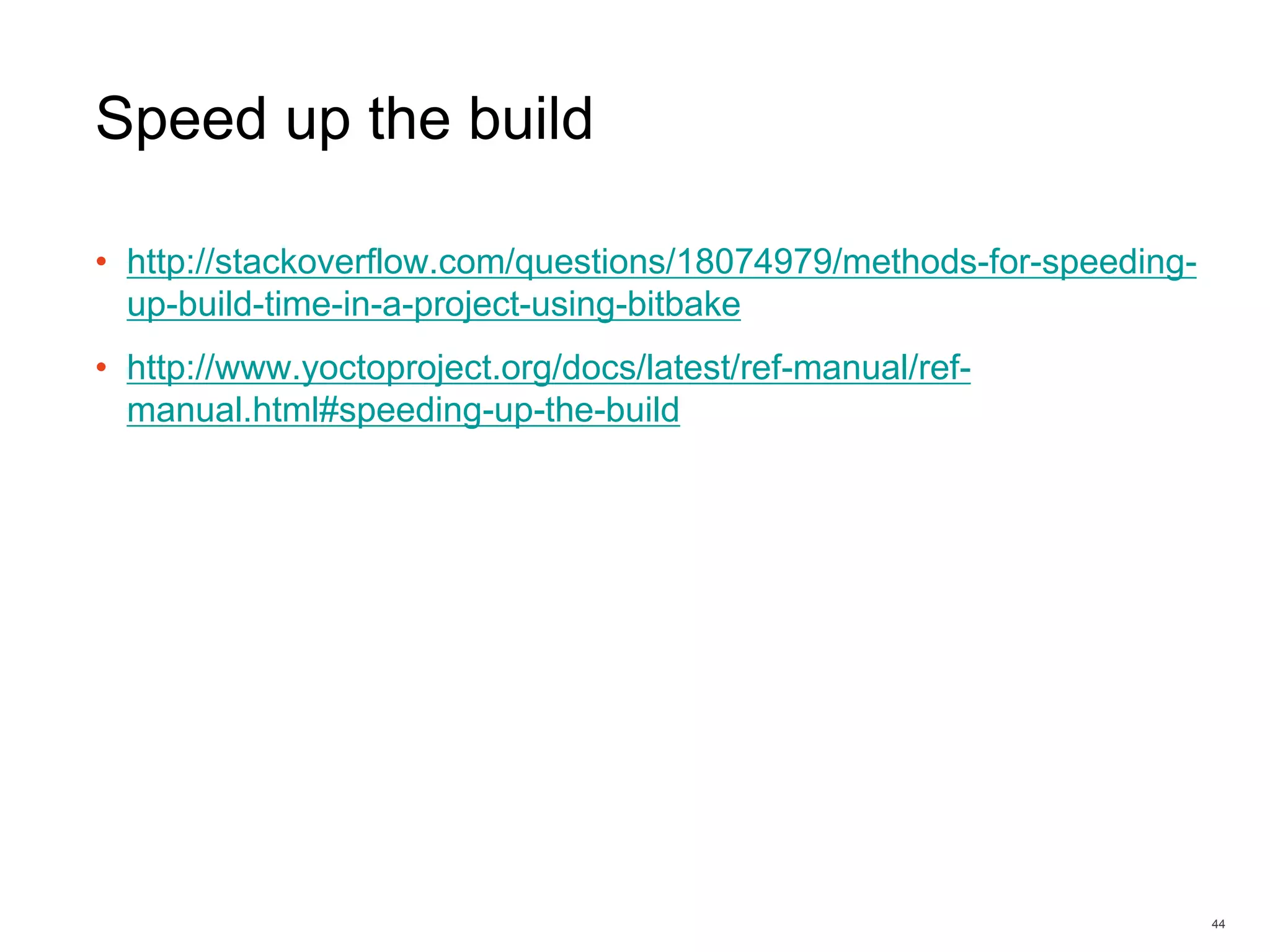

- 44. Speed up thebuild • http://stackoverflow.com/questions/18074979/methods-for-speeding- up-build-time-in-a-project-using-bitbake • http://www.yoctoproject.org/docs/latest/ref-manual/ref- manual.html#speeding-up-the-build 44
