- 1. VR Creation without becominga game developer Mitch Williams Samsung / 3d-online GearVR Software Engineer

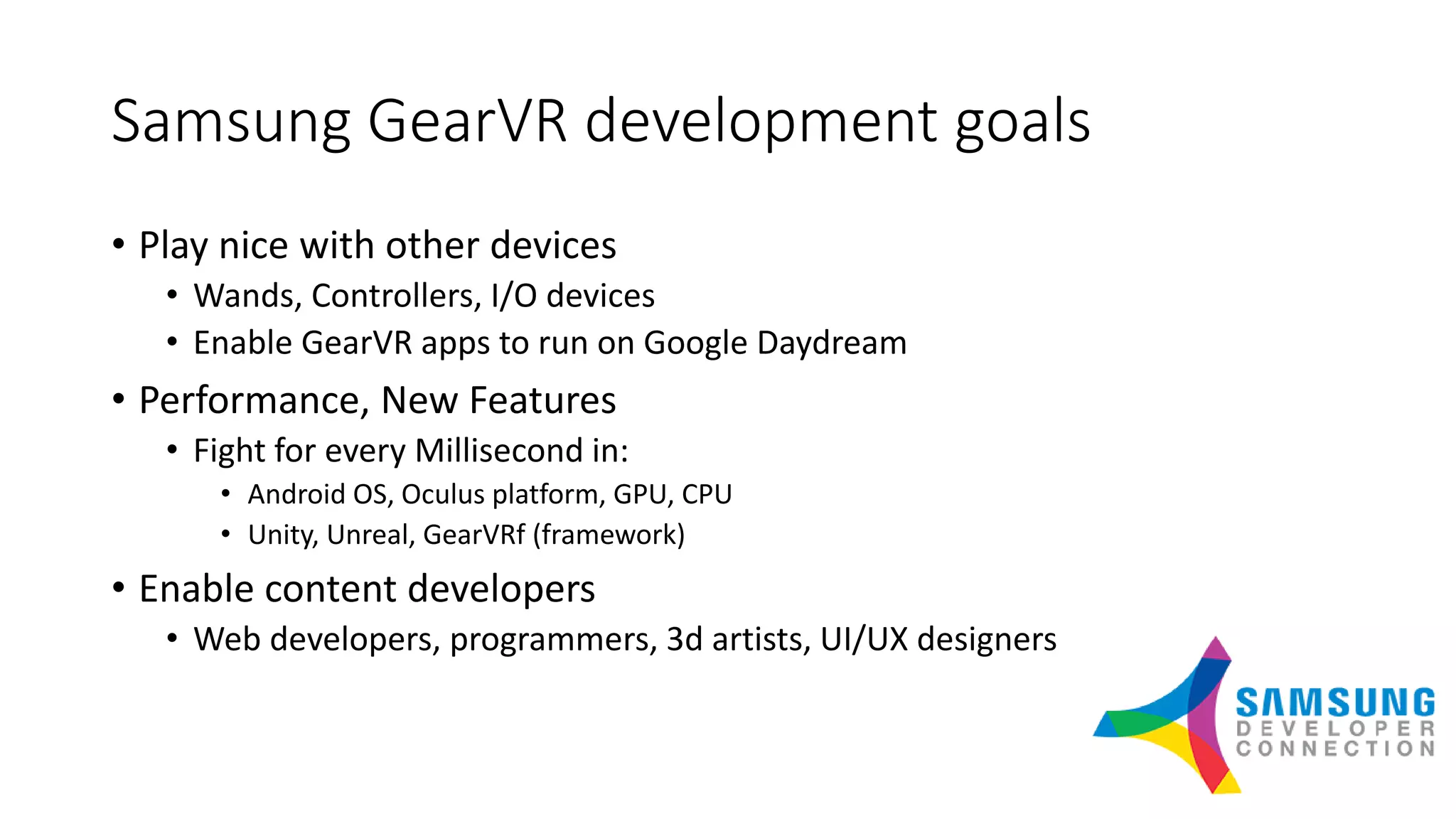

- 2. Samsung GearVR developmentgoals • Play nice with other devices • Wands, Controllers, I/O devices • Enable GearVR apps to run on Google Daydream • Performance, New Features • Fight for every Millisecond in: • Android OS, Oculus platform, GPU, CPU • Unity, Unreal, GearVRf (framework) • Enable content developers • Web developers, programmers, 3d artists, UI/UX designers

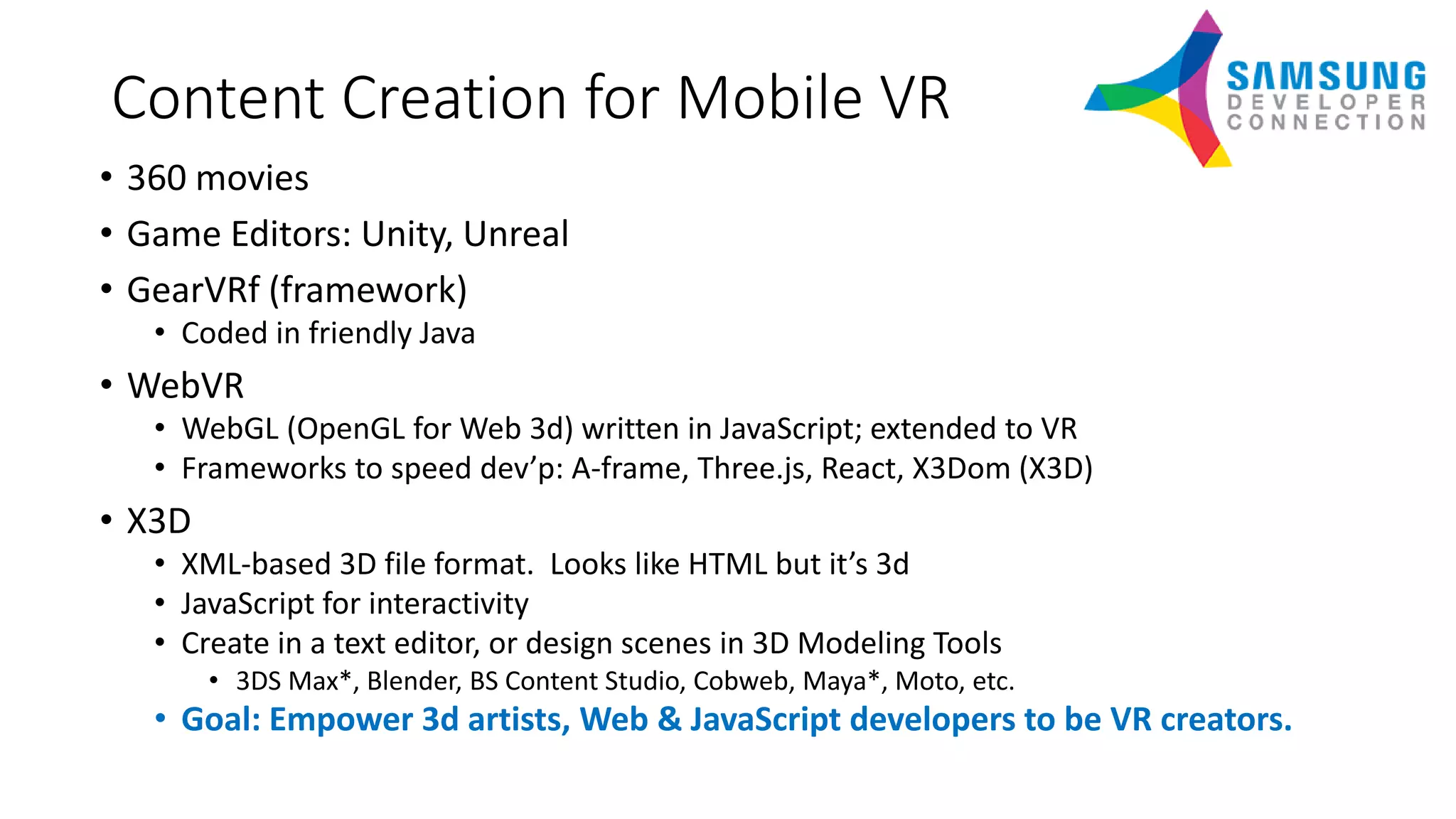

- 3. Content Creation forMobile VR • 360 movies • Game Editors: Unity, Unreal • GearVRf (framework) • Coded in friendly Java • WebVR • WebGL (OpenGL for Web 3d) written in JavaScript; extended to VR • Frameworks to speed dev’p: A-frame, Three.js, React, X3Dom (X3D) • X3D • XML-based 3D file format. Looks like HTML but it’s 3d • JavaScript for interactivity • Create in a text editor, or design scenes in 3D Modeling Tools • 3DS Max*, Blender, BS Content Studio, Cobweb, Maya*, Moto, etc. • Goal: Empower 3d artists, Web & JavaScript developers to be VR creators.

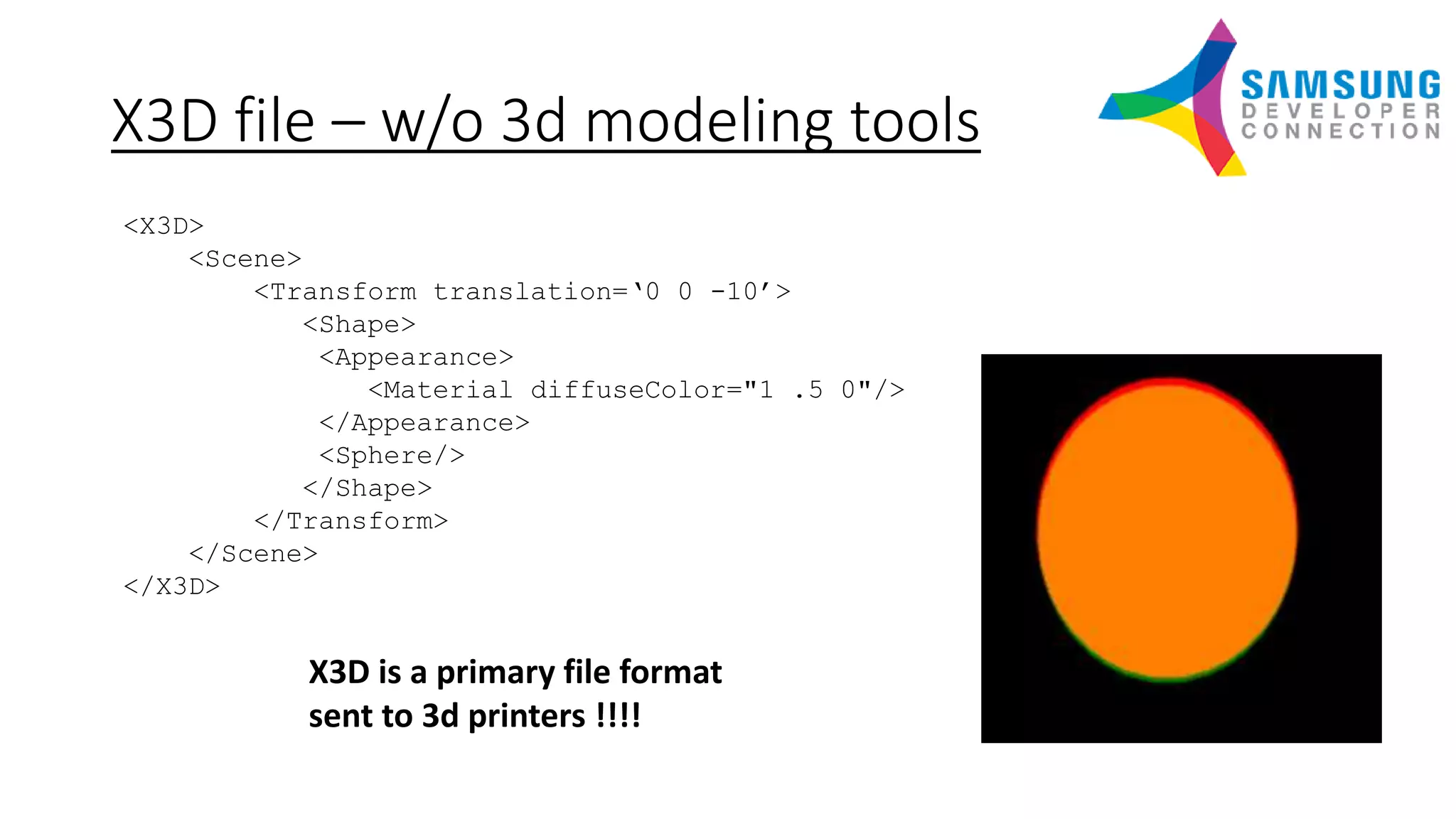

- 4. X3D file –w/o 3d modeling tools <X3D> <Scene> <Transform translation=‘0 0 -10’> <Shape> <Appearance> <Material diffuseColor="1 .5 0"/> </Appearance> <Sphere/> </Shape> </Transform> </Scene> </X3D> X3D is a primary file format sent to 3d printers !!!!

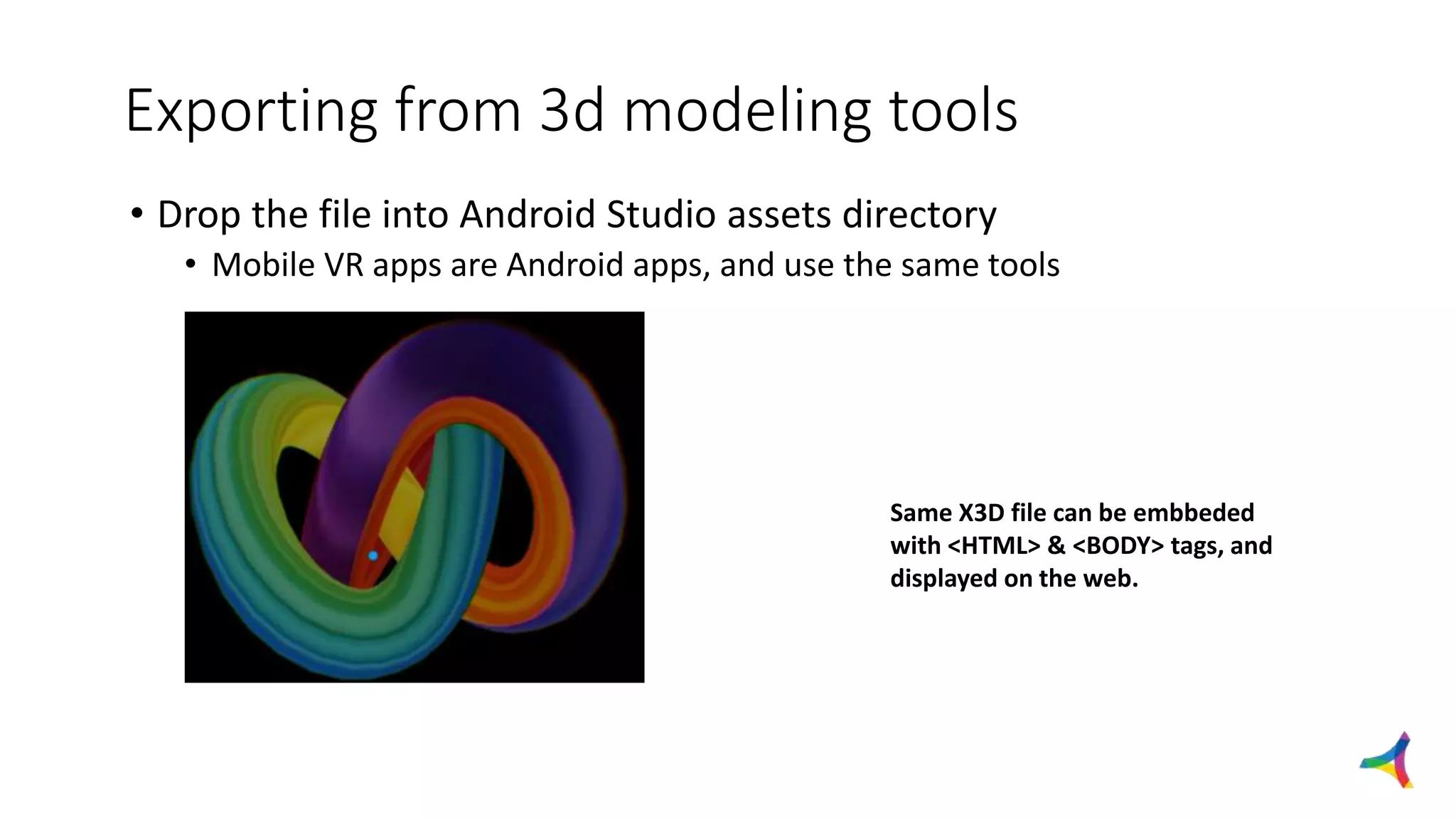

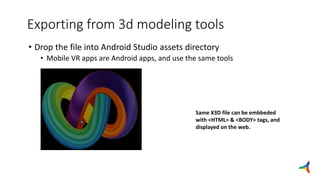

- 5. Exporting from 3dmodeling tools • Drop the file into Android Studio assets directory • Mobile VR apps are Android apps, and use the same tools Same X3D file can be embbeded with <HTML> & <BODY> tags, and displayed on the web.

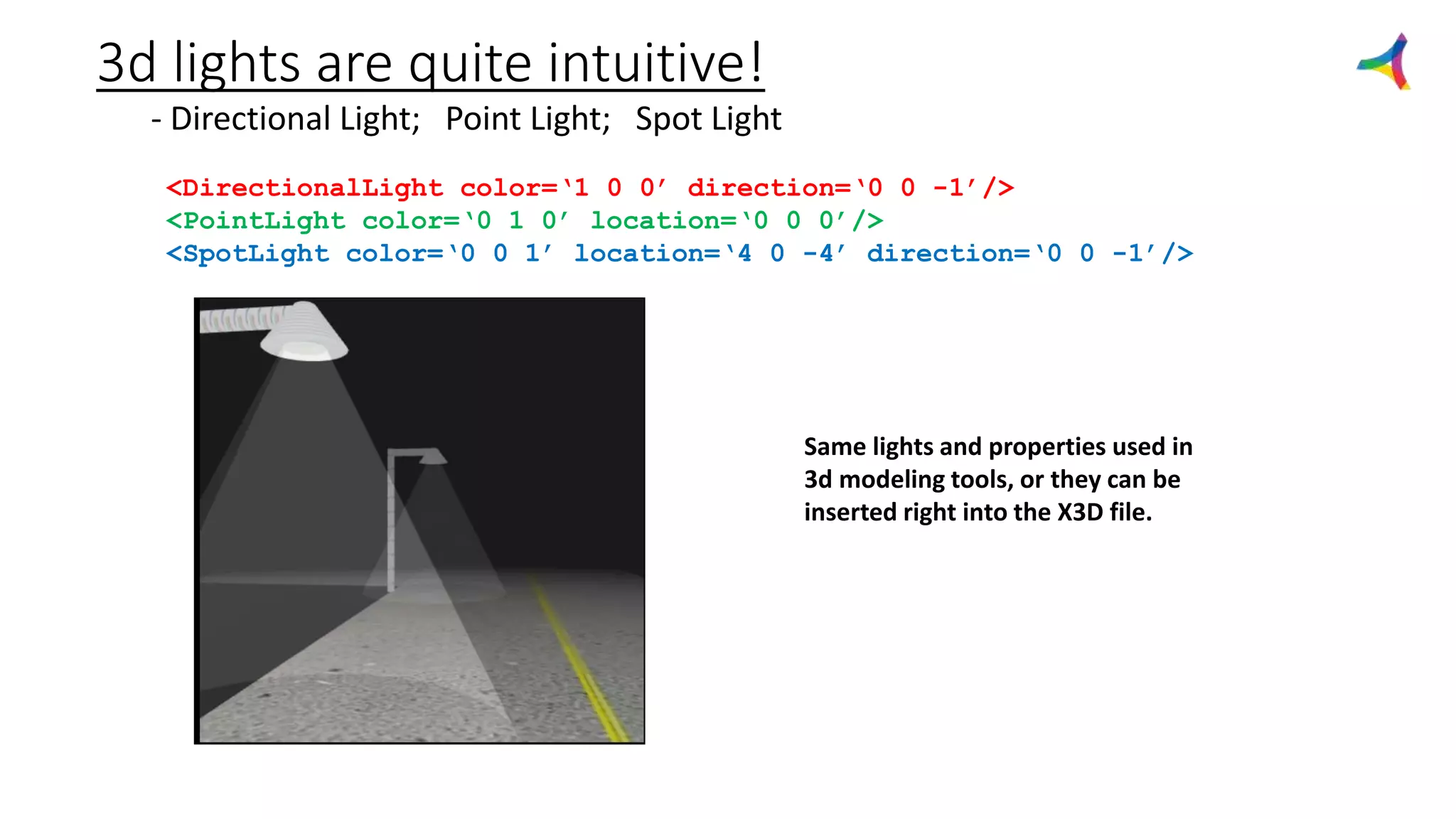

- 6. 3d lights arequite intuitive! <DirectionalLight color=‘1 0 0’ direction=‘0 0 -1’/> <PointLight color=‘0 1 0’ location=‘0 0 0’/> <SpotLight color=‘0 0 1’ location=‘4 0 -4’ direction=‘0 0 -1’/> - Directional Light; Point Light; Spot Light Same lights and properties used in 3d modeling tools, or they can be inserted right into the X3D file.

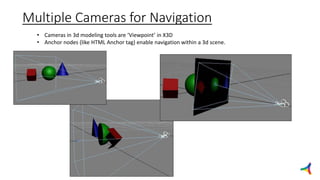

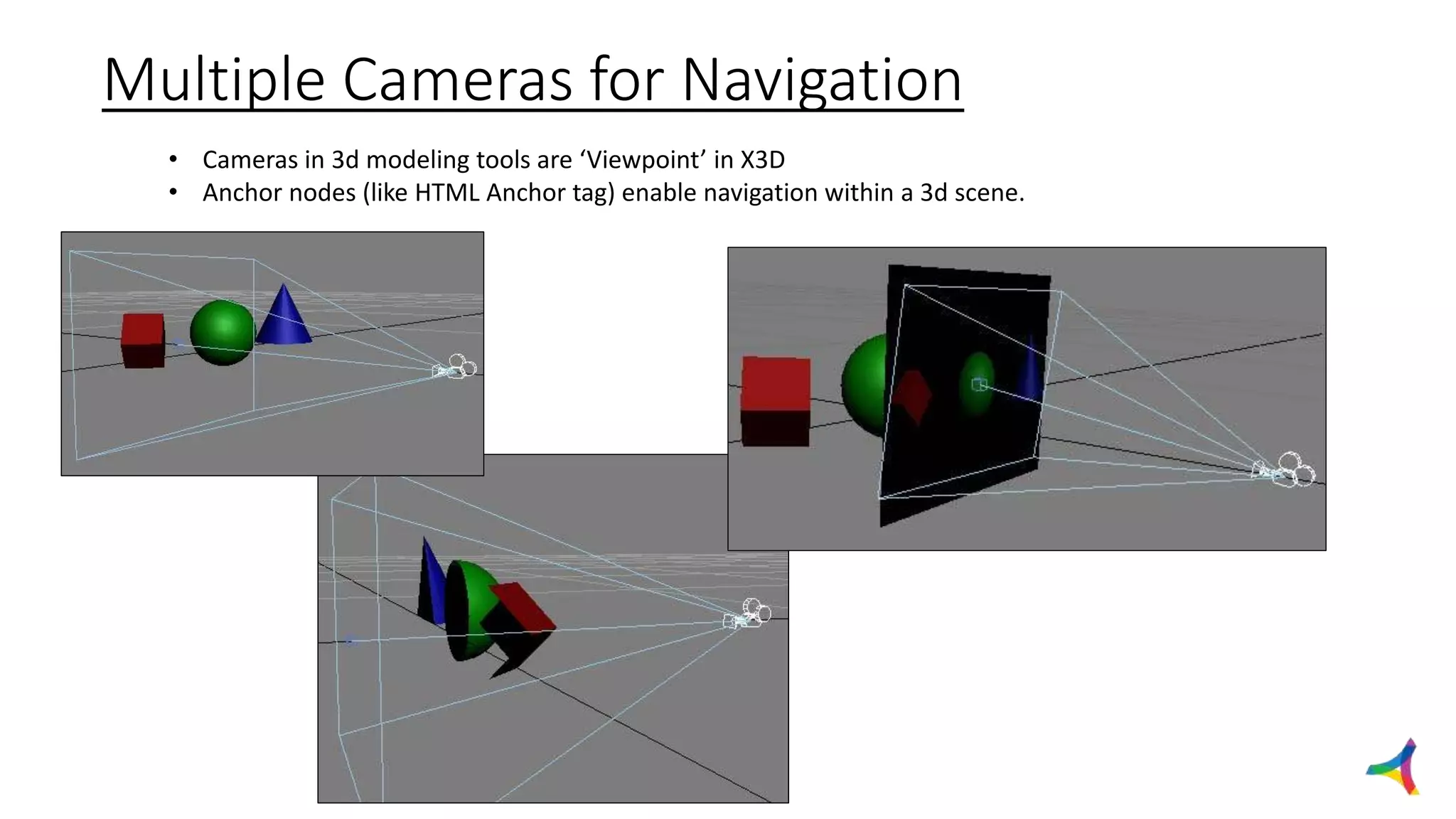

- 7. Multiple Cameras forNavigation • Cameras in 3d modeling tools are ‘Viewpoint’ in X3D • Anchor nodes (like HTML Anchor tag) enable navigation within a 3d scene.

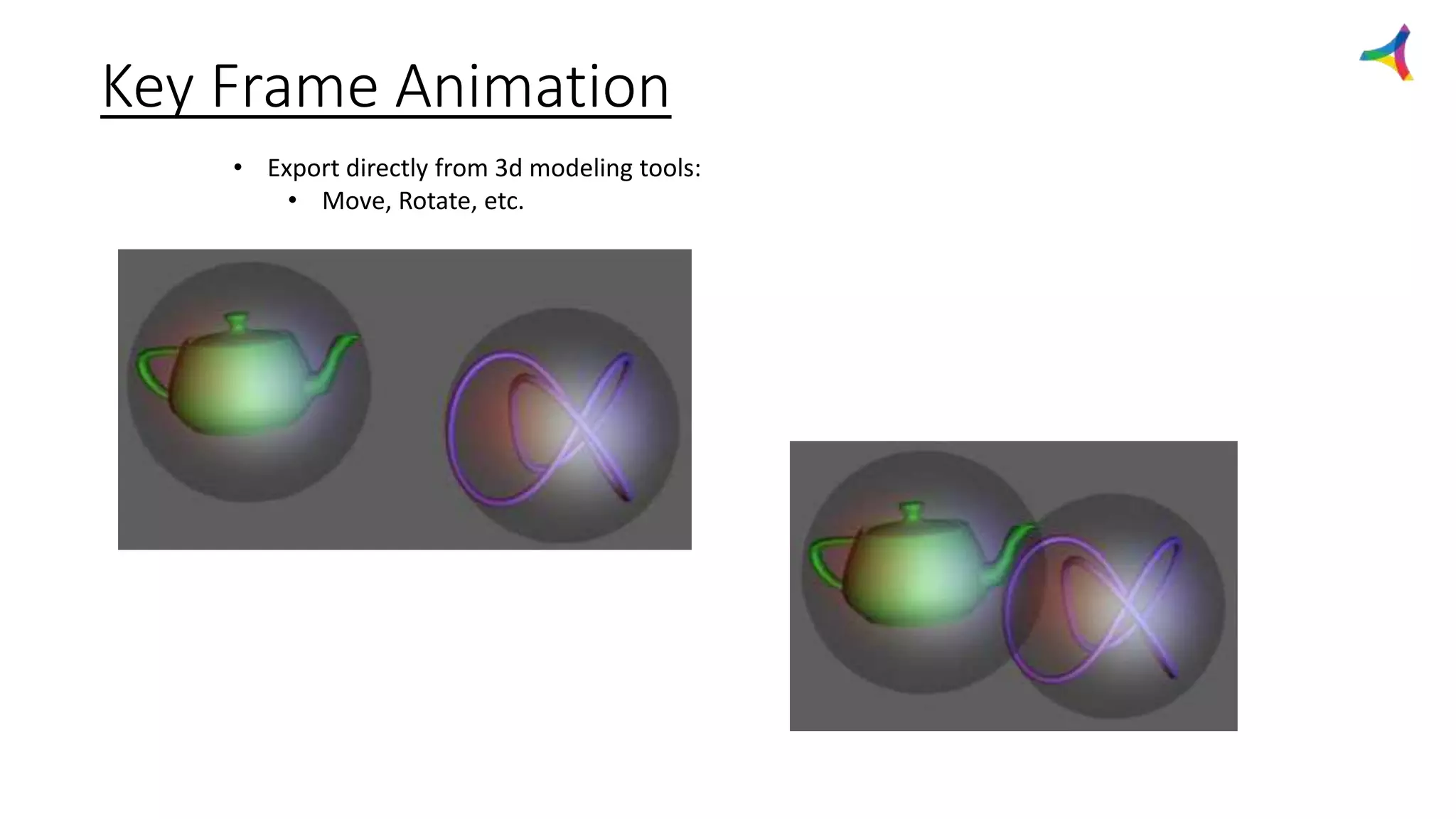

- 8. Key Frame Animation DemonstrationTime! • Export directly from 3d modeling tools: • Move, Rotate, etc.

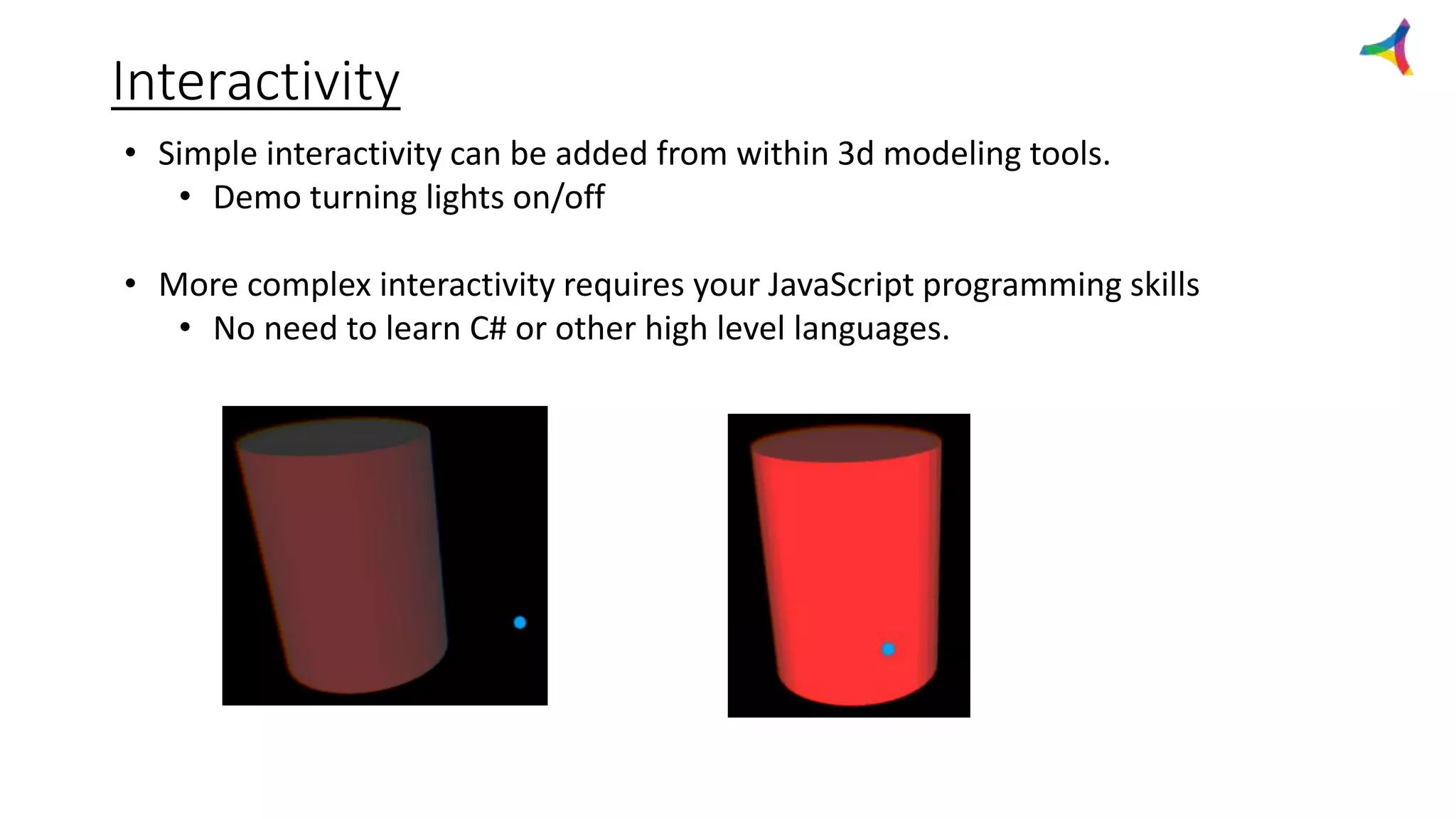

- 9. Interactivity • Simple interactivitycan be added from within 3d modeling tools. • Demo turning lights on/off • More complex interactivity requires your JavaScript programming skills • No need to learn C# or other high level languages.

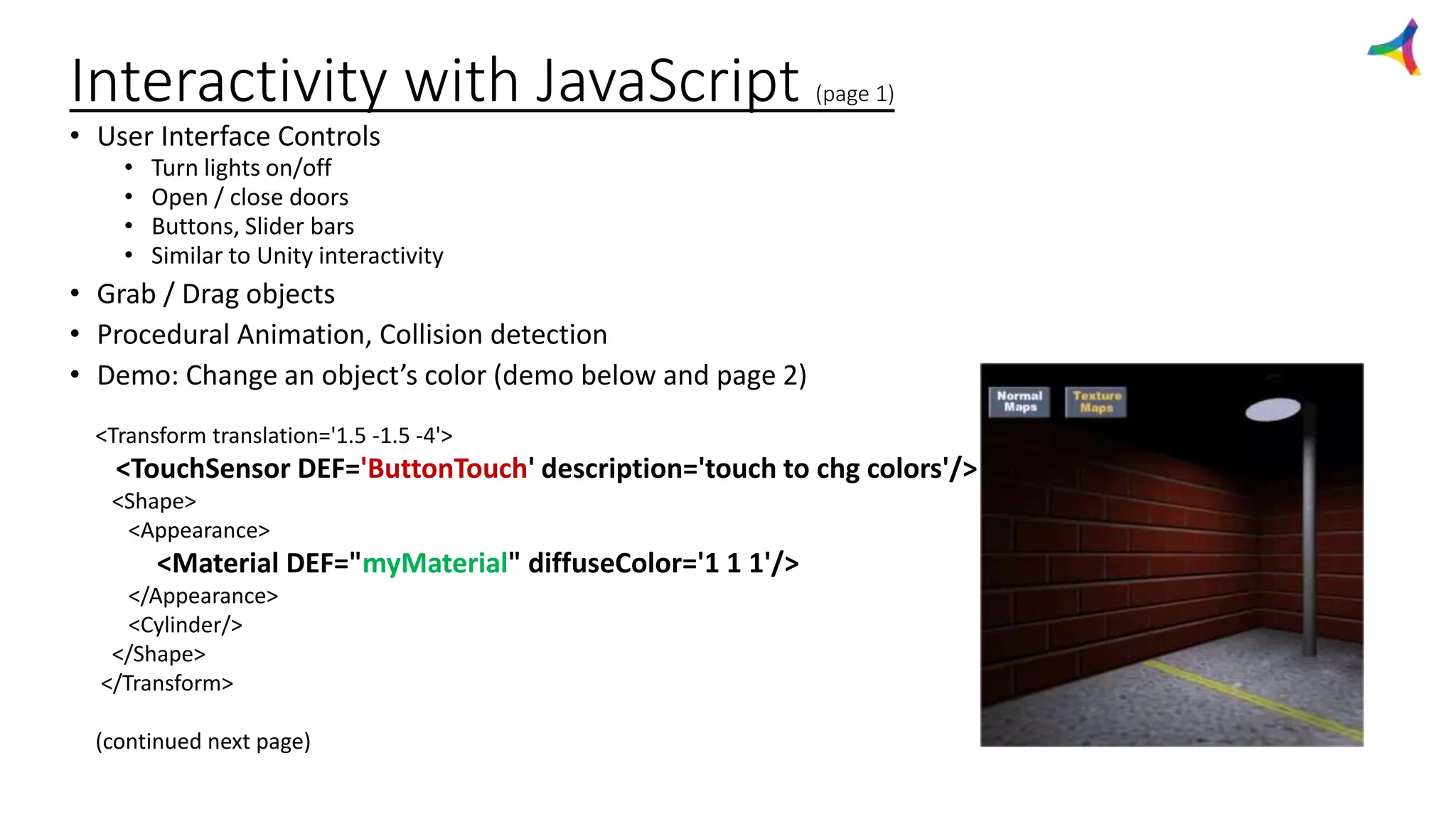

- 10. Interactivity with JavaScript(page 1) • User Interface Controls • Turn lights on/off • Open / close doors • Buttons, Slider bars • Similar to Unity interactivity • Grab / Drag objects • Procedural Animation, Collision detection • Demo: Change an object’s color (demo below and page 2) <Transform translation='1.5 -1.5 -4'> <TouchSensor DEF='ButtonTouch' description='touch to chg colors'/> <Shape> <Appearance> <Material DEF="myMaterial" diffuseColor='1 1 1'/> </Appearance> <Cylinder/> </Shape> </Transform> (continued next page)

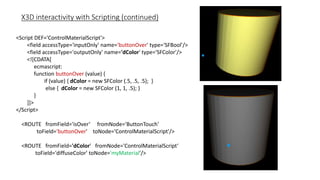

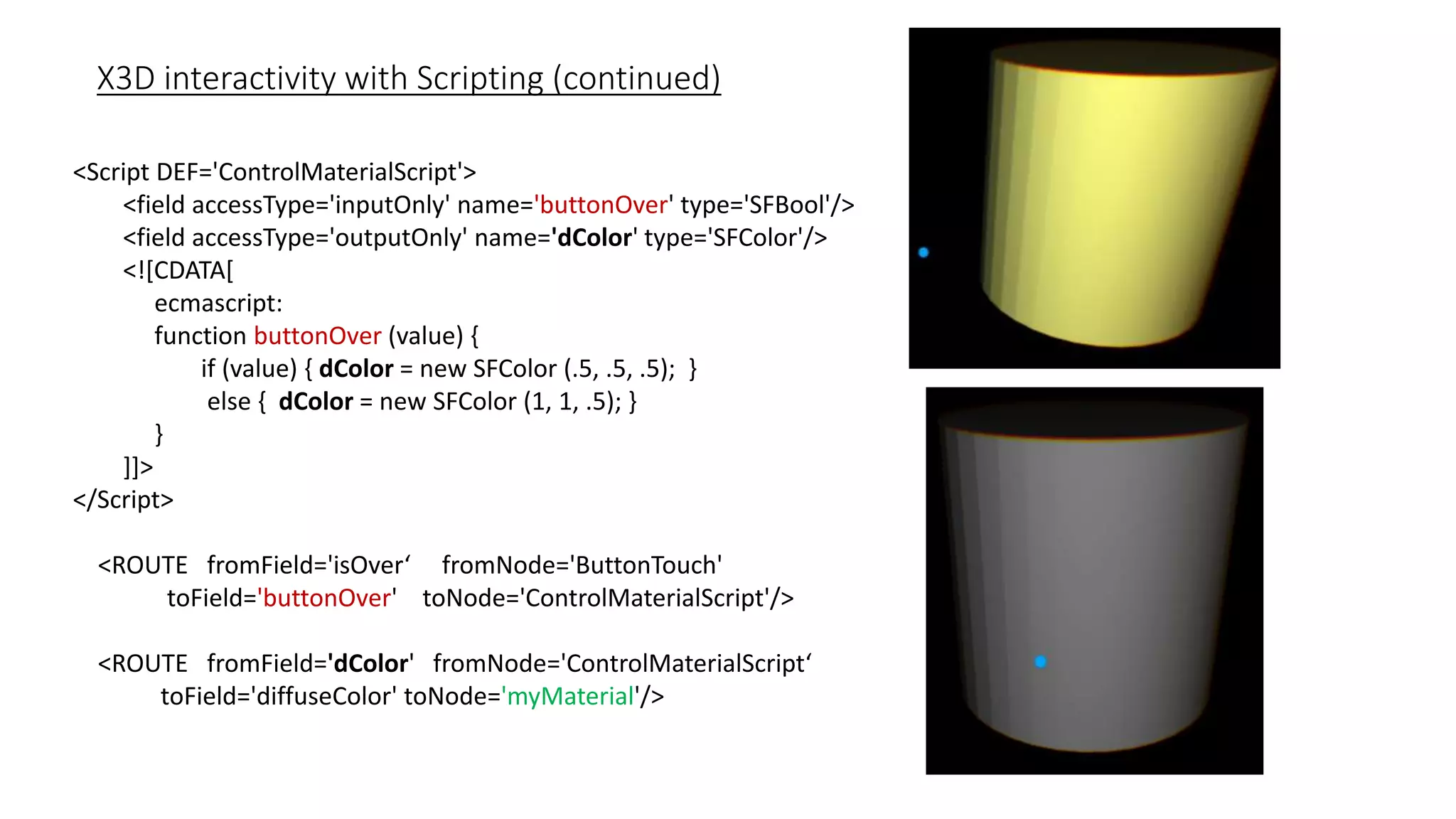

- 11. X3D interactivity withScripting (continued) <Script DEF='ControlMaterialScript'> <field accessType='inputOnly' name='buttonOver' type='SFBool'/> <field accessType='outputOnly' name='dColor' type='SFColor'/> <![CDATA[ ecmascript: function buttonOver (value) { if (value) { dColor = new SFColor (.5, .5, .5); } else { dColor = new SFColor (1, 1, .5); } } ]]> </Script> <ROUTE fromField='isOver‘ fromNode='ButtonTouch' toField='buttonOver' toNode='ControlMaterialScript'/> <ROUTE fromField='dColor' fromNode='ControlMaterialScript‘ toField='diffuseColor' toNode='myMaterial'/>

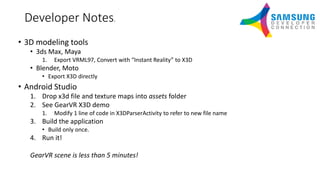

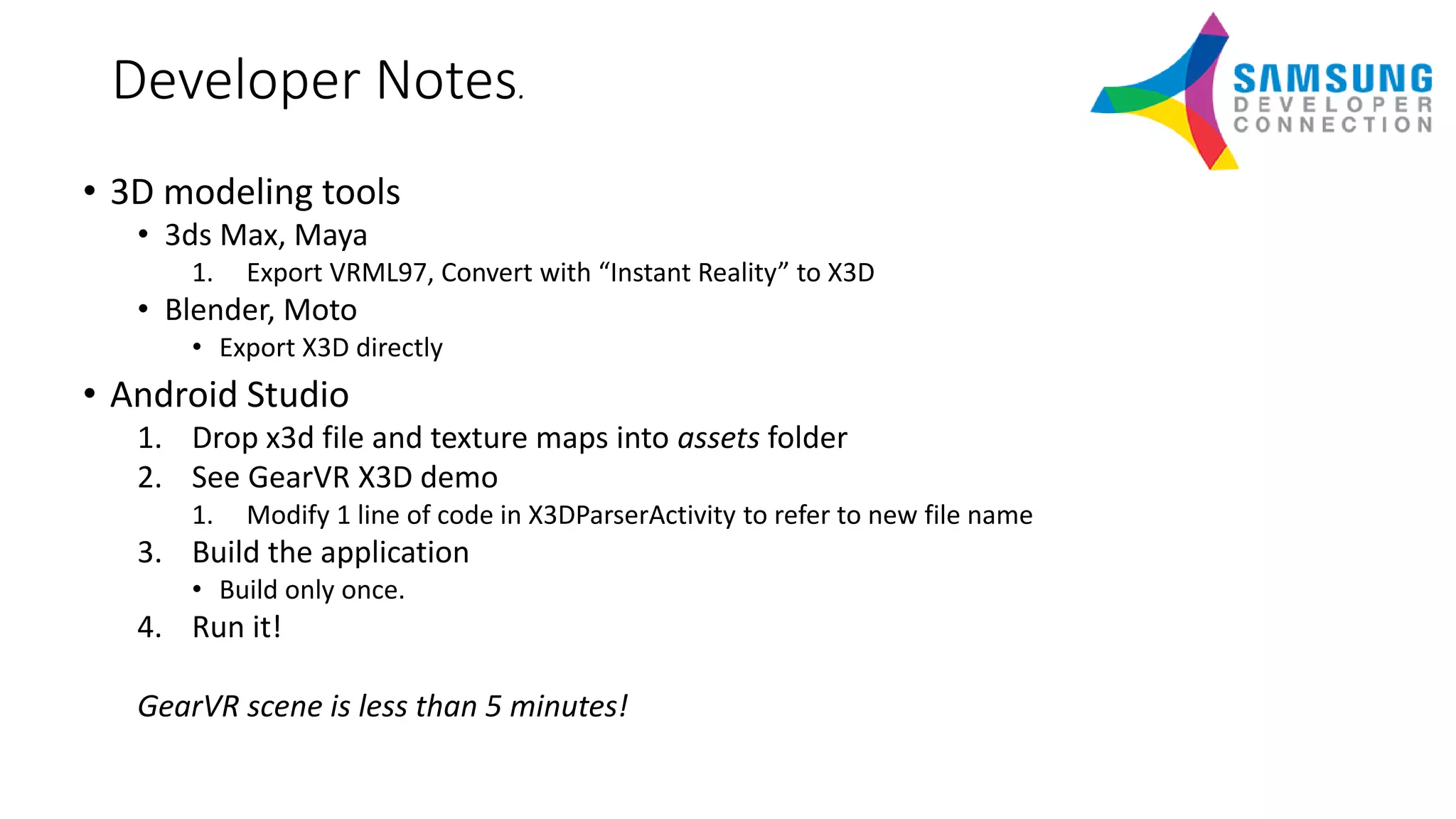

- 12. Developer Notes. • 3Dmodeling tools • 3ds Max, Maya 1. Export VRML97, Convert with “Instant Reality” to X3D • Blender, Moto • Export X3D directly • Android Studio 1. Drop x3d file and texture maps into assets folder 2. See GearVR X3D demo 1. Modify 1 line of code in X3DParserActivity to refer to new file name 3. Build the application • Build only once. 4. Run it! GearVR scene is less than 5 minutes!

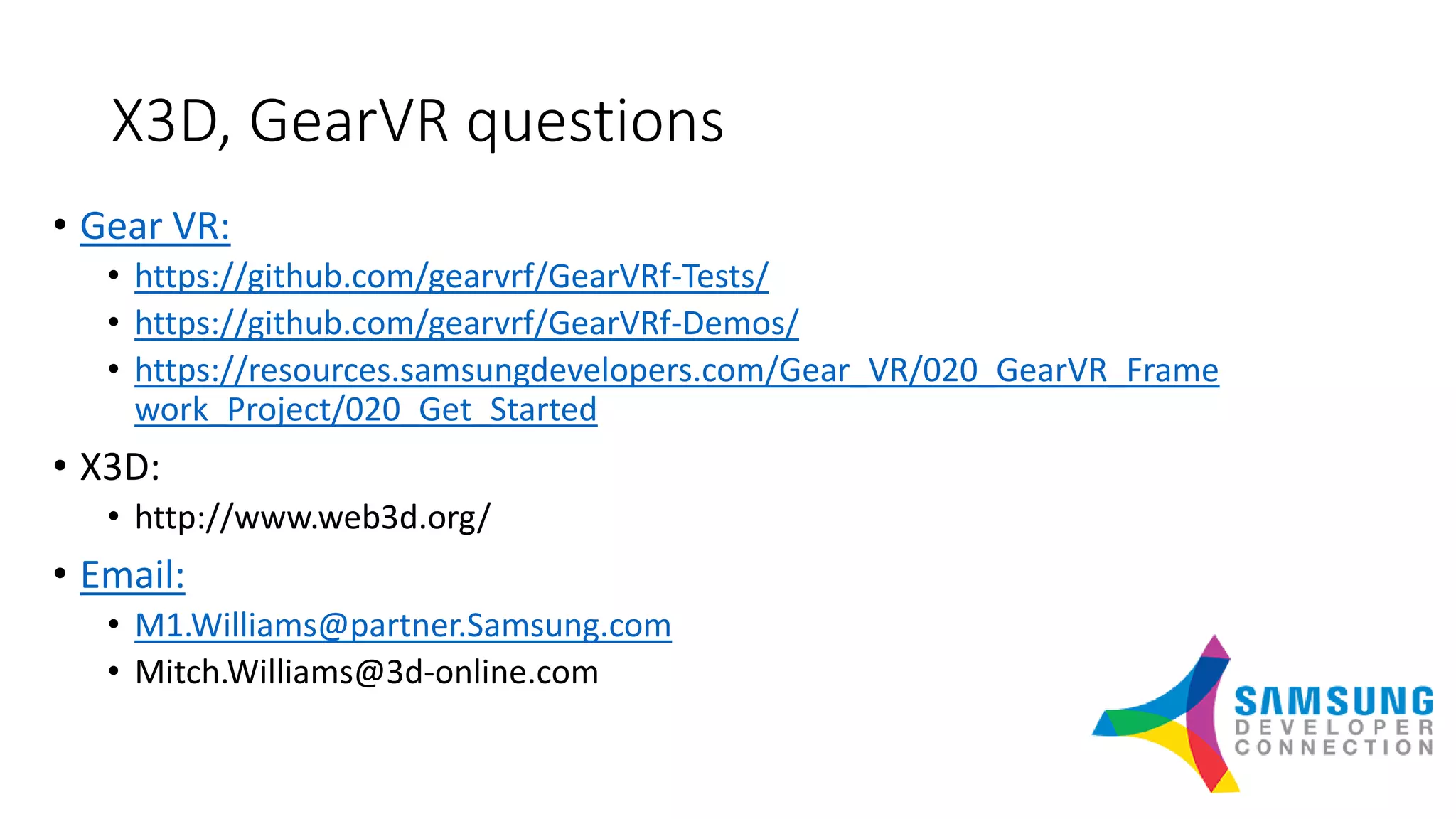

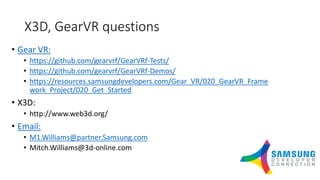

- 13. X3D, GearVR questions •Gear VR: • https://github.com/gearvrf/GearVRf-Tests/ • https://github.com/gearvrf/GearVRf-Demos/ • https://resources.samsungdevelopers.com/Gear_VR/020_GearVR_Frame work_Project/020_Get_Started • X3D: • http://www.web3d.org/ • Email: • M1.Williams@partner.Samsung.com • Mitch.Williams@3d-online.com
