Taming Asynchrony using RxJS
- 1. Taming Asynchrony using RxJS AngeloSimone Scotto Cluster Reply 26 October 2015, Milan 15

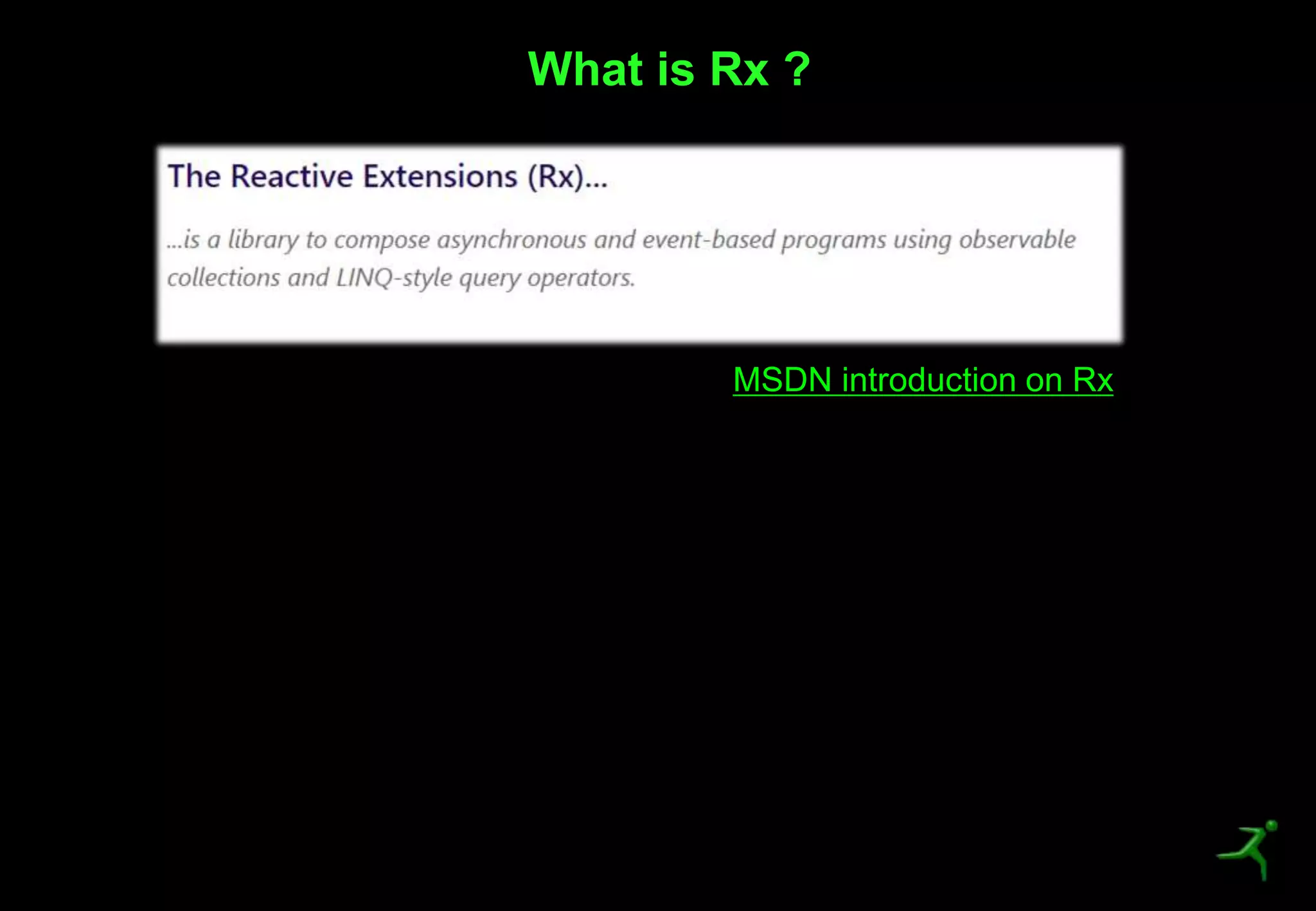

- 2. 2 What is Rx? MSDN introduction on Rx
- 3. 3 What is Rx? MSDN introduction on Rx
- 4. 4 • Design Patternswas published. • Written by Gamma, Helm, Johnson, Vlissided (Gang of Four) • Contains 23 «recipes» to solve abstract problems with Object-Oriented approach. Back in 1994…

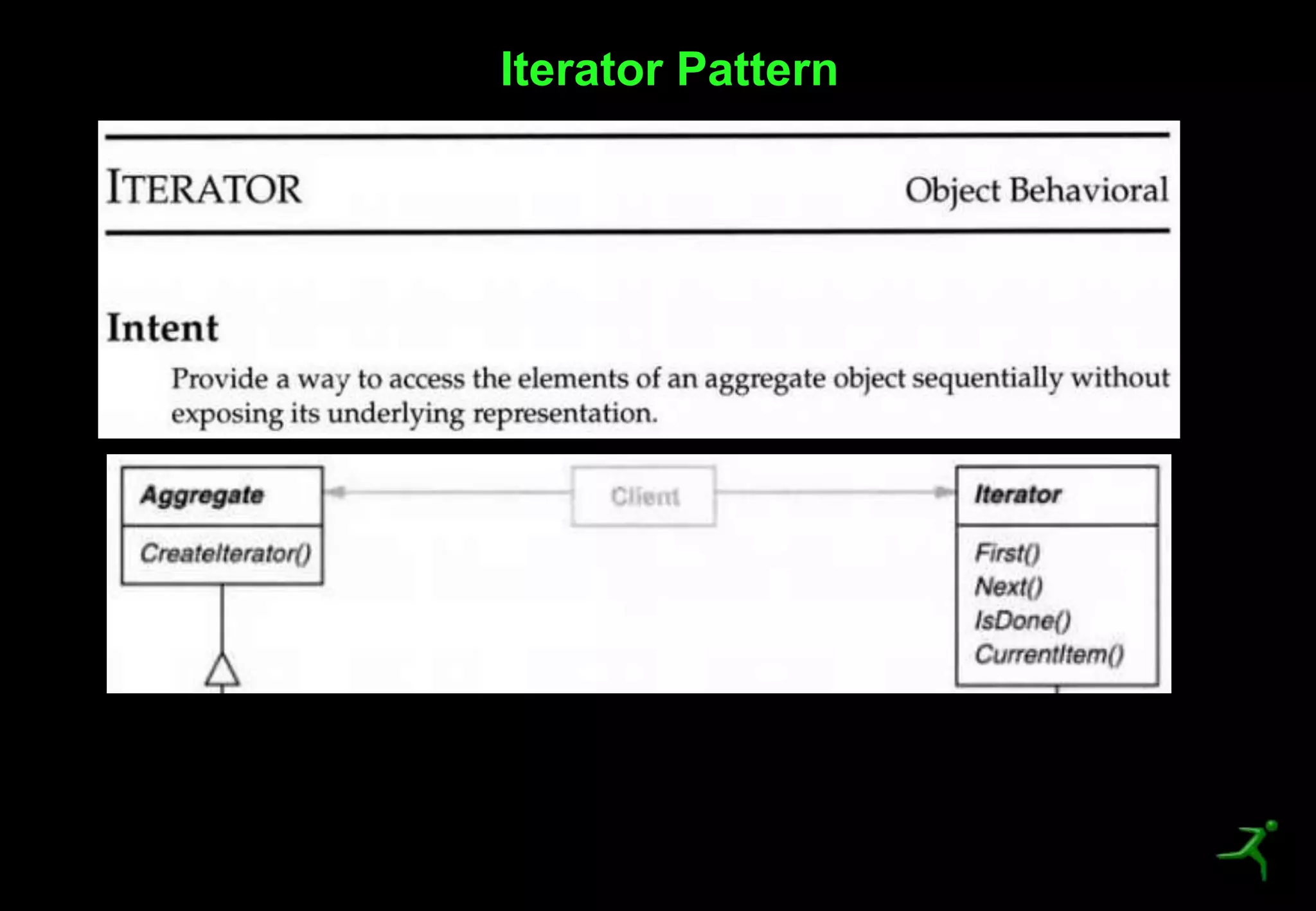

- 5.

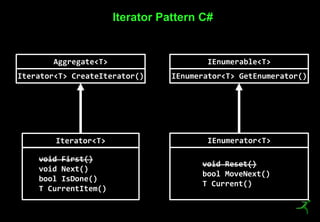

- 6. 6 Iterator Pattern C# Aggregate<T> Iterator<T>CreateIterator() Iterator<T> void First() void Next() bool IsDone() T CurrentItem() IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> void Reset() bool MoveNext() T Current()

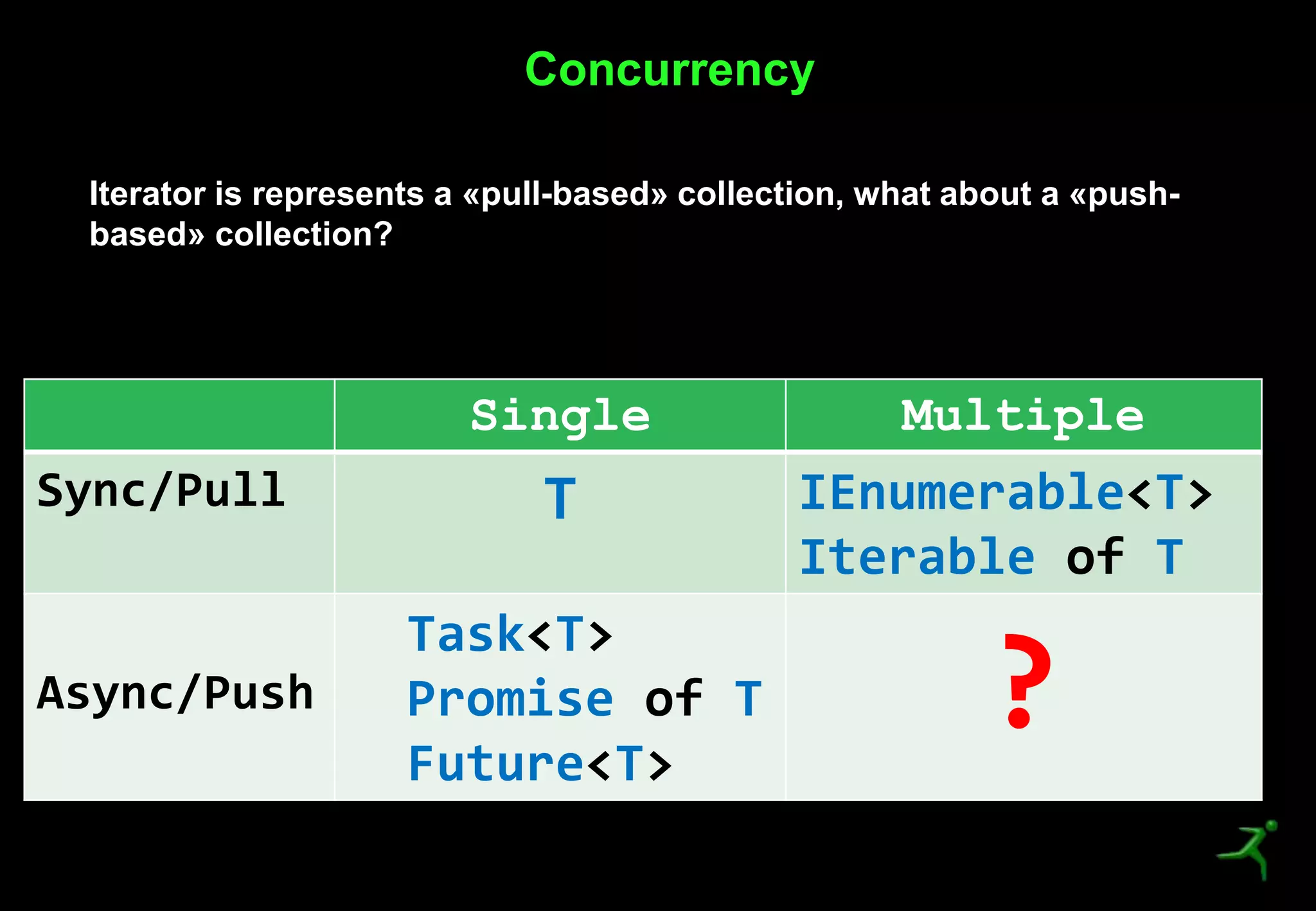

- 7. 7 Concurrency Single Multiple Sync/Pull TIEnumerable<T> Iterable of T Async/Push Task<T> Promise of T Future<T> ? Iterator is represents a «pull-based» collection, what about a «push- based» collection?
- 8. «Tell me andI forget, teach me and I may remember, involve me and I learn» Benjamin Franklin

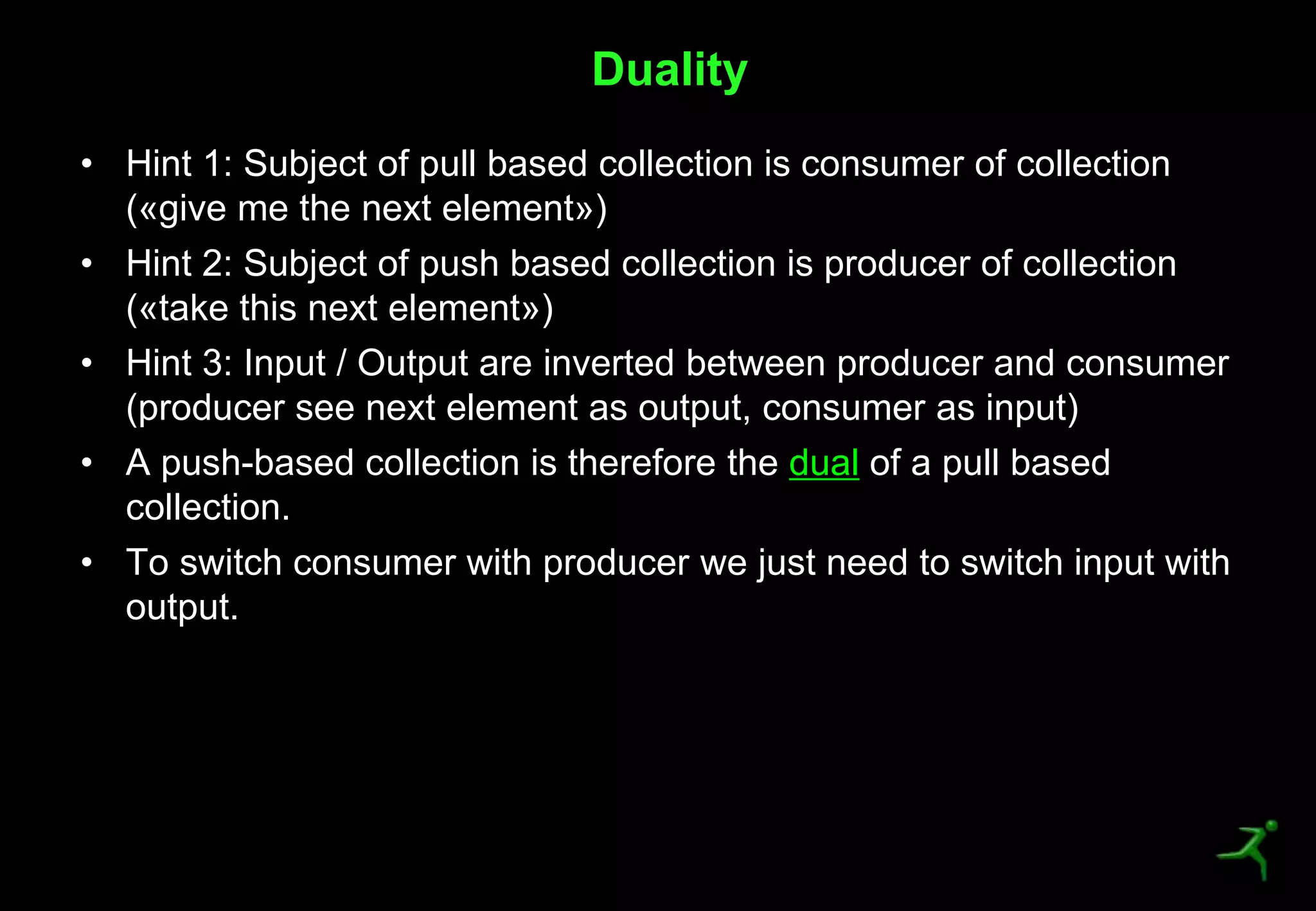

- 9. 9 • Hint 1:Subject of pull based collection is consumer of collection («give me the next element») • Hint 2: Subject of push based collection is producer of collection («take this next element») • Hint 3: Input / Output are inverted between producer and consumer (producer see next element as output, consumer as input) • A push-based collection is therefore the dual of a pull based collection. • To switch consumer with producer we just need to switch input with output. Duality

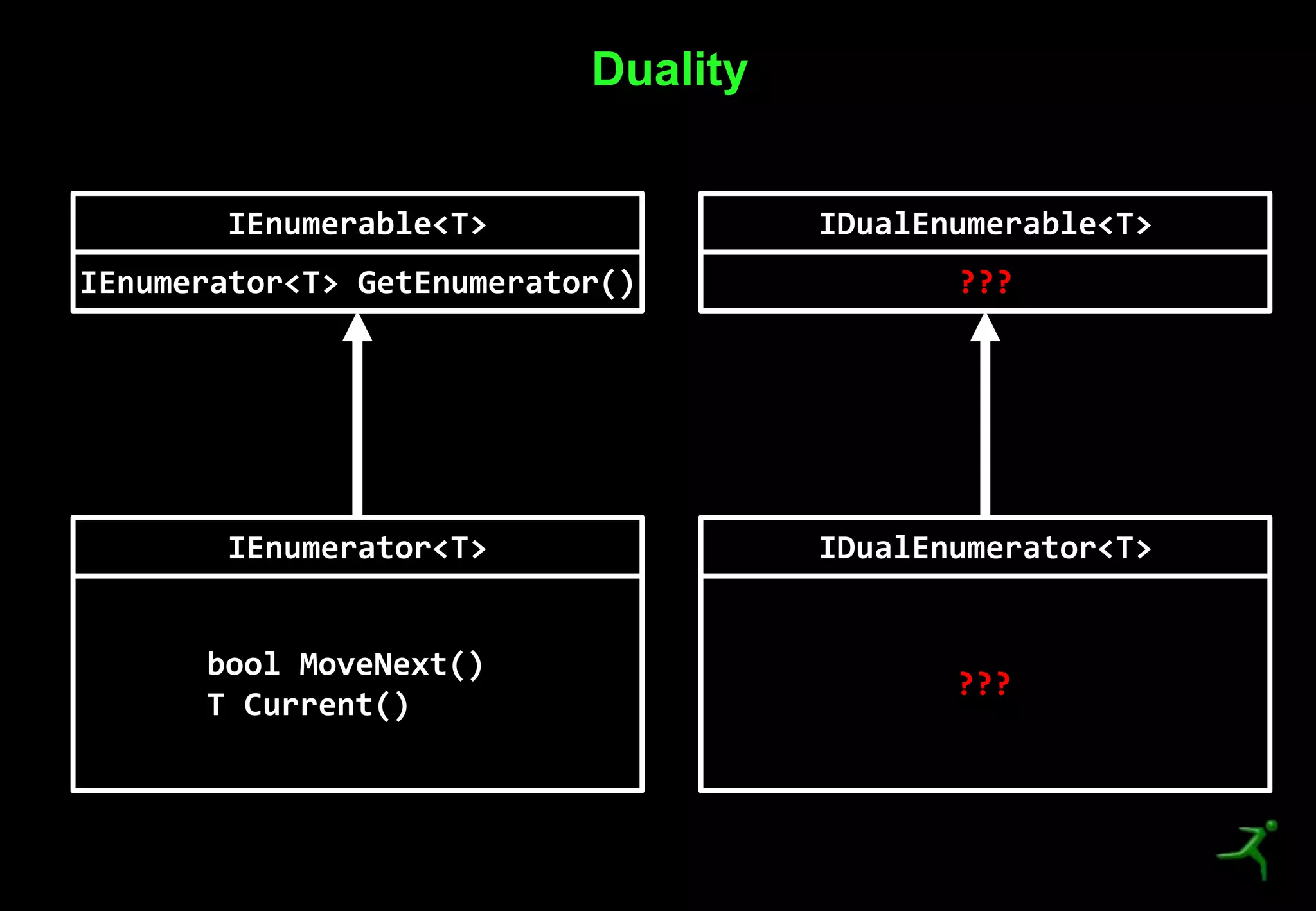

- 10. 10 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> ??? IDualEnumerator<T> ???

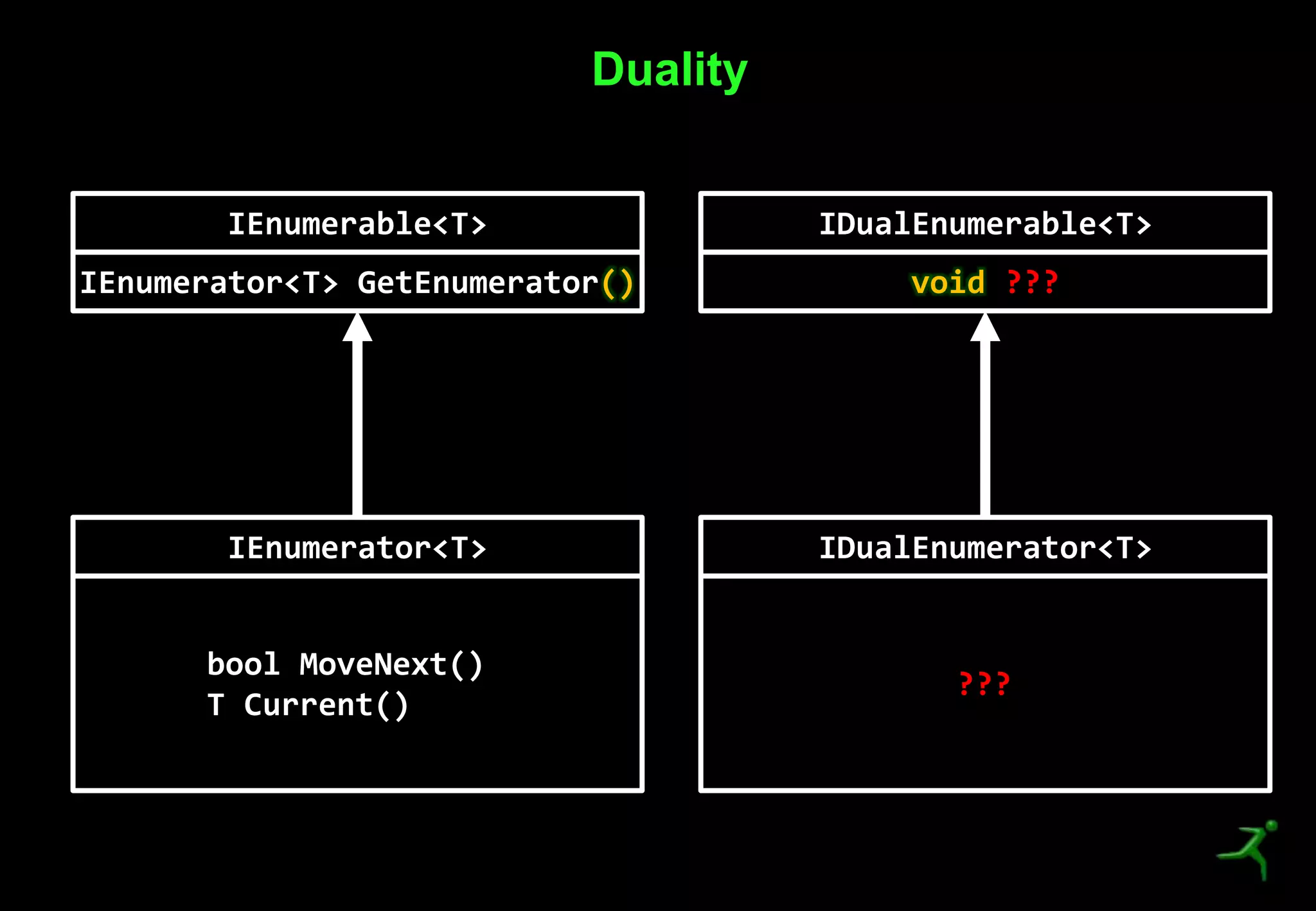

- 11. 11 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ??? IDualEnumerator<T> ???

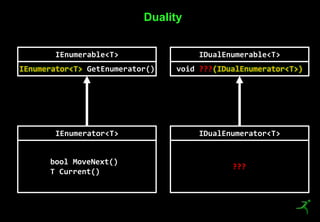

- 12. 12 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> ???

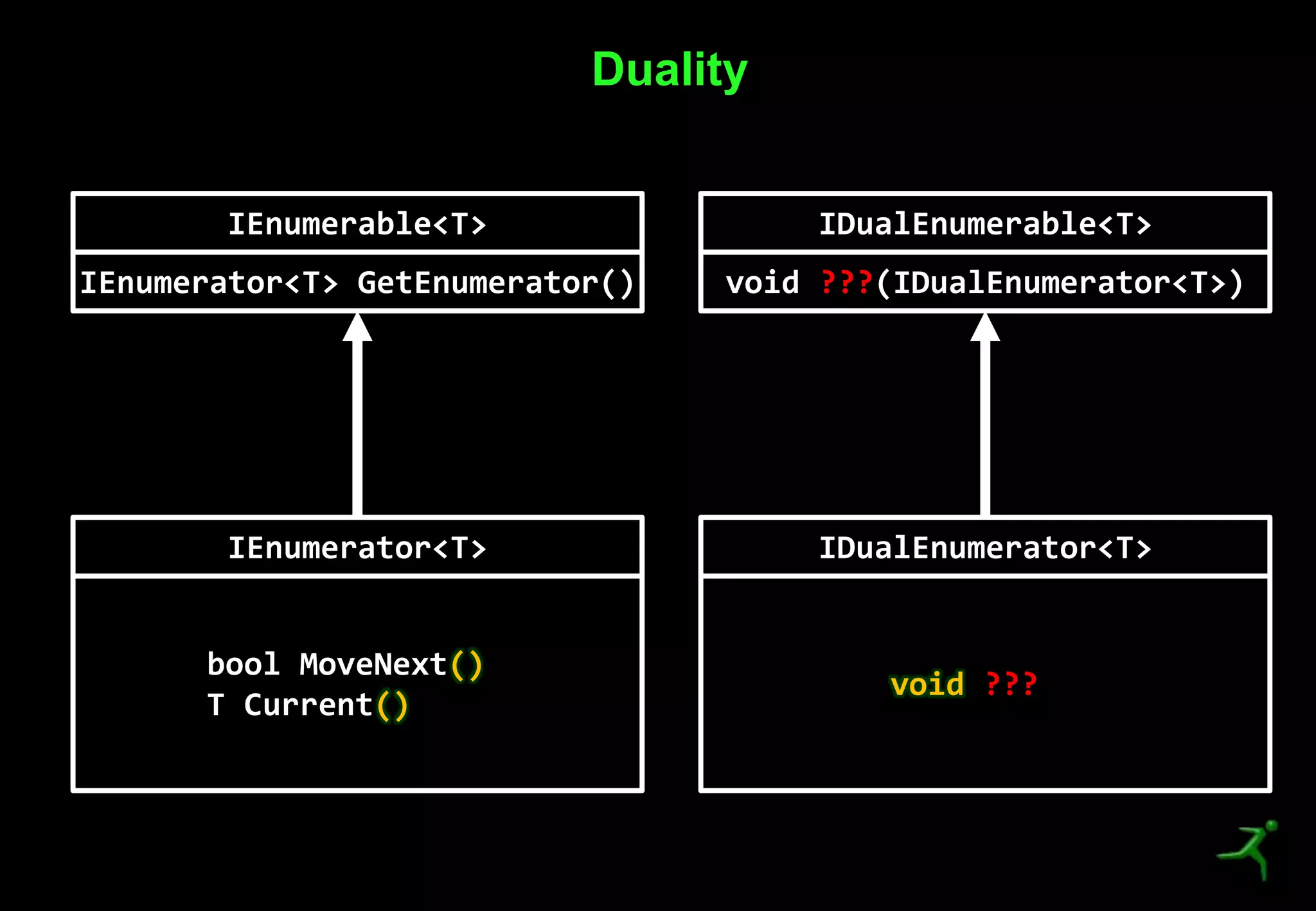

- 13. 13 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void ???

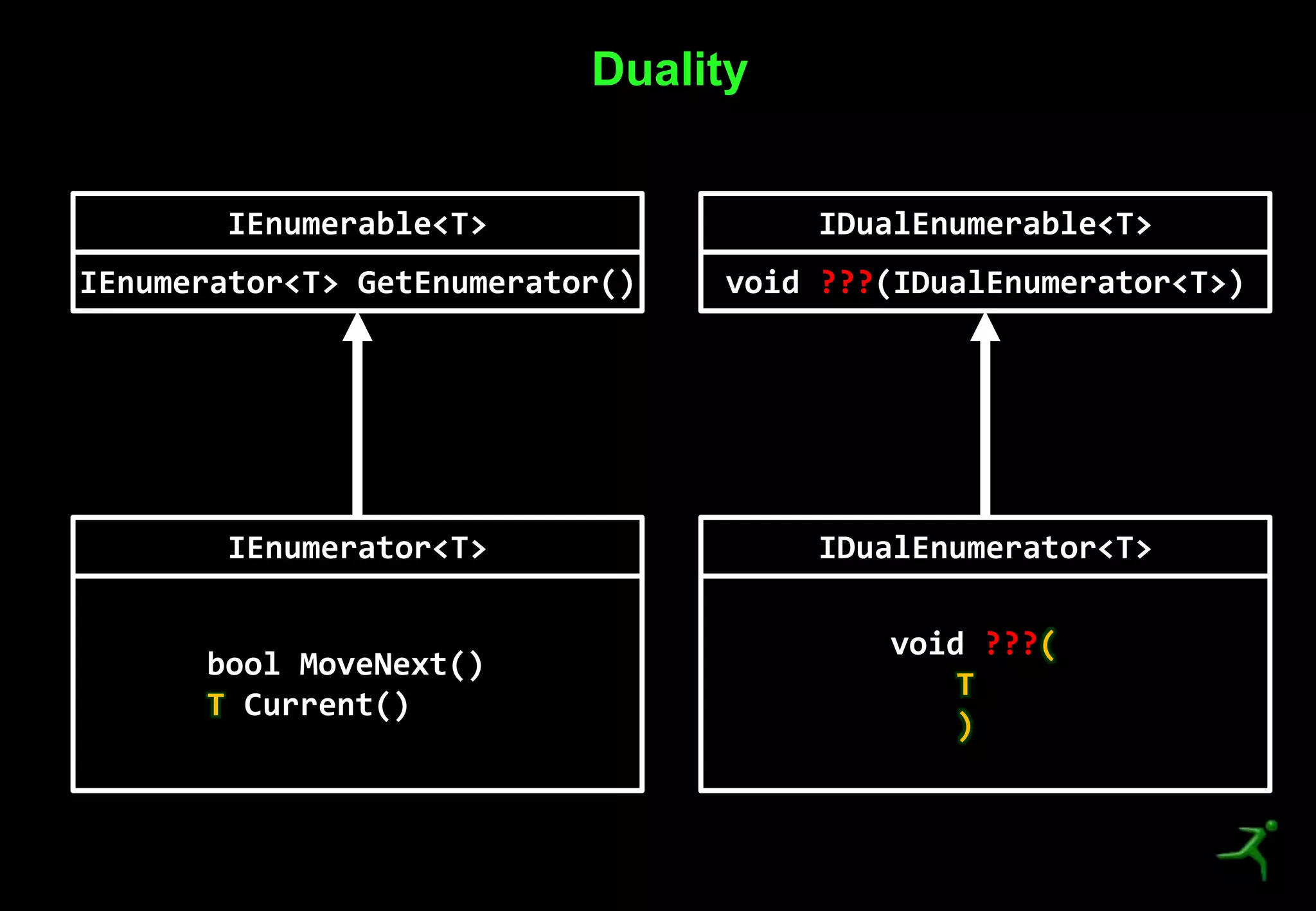

- 14. 14 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void ???( T )

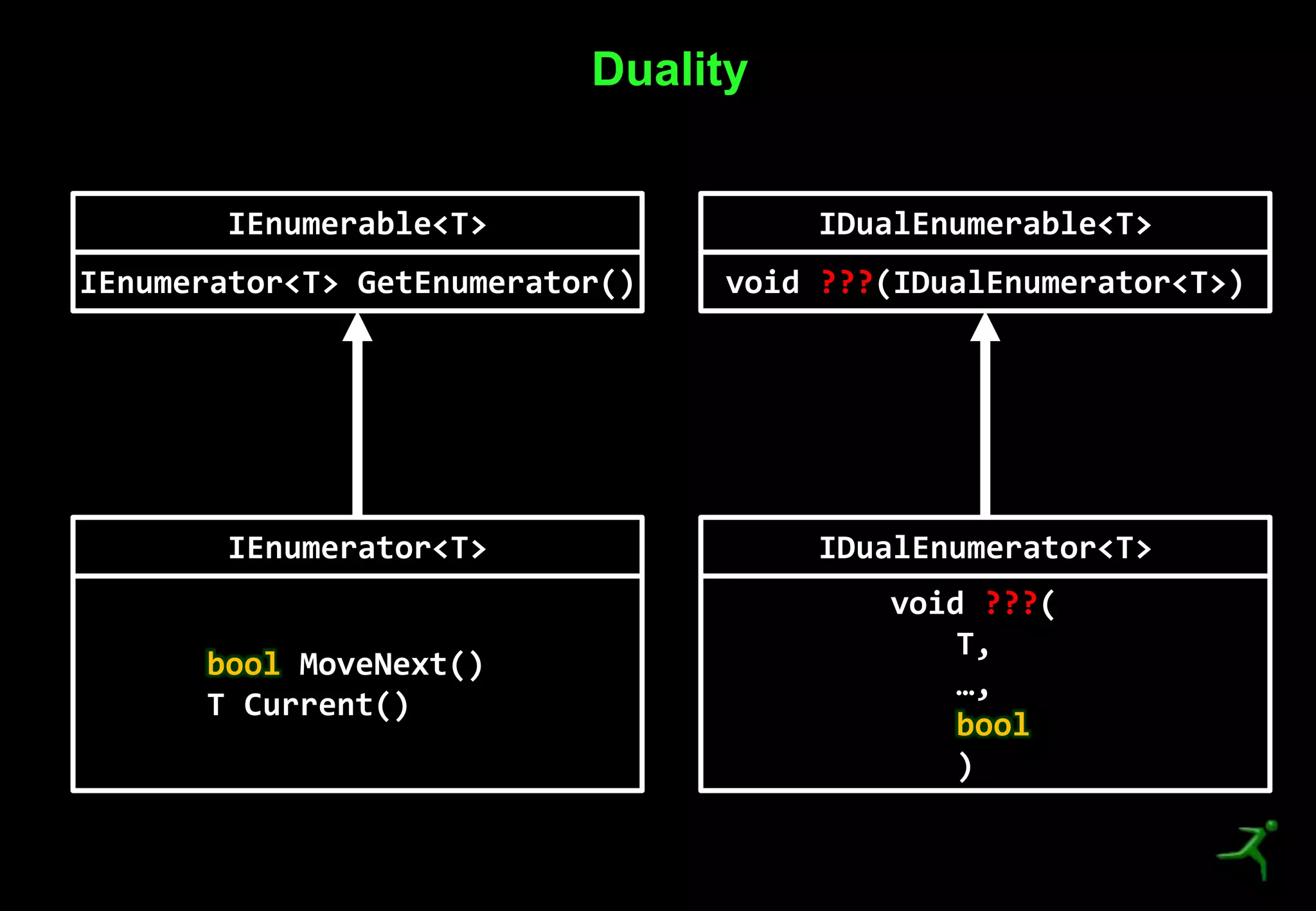

- 15. 15 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void ???( T, …, bool )

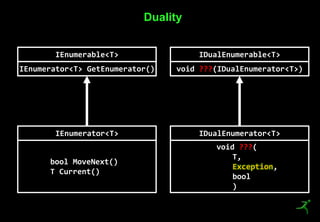

- 16. 16 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void ???( T, Exception, bool )

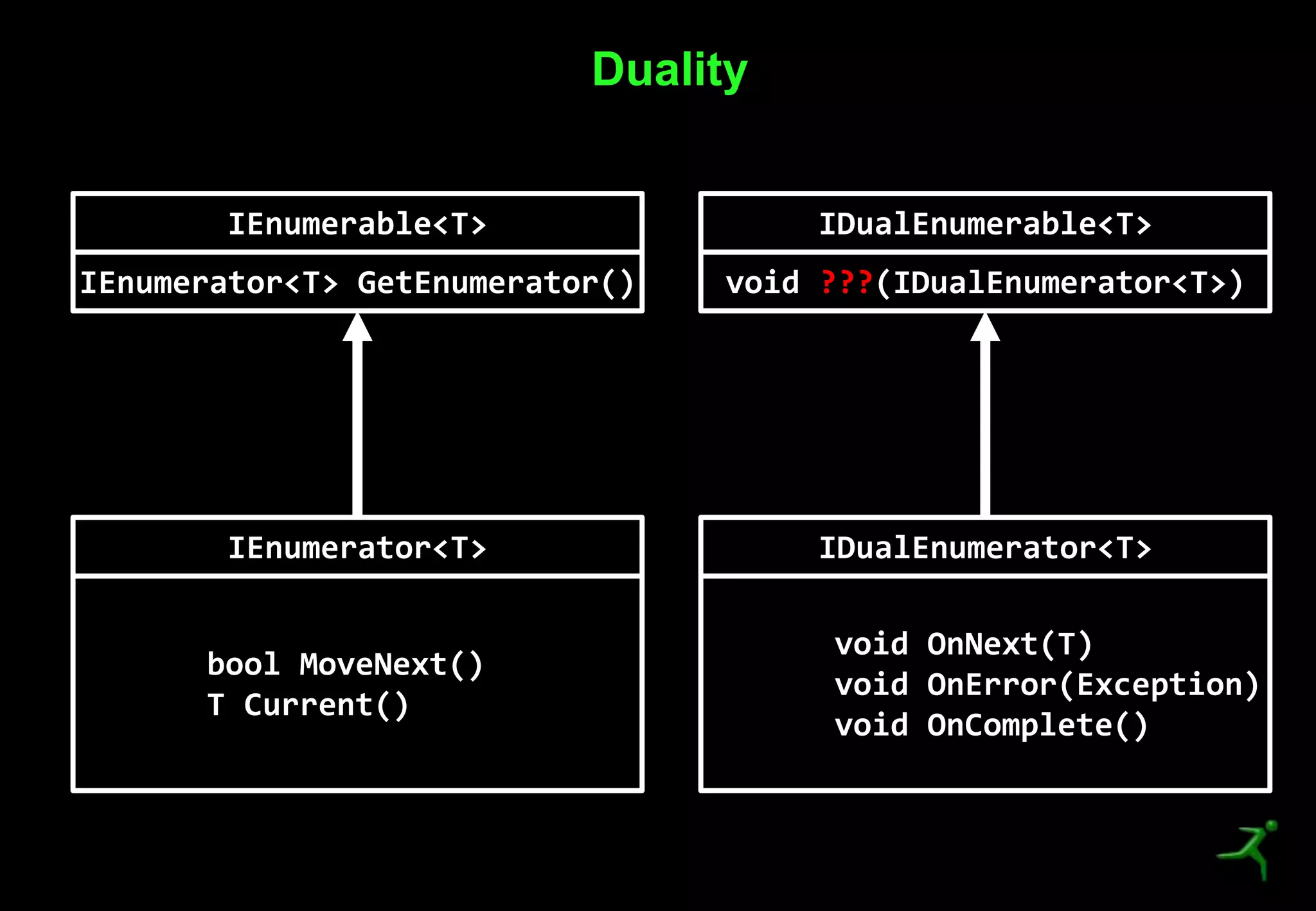

- 17. 17 Duality IEnumerable<T> IEnumerator<T> GetEnumerator() IEnumerator<T> bool MoveNext() TCurrent() IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void OnNext(T) void OnError(Exception) void OnComplete()
- 18.
- 19.
- 20.
- 21.

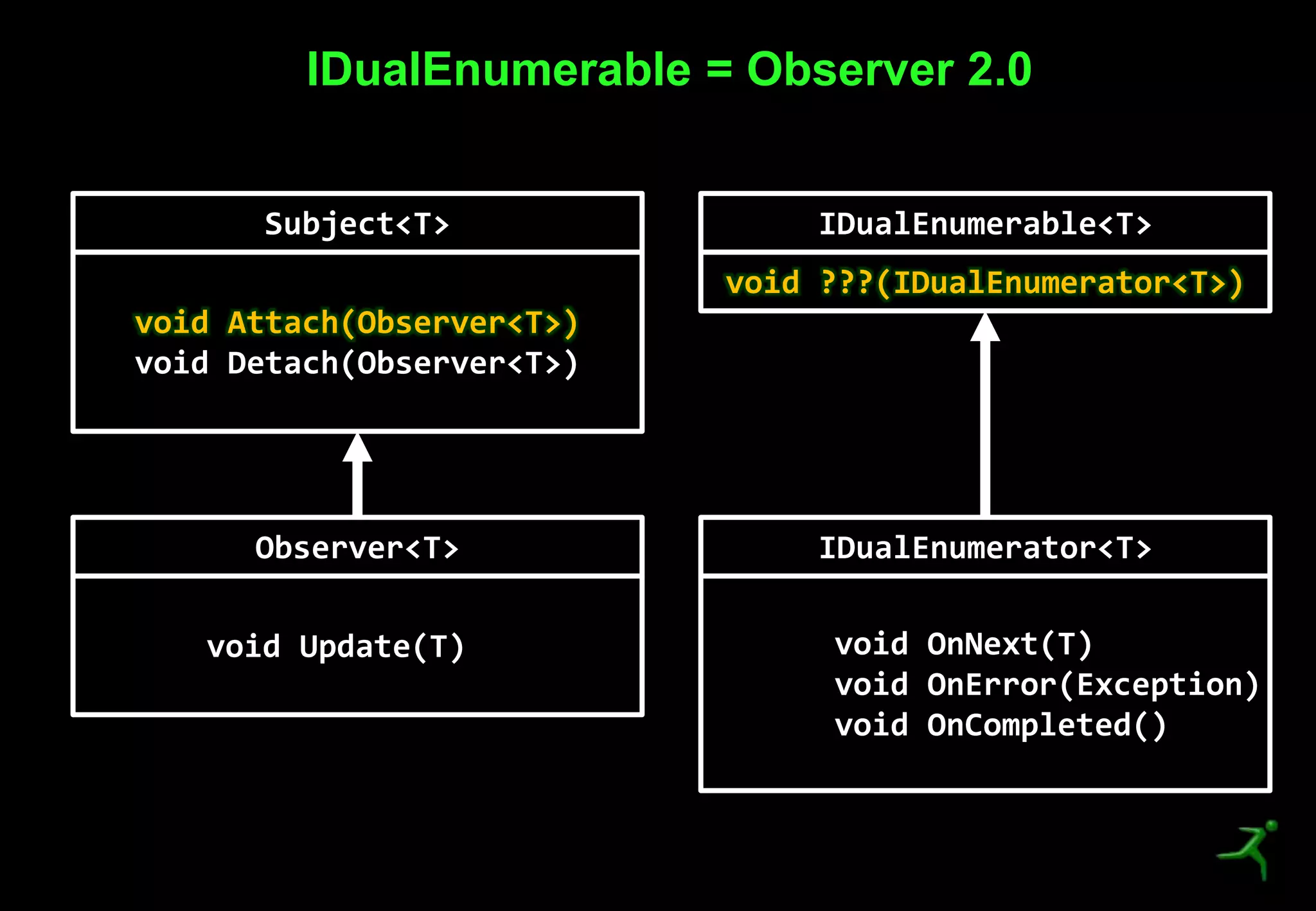

- 22. 22 IDualEnumerable = Observer2.0 Subject<T> void Attach(Observer<T>) void Detach(Observer<T>) Observer<T> void Update(T) IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void OnNext(T) void OnError(Exception) void OnCompleted()

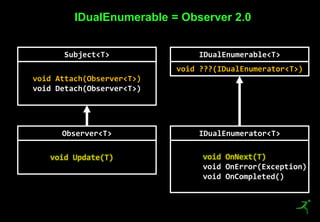

- 23. 23 IDualEnumerable = Observer2.0 Subject<T> void Attach(Observer<T>) void Detach(Observer<T>) Observer<T> void Update(T) IDualEnumerable<T> void ???(IDualEnumerator<T>) IDualEnumerator<T> void OnNext(T) void OnError(Exception) void OnCompleted()

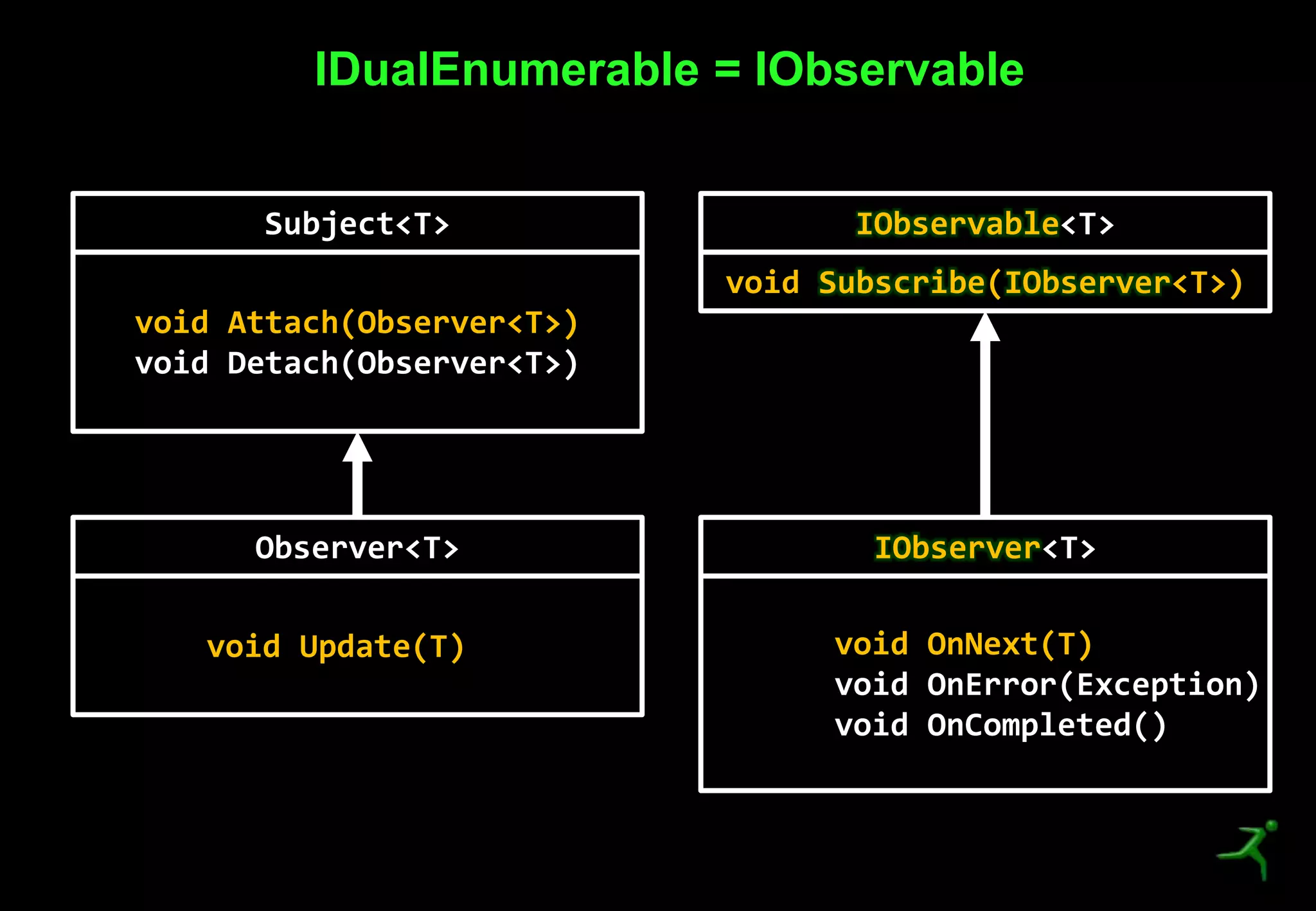

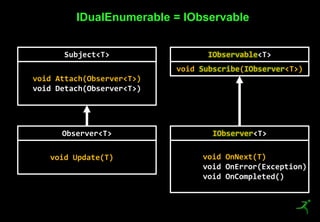

- 24. 24 IDualEnumerable = IObservable Subject<T> voidAttach(Observer<T>) void Detach(Observer<T>) Observer<T> void Update(T) IObservable<T> void Subscribe(IObserver<T>) IObserver<T> void OnNext(T) void OnError(Exception) void OnCompleted()

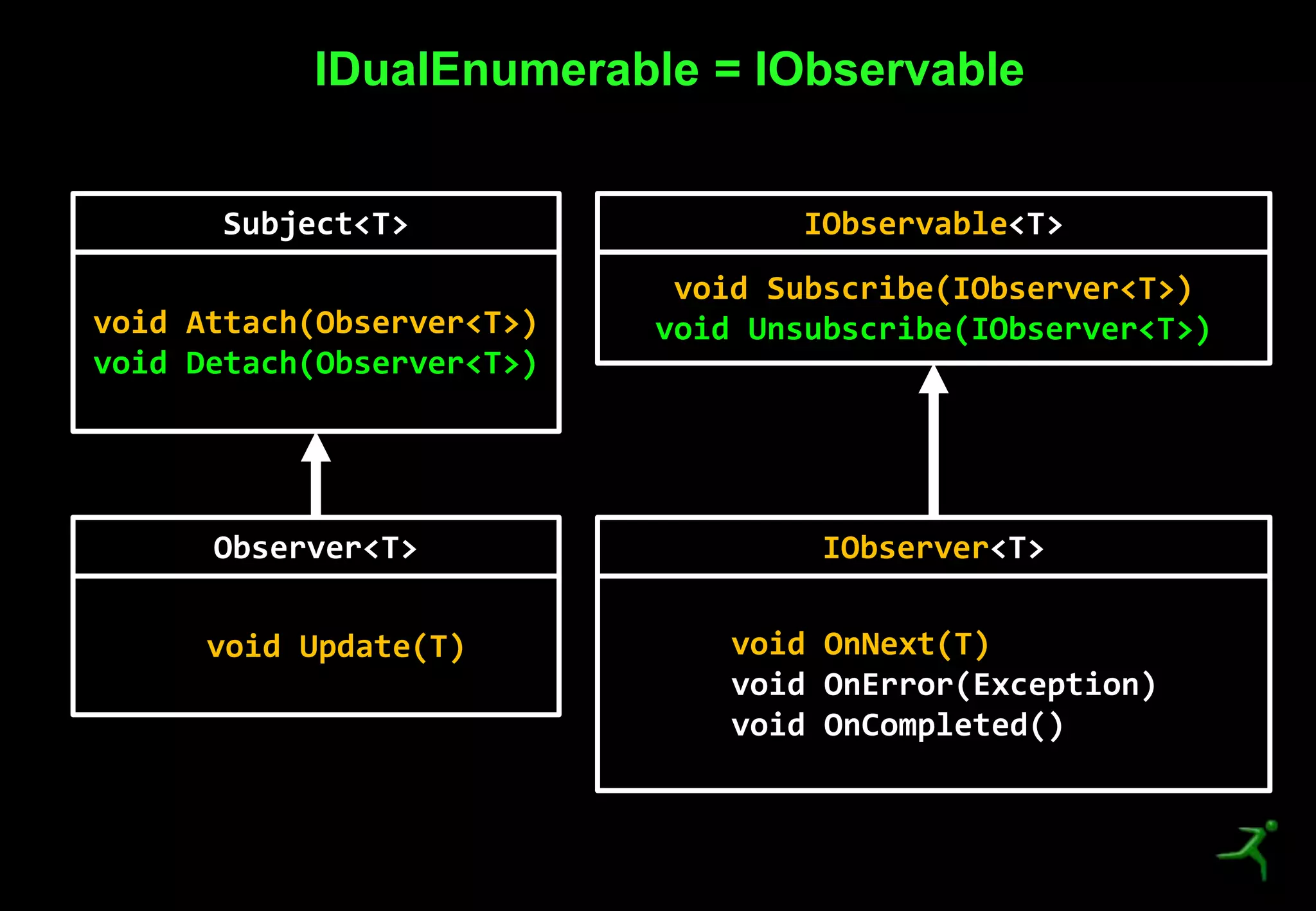

- 25. 25 IDualEnumerable = IObservable Subject<T> voidAttach(Observer<T>) void Detach(Observer<T>) Observer<T> void Update(T) IObservable<T> void Subscribe(IObserver<T>) void Unsubscribe(IObserver<T>) IObserver<T> void OnNext(T) void OnError(Exception) void OnCompleted()

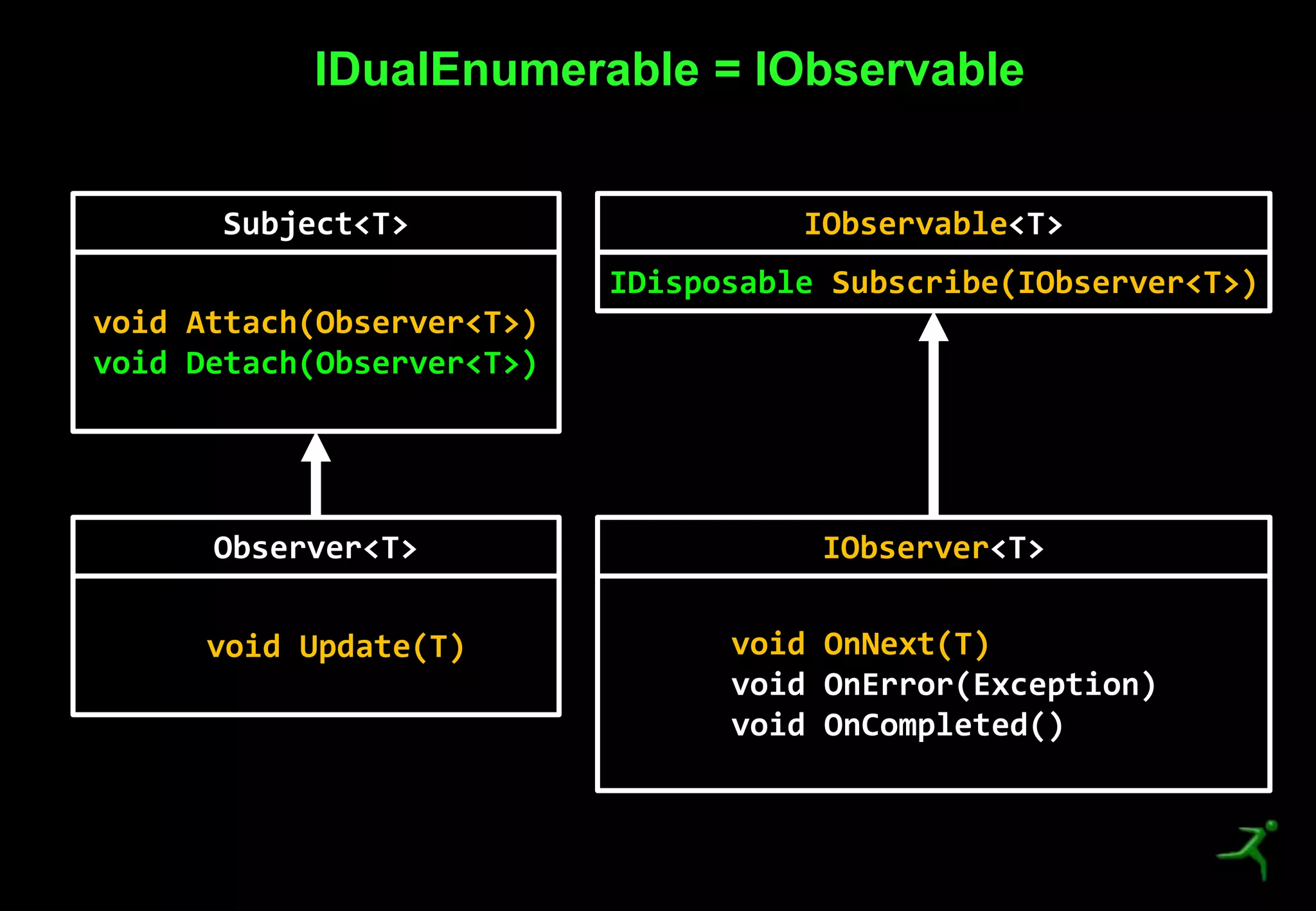

- 26. 26 IDualEnumerable = IObservable Subject<T> voidAttach(Observer<T>) void Detach(Observer<T>) Observer<T> void Update(T) IObservable<T> IDisposable Subscribe(IObserver<T>) IObserver<T> void OnNext(T) void OnError(Exception) void OnCompleted()

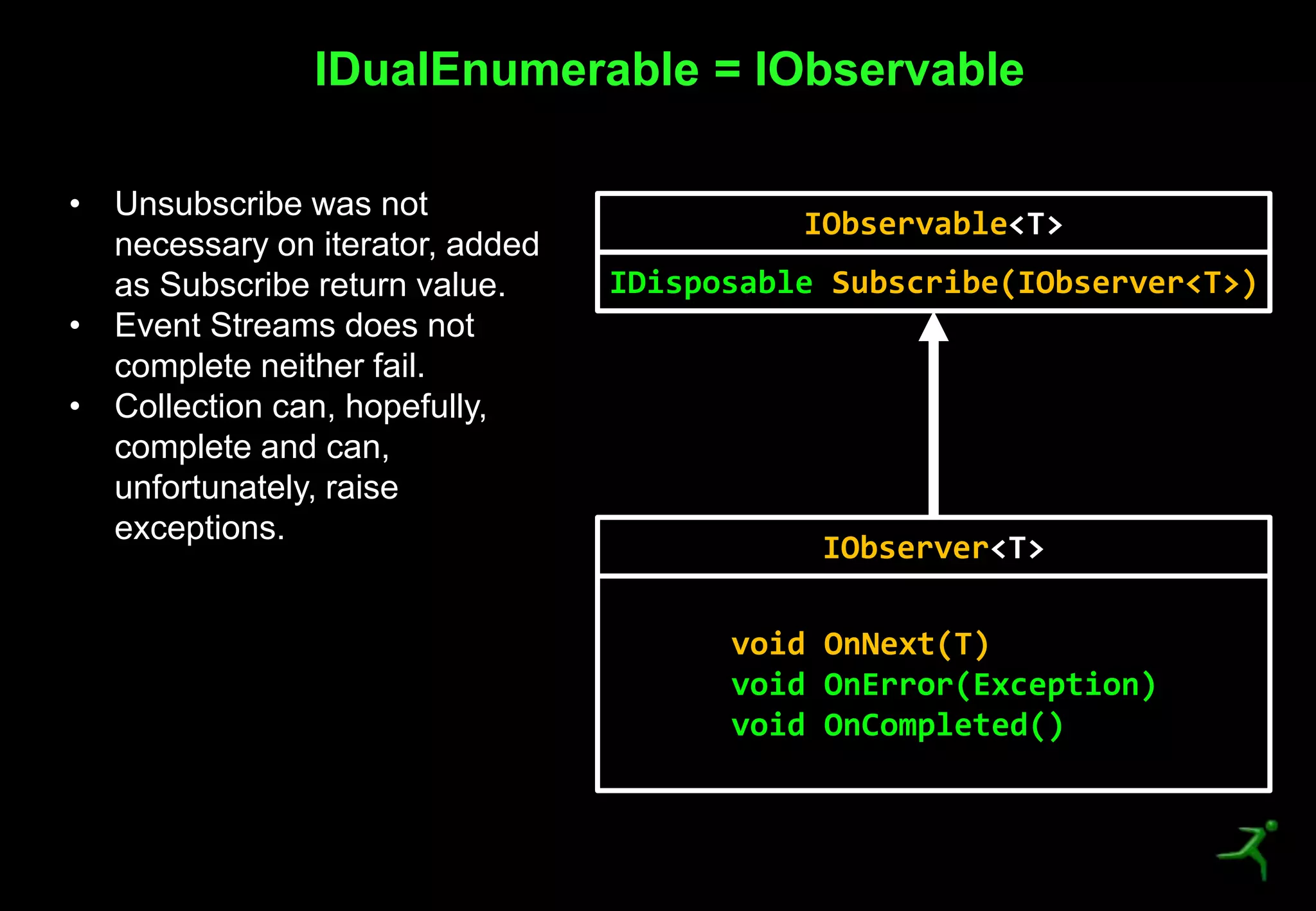

- 27. 27 IDualEnumerable = IObservable IObservable<T> IDisposableSubscribe(IObserver<T>) IObserver<T> void OnNext(T) void OnError(Exception) void OnCompleted() • Unsubscribe was not necessary on iterator, added as Subscribe return value. • Event Streams does not complete neither fail. • Collection can, hopefully, complete and can, unfortunately, raise exceptions.

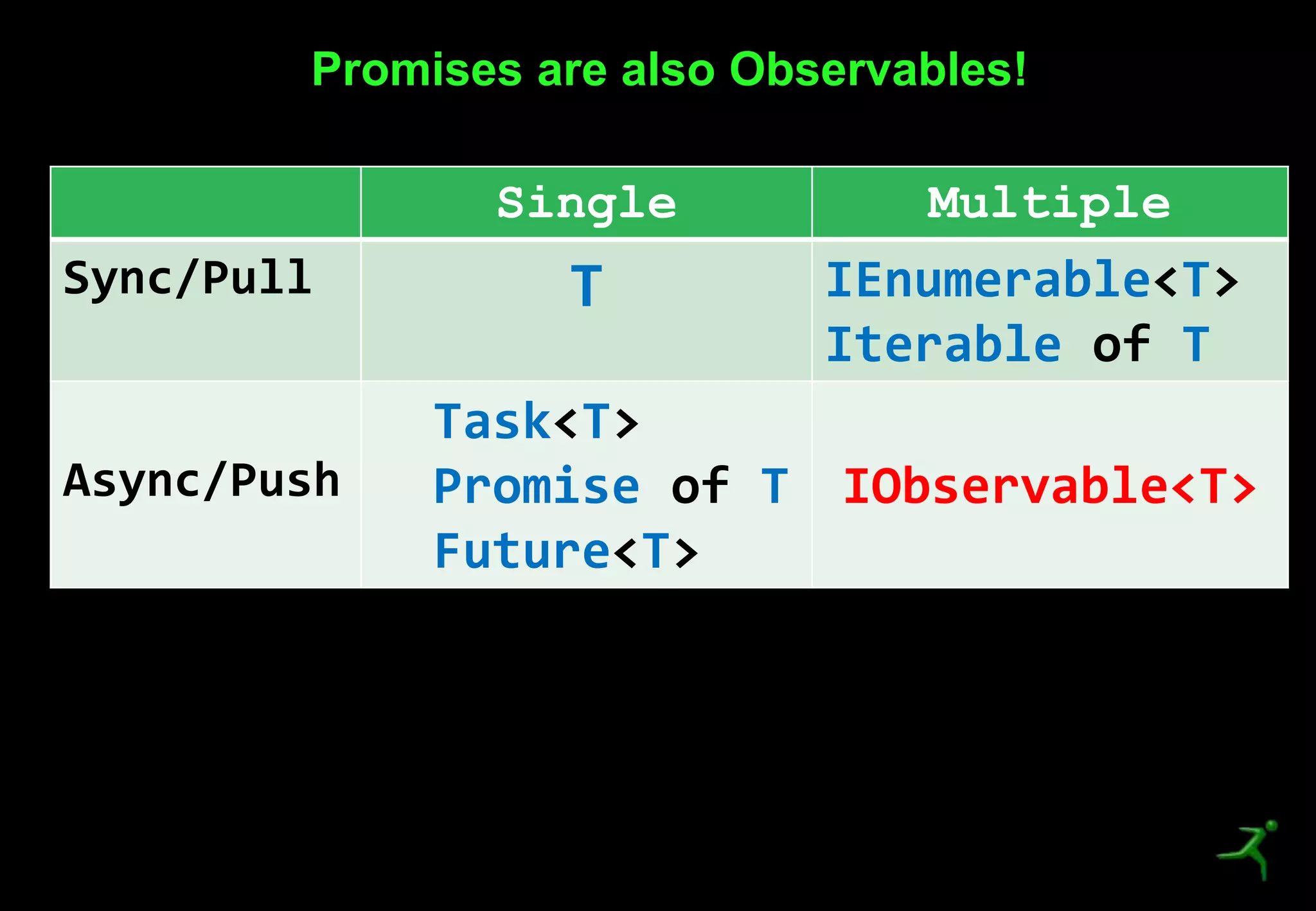

- 28. 28 Promises are alsoObservables! Single Multiple Sync/Pull T IEnumerable<T> Iterable of T Async/Push Task<T> Promise of T Future<T> IObservable<T>

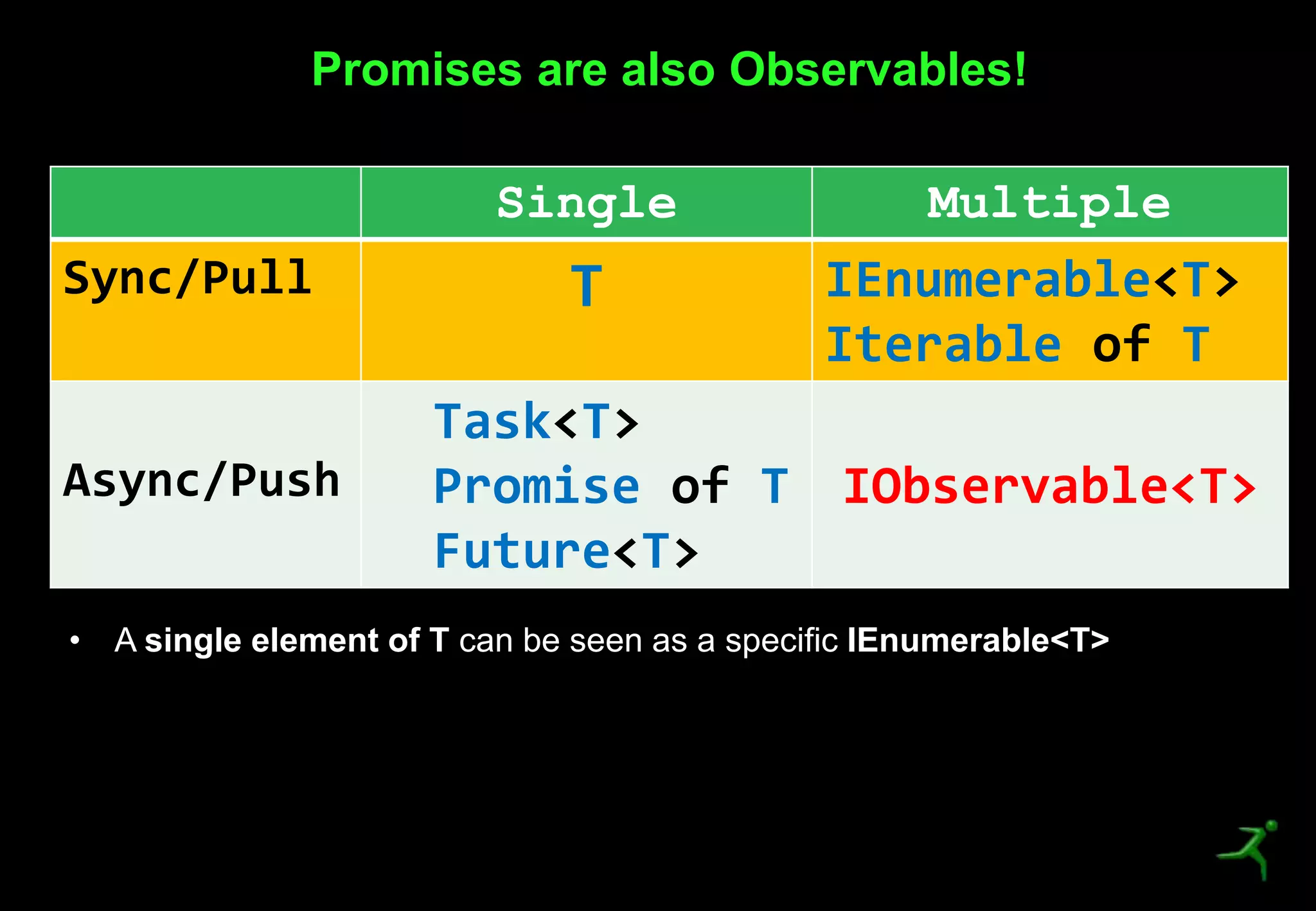

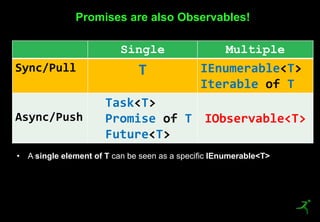

- 29. 29 Promises are alsoObservables! Single Multiple Sync/Pull T IEnumerable<T> Iterable of T Async/Push Task<T> Promise of T Future<T> IObservable<T> • A single element of T can be seen as a specific IEnumerable<T>

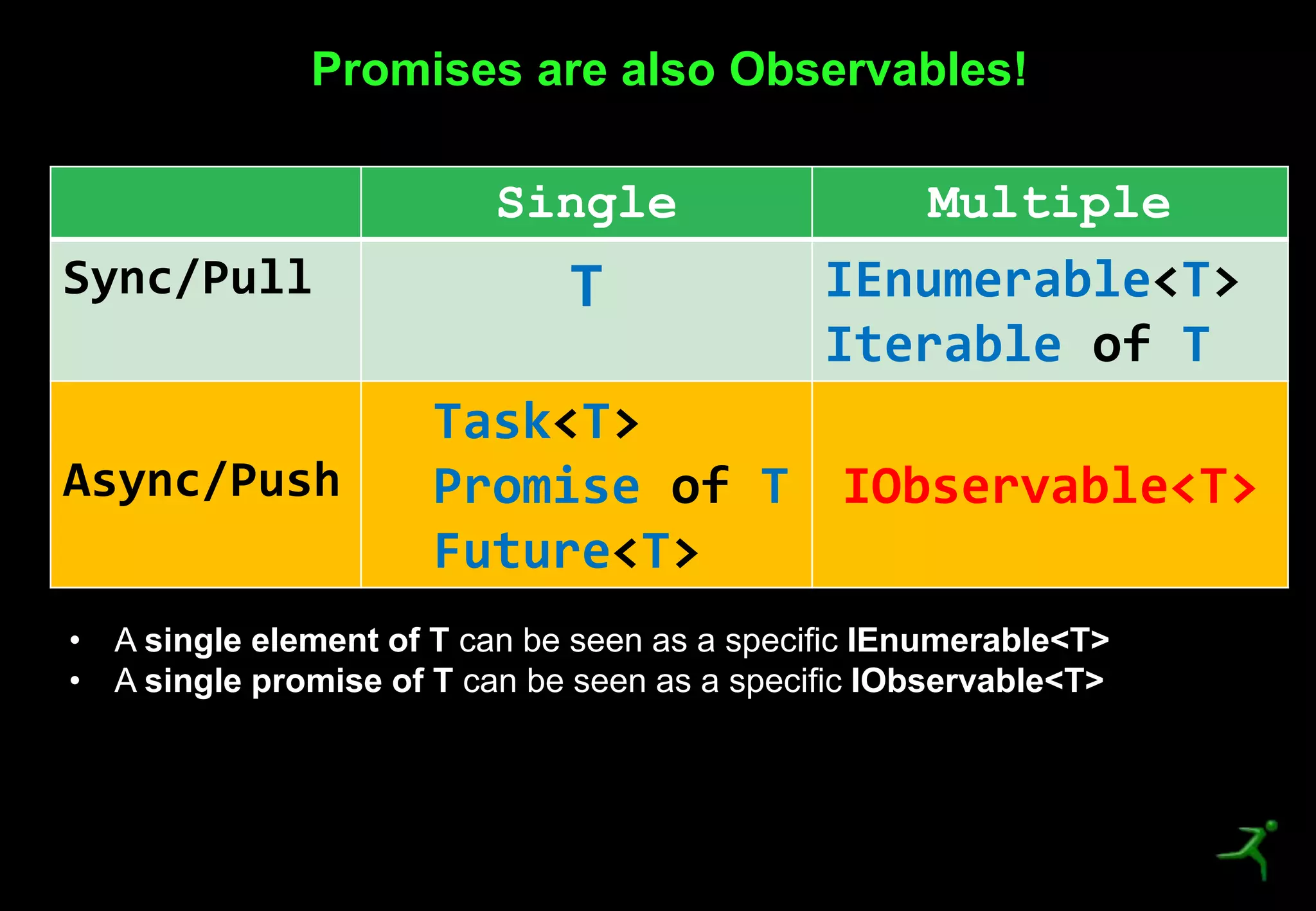

- 30. 30 Promises are alsoObservables! Single Multiple Sync/Pull T IEnumerable<T> Iterable of T Async/Push Task<T> Promise of T Future<T> IObservable<T> • A single element of T can be seen as a specific IEnumerable<T> • A single promise of T can be seen as a specific IObservable<T>
- 31. «Perfection is achieved,not when there is nothing more to add, but when there is nothing left to take away» Antoine de Saint-Exupéry
- 32. 32 DEMO Code can befound at: http://bit.ly/1GaADhX

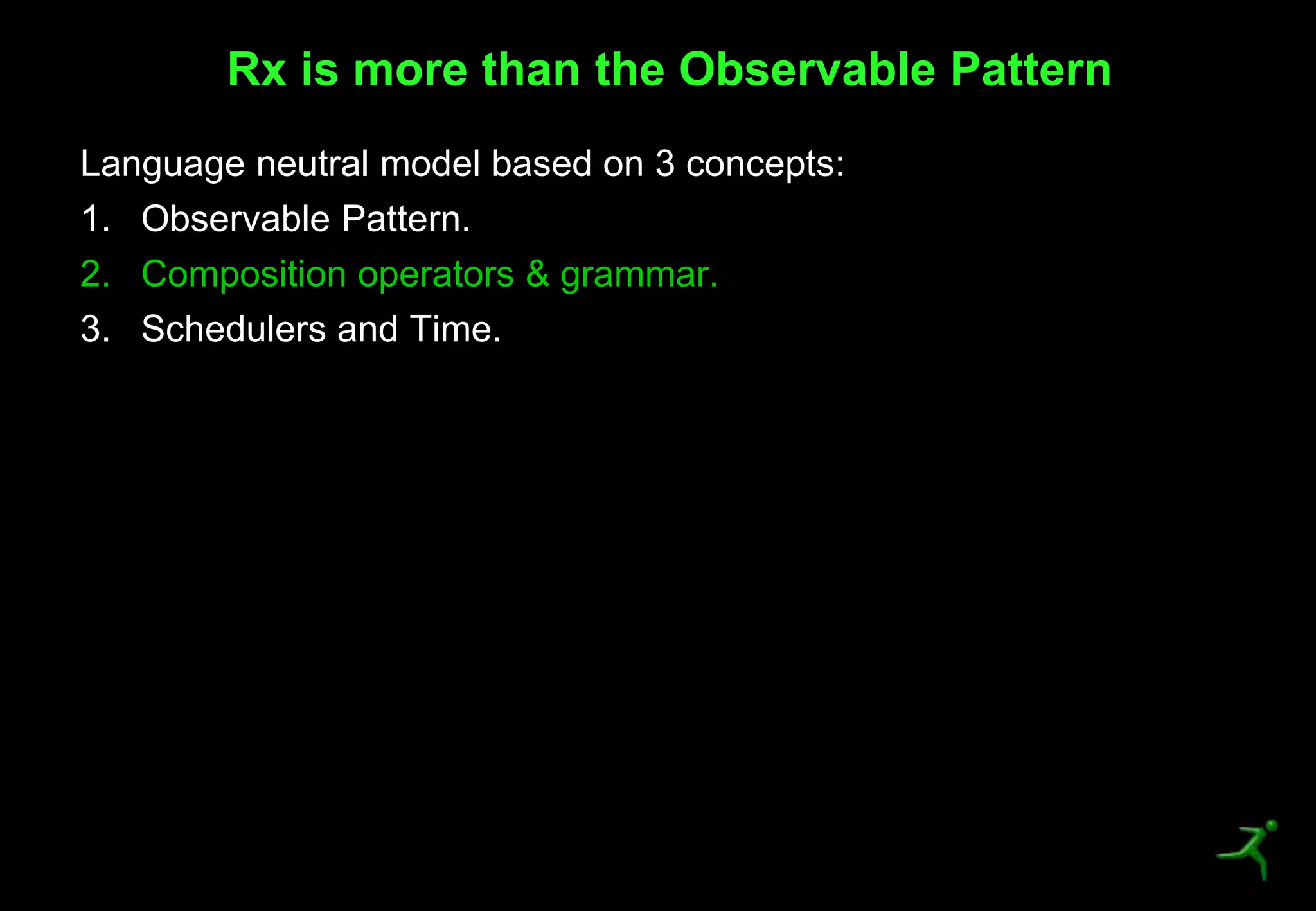

- 33. 33 Language neutral modelbased on 3 concepts: 1. Observable Pattern. 2. Composition operators & grammar. 3. Schedulers and Time. Rx is more than the Observable Pattern

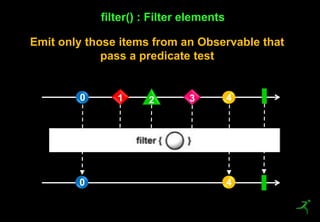

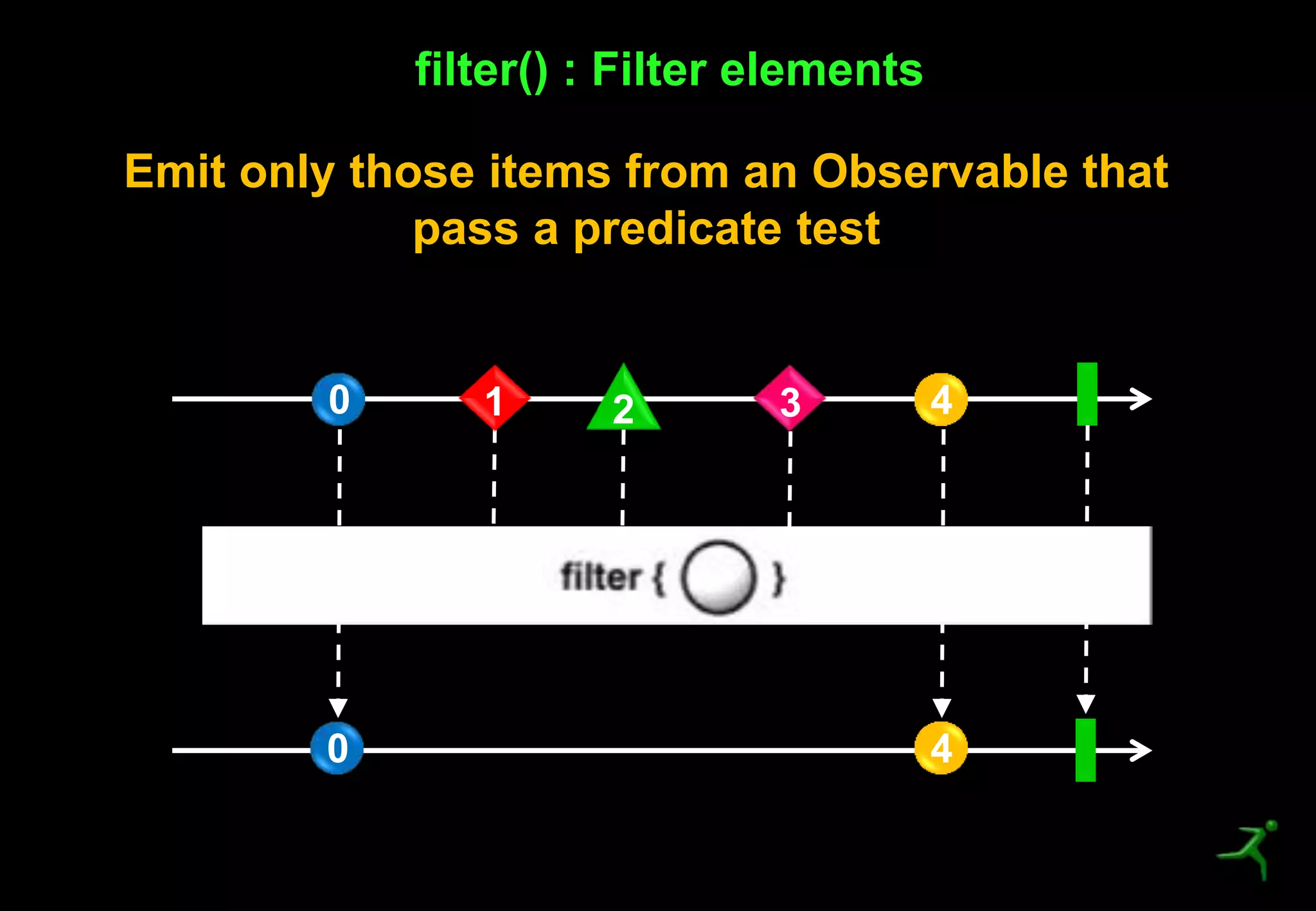

- 34. 34 filter() : Filterelements 0 431 2 0 4 Emit only those items from an Observable that pass a predicate test

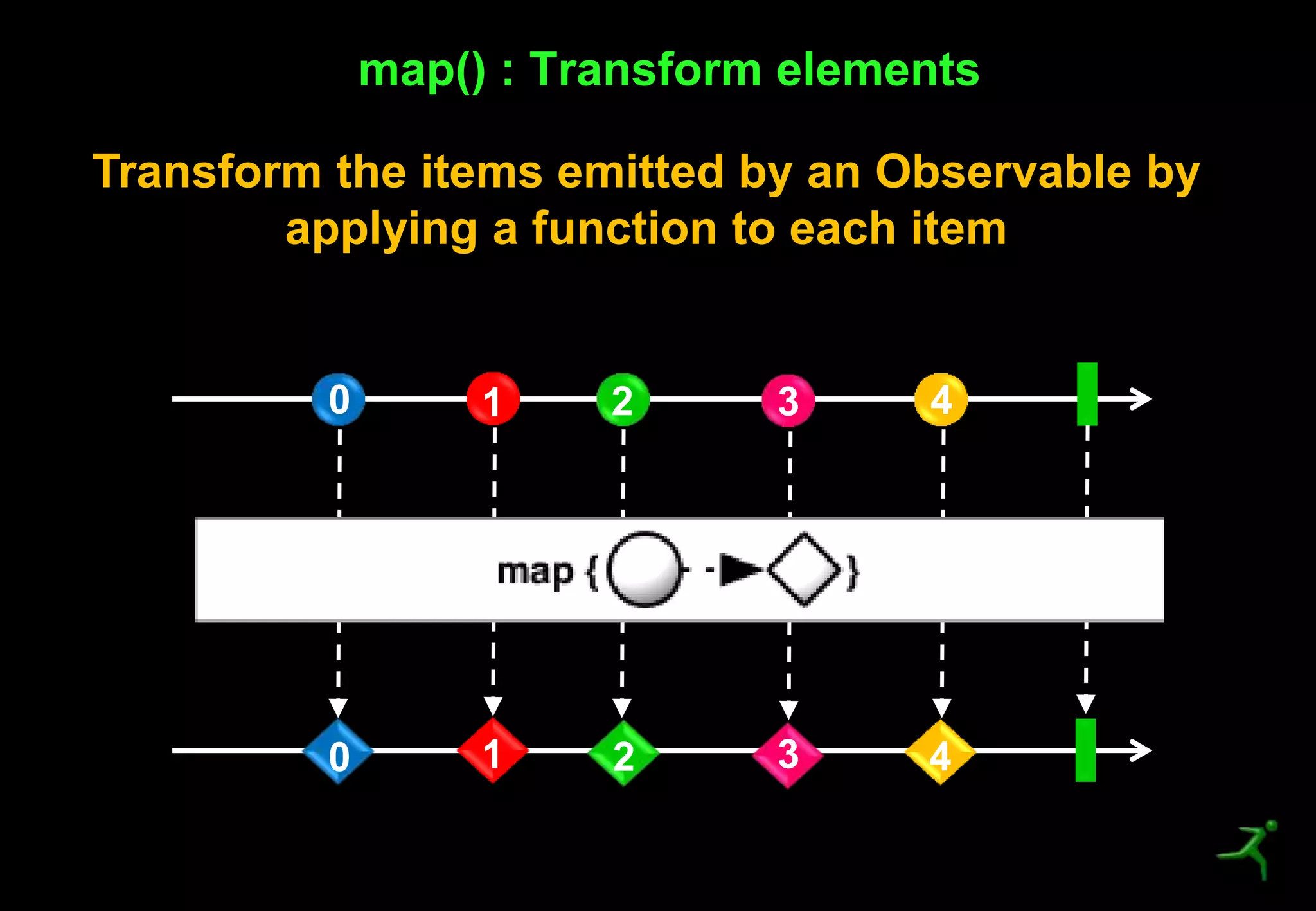

- 35. 35 map() : Transformelements 0 1 2 0 1 43 2 3 4 Transform the items emitted by an Observable by applying a function to each item

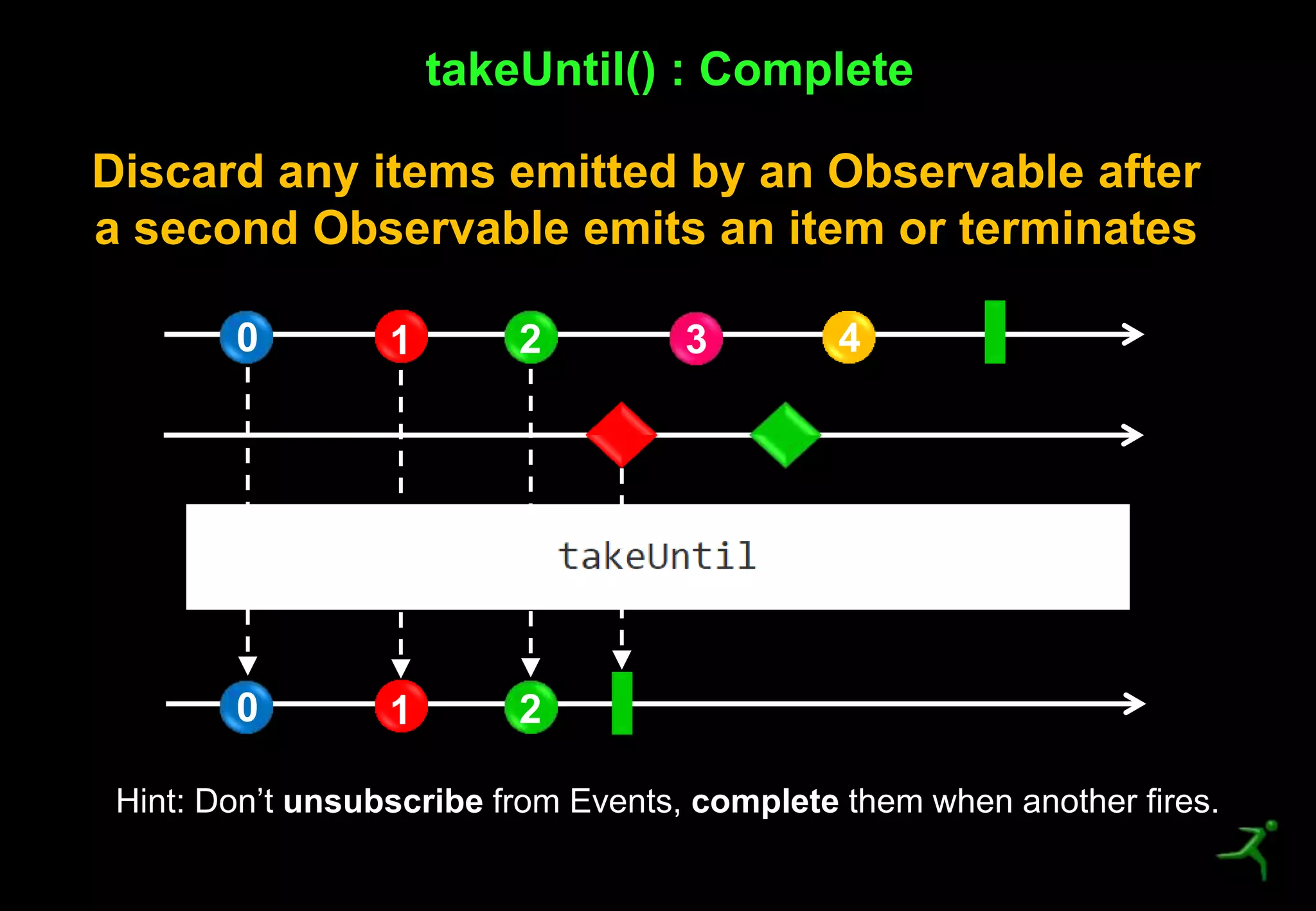

- 36. 36 takeUntil() : Complete 01 2 43 0 1 2 Hint: Don’t unsubscribe from Events, complete them when another fires. Discard any items emitted by an Observable after a second Observable emits an item or terminates
- 37. 37 DEMO Code can befound at: http://bit.ly/1GaADhX

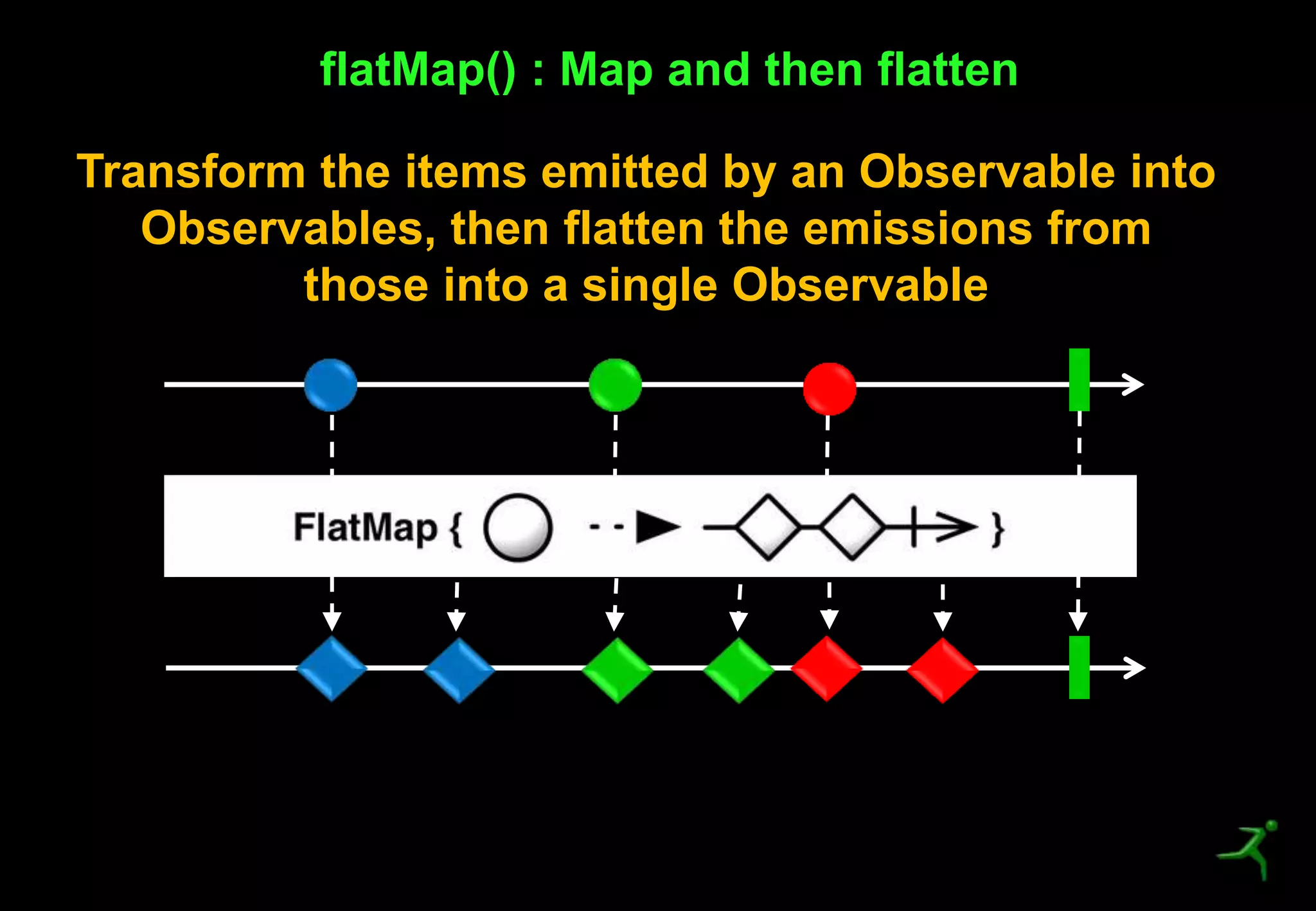

- 38. 38 flatMap() : Mapand then flatten Transform the items emitted by an Observable into Observables, then flatten the emissions from those into a single Observable

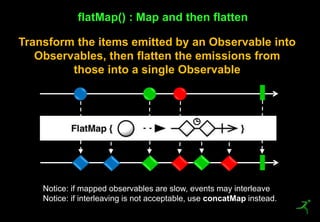

- 39. 39 flatMap() : Mapand then flatten Notice: if mapped observables are slow, events may interleave Notice: if interleaving is not acceptable, use concatMap instead. Transform the items emitted by an Observable into Observables, then flatten the emissions from those into a single Observable

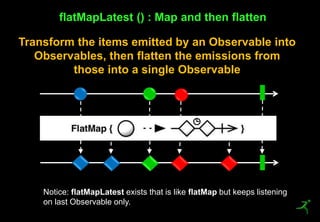

- 40. 40 flatMapLatest () :Map and then flatten Notice: flatMapLatest exists that is like flatMap but keeps listening on last Observable only. Transform the items emitted by an Observable into Observables, then flatten the emissions from those into a single Observable

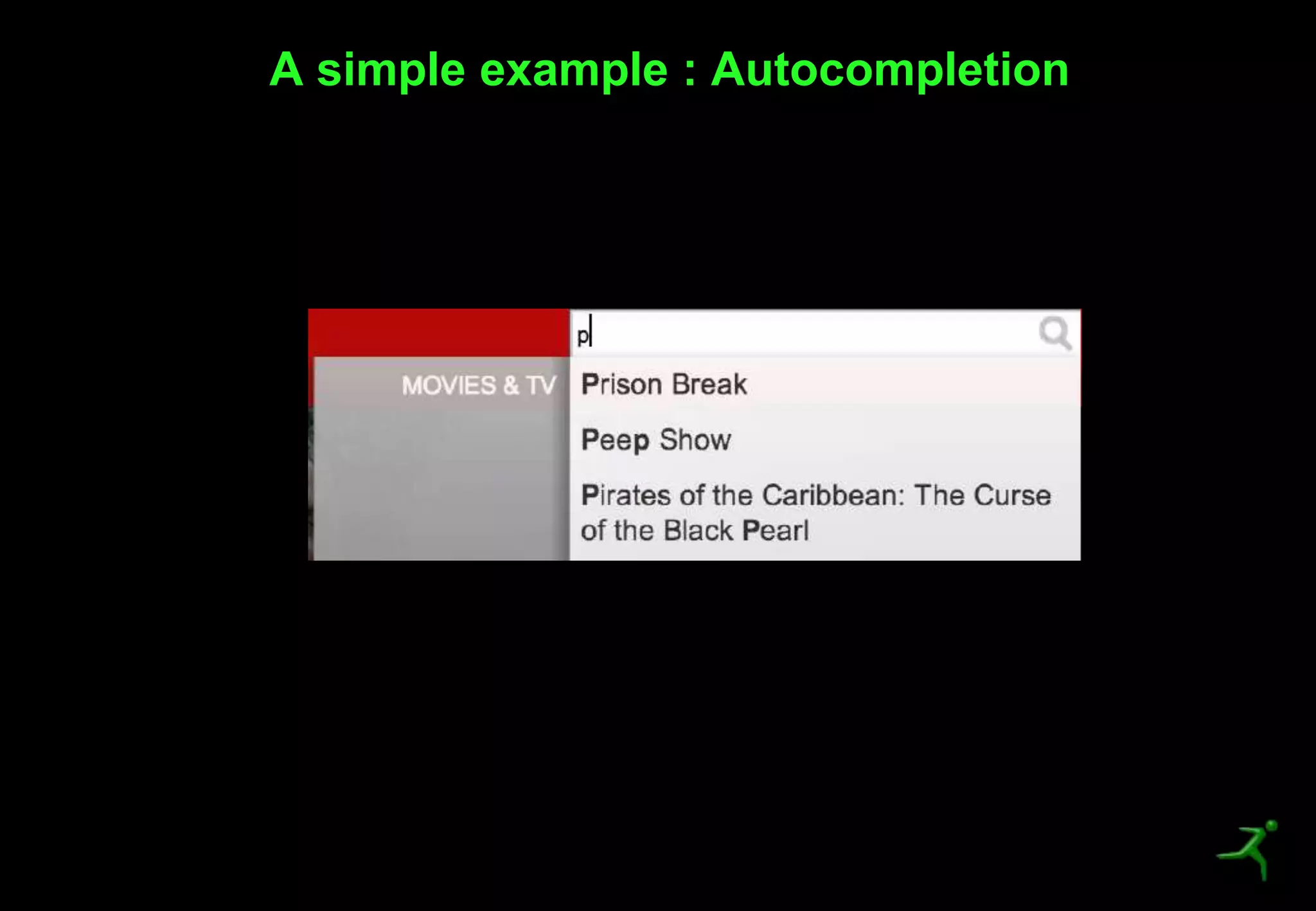

- 41. 41 A simple example: Autocompletion
- 42. 42 A simple example: Autocompletion Events as Observables Iterable as Observable Promise as Observable
- 43. 43 A simple example: Autocompletion DEMO Code can be found at: http://bit.ly/1GaADhX

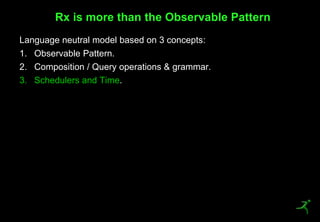

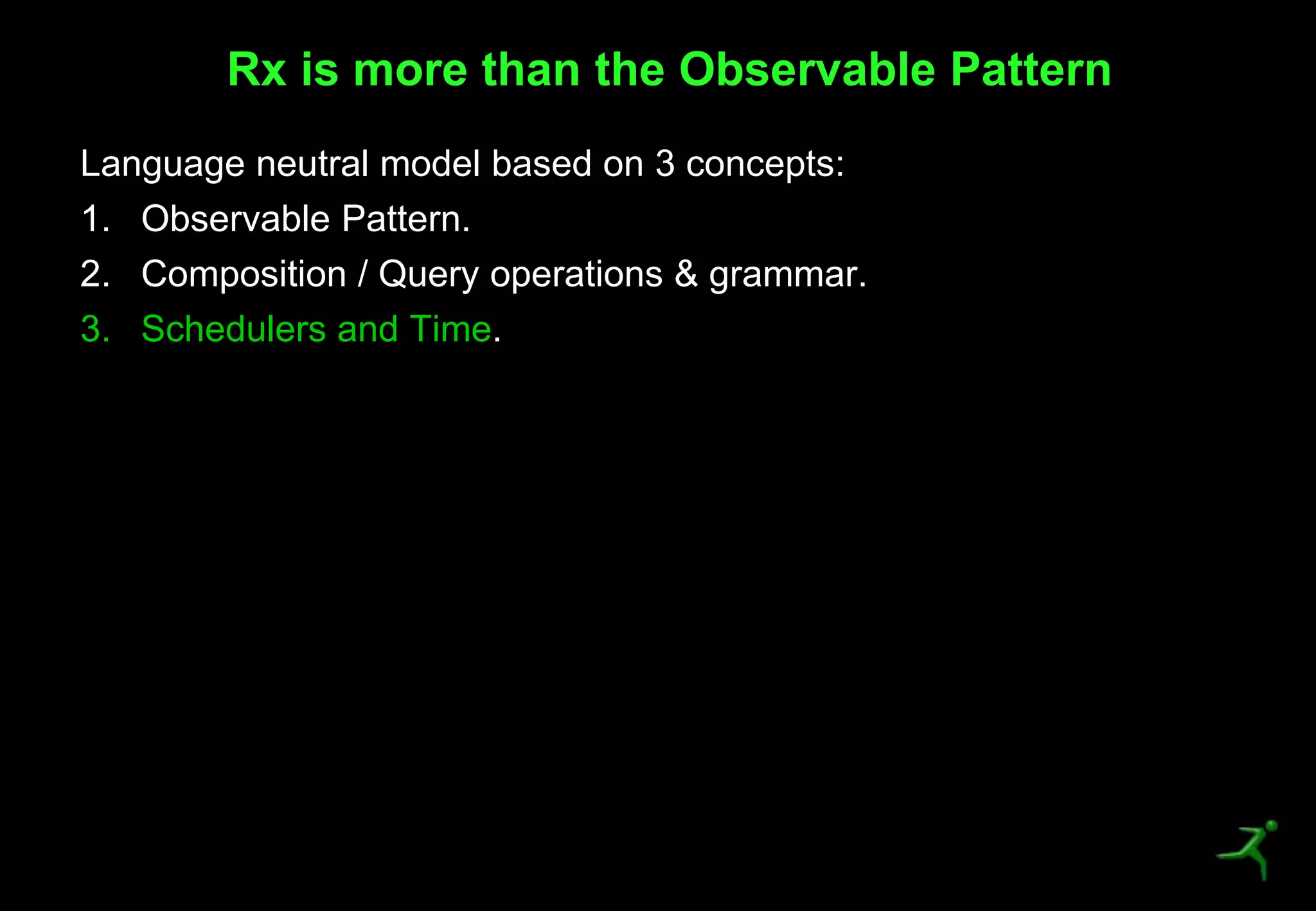

- 44. 44 Language neutral modelbased on 3 concepts: 1. Observable Pattern. 2. Composition / Query operations & grammar. 3. Schedulers and Time. Rx is more than the Observable Pattern

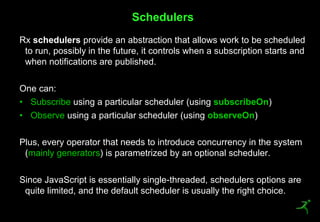

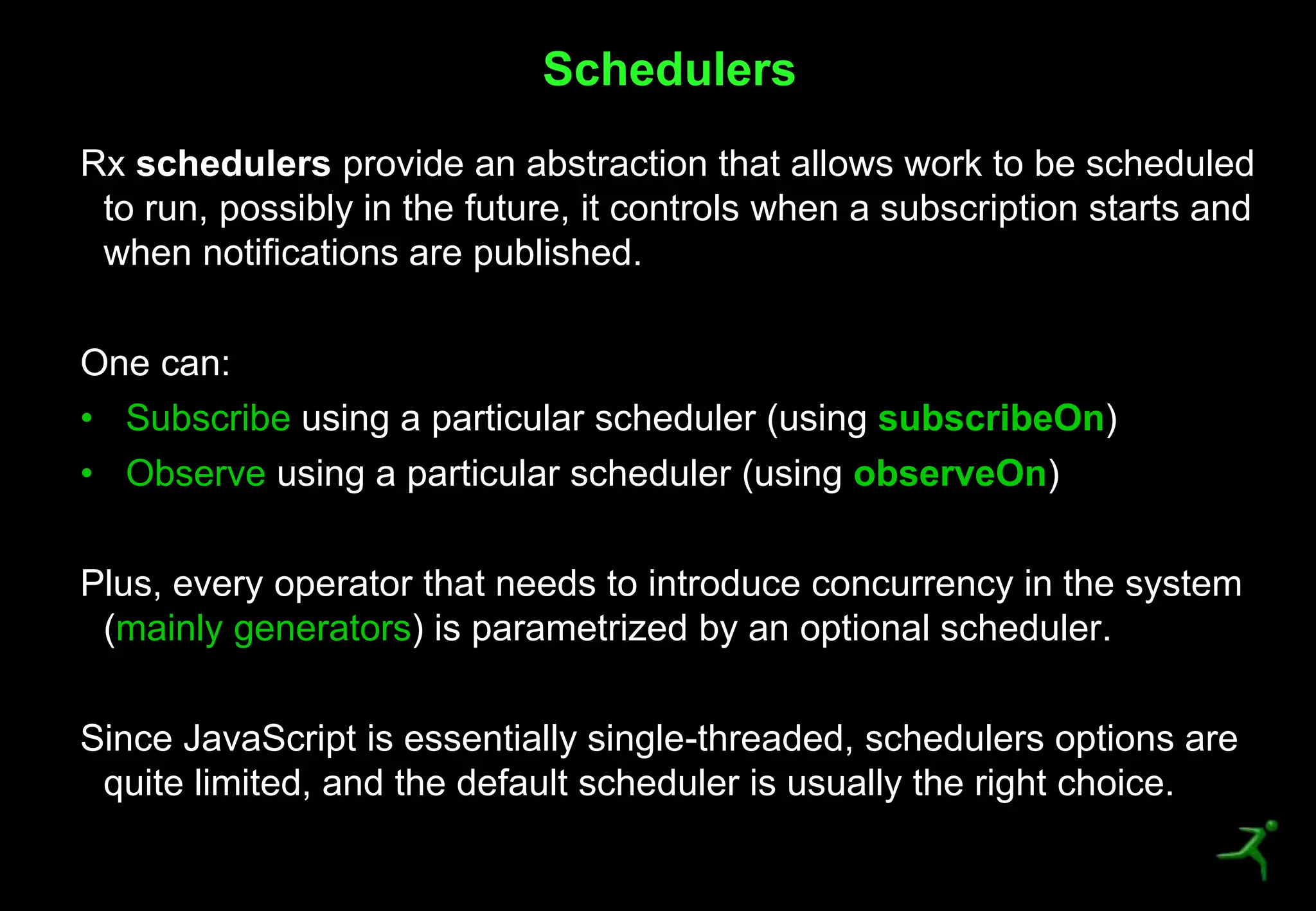

- 45. 45 Rx schedulers providean abstraction that allows work to be scheduled to run, possibly in the future, it controls when a subscription starts and when notifications are published. One can: • Subscribe using a particular scheduler (using subscribeOn) • Observe using a particular scheduler (using observeOn) Plus, every operator that needs to introduce concurrency in the system (mainly generators) is parametrized by an optional scheduler. Since JavaScript is essentially single-threaded, schedulers options are quite limited, and the default scheduler is usually the right choice. Schedulers

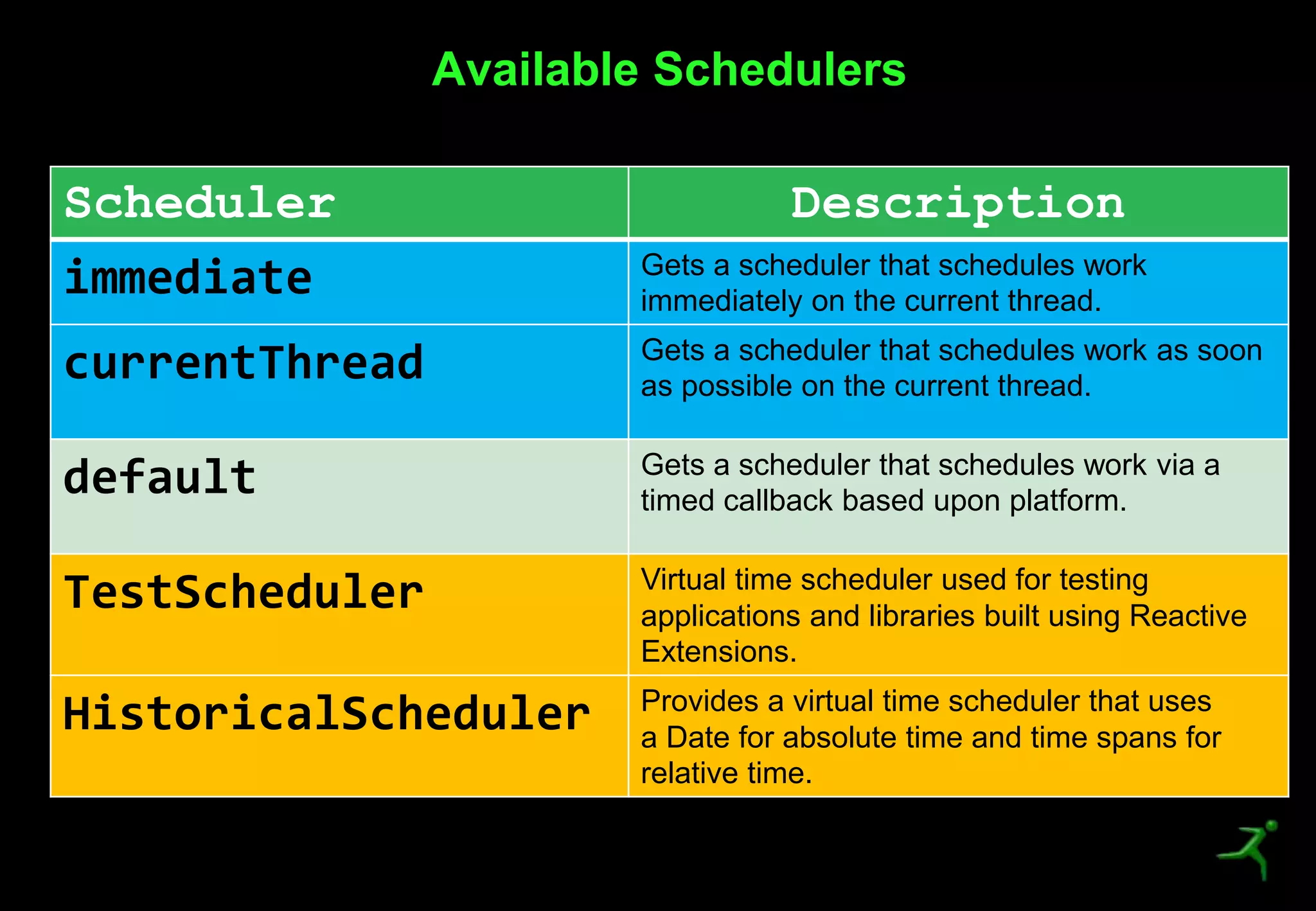

- 46. 46 Available Schedulers Scheduler Description immediateGets a scheduler that schedules work immediately on the current thread. currentThread Gets a scheduler that schedules work as soon as possible on the current thread. default Gets a scheduler that schedules work via a timed callback based upon platform. TestScheduler Virtual time scheduler used for testing applications and libraries built using Reactive Extensions. HistoricalScheduler Provides a virtual time scheduler that uses a Date for absolute time and time spans for relative time.
- 47.

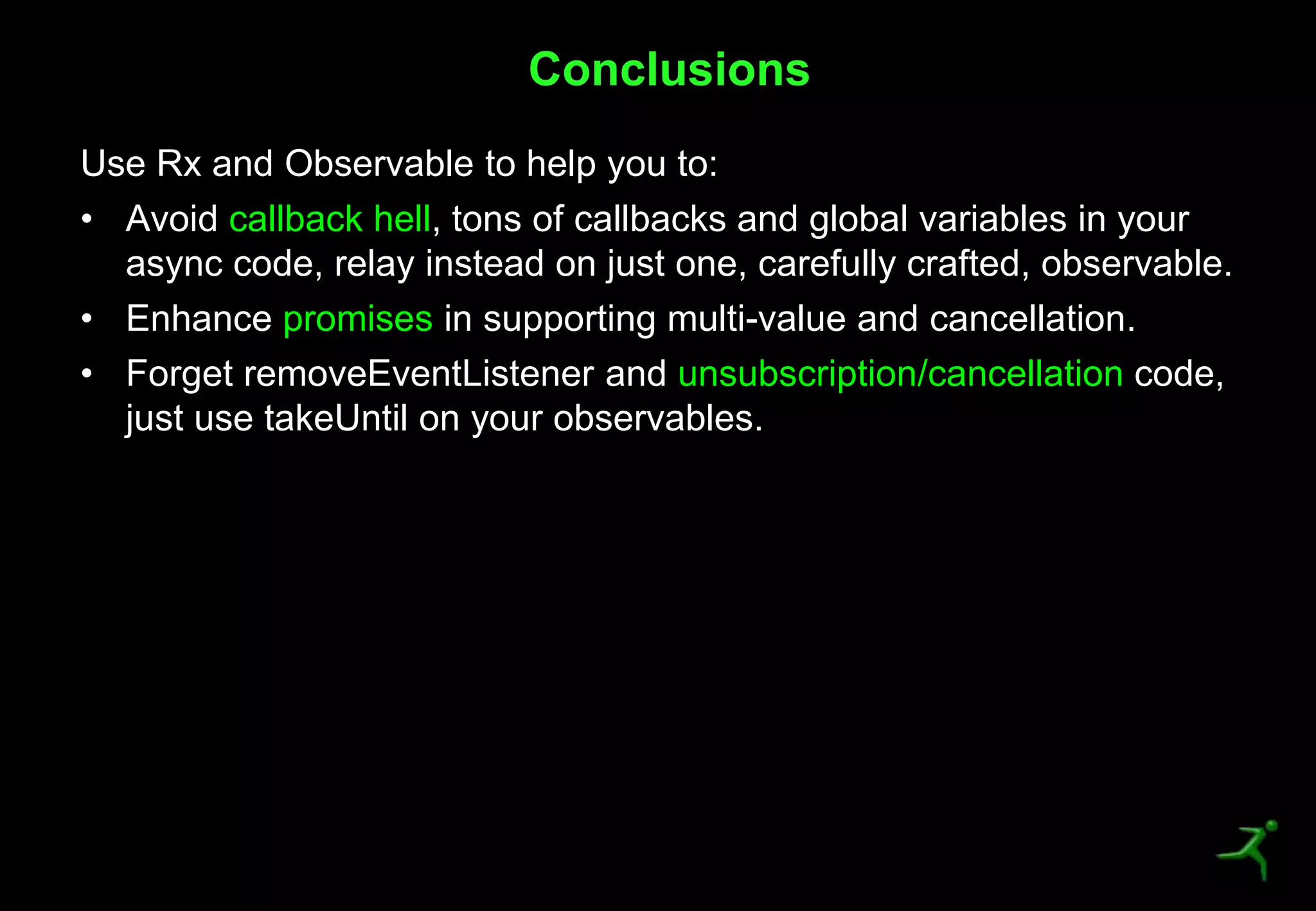

- 48. 48 Use Rx andObservable to help you to: • Avoid callback hell, tons of callbacks and global variables in your async code, relay instead on just one, carefully crafted, observable. • Enhance promises in supporting multi-value and cancellation. • Forget removeEventListener and unsubscription/cancellation code, just use takeUntil on your observables. Conclusions

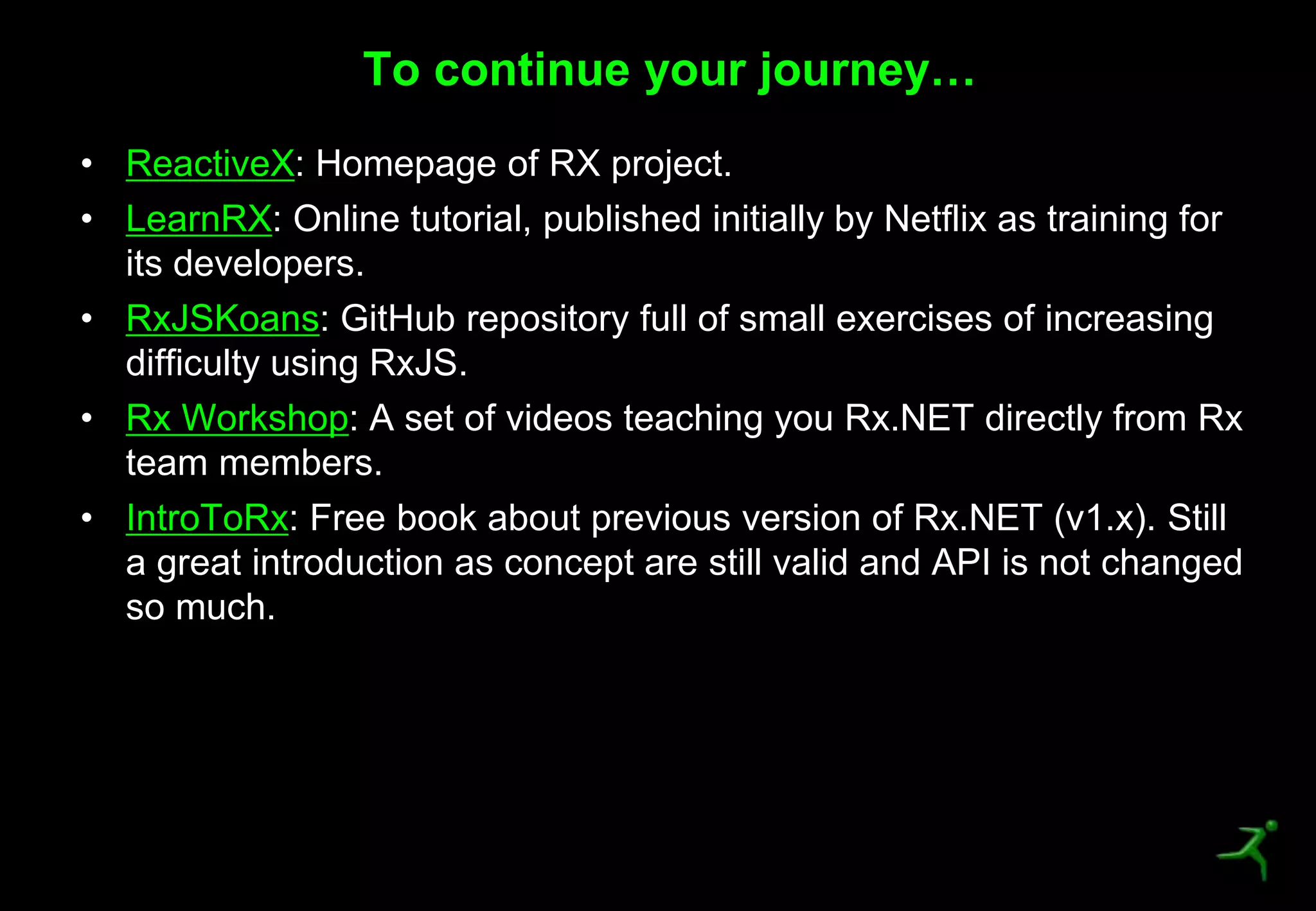

- 49. 49 • ReactiveX: Homepageof RX project. • LearnRX: Online tutorial, published initially by Netflix as training for its developers. • RxJSKoans: GitHub repository full of small exercises of increasing difficulty using RxJS. • Rx Workshop: A set of videos teaching you Rx.NET directly from Rx team members. • IntroToRx: Free book about previous version of Rx.NET (v1.x). Still a great introduction as concept are still valid and API is not changed so much. To continue your journey…
- 51.
- 52. Thanks Angelo Simone Scotto a.scotto@reply.eu Exceptwhere otherwise noted, This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
