The Geni Experiment Engine

The Geni Experiment Engine

• 1.
  Andy Bavier JimChen Yvonne Coady Matt Hemmings Joe Mambretti Rick McGeer Sean McGeer Jude Nelson Patrick O’Connell Glenn Ricart Ulrike Stege Stephen Tredger Ignite Kickoff, January 26, 2016
• 2.

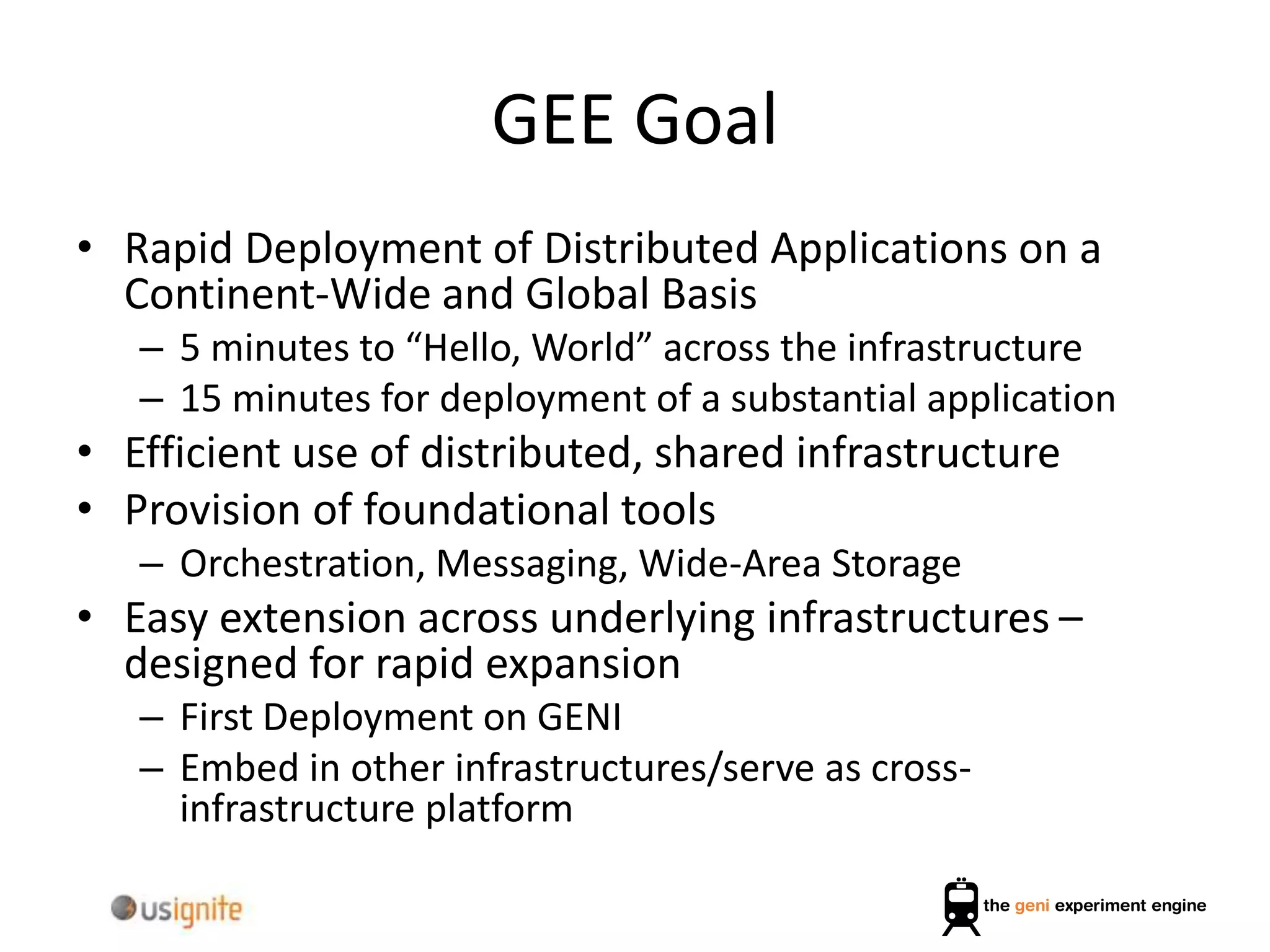

  GEE Goal • RapidDeployment of Distributed Applications on a Continent-Wide and Global Basis – 5 minutes to “Hello, World” across the infrastructure – 15 minutes for deployment of a substantial application • Efficient use of distributed, shared infrastructure • Provision of foundational tools – Orchestration, Messaging, Wide-Area Storage • Easy extension across underlying infrastructures – designed for rapid expansion – First Deployment on GENI – Embed in other infrastructures/serve as cross- infrastructure platform
• 3.

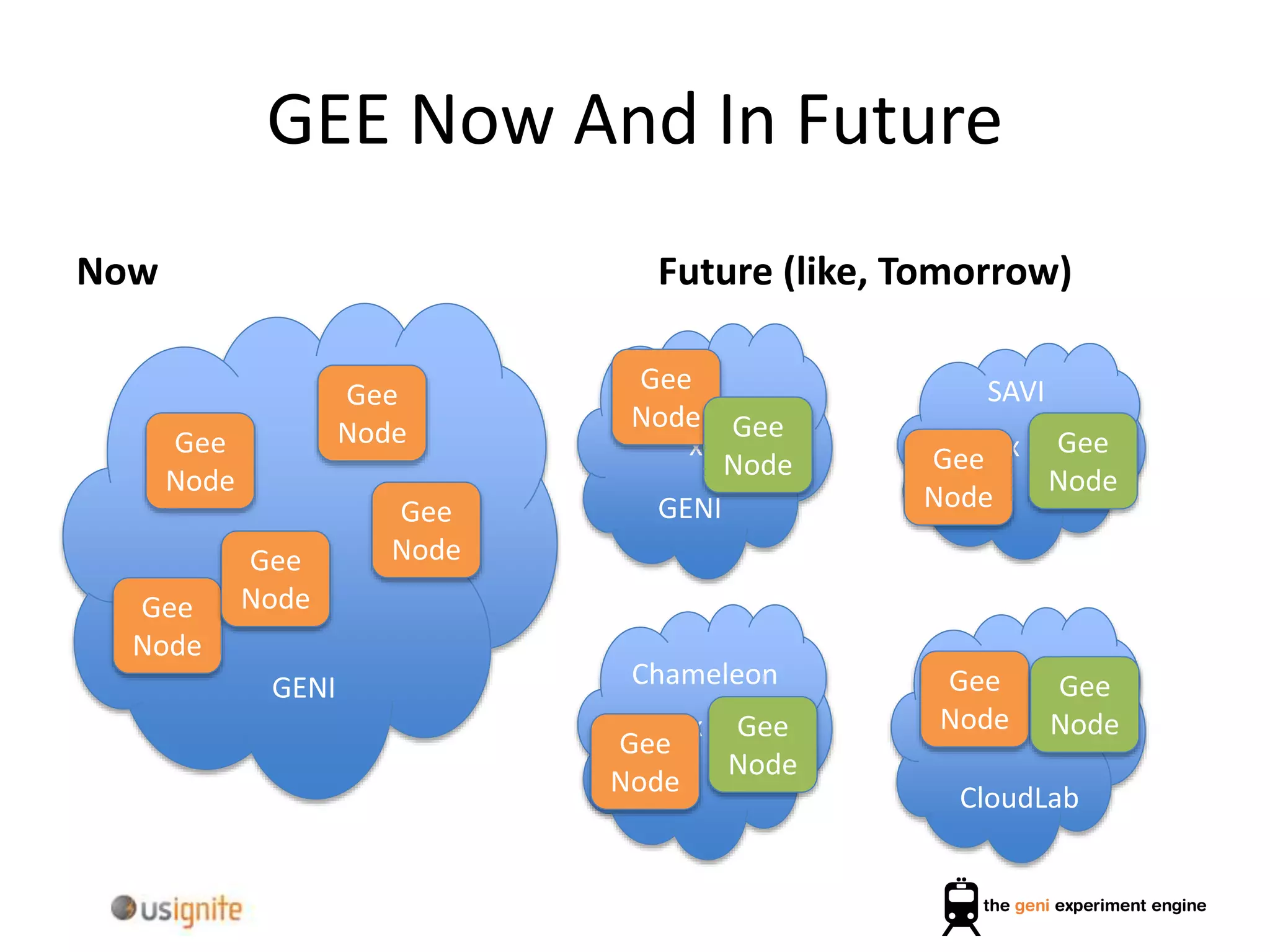

  GEE Now AndIn Future Now Future (like, Tomorrow) x Gee Node Gee Node Gee Node Gee Node Gee Node GENI x x x x GENI SAVI Chameleon Gee Node Gee Node Gee Node Gee Node CloudLab Gee Node Gee Node Gee Node Gee Node
• 4.

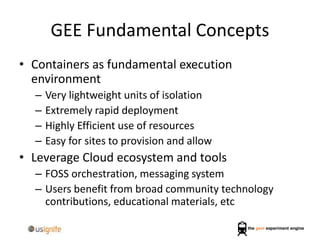

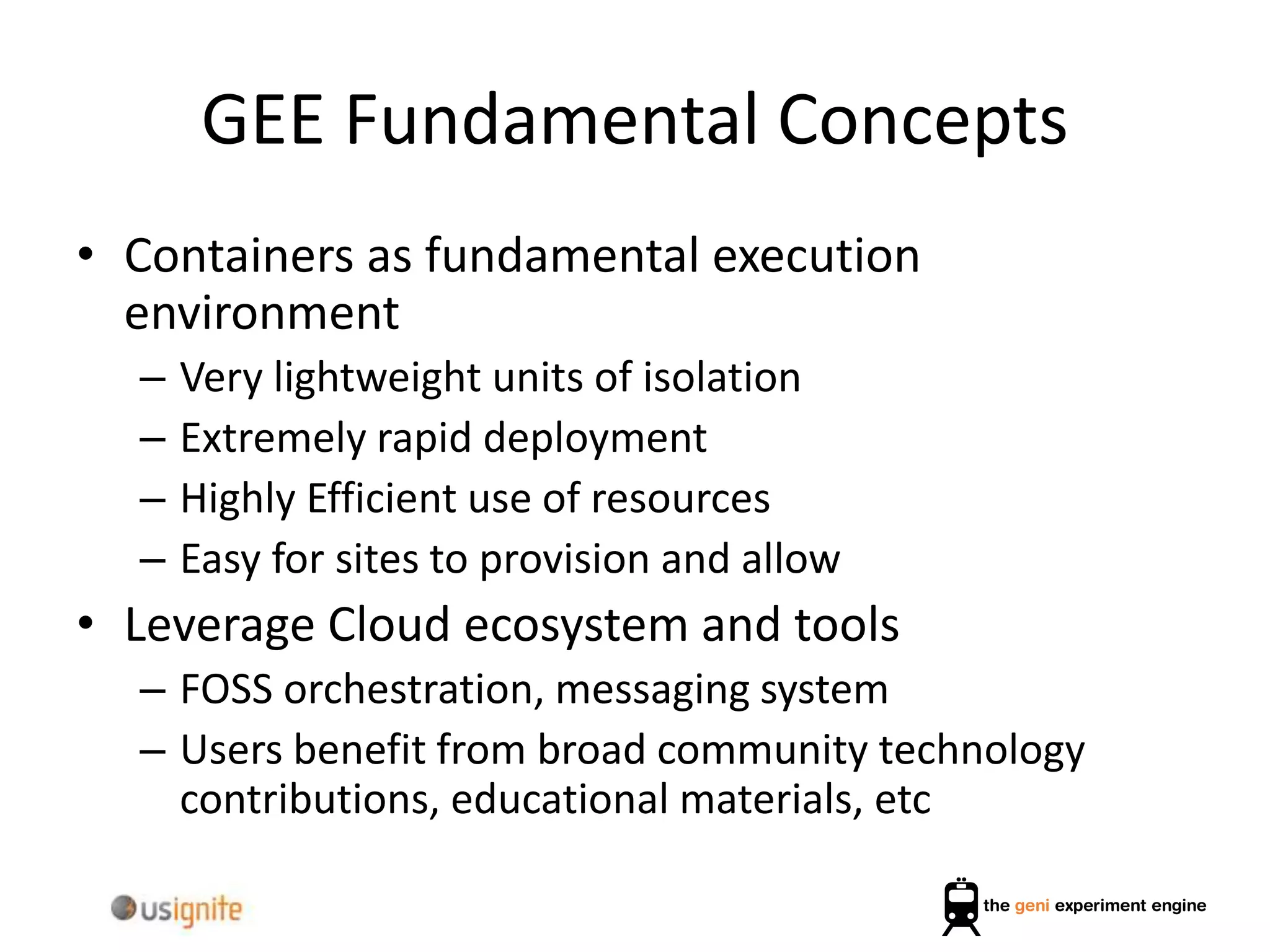

  GEE Fundamental Concepts •Containers as fundamental execution environment – Very lightweight units of isolation – Extremely rapid deployment – Highly Efficient use of resources – Easy for sites to provision and allow • Leverage Cloud ecosystem and tools – FOSS orchestration, messaging system – Users benefit from broad community technology contributions, educational materials, etc
• 5.

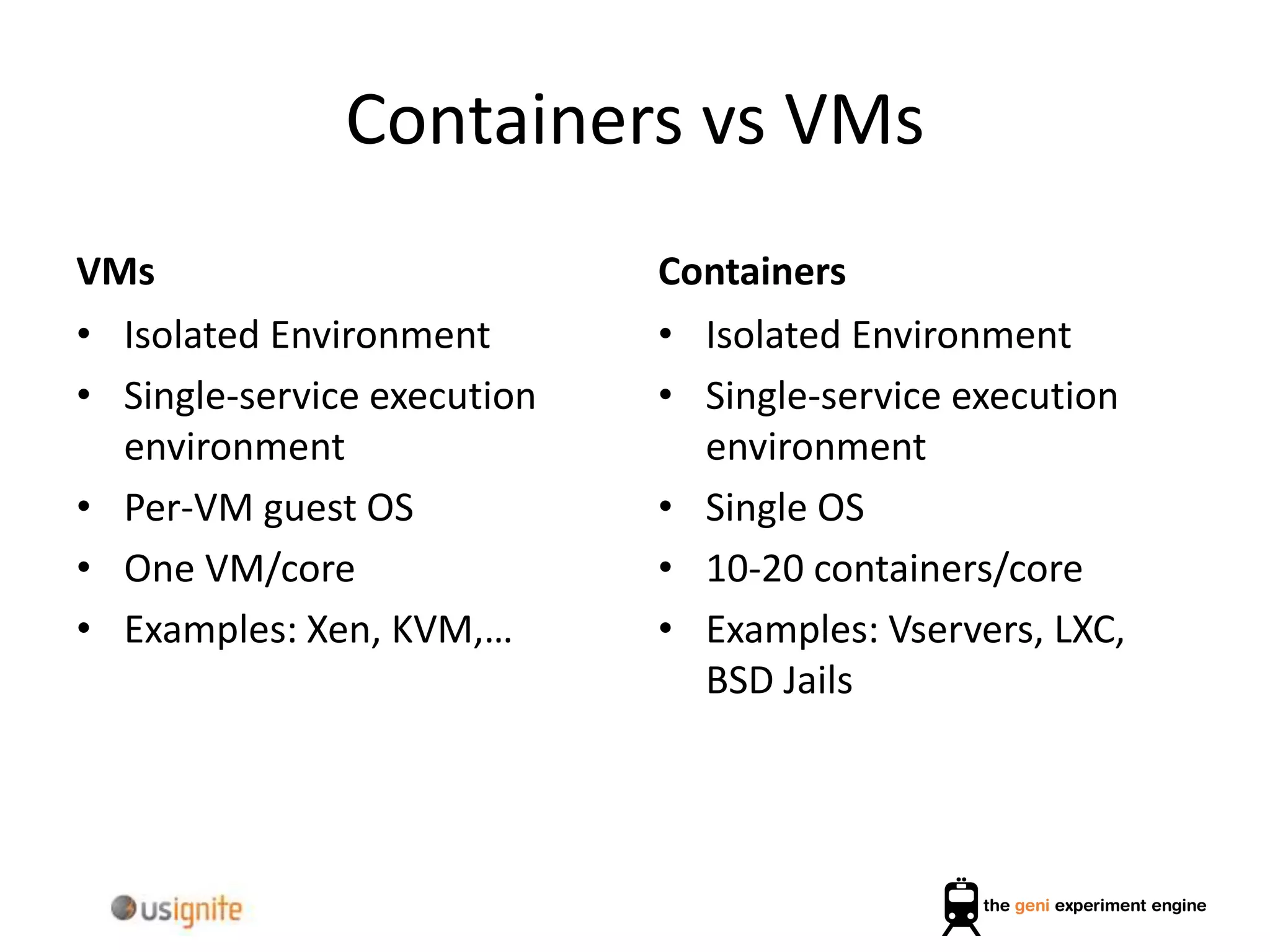

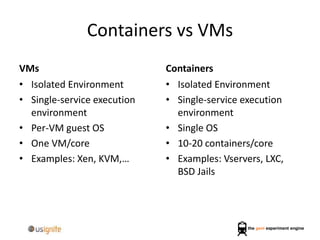

  Containers vs VMs VMs •Isolated Environment • Single-service execution environment • Per-VM guest OS • One VM/core • Examples: Xen, KVM,… Containers • Isolated Environment • Single-service execution environment • Single OS • 10-20 containers/core • Examples: Vservers, LXC, BSD Jails
• 6.

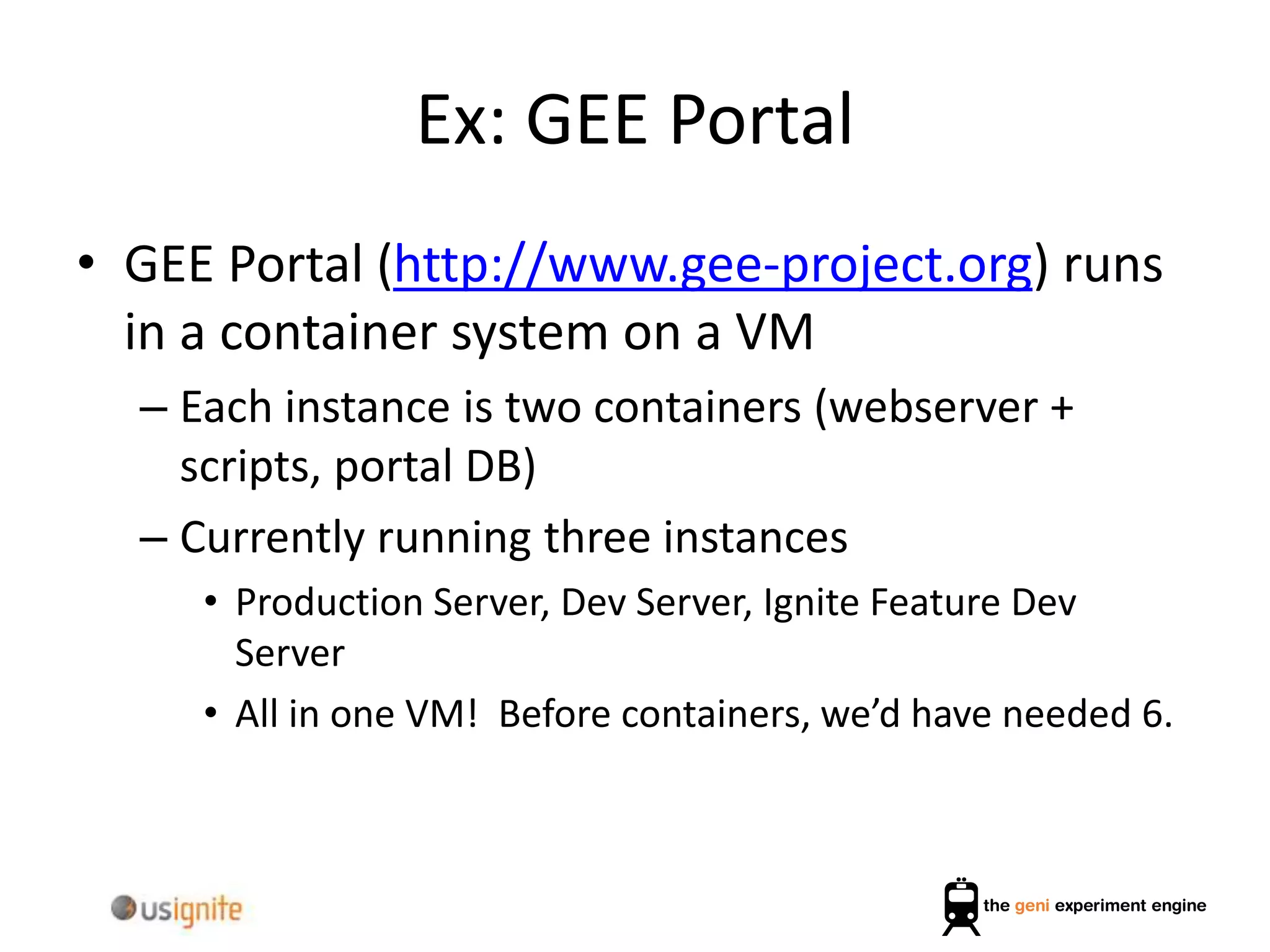

  Ex: GEE Portal •GEE Portal (http://www.gee-project.org) runs in a container system on a VM – Each instance is two containers (webserver + scripts, portal DB) – Currently running three instances • Production Server, Dev Server, Ignite Feature Dev Server • All in one VM! Before containers, we’d have needed 6.
• 7.

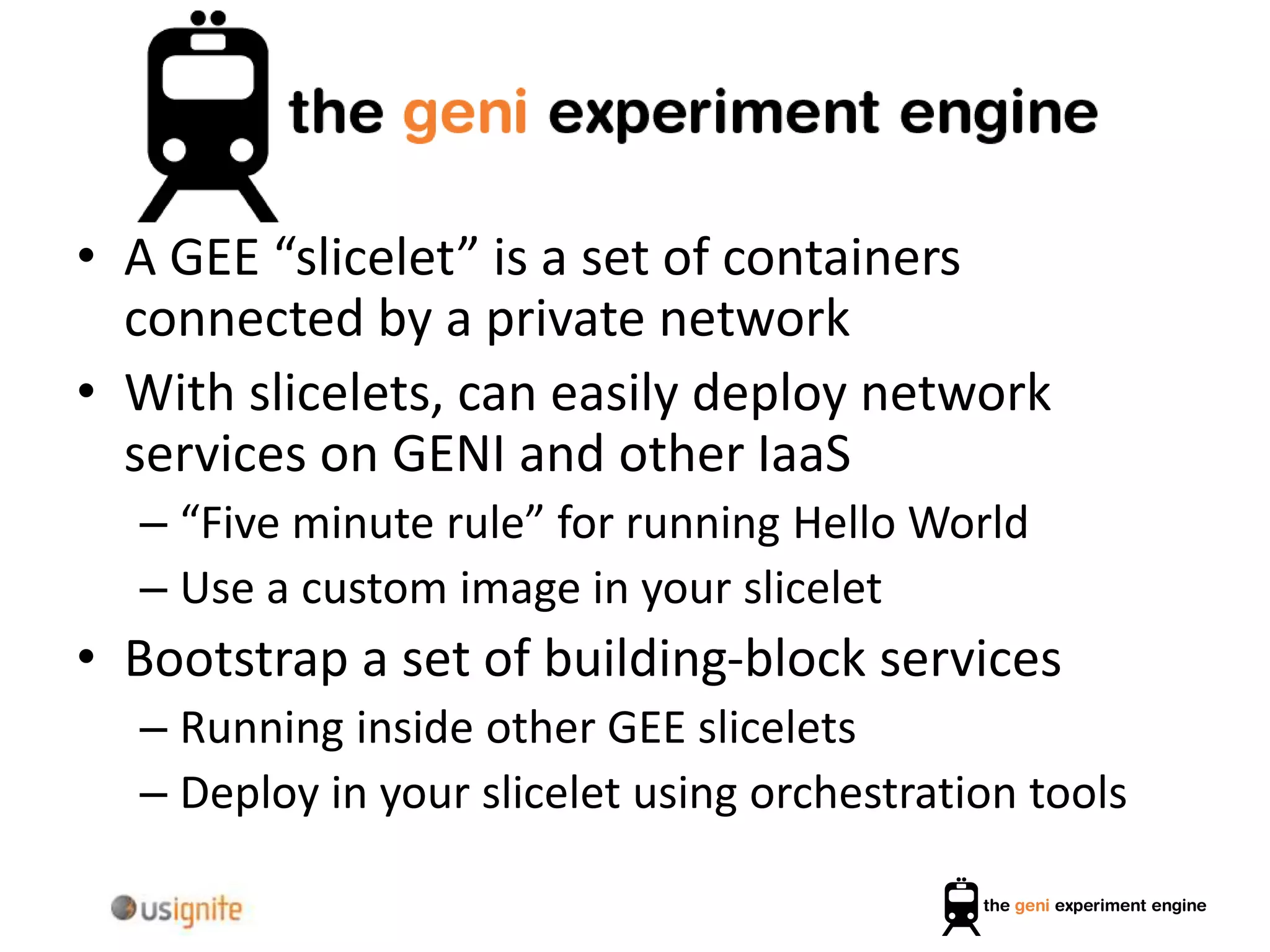

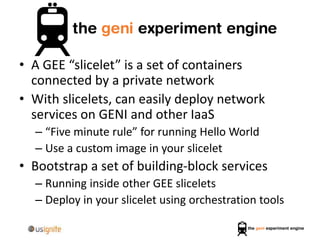

  • A GEE“slicelet” is a set of containers connected by a private network • With slicelets, can easily deploy network services on GENI and other IaaS – “Five minute rule” for running Hello World – Use a custom image in your slicelet • Bootstrap a set of building-block services – Running inside other GEE slicelets – Deploy in your slicelet using orchestration tools
• 8.

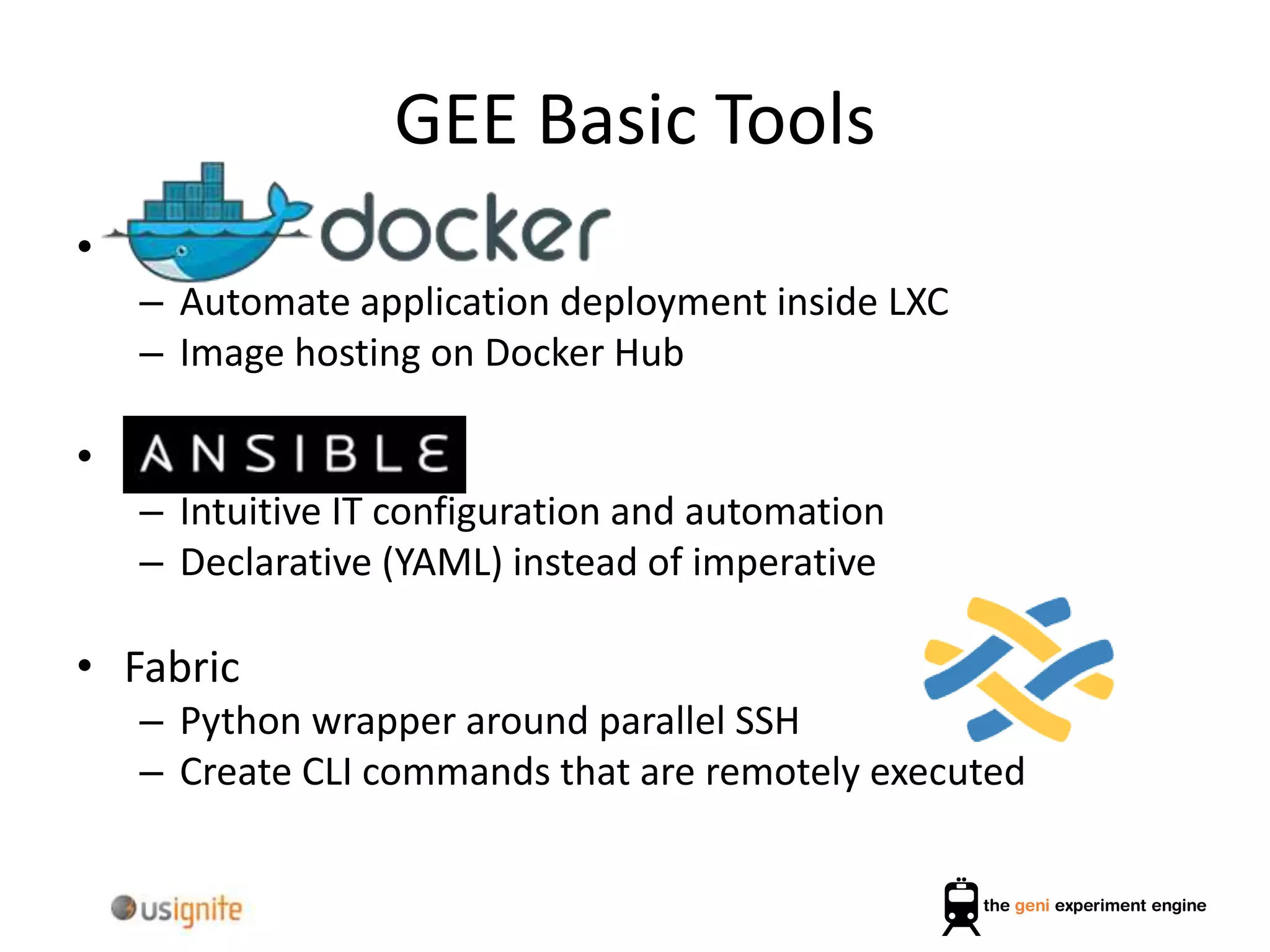

  GEE Basic Tools • –Automate application deployment inside LXC – Image hosting on Docker Hub • – Intuitive IT configuration and automation – Declarative (YAML) instead of imperative • Fabric – Python wrapper around parallel SSH – Create CLI commands that are remotely executed
• 9.

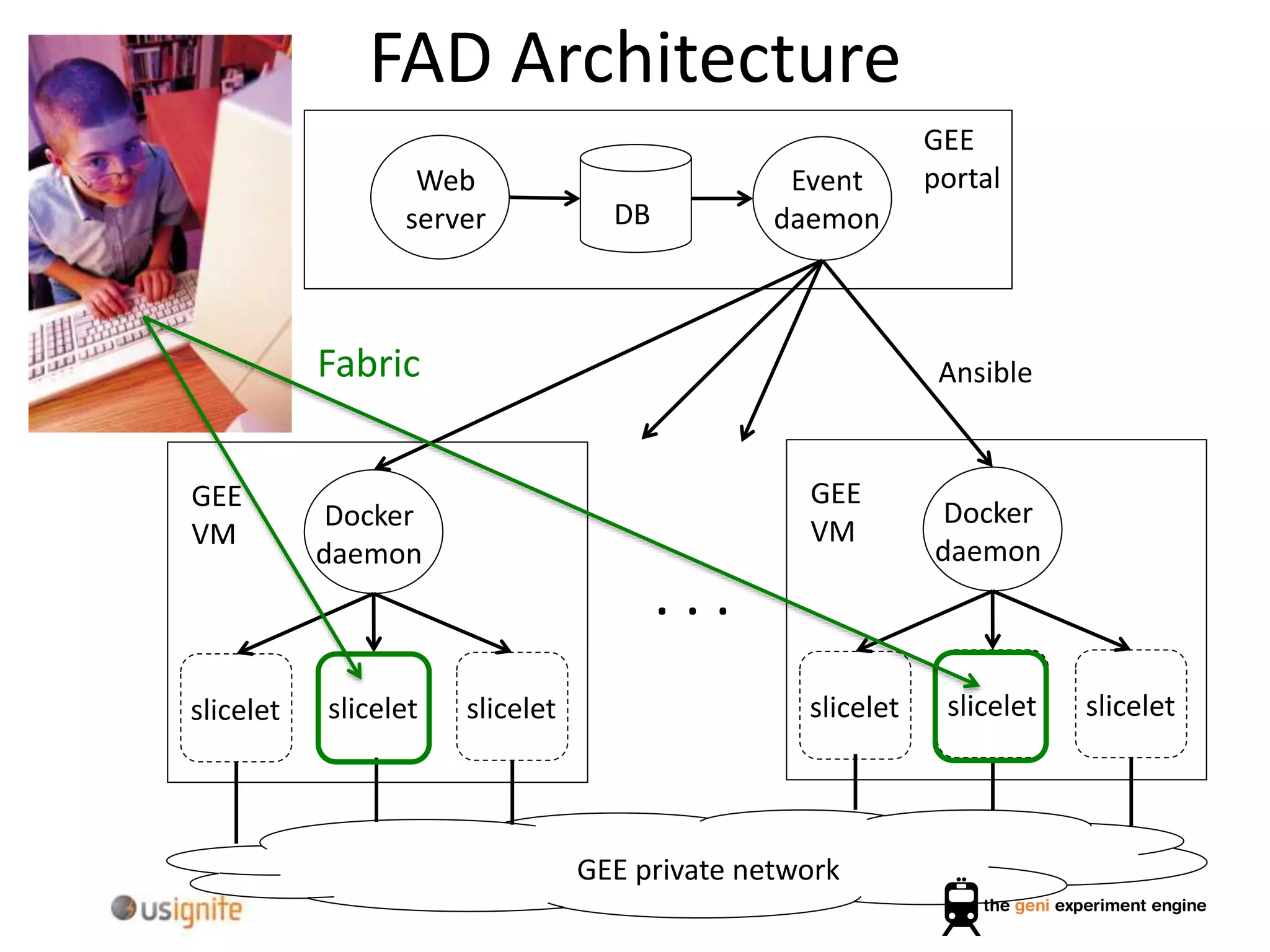

  FAD Architecture Web server DB Event daemon sliceletsliceletslicelet Docker daemon GEE VM sliceletslicelet slicelet Docker daemon GEE VM . . . GEE portal Ansible GEE private network Fabric
• 10.

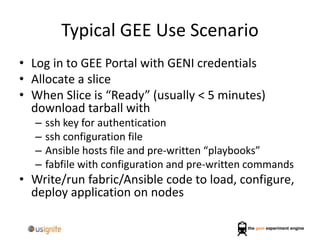

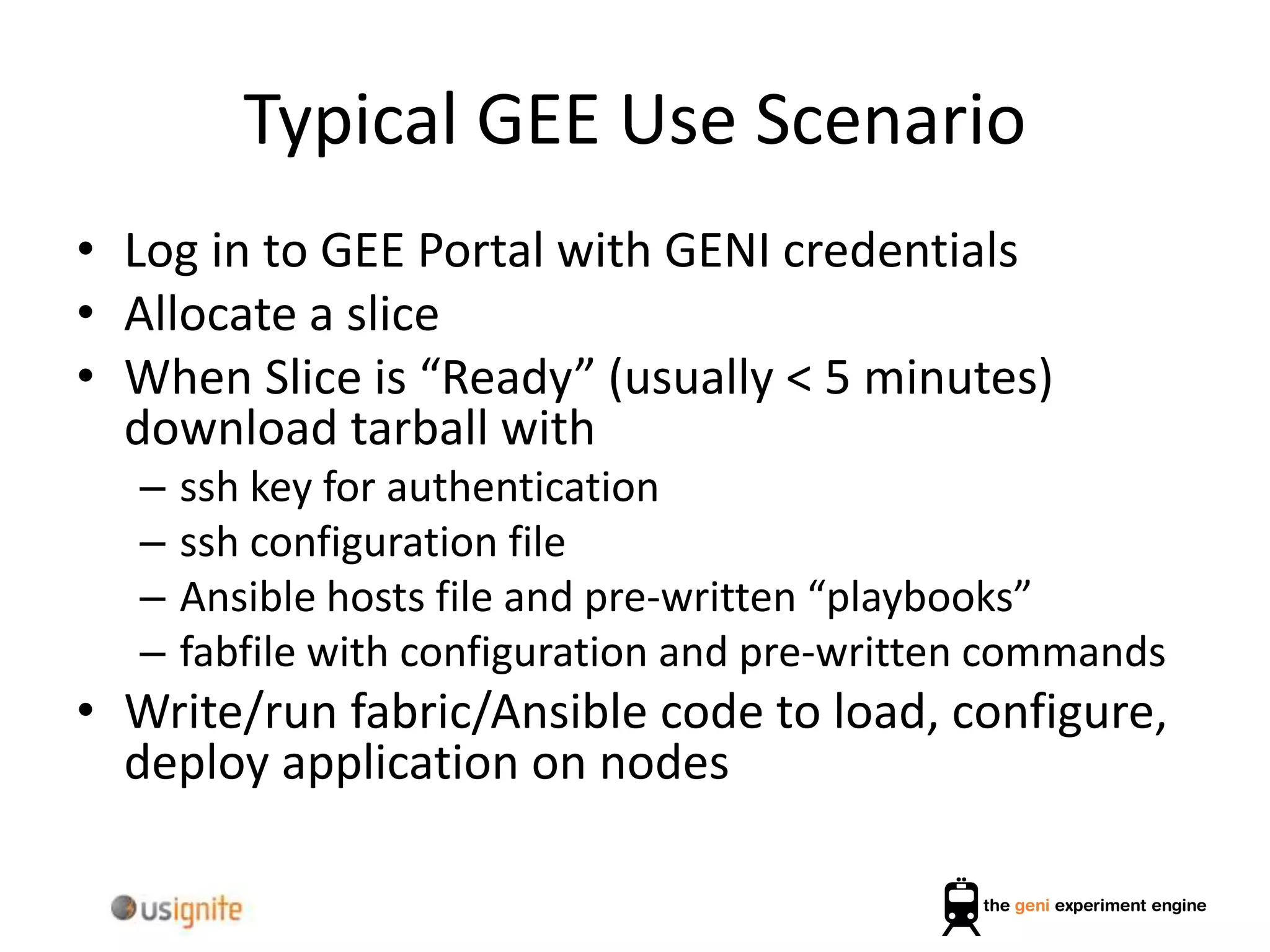

  Typical GEE UseScenario • Log in to GEE Portal with GENI credentials • Allocate a slice • When Slice is “Ready” (usually < 5 minutes) download tarball with – ssh key for authentication – ssh configuration file – Ansible hosts file and pre-written “playbooks” – fabfile with configuration and pre-written commands • Write/run fabric/Ansible code to load, configure, deploy application on nodes
• 11.

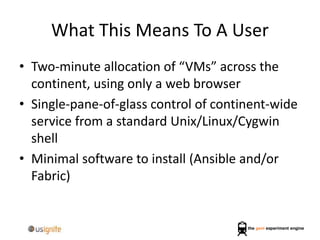

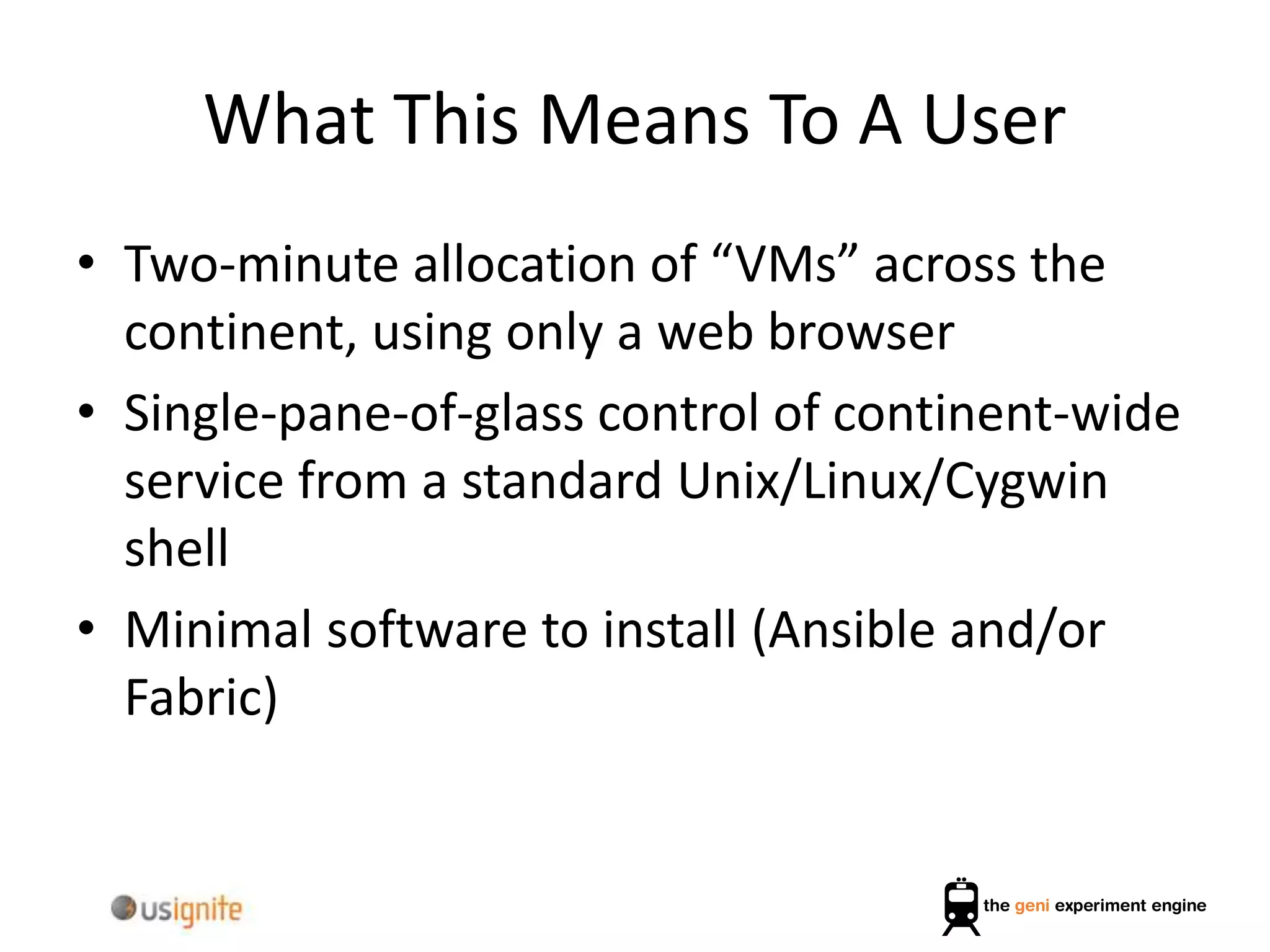

  What This MeansTo A User • Two-minute allocation of “VMs” across the continent, using only a web browser • Single-pane-of-glass control of continent-wide service from a standard Unix/Linux/Cygwin shell • Minimal software to install (Ansible and/or Fabric)
• 12.

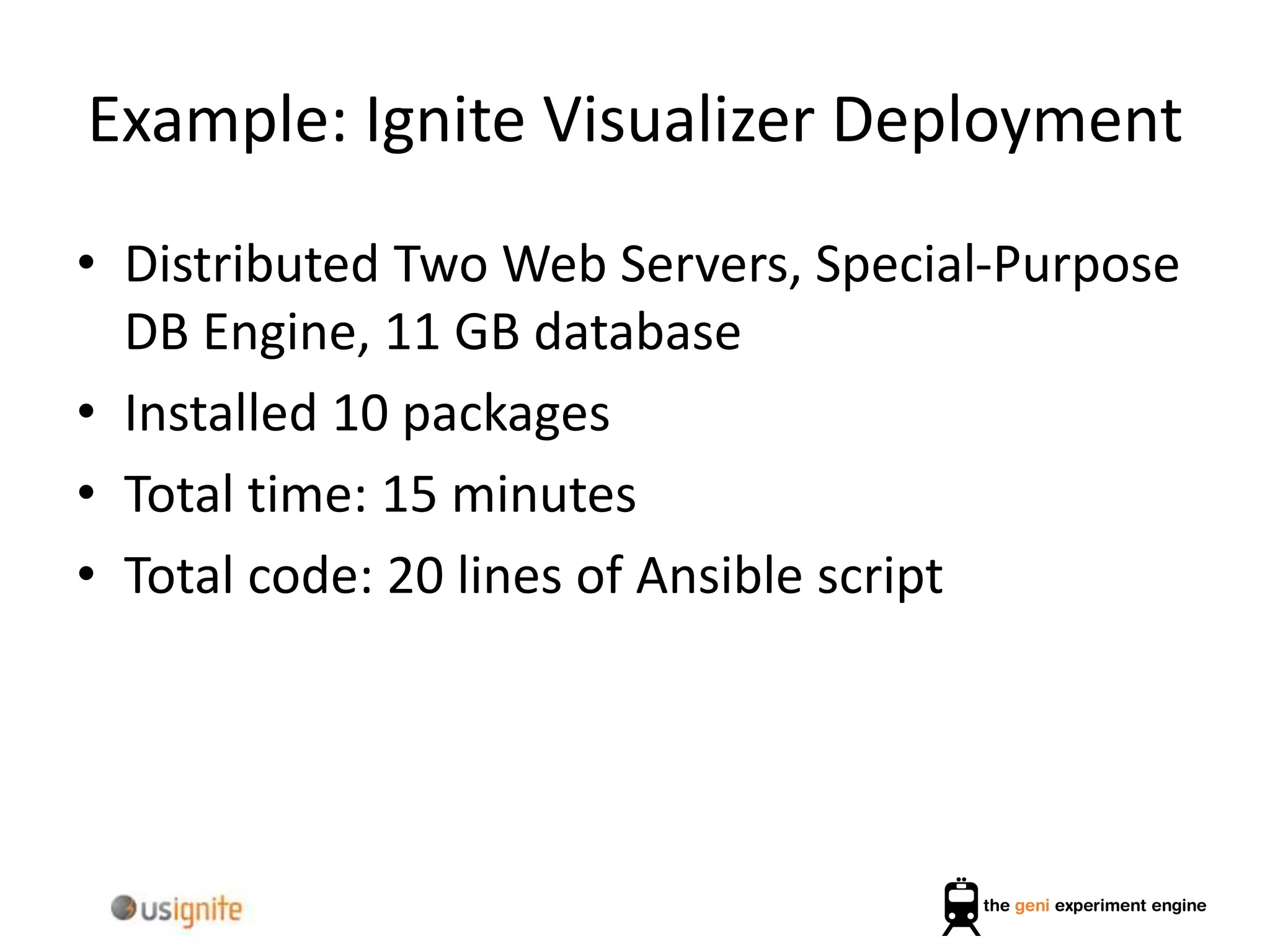

  Example: Ignite VisualizerDeployment • Distributed Two Web Servers, Special-Purpose DB Engine, 11 GB database • Installed 10 packages • Total time: 15 minutes • Total code: 20 lines of Ansible script
• 13.

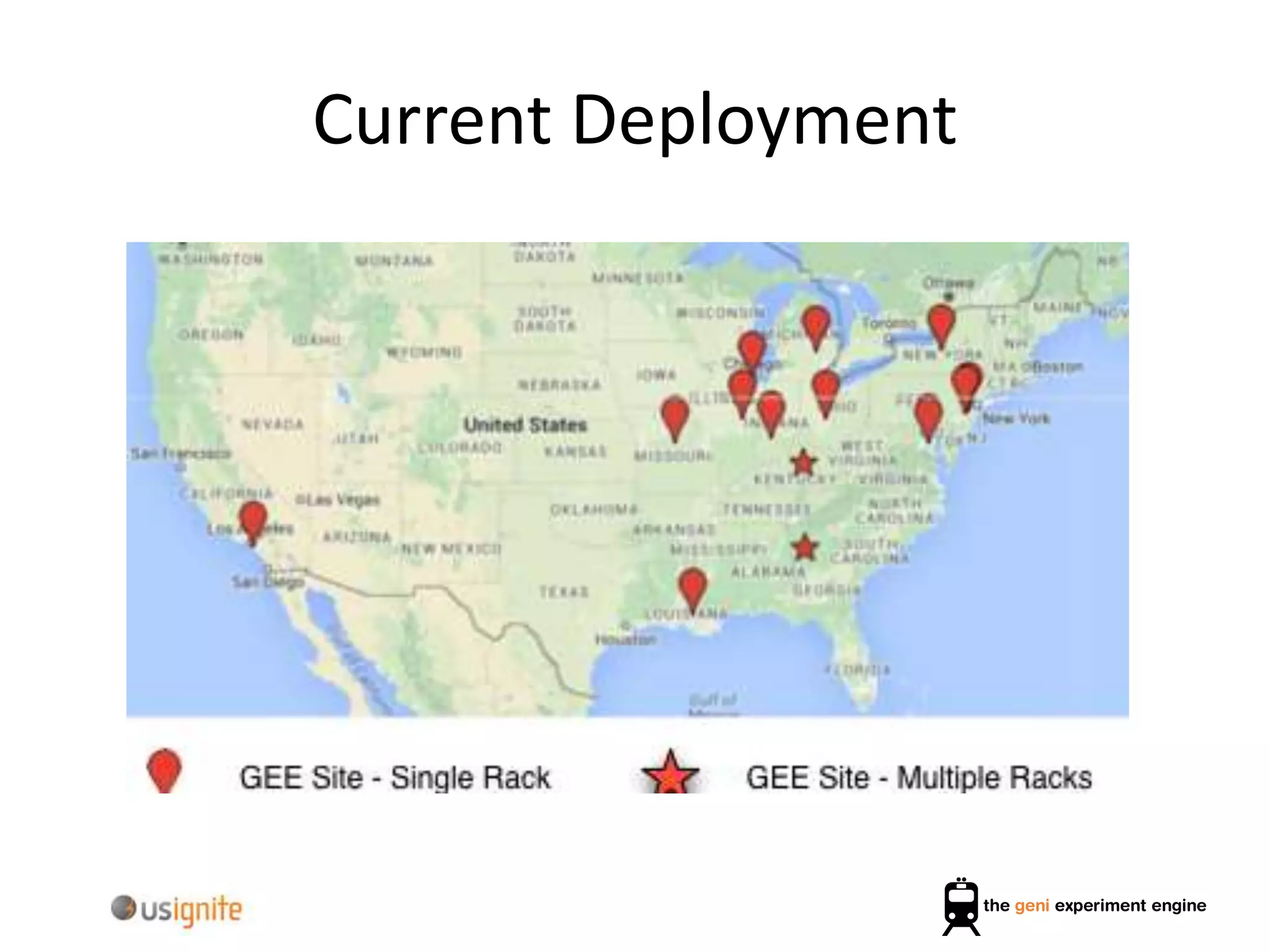

  Current Deployment
• 14.

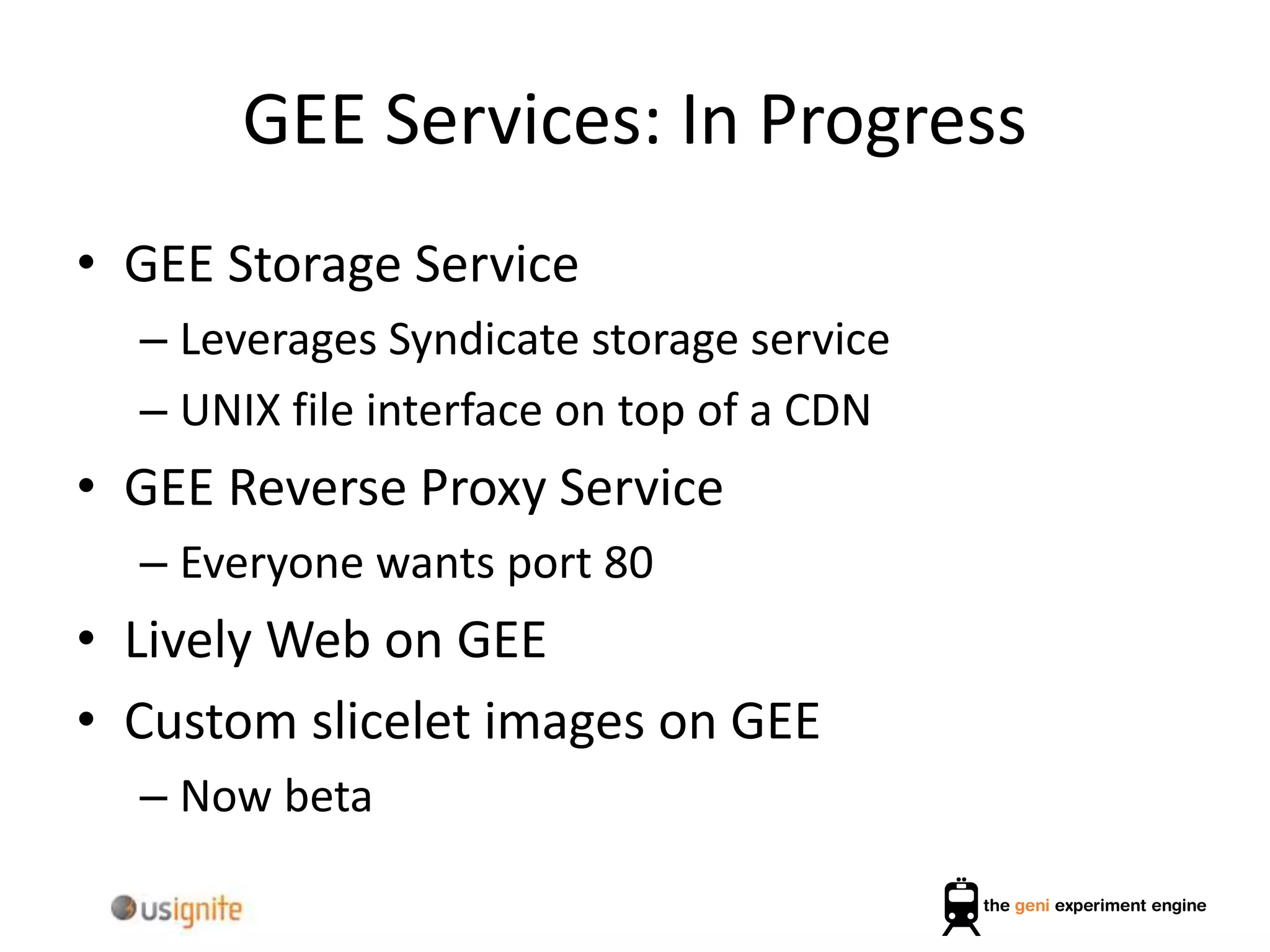

  GEE Services: InProgress • GEE Storage Service – Leverages Syndicate storage service – UNIX file interface on top of a CDN • GEE Reverse Proxy Service – Everyone wants port 80 • Lively Web on GEE • Custom slicelet images on GEE – Now beta
• 15.

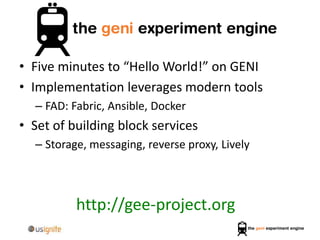

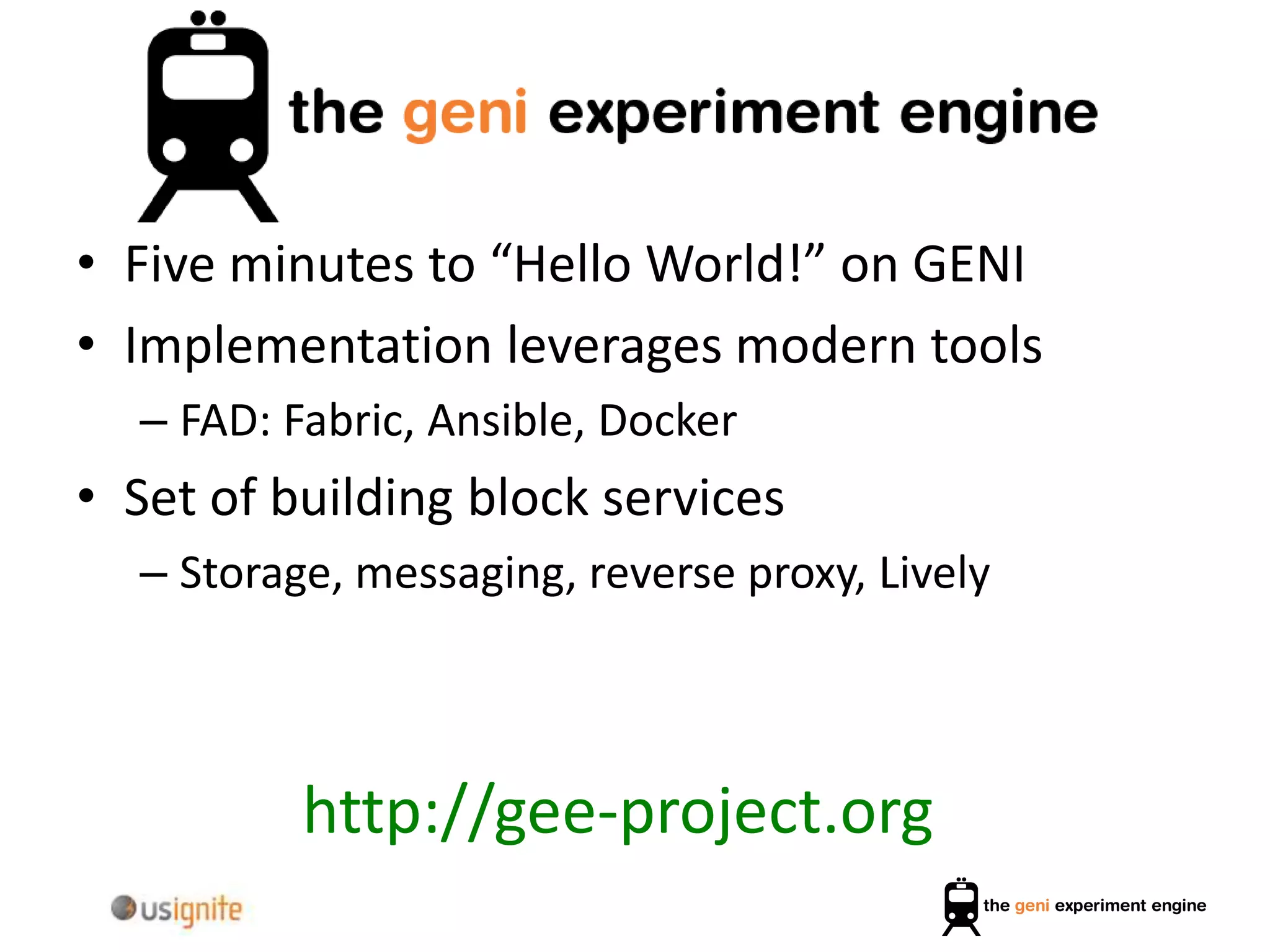

  • Five minutesto “Hello World!” on GENI • Implementation leverages modern tools – FAD: Fabric, Ansible, Docker • Set of building block services – Storage, messaging, reverse proxy, Lively http://gee-project.org
