The power of spatial SQL in MapInfo Professional
- 1. Peter Horsbøll Møller SeniorSystems Engineer Pitney Bowes Software
- 2. The Power ofSpatial SQL in MapInfo Professional Peter Horsbøll Møller Senior Systems Engineer June 15, 2012 Every connection is a new opportunity™

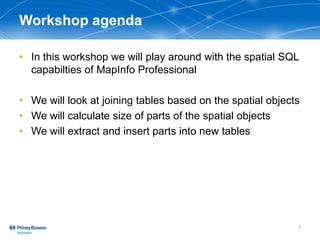

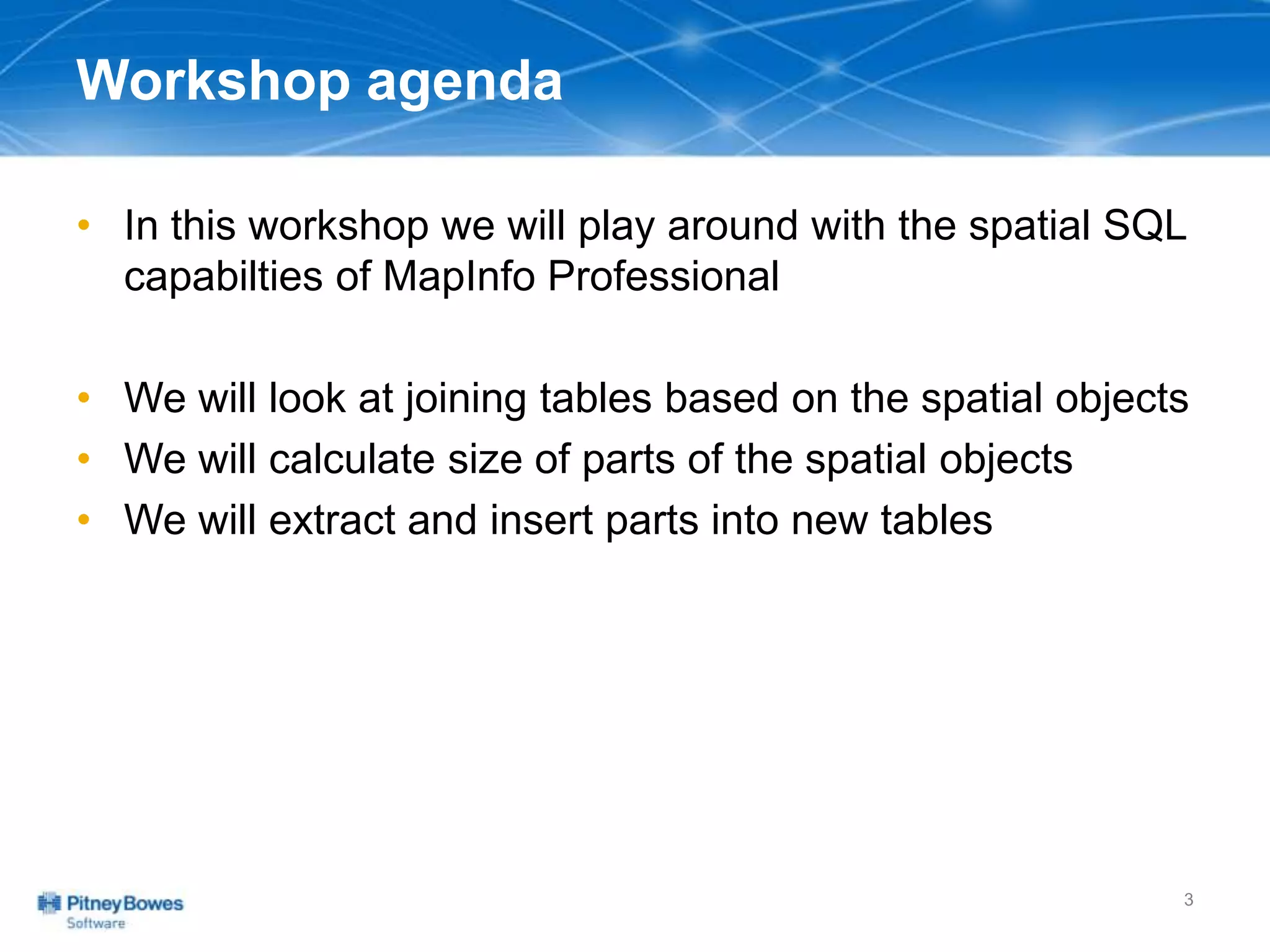

- 3. Workshop agenda • Inthis workshop we will play around with the spatial SQL capabilties of MapInfo Professional • We will look at joining tables based on the spatial objects • We will calculate size of parts of the spatial objects • We will extract and insert parts into new tables 3

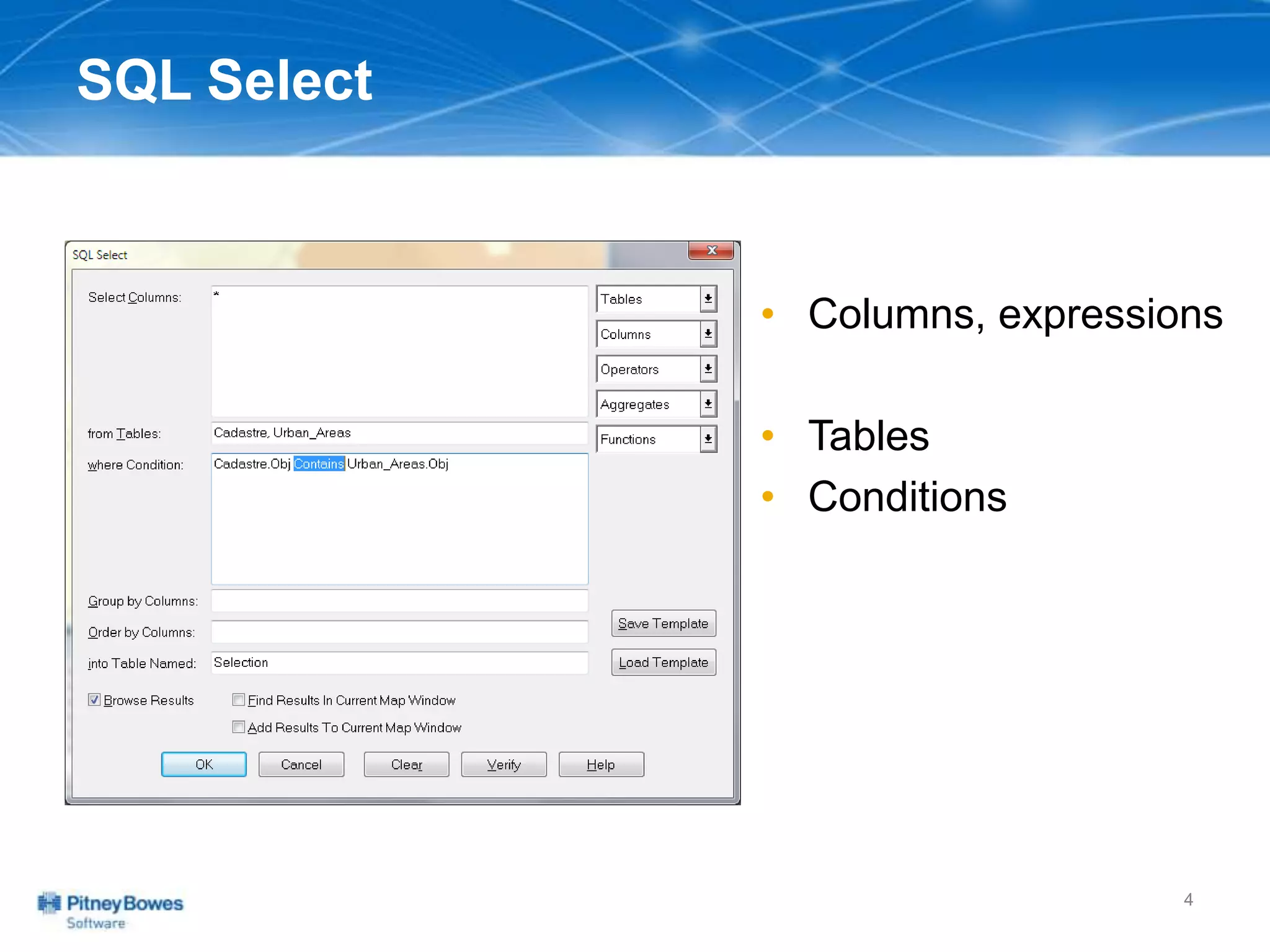

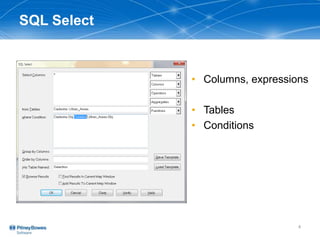

- 4. SQL Select • Columns,expressions • Tables • Conditions 4

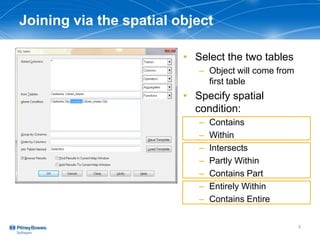

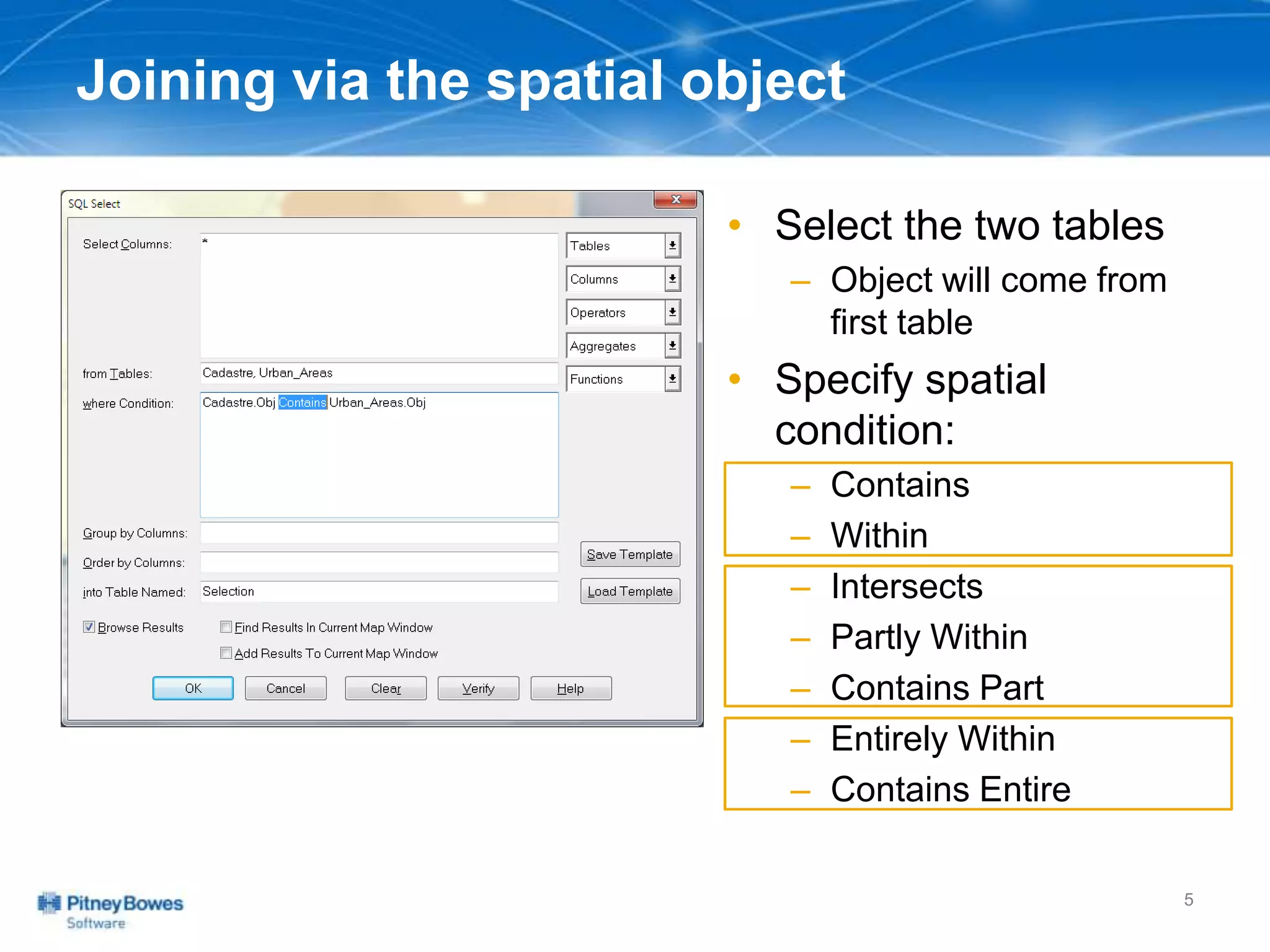

- 5. Joining via thespatial object • Select the two tables – Object will come from first table • Specify spatial condition: – Contains – Within – Intersects – Partly Within – Contains Part – Entirely Within – Contains Entire 5

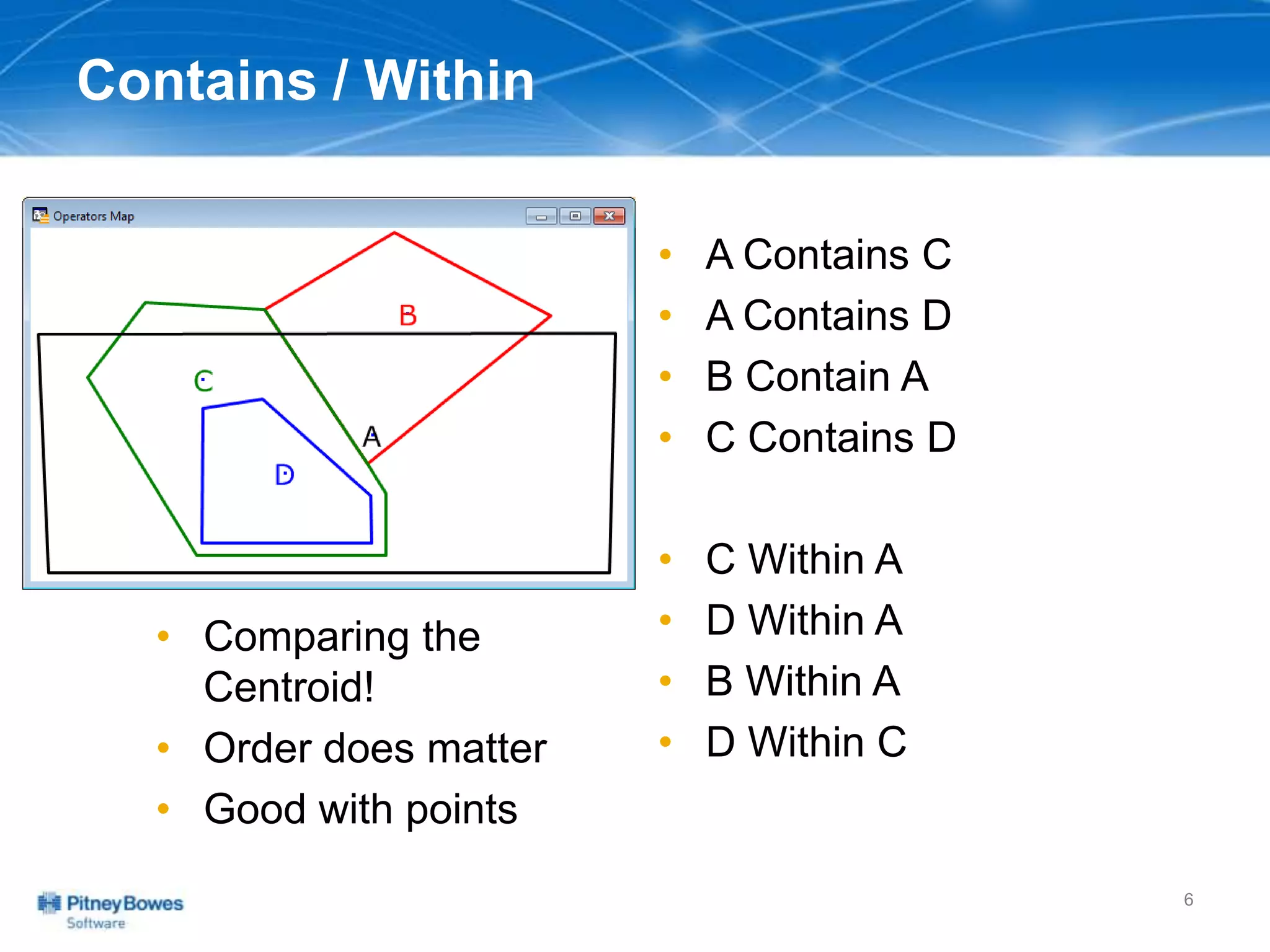

- 6. Contains / Within •Comparing the Centroid! • Order does matter • Good with points • A Contains C • A Contains D • B Contain A • C Contains D • C Within A • D Within A • B Within A • D Within C 6

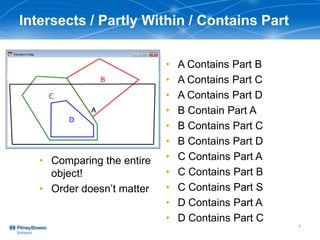

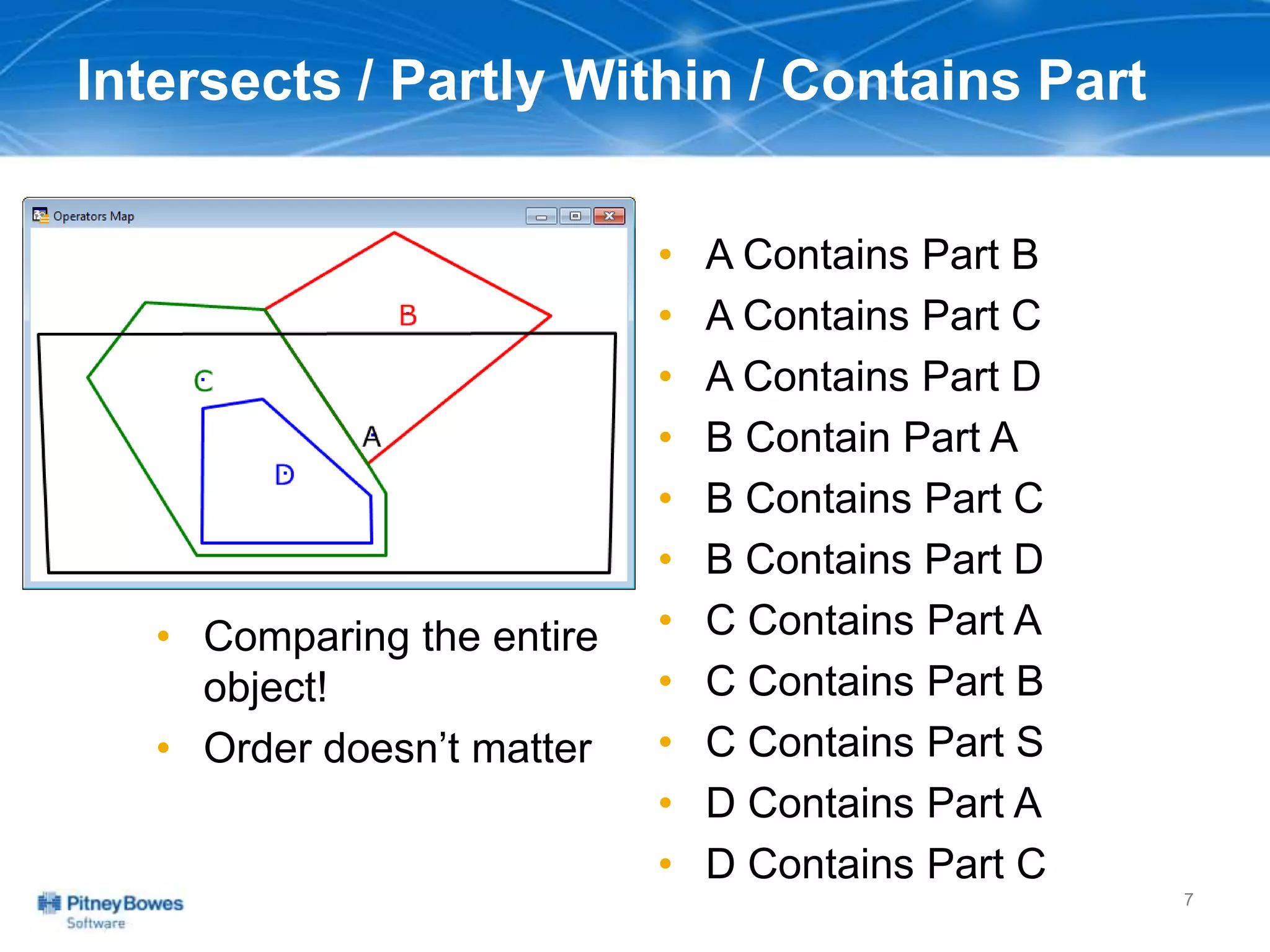

- 7. Intersects / PartlyWithin / Contains Part • Comparing the entire object! • Order doesn’t matter • A Contains Part B • A Contains Part C • A Contains Part D • B Contain Part A • B Contains Part C • C Contains Part A • C Contains Part B • C Contains Part D • D Contains Part A • D Contains Part C 7

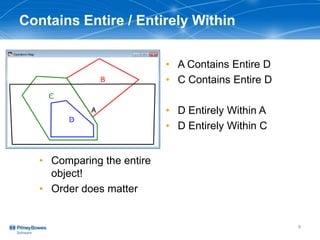

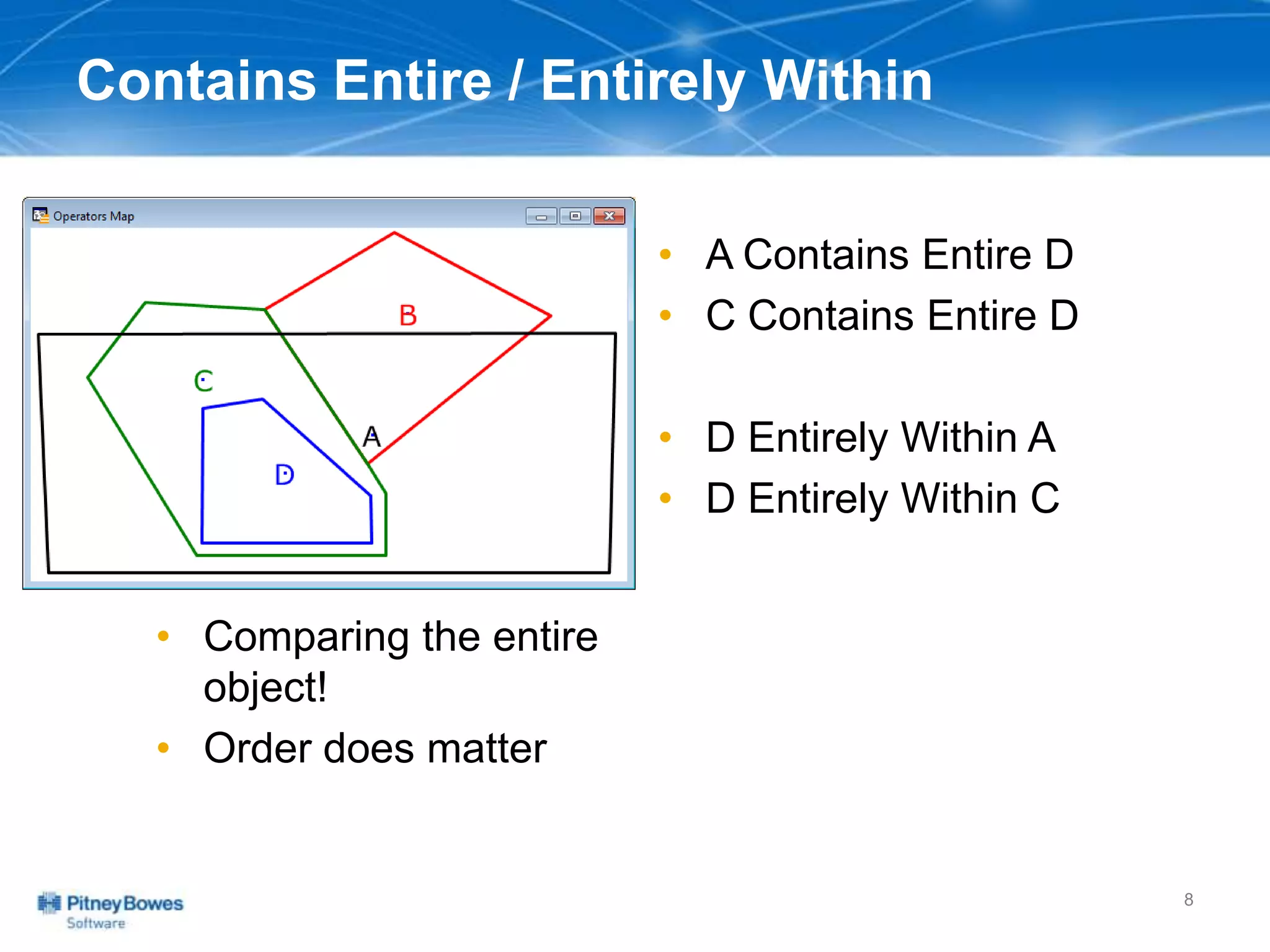

- 8. Contains Entire /Entirely Within • Comparing the entire object! • Order does matter • A Contains Entire D • C Contains Entire D • D Entirely Within A • D Entirely Within C 8

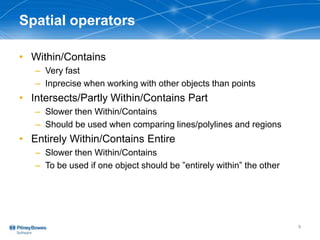

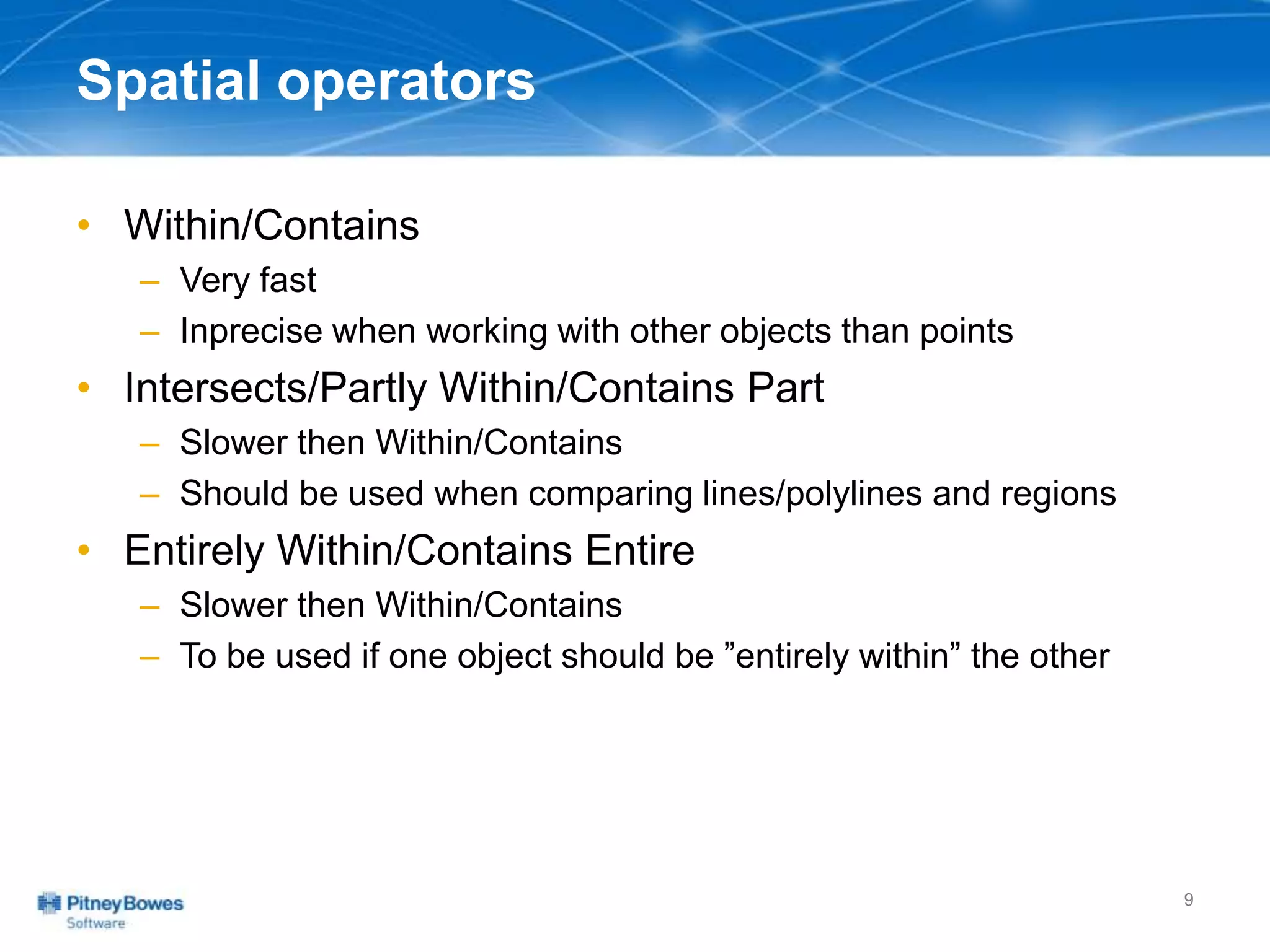

- 9. Spatial operators • Within/Contains –Very fast – Inprecise when working with other objects than points • Intersects/Partly Within/Contains Part – Slower then Within/Contains – Should be used when comparing lines/polylines and regions • Entirely Within/Contains Entire – Slower then Within/Contains – To be used if one object should be ”entirely within” the other 9

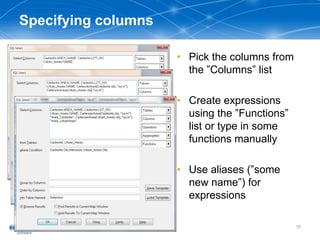

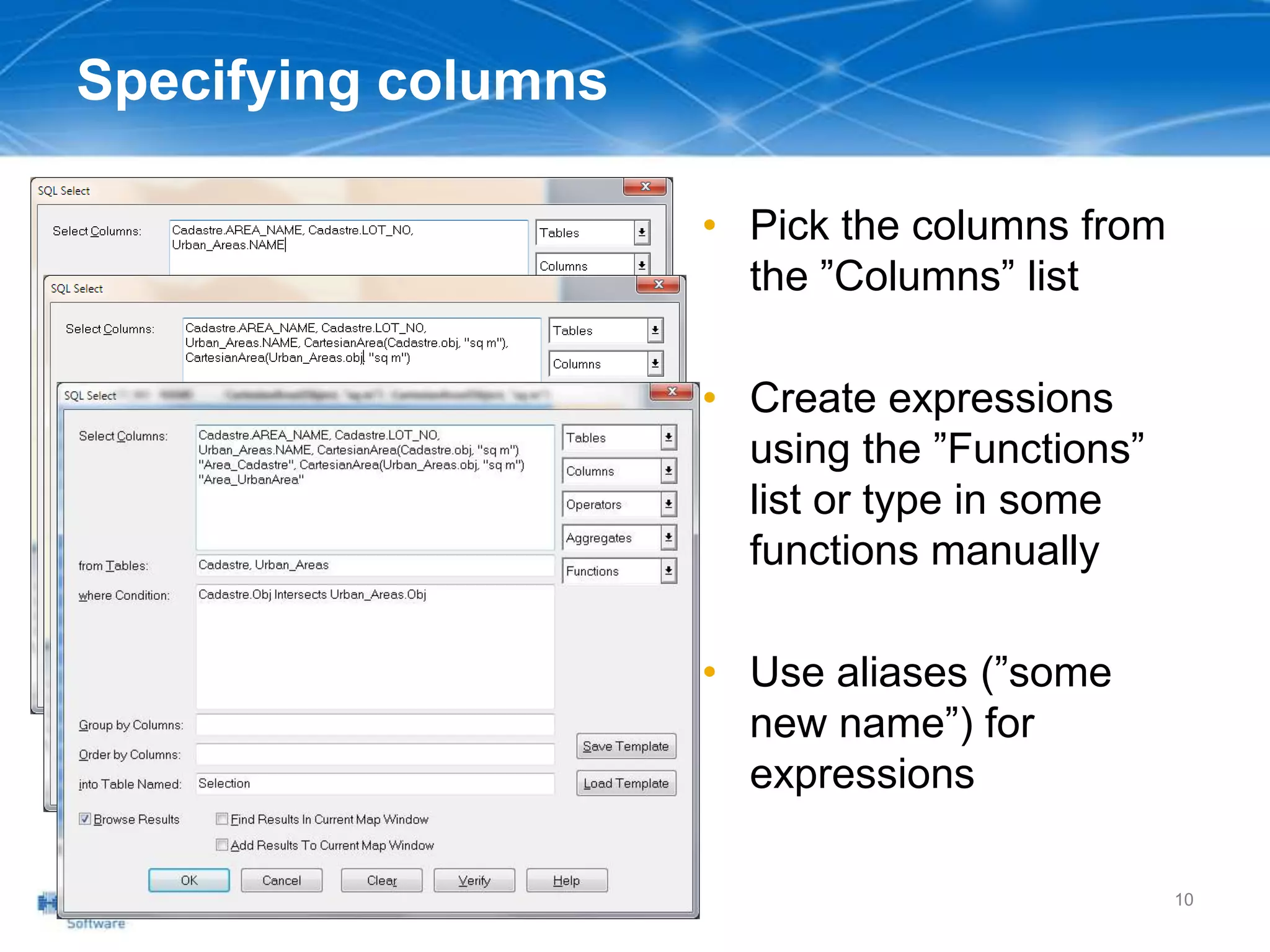

- 10. Specifying columns • Pickthe columns from the ”Columns” list • Create expressions using the ”Functions” list or type in some functions manually • Use aliases (”some new name”) for expressions 10

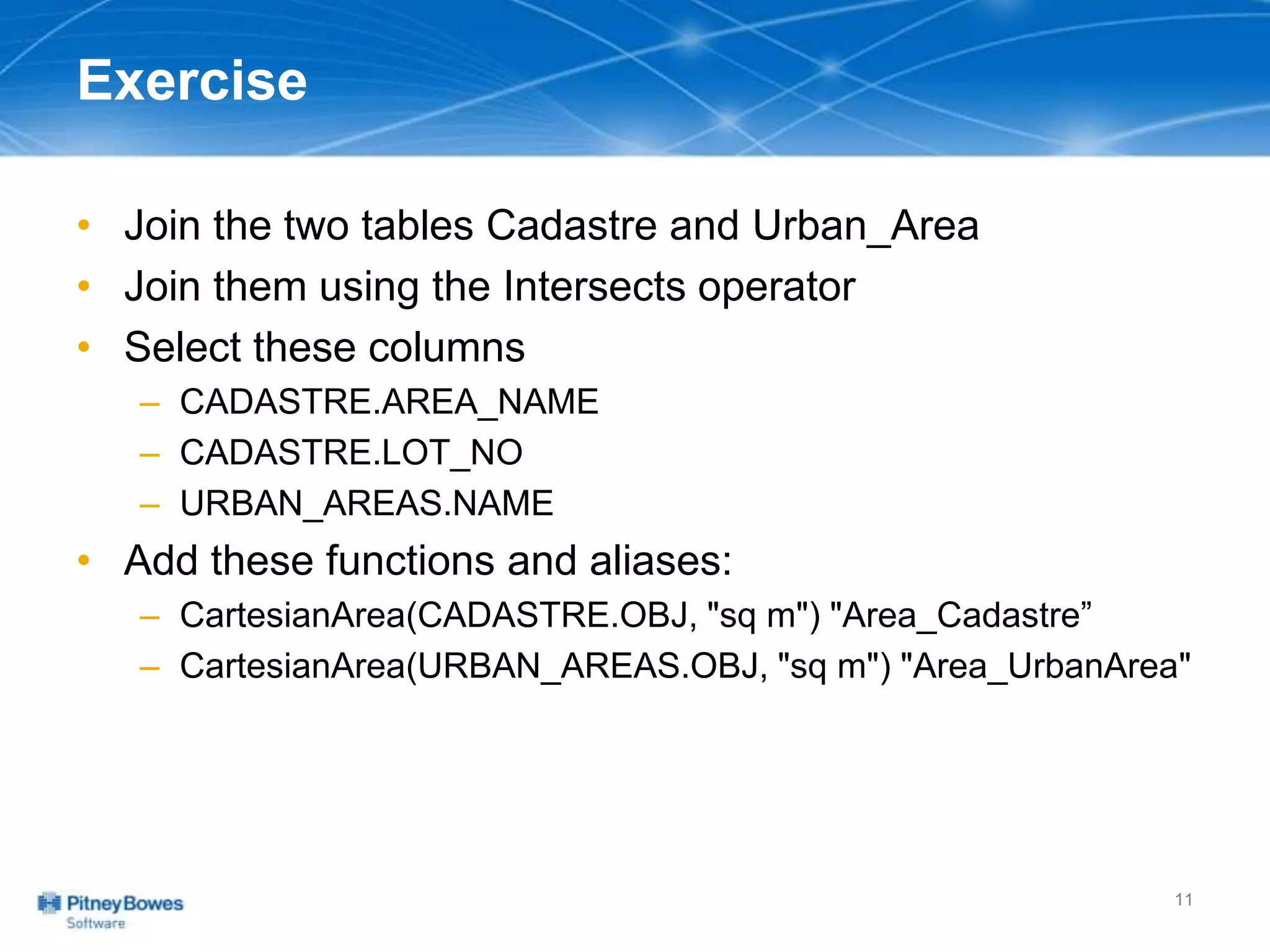

- 11. Exercise • Join thetwo tables Cadastre and Urban_Area • Join them using the Intersects operator • Select these columns – CADASTRE.AREA_NAME – CADASTRE.LOT_NO – URBAN_AREAS.NAME • Add these functions and aliases: – CartesianArea(CADASTRE.OBJ, "sq m") "Area_Cadastre” – CartesianArea(URBAN_AREAS.OBJ, "sq m") "Area_UrbanArea" 11

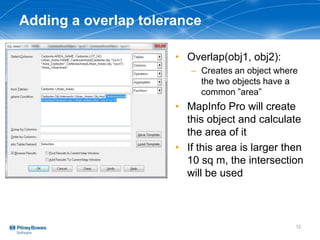

- 12. Adding a overlaptolerance • Overlap(obj1, obj2): – Creates an object where the two objects have a common ”area” • MapInfo Pro will create this object and calculate the area of it • If this area is larger then 10 sq m, the intersection will be used 12

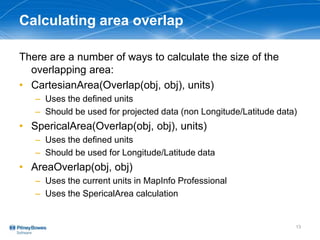

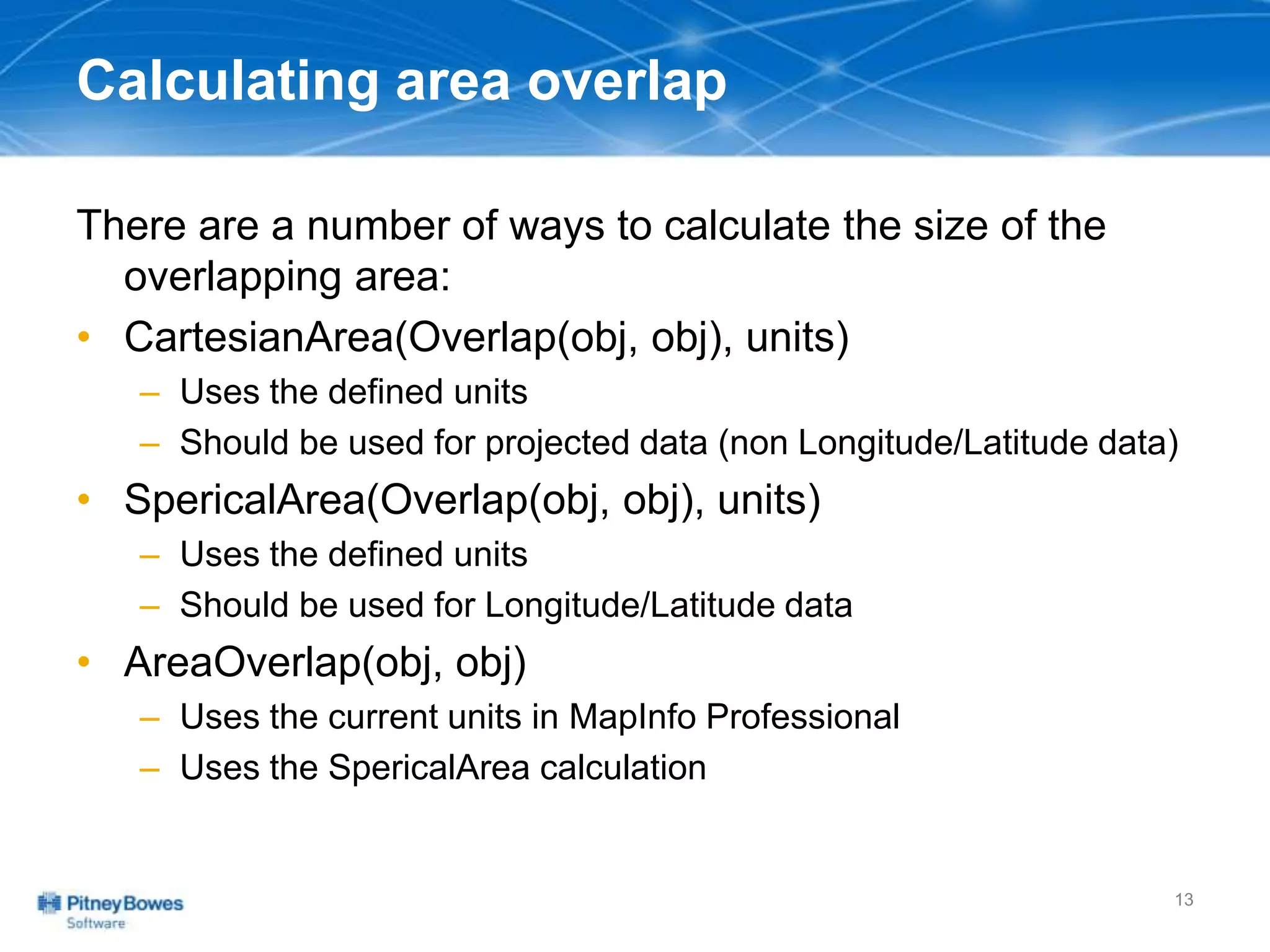

- 13. Calculating area overlap Thereare a number of ways to calculate the size of the overlapping area: • CartesianArea(Overlap(obj, obj), units) – Uses the defined units – Should be used for projected data (non Longitude/Latitude data) • SpericalArea(Overlap(obj, obj), units) – Uses the defined units – Should be used for Longitude/Latitude data • AreaOverlap(obj, obj) – Uses the current units in MapInfo Professional – Uses the SpericalArea calculation 13

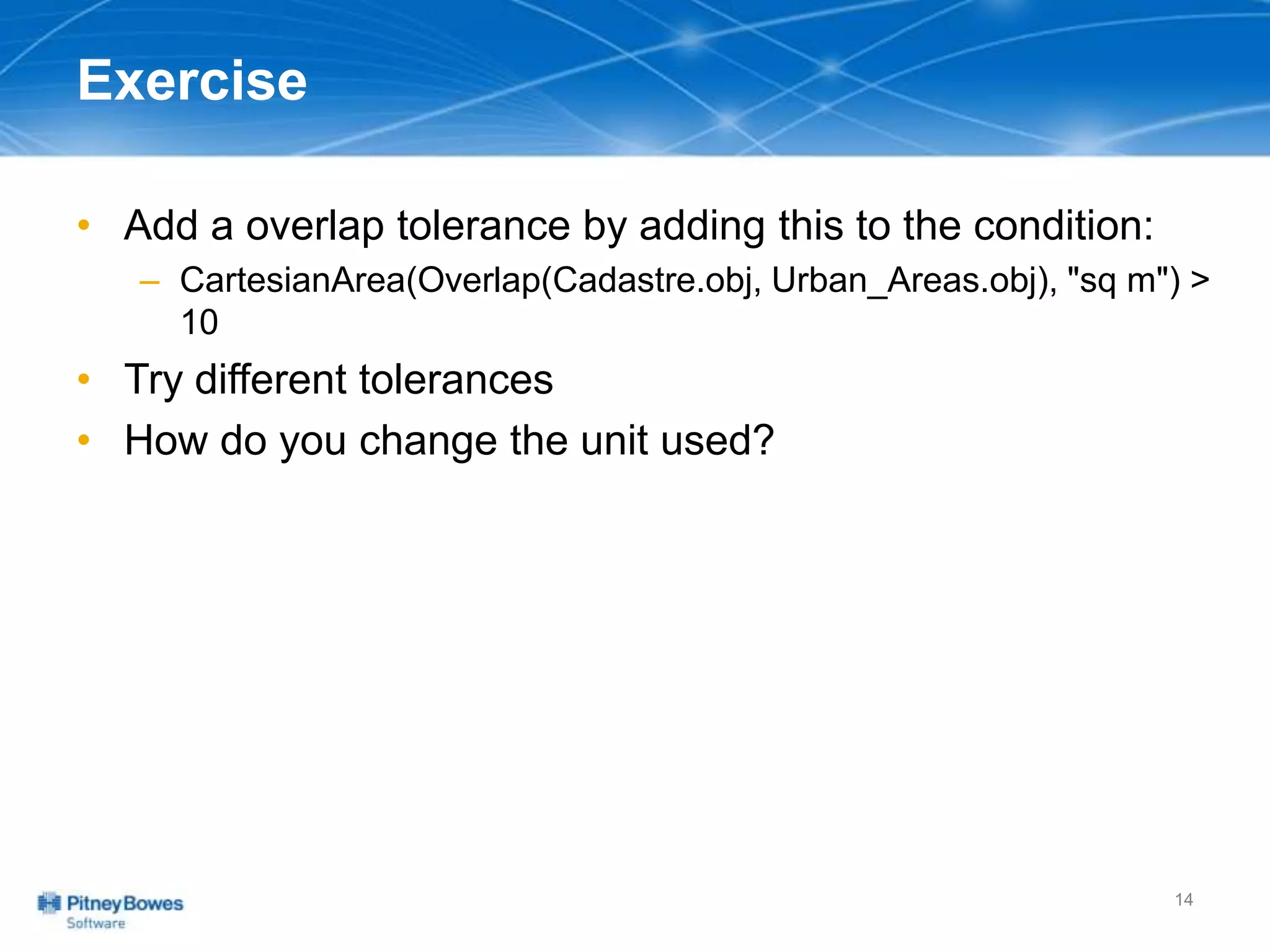

- 14. Exercise • Add aoverlap tolerance by adding this to the condition: – CartesianArea(Overlap(Cadastre.obj, Urban_Areas.obj), "sq m") > 10 • Try different tolerances • How do you change the unit used? 14

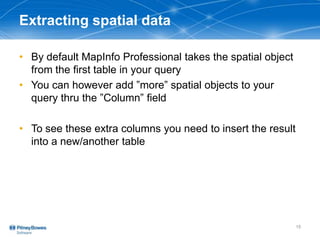

- 15. Extracting spatial data •By default MapInfo Professional takes the spatial object from the first table in your query • You can however add ”more” spatial objects to your query thru the ”Column” field • To see these extra columns you need to insert the result into a new/another table 15

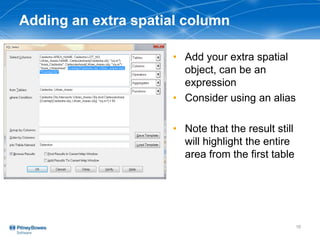

- 16. Adding an extraspatial column • Add your extra spatial object, can be an expression • Consider using an alias • Note that the result still will highlight the entire area from the first table 16

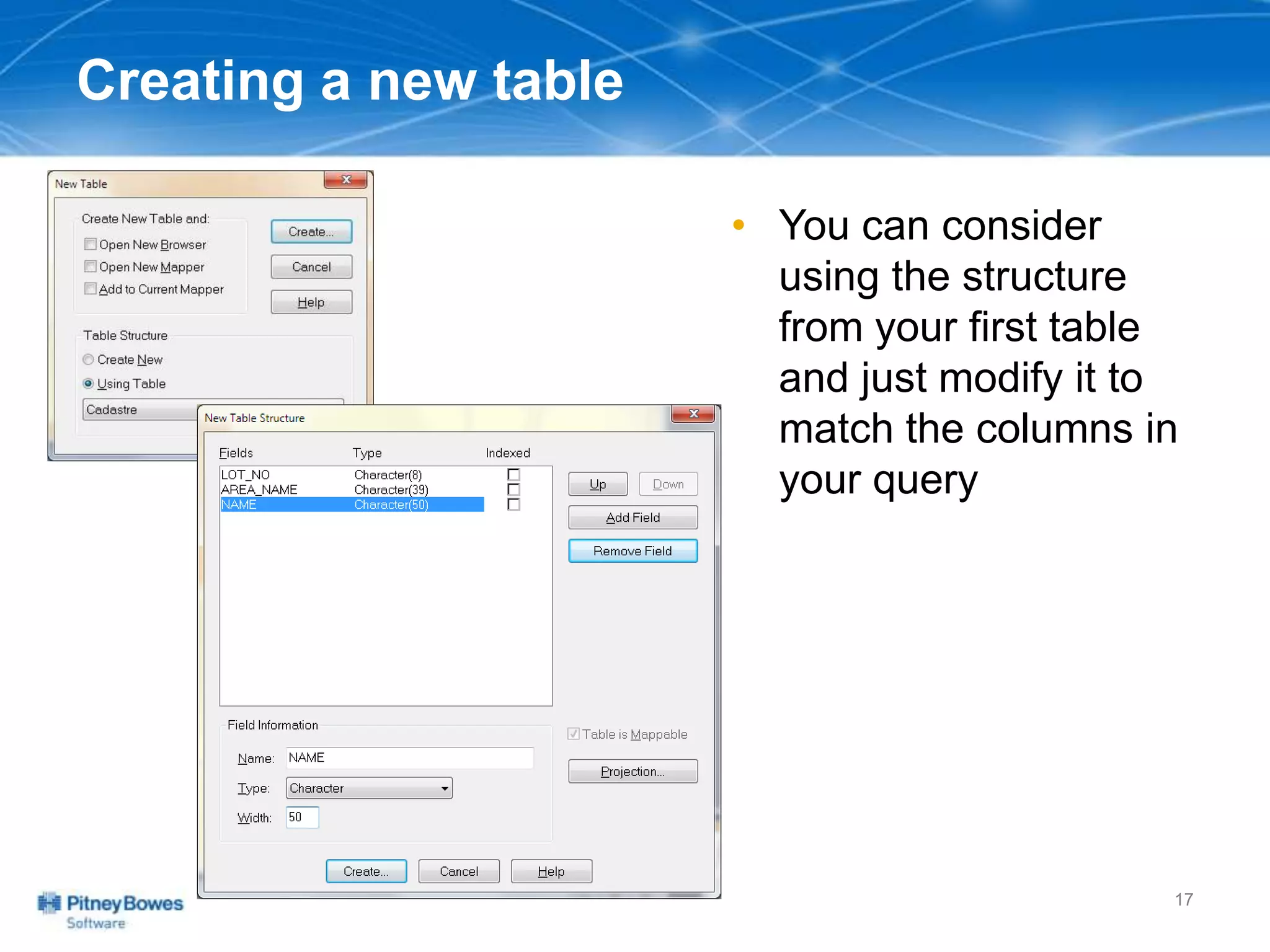

- 17. Creating a newtable • You can consider using the structure from your first table and just modify it to match the columns in your query 17

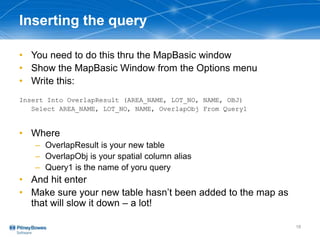

- 18. Inserting the query •You need to do this thru the MapBasic window • Show the MapBasic Window from the Options menu • Write this: Insert Into OverlapResult (AREA_NAME, LOT_NO, NAME, OBJ) Select AREA_NAME, LOT_NO, NAME, OverlapObj From Query1 • Where – OverlapResult is your new table – OverlapObj is your spatial column alias – Query1 is the name of yoru query • And hit enter • Make sure your new table hasn’t been added to the map as that will slow it down – a lot! 18

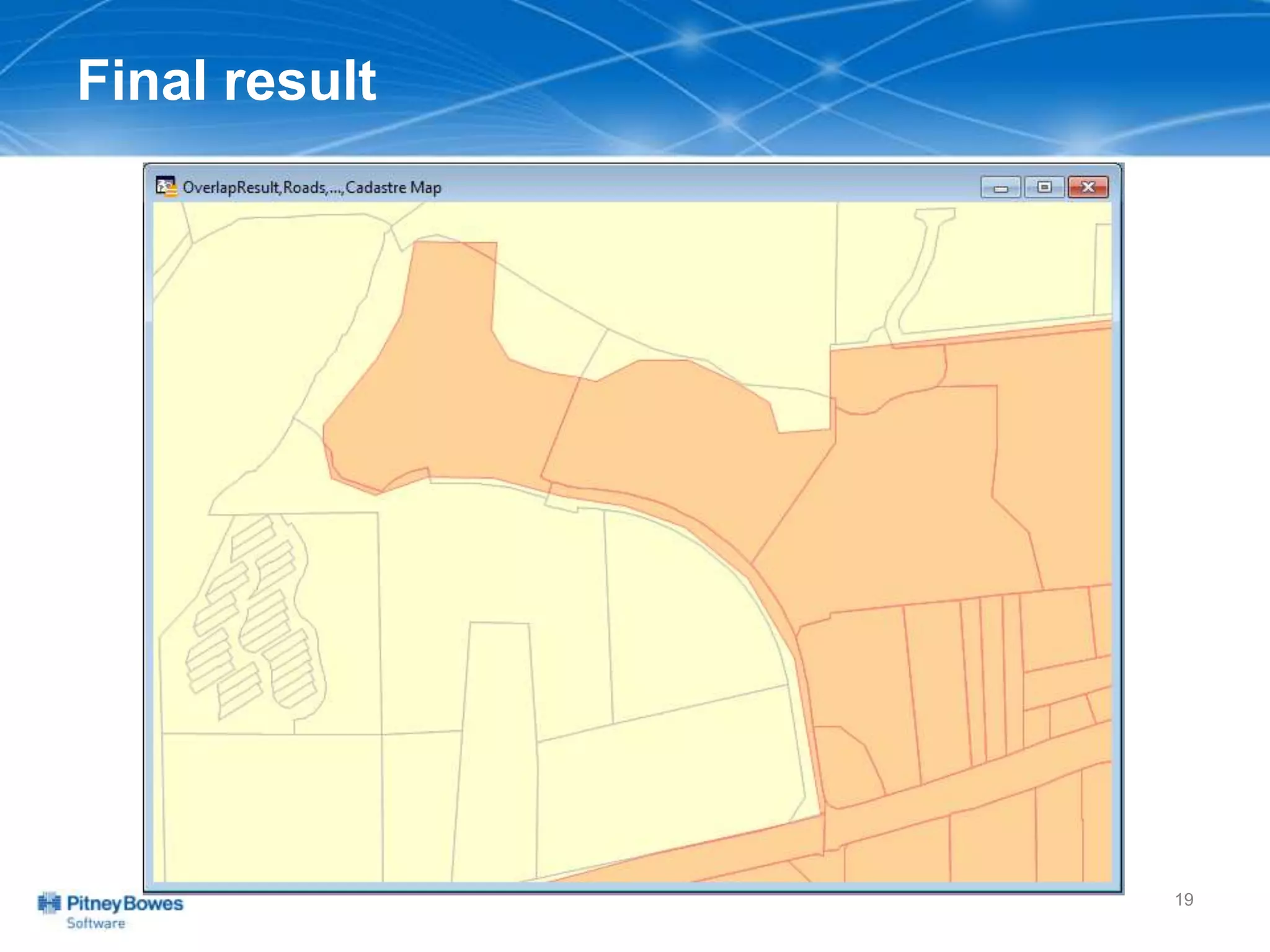

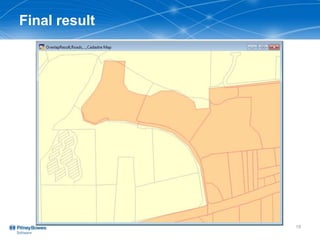

- 19.

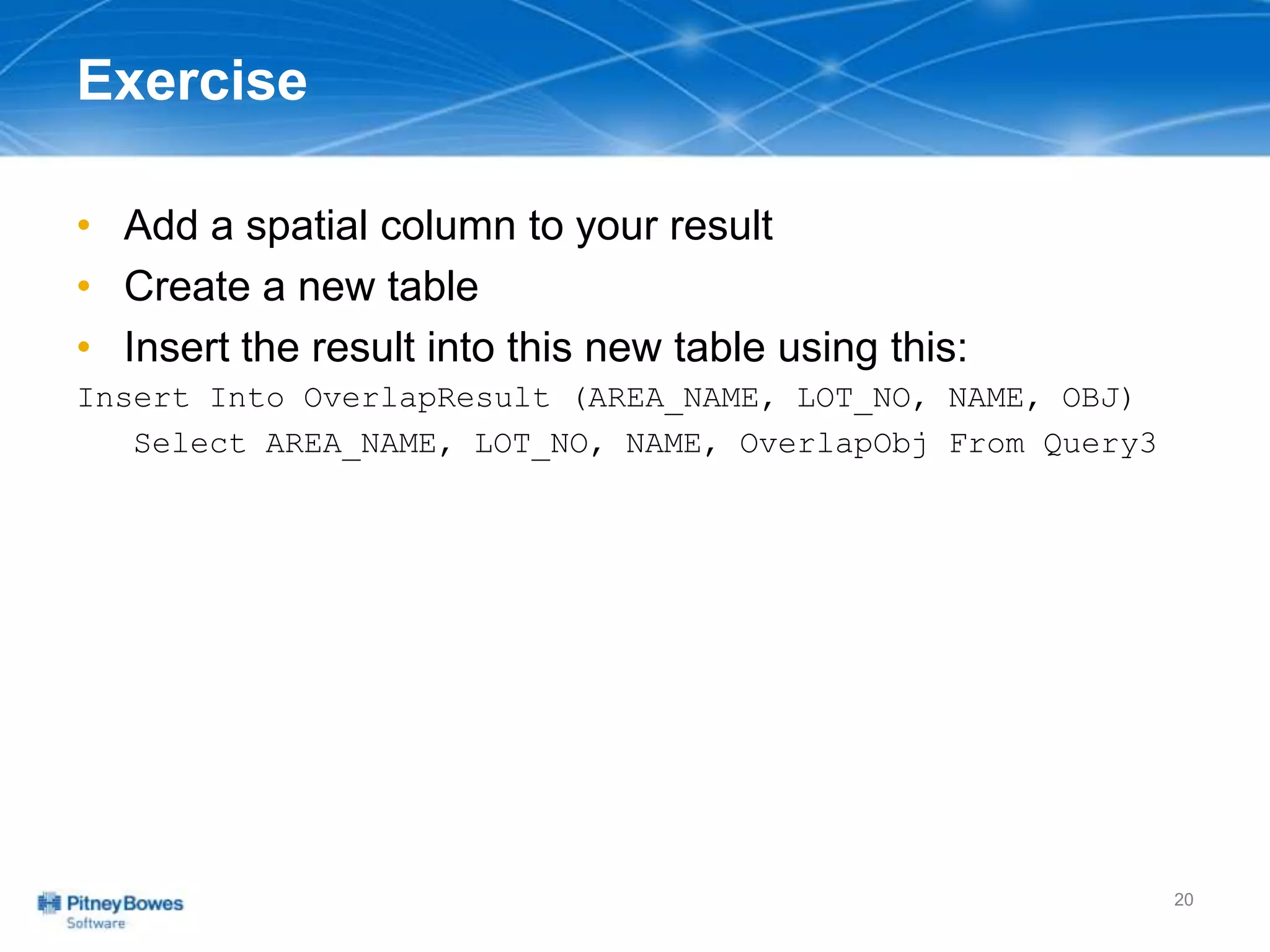

- 20. Exercise • Add aspatial column to your result • Create a new table • Insert the result into this new table using this: Insert Into OverlapResult (AREA_NAME, LOT_NO, NAME, OBJ) Select AREA_NAME, LOT_NO, NAME, OverlapObj From Query3 20

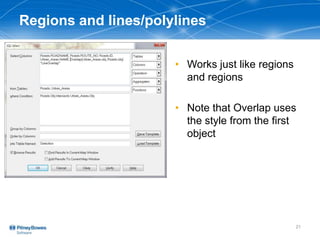

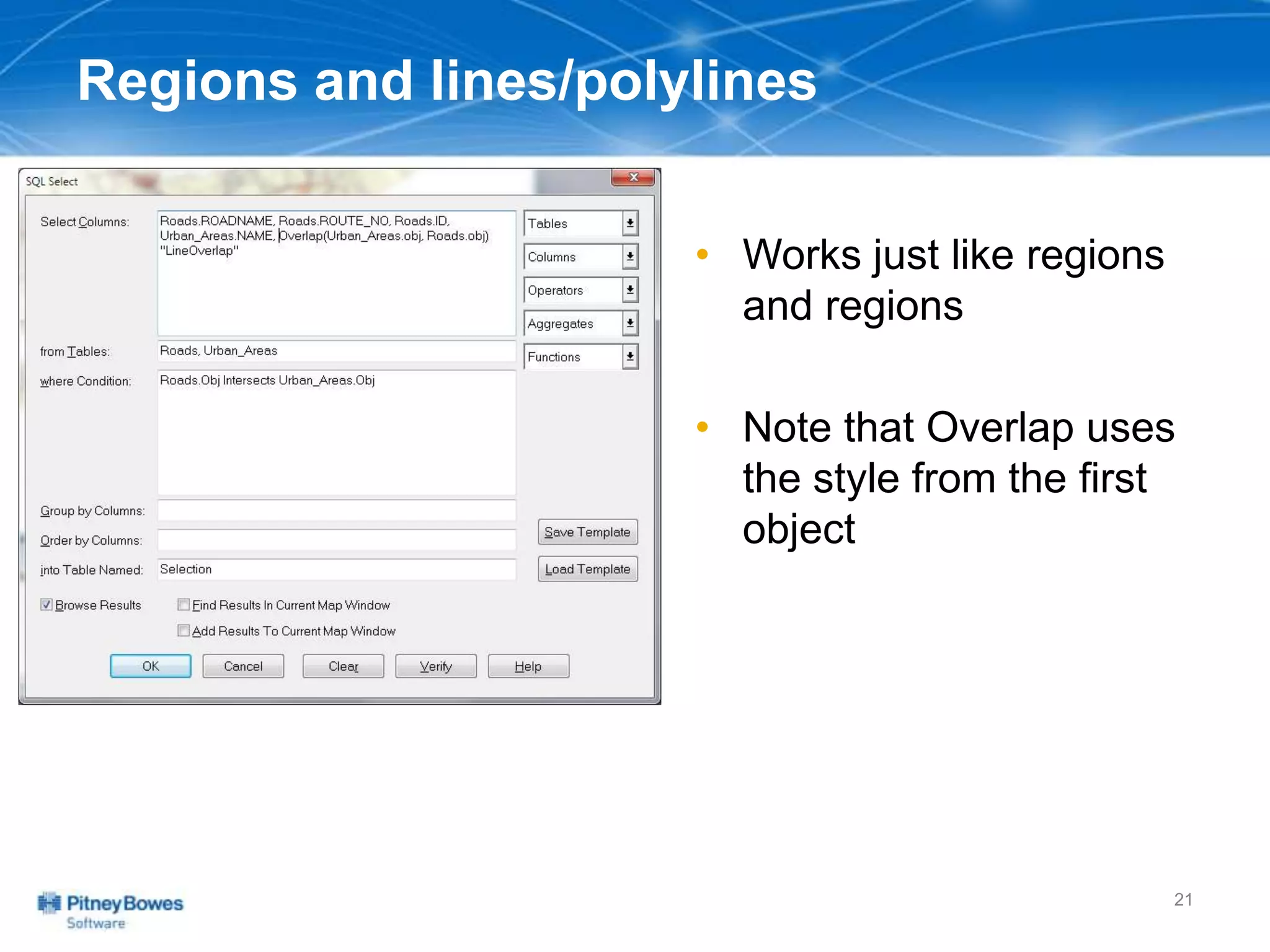

- 21. Regions and lines/polylines •Works just like regions and regions • Note that Overlap uses the style from the first object 21

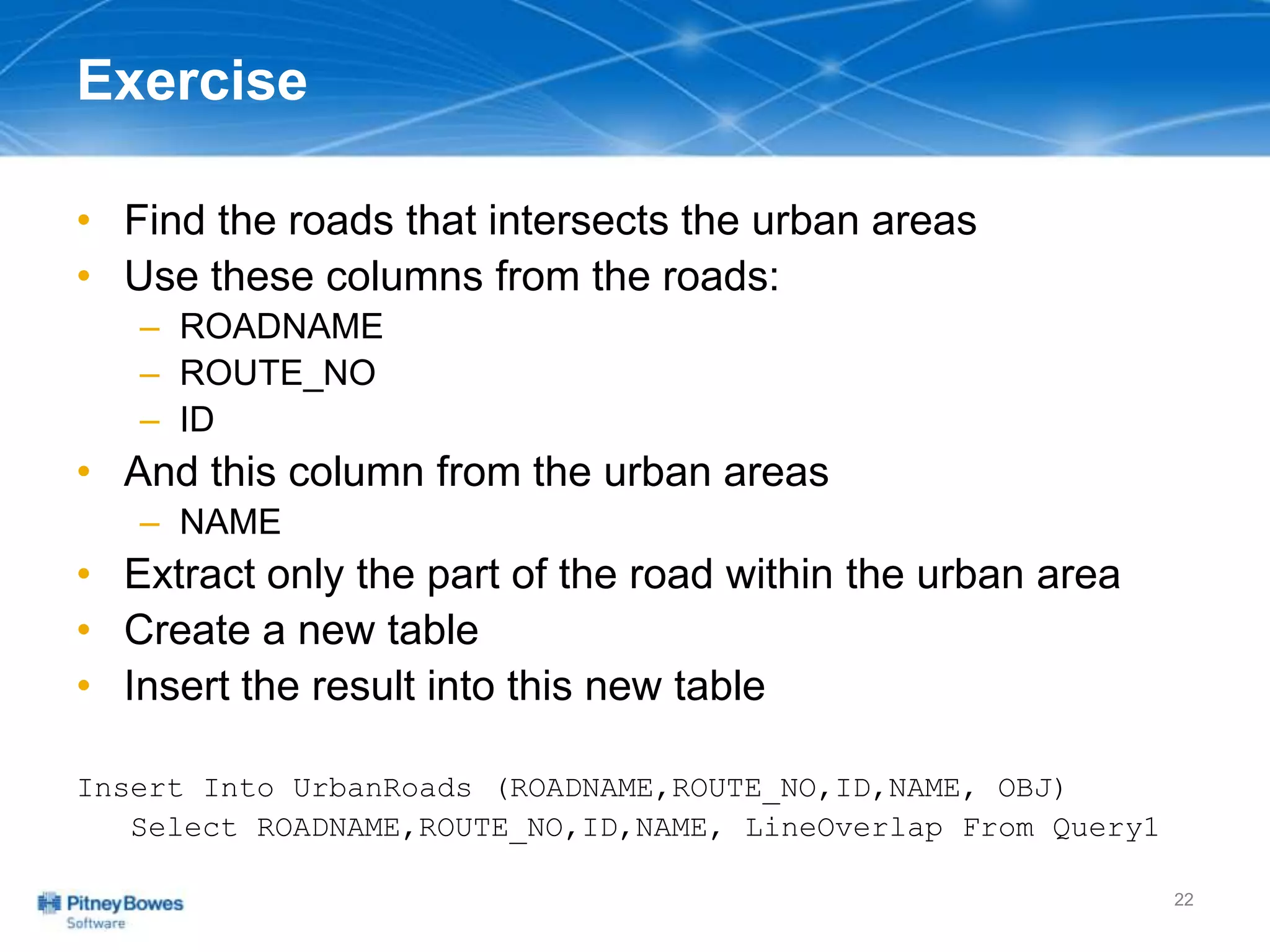

- 22. Exercise • Find theroads that intersects the urban areas • Use these columns from the roads: – ROADNAME – ROUTE_NO – ID • And this column from the urban areas – NAME • Extract only the part of the road within the urban area • Create a new table • Insert the result into this new table Insert Into UrbanRoads (ROADNAME,ROUTE_NO,ID,NAME, OBJ) Select ROADNAME,ROUTE_NO,ID,NAME, LineOverlap From Query1 22

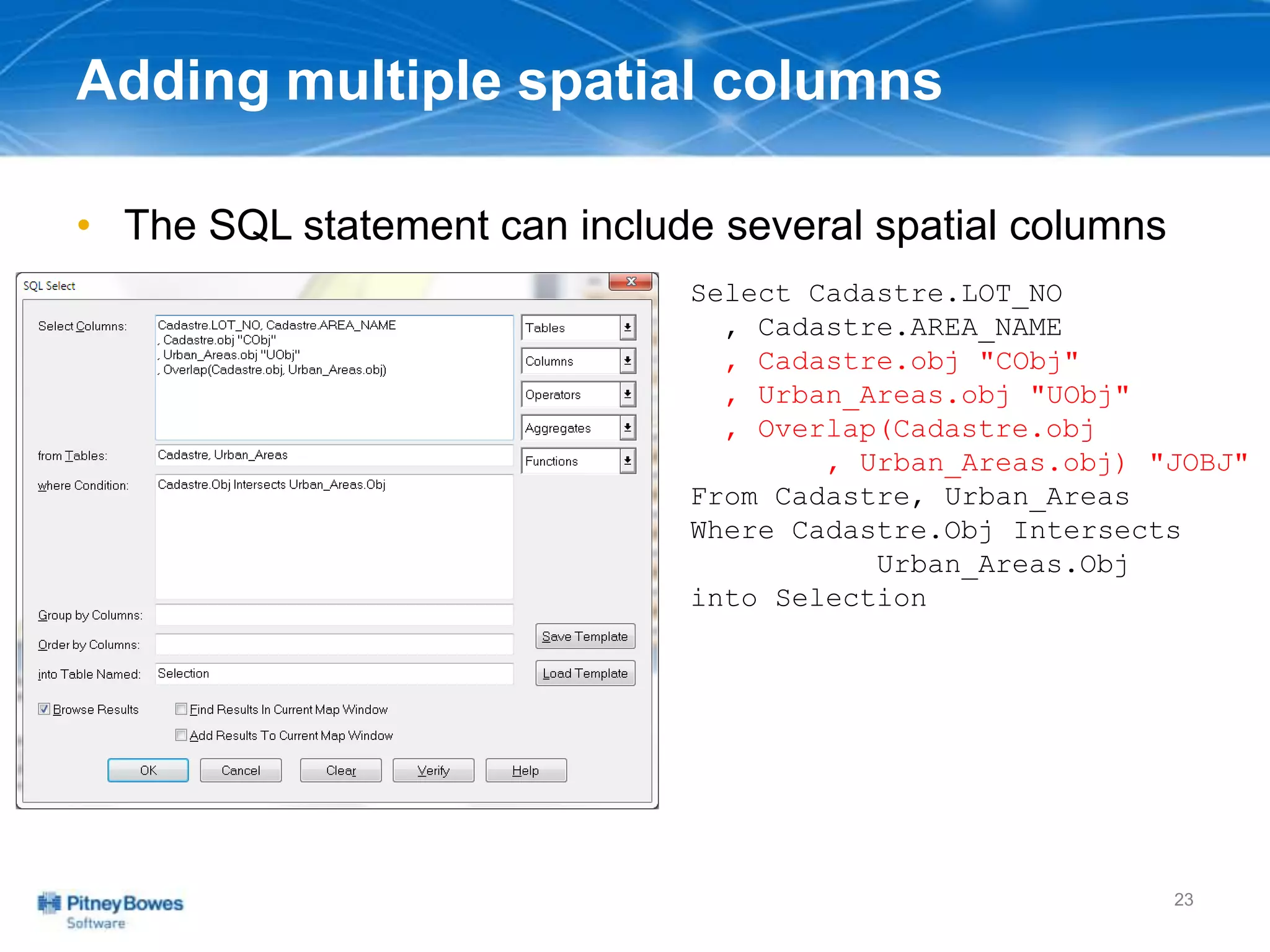

- 23. Adding multiple spatialcolumns • The SQL statement can include several spatial columns 23 Select Cadastre.LOT_NO , Cadastre.AREA_NAME , Cadastre.obj "CObj" , Urban_Areas.obj "UObj" , Overlap(Cadastre.obj , Urban_Areas.obj) "JOBJ" From Cadastre, Urban_Areas Where Cadastre.Obj Intersects Urban_Areas.Obj into Selection

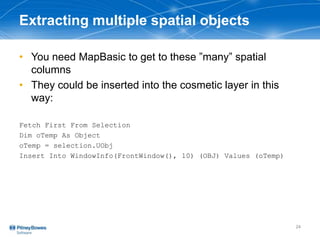

- 24. Extracting multiple spatialobjects • You need MapBasic to get to these ”many” spatial columns • They could be inserted into the cosmetic layer in this way: Fetch First From Selection Dim oTemp As Object oTemp = selection.UObj Insert Into WindowInfo(FrontWindow(), 10) (OBJ) Values (oTemp) 24

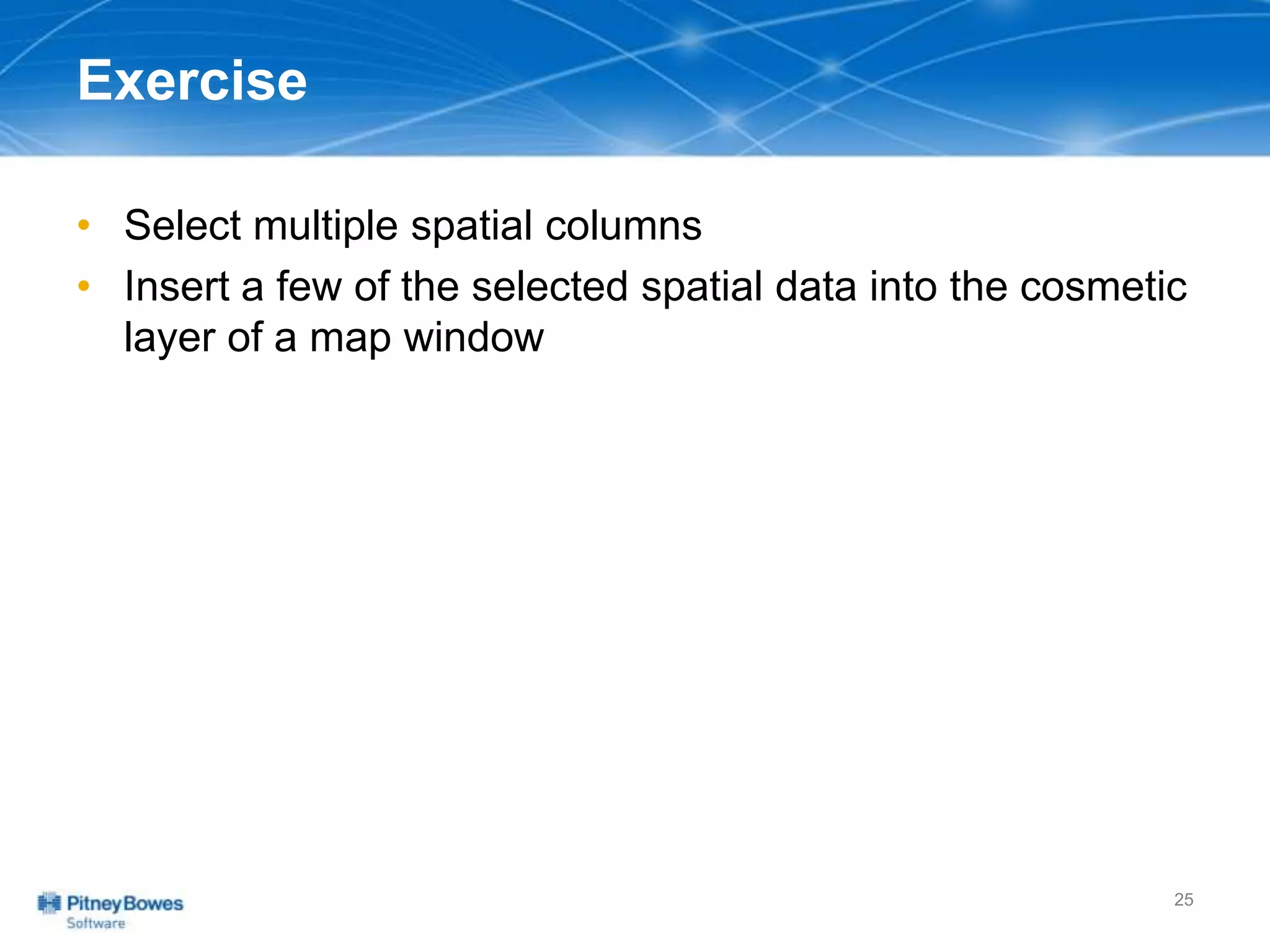

- 25. Exercise • Select multiplespatial columns • Insert a few of the selected spatial data into the cosmetic layer of a map window 25

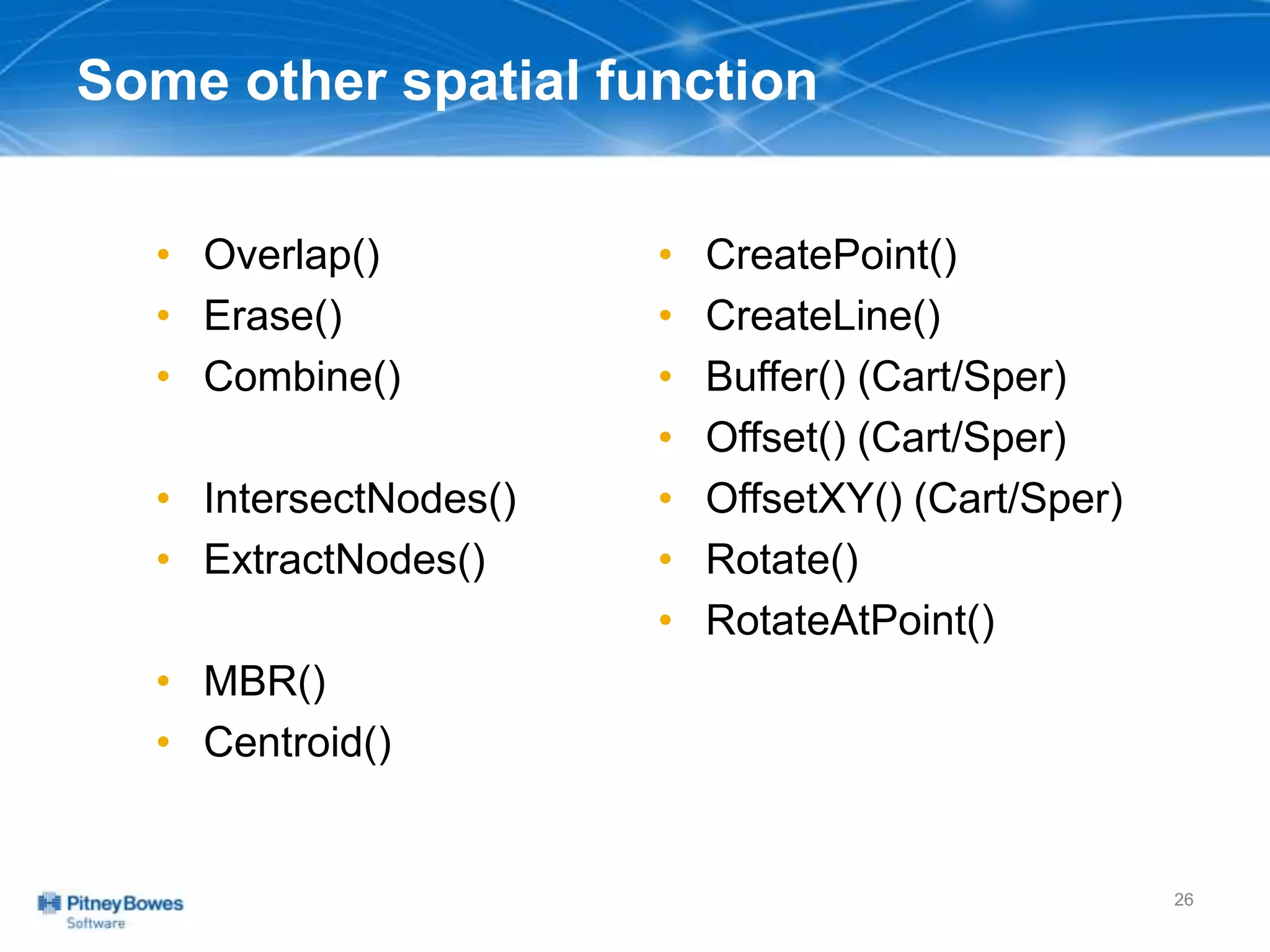

- 26. Some other spatialfunction • Overlap() • Erase() • Combine() • IntersectNodes() • ExtractNodes() • MBR() • Centroid() • CreatePoint() • CreateLine() • Buffer() (Cart/Sper) • Offset() (Cart/Sper) • OffsetXY() (Cart/Sper) • Rotate() • RotateAtPoint() 26
- 27. Thank You Peter HorsbøllMøller peter.moller@pb.com
