The ASP.NET Web API for Beginners
This document provides an overview and examples for building web APIs with ASP.NET Web API. It discusses Richardson maturity levels, the HTTP request/response processing pipeline, attribute routing, and implementing handlers. It also demonstrates testing Web API controllers with the WebApiTestClient without requiring a running host. Key topics include building controllers, adding OData query support, creating an authorization handler, and following the Arrange, Act, Assert pattern for tests.
More Related Content
Similar to The ASP.NET Web API for Beginners
The ASP.NET Web API for Beginners
- 1. The ASP.NET Web APIfor Beginners W. Kevin Hazzard

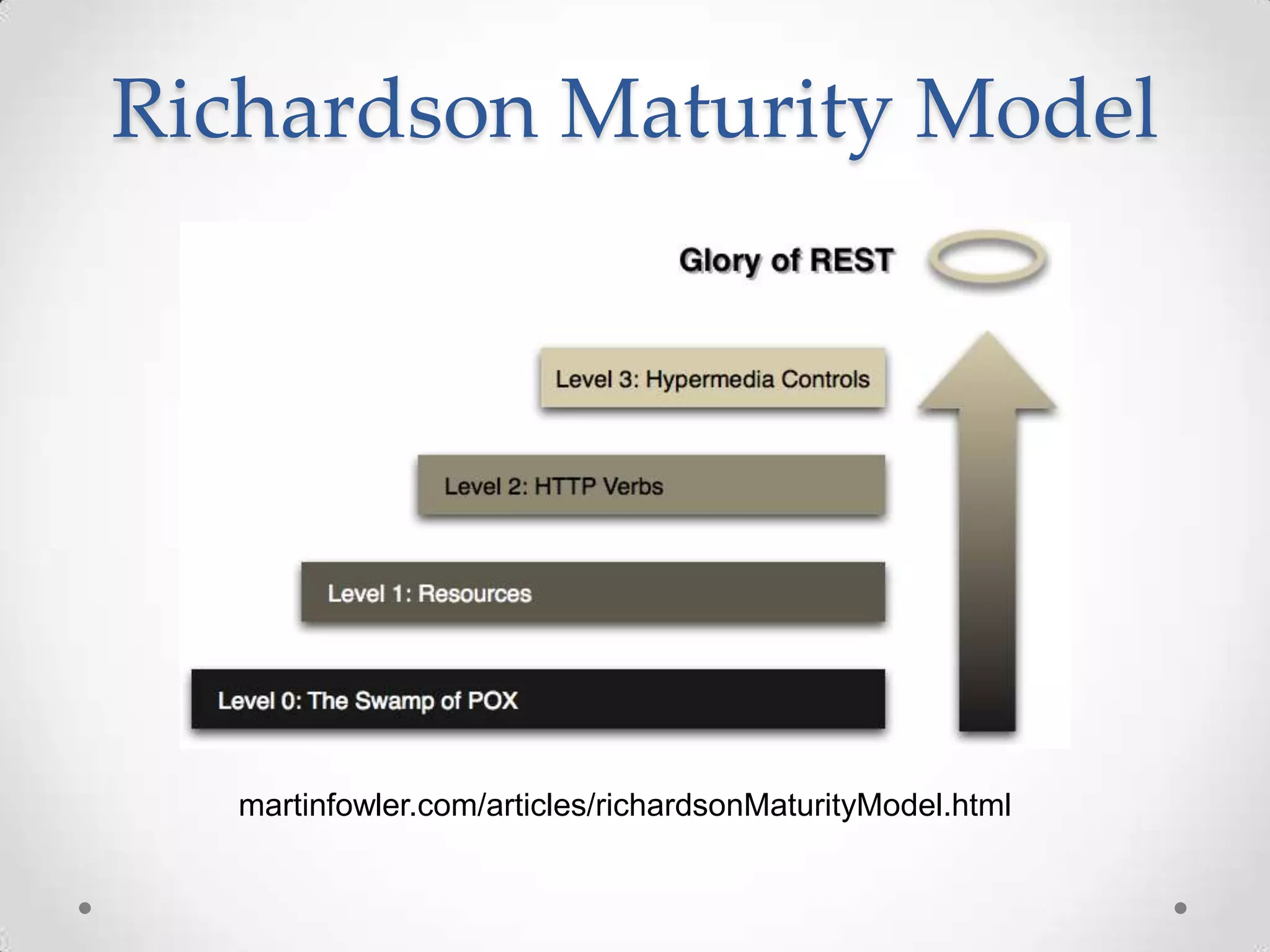

- 2.

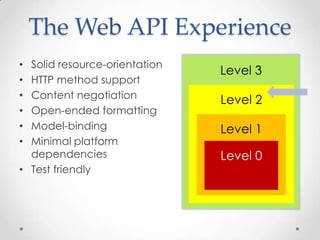

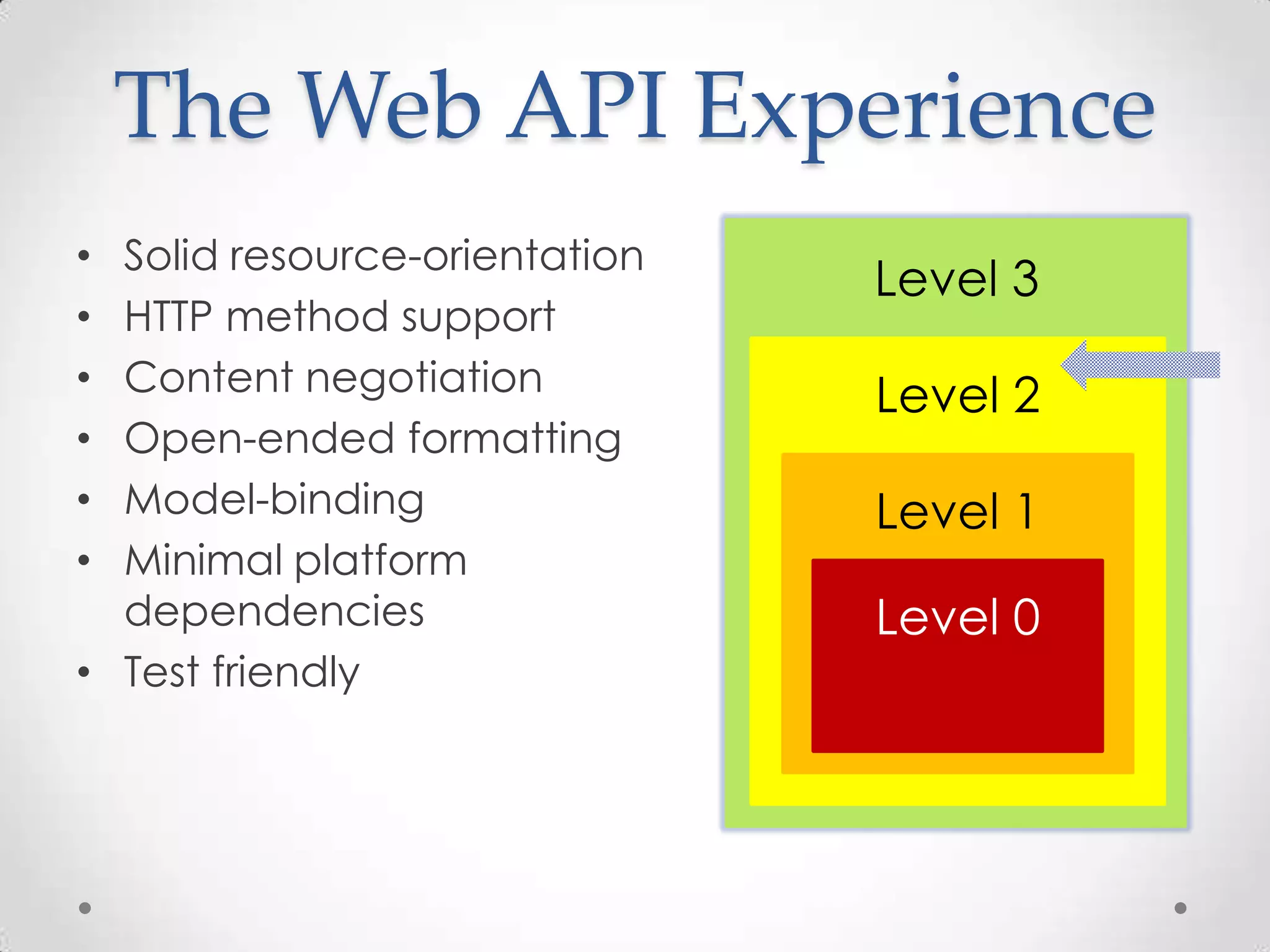

- 3. The Web APIExperience • Solid resource-orientation • HTTP method support • Content negotiation • Open-ended formatting • Model-binding • Minimal platform dependencies • Test friendly Level 3 Level 2 Level 1 Level 0

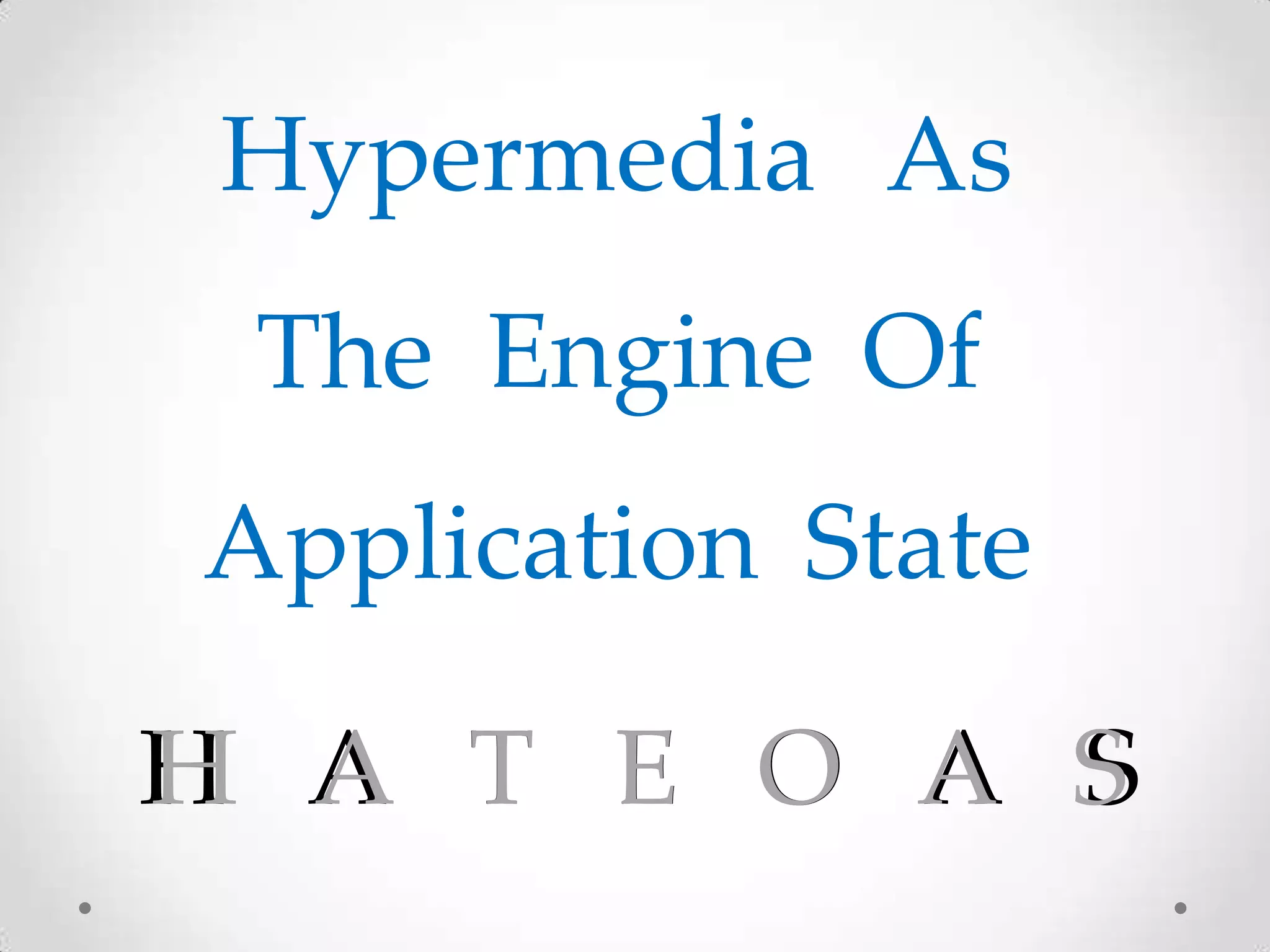

- 4. H A TE O A S Hypermedia As The Engine Of Application State H A T E O A S
- 5.

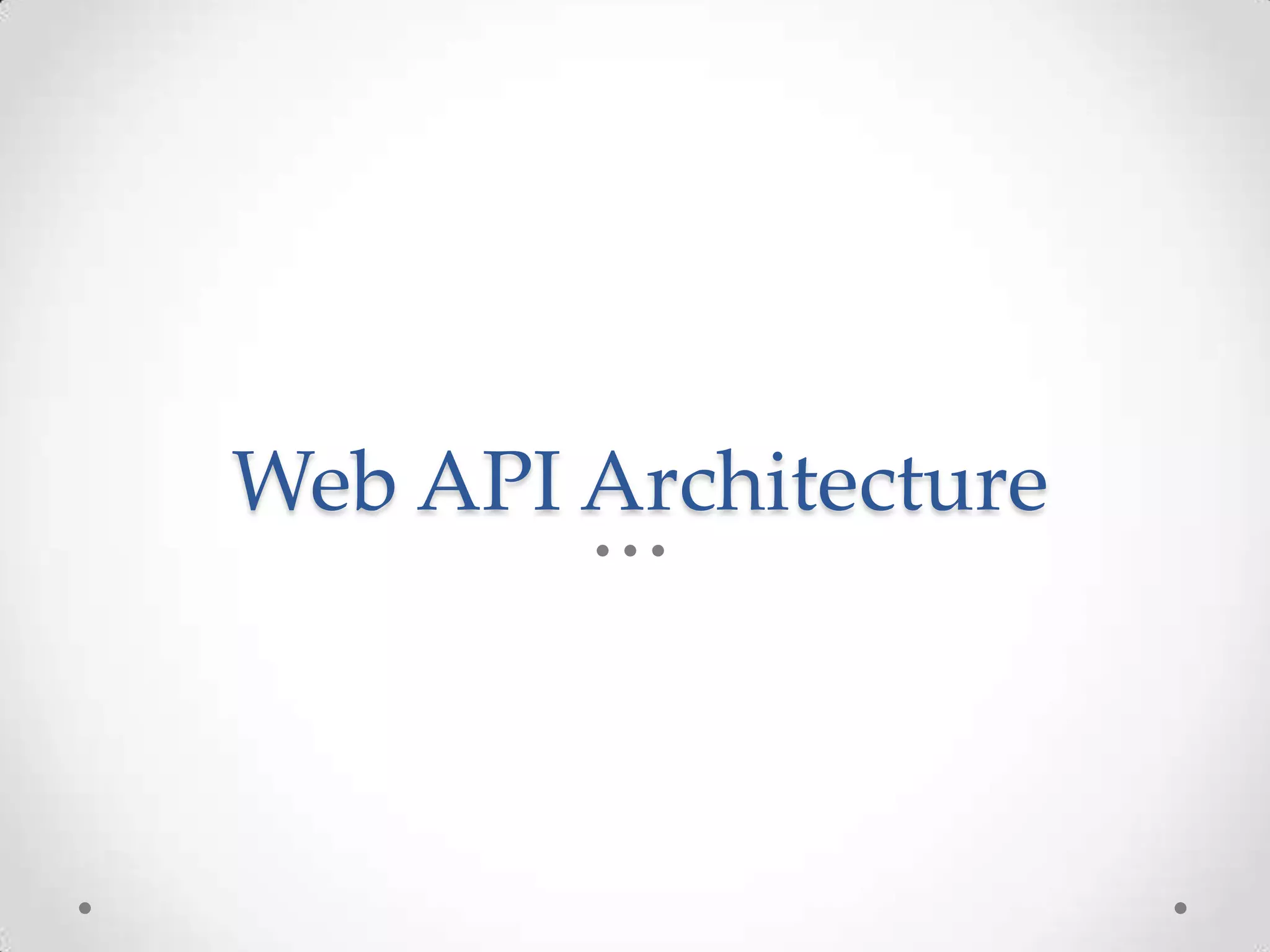

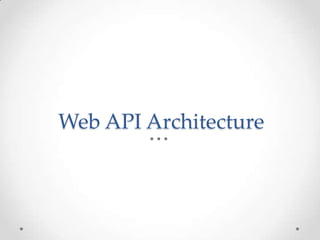

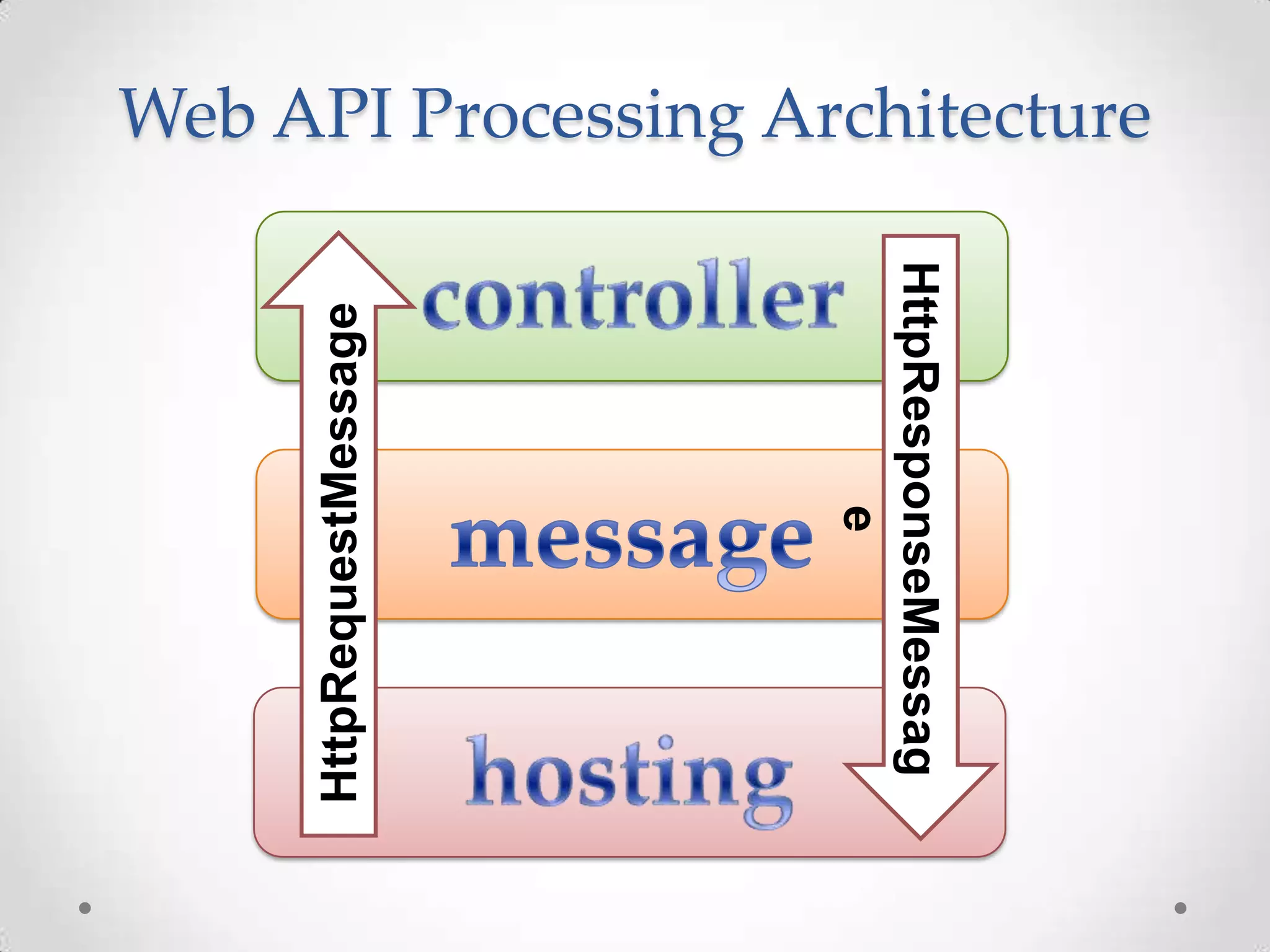

- 6. Web API ProcessingArchitecture HttpRequestMessage HttpResponseMessag e

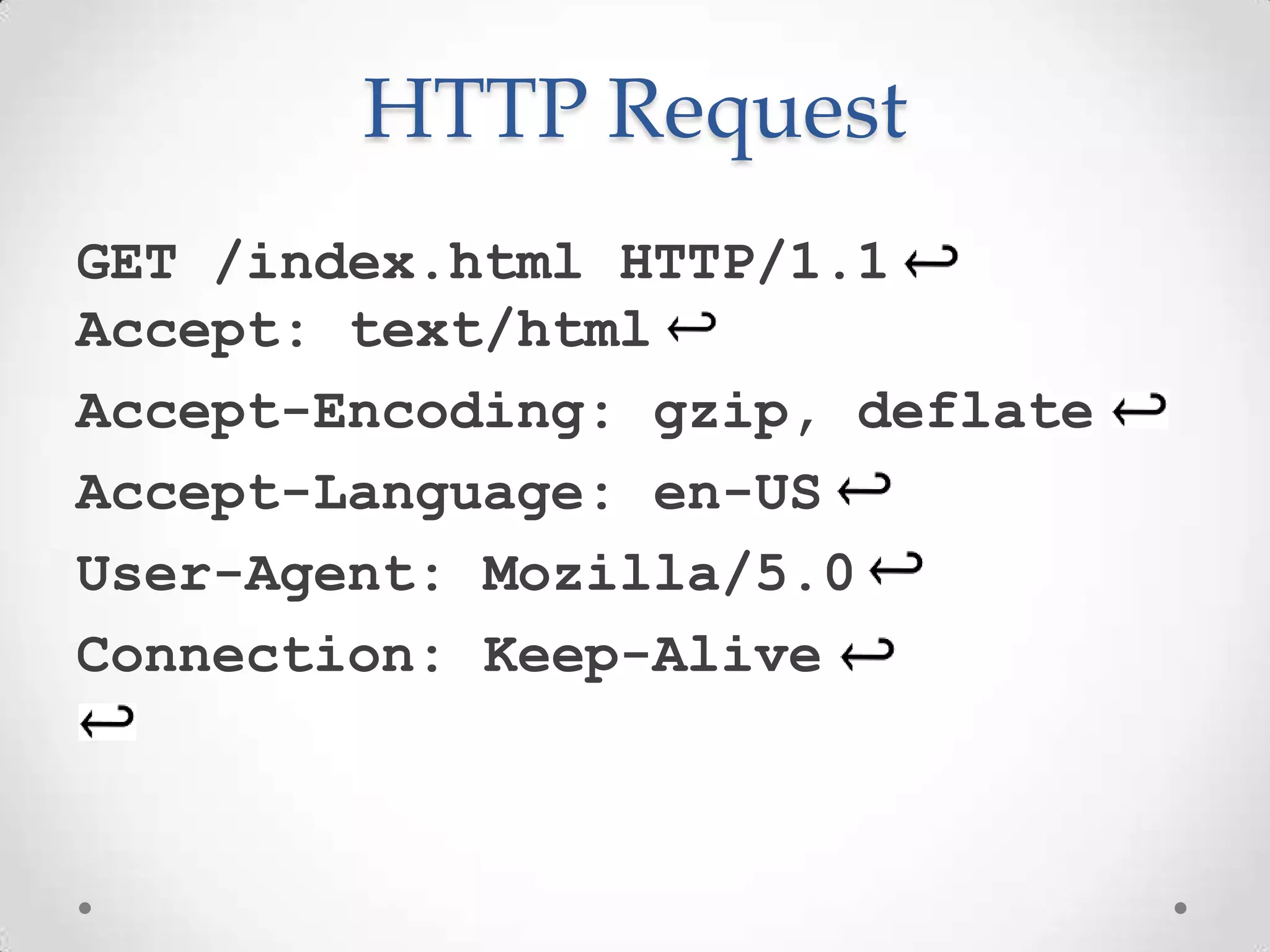

- 7. HTTP Request GET /index.htmlHTTP/1.1 Accept: text/html Accept-Encoding: gzip, deflate Accept-Language: en-US User-Agent: Mozilla/5.0 Connection: Keep-Alive

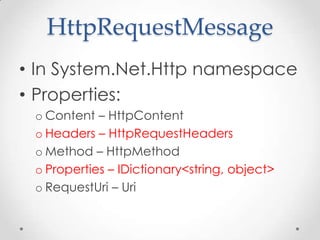

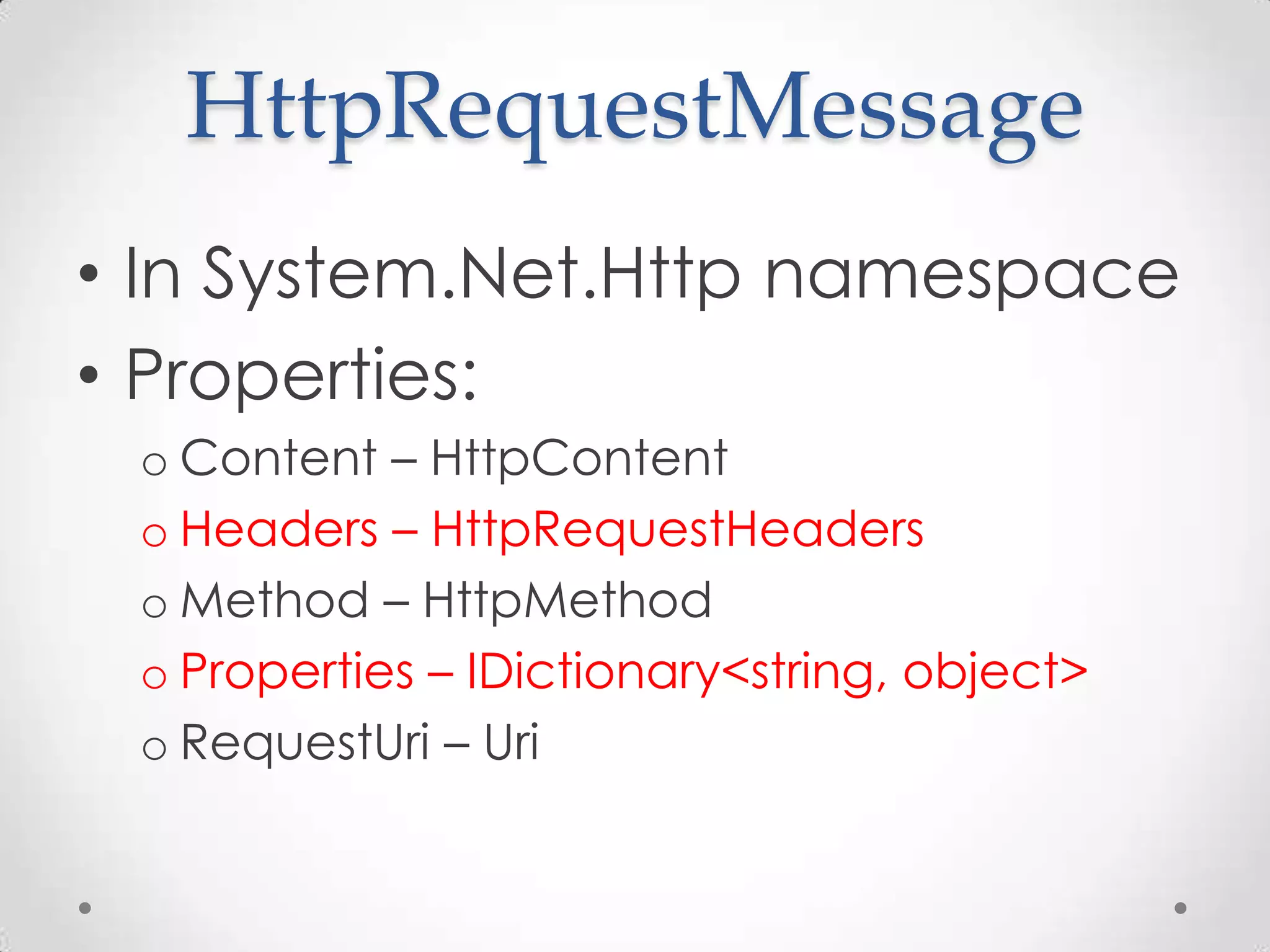

- 8. HttpRequestMessage • In System.Net.Httpnamespace • Properties: o Content – HttpContent o Headers – HttpRequestHeaders o Method – HttpMethod o Properties – IDictionary<string, object> o RequestUri – Uri

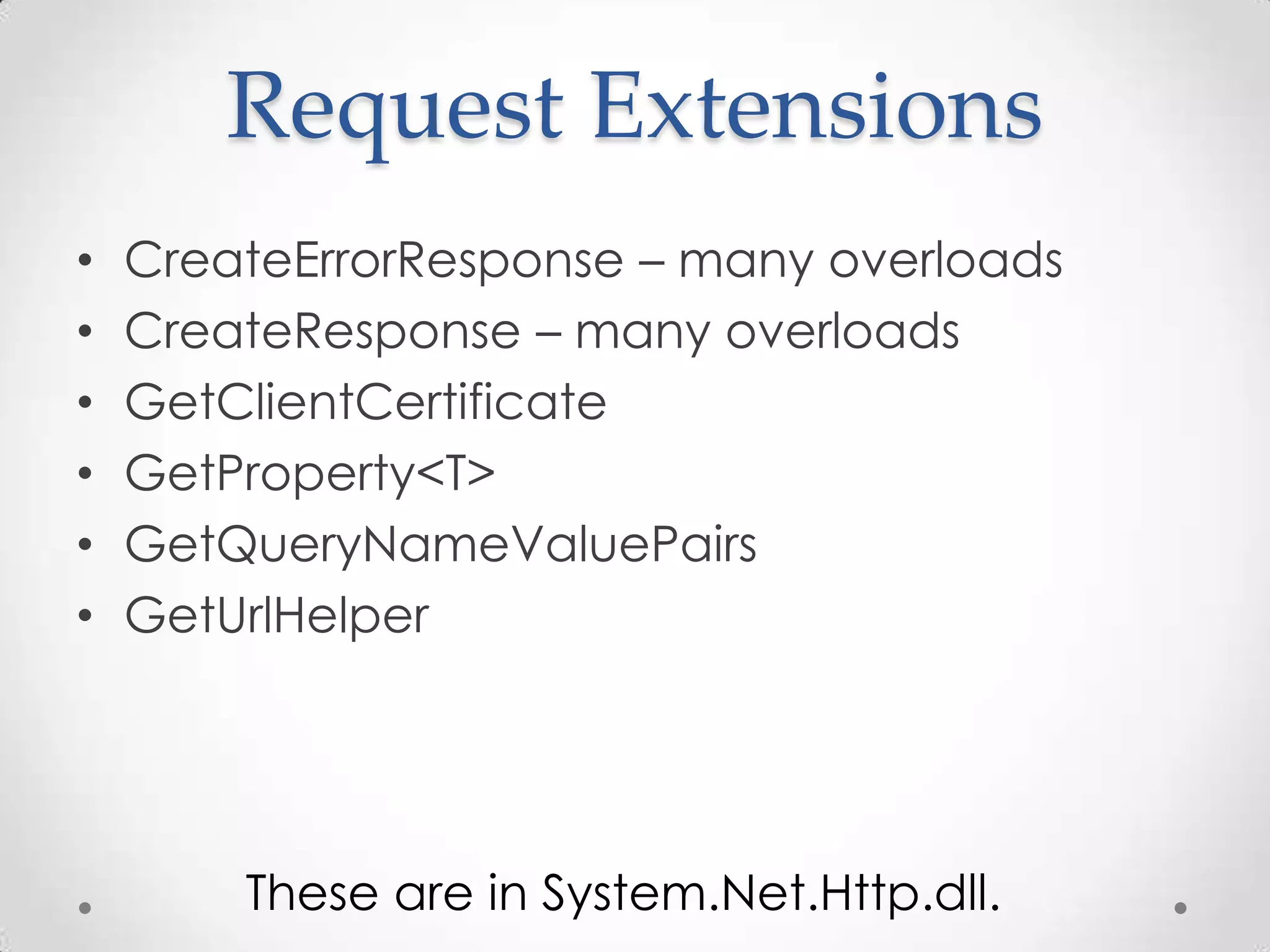

- 9. Request Extensions • CreateErrorResponse– many overloads • CreateResponse – many overloads • GetClientCertificate • GetProperty<T> • GetQueryNameValuePairs • GetUrlHelper These are in System.Net.Http.dll.

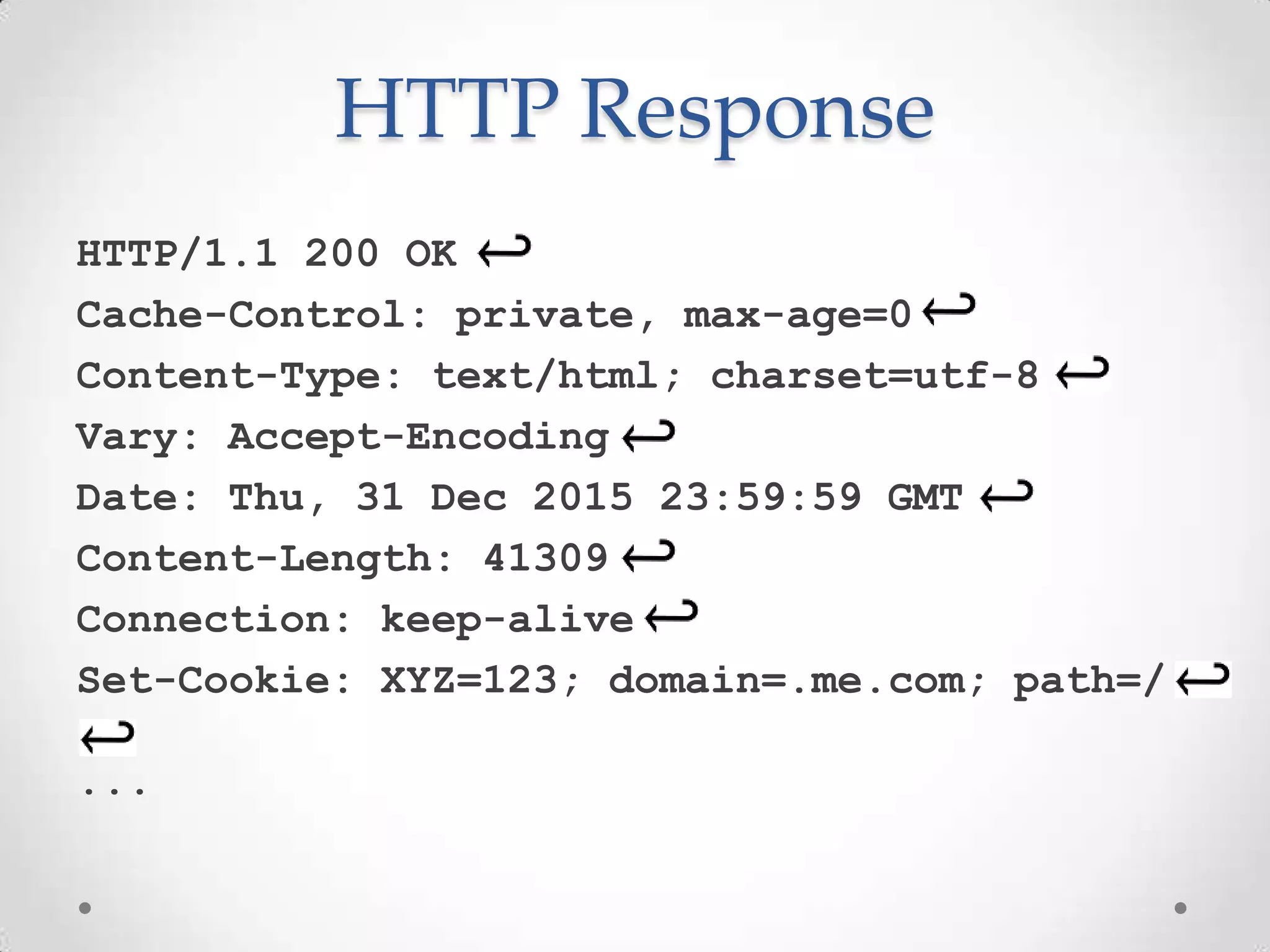

- 10. HTTP Response HTTP/1.1 200OK Cache-Control: private, max-age=0 Content-Type: text/html; charset=utf-8 Vary: Accept-Encoding Date: Thu, 31 Dec 2015 23:59:59 GMT Content-Length: 41309 Connection: keep-alive Set-Cookie: XYZ=123; domain=.me.com; path=/ ...

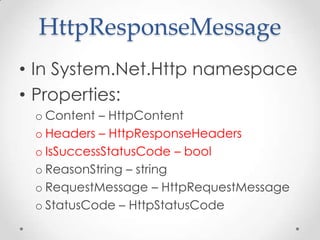

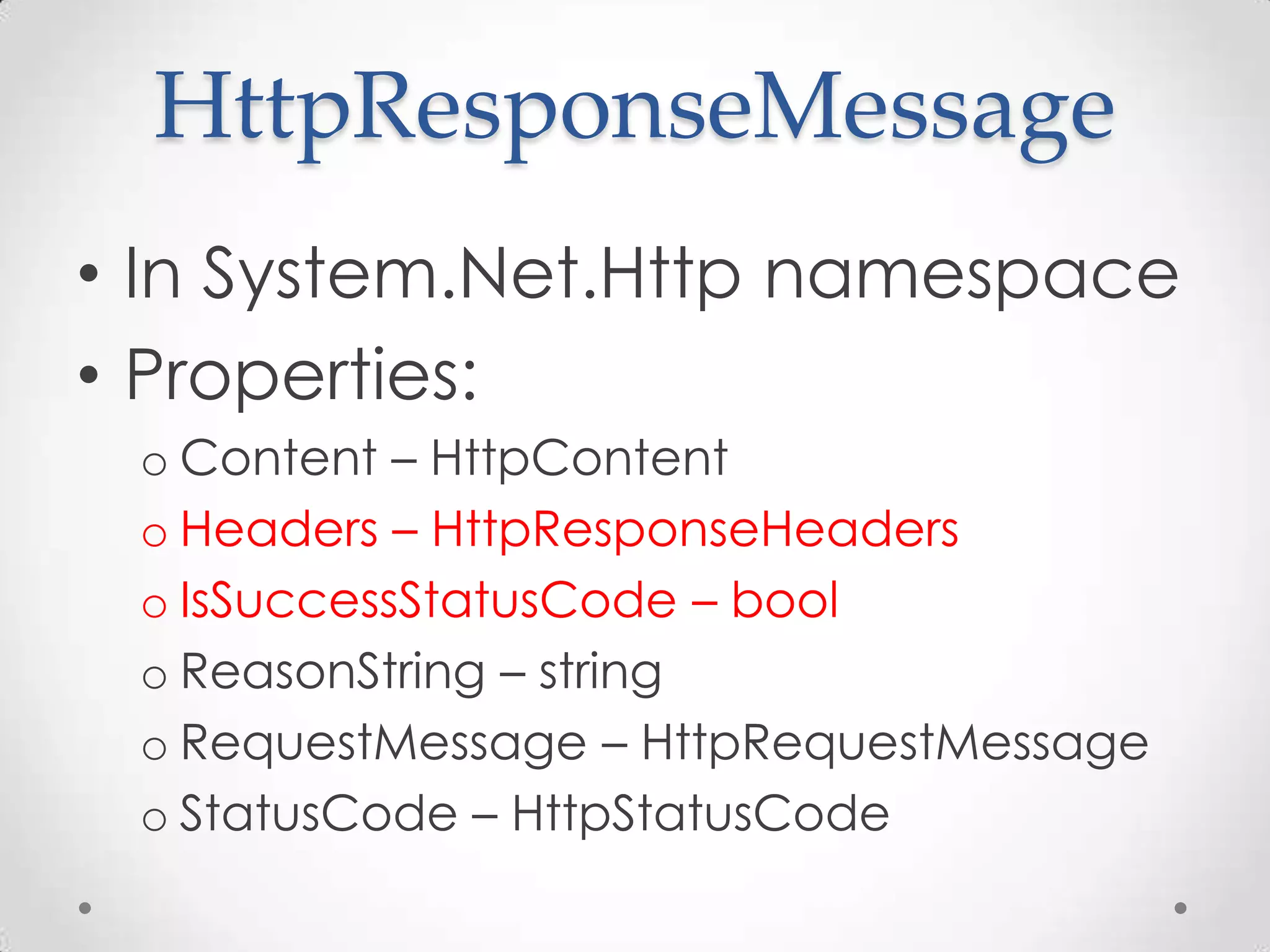

- 11. HttpResponseMessage • In System.Net.Httpnamespace • Properties: o Content – HttpContent o Headers – HttpResponseHeaders o IsSuccessStatusCode – bool o ReasonString – string o RequestMessage – HttpRequestMessage o StatusCode – HttpStatusCode

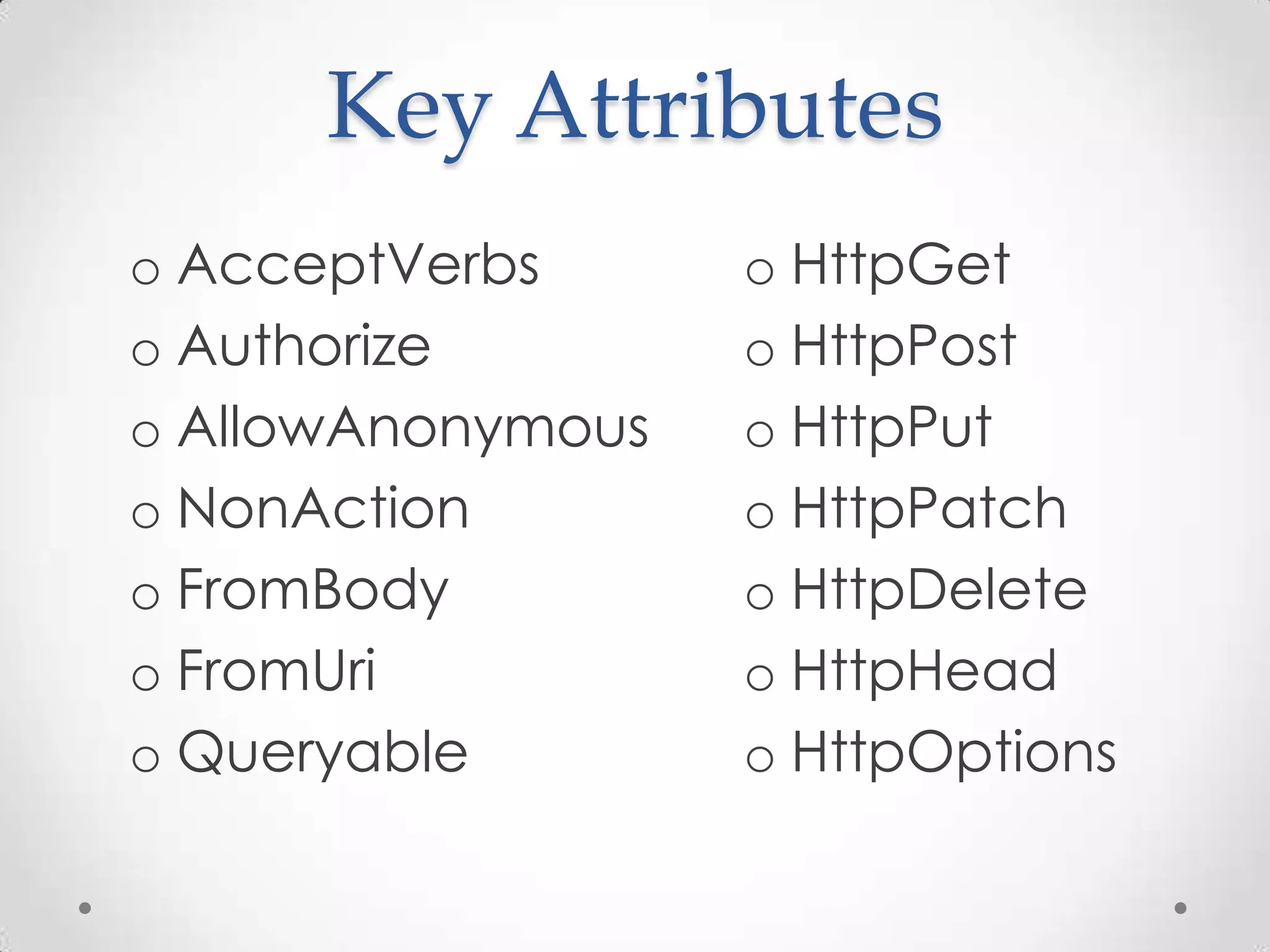

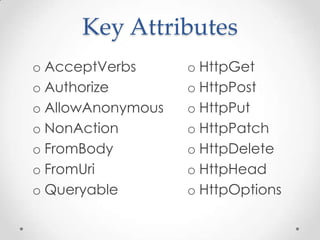

- 12. Key Attributes o HttpGet oHttpPost o HttpPut o HttpPatch o HttpDelete o HttpHead o HttpOptions o AcceptVerbs o Authorize o AllowAnonymous o NonAction o FromBody o FromUri o Queryable

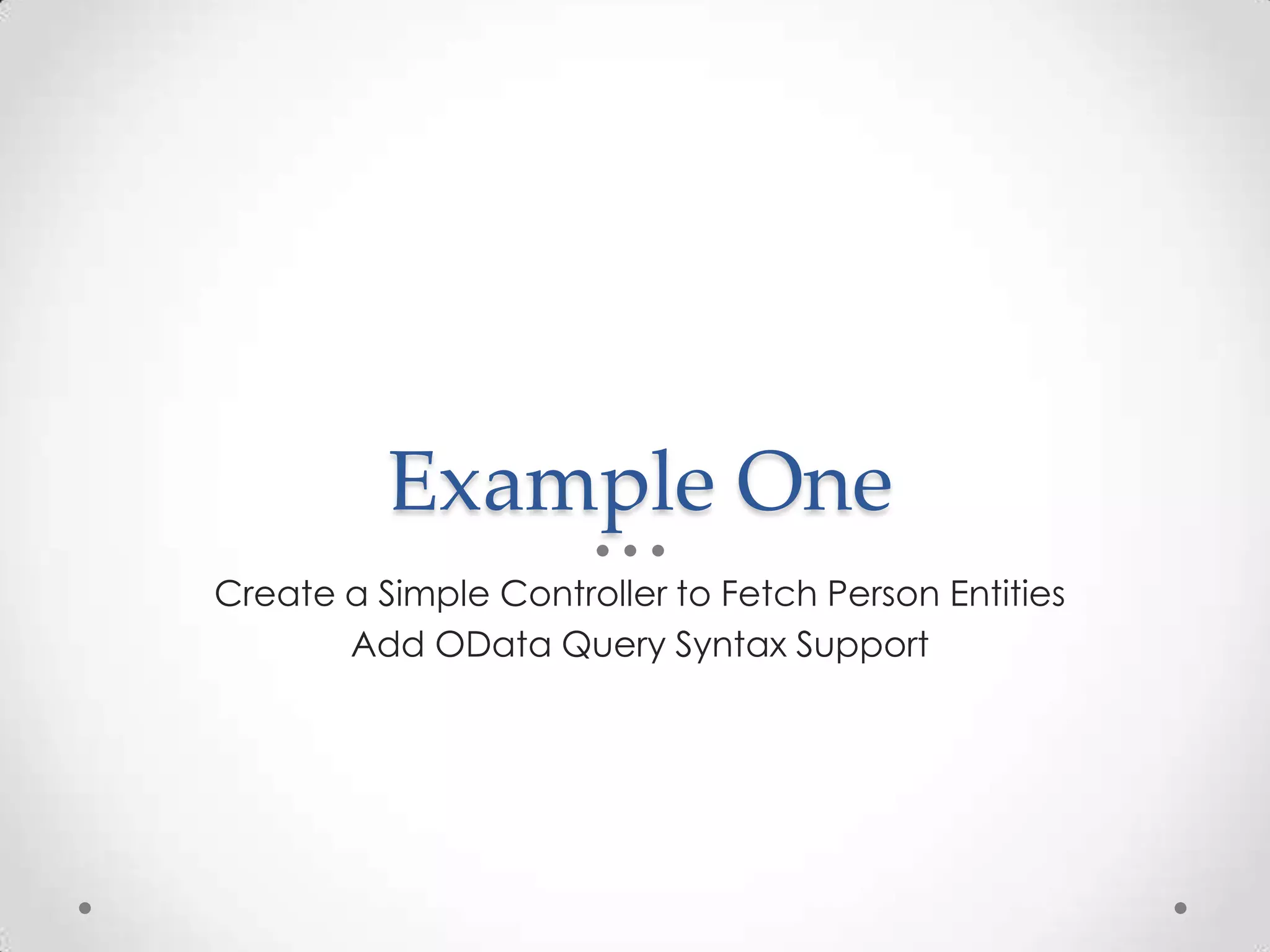

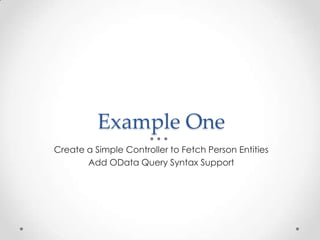

- 13. Example One Create aSimple Controller to Fetch Person Entities Add OData Query Syntax Support

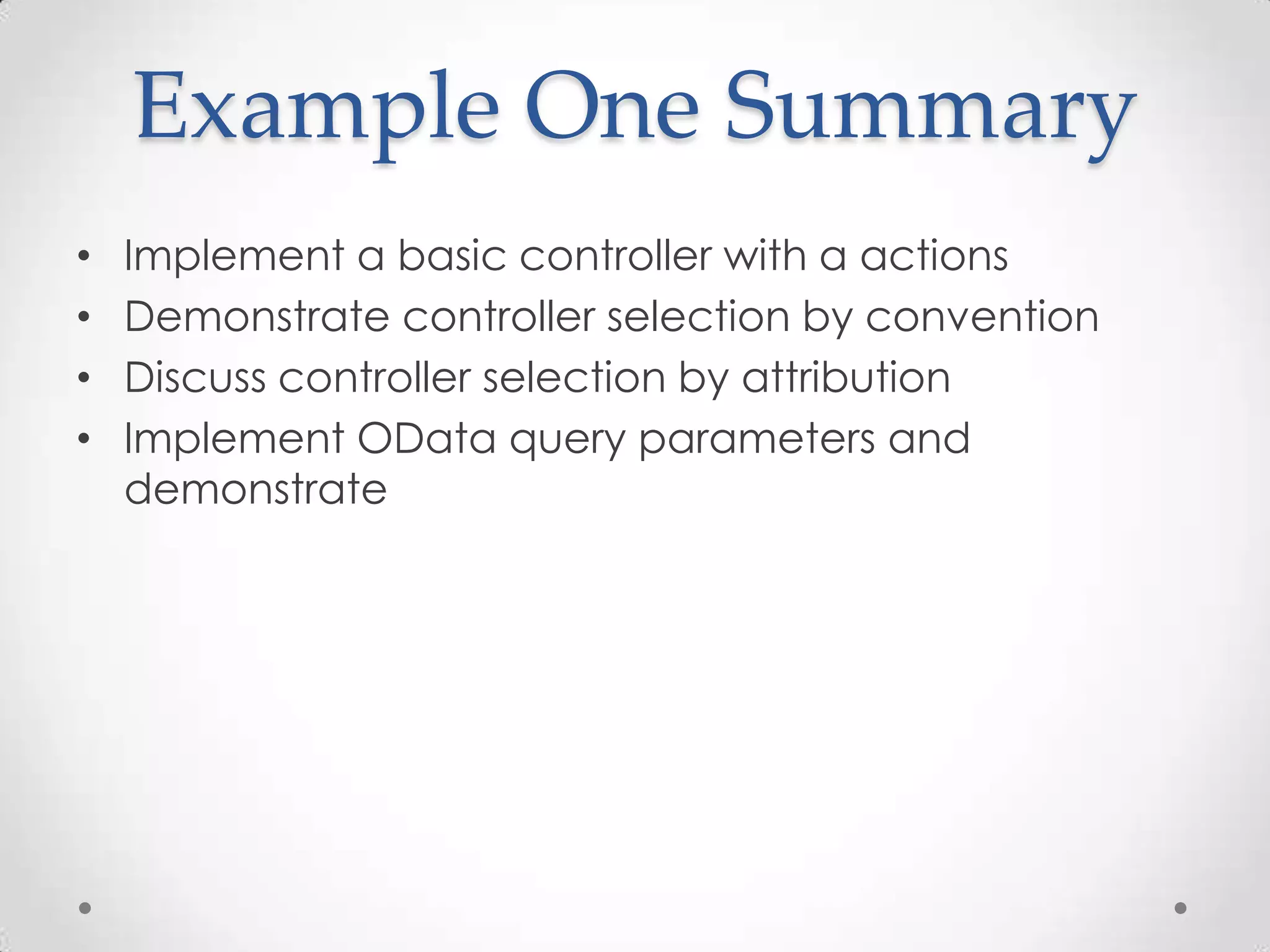

- 14. Example One Summary •Implement a basic controller with a actions • Demonstrate controller selection by convention • Discuss controller selection by attribution • Implement OData query parameters and demonstrate

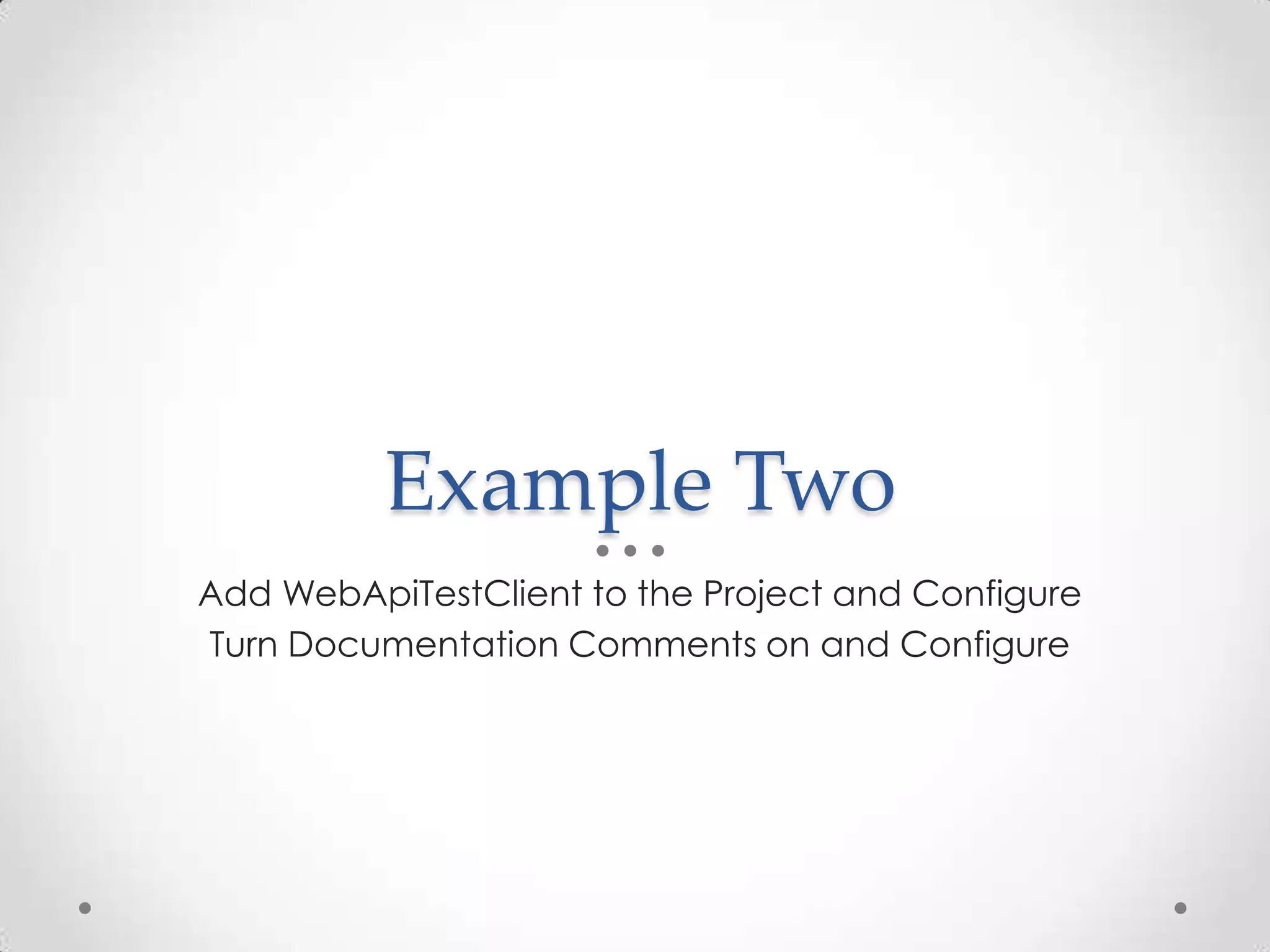

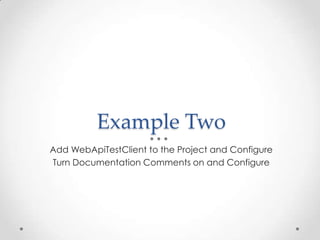

- 15. Example Two Add WebApiTestClientto the Project and Configure Turn Documentation Comments on and Configure

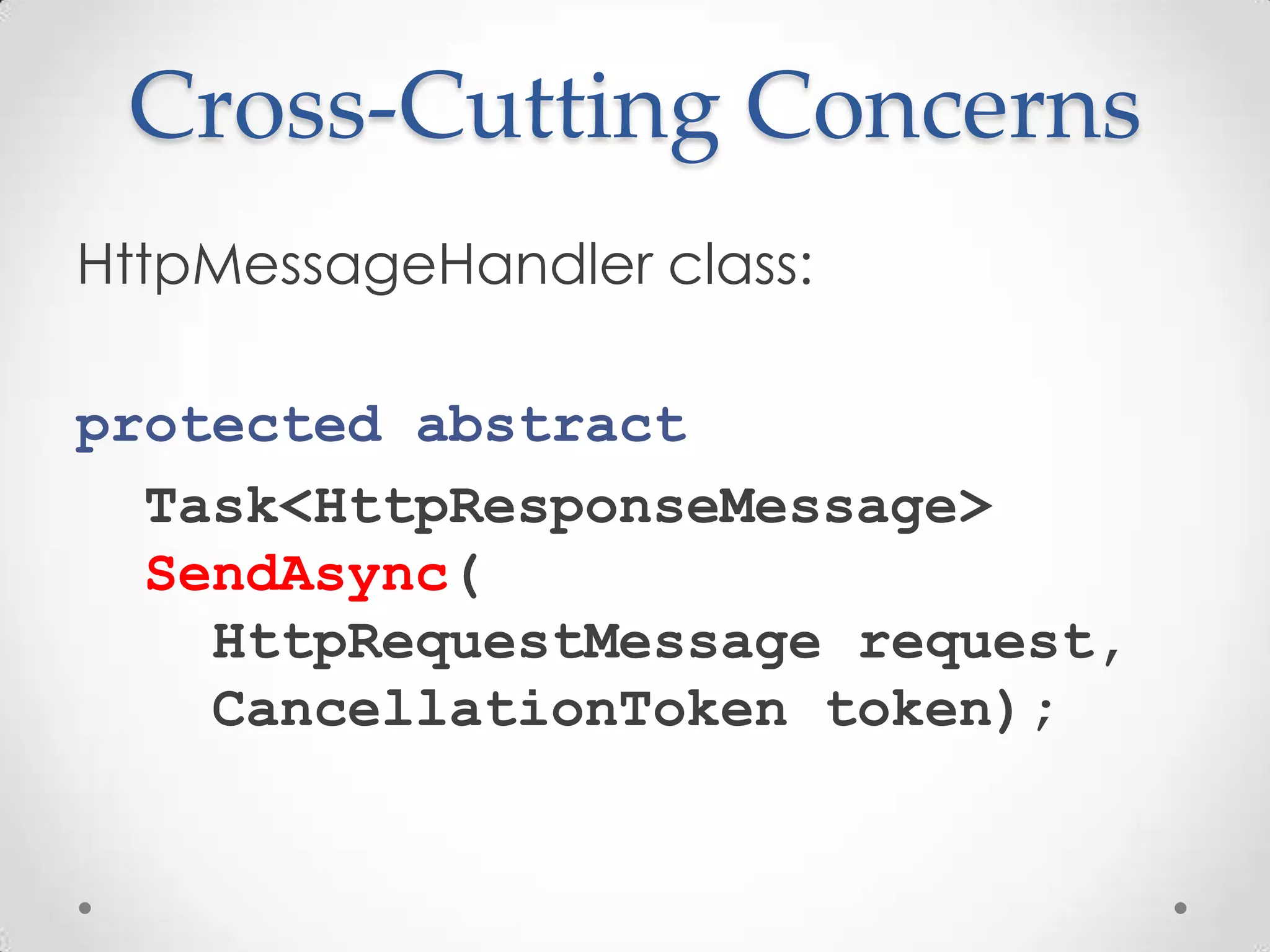

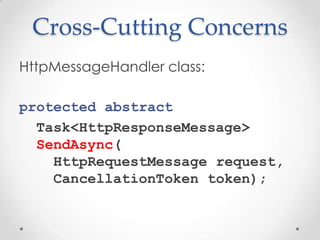

- 16. Cross-Cutting Concerns HttpMessageHandler class: protectedabstract Task<HttpResponseMessage> SendAsync( HttpRequestMessage request, CancellationToken token);

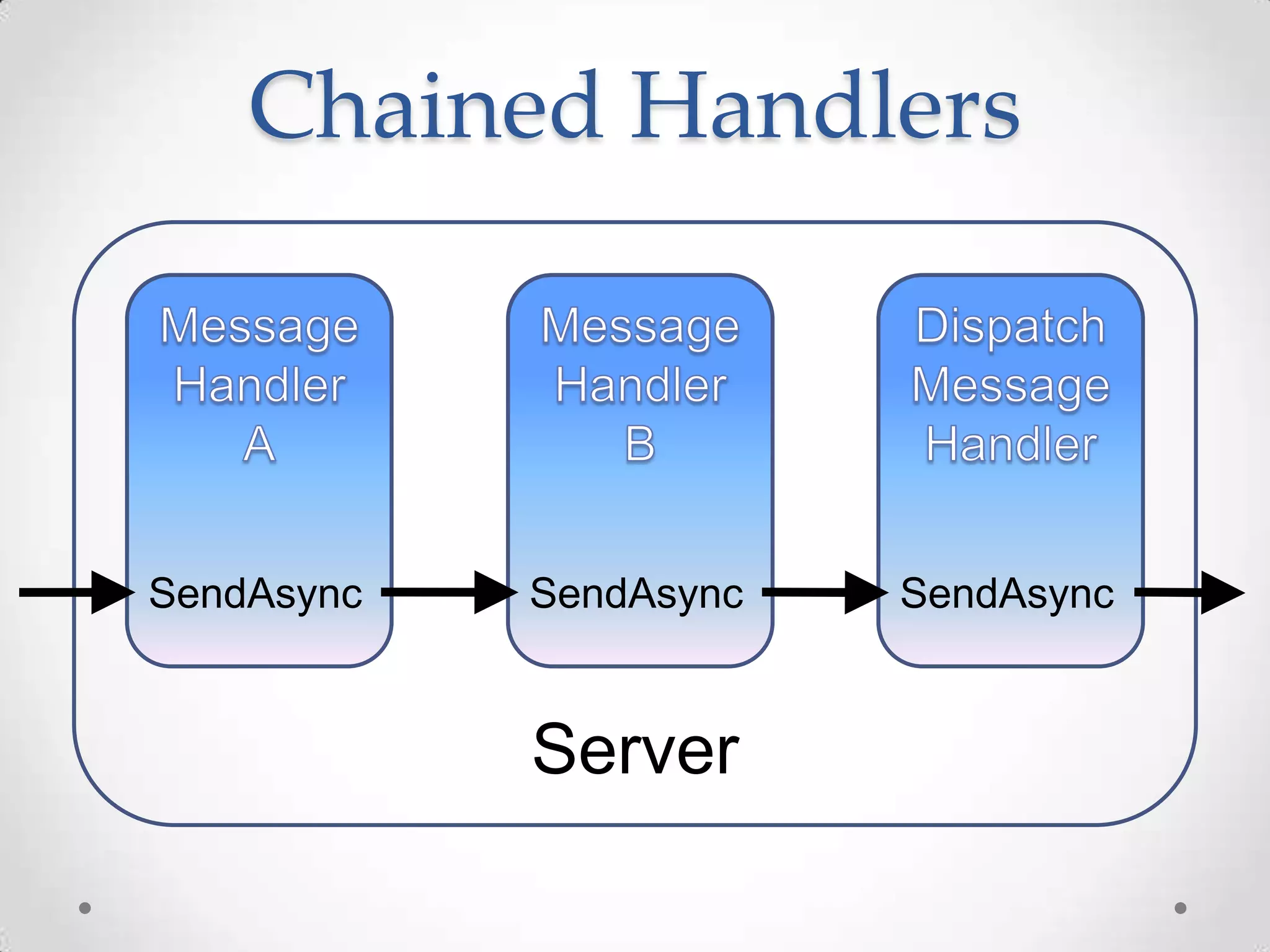

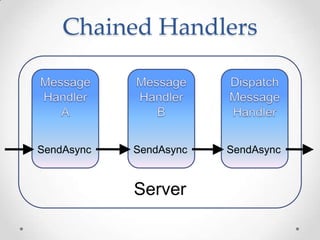

- 17. DelegatingHandler Derives from HttpMessageHandler Chains handlerstogether in the order you add them
- 18.

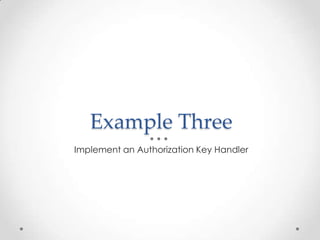

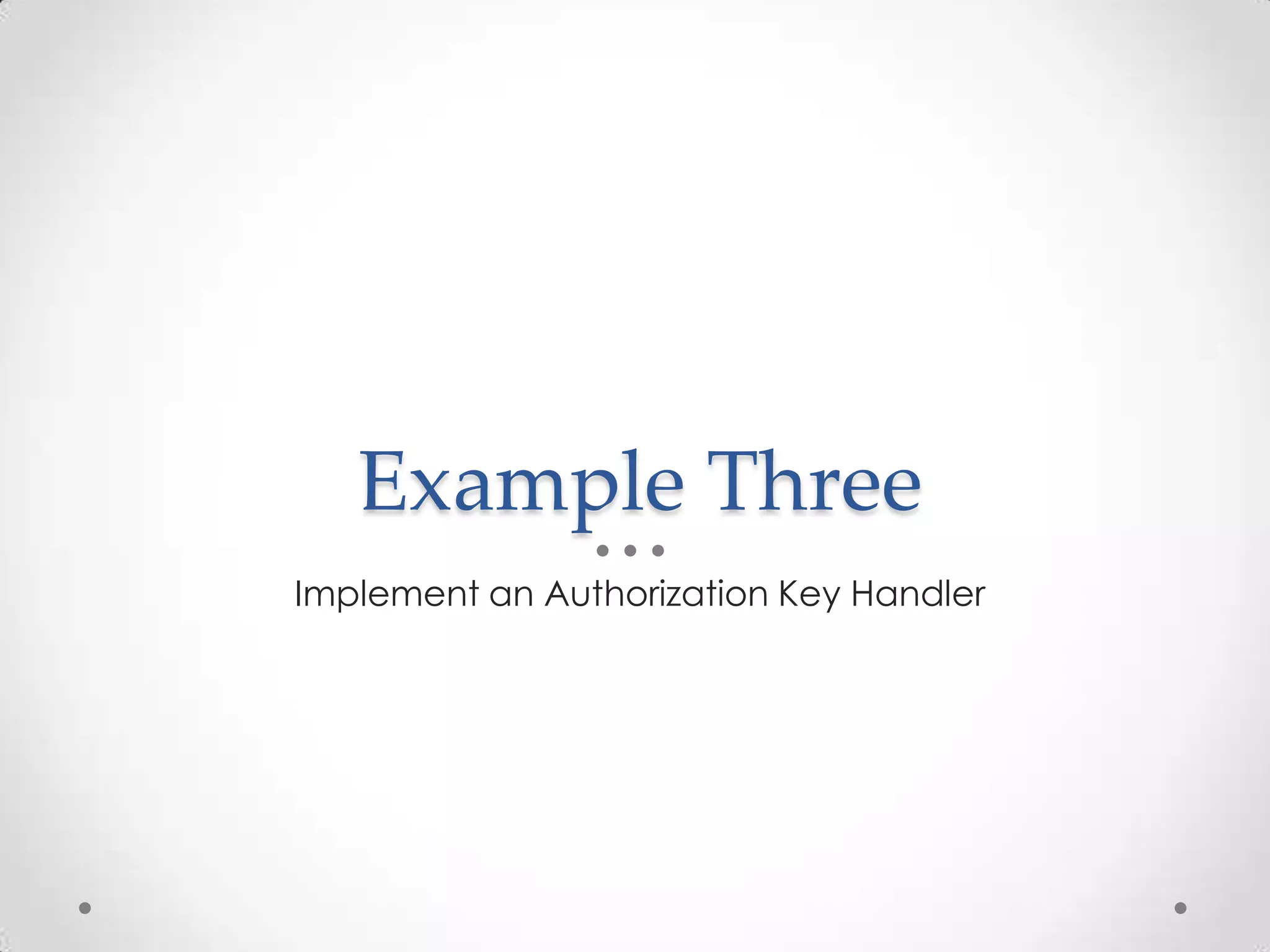

- 19. Example Three Implement anAuthorization Key Handler

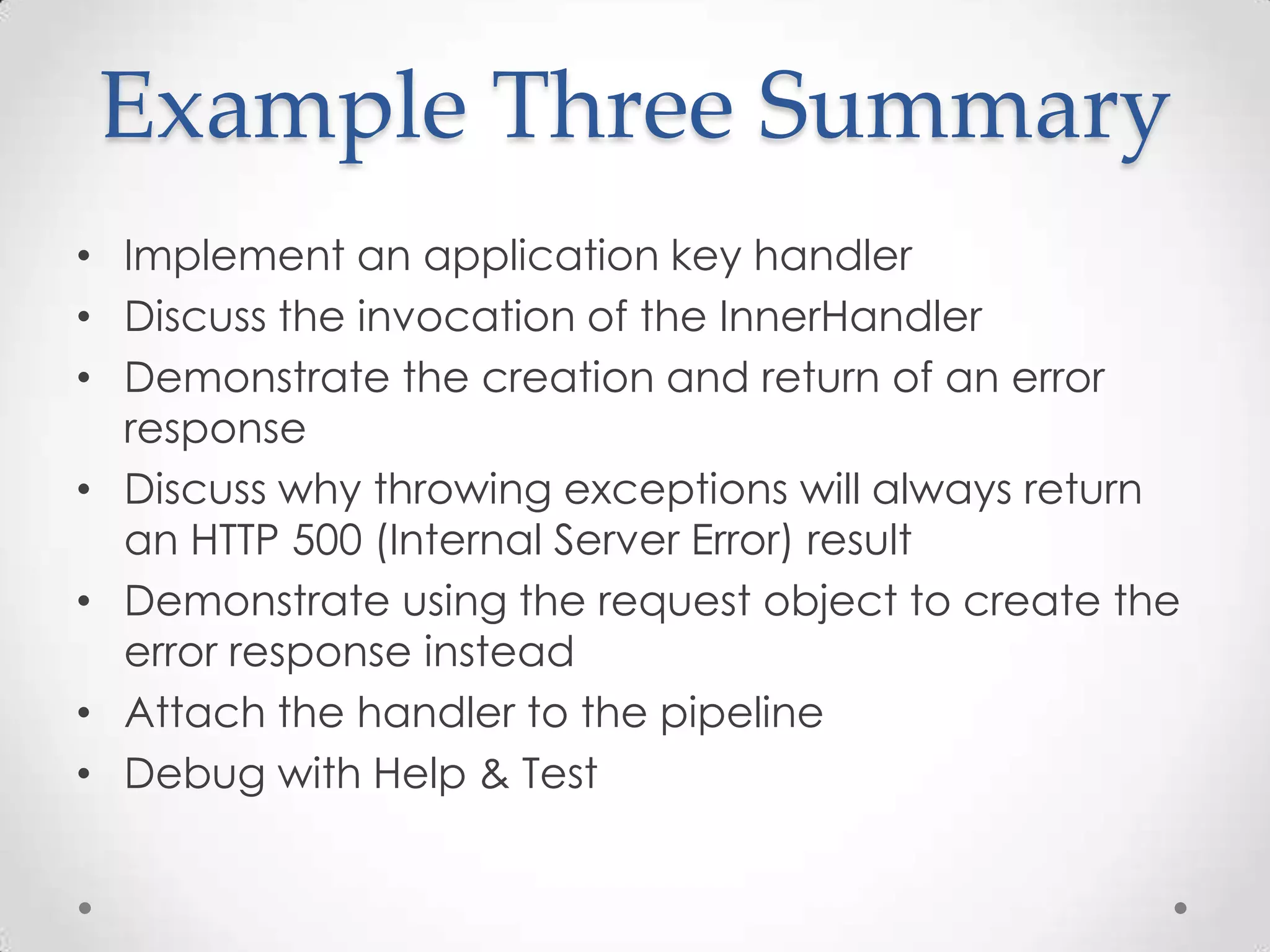

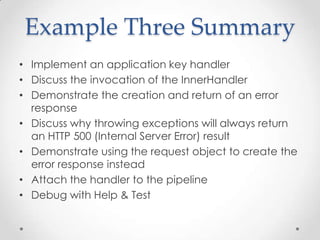

- 20. Example Three Summary •Implement an application key handler • Discuss the invocation of the InnerHandler • Demonstrate the creation and return of an error response • Discuss why throwing exceptions will always return an HTTP 500 (Internal Server Error) result • Demonstrate using the request object to create the error response instead • Attach the handler to the pipeline • Debug with Help & Test

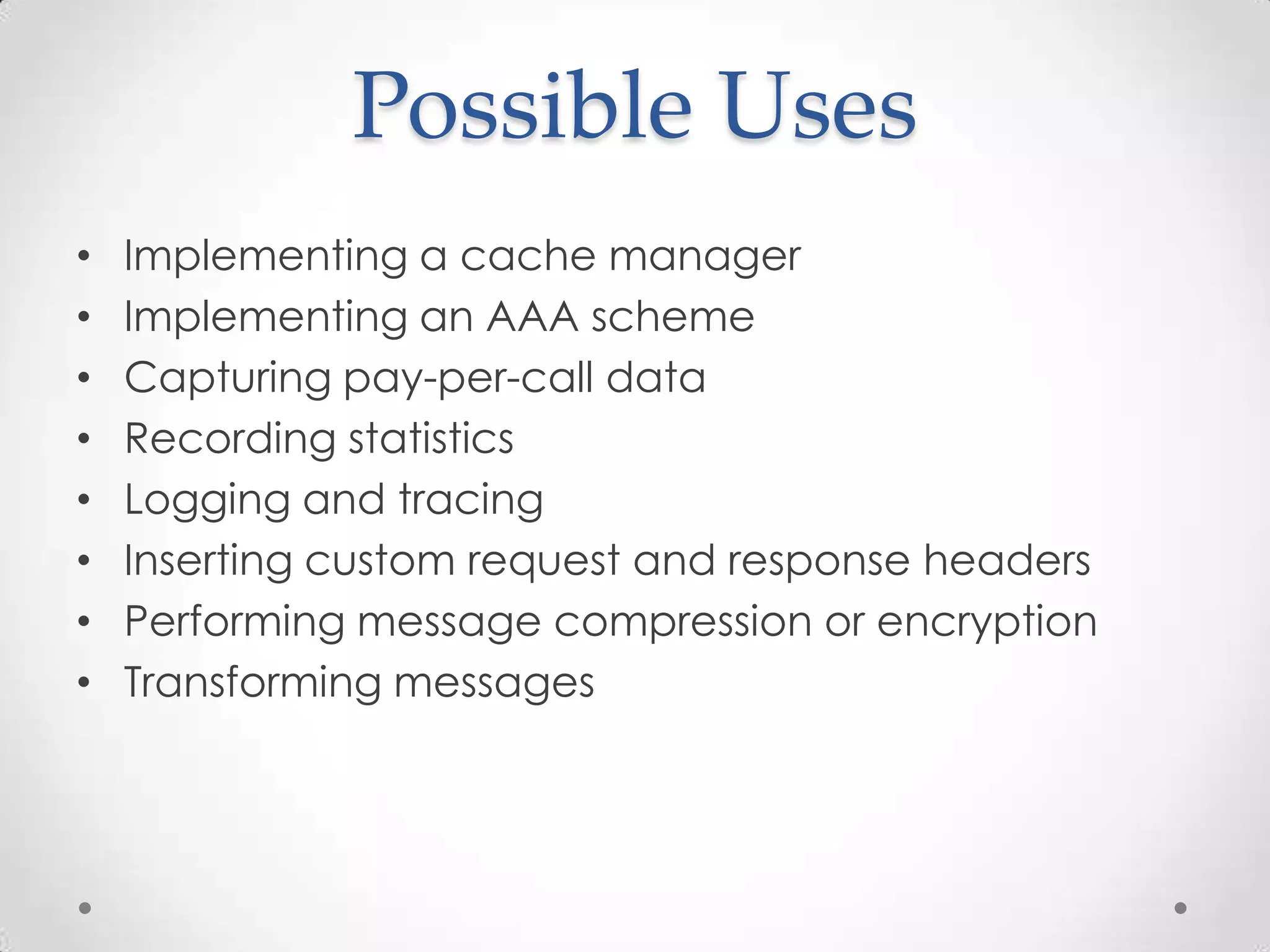

- 21. Possible Uses • Implementinga cache manager • Implementing an AAA scheme • Capturing pay-per-call data • Recording statistics • Logging and tracing • Inserting custom request and response headers • Performing message compression or encryption • Transforming messages

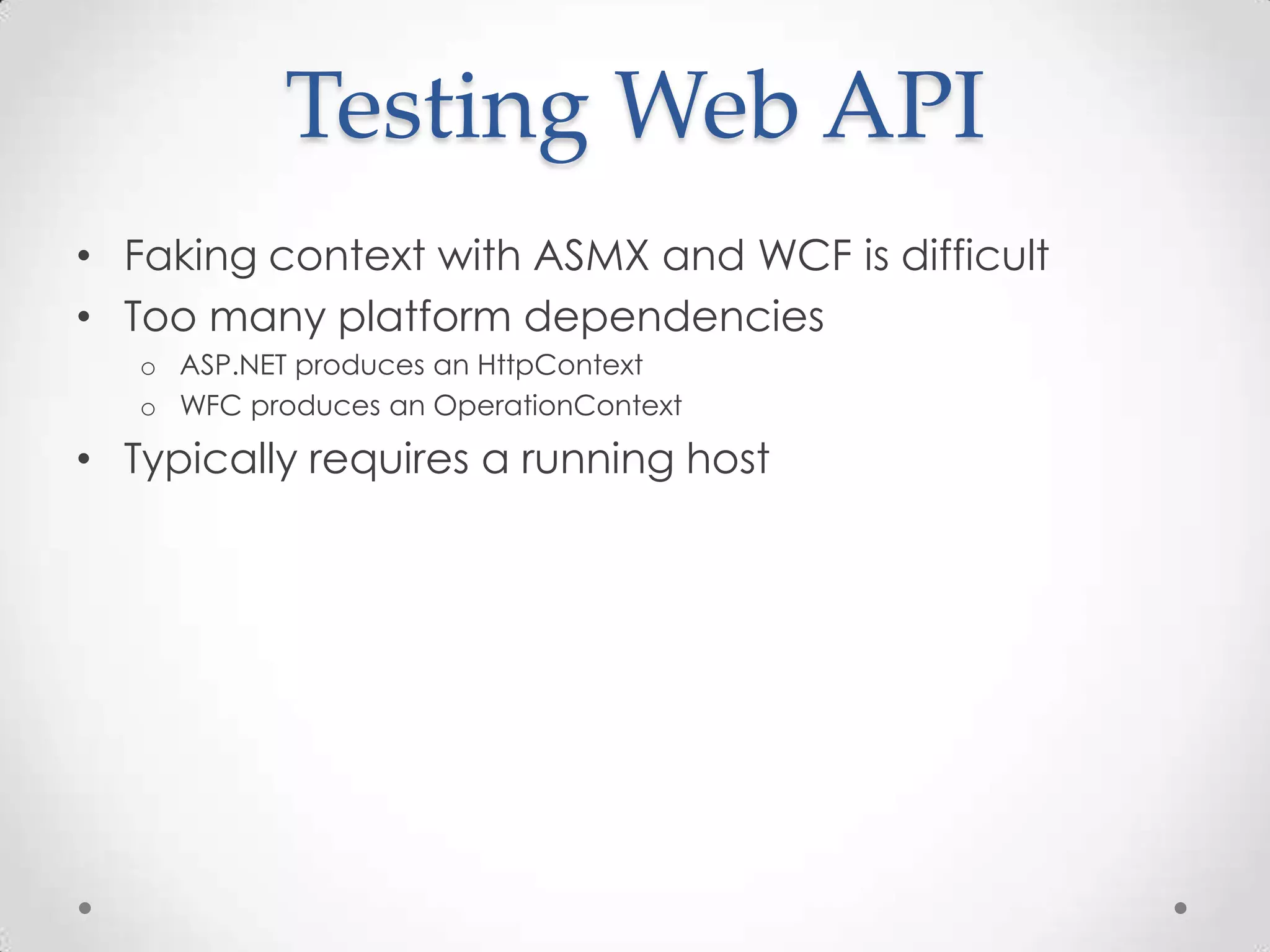

- 22. Testing Web API •Faking context with ASMX and WCF is difficult • Too many platform dependencies o ASP.NET produces an HttpContext o WFC produces an OperationContext • Typically requires a running host

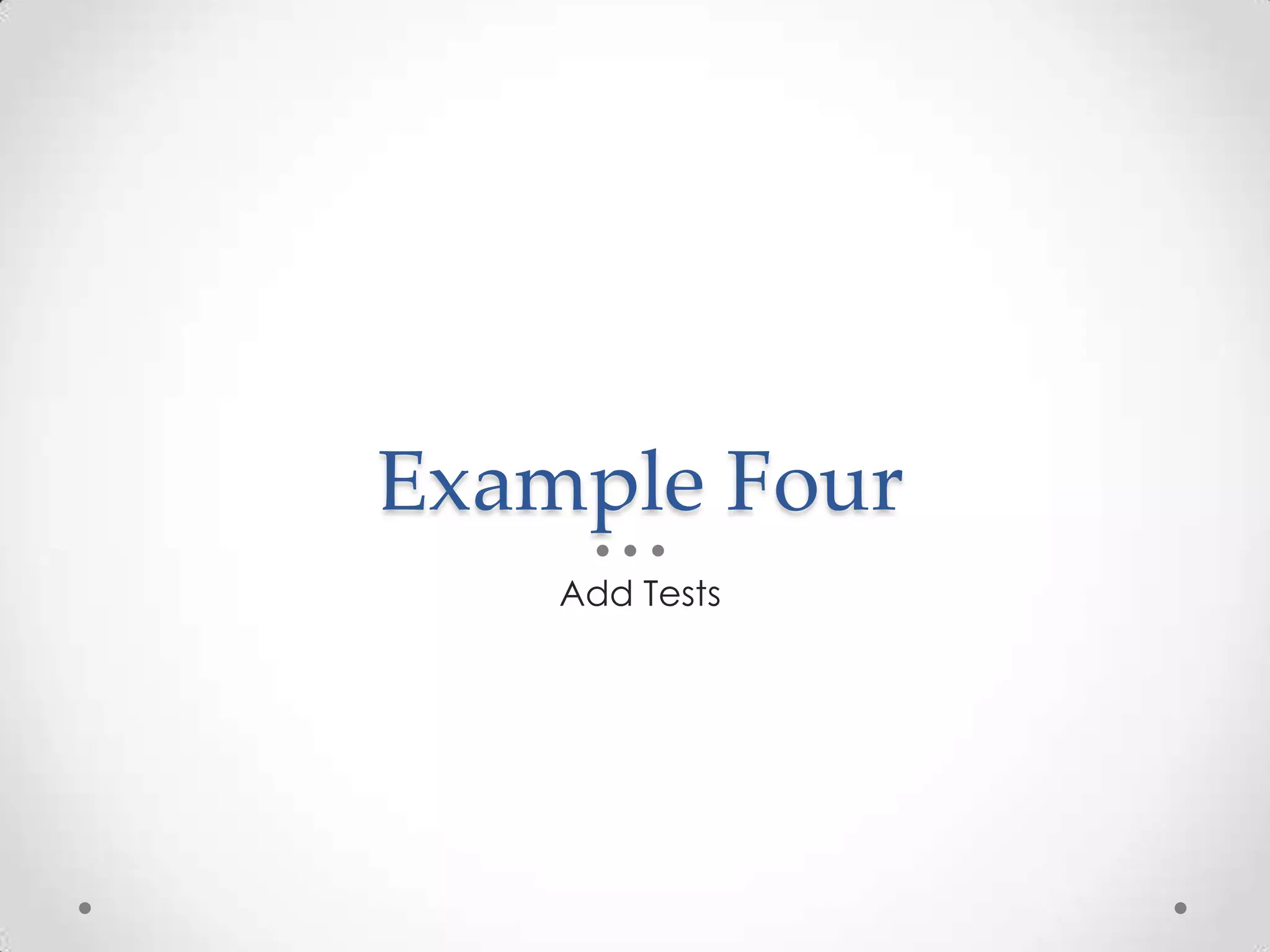

- 23.

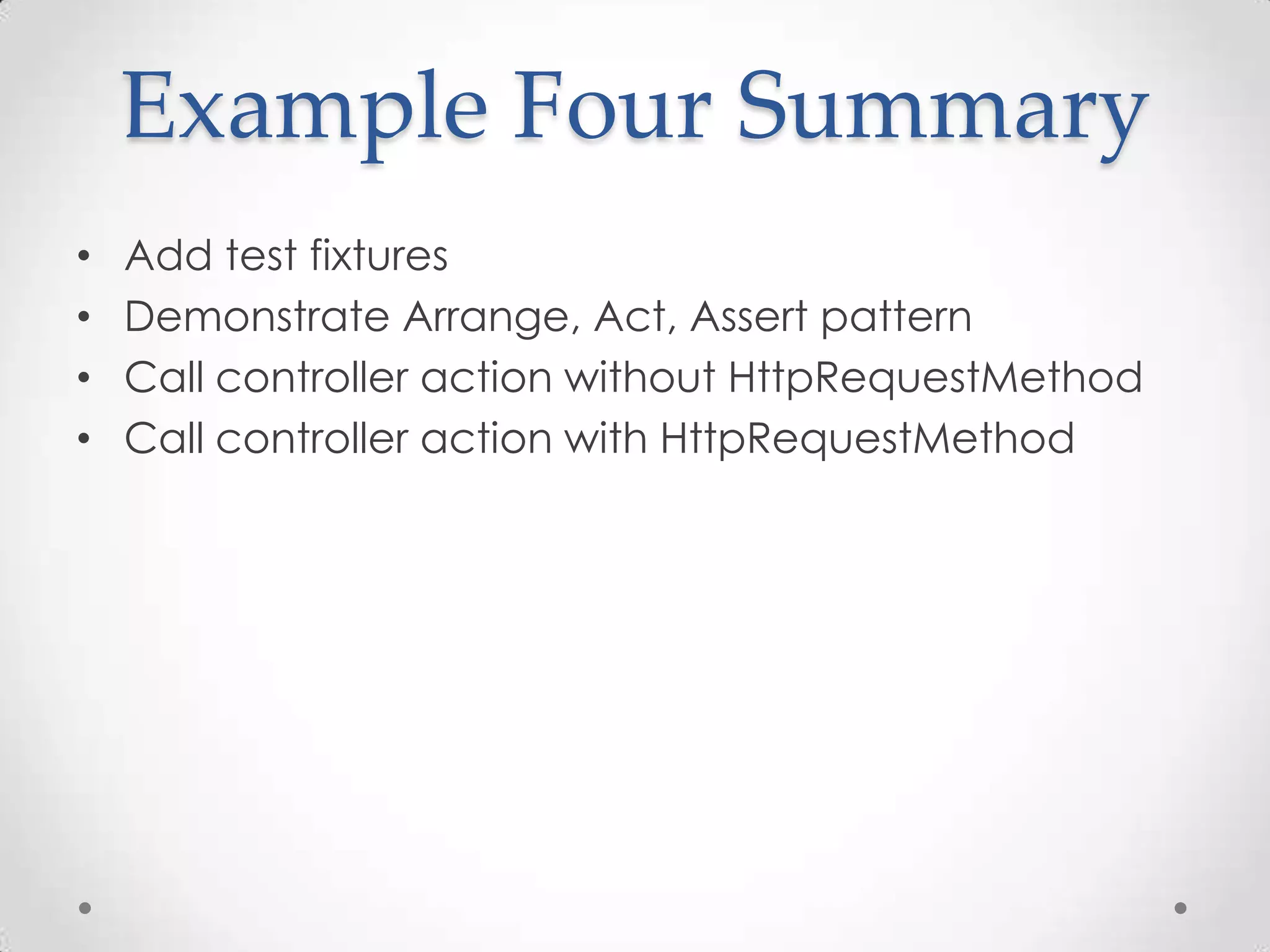

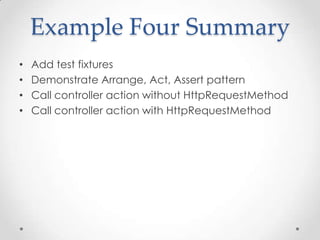

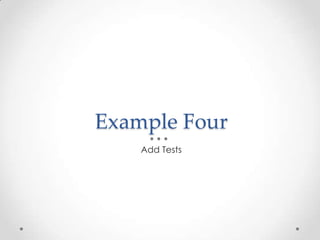

- 24. Example Four Summary •Add test fixtures • Demonstrate Arrange, Act, Assert pattern • Call controller action without HttpRequestMethod • Call controller action with HttpRequestMethod
- 25.
Editor's Notes
- #6 Values idealism over pragmatism and app longevity over short-term efficiencyResult: nobody does it correctly
