UNIT 1- Design Analysis of algorithms and its working

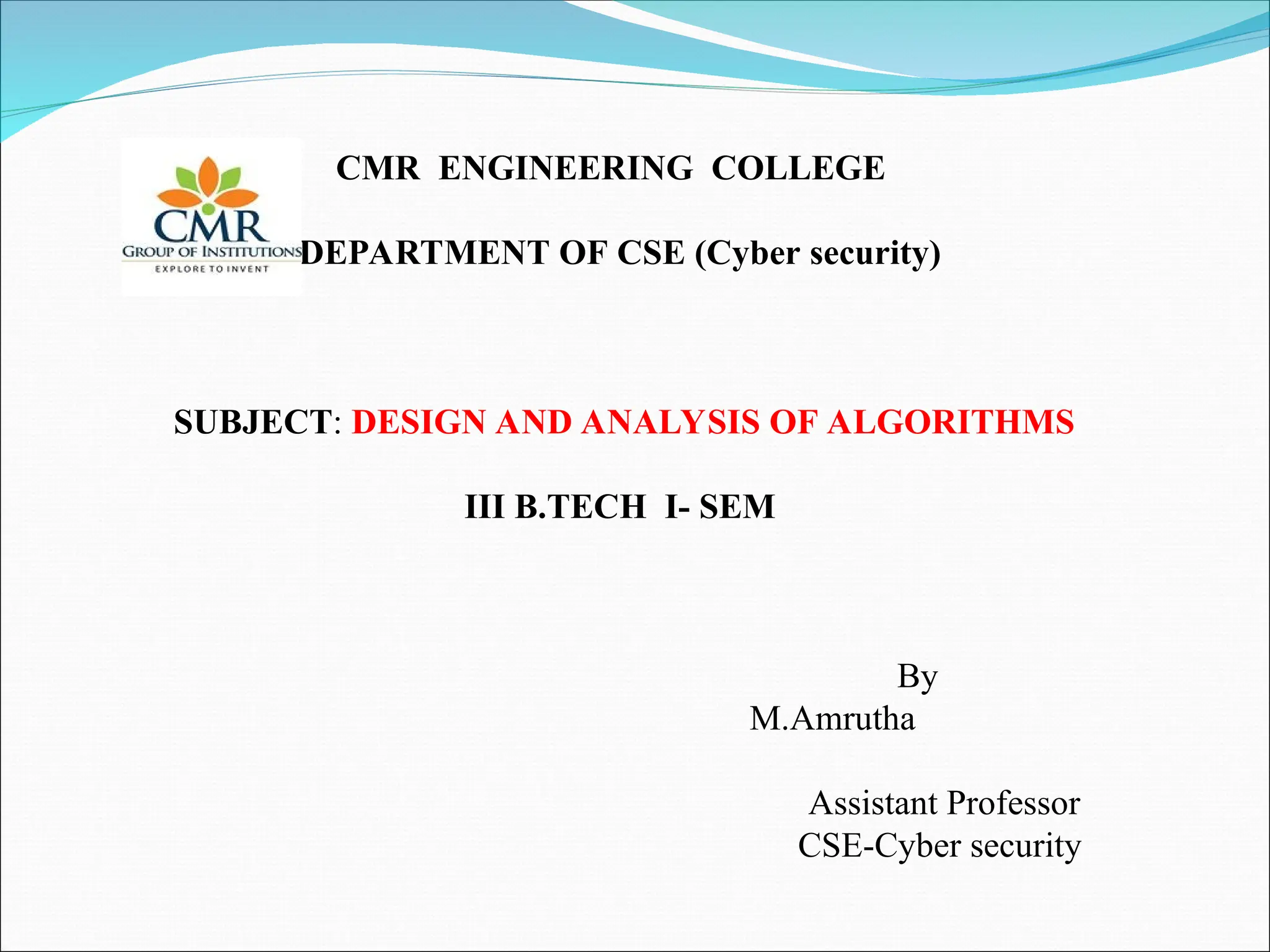

CMR ENGINEERING COLLEGE
DEPARTMENT OF CSE (Cyber security)
SUBJECT: DESIGN AND ANALYSIS OF ALGORITHMS
III B.TECH I- SEM
By
M.Amrutha
Assistant Professor
CSE-Cyber security

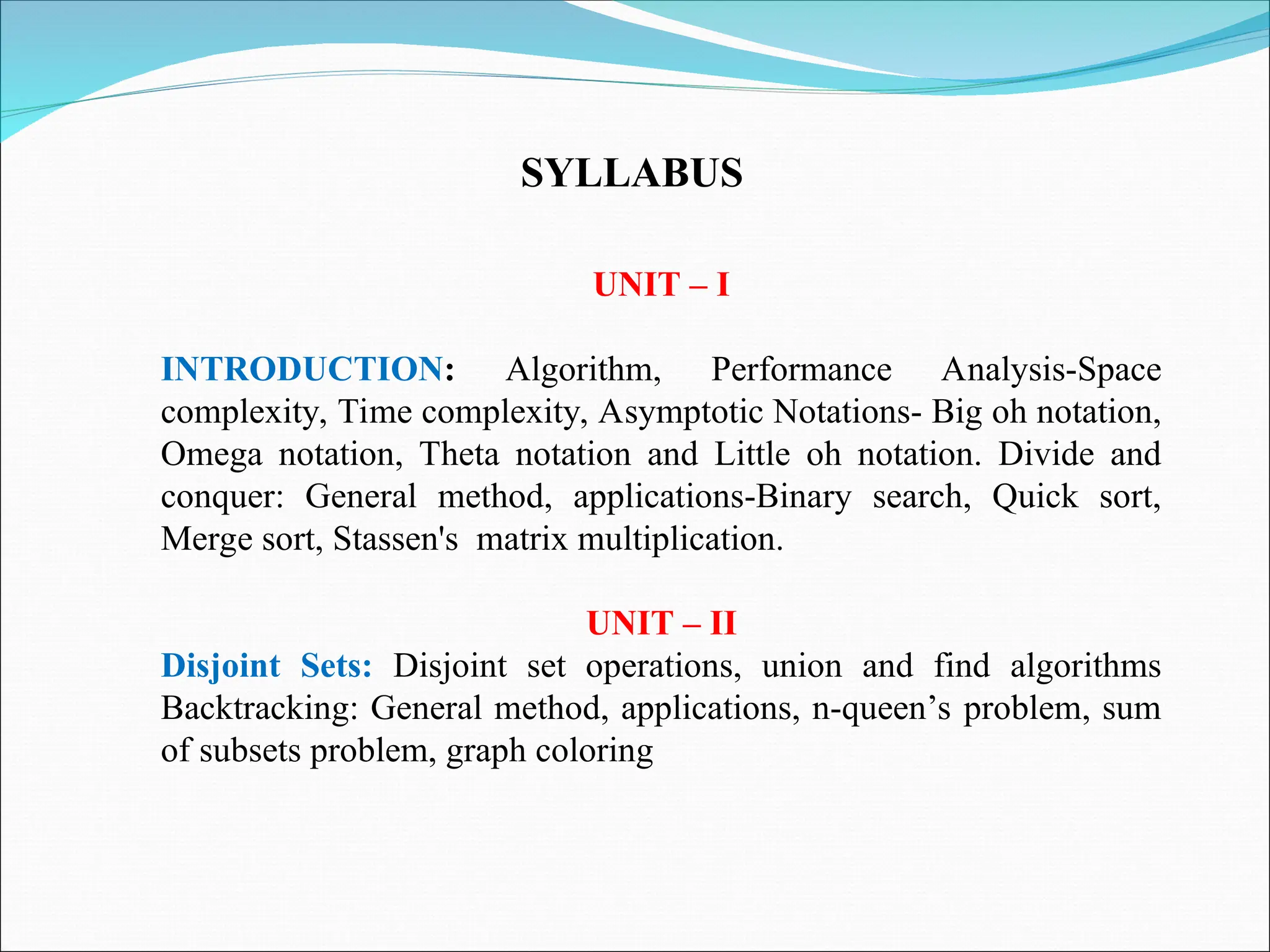

UNIT – I
INTRODUCTION: Algorithm, Performance Analysis-Space
complexity, Time complexity, Asymptotic Notations- Big oh notation,
Omega notation, Theta notation and Little oh notation. Divide and
conquer: General method, applications-Binary search, Quick sort,
Merge sort, Stassen's matrix multiplication.
UNIT – II
Disjoint Sets: Disjoint set operations, union and find algorithms
Backtracking: General method, applications, n-queen’s problem, sum
of subsets problem, graph coloring
SYLLABUS

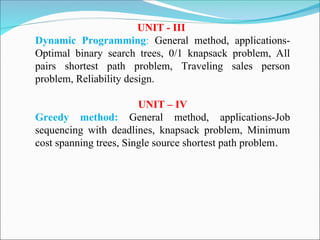

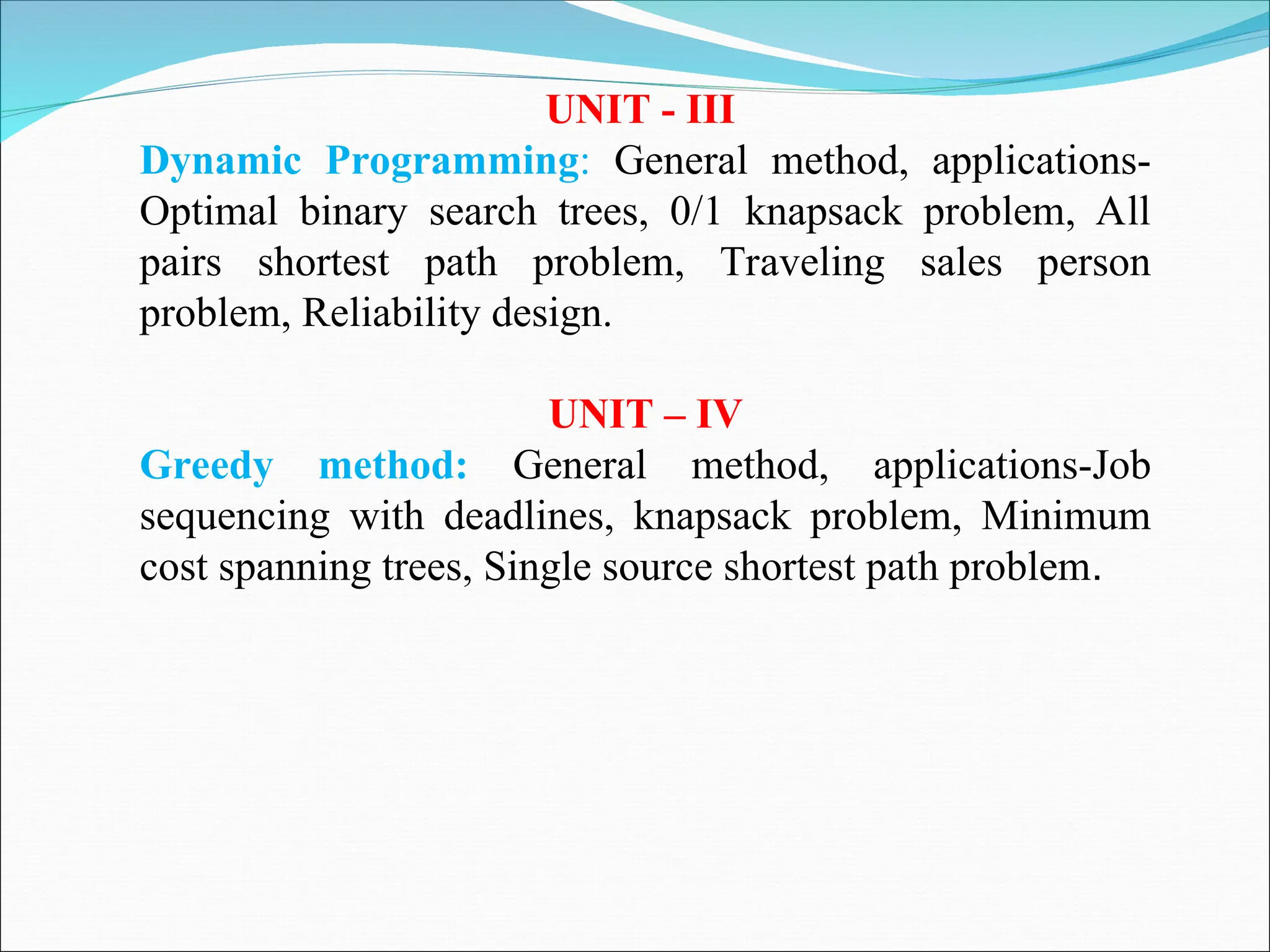

UNIT - III
Dynamic Programming: General method, applications-
Optimal binary search trees, 0/1 knapsack problem, All
pairs shortest path problem, Traveling sales person
problem, Reliability design.
UNIT – IV
Greedy method: General method, applications-Job
sequencing with deadlines, knapsack problem, Minimum
cost spanning trees, Single source shortest path problem.

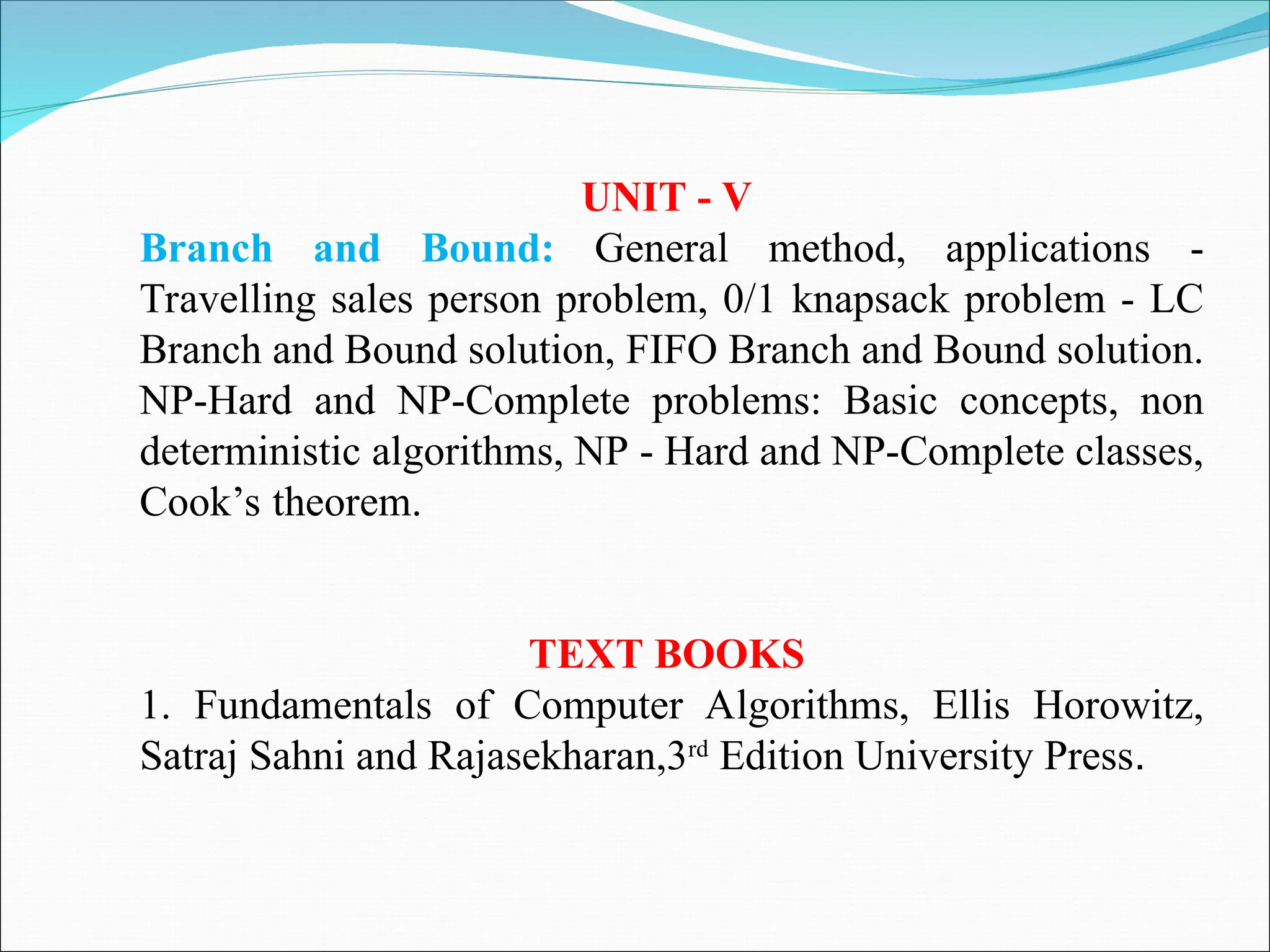

UNIT - V
Branch and Bound: General method, applications -
Travelling sales person problem, 0/1 knapsack problem - LC
Branch and Bound solution, FIFO Branch and Bound solution.
NP-Hard and NP-Complete problems: Basic concepts, non
deterministic algorithms, NP - Hard and NP-Complete classes,
Cook’s theorem.
TEXT BOOKS
1. Fundamentals of Computer Algorithms, Ellis Horowitz,
Satraj Sahni and Rajasekharan,3rd
Edition University Press.

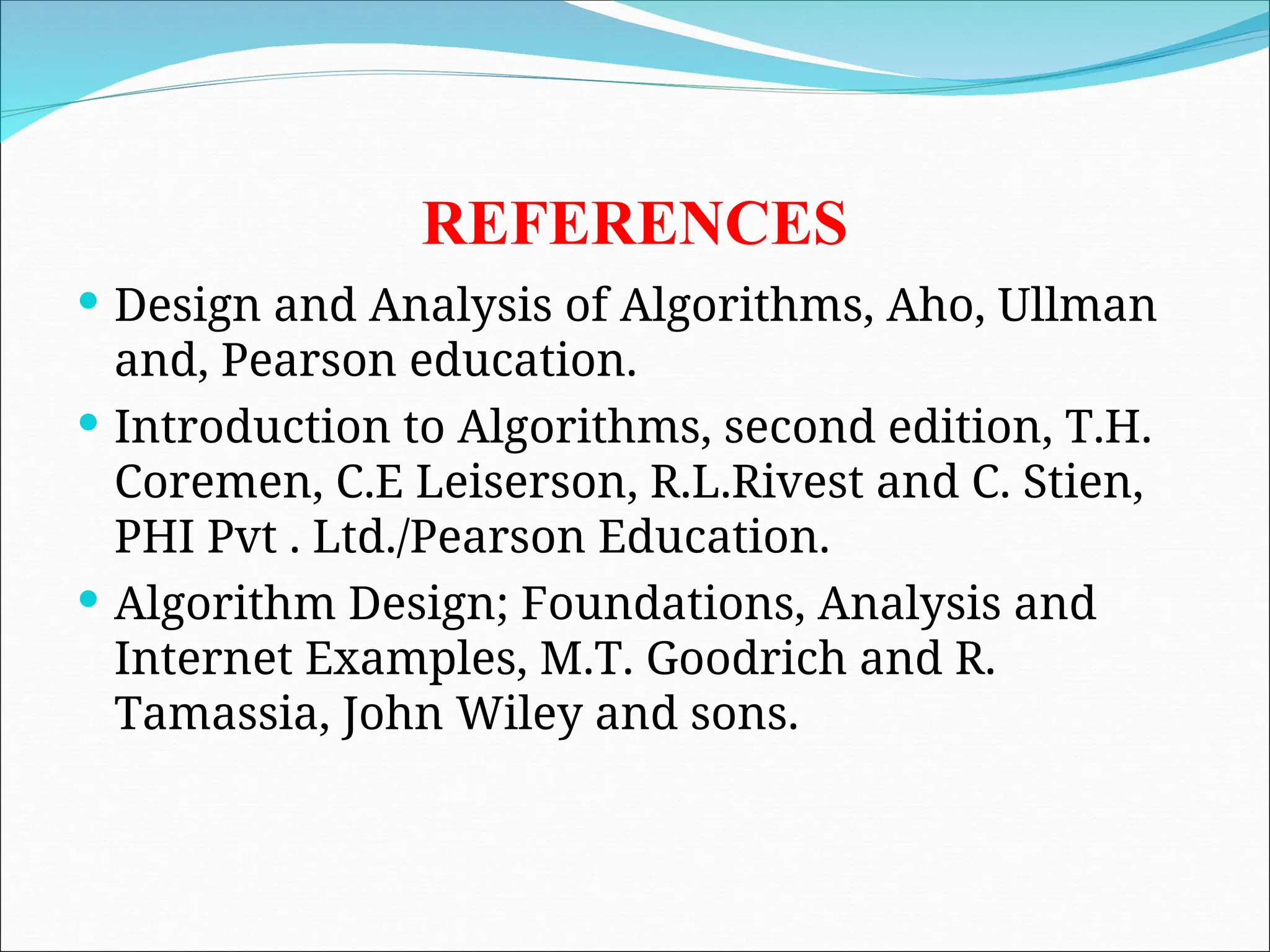

REFERENCES
 Design and Analysis of Algorithms, Aho, Ullman
and, Pearson education.
 Introduction to Algorithms, second edition, T.H.
Coremen, C.E Leiserson, R.L.Rivest and C. Stien,
PHI Pvt . Ltd./Pearson Education.
 Algorithm Design; Foundations, Analysis and
Internet Examples, M.T. Goodrich and R.
Tamassia, John Wiley and sons.

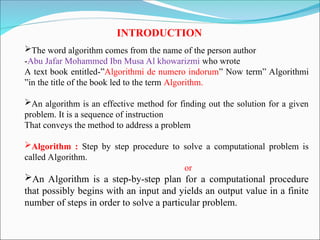

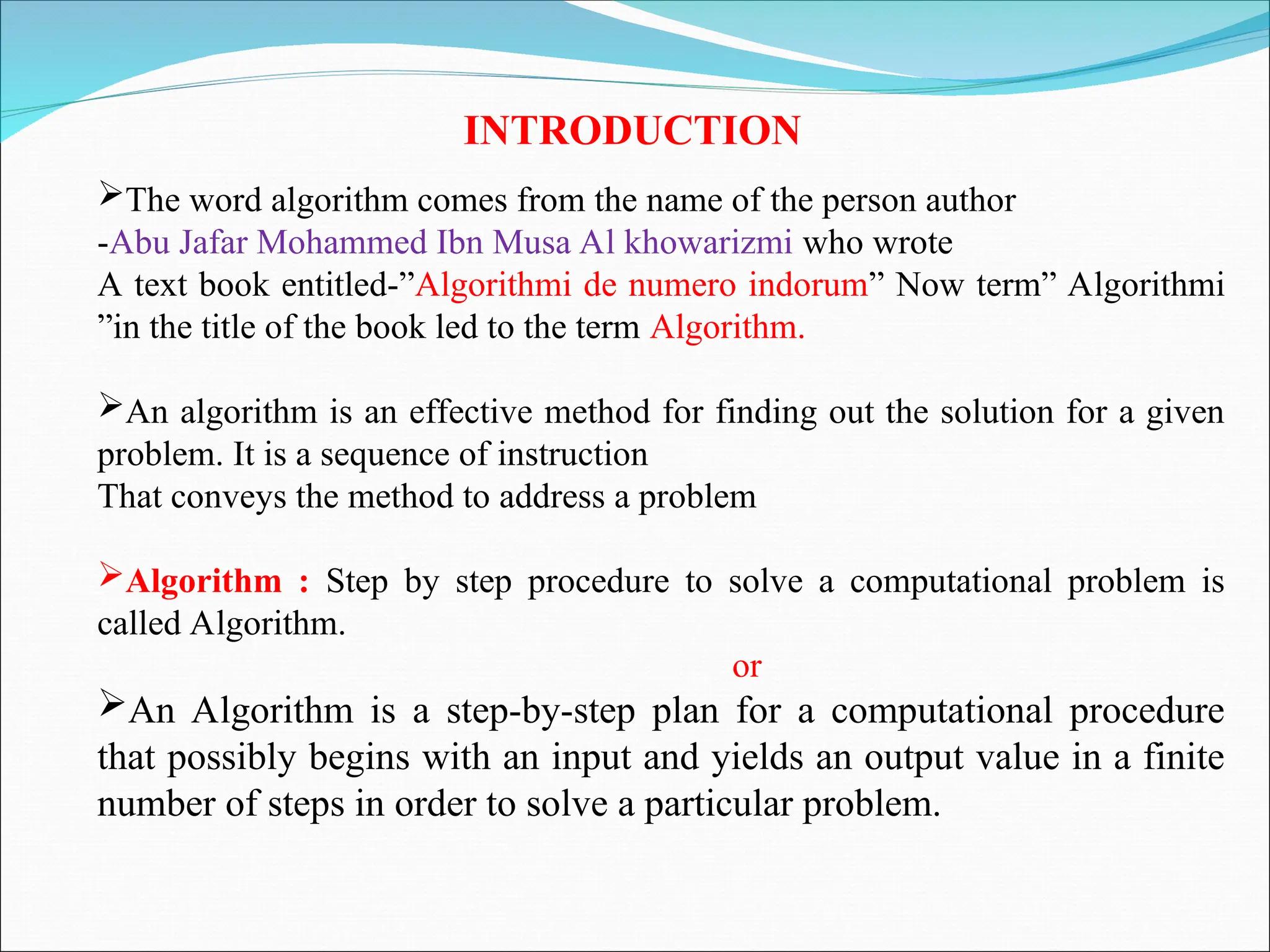

INTRODUCTION
The word algorithm comes from the name of the person author
-Abu Jafar Mohammed Ibn Musa Al khowarizmi who wrote
A text book entitled-”Algorithmi de numero indorum” Now term” Algorithmi
”in the title of the book led to the term Algorithm.
An algorithm is an effective method for finding out the solution for a given
problem. It is a sequence of instruction
That conveys the method to address a problem
Algorithm : Step by step procedure to solve a computational problem is
called Algorithm.
or
An Algorithm is a step-by-step plan for a computational procedure
that possibly begins with an input and yields an output value in a finite
number of steps in order to solve a particular problem.

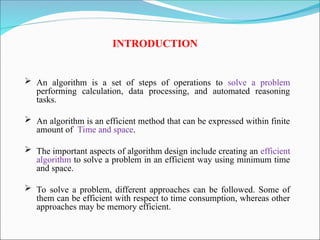

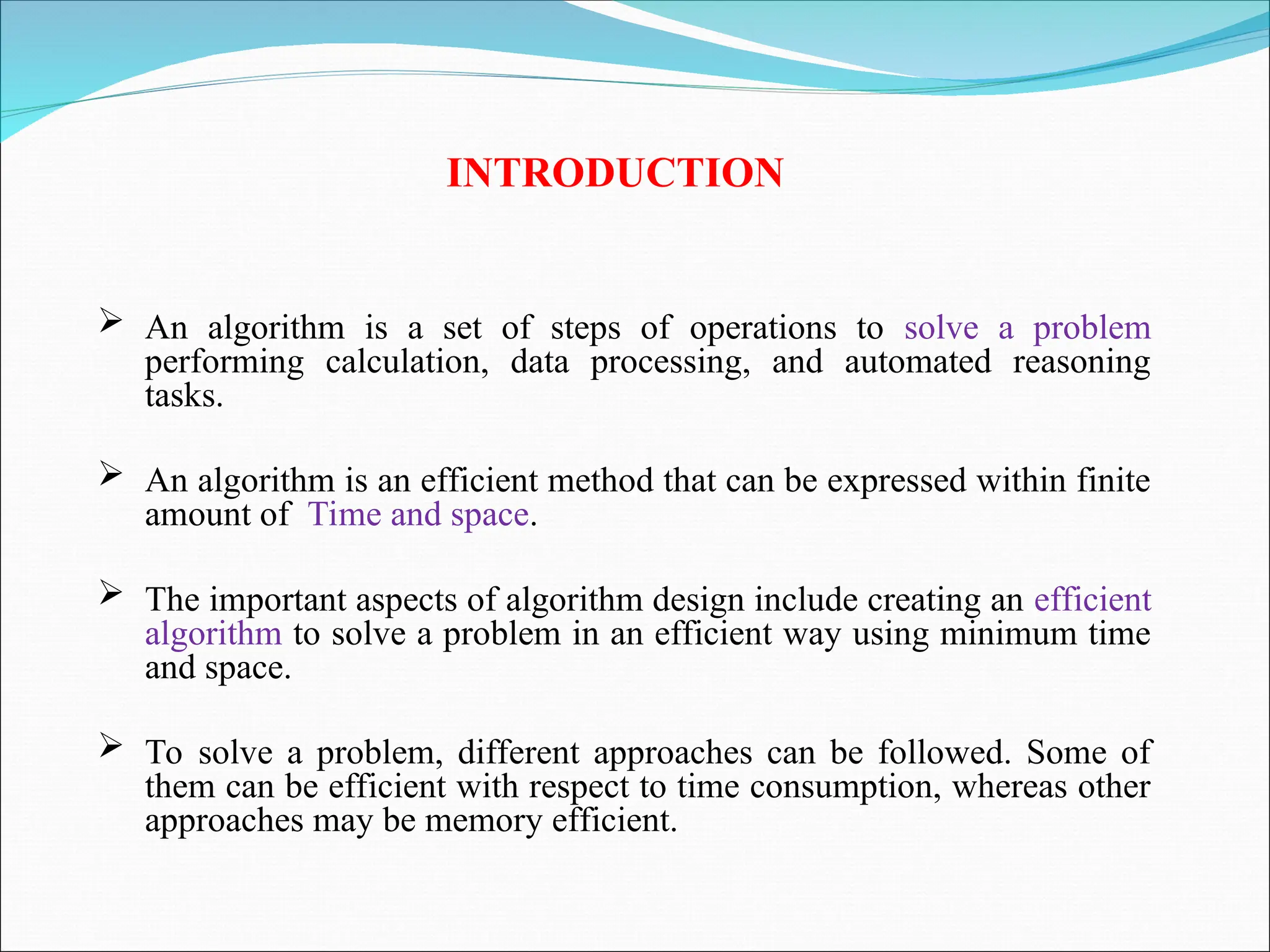

INTRODUCTION
 An algorithm is a set of steps of operations to solve a problem
performing calculation, data processing, and automated reasoning
tasks.
 An algorithm is an efficient method that can be expressed within finite
amount of Time and space.
 The important aspects of algorithm design include creating an efficient
algorithm to solve a problem in an efficient way using minimum time
and space.
 To solve a problem, different approaches can be followed. Some of
them can be efficient with respect to time consumption, whereas other
approaches may be memory efficient.

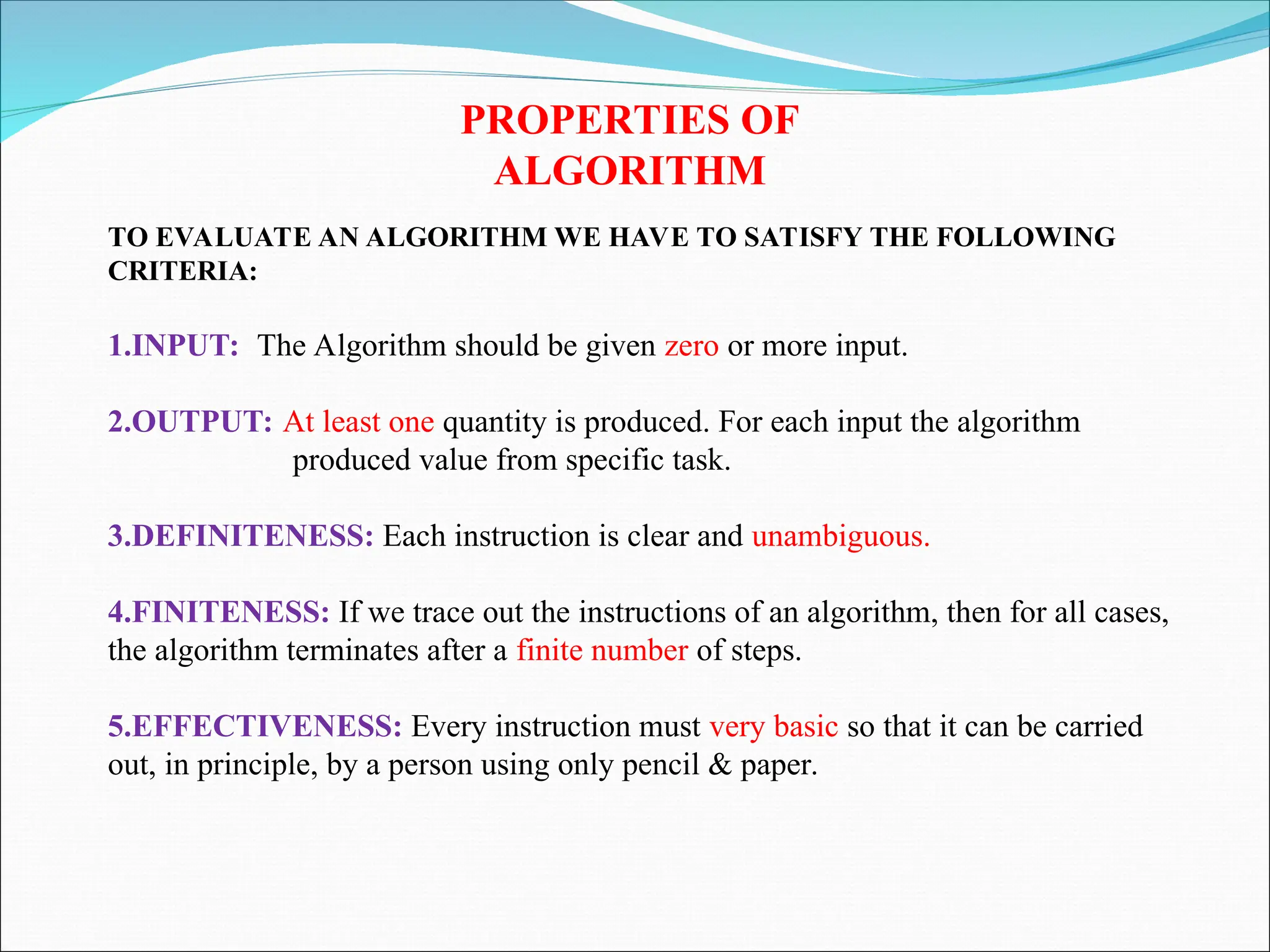

PROPERTIES OF
ALGORITHM
TO EVALUATE AN ALGORITHM WE HAVE TO SATISFY THE FOLLOWING
CRITERIA:
1.INPUT: The Algorithm should be given zero or more input.
2.OUTPUT: At least one quantity is produced. For each input the algorithm
produced value from specific task.
3.DEFINITENESS: Each instruction is clear and unambiguous.
4.FINITENESS: If we trace out the instructions of an algorithm, then for all cases,
the algorithm terminates after a finite number of steps.
5.EFFECTIVENESS: Every instruction must very basic so that it can be carried
out, in principle, by a person using only pencil & paper.

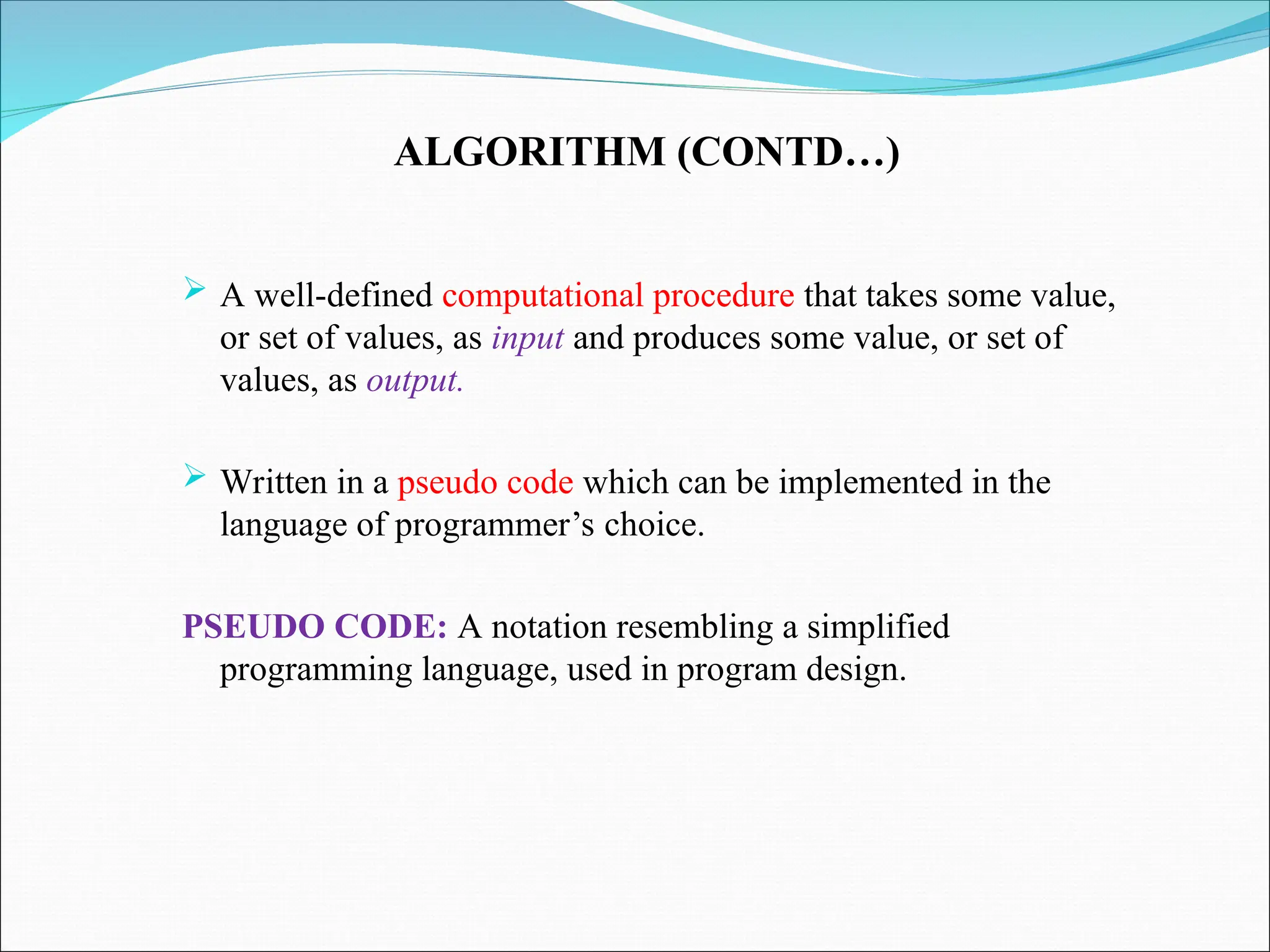

ALGORITHM (CONTD…)
 A well-defined computational procedure that takes some value,
or set of values, as input and produces some value, or set of
values, as output.
 Written in a pseudo code which can be implemented in the
language of programmer’s choice.
PSEUDO CODE: A notation resembling a simplified
programming language, used in program design.

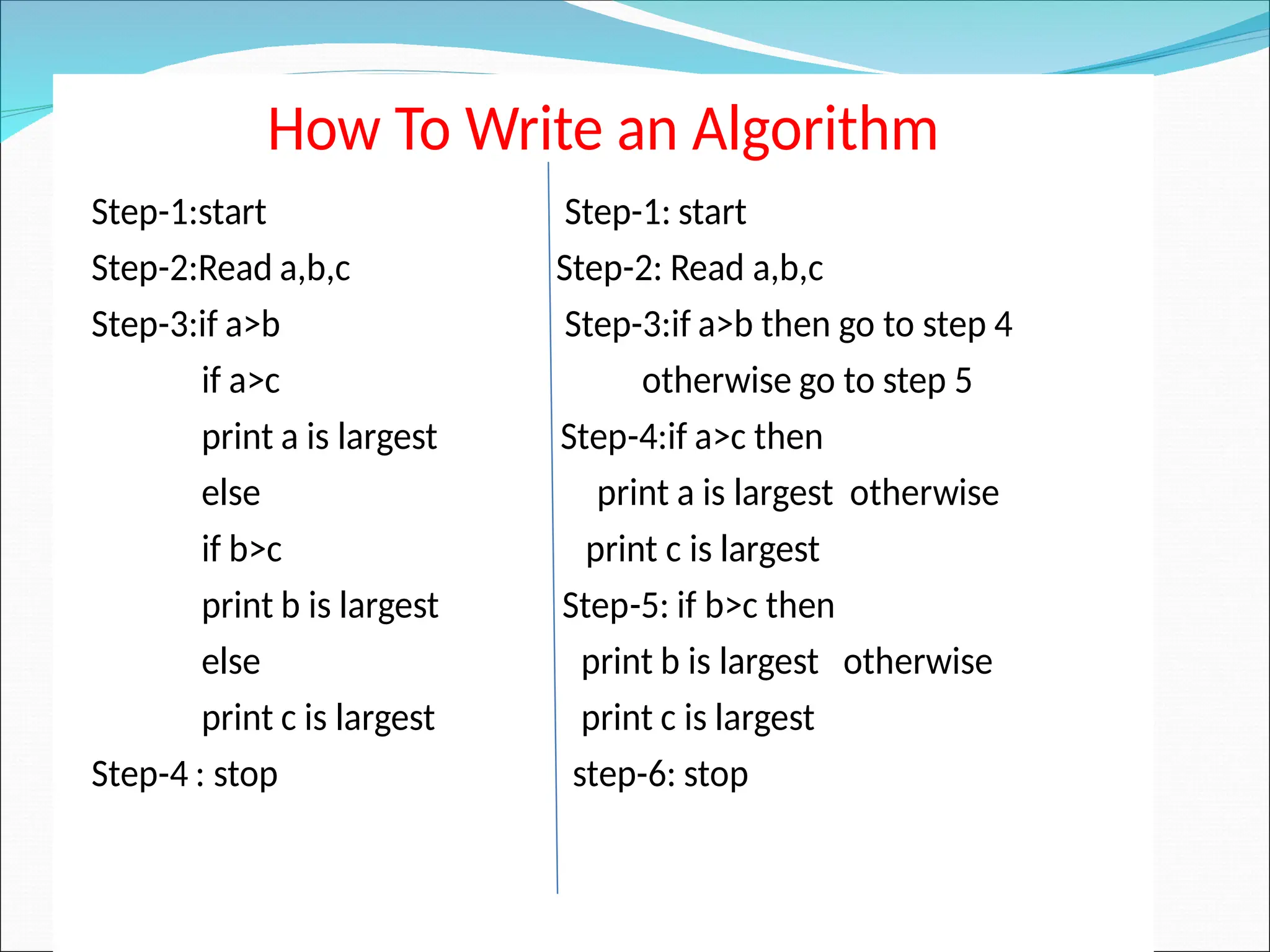

How To Write an Algorithm
Step-1:start Step-1: start
Step-2:Read a,b,c Step-2: Read a,b,c
Step-3:if a>b Step-3:if a>b then go to step 4
if a>c otherwise go to step 5
print a is largest Step-4:if a>c then
else print a is largest otherwise
if b>c print c is largest
print b is largest Step-5: if b>c then
else print b is largest otherwise
print c is largest print c is largest
Step-4 : stop step-6: stop

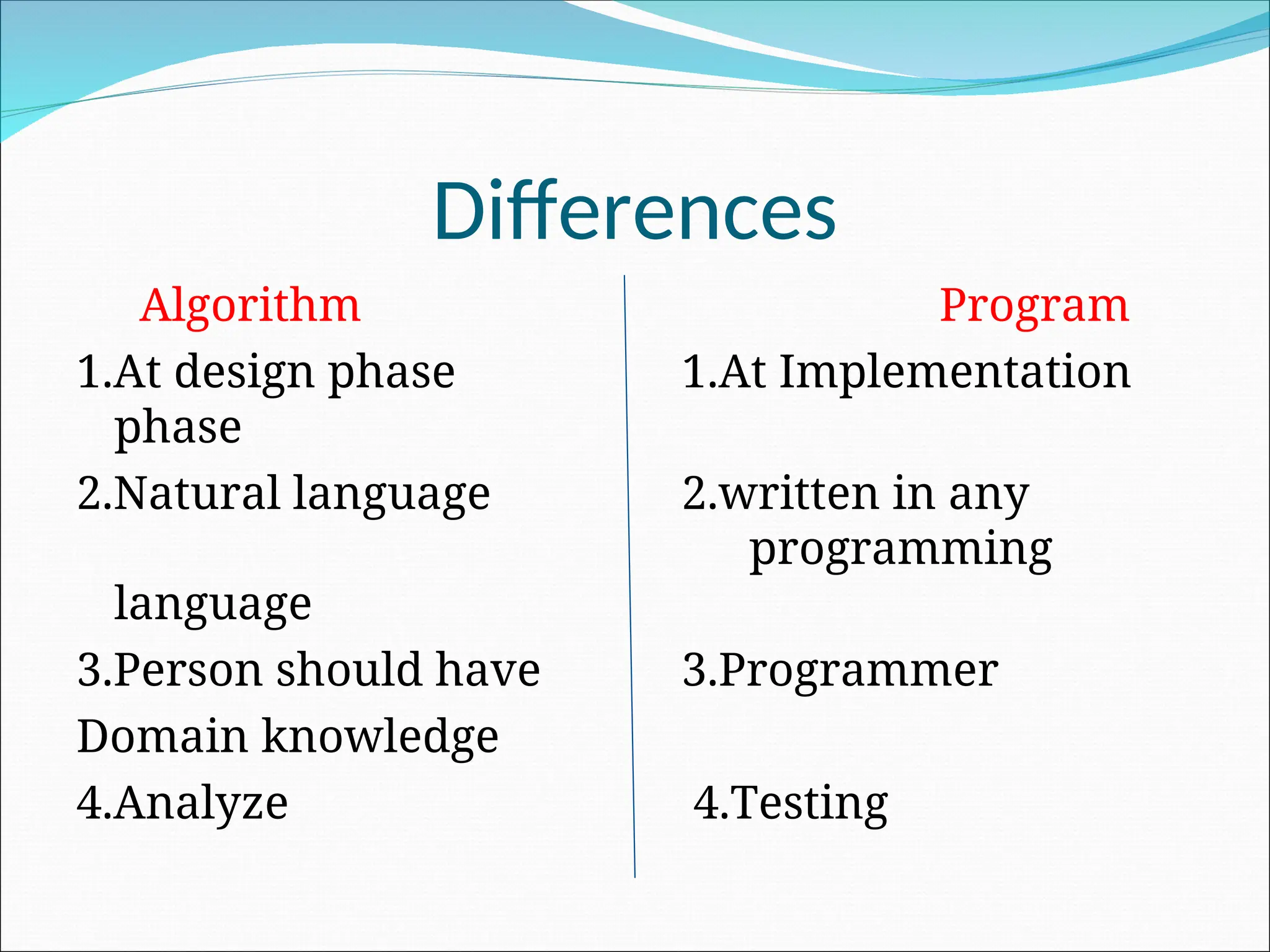

Differences
Algorithm Program
1.At design phase 1.At Implementation
phase
2.Natural language 2.written in any
programming
language
3.Person should have 3.Programmer
Domain knowledge
4.Analyze 4.Testing

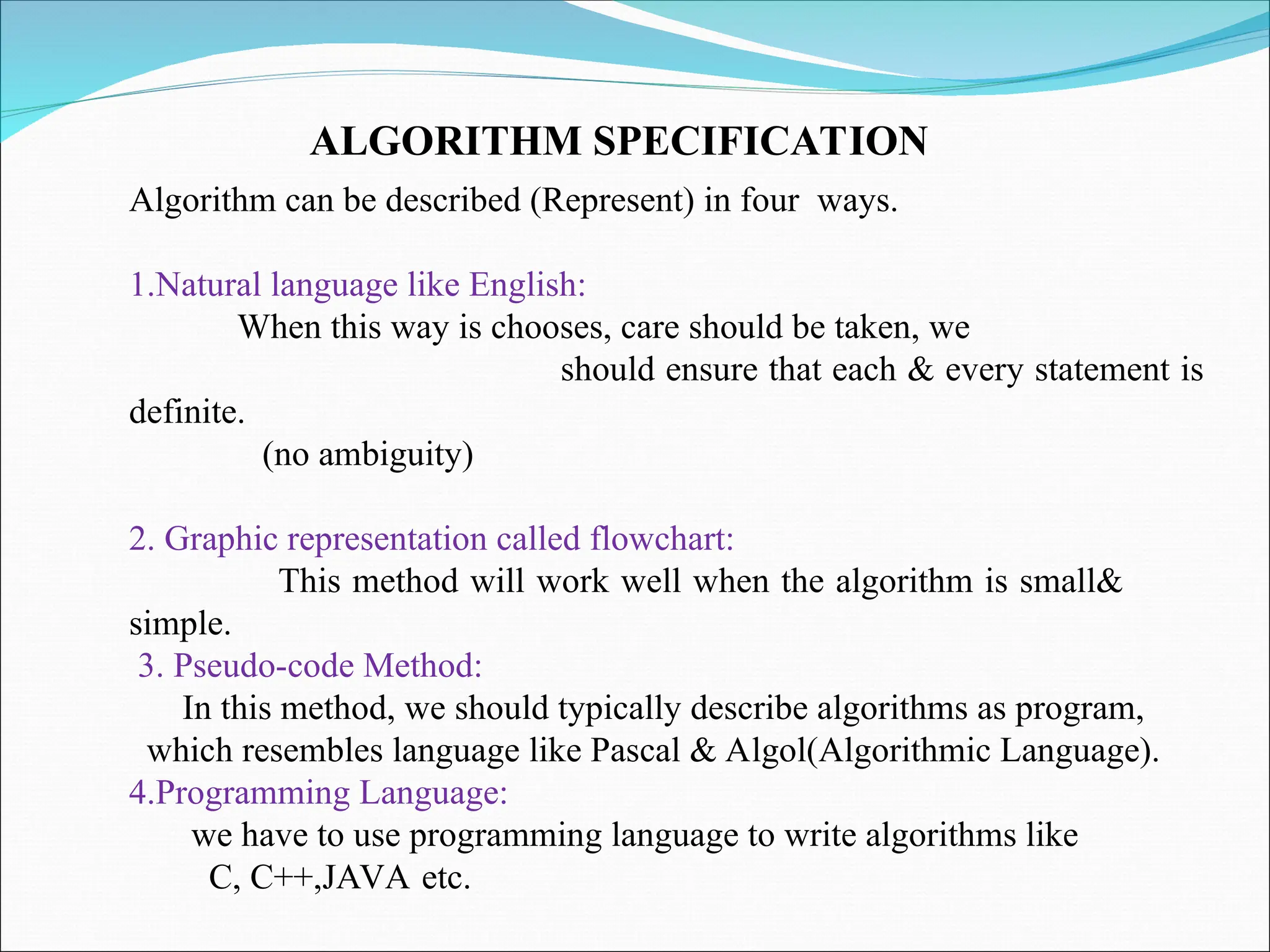

Algorithm can be described (Represent) in four ways.
1.Natural language like English:
When this way is chooses, care should be taken, we
should ensure that each & every statement is
definite.
(no ambiguity)
2. Graphic representation called flowchart:
This method will work well when the algorithm is small&
simple.
3. Pseudo-code Method:
In this method, we should typically describe algorithms as program,
which resembles language like Pascal & Algol(Algorithmic Language).
4.Programming Language:
we have to use programming language to write algorithms like
C, C++,JAVA etc.
ALGORITHM SPECIFICATION

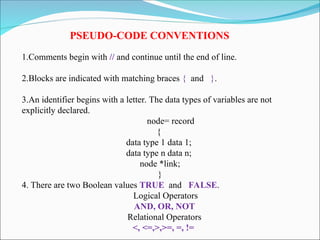

PSEUDO-CODE CONVENTIONS
1.Comments begin with // and continue until the end of line.
2.Blocks are indicated with matching braces { and }.
3.An identifier begins with a letter. The data types of variables are not
explicitly declared.
node= record
{
data type 1 data 1;
data type n data n;
node *link;
}
4. There are two Boolean values TRUE and FALSE.
Logical Operators
AND, OR, NOT
Relational Operators
<, <=,>,>=, =, !=

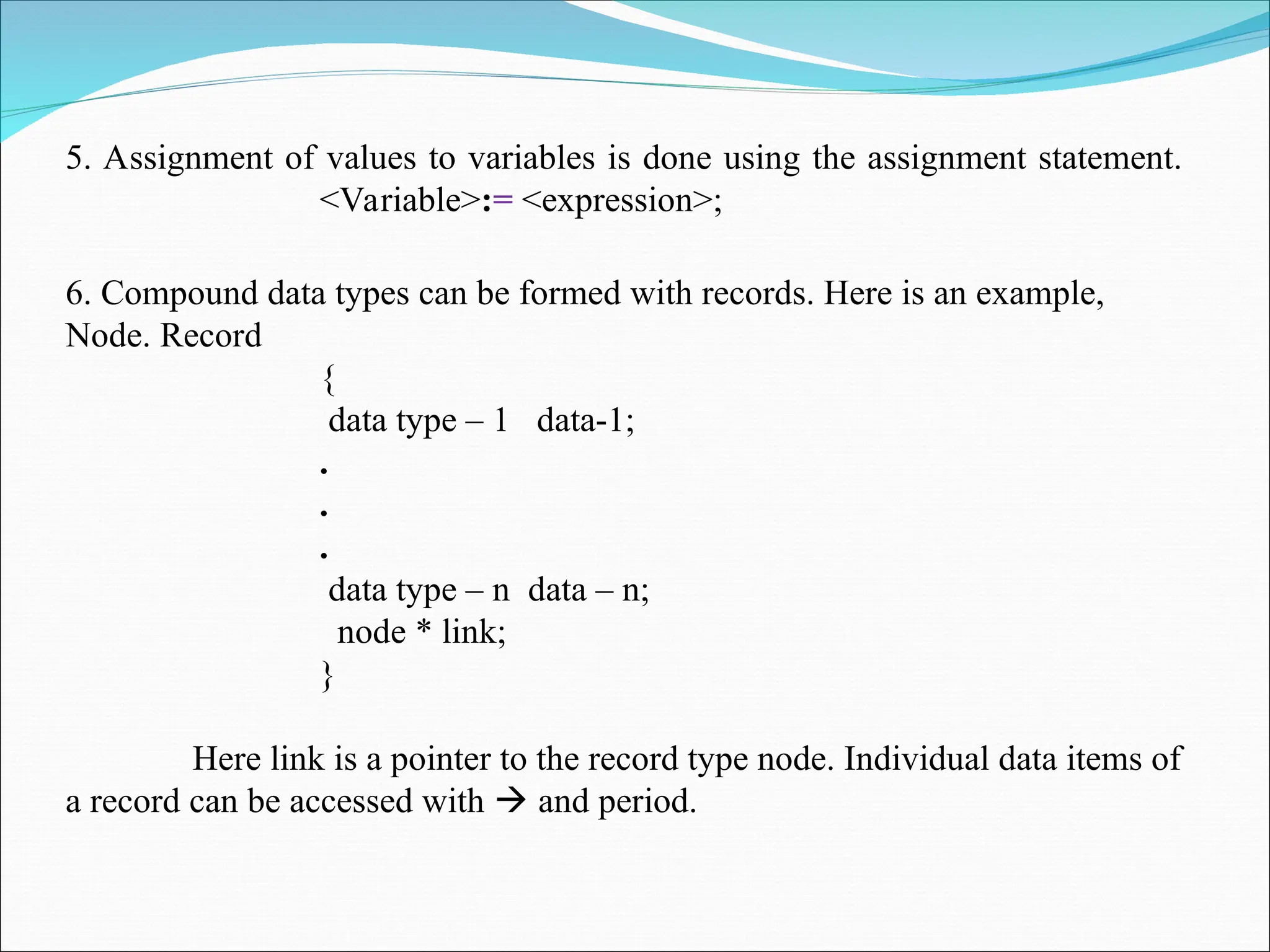

5. Assignment of values to variables is done using the assignment statement.
<Variable>:= <expression>;
6. Compound data types can be formed with records. Here is an example,
Node. Record
{
data type – 1 data-1;
.
.
.
data type – n data – n;
node * link;
}
Here link is a pointer to the record type node. Individual data items of
a record can be accessed with  and period.

Contd…

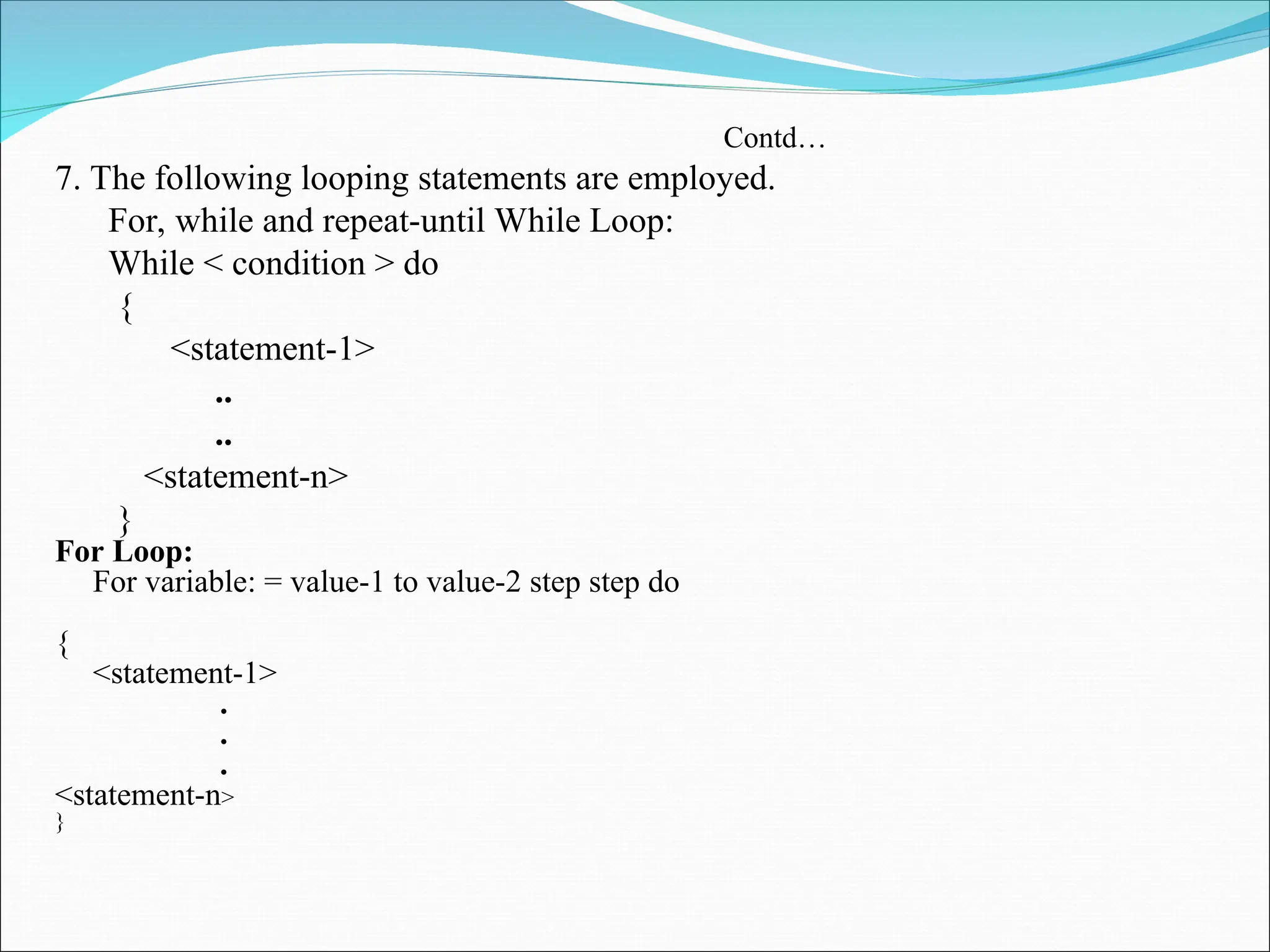

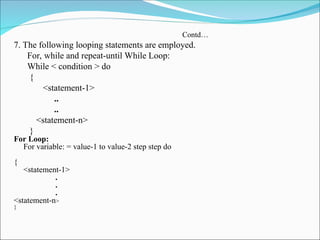

7. The following looping statements are employed.
For, while and repeat-until While Loop:
While < condition > do
{
<statement-1>
..
..
<statement-n>
}
For Loop:
For variable: = value-1 to value-2 step step do
{
<statement-1>
.
.
.
<statement-n>
}

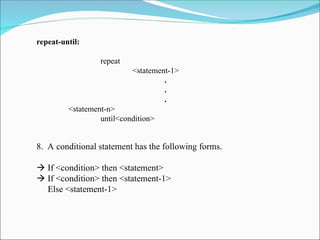

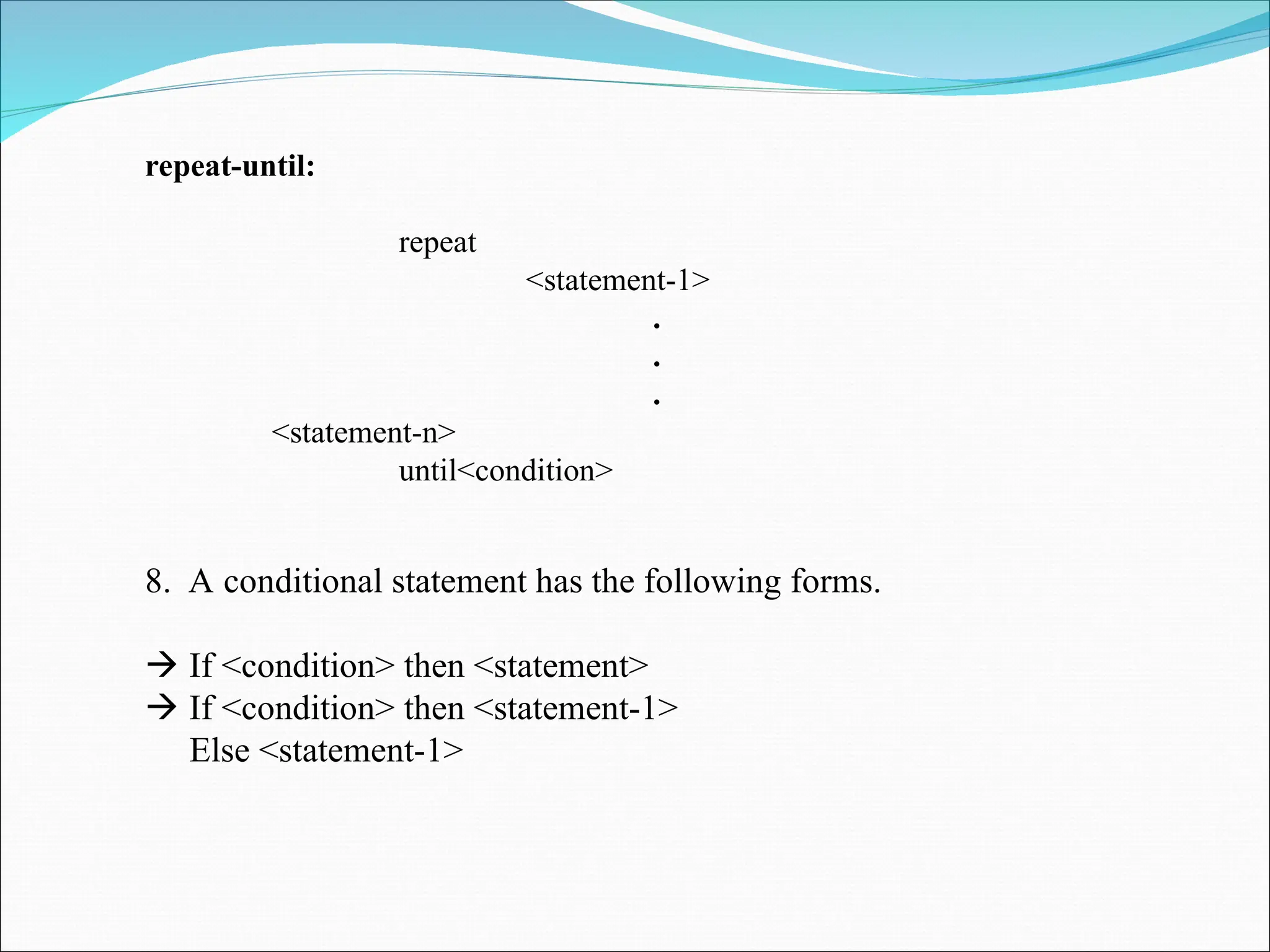

repeat-until:
repeat
<statement-1>
.
.
.
<statement-n>
until<condition>
8. A conditional statement has the following forms.
 If <condition> then <statement>
 If <condition> then <statement-1>
Else <statement-1>

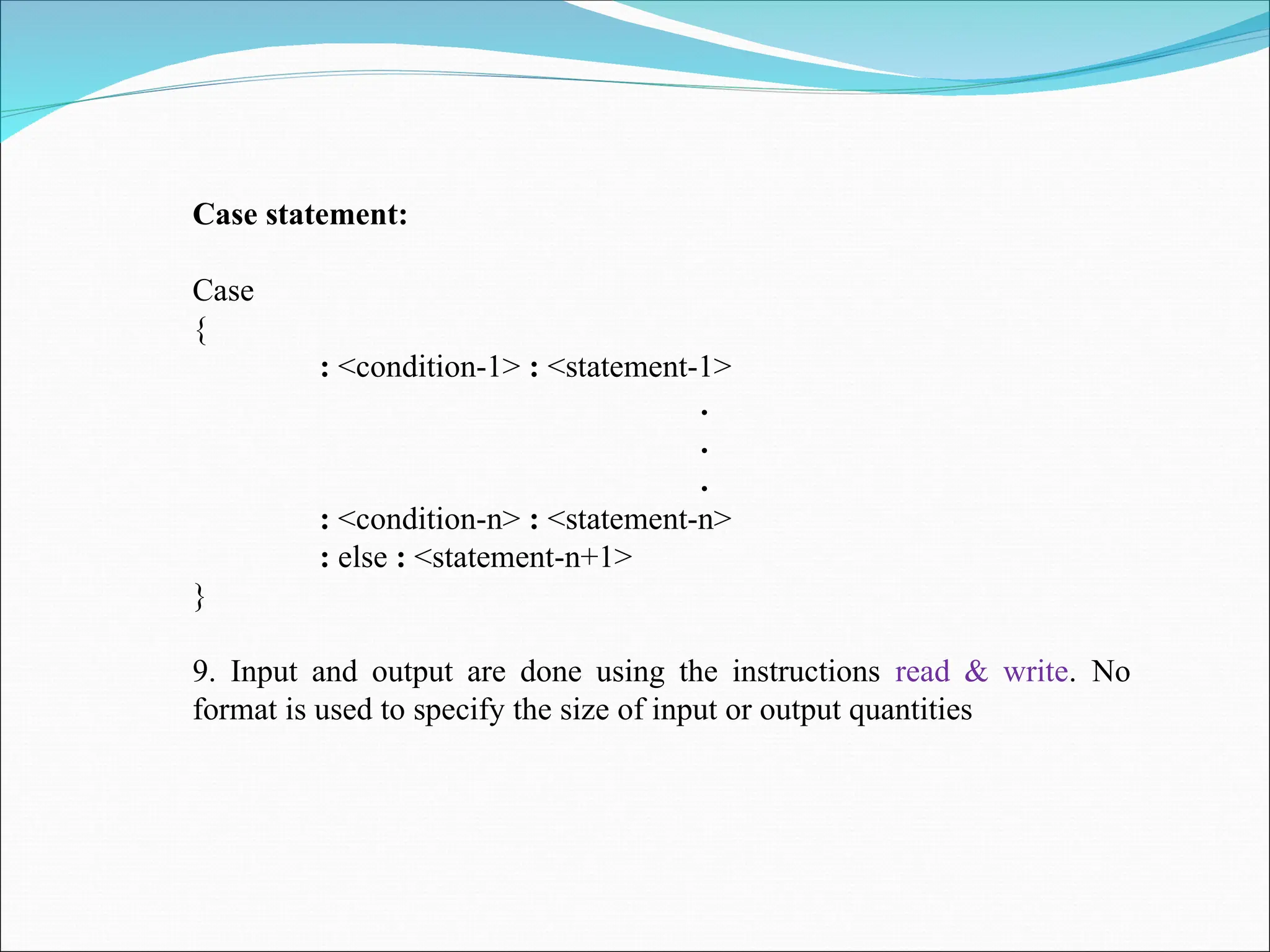

Case statement:
Case
{
: <condition-1> : <statement-1>
.
.
.
: <condition-n> : <statement-n>
: else : <statement-n+1>
}
9. Input and output are done using the instructions read & write. No
format is used to specify the size of input or output quantities

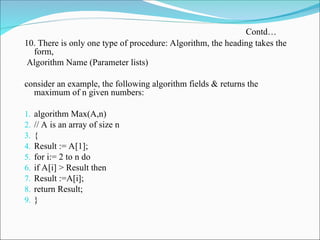

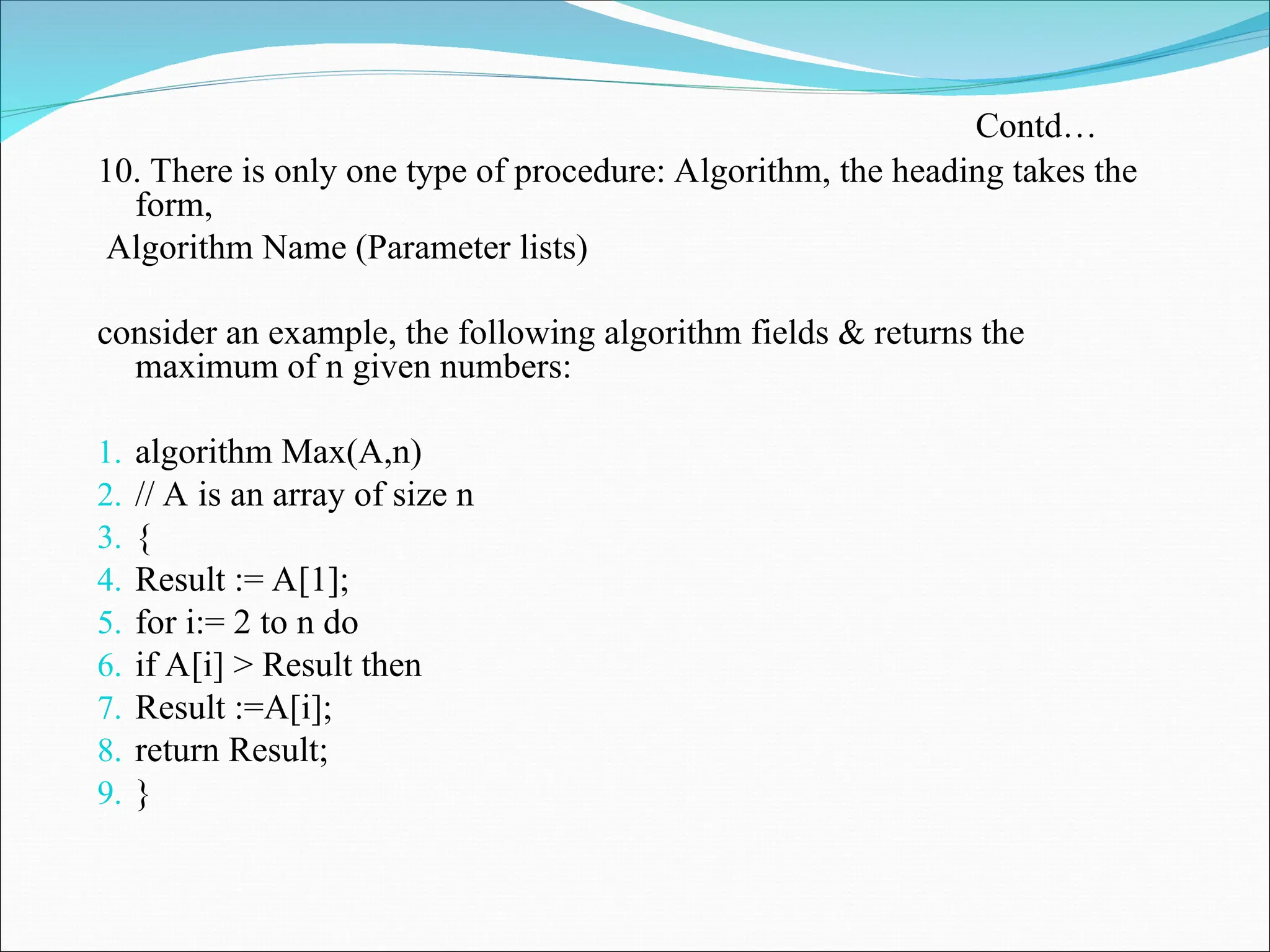

10. There is only one type of procedure: Algorithm, the heading takes the
form,
Algorithm Name (Parameter lists)
consider an example, the following algorithm fields & returns the
maximum of n given numbers:
1. algorithm Max(A,n)
2. // A is an array of size n
3. {
4. Result := A[1];
5. for i:= 2 to n do
6. if A[i] > Result then
7. Result :=A[i];
8. return Result;
9. }
Contd…

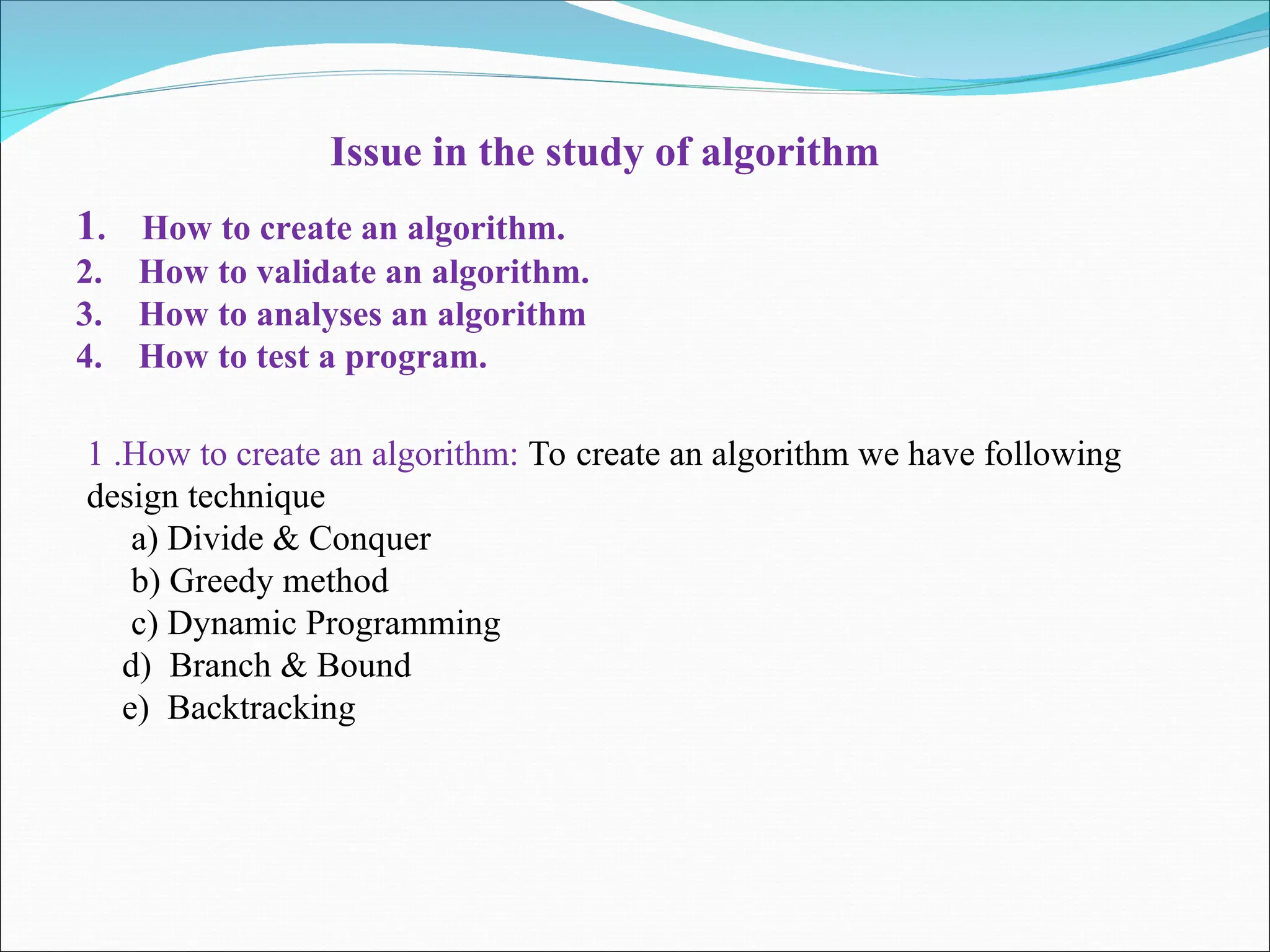

Issue in the study of algorithm
1. How to create an algorithm.
2. How to validate an algorithm.
3. How to analyses an algorithm
4. How to test a program.
1 .How to create an algorithm: To create an algorithm we have following
design technique
a) Divide & Conquer
b) Greedy method
c) Dynamic Programming
d) Branch & Bound
e) Backtracking

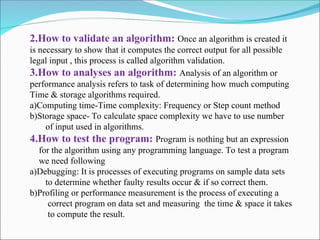

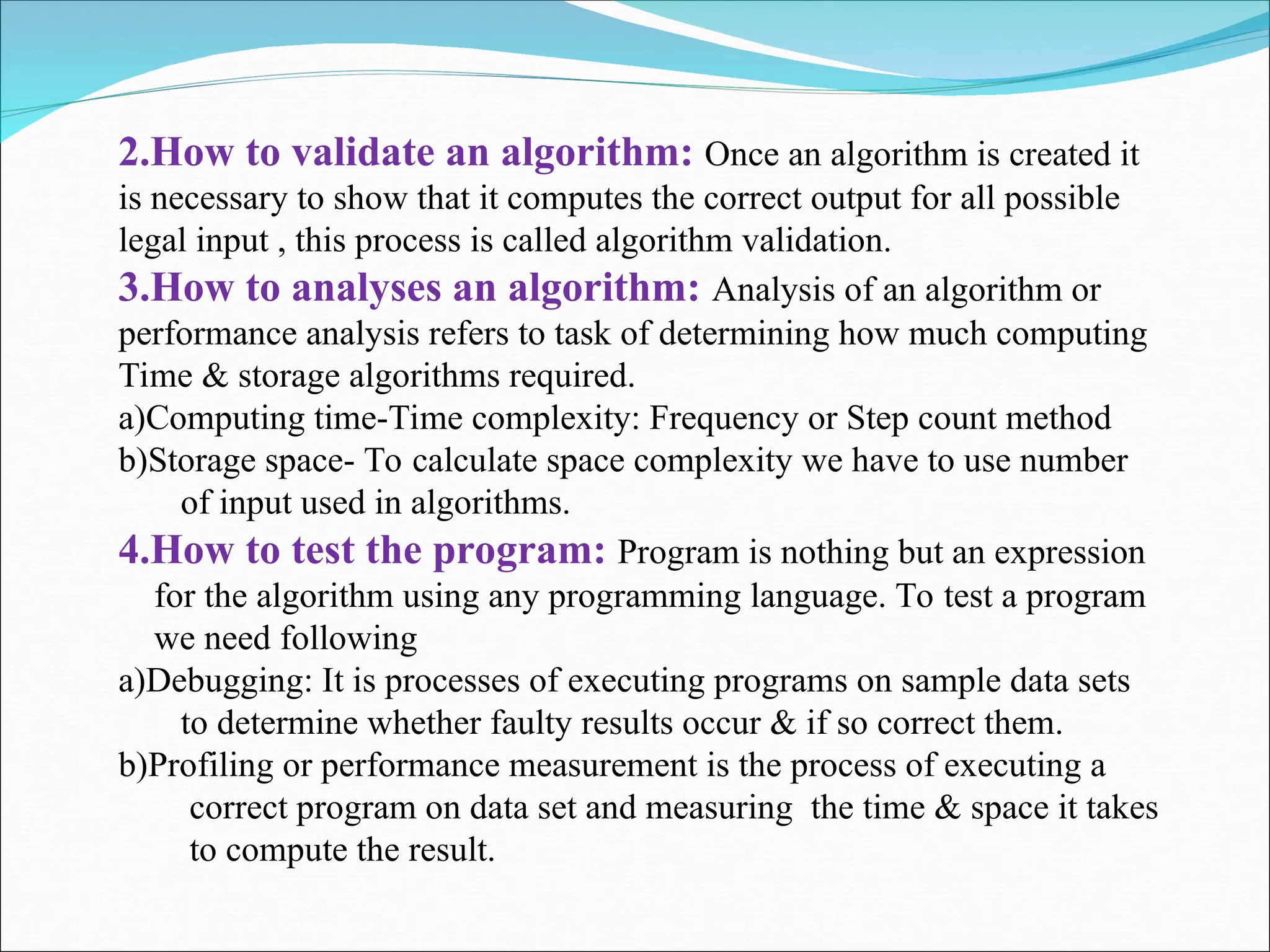

2.How to validate an algorithm: Once an algorithm is created it
is necessary to show that it computes the correct output for all possible
legal input , this process is called algorithm validation.
3.How to analyses an algorithm: Analysis of an algorithm or
performance analysis refers to task of determining how much computing
Time & storage algorithms required.
a)Computing time-Time complexity: Frequency or Step count method
b)Storage space- To calculate space complexity we have to use number
of input used in algorithms.
4.How to test the program: Program is nothing but an expression
for the algorithm using any programming language. To test a program
we need following
a)Debugging: It is processes of executing programs on sample data sets
to determine whether faulty results occur & if so correct them.
b)Profiling or performance measurement is the process of executing a
correct program on data set and measuring the time & space it takes
to compute the result.

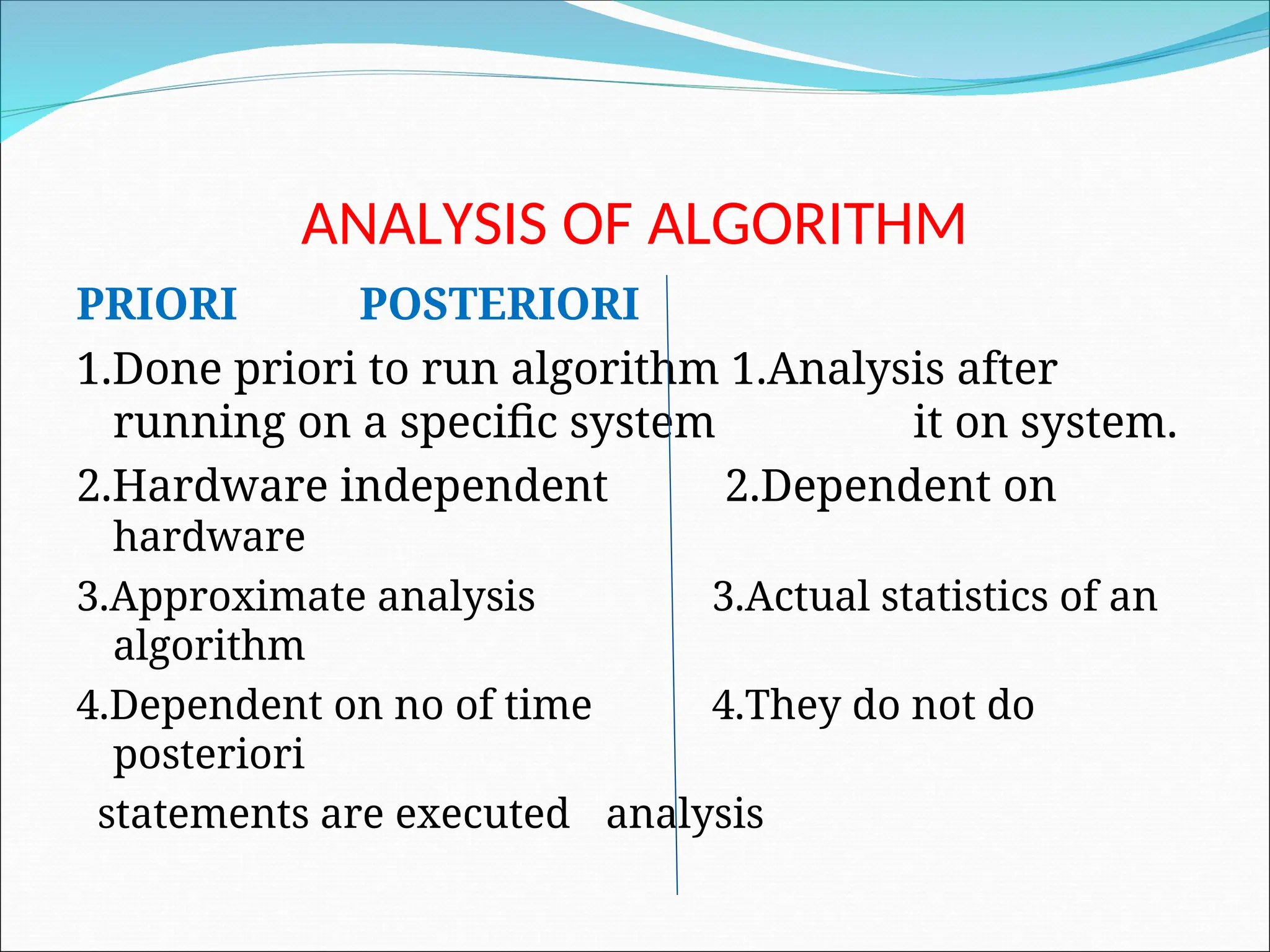

ANALYSIS OF ALGORITHM
PRIORI POSTERIORI
1.Done priori to run algorithm 1.Analysis after
running on a specific system it on system.
2.Hardware independent 2.Dependent on
hardware
3.Approximate analysis 3.Actual statistics of an
algorithm
4.Dependent on no of time 4.They do not do
posteriori
statements are executed analysis

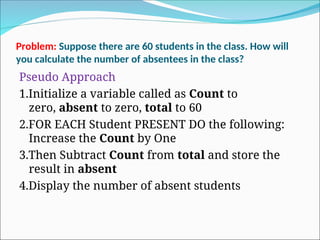

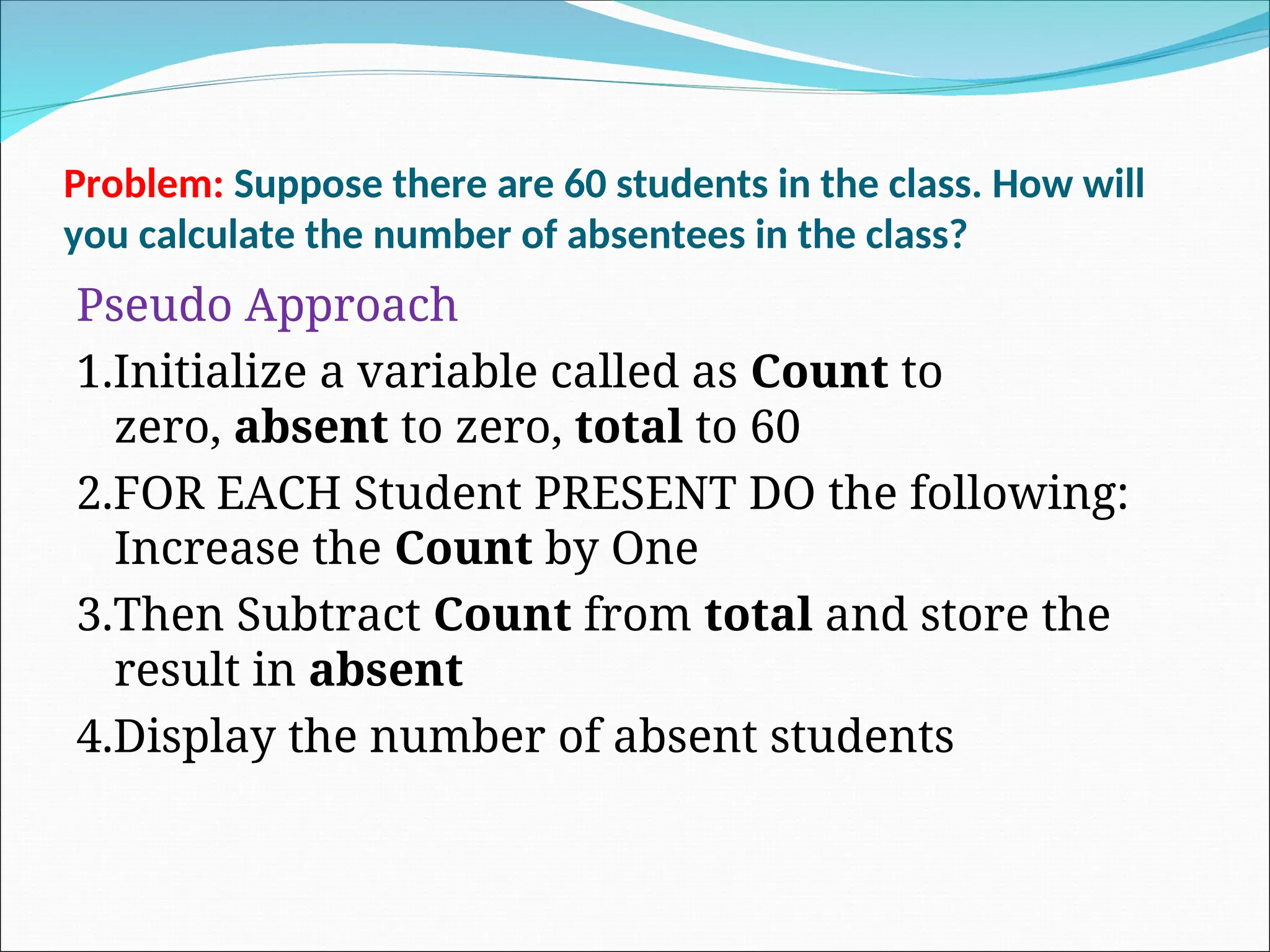

Problem: Suppose there are 60 students in the class. How will
you calculate the number of absentees in the class?
Pseudo Approach
1.Initialize a variable called as Count to
zero, absent to zero, total to 60
2.FOR EACH Student PRESENT DO the following:
Increase the Count by One
3.Then Subtract Count from total and store the
result in absent
4.Display the number of absent students

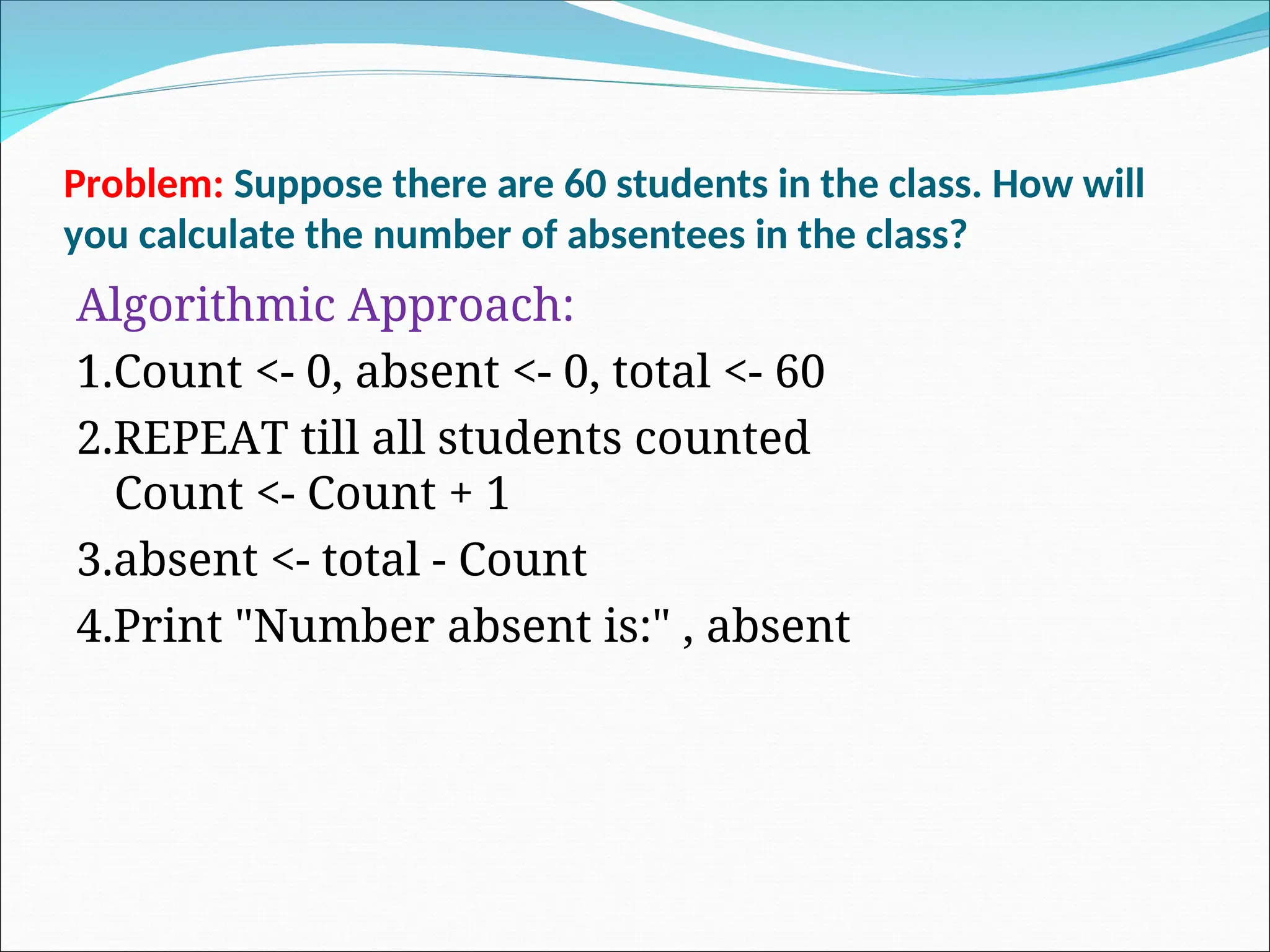

Problem: Suppose there are 60 students in the class. How will
you calculate the number of absentees in the class?
Algorithmic Approach:
1.Count <- 0, absent <- 0, total <- 60
2.REPEAT till all students counted
Count <- Count + 1
3.absent <- total - Count
4.Print "Number absent is:" , absent

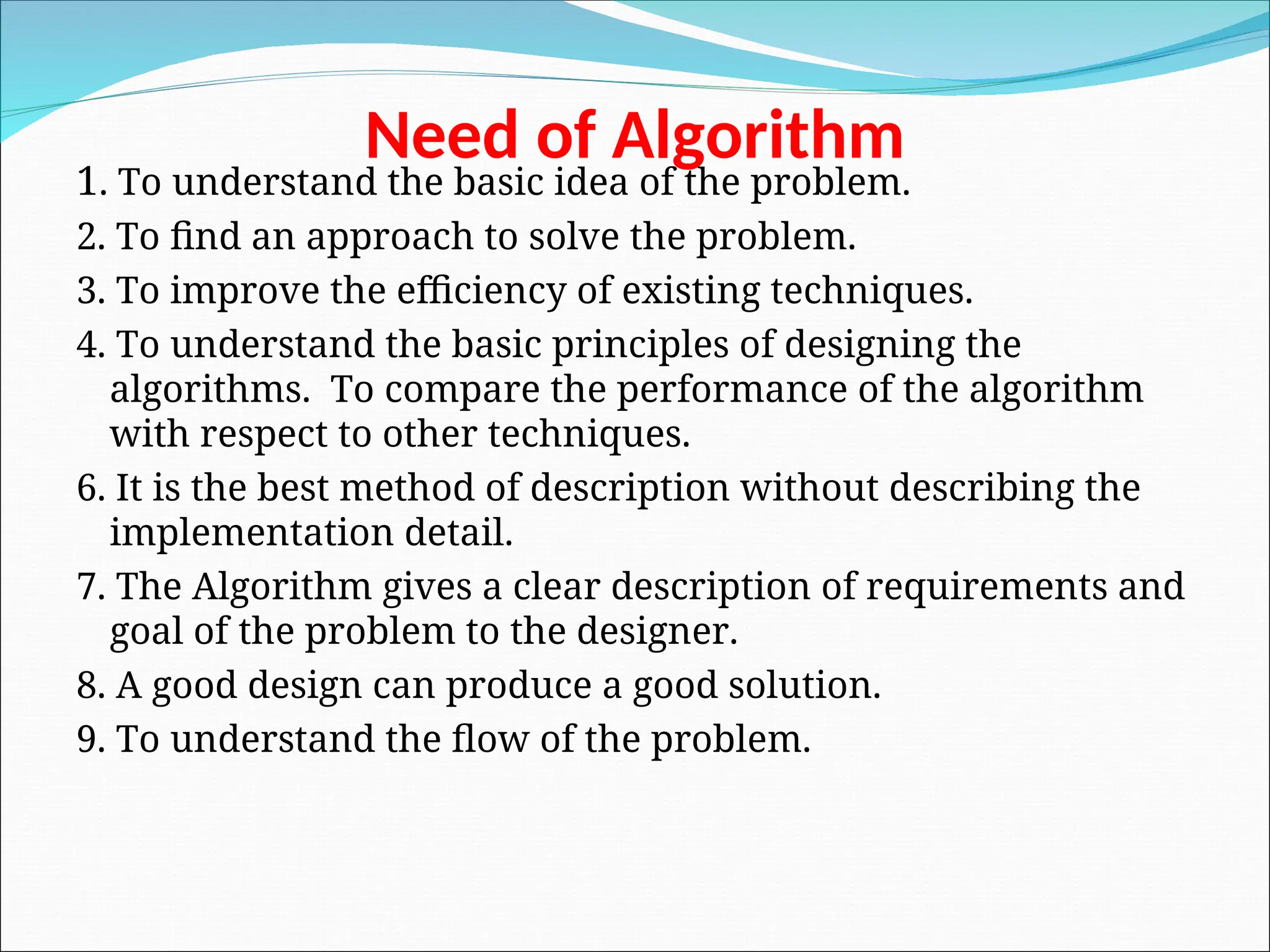

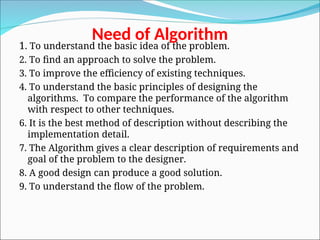

Need of Algorithm
1. To understand the basic idea of the problem.
2. To find an approach to solve the problem.
3. To improve the efficiency of existing techniques.
4. To understand the basic principles of designing the
algorithms. To compare the performance of the algorithm
with respect to other techniques.
6. It is the best method of description without describing the
implementation detail.
7. The Algorithm gives a clear description of requirements and
goal of the problem to the designer.
8. A good design can produce a good solution.
9. To understand the flow of the problem.

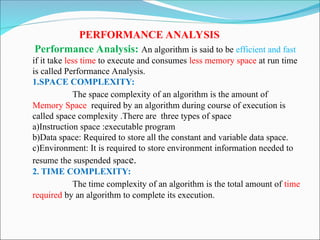

PERFORMANCE ANALYSIS
Performance Analysis: An algorithm is said to be efficient and fast
if it take less time to execute and consumes less memory space at run time
is called Performance Analysis.

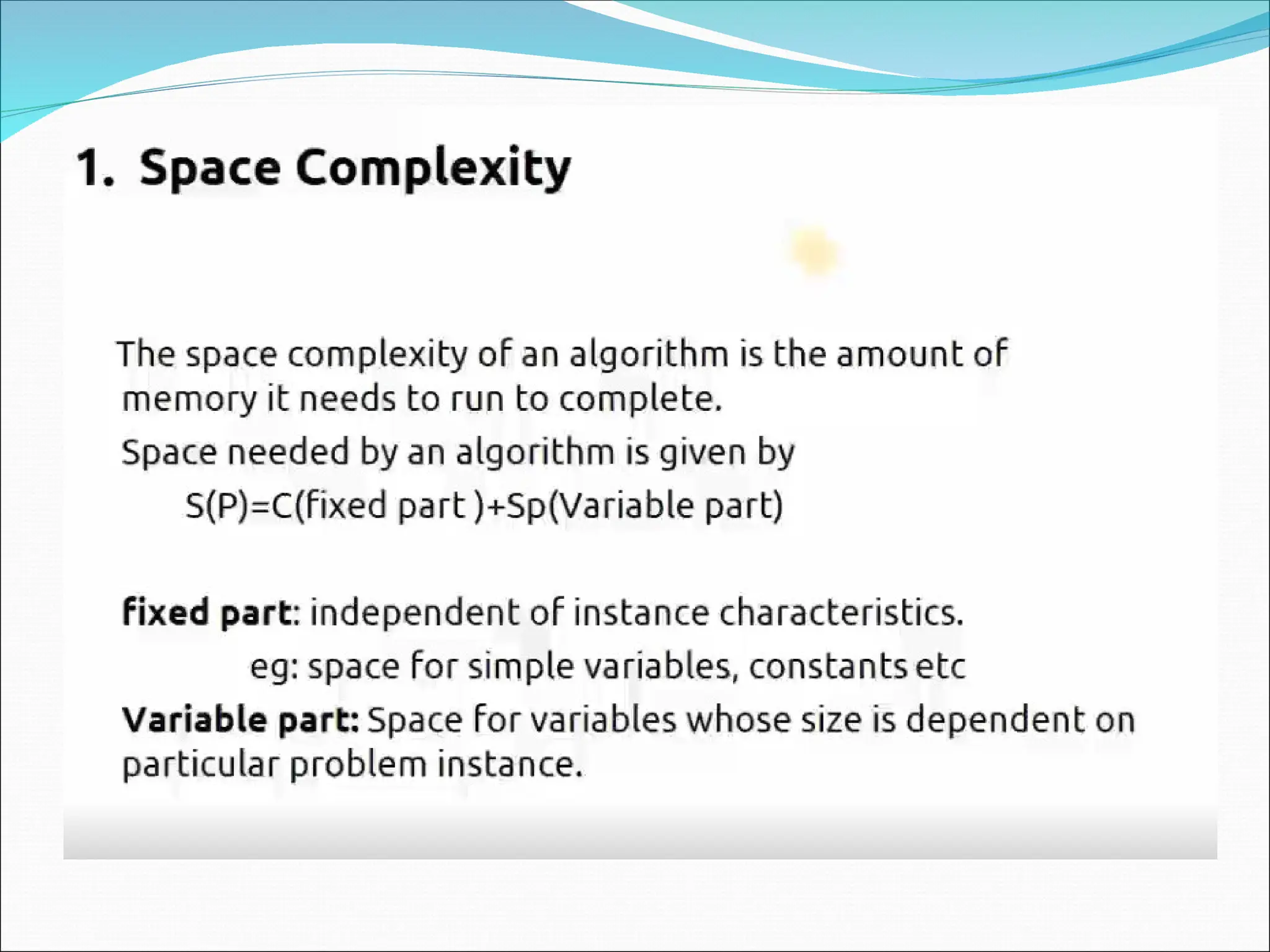

1.SPACE COMPLEXITY:
The space complexity of an algorithm is the amount of
Memory Space required by an algorithm during course of execution is
called space complexity .There are three types of space
a)Instruction space :executable program
b)Data space: Required to store all the constant and variable data space.
c)Environment: It is required to store environment information needed to
resume the suspended space.

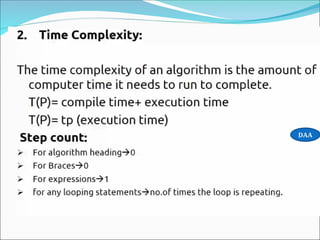

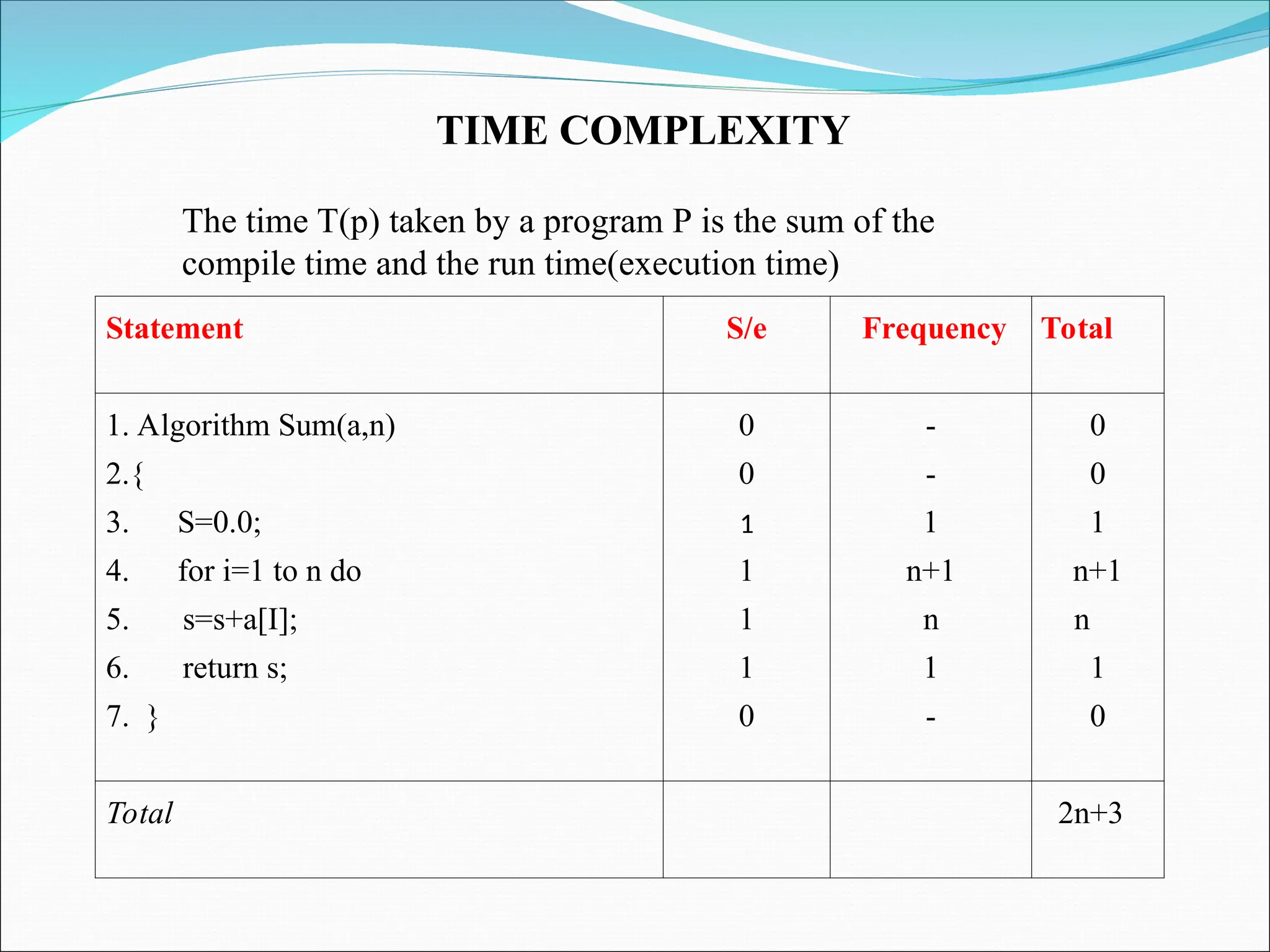

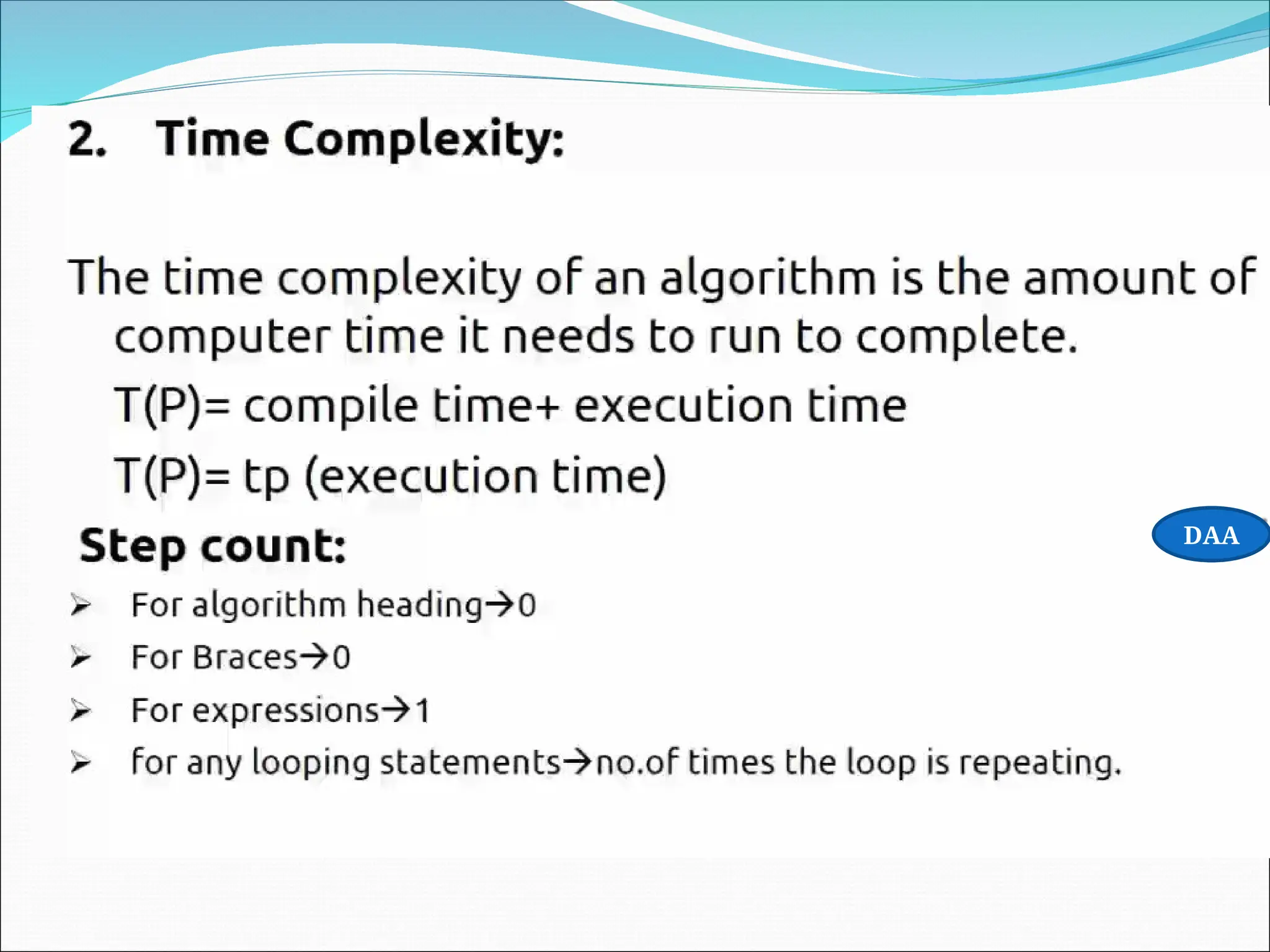

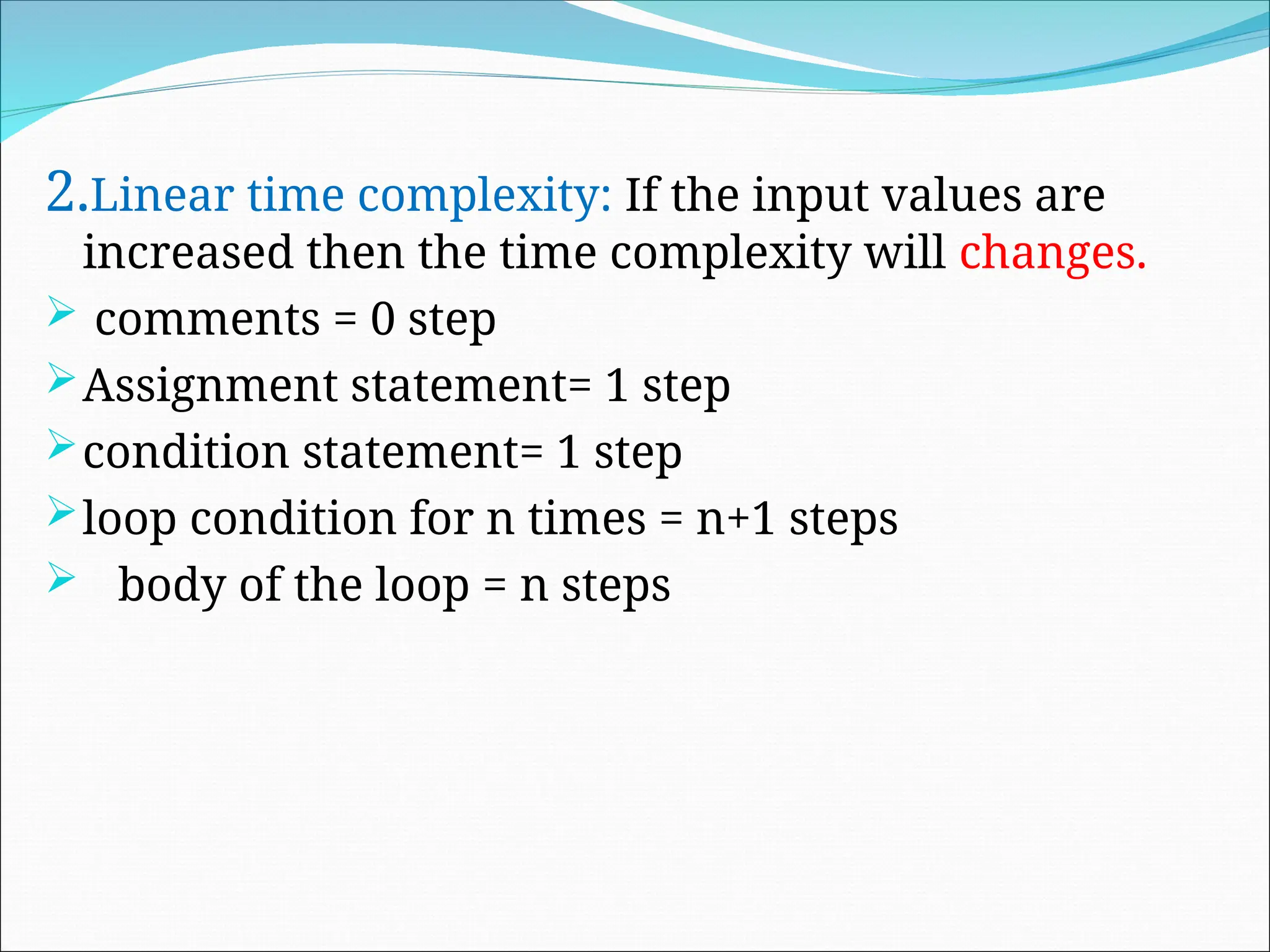

2. TIME COMPLEXITY:
The time complexity of an algorithm is the total amount of time
required by an algorithm to complete its execution.

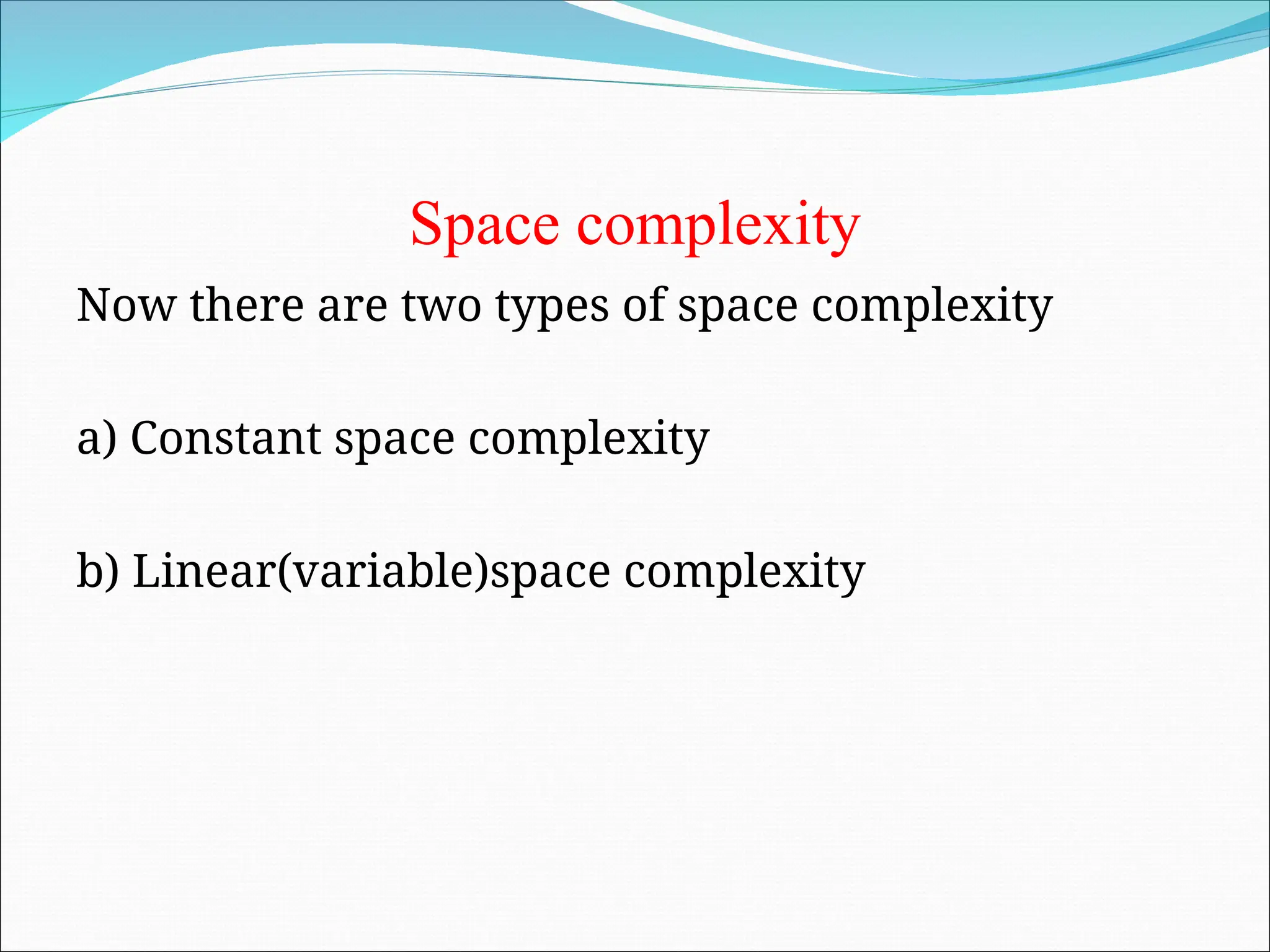

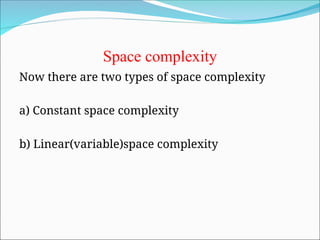

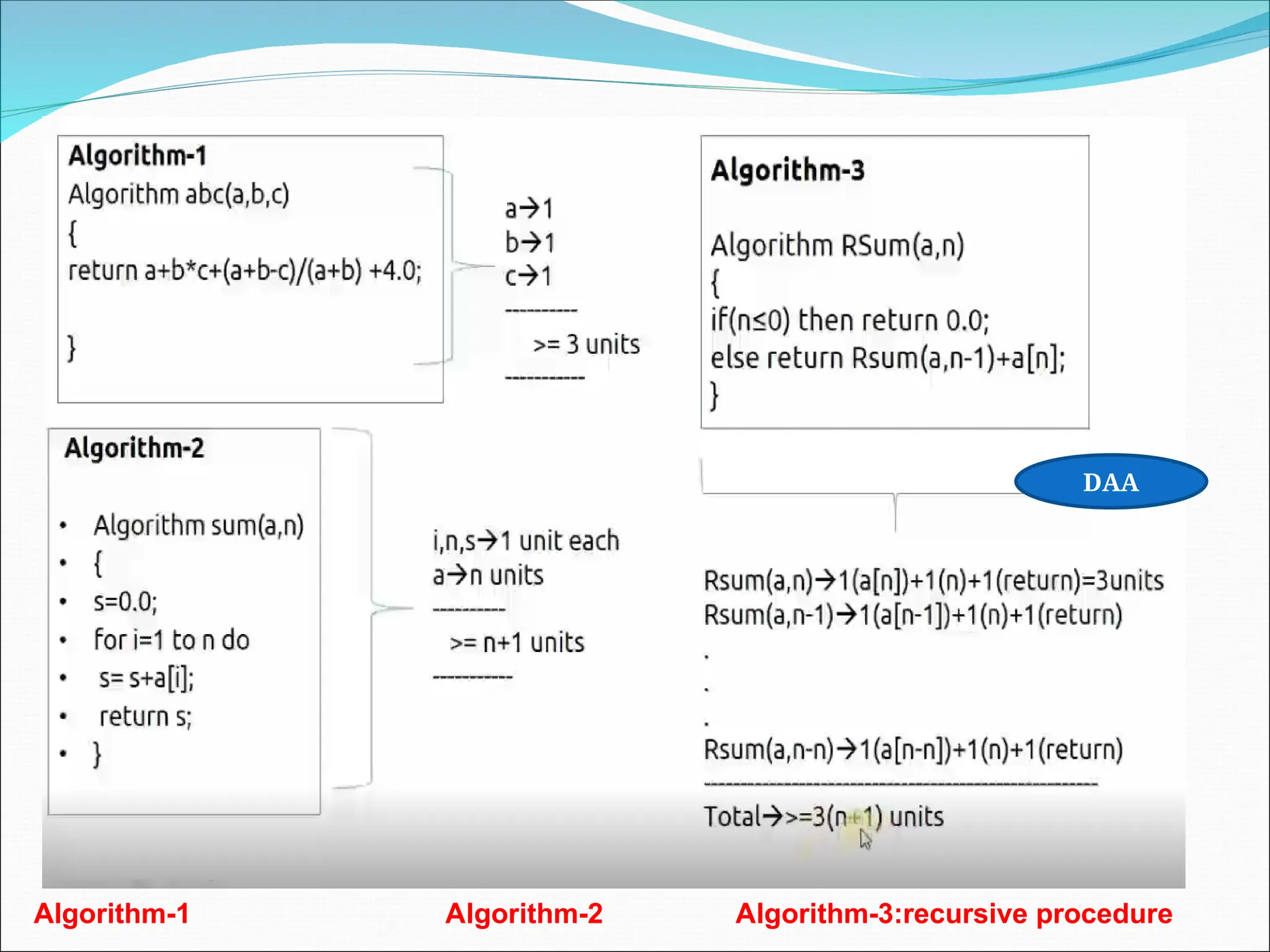

Space complexity
Now there are two types of space complexity
a) Constant space complexity
b) Linear(variable)space complexity

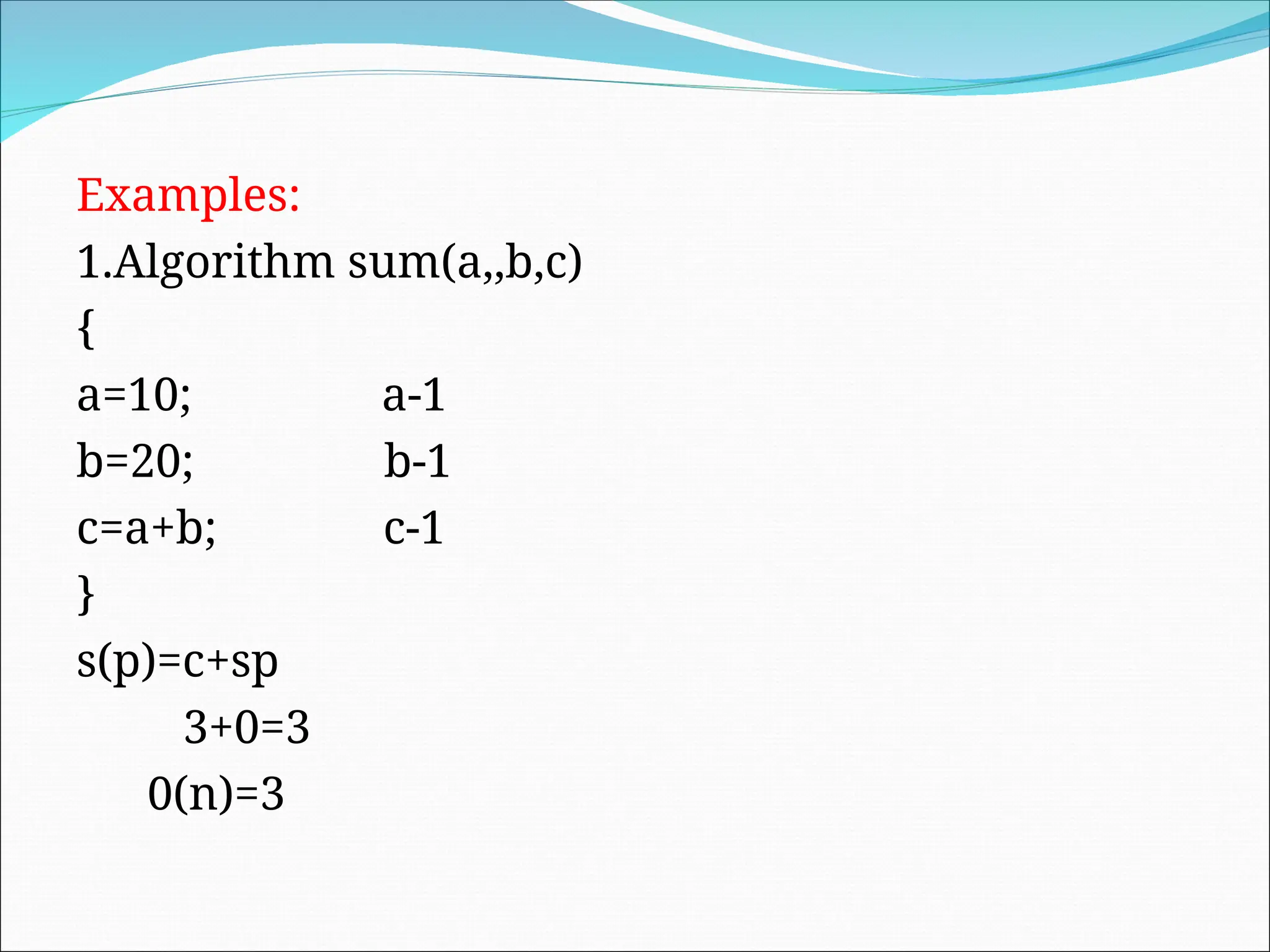

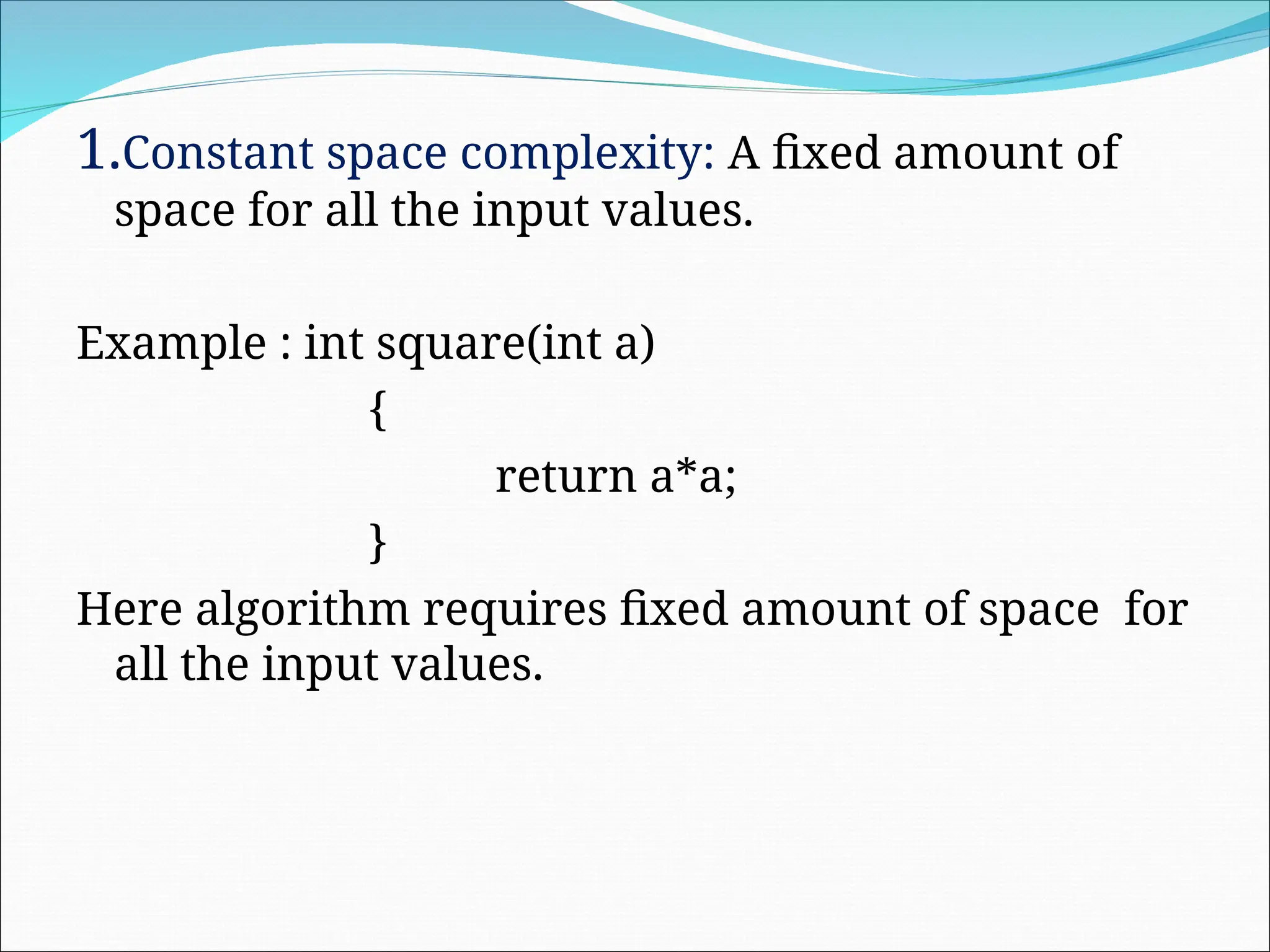

1.Constant space complexity: A fixed amount of
space for all the input values.
Example : int square(int a)
{
return a*a;
}
Here algorithm requires fixed amount of space for
all the input values.

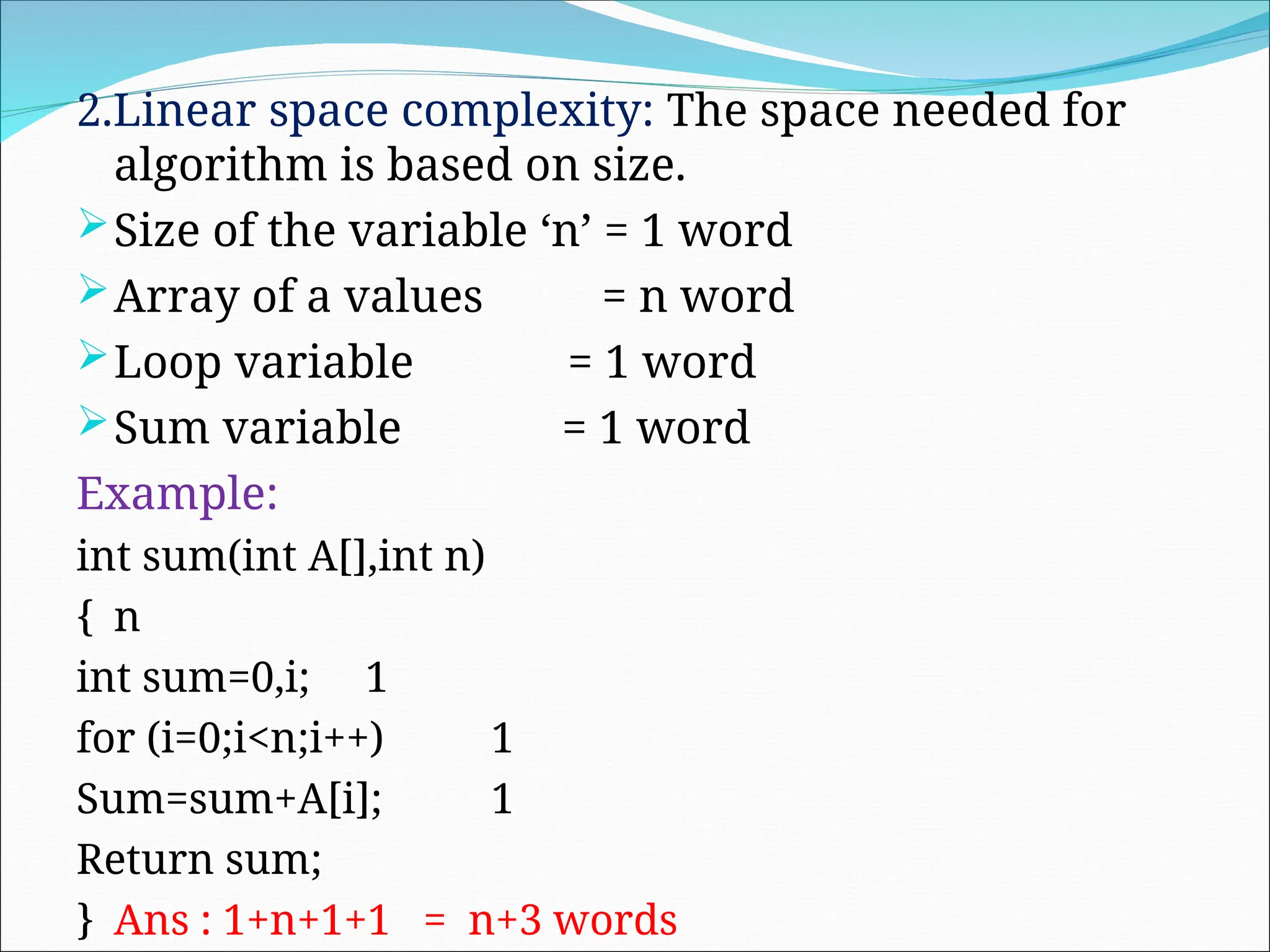

2.Linear space complexity: The space needed for
algorithm is based on size.
Size of the variable ‘n’ = 1 word
Array of a values = n word
Loop variable = 1 word
Sum variable = 1 word
Example:
int sum(int A[],int n)
{ n
int sum=0,i; 1
for (i=0;i<n;i++) 1
Sum=sum+A[i]; 1
Return sum;
} Ans : 1+n+1+1 = n+3 words

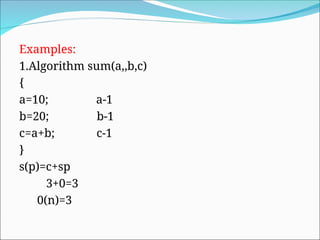

Examples:
1.Algorithm sum(a,,b,c)
{
a=10; a-1
b=20; b-1
c=a+b; c-1
}
s(p)=c+sp
3+0=3
0(n)=3

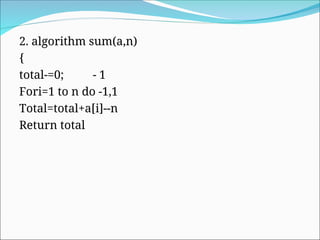

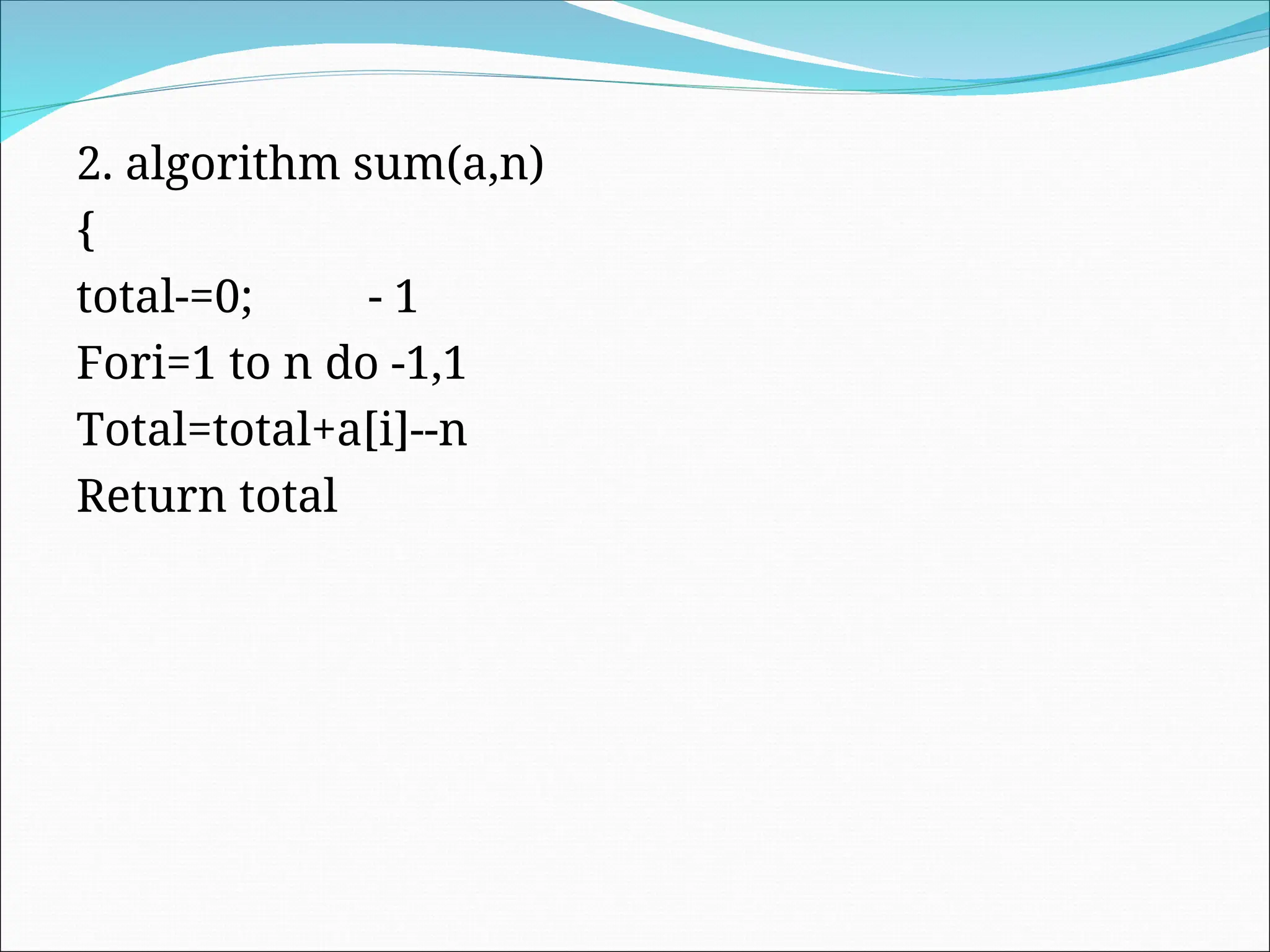

2. algorithm sum(a,n)
{
total-=0; - 1
Fori=1 to n do -1,1
Total=total+a[i]--n
Return total

DAA

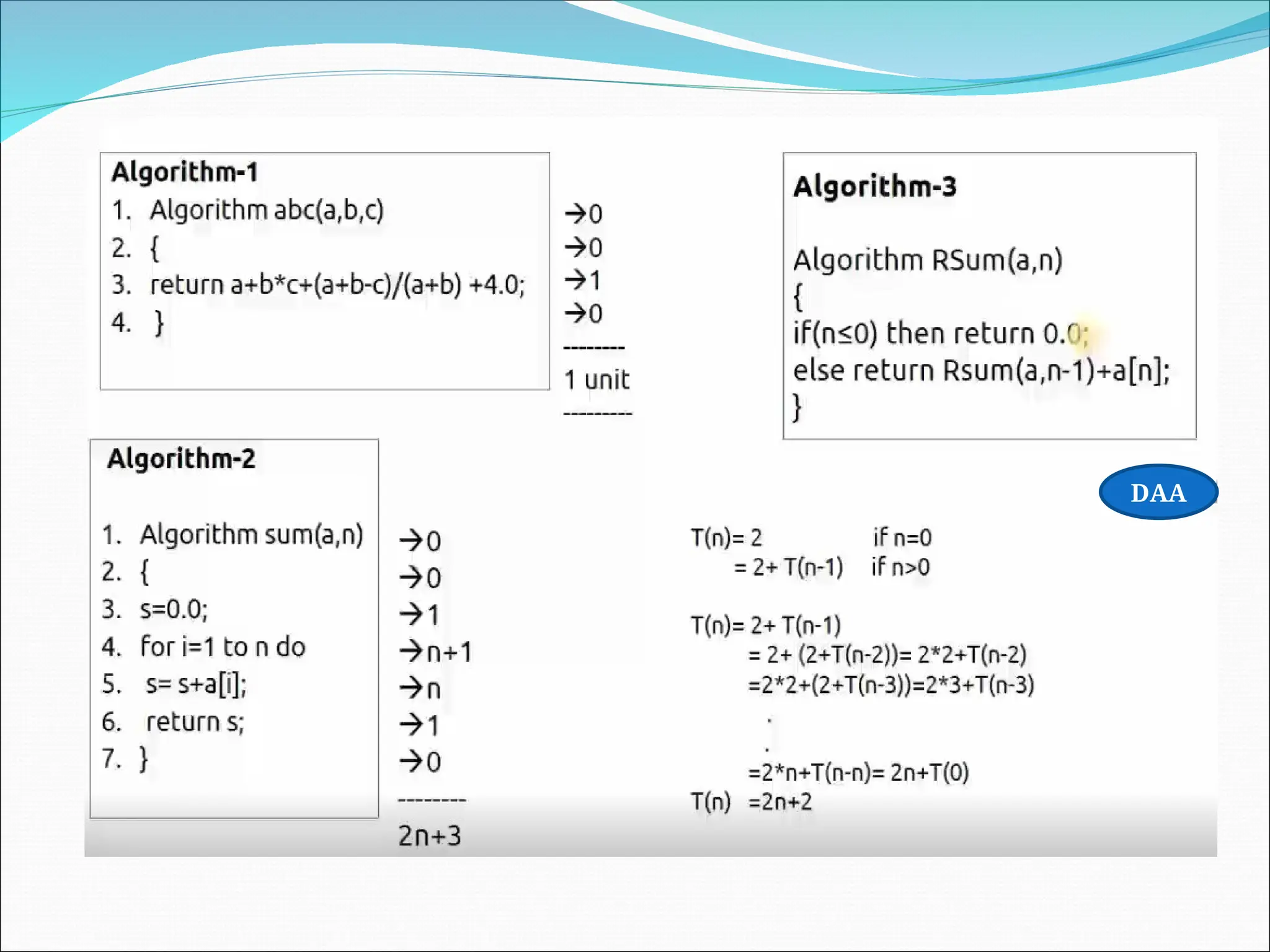

Algorithm-1 Algorithm-2 Algorithm-3:recursive procedure

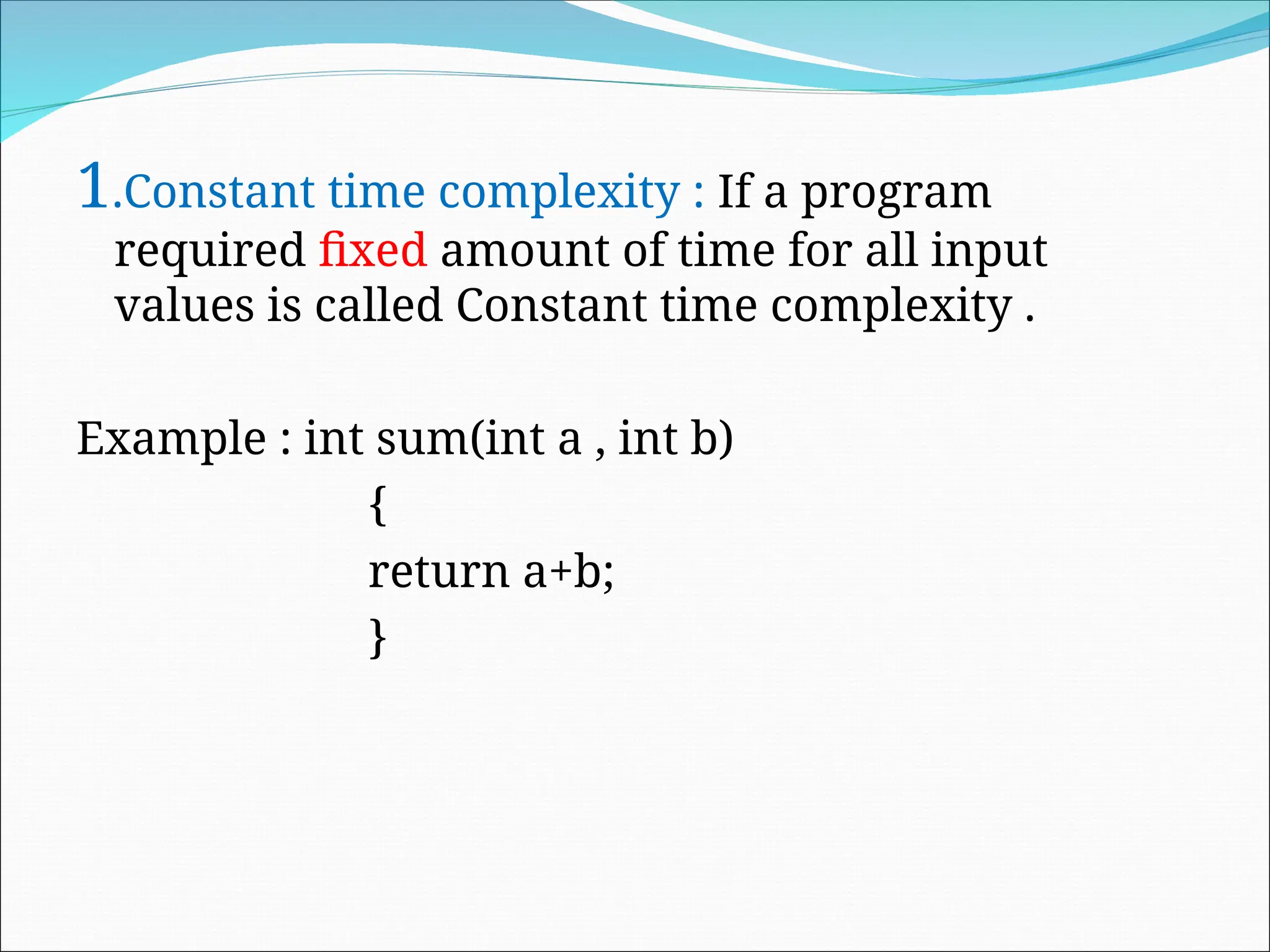

1.Constant time complexity : If a program
required fixed amount of time for all input
values is called Constant time complexity .
Example : int sum(int a , int b)
{
return a+b;
}

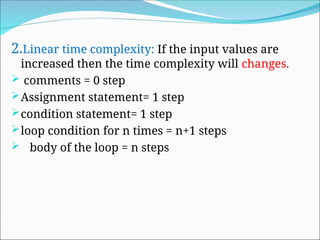

2.Linear time complexity: If the input values are
increased then the time complexity will changes.
 comments = 0 step
Assignment statement= 1 step
condition statement= 1 step
loop condition for n times = n+1 steps
 body of the loop = n steps

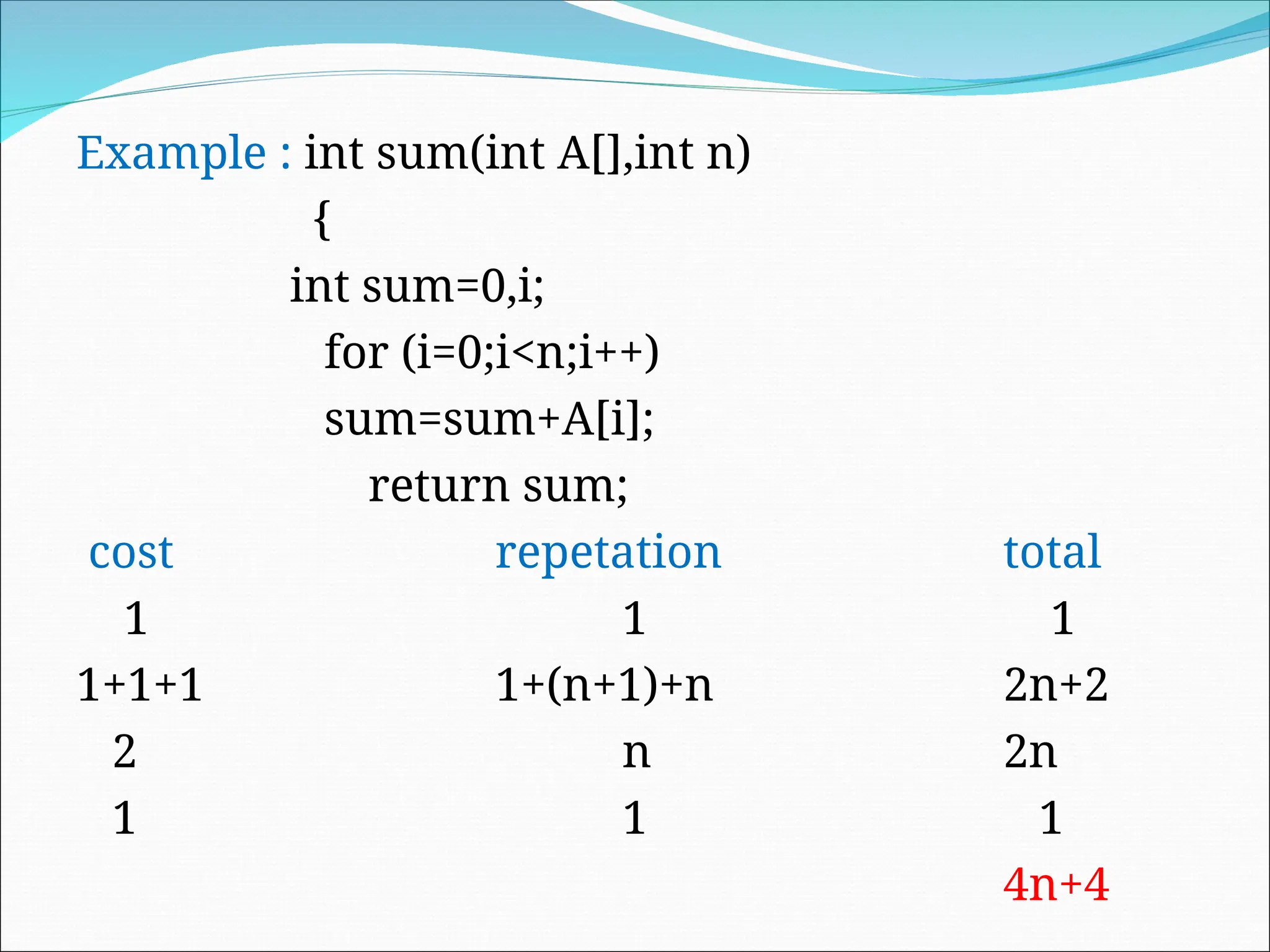

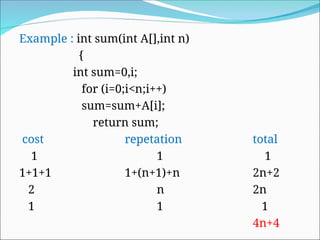

Example : int sum(int A[],int n)
{
int sum=0,i;
for (i=0;i<n;i++)
sum=sum+A[i];
return sum;
cost repetation total
1 1 1
1+1+1 1+(n+1)+n 2n+2
2 n 2n
1 1 1
4n+4

Statement S/e Frequency Total
1. Algorithm Sum(a,n) 0 - 0
2.{ 0 - 0
3. S=0.0; 1 1 1
4. for i=1 to n do 1 n+1 n+1
5. s=s+a[I]; 1 n n
6. return s; 1 1 1
7. } 0 - 0
Total 2n+3
The time T(p) taken by a program P is the sum of the
compile time and the run time(execution time)
TIME COMPLEXITY

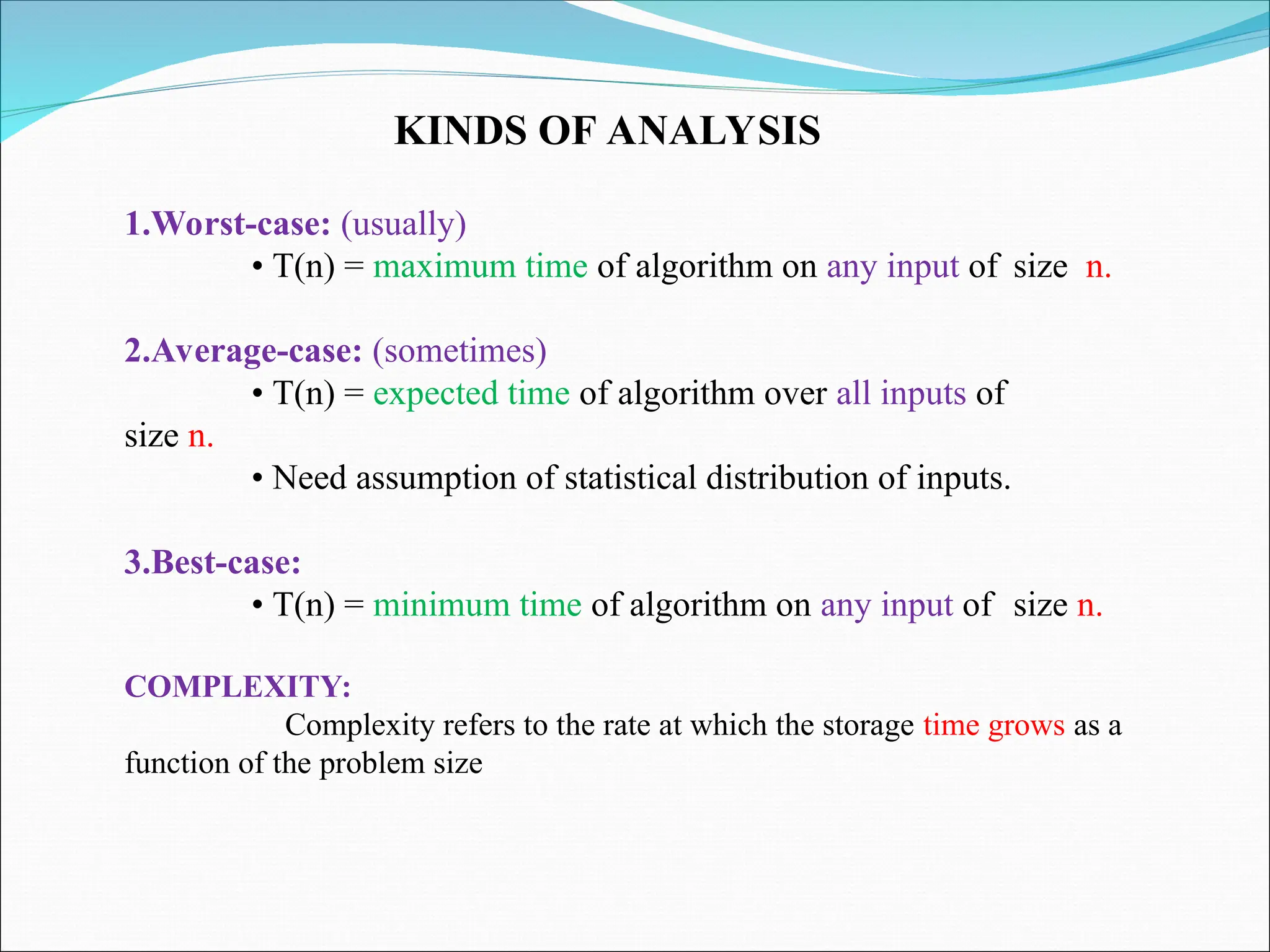

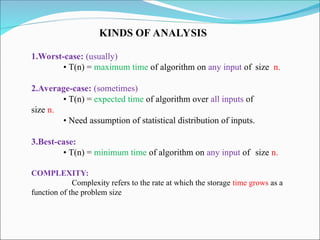

KINDS OF ANALYSIS
1.Worst-case: (usually)
• T(n) = maximum time of algorithm on any input of size n.
2.Average-case: (sometimes)
• T(n) = expected time of algorithm over all inputs of
size n.
• Need assumption of statistical distribution of inputs.
3.Best-case:
• T(n) = minimum time of algorithm on any input of size n.
COMPLEXITY:
Complexity refers to the rate at which the storage time grows as a
function of the problem size

Analysis of an Algorithm
The goal of analysis of an algorithm is to compare
algorithm in running time and also Memory
management.
Running time of an algorithm depends on how long it
takes a computer to run the lines of code of the
algorithm.
Running time of an algorithm depends on
1.Speed of computer
2.Programming language
3.Compiler and translator
Examples: binary search, linear search

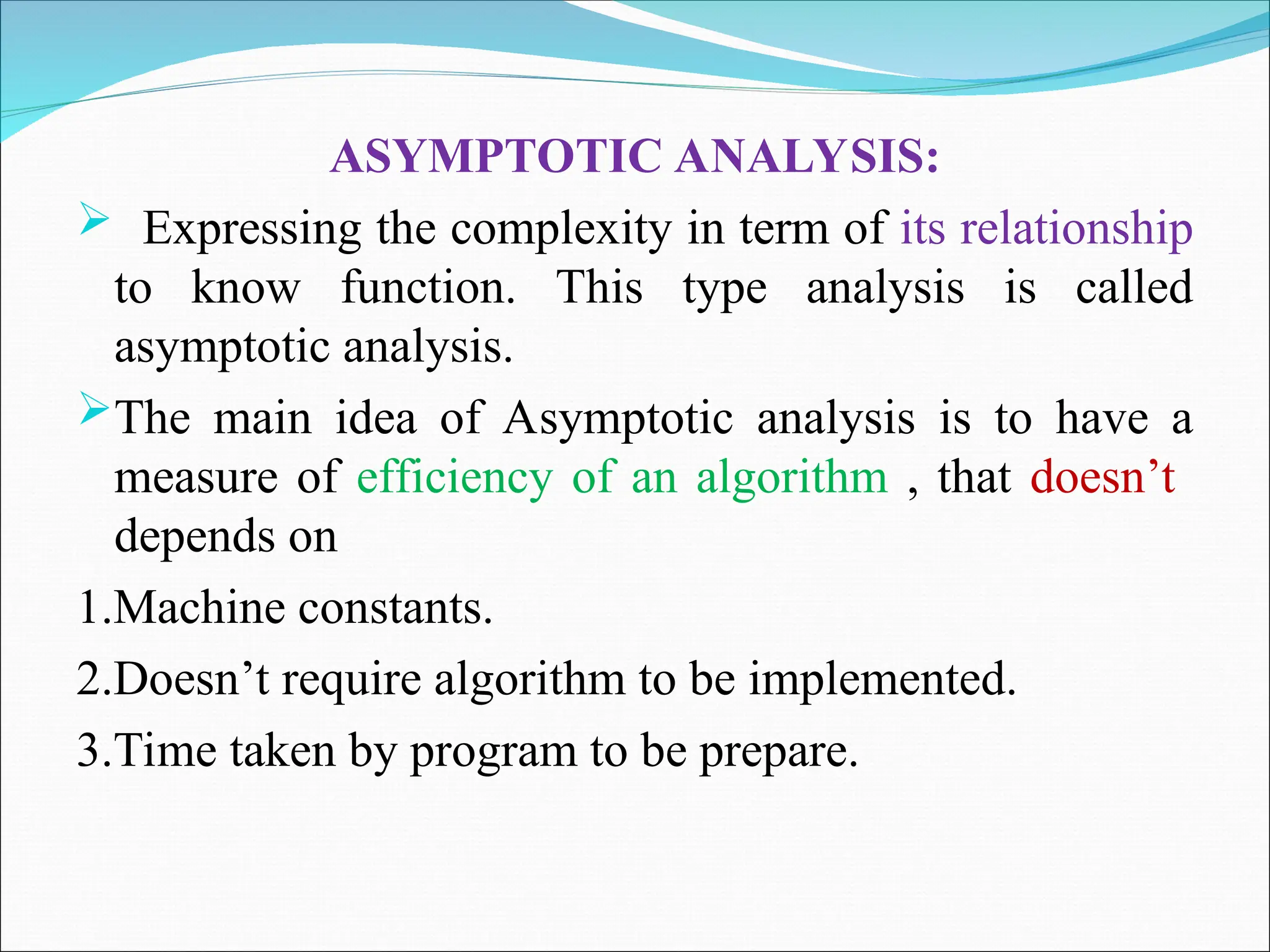

ASYMPTOTIC ANALYSIS:
 Expressing the complexity in term of its relationship
to know function. This type analysis is called
asymptotic analysis.
The main idea of Asymptotic analysis is to have a
measure of efficiency of an algorithm , that doesn’t
depends on
1.Machine constants.
2.Doesn’t require algorithm to be implemented.
3.Time taken by program to be prepare.

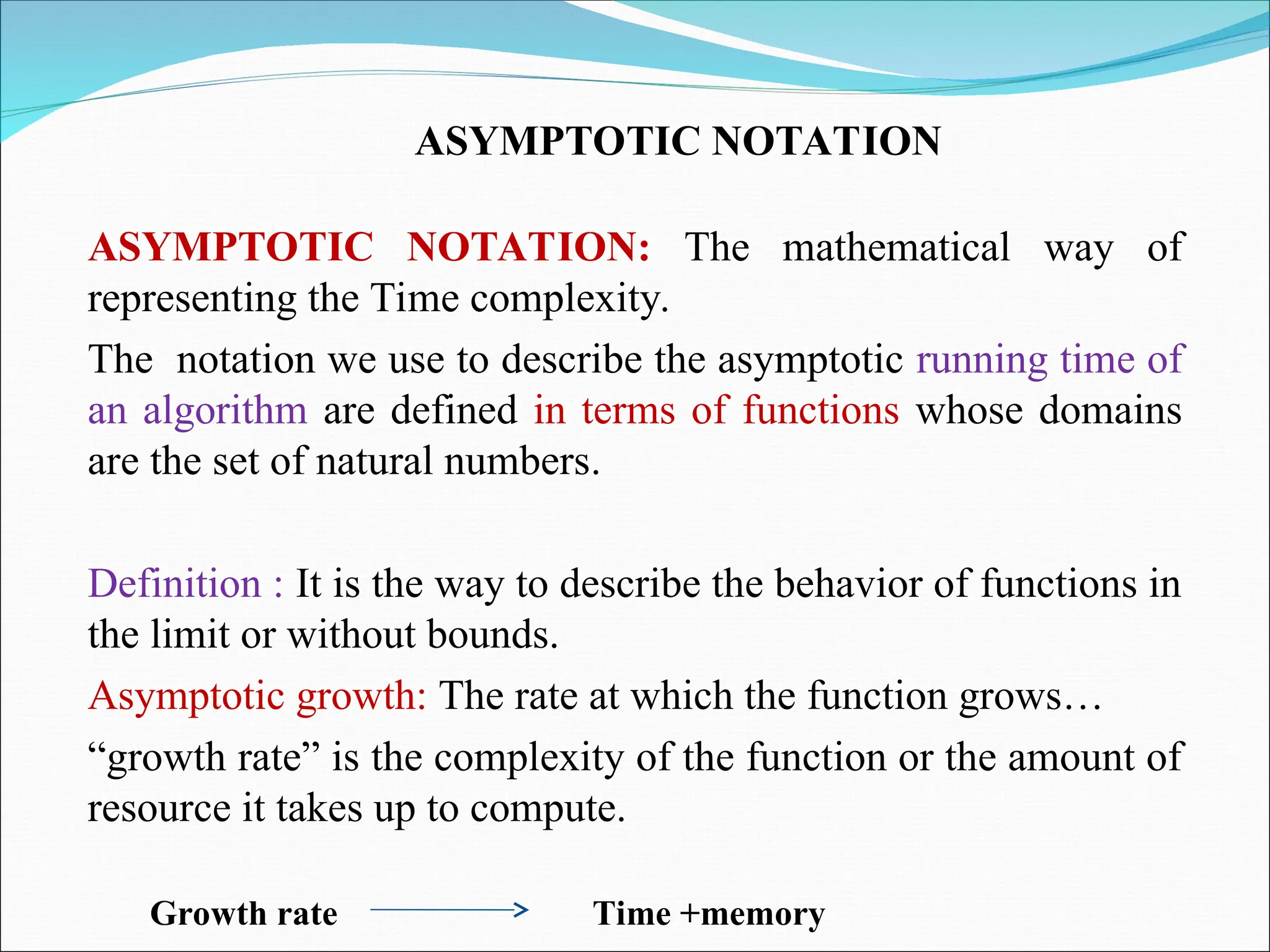

ASYMPTOTIC NOTATION
ASYMPTOTIC NOTATION: The mathematical way of
representing the Time complexity.
The notation we use to describe the asymptotic running time of
an algorithm are defined in terms of functions whose domains
are the set of natural numbers.
Definition : It is the way to describe the behavior of functions in
the limit or without bounds.
Asymptotic growth: The rate at which the function grows…
“growth rate” is the complexity of the function or the amount of
resource it takes up to compute.
Growth rate Time +memory

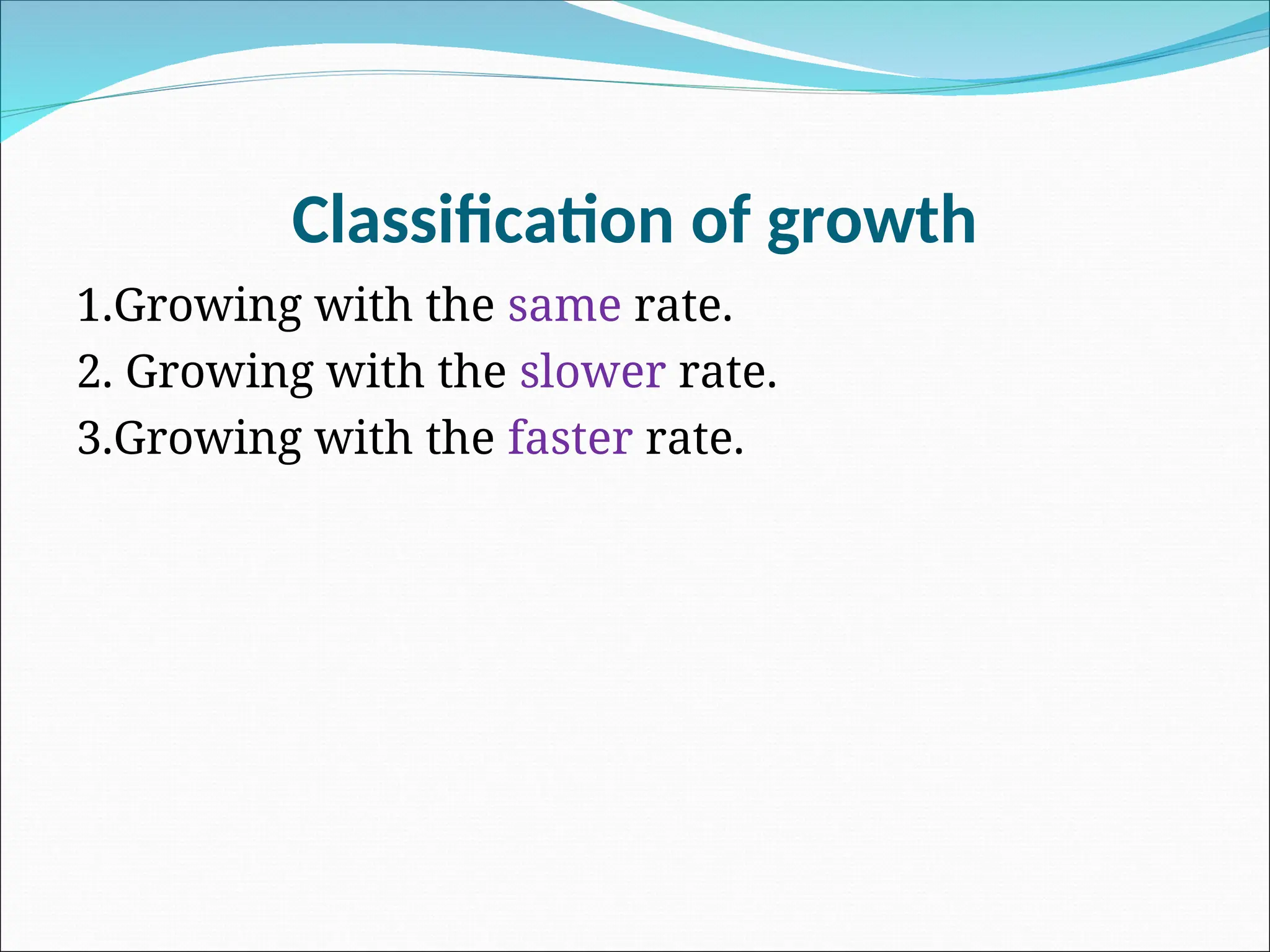

Classification of growth
1.Growing with the same rate.
2. Growing with the slower rate.
3.Growing with the faster rate.

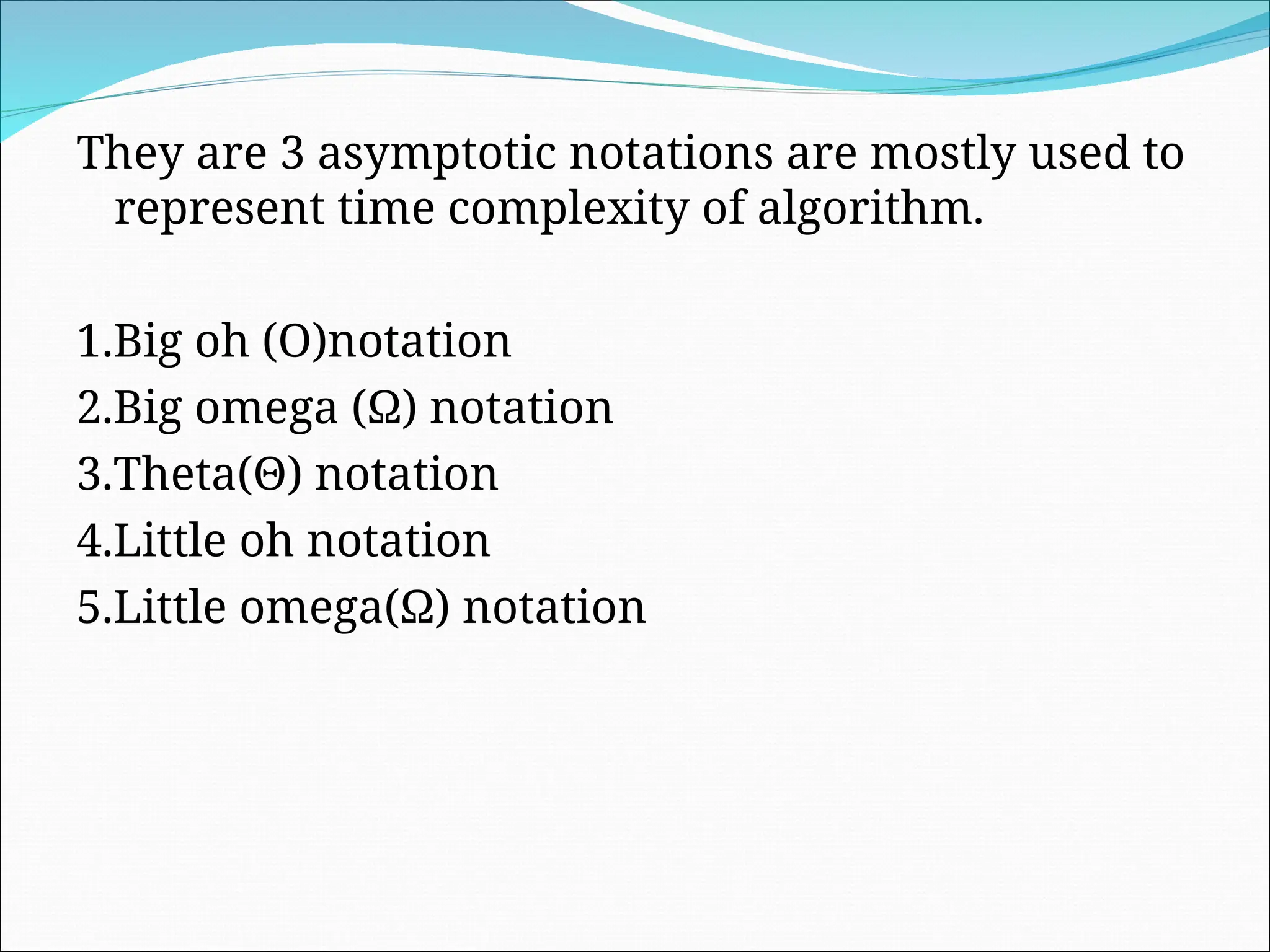

They are 3 asymptotic notations are mostly used to
represent time complexity of algorithm.
1.Big oh (O)notation
2.Big omega (Ω) notation
3.Theta(Θ) notation
4.Little oh notation
5.Little omega(Ω) notation

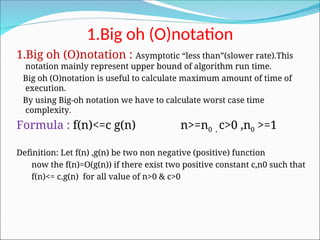

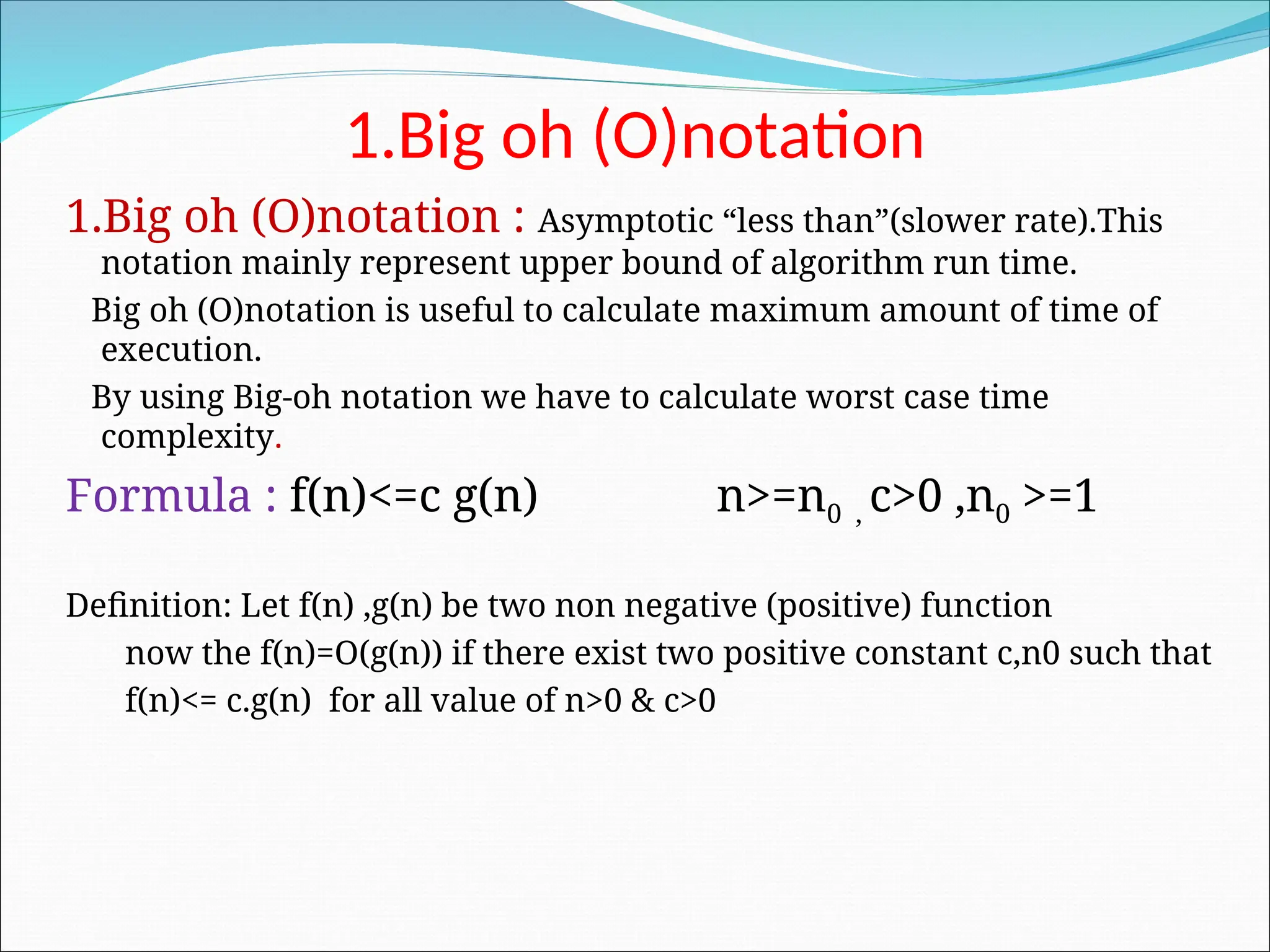

1.Big oh (O)notation
1.Big oh (O)notation : Asymptotic “less than”(slower rate).This
notation mainly represent upper bound of algorithm run time.
Big oh (O)notation is useful to calculate maximum amount of time of
execution.
By using Big-oh notation we have to calculate worst case time
complexity.
Formula : f(n)<=c g(n) n>=n0 , c>0 ,n0 >=1
Definition: Let f(n) ,g(n) be two non negative (positive) function
now the f(n)=O(g(n)) if there exist two positive constant c,n0 such that
f(n)<= c.g(n) for all value of n>0 & c>0

1.Big

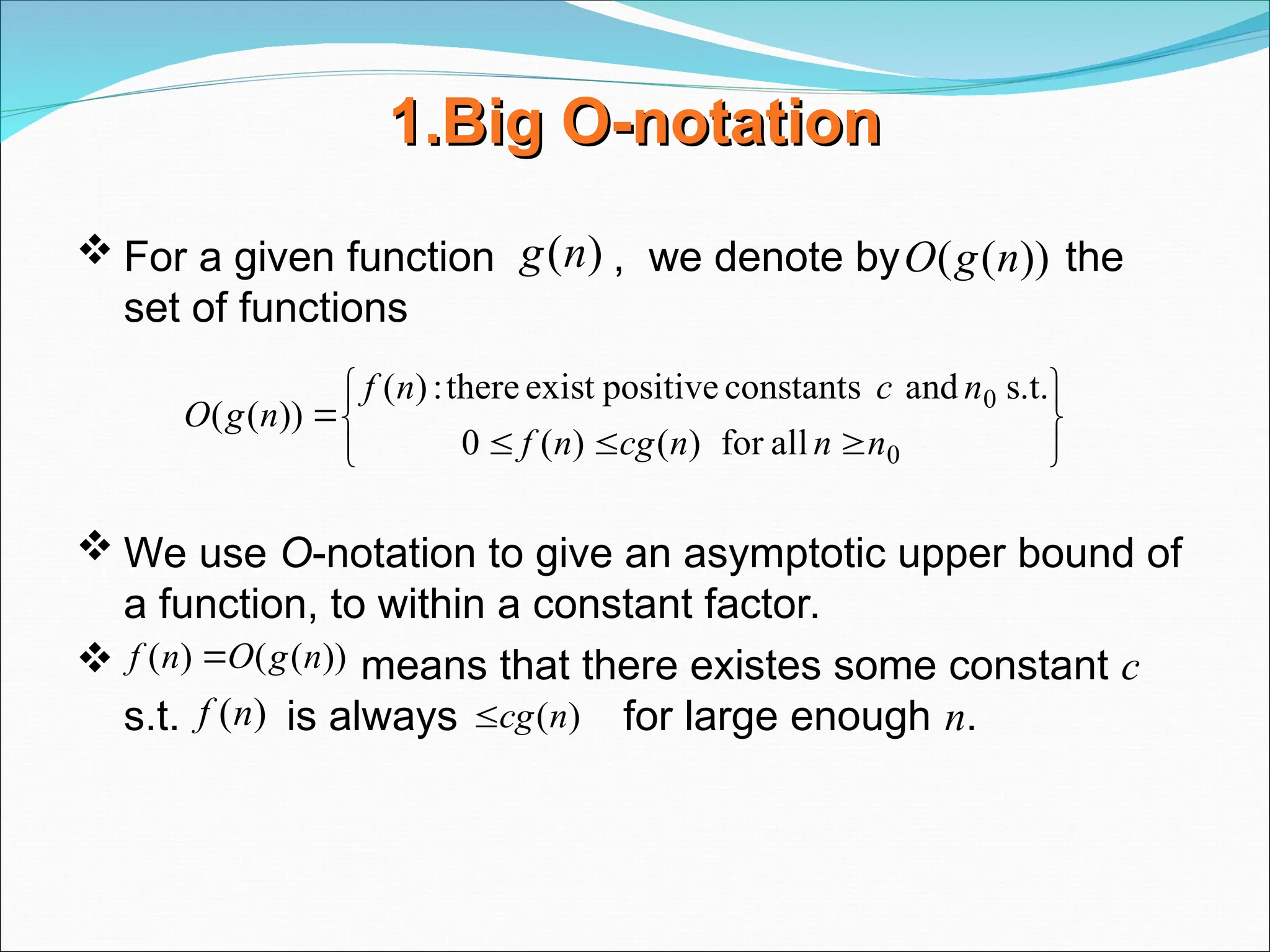

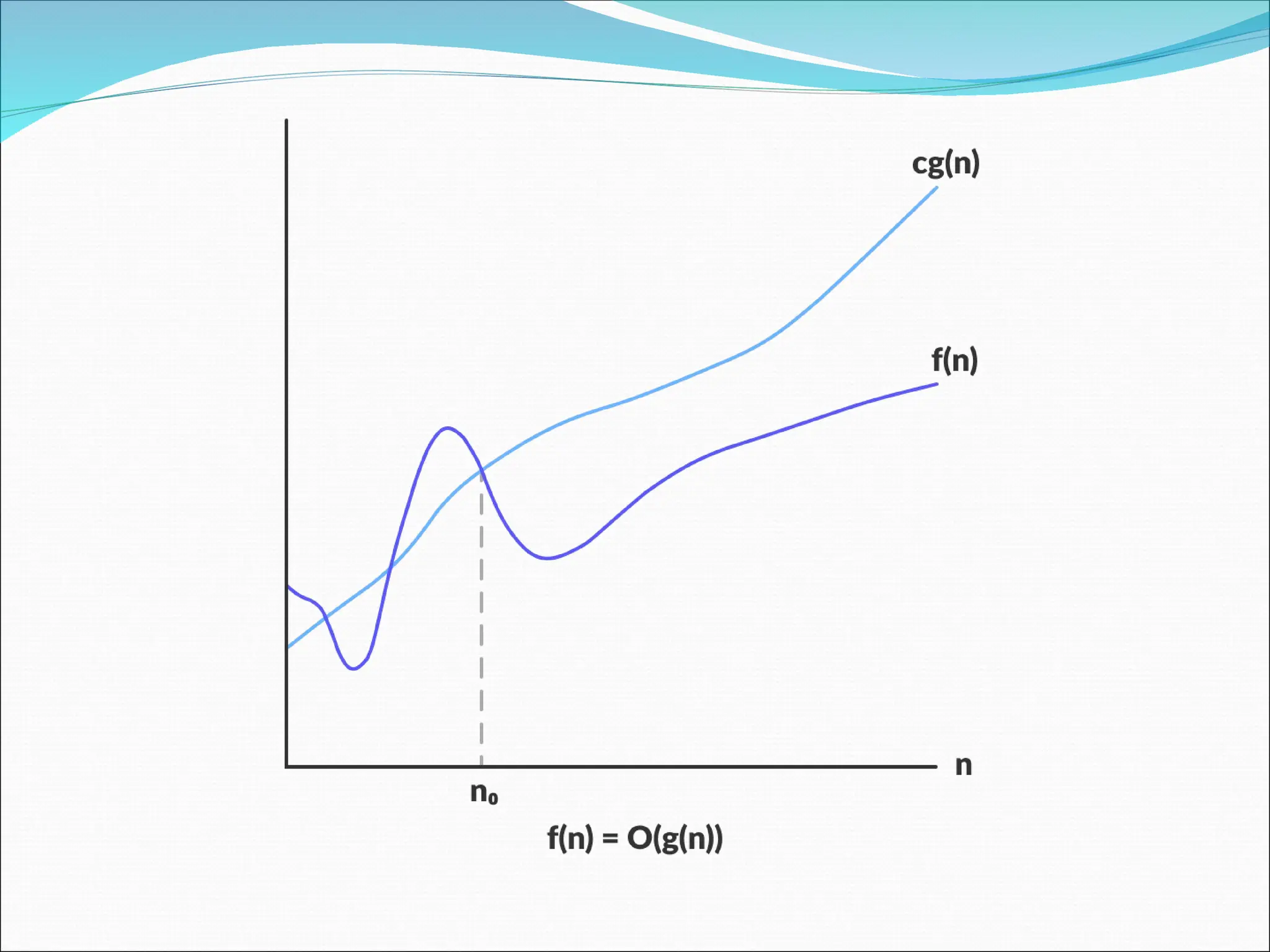

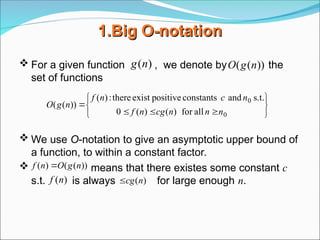

1.Big O-notation
O-notation
 For a given function , we denote by the
set of functions

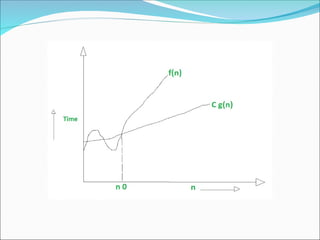

 We use O-notation to give an asymptotic upper bound of
a function, to within a constant factor.
 means that there existes some constant c
s.t. is always for large enough n.
)
(n
g ))
(
( n
g
O










0
0
all
for
)
(
)
(
0
s.t.
and
constants
positive
exist
there
:
)
(
))
(
(
n
n
n
cg
n
f
n
c
n
f
n
g
O
))
(
(
)
( n
g
O
n
f 
)
(n
cg

)
(n
f

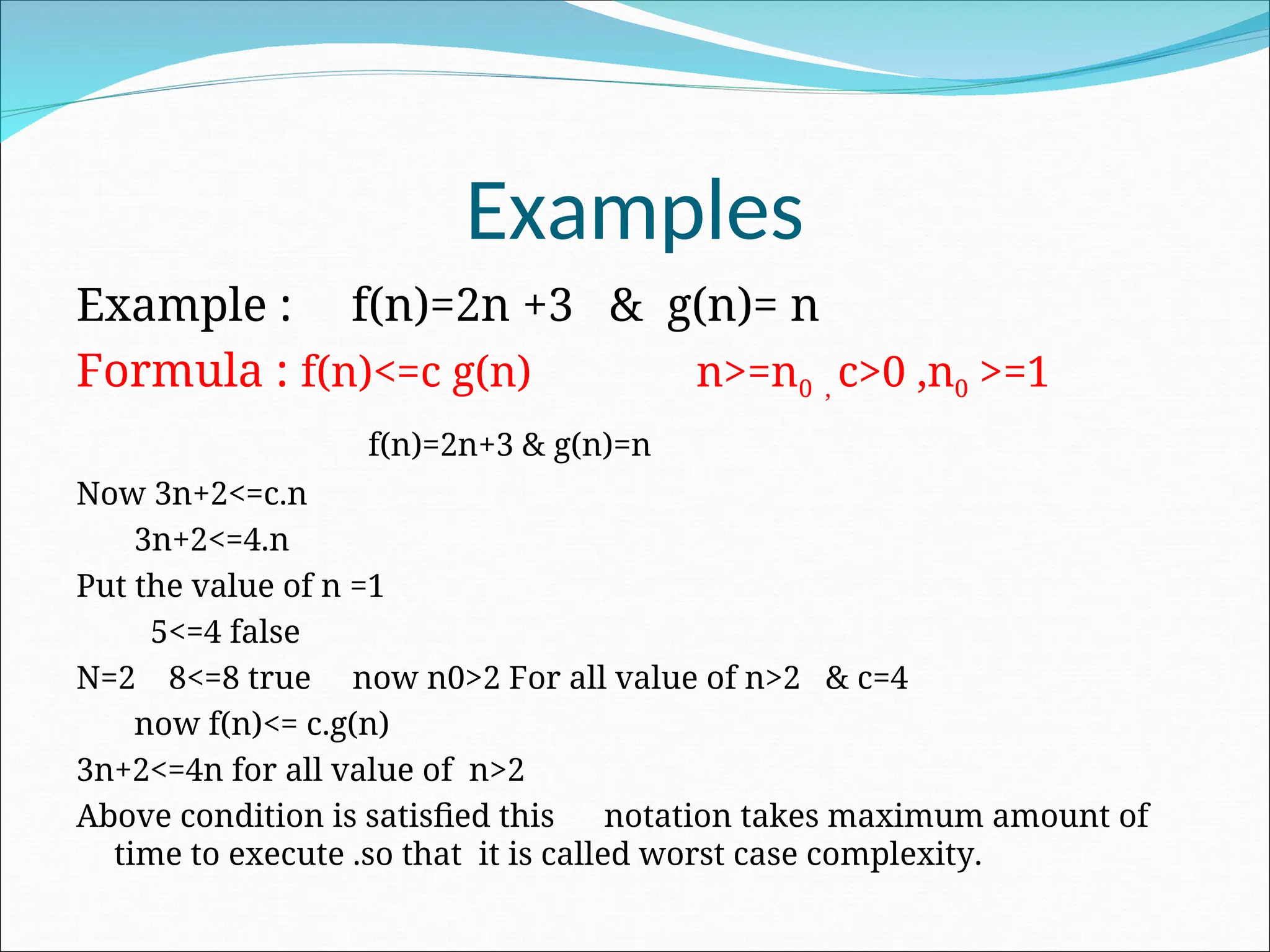

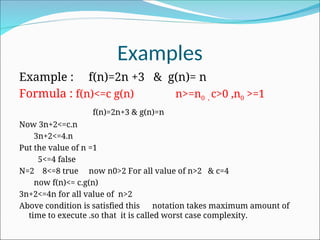

Examples
Example : f(n)=2n +3 & g(n)= n
Formula : f(n)<=c g(n) n>=n0 , c>0 ,n0 >=1
f(n)=2n+3 & g(n)=n
Now 3n+2<=c.n
3n+2<=4.n
Put the value of n =1
5<=4 false
N=2 8<=8 true now n0>2 For all value of n>2 & c=4
now f(n)<= c.g(n)
3n+2<=4n for all value of n>2
Above condition is satisfied this notation takes maximum amount of
time to execute .so that it is called worst case complexity.

2.

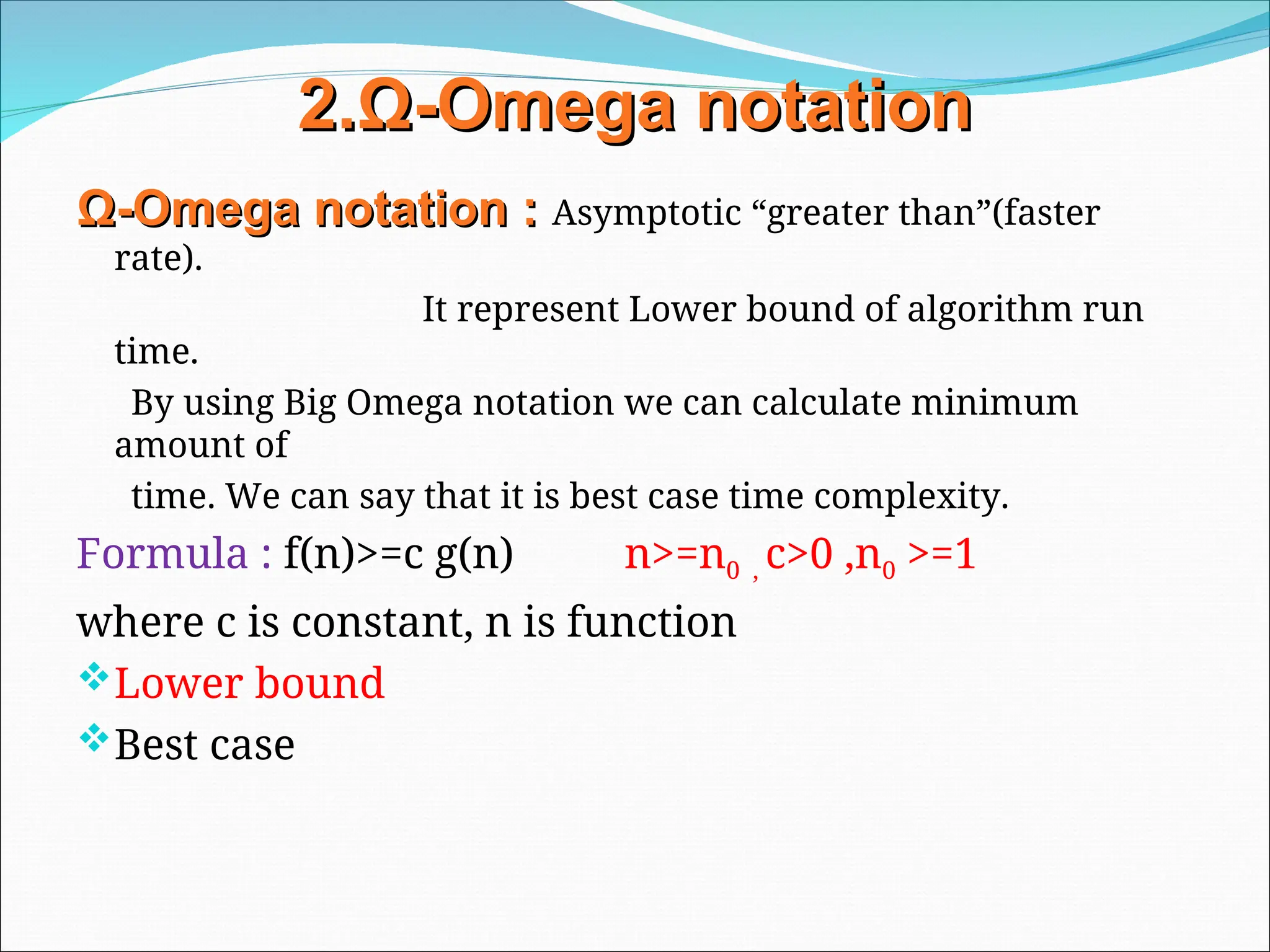

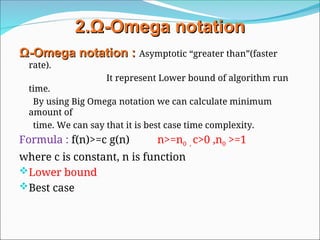

2.Ω
Ω-
-Omega
Omega notation
notation
Ω
Ω-
-Omega
Omega notation
notation :
: Asymptotic “greater than”(faster
rate).

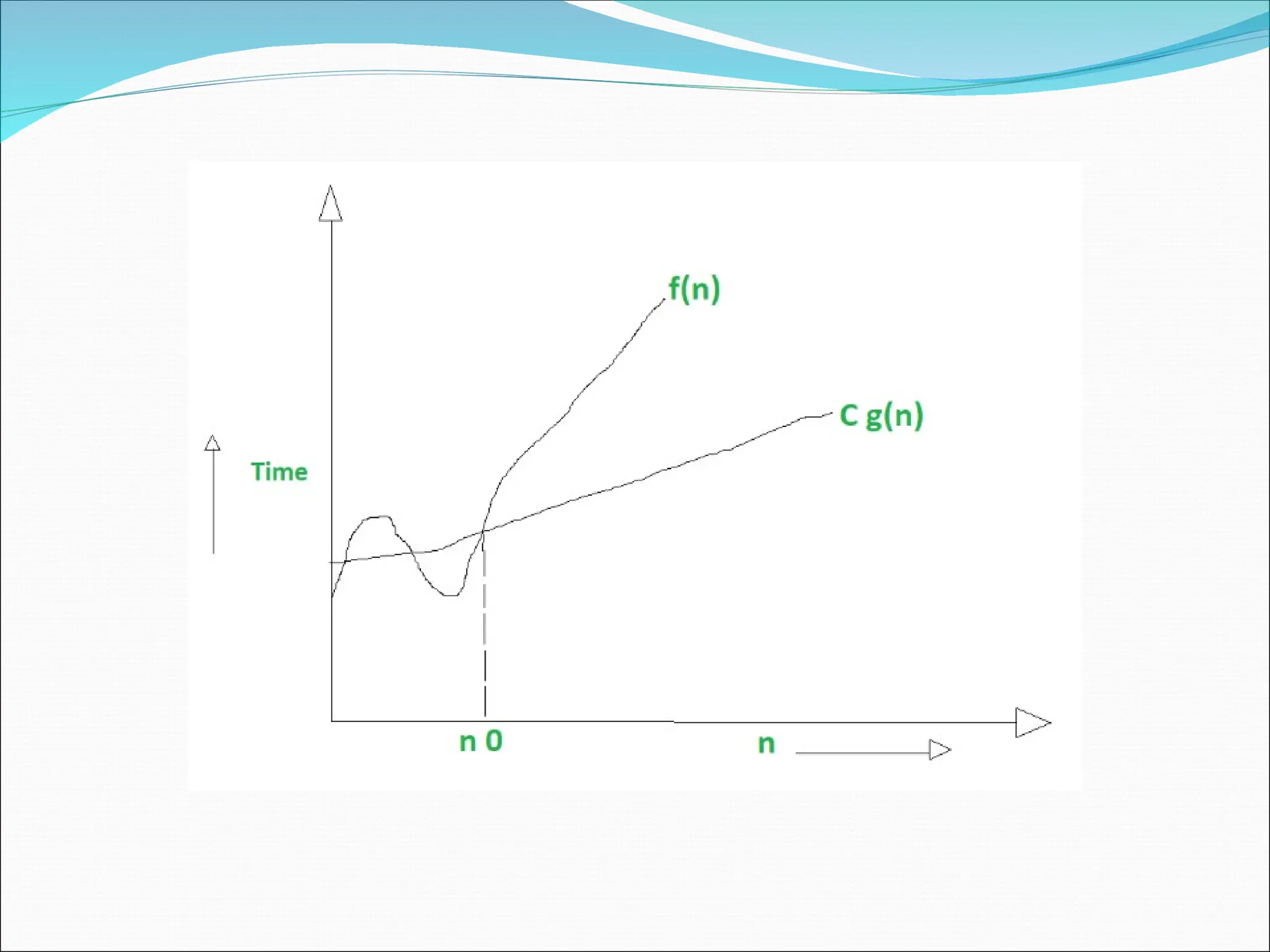

It represent Lower bound of algorithm run
time.
By using Big Omega notation we can calculate minimum
amount of
time. We can say that it is best case time complexity.
Formula : f(n)>=c g(n) n>=n0 , c>0 ,n0 >=1
where c is constant, n is function
Lower bound
Best case

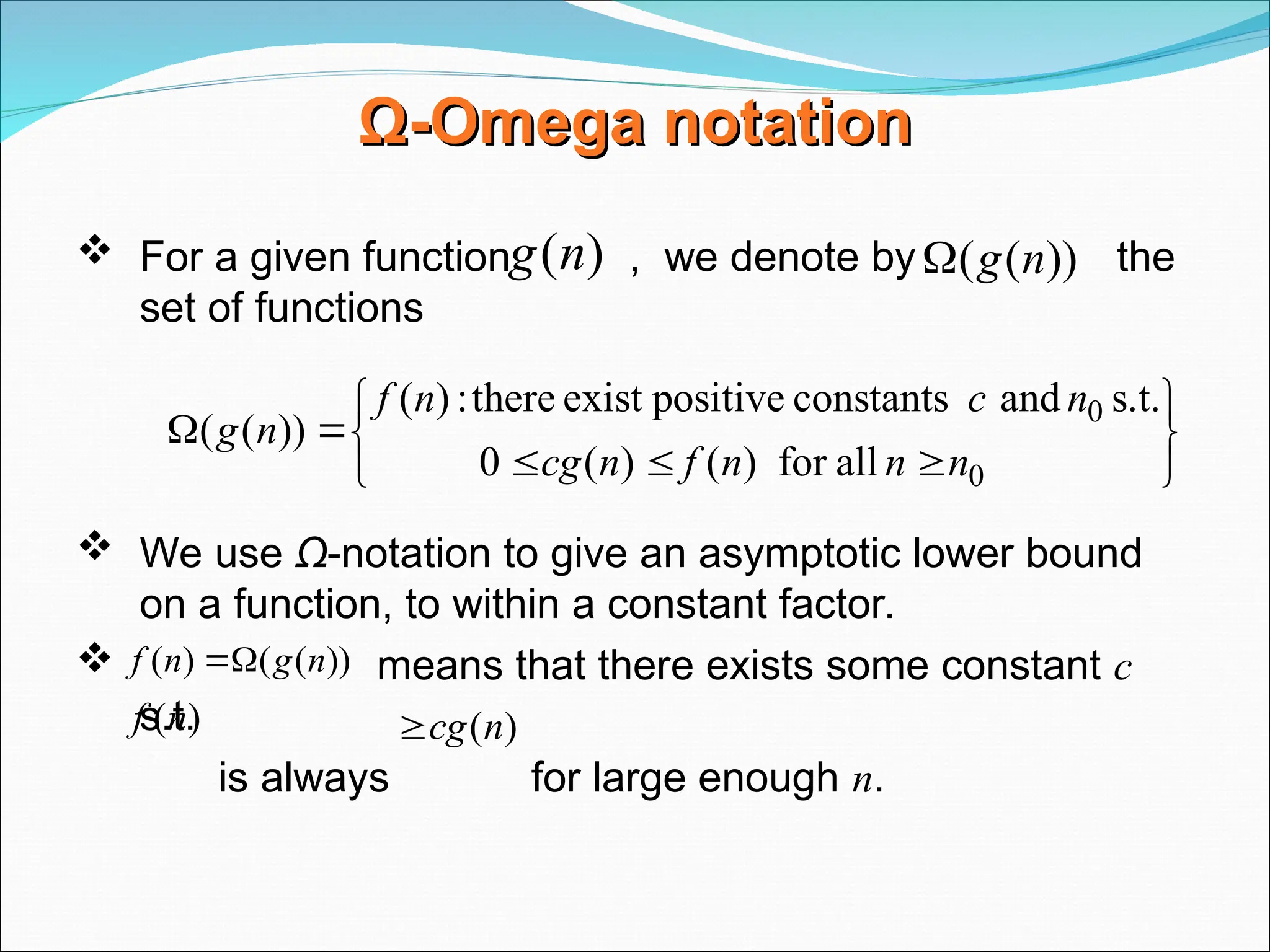

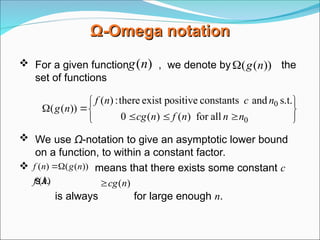

Ω
Ω-
-Omega
Omega notation
notation
set of functions
 We use Ω-notation to give an asymptotic lower bound
on a function, to within a constant factor.
 means that there exists some constant c
s.t.
is always for large enough n.
)
(n
g ))
(
( n
g












0
0
all
for
)
(
)
(
0
s.t.
and
constants
positive
exist
there
:
)
(
))
(
(
n
n
n
f
n
cg
n
c
n
f
n
g
))
(
(
)
( n
g
n
f 

)
(n
f )
(n
cg


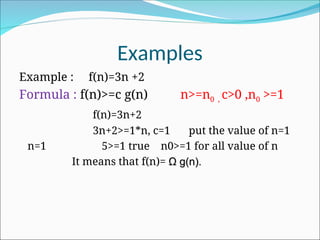

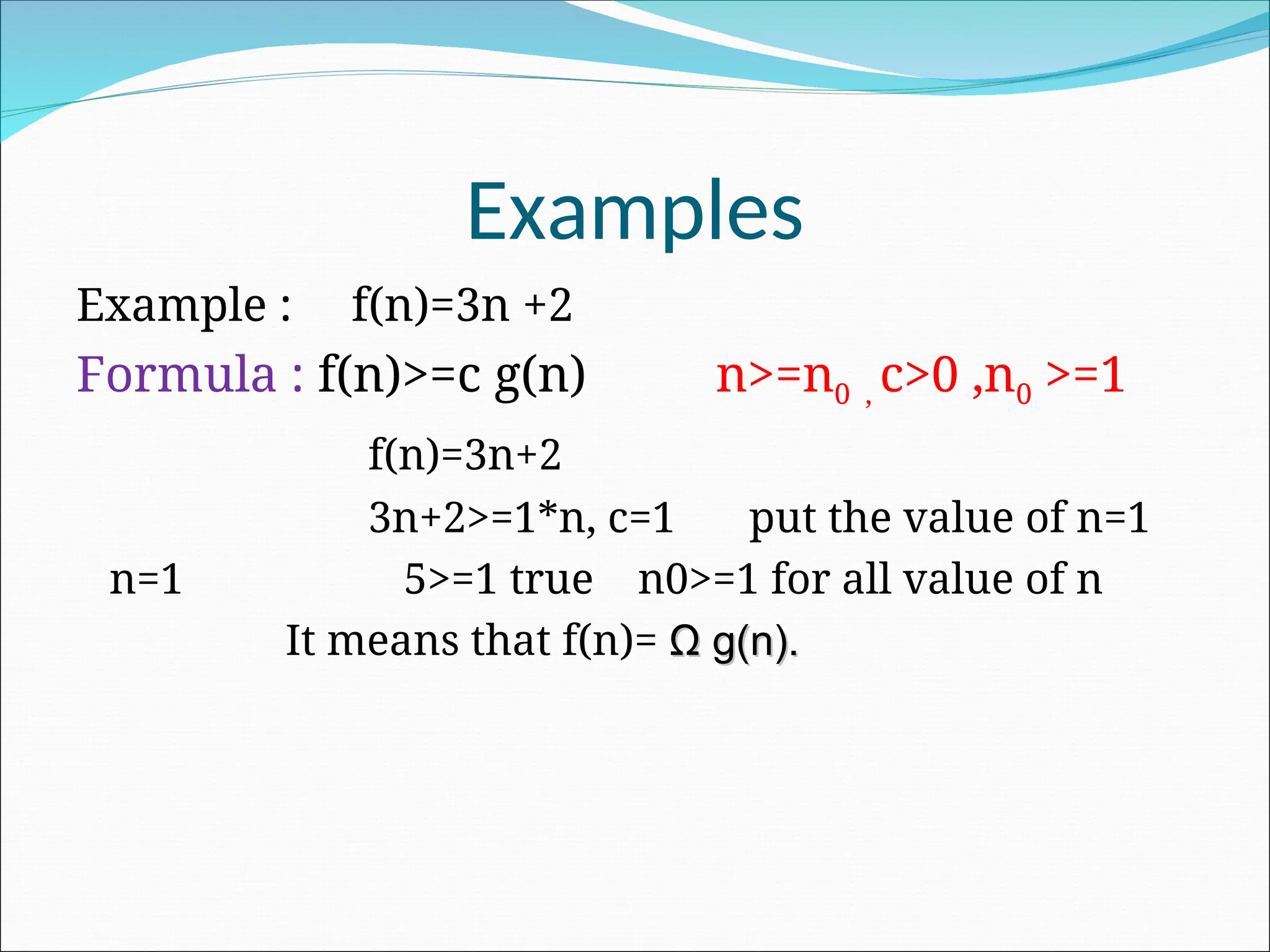

Examples
Example : f(n)=3n +2
Formula : f(n)>=c g(n) n>=n0 , c>0 ,n0 >=1
f(n)=3n+2
3n+2>=1*n, c=1 put the value of n=1
n=1 5>=1 true n0>=1 for all value of n
It means that f(n)= Ω
Ω g(n).
g(n).

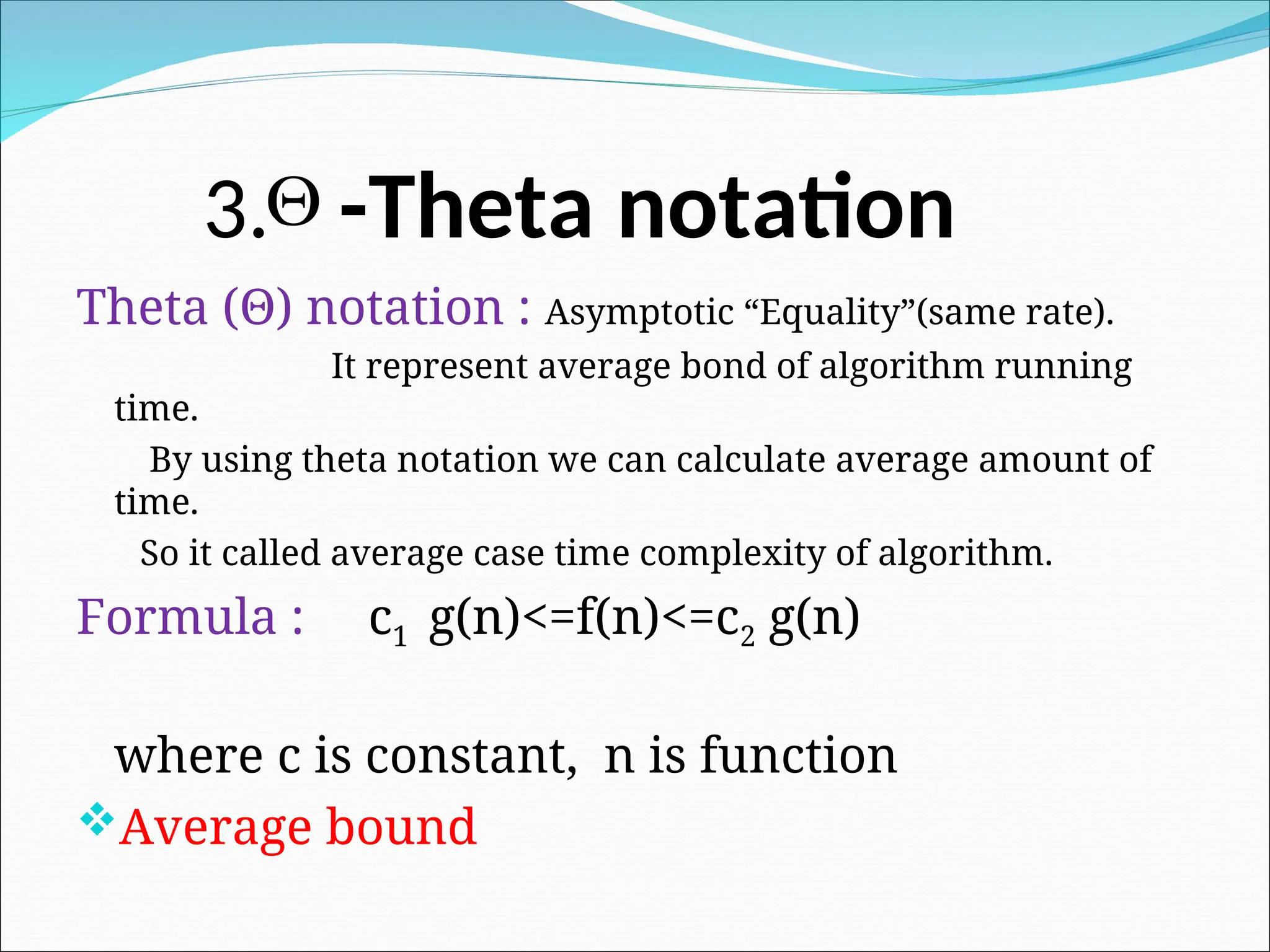

3. -Theta notation
Theta (Θ) notation : Asymptotic “Equality”(same rate).
It represent average bond of algorithm running
time.
By using theta notation we can calculate average amount of
time.
So it called average case time complexity of algorithm.
Formula : c1 g(n)<=f(n)<=c2 g(n)
where c is constant, n is function
Average bound


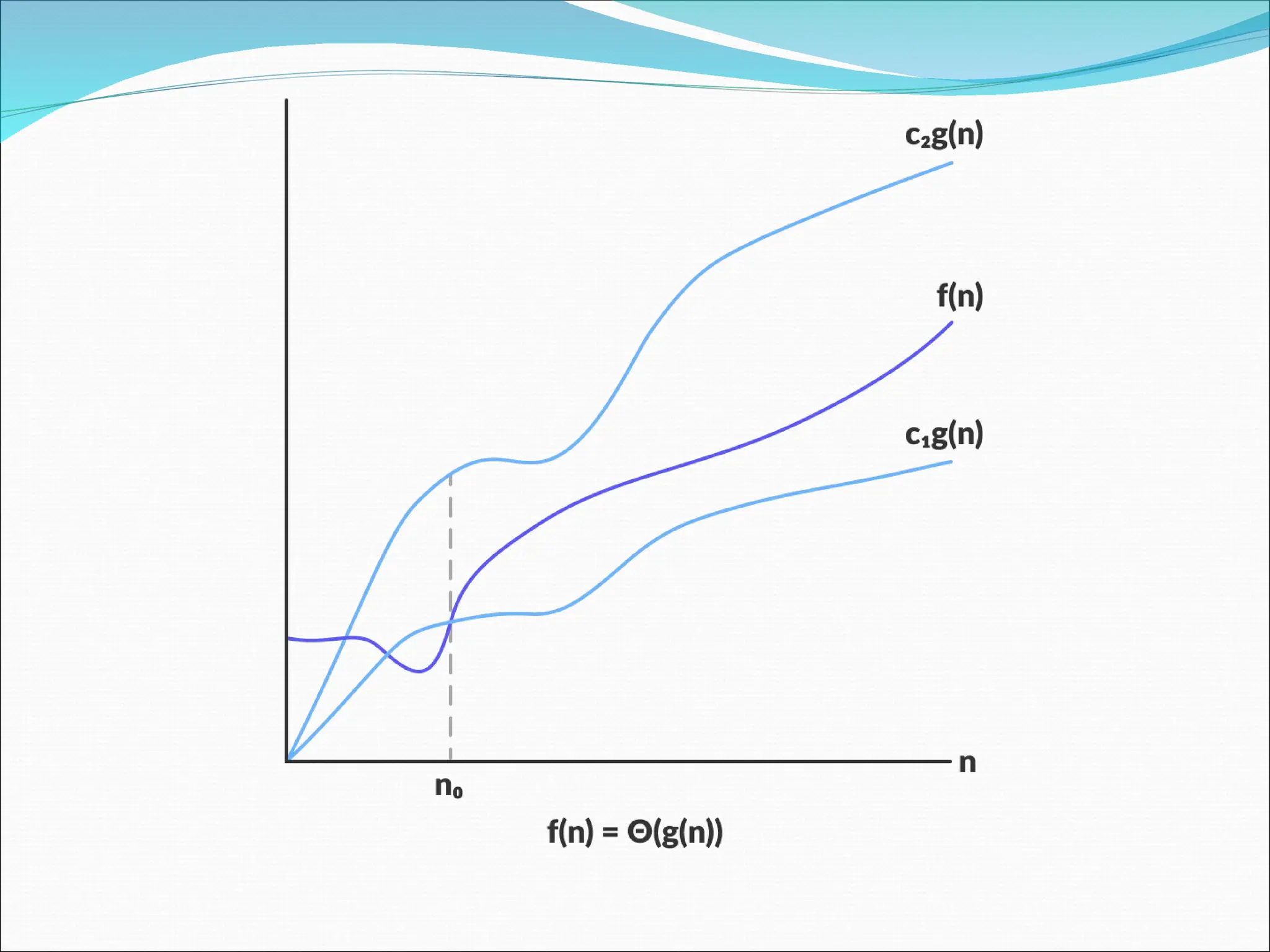

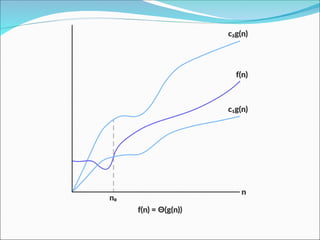

-Theta notation
set of functions
 A function belongs to the set if there
exist positive constants and such that it can be
“sand- wiched” between and or sufficienly
large n.
 means that there exists some constant c1
and c2 s.t. for large enough n.
)
(n
g ))
(
( n
g













0
2
1
0
2
1
all
for
)
(
)
(
)
(
c
0
s.t.
and
,
,
constants
positive
exist
there
:
)
(
))
(
(
n
n
n
g
c
n
f
n
g
n
c
c
n
f
n
g
)
(n
f ))
(
( n
g

1
c 2
c
)
(
1 n
g
c )
(
2 n
g
c
Θ
))
(
(
)
( n
g
n
f 

)
(
)
(
)
( 2
1 n
g
c
n
f
n
g
c 


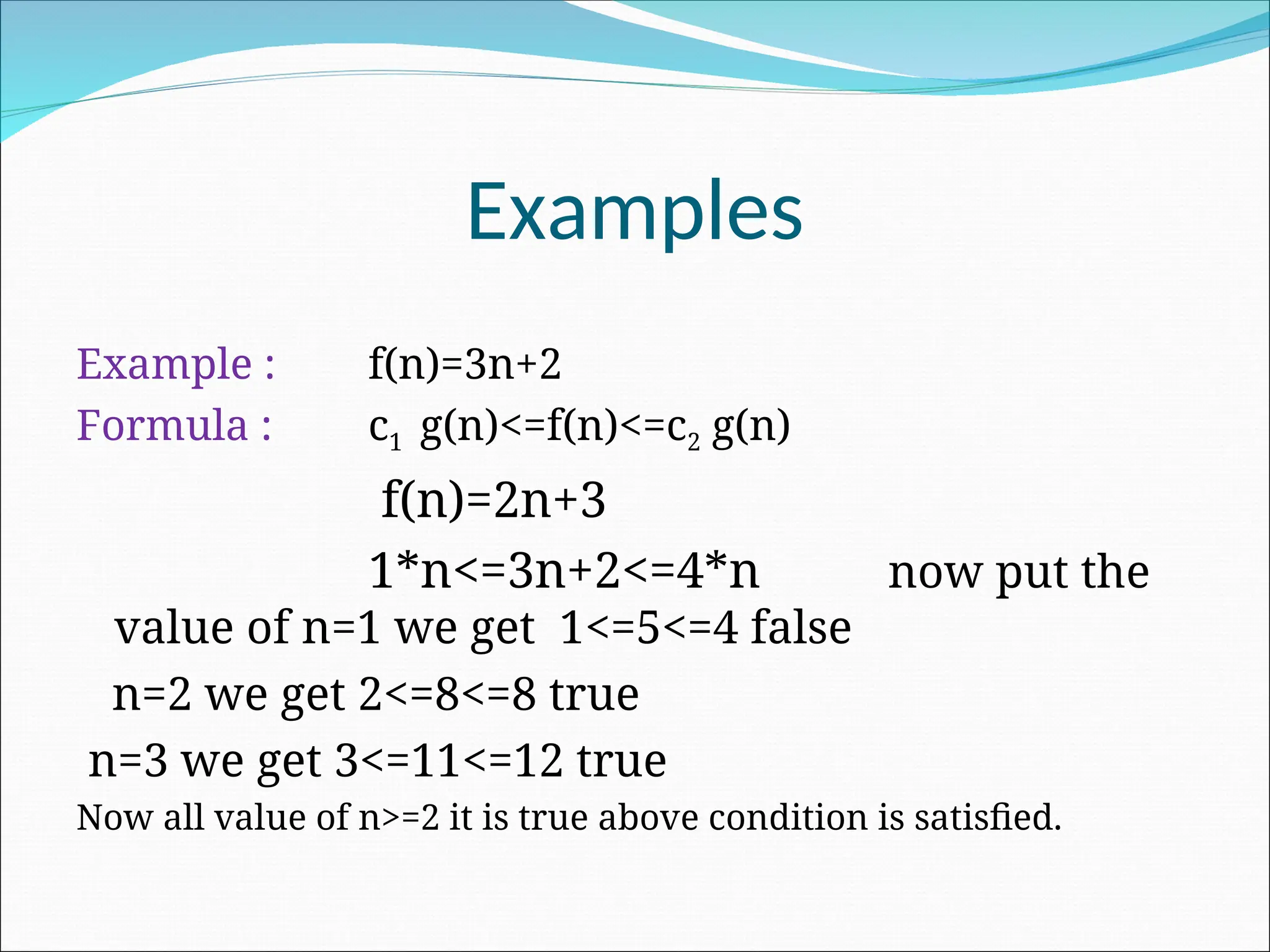

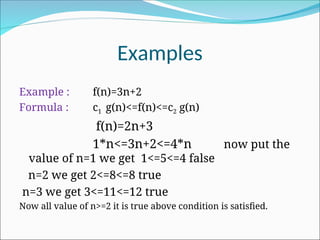

Examples
Example : f(n)=3n+2
Formula : c1 g(n)<=f(n)<=c2 g(n)
f(n)=2n+3
1*n<=3n+2<=4*n now put the
value of n=1 we get 1<=5<=4 false
n=2 we get 2<=8<=8 true
n=3 we get 3<=11<=12 true
Now all value of n>=2 it is true above condition is satisfied.

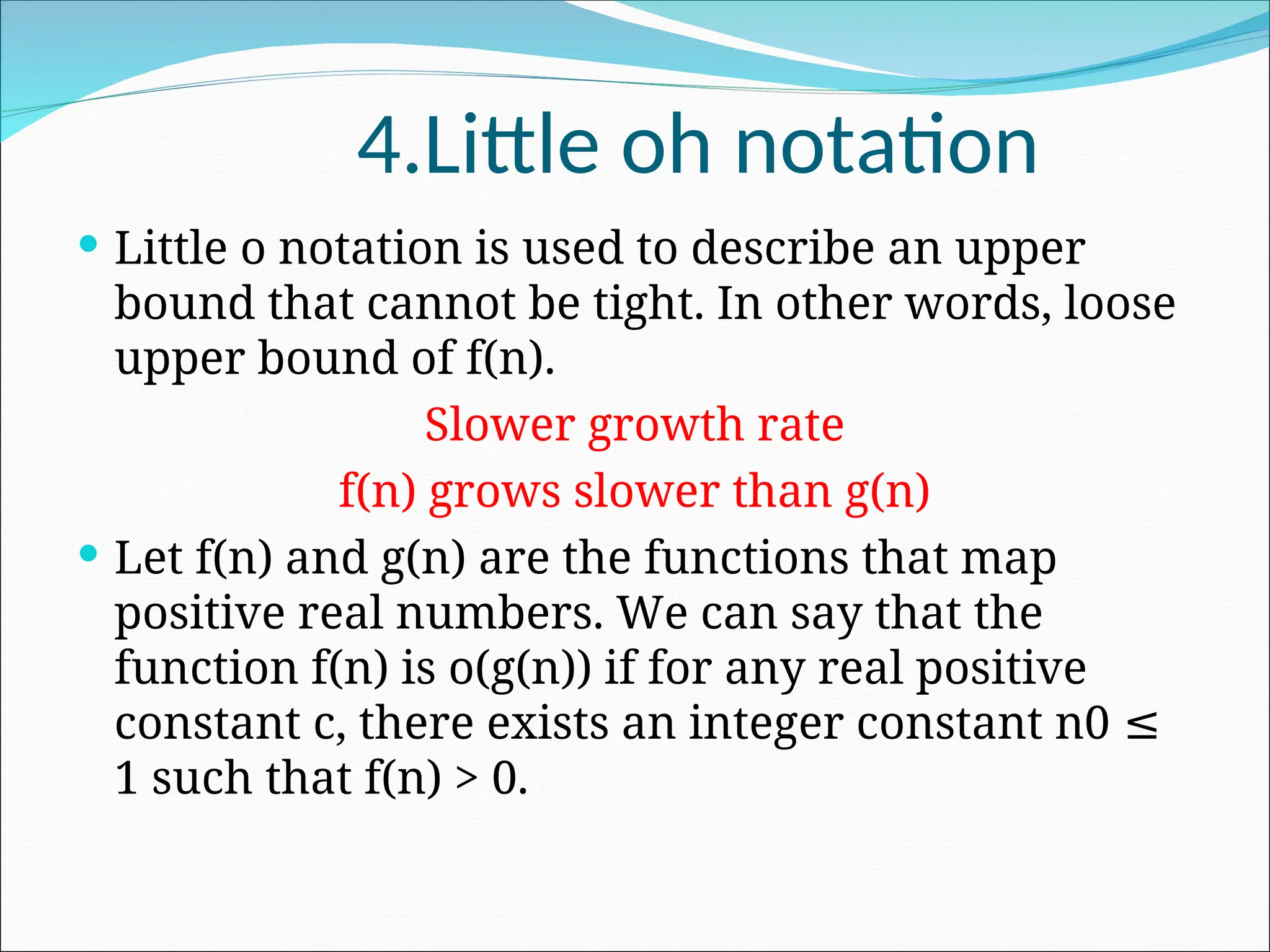

4.Little oh notation
 Little o notation is used to describe an upper
bound that cannot be tight. In other words, loose
upper bound of f(n).
Slower growth rate
f(n) grows slower than g(n)
 Let f(n) and g(n) are the functions that map
positive real numbers. We can say that the
function f(n) is o(g(n)) if for any real positive
constant c, there exists an integer constant n0 ≤
1 such that f(n) > 0.

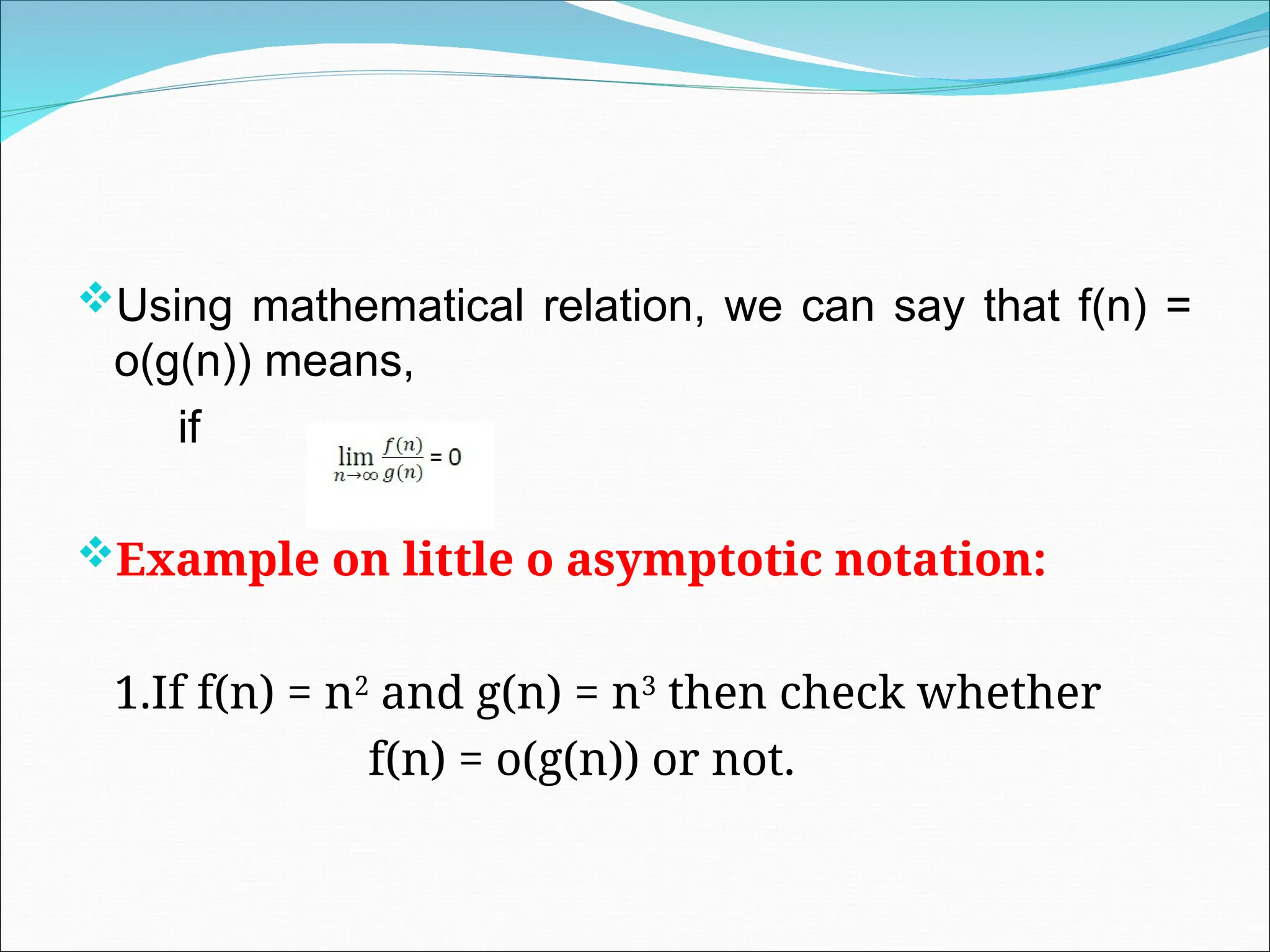

Using mathematical relation, we can say that f(n) =
o(g(n)) means,
if
Example on little o asymptotic notation:
1.If f(n) = n2
and g(n) = n3
then check whether
f(n) = o(g(n)) or not.

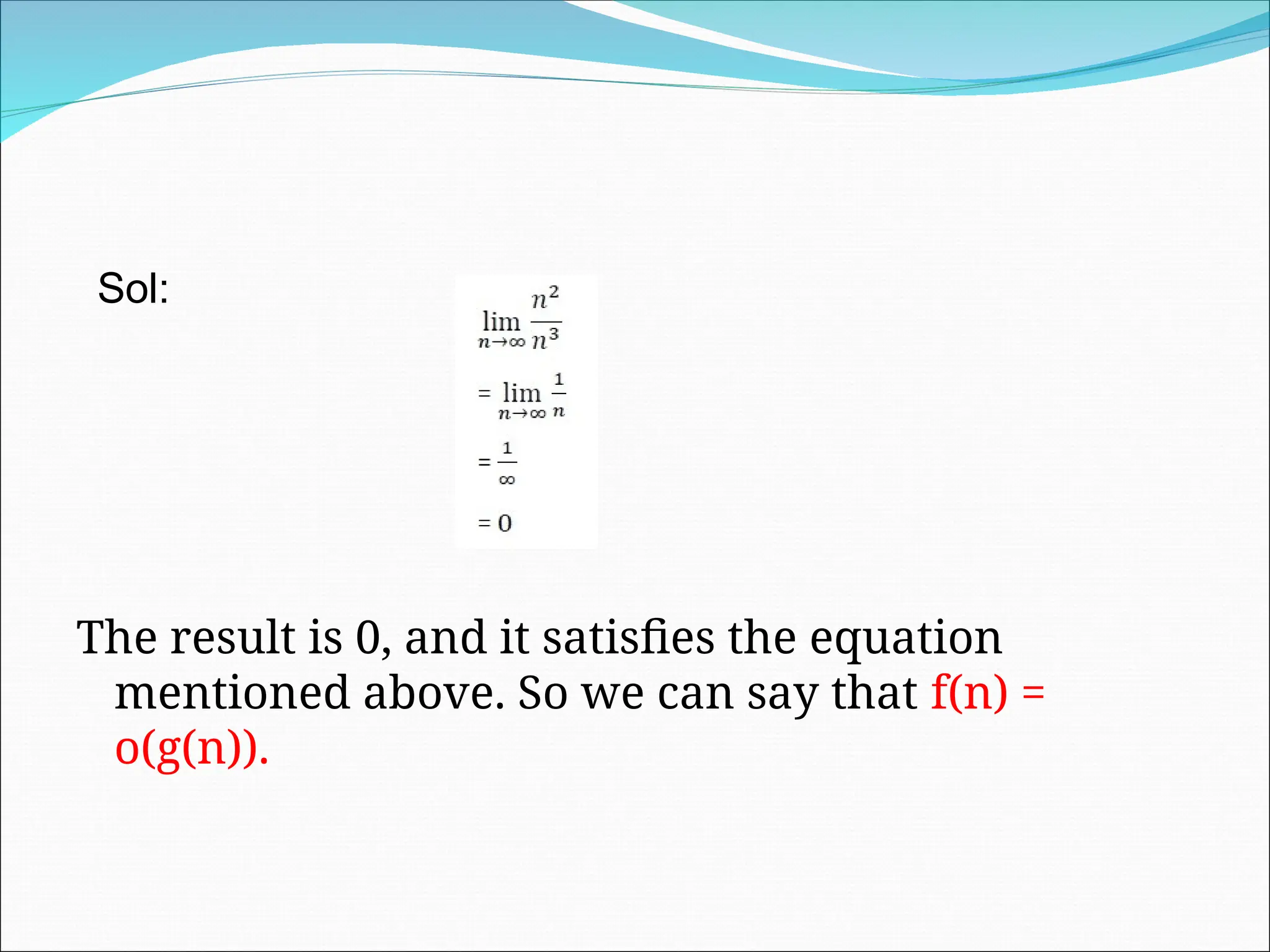

The result is 0, and it satisfies the equation
mentioned above. So we can say that f(n) =
o(g(n)).
Sol:

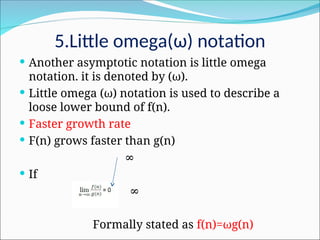

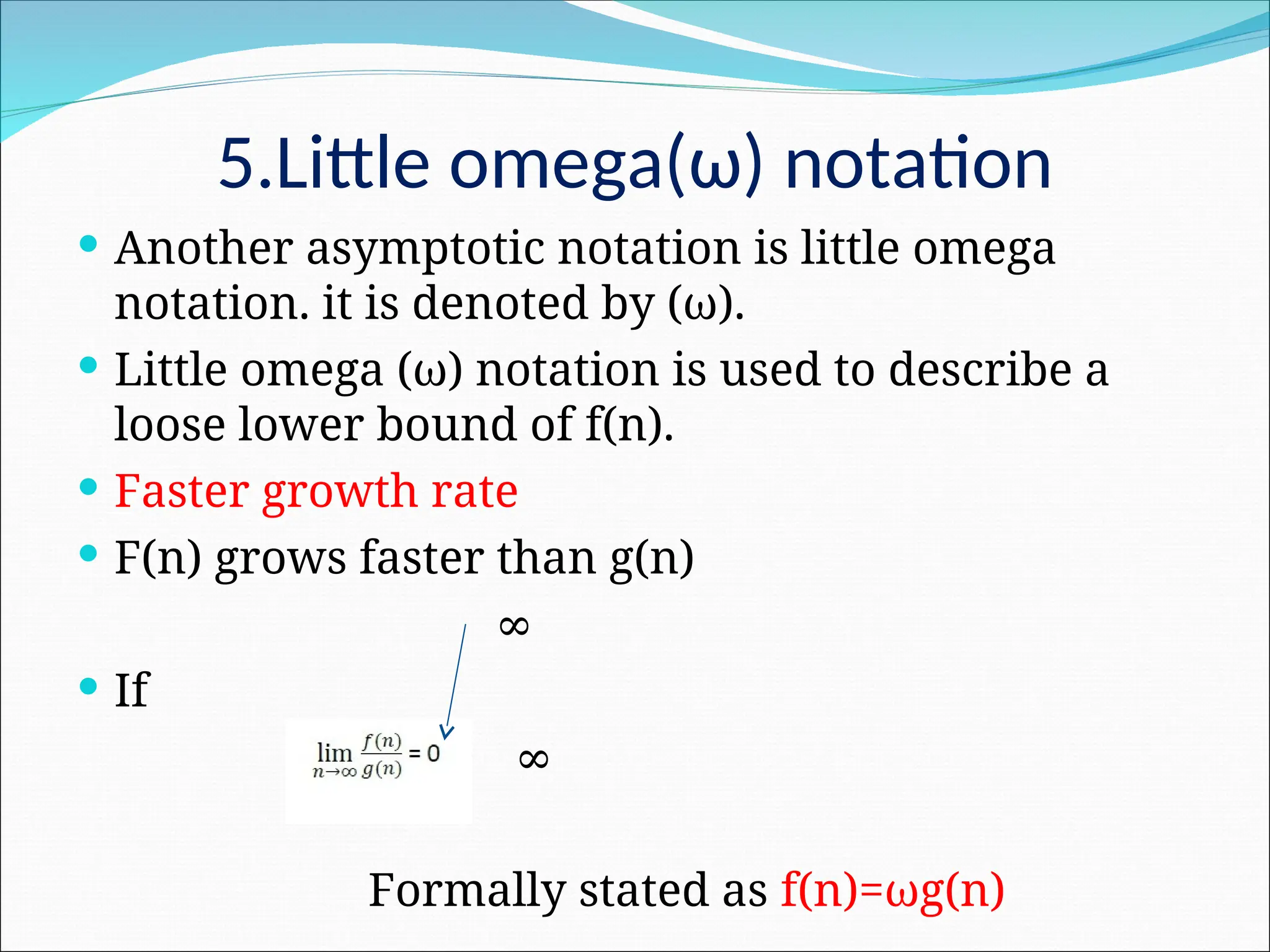

5.Little omega(ω) notation
 Another asymptotic notation is little omega
notation. it is denoted by (ω).
 Little omega (ω) notation is used to describe a
loose lower bound of f(n).
 Faster growth rate
 F(n) grows faster than g(n)
∞
 If
∞
Formally stated as f(n)=ωg(n)

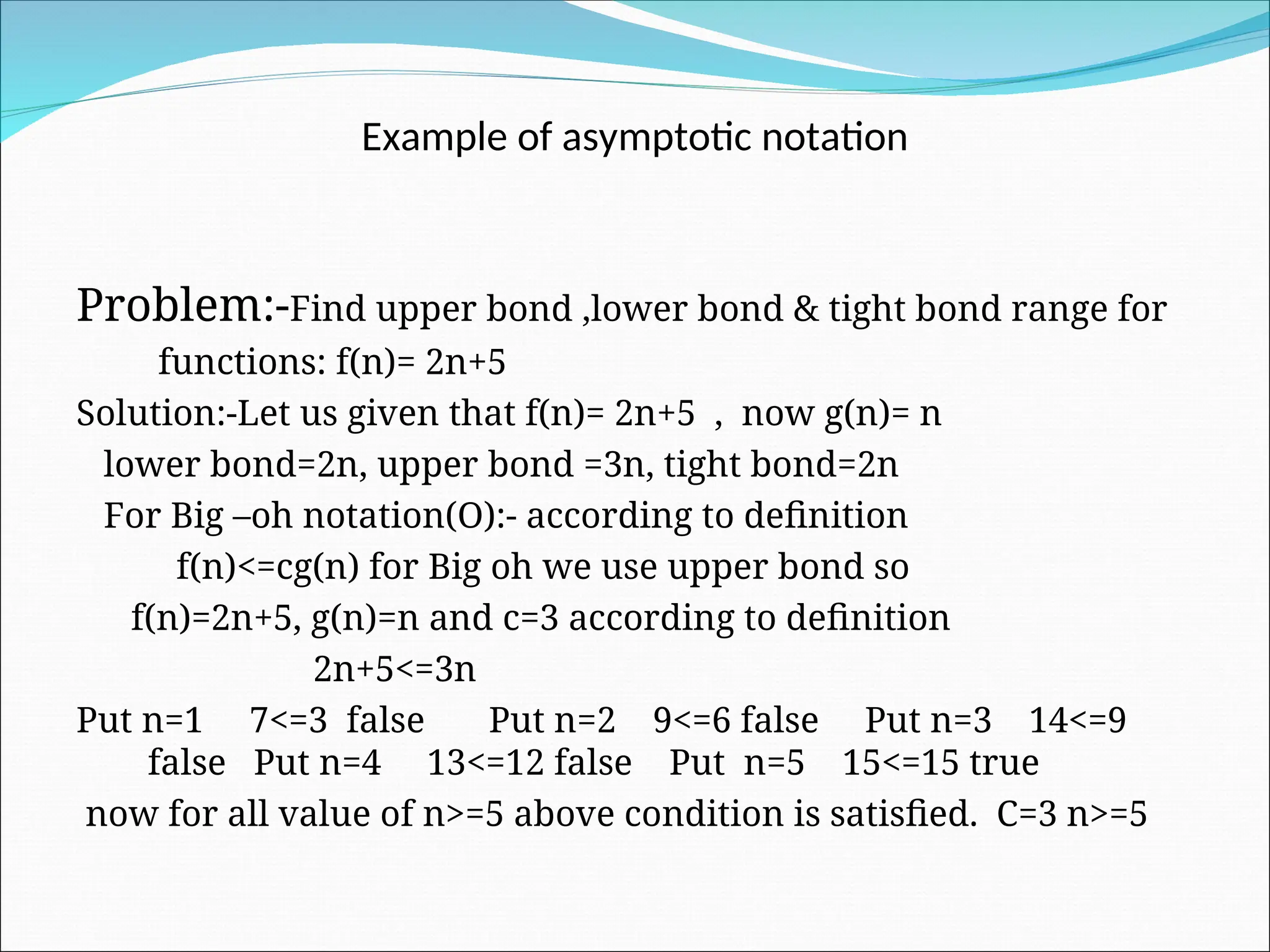

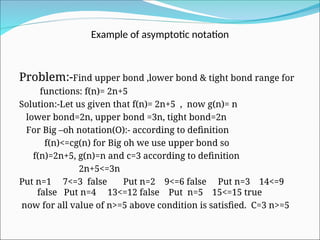

Example of asymptotic notation
Problem:-Find upper bond ,lower bond & tight bond range for
functions: f(n)= 2n+5
Solution:-Let us given that f(n)= 2n+5 , now g(n)= n
lower bond=2n, upper bond =3n, tight bond=2n
For Big –oh notation(O):- according to definition
f(n)<=cg(n) for Big oh we use upper bond so
f(n)=2n+5, g(n)=n and c=3 according to definition
2n+5<=3n
Put n=1 7<=3 false Put n=2 9<=6 false Put n=3 14<=9
false Put n=4 13<=12 false Put n=5 15<=15 true
now for all value of n>=5 above condition is satisfied. C=3 n>=5

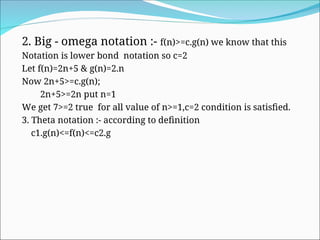

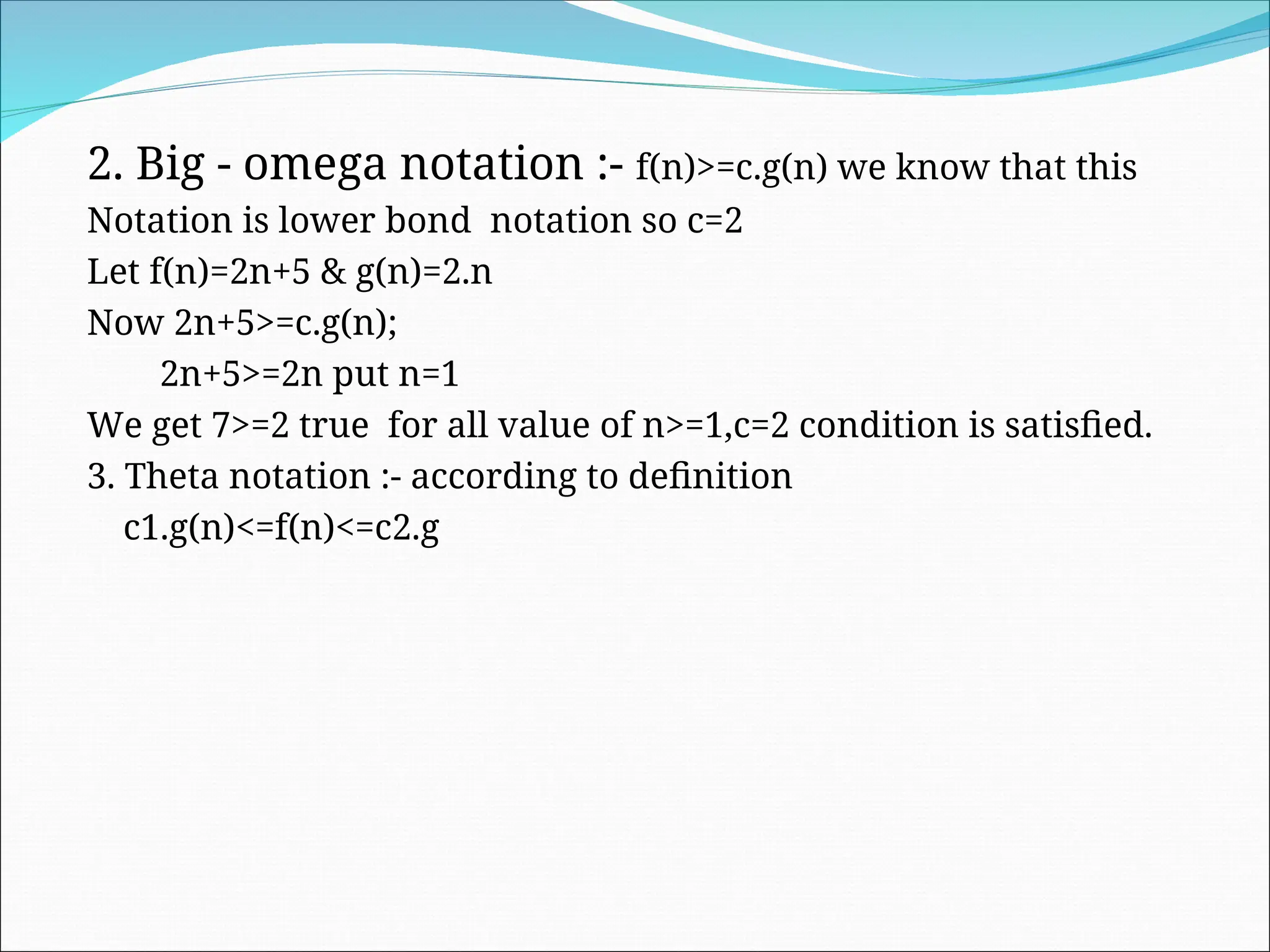

2. Big - omega notation :- f(n)>=c.g(n) we know that this
Notation is lower bond notation so c=2
Let f(n)=2n+5 & g(n)=2.n
Now 2n+5>=c.g(n);
2n+5>=2n put n=1
We get 7>=2 true for all value of n>=1,c=2 condition is satisfied.
3. Theta notation :- according to definition
c1.g(n)<=f(n)<=c2.g

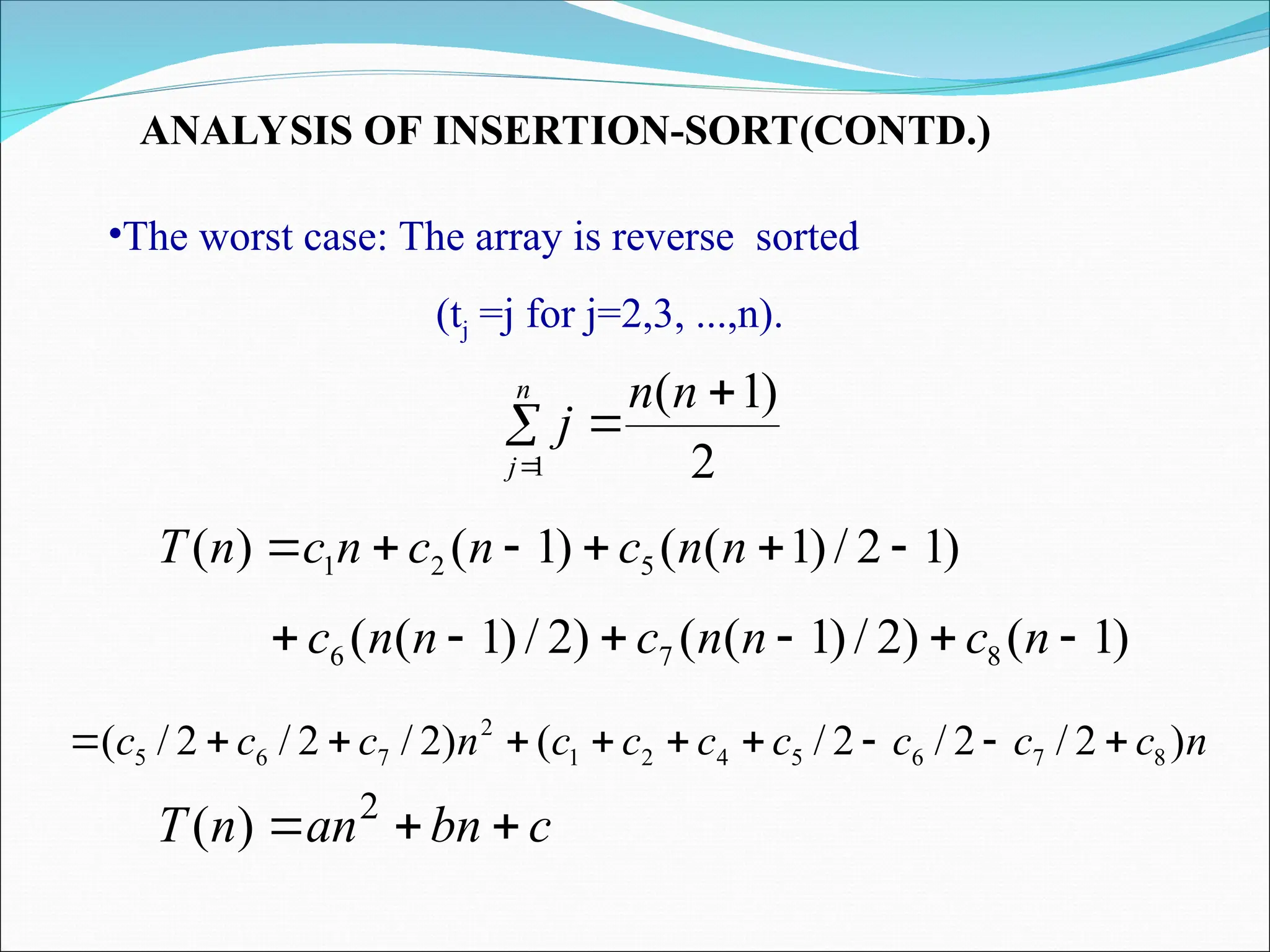

ANALYSIS OF INSERTION-SORT(CONTD.)
•The worst case: The array is reverse sorted
(tj =j for j=2,3, ...,n).
)
1
2
/
)
1
(
(
)
1
(
)
( 5
2
1 




 n
n
c
n
c
n
c
n
T
)
1
(
)
2
/
)
1
(
(
)
2
/
)
1
(
( 8
7
6 




 n
c
n
n
c
n
n
c
n
c
c
c
c
c
c
c
n
c
c
c )
2
/
2
/
2
/
(
)
2
/
2
/
2
/
( 8
7
6
5
4
2
1
2
7
6
5 









2
)
1
(
1




n
n
j
n
j
c
bn
an
n
T 

 2
)
(

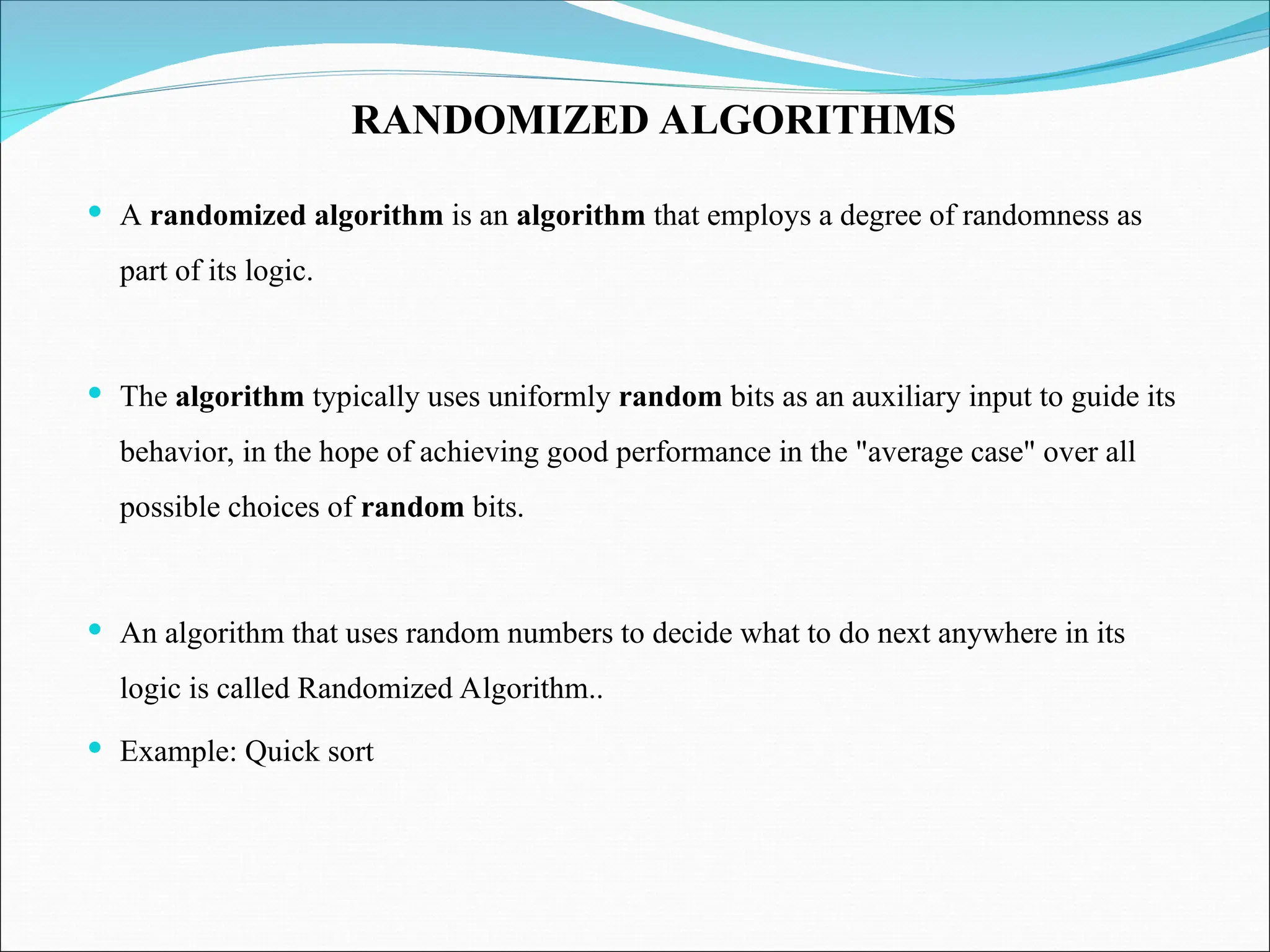

 A randomized algorithm is an algorithm that employs a degree of randomness as
part of its logic.
 The algorithm typically uses uniformly random bits as an auxiliary input to guide its
behavior, in the hope of achieving good performance in the "average case" over all
possible choices of random bits.
 An algorithm that uses random numbers to decide what to do next anywhere in its
logic is called Randomized Algorithm..
 Example: Quick sort
RANDOMIZED ALGORITHMS

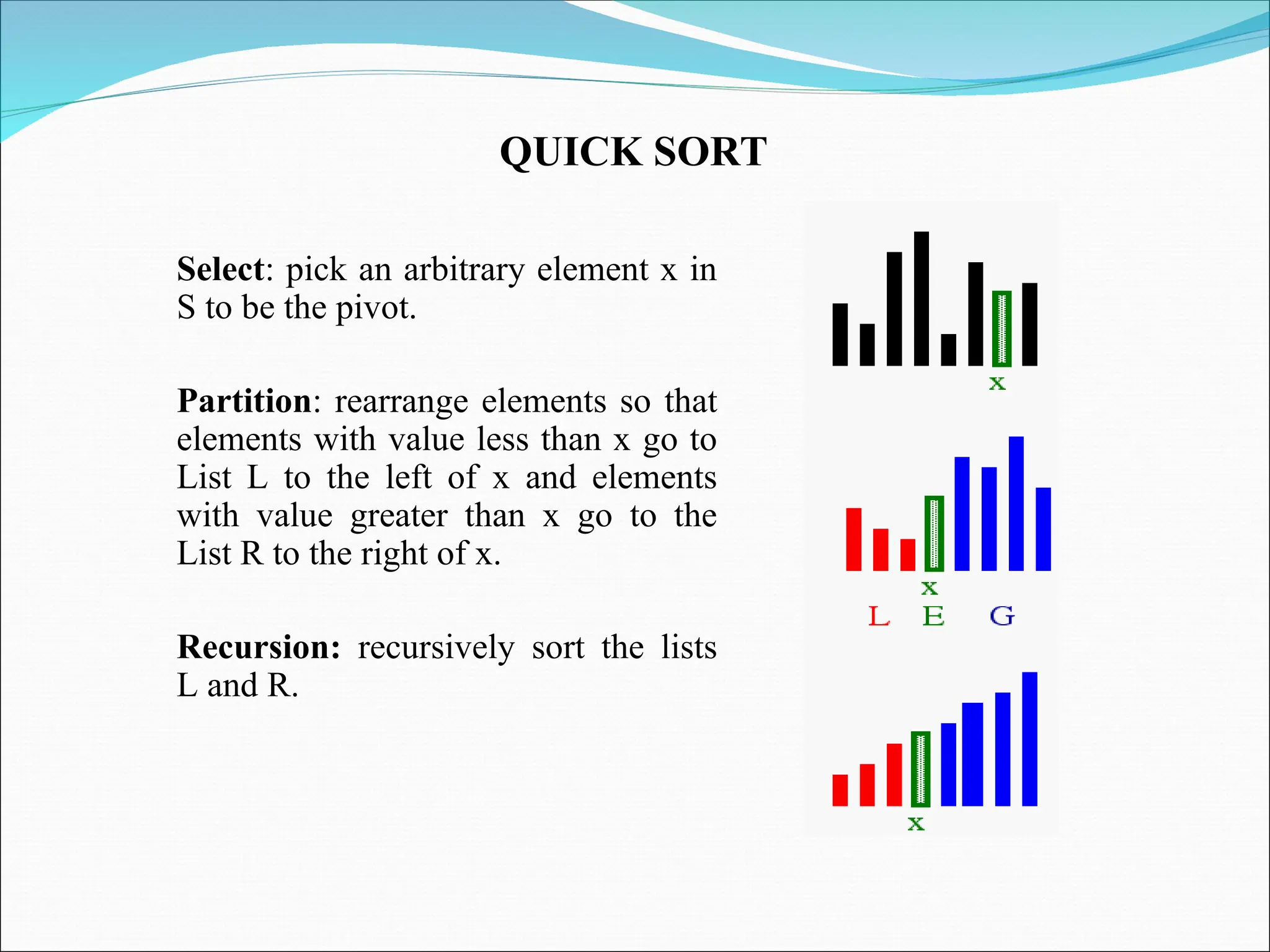

Select: pick an arbitrary element x in
S to be the pivot.
Partition: rearrange elements so that
elements with value less than x go to
List L to the left of x and elements
with value greater than x go to the
List R to the right of x.
Recursion: recursively sort the lists
L and R.
QUICK SORT

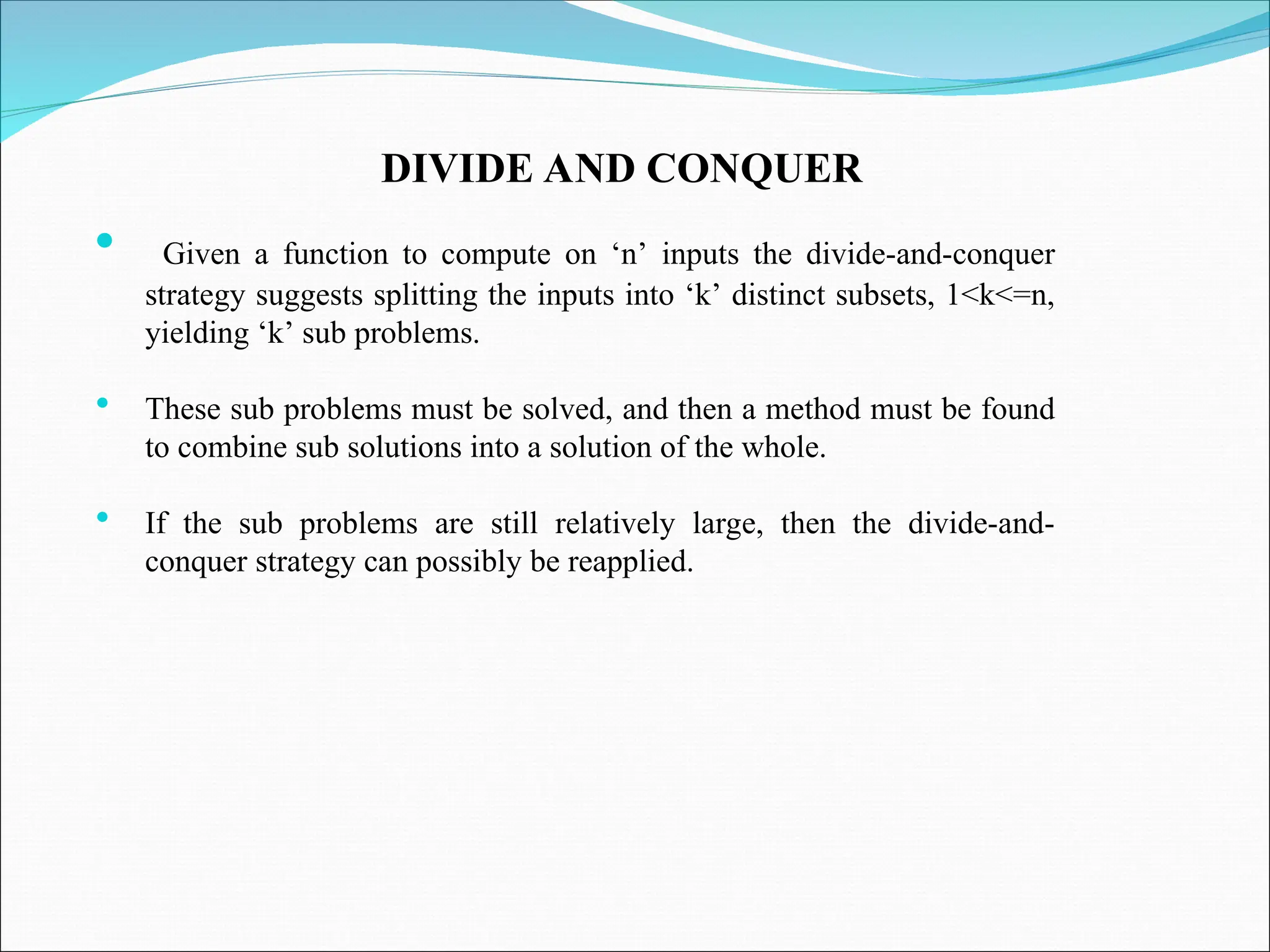

DIVIDE AND CONQUER
 Given a function to compute on ‘n’ inputs the divide-and-conquer
strategy suggests splitting the inputs into ‘k’ distinct subsets, 1<k<=n,
yielding ‘k’ sub problems.
 These sub problems must be solved, and then a method must be found
to combine sub solutions into a solution of the whole.
 If the sub problems are still relatively large, then the divide-and-
conquer strategy can possibly be reapplied.

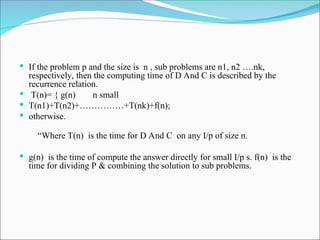

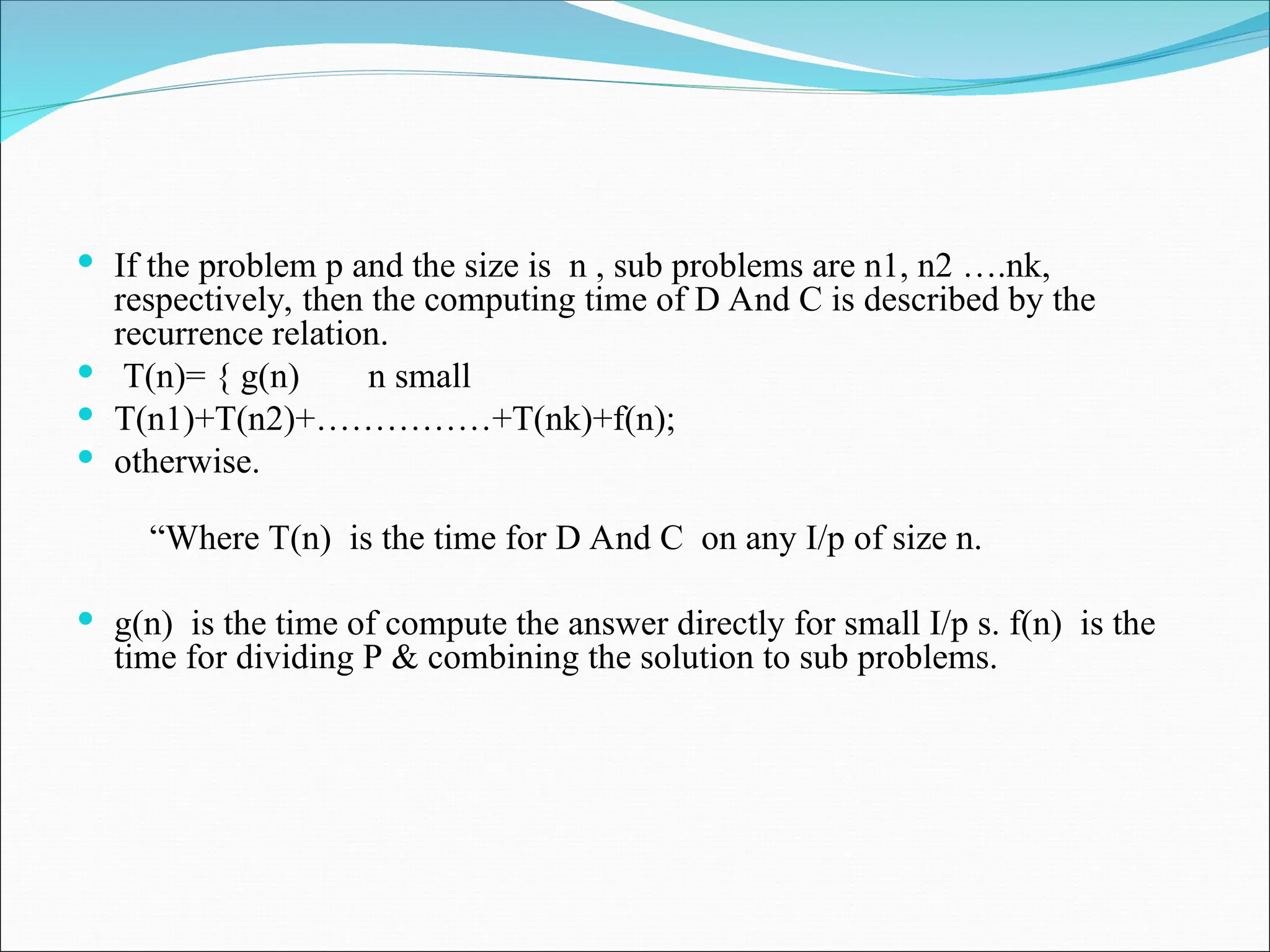

 If the problem p and the size is n , sub problems are n1, n2 ….nk,
respectively, then the computing time of D And C is described by the
recurrence relation.
 T(n)= { g(n) n small
 T(n1)+T(n2)+……………+T(nk)+f(n);
 otherwise.
“Where T(n) is the time for D And C on any I/p of size n.
 g(n) is the time of compute the answer directly for small I/p s. f(n) is the
time for dividing P & combining the solution to sub problems.

DIVIDE AND CONQUER :GENERAL METHOD
1. Algorithm D And C(P)
2. {
3. if small(P) then return S(P);
4. else
5. {
6. divide P into smaller instances
7. P1, P2… Pk, k>=1;
8. Apply D And C to each of these sub problems;
9. return combine (D And C(P1), D And C(P2),…….,D And C(Pk));
10. }
11. }

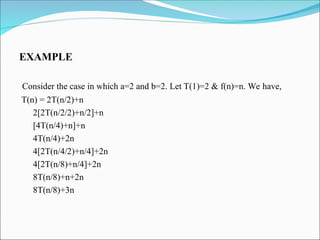

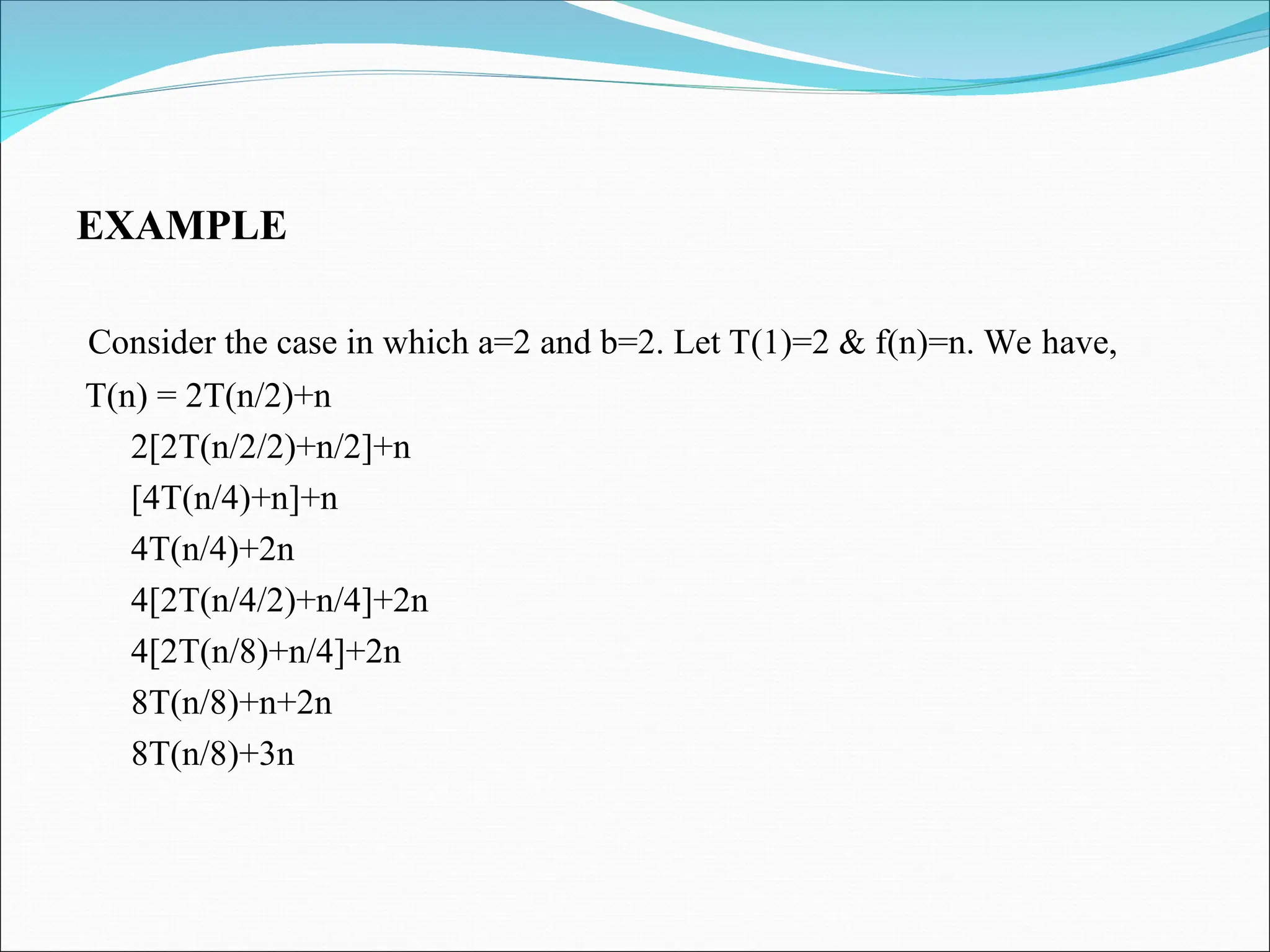

EXAMPLE
Consider the case in which a=2 and b=2. Let T(1)=2 & f(n)=n. We have,
T(n) = 2T(n/2)+n
2[2T(n/2/2)+n/2]+n
[4T(n/4)+n]+n
4T(n/4)+2n
4[2T(n/4/2)+n/4]+2n
4[2T(n/8)+n/4]+2n
8T(n/8)+n+2n
8T(n/8)+3n

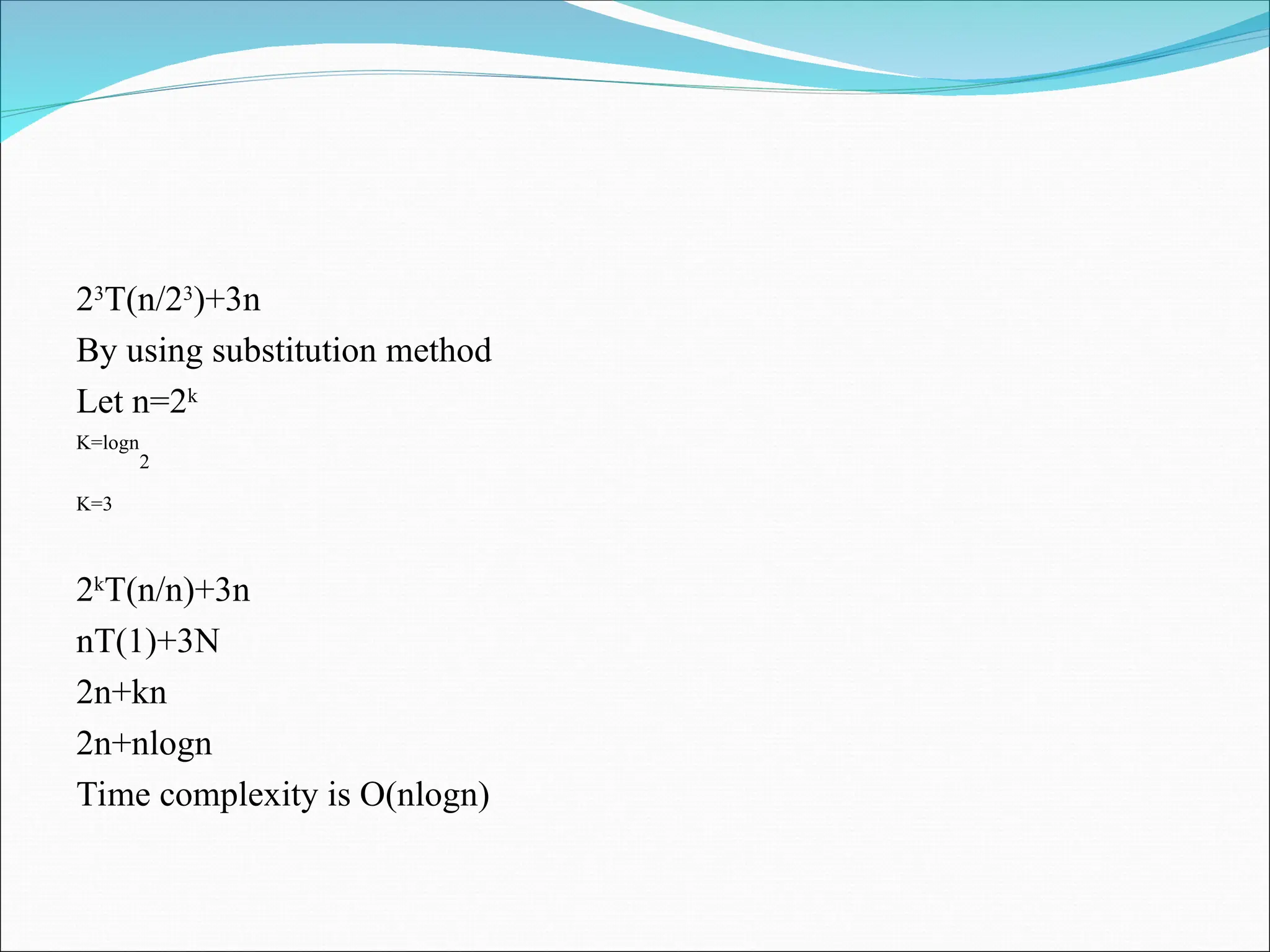

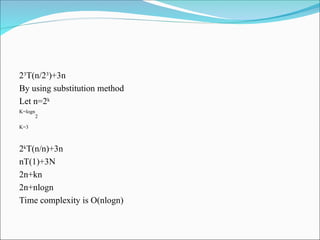

23
T(n/23
)+3n
By using substitution method
Let n=2k
K=logn
2
K=3
2k
T(n/n)+3n
nT(1)+3N
2n+kn
2n+nlogn
Time complexity is O(nlogn)

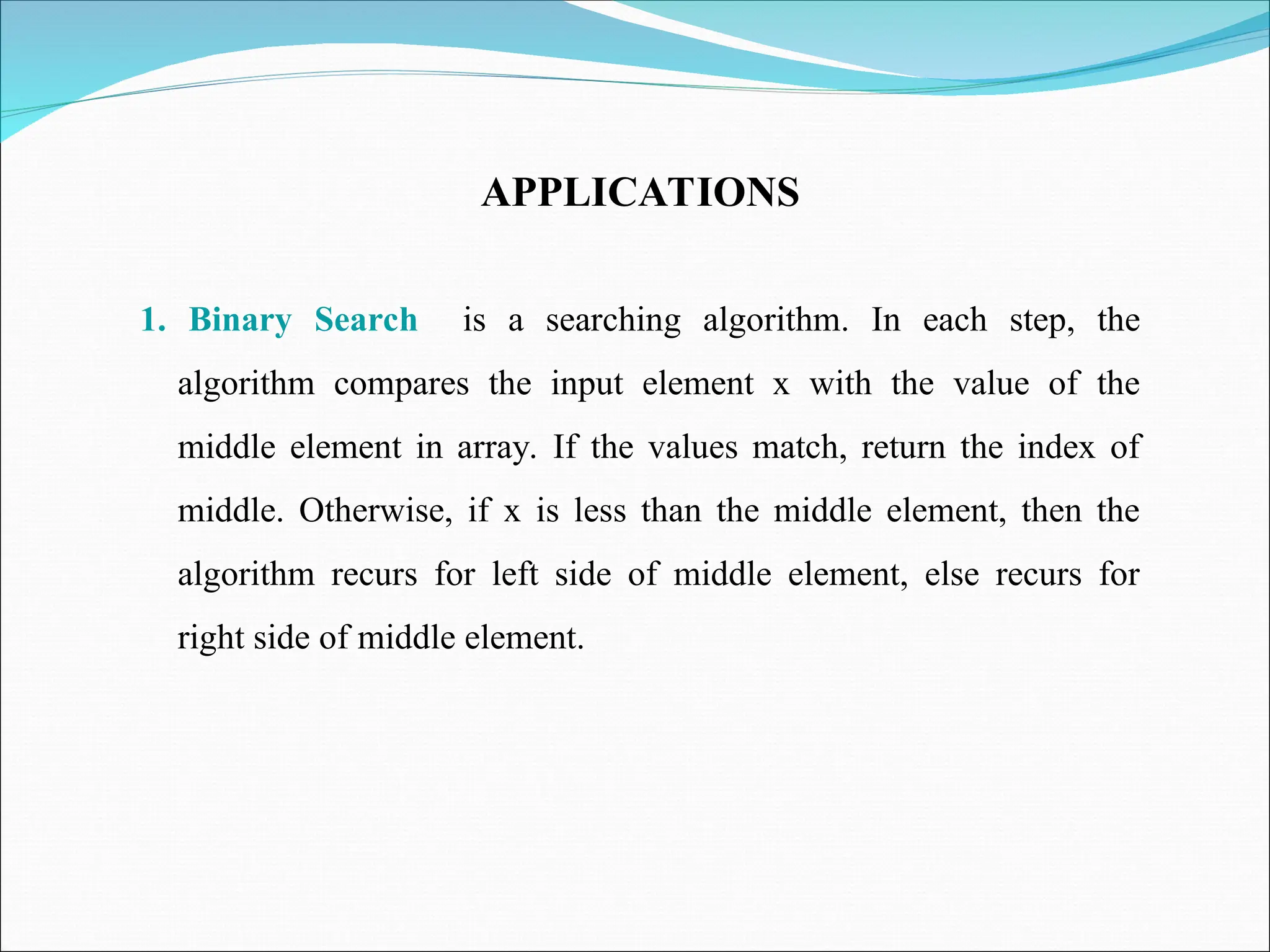

APPLICATIONS
1. Binary Search is a searching algorithm. In each step, the
algorithm compares the input element x with the value of the
middle element in array. If the values match, return the index of
middle. Otherwise, if x is less than the middle element, then the
algorithm recurs for left side of middle element, else recurs for
right side of middle element.

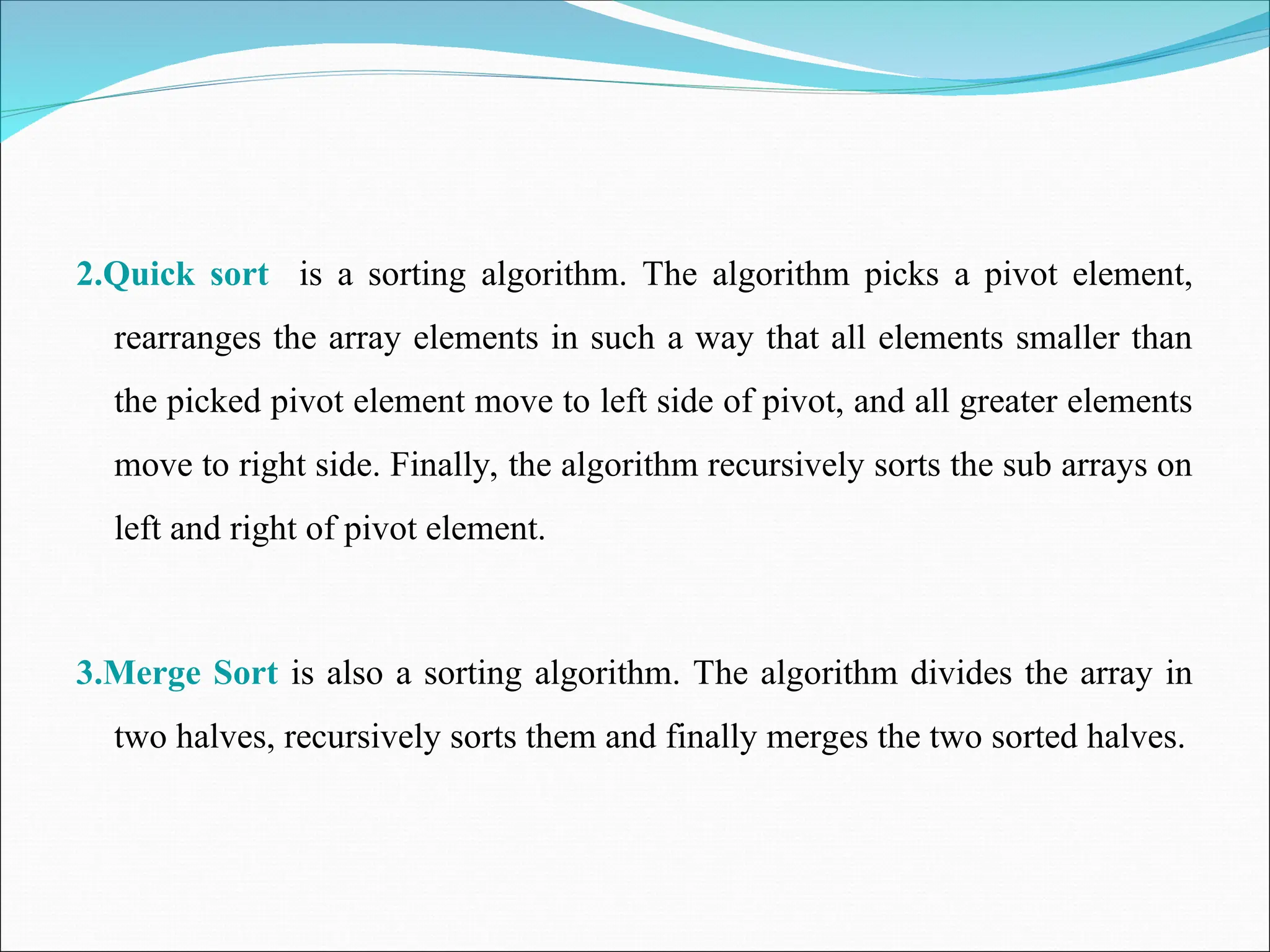

2.Quick sort is a sorting algorithm. The algorithm picks a pivot element,
rearranges the array elements in such a way that all elements smaller than
the picked pivot element move to left side of pivot, and all greater elements
move to right side. Finally, the algorithm recursively sorts the sub arrays on
left and right of pivot element.
3.Merge Sort is also a sorting algorithm. The algorithm divides the array in
two halves, recursively sorts them and finally merges the two sorted halves.

1. Algorithm Bin search(a,n,x)
2. // Given an array a[1:n] of elements in non-decreasing
3. //order, n>=0,determine whether x is present and
4. // if so, return j such that x=a[j]; else return 0.
5. {
6. low:=1; high:=n;
7. while (low<=high) do
8. {
9. mid:=[(low+high)/2];
10. if (x<a[mid]) then high;
11. else if(x>a[mid]) then
12. low=mid+1;
13. else return mid;
14. }
15. return 0; }
BINARY SEARCH

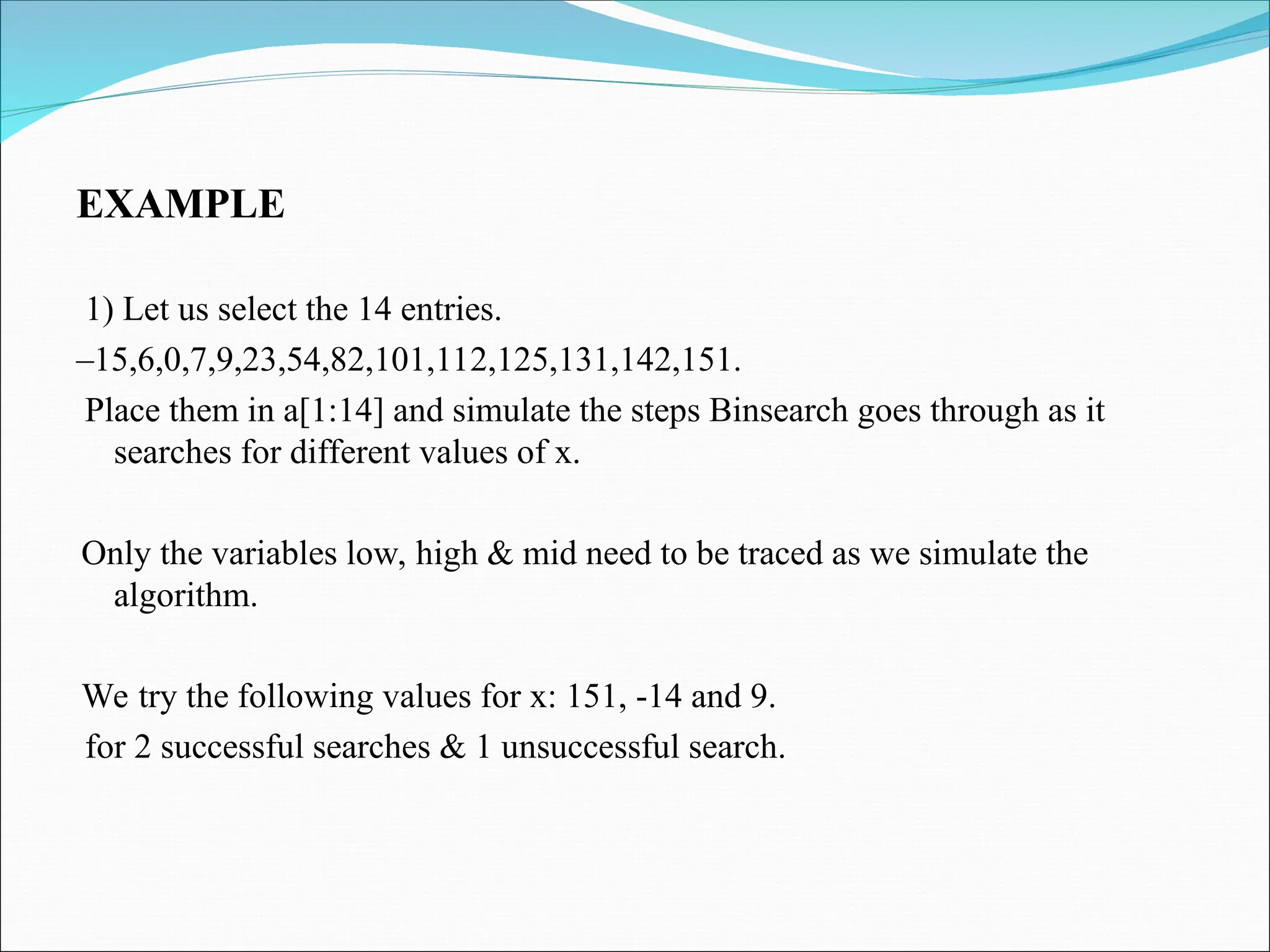

EXAMPLE
1) Let us select the 14 entries.
–15,6,0,7,9,23,54,82,101,112,125,131,142,151.
Place them in a[1:14] and simulate the steps Binsearch goes through as it
searches for different values of x.
Only the variables low, high & mid need to be traced as we simulate the
algorithm.
We try the following values for x: 151, -14 and 9.
for 2 successful searches & 1 unsuccessful search.

X=151 low high mid
1 14 7
8 14 11
12 14 13
14 14 14
Found
x=-14 low high mid
1 14 7
1 6 3
1 2 1
2 2 2
2 1 Not found
x=9 low high mid
1 14 7
1 6 3
4 6 5
Found

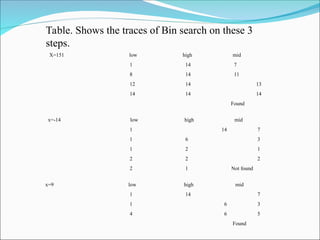

Table. Shows the traces of Bin search on these 3
steps.

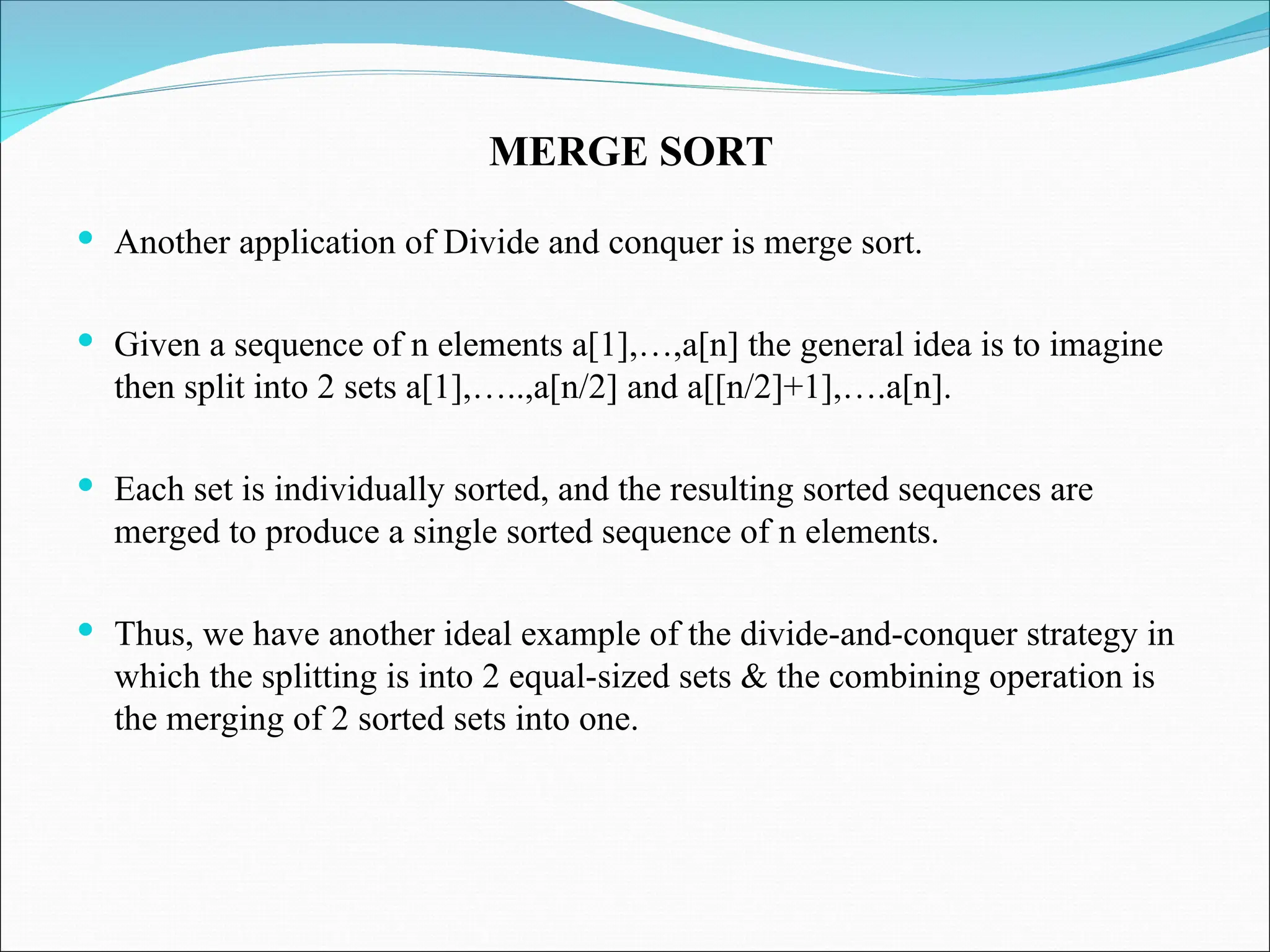

 Another application of Divide and conquer is merge sort.
 Given a sequence of n elements a[1],…,a[n] the general idea is to imagine
then split into 2 sets a[1],…..,a[n/2] and a[[n/2]+1],….a[n].
 Each set is individually sorted, and the resulting sorted sequences are
merged to produce a single sorted sequence of n elements.
 Thus, we have another ideal example of the divide-and-conquer strategy in
which the splitting is into 2 equal-sized sets & the combining operation is
the merging of 2 sorted sets into one.
MERGE SORT

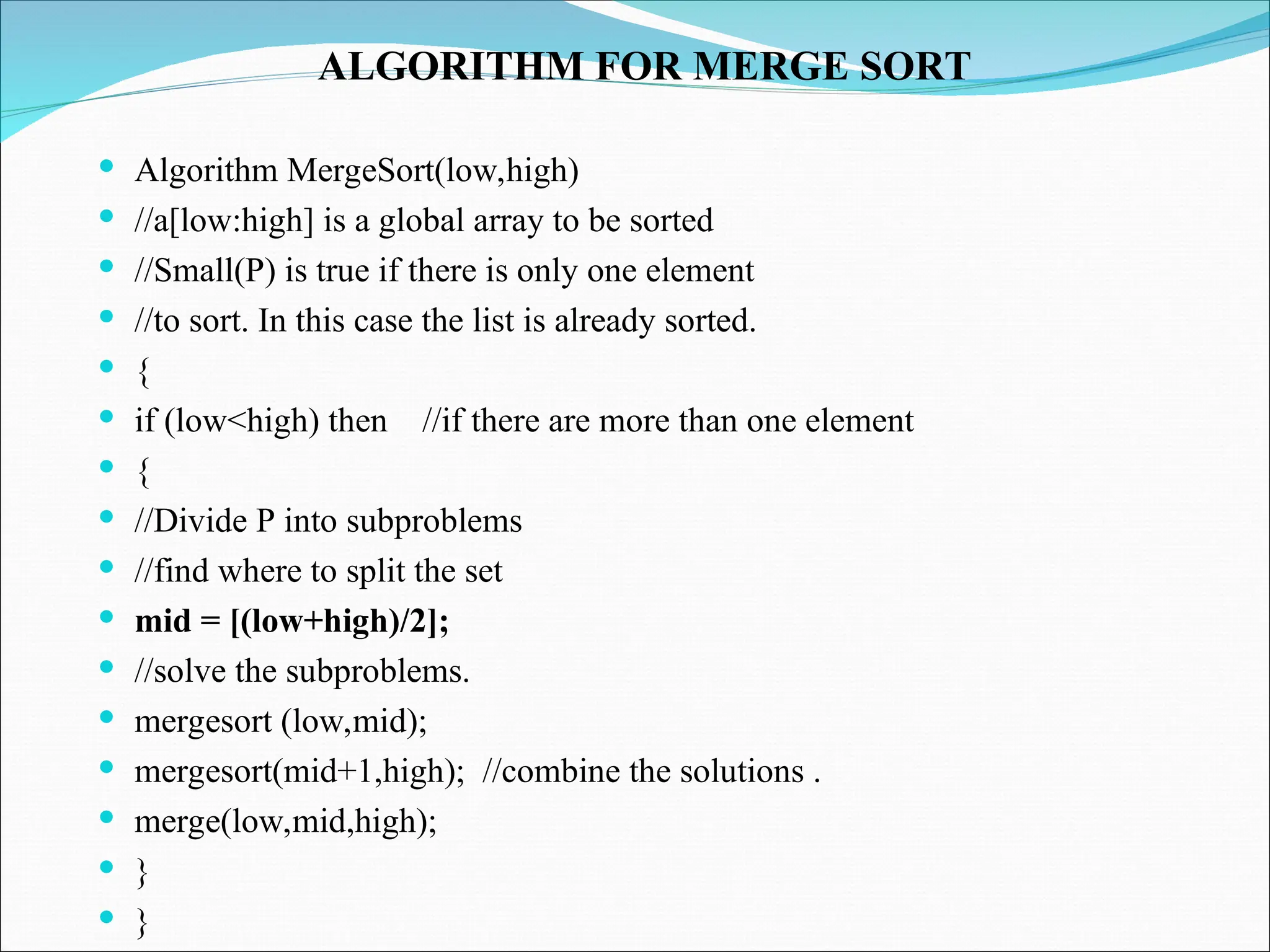

ALGORITHM FOR MERGE SORT
 Algorithm MergeSort(low,high)
 //a[low:high] is a global array to be sorted
 //Small(P) is true if there is only one element
 //to sort. In this case the list is already sorted.
 {
 if (low<high) then //if there are more than one element
 {
 //Divide P into subproblems
 //find where to split the set
 mid = [(low+high)/2];
 //solve the subproblems.
 mergesort (low,mid);
 mergesort(mid+1,high); //combine the solutions .
 merge(low,mid,high);
 }
 }

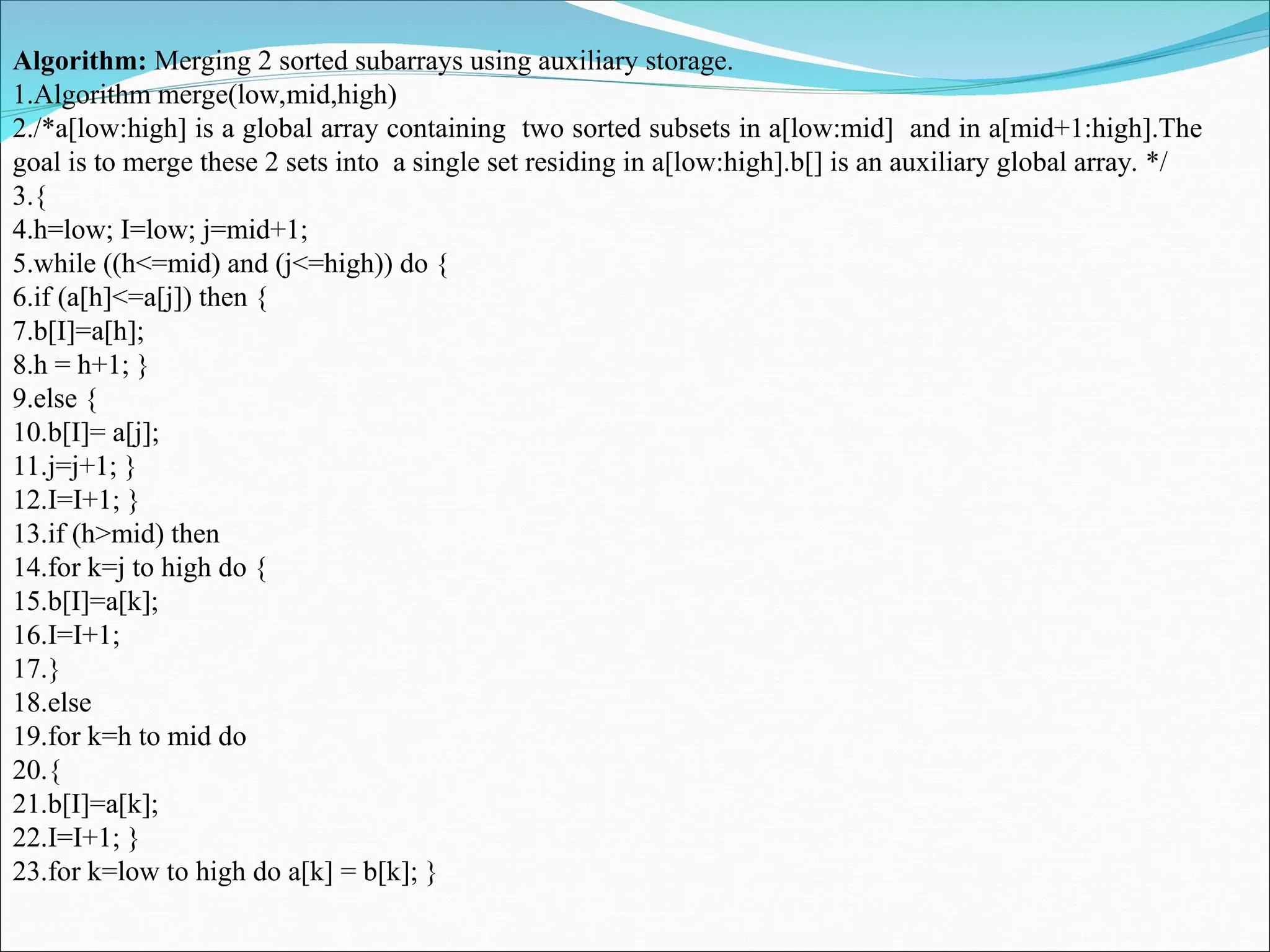

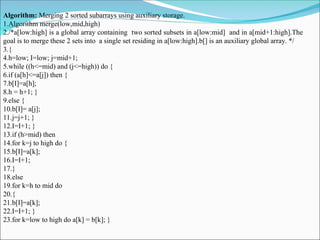

Algorithm: Merging 2 sorted subarrays using auxiliary storage.
1.Algorithm merge(low,mid,high)
2./*a[low:high] is a global array containing two sorted subsets in a[low:mid] and in a[mid+1:high].The
goal is to merge these 2 sets into a single set residing in a[low:high].b[] is an auxiliary global array. */
3.{
4.h=low; I=low; j=mid+1;
5.while ((h<=mid) and (j<=high)) do {
6.if (a[h]<=a[j]) then {
7.b[I]=a[h];
8.h = h+1; }
9.else {
10.b[I]= a[j];
11.j=j+1; }
12.I=I+1; }
13.if (h>mid) then
14.for k=j to high do {
15.b[I]=a[k];
16.I=I+1;
17.}
18.else
19.for k=h to mid do
20.{
21.b[I]=a[k];
22.I=I+1; }
23.for k=low to high do a[k] = b[k]; }

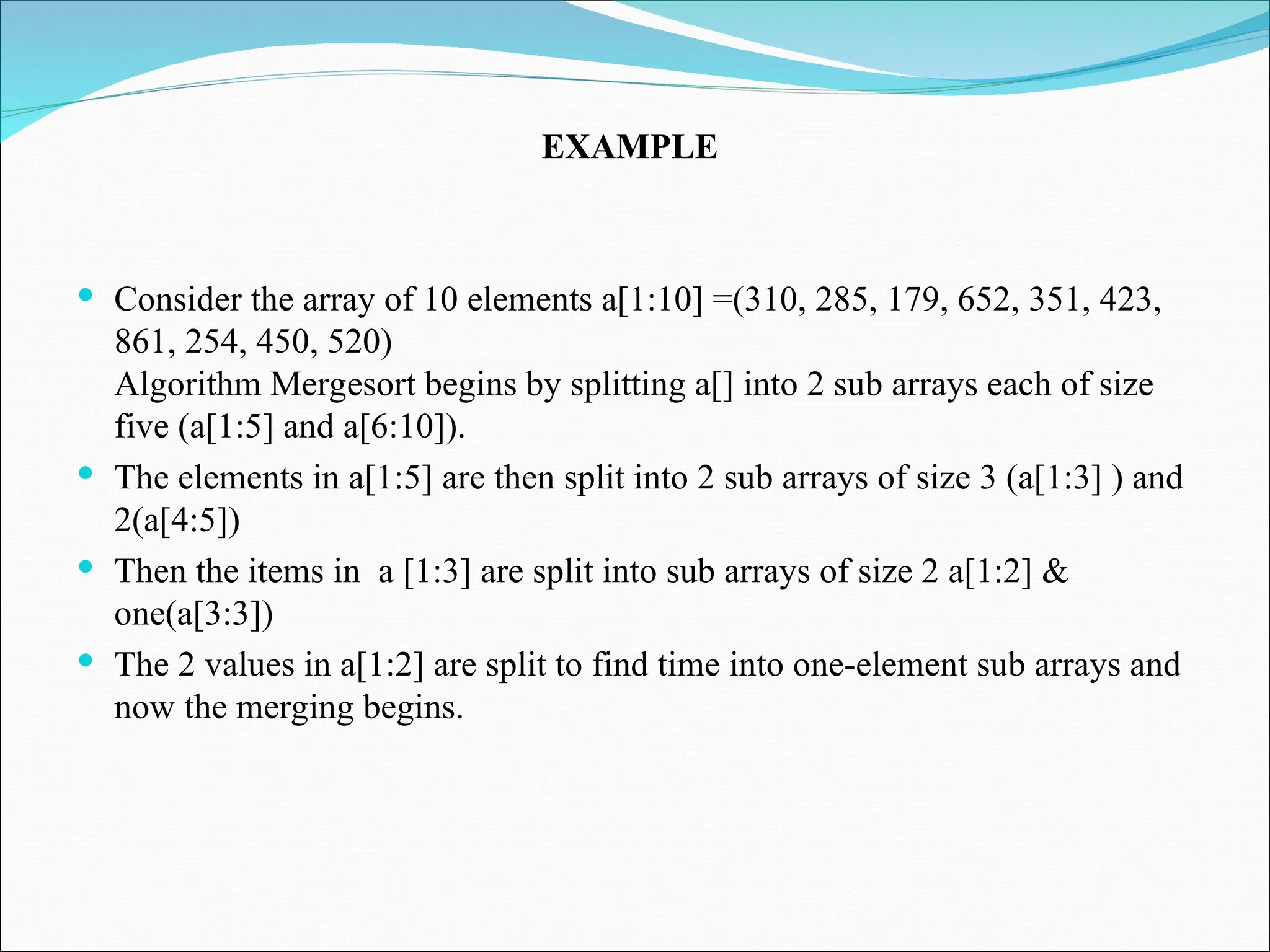

 Consider the array of 10 elements a[1:10] =(310, 285, 179, 652, 351, 423,
861, 254, 450, 520)
Algorithm Mergesort begins by splitting a[] into 2 sub arrays each of size
five (a[1:5] and a[6:10]).
 The elements in a[1:5] are then split into 2 sub arrays of size 3 (a[1:3] ) and
2(a[4:5])
 Then the items in a [1:3] are split into sub arrays of size 2 a[1:2] &
one(a[3:3])
 The 2 values in a[1:2] are split to find time into one-element sub arrays and
now the merging begins.
EXAMPLE

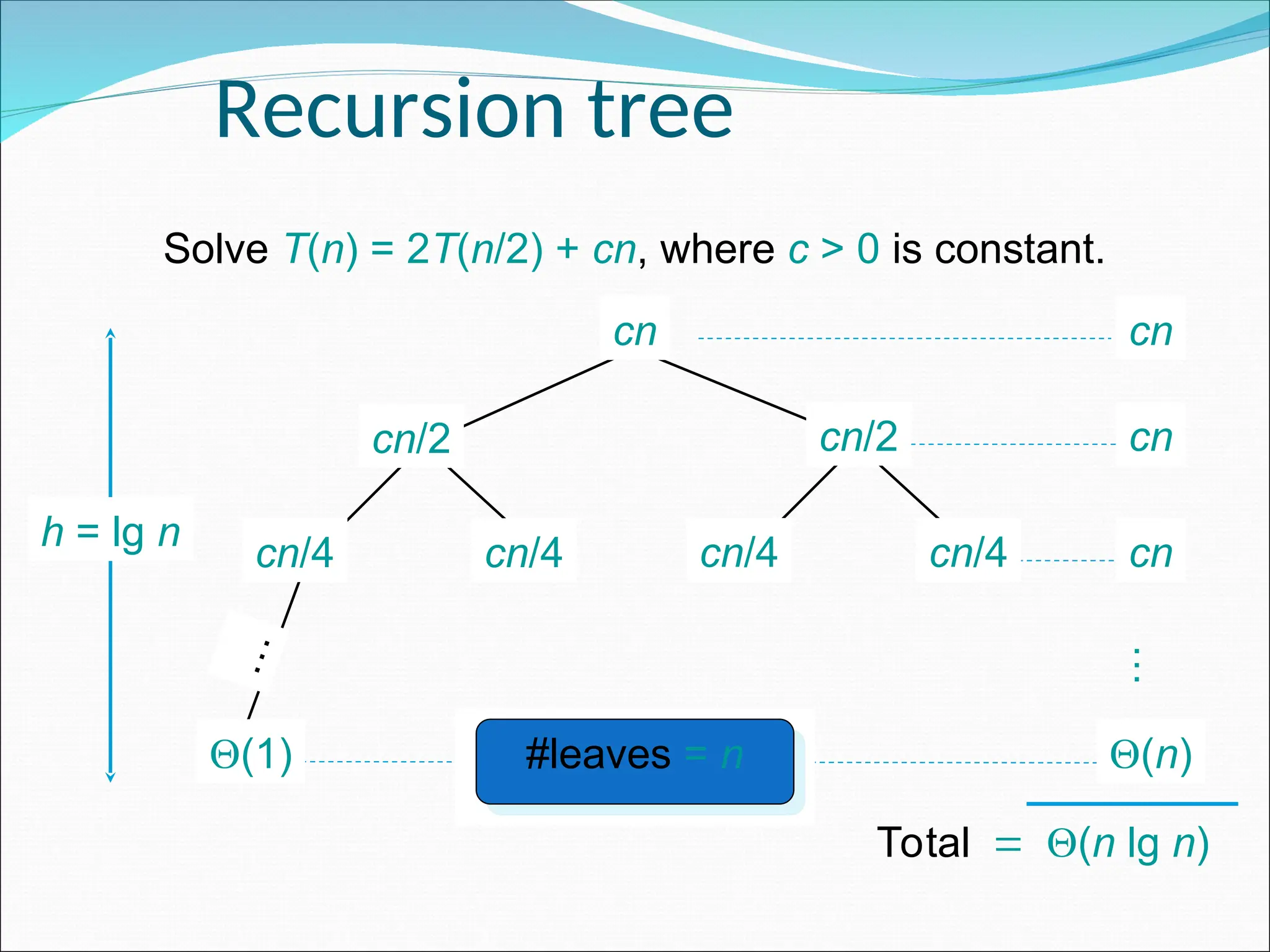

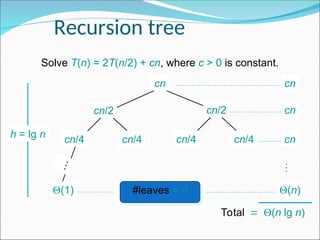

Recursion tree
Solve T(n) = 2T(n/2) + cn, where c > 0 is constant.
cn
cn/4 cn/4 cn/4 cn/4
cn/2 cn/2
(1)
…
h = lg n
cn
cn
cn
#leaves = n (n)
Total(n lg n)
…

 In Quick sort, the division into 2 sub arrays is made so that the sorted sub
arrays do not need to be merged later.
 This is accomplished by rearranging the elements in a[1:n] such that
a[I]<=a[j] for all I between 1 & n and all j between (m+1) & n for some m,
1<=m<=n.
 Thus the elements in a[1:m] & a[m+1:n] can be independently sorted.
 No merge is needed. This rearranging is referred to as partitioning.
QUICK SORT

1. Algorithm: Partition the array a[m:p-1] about a[m]
2. Algorithm Partition(a,m,p)
3. /*within a[m],a[m+1],…..,a[p-1] the elements are rearranged in such a
manner that if initially t=a[m],then after completion a[q]=t for some q
between m and
4. p-1,a[k]<=t for m<=k<q, and a[k]>=t for q<k<p. q is returned Set a[p]=infinite.
*/
5. {
6. v=a[m];I=m;j=p;
7. repeat
8. {
9. repeat
10. I=I+1;
11. until(a[I]>=v);
12. repeat
13. j=j-1;
14. until(a[j]<=v);
15. if (I<j) then interchange(a,i.j);
16. }until(I>=j);
17. a[m]=a[j]; a[j]=v;
18. retun j;
19. }
20. Algorithm Interchange(a,I,j) //Exchange a[I] with a[j]
21. {
22. p=a[I];
23. a[I]=a[j];
24. a[j]=p;
25. }

 Algorithm: Sorting by Partitioning
 Algorithm Quicksort(p,q)
 //Sort the elements a[p],….a[q] which resides
 //is the global array a[1:n] into ascending
//order; a[n+1] is considered to be defined
 // and must be >= all the elements in a[1:n]
 {
 if(p<q) then // If there are more than one element
 {
 // divide p into 2 subproblems
 j=partition(a,p,q+1);
 // j is the position of the partitioning element.
‟ ‟
 //solve the subproblems.
 quicksort(p,j-1);
 quicksort(j+1,q);
 //There is no need for combining solution.
 }
 }

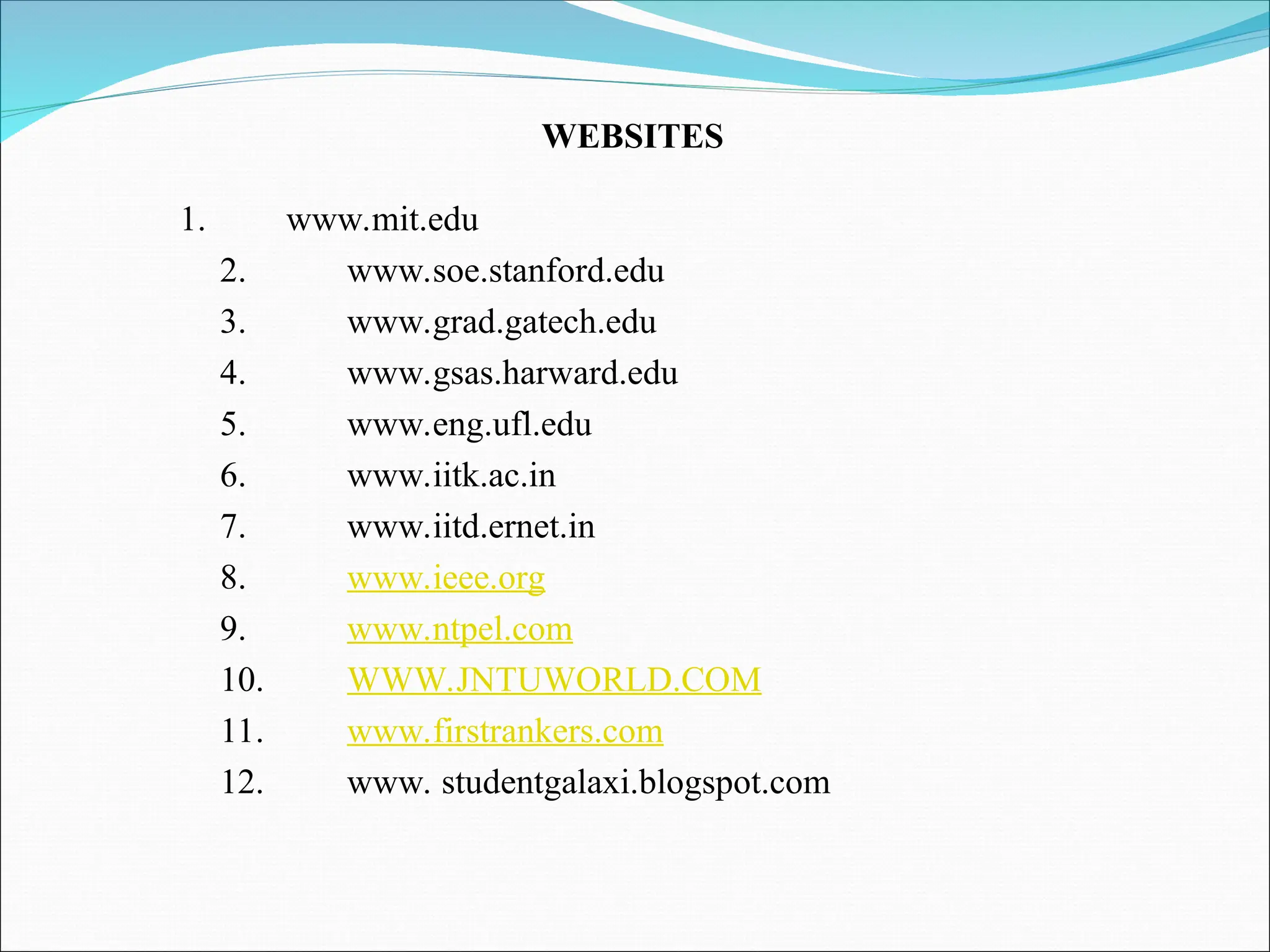

1. www.mit.edu
2. www.soe.stanford.edu
3. www.grad.gatech.edu
4. www.gsas.harward.edu
5. www.eng.ufl.edu
6. www.iitk.ac.in
7. www.iitd.ernet.in
8. www.ieee.org
9. www.ntpel.com
10. WWW.JNTUWORLD.COM
11. www.firstrankers.com
12. www. studentgalaxi.blogspot.com
WEBSITES

TEXT BOOKS
1. Fundamentals of Computer Algorithms, Ellis Horowitz,Satraj Sahni and
Rajasekharam,Galgotia publications pvt. Ltd.
2. Algorithm Design: Foundations, Analysis and Internet examples,
M.T.Goodrich and R.Tomassia,John wiley and sons.
SUGGESTED BOOKS

1. Introduction to Algorithms, secondedition,T.H.Cormen,C.E.Leiserson,
R.L.Rivest,and C.Stein,PHI Pvt. Ltd./ Pearson Education
2. Introduction to Design and Analysis of Algorithms A strategic approach,
R.C.T.Lee, S.S.Tseng, R.C.Chang and T.Tsai, Mc Graw Hill.
3. Data structures and Algorithm Analysis in C++, Allen Weiss, Second
edition, Pearson education.
REFERENCES

UNIT 1- Design Analysis of algorithms and its working

More Related Content

Similar to UNIT 1- Design Analysis of algorithms and its working

Recently uploaded

UNIT 1- Design Analysis of algorithms and its working
