DESIGN AND ANALYSIS OF
ALGORITHMS
18CS42

AGENDA
 What is an Algorithm?
Formal and Informal Definition
Properties of an Algorithm
Fundamentals Of Algorithmic Problem Solving
Example
Assignment

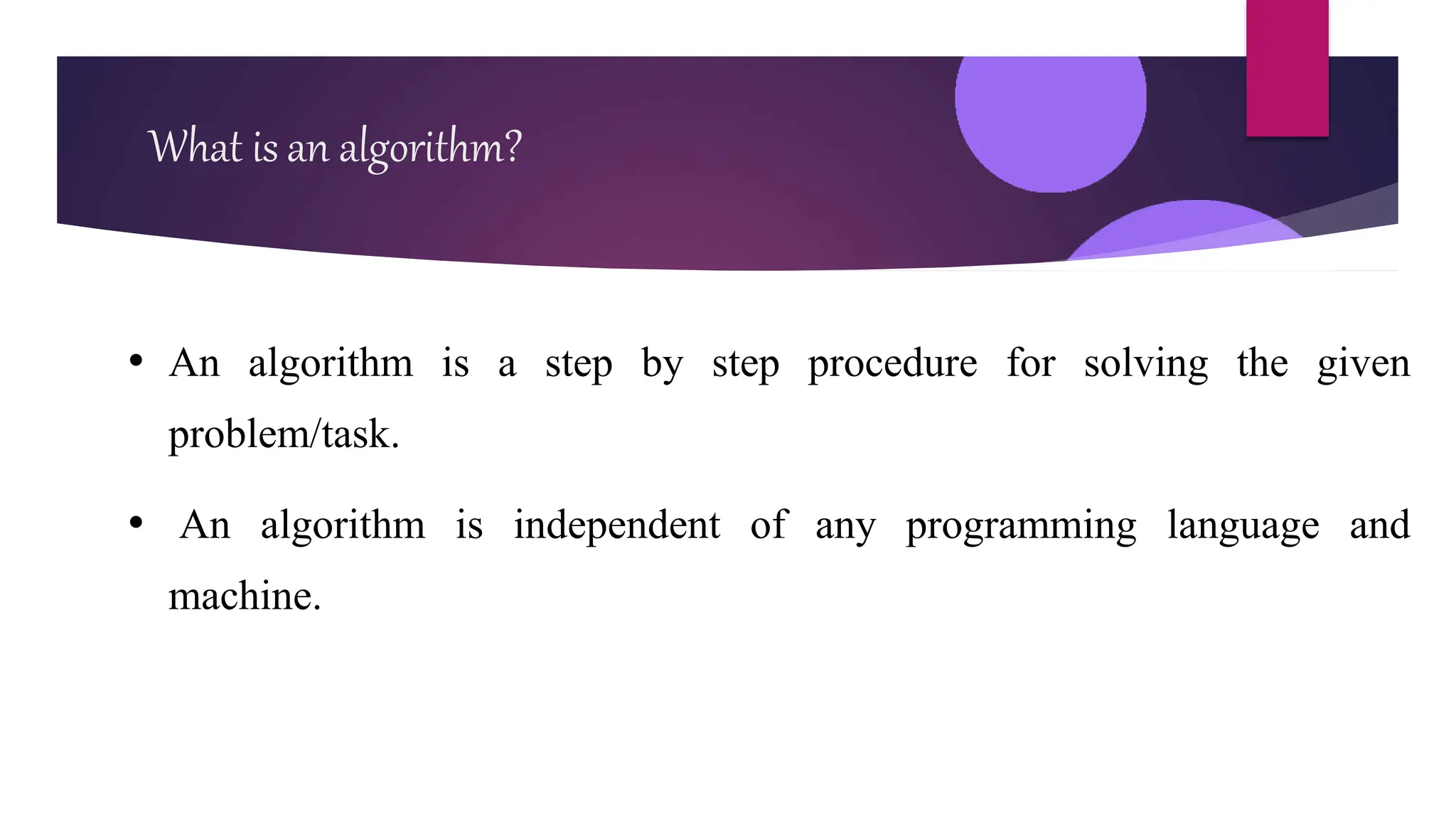

• An algorithm is a step by step procedure for solving the given
problem/task.
• An algorithm is independent of any programming language and
machine.
What is an algorithm?

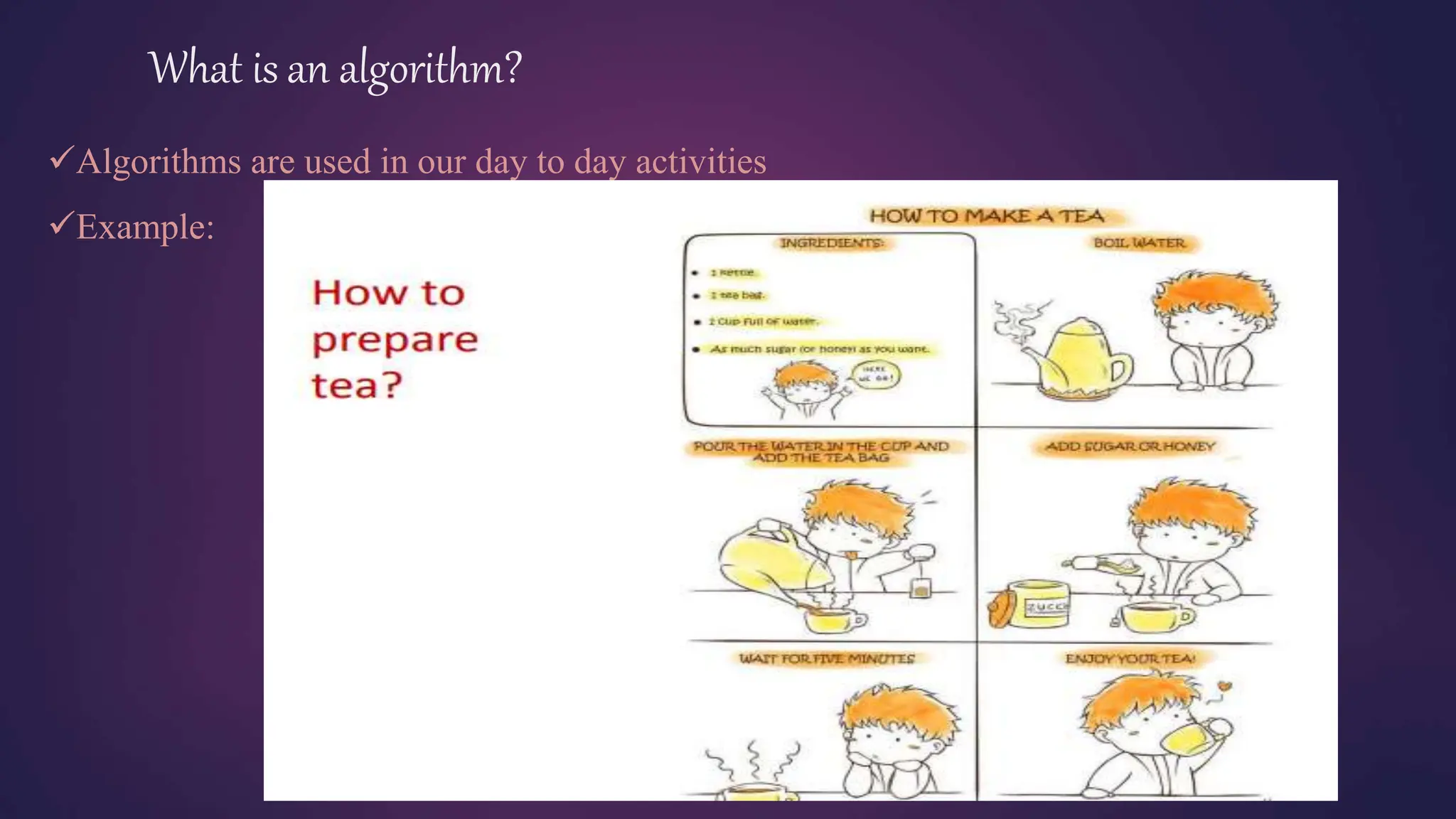

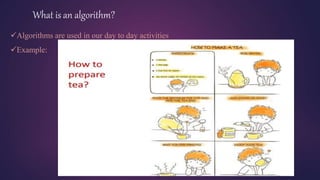

Algorithms are used in our day to day activities
Example:
What is an algorithm?

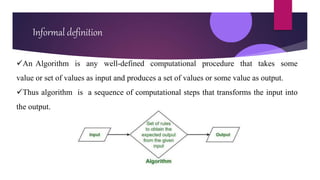

Informal definition
An Algorithm is any well-defined computational procedure that takes some
value or set of values as input and produces a set of values or some value as output.
Thus algorithm is a sequence of computational steps that transforms the input into
the output.

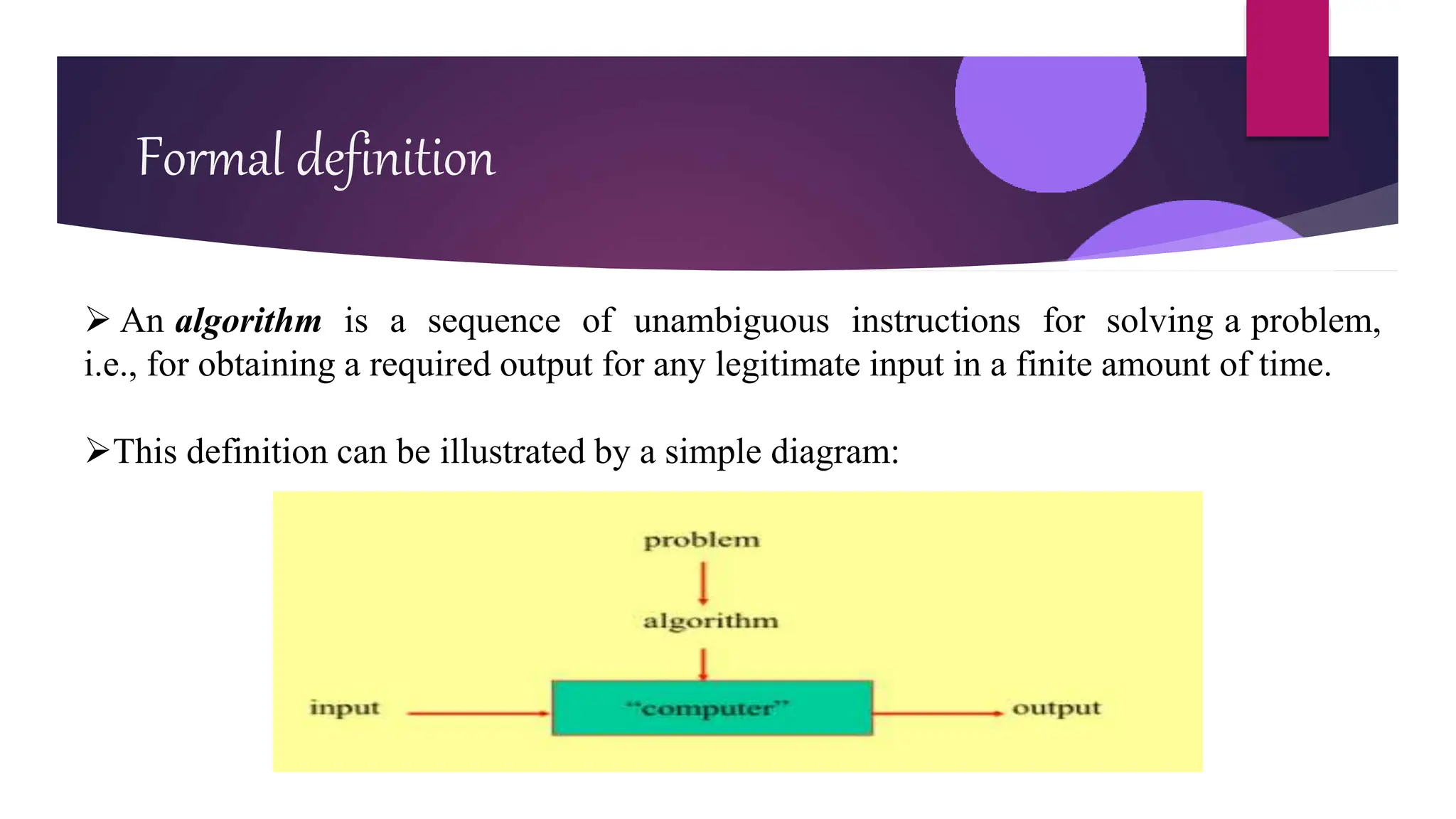

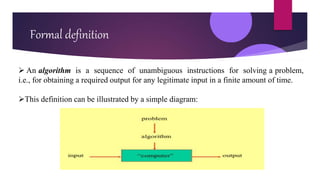

Formal definition
 An algorithm is a sequence of unambiguous instructions for solving a problem,
i.e., for obtaining a required output for any legitimate input in a finite amount of time.

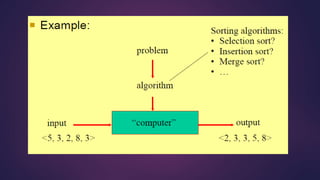

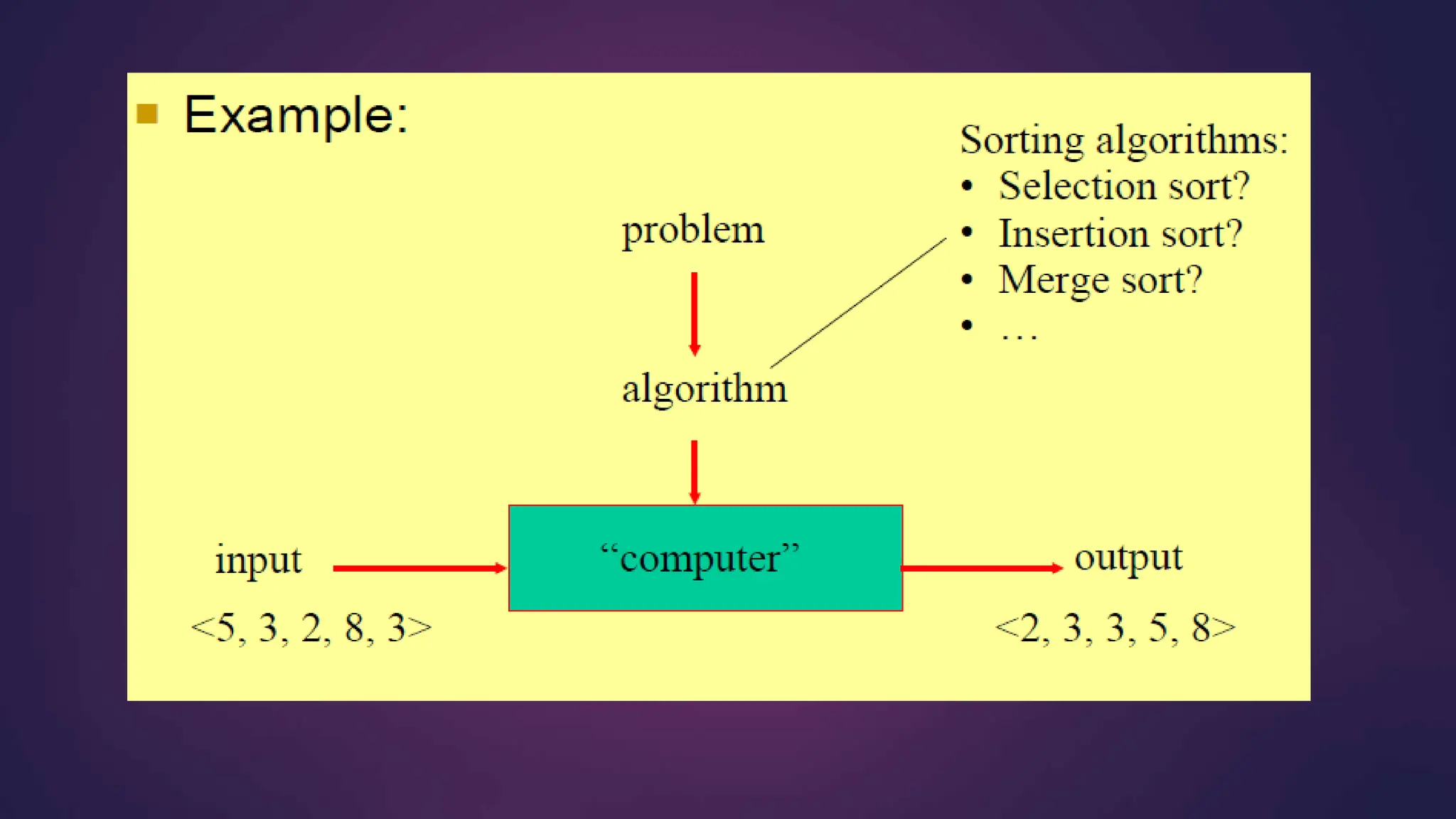

This definition can be illustrated by a simple diagram:

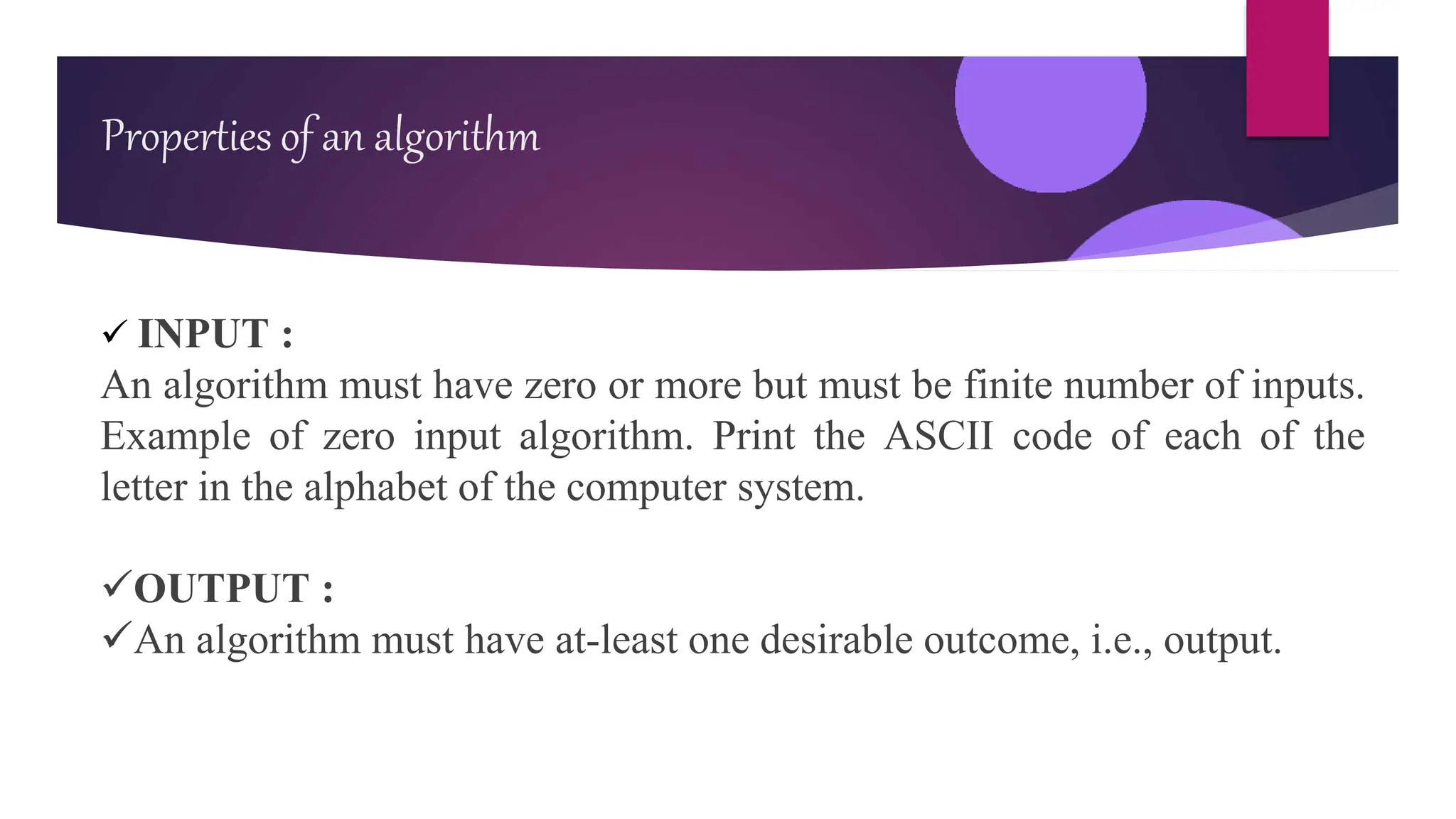

 INPUT :
An algorithm must have zero or more but must be finite number of inputs.
Example of zero input algorithm. Print the ASCII code of each of the
letter in the alphabet of the computer system.
OUTPUT :
An algorithm must have at-least one desirable outcome, i.e., output.

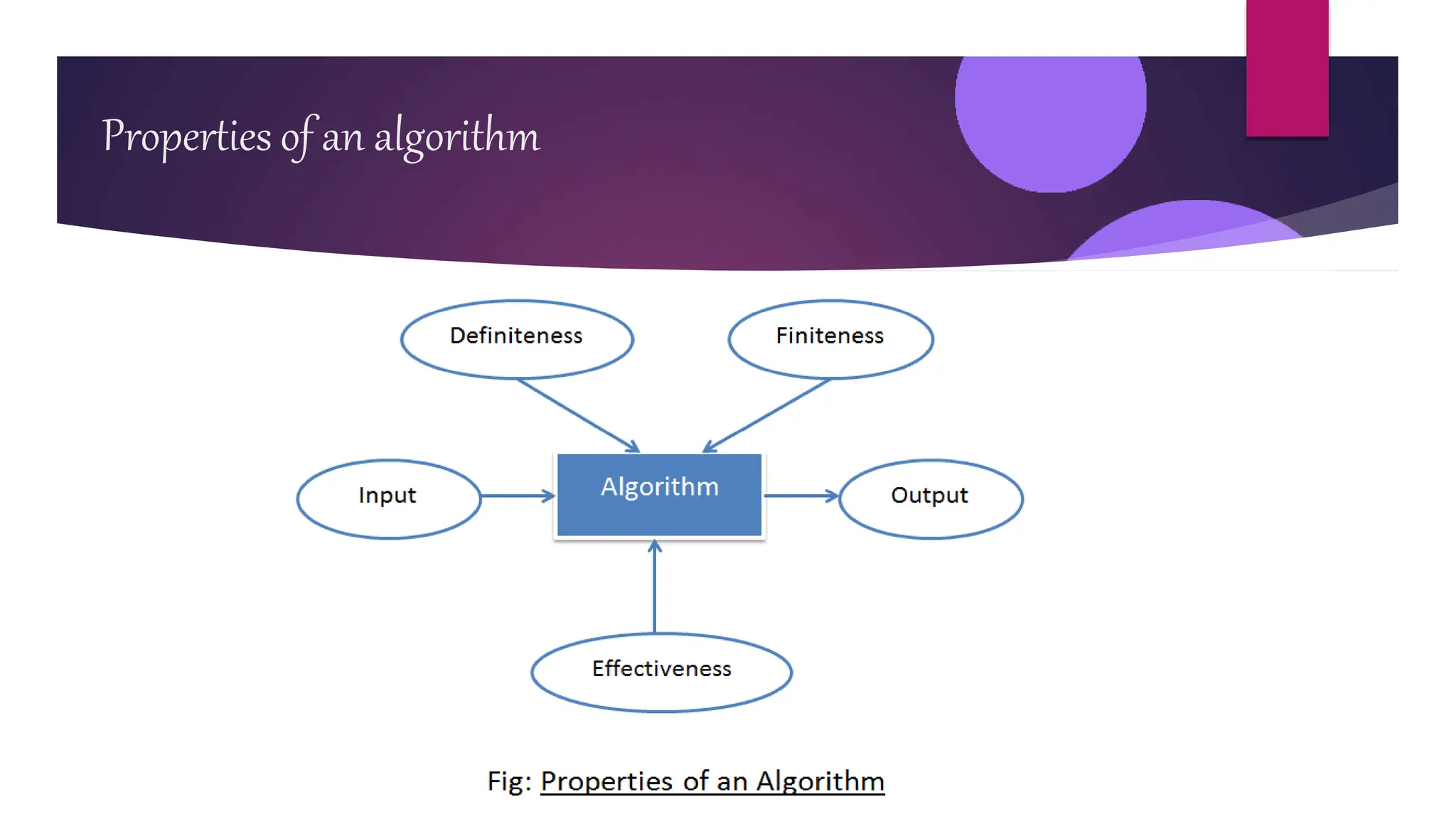

Properties of an algorithm

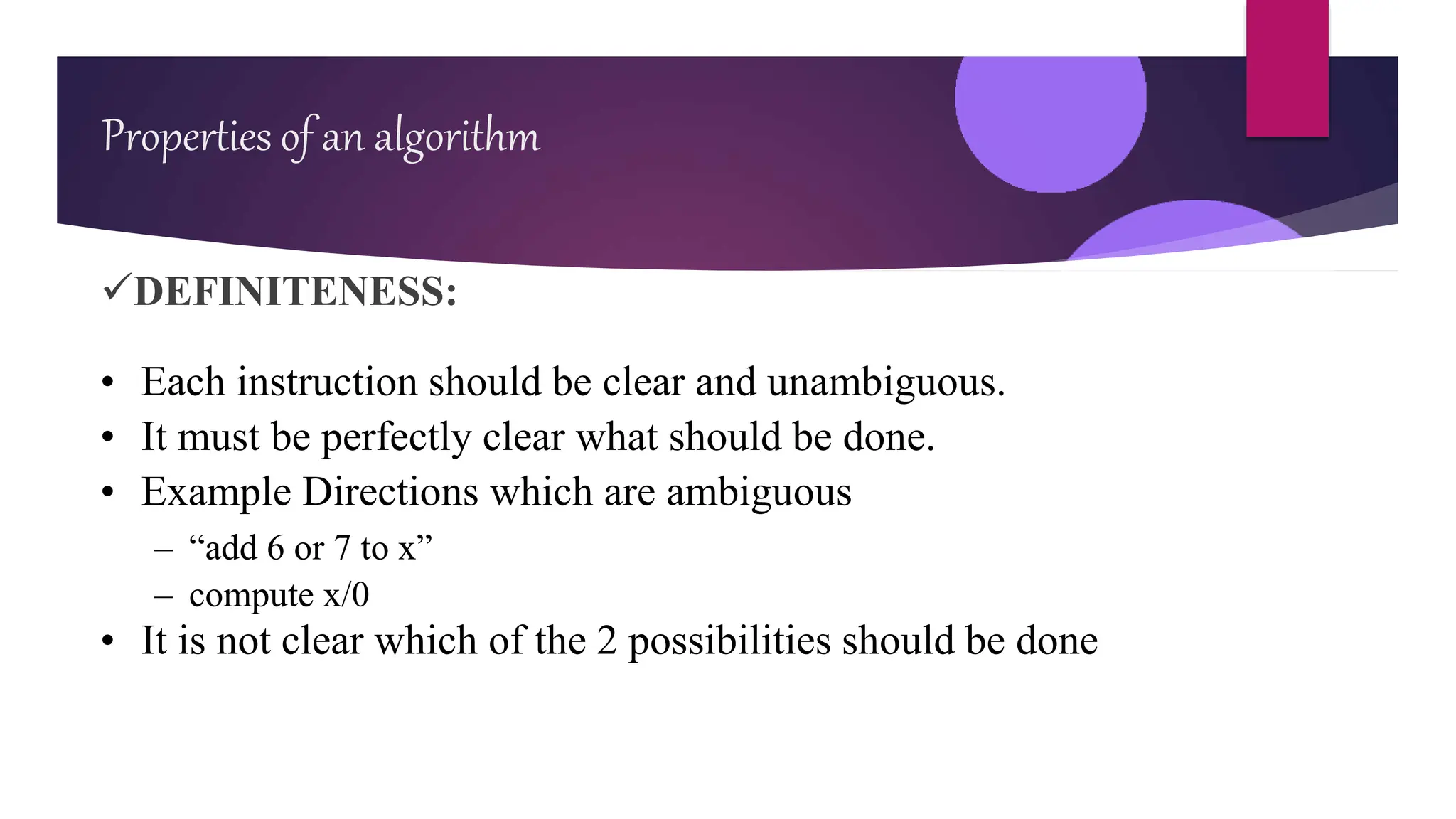

DEFINITENESS:
• Each instruction should be clear and unambiguous.
• It must be perfectly clear what should be done.
• Example Directions which are ambiguous
– “add 6 or 7 to x”
– compute x/0
• It is not clear which of the 2 possibilities should be done

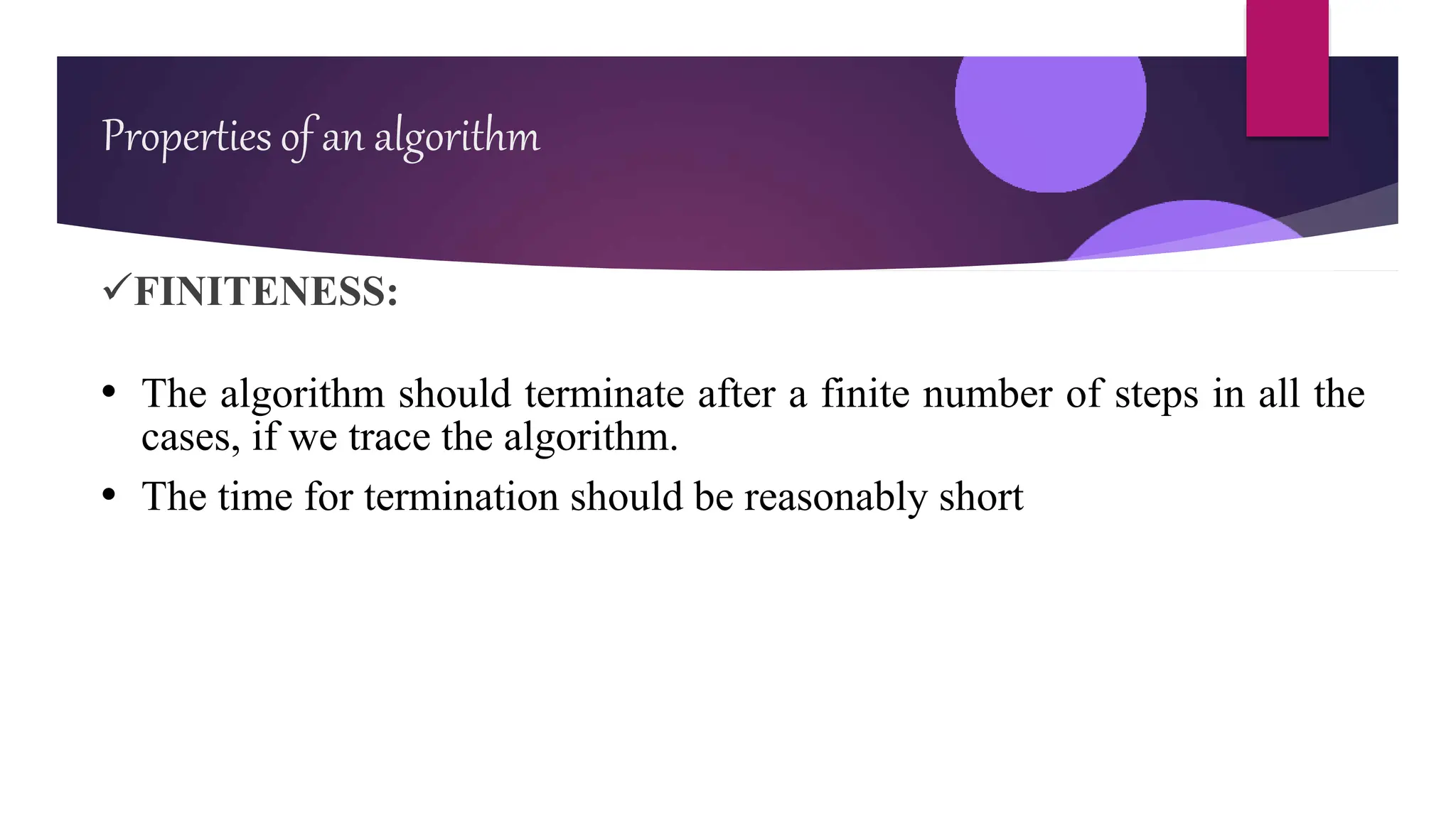

FINITENESS:
• The algorithm should terminate after a finite number of steps in all the
cases, if we trace the algorithm.
• The time for termination should be reasonably short

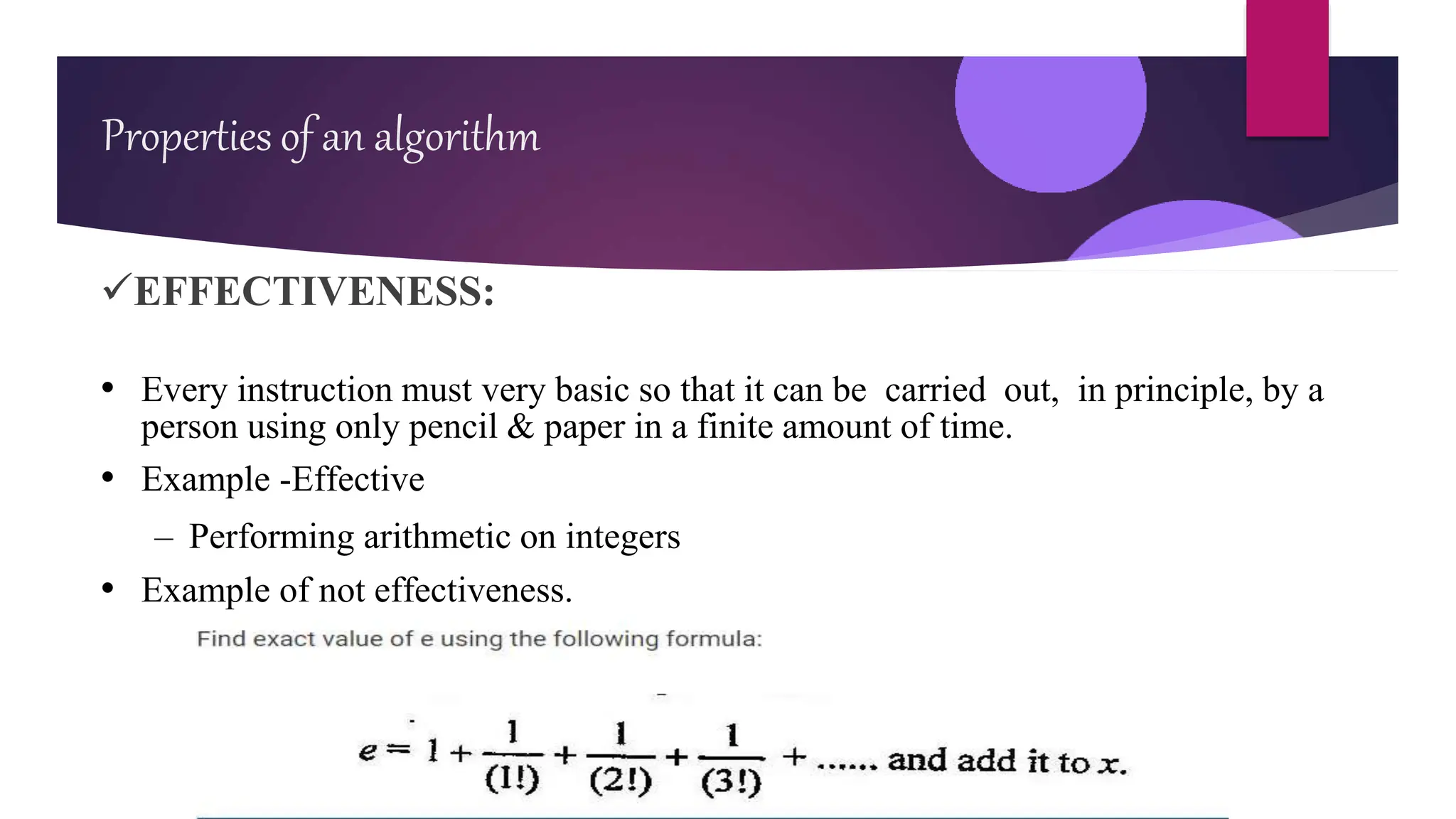

EFFECTIVENESS:
• Every instruction must very basic so that it can be carried out, in principle, by a
person using only pencil & paper in a finite amount of time.
• Example -Effective
– Performing arithmetic on integers
• Example of not effectiveness.

Fundamentals Of AlgorithmicProblemSolving
Algorithms are procedural solutions to problems. These solutions are not answers
but specific instructions for getting answers.

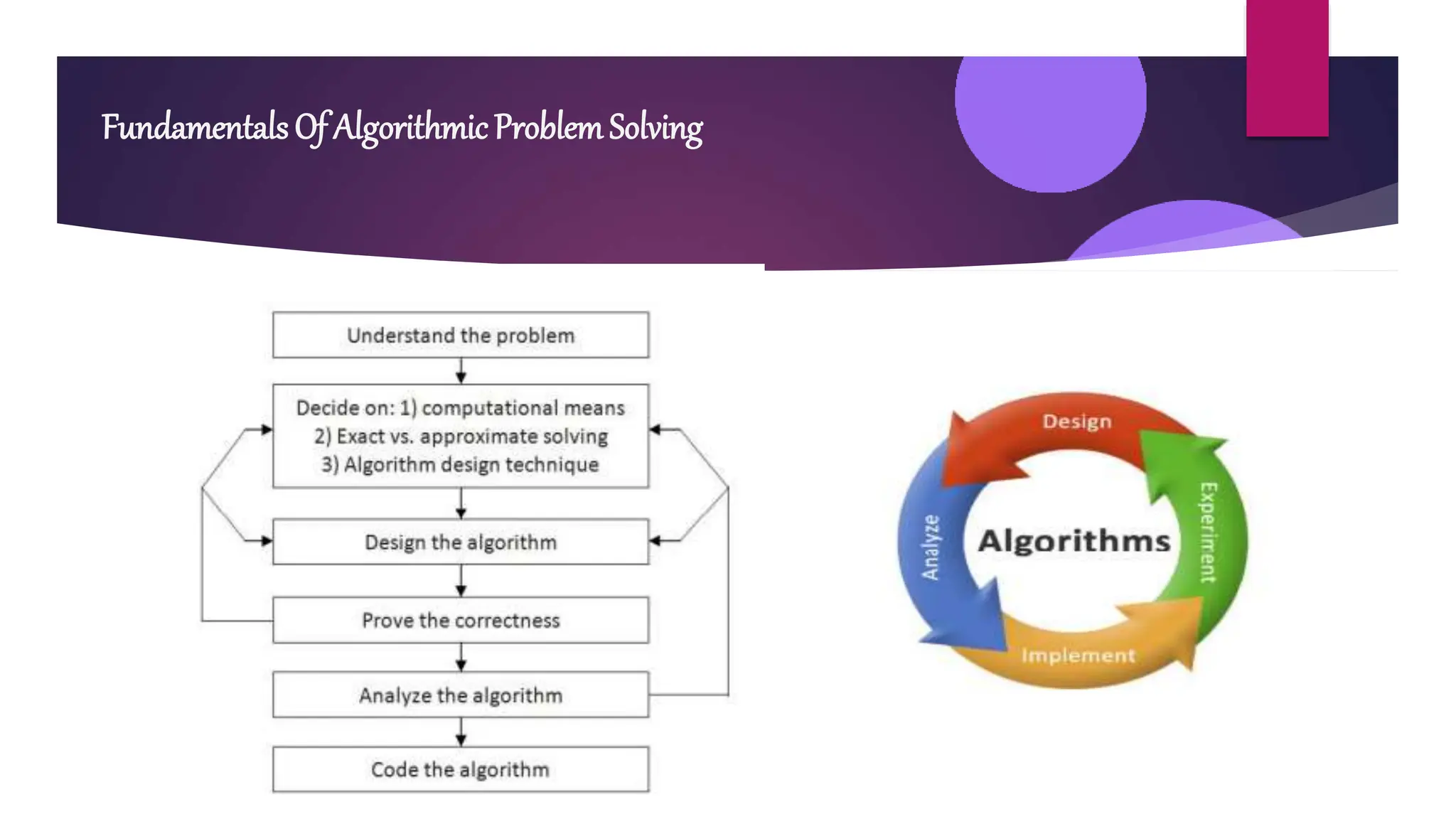

The following diagram briefly illustrates the sequence of steps one typically goes
through in designing and analyzing an algorithm.

Fundamentals Of AlgorithmicProblemSolving

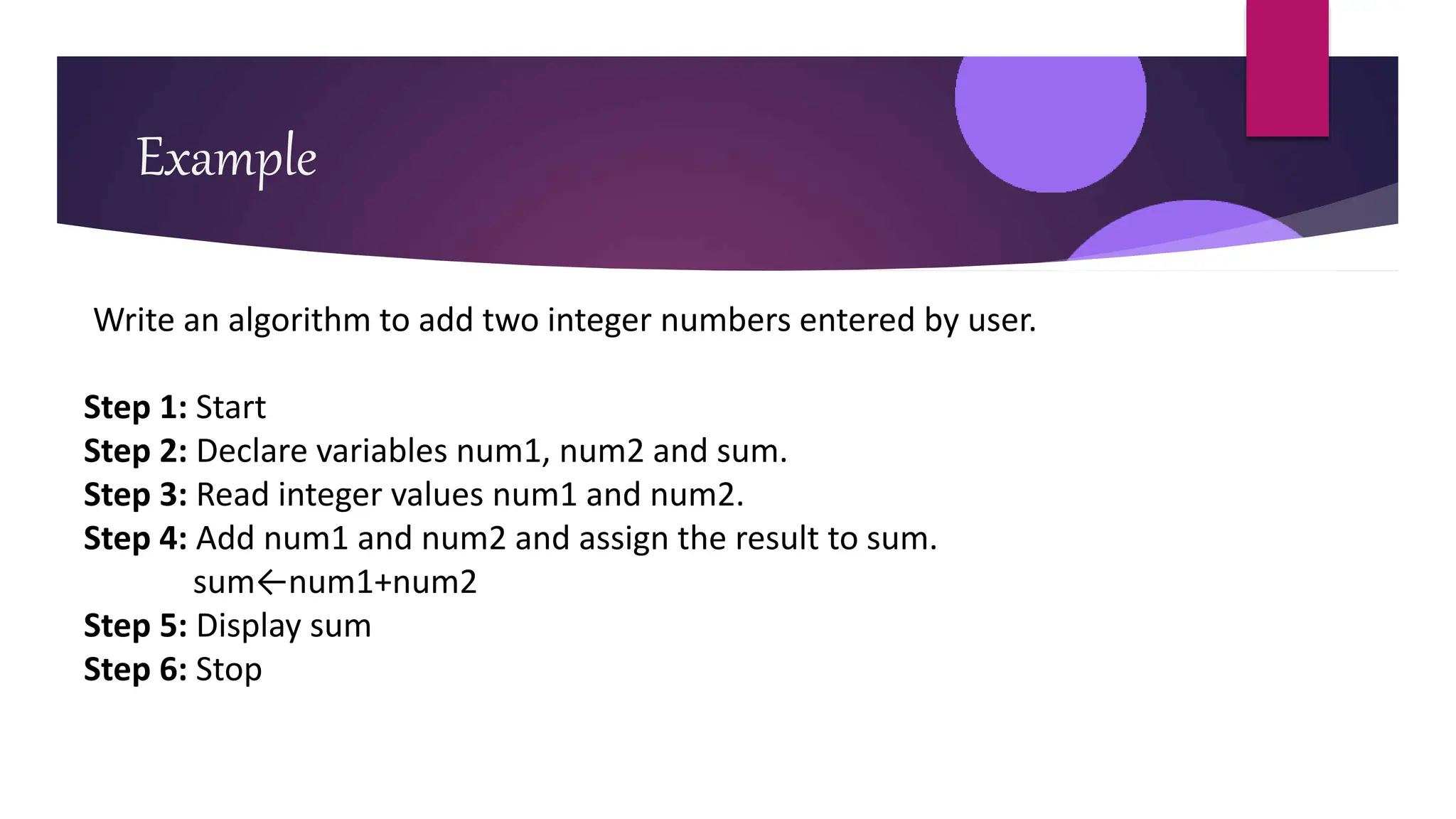

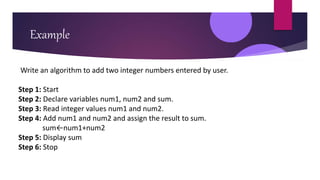

Example
Write an algorithm to add two integer numbers entered by user.
Step 1: Start
Step 2: Declare variables num1, num2 and sum.
Step 3: Read integer values num1 and num2.
Step 4: Add num1 and num2 and assign the result to sum.
sum←num1+num2
Step 5: Display sum
Step 6: Stop

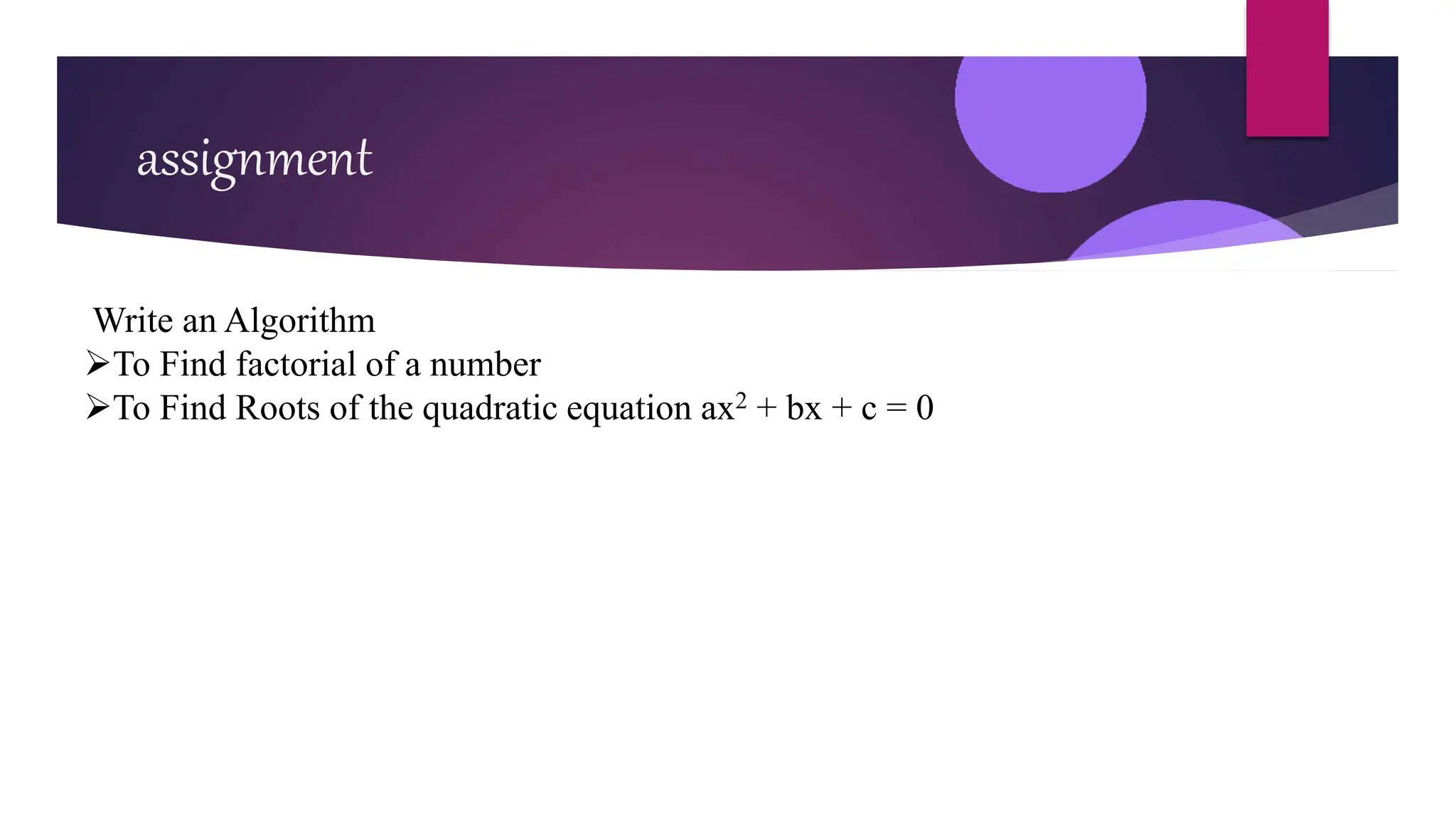

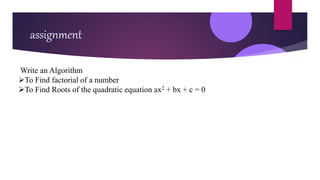

assignment
Write an Algorithm

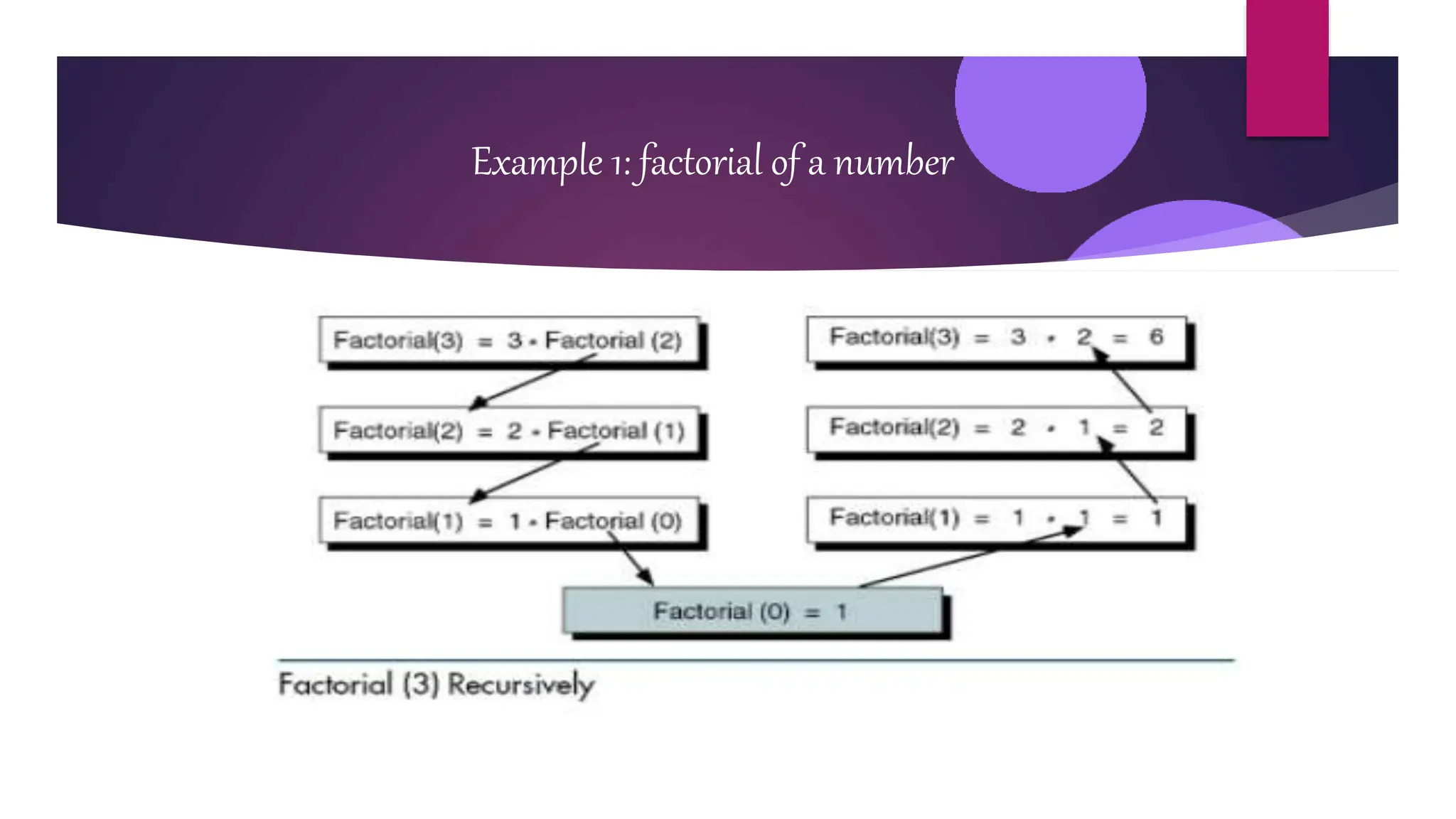

To Find factorial of a number
To Find Roots of the quadratic equation ax2 + bx + c = 0

Recap…
 What is an Algorithm?
Formal and Informal Definition
Properties of an Algorithm
Example
Assignment

AGENDA

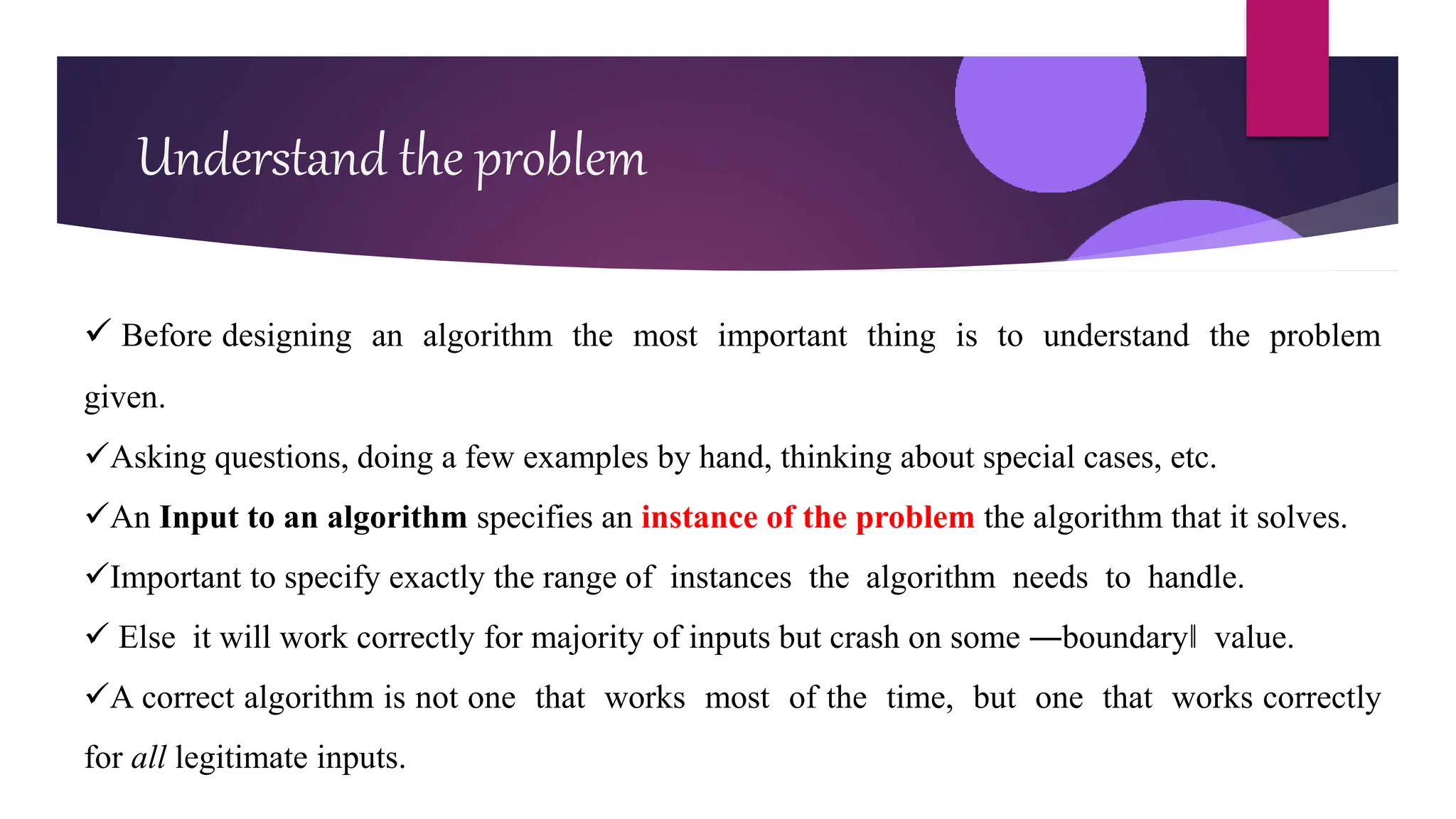

Understand the problem
 Before designing an algorithm the most important thing is to understand the problem
given.
Asking questions, doing a few examples by hand, thinking about special cases, etc.
An Input to an algorithm specifies an instance of the problem the algorithm that it solves.
Important to specify exactly the range of instances the algorithm needs to handle.
 Else it will work correctly for majority of inputs but crash on some ―boundary‖ value.
A correct algorithm is not one that works most of the time, but one that works correctly
for all legitimate inputs.

Decide on:
Ascertaining the capabilities of a computational device
The vast majority of algorithms in use today are still destined to be programmed for a computer closely
resembling the von Neumann machine—a computer architecture.
Von Neumann architectures are sequential and the algorithms implemented on them are called
sequential algorithms.
Algorithms which designed to be executed on parallel computers called parallel
algorithms.
For very complex algorithms concentrate on a machine with high speed and more memory where
time is critical.

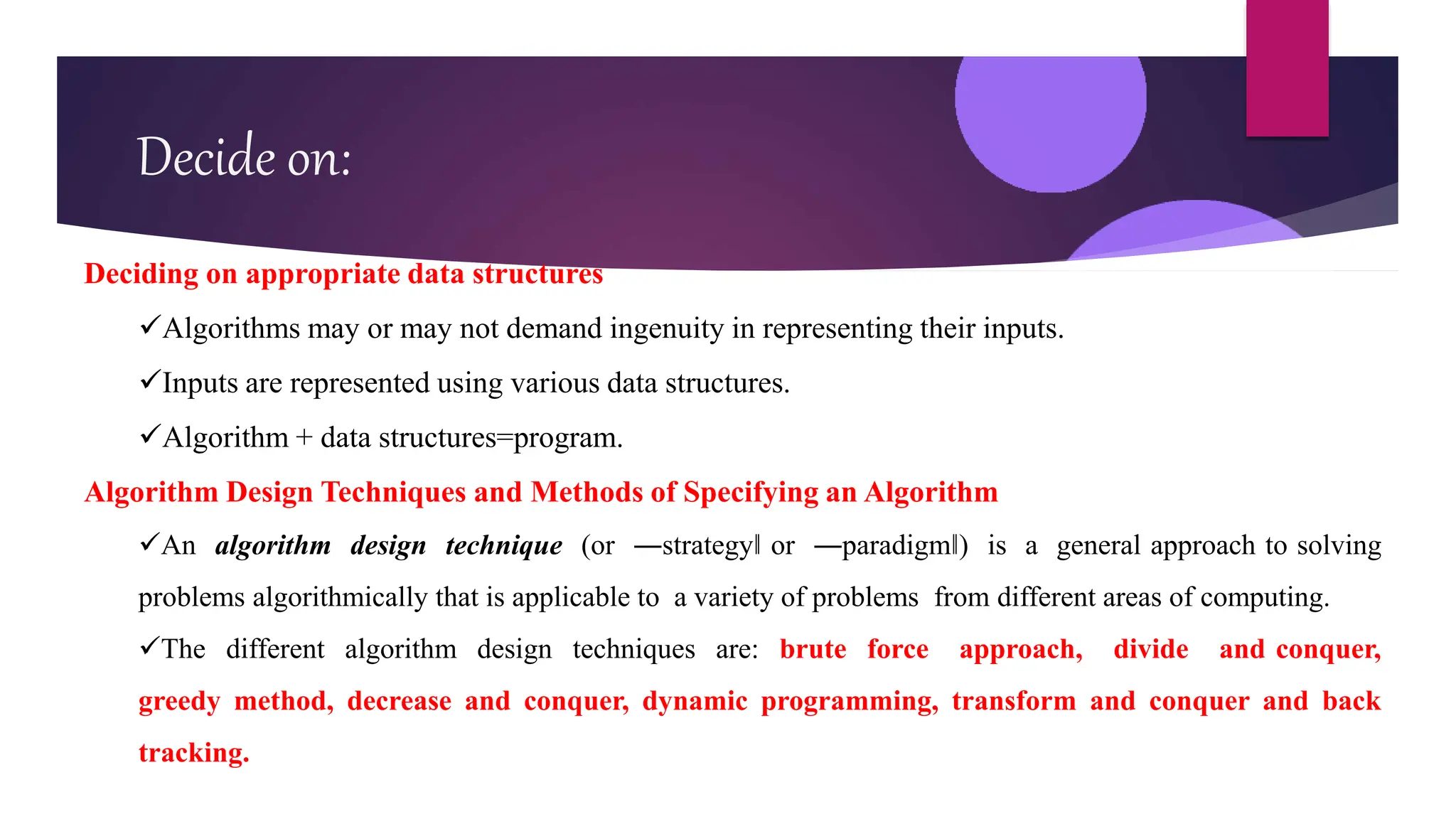

Decide on:
Deciding on appropriate data structures
Algorithms may or may not demand ingenuity in representing their inputs.
Inputs are represented using various data structures.
Algorithm + data structures=program.
Algorithm Design Techniques and Methods of Specifying an Algorithm
An algorithm design technique (or ―strategy‖ or ―paradigm‖) is a general approach to solving
problems algorithmically that is applicable to a variety of problems from different areas of computing.
The different algorithm design techniques are: brute force approach, divide and conquer,
greedy method, decrease and conquer, dynamic programming, transform and conquer and back
tracking.

Decide on:
Methods of specifying an algorithm:
Using natural language, in this method ambiguity problem will be there.
The next 2 options are : pseudo code and flowchart.
Pseudo code: mix of natural and programming language. More precise than NL
Flow chart: method of expressing an algorithmby collectionof
connected geometric shapes containing descriptions of the algorithm‘s steps.
This representation technique has proved to be inconvenient for large problems.
 Algorithm needs to be converted into a computer program written in a particular computer language.
Hence program as yet another way of specifying the algorithm, although it is preferable to consider it as
the algorithm‘s implementation.

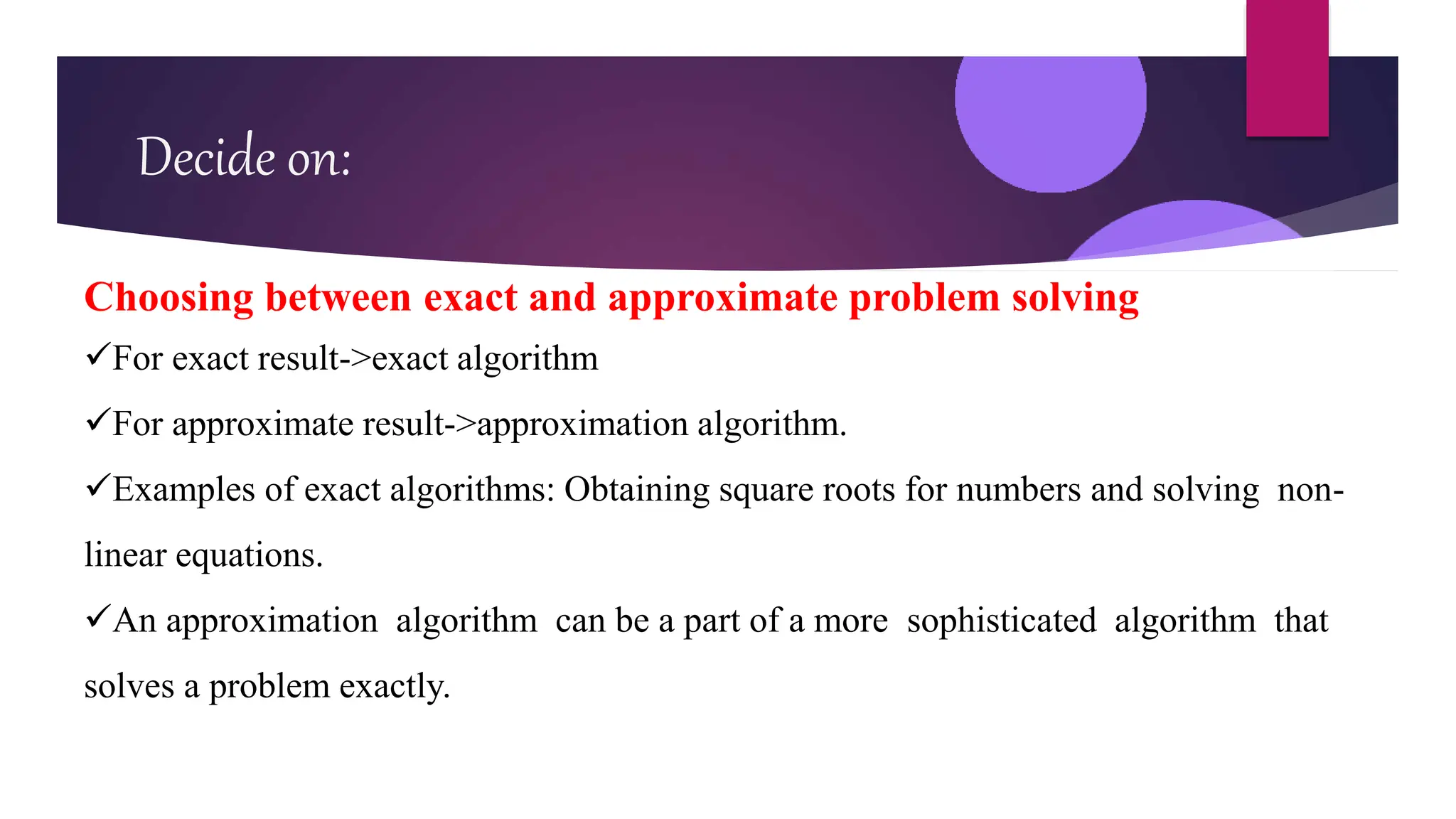

Decide on:

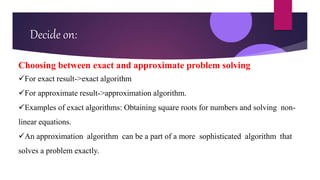

Choosing between exact and approximate problem solving
For exact result->exact algorithm
For approximate result->approximation algorithm.
Examples of exact algorithms: Obtaining square roots for numbers and solving non-
linear equations.
An approximation algorithm can be a part of a more sophisticated algorithm that
solves a problem exactly.

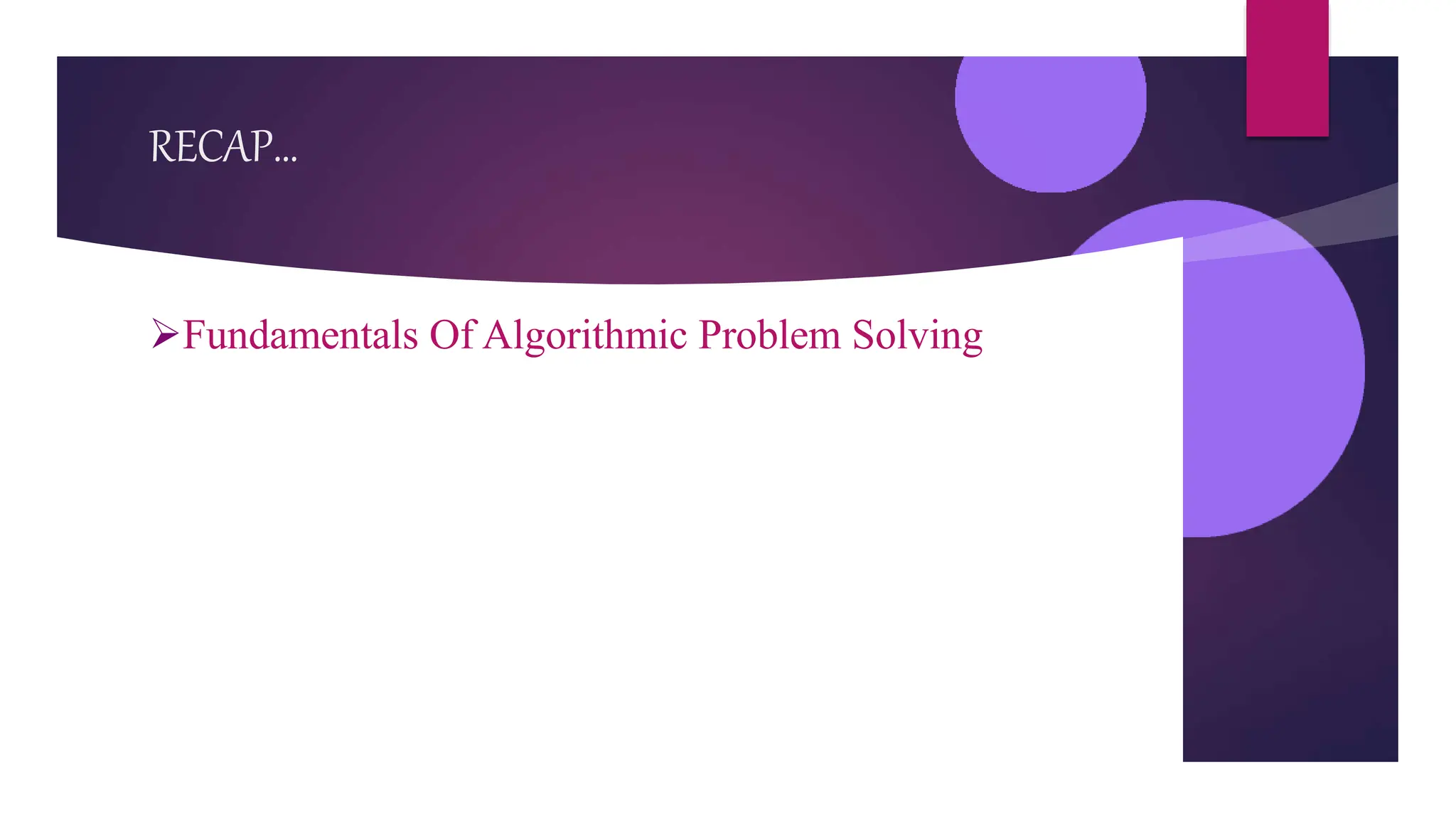

RECAP…

AGENDA
Type of Algorithm Specification
Pseudocode Conventions
Example
Assignment

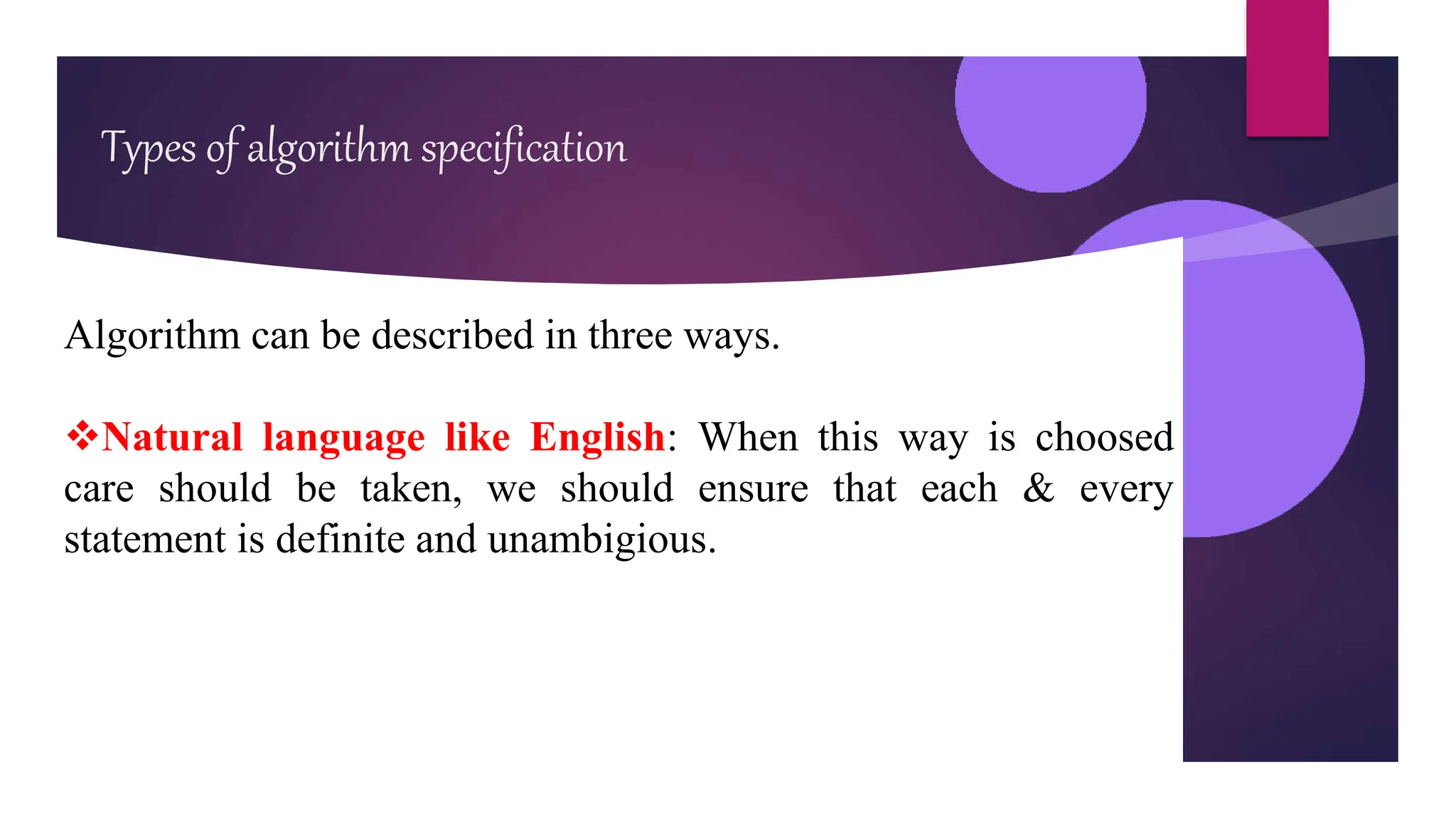

Types of algorithm specification
Algorithm can be described in three ways.
Natural language like English: When this way is choosed
care should be taken, we should ensure that each & every
statement is definite and unambigious.

Graphic representation called flowchart: This method will
work well when the algorithm is small& simple.

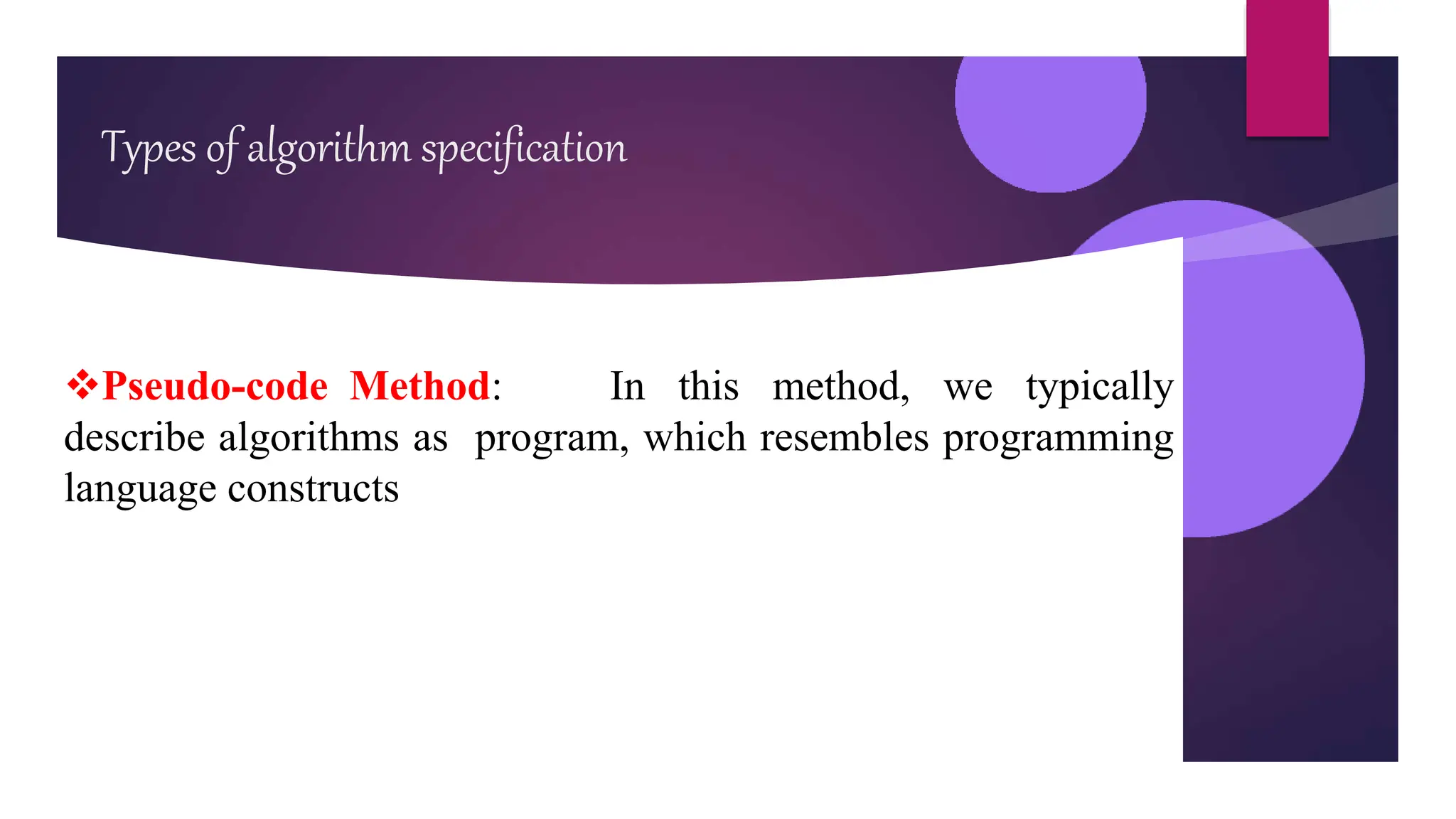

Pseudo-code Method: In this method, we typically
describe algorithms as program, which resembles programming
language constructs

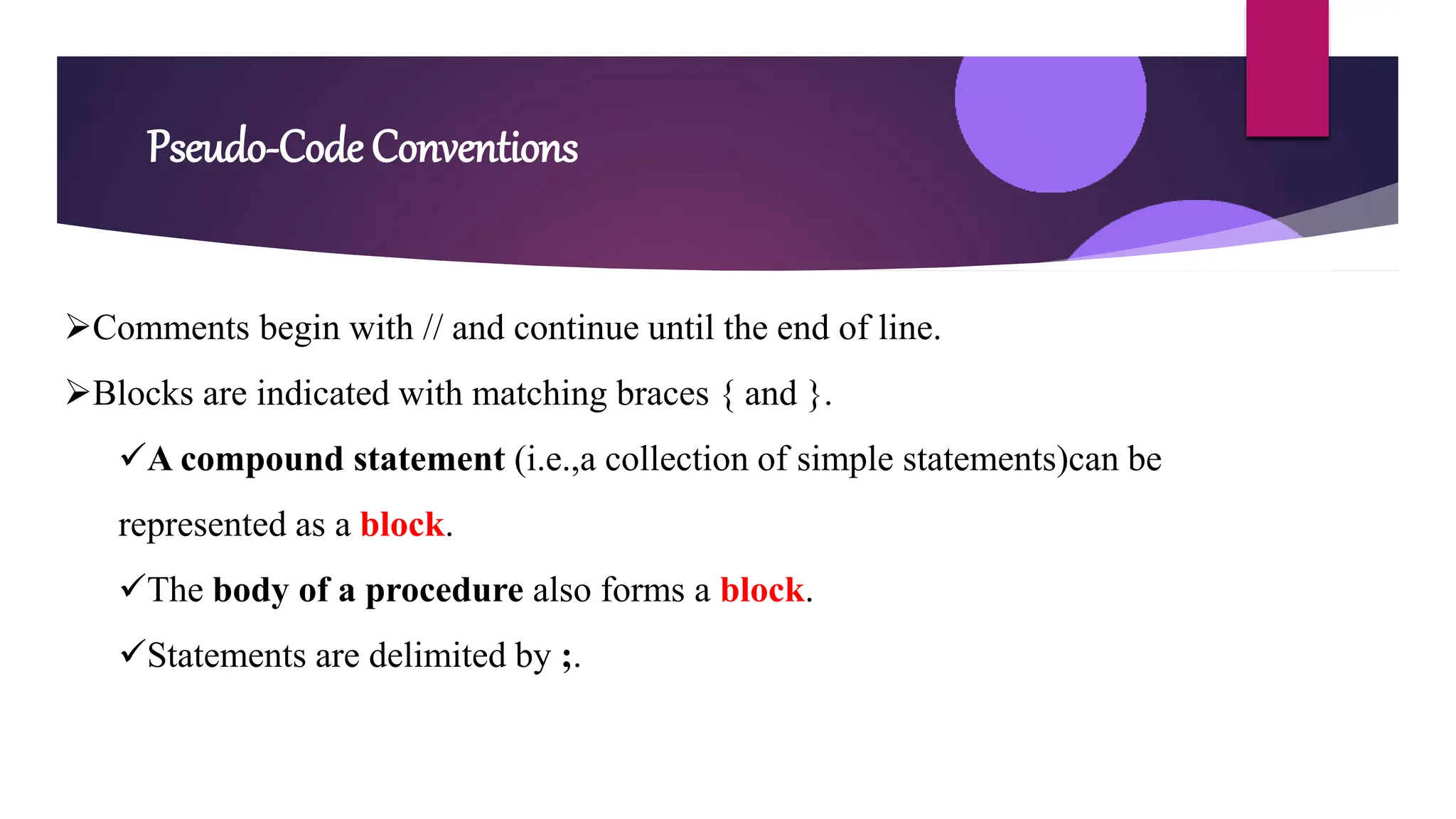

Pseudo-Code Conventions
Comments begin with // and continue until the end of line.
Blocks are indicated with matching braces { and }.
A compound statement (i.e.,a collection of simple statements)can be
represented as a block.
The body of a procedure also forms a block.
Statements are delimited by ;.

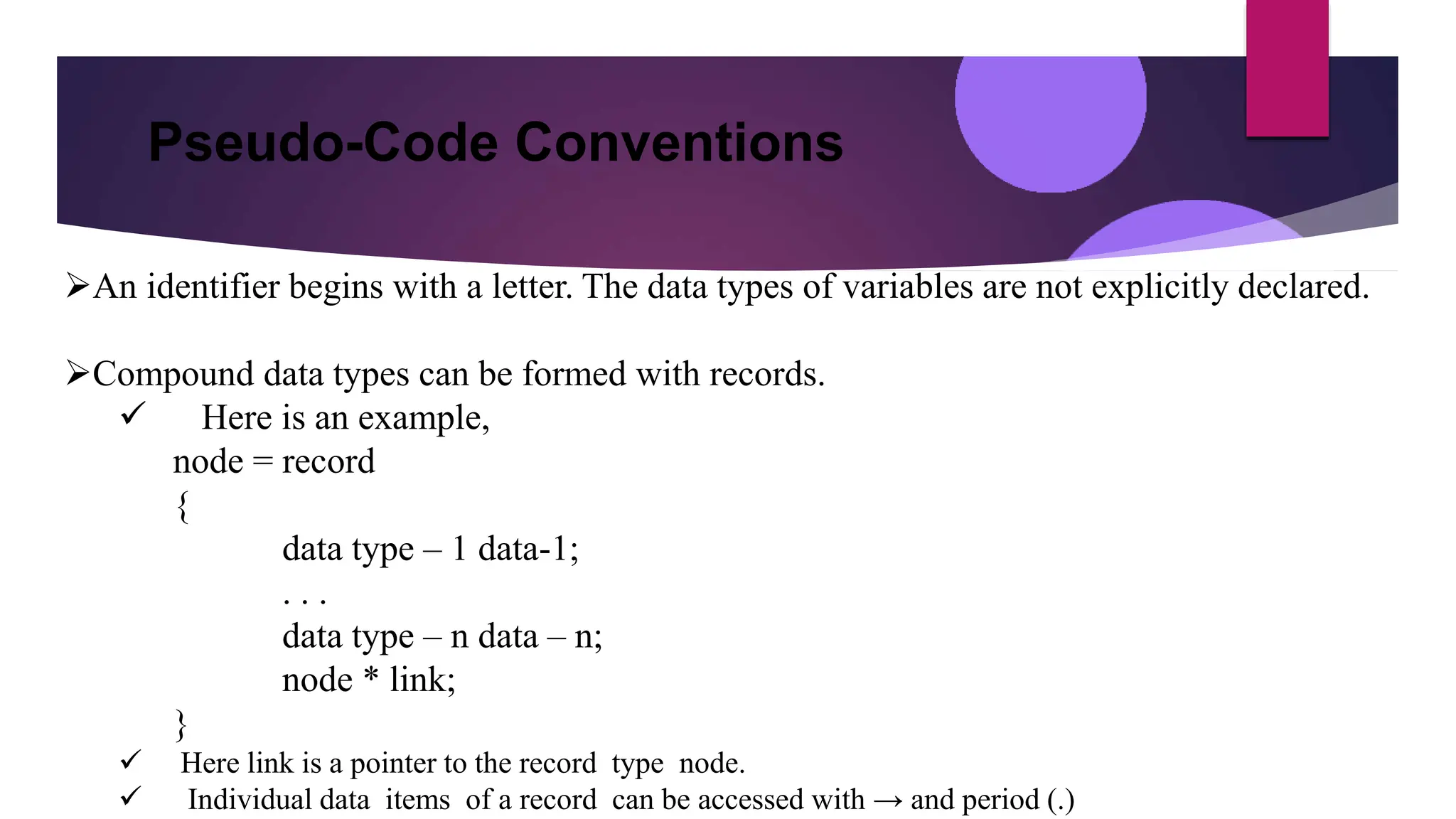

An identifier begins with a letter. The data types of variables are not explicitly declared.
Compound data types can be formed with records.
 Here is an example,
node = record
{
data type – 1 data-1;
. . .
data type – n data – n;
node * link;
}
 Here link is a pointer to the record type node.
 Individual data items of a record can be accessed with → and period (.)

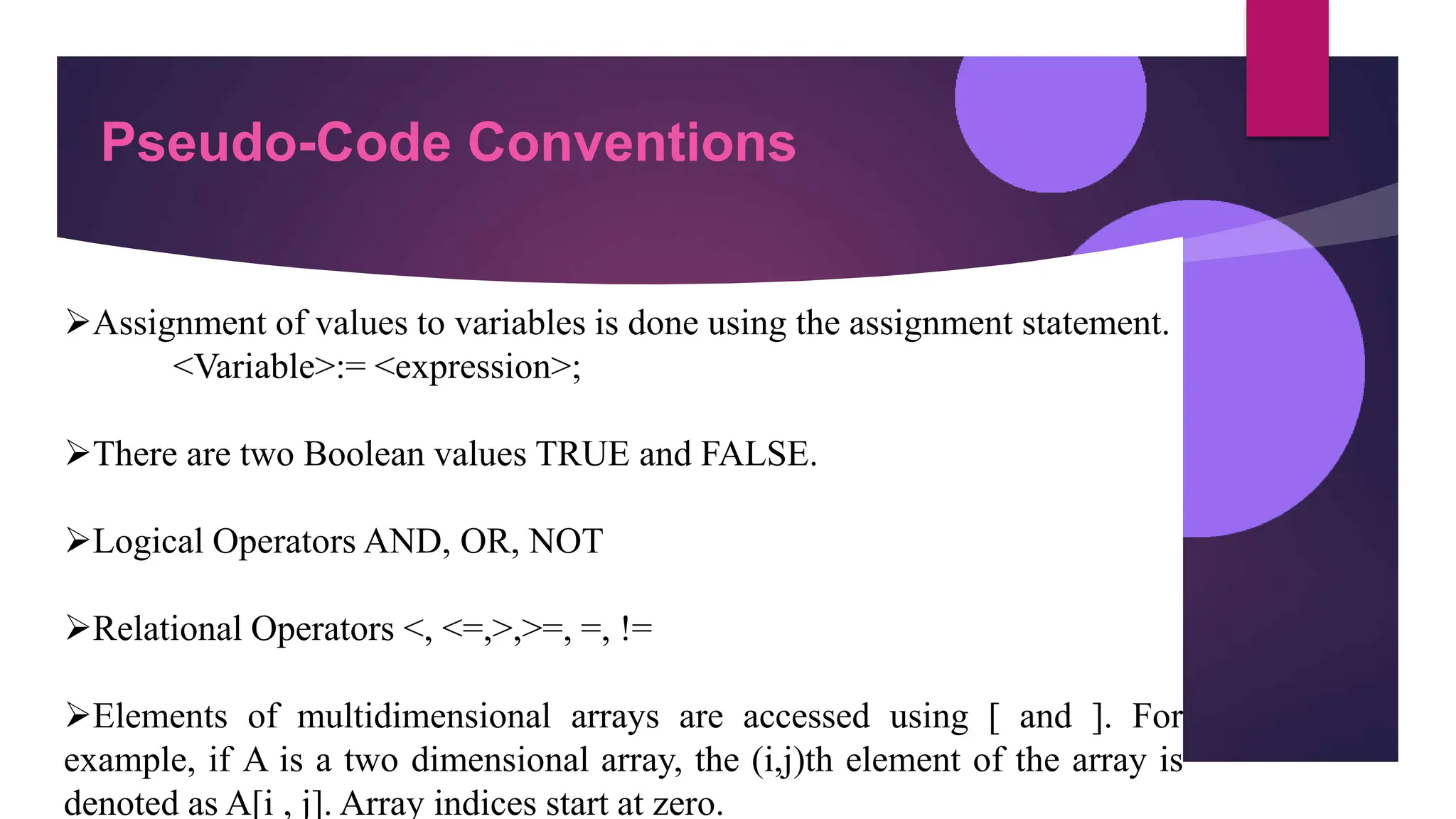

Assignment of values to variables is done using the assignment statement.
<Variable>:= <expression>;
There are two Boolean values TRUE and FALSE.
Logical Operators AND, OR, NOT
Relational Operators <, <=,>,>=, =, !=
Elements of multidimensional arrays are accessed using [ and ]. For
example, if A is a two dimensional array, the (i,j)th element of the array is
denoted as A[i , j]. Array indices start at zero.

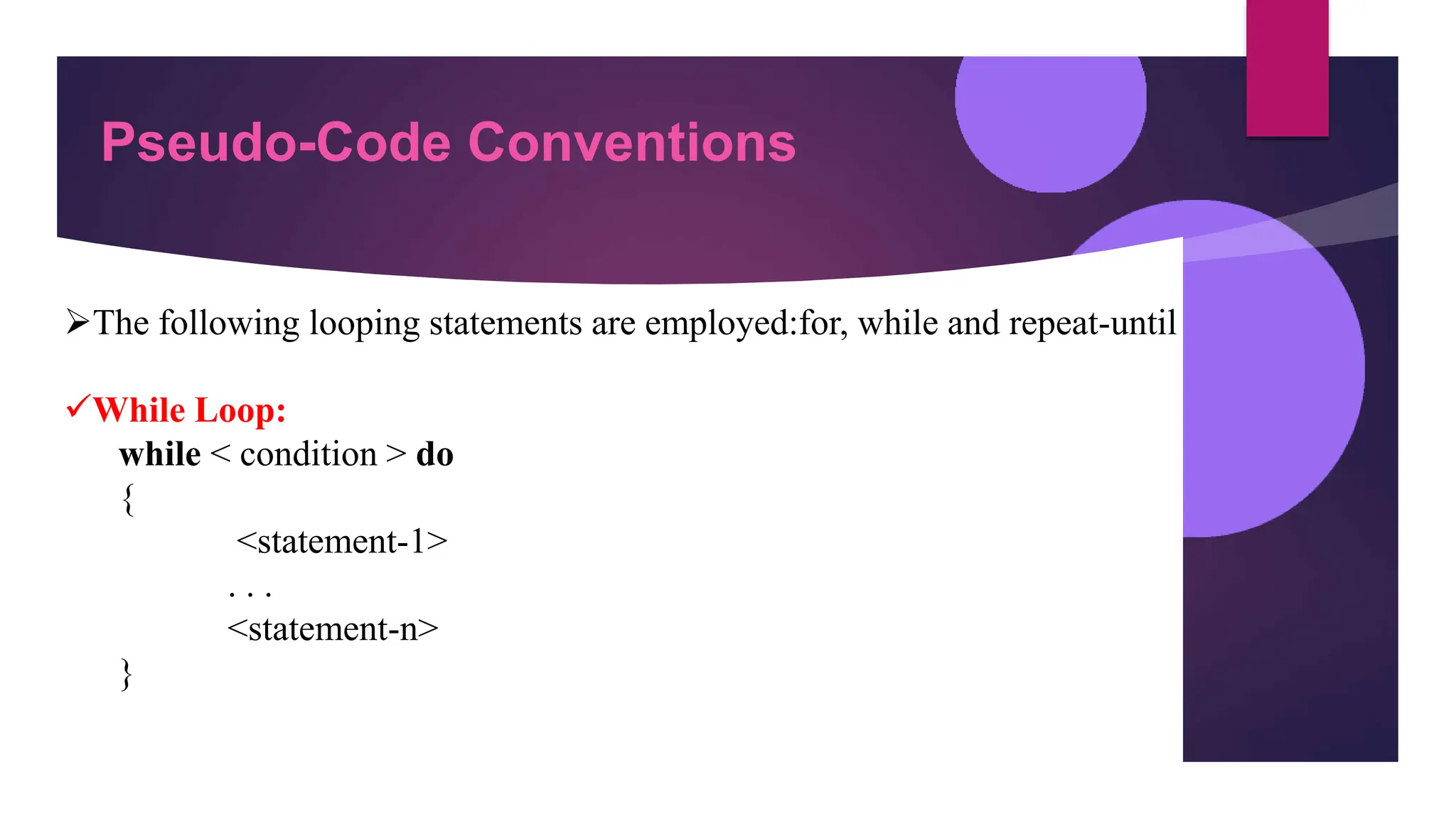

The following looping statements are employed:for, while and repeat-until
While Loop:
while < condition > do
{
<statement-1>
. . .
<statement-n>
}

For Loop:
for variable: = value-1 to value-2 step step do
{
<statement-1>
. . .
<statement-n>
}
The clause “step step” is optional and taken as +1 if it does not occur,
step could either be positive or negative.

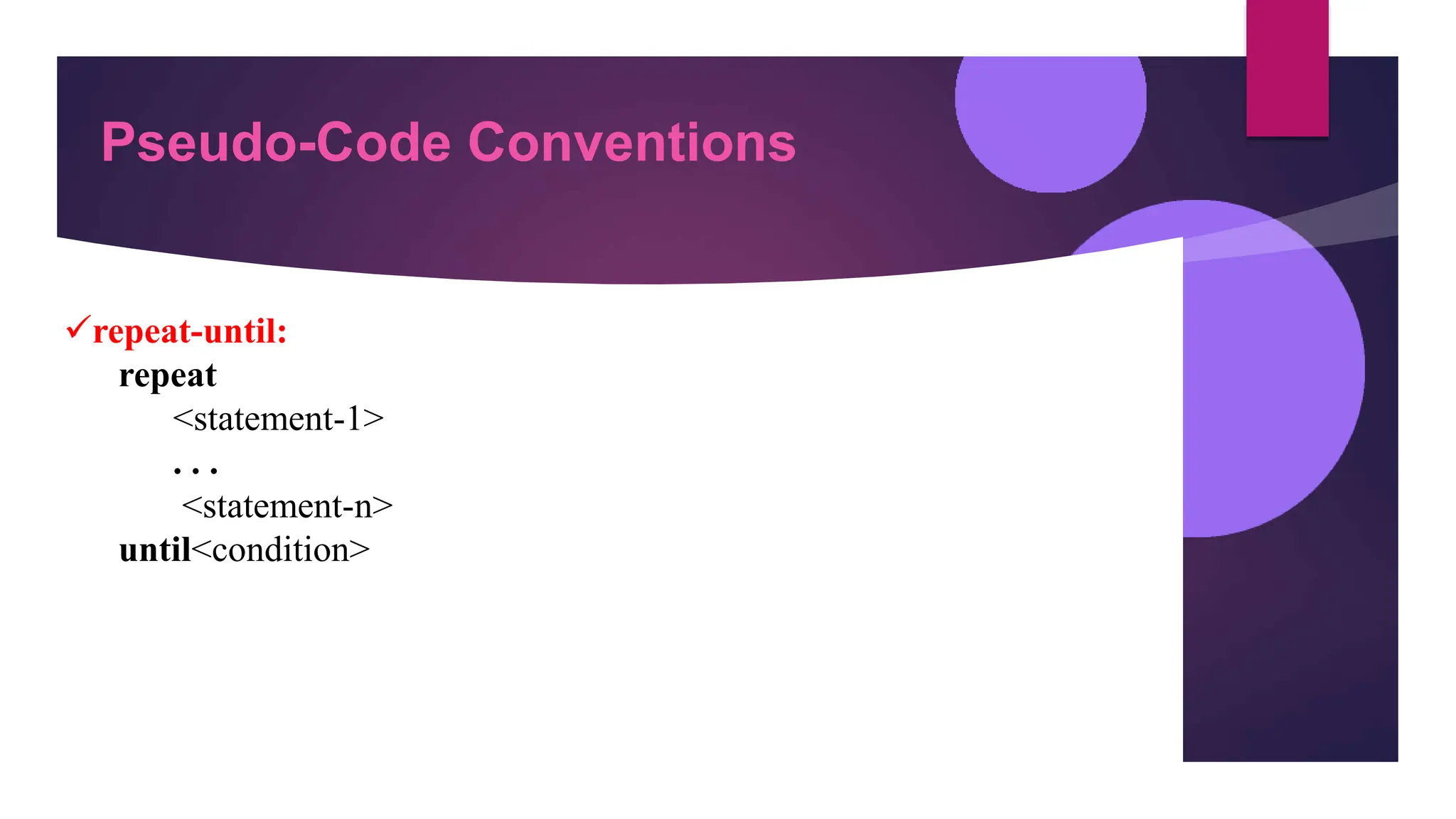

repeat-until:
repeat
<statement-1>
. . .
<statement-n>
until<condition>

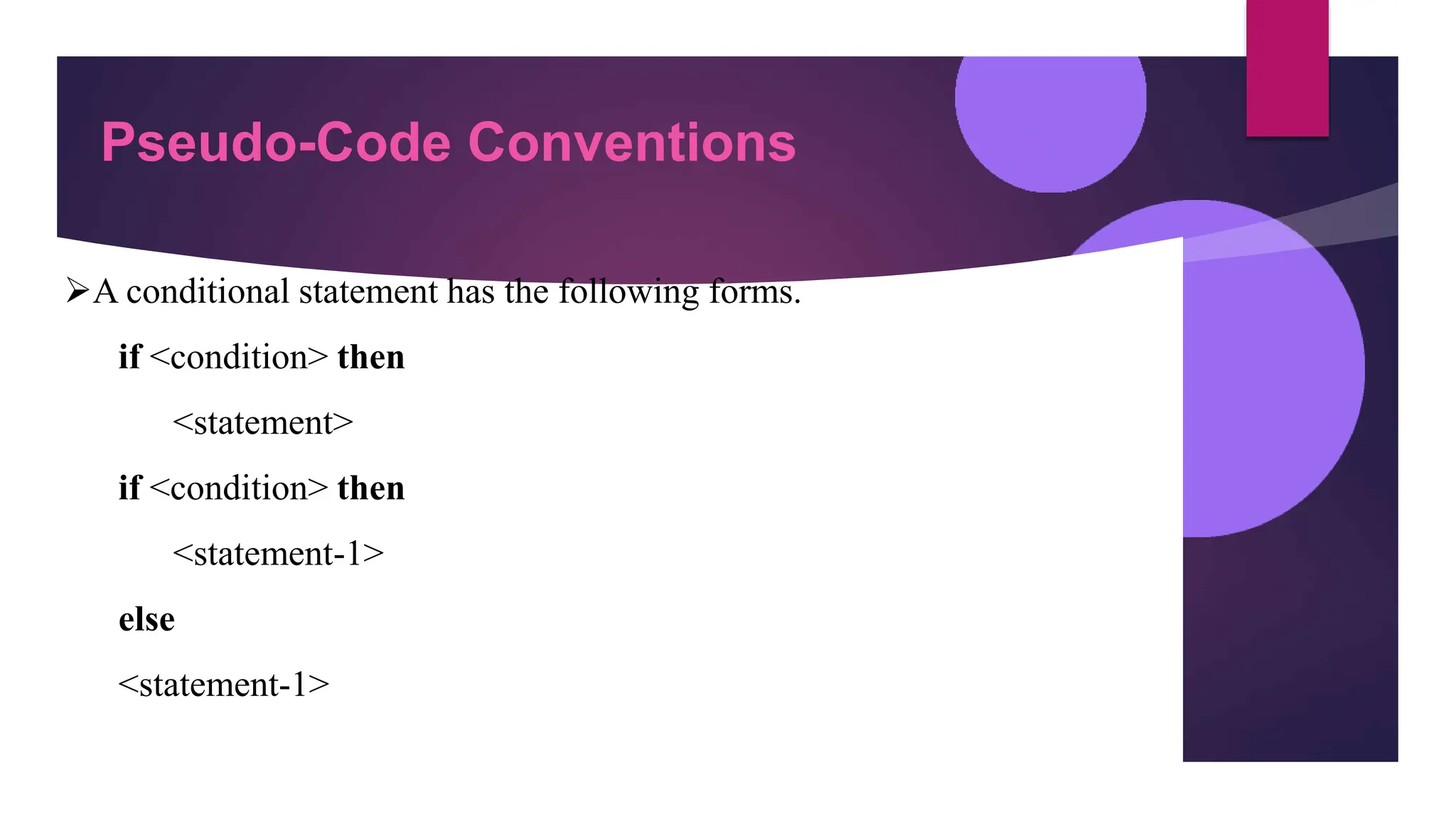

A conditional statement has the following forms.
if <condition> then
<statement>
if <condition> then
<statement-1>
else
<statement-1>

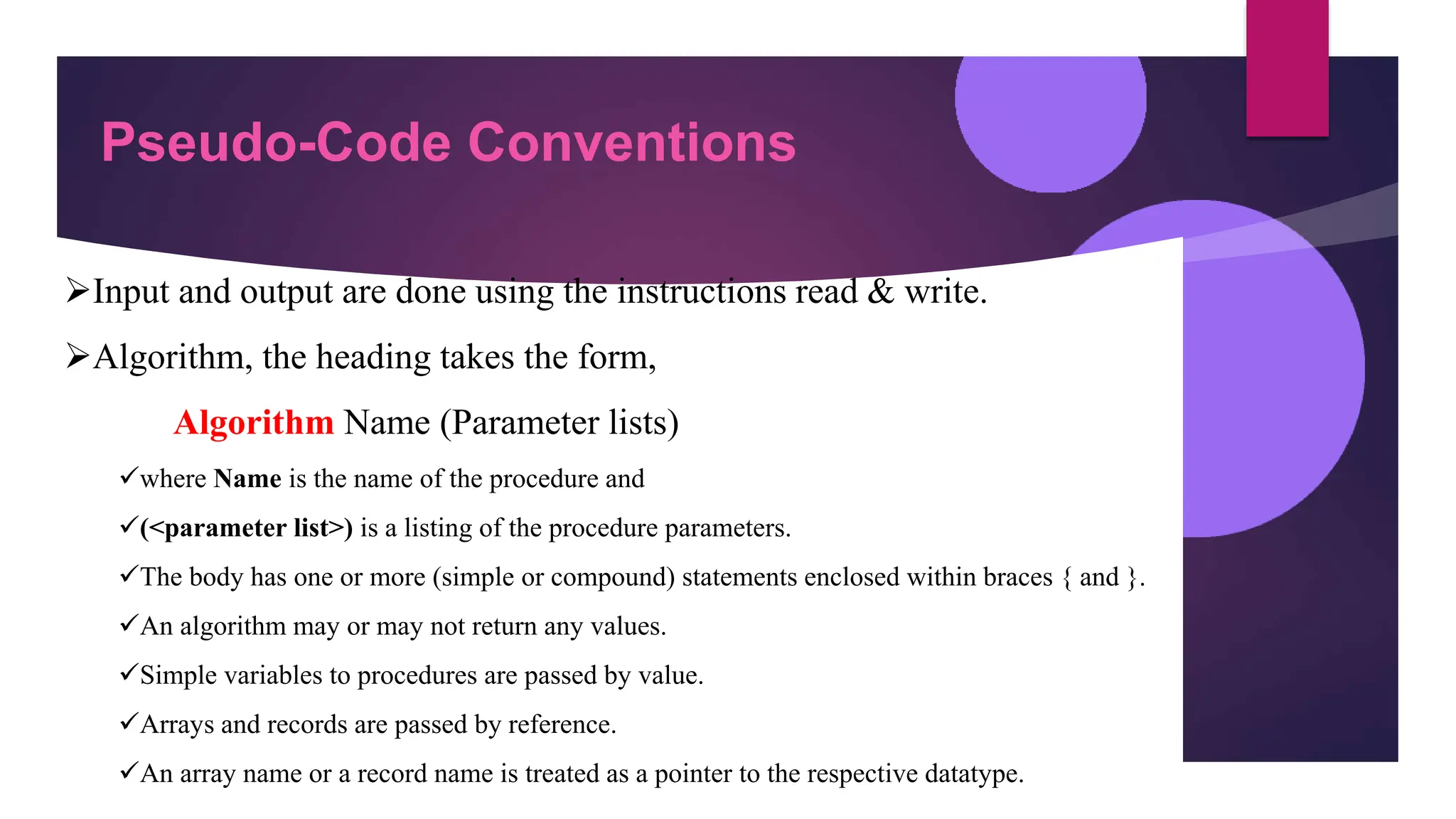

Input and output are done using the instructions read & write.
Algorithm, the heading takes the form,
Algorithm Name (Parameter lists)
where Name is the name of the procedure and
(<parameter list>) is a listing of the procedure parameters.
The body has one or more (simple or compound) statements enclosed within braces { and }.
An algorithm may or may not return any values.
Simple variables to procedures are passed by value.
Arrays and records are passed by reference.
An array name or a record name is treated as a pointer to the respective datatype.

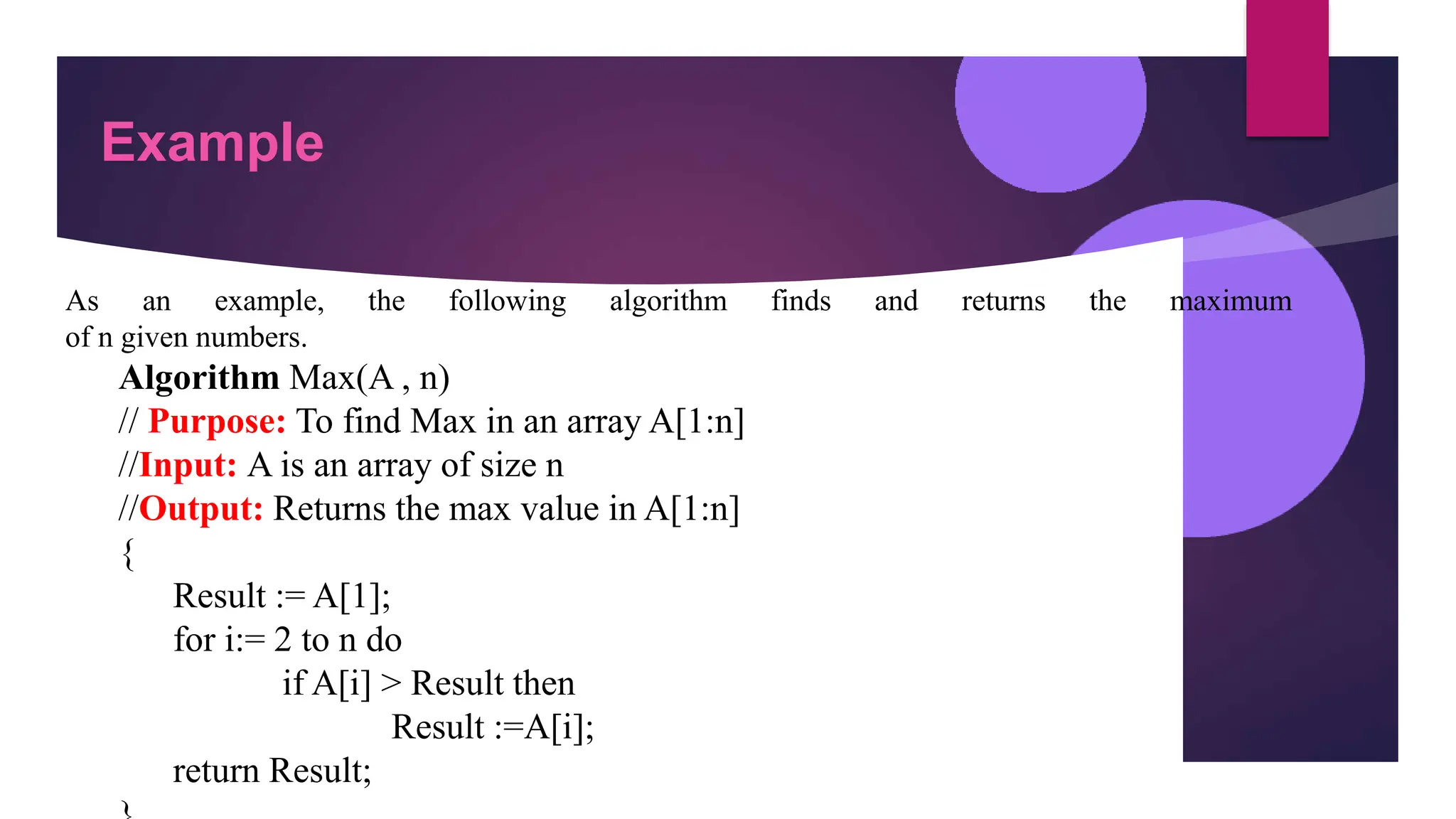

Example

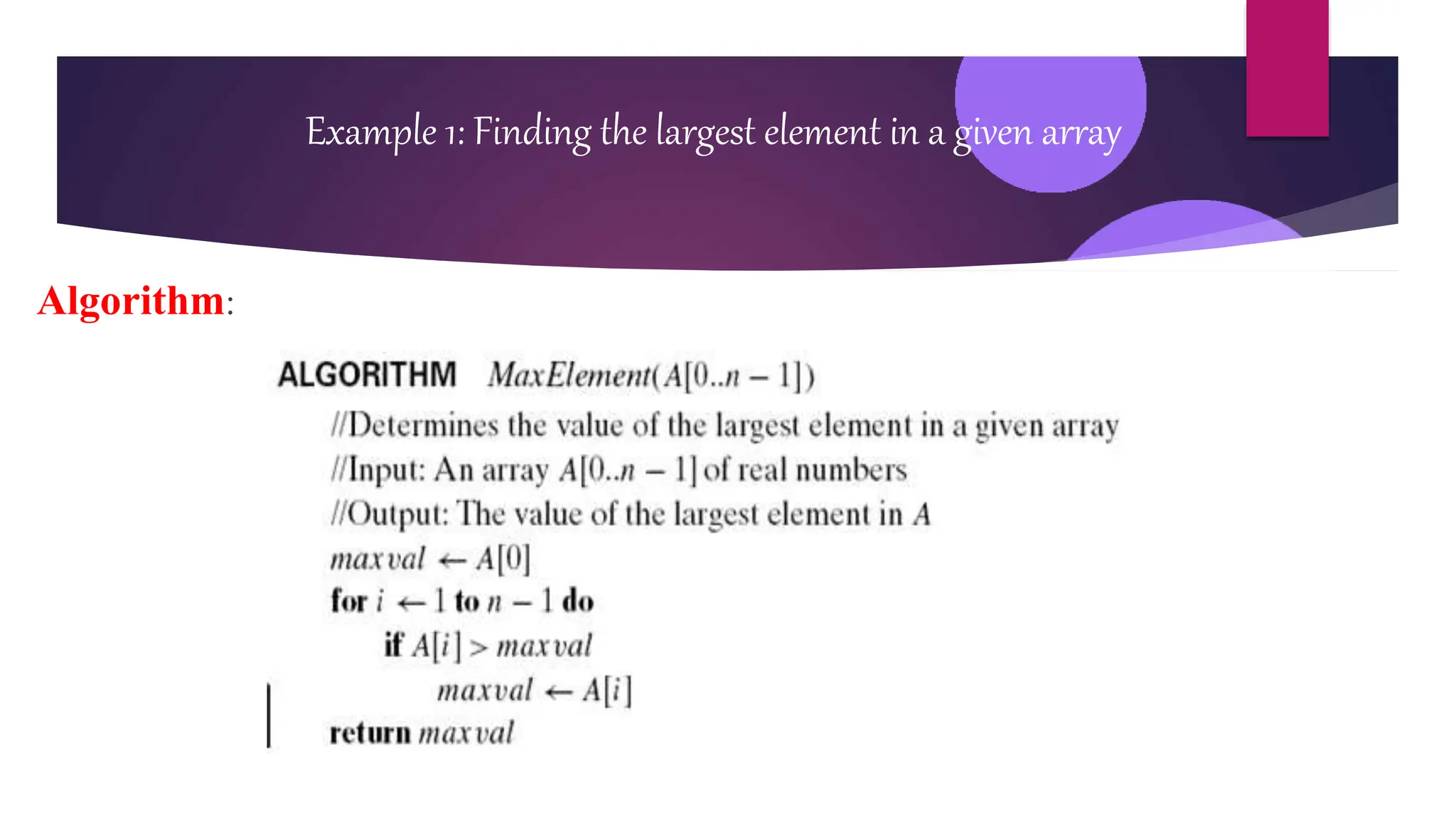

As an example, the following algorithm finds and returns the maximum
of n given numbers.
Algorithm Max(A , n)
// Purpose: To find Max in an array A[1:n]
//Input: A is an array of size n
//Output: Returns the max value in A[1:n]
{
Result := A[1];
for i:= 2 to n do
if A[i] > Result then
Result :=A[i];
return Result;

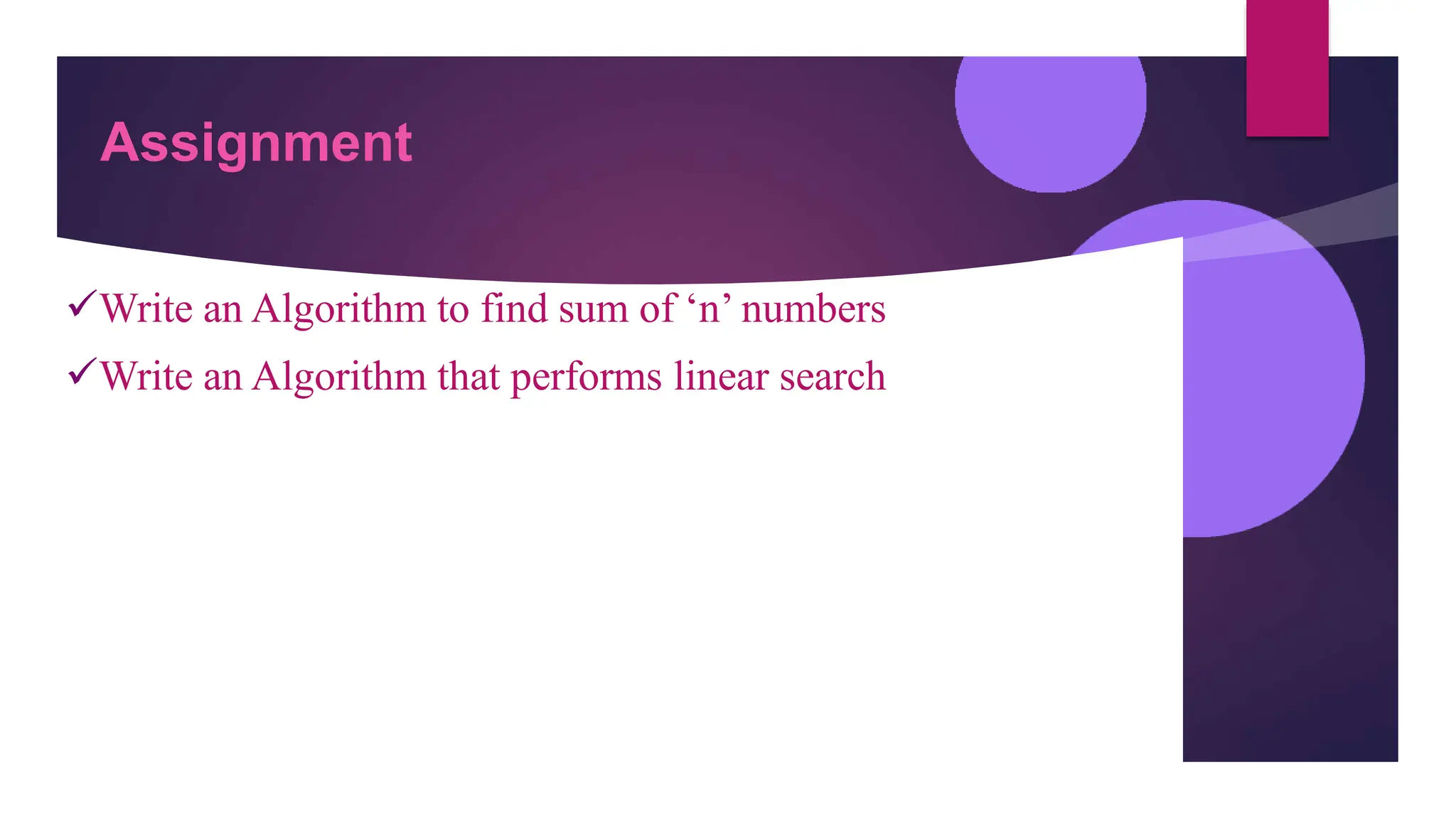

Assignment
Write an Algorithm to find sum of ‘n’ numbers
Write an Algorithm that performs linear search

RECAP….
Example
Assignment

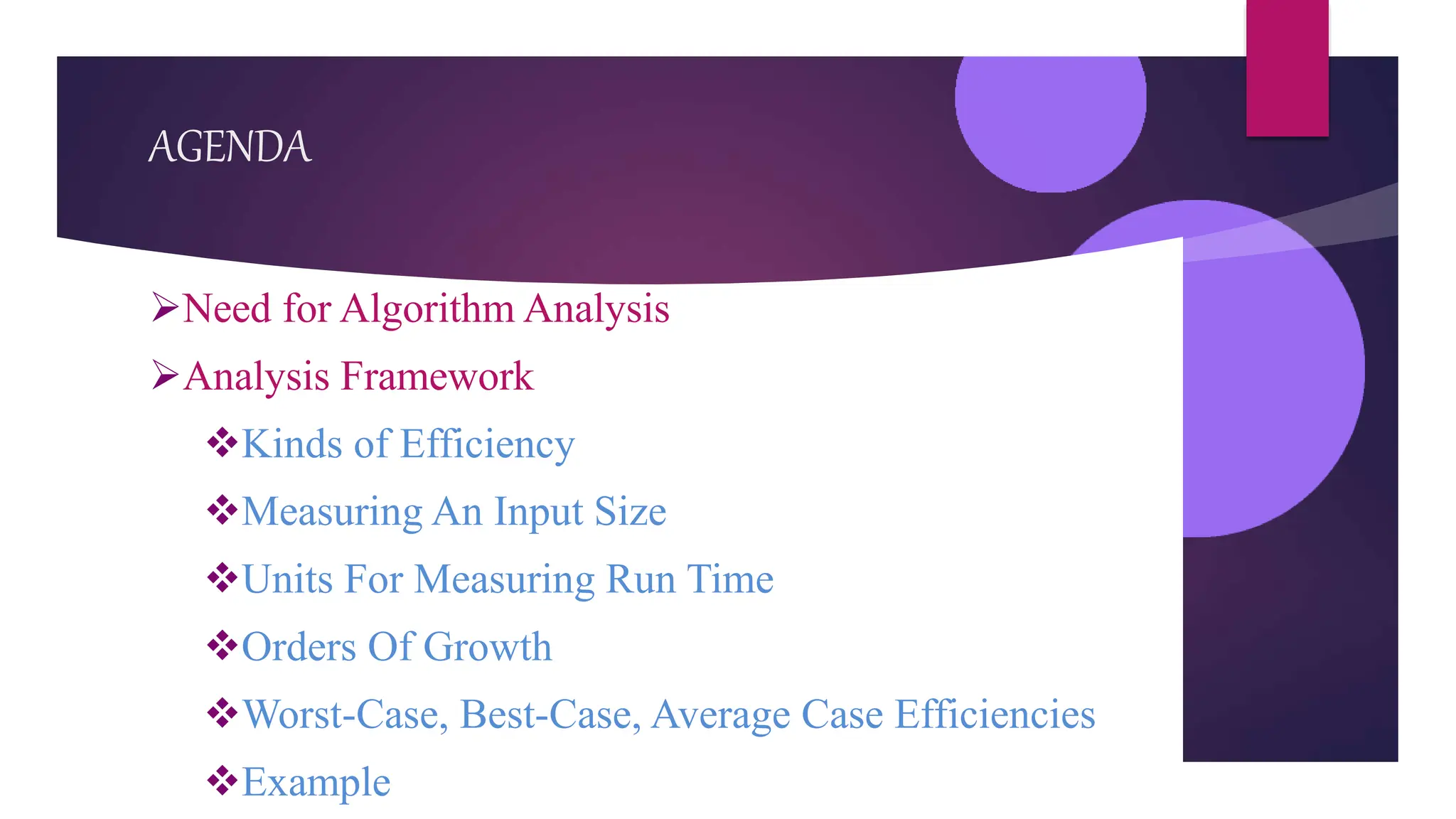

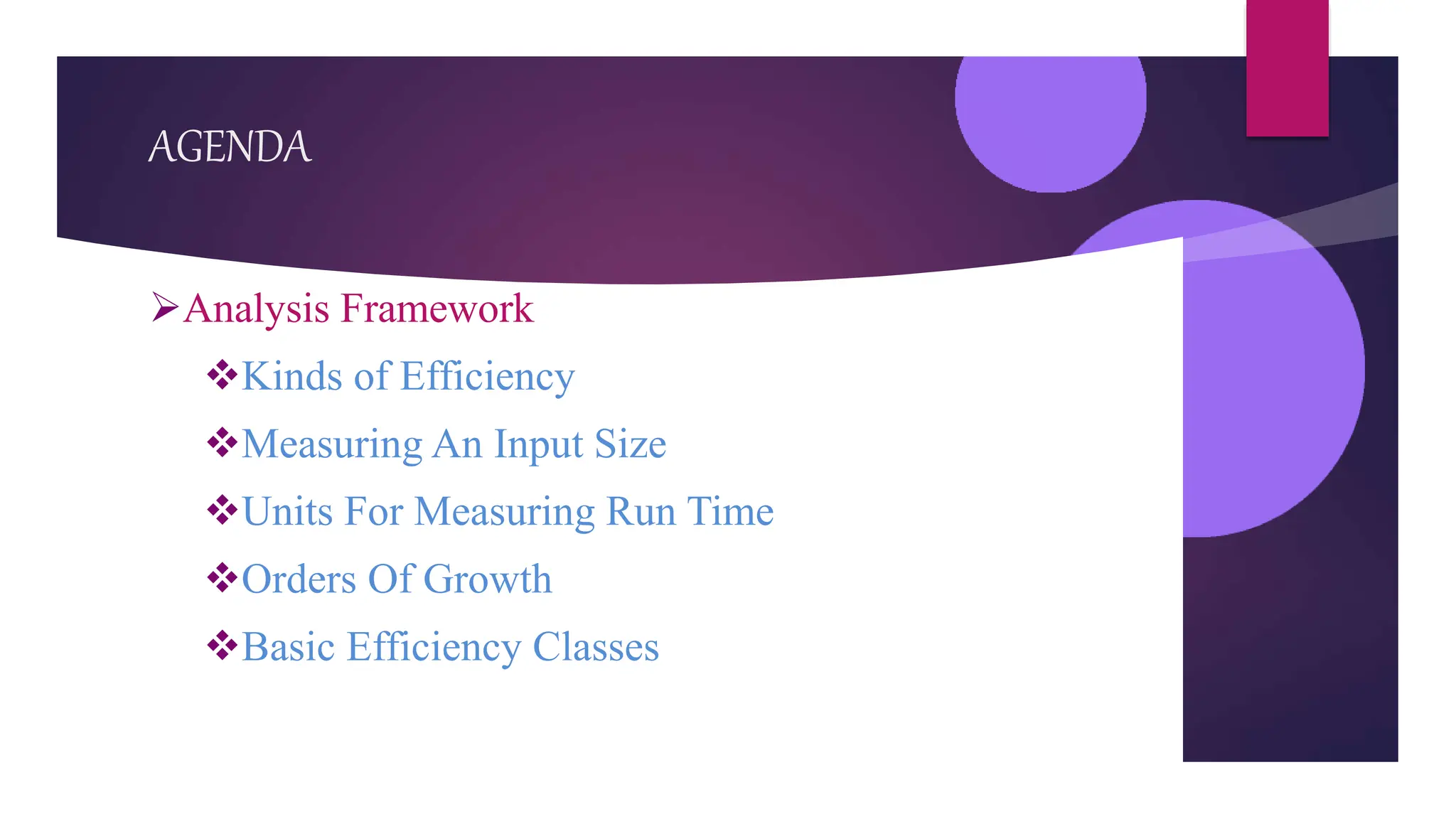

AGENDA
Need for Algorithm Analysis
Analysis Framework
Kinds of Efficiency
Measuring An Input Size
Units For Measuring Run Time
Orders Of Growth

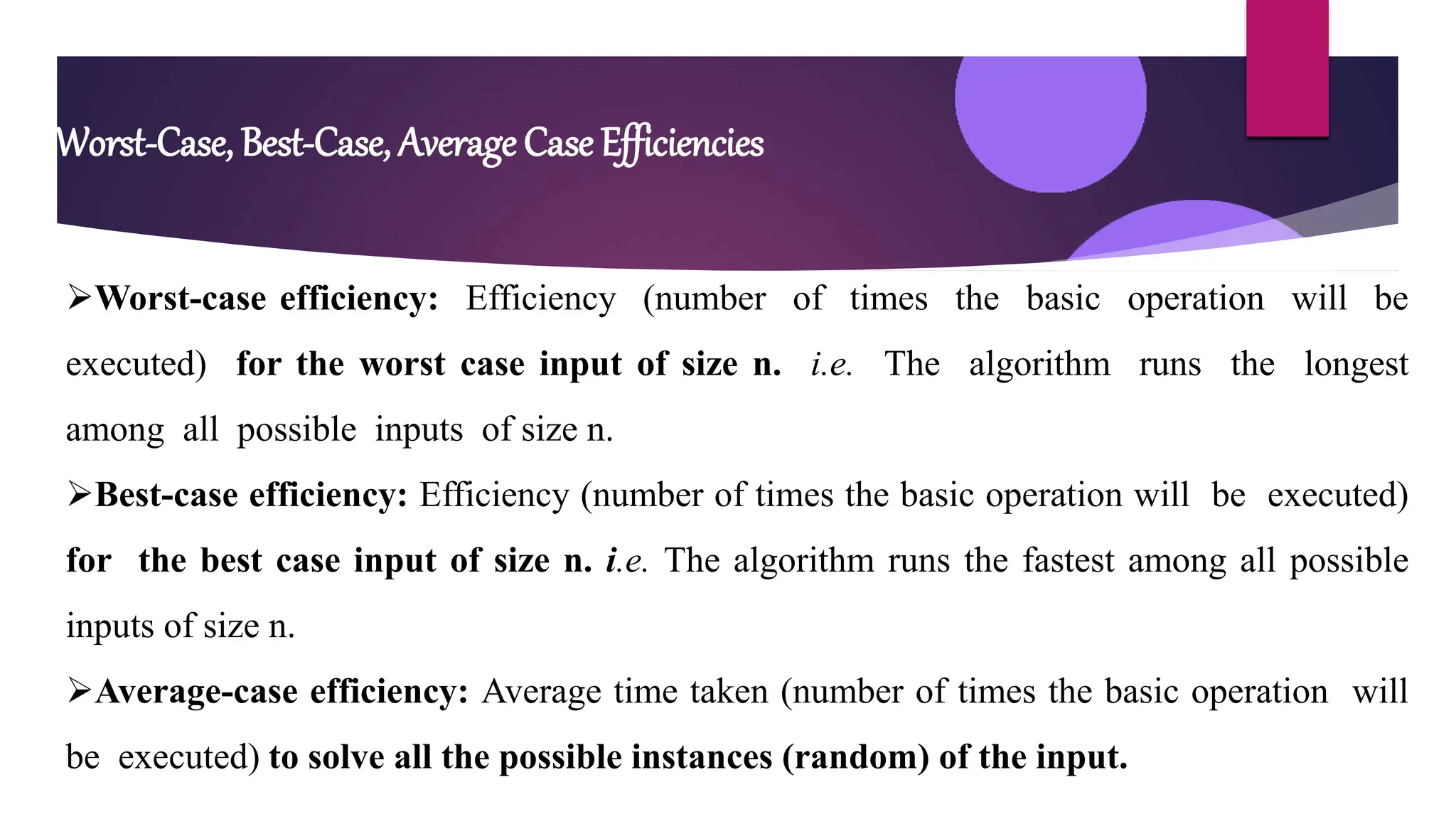

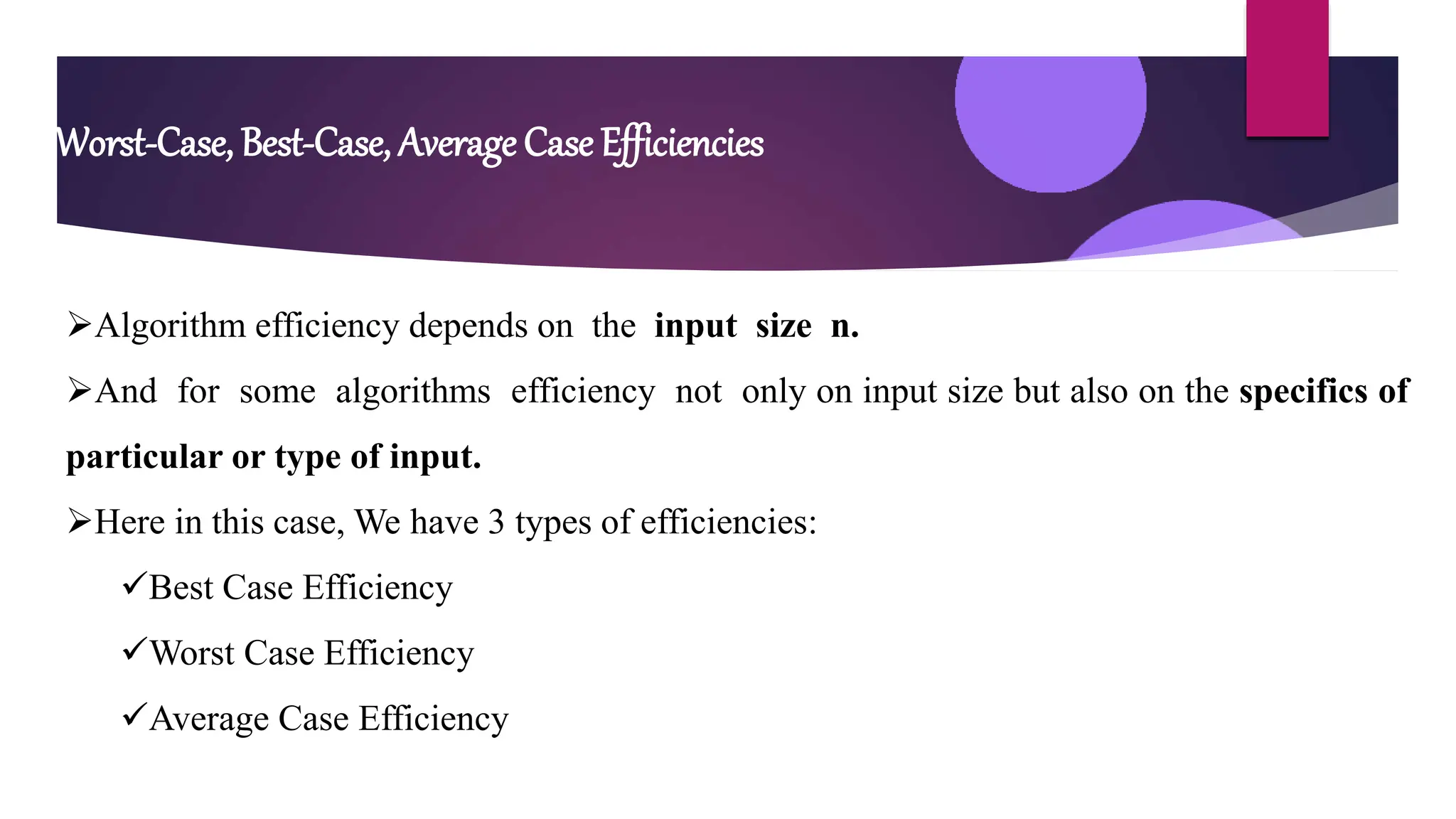

Worst-Case, Best-Case, Average Case Efficiencies
Example

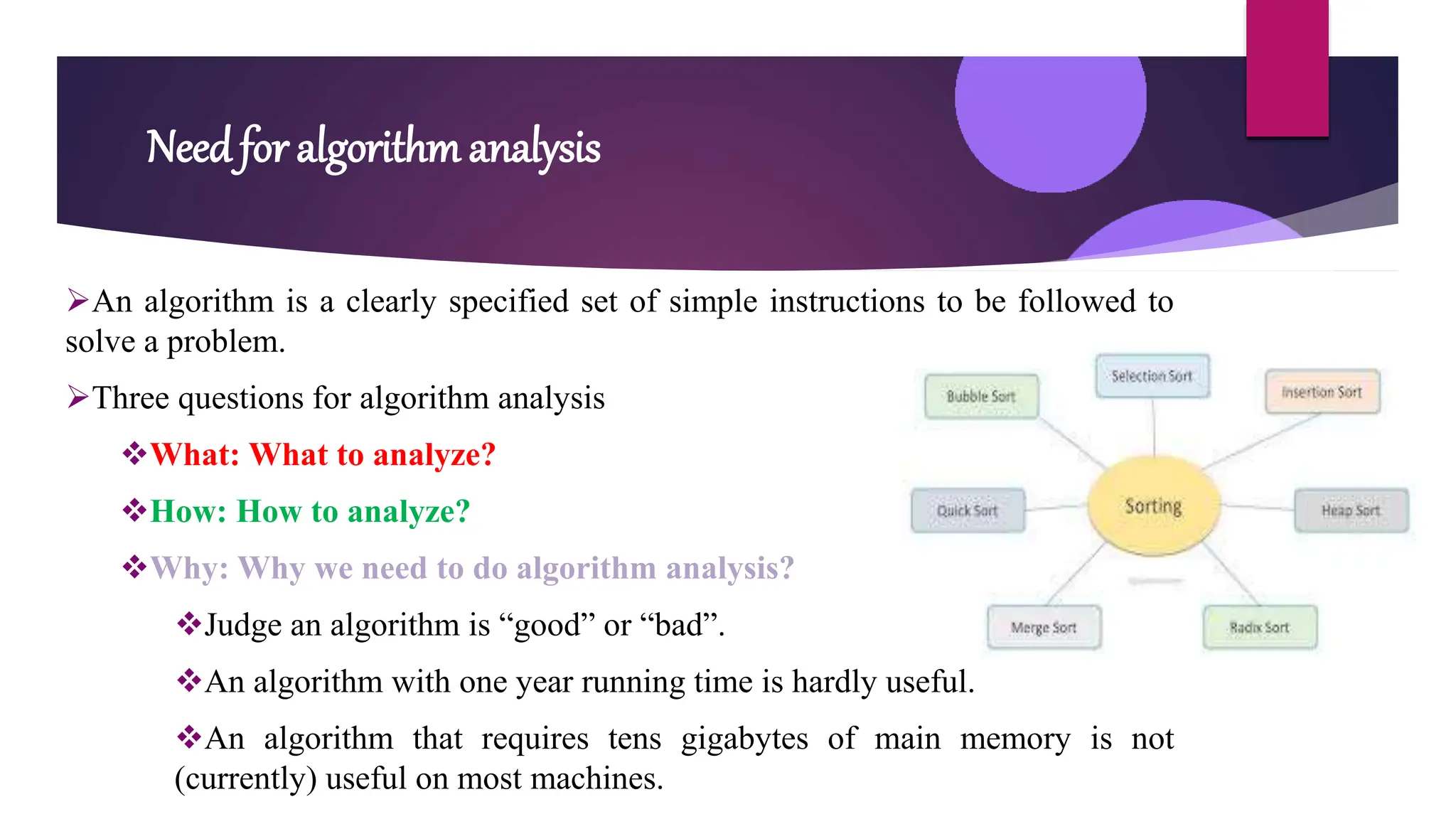

Needfor algorithm analysis
An algorithm is a clearly specified set of simple instructions to be followed to
solve a problem.
Three questions for algorithm analysis
What: What to analyze?
How: How to analyze?
Why: Why we need to do algorithm analysis?
Judge an algorithm is “good” or “bad”.
An algorithm with one year running time is hardly useful.
An algorithm that requires tens gigabytes of main memory is not
(currently) useful on most machines.

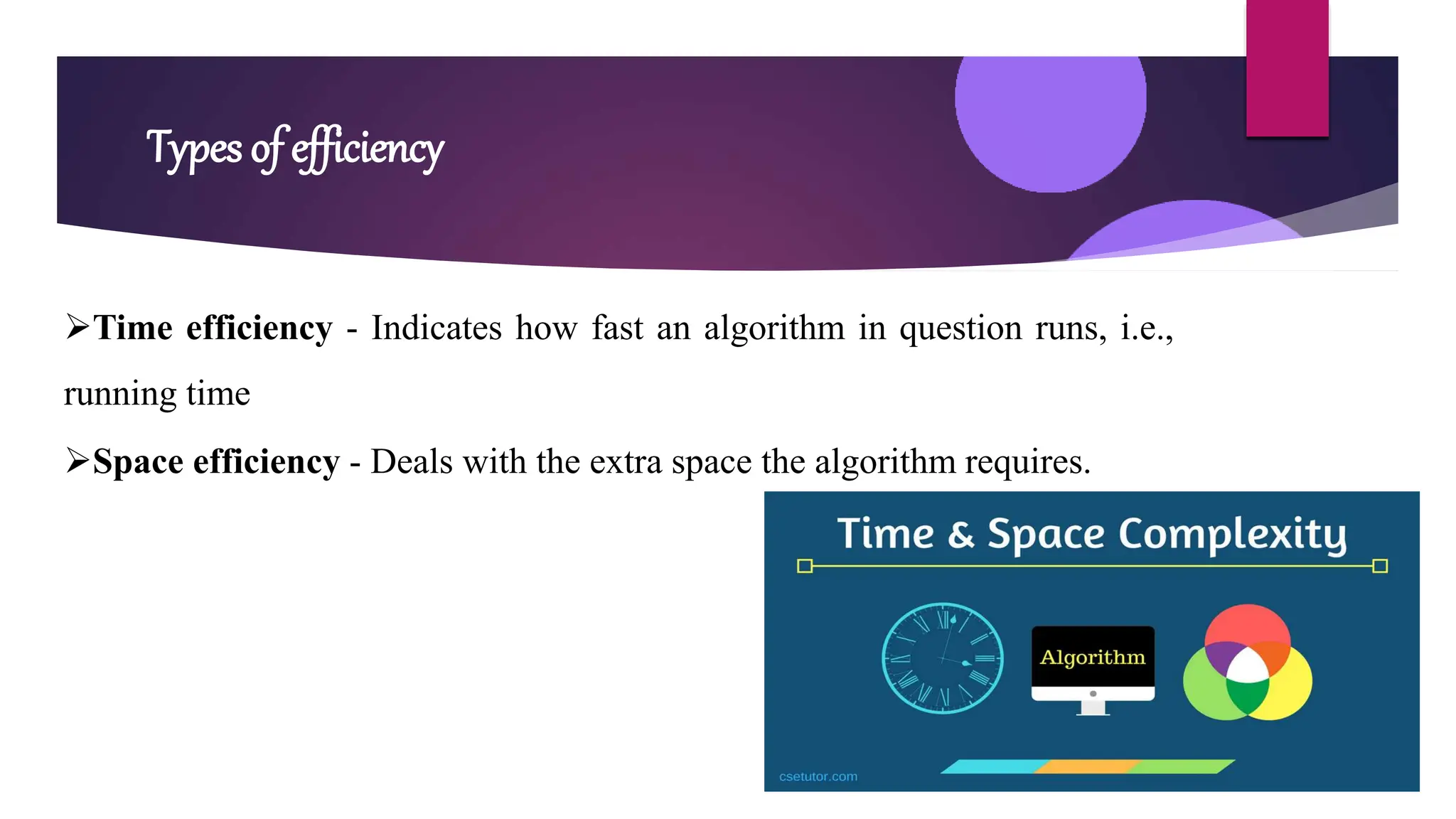

Types of efficiency
Time efficiency - Indicates how fast an algorithm in question runs, i.e.,
running time
Space efficiency - Deals with the extra space the algorithm requires.

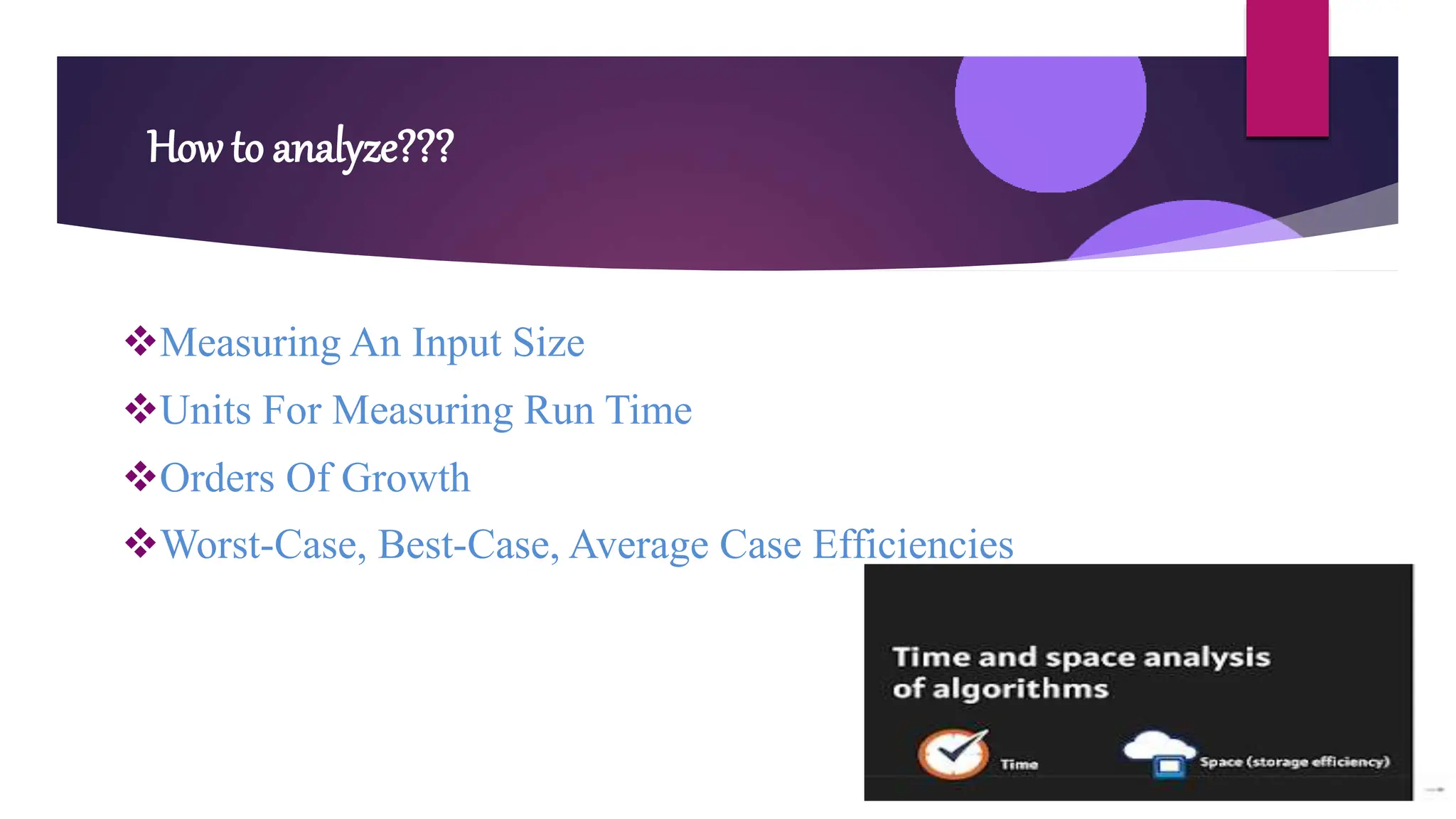

How to analyze???

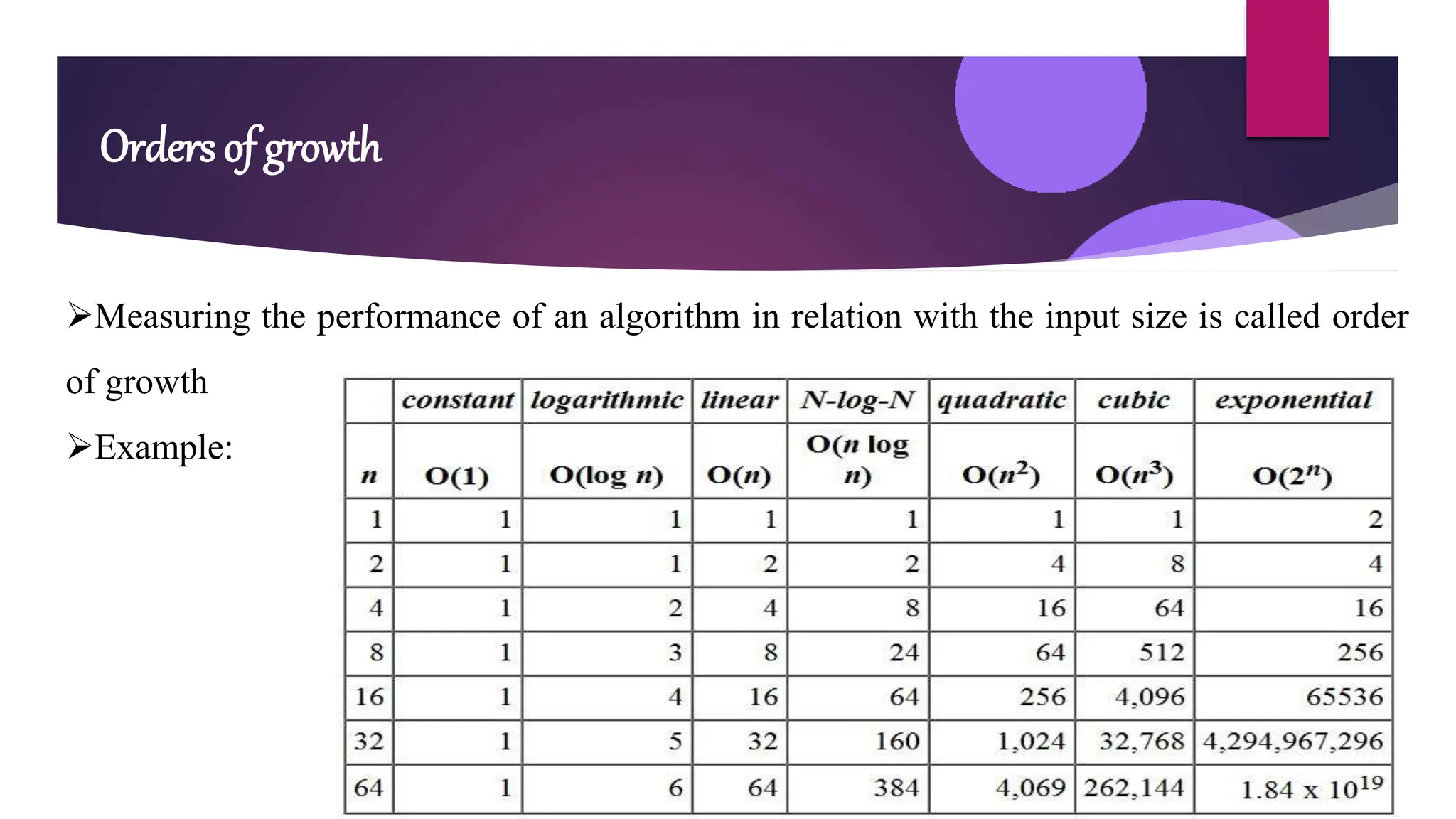

Orders Of Growth

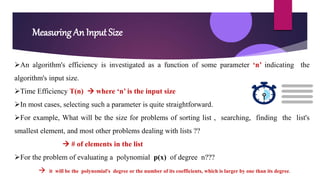

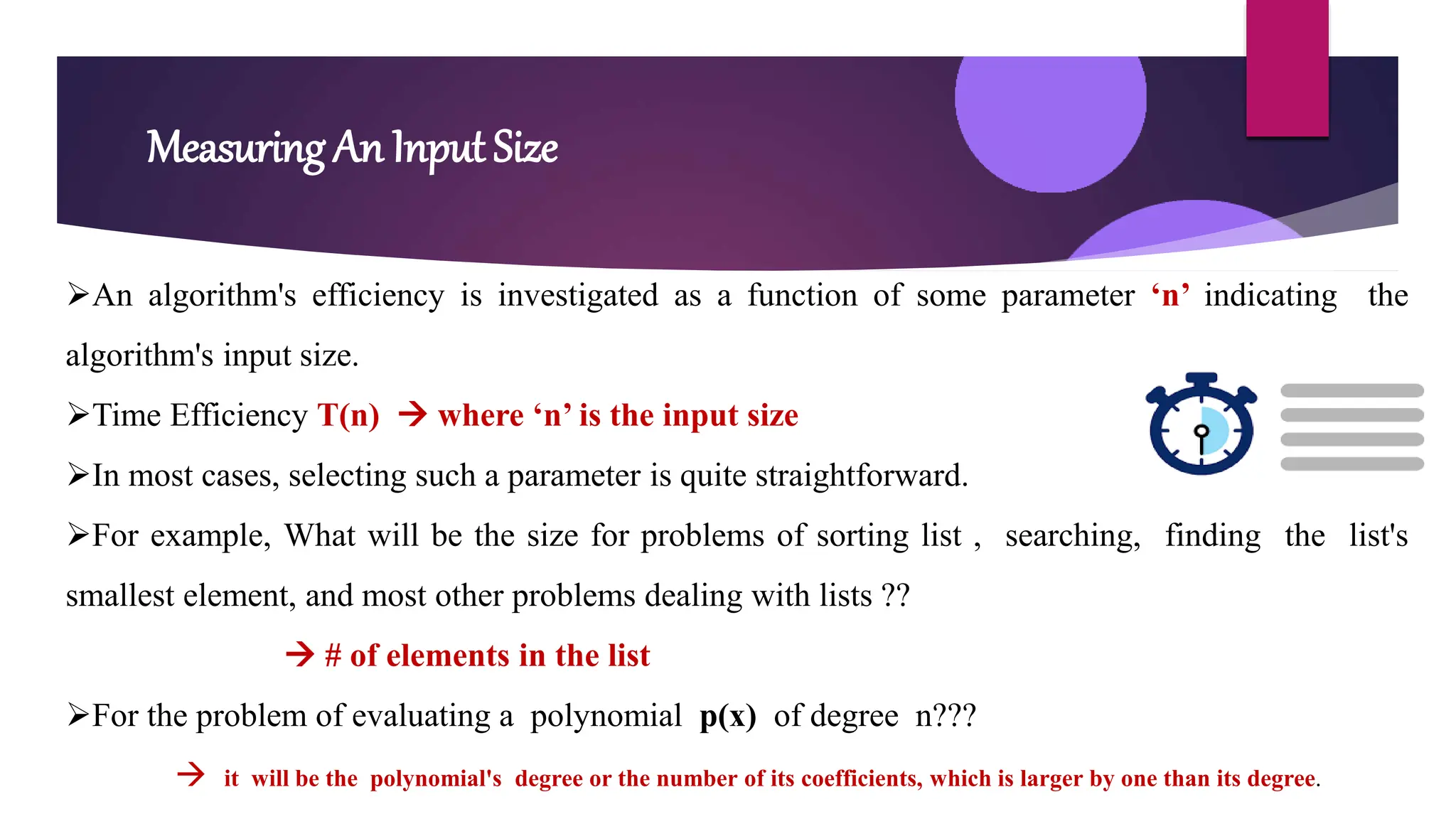

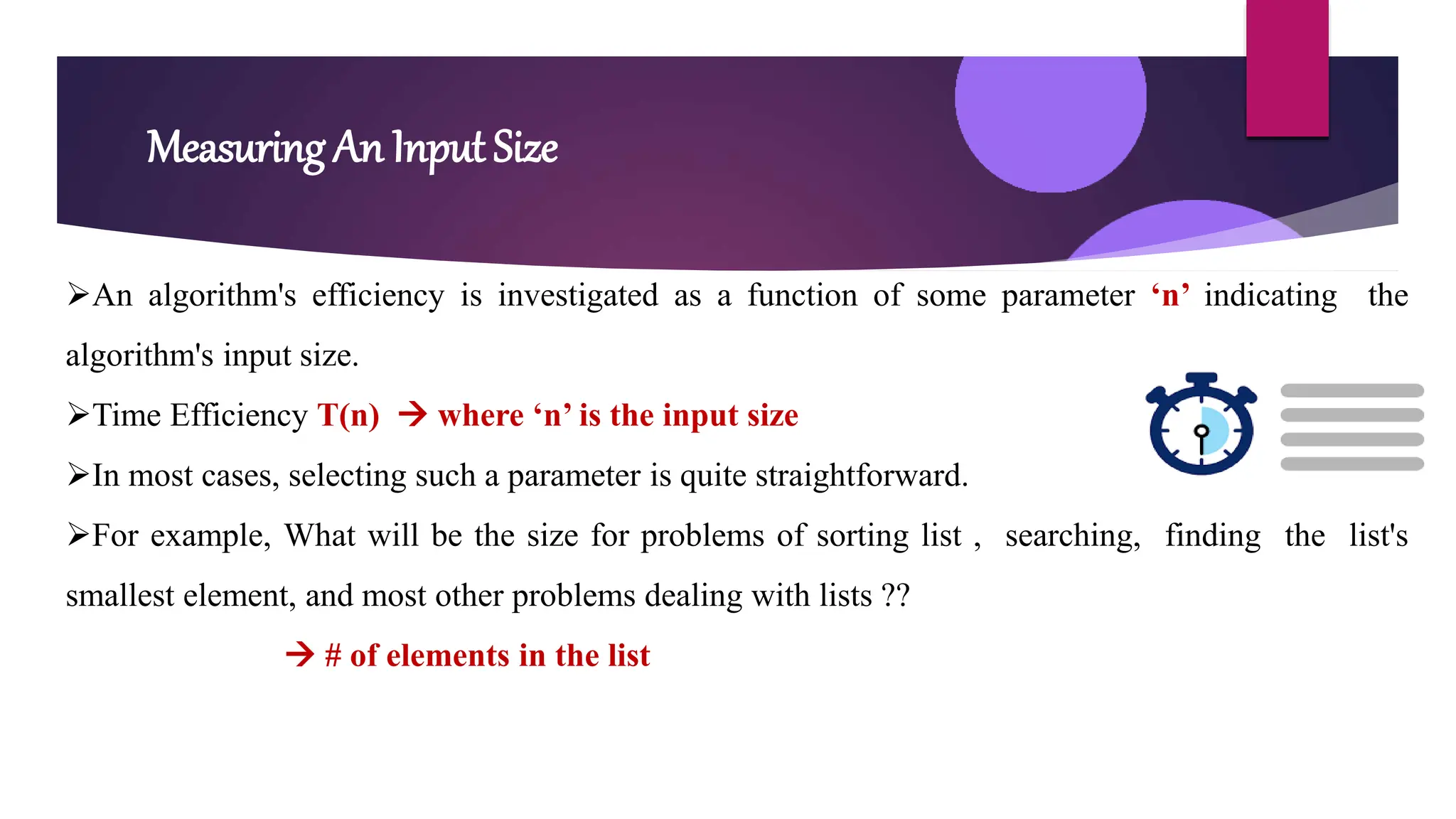

Measuring An Input Size
An algorithm's efficiency is investigated as a function of some parameter ‘n’ indicating the
algorithm's input size.
Time Efficiency T(n)  where ‘n’ is the input size
In most cases, selecting such a parameter is quite straightforward.
For example, What will be the size for problems of sorting list , searching, finding the list's
smallest element, and most other problems dealing with lists ??
 # of elements in the list
For the problem of evaluating a polynomial p(x) of degree n???
 it will be the polynomial's degree or the number of its coefficients, which is larger by one than its degree.

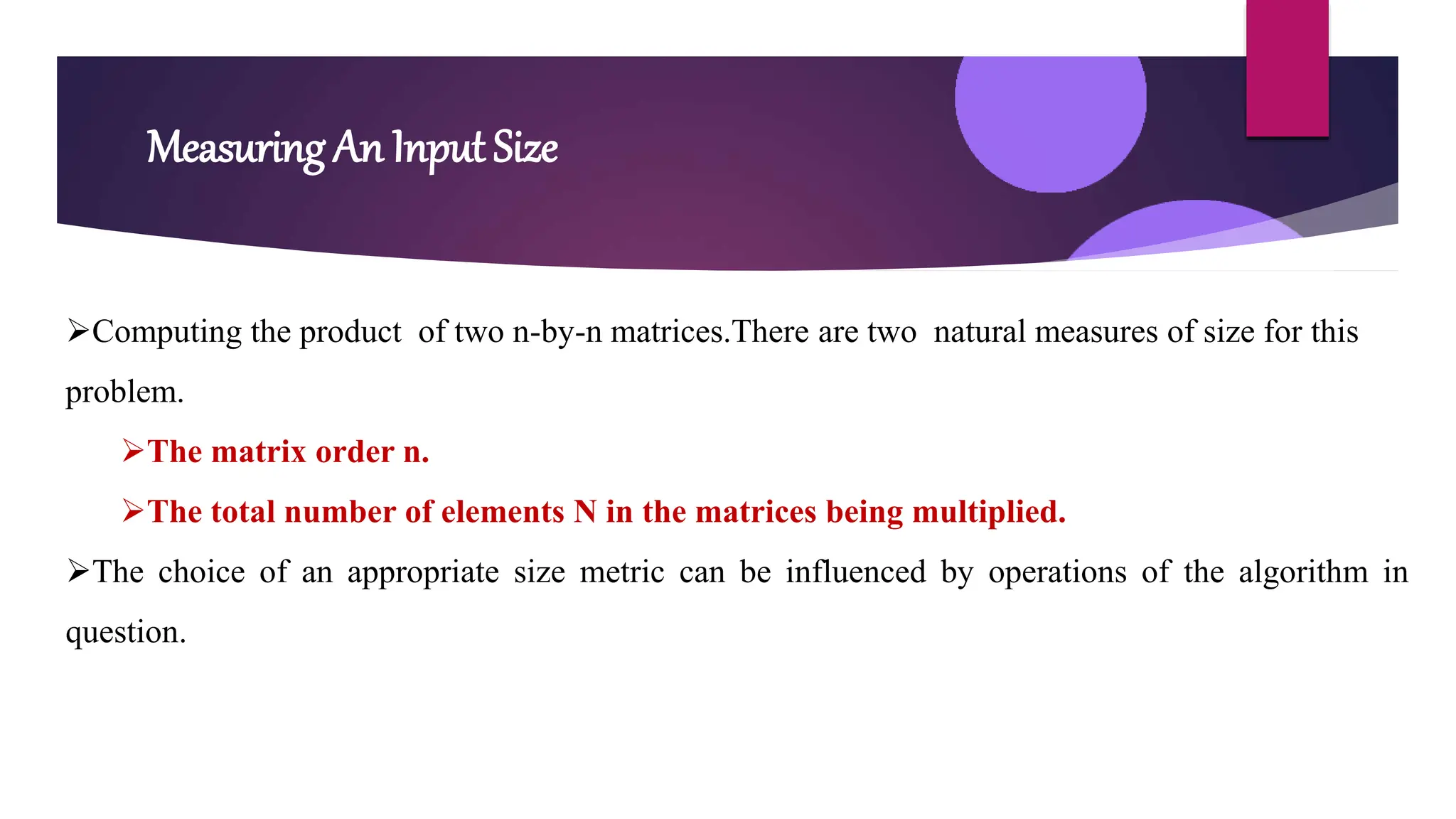

Computing the product of two n-by-n matrices.There are two natural measures of size for this
problem.
The matrix order n.
The total number of elements N in the matrices being multiplied.
The choice of an appropriate size metric can be influenced by operations of the algorithm in
question.

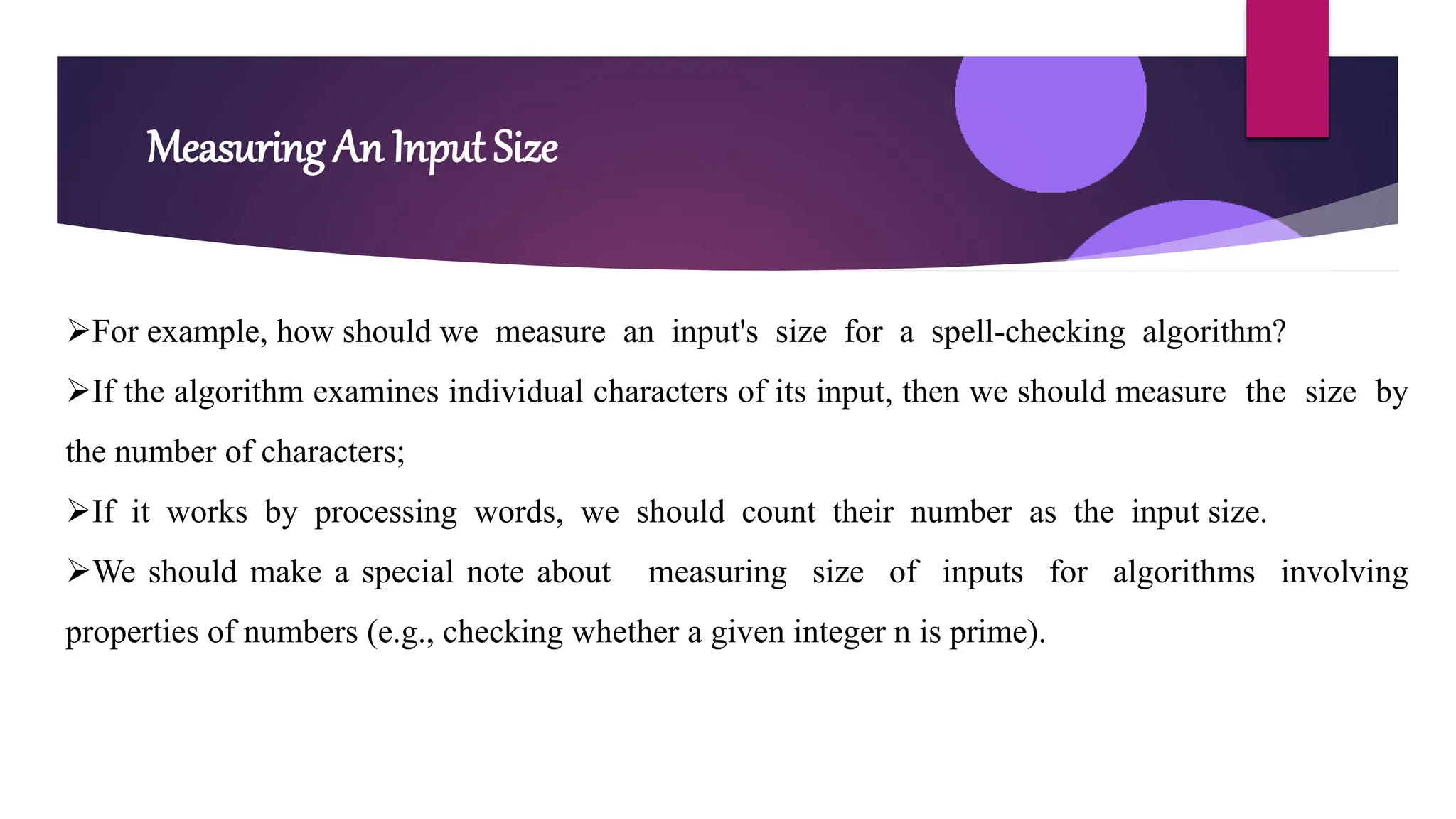

For example, how should we measure an input's size for a spell-checking algorithm?
If the algorithm examines individual characters of its input, then we should measure the size by
the number of characters;
If it works by processing words, we should count their number as the input size.
We should make a special note about measuring size of inputs for algorithms involving
properties of numbers (e.g., checking whether a given integer n is prime).

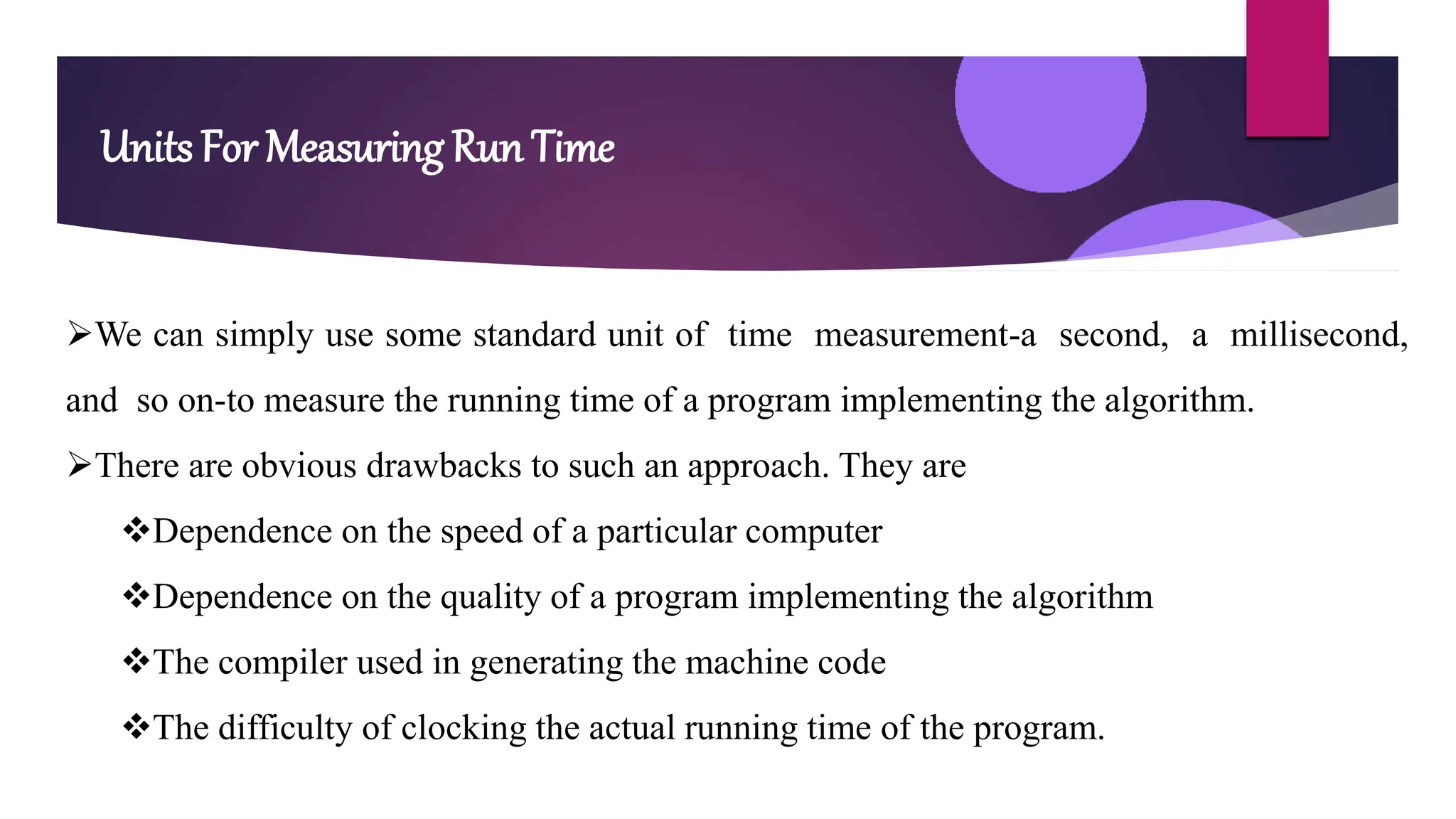

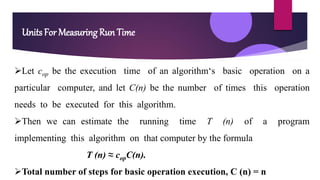

Units For Measuring Run Time
We can simply use some standard unit of time measurement-a second, a millisecond,
and so on-to measure the running time of a program implementing the algorithm.
There are obvious drawbacks to such an approach. They are
Dependence on the speed of a particular computer
Dependence on the quality of a program implementing the algorithm
The compiler used in generating the machine code
The difficulty of clocking the actual running time of the program.

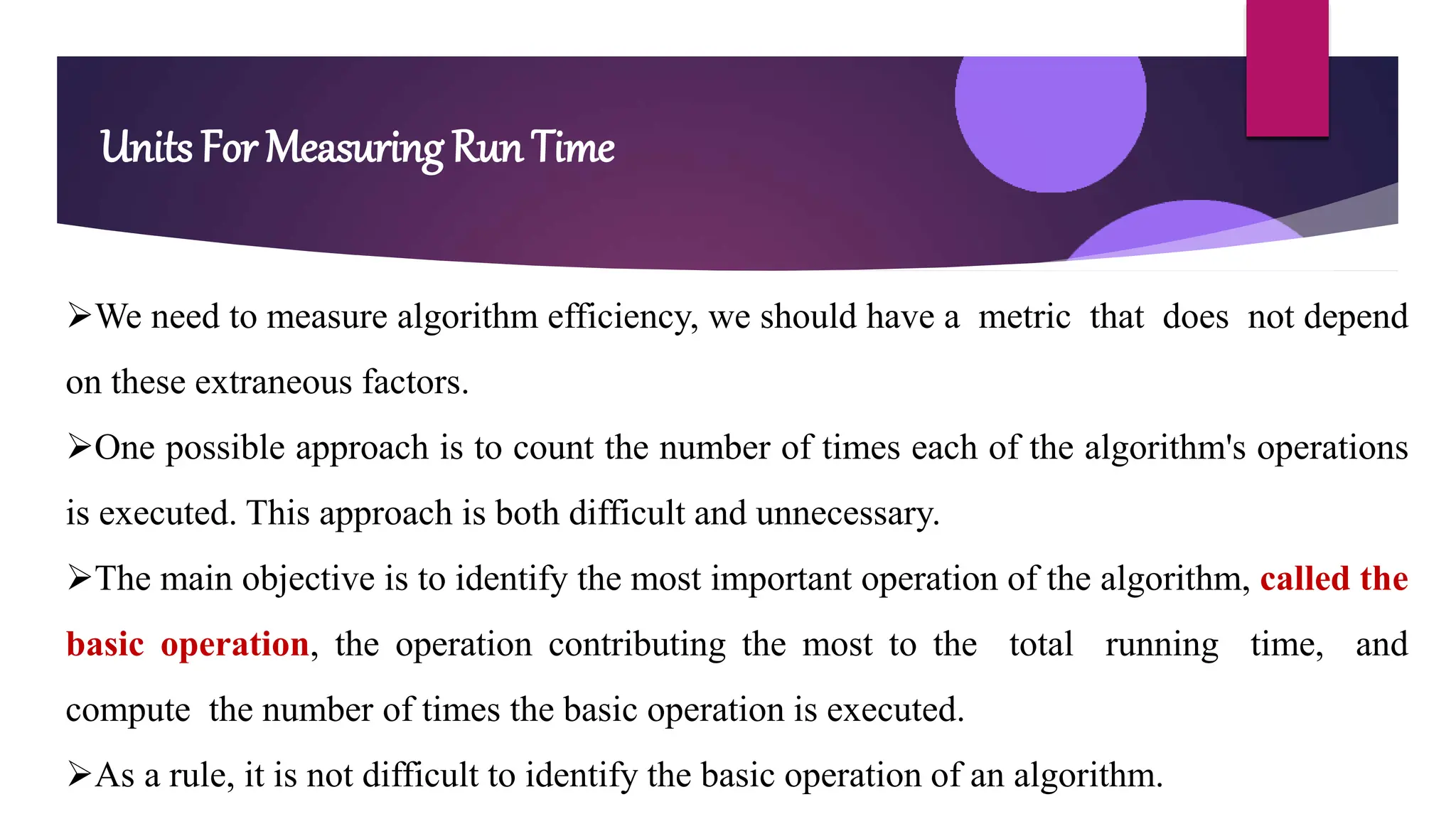

We need to measure algorithm efficiency, we should have a metric that does not depend
on these extraneous factors.
One possible approach is to count the number of times each of the algorithm's operations
is executed. This approach is both difficult and unnecessary.
The main objective is to identify the most important operation of the algorithm, called the
basic operation, the operation contributing the most to the total running time, and
compute the number of times the basic operation is executed.
As a rule, it is not difficult to identify the basic operation of an algorithm.

Problem Input Size Basic Operation
Search for a key in a list of ‘n’
items
# of items in the list Key Comparison
Addition of 2 n x n matrices Dimensions of the matrices, n Addition
Polynomial Evaluation Order of the polynomial Multiplication

RECAP….
Algorithm –Definition, Example
Fundamentals of Algorithmic Problem Solving
Need for Algorithm Analysis

AGENDA
Orders Of Growth
Basic Efficiency Classes

An algorithm's efficiency is investigated as a function of some parameter ‘n’ indicating the
algorithm's input size.
Time Efficiency T(n)  where ‘n’ is the input size
In most cases, selecting such a parameter is quite straightforward.
For example, What will be the size for problems of sorting list , searching, finding the list's
smallest element, and most other problems dealing with lists ??
 # of elements in the list

Example: Algorithm to find sum of n numbers
Step 1: Identify input size:
n – number of elements in the array
Step 2: Identify the Basic Operation: Addition
operation
sum <- sum+A[i]
Step 3: How many times the basic operation is
executed
For example we have 4 elements- it will be executed
for i=0,1,2,3  4 times,
Hence in general for n elements it will be executed n
times
n

Let cop be the execution time of an algorithm‘s basic operation on a
particular computer, and let C(n) be the number of times this operation
needs to be executed for this algorithm.
Then we can estimate the running time T (n) of a program
implementing this algorithm on that computer by the formula
T (n) ≈ copC(n).
Total number of steps for basic operation execution, C (n) = n

Orders of growth
Measuring the performance of an algorithm in relation with the input size is called order
of growth
Example:

Recap….
Orders Of Growth
Basic Efficiency Classes

AGENDA
Example
 Introduction to Asymptotic Notations

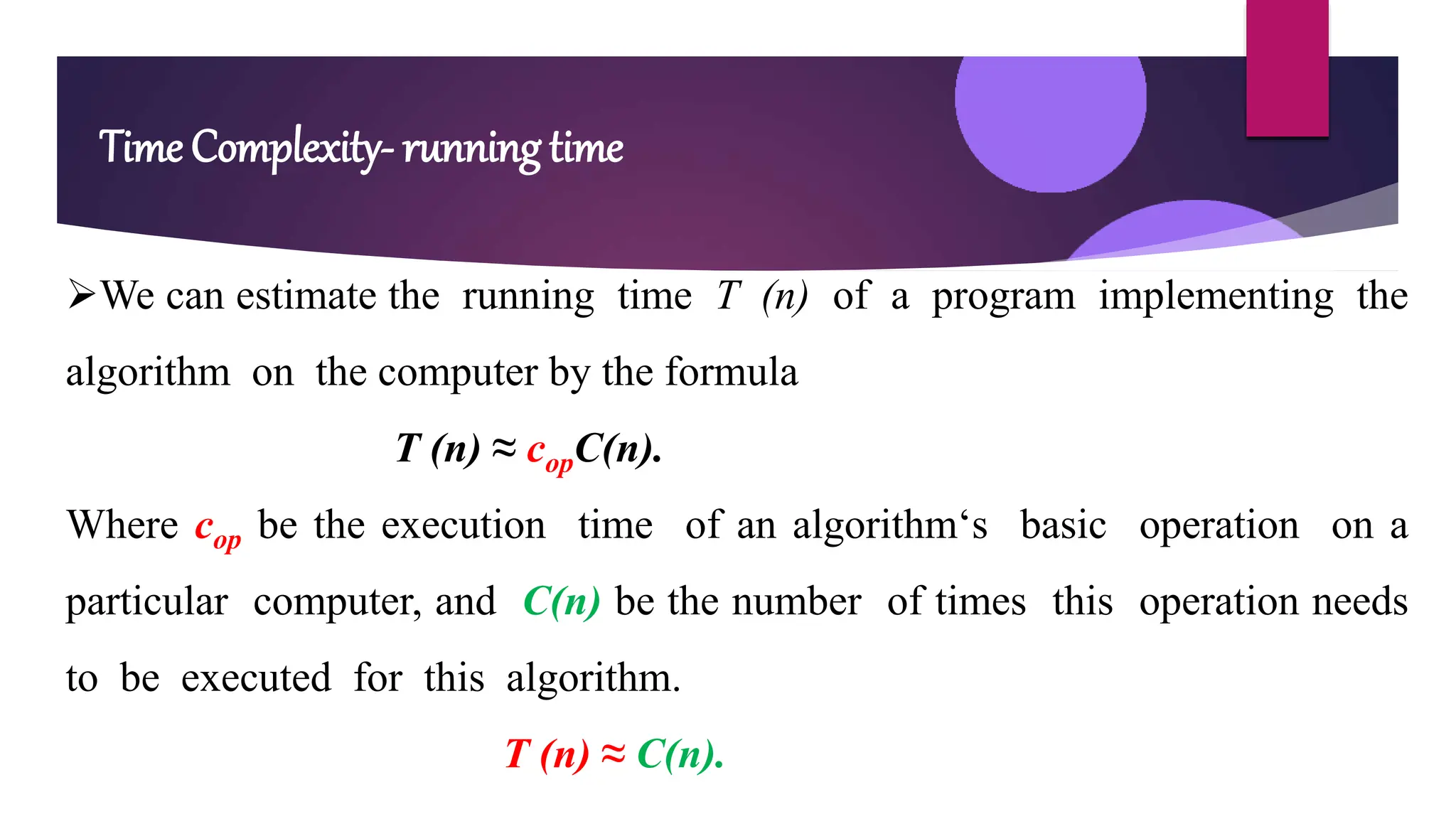

Time Complexity- running time
We can estimate the running time T (n) of a program implementing the
algorithm on the computer by the formula
T (n) ≈ copC(n).
Where cop be the execution time of an algorithm‘s basic operation on a
particular computer, and C(n) be the number of times this operation needs
to be executed for this algorithm.
T (n) ≈ C(n).

Worst-Case, Best-Case, Average Case Efficiencies
Algorithm efficiency depends on the input size n.
And for some algorithms efficiency not only on input size but also on the specifics of
particular or type of input.
Here in this case, We have 3 types of efficiencies:
Best Case Efficiency
Worst Case Efficiency
Average Case Efficiency

Worst-Case, Best-Case, Average Case Efficiencies
Worst-case efficiency: Efficiency (number of times the basic operation will be
executed) for the worst case input of size n. i.e. The algorithm runs the longest
among all possible inputs of size n.
Best-case efficiency: Efficiency (number of times the basic operation will be executed)
for the best case input of size n. i.e. The algorithm runs the fastest among all possible
inputs of size n.
Average-case efficiency: Average time taken (number of times the basic operation will
be executed) to solve all the possible instances (random) of the input.

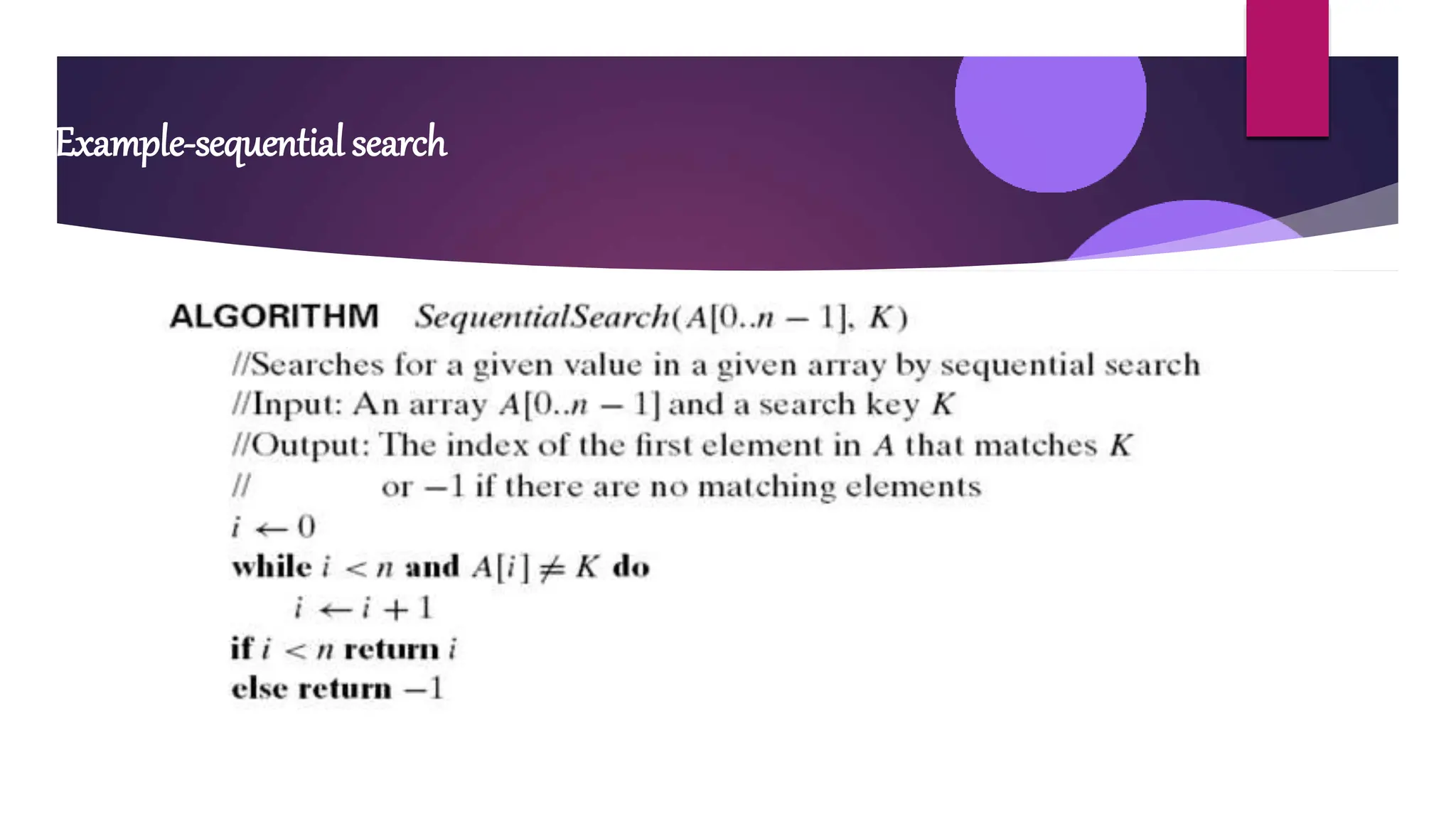

Example-sequential search
This is a straightforward algorithm that searches for a given item (some search key K)
in a list of n elements by checking successive elements of the list until either a match with
the search key is found or the list is exhausted.
Input size:
n no of elements in the list
Basic Operation:
Comparison Operation
Does the Basic Operation depends only on input size or also on type of input????

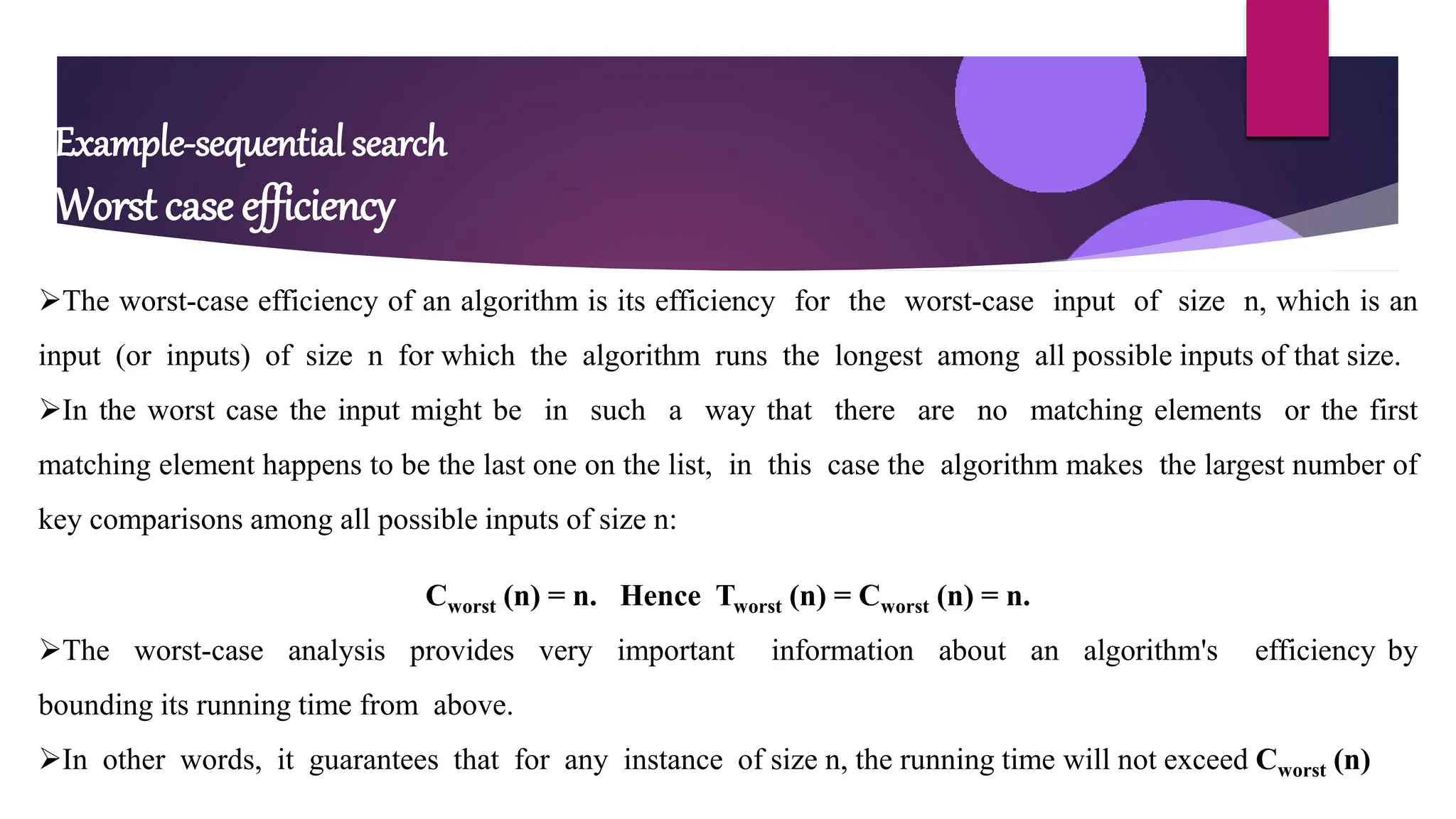

Worst case efficiency
The worst-case efficiency of an algorithm is its efficiency for the worst-case input of size n, which is an
input (or inputs) of size n for which the algorithm runs the longest among all possible inputs of that size.
In the worst case the input might be in such a way that there are no matching elements or the first
matching element happens to be the last one on the list, in this case the algorithm makes the largest number of
key comparisons among all possible inputs of size n:
Cworst (n) = n. Hence Tworst (n) = Cworst (n) = n.
The worst-case analysis provides very important information about an algorithm's efficiency by
bounding its running time from above.
In other words, it guarantees that for any instance of size n, the running time will not exceed Cworst (n)

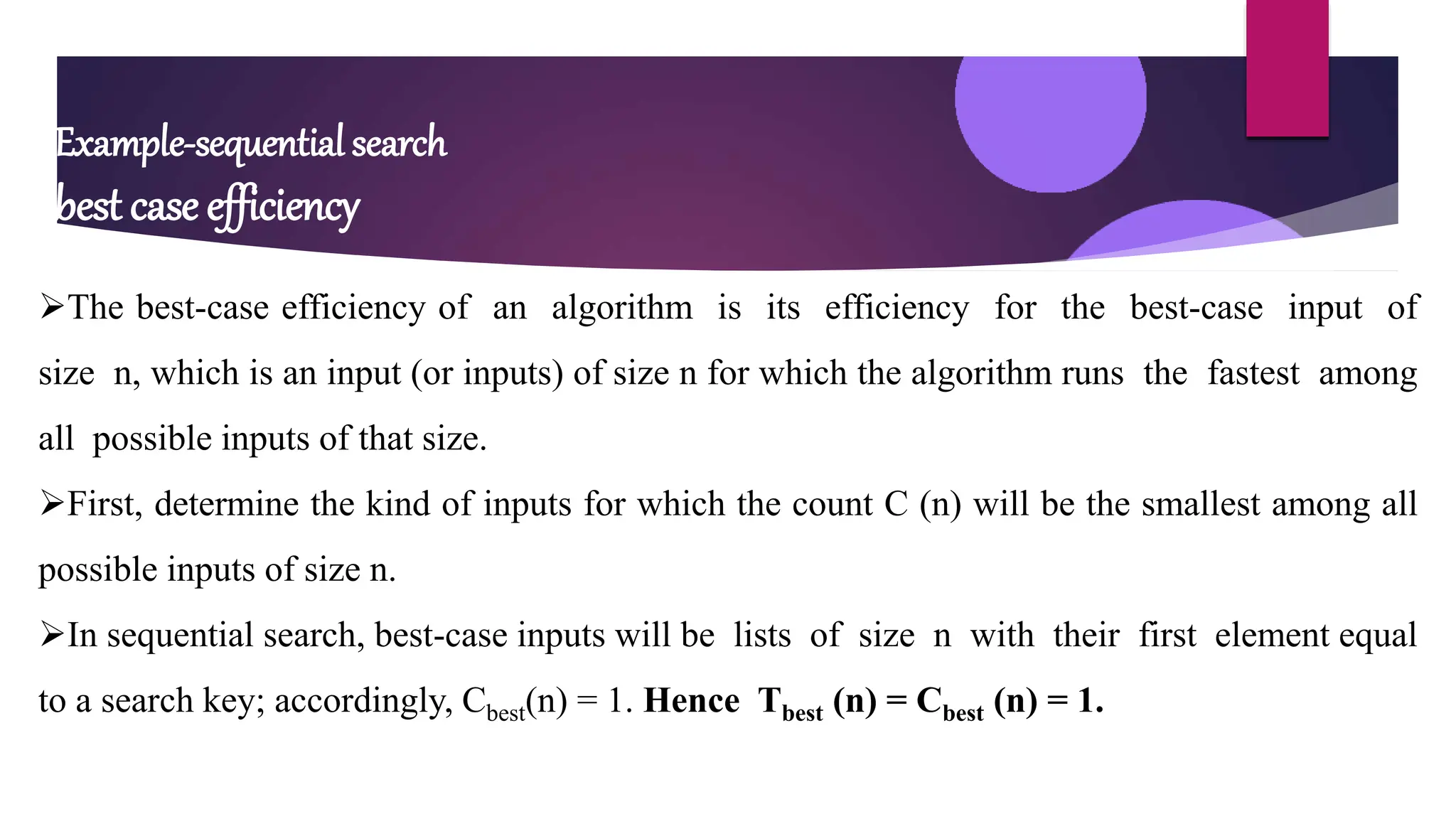

best case efficiency
The best-case efficiency of an algorithm is its efficiency for the best-case input of
size n, which is an input (or inputs) of size n for which the algorithm runs the fastest among
all possible inputs of that size.
First, determine the kind of inputs for which the count C (n) will be the smallest among all
possible inputs of size n.
In sequential search, best-case inputs will be lists of size n with their first element equal
to a search key; accordingly, Cbest(n) = 1. Hence Tbest (n) = Cbest (n) = 1.

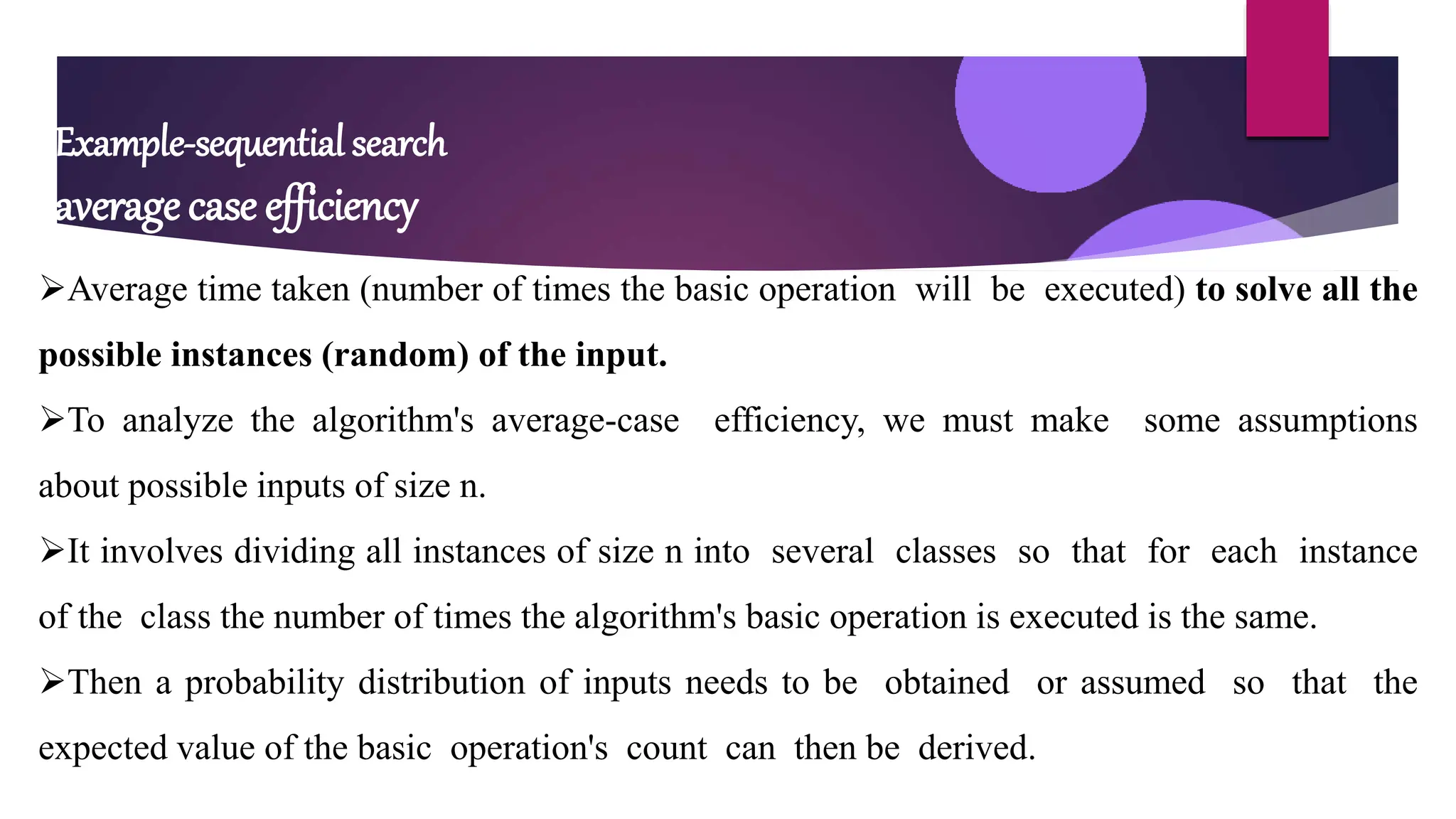

average case efficiency
Average time taken (number of times the basic operation will be executed) to solve all the
possible instances (random) of the input.
To analyze the algorithm's average-case efficiency, we must make some assumptions
about possible inputs of size n.
It involves dividing all instances of size n into several classes so that for each instance
of the class the number of times the algorithm's basic operation is executed is the same.
Then a probability distribution of inputs needs to be obtained or assumed so that the
expected value of the basic operation's count can then be derived.

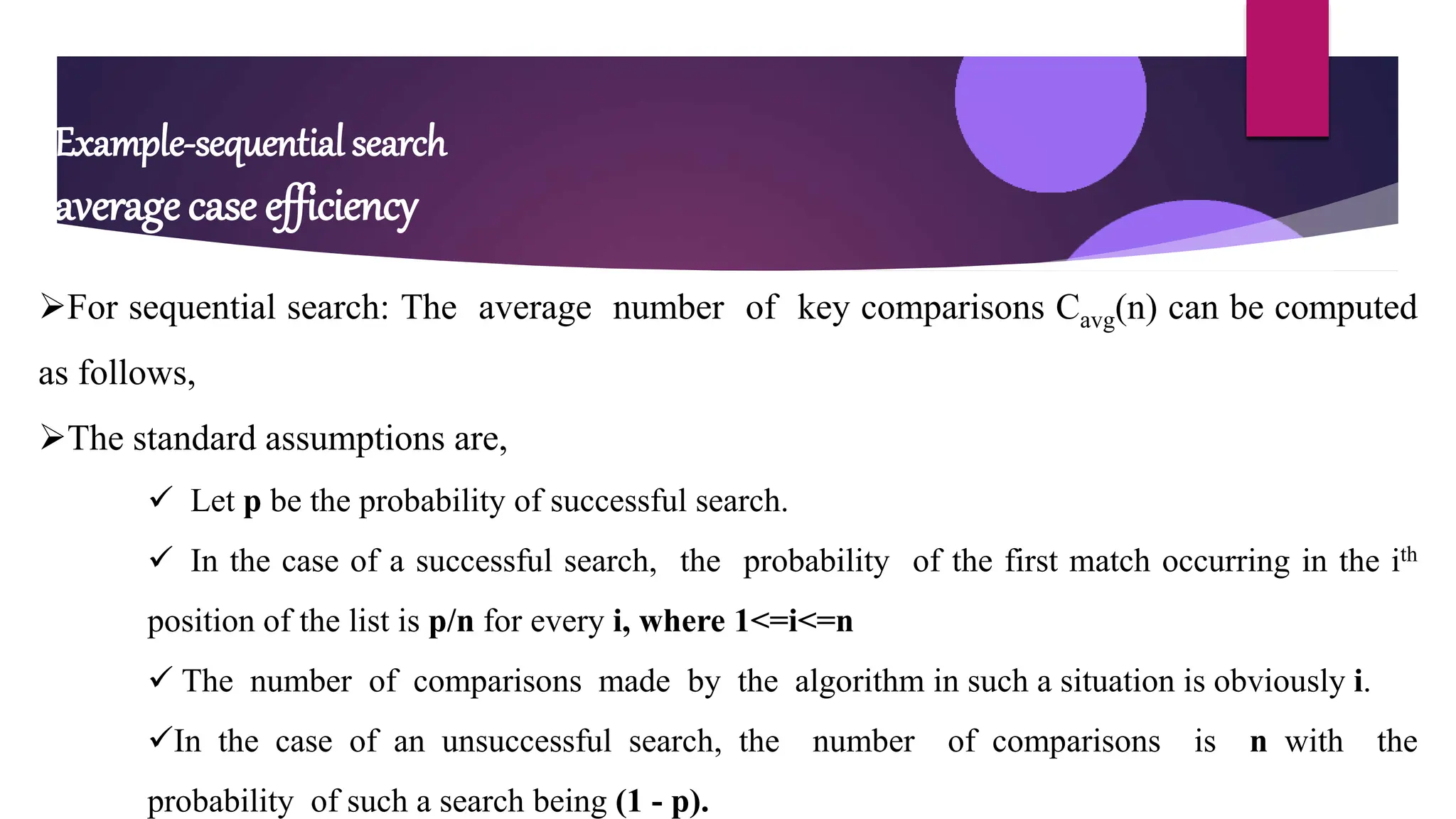

For sequential search: The average number of key comparisons Cavg(n) can be computed
as follows,
The standard assumptions are,
 Let p be the probability of successful search.
 In the case of a successful search, the probability of the first match occurring in the ith
position of the list is p/n for every i, where 1<=i<=n
 The number of comparisons made by the algorithm in such a situation is obviously i.
In the case of an unsuccessful search, the number of comparisons is n with the
probability of such a search being (1 - p).

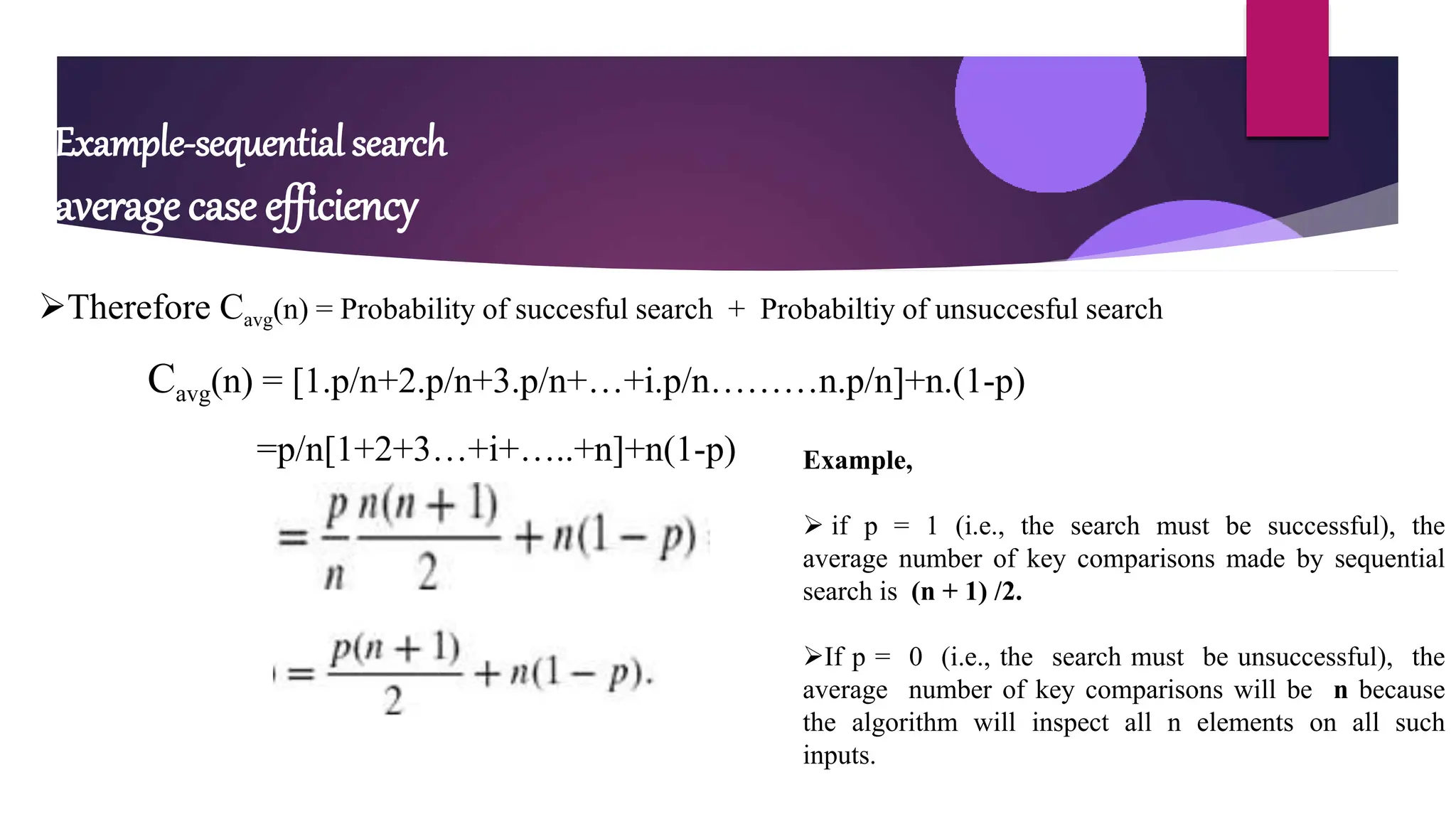

Therefore Cavg(n) = Probability of succesful search + Probabiltiy of unsuccesful search
Cavg(n) = [1.p/n+2.p/n+3.p/n+…+i.p/n………n.p/n]+n.(1-p)
=p/n[1+2+3…+i+…..+n]+n(1-p) Example,
 if p = 1 (i.e., the search must be successful), the
average number of key comparisons made by sequential
search is (n + 1) /2.
If p = 0 (i.e., the search must be unsuccessful), the
average number of key comparisons will be n because
the algorithm will inspect all n elements on all such
inputs.

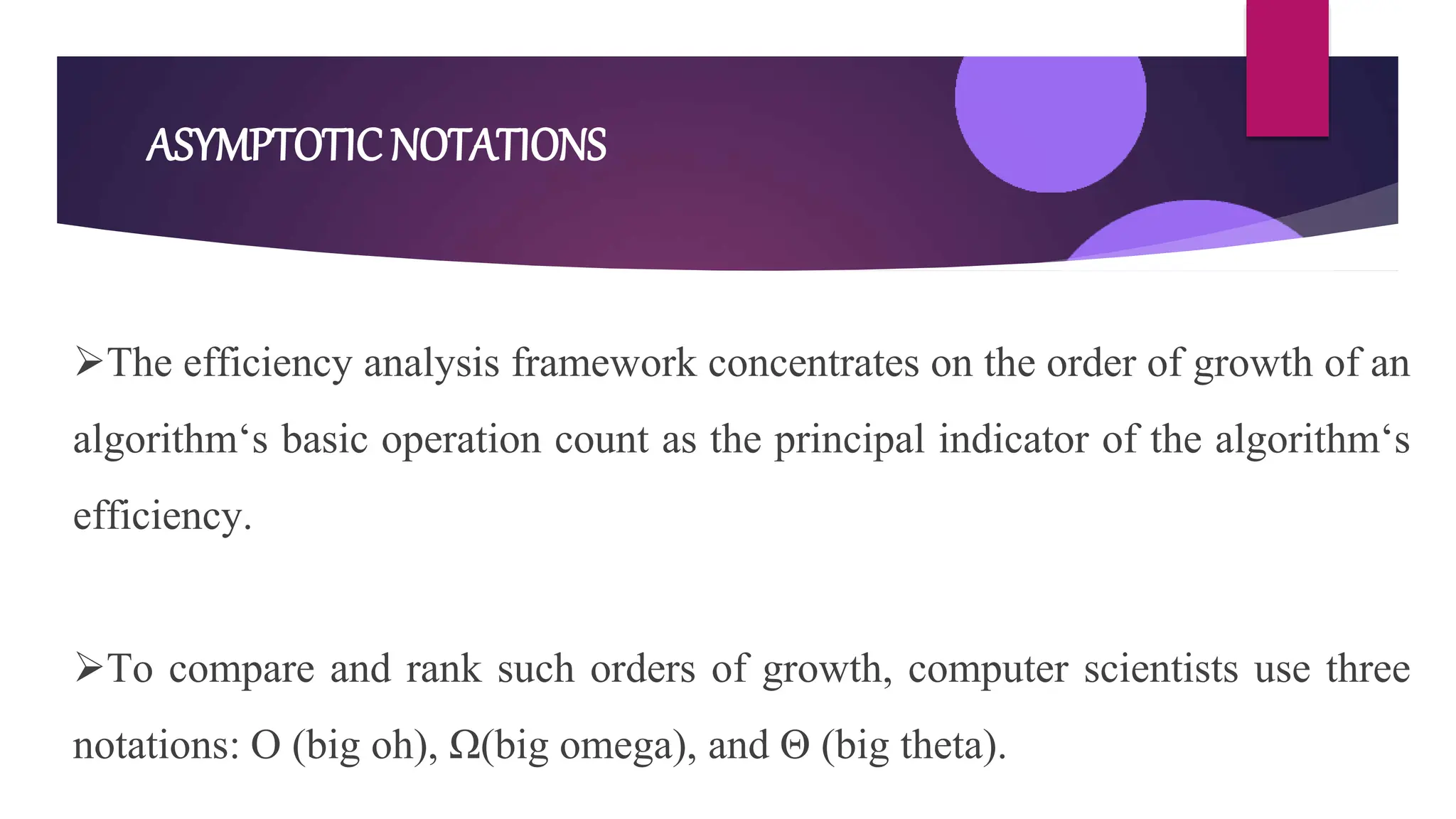

ASYMPTOTICNOTATIONS
The efficiency analysis framework concentrates on the order of growth of an
algorithm‘s basic operation count as the principal indicator of the algorithm‘s
efficiency.
To compare and rank such orders of growth, computer scientists use three
notations: O (big oh), Ω(big omega), and Θ (big theta).

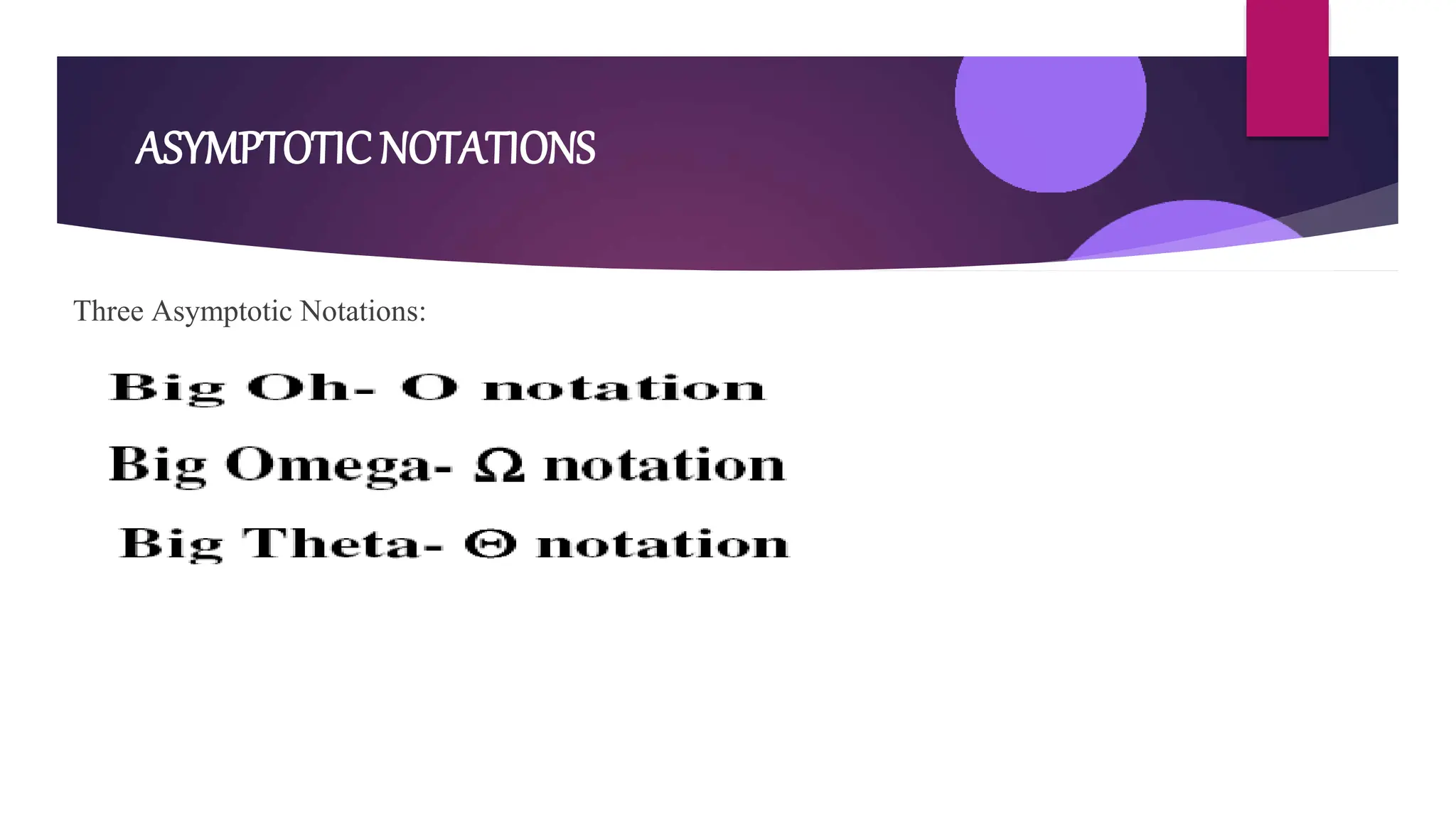

ASYMPTOTIC NOTATIONS
Three Asymptotic Notations:

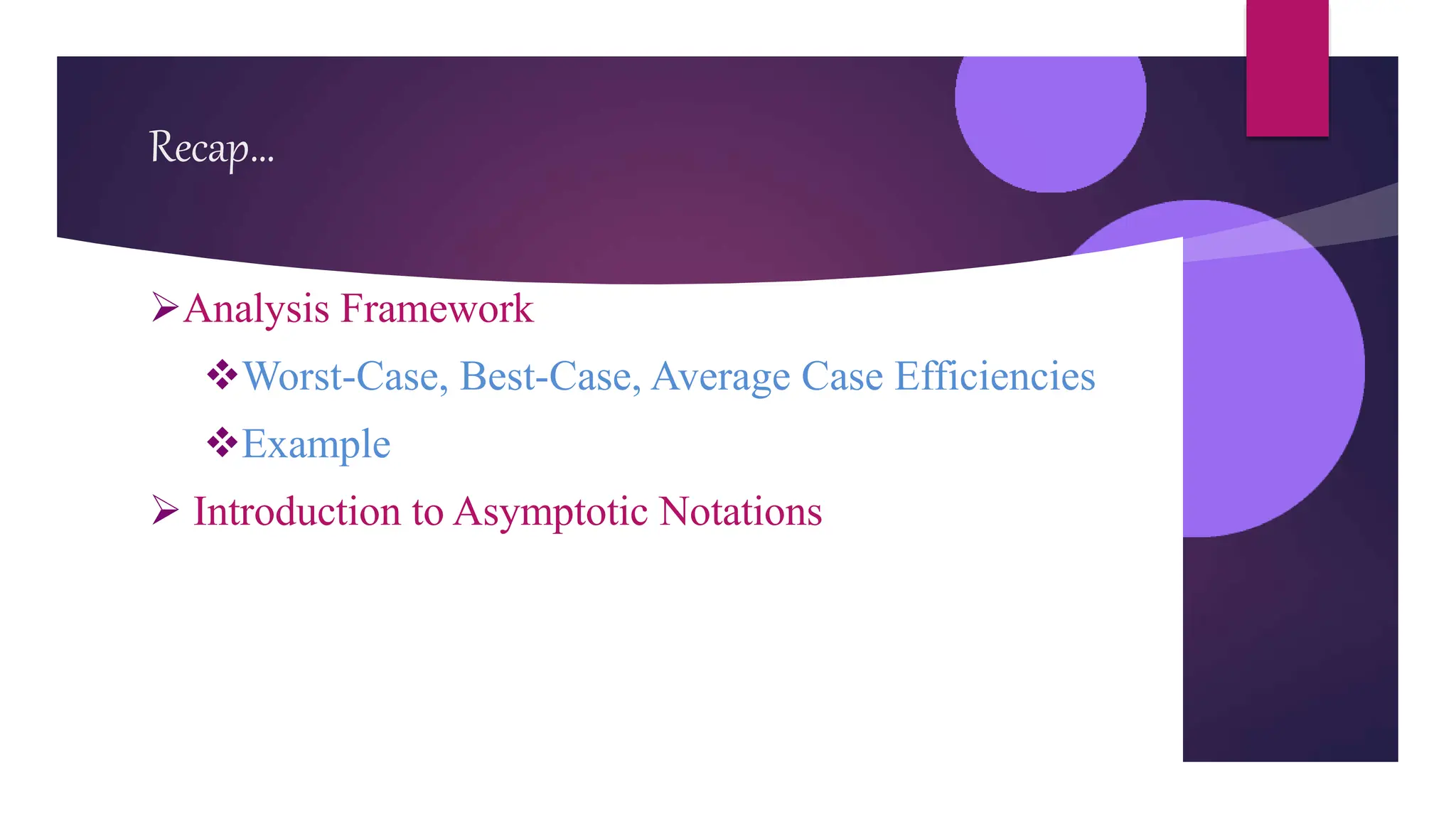

Recap…
Example
 Introduction to Asymptotic Notations

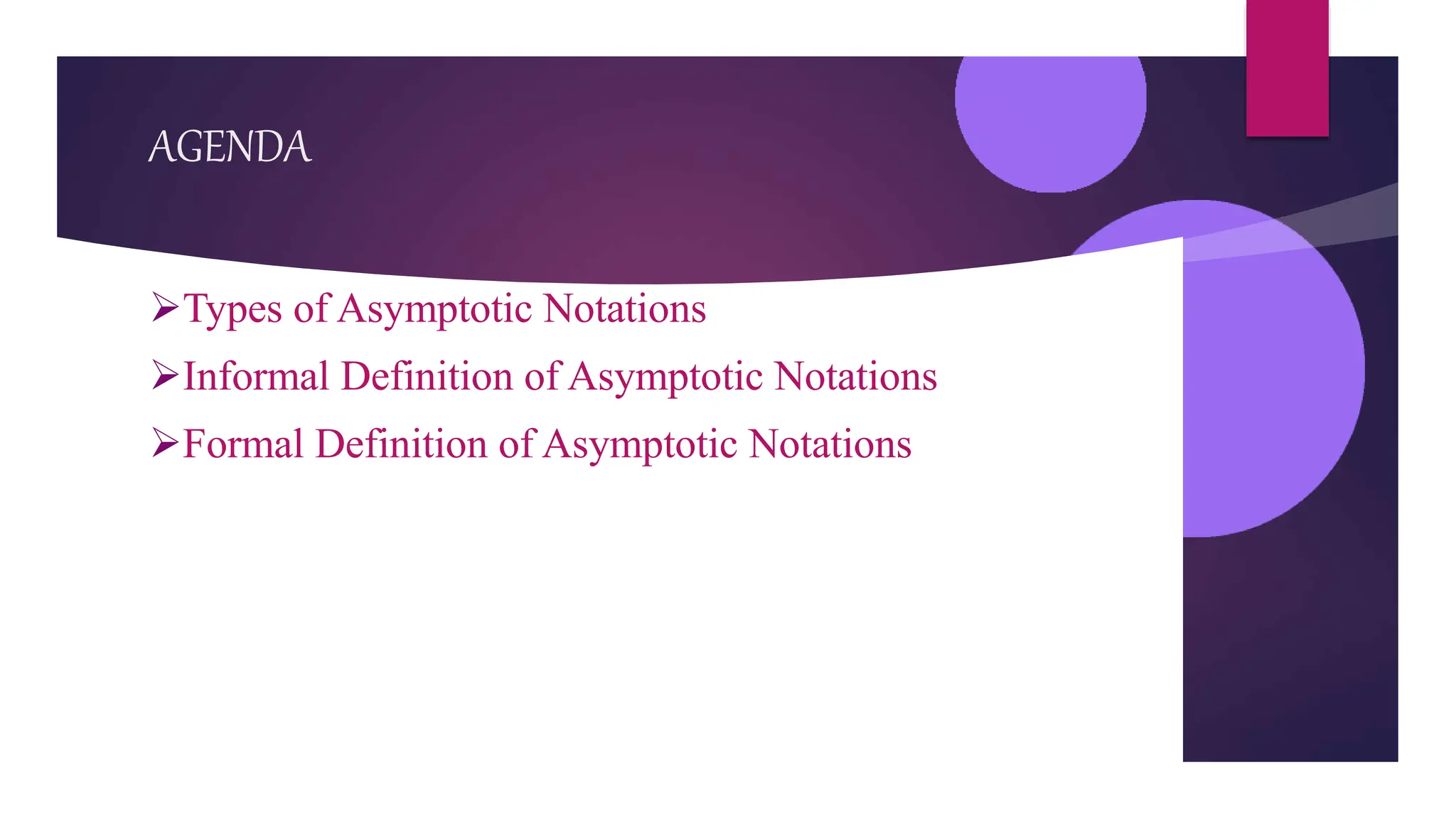

AGENDA
Types of Asymptotic Notations
Informal Definition of Asymptotic Notations
Formal Definition of Asymptotic Notations

ASYMPTOTIC NOTATIONS

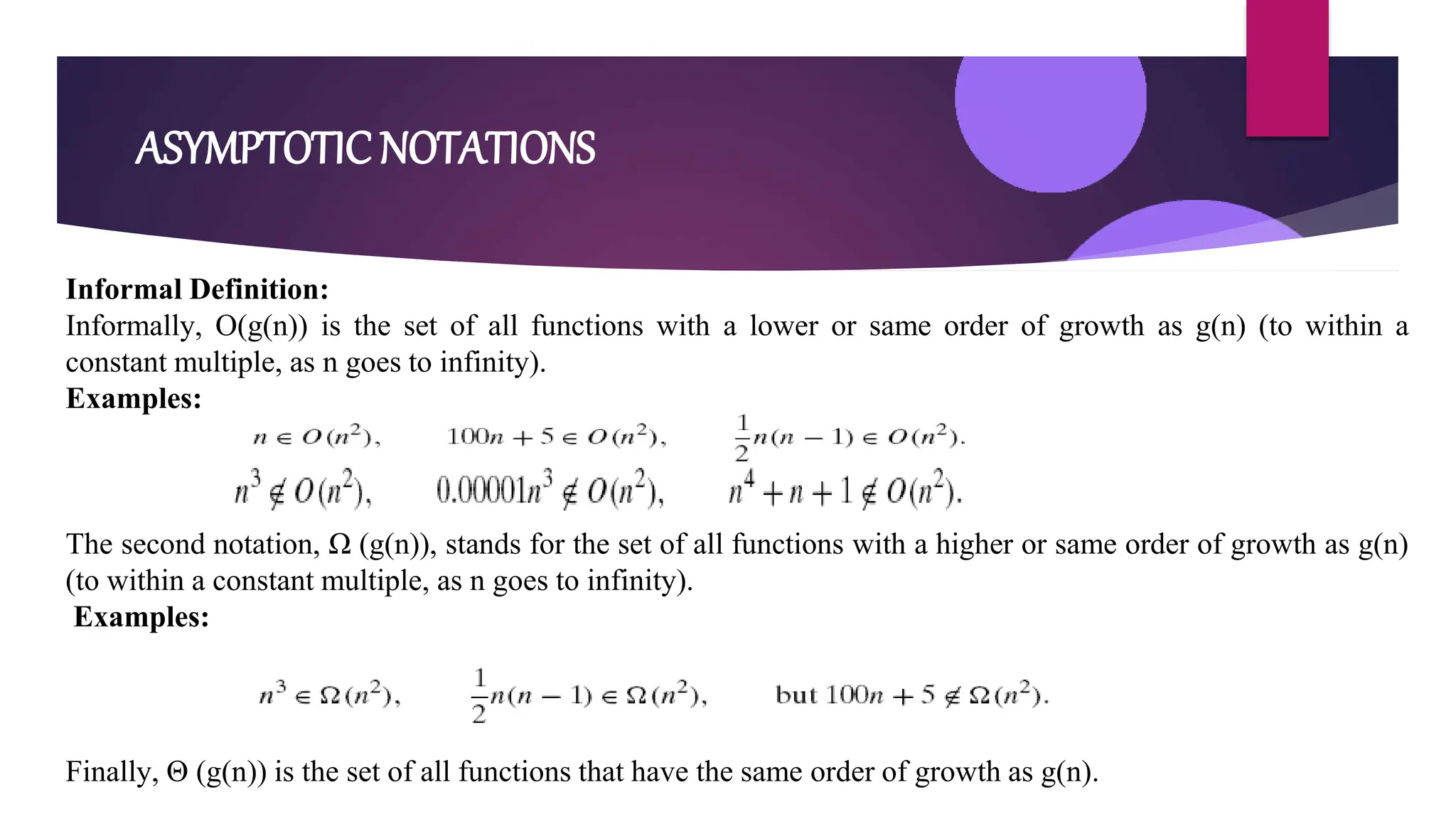

Informal Definition:
Informally, O(g(n)) is the set of all functions with a lower or same order of growth as g(n) (to within a
constant multiple, as n goes to infinity).
Examples:

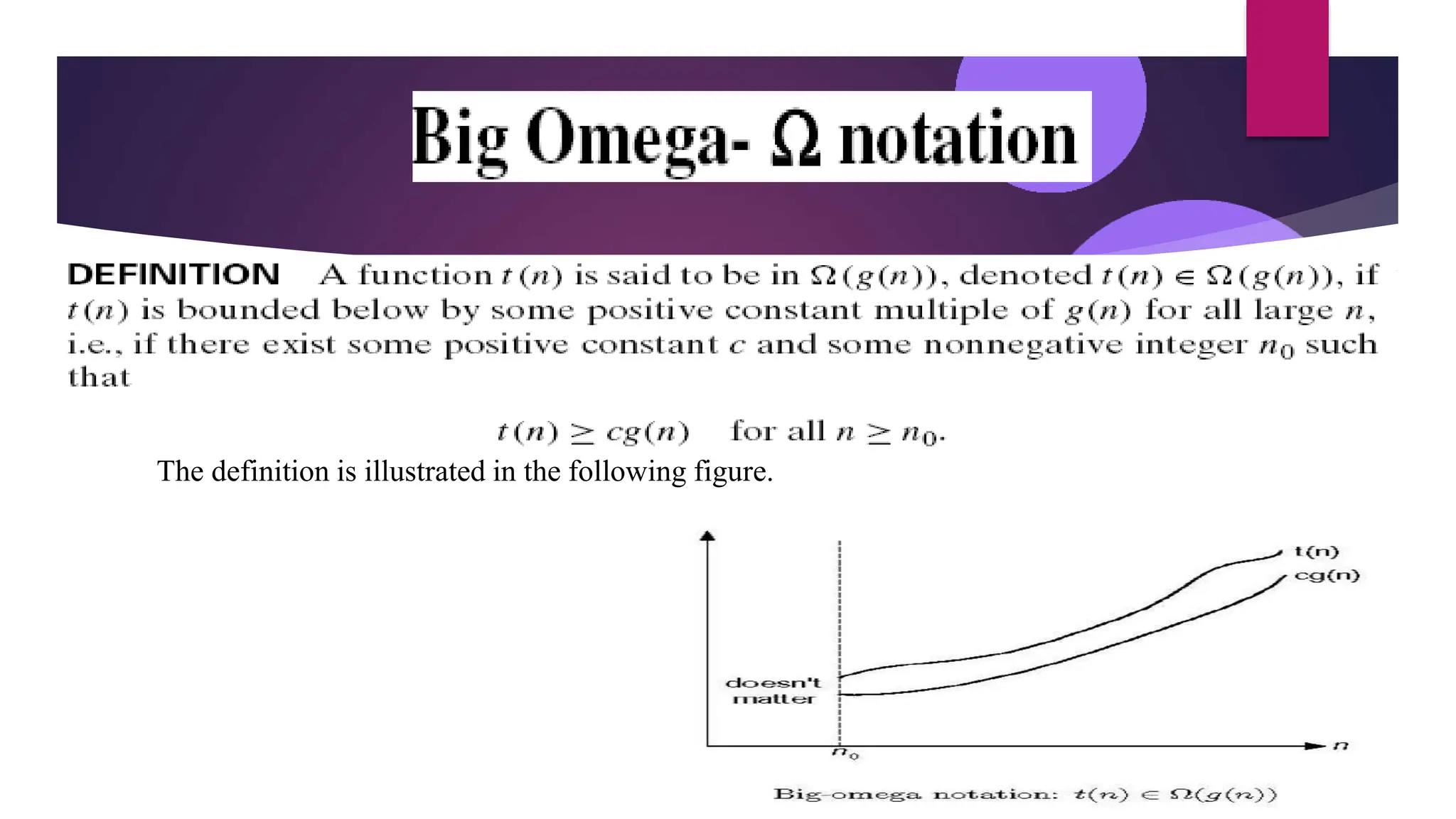

The second notation, Ω (g(n)), stands for the set of all functions with a higher or same order of growth as g(n)
(to within a constant multiple, as n goes to infinity).
Examples:

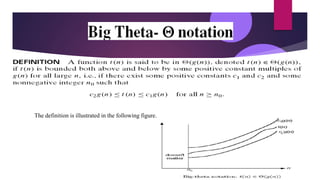

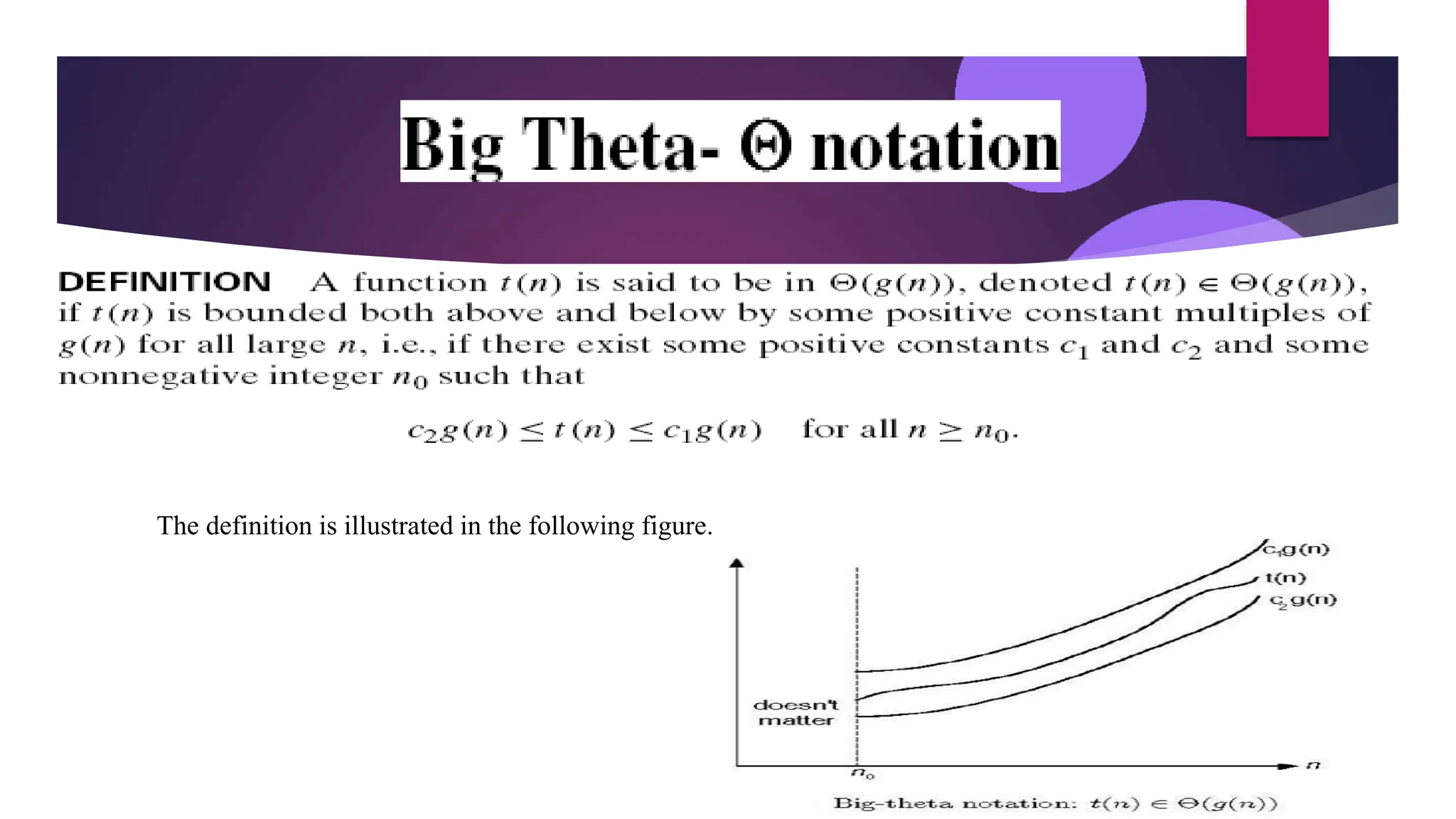

Finally, Θ (g(n)) is the set of all functions that have the same order of growth as g(n).

The definition is illustrated in the following figure.

Recap…
Types of Asymptotic Notations
Informal Definition of Asymptotic Notations
Formal Definition of Asymptotic Notations

AGENDA
Useful Property Involving the Asymptotic Notations
 Theorem
 Example
Problems on Asymptotic Notations
Assignment

Theorem: If t1 (n) ∈ O(g1 (n)) and t2 (n) ∈ O(g2 (n)), then t1 (n) + t2 (n) ∈ O(max{g1 (n), g2 (n)})
Proof:
For any four arbitrary real numbers a1 , b1 , a2 , b2 :
if a1 ≤ b1 and a2 ≤ b2 , then a1 + a2 ≤ 2 max{b1 , b2 }.
Since t1 (n) ∈ O(g1 (n)), there exist some positive constant c1 and some non negative integer
n1 such that
t1 (n) ≤ c1g1 (n) for all n ≥ n1  Eqn 1
Similarly, since t2 (n) ∈ O(g2 (n)),
t2 (n) ≤ c2g2(n) for all n ≥ n2  Eqn 2
Useful property involving the asymptotic notations

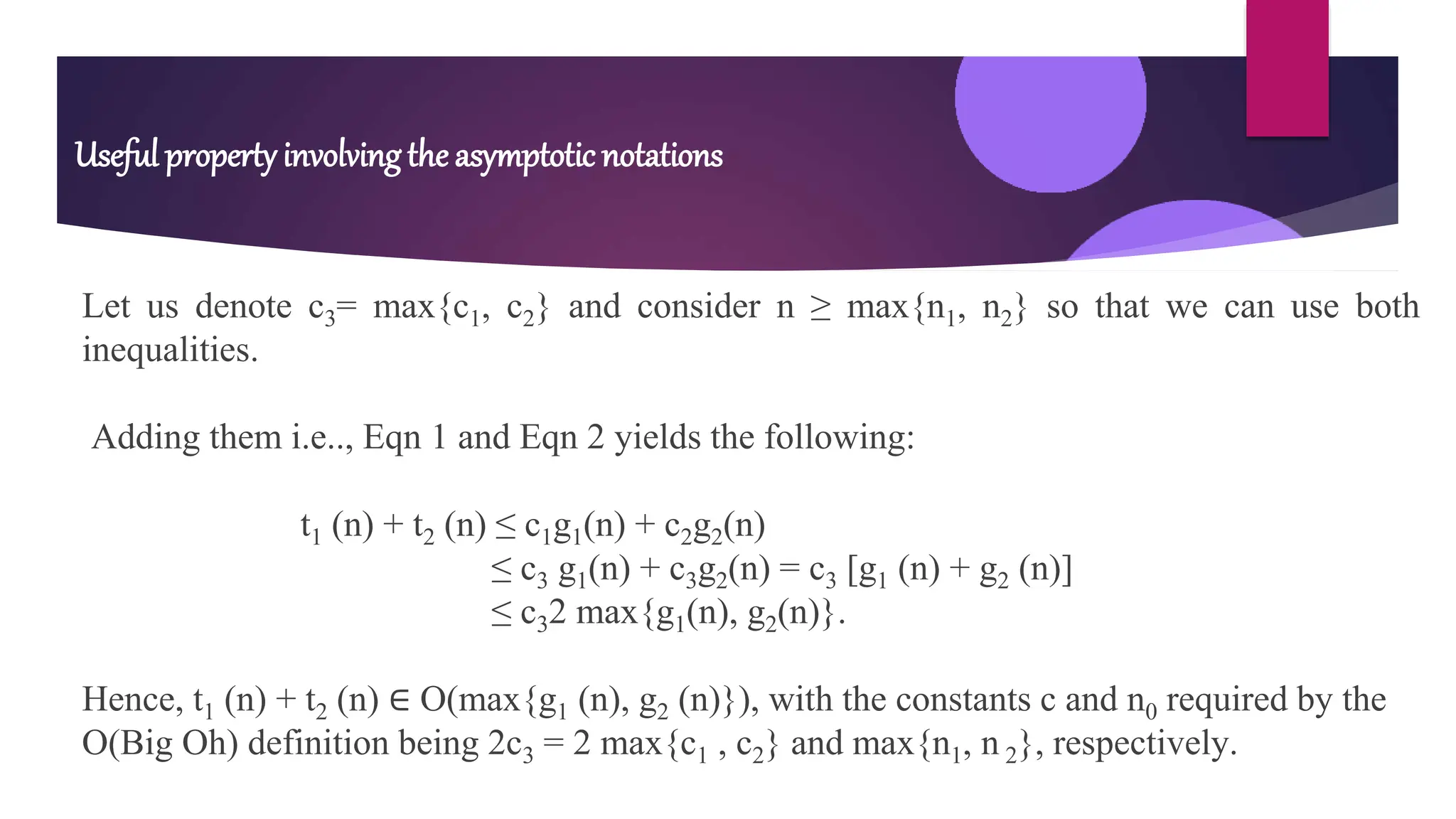

Let us denote c3= max{c1, c2} and consider n ≥ max{n1, n2} so that we can use both
inequalities.
Adding them i.e.., Eqn 1 and Eqn 2 yields the following:
t1 (n) + t2 (n) ≤ c1g1(n) + c2g2(n)
≤ c3 g1(n) + c3g2(n) = c3 [g1 (n) + g2 (n)]
≤ c32 max{g1(n), g2(n)}.
Hence, t1 (n) + t2 (n) ∈ O(max{g1 (n), g2 (n)}), with the constants c and n0 required by the
O(Big Oh) definition being 2c3 = 2 max{c1 , c2} and max{n1, n 2}, respectively.

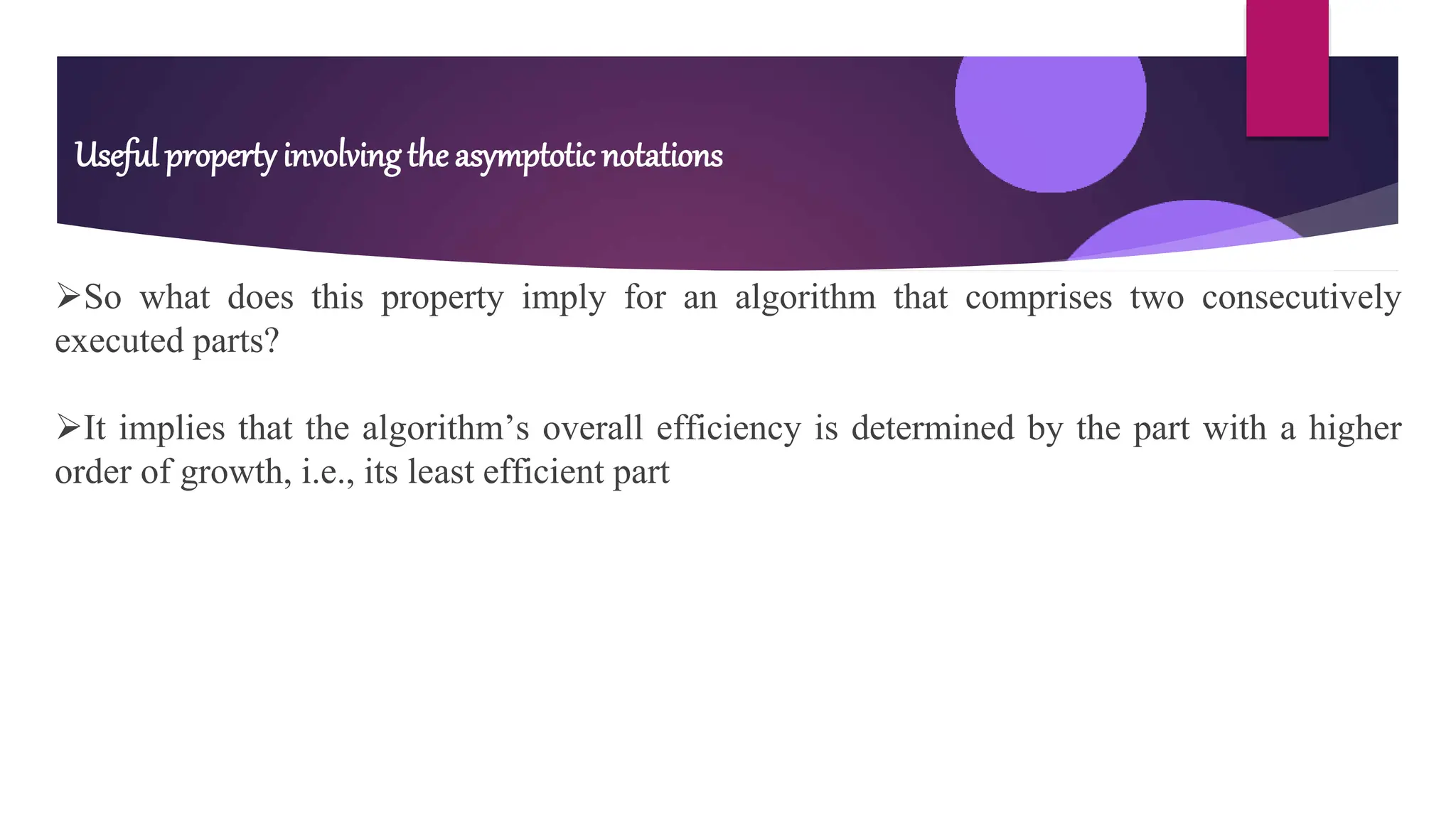

So what does this property imply for an algorithm that comprises two consecutively
executed parts?
It implies that the algorithm’s overall efficiency is determined by the part with a higher
order of growth, i.e., its least efficient part

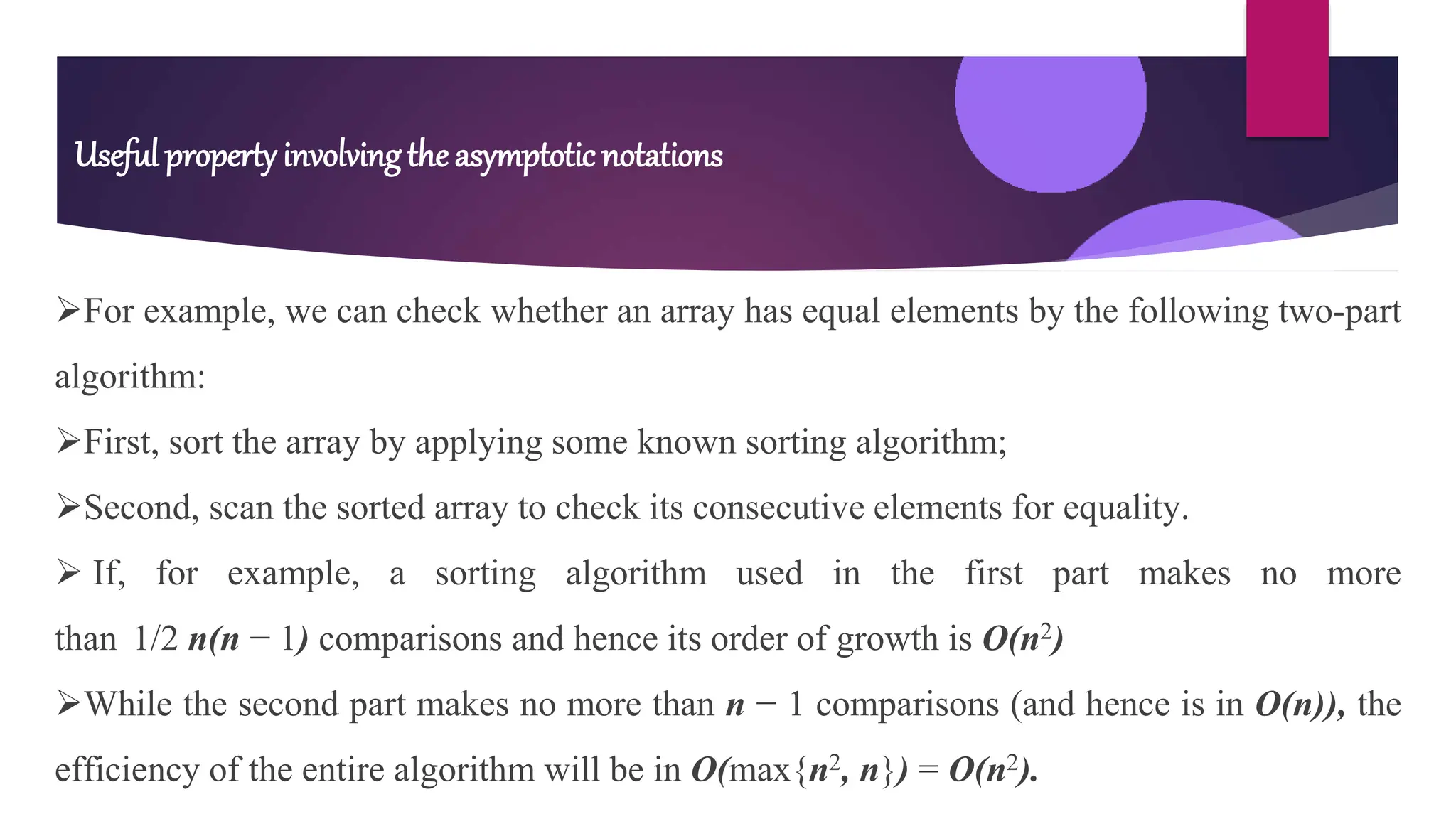

For example, we can check whether an array has equal elements by the following two-part
algorithm:
First, sort the array by applying some known sorting algorithm;
Second, scan the sorted array to check its consecutive elements for equality.
 If, for example, a sorting algorithm used in the first part makes no more
than 1/2 n(n − 1) comparisons and hence its order of growth is O(n2)
While the second part makes no more than n − 1 comparisons (and hence is in O(n)), the
efficiency of the entire algorithm will be in O(max{n2, n}) = O(n2).

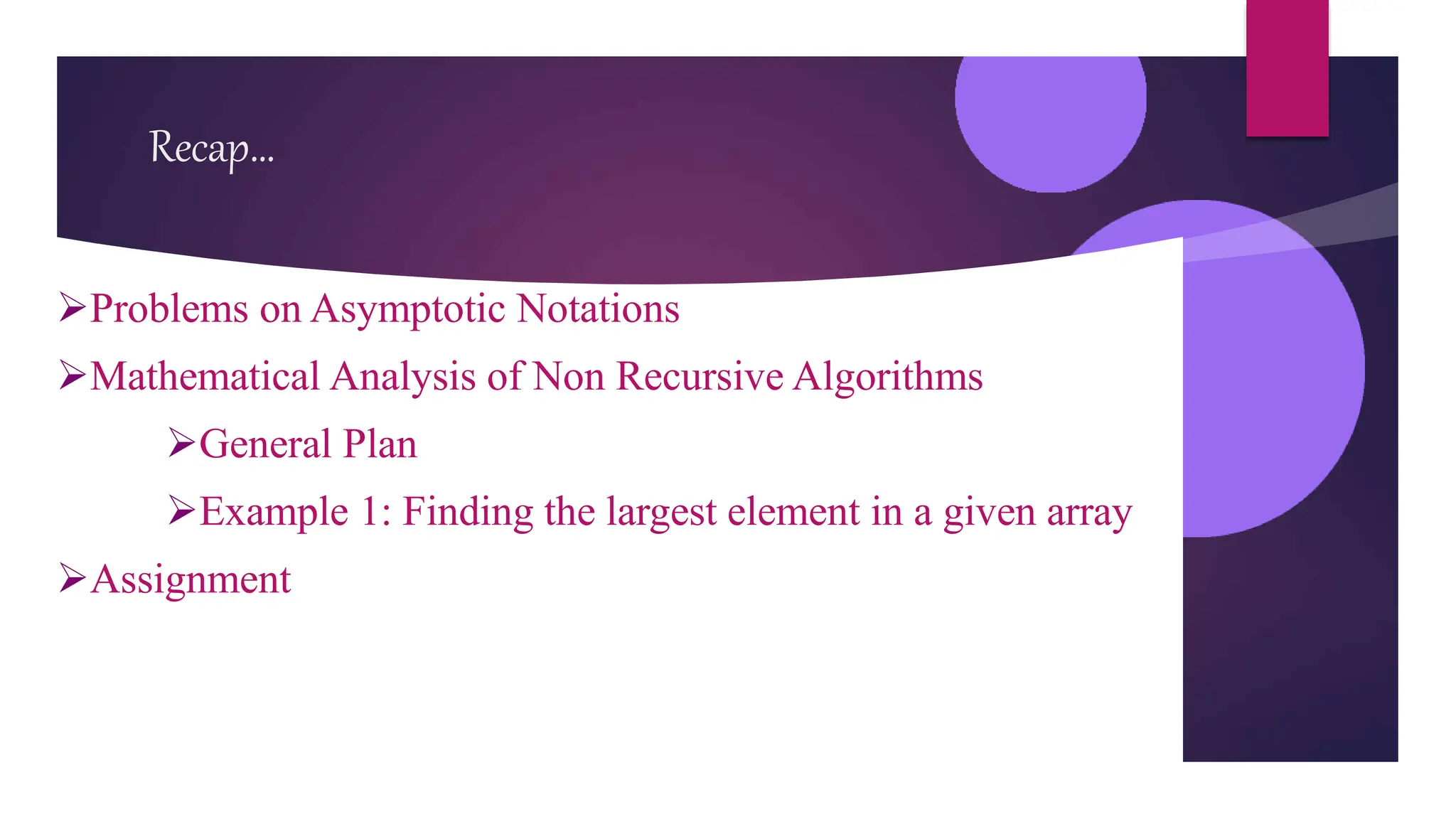

Recap…
Useful Property Involving the Asymptotic Notations
 Theorem
 Example

AGENDA
Mathematical Analysis of Non Recursive Algorithms
General Plan
Example 1: Finding the largest element in a given array
Assignment

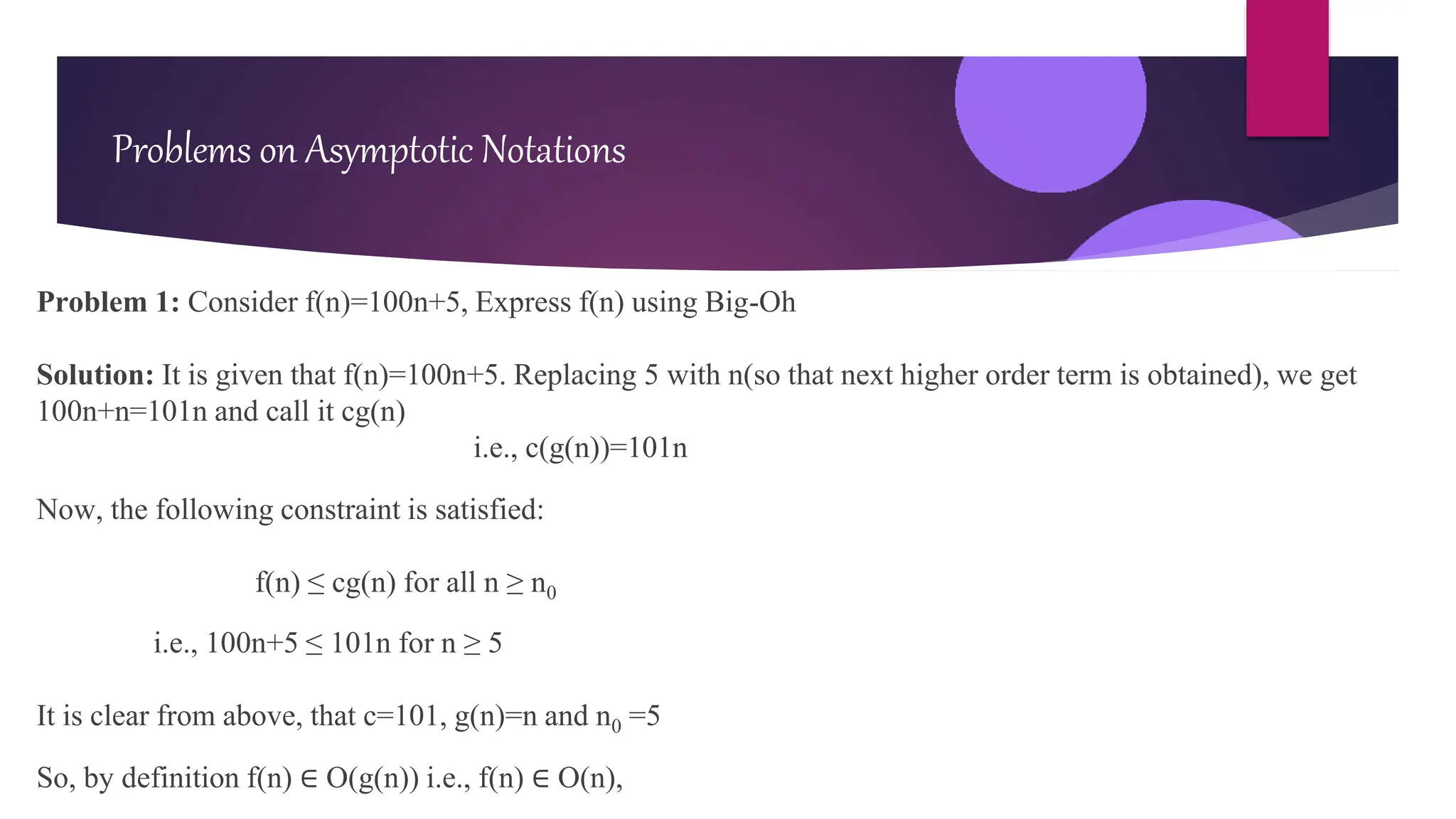

Problem 1: Consider f(n)=100n+5, Express f(n) using Big-Oh
Solution: It is given that f(n)=100n+5. Replacing 5 with n(so that next higher order term is obtained), we get
100n+n=101n and call it cg(n)
i.e., c(g(n))=101n
Now, the following constraint is satisfied:
f(n) ≤ cg(n) for all n ≥ n0
i.e., 100n+5 ≤ 101n for n ≥ 5
It is clear from above, that c=101, g(n)=n and n0 =5
So, by definition f(n) ∈ O(g(n)) i.e., f(n) ∈ O(n),
Problems on Asymptotic Notations

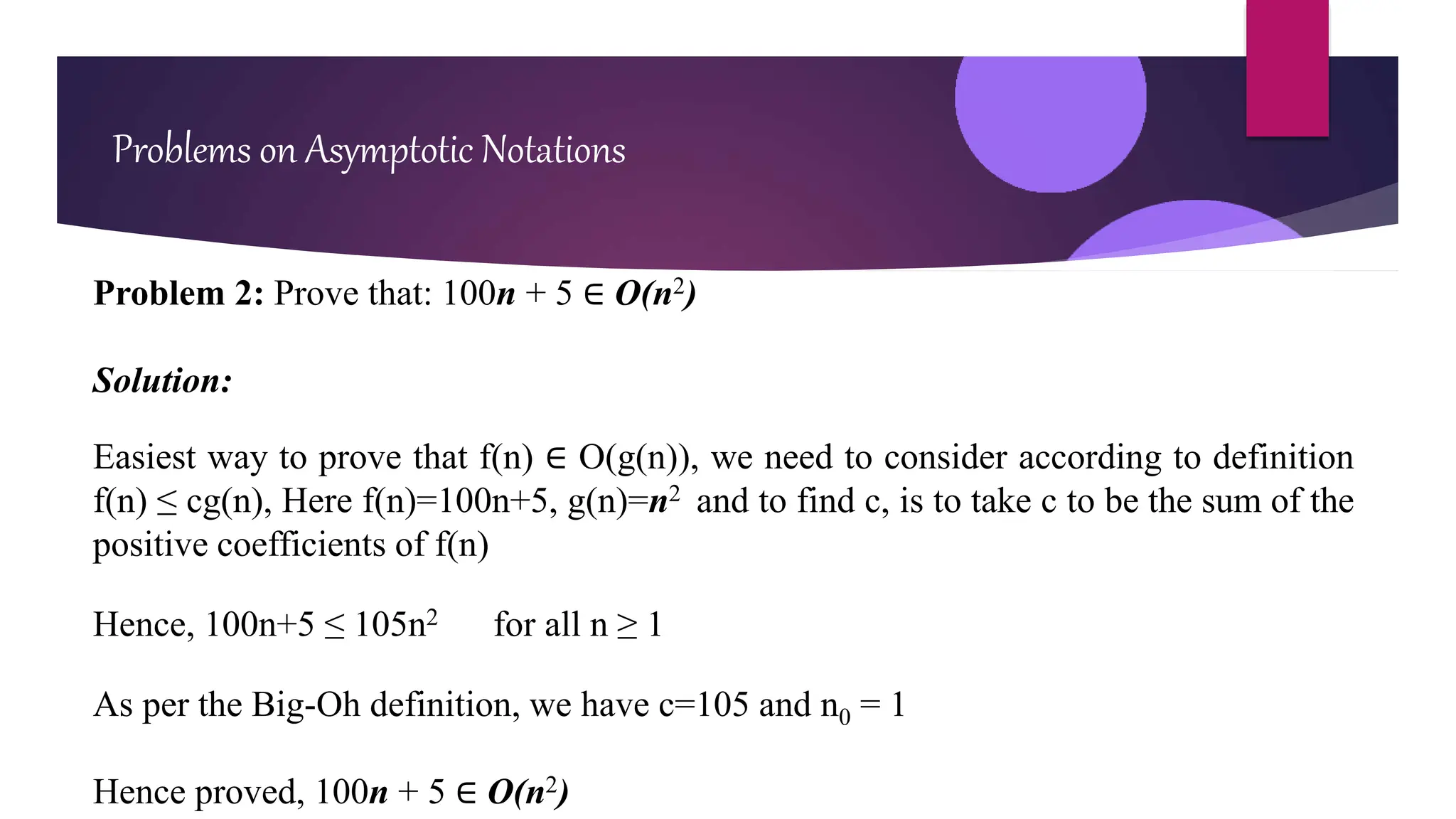

Problem 2: Prove that: 100n + 5 ∈ O(n2)
Solution:
Easiest way to prove that f(n) ∈ O(g(n)), we need to consider according to definition
f(n) ≤ cg(n), Here f(n)=100n+5, g(n)=n2 and to find c, is to take c to be the sum of the
positive coefficients of f(n)
Hence, 100n+5 ≤ 105n2 for all n ≥ 1
As per the Big-Oh definition, we have c=105 and n0 = 1
Hence proved, 100n + 5 ∈ O(n2)

Problem 3: Consider f(n)=100n+5, Express f(n) using Big-Omega
Solution: It is given that f(n)=100n+5. we consider c(g(n))=100n
Now, the following constraint is satisfied:
f(n) ≥ cg (n) for all n ≥ n0
i.e., 100n+5 ≥ 100n for n ≥ 0
It is clear from above, that c=100, g(n)=n and n0 =0 So, by definition f(n) ∈  (g(n)) i.e.,
f(n) ∈ (n)

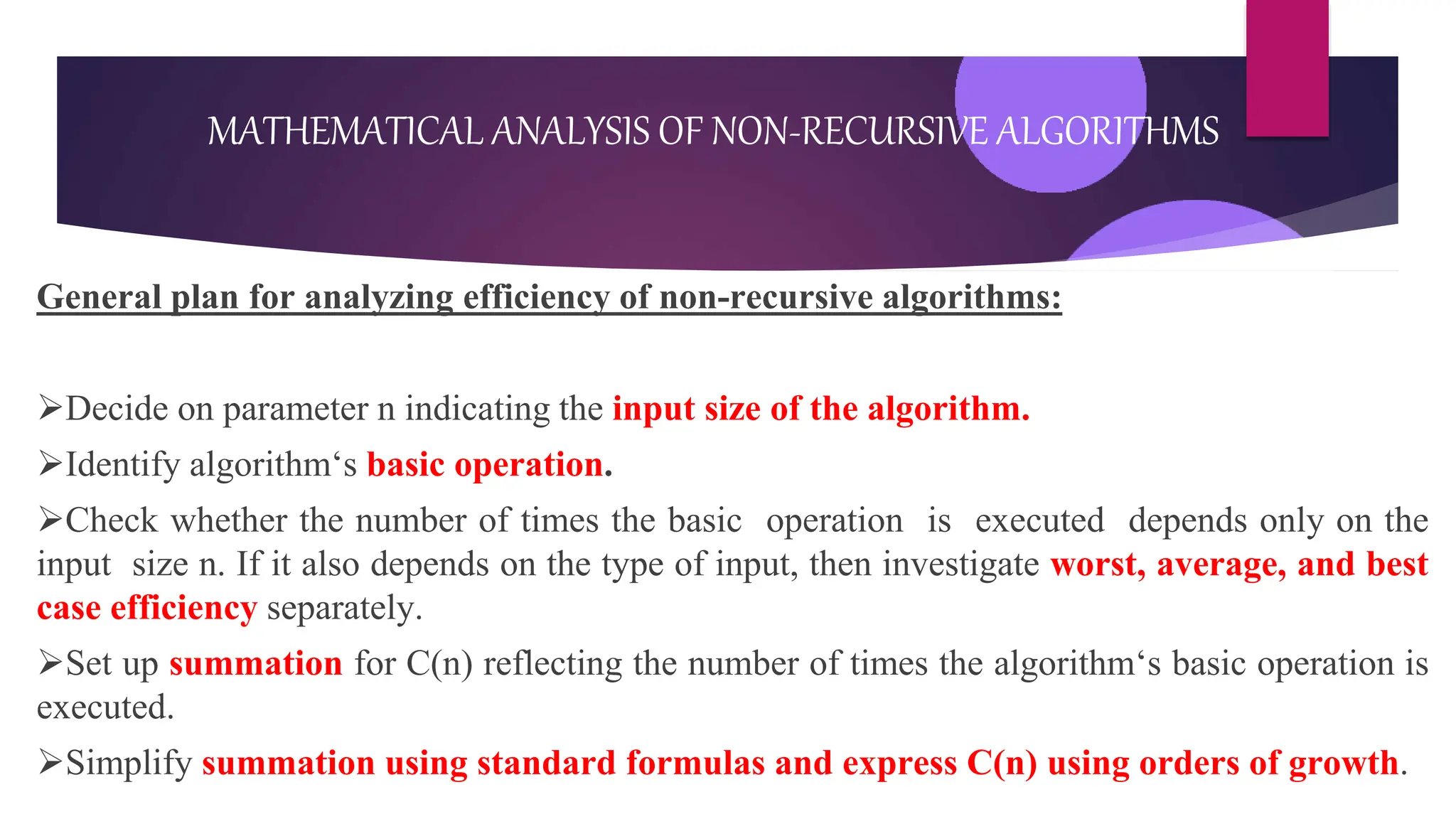

General plan for analyzing efficiency of non-recursive algorithms:
Decide on parameter n indicating the input size of the algorithm.
Identify algorithm‘s basic operation.
Check whether the number of times the basic operation is executed depends only on the
input size n. If it also depends on the type of input, then investigate worst, average, and best
case efficiency separately.
Set up summation for C(n) reflecting the number of times the algorithm‘s basic operation is
executed.
Simplify summation using standard formulas and express C(n) using orders of growth.
MATHEMATICAL ANALYSIS OF NON-RECURSIVE ALGORITHMS

Algorithm:

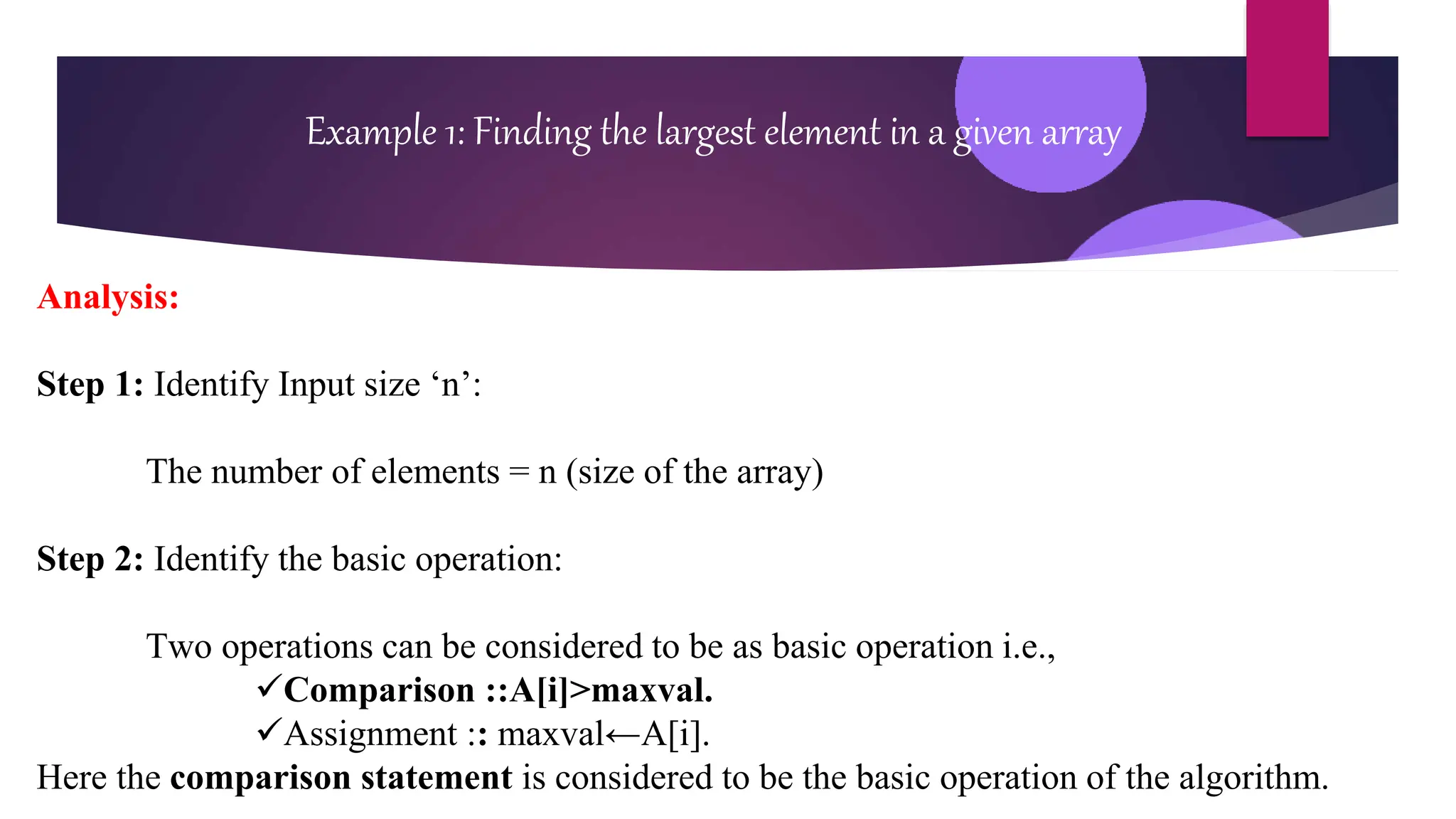

Example 1: Finding the largest element in a given array

Analysis:
Step 1: Identify Input size ‘n’:
The number of elements = n (size of the array)
Step 2: Identify the basic operation:
Two operations can be considered to be as basic operation i.e.,
Comparison ::A[i]>maxval.
Assignment :: maxval←A[i].
Here the comparison statement is considered to be the basic operation of the algorithm.

Analysis:
Step 3: Check whether the number of times the basic operation is executed depends only on
the input size n. If it also depends on the type of input then investigate worst, average, and
best case efficiency separately.
No best, worst, average cases- because the number of comparisons will be same for all
arrays of size n and it is not dependent on type of input.

Analysis:
Step 4: Set up summation for C(n) reflecting the number of times the algorithm‘s basic
operation is executed.
Let C(n) denotes number of comparisons made.
 Algorithm makes one comparison on each execution of the loop, which is repeated for
each value of the loop‘s variable i within the bound between 1 and n – 1.

Analysis:
Step 5: Simplify summation using standard formulas and express C(n) using orders of
growth.
we have,
Standard Formula to be used:
C(n)=
C(n) (n)

Recap…
General Plan
Example 1: Finding the largest element in a given array
Assignment

AGENDA
General Plan
Example 2: Element uniqueness problem
Assignment

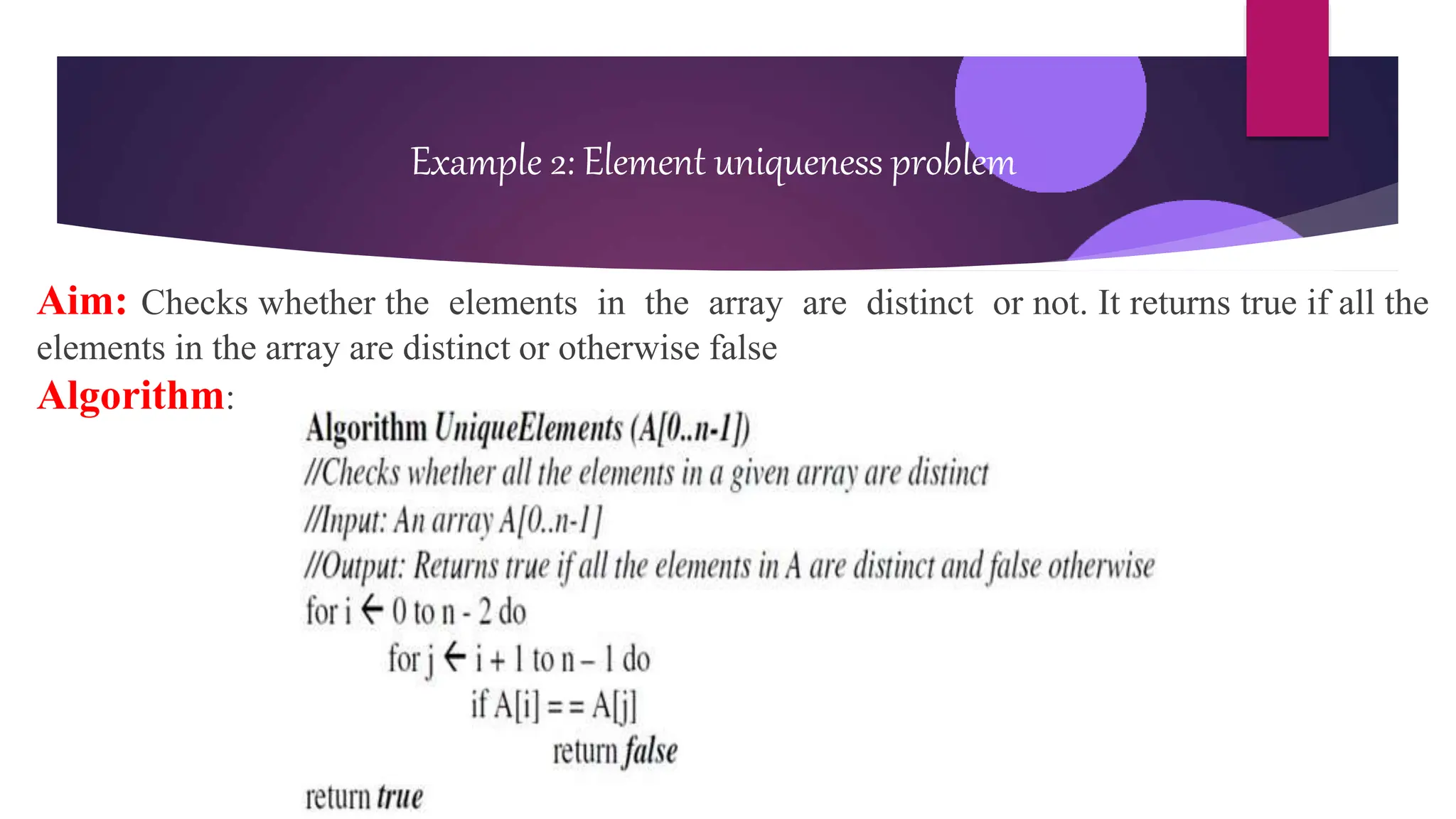

Aim: Checks whether the elements in the array are distinct or not. It returns true if all the
elements in the array are distinct or otherwise false
Algorithm:
Example 2: Element uniqueness problem

Analysis:
The number of elements = n (size of the array)
Basic operation is identified as,
Comparison ::A[i]==A[j]
Here the comparison statement is considered to be the basic operation of the algorithm.

Analysis:
Best, worst, average cases exist - because the number of comparisons will vary for the input
of size n based on type of input.

Analysis:
Here, we need to consider both best and worst case efficiency

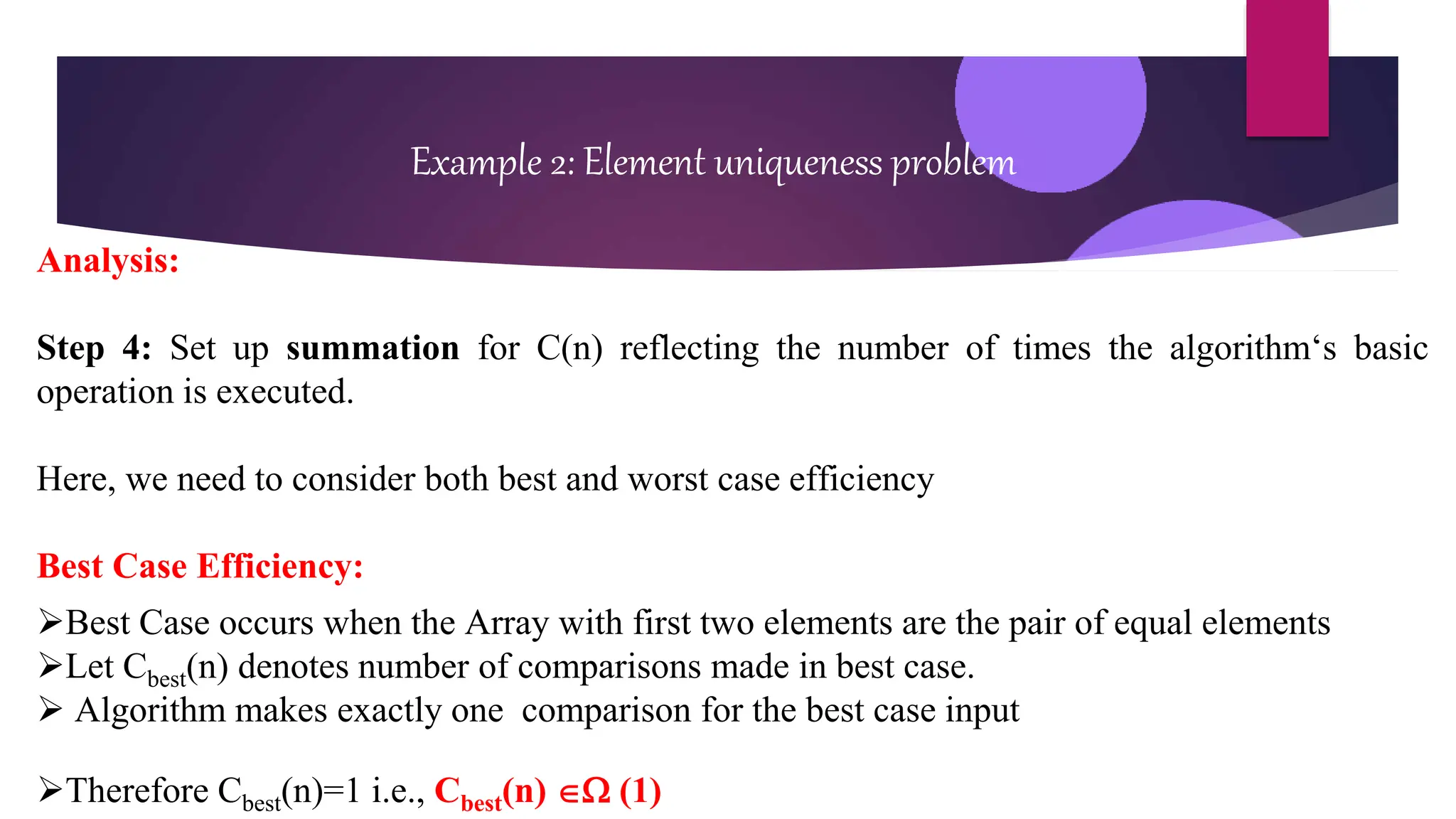

Best Case Efficiency:
Best Case occurs when the Array with first two elements are the pair of equal elements
Let Cbest(n) denotes number of comparisons made in best case.
 Algorithm makes exactly one comparison for the best case input
Therefore Cbest(n)=1 i.e., Cbest(n)  (1)

Analysis:

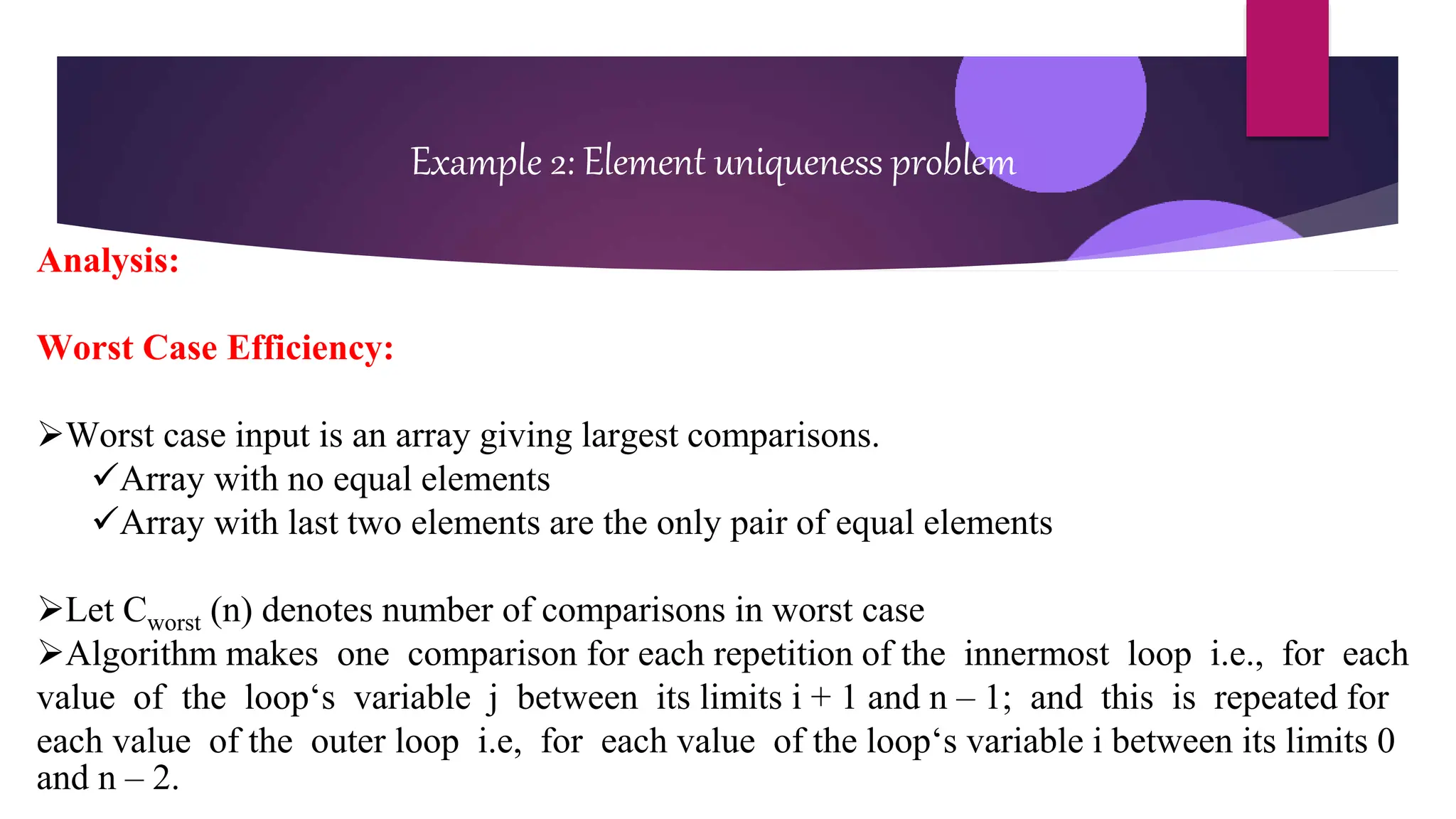

Worst Case Efficiency:
Worst case input is an array giving largest comparisons.
Array with no equal elements
Array with last two elements are the only pair of equal elements
Let Cworst (n) denotes number of comparisons in worst case
Algorithm makes one comparison for each repetition of the innermost loop i.e., for each
value of the loop‘s variable j between its limits i + 1 and n – 1; and this is repeated for
each value of the outer loop i.e, for each value of the loop‘s variable i between its limits 0
and n – 2.

Analysis:
Worst Case Efficiency:
We need to set up the summation for Cworst (n)

Analysis:

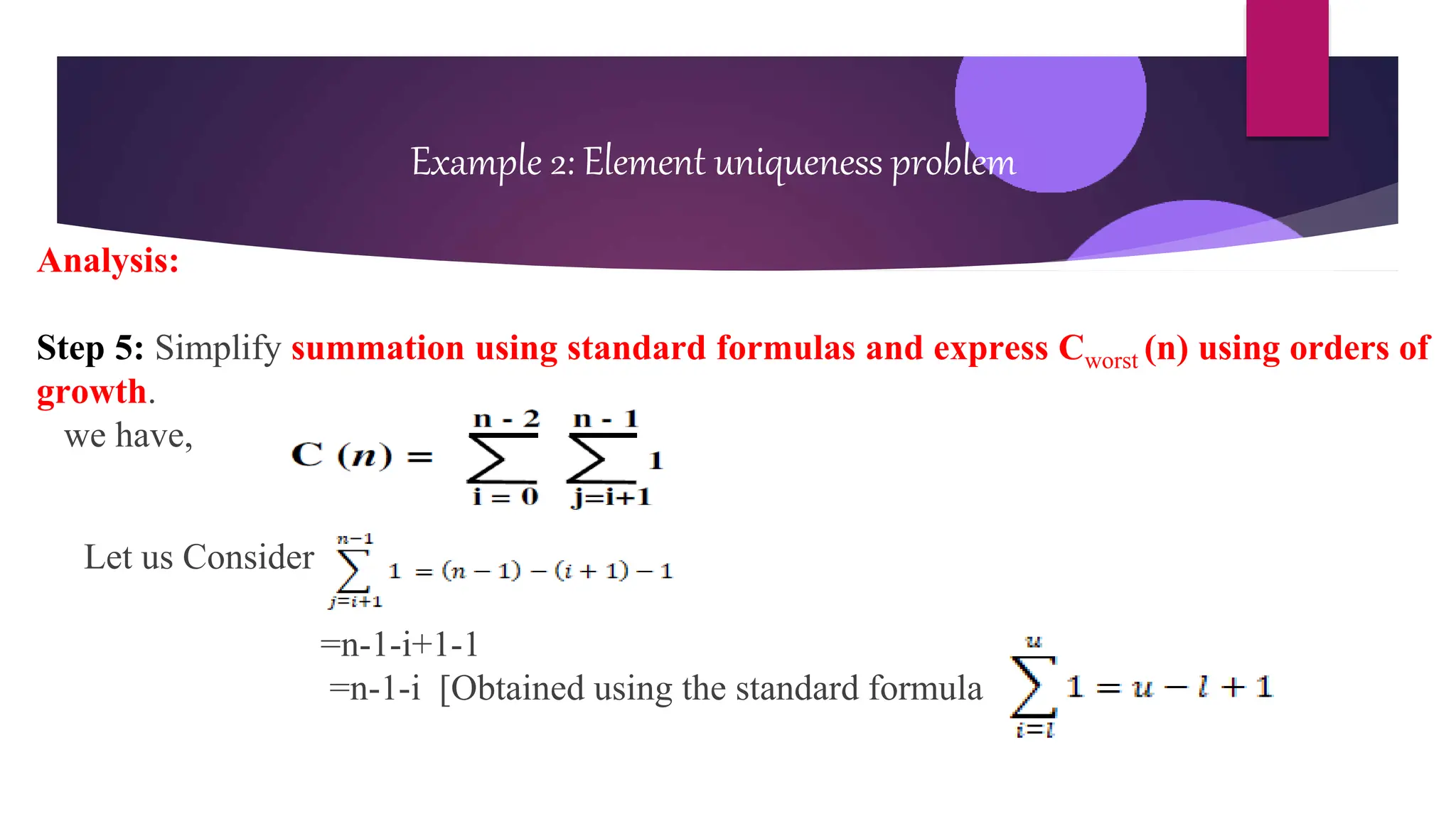

Step 5: Simplify summation using standard formulas and express Cworst (n) using orders of
growth.
we have,
Let us Consider
=n-1-i+1-1
=n-1-i [Obtained using the standard formula

Analysis:
we have,
Cworst (n)= (n-1-0)+(n-1-1)+(n-1-2)+…………………+(n-1-(n-3))+(n-1-(n-2))
=(n-1)+(n-2)+(n-3)+…………………………+2+1
=1+2+3+…….+(n-3)+(n-2)+(n-1) [Using the formula 1+2+3+….+n=n(n+1)/2]
= =
Therefore Cworst (n)  (n2)

Recap…
General Plan
Example 2: Element uniqueness problem
Assignment

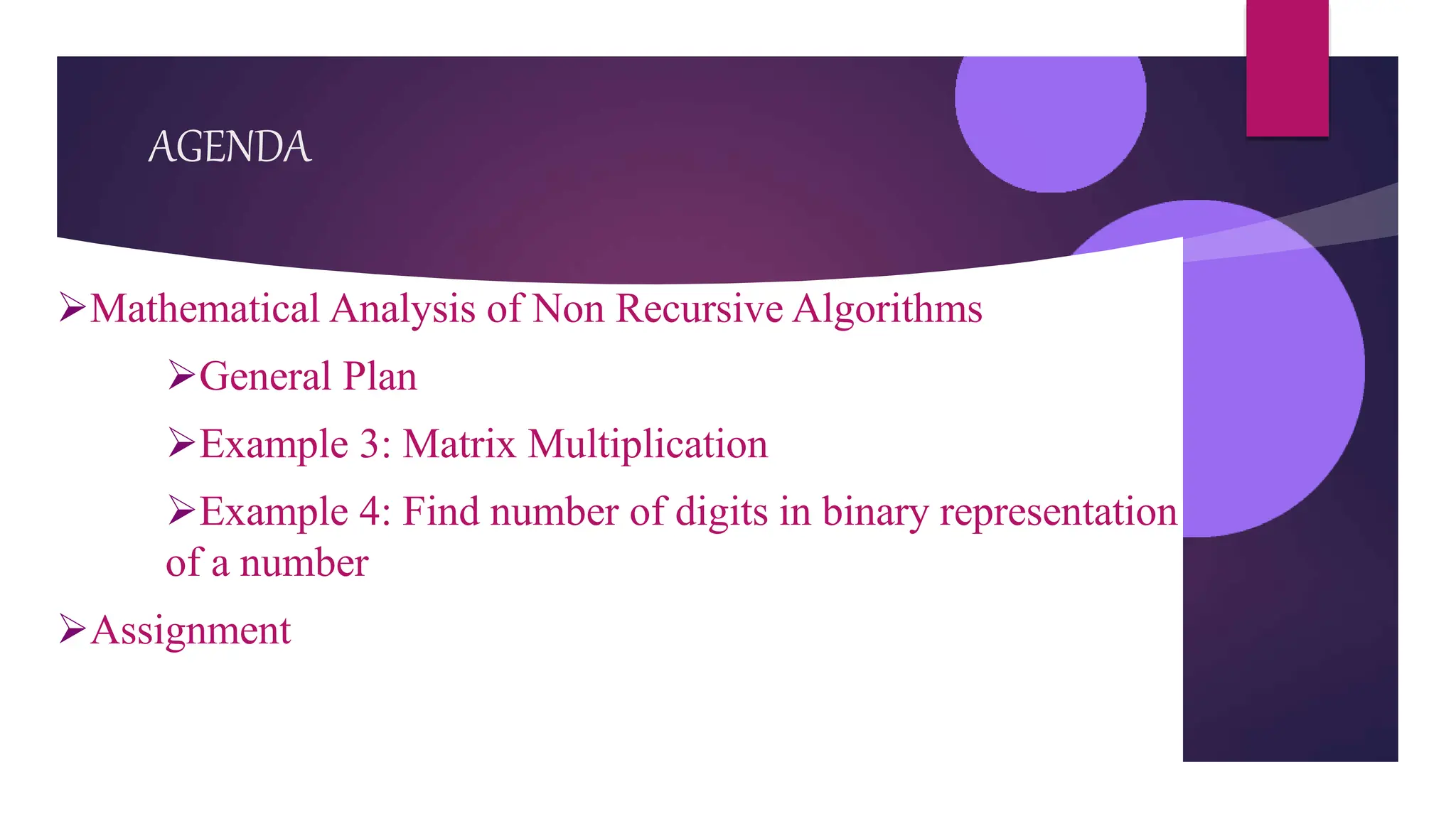

AGENDA
General Plan
Example 3: Matrix Multiplication
Example 4: Find number of digits in binary representation
of a number
Assignment

Aim: Given two n × n matrices A and B, find the time efficiency of the definition-based
algorithm for computing their product C = AB. By definition, C is an n × n matrix whose
elements are computed as the scalar (dot) products of the rows of matrix A and the columns
of matrix B:

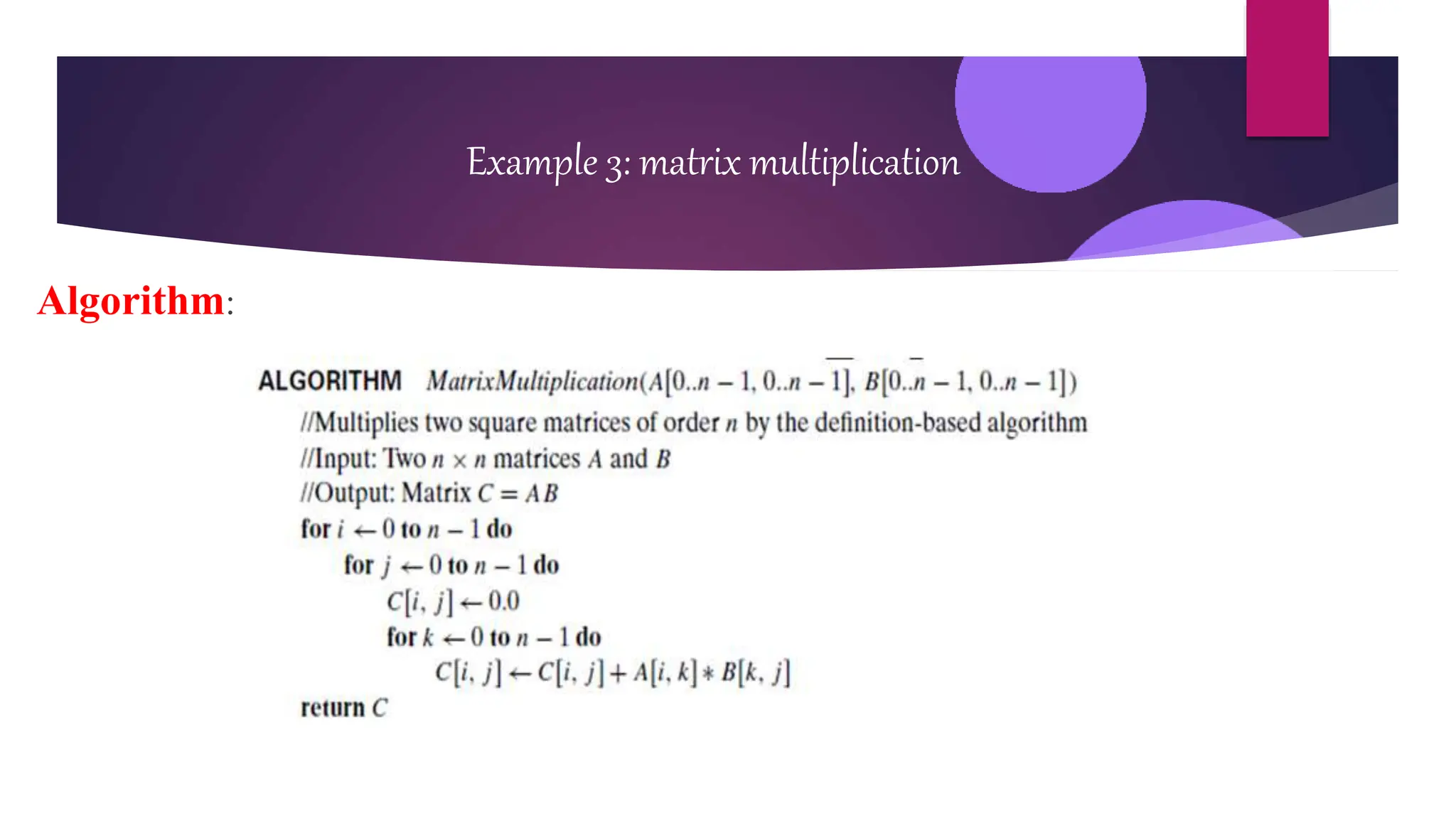

Example 3: matrix multiplication

Algorithm:

Analysis:

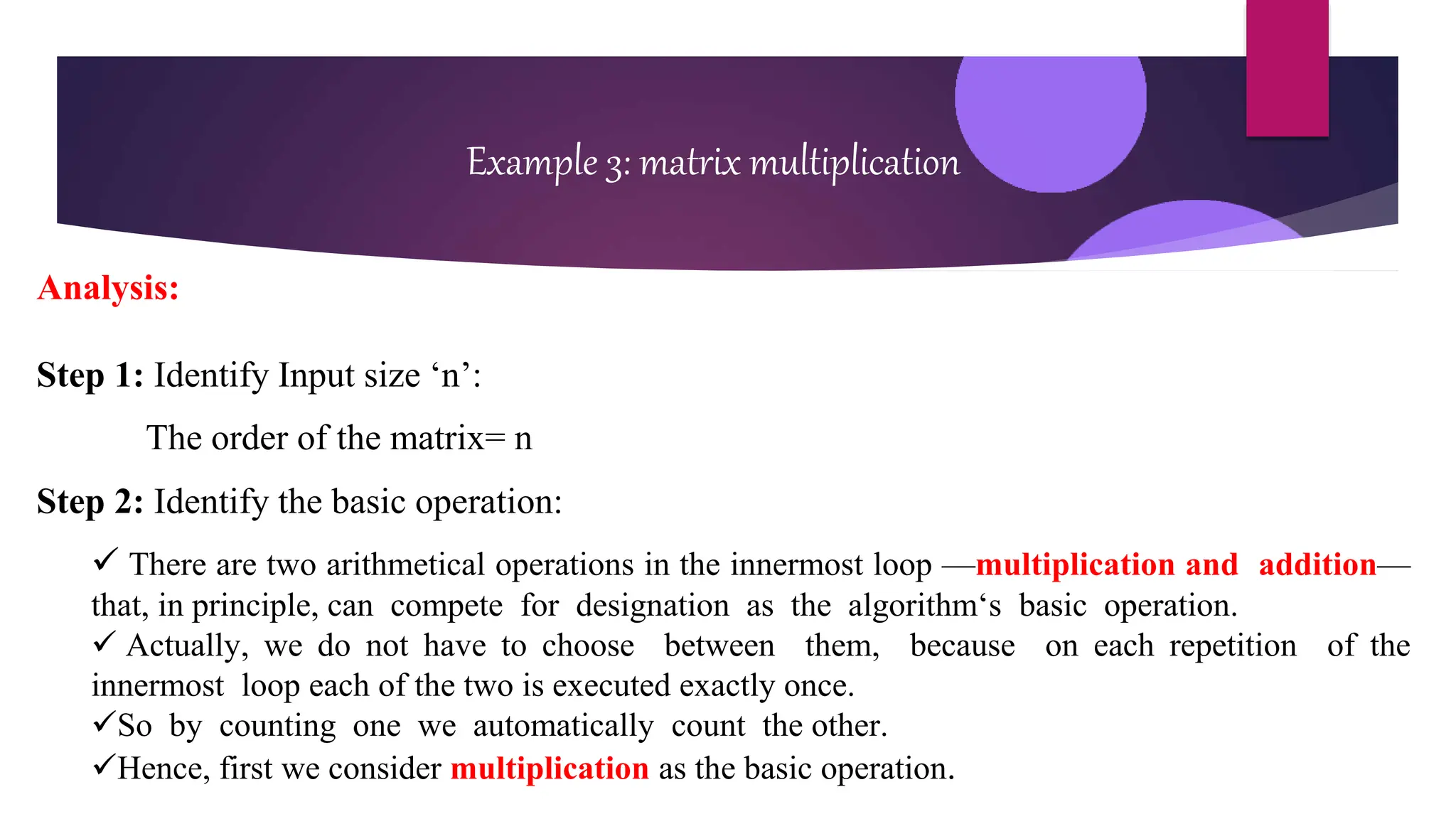

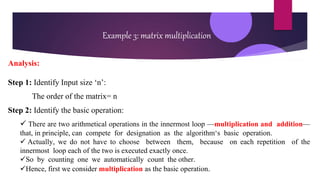

The order of the matrix= n
 There are two arithmetical operations in the innermost loop —multiplication and addition—
that, in principle, can compete for designation as the algorithm‘s basic operation.
 Actually, we do not have to choose between them, because on each repetition of the
innermost loop each of the two is executed exactly once.
So by counting one we automatically count the other.
Hence, first we consider multiplication as the basic operation.

Analysis:
We can observe that the total number of multiplications M(n) executed by the algorithm.
depends only on the size of the input matrices, we do not have to investigate the worst-case,
average-case, and best-case efficiencies separately.

Analysis:

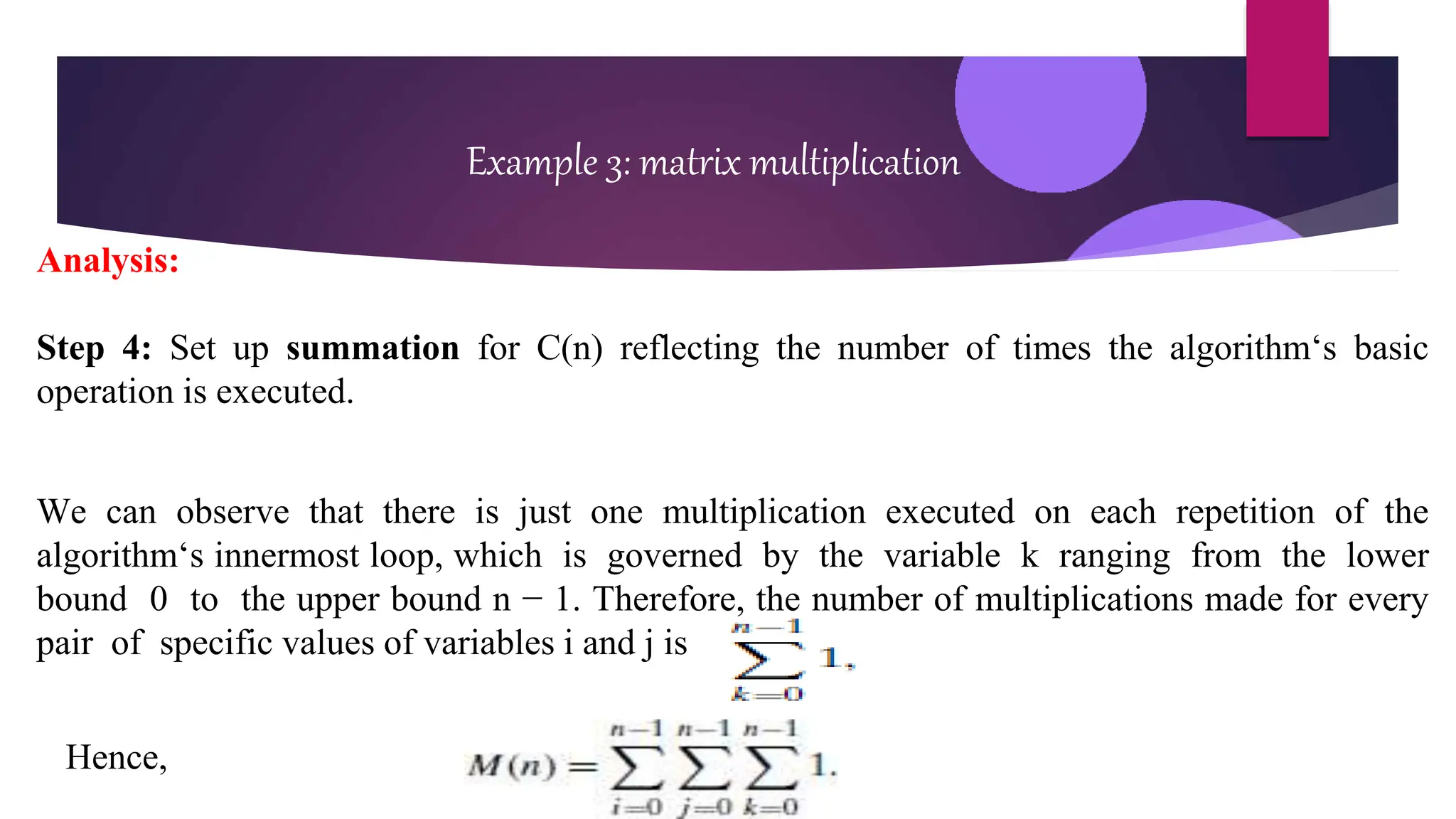

We can observe that there is just one multiplication executed on each repetition of the
algorithm‘s innermost loop, which is governed by the variable k ranging from the lower
bound 0 to the upper bound n − 1. Therefore, the number of multiplications made for every
pair of specific values of variables i and j is
Hence,

Analysis:
Step 5: Simplify summation using standard formulas and express M (n) using orders of
growth.
we have,
Consider
Now,
Standard Formula to be used:

Analysis:
Total running time:
Suppose if we take into account of addition; A(n) = n3
Total running time:
Hence T(n)  (n3)

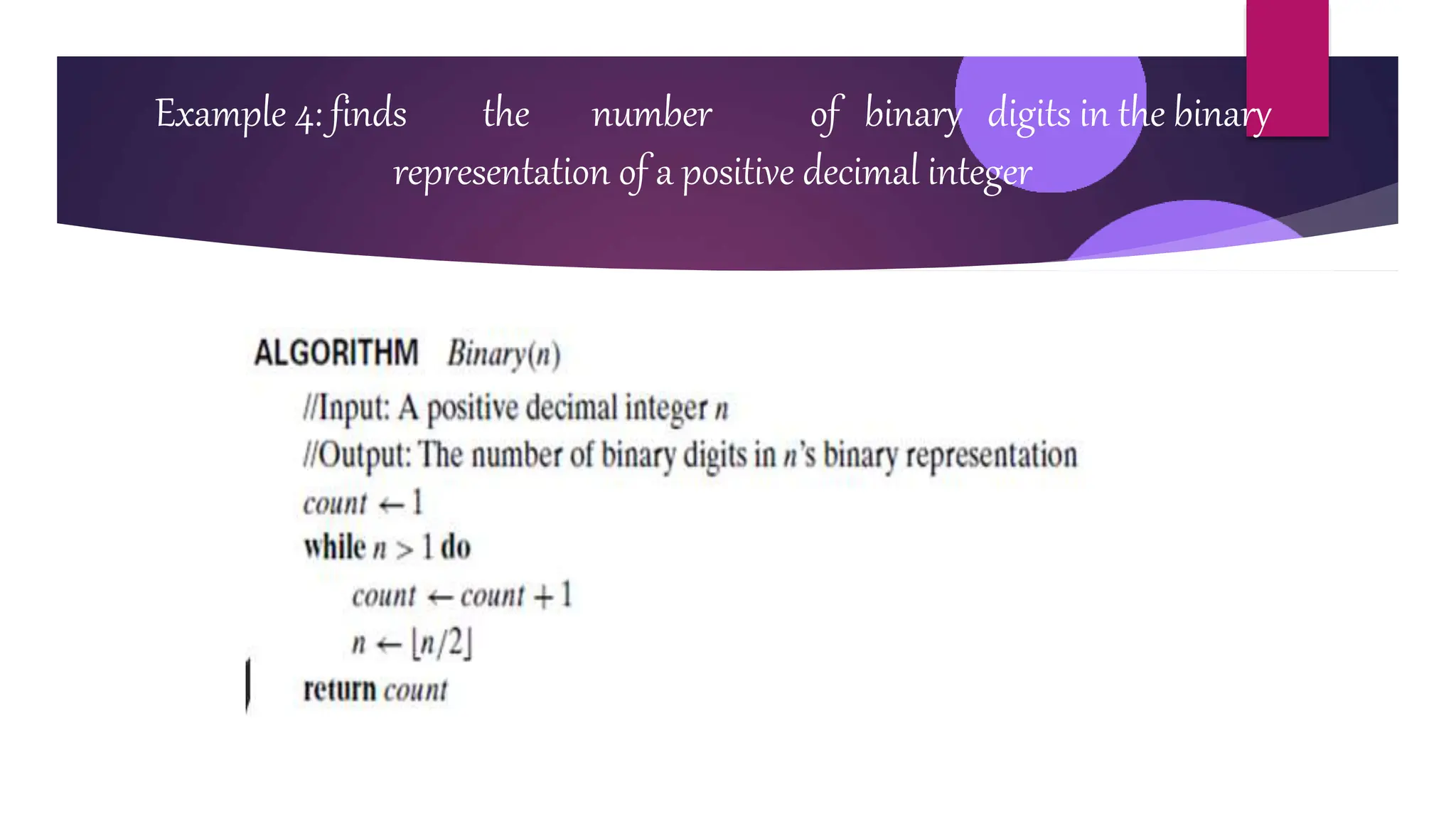

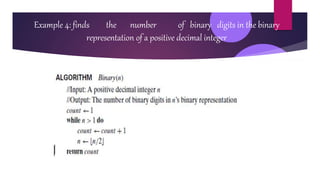

Example 4: finds the number of binary digits in the binary
representation of a positive decimal integer

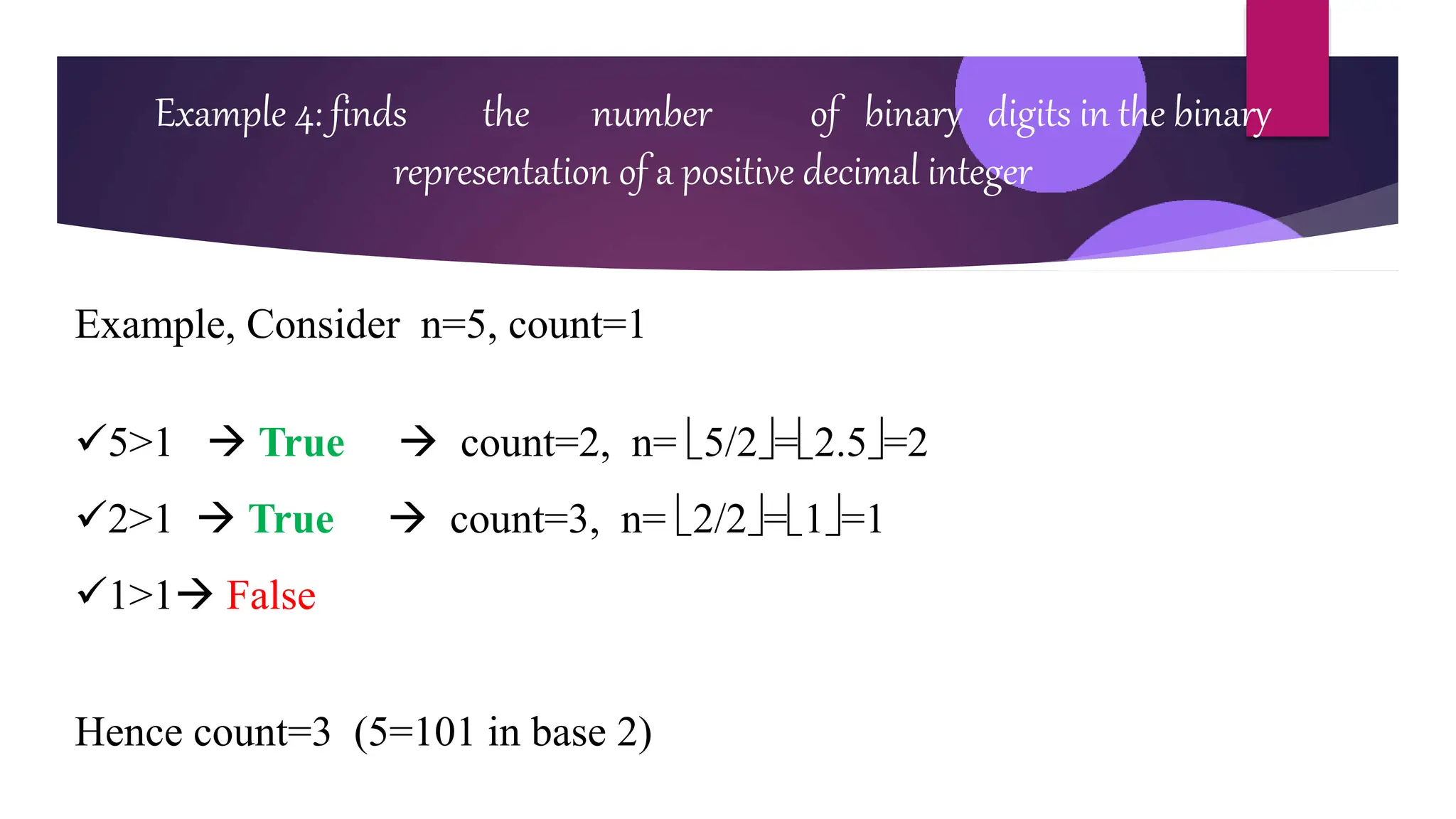

Example, Consider n=5, count=1
5>1  True  count=2, n= 5/2=2.5=2
2>1  True  count=3, n= 2/2=1=1
1>1 False
Hence count=3 (5=101 in base 2)

Analysis:

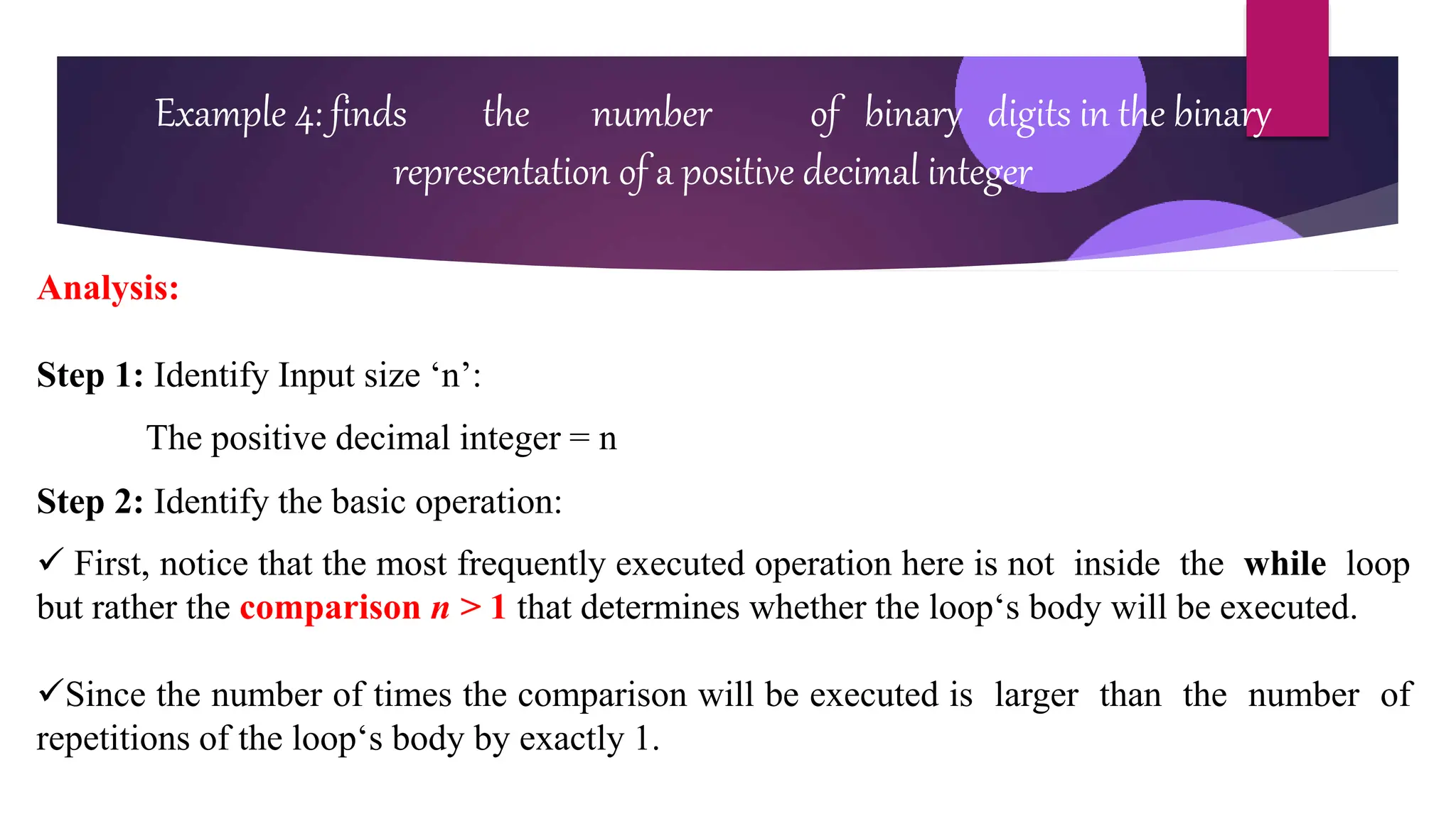

The positive decimal integer = n
 First, notice that the most frequently executed operation here is not inside the while loop
but rather the comparison n > 1 that determines whether the loop‘s body will be executed.
Since the number of times the comparison will be executed is larger than the number of
repetitions of the loop‘s body by exactly 1.

Analysis:
We can observe that the comparison statement depends only on input size not on type of input ,
we do not have to investigate the worst-case, average-case, and best-case efficiencies
separately.

Analysis:

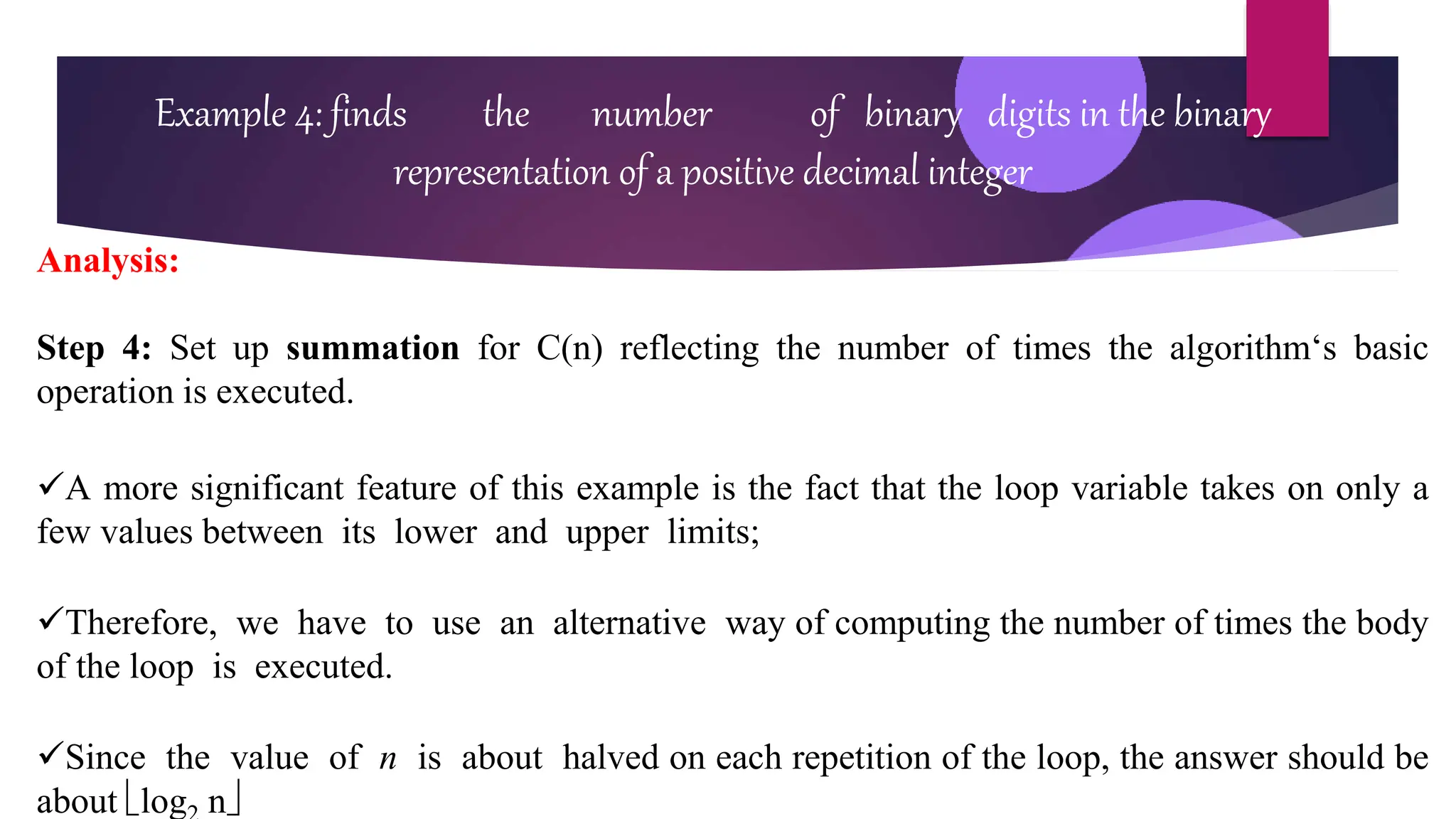

A more significant feature of this example is the fact that the loop variable takes on only a
few values between its lower and upper limits;
Therefore, we have to use an alternative way of computing the number of times the body
of the loop is executed.
Since the value of n is about halved on each repetition of the loop, the answer should be
about log n

Analysis:

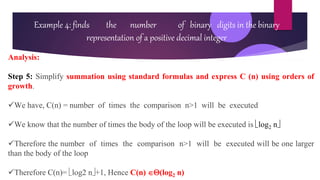

Step 5: Simplify summation using standard formulas and express C (n) using orders of
growth.
We have, C(n) = number of times the comparison n>1 will be executed
We know that the number of times the body of the loop will be executed is log2 n
Therefore the number of times the comparison n>1 will be executed will be one larger
than the body of the loop
Therefore C(n)= log2 n+1, Hence C(n) (log2 n)

Recap….
General Plan
Example 3: Matrix Multiplication
Example 4: Find number of digits in binary representation
of a number
Assignment

AGENDA
Mathematical Analysis of Recursive Algorithms
General Plan
Example 1: Factorial of a Number
Assignment

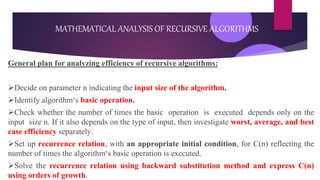

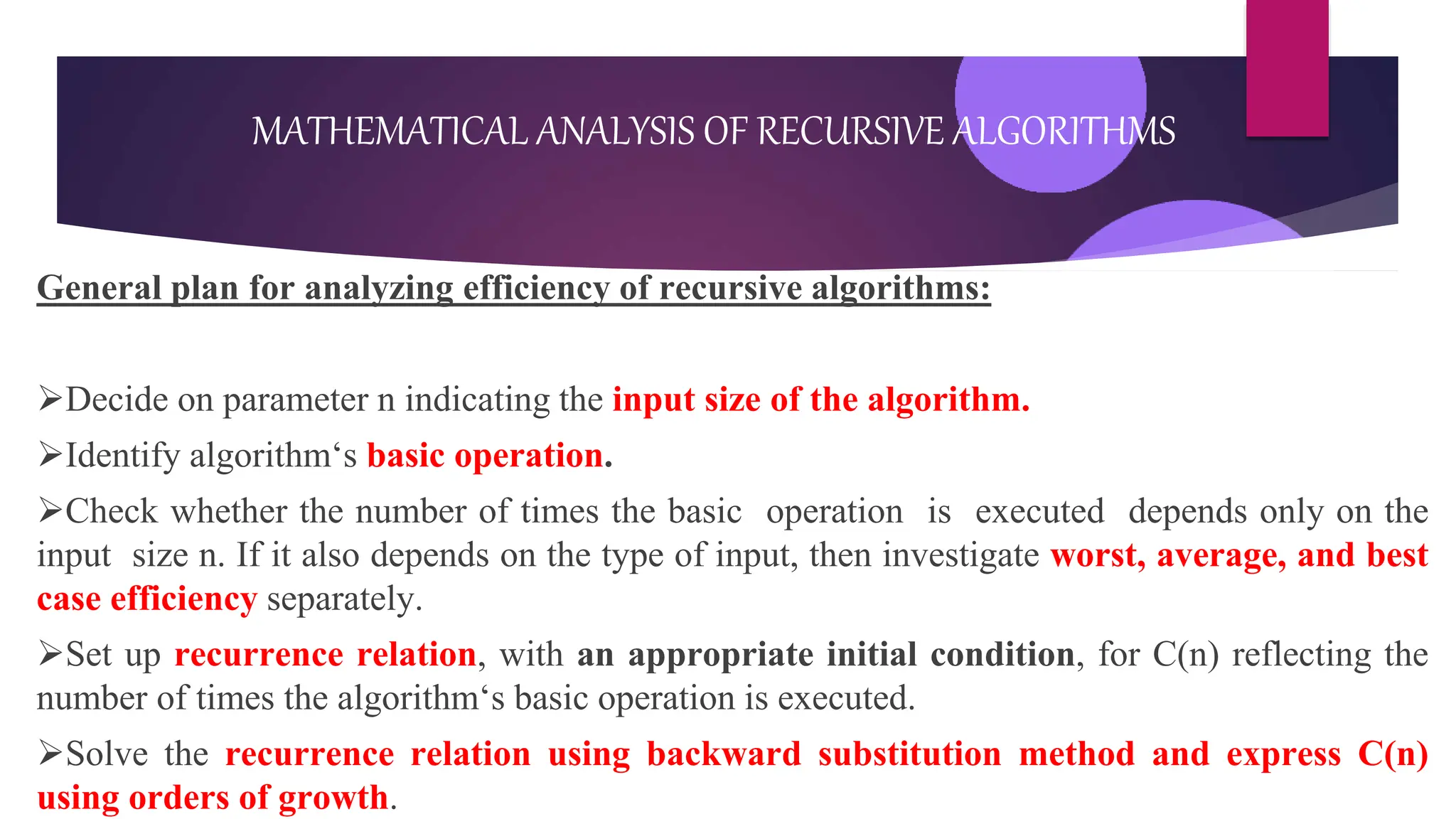

General plan for analyzing efficiency of recursive algorithms:
Decide on parameter n indicating the input size of the algorithm.
Identify algorithm‘s basic operation.
Check whether the number of times the basic operation is executed depends only on the
input size n. If it also depends on the type of input, then investigate worst, average, and best
case efficiency separately.
Set up recurrence relation, with an appropriate initial condition, for C(n) reflecting the
number of times the algorithm‘s basic operation is executed.
Solve the recurrence relation using backward substitution method and express C(n)
using orders of growth.
MATHEMATICAL ANALYSIS OF RECURSIVE ALGORITHMS

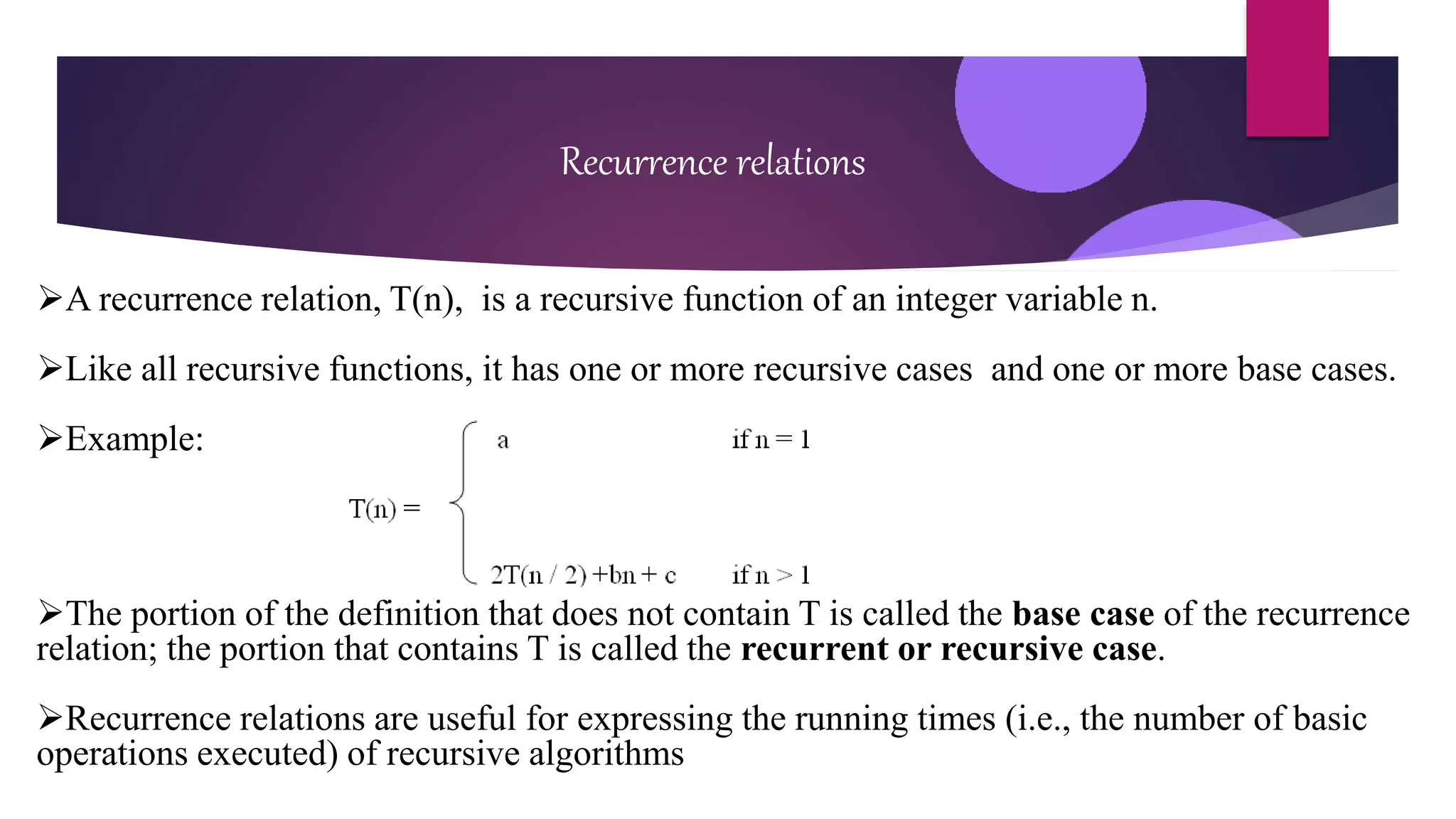

Recurrence relations
A recurrence relation, T(n), is a recursive function of an integer variable n.
Like all recursive functions, it has one or more recursive cases and one or more base cases.
Example:
The portion of the definition that does not contain T is called the base case of the recurrence
relation; the portion that contains T is called the recurrent or recursive case.
Recurrence relations are useful for expressing the running times (i.e., the number of basic
operations executed) of recursive algorithms

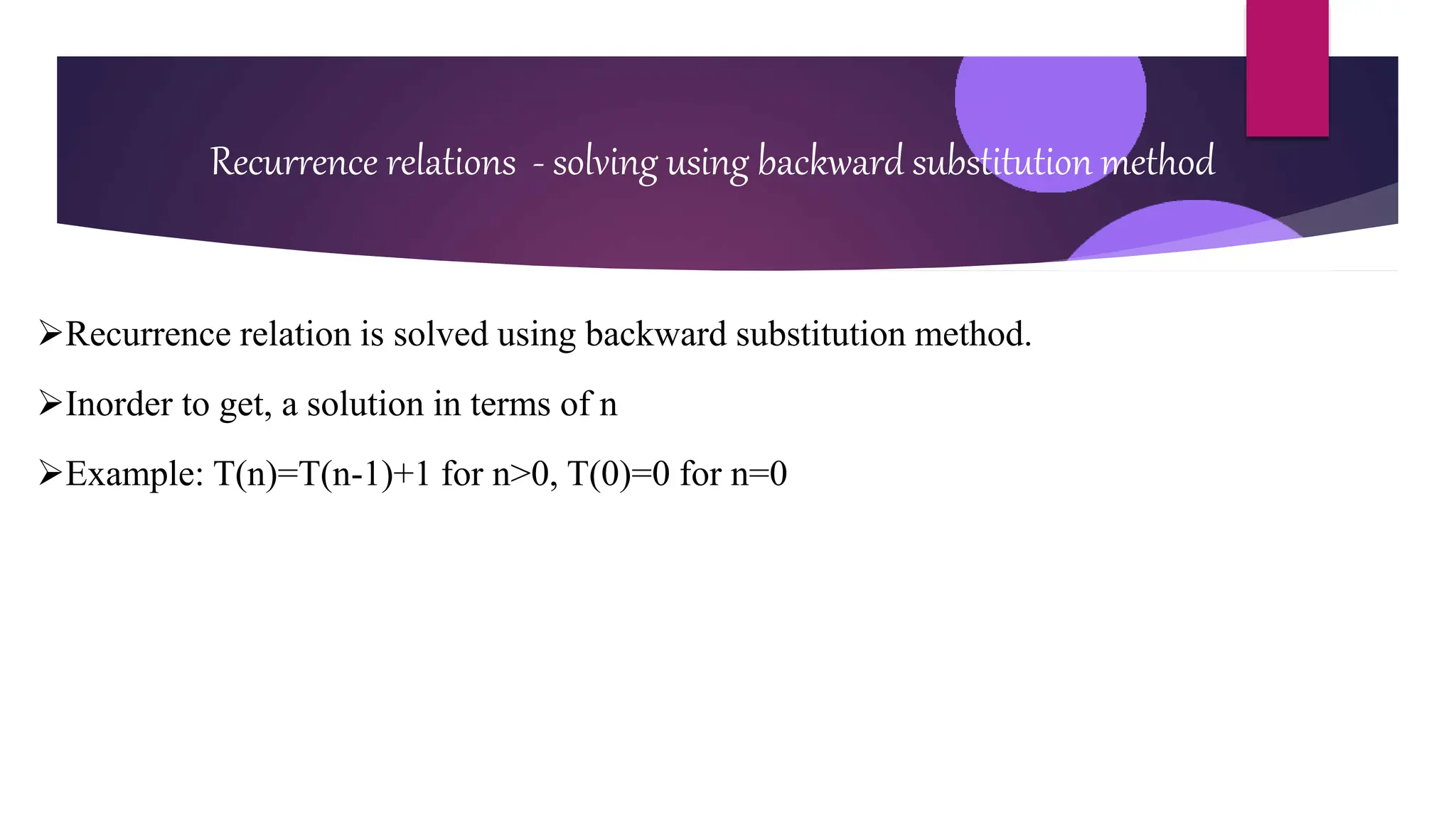

Recurrence relations - solving using backward substitution method
Recurrence relation is solved using backward substitution method.
Inorder to get, a solution in terms of n
Example: T(n)=T(n-1)+1 for n>0, T(0)=0 for n=0

Example 1: factorial of a number
Definition:
n ! = 1 * 2 * … *(n-1) * n for n ≥ 1 and 0! = 1
 Recursive definition of n!:
F(n) = F(n-1) * n for n ≥ 1 and F(0) = 1

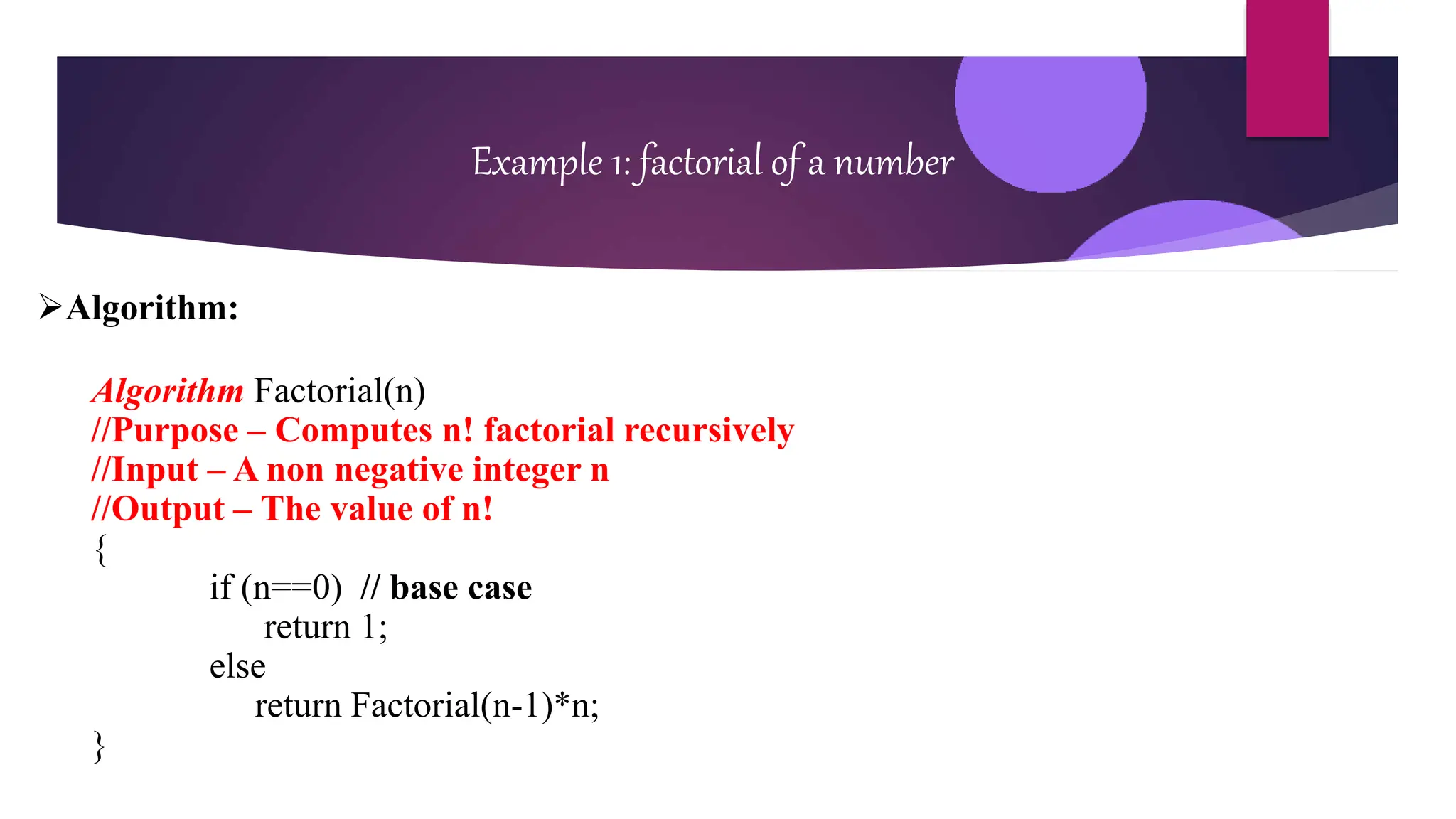

Algorithm:
Algorithm Factorial(n)
//Purpose – Computes n! factorial recursively
//Input – A non negative integer n
//Output – The value of n!
{
if (n==0) // base case
return 1;
else
return Factorial(n-1)*n;
}

Analysis:

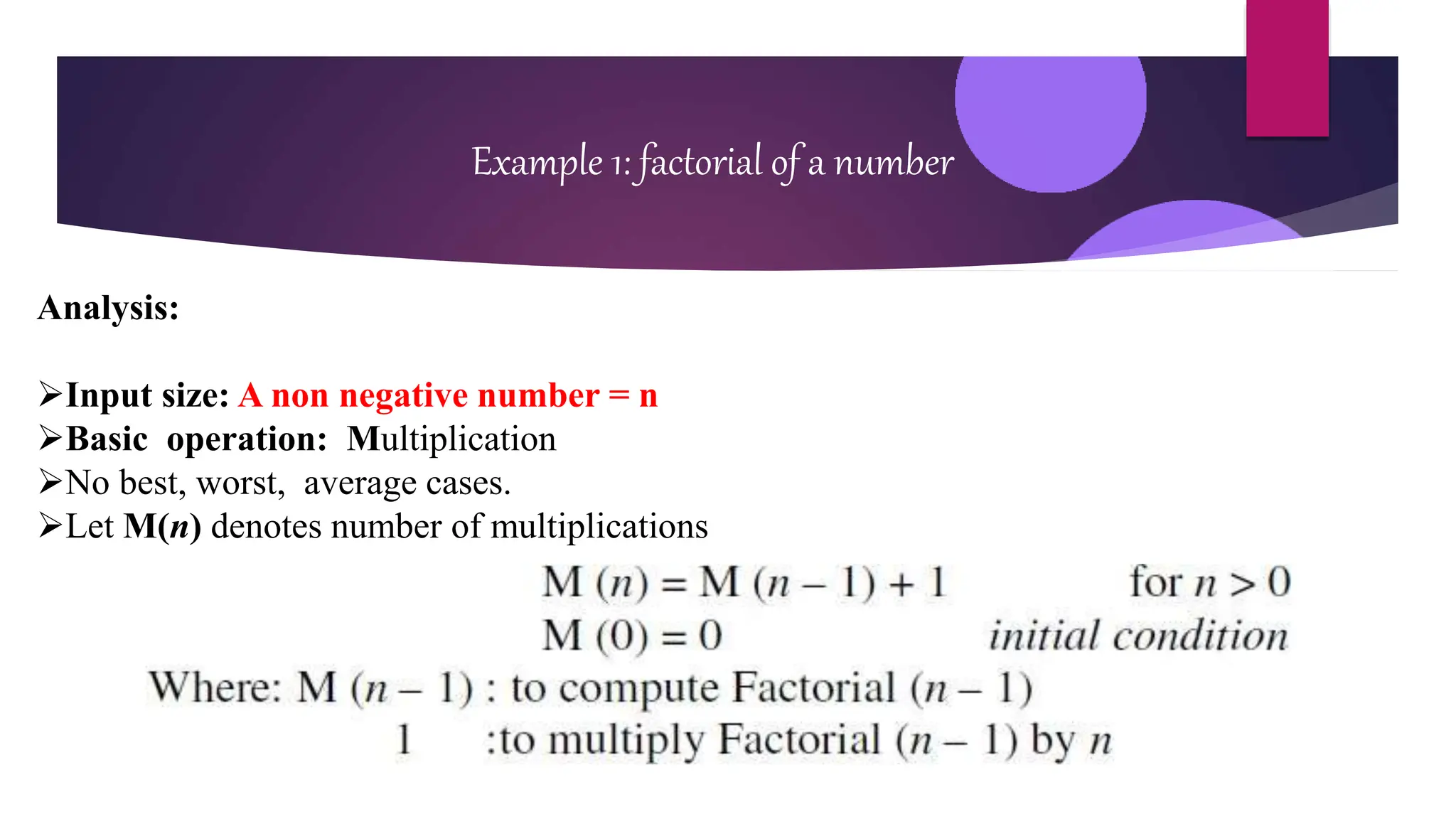

Input size: A non negative number = n
Basic operation: Multiplication
No best, worst, average cases.
Let M(n) denotes number of multiplications

Analysis:

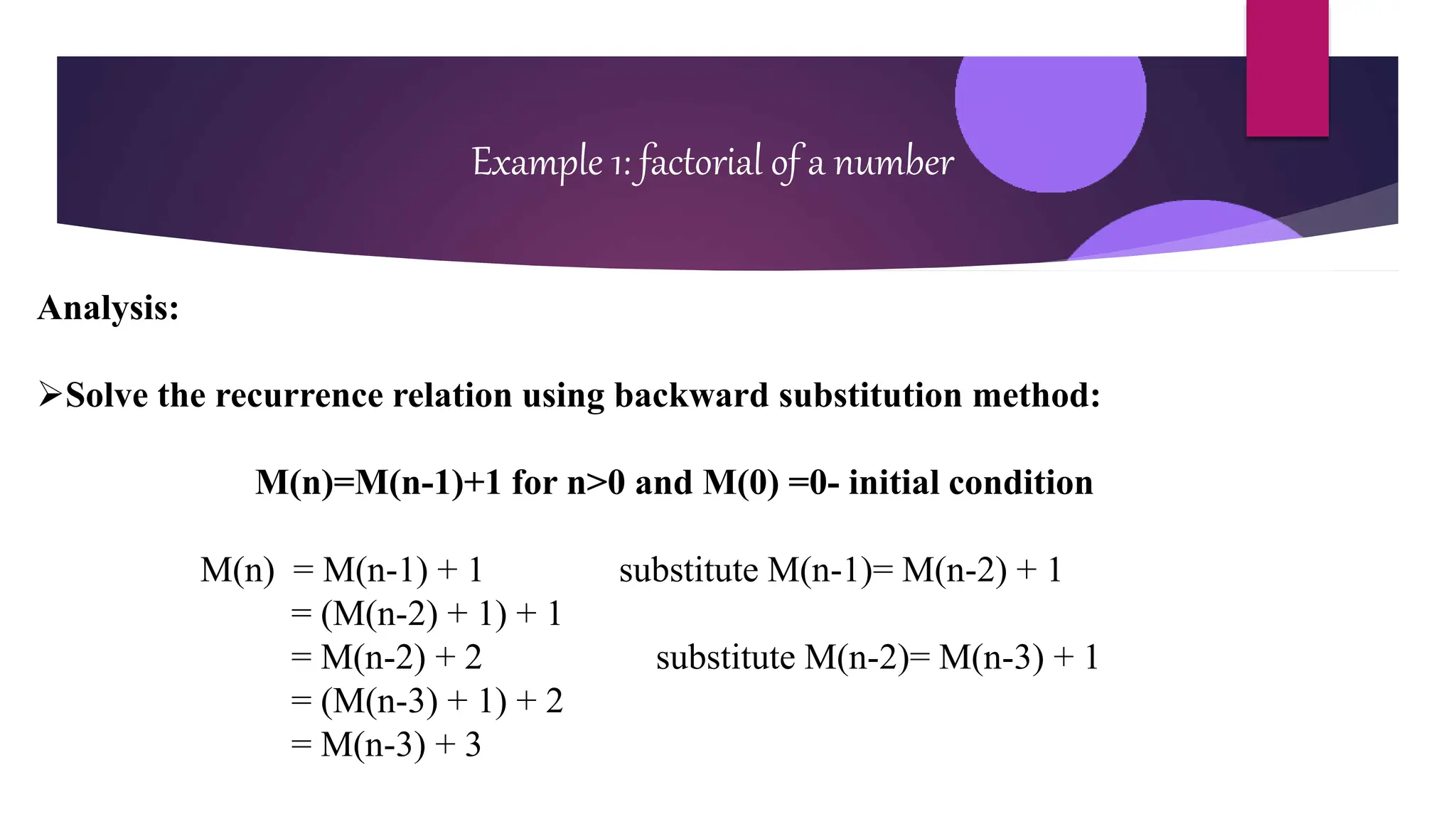

Solve the recurrence relation using backward substitution method:
M(n)=M(n-1)+1 for n>0 and M(0) =0- initial condition
M(n) = M(n-1) + 1 substitute M(n-1)= M(n-2) + 1
= (M(n-2) + 1) + 1
= M(n-2) + 2 substitute M(n-2)= M(n-3) + 1
= (M(n-3) + 1) + 2
= M(n-3) + 3

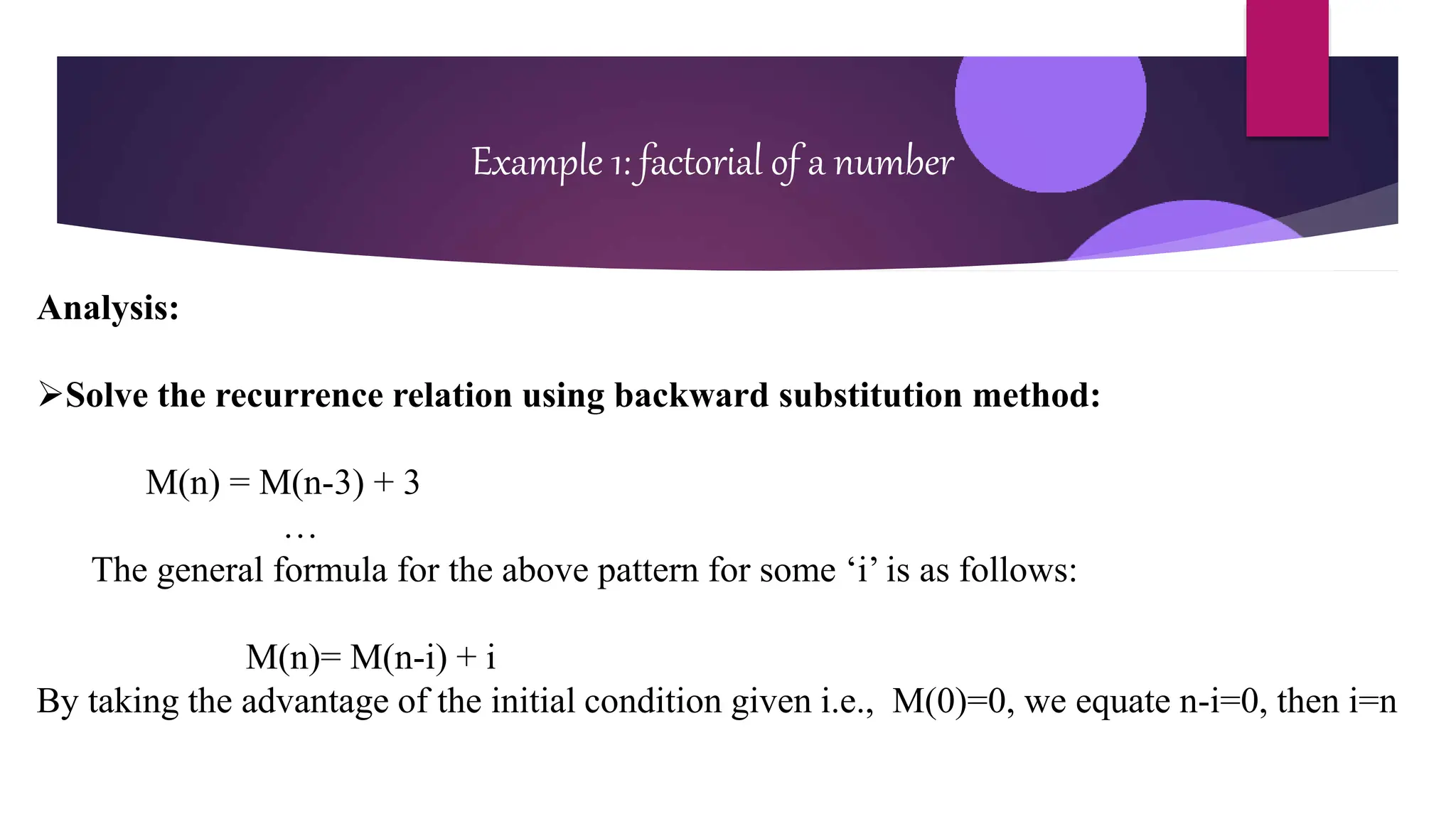

Analysis:
M(n) = M(n-3) + 3
…
The general formula for the above pattern for some ‘i’ is as follows:
M(n)= M(n-i) + i
By taking the advantage of the initial condition given i.e., M(0)=0, we equate n-i=0, then i=n

Analysis:

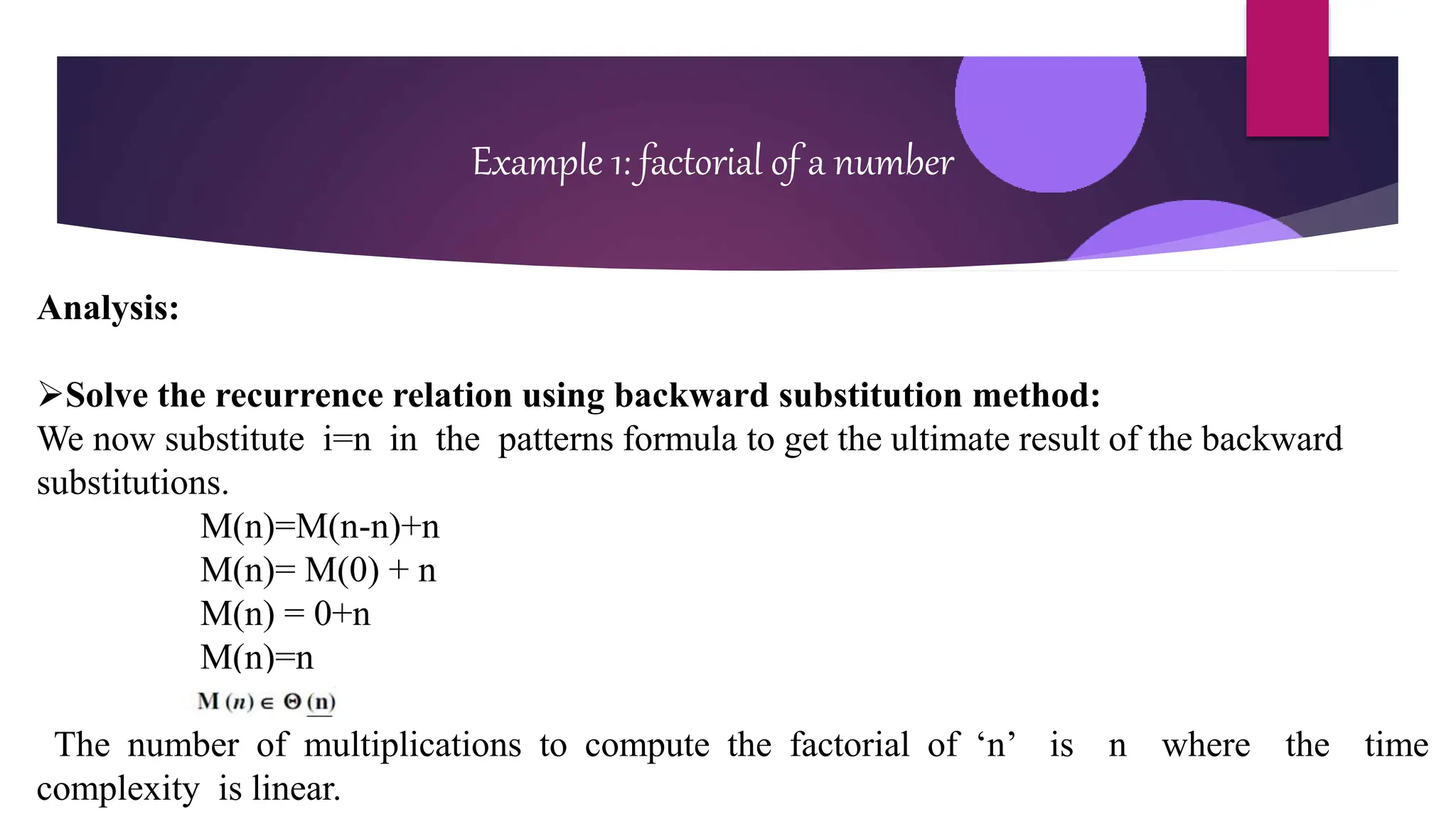

We now substitute i=n in the patterns formula to get the ultimate result of the backward
substitutions.
M(n)=M(n-n)+n
M(n)= M(0) + n
M(n) = 0+n
M(n)=n
The number of multiplications to compute the factorial of ‘n’ is n where the time
complexity is linear.

Recap..
General Plan
Example 1: Factorial of a Number
Assignment

AGENDA
General Plan
Example 2: Tower of Hanoi Problem
Assignment

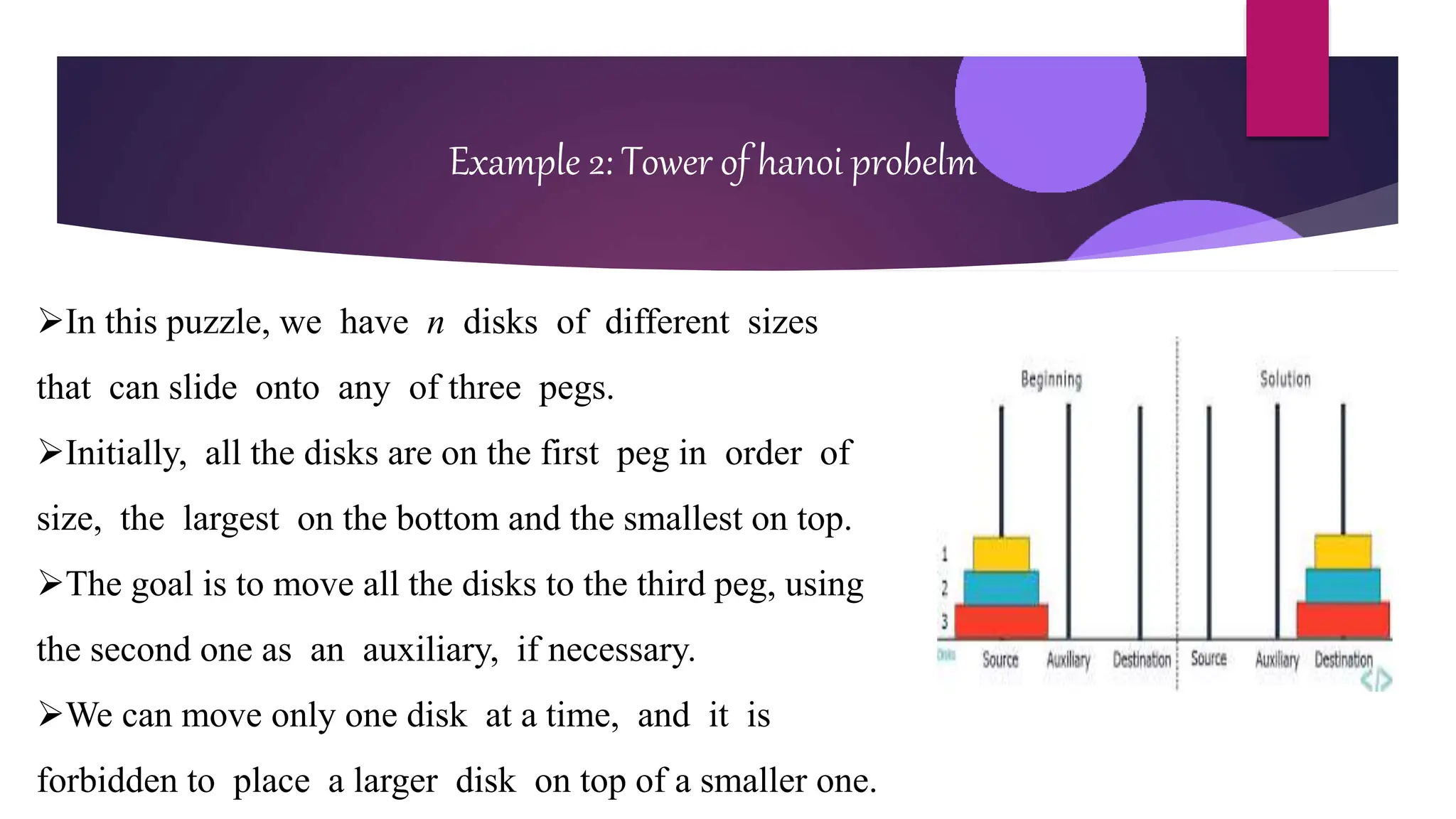

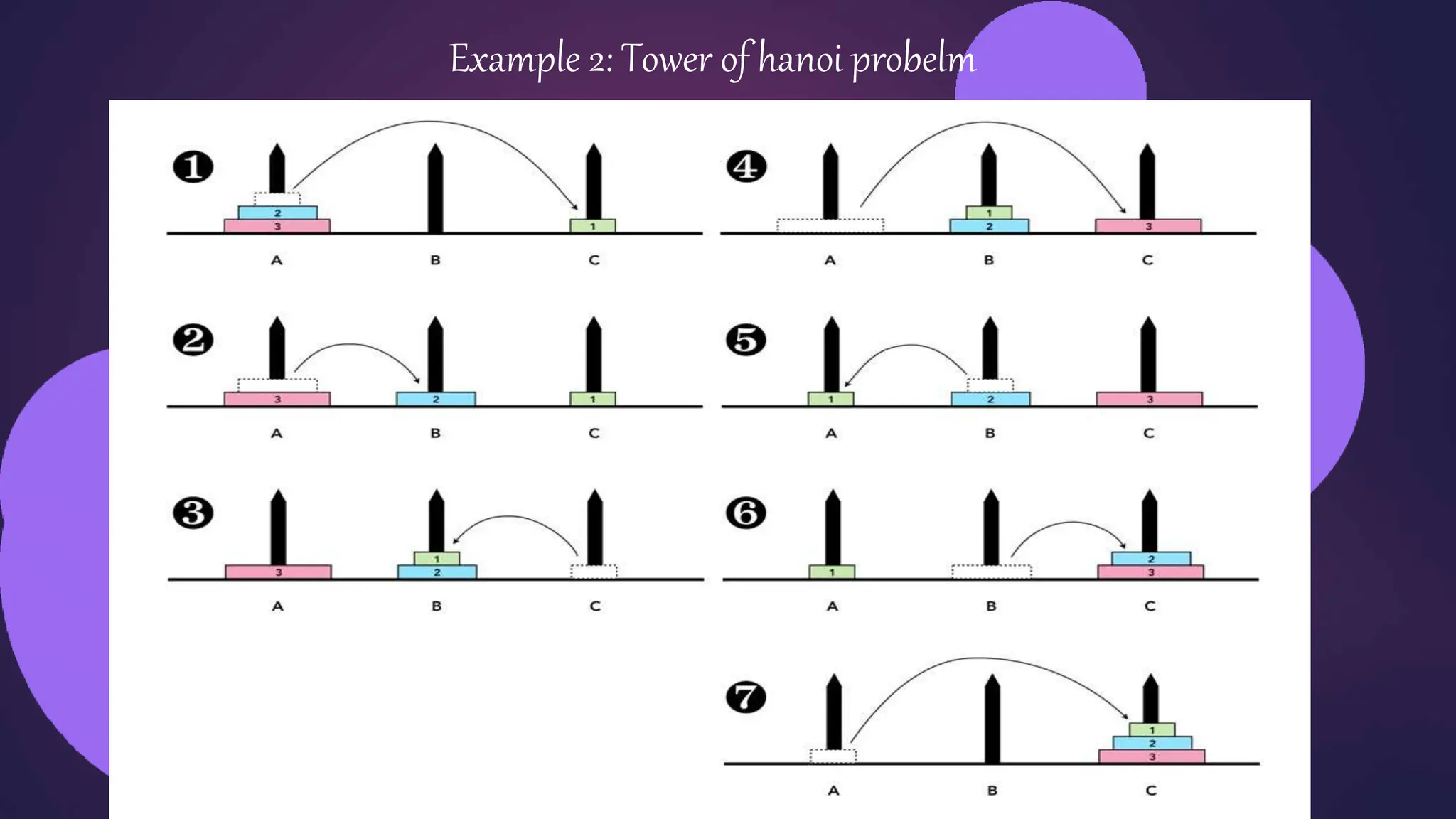

Example 2: Tower of hanoi probelm

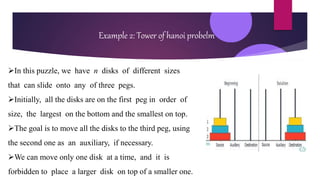

In this puzzle, we have n disks of different sizes
that can slide onto any of three pegs.
Initially, all the disks are on the first peg in order of
size, the largest on the bottom and the smallest on top.
The goal is to move all the disks to the third peg, using
the second one as an auxiliary, if necessary.
We can move only one disk at a time, and it is
forbidden to place a larger disk on top of a smaller one.

The problem has an elegant recursive solution:
To move n>1 disks from peg 1 to peg 3 (with peg 2 as auxiliary):
o Step 1: We first move recursively n − 1 disks from peg 1 to peg 2 (with peg 3 as
auxiliary).
o Step 2: Then move the largest disk i.e., nth disk directly from peg 1 to peg 3.
o Step 3: And, finally, move recursively n − 1 disks from peg 2 to peg 3 (using peg 1 as
auxiliary).
Of course, if n = 1, we simply move the single disk directly from the source peg to the destination
peg.

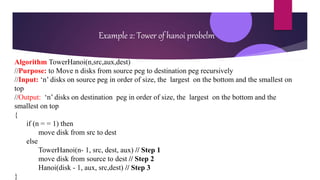

Algorithm TowerHanoi(n,src,aux,dest)
//Purpose: to Move n disks from source peg to destination peg recursively
//Input: ‘n’ disks on source peg in order of size, the largest on the bottom and the smallest on
top
//Output: ‘n’ disks on destination peg in order of size, the largest on the bottom and the
smallest on top
{
if (n = = 1) then
move disk from src to dest
else
TowerHanoi(n- 1, src, dest, aux) // Step 1
move disk from source to dest // Step 2
Hanoi(disk - 1, aux, src,dest) // Step 3
}

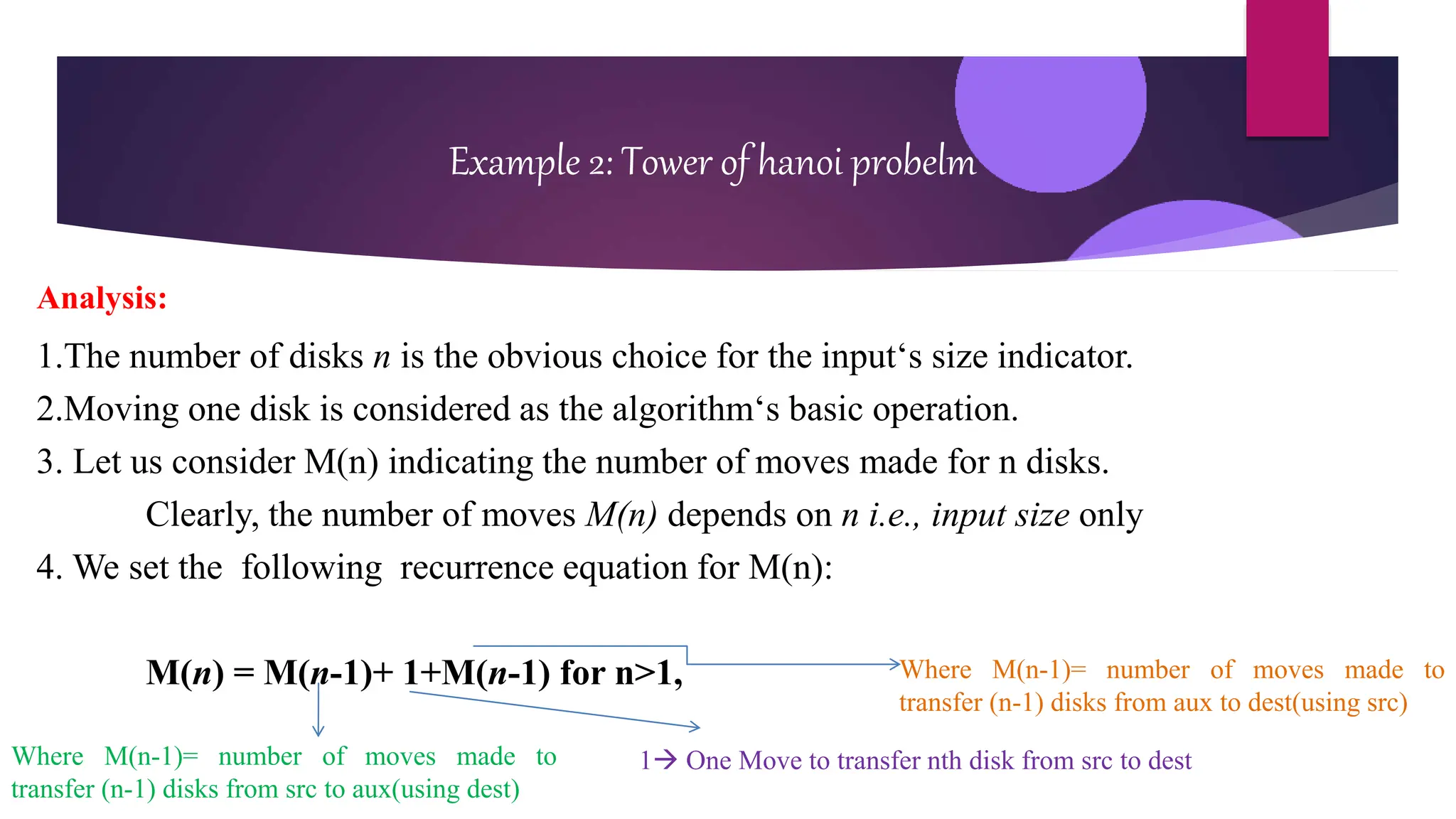

Analysis:
1.The number of disks n is the obvious choice for the input‘s size indicator.
2.Moving one disk is considered as the algorithm‘s basic operation.
3. Let us consider M(n) indicating the number of moves made for n disks.
Clearly, the number of moves M(n) depends on n i.e., input size only
4. We set the following recurrence equation for M(n):
M(n) = M(n-1)+ 1+M(n-1) for n>1,
Where M(n-1)= number of moves made to
transfer (n-1) disks from src to aux(using dest)
1 One Move to transfer nth disk from src to dest
Where M(n-1)= number of moves made to
transfer (n-1) disks from aux to dest(using src)

Analysis:

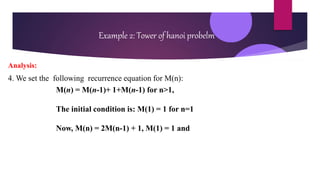

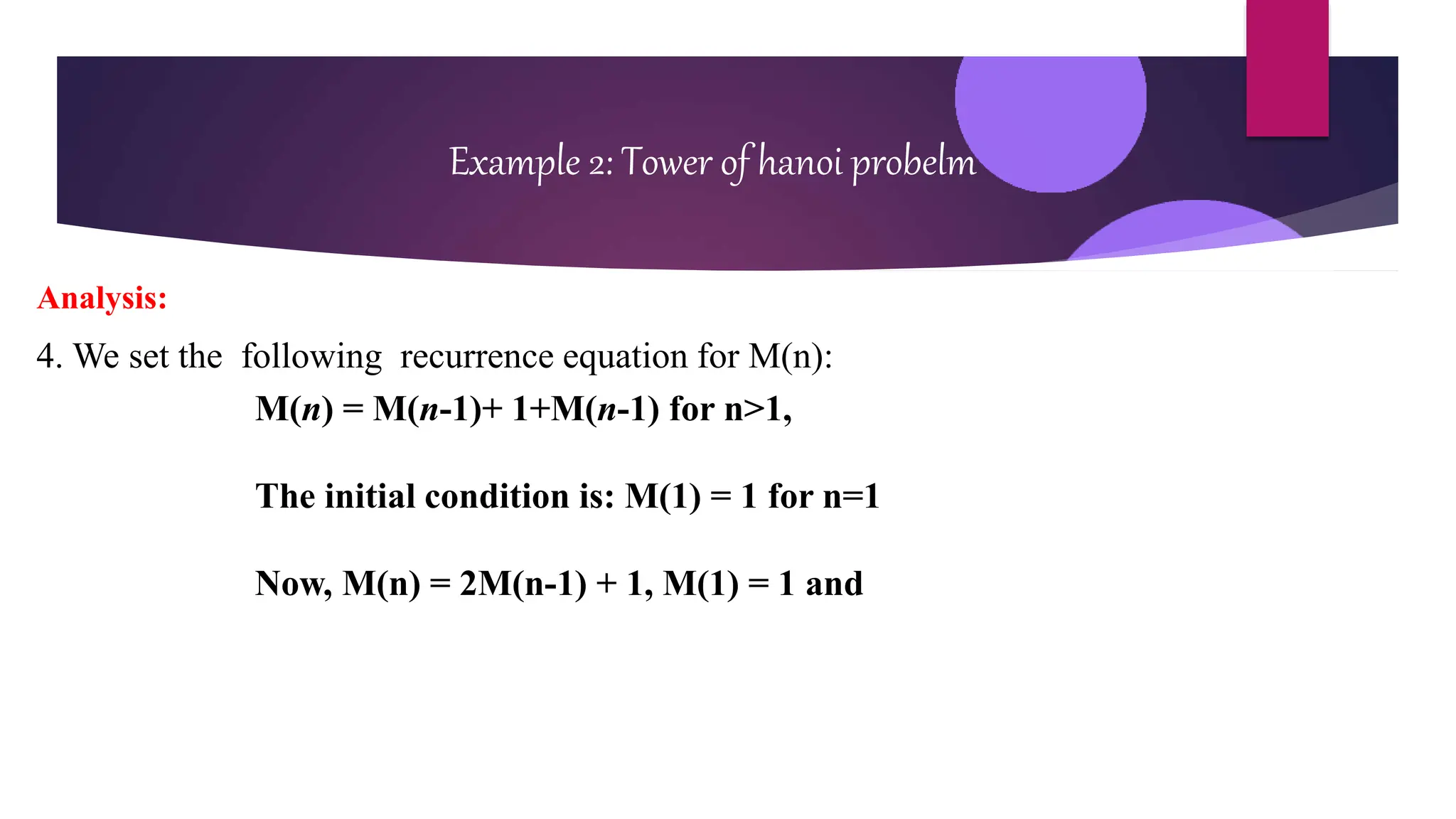

4. We set the following recurrence equation for M(n):
M(n) = M(n-1)+ 1+M(n-1) for n>1,
The initial condition is: M(1) = 1 for n=1

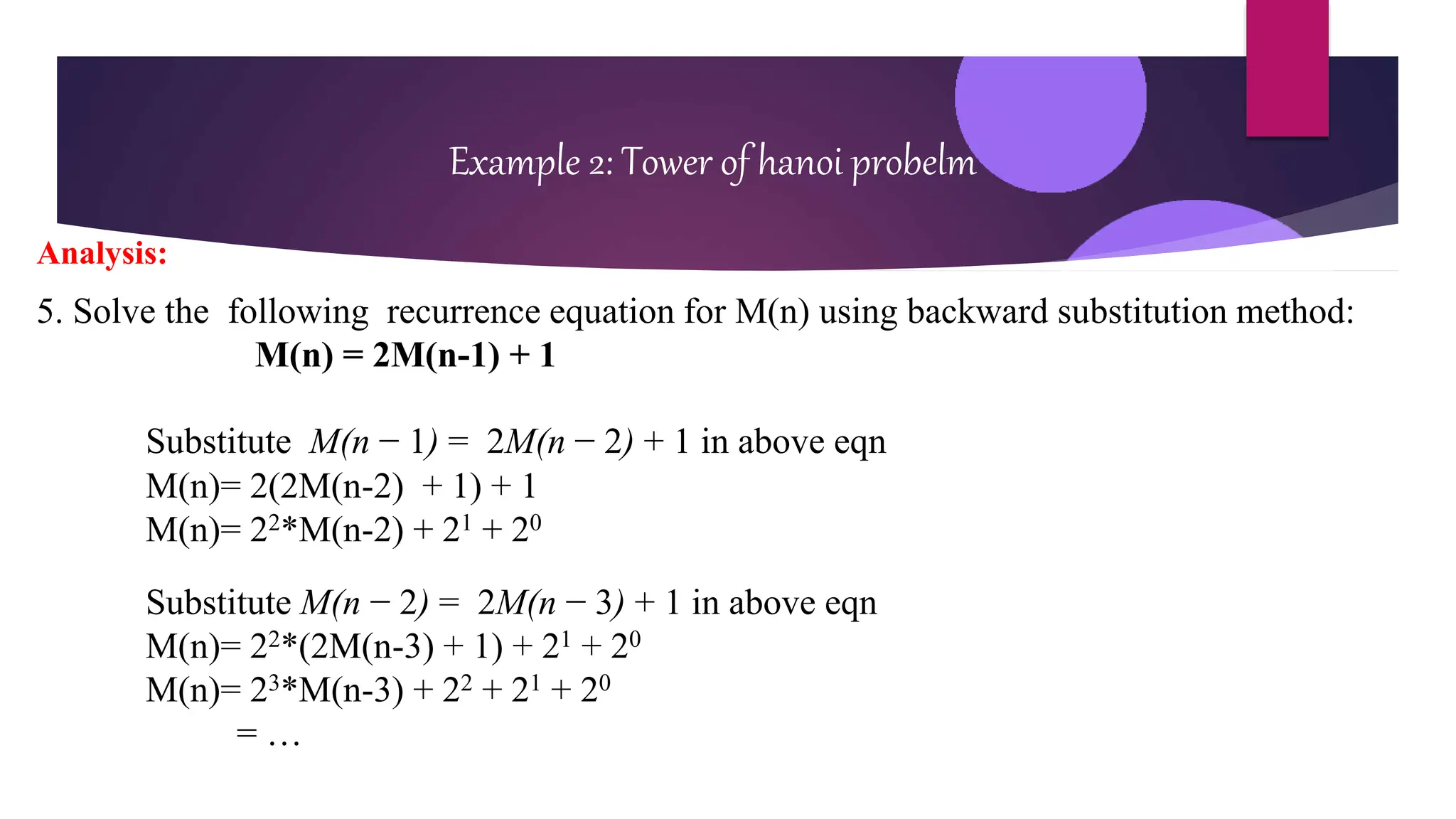

Now, M(n) = 2M(n-1) + 1, M(1) = 1 and

Analysis:

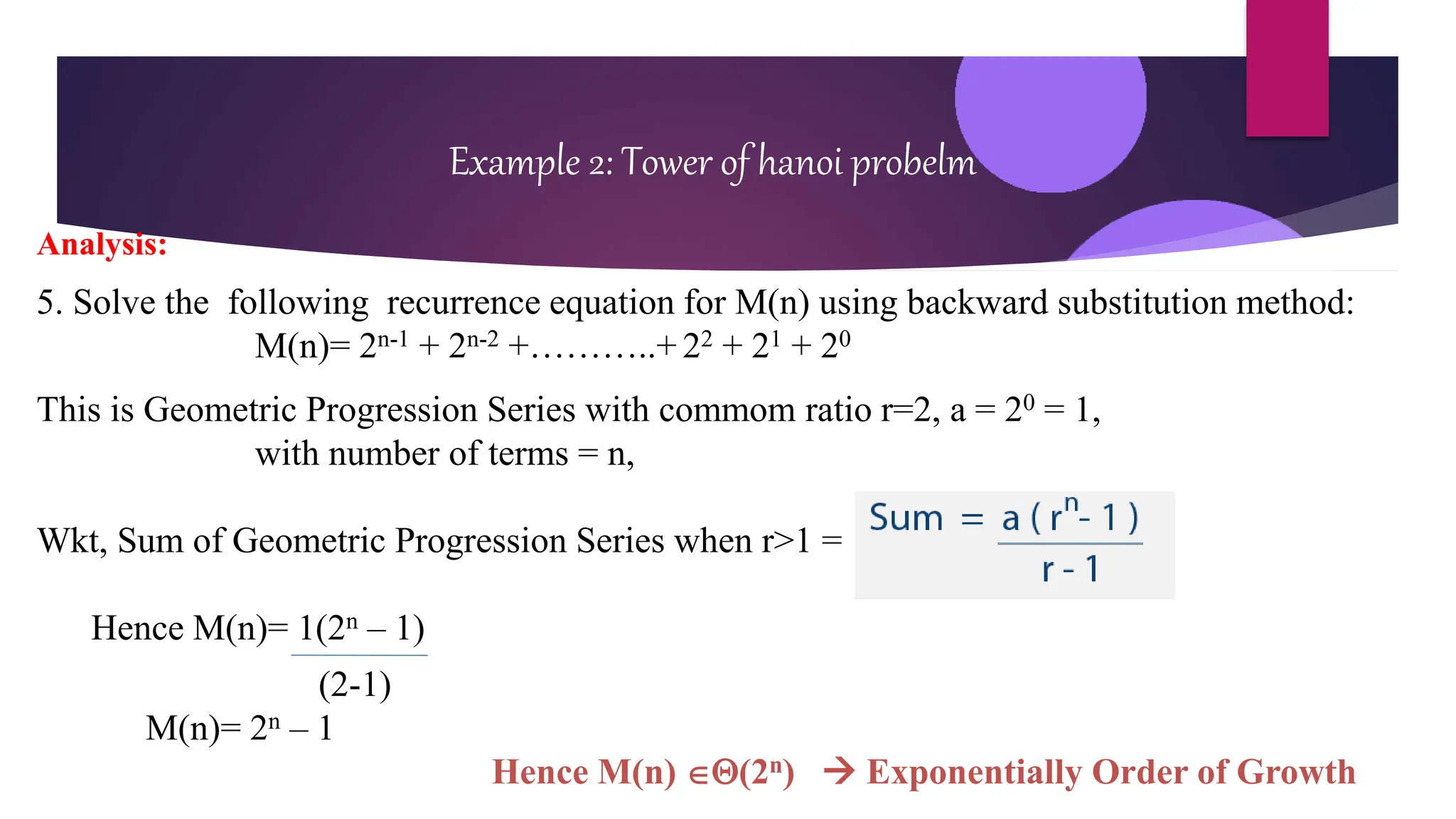

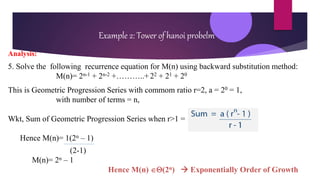

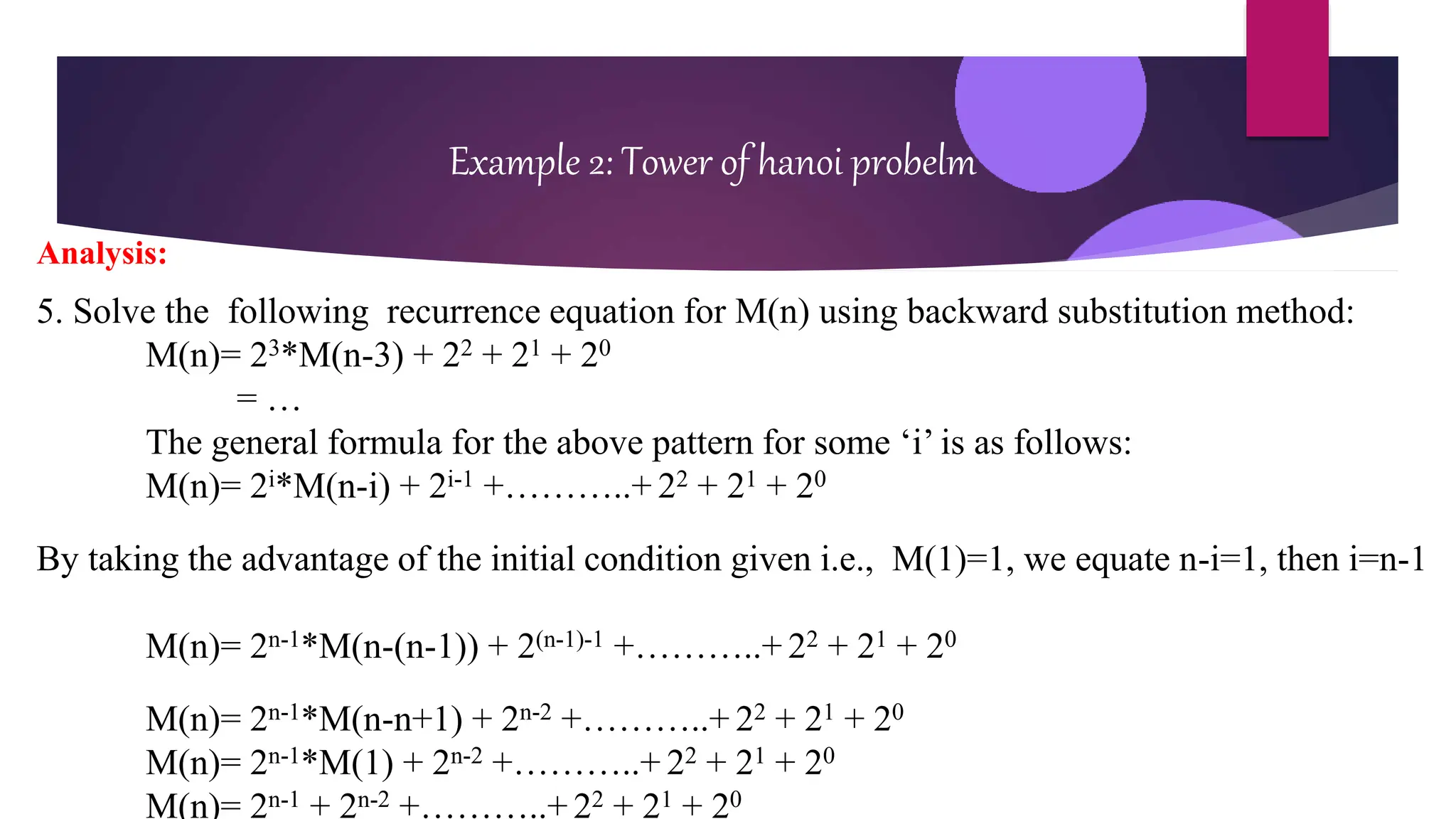

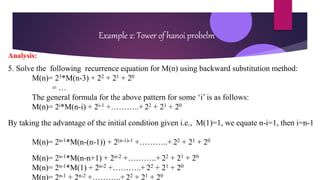

5. Solve the following recurrence equation for M(n) using backward substitution method:
M(n) = 2M(n-1) + 1
Substitute M(n − 1) = 2M(n − 2) + 1 in above eqn
M(n)= 2(2M(n-2) + 1) + 1
M(n)= 22*M(n-2) + 21 + 20
Substitute M(n − 2) = 2M(n − 3) + 1 in above eqn
M(n)= 22*(2M(n-3) + 1) + 21 + 20
M(n)= 23*M(n-3) + 22 + 21 + 20
= …

Analysis:
M(n)= 23*M(n-3) + 22 + 21 + 20
= …
The general formula for the above pattern for some ‘i’ is as follows:
M(n)= 2i*M(n-i) + 2i-1 +………..+ 22 + 21 + 20
By taking the advantage of the initial condition given i.e., M(1)=1, we equate n-i=1, then i=n-1
M(n)= 2n-1*M(n-(n-1)) + 2(n-1)-1 +………..+ 22 + 21 + 20
M(n)= 2n-1*M(n-n+1) + 2n-2 +………..+ 22 + 21 + 20
M(n)= 2n-1*M(1) + 2n-2 +………..+ 22 + 21 + 20
M(n)= 2n-1 + 2n-2 +………..+ 22 + 21 + 20

Analysis:
M(n)= 2n-1 + 2n-2 +………..+ 22 + 21 + 20
This is Geometric Progression Series with commom ratio r=2, a = 20 = 1,
with number of terms = n,
Wkt, Sum of Geometric Progression Series when r>1 =
Hence M(n)= 1(2n – 1)
(2-1)
M(n)= 2n – 1
Hence M(n) (2n)  Exponentially Order of Growth

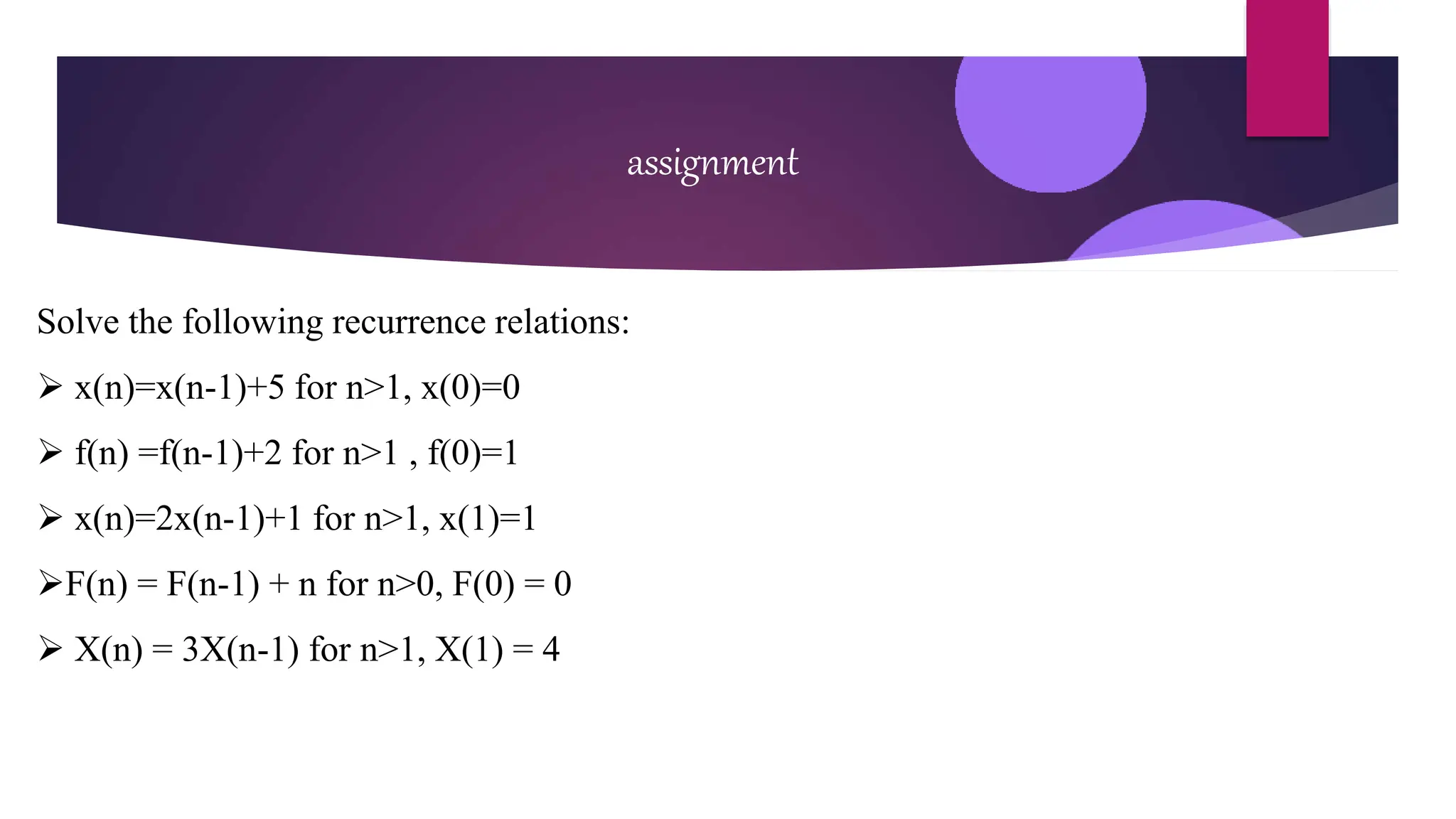

assignment
Solve the following recurrence relations:
 x(n)=x(n-1)+5 for n>1, x(0)=0
 f(n) =f(n-1)+2 for n>1 , f(0)=1
 x(n)=2x(n-1)+1 for n>1, x(1)=1
F(n) = F(n-1) + n for n>0, F(0) = 0
 X(n) = 3X(n-1) for n>1, X(1) = 4

“
”
Thank You!
ANY QUESTIONS?

Design and analysis of algorithms Module-I.pptx

More Related Content

Similar to Design and analysis of algorithms Module-I.pptx

Recently uploaded

Design and analysis of algorithms Module-I.pptx
