Using JS to teach JS at Khan Academy

Using JS to teach JS 
@ Khan Academy
John Resig (ejohn.org)
http://khanacademy.org/cs

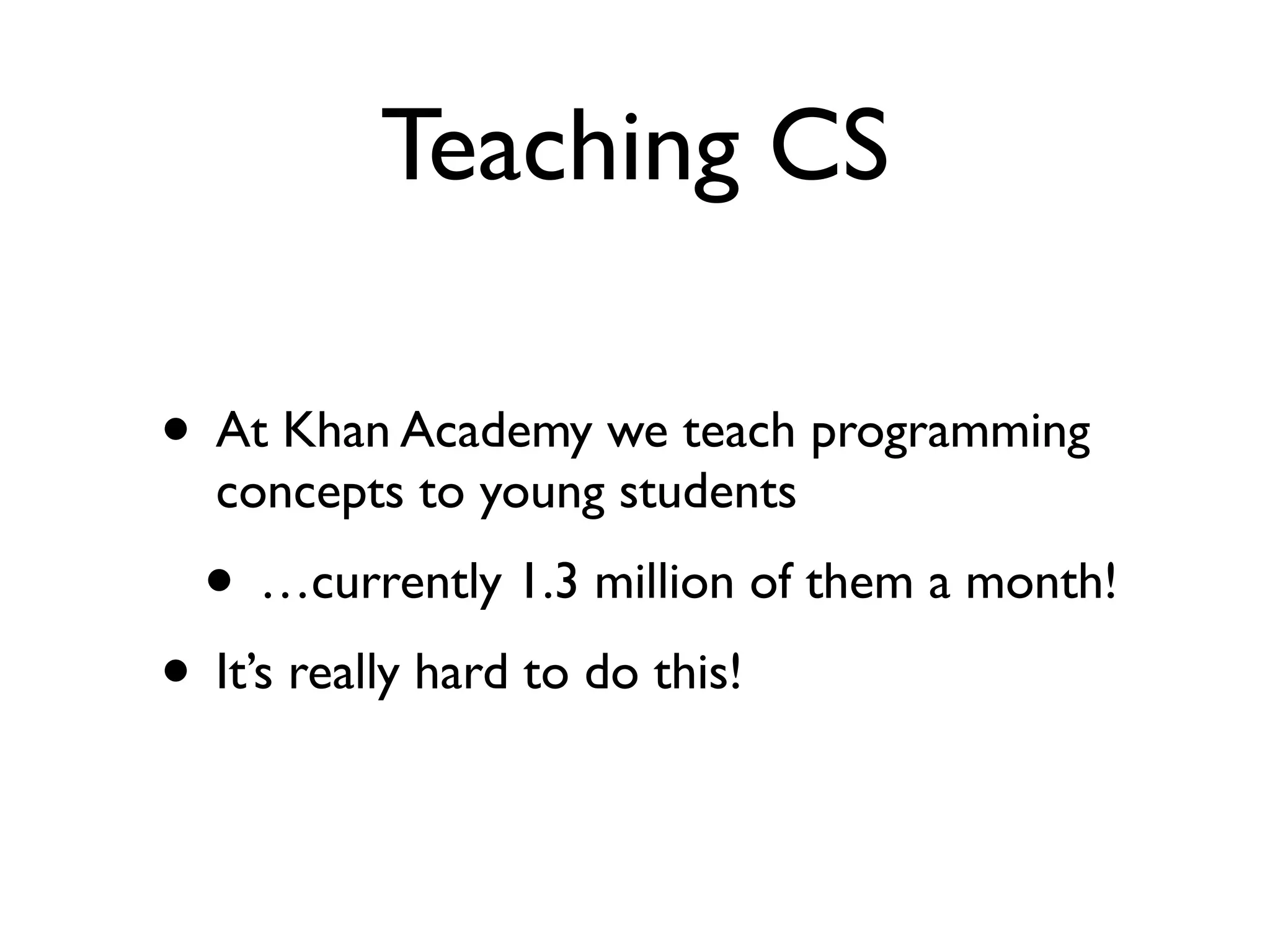

Teaching CS
• At Khan Academy we teach programming
concepts to young students
• …currently 1.3 million of them a month!
• It’s really hard to do this!

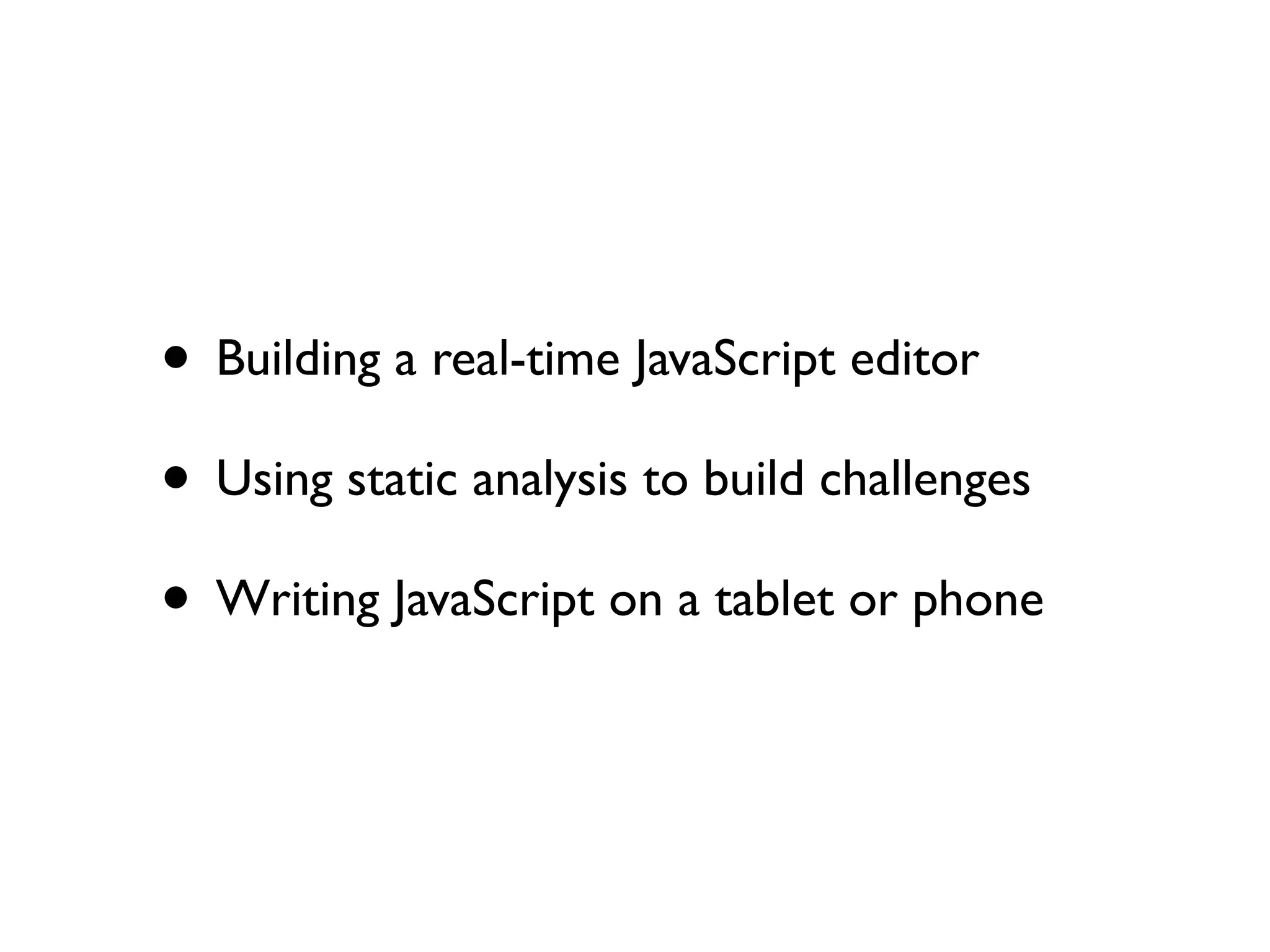

• Building a real-time JavaScript editor
• Using static analysis to build challenges
• Writing JavaScript on a tablet or phone

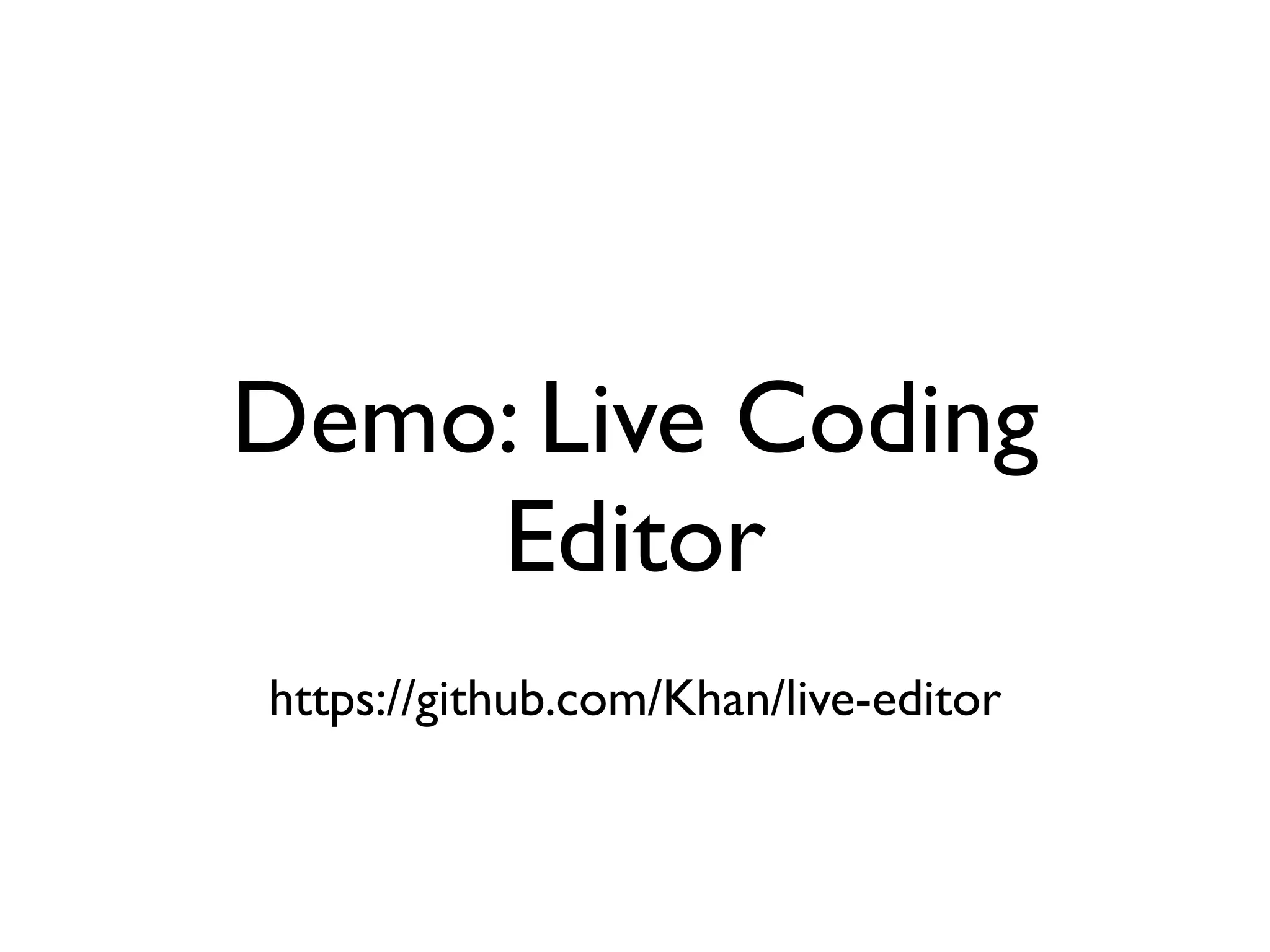

Demo: Live Coding
Editor
https://github.com/Khan/live-editor

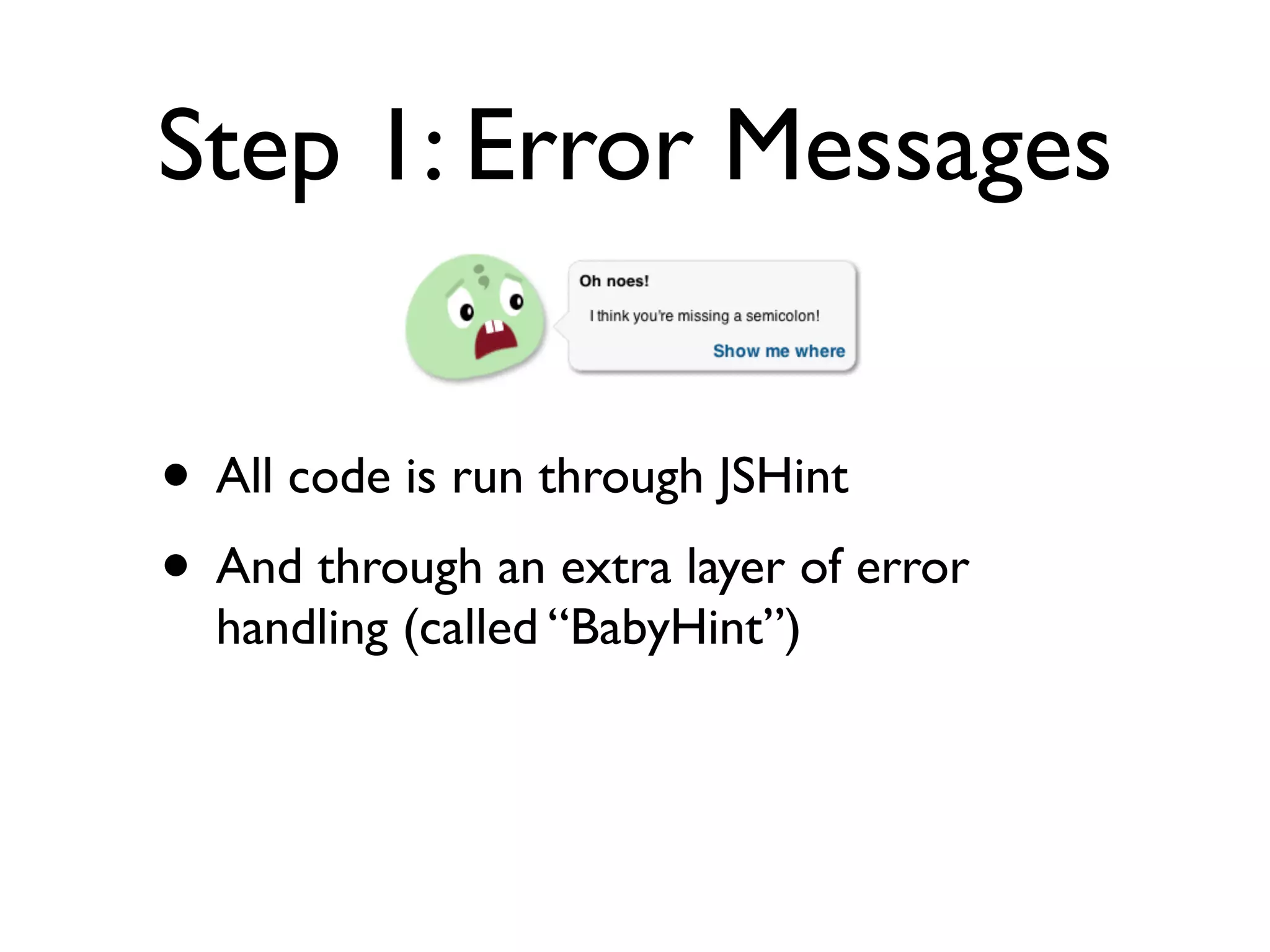

Step 1: Error Messages
• All code is run through JSHint
• And through an extra layer of error
handling (called “BabyHint”)

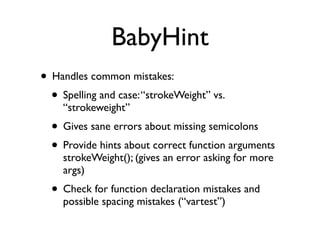

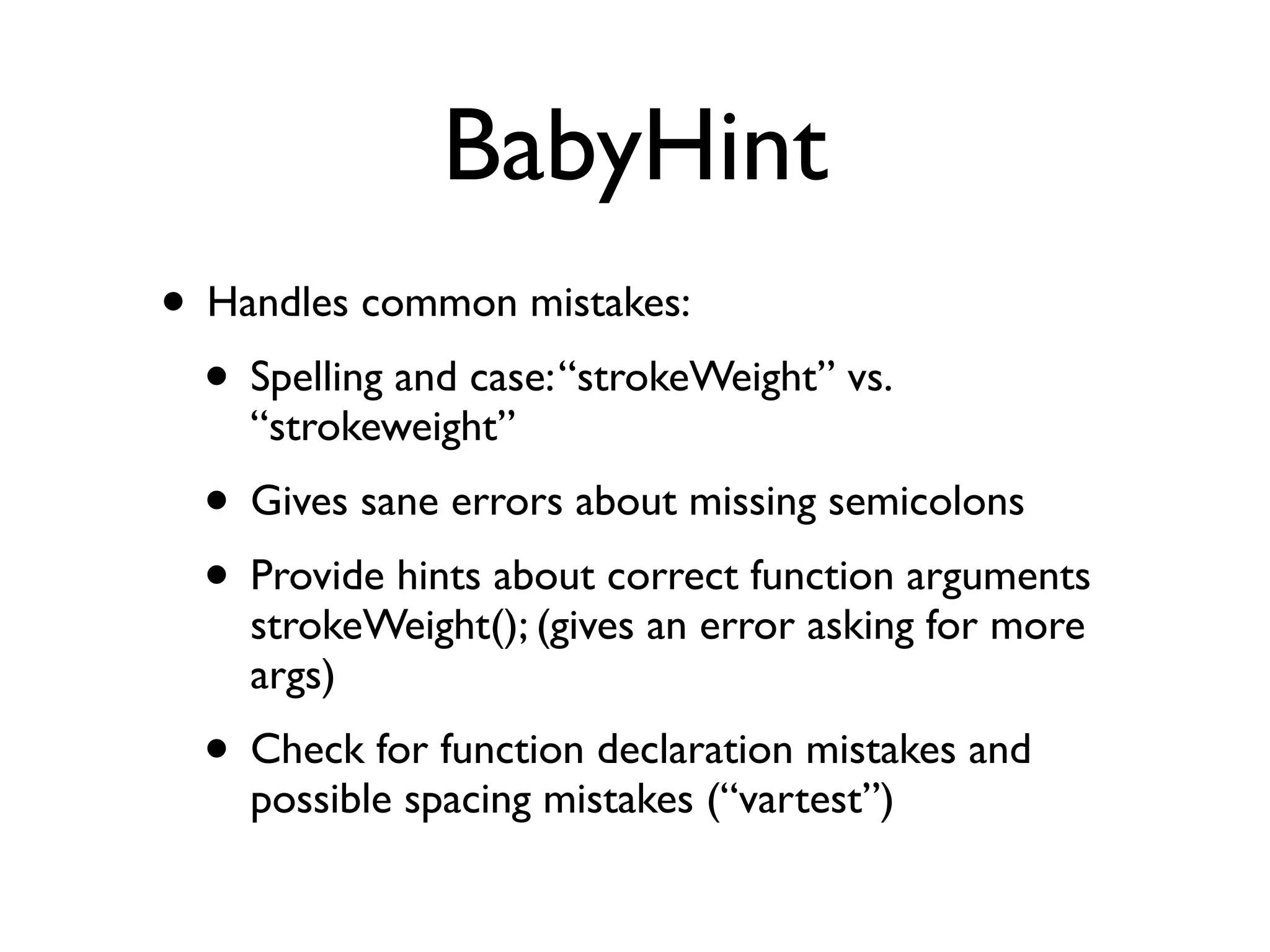

BabyHint
• Handles common mistakes:
• Spelling and case:“strokeWeight” vs.
“strokeweight”
• Gives sane errors about missing semicolons
• Provide hints about correct function arguments
strokeWeight(); (gives an error asking for more
args)
• Check for function declaration mistakes and
possible spacing mistakes (“vartest”)

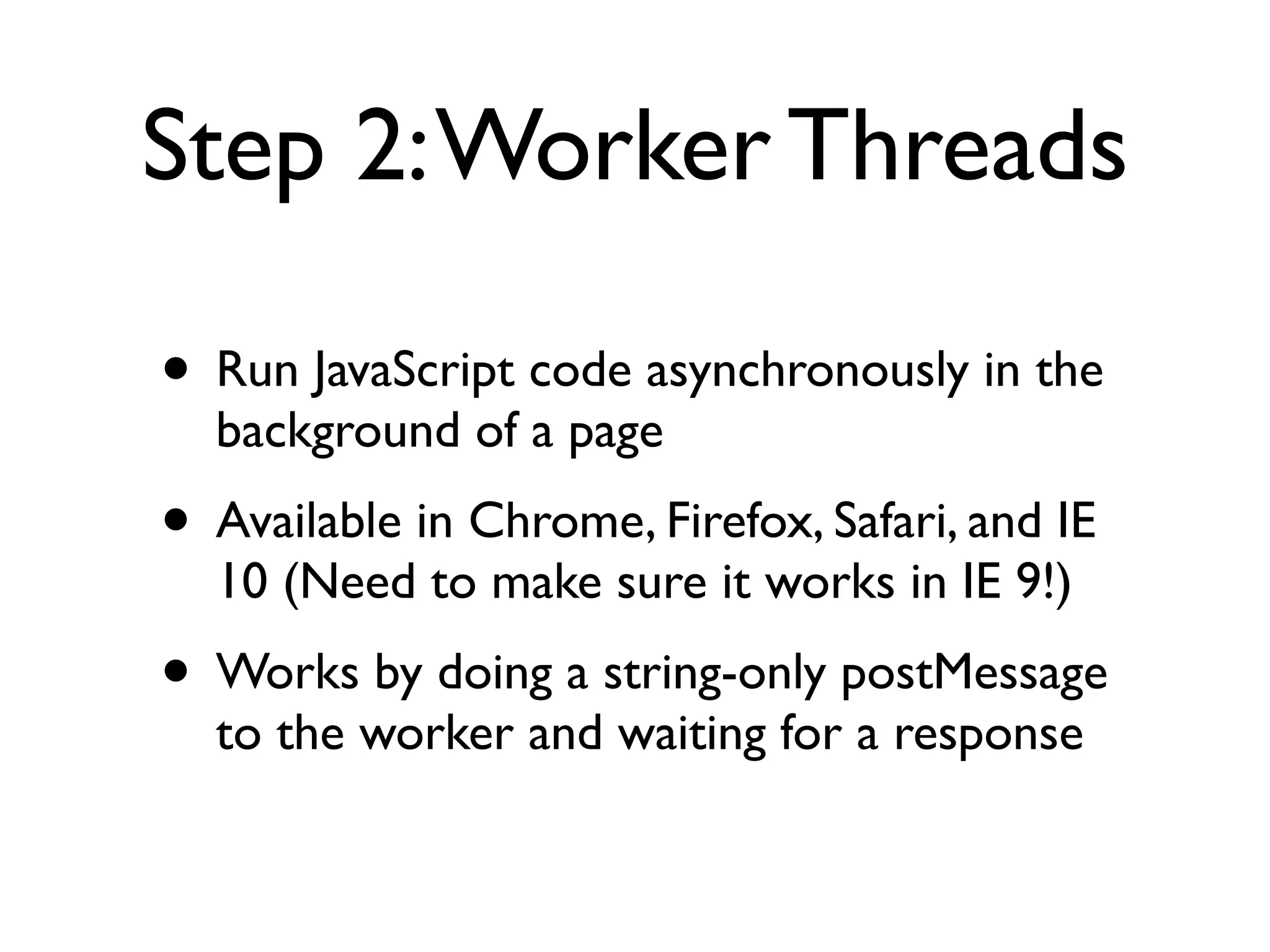

Step 2:Worker Threads
• Run JavaScript code asynchronously in the
background of a page
• Available in Chrome, Firefox, Safari, and IE
10 (Need to make sure it works in IE 9!)
• Works by doing a string-only postMessage
to the worker and waiting for a response

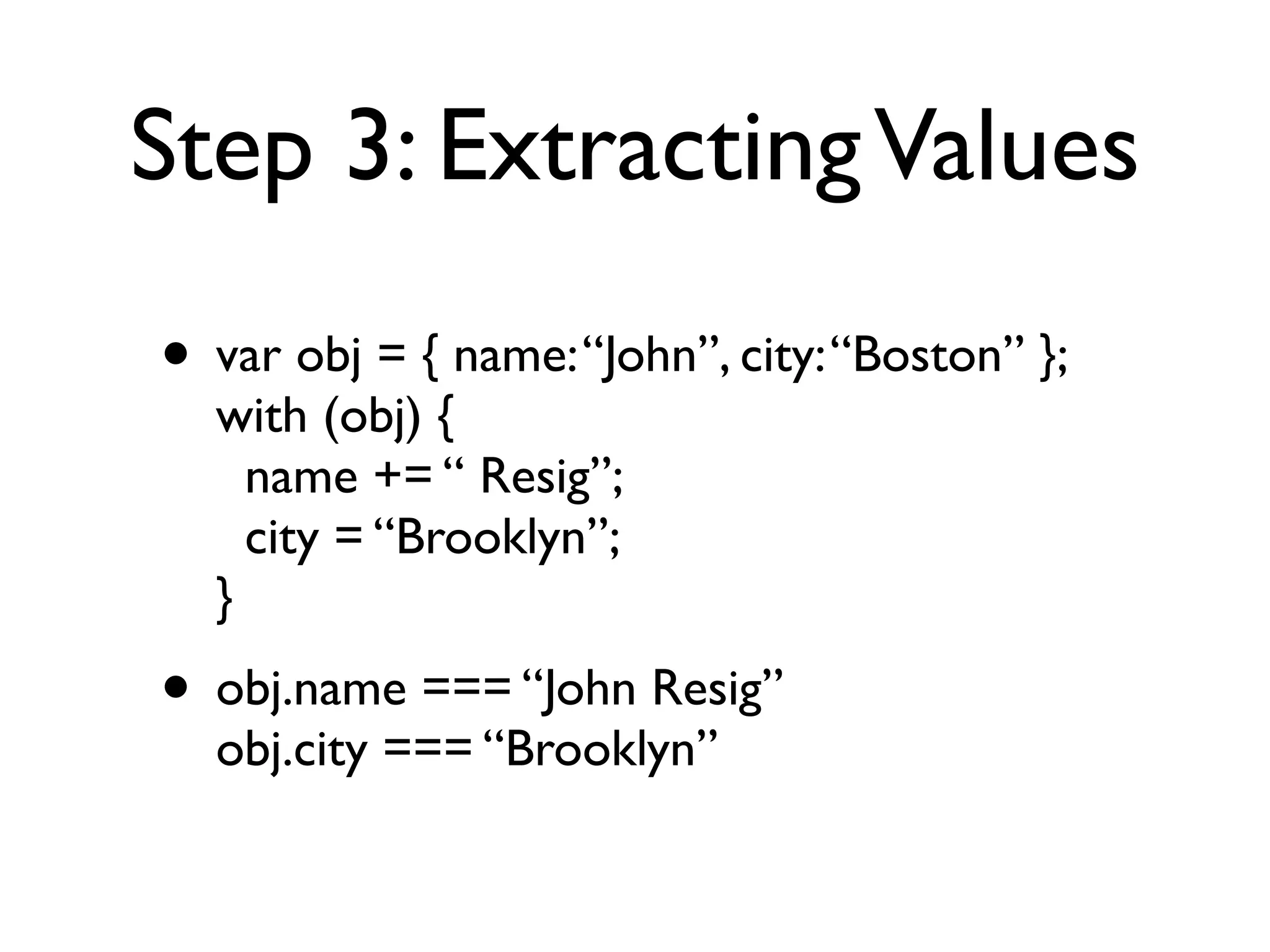

Step 3: ExtractingValues
• var obj = { name:“John”, city:“Boston” }; 
with (obj) { 
name += “ Resig”; 
city = “Brooklyn”; 
}
• obj.name === “John Resig” 
obj.city === “Brooklyn”

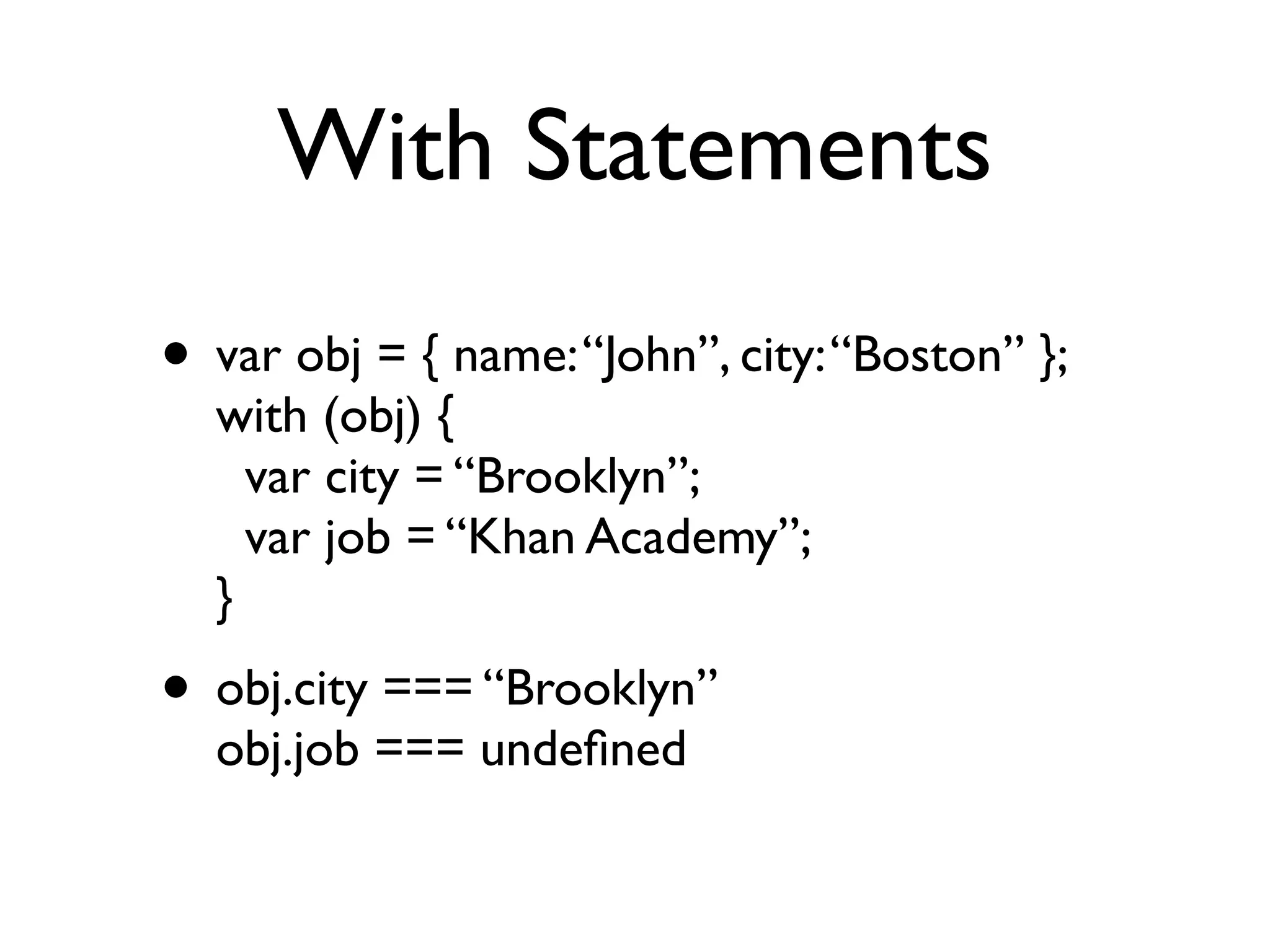

With Statements
• var obj = { name:“John”, city:“Boston” }; 
with (obj) { 
var city = “Brooklyn”; 
var job = “Khan Academy”; 
}
• obj.city === “Brooklyn” 
obj.job === undeﬁned

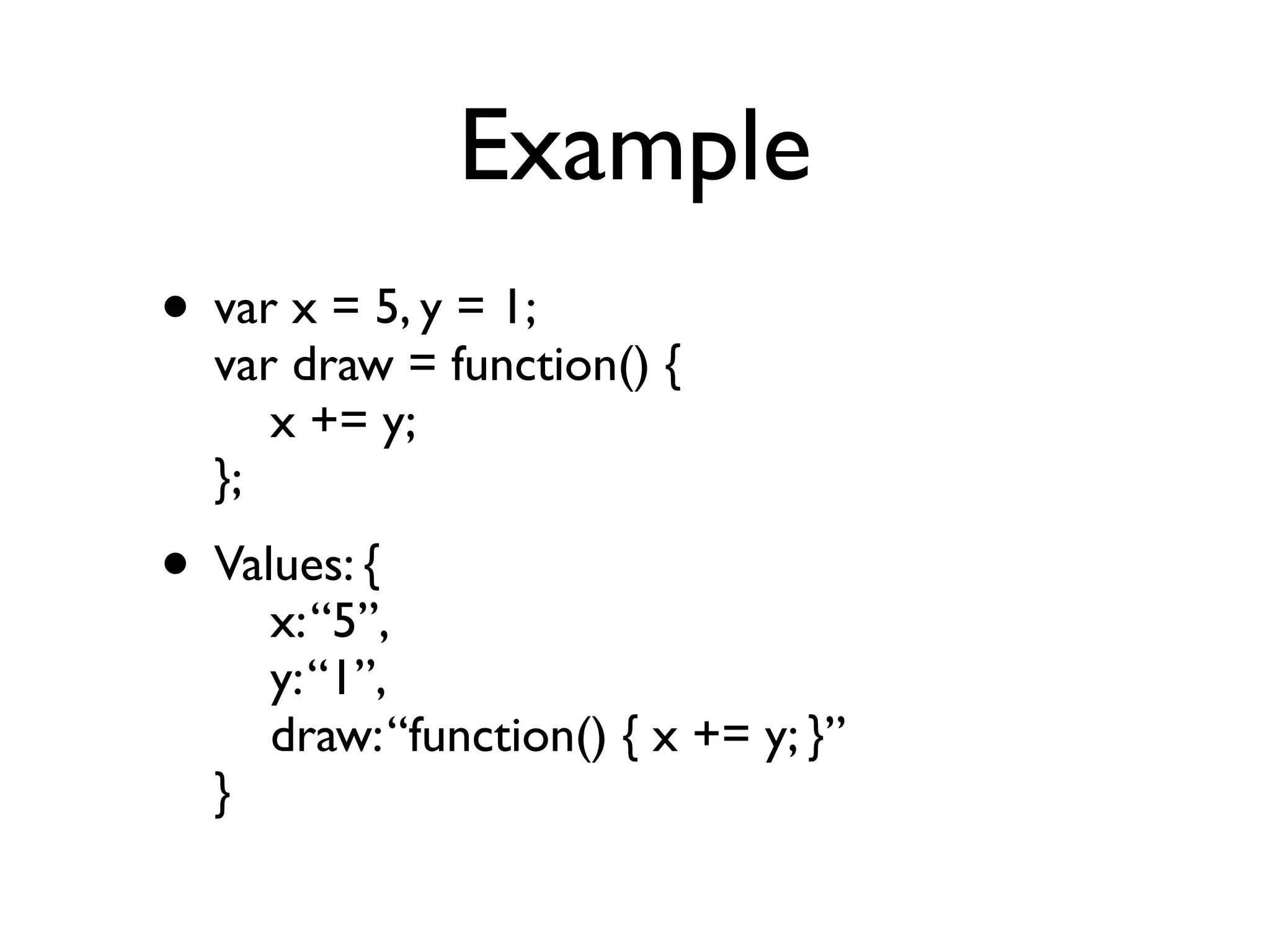

Example
• var x = 5, y = 1; 
var draw = function() { 
x += y; 
};
• Values: { 
x:“5”, 
y:“1”, 
draw:“function() { x += y; }” 
}

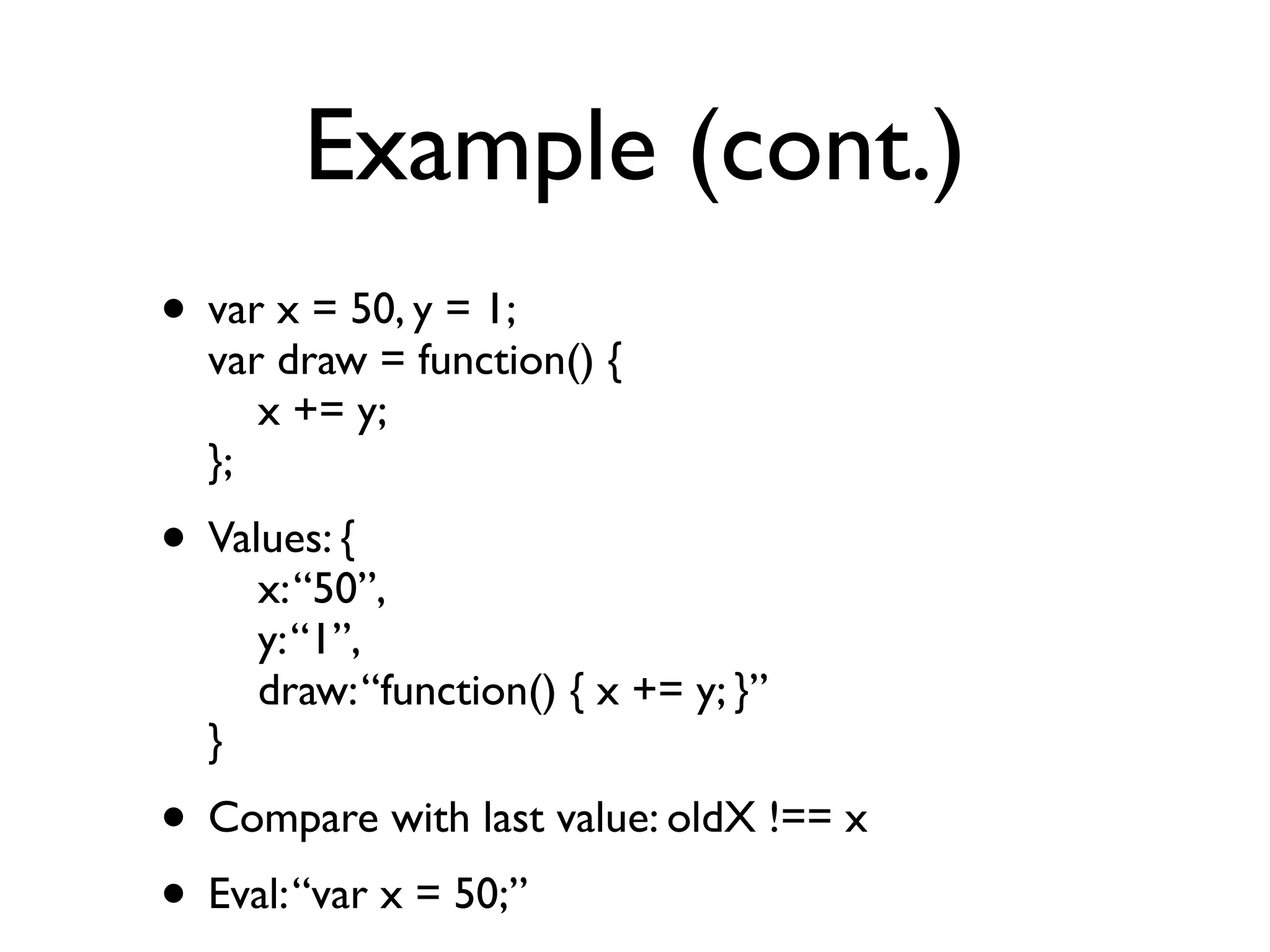

Example (cont.)
• var x = 50, y = 1; 
var draw = function() { 
x += y; 
};
• Values: { 
x:“50”, 
y:“1”, 
draw:“function() { x += y; }” 
}
• Compare with last value: oldX !== x
• Eval:“var x = 50;”

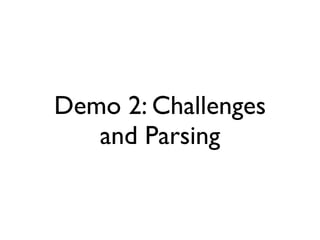

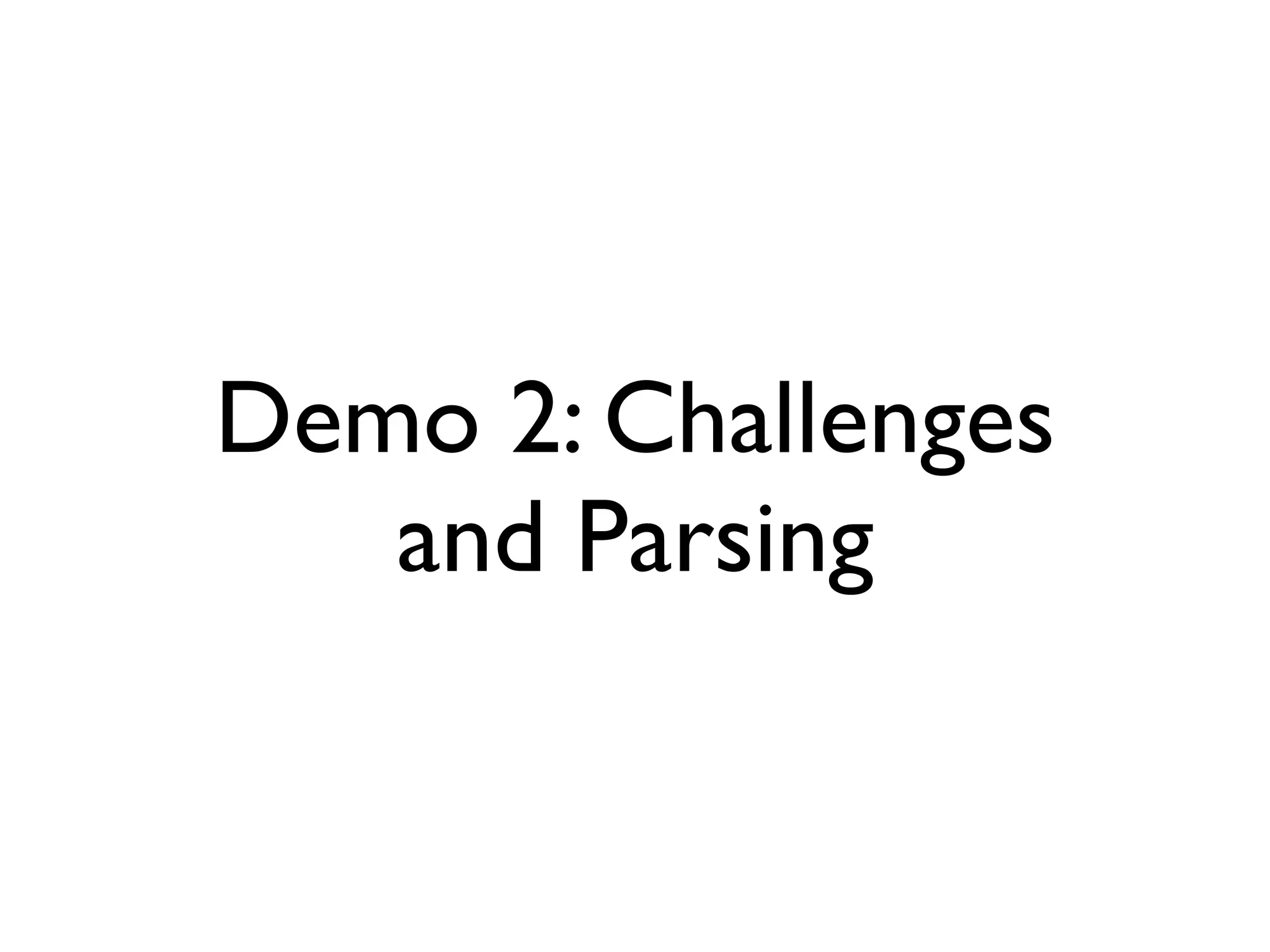

Demo 2: Challenges
and Parsing

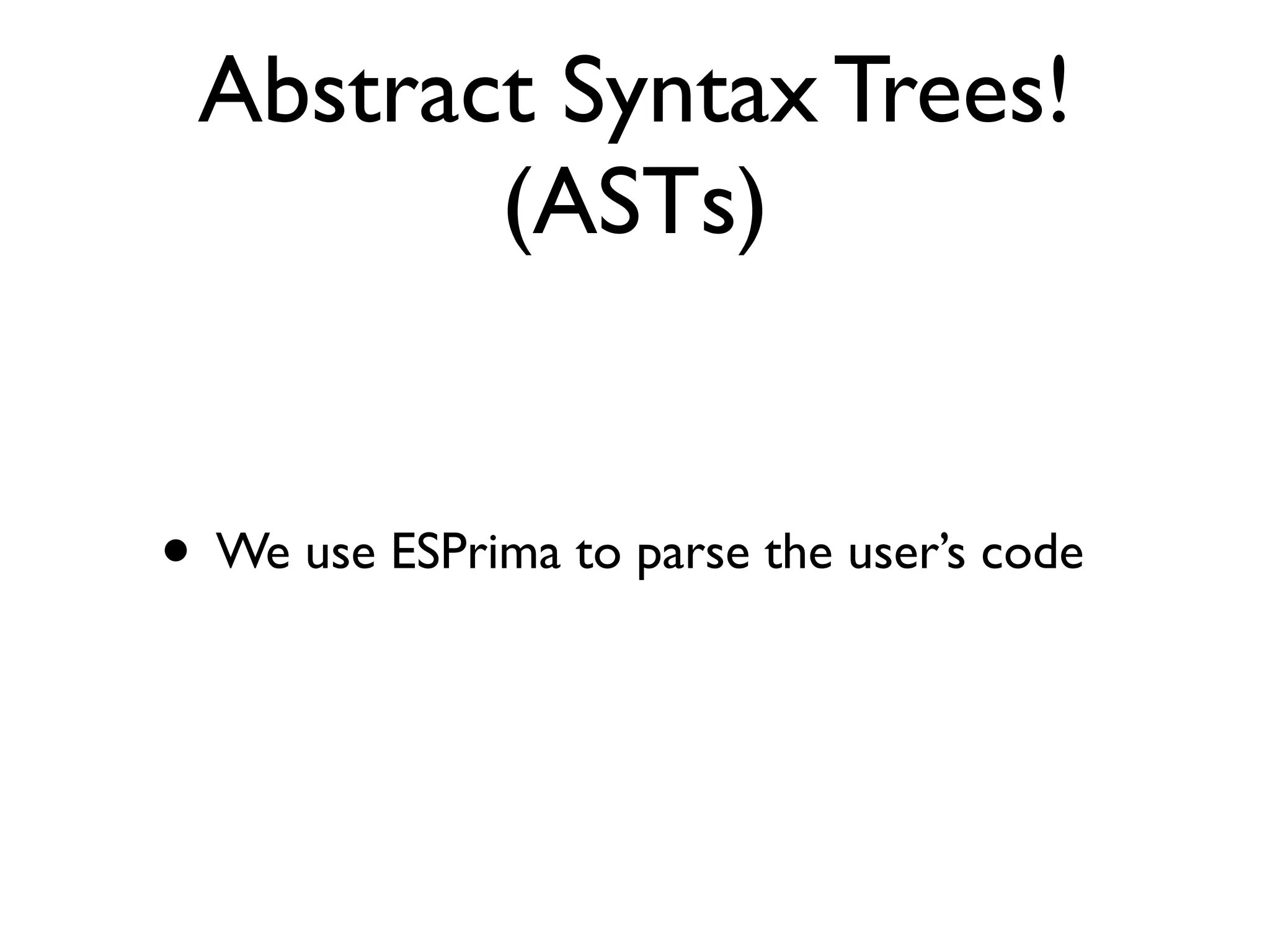

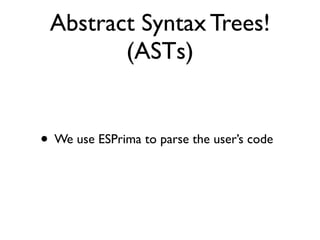

Abstract Syntax Trees!
(ASTs)

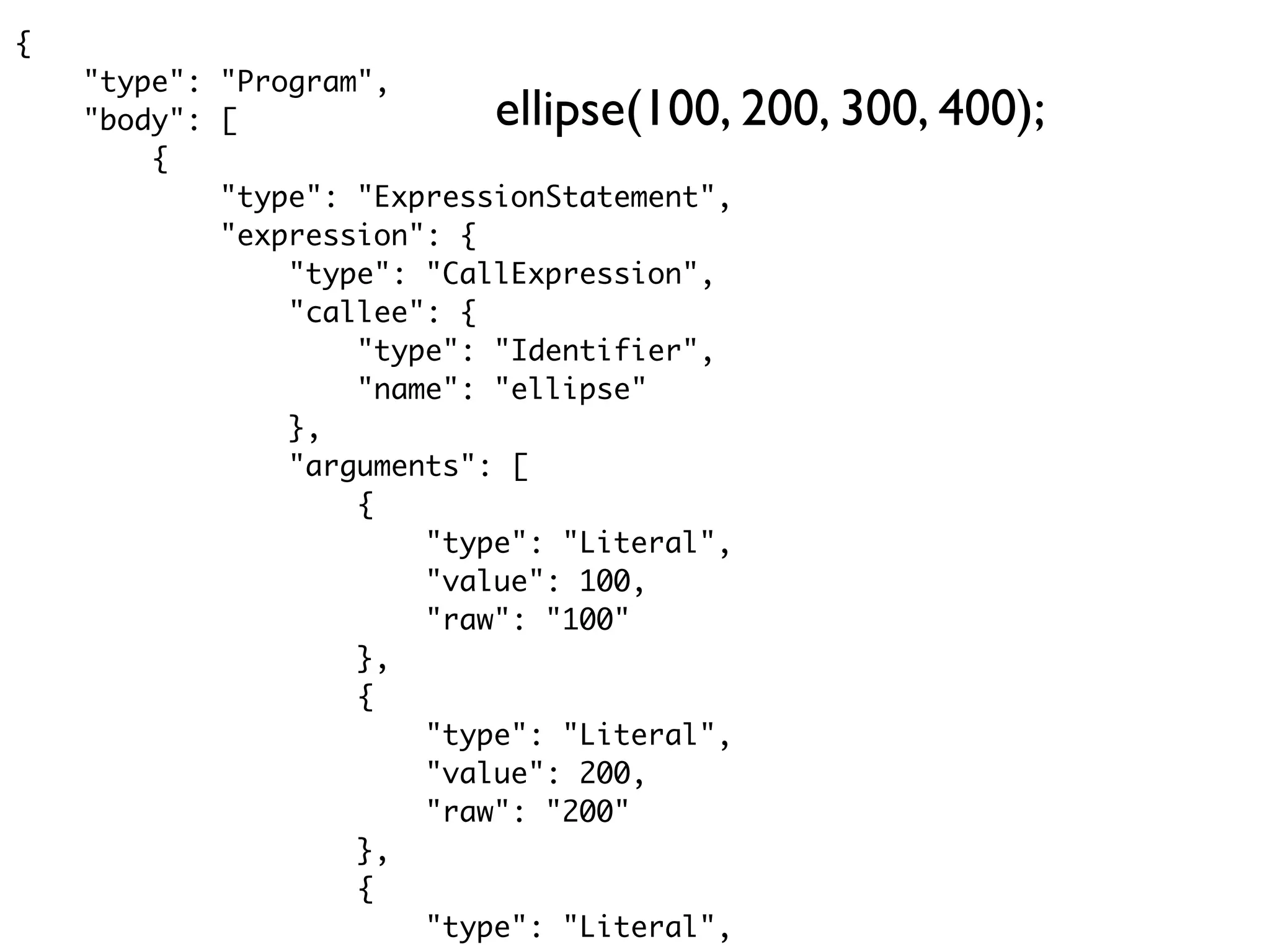

• We use ESPrima to parse the user’s code

{
"type": "Program",
"body": [
{
"type": "ExpressionStatement",
"expression": {
"type": "CallExpression",
"callee": {
"type": "Identifier",
"name": "ellipse"
},
"arguments": [
{
"type": "Literal",
"value": 100,
"raw": "100"
},
{
"type": "Literal",
"value": 200,
"raw": "200"
},
{
"type": "Literal",
ellipse(100, 200, 300, 400);

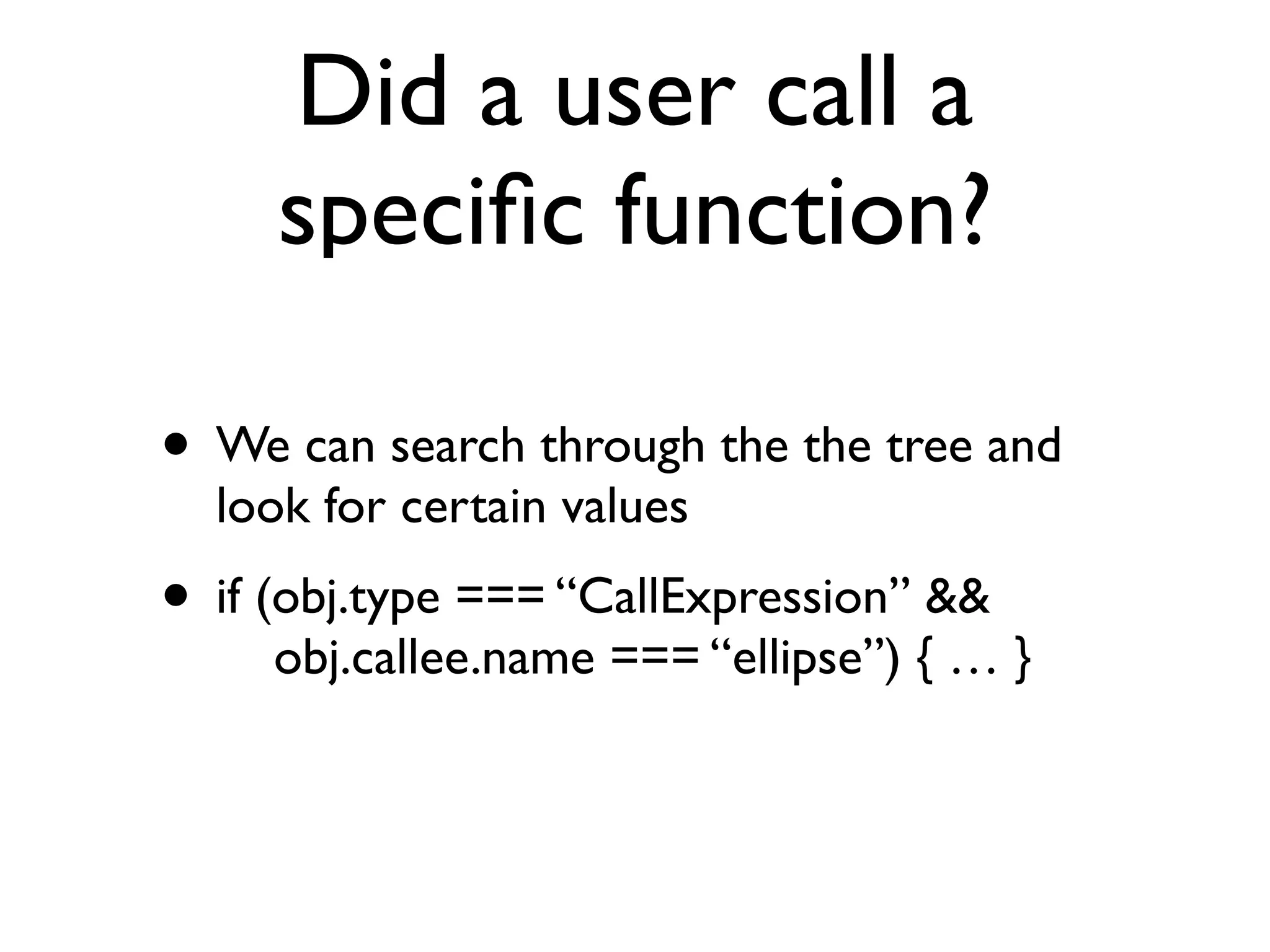

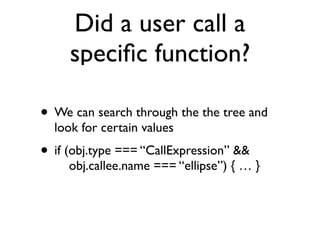

Did a user call a
speciﬁc function?
• We can search through the the tree and
look for certain values
• if (obj.type === “CallExpression” && 
obj.callee.name === “ellipse”) { … }

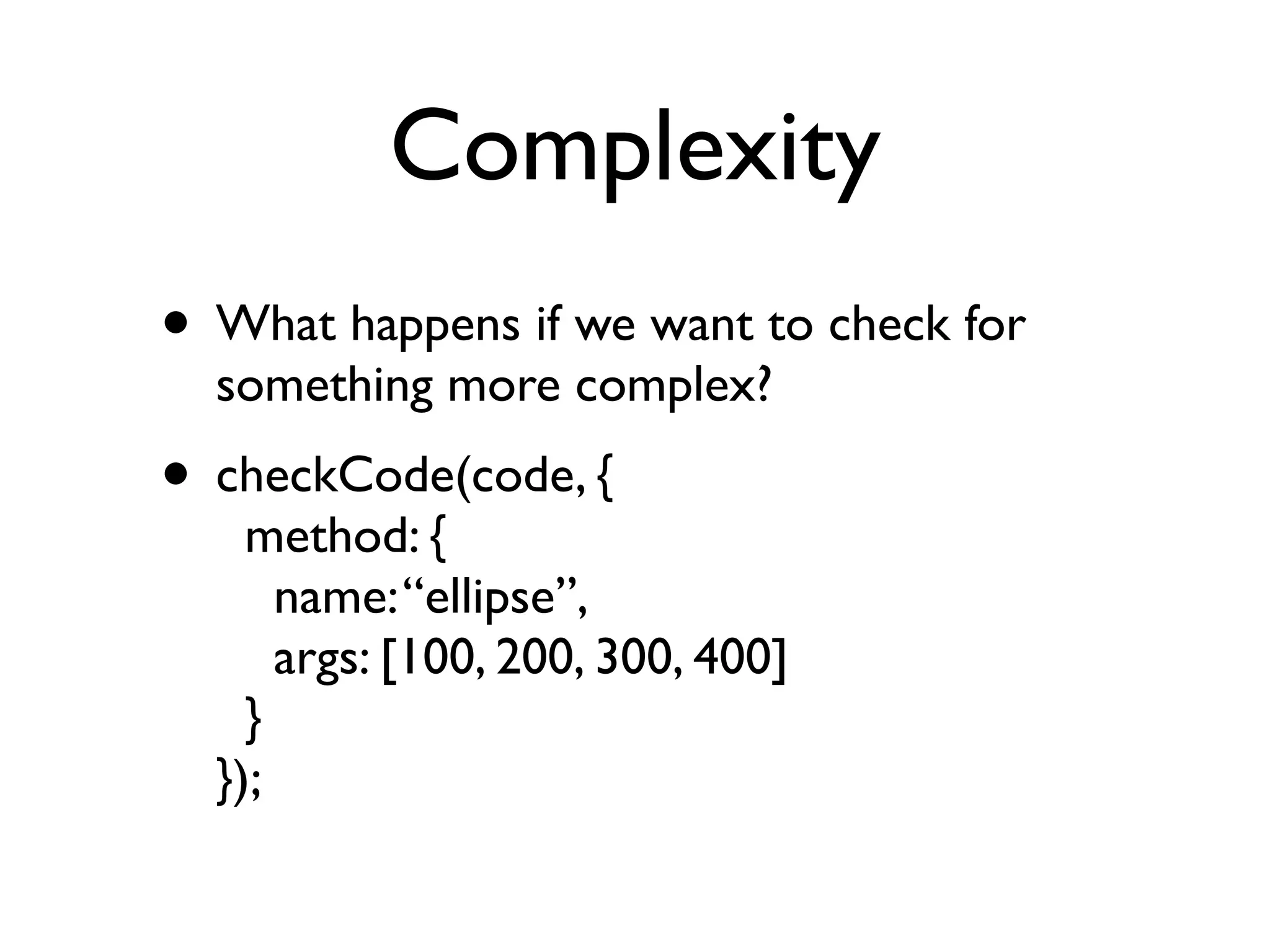

Complexity
• What happens if we want to check for
something more complex?
• checkCode(code, { 
method: { 
name:“ellipse”, 
args: [100, 200, 300, 400] 
} 
});

…

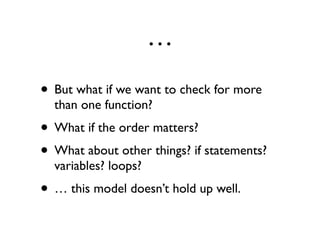

• But what if we want to check for more
than one function?
• What if the order matters?
• What about other things? if statements?
variables? loops?
• … this model doesn’t hold up well.

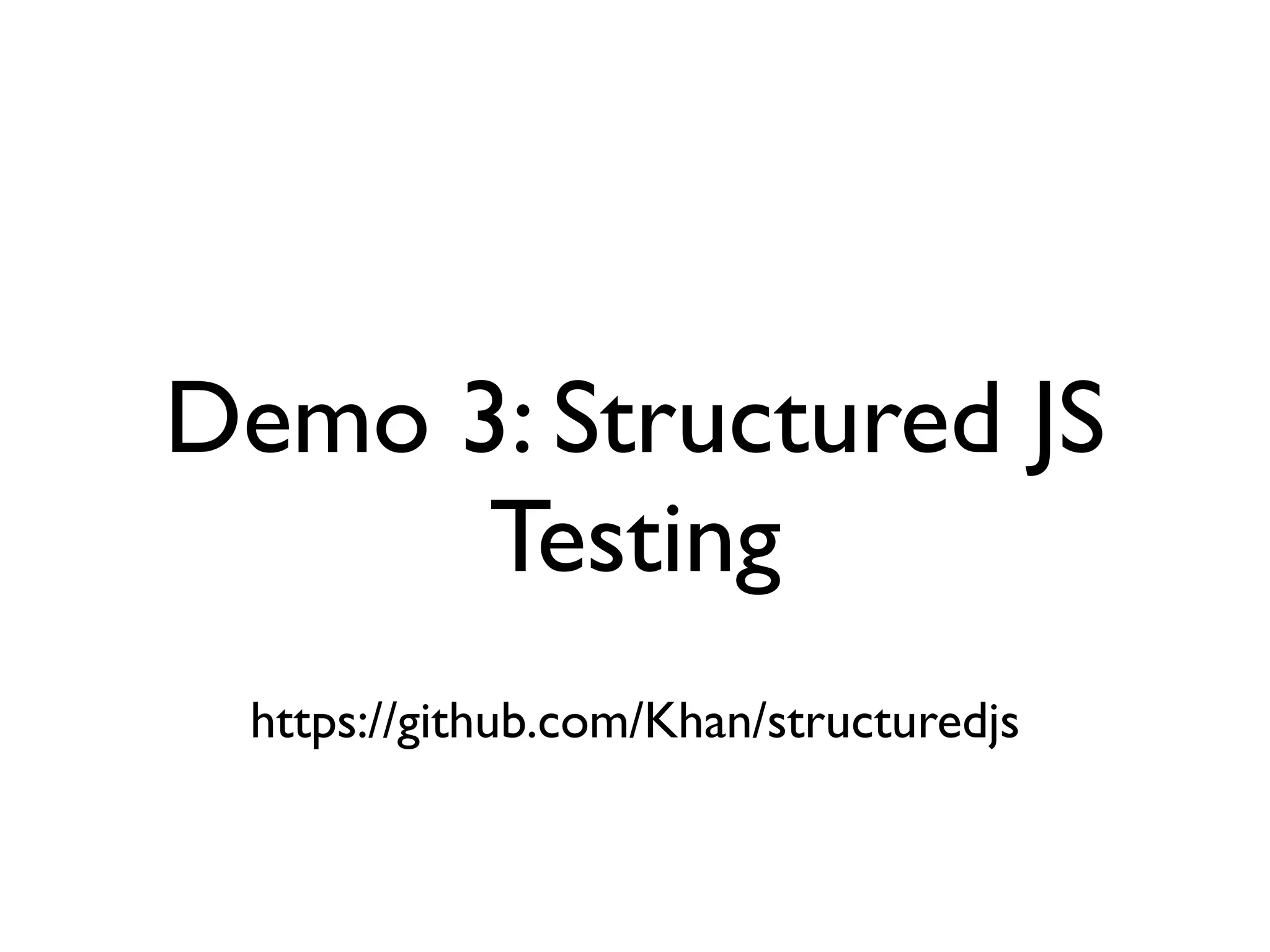

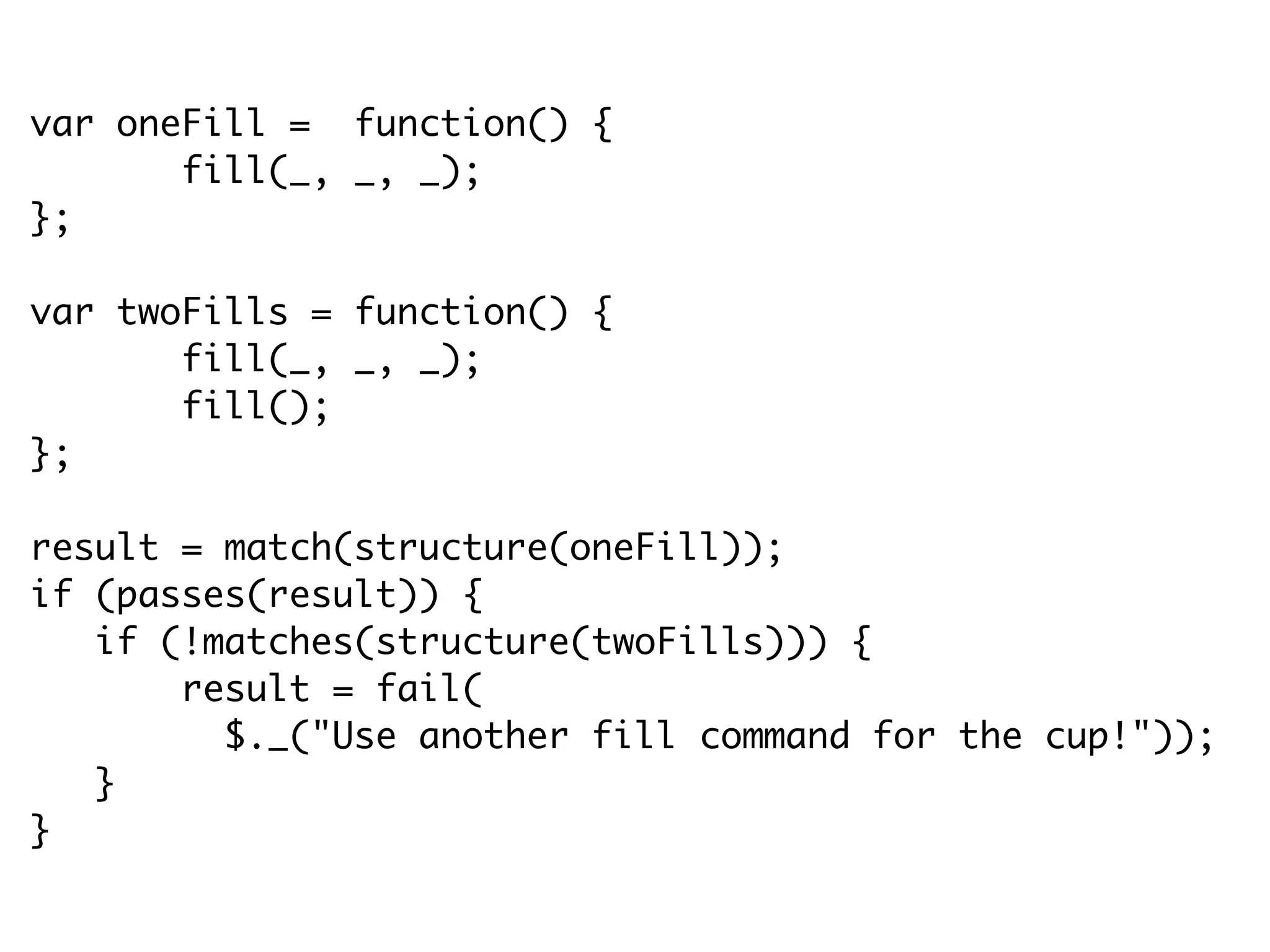

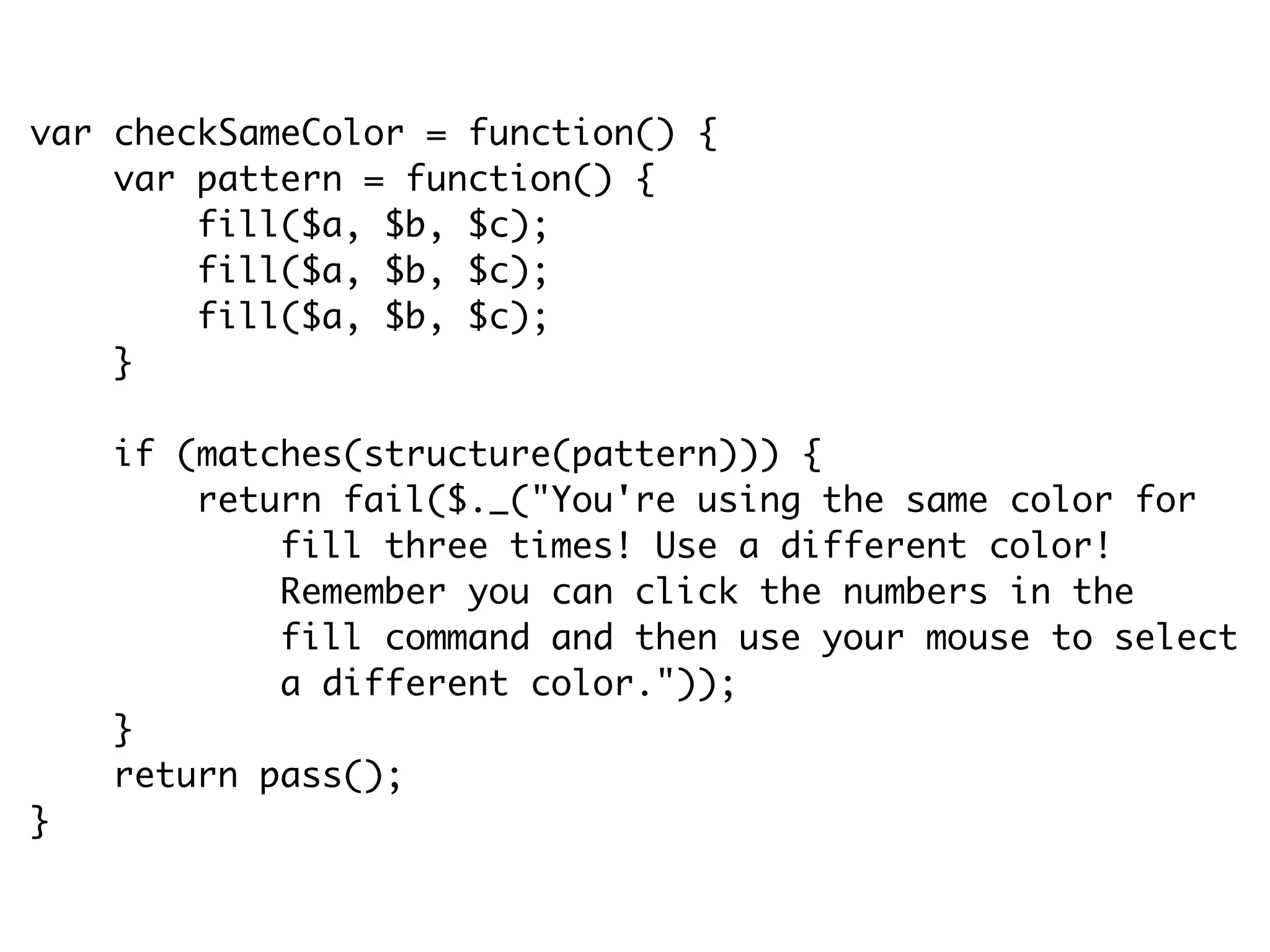

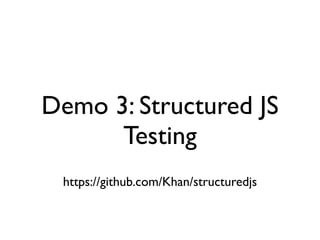

Demo 3: Structured JS
Testing
https://github.com/Khan/structuredjs

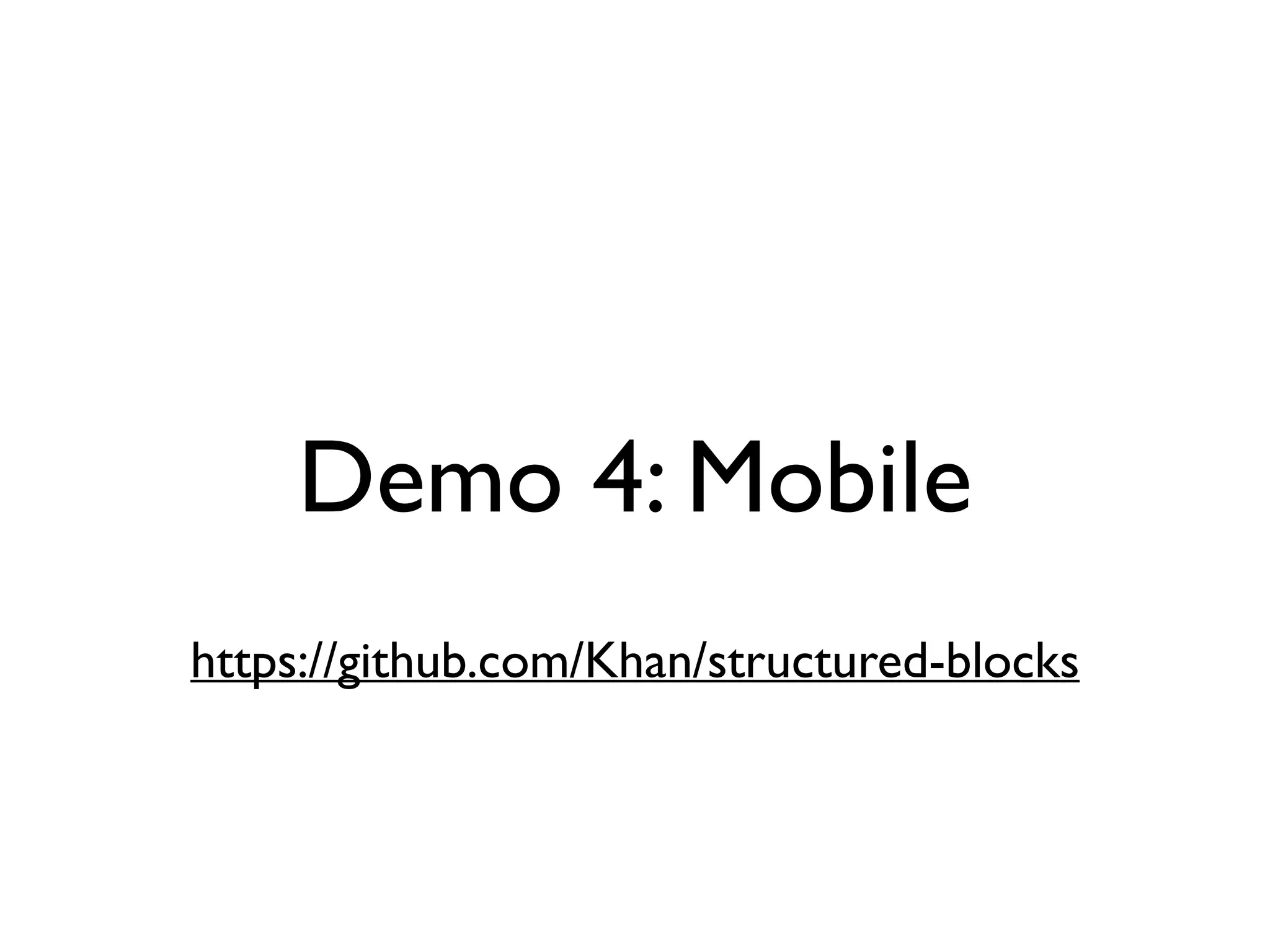

Demo 4: Mobile
https://github.com/Khan/structured-blocks

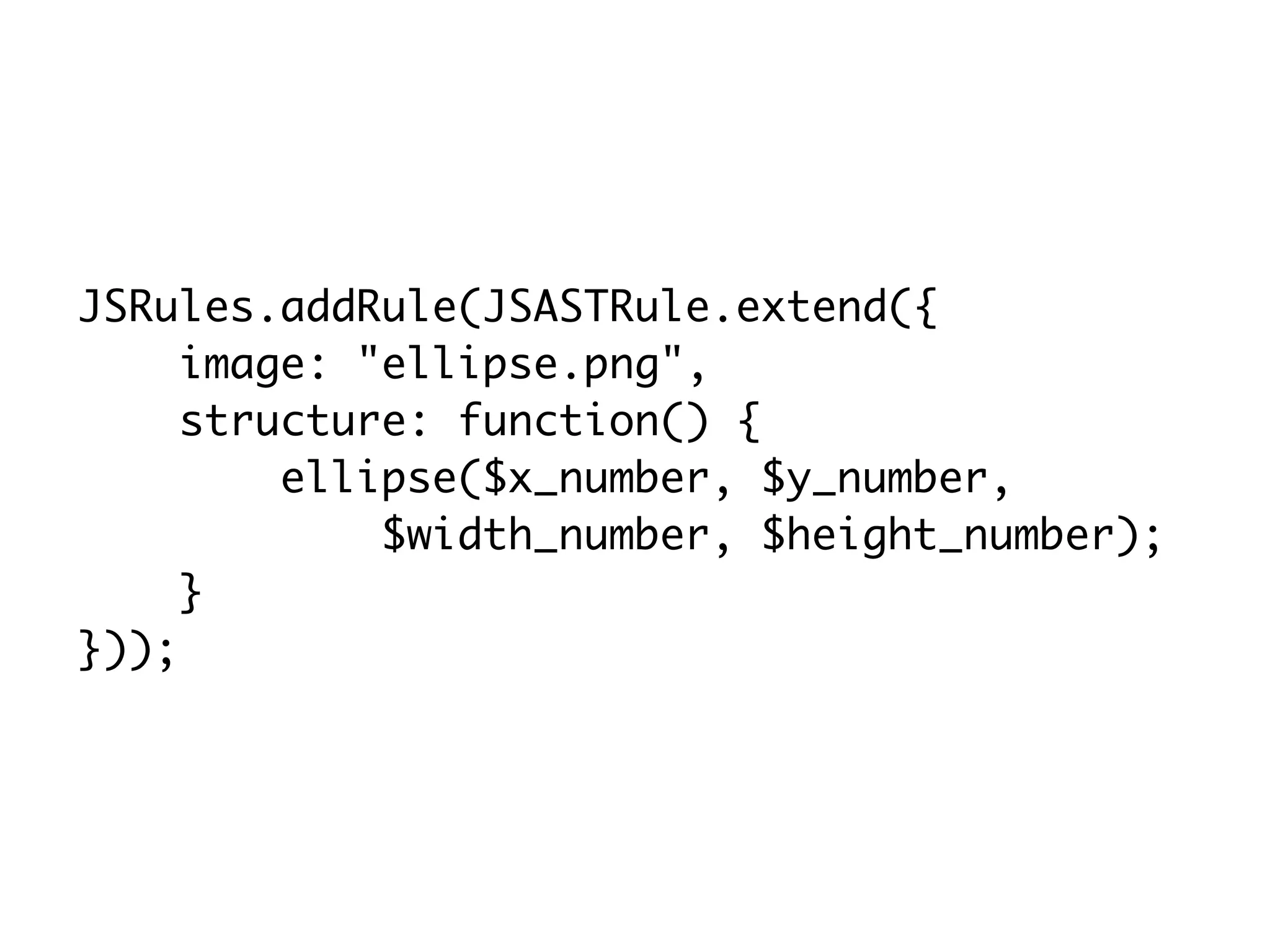

JSRules.addRule(JSASTRule.extend({
image: "ellipse.png",
structure: function() {
ellipse($x_number, $y_number, 
$width_number, $height_number);
}
}));

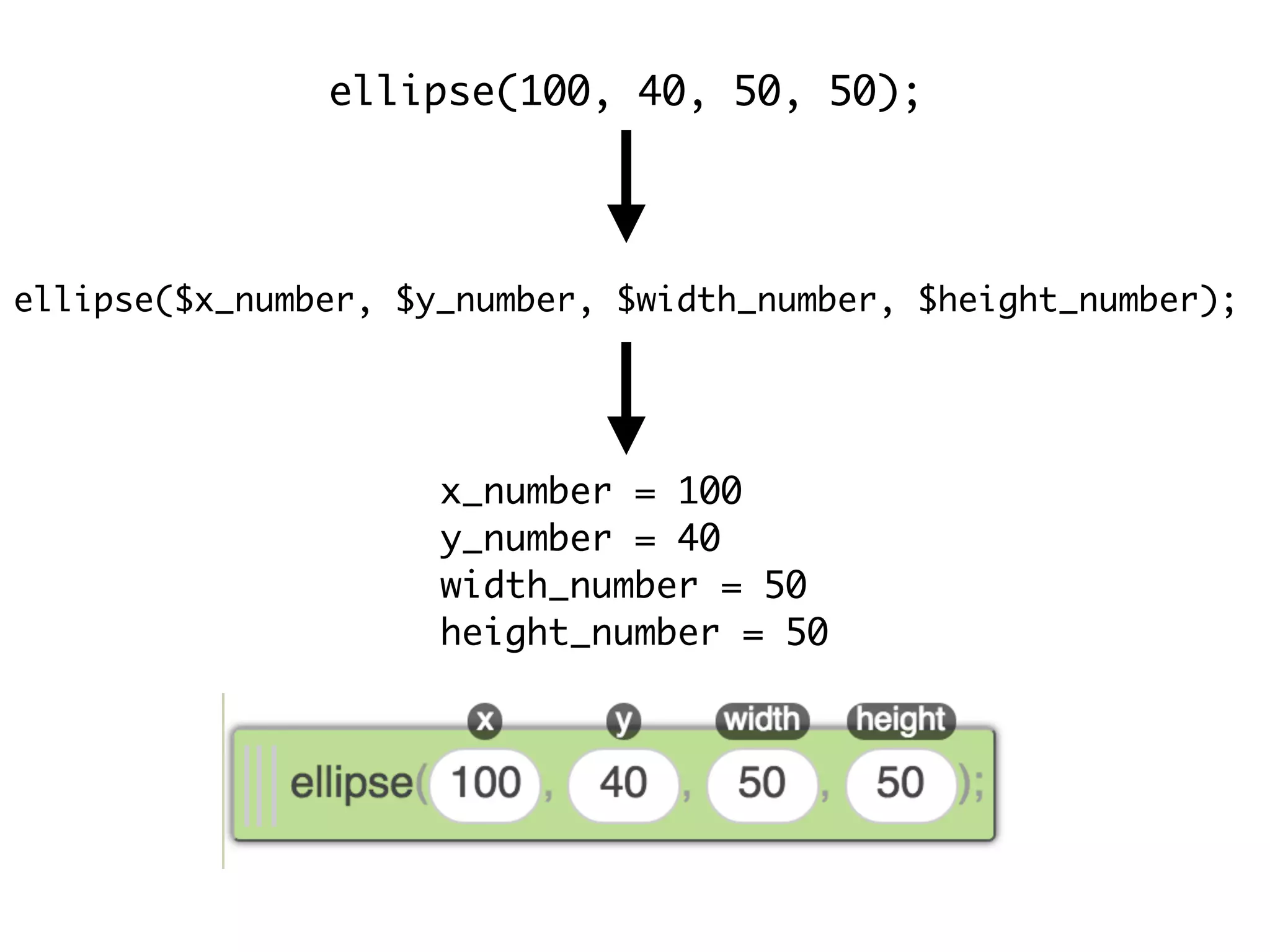

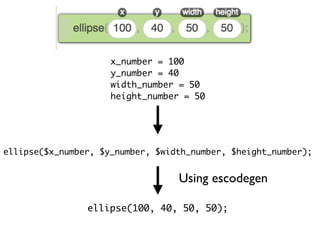

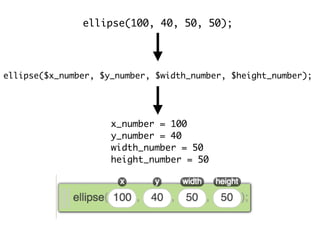

ellipse($x_number, $y_number, $width_number, $height_number);
ellipse(100, 40, 50, 50);
x_number = 100
y_number = 40
width_number = 50
height_number = 50

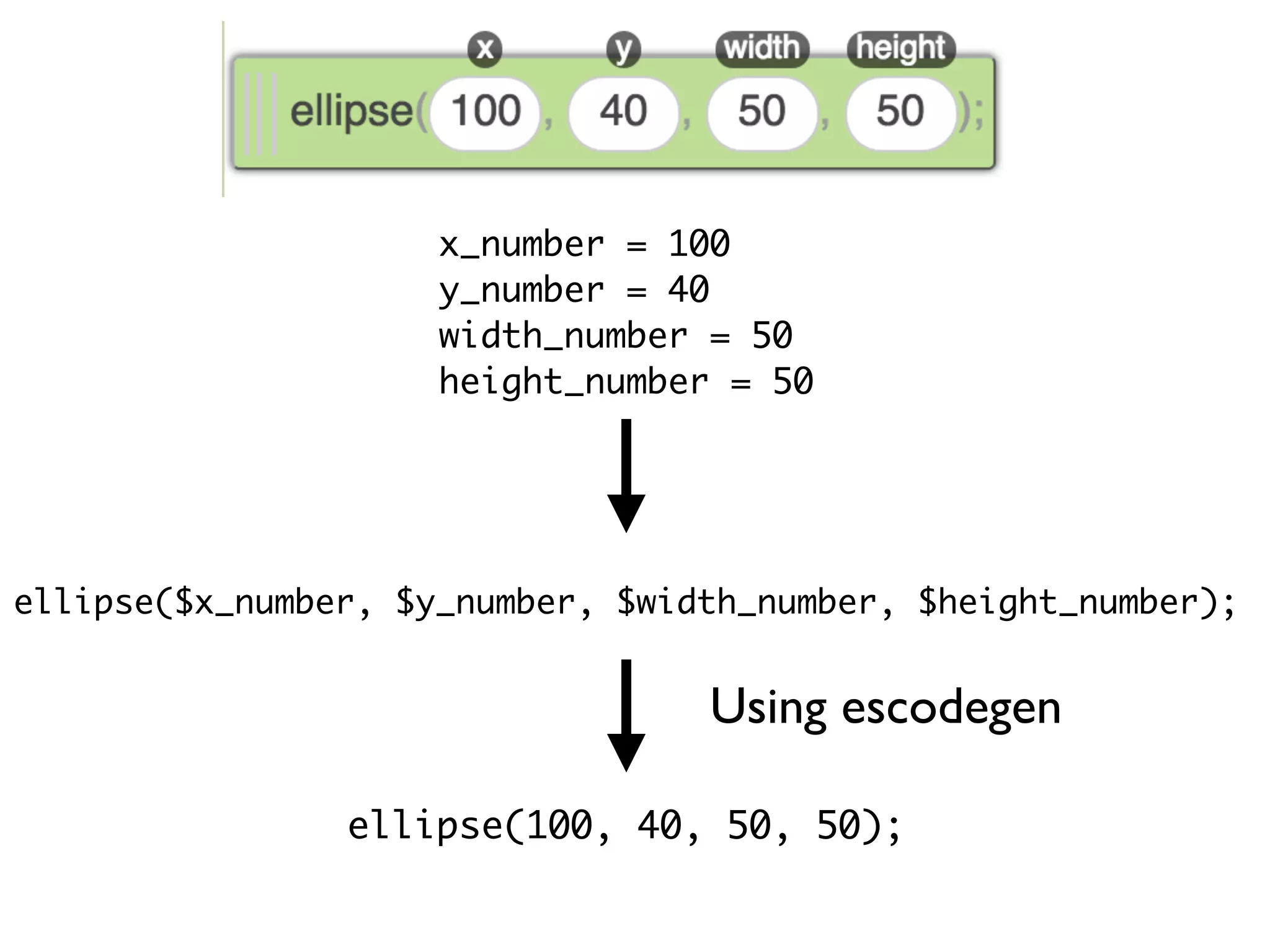

ellipse($x_number, $y_number, $width_number, $height_number);
ellipse(100, 40, 50, 50);
x_number = 100
y_number = 40
width_number = 50
height_number = 50
Using escodegen

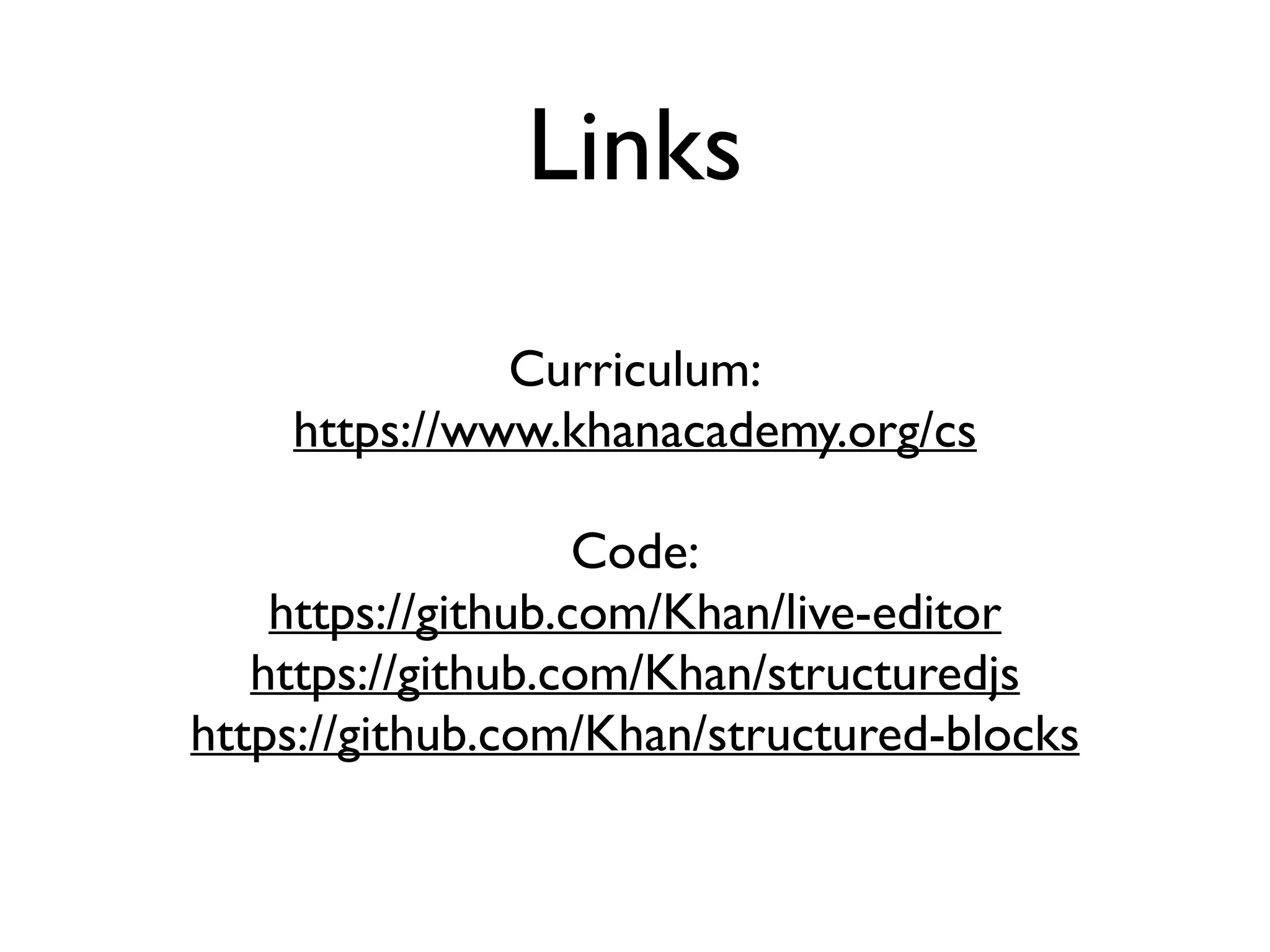

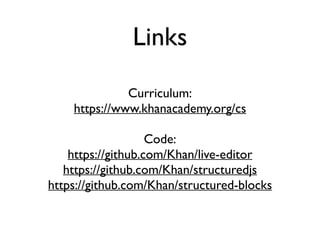

Links
Curriculum:
https://www.khanacademy.org/cs
Code:
https://github.com/Khan/live-editor
https://github.com/Khan/structuredjs
https://github.com/Khan/structured-blocks
