Verilog HDL CODES

FUNDAMENTALS OF HDL LABORATORY MANUAL 2019
Prepared By:
Mr. Omkar H. Darekar, Dept. of Electronics Engg. , AISSMS COE, Pune (MS)
omkar.darekar.55@gmail.com Page 285
PRACTICE EXPERIMENT
__________________________________________________
NAME :- Omkar H. Darekar
ROLL NO :- 17EX310
DATE OF PERFORMANCE:-
__________________________________________________

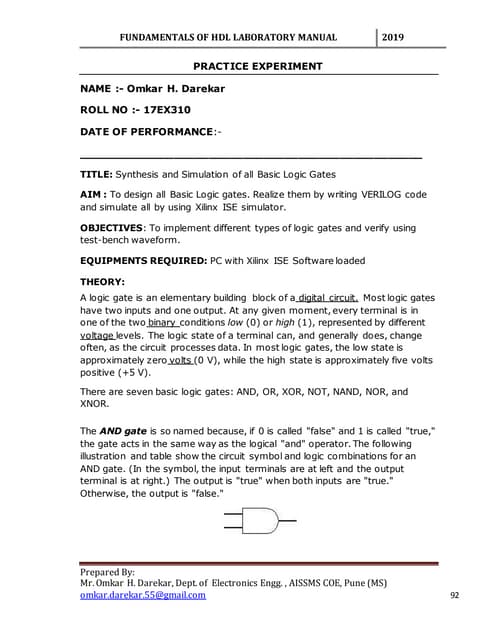

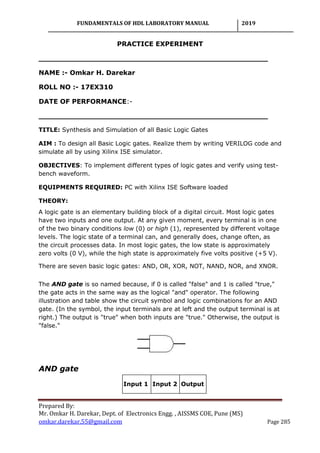

TITLE: Synthesis and Simulation of all Basic Logic Gates
AIM : To design all Basic Logic gates. Realize them by writing VERILOG code and
simulate all by using Xilinx ISE simulator.
OBJECTIVES: To implement different types of logic gates and verify using test-
bench waveform.
EQUIPMENTS REQUIRED: PC with Xilinx ISE Software loaded
THEORY:
A logic gate is an elementary building block of a digital circuit. Most logic gates
have two inputs and one output. At any given moment, every terminal is in one
of the two binary conditions low (0) or high (1), represented by different voltage
levels. The logic state of a terminal can, and generally does, change often, as
the circuit processes data. In most logic gates, the low state is approximately
zero volts (0 V), while the high state is approximately five volts positive (+5 V).
There are seven basic logic gates: AND, OR, XOR, NOT, NAND, NOR, and XNOR.
The AND gate is so named because, if 0 is called "false" and 1 is called "true,"
the gate acts in the same way as the logical "and" operator. The following
illustration and table show the circuit symbol and logic combinations for an AND
gate. (In the symbol, the input terminals are at left and the output terminal is at
right.) The output is "true" when both inputs are "true." Otherwise, the output is
"false."
AND gate
Input 1 Input 2 Output

Prepared By:
0 0 0
0 1 0
1 0 0
1 1 1

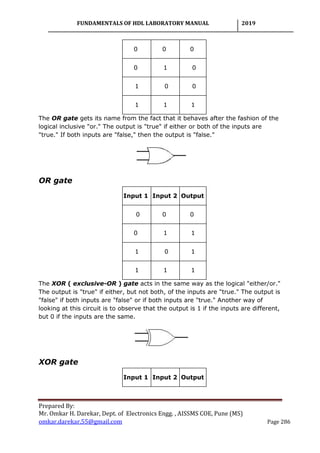

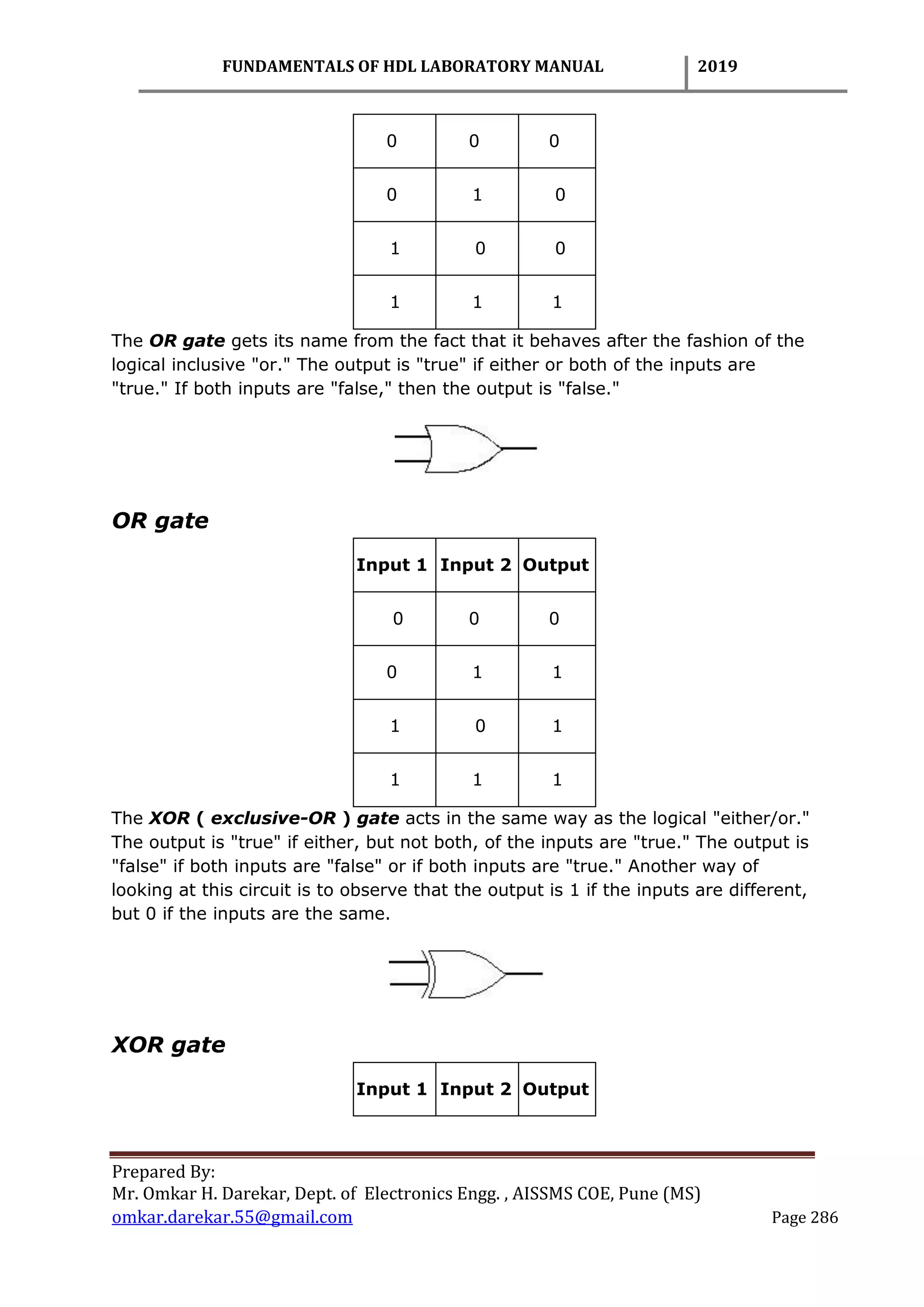

The OR gate gets its name from the fact that it behaves after the fashion of the
logical inclusive "or." The output is "true" if either or both of the inputs are
"true." If both inputs are "false," then the output is "false."
OR gate
0 0 0
0 1 1
1 0 1
1 1 1
The XOR ( exclusive-OR ) gate acts in the same way as the logical "either/or."
The output is "true" if either, but not both, of the inputs are "true." The output is
"false" if both inputs are "false" or if both inputs are "true." Another way of
looking at this circuit is to observe that the output is 1 if the inputs are different,
but 0 if the inputs are the same.
XOR gate

Prepared By:
0 0 0
0 1 1
1 0 1
1 1 0

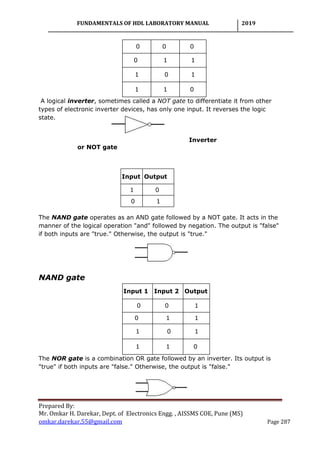

A logical inverter, sometimes called a NOT gate to differentiate it from other
types of electronic inverter devices, has only one input. It reverses the logic
state.
Inverter
or NOT gate
The NAND gate operates as an AND gate followed by a NOT gate. It acts in the
manner of the logical operation "and" followed by negation. The output is "false"
if both inputs are "true." Otherwise, the output is "true."
NAND gate
0 0 1
0 1 1
1 0 1
1 1 0
The NOR gate is a combination OR gate followed by an inverter. Its output is
"true" if both inputs are "false." Otherwise, the output is "false."
Input Output
1 0
0 1

Prepared By:

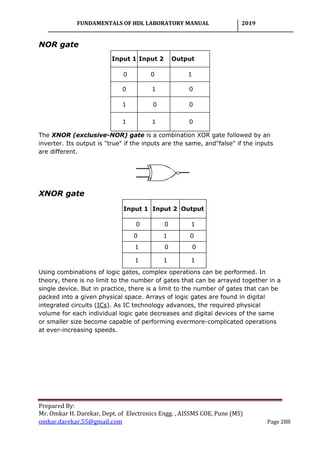

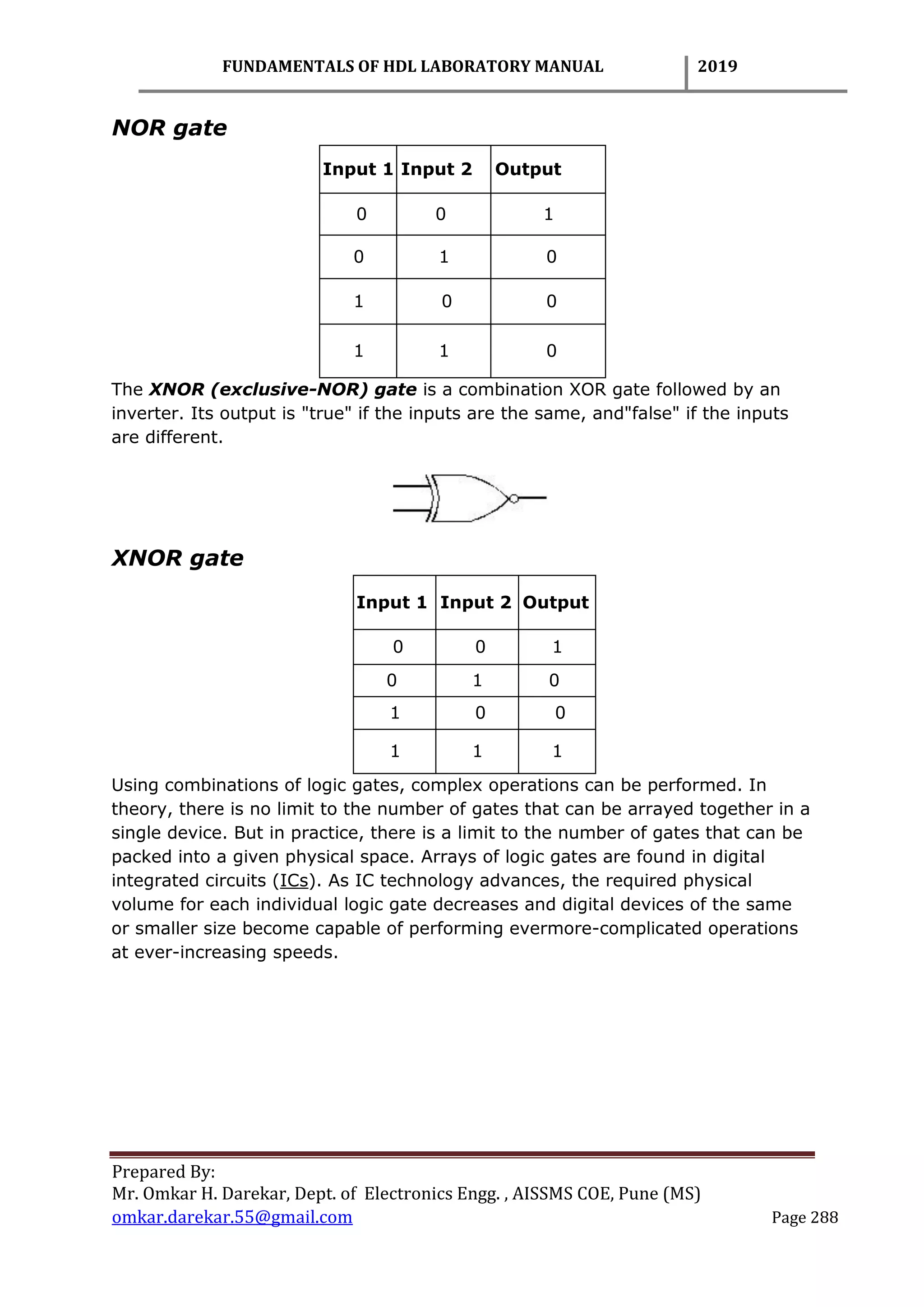

NOR gate
0 0 1
0 1 0
1 0 0
1 1 0
The XNOR (exclusive-NOR) gate is a combination XOR gate followed by an
inverter. Its output is "true" if the inputs are the same, and"false" if the inputs
are different.
XNOR gate
0 0 1
0 1 0
1 0 0
1 1 1
Using combinations of logic gates, complex operations can be performed. In
theory, there is no limit to the number of gates that can be arrayed together in a
single device. But in practice, there is a limit to the number of gates that can be
packed into a given physical space. Arrays of logic gates are found in digital
integrated circuits (ICs). As IC technology advances, the required physical
volume for each individual logic gate decreases and digital devices of the same
or smaller size become capable of performing evermore-complicated operations
at ever-increasing speeds.

Prepared By:

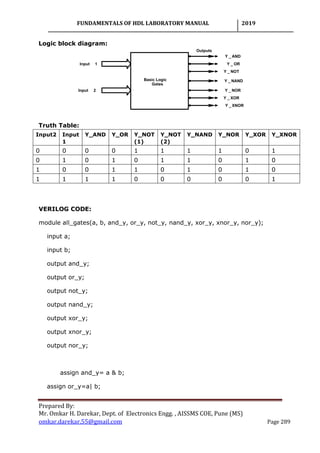

Logic block diagram:
Truth Table:
Input2 Input
1
Y_AND Y_OR Y_NOT
(1)
Y_NOT
(2)
Y_NAND Y_NOR Y_XOR Y_XNOR
0 0 0 0 1 1 1 1 0 1
0 1 0 1 0 1 1 0 1 0
1 0 0 1 1 0 1 0 1 0
1 1 1 1 0 0 0 0 0 1
VERILOG CODE:
module all_gates(a, b, and_y, or_y, not_y, nand_y, xor_y, xnor_y, nor_y);
input a;
input b;
output and_y;
output or_y;
output not_y;
output nand_y;
output xor_y;
output xnor_y;
output nor_y;
assign and_y= a & b;
assign or_y=a| b;
Input 1
Input 2
text
Outputs
Y _ OR
Y _ AND
Y _ NOT
Y _ NAND
Y _ NOR
Y _ XOR
Y _ XNOR
Basic Logic
Gates

Prepared By:

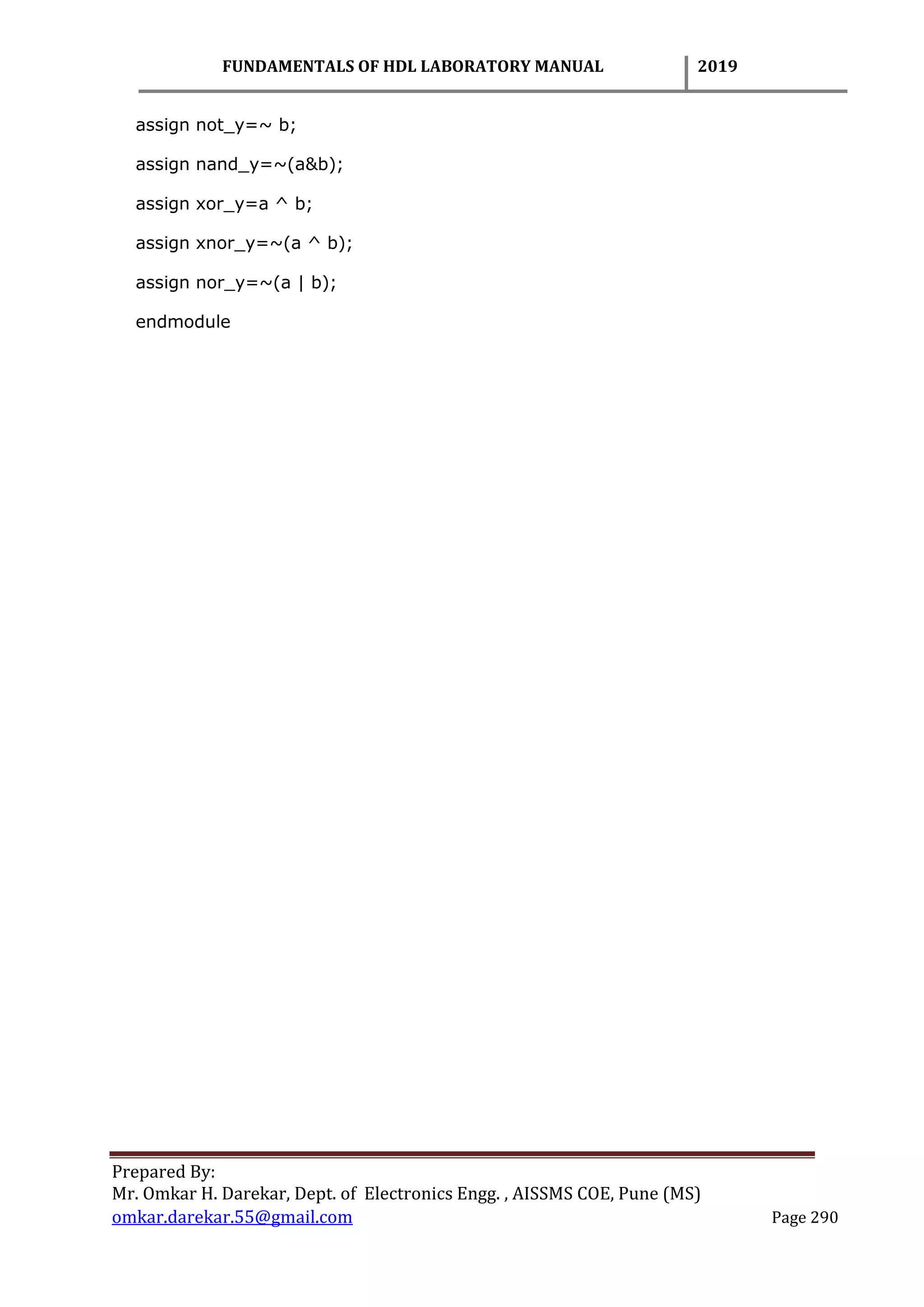

assign not_y=~ b;
assign nand_y=~(a&b);
assign xor_y=a ^ b;
assign xnor_y=~(a ^ b);
assign nor_y=~(a | b);
endmodule

Prepared By:

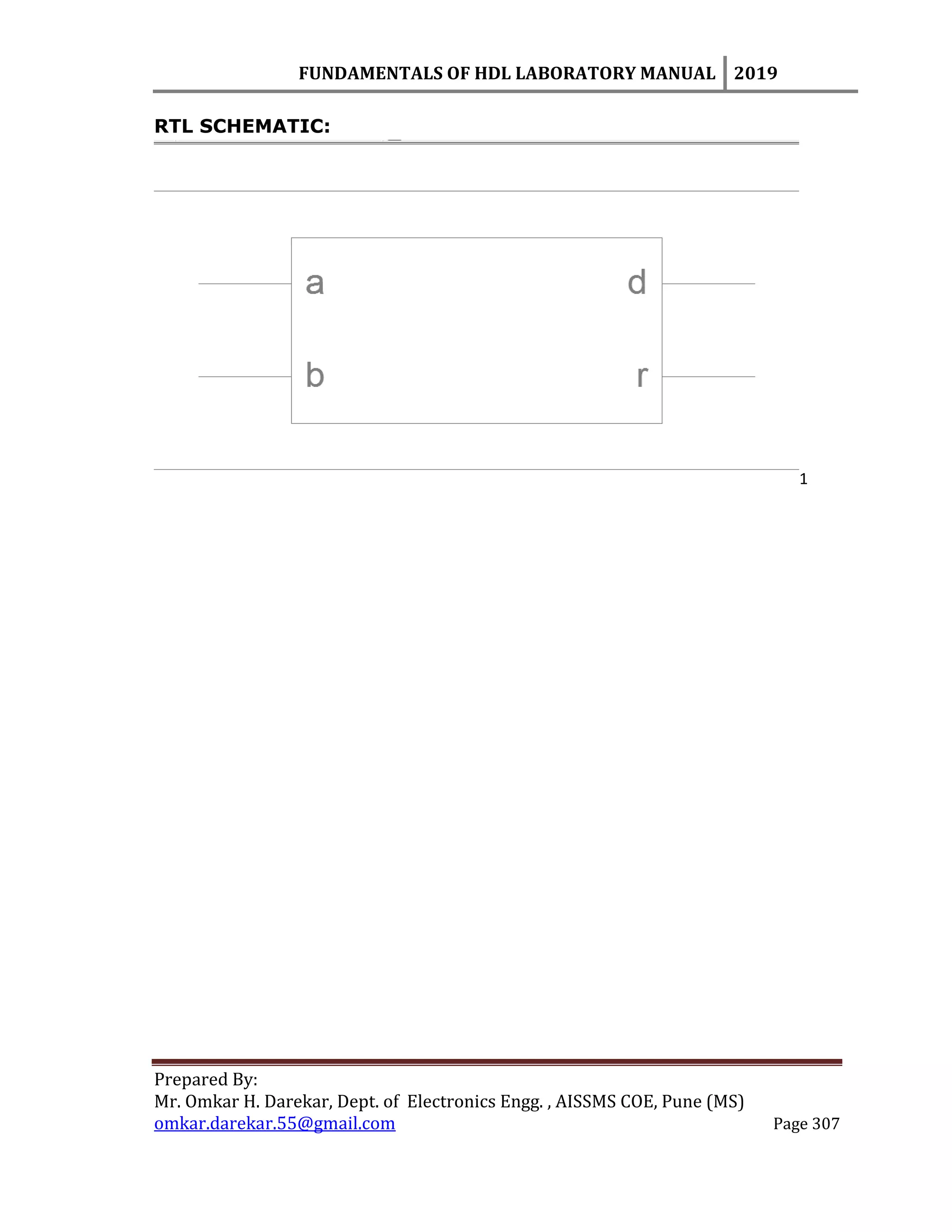

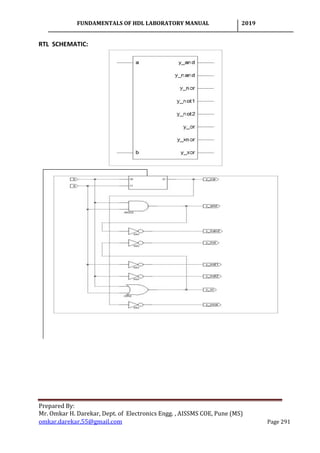

RTL SCHEMATIC:

Prepared By:

Prepared By:
TECHNOLOGY SCHEMATIC:

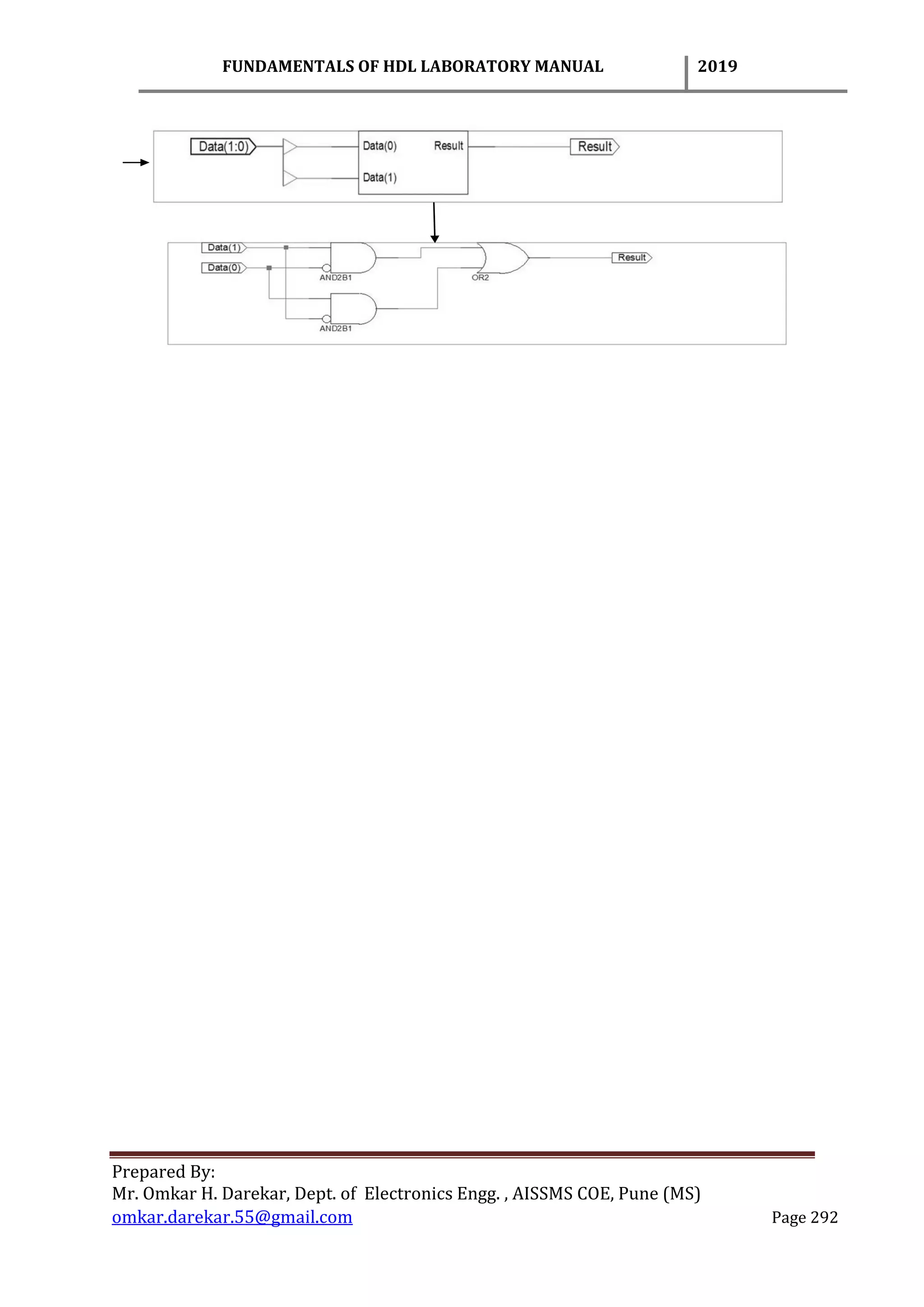

LUT 2_8: And Gate

Prepared By:

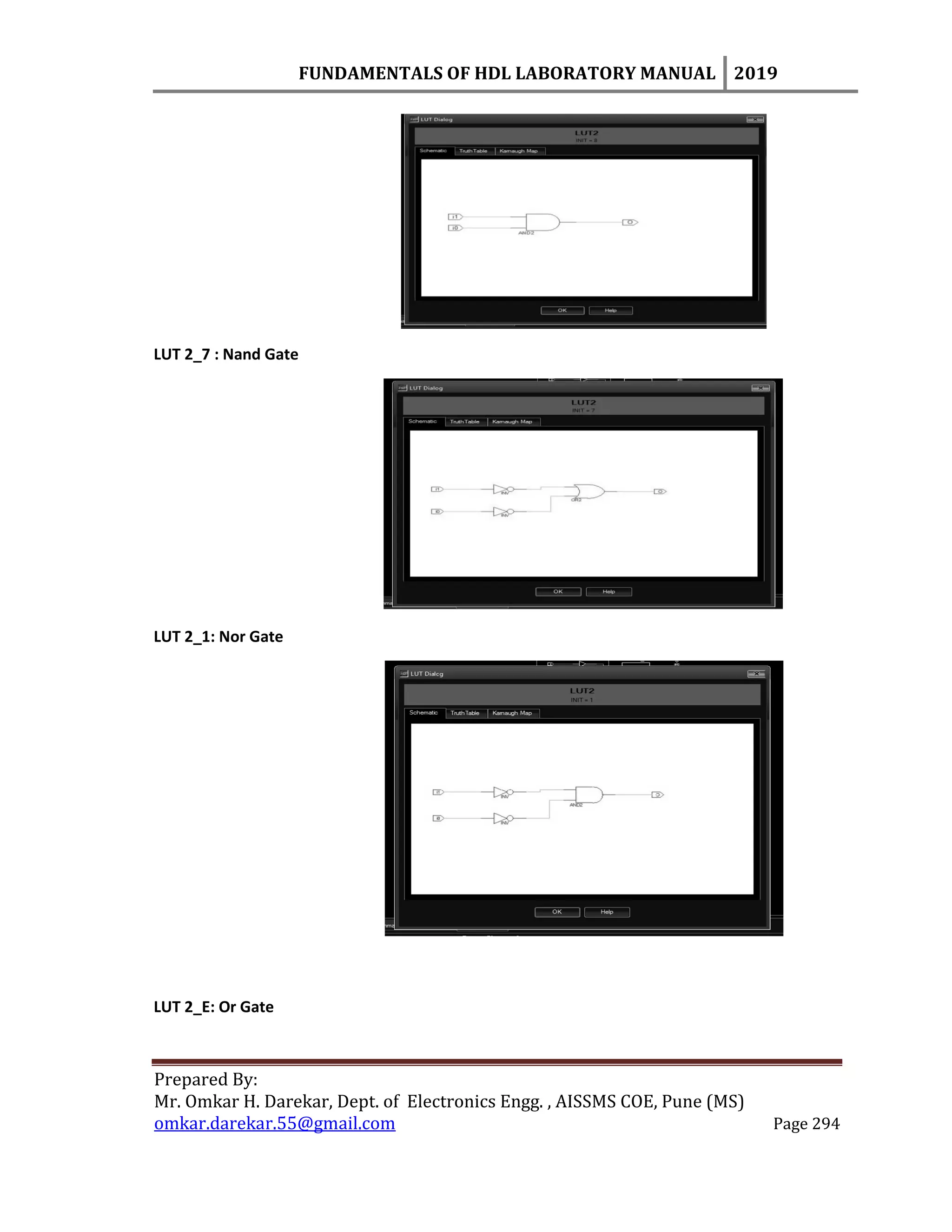

LUT 2_7 : Nand Gate
LUT 2_1: Nor Gate
LUT 2_E: Or Gate

Prepared By:

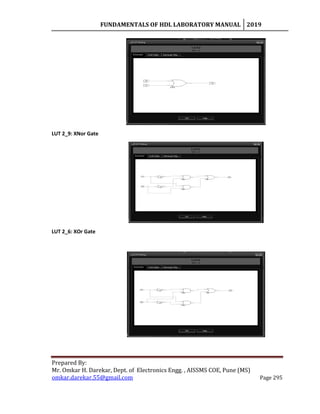

LUT 2_9: XNor Gate
LUT 2_6: XOr Gate

Prepared By:

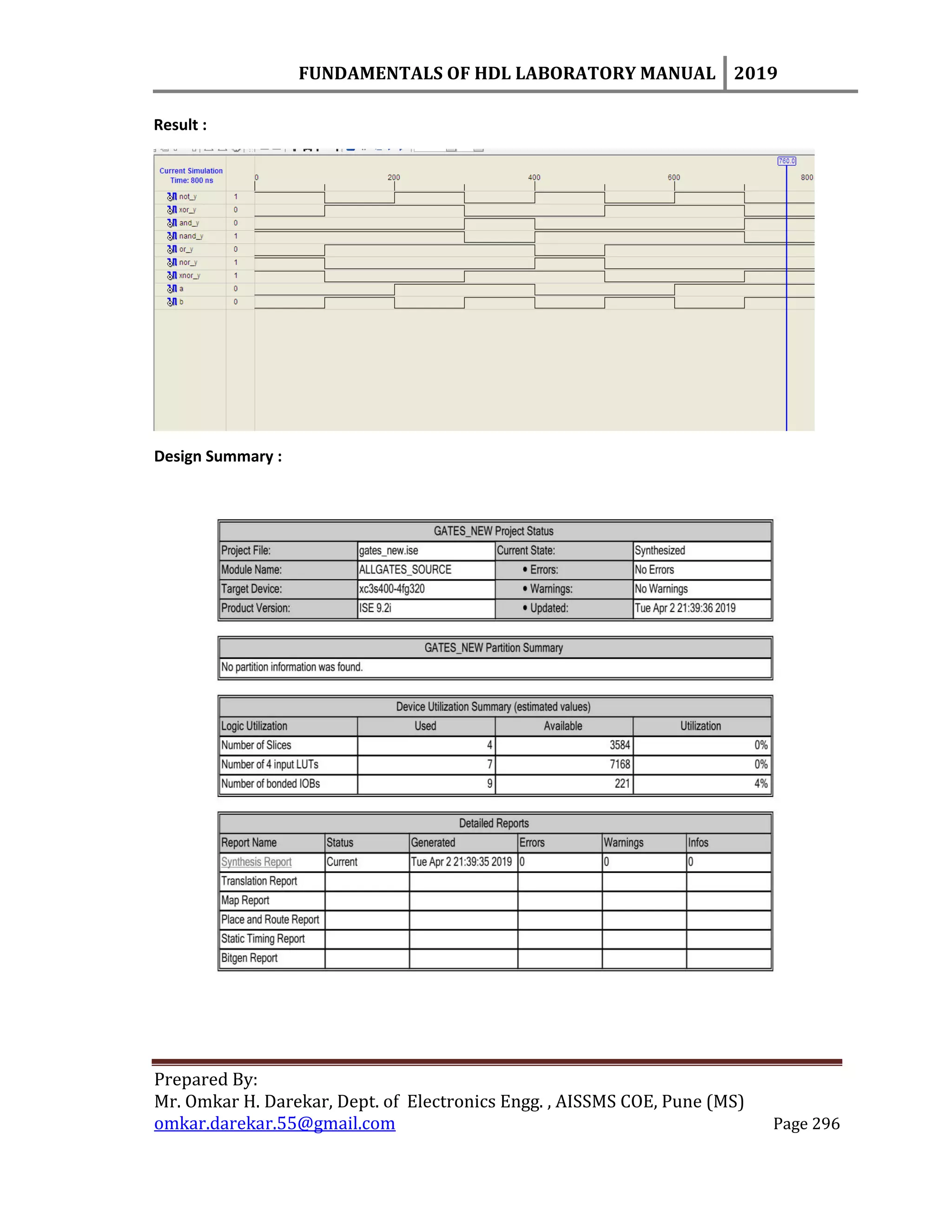

Result :

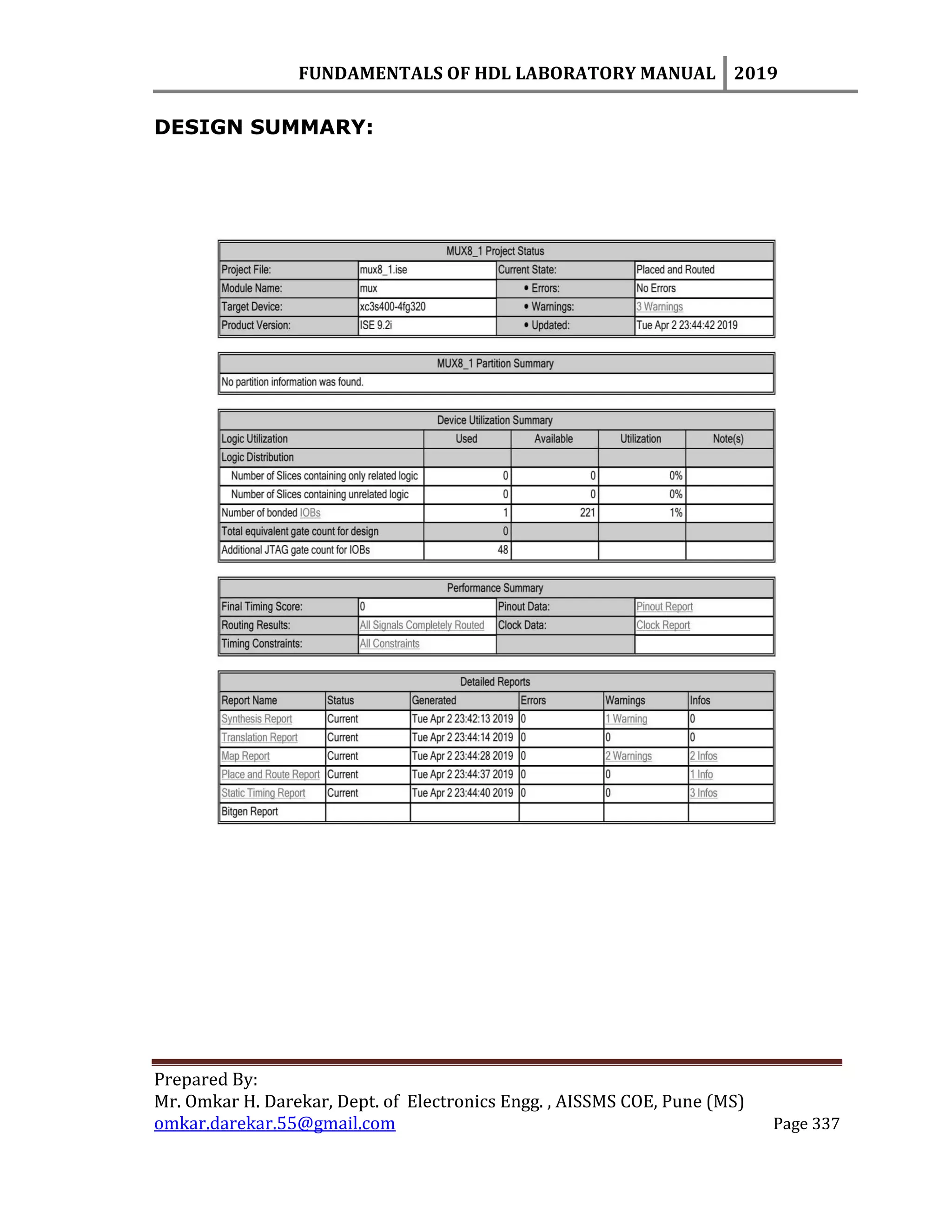

Design Summary :

Prepared By:

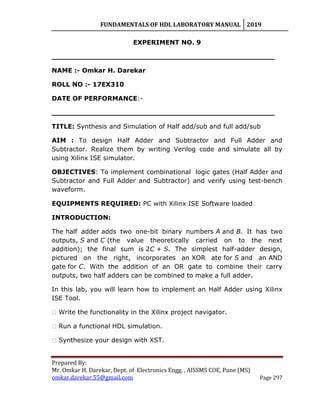

EXPERIMENT NO. 9
__________________________________________________
ROLL NO :- 17EX310
__________________________________________________
TITLE: Synthesis and Simulation of Half add/sub and full add/sub
AIM : To design Half Adder and Subtractor and Full Adder and
Subtractor. Realize them by writing Verilog code and simulate all by
using Xilinx ISE simulator.
OBJECTIVES: To implement combinational logic gates (Half Adder and
Subtractor and Full Adder and Subtractor) and verify using test-bench
waveform.
EQUIPMENTS REQUIRED: PC with Xilinx ISE Software loaded
INTRODUCTION:
The half adder adds two one-bit binary numbers A and B. It has two
outputs, S and C (the value theoretically carried on to the next
addition); the final sum is 2C + S. The simplest half-adder design,
pictured on the right, incorporates an XOR ate for S and an AND
gate for C. With the addition of an OR gate to combine their carry
outputs, two half adders can be combined to make a full adder.
In this lab, you will learn how to implement an Half Adder using Xilinx
ISE Tool.
� Write the functionality in the Xilinx project navigator.
� Run a functional HDL simulation.
� Synthesize your design with XST.

Prepared By:
� Take the synthesized design through the Xilinx implementation tools.
� Check the performance of your design by applying different inputs
and verify the outputs using simulator
THEORY:
Half adder is a combinational arithmetic circuit that adds two
numbers and produces a sum bit (S) and carry bit (C) as the output. If
A and B are the input bits, then sum bit (S) is the X-OR of A and B and
the carry bit (C) will be the AND of A and B. From this it is clear that a
half adder circuit can be easily constructed using one X-OR gate and one
AND gate. Half adder is the simplest of all adder circuit, but it has a
major disadvantage.
The half adder can add only two input bits (A and B) and has
nothing to do with the carry if there is any in the input. So if the input
to a half adder have a carry, then it will be neglected it and adds only
the A and B bits. That means the binary addition process is not
complete and that‟s why it is called a half adder.
DESIGN DESCRIPTION:
Adds two 1-bit operands, producing a 2-bit output. The low-order
bit of the output is called as ‟Sum‟ while the higher-order bit is called as
„Carry‟.

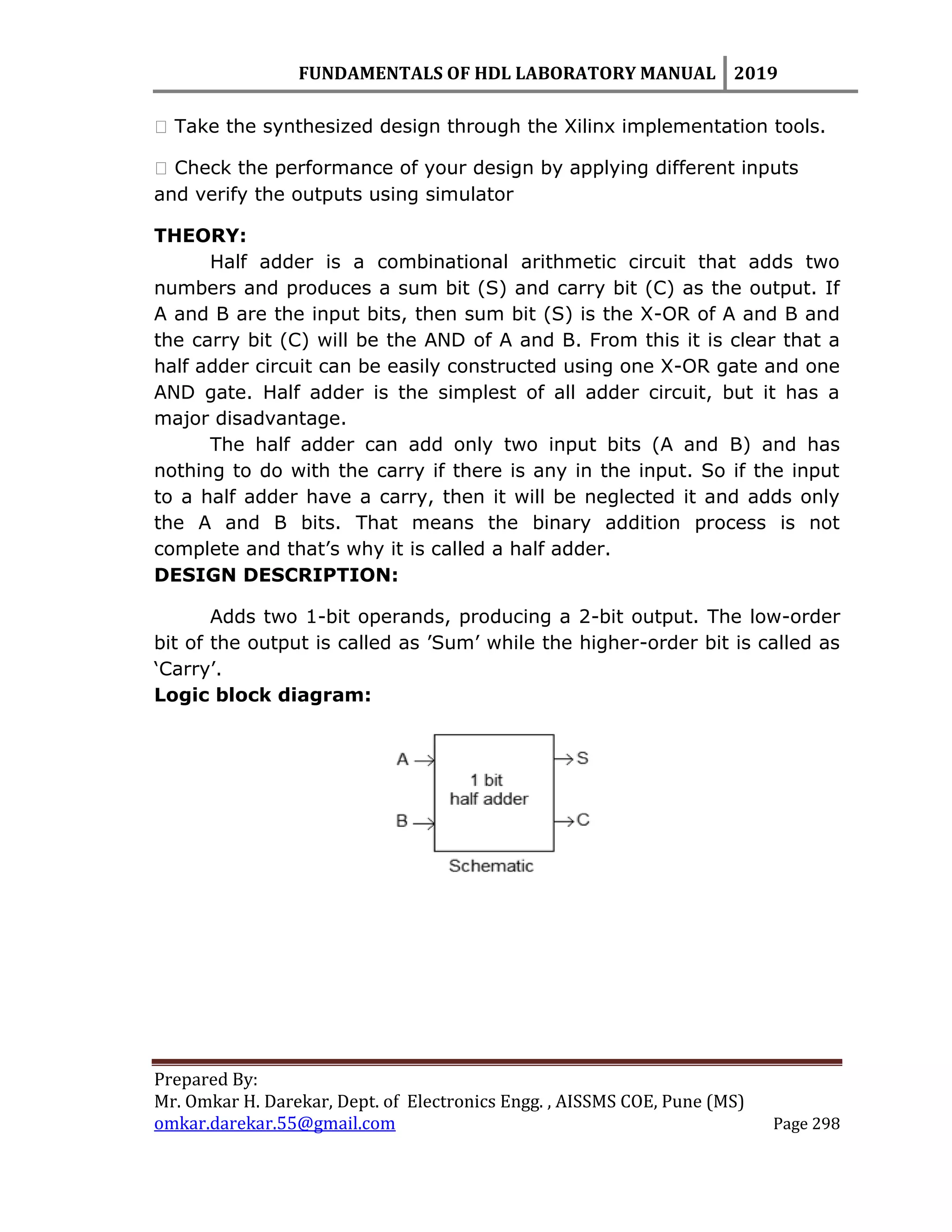

Logic block diagram:

Prepared By:

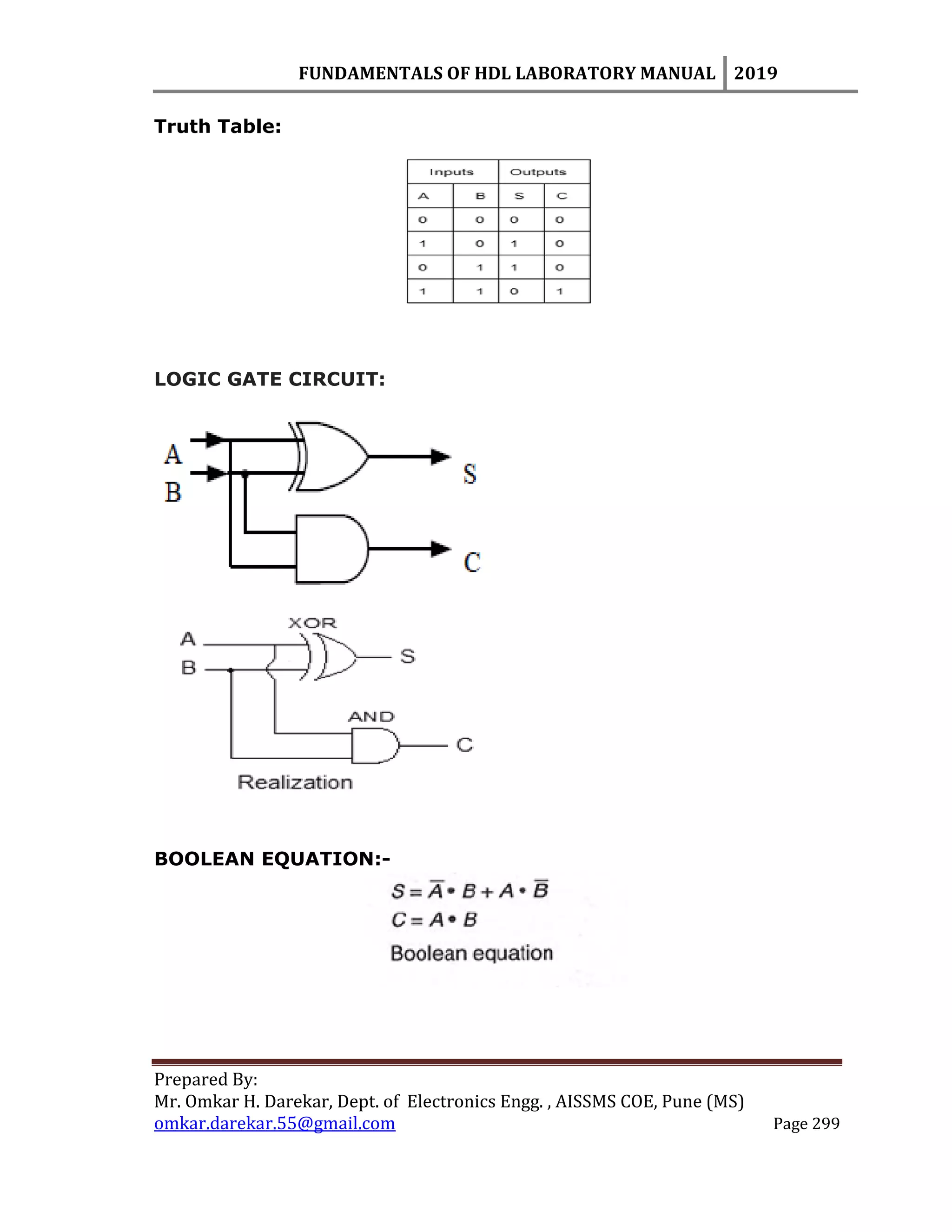

Truth Table:
LOGIC GATE CIRCUIT:
BOOLEAN EQUATION:-

Prepared By:

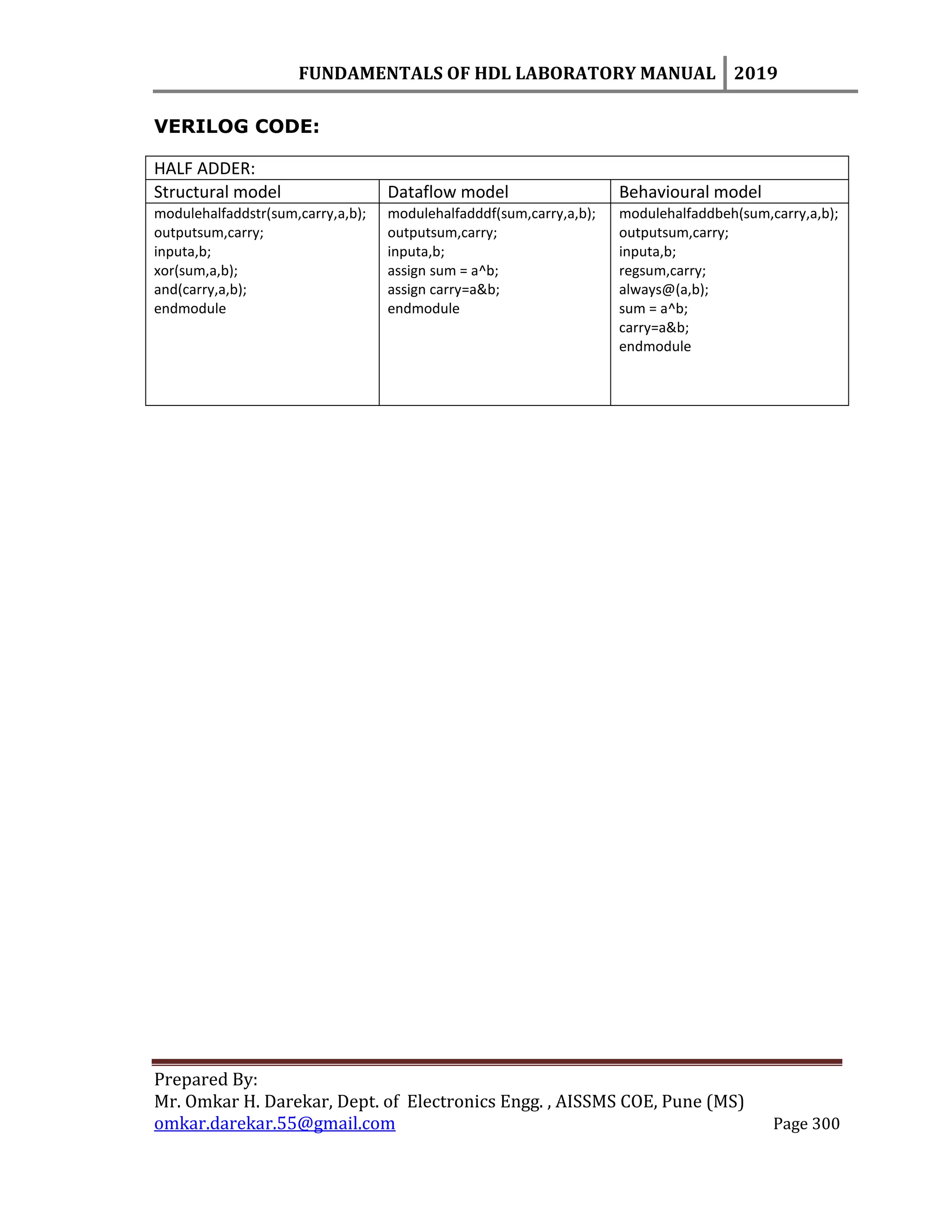

VERILOG CODE:
HALF ADDER:
Structural model Dataflow model Behavioural model
modulehalfaddstr(sum,carry,a,b);
outputsum,carry;
inputa,b;
xor(sum,a,b);
and(carry,a,b);
endmodule
modulehalfadddf(sum,carry,a,b);
outputsum,carry;
inputa,b;
assign sum = a^b;
assign carry=a&b;
endmodule
modulehalfaddbeh(sum,carry,a,b);
outputsum,carry;
inputa,b;
regsum,carry;
always@(a,b);
sum = a^b;
carry=a&b;
endmodule

Prepared By:

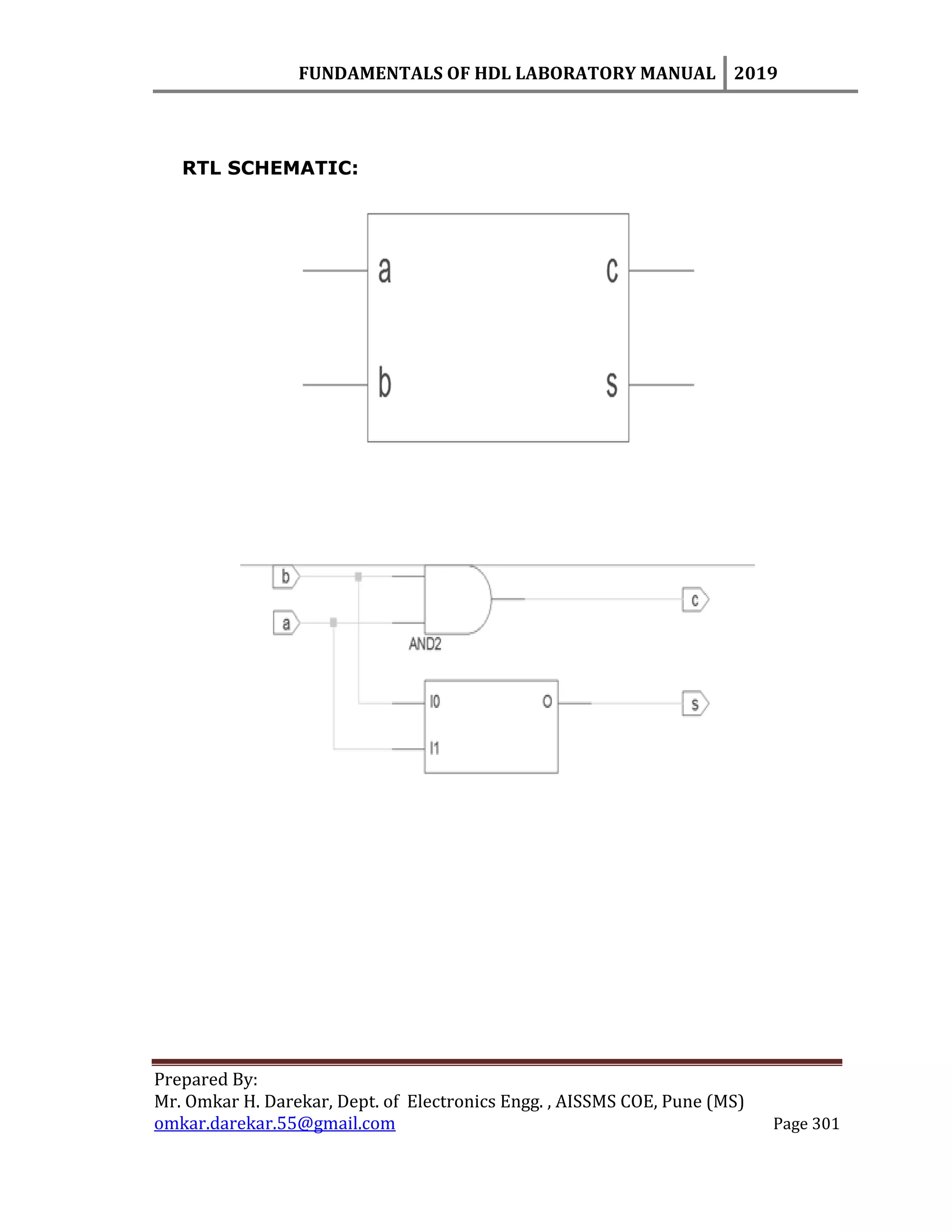

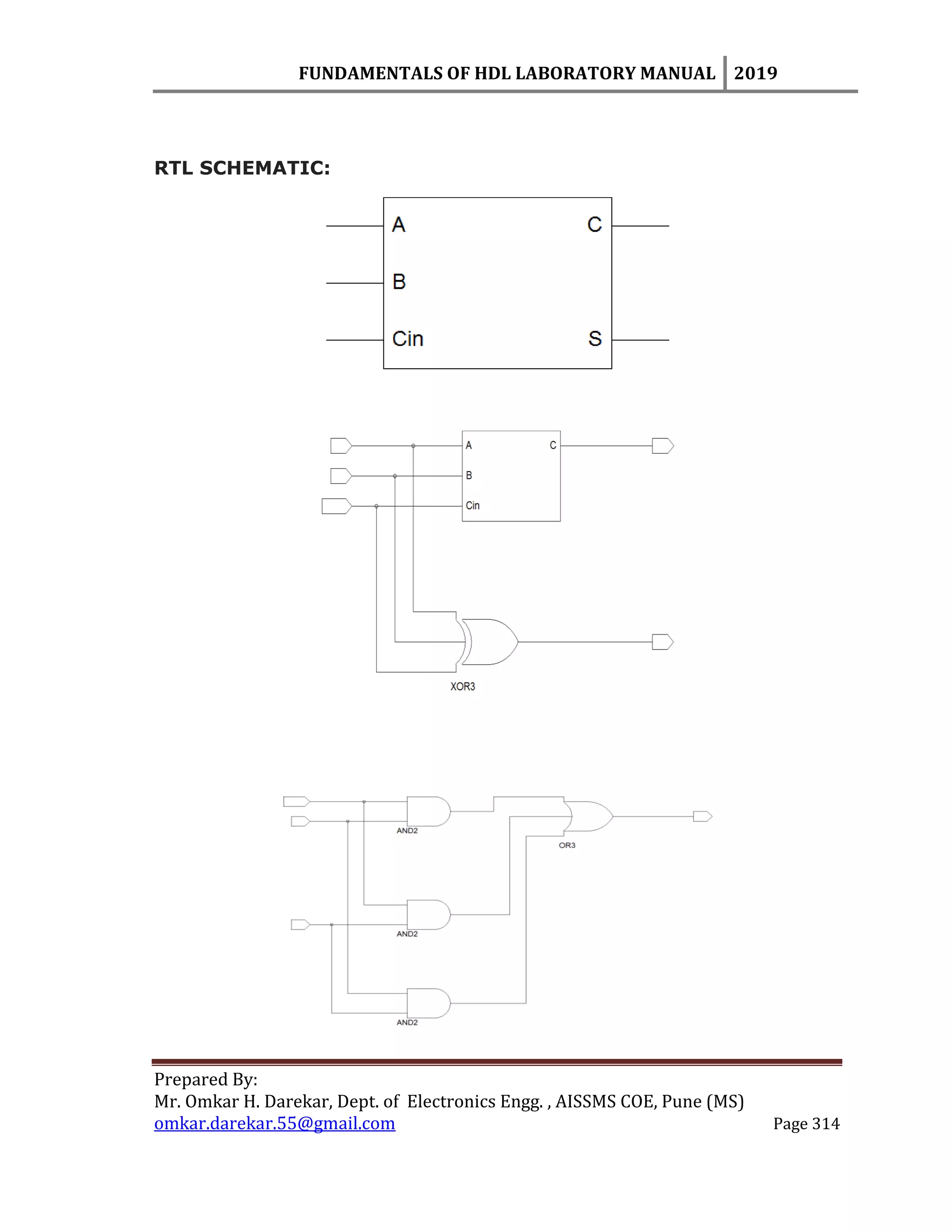

RTL SCHEMATIC:

Prepared By:

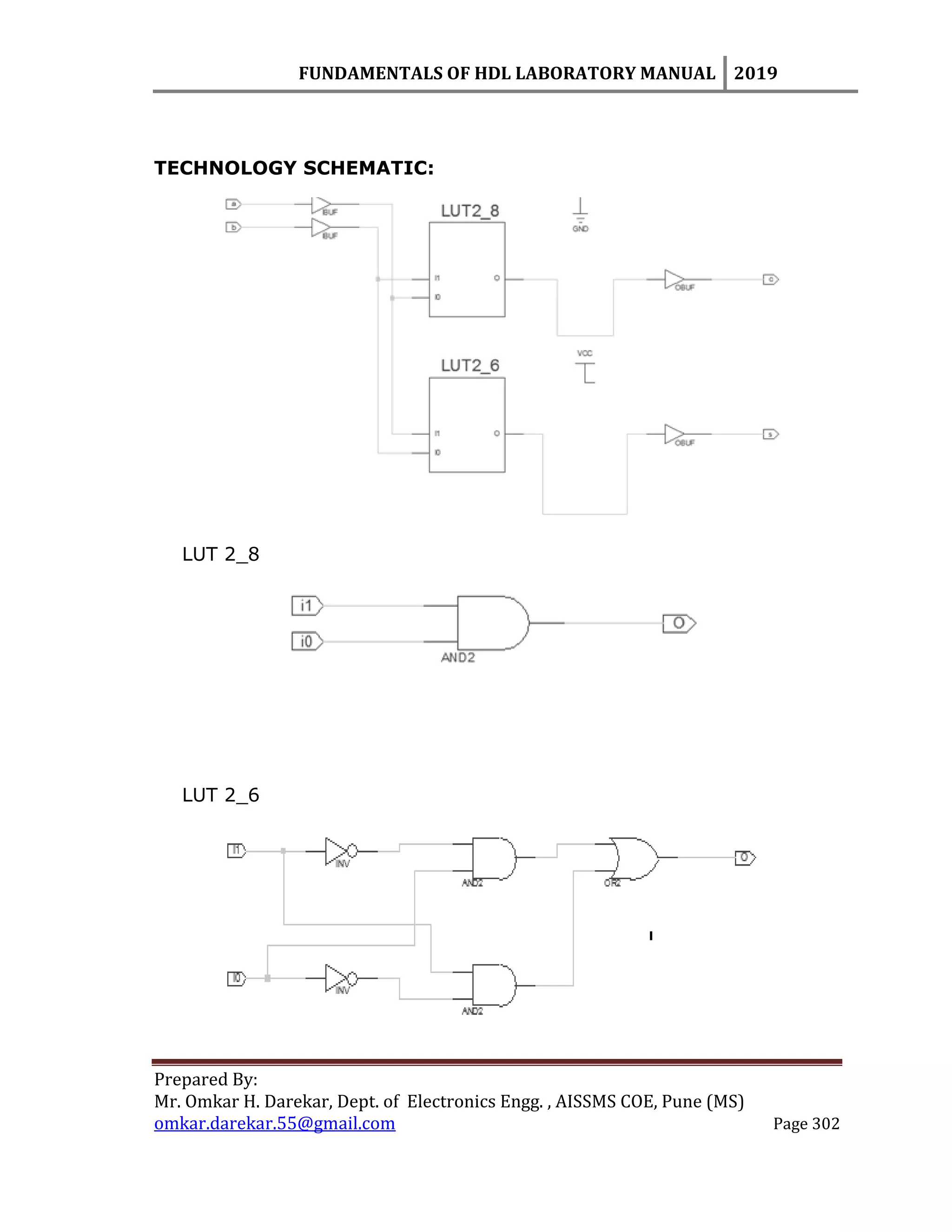

LUT 2_8
LUT 2_6

Prepared By:

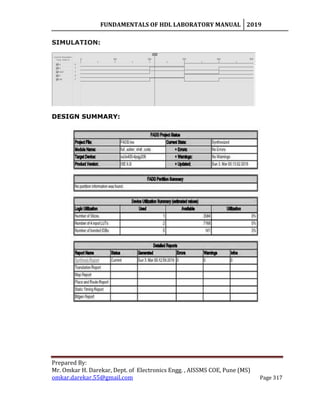

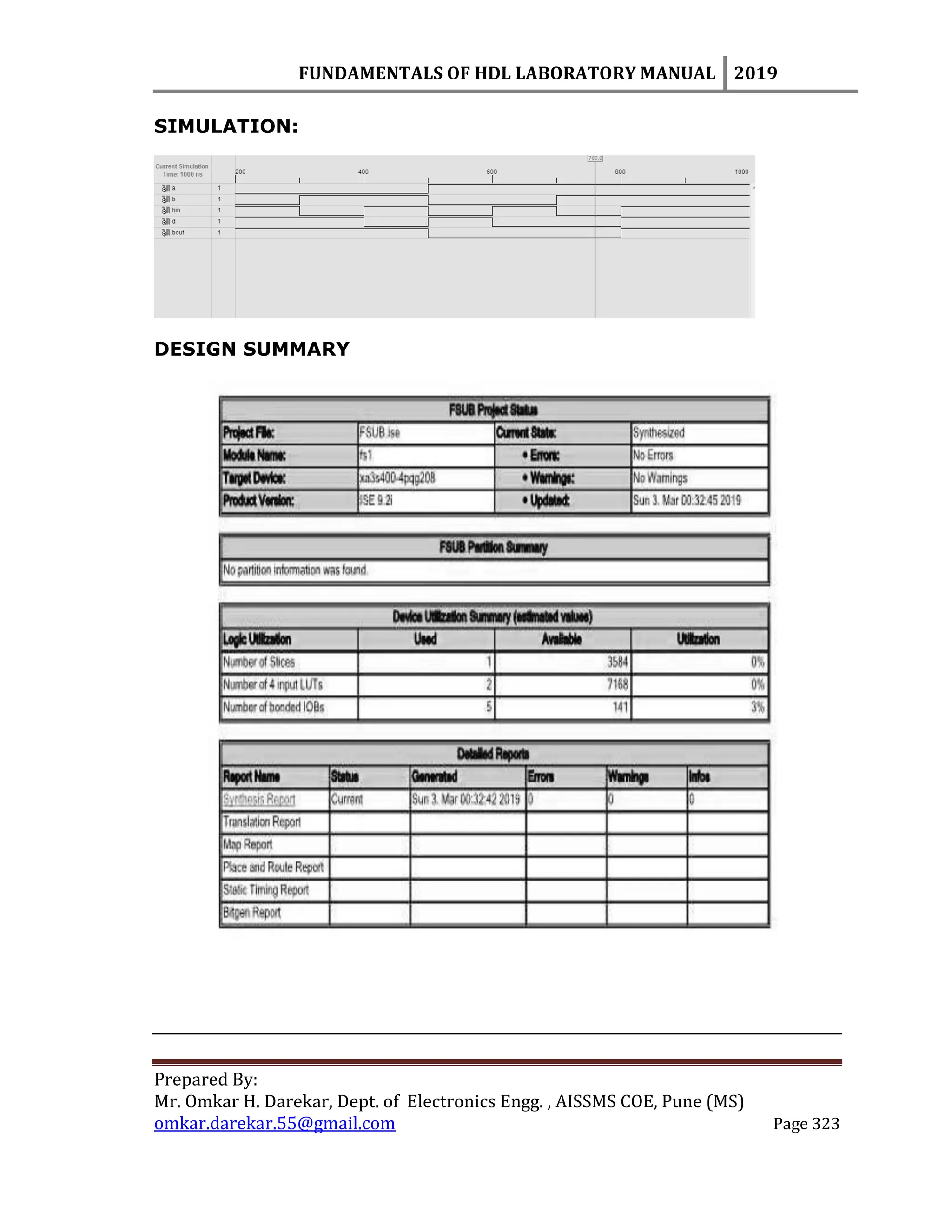

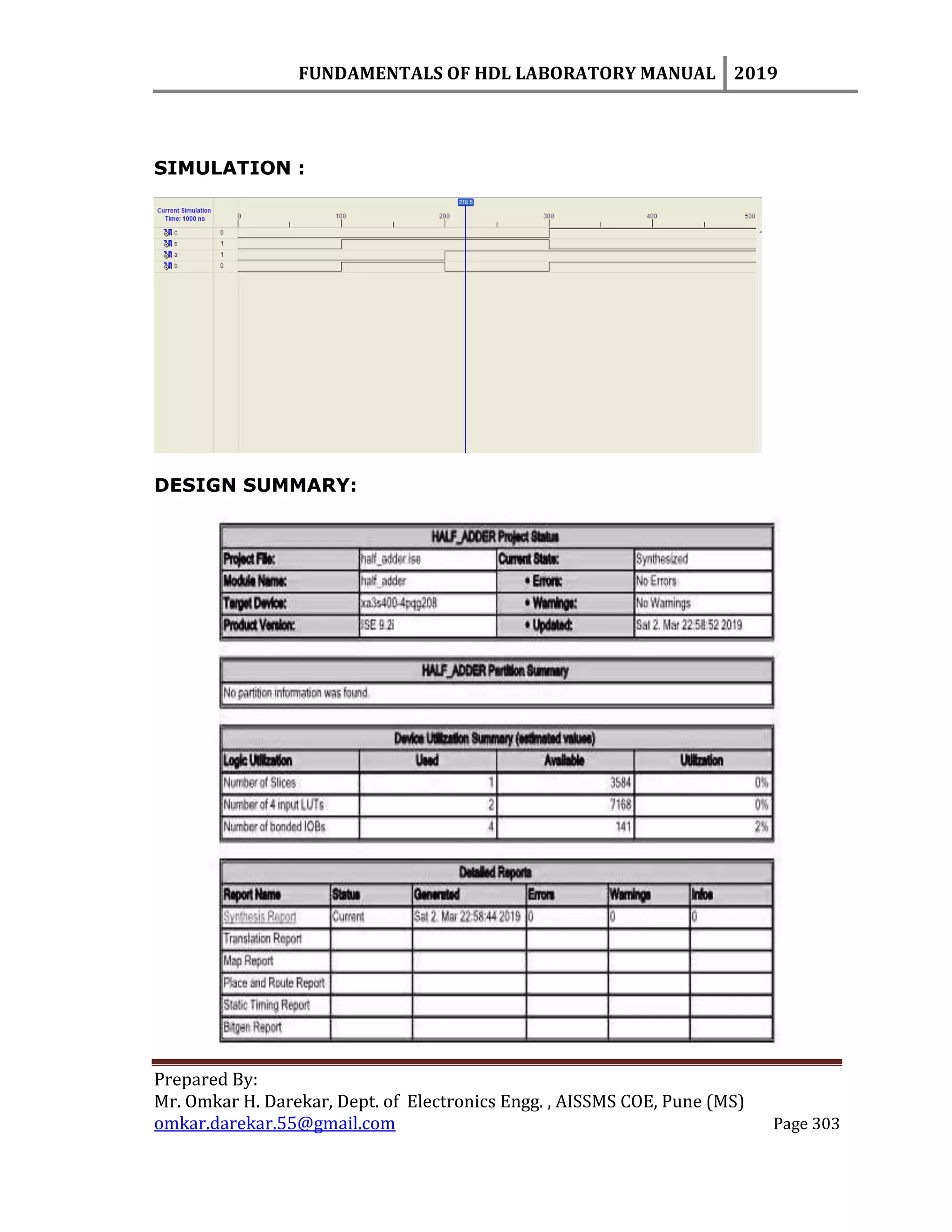

SIMULATION :
DESIGN SUMMARY:

Prepared By:

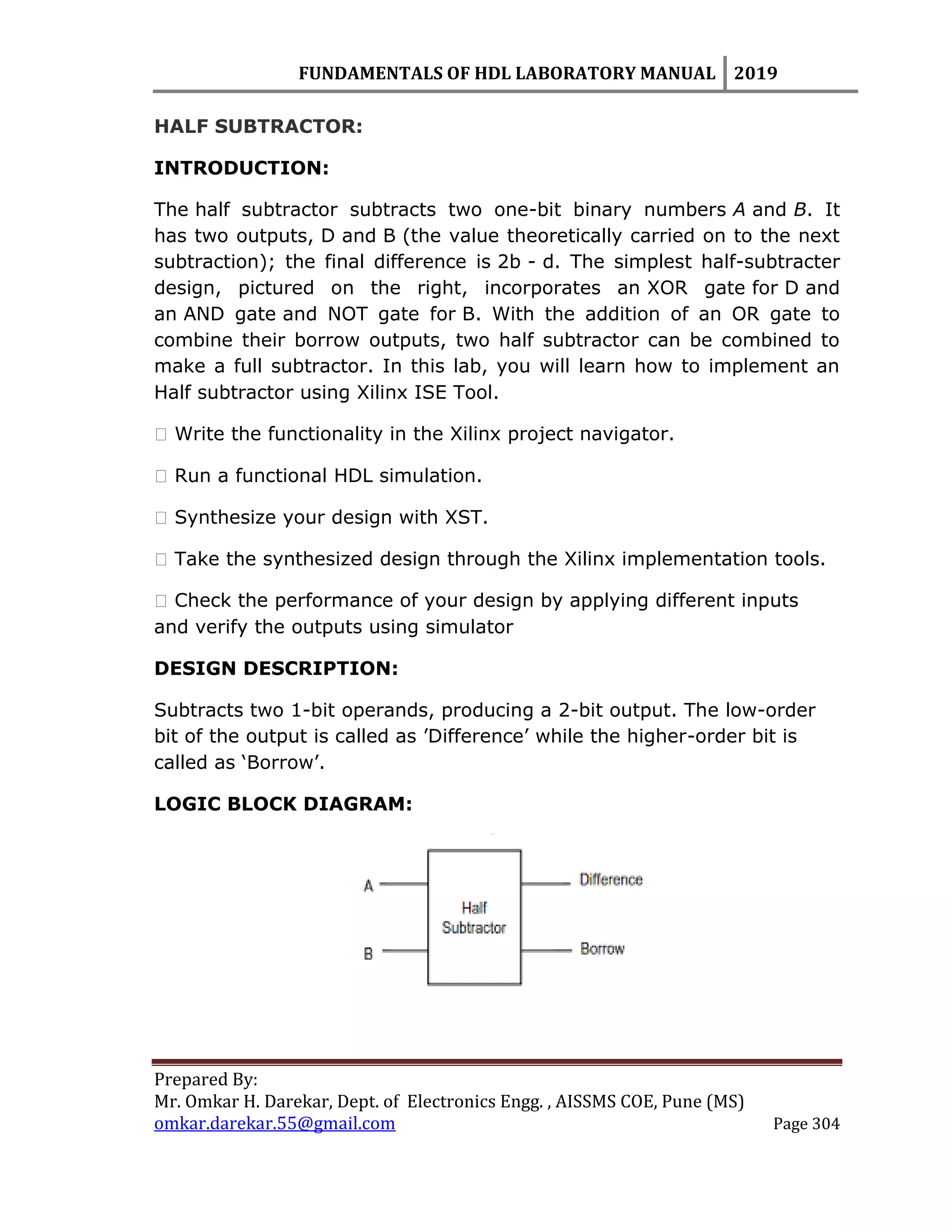

HALF SUBTRACTOR:
INTRODUCTION:
The half subtractor subtracts two one-bit binary numbers A and B. It
has two outputs, D and B (the value theoretically carried on to the next
subtraction); the final difference is 2b - d. The simplest half-subtracter
design, pictured on the right, incorporates an XOR gate for D and
an AND gate and NOT gate for B. With the addition of an OR gate to
combine their borrow outputs, two half subtractor can be combined to
make a full subtractor. In this lab, you will learn how to implement an
Half subtractor using Xilinx ISE Tool.
and verify the outputs using simulator
DESIGN DESCRIPTION:
Subtracts two 1-bit operands, producing a 2-bit output. The low-order
bit of the output is called as ‟Difference‟ while the higher-order bit is
called as „Borrow‟.
LOGIC BLOCK DIAGRAM:

Prepared By:

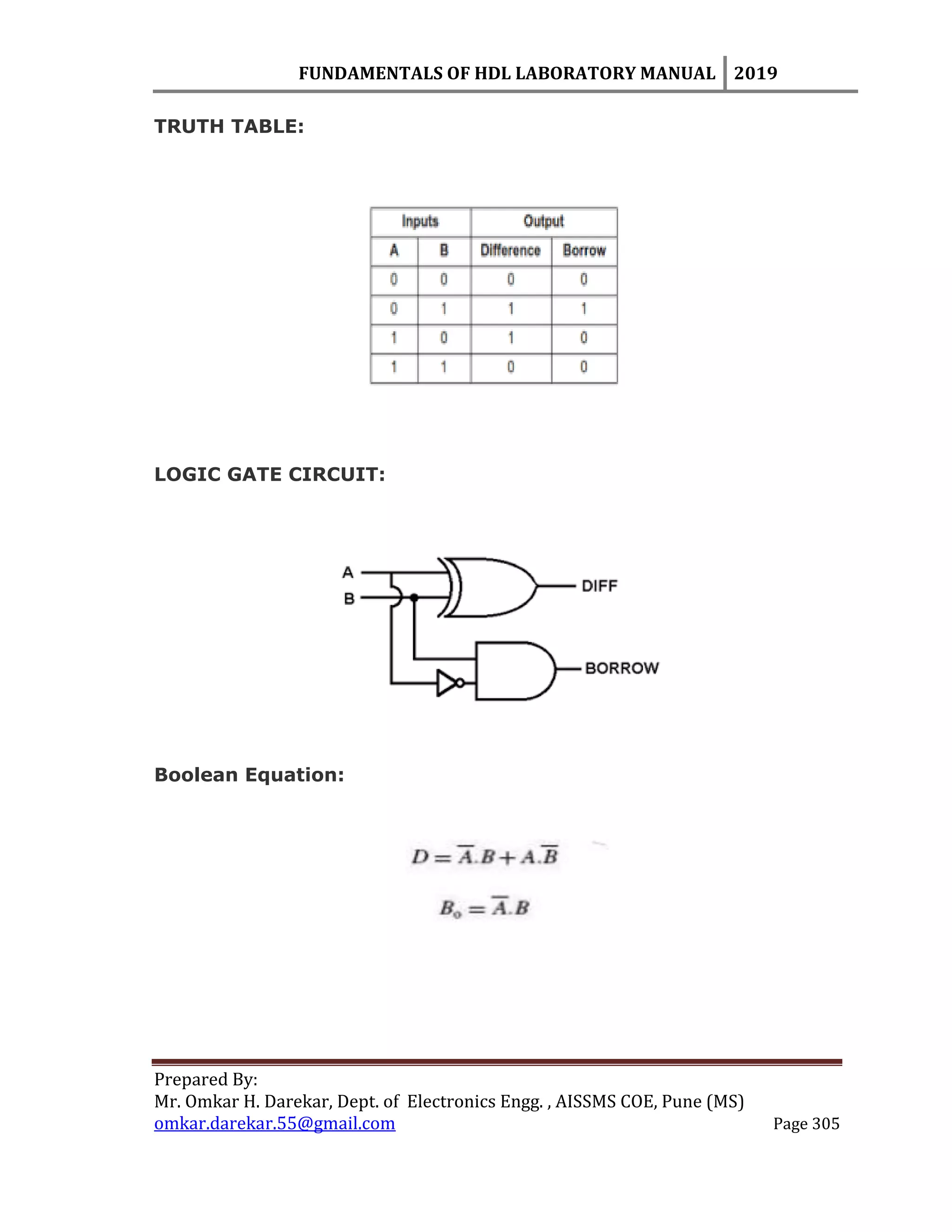

TRUTH TABLE:
LOGIC GATE CIRCUIT:
Boolean Equation:

Prepared By:

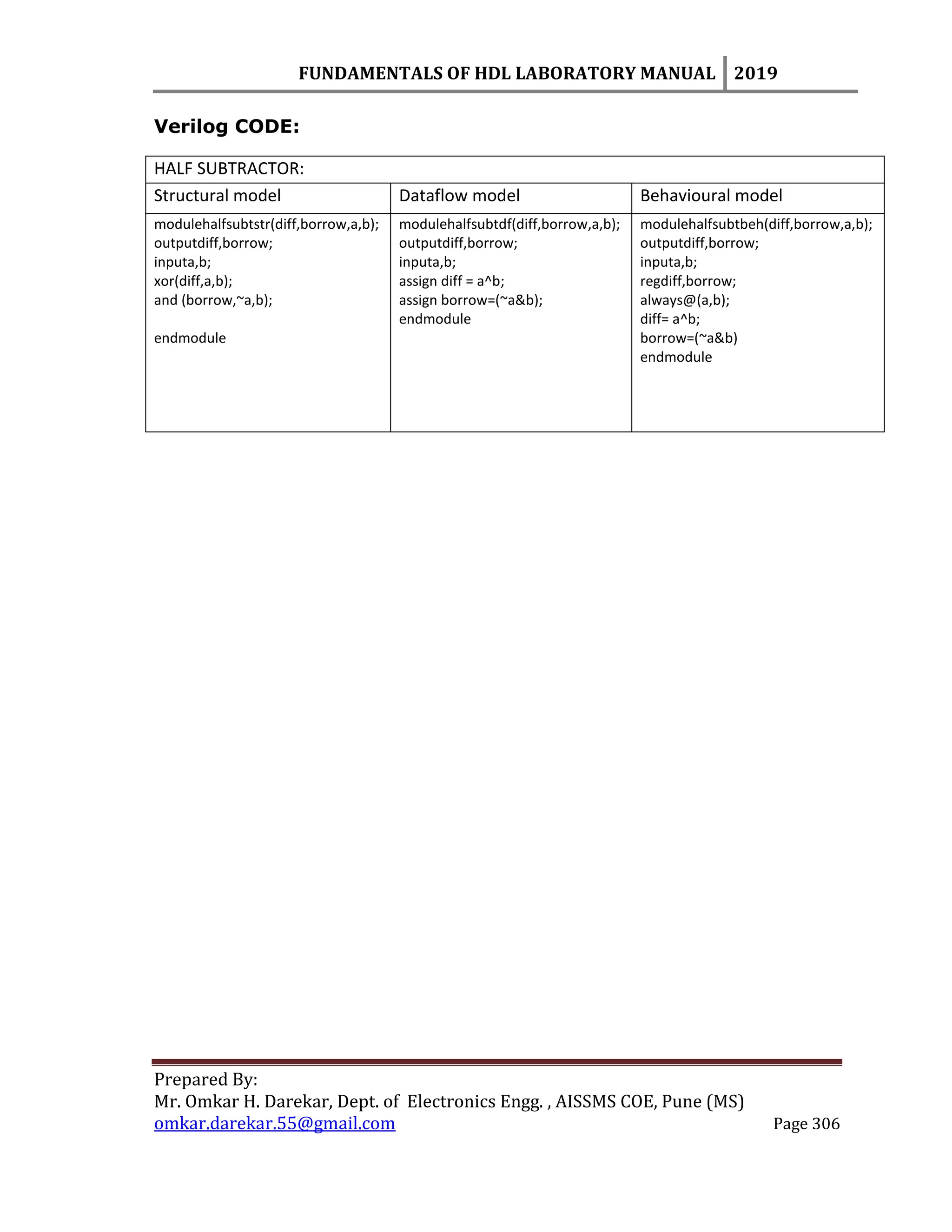

Verilog CODE:
HALF SUBTRACTOR:
modulehalfsubtstr(diff,borrow,a,b);
outputdiff,borrow;
inputa,b;
xor(diff,a,b);
and (borrow,~a,b);
endmodule
modulehalfsubtdf(diff,borrow,a,b);
outputdiff,borrow;
inputa,b;
assign diff = a^b;
assign borrow=(~a&b);
endmodule
modulehalfsubtbeh(diff,borrow,a,b);
outputdiff,borrow;
inputa,b;
regdiff,borrow;
always@(a,b);
diff= a^b;
borrow=(~a&b)
endmodule

Prepared By:

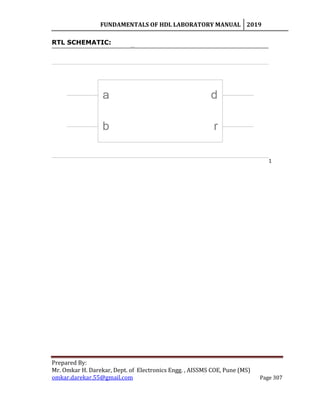

RTL SCHEMATIC:
1

Prepared By:

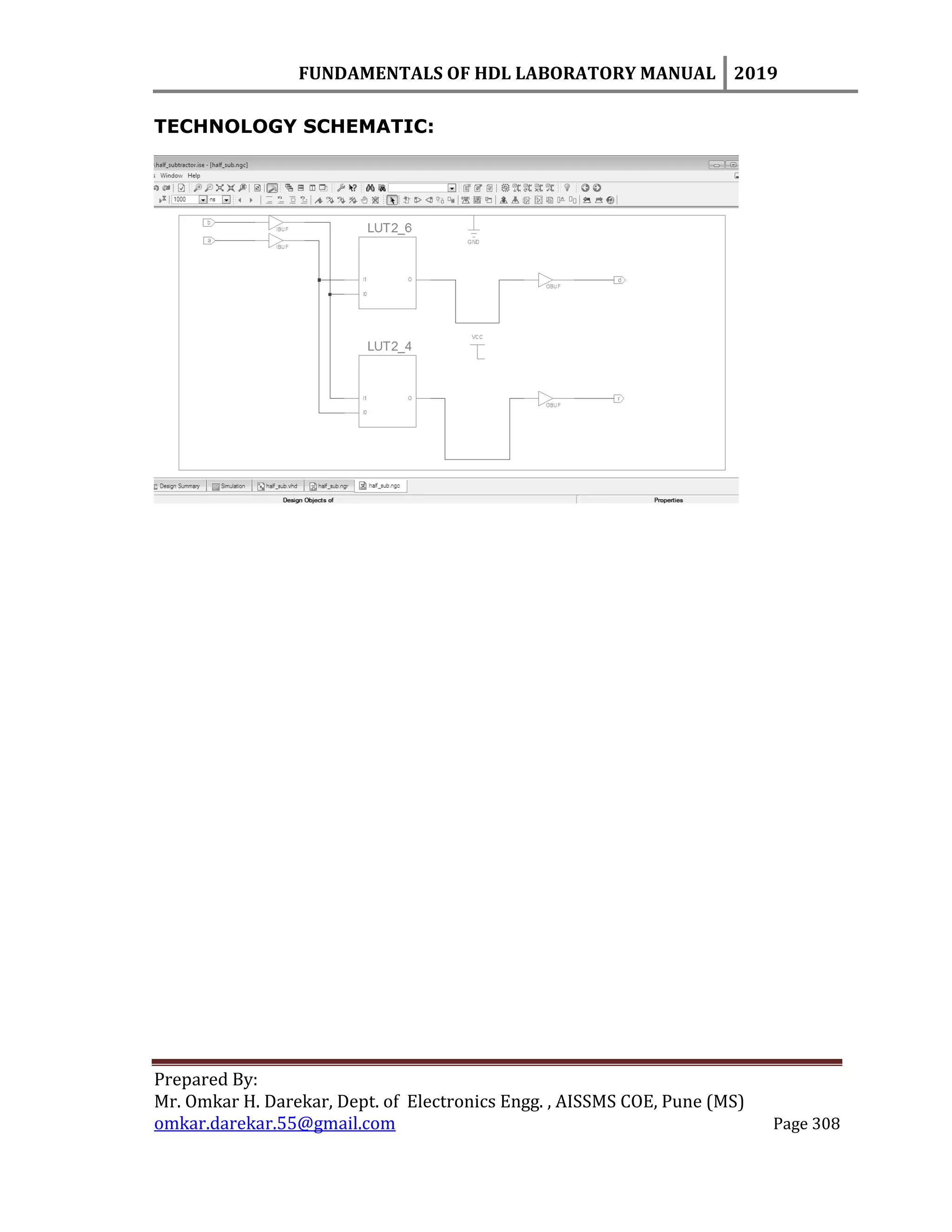

Prepared By:

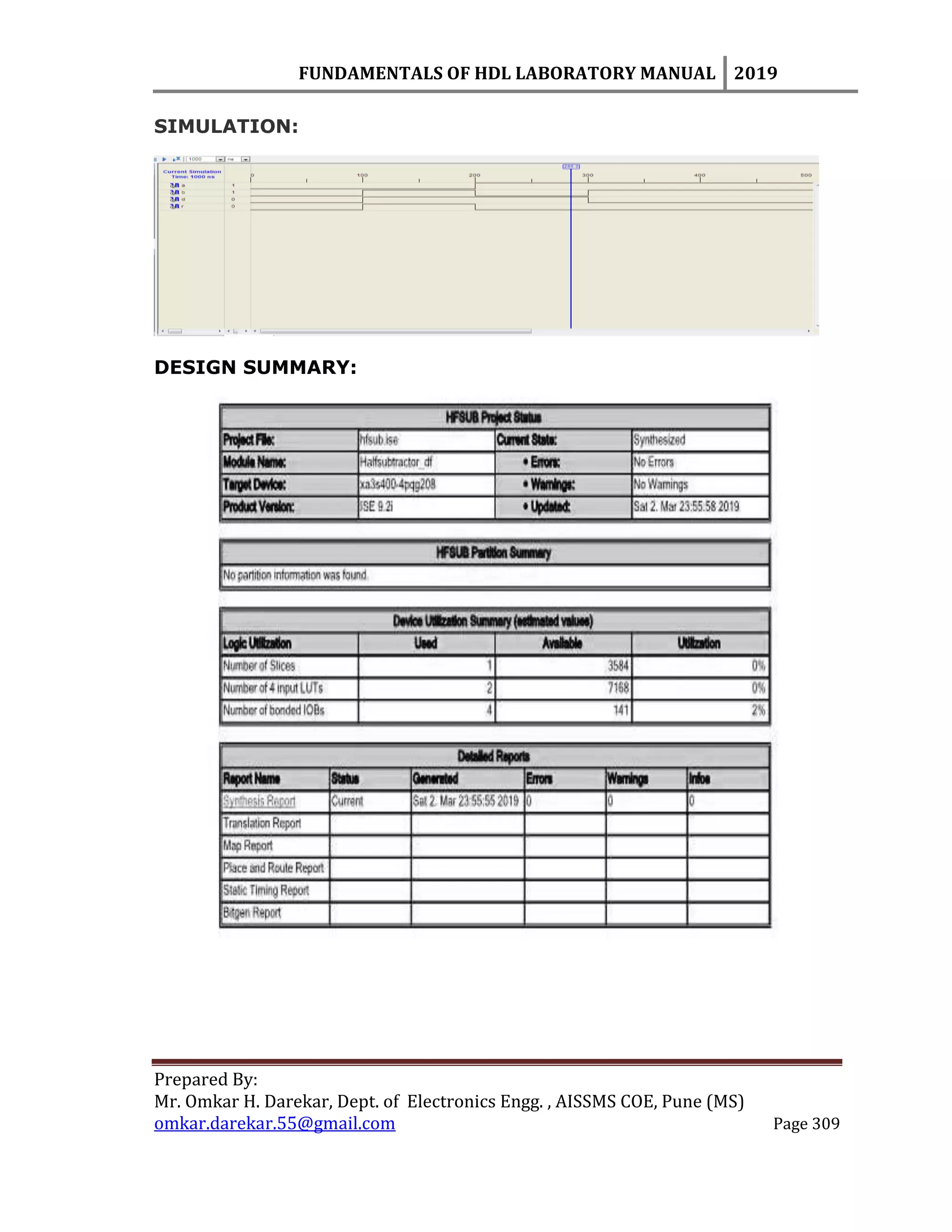

SIMULATION:
DESIGN SUMMARY:

Prepared By:

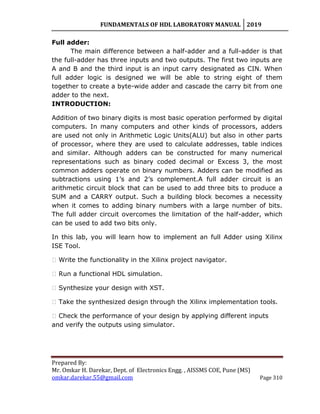

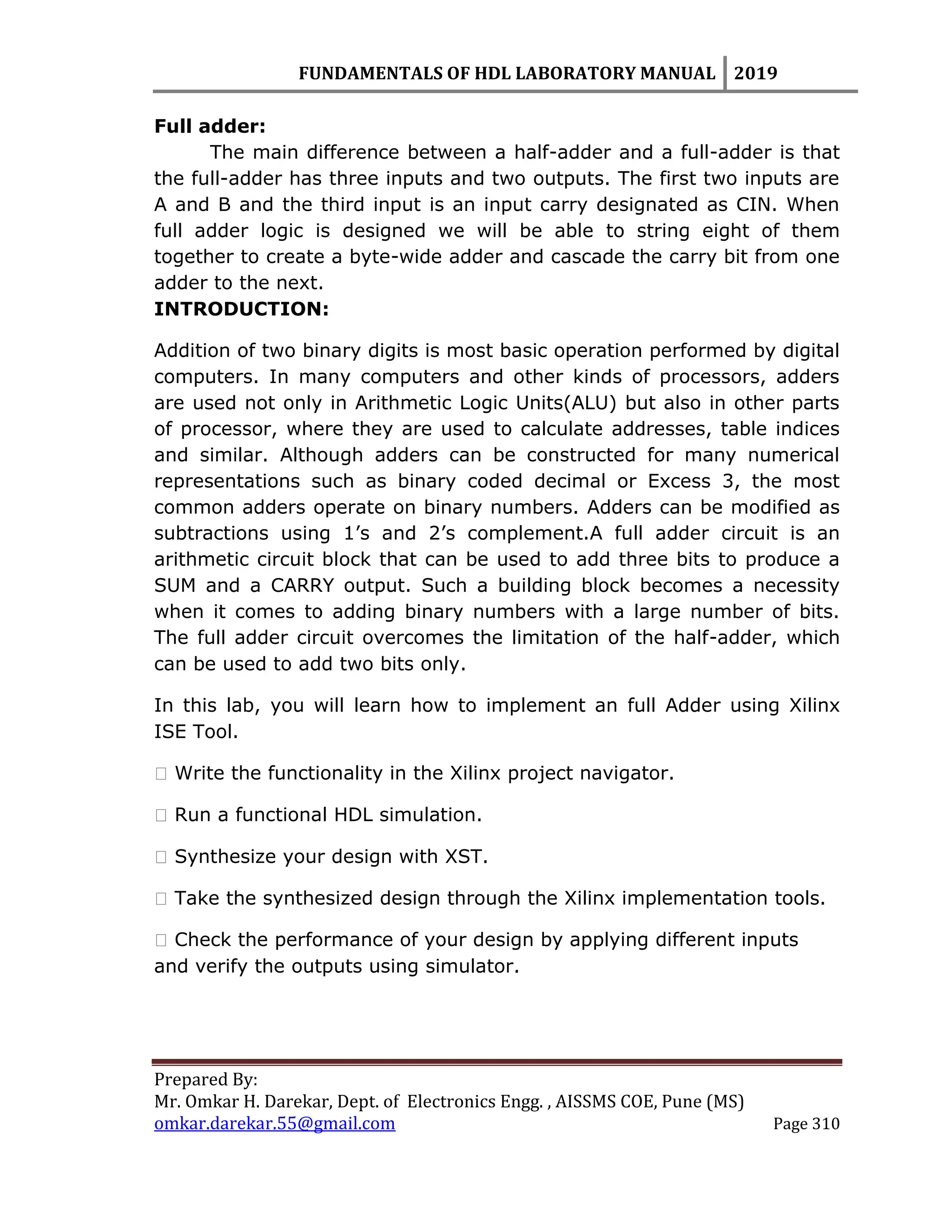

Full adder:
The main difference between a half-adder and a full-adder is that
the full-adder has three inputs and two outputs. The first two inputs are
A and B and the third input is an input carry designated as CIN. When
full adder logic is designed we will be able to string eight of them
together to create a byte-wide adder and cascade the carry bit from one
adder to the next.
INTRODUCTION:
Addition of two binary digits is most basic operation performed by digital
computers. In many computers and other kinds of processors, adders
are used not only in Arithmetic Logic Units(ALU) but also in other parts
of processor, where they are used to calculate addresses, table indices
and similar. Although adders can be constructed for many numerical
representations such as binary coded decimal or Excess 3, the most
common adders operate on binary numbers. Adders can be modified as
subtractions using 1‟s and 2‟s complement.A full adder circuit is an
arithmetic circuit block that can be used to add three bits to produce a
SUM and a CARRY output. Such a building block becomes a necessity
when it comes to adding binary numbers with a large number of bits.
The full adder circuit overcomes the limitation of the half-adder, which
can be used to add two bits only.
In this lab, you will learn how to implement an full Adder using Xilinx
ISE Tool.
and verify the outputs using simulator.

Prepared By:

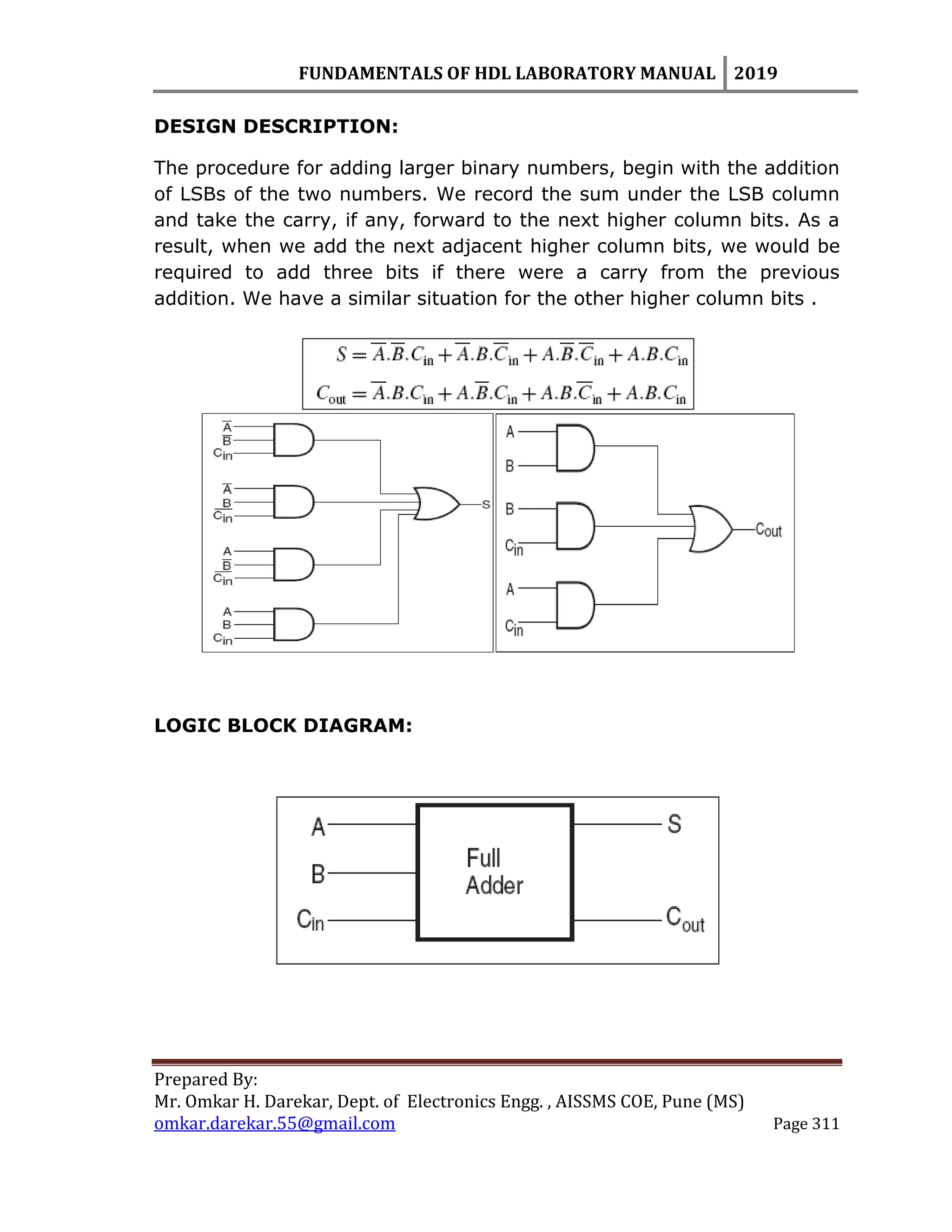

DESIGN DESCRIPTION:
The procedure for adding larger binary numbers, begin with the addition
of LSBs of the two numbers. We record the sum under the LSB column
and take the carry, if any, forward to the next higher column bits. As a
result, when we add the next adjacent higher column bits, we would be
required to add three bits if there were a carry from the previous
addition. We have a similar situation for the other higher column bits .

Prepared By:

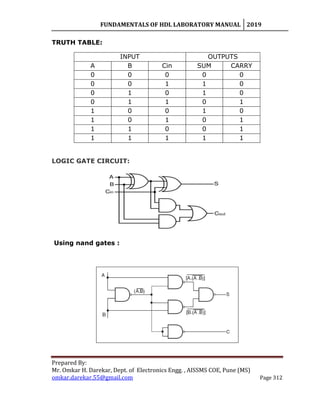

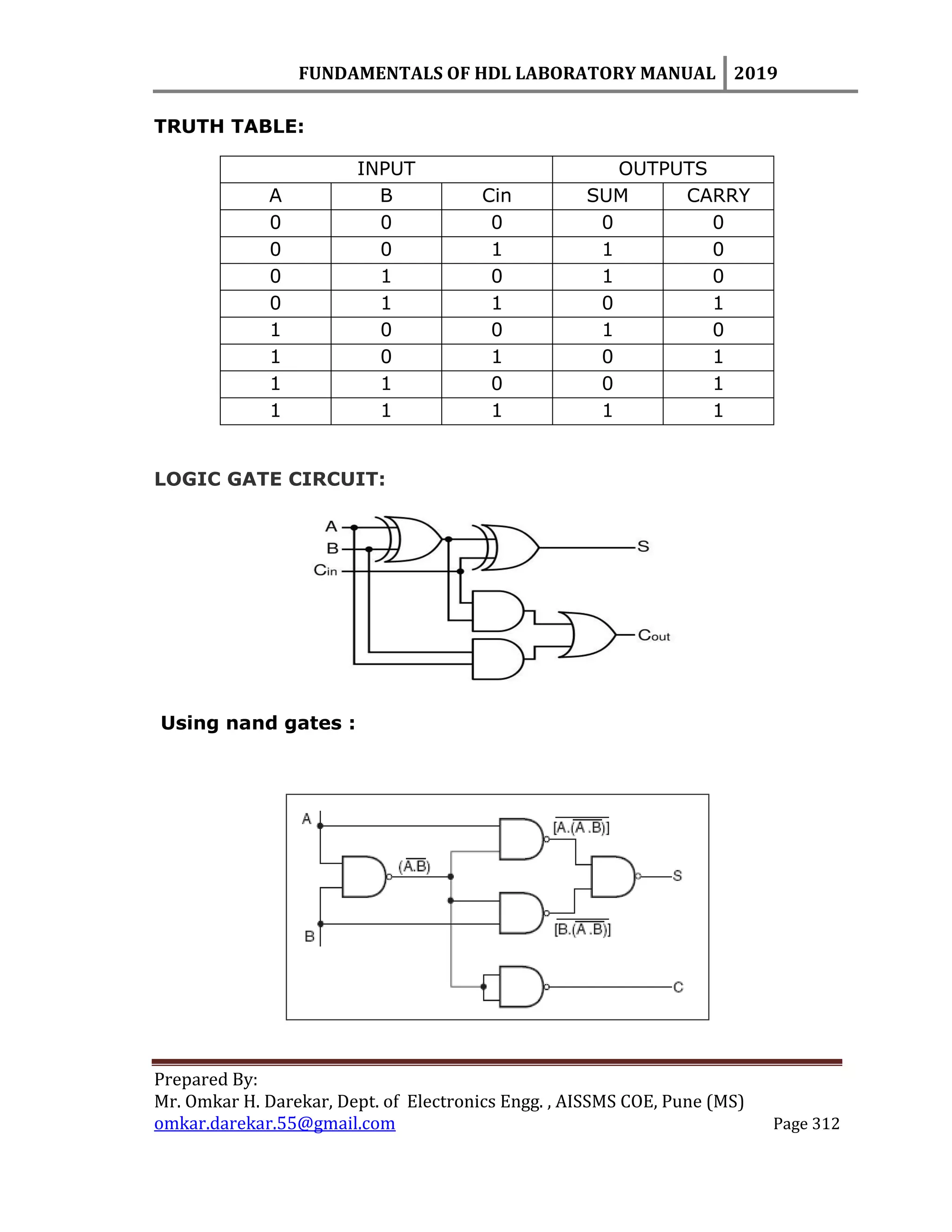

TRUTH TABLE:
INPUT OUTPUTS
A B Cin SUM CARRY
0 0 0 0 0
0 0 1 1 0
0 1 0 1 0
0 1 1 0 1
1 0 0 1 0
1 0 1 0 1
1 1 0 0 1
1 1 1 1 1
LOGIC GATE CIRCUIT:
Using nand gates :

Prepared By:

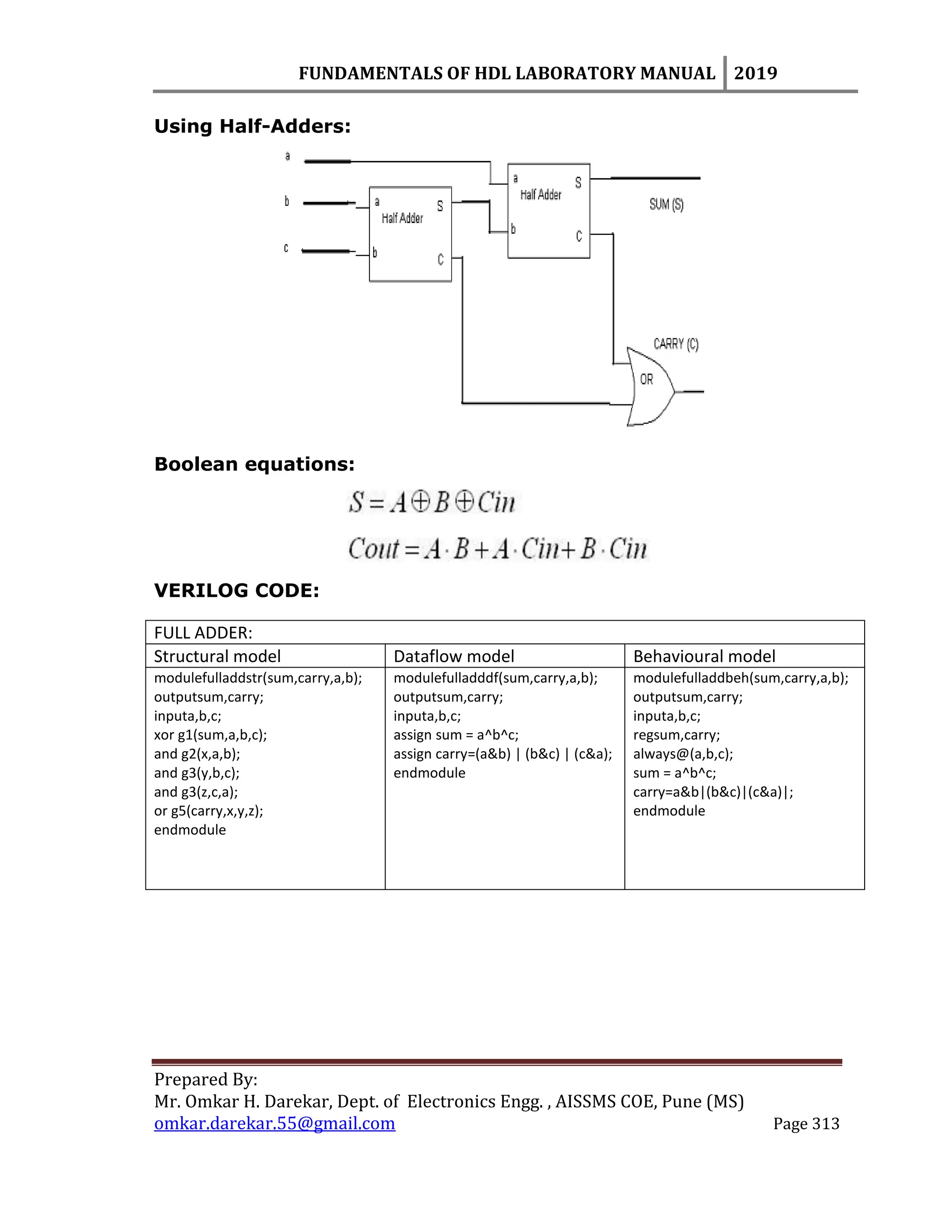

Using Half-Adders:
Boolean equations:
VERILOG CODE:
FULL ADDER:
modulefulladdstr(sum,carry,a,b);
outputsum,carry;
inputa,b,c;
xor g1(sum,a,b,c);
and g2(x,a,b);
and g3(y,b,c);
and g3(z,c,a);
or g5(carry,x,y,z);
endmodule
modulefulladddf(sum,carry,a,b);
outputsum,carry;
inputa,b,c;
assign sum = a^b^c;
assign carry=(a&b) | (b&c) | (c&a);
endmodule
modulefulladdbeh(sum,carry,a,b);
outputsum,carry;
inputa,b,c;
regsum,carry;
always@(a,b,c);
sum = a^b^c;
carry=a&b|(b&c)|(c&a)|;
endmodule

Prepared By:
RTL SCHEMATIC:

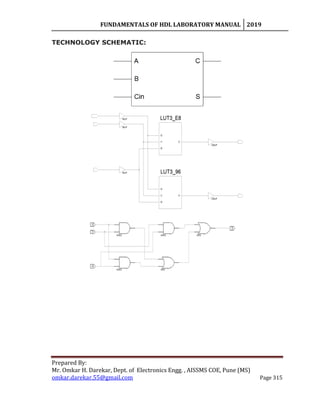

Prepared By:

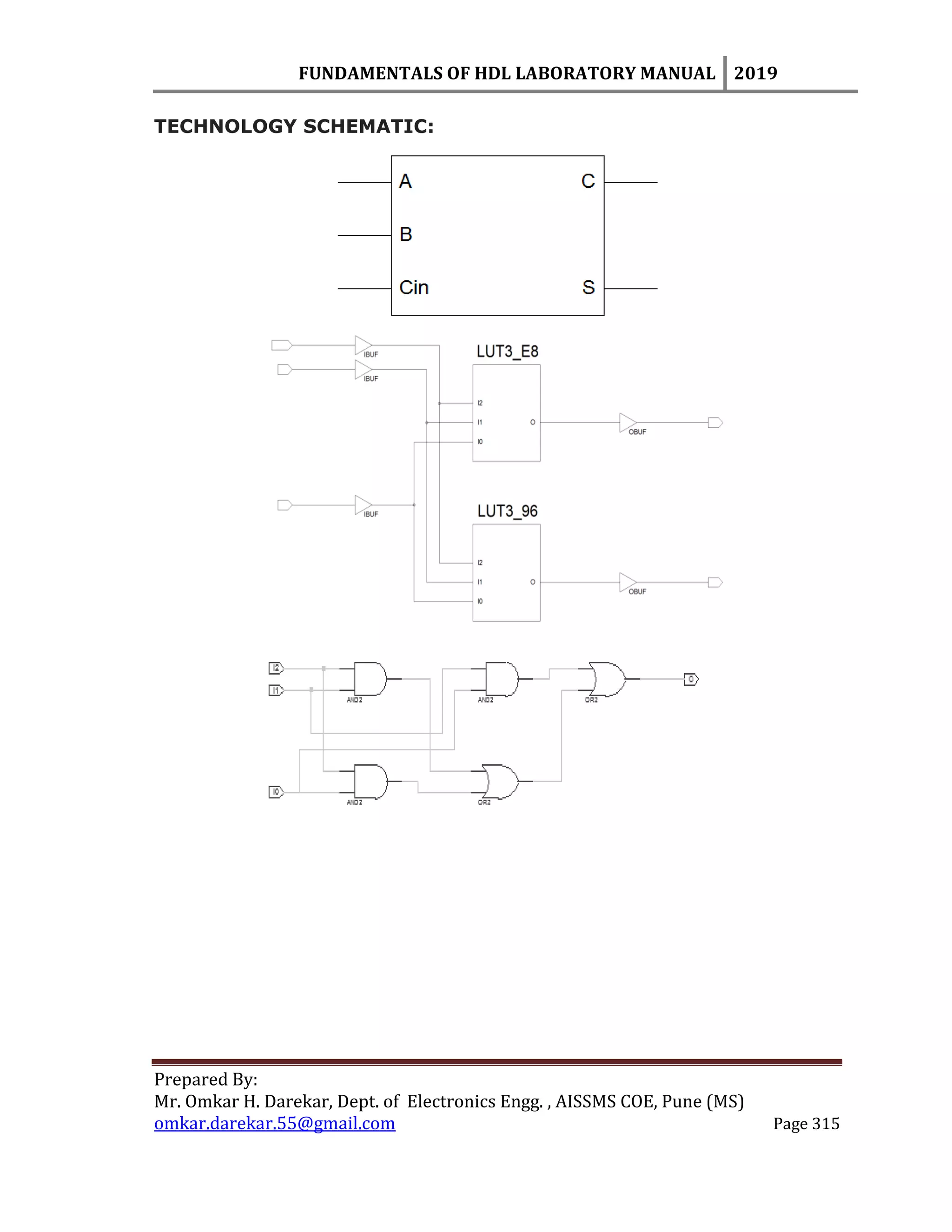

Prepared By:

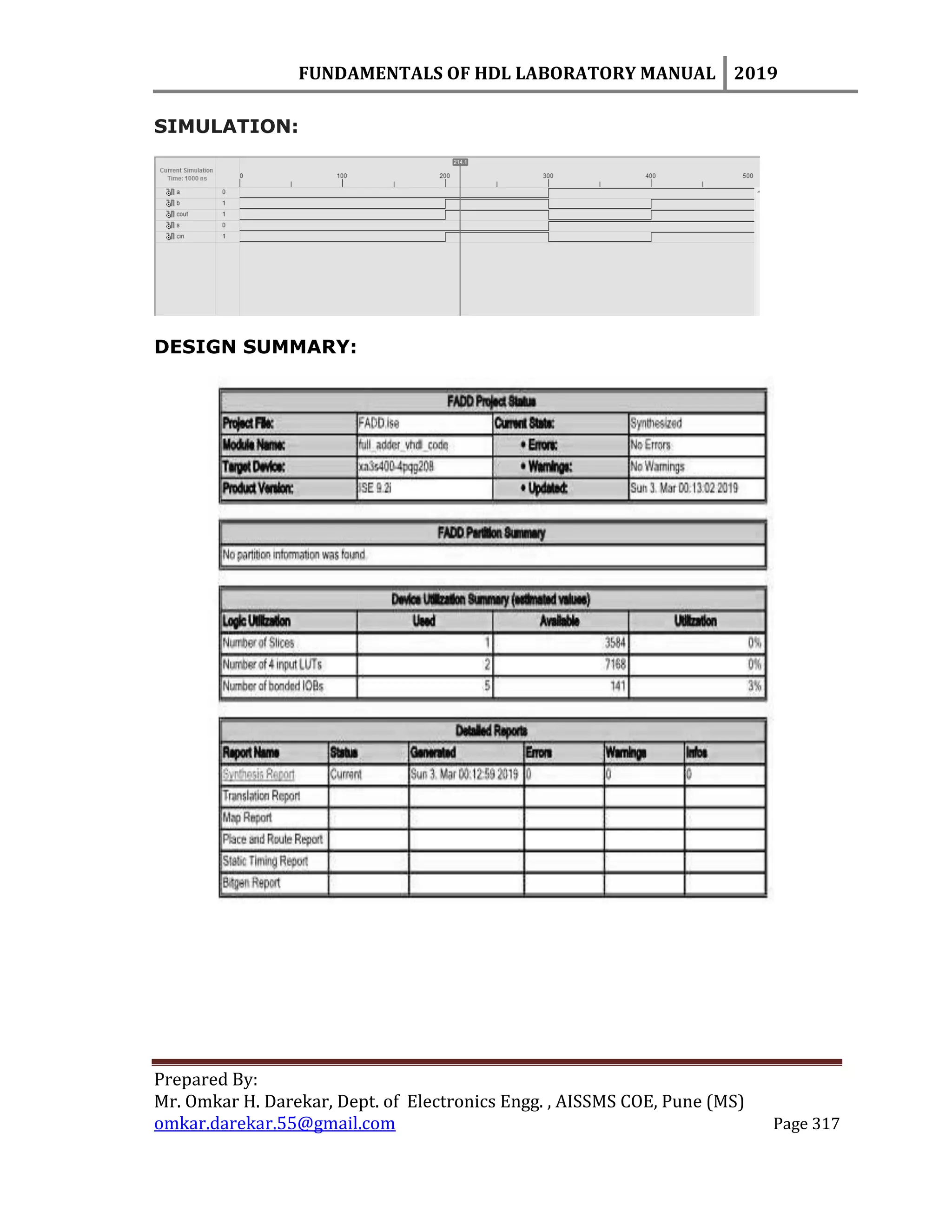

SIMULATION:
DESIGN SUMMARY:

Prepared By:

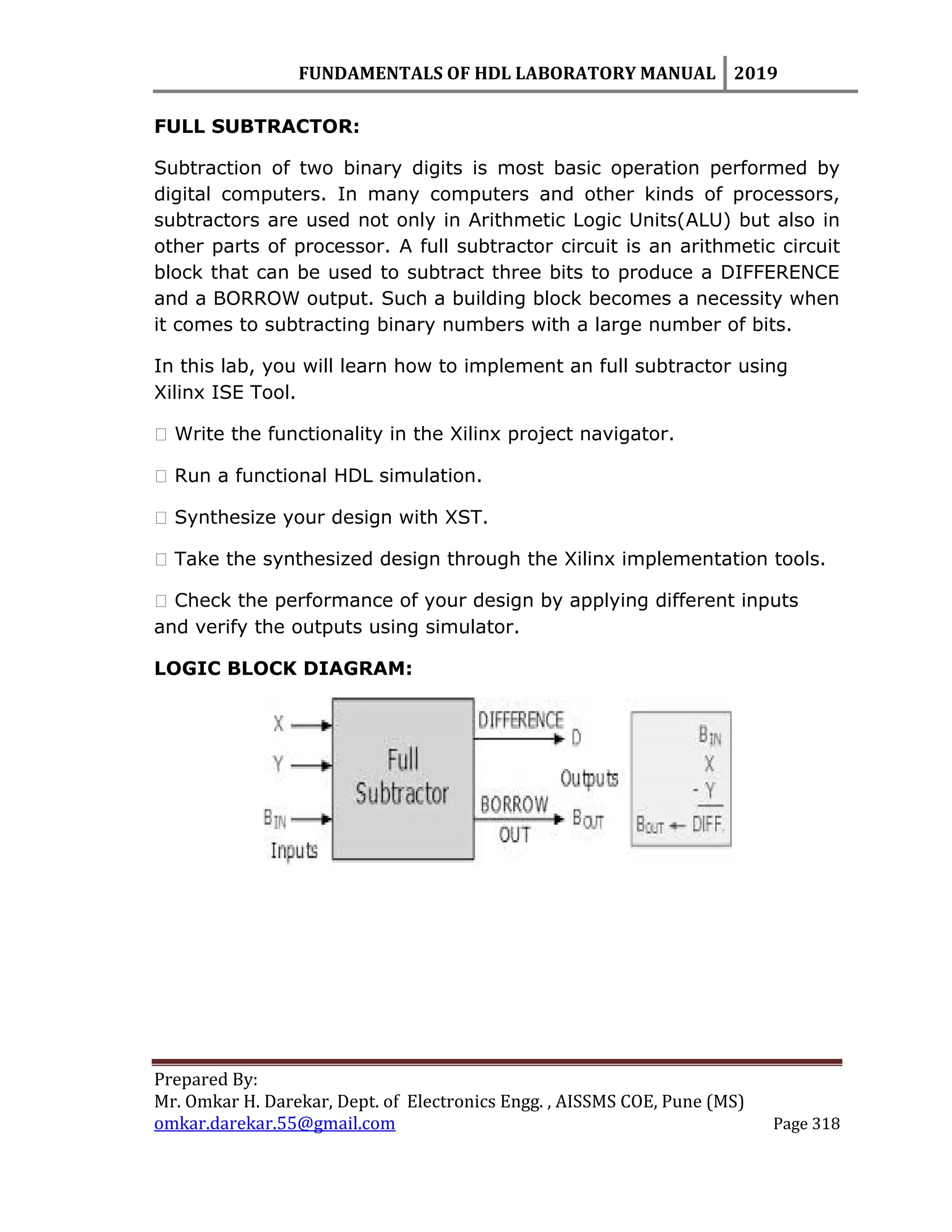

FULL SUBTRACTOR:
Subtraction of two binary digits is most basic operation performed by
digital computers. In many computers and other kinds of processors,
subtractors are used not only in Arithmetic Logic Units(ALU) but also in
other parts of processor. A full subtractor circuit is an arithmetic circuit
block that can be used to subtract three bits to produce a DIFFERENCE
and a BORROW output. Such a building block becomes a necessity when
it comes to subtracting binary numbers with a large number of bits.
In this lab, you will learn how to implement an full subtractor using
Xilinx ISE Tool.
and verify the outputs using simulator.

Prepared By:

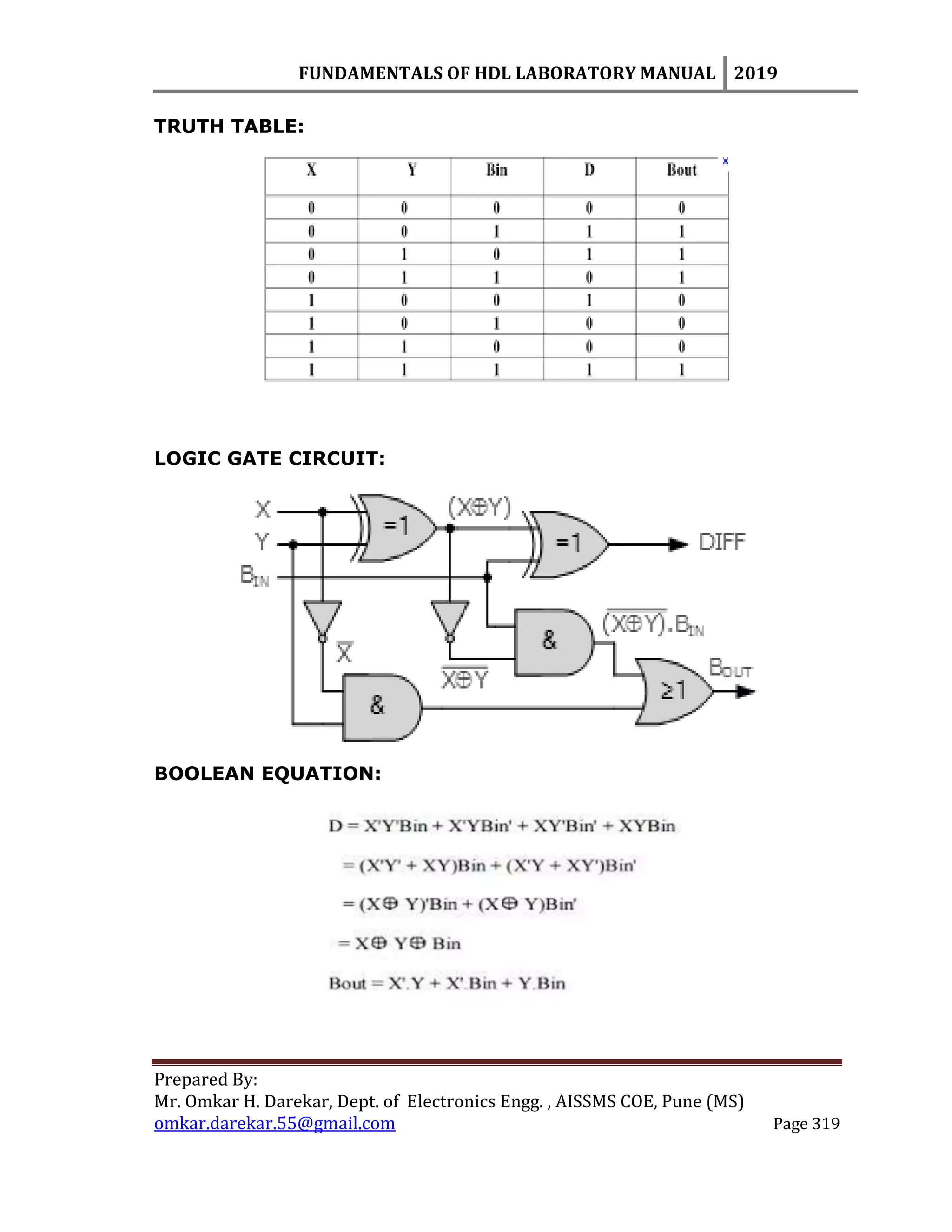

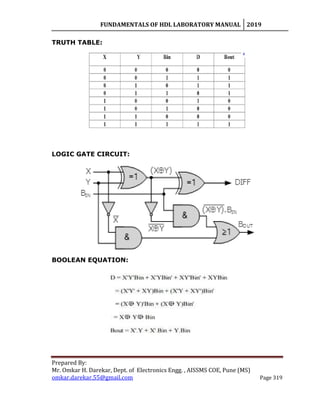

TRUTH TABLE:
LOGIC GATE CIRCUIT:
BOOLEAN EQUATION:

Prepared By:

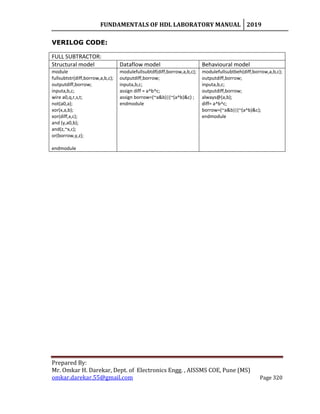

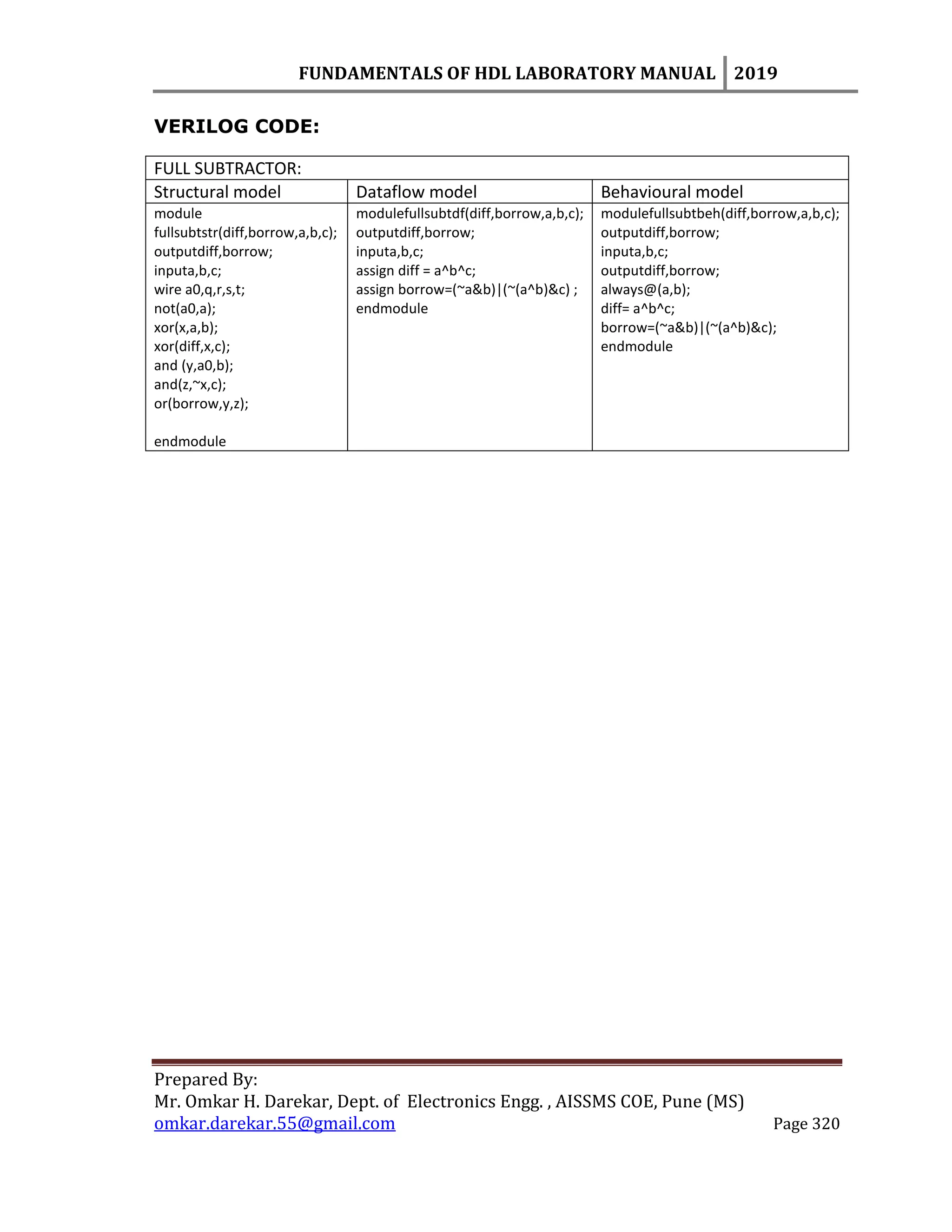

VERILOG CODE:
FULL SUBTRACTOR:
module
fullsubtstr(diff,borrow,a,b,c);
outputdiff,borrow;
inputa,b,c;
wire a0,q,r,s,t;
not(a0,a);
xor(x,a,b);
xor(diff,x,c);
and (y,a0,b);
and(z,~x,c);
or(borrow,y,z);
endmodule
modulefullsubtdf(diff,borrow,a,b,c);
outputdiff,borrow;
inputa,b,c;
assign diff = a^b^c;
assign borrow=(~a&b)|(~(a^b)&c) ;
endmodule
modulefullsubtbeh(diff,borrow,a,b,c);
outputdiff,borrow;
inputa,b,c;
outputdiff,borrow;
always@(a,b);
diff= a^b^c;
borrow=(~a&b)|(~(a^b)&c);
endmodule

Prepared By:

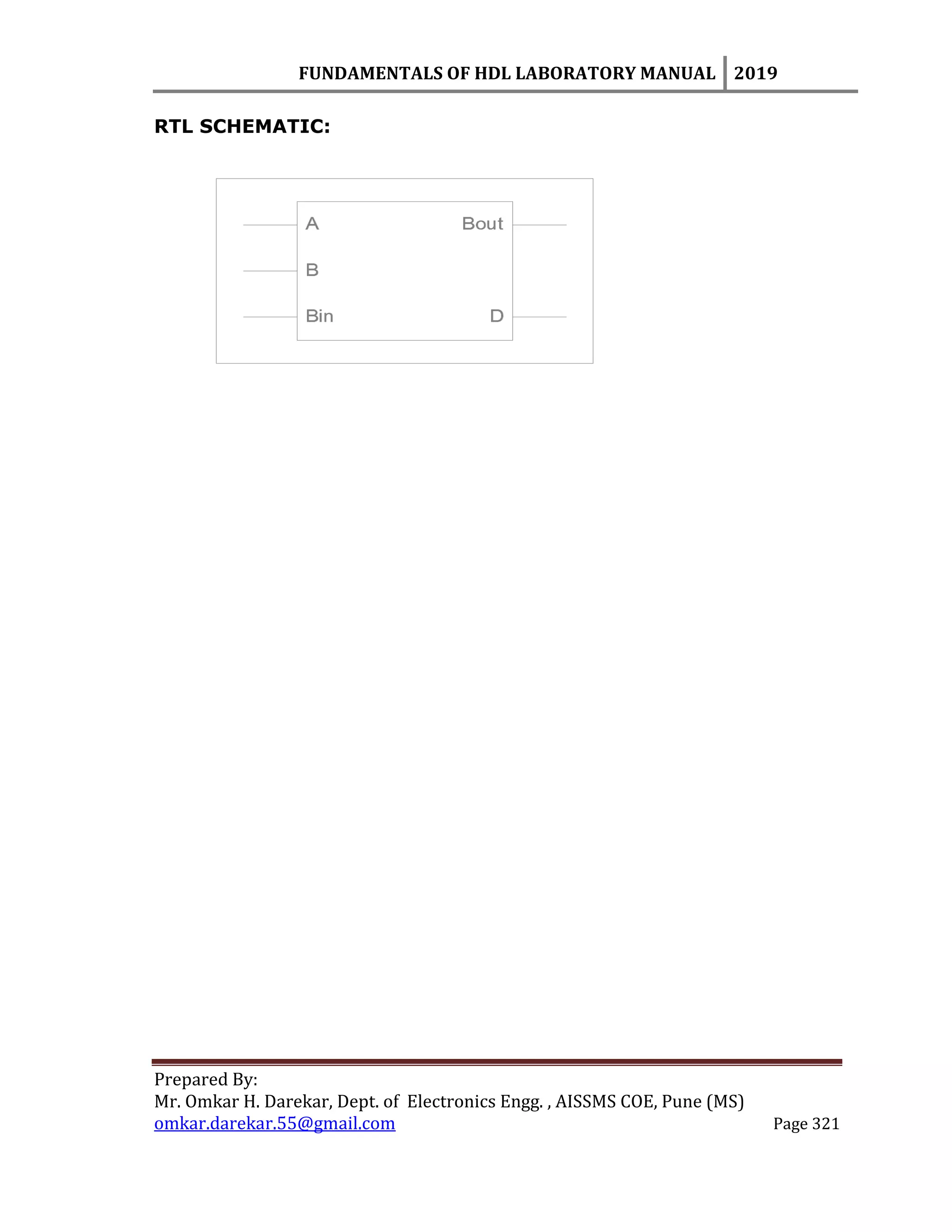

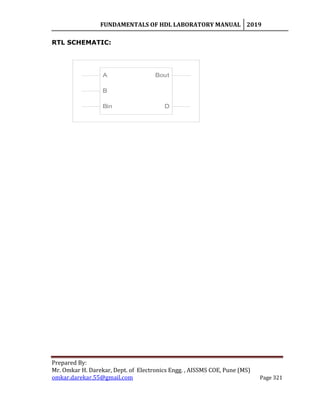

RTL SCHEMATIC:

Prepared By:

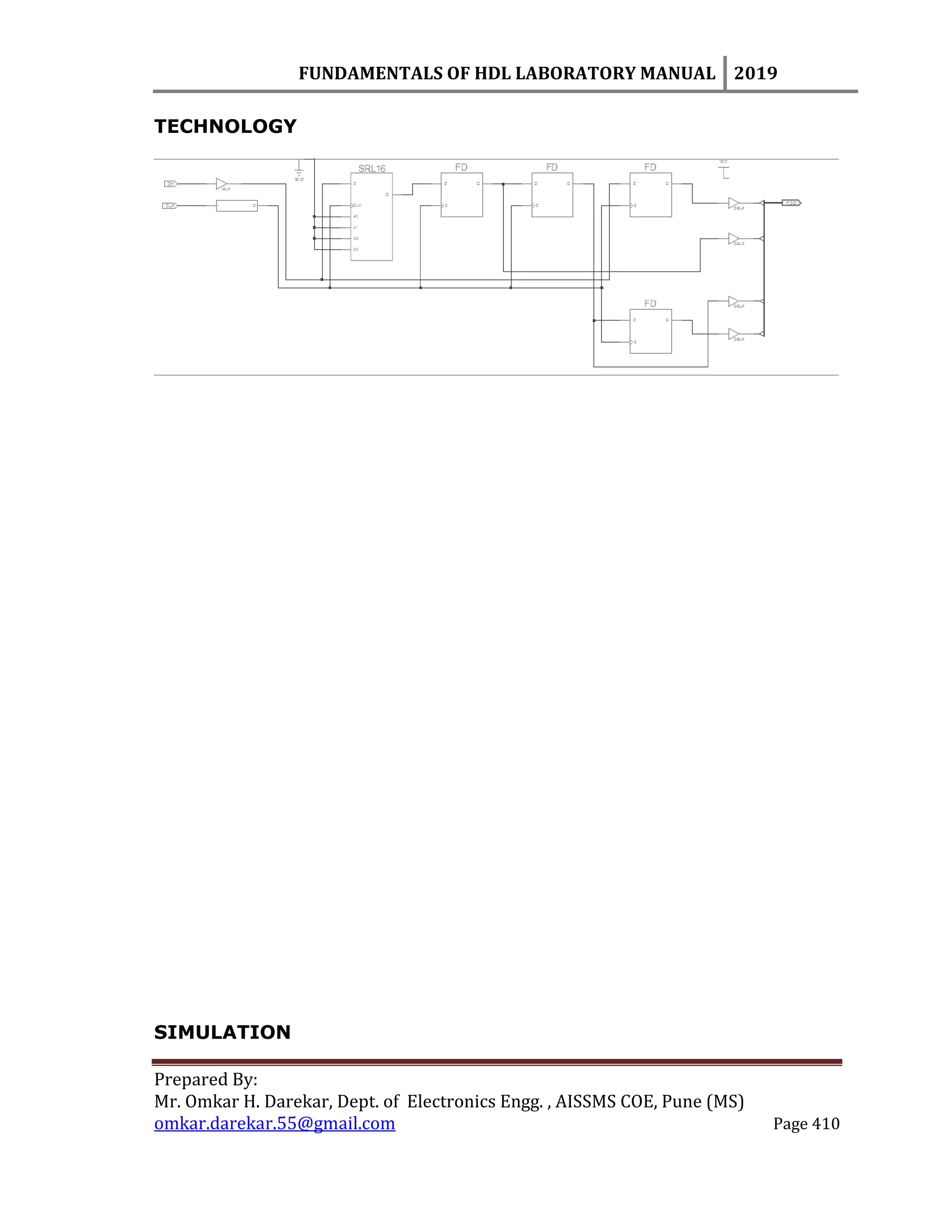

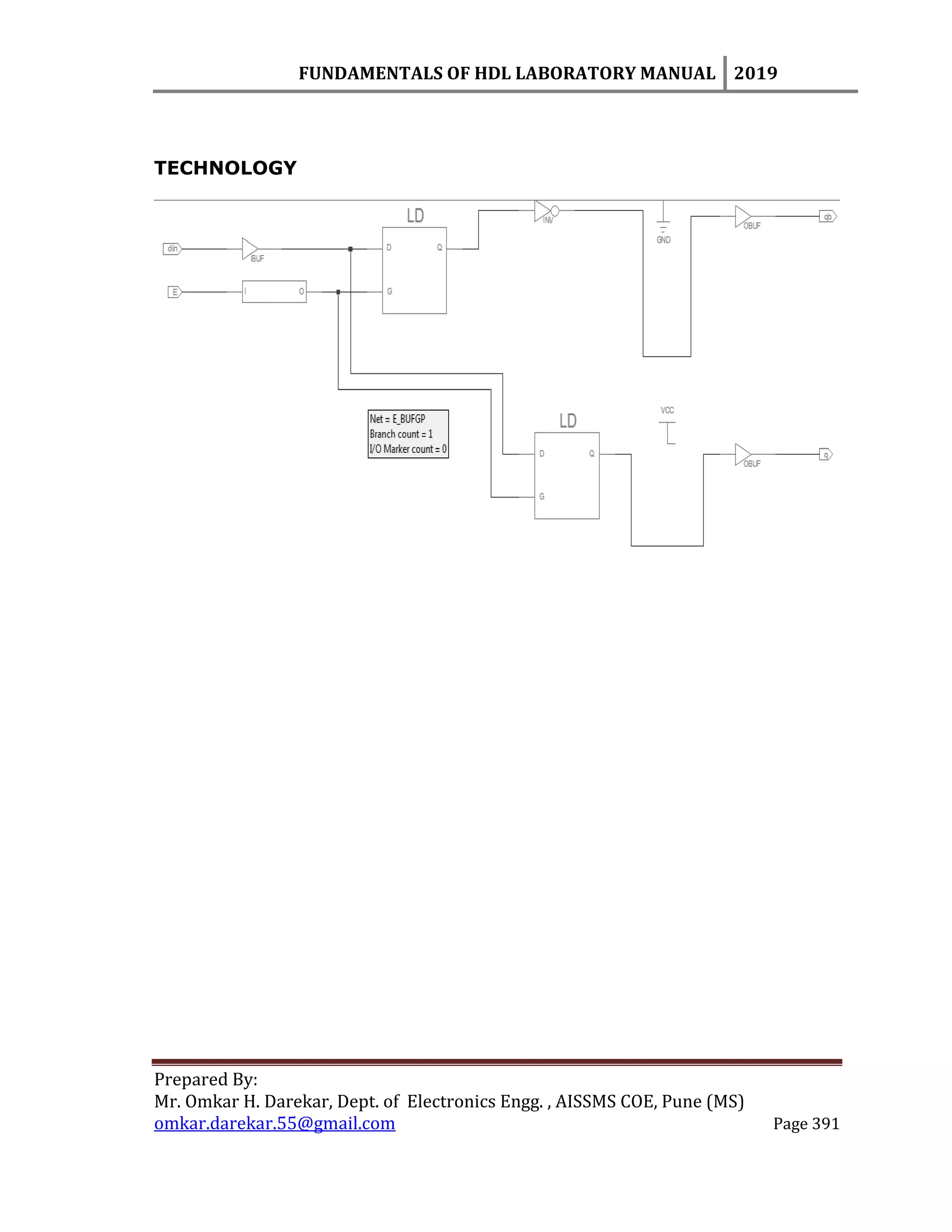

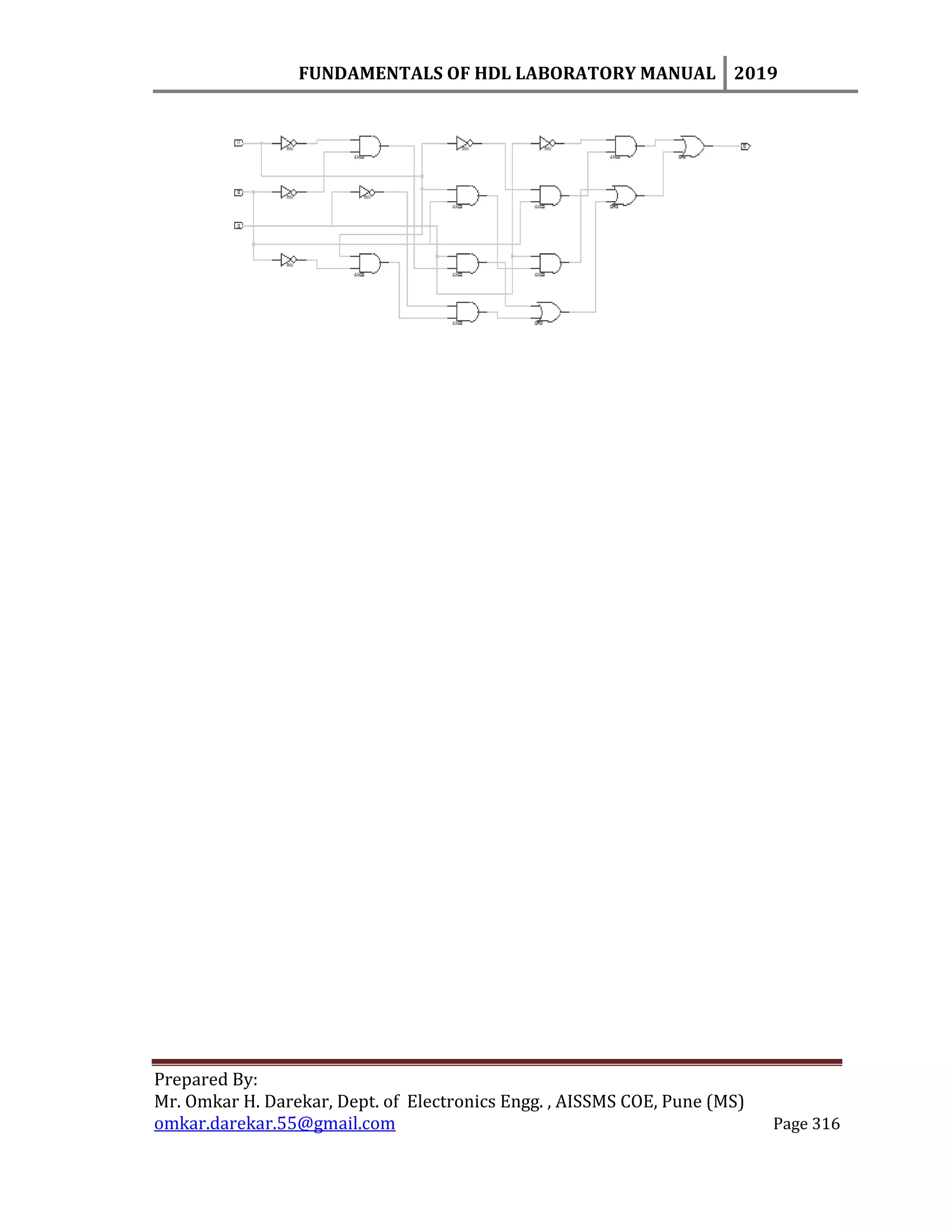

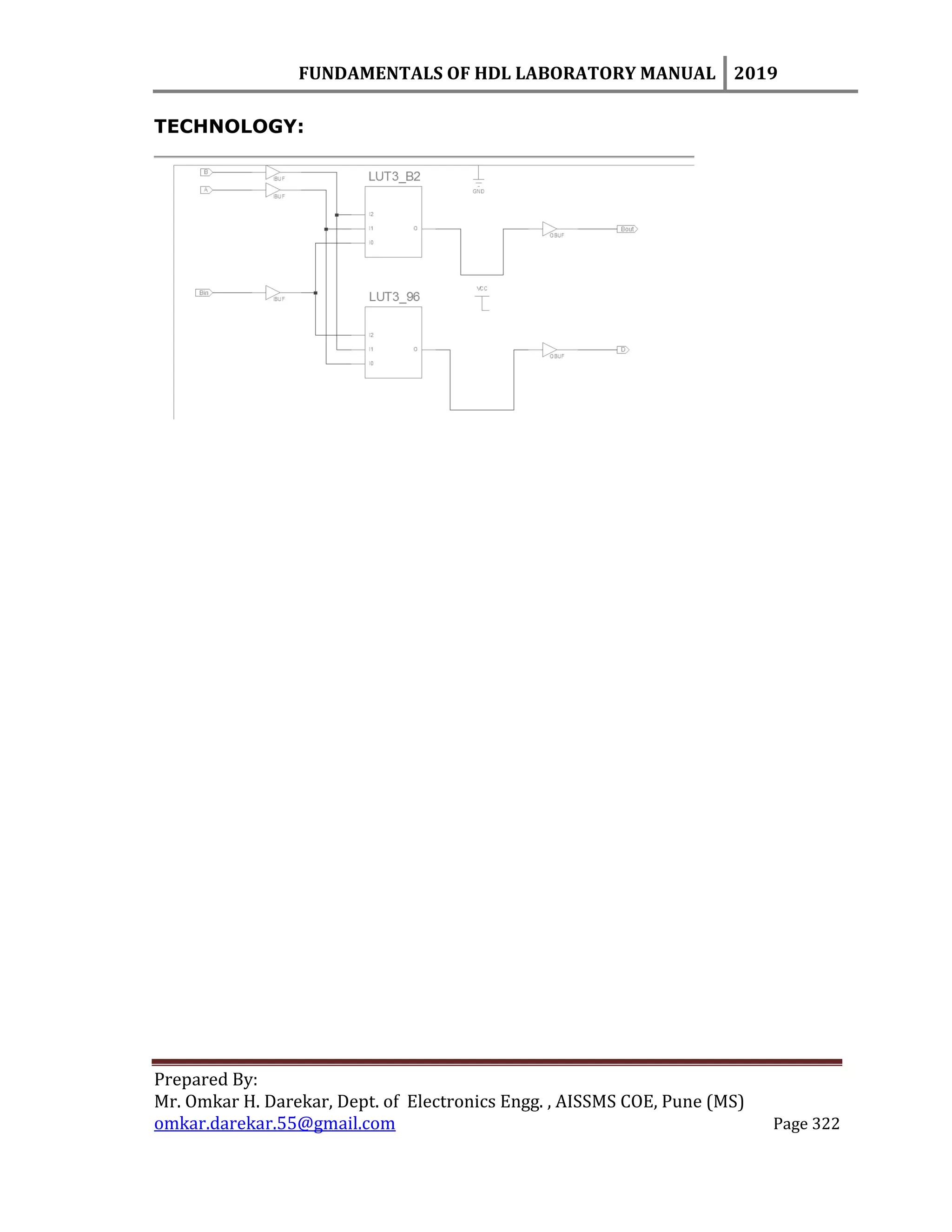

TECHNOLOGY:

Prepared By:

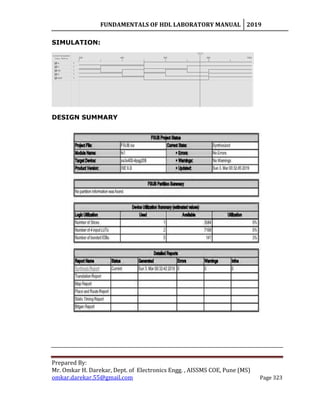

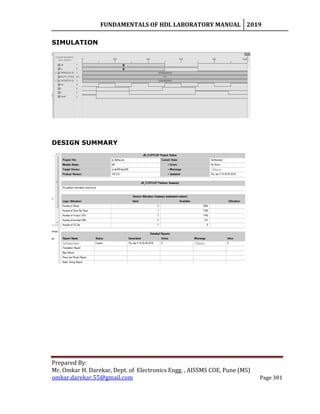

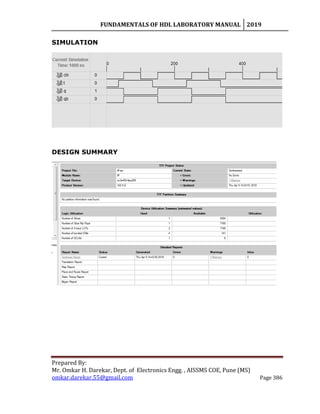

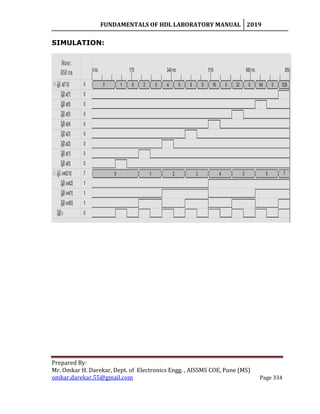

SIMULATION:
DESIGN SUMMARY

Prepared By:

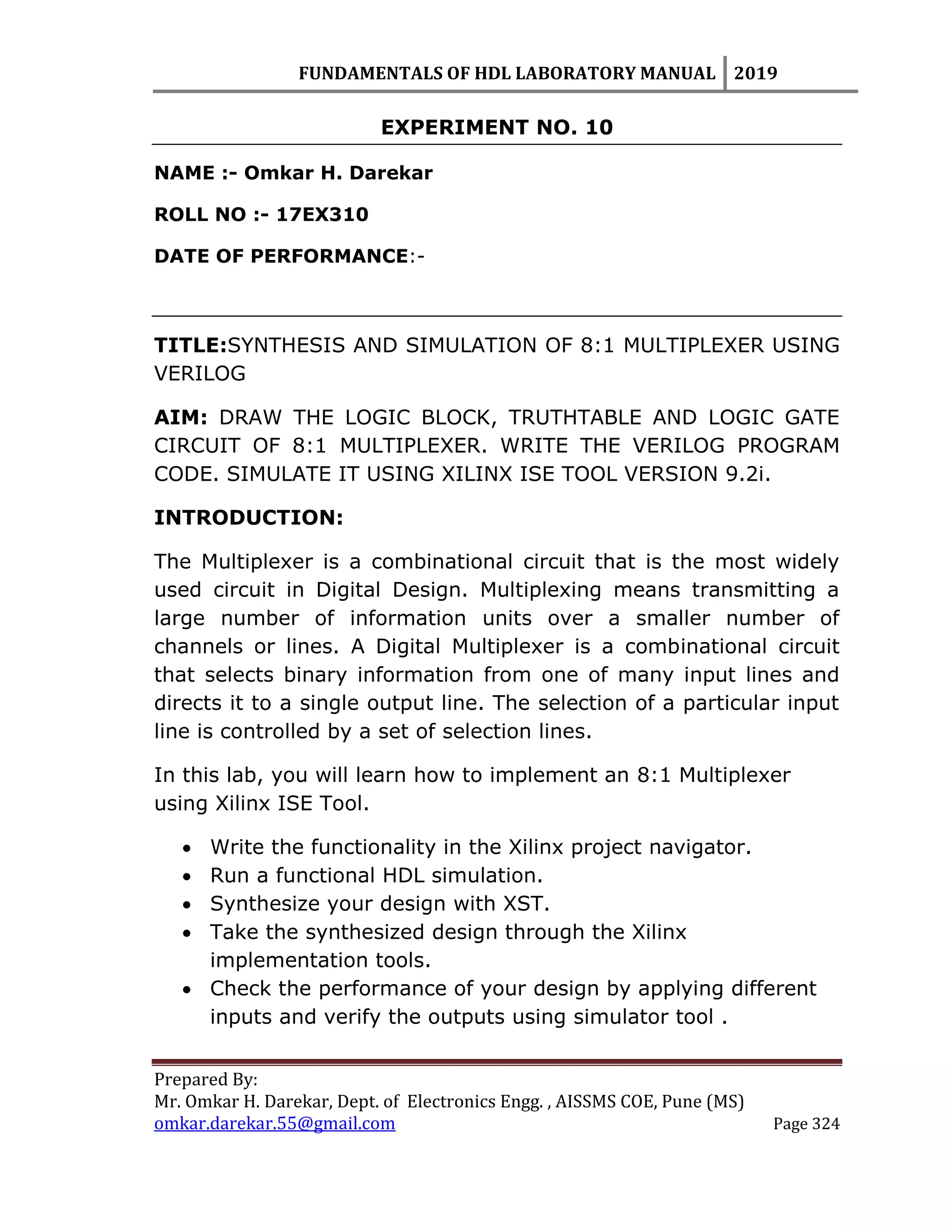

EXPERIMENT NO. 10
ROLL NO :- 17EX310
TITLE:SYNTHESIS AND SIMULATION OF 8:1 MULTIPLEXER USING
VERILOG
AIM: DRAW THE LOGIC BLOCK, TRUTHTABLE AND LOGIC GATE
CIRCUIT OF 8:1 MULTIPLEXER. WRITE THE VERILOG PROGRAM
CODE. SIMULATE IT USING XILINX ISE TOOL VERSION 9.2i.
INTRODUCTION:
The Multiplexer is a combinational circuit that is the most widely
used circuit in Digital Design. Multiplexing means transmitting a
large number of information units over a smaller number of
channels or lines. A Digital Multiplexer is a combinational circuit
that selects binary information from one of many input lines and
directs it to a single output line. The selection of a particular input
line is controlled by a set of selection lines.
In this lab, you will learn how to implement an 8:1 Multiplexer
using Xilinx ISE Tool.
 Write the functionality in the Xilinx project navigator.
 Run a functional HDL simulation.
 Synthesize your design with XST.
 Take the synthesized design through the Xilinx
implementation tools.
 Check the performance of your design by applying different
inputs and verify the outputs using simulator tool .

Prepared By:

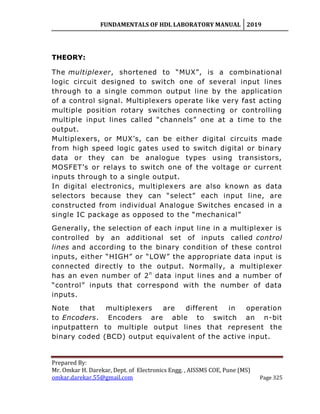

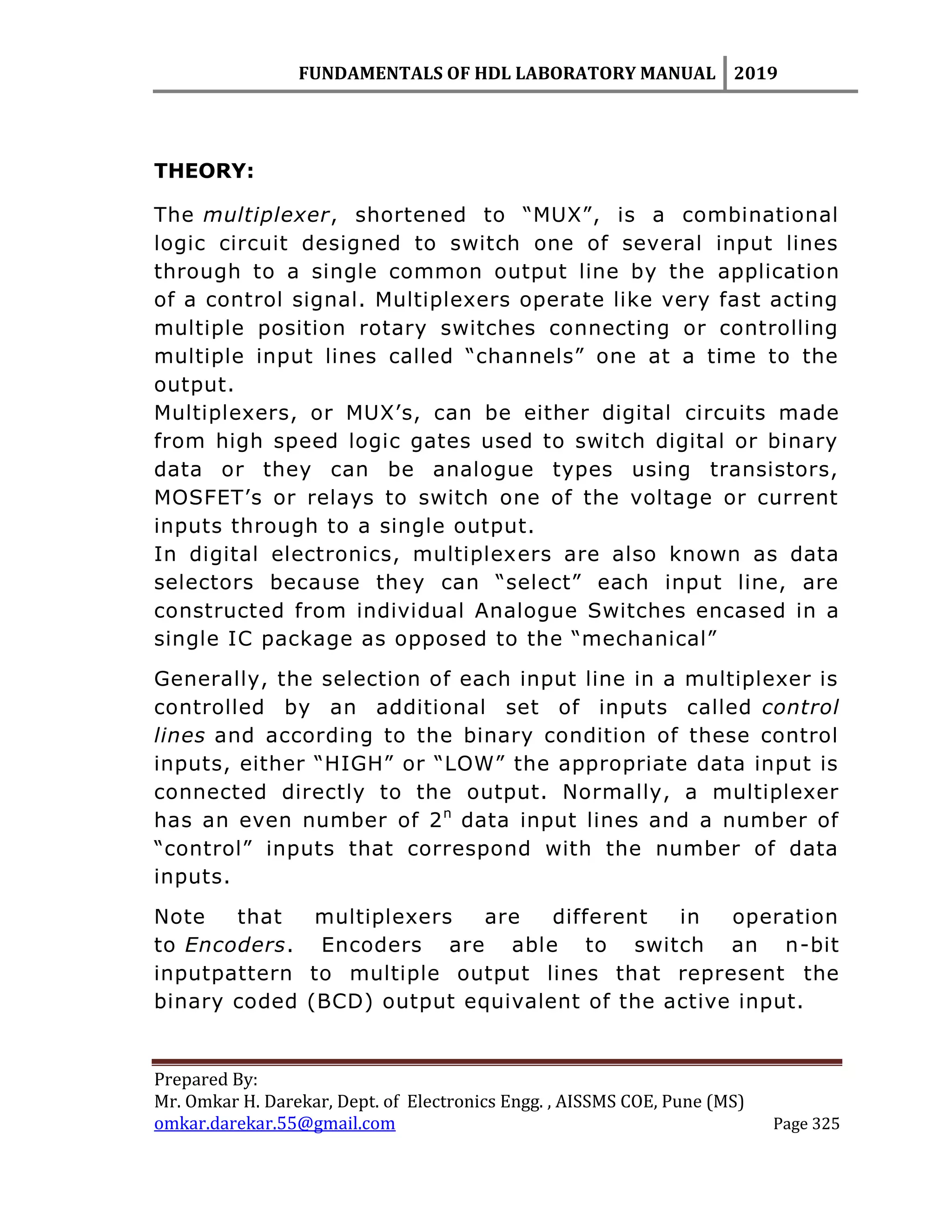

THEORY:
The multiplexer, shortened to “MUX”, is a combinational
logic circuit designed to switch one of several input lines
through to a single common output line by the application
of a control signal. Multiplexers operate like very fast acting
multiple position rotary switches connecting or controlling
multiple input lines called “channels” one at a time to the
output.
Multiplexers, or MUX‟s, can be either digital circuits made
from high speed logic gates used to switch digital or binary
data or they can be analogue types using transistors,
MOSFET‟s or relays to switch one of the voltage or current
inputs through to a single output.
In digital electronics, multiplexers are also known as data
selectors because they can “select” each input line, are
constructed from individual Analogue Switches encased in a
single IC package as opposed to the “mechanical”
Generally, the selection of each input line in a multiplexer is
controlled by an additional set of inputs called control
lines and according to the binary condition of these control
inputs, either “HIGH” or “LOW” the appropriate data input is
connected directly to the output. Normally, a multiplexer
has an even number of 2n
data input lines and a number of
“control” inputs that correspond with the number of data
inputs.
Note that multiplexers are different in operation
to Encoders. Encoders are able to switch an n-bit
inputpattern to multiple output lines that represent the
binary coded (BCD) output equivalent of the active input.

Prepared By:

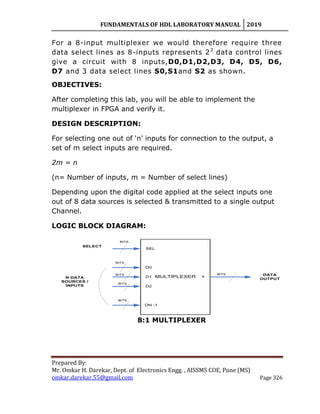

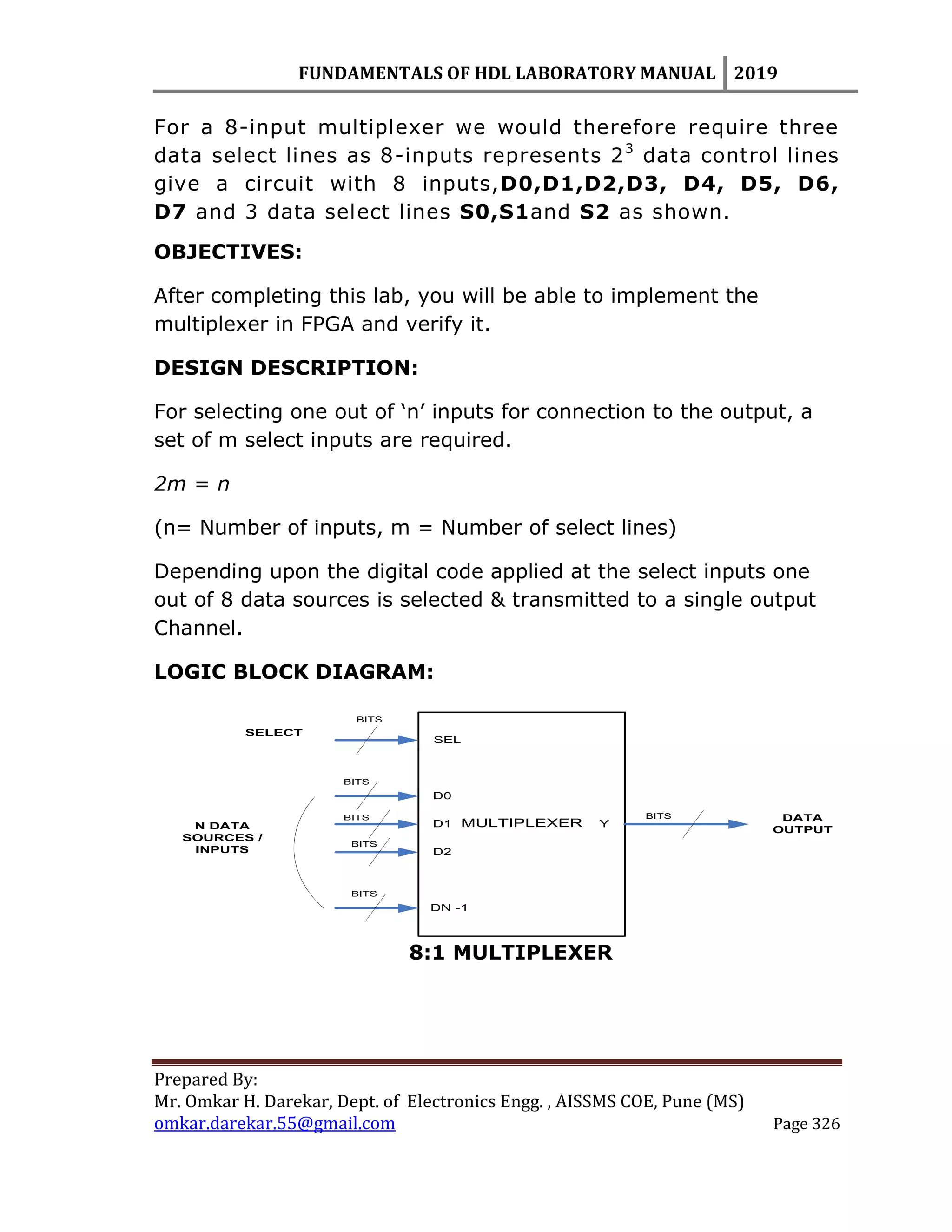

For a 8-input multiplexer we would therefore require three
data select lines as 8-inputs represents 23
data control lines
give a circuit with 8 inputs,D0,D1,D2,D3, D4, D5, D6,
D7 and 3 data select lines S0,S1and S2 as shown.
OBJECTIVES:
After completing this lab, you will be able to implement the
multiplexer in FPGA and verify it.
DESIGN DESCRIPTION:
For selecting one out of „n‟ inputs for connection to the output, a
set of m select inputs are required.
2m = n
(n= Number of inputs, m = Number of select lines)
Depending upon the digital code applied at the select inputs one
out of 8 data sources is selected & transmitted to a single output
Channel.
SEL
DATA
OUTPUT
D0
D1
D2
DN -1
YMULTIPLEXER
SELECT
N DATA
SOURCES /
INPUTS
BITS
BITS
BITS
BITS
BITS
BITS
8:1 MULTIPLEXER

Prepared By:

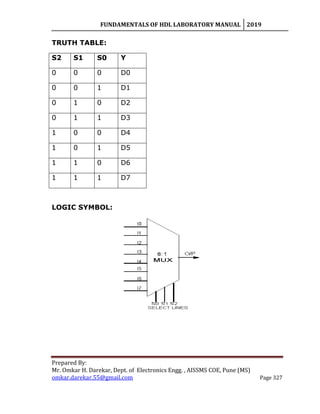

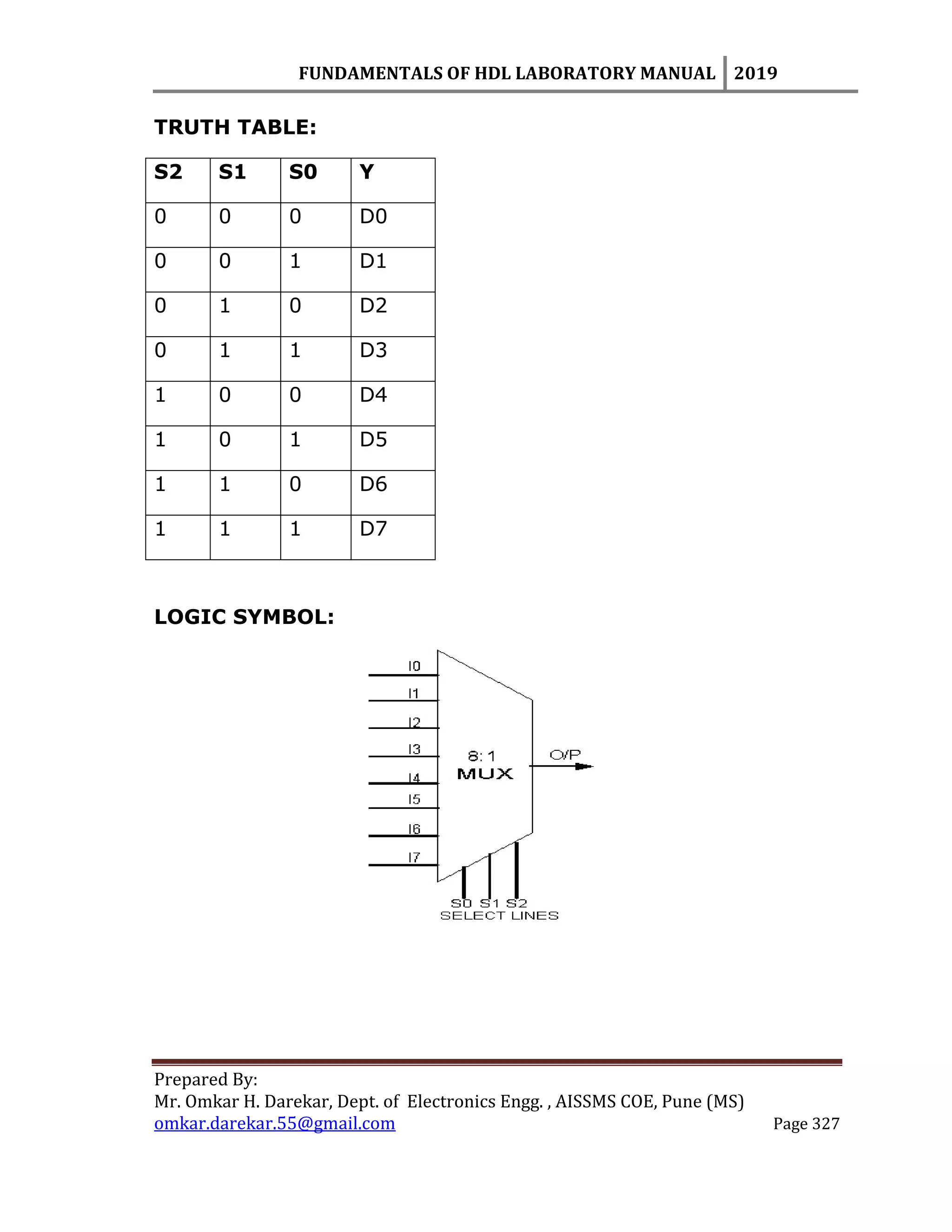

TRUTH TABLE:
S2 S1 S0 Y
0 0 0 D0
0 0 1 D1
0 1 0 D2
0 1 1 D3
1 0 0 D4
1 0 1 D5
1 1 0 D6
1 1 1 D7
LOGIC SYMBOL:

Prepared By:

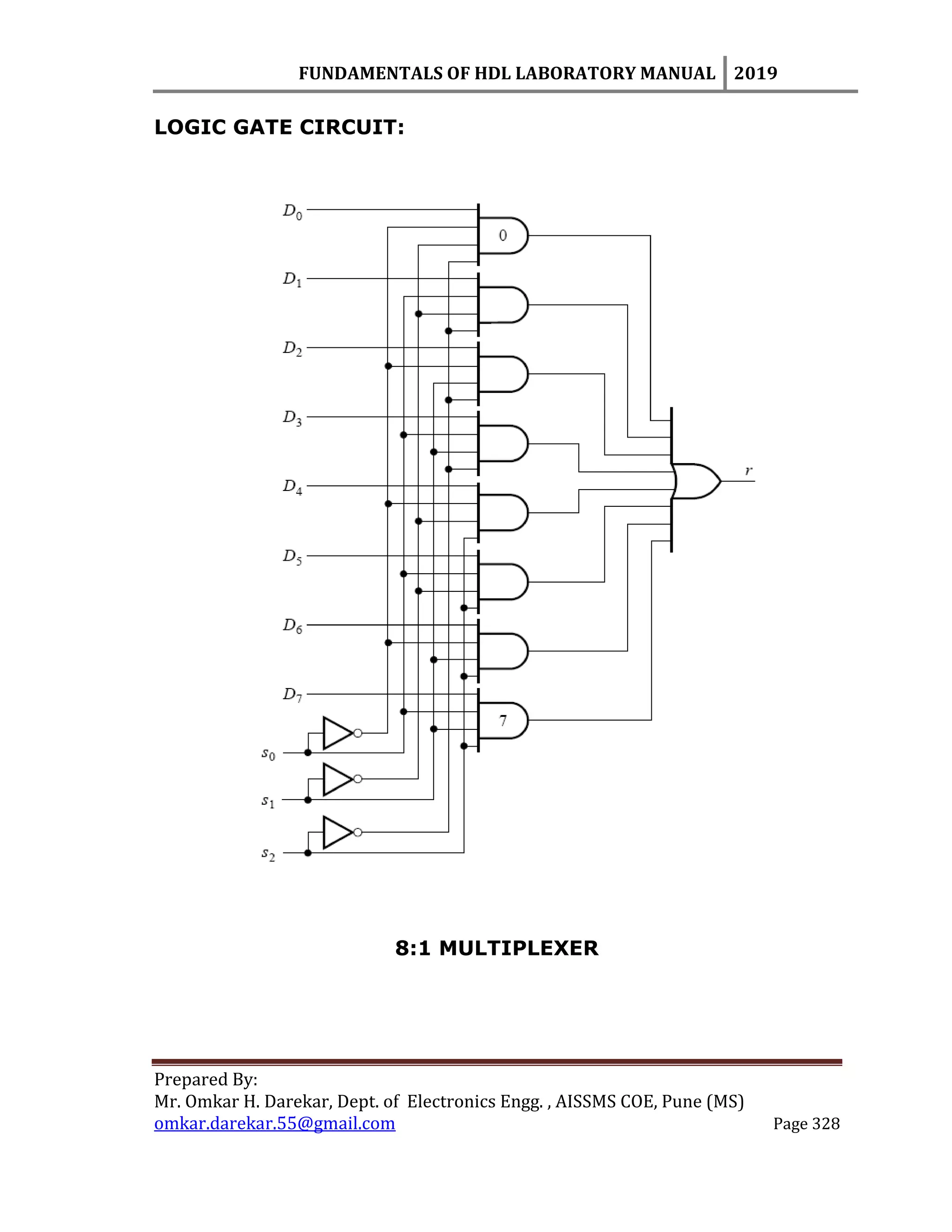

LOGIC GATE CIRCUIT:
8:1 MULTIPLEXER

Prepared By:

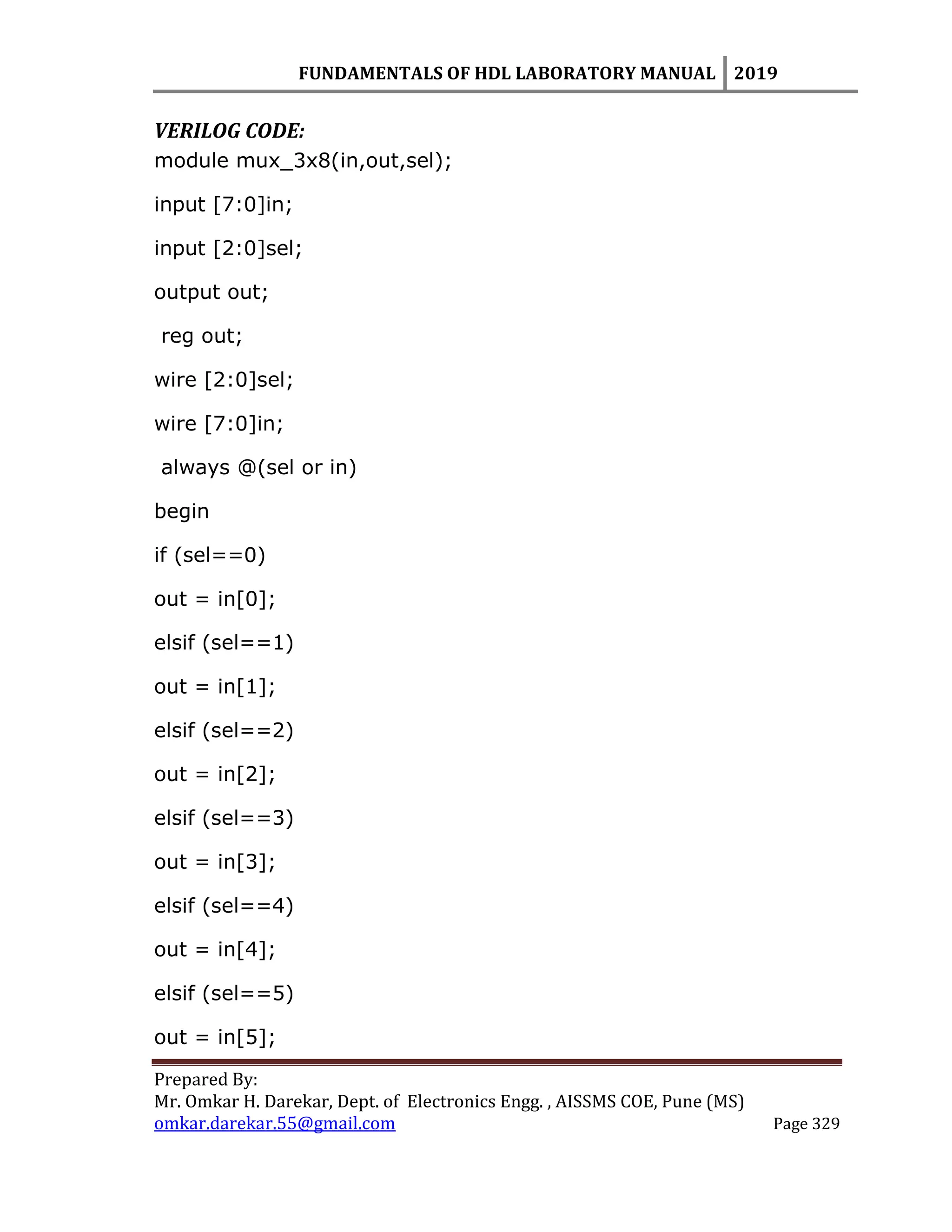

VERILOG CODE:
module mux_3x8(in,out,sel);
input [7:0]in;
input [2:0]sel;
output out;
reg out;
wire [2:0]sel;
wire [7:0]in;
always @(sel or in)
begin
if (sel==0)
out = in[0];
elsif (sel==1)
out = in[1];
elsif (sel==2)
out = in[2];
elsif (sel==3)
out = in[3];
elsif (sel==4)
out = in[4];
elsif (sel==5)
out = in[5];

Prepared By:

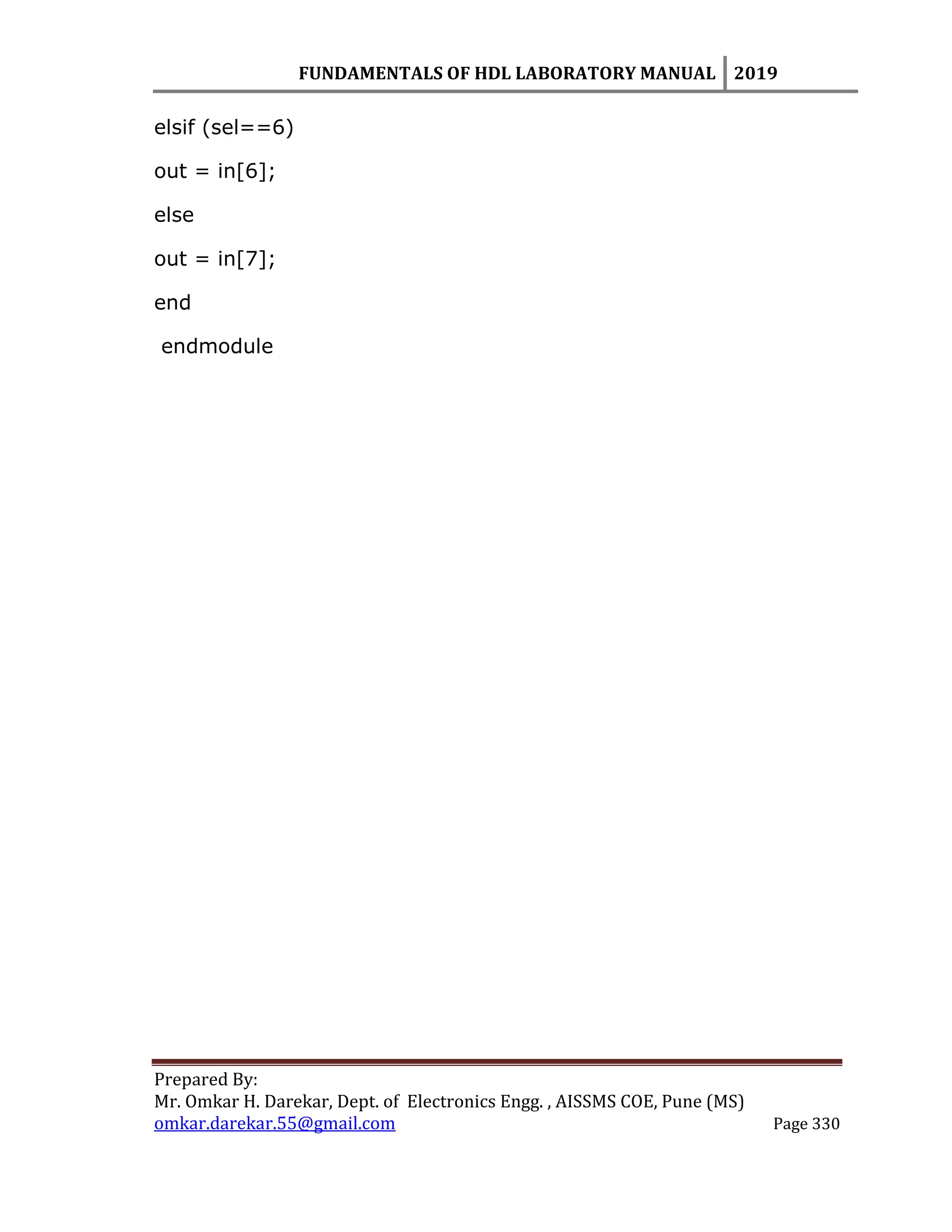

elsif (sel==6)
out = in[6];
else
out = in[7];
end
endmodule

Prepared By:

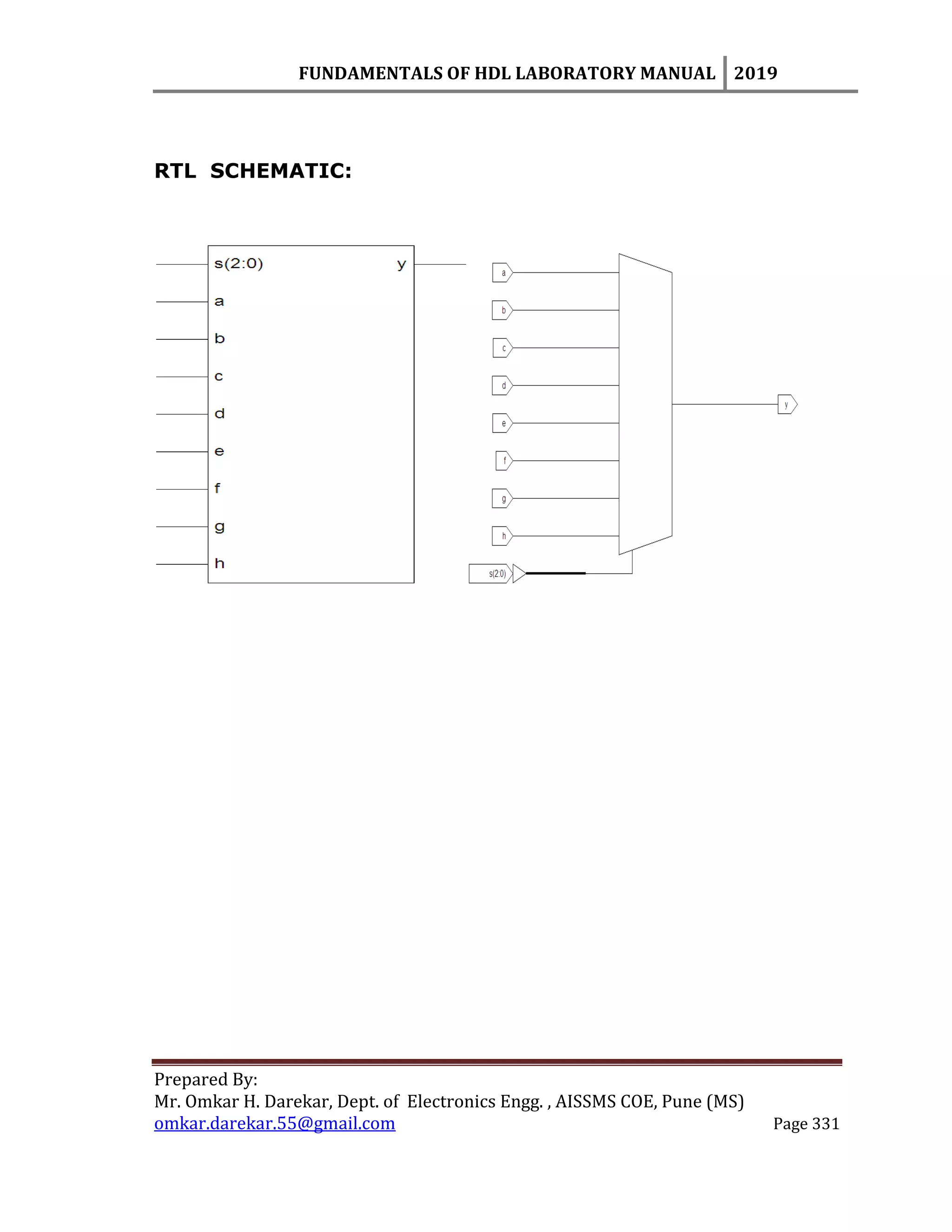

RTL SCHEMATIC:

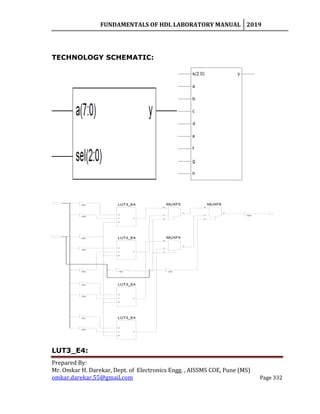

Prepared By:

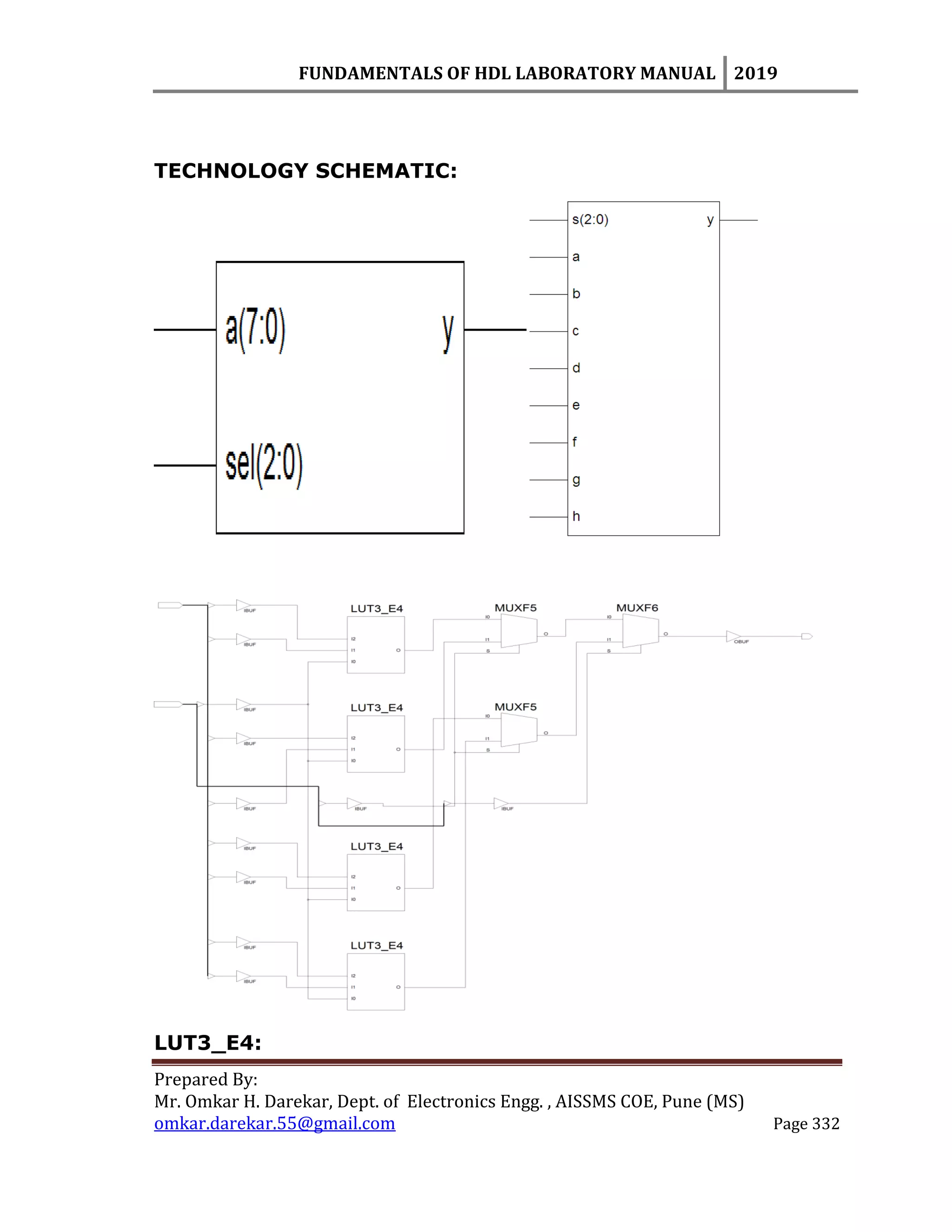

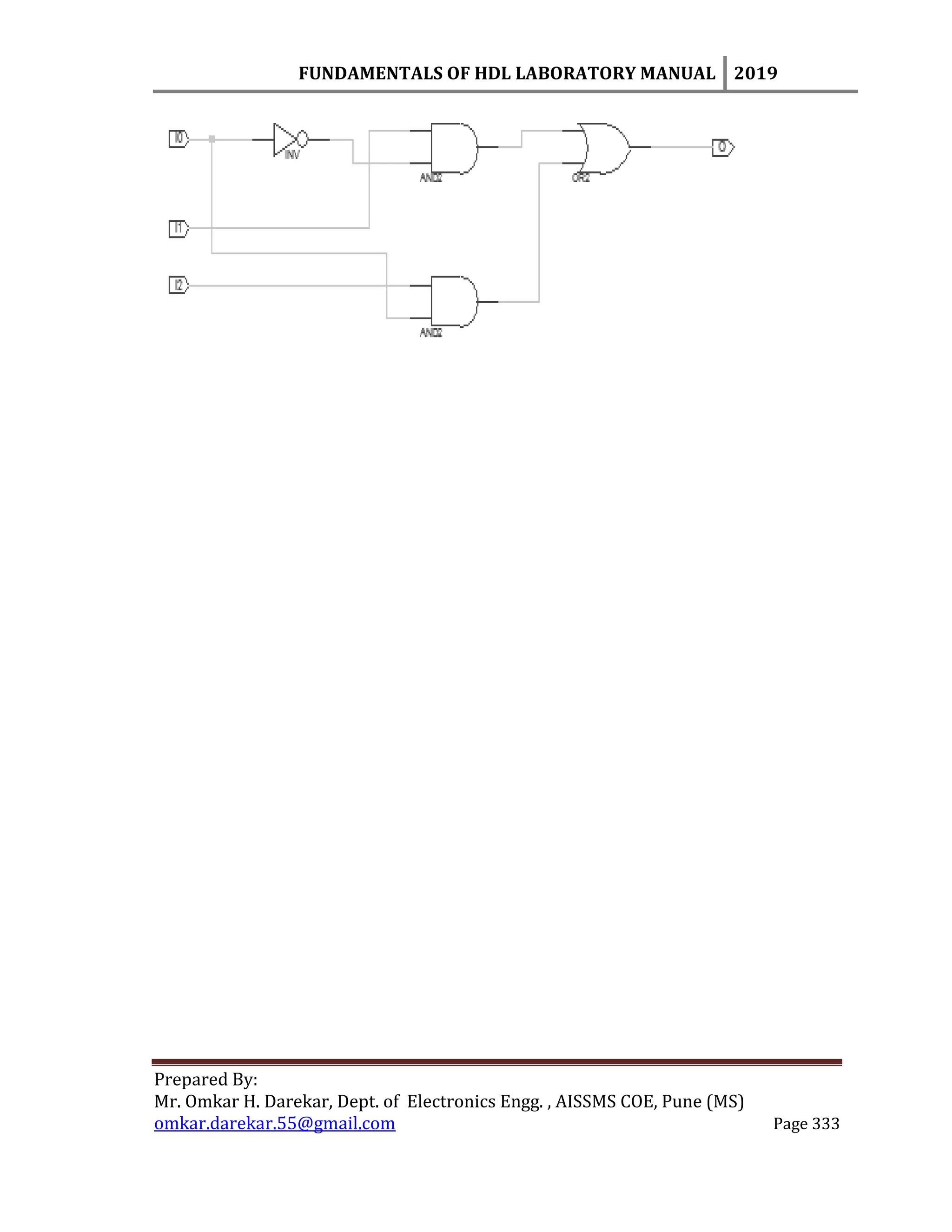

LUT3_E4:

Prepared By:

Prepared By:
SIMULATION:

Prepared By:

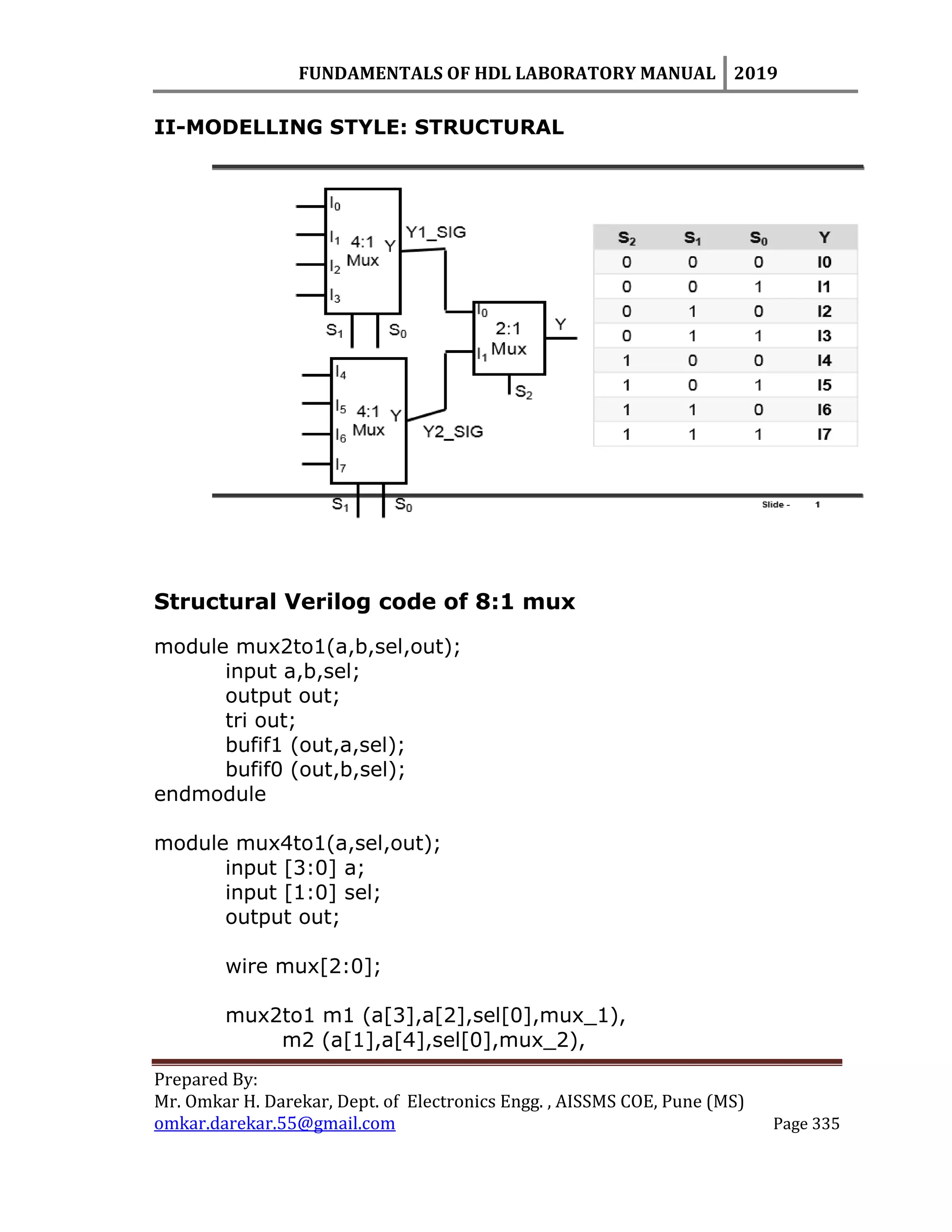

II-MODELLING STYLE: STRUCTURAL
Structural Verilog code of 8:1 mux
module mux2to1(a,b,sel,out);
input a,b,sel;
output out;
tri out;
bufif1 (out,a,sel);
bufif0 (out,b,sel);
endmodule
module mux4to1(a,sel,out);
input [3:0] a;
input [1:0] sel;
output out;
wire mux[2:0];
mux2to1 m1 (a[3],a[2],sel[0],mux_1),
m2 (a[1],a[4],sel[0],mux_2),

Prepared By:
m3 (mux_1,mux_2,sel[1],out);
endmodule

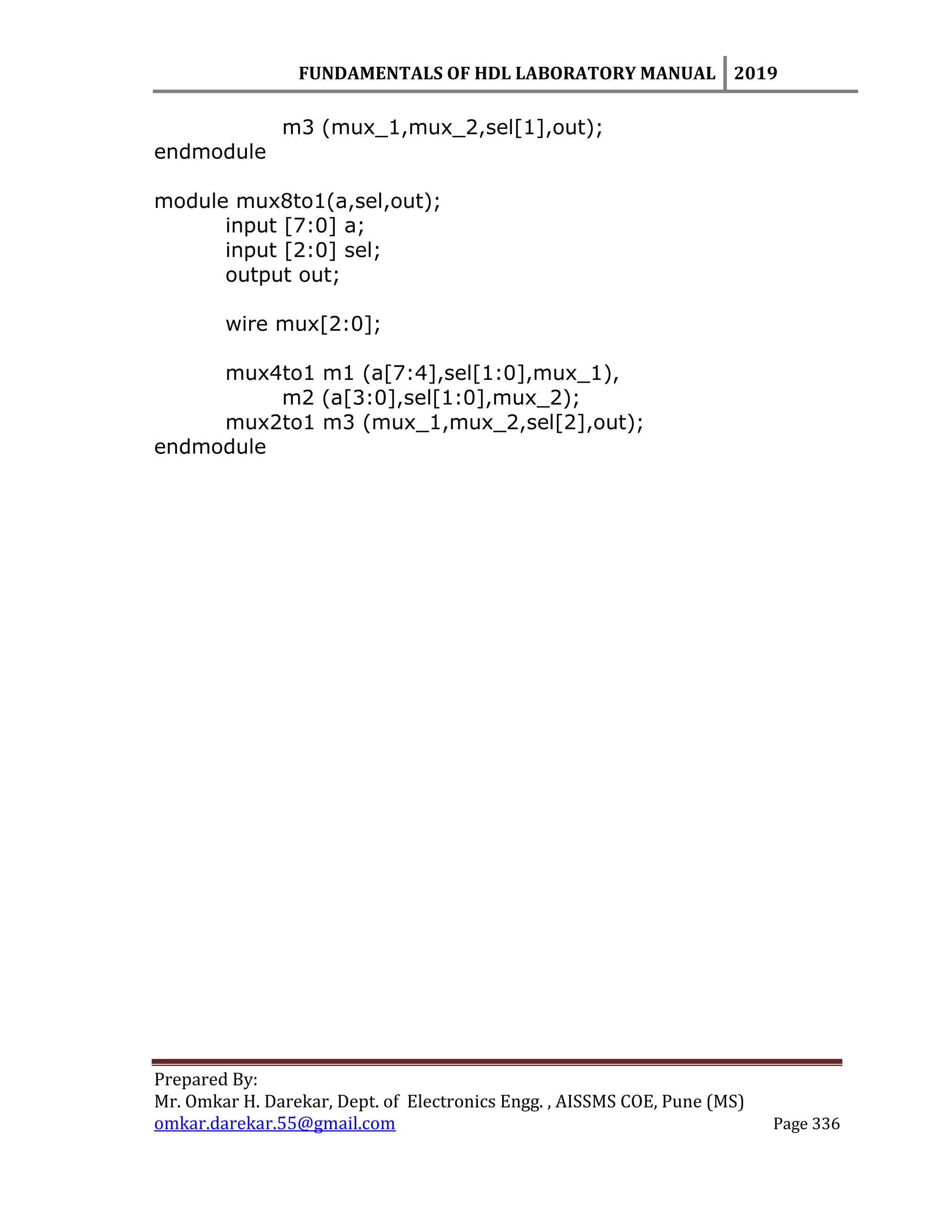

module mux8to1(a,sel,out);
input [7:0] a;
input [2:0] sel;
output out;
wire mux[2:0];
mux4to1 m1 (a[7:4],sel[1:0],mux_1),
m2 (a[3:0],sel[1:0],mux_2);
mux2to1 m3 (mux_1,mux_2,sel[2],out);
endmodule

Prepared By:
DESIGN SUMMARY:

Prepared By:

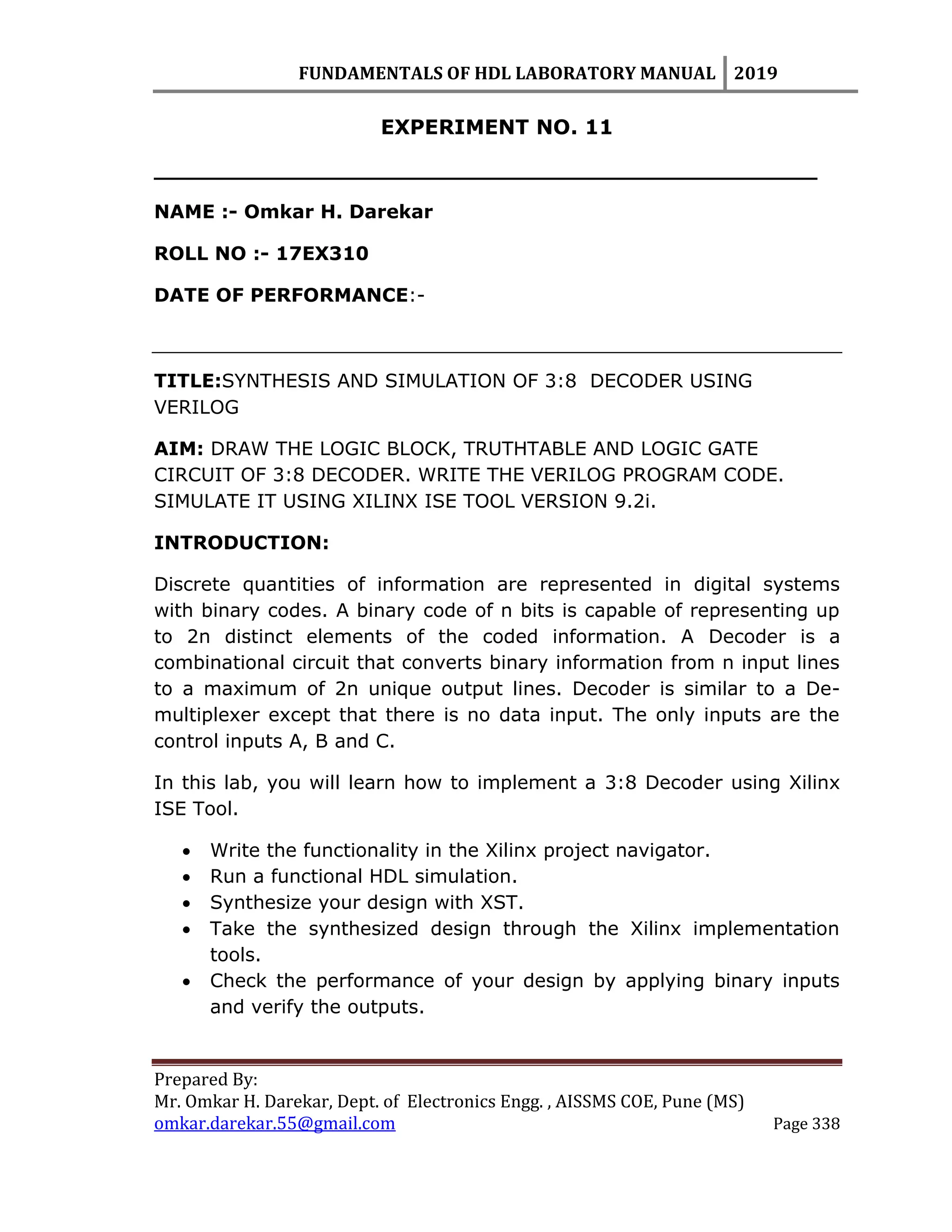

EXPERIMENT NO. 11
__________________________________________________
ROLL NO :- 17EX310
TITLE:SYNTHESIS AND SIMULATION OF 3:8 DECODER USING
VERILOG
CIRCUIT OF 3:8 DECODER. WRITE THE VERILOG PROGRAM CODE.
SIMULATE IT USING XILINX ISE TOOL VERSION 9.2i.
INTRODUCTION:
Discrete quantities of information are represented in digital systems
with binary codes. A binary code of n bits is capable of representing up
to 2n distinct elements of the coded information. A Decoder is a
combinational circuit that converts binary information from n input lines
to a maximum of 2n unique output lines. Decoder is similar to a De-
multiplexer except that there is no data input. The only inputs are the
control inputs A, B and C.
In this lab, you will learn how to implement a 3:8 Decoder using Xilinx
ISE Tool.
 Take the synthesized design through the Xilinx implementation
tools.
 Check the performance of your design by applying binary inputs
and verify the outputs.

Prepared By:

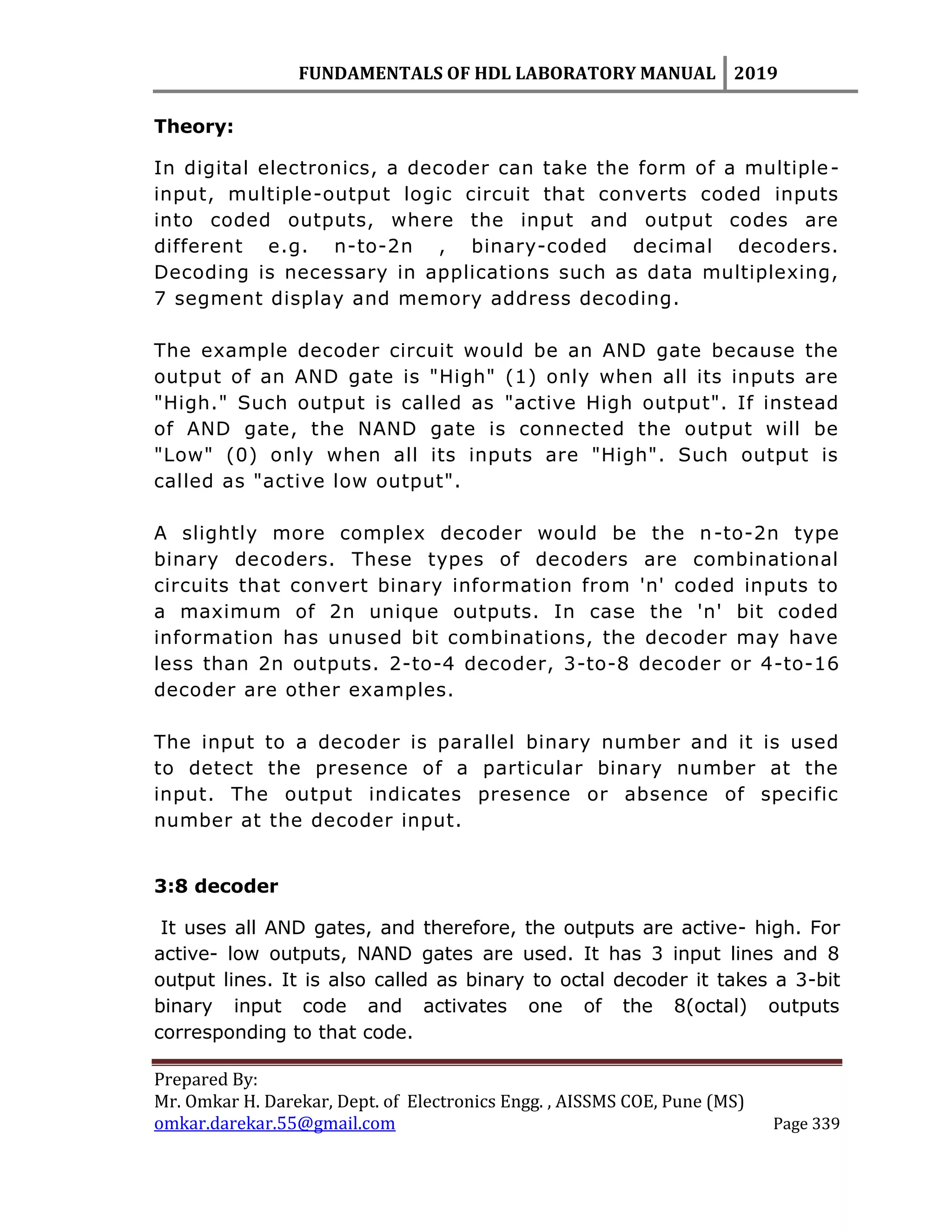

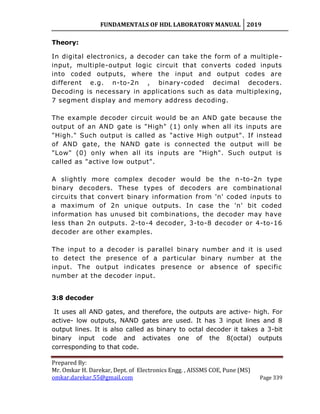

Theory:
In digital electronics, a decoder can take the form of a multiple-
input, multiple-output logic circuit that converts coded inputs
into coded outputs, where the input and output codes are
different e.g. n-to-2n , binary-coded decimal decoders.
Decoding is necessary in applications such as data multiplexing,
7 segment display and memory address decoding.
The example decoder circuit would be an AND gate because the
output of an AND gate is "High" (1) only when all its inputs are
"High." Such output is called as "active High output". If instead
of AND gate, the NAND gate is connected the output will be
"Low" (0) only when all its inputs are "High". Such output is
called as "active low output".
A slightly more complex decoder would be the n-to-2n type
binary decoders. These types of decoders are combinational
circuits that convert binary information from 'n' coded inputs to
a maximum of 2n unique outputs. In case the 'n' bit coded
information has unused bit combinations, the decoder may have
less than 2n outputs. 2-to-4 decoder, 3-to-8 decoder or 4-to-16
decoder are other examples.
The input to a decoder is parallel binary number and it is used
to detect the presence of a particular binary number at the
input. The output indicates presence or absence of specific
number at the decoder input.
3:8 decoder
It uses all AND gates, and therefore, the outputs are active- high. For
active- low outputs, NAND gates are used. It has 3 input lines and 8
output lines. It is also called as binary to octal decoder it takes a 3-bit
binary input code and activates one of the 8(octal) outputs
corresponding to that code.

Prepared By:

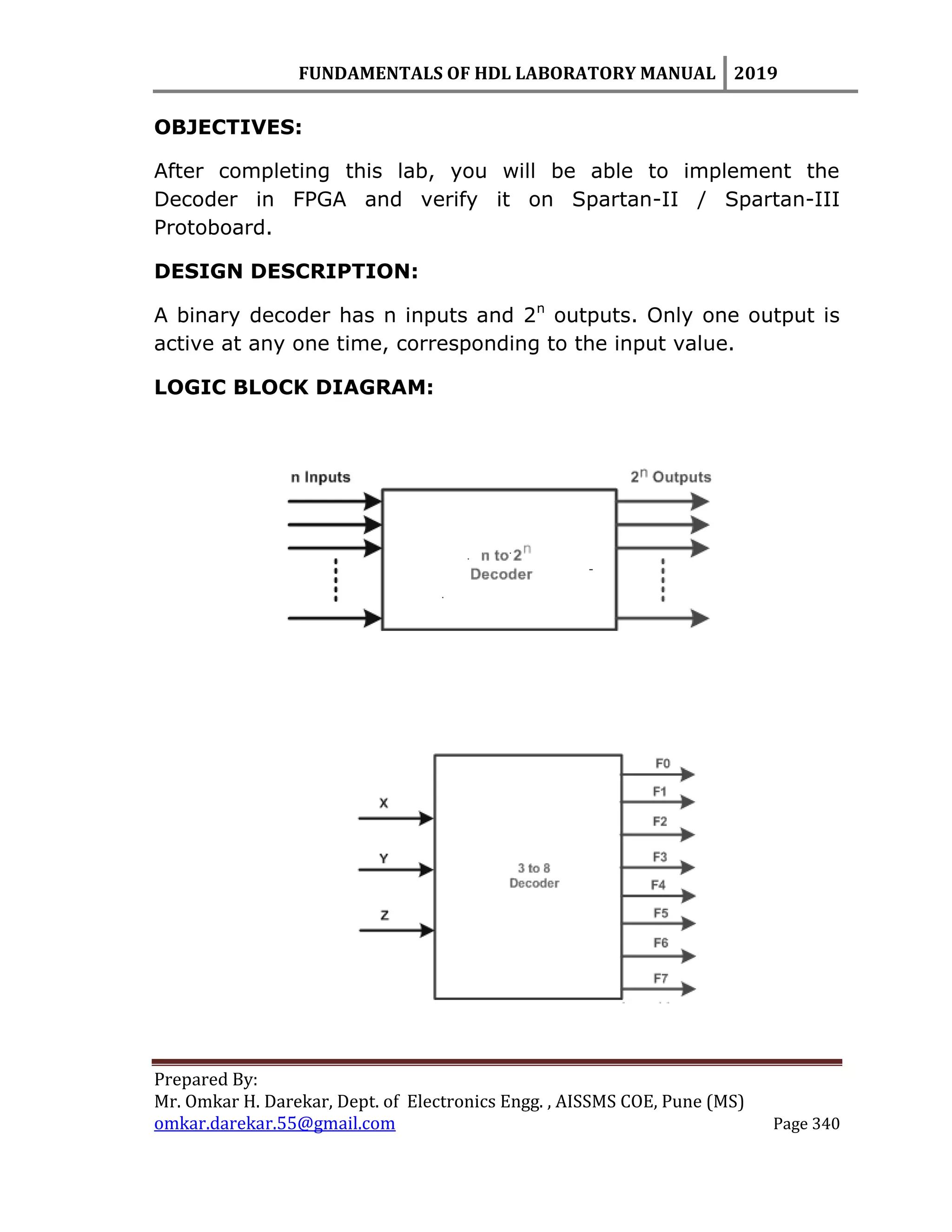

OBJECTIVES:
Decoder in FPGA and verify it on Spartan-II / Spartan-III
Protoboard.
DESIGN DESCRIPTION:
A binary decoder has n inputs and 2n
outputs. Only one output is
active at any one time, corresponding to the input value.

Prepared By:

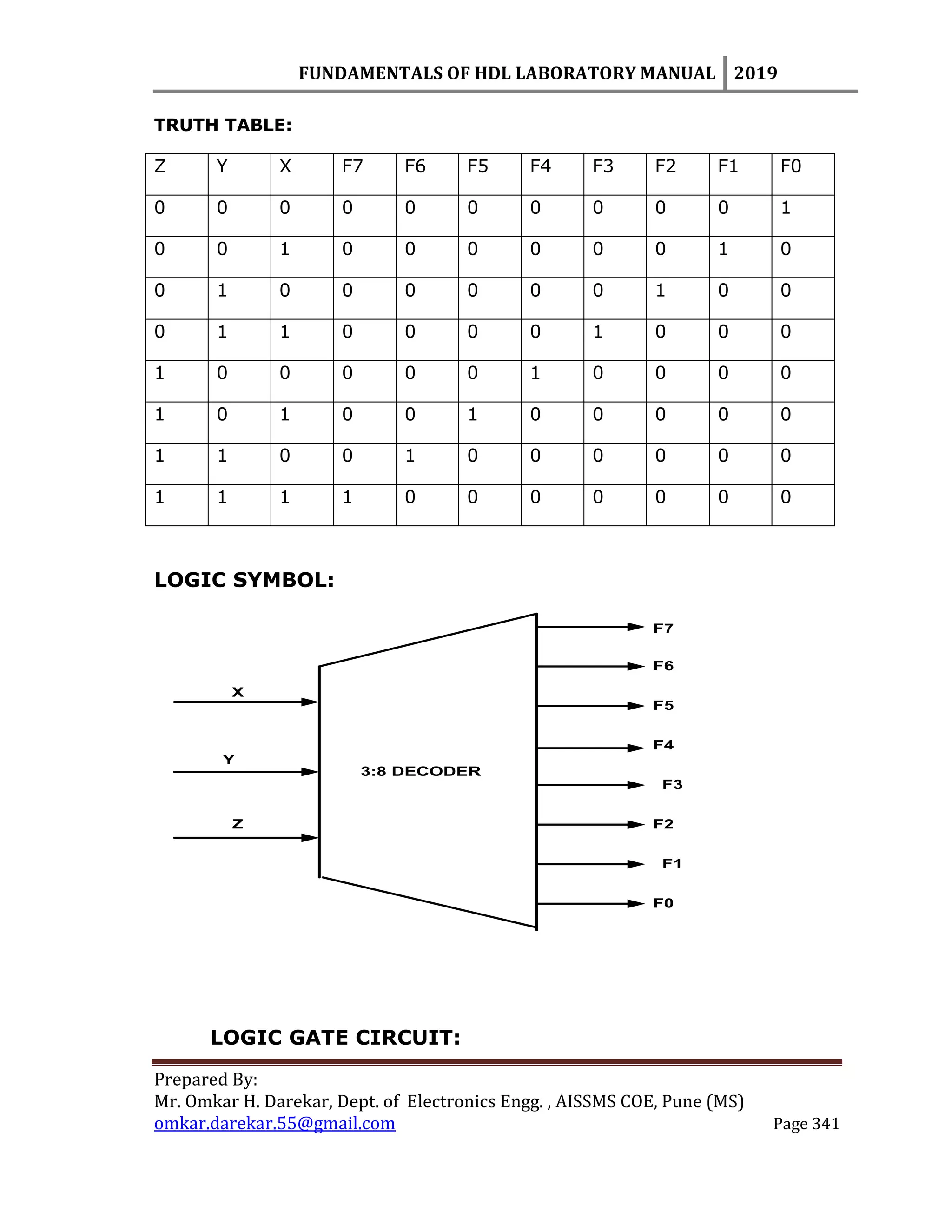

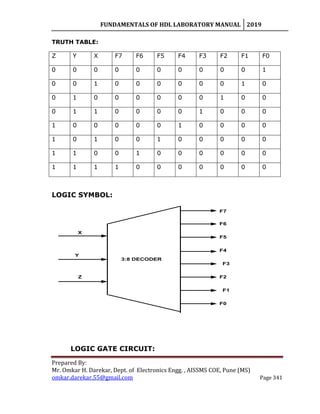

TRUTH TABLE:
Z Y X F7 F6 F5 F4 F3 F2 F1 F0
0 0 0 0 0 0 0 0 0 0 1
0 0 1 0 0 0 0 0 0 1 0
0 1 0 0 0 0 0 0 1 0 0
0 1 1 0 0 0 0 1 0 0 0
1 0 0 0 0 0 1 0 0 0 0
1 0 1 0 0 1 0 0 0 0 0
1 1 0 0 1 0 0 0 0 0 0
1 1 1 1 0 0 0 0 0 0 0
LOGIC SYMBOL:
3:8 DECODER
X
Y
Z
F0
F1
F2
F3
F4
F5
F6
F7

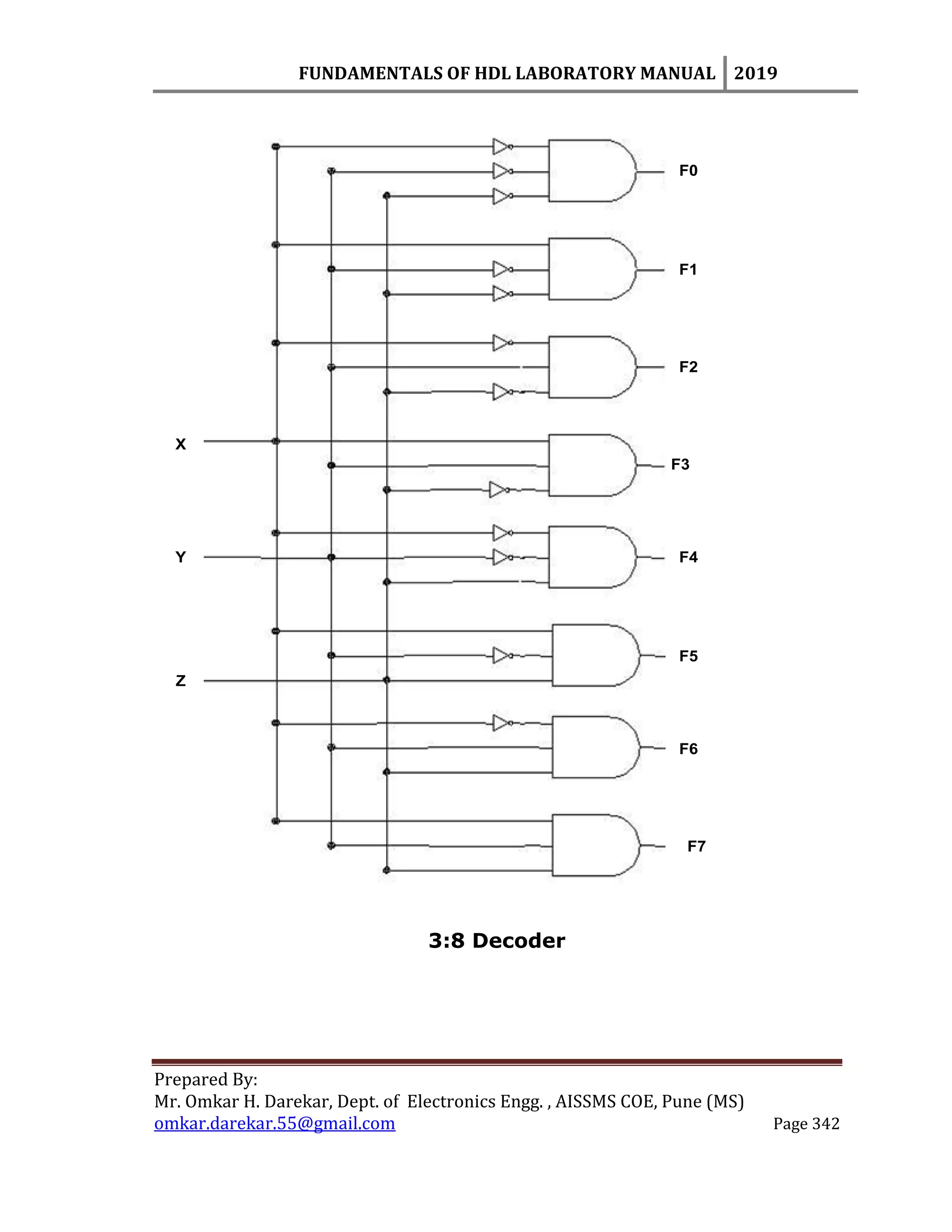

LOGIC GATE CIRCUIT:

Prepared By:
Y
X
Z
F7
F6
F5
F4
F3
F2
F1
F0
3:8 Decoder

Prepared By:

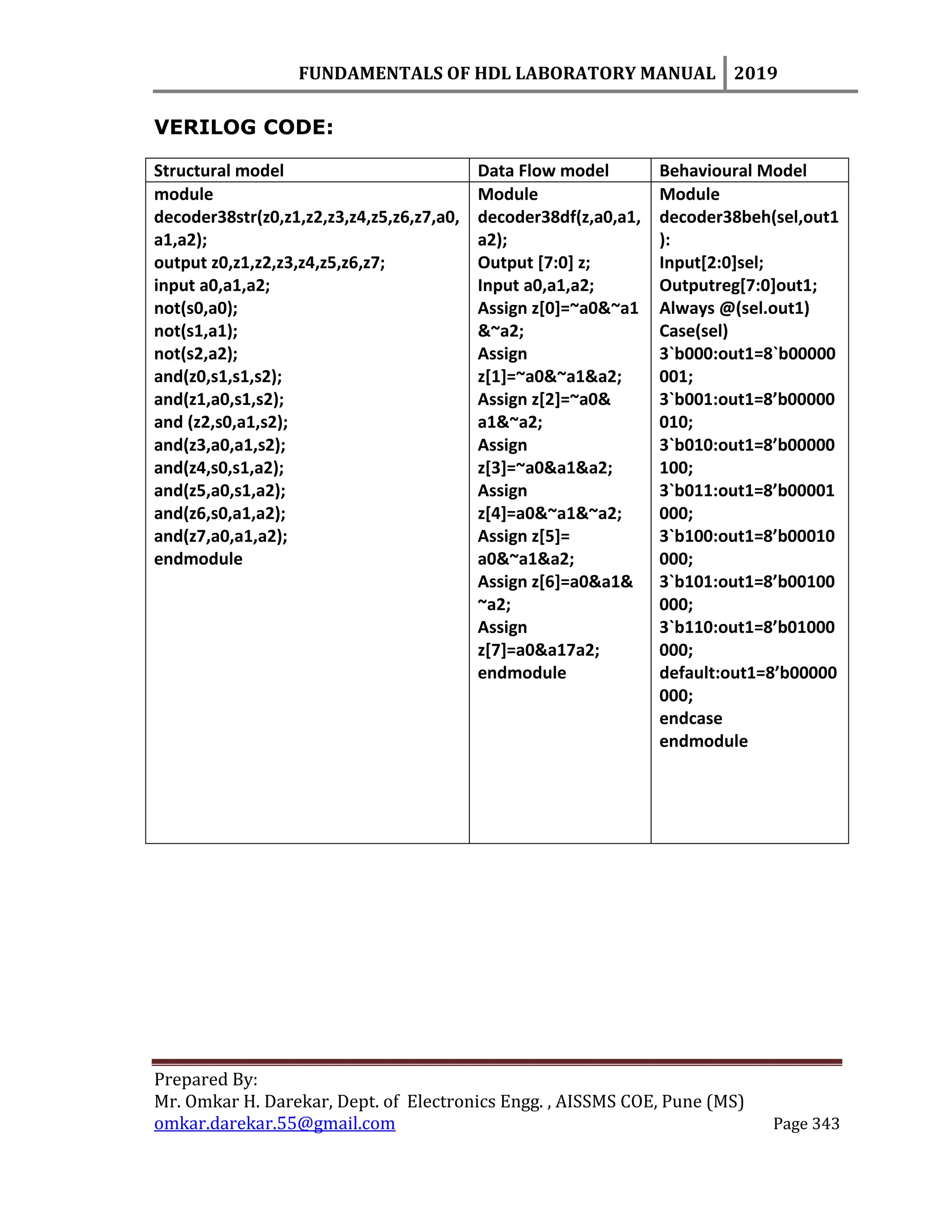

VERILOG CODE:
Structural model Data Flow model Behavioural Model
module
decoder38str(z0,z1,z2,z3,z4,z5,z6,z7,a0,
a1,a2);
output z0,z1,z2,z3,z4,z5,z6,z7;
input a0,a1,a2;
not(s0,a0);
not(s1,a1);
not(s2,a2);
and(z0,s1,s1,s2);
and(z1,a0,s1,s2);
and (z2,s0,a1,s2);
and(z3,a0,a1,s2);
and(z4,s0,s1,a2);
and(z5,a0,s1,a2);
and(z6,s0,a1,a2);
and(z7,a0,a1,a2);
endmodule
Module
decoder38df(z,a0,a1,
a2);
Output [7:0] z;
Input a0,a1,a2;
Assign z[0]=~a0&~a1
&~a2;
Assign
z[1]=~a0&~a1&a2;
Assign z[2]=~a0&
a1&~a2;
Assign
z[3]=~a0&a1&a2;
Assign
z[4]=a0&~a1&~a2;
Assign z[5]=
a0&~a1&a2;
Assign z[6]=a0&a1&
~a2;
Assign
z[7]=a0&a17a2;
endmodule
Module
decoder38beh(sel,out1
):
Input[2:0]sel;
Outputreg[7:0]out1;
Always @(sel.out1)
Case(sel)
3`b000:out1=8`b00000
001;
3`b001:out1=8’b00000
010;
3`b010:out1=8’b00000
100;
3`b011:out1=8’b00001
000;
3`b100:out1=8’b00010
000;
3`b101:out1=8’b00100
000;
3`b110:out1=8’b01000
000;
default:out1=8’b00000
000;
endcase
endmodule

Prepared By:

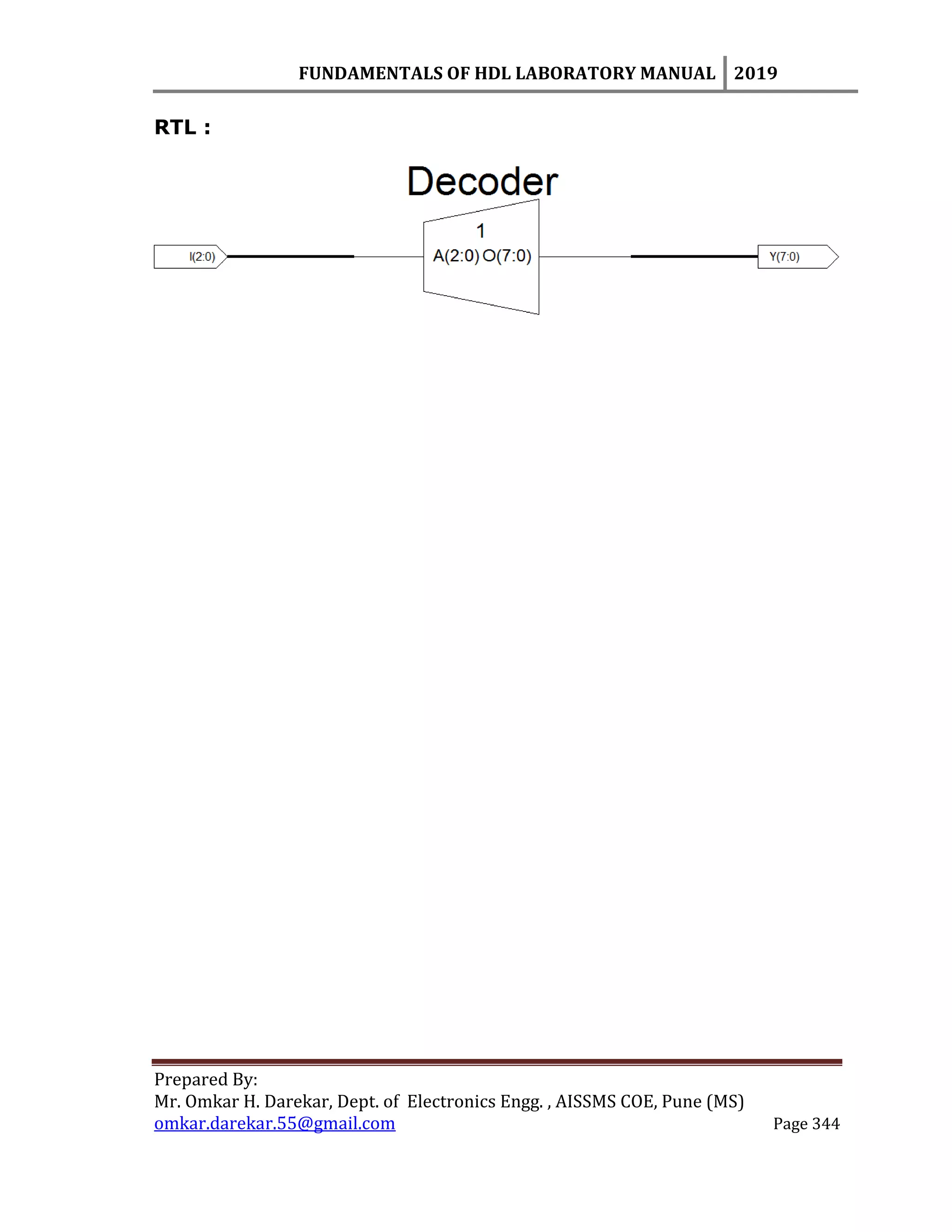

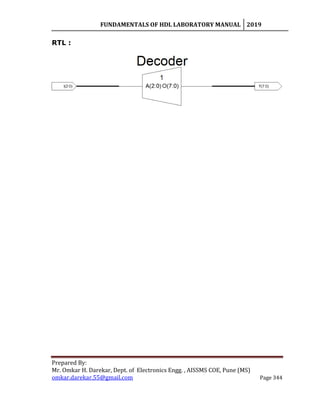

RTL :

Prepared By:

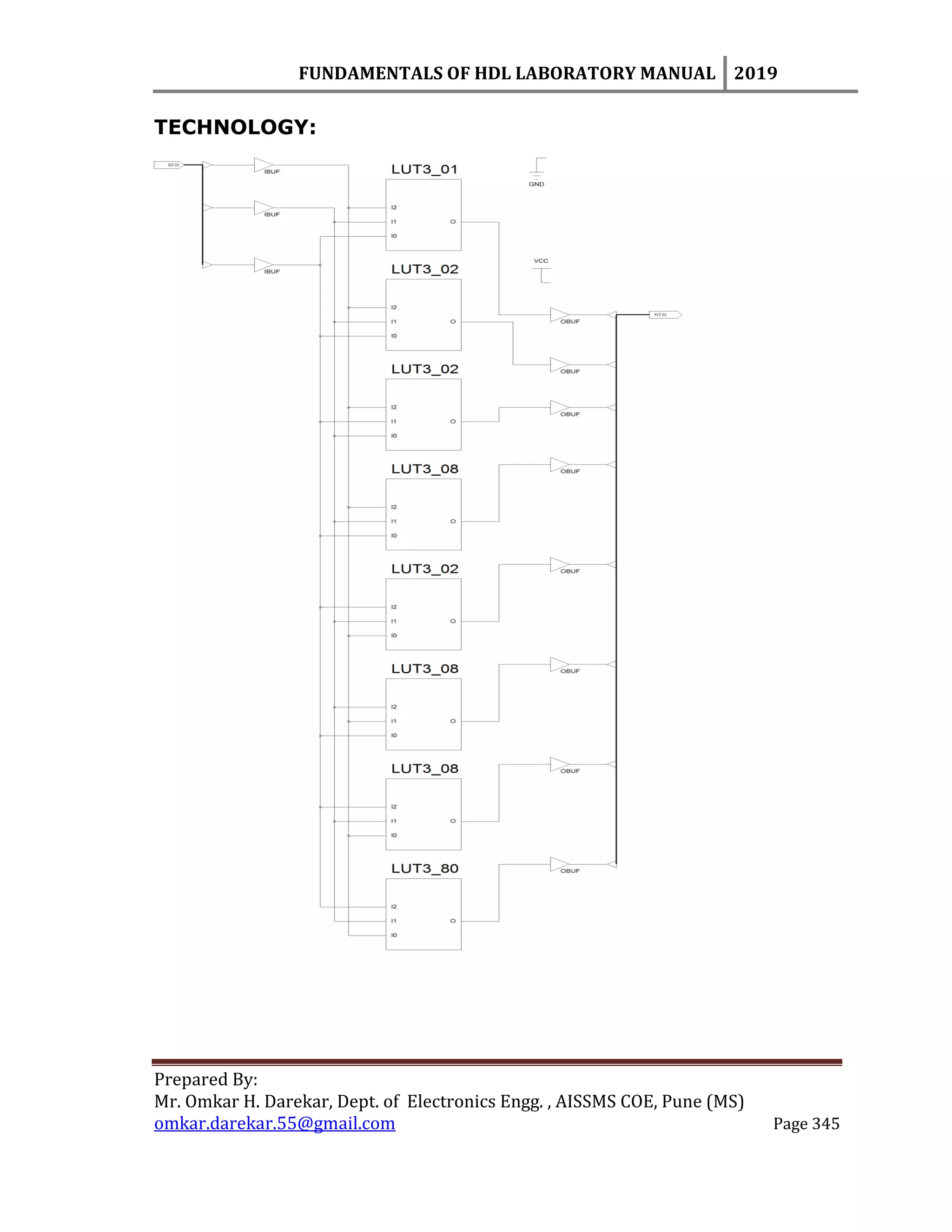

TECHNOLOGY:

Prepared By:

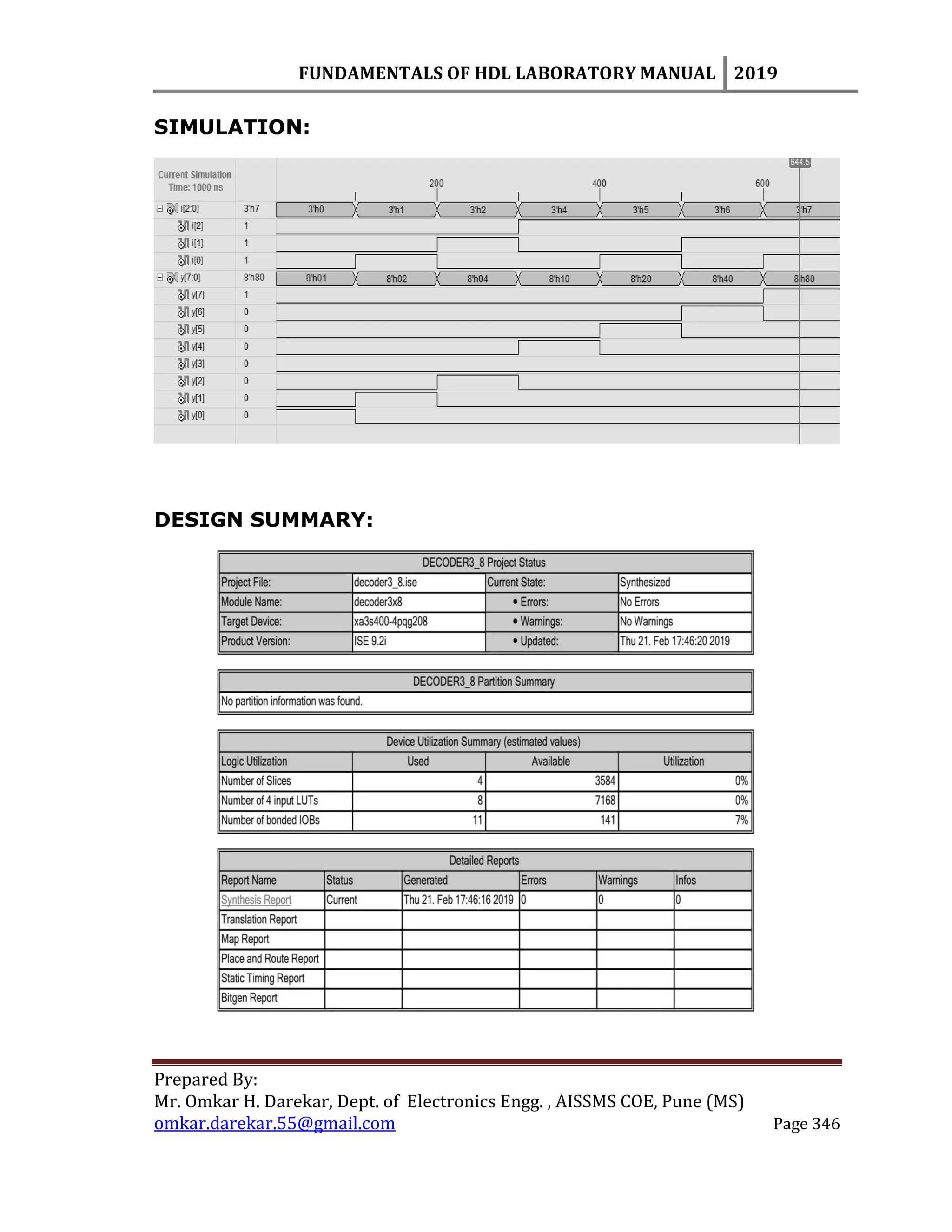

SIMULATION:
DESIGN SUMMARY:

Prepared By:

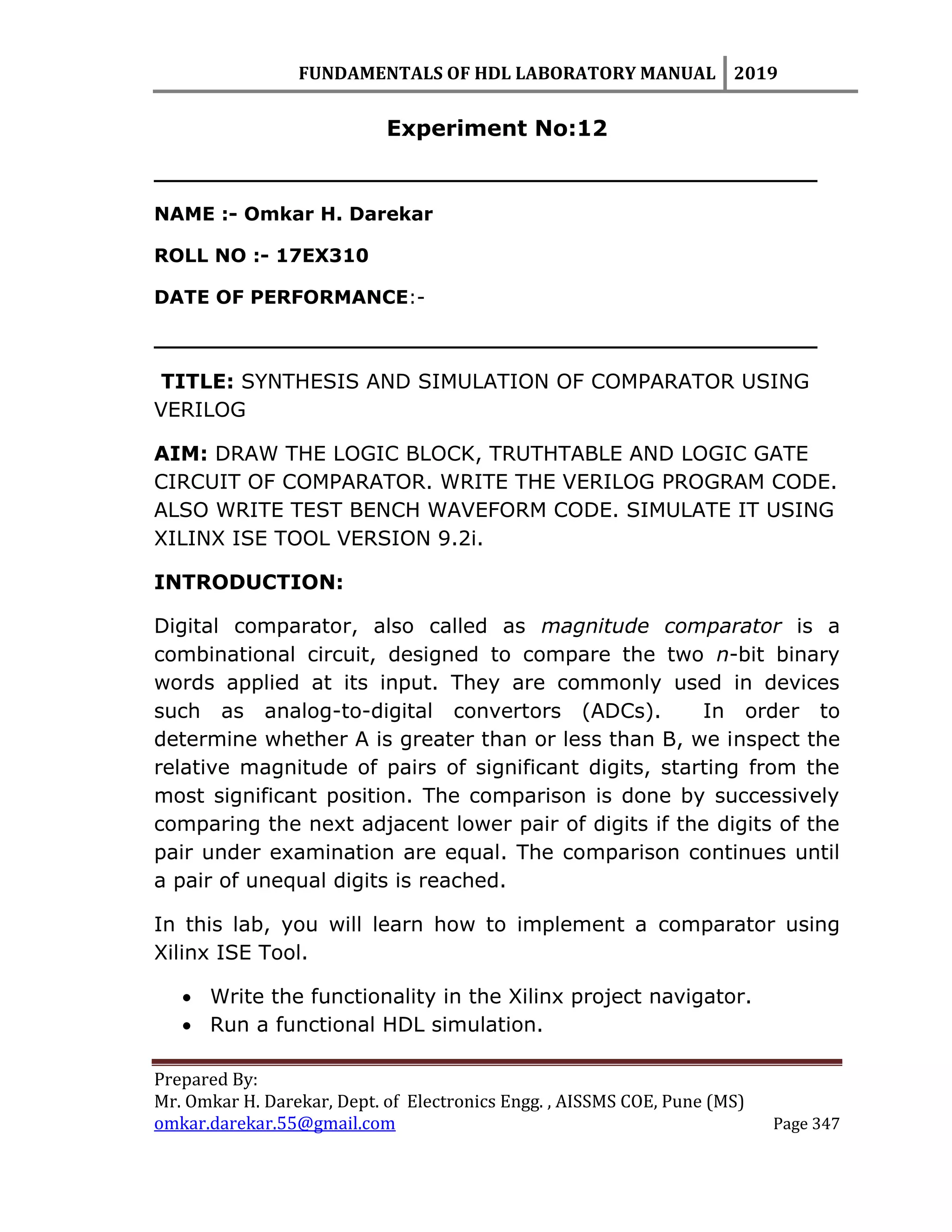

Experiment No:12
__________________________________________________
ROLL NO :- 17EX310
__________________________________________________
TITLE: SYNTHESIS AND SIMULATION OF COMPARATOR USING
VERILOG
CIRCUIT OF COMPARATOR. WRITE THE VERILOG PROGRAM CODE.
ALSO WRITE TEST BENCH WAVEFORM CODE. SIMULATE IT USING
XILINX ISE TOOL VERSION 9.2i.
INTRODUCTION:
Digital comparator, also called as magnitude comparator is a
combinational circuit, designed to compare the two n-bit binary
words applied at its input. They are commonly used in devices
such as analog-to-digital convertors (ADCs). In order to
determine whether A is greater than or less than B, we inspect the
relative magnitude of pairs of significant digits, starting from the
most significant position. The comparison is done by successively
comparing the next adjacent lower pair of digits if the digits of the
pair under examination are equal. The comparison continues until
a pair of unequal digits is reached.
In this lab, you will learn how to implement a comparator using
Xilinx ISE Tool.

Prepared By:
 Check the performance of your design by applying binary
inputs and verify the outputs.

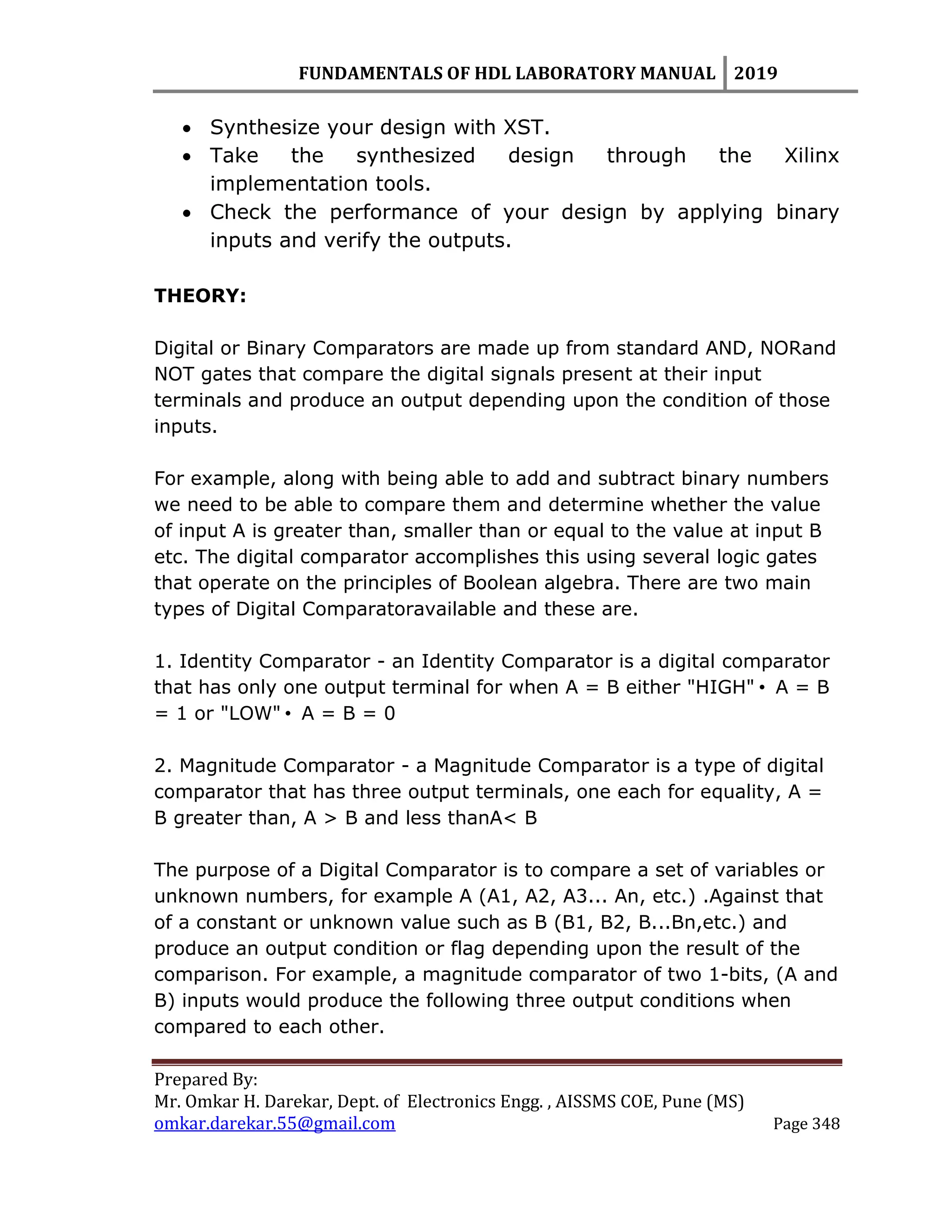

THEORY:
Digital or Binary Comparators are made up from standard AND, NORand
NOT gates that compare the digital signals present at their input
terminals and produce an output depending upon the condition of those
inputs.
For example, along with being able to add and subtract binary numbers
we need to be able to compare them and determine whether the value
of input A is greater than, smaller than or equal to the value at input B
etc. The digital comparator accomplishes this using several logic gates
that operate on the principles of Boolean algebra. There are two main
types of Digital Comparatoravailable and these are.
1. Identity Comparator - an Identity Comparator is a digital comparator
that has only one output terminal for when A = B either "HIGH"• A = B
= 1 or "LOW"• A = B = 0
2. Magnitude Comparator - a Magnitude Comparator is a type of digital
comparator that has three output terminals, one each for equality, A =
B greater than, A > B and less thanA< B
The purpose of a Digital Comparator is to compare a set of variables or
unknown numbers, for example A (A1, A2, A3... An, etc.) .Against that
of a constant or unknown value such as B (B1, B2, B...Bn,etc.) and
produce an output condition or flag depending upon the result of the
comparison. For example, a magnitude comparator of two 1-bits, (A and
B) inputs would produce the following three output conditions when
compared to each other.

Prepared By:

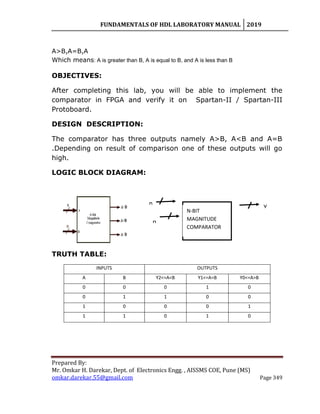

A>B,A=B,A
Which means: A is greater than B, A is equal to B, and A is less than B
OBJECTIVES:
comparator in FPGA and verify it on Spartan-II / Spartan-III
Protoboard.

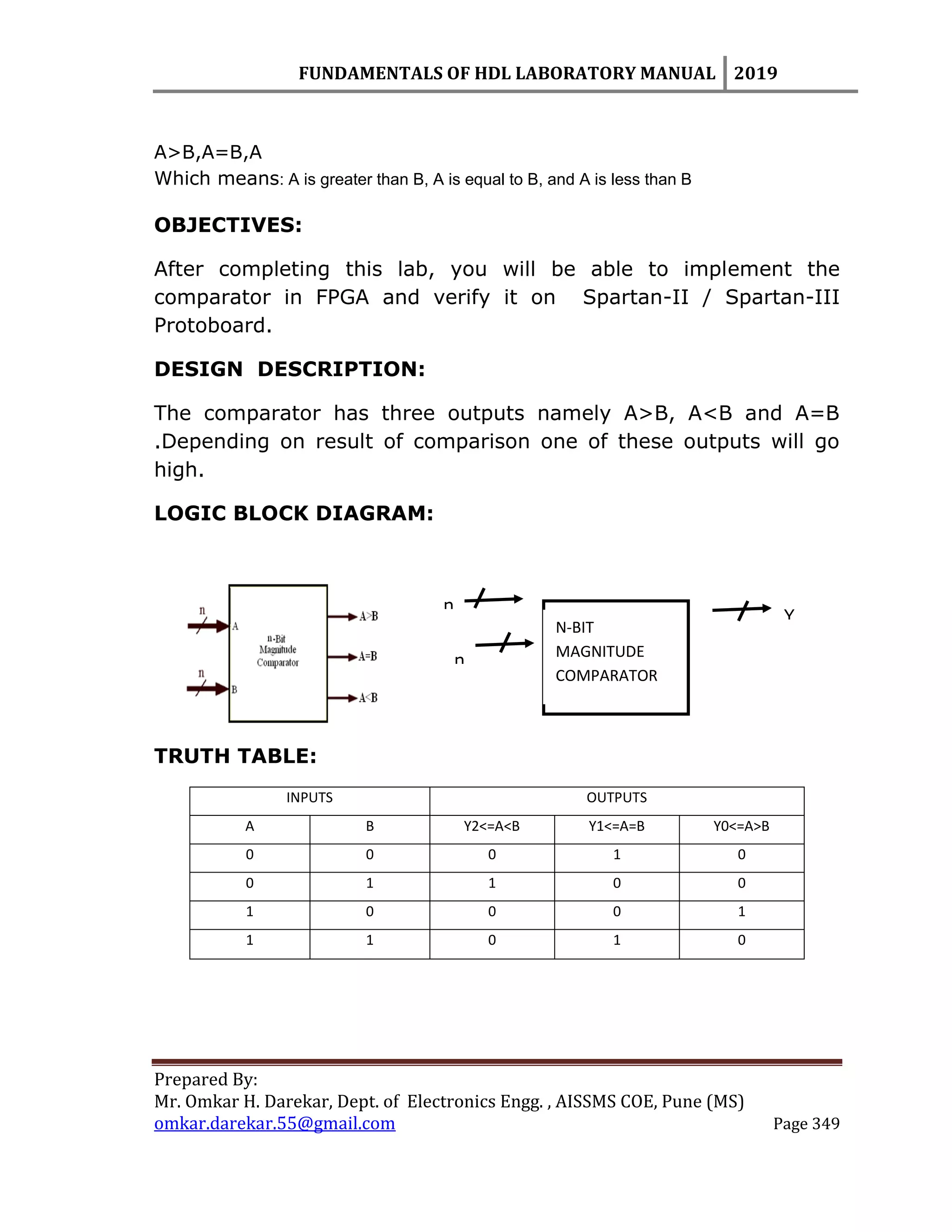

DESIGN DESCRIPTION:
The comparator has three outputs namely A>B, A<B and A=B
.Depending on result of comparison one of these outputs will go
high.
TRUTH TABLE:
INPUTS OUTPUTS
A B Y2<=A<B Y1<=A=B Y0<=A>B
0 0 0 1 0
0 1 1 0 0
1 0 0 0 1
1 1 0 1 0
N-BIT
MAGNITUDE
COMPARATOR
n
n
Y

Prepared By:

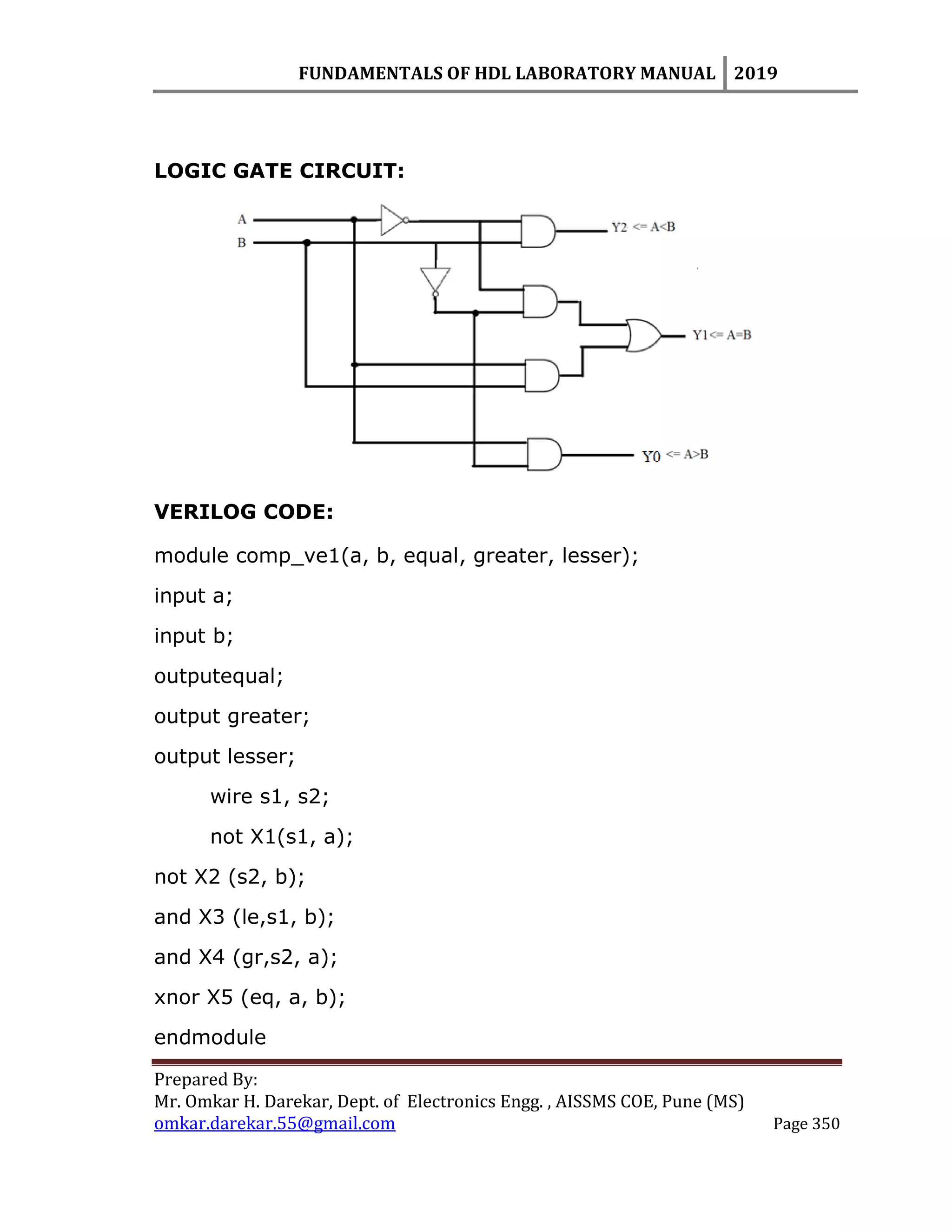

LOGIC GATE CIRCUIT:
VERILOG CODE:
module comp_ve1(a, b, equal, greater, lesser);
input a;
input b;
outputequal;
output greater;
output lesser;
wire s1, s2;
not X1(s1, a);
not X2 (s2, b);
and X3 (le,s1, b);
and X4 (gr,s2, a);
xnor X5 (eq, a, b);
endmodule

Prepared By:

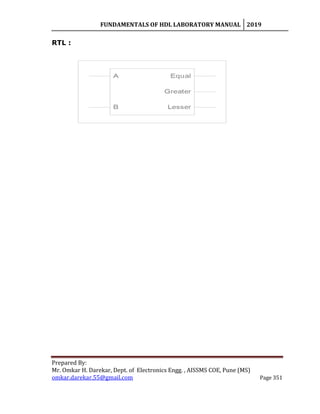

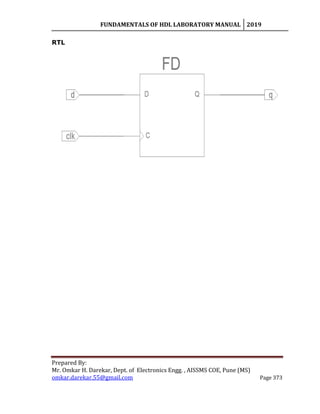

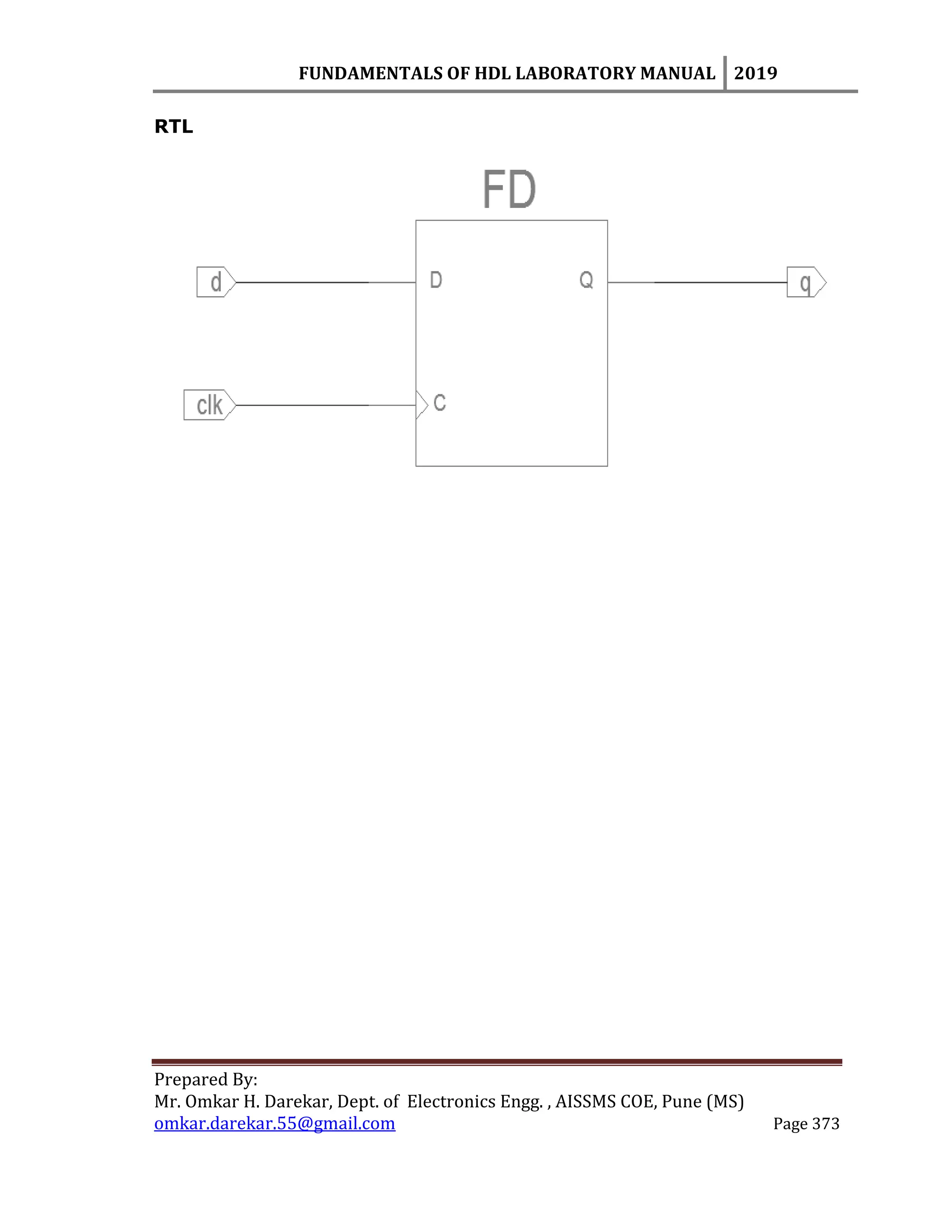

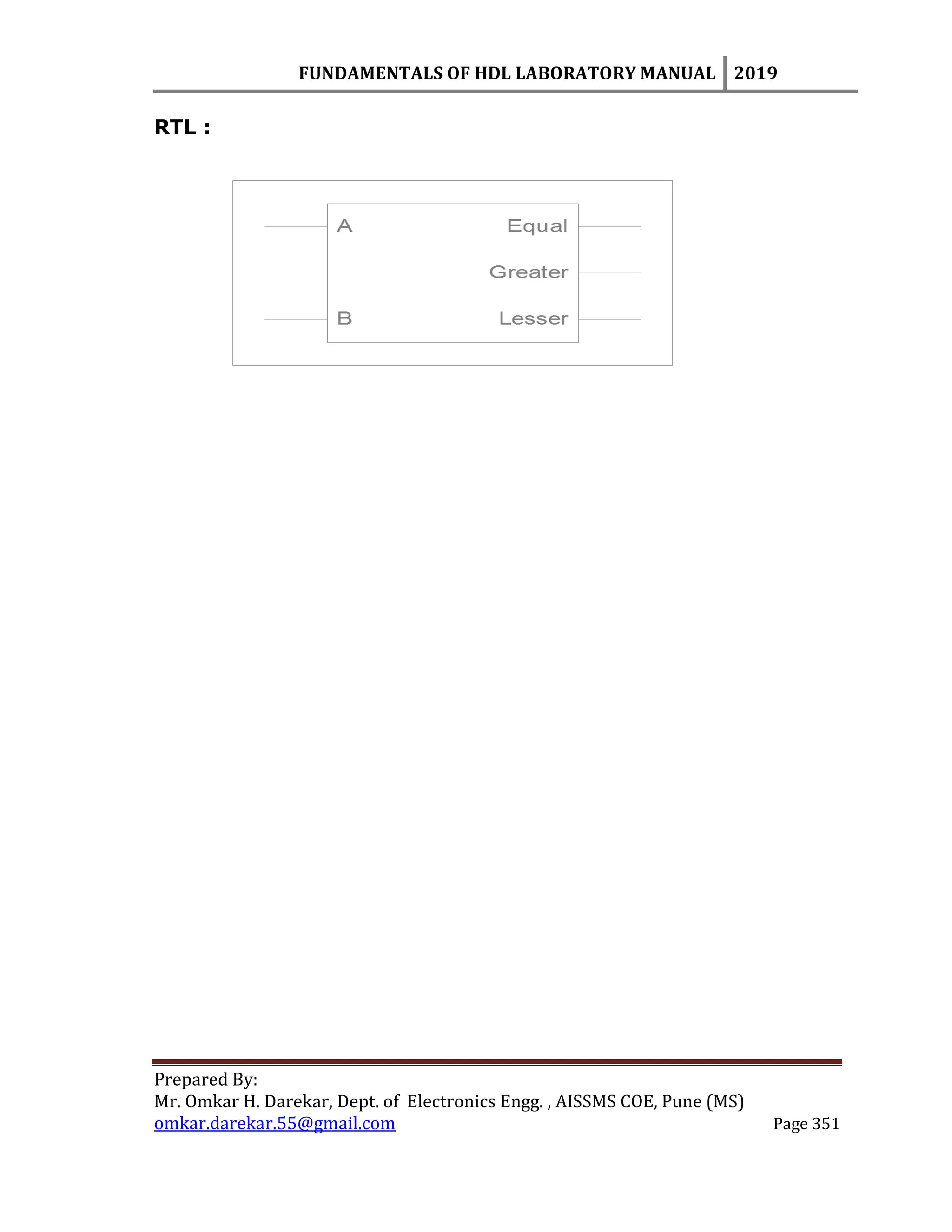

RTL :

Prepared By:

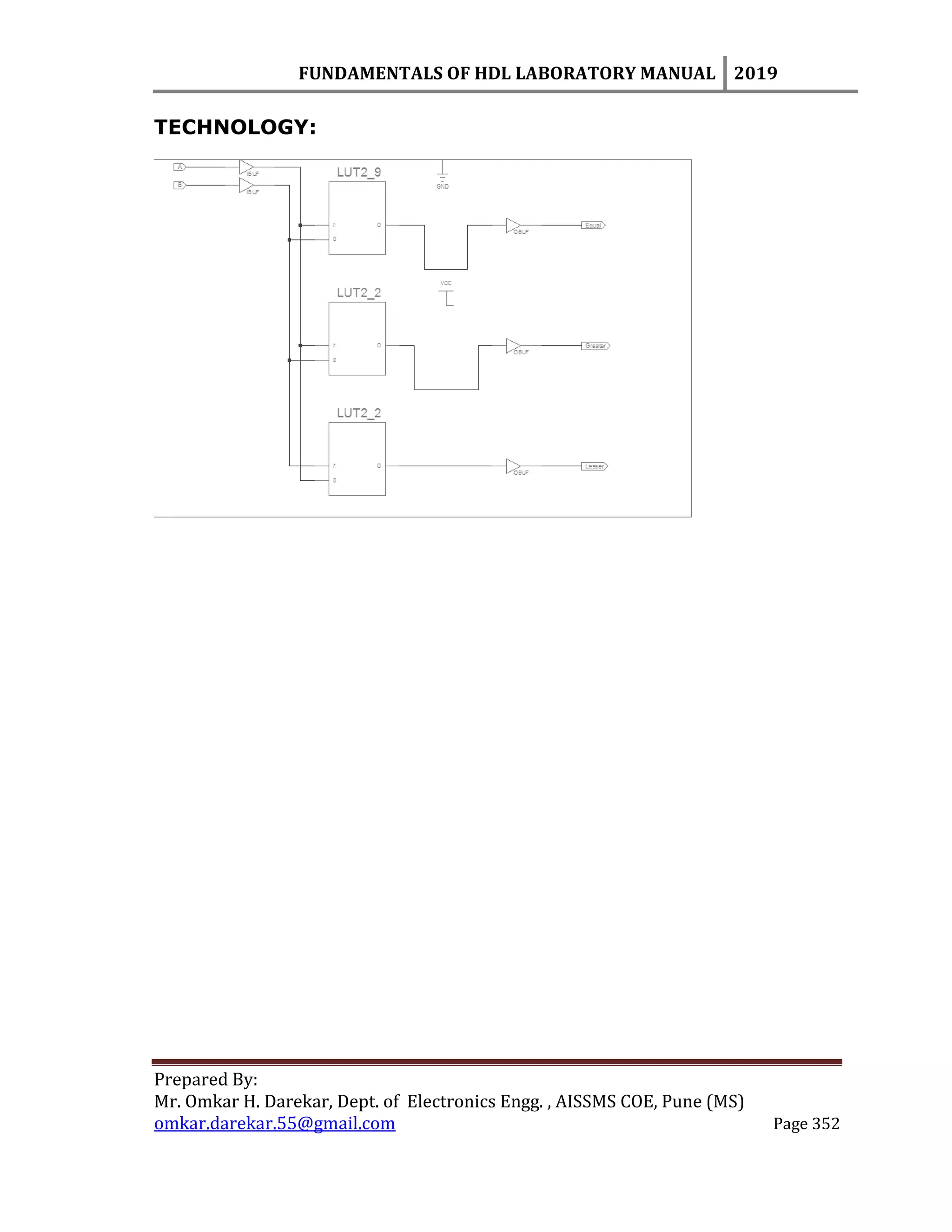

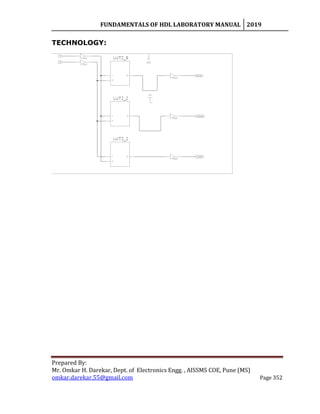

TECHNOLOGY:

Prepared By:

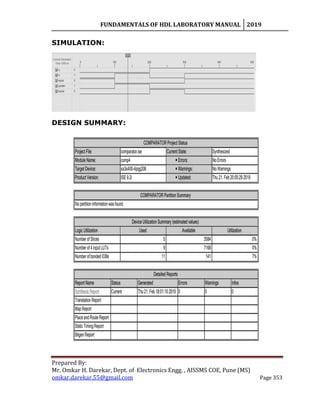

SIMULATION:
DESIGN SUMMARY:

Prepared By:
Experiment No:13
__________________________________________________
ROLL NO :- 17EX310
__________________________________________________

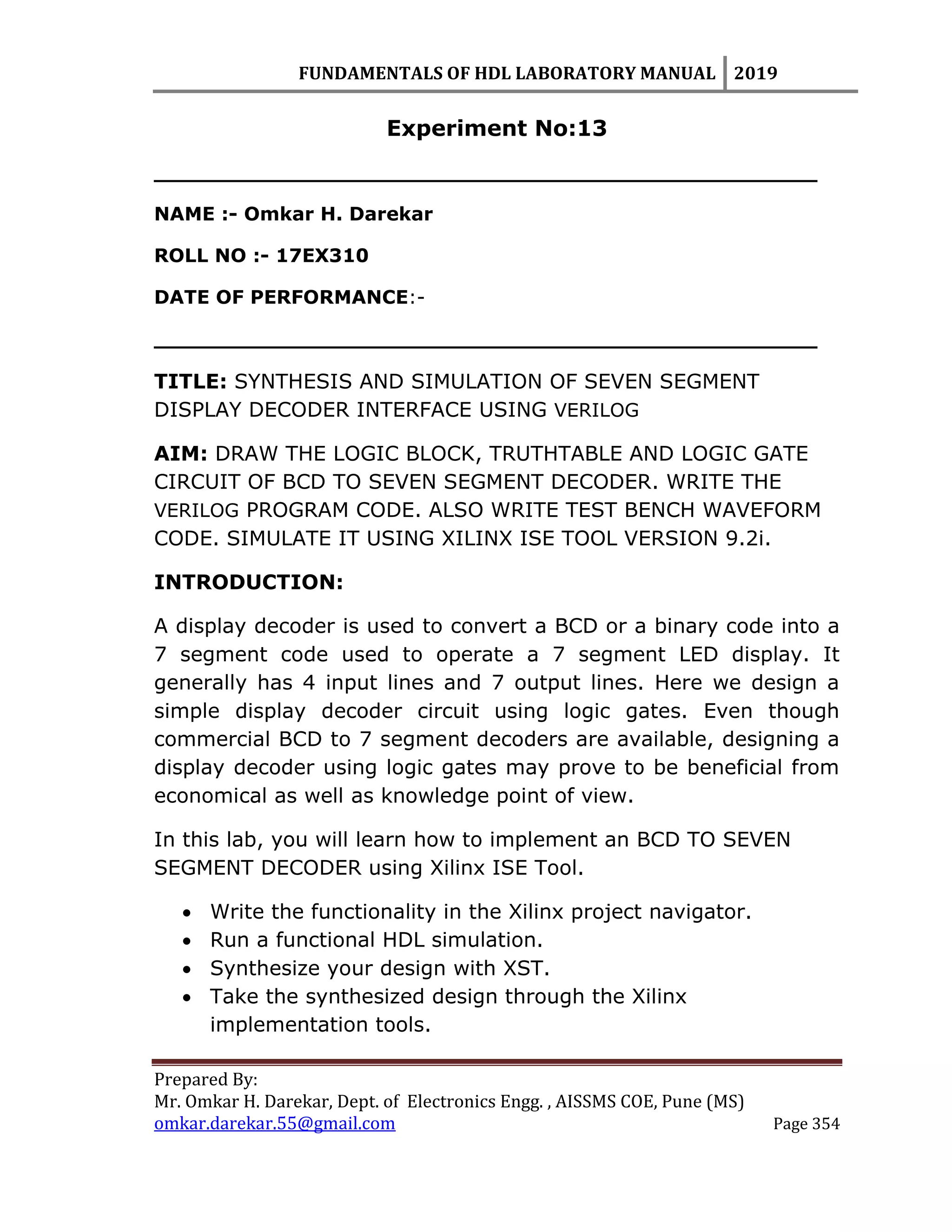

TITLE: SYNTHESIS AND SIMULATION OF SEVEN SEGMENT
DISPLAY DECODER INTERFACE USING VERILOG
CIRCUIT OF BCD TO SEVEN SEGMENT DECODER. WRITE THE
VERILOG PROGRAM CODE. ALSO WRITE TEST BENCH WAVEFORM
CODE. SIMULATE IT USING XILINX ISE TOOL VERSION 9.2i.
INTRODUCTION:
A display decoder is used to convert a BCD or a binary code into a
7 segment code used to operate a 7 segment LED display. It
generally has 4 input lines and 7 output lines. Here we design a
simple display decoder circuit using logic gates. Even though
commercial BCD to 7 segment decoders are available, designing a
display decoder using logic gates may prove to be beneficial from
economical as well as knowledge point of view.
In this lab, you will learn how to implement an BCD TO SEVEN
SEGMENT DECODER using Xilinx ISE Tool.

Prepared By:
 Check the performance of your design by applying different
inputs and verify the outputs.
OBJECTIVES:
After completing this lab, you will be able to implement the bcd to
seven segment decoder in FPGA and verify it on Spartan-II /
Spartan-III Protoboard.

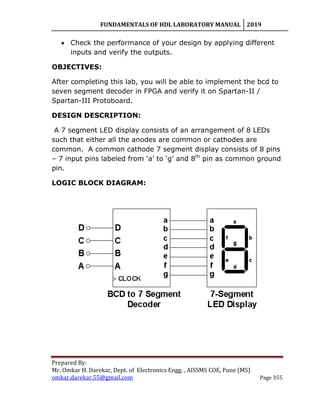

DESIGN DESCRIPTION:
A 7 segment LED display consists of an arrangement of 8 LEDs
such that either all the anodes are common or cathodes are
common. A common cathode 7 segment display consists of 8 pins
– 7 input pins labeled from „a‟ to „g‟ and 8th
pin as common ground
pin.

Prepared By:

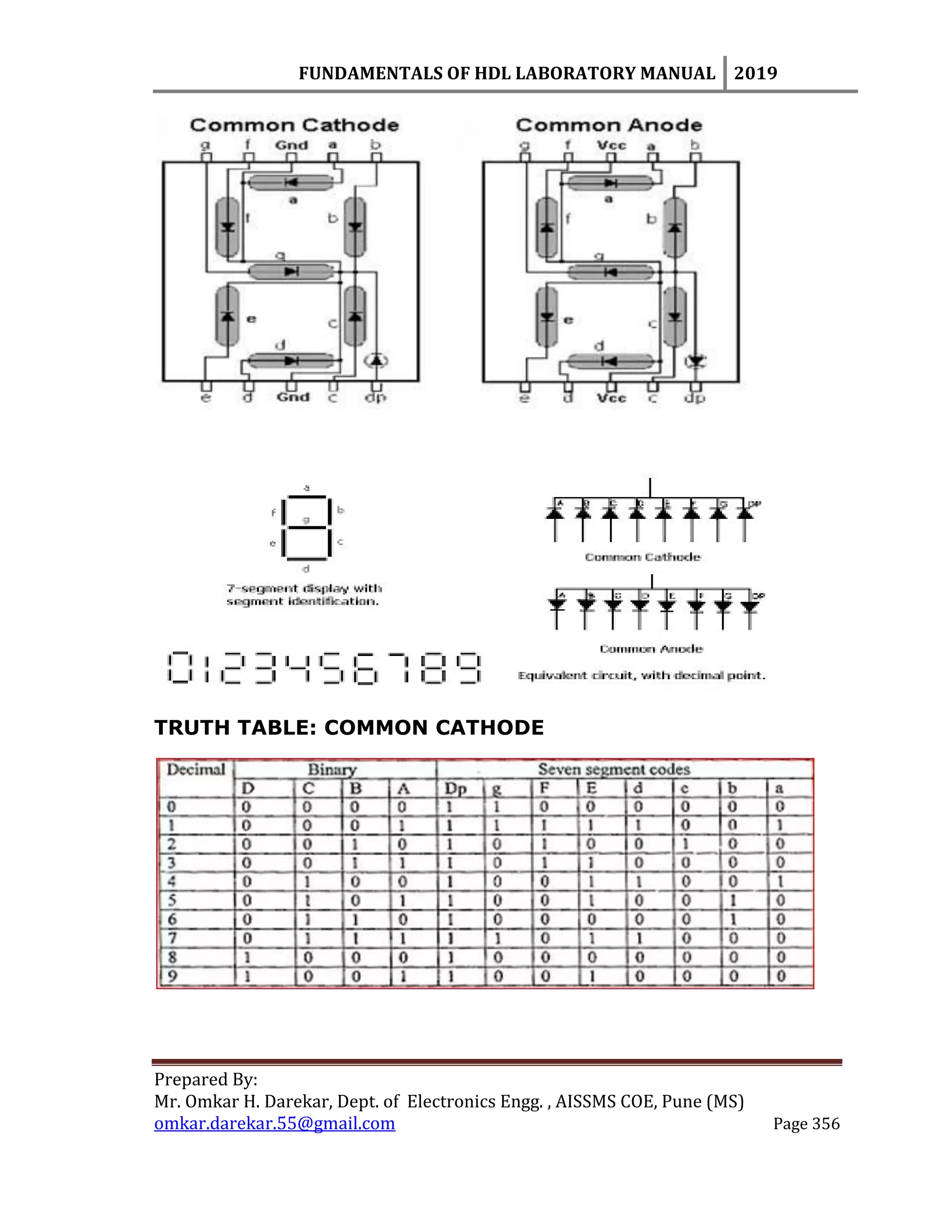

TRUTH TABLE: COMMON CATHODE

Prepared By:

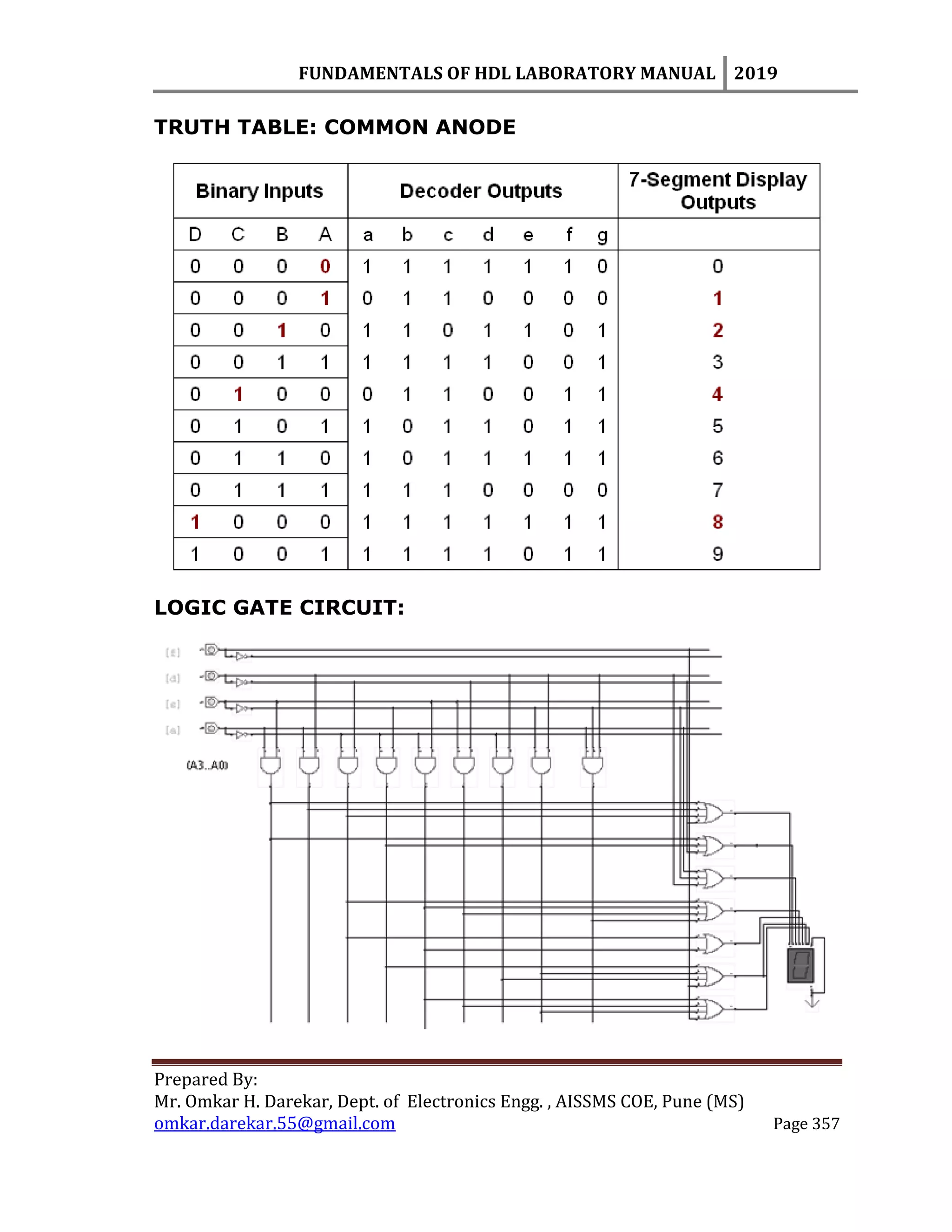

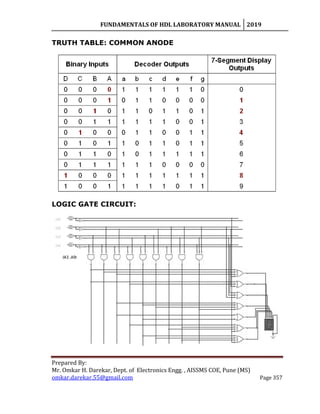

TRUTH TABLE: COMMON ANODE
LOGIC GATE CIRCUIT:

Prepared By:
VERILOG CODE:

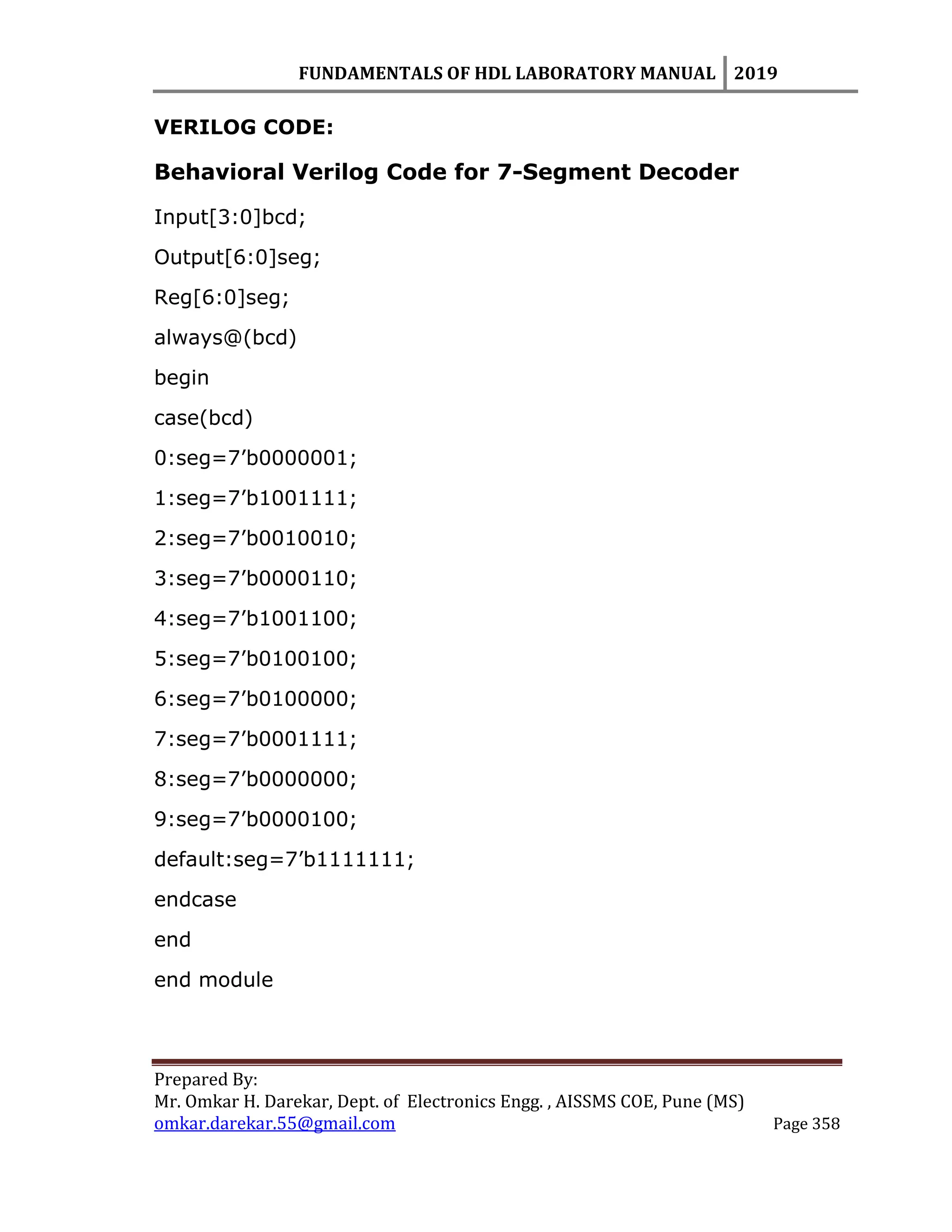

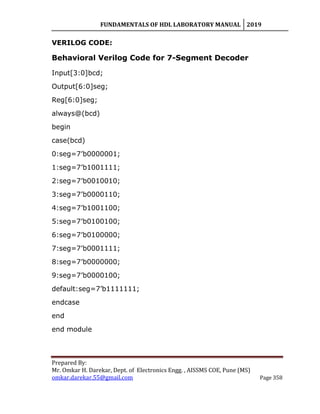

Behavioral Verilog Code for 7-Segment Decoder
Input[3:0]bcd;
Output[6:0]seg;
Reg[6:0]seg;
always@(bcd)
begin
case(bcd)
0:seg=7‟b0000001;
1:seg=7‟b1001111;
2:seg=7‟b0010010;
3:seg=7‟b0000110;
4:seg=7‟b1001100;
5:seg=7‟b0100100;
6:seg=7‟b0100000;
7:seg=7‟b0001111;
8:seg=7‟b0000000;
9:seg=7‟b0000100;
default:seg=7‟b1111111;
endcase
end
end module

Prepared By:

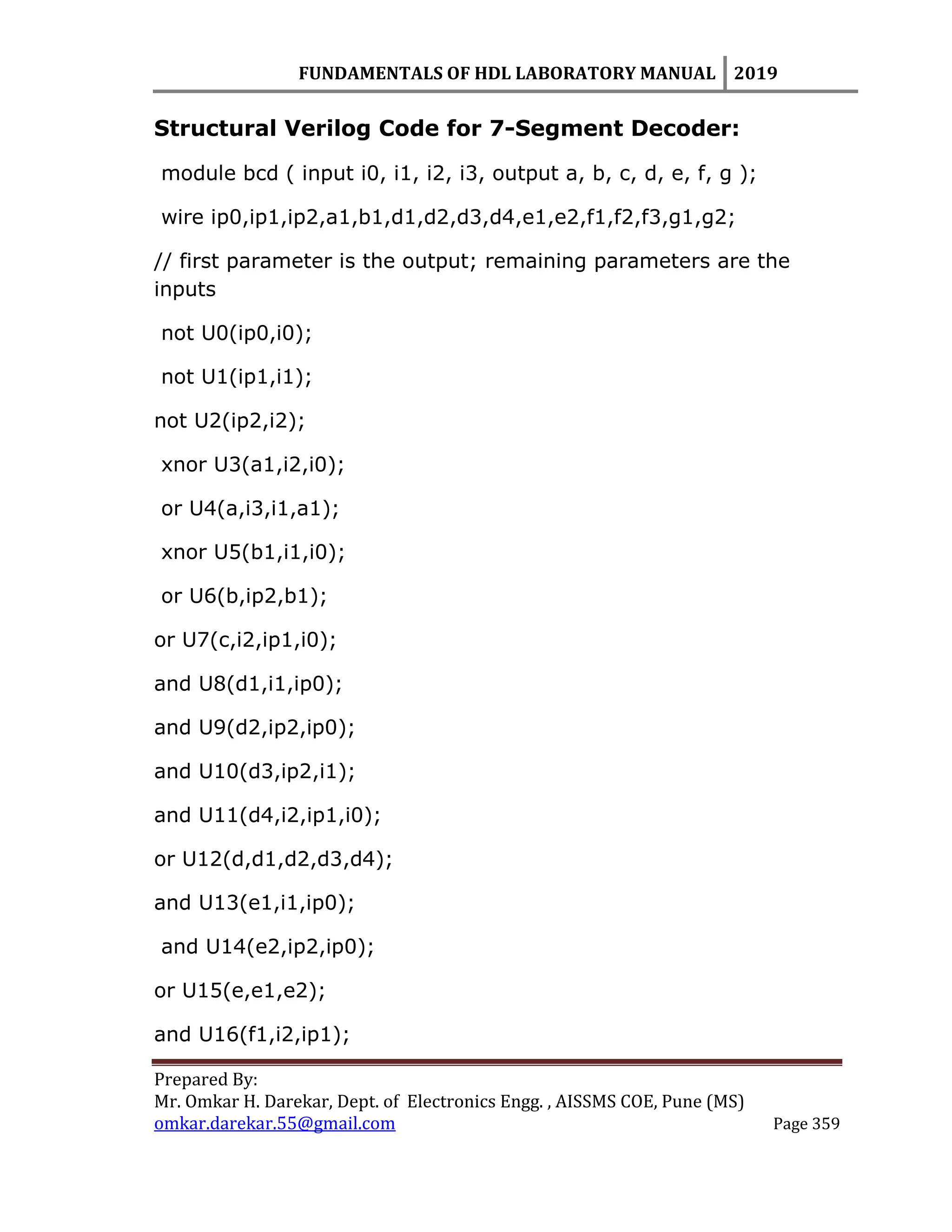

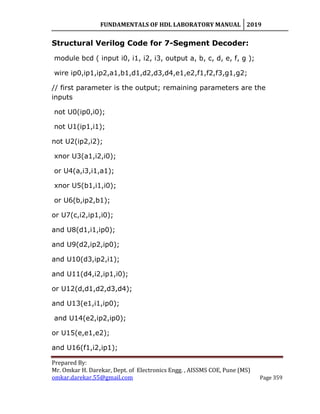

Structural Verilog Code for 7-Segment Decoder:
module bcd ( input i0, i1, i2, i3, output a, b, c, d, e, f, g );
wire ip0,ip1,ip2,a1,b1,d1,d2,d3,d4,e1,e2,f1,f2,f3,g1,g2;
// first parameter is the output; remaining parameters are the
inputs
not U0(ip0,i0);
not U1(ip1,i1);
not U2(ip2,i2);
xnor U3(a1,i2,i0);
or U4(a,i3,i1,a1);
xnor U5(b1,i1,i0);
or U6(b,ip2,b1);
or U7(c,i2,ip1,i0);
and U8(d1,i1,ip0);
and U9(d2,ip2,ip0);
and U10(d3,ip2,i1);
and U11(d4,i2,ip1,i0);
or U12(d,d1,d2,d3,d4);
and U13(e1,i1,ip0);
and U14(e2,ip2,ip0);
or U15(e,e1,e2);
and U16(f1,i2,ip1);

Prepared By:
and U17(f2,i2,ip0);
and U18(f3,ip1,ip0);
or U19(f,i3,f1,f2,f3);
xor U20(g1,i2,i1);
and U21(g2,i1,ip0);
or U22(g,i3,g1,g2);
endmodule

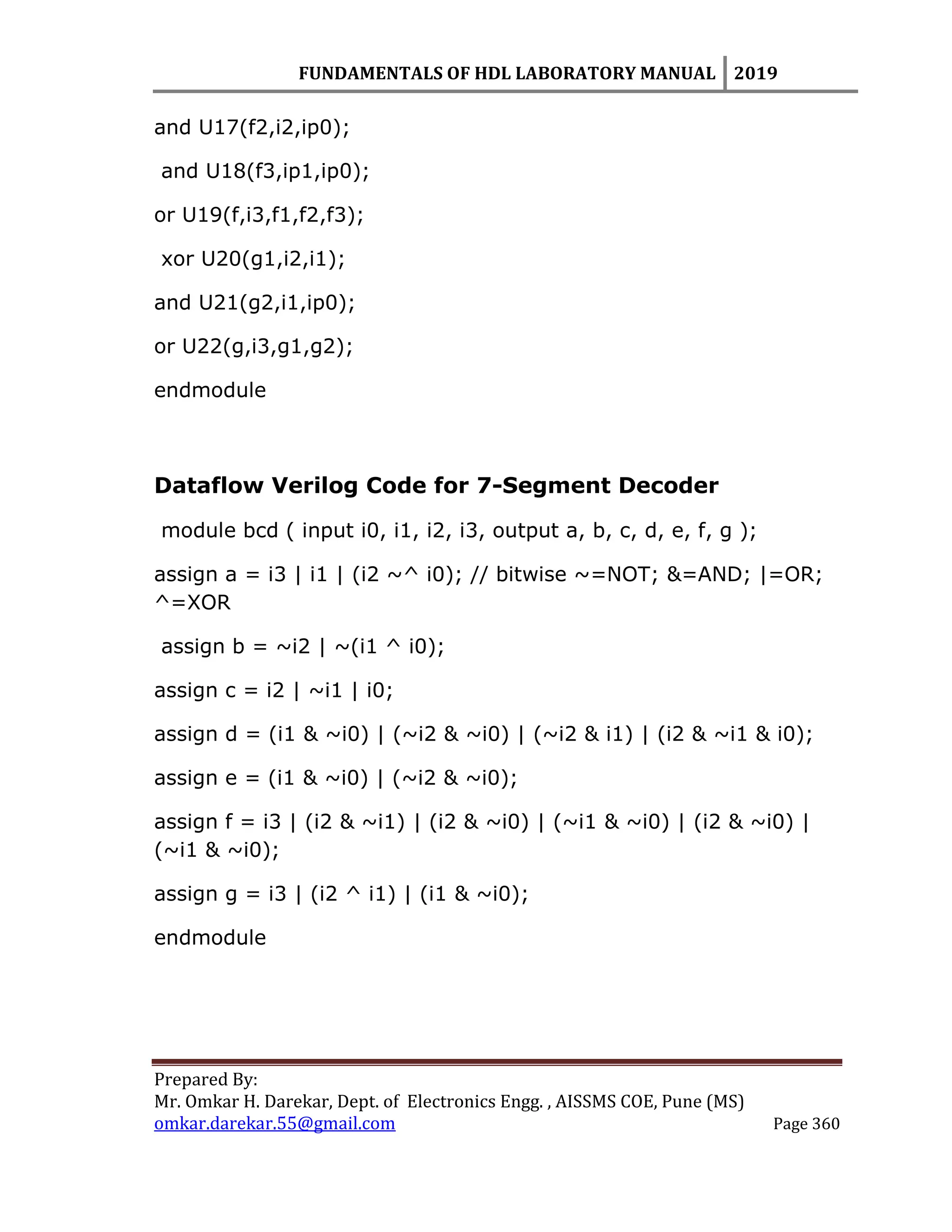

Dataflow Verilog Code for 7-Segment Decoder
module bcd ( input i0, i1, i2, i3, output a, b, c, d, e, f, g );
assign a = i3 | i1 | (i2 ~^ i0); // bitwise ~=NOT; &=AND; |=OR;
^=XOR
assign b = ~i2 | ~(i1 ^ i0);
assign c = i2 | ~i1 | i0;
assign d = (i1 & ~i0) | (~i2 & ~i0) | (~i2 & i1) | (i2 & ~i1 & i0);
assign e = (i1 & ~i0) | (~i2 & ~i0);
assign f = i3 | (i2 & ~i1) | (i2 & ~i0) | (~i1 & ~i0) | (i2 & ~i0) |
(~i1 & ~i0);
assign g = i3 | (i2 ^ i1) | (i1 & ~i0);
endmodule

Prepared By:

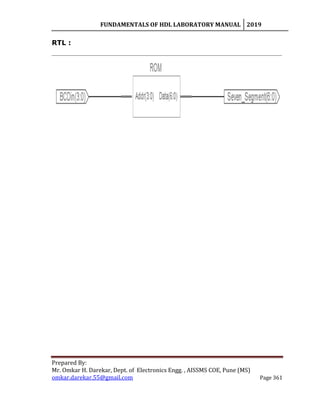

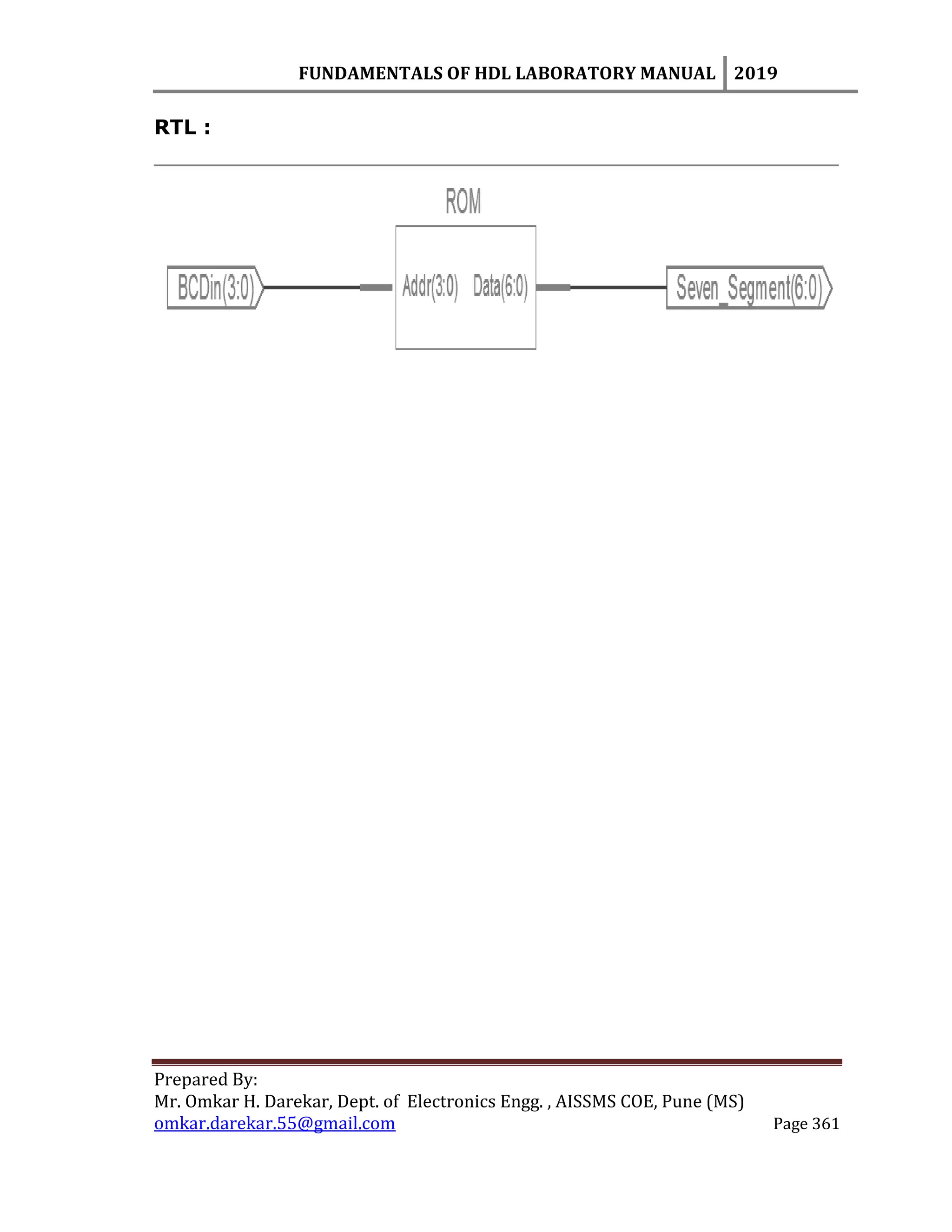

RTL :

Prepared By:

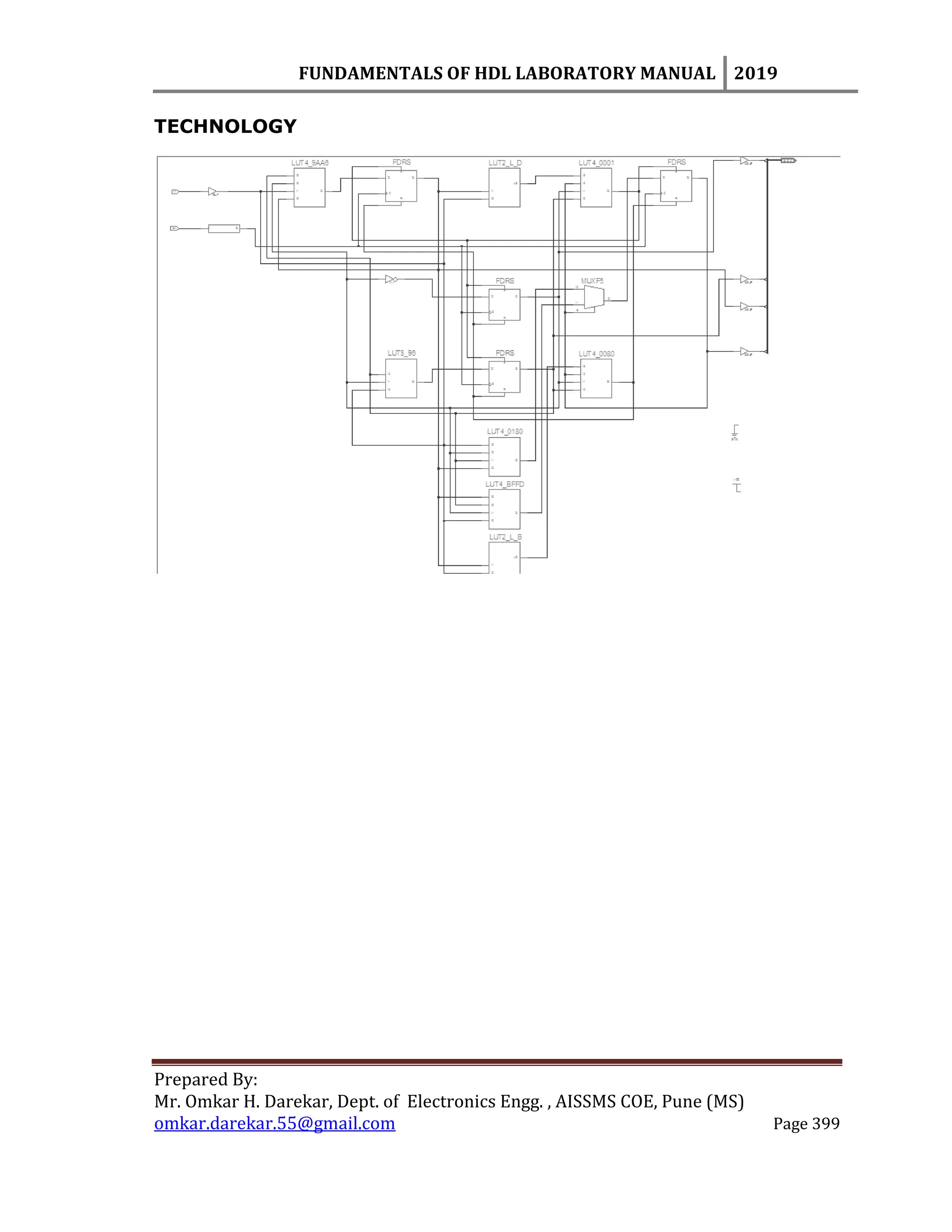

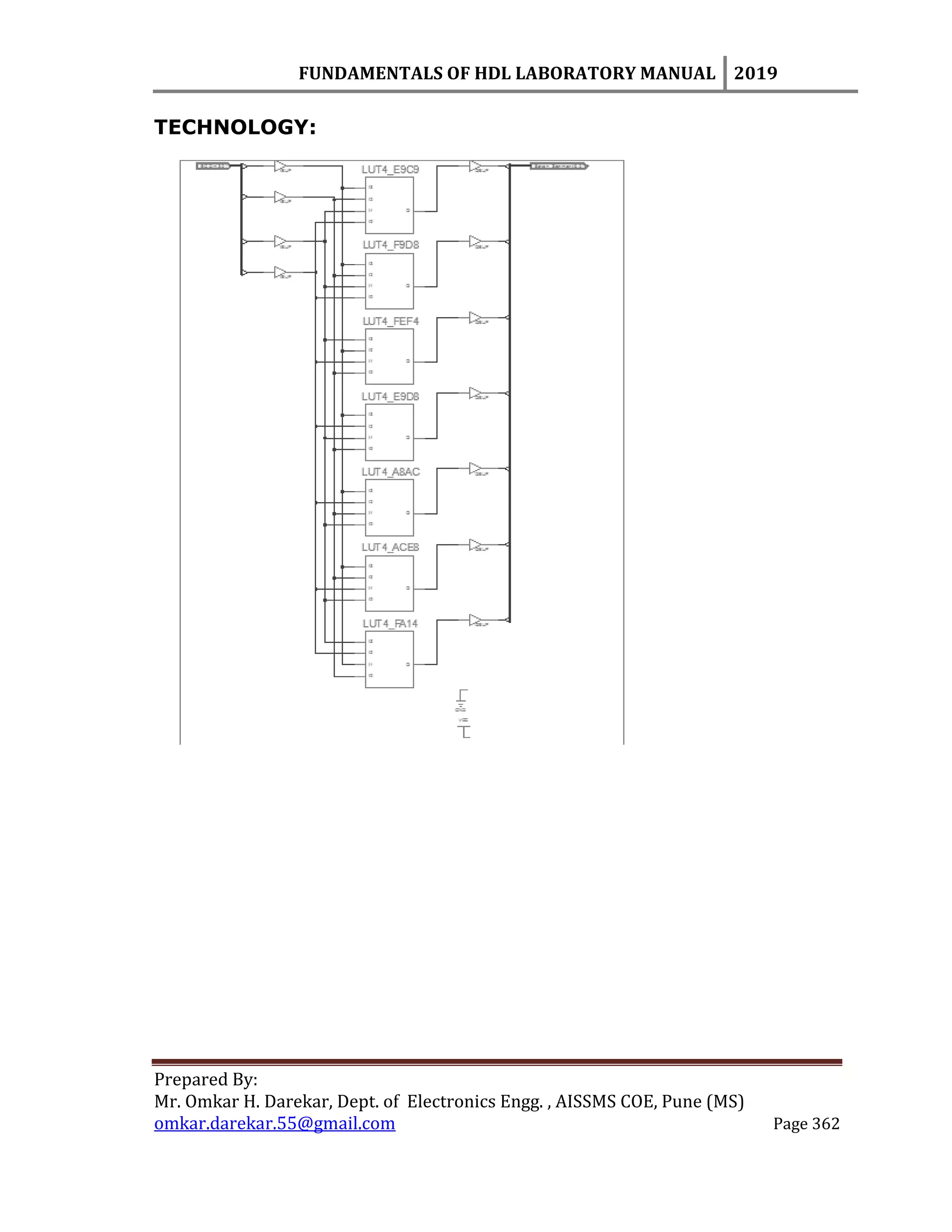

TECHNOLOGY:

Prepared By:

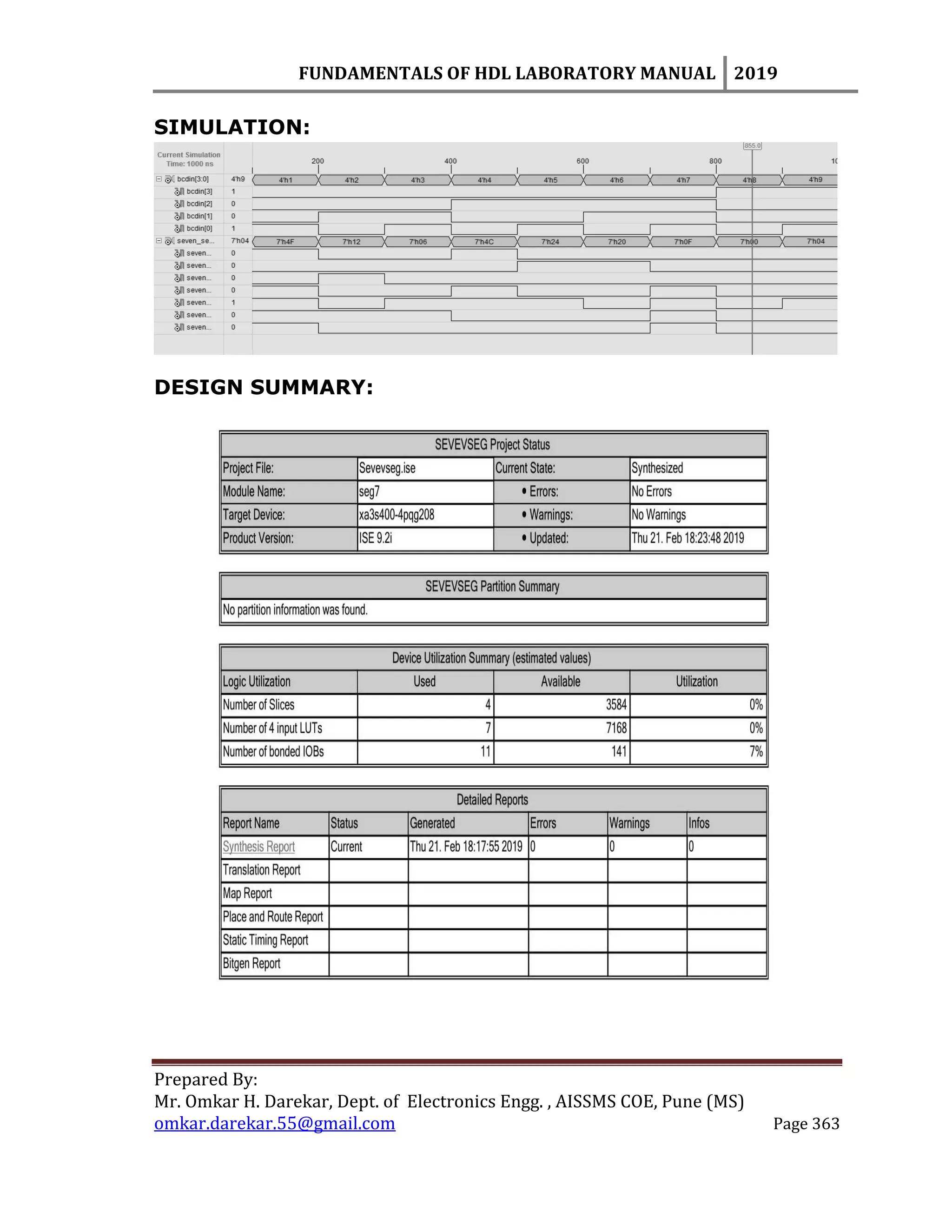

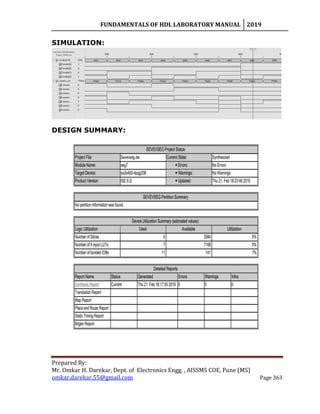

SIMULATION:
DESIGN SUMMARY:

Prepared By:

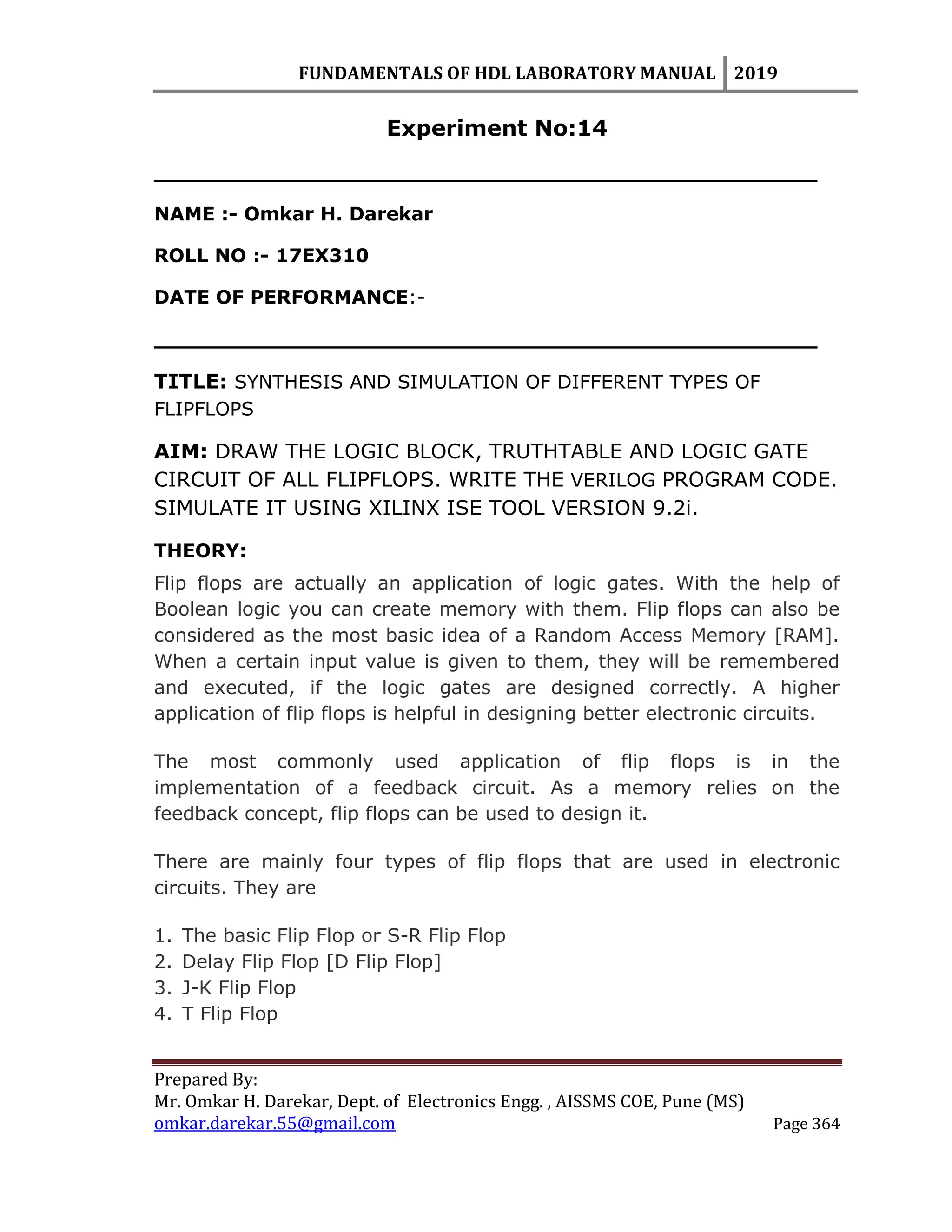

Experiment No:14
__________________________________________________
ROLL NO :- 17EX310
__________________________________________________
TITLE: SYNTHESIS AND SIMULATION OF DIFFERENT TYPES OF
FLIPFLOPS
CIRCUIT OF ALL FLIPFLOPS. WRITE THE VERILOG PROGRAM CODE.
SIMULATE IT USING XILINX ISE TOOL VERSION 9.2i.
THEORY:
Flip flops are actually an application of logic gates. With the help of
Boolean logic you can create memory with them. Flip flops can also be
considered as the most basic idea of a Random Access Memory [RAM].
When a certain input value is given to them, they will be remembered
and executed, if the logic gates are designed correctly. A higher
application of flip flops is helpful in designing better electronic circuits.
The most commonly used application of flip flops is in the
implementation of a feedback circuit. As a memory relies on the
feedback concept, flip flops can be used to design it.
There are mainly four types of flip flops that are used in electronic
circuits. They are
1. The basic Flip Flop or S-R Flip Flop
2. Delay Flip Flop [D Flip Flop]
3. J-K Flip Flop
4. T Flip Flop

Prepared By:
INTRODUCTION:

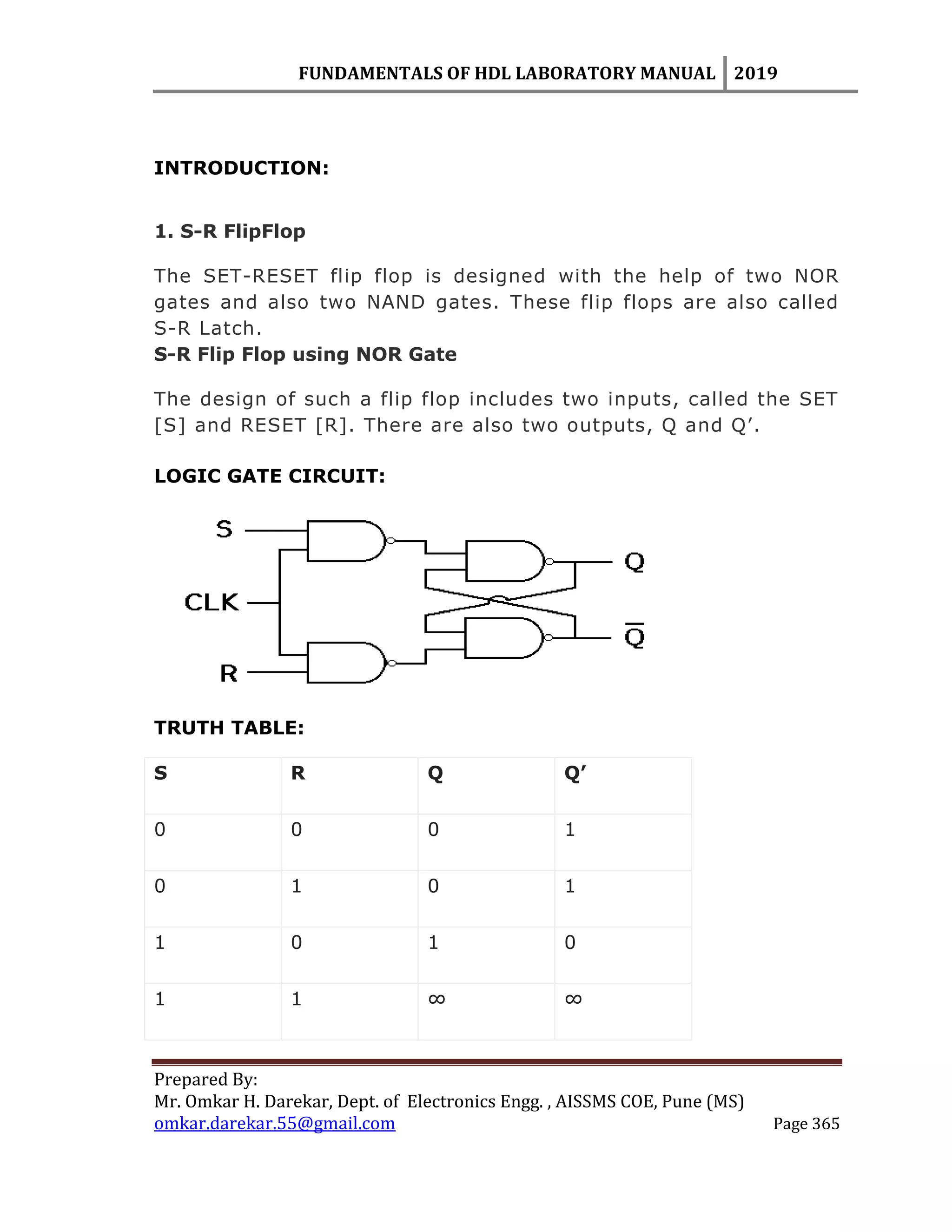

1. S-R FlipFlop
The SET-RESET flip flop is designed with the help of two NOR
gates and also two NAND gates. These flip flops are also called
S-R Latch.
S-R Flip Flop using NOR Gate
The design of such a flip flop includes two inputs, called the SET
[S] and RESET [R]. There are also two outputs, Q and Q‟.
LOGIC GATE CIRCUIT:
TRUTH TABLE:
S R Q Q’
0 0 0 1
0 1 0 1
1 0 1 0
1 1 ∞ ∞

Prepared By:

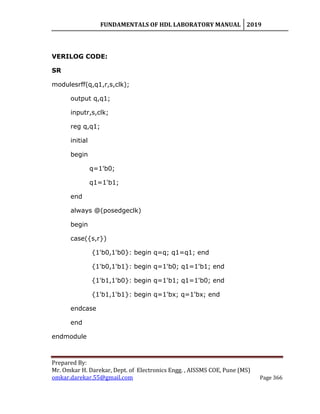

VERILOG CODE:
SR
modulesrff(q,q1,r,s,clk);
output q,q1;
inputr,s,clk;
reg q,q1;
initial
begin
q=1'b0;
q1=1'b1;
end
always @(posedgeclk)
begin
case({s,r})
{1'b0,1'b0}: begin q=q; q1=q1; end
{1'b0,1'b1}: begin q=1'b0; q1=1'b1; end
{1'b1,1'b0}: begin q=1'b1; q1=1'b0; end
{1'b1,1'b1}: begin q=1'bx; q=1'bx; end
endcase
end
endmodule

Prepared By:

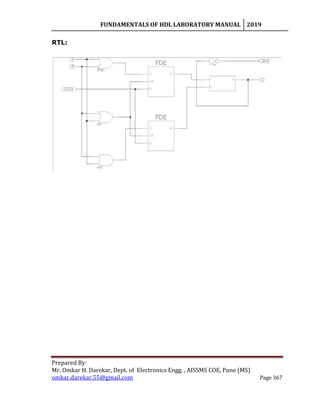

RTL:

Prepared By:

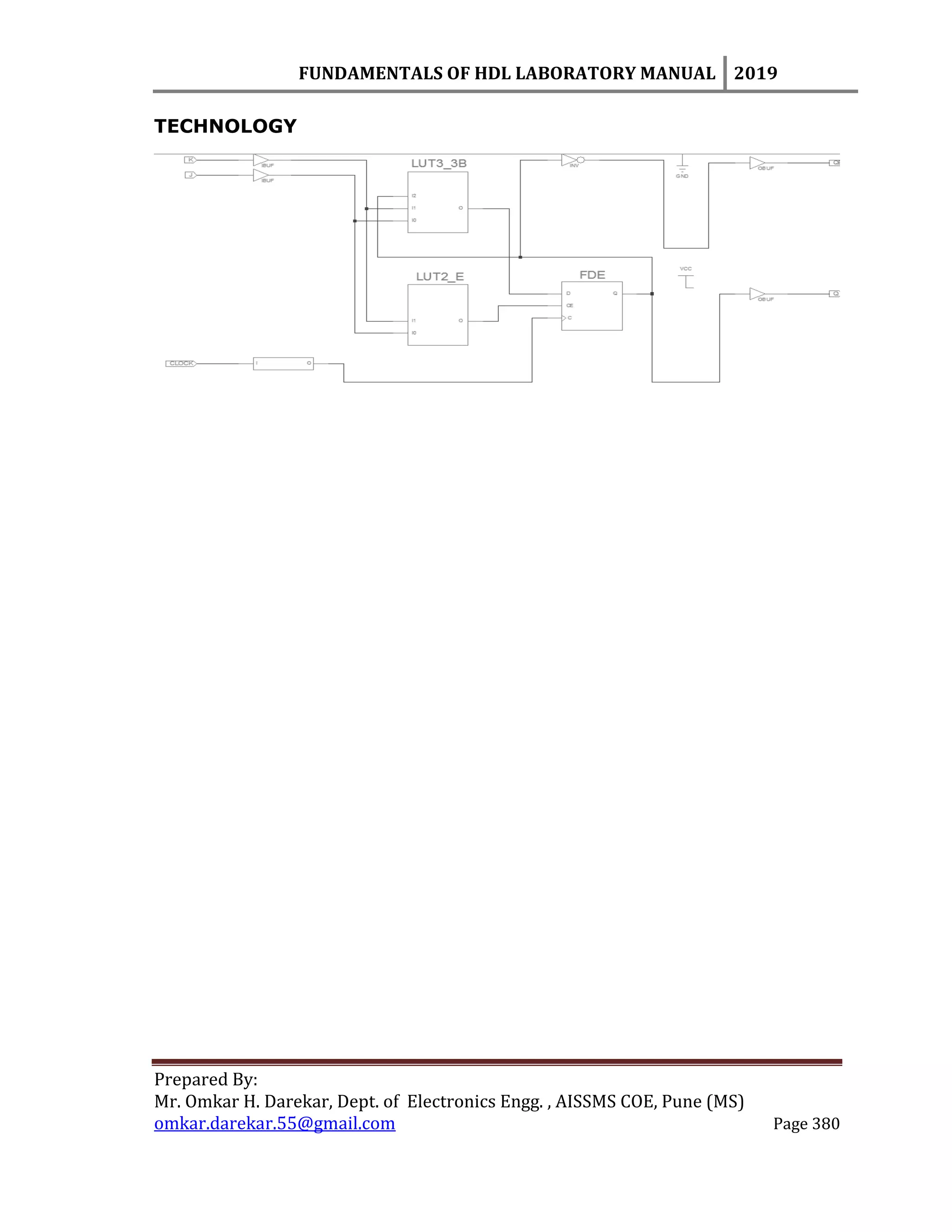

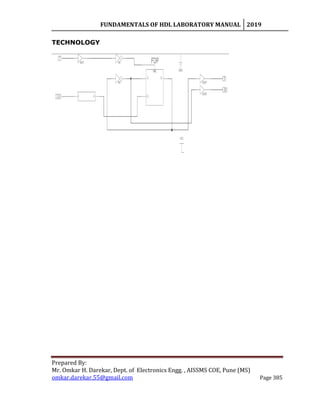

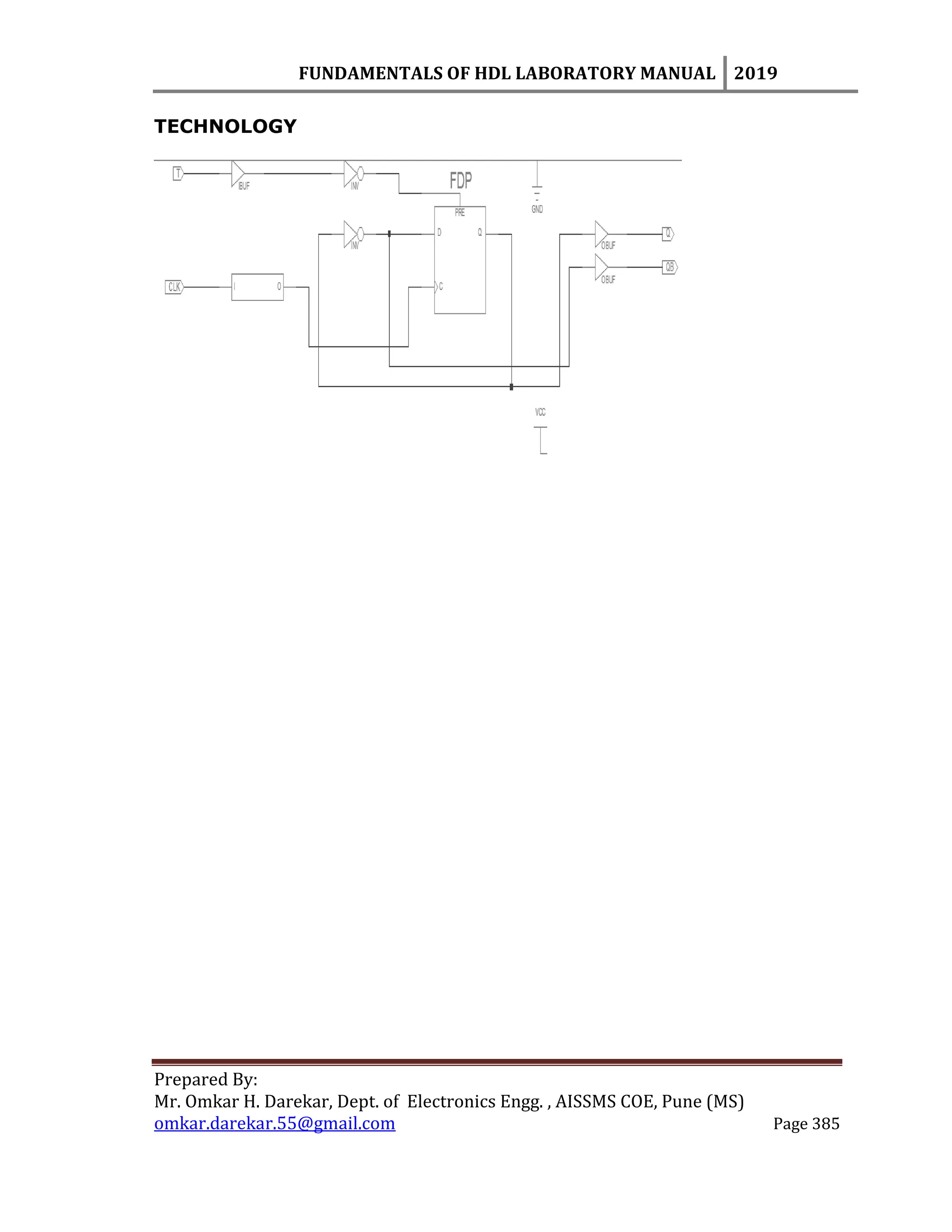

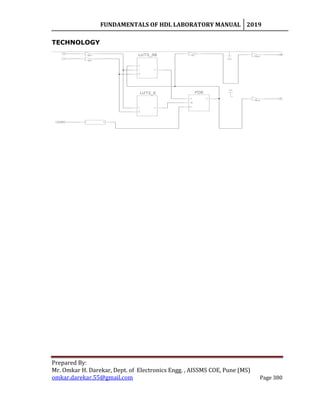

TECHNOLOGY:

Prepared By:

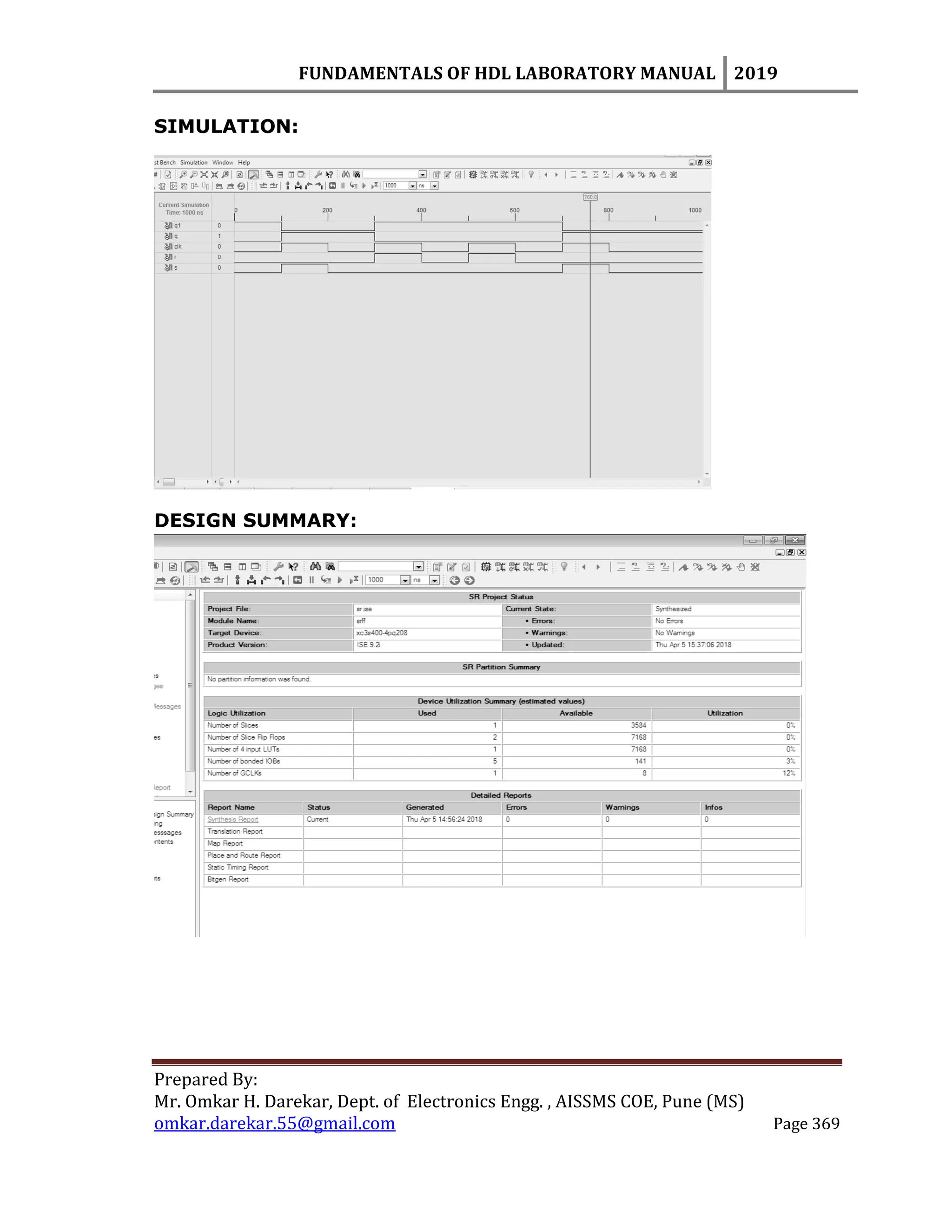

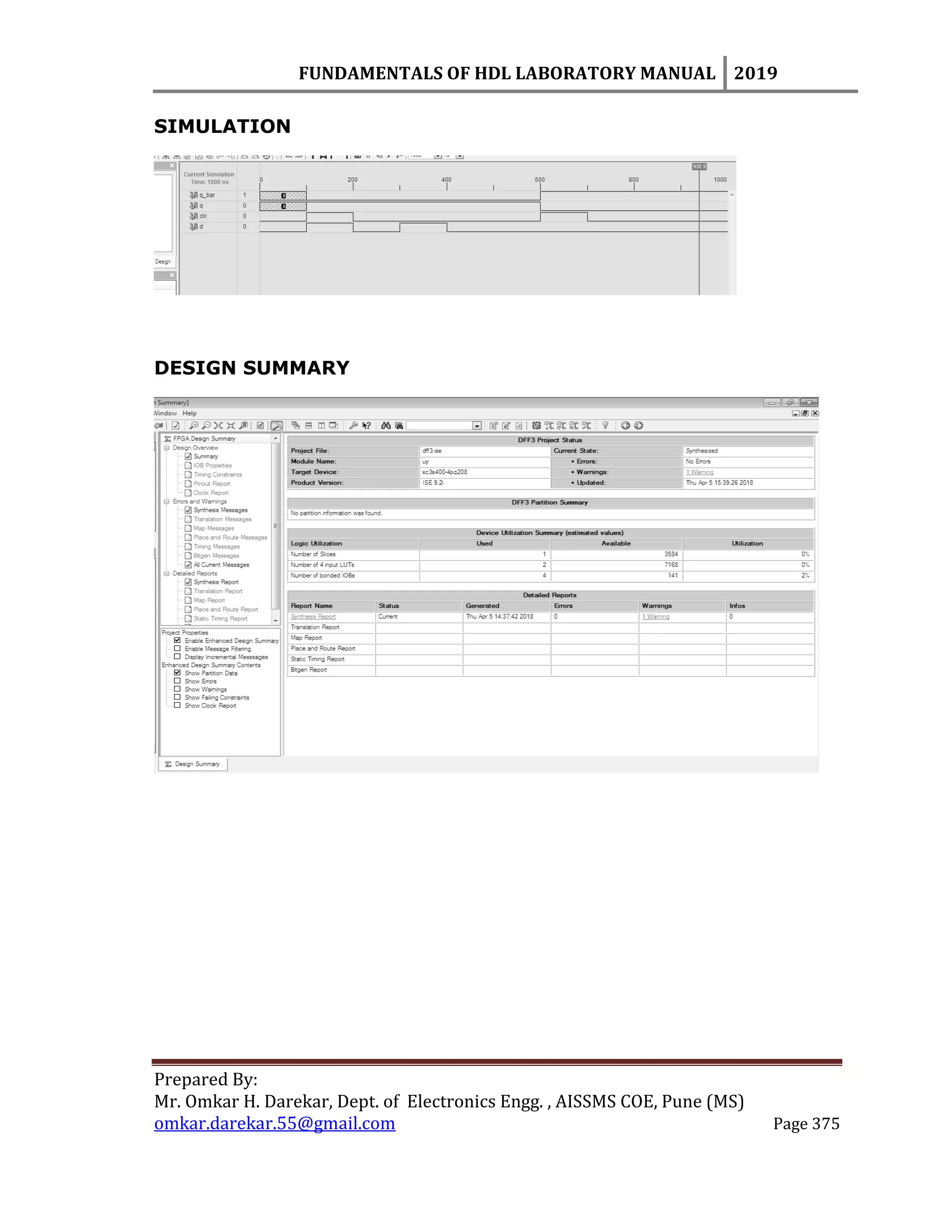

SIMULATION:
DESIGN SUMMARY:

Prepared By:

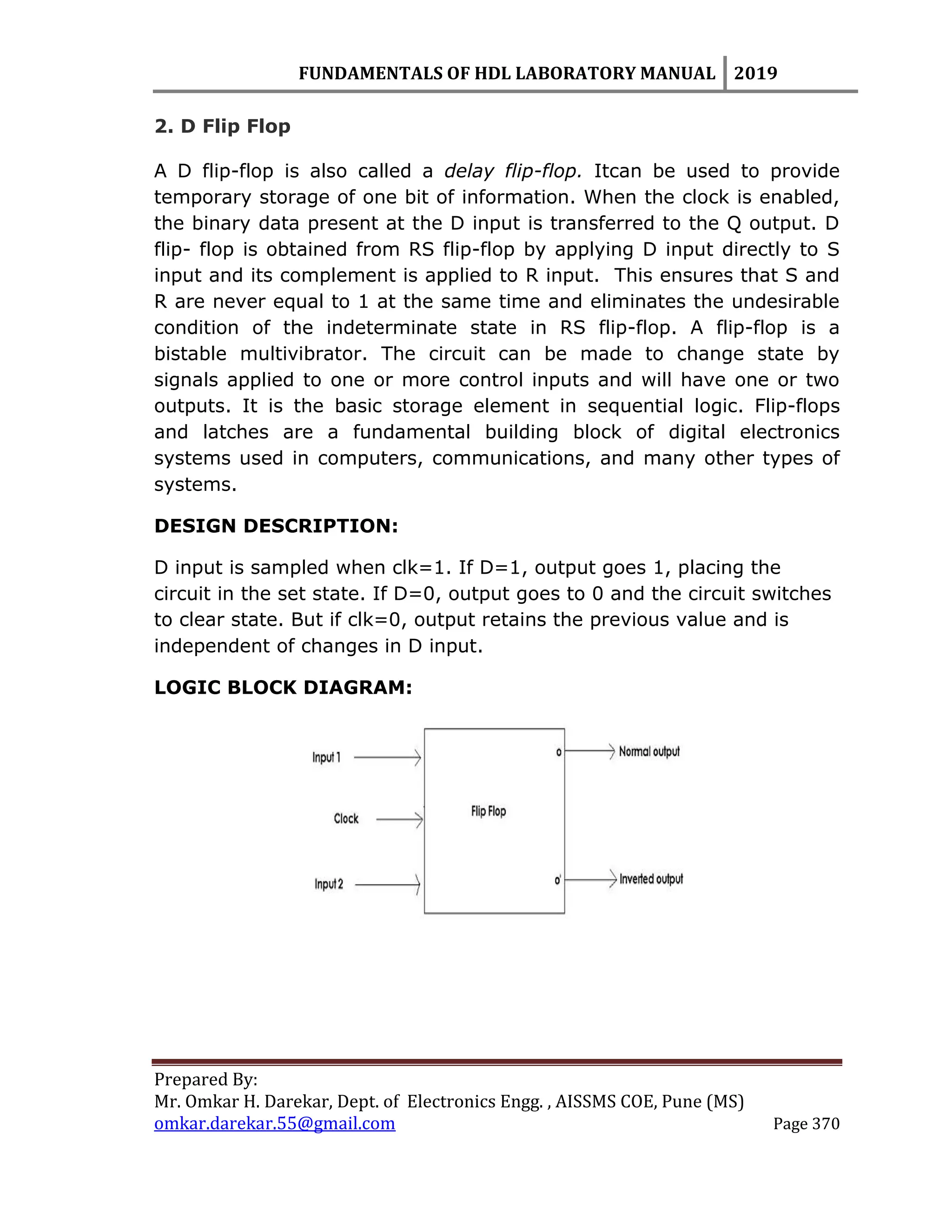

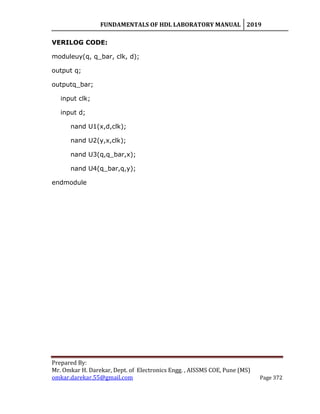

2. D Flip Flop
A D flip-flop is also called a delay flip-flop. Itcan be used to provide
temporary storage of one bit of information. When the clock is enabled,
the binary data present at the D input is transferred to the Q output. D
flip- flop is obtained from RS flip-flop by applying D input directly to S
input and its complement is applied to R input. This ensures that S and
R are never equal to 1 at the same time and eliminates the undesirable
condition of the indeterminate state in RS flip-flop. A flip-flop is a
bistable multivibrator. The circuit can be made to change state by
signals applied to one or more control inputs and will have one or two
outputs. It is the basic storage element in sequential logic. Flip-flops
and latches are a fundamental building block of digital electronics
systems used in computers, communications, and many other types of
systems.
DESIGN DESCRIPTION:
D input is sampled when clk=1. If D=1, output goes 1, placing the
circuit in the set state. If D=0, output goes to 0 and the circuit switches
to clear state. But if clk=0, output retains the previous value and is
independent of changes in D input.

Prepared By:

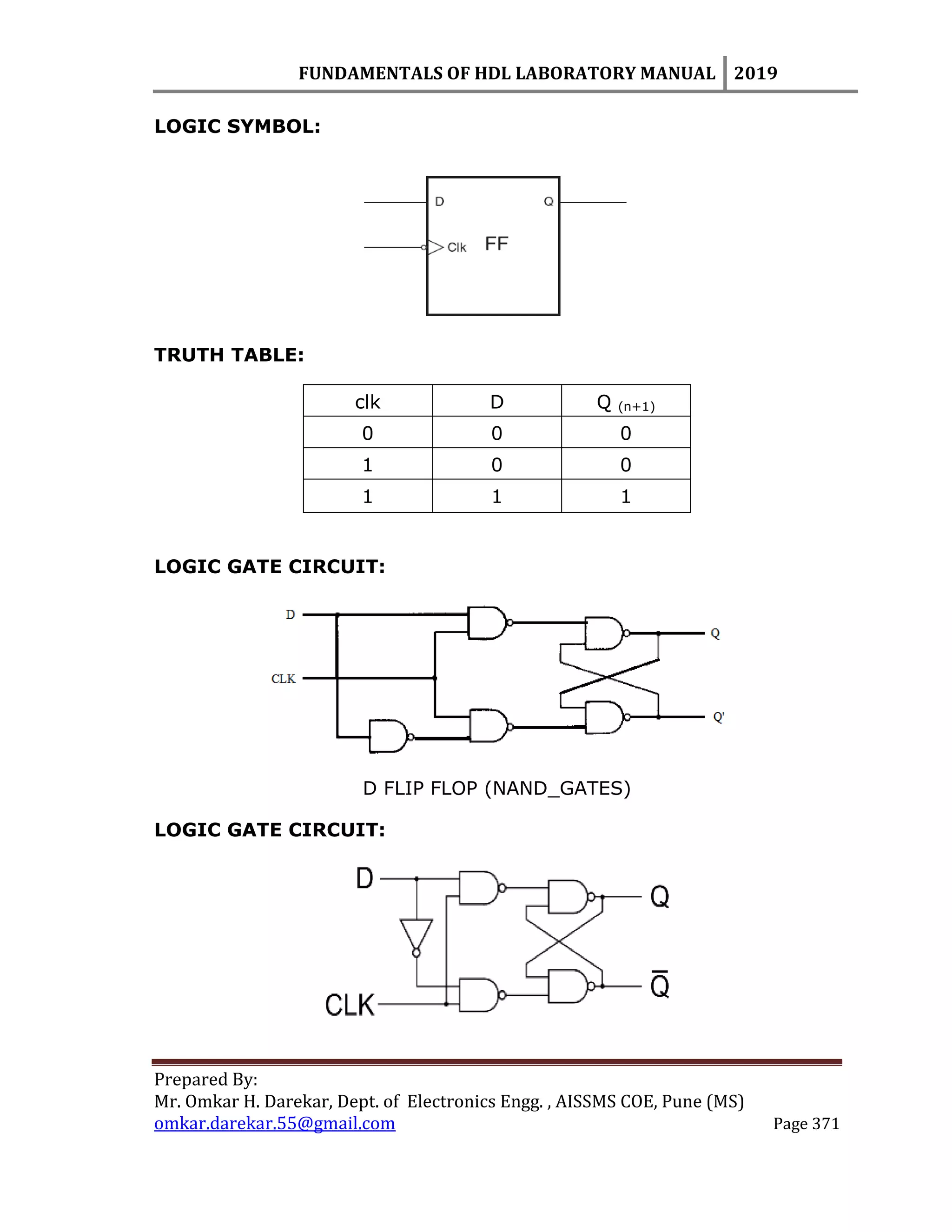

LOGIC SYMBOL:
TRUTH TABLE:
clk D Q (n+1)
0 0 0
1 0 0
1 1 1
LOGIC GATE CIRCUIT:
D FLIP FLOP (NAND_GATES)
LOGIC GATE CIRCUIT:

Prepared By:

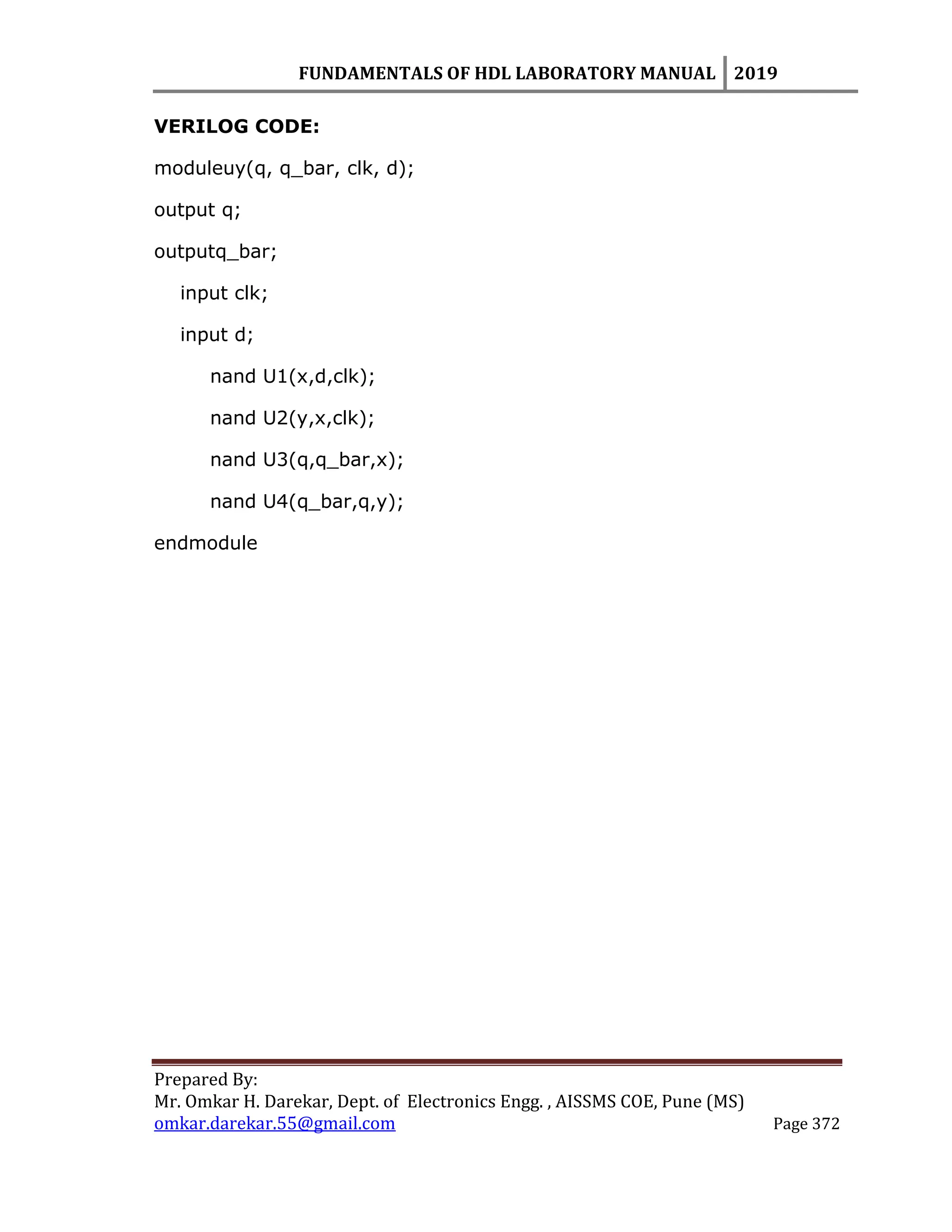

VERILOG CODE:
moduleuy(q, q_bar, clk, d);
output q;
outputq_bar;
input clk;
input d;
nand U1(x,d,clk);
nand U2(y,x,clk);
nand U3(q,q_bar,x);
nand U4(q_bar,q,y);
endmodule

Prepared By:
RTL

Prepared By:

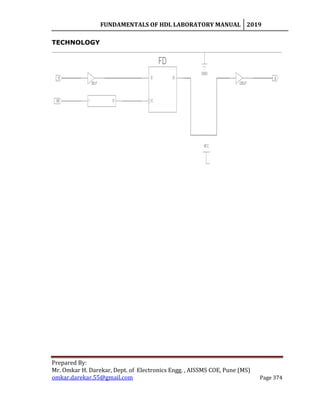

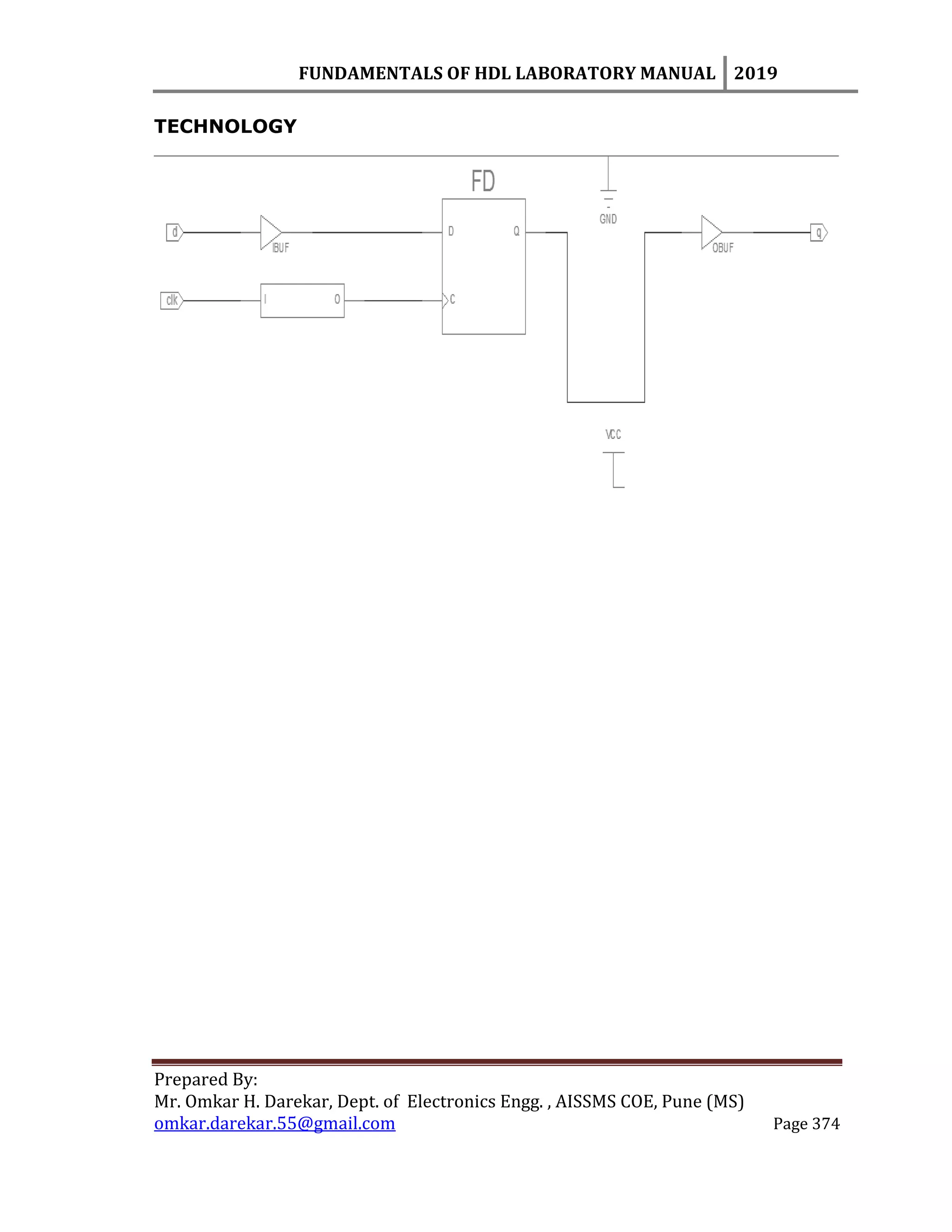

TECHNOLOGY

Prepared By:
SIMULATION
DESIGN SUMMARY

Prepared By:

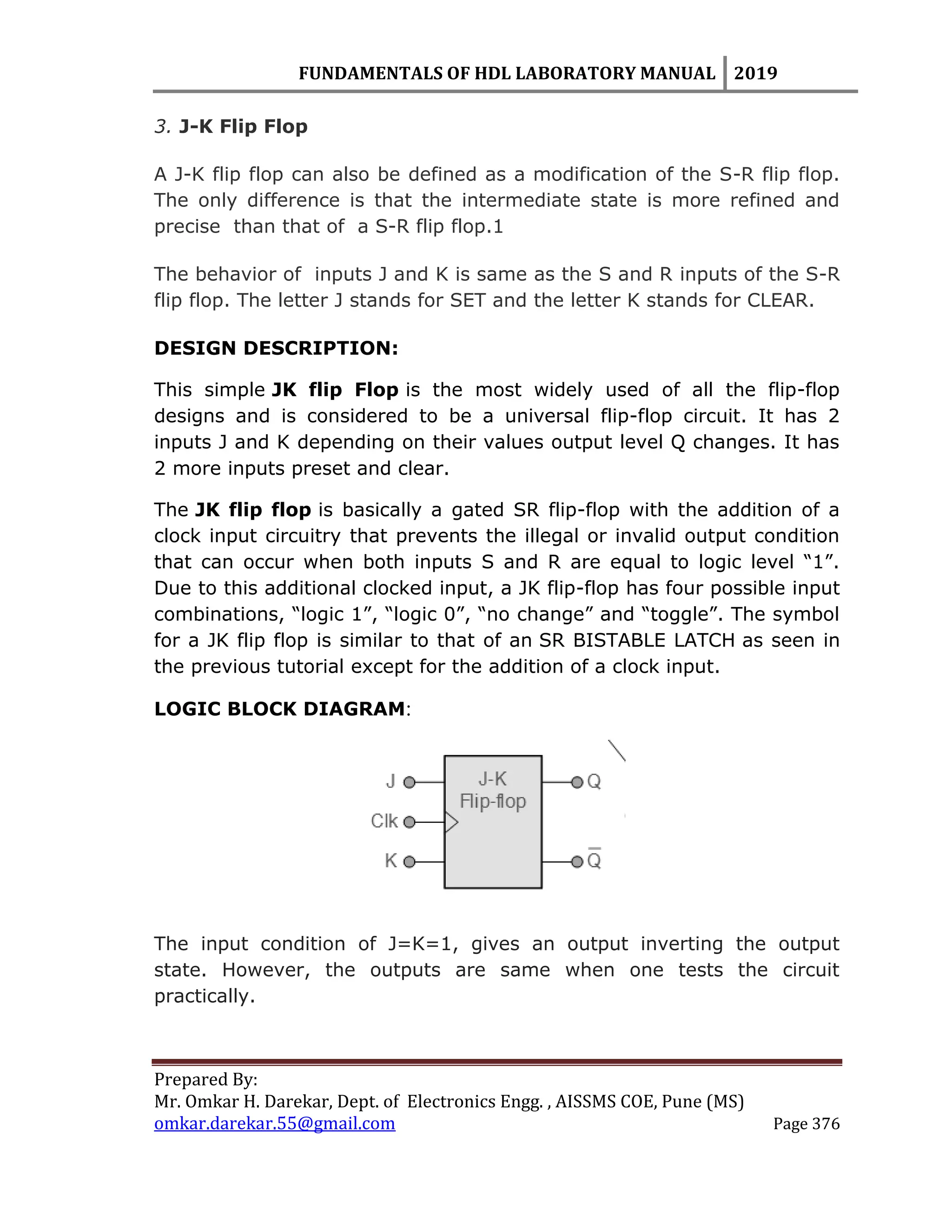

3. J-K Flip Flop
A J-K flip flop can also be defined as a modification of the S-R flip flop.
The only difference is that the intermediate state is more refined and
precise than that of a S-R flip flop.1
The behavior of inputs J and K is same as the S and R inputs of the S-R
flip flop. The letter J stands for SET and the letter K stands for CLEAR.
DESIGN DESCRIPTION:
This simple JK flip Flop is the most widely used of all the flip-flop
designs and is considered to be a universal flip-flop circuit. It has 2
inputs J and K depending on their values output level Q changes. It has
2 more inputs preset and clear.
The JK flip flop is basically a gated SR flip-flop with the addition of a
clock input circuitry that prevents the illegal or invalid output condition
that can occur when both inputs S and R are equal to logic level “1”.
Due to this additional clocked input, a JK flip-flop has four possible input
combinations, “logic 1”, “logic 0”, “no change” and “toggle”. The symbol
for a JK flip flop is similar to that of an SR BISTABLE LATCH as seen in
the previous tutorial except for the addition of a clock input.
The input condition of J=K=1, gives an output inverting the output
state. However, the outputs are same when one tests the circuit
practically.

Prepared By:

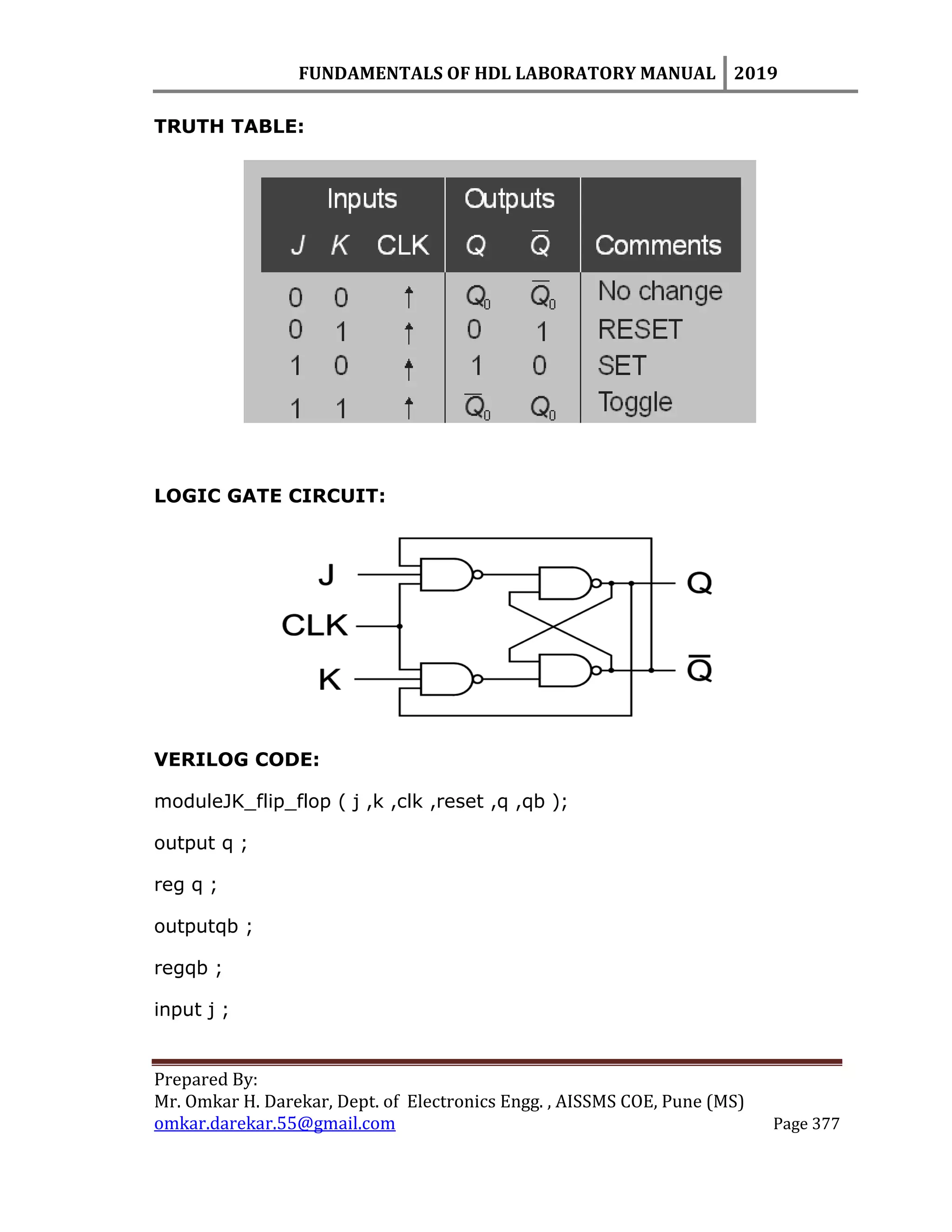

TRUTH TABLE:
LOGIC GATE CIRCUIT:
VERILOG CODE:
moduleJK_flip_flop ( j ,k ,clk ,reset ,q ,qb );
output q ;
reg q ;
outputqb ;
regqb ;
input j ;

Prepared By:

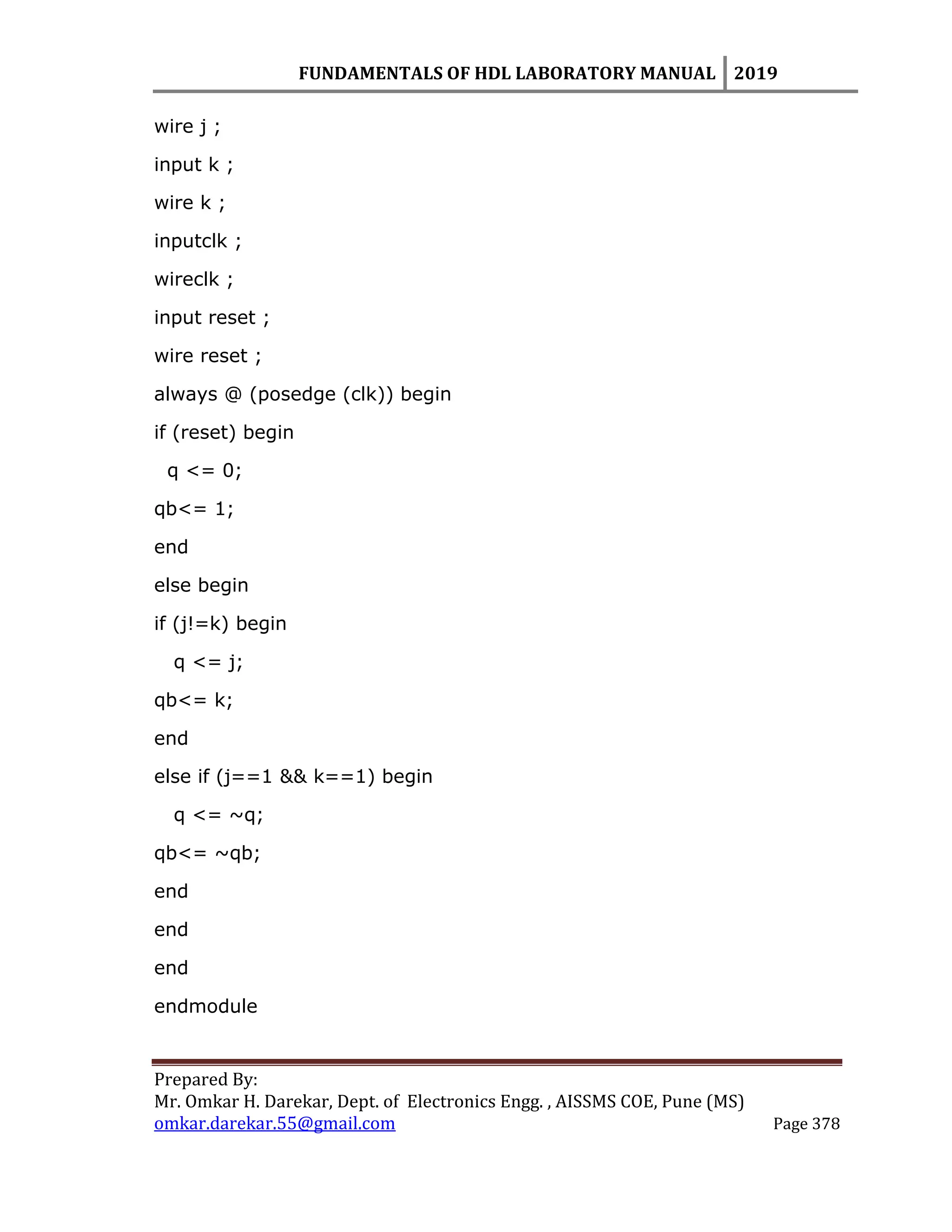

wire j ;
input k ;
wire k ;
inputclk ;
wireclk ;
input reset ;
wire reset ;
always @ (posedge (clk)) begin
if (reset) begin
q <= 0;
qb<= 1;
end
else begin
if (j!=k) begin
q <= j;
qb<= k;
end
else if (j==1 && k==1) begin
q <= ~q;
qb<= ~qb;
end
end
end
endmodule

Prepared By:

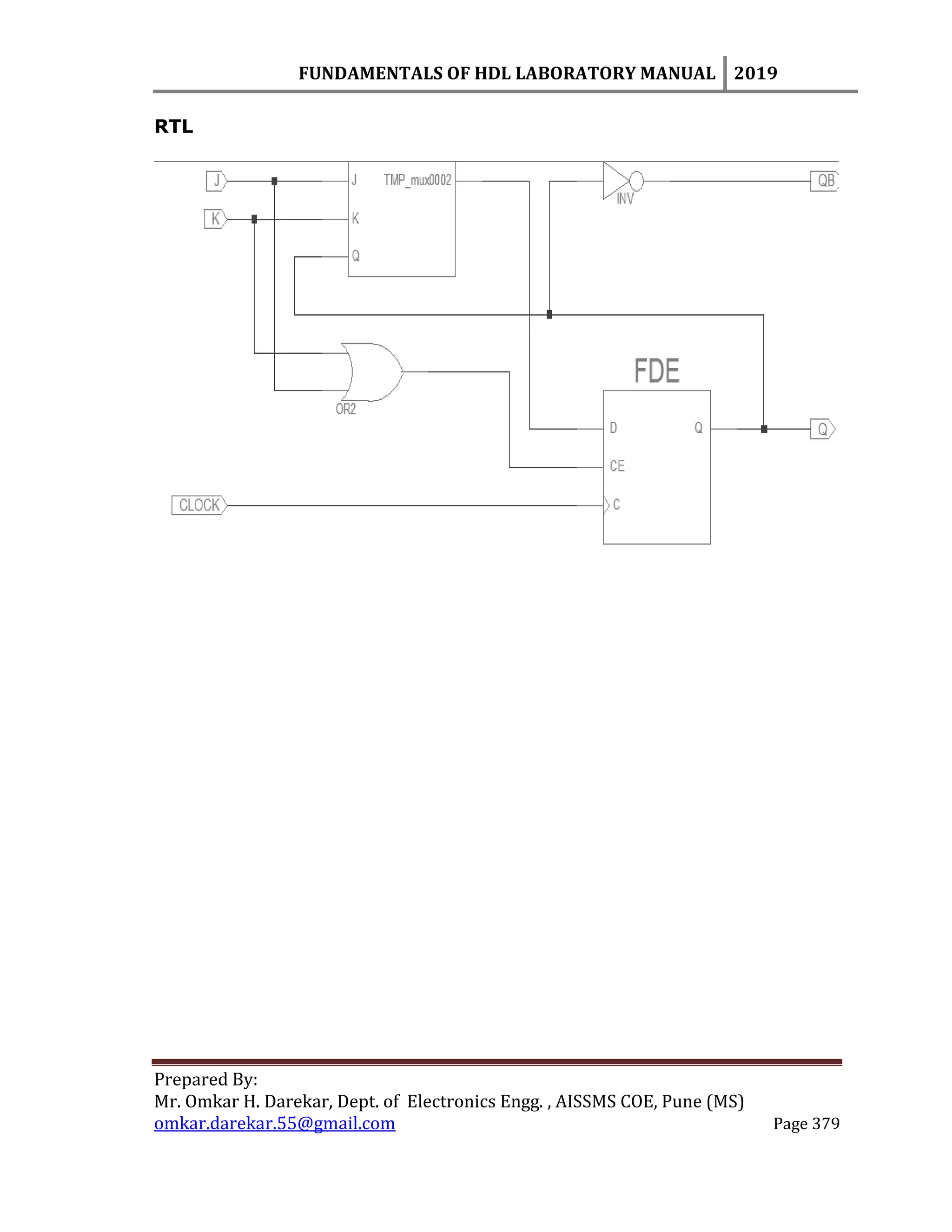

RTL

Prepared By:
TECHNOLOGY

Prepared By:

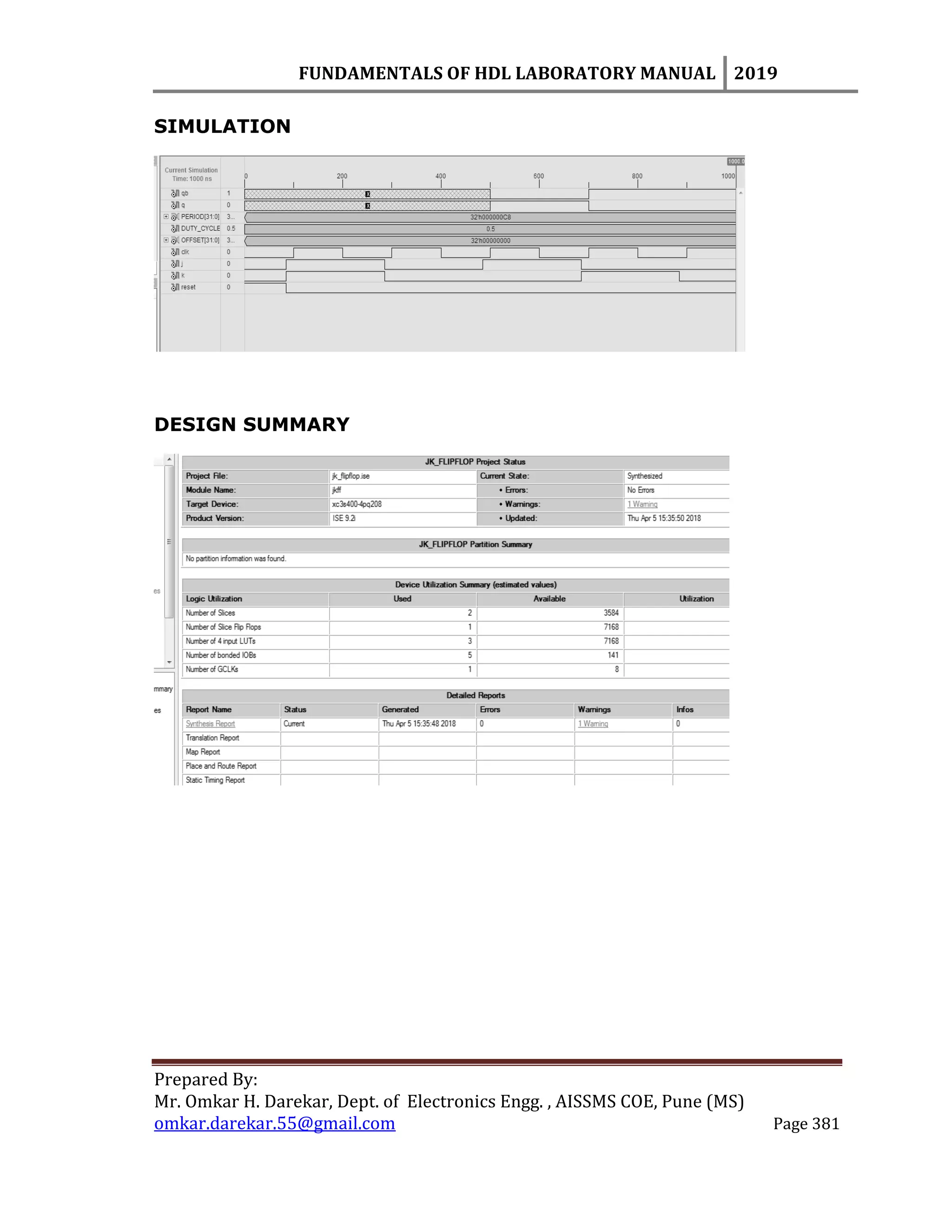

SIMULATION
DESIGN SUMMARY

Prepared By:

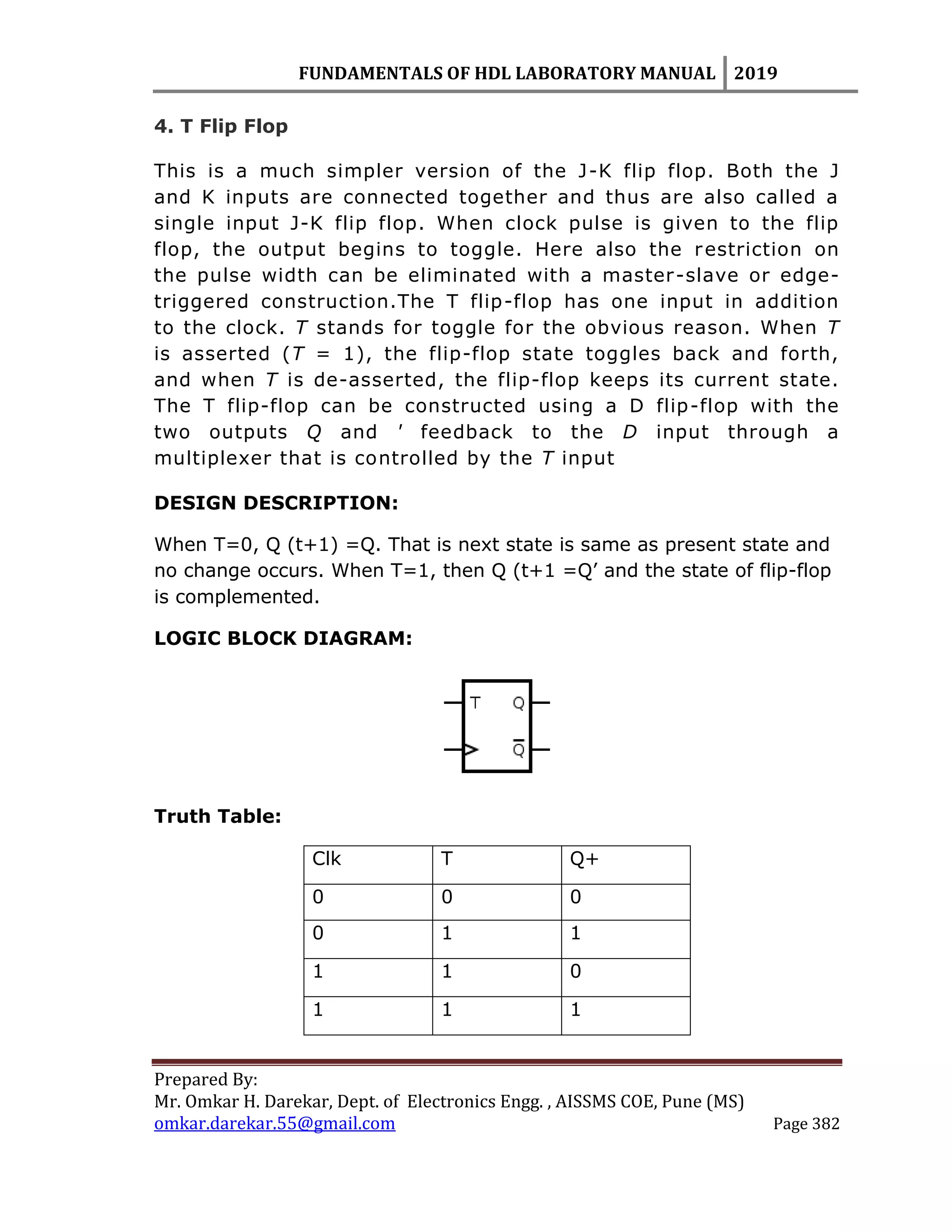

4. T Flip Flop
This is a much simpler version of the J-K flip flop. Both the J
and K inputs are connected together and thus are also called a
single input J-K flip flop. When clock pulse is given to the flip
flop, the output begins to toggle. Here also the restriction on
the pulse width can be eliminated with a master-slave or edge-
triggered construction.The T flip-flop has one input in addition
to the clock. T stands for toggle for the obvious reason. When T
is asserted (T = 1), the flip-flop state toggles back and forth,
and when T is de-asserted, the flip-flop keeps its current state.
The T flip-flop can be constructed using a D flip-flop with the
two outputs Q and ' feedback to the D input through a
multiplexer that is controlled by the T input
DESIGN DESCRIPTION:
When T=0, Q (t+1) =Q. That is next state is same as present state and
no change occurs. When T=1, then Q (t+1 =Q‟ and the state of flip-flop
is complemented.
Truth Table:
Clk T Q+
0 0 0
0 1 1
1 1 0
1 1 1

Prepared By:

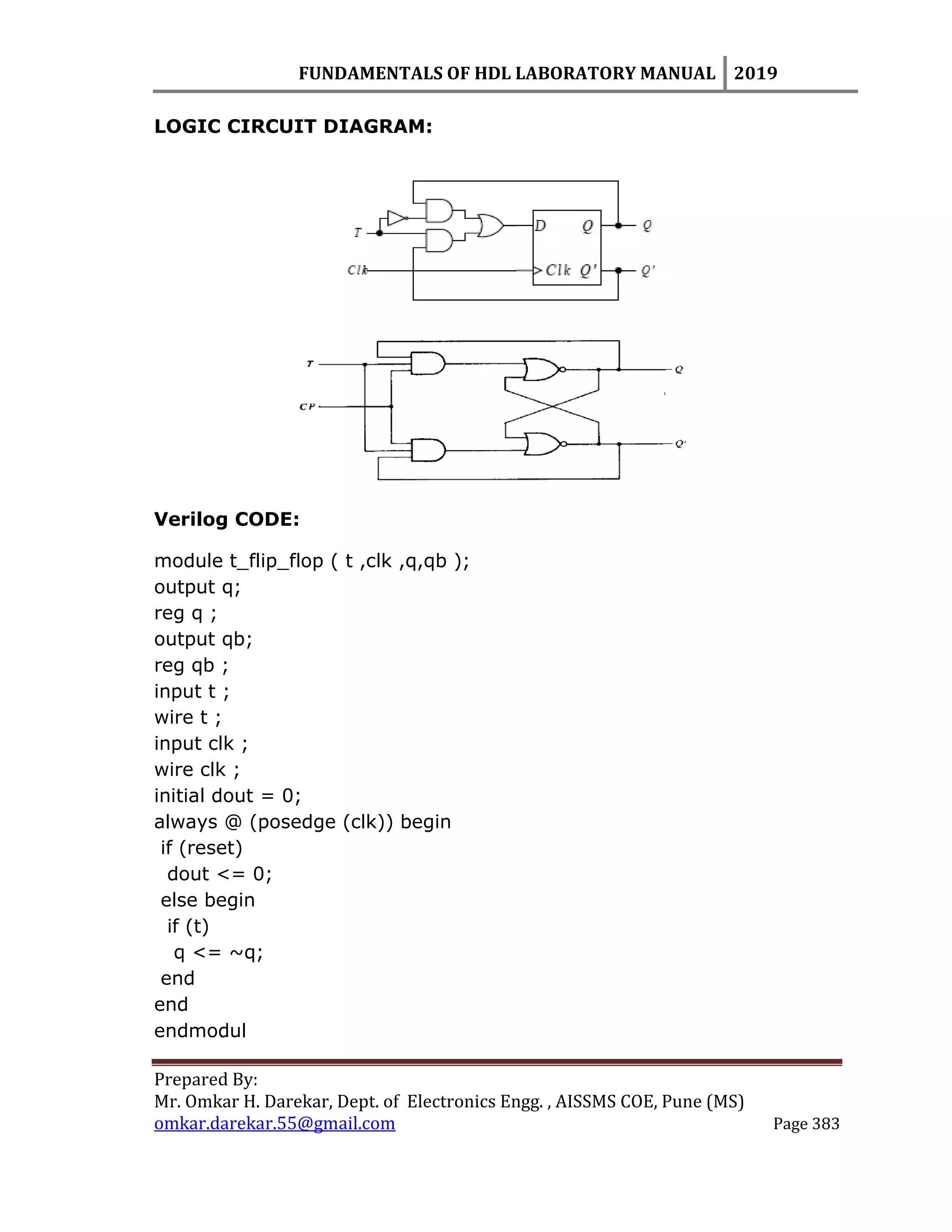

LOGIC CIRCUIT DIAGRAM:
Verilog CODE:
module t_flip_flop ( t ,clk ,q,qb );
output q;
reg q ;
output qb;
reg qb ;
input t ;
wire t ;
input clk ;
wire clk ;
initial dout = 0;
always @ (posedge (clk)) begin
if (reset)
dout <= 0;
else begin
if (t)
q <= ~q;
end
end
endmodul

Prepared By:

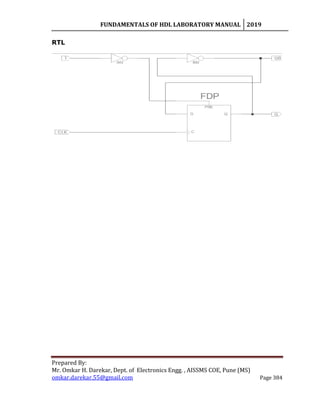

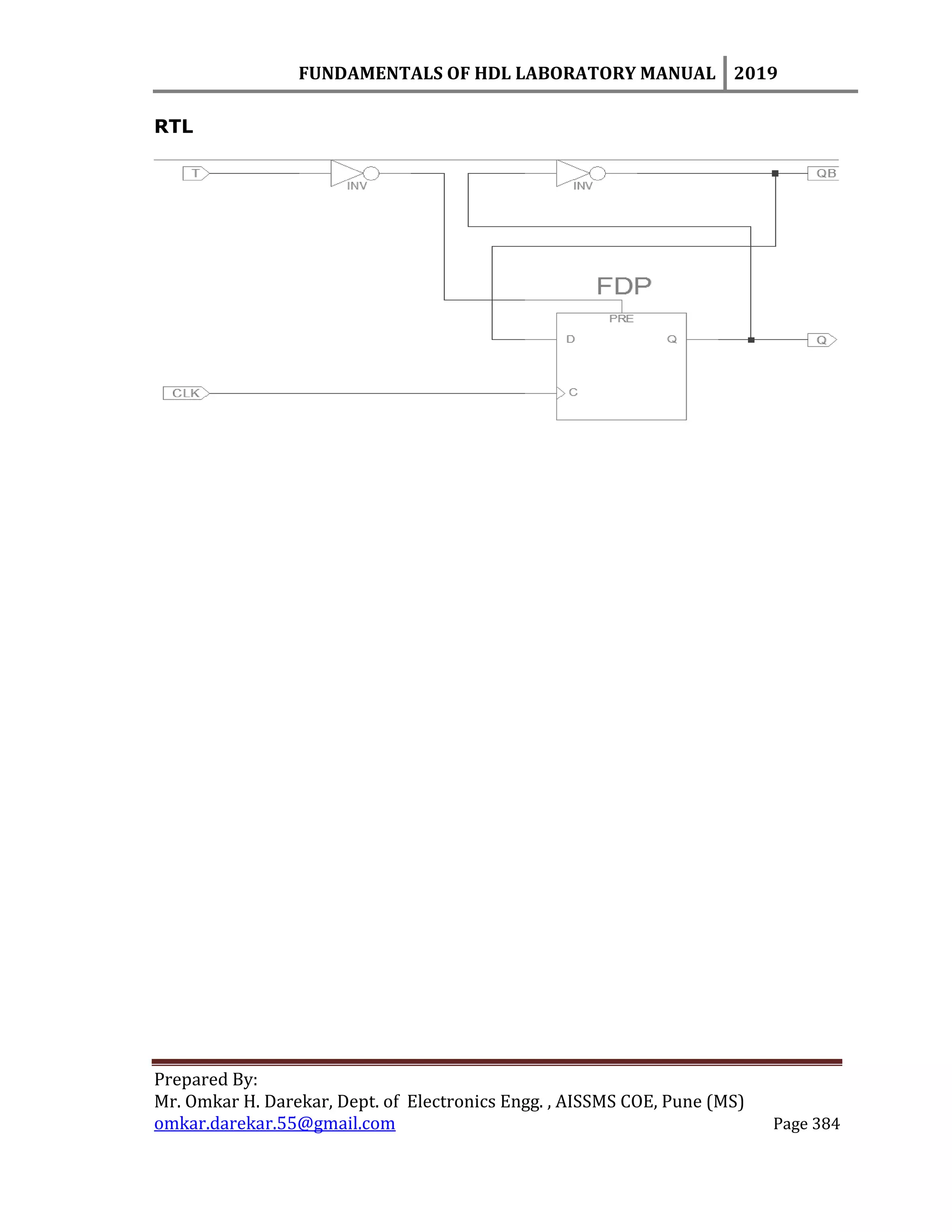

RTL

Prepared By:
TECHNOLOGY

Prepared By:
SIMULATION
DESIGN SUMMARY

Prepared By:

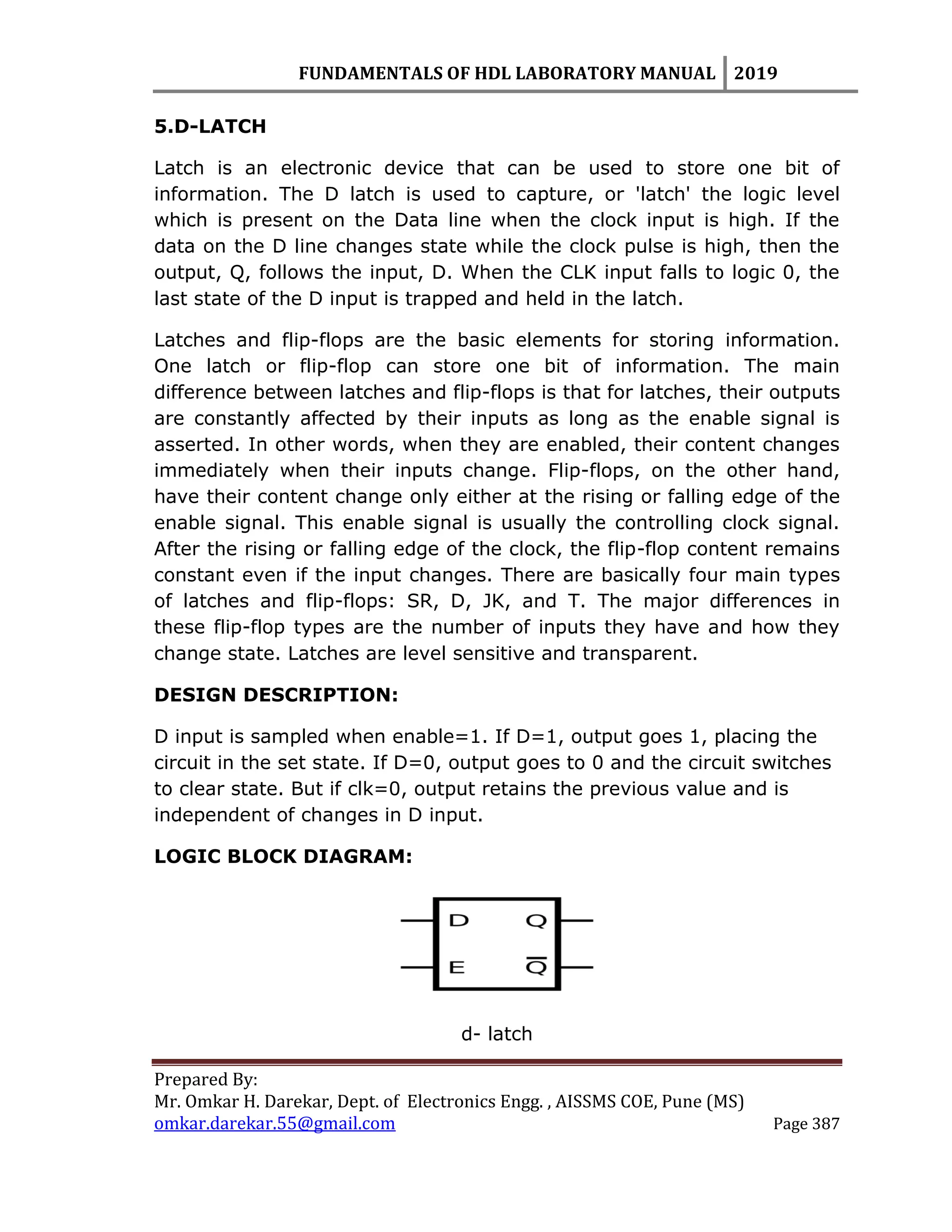

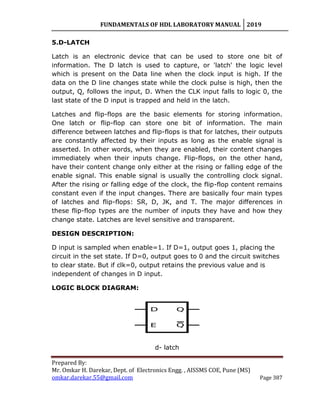

5.D-LATCH
Latch is an electronic device that can be used to store one bit of
information. The D latch is used to capture, or 'latch' the logic level
which is present on the Data line when the clock input is high. If the
data on the D line changes state while the clock pulse is high, then the
output, Q, follows the input, D. When the CLK input falls to logic 0, the
last state of the D input is trapped and held in the latch.
Latches and flip-flops are the basic elements for storing information.
One latch or flip-flop can store one bit of information. The main
difference between latches and flip-flops is that for latches, their outputs
are constantly affected by their inputs as long as the enable signal is
asserted. In other words, when they are enabled, their content changes
immediately when their inputs change. Flip-flops, on the other hand,
have their content change only either at the rising or falling edge of the
enable signal. This enable signal is usually the controlling clock signal.
After the rising or falling edge of the clock, the flip-flop content remains
constant even if the input changes. There are basically four main types
of latches and flip-flops: SR, D, JK, and T. The major differences in
these flip-flop types are the number of inputs they have and how they
change state. Latches are level sensitive and transparent.
DESIGN DESCRIPTION:
D input is sampled when enable=1. If D=1, output goes 1, placing the
circuit in the set state. If D=0, output goes to 0 and the circuit switches
to clear state. But if clk=0, output retains the previous value and is
independent of changes in D input.
d- latch

Prepared By:

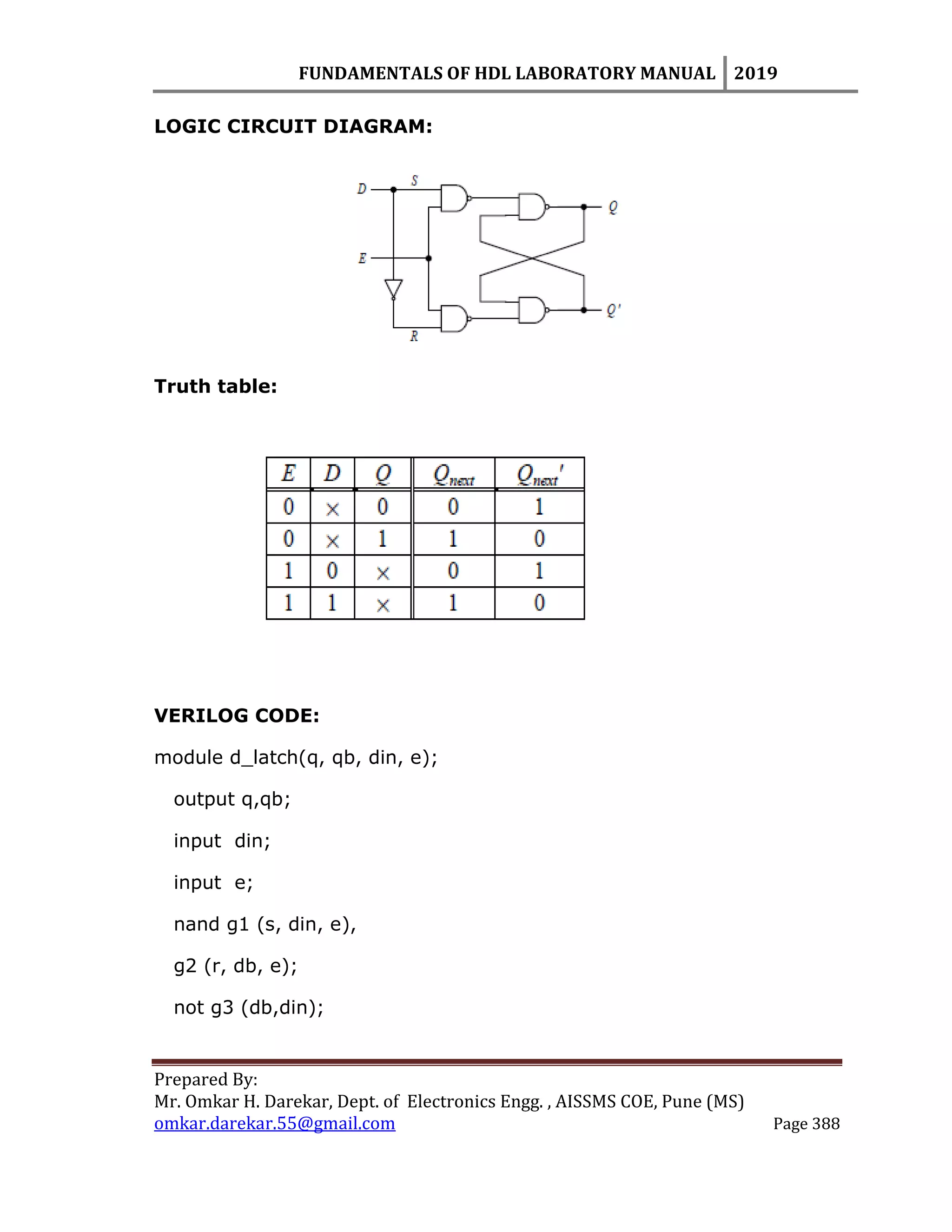

LOGIC CIRCUIT DIAGRAM:
Truth table:
VERILOG CODE:
module d_latch(q, qb, din, e);
output q,qb;
input din;
input e;
nand g1 (s, din, e),
g2 (r, db, e);
not g3 (db,din);

Prepared By:

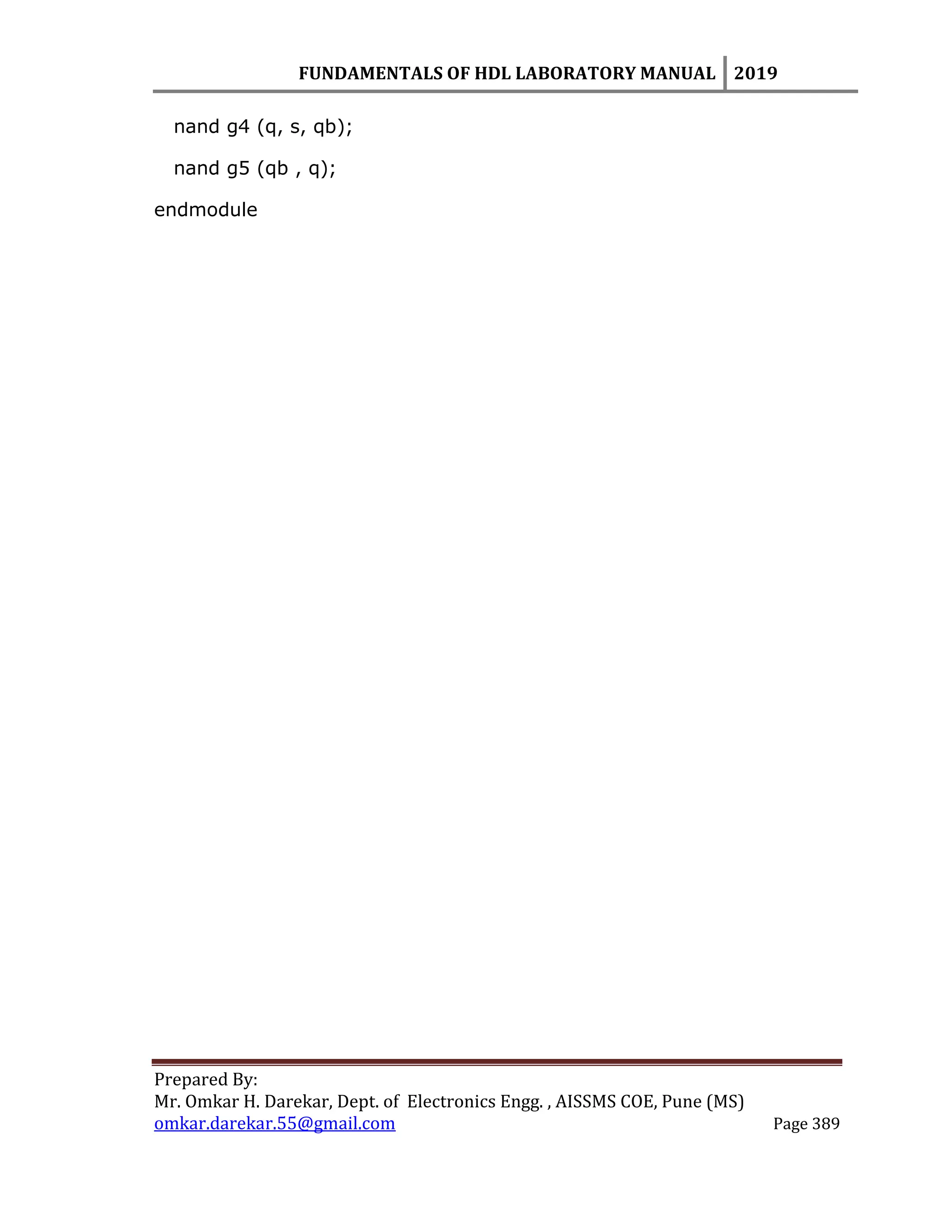

nand g4 (q, s, qb);
nand g5 (qb , q);
endmodule

Prepared By:

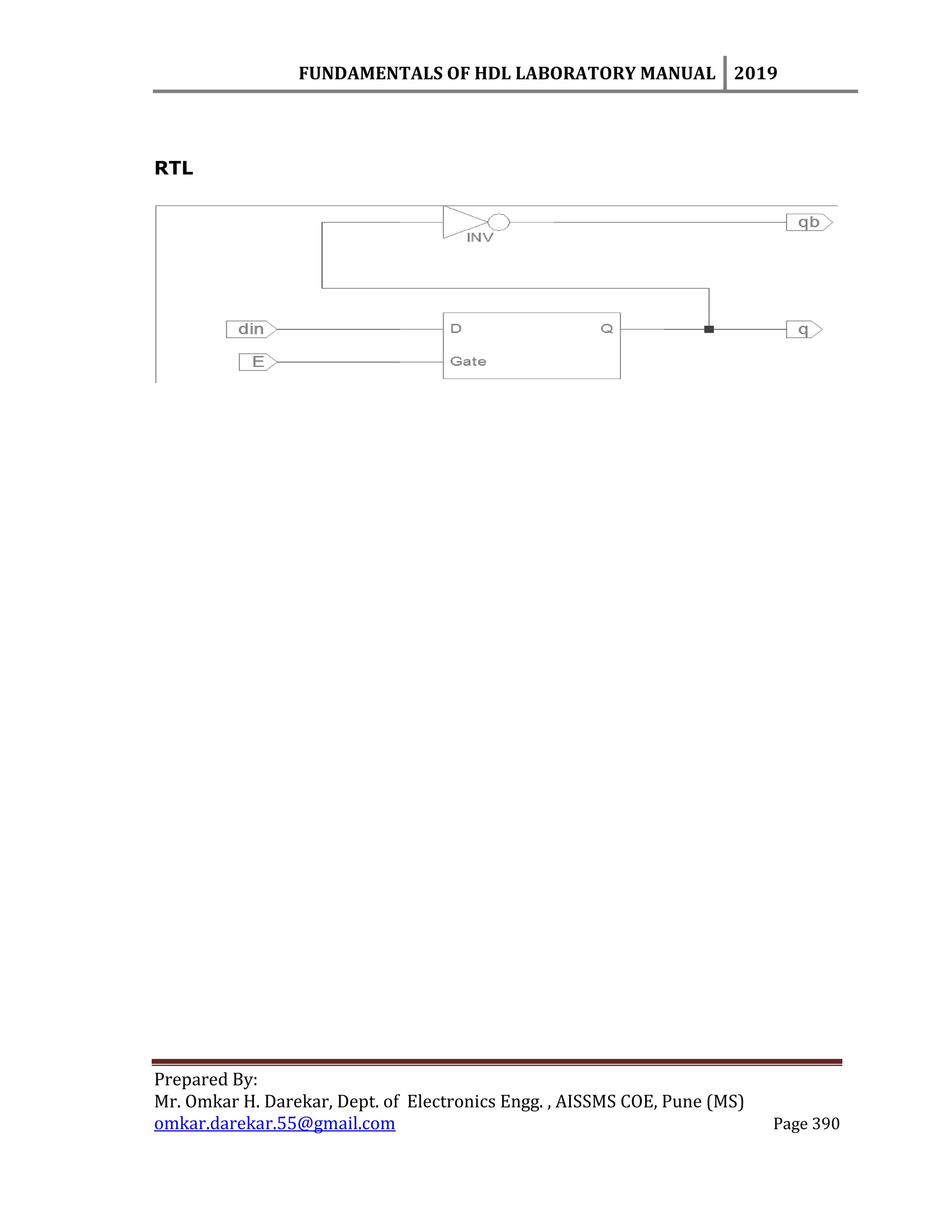

RTL

Prepared By:
TECHNOLOGY

Prepared By:

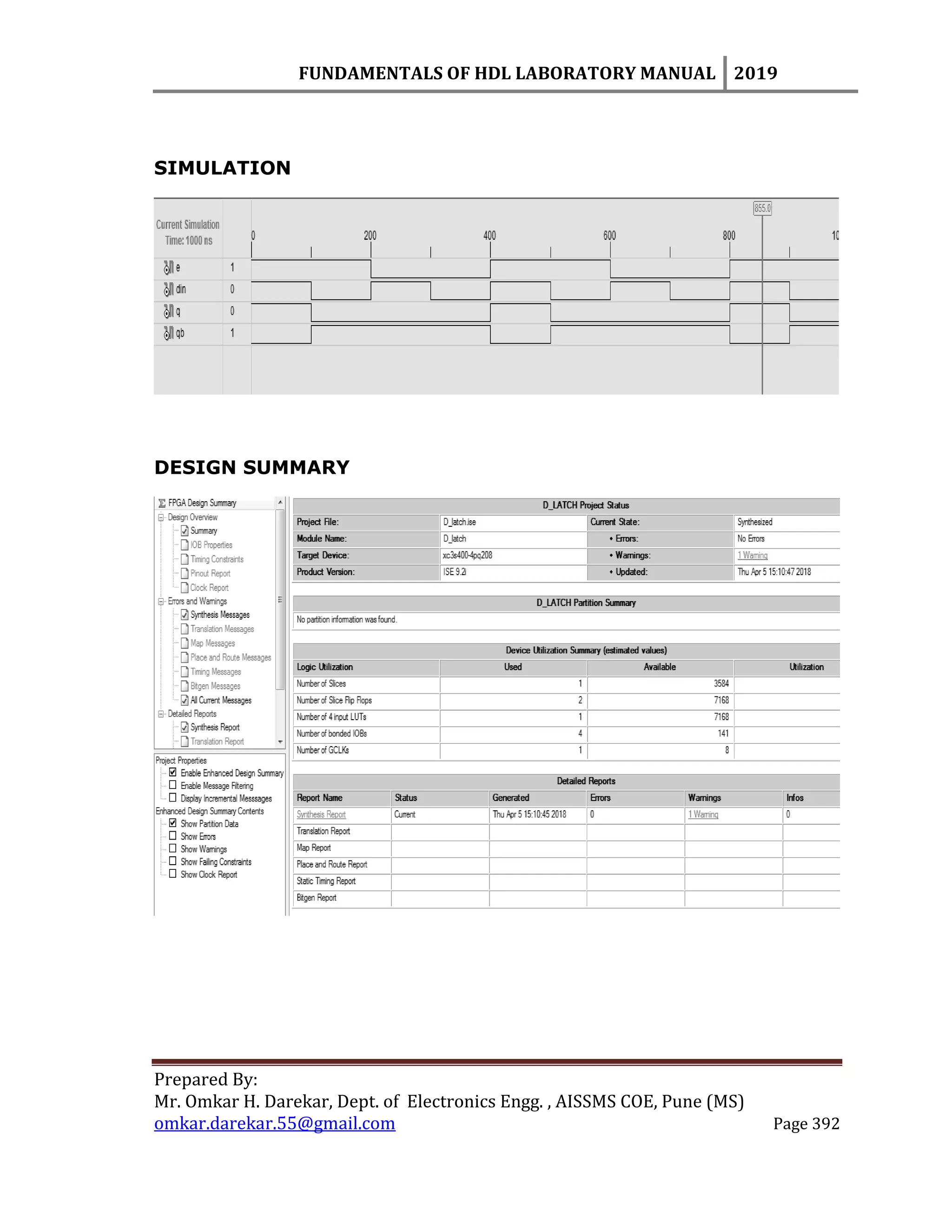

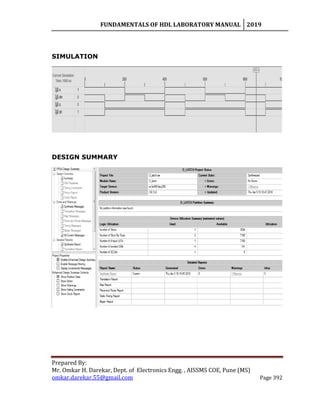

SIMULATION
DESIGN SUMMARY

Prepared By:

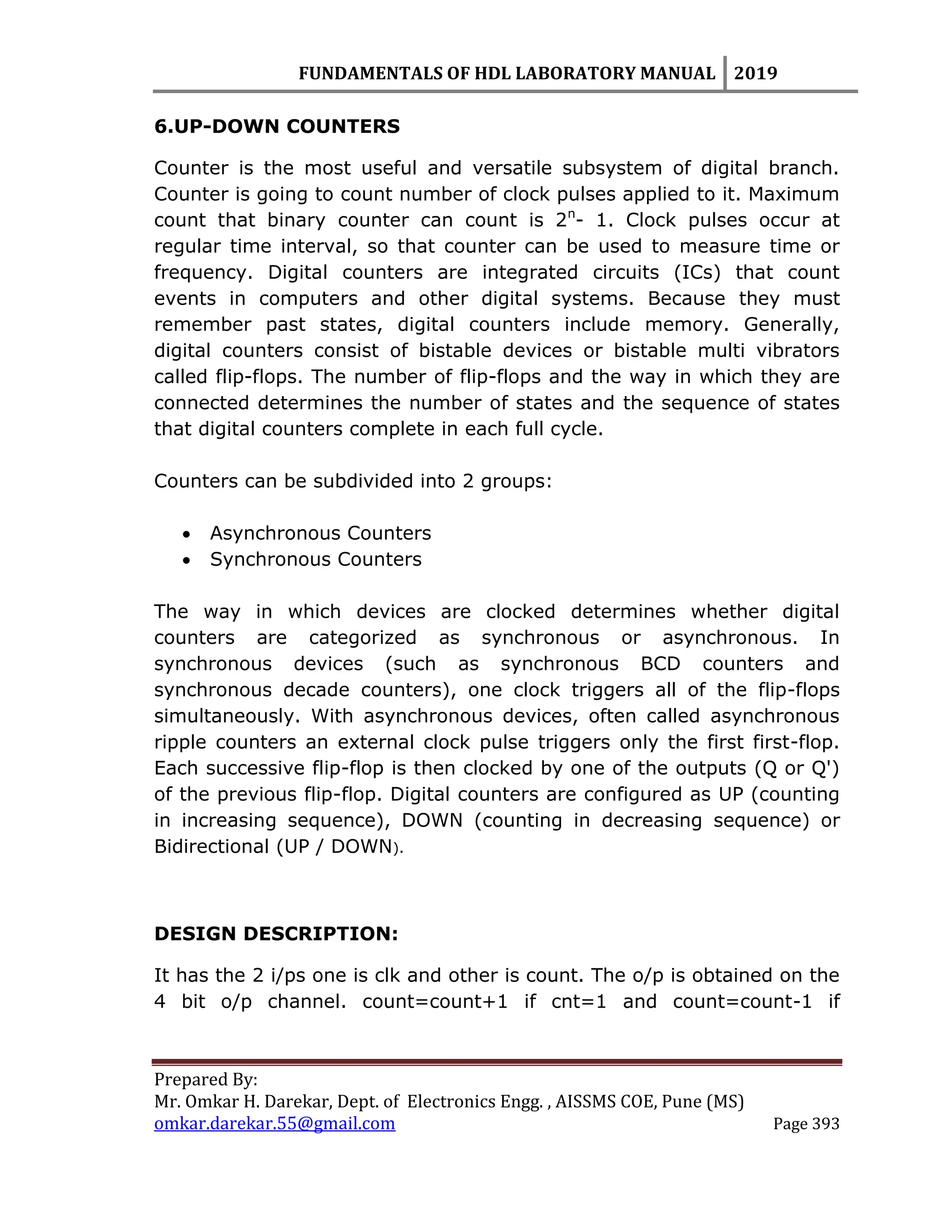

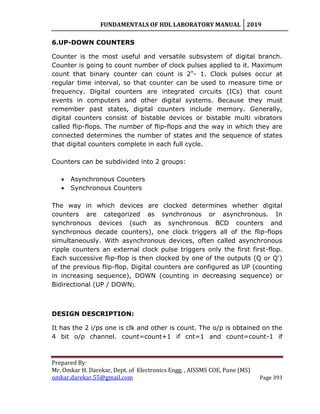

6.UP-DOWN COUNTERS
Counter is the most useful and versatile subsystem of digital branch.
Counter is going to count number of clock pulses applied to it. Maximum
count that binary counter can count is 2n
- 1. Clock pulses occur at
regular time interval, so that counter can be used to measure time or
frequency. Digital counters are integrated circuits (ICs) that count
events in computers and other digital systems. Because they must
remember past states, digital counters include memory. Generally,
digital counters consist of bistable devices or bistable multi vibrators
called flip-flops. The number of flip-flops and the way in which they are
connected determines the number of states and the sequence of states
that digital counters complete in each full cycle.
Counters can be subdivided into 2 groups:
 Asynchronous Counters
 Synchronous Counters
The way in which devices are clocked determines whether digital
counters are categorized as synchronous or asynchronous. In
synchronous devices (such as synchronous BCD counters and
synchronous decade counters), one clock triggers all of the flip-flops
simultaneously. With asynchronous devices, often called asynchronous
ripple counters an external clock pulse triggers only the first first-flop.
Each successive flip-flop is then clocked by one of the outputs (Q or Q')
of the previous flip-flop. Digital counters are configured as UP (counting
in increasing sequence), DOWN (counting in decreasing sequence) or
Bidirectional (UP / DOWN).
DESIGN DESCRIPTION:

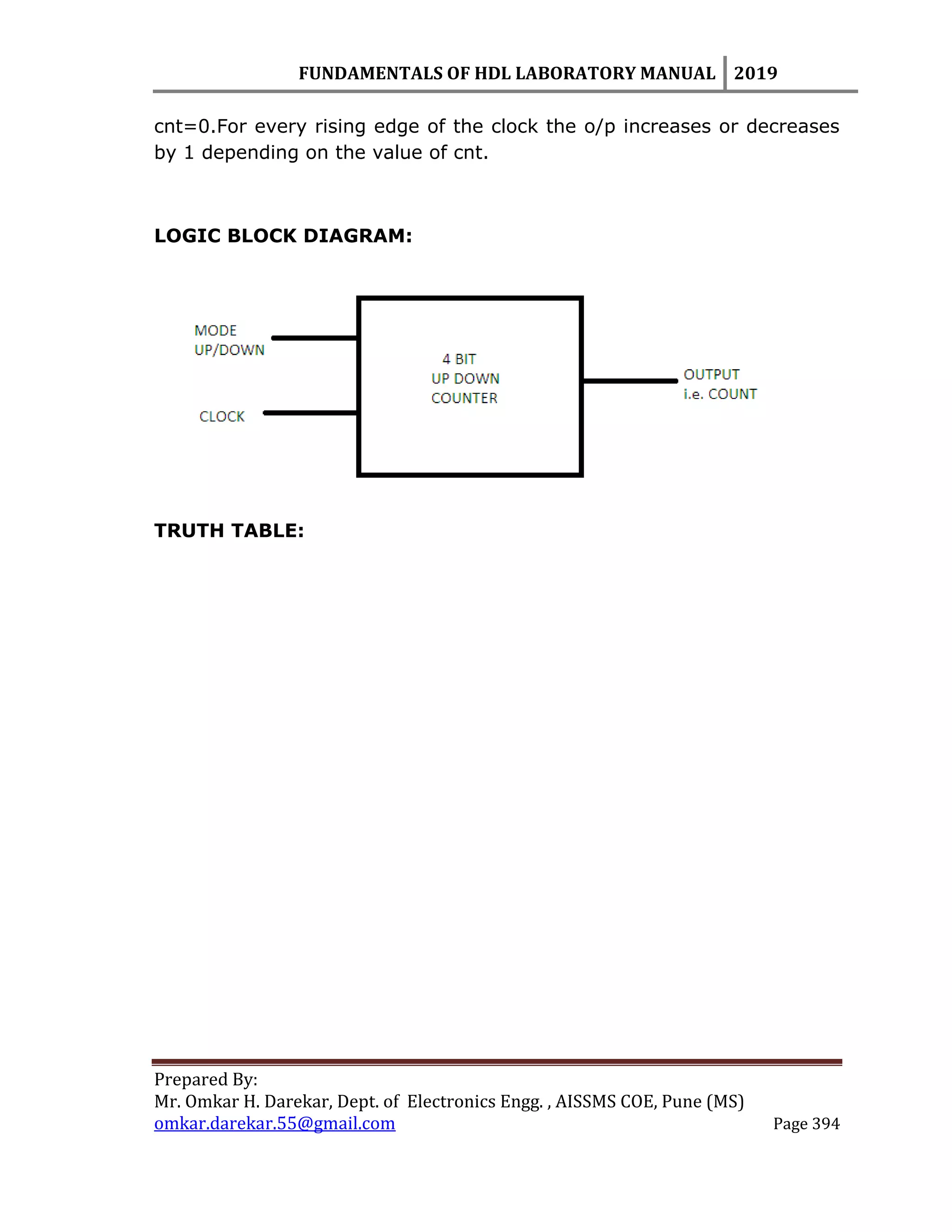

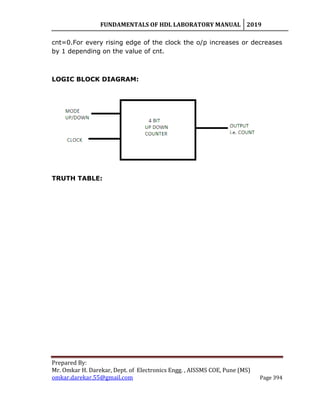

It has the 2 i/ps one is clk and other is count. The o/p is obtained on the
4 bit o/p channel. count=count+1 if cnt=1 and count=count-1 if

Prepared By:
cnt=0.For every rising edge of the clock the o/p increases or decreases
by 1 depending on the value of cnt.

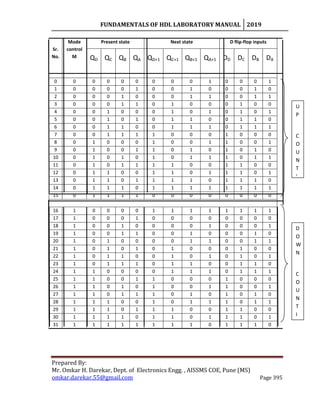

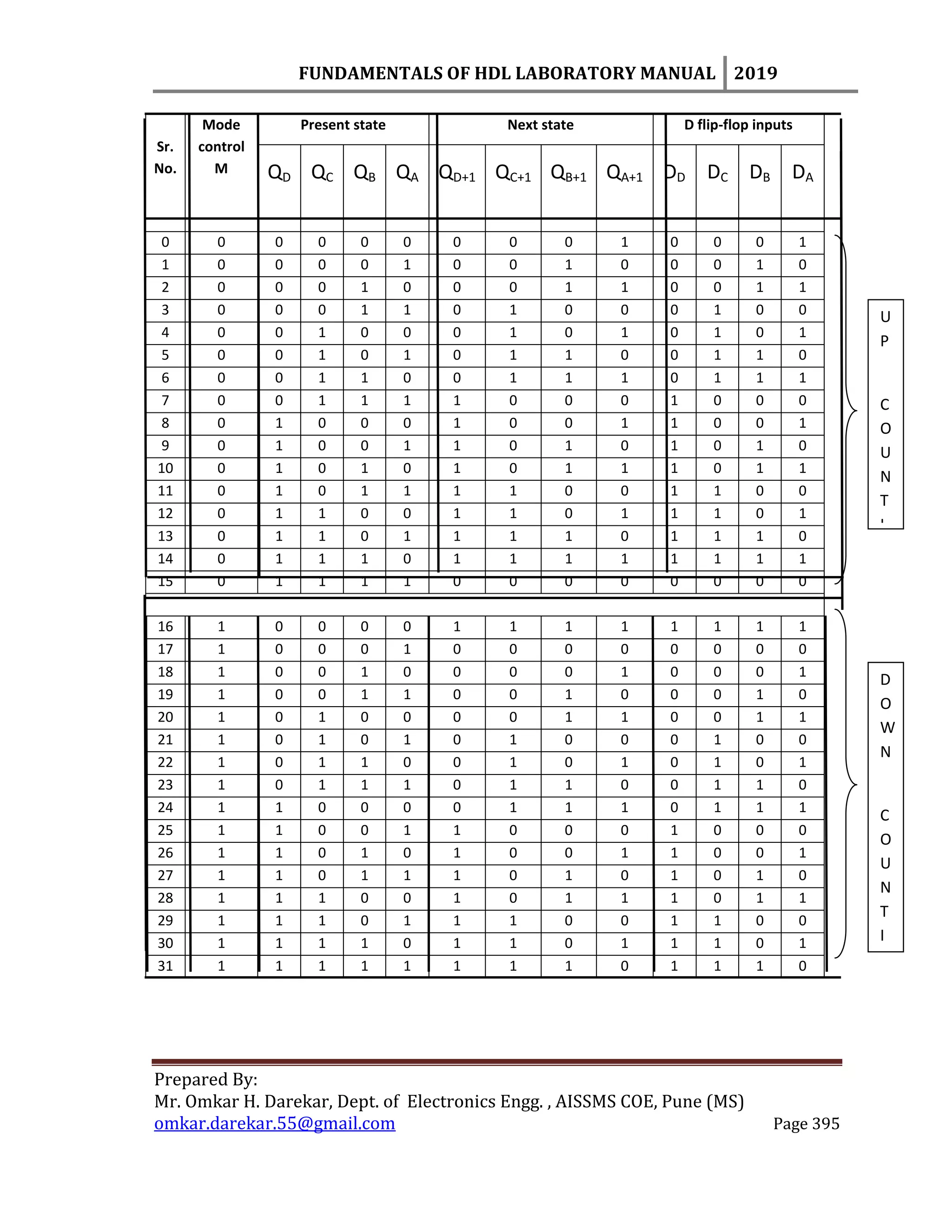

TRUTH TABLE:

Prepared By:
Sr.
No.
Mode
control
M
Present state Next state D flip-flop inputs
QD QC QB QA QD+1 QC+1 QB+1 QA+1 DD DC DB DA
0 0 0 0 0 0 0 0 0 1 0 0 0 1
1 0 0 0 0 1 0 0 1 0 0 0 1 0
2 0 0 0 1 0 0 0 1 1 0 0 1 1
3 0 0 0 1 1 0 1 0 0 0 1 0 0
4 0 0 1 0 0 0 1 0 1 0 1 0 1
5 0 0 1 0 1 0 1 1 0 0 1 1 0
6 0 0 1 1 0 0 1 1 1 0 1 1 1
7 0 0 1 1 1 1 0 0 0 1 0 0 0
8 0 1 0 0 0 1 0 0 1 1 0 0 1
9 0 1 0 0 1 1 0 1 0 1 0 1 0
10 0 1 0 1 0 1 0 1 1 1 0 1 1
11 0 1 0 1 1 1 1 0 0 1 1 0 0
12 0 1 1 0 0 1 1 0 1 1 1 0 1
13 0 1 1 0 1 1 1 1 0 1 1 1 0
14 0 1 1 1 0 1 1 1 1 1 1 1 1
15 0 1 1 1 1 0 0 0 0 0 0 0 0
16 1 0 0 0 0 1 1 1 1 1 1 1 1
17 1 0 0 0 1 0 0 0 0 0 0 0 0
18 1 0 0 1 0 0 0 0 1 0 0 0 1
19 1 0 0 1 1 0 0 1 0 0 0 1 0
20 1 0 1 0 0 0 0 1 1 0 0 1 1
21 1 0 1 0 1 0 1 0 0 0 1 0 0
22 1 0 1 1 0 0 1 0 1 0 1 0 1
23 1 0 1 1 1 0 1 1 0 0 1 1 0
24 1 1 0 0 0 0 1 1 1 0 1 1 1
25 1 1 0 0 1 1 0 0 0 1 0 0 0
26 1 1 0 1 0 1 0 0 1 1 0 0 1
27 1 1 0 1 1 1 0 1 0 1 0 1 0
28 1 1 1 0 0 1 0 1 1 1 0 1 1
29 1 1 1 0 1 1 1 0 0 1 1 0 0
30 1 1 1 1 0 1 1 0 1 1 1 0 1
31 1 1 1 1 1 1 1 1 0 1 1 1 0
U
P
C
O
U
N
T
I
N
D
O
W
N
C
O
U
N
T
I
N

Prepared By:
VERILOG CODE:

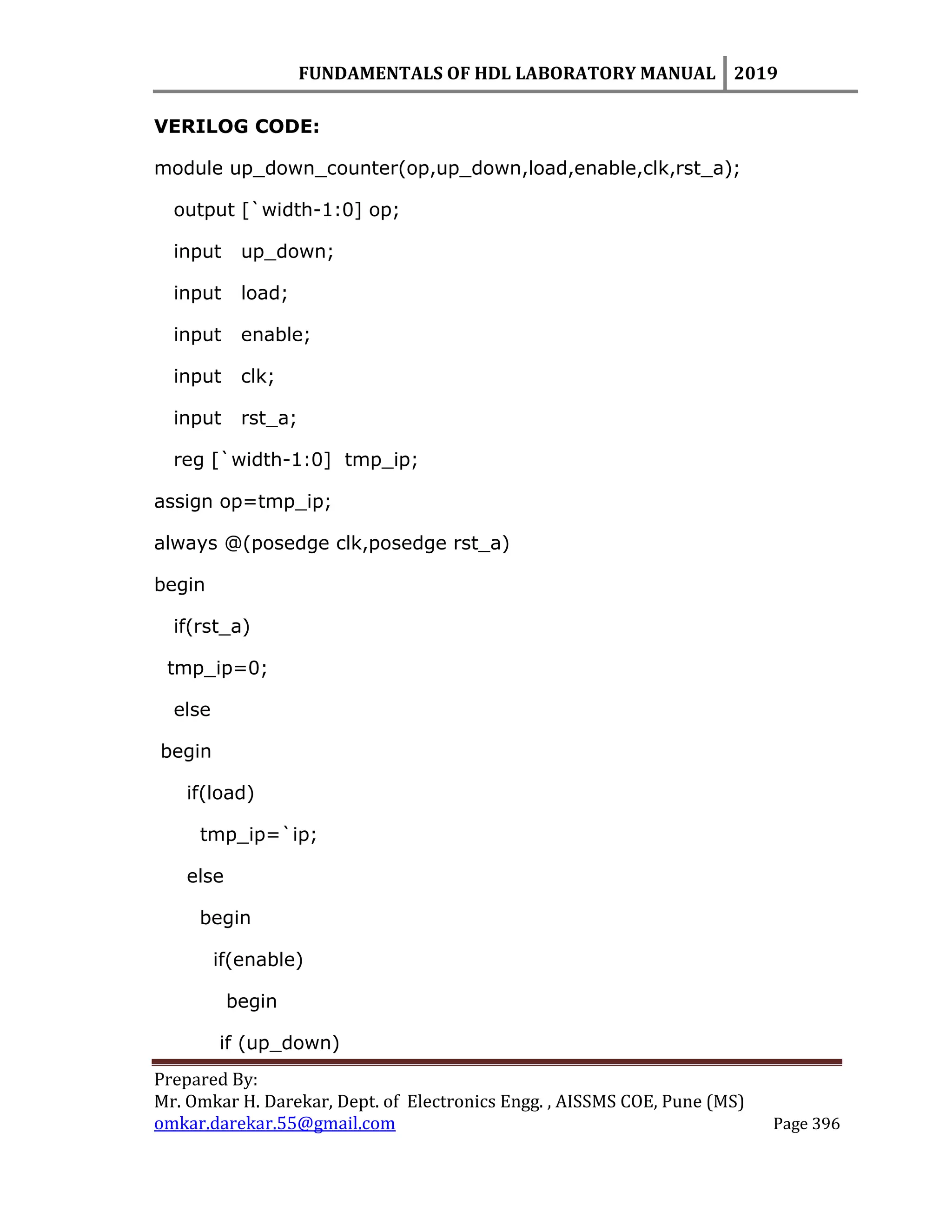

module up_down_counter(op,up_down,load,enable,clk,rst_a);
output [`width-1:0] op;
input up_down;
input load;
input enable;
input clk;
input rst_a;
reg [`width-1:0] tmp_ip;
assign op=tmp_ip;
always @(posedge clk,posedge rst_a)
begin
if(rst_a)
tmp_ip=0;
else
begin
if(load)
tmp_ip=`ip;
else
begin
if(enable)
begin
if (up_down)

Prepared By:

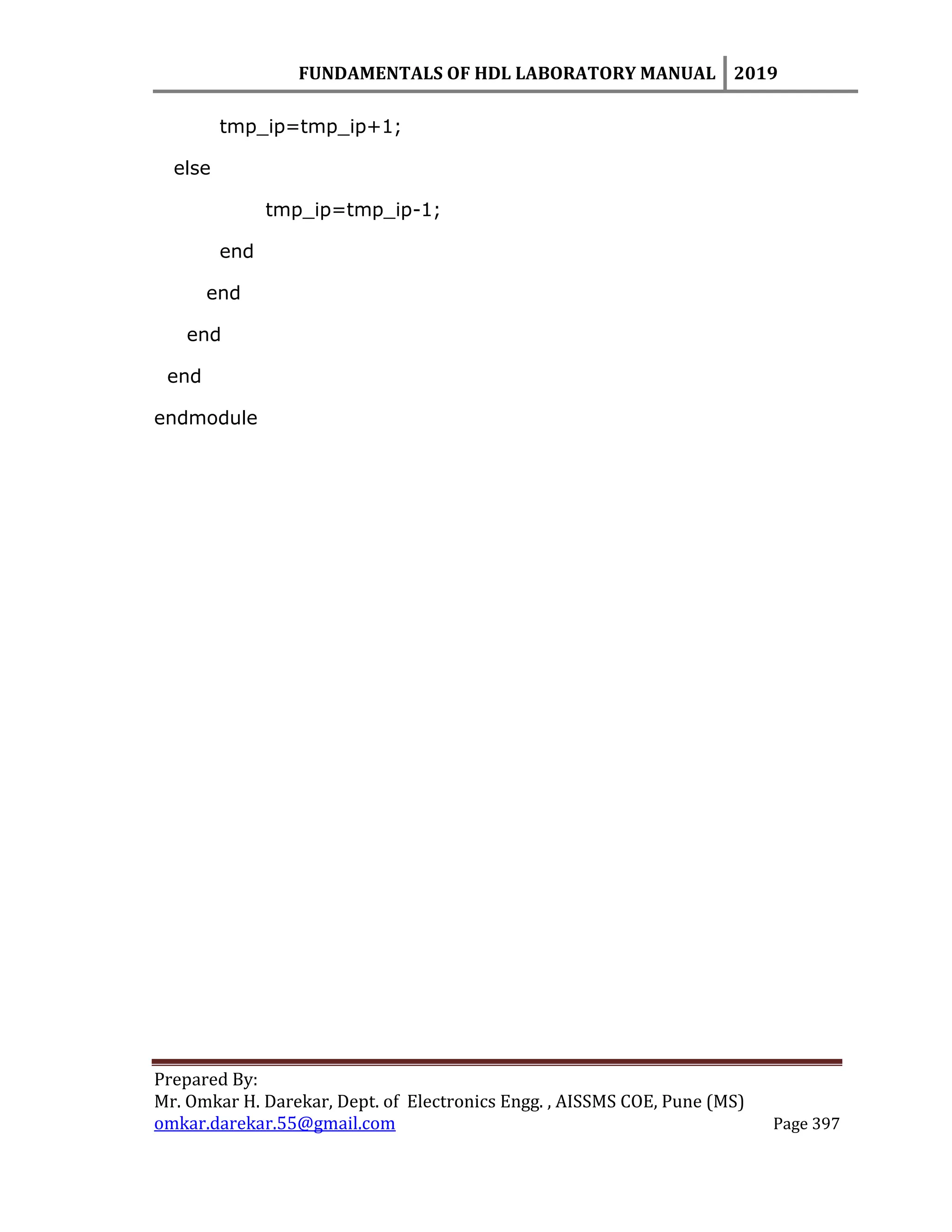

tmp_ip=tmp_ip+1;
else
tmp_ip=tmp_ip-1;
end
end
end
end
endmodule

Prepared By:

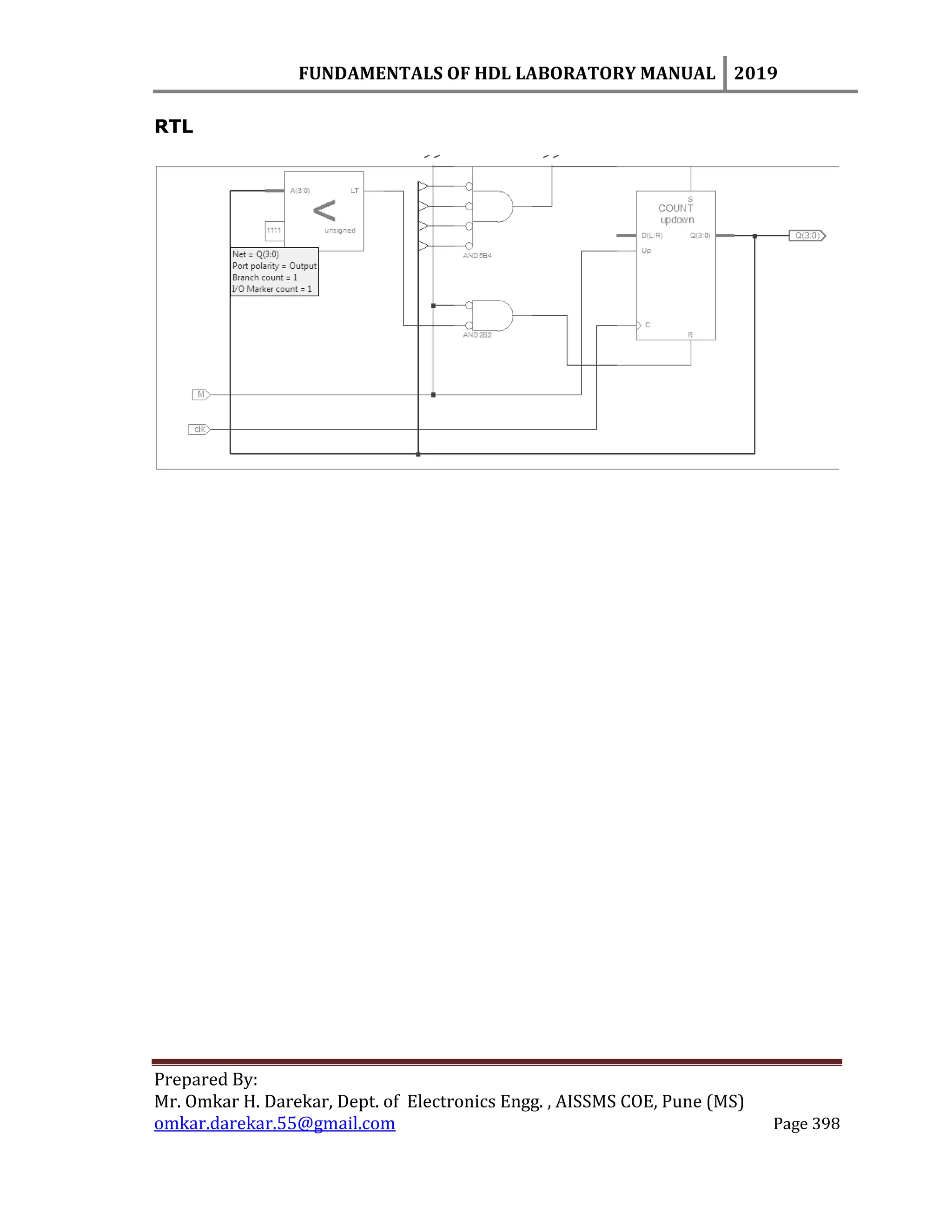

RTL

Prepared By:
TECHNOLOGY

Prepared By:

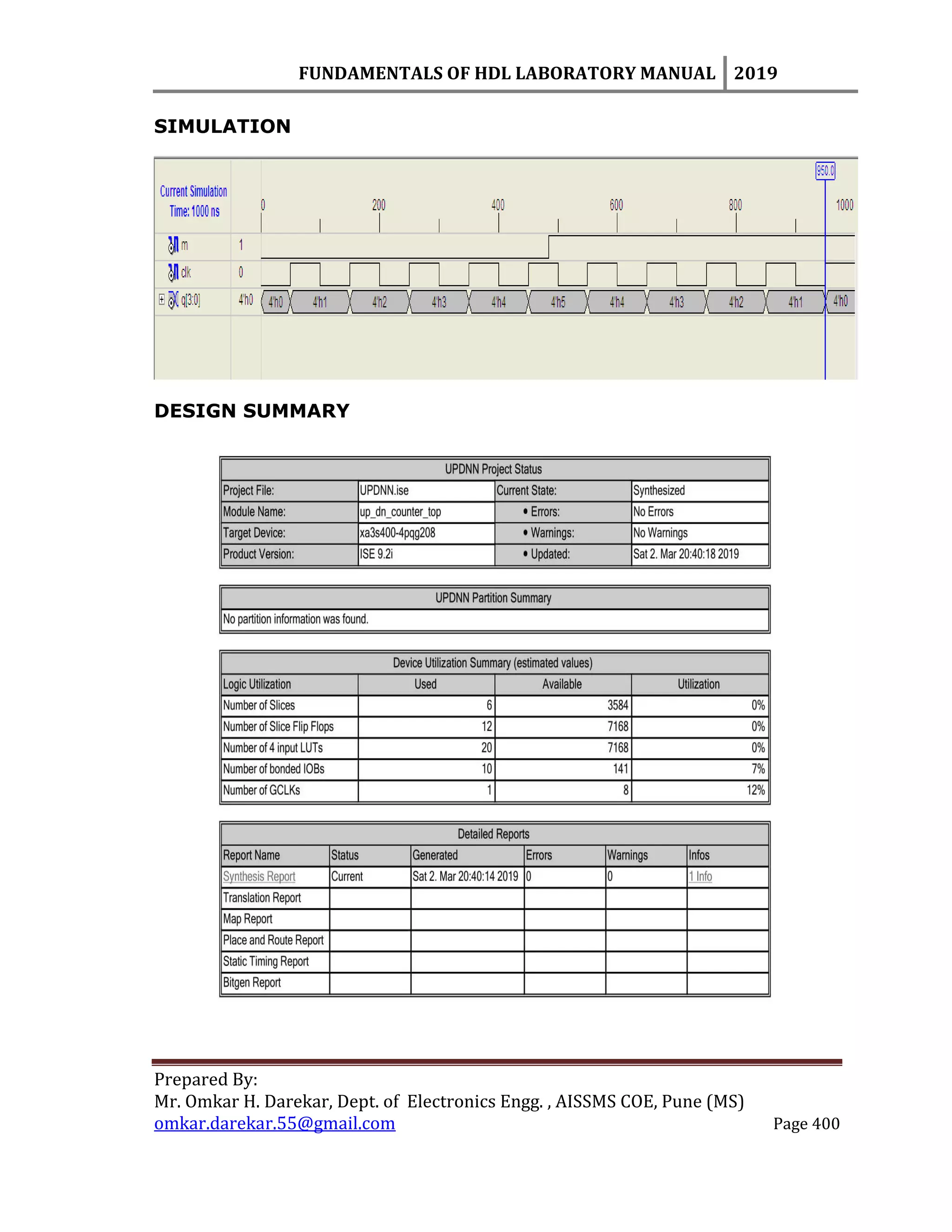

SIMULATION
DESIGN SUMMARY

Prepared By:

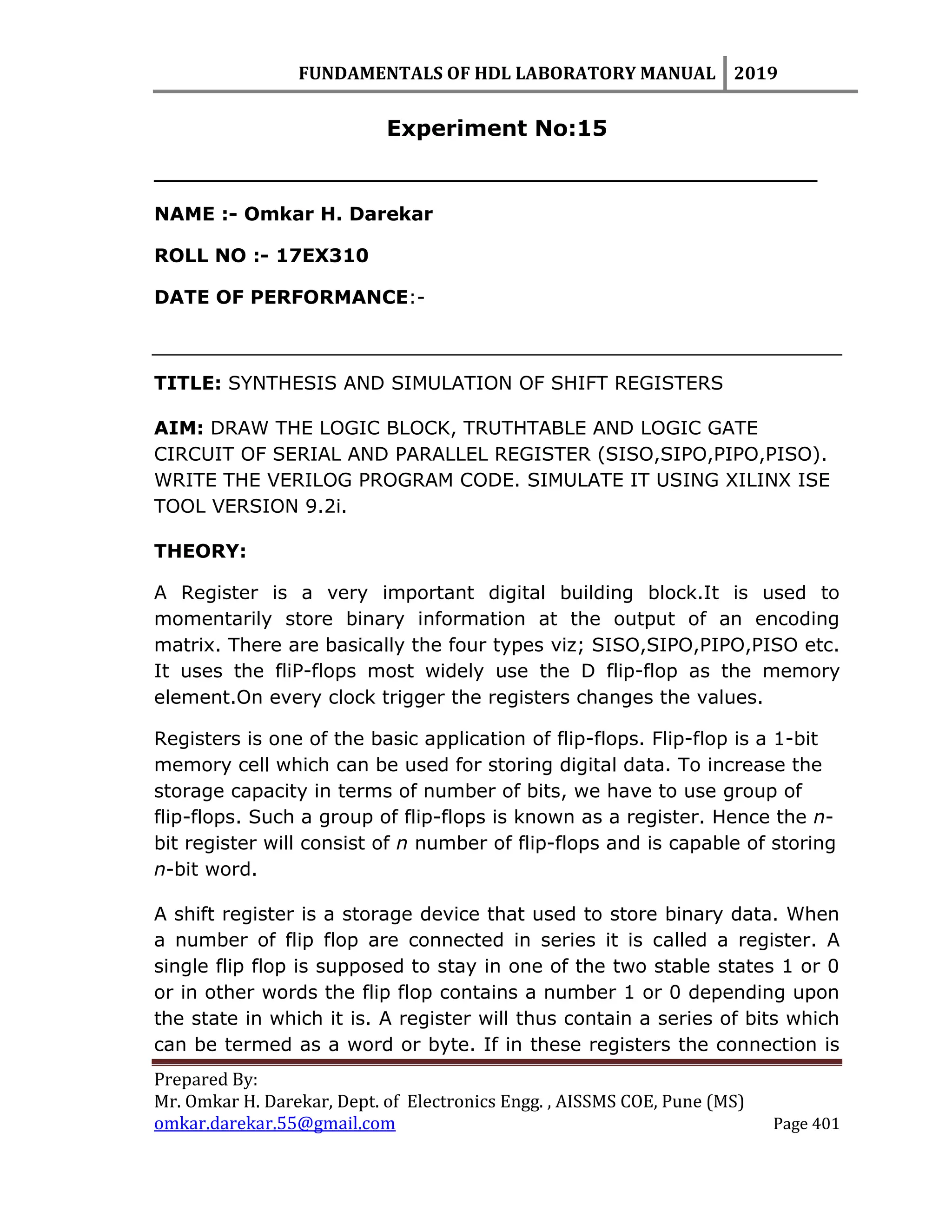

Experiment No:15
__________________________________________________
ROLL NO :- 17EX310
TITLE: SYNTHESIS AND SIMULATION OF SHIFT REGISTERS
CIRCUIT OF SERIAL AND PARALLEL REGISTER (SISO,SIPO,PIPO,PISO).
WRITE THE VERILOG PROGRAM CODE. SIMULATE IT USING XILINX ISE
TOOL VERSION 9.2i.
THEORY:
A Register is a very important digital building block.It is used to
momentarily store binary information at the output of an encoding
matrix. There are basically the four types viz; SISO,SIPO,PIPO,PISO etc.
It uses the fliP-flops most widely use the D flip-flop as the memory
element.On every clock trigger the registers changes the values.
Registers is one of the basic application of flip-flops. Flip-flop is a 1-bit
memory cell which can be used for storing digital data. To increase the
storage capacity in terms of number of bits, we have to use group of
flip-flops. Such a group of flip-flops is known as a register. Hence the n-
bit register will consist of n number of flip-flops and is capable of storing
n-bit word.
A shift register is a storage device that used to store binary data. When
a number of flip flop are connected in series it is called a register. A
single flip flop is supposed to stay in one of the two stable states 1 or 0
or in other words the flip flop contains a number 1 or 0 depending upon
the state in which it is. A register will thus contain a series of bits which
can be termed as a word or byte. If in these registers the connection is

Prepared By:
done in such a way that the output of one of the flip flop forms in input
to other, it is known as a shift register. The data in a shift register is
moved serially (one bit at a time).

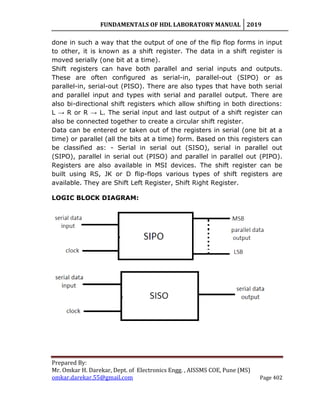

Shift registers can have both parallel and serial inputs and outputs.
These are often configured as serial-in, parallel-out (SIPO) or as
parallel-in, serial-out (PISO). There are also types that have both serial
and parallel input and types with serial and parallel output. There are
also bi-directional shift registers which allow shifting in both directions:
L → R or R → L. The serial input and last output of a shift register can
also be connected together to create a circular shift register.
Data can be entered or taken out of the registers in serial (one bit at a
time) or parallel (all the bits at a time) form. Based on this registers can
be classified as: - Serial in serial out (SISO), serial in parallel out
(SIPO), parallel in serial out (PISO) and parallel in parallel out (PIPO).
Registers are also available in MSI devices. The shift register can be
built using RS, JK or D flip-flops various types of shift registers are
available. They are Shift Left Register, Shift Right Register.

Prepared By:

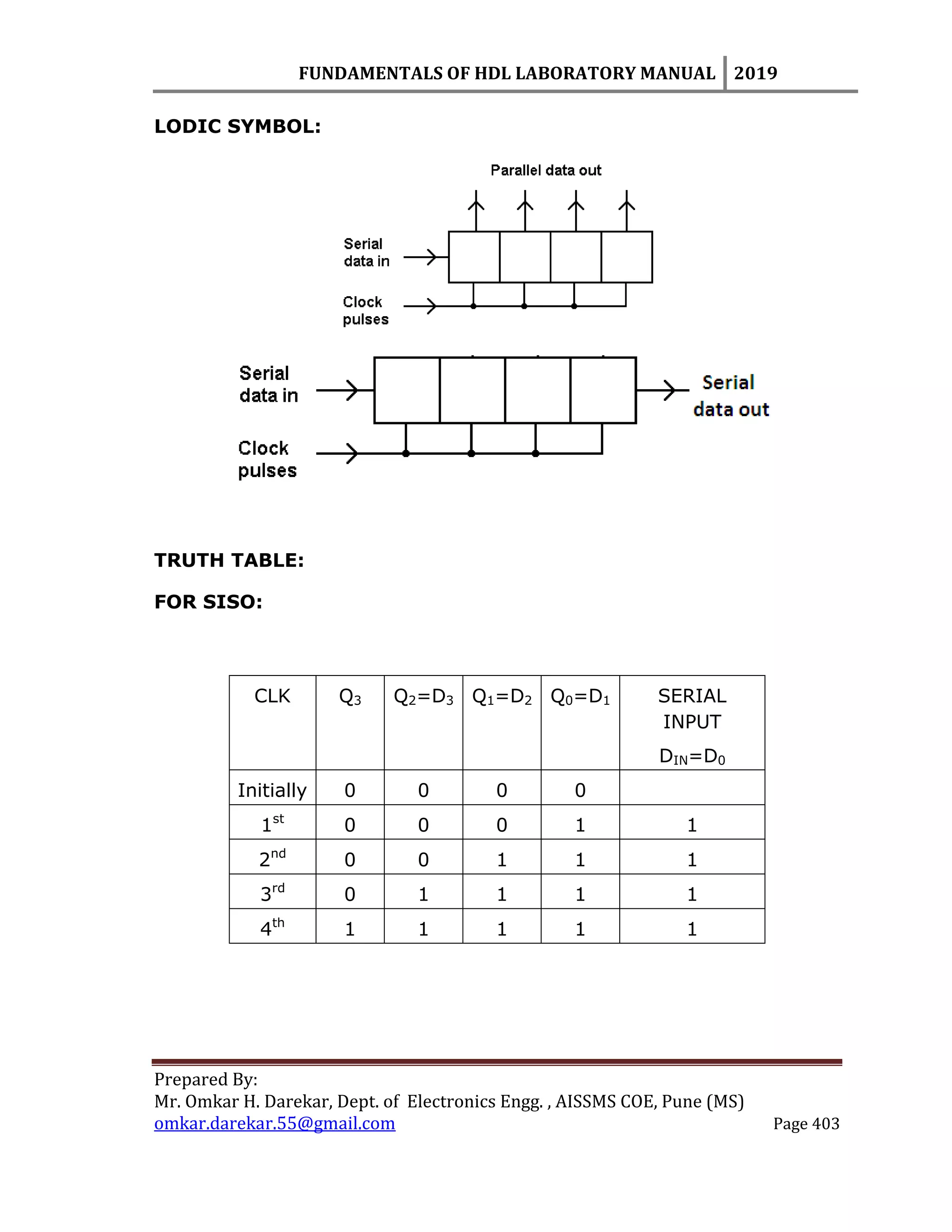

LODIC SYMBOL:
TRUTH TABLE:
FOR SISO:
CLK Q3 Q2=D3 Q1=D2 Q0=D1 SERIAL
INPUT
DIN=D0
Initially 0 0 0 0
1st
0 0 0 1 1
2nd
0 0 1 1 1
3rd
0 1 1 1 1
4th
1 1 1 1 1

Prepared By:

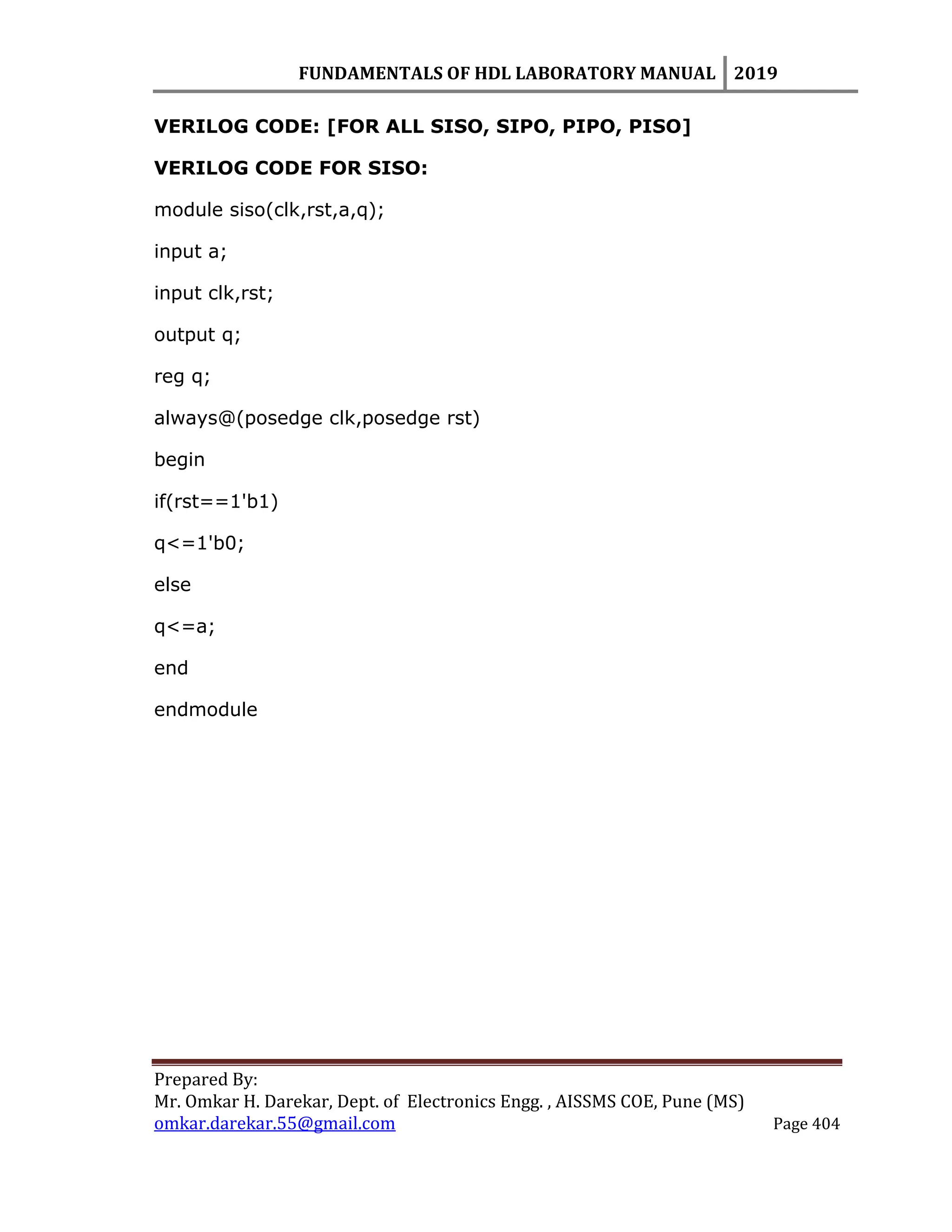

VERILOG CODE: [FOR ALL SISO, SIPO, PIPO, PISO]
VERILOG CODE FOR SISO:
module siso(clk,rst,a,q);
input a;
input clk,rst;
output q;
reg q;
always@(posedge clk,posedge rst)
begin
if(rst==1'b1)
q<=1'b0;
else
q<=a;
end
endmodule

Prepared By:

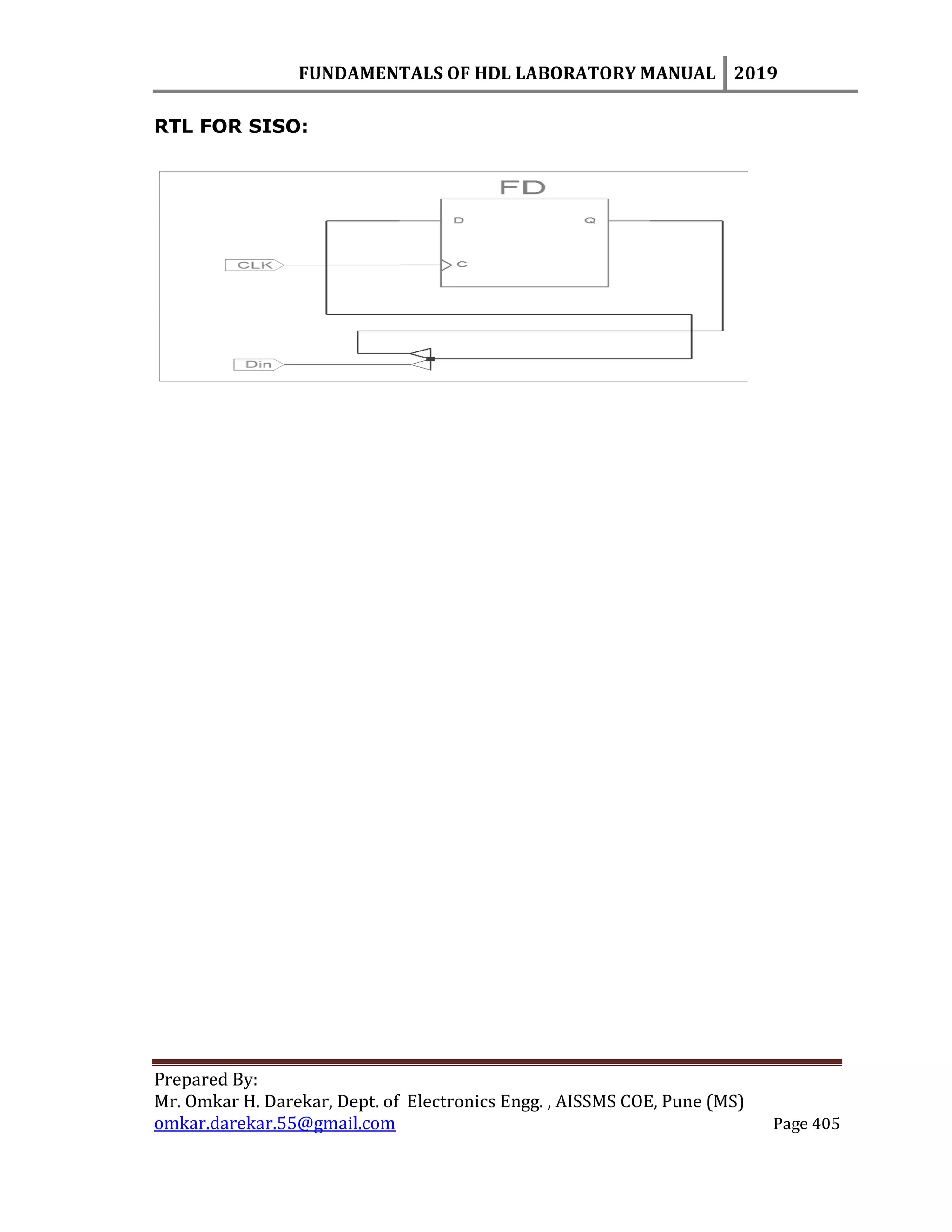

RTL FOR SISO:

Prepared By:

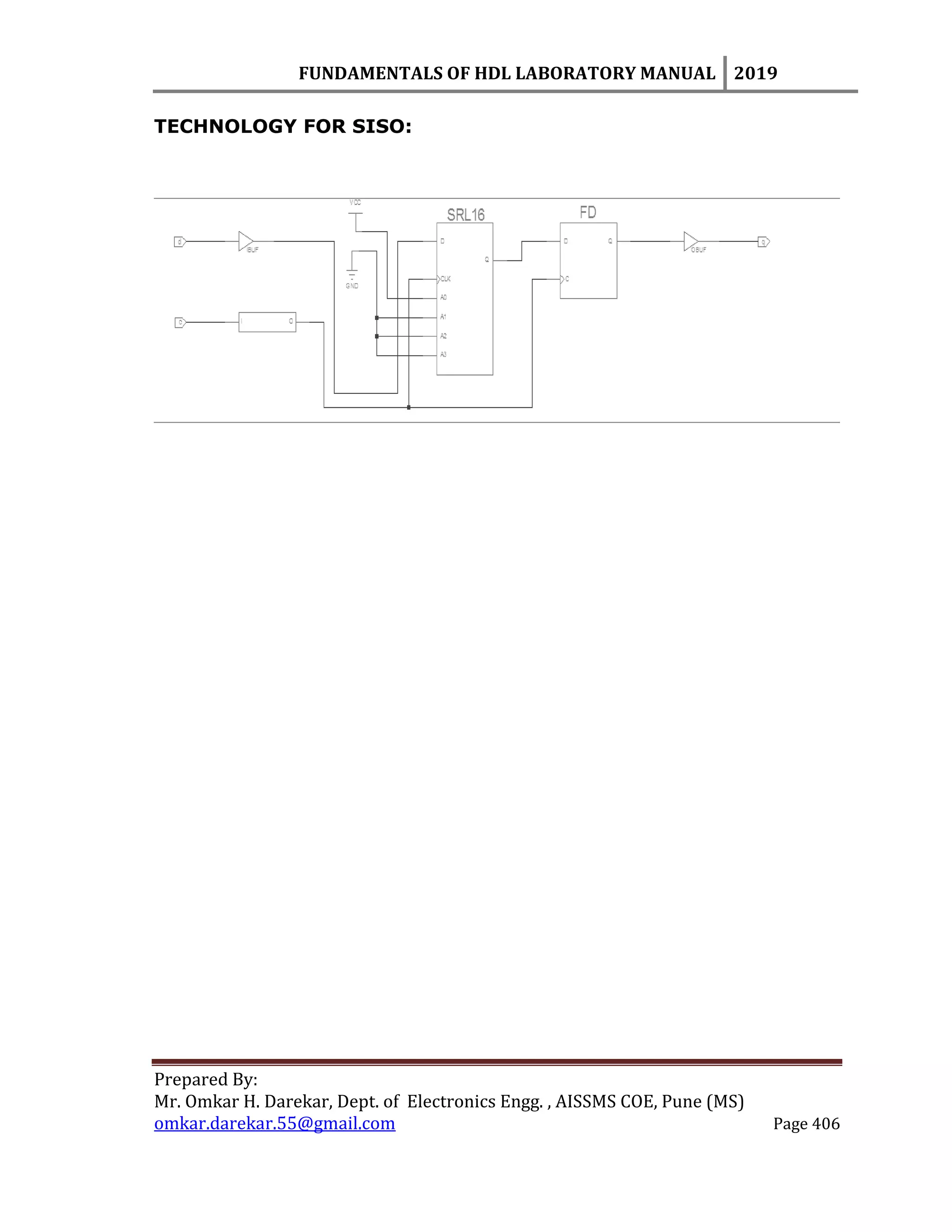

TECHNOLOGY FOR SISO:

Prepared By:

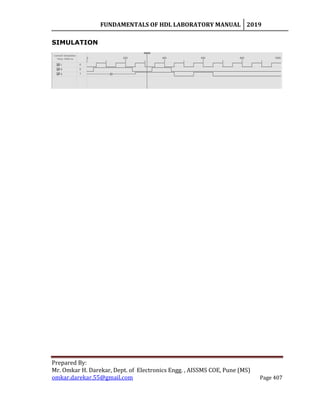

SIMULATION

Prepared By:

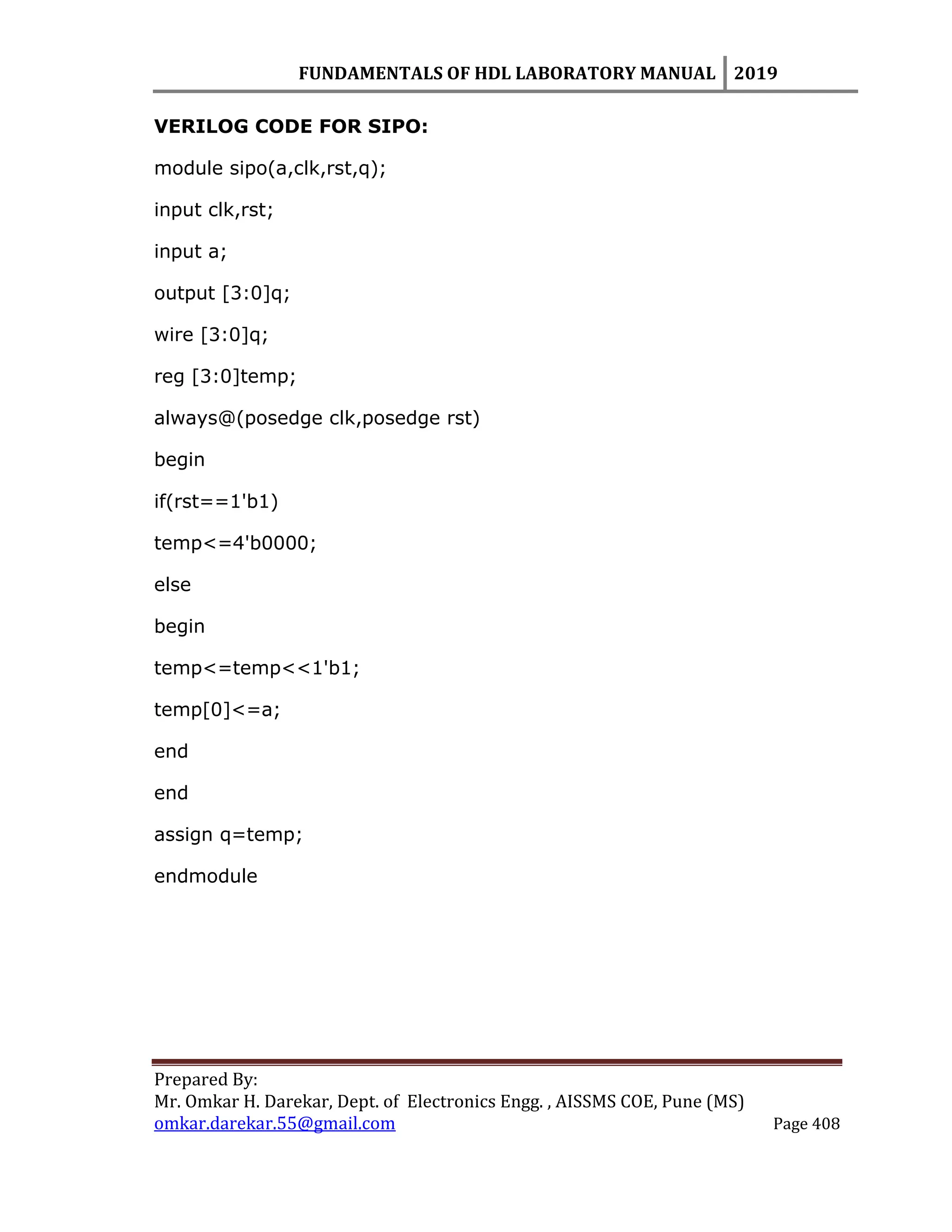

VERILOG CODE FOR SIPO:
module sipo(a,clk,rst,q);
input clk,rst;
input a;
output [3:0]q;
wire [3:0]q;
reg [3:0]temp;
begin
if(rst==1'b1)
temp<=4'b0000;
else
begin
temp<=temp<<1'b1;
temp[0]<=a;
end
end
assign q=temp;
endmodule

Prepared By:

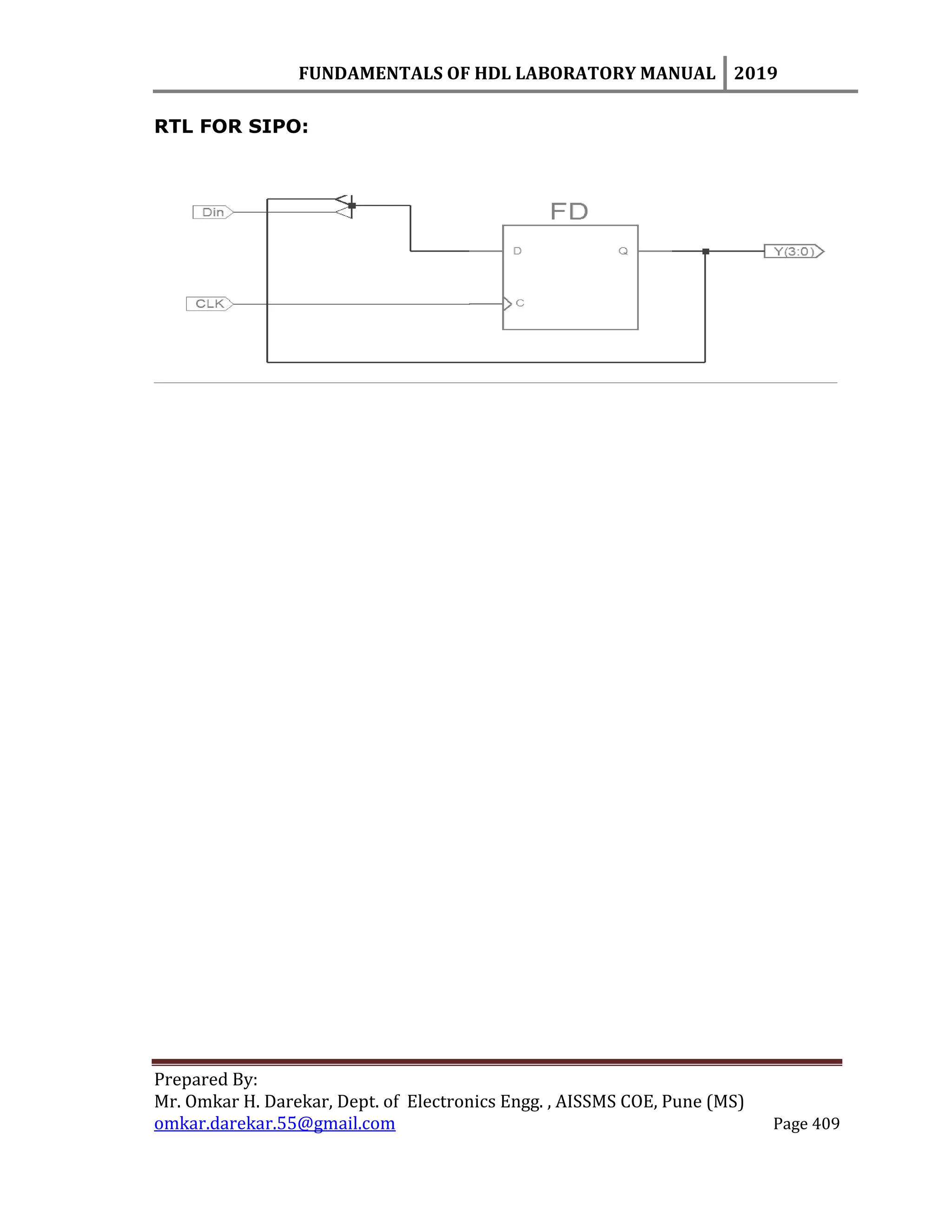

RTL FOR SIPO:

Prepared By:
TECHNOLOGY

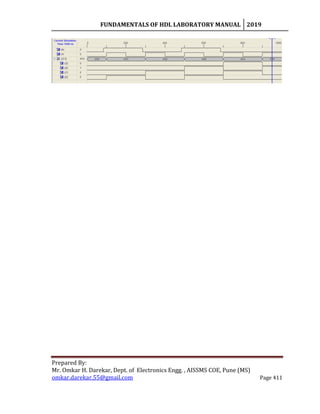

SIMULATION

Prepared By:

Prepared By:

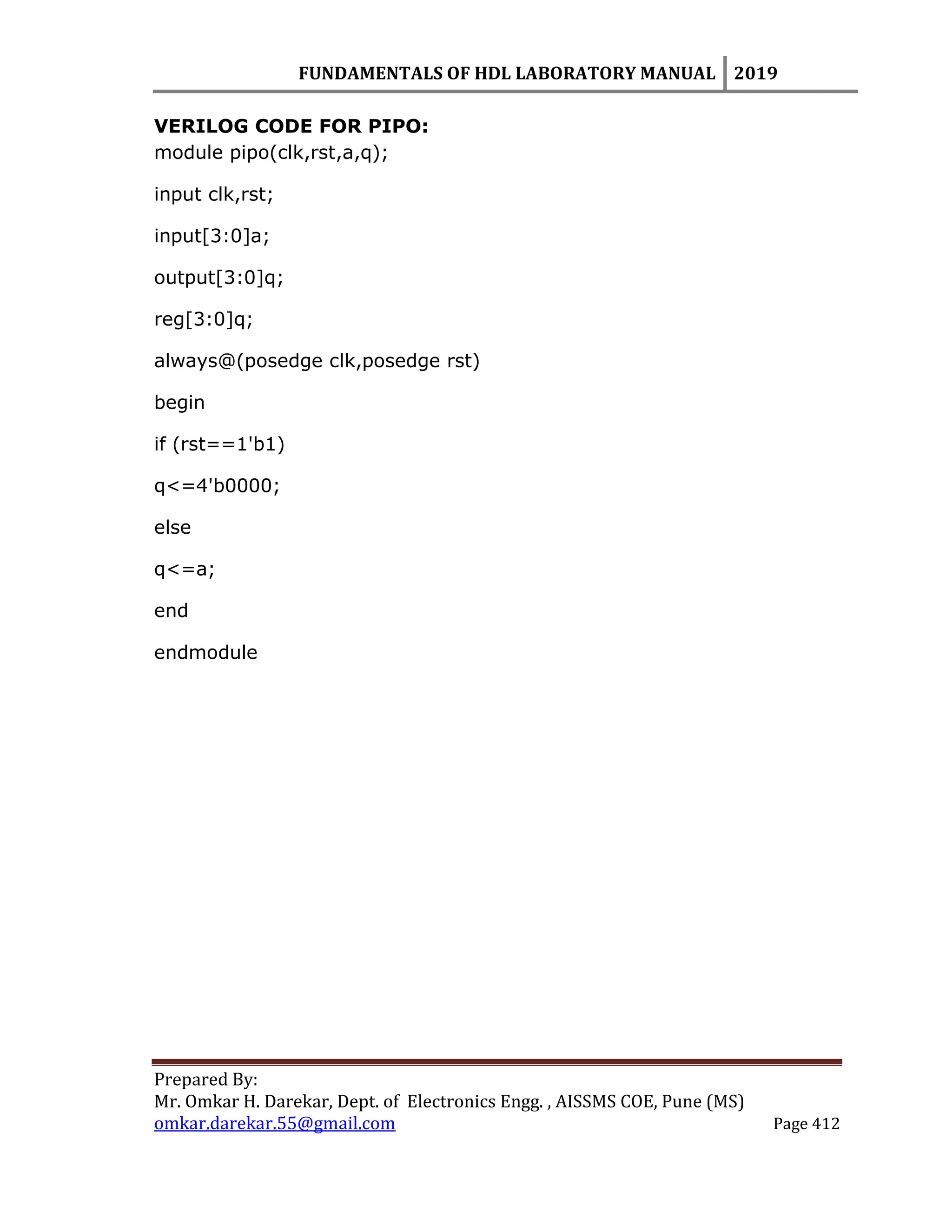

VERILOG CODE FOR PIPO:
module pipo(clk,rst,a,q);
input clk,rst;
input[3:0]a;
output[3:0]q;
reg[3:0]q;
begin
if (rst==1'b1)
q<=4'b0000;
else
q<=a;
end
endmodule

Prepared By:

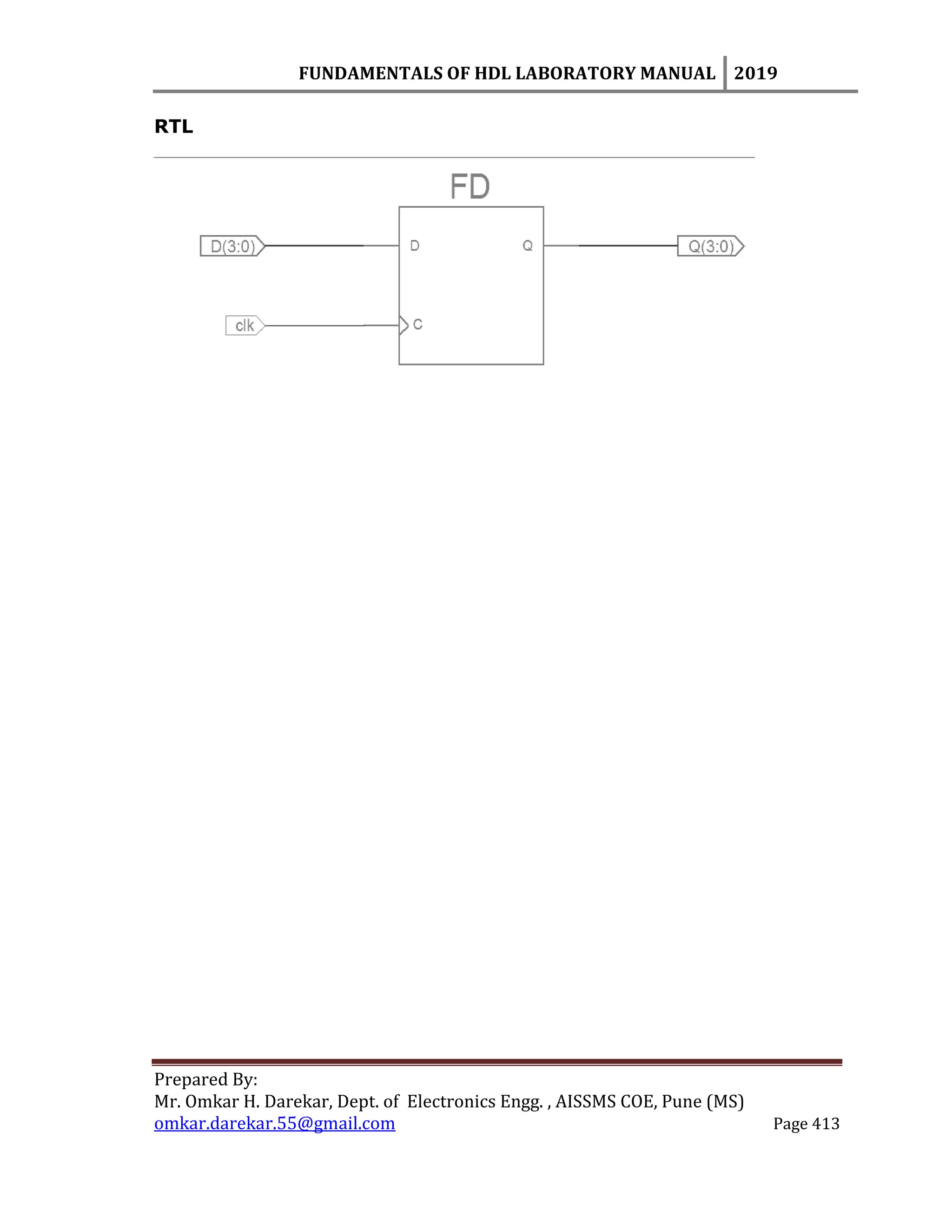

RTL

Prepared By:

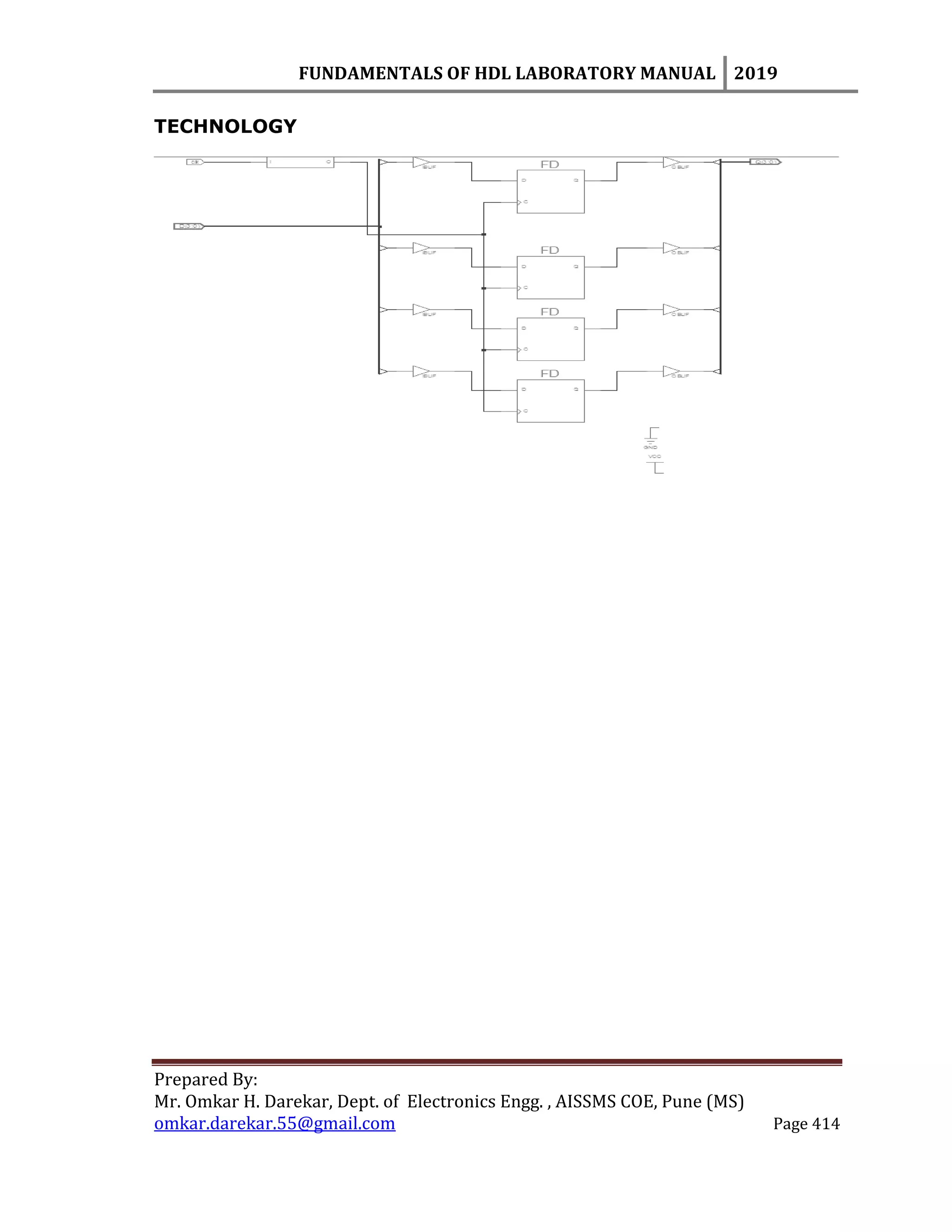

TECHNOLOGY

Prepared By:

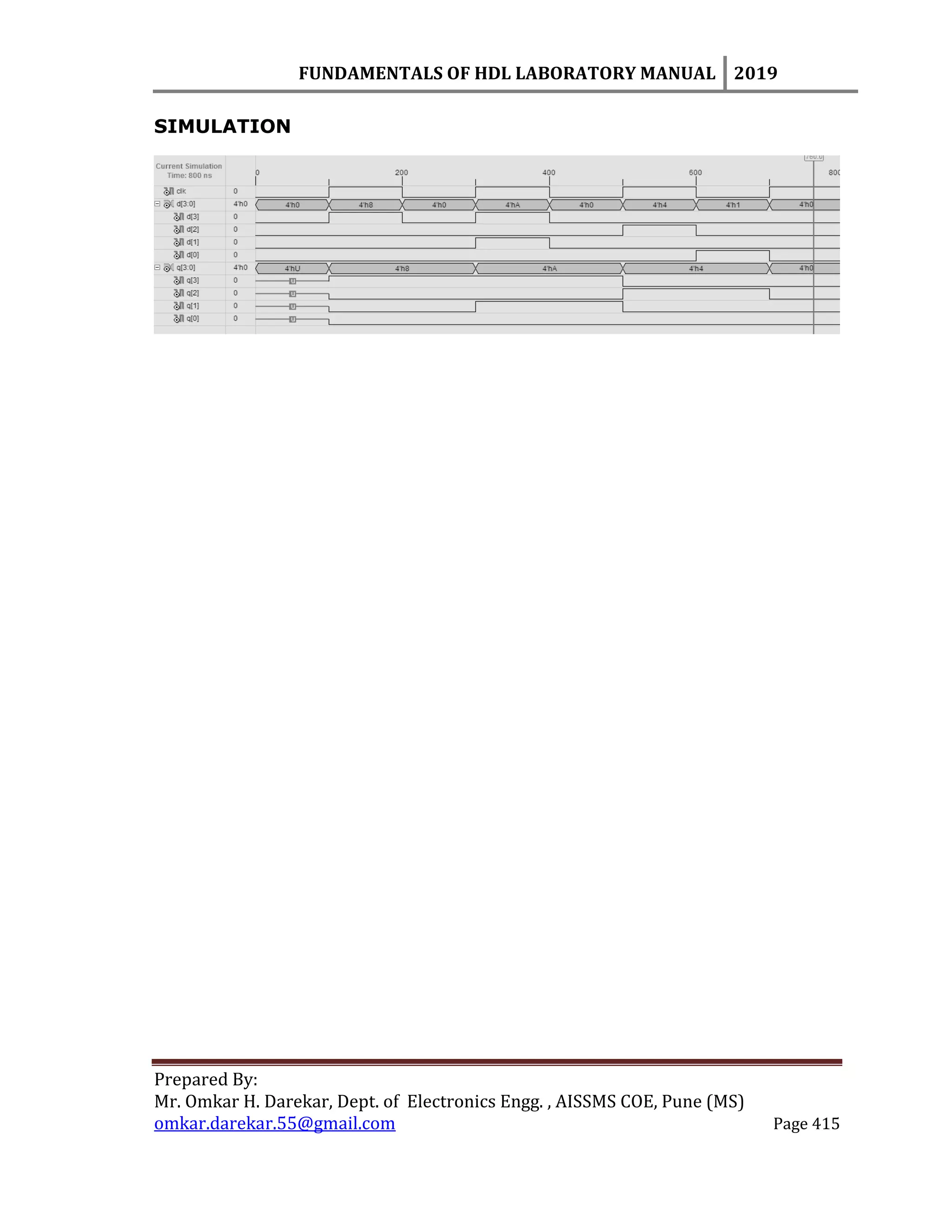

SIMULATION

Prepared By:

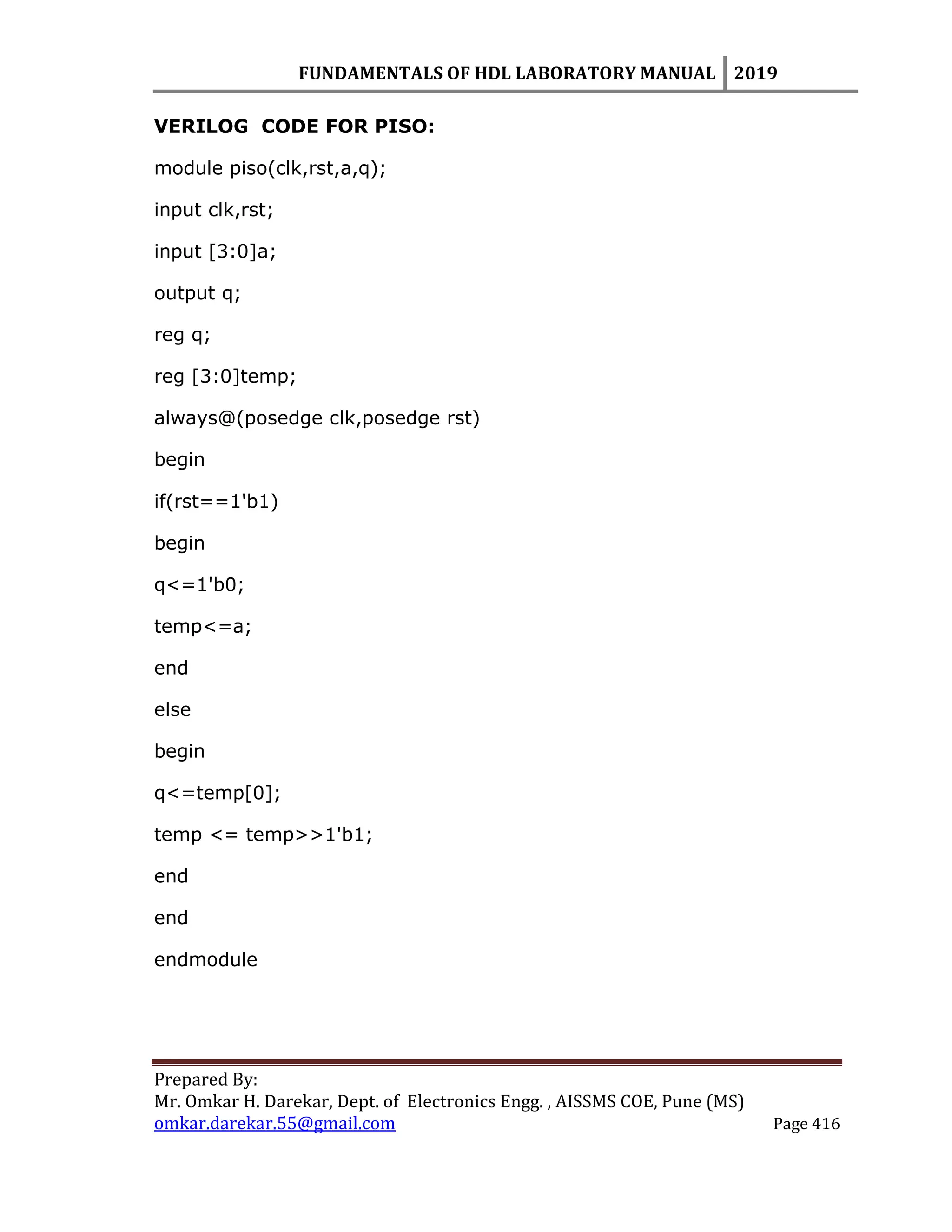

VERILOG CODE FOR PISO:
module piso(clk,rst,a,q);
input clk,rst;
input [3:0]a;
output q;
reg q;
reg [3:0]temp;
begin
if(rst==1'b1)
begin
q<=1'b0;
temp<=a;
end
else
begin
q<=temp[0];
temp <= temp>>1'b1;
end
end
endmodule

Prepared By:

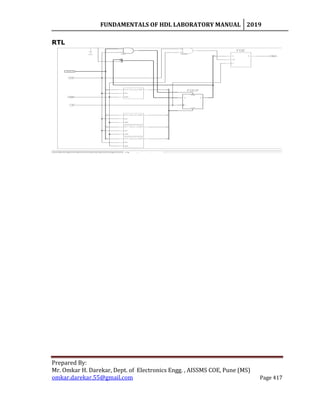

RTL

Prepared By:

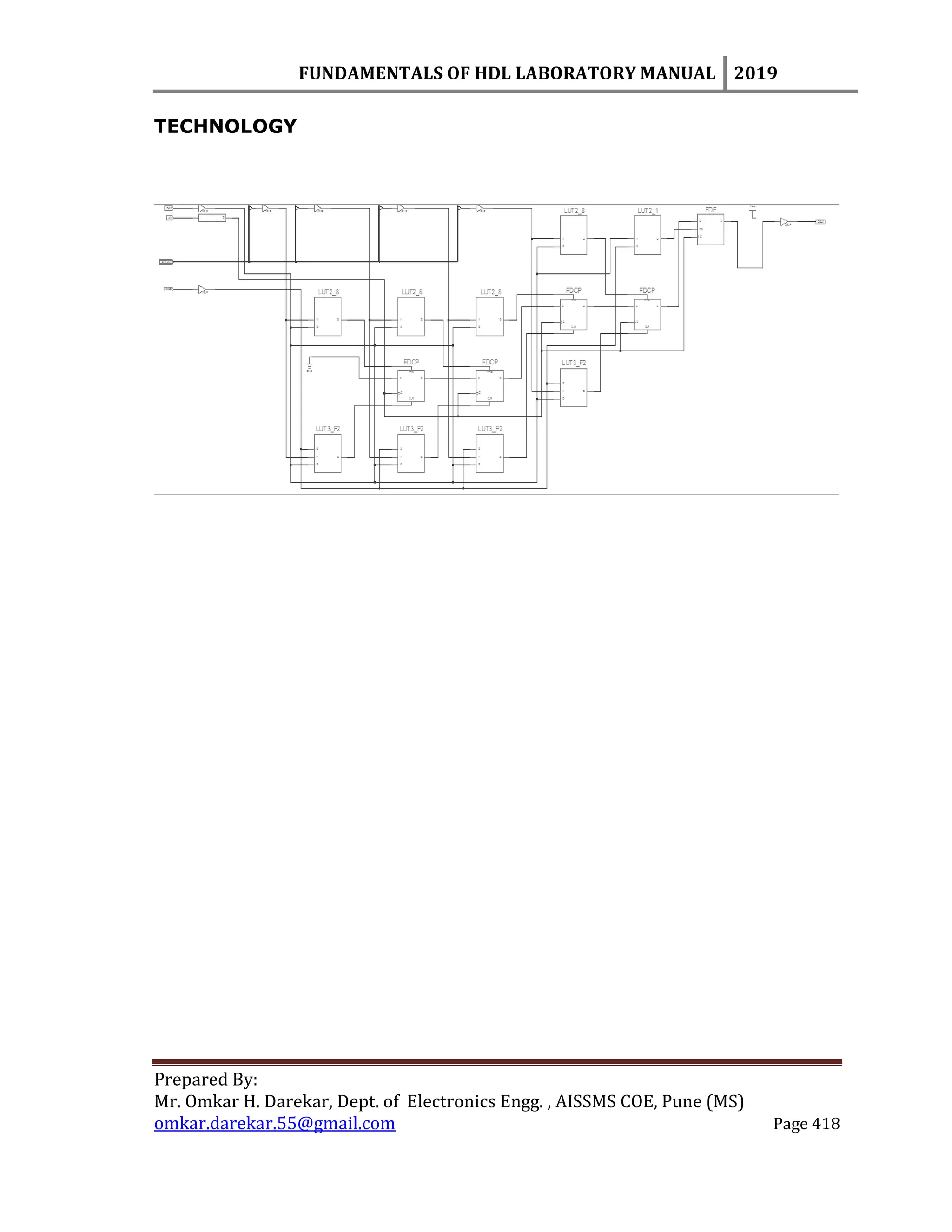

TECHNOLOGY

Prepared By:

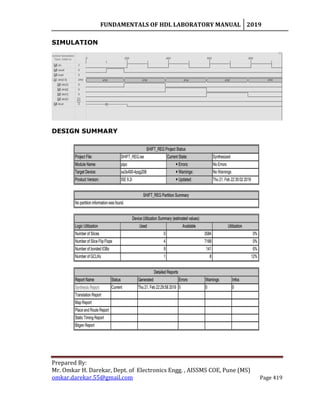

SIMULATION
DESIGN SUMMARY

Prepared By:

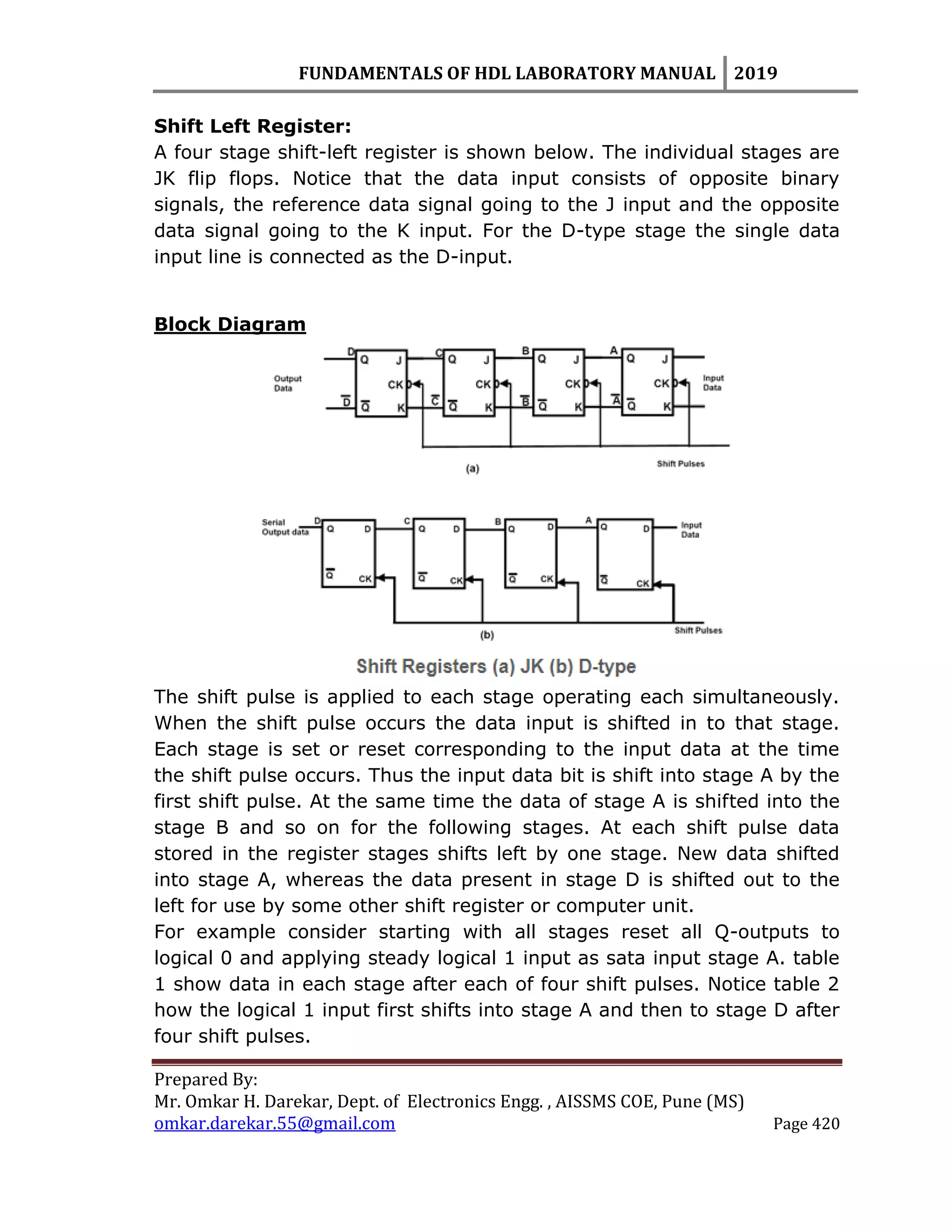

Shift Left Register:
A four stage shift-left register is shown below. The individual stages are
JK flip flops. Notice that the data input consists of opposite binary
signals, the reference data signal going to the J input and the opposite
data signal going to the K input. For the D-type stage the single data
input line is connected as the D-input.
Block Diagram
The shift pulse is applied to each stage operating each simultaneously.
When the shift pulse occurs the data input is shifted in to that stage.
Each stage is set or reset corresponding to the input data at the time
the shift pulse occurs. Thus the input data bit is shift into stage A by the
first shift pulse. At the same time the data of stage A is shifted into the
stage B and so on for the following stages. At each shift pulse data
stored in the register stages shifts left by one stage. New data shifted
into stage A, whereas the data present in stage D is shifted out to the
left for use by some other shift register or computer unit.
For example consider starting with all stages reset all Q-outputs to
logical 0 and applying steady logical 1 input as sata input stage A. table
1 show data in each stage after each of four shift pulses. Notice table 2
how the logical 1 input first shifts into stage A and then to stage D after
four shift pulses.

Prepared By:
As another example consider shifting alternate 0 and 1 data into stage A
starting with all stages 1. Table 2 shows the data in each stage after
each of four shift pulses.
Finally as a third example of shift register operation, consider starting
with the count in step 4 of table 2 and apply four more shift pulses with
placing a steady logical 0 input as data input to stage A, table 3 shows
this operation.

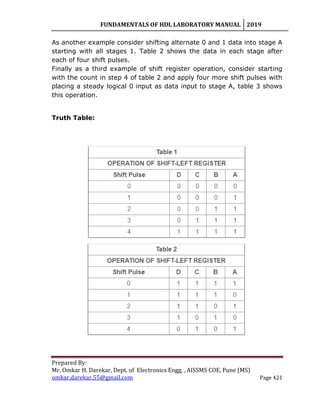

Truth Table:

Prepared By:

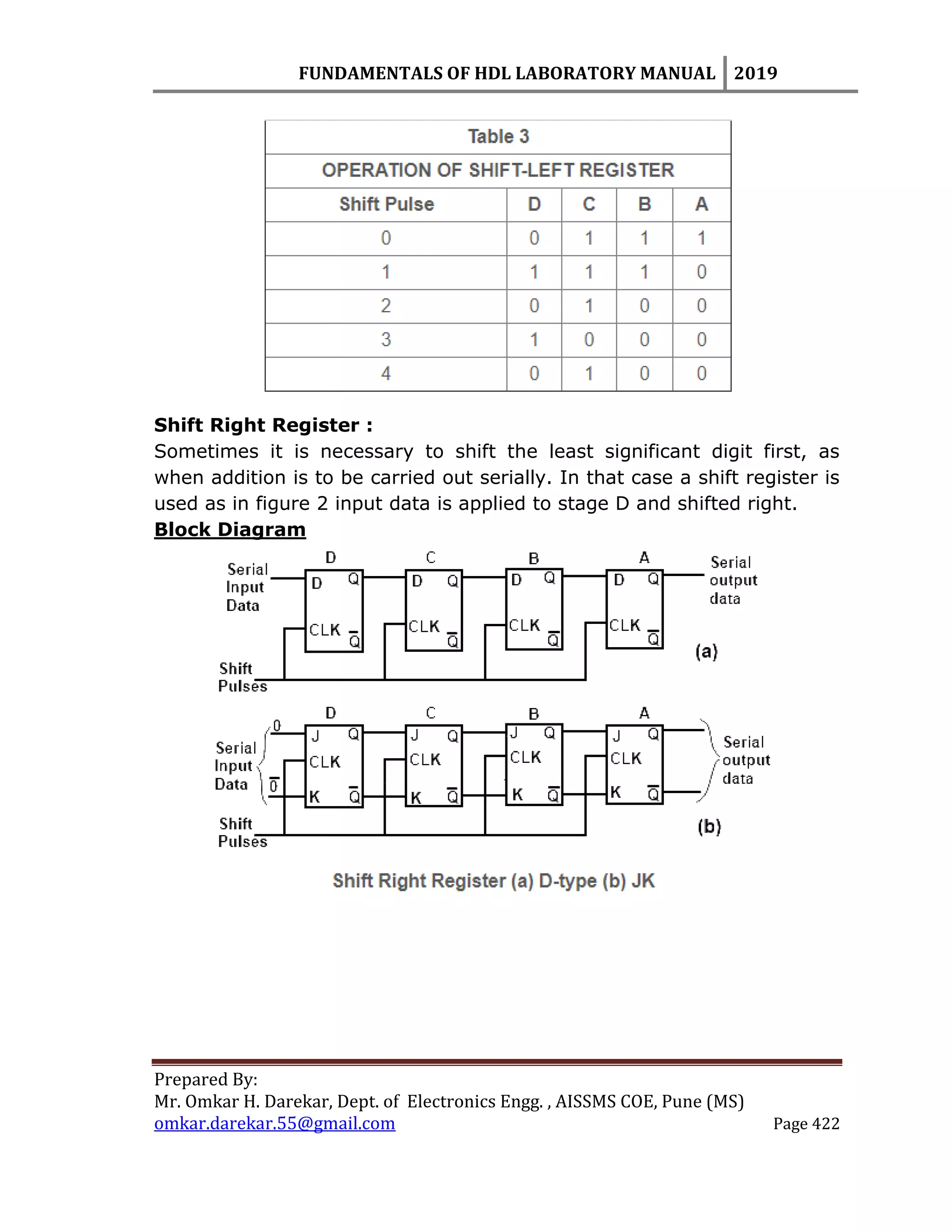

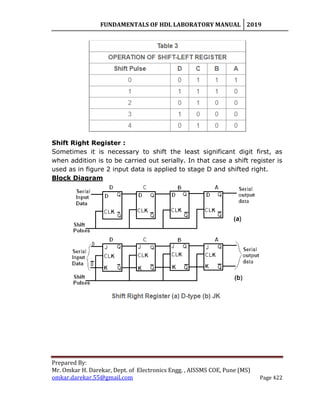

Shift Right Register :
Sometimes it is necessary to shift the least significant digit first, as
when addition is to be carried out serially. In that case a shift register is
used as in figure 2 input data is applied to stage D and shifted right.
Block Diagram

Prepared By:

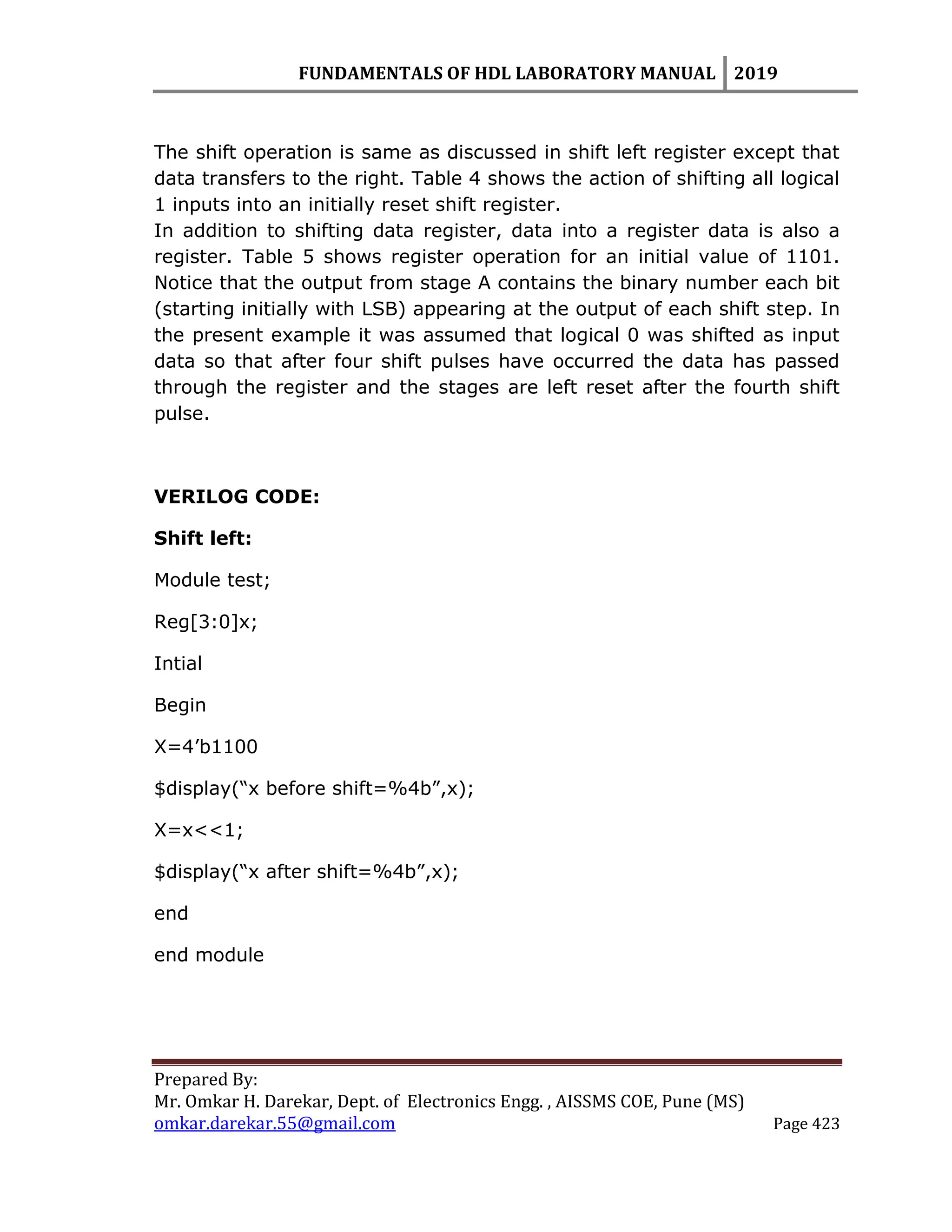

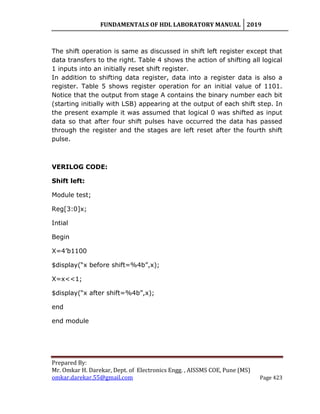

The shift operation is same as discussed in shift left register except that
data transfers to the right. Table 4 shows the action of shifting all logical
1 inputs into an initially reset shift register.
In addition to shifting data register, data into a register data is also a
register. Table 5 shows register operation for an initial value of 1101.
Notice that the output from stage A contains the binary number each bit
(starting initially with LSB) appearing at the output of each shift step. In
the present example it was assumed that logical 0 was shifted as input
data so that after four shift pulses have occurred the data has passed
through the register and the stages are left reset after the fourth shift
pulse.
VERILOG CODE:
Shift left:
Module test;
Reg[3:0]x;
Intial
Begin
X=4‟b1100
$display(“x before shift=%4b”,x);
X=x<<1;
$display(“x after shift=%4b”,x);
end
end module

Prepared By:

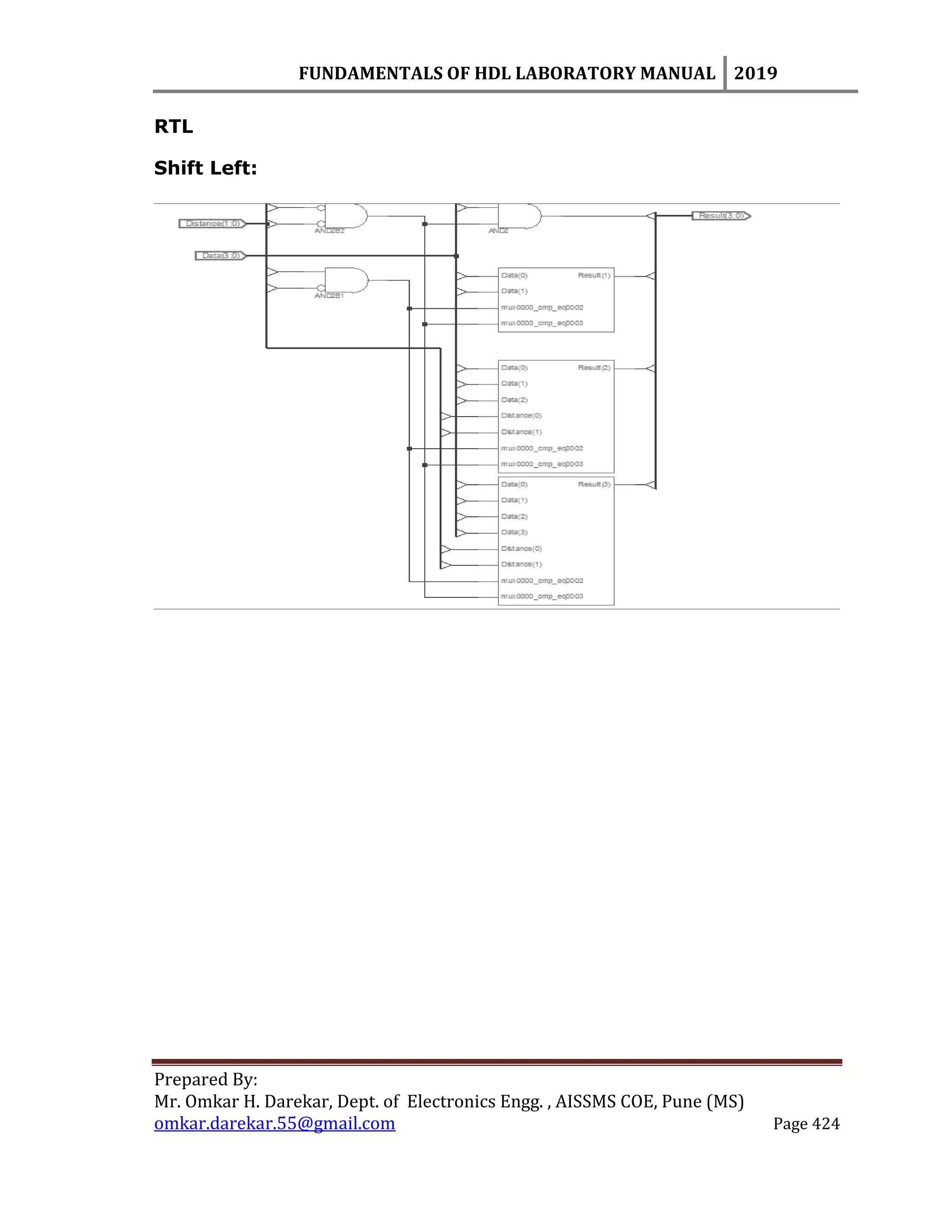

RTL
Shift Left:

Prepared By:

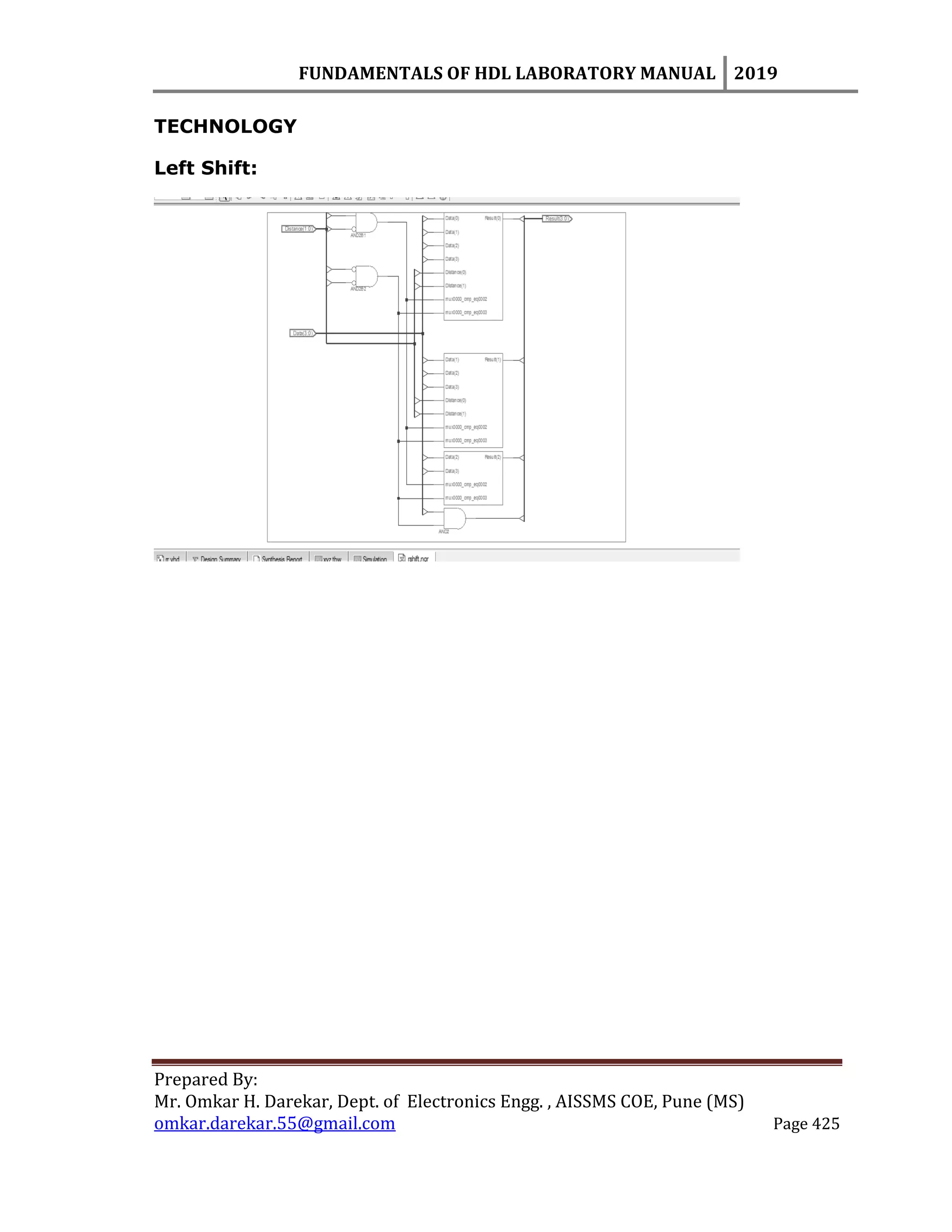

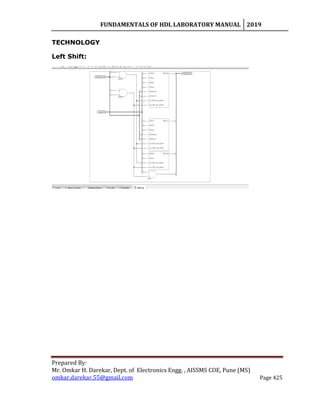

TECHNOLOGY
Left Shift:

Prepared By:

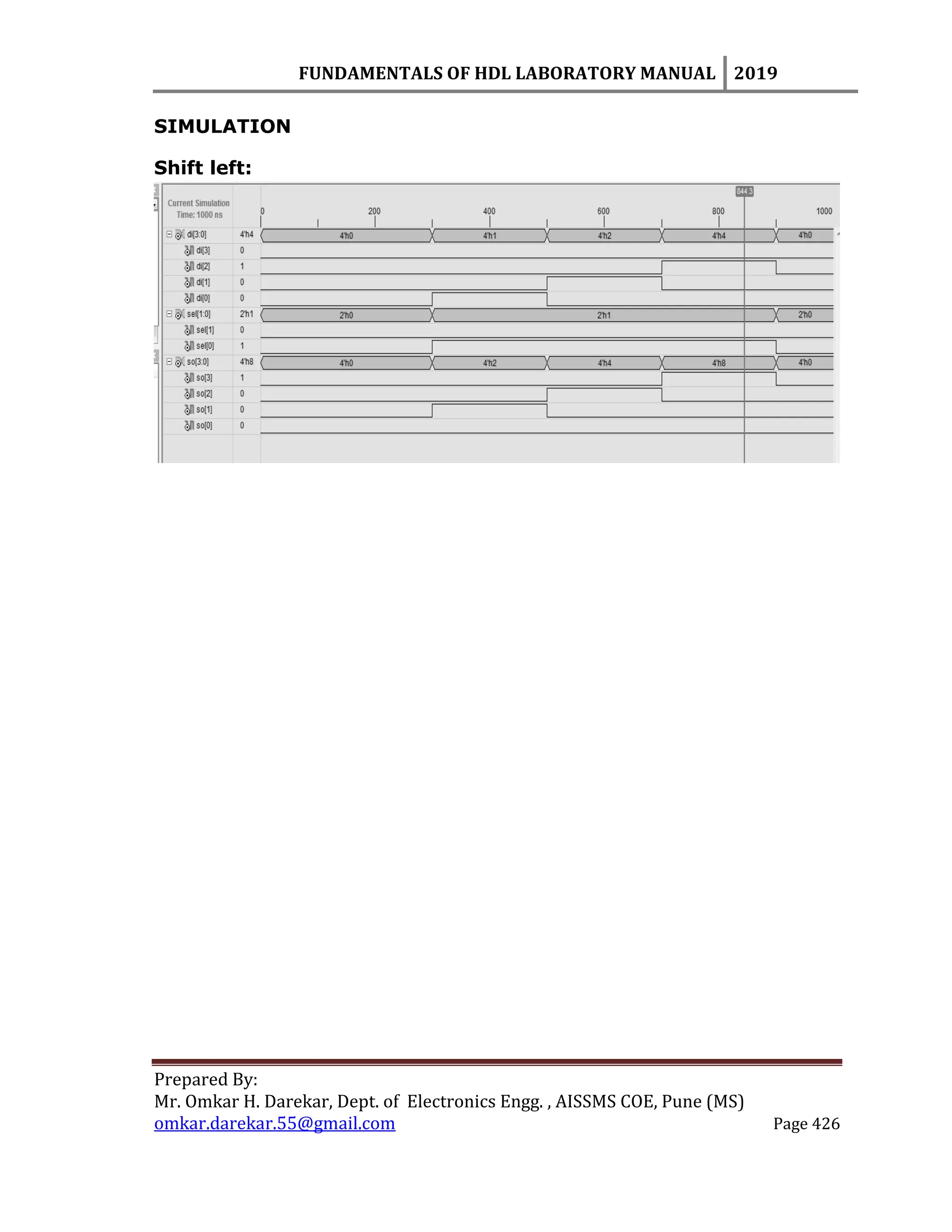

SIMULATION
Shift left:

Prepared By:

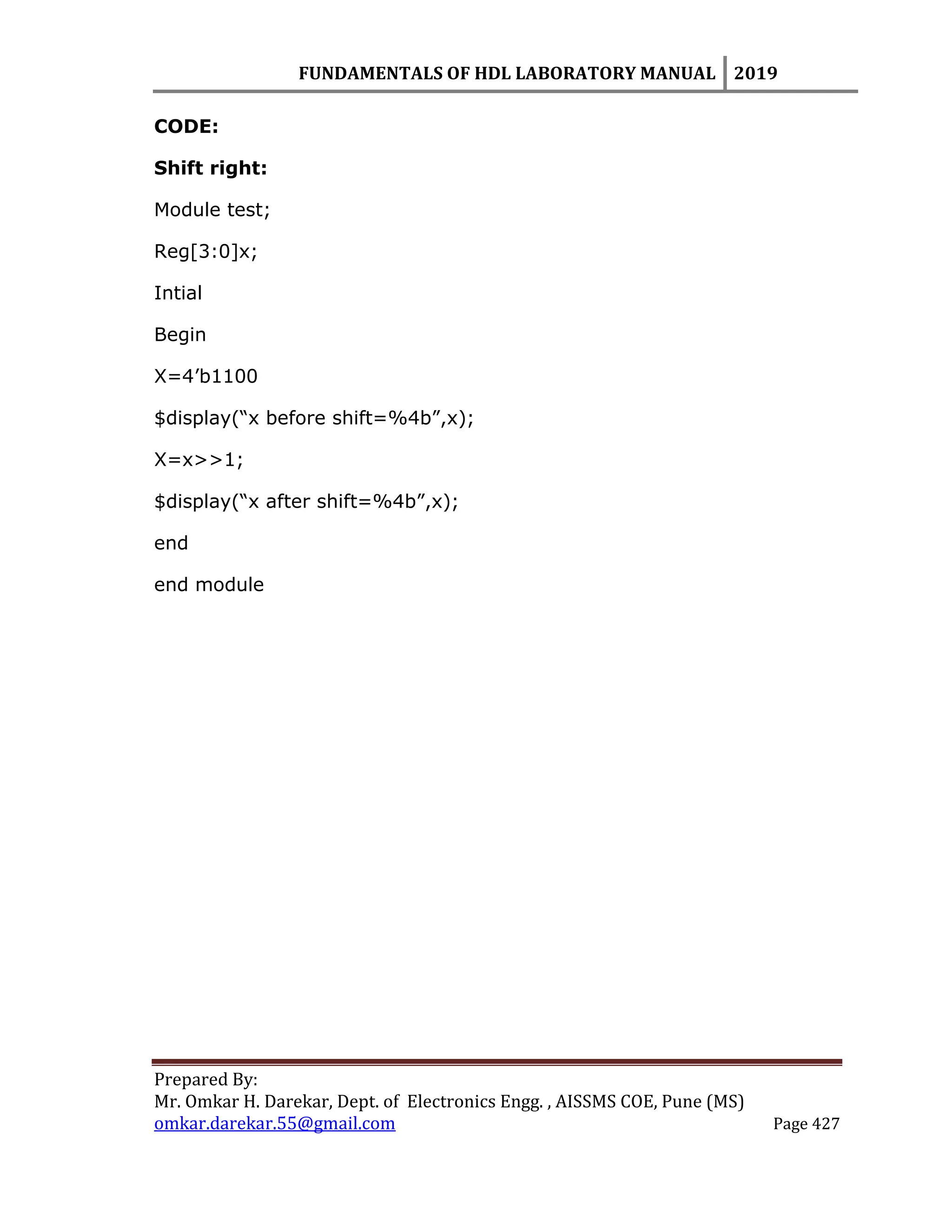

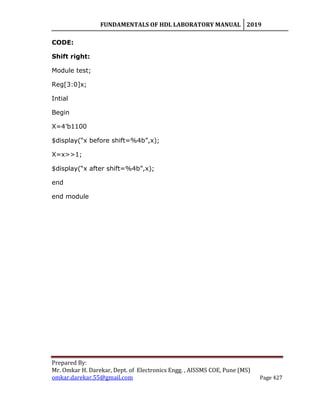

CODE:
Shift right:
Module test;
Reg[3:0]x;
Intial
Begin
X=4‟b1100
$display(“x before shift=%4b”,x);
X=x>>1;
$display(“x after shift=%4b”,x);
end
end module

Prepared By:

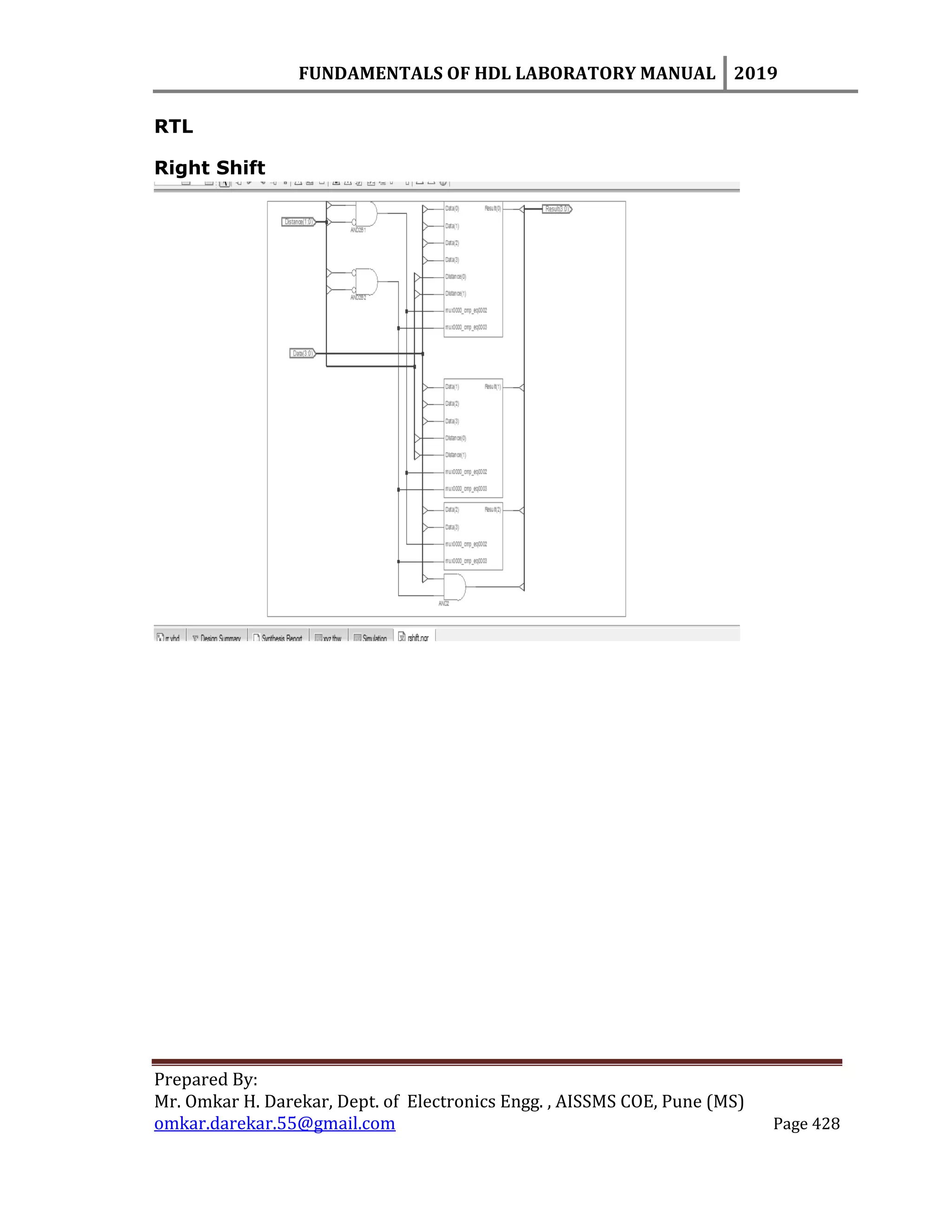

RTL
Right Shift

Prepared By:

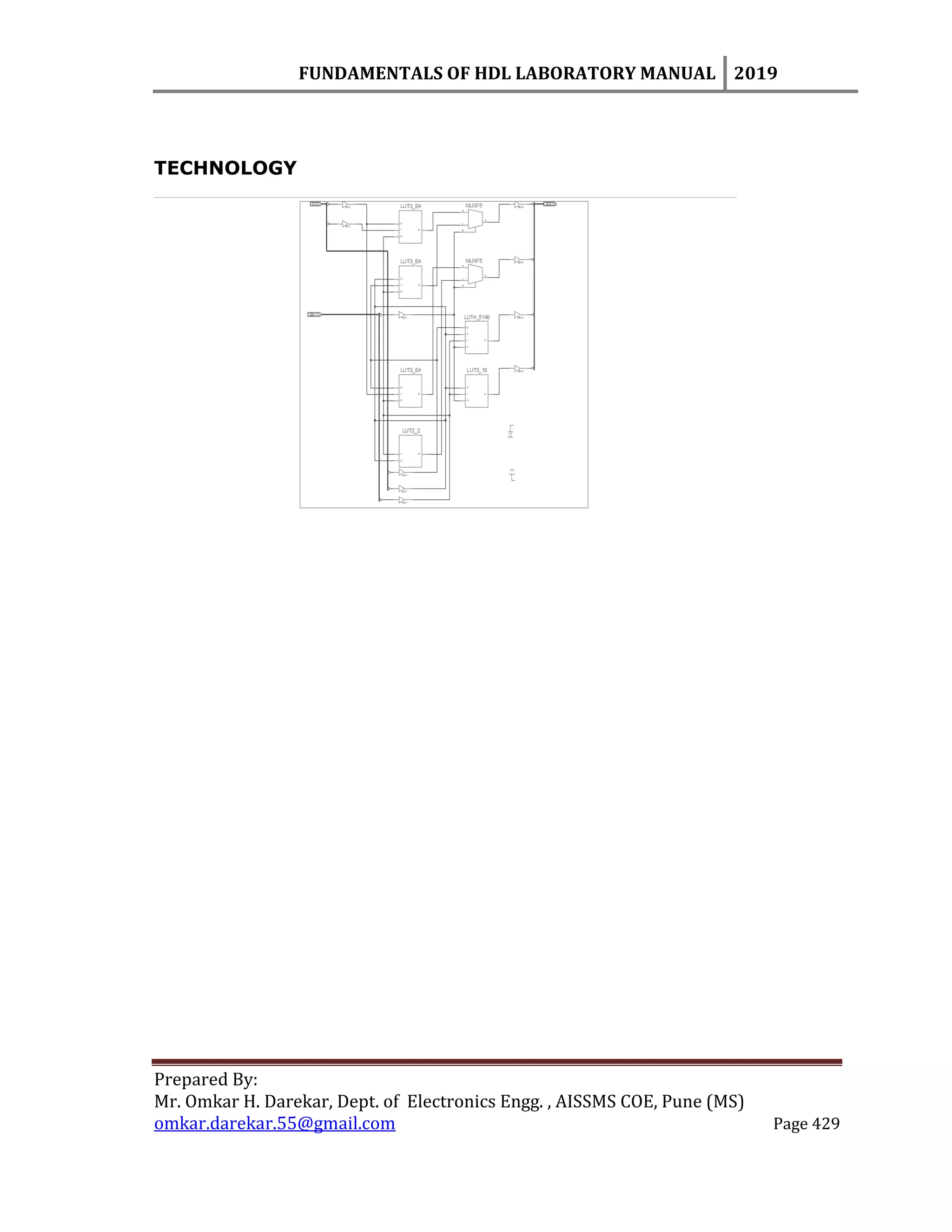

TECHNOLOGY

Prepared By:
SIMULATION
Shift Right:
DESIGN SUMMARY

Prepared By:

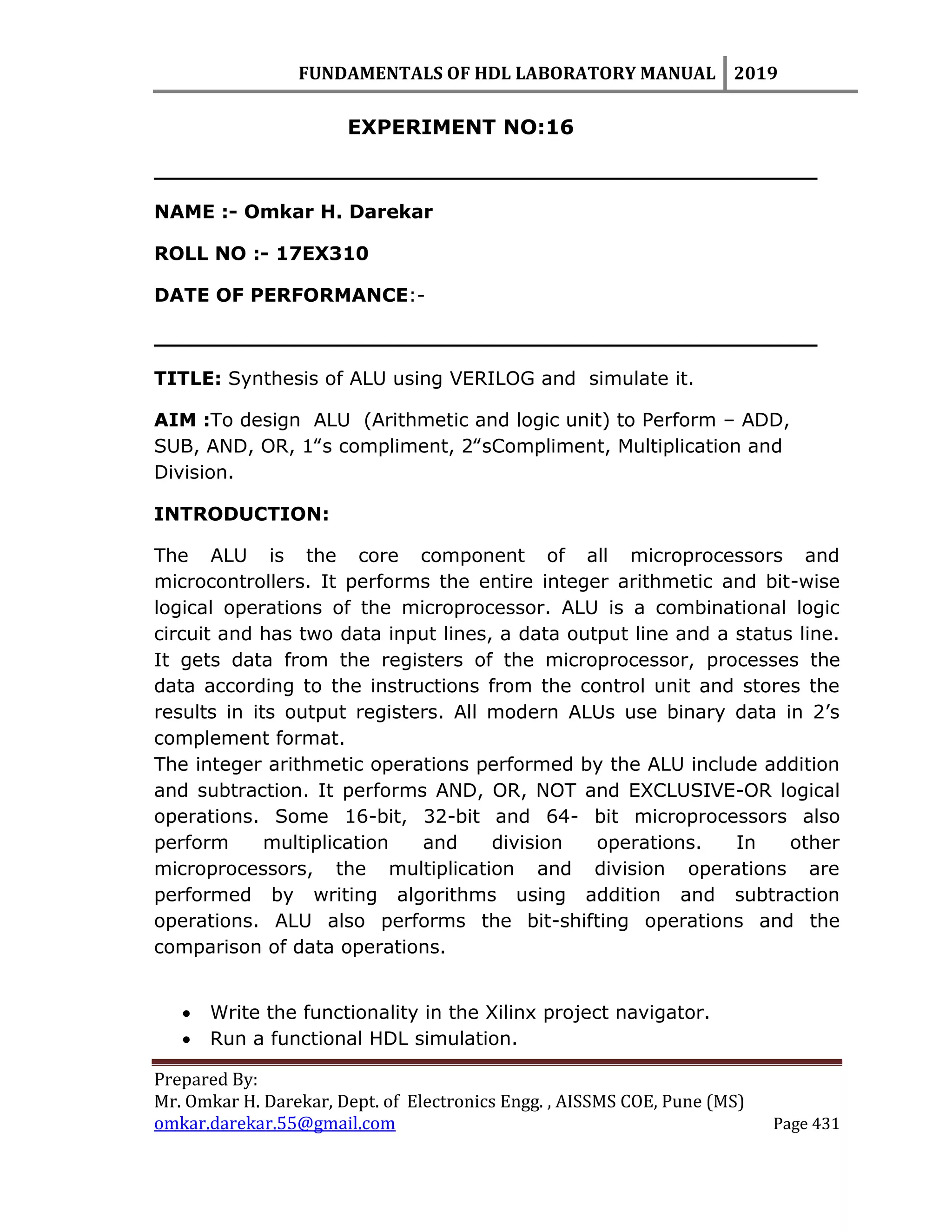

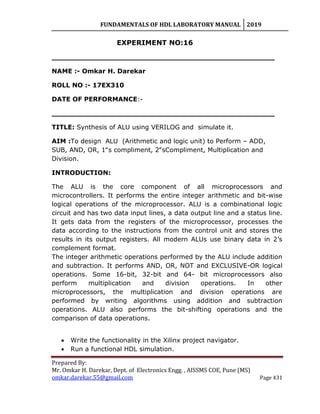

EXPERIMENT NO:16
__________________________________________________
ROLL NO :- 17EX310
__________________________________________________
TITLE: Synthesis of ALU using VERILOG and simulate it.
AIM :To design ALU (Arithmetic and logic unit) to Perform – ADD,
SUB, AND, OR, 1‟s compliment, 2‟sCompliment, Multiplication and
Division.
INTRODUCTION:
The ALU is the core component of all microprocessors and
microcontrollers. It performs the entire integer arithmetic and bit-wise
logical operations of the microprocessor. ALU is a combinational logic
circuit and has two data input lines, a data output line and a status line.
It gets data from the registers of the microprocessor, processes the
data according to the instructions from the control unit and stores the
results in its output registers. All modern ALUs use binary data in 2‟s
complement format.
The integer arithmetic operations performed by the ALU include addition
and subtraction. It performs AND, OR, NOT and EXCLUSIVE-OR logical
operations. Some 16-bit, 32-bit and 64- bit microprocessors also
perform multiplication and division operations. In other
microprocessors, the multiplication and division operations are
performed by writing algorithms using addition and subtraction
operations. ALU also performs the bit-shifting operations and the
comparison of data operations.

Prepared By:

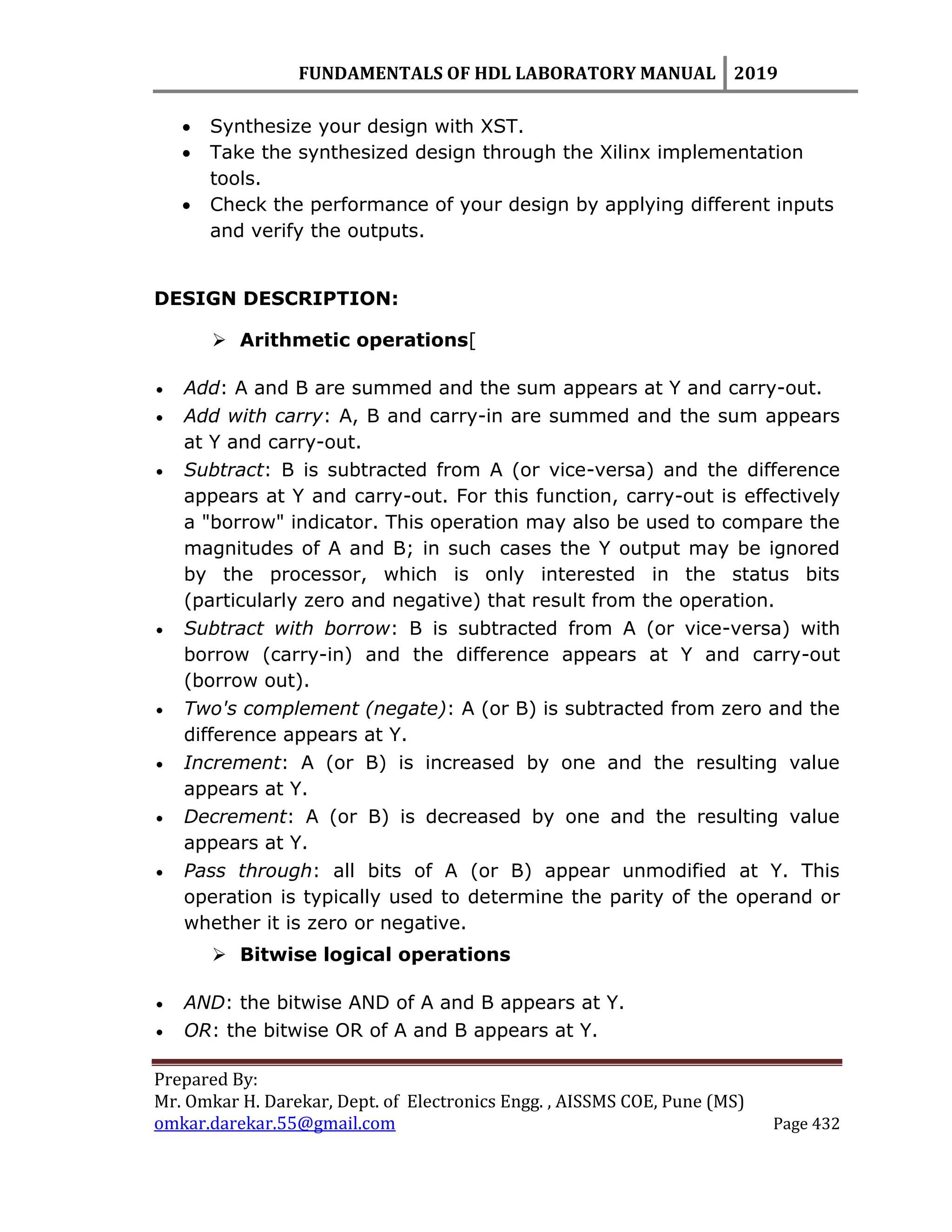

 Take the synthesized design through the Xilinx implementation
tools.
 Check the performance of your design by applying different inputs
and verify the outputs.
DESIGN DESCRIPTION:
 Arithmetic operations[
 Add: A and B are summed and the sum appears at Y and carry-out.
 Add with carry: A, B and carry-in are summed and the sum appears
at Y and carry-out.
 Subtract: B is subtracted from A (or vice-versa) and the difference
appears at Y and carry-out. For this function, carry-out is effectively
a "borrow" indicator. This operation may also be used to compare the
magnitudes of A and B; in such cases the Y output may be ignored
by the processor, which is only interested in the status bits
(particularly zero and negative) that result from the operation.
 Subtract with borrow: B is subtracted from A (or vice-versa) with
borrow (carry-in) and the difference appears at Y and carry-out
(borrow out).
 Two's complement (negate): A (or B) is subtracted from zero and the
difference appears at Y.
 Increment: A (or B) is increased by one and the resulting value
appears at Y.
 Decrement: A (or B) is decreased by one and the resulting value
appears at Y.
 Pass through: all bits of A (or B) appear unmodified at Y. This
operation is typically used to determine the parity of the operand or
whether it is zero or negative.
 Bitwise logical operations
 AND: the bitwise AND of A and B appears at Y.
 OR: the bitwise OR of A and B appears at Y.

Prepared By:

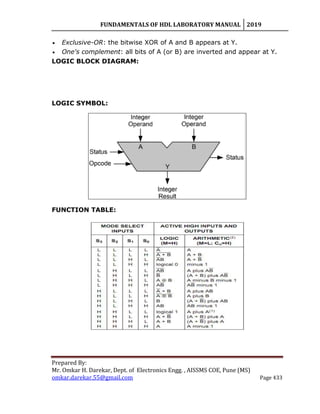

 Exclusive-OR: the bitwise XOR of A and B appears at Y.
 One's complement: all bits of A (or B) are inverted and appear at Y.

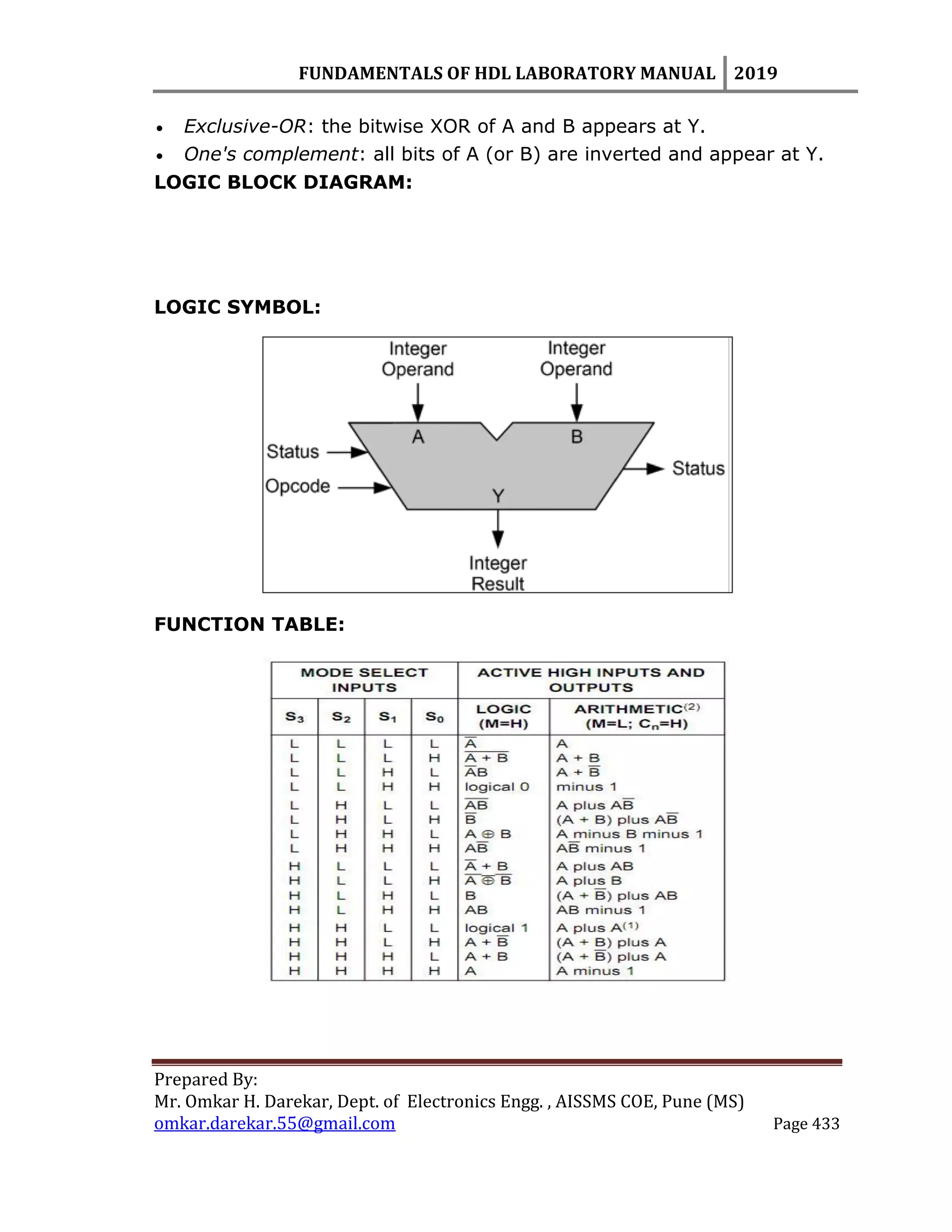

LOGIC SYMBOL:
FUNCTION TABLE:

Prepared By:

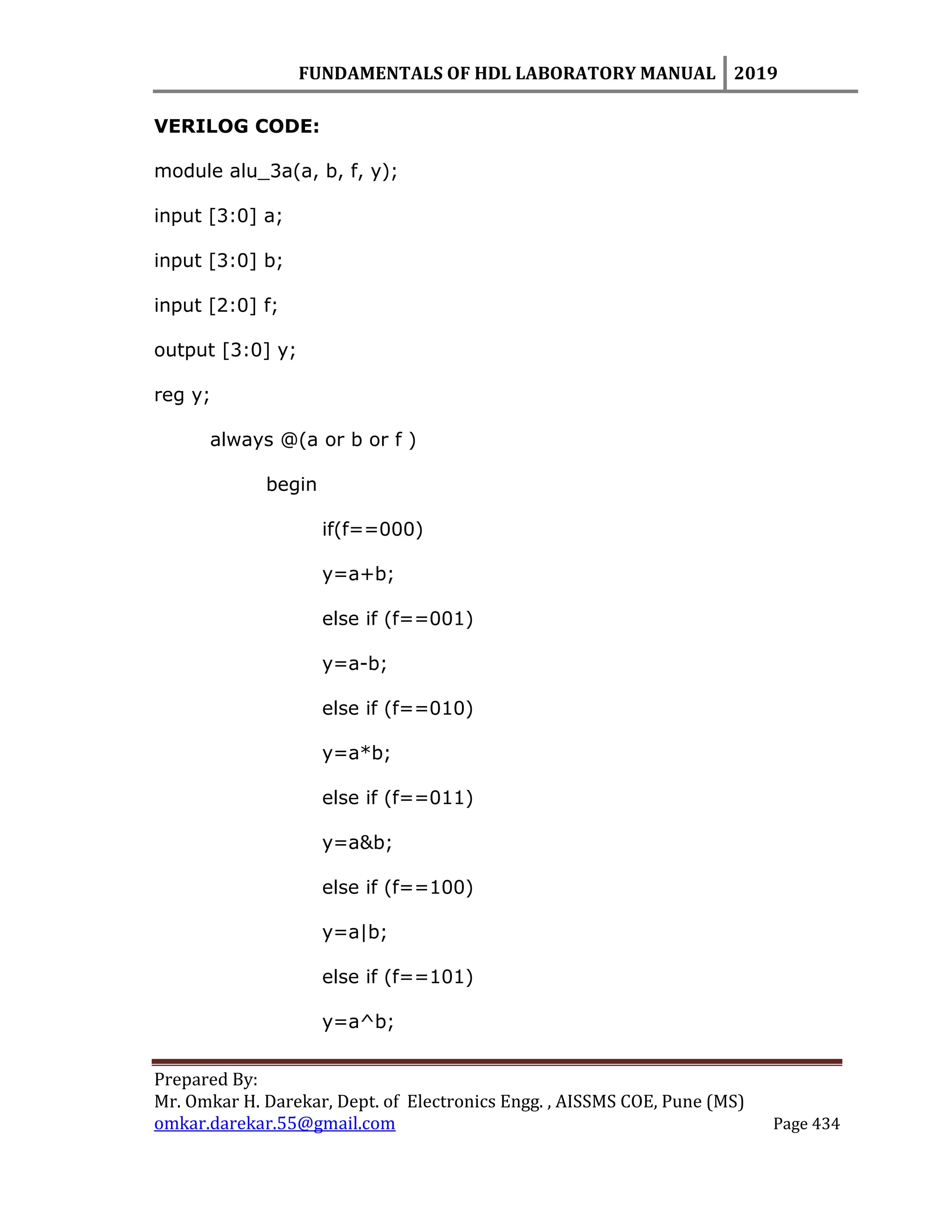

VERILOG CODE:
module alu_3a(a, b, f, y);
input [3:0] a;
input [3:0] b;
input [2:0] f;
output [3:0] y;
reg y;
always @(a or b or f )
begin
if(f==000)
y=a+b;
else if (f==001)
y=a-b;
else if (f==010)
y=a*b;
else if (f==011)
y=a&b;
else if (f==100)
y=a|b;
else if (f==101)
y=a^b;

Prepared By:

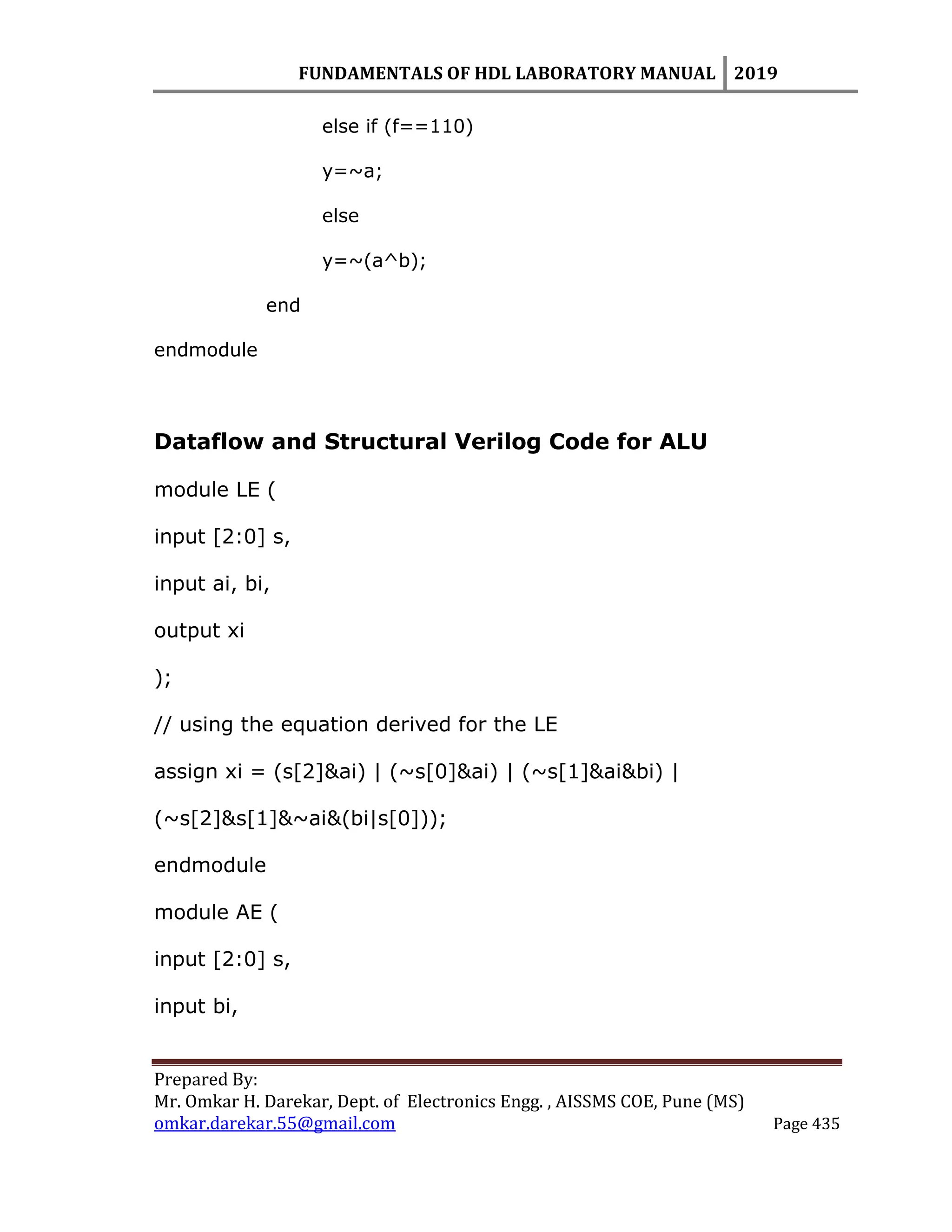

else if (f==110)
y=~a;
else
y=~(a^b);
end
endmodule
Dataflow and Structural Verilog Code for ALU
module LE (
input [2:0] s,
input ai, bi,
output xi
);
// using the equation derived for the LE
assign xi = (s[2]&ai) | (~s[0]&ai) | (~s[1]&ai&bi) |
(~s[2]&s[1]&~ai&(bi|s[0]));
endmodule
module AE (
input [2:0] s,
input bi,

Prepared By:

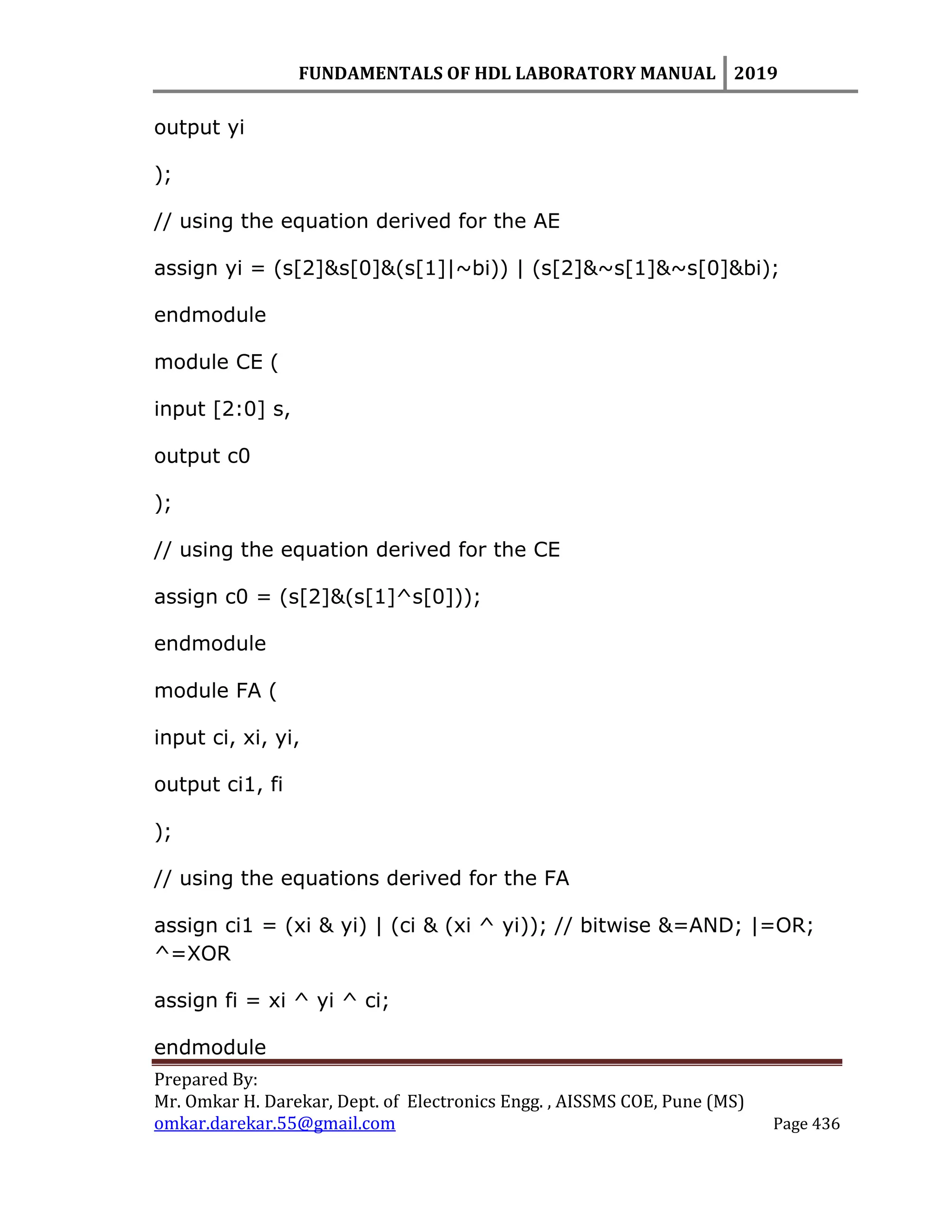

output yi
);
// using the equation derived for the AE
assign yi = (s[2]&s[0]&(s[1]|~bi)) | (s[2]&~s[1]&~s[0]&bi);
endmodule
module CE (
input [2:0] s,
output c0
);
// using the equation derived for the CE
assign c0 = (s[2]&(s[1]^s[0]));
endmodule
module FA (
input ci, xi, yi,
output ci1, fi
);
// using the equations derived for the FA
assign ci1 = (xi & yi) | (ci & (xi ^ yi)); // bitwise &=AND; |=OR;
^=XOR
assign fi = xi ^ yi ^ ci;
endmodule

Prepared By:

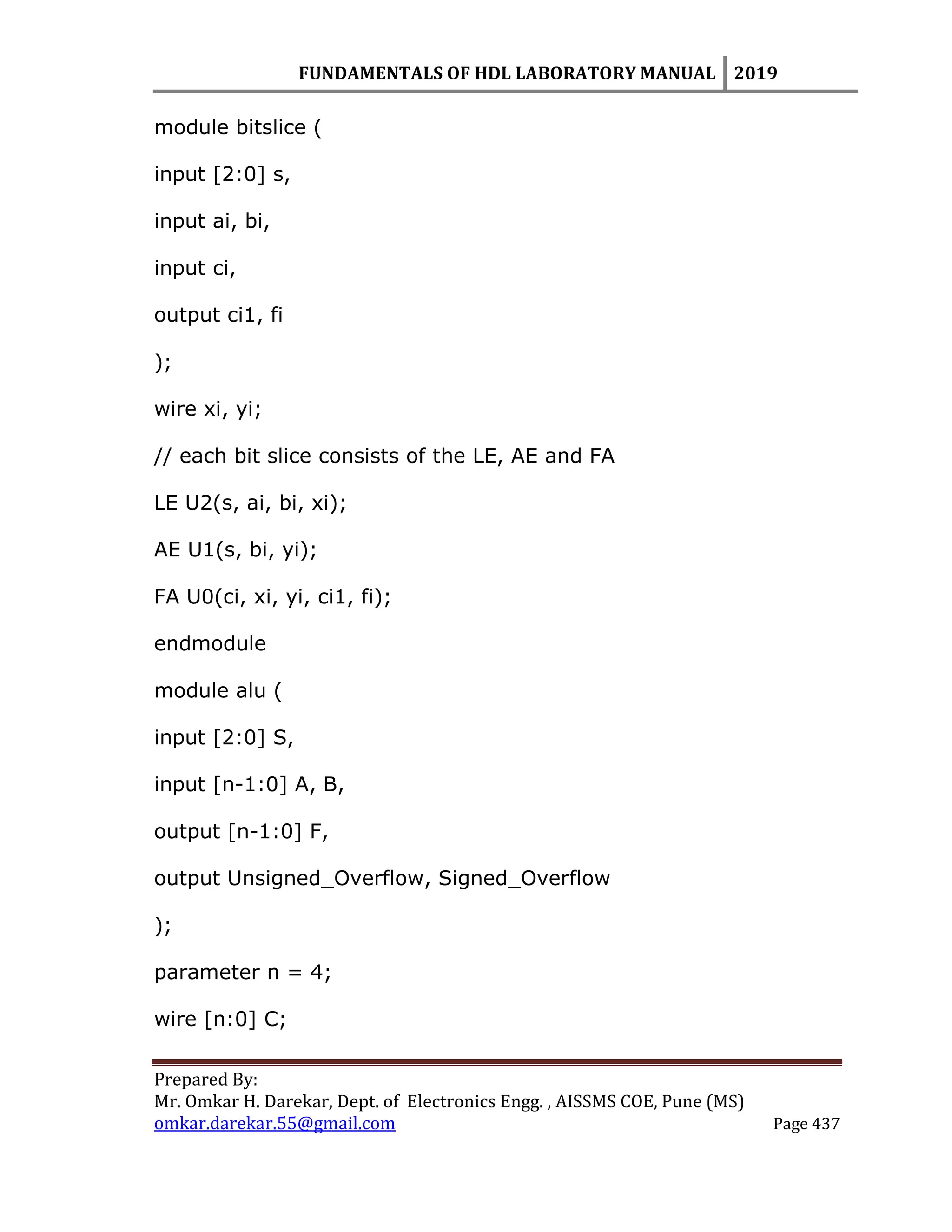

module bitslice (
input [2:0] s,
input ai, bi,
input ci,
output ci1, fi
);
wire xi, yi;
// each bit slice consists of the LE, AE and FA
LE U2(s, ai, bi, xi);
AE U1(s, bi, yi);
FA U0(ci, xi, yi, ci1, fi);
endmodule
module alu (
input [2:0] S,
input [n-1:0] A, B,
output [n-1:0] F,
output Unsigned_Overflow, Signed_Overflow
);
parameter n = 4;
wire [n:0] C;

Prepared By:

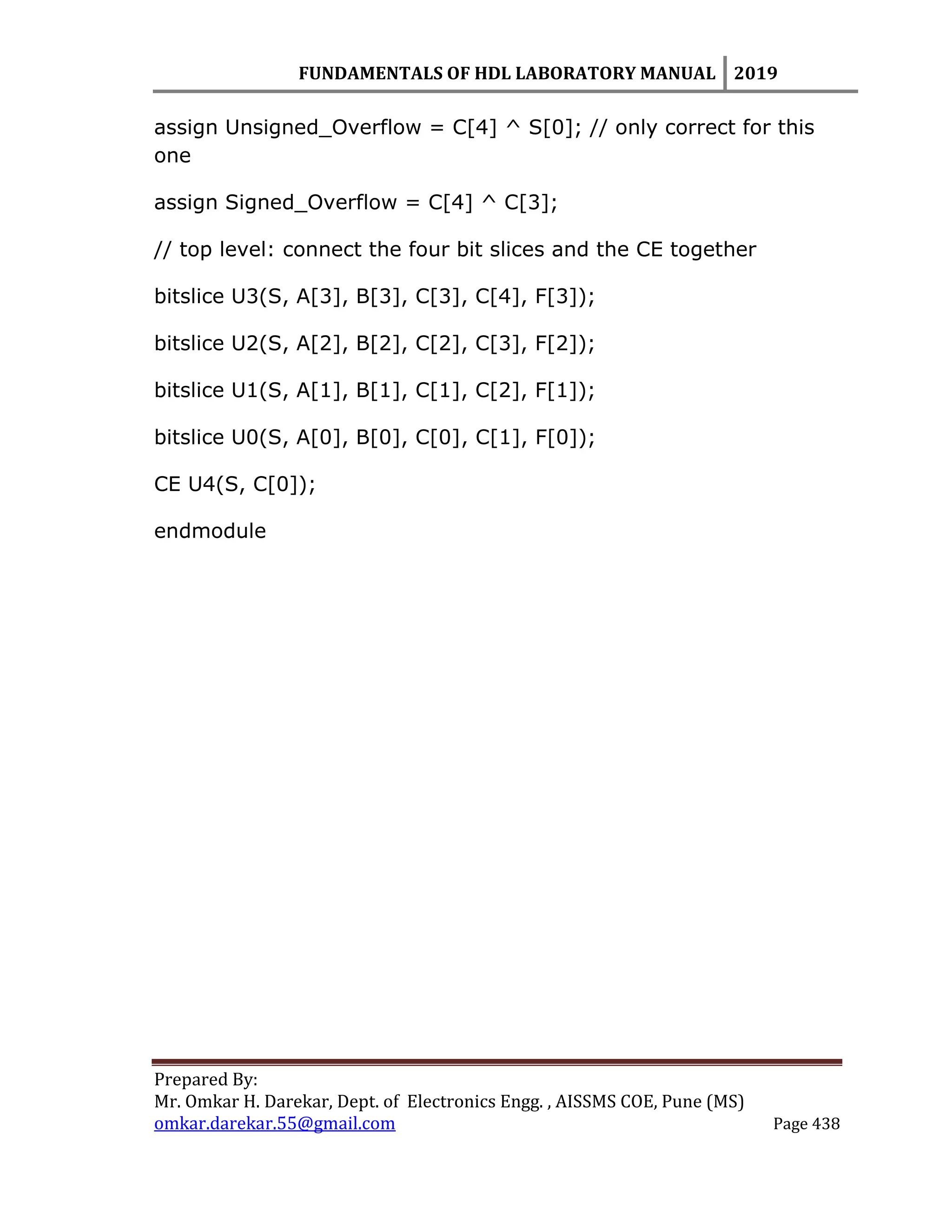

assign Unsigned_Overflow = C[4] ^ S[0]; // only correct for this
one
assign Signed_Overflow = C[4] ^ C[3];
// top level: connect the four bit slices and the CE together
bitslice U3(S, A[3], B[3], C[3], C[4], F[3]);
CE U4(S, C[0]);
endmodule

Prepared By:

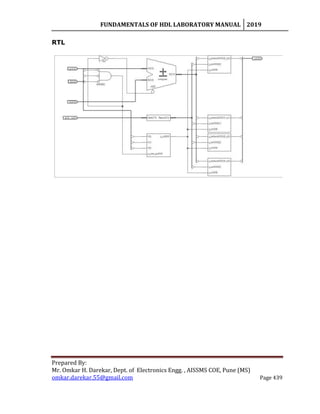

RTL

Prepared By:

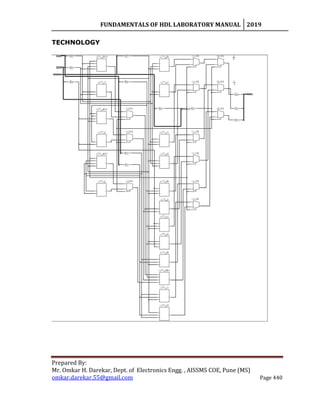

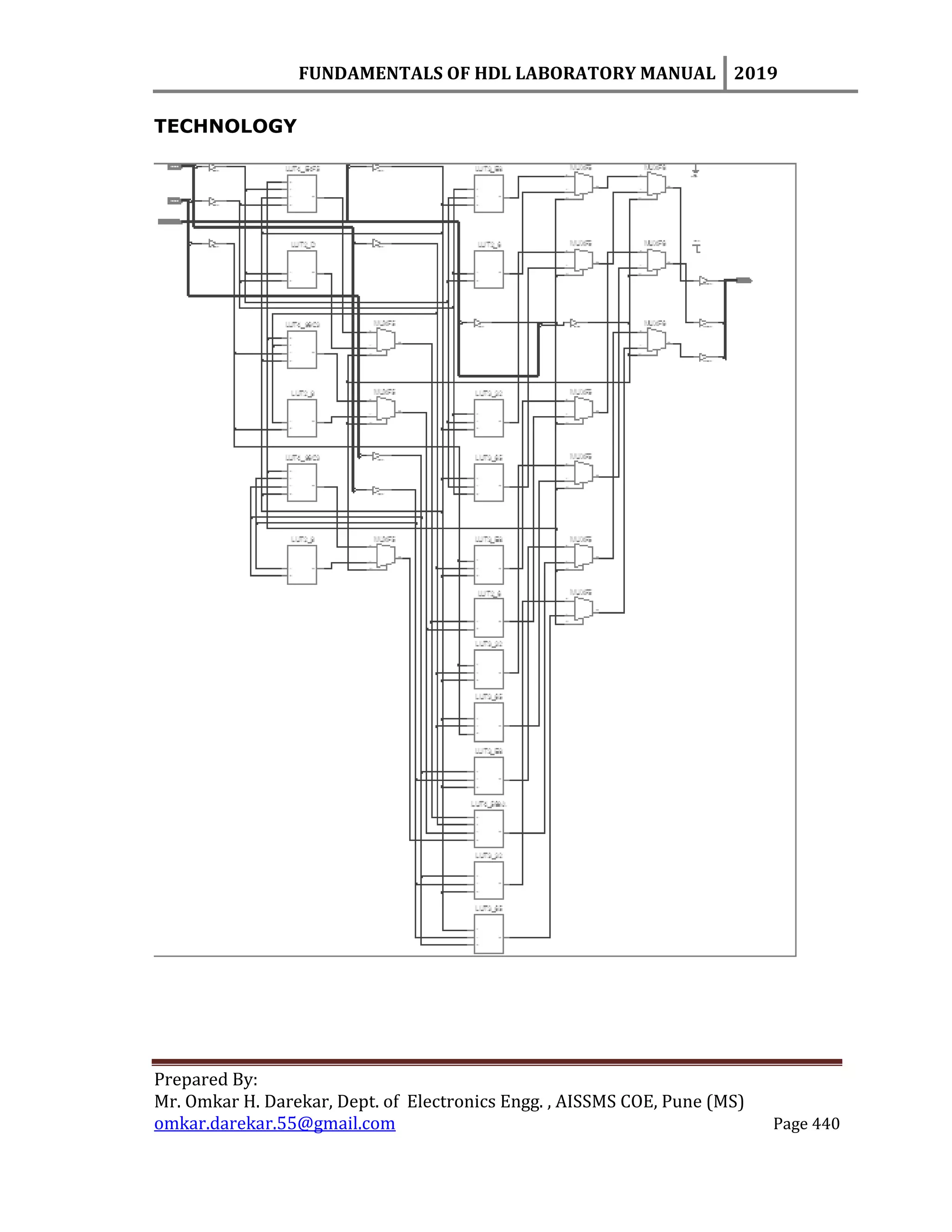

TECHNOLOGY

Prepared By:

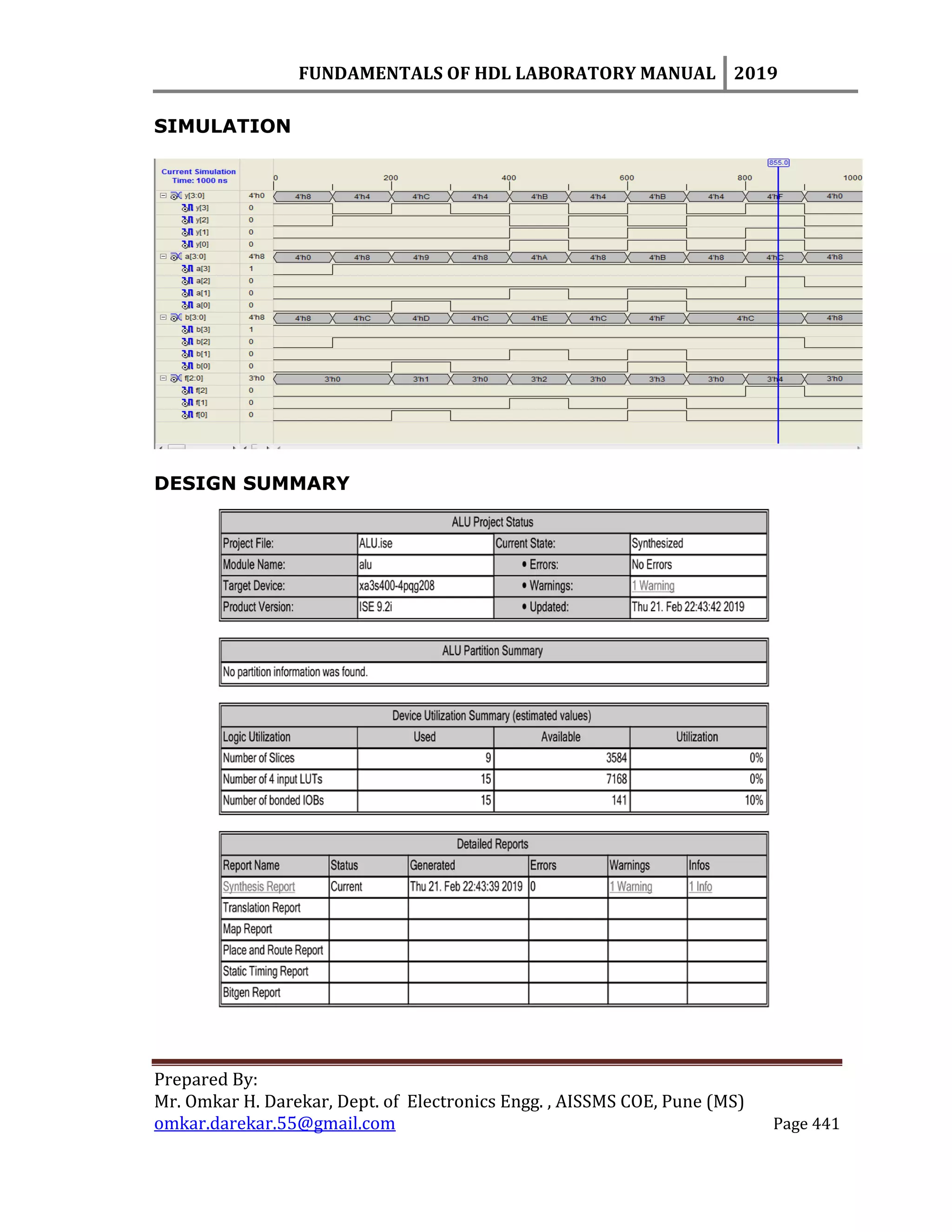

SIMULATION
DESIGN SUMMARY

Verilog HDL CODES

More Related Content

What's hot

Similar to Verilog HDL CODES

Recently uploaded

In this document

Verilog HDL CODES
