03unixintro2

Introduction to Unix, Part 2

CS 167 III–1 Copyright © 2006 Thomas W. Doeppner. All rights reserved.

III–1

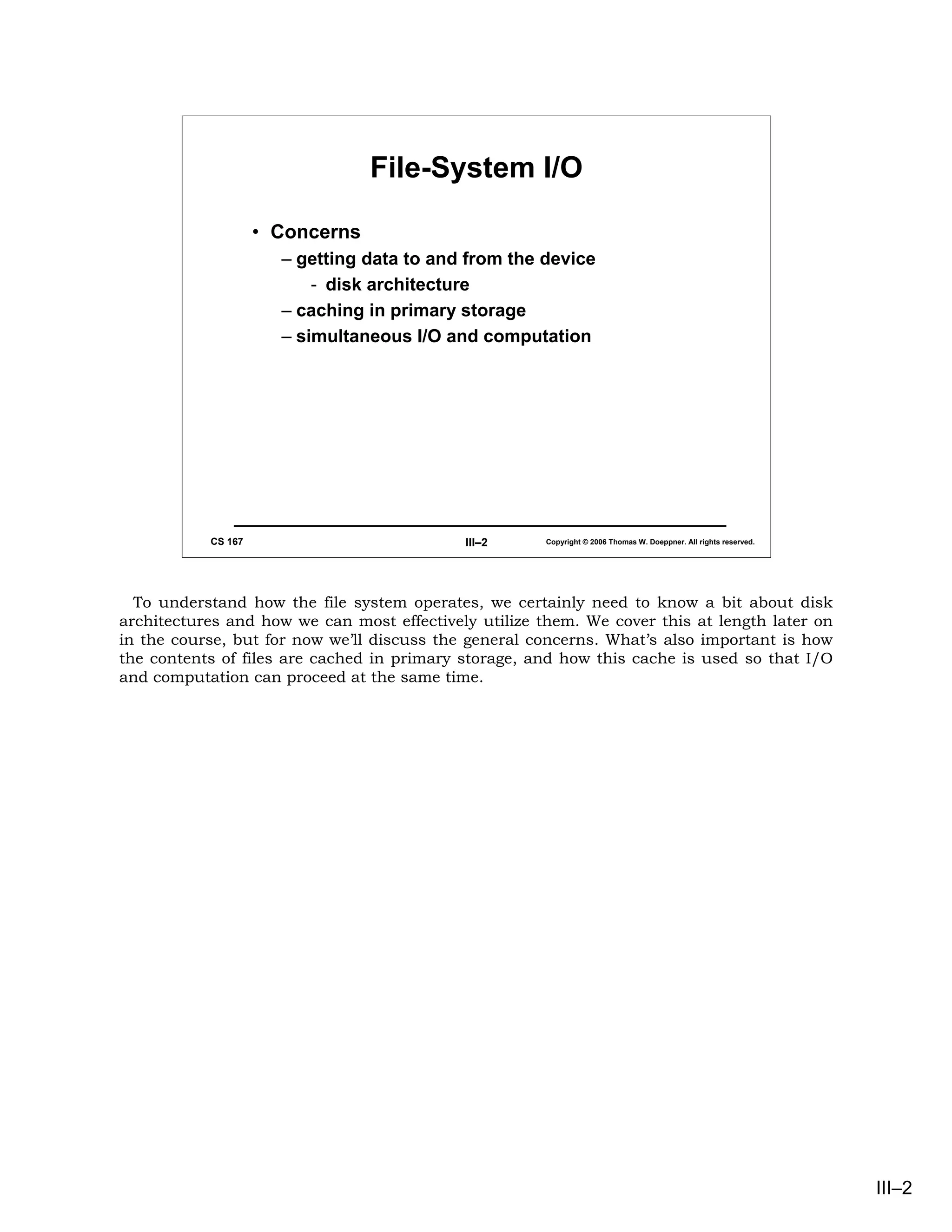

File-System I/O

• Concerns
– getting data to and from the device
- disk architecture
– caching in primary storage
– simultaneous I/O and computation


To understand how the file system operates, we certainly need to know a bit about disk
architectures and how we can most effectively utilize them. We cover this at length later on
in the course, but for now we’ll discuss the general concerns. What’s also important is how
the contents of files are cached in primary storage, and how this cache is used so that I/O
and computation can proceed at the same time.

III–2

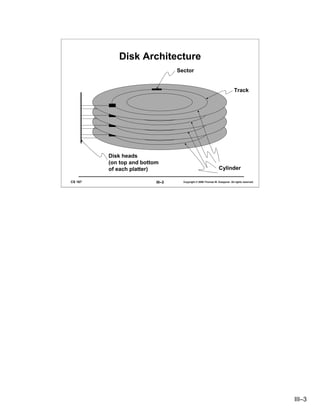

Disk Architecture
Sector

Track

Disk heads
(on top and bottom
of each platter) Cylinder


III–3

The Buffer Cache

Buffer

User Process

Buffer Cache

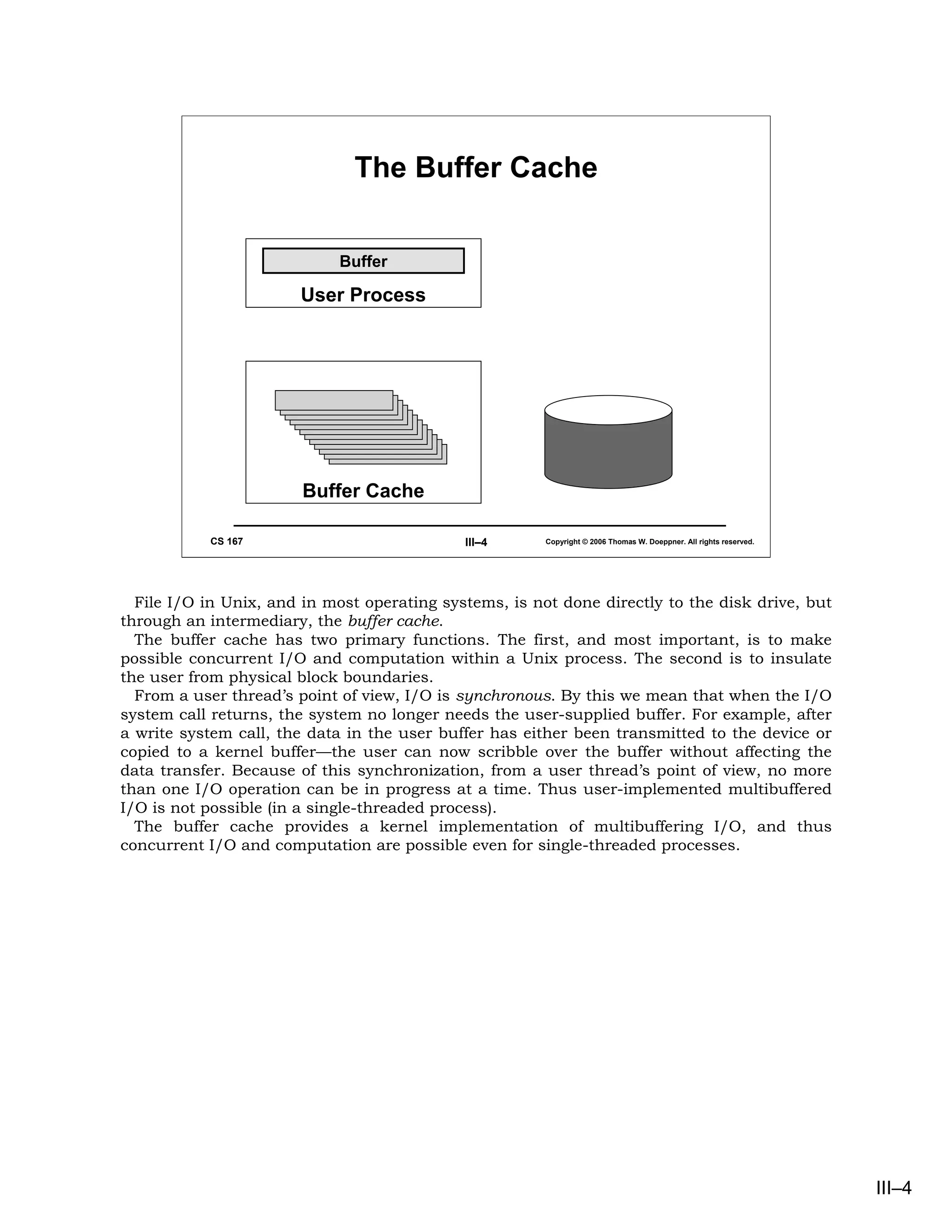

File I/O in Unix, and in most operating systems, is not done directly to the disk drive, but
through an intermediary, the buffer cache.
The buffer cache has two primary functions. The first, and most important, is to make
possible concurrent I/O and computation within a Unix process. The second is to insulate
the user from physical block boundaries.
From a user thread’s point of view, I/O is synchronous. By this we mean that when the I/O
system call returns, the system no longer needs the user-supplied buffer. For example, after
a write system call, the data in the user buffer has either been transmitted to the device or
copied to a kernel buffer—the user can now scribble over the buffer without affecting the
data transfer. Because of this synchronization, from a user thread’s point of view, no more
than one I/O operation can be in progress at a time. Thus user-implemented multibuffered
I/O is not possible (in a single-threaded process).
The buffer cache provides a kernel implementation of multibuffering I/O, and thus
concurrent I/O and computation are possible even for single-threaded processes.

III–4

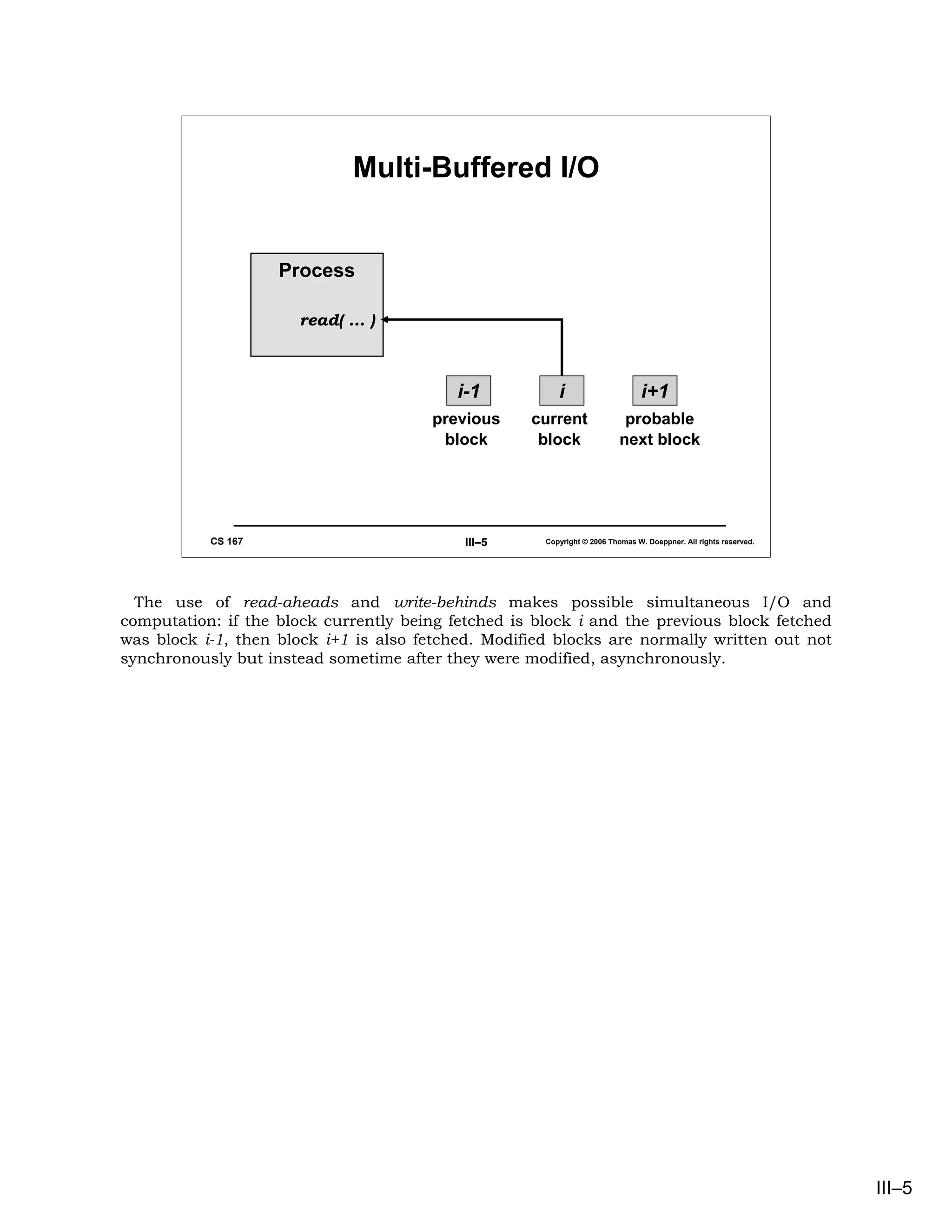

Multi-Buffered I/O

Process

read( … )

i-1 i i+1
previous current probable
block block next block


The use of read-aheads and write-behinds makes possible simultaneous I/O and
computation: if the block currently being fetched is block i and the previous block fetched
was block i-1, then block i+1 is also fetched. Modified blocks are normally written out not
synchronously but instead sometime after they were modified, asynchronously.

III–5

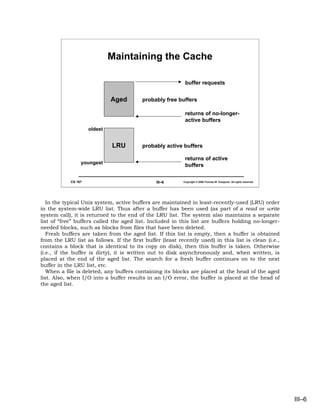

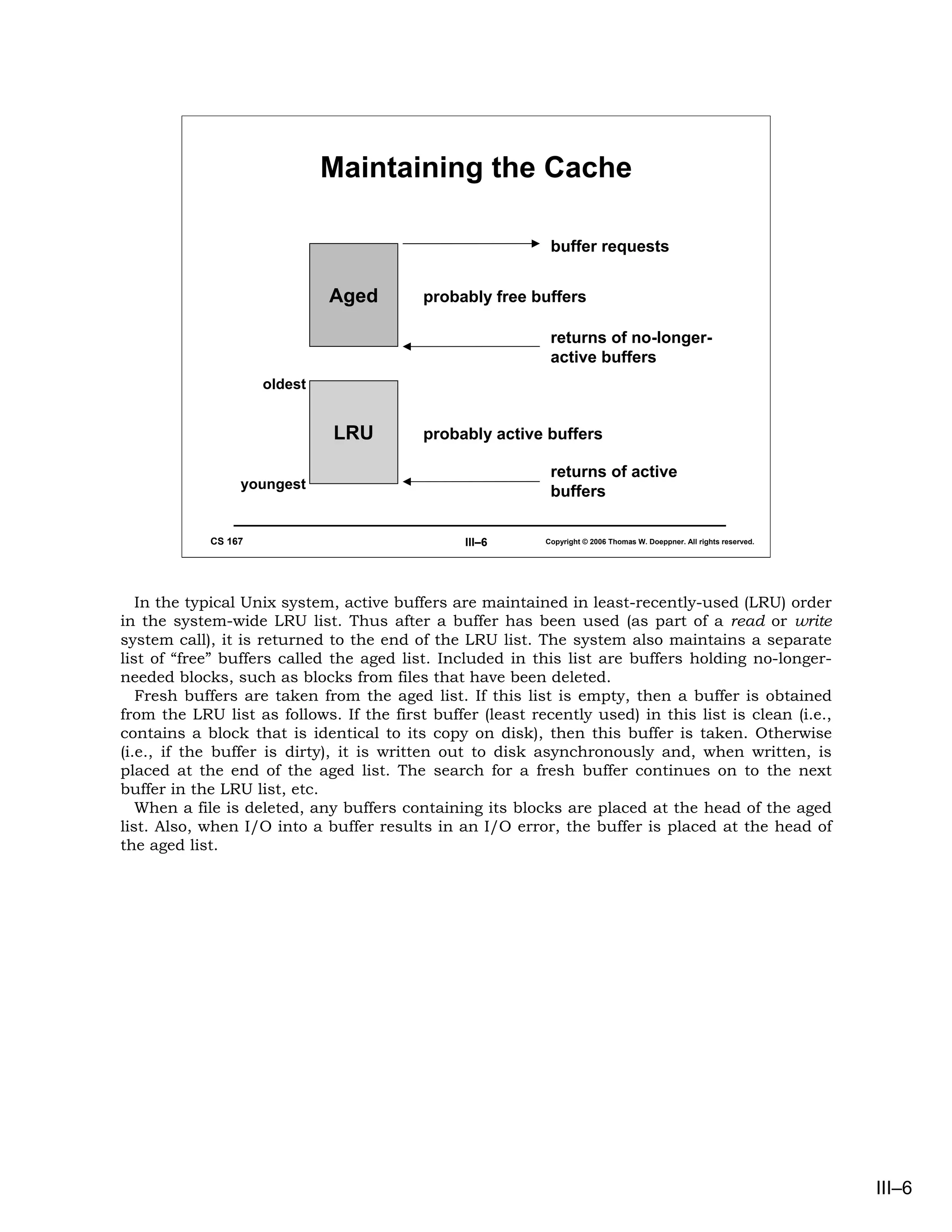

Maintaining the Cache

buffer requests

Aged probably free buffers

returns of no-longer-
active buffers
oldest

LRU probably active buffers

returns of active
youngest
buffers


In the typical Unix system, active buffers are maintained in least-recently-used (LRU) order
in the system-wide LRU list. Thus after a buffer has been used (as part of a read or write
system call), it is returned to the end of the LRU list. The system also maintains a separate
list of “free” buffers called the aged list. Included in this list are buffers holding no-longer-
needed blocks, such as blocks from files that have been deleted.
Fresh buffers are taken from the aged list. If this list is empty, then a buffer is obtained
from the LRU list as follows. If the first buffer (least recently used) in this list is clean (i.e.,
contains a block that is identical to its copy on disk), then this buffer is taken. Otherwise
(i.e., if the buffer is dirty), it is written out to disk asynchronously and, when written, is
placed at the end of the aged list. The search for a fresh buffer continues on to the next
buffer in the LRU list, etc.
When a file is deleted, any buffers containing its blocks are placed at the head of the aged
list. Also, when I/O into a buffer results in an I/O error, the buffer is placed at the head of
the aged list.

III–6

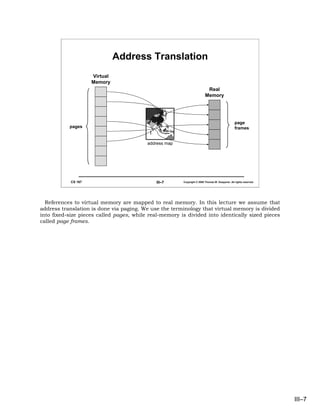

Address Translation
Virtual
Memory
Real
Memory

page
pages frames

address map

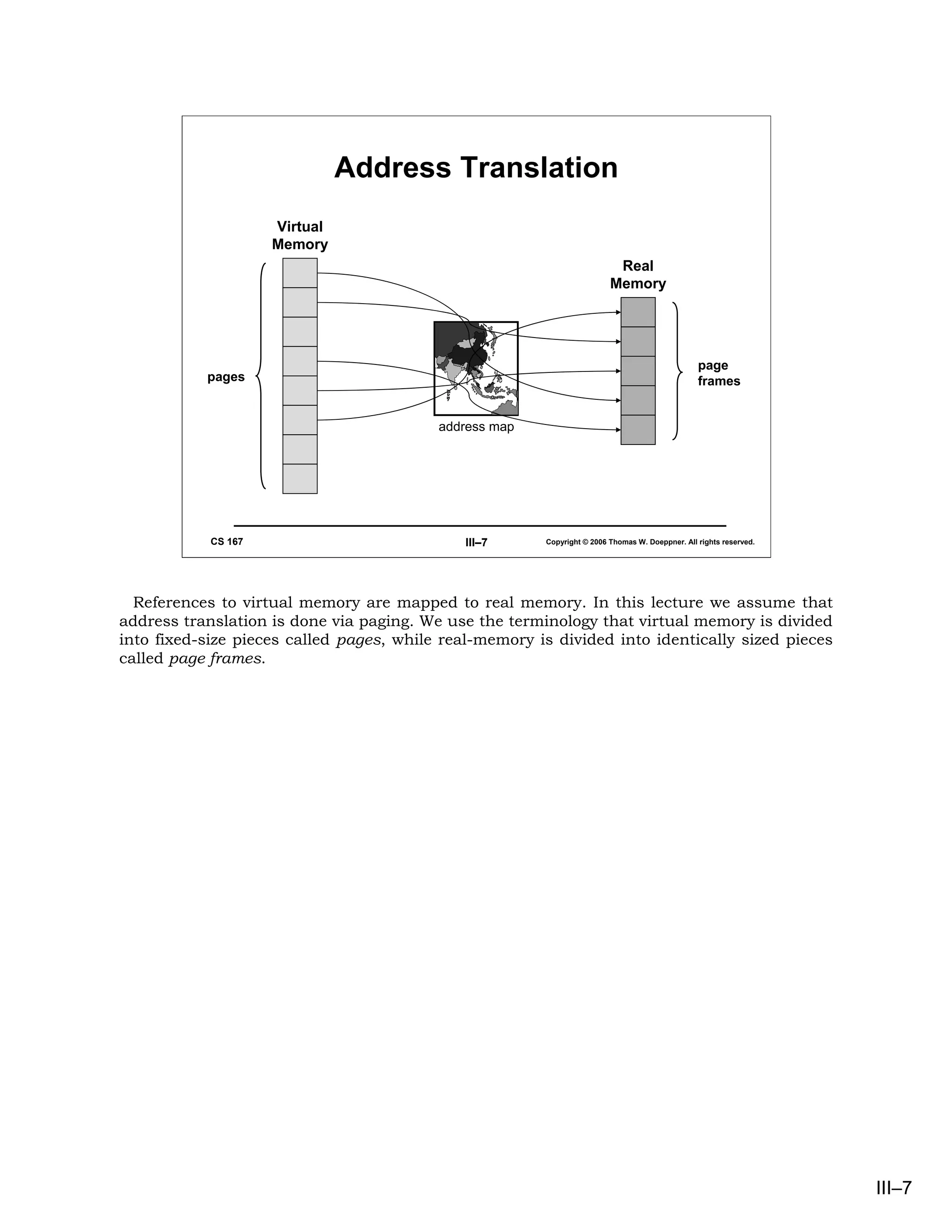

References to virtual memory are mapped to real memory. In this lecture we assume that
address translation is done via paging. We use the terminology that virtual memory is divided
into fixed-size pieces called pages, while real-memory is divided into identically sized pieces
called page frames.

III–7

Multiprocess
Address Translation
Process 1’s
Process 2’s Virtual
Virtual Memory
Memory Real
Memory

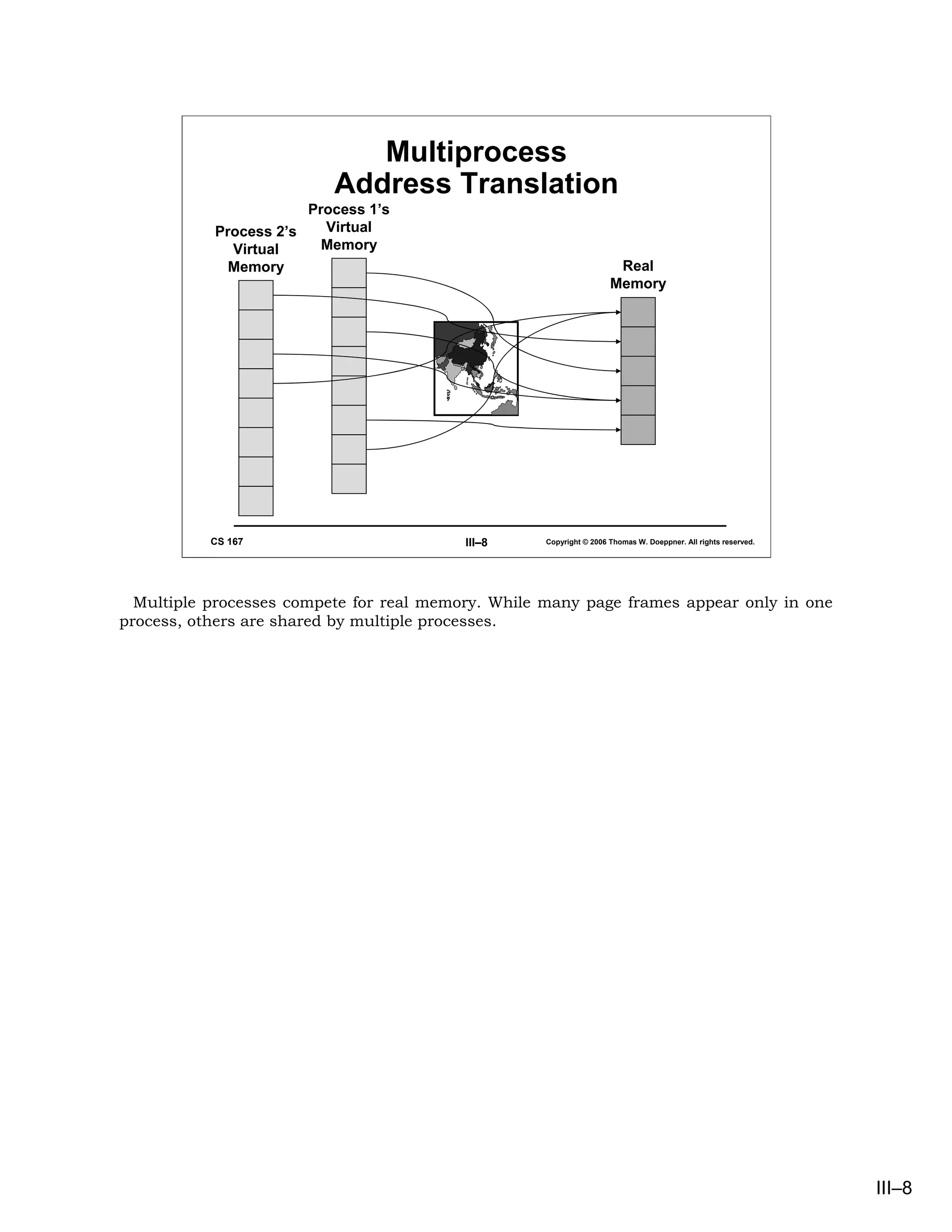

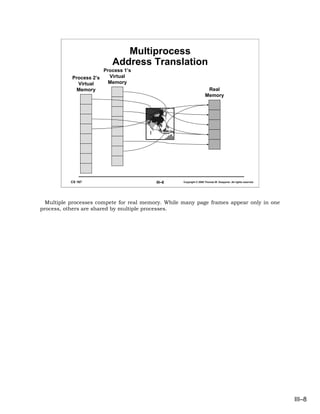

Multiple processes compete for real memory. While many page frames appear only in one
process, others are shared by multiple processes.

III–8

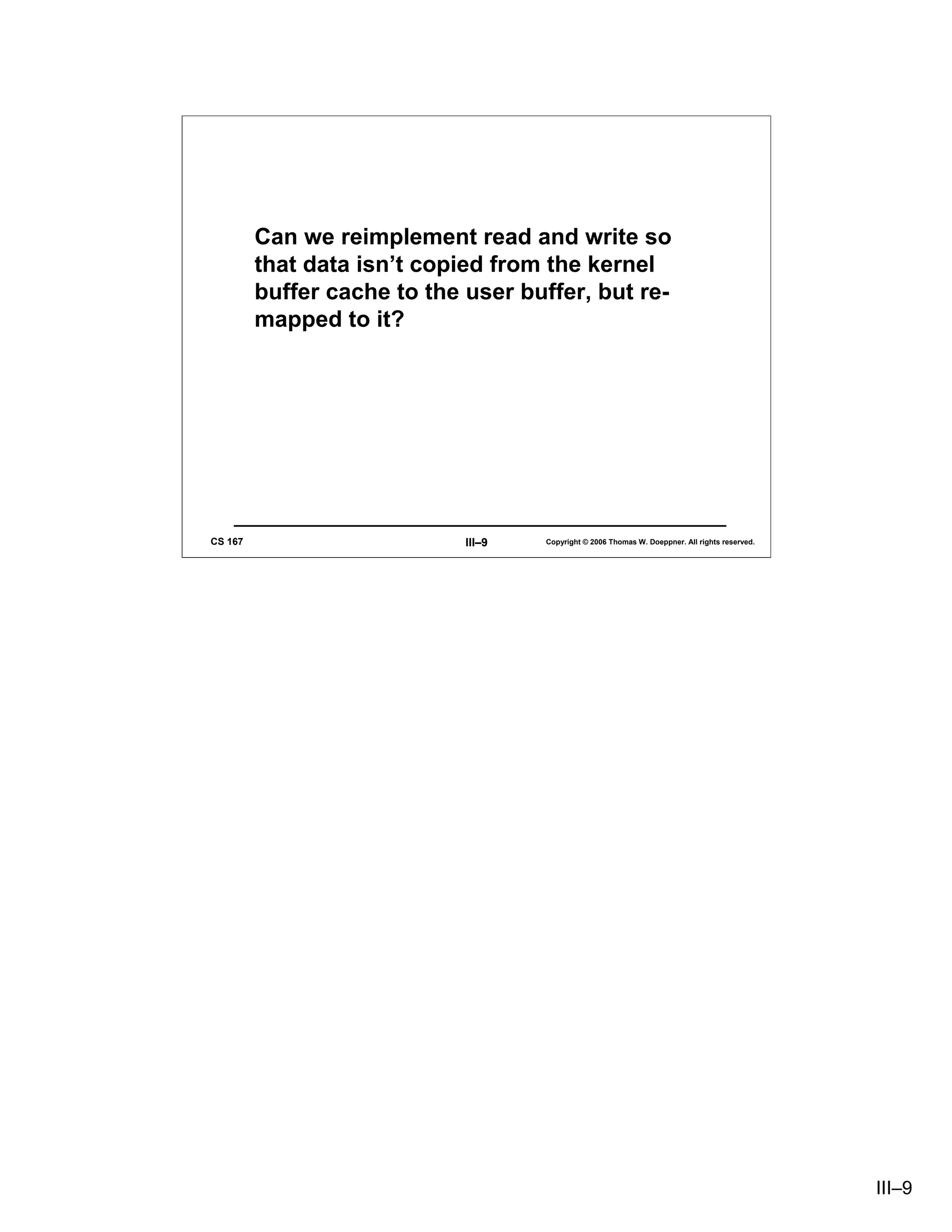

Can we reimplement read and write so
that data isn’t copied from the kernel
buffer cache to the user buffer, but re-
mapped to it?


III–9

No …

(But we can do something almost as good.)

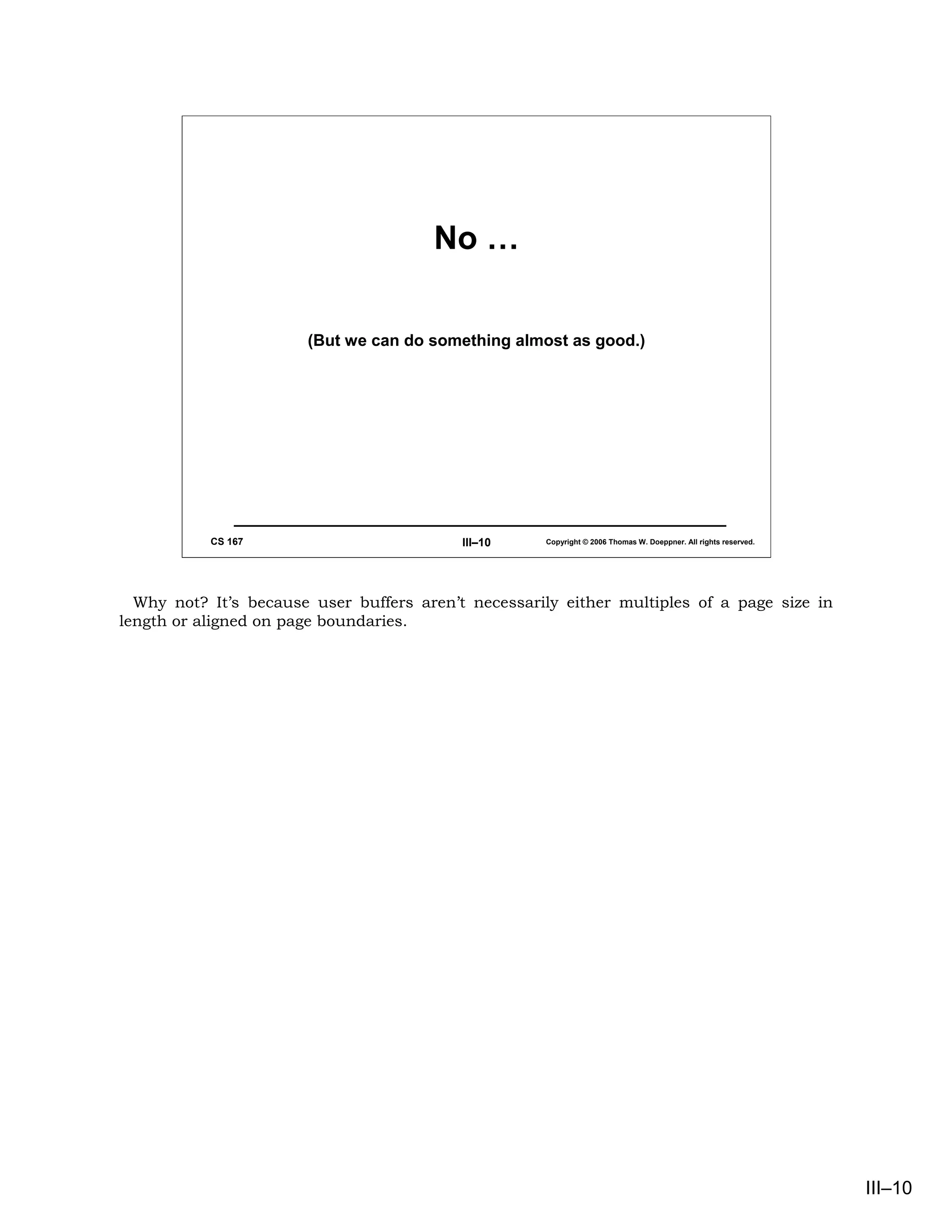

Why not? It’s because user buffers aren’t necessarily either multiples of a page size in
length or aligned on page boundaries.

III–10

Mapped Files

• Traditional File I/O
char buf[BigEnough];
fd = open(file, O_RDWR);
for (i=0; i<n_recs; i++) {
read(fd, buf, sizeof(buf));
use(buf);
}
• Mapped File I/O
void *MappedFile;
fd = open(file, O_RDWR);
MappedFile = mmap(... , fd, ...);
for (i=0; i<n_recs; i++)
use(MappedFile[i]);

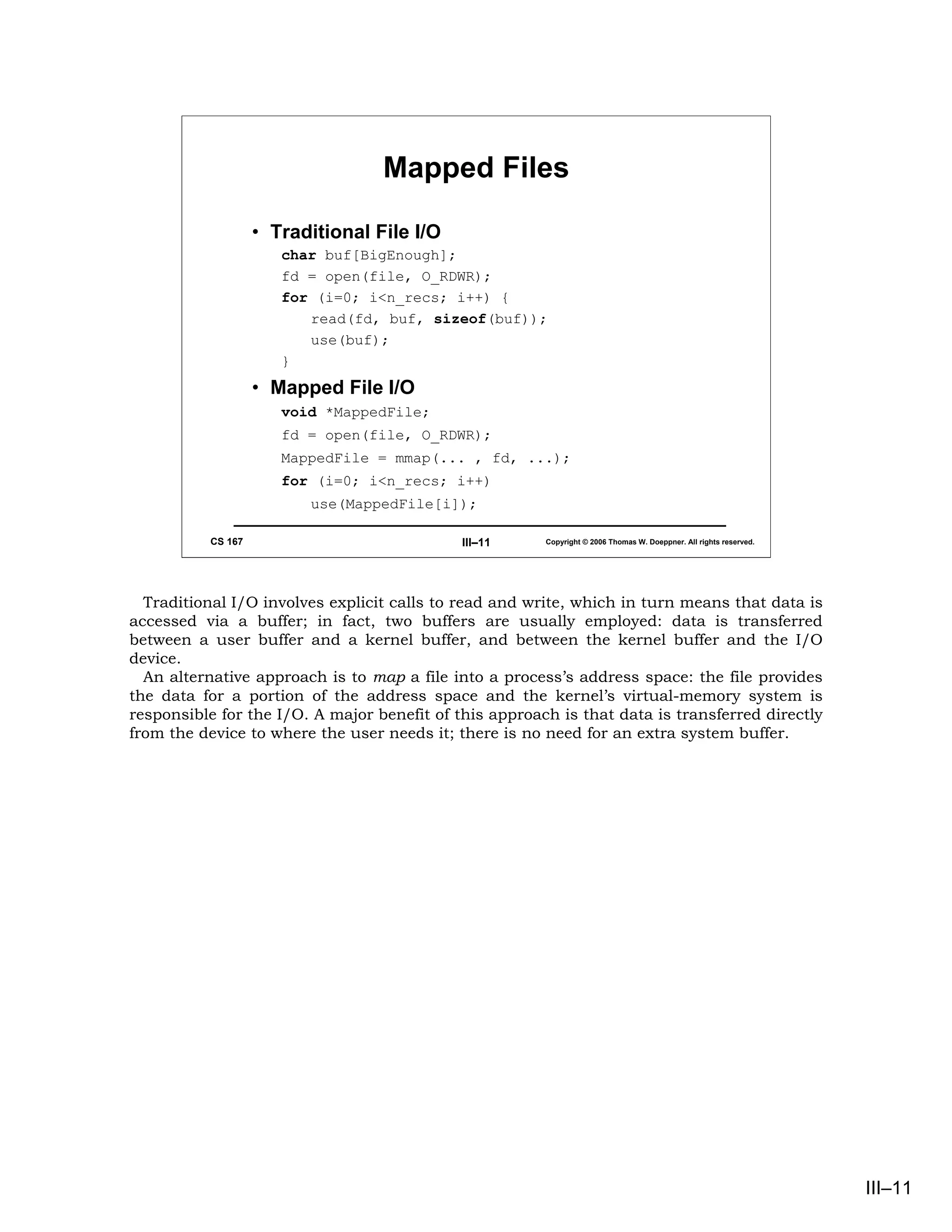

Traditional I/O involves explicit calls to read and write, which in turn means that data is
accessed via a buffer; in fact, two buffers are usually employed: data is transferred
between a user buffer and a kernel buffer, and between the kernel buffer and the I/O
device.
An alternative approach is to map a file into a process’s address space: the file provides
the data for a portion of the address space and the kernel’s virtual-memory system is
responsible for the I/O. A major benefit of this approach is that data is transferred directly
from the device to where the user needs it; there is no need for an extra system buffer.

III–11

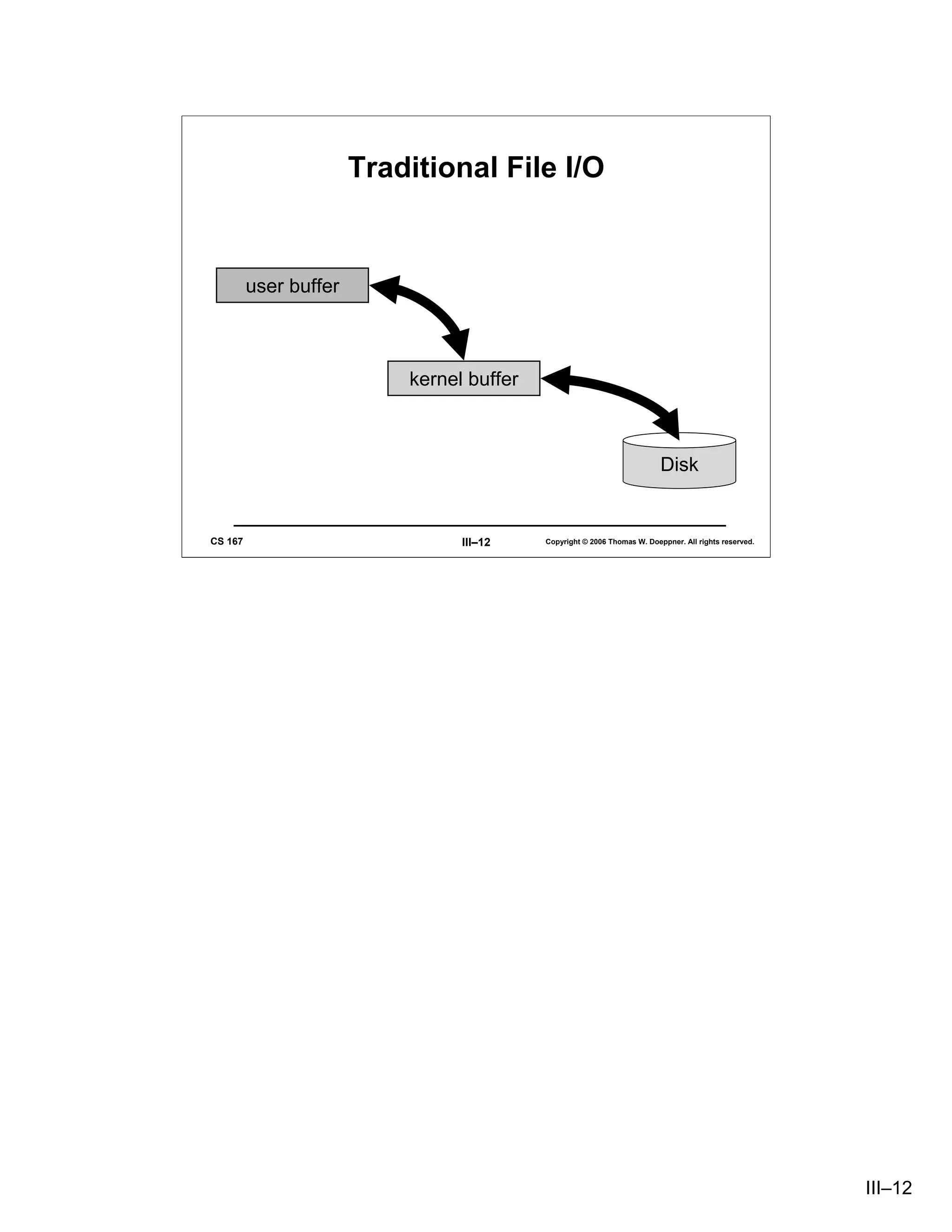

Traditional File I/O

user buffer

kernel buffer

Disk


III–12

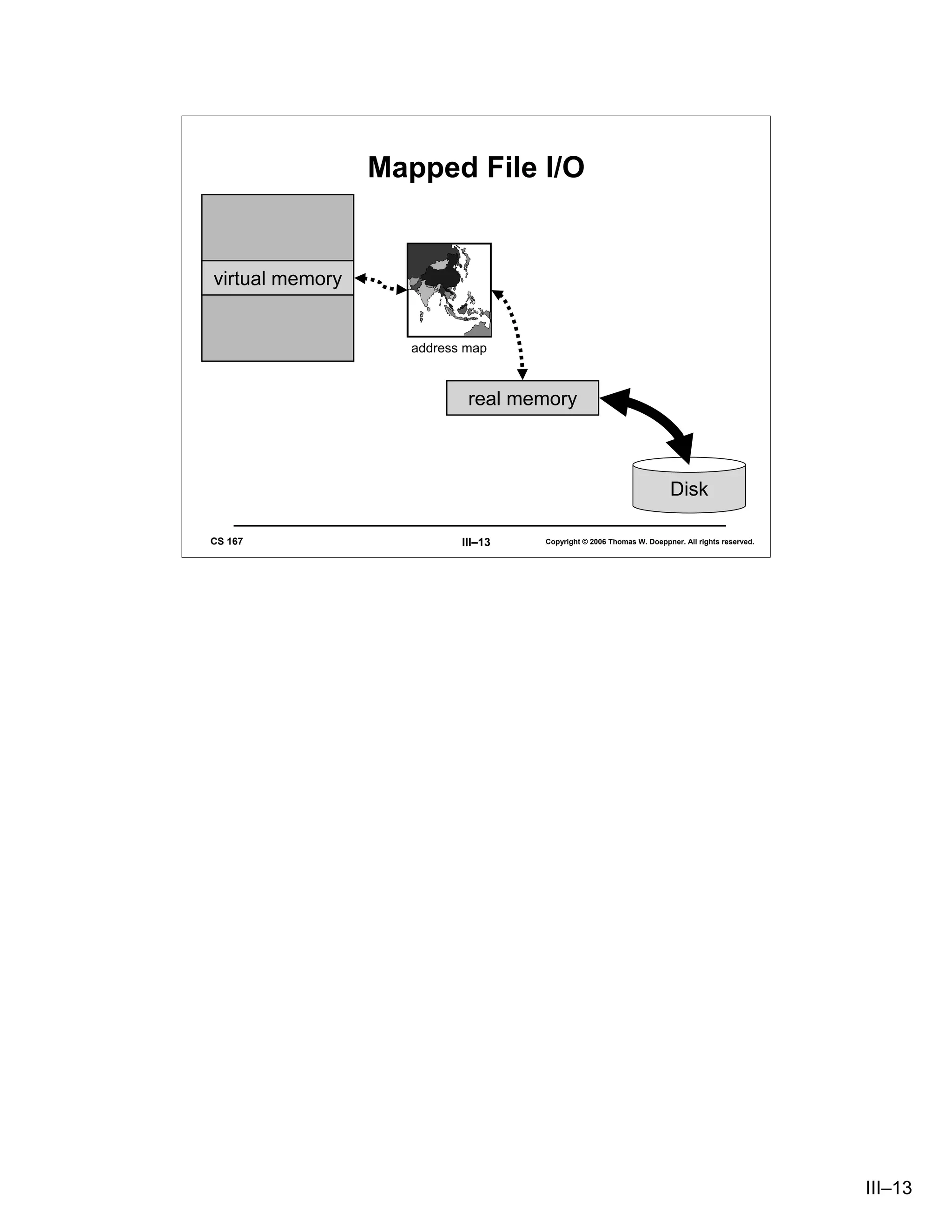

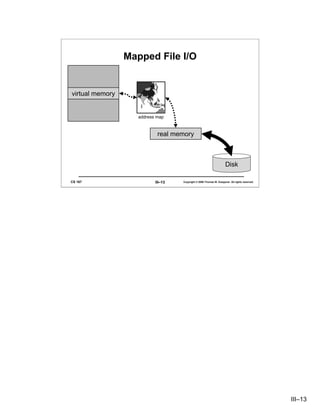

Mapped File I/O

virtual memory

address map

real memory

Disk


III–13

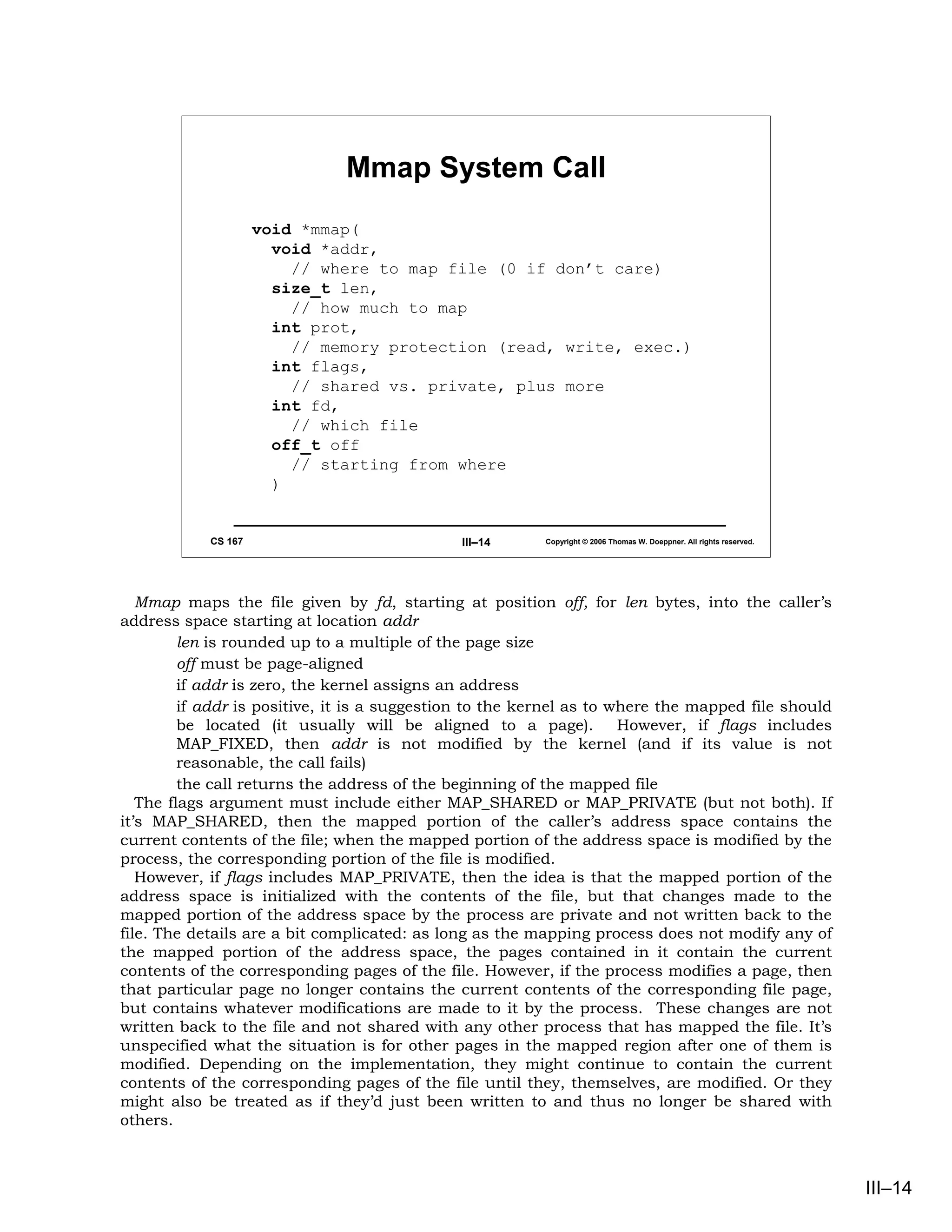

Mmap System Call
void *mmap(
void *addr,
// where to map file (0 if don’t care)
size_t len,
// how much to map
int prot,
// memory protection (read, write, exec.)
int flags,
// shared vs. private, plus more
int fd,
// which file
off_t off
// starting from where
)


Mmap maps the file given by fd, starting at position off, for len bytes, into the caller’s
address space starting at location addr
len is rounded up to a multiple of the page size
off must be page-aligned
if addr is zero, the kernel assigns an address
if addr is positive, it is a suggestion to the kernel as to where the mapped file should
be located (it usually will be aligned to a page). However, if flags includes
MAP_FIXED, then addr is not modified by the kernel (and if its value is not
reasonable, the call fails)
the call returns the address of the beginning of the mapped file
The flags argument must include either MAP_SHARED or MAP_PRIVATE (but not both). If
it’s MAP_SHARED, then the mapped portion of the caller’s address space contains the
current contents of the file; when the mapped portion of the address space is modified by the
process, the corresponding portion of the file is modified.
However, if flags includes MAP_PRIVATE, then the idea is that the mapped portion of the
address space is initialized with the contents of the file, but that changes made to the
mapped portion of the address space by the process are private and not written back to the
file. The details are a bit complicated: as long as the mapping process does not modify any of
the mapped portion of the address space, the pages contained in it contain the current
contents of the corresponding pages of the file. However, if the process modifies a page, then
that particular page no longer contains the current contents of the corresponding file page,
but contains whatever modifications are made to it by the process. These changes are not
written back to the file and not shared with any other process that has mapped the file. It’s
unspecified what the situation is for other pages in the mapped region after one of them is
modified. Depending on the implementation, they might continue to contain the current
contents of the corresponding pages of the file until they, themselves, are modified. Or they
might also be treated as if they’d just been written to and thus no longer be shared with
others.

III–14

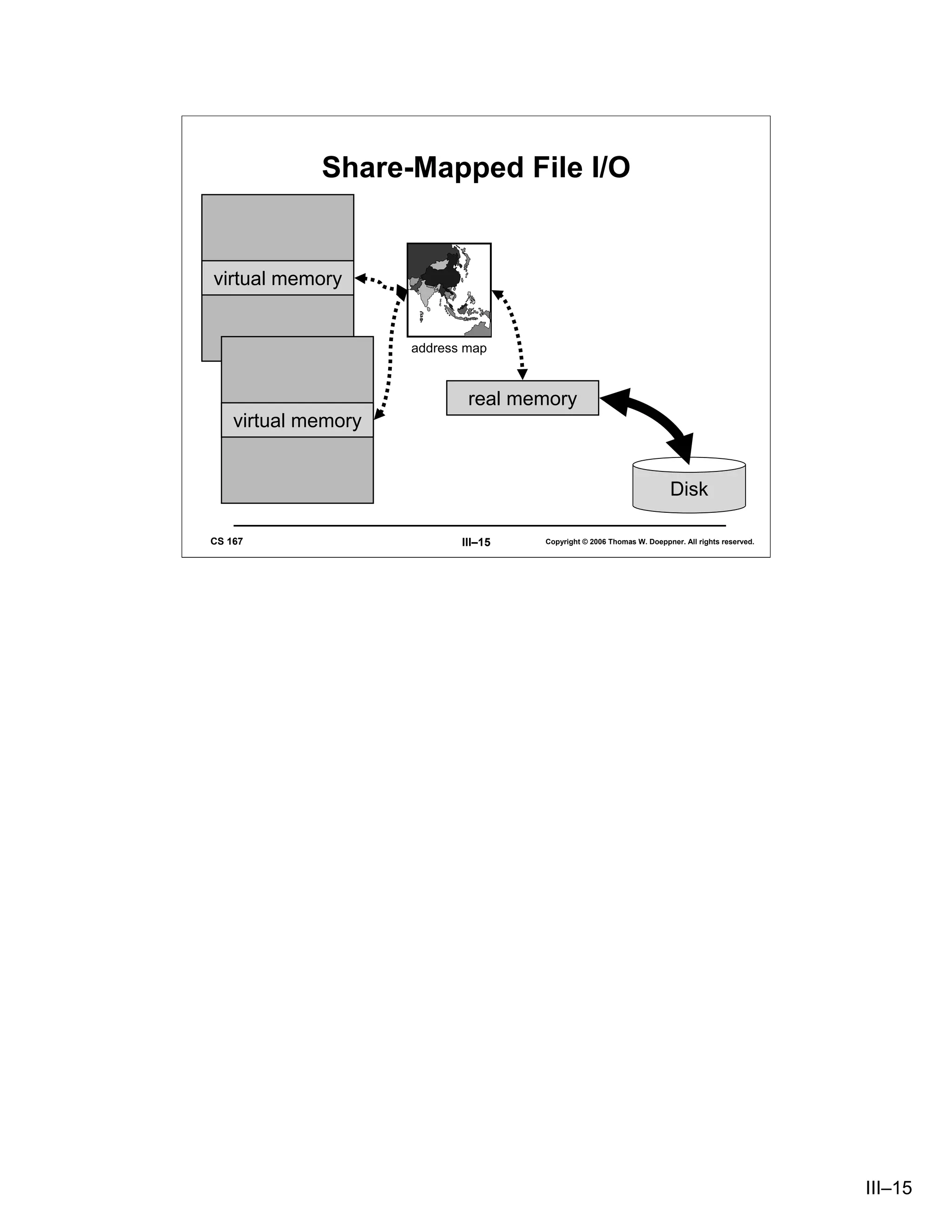

Share-Mapped File I/O

virtual memory

address map

real memory
virtual memory

Disk


III–15

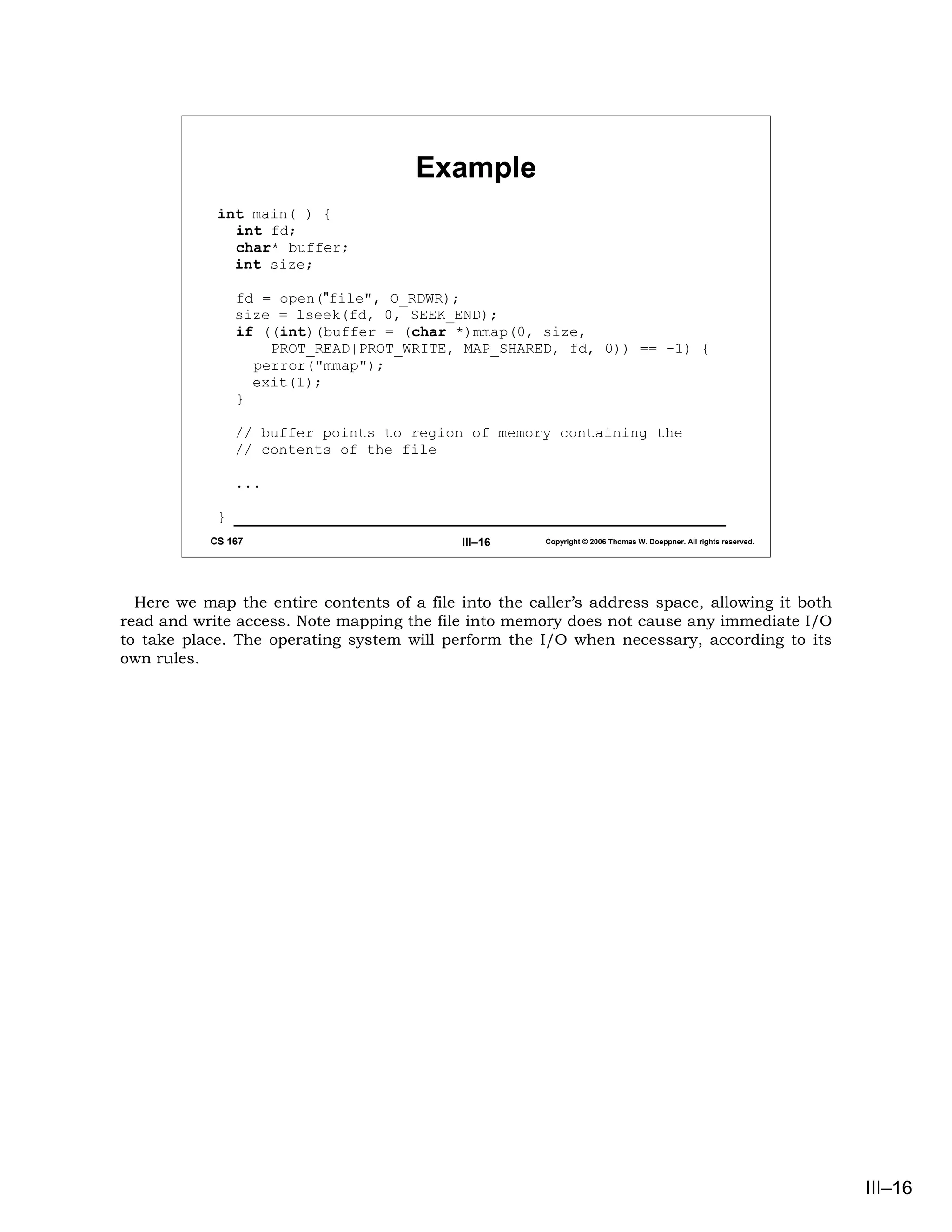

Example
int main( ) {
int fd;
char* buffer;
int size;

fd = open("file", O_RDWR);
size = lseek(fd, 0, SEEK_END);
if ((int)(buffer = (char *)mmap(0, size,
PROT_READ|PROT_WRITE, MAP_SHARED, fd, 0)) == -1) {
perror("mmap");
exit(1);
}

// buffer points to region of memory containing the
// contents of the file

...

}

Here we map the entire contents of a file into the caller’s address space, allowing it both
read and write access. Note mapping the file into memory does not cause any immediate I/O
to take place. The operating system will perform the I/O when necessary, according to its
own rules.

III–16

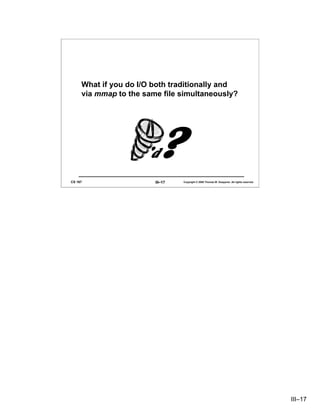

What if you do I/O both traditionally and
via mmap to the same file simultaneously?

’d ?

III–17

Integrated VM and Buffer Cache
Process 1’s
Process 2’s Virtual
Kernel’s
Virtual Memory Disk
Buffer Cache
Memory
Real
Memory

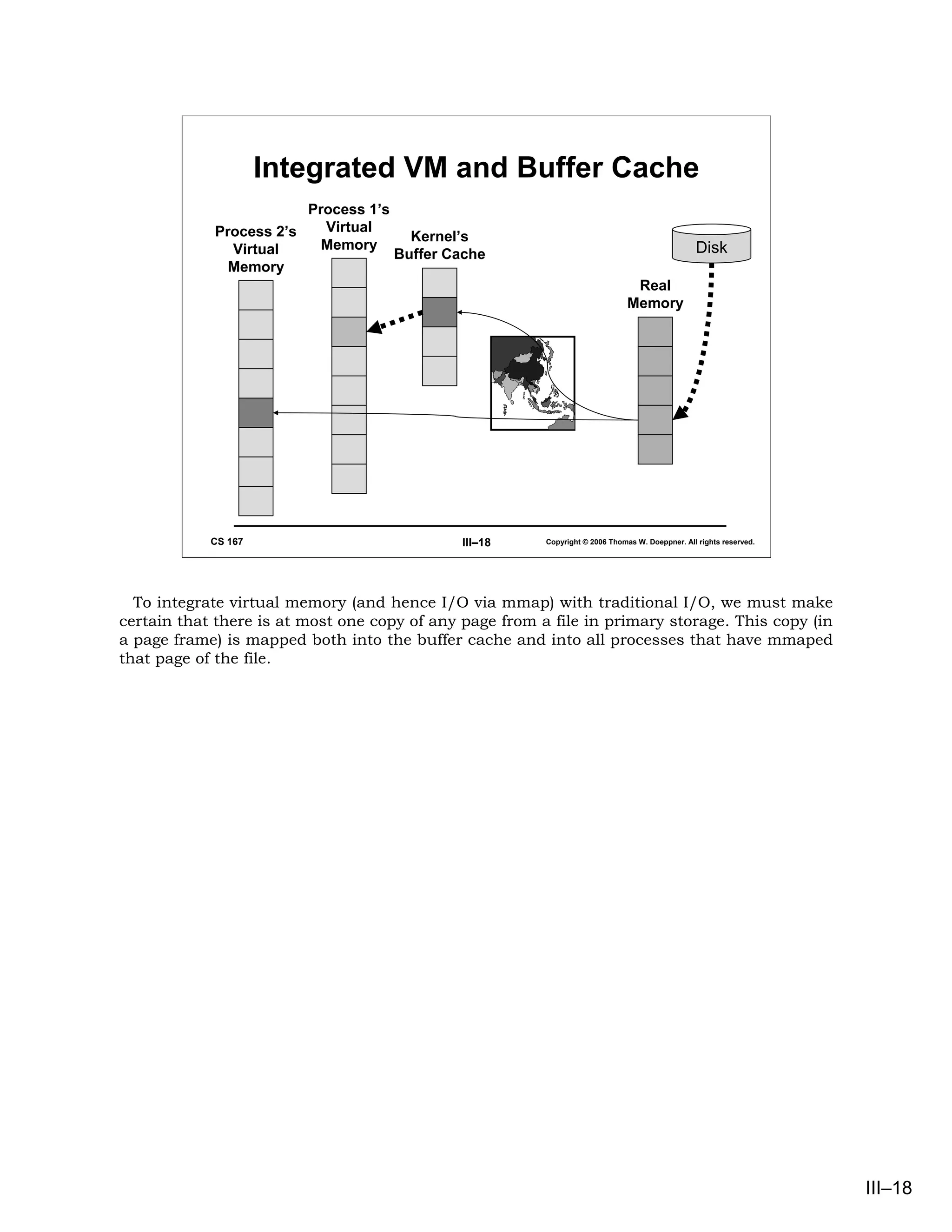

To integrate virtual memory (and hence I/O via mmap) with traditional I/O, we must make
certain that there is at most one copy of any page from a file in primary storage. This copy (in
a page frame) is mapped both into the buffer cache and into all processes that have mmaped
that page of the file.

III–18
