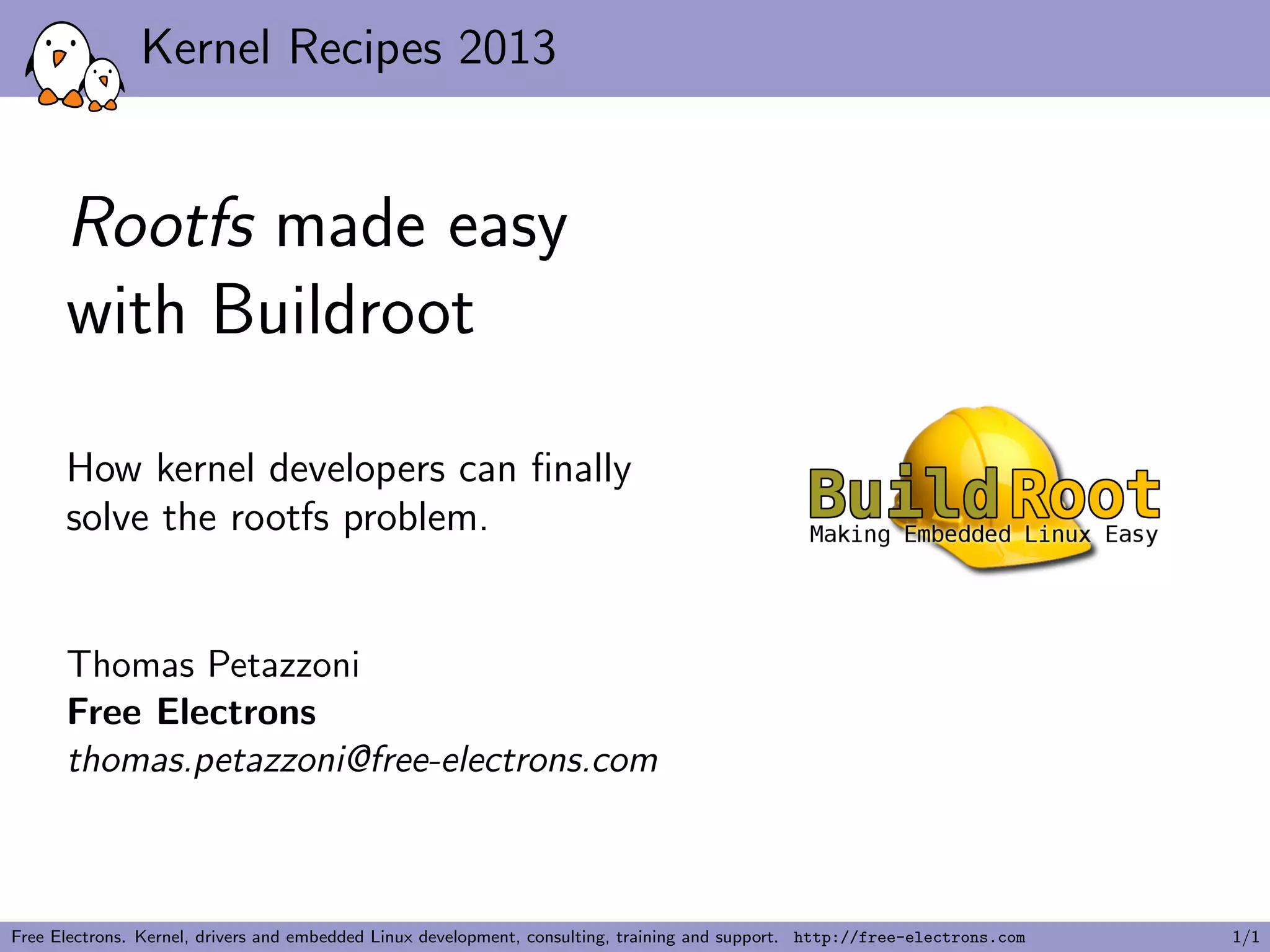

Kernel Recipes 2013 - Easy rootfs using Buildroot

Kernel Recipes 2013
Rootfs made easy
with Buildroot
How kernel developers can ﬁnally
solve the rootfs problem.
Thomas Petazzoni
Free Electrons
thomas.petazzoni@free-electrons.com
Free Electrons. Kernel, drivers and embedded Linux development, consulting, training and support. http://free-electrons.com 1/1

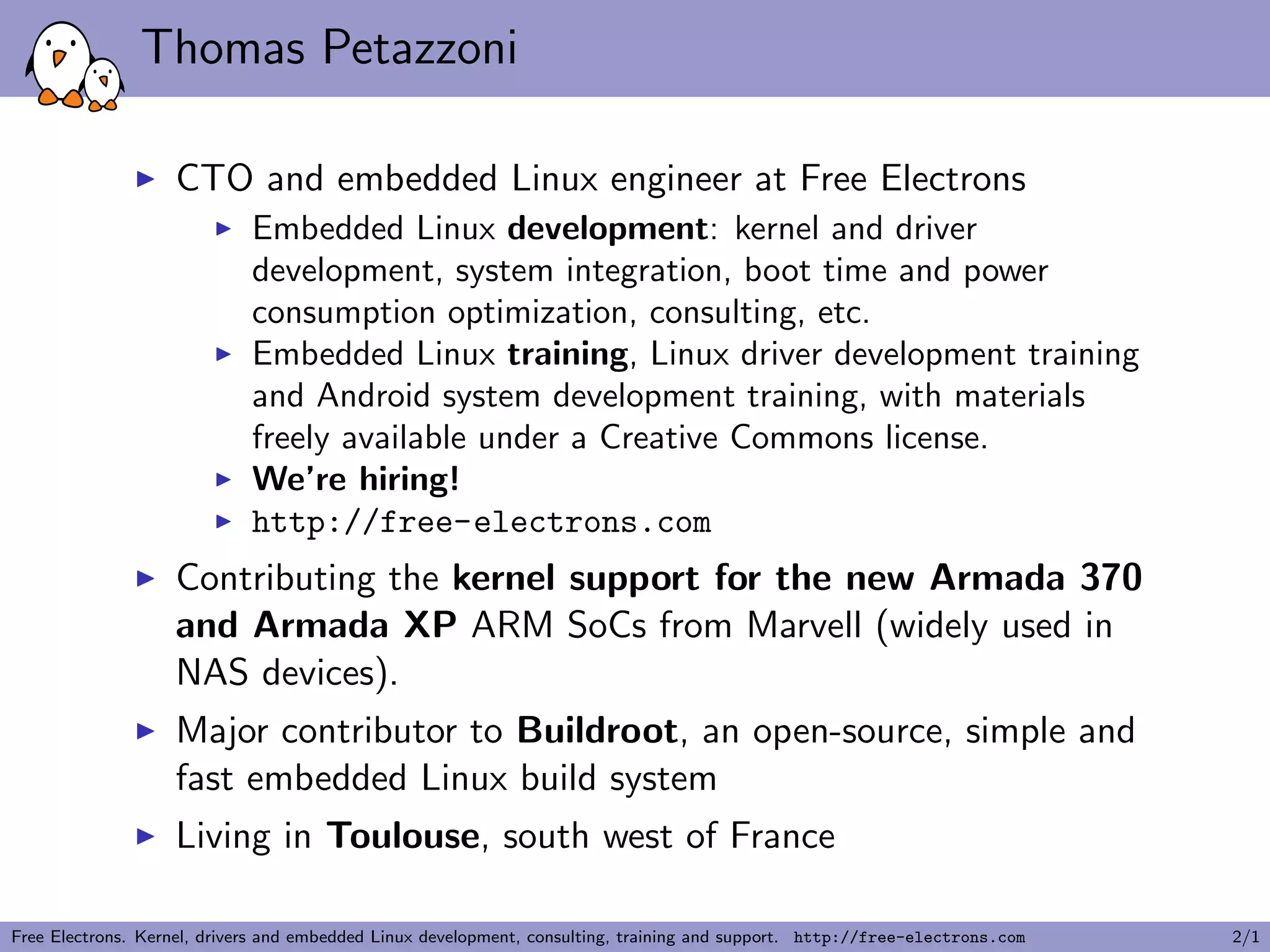

Thomas Petazzoni
CTO and embedded Linux engineer at Free Electrons
Embedded Linux development: kernel and driver
development, system integration, boot time and power
consumption optimization, consulting, etc.
Embedded Linux training, Linux driver development training
and Android system development training, with materials
freely available under a Creative Commons license.
We’re hiring!
http://free-electrons.com
Contributing the kernel support for the new Armada 370
and Armada XP ARM SoCs from Marvell (widely used in
NAS devices).
Major contributor to Buildroot, an open-source, simple and
fast embedded Linux build system
Living in Toulouse, south west of France

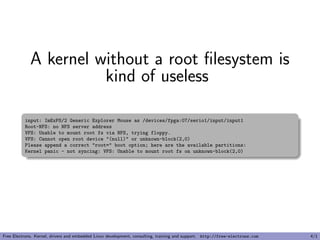

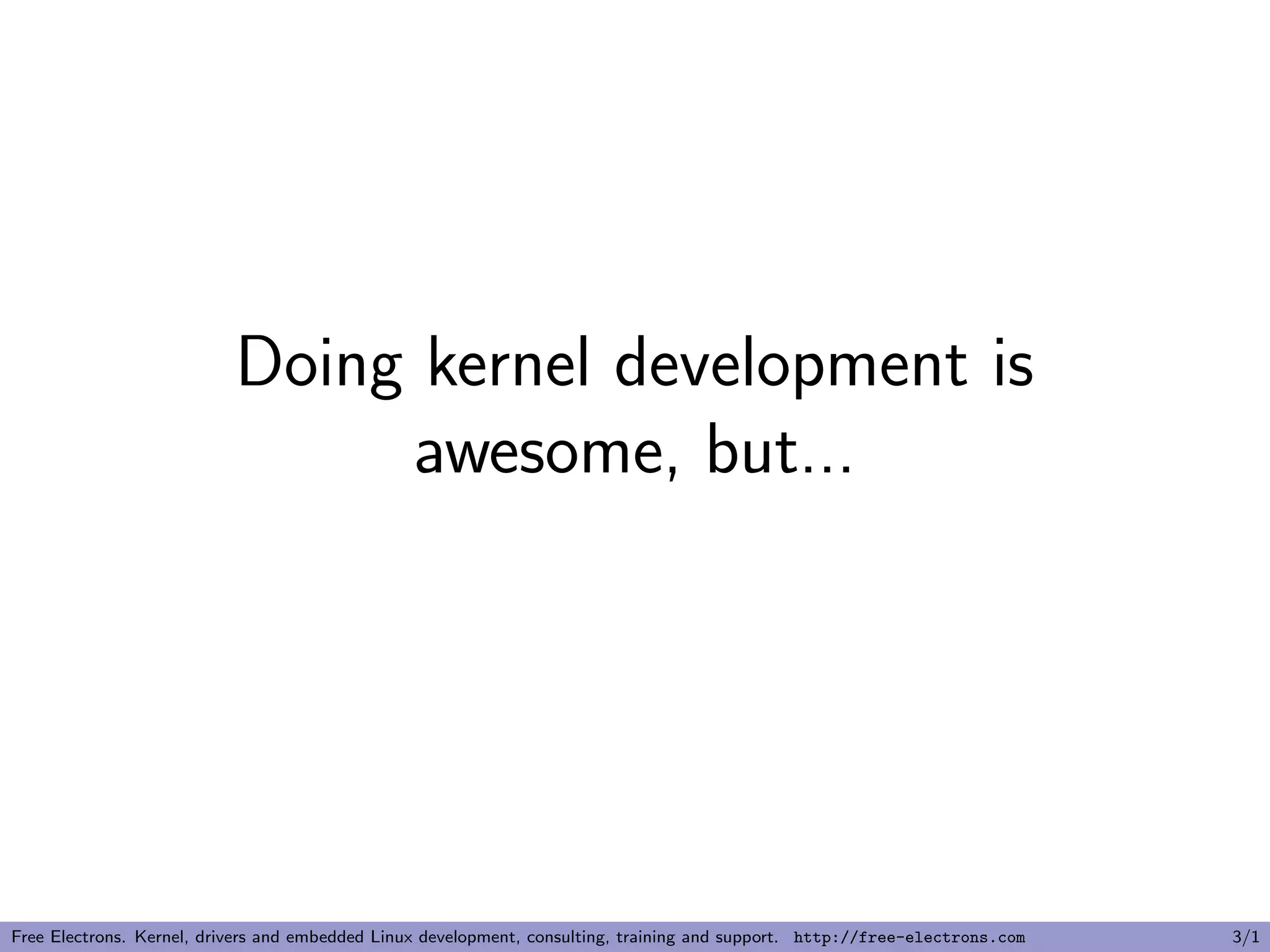

Doing kernel development is
awesome, but...

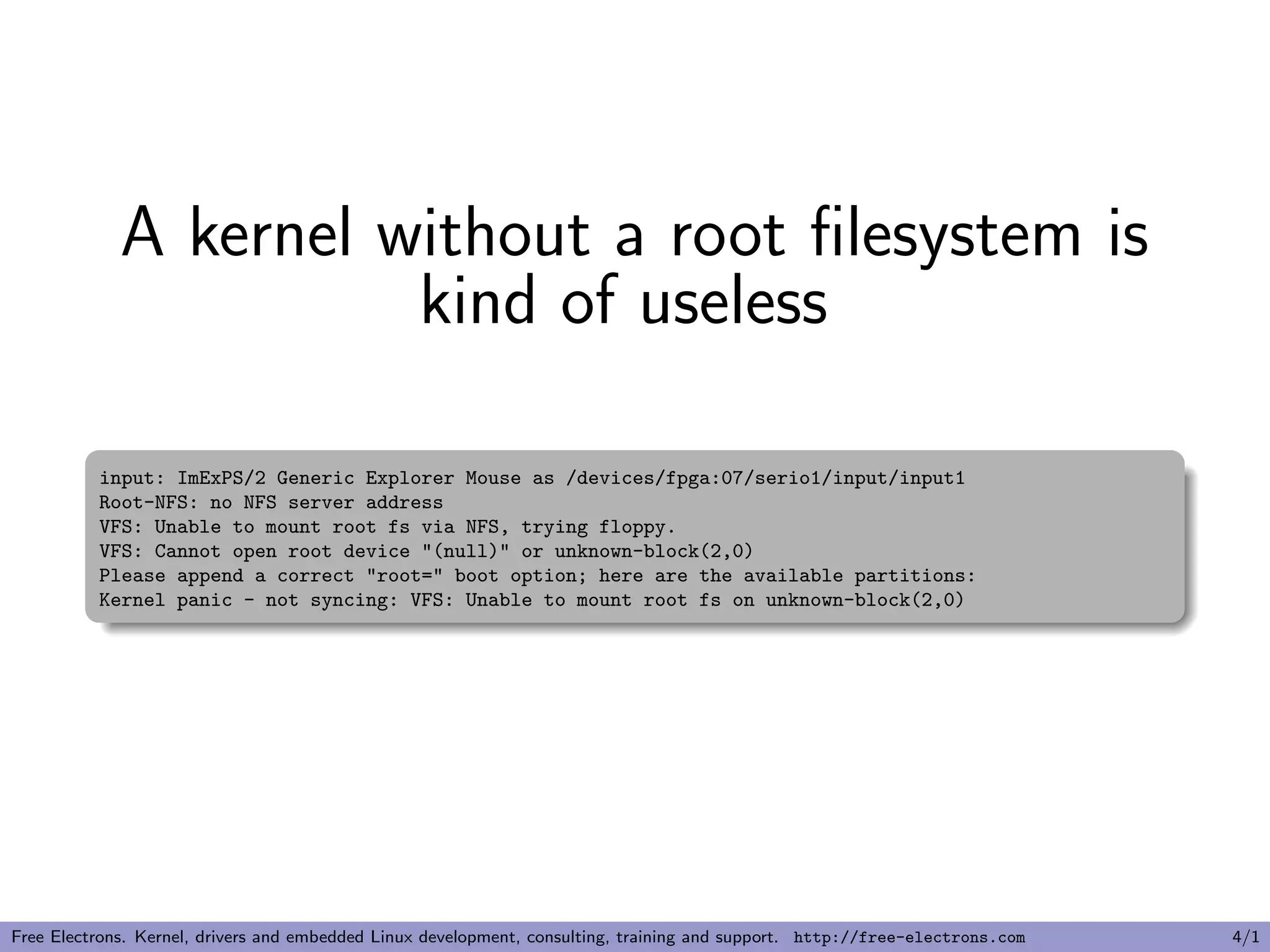

A kernel without a root ﬁlesystem is
kind of useless
input: ImExPS/2 Generic Explorer Mouse as /devices/fpga:07/serio1/input/input1
Root-NFS: no NFS server address
VFS: Unable to mount root fs via NFS, trying floppy.
VFS: Cannot open root device "(null)" or unknown-block(2,0)
Please append a correct "root=" boot option; here are the available partitions:
Kernel panic - not syncing: VFS: Unable to mount root fs on unknown-block(2,0)

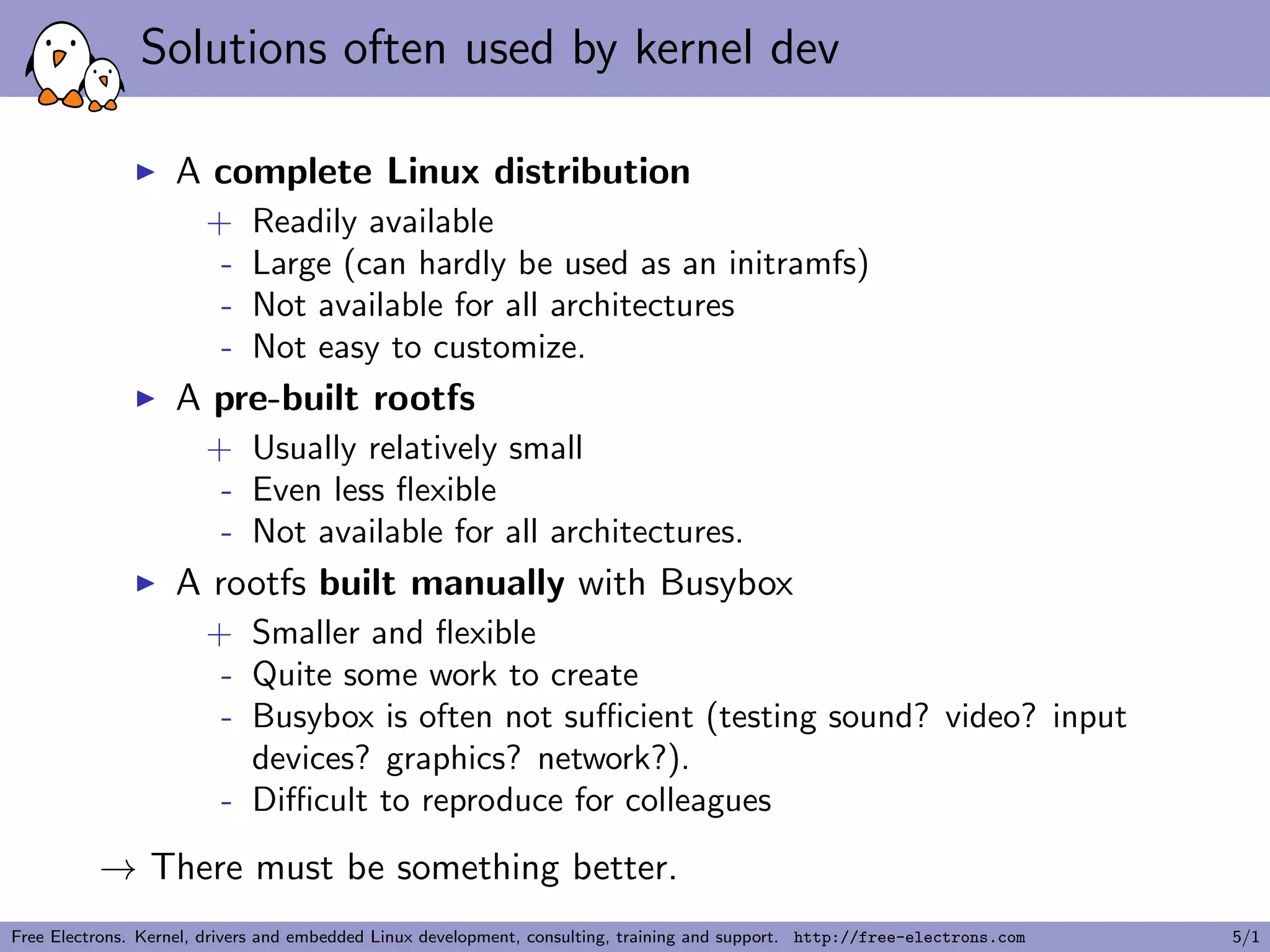

Solutions often used by kernel dev
A complete Linux distribution
+ Readily available
- Large (can hardly be used as an initramfs)
- Not available for all architectures
- Not easy to customize.
A pre-built rootfs
+ Usually relatively small
- Even less flexible
- Not available for all architectures.
A rootfs built manually with Busybox
+ Smaller and flexible
- Quite some work to create
- Busybox is often not sufficient (testing sound? video? input
devices? graphics? network?).
- Difficult to reproduce for colleagues
→ There must be something better.

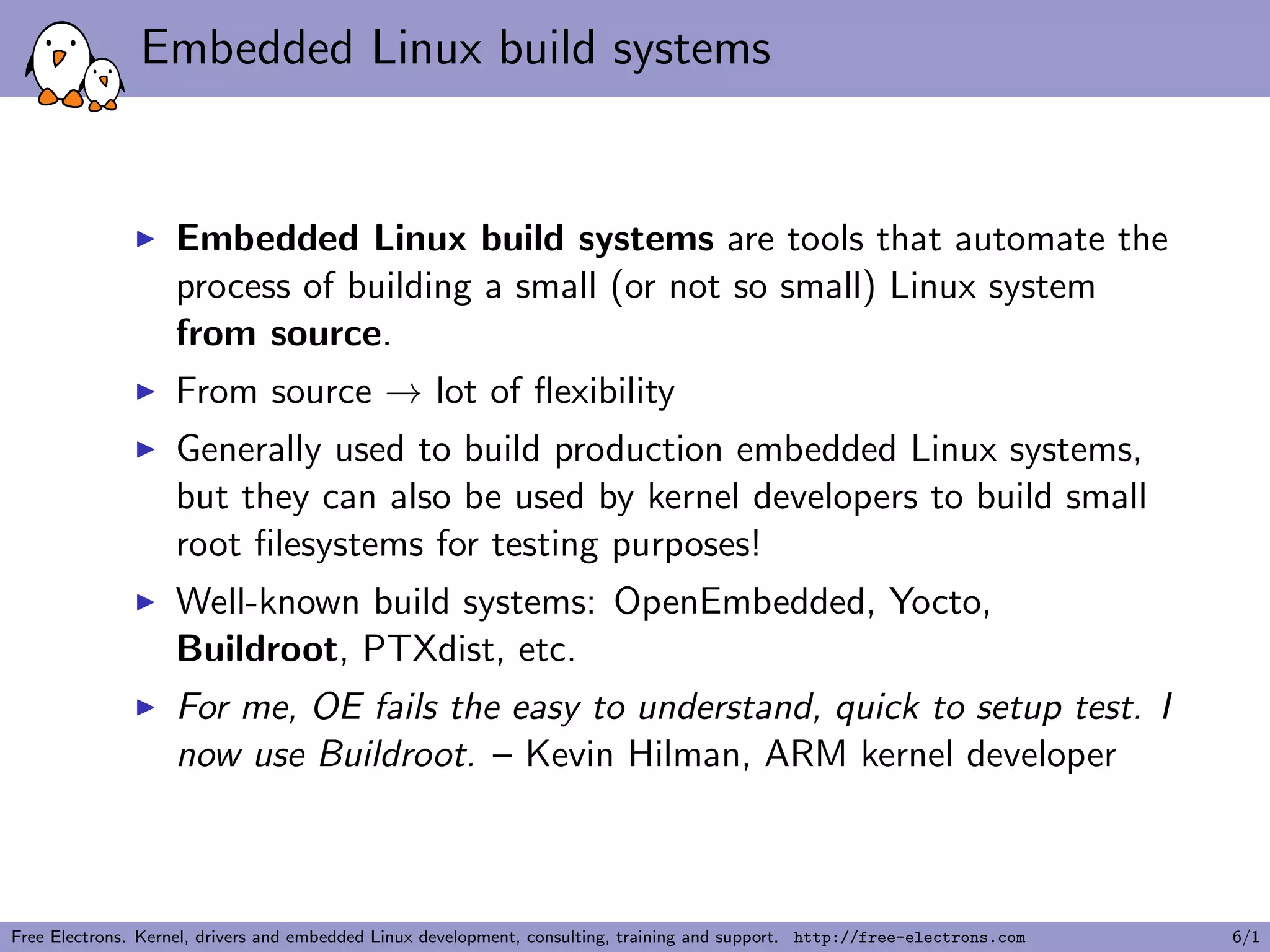

Embedded Linux build systems
Embedded Linux build systems are tools that automate the
process of building a small (or not so small) Linux system
from source.
From source → lot of ﬂexibility
Generally used to build production embedded Linux systems,
but they can also be used by kernel developers to build small
root ﬁlesystems for testing purposes!
Well-known build systems: OpenEmbedded, Yocto,
Buildroot, PTXdist, etc.
For me, OE fails the easy to understand, quick to setup test. I
now use Buildroot. – Kevin Hilman, ARM kernel developer

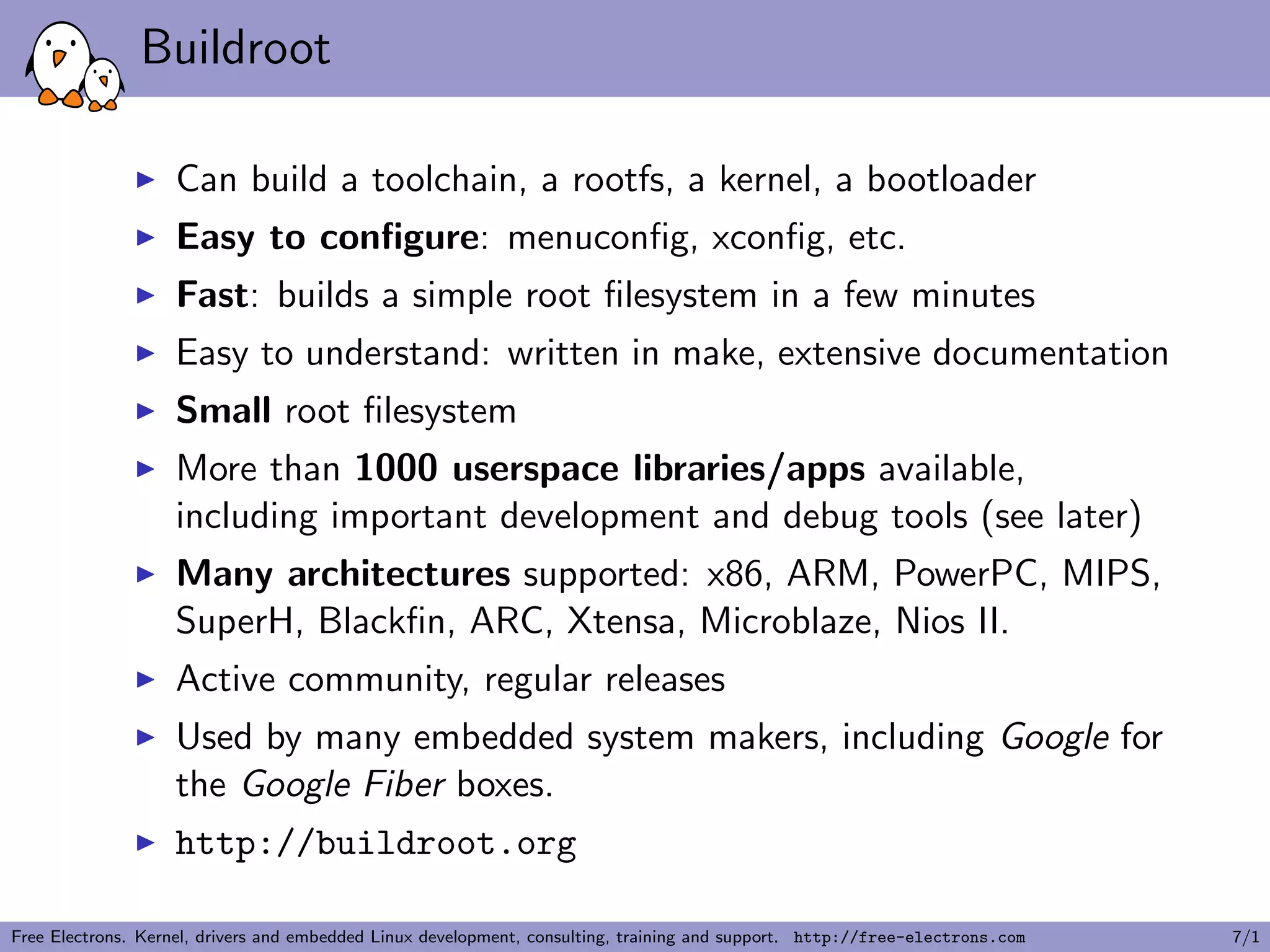

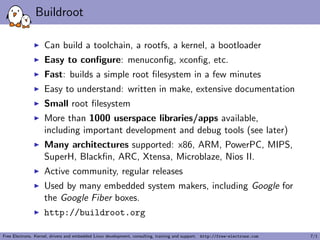

Buildroot
Can build a toolchain, a rootfs, a kernel, a bootloader
Easy to configure: menuconfig, xconfig, etc.
Fast: builds a simple root filesystem in a few minutes
Easy to understand: written in make, extensive documentation
Small root filesystem
More than 1000 userspace libraries/apps available,
including important development and debug tools (see later)
Many architectures supported: x86, ARM, PowerPC, MIPS,
SuperH, Blackfin, ARC, Xtensa, Microblaze, Nios II.
Active community, regular releases
Used by many embedded system makers, including Google for
the Google Fiber boxes.
http://buildroot.org

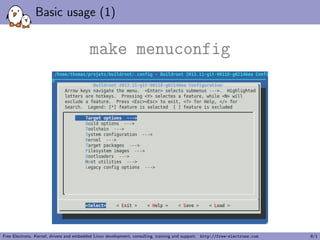

Basic usage (1)

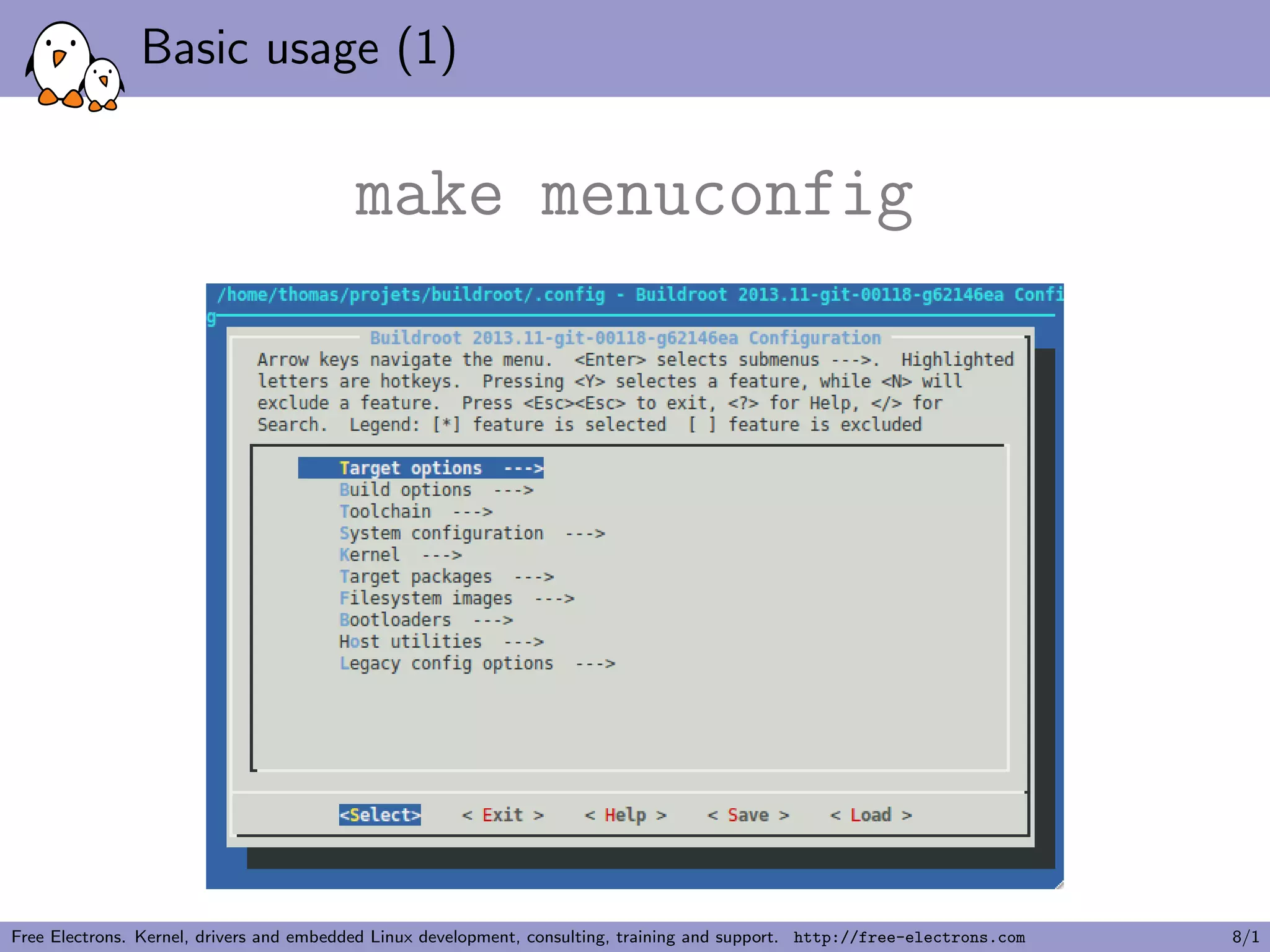

make menuconfig

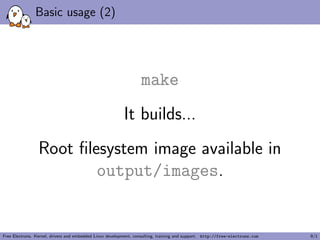

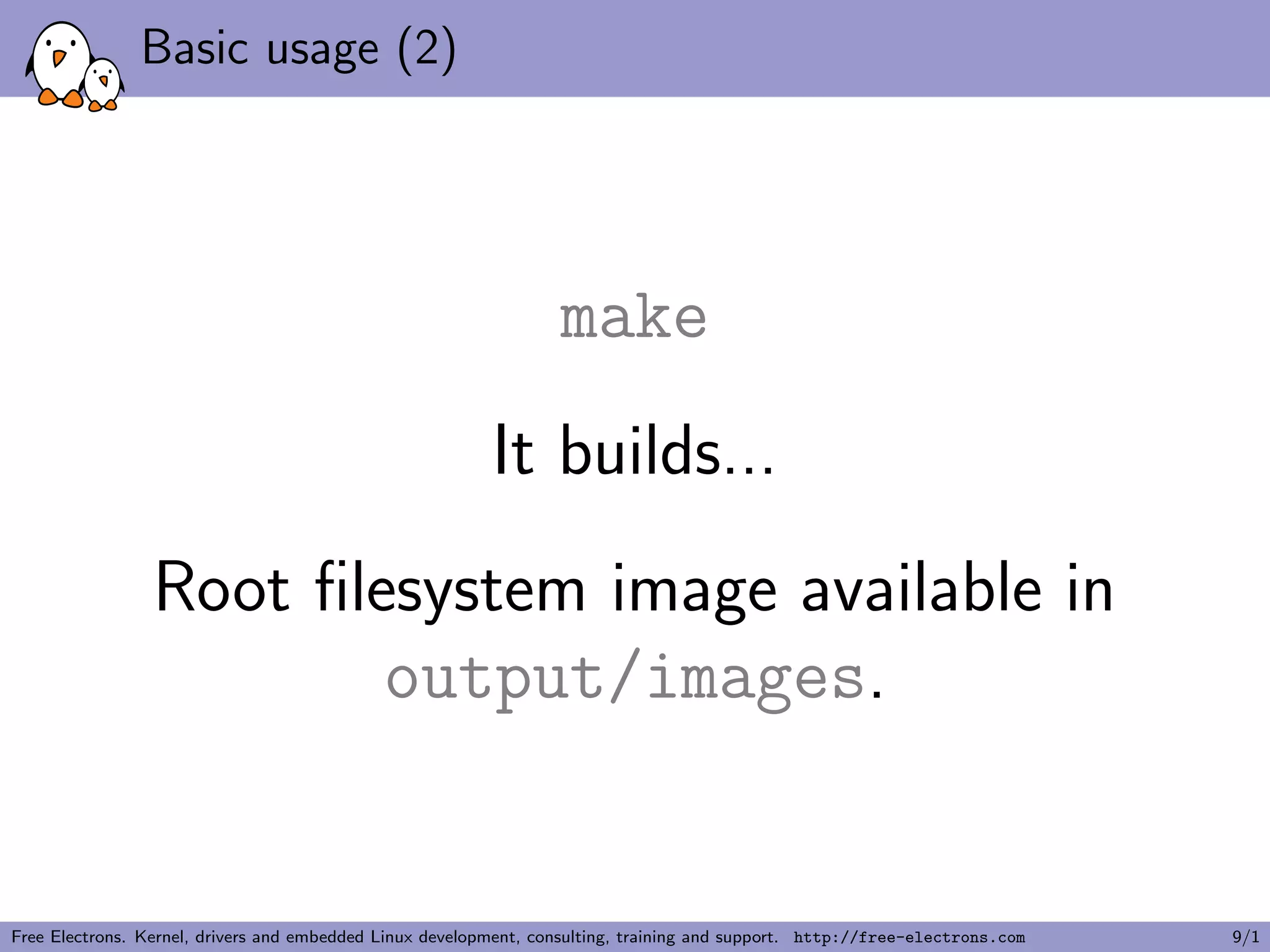

Basic usage (2)
make
It builds...
Root ﬁlesystem image available in
output/images.

initramfs use case: why
initramfs is great for kernel development because your rootfs
is fully in RAM, and has absolutely no dependency on any
kernel driver. You don’t need a storage driver or a network
driver.
However, since the root ﬁlesystem is loaded entirely in RAM,
at every kernel boot, it has to be small. Buildroot’s ability to
generate really small ﬁlesystems is very useful here.

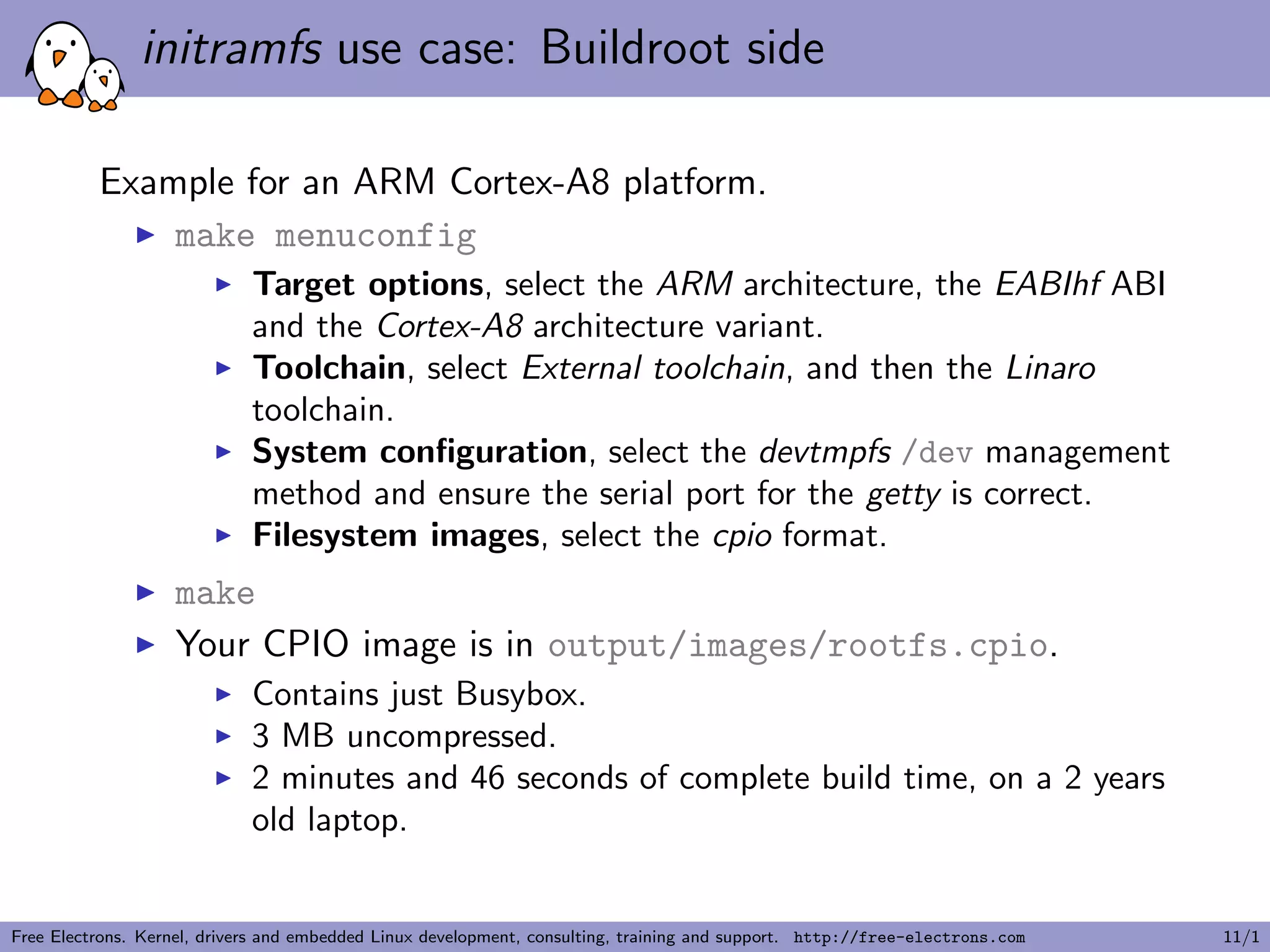

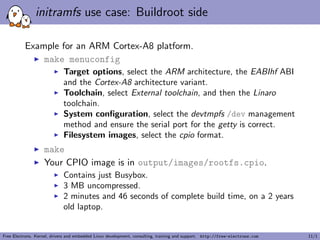

initramfs use case: Buildroot side
Example for an ARM Cortex-A8 platform.
make menuconfig
Target options, select the ARM architecture, the EABIhf ABI
and the Cortex-A8 architecture variant.
Toolchain, select External toolchain, and then the Linaro
toolchain.
System conﬁguration, select the devtmpfs /dev management
method and ensure the serial port for the getty is correct.
Filesystem images, select the cpio format.
make
Your CPIO image is in output/images/rootfs.cpio.
Contains just Busybox.
3 MB uncompressed.
2 minutes and 46 seconds of complete build time, on a 2 years
old laptop.

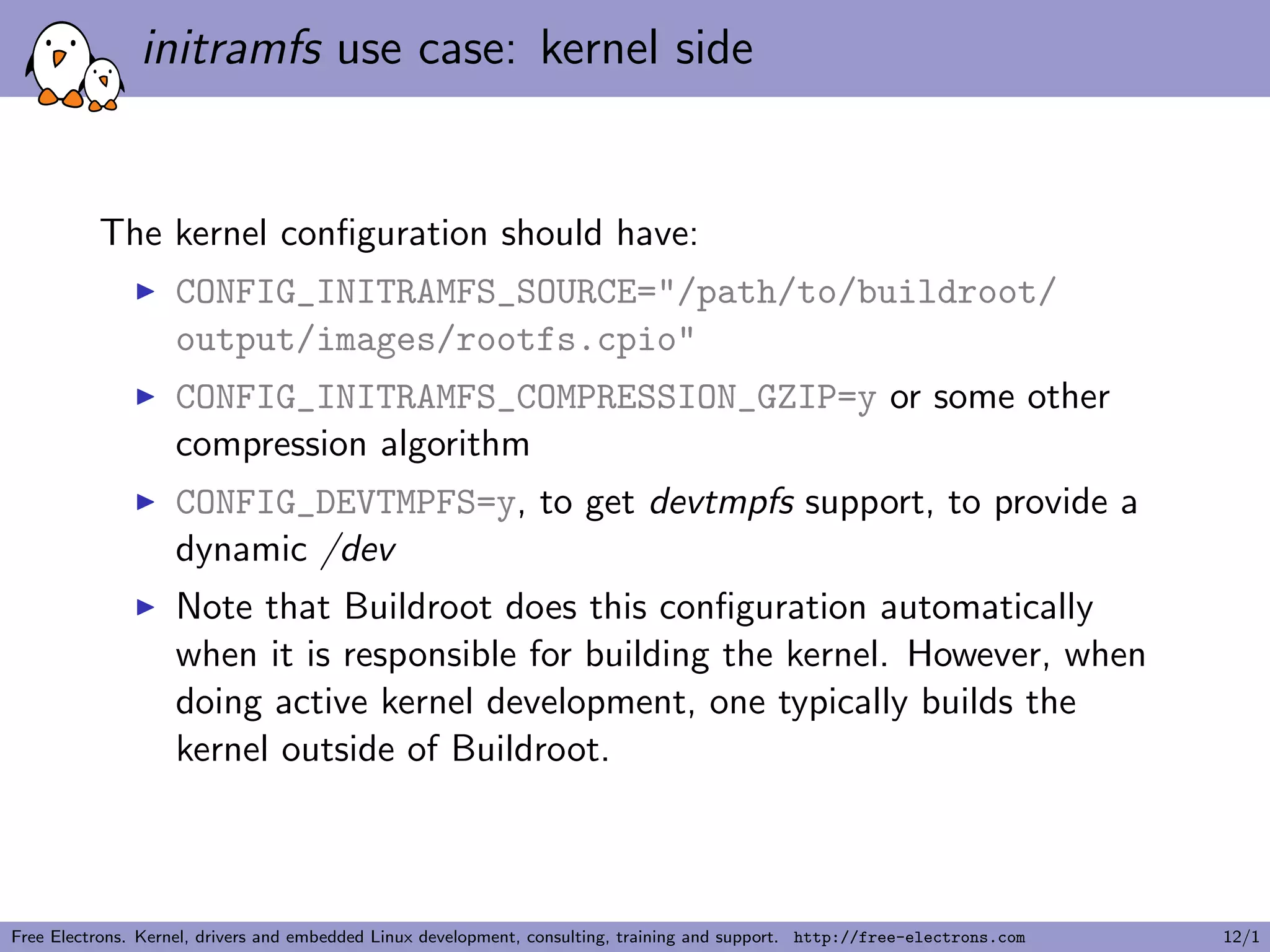

initramfs use case: kernel side
The kernel conﬁguration should have:
CONFIG_INITRAMFS_SOURCE="/path/to/buildroot/
output/images/rootfs.cpio"
CONFIG_INITRAMFS_COMPRESSION_GZIP=y or some other
compression algorithm
CONFIG_DEVTMPFS=y, to get devtmpfs support, to provide a
dynamic /dev
Note that Buildroot does this conﬁguration automatically
when it is responsible for building the kernel. However, when
doing active kernel development, one typically builds the
kernel outside of Buildroot.

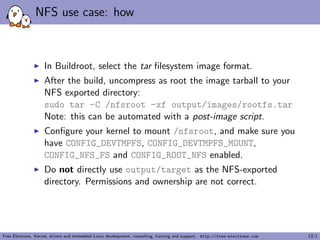

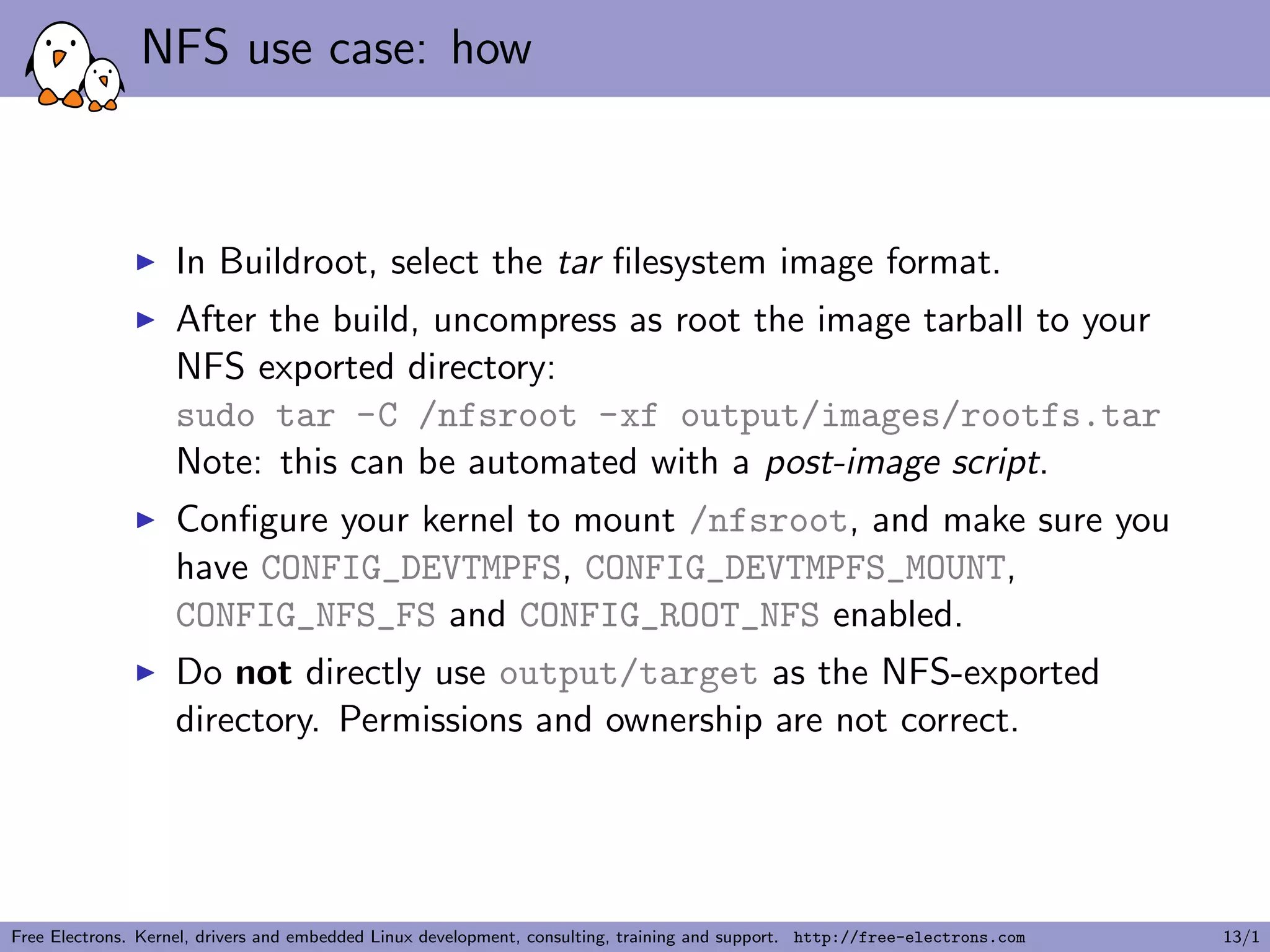

NFS use case: how
In Buildroot, select the tar ﬁlesystem image format.
After the build, uncompress as root the image tarball to your
NFS exported directory:
sudo tar -C /nfsroot -xf output/images/rootfs.tar
Note: this can be automated with a post-image script.
Conﬁgure your kernel to mount /nfsroot, and make sure you
have CONFIG_DEVTMPFS, CONFIG_DEVTMPFS_MOUNT,
CONFIG_NFS_FS and CONFIG_ROOT_NFS enabled.
Do not directly use output/target as the NFS-exported
directory. Permissions and ownership are not correct.

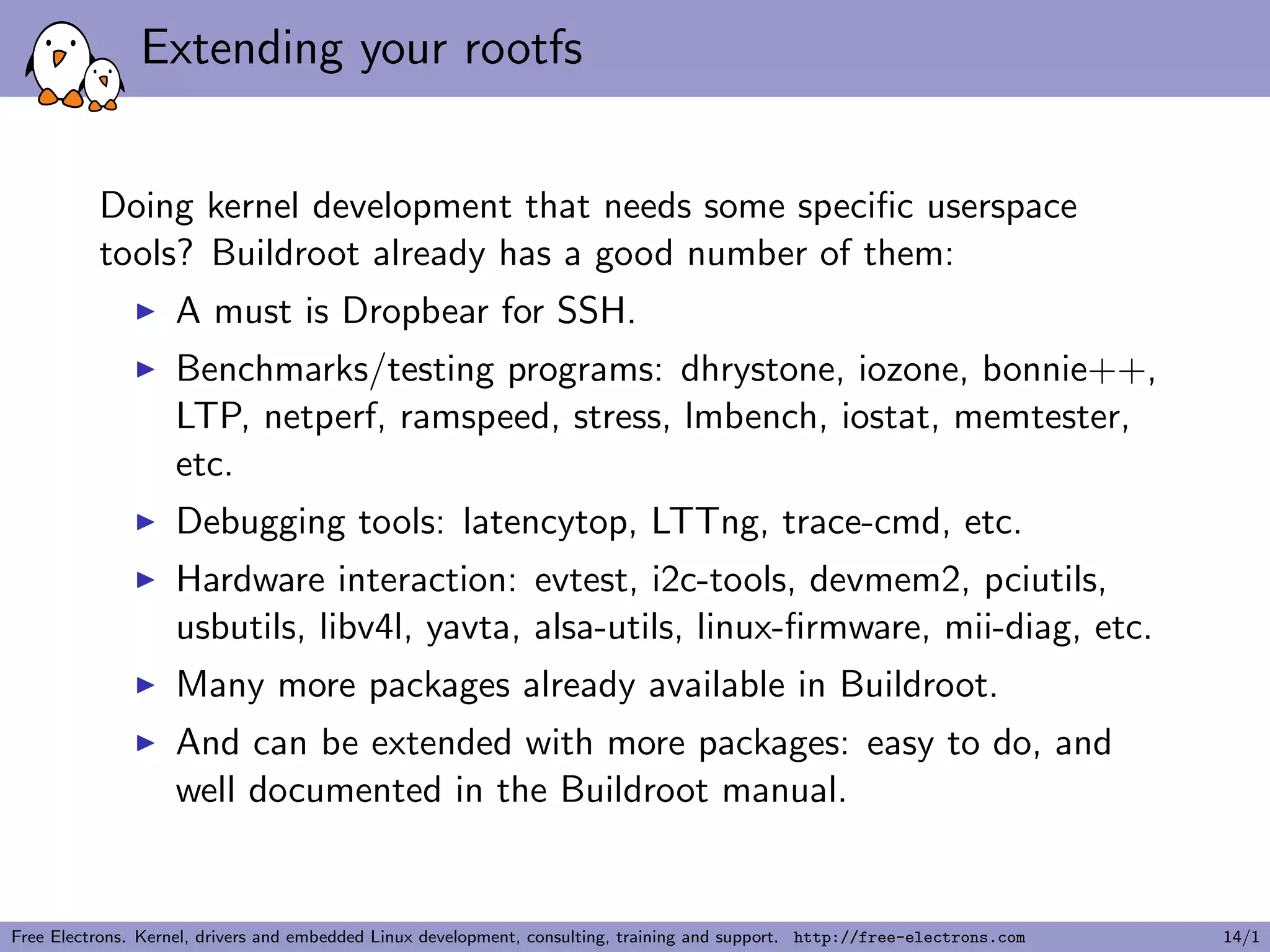

Extending your rootfs
Doing kernel development that needs some speciﬁc userspace
tools? Buildroot already has a good number of them:
A must is Dropbear for SSH.
Benchmarks/testing programs: dhrystone, iozone, bonnie++,
LTP, netperf, ramspeed, stress, lmbench, iostat, memtester,
etc.
Debugging tools: latencytop, LTTng, trace-cmd, etc.
Hardware interaction: evtest, i2c-tools, devmem2, pciutils,
usbutils, libv4l, yavta, alsa-utils, linux-ﬁrmware, mii-diag, etc.
Many more packages already available in Buildroot.
And can be extended with more packages: easy to do, and
well documented in the Buildroot manual.

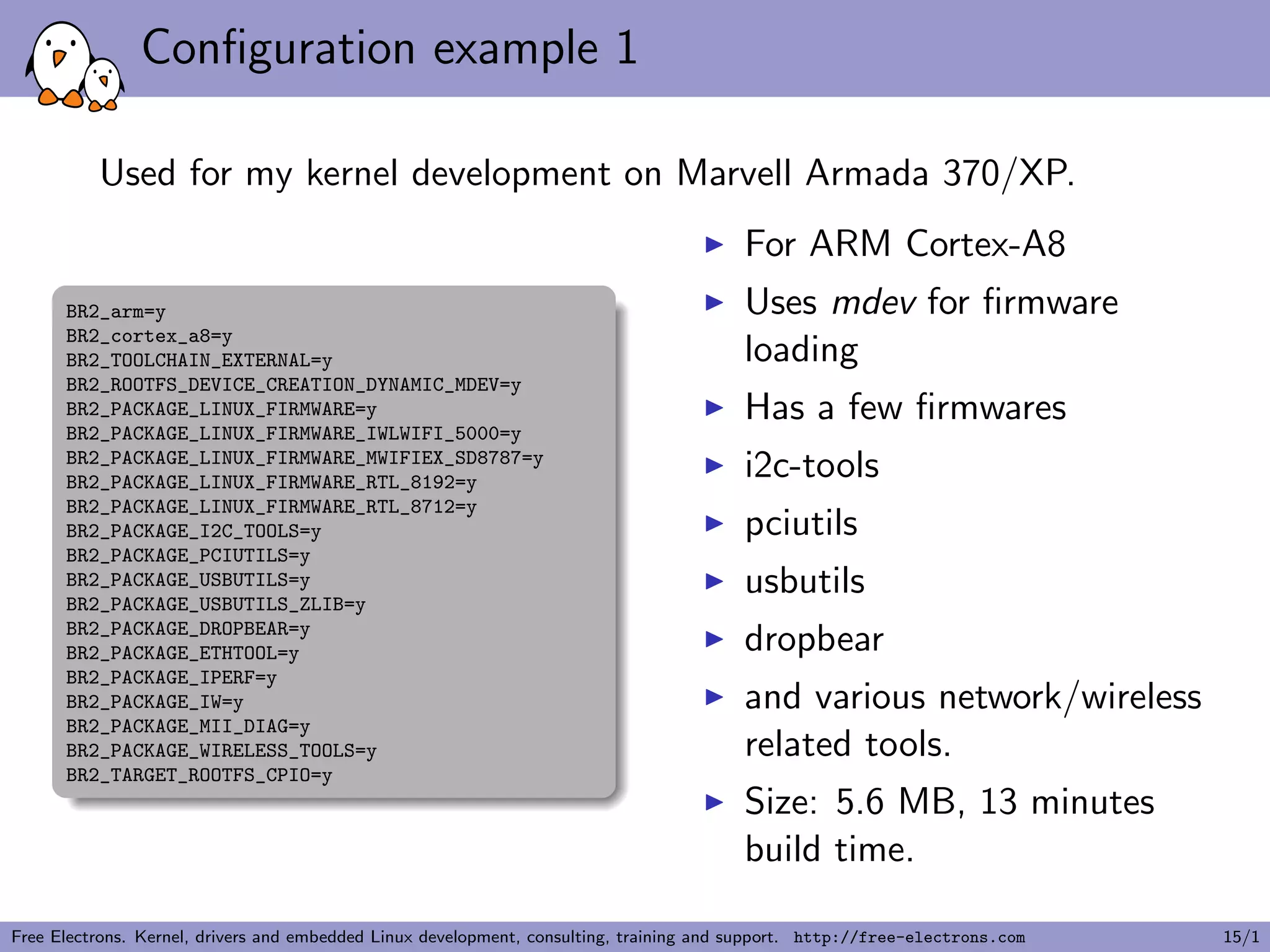

Configuration example 1
Used for my kernel development on Marvell Armada 370/XP.
BR2_arm=y
BR2_cortex_a8=y
BR2_TOOLCHAIN_EXTERNAL=y
BR2_ROOTFS_DEVICE_CREATION_DYNAMIC_MDEV=y
BR2_PACKAGE_LINUX_FIRMWARE=y
BR2_PACKAGE_LINUX_FIRMWARE_IWLWIFI_5000=y
BR2_PACKAGE_LINUX_FIRMWARE_MWIFIEX_SD8787=y
BR2_PACKAGE_LINUX_FIRMWARE_RTL_8192=y
BR2_PACKAGE_LINUX_FIRMWARE_RTL_8712=y
BR2_PACKAGE_I2C_TOOLS=y
BR2_PACKAGE_PCIUTILS=y
BR2_PACKAGE_USBUTILS=y
BR2_PACKAGE_USBUTILS_ZLIB=y
BR2_PACKAGE_DROPBEAR=y
BR2_PACKAGE_ETHTOOL=y
BR2_PACKAGE_IPERF=y
BR2_PACKAGE_IW=y
BR2_PACKAGE_MII_DIAG=y
BR2_PACKAGE_WIRELESS_TOOLS=y
BR2_TARGET_ROOTFS_CPIO=y
For ARM Cortex-A8
Uses mdev for firmware
loading
Has a few firmwares
i2c-tools
pciutils
usbutils
dropbear
and various network/wireless
related tools.
Size: 5.6 MB, 13 minutes
build time.

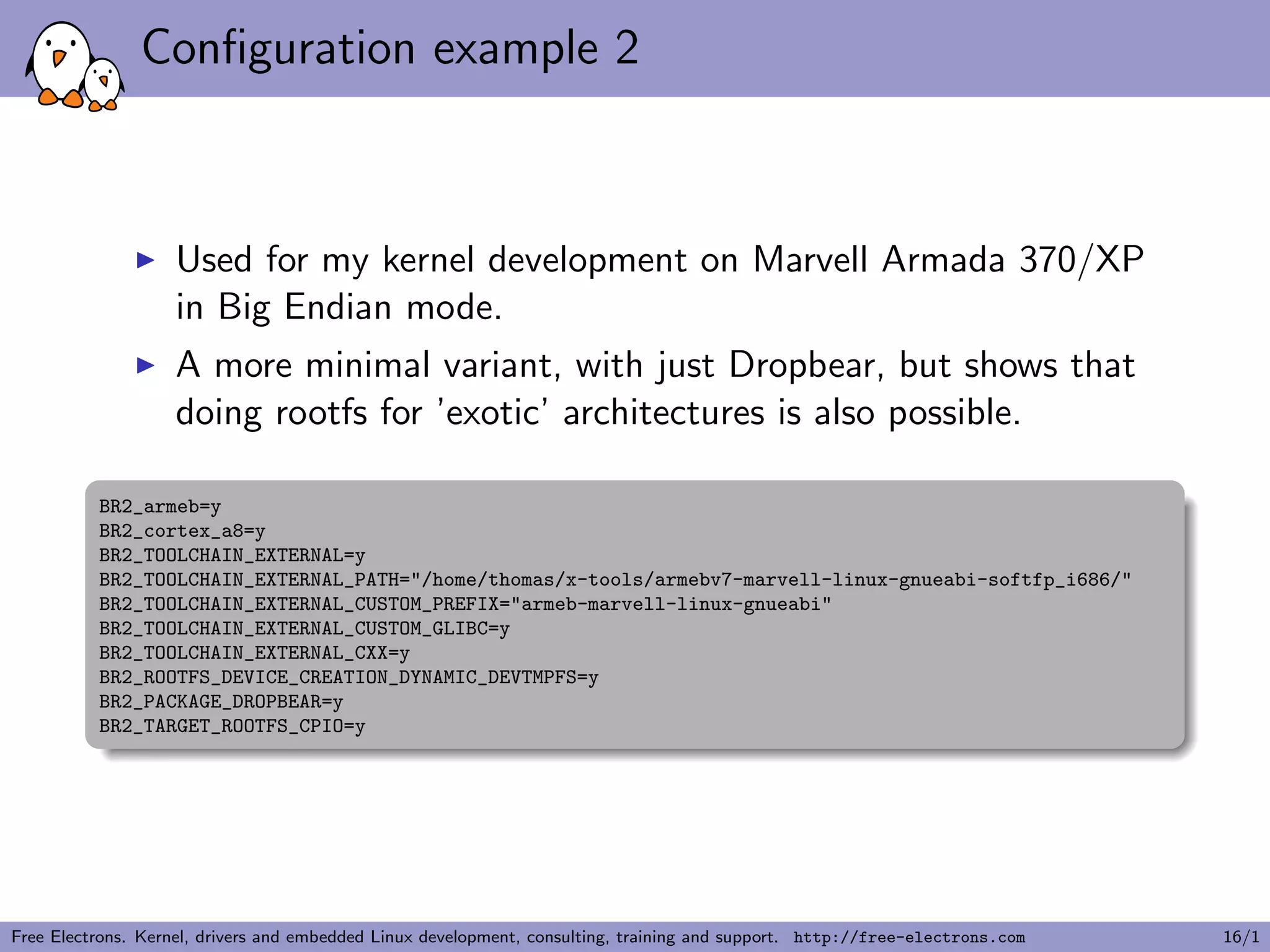

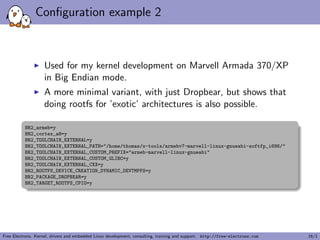

Conﬁguration example 2
Used for my kernel development on Marvell Armada 370/XP
in Big Endian mode.
A more minimal variant, with just Dropbear, but shows that
doing rootfs for ’exotic’ architectures is also possible.
BR2_armeb=y
BR2_cortex_a8=y
BR2_TOOLCHAIN_EXTERNAL=y
BR2_TOOLCHAIN_EXTERNAL_PATH="/home/thomas/x-tools/armebv7-marvell-linux-gnueabi-softfp_i686/"
BR2_TOOLCHAIN_EXTERNAL_CUSTOM_PREFIX="armeb-marvell-linux-gnueabi"
BR2_TOOLCHAIN_EXTERNAL_CUSTOM_GLIBC=y
BR2_TOOLCHAIN_EXTERNAL_CXX=y
BR2_ROOTFS_DEVICE_CREATION_DYNAMIC_DEVTMPFS=y
BR2_PACKAGE_DROPBEAR=y
BR2_TARGET_ROOTFS_CPIO=y

Conclusion

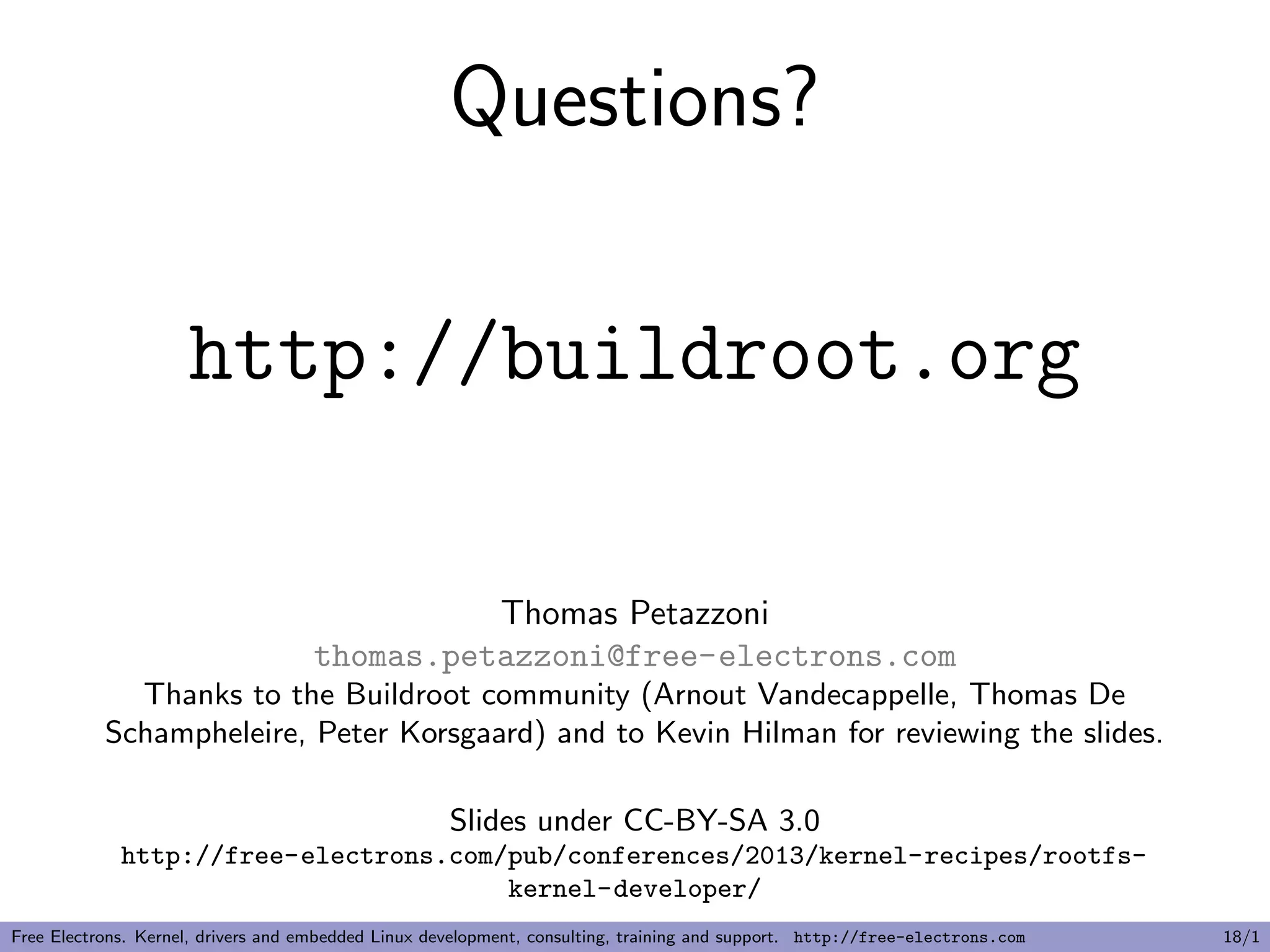

Questions?
http://buildroot.org
Thomas Petazzoni
thomas.petazzoni@free-electrons.com
Thanks to the Buildroot community (Arnout Vandecappelle, Thomas De
Schampheleire, Peter Korsgaard) and to Kevin Hilman for reviewing the slides.
Slides under CC-BY-SA 3.0
http://free-electrons.com/pub/conferences/2013/kernel-recipes/rootfs-
kernel-developer/

Kernel Recipes 2013 - Easy rootfs using Buildroot
