The end of embedded Linux (as we know it)
The document discusses the evolution and future of embedded Linux, highlighting significant advancements in hardware capabilities and the challenges faced in software complexity and user interface demands. It reviews various options for embedded OS, including mainstream distributions, embedded distributions, and Android, evaluating their strengths and weaknesses. The conclusion emphasizes that while embedded Linux is not ending, its role as a niche market is diminishing as it adapts more mainstream practices.
More Related Content
Similar to The end of embedded Linux (as we know it)
The end of embedded Linux (as we know it)
- 1. The end ofembedded Linux (as we know it) Chris Simmonds 2net Ltd. 21st February 2013

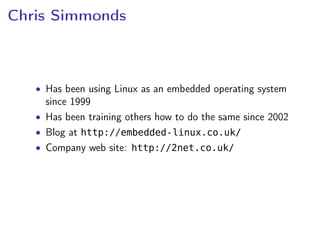

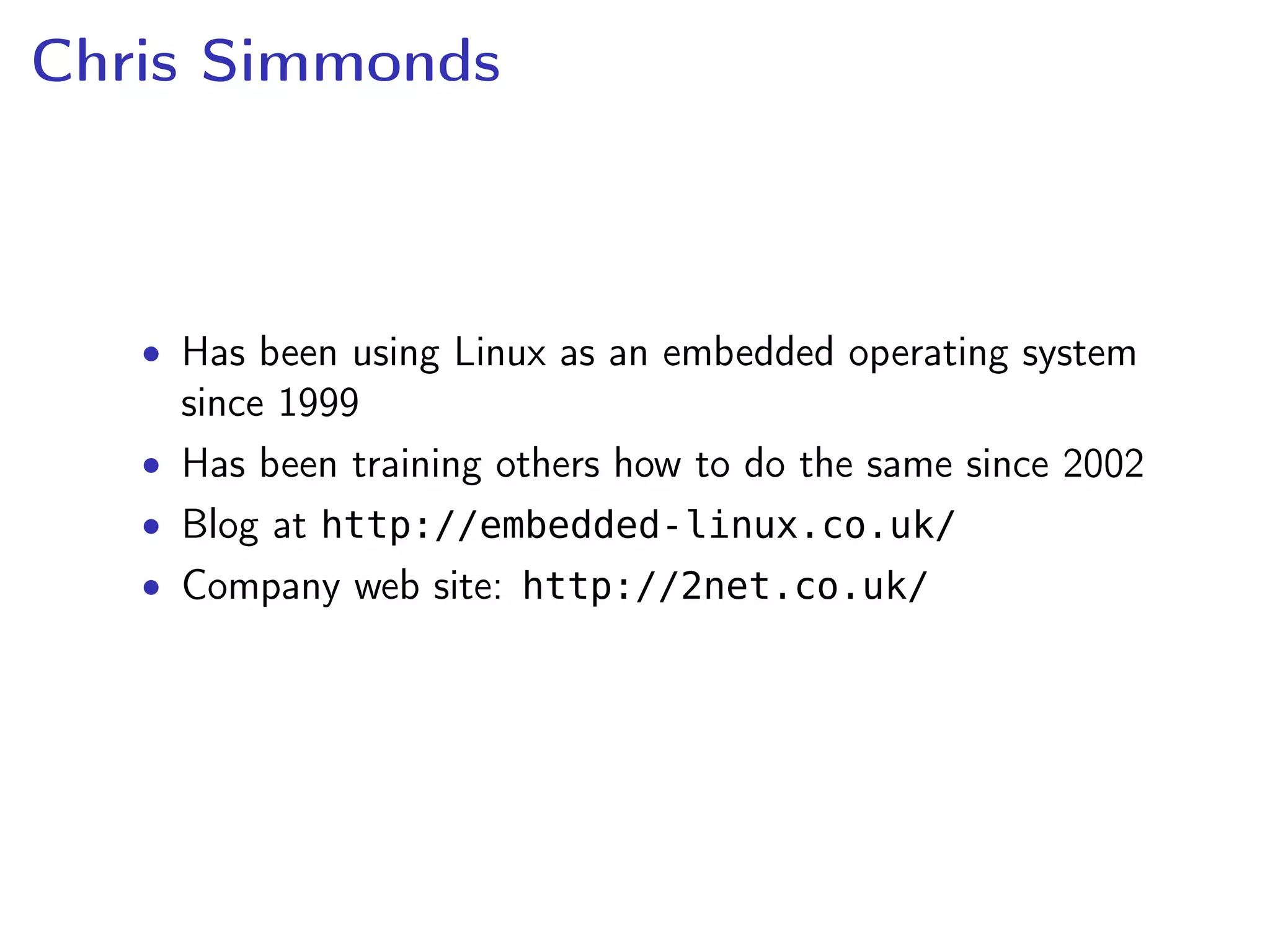

- 2. Chris Simmonds • Hasbeen using Linux as an embedded operating system since 1999 • Has been training others how to do the same since 2002 • Blog at http://embedded-linux.co.uk/ • Company web site: http://2net.co.uk/

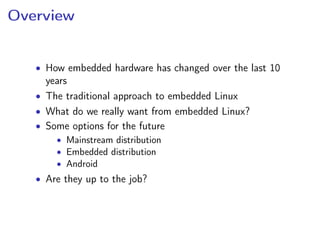

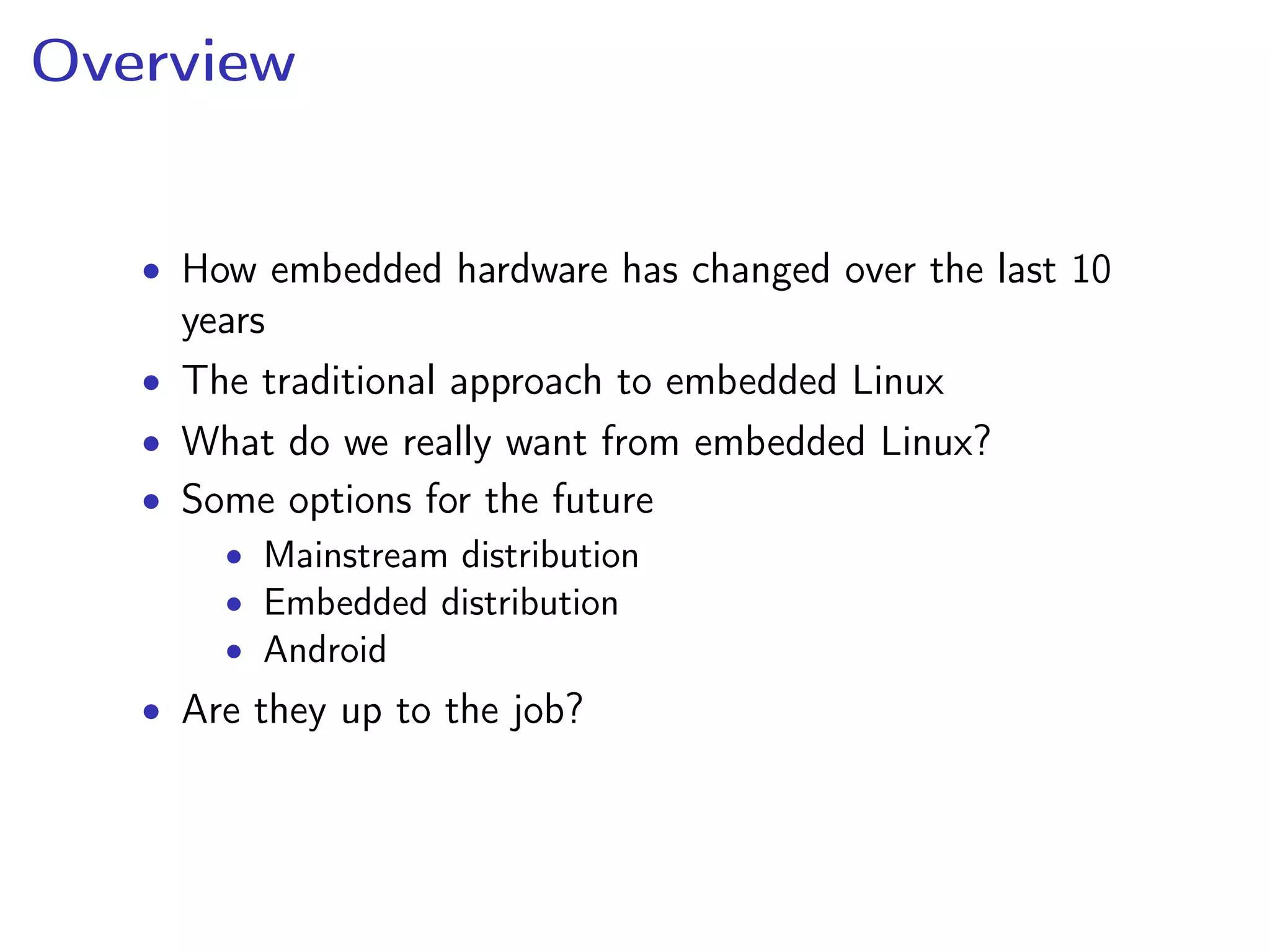

- 3. Overview • How embeddedhardware has changed over the last 10 years • The traditional approach to embedded Linux • What do we really want from embedded Linux? • Some options for the future • Mainstream distribution • Embedded distribution • Android • Are they up to the job?

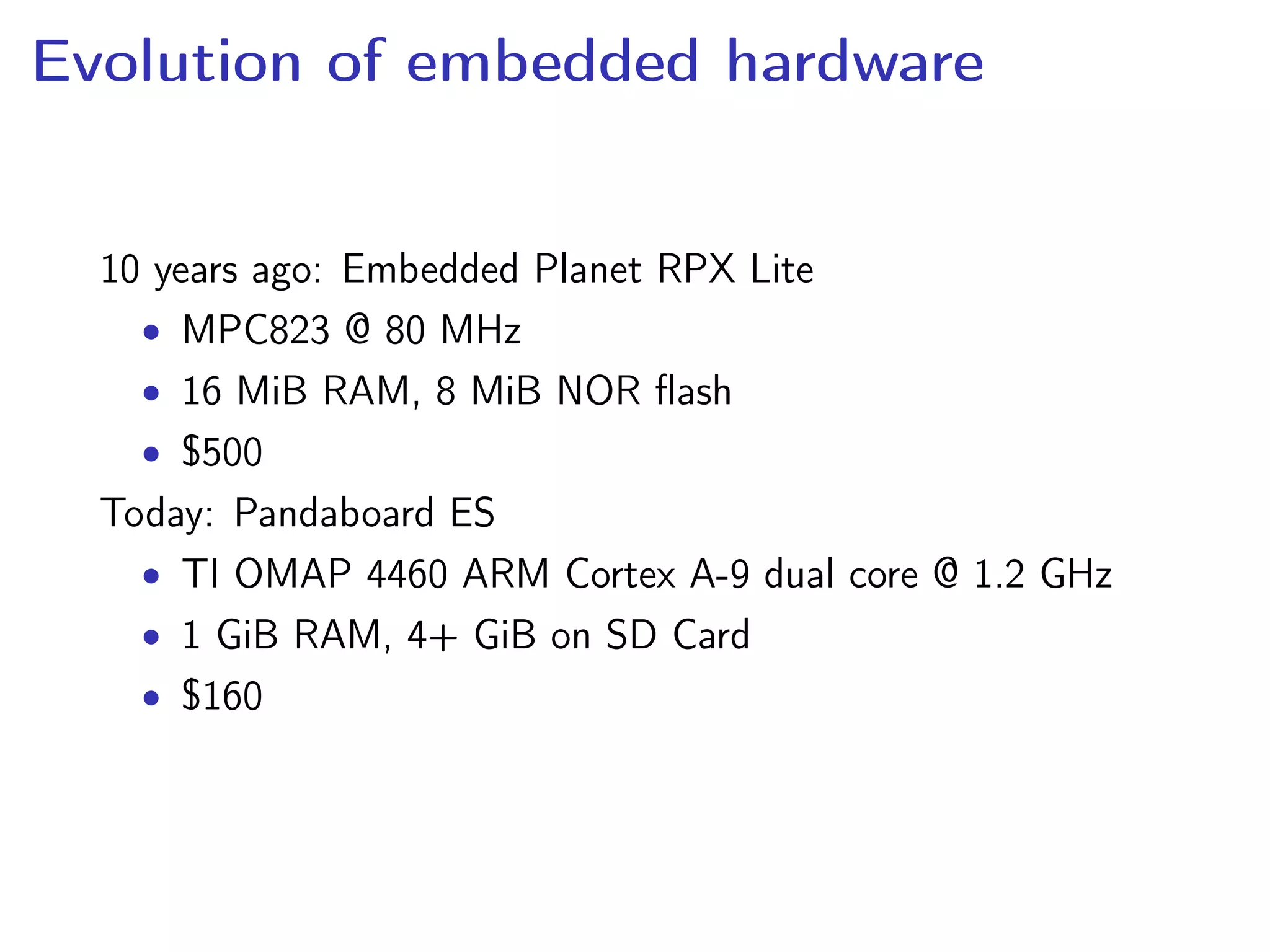

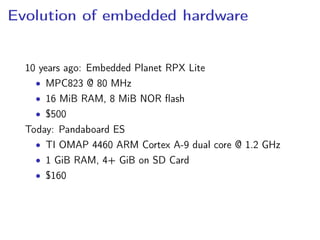

- 4. Evolution of embeddedhardware 10 years ago: Embedded Planet RPX Lite • MPC823 @ 80 MHz • 16 MiB RAM, 8 MiB NOR flash • $500 Today: Pandaboard ES • TI OMAP 4460 ARM Cortex A-9 dual core @ 1.2 GHz • 1 GiB RAM, 4+ GiB on SD Card • $160

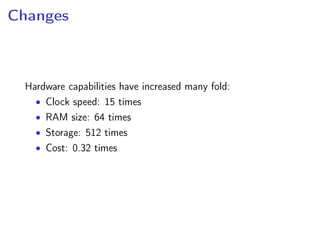

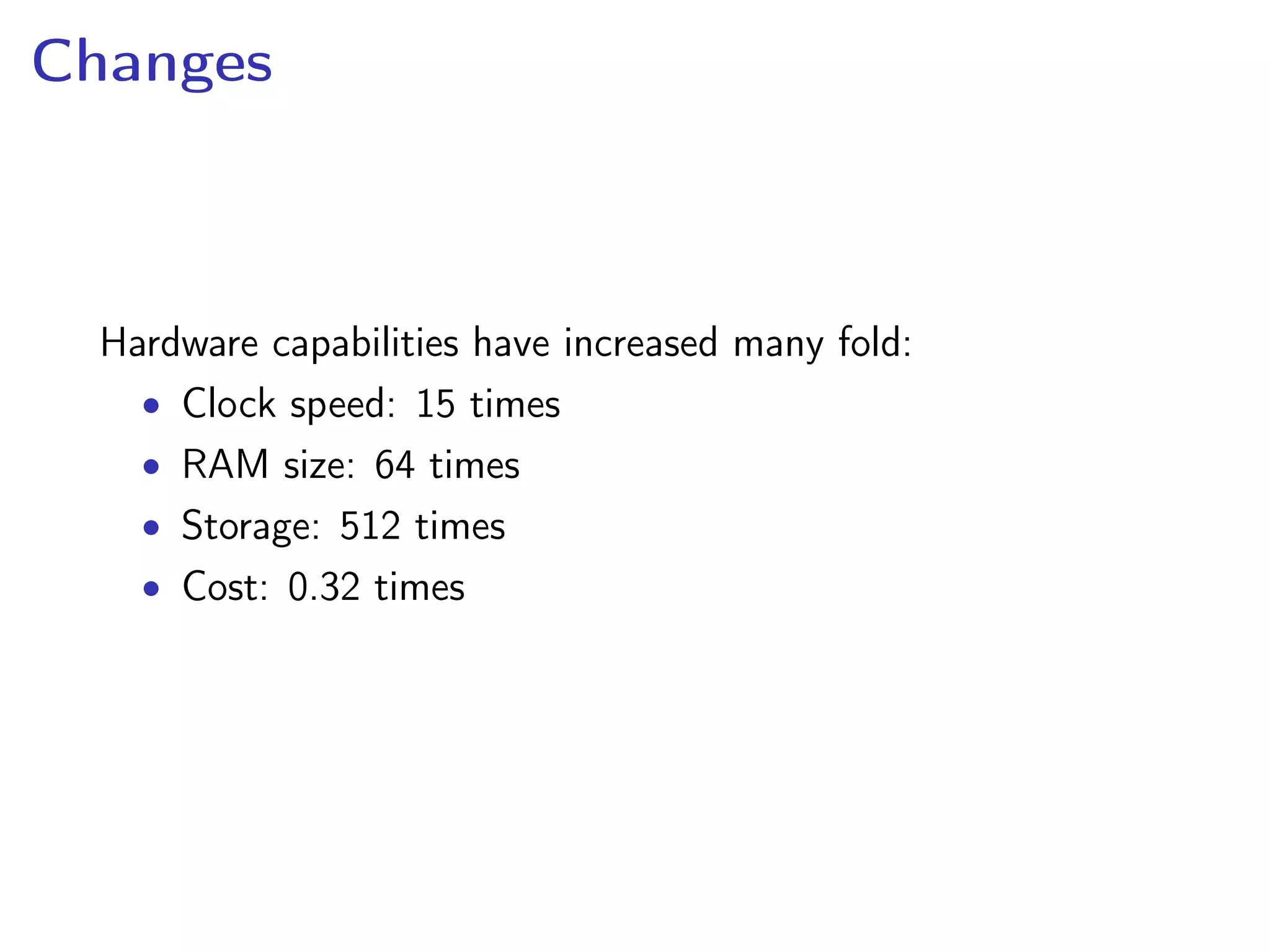

- 5. Changes Hardware capabilities haveincreased many fold: • Clock speed: 15 times • RAM size: 64 times • Storage: 512 times • Cost: 0.32 times

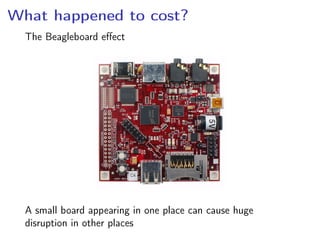

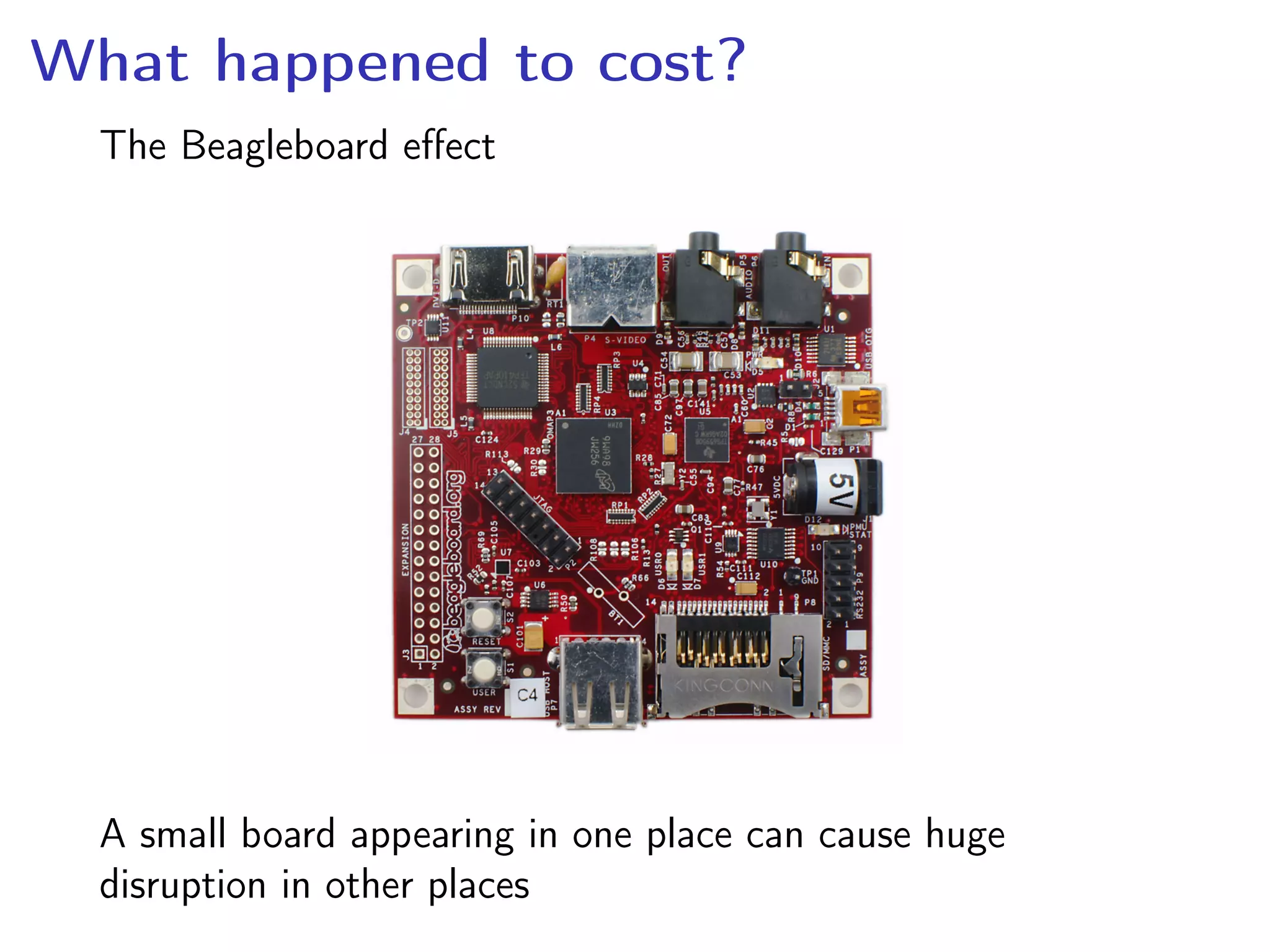

- 6. What happened tocost? The Beagleboard effect A small board appearing in one place can cause huge disruption in other places

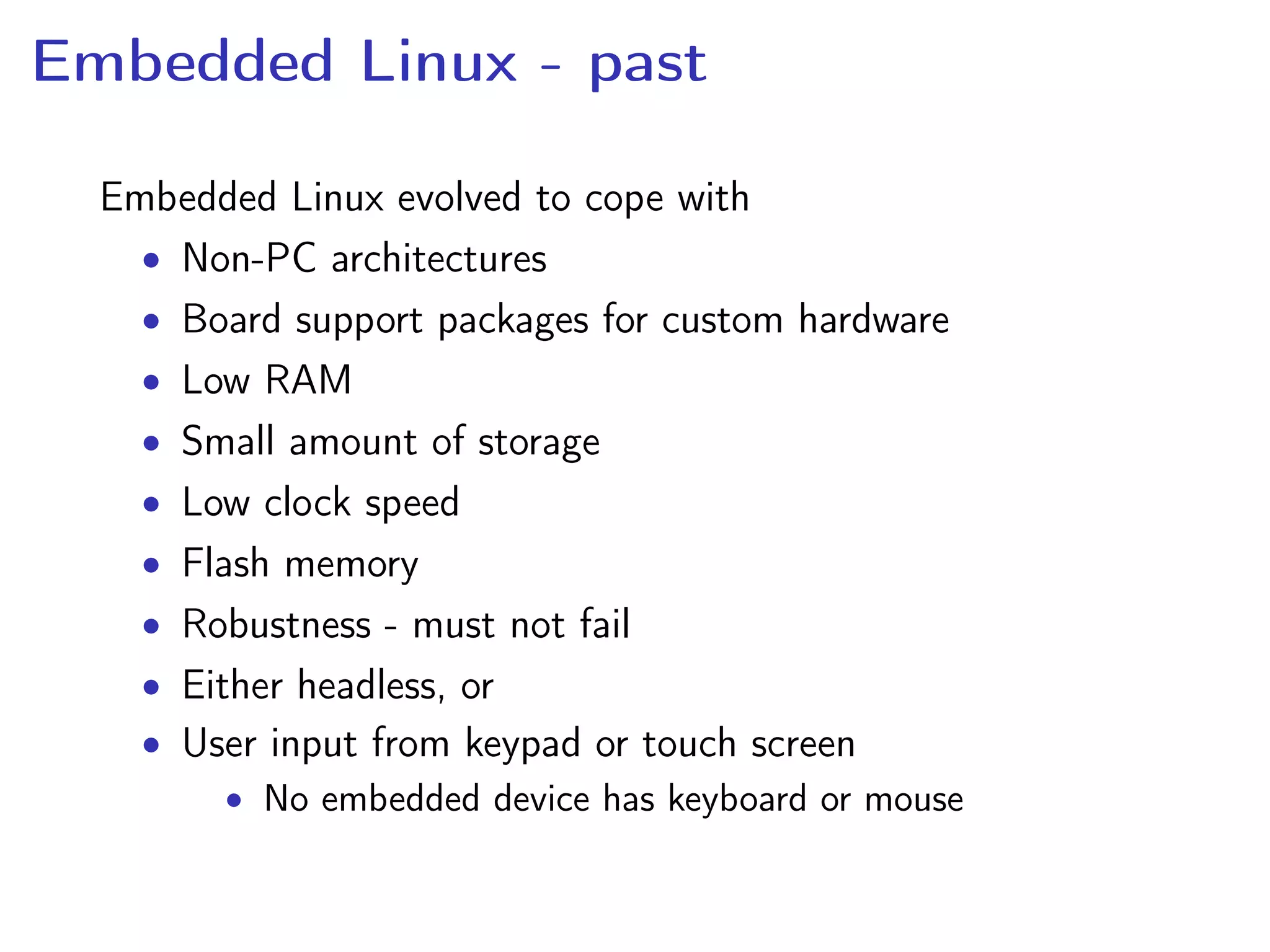

- 7. Embedded Linux -past Embedded Linux evolved to cope with • Non-PC architectures • Board support packages for custom hardware • Low RAM • Small amount of storage • Low clock speed • Flash memory • Robustness - must not fail • Either headless, or • User input from keypad or touch screen • No embedded device has keyboard or mouse

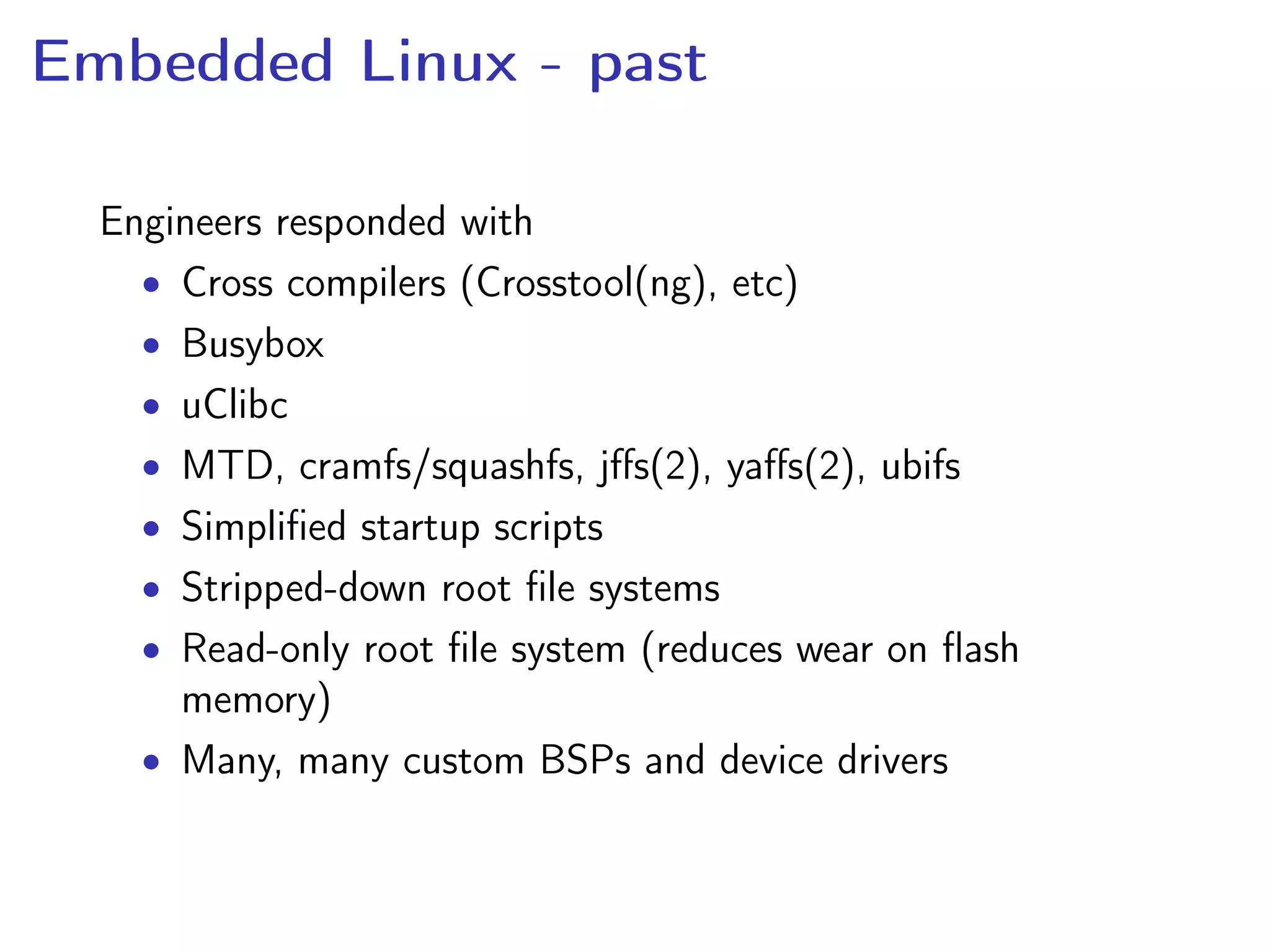

- 8. Embedded Linux -past Engineers responded with • Cross compilers (Crosstool(ng), etc) • Busybox • uClibc • MTD, cramfs/squashfs, jffs(2), yaffs(2), ubifs • Simplified startup scripts • Stripped-down root file systems • Read-only root file system (reduces wear on flash memory) • Many, many custom BSPs and device drivers

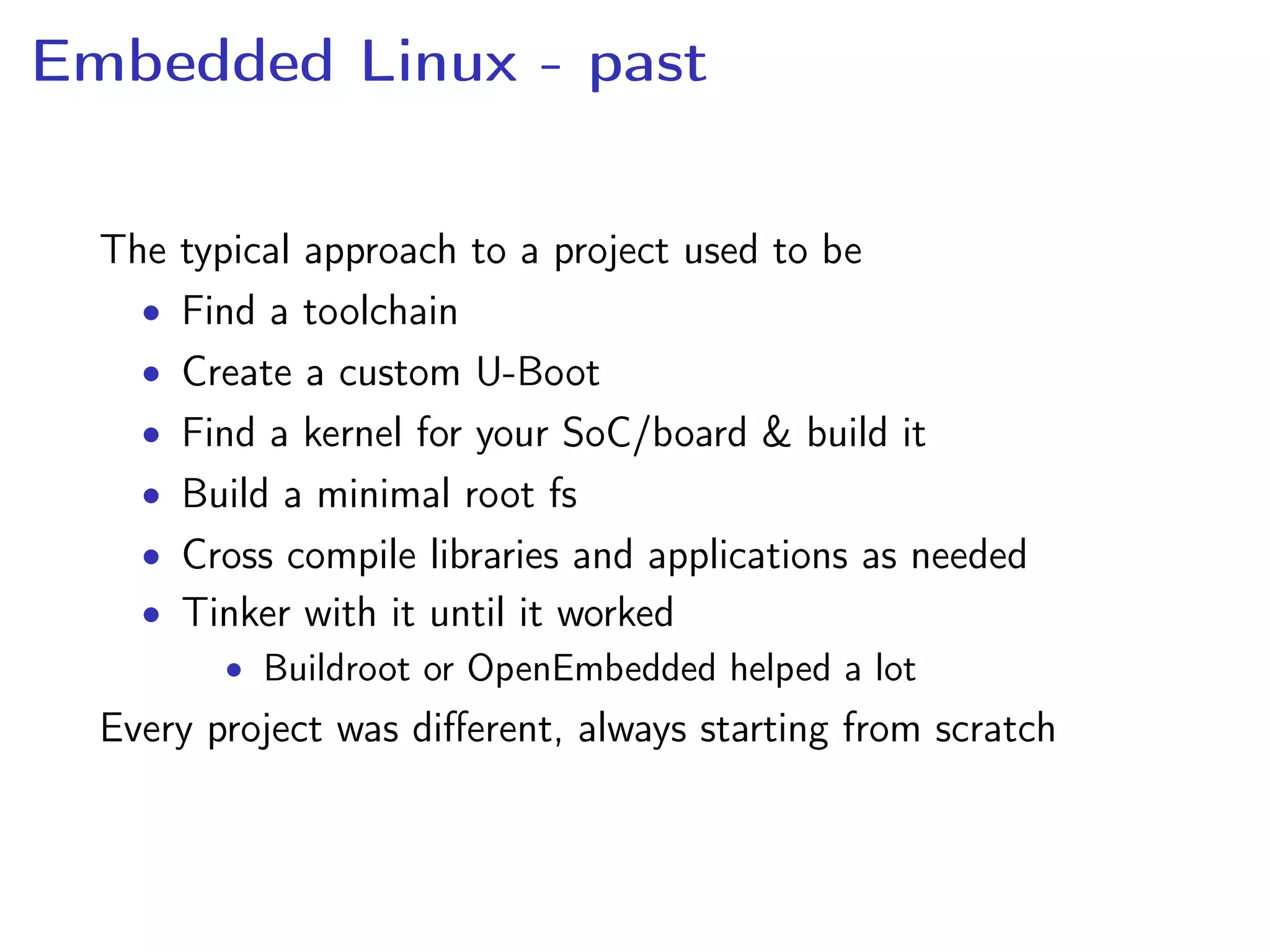

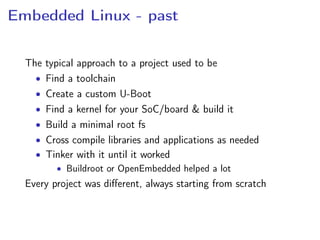

- 9. Embedded Linux -past The typical approach to a project used to be • Find a toolchain • Create a custom U-Boot • Find a kernel for your SoC/board & build it • Build a minimal root fs • Cross compile libraries and applications as needed • Tinker with it until it worked • Buildroot or OpenEmbedded helped a lot Every project was different, always starting from scratch

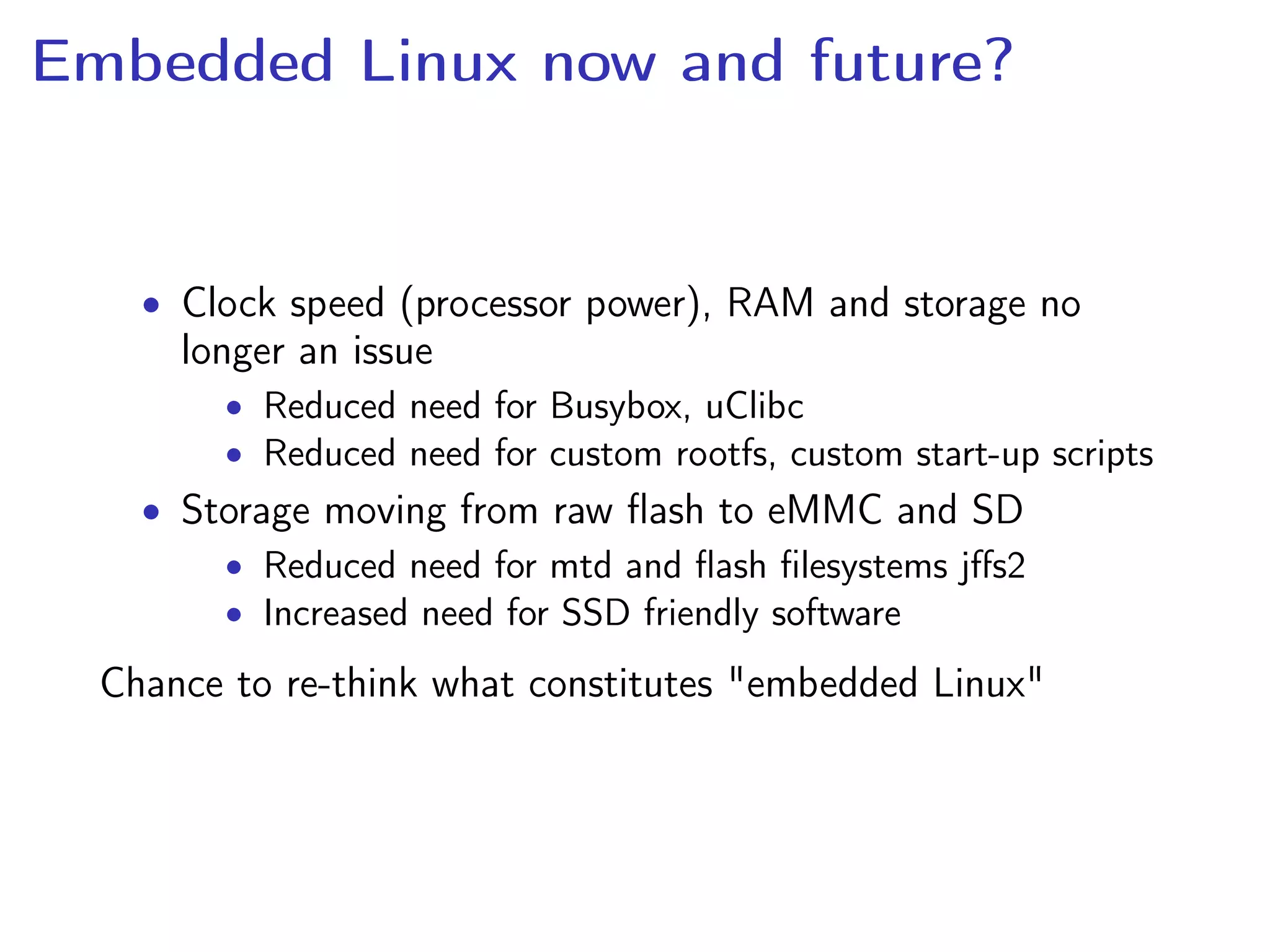

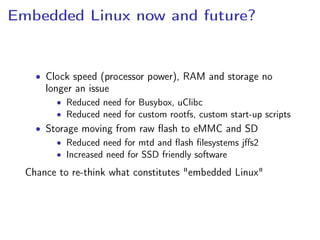

- 10. Embedded Linux nowand future? • Clock speed (processor power), RAM and storage no longer an issue • Reduced need for Busybox, uClibc • Reduced need for custom rootfs, custom start-up scripts • Storage moving from raw flash to eMMC and SD • Reduced need for mtd and flash filesystems jffs2 • Increased need for SSD friendly software Chance to re-think what constitutes "embedded Linux"

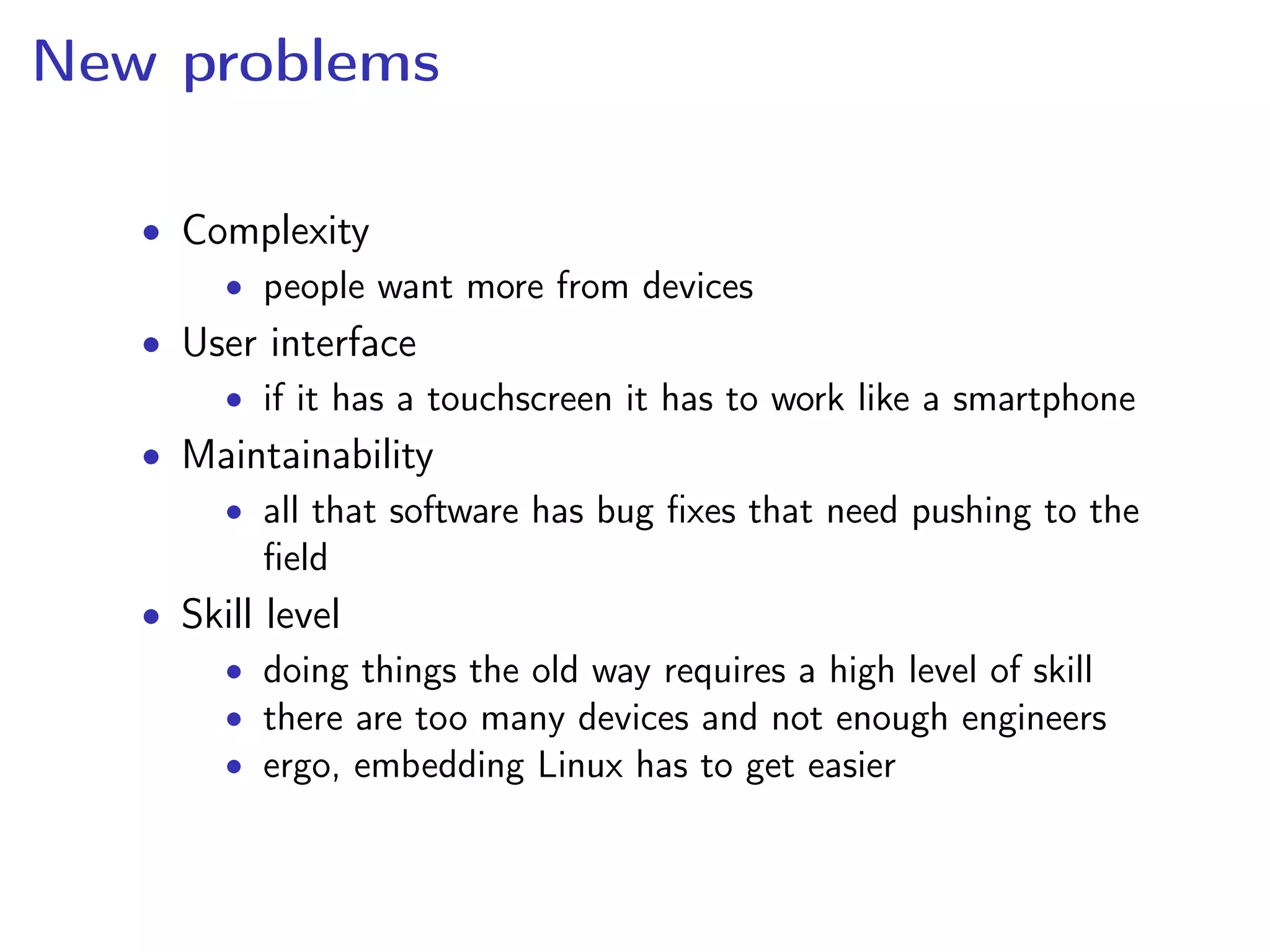

- 11. New problems • Complexity •people want more from devices • User interface • if it has a touchscreen it has to work like a smartphone • Maintainability • all that software has bug fixes that need pushing to the field • Skill level • doing things the old way requires a high level of skill • there are too many devices and not enough engineers • ergo, embedding Linux has to get easier

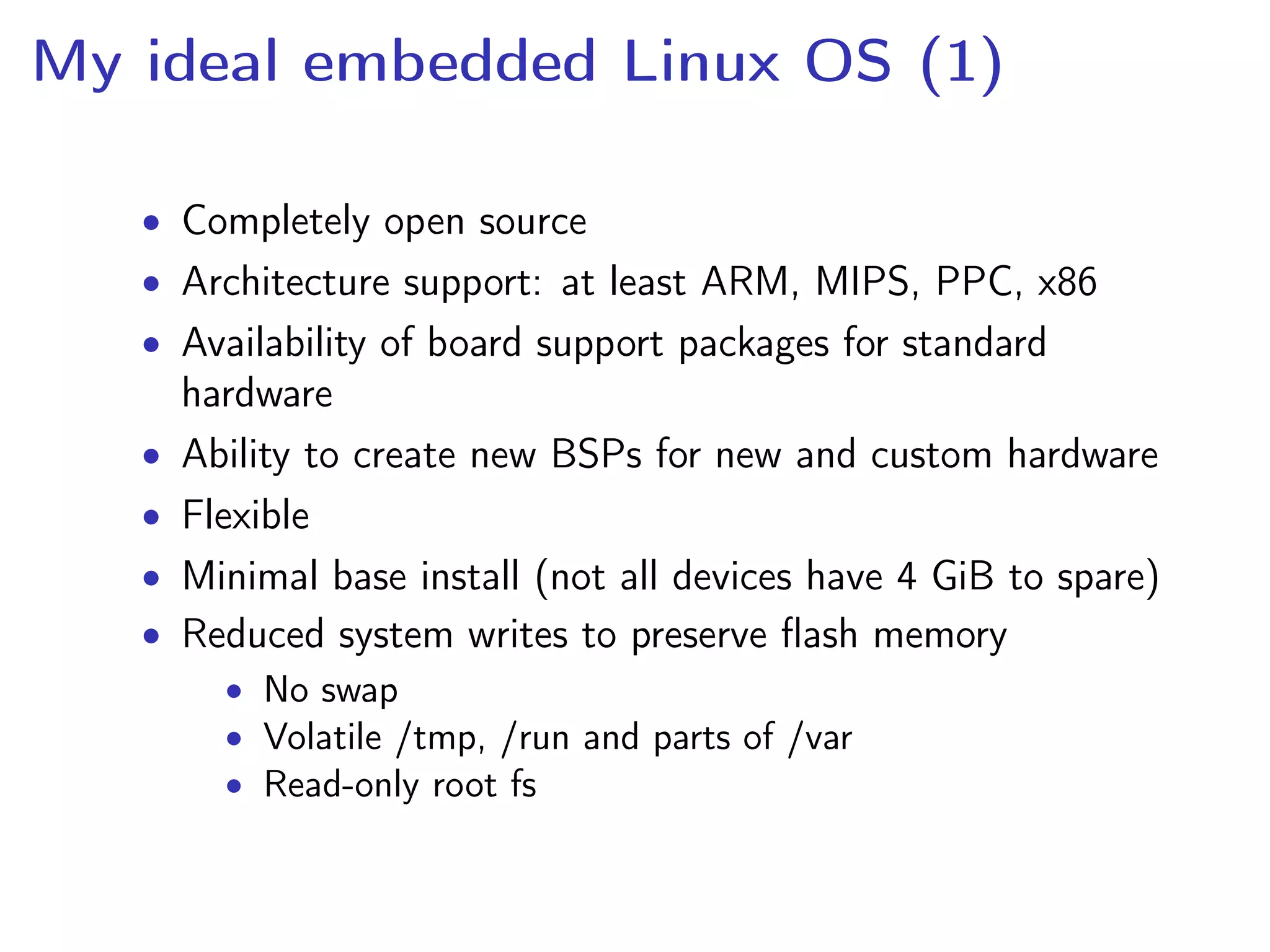

- 12. My ideal embeddedLinux OS (1) • Completely open source • Architecture support: at least ARM, MIPS, PPC, x86 • Availability of board support packages for standard hardware • Ability to create new BSPs for new and custom hardware • Flexible • Minimal base install (not all devices have 4 GiB to spare) • Reduced system writes to preserve flash memory • No swap • Volatile /tmp, /run and parts of /var • Read-only root fs

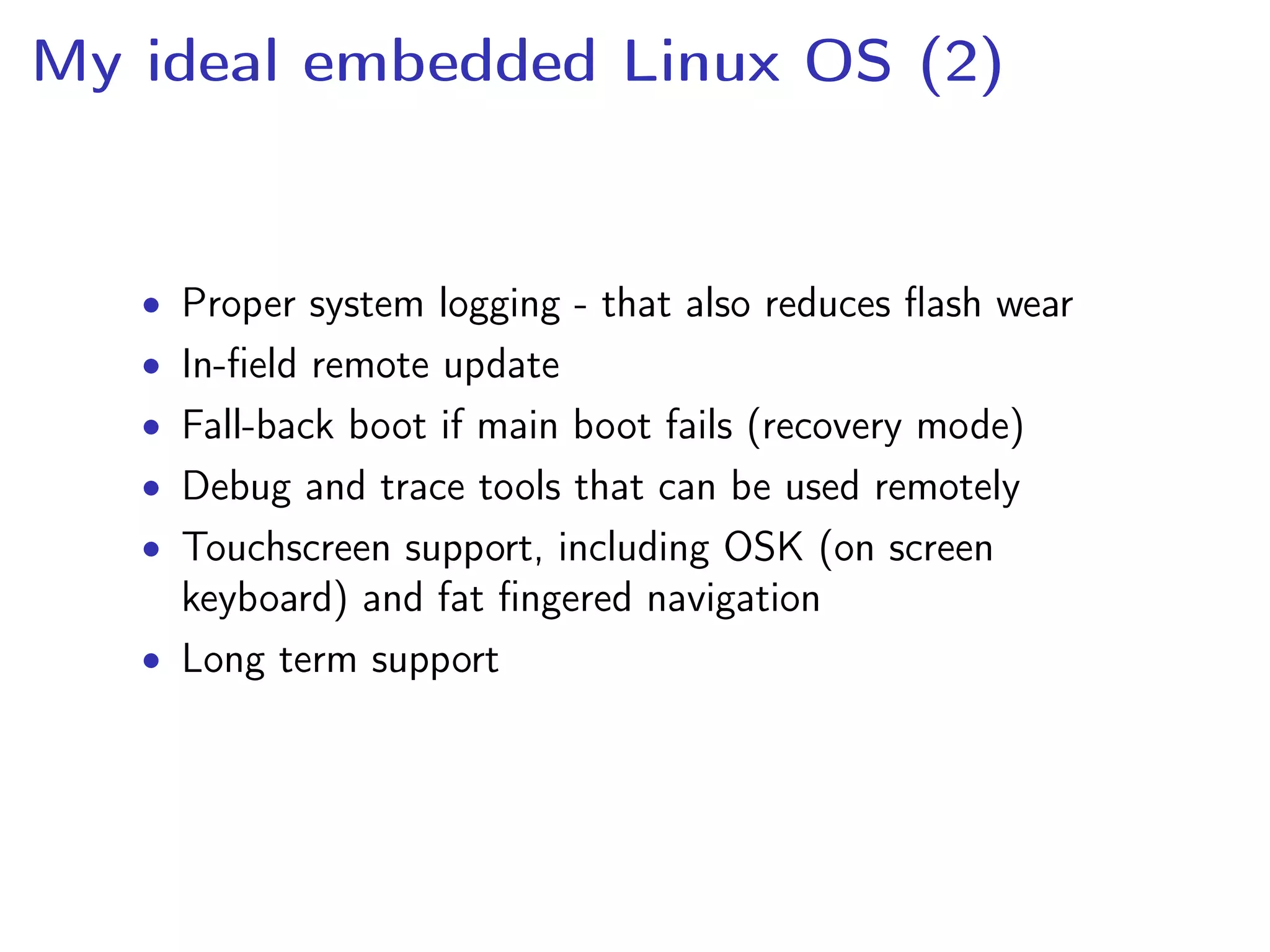

- 13. My ideal embeddedLinux OS (2) • Proper system logging - that also reduces flash wear • In-field remote update • Fall-back boot if main boot fails (recovery mode) • Debug and trace tools that can be used remotely • Touchscreen support, including OSK (on screen keyboard) and fat fingered navigation • Long term support

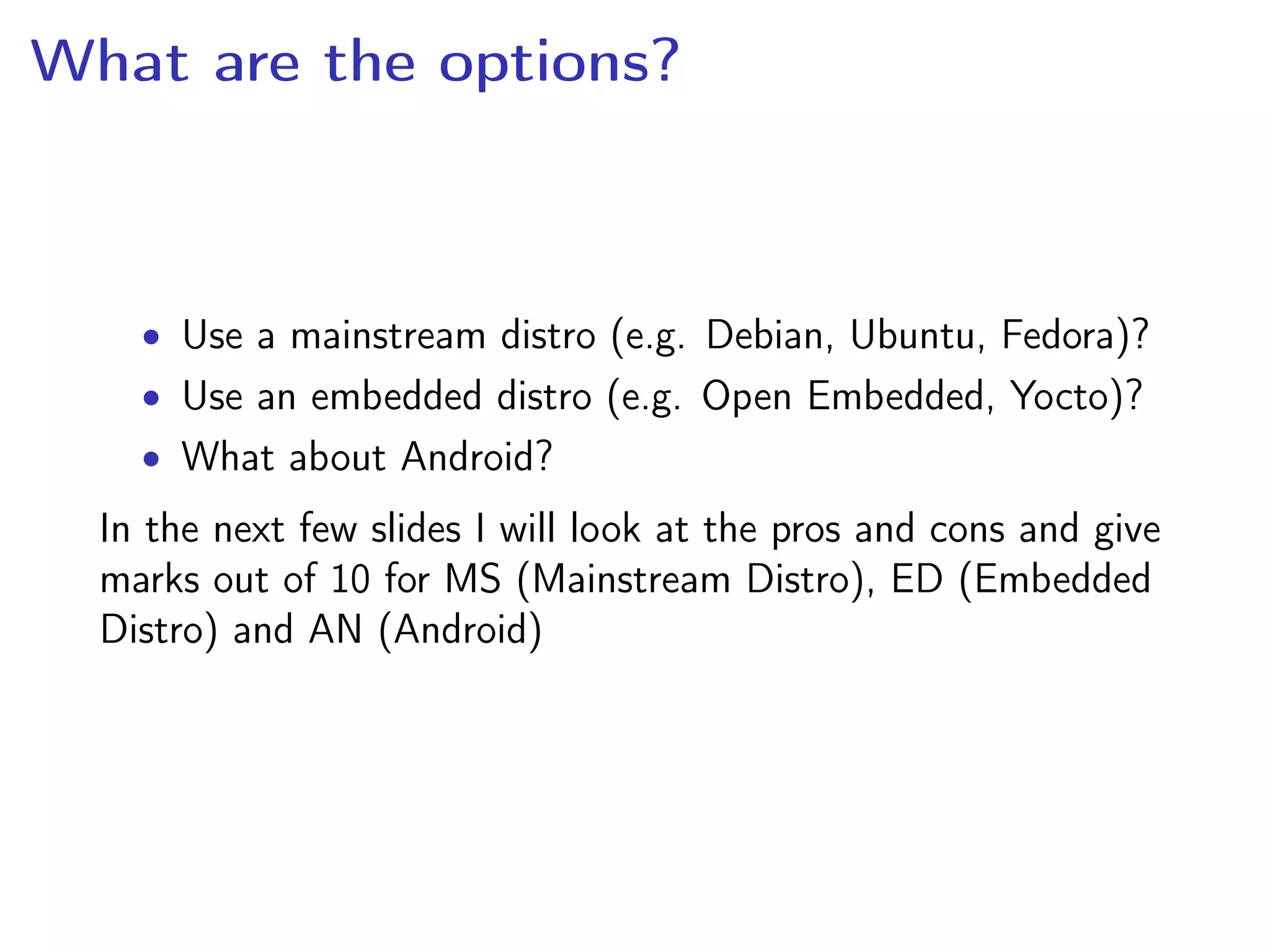

- 14. What are theoptions? • Use a mainstream distro (e.g. Debian, Ubuntu, Fedora)? • Use an embedded distro (e.g. Open Embedded, Yocto)? • What about Android? In the next few slides I will look at the pros and cons and give marks out of 10 for MS (Mainstream Distro), ED (Embedded Distro) and AN (Android)

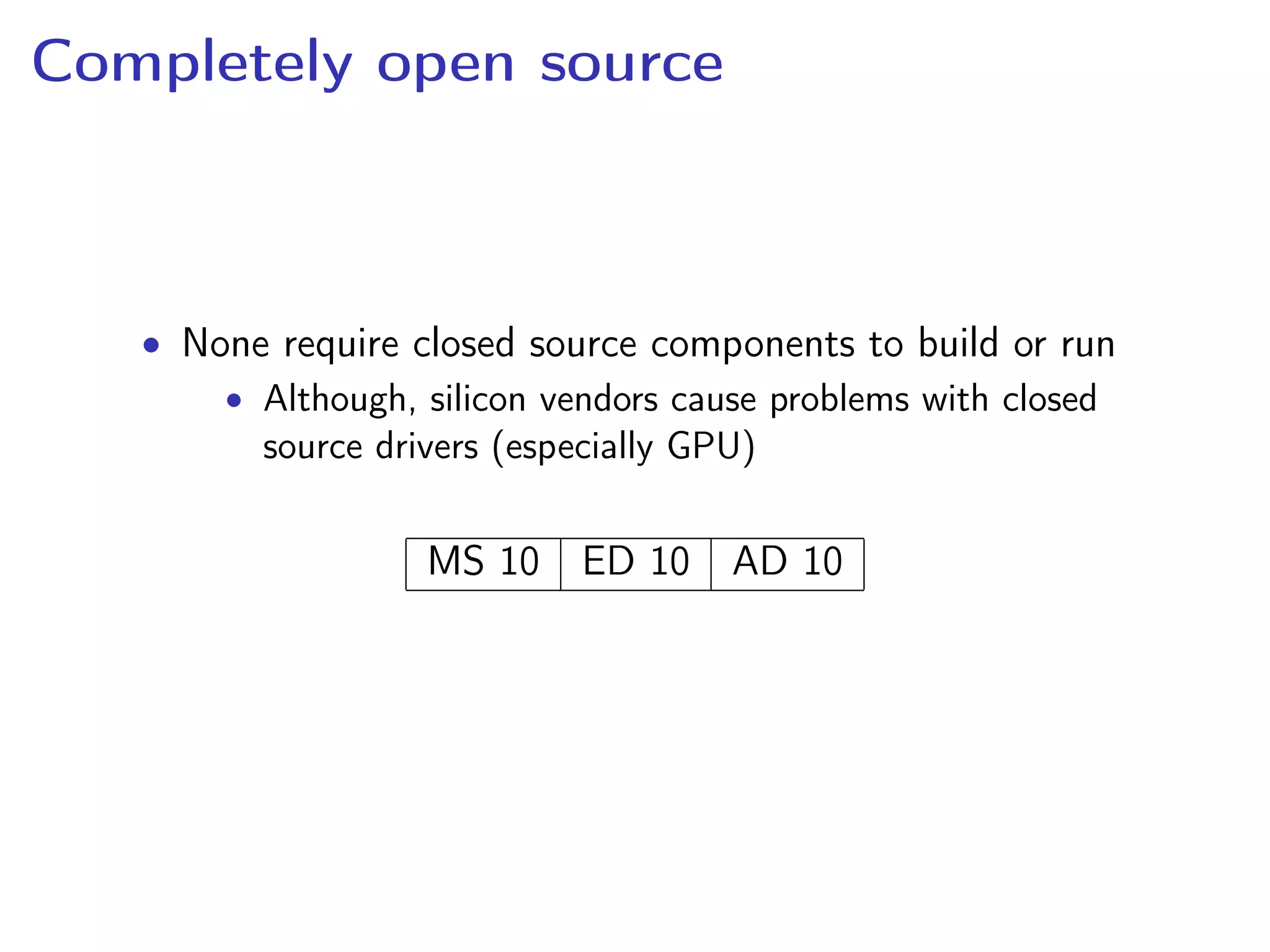

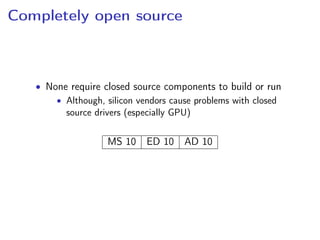

- 15. Completely open source •None require closed source components to build or run • Although, silicon vendors cause problems with closed source drivers (especially GPU) MS 10 ED 10 AD 10

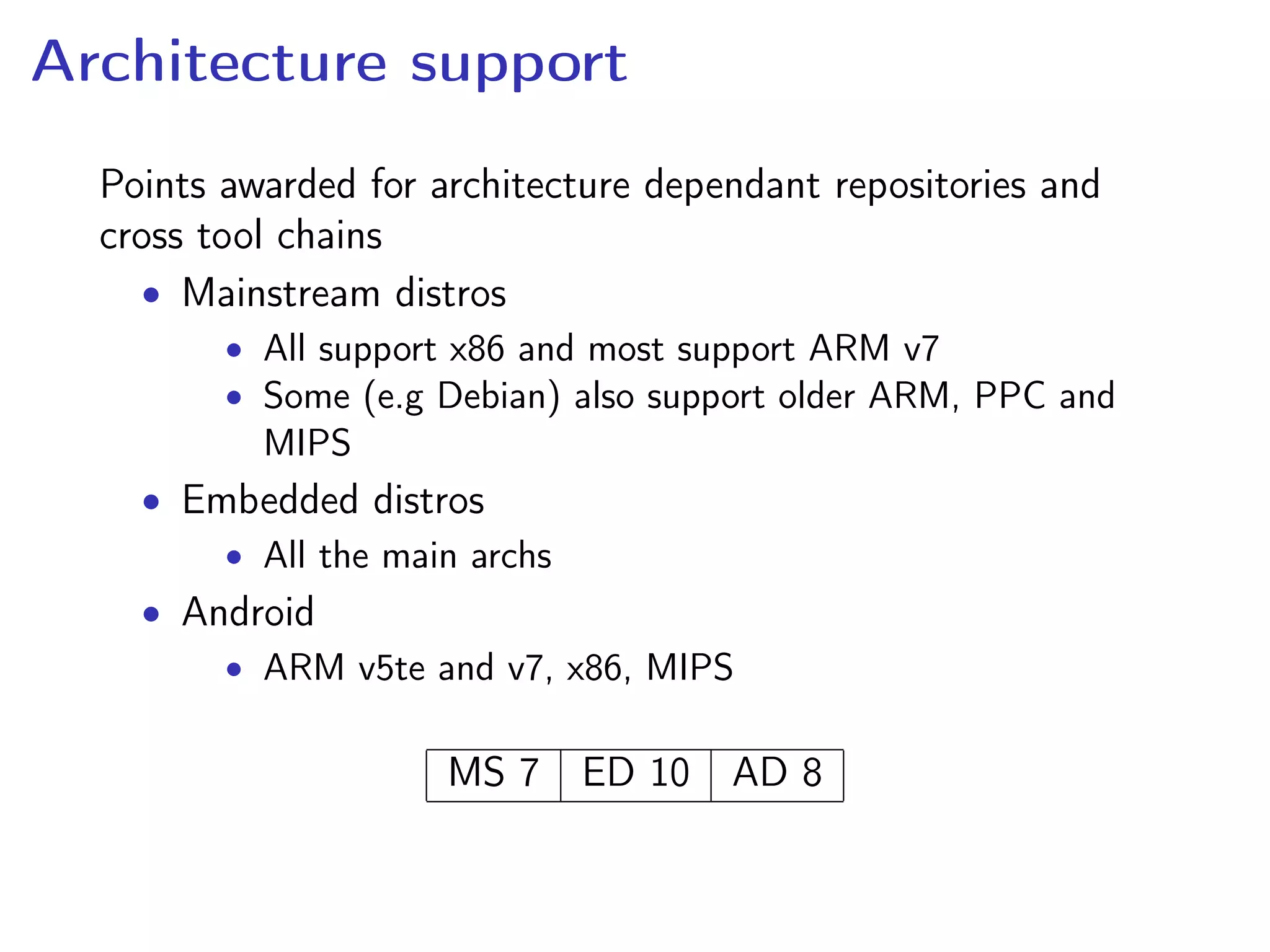

- 16. Architecture support Points awardedfor architecture dependant repositories and cross tool chains • Mainstream distros • All support x86 and most support ARM v7 • Some (e.g Debian) also support older ARM, PPC and MIPS • Embedded distros • All the main archs • Android • ARM v5te and v7, x86, MIPS MS 7 ED 10 AD 8

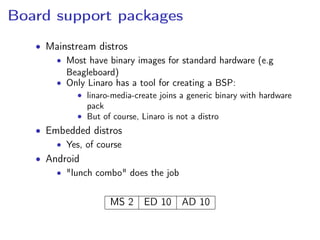

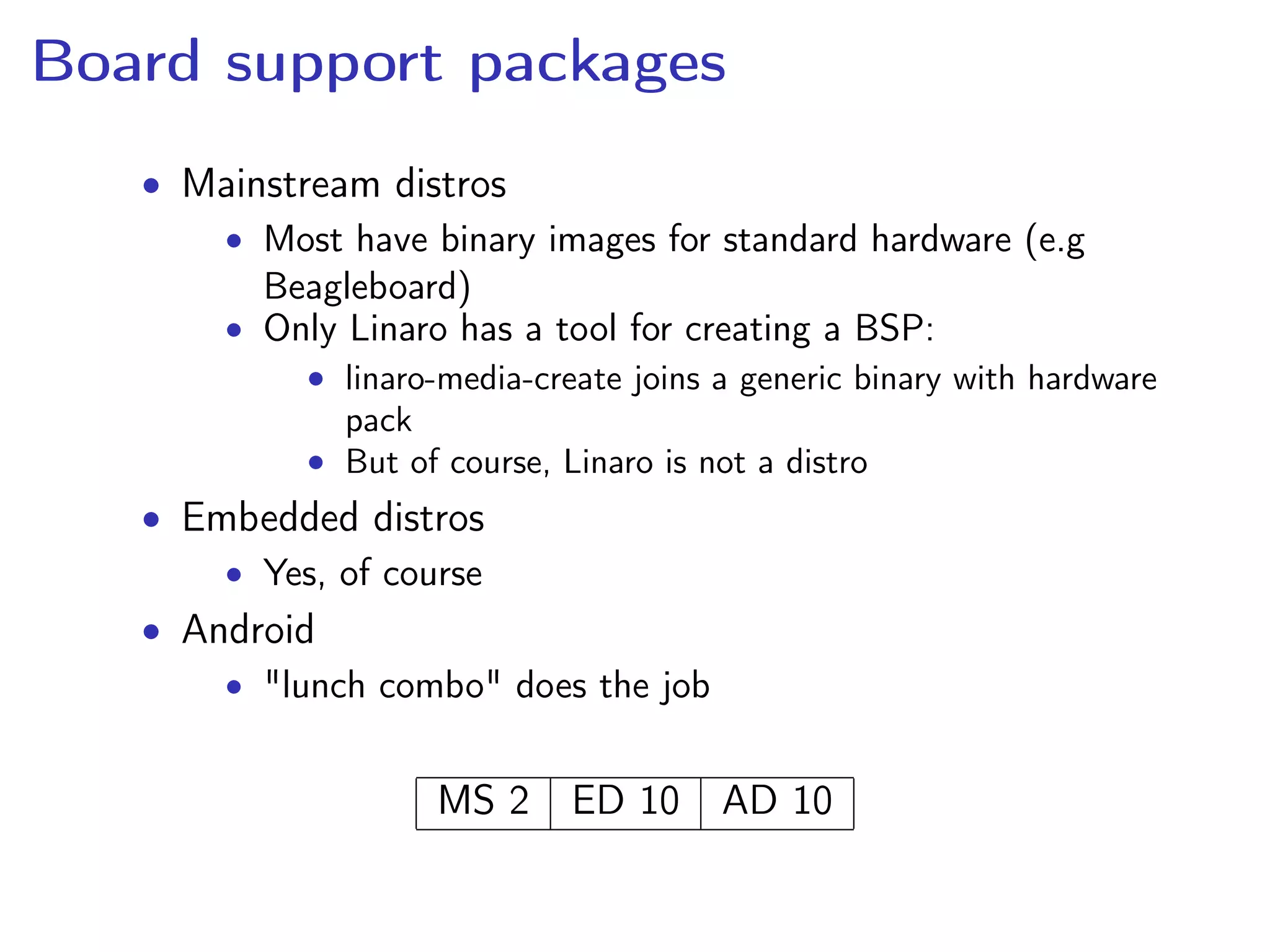

- 17. Board support packages •Mainstream distros • Most have binary images for standard hardware (e.g Beagleboard) • Only Linaro has a tool for creating a BSP: • linaro-media-create joins a generic binary with hardware pack • But of course, Linaro is not a distro • Embedded distros • Yes, of course • Android • "lunch combo" does the job MS 2 ED 10 AD 10

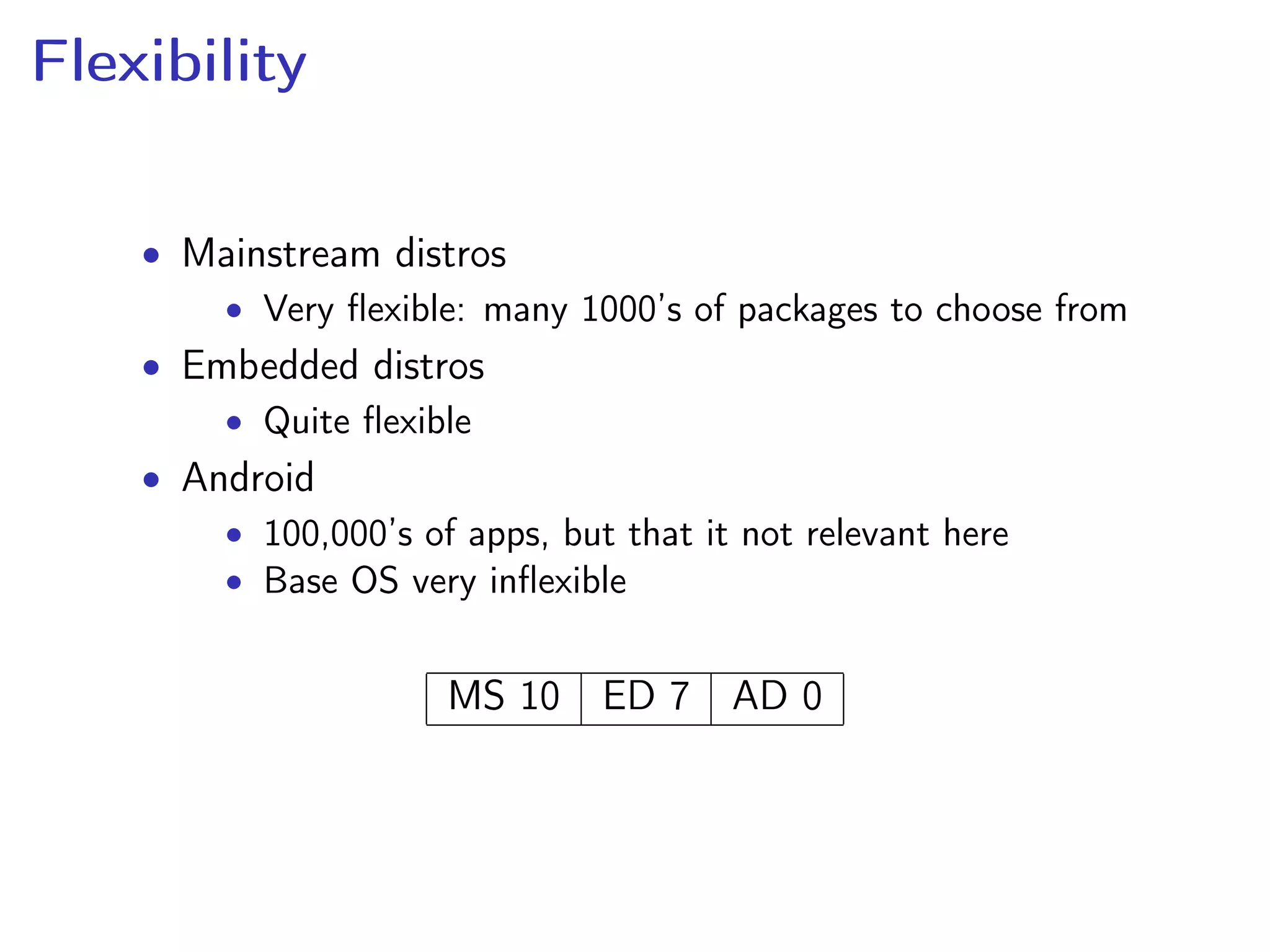

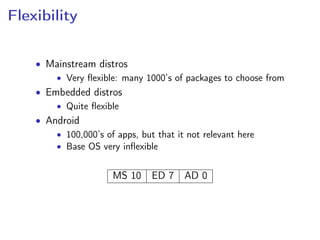

- 18. Flexibility • Mainstream distros •Very flexible: many 1000’s of packages to choose from • Embedded distros • Quite flexible • Android • 100,000’s of apps, but that it not relevant here • Base OS very inflexible MS 10 ED 7 AD 0

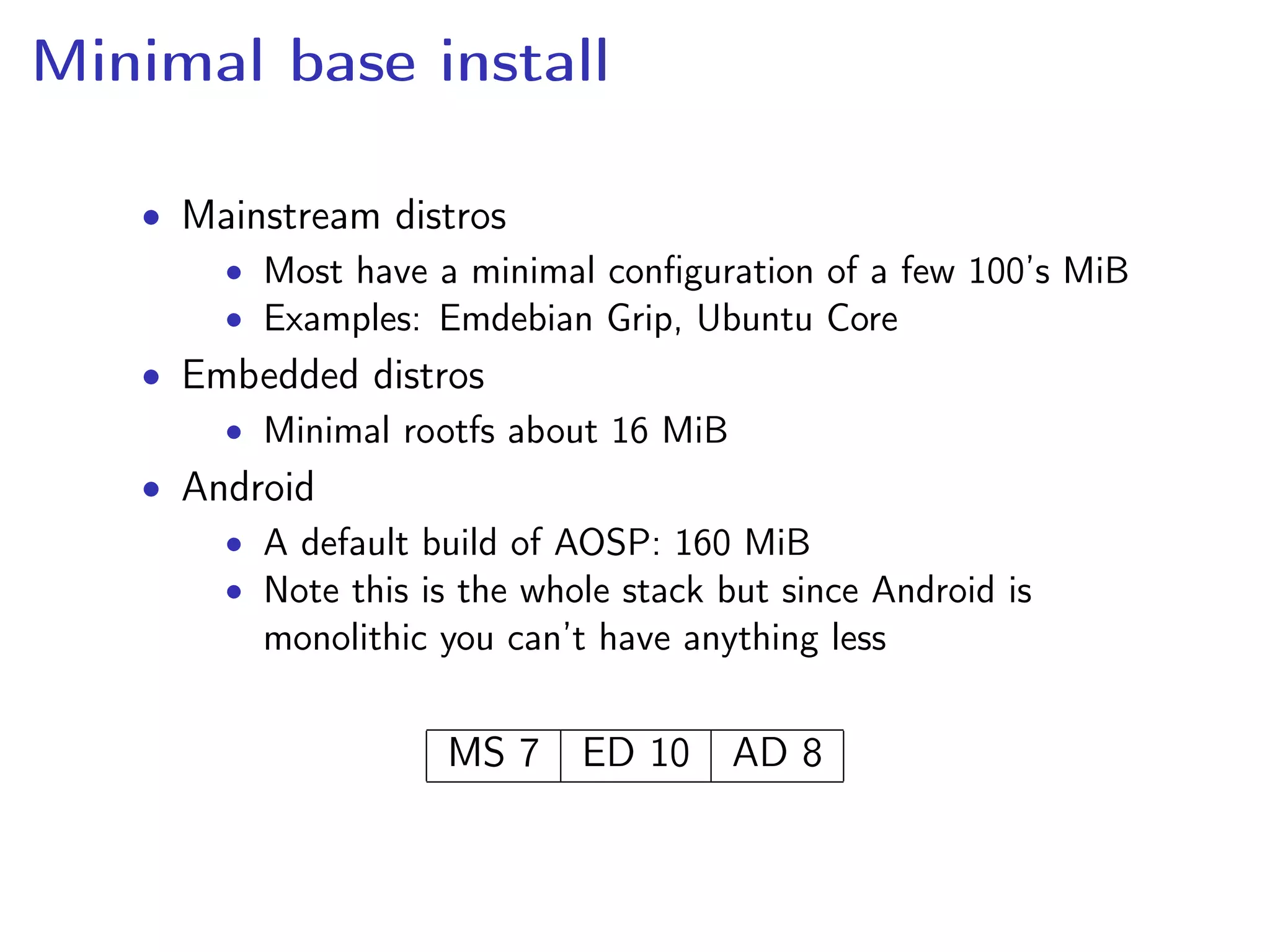

- 19. Minimal base install •Mainstream distros • Most have a minimal configuration of a few 100’s MiB • Examples: Emdebian Grip, Ubuntu Core • Embedded distros • Minimal rootfs about 16 MiB • Android • A default build of AOSP: 160 MiB • Note this is the whole stack but since Android is monolithic you can’t have anything less MS 7 ED 10 AD 8

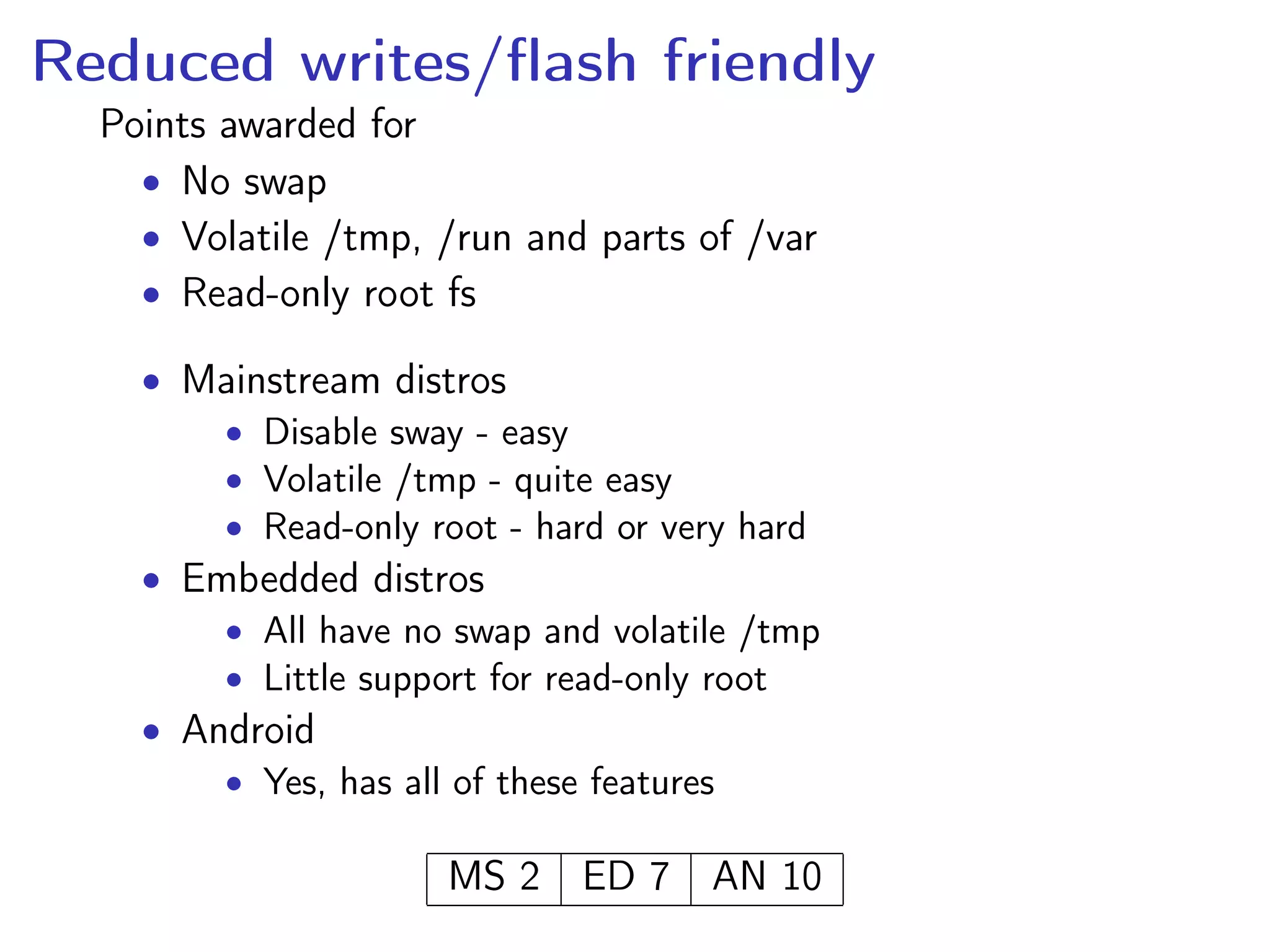

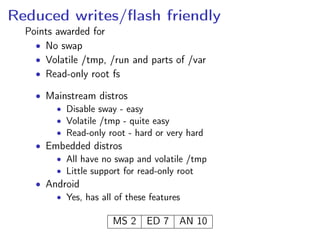

- 20. Reduced writes/flash friendly Pointsawarded for • No swap • Volatile /tmp, /run and parts of /var • Read-only root fs • Mainstream distros • Disable sway - easy • Volatile /tmp - quite easy • Read-only root - hard or very hard • Embedded distros • All have no swap and volatile /tmp • Little support for read-only root • Android • Yes, has all of these features MS 2 ED 7 AN 10

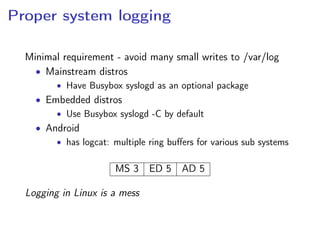

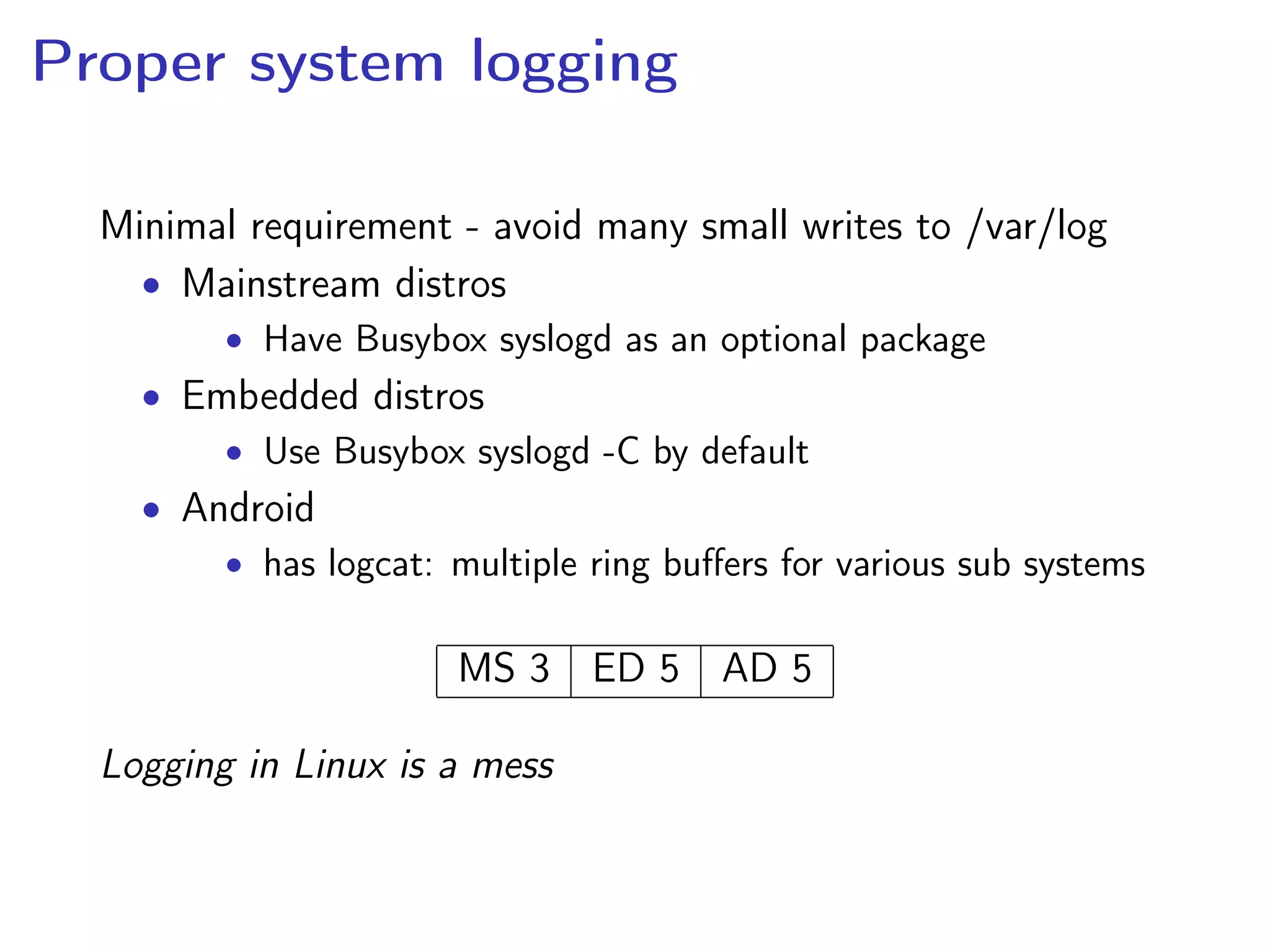

- 21. Proper system logging Minimalrequirement - avoid many small writes to /var/log • Mainstream distros • Have Busybox syslogd as an optional package • Embedded distros • Use Busybox syslogd -C by default • Android • has logcat: multiple ring buffers for various sub systems MS 3 ED 5 AD 5 Logging in Linux is a mess

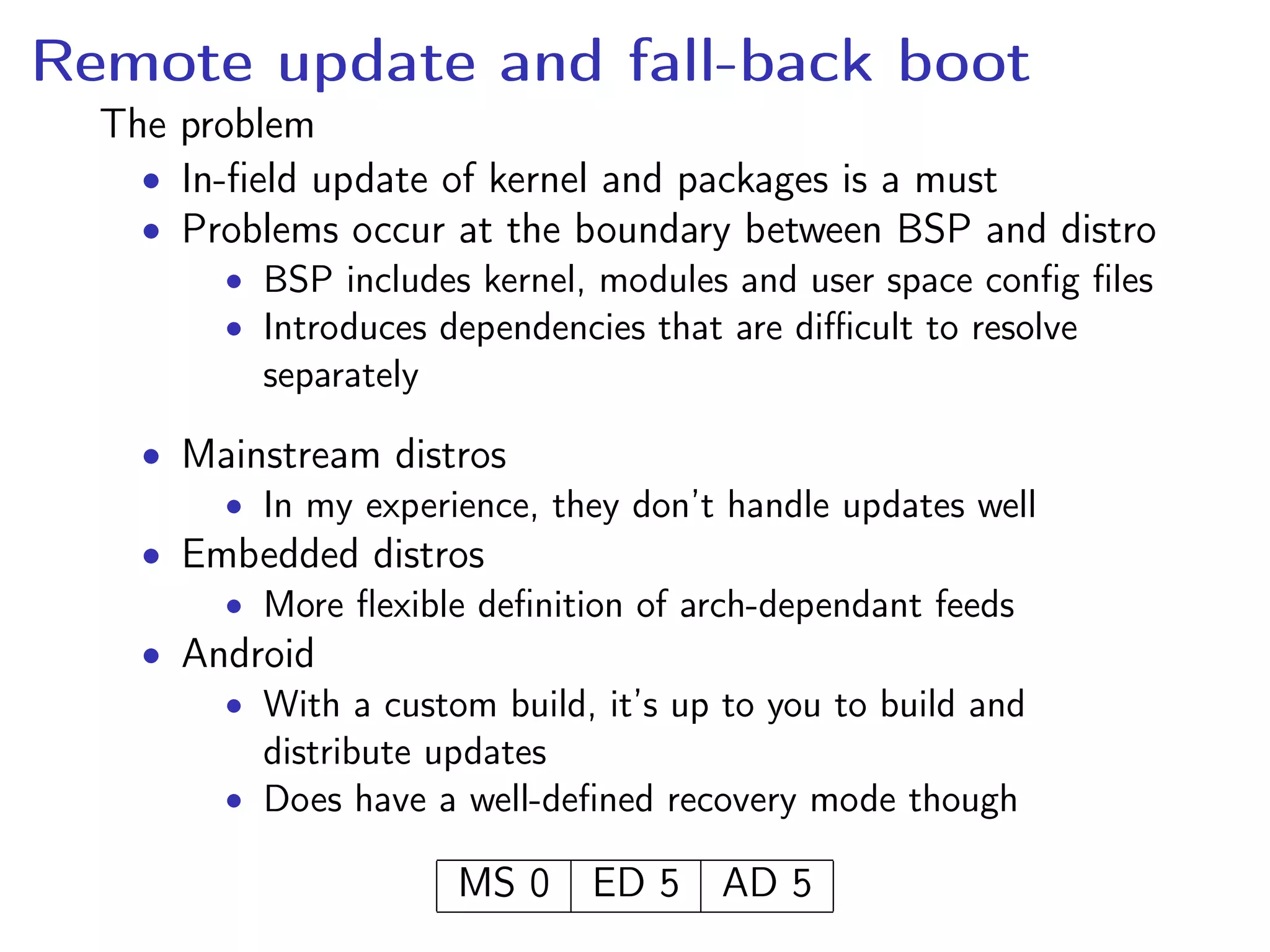

- 22. Remote update andfall-back boot The problem • In-field update of kernel and packages is a must • Problems occur at the boundary between BSP and distro • BSP includes kernel, modules and user space config files • Introduces dependencies that are difficult to resolve separately • Mainstream distros • In my experience, they don’t handle updates well • Embedded distros • More flexible definition of arch-dependant feeds • Android • With a custom build, it’s up to you to build and distribute updates • Does have a well-defined recovery mode though MS 0 ED 5 AD 5

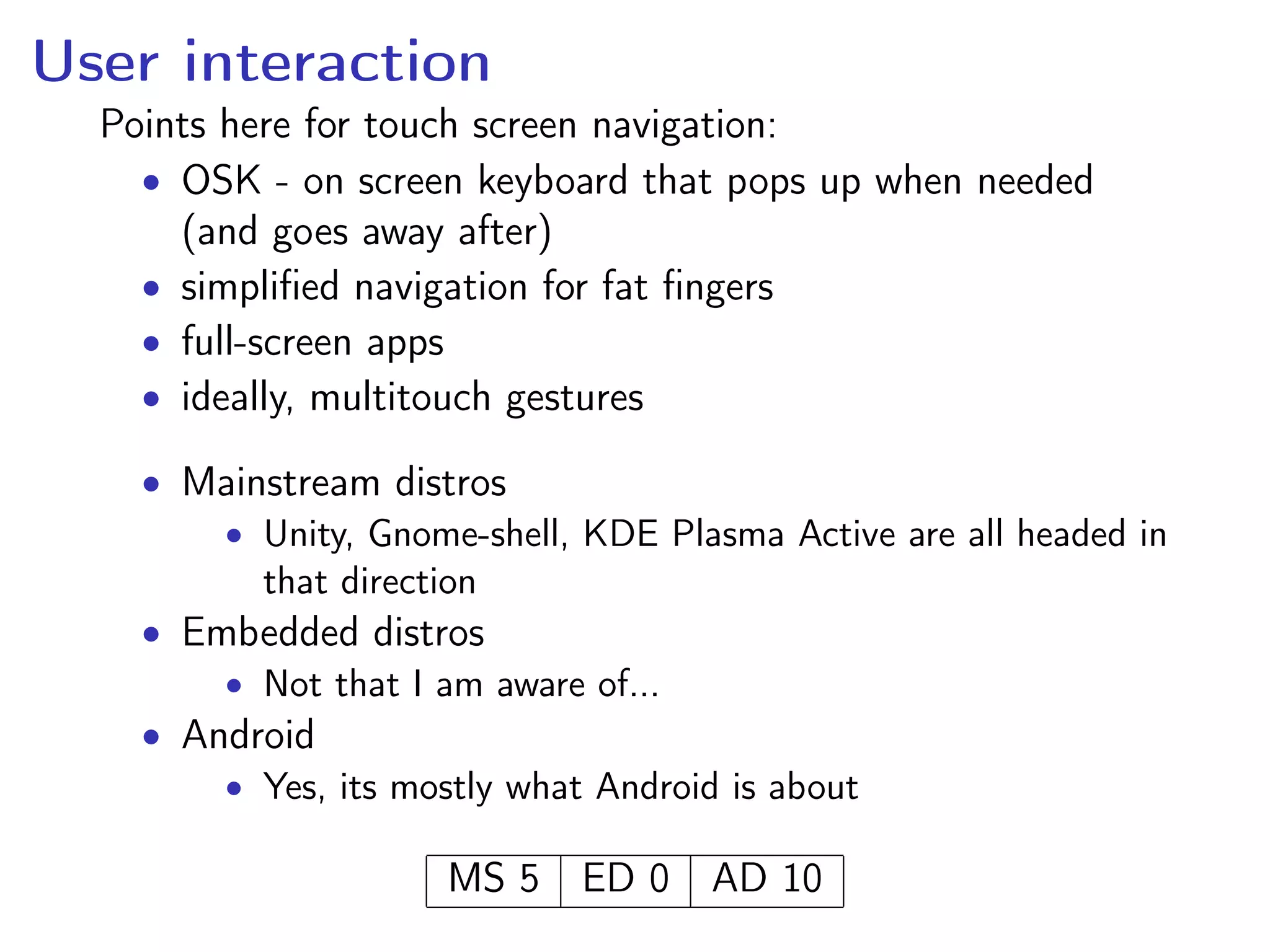

- 23. User interaction Points herefor touch screen navigation: • OSK - on screen keyboard that pops up when needed (and goes away after) • simplified navigation for fat fingers • full-screen apps • ideally, multitouch gestures • Mainstream distros • Unity, Gnome-shell, KDE Plasma Active are all headed in that direction • Embedded distros • Not that I am aware of... • Android • Yes, its mostly what Android is about MS 5 ED 0 AD 10

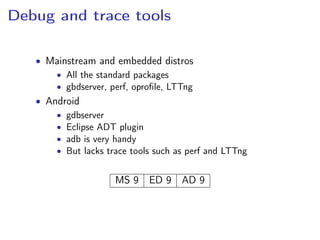

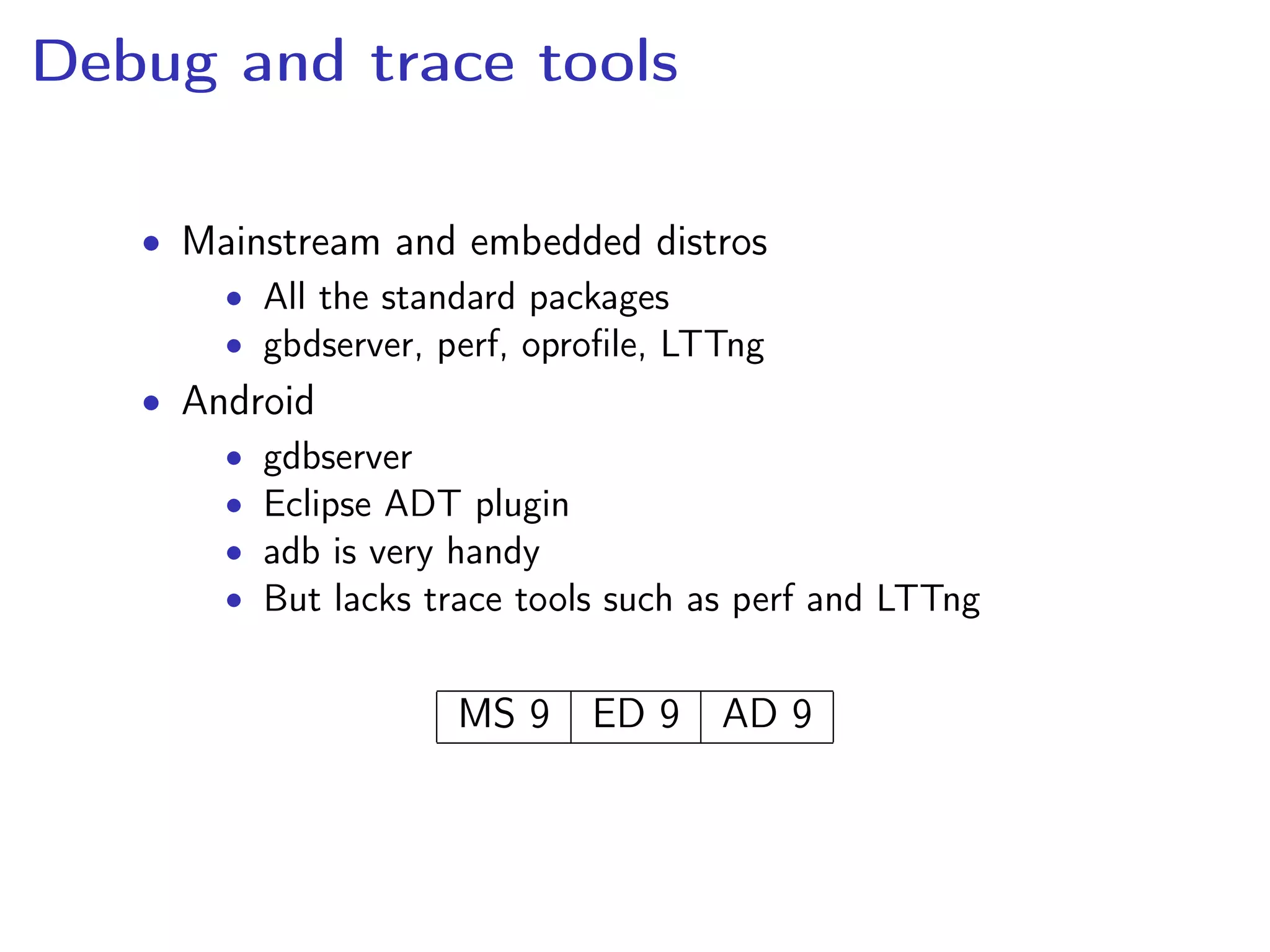

- 24. Debug and tracetools • Mainstream and embedded distros • All the standard packages • gbdserver, perf, oprofile, LTTng • Android • gdbserver • Eclipse ADT plugin • adb is very handy • But lacks trace tools such as perf and LTTng MS 9 ED 9 AD 9

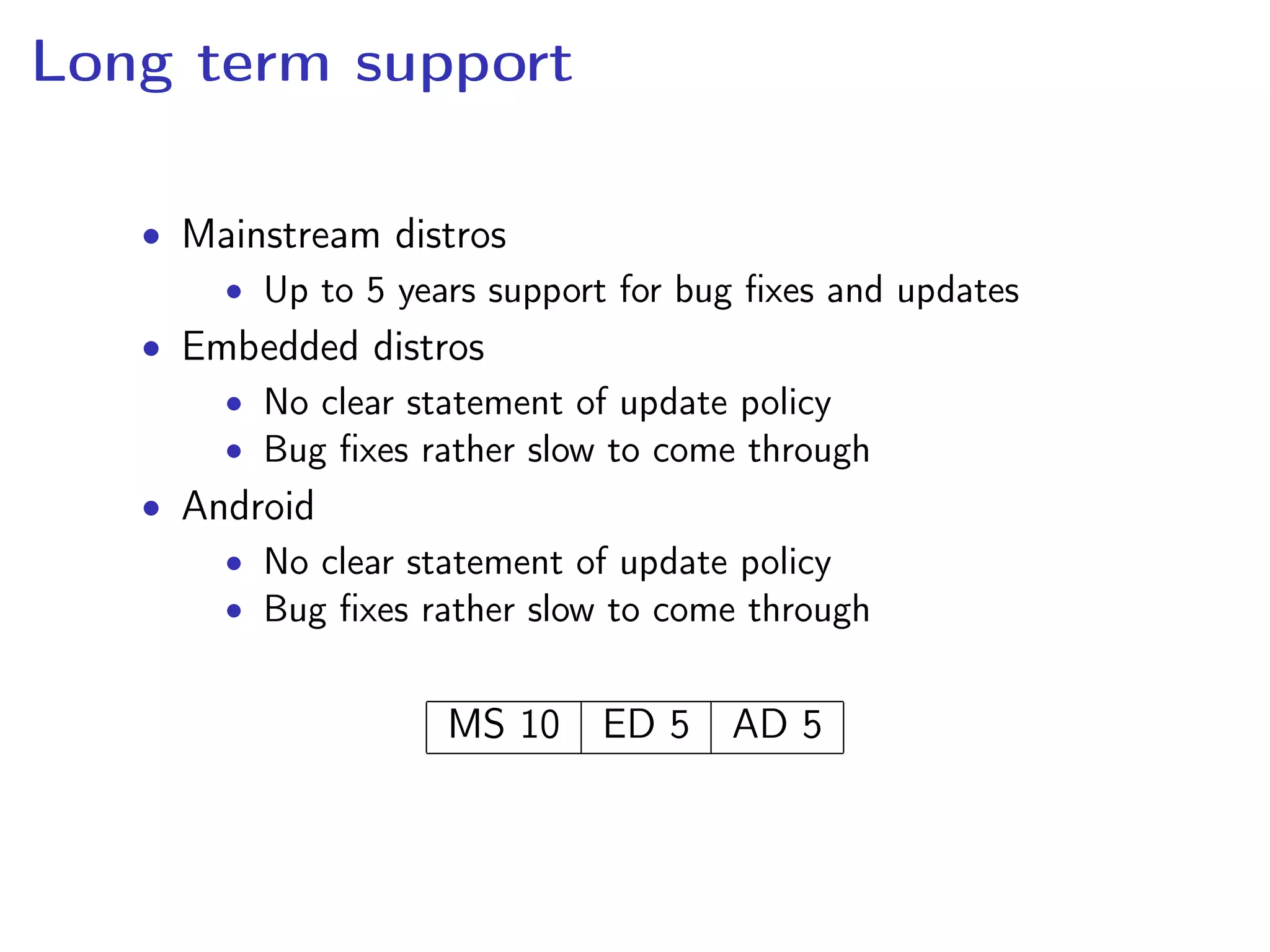

- 25. Long term support •Mainstream distros • Up to 5 years support for bug fixes and updates • Embedded distros • No clear statement of update policy • Bug fixes rather slow to come through • Android • No clear statement of update policy • Bug fixes rather slow to come through MS 10 ED 5 AD 5

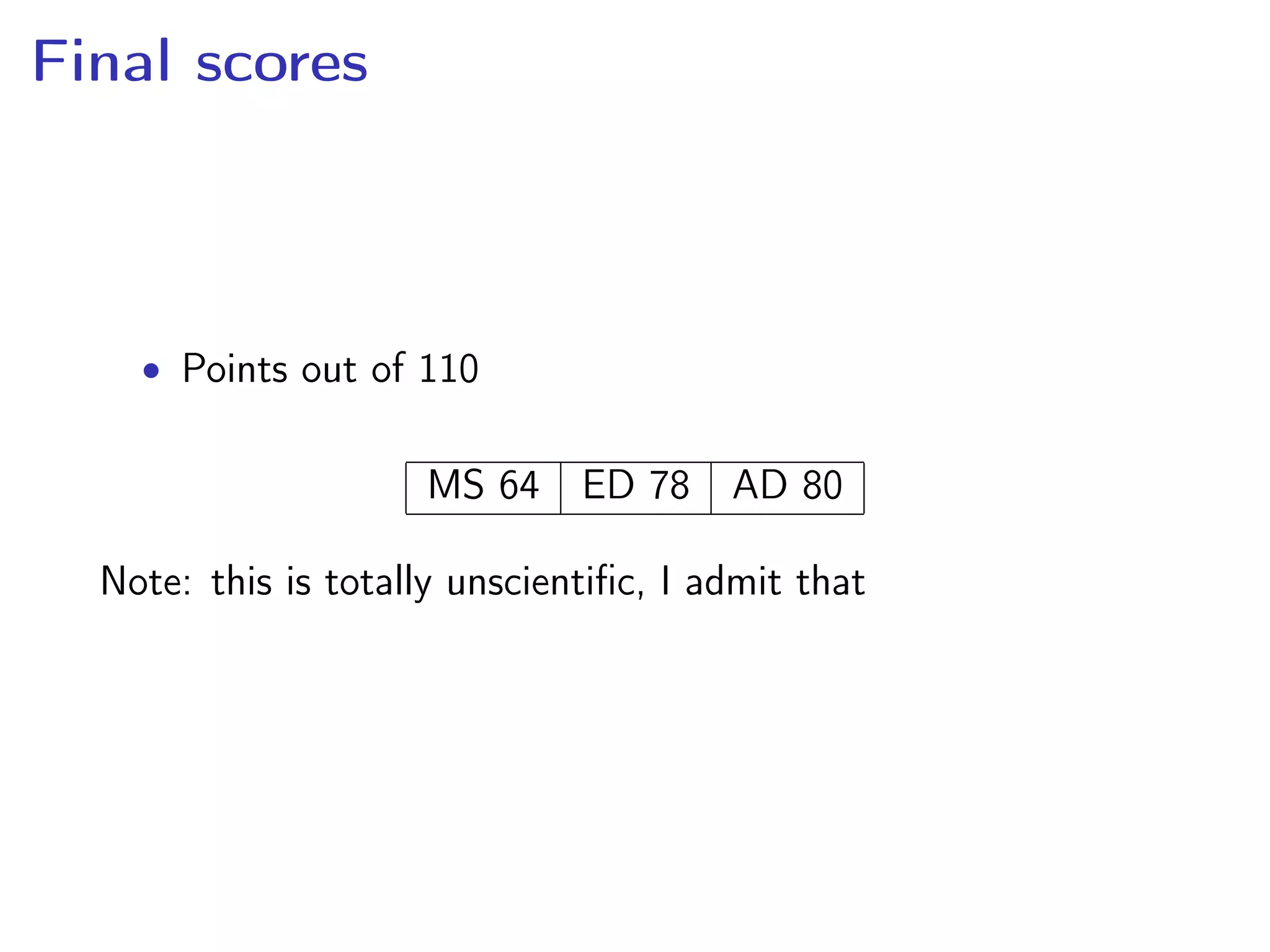

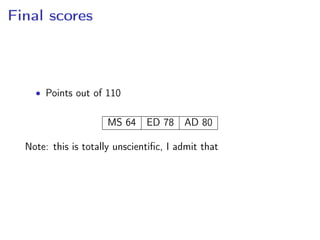

- 26. Final scores • Pointsout of 110 MS 64 ED 78 AD 80 Note: this is totally unscientific, I admit that

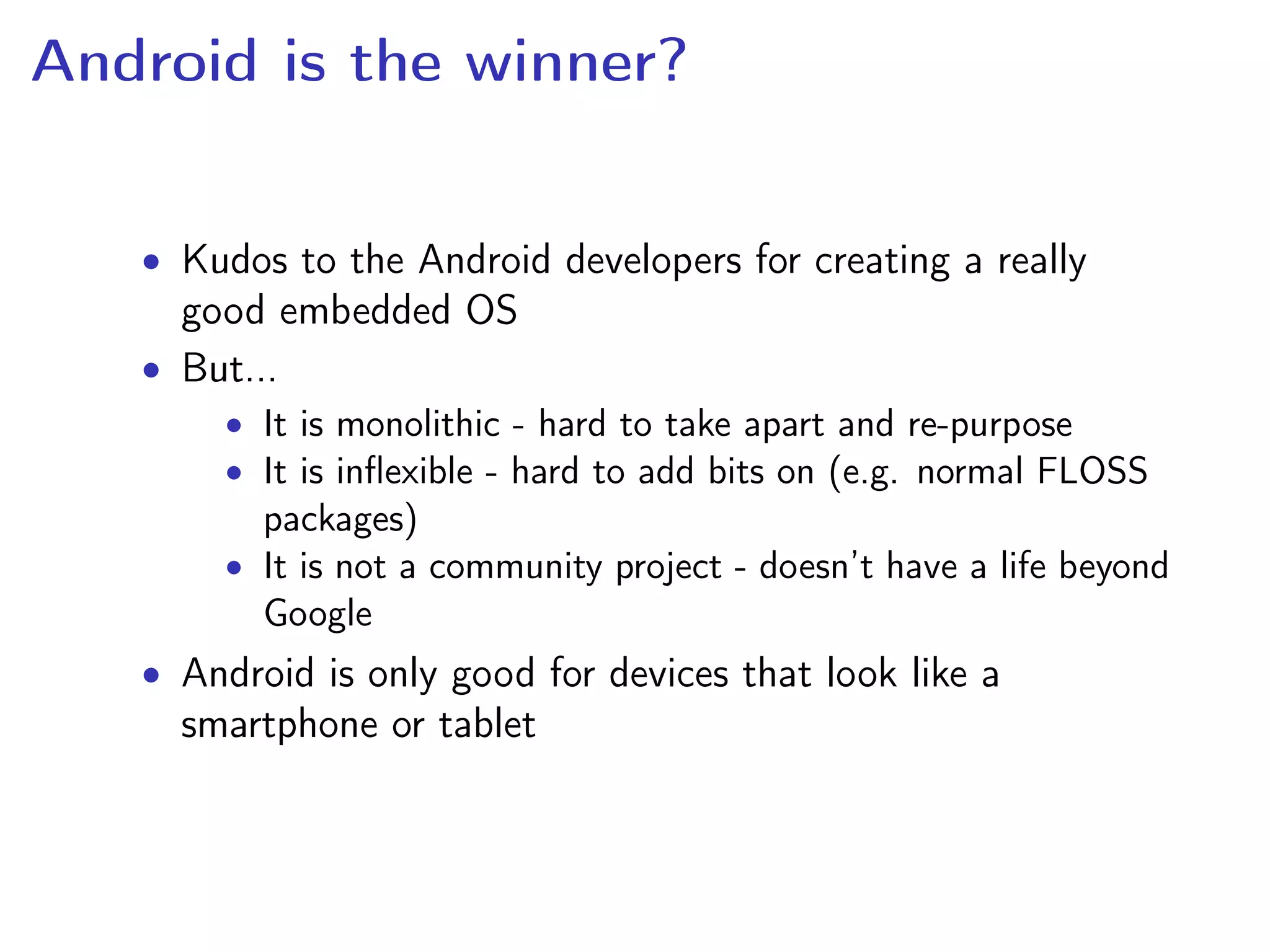

- 27. Android is thewinner? • Kudos to the Android developers for creating a really good embedded OS • But... • It is monolithic - hard to take apart and re-purpose • It is inflexible - hard to add bits on (e.g. normal FLOSS packages) • It is not a community project - doesn’t have a life beyond Google • Android is only good for devices that look like a smartphone or tablet

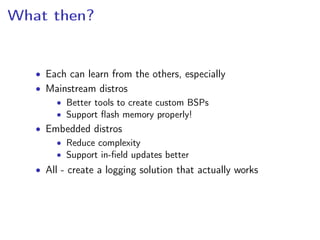

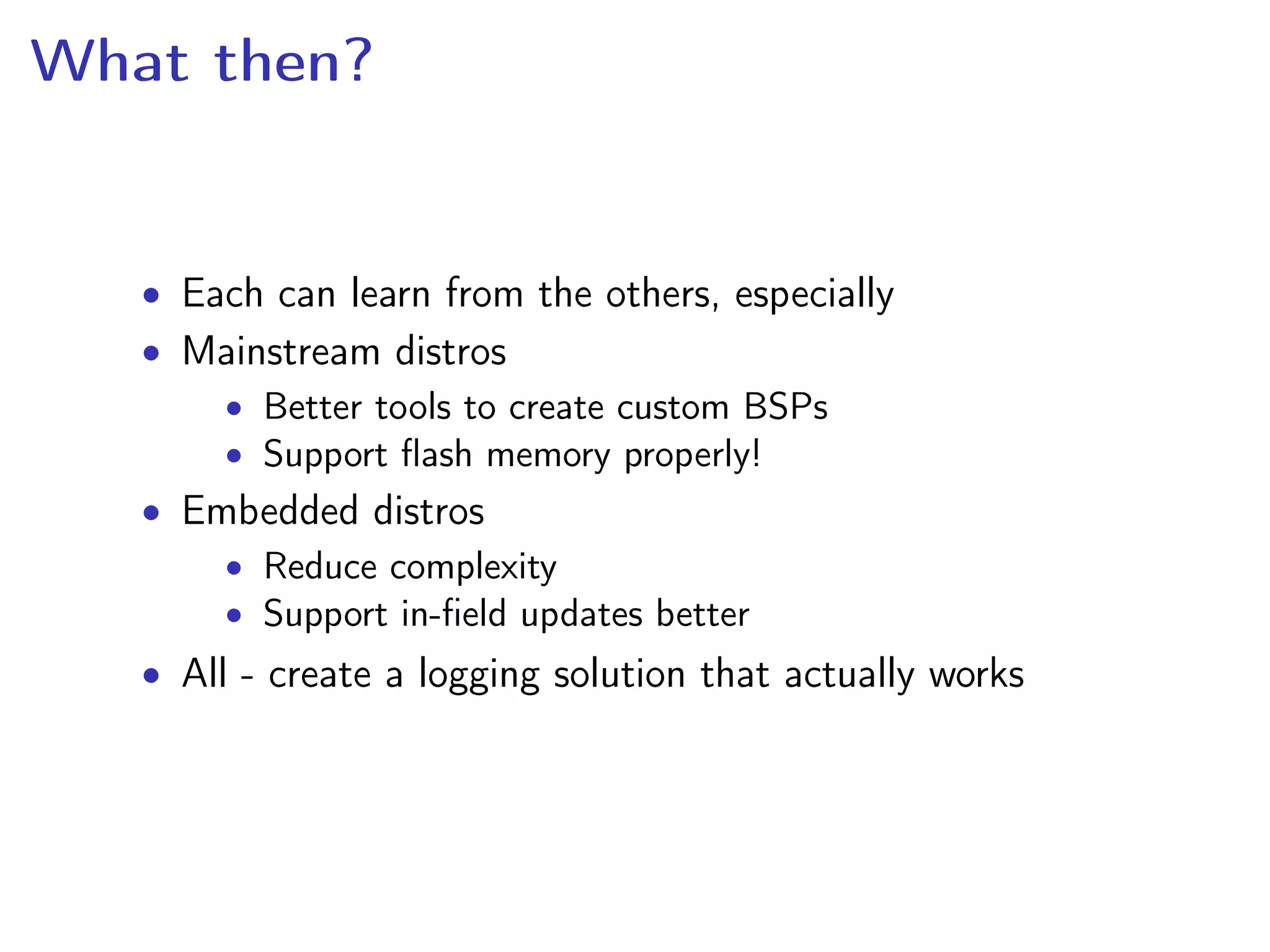

- 28. What then? • Eachcan learn from the others, especially • Mainstream distros • Better tools to create custom BSPs • Support flash memory properly! • Embedded distros • Reduce complexity • Support in-field updates better • All - create a logging solution that actually works

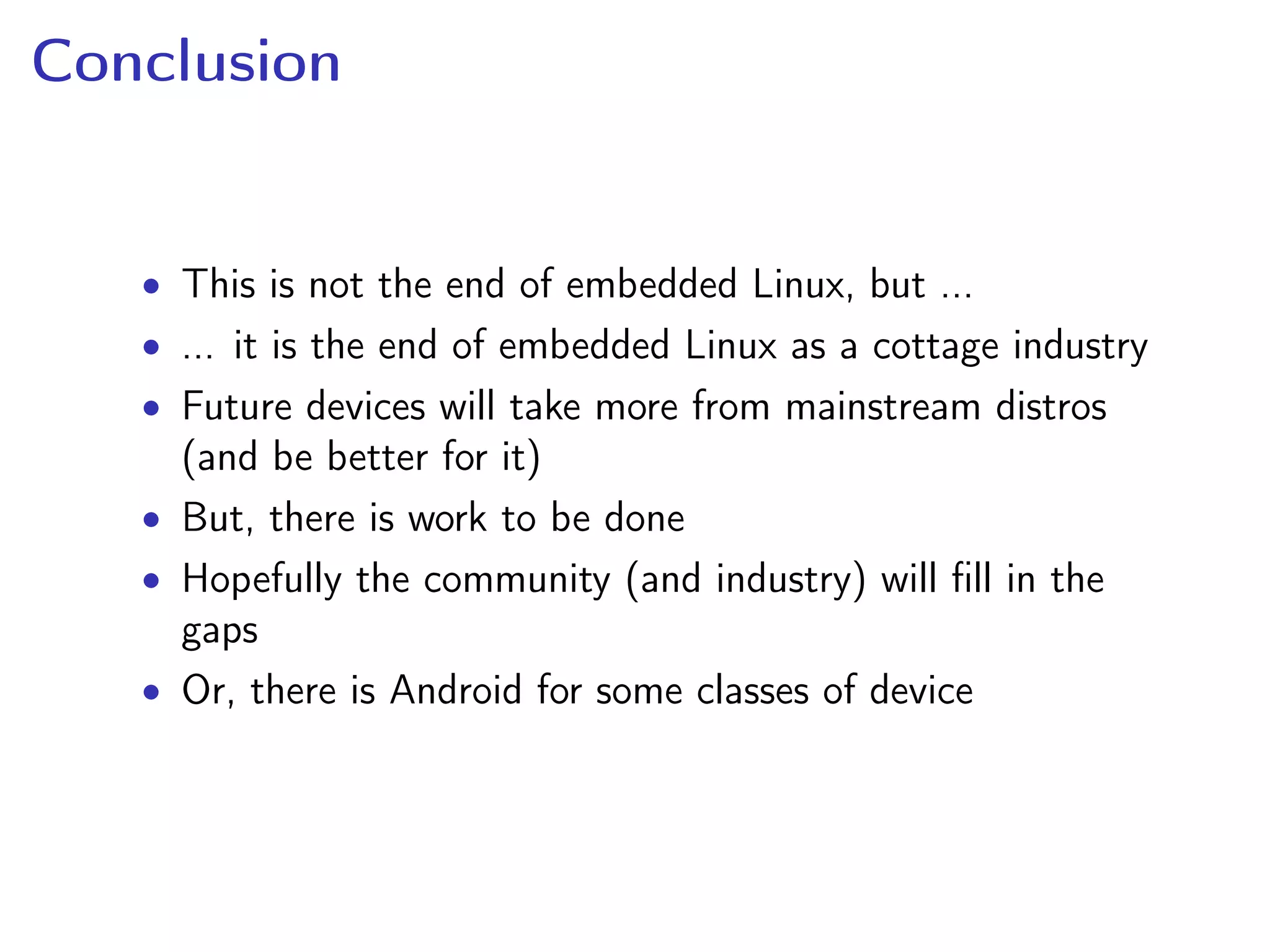

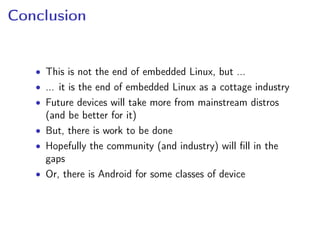

- 29. Conclusion • This isnot the end of embedded Linux, but ... • ... it is the end of embedded Linux as a cottage industry • Future devices will take more from mainstream distros (and be better for it) • But, there is work to be done • Hopefully the community (and industry) will fill in the gaps • Or, there is Android for some classes of device
