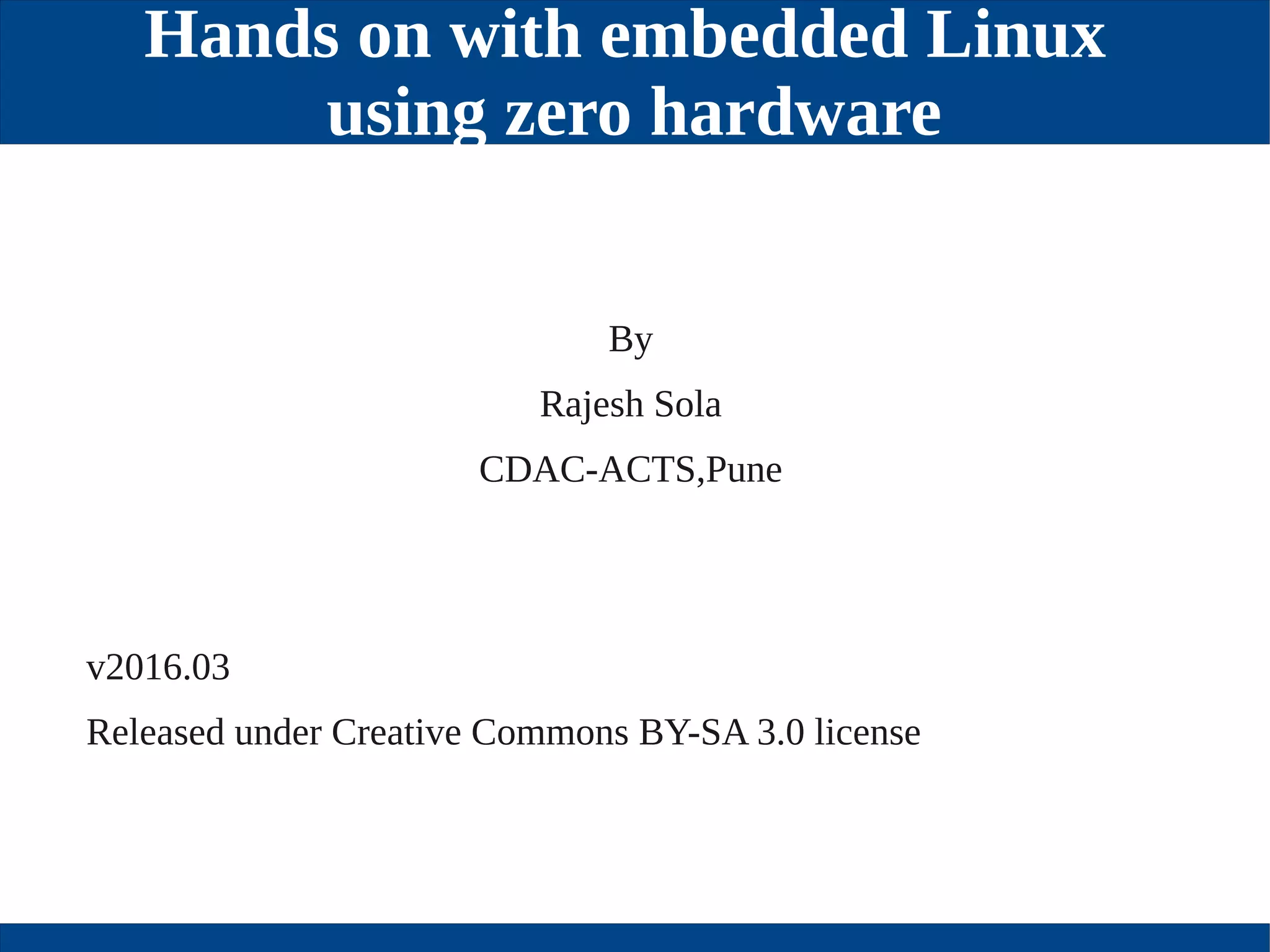

Hands on with embedded linux using zero hardware

Hands on with embedded Linux
using zero hardware
v2016.03
Released under Creative Commons BYSA 3.0 license
By
Rajesh Sola
CDACACTS,Pune

Rajesh Sola,CDAC-ACTS,Pune 2

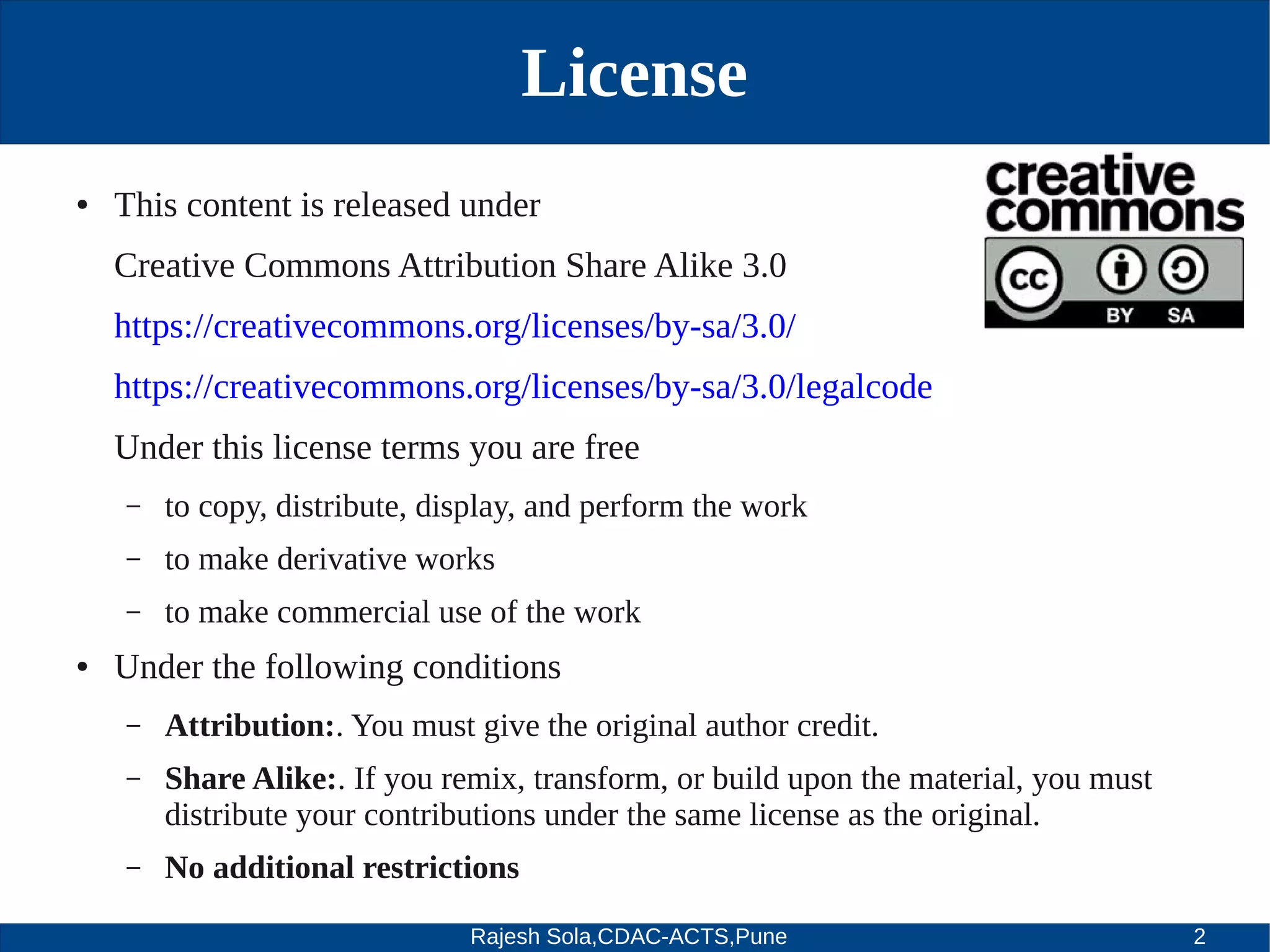

License
● This content is released under
Creative Commons Attribution Share Alike 3.0
https://creativecommons.org/licenses/bysa/3.0/
https://creativecommons.org/licenses/bysa/3.0/legalcode
Under this license terms you are free
– to copy, distribute, display, and perform the work
– to make derivative works
– to make commercial use of the work
● Under the following conditions
– Attribution:. You must give the original author credit.
– Share Alike:. If you remix, transform, or build upon the material, you must
distribute your contributions under the same license as the original.
– No additional restrictions

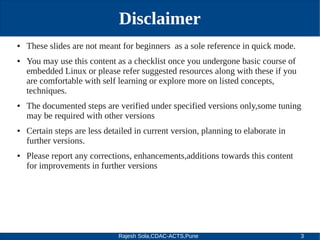

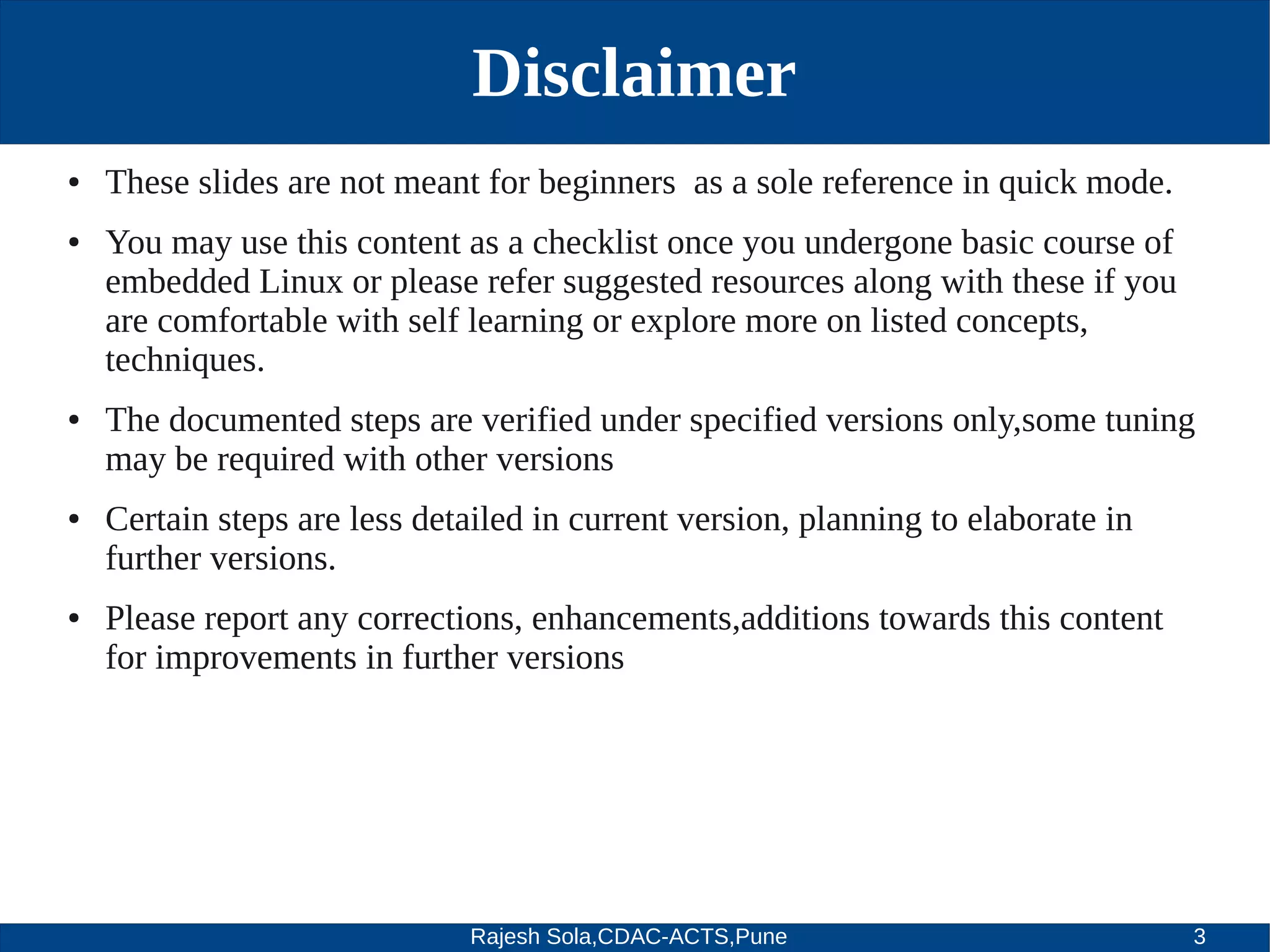

Disclaimer
● These slides are not meant for beginners as a sole reference in quick mode.
● You may use this content as a checklist once you undergone basic course of
embedded Linux or please refer suggested resources along with these if you
are comfortable with self learning or explore more on listed concepts,
techniques.
● The documented steps are verified under specified versions only,some tuning
may be required with other versions
● Certain steps are less detailed in current version, planning to elaborate in
further versions.
● Please report any corrections, enhancements,additions towards this content
for improvements in further versions

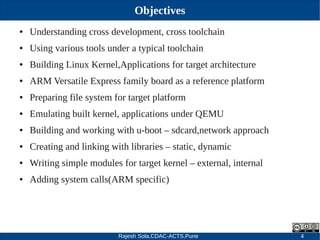

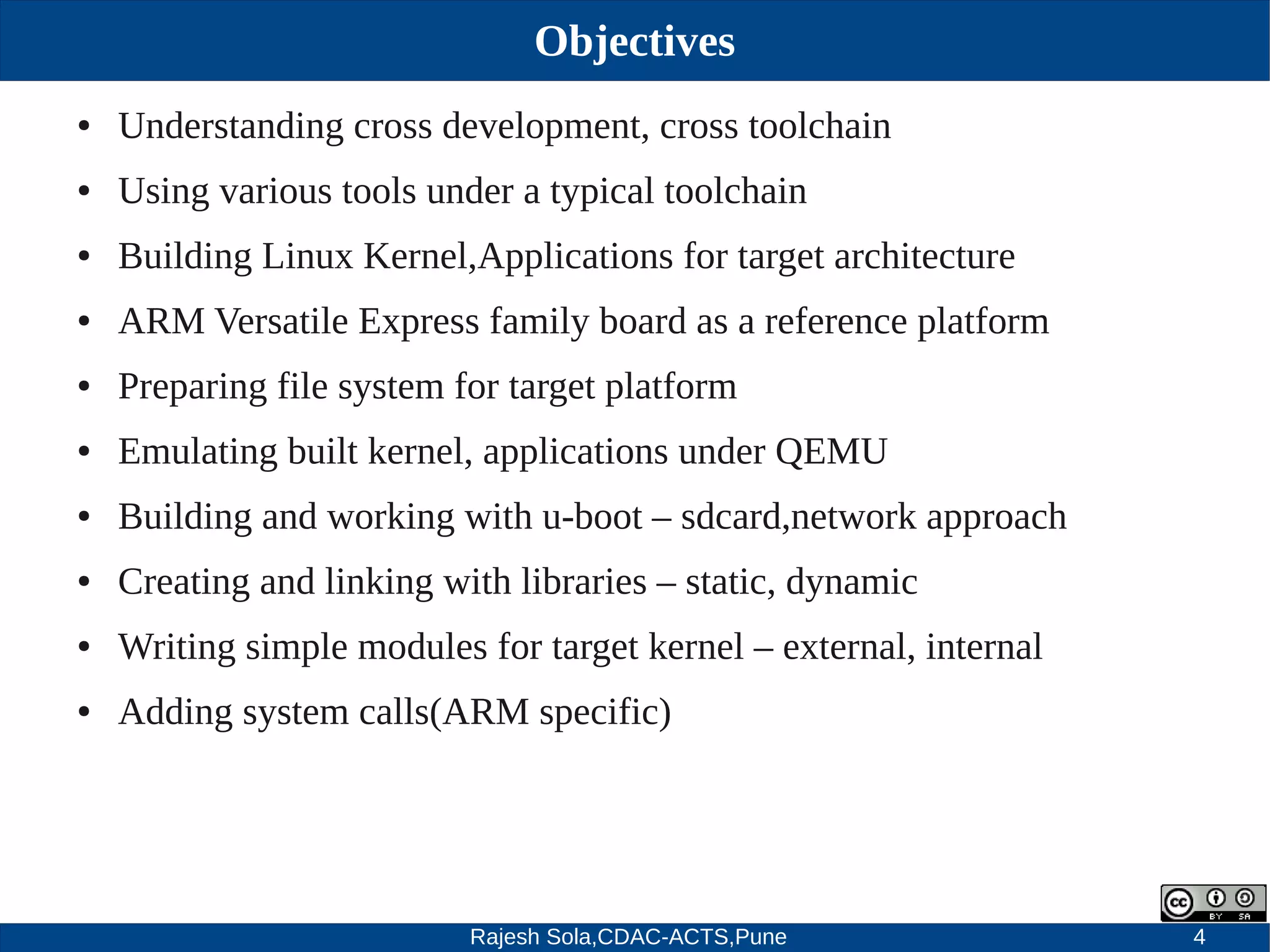

Objectives
● Understanding cross development, cross toolchain
● Using various tools under a typical toolchain
● Building Linux Kernel,Applications for target architecture
● ARM Versatile Express family board as a reference platform
● Preparing file system for target platform
● Emulating built kernel, applications under QEMU
● Building and working with uboot – sdcard,network approach
● Creating and linking with libraries – static, dynamic
● Writing simple modules for target kernel – external, internal
● Adding system calls(ARM specific)

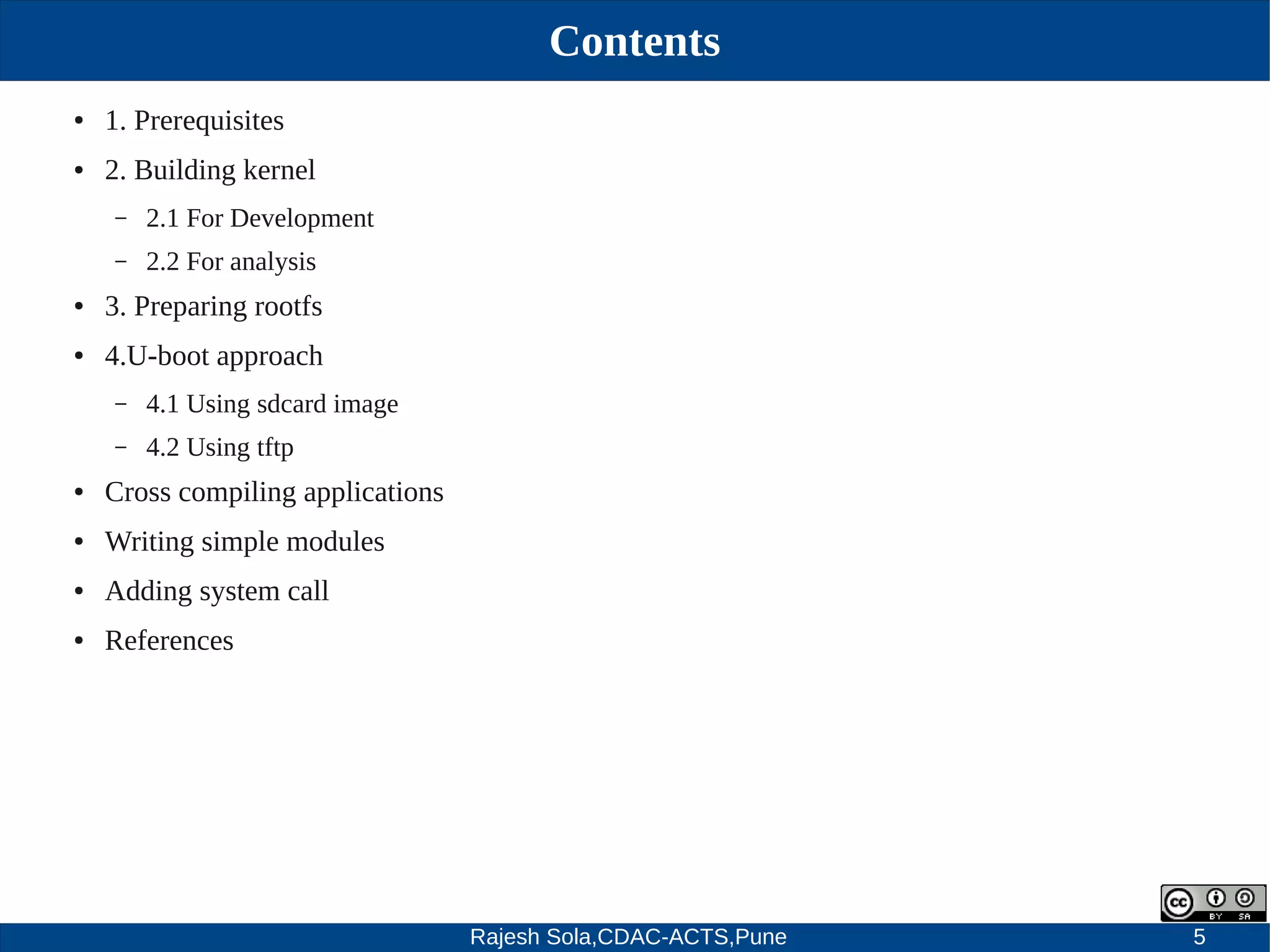

Contents
● 1. Prerequisites
● 2. Building kernel
– 2.1 For Development
– 2.2 For analysis
● 3. Preparing rootfs
● 4.Uboot approach
– 4.1 Using sdcard image
– 4.2 Using tftp
● Cross compiling applications
● Writing simple modules

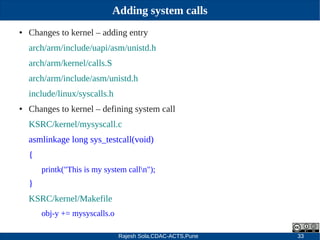

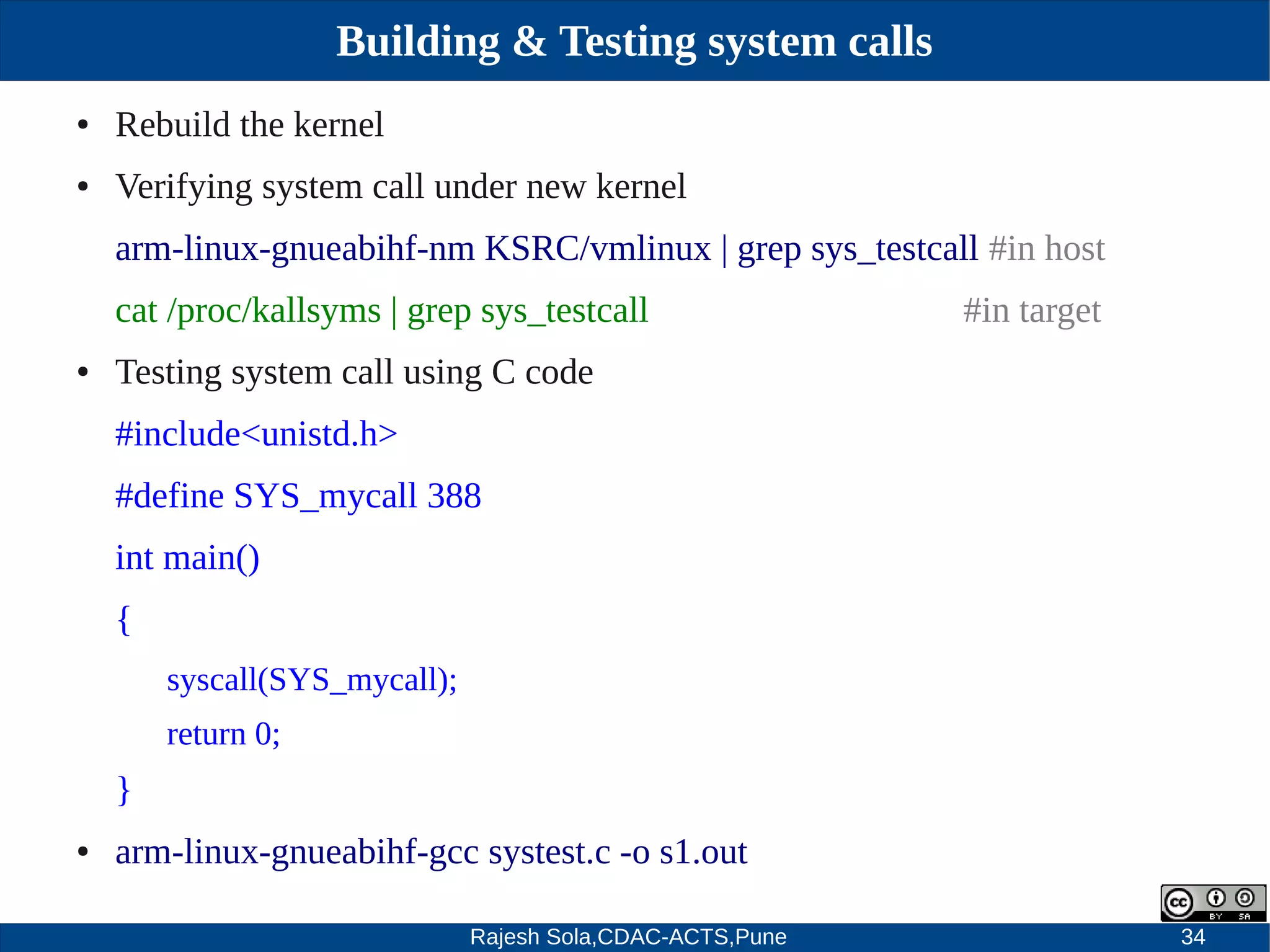

● Adding system call
● References

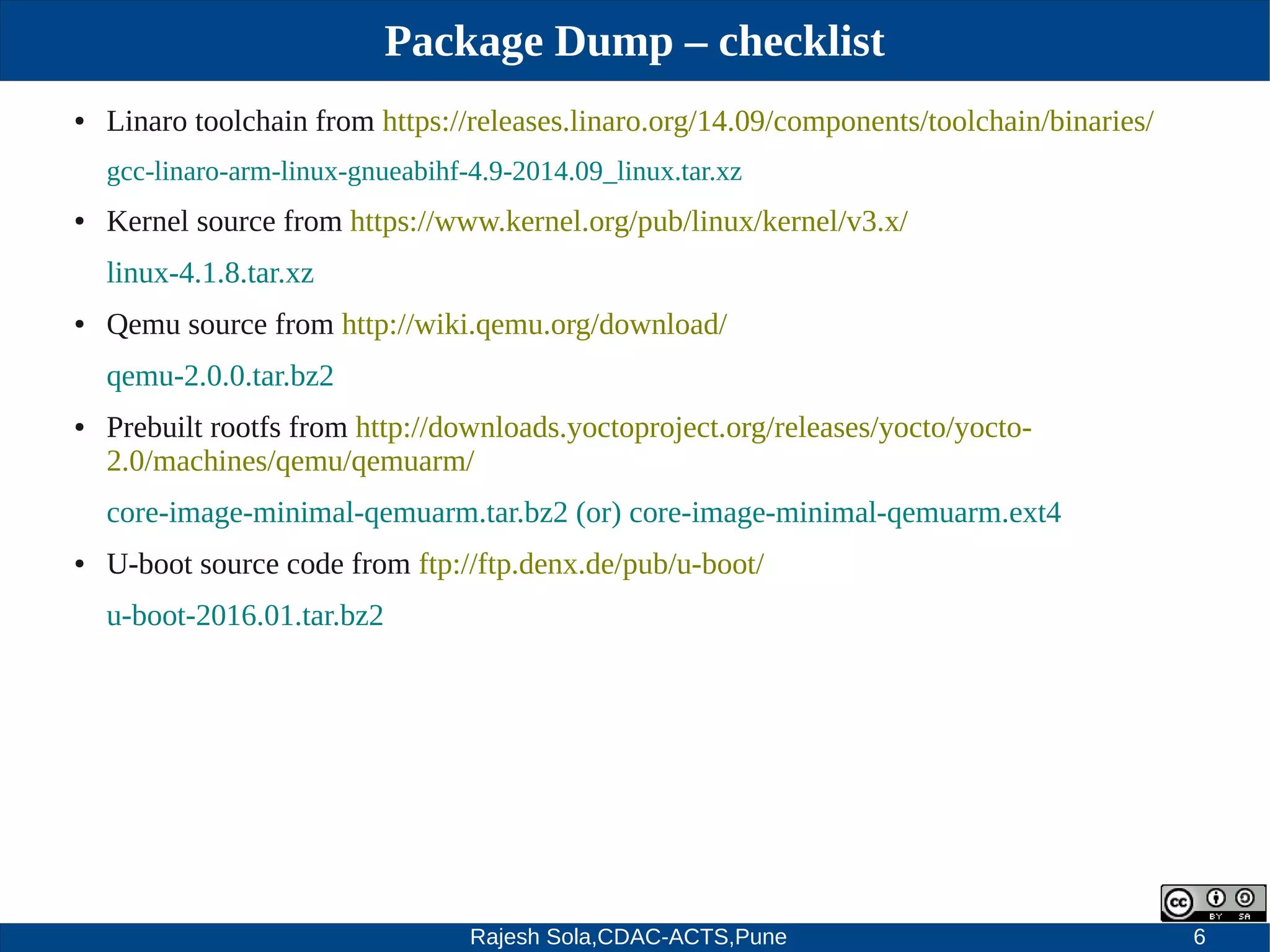

Package Dump – checklist
● Linaro toolchain from https://releases.linaro.org/14.09/components/toolchain/binaries/
gcclinaroarmlinuxgnueabihf4.92014.09_linux.tar.xz
● Kernel source from https://www.kernel.org/pub/linux/kernel/v3.x/
linux4.1.8.tar.xz
● Qemu source from http://wiki.qemu.org/download/
qemu2.0.0.tar.bz2
● Prebuilt rootfs from http://downloads.yoctoproject.org/releases/yocto/yocto
2.0/machines/qemu/qemuarm/
coreimageminimalqemuarm.tar.bz2 (or) coreimageminimalqemuarm.ext4
● Uboot source code from ftp://ftp.denx.de/pub/uboot/
uboot2016.01.tar.bz2

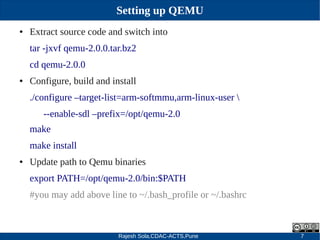

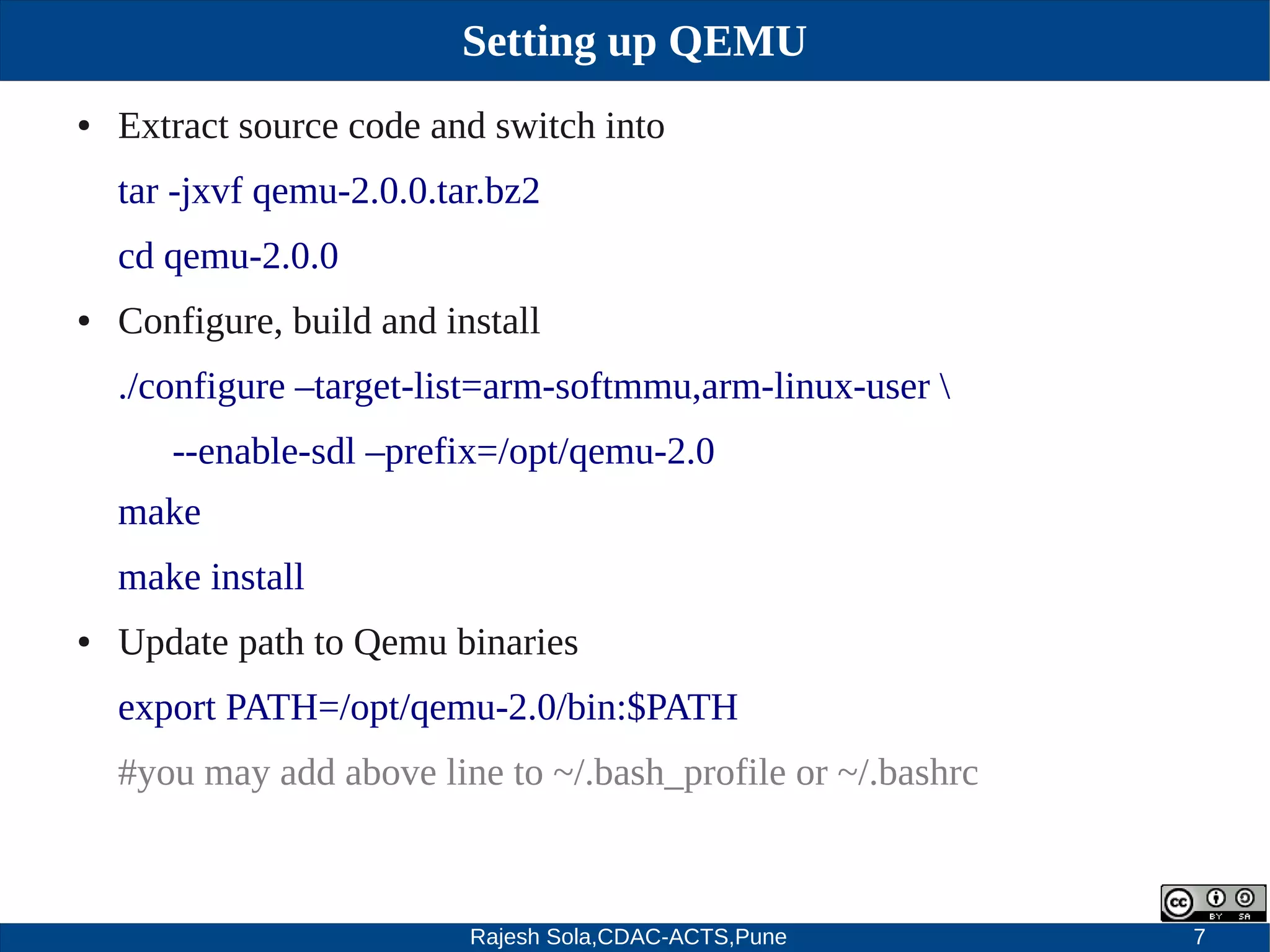

Setting up QEMU
● Extract source code and switch into
tar jxvf qemu2.0.0.tar.bz2
cd qemu2.0.0
● Configure, build and install
./configure –targetlist=armsoftmmu,armlinuxuser
enablesdl –prefix=/opt/qemu2.0
make
make install
● Update path to Qemu binaries
export PATH=/opt/qemu2.0/bin:$PATH
#you may add above line to ~/.bash_profile or ~/.bashrc

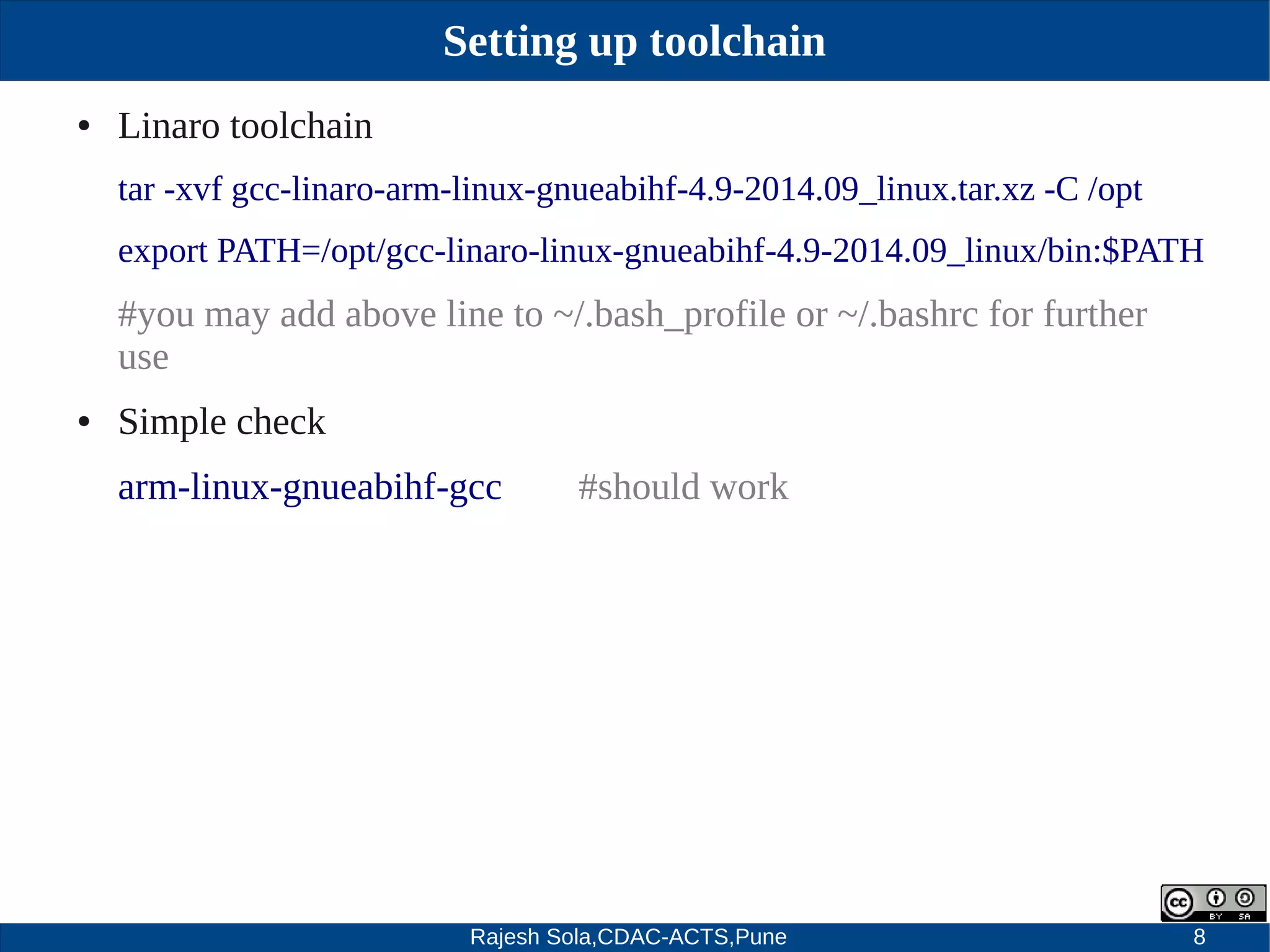

Setting up toolchain
● Linaro toolchain
tar xvf gcclinaroarmlinuxgnueabihf4.92014.09_linux.tar.xz C /opt
export PATH=/opt/gcclinarolinuxgnueabihf4.92014.09_linux/bin:$PATH
#you may add above line to ~/.bash_profile or ~/.bashrc for further
use
● Simple check
armlinuxgnueabihfgcc #should work

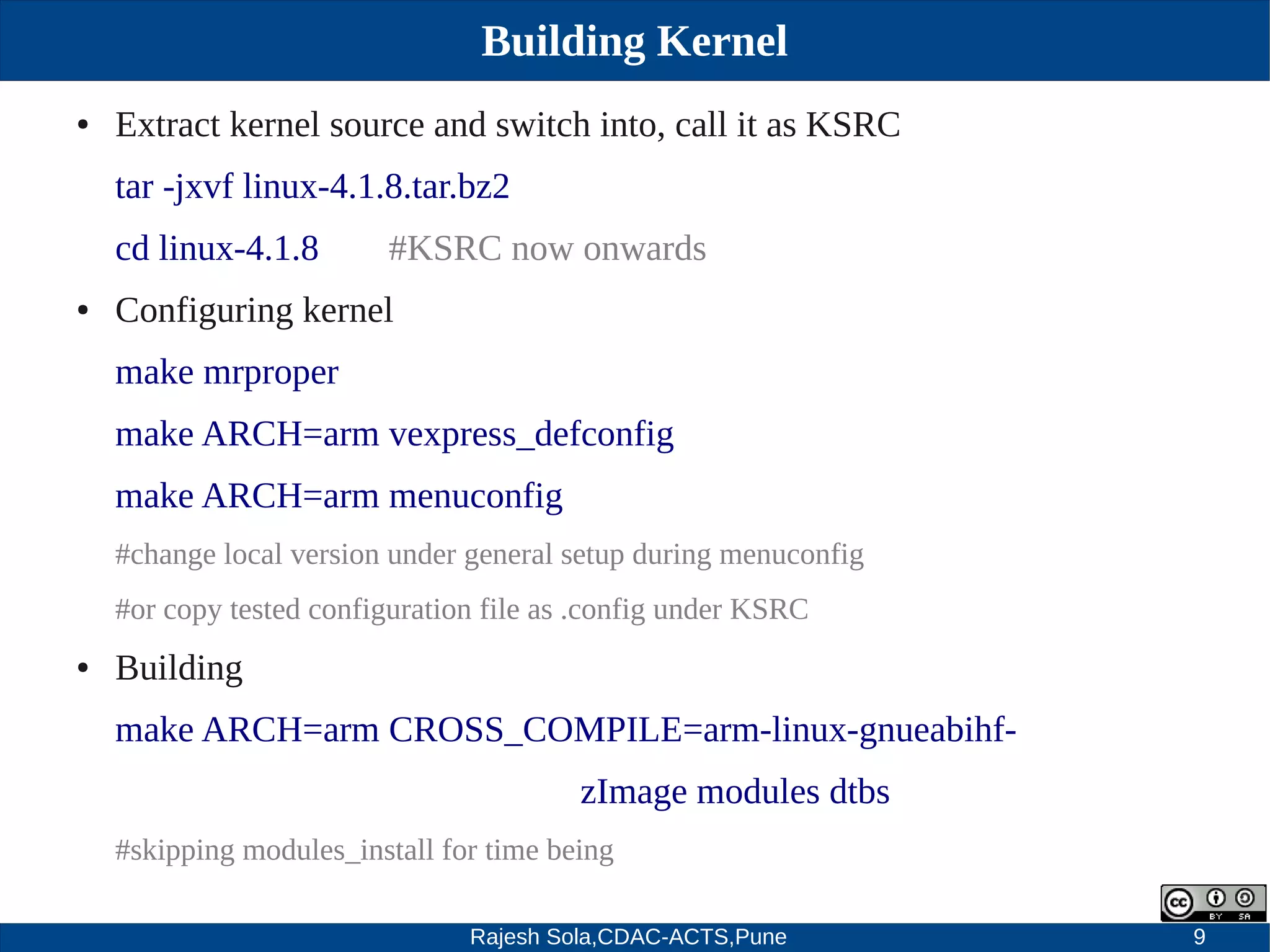

Building Kernel
● Extract kernel source and switch into, call it as KSRC
tar jxvf linux4.1.8.tar.bz2
cd linux4.1.8 #KSRC now onwards
● Configuring kernel
make mrproper
make ARCH=arm vexpress_defconfig
make ARCH=arm menuconfig
#change local version under general setup during menuconfig
#or copy tested configuration file as .config under KSRC
● Building
make ARCH=arm CROSS_COMPILE=armlinuxgnueabihf
zImage modules dtbs
#skipping modules_install for time being

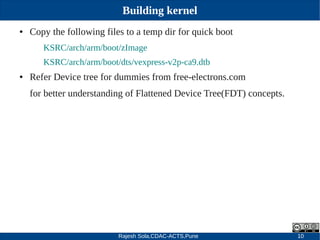

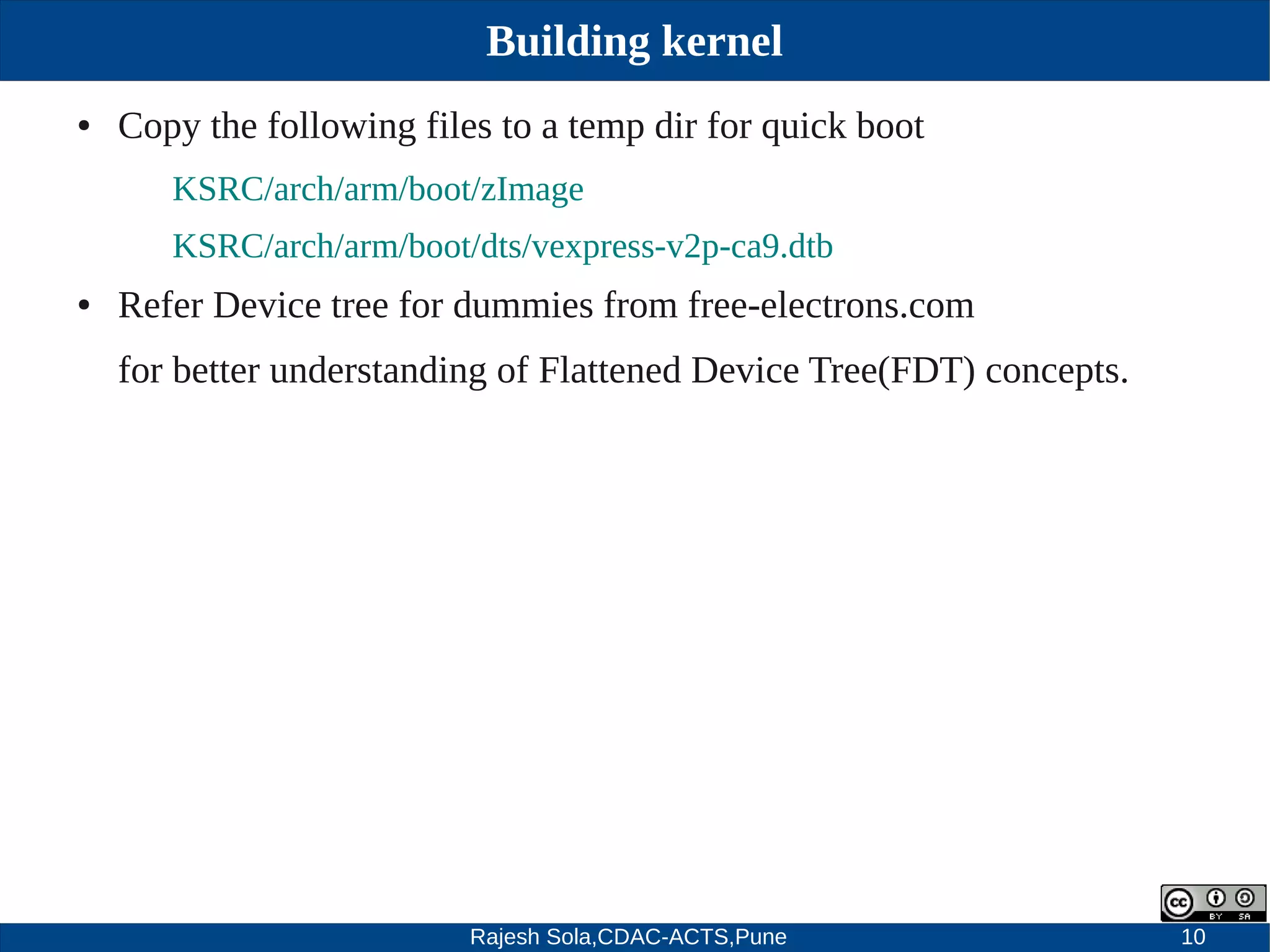

Building kernel
● Copy the following files to a temp dir for quick boot
KSRC/arch/arm/boot/zImage
KSRC/arch/arm/boot/dts/vexpressv2pca9.dtb
● Refer Device tree for dummies from freeelectrons.com
for better understanding of Flattened Device Tree(FDT) concepts.

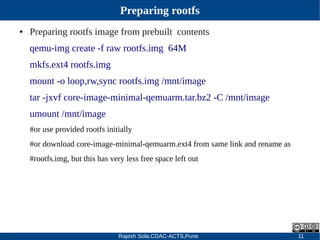

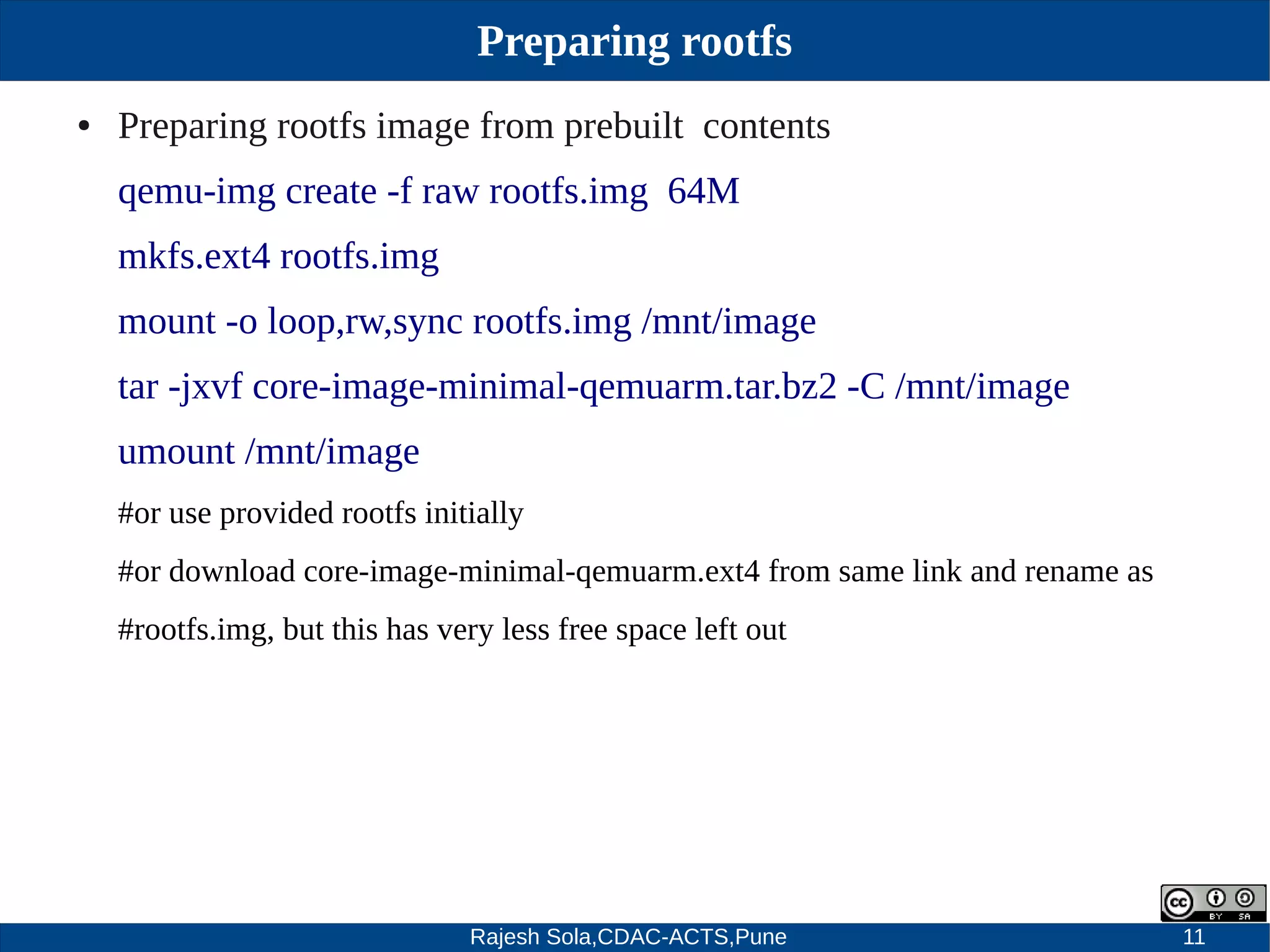

Preparing rootfs
● Preparing rootfs image from prebuilt contents
qemuimg create f raw rootfs.img 64M
mkfs.ext4 rootfs.img
mount o loop,rw,sync rootfs.img /mnt/image
tar jxvf coreimageminimalqemuarm.tar.bz2 C /mnt/image
umount /mnt/image
#or use provided rootfs initially
#or download coreimageminimalqemuarm.ext4 from same link and rename as
#rootfs.img, but this has very less free space left out

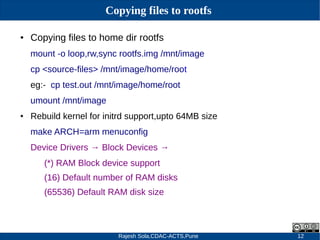

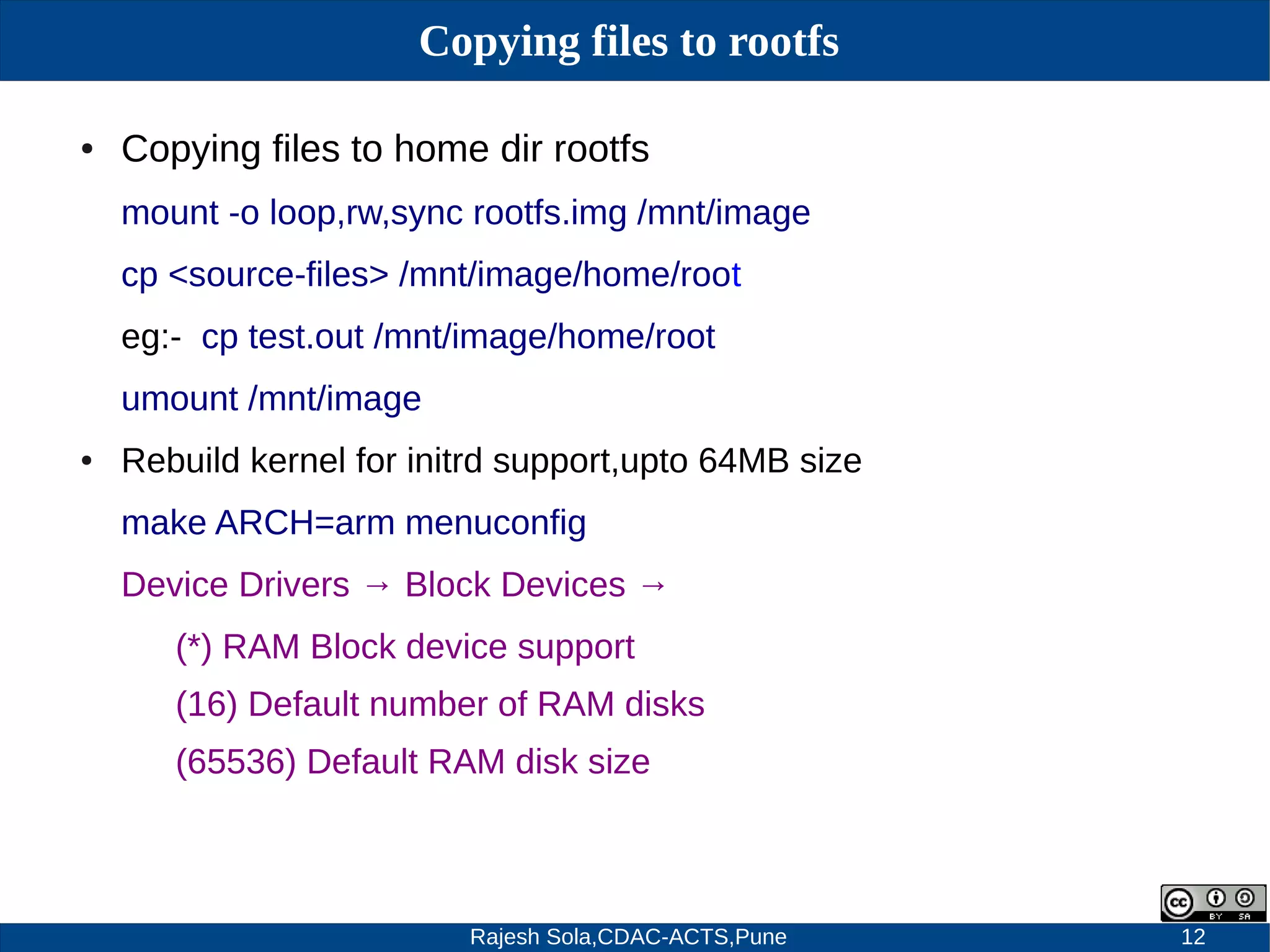

Copying files to rootfs
● Copying files to home dir rootfs
mount -o loop,rw,sync rootfs.img /mnt/image
cp <source-files> /mnt/image/home/root
eg:- cp test.out /mnt/image/home/root
umount /mnt/image
● Rebuild kernel for initrd support,upto 64MB size
Device Drivers → Block Devices →
(*) RAM Block device support
(16) Default number of RAM disks
(65536) Default RAM disk size

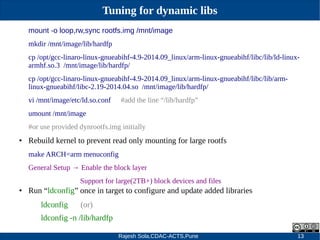

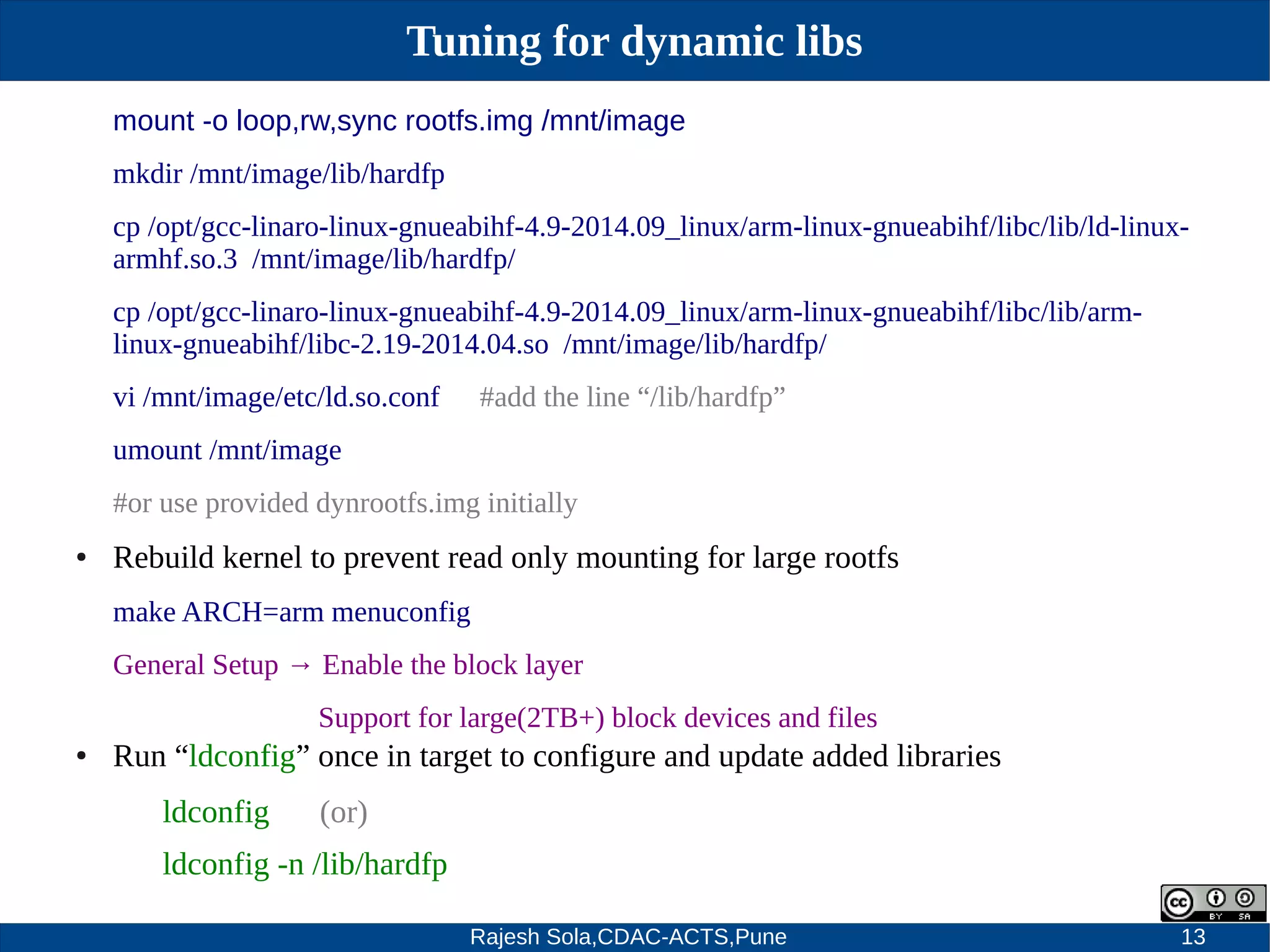

Tuning for dynamic libs
mount -o loop,rw,sync rootfs.img /mnt/image
mkdir /mnt/image/lib/hardfp
cp /opt/gcclinarolinuxgnueabihf4.92014.09_linux/armlinuxgnueabihf/libc/lib/ldlinux
armhf.so.3 /mnt/image/lib/hardfp/
cp /opt/gcclinarolinuxgnueabihf4.92014.09_linux/armlinuxgnueabihf/libc/lib/arm
linuxgnueabihf/libc2.192014.04.so /mnt/image/lib/hardfp/
vi /mnt/image/etc/ld.so.conf #add the line “/lib/hardfp”
umount /mnt/image
#or use provided dynrootfs.img initially
● Rebuild kernel to prevent read only mounting for large rootfs
General Setup → Enable the block layer
Support for large(2TB+) block devices and files
● Run “ldconfig” once in target to configure and update added libraries
ldconfig (or)
ldconfig n /lib/hardfp

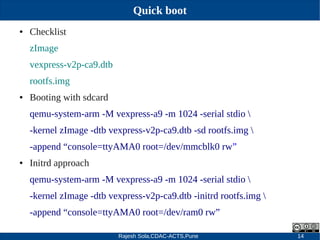

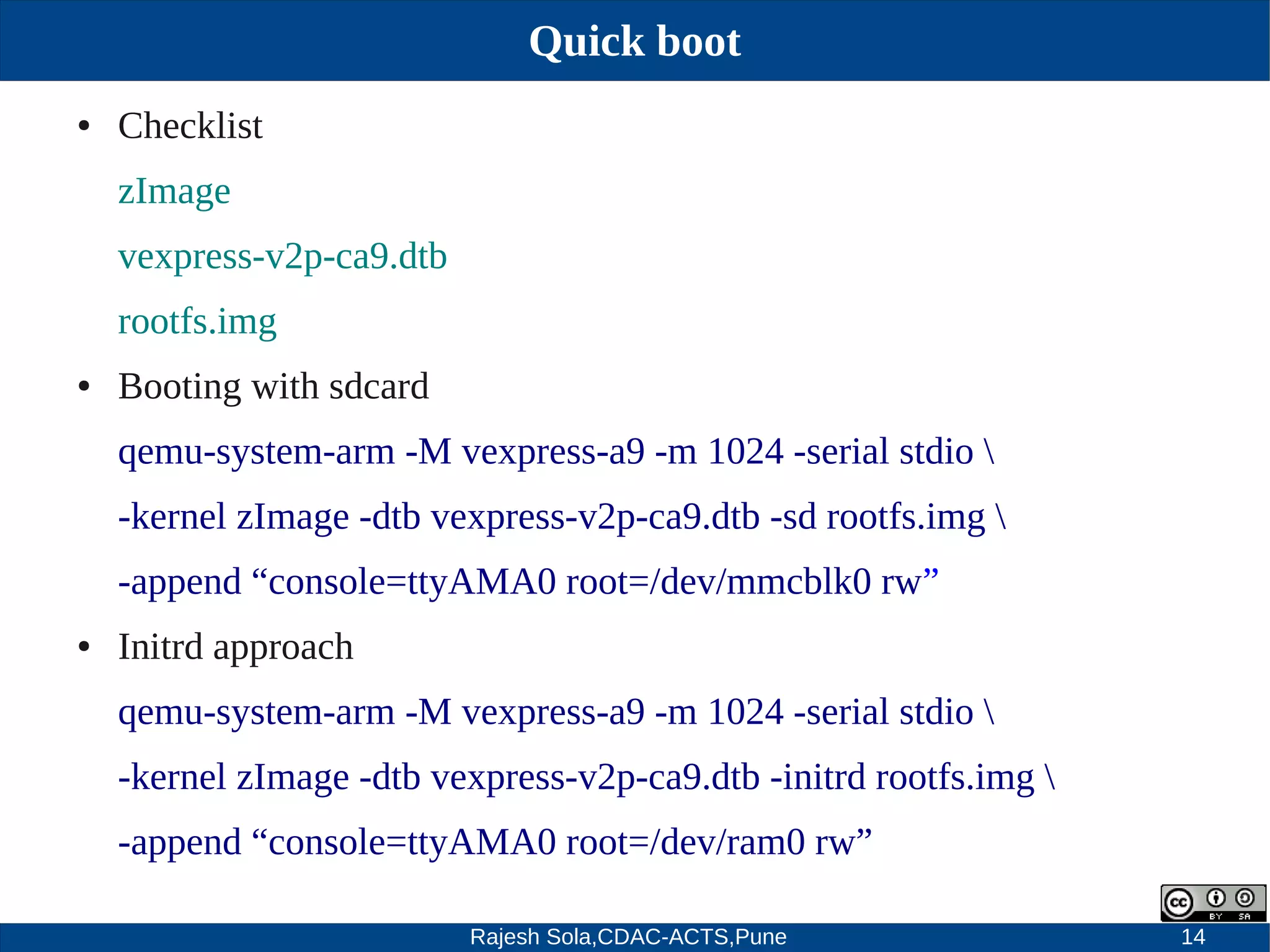

Quick boot
● Checklist
zImage
vexpressv2pca9.dtb
rootfs.img
● Booting with sdcard
qemusystemarm M vexpressa9 m 1024 serial stdio
kernel zImage dtb vexpressv2pca9.dtb sd rootfs.img
append “console=ttyAMA0 root=/dev/mmcblk0 rw”
● Initrd approach
qemusystemarm M vexpressa9 m 1024 serial stdio
kernel zImage dtb vexpressv2pca9.dtb initrd rootfs.img
append “console=ttyAMA0 root=/dev/ram0 rw”

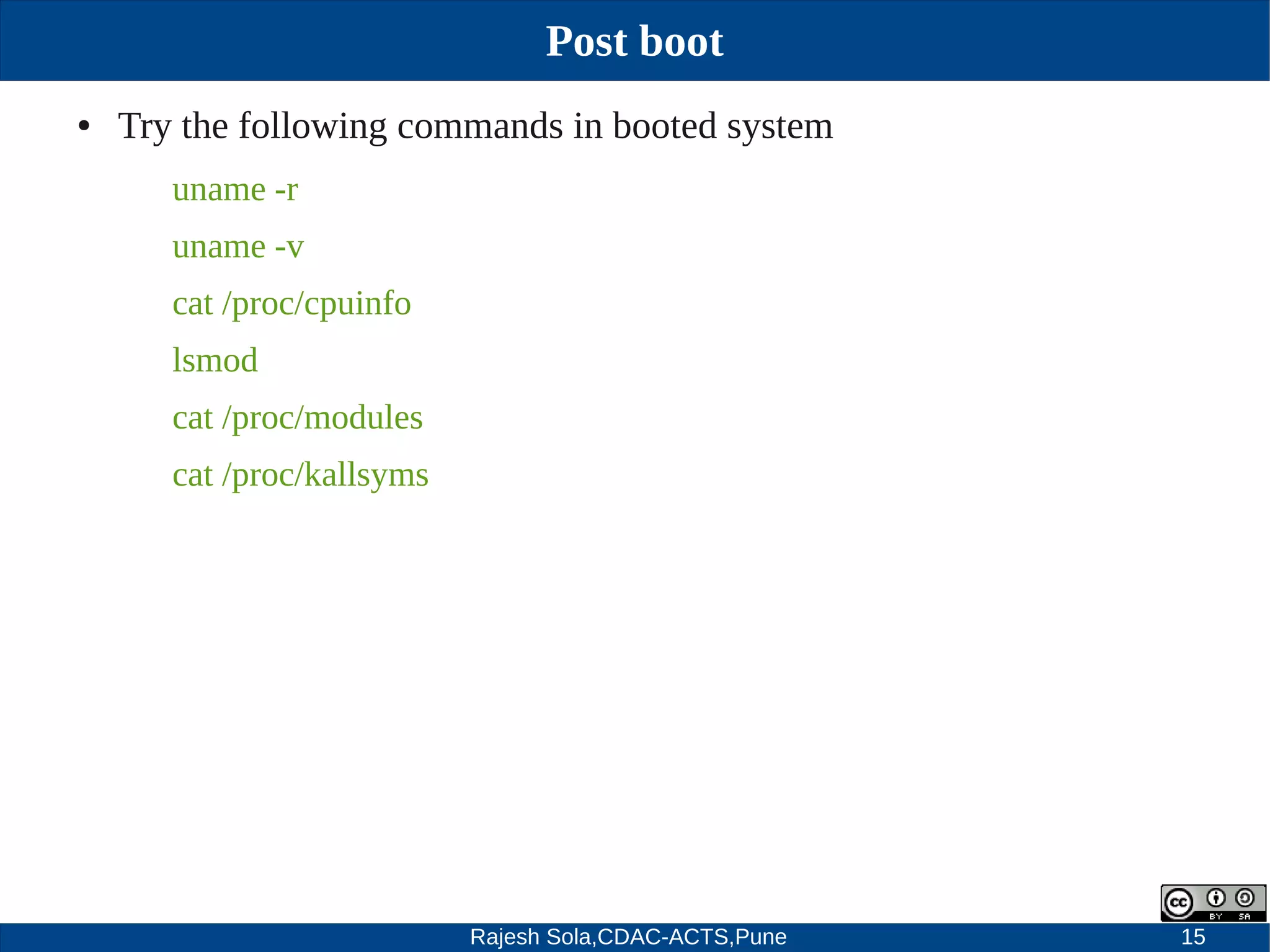

Post boot
● Try the following commands in booted system
uname r
uname v
cat /proc/cpuinfo
lsmod
cat /proc/modules
cat /proc/kallsyms

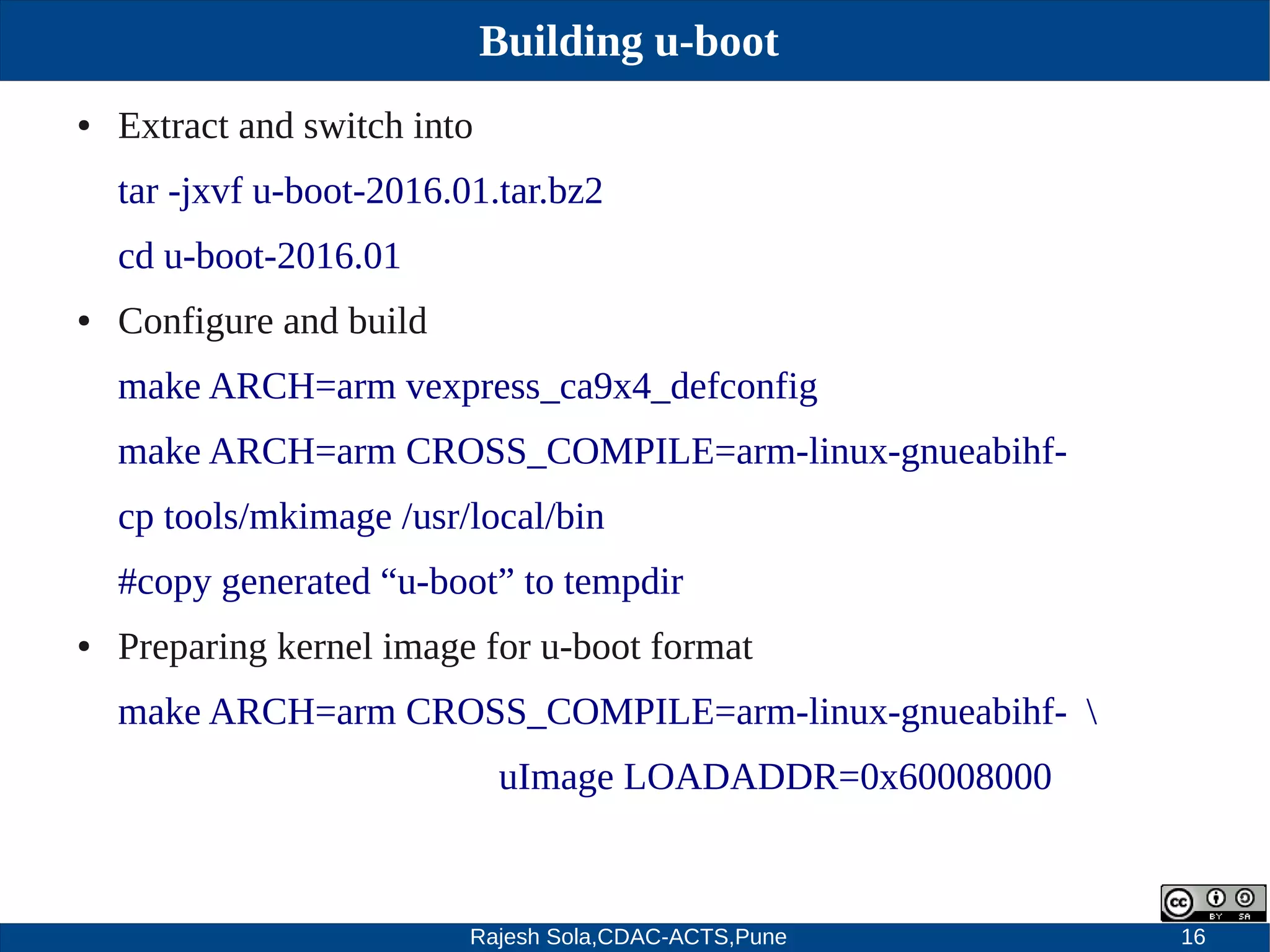

Building u-boot
● Extract and switch into
tar jxvf uboot2016.01.tar.bz2
cd uboot2016.01
● Configure and build
make ARCH=arm vexpress_ca9x4_defconfig
cp tools/mkimage /usr/local/bin
#copy generated “uboot” to tempdir
● Preparing kernel image for uboot format
uImage LOADADDR=0x60008000

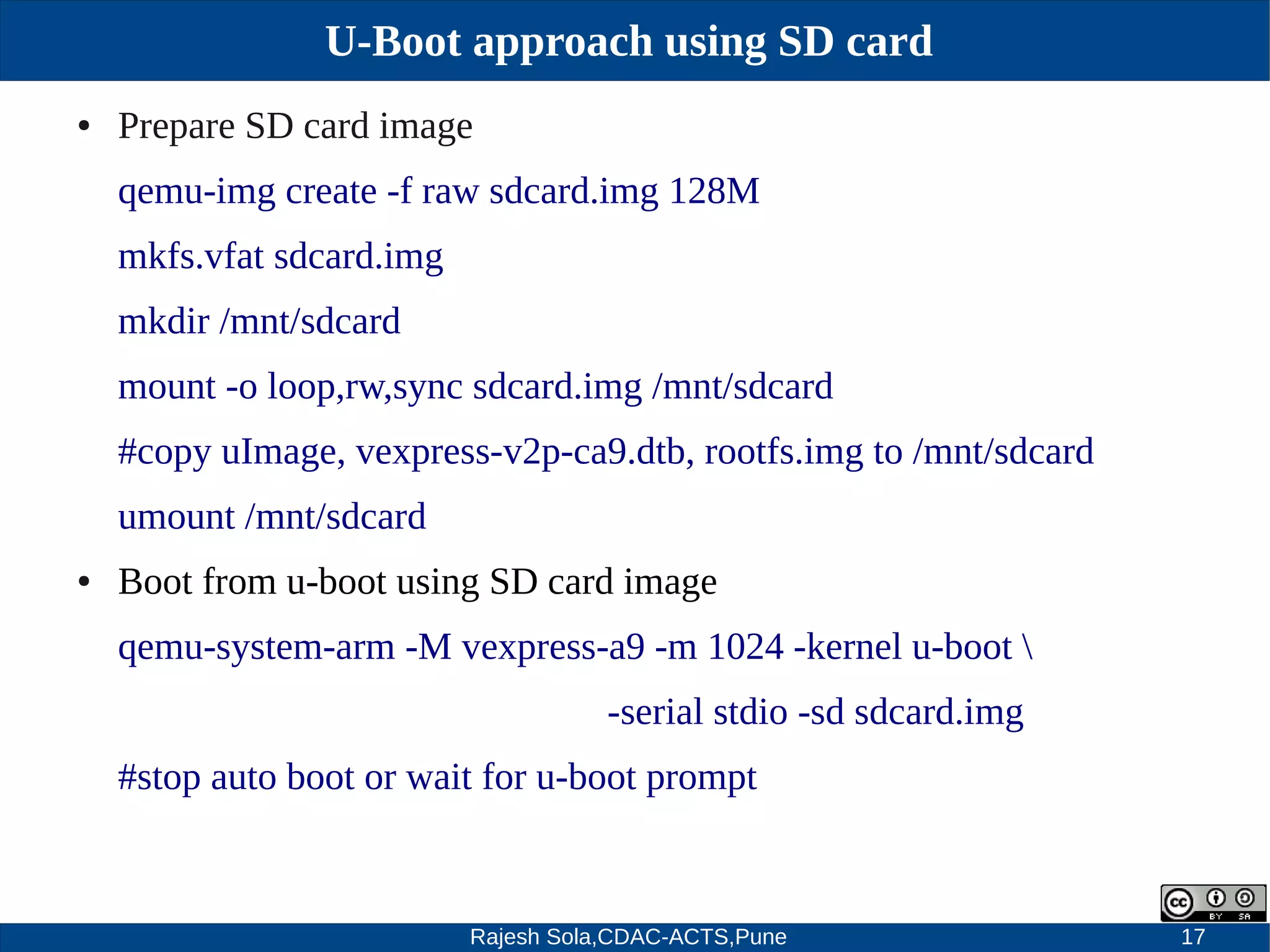

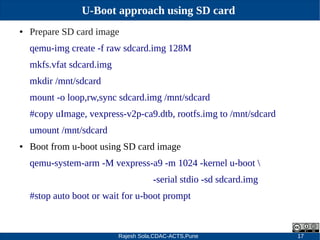

U-Boot approach using SD card
● Prepare SD card image
qemuimg create f raw sdcard.img 128M
mkfs.vfat sdcard.img
mkdir /mnt/sdcard
mount o loop,rw,sync sdcard.img /mnt/sdcard
#copy uImage, vexpressv2pca9.dtb, rootfs.img to /mnt/sdcard
umount /mnt/sdcard
● Boot from uboot using SD card image
qemusystemarm M vexpressa9 m 1024 kernel uboot
serial stdio sd sdcard.img
#stop auto boot or wait for uboot prompt

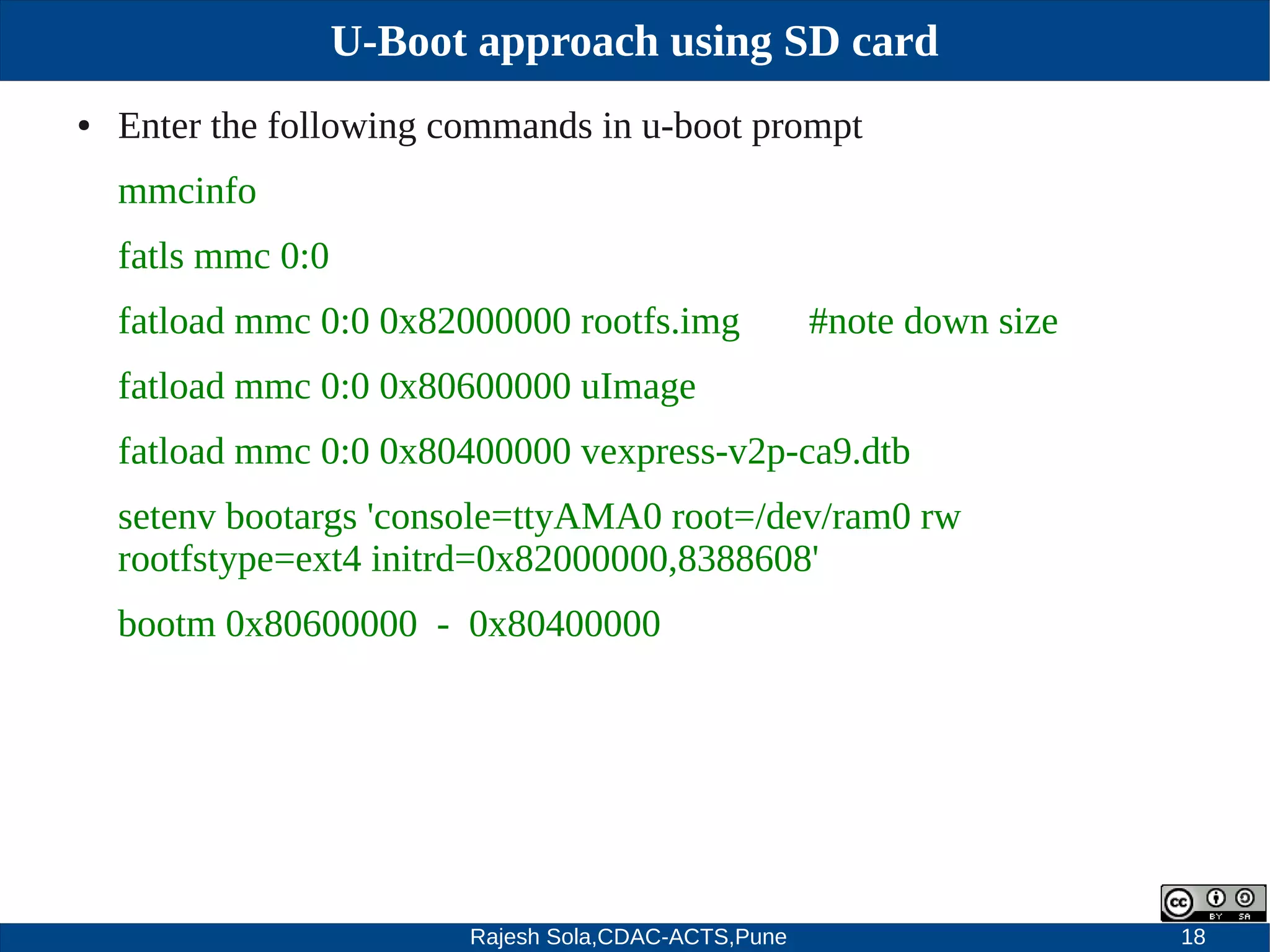

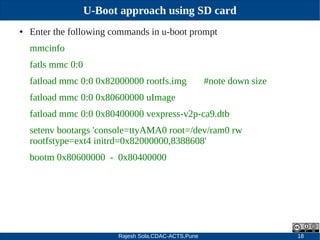

U-Boot approach using SD card
● Enter the following commands in uboot prompt
mmcinfo
fatls mmc 0:0
fatload mmc 0:0 0x82000000 rootfs.img #note down size
fatload mmc 0:0 0x80600000 uImage
fatload mmc 0:0 0x80400000 vexpressv2pca9.dtb
setenv bootargs 'console=ttyAMA0 root=/dev/ram0 rw
rootfstype=ext4 initrd=0x82000000,8388608'
bootm 0x80600000 0x80400000

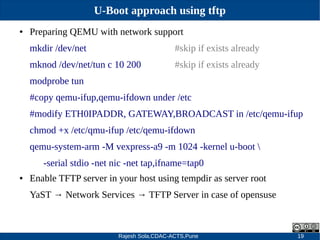

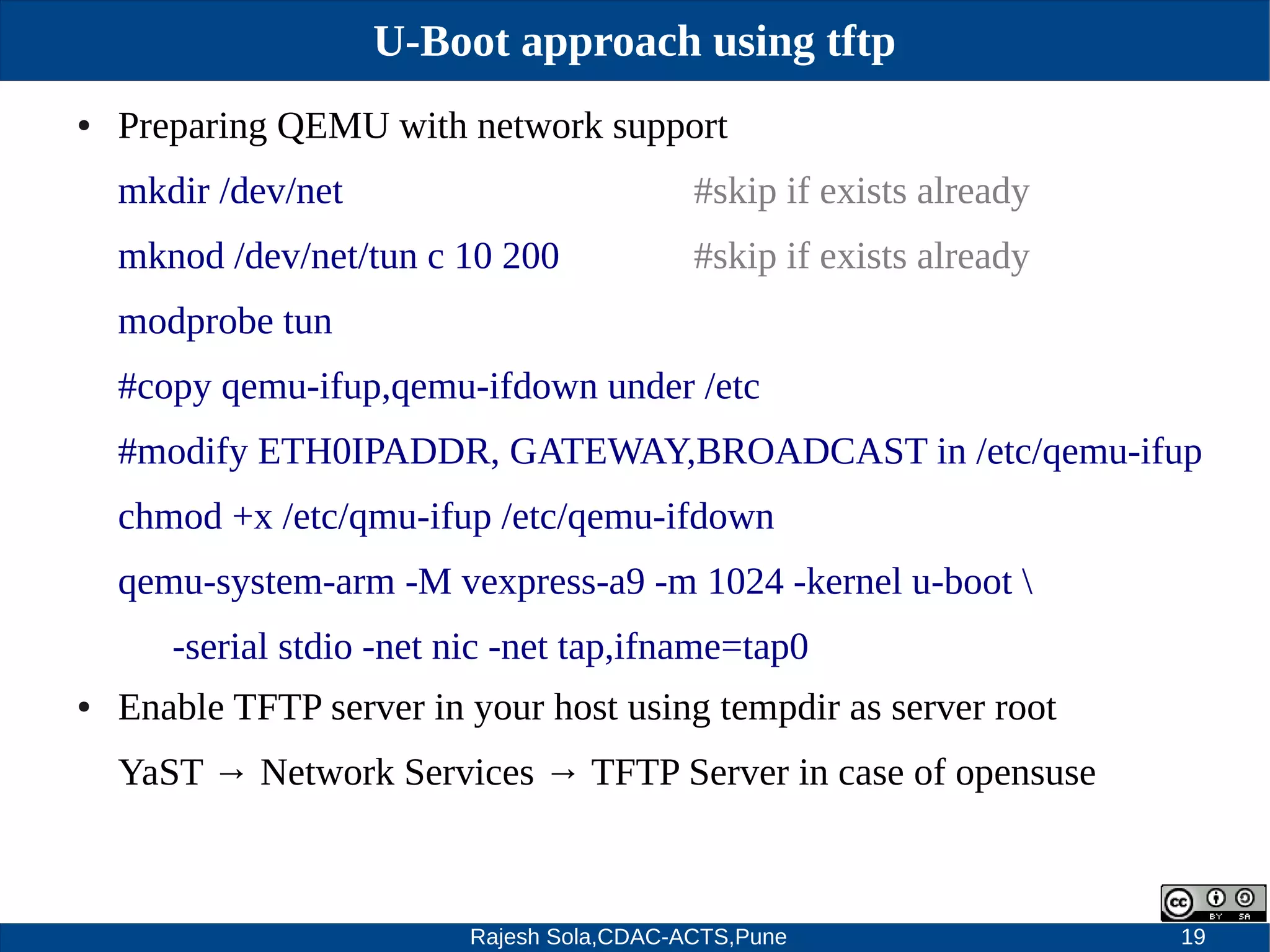

U-Boot approach using tftp
● Preparing QEMU with network support
mkdir /dev/net #skip if exists already
mknod /dev/net/tun c 10 200 #skip if exists already
modprobe tun
#copy qemuifup,qemuifdown under /etc
#modify ETH0IPADDR, GATEWAY,BROADCAST in /etc/qemuifup
chmod +x /etc/qmuifup /etc/qemuifdown
qemusystemarm M vexpressa9 m 1024 kernel uboot
serial stdio net nic net tap,ifname=tap0
● Enable TFTP server in your host using tempdir as server root
YaST → Network Services → TFTP Server in case of opensuse

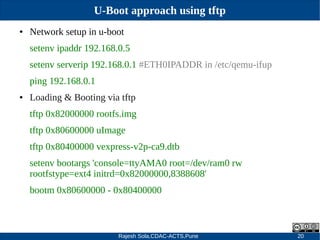

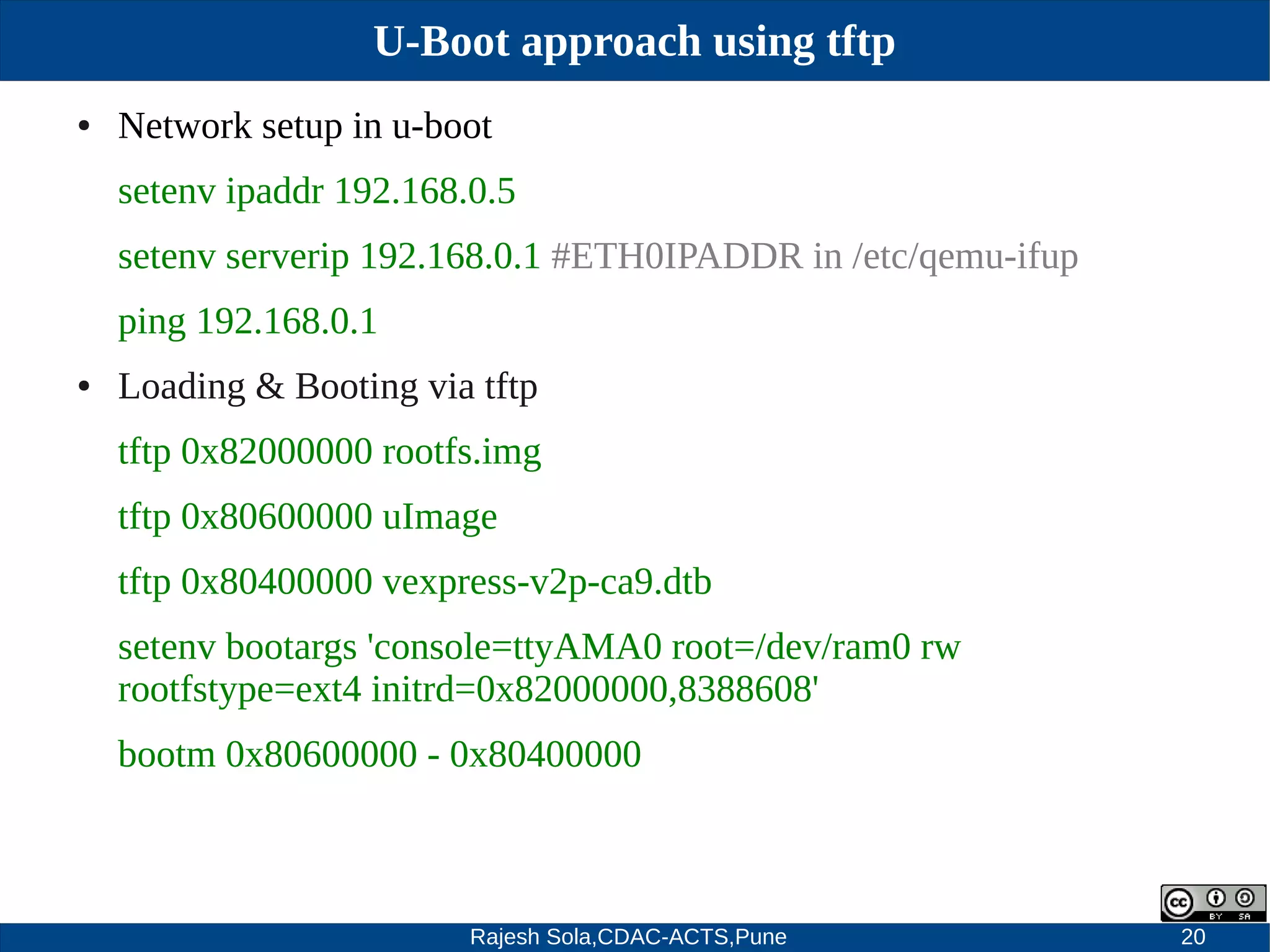

U-Boot approach using tftp
● Network setup in uboot
setenv ipaddr 192.168.0.5
setenv serverip 192.168.0.1 #ETH0IPADDR in /etc/qemuifup
ping 192.168.0.1
● Loading & Booting via tftp
tftp 0x82000000 rootfs.img
tftp 0x80600000 uImage
tftp 0x80400000 vexpressv2pca9.dtb
setenv bootargs 'console=ttyAMA0 root=/dev/ram0 rw
rootfstype=ext4 initrd=0x82000000,8388608'
bootm 0x80600000 0x80400000

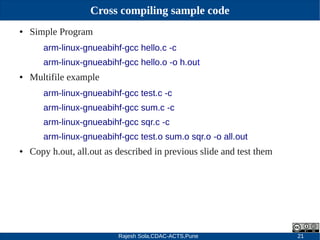

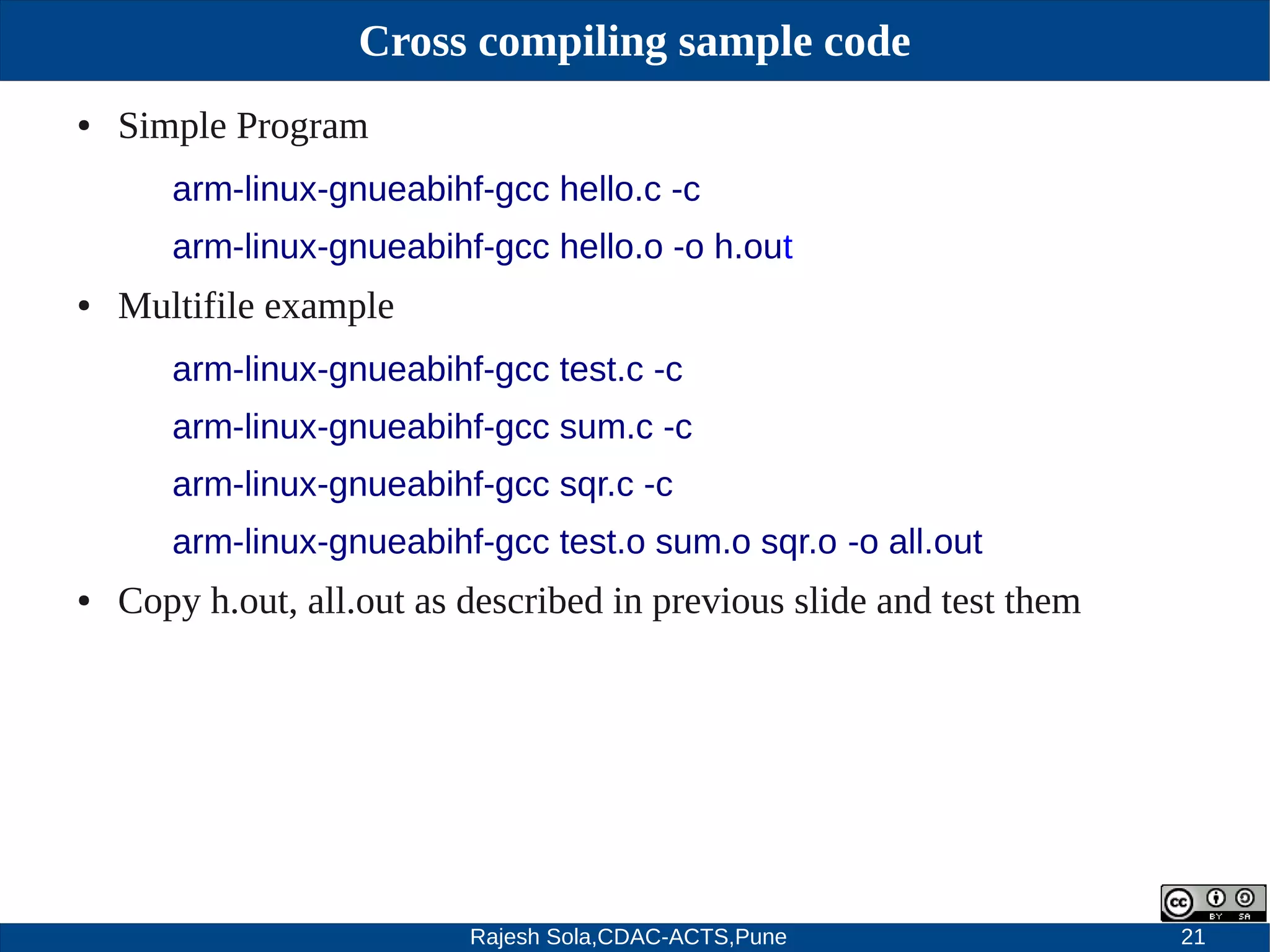

Cross compiling sample code
● Simple Program
arm-linux-gnueabihf-gcc hello.c -c
arm-linux-gnueabihf-gcc hello.o -o h.out
● Multifile example
arm-linux-gnueabihf-gcc test.c -c
arm-linux-gnueabihf-gcc sum.c -c
arm-linux-gnueabihf-gcc sqr.c -c
arm-linux-gnueabihf-gcc test.o sum.o sqr.o -o all.out
● Copy h.out, all.out as described in previous slide and test them

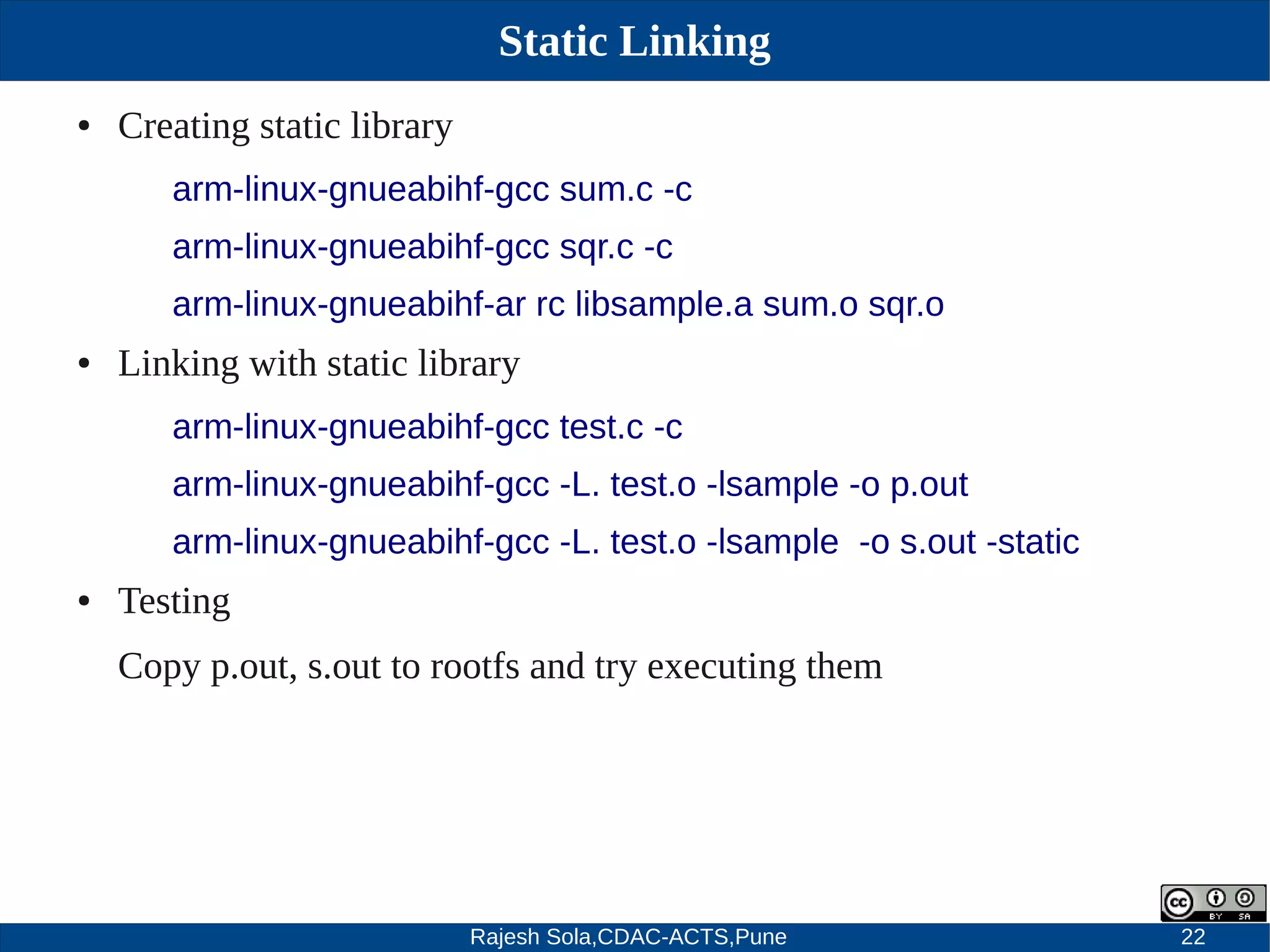

Static Linking
● Creating static library
arm-linux-gnueabihf-ar rc libsample.a sum.o sqr.o
● Linking with static library
arm-linux-gnueabihf-gcc -L. test.o -lsample -o p.out
arm-linux-gnueabihf-gcc -L. test.o -lsample -o s.out -static
● Testing
Copy p.out, s.out to rootfs and try executing them

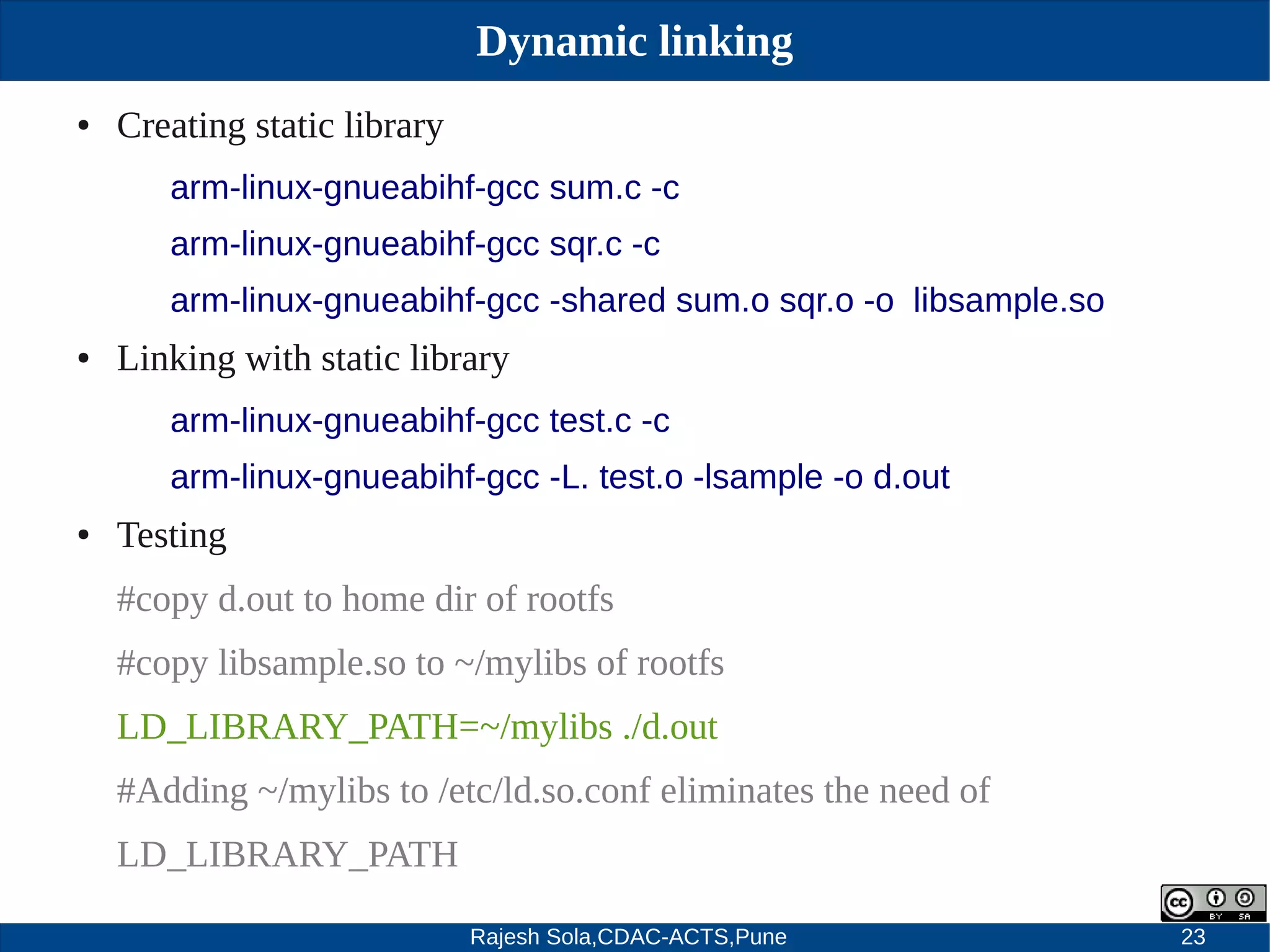

Dynamic linking
● Creating static library
arm-linux-gnueabihf-gcc -shared sum.o sqr.o -o libsample.so
● Linking with static library
arm-linux-gnueabihf-gcc -L. test.o -lsample -o d.out
● Testing
#copy d.out to home dir of rootfs
#copy libsample.so to ~/mylibs of rootfs
LD_LIBRARY_PATH=~/mylibs ./d.out
#Adding ~/mylibs to /etc/ld.so.conf eliminates the need of
LD_LIBRARY_PATH

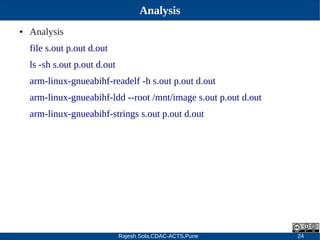

Analysis
● Analysis
file s.out p.out d.out
ls sh s.out p.out d.out
armlinuxgnueabihfreadelf h s.out p.out d.out
armlinuxgnueabihfldd root /mnt/image s.out p.out d.out
armlinuxgnueabihfstrings s.out p.out d.out

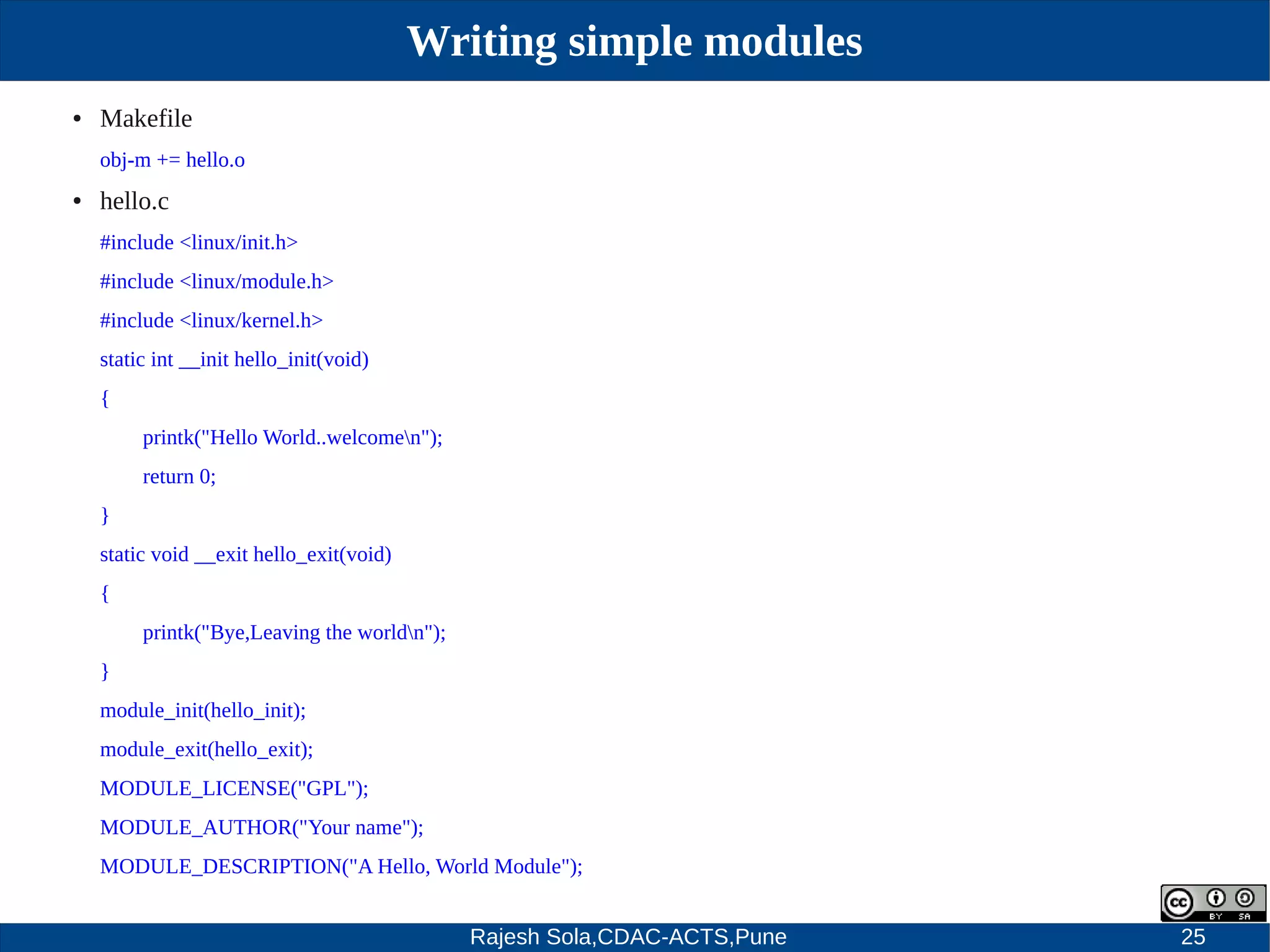

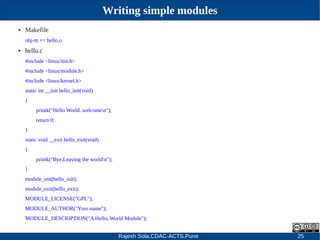

Writing simple modules
● Makefile
objm += hello.o
● hello.c
#include <linux/init.h>
#include <linux/module.h>
#include <linux/kernel.h>
static int __init hello_init(void)
{
printk("Hello World..welcomen");
return 0;
}
static void __exit hello_exit(void)
{
printk("Bye,Leaving the worldn");
}
module_init(hello_init);
module_exit(hello_exit);
MODULE_LICENSE("GPL");
MODULE_AUTHOR("Your name");
MODULE_DESCRIPTION("A Hello, World Module");

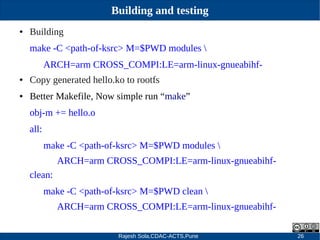

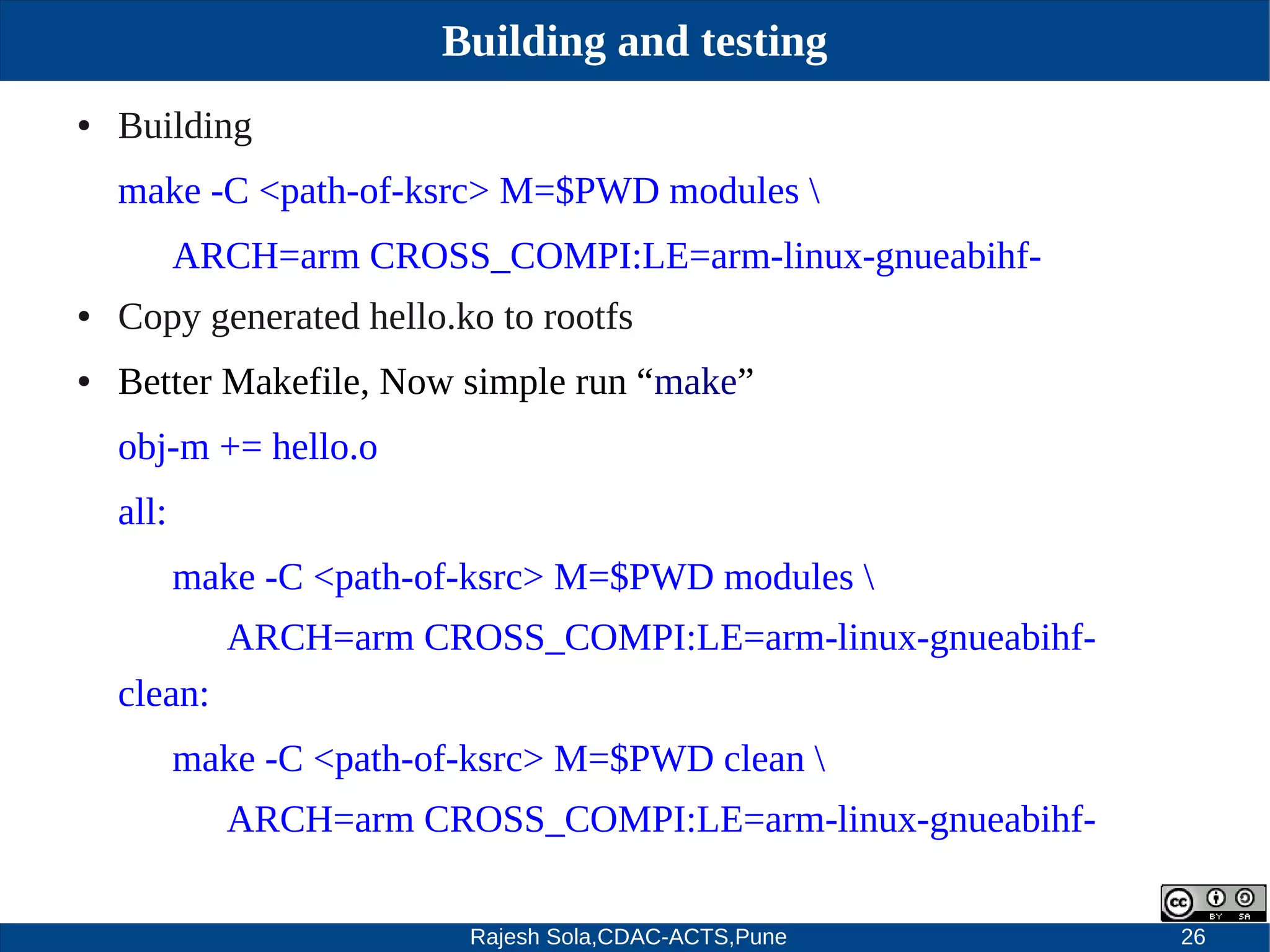

Building and testing
● Building
make C <pathofksrc> M=$PWD modules
ARCH=arm CROSS_COMPI:LE=armlinuxgnueabihf
● Copy generated hello.ko to rootfs
● Better Makefile, Now simple run “make”
objm += hello.o
all:
make C <pathofksrc> M=$PWD modules
clean:
make C <pathofksrc> M=$PWD clean

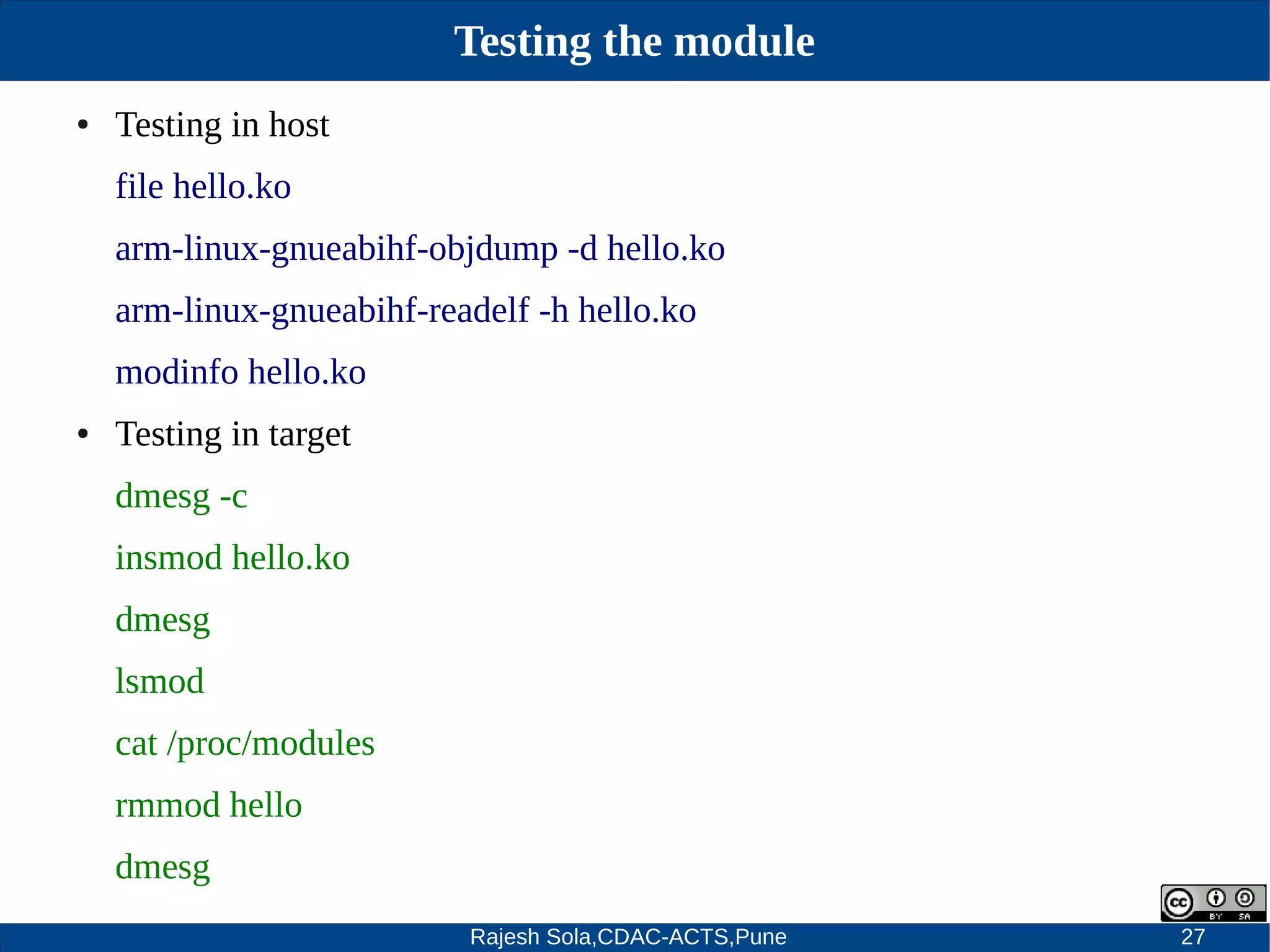

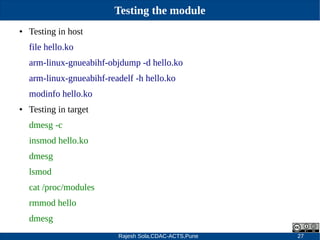

Testing the module
● Testing in host
file hello.ko
armlinuxgnueabihfobjdump d hello.ko
armlinuxgnueabihfreadelf h hello.ko
modinfo hello.ko
● Testing in target
dmesg c
insmod hello.ko
dmesg
lsmod
cat /proc/modules
rmmod hello
dmesg

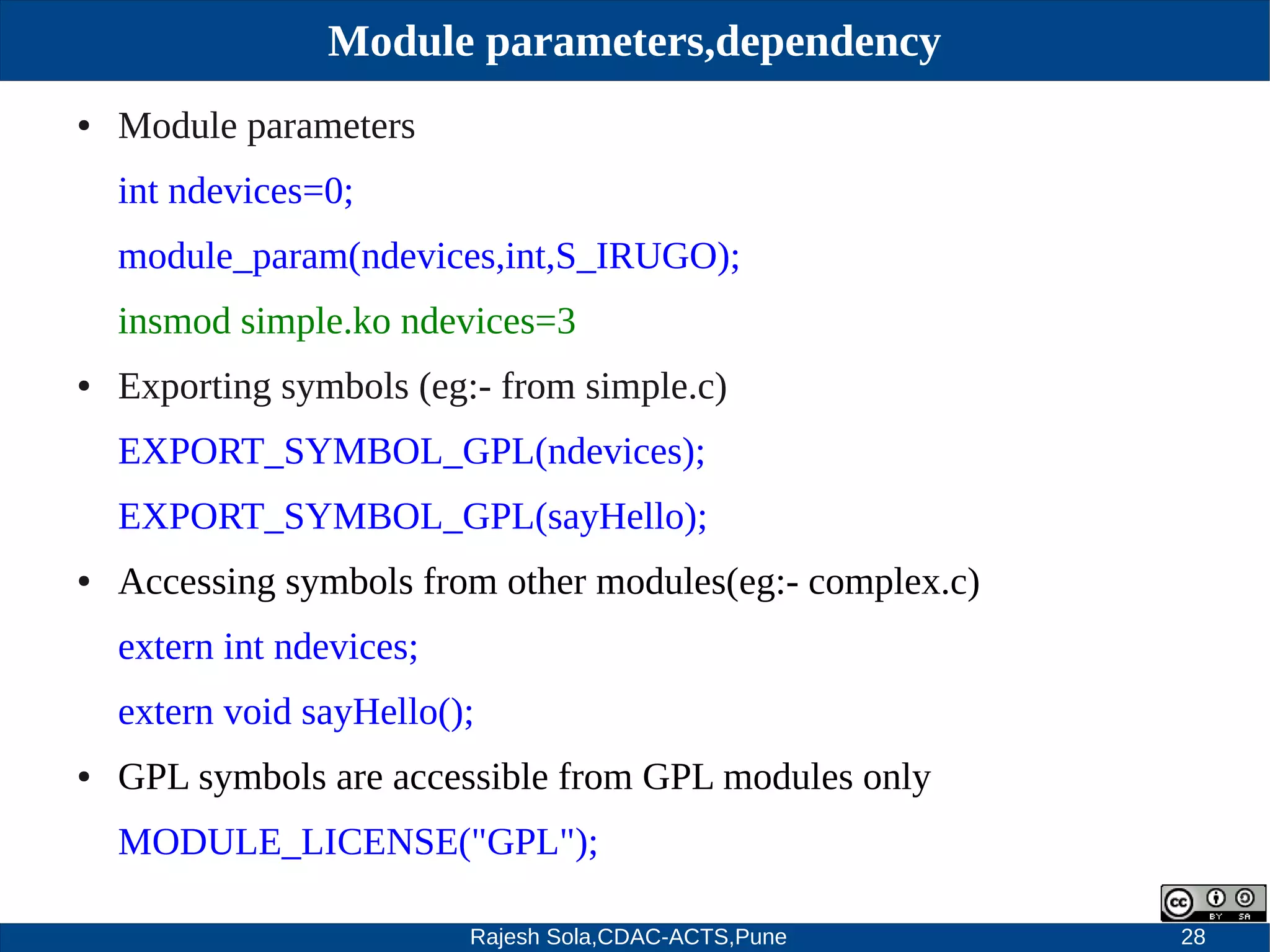

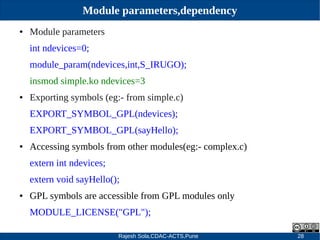

Module parameters,dependency
● Module parameters
int ndevices=0;
module_param(ndevices,int,S_IRUGO);
insmod simple.ko ndevices=3
● Exporting symbols (eg: from simple.c)
EXPORT_SYMBOL_GPL(ndevices);
EXPORT_SYMBOL_GPL(sayHello);
● Accessing symbols from other modules(eg: complex.c)
extern int ndevices;
extern void sayHello();
● GPL symbols are accessible from GPL modules only
MODULE_LICENSE("GPL");

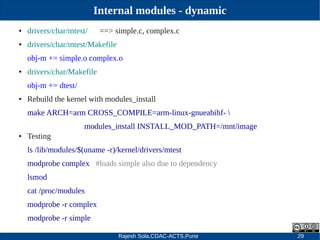

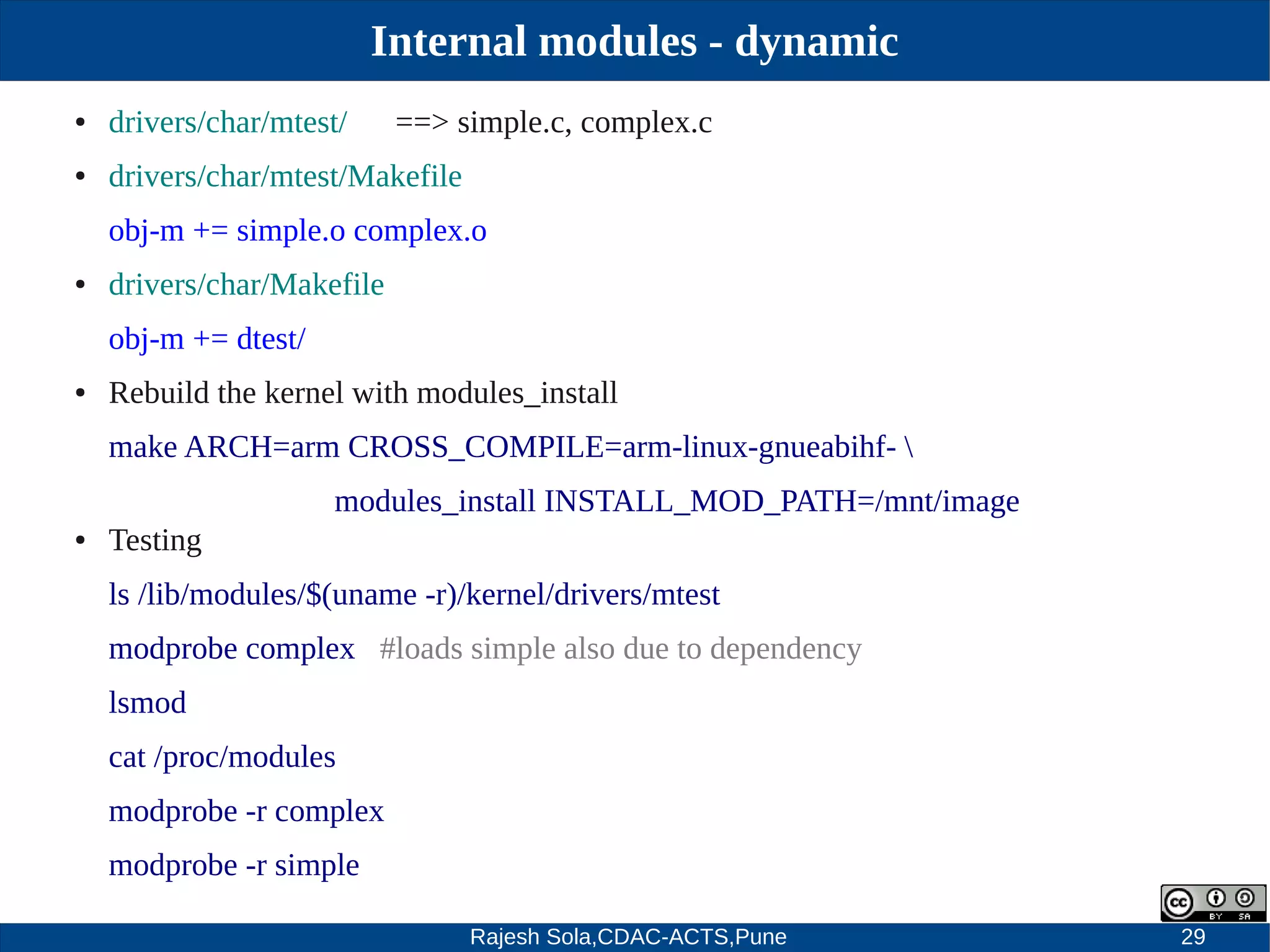

Internal modules - dynamic
● drivers/char/mtest/ ==> simple.c, complex.c
● drivers/char/mtest/Makefile
objm += simple.o complex.o
● drivers/char/Makefile
objm += dtest/
● Rebuild the kernel with modules_install
modules_install INSTALL_MOD_PATH=/mnt/image
● Testing
ls /lib/modules/$(uname r)/kernel/drivers/mtest
modprobe complex #loads simple also due to dependency
lsmod
cat /proc/modules
modprobe r complex
modprobe r simple

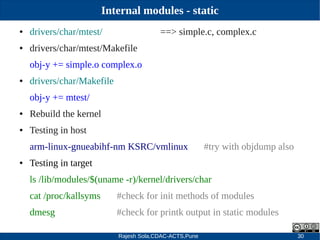

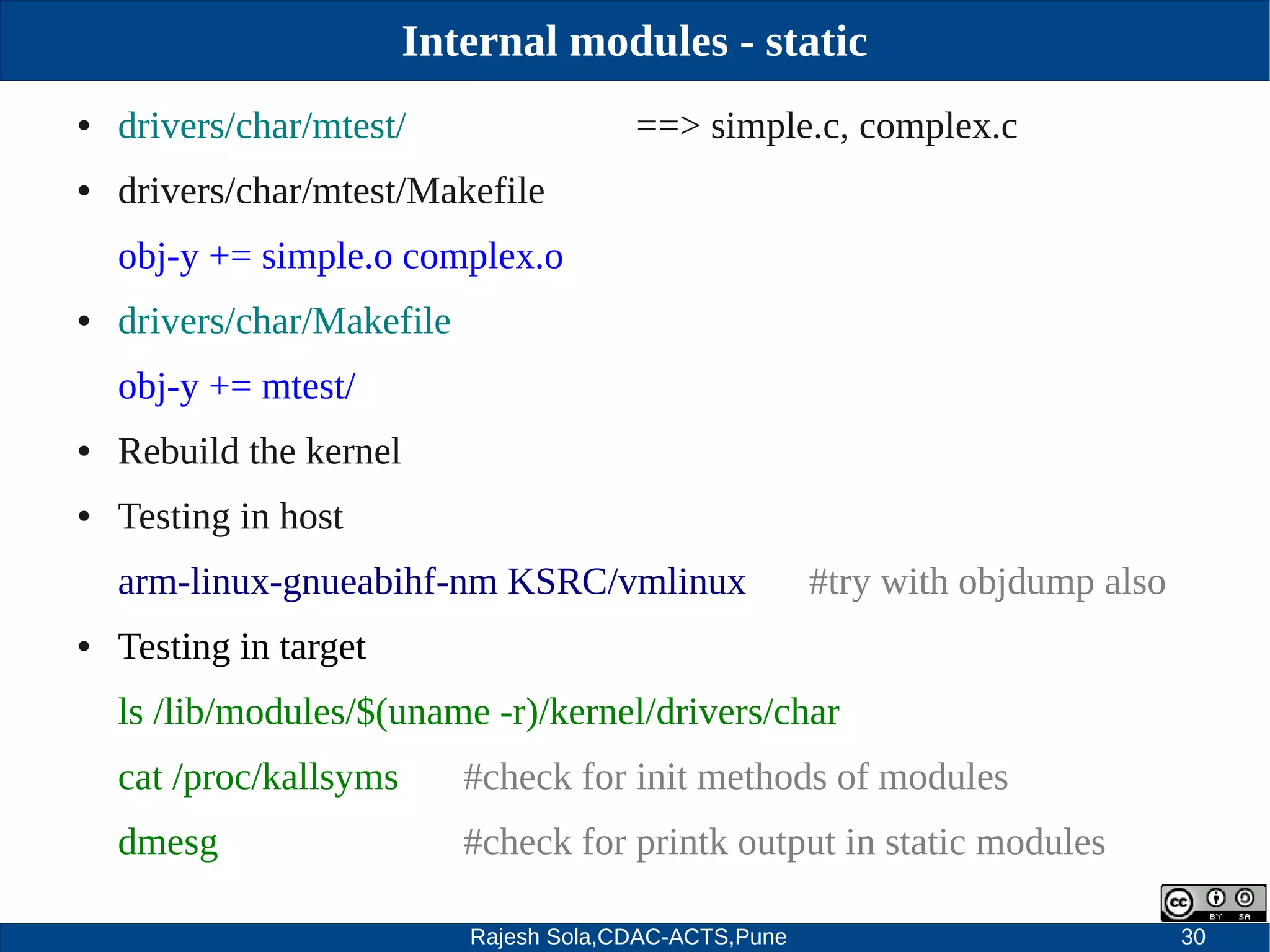

Internal modules - static
● drivers/char/mtest/ ==> simple.c, complex.c
● drivers/char/mtest/Makefile
objy += simple.o complex.o
● drivers/char/Makefile
objy += mtest/
● Rebuild the kernel
● Testing in host
armlinuxgnueabihfnm KSRC/vmlinux #try with objdump also
● Testing in target
ls /lib/modules/$(uname r)/kernel/drivers/char
cat /proc/kallsyms #check for init methods of modules
dmesg #check for printk output in static modules

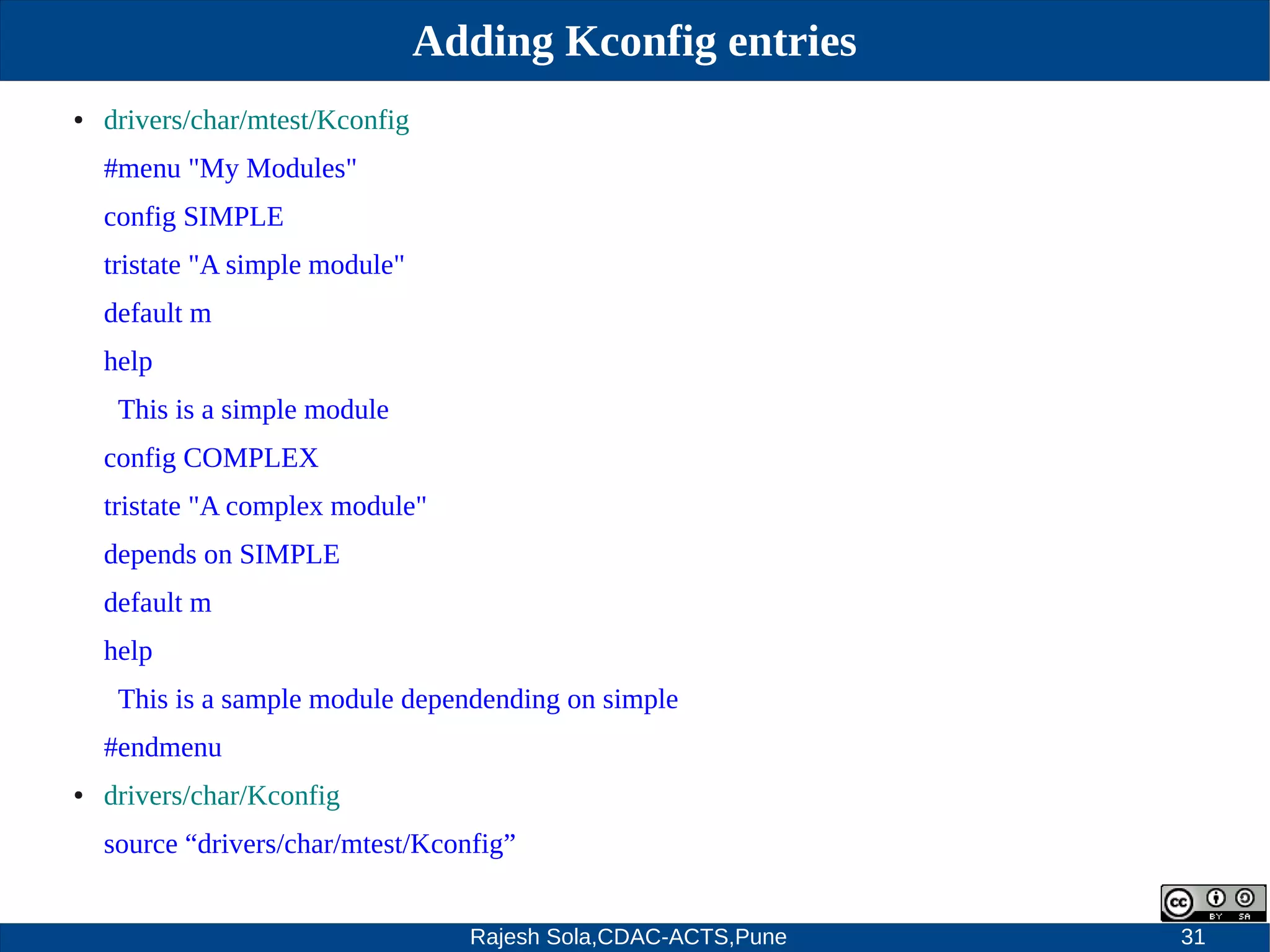

Adding Kconfig entries
● drivers/char/mtest/Kconfig
#menu "My Modules"
config SIMPLE
tristate "A simple module"
default m
help
This is a simple module
config COMPLEX
tristate "A complex module"
depends on SIMPLE
default m
help
This is a sample module dependending on simple
#endmenu
● drivers/char/Kconfig
source “drivers/char/mtest/Kconfig”

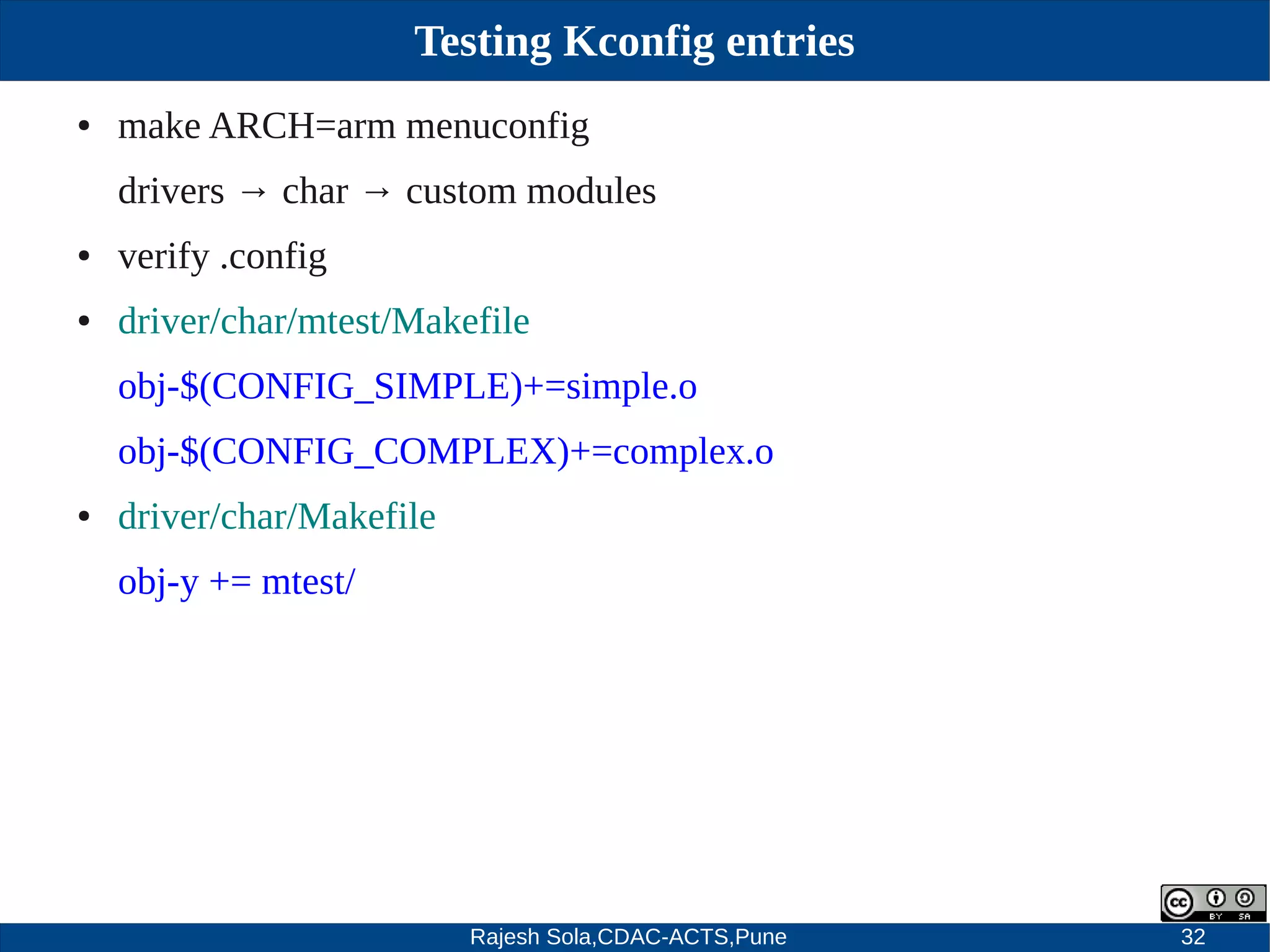

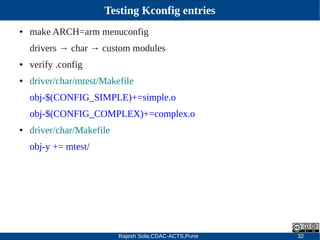

Testing Kconfig entries
● make ARCH=arm menuconfig
drivers → char → custom modules
● verify .config
● driver/char/mtest/Makefile
obj$(CONFIG_SIMPLE)+=simple.o
obj$(CONFIG_COMPLEX)+=complex.o
● driver/char/Makefile
objy += mtest/

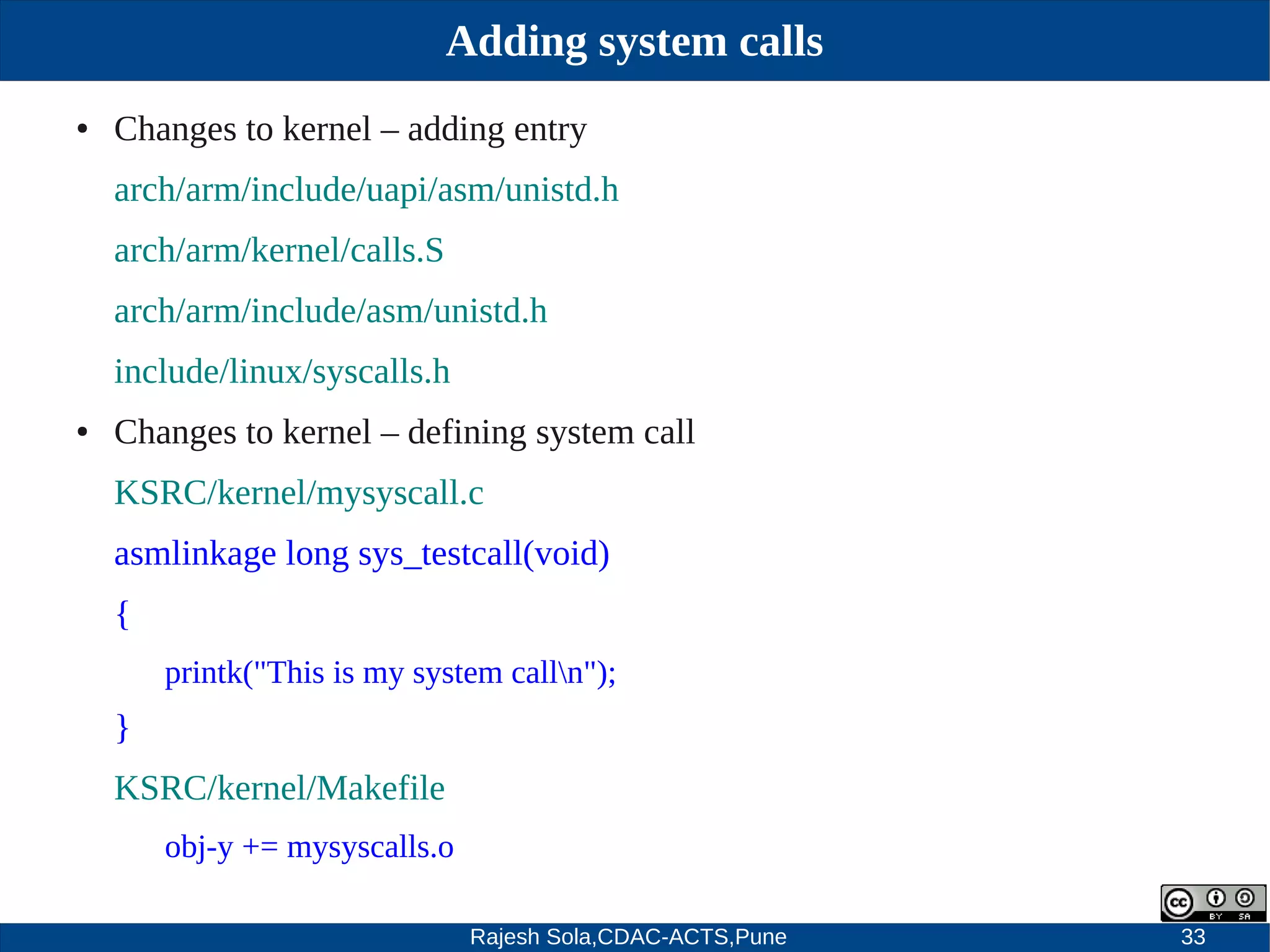

Adding system calls
● Changes to kernel – adding entry
arch/arm/include/uapi/asm/unistd.h
arch/arm/kernel/calls.S
arch/arm/include/asm/unistd.h
include/linux/syscalls.h
● Changes to kernel – defining system call
KSRC/kernel/mysyscall.c
asmlinkage long sys_testcall(void)
{
printk("This is my system calln");
}
KSRC/kernel/Makefile
objy += mysyscalls.o

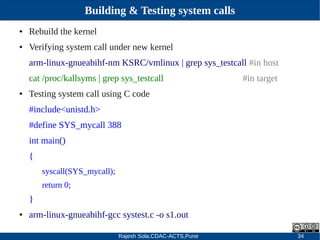

Building & Testing system calls
● Rebuild the kernel
● Verifying system call under new kernel
armlinuxgnueabihfnm KSRC/vmlinux | grep sys_testcall #in host
cat /proc/kallsyms | grep sys_testcall #in target
● Testing system call using C code
#include<unistd.h>
#define SYS_mycall 388
int main()
{
syscall(SYS_mycall);
return 0;
}
● armlinuxgnueabihfgcc systest.c o s1.out

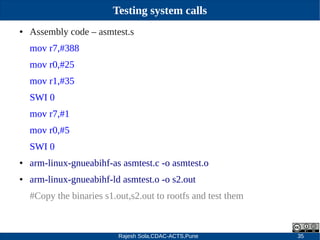

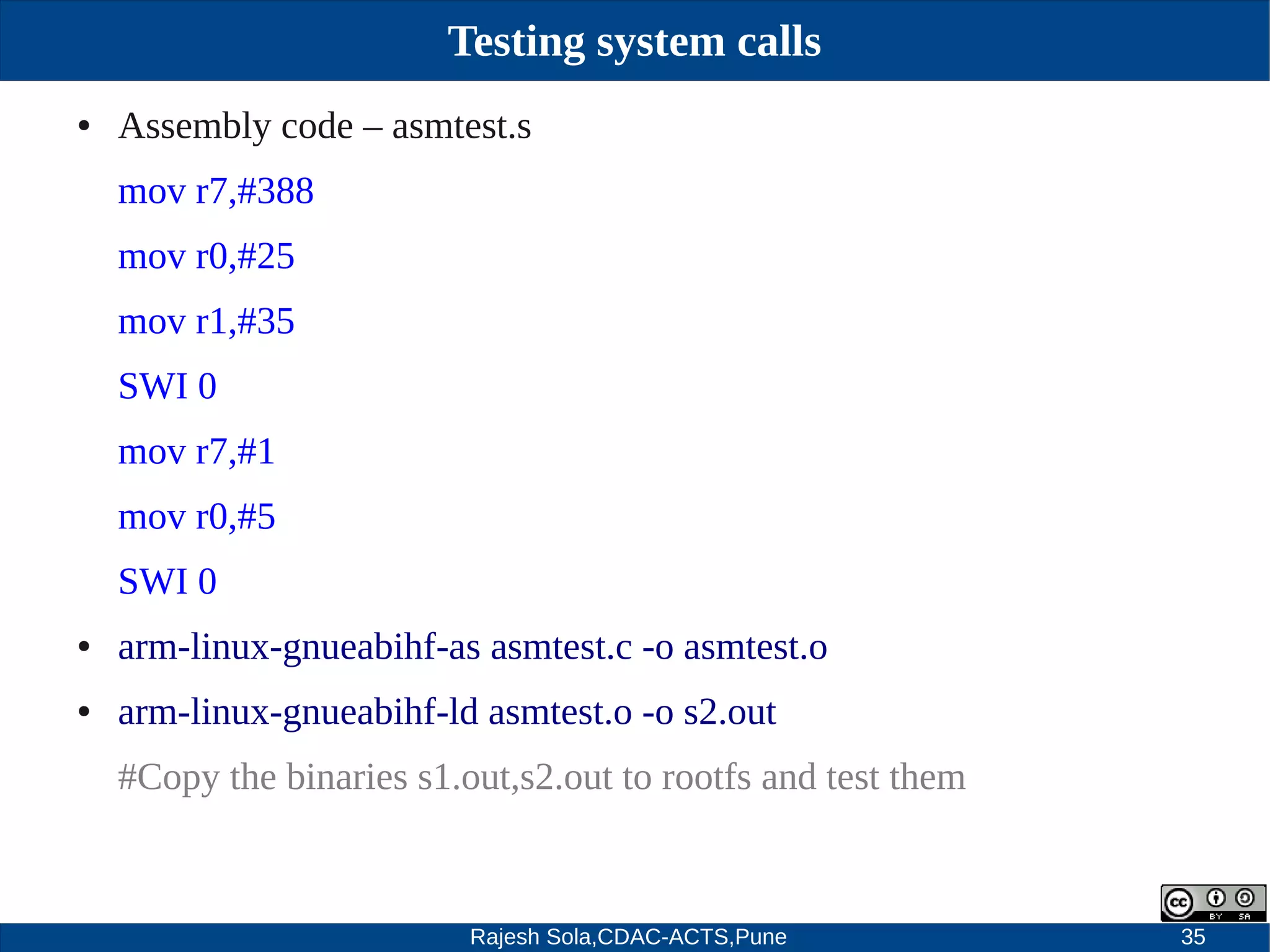

Testing system calls
● Assembly code – asmtest.s
mov r7,#388
mov r0,#25
mov r1,#35
SWI 0
mov r7,#1
mov r0,#5
SWI 0
● armlinuxgnueabihfas asmtest.c o asmtest.o
● armlinuxgnueabihfld asmtest.o o s2.out
#Copy the binaries s1.out,s2.out to rootfs and test them

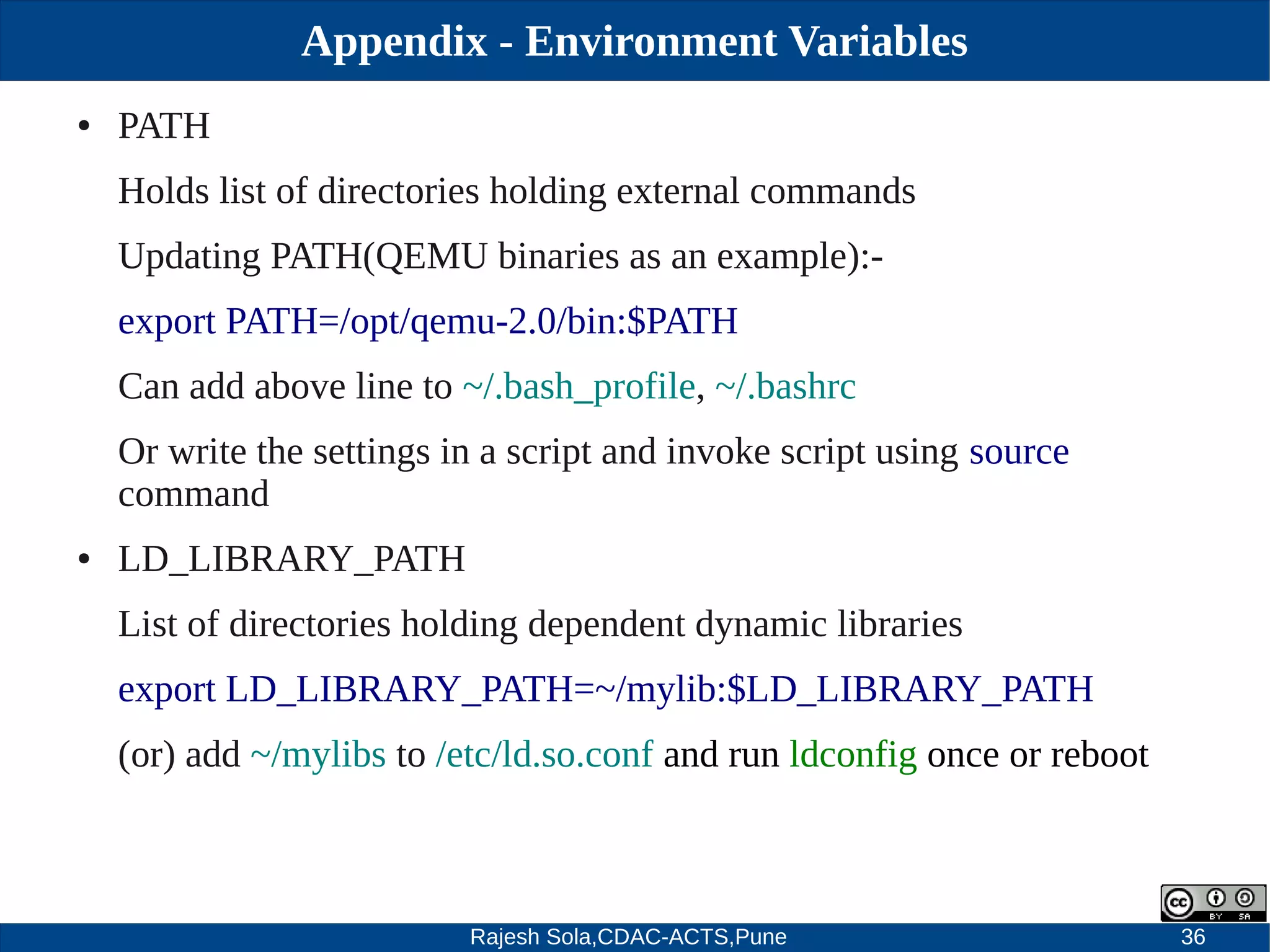

Appendix - Environment Variables
● PATH
Holds list of directories holding external commands
Updating PATH(QEMU binaries as an example):
export PATH=/opt/qemu2.0/bin:$PATH
Can add above line to ~/.bash_profile, ~/.bashrc
Or write the settings in a script and invoke script using source
command
● LD_LIBRARY_PATH
List of directories holding dependent dynamic libraries
export LD_LIBRARY_PATH=~/mylib:$LD_LIBRARY_PATH
(or) add ~/mylibs to /etc/ld.so.conf and run ldconfig once or reboot

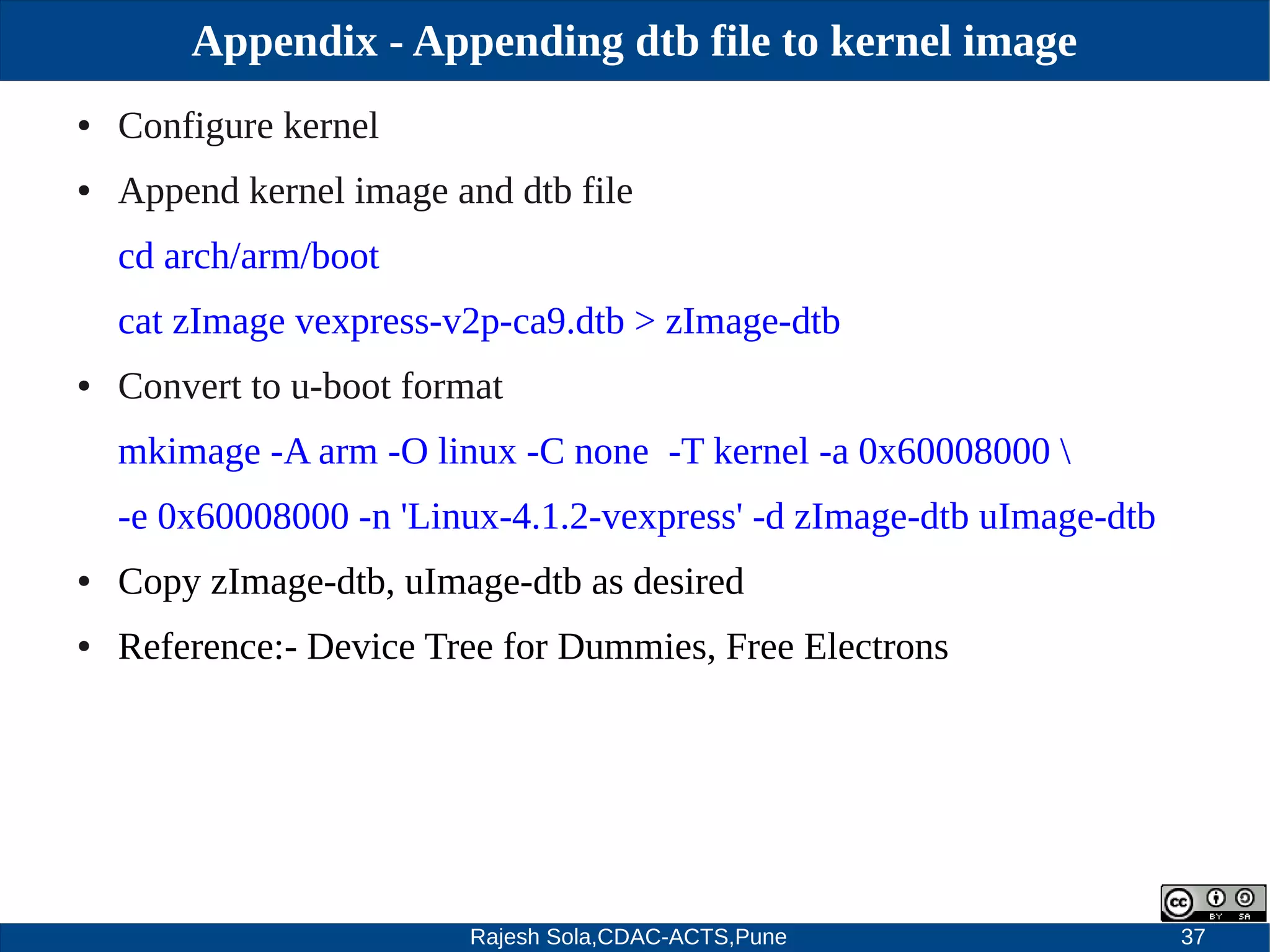

Appendix - Appending dtb file to kernel image
● Configure kernel
● Append kernel image and dtb file
cd arch/arm/boot
cat zImage vexpressv2pca9.dtb > zImagedtb
● Convert to uboot format
mkimage A arm O linux C none T kernel a 0x60008000
e 0x60008000 n 'Linux4.1.2vexpress' d zImagedtb uImagedtb
● Copy zImagedtb, uImagedtb as desired
● Reference: Device Tree for Dummies, Free Electrons

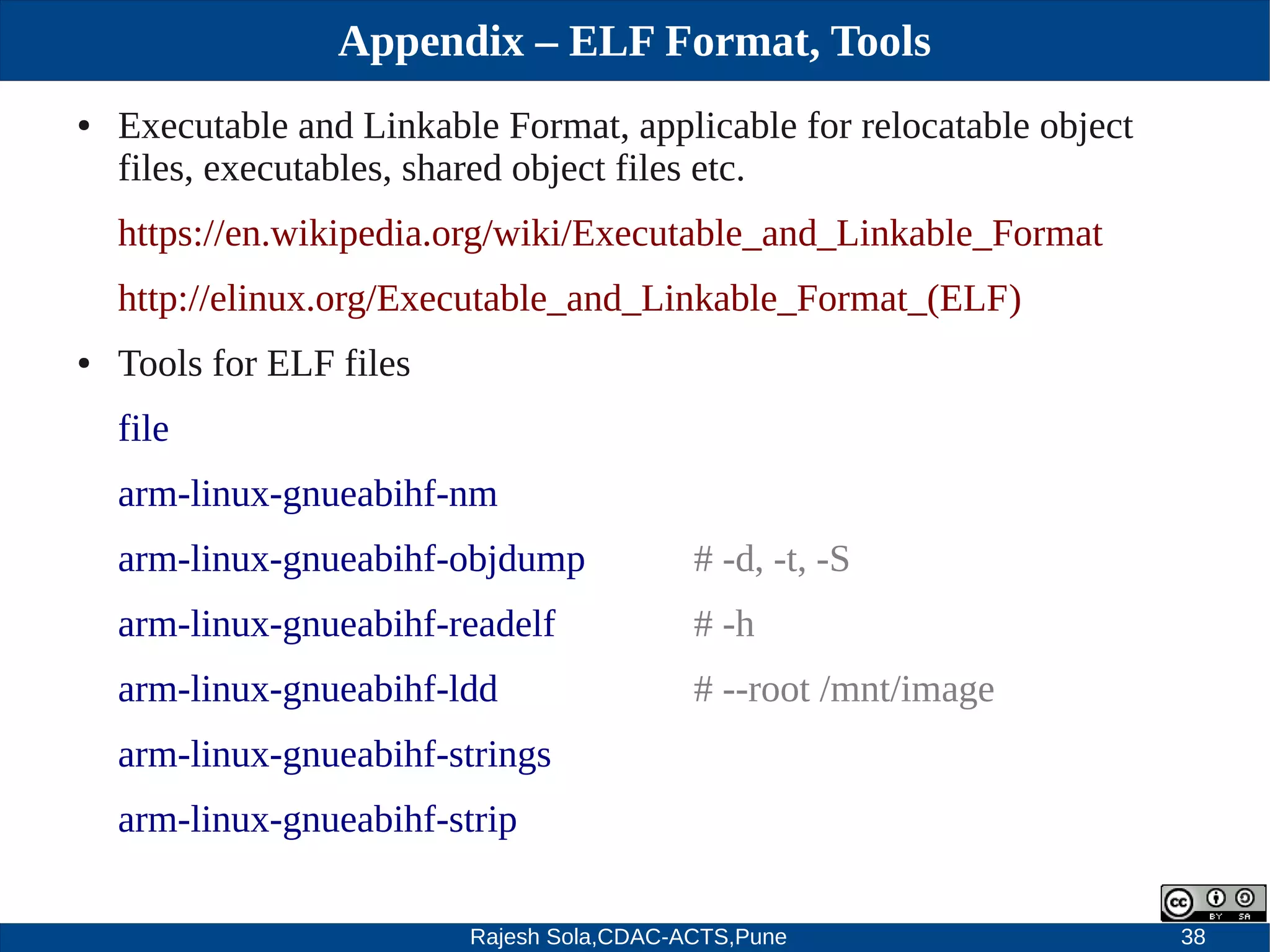

Appendix – ELF Format, Tools
● Executable and Linkable Format, applicable for relocatable object
files, executables, shared object files etc.
https://en.wikipedia.org/wiki/Executable_and_Linkable_Format
http://elinux.org/Executable_and_Linkable_Format_(ELF)
● Tools for ELF files
file
armlinuxgnueabihfnm
armlinuxgnueabihfobjdump # d, t, S
armlinuxgnueabihfreadelf # h
armlinuxgnueabihfldd # root /mnt/image
armlinuxgnueabihfstrings
armlinuxgnueabihfstrip

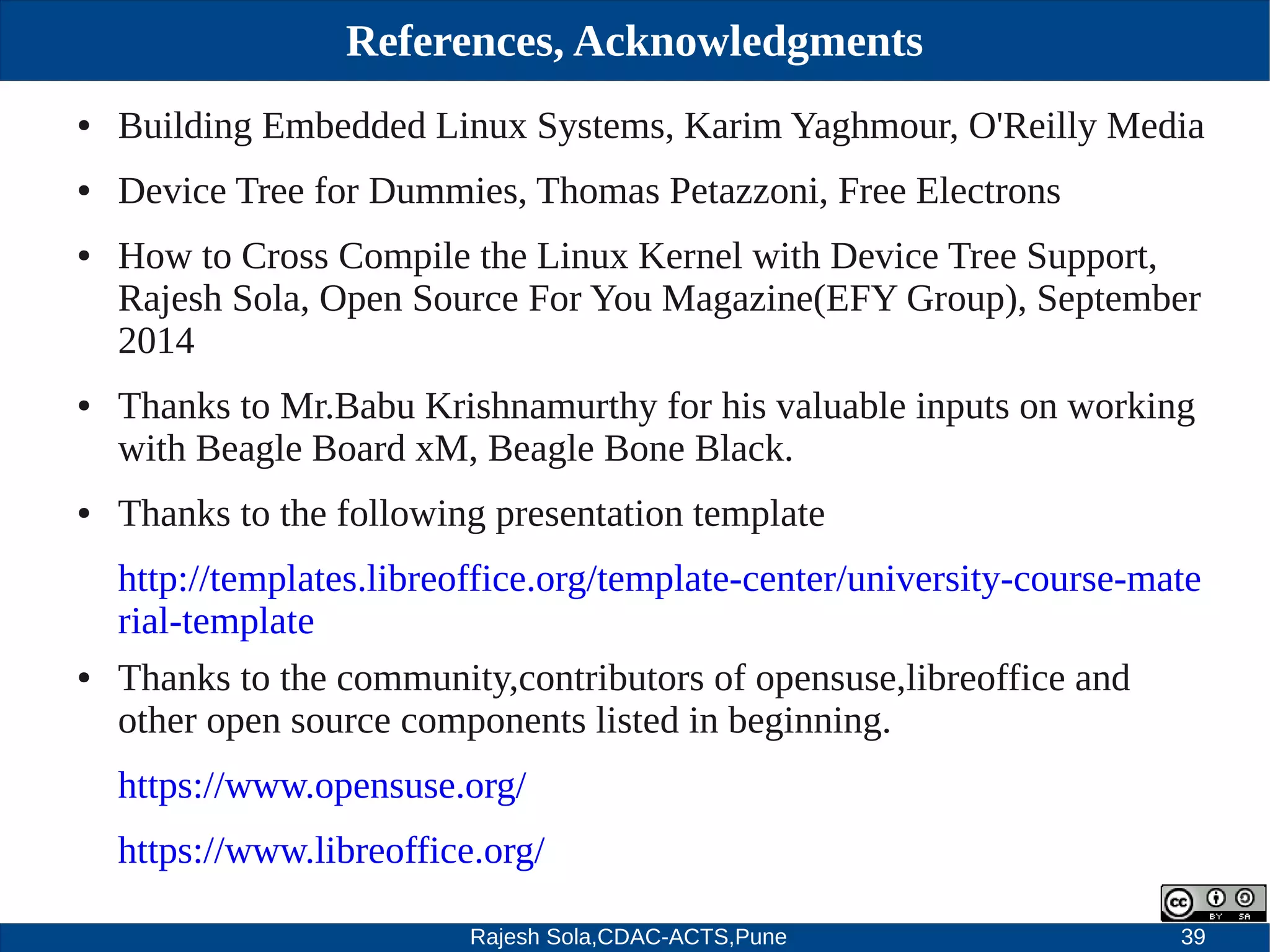

References, Acknowledgments
● Building Embedded Linux Systems, Karim Yaghmour, O'Reilly Media
● Device Tree for Dummies, Thomas Petazzoni, Free Electrons
● How to Cross Compile the Linux Kernel with Device Tree Support,
Rajesh Sola, Open Source For You Magazine(EFY Group), September
2014
● Thanks to Mr.Babu Krishnamurthy for his valuable inputs on working
with Beagle Board xM, Beagle Bone Black.
● Thanks to the following presentation template
http://templates.libreoffice.org/templatecenter/universitycoursemate
rialtemplate
● Thanks to the community,contributors of opensuse,libreoffice and
other open source components listed in beginning.
https://www.opensuse.org/
https://www.libreoffice.org/

Thank You
rajeshsola@gmail.com

Hands on with embedded linux using zero hardware

More Related Content

What's hot

Viewers also liked

Similar to Hands on with embedded linux using zero hardware

Recently uploaded

Hands on with embedded linux using zero hardware
