3.0 Introduction to .NET Framework
- 1. Introduction to Microsoft.NET Framework 4.0 Abd El-Rahman Hosny Mohammed Microsoft Student Partner. 4th Grade – Faculty of Computers and Information. Computer Science Department. Assiut University. contact: abdelrahmanhosny.com

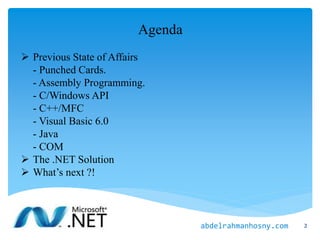

- 2. Agenda Previous Stateof Affairs - Punched Cards. - Assembly Programming. - C/Windows API - C++/MFC - Visual Basic 6.0 - Java - COM The .NET Solution What’s next ?! 2abdelrahmanhosny.com

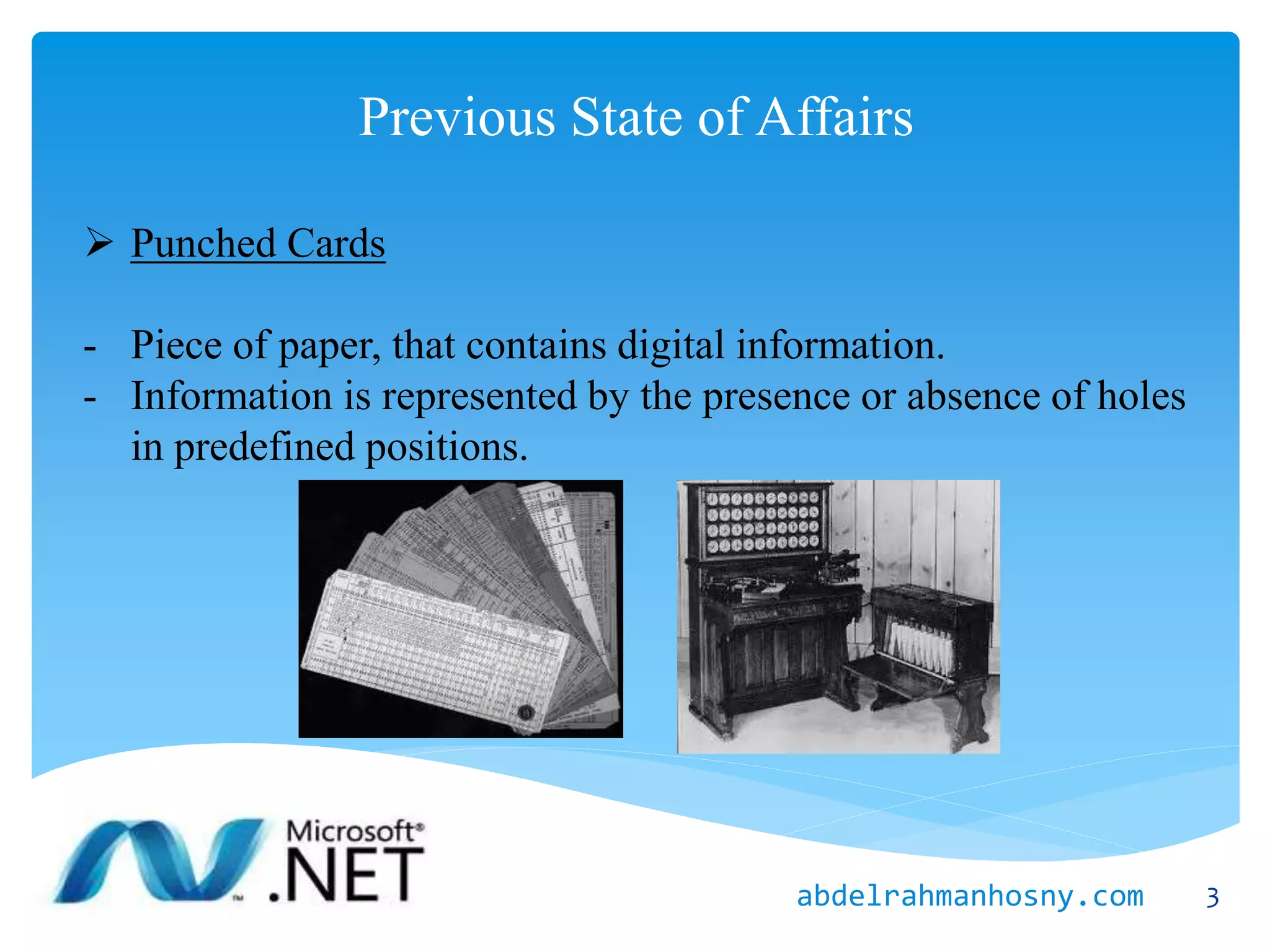

- 3. Previous State ofAffairs Punched Cards - Piece of paper, that contains digital information. - Information is represented by the presence or absence of holes in predefined positions. 3abdelrahmanhosny.com

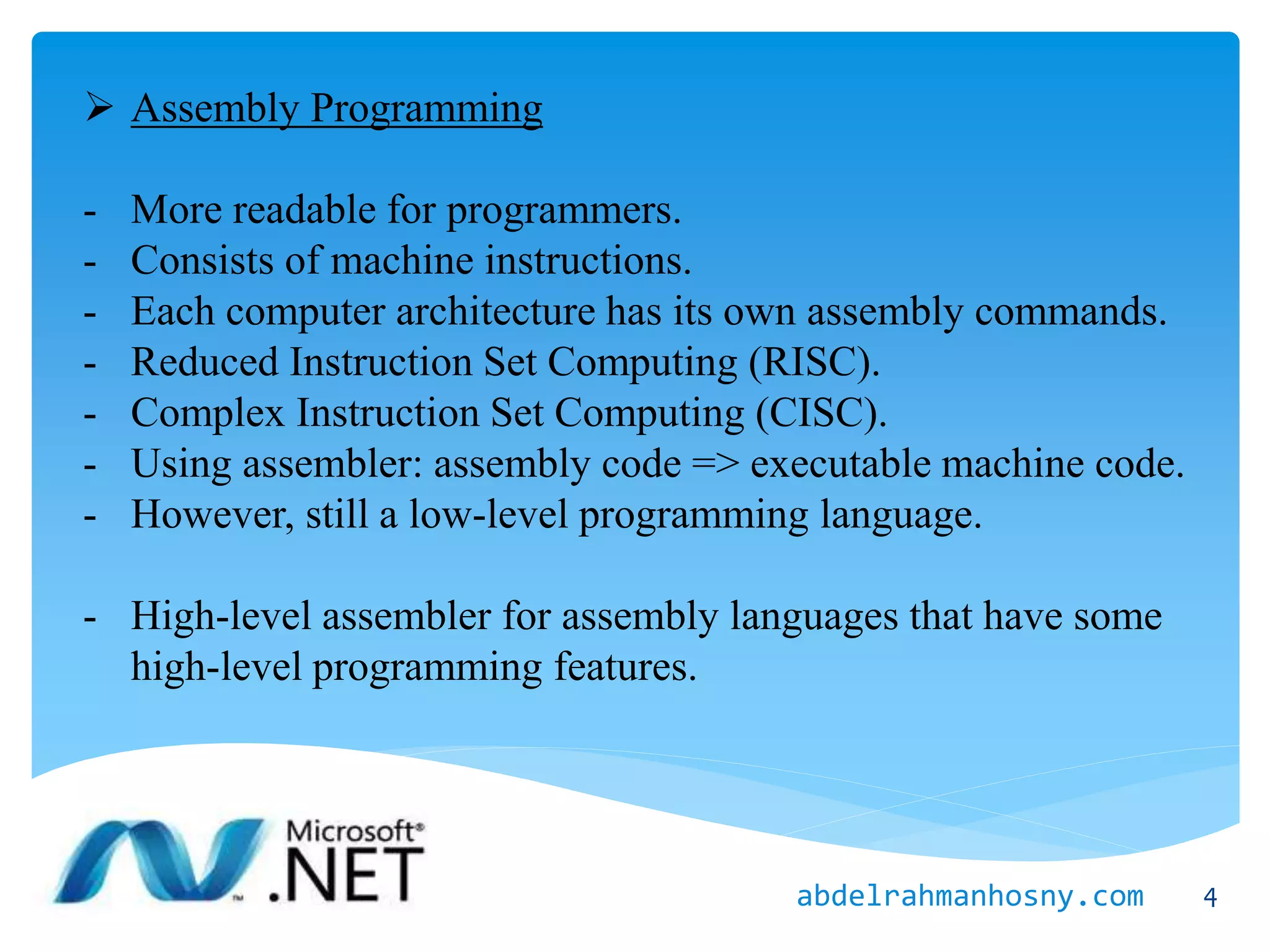

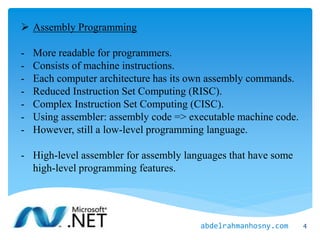

- 4. Assembly Programming -More readable for programmers. - Consists of machine instructions. - Each computer architecture has its own assembly commands. - Reduced Instruction Set Computing (RISC). - Complex Instruction Set Computing (CISC). - Using assembler: assembly code => executable machine code. - However, still a low-level programming language. - High-level assembler for assembly languages that have some high-level programming features. 4abdelrahmanhosny.com

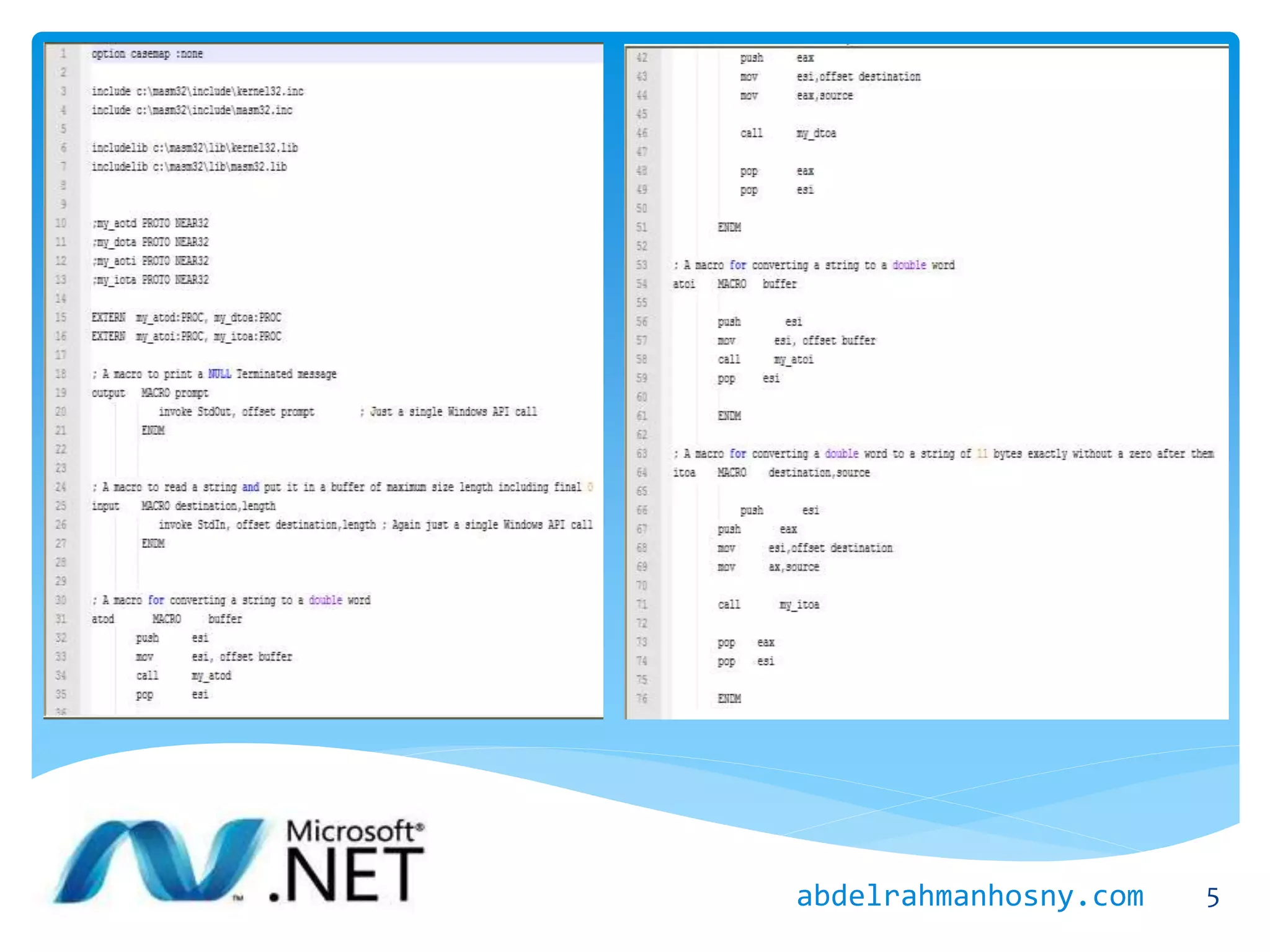

- 5.

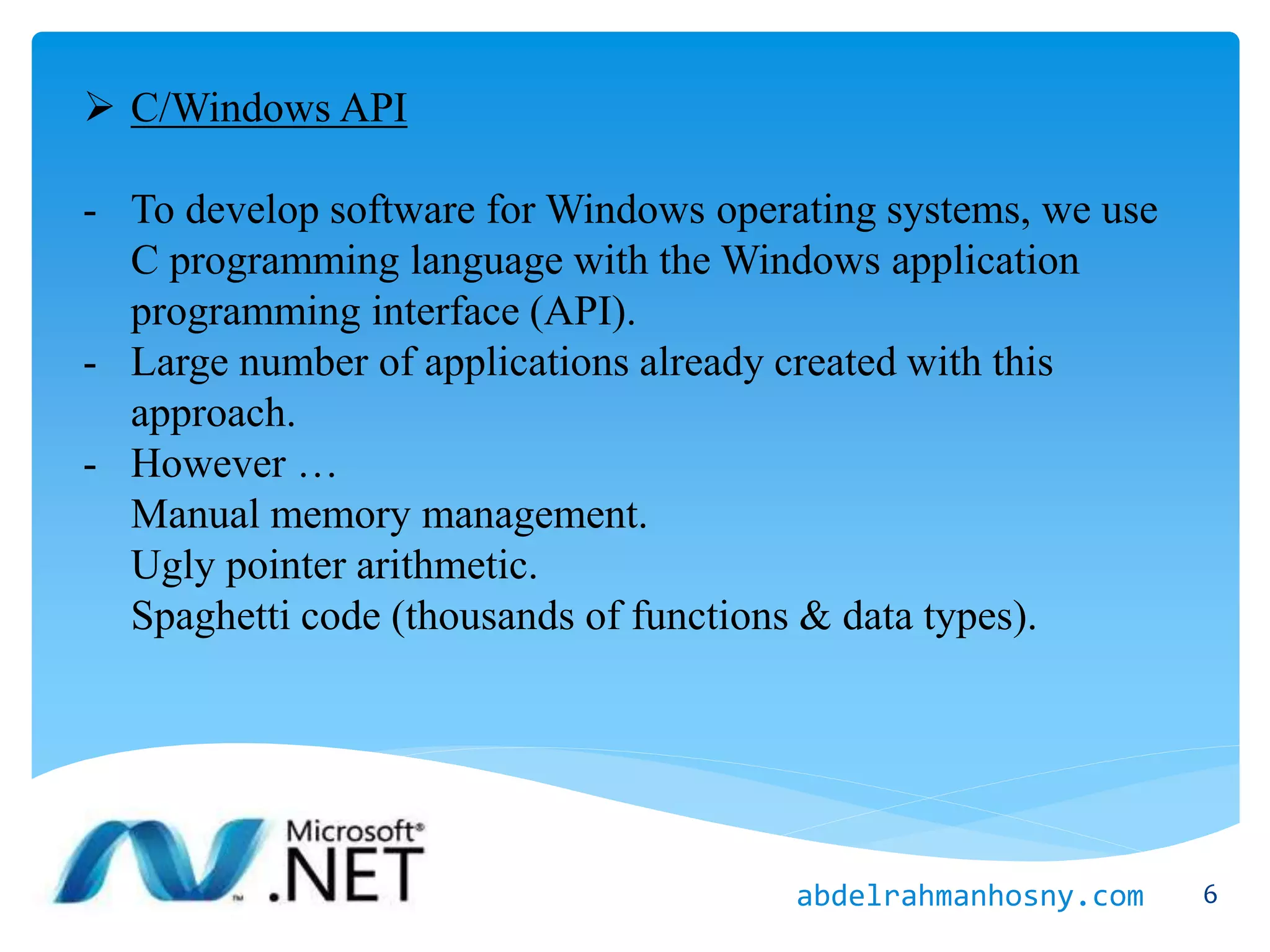

- 6. C/Windows API -To develop software for Windows operating systems, we use C programming language with the Windows application programming interface (API). - Large number of applications already created with this approach. - However … Manual memory management. Ugly pointer arithmetic. Spaghetti code (thousands of functions & data types). 6abdelrahmanhosny.com

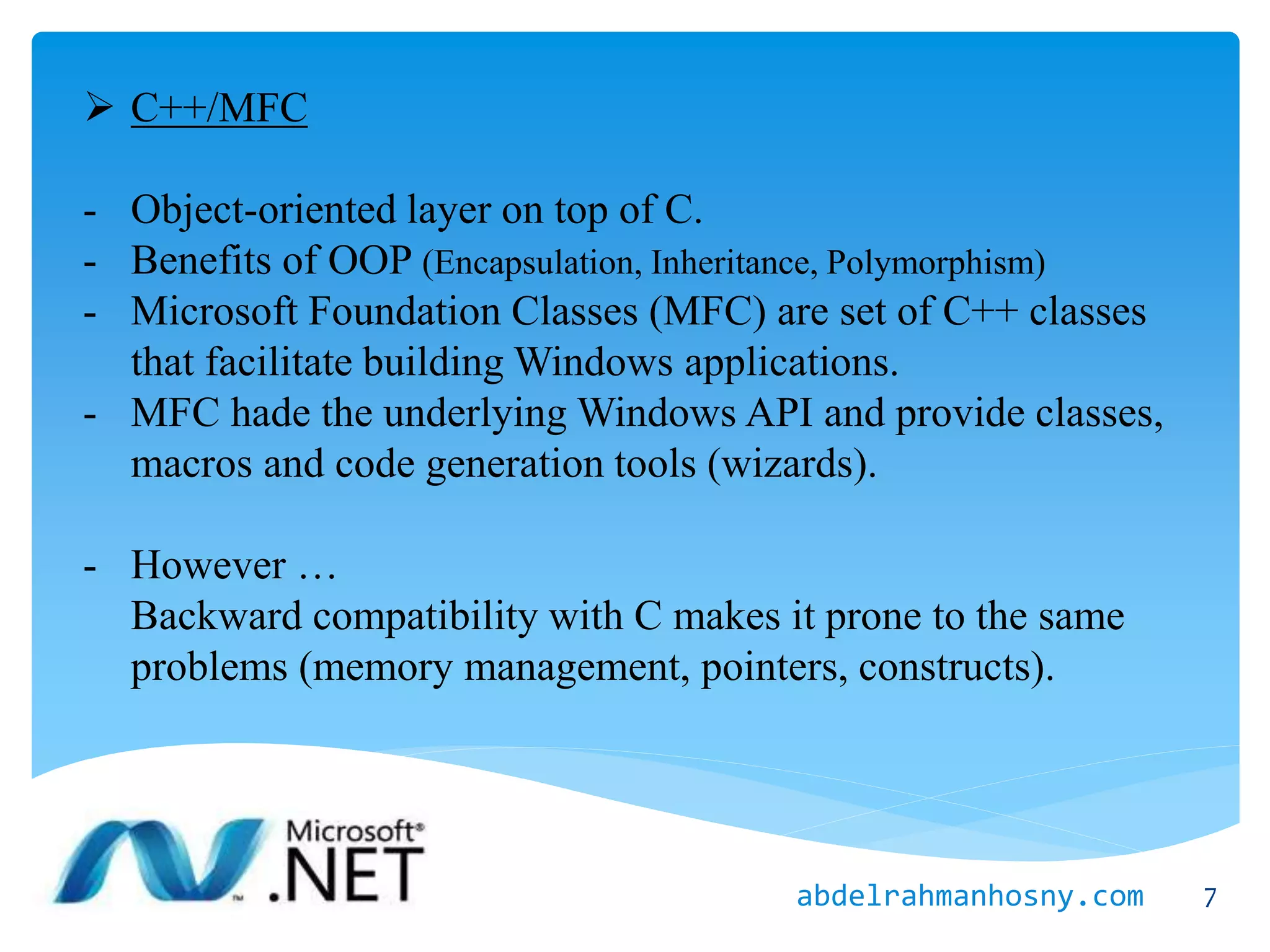

- 7. C++/MFC - Object-orientedlayer on top of C. - Benefits of OOP (Encapsulation, Inheritance, Polymorphism) - Microsoft Foundation Classes (MFC) are set of C++ classes that facilitate building Windows applications. - MFC hade the underlying Windows API and provide classes, macros and code generation tools (wizards). - However … Backward compatibility with C makes it prone to the same problems (memory management, pointers, constructs). 7abdelrahmanhosny.com

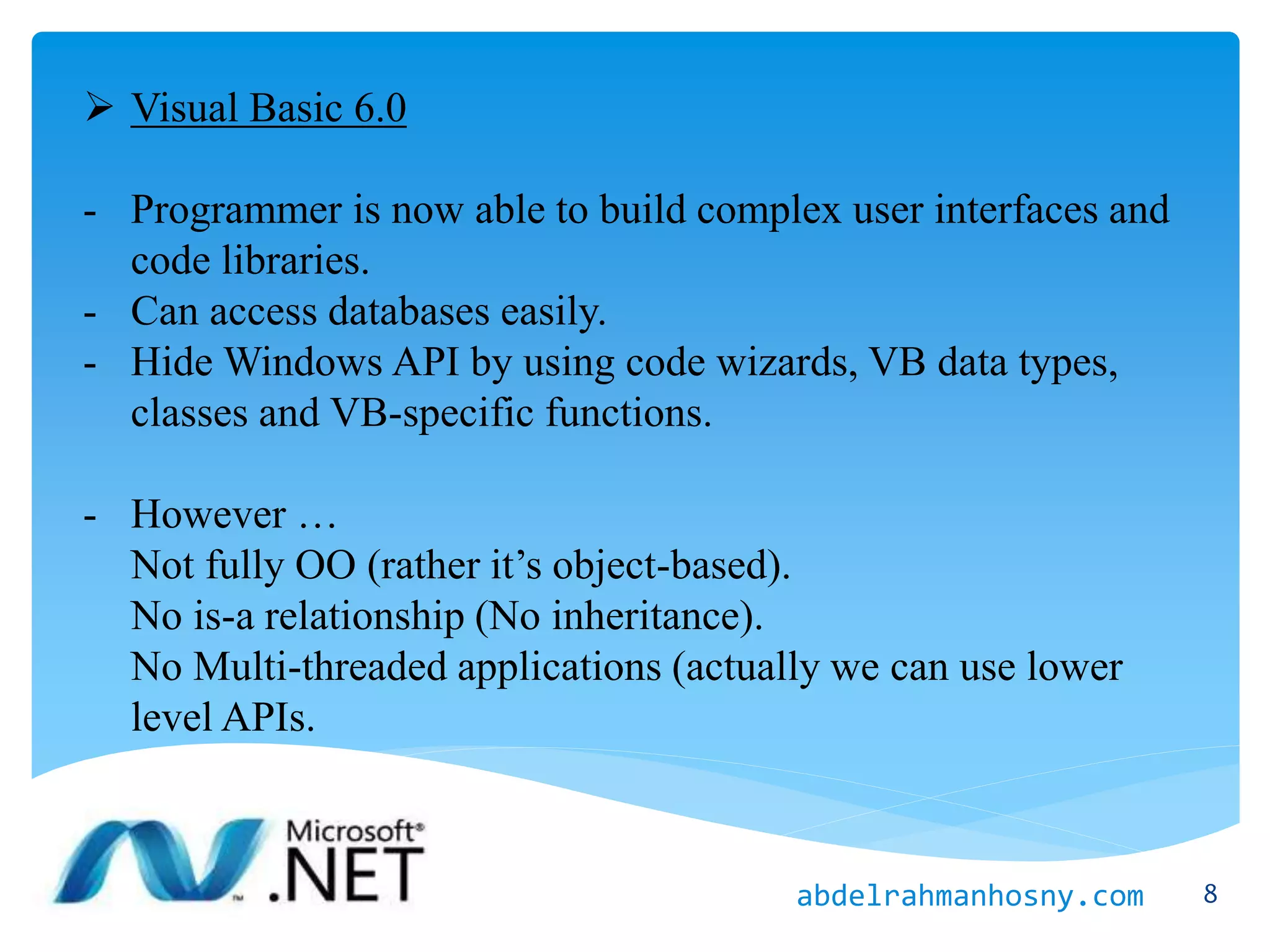

- 8. Visual Basic6.0 - Programmer is now able to build complex user interfaces and code libraries. - Can access databases easily. - Hide Windows API by using code wizards, VB data types, classes and VB-specific functions. - However … Not fully OO (rather it’s object-based). No is-a relationship (No inheritance). No Multi-threaded applications (actually we can use lower level APIs. 8abdelrahmanhosny.com

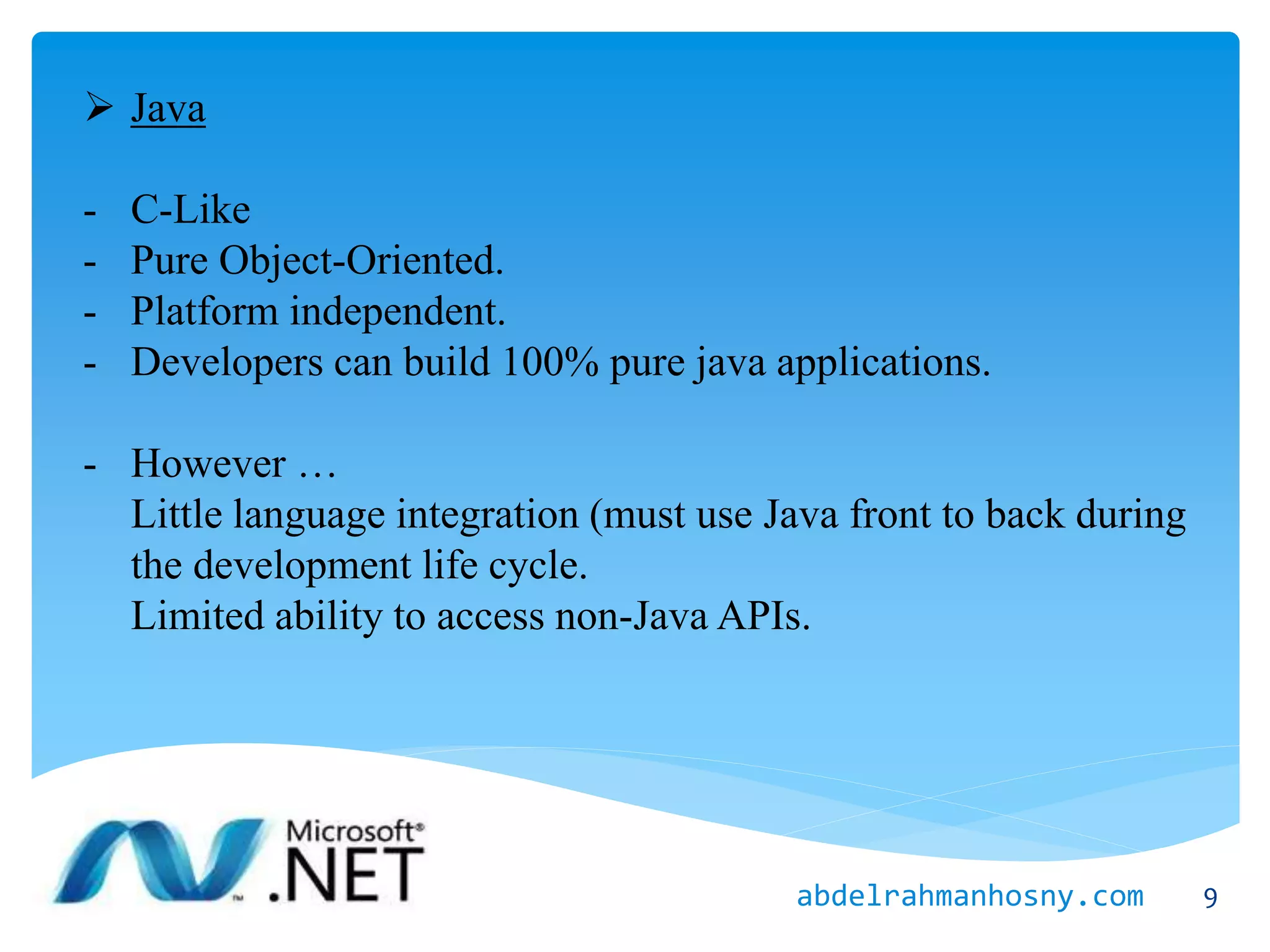

- 9. Java - C-Like -Pure Object-Oriented. - Platform independent. - Developers can build 100% pure java applications. - However … Little language integration (must use Java front to back during the development life cycle. Limited ability to access non-Java APIs. 9abdelrahmanhosny.com

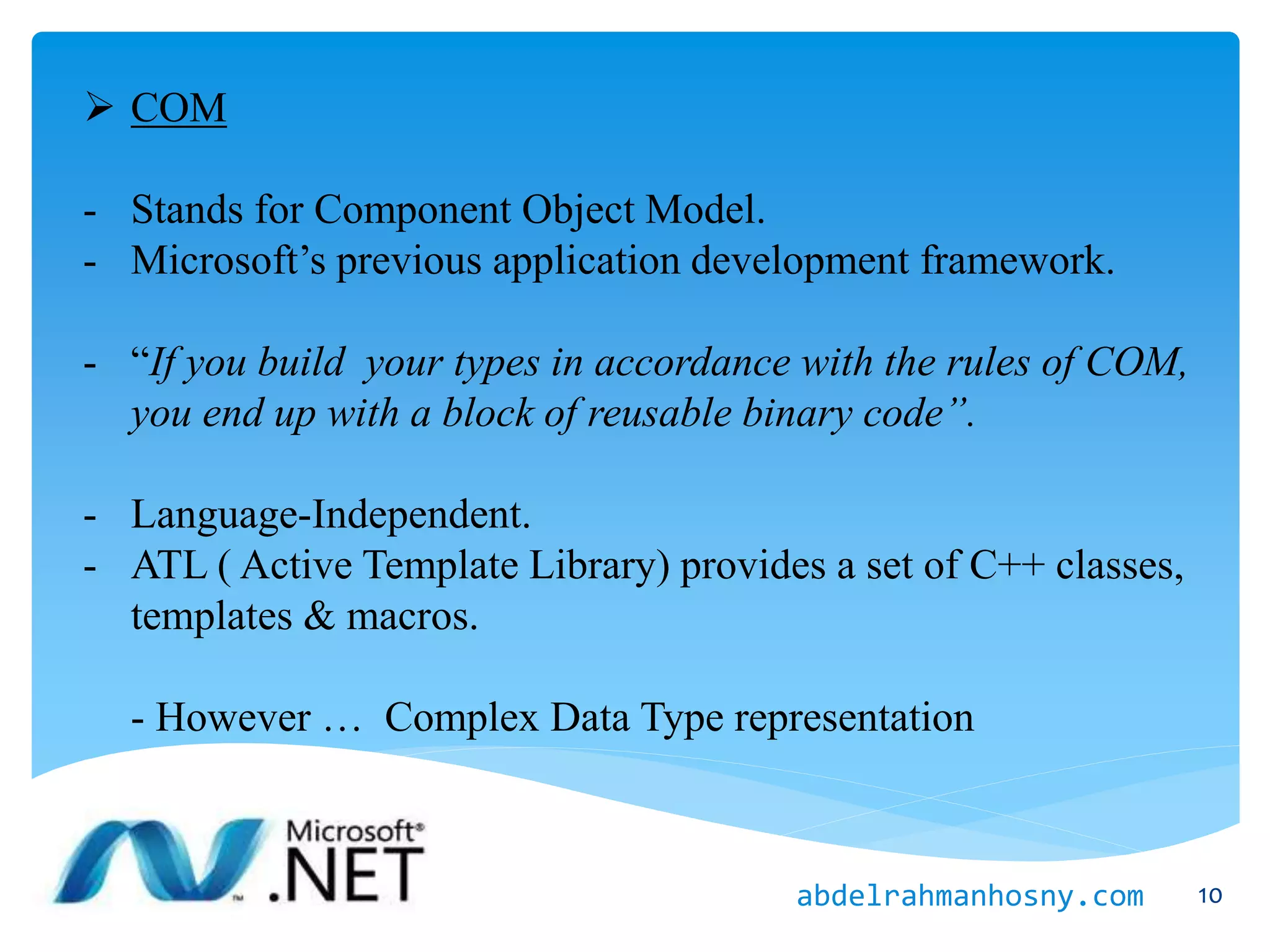

- 10. COM - Standsfor Component Object Model. - Microsoft’s previous application development framework. - “If you build your types in accordance with the rules of COM, you end up with a block of reusable binary code”. - Language-Independent. - ATL ( Active Template Library) provides a set of C++ classes, templates & macros. - However … Complex Data Type representation 10abdelrahmanhosny.com

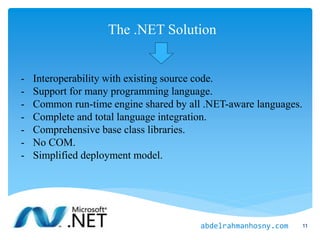

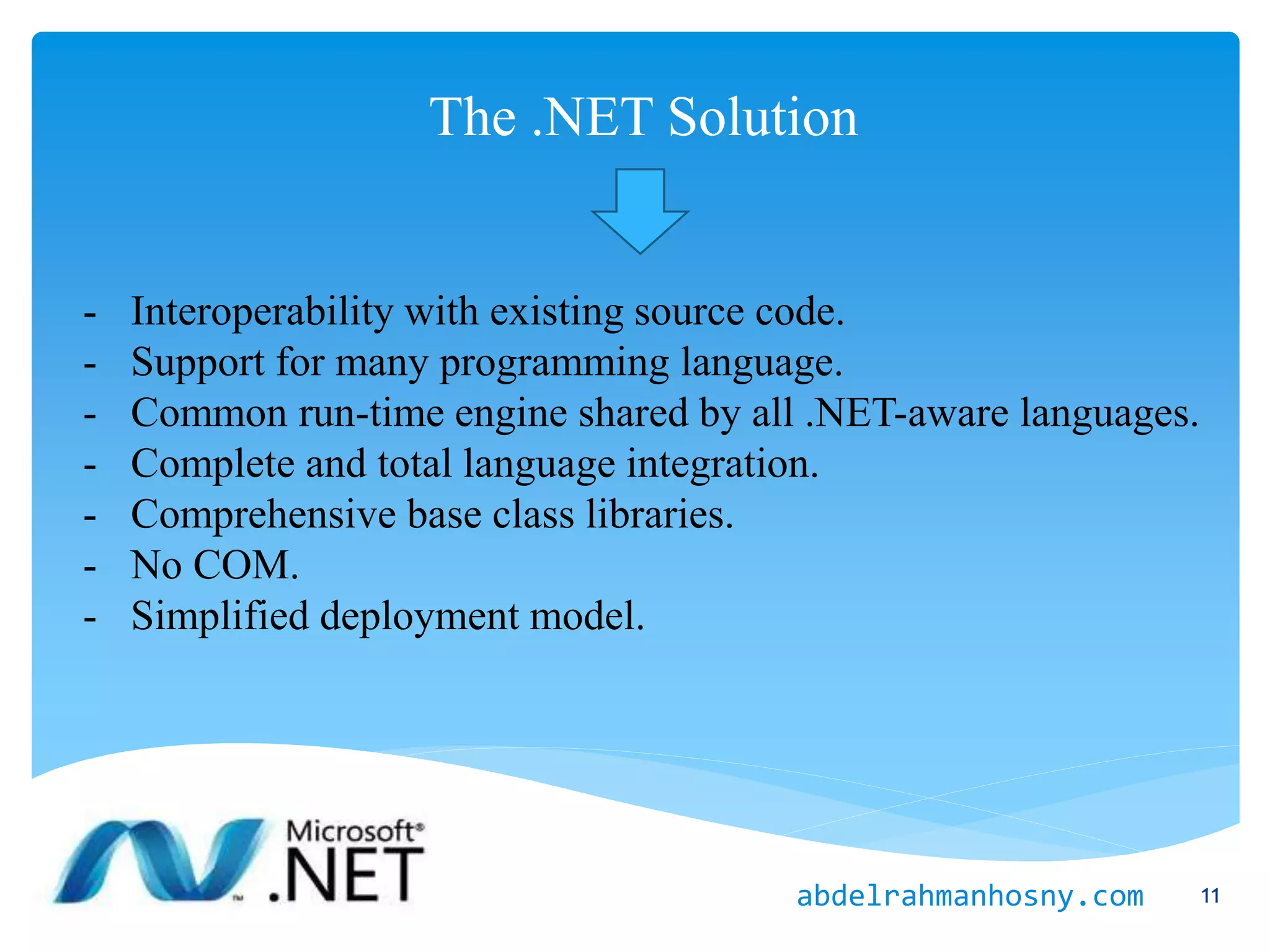

- 11. The .NET Solution -Interoperability with existing source code. - Support for many programming language. - Common run-time engine shared by all .NET-aware languages. - Complete and total language integration. - Comprehensive base class libraries. - No COM. - Simplified deployment model. 11abdelrahmanhosny.com

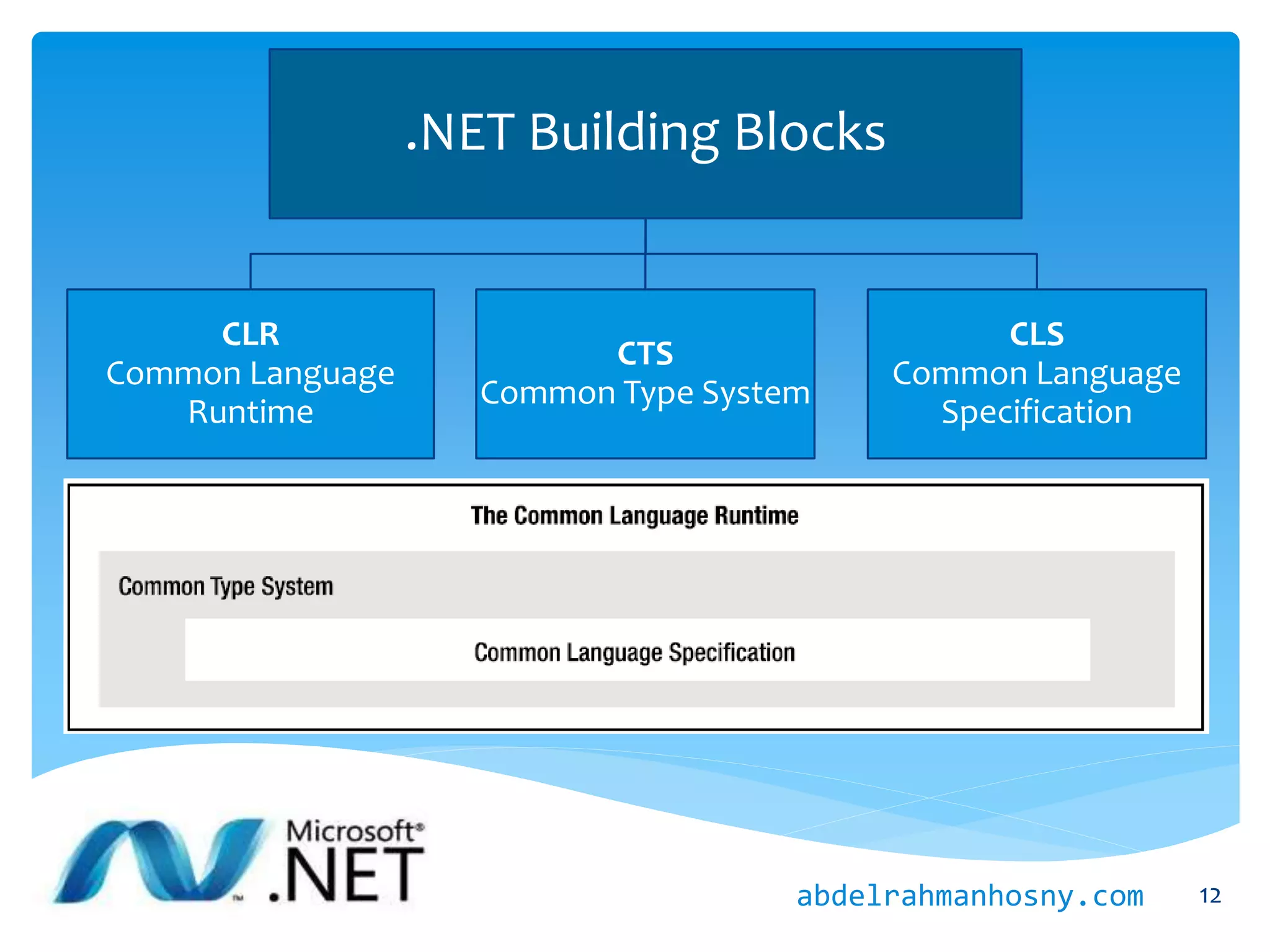

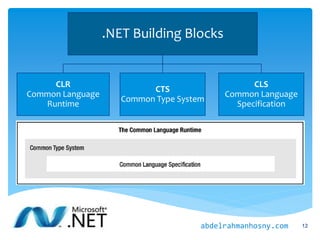

- 12. .NET Building Blocks CLR CommonLanguage Runtime CTS Common Type System CLS Common Language Specification 12abdelrahmanhosny.com

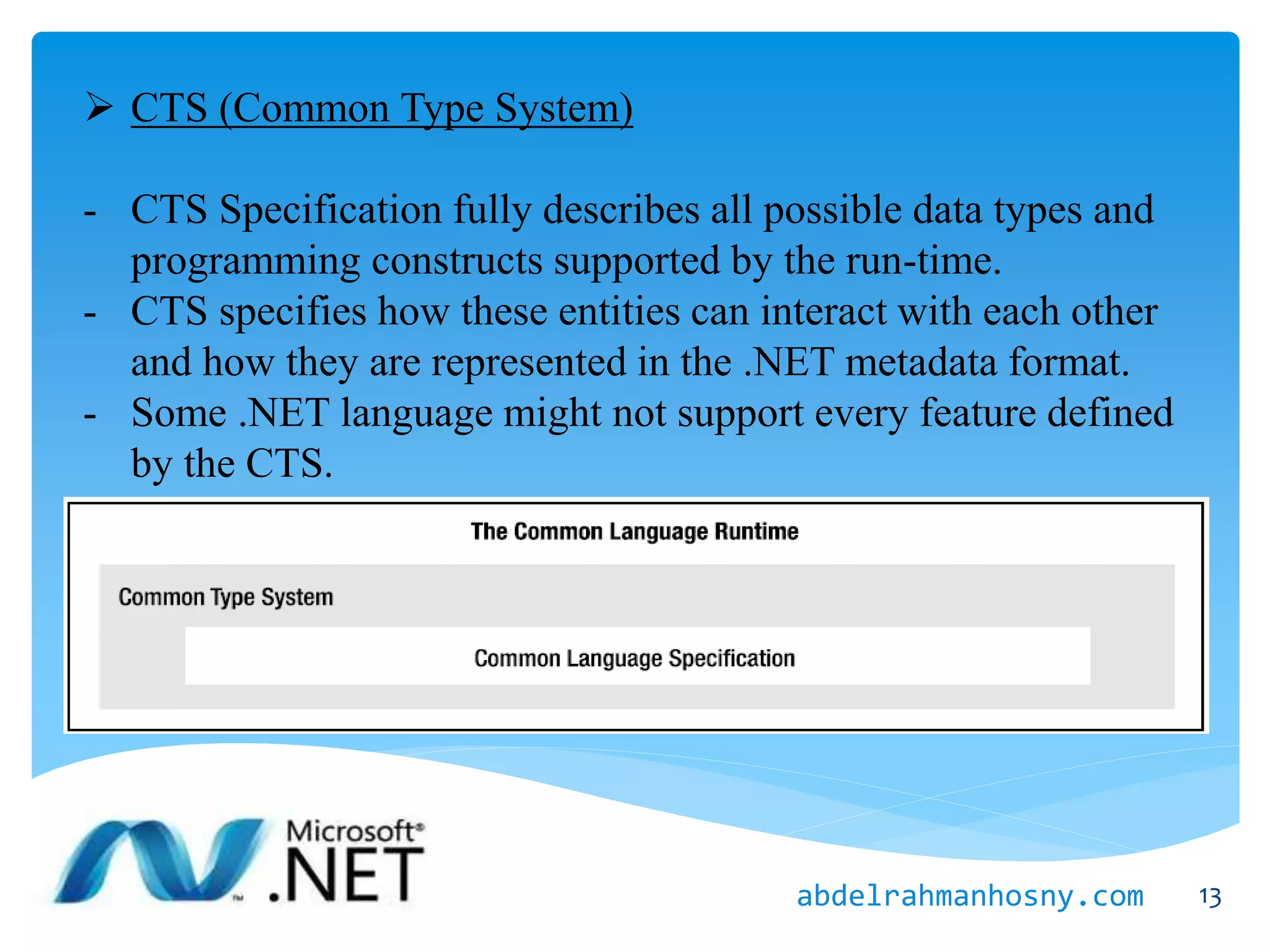

- 13. CTS (CommonType System) - CTS Specification fully describes all possible data types and programming constructs supported by the run-time. - CTS specifies how these entities can interact with each other and how they are represented in the .NET metadata format. - Some .NET language might not support every feature defined by the CTS. 13abdelrahmanhosny.com

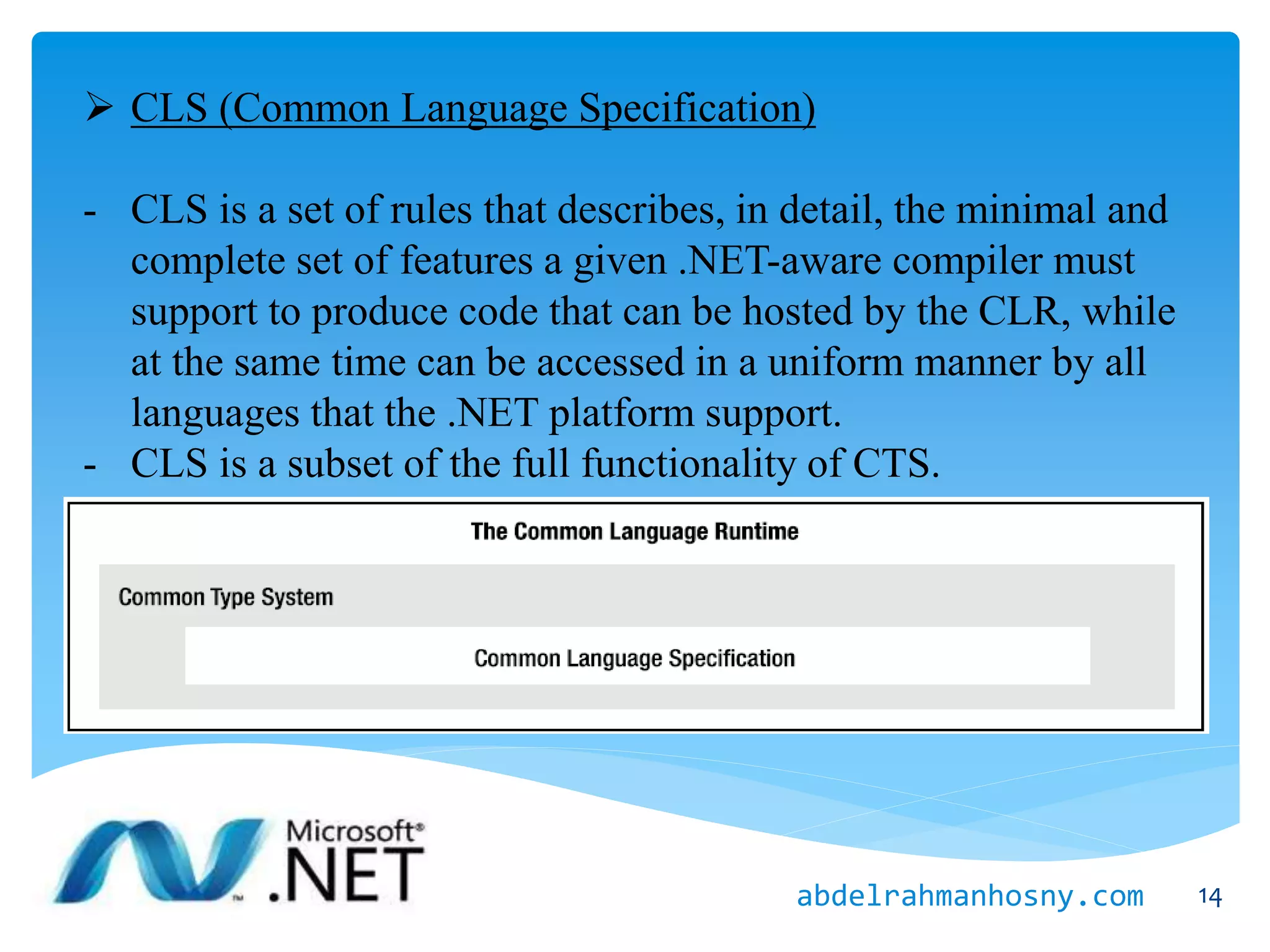

- 14. CLS (CommonLanguage Specification) - CLS is a set of rules that describes, in detail, the minimal and complete set of features a given .NET-aware compiler must support to produce code that can be hosted by the CLR, while at the same time can be accessed in a uniform manner by all languages that the .NET platform support. - CLS is a subset of the full functionality of CTS. 14abdelrahmanhosny.com

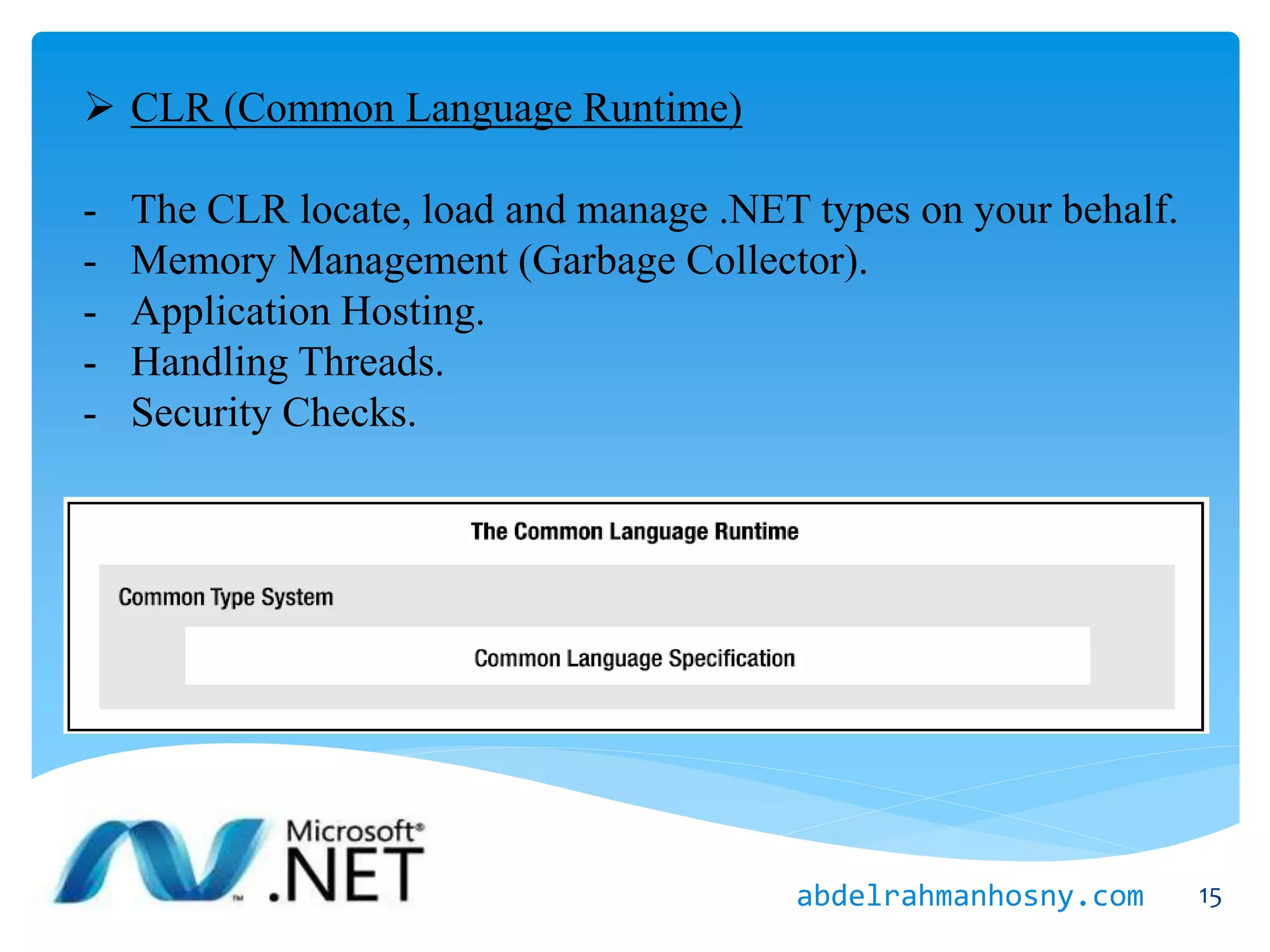

- 15. CLR (CommonLanguage Runtime) - The CLR locate, load and manage .NET types on your behalf. - Memory Management (Garbage Collector). - Application Hosting. - Handling Threads. - Security Checks. 15abdelrahmanhosny.com

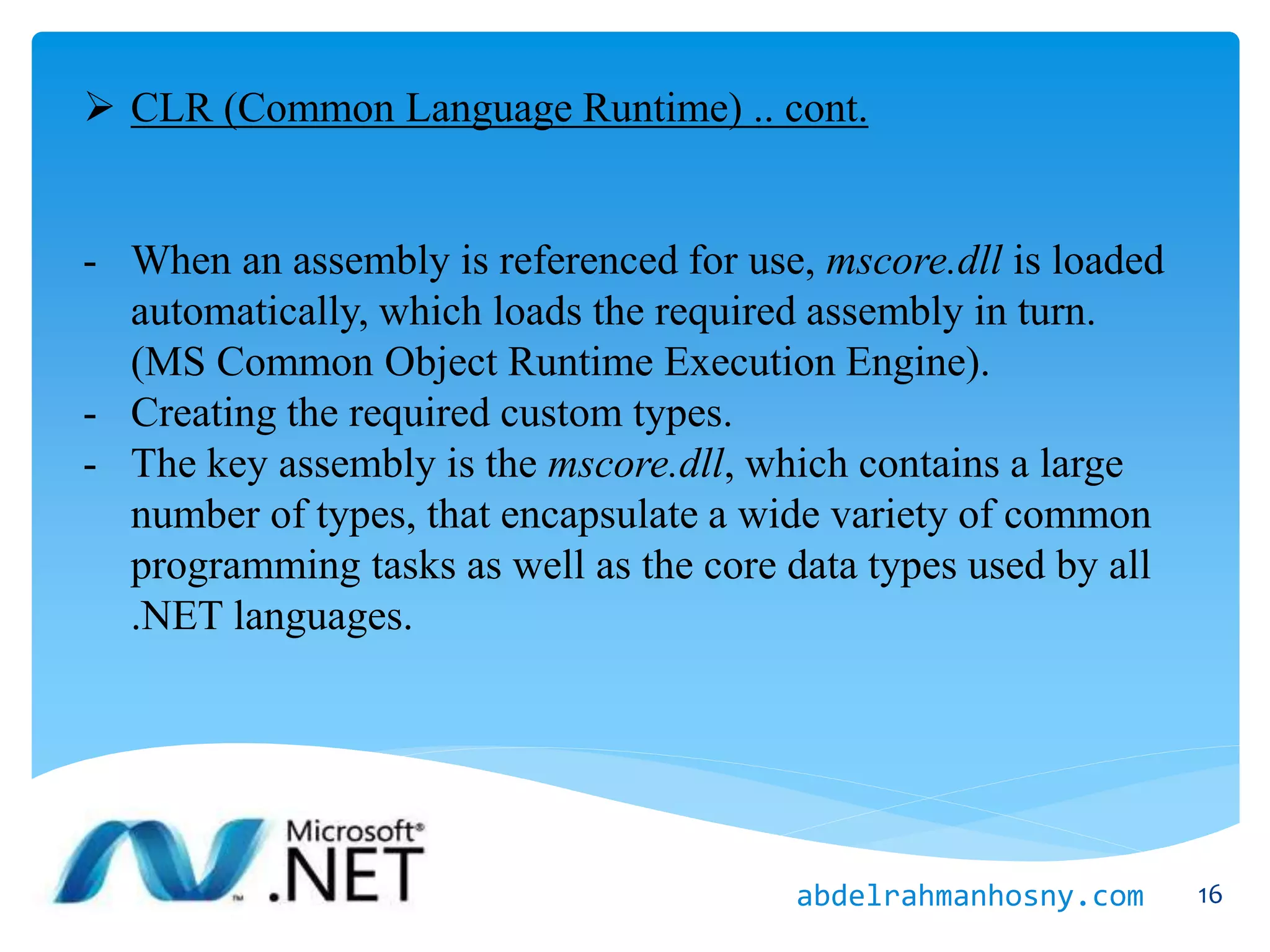

- 16. CLR (CommonLanguage Runtime) .. cont. - When an assembly is referenced for use, mscore.dll is loaded automatically, which loads the required assembly in turn. (MS Common Object Runtime Execution Engine). - Creating the required custom types. - The key assembly is the mscore.dll, which contains a large number of types, that encapsulate a wide variety of common programming tasks as well as the core data types used by all .NET languages. 16abdelrahmanhosny.com

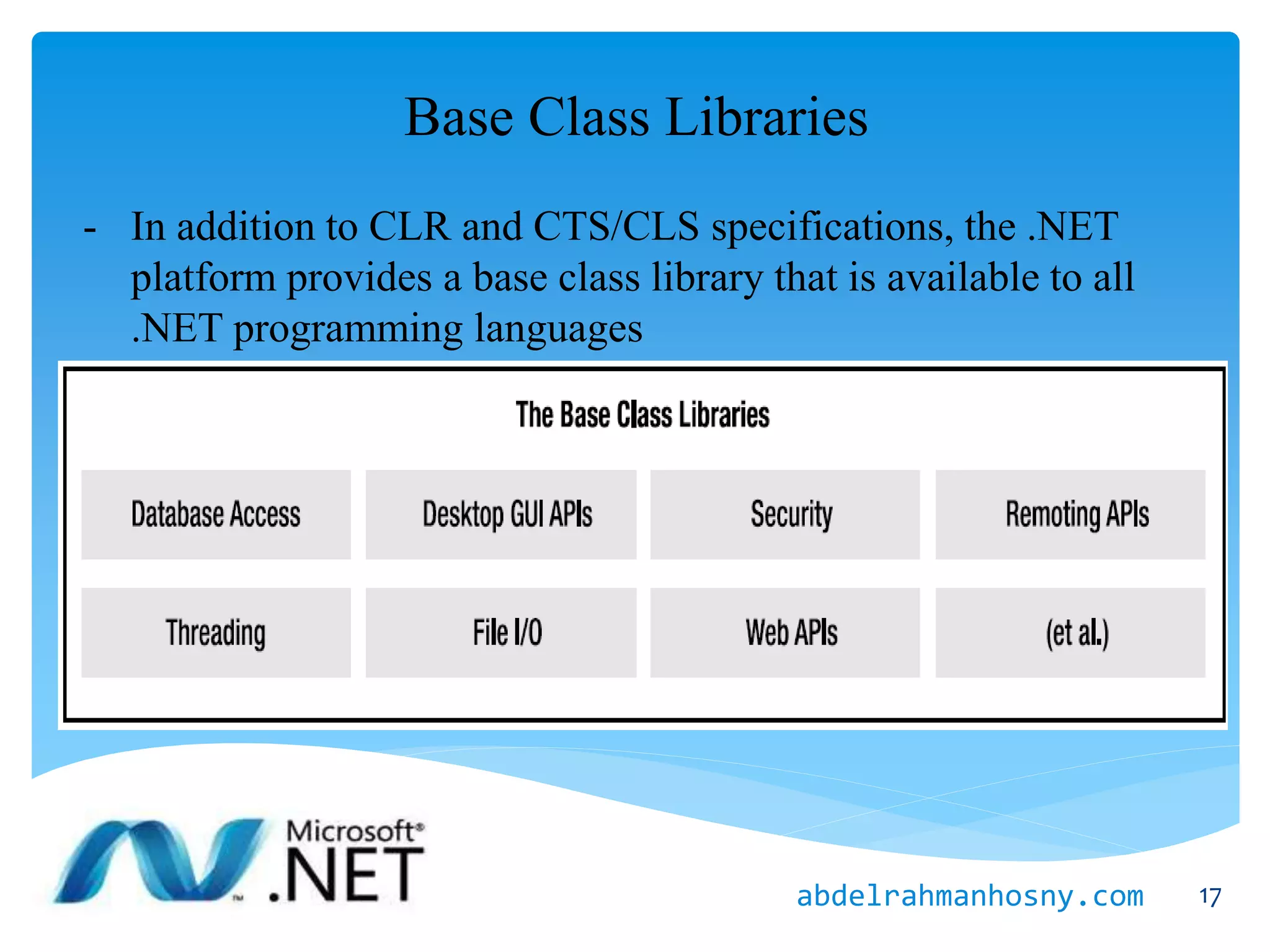

- 17. Base Class Libraries -In addition to CLR and CTS/CLS specifications, the .NET platform provides a base class library that is available to all .NET programming languages 17abdelrahmanhosny.com

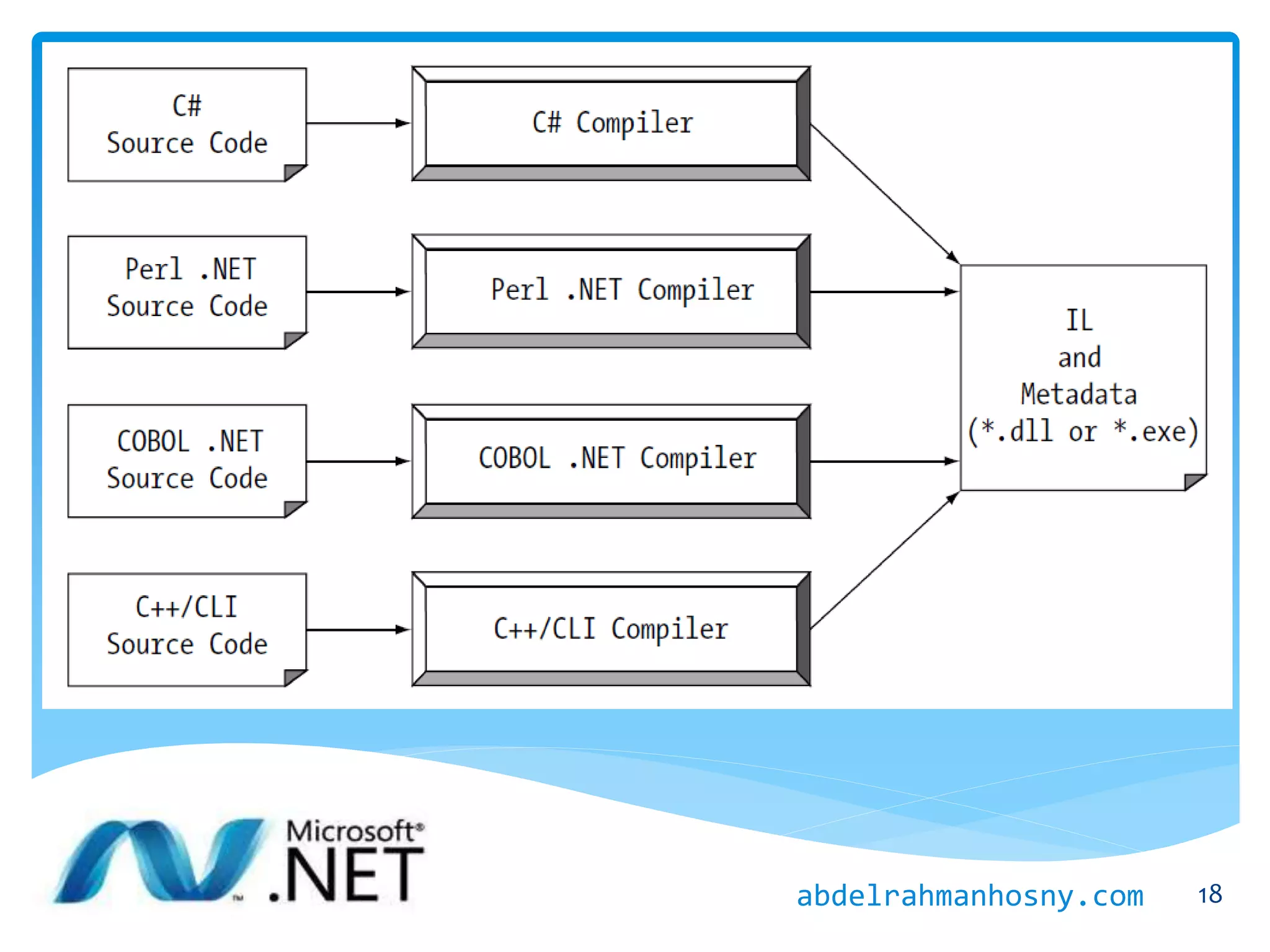

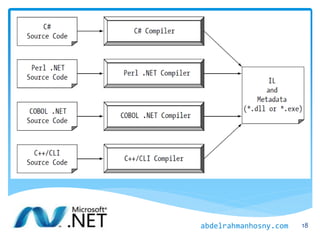

- 18.

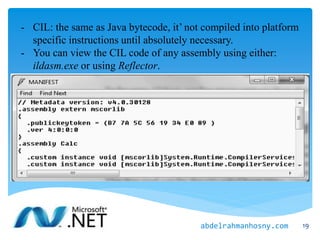

- 19. - CIL: thesame as Java bytecode, it’ not compiled into platform specific instructions until absolutely necessary. - You can view the CIL code of any assembly using either: ildasm.exe or using Reflector. 19abdelrahmanhosny.com

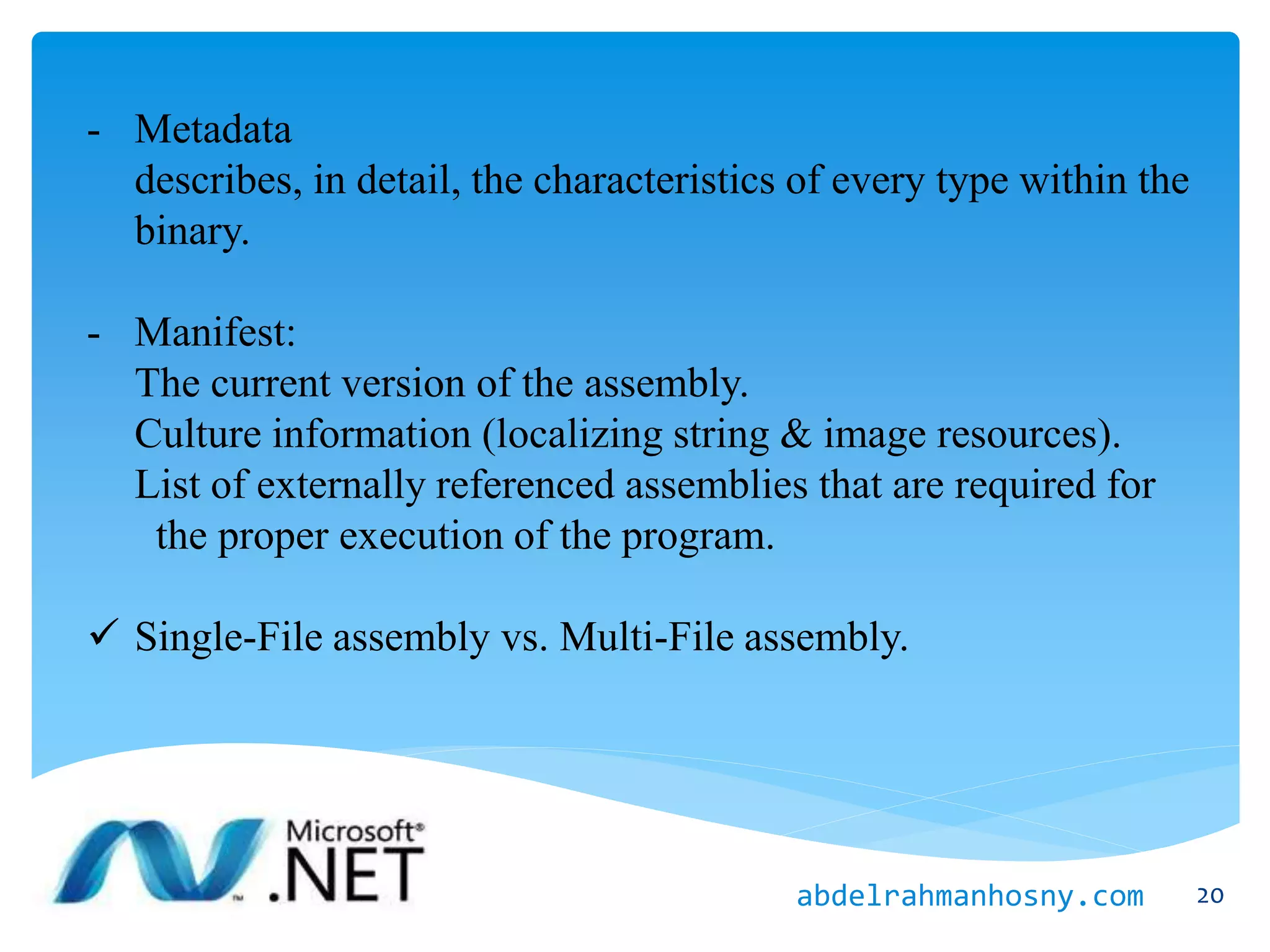

- 20. - Metadata describes, indetail, the characteristics of every type within the binary. - Manifest: The current version of the assembly. Culture information (localizing string & image resources). List of externally referenced assemblies that are required for the proper execution of the program. Single-File assembly vs. Multi-File assembly. 20abdelrahmanhosny.com
- 21.

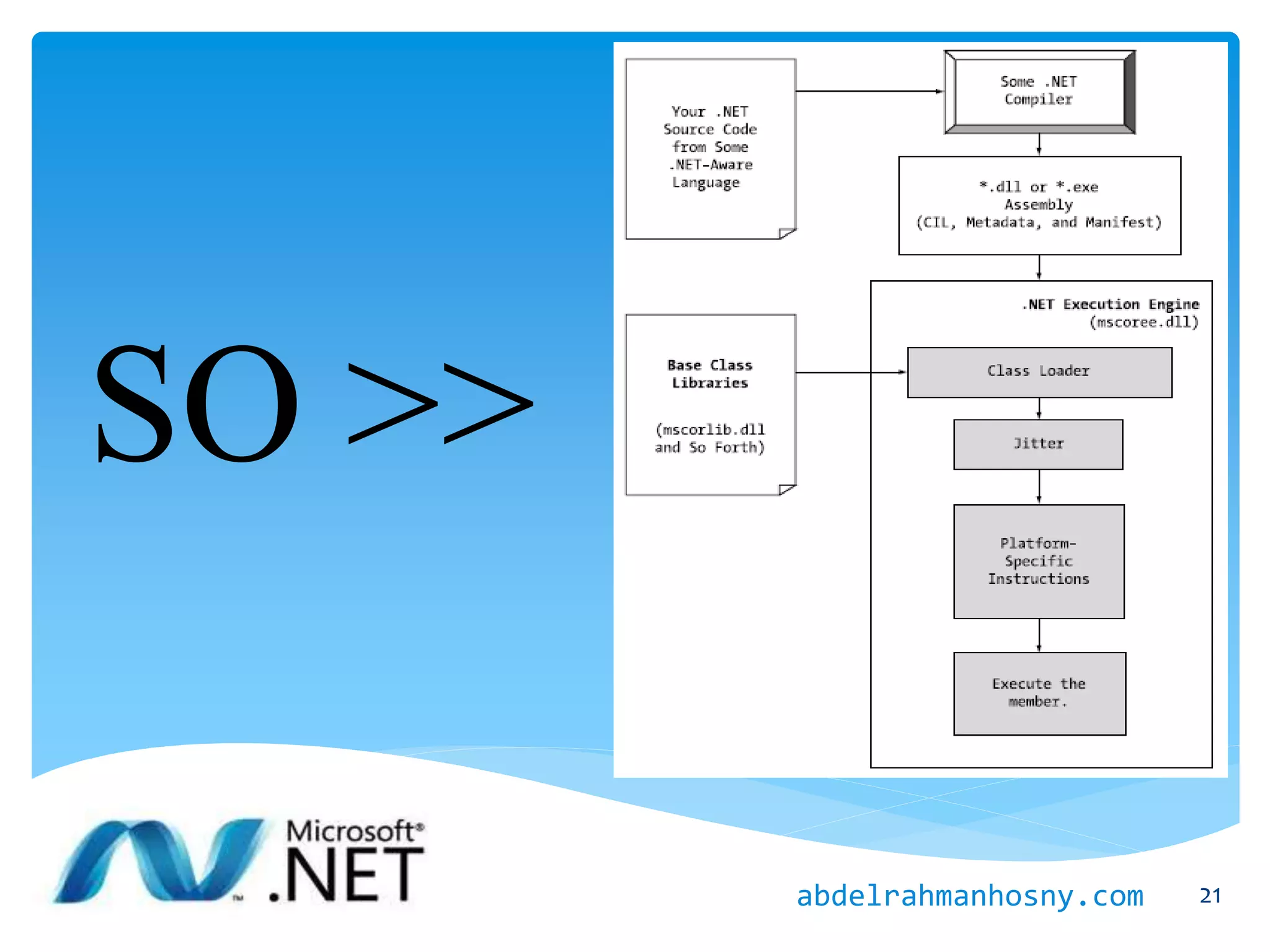

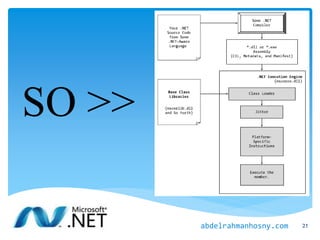

- 22.

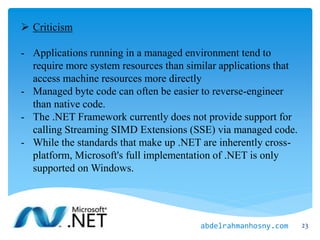

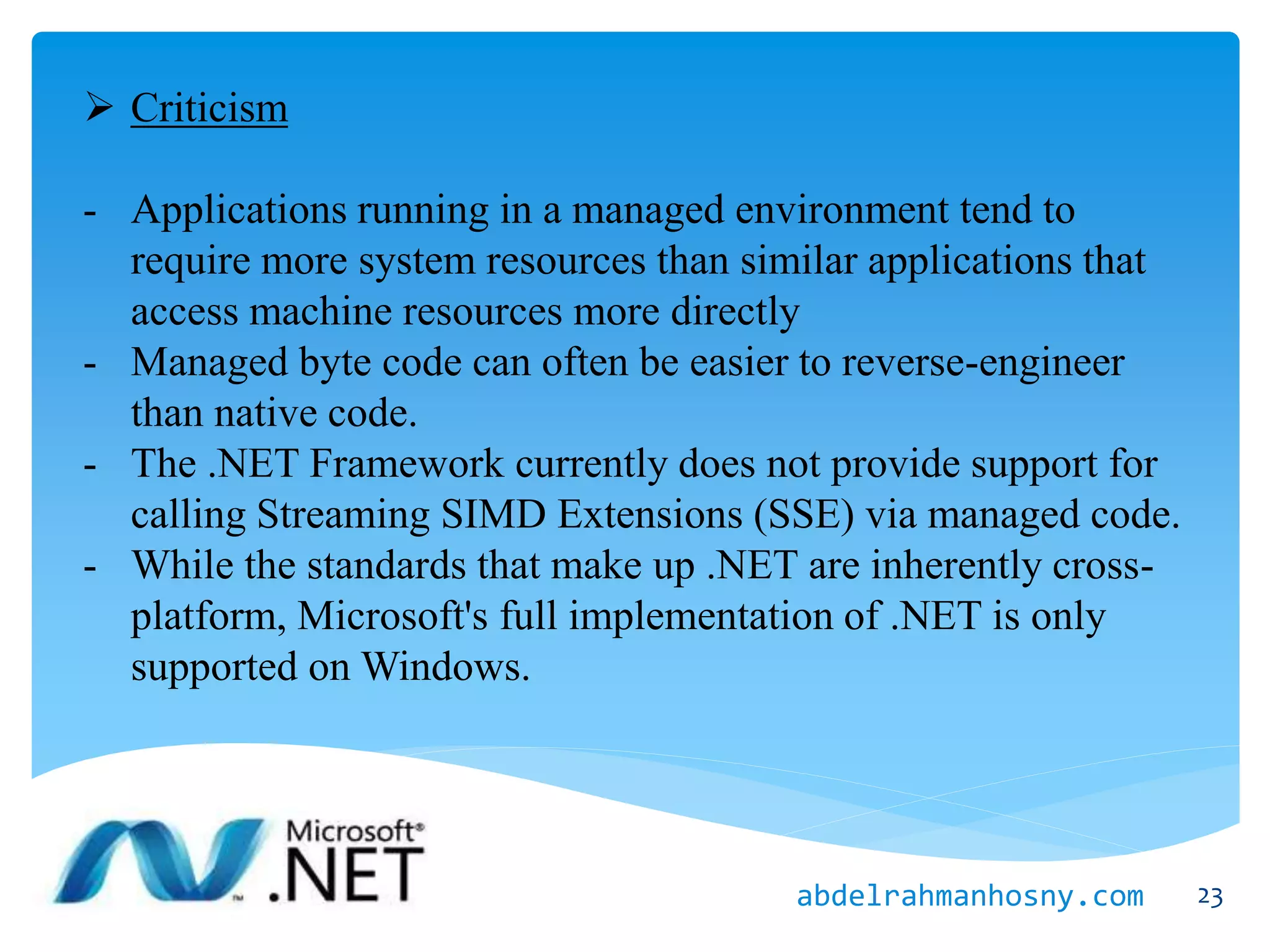

- 23. Criticism - Applicationsrunning in a managed environment tend to require more system resources than similar applications that access machine resources more directly - Managed byte code can often be easier to reverse-engineer than native code. - The .NET Framework currently does not provide support for calling Streaming SIMD Extensions (SSE) via managed code. - While the standards that make up .NET are inherently cross- platform, Microsoft's full implementation of .NET is only supported on Windows. 23abdelrahmanhosny.com

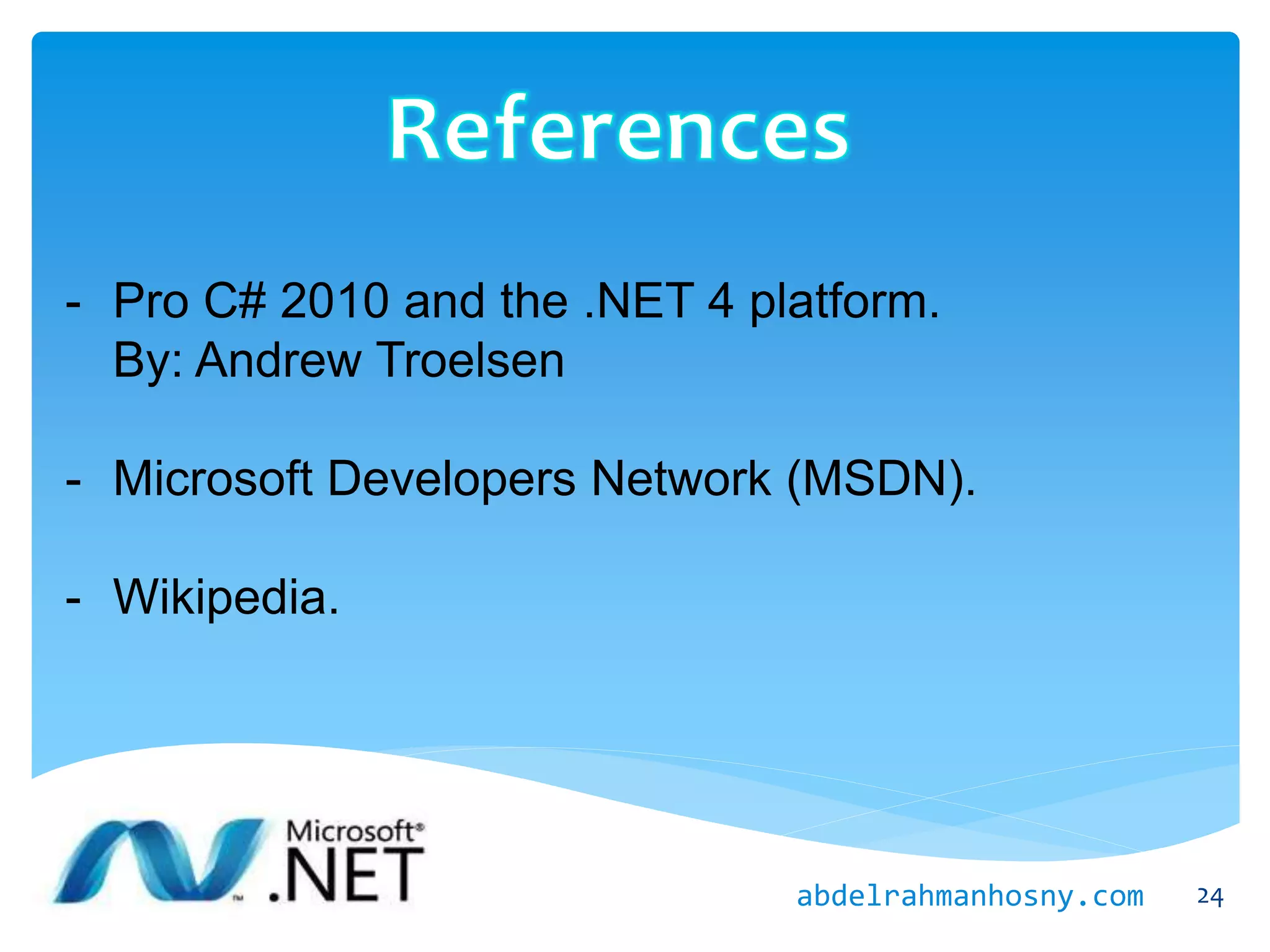

- 24. - Pro C#2010 and the .NET 4 platform. By: Andrew Troelsen - Microsoft Developers Network (MSDN). - Wikipedia. 24abdelrahmanhosny.com
- 25.

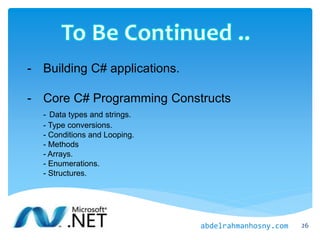

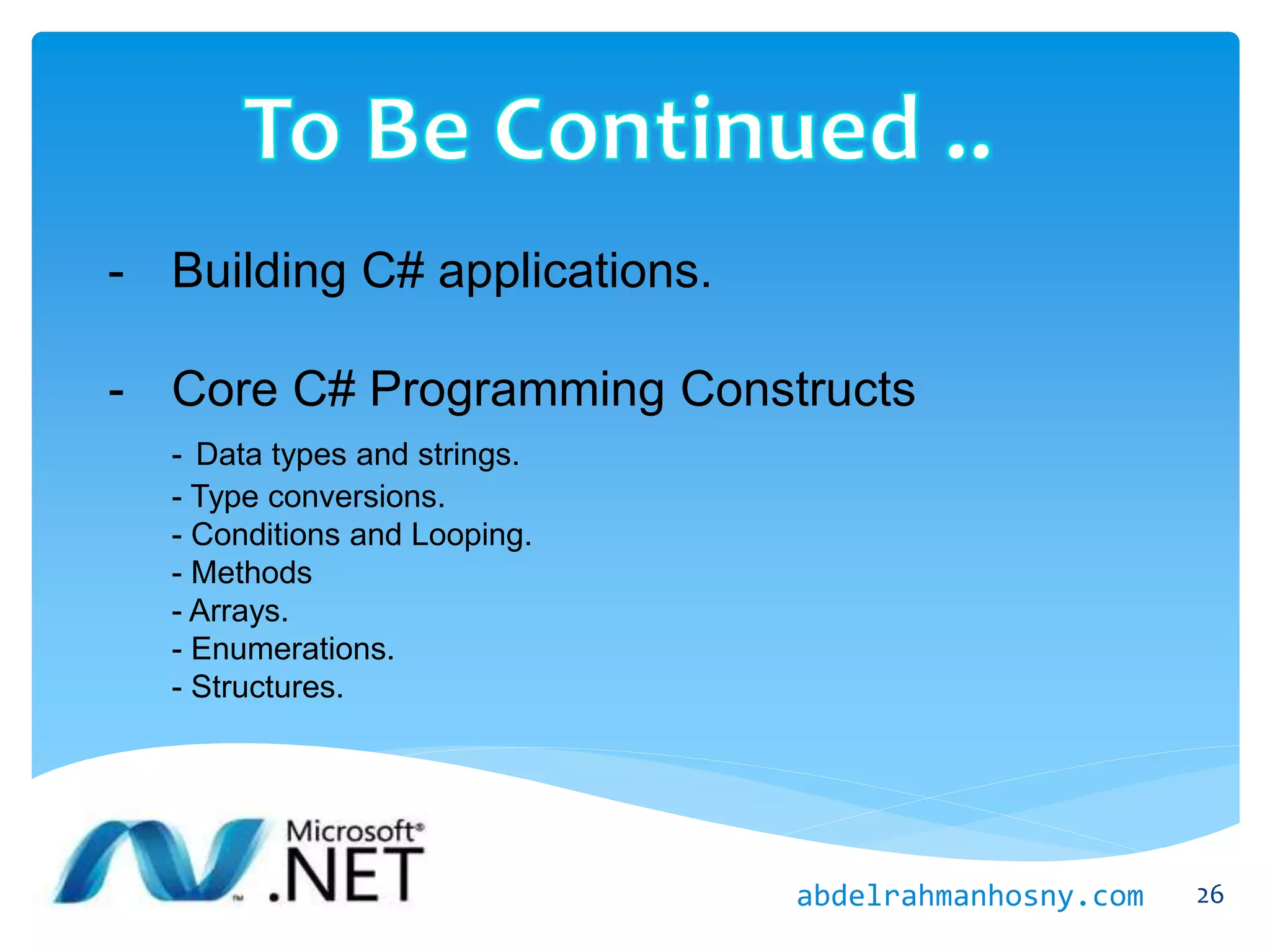

- 26. 26 - Building C#applications. - Core C# Programming Constructs - Data types and strings. - Type conversions. - Conditions and Looping. - Methods - Arrays. - Enumerations. - Structures. abdelrahmanhosny.com
