© Oxford University Press 2011. All rights reserved.
Data Structures Using C
Reema Thareja, Assistant Professor, Institute of
Information Technology and Management,
New Delhi

CHAPTER 7
POINTERS

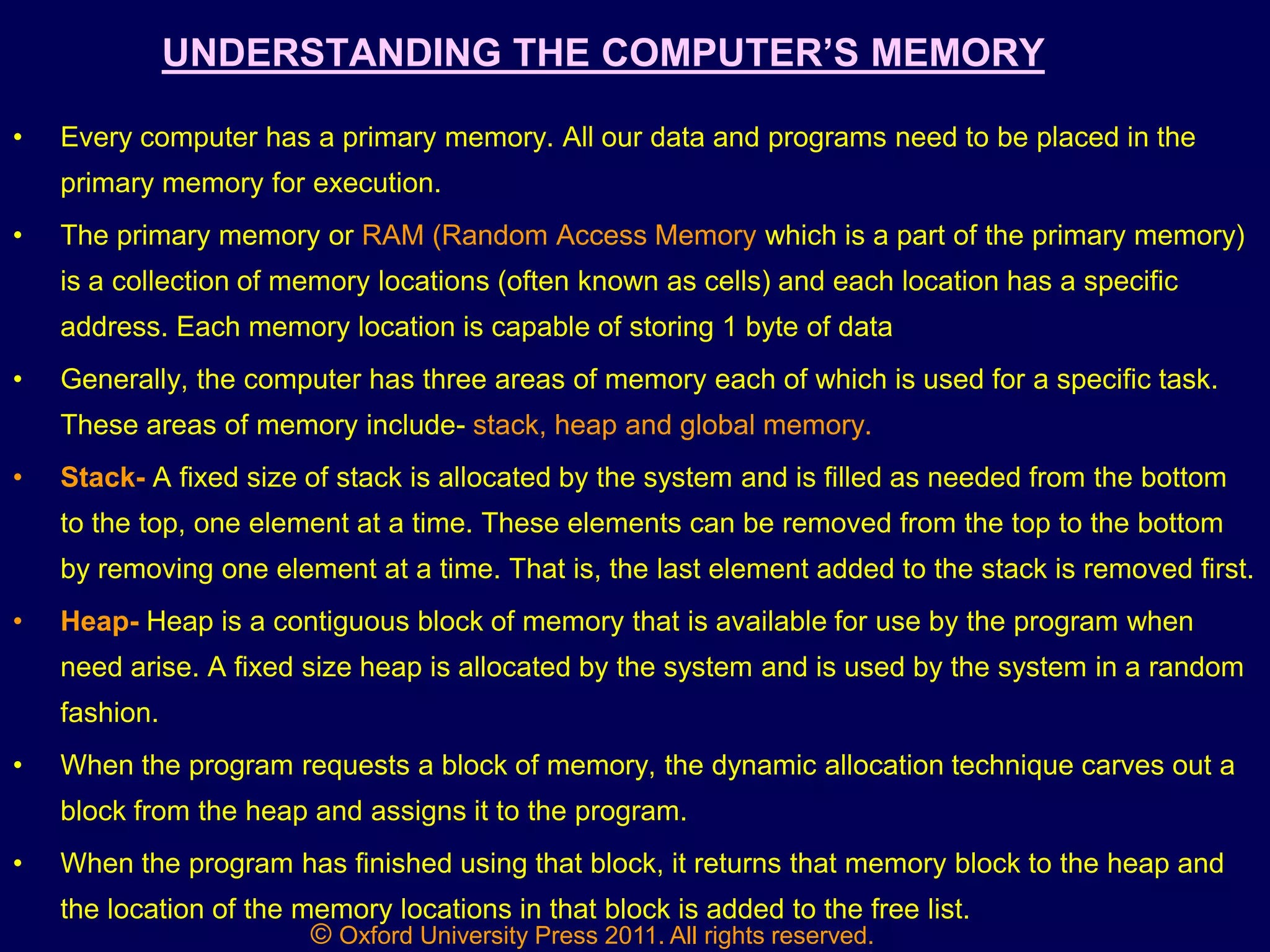

UNDERSTANDING THE COMPUTER‟S MEMORY
• Every computer has a primary memory. All our data and programs need to be placed in the
primary memory for execution.
• The primary memory or RAM (Random Access Memory which is a part of the primary memory)
is a collection of memory locations (often known as cells) and each location has a specific
address. Each memory location is capable of storing 1 byte of data
• Generally, the computer has three areas of memory each of which is used for a specific task.
These areas of memory include- stack, heap and global memory.
• Stack- A fixed size of stack is allocated by the system and is filled as needed from the bottom
to the top, one element at a time. These elements can be removed from the top to the bottom
by removing one element at a time. That is, the last element added to the stack is removed first.
• Heap- Heap is a contiguous block of memory that is available for use by the program when
need arise. A fixed size heap is allocated by the system and is used by the system in a random
fashion.
• When the program requests a block of memory, the dynamic allocation technique carves out a
block from the heap and assigns it to the program.
• When the program has finished using that block, it returns that memory block to the heap and
the location of the memory locations in that block is added to the free list.

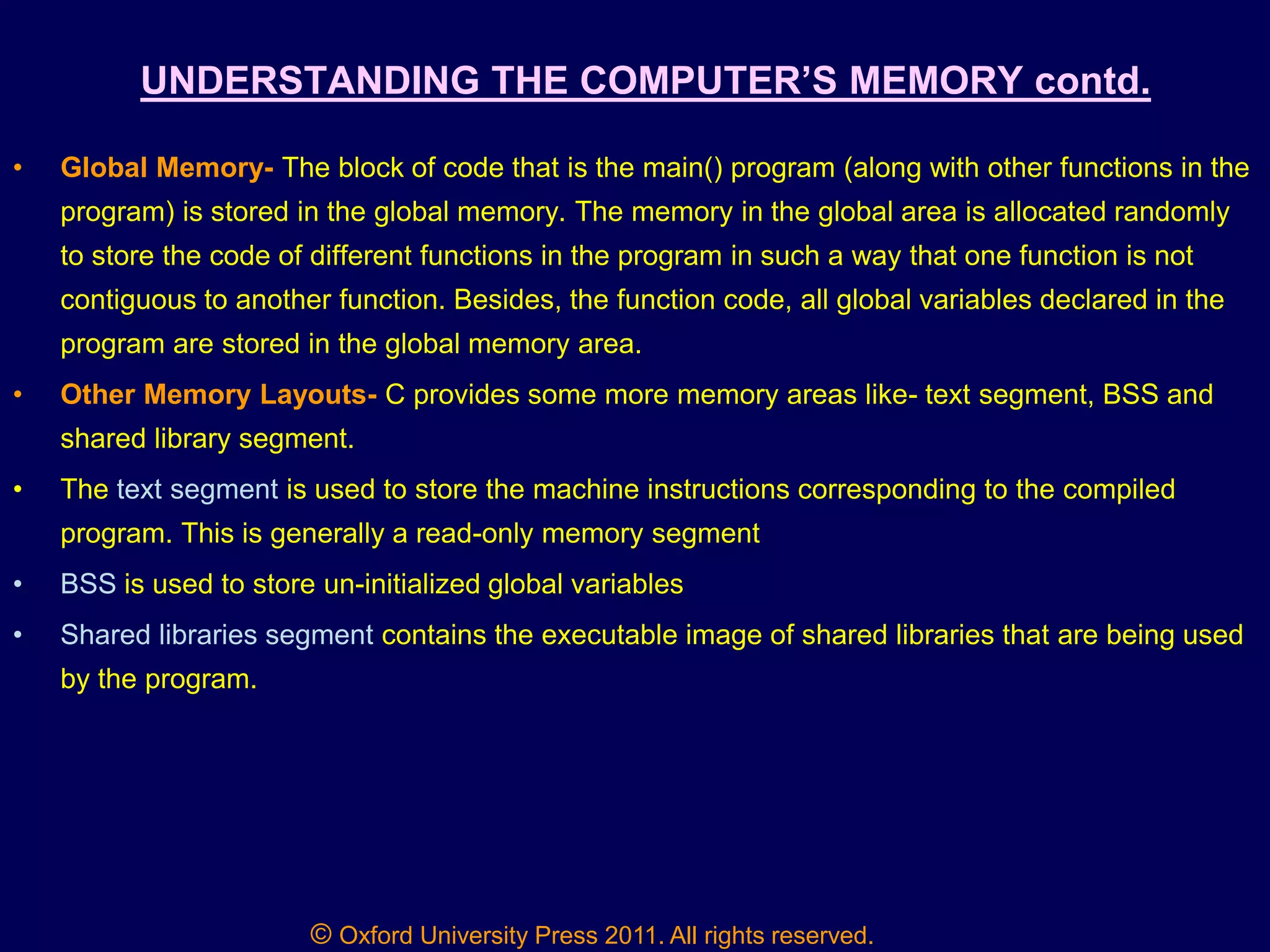

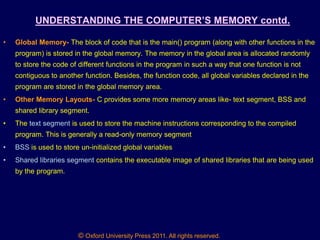

UNDERSTANDING THE COMPUTER‟S MEMORY contd.
• Global Memory- The block of code that is the main() program (along with other functions in the
program) is stored in the global memory. The memory in the global area is allocated randomly
to store the code of different functions in the program in such a way that one function is not
contiguous to another function. Besides, the function code, all global variables declared in the
program are stored in the global memory area.
• Other Memory Layouts- C provides some more memory areas like- text segment, BSS and
shared library segment.
• The text segment is used to store the machine instructions corresponding to the compiled
program. This is generally a read-only memory segment
• BSS is used to store un-initialized global variables
• Shared libraries segment contains the executable image of shared libraries that are being used
by the program.

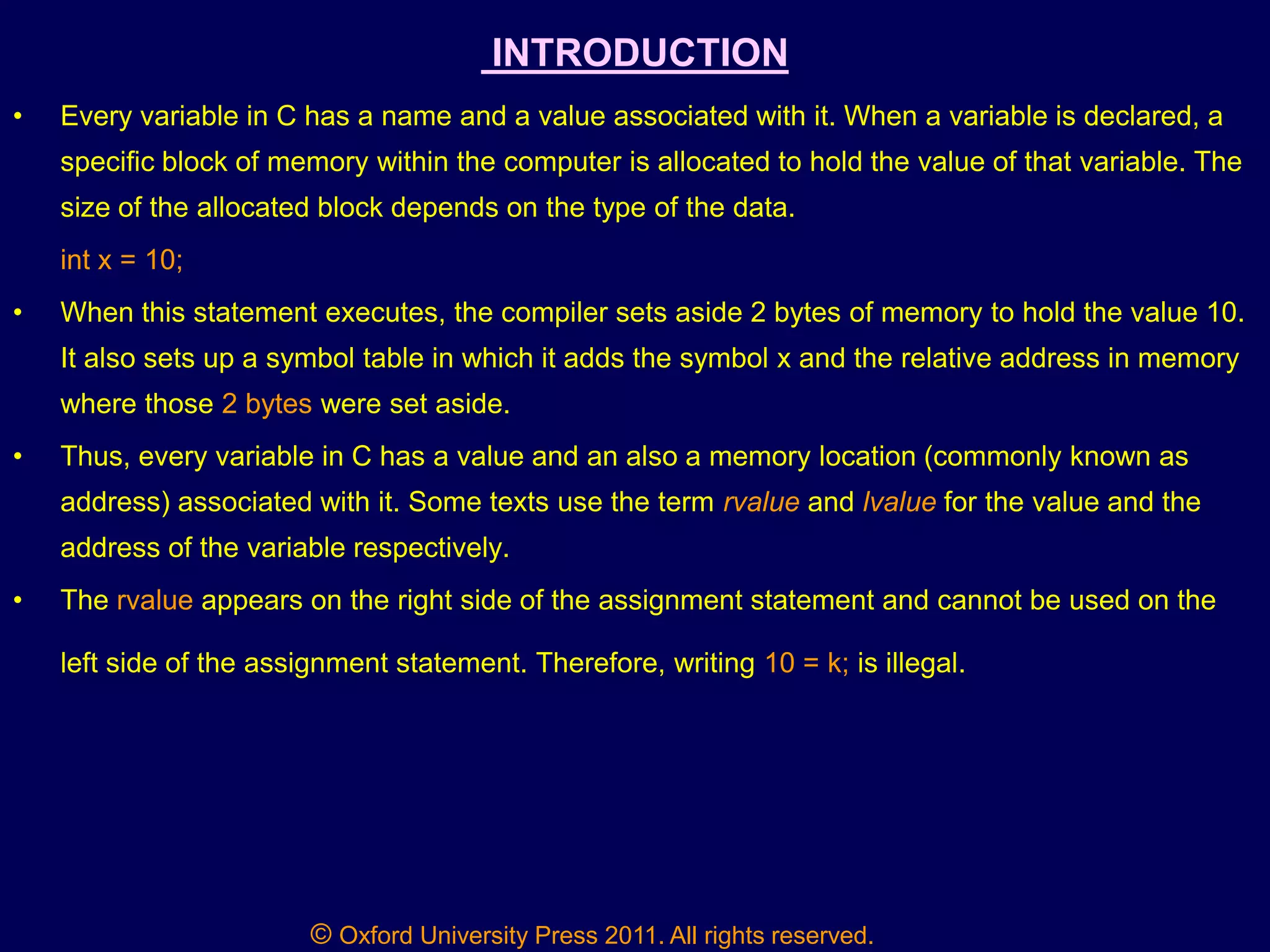

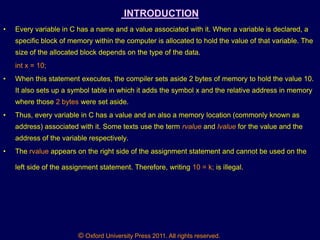

INTRODUCTION
• Every variable in C has a name and a value associated with it. When a variable is declared, a
specific block of memory within the computer is allocated to hold the value of that variable. The
size of the allocated block depends on the type of the data.
int x = 10;
• When this statement executes, the compiler sets aside 2 bytes of memory to hold the value 10.
It also sets up a symbol table in which it adds the symbol x and the relative address in memory
where those 2 bytes were set aside.
• Thus, every variable in C has a value and an also a memory location (commonly known as
address) associated with it. Some texts use the term rvalue and lvalue for the value and the
address of the variable respectively.
• The rvalue appears on the right side of the assignment statement and cannot be used on the
left side of the assignment statement. Therefore, writing 10 = k; is illegal.

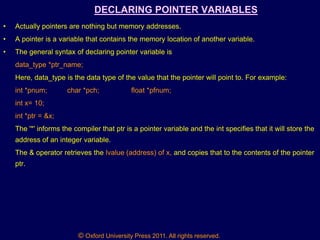

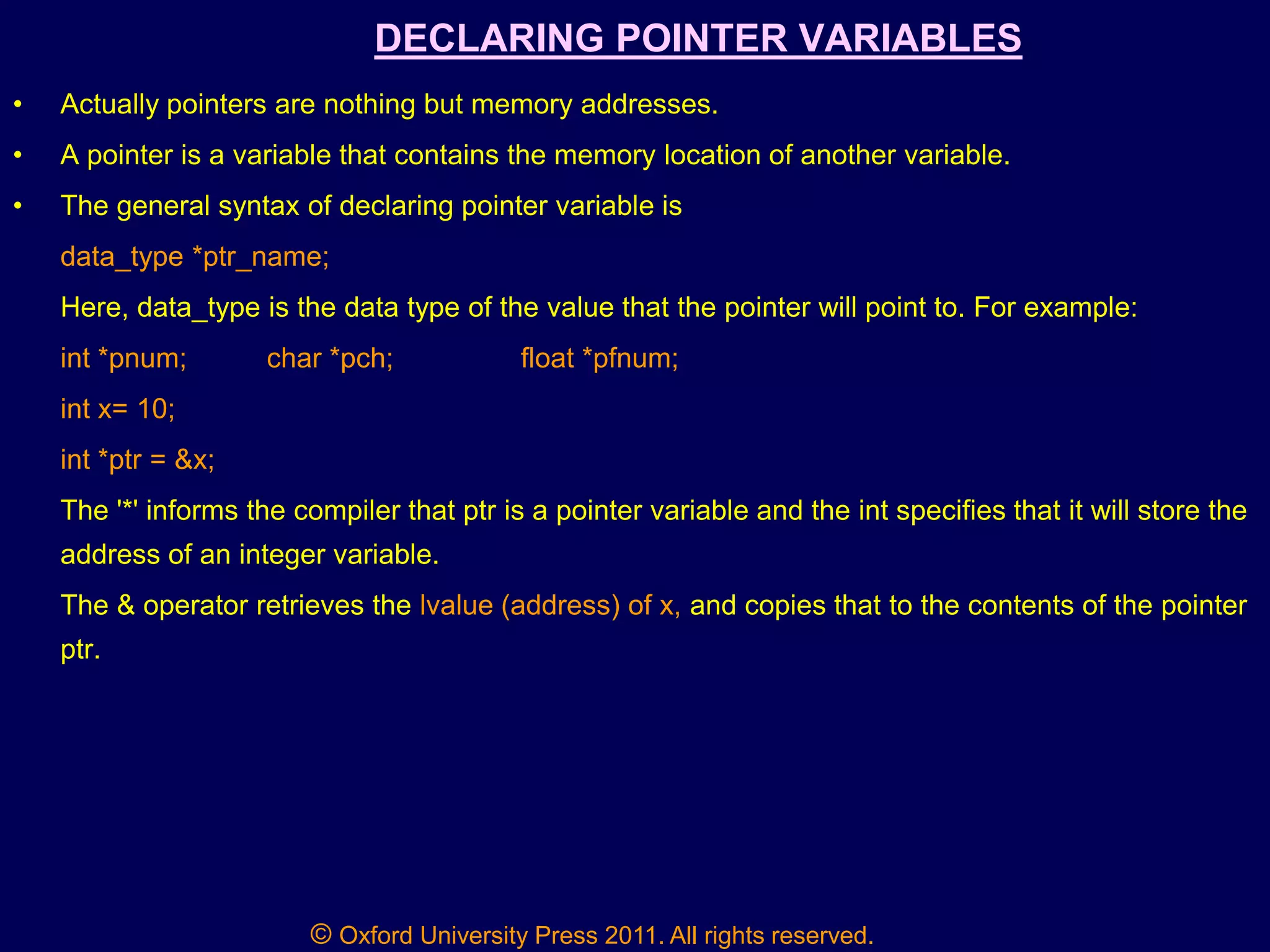

DECLARING POINTER VARIABLES
• Actually pointers are nothing but memory addresses.
• A pointer is a variable that contains the memory location of another variable.
• The general syntax of declaring pointer variable is
data_type *ptr_name;
Here, data_type is the data type of the value that the pointer will point to. For example:
int *pnum; char *pch; float *pfnum;
int x= 10;
int *ptr = &x;
The '*' informs the compiler that ptr is a pointer variable and the int specifies that it will store the
address of an integer variable.
The & operator retrieves the lvalue (address) of x, and copies that to the contents of the pointer
ptr.

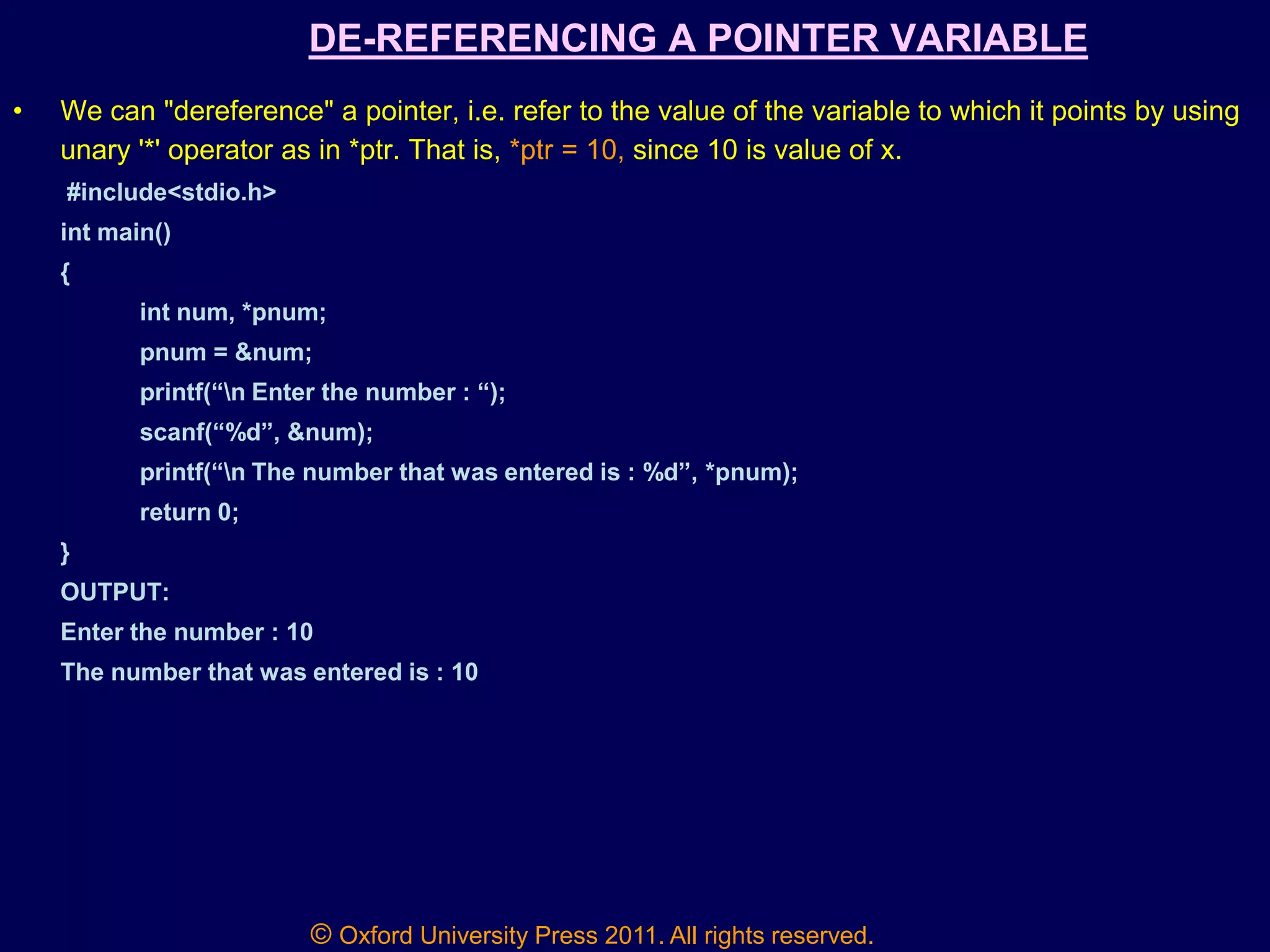

DE-REFERENCING A POINTER VARIABLE
• We can "dereference" a pointer, i.e. refer to the value of the variable to which it points by using
unary '*' operator as in *ptr. That is, *ptr = 10, since 10 is value of x.
#include<stdio.h>
int main()
{
int num, *pnum;
pnum = &num;
printf(“n Enter the number : “);
scanf(“%d”, &num);
printf(“n The number that was entered is : %d”, *pnum);
return 0;
}
OUTPUT:
Enter the number : 10
The number that was entered is : 10

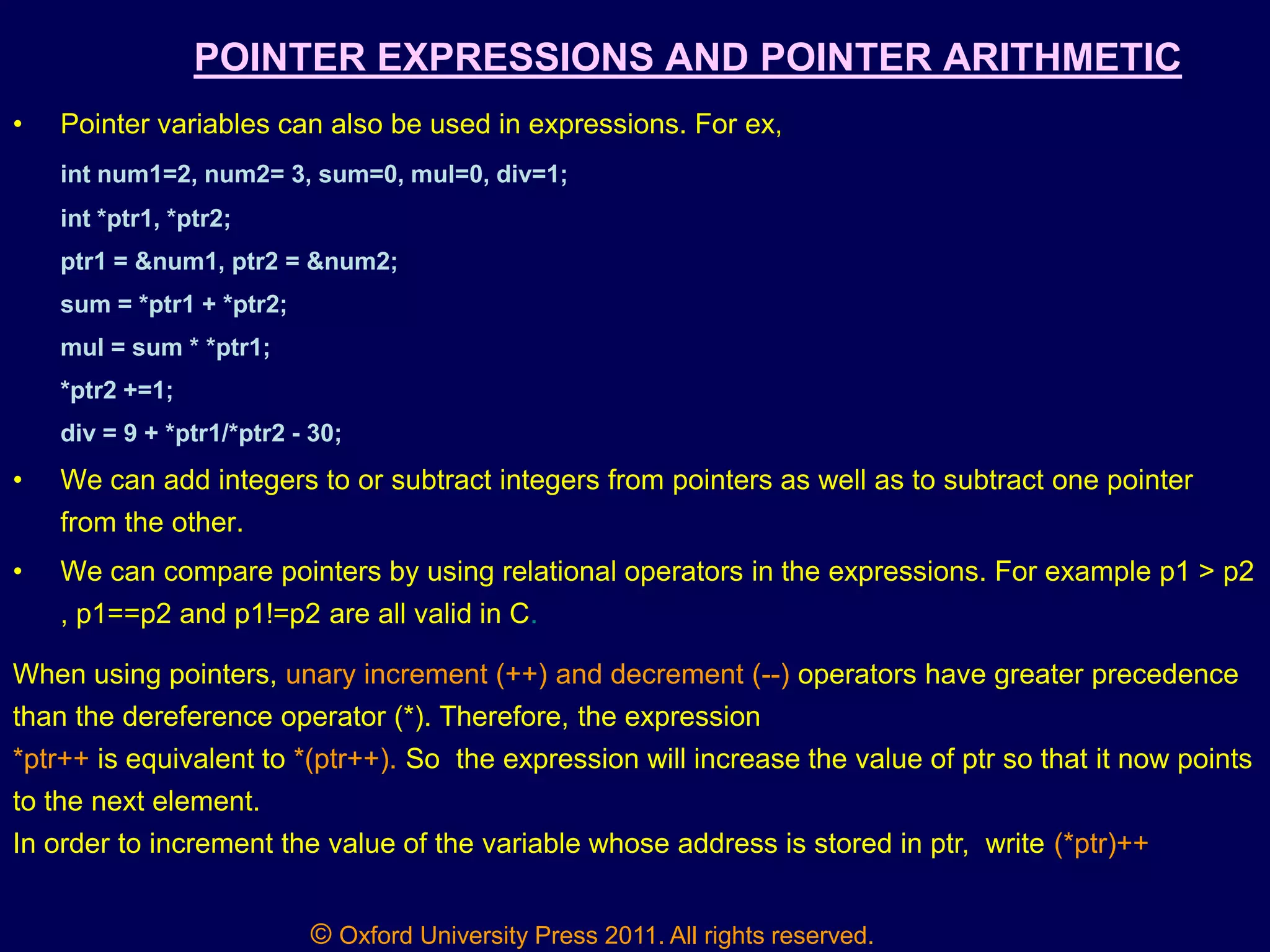

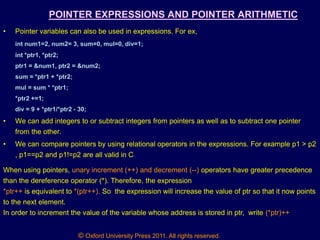

POINTER EXPRESSIONS AND POINTER ARITHMETIC
• Pointer variables can also be used in expressions. For ex,
int num1=2, num2= 3, sum=0, mul=0, div=1;
int *ptr1, *ptr2;
ptr1 = &num1, ptr2 = &num2;
sum = *ptr1 + *ptr2;
mul = sum * *ptr1;
*ptr2 +=1;
div = 9 + *ptr1/*ptr2 - 30;
• We can add integers to or subtract integers from pointers as well as to subtract one pointer
from the other.
• We can compare pointers by using relational operators in the expressions. For example p1 > p2
, p1==p2 and p1!=p2 are all valid in C.
When using pointers, unary increment (++) and decrement (--) operators have greater precedence
than the dereference operator (*). Therefore, the expression
*ptr++ is equivalent to *(ptr++). So the expression will increase the value of ptr so that it now points
to the next element.
In order to increment the value of the variable whose address is stored in ptr, write (*ptr)++

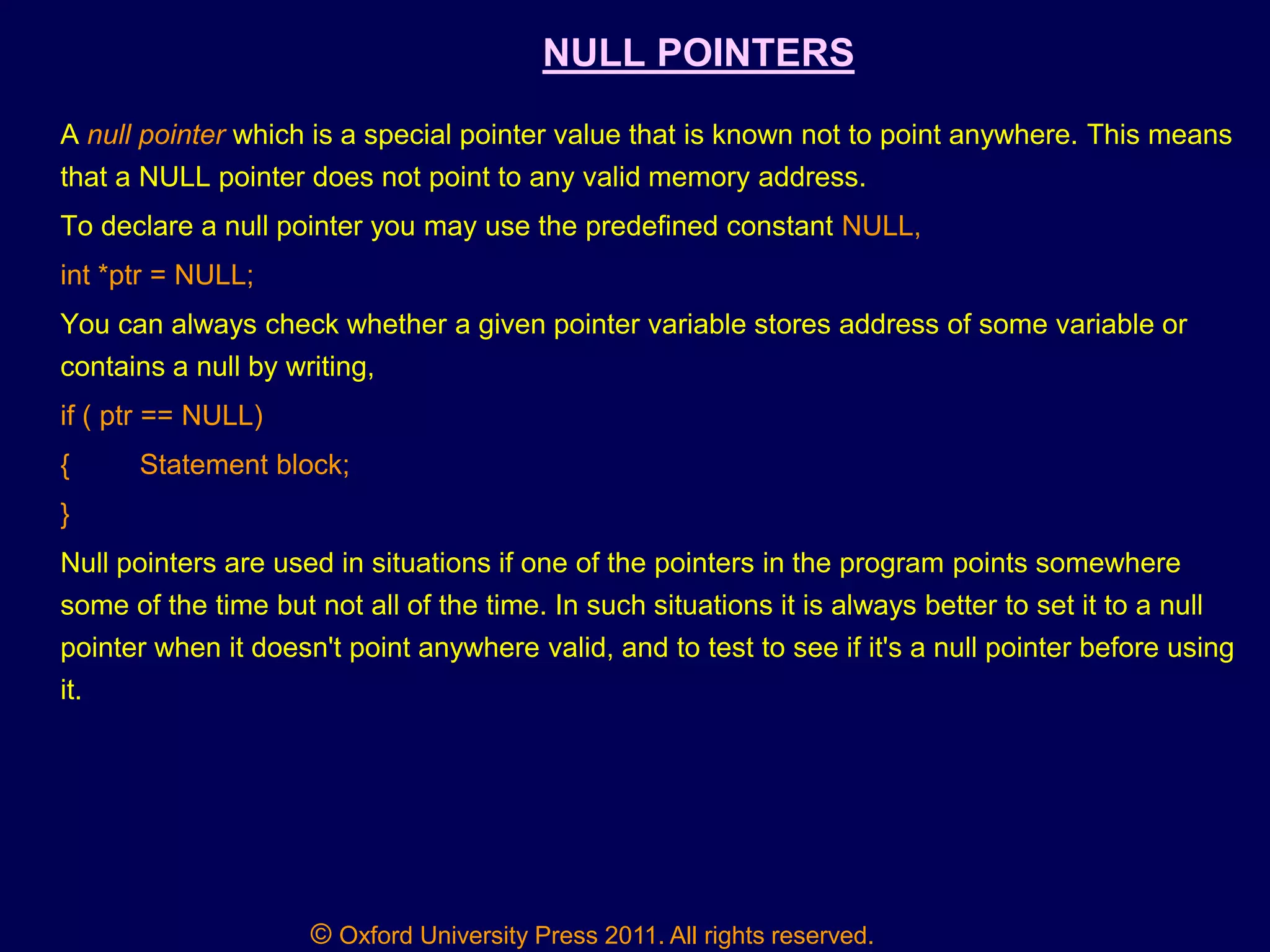

NULL POINTERS
A null pointer which is a special pointer value that is known not to point anywhere. This means
that a NULL pointer does not point to any valid memory address.
To declare a null pointer you may use the predefined constant NULL,
int *ptr = NULL;
You can always check whether a given pointer variable stores address of some variable or
contains a null by writing,
if ( ptr == NULL)
{ Statement block;
}
Null pointers are used in situations if one of the pointers in the program points somewhere
some of the time but not all of the time. In such situations it is always better to set it to a null
pointer when it doesn't point anywhere valid, and to test to see if it's a null pointer before using
it.

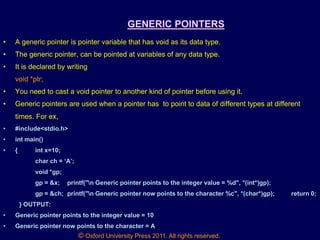

GENERIC POINTERS
• A generic pointer is pointer variable that has void as its data type.
• The generic pointer, can be pointed at variables of any data type.
• It is declared by writing
void *ptr;
• You need to cast a void pointer to another kind of pointer before using it.
• Generic pointers are used when a pointer has to point to data of different types at different
times. For ex,
• #include<stdio.h>
• int main()
• { int x=10;
char ch = „A‟;
void *gp;
gp = &x; printf("n Generic pointer points to the integer value = %d", *(int*)gp);
gp = &ch; printf("n Generic pointer now points to the character %c", *(char*)gp); return 0;
} OUTPUT:
• Generic pointer points to the integer value = 10
• Generic pointer now points to the character = A

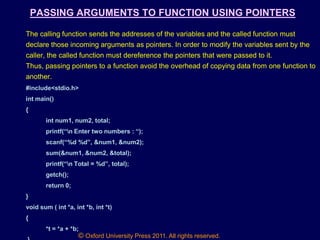

PASSING ARGUMENTS TO FUNCTION USING POINTERS
The calling function sends the addresses of the variables and the called function must
declare those incoming arguments as pointers. In order to modify the variables sent by the
caller, the called function must dereference the pointers that were passed to it.
Thus, passing pointers to a function avoid the overhead of copying data from one function to
another.
#include<stdio.h>
int main()
{
int num1, num2, total;
printf(“n Enter two numbers : “);
scanf(“%d %d”, &num1, &num2);
sum(&num1, &num2, &total);
printf(“n Total = %d”, total);
getch();
return 0;
}
void sum ( int *a, int *b, int *t)
{
*t = *a + *b;

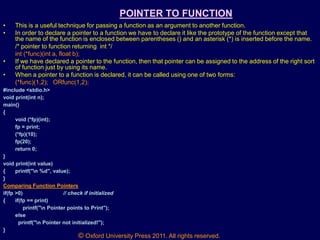

POINTER TO FUNCTION
• This is a useful technique for passing a function as an argument to another function.
• In order to declare a pointer to a function we have to declare it like the prototype of the function except that
the name of the function is enclosed between parentheses () and an asterisk (*) is inserted before the name.
/* pointer to function returning int */
int (*func)(int a, float b);
• If we have declared a pointer to the function, then that pointer can be assigned to the address of the right sort
of function just by using its name.
• When a pointer to a function is declared, it can be called using one of two forms:
(*func)(1,2); ORfunc(1,2);
#include <stdio.h>
void print(int n);
main()
{
void (*fp)(int);
fp = print;
(*fp)(10);
fp(20);
return 0;
}
void print(int value)
{ printf("n %d", value);
}
Comparing Function Pointers
if(fp >0) // check if initialized
{ if(fp == print)
printf("n Pointer points to Print");
else
printf("n Pointer not initialized!");
}

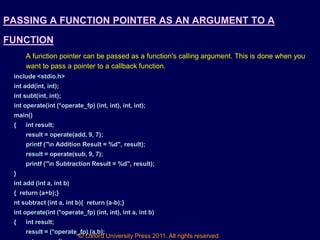

PASSING A FUNCTION POINTER AS AN ARGUMENT TO A
FUNCTION
A function pointer can be passed as a function's calling argument. This is done when you
want to pass a pointer to a callback function.
include <stdio.h>
int add(int, int);
int subt(int, int);
int operate(int (*operate_fp) (int, int), int, int);
main()
{ int result;
result = operate(add, 9, 7);
printf ("n Addition Result = %d", result);
result = operate(sub, 9, 7);
printf ("n Subtraction Result = %d", result);
}
int add (int a, int b)
{ return (a+b);}
nt subtract (int a, int b){ return (a-b);}
int operate(int (*operate_fp) (int, int), int a, int b)
{ int result;
result = (*operate_fp) (a,b);

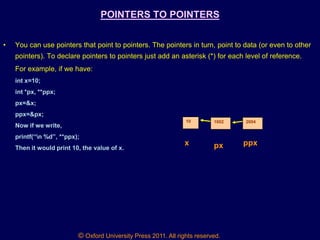

POINTERS TO POINTERS
• You can use pointers that point to pointers. The pointers in turn, point to data (or even to other
pointers). To declare pointers to pointers just add an asterisk (*) for each level of reference.
For example, if we have:
int x=10;
int *px, **ppx;
px=&x;
ppx=&px;
Now if we write,
printf(“n %d”, **ppx);
Then it would print 10, the value of x.
10 1002 2004
x px ppx
