3D on the Web in 2011
Chad Austin discusses the current state of 3D graphics on the web. He outlines technologies like WebGL, Flash 11, Unity3D and Silverlight that enable 3D in browsers. WebGL provides full programmability via OpenGL ES 2.0 but lacks support in some browsers. Flash 11 exposes 3D via ActionScript but has shader limitations. Unity3D uses a plugin for 3D games but not full hardware access. Security is a challenge as 3D exposes vulnerabilities in graphics drivers. Chad predicts WebGL will become dominant long term as browsers support it.
![[GREE Tech Talk #08] You Don't Know WebGL](https://cdn.slidesharecdn.com/ss_thumbnails/youdontknowwebgl-150618071531-lva1-app6891-150619005902-lva1-app6892-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![UiPath Automation Suite Installation (Hands-On) [2/3]](https://cdn.slidesharecdn.com/ss_thumbnails/automationsuitecommunitysession2-251015095633-a6d862f1-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
3D on the Web in 2011
- 1. 3D on theWeb in 2011Chad AustinTechnical Director, IMVU

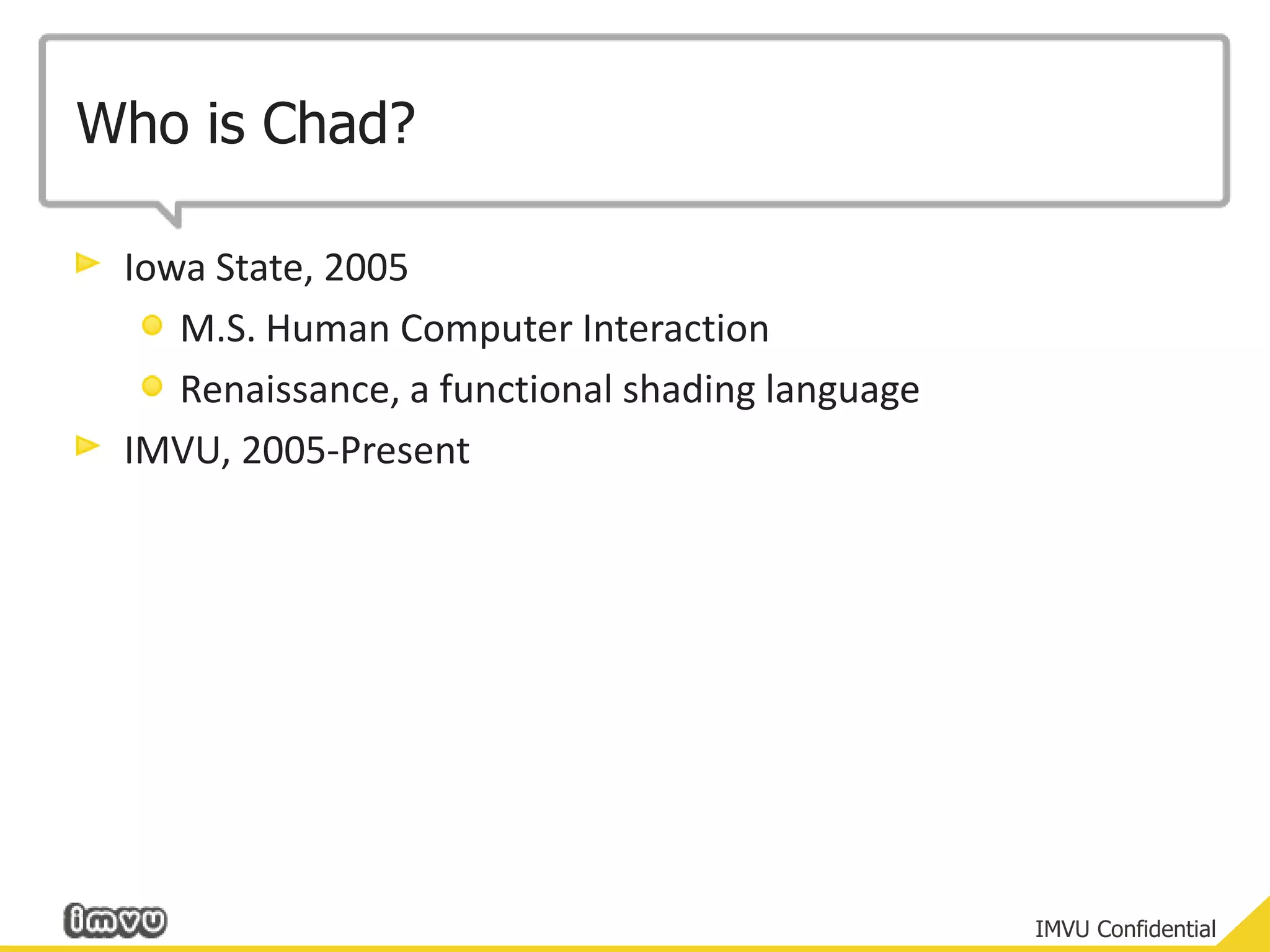

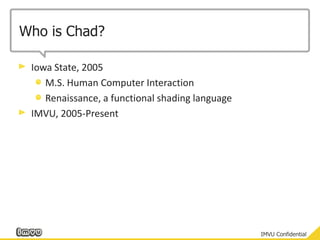

- 2. Who is Chad?IowaState, 2005M.S. Human Computer InteractionRenaissance, a functional shading languageIMVU, 2005-Present

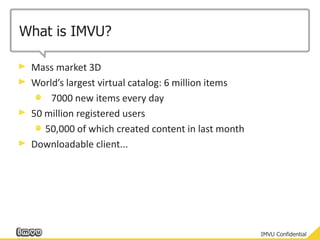

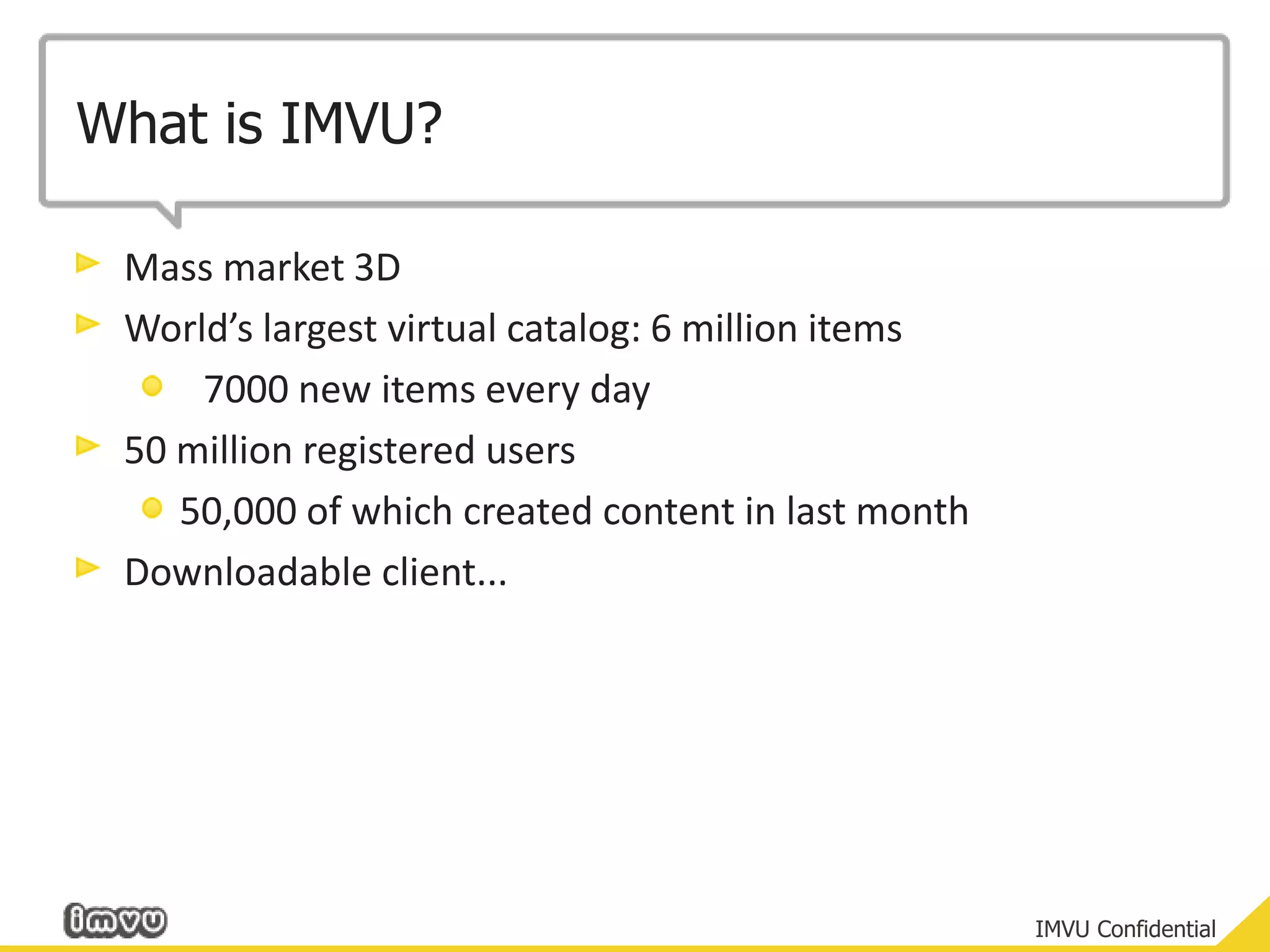

- 3. What is IMVU?Massmarket 3DWorld’s largest virtual catalog: 6 million items 7000 new items every day50 million registered users50,000 of which created content in last monthDownloadable client...

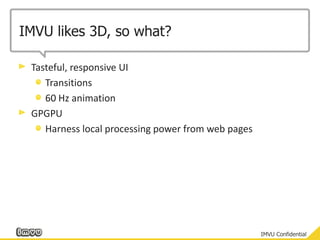

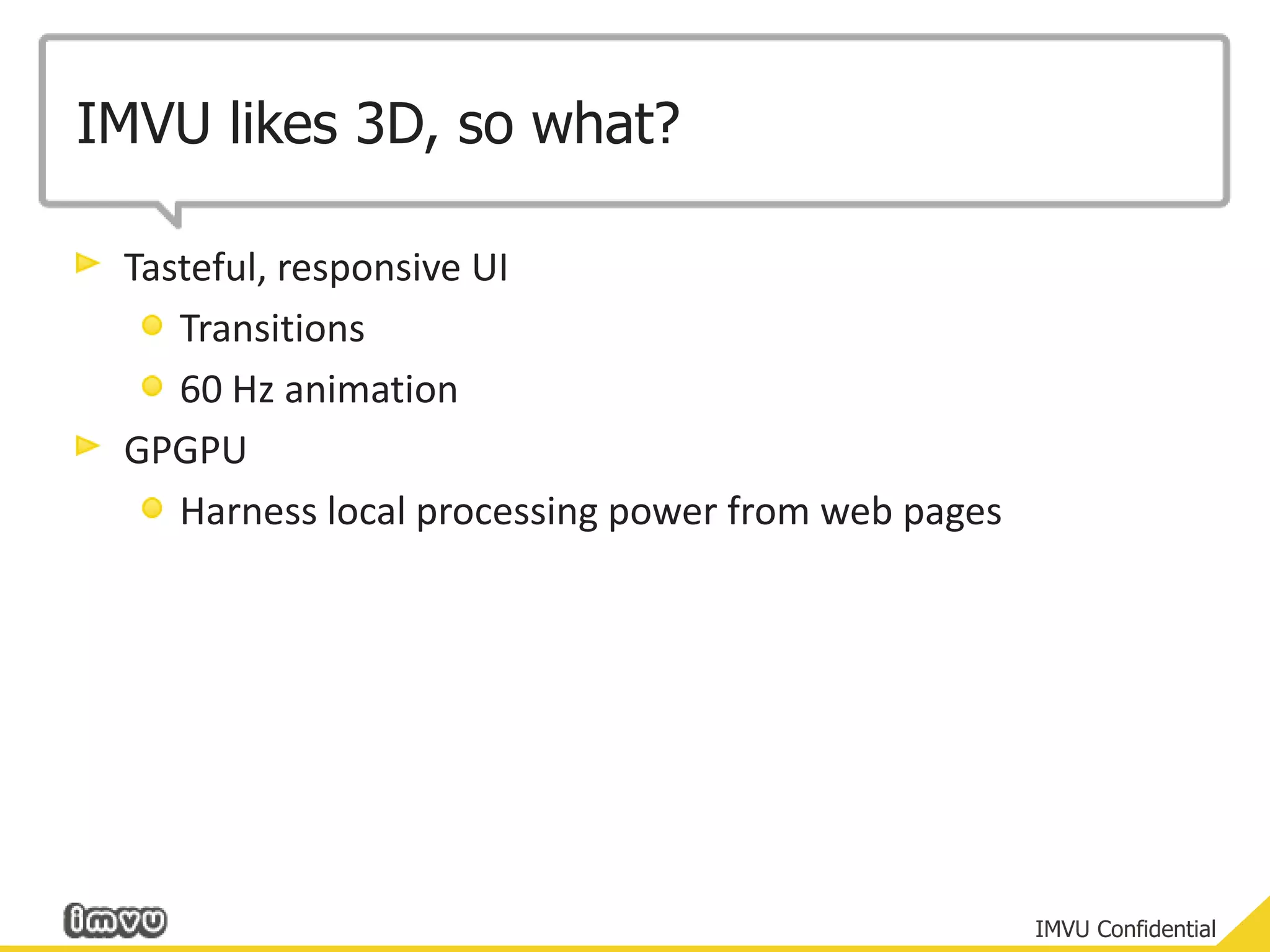

- 4. IMVU likes 3D,so what?Tasteful, responsive UITransitions60 Hz animationGPGPUHarness local processing power from web pages

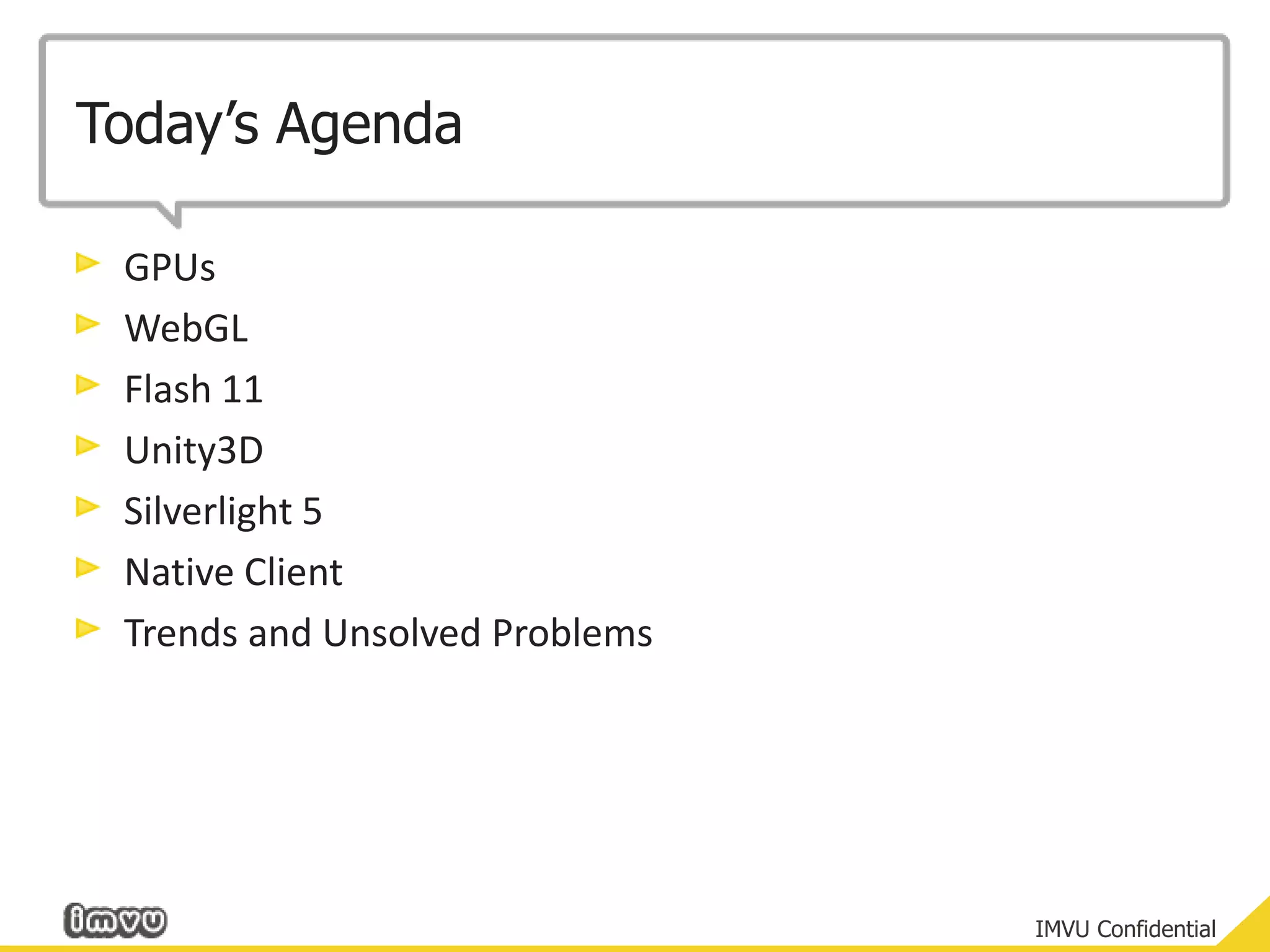

- 5. Today’s AgendaGPUsWebGLFlash 11Unity3DSilverlight5Native ClientTrends and Unsolved Problems

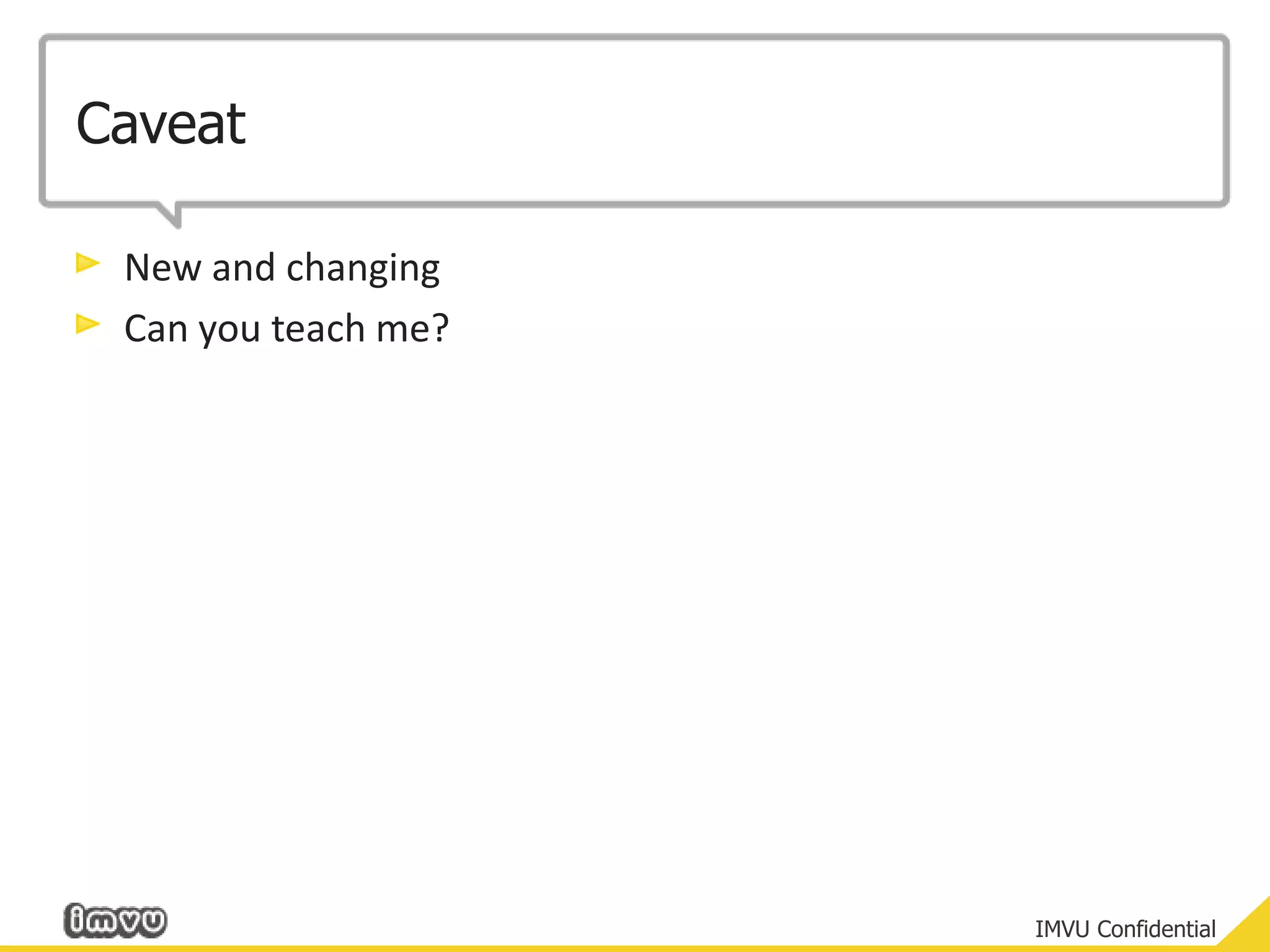

- 6. CaveatNew and changingCanyou teach me?

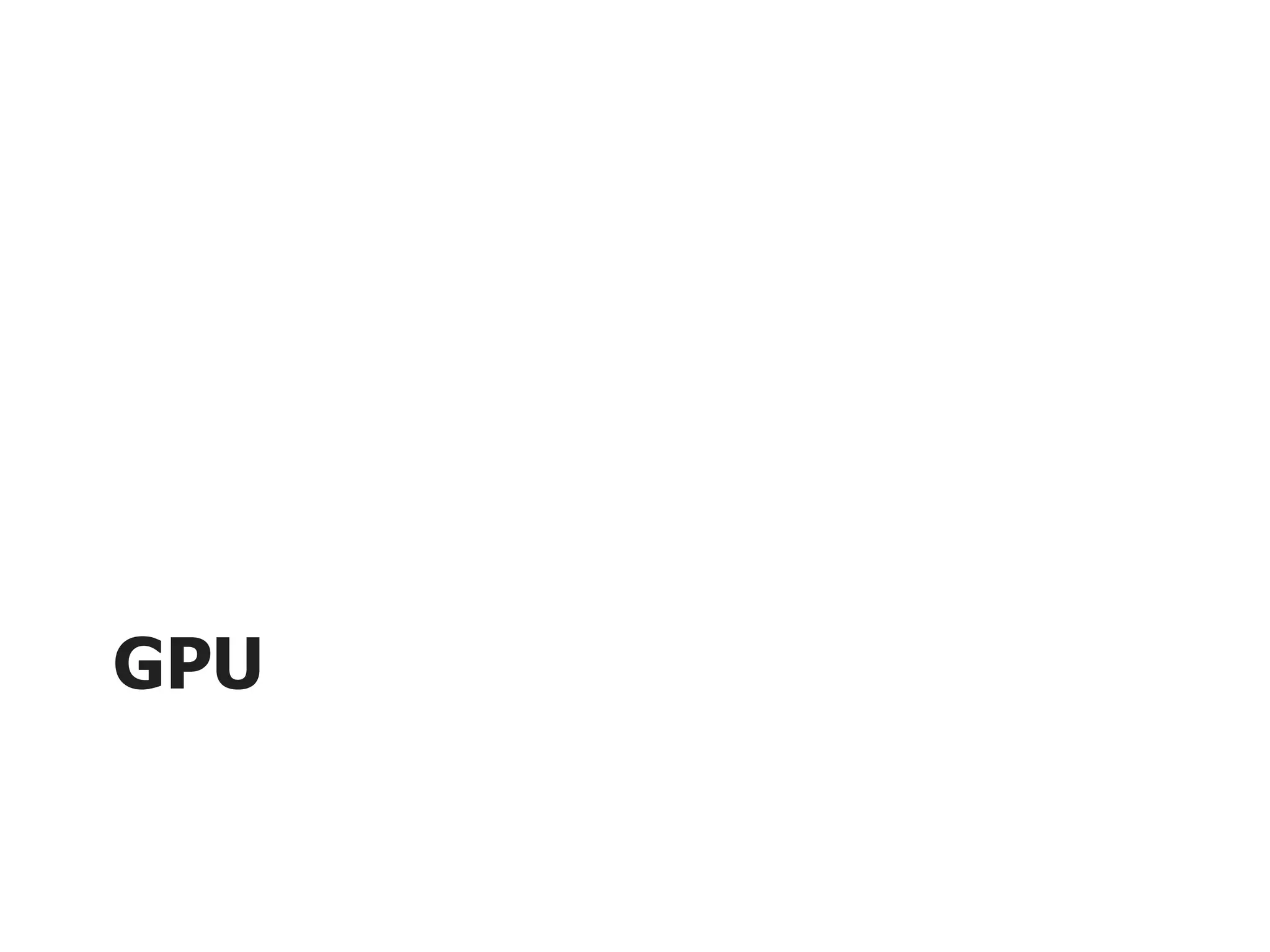

- 7.

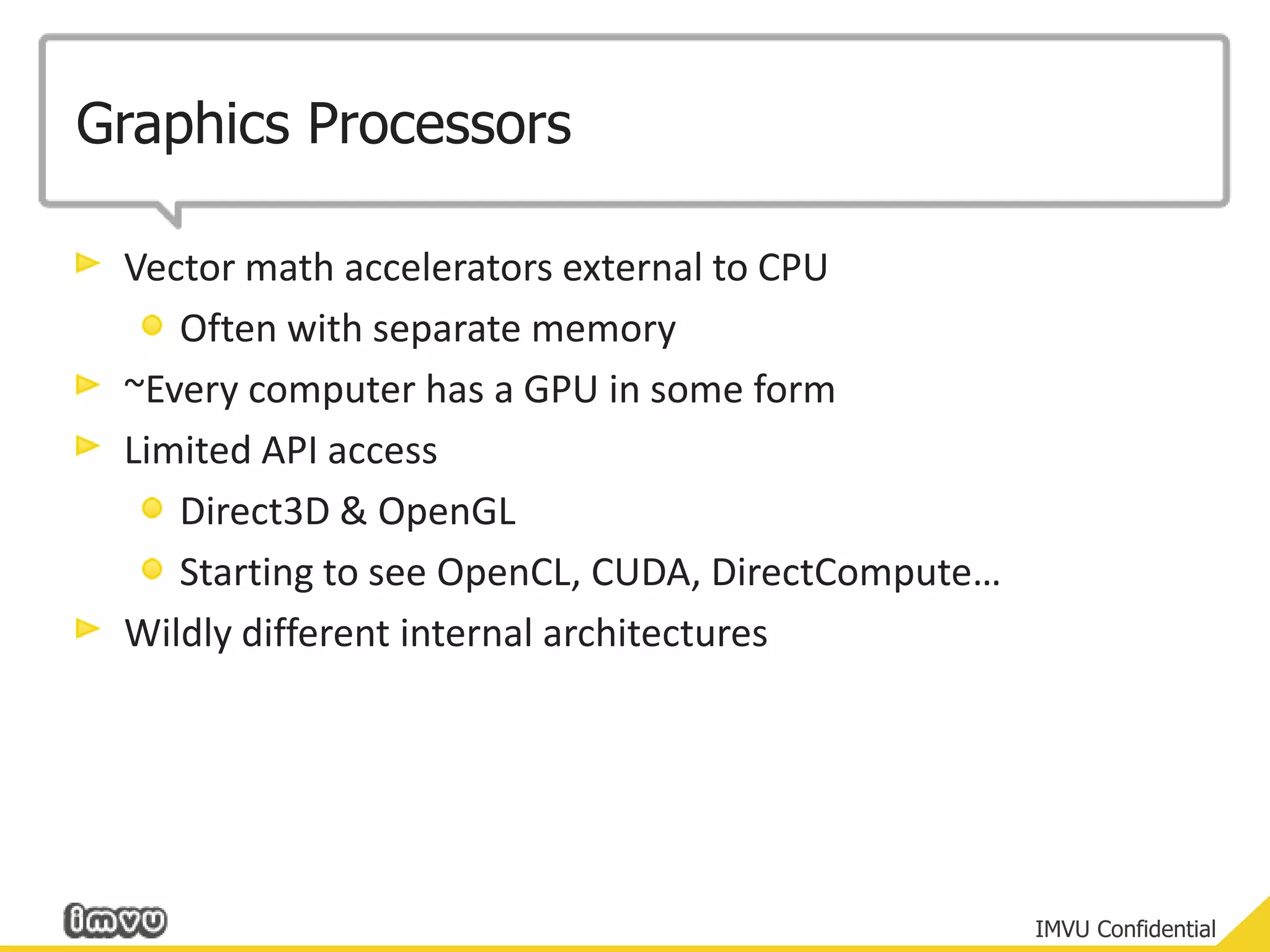

- 8. Graphics ProcessorsVector mathaccelerators external to CPUOften with separate memory~Every computer has a GPU in some formLimited API accessDirect3D & OpenGLStarting to see OpenCL, CUDA, DirectCompute…Wildly different internal architectures

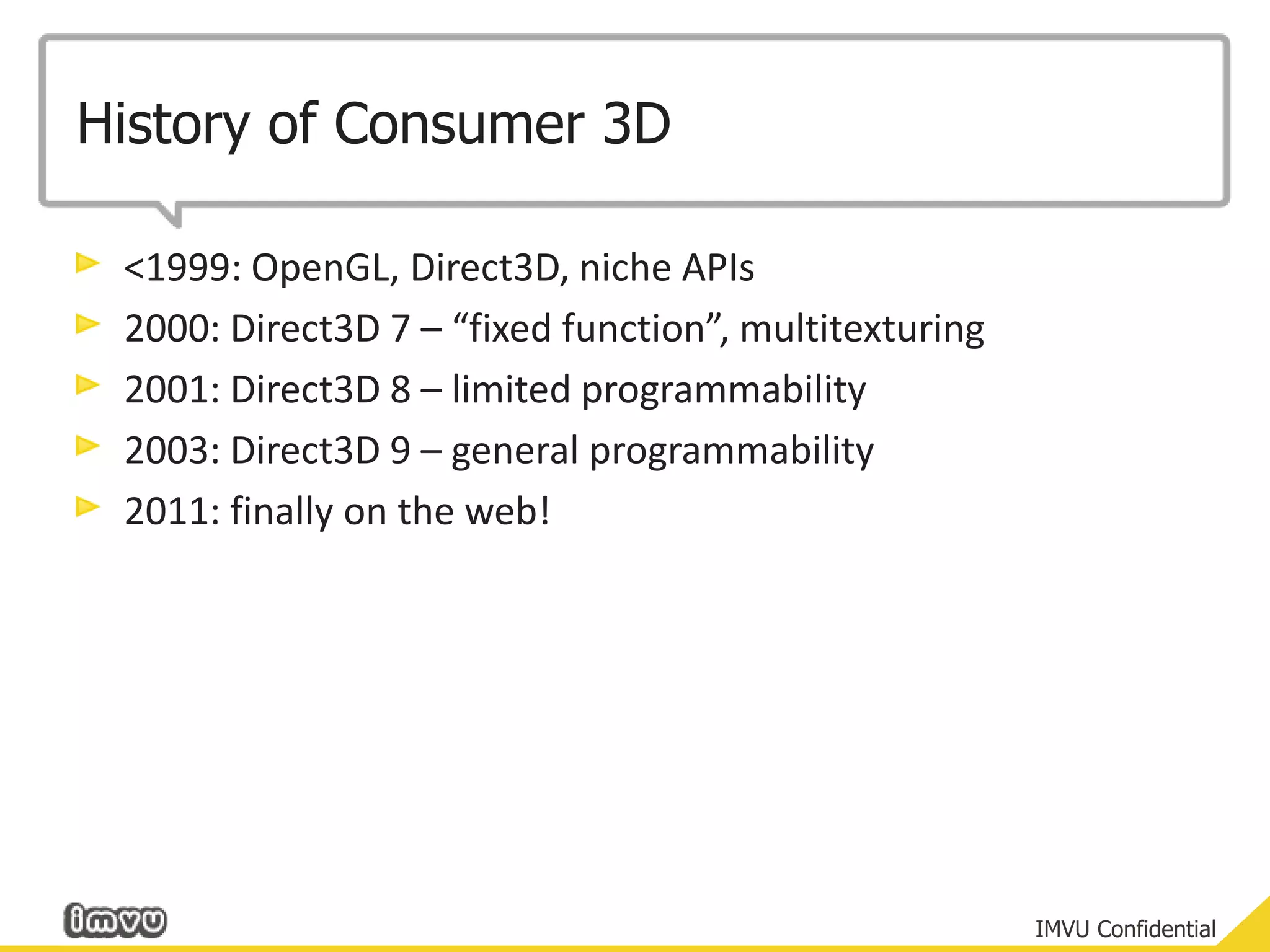

- 9. History of Consumer3D<1999: OpenGL, Direct3D, niche APIs2000: Direct3D 7 – “fixed function”, multitexturing2001:Direct3D 8 – limited programmability2003: Direct3D 9 – general programmability2011: finally on the web!

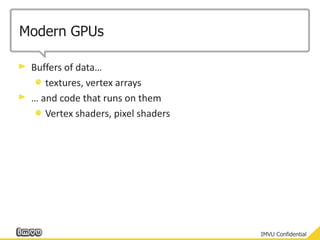

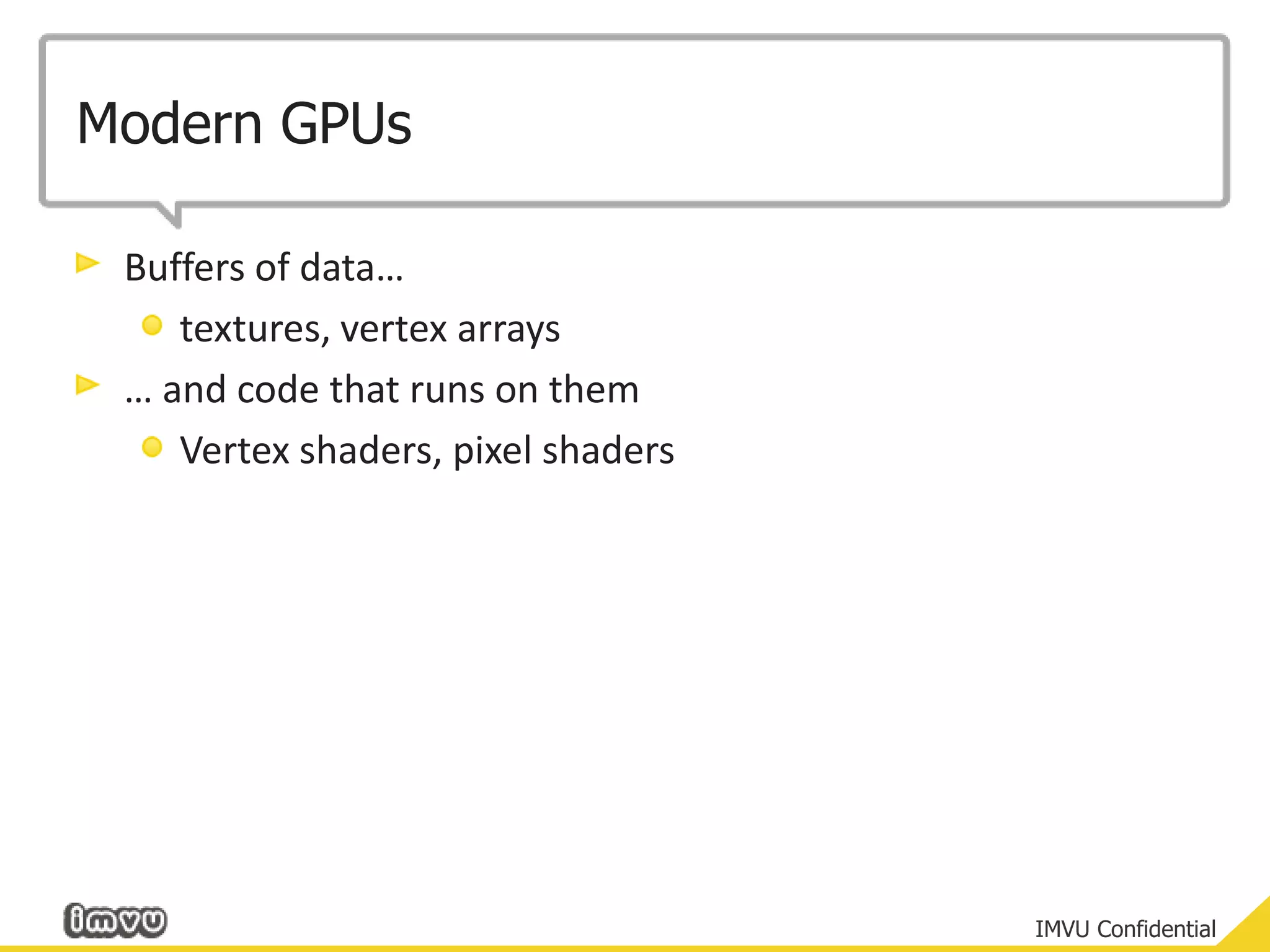

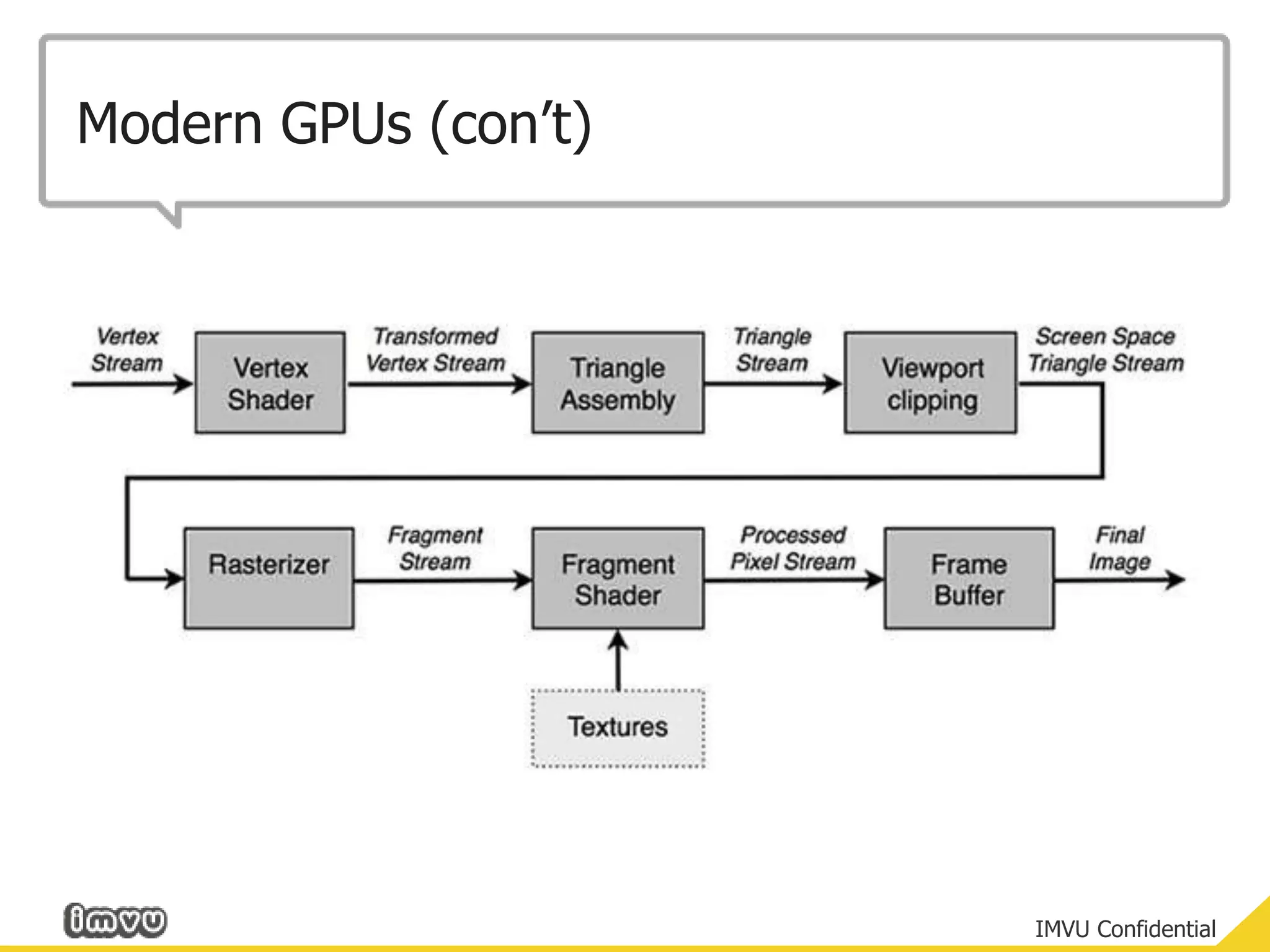

- 10. Modern GPUsBuffers ofdata…textures, vertex arrays… and code that runs on themVertex shaders, pixel shaders

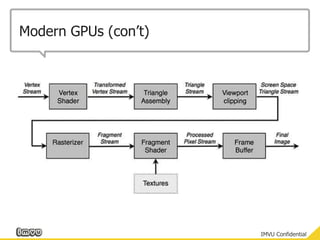

- 11.

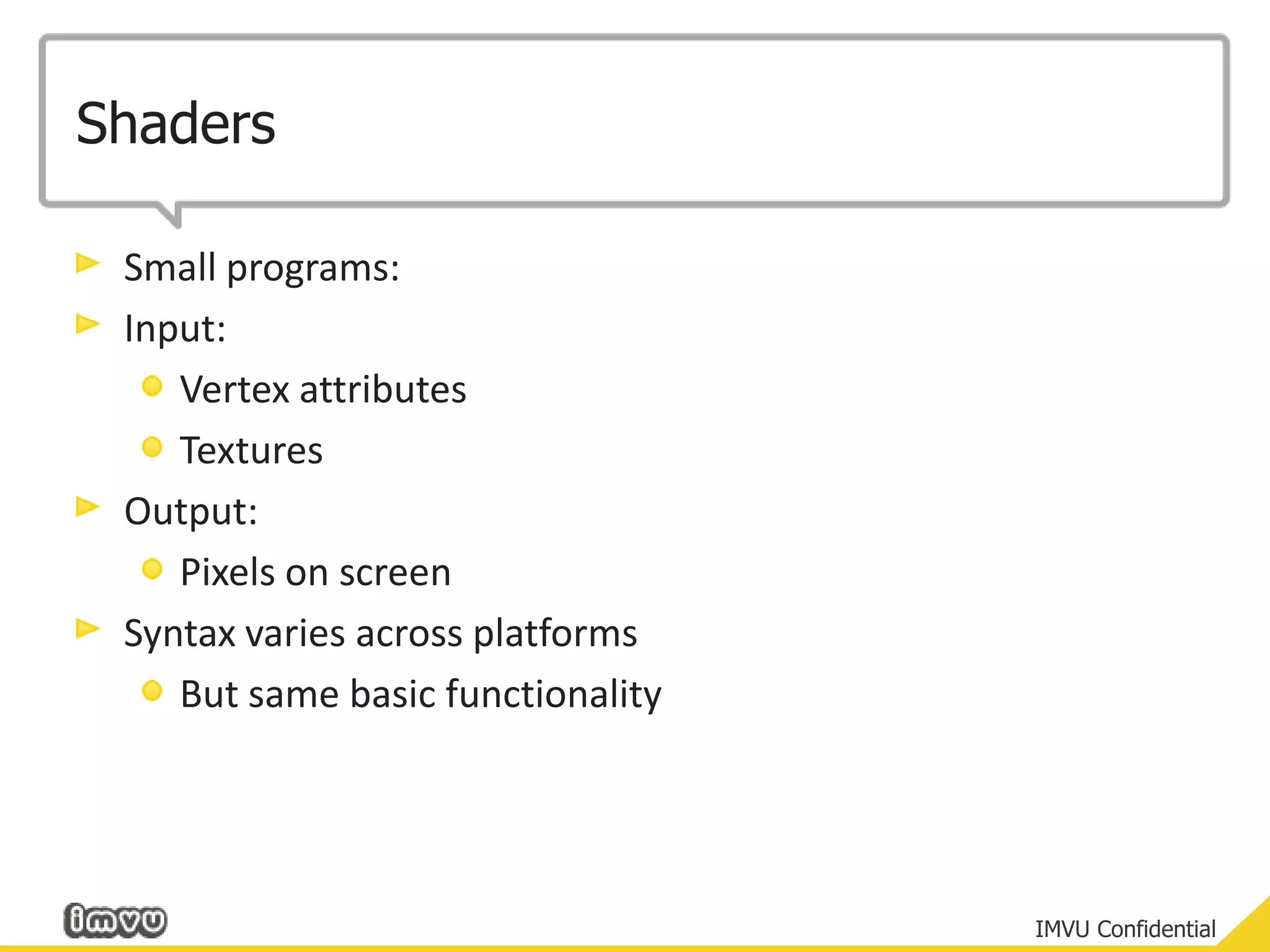

- 12. ShadersSmall programs:Input:Vertex attributesTexturesOutput:Pixelson screenSyntax varies across platforms But same basic functionality

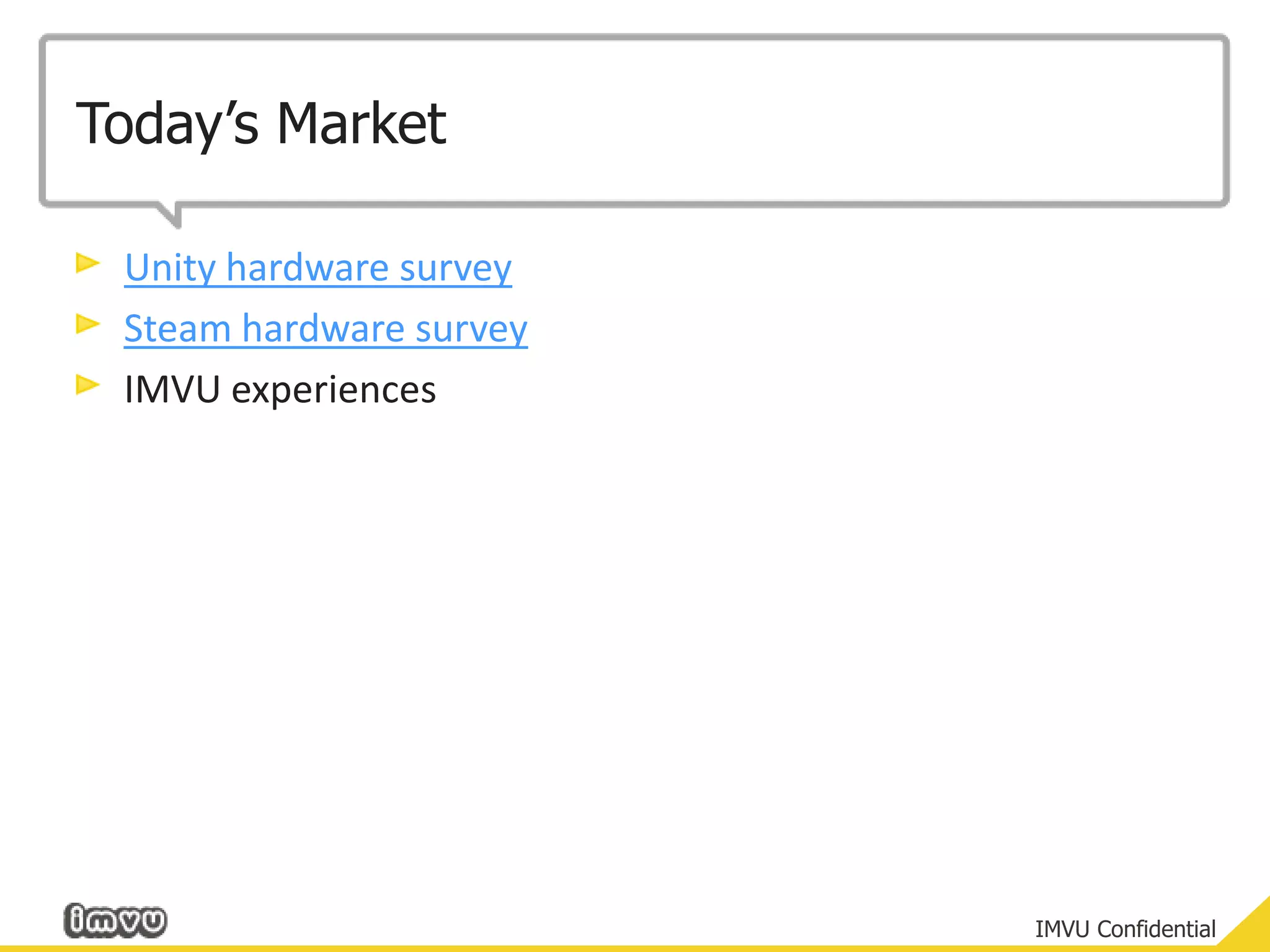

- 13. Today’s MarketUnity hardwaresurveySteam hardware surveyIMVU experiences

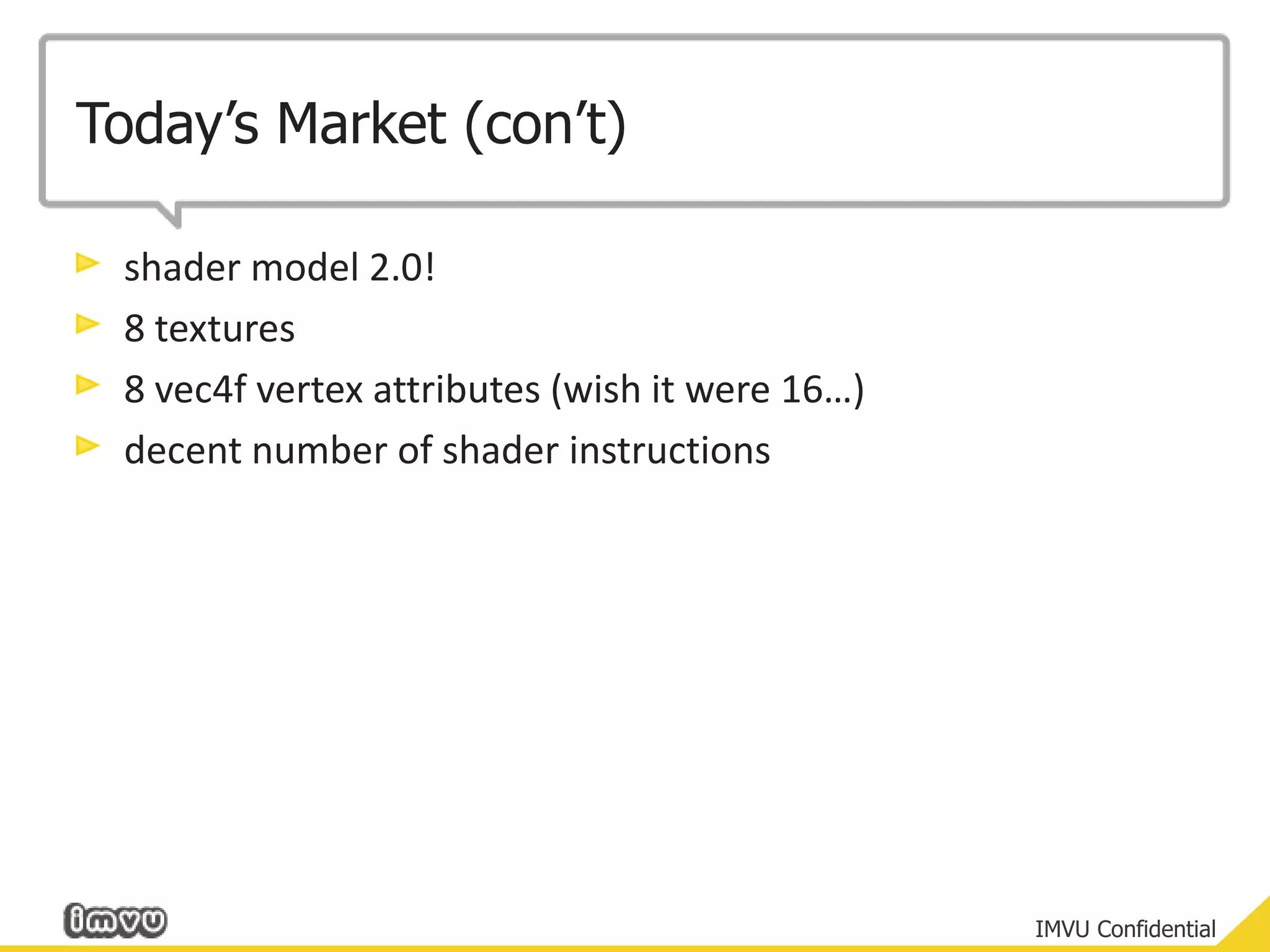

- 14. Today’s Market (con’t)shadermodel 2.0!8 textures8 vec4f vertex attributes (wish it were 16…)decent number of shader instructions

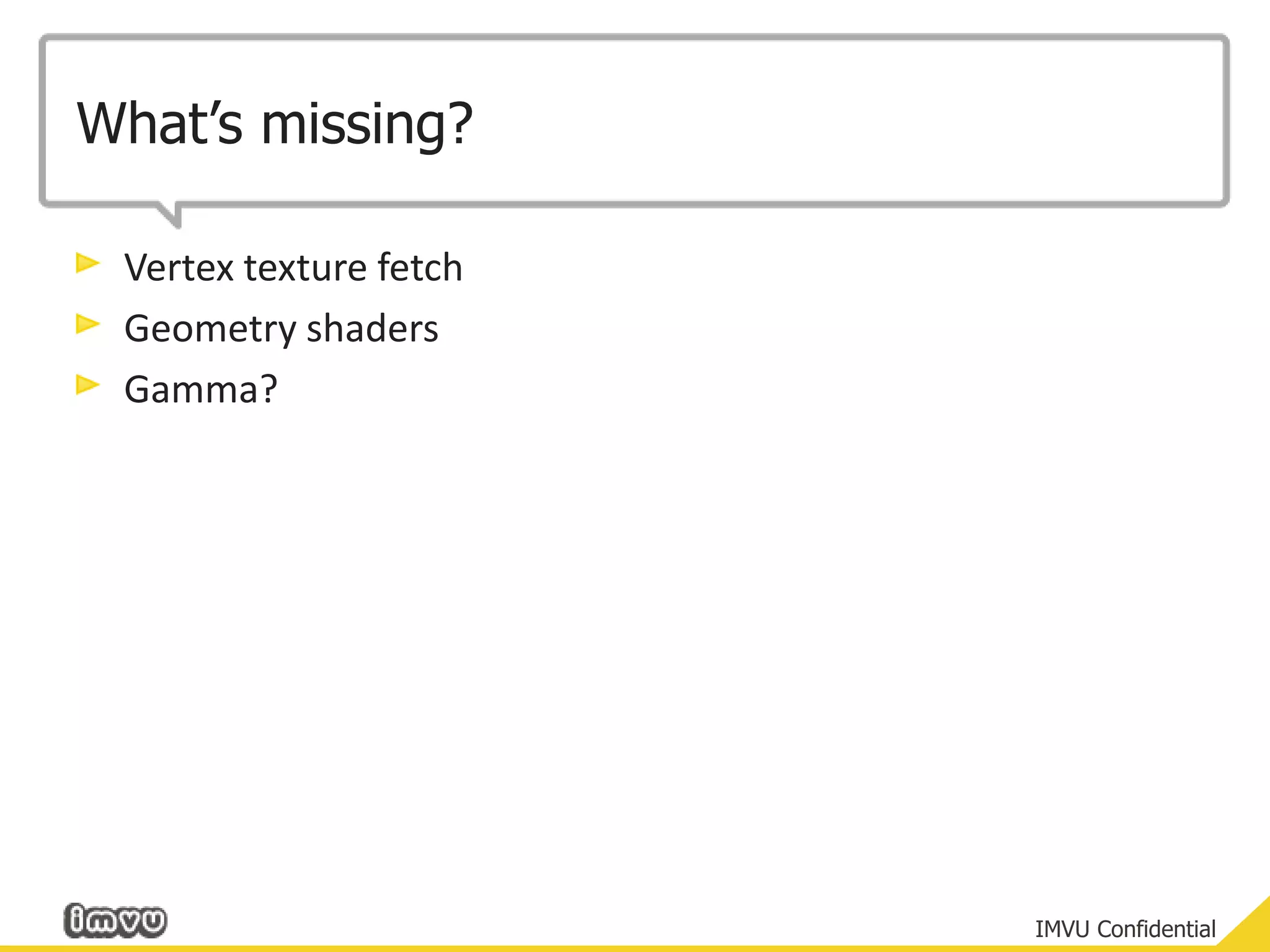

- 15. What’s missing?Vertex texturefetchGeometry shadersGamma?
- 16.

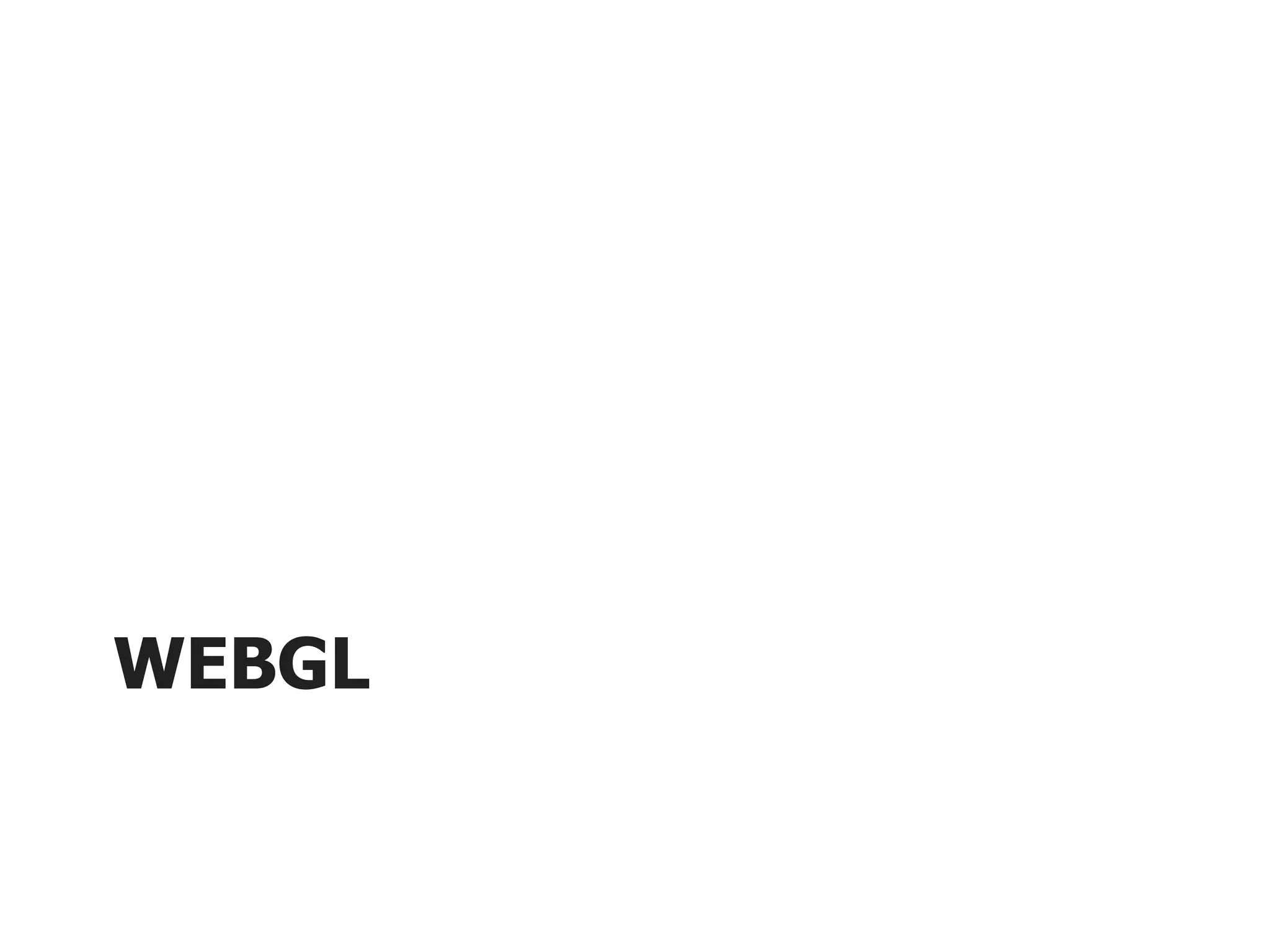

- 17.

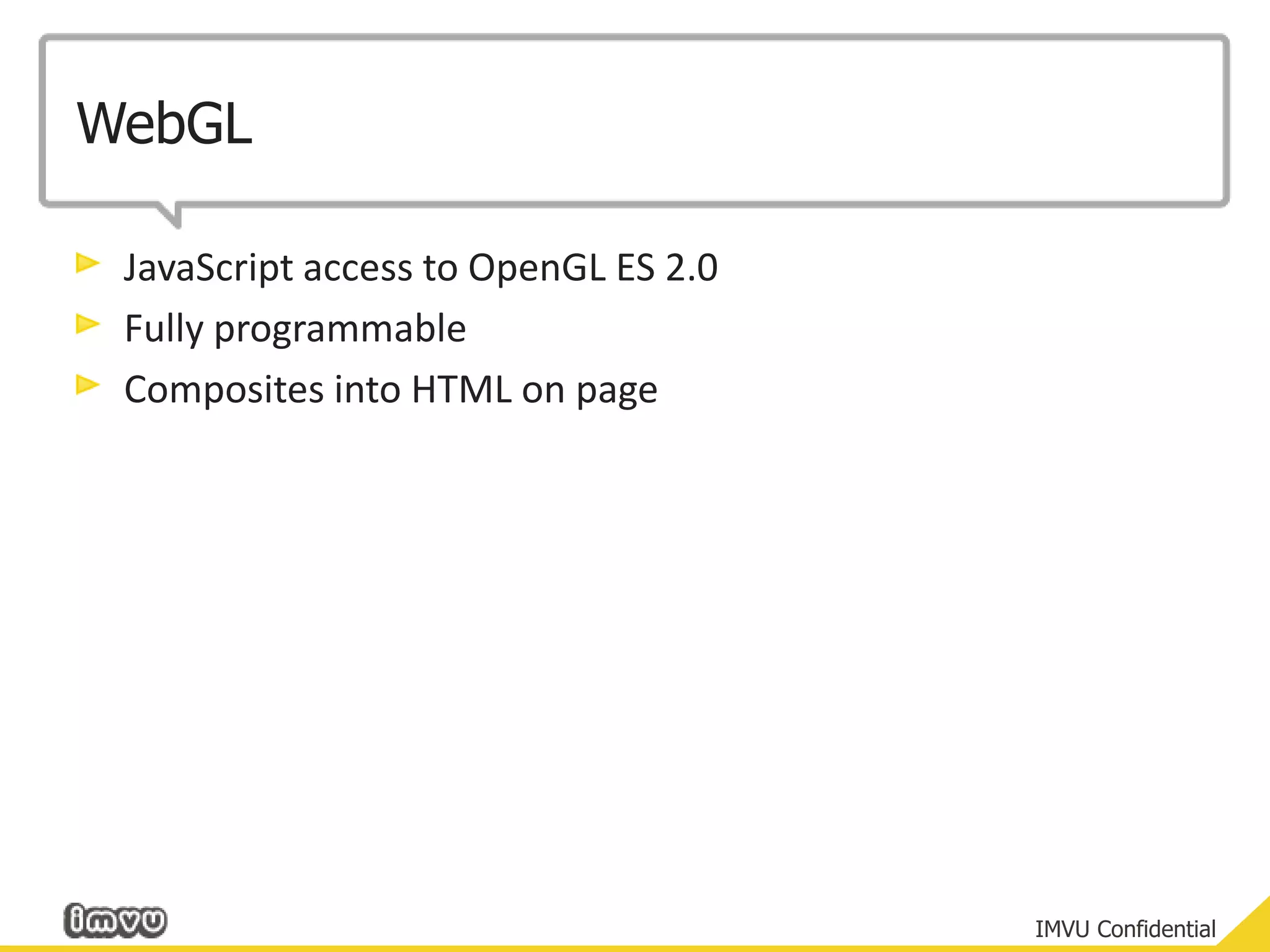

- 18. WebGLJavaScript access toOpenGL ES 2.0Fully programmableComposites into HTML on page

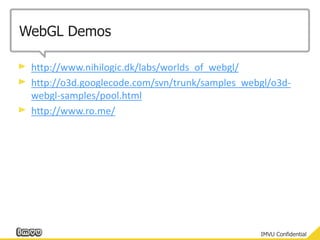

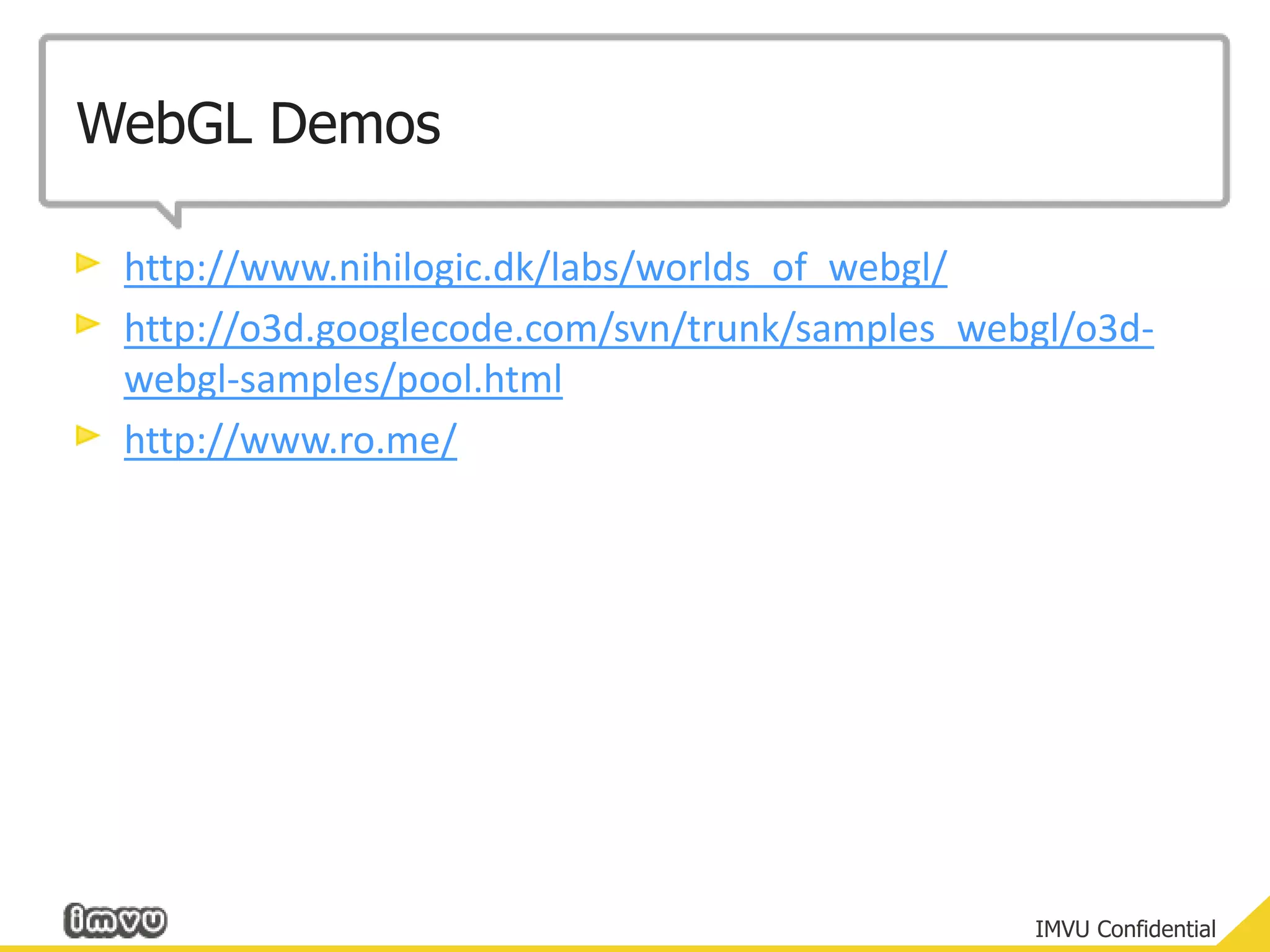

- 19.

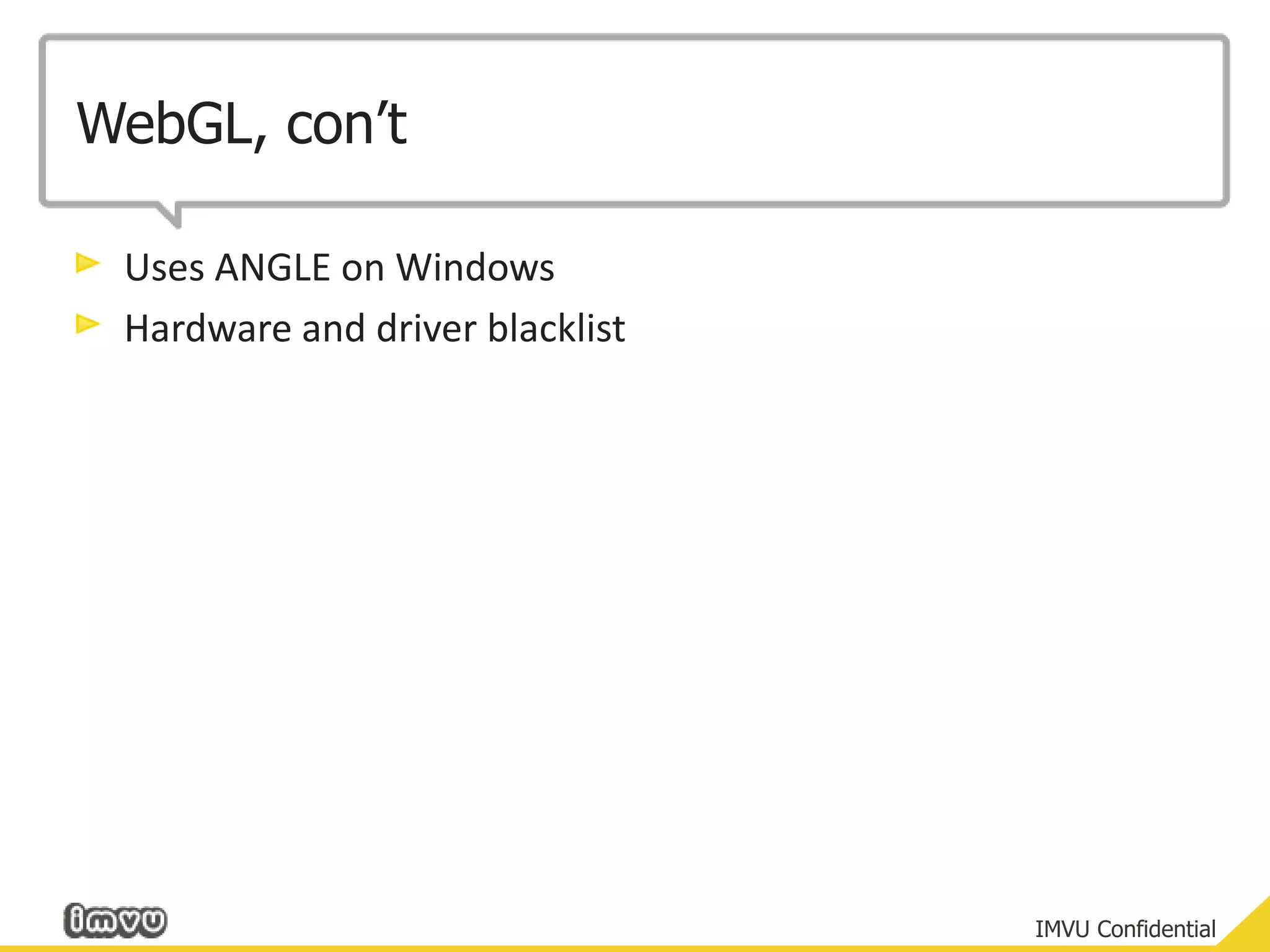

- 20. WebGL, con’tUses ANGLEon WindowsHardware and driver blacklist

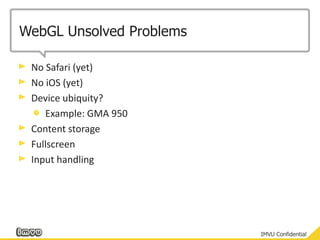

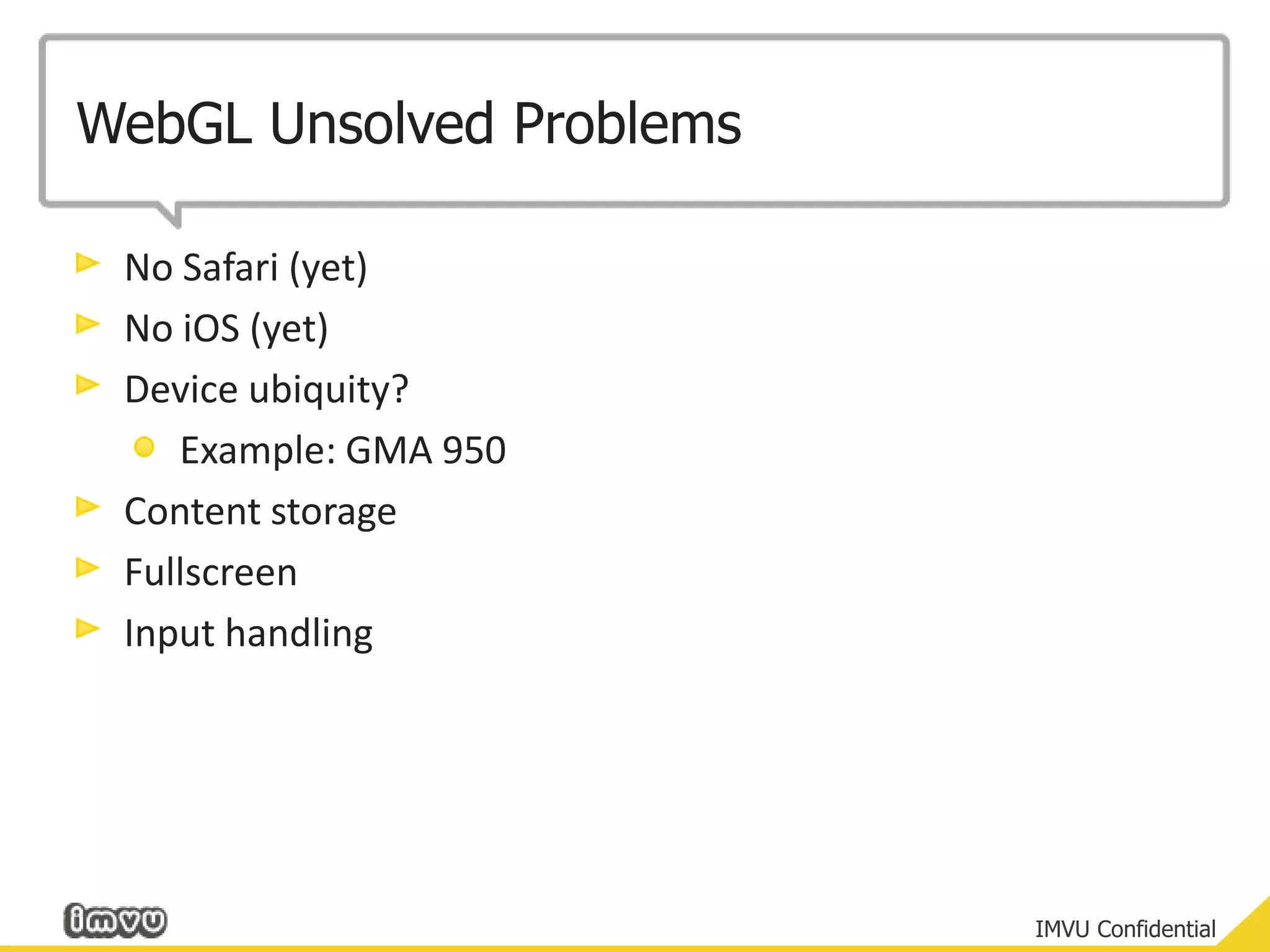

- 21. WebGL Unsolved ProblemsNoSafari (yet)No iOS(yet)Device ubiquity?Example: GMA 950Content storageFullscreenInput handling
- 22.

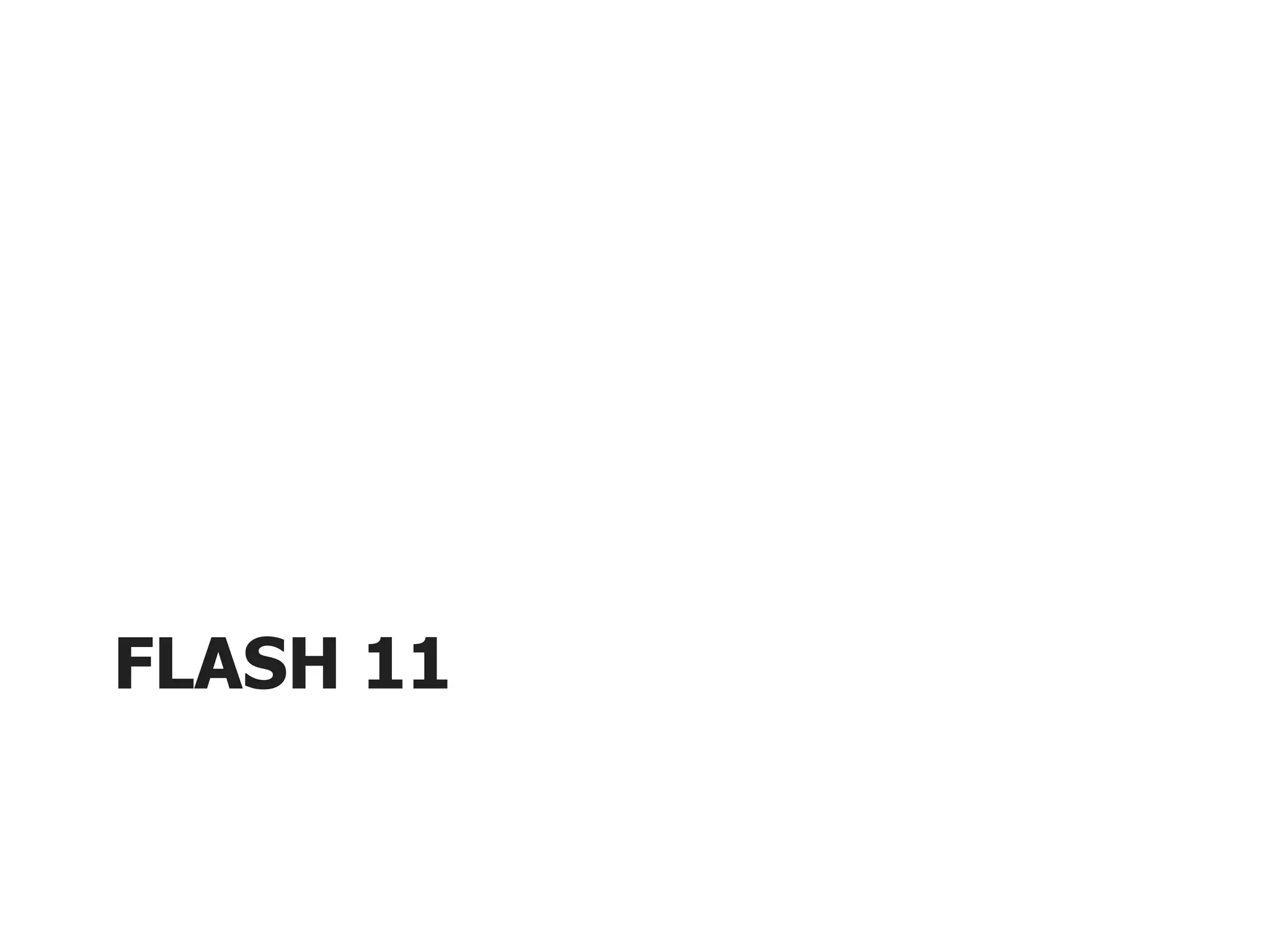

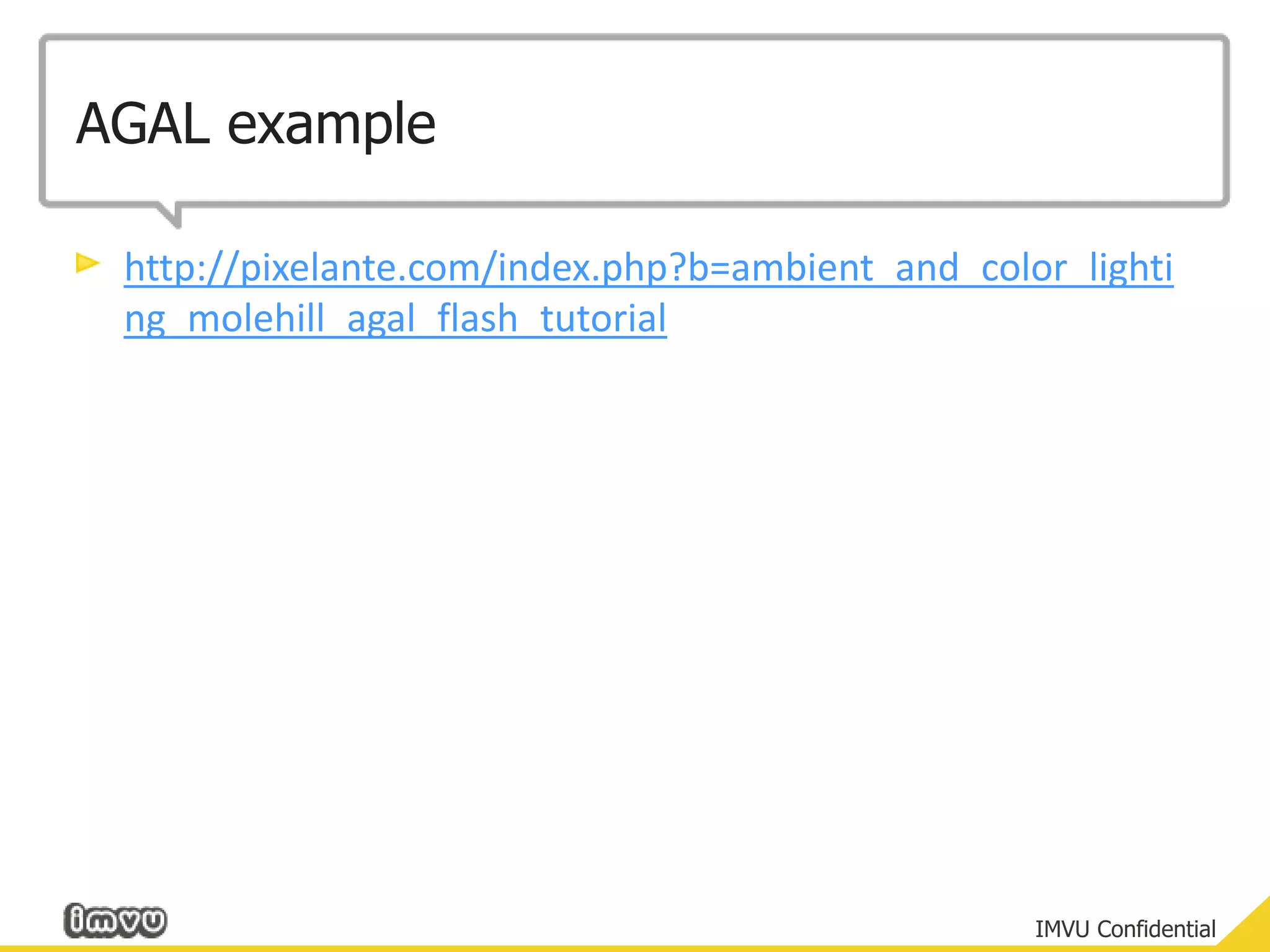

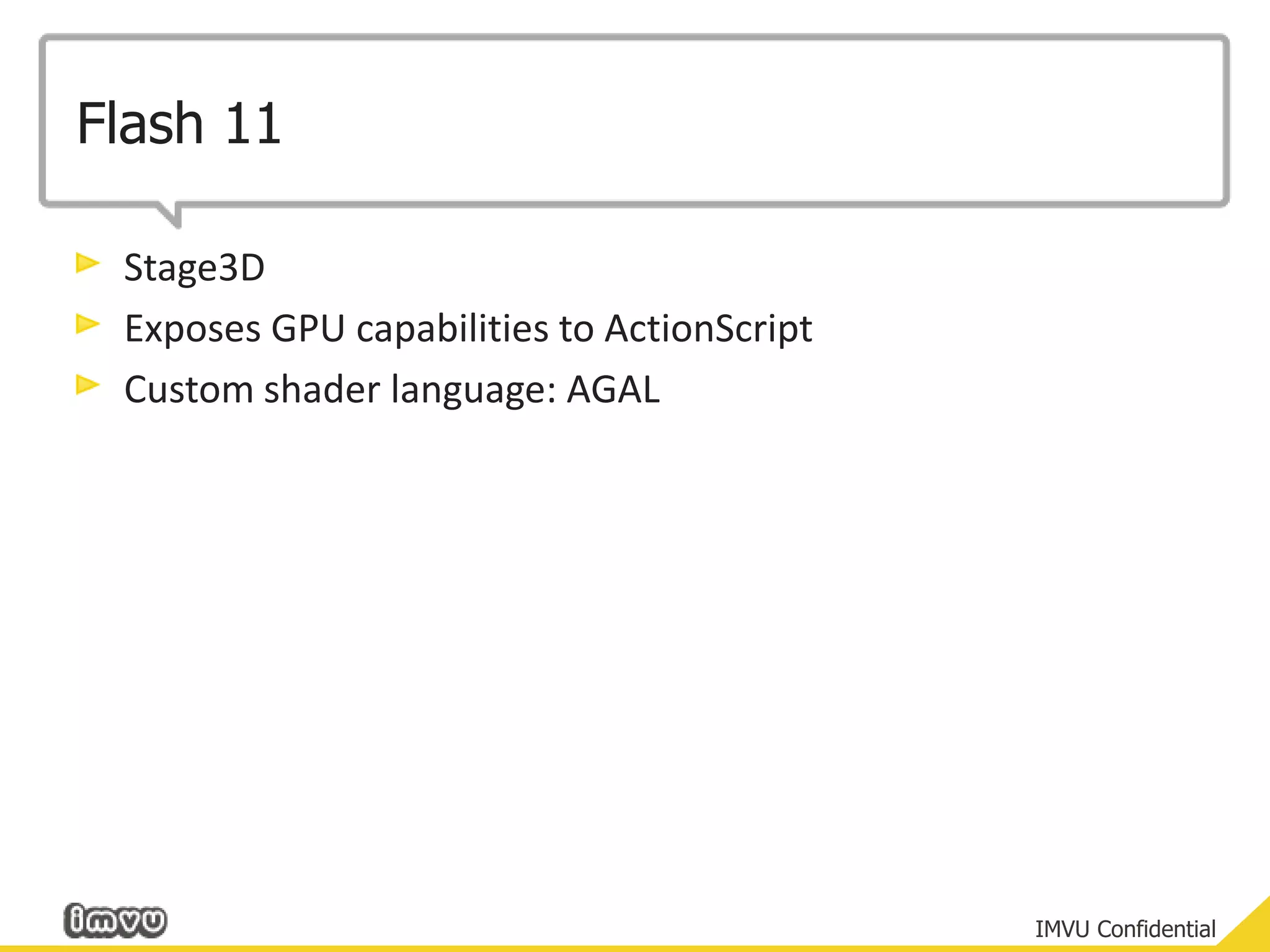

- 23. Flash 11Stage3DExposes GPUcapabilities to ActionScriptCustom shader language: AGAL
- 24.
- 25.

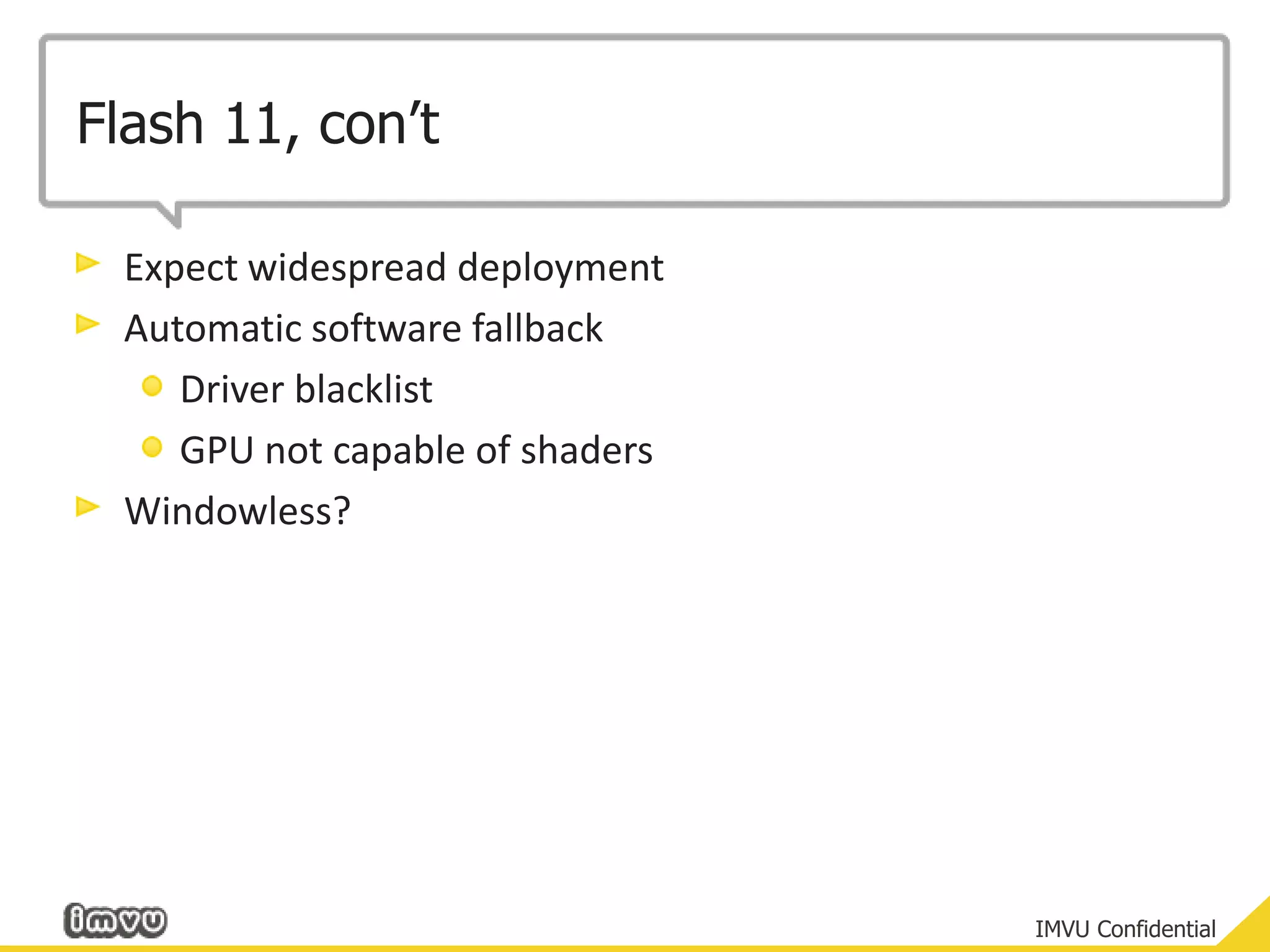

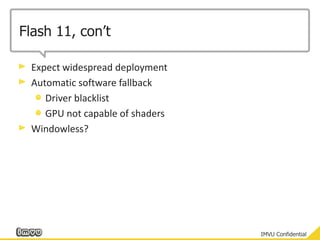

- 26. Flash 11, con’tExpectwidespread deploymentAutomatic software fallbackDriver blacklistGPU not capable of shadersWindowless?

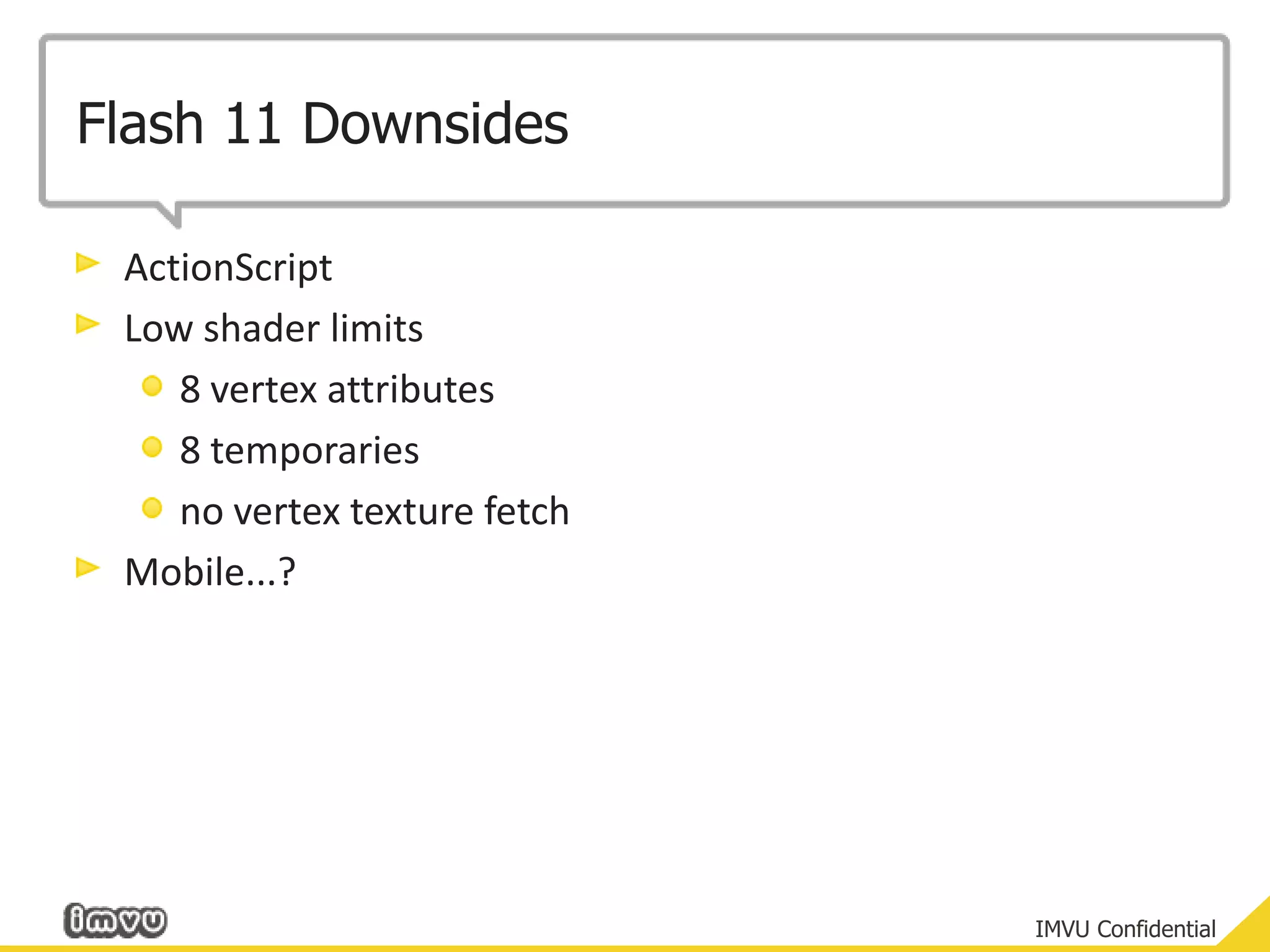

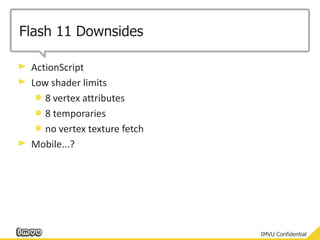

- 27. Flash 11 DownsidesActionScriptLowshader limits8 vertex attributes8 temporariesno vertex texture fetchMobile...?
- 28.

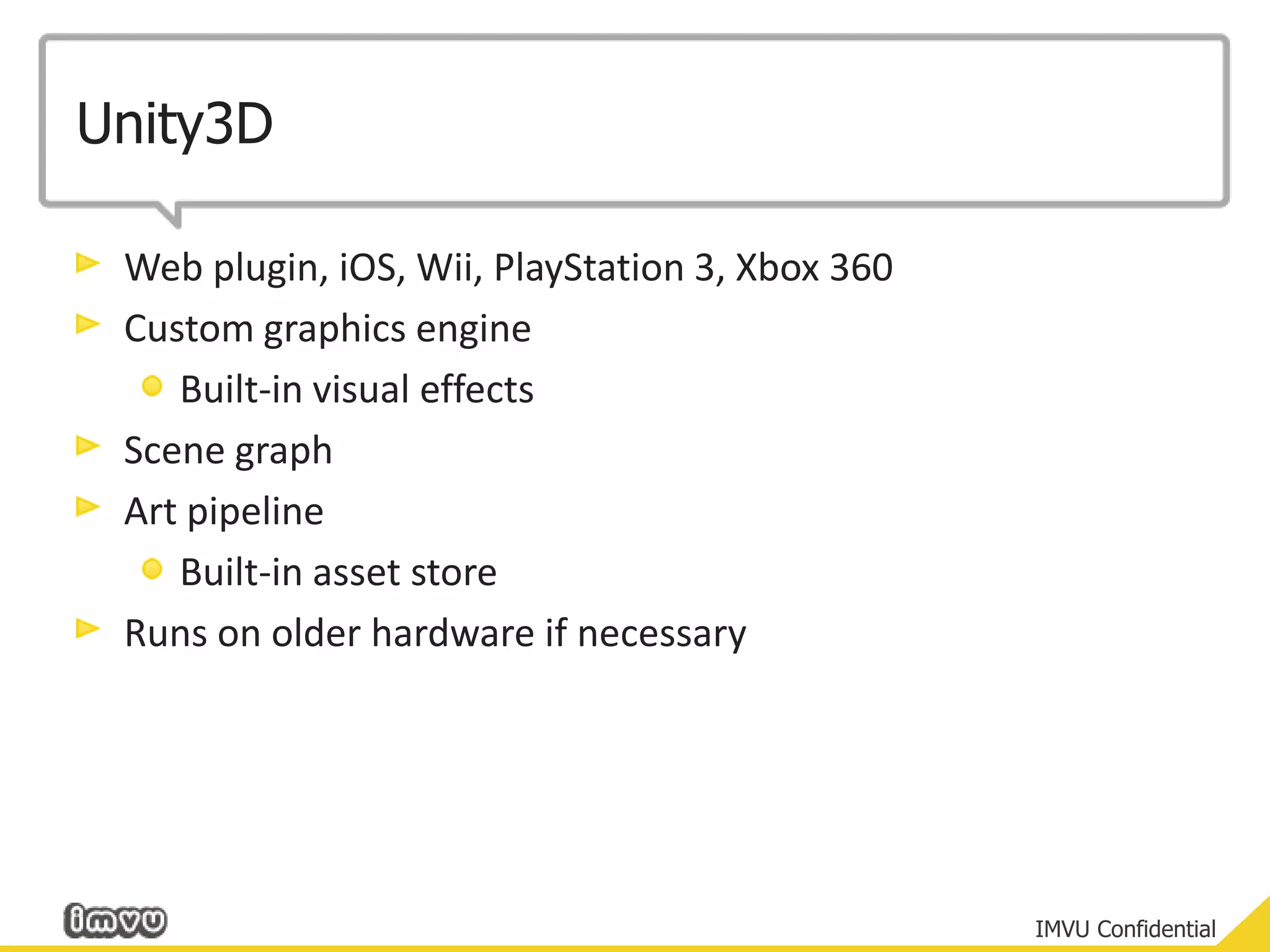

- 29. Unity3DWeb plugin, iOS,Wii, PlayStation 3, Xbox 360Custom graphics engineBuilt-in visual effectsScene graphArt pipelineBuilt-in asset storeRuns on older hardware if necessary

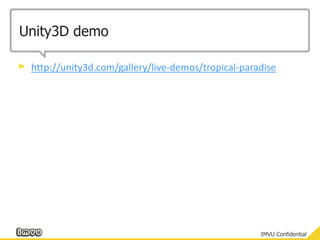

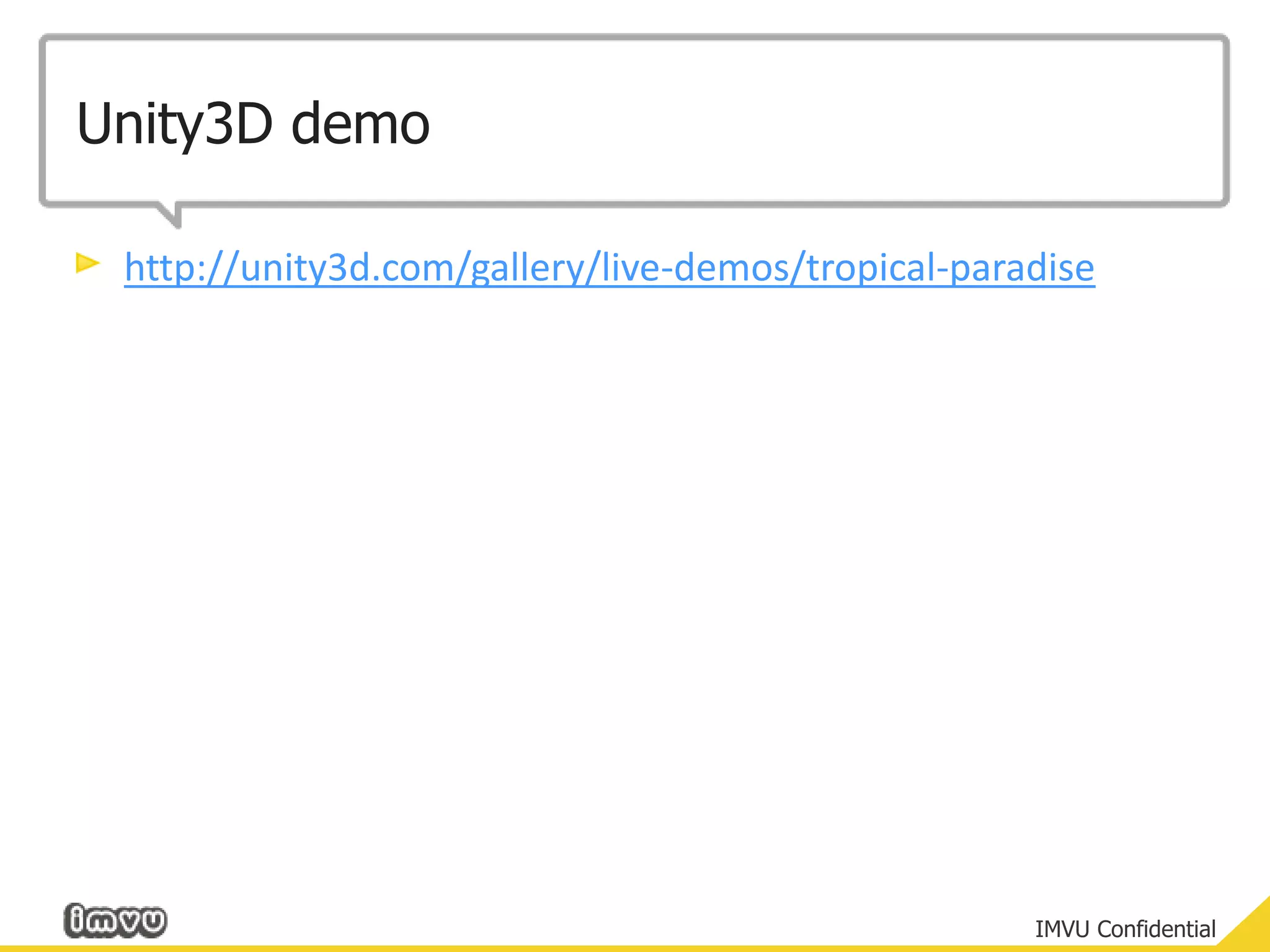

- 30.

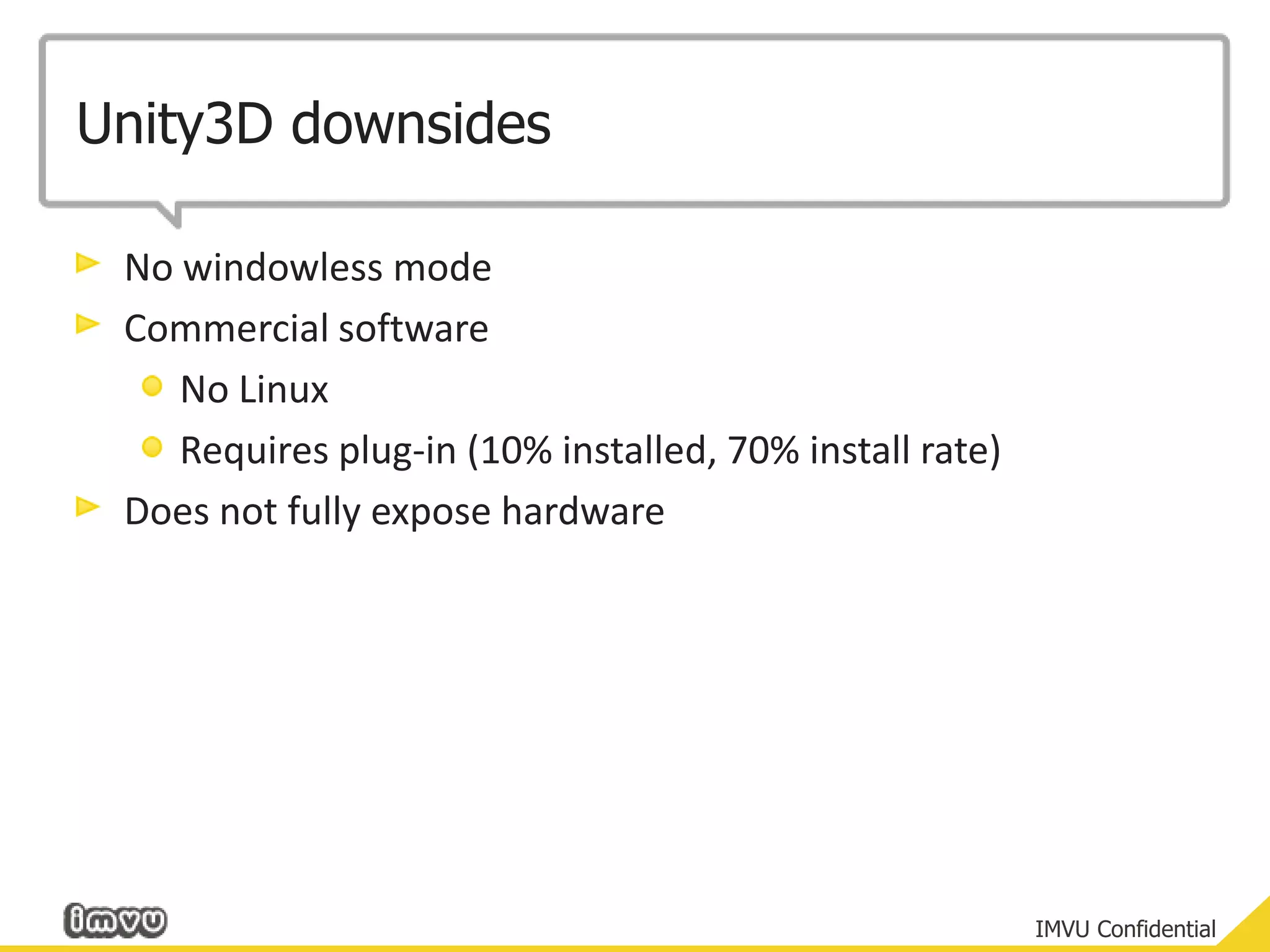

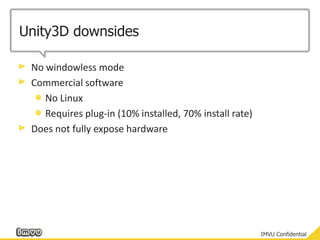

- 31. Unity3D downsidesNo windowlessmodeCommercial softwareNo LinuxRequires plug-in (10% installed, 70% install rate)Does not fully expose hardware

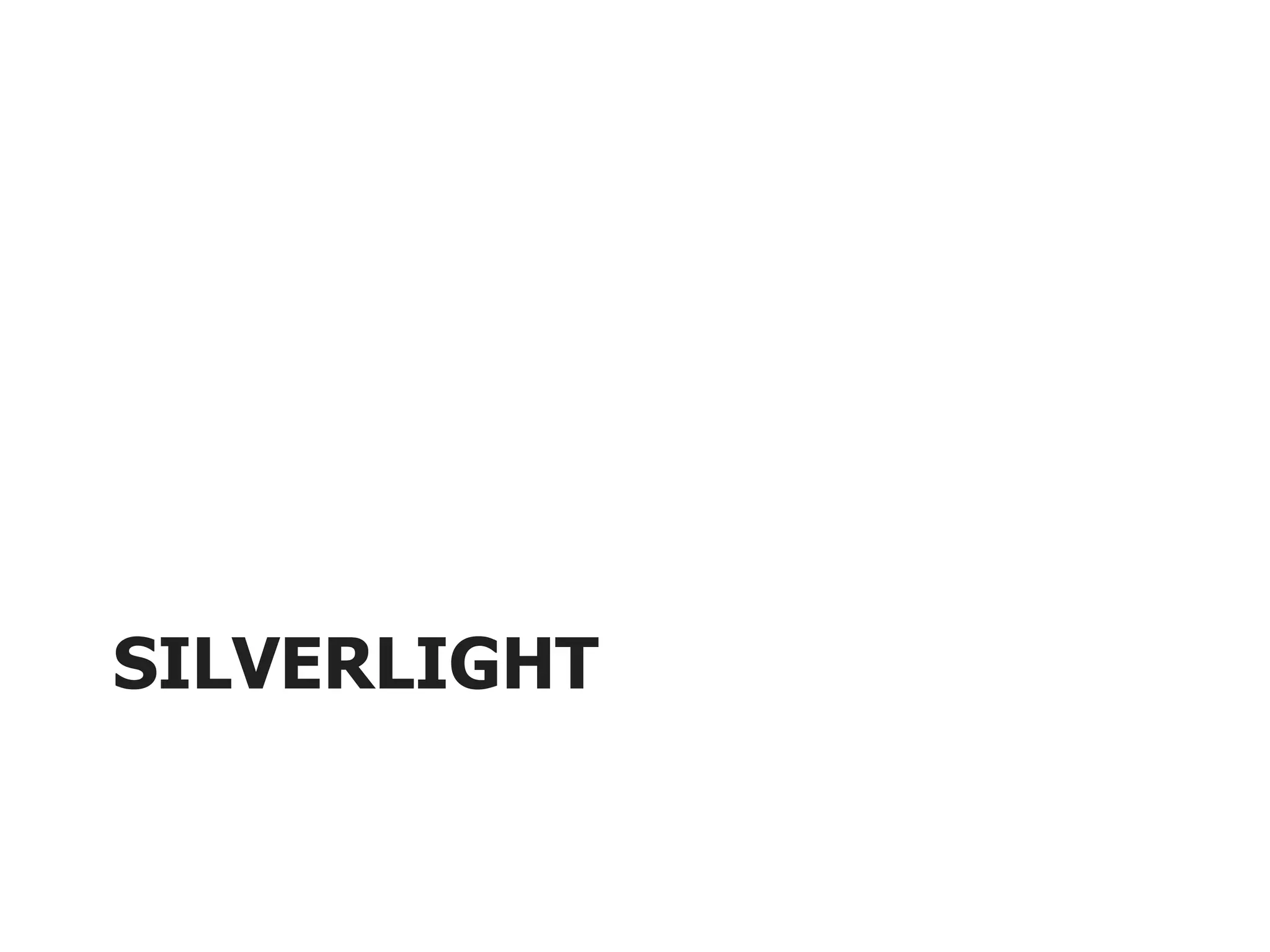

- 32.

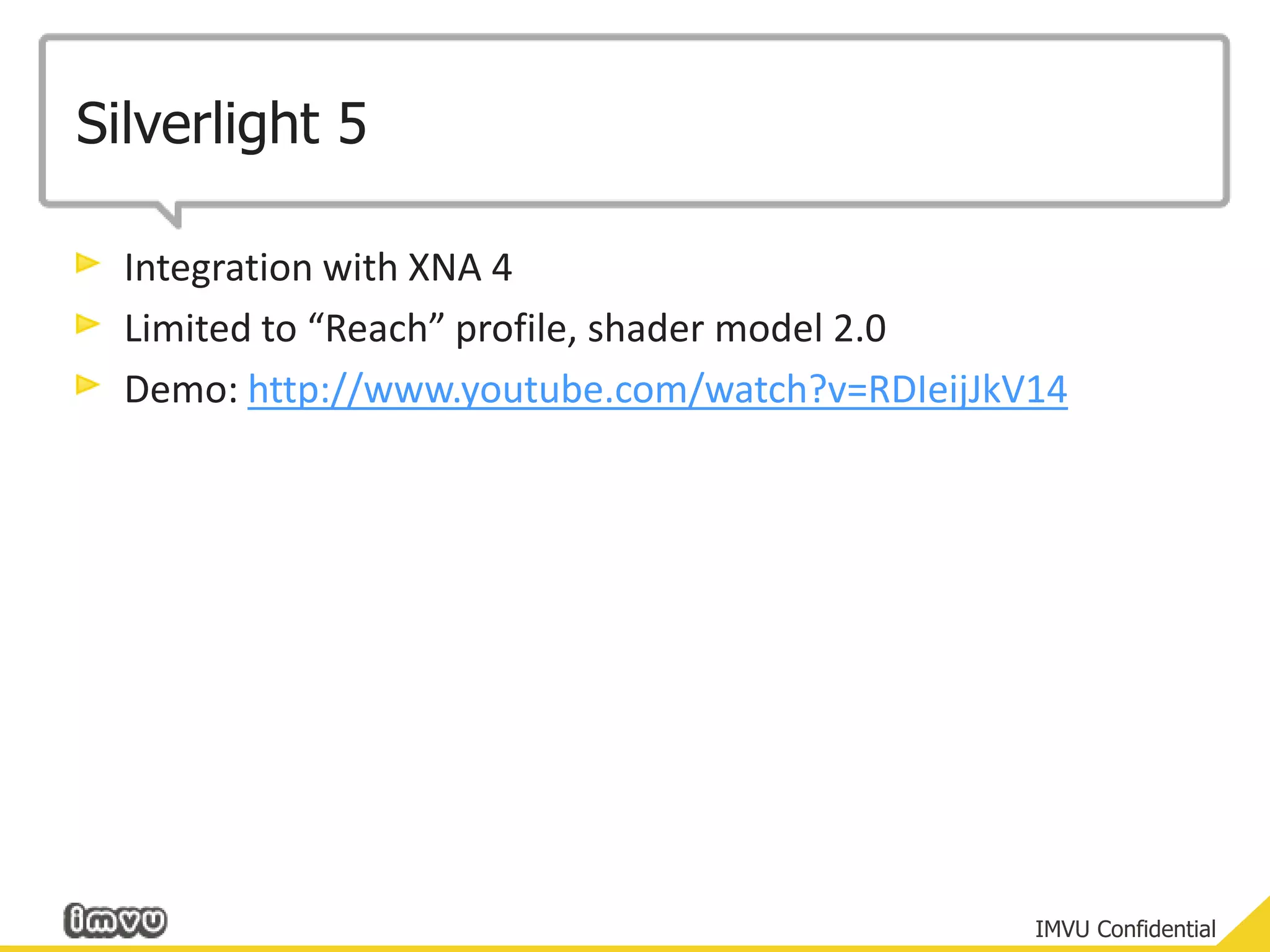

- 33. Silverlight 5Integration withXNA 4Limited to “Reach” profile, shader model 2.0Demo: http://www.youtube.com/watch?v=RDIeijJkV14

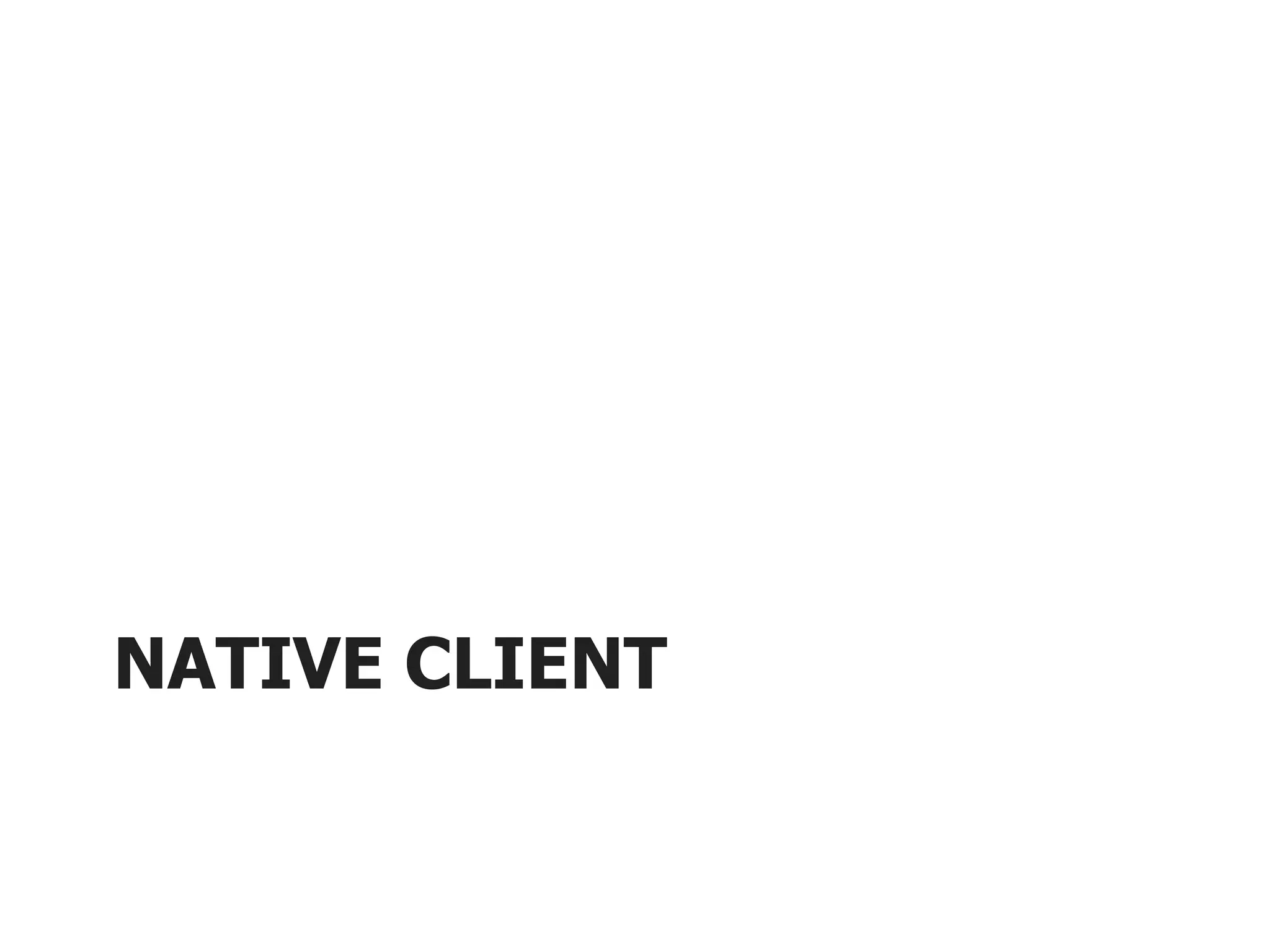

- 34.

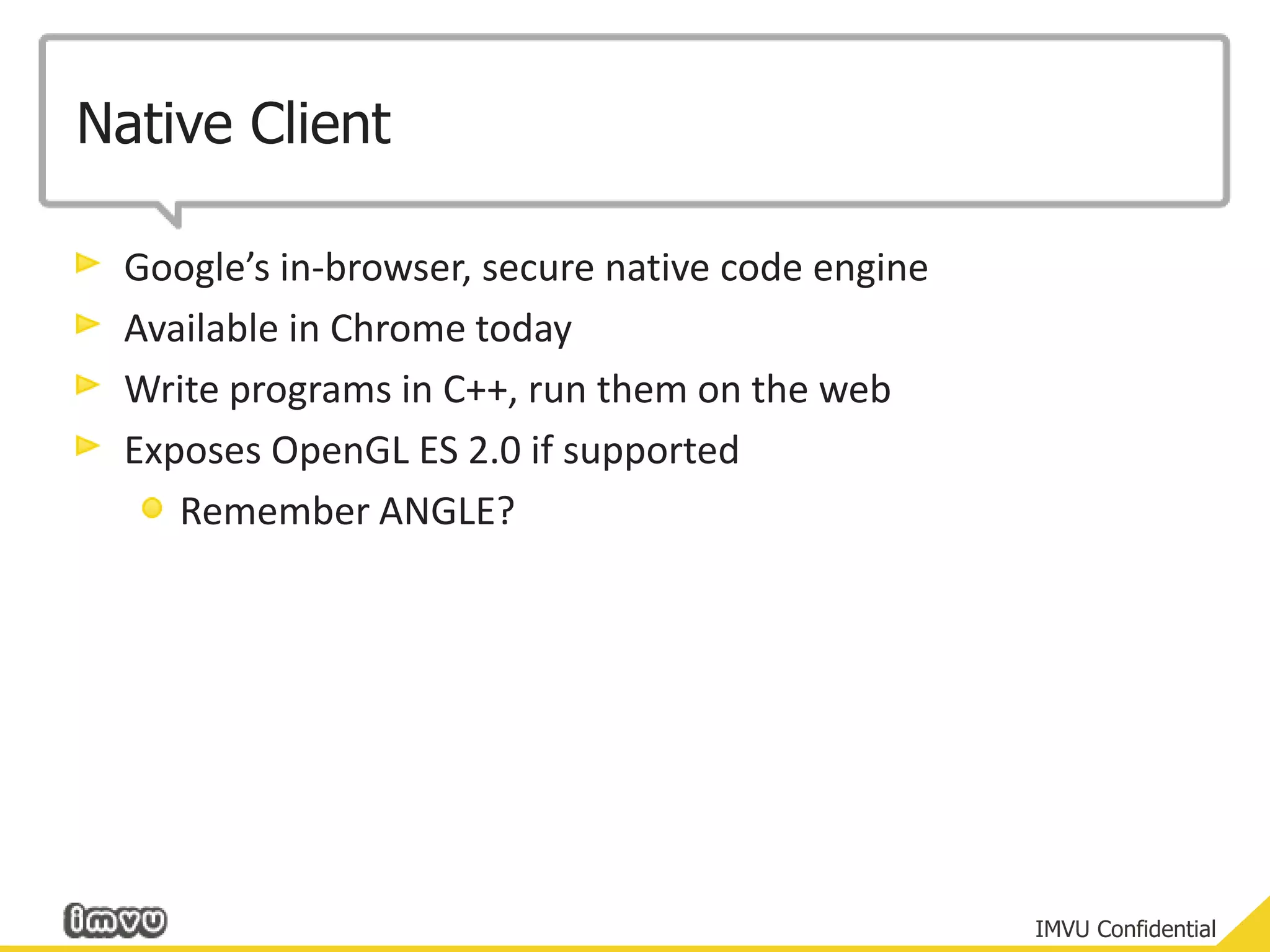

- 35. Native ClientGoogle’s in-browser,secure native code engineAvailable in Chrome todayWrite programs in C++, run them on the webExposes OpenGL ES 2.0 if supportedRemember ANGLE?

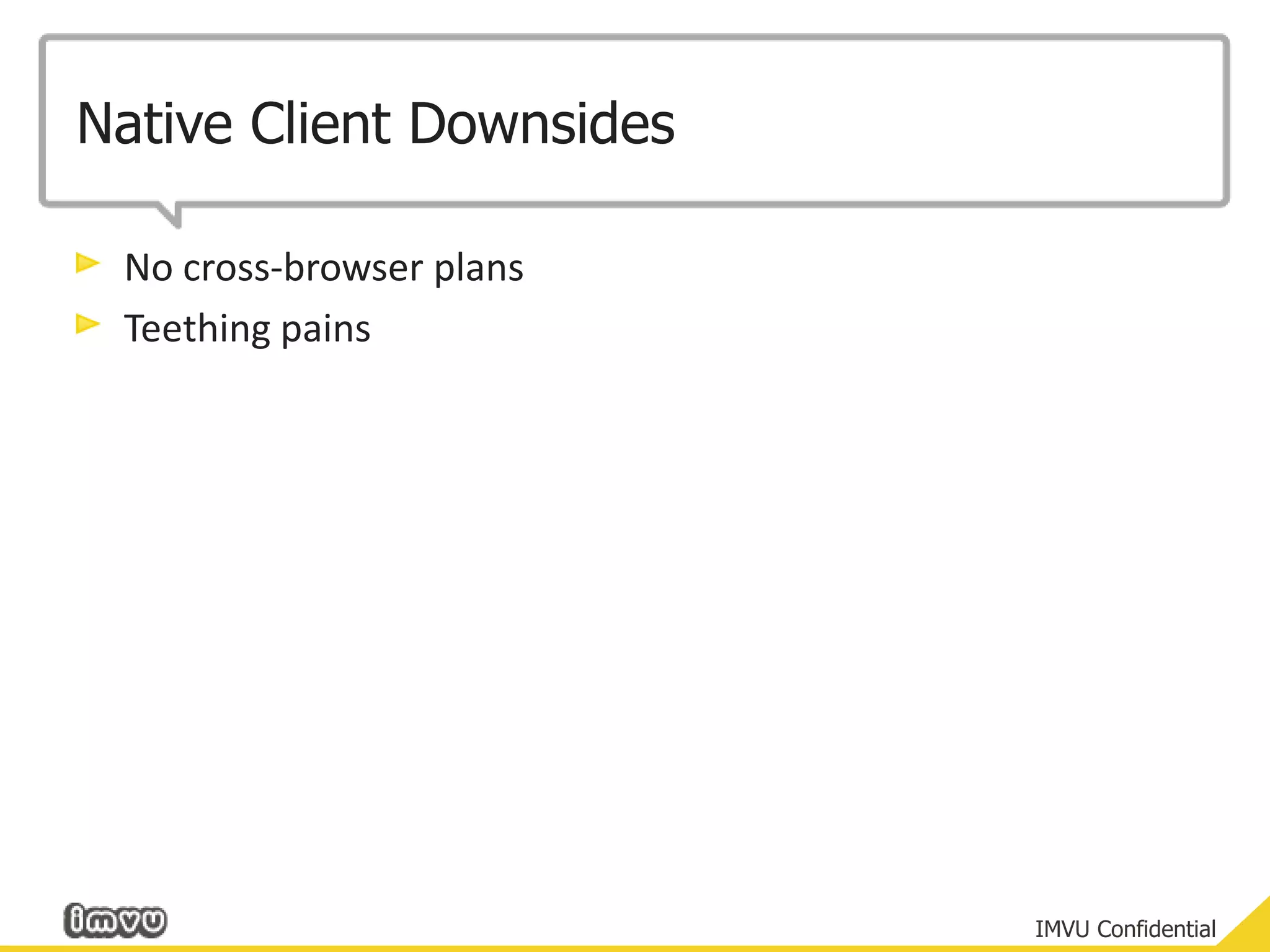

- 36. Native Client DownsidesNocross-browser plansTeething pains

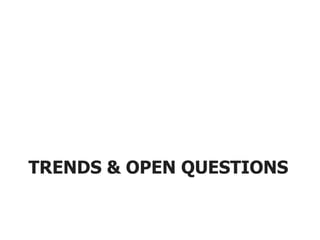

- 37. Trends & OpenQuestions

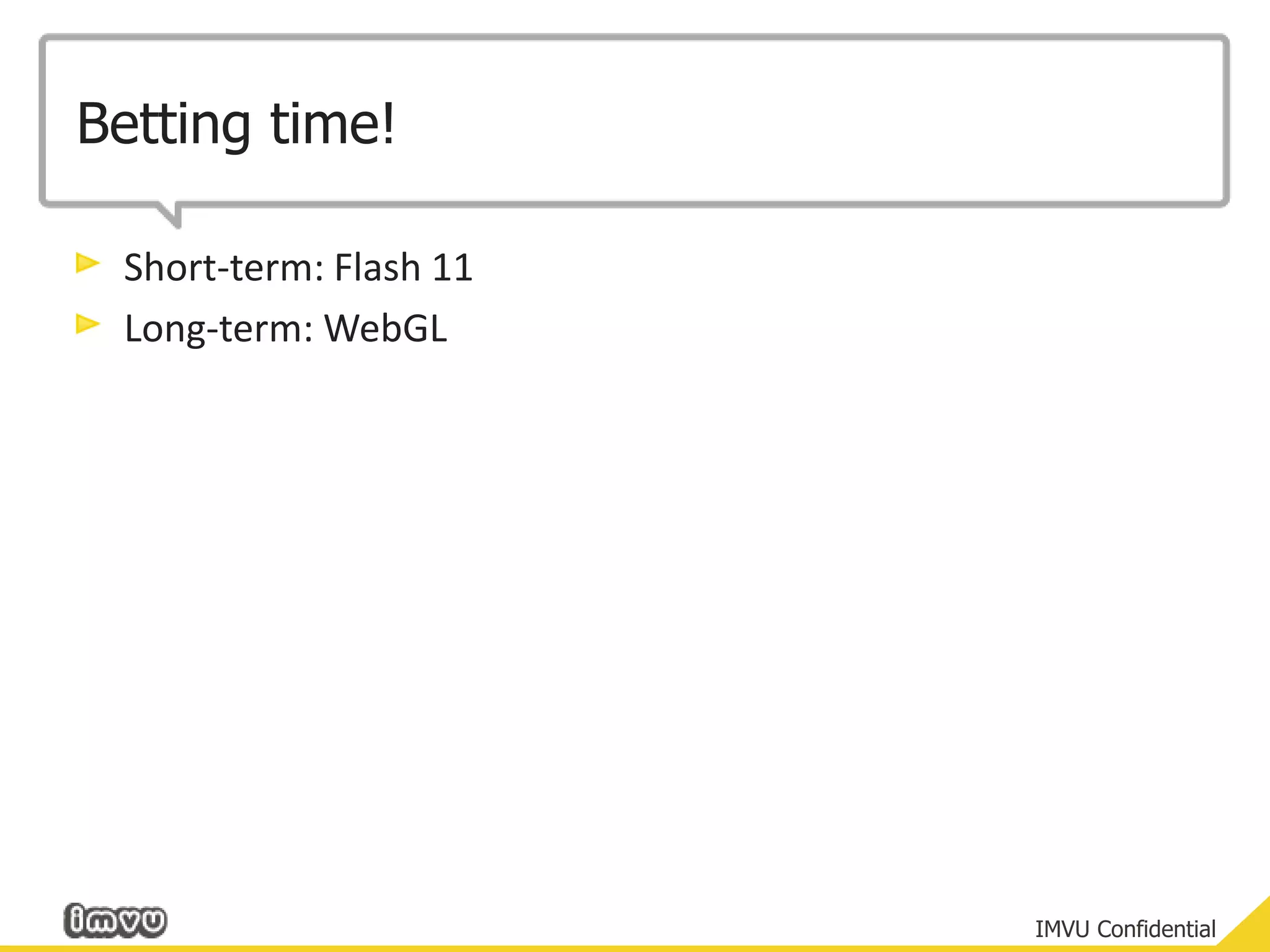

- 38. Betting time!Short-term: Flash11Long-term: WebGL

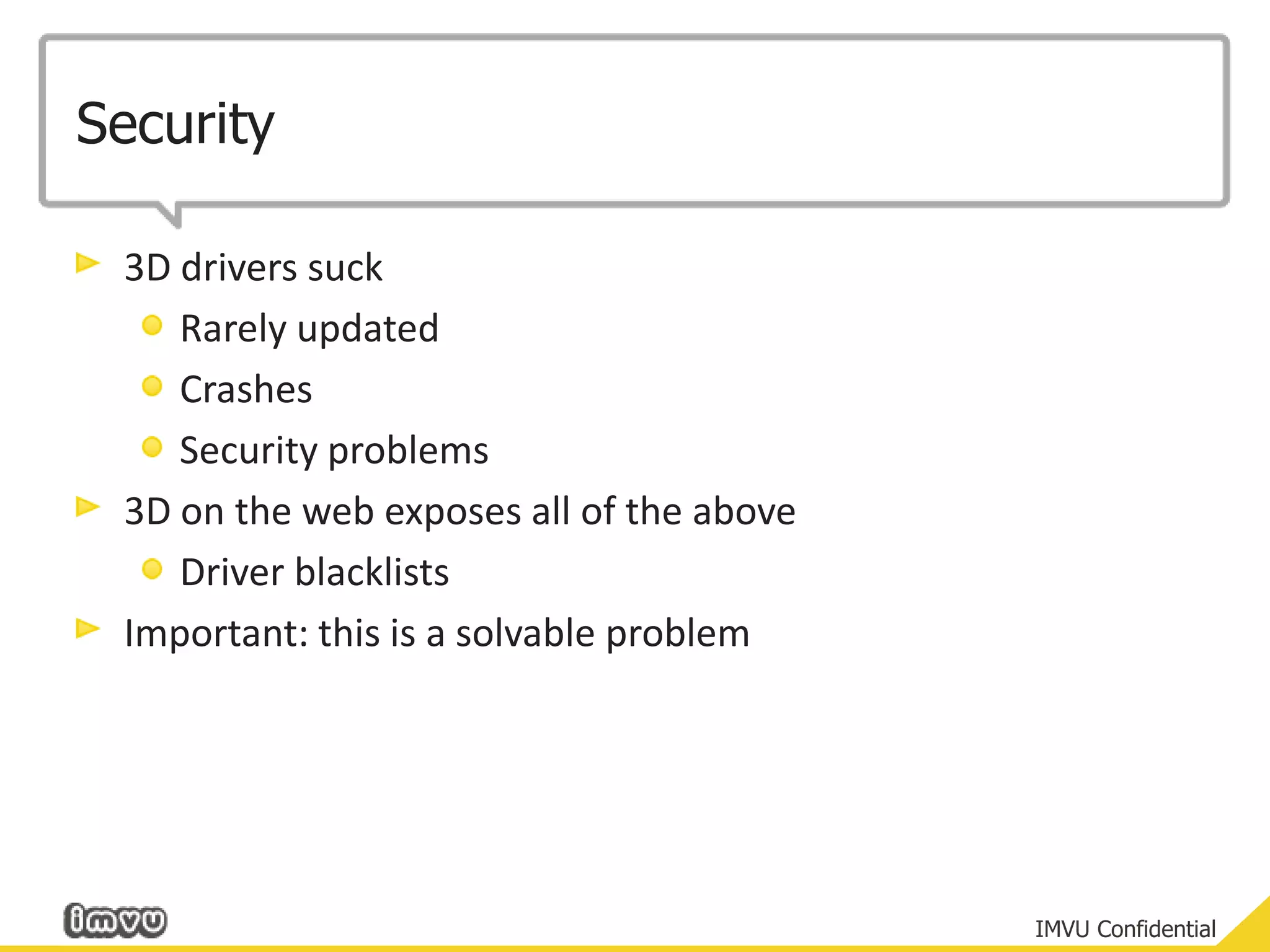

- 39. Security3D drivers suckRarelyupdatedCrashesSecurity problems3D on the web exposes all of the aboveDriver blacklistsImportant: this is a solvable problem

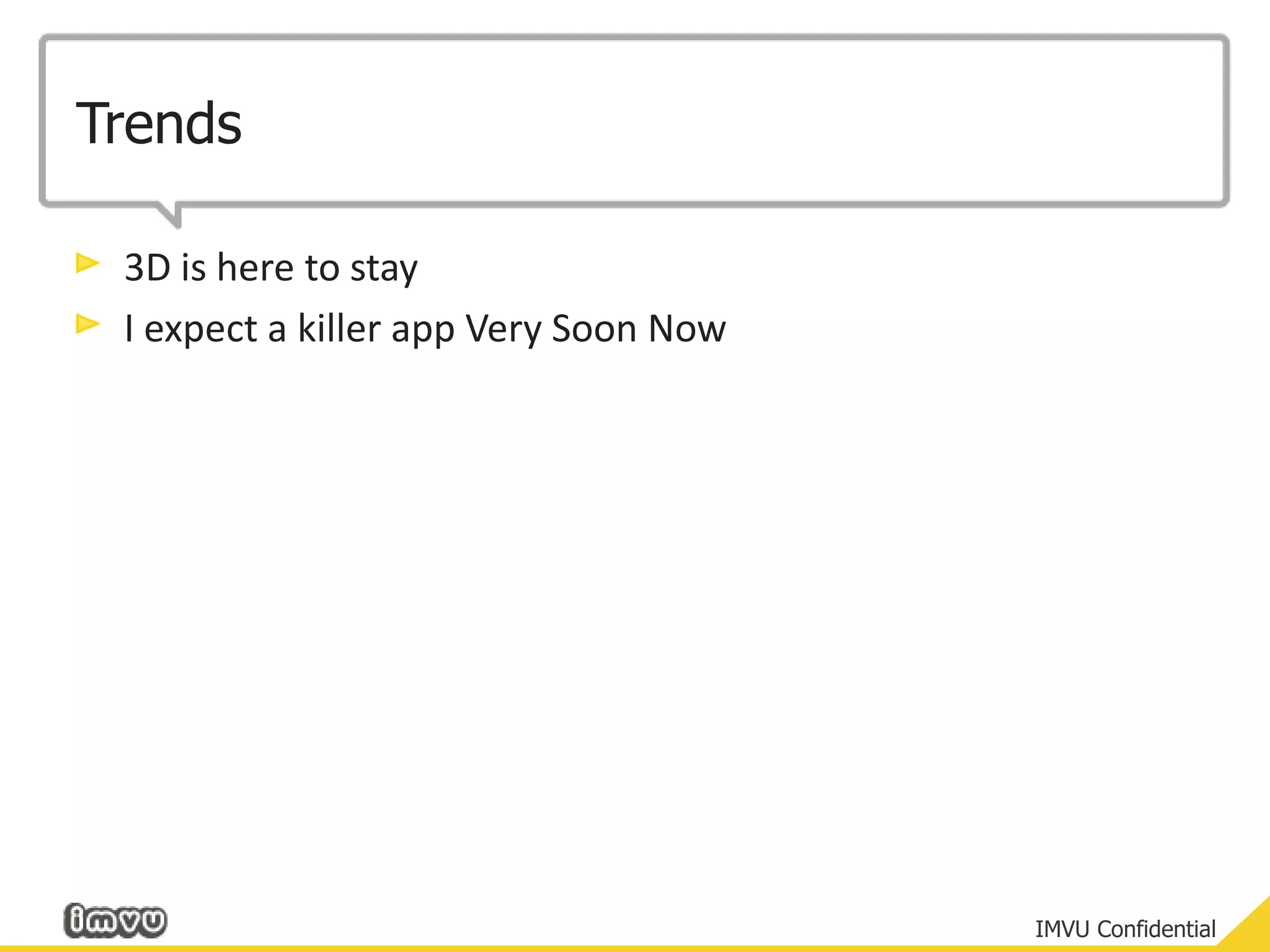

- 40. Trends3D is hereto stayI expect a killer app Very Soon Now

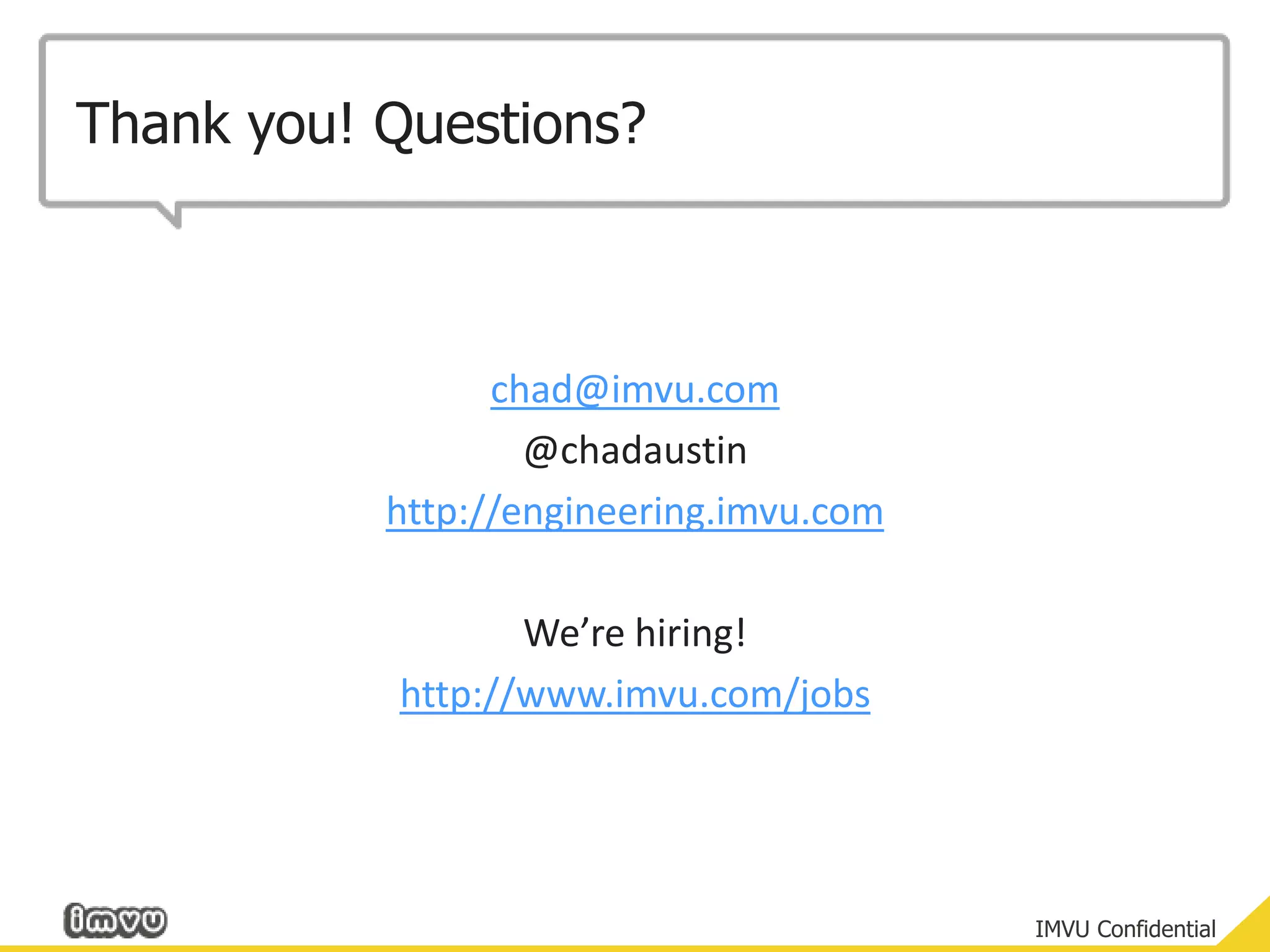

- 41. Thank you! Questions?chad@imvu.com@chadaustinhttp://engineering.imvu.comWe’rehiring!http://www.imvu.com/jobs
