WebGL For Game Development 2012

WebGL for Game
Development
Tony Parisi
http://www.tonyparisi.com

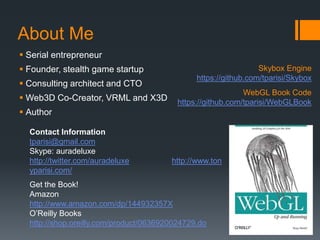

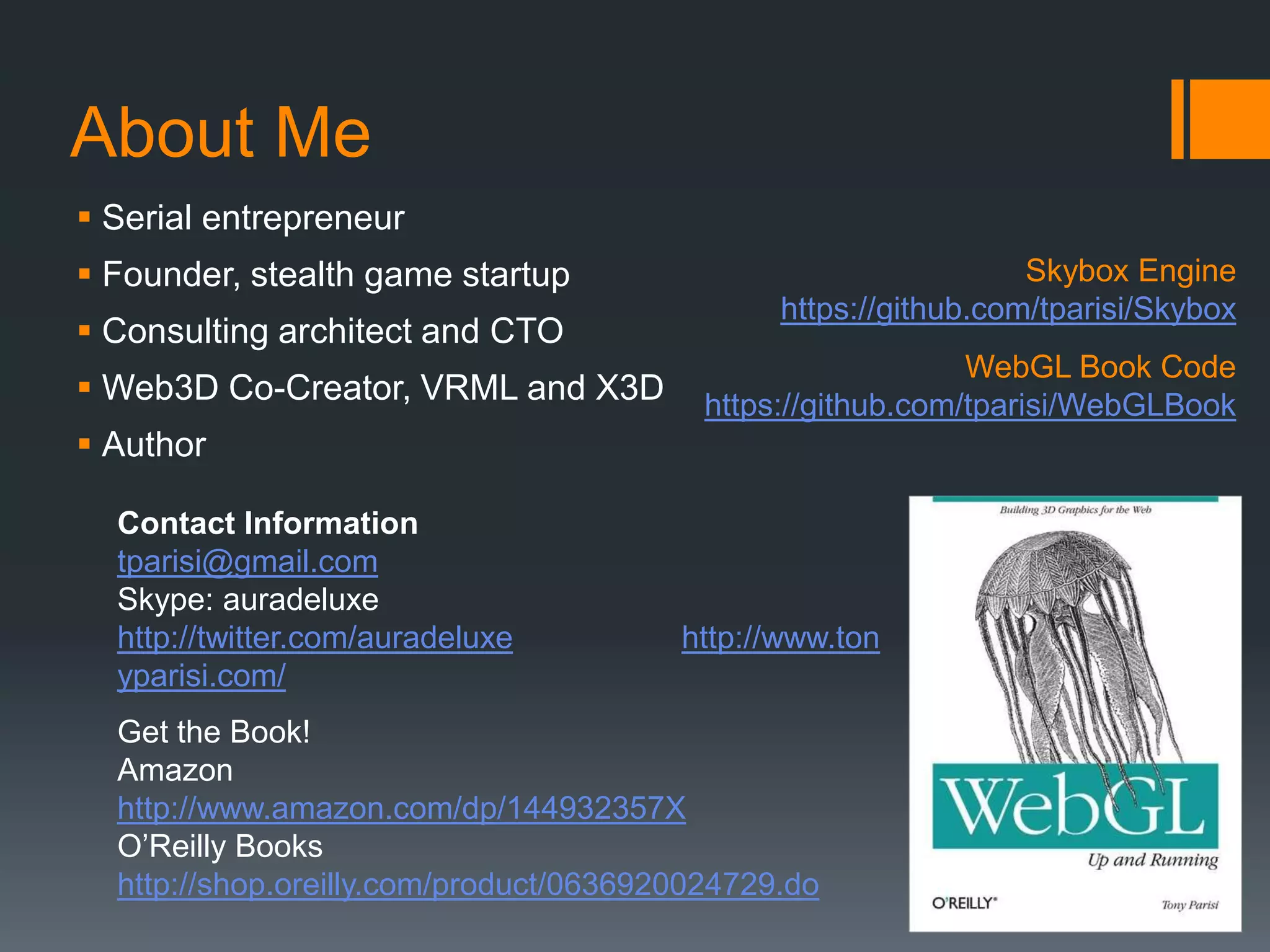

About Me
 Serial entrepreneur
 Founder, stealth game startup Skybox Engine
https://github.com/tparisi/Skybox
 Consulting architect and CTO
WebGL Book Code
 Web3D Co-Creator, VRML and X3D https://github.com/tparisi/WebGLBook
 Author

Contact Information
tparisi@gmail.com
Skype: auradeluxe
http://twitter.com/auradeluxe http://www.ton
yparisi.com/
Get the Book!
Amazon
http://www.amazon.com/dp/144932357X
O’Reilly Books
http://shop.oreilly.com/product/0636920024729.do

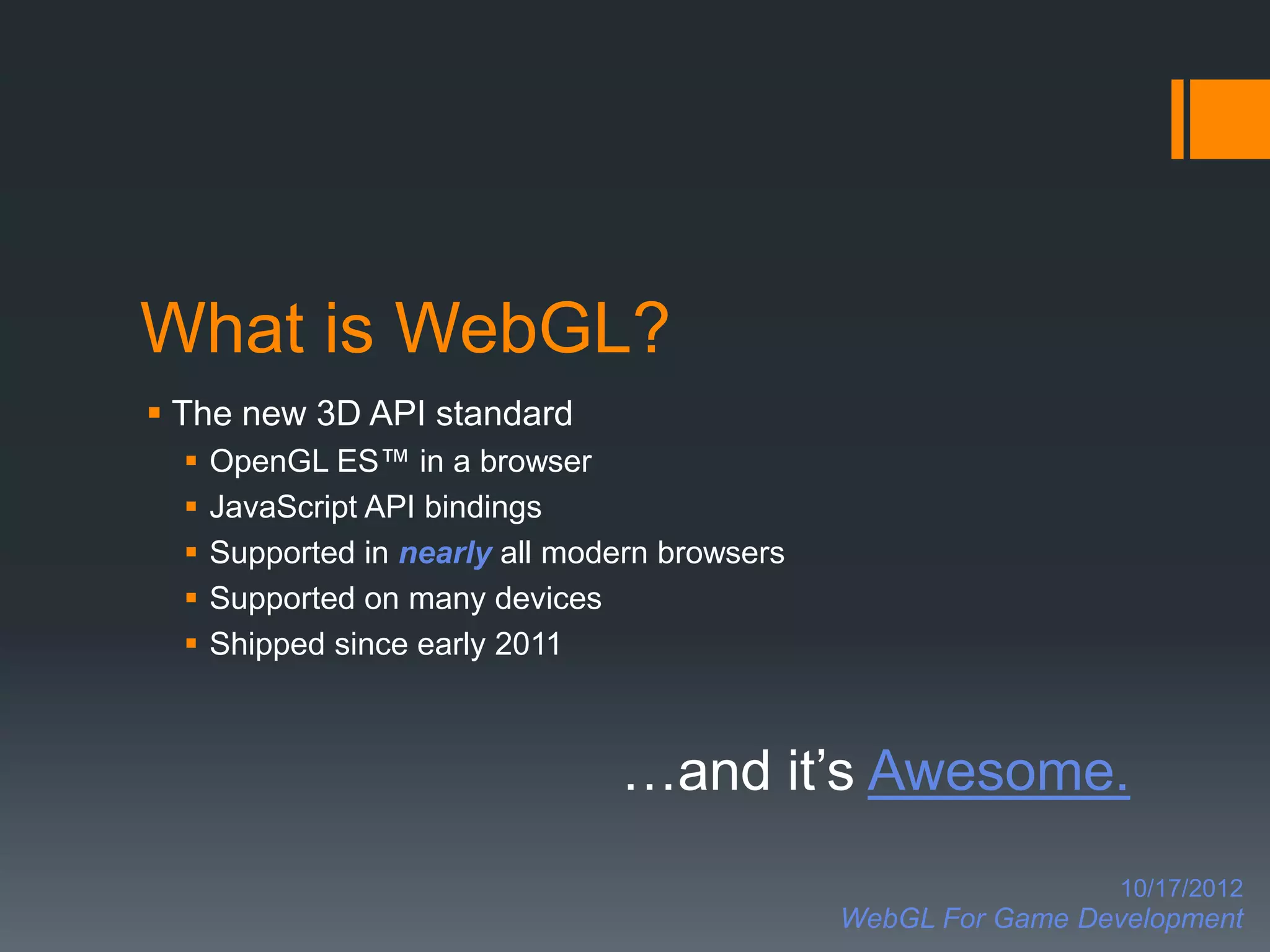

What is WebGL?
 The new 3D API standard
 OpenGL ES™ in a browser
 JavaScript API bindings
 Supported in nearly all modern browsers
 Supported on many devices
 Shipped since early 2011

…and it’s Awesome.
10/17/2012
WebGL For Game Development

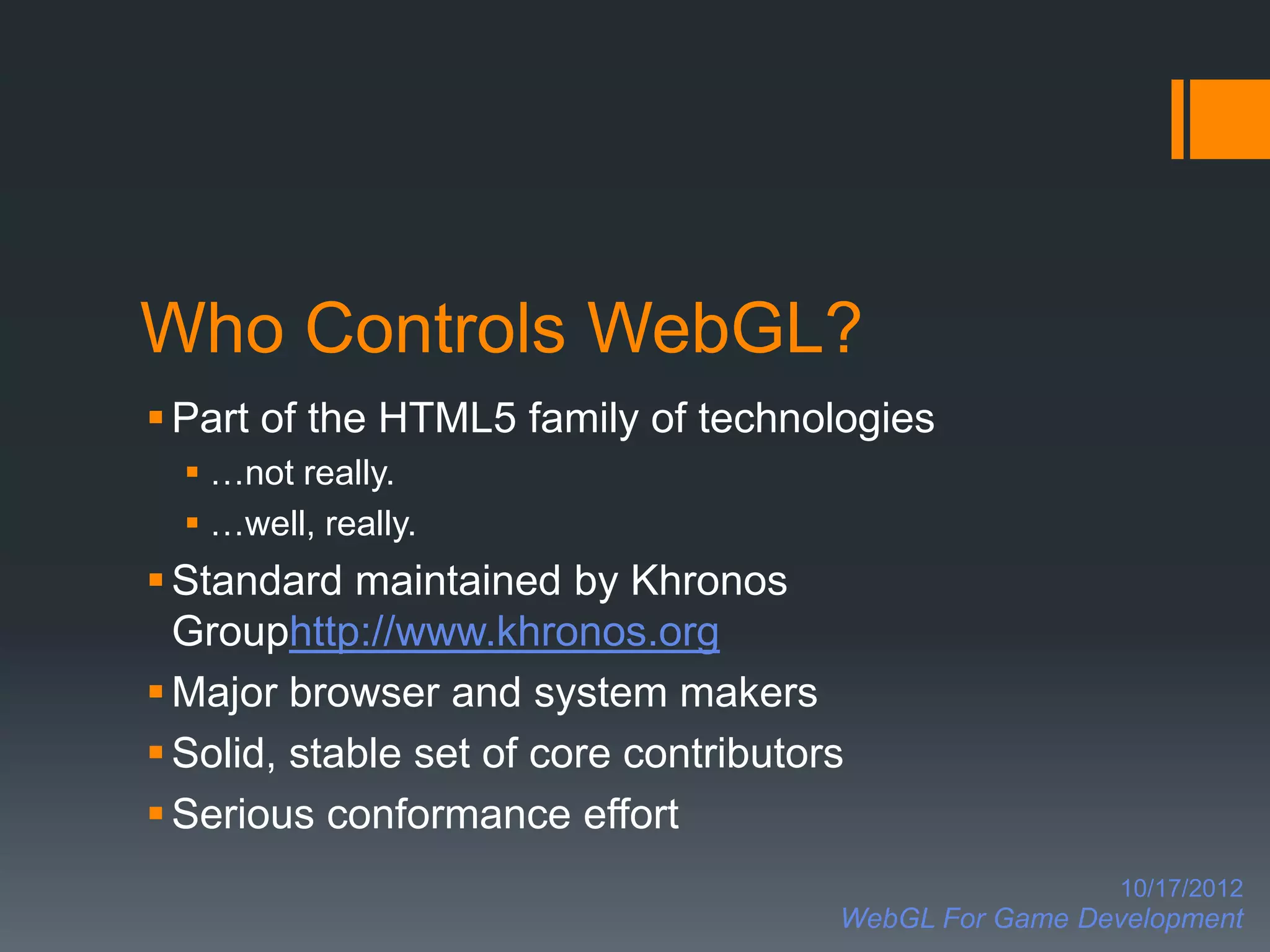

Who Controls WebGL?
 Part of the HTML5 family of technologies
 …not really.
 …well, really.
 Standard maintained by Khronos
Grouphttp://www.khronos.org
 Major browser and system makers
 Solid, stable set of core contributors
 Serious conformance effort
10/17/2012

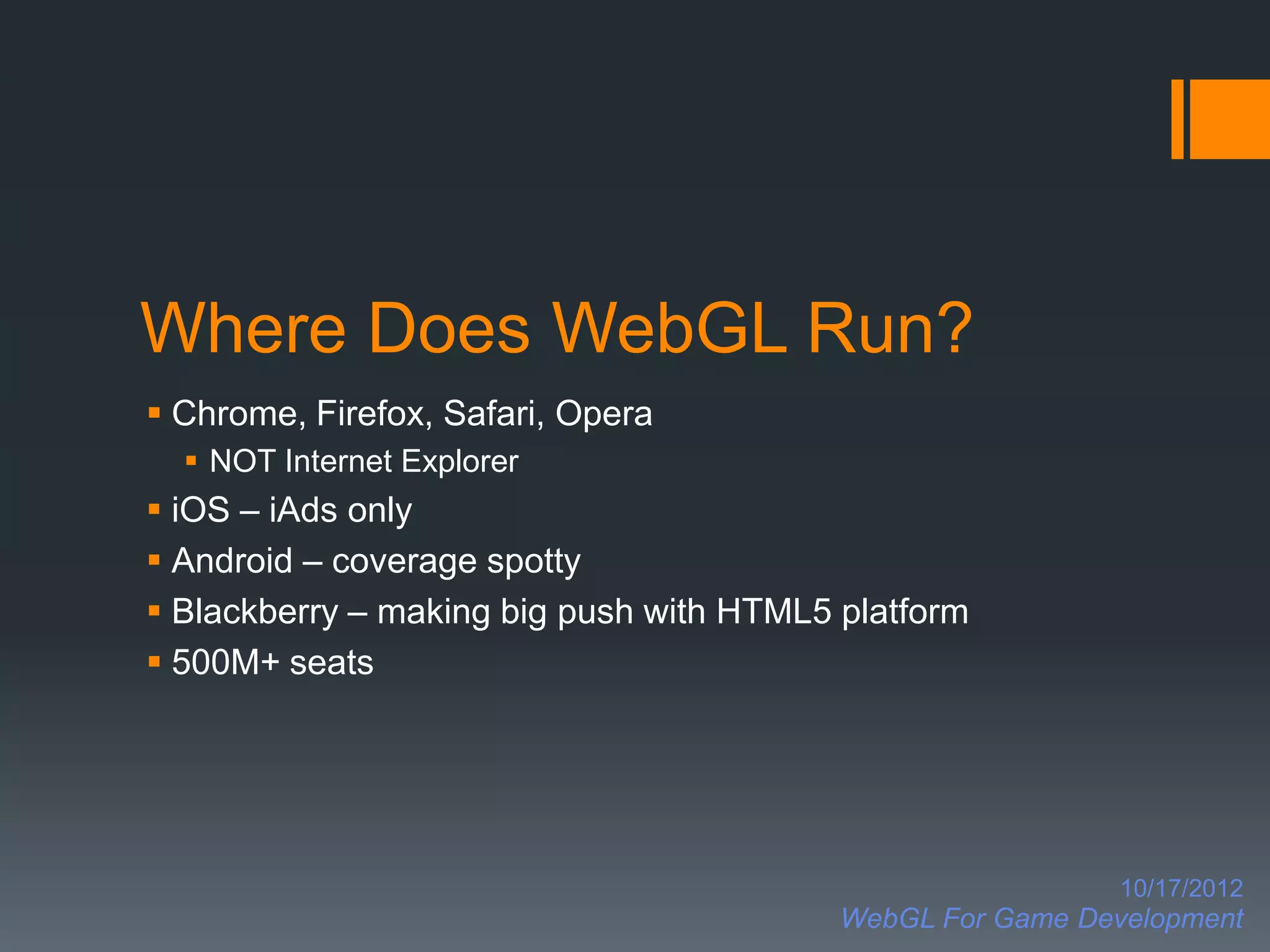

Where Does WebGL Run?
 Chrome, Firefox, Safari, Opera
 NOT Internet Explorer
 iOS – iAds only
 Android – coverage spotty
 Blackberry – making big push with HTML5 platform
 500M+ seats

10/17/2012

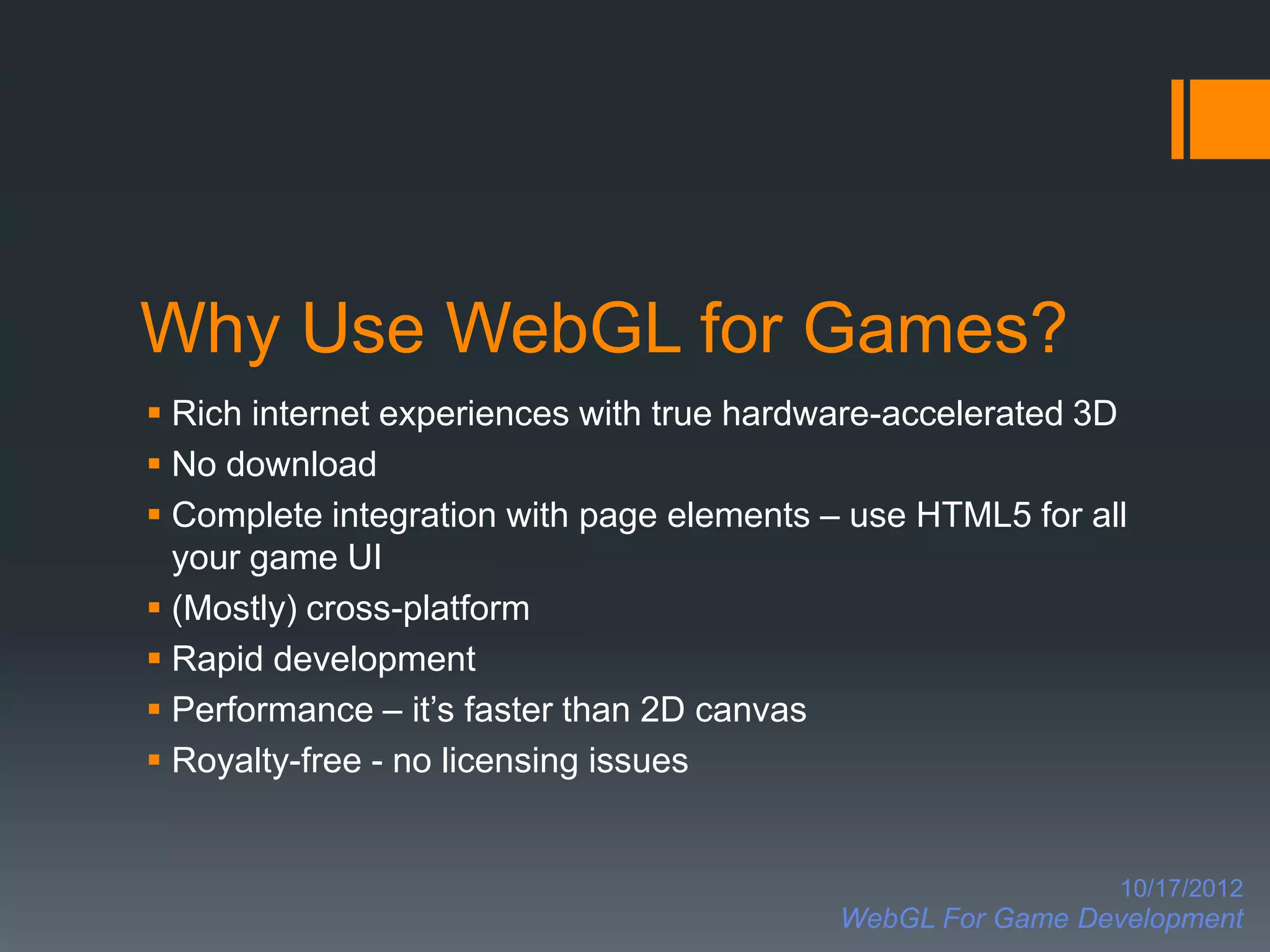

Why Use WebGL for Games?
 Rich internet experiences with true hardware-accelerated 3D
 No download
 Complete integration with page elements – use HTML5 for all
your game UI
 (Mostly) cross-platform
 Rapid development
 Performance – it’s faster than 2D canvas
 Royalty-free - no licensing issues

10/17/2012

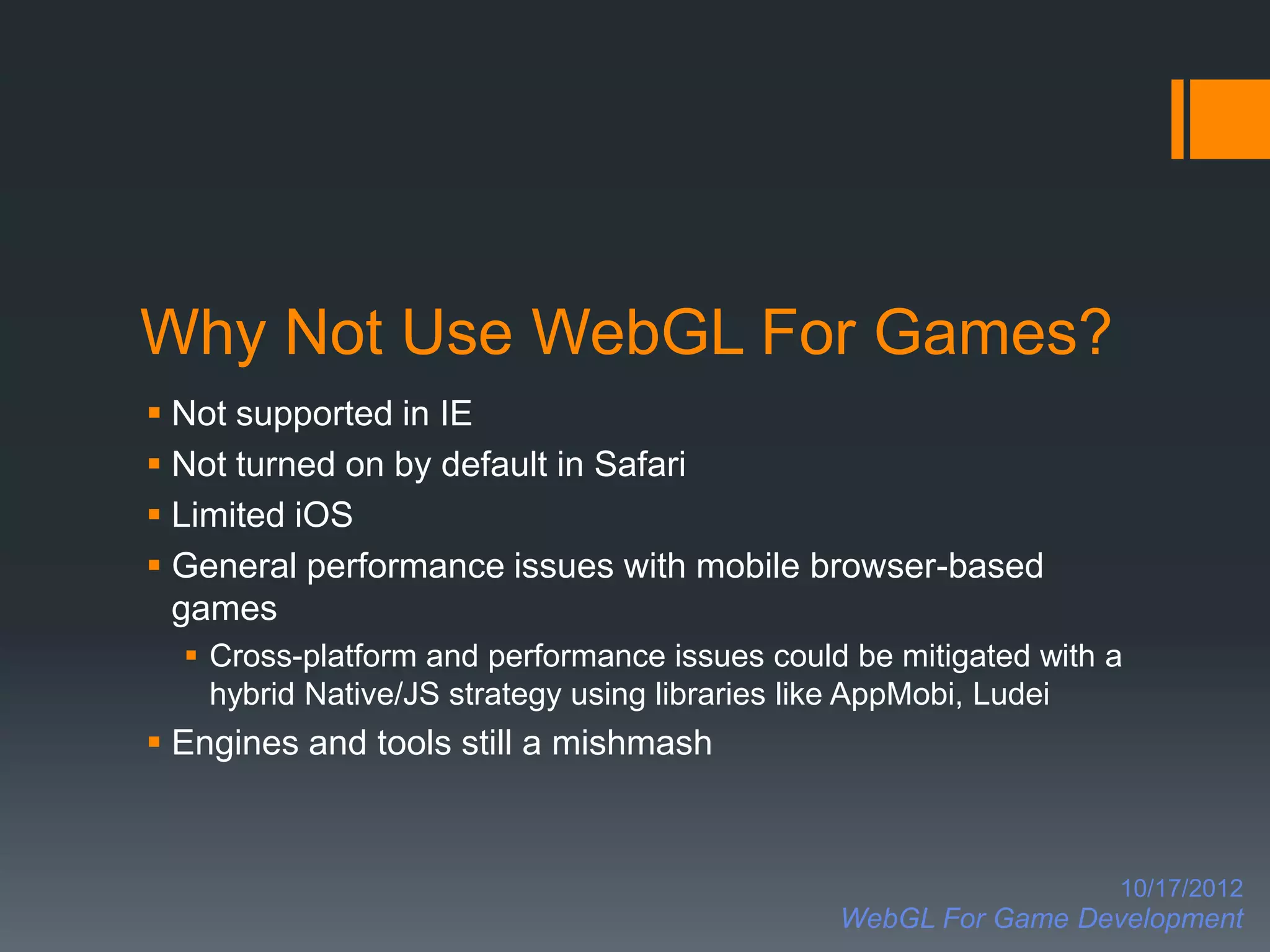

Why Not Use WebGL For Games?
 Not supported in IE
 Not turned on by default in Safari
 Limited iOS
 General performance issues with mobile browser-based
games
 Cross-platform and performance issues could be mitigated with a
hybrid Native/JS strategy using libraries like AppMobi, Ludei
 Engines and tools still a mishmash

10/17/2012

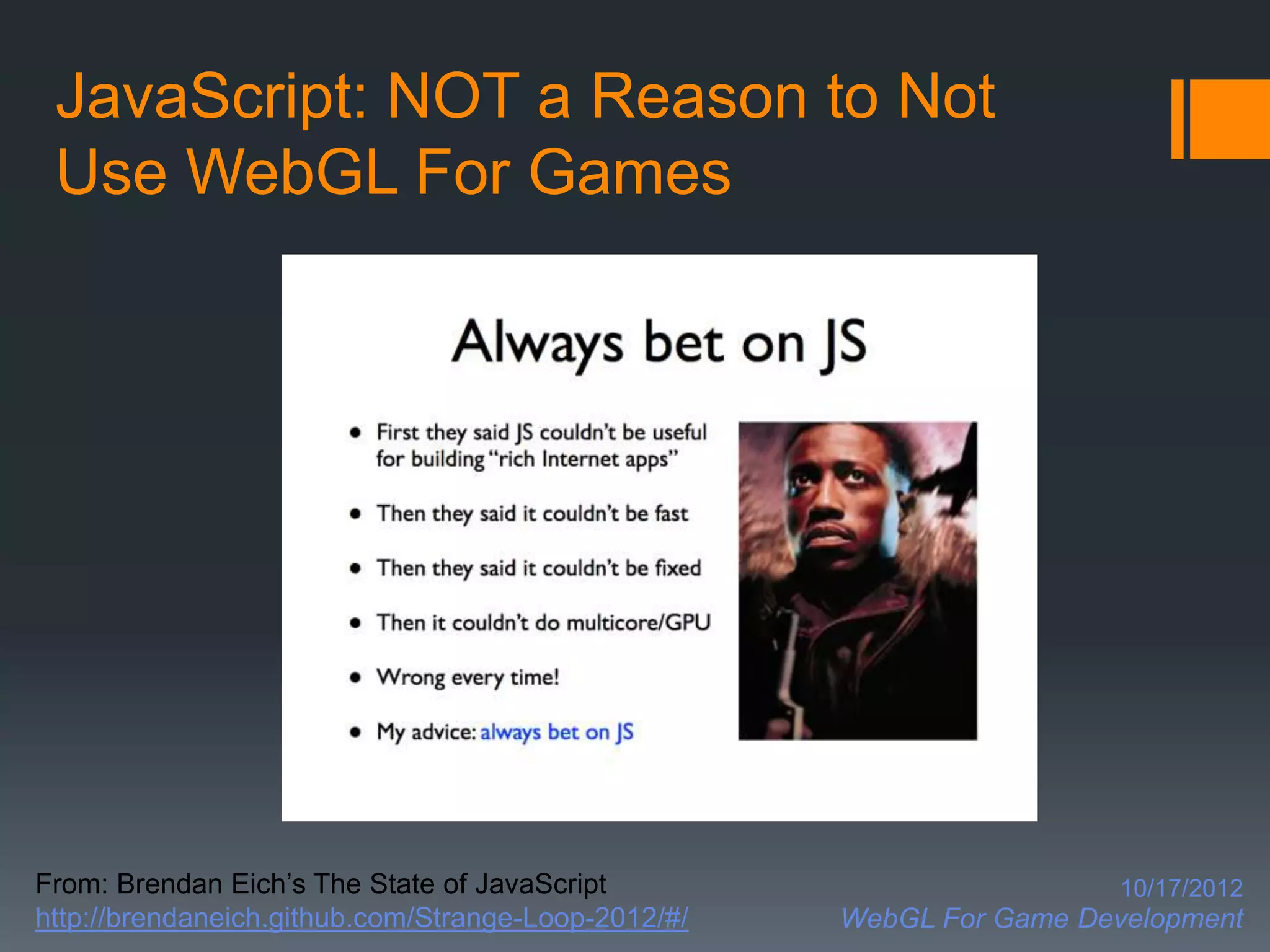

JavaScript: NOT a Reason to Not
Use WebGL For Games

From: Brendan Eich’s The State of JavaScript 10/17/2012
http://brendaneich.github.com/Strange-Loop-2012/#/ WebGL For Game Development

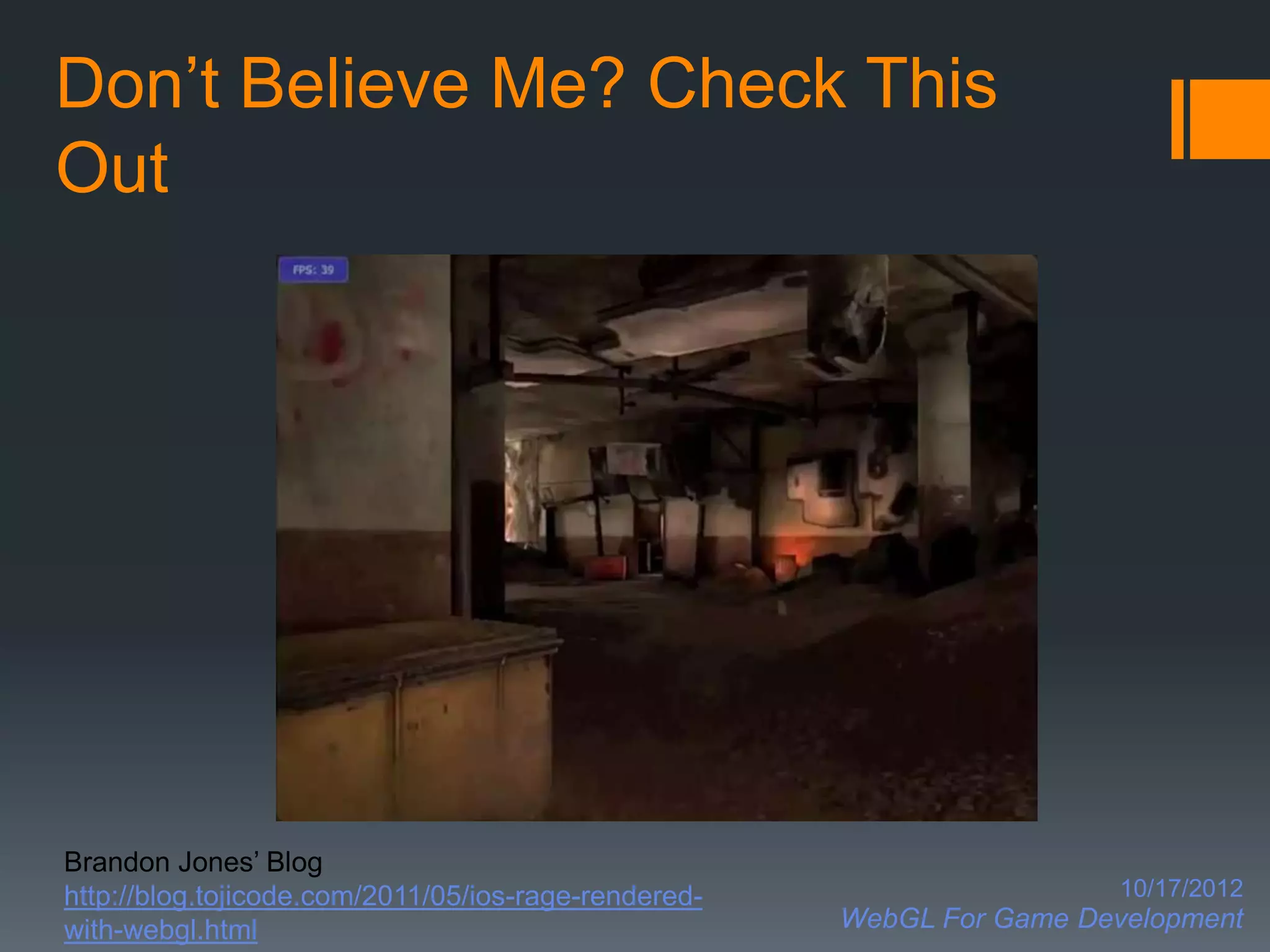

Don’t Believe Me? Check This
Out

Brandon Jones’ Blog
http://blog.tojicode.com/2011/05/ios-rage-rendered- 10/17/2012
with-webgl.html WebGL For Game Development

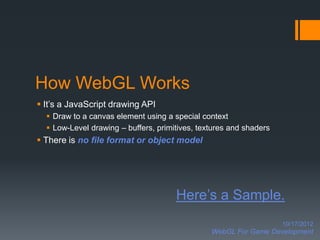

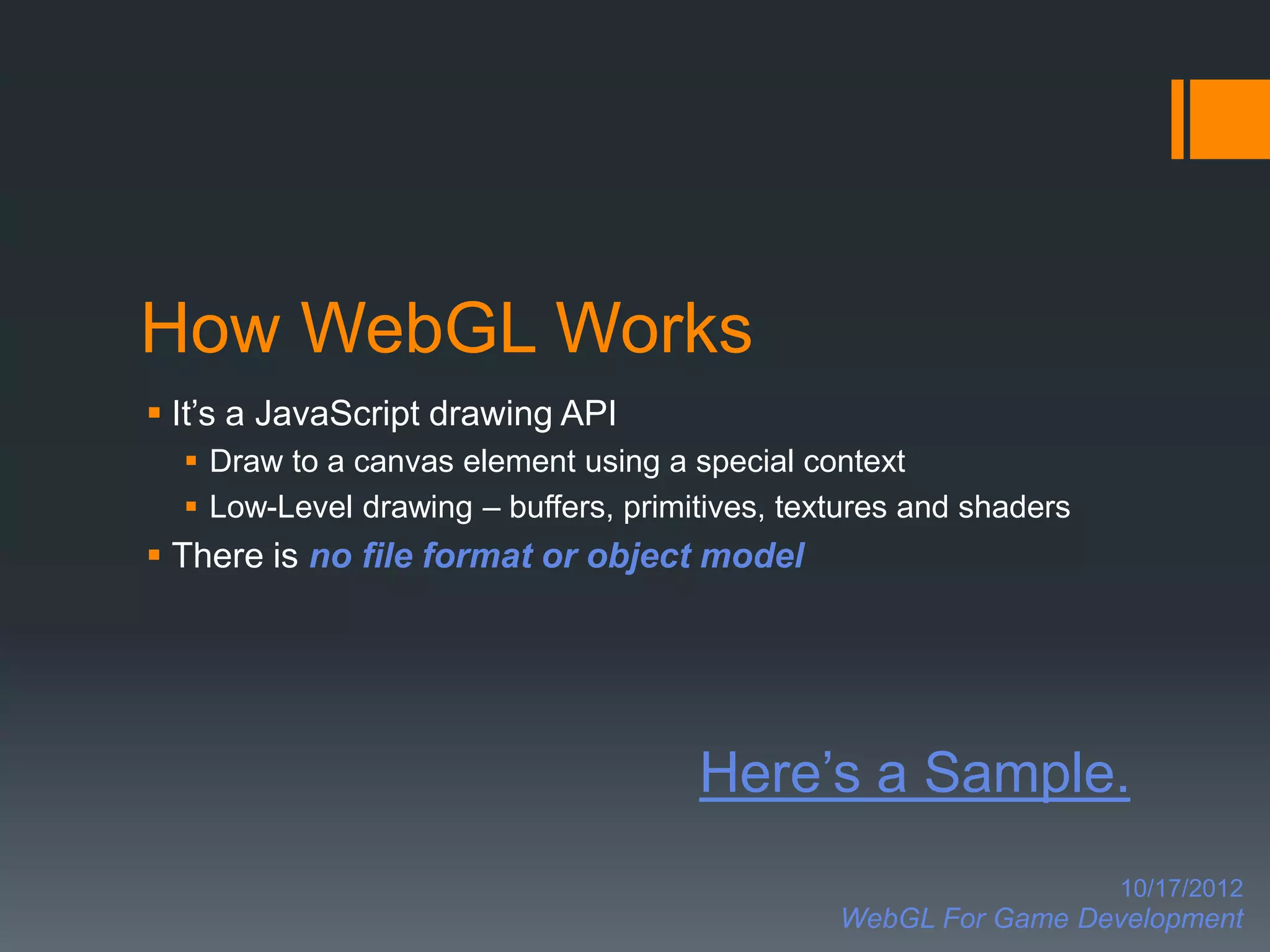

How WebGL Works
 It’s a JavaScript drawing API
 Draw to a canvas element using a special context
 Low-Level drawing – buffers, primitives, textures and shaders
 There is no file format or object model

Here’s a Sample.
10/17/2012

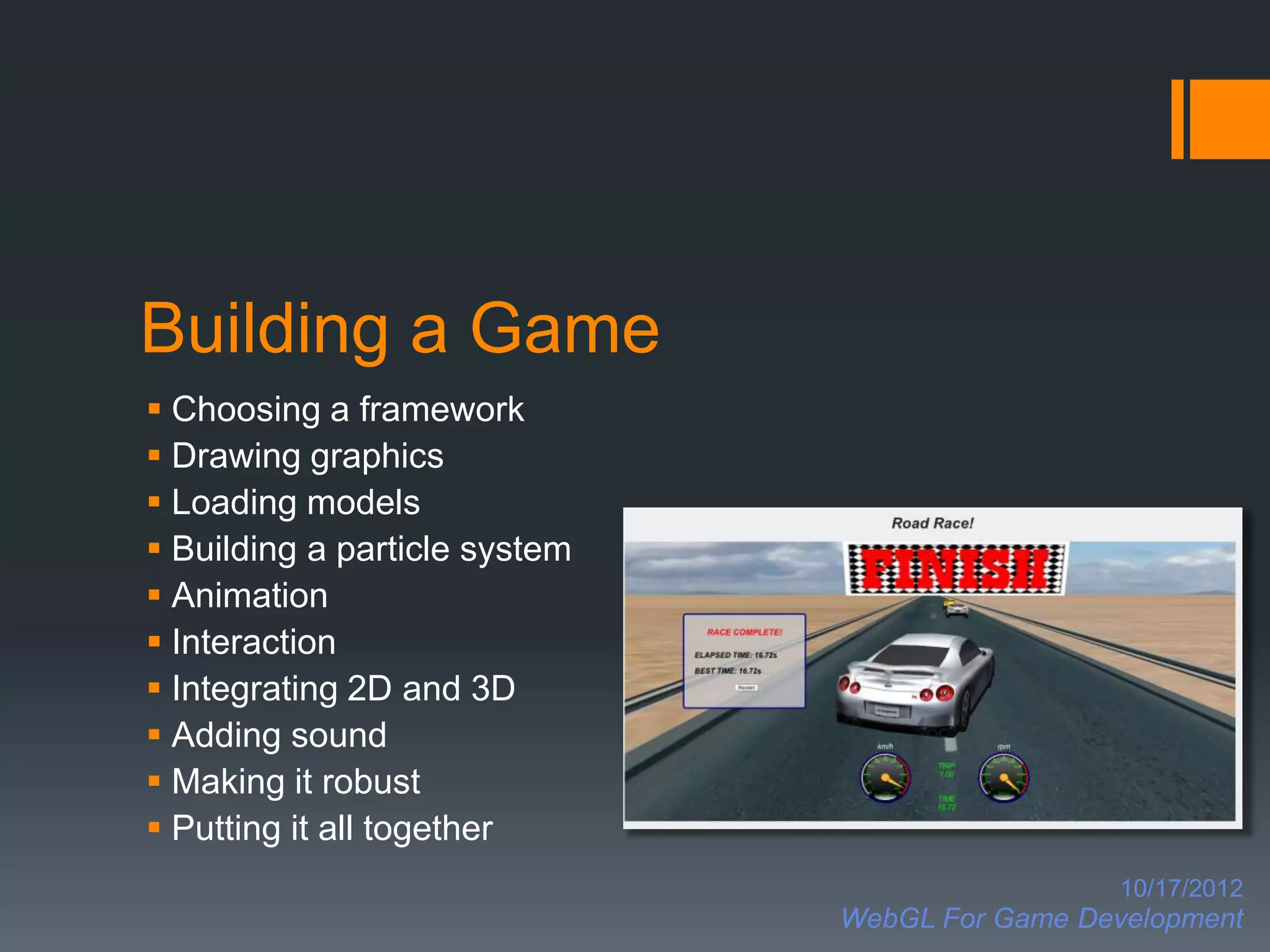

Building a Game
 Choosing a framework
 Drawing graphics
 Loading models
 Building a particle system
 Animation
 Interaction
 Integrating 2D and 3D
 Adding sound
 Making it robust
 Putting it all together
10/17/2012

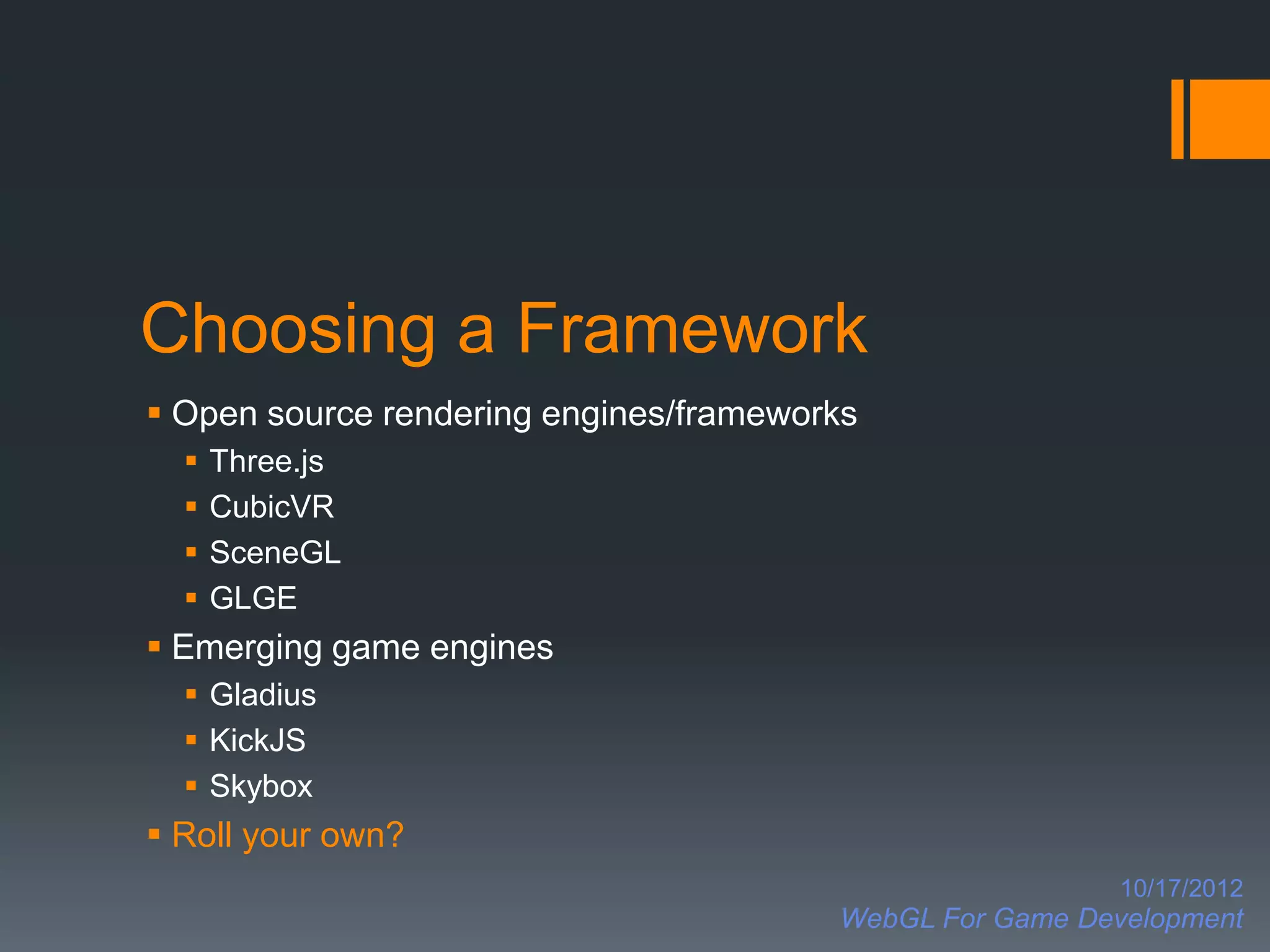

Choosing a Framework
 Open source rendering engines/frameworks
 Three.js
 CubicVR
 SceneGL
 GLGE
 Emerging game engines
 Gladius
 KickJS
 Skybox
 Roll your own?
10/17/2012

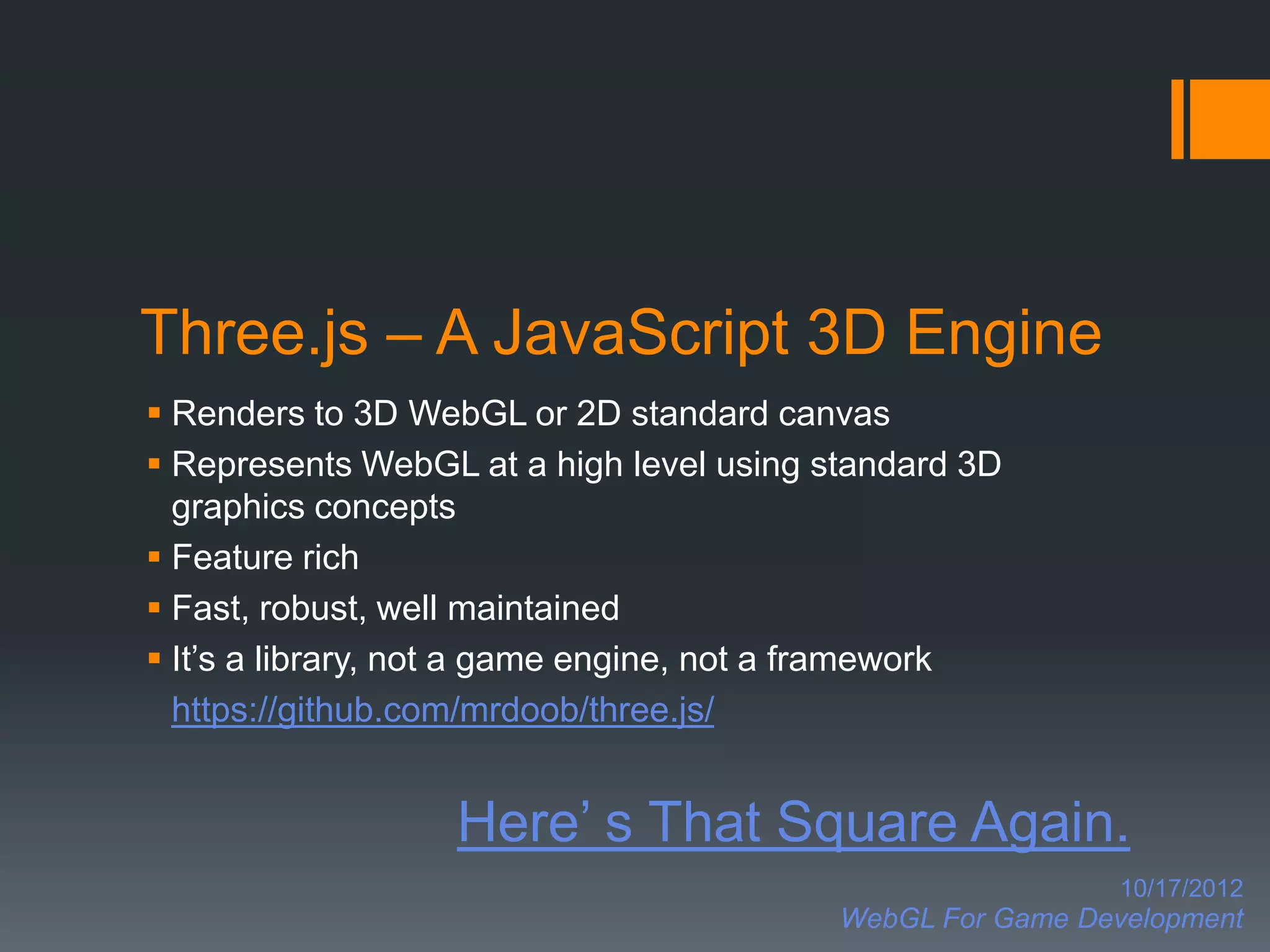

Three.js – A JavaScript 3D Engine
 Renders to 3D WebGL or 2D standard canvas
 Represents WebGL at a high level using standard 3D
graphics concepts
 Feature rich
 Fast, robust, well maintained
 It’s a library, not a game engine, not a framework
https://github.com/mrdoob/three.js/

Here’ s That Square Again.
10/17/2012

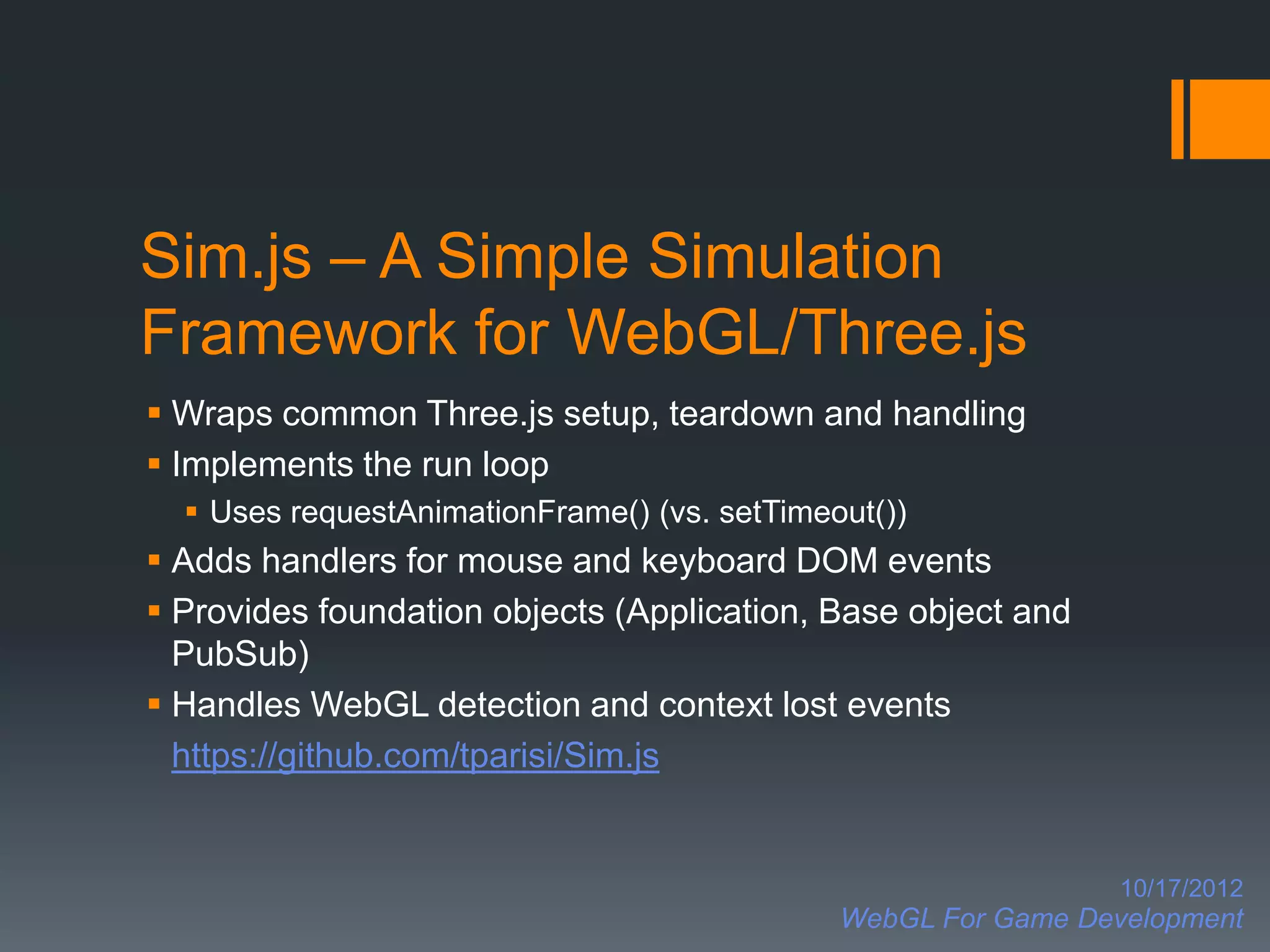

Sim.js – A Simple Simulation
Framework for WebGL/Three.js
 Wraps common Three.js setup, teardown and handling
 Implements the run loop
 Uses requestAnimationFrame() (vs. setTimeout())
 Adds handlers for mouse and keyboard DOM events
 Provides foundation objects (Application, Base object and
PubSub)
 Handles WebGL detection and context lost events
https://github.com/tparisi/Sim.js

10/17/2012

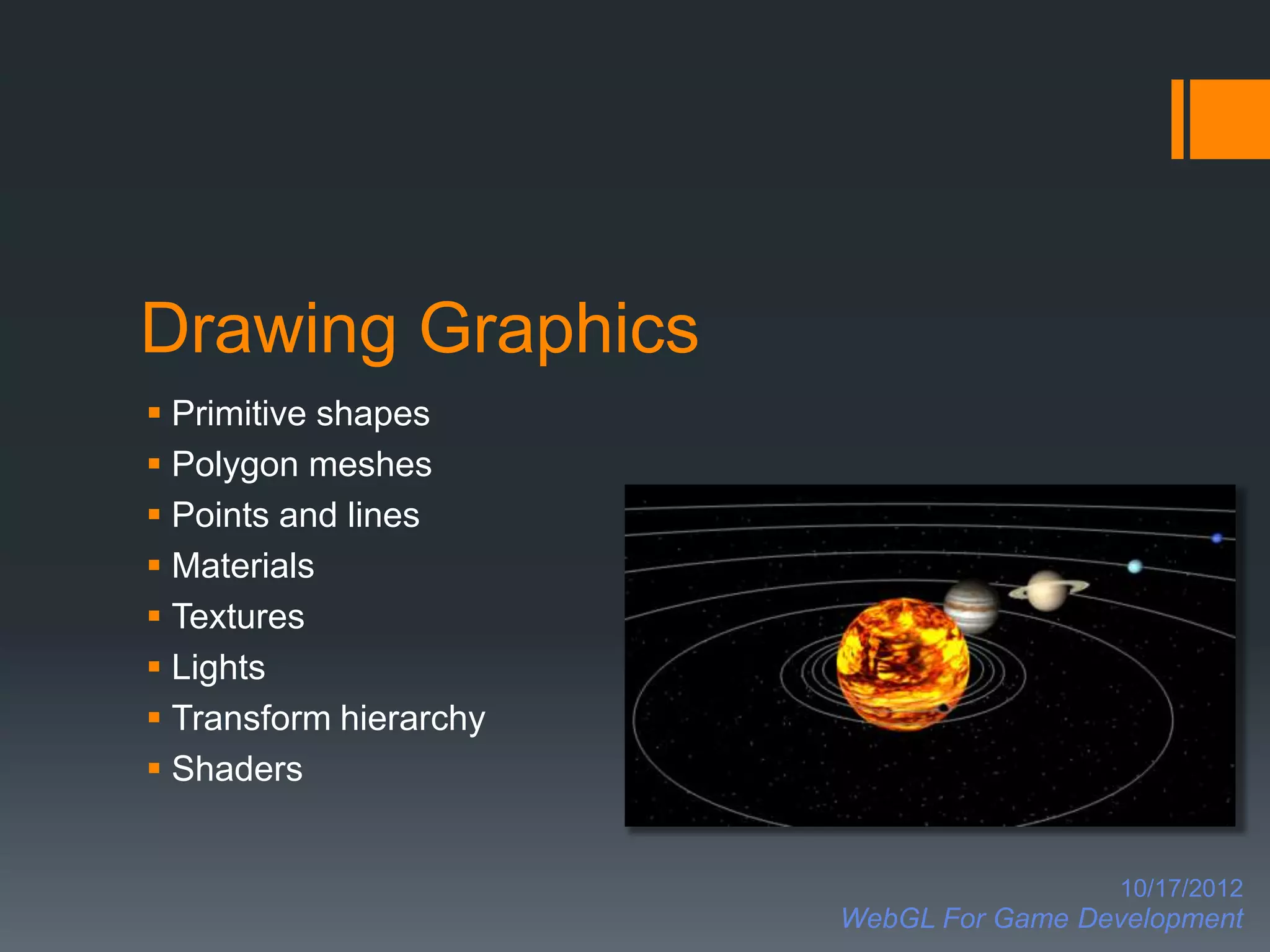

Drawing Graphics
 Primitive shapes
 Polygon meshes
 Points and lines
 Materials
 Textures
 Lights
 Transform hierarchy
 Shaders

10/17/2012

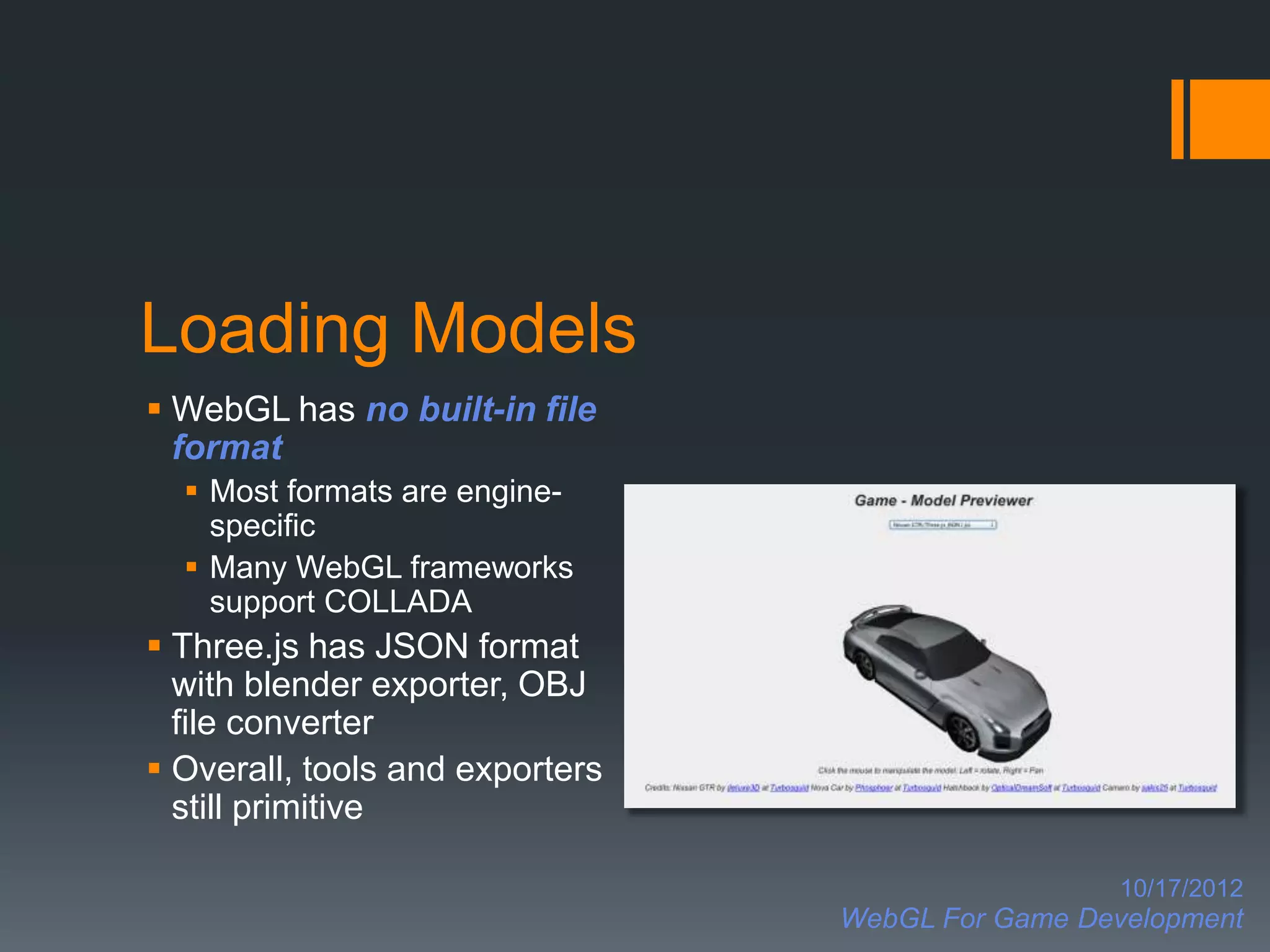

Loading Models
 WebGL has no built-in file
format
 Most formats are engine-
specific
 Many WebGL frameworks
support COLLADA
 Three.js has JSON format
with blender exporter, OBJ
file converter
 Overall, tools and exporters
still primitive

10/17/2012

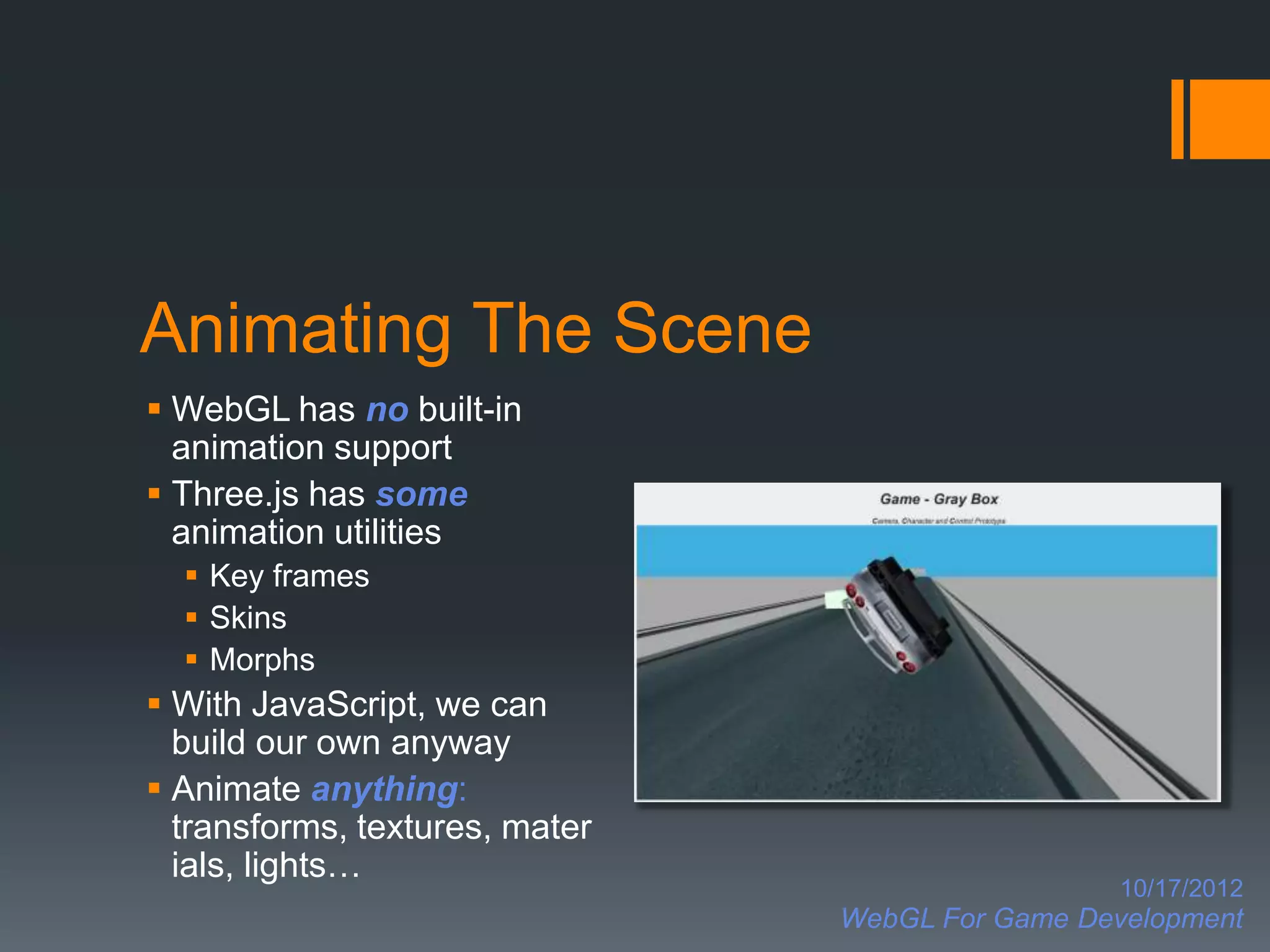

Animating The Scene
 WebGL has no built-in
animation support
 Three.js has some
animation utilities
 Key frames
 Skins
 Morphs
 With JavaScript, we can
build our own anyway
 Animate anything:
transforms, textures, mater
ials, lights…
10/17/2012

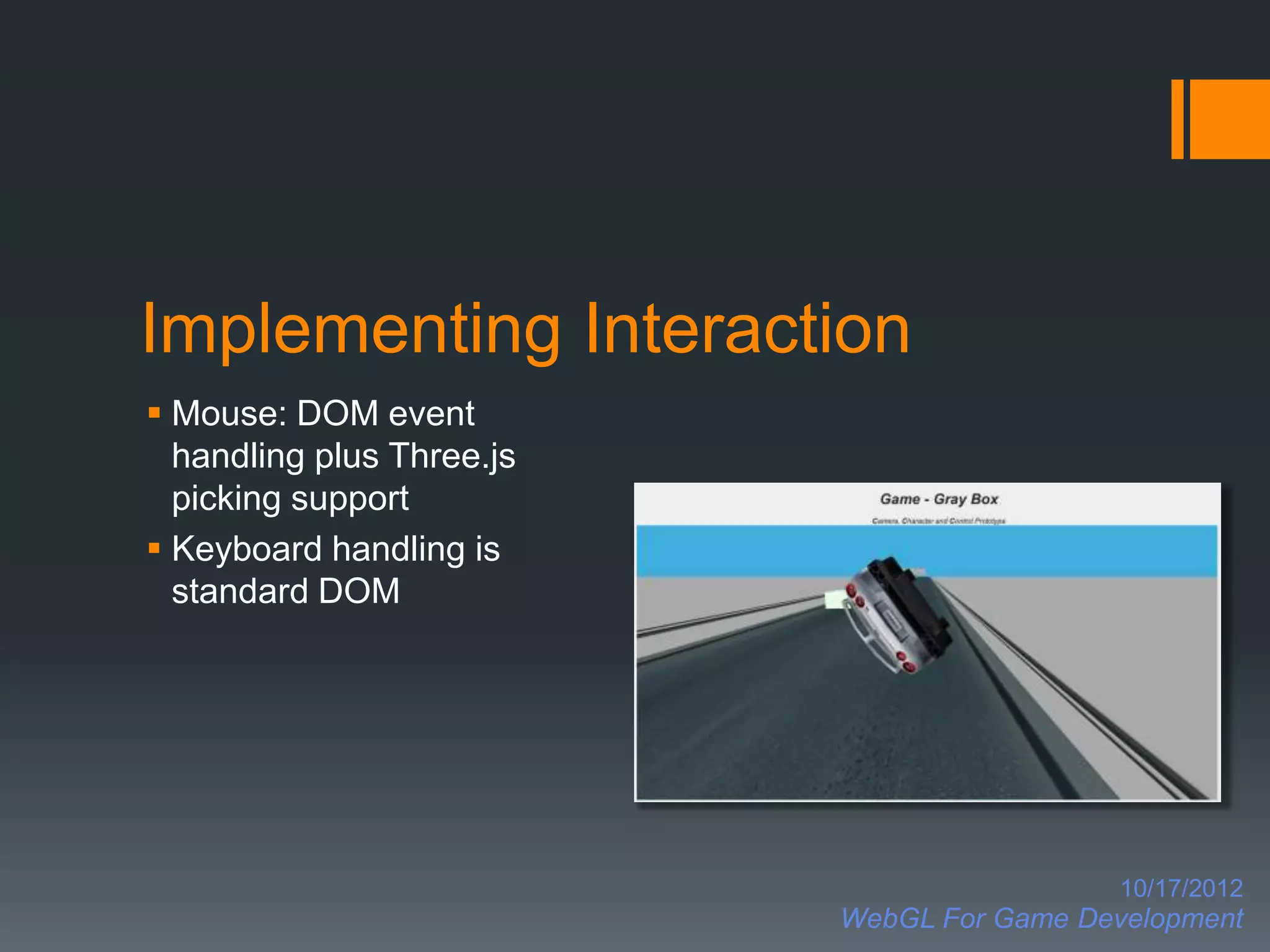

Implementing Interaction
 Mouse: DOM event
handling plus Three.js
picking support
 Keyboard handling is
standard DOM

10/17/2012

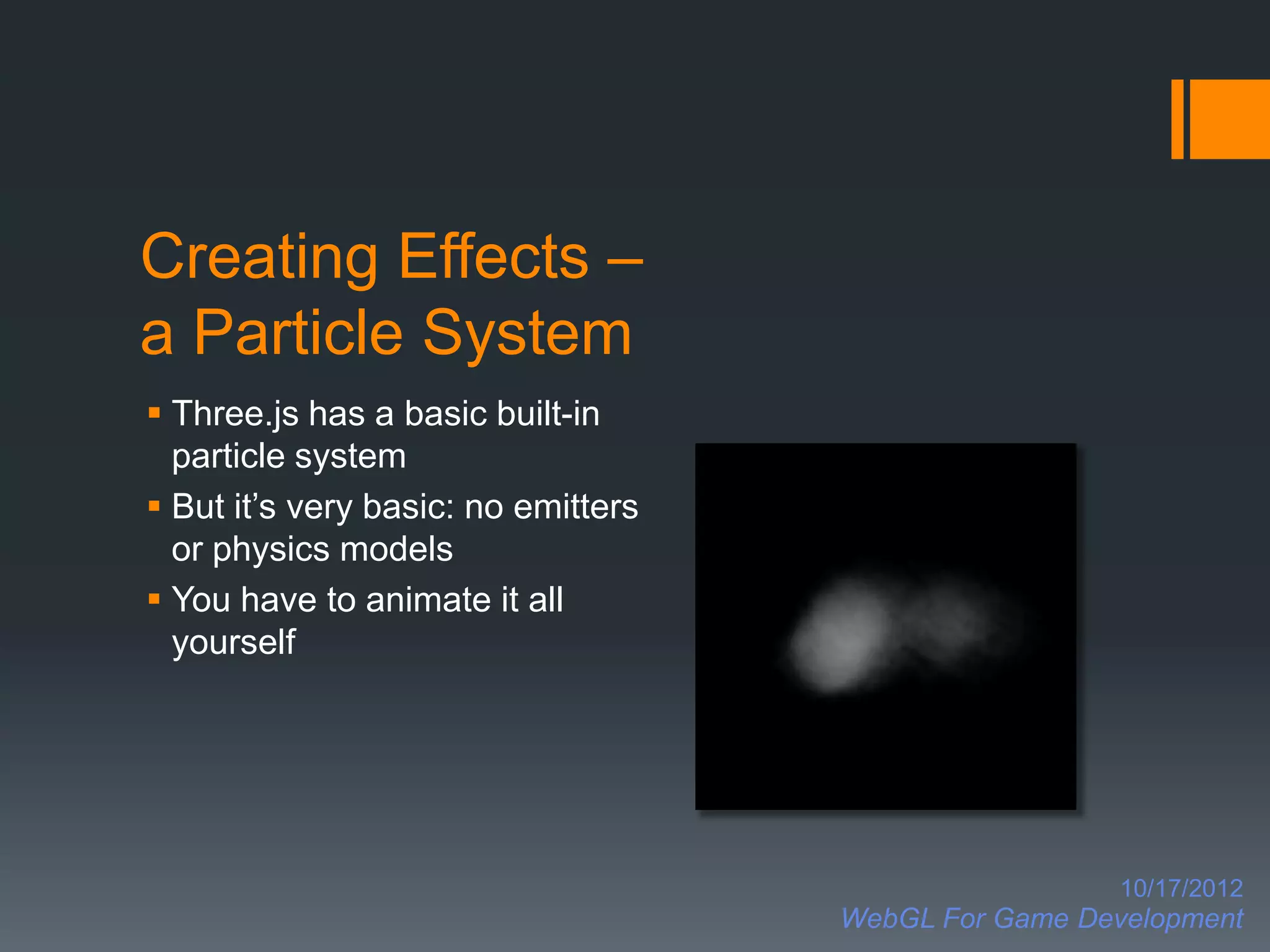

Creating Effects –
a Particle System
 Three.js has a basic built-in
particle system
 But it’s very basic: no emitters
or physics models
 You have to animate it all
yourself

10/17/2012

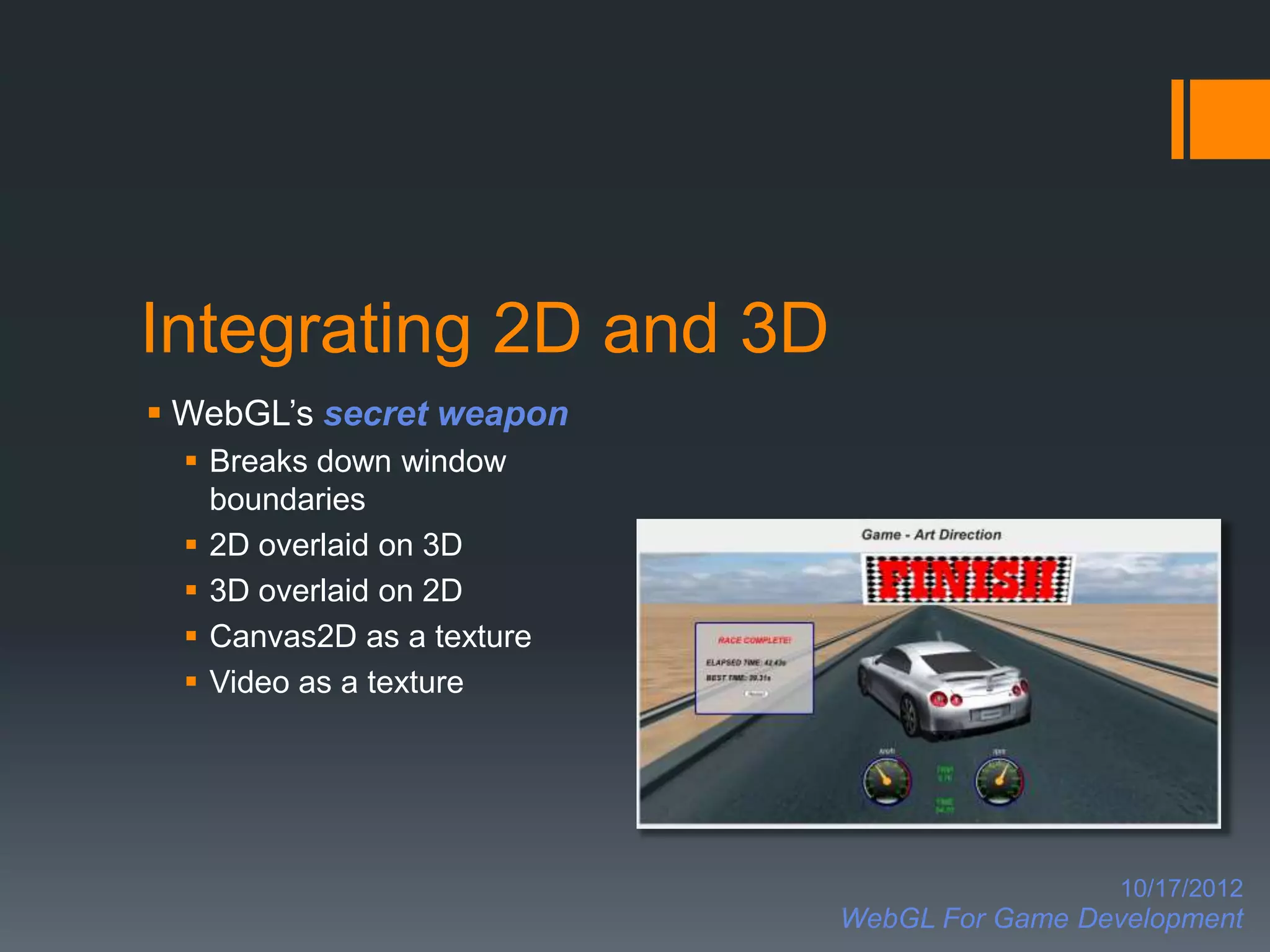

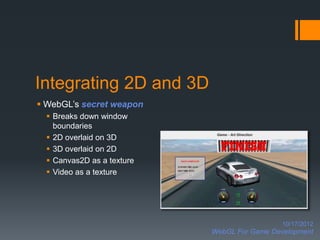

Integrating 2D and 3D
 WebGL’s secret weapon
 Breaks down window
boundaries
 2D overlaid on 3D
 3D overlaid on 2D
 Canvas2D as a texture
 Video as a texture

10/17/2012

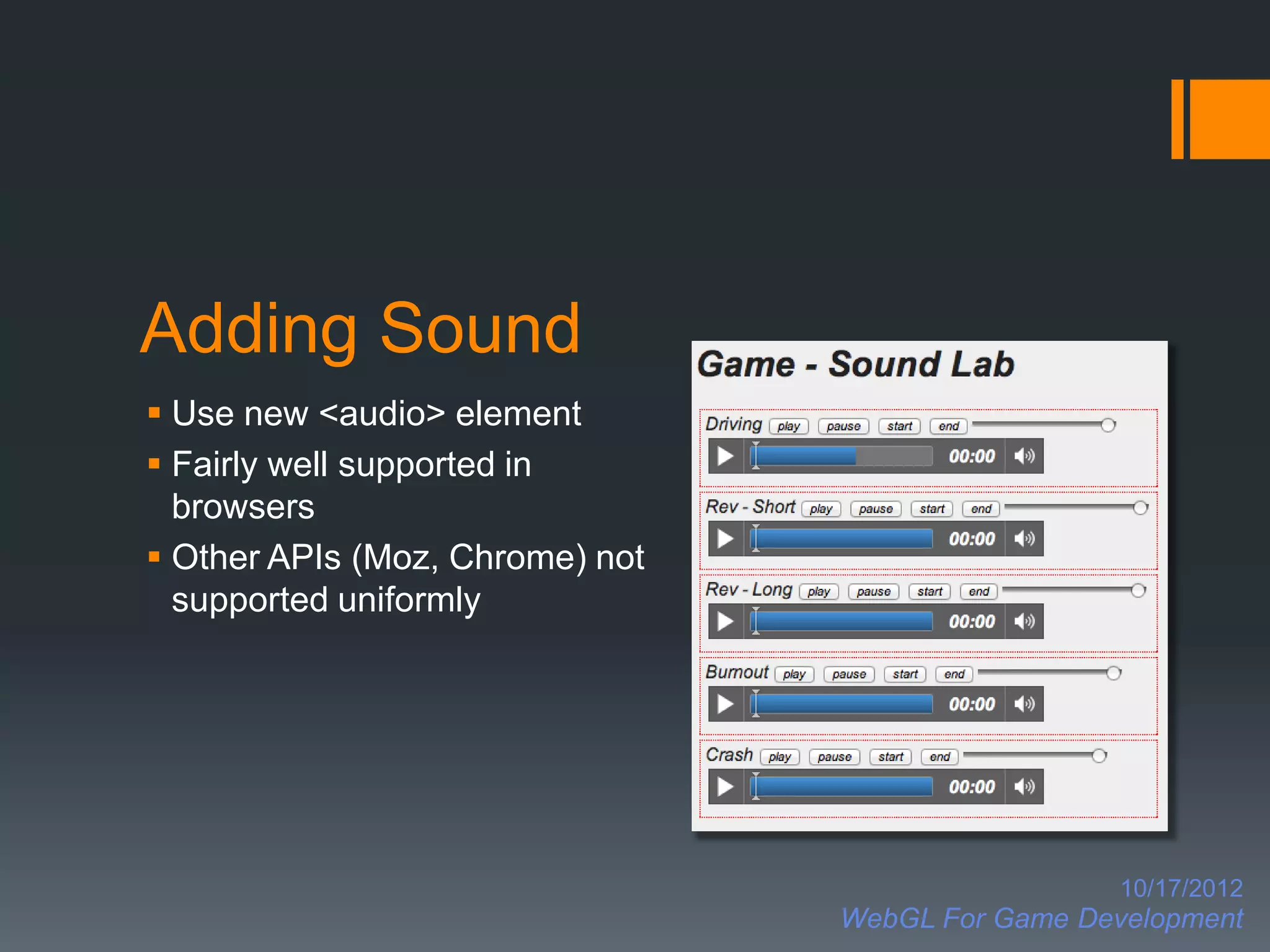

Adding Sound
 Use new <audio> element
 Fairly well supported in
browsers
 Other APIs (Moz, Chrome) not
supported uniformly

10/17/2012

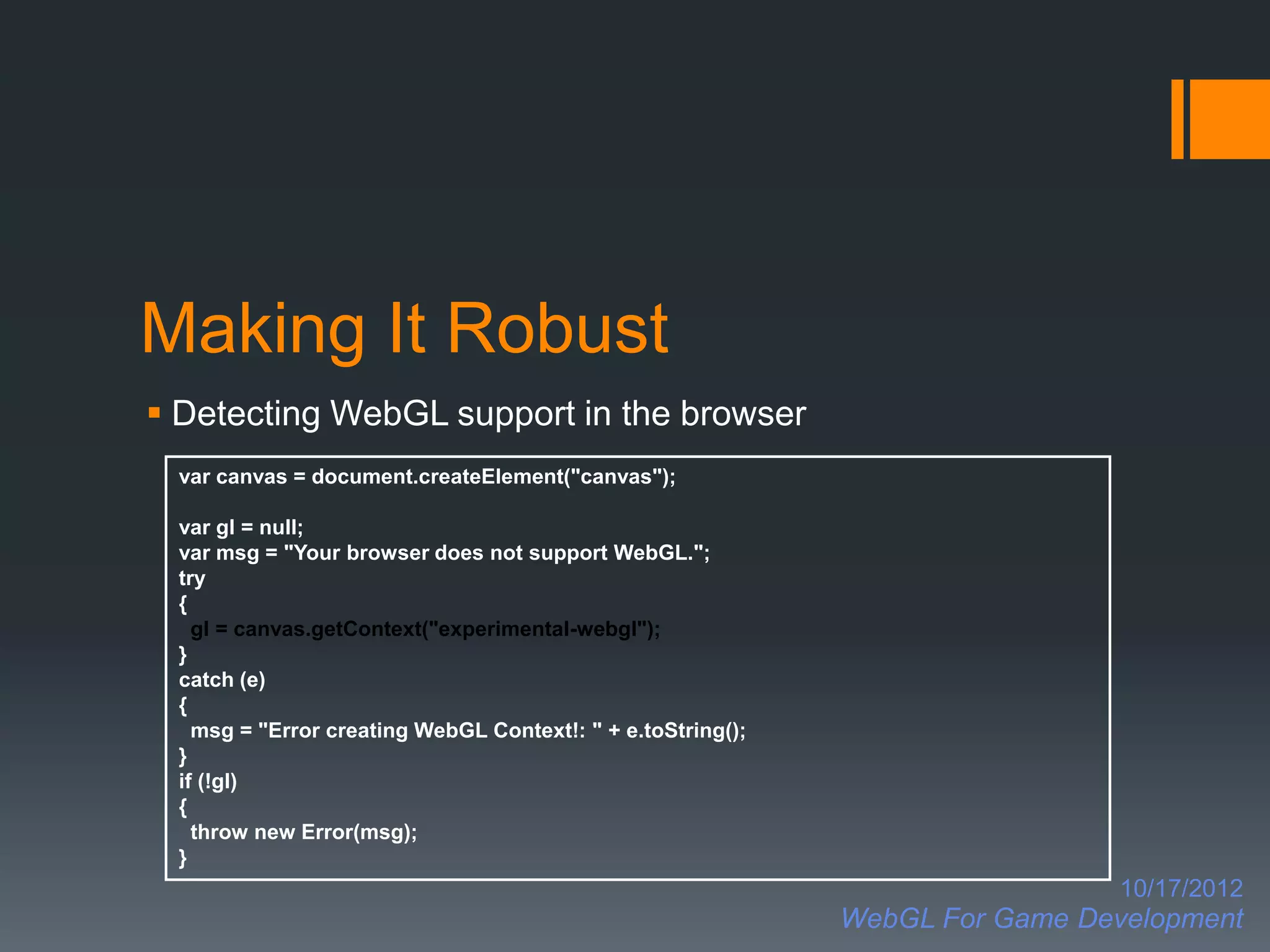

Making It Robust
 Detecting WebGL support in the browser
var canvas = document.createElement("canvas");

var gl = null;
var msg = "Your browser does not support WebGL.";
try
{
gl = canvas.getContext("experimental-webgl");
}
catch (e)
{
msg = "Error creating WebGL Context!: " + e.toString();
}
if (!gl)
{
throw new Error(msg);
}
10/17/2012

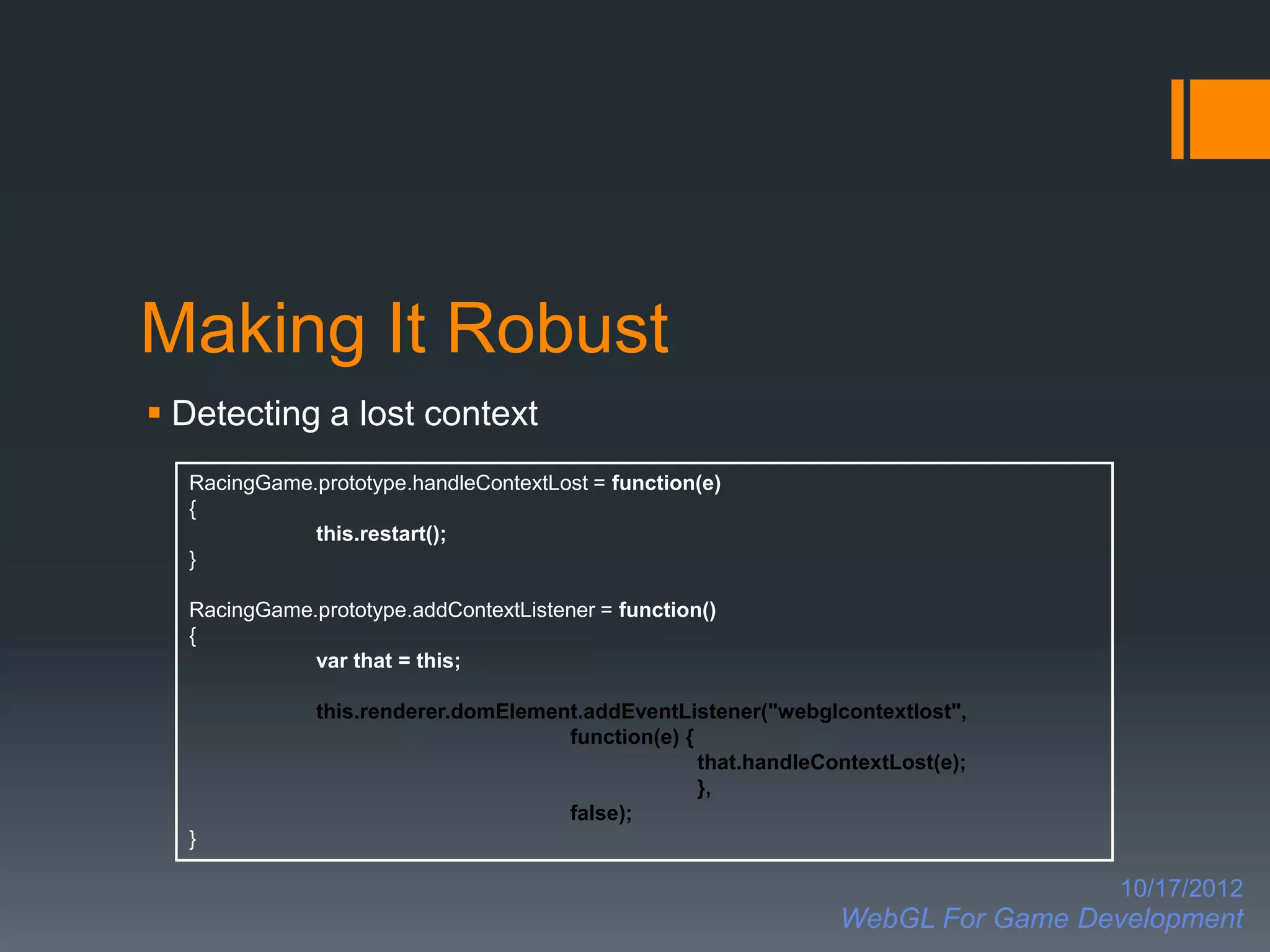

Making It Robust
 Detecting a lost context
RacingGame.prototype.handleContextLost = function(e)
{
this.restart();
}

RacingGame.prototype.addContextListener = function()
{
var that = this;

this.renderer.domElement.addEventListener("webglcontextlost",
function(e) {
that.handleContextLost(e);
},
false);
}

10/17/2012

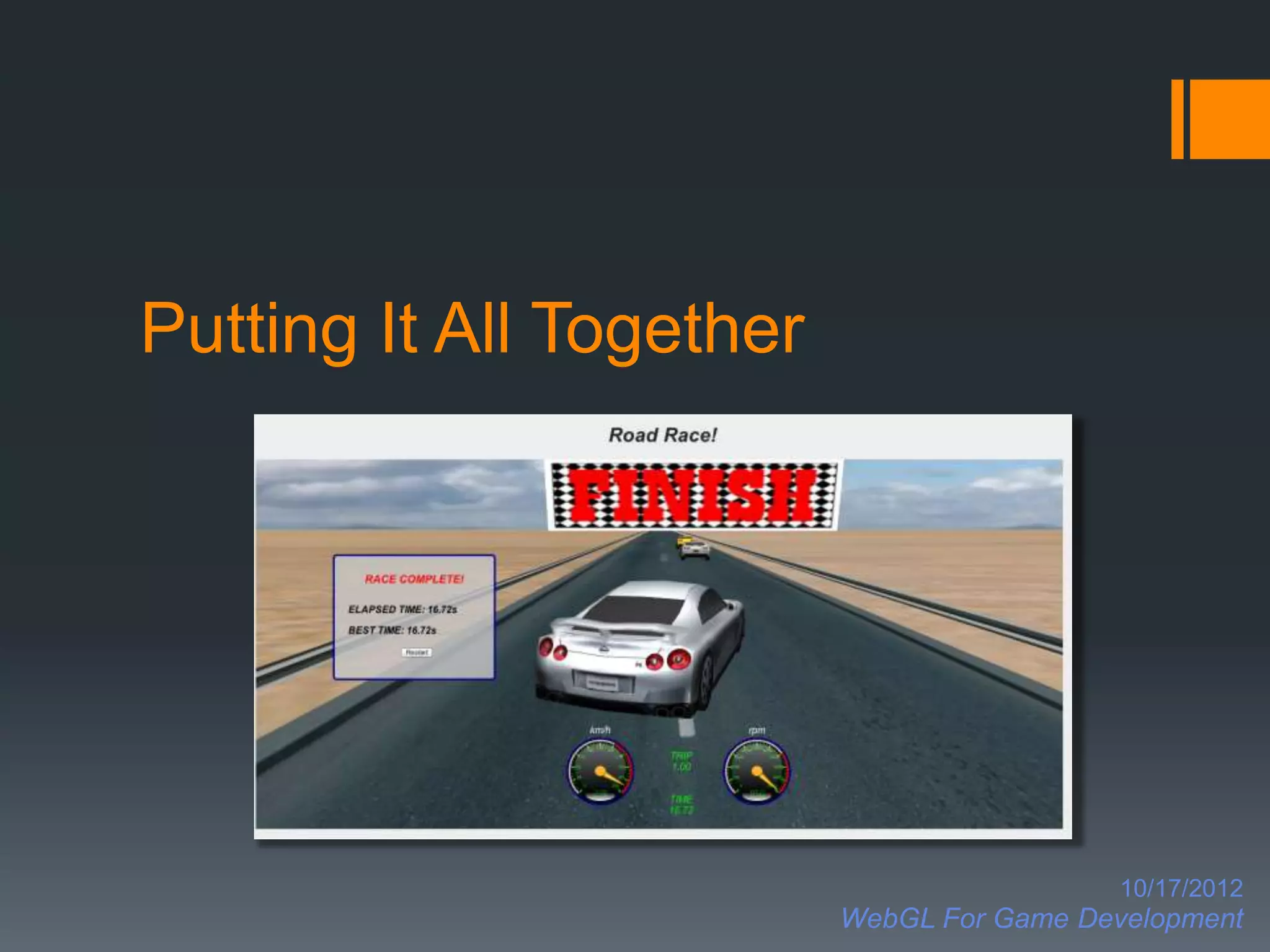

Putting It All Together

10/17/2012

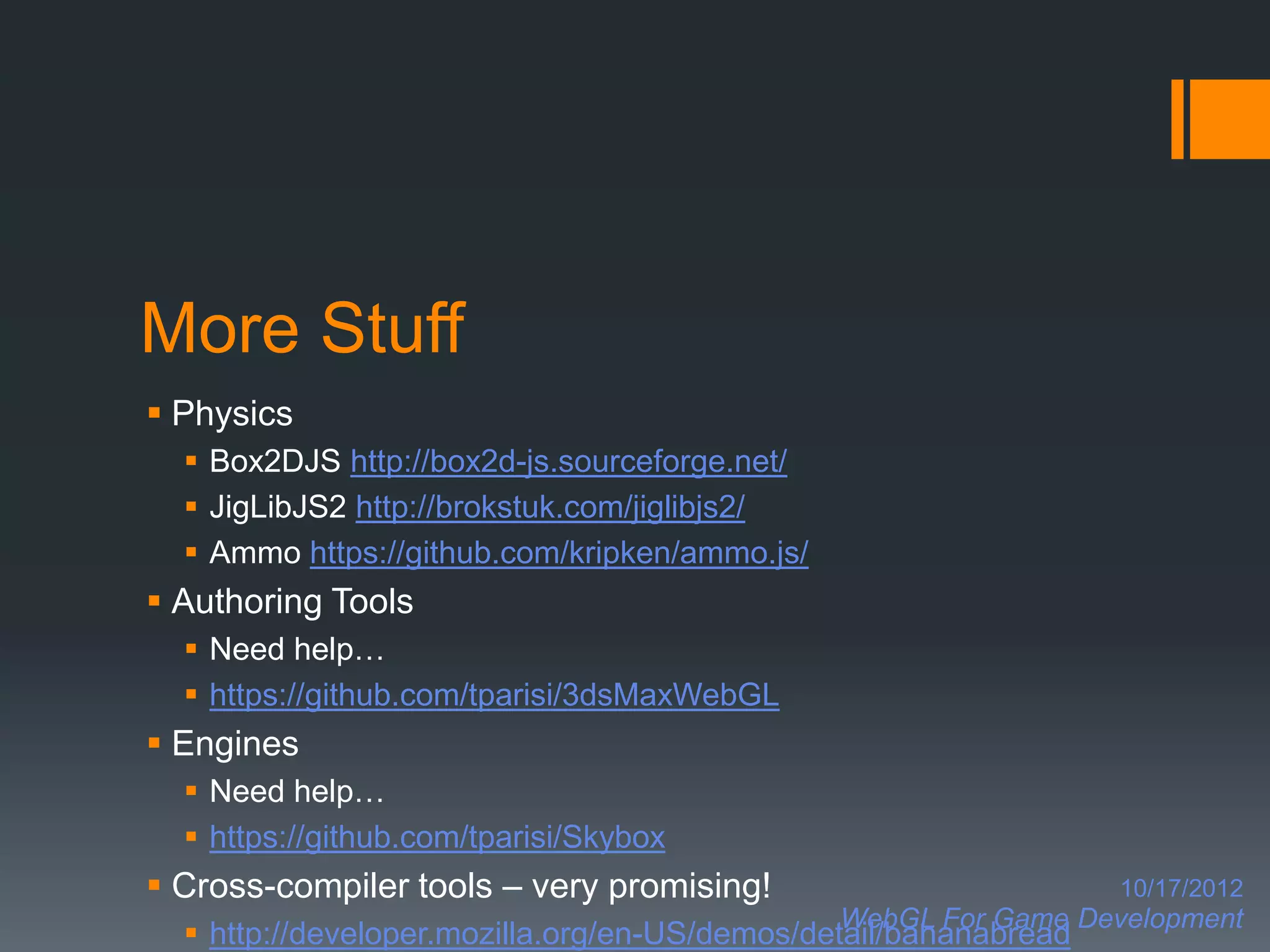

More Stuff
 Physics
 Box2DJS http://box2d-js.sourceforge.net/
 JigLibJS2 http://brokstuk.com/jiglibjs2/
 Ammo https://github.com/kripken/ammo.js/
 Authoring Tools
 Need help…
 https://github.com/tparisi/3dsMaxWebGL
 Engines
 Need help…
 https://github.com/tparisi/Skybox
 Cross-compiler tools – very promising! 10/17/2012
 http://developer.mozilla.org/en-US/demos/detail/bananabread

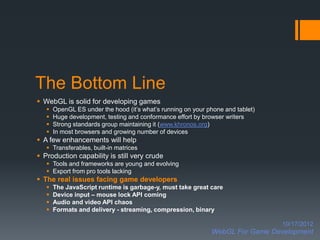

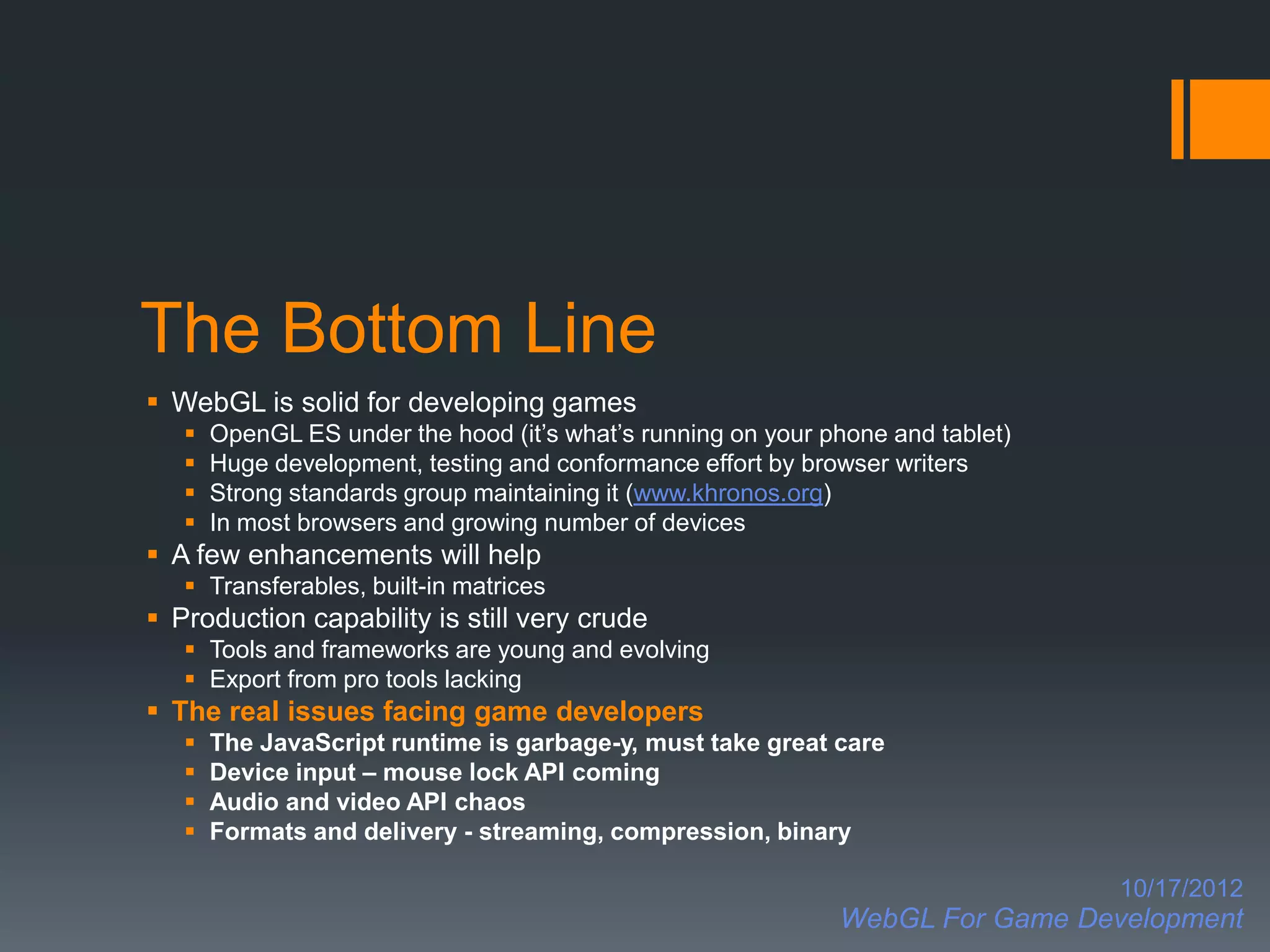

The Bottom Line
 WebGL is solid for developing games
 OpenGL ES under the hood (it’s what’s running on your phone and tablet)
 Huge development, testing and conformance effort by browser writers
 Strong standards group maintaining it (www.khronos.org)
 In most browsers and growing number of devices
 A few enhancements will help
 Transferables, built-in matrices
 Production capability is still very crude
 Tools and frameworks are young and evolving
 Export from pro tools lacking
 The real issues facing game developers
 The JavaScript runtime is garbage-y, must take great care
 Device input – mouse lock API coming
 Audio and video API chaos
 Formats and delivery - streaming, compression, binary

10/17/2012

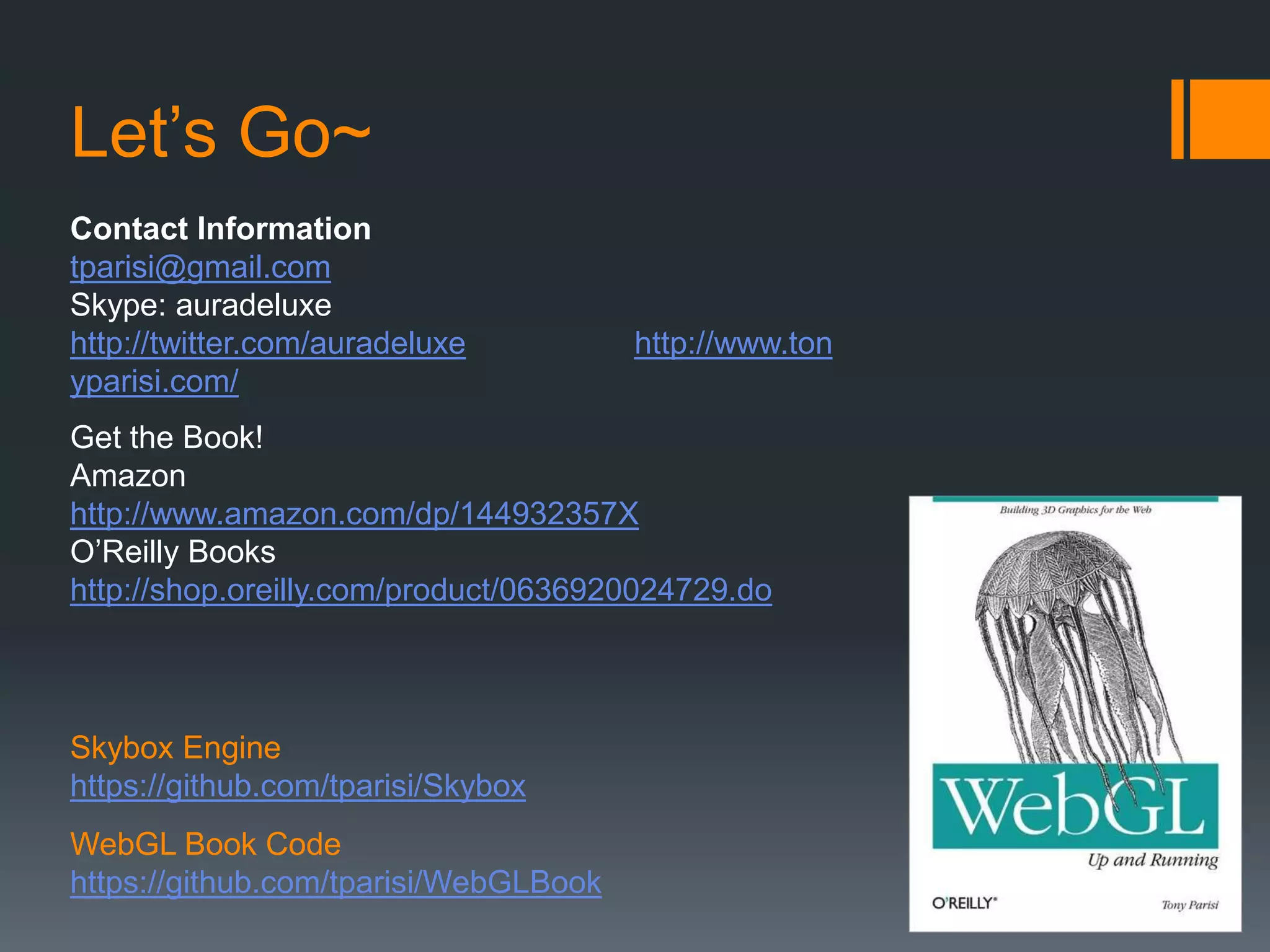

Let’s Go~
