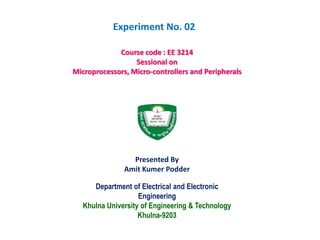

  Department of Electricaland Electronic Engineering Khulna University of Engineering & Technology Khulna-9203 Course code : EE 3214 Sessional on Microprocessors, Micro-controllers and Peripherals Presented By Amit Kumer Podder Experiment No. 02
• 2.
  (a)Study on 8085Microprocessor Instruction set (b)Performing different arithmetic operation using 8085 Microprocessor Experiment Name 7/3/2020 Amit Kumer Podder 2
• 3.

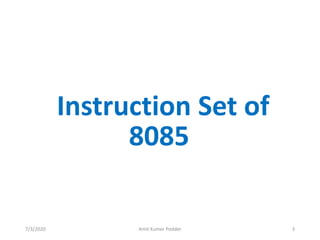

  Instruction Set of 8085 7/3/2020Amit Kumer Podder 3
• 4.

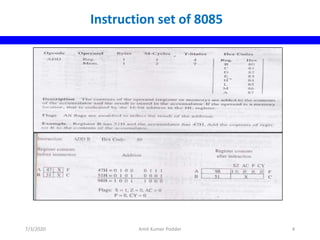

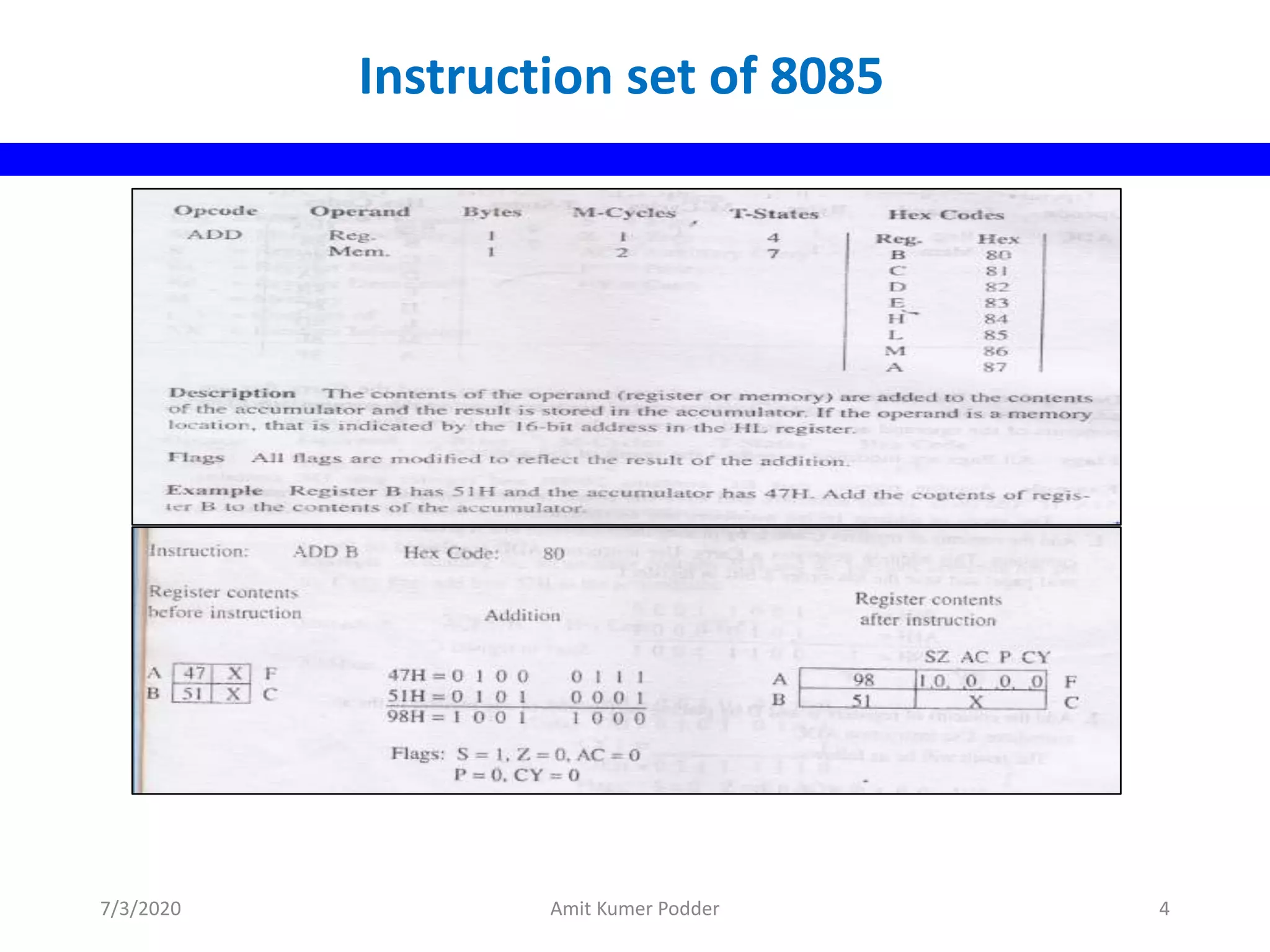

  Instruction set of8085 7/3/2020 Amit Kumer Podder 4
• 5.

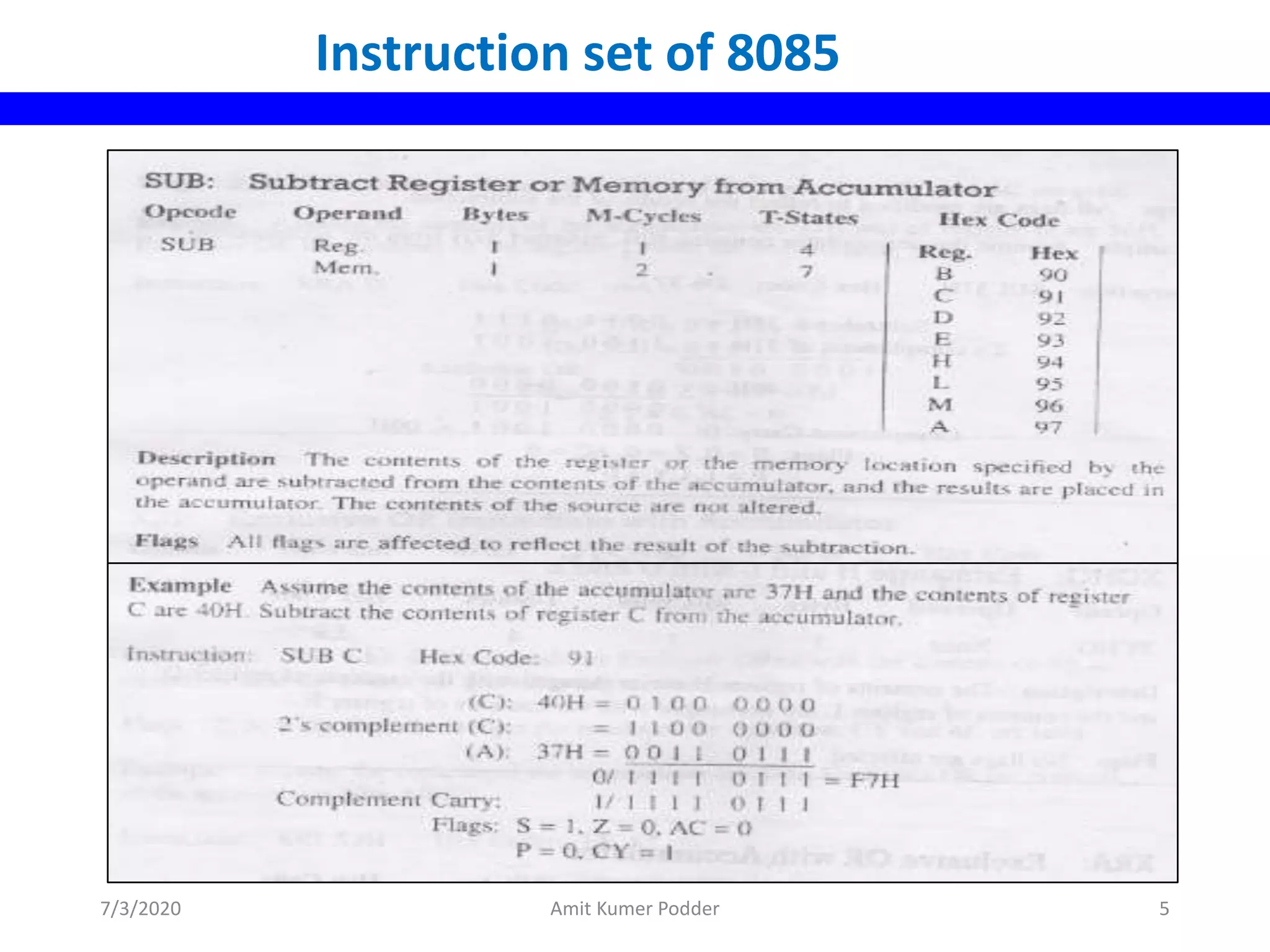

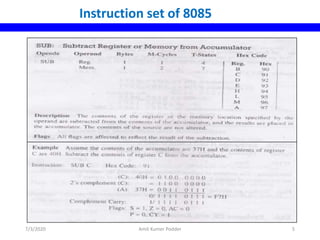

  Instruction set of8085 7/3/2020 Amit Kumer Podder 5
• 6.

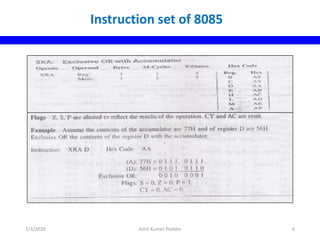

  Instruction set of8085 7/3/2020 Amit Kumer Podder 6
• 7.

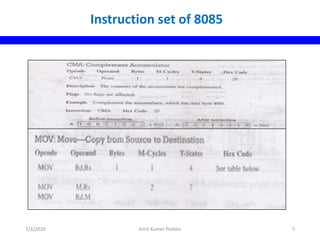

  Instruction set of8085 7/3/2020 Amit Kumer Podder 7
• 8.

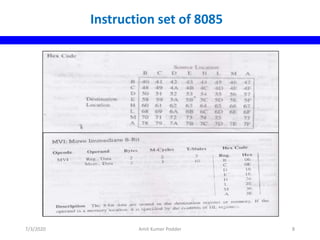

  Instruction set of8085 7/3/2020 Amit Kumer Podder 8
• 9.
  Instruction set of8085 7/3/2020 Amit Kumer Podder 9
• 10.

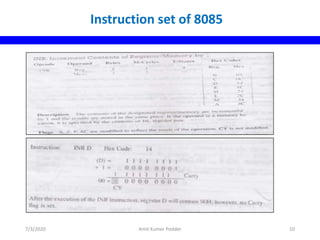

  Instruction set of8085 7/3/2020 Amit Kumer Podder 10
• 11.

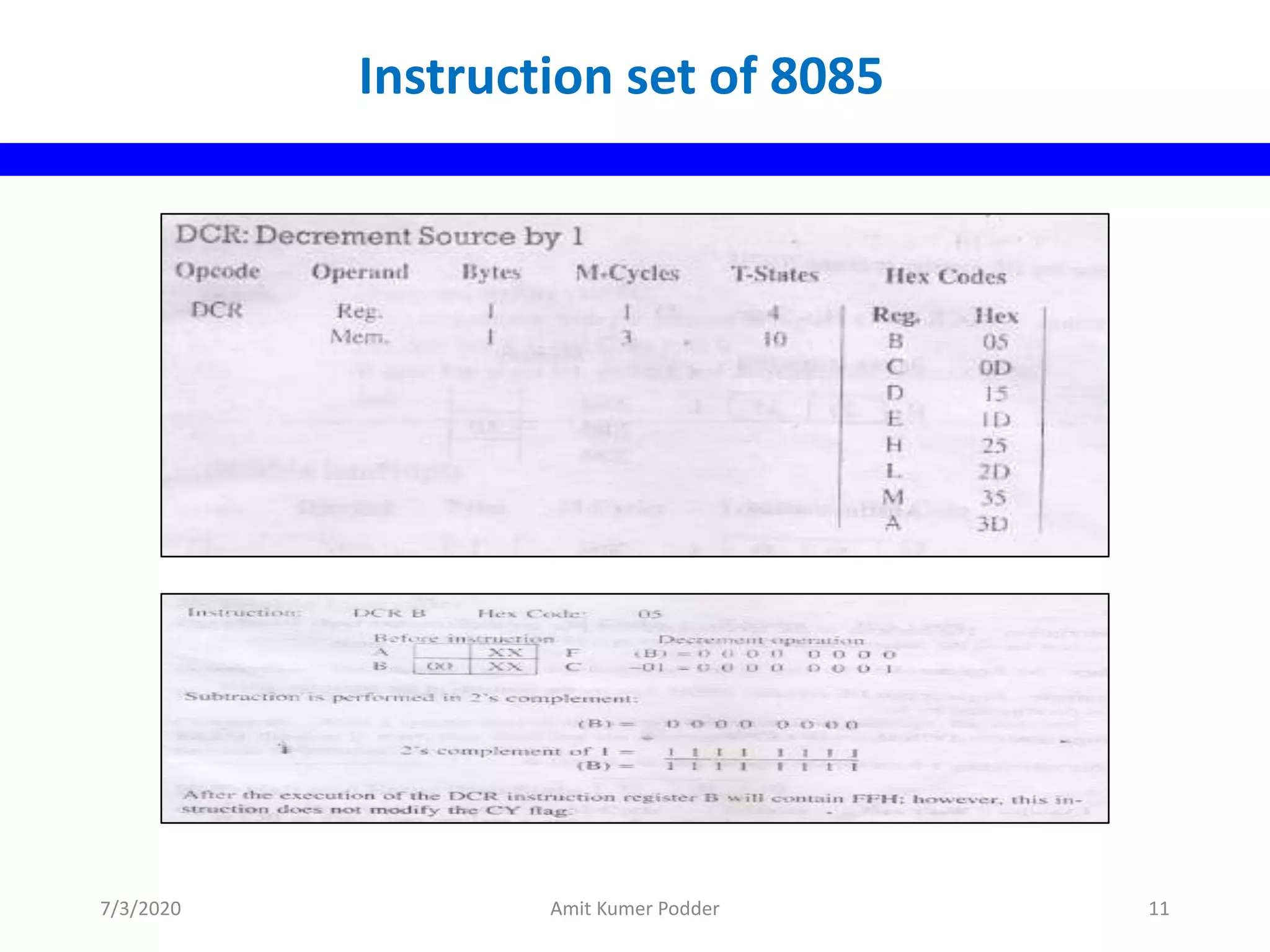

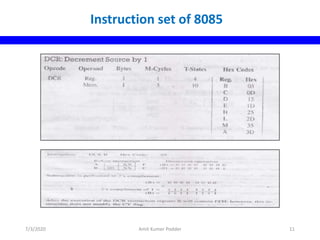

  Instruction set of8085 7/3/2020 Amit Kumer Podder 11
• 12.

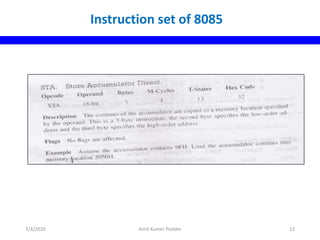

  Instruction set of8085 7/3/2020 Amit Kumer Podder 12
• 13.

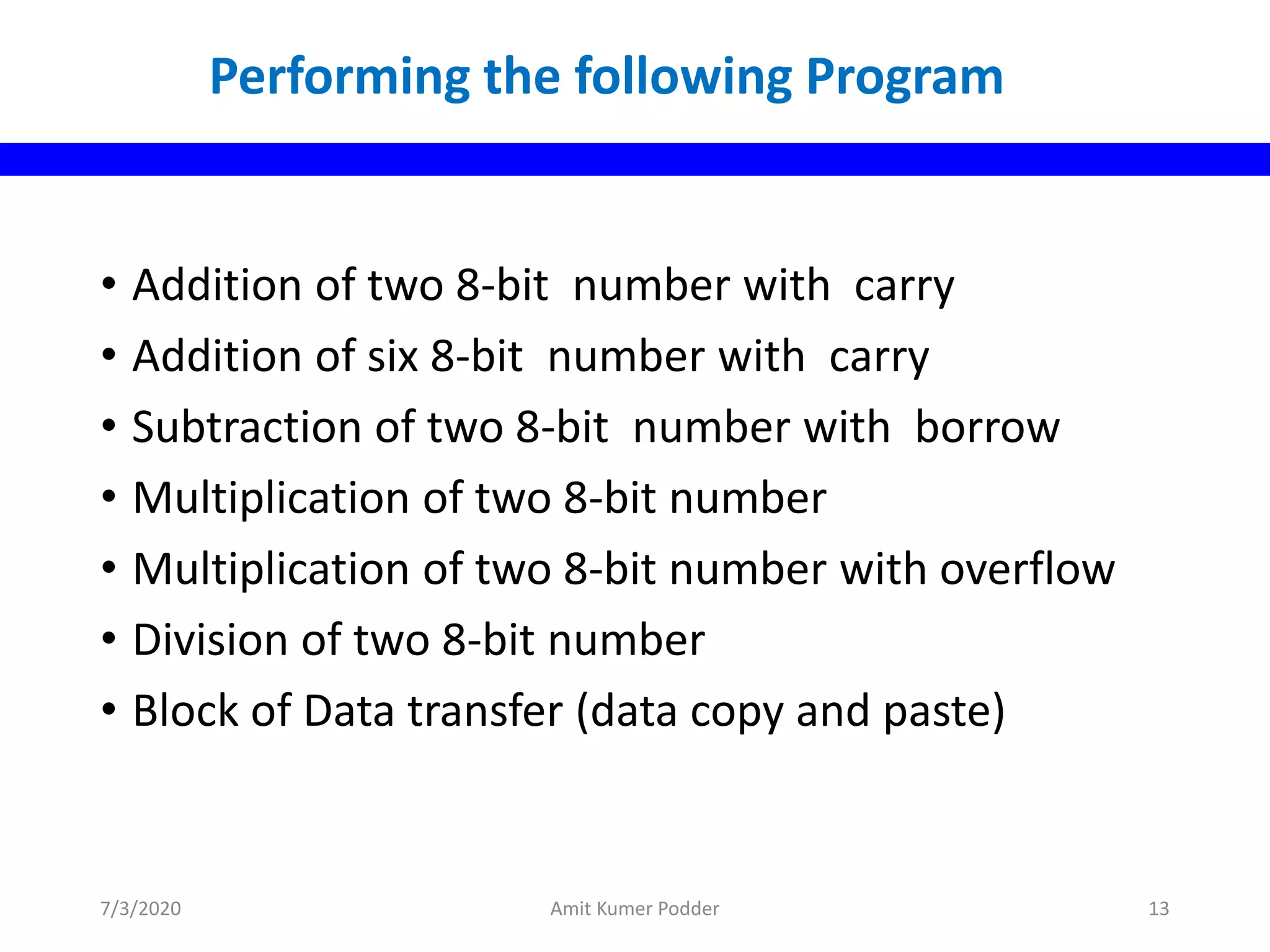

  • Addition oftwo 8-bit number with carry • Addition of six 8-bit number with carry • Subtraction of two 8-bit number with borrow • Multiplication of two 8-bit number • Multiplication of two 8-bit number with overflow • Division of two 8-bit number • Block of Data transfer (data copy and paste) Performing the following Program 7/3/2020 Amit Kumer Podder 13
• 14.

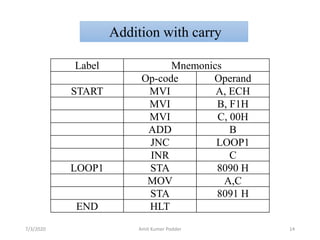

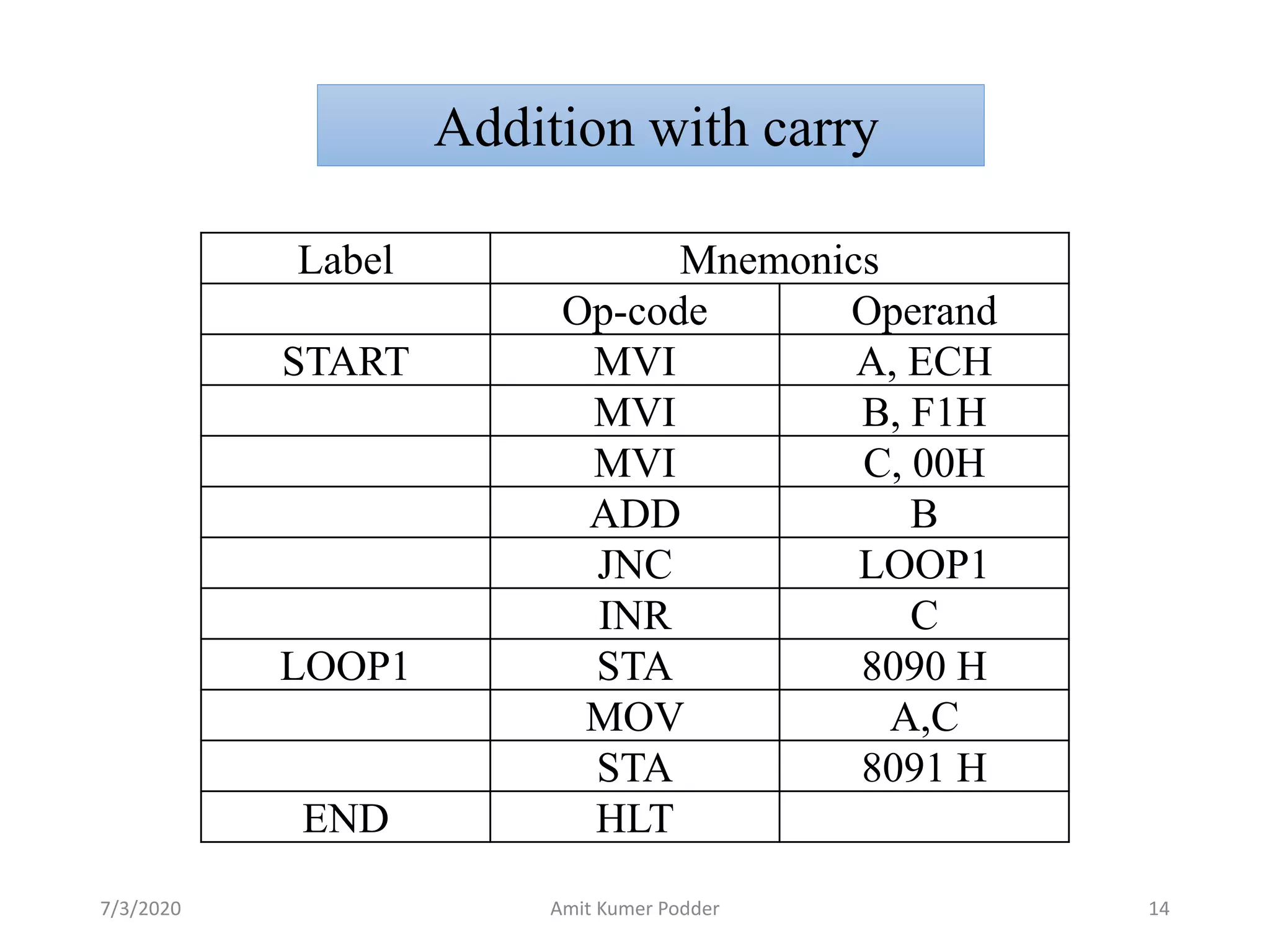

  Addition with carry LabelMnemonics Op-code Operand START MVI A, ECH MVI B, F1H MVI C, 00H ADD B JNC LOOP1 INR C LOOP1 STA 8090 H MOV A,C STA 8091 H END HLT 7/3/2020 Amit Kumer Podder 14
• 15.

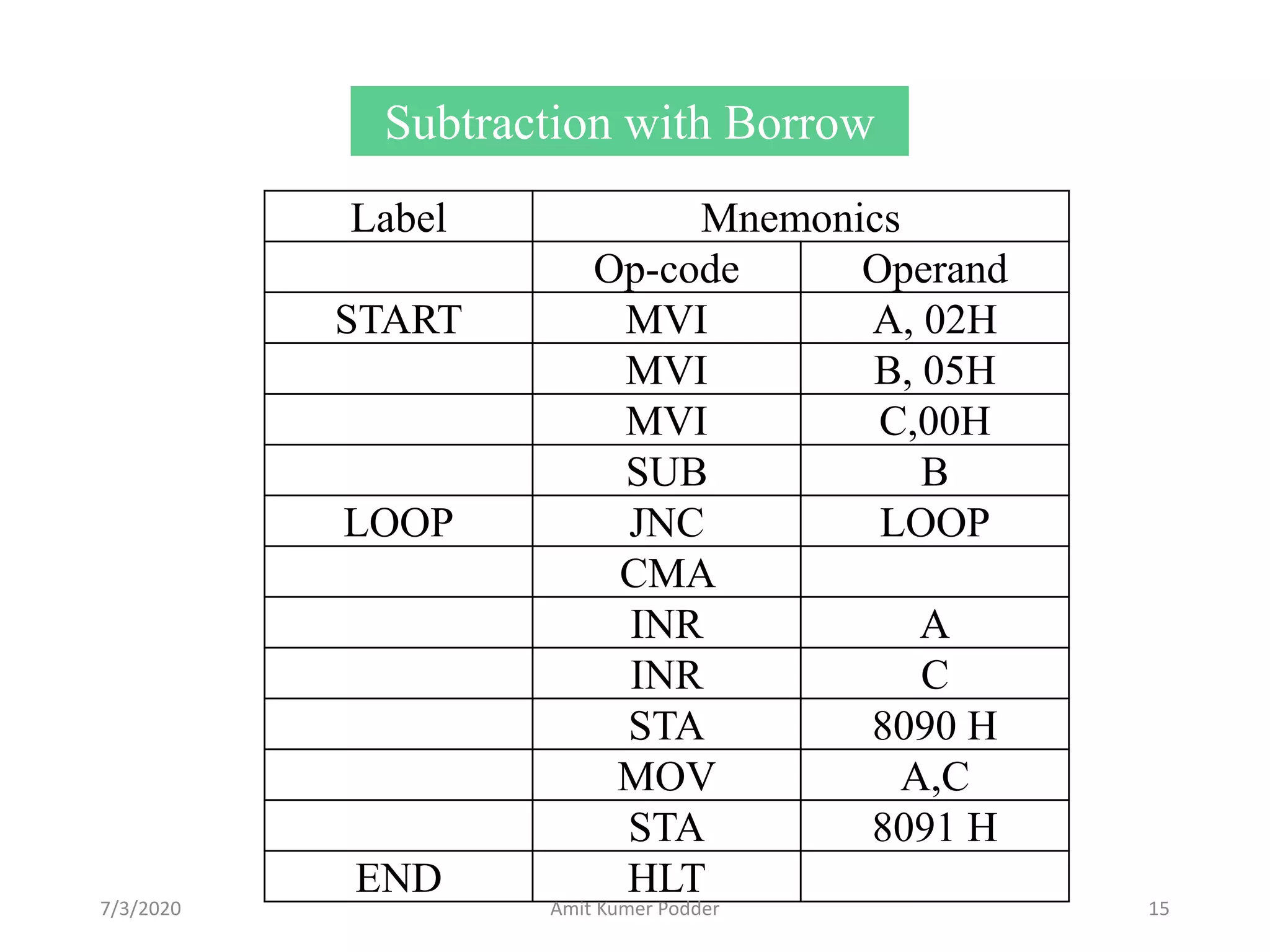

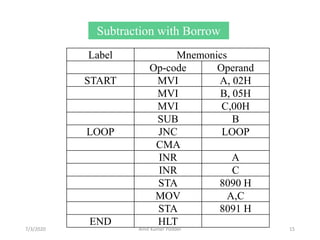

  Subtraction with Borrow LabelMnemonics Op-code Operand START MVI A, 02H MVI B, 05H MVI C,00H SUB B LOOP JNC LOOP CMA INR A INR C STA 8090 H MOV A,C STA 8091 H END HLT 7/3/2020 Amit Kumer Podder 15
• 16.

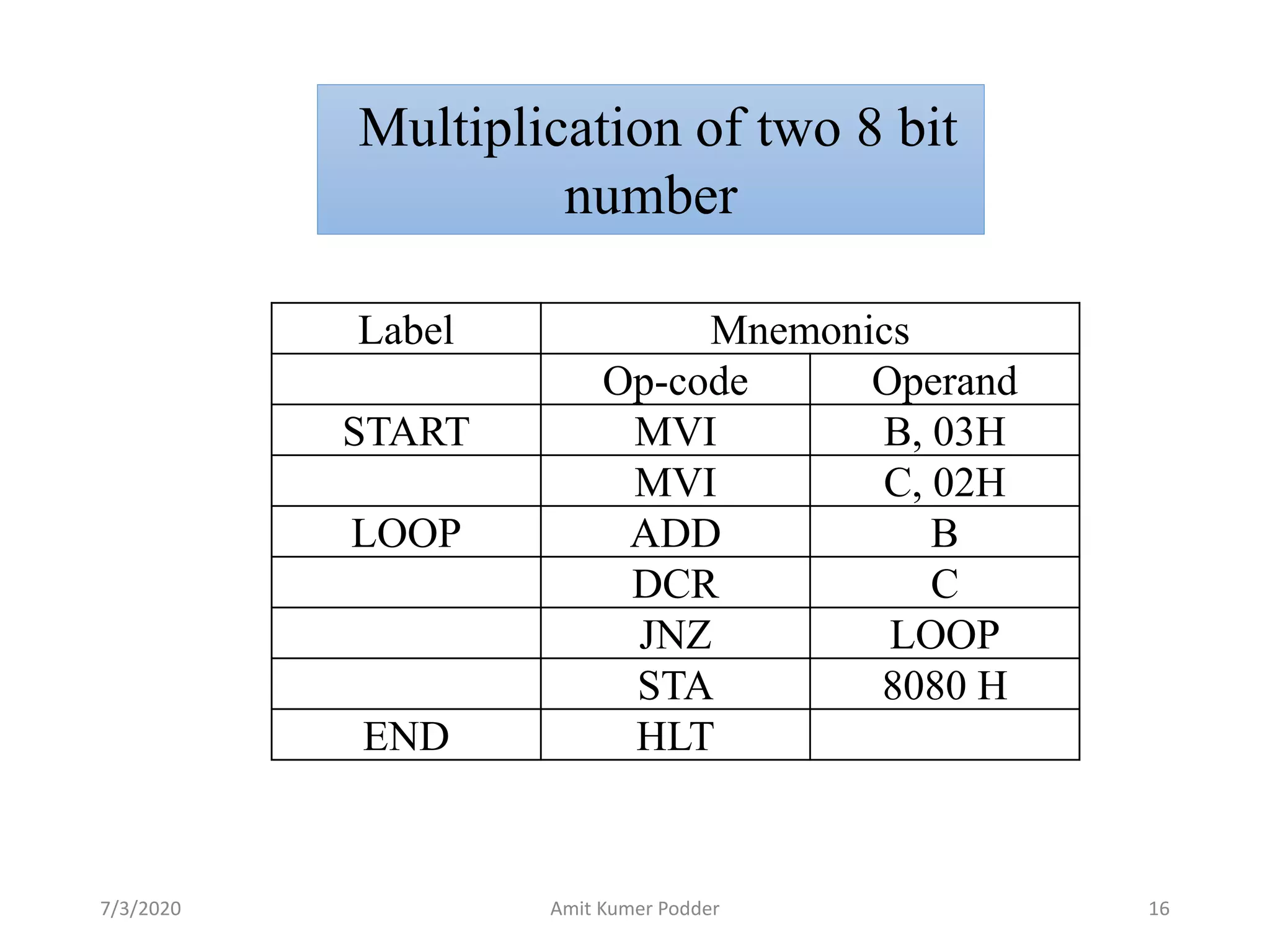

  Multiplication of two8 bit number Label Mnemonics Op-code Operand START MVI B, 03H MVI C, 02H LOOP ADD B DCR C JNZ LOOP STA 8080 H END HLT 7/3/2020 Amit Kumer Podder 16
• 17.

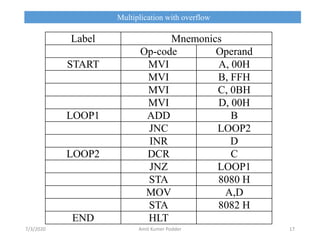

  Multiplication with overflow LabelMnemonics Op-code Operand START MVI A, 00H MVI B, FFH MVI C, 0BH MVI D, 00H LOOP1 ADD B JNC LOOP2 INR D LOOP2 DCR C JNZ LOOP1 STA 8080 H MOV A,D STA 8082 H END HLT 7/3/2020 Amit Kumer Podder 17
• 18.

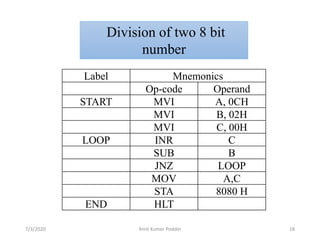

  Division of two8 bit number Label Mnemonics Op-code Operand START MVI A, 0CH MVI B, 02H MVI C, 00H LOOP INR C SUB B JNZ LOOP MOV A,C STA 8080 H END HLT 7/3/2020 Amit Kumer Podder 18
• 19.

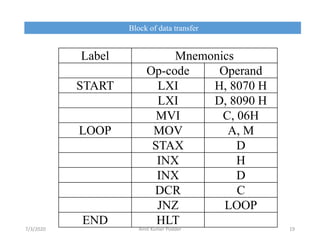

  Block of datatransfer Label Mnemonics Op-code Operand START LXI H, 8070 H LXI D, 8090 H MVI C, 06H LOOP MOV A, M STAX D INX H INX D DCR C JNZ LOOP END HLT 7/3/2020 Amit Kumer Podder 19
• 20.

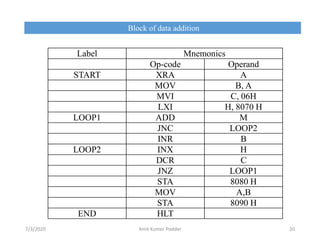

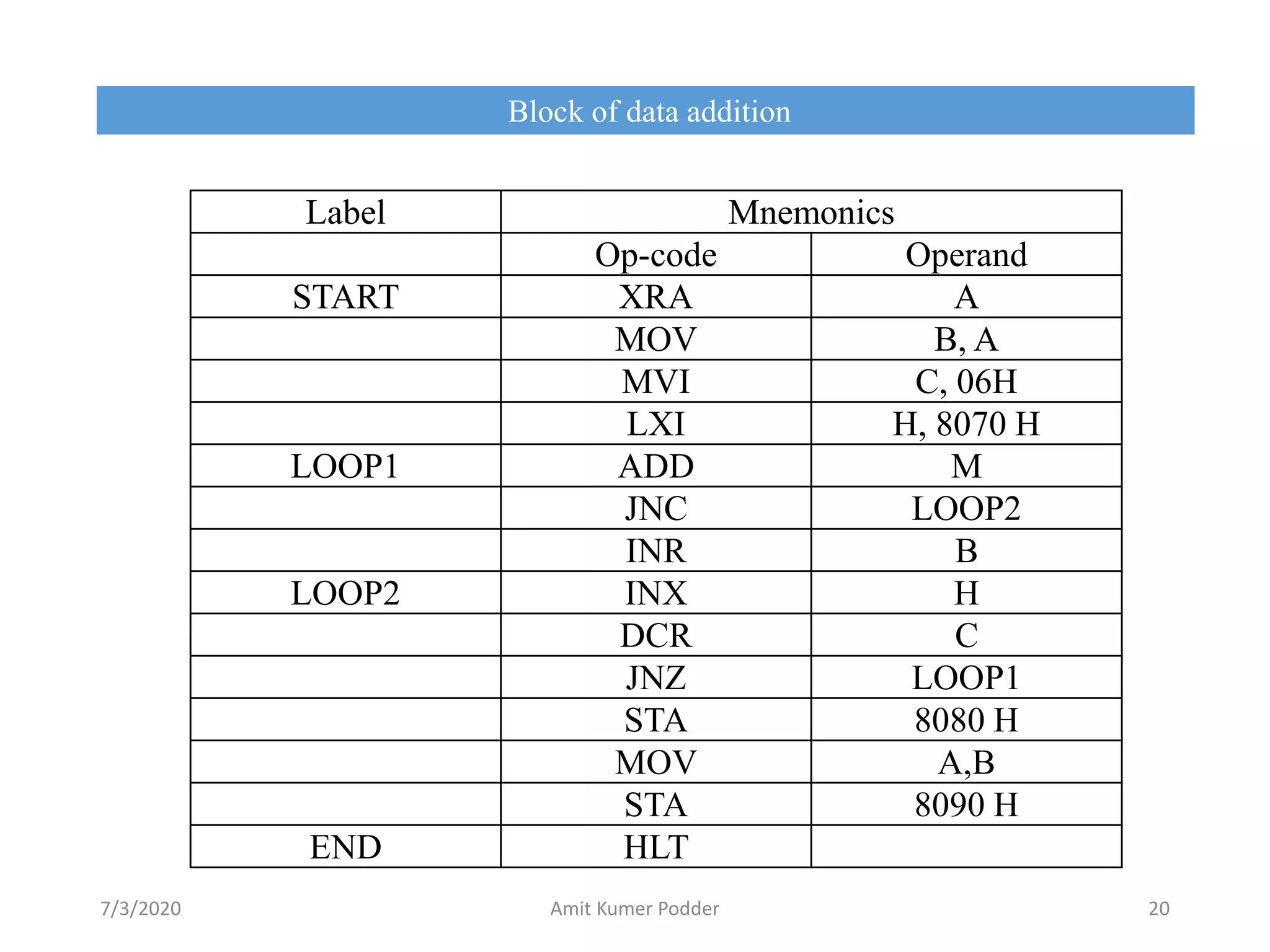

  Block of dataaddition Label Mnemonics Op-code Operand START XRA A MOV B, A MVI C, 06H LXI H, 8070 H LOOP1 ADD M JNC LOOP2 INR B LOOP2 INX H DCR C JNZ LOOP1 STA 8080 H MOV A,B STA 8090 H END HLT 7/3/2020 Amit Kumer Podder 20
