A Unified SOAP/JSON API with Symfony2

A Unified SOAP/JSON API with Symfony2

• 1.
  A UNIFIED SOAP/ JSON API using Symfony2 Tuesday, 12 June 12
• 2.

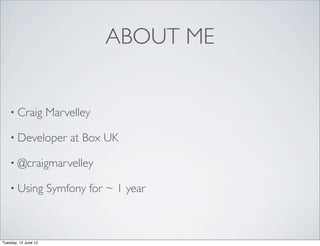

  ABOUT ME • Craig Marvelley • Developer at Box UK • @craigmarvelley • Using Symfony for ~ 1 year Tuesday, 12 June 12

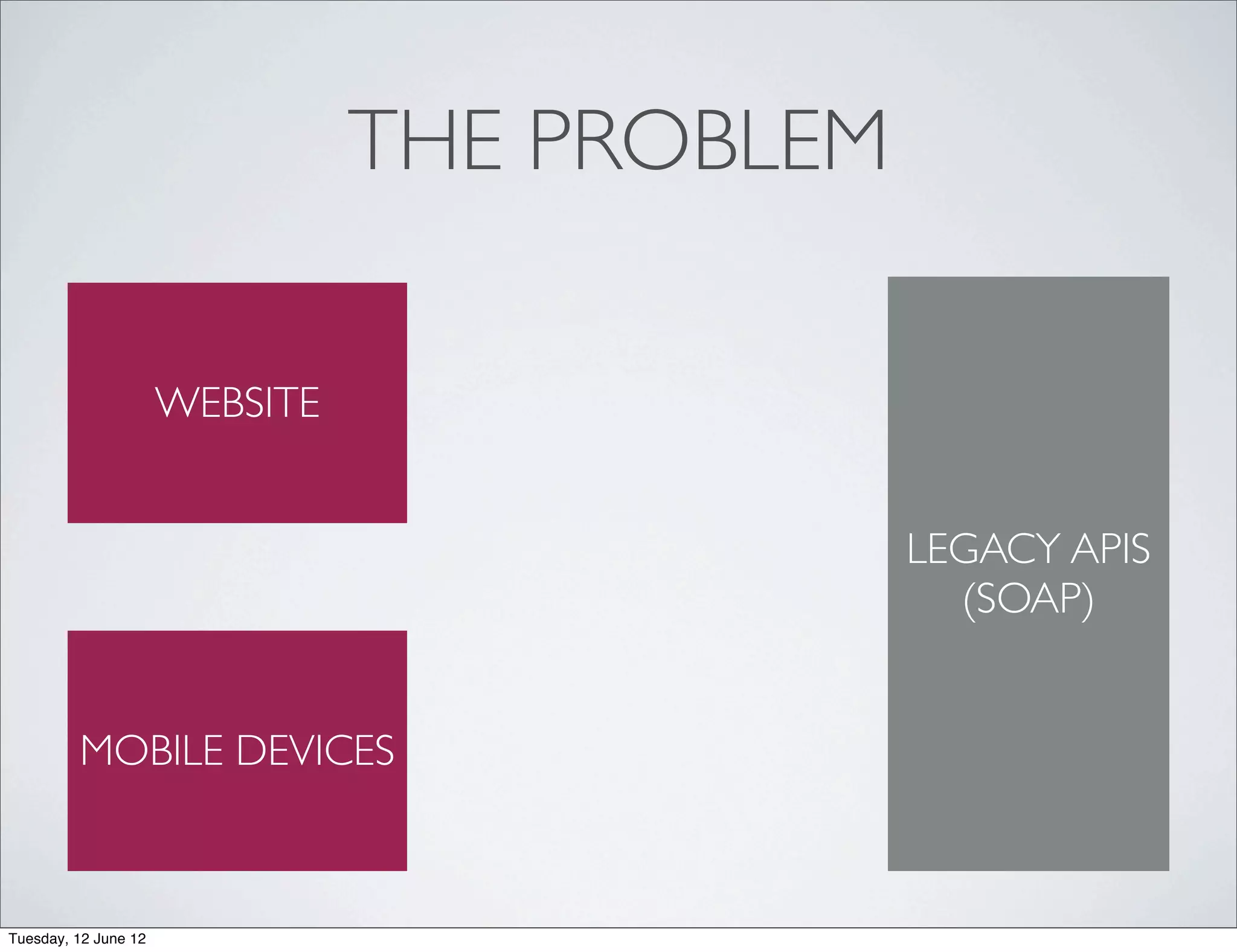

• 3.
  THE PROBLEM WEBSITE LEGACY APIS (SOAP) MOBILE DEVICES Tuesday, 12 June 12
• 4.

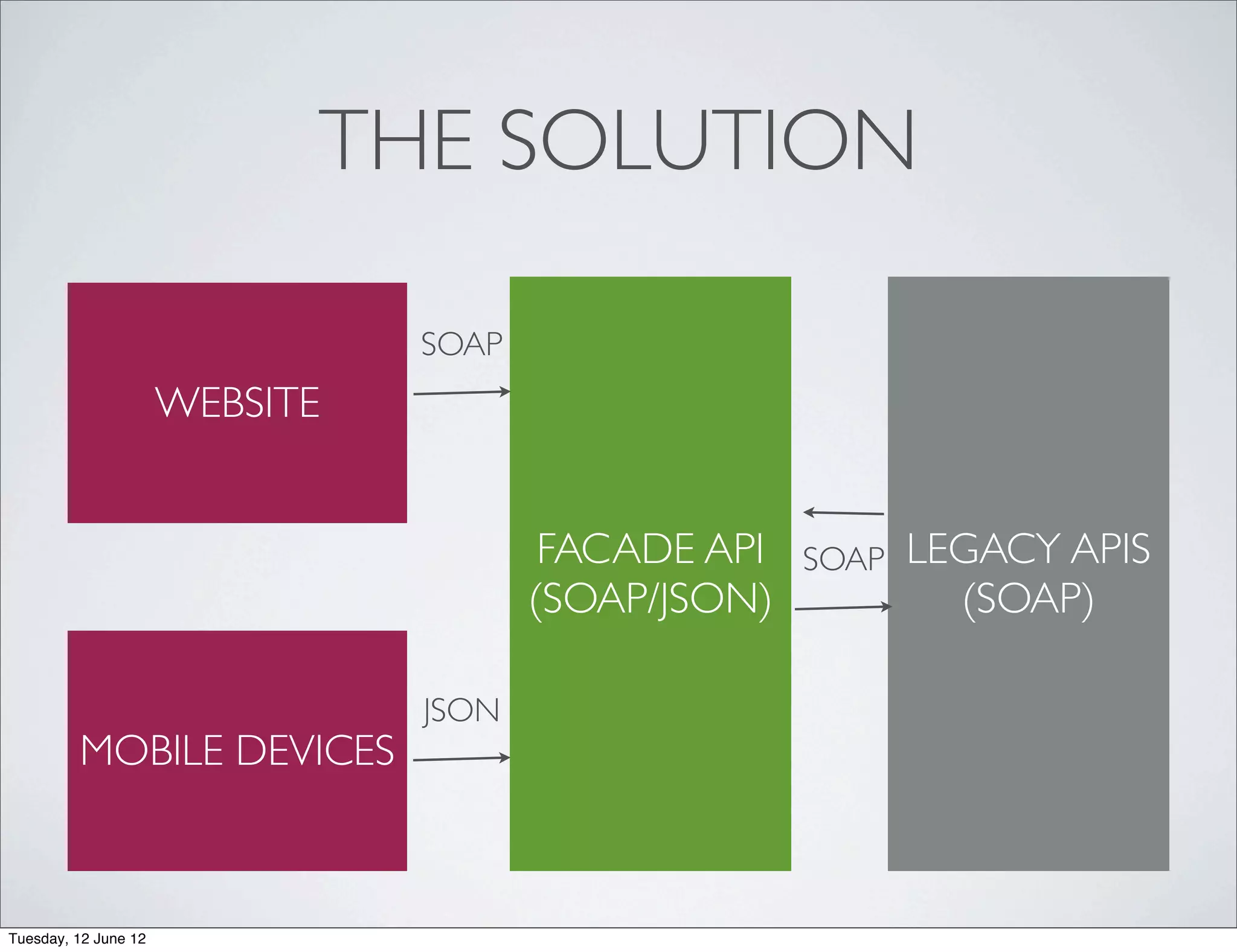

  THE SOLUTION SOAP WEBSITE FACADE API SOAP LEGACY APIS (SOAP/JSON) (SOAP) JSON MOBILE DEVICES Tuesday, 12 June 12
• 5.

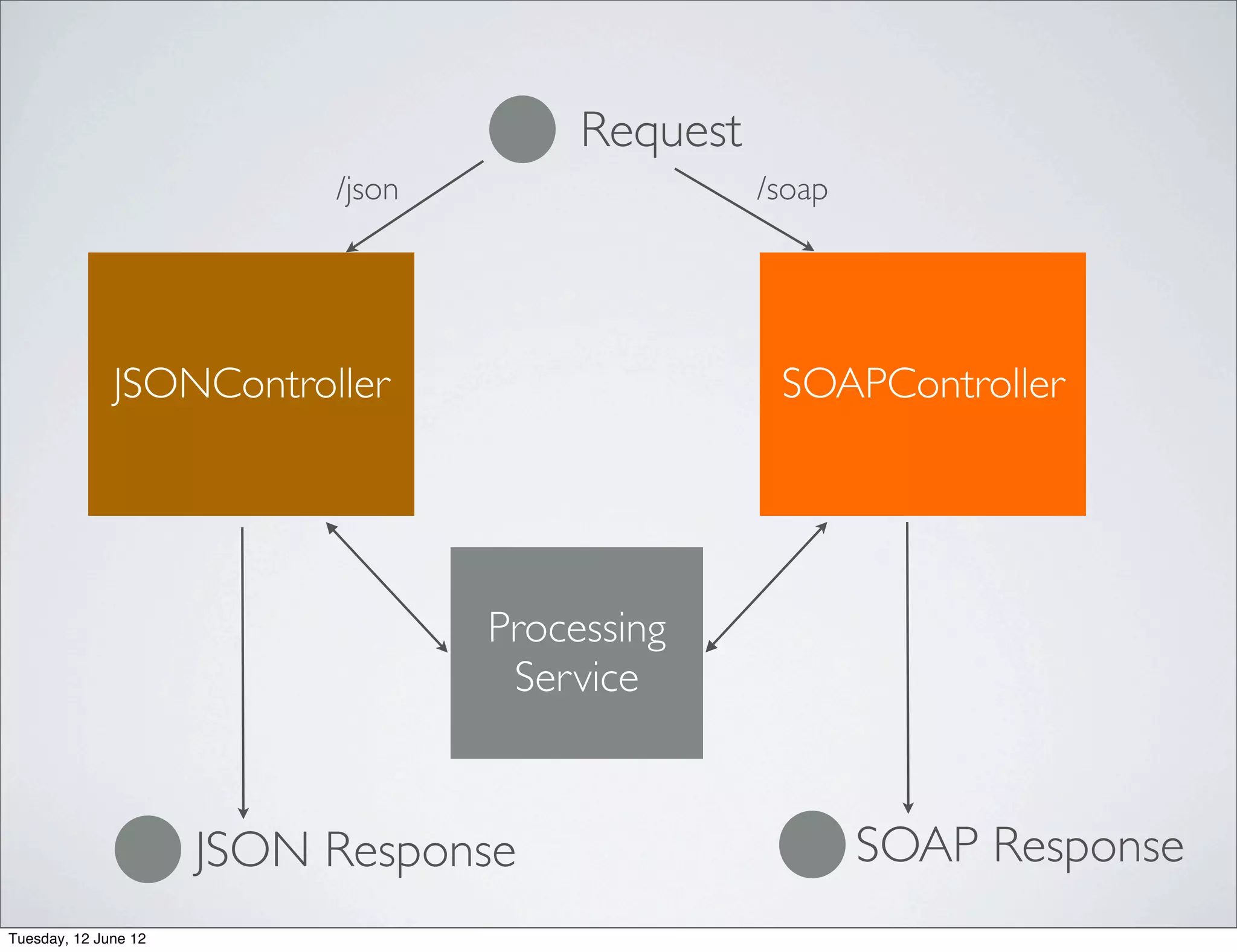

  Request /json /soap JSONController SOAPController Processing Service JSON Response SOAP Response Tuesday, 12 June 12
• 6.

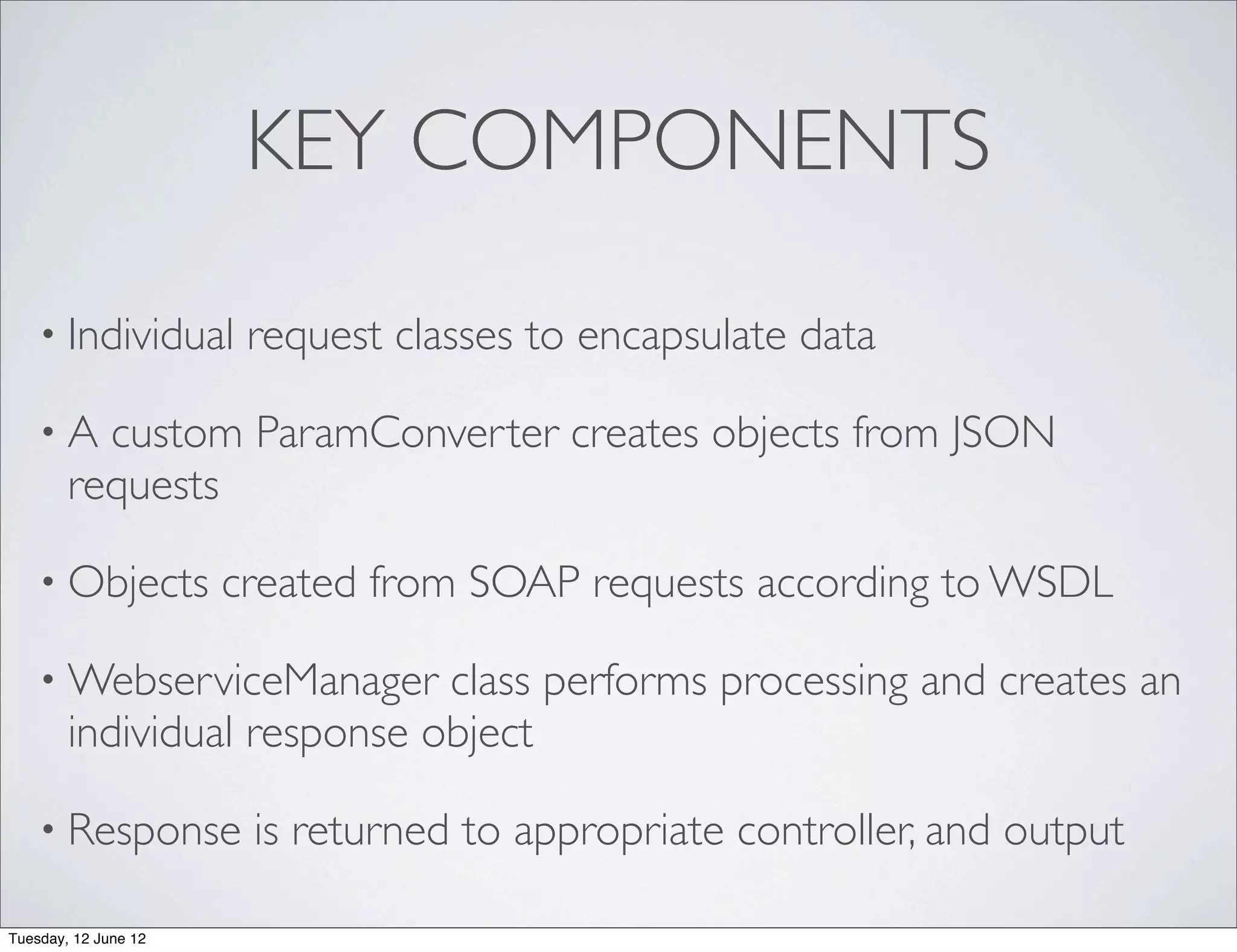

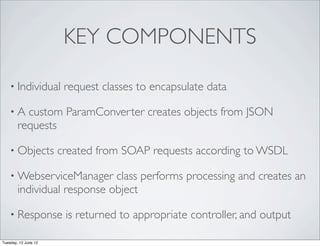

  KEY COMPONENTS • Individual request classes to encapsulate data •A custom ParamConverter creates objects from JSON requests • Objects created from SOAP requests according to WSDL • WebserviceManager class performs processing and creates an individual response object • Response is returned to appropriate controller, and output Tuesday, 12 June 12
• 7.

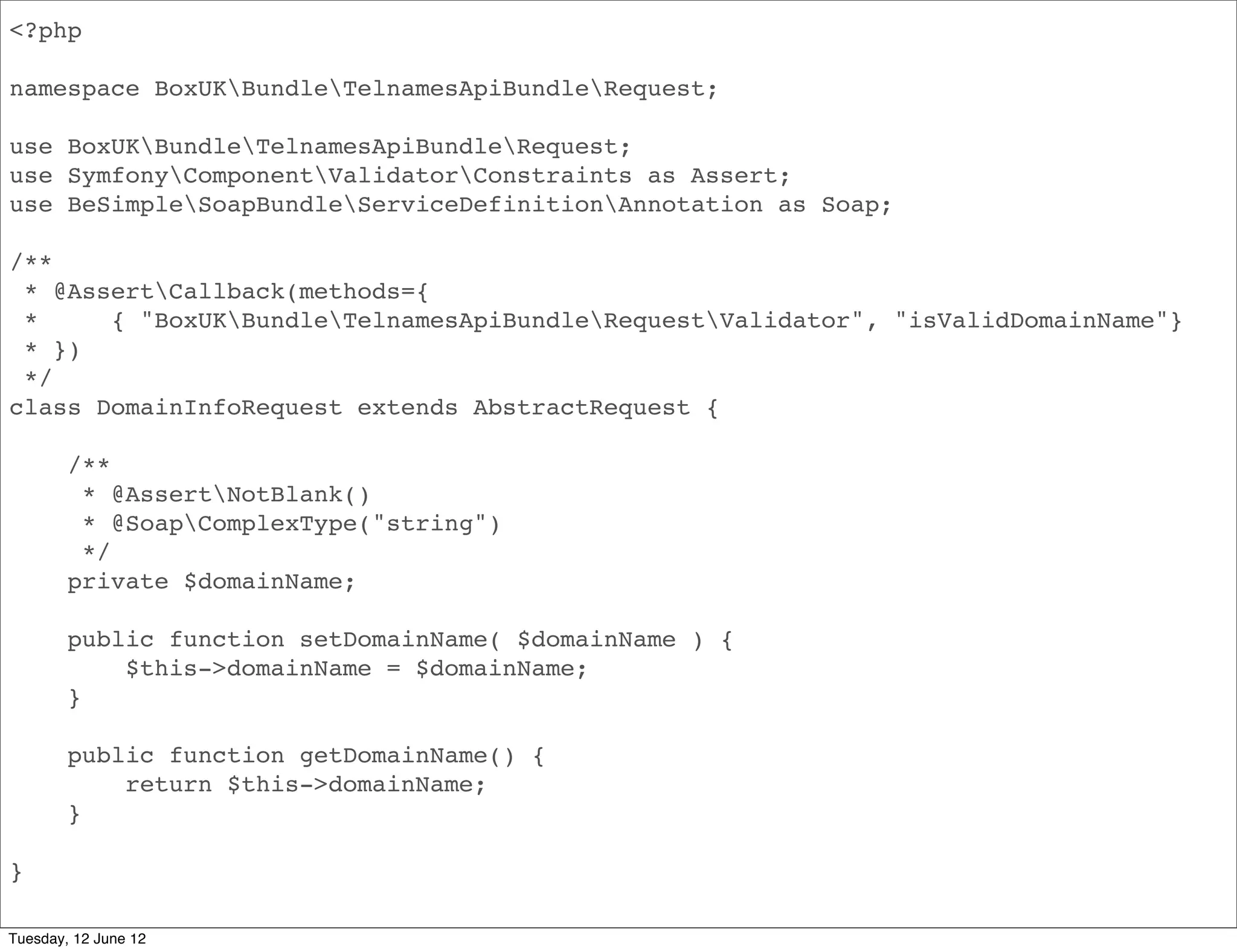

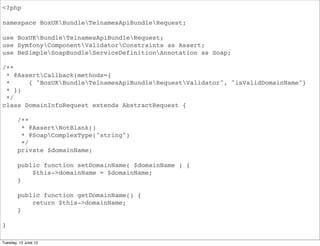

  <?php namespace BoxUKBundleApiBundleRequest; use BoxUKBundleApiBundleRequest; useSymfonyComponentValidatorConstraints as Assert; use BeSimpleSoapBundleServiceDefinitionAnnotation as Soap; /** * @AssertCallback(methods={ * { "BoxUKBundleApiBundleRequestValidator", "isValidDomainName"} * }) */ class DomainInfoRequest extends AbstractRequest { /** * @AssertNotBlank() * @SoapComplexType("string") */ private $domainName; public function setDomainName( $domainName ) { $this->domainName = $domainName; } public function getDomainName() { return $this->domainName; } } Tuesday, 12 June 12

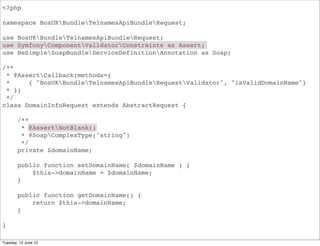

• 8.

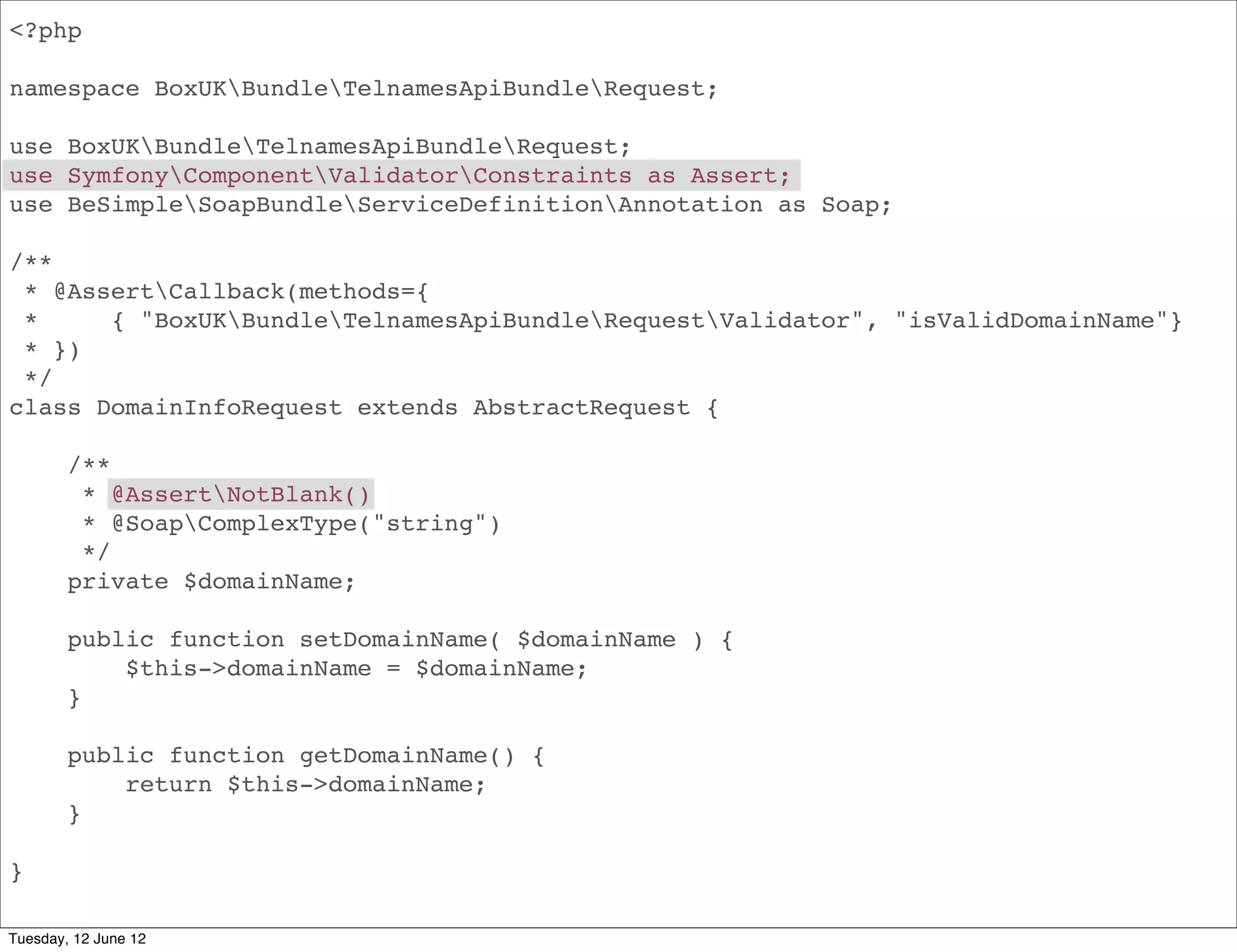

  <?php namespace BoxUKBundleApiBundleRequest; use BoxUKBundleApiBundleRequest; useSymfonyComponentValidatorConstraints as Assert; use BeSimpleSoapBundleServiceDefinitionAnnotation as Soap; /** * @AssertCallback(methods={ * { "BoxUKBundleApiBundleRequestValidator", "isValidDomainName"} * }) */ class DomainInfoRequest extends AbstractRequest { /** * @AssertNotBlank() * @SoapComplexType("string") */ private $domainName; public function setDomainName( $domainName ) { $this->domainName = $domainName; } public function getDomainName() { return $this->domainName; } } Tuesday, 12 June 12

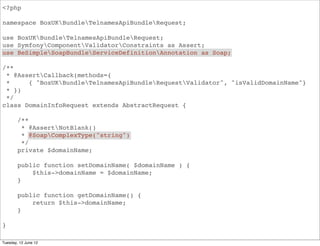

• 9.

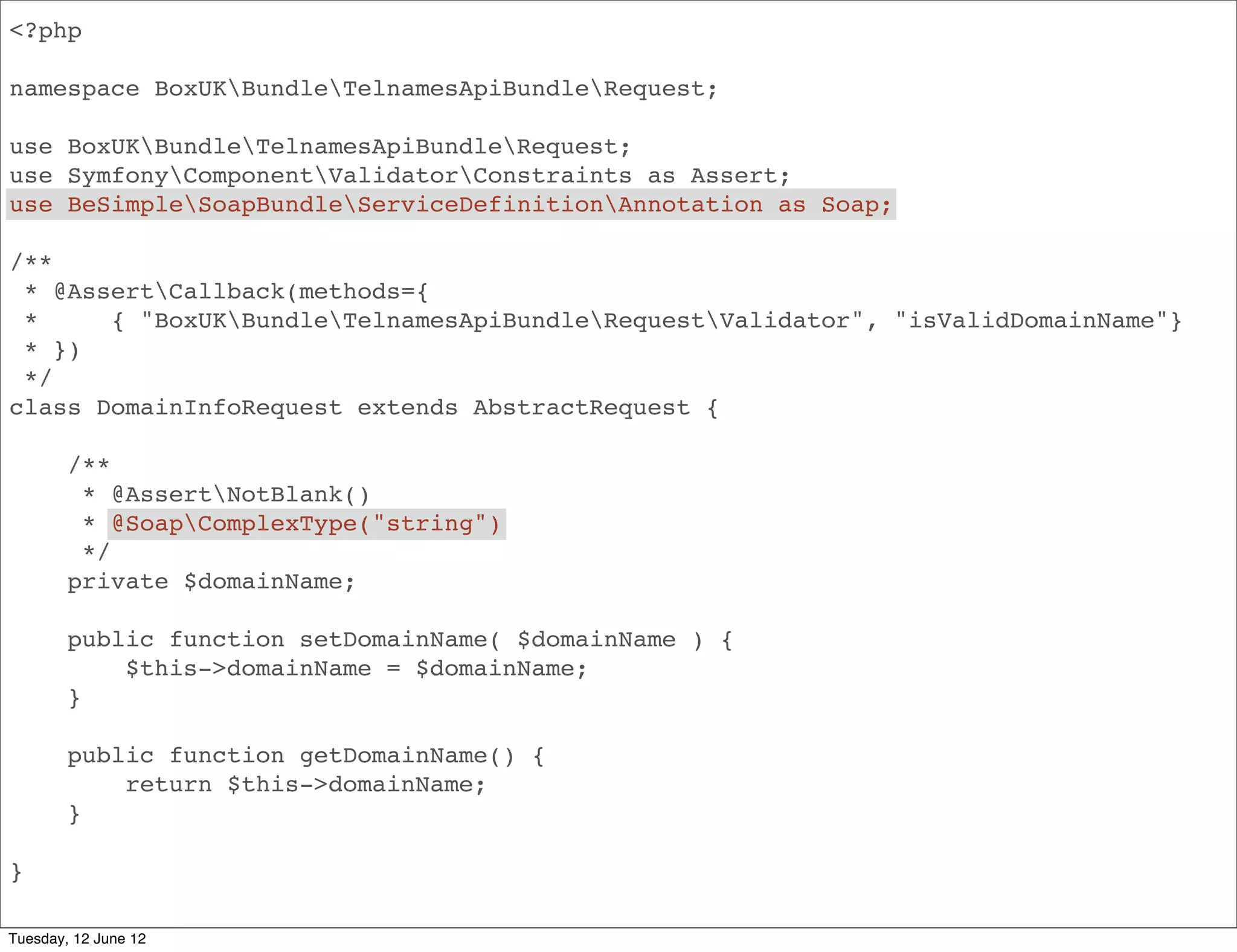

  <?php namespace BoxUKBundleApiBundleRequest; use BoxUKBundleApiBundleRequest; useSymfonyComponentValidatorConstraints as Assert; use BeSimpleSoapBundleServiceDefinitionAnnotation as Soap; /** * @AssertCallback(methods={ * { "BoxUKBundleApiBundleRequestValidator", "isValidDomainName"} * }) */ class DomainInfoRequest extends AbstractRequest { /** * @AssertNotBlank() * @SoapComplexType("string") */ private $domainName; public function setDomainName( $domainName ) { $this->domainName = $domainName; } public function getDomainName() { return $this->domainName; } } Tuesday, 12 June 12
• 10.

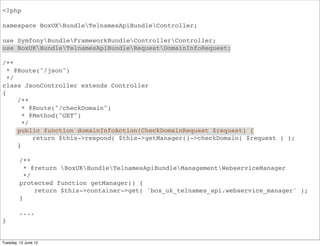

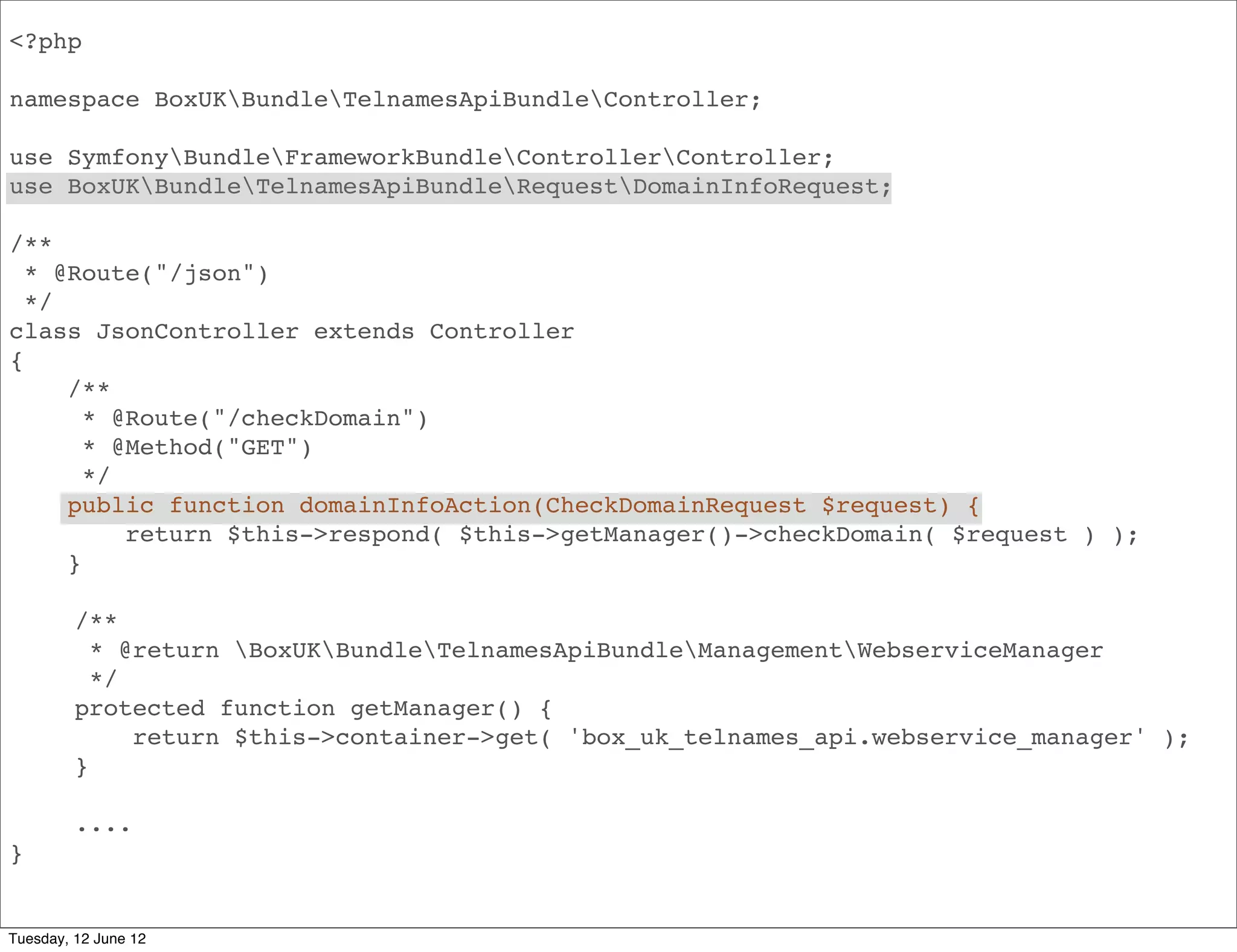

  <?php namespace BoxUKBundleApiBundleController; use SymfonyBundleFrameworkBundleControllerController; useBoxUKBundleApiBundleRequestDomainInfoRequest; /** * @Route("/json") */ class JsonController extends Controller { /** * @Route("/domainInfo") * @Method("GET") */ public function domainInfoAction(DomainInfoRequest $request) { return $this->respond( $this->getManager()->domainInfo( $request ) ); } /** * @return BoxUKBundleApiBundleManagementWebserviceManager */ protected function getManager() { return $this->container->get( 'box_uk.api.webservice_manager' ); } .... } Tuesday, 12 June 12

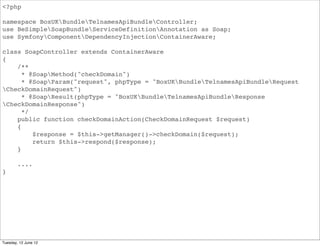

• 11.

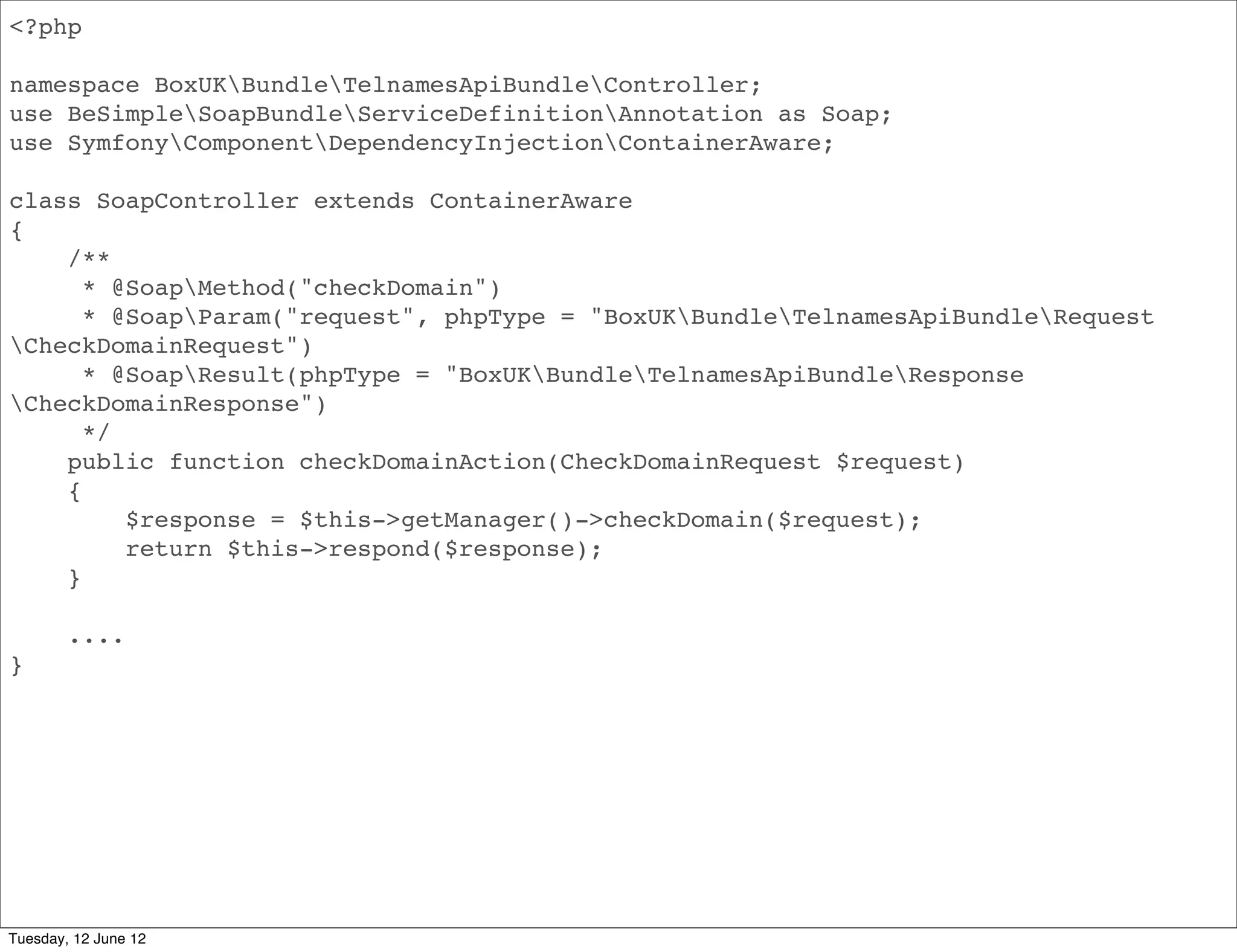

  <?php namespace BoxUKBundleApiBundleController; use BeSimpleSoapBundleServiceDefinitionAnnotationas Soap; use SymfonyComponentDependencyInjectionContainerAware; class SoapController extends ContainerAware { /** * @SoapMethod("domainInfo") * @SoapParam("request", phpType = "BoxUKBundleApiBundleRequest DomainInfoRequest") * @SoapResult(phpType = "BoxUKBundleApiBundleResponseDomainInfoRequest") */ public function domainInfoAction(DomainInfoRequest $request) { $response = $this->getManager()->domainInfo($request); return $this->respond($response); } .... } Tuesday, 12 June 12

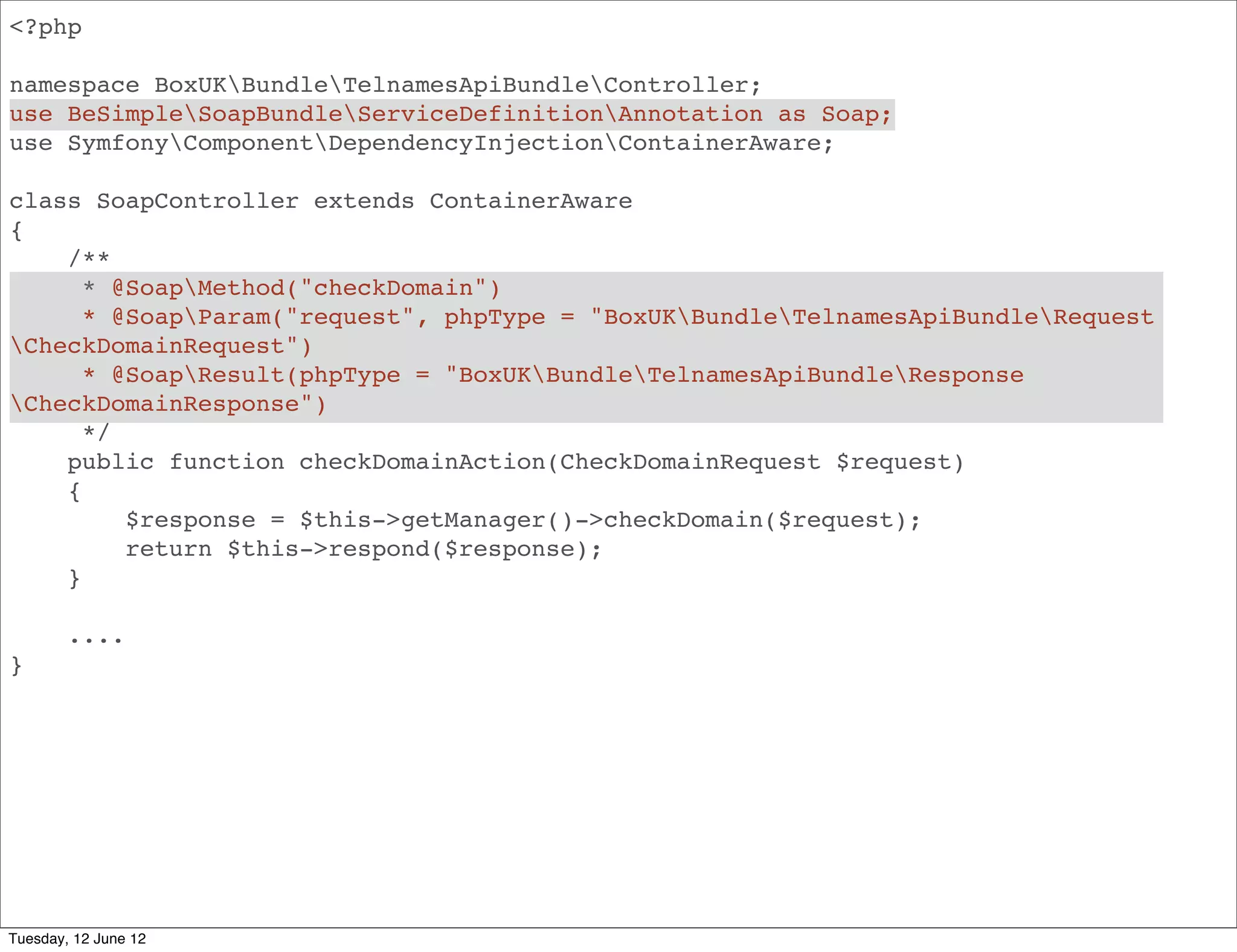

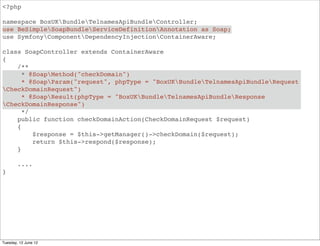

• 12.
  <?php namespace BoxUKBundleApiBundleController; use BeSimpleSoapBundleServiceDefinitionAnnotationas Soap; use SymfonyComponentDependencyInjectionContainerAware; class SoapController extends ContainerAware { /** * @SoapMethod("domainInfo") * @SoapParam("request", phpType = "BoxUKBundleApiBundleRequest DomainInfoRequest") * @SoapResult(phpType = "BoxUKBundleApiBundleResponseDomainInfoRequest") */ public function domainInfoAction(DomainInfoRequest $request) { $response = $this->getManager()->domainInfo($request); return $this->respond($response); } .... } Tuesday, 12 June 12
• 13.

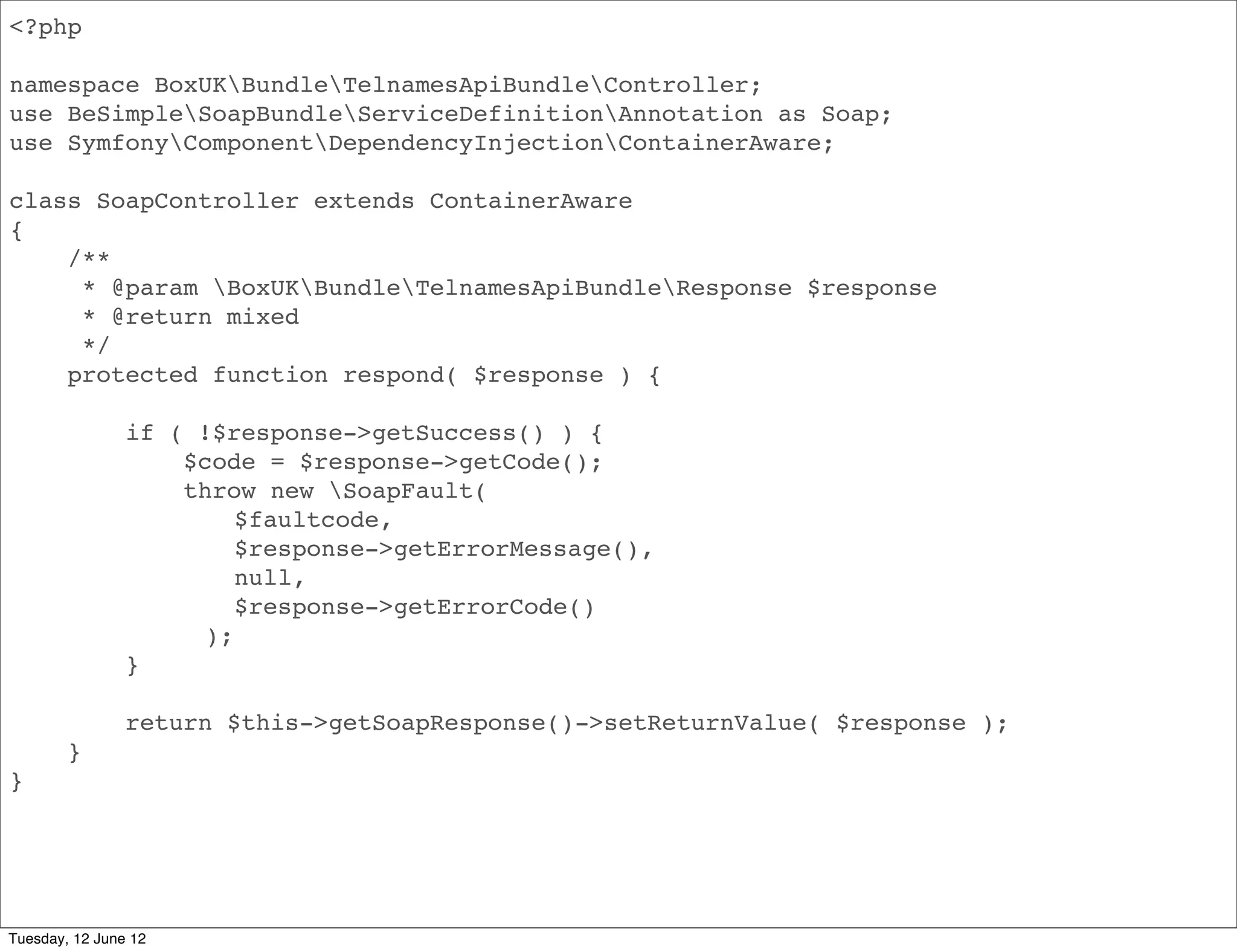

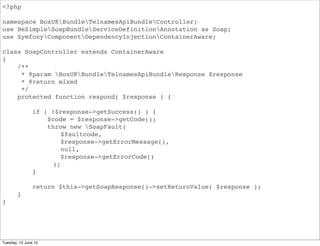

  <?php namespace BoxUKBundleApiBundleController; use BeSimpleSoapBundleServiceDefinitionAnnotationas Soap; use SymfonyComponentDependencyInjectionContainerAware; class SoapController extends ContainerAware { /** * @param BoxUKBundleApiBundleResponse $response * @return mixed */ protected function respond( $response ) { if ( !$response->getSuccess() ) { $code = $response->getCode(); throw new SoapFault( $faultcode, $response->getErrorMessage(), null, $response->getErrorCode() ); } return $this->getSoapResponse()->setReturnValue( $response ); } } Tuesday, 12 June 12
• 14.

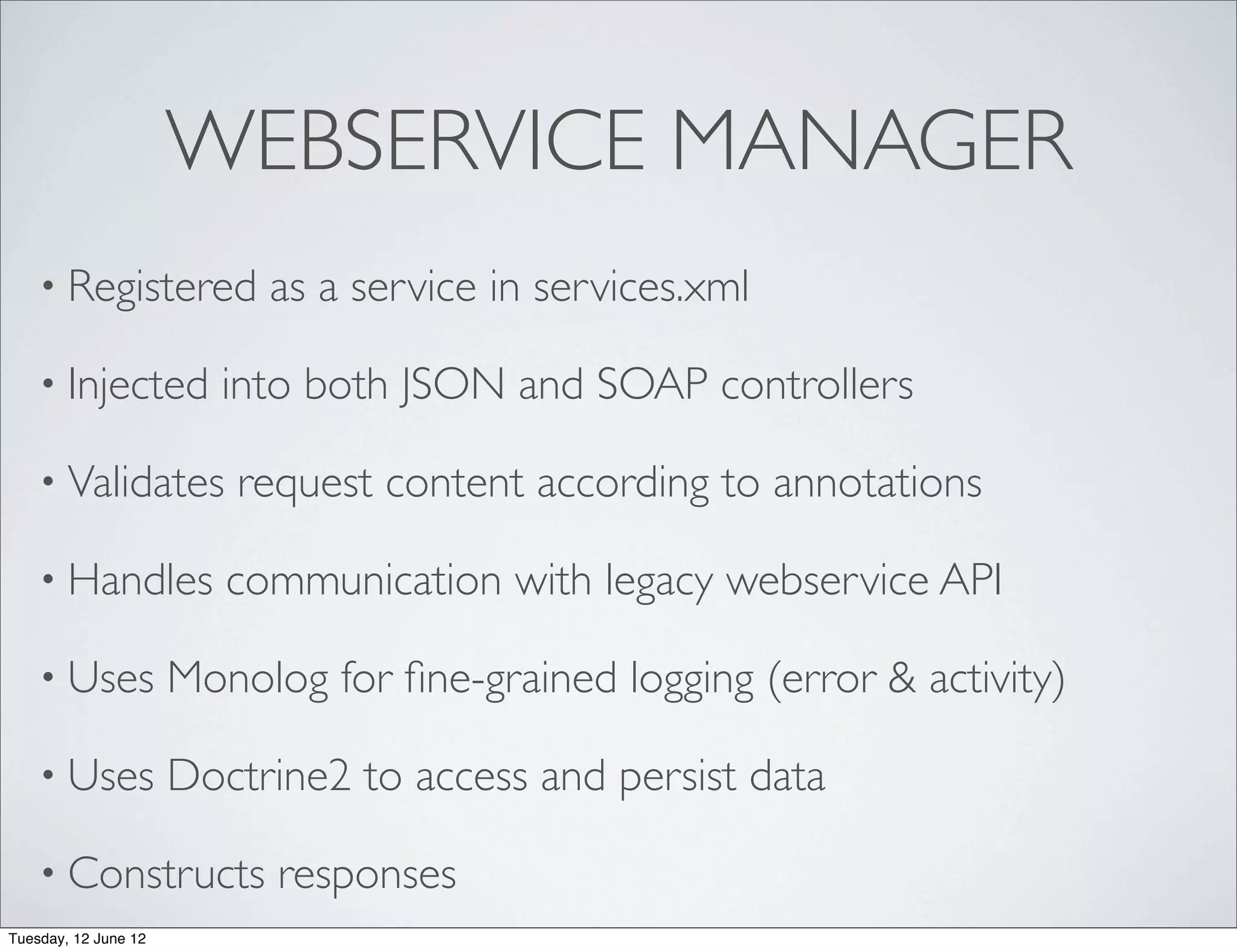

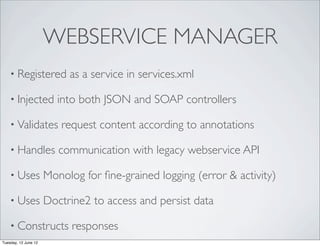

  WEBSERVICE MANAGER • Registered as a service in services.xml • Injected into both JSON and SOAP controllers • Validates request content according to annotations • Handles communication with legacy webservice API • Uses Monolog for fine-grained logging (error & activity) • Uses Doctrine2 to access and persist data • Constructs responses Tuesday, 12 June 12
• 15.

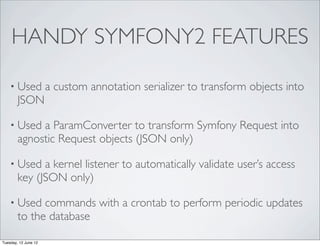

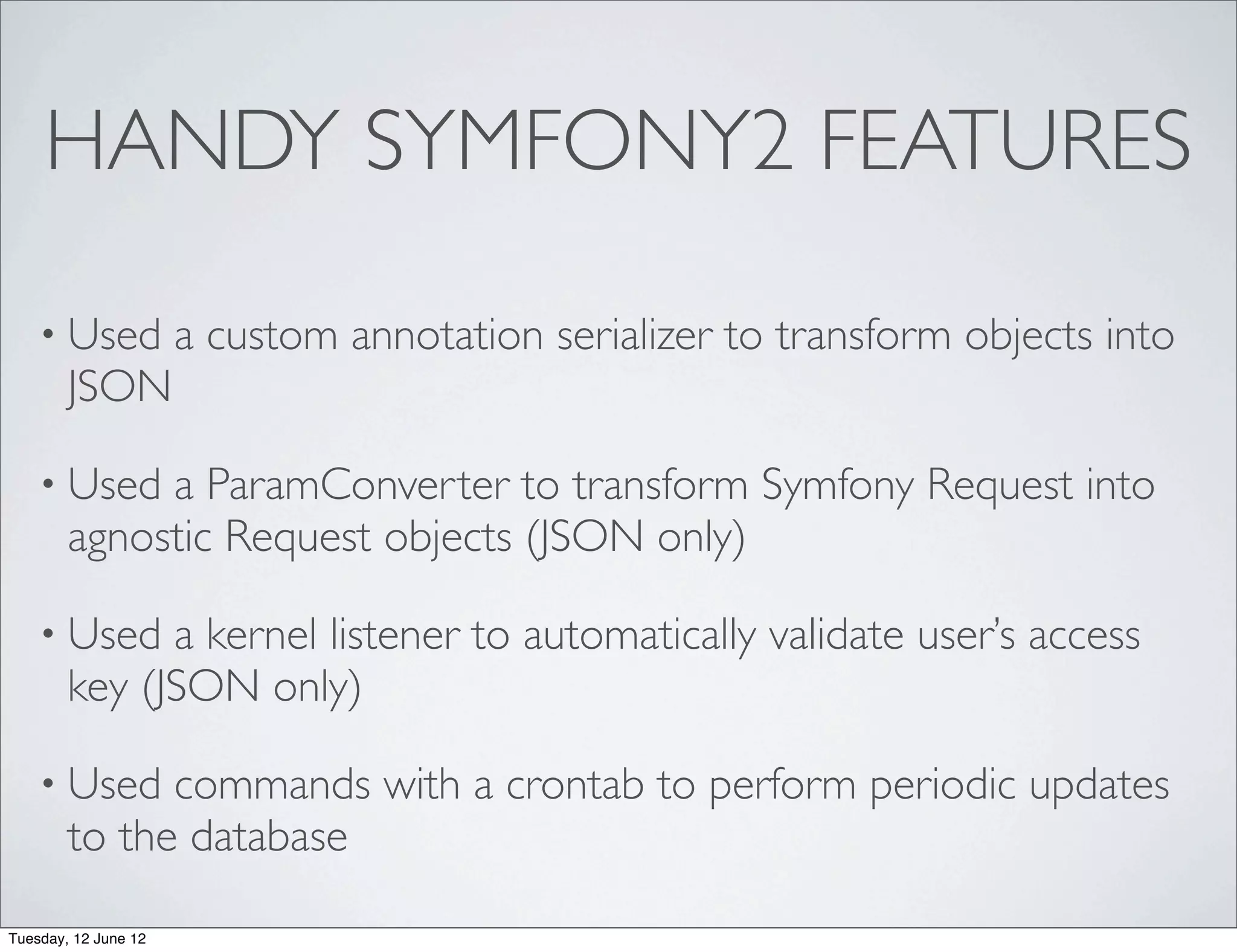

  HANDY SYMFONY2 FEATURES • Used a custom annotation serializer to transform objects into JSON • Used a ParamConverter to transform Symfony Request into agnostic Request objects (JSON only) • Used a kernel listener to automatically validate user’s access key (JSON only) • Used commands with a crontab to perform periodic updates to the database Tuesday, 12 June 12

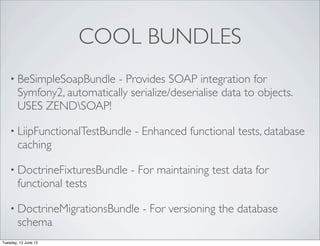

• 16.

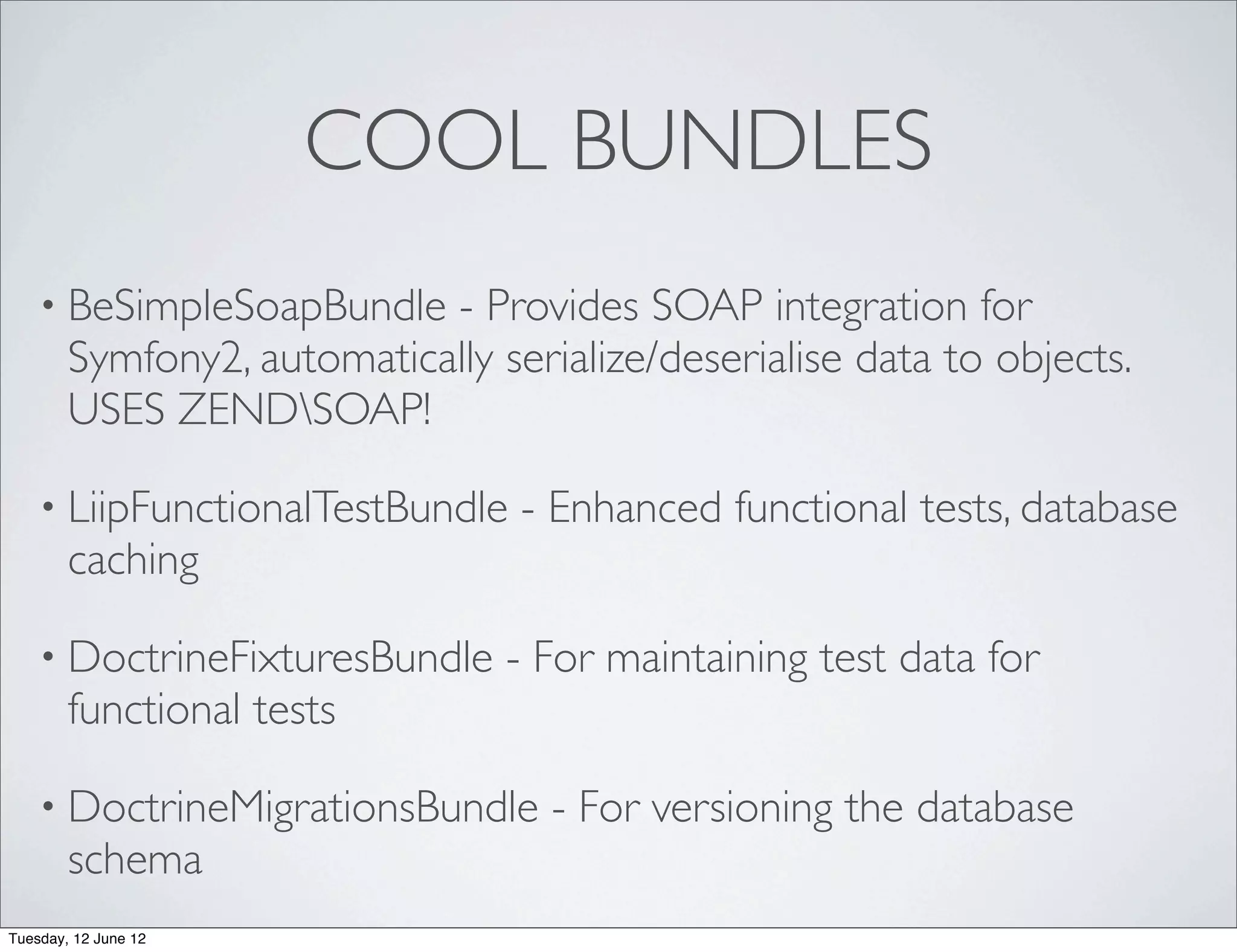

  COOL BUNDLES • BeSimpleSoapBundle - Provides SOAP integration for Symfony2, automatically serialize/deserialise data to objects. USES ZENDSOAP! • LiipFunctionalTestBundle - Enhanced functional tests, database caching • DoctrineFixturesBundle - For maintaining test data for functional tests • DoctrineMigrationsBundle - For versioning the database schema Tuesday, 12 June 12
• 17.

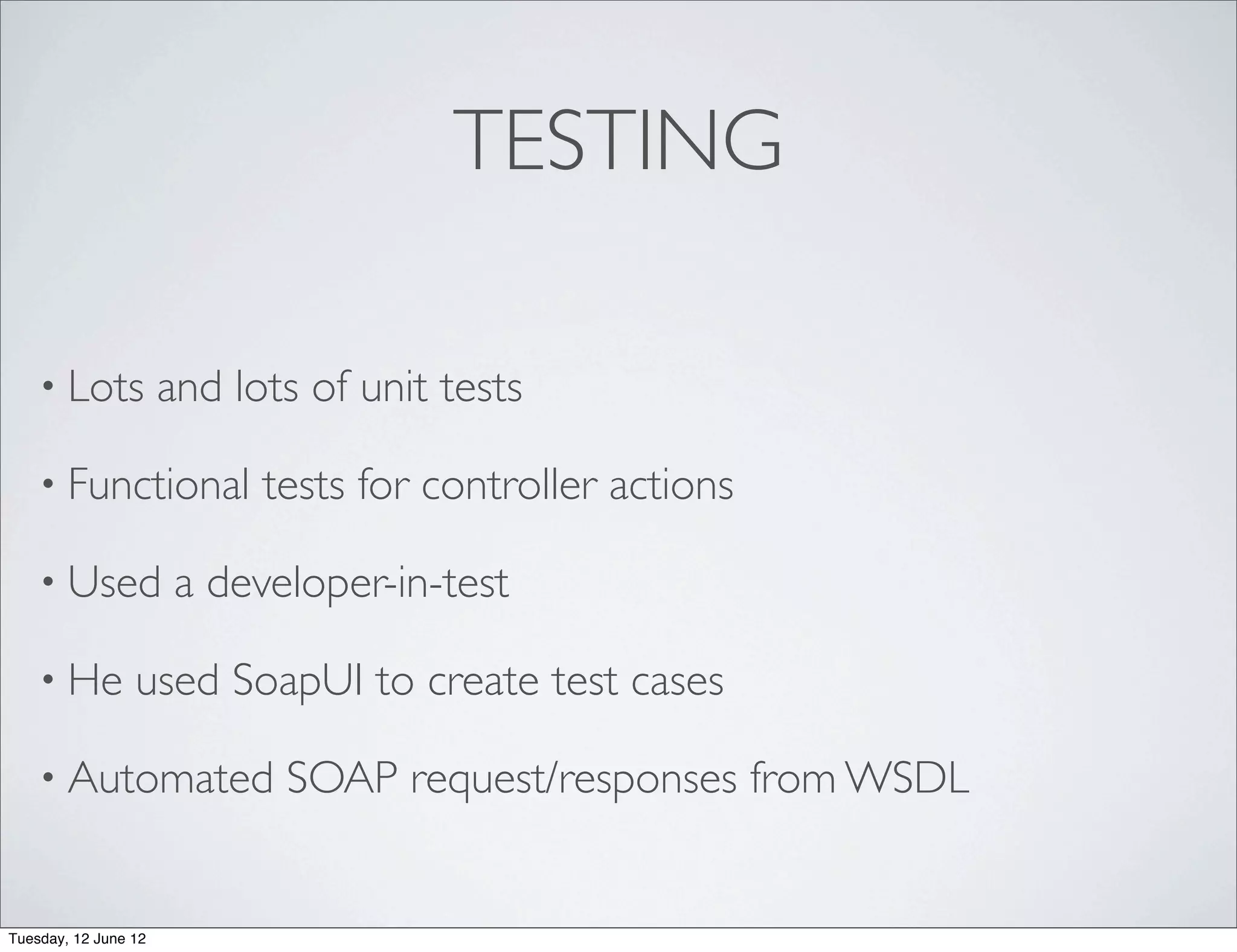

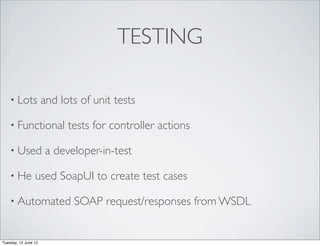

  TESTING • Lots and lots of unit tests • Functional tests for controller actions • Used a developer-in-test • He used SoapUI to create test cases • Automated SOAP request/responses from WSDL Tuesday, 12 June 12
• 18.
  THANKS FOR LISTENING! https://joind.in/talk/view/6667 @craigmarvelley Tuesday, 12 June 12
