Algorithm Design and Complexity - Course 4 - Heaps and Dynamic Progamming

Algorithm Design and Complexity
Course 4

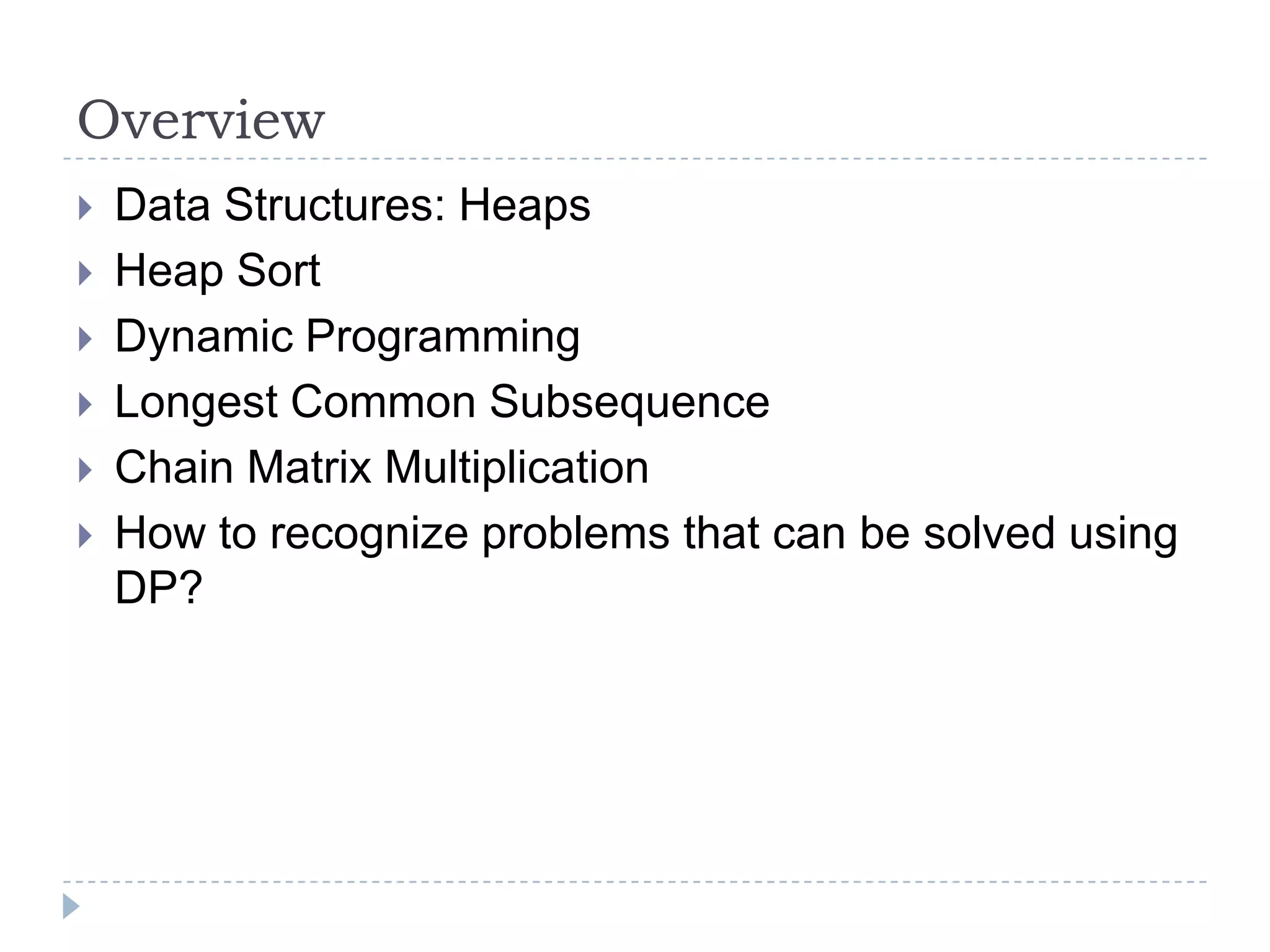

Overview








Data Structures: Heaps
Heap Sort
Dynamic Programming
Longest Common Subsequence

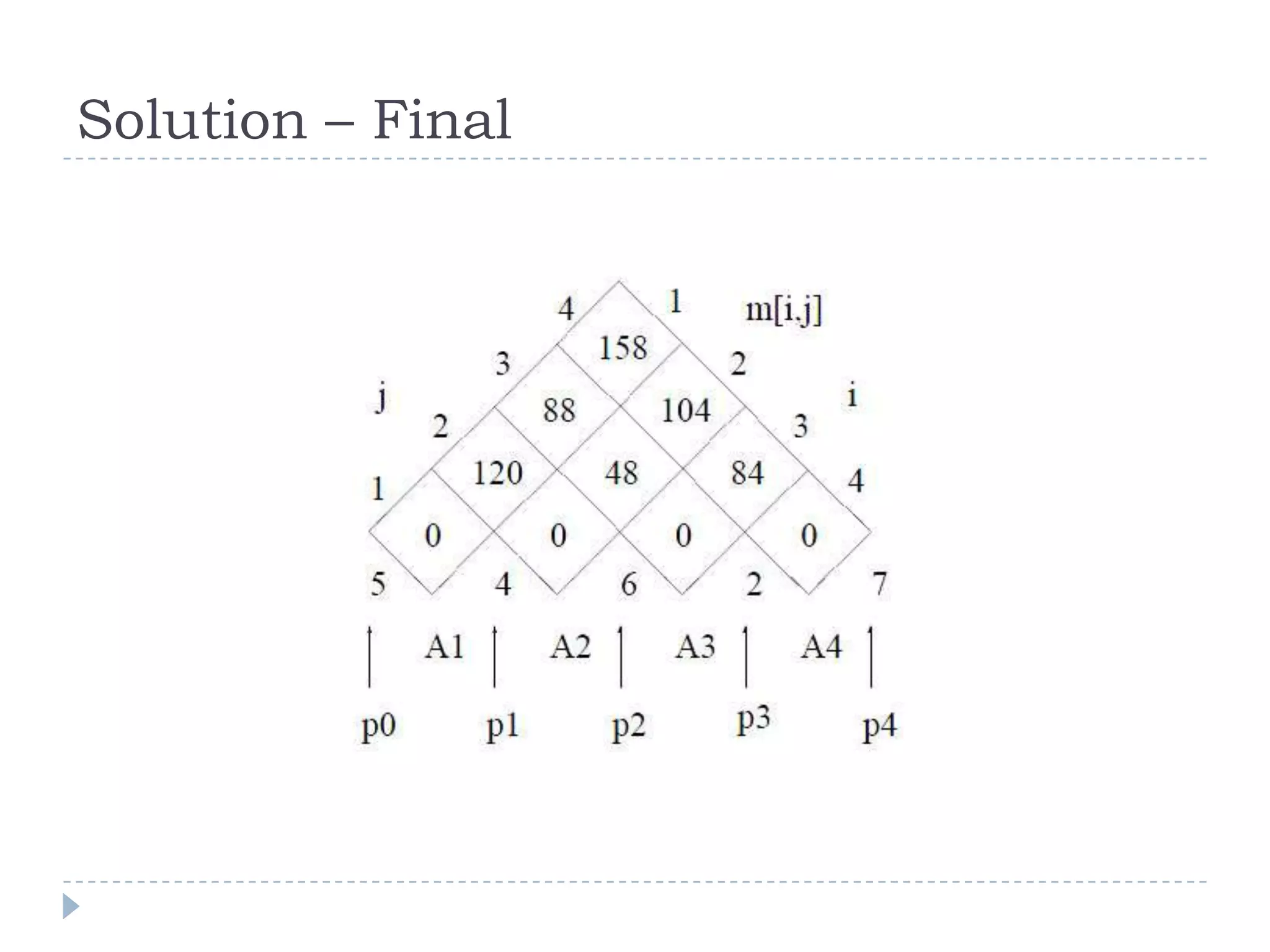

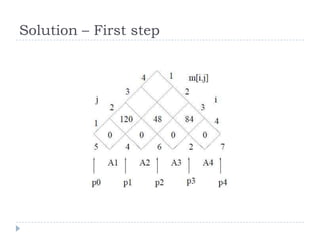

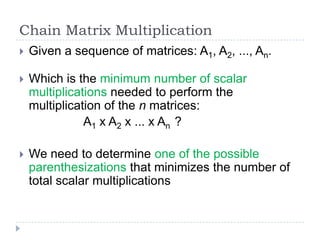

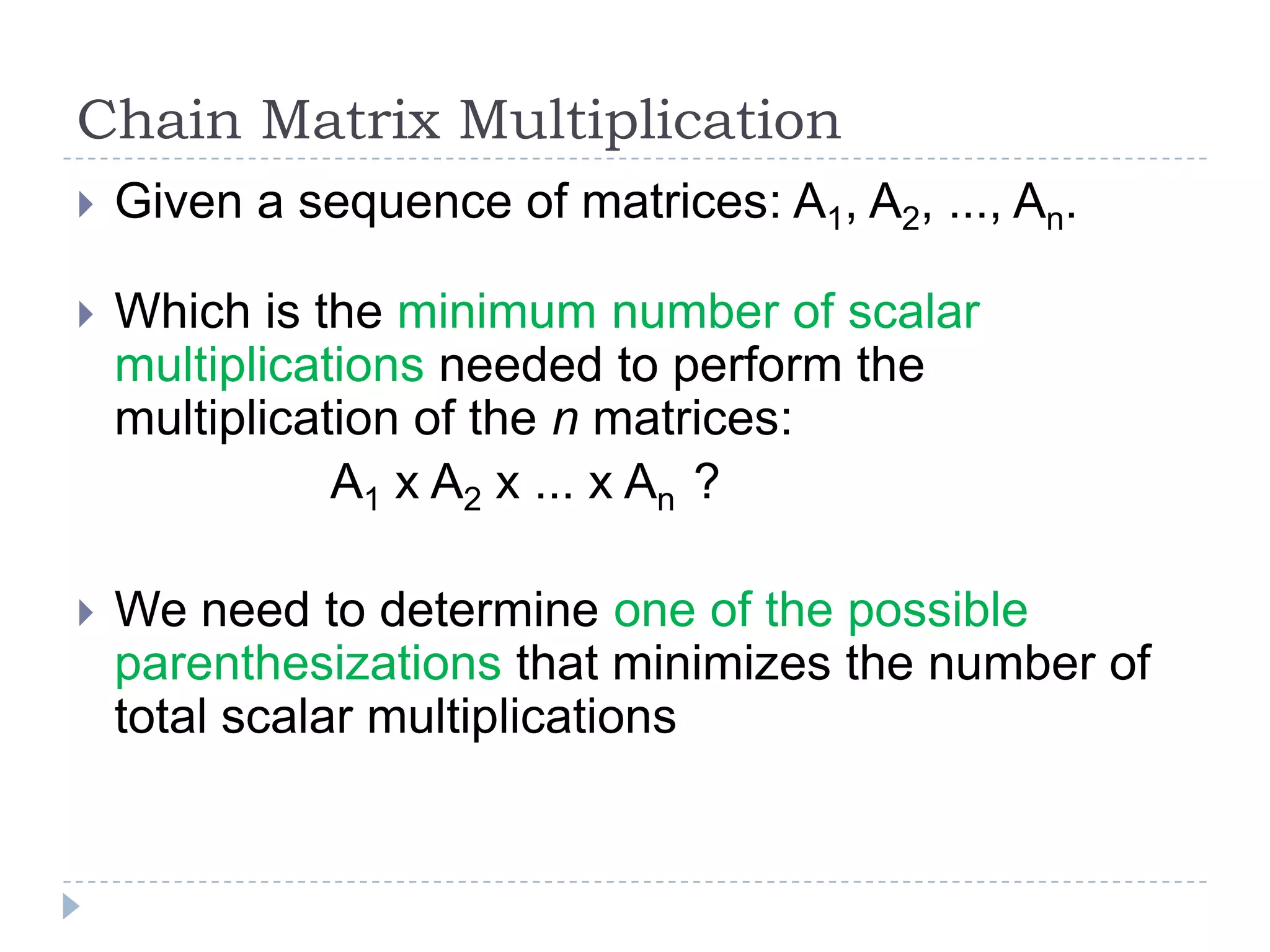

Chain Matrix Multiplication
How to recognize problems that can be solved using
DP?

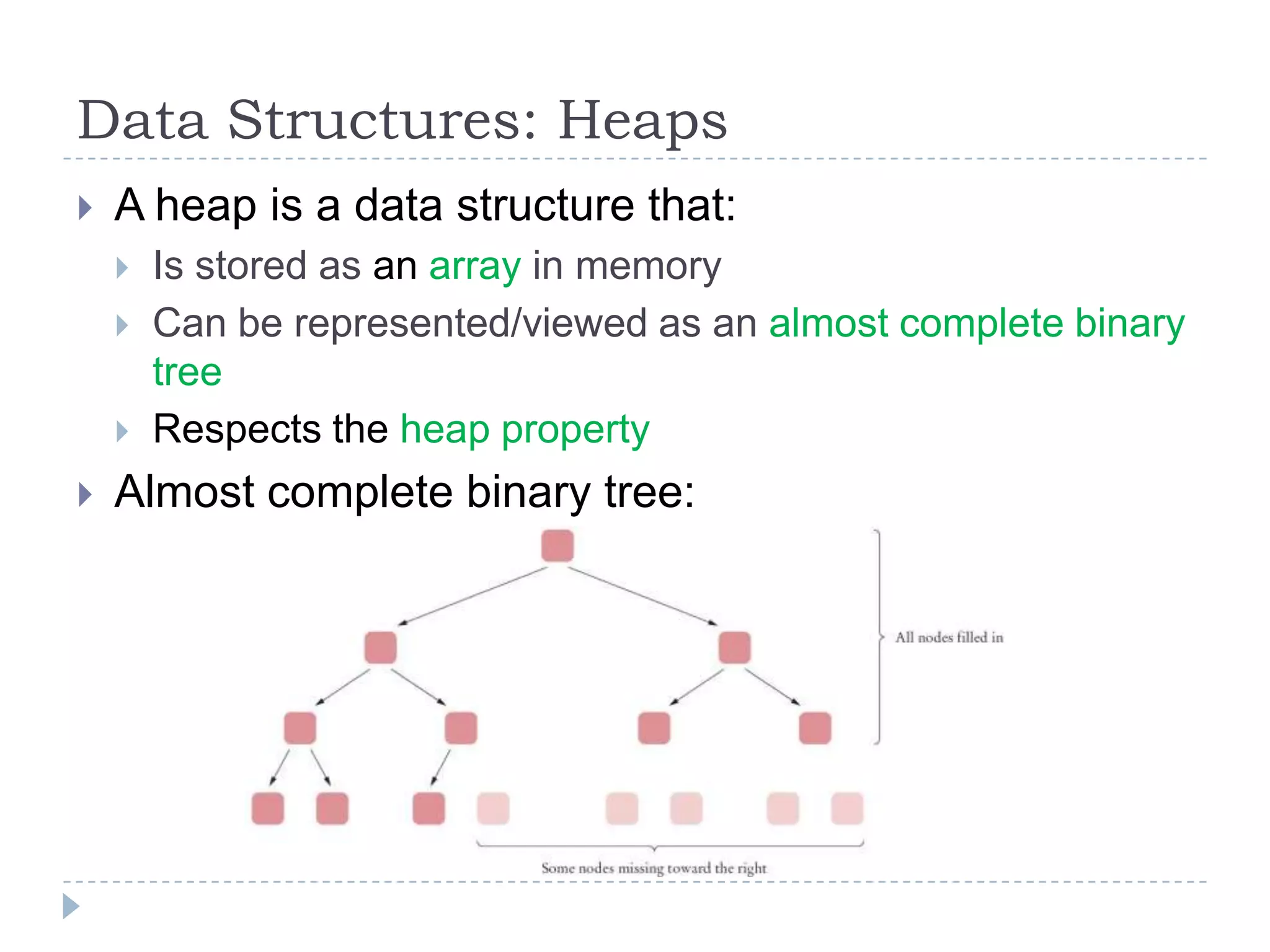

Data Structures: Heaps


A heap is a data structure that:






Is stored as an array in memory
Can be represented/viewed as an almost complete binary
tree
Respects the heap property

Almost complete binary tree:

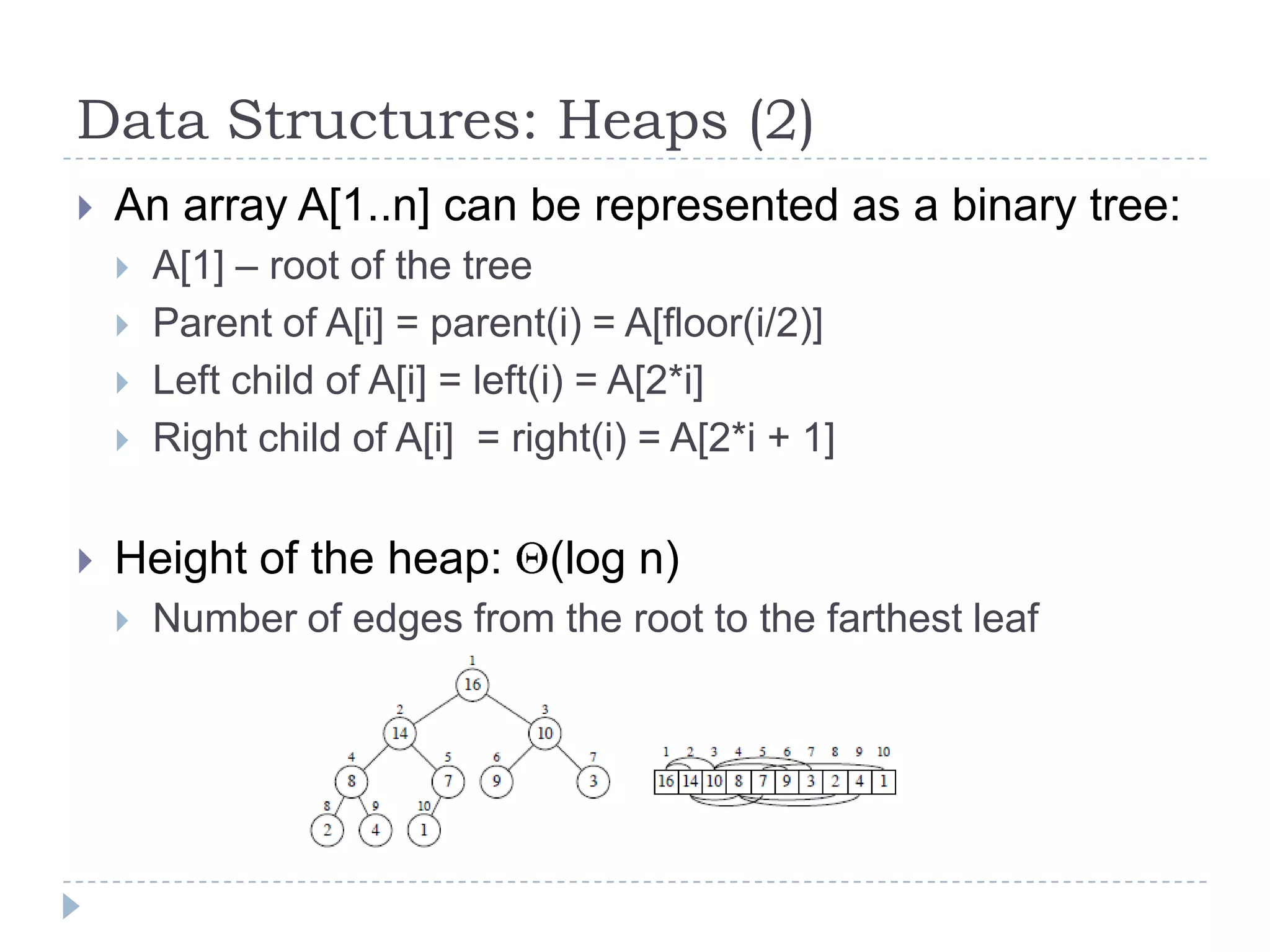

Data Structures: Heaps (2)


An array A[1..n] can be represented as a binary tree:







A[1] – root of the tree
Parent of A[i] = parent(i) = A[floor(i/2)]
Left child of A[i] = left(i) = A[2*i]
Right child of A[i] = right(i) = A[2*i + 1]

Height of the heap:


(log n)

Number of edges from the root to the farthest leaf

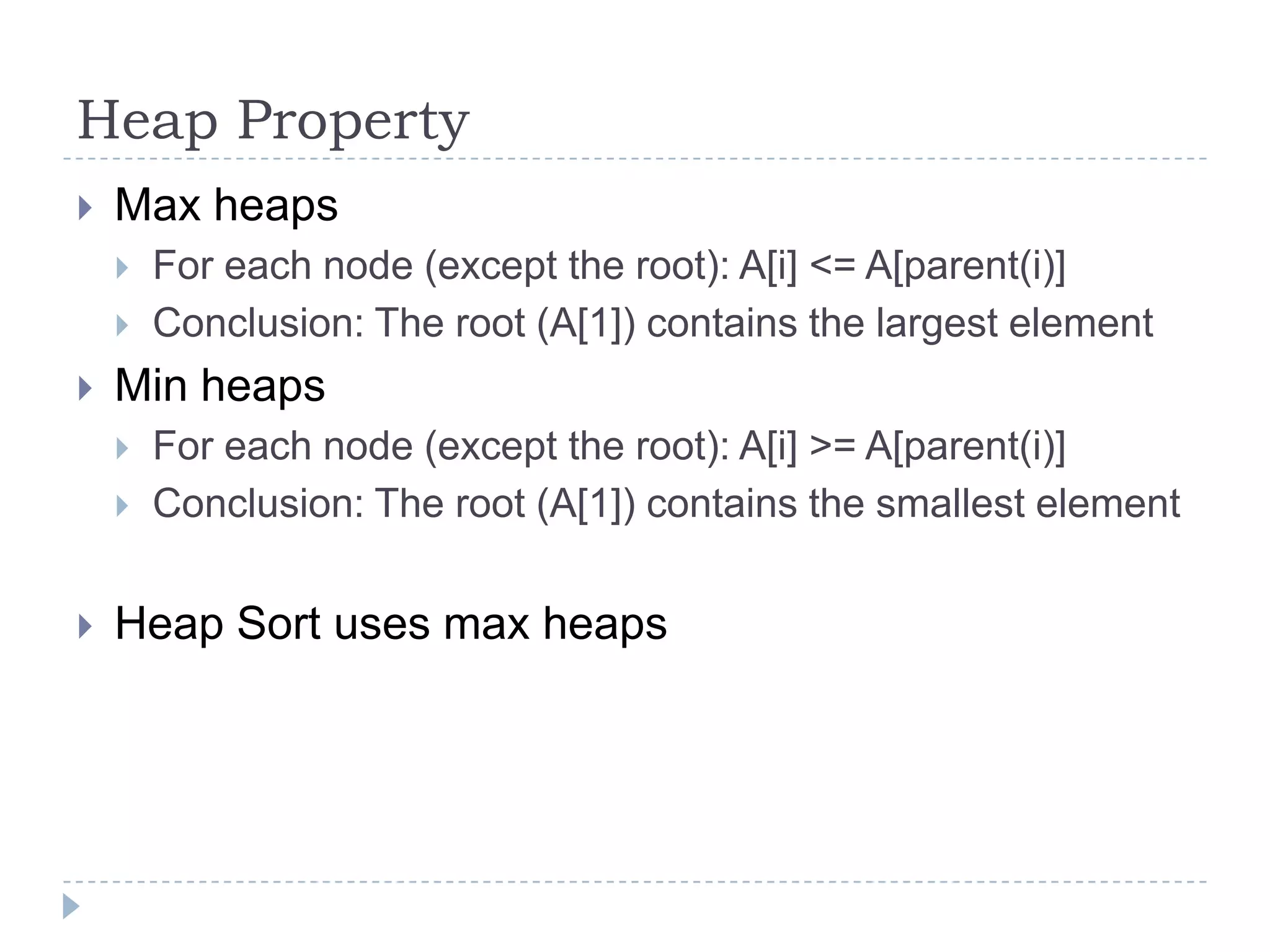

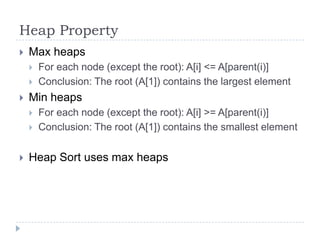

Heap Property


Max heaps





Min heaps





For each node (except the root): A[i] <= A[parent(i)]
Conclusion: The root (A[1]) contains the largest element
For each node (except the root): A[i] >= A[parent(i)]
Conclusion: The root (A[1]) contains the smallest element

Heap Sort uses max heaps

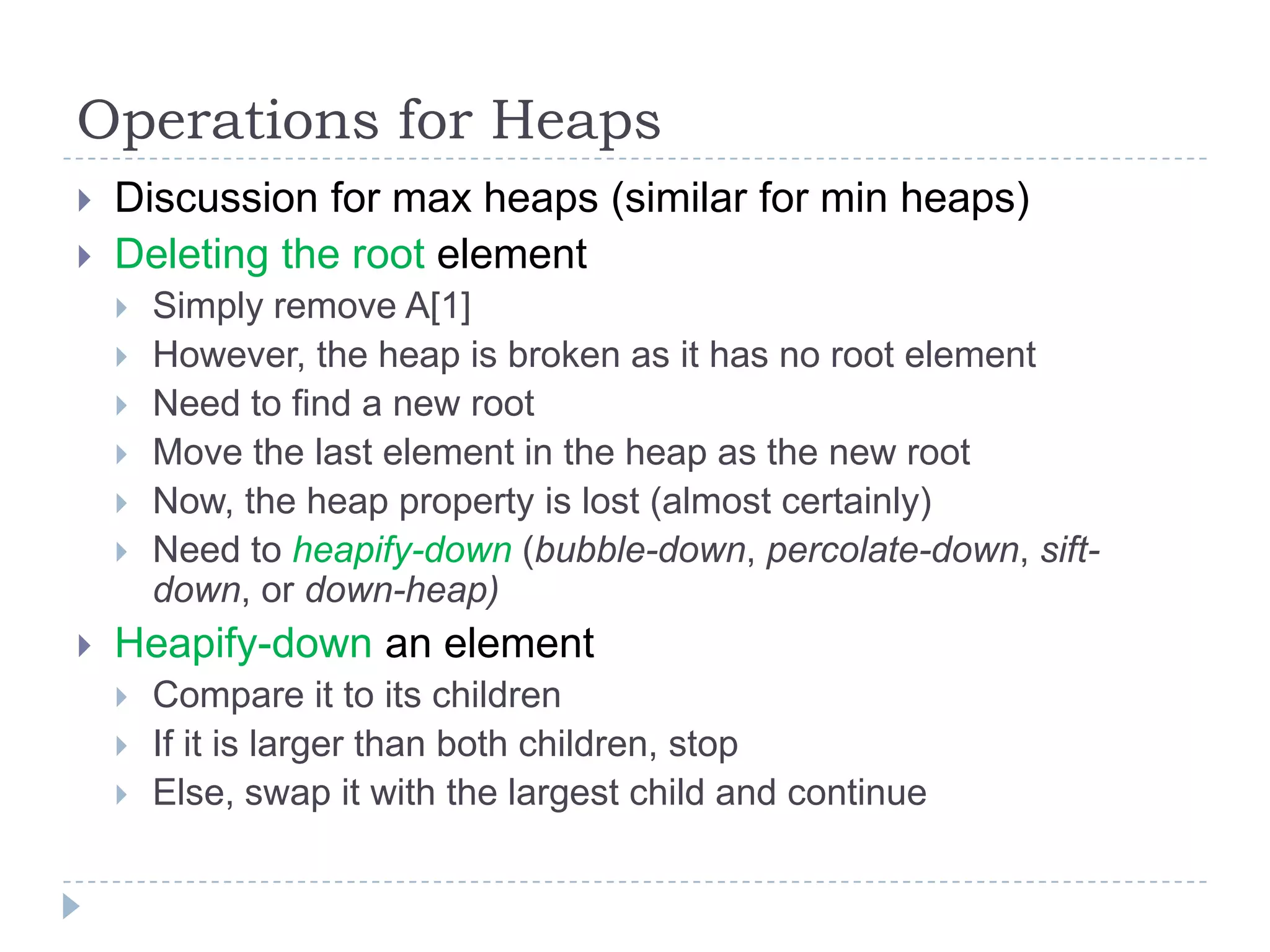

Operations for Heaps



Discussion for max heaps (similar for min heaps)
Deleting the root element










Simply remove A[1]
However, the heap is broken as it has no root element
Need to find a new root
Move the last element in the heap as the new root
Now, the heap property is lost (almost certainly)
Need to heapify-down (bubble-down, percolate-down, siftdown, or down-heap)

Heapify-down an element




Compare it to its children
If it is larger than both children, stop
Else, swap it with the largest child and continue

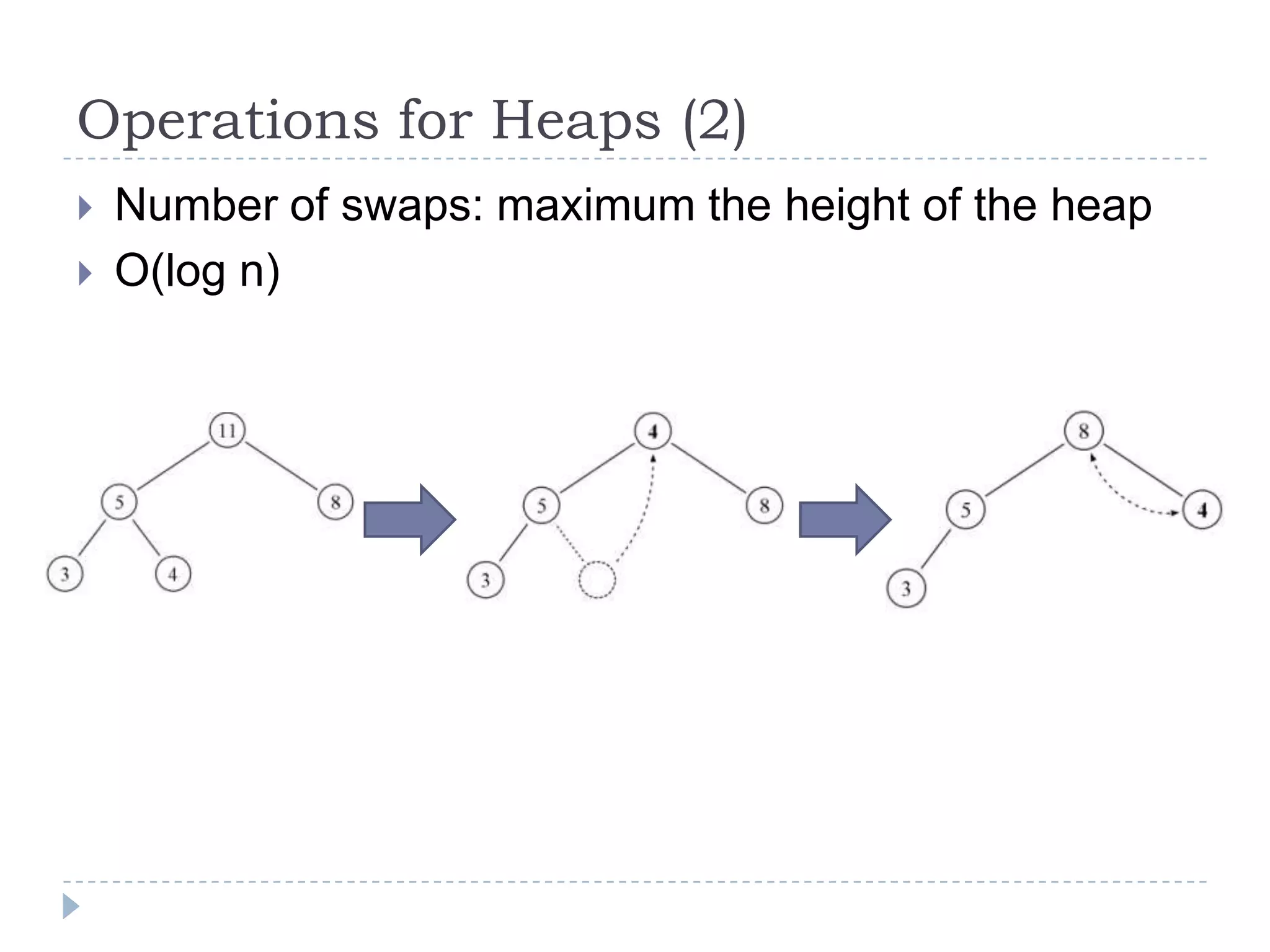

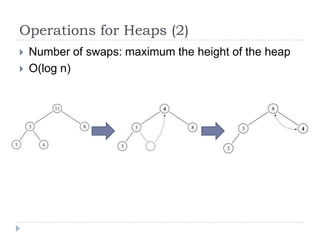

Operations for Heaps (2)



Number of swaps: maximum the height of the heap
O(log n)



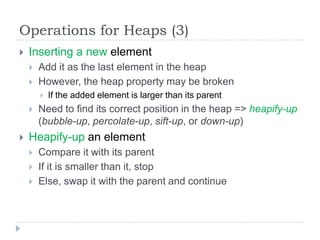

Inserting a new element



Add it as the last element in the heap
However, the heap property may be broken






If the added element is larger than its parent

Need to find its correct position in the heap => heapify-up
(bubble-up, percolate-up, sift-up, or down-up)

Heapify-up an element




Compare it with its parent
If it is smaller than it, stop
Else, swap it with the parent and continue




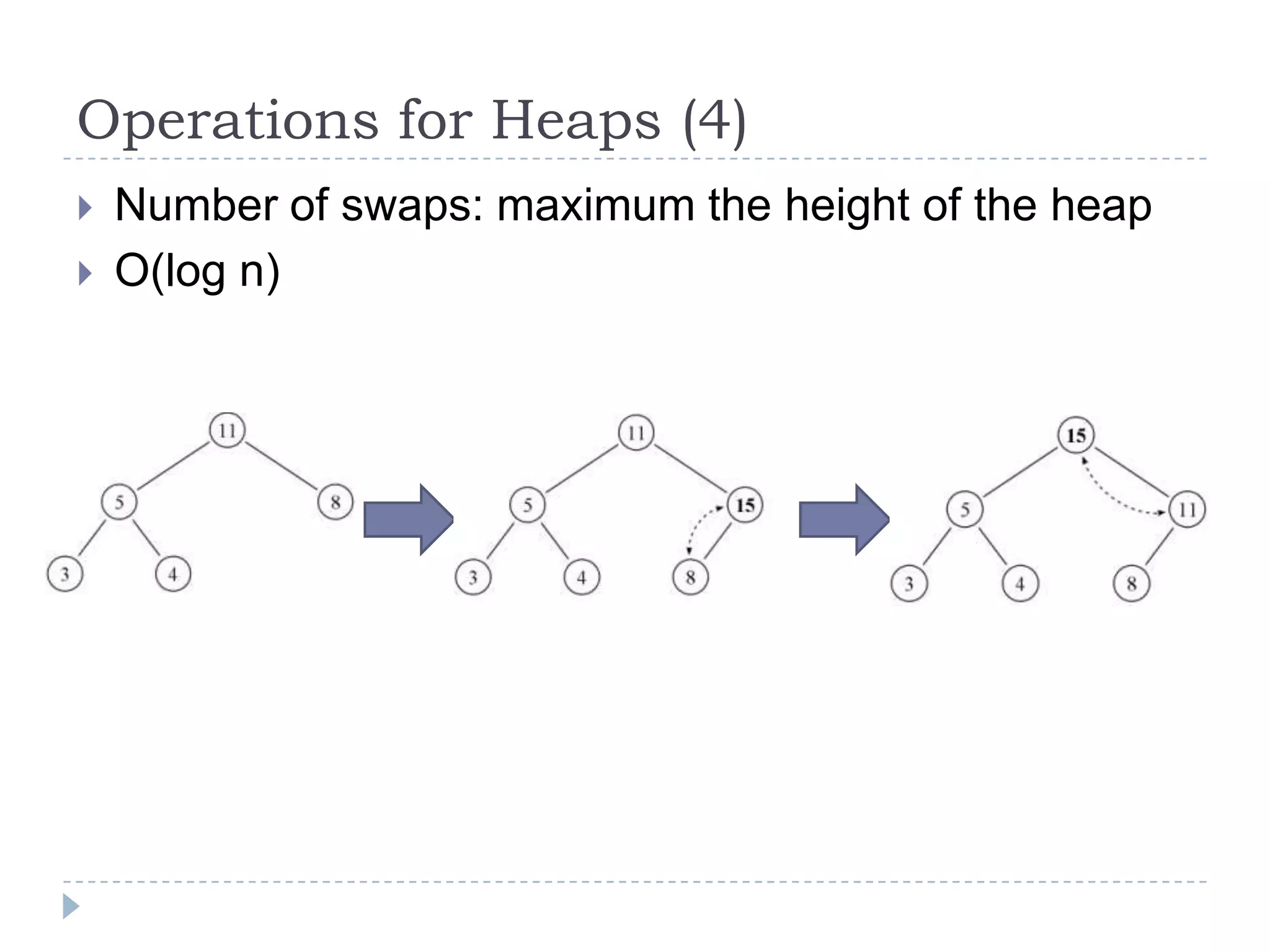

Number of swaps: maximum the height of the heap
O(log n)

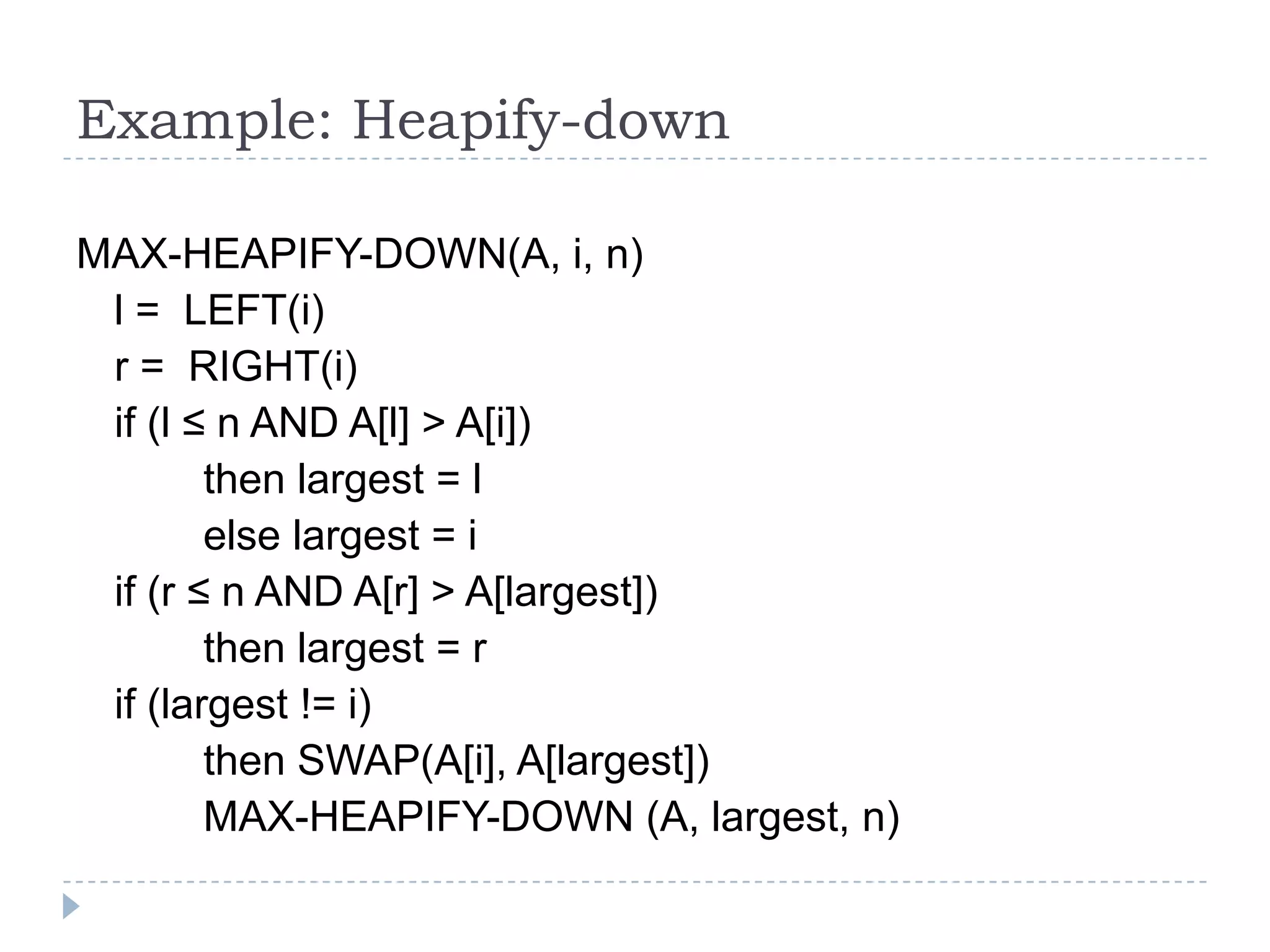

Example: Heapify-down
MAX-HEAPIFY-DOWN(A, i, n)
l = LEFT(i)
r = RIGHT(i)
if (l ≤ n AND A[l] > A[i])
then largest = l
else largest = i
if (r ≤ n AND A[r] > A[largest])
then largest = r
if (largest != i)
then SWAP(A[i], A[largest])
MAX-HEAPIFY-DOWN (A, largest, n)

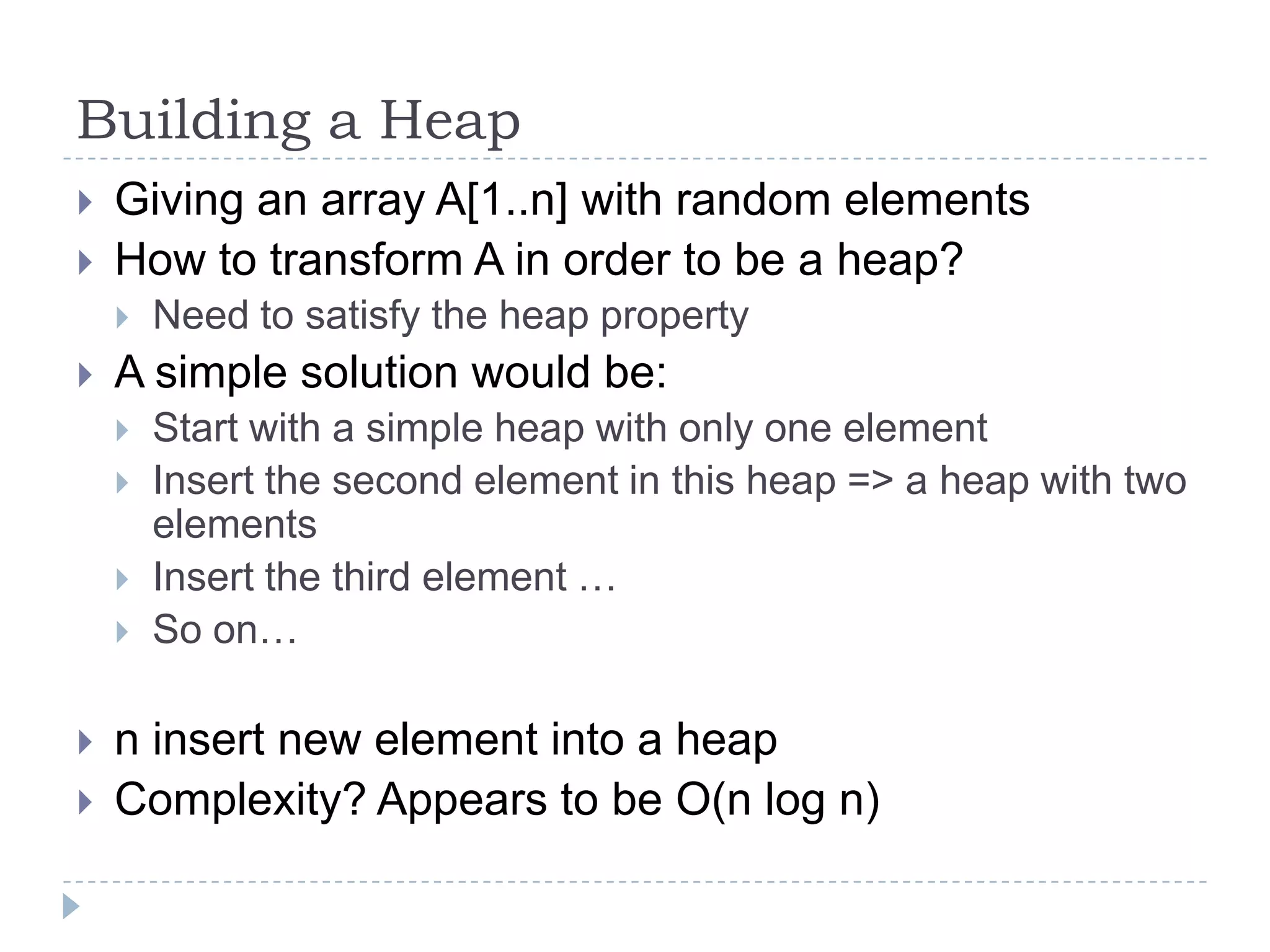

Building a Heap



Giving an array A[1..n] with random elements
How to transform A in order to be a heap?




A simple solution would be:








Need to satisfy the heap property
Start with a simple heap with only one element
Insert the second element in this heap => a heap with two
elements
Insert the third element …
So on…

n insert new element into a heap
Complexity? Appears to be O(n log n)

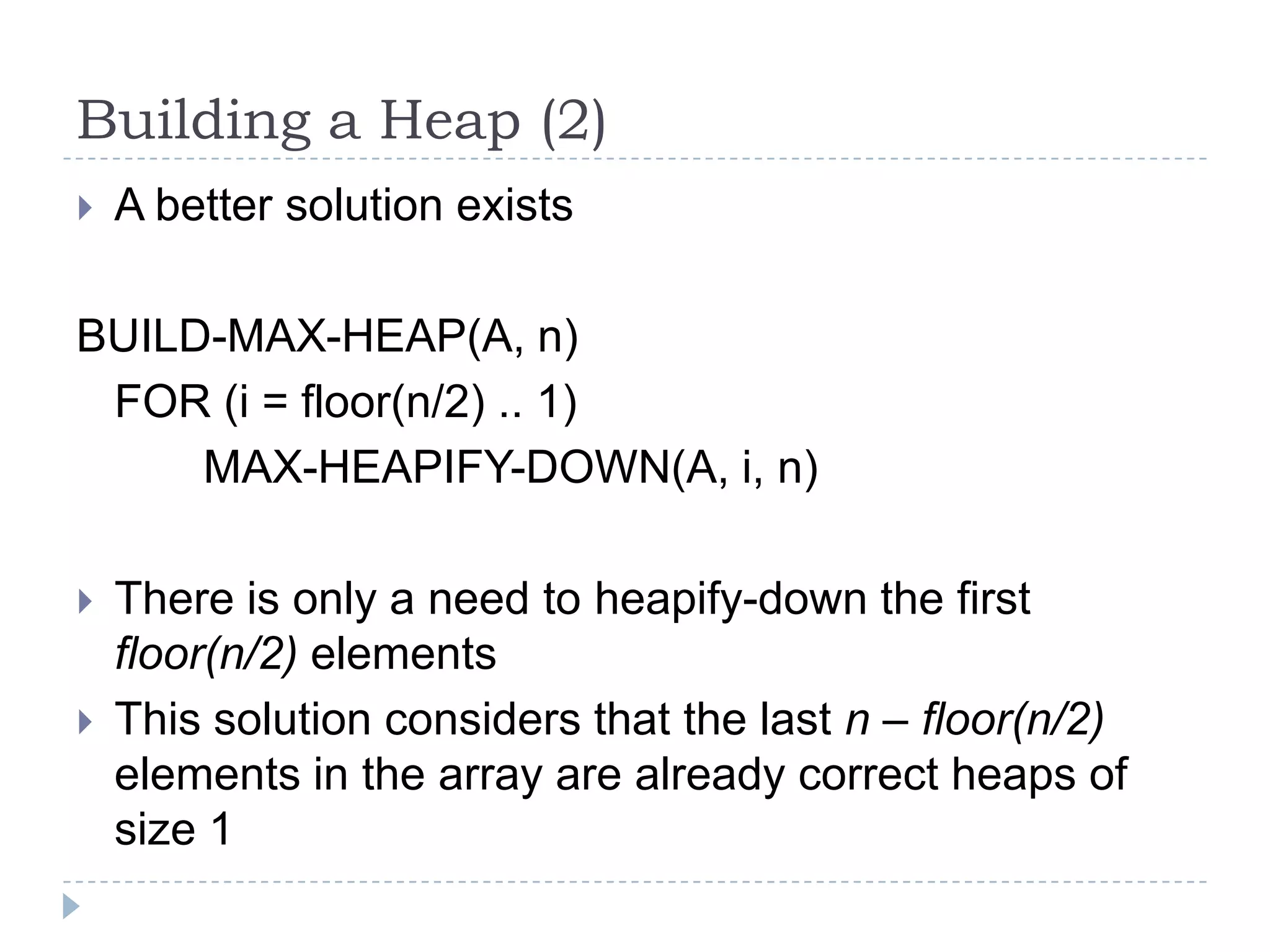

Building a Heap (2)


A better solution exists

BUILD-MAX-HEAP(A, n)
FOR (i = floor(n/2) .. 1)



There is only a need to heapify-down the first
floor(n/2) elements
This solution considers that the last n – floor(n/2)
elements in the array are already correct heaps of
size 1

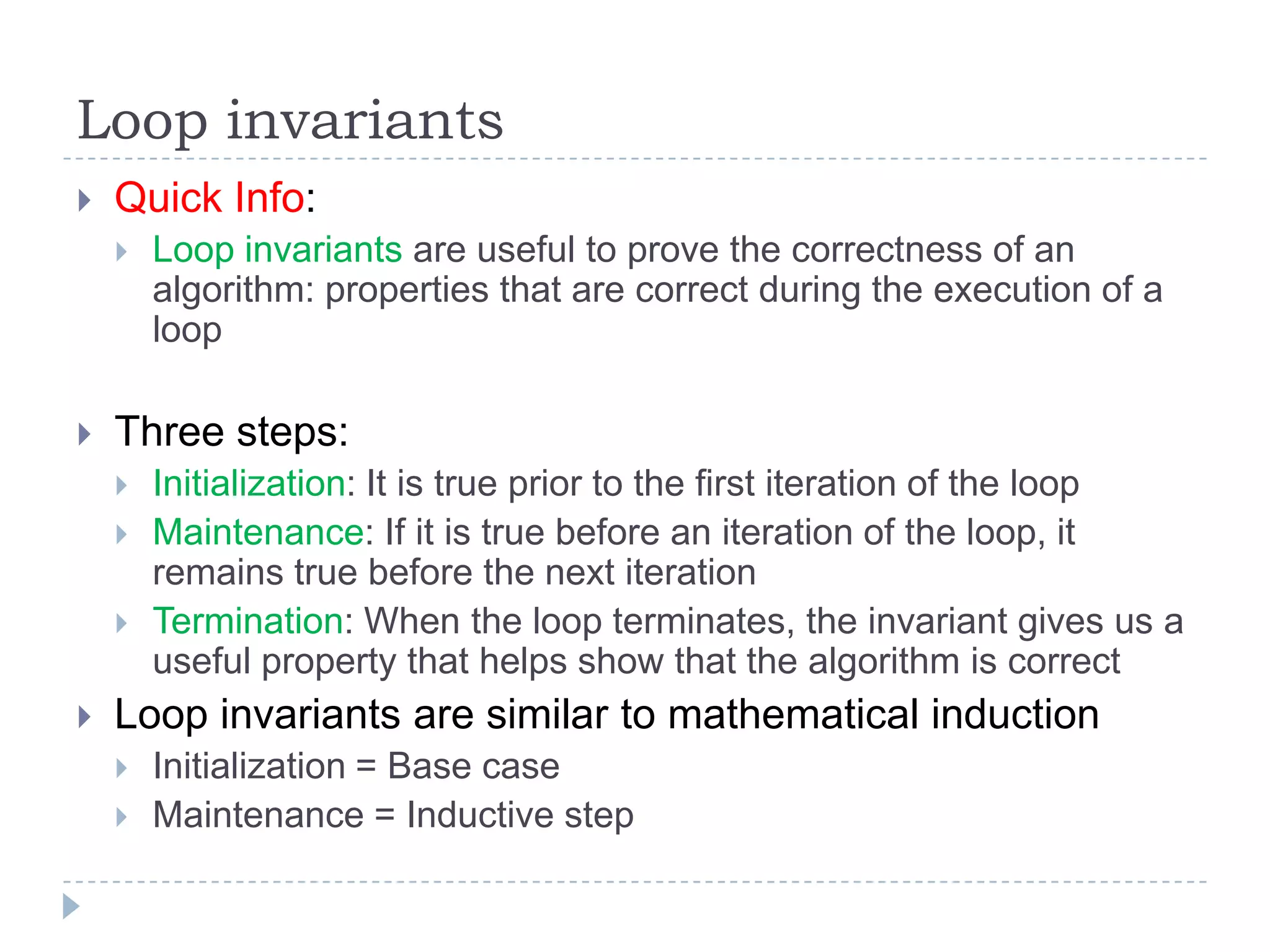

Loop invariants


Quick Info:




Three steps:






Loop invariants are useful to prove the correctness of an
algorithm: properties that are correct during the execution of a
loop

Initialization: It is true prior to the first iteration of the loop
Maintenance: If it is true before an iteration of the loop, it
remains true before the next iteration
Termination: When the loop terminates, the invariant gives us a
useful property that helps show that the algorithm is correct

Loop invariants are similar to mathematical induction



Initialization = Base case
Maintenance = Inductive step

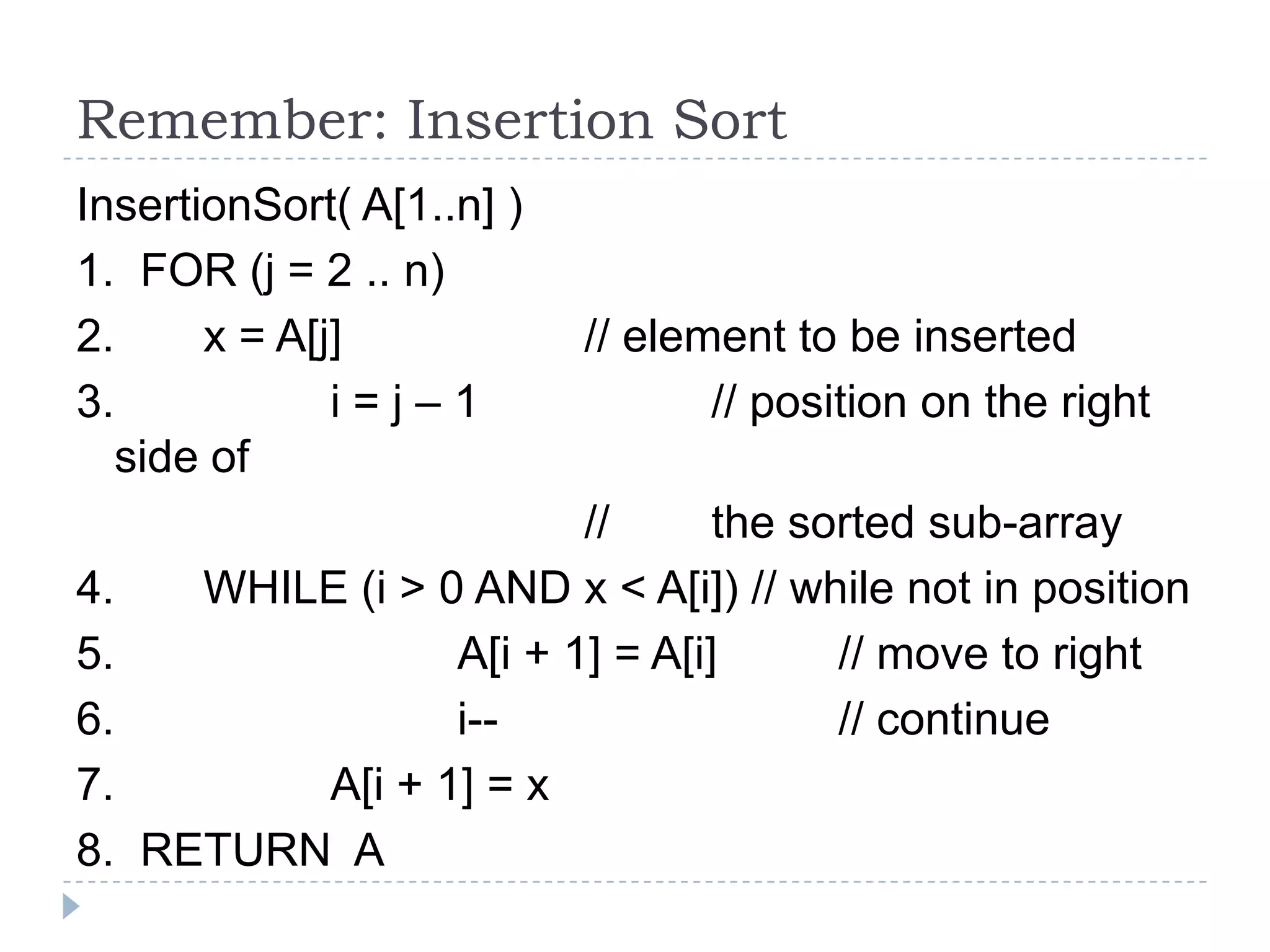

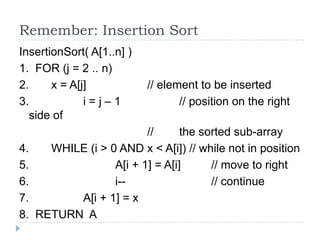

Remember: Insertion Sort
InsertionSort( A[1..n] )
1. FOR (j = 2 .. n)
2.
x = A[j]
3.
i=j–1
side of
4.
5.
6.
7.
8.

// element to be inserted
// position on the right

//
the sorted sub-array
WHILE (i > 0 AND x < A[i]) // while not in position
A[i + 1] = A[i]
// move to right
i-// continue
A[i + 1] = x
RETURN A

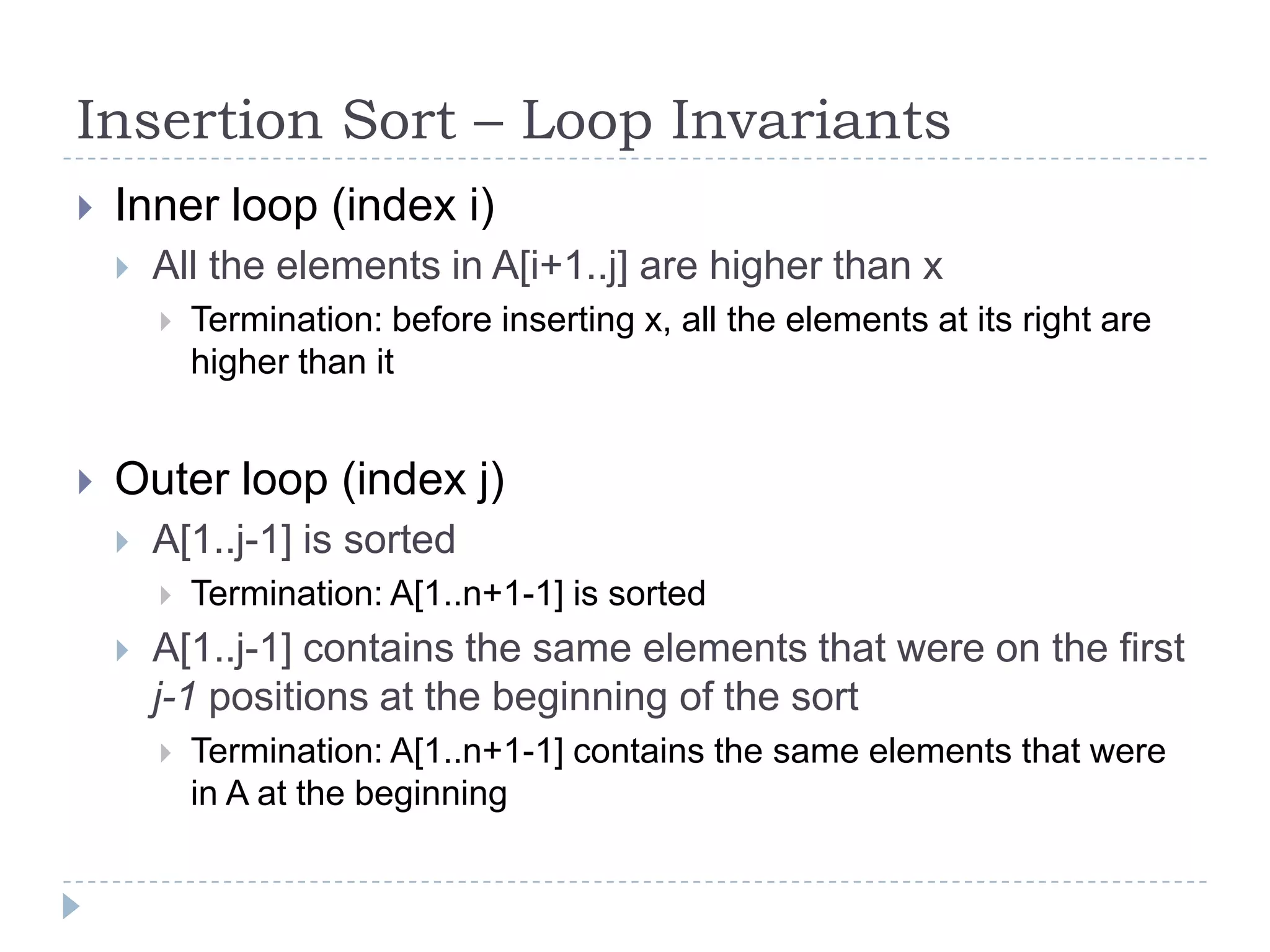

Insertion Sort – Loop Invariants


Inner loop (index i)


All the elements in A[i+1..j] are higher than x




Termination: before inserting x, all the elements at its right are
higher than it

Outer loop (index j)


A[1..j-1] is sorted




Termination: A[1..n+1-1] is sorted

A[1..j-1] contains the same elements that were on the first
j-1 positions at the beginning of the sort


Termination: A[1..n+1-1] contains the same elements that were
in A at the beginning

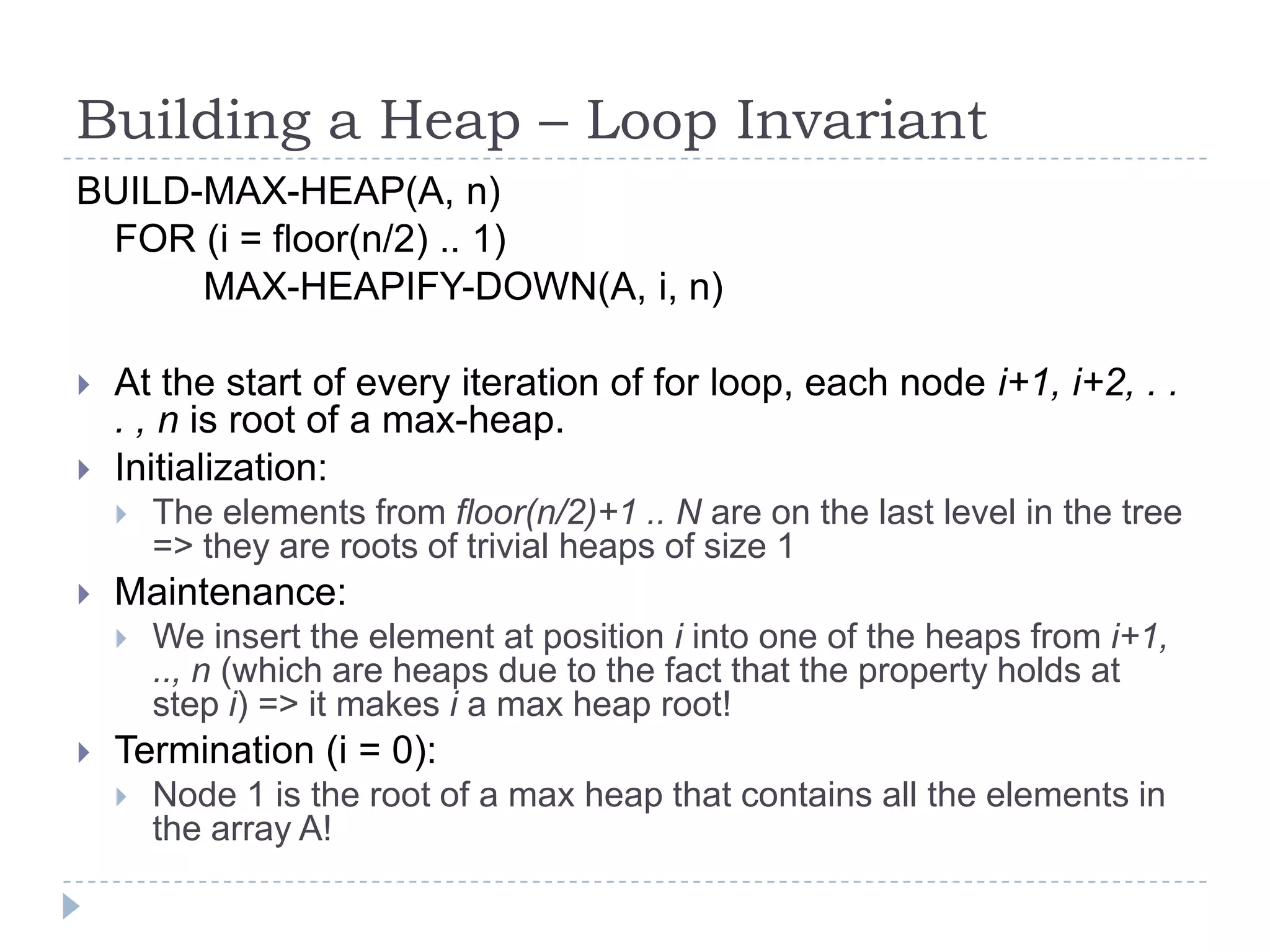

Building a Heap – Loop Invariant
FOR (i = floor(n/2) .. 1)



At the start of every iteration of for loop, each node i+1, i+2, . .
. , n is root of a max-heap.
Initialization:




Maintenance:




The elements from floor(n/2)+1 .. N are on the last level in the tree
=> they are roots of trivial heaps of size 1
We insert the element at position i into one of the heaps from i+1,
.., n (which are heaps due to the fact that the property holds at
step i) => it makes i a max heap root!

Termination (i = 0):


Node 1 is the root of a max heap that contains all the elements in
the array A!

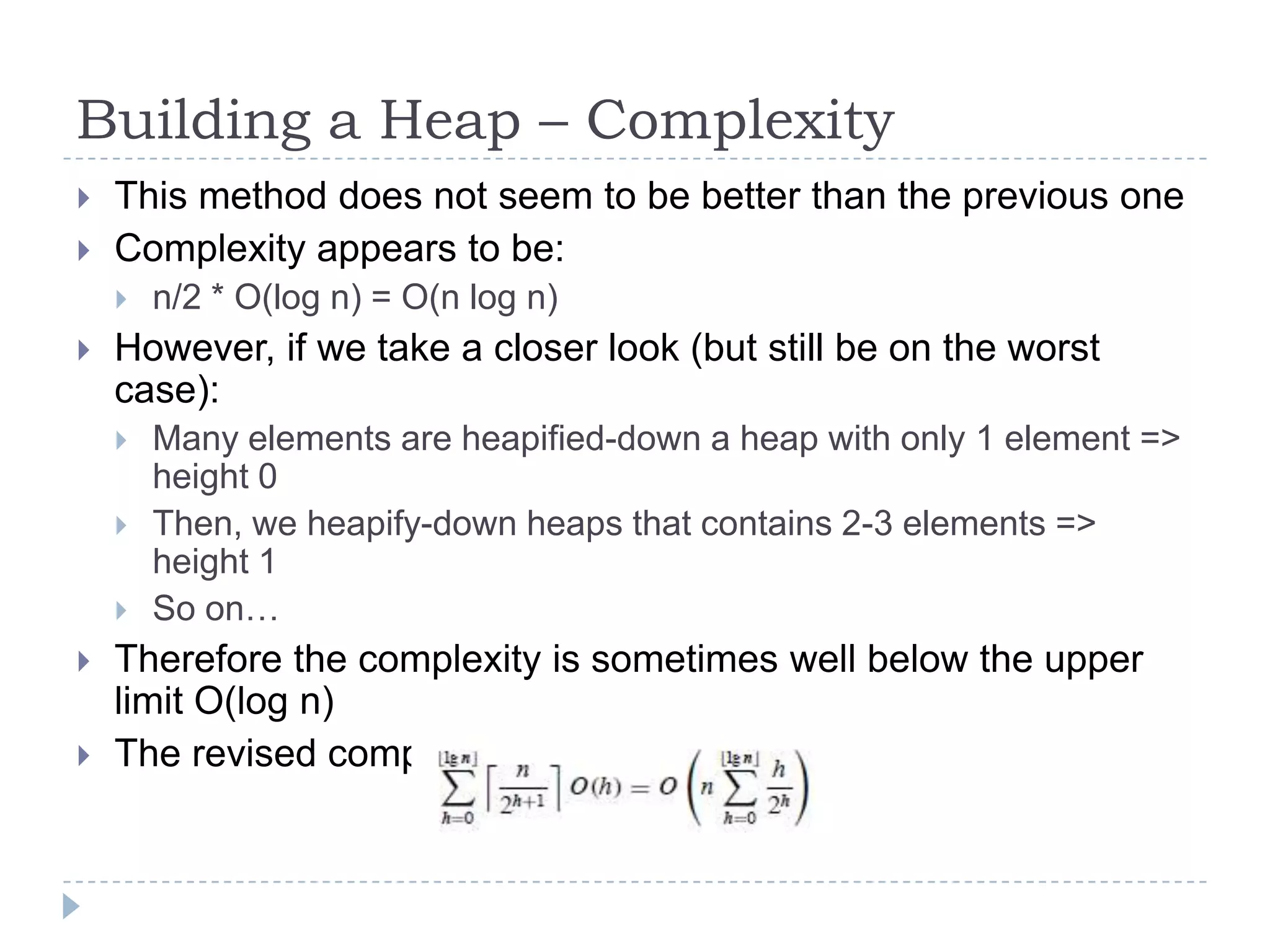

Building a Heap – Complexity



This method does not seem to be better than the previous one
Complexity appears to be:




However, if we take a closer look (but still be on the worst
case):








n/2 * O(log n) = O(n log n)

Many elements are heapified-down a heap with only 1 element =>
height 0
Then, we heapify-down heaps that contains 2-3 elements =>
height 1
So on…

Therefore the complexity is sometimes well below the upper
limit O(log n)
The revised complexity is: O(2*n) = O(n)

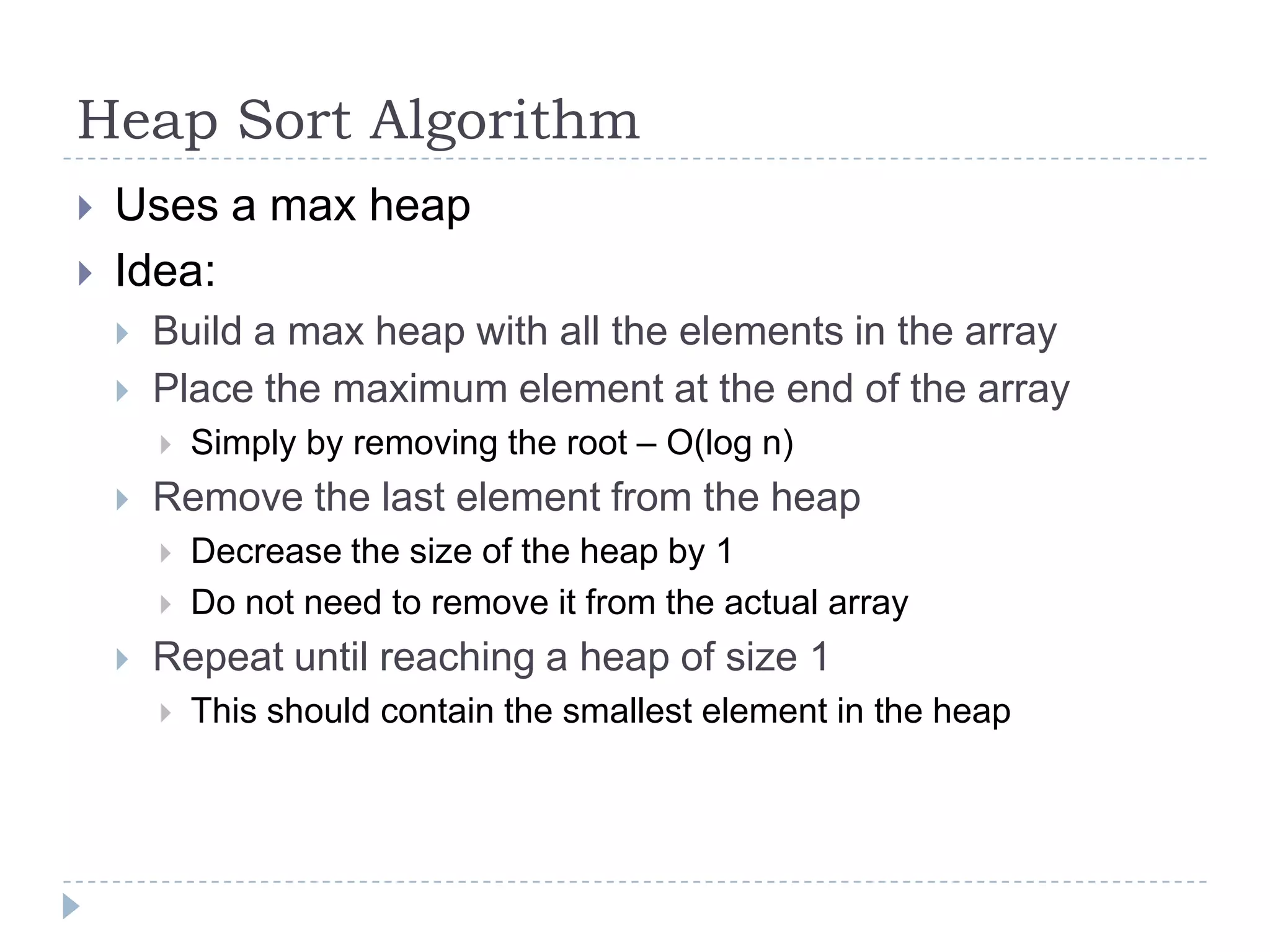

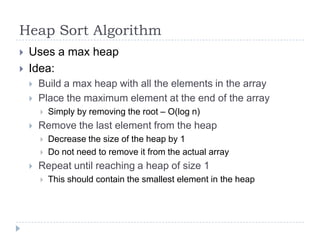

Heap Sort Algorithm



Uses a max heap
Idea:



Build a max heap with all the elements in the array
Place the maximum element at the end of the array




Remove the last element from the heap





Simply by removing the root – O(log n)

Decrease the size of the heap by 1
Do not need to remove it from the actual array

Repeat until reaching a heap of size 1


This should contain the smallest element in the heap

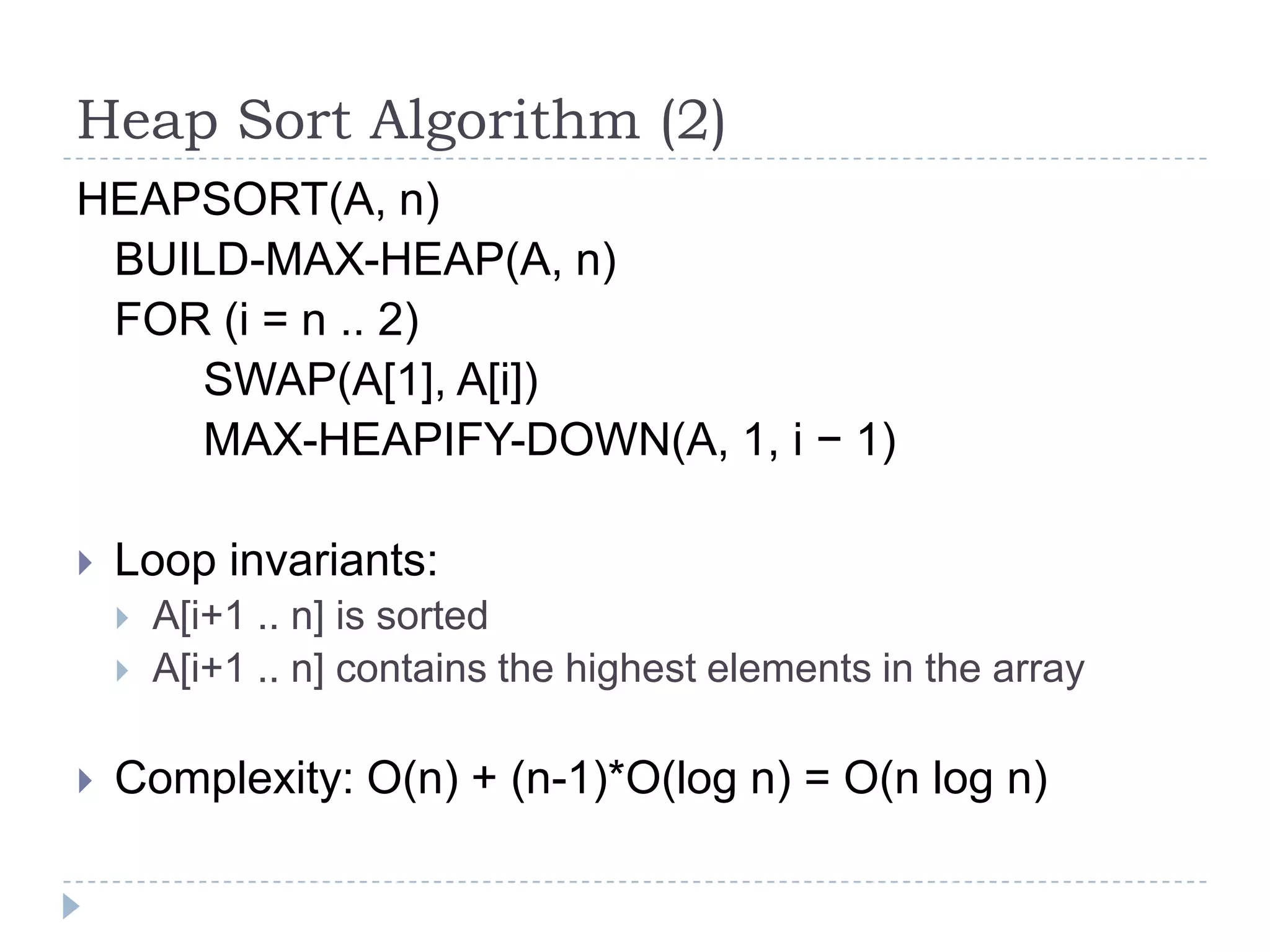

Heap Sort Algorithm (2)
HEAPSORT(A, n)
FOR (i = n .. 2)
SWAP(A[1], A[i])
MAX-HEAPIFY-DOWN(A, 1, i − 1)


Loop invariants:





A[i+1 .. n] is sorted
A[i+1 .. n] contains the highest elements in the array

Complexity: O(n) + (n-1)*O(log n) = O(n log n)

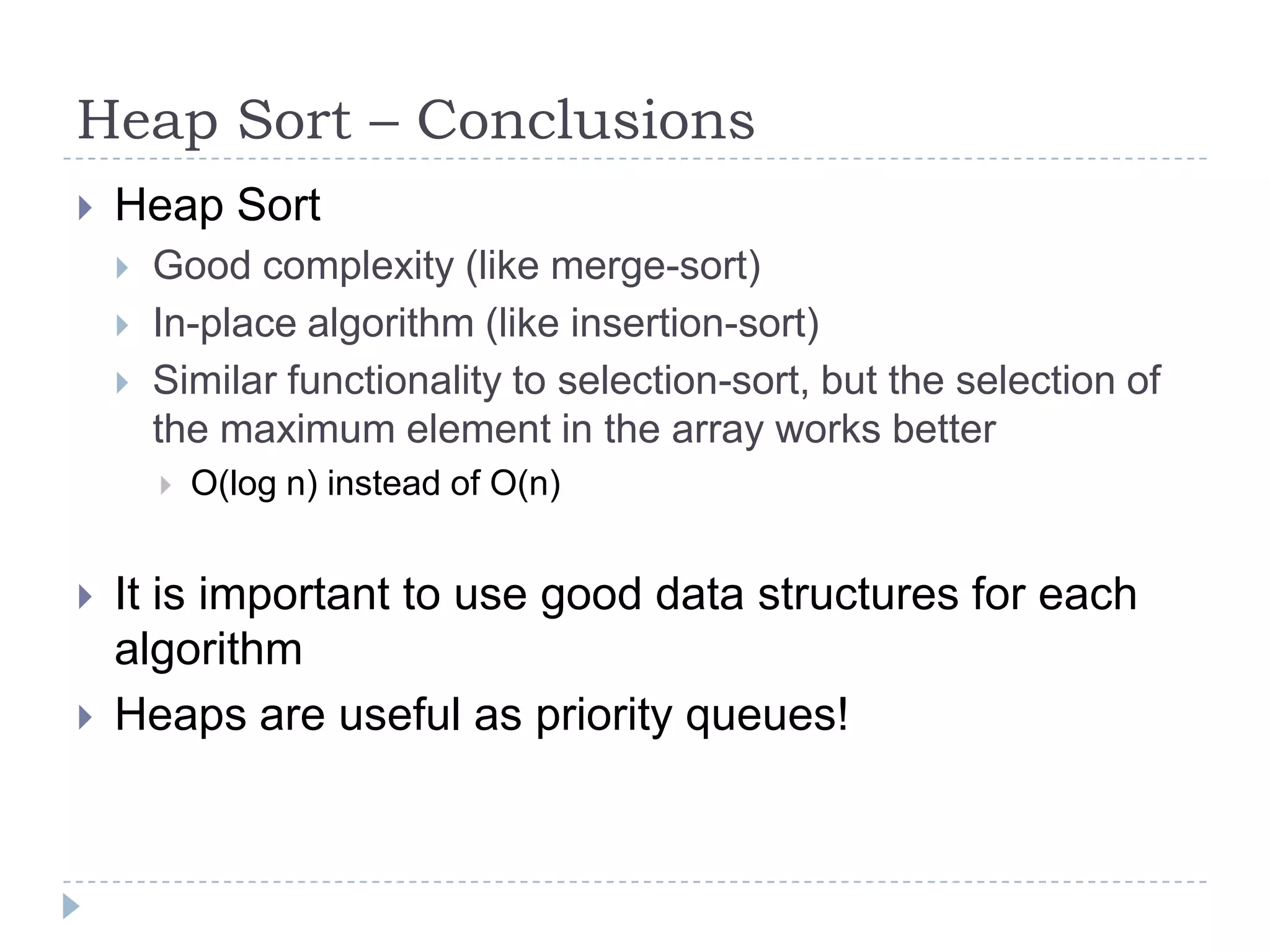

Heap Sort – Conclusions


Heap Sort




Good complexity (like merge-sort)
In-place algorithm (like insertion-sort)
Similar functionality to selection-sort, but the selection of
the maximum element in the array works better





O(log n) instead of O(n)

It is important to use good data structures for each
algorithm
Heaps are useful as priority queues!

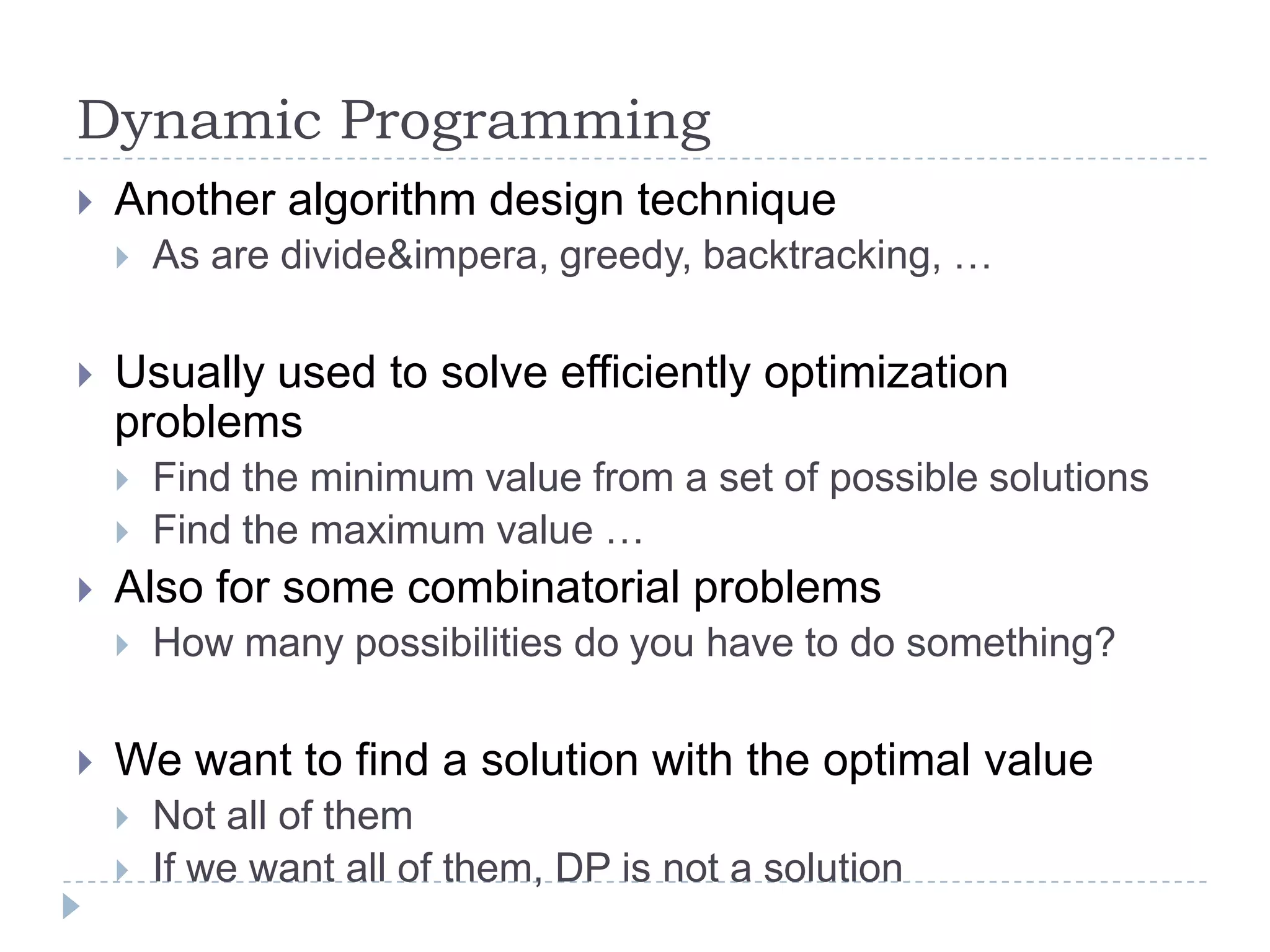

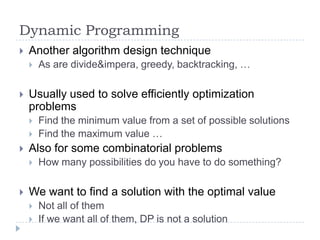

Dynamic Programming


Another algorithm design technique




Usually used to solve efficiently optimization
problems





Find the minimum value from a set of possible solutions
Find the maximum value …

Also for some combinatorial problems




As are divide&impera, greedy, backtracking, …

How many possibilities do you have to do something?

We want to find a solution with the optimal value



Not all of them
If we want all of them, DP is not a solution

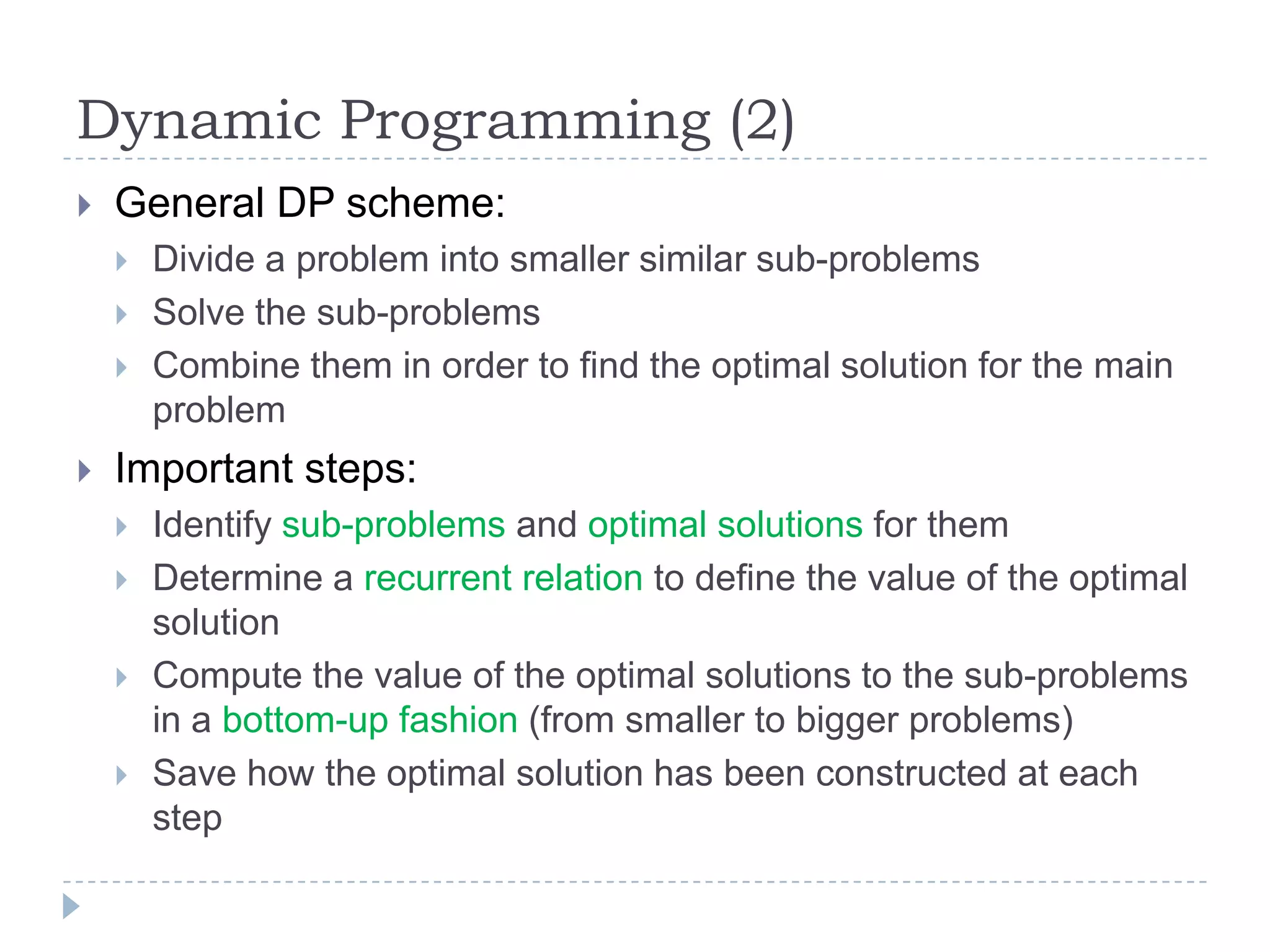

Dynamic Programming (2)


General DP scheme:






Divide a problem into smaller similar sub-problems
Solve the sub-problems
Combine them in order to find the optimal solution for the main
problem

Important steps:






Identify sub-problems and optimal solutions for them
Determine a recurrent relation to define the value of the optimal
solution
Compute the value of the optimal solutions to the sub-problems
in a bottom-up fashion (from smaller to bigger problems)
Save how the optimal solution has been constructed at each
step

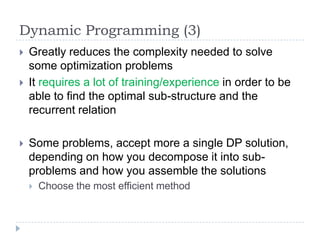

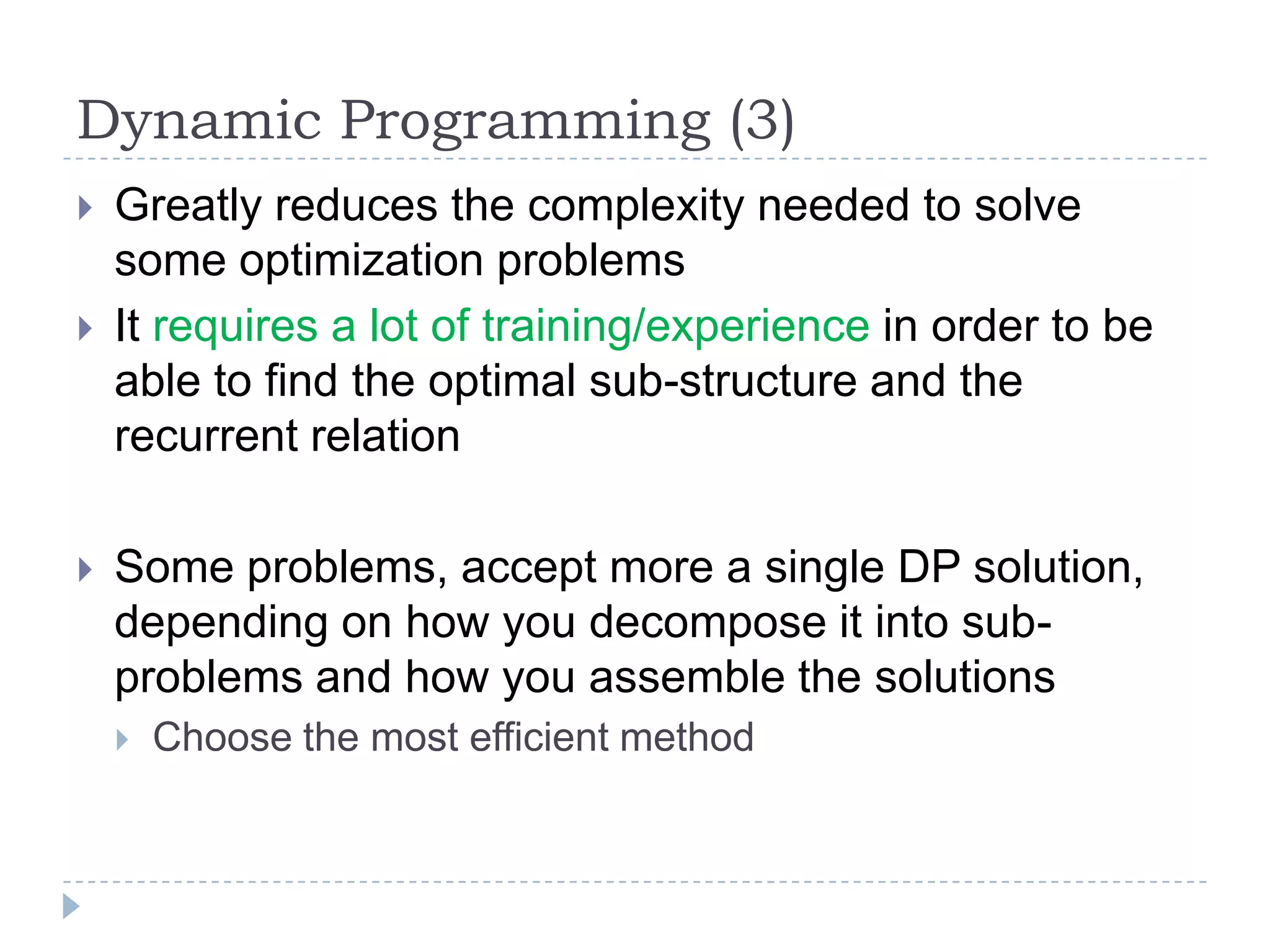

Dynamic Programming (3)





Greatly reduces the complexity needed to solve
some optimization problems
It requires a lot of training/experience in order to be
able to find the optimal sub-structure and the
recurrent relation

Some problems, accept more a single DP solution,
depending on how you decompose it into subproblems and how you assemble the solutions


Choose the most efficient method

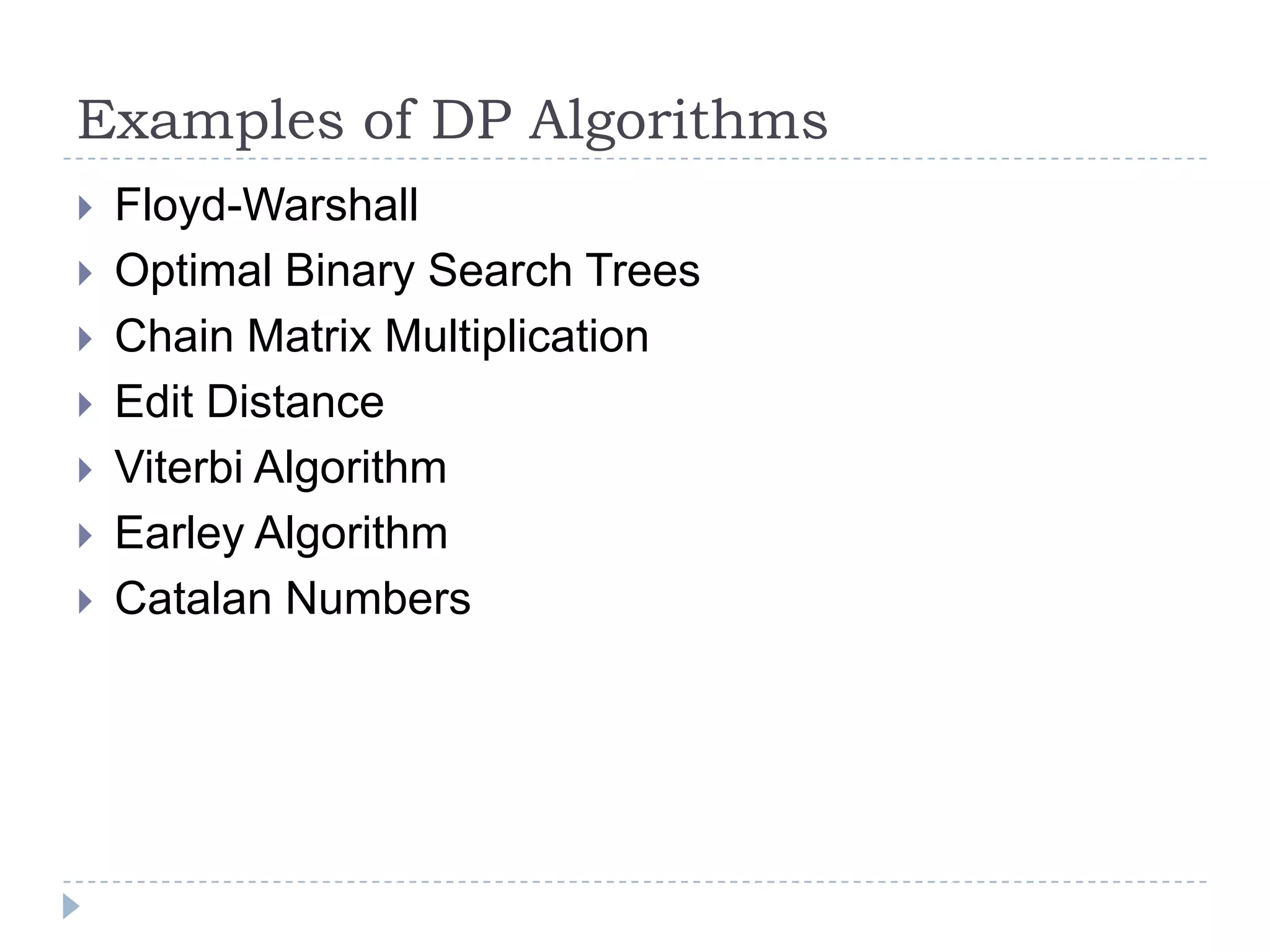

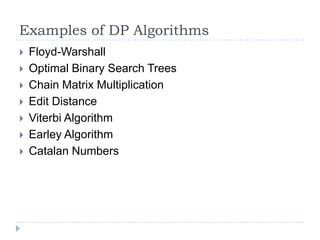

Examples of DP Algorithms









Floyd-Warshall
Optimal Binary Search Trees
Edit Distance
Viterbi Algorithm
Earley Algorithm
Catalan Numbers

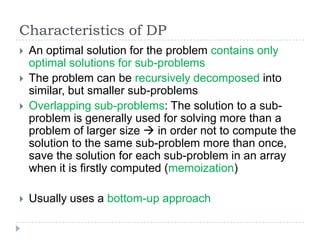

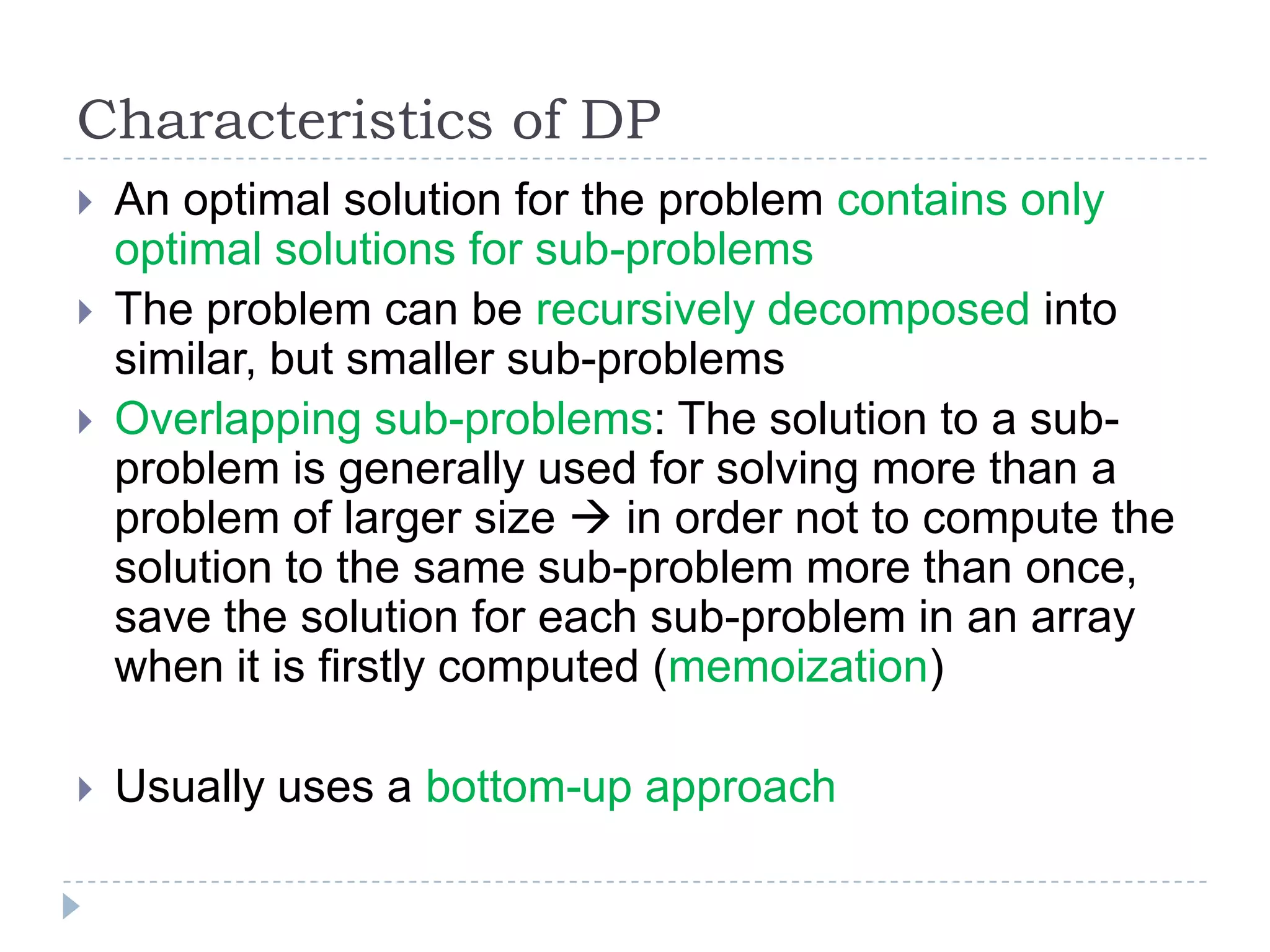

Characteristics of DP



An optimal solution for the problem contains only
optimal solutions for sub-problems
The problem can be recursively decomposed into
similar, but smaller sub-problems

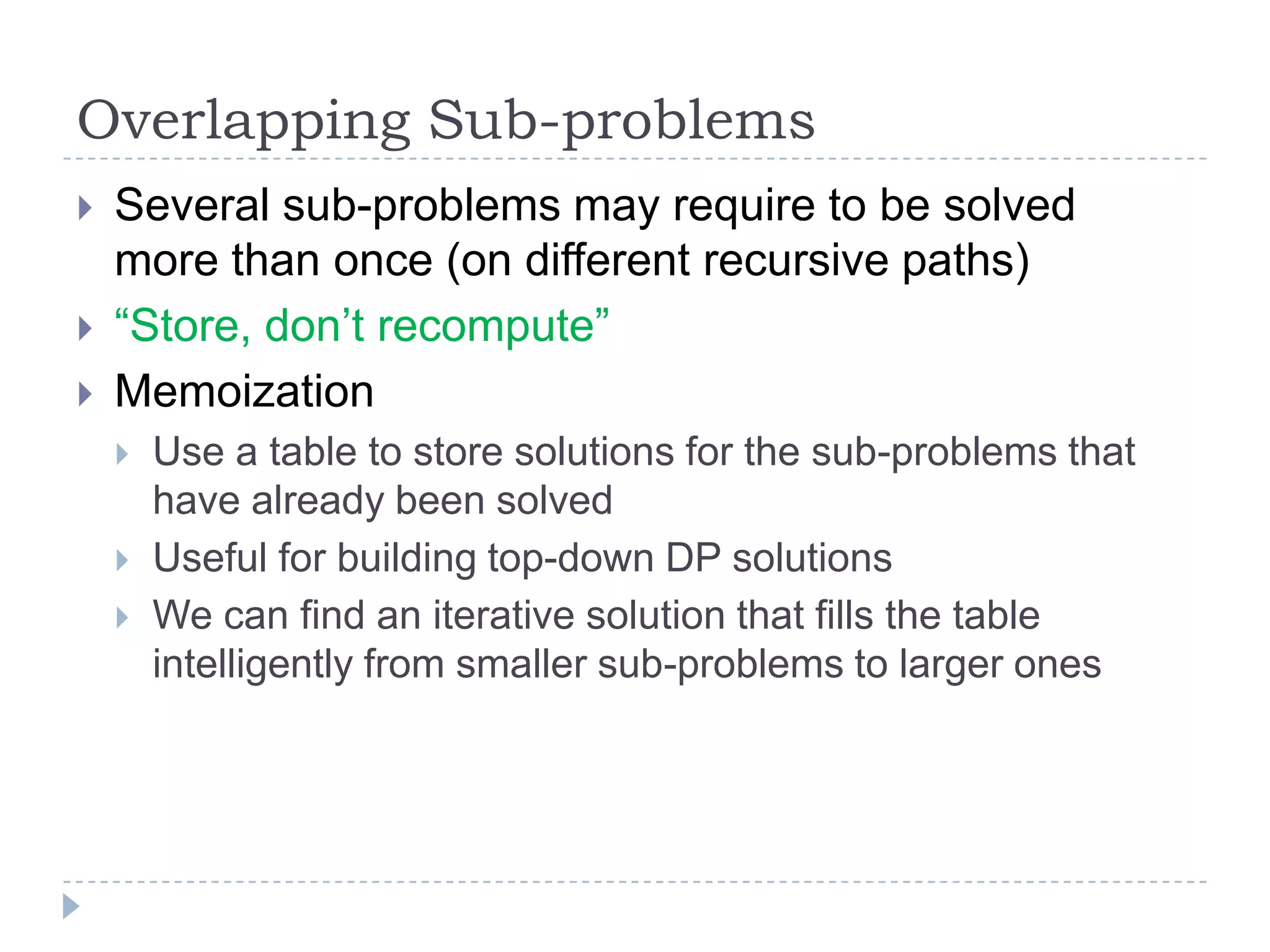

Overlapping sub-problems: The solution to a subproblem is generally used for solving more than a
problem of larger size  in order not to compute the
solution to the same sub-problem more than once,
save the solution for each sub-problem in an array
when it is firstly computed (memoization)



Usually uses a bottom-up approach




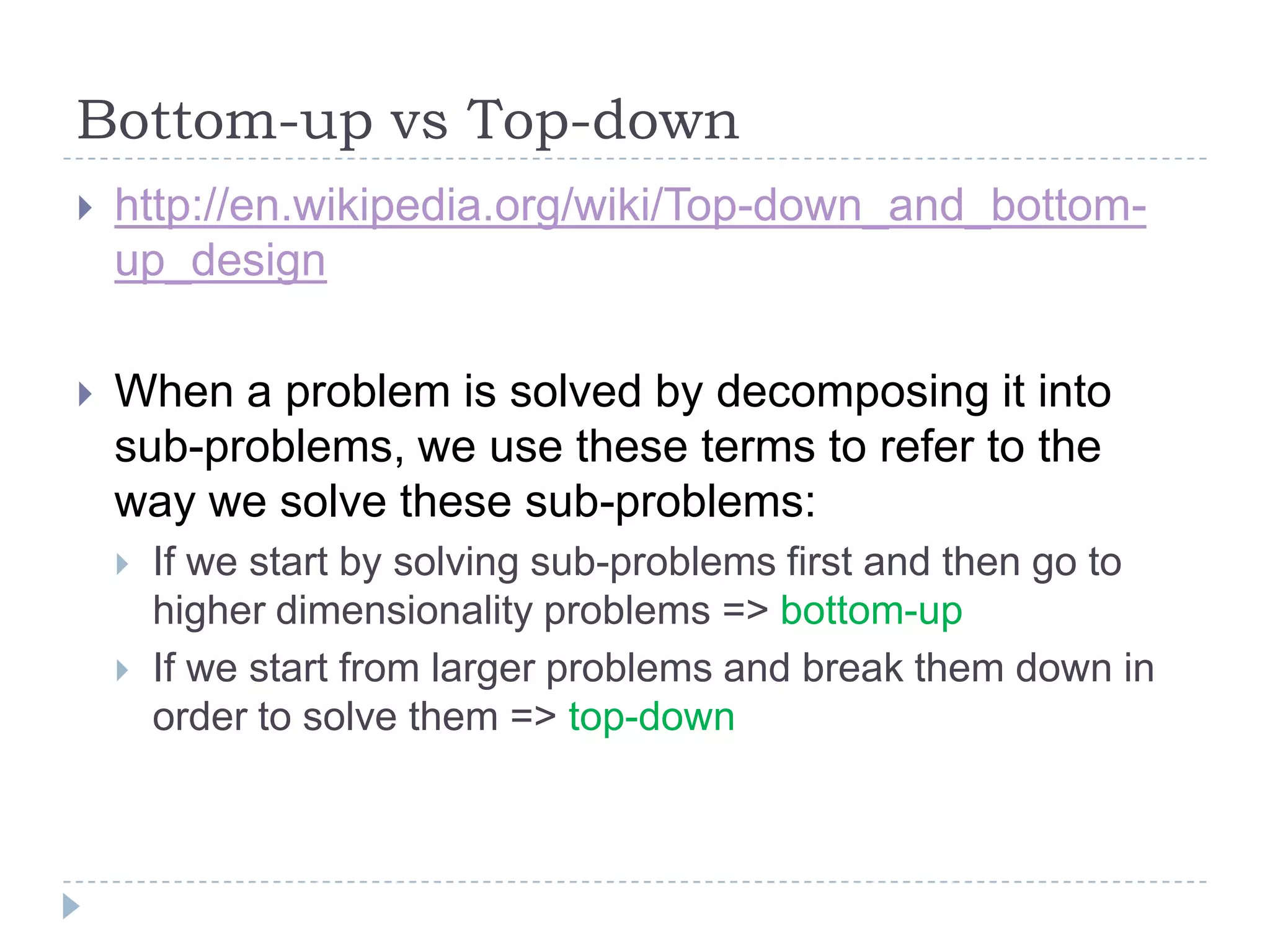

Bottom-up vs Top-down


http://en.wikipedia.org/wiki/Top-down_and_bottomup_design



When a problem is solved by decomposing it into
sub-problems, we use these terms to refer to the
way we solve these sub-problems:



If we start by solving sub-problems first and then go to
higher dimensionality problems => bottom-up
If we start from larger problems and break them down in
order to solve them => top-down

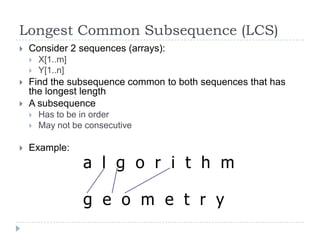

Longest Common Subsequence (LCS)


Consider 2 sequences (arrays):






Find the subsequence common to both sequences that has
the longest length
A subsequence





X[1..m]
Y[1..n]

Has to be in order
May not be consecutive

Example:

a l g o r i t h m
g e o m e t r y

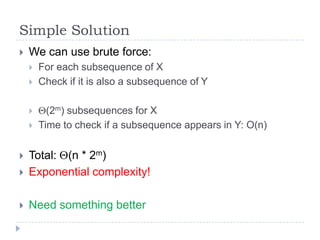

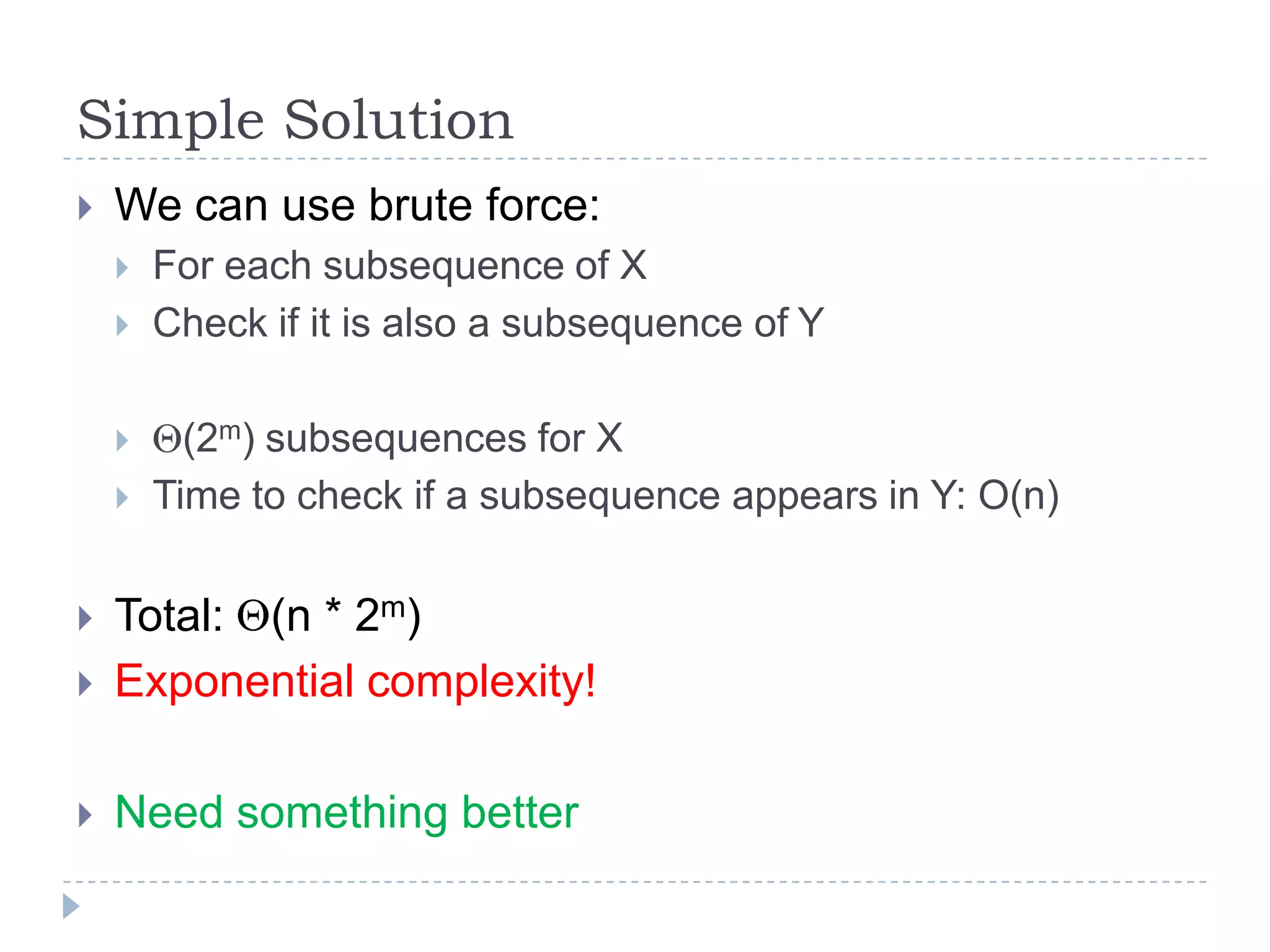

Simple Solution


We can use brute force:






For each subsequence of X
Check if it is also a subsequence of Y
(2m) subsequences for X
Time to check if a subsequence appears in Y: O(n)



Total: (n * 2m)
Exponential complexity!



Need something better



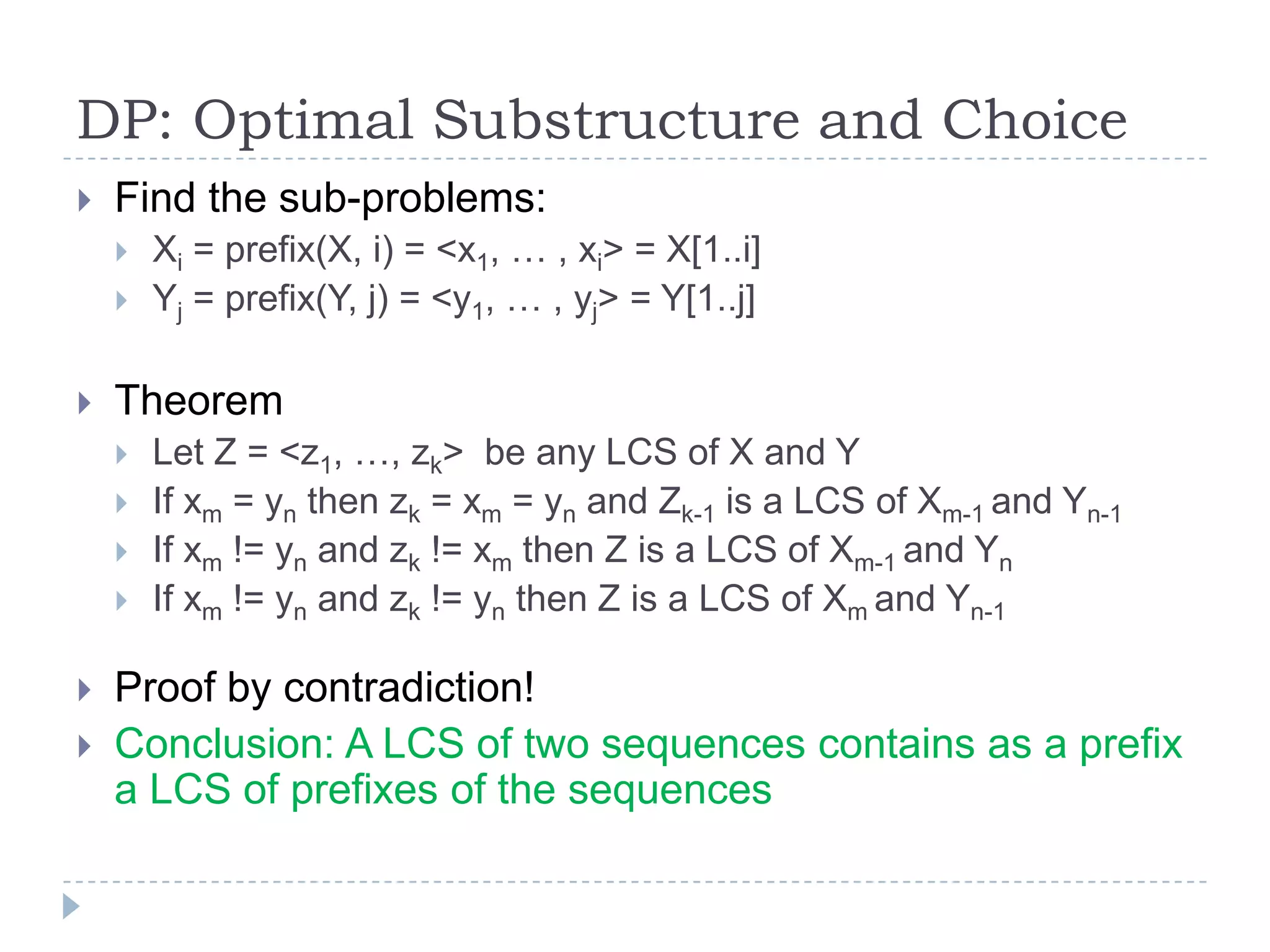

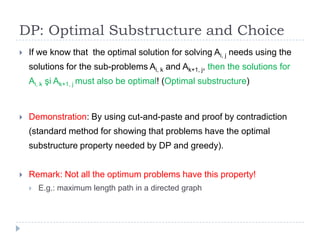

DP: Optimal Substructure and Choice


Find the sub-problems:





Theorem









Xi = prefix(X, i) = <x1, … , xi> = X[1..i]
Yj = prefix(Y, j) = <y1, … , yj> = Y[1..j]

Let Z = <z1, …, zk> be any LCS of X and Y
If xm = yn then zk = xm = yn and Zk-1 is a LCS of Xm-1 and Yn-1
If xm != yn and zk != xm then Z is a LCS of Xm-1 and Yn
If xm != yn and zk != yn then Z is a LCS of Xm and Yn-1

Proof by contradiction!
Conclusion: A LCS of two sequences contains as a prefix
a LCS of prefixes of the sequences

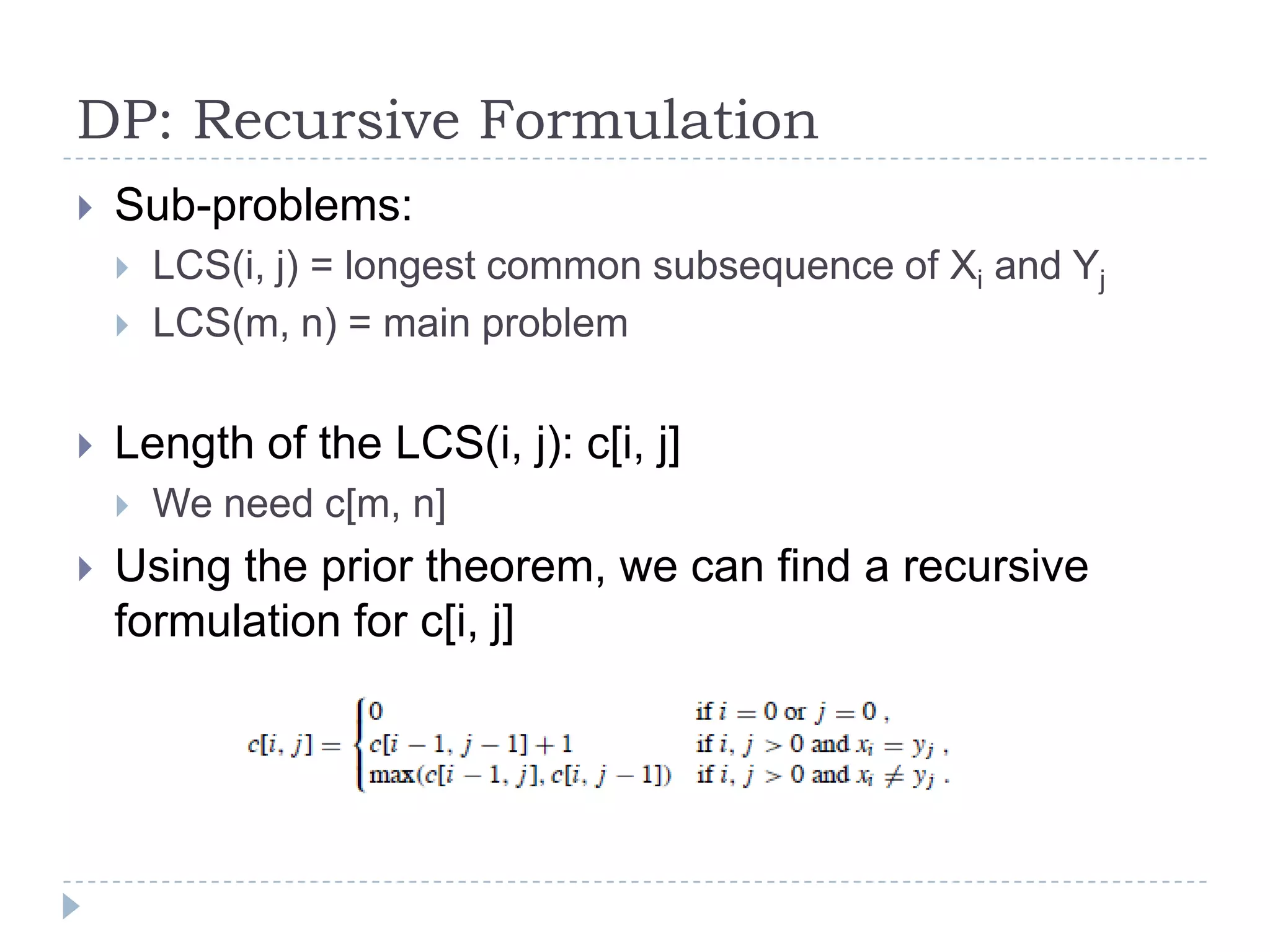

DP: Recursive Formulation


Sub-problems:





Length of the LCS(i, j): c[i, j]




LCS(i, j) = longest common subsequence of Xi and Yj
LCS(m, n) = main problem

We need c[m, n]

Using the prior theorem, we can find a recursive
formulation for c[i, j]

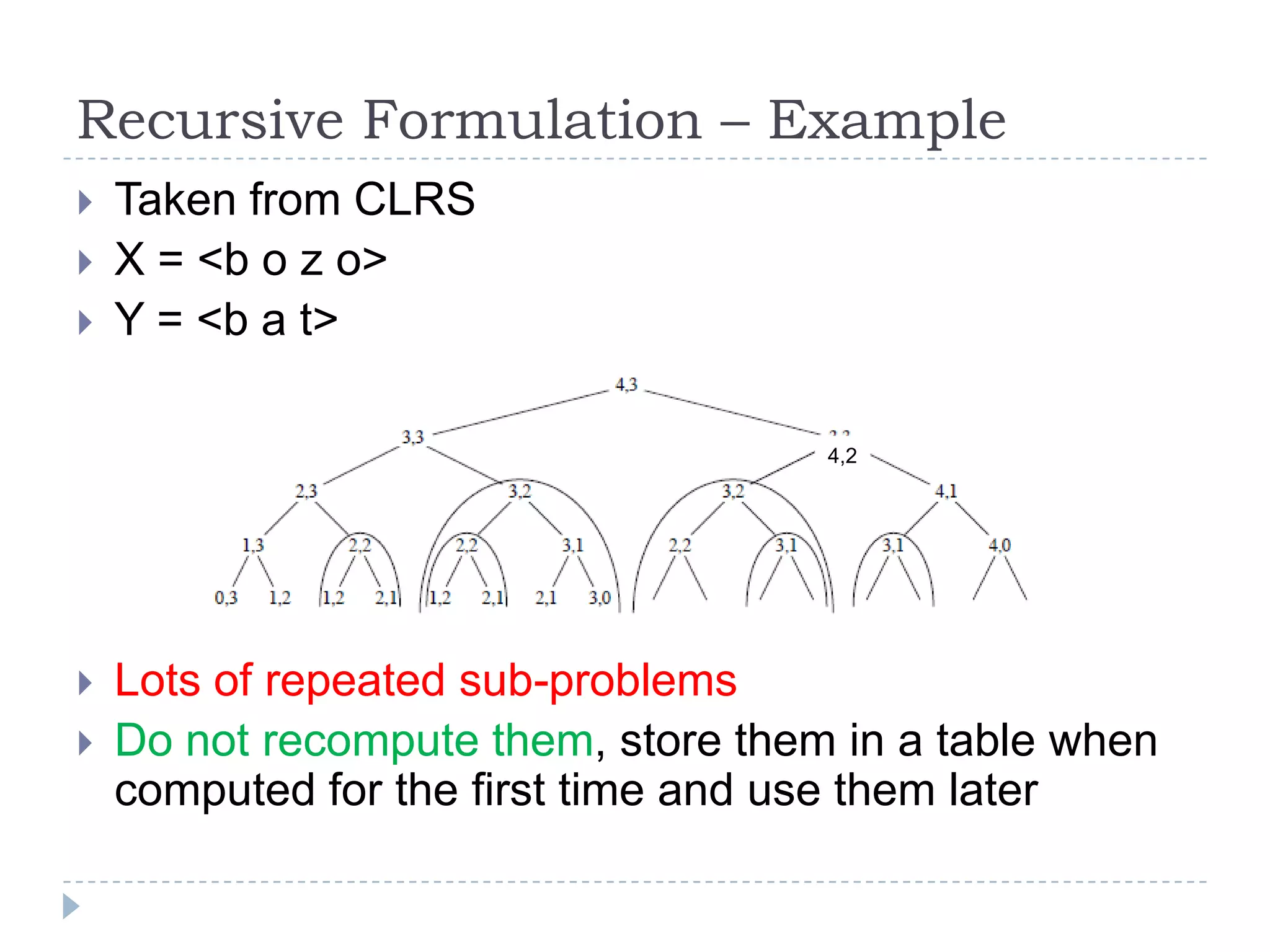

Recursive Formulation – Example




Taken from CLRS
X = <b o z o>
Y = <b a t>
4,2




Lots of repeated sub-problems
Do not recompute them, store them in a table when
computed for the first time and use them later

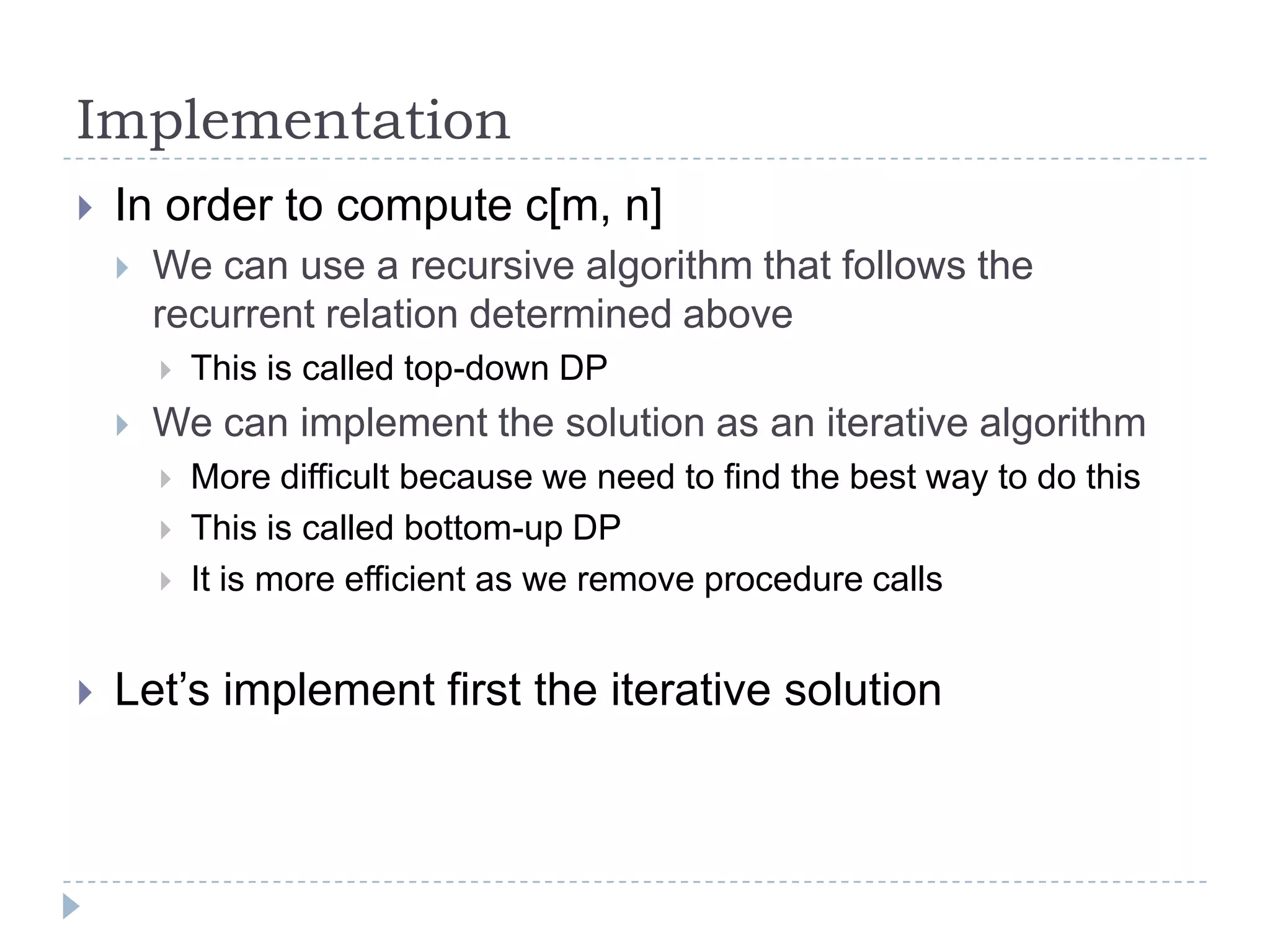

Implementation


In order to compute c[m, n]


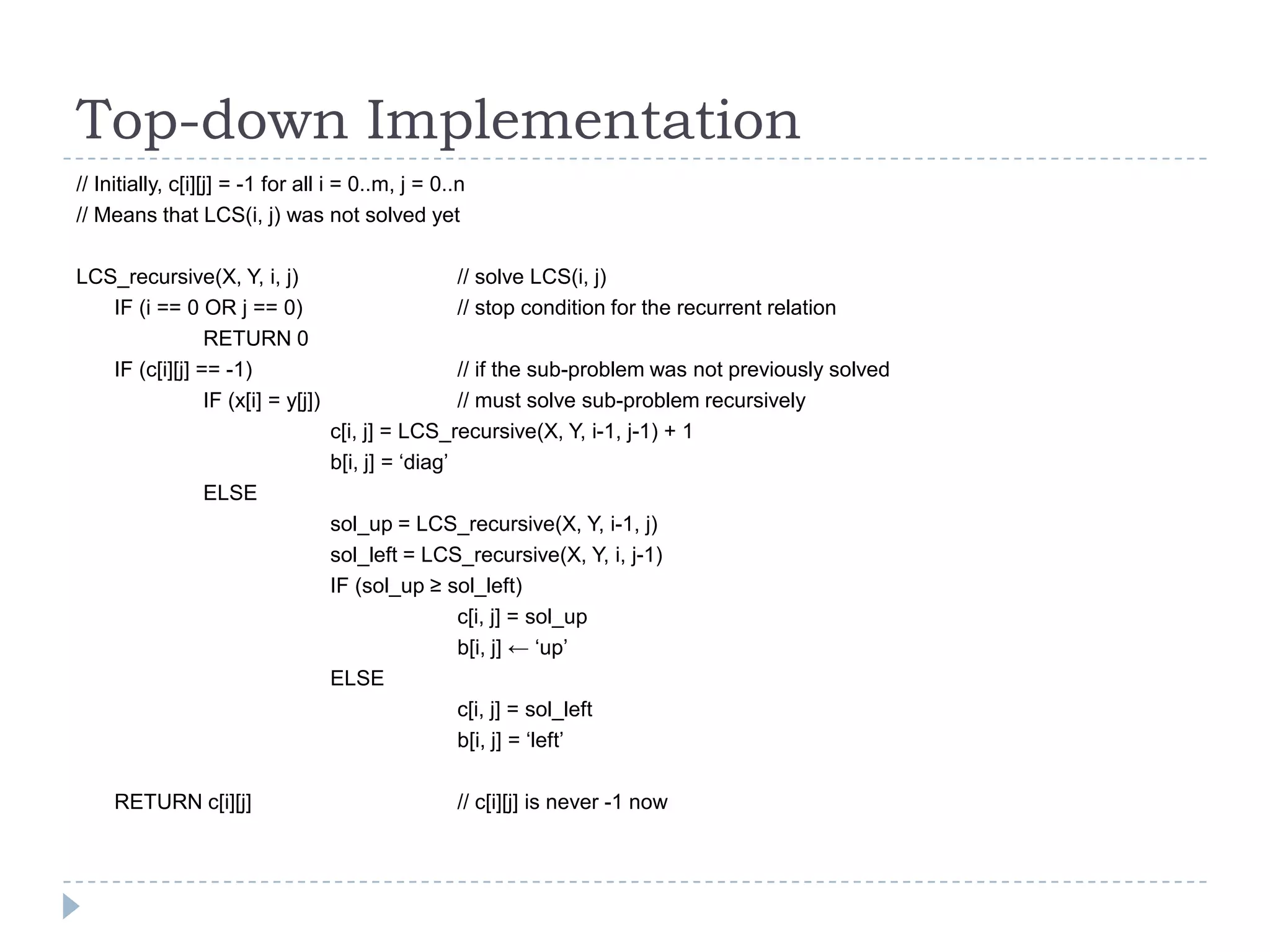

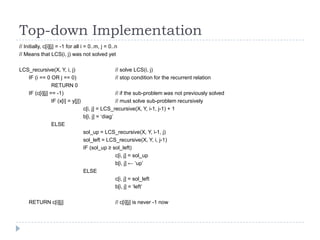

We can use a recursive algorithm that follows the
recurrent relation determined above




We can implement the solution as an iterative algorithm






This is called top-down DP
More difficult because we need to find the best way to do this
This is called bottom-up DP
It is more efficient as we remove procedure calls

Let‟s implement first the iterative solution

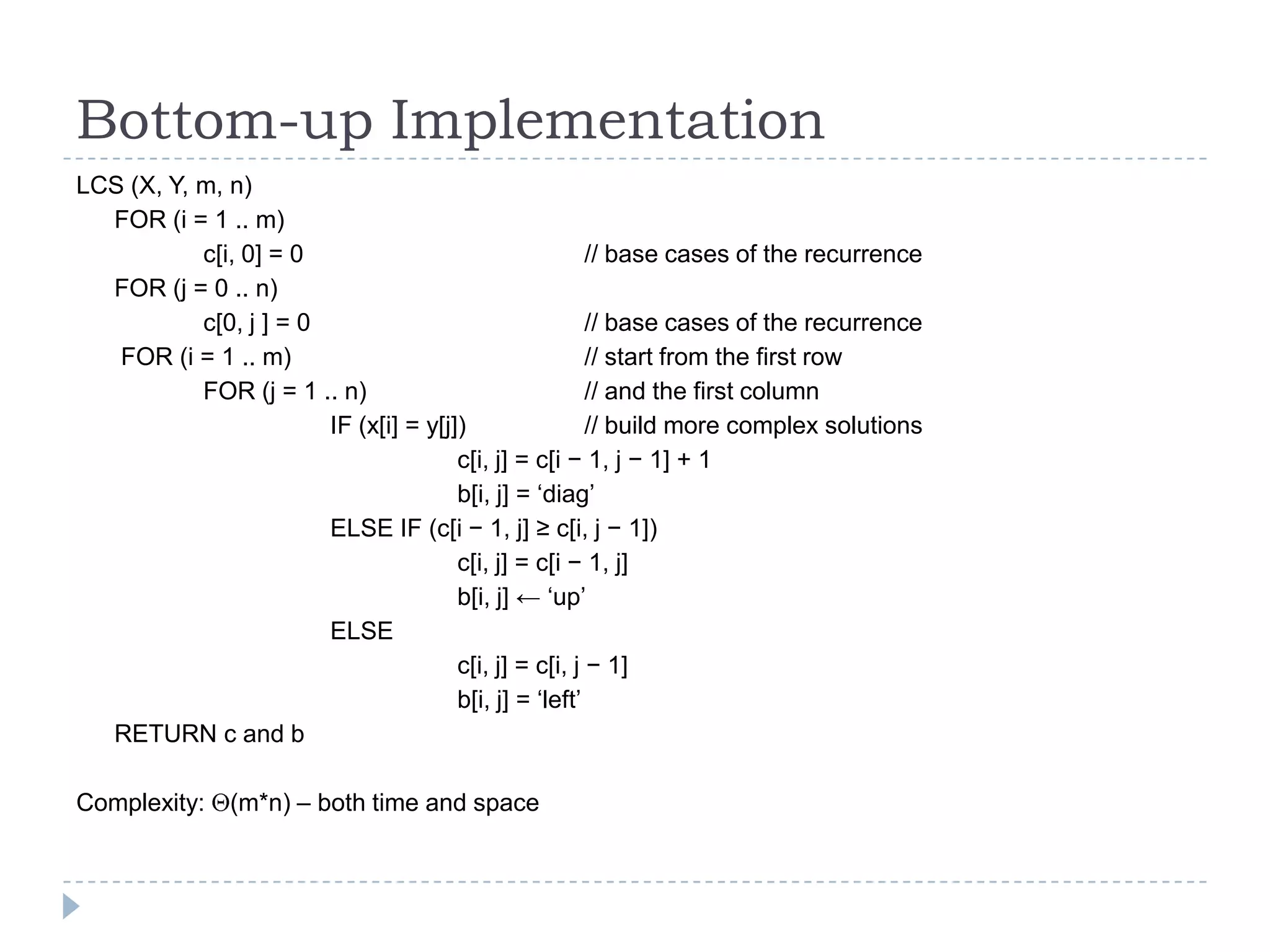

Bottom-up Implementation
LCS (X, Y, m, n)
FOR (i = 1 .. m)
c[i, 0] = 0
// base cases of the recurrence
FOR (j = 0 .. n)
c[0, j ] = 0
// base cases of the recurrence
FOR (i = 1 .. m)
// start from the first row
FOR (j = 1 .. n)
// and the first column
IF (x[i] = y[j])
// build more complex solutions
c[i, j] = c[i − 1, j − 1] + 1
b[i, j] = „diag‟
ELSE IF (c[i − 1, j] ≥ c[i, j − 1])
c[i, j] = c[i − 1, j]
b[i, j] ← „up‟
ELSE
c[i, j] = c[i, j − 1]
b[i, j] = „left‟
RETURN c and b
Complexity:

(m*n) – both time and space

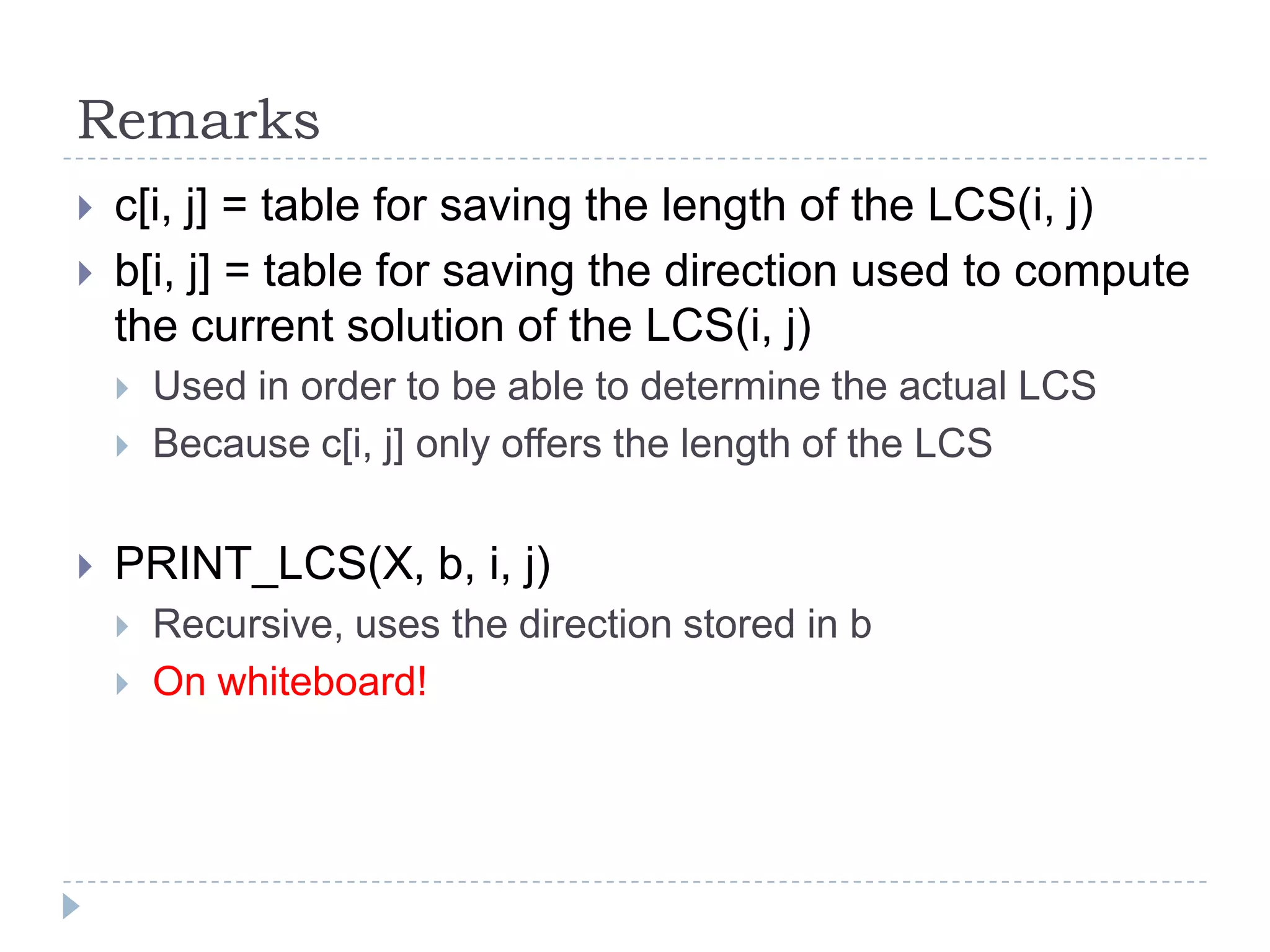

Remarks



c[i, j] = table for saving the length of the LCS(i, j)
b[i, j] = table for saving the direction used to compute
the current solution of the LCS(i, j)





Used in order to be able to determine the actual LCS
Because c[i, j] only offers the length of the LCS

PRINT_LCS(X, b, i, j)



Recursive, uses the direction stored in b
On whiteboard!

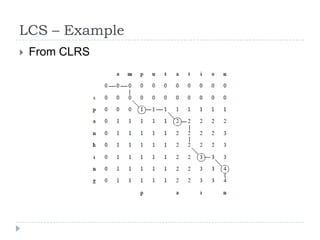

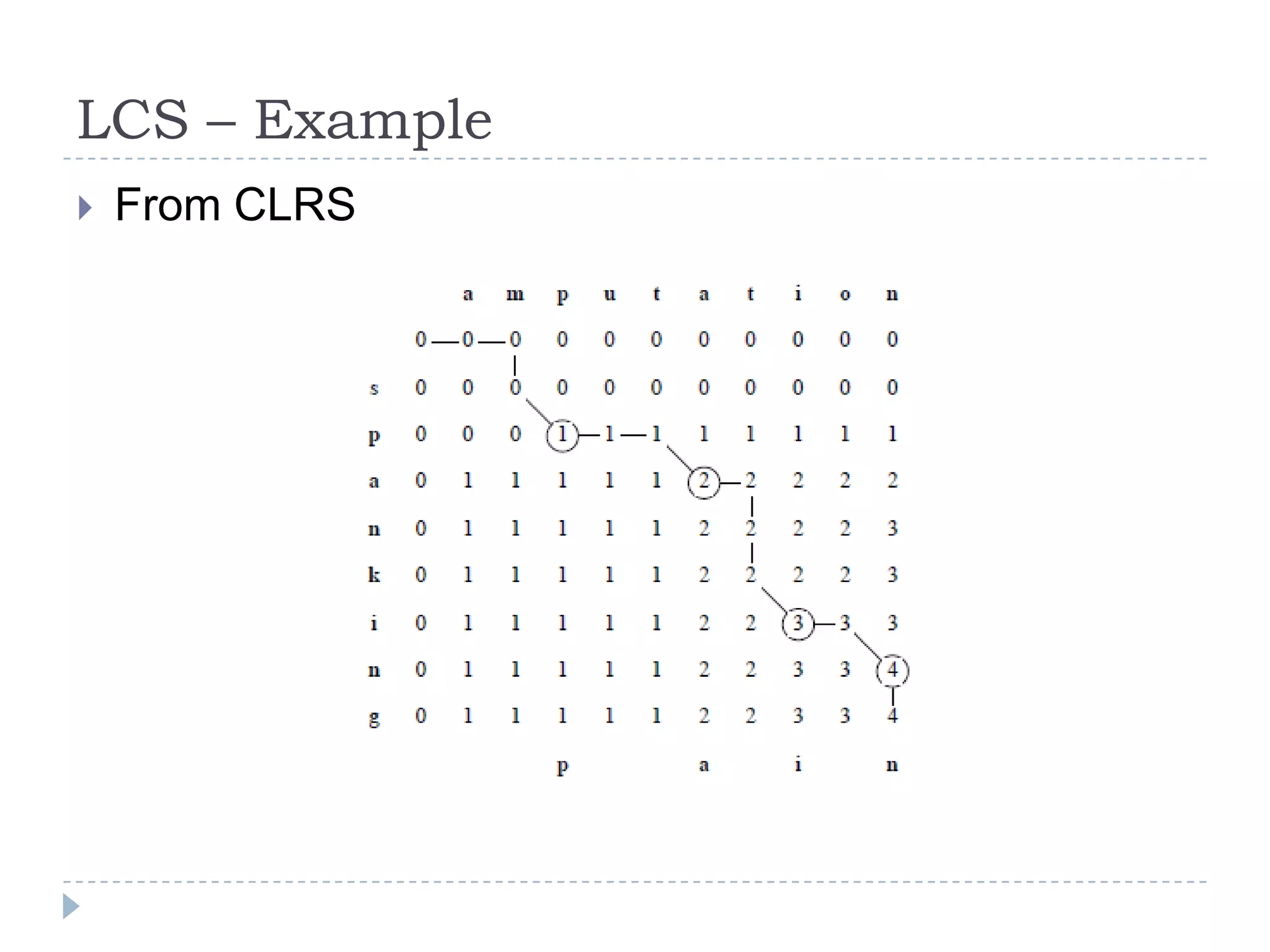

LCS – Example


From CLRS

Top-down Implementation
// Initially, c[i][j] = -1 for all i = 0..m, j = 0..n
// Means that LCS(i, j) was not solved yet
LCS_recursive(X, Y, i, j)
IF (i == 0 OR j == 0)
RETURN 0
IF (c[i][j] == -1)
IF (x[i] = y[j])

// solve LCS(i, j)
// stop condition for the recurrent relation
// if the sub-problem was not previously solved
// must solve sub-problem recursively
c[i, j] = LCS_recursive(X, Y, i-1, j-1) + 1
b[i, j] = „diag‟

ELSE
sol_up = LCS_recursive(X, Y, i-1, j)
sol_left = LCS_recursive(X, Y, i, j-1)
IF (sol_up ≥ sol_left)
c[i, j] = sol_up
b[i, j] ← „up‟
ELSE
c[i, j] = sol_left
b[i, j] = „left‟
RETURN c[i][j]

// c[i][j] is never -1 now

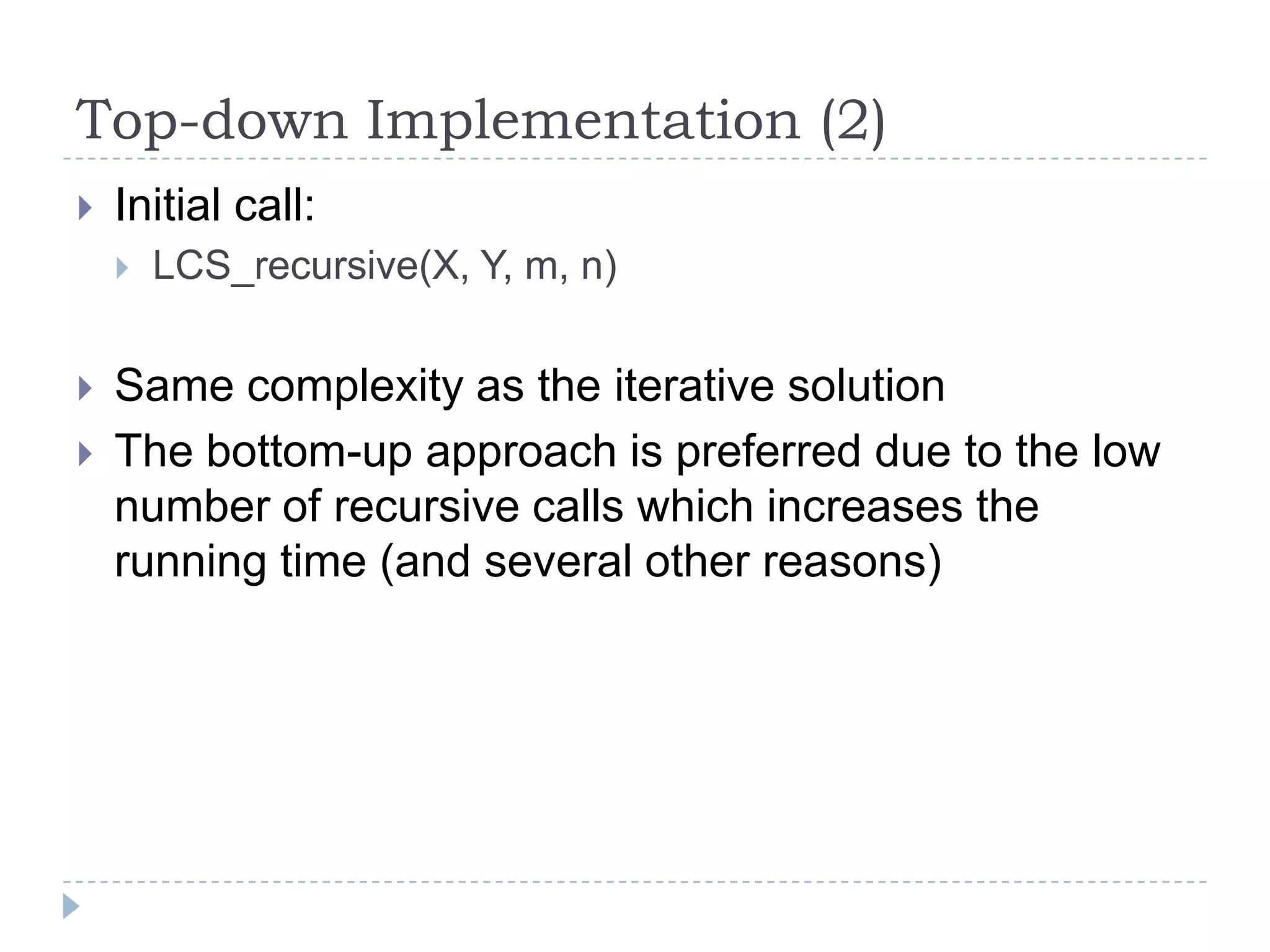

Top-down Implementation (2)


Initial call:





LCS_recursive(X, Y, m, n)

Same complexity as the iterative solution
The bottom-up approach is preferred due to the low
number of recursive calls which increases the
running time (and several other reasons)



Given a sequence of matrices: A1, A2, ..., An.



Which is the minimum number of scalar
multiplications needed to perform the
multiplication of the n matrices:
A1 x A2 x ... x An ?



We need to determine one of the possible
parenthesizations that minimizes the number of
total scalar multiplications

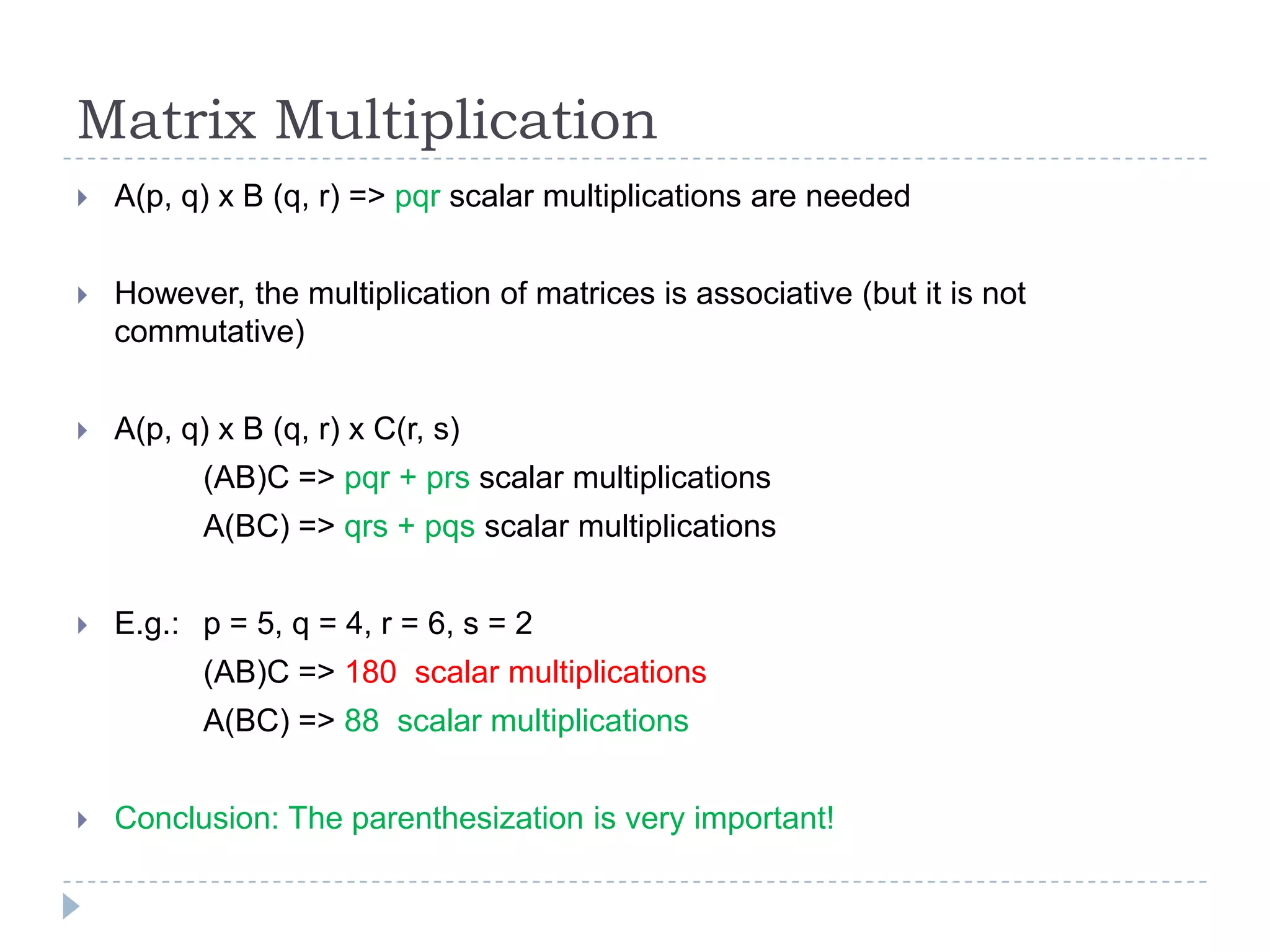

Matrix Multiplication


A(p, q) x B (q, r) => pqr scalar multiplications are needed



However, the multiplication of matrices is associative (but it is not
commutative)



A(p, q) x B (q, r) x C(r, s)
(AB)C => pqr + prs scalar multiplications
A(BC) => qrs + pqs scalar multiplications



E.g.: p = 5, q = 4, r = 6, s = 2
(AB)C => 180 scalar multiplications
A(BC) => 88 scalar multiplications



Conclusion: The parenthesization is very important!

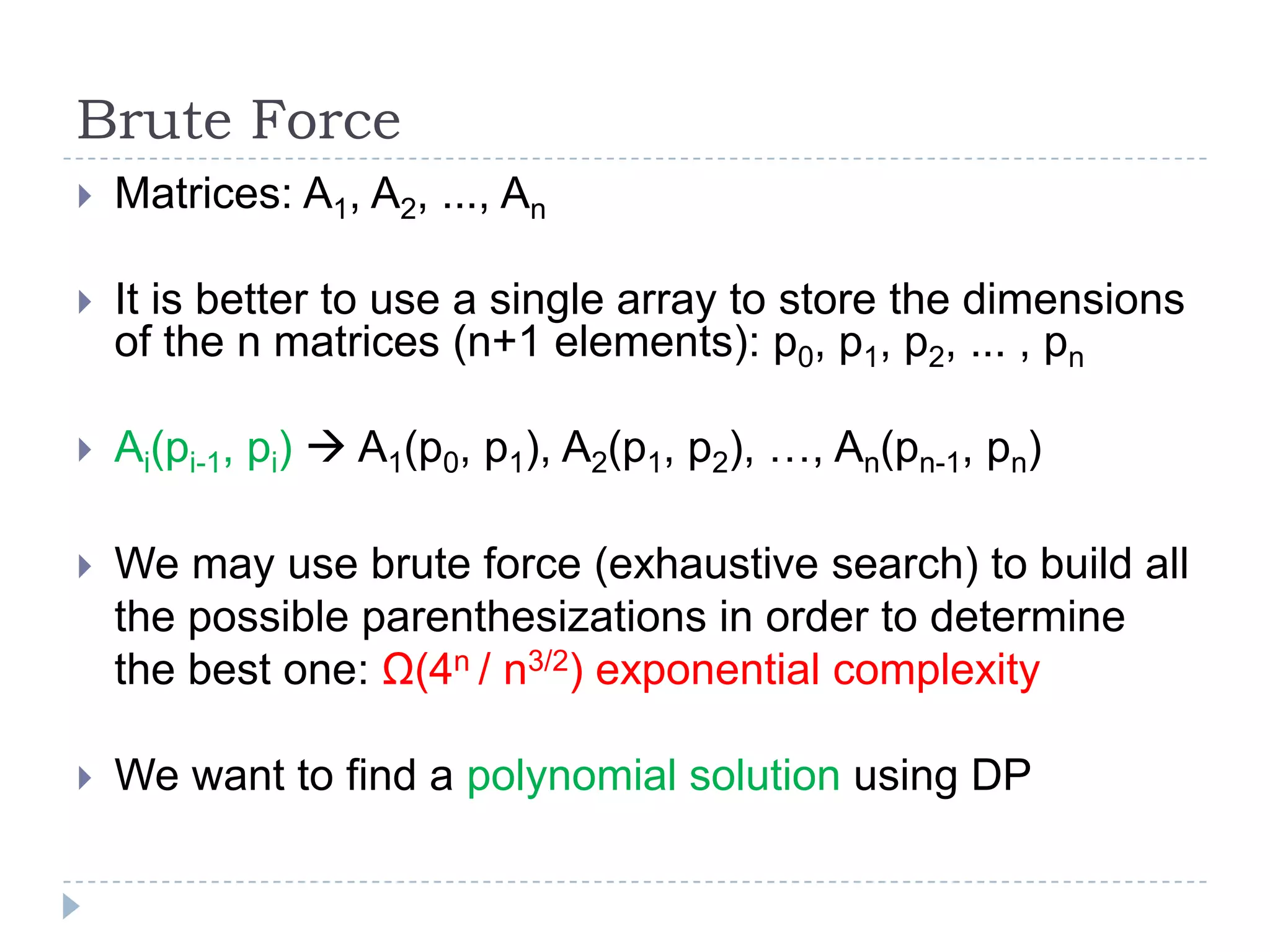

Brute Force


Matrices: A1, A2, ..., An



It is better to use a single array to store the dimensions
of the n matrices (n+1 elements): p0, p1, p2, ... , pn



Ai(pi-1, pi)  A1(p0, p1), A2(p1, p2), …, An(pn-1, pn)



We may use brute force (exhaustive search) to build all
the possible parenthesizations in order to determine
the best one: Ω(4n / n3/2) exponential complexity



We want to find a polynomial solution using DP

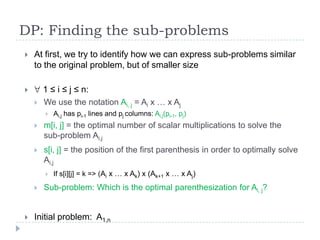

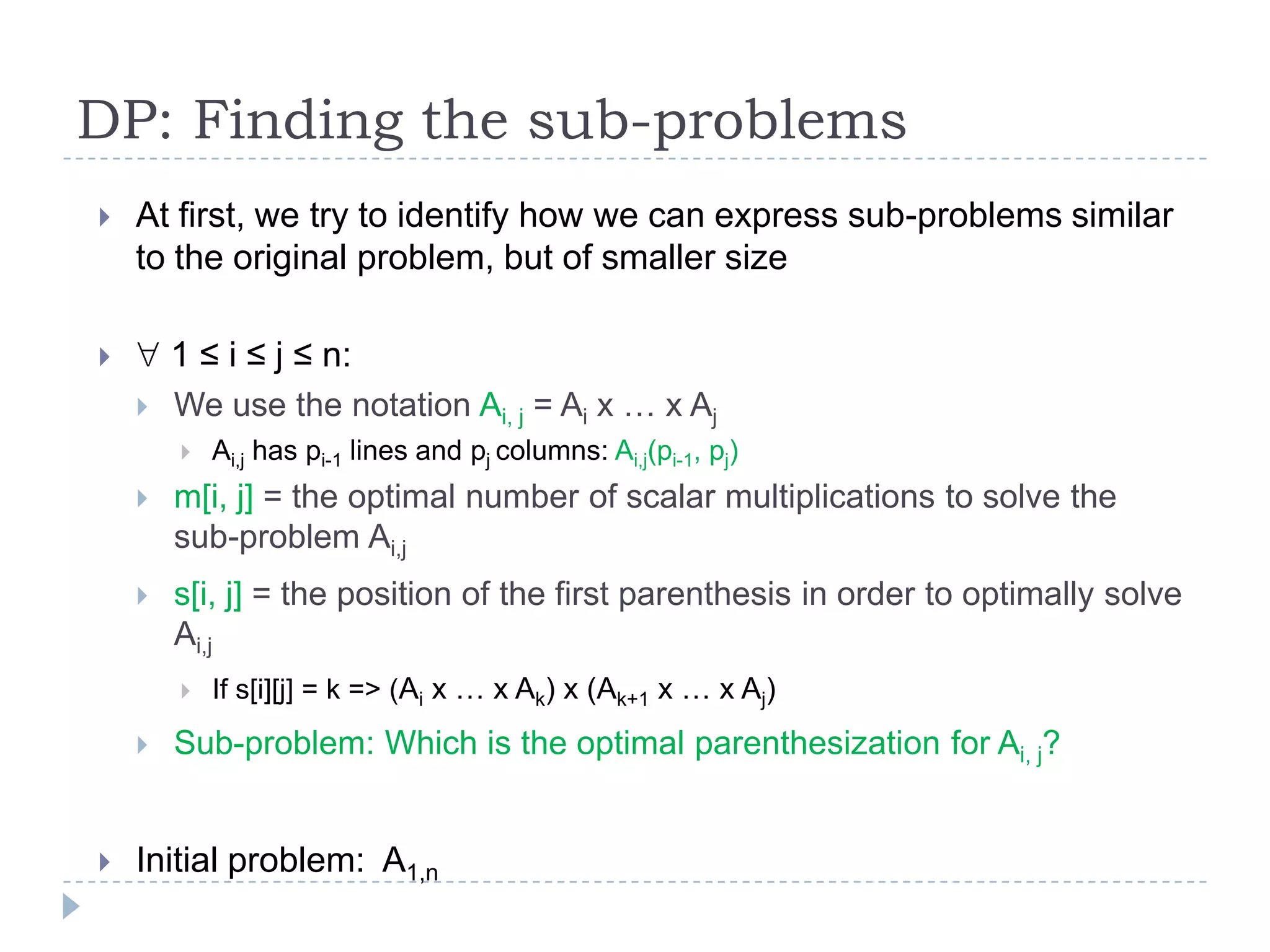

DP: Finding the sub-problems


At first, we try to identify how we can express sub-problems similar
to the original problem, but of smaller size
1 ≤ i ≤ j ≤ n:




We use the notation Ai, j = Ai x … x Aj


Ai,j has pi-1 lines and pj columns: Ai,j(pi-1, pj)



m[i, j] = the optimal number of scalar multiplications to solve the
sub-problem Ai,j



s[i, j] = the position of the first parenthesis in order to optimally solve
Ai,j






If s[i][j] = k => (Ai x … x Ak) x (Ak+1 x … x Aj)

Sub-problem: Which is the optimal parenthesization for Ai, j?

Initial problem: A1,n

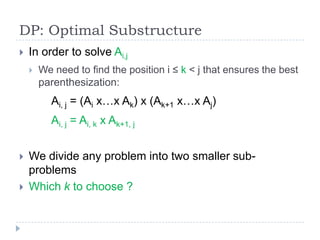

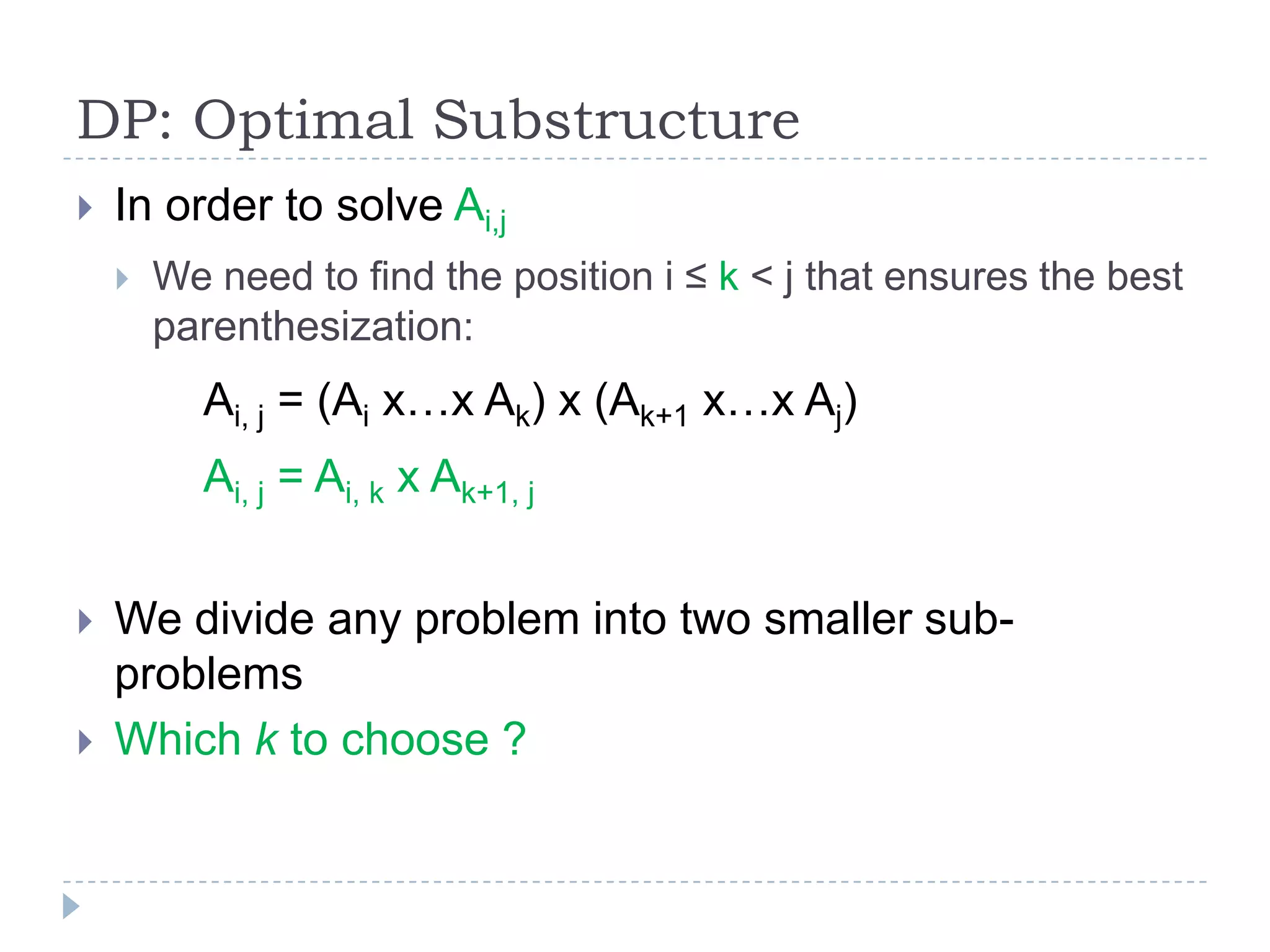

DP: Optimal Substructure


In order to solve Ai,j


We need to find the position i ≤ k < j that ensures the best
parenthesization:

Ai, j = (Ai x…x Ak) x (Ak+1 x…x Aj)
Ai, j = Ai, k x Ak+1, j



We divide any problem into two smaller subproblems
Which k to choose ?

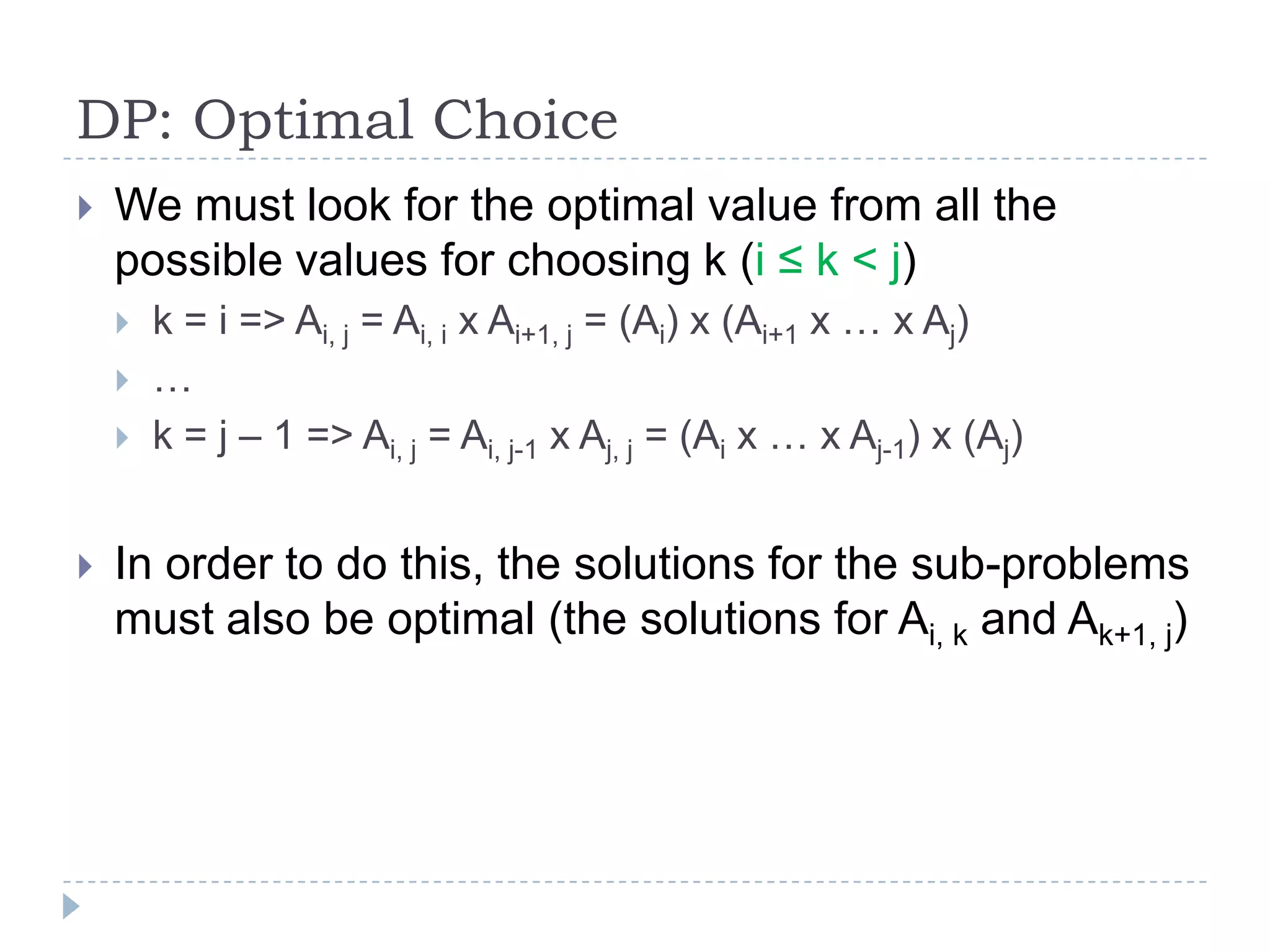

DP: Optimal Choice


We must look for the optimal value from all the
possible values for choosing k (i ≤ k < j)






k = i => Ai, j = Ai, i x Ai+1, j = (Ai) x (Ai+1 x … x Aj)
…
k = j – 1 => Ai, j = Ai, j-1 x Aj, j = (Ai x … x Aj-1) x (Aj)

In order to do this, the solutions for the sub-problems
must also be optimal (the solutions for Ai, k and Ak+1, j)

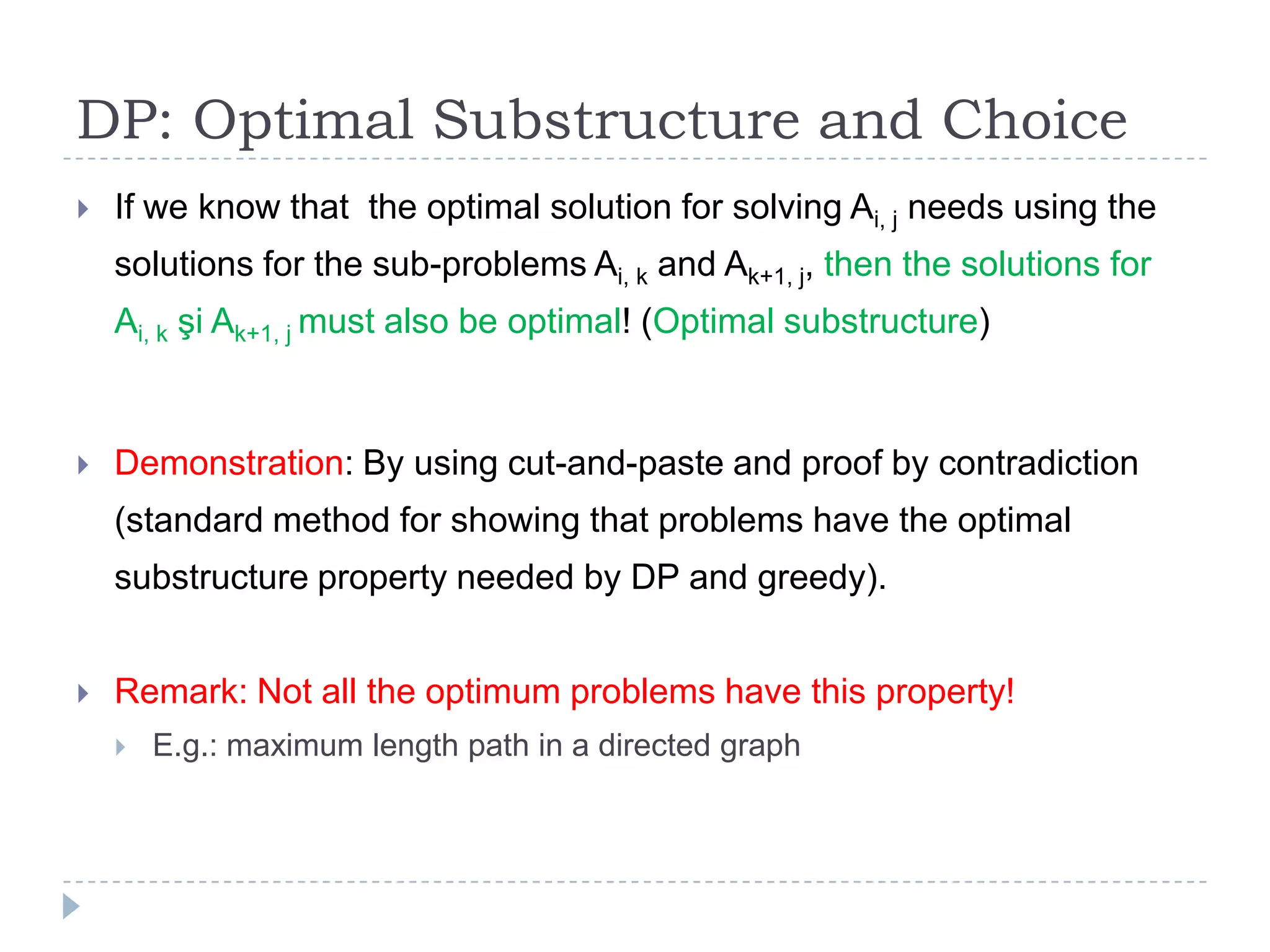

DP: Optimal Substructure and Choice


If we know that the optimal solution for solving Ai, j needs using the
solutions for the sub-problems Ai, k and Ak+1, j, then the solutions for
Ai, k şi Ak+1, j must also be optimal! (Optimal substructure)



Demonstration: By using cut-and-paste and proof by contradiction
(standard method for showing that problems have the optimal
substructure property needed by DP and greedy).



Remark: Not all the optimum problems have this property!


E.g.: maximum length path in a directed graph

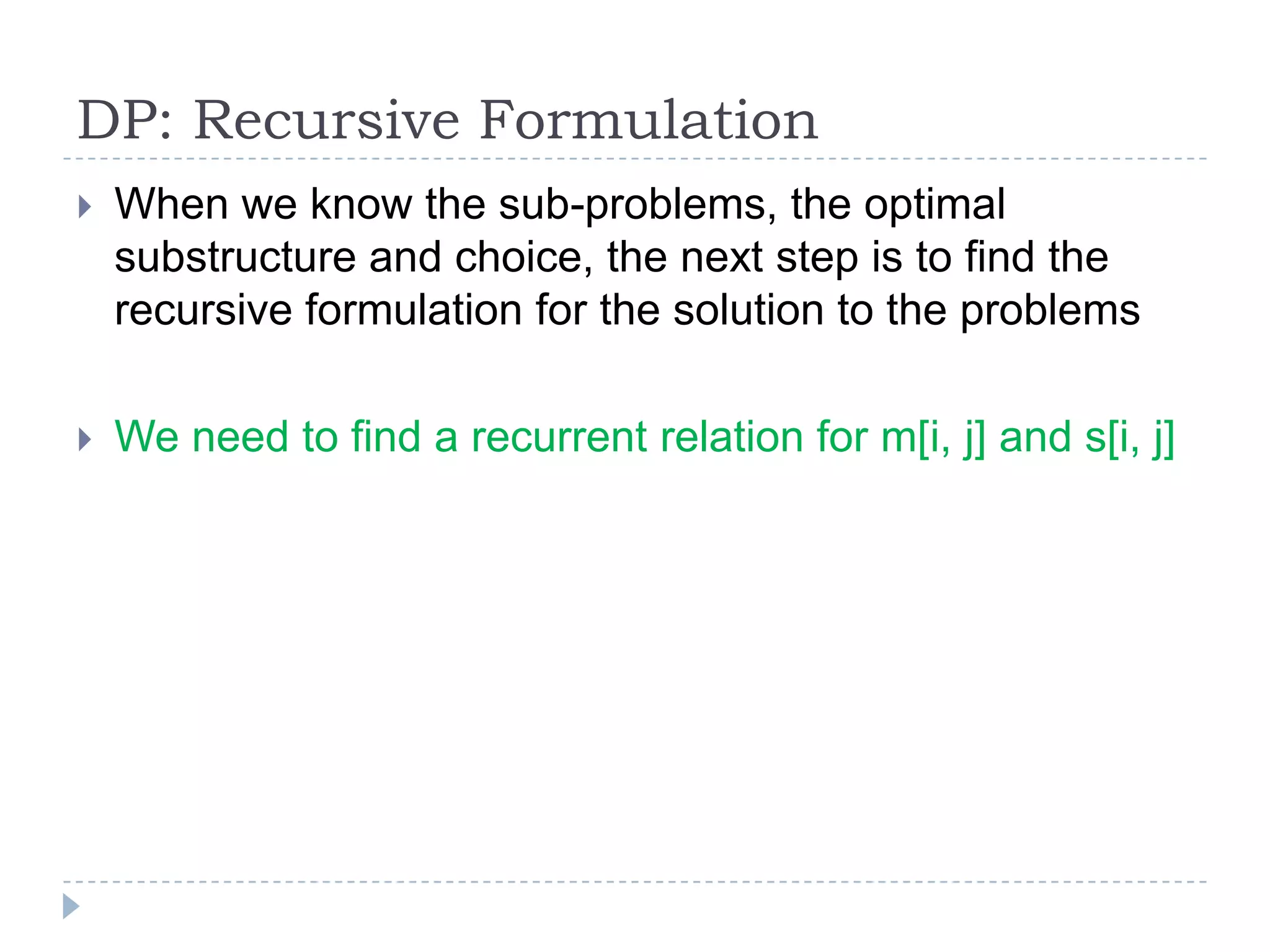

DP: Recursive Formulation


When we know the sub-problems, the optimal
substructure and choice, the next step is to find the
recursive formulation for the solution to the problems



We need to find a recurrent relation for m[i, j] and s[i, j]

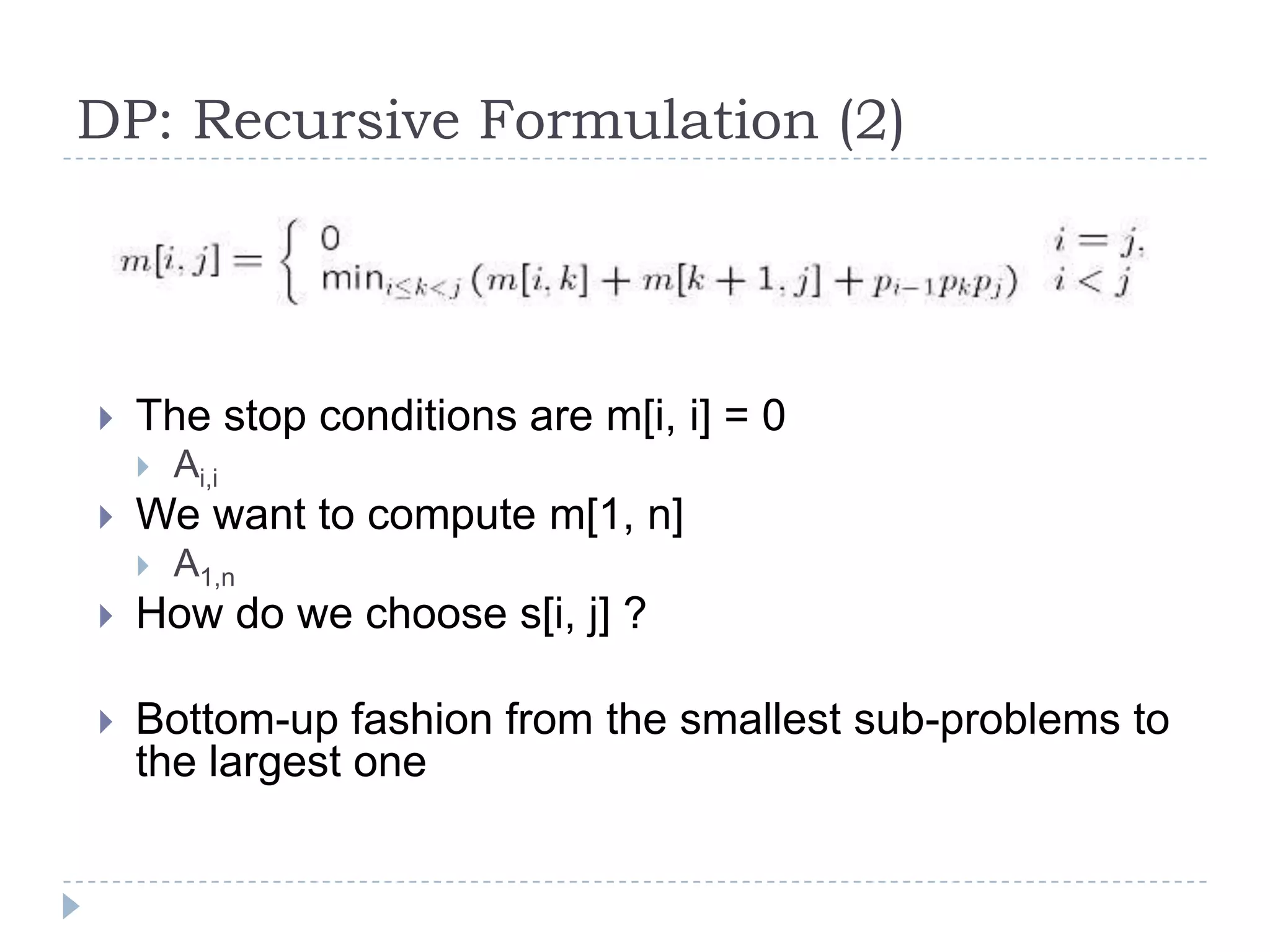

DP: Recursive Formulation (2)



The stop conditions are m[i, i] = 0




Ai,i

We want to compute m[1, n]


A1,n



How do we choose s[i, j] ?



Bottom-up fashion from the smallest sub-problems to
the largest one

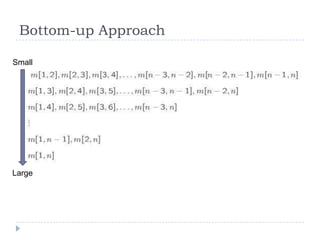

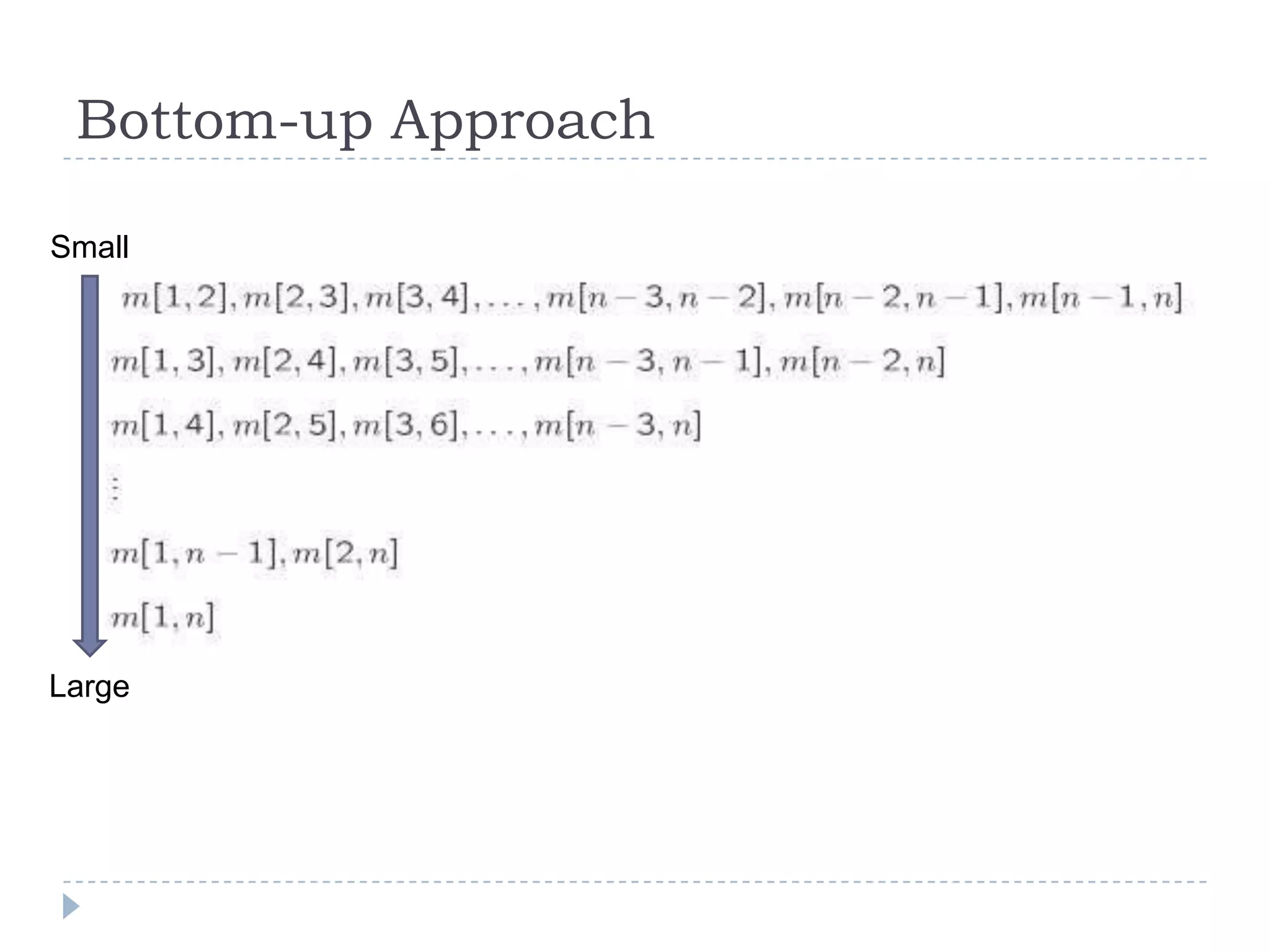

Bottom-up Approach
Small

Large

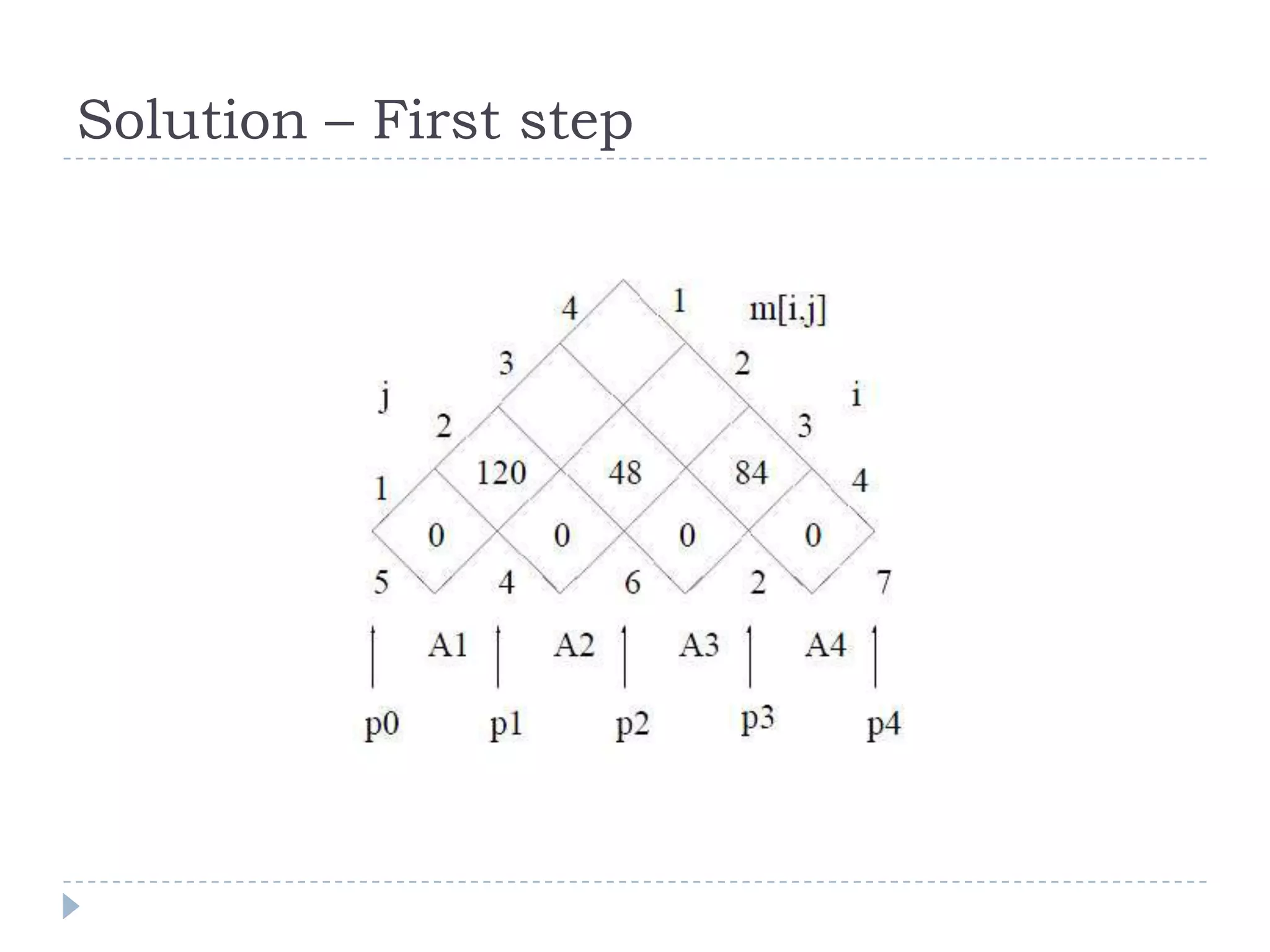

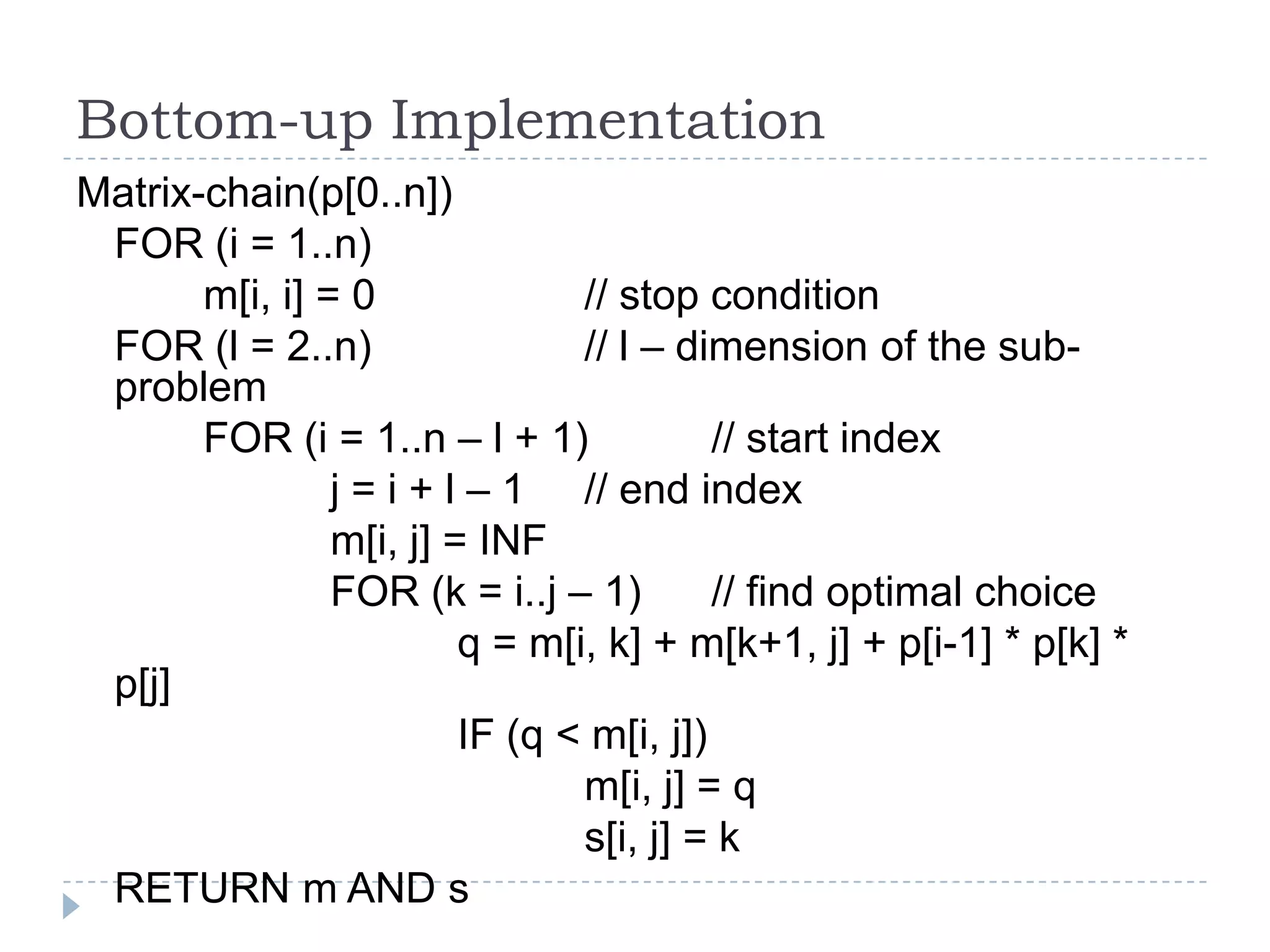

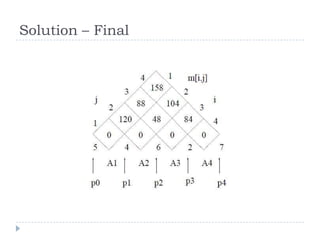

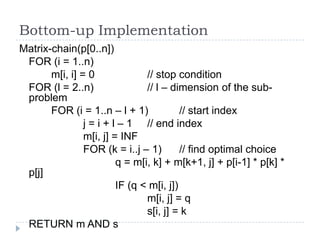

Bottom-up Implementation
Matrix-chain(p[0..n])
FOR (i = 1..n)
m[i, i] = 0
// stop condition
FOR (l = 2..n)
// l – dimension of the subproblem
FOR (i = 1..n – l + 1)
// start index
j = i + l – 1 // end index
m[i, j] = INF
FOR (k = i..j – 1)
// find optimal choice
q = m[i, k] + m[k+1, j] + p[i-1] * p[k] *
p[j]
IF (q < m[i, j])
m[i, j] = q
s[i, j] = k
RETURN m AND s

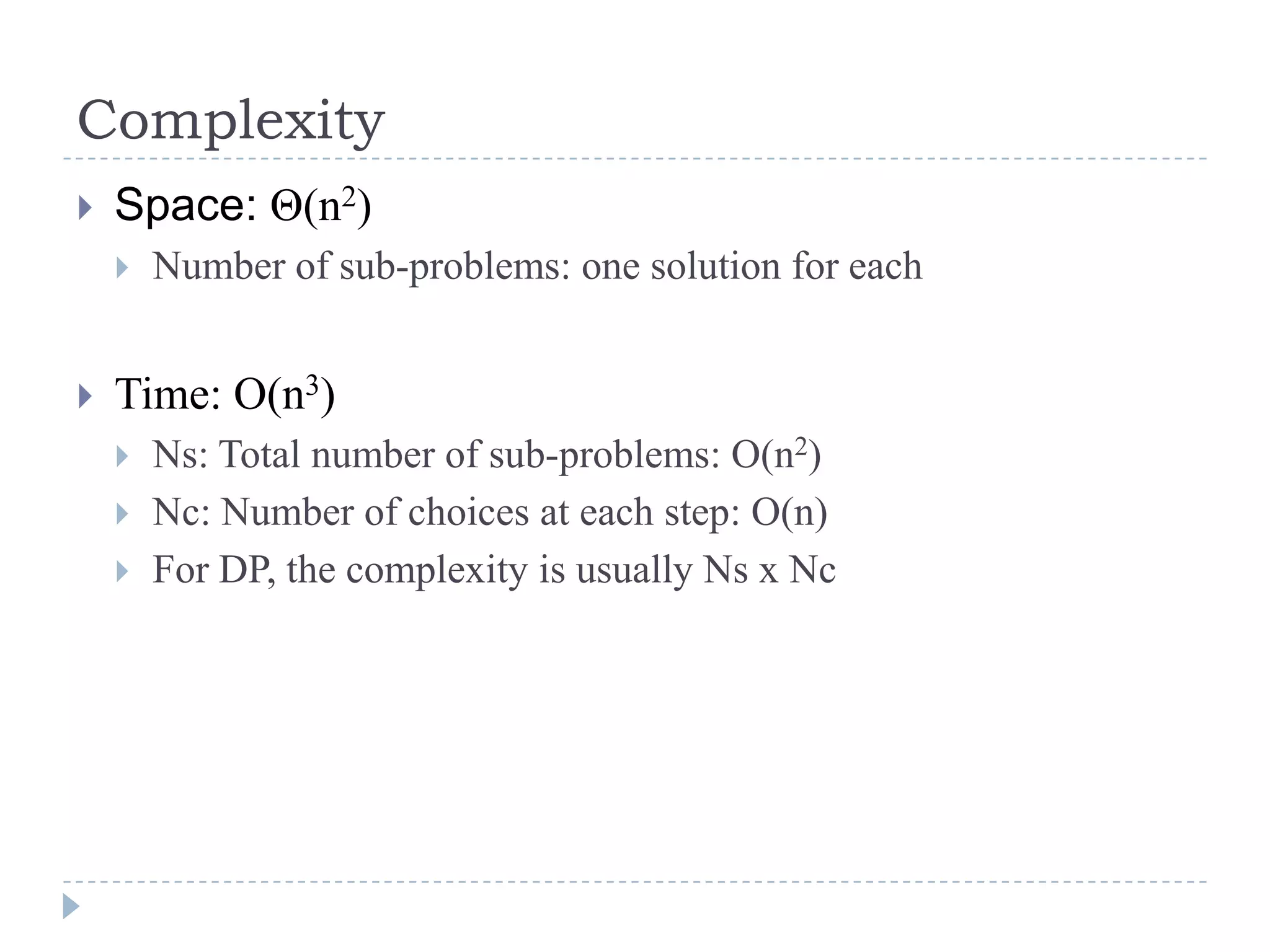

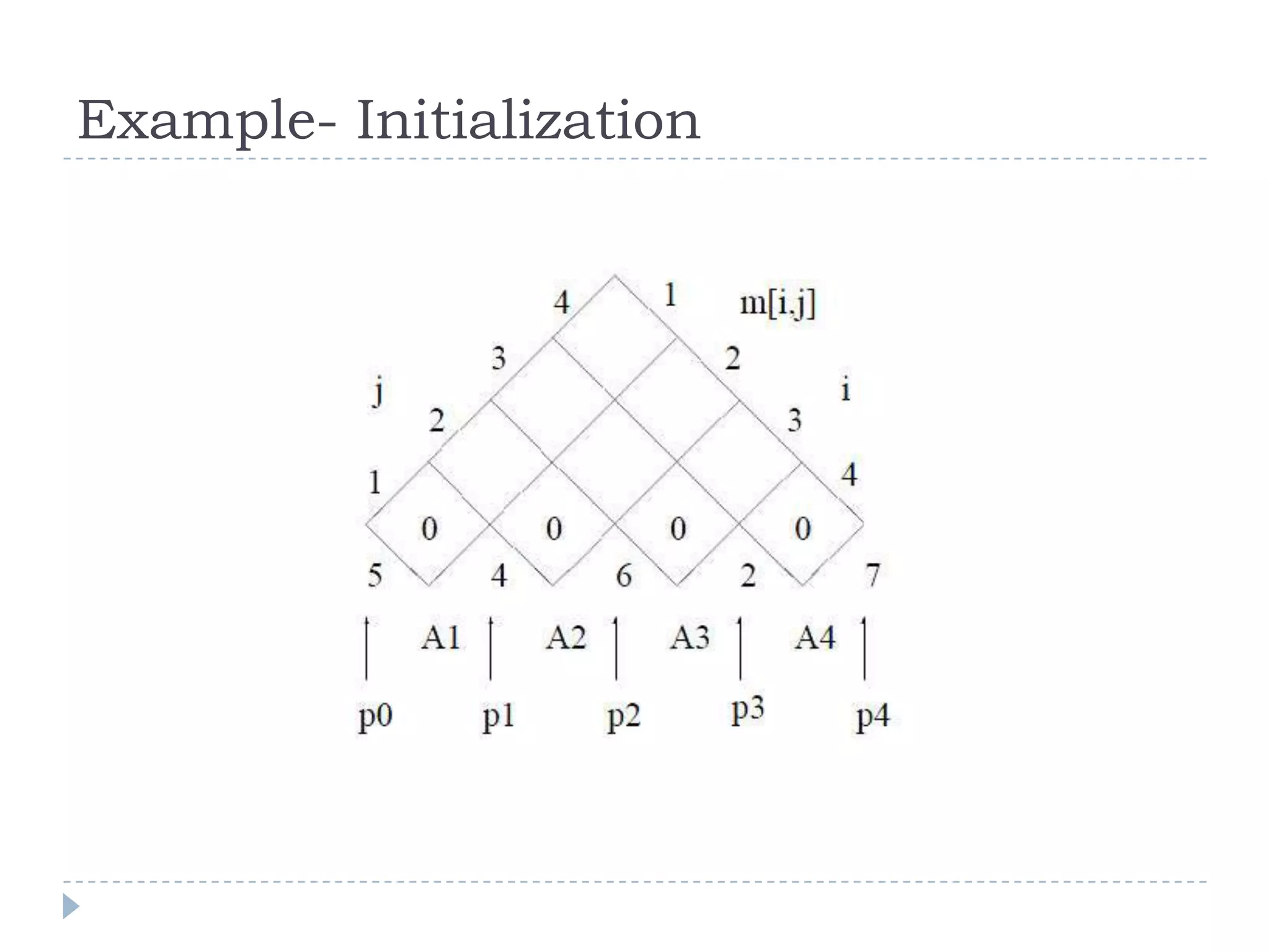

Complexity


Space: Θ(n2)




Number of sub-problems: one solution for each

Time: O(n3)




Ns: Total number of sub-problems: O(n2)
Nc: Number of choices at each step: O(n)
For DP, the complexity is usually Ns x Nc

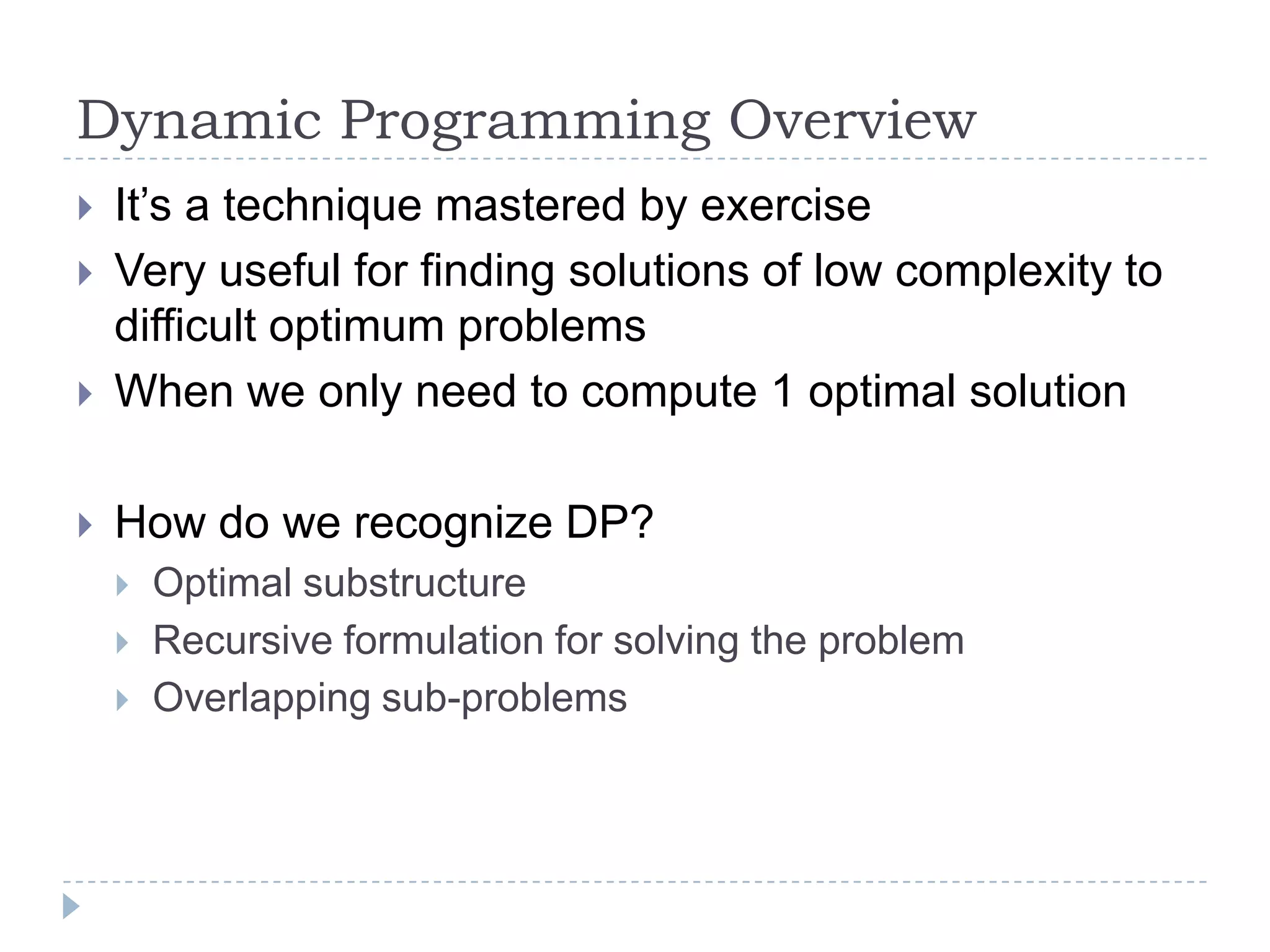

Dynamic Programming Overview



It‟s a technique mastered by exercise
Very useful for finding solutions of low complexity to
difficult optimum problems
When we only need to compute 1 optimal solution



How do we recognize DP?








Optimal substructure
Recursive formulation for solving the problem
Overlapping sub-problems

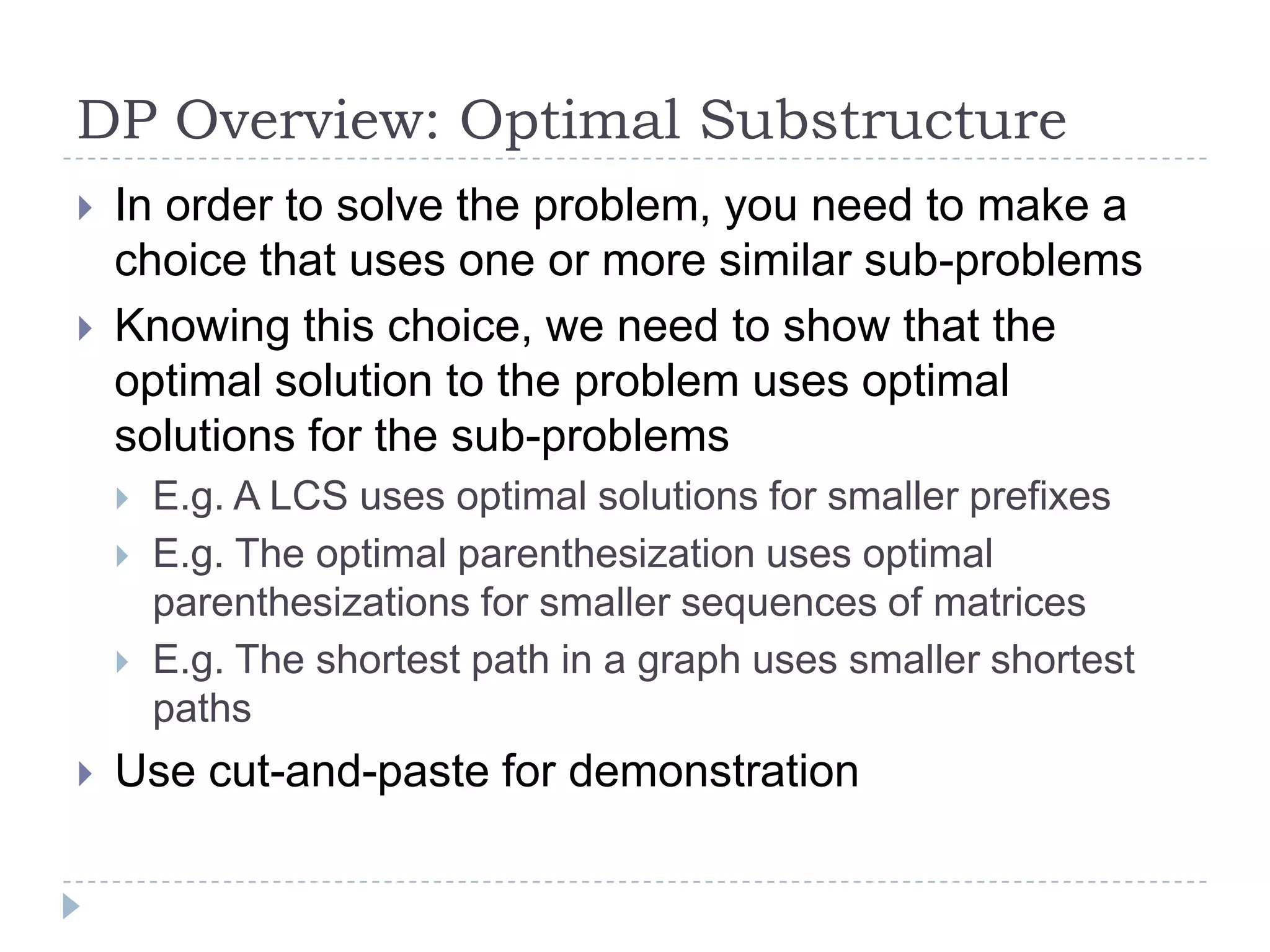

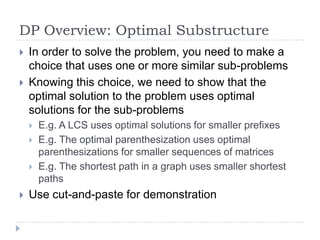

DP Overview: Optimal Substructure



In order to solve the problem, you need to make a
choice that uses one or more similar sub-problems
Knowing this choice, we need to show that the
optimal solution to the problem uses optimal
solutions for the sub-problems







E.g. A LCS uses optimal solutions for smaller prefixes
E.g. The optimal parenthesization uses optimal
parenthesizations for smaller sequences of matrices
E.g. The shortest path in a graph uses smaller shortest
paths

Use cut-and-paste for demonstration

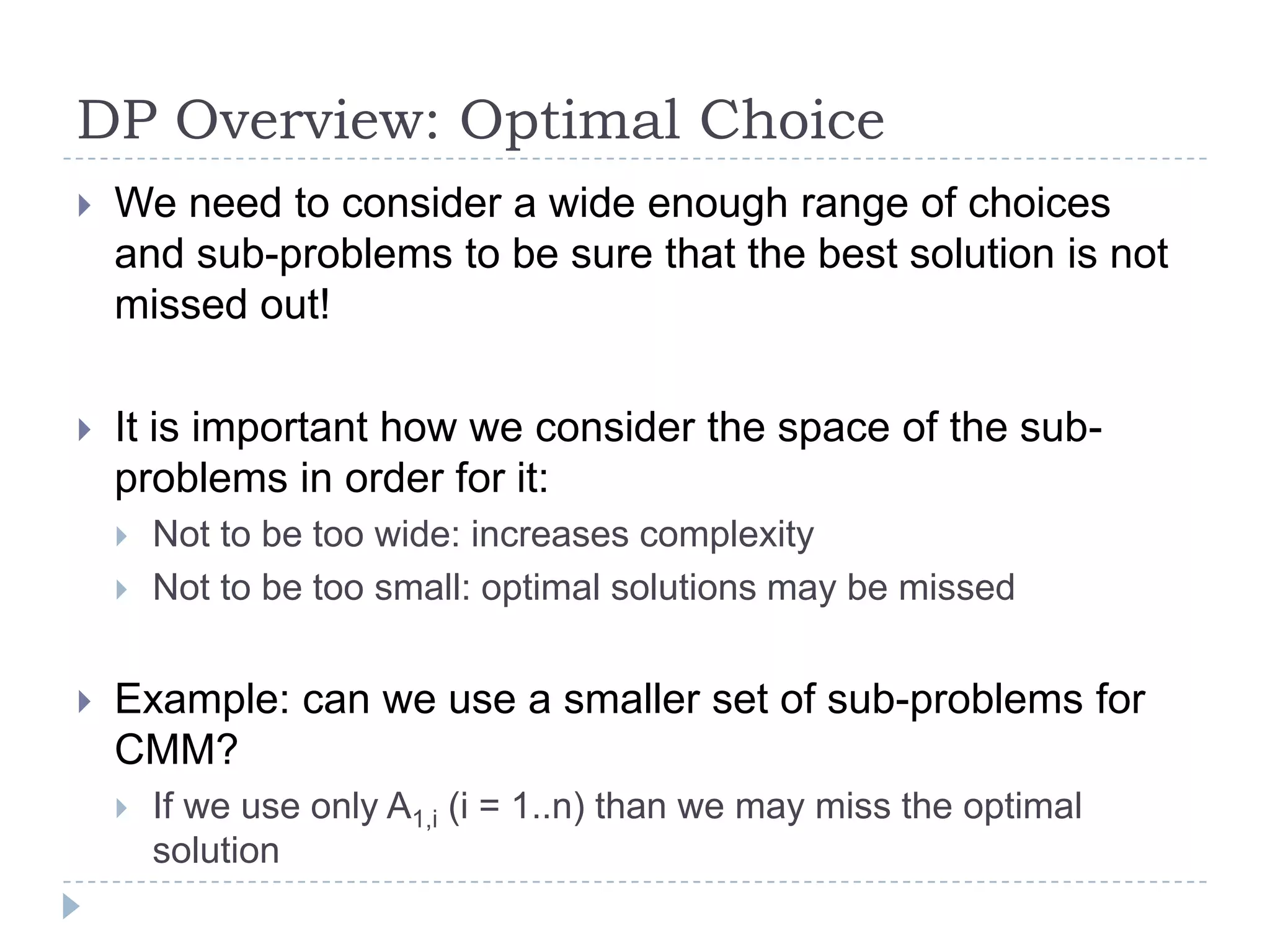

DP Overview: Optimal Choice


We need to consider a wide enough range of choices
and sub-problems to be sure that the best solution is not
missed out!



It is important how we consider the space of the subproblems in order for it:





Not to be too wide: increases complexity
Not to be too small: optimal solutions may be missed

Example: can we use a smaller set of sub-problems for
CMM?


If we use only A1,i (i = 1..n) than we may miss the optimal
solution

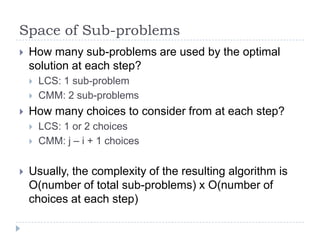

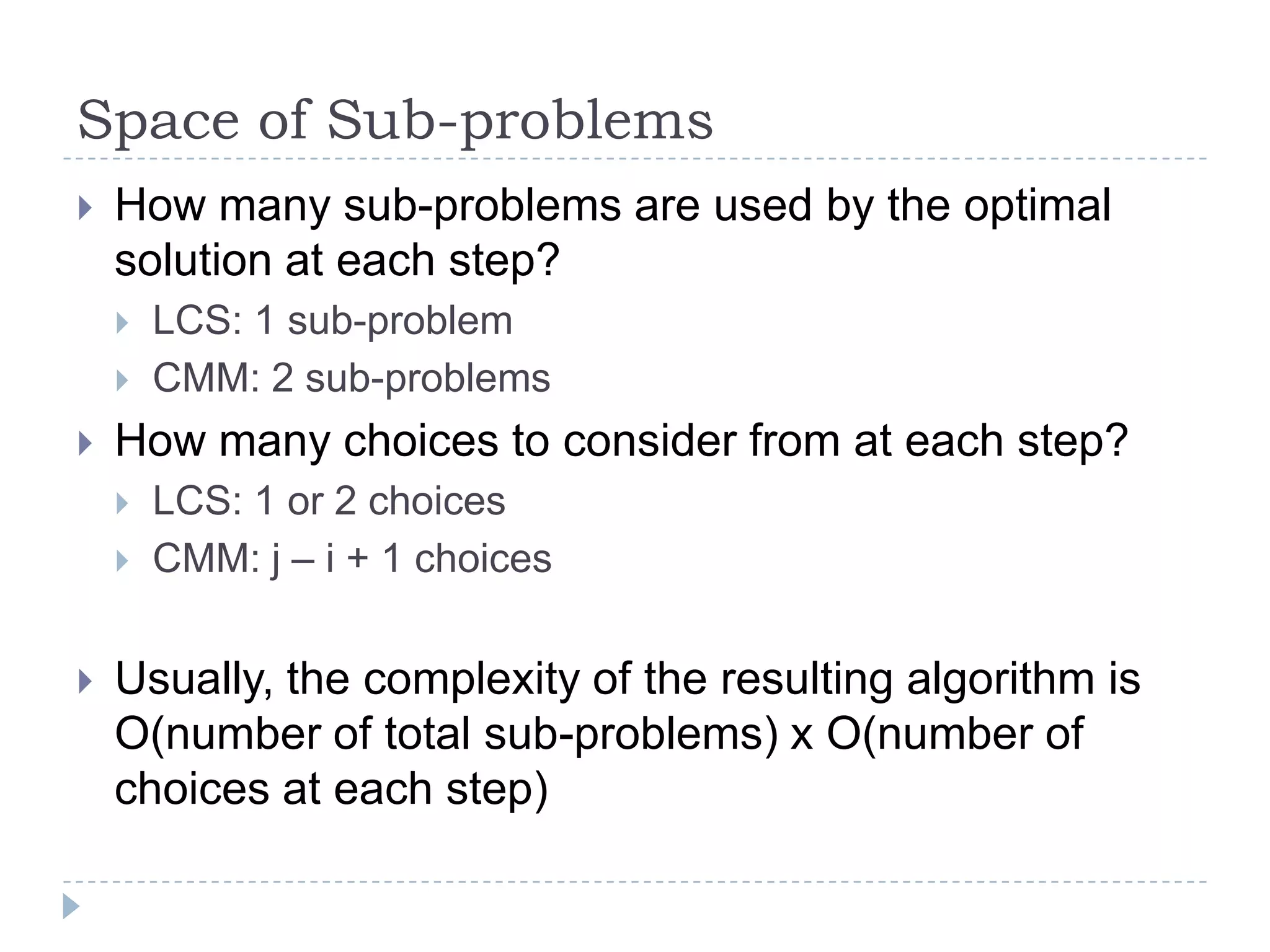

Space of Sub-problems


How many sub-problems are used by the optimal
solution at each step?





How many choices to consider from at each step?






LCS: 1 sub-problem
CMM: 2 sub-problems
LCS: 1 or 2 choices
CMM: j – i + 1 choices

Usually, the complexity of the resulting algorithm is
O(number of total sub-problems) x O(number of
choices at each step)

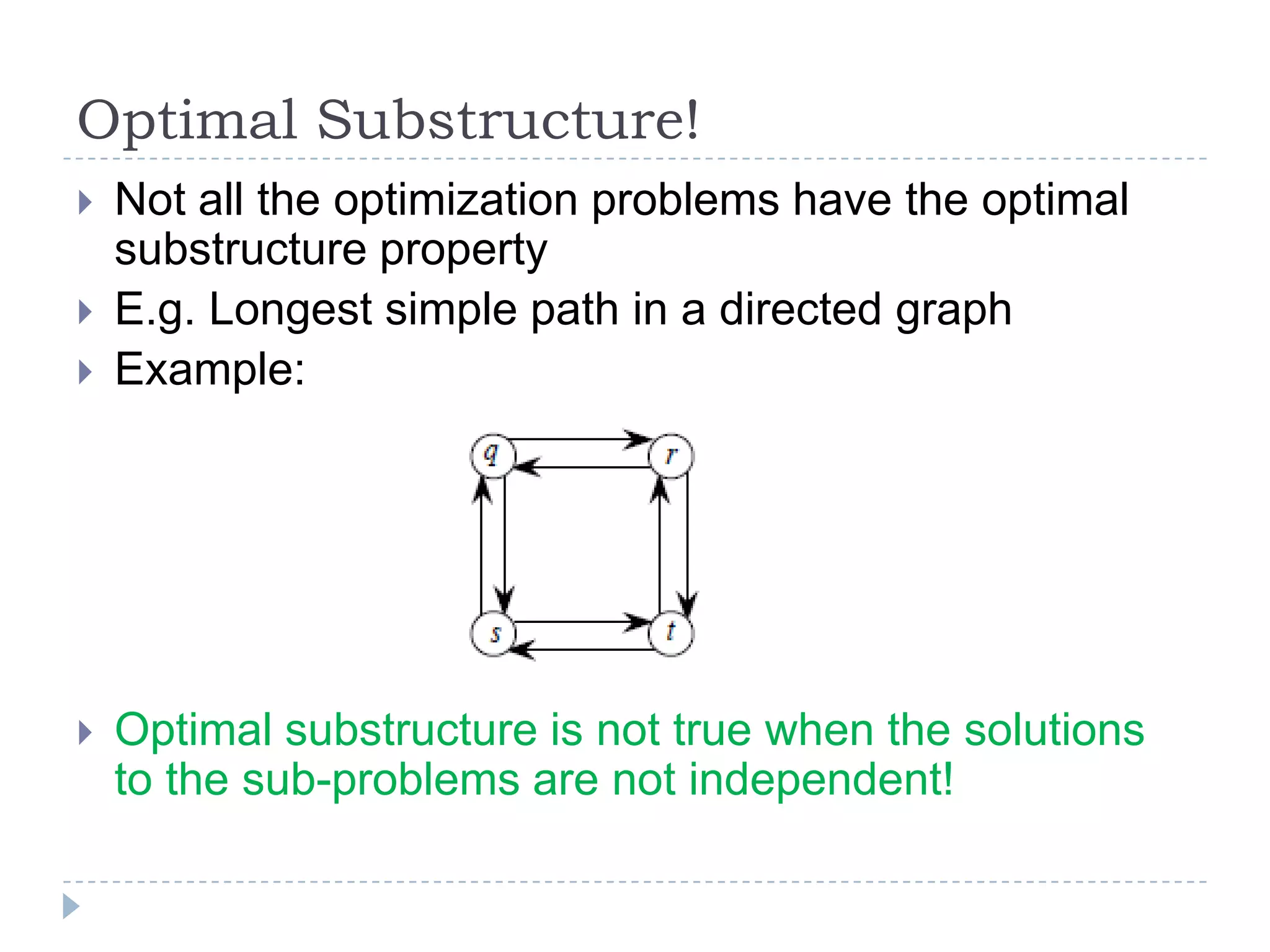

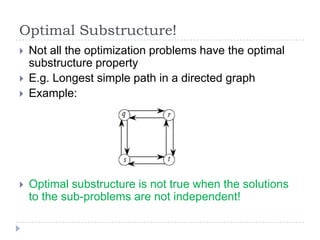

Optimal Substructure!






Not all the optimization problems have the optimal
substructure property
E.g. Longest simple path in a directed graph
Example:

Optimal substructure is not true when the solutions
to the sub-problems are not independent!

Overlapping Sub-problems




Several sub-problems may require to be solved
more than once (on different recursive paths)
“Store, don‟t recompute”
Memoization





Use a table to store solutions for the sub-problems that
have already been solved
Useful for building top-down DP solutions
We can find an iterative solution that fills the table
intelligently from smaller sub-problems to larger ones

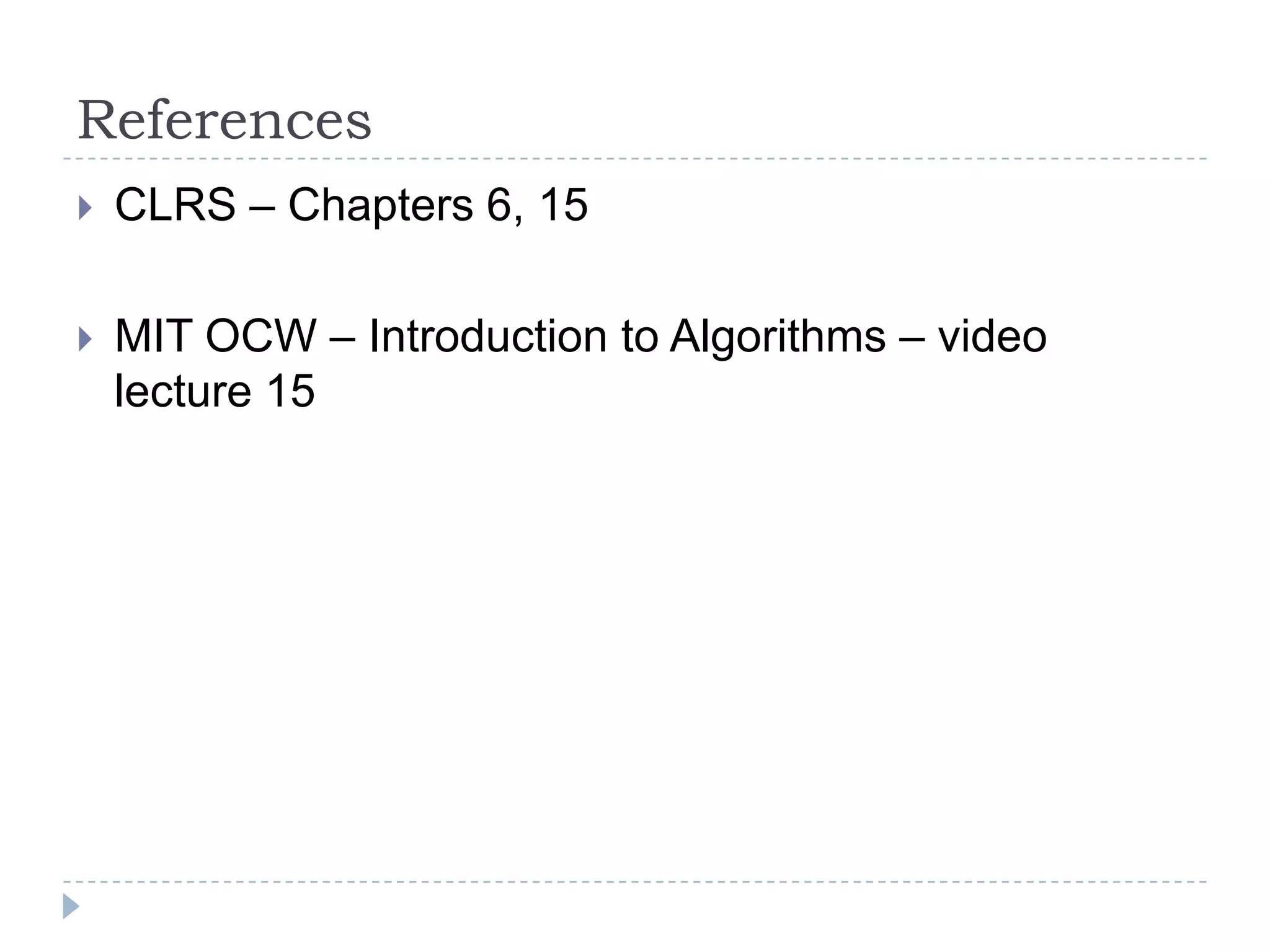

References


CLRS – Chapters 6, 15



MIT OCW – Introduction to Algorithms – video
lecture 15

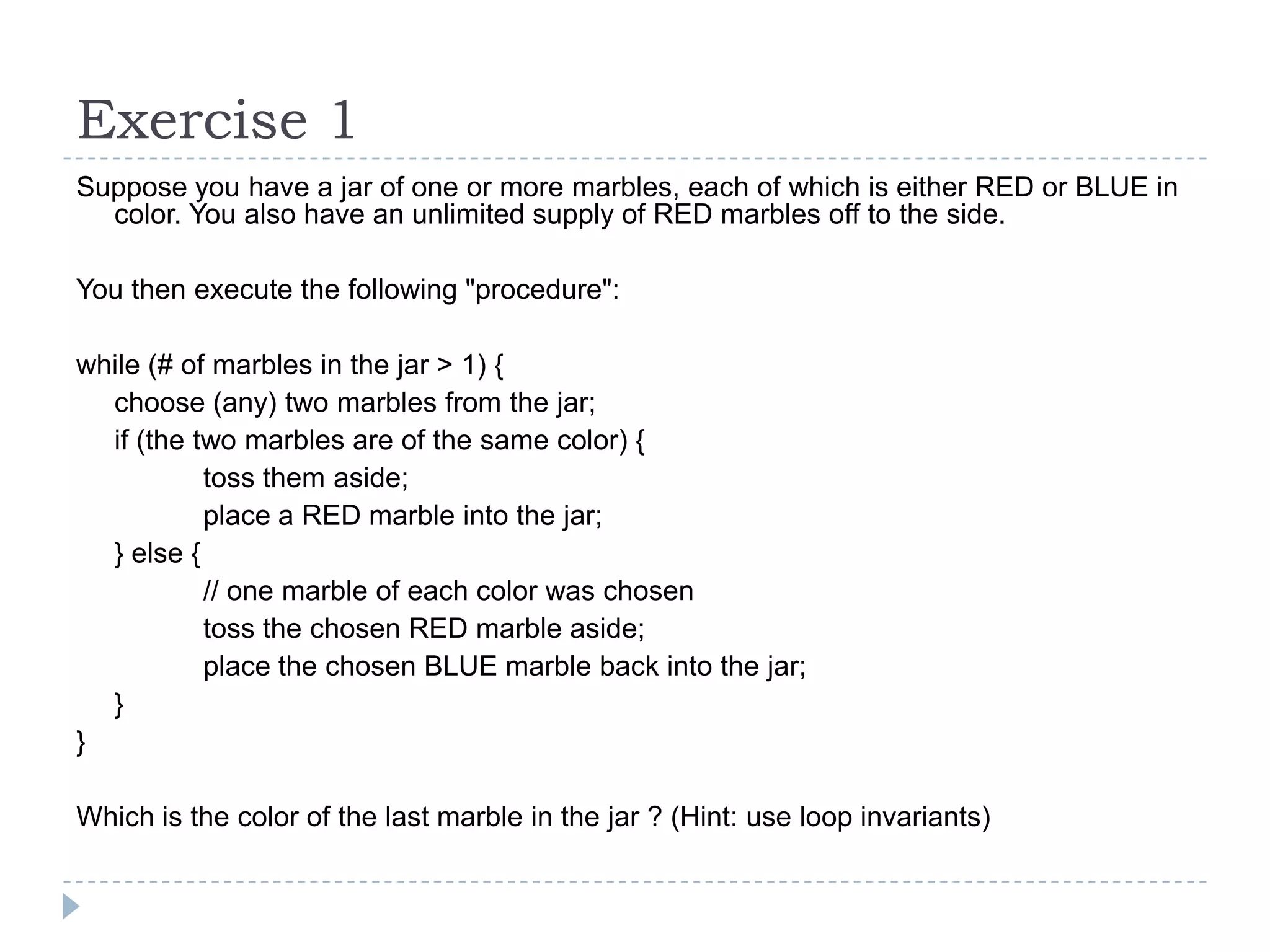

Exercise 1
Suppose you have a jar of one or more marbles, each of which is either RED or BLUE in
color. You also have an unlimited supply of RED marbles off to the side.
You then execute the following "procedure":
while (# of marbles in the jar > 1) {
choose (any) two marbles from the jar;
if (the two marbles are of the same color) {
toss them aside;
place a RED marble into the jar;
} else {
// one marble of each color was chosen
toss the chosen RED marble aside;
place the chosen BLUE marble back into the jar;
}
}
Which is the color of the last marble in the jar ? (Hint: use loop invariants)

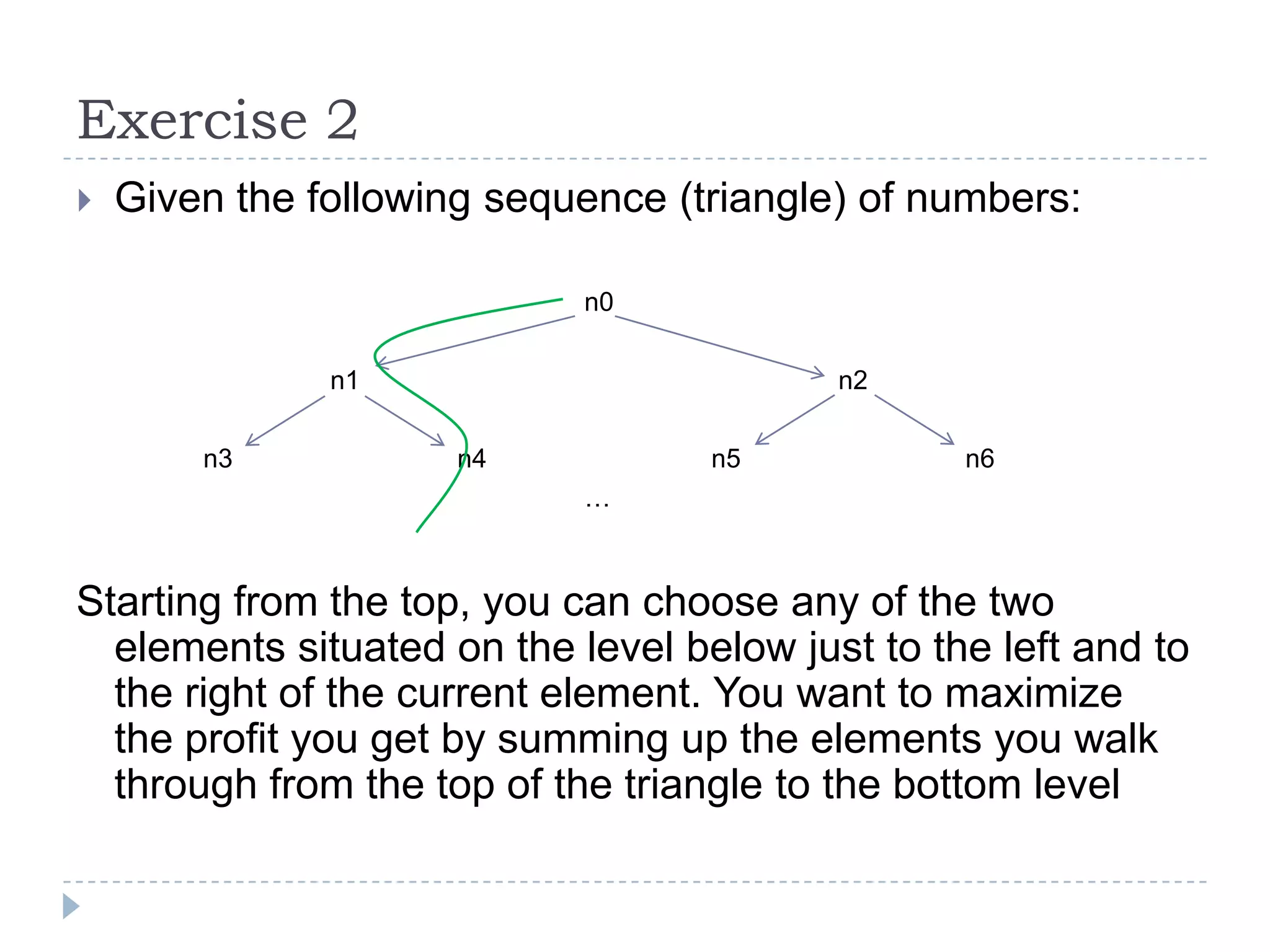

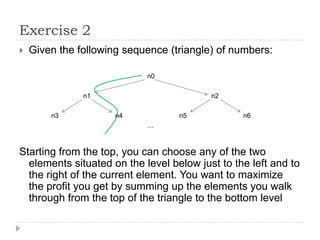

Exercise 2


Given the following sequence (triangle) of numbers:
n0
n1
n3

n2
n4

n5

n6

…

Starting from the top, you can choose any of the two
elements situated on the level below just to the left and to
the right of the current element. You want to maximize
the profit you get by summing up the elements you walk
through from the top of the triangle to the bottom level

Algorithm Design and Complexity - Course 4 - Heaps and Dynamic Progamming

More Related Content

What's hot

Similar to Algorithm Design and Complexity - Course 4 - Heaps and Dynamic Progamming

More from Traian Rebedea

Recently uploaded

Algorithm Design and Complexity - Course 4 - Heaps and Dynamic Progamming
