![METRICS COLLECTION
GET_SEQ_SCAN_ON_LARGE_TABLES
33
CREATE OR REPLACE FUNCTION collectd.get_seq_scan_on_large_tables()
RETURNS text AS
$$
DECLARE
v_matview text;
v_refreshed_at timestamptz;
v_tables_with_seq_scan text[];
BEGIN
SELECT refreshed_at INTO v_refreshed_at
FROM collectd.seq_scan_on_large_tables WHERE relid=0;
-- refresh MV every 4 hours
IF v_refreshed_at < now() - interval '4 hours' and pg_is_in_recovery() is false THEN
REFRESH MATERIALIZED VIEW collectd.seq_scan_on_large_tables;
END IF;
SELECT ARRAY (SELECT base.relname ||':'|| (current.seq_scan-base.seq_scan) INTO v_tables_with_seq_scan
FROM collectd.seq_scan_on_large_tables AS base
LEFT JOIN pg_stat_all_tables AS current ON (base.schemaname=base.schemaname AND base.relname=current.relname)
WHERE (current.seq_scan-base.seq_scan) > 0 AND ((current.seq_tup_read-base.seq_tup_read)/(current.seq_scan-base.seq_scan)) > 50000 ) AS
tables_with_seq_scan;
IF v_tables_with_seq_scan = '{}' THEN
RETURN 'OK';
ELSE
RETURN 'PROBLEM: Seq scan on table: '|| array_to_string(v_tables_with_seq_scan,'&');
END If;
END;
$$
LANGUAGE 'plpgsql' SECURITY DEFINER;](https://image.slidesharecdn.com/0b32a8bb-f5b3-4886-bd25-358438dc8f13-160915153052/85/Advanced-Postgres-Monitoring-33-320.jpg)
![METRICS COLLECTION
GET_SEQ_SCAN_ON_LARGE_TABLES
33
CREATE OR REPLACE FUNCTION collectd.get_seq_scan_on_large_tables()
RETURNS text AS
$$
DECLARE
v_matview text;
v_refreshed_at timestamptz;
v_tables_with_seq_scan text[];
BEGIN
SELECT refreshed_at INTO v_refreshed_at
FROM collectd.seq_scan_on_large_tables WHERE relid=0;
-- refresh MV every 4 hours
IF v_refreshed_at < now() - interval '4 hours' and pg_is_in_recovery() is false THEN
REFRESH MATERIALIZED VIEW collectd.seq_scan_on_large_tables;
END IF;
SELECT ARRAY (SELECT base.relname ||':'|| (current.seq_scan-base.seq_scan) INTO v_tables_with_seq_scan
FROM collectd.seq_scan_on_large_tables AS base
LEFT JOIN pg_stat_all_tables AS current ON (base.schemaname=base.schemaname AND base.relname=current.relname)
WHERE (current.seq_scan-base.seq_scan) > 0 AND ((current.seq_tup_read-base.seq_tup_read)/(current.seq_scan-base.seq_scan)) > 50000 ) AS
tables_with_seq_scan;
IF v_tables_with_seq_scan = '{}' THEN
RETURN 'OK';
ELSE
RETURN 'PROBLEM: Seq scan on table: '|| array_to_string(v_tables_with_seq_scan,'&');
END If;
END;
$$
LANGUAGE 'plpgsql' SECURITY DEFINER;](https://image.slidesharecdn.com/0b32a8bb-f5b3-4886-bd25-358438dc8f13-160915153052/75/Advanced-Postgres-Monitoring-33-2048.jpg)
Uploaded byDenish Patel
Advanced Postgres Monitoring
This document discusses advanced Postgres monitoring. It begins with an introduction of the speaker and an agenda for the discussion. It then covers selection criteria for monitoring solutions, compares open source and SAAS monitoring options, and provides examples of collecting specific Postgres metrics using CollectD. It also discusses alerting, handling monitoring changes, and being prepared to respond to incidents outside of normal hours.
More Related Content
![[pgday.Seoul 2022] 서비스개편시 PostgreSQL 도입기 - 진소린 & 김태정](https://cdn.slidesharecdn.com/ss_thumbnails/postgresql-221121085744-f0fb1a8a-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
![[Pgday.Seoul 2018] 이기종 DB에서 PostgreSQL로의 Migration을 위한 DB2PG](https://cdn.slidesharecdn.com/ss_thumbnails/04-pgdaydb2pgv1-181112042107-thumbnail.jpg?width=600ounds&width=560&fit=bounds)
Similar to Advanced Postgres Monitoring
Advanced Postgres Monitoring
- 1.
- 2. SPEAKER WHO IS THISGUY? ▸ Sr. Database Architect at Medallia ▸ Recent fun employments: ▸ Principal Database Engineer@ WithMe ▸ Lead Database Architect @ OmniTI ▸ Expertise in PostgreSQL , Oracle, MySQL, NoSQL ▸ Contact : denish.j.patel@gmail.com or dpatel@medallia.com ▸ Twitter: @DenishPatel ▸ Blog: http://www.pateldenish.com ▸ Postgres Slack Channel (https://postgres-slack.herokuapp.com/) 2

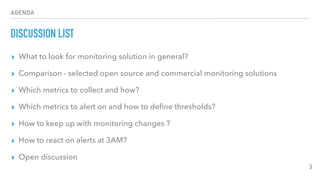

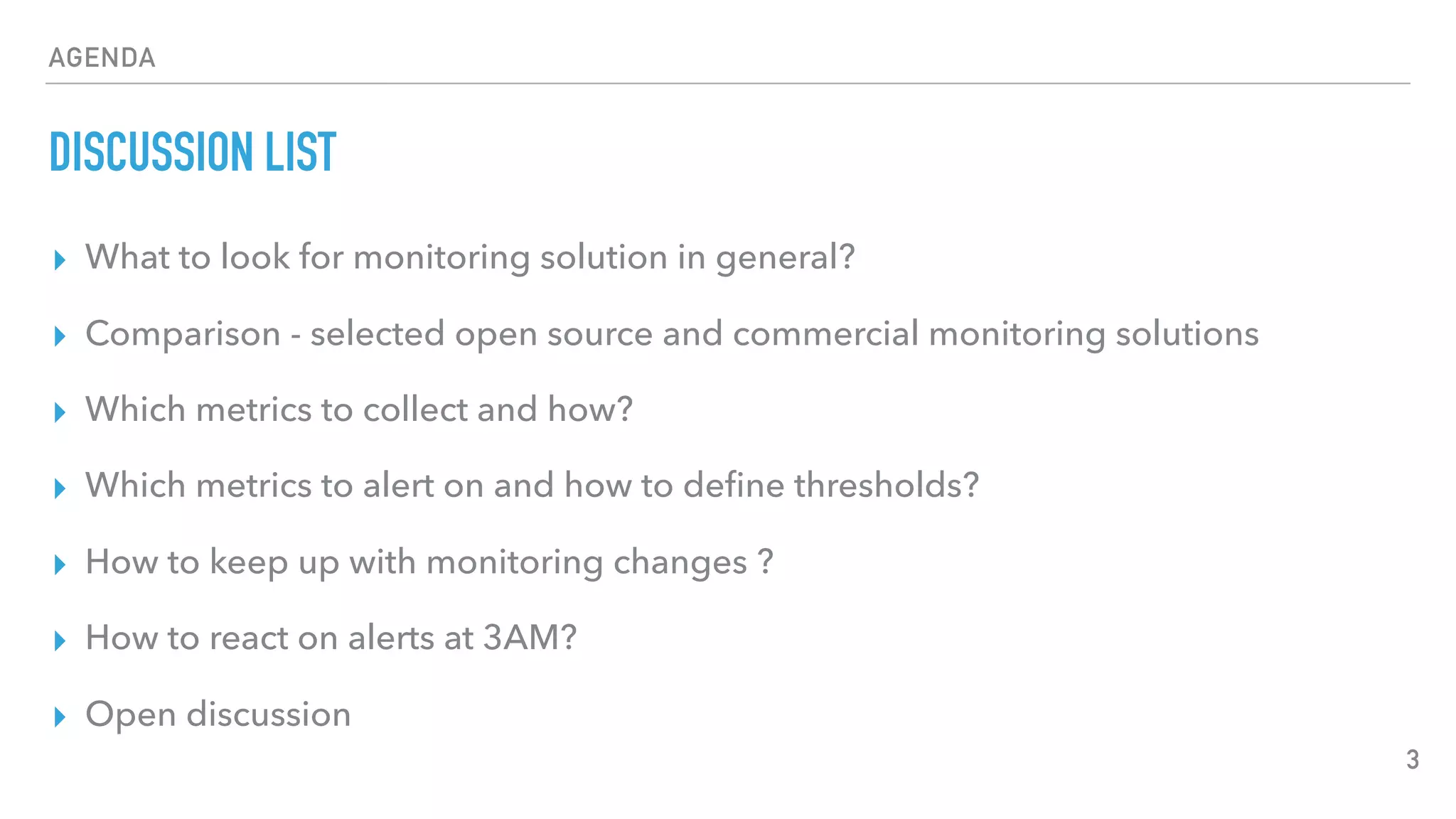

- 3. AGENDA DISCUSSION LIST ▸ Whatto look for monitoring solution in general? ▸ Comparison - selected open source and commercial monitoring solutions ▸ Which metrics to collect and how? ▸ Which metrics to alert on and how to define thresholds? ▸ How to keep up with monitoring changes ? ▸ How to react on alerts at 3AM? ▸ Open discussion 3

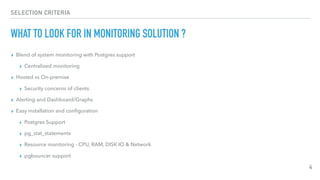

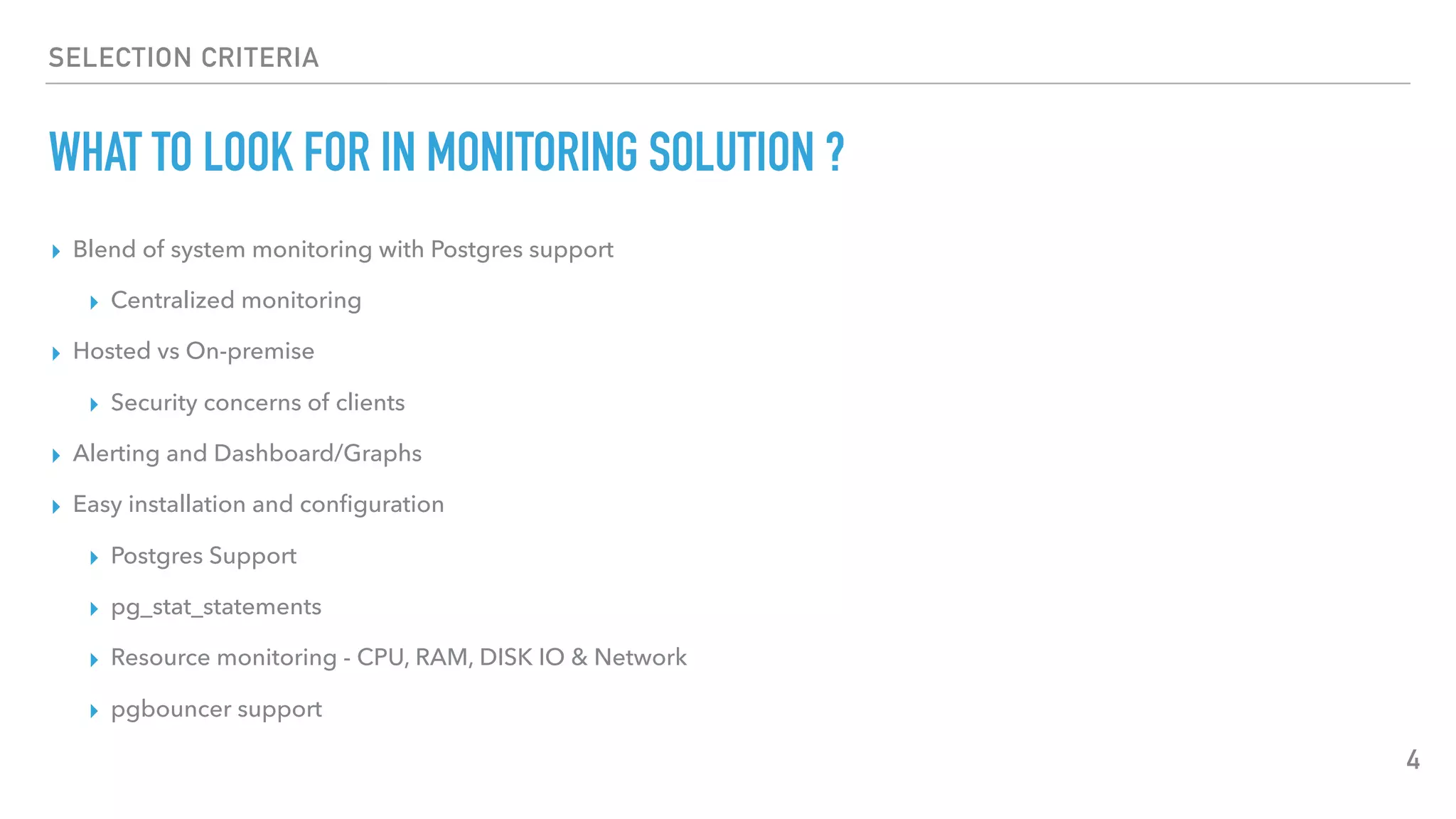

- 4. SELECTION CRITERIA WHAT TOLOOK FOR IN MONITORING SOLUTION ? ▸ Blend of system monitoring with Postgres support ▸ Centralized monitoring ▸ Hosted vs On-premise ▸ Security concerns of clients ▸ Alerting and Dashboard/Graphs ▸ Easy installation and configuration ▸ Postgres Support ▸ pg_stat_statements ▸ Resource monitoring - CPU, RAM, DISK IO & Network ▸ pgbouncer support 4

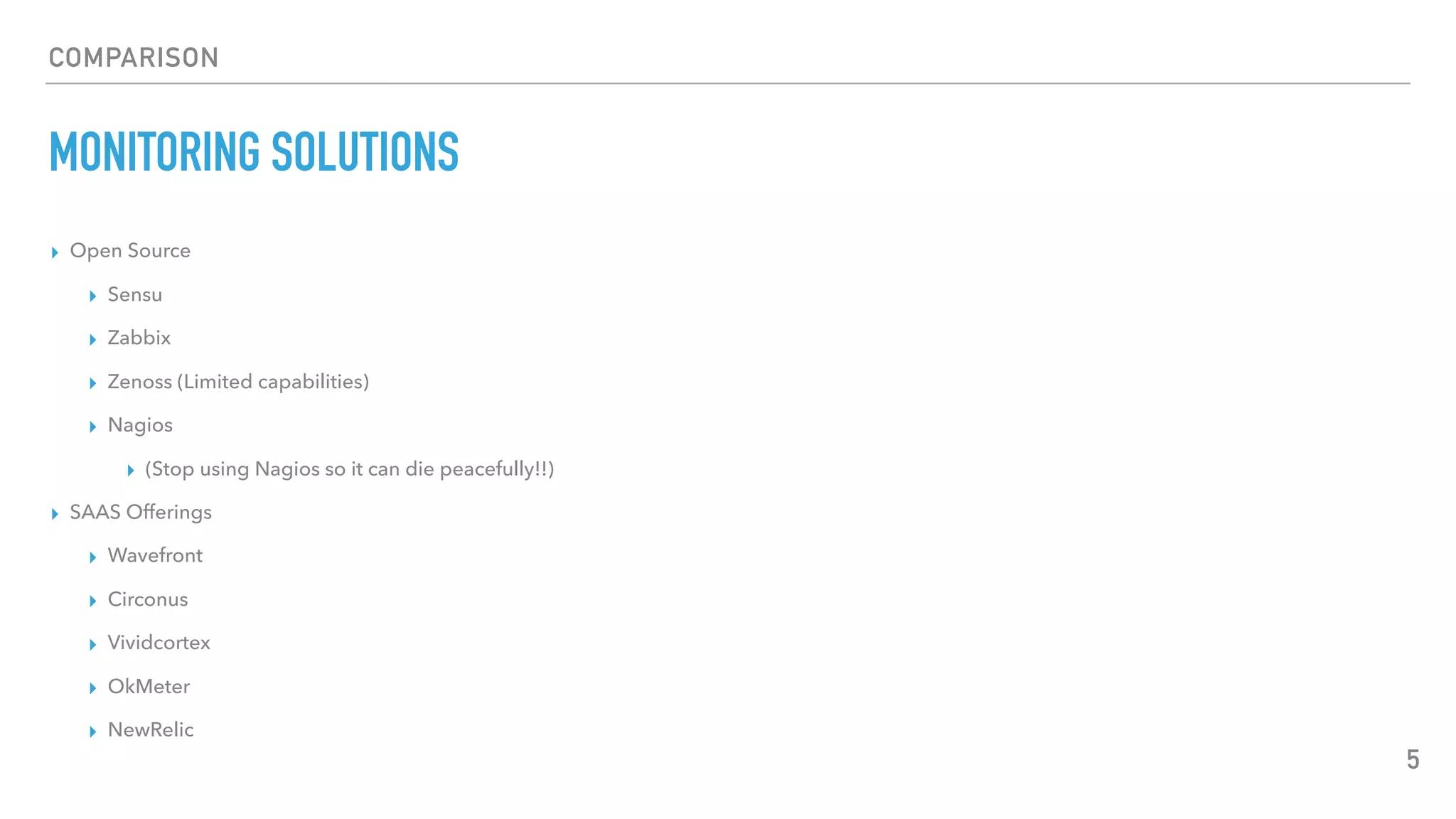

- 5. COMPARISON MONITORING SOLUTIONS ▸ OpenSource ▸ Sensu ▸ Zabbix ▸ Zenoss (Limited capabilities) ▸ Nagios ▸ (Stop using Nagios so it can die peacefully!!) ▸ SAAS Offerings ▸ Wavefront ▸ Circonus ▸ Vividcortex ▸ OkMeter ▸ NewRelic 5

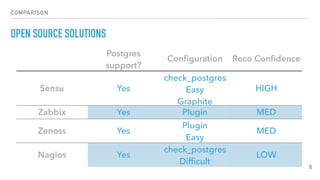

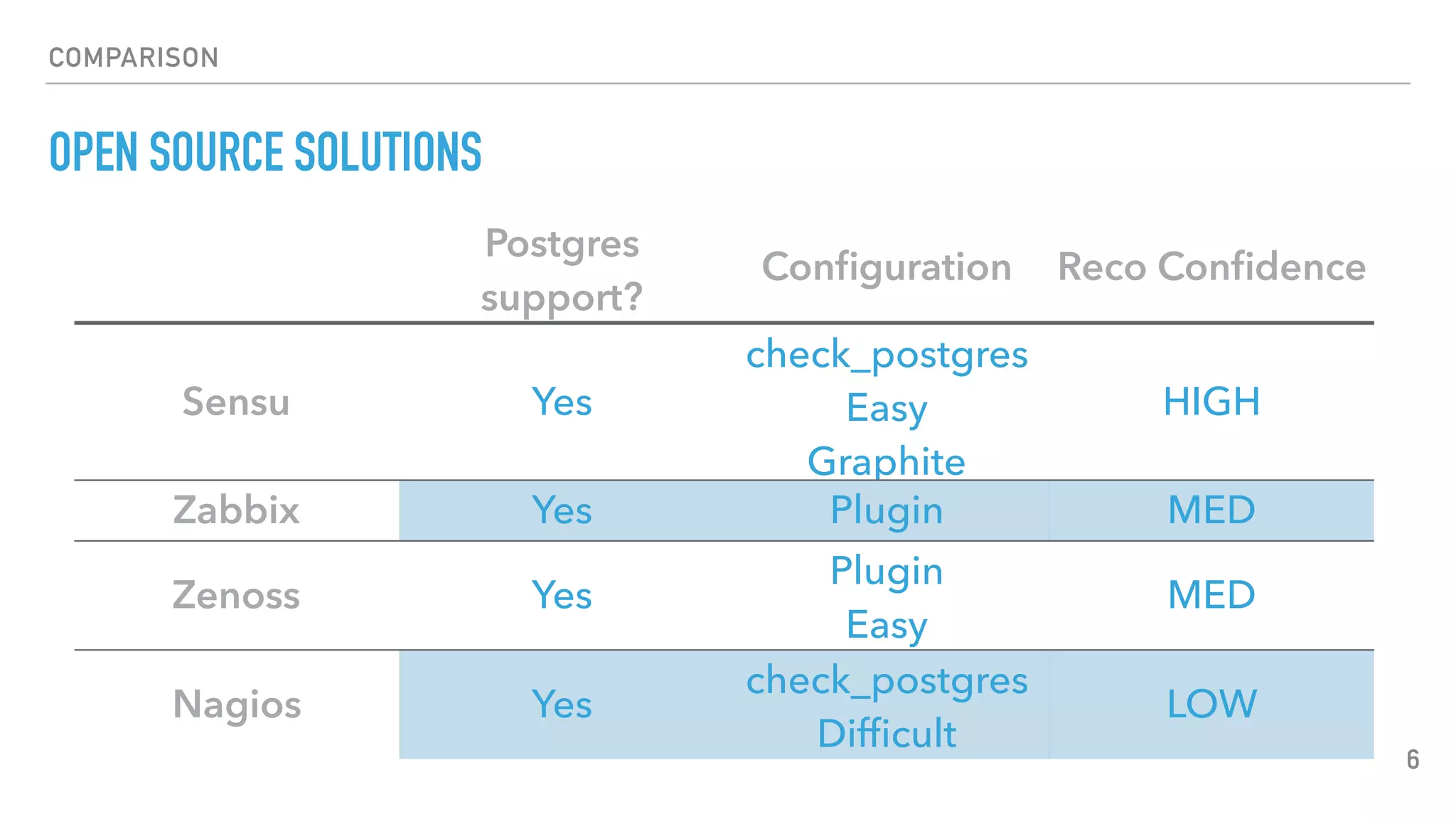

- 6. COMPARISON OPEN SOURCE SOLUTIONS 6 Postgres support? ConfigurationReco Confidence Sensu Yes check_postgres Easy Graphite HIGH Zabbix Yes Plugin Easy MED Zenoss Yes Plugin Easy MED Nagios Yes check_postgres Difficult LOW

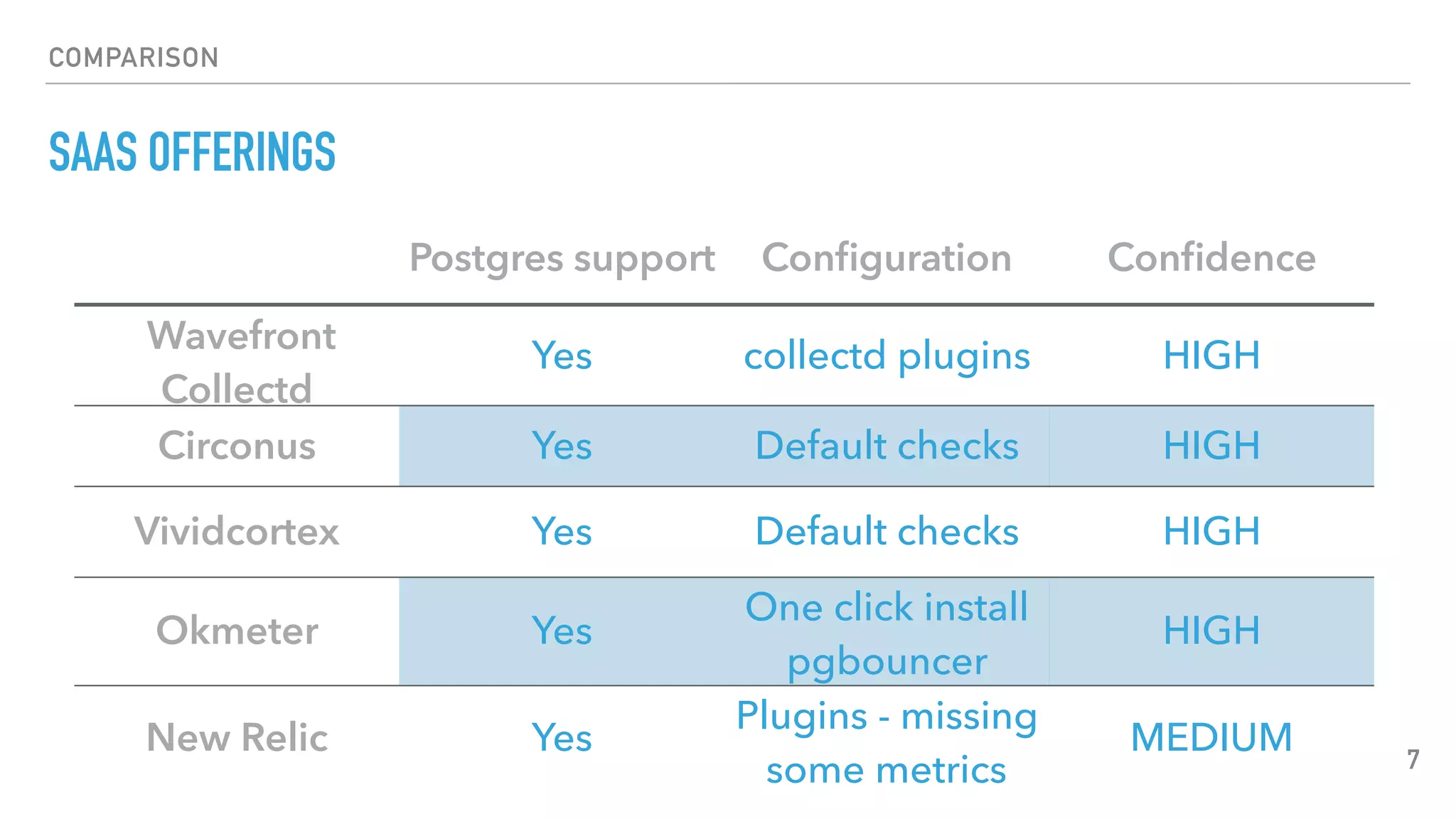

- 7. COMPARISON SAAS OFFERINGS 7 Postgres supportConfiguration Confidence Wavefront Collectd Yes collectd plugins HIGH Circonus Yes Default checks HIGH Vividcortex Yes Default checks HIGH Okmeter Yes One click install pgbouncer HIGH New Relic Yes Plugins - missing some metrics MEDIUM

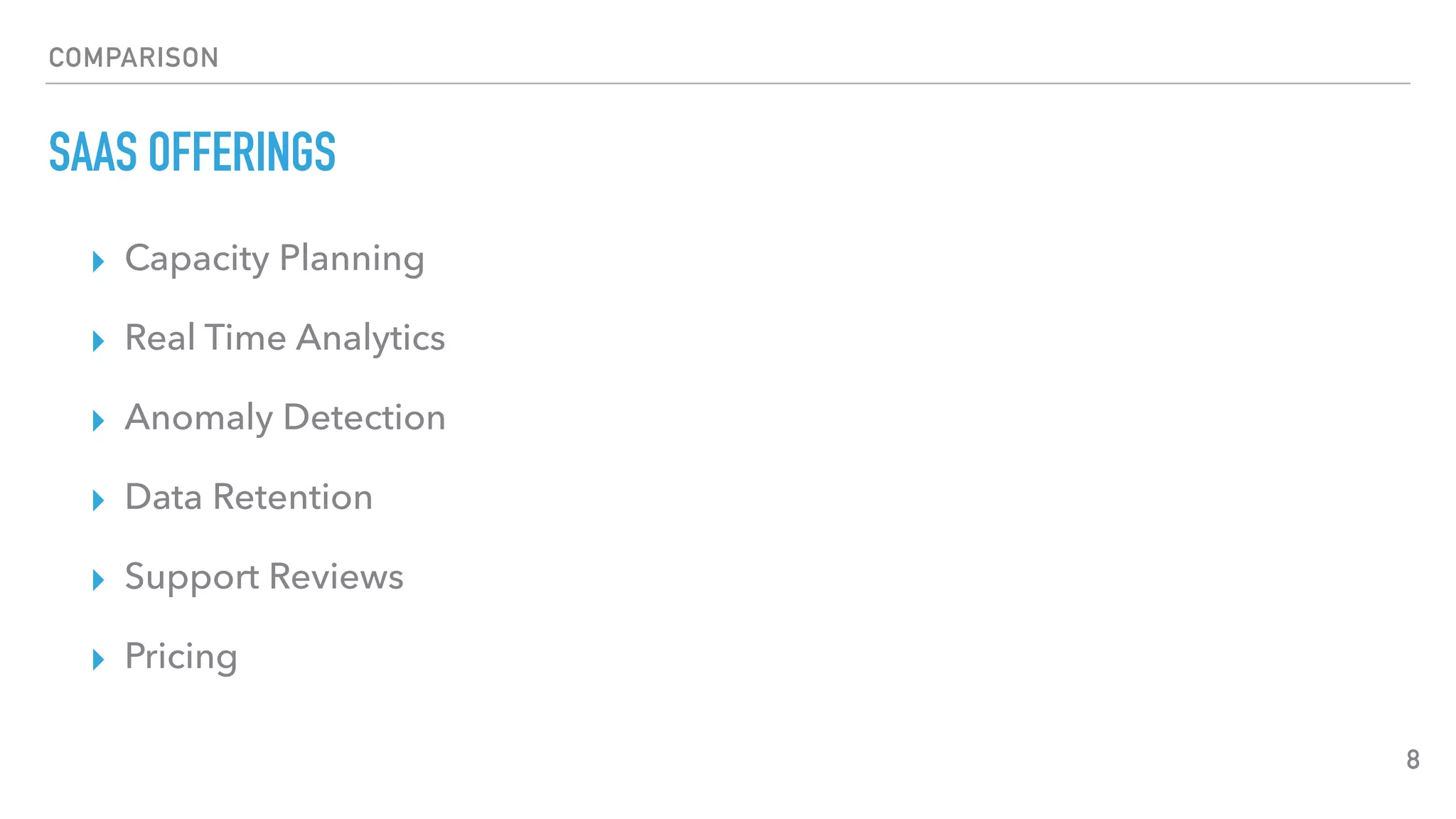

- 8. COMPARISON SAAS OFFERINGS ▸ CapacityPlanning ▸ Real Time Analytics ▸ Anomaly Detection ▸ Data Retention ▸ Support Reviews ▸ Pricing 8

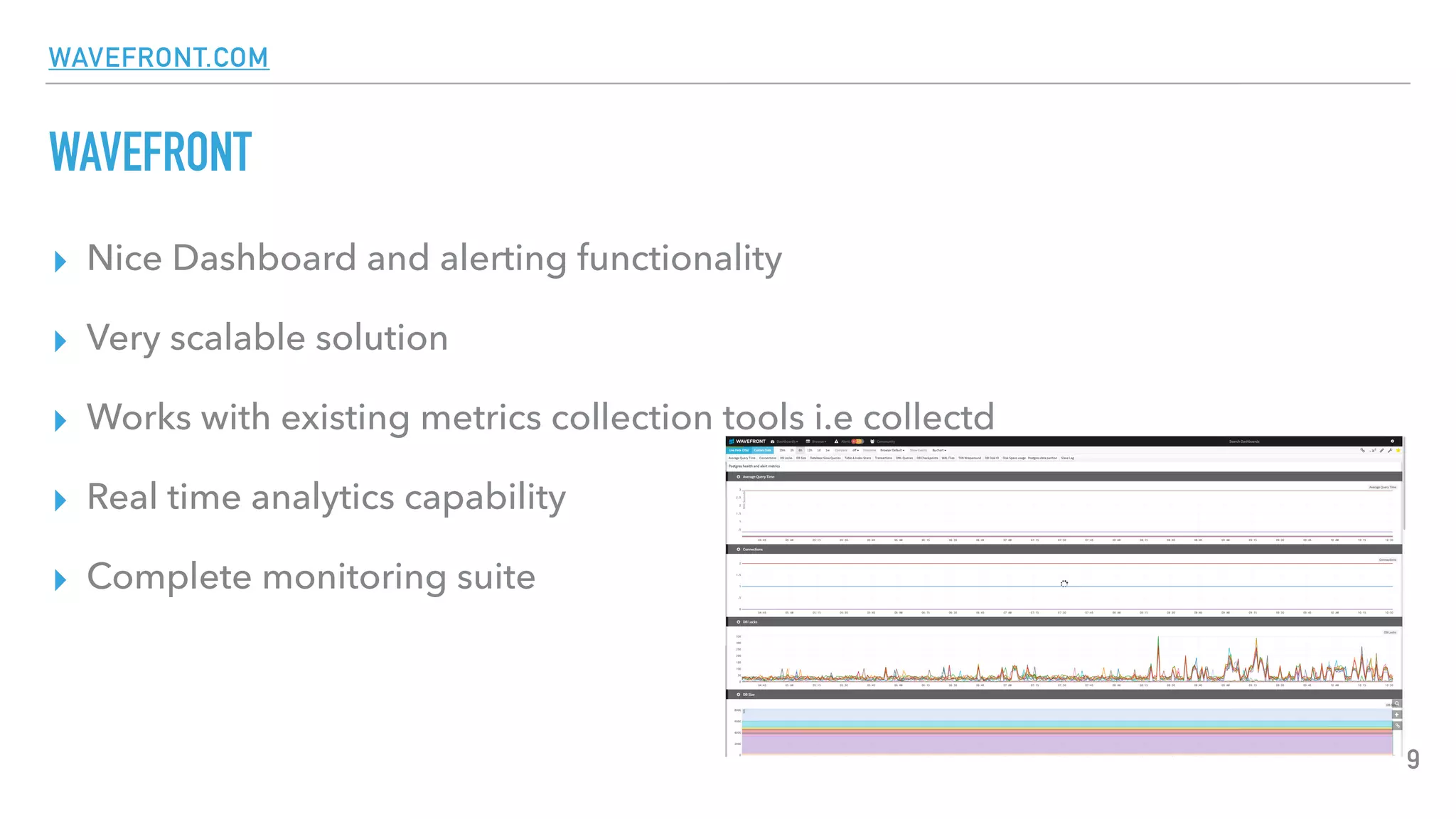

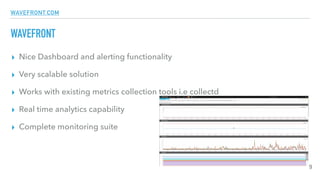

- 9. WAVEFRONT.COM WAVEFRONT ▸ Nice Dashboardand alerting functionality ▸ Very scalable solution ▸ Works with existing metrics collection tools i.e collectd ▸ Real time analytics capability ▸ Complete monitoring suite 9

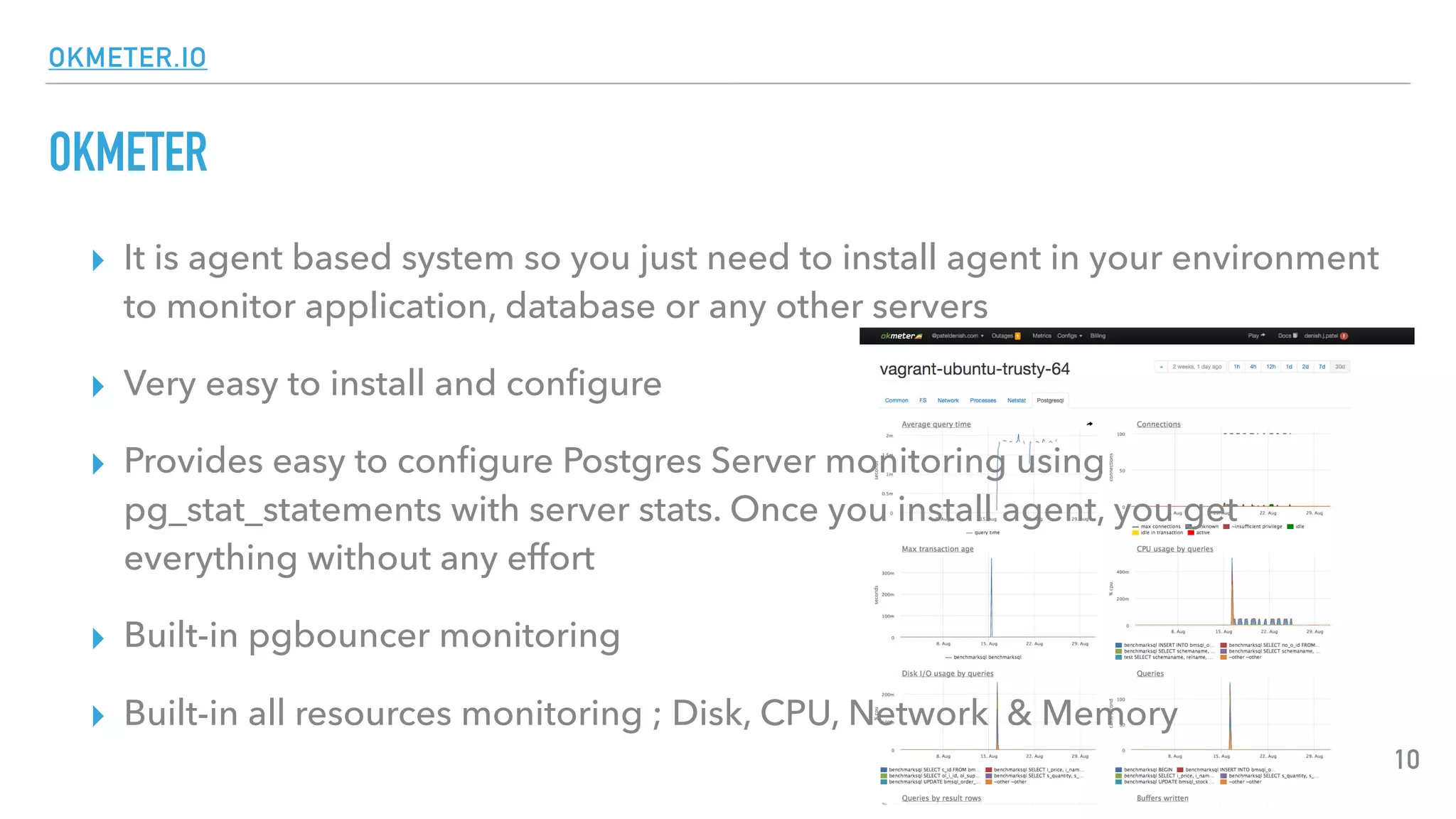

- 10. OKMETER.IO OKMETER ▸ It isagent based system so you just need to install agent in your environment to monitor application, database or any other servers ▸ Very easy to install and configure ▸ Provides easy to configure Postgres Server monitoring using pg_stat_statements with server stats. Once you install agent, you get everything without any effort ▸ Built-in pgbouncer monitoring ▸ Built-in all resources monitoring ; Disk, CPU, Network & Memory 10
- 11.

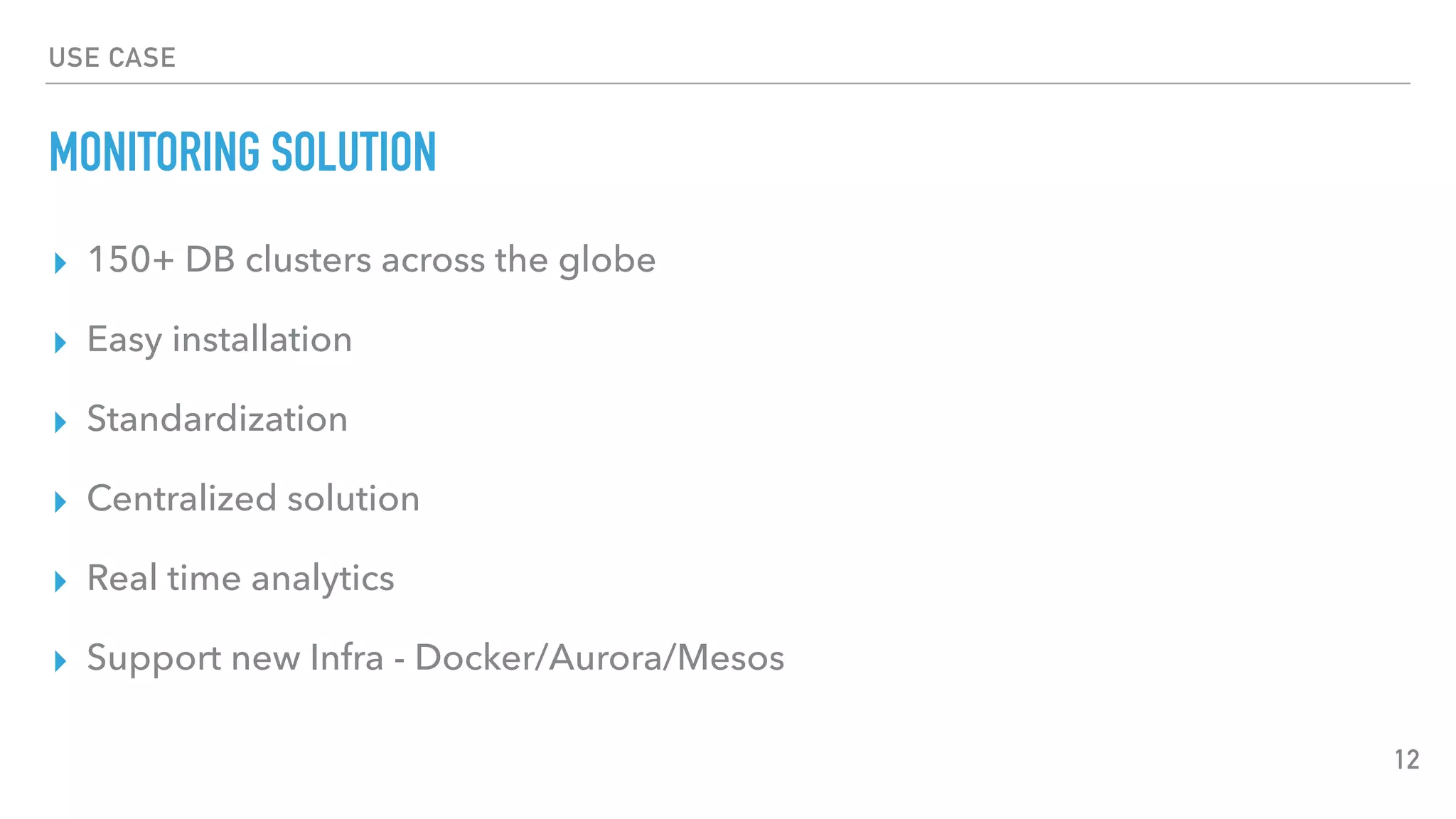

- 12. USE CASE MONITORING SOLUTION ▸150+ DB clusters across the globe ▸ Easy installation ▸ Standardization ▸ Centralized solution ▸ Real time analytics ▸ Support new Infra - Docker/Aurora/Mesos 12

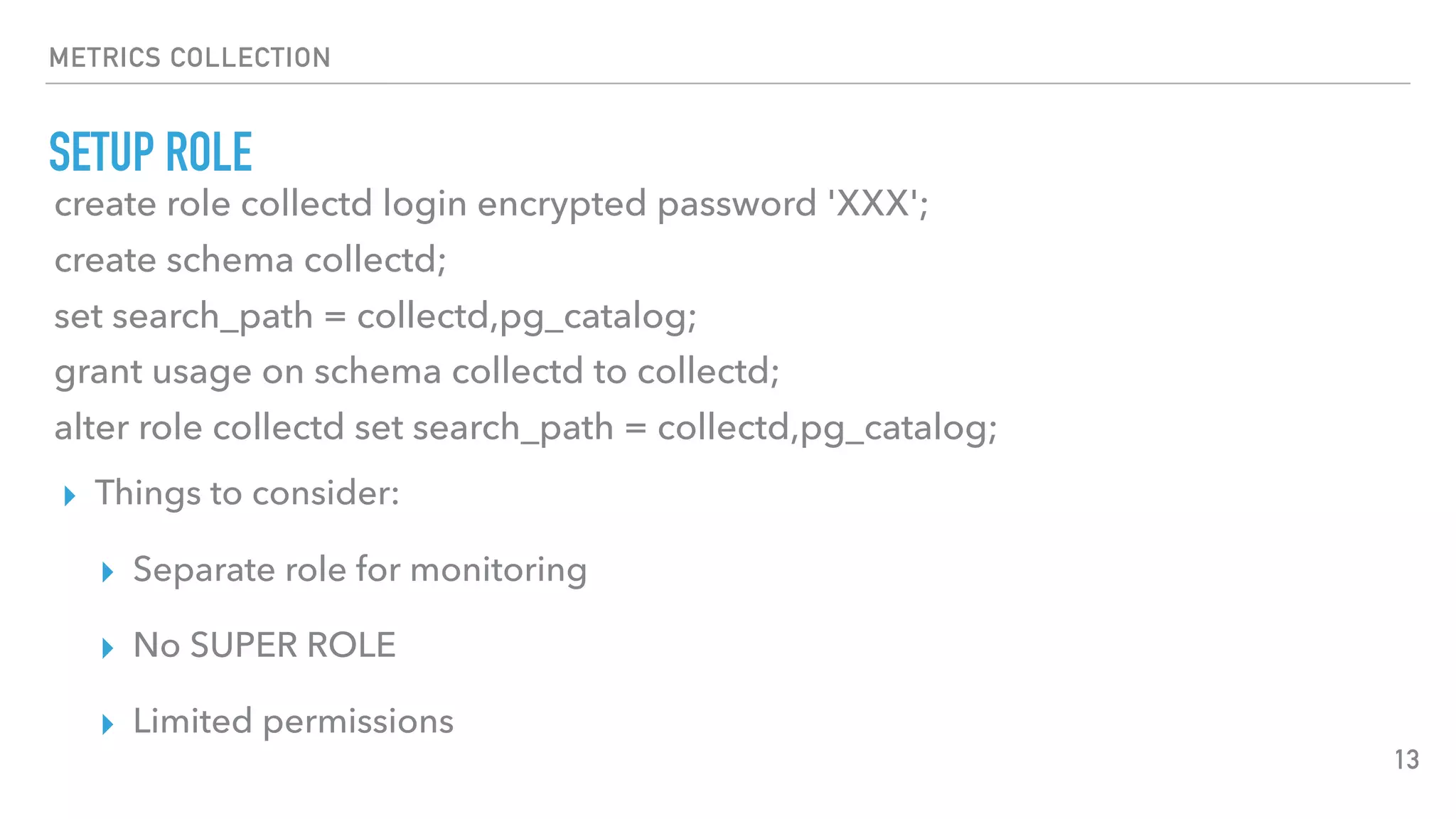

- 13. METRICS COLLECTION SETUP ROLE 13 createrole collectd login encrypted password 'XXX'; create schema collectd; set search_path = collectd,pg_catalog; grant usage on schema collectd to collectd; alter role collectd set search_path = collectd,pg_catalog; ▸ Things to consider: ▸ Separate role for monitoring ▸ No SUPER ROLE ▸ Limited permissions

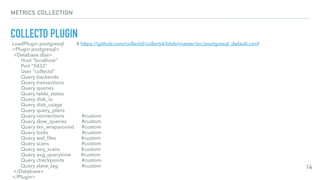

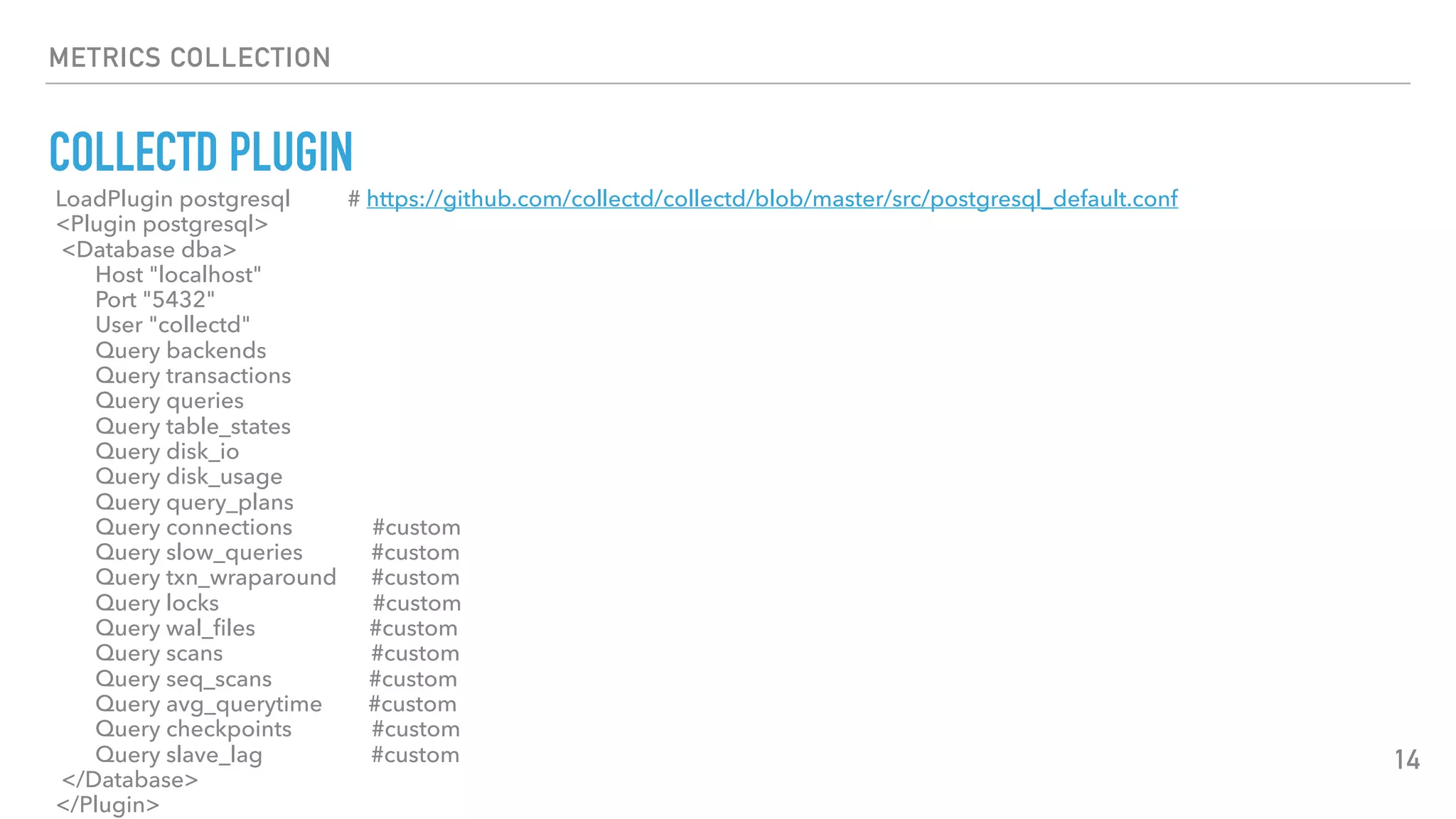

- 14. METRICS COLLECTION COLLECTD PLUGIN 14 LoadPluginpostgresql # https://github.com/collectd/collectd/blob/master/src/postgresql_default.conf <Plugin postgresql> <Database dba> Host "localhost" Port "5432" User "collectd" Query backends Query transactions Query queries Query table_states Query disk_io Query disk_usage Query query_plans Query connections #custom Query slow_queries #custom Query txn_wraparound #custom Query locks #custom Query wal_files #custom Query scans #custom Query seq_scans #custom Query avg_querytime #custom Query checkpoints #custom Query slave_lag #custom </Database> </Plugin>

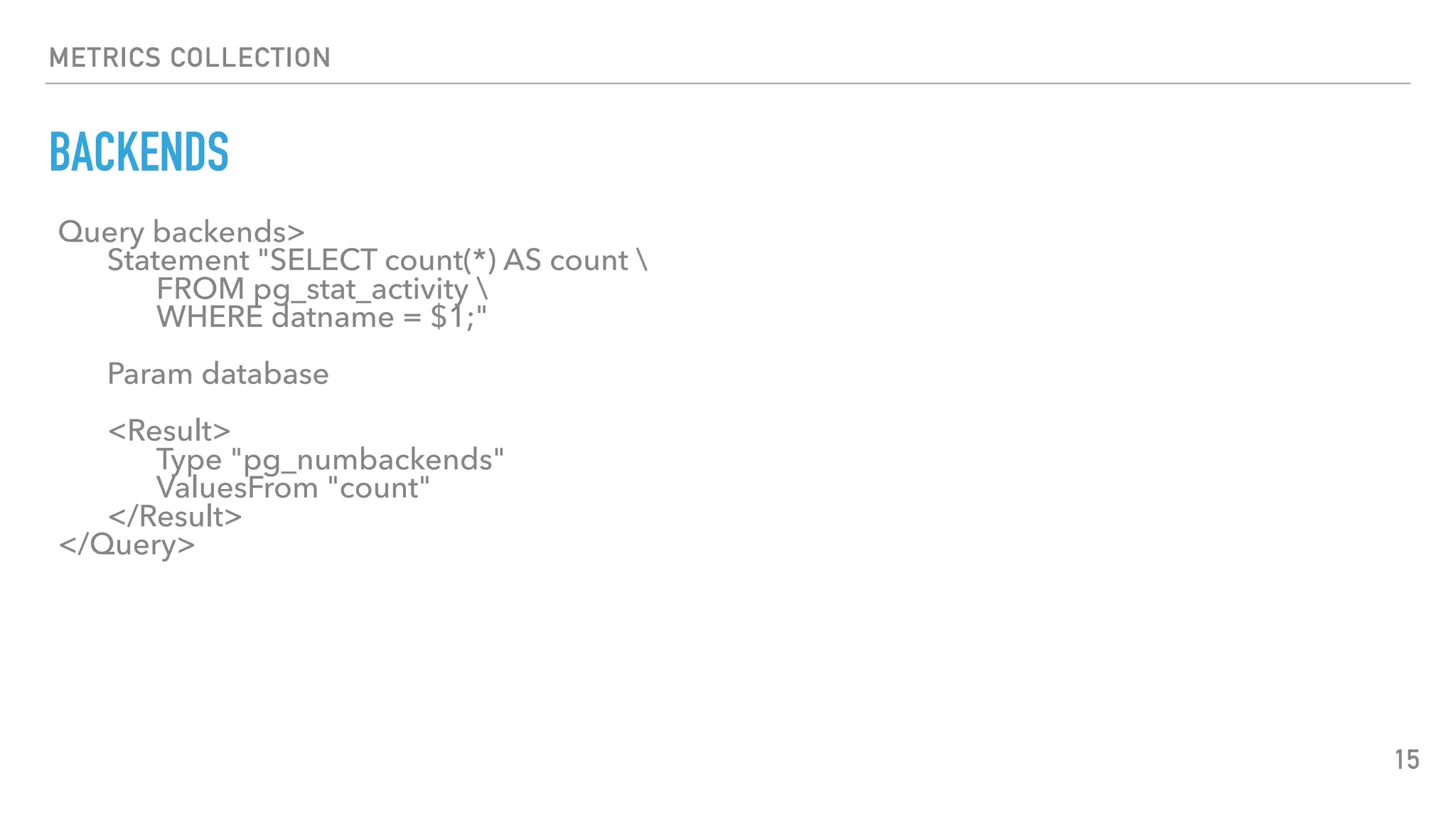

- 15. METRICS COLLECTION BACKENDS 15 Query backends> Statement"SELECT count(*) AS count FROM pg_stat_activity WHERE datname = $1;" Param database <Result> Type "pg_numbackends" ValuesFrom "count" </Result> </Query>

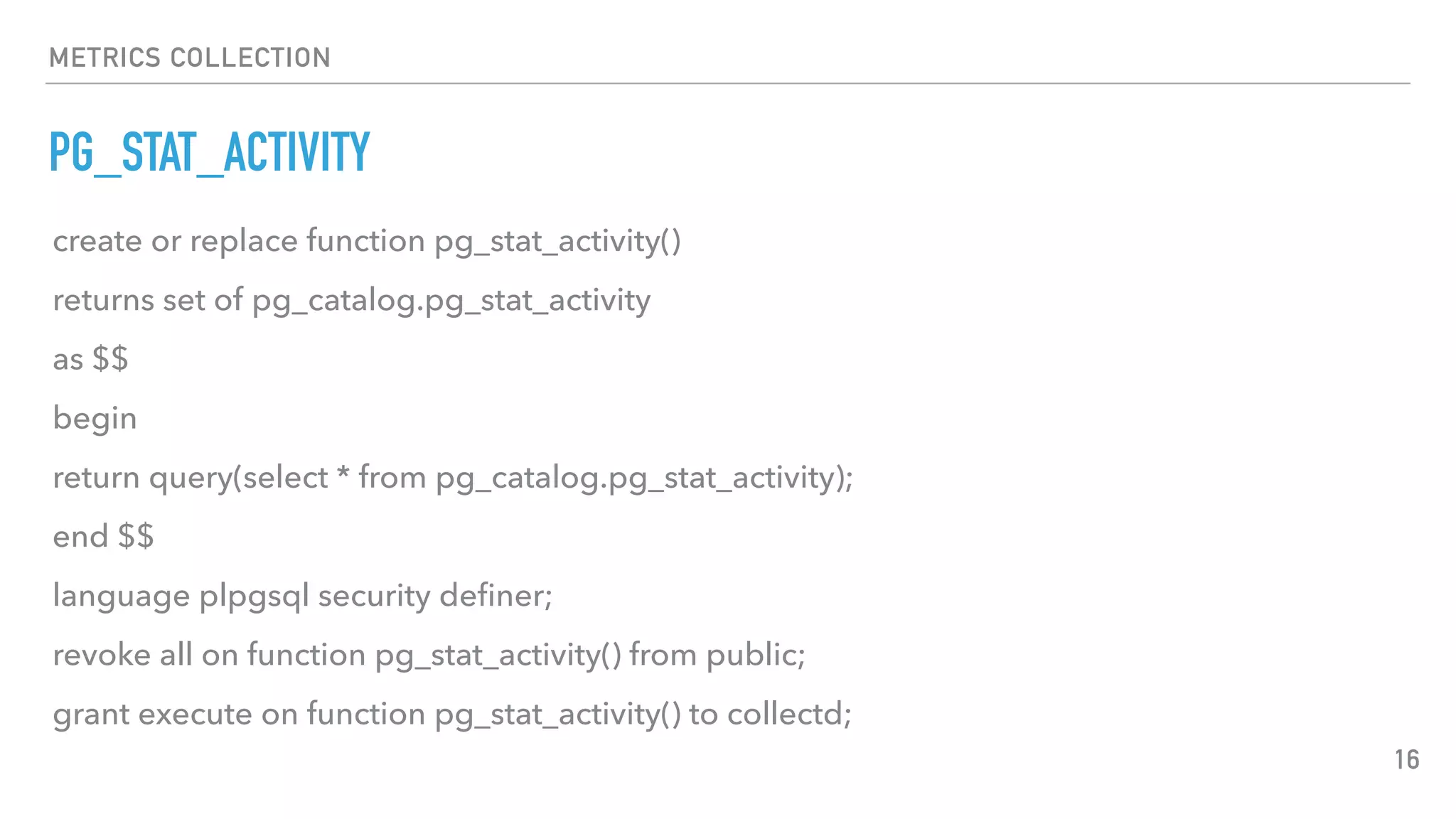

- 16. METRICS COLLECTION PG_STAT_ACTIVITY 16 create orreplace function pg_stat_activity() returns set of pg_catalog.pg_stat_activity as $$ begin return query(select * from pg_catalog.pg_stat_activity); end $$ language plpgsql security definer; revoke all on function pg_stat_activity() from public; grant execute on function pg_stat_activity() to collectd;

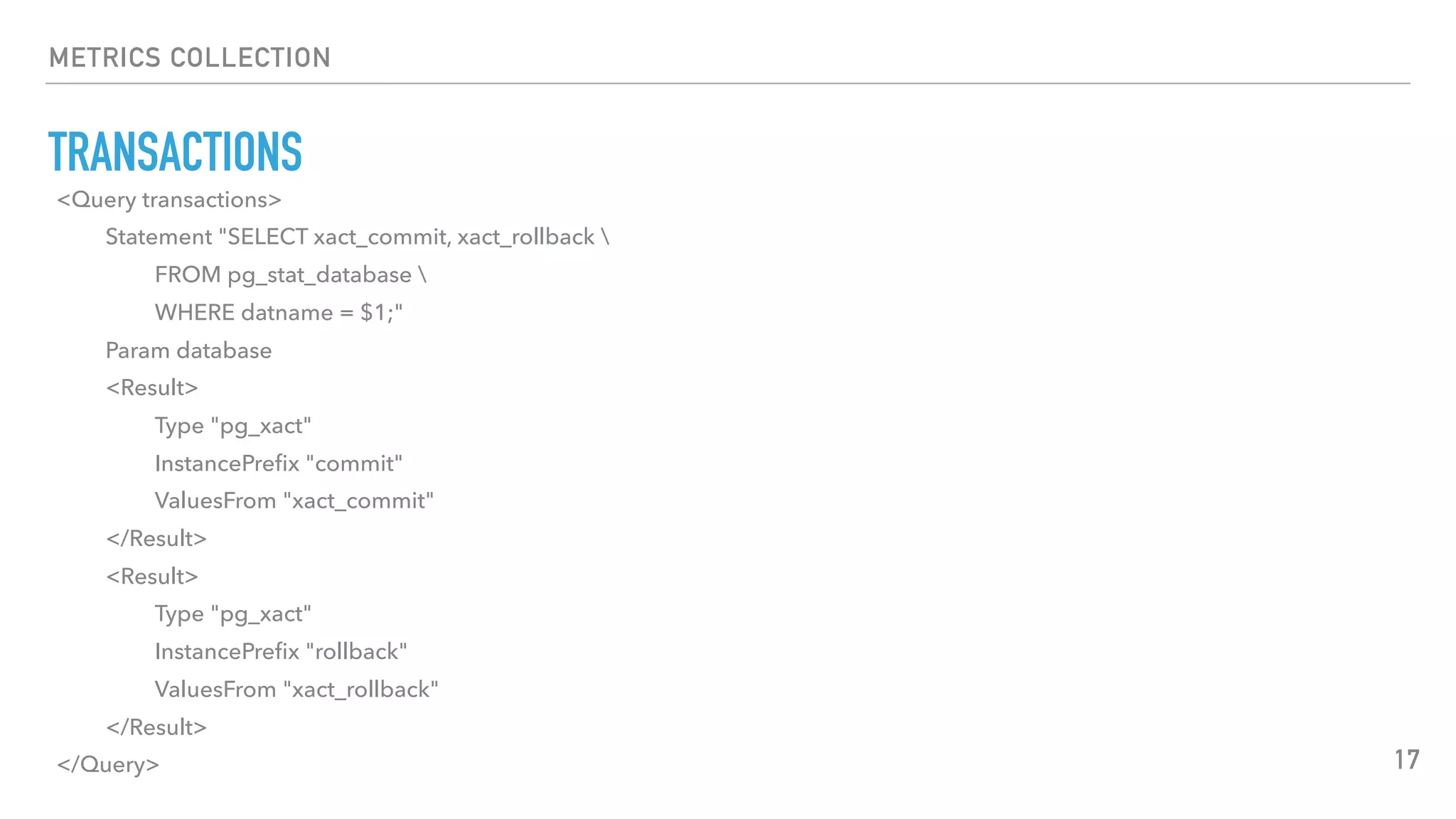

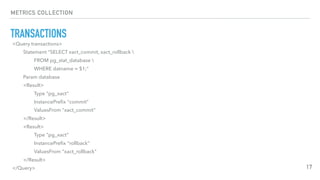

- 17. METRICS COLLECTION TRANSACTIONS 17 <Query transactions> Statement"SELECT xact_commit, xact_rollback FROM pg_stat_database WHERE datname = $1;" Param database <Result> Type "pg_xact" InstancePrefix "commit" ValuesFrom "xact_commit" </Result> <Result> Type "pg_xact" InstancePrefix "rollback" ValuesFrom "xact_rollback" </Result> </Query>

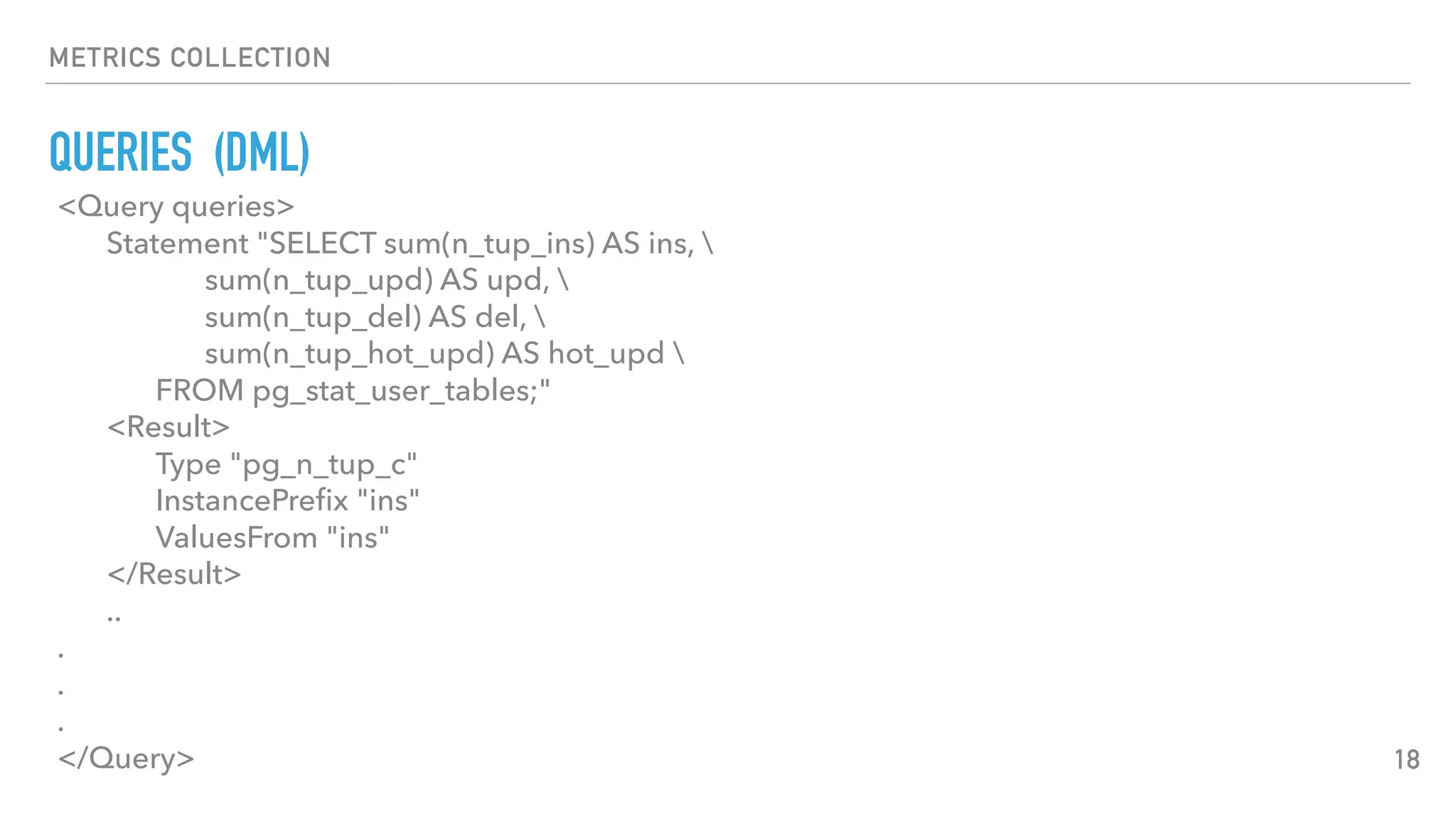

- 18. METRICS COLLECTION QUERIES (DML) 18 <Queryqueries> Statement "SELECT sum(n_tup_ins) AS ins, sum(n_tup_upd) AS upd, sum(n_tup_del) AS del, sum(n_tup_hot_upd) AS hot_upd FROM pg_stat_user_tables;" <Result> Type "pg_n_tup_c" InstancePrefix "ins" ValuesFrom "ins" </Result> .. . . . </Query>

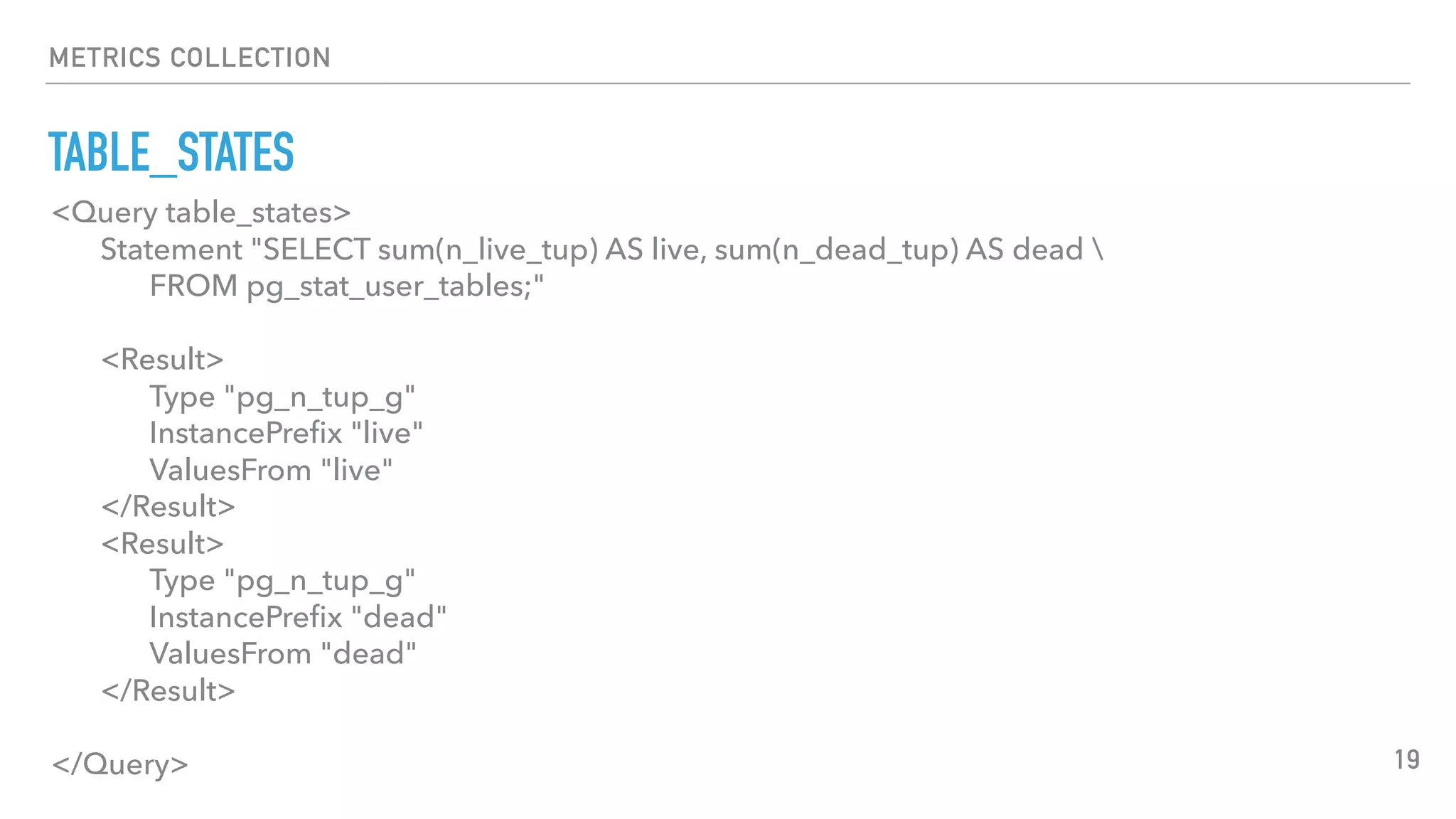

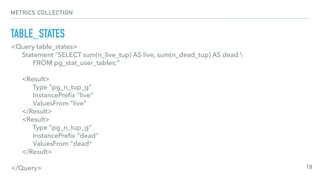

- 19. METRICS COLLECTION TABLE_STATES 19 <Query table_states> Statement"SELECT sum(n_live_tup) AS live, sum(n_dead_tup) AS dead FROM pg_stat_user_tables;" <Result> Type "pg_n_tup_g" InstancePrefix "live" ValuesFrom "live" </Result> <Result> Type "pg_n_tup_g" InstancePrefix "dead" ValuesFrom "dead" </Result> </Query>

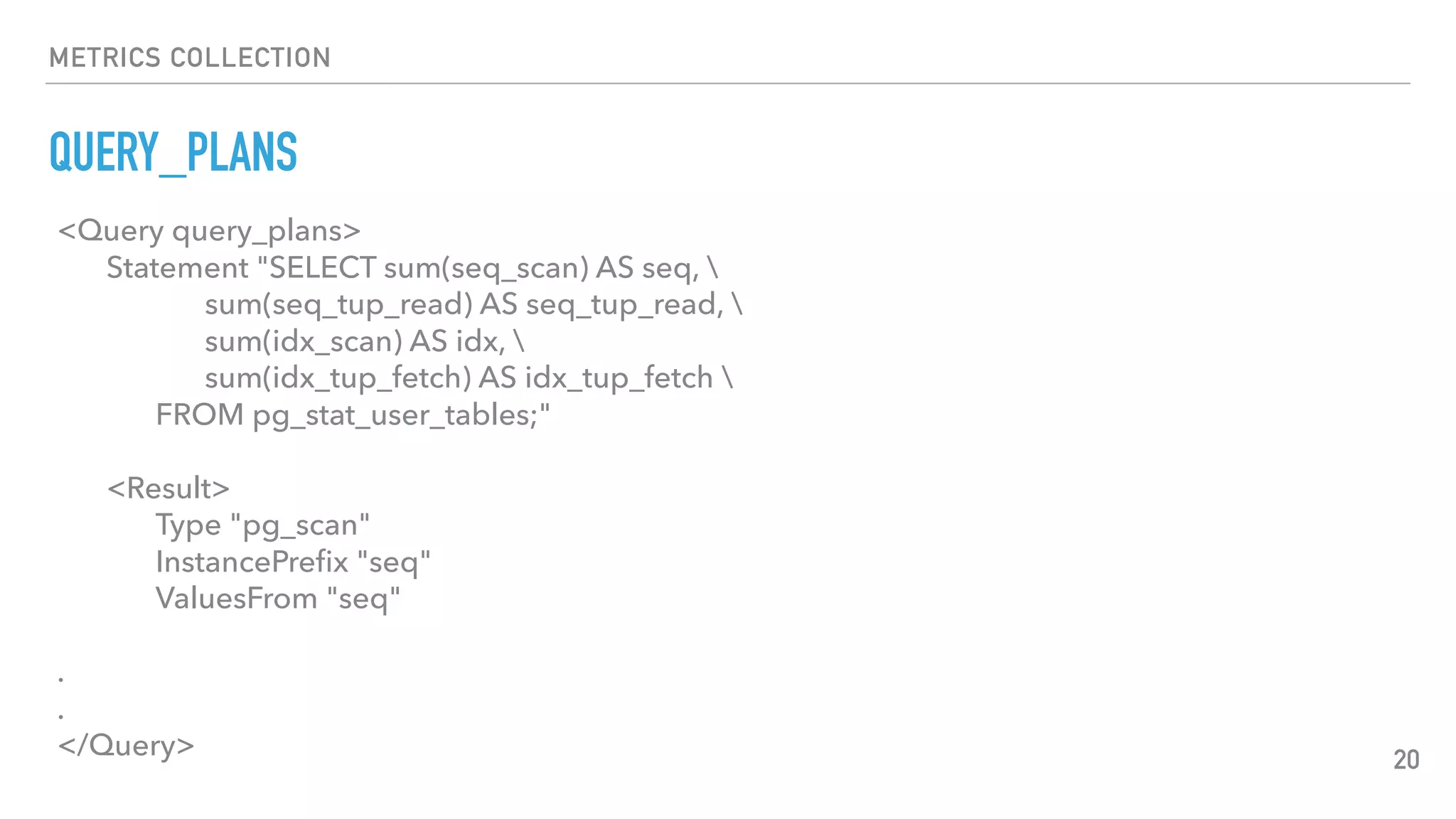

- 20. METRICS COLLECTION QUERY_PLANS 20 <Query query_plans> Statement"SELECT sum(seq_scan) AS seq, sum(seq_tup_read) AS seq_tup_read, sum(idx_scan) AS idx, sum(idx_tup_fetch) AS idx_tup_fetch FROM pg_stat_user_tables;" <Result> Type "pg_scan" InstancePrefix "seq" ValuesFrom "seq" . . </Query>

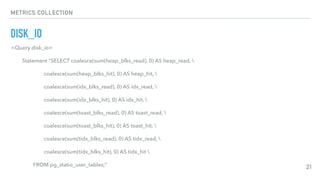

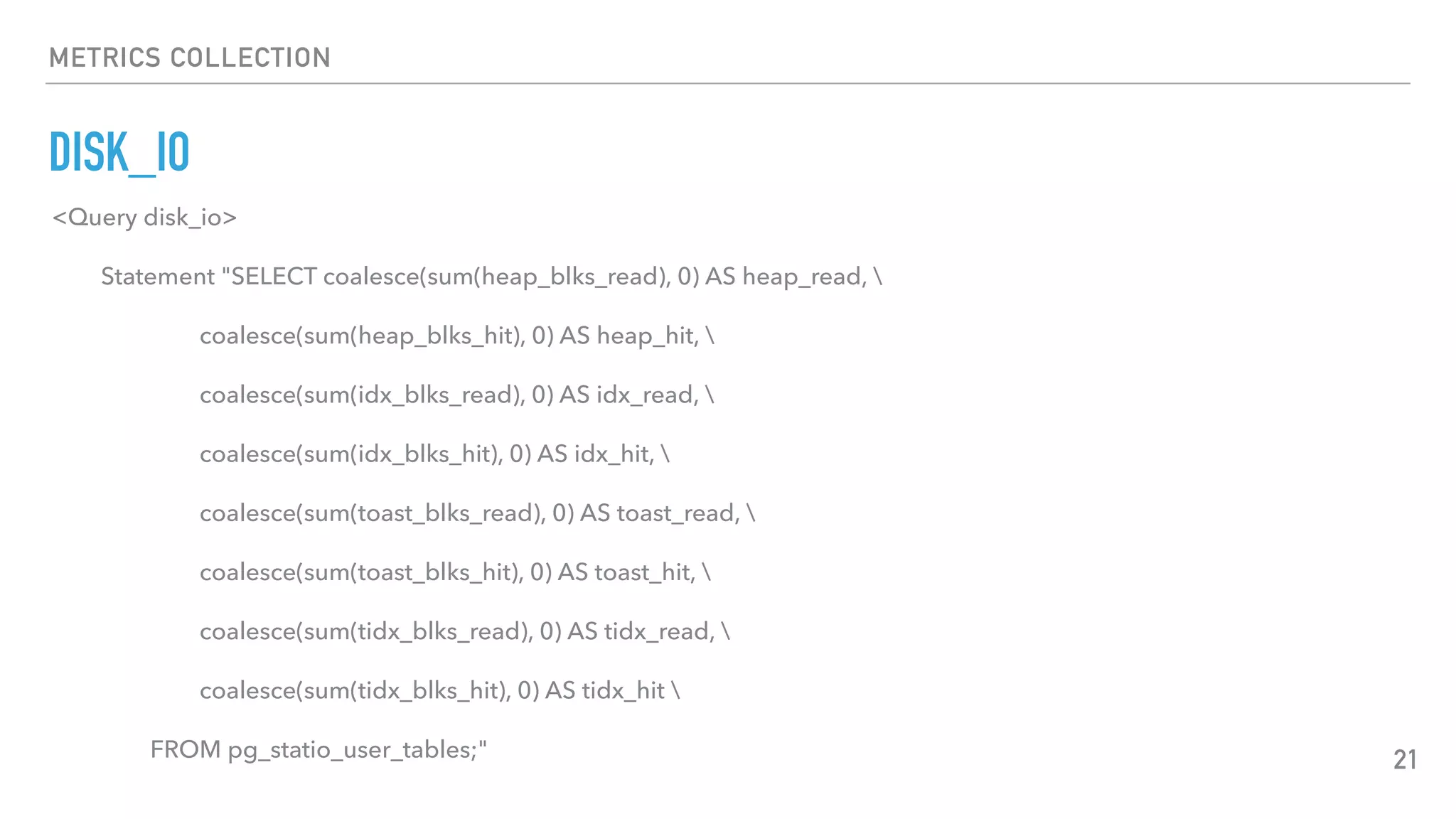

- 21. METRICS COLLECTION DISK_IO 21 <Query disk_io> Statement"SELECT coalesce(sum(heap_blks_read), 0) AS heap_read, coalesce(sum(heap_blks_hit), 0) AS heap_hit, coalesce(sum(idx_blks_read), 0) AS idx_read, coalesce(sum(idx_blks_hit), 0) AS idx_hit, coalesce(sum(toast_blks_read), 0) AS toast_read, coalesce(sum(toast_blks_hit), 0) AS toast_hit, coalesce(sum(tidx_blks_read), 0) AS tidx_read, coalesce(sum(tidx_blks_hit), 0) AS tidx_hit FROM pg_statio_user_tables;"

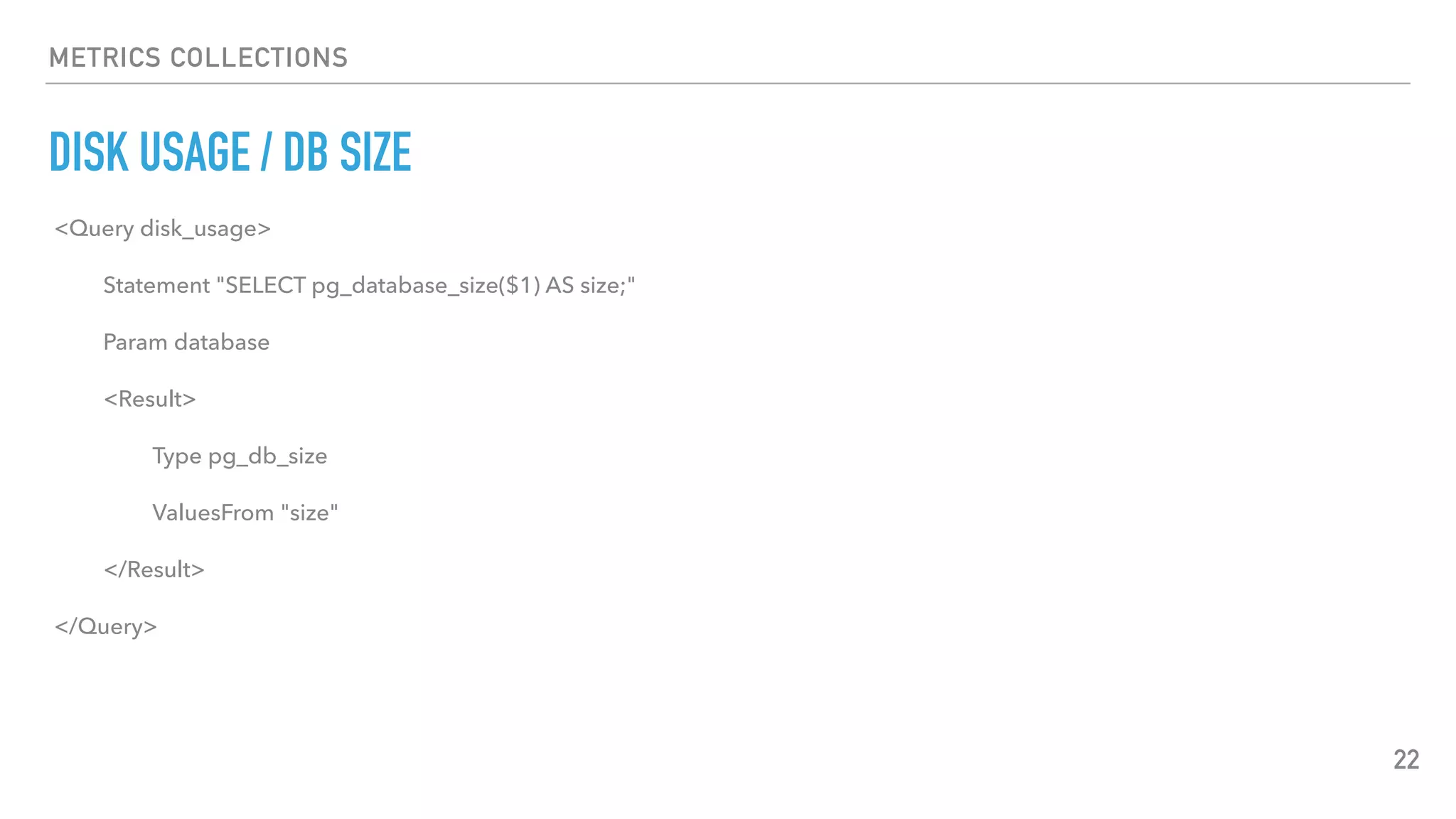

- 22. METRICS COLLECTIONS DISK USAGE/ DB SIZE 22 <Query disk_usage> Statement "SELECT pg_database_size($1) AS size;" Param database <Result> Type pg_db_size ValuesFrom "size" </Result> </Query>

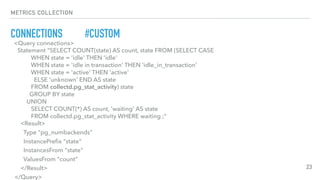

- 23. METRICS COLLECTION CONNECTIONS #CUSTOM 23 <Queryconnections> Statement "SELECT COUNT(state) AS count, state FROM (SELECT CASE WHEN state = 'idle' THEN 'idle' WHEN state = 'idle in transaction' THEN 'idle_in_transaction' WHEN state = 'active' THEN 'active' ELSE 'unknown' END AS state FROM collectd.pg_stat_activity) state GROUP BY state UNION SELECT COUNT(*) AS count, 'waiting' AS state FROM collectd.pg_stat_activity WHERE waiting ;" <Result> Type "pg_numbackends" InstancePrefix "state" InstancesFrom "state" ValuesFrom "count" </Result> </Query>

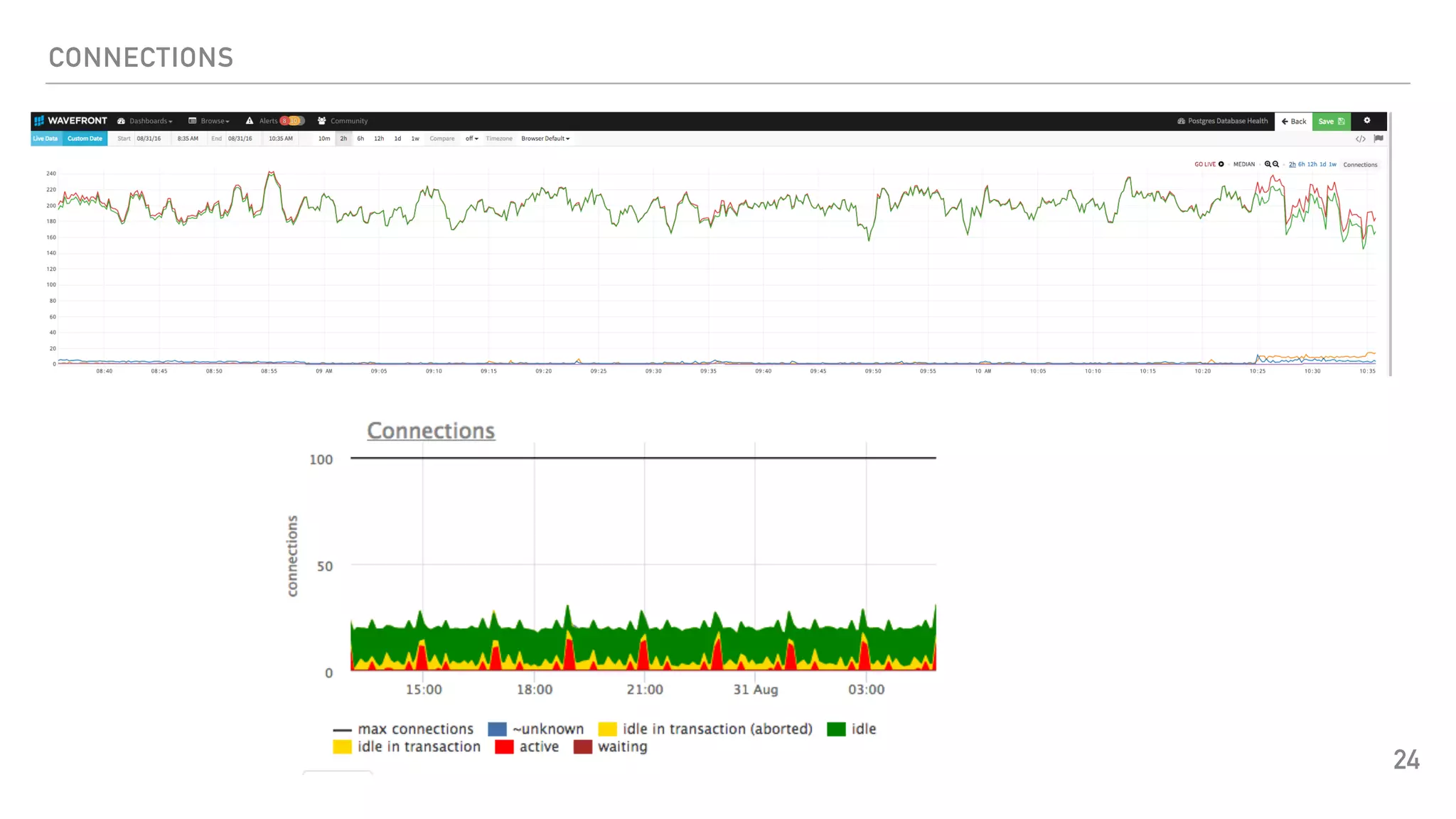

- 24.

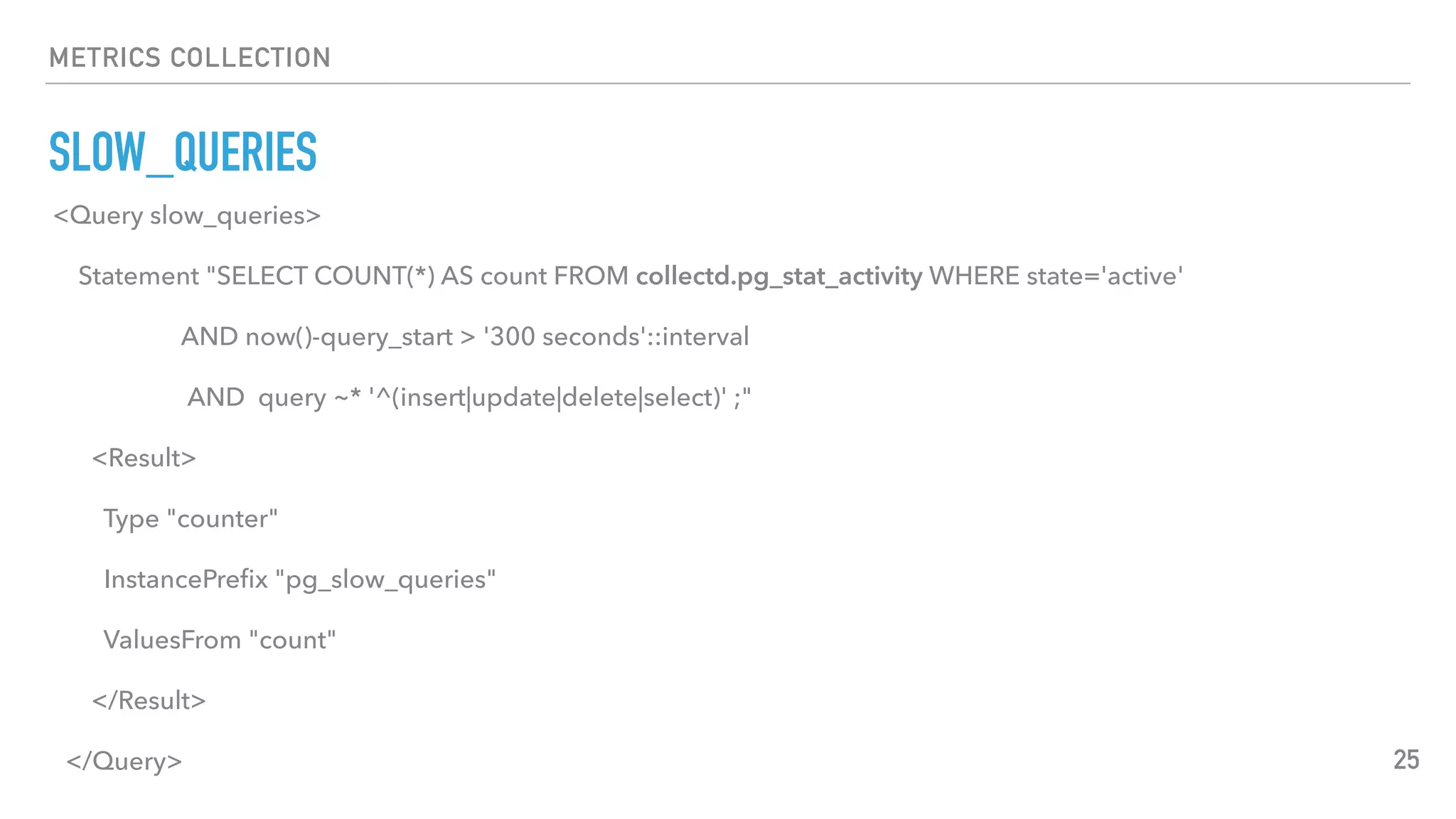

- 25. METRICS COLLECTION SLOW_QUERIES 25 <Query slow_queries> Statement"SELECT COUNT(*) AS count FROM collectd.pg_stat_activity WHERE state='active' AND now()-query_start > '300 seconds'::interval AND query ~* '^(insert|update|delete|select)' ;" <Result> Type "counter" InstancePrefix "pg_slow_queries" ValuesFrom "count" </Result> </Query>

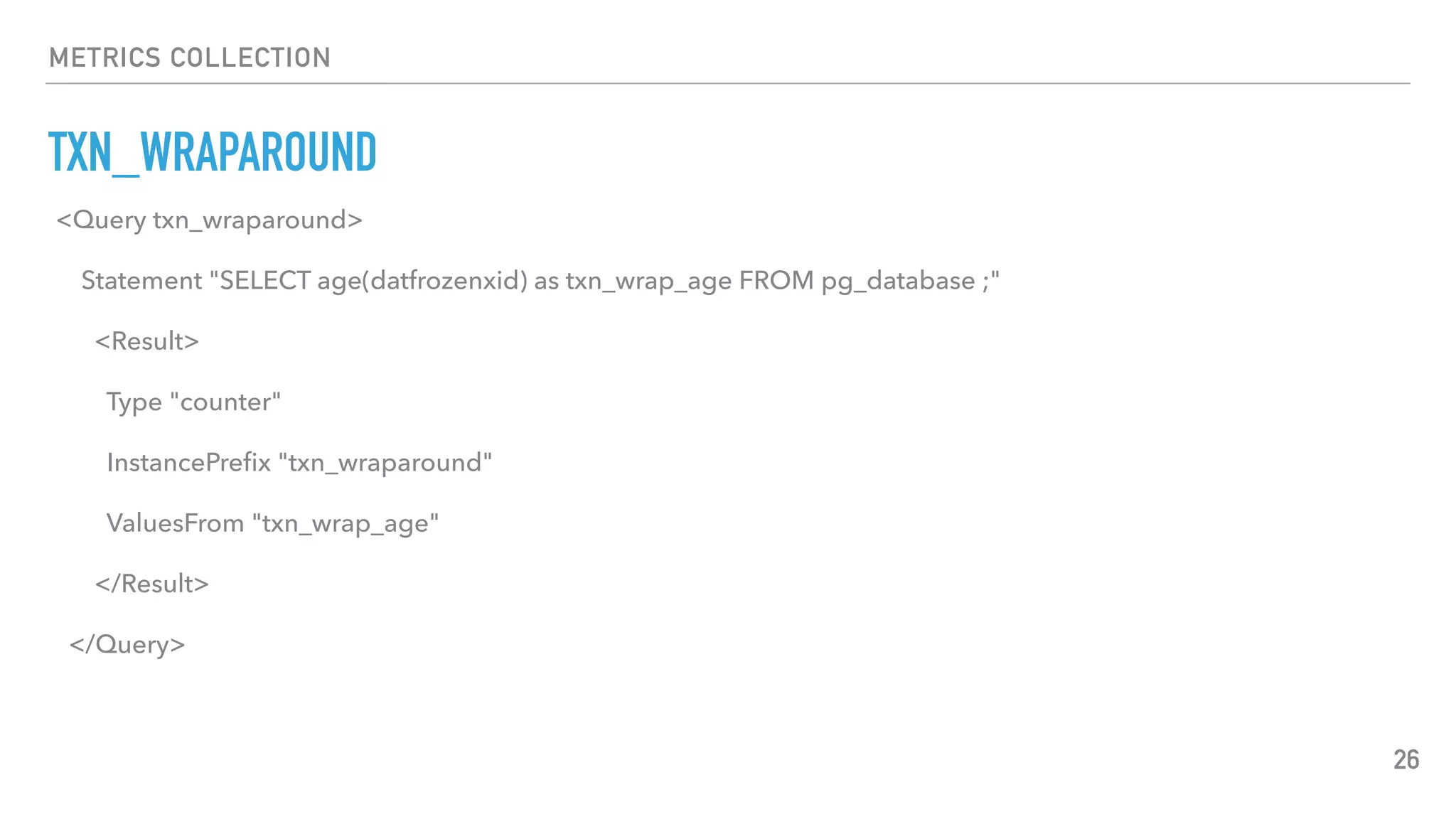

- 26. METRICS COLLECTION TXN_WRAPAROUND 26 <Query txn_wraparound> Statement"SELECT age(datfrozenxid) as txn_wrap_age FROM pg_database ;" <Result> Type "counter" InstancePrefix "txn_wraparound" ValuesFrom "txn_wrap_age" </Result> </Query>

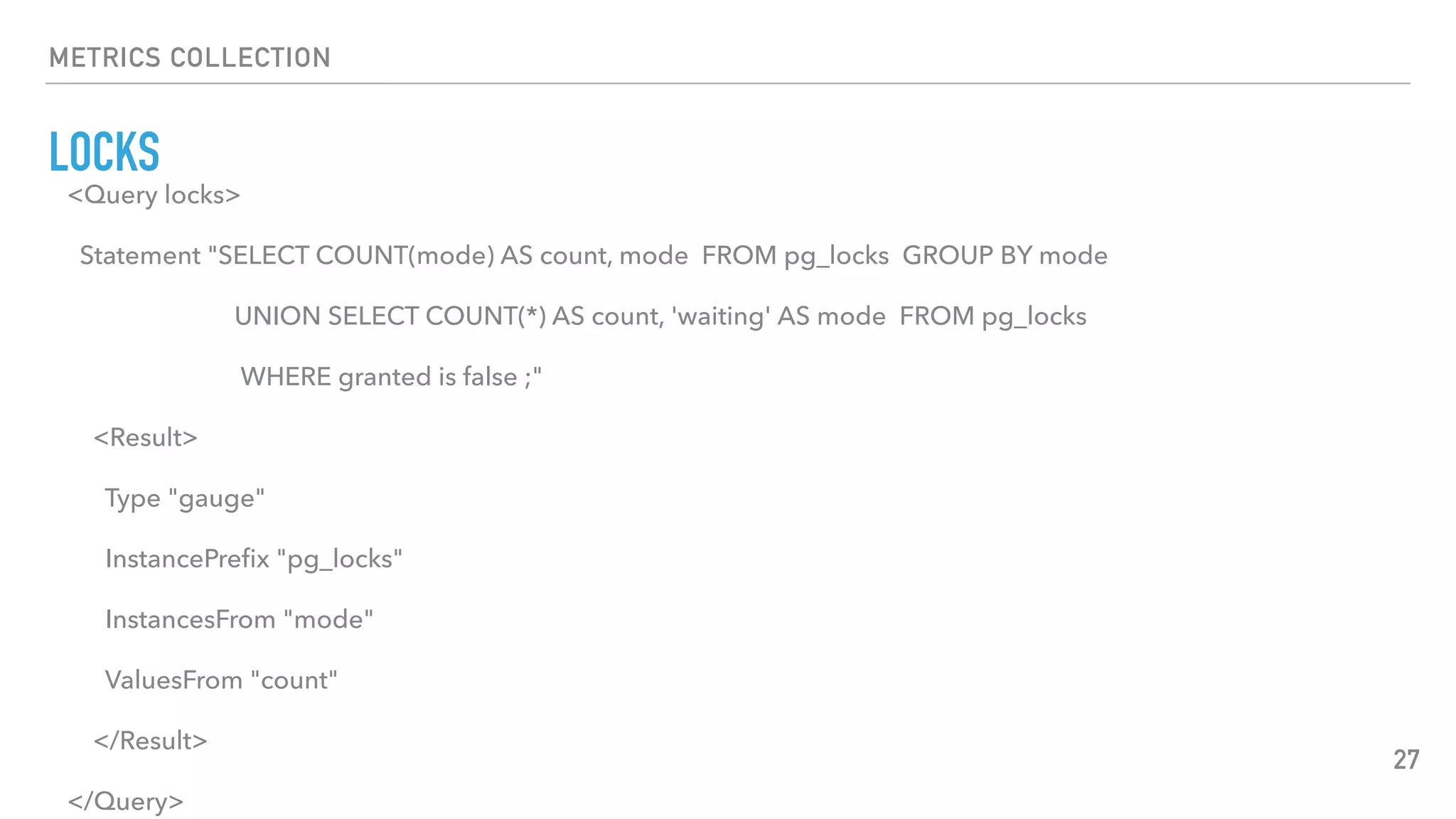

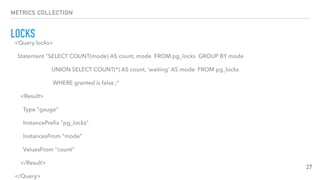

- 27. METRICS COLLECTION LOCKS 27 <Query locks> Statement"SELECT COUNT(mode) AS count, mode FROM pg_locks GROUP BY mode UNION SELECT COUNT(*) AS count, 'waiting' AS mode FROM pg_locks WHERE granted is false ;" <Result> Type "gauge" InstancePrefix "pg_locks" InstancesFrom "mode" ValuesFrom "count" </Result> </Query>

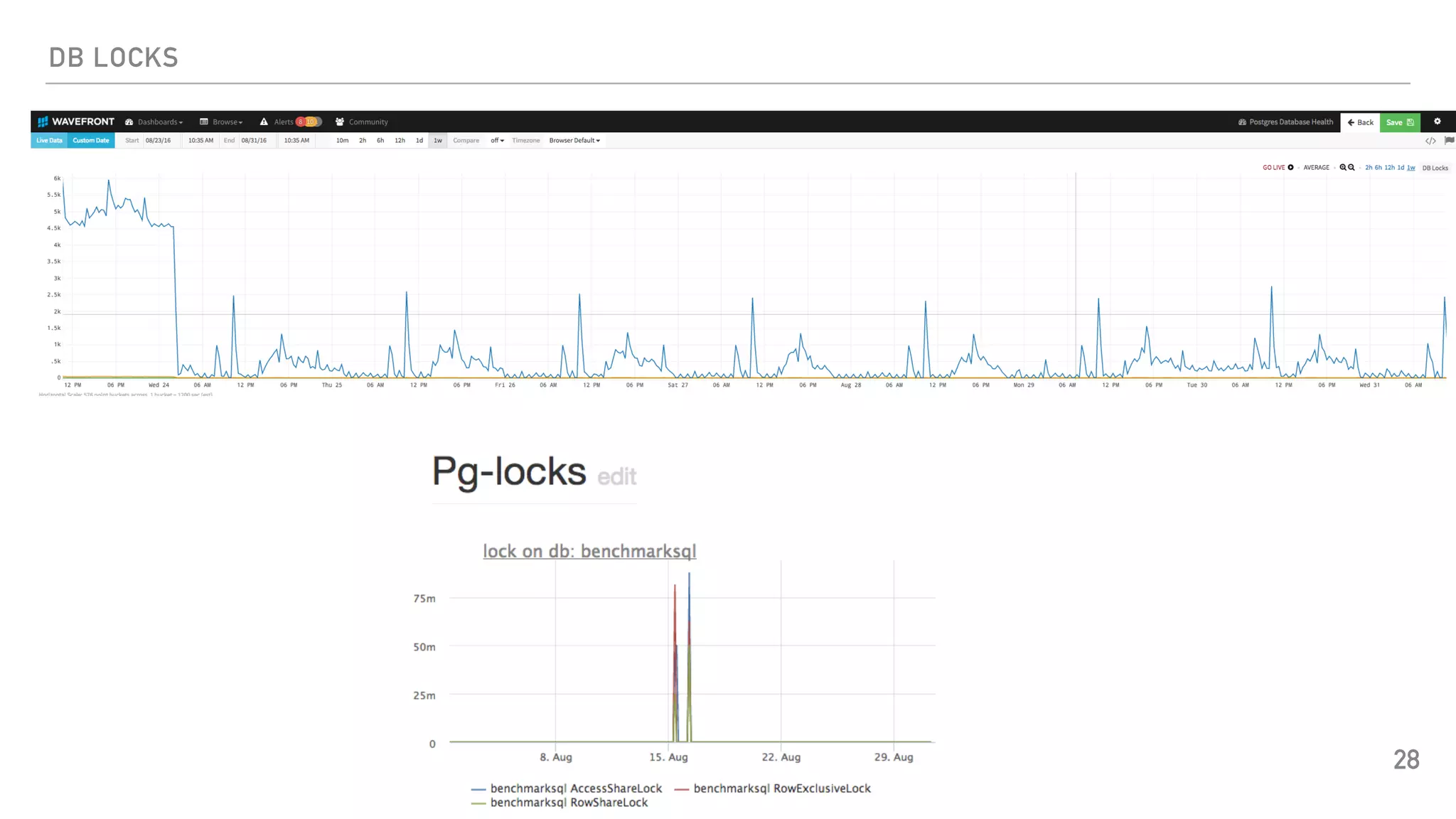

- 28.

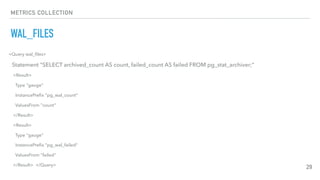

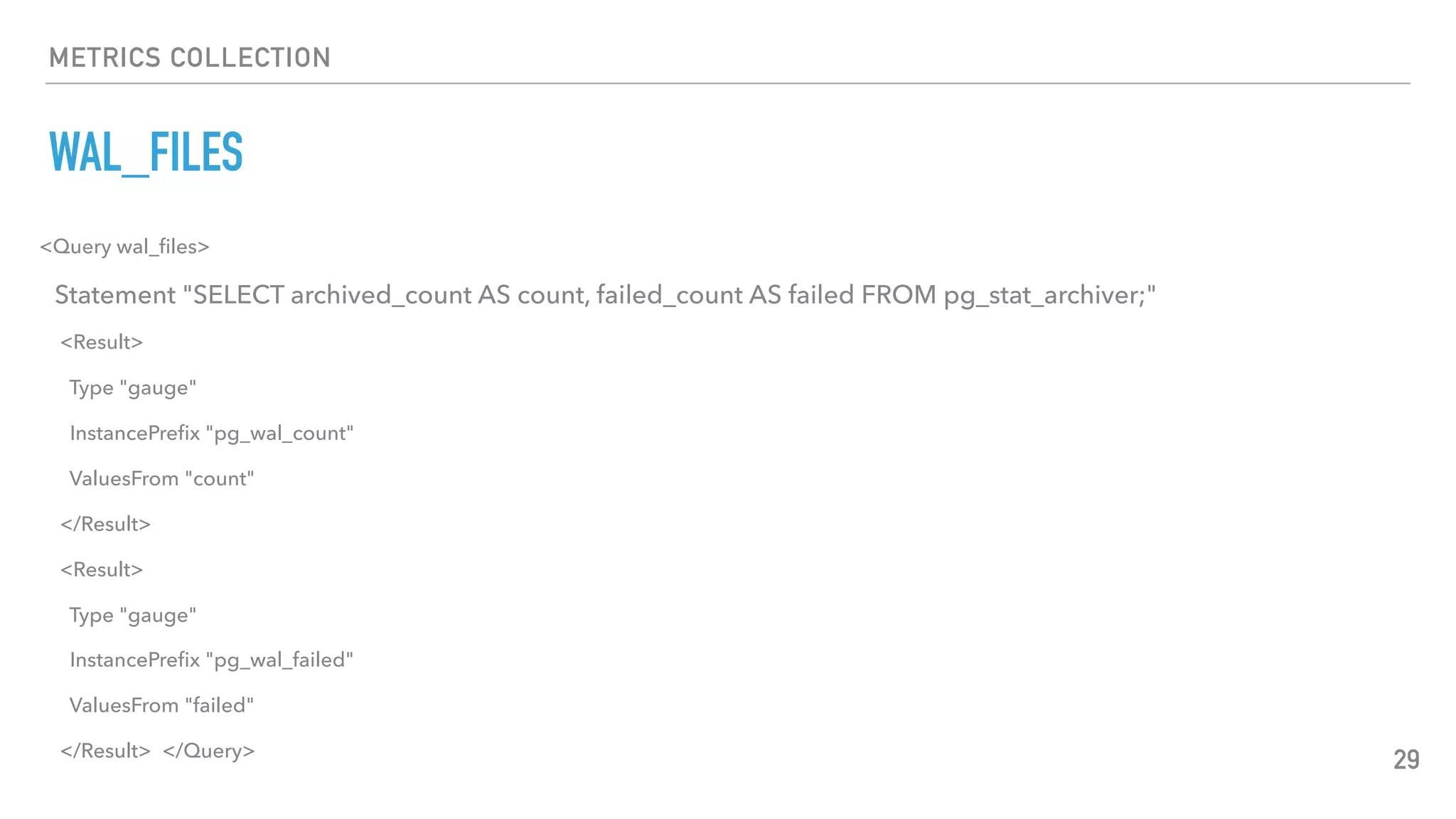

- 29. METRICS COLLECTION WAL_FILES 29 <Query wal_files> Statement"SELECT archived_count AS count, failed_count AS failed FROM pg_stat_archiver;" <Result> Type "gauge" InstancePrefix "pg_wal_count" ValuesFrom "count" </Result> <Result> Type "gauge" InstancePrefix "pg_wal_failed" ValuesFrom "failed" </Result> </Query>

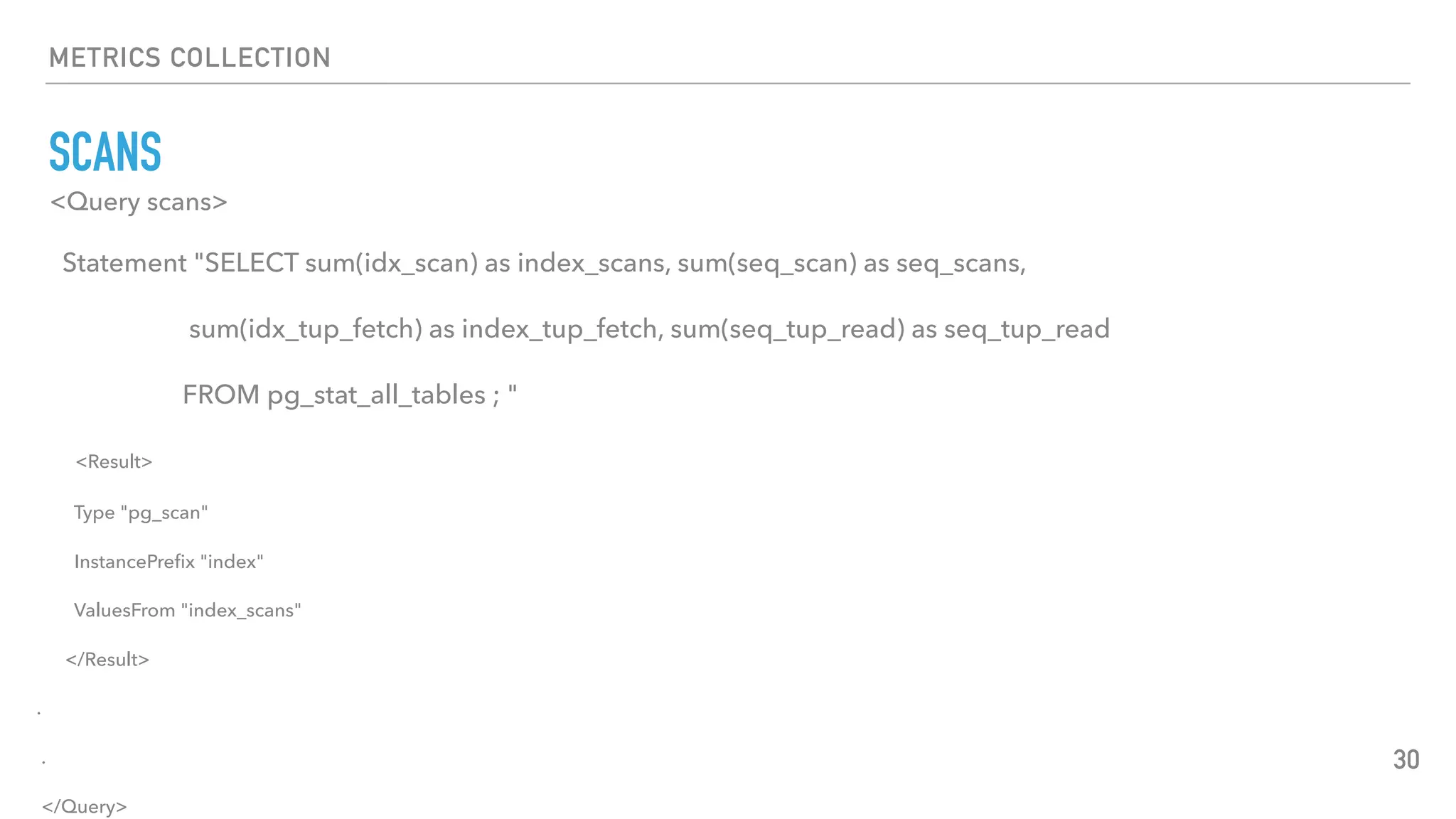

- 30. METRICS COLLECTION SCANS 30 <Query scans> Statement"SELECT sum(idx_scan) as index_scans, sum(seq_scan) as seq_scans, sum(idx_tup_fetch) as index_tup_fetch, sum(seq_tup_read) as seq_tup_read FROM pg_stat_all_tables ; " <Result> Type "pg_scan" InstancePrefix "index" ValuesFrom "index_scans" </Result> . . </Query>

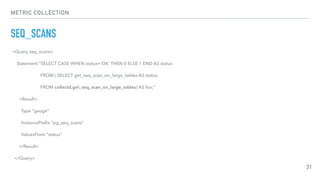

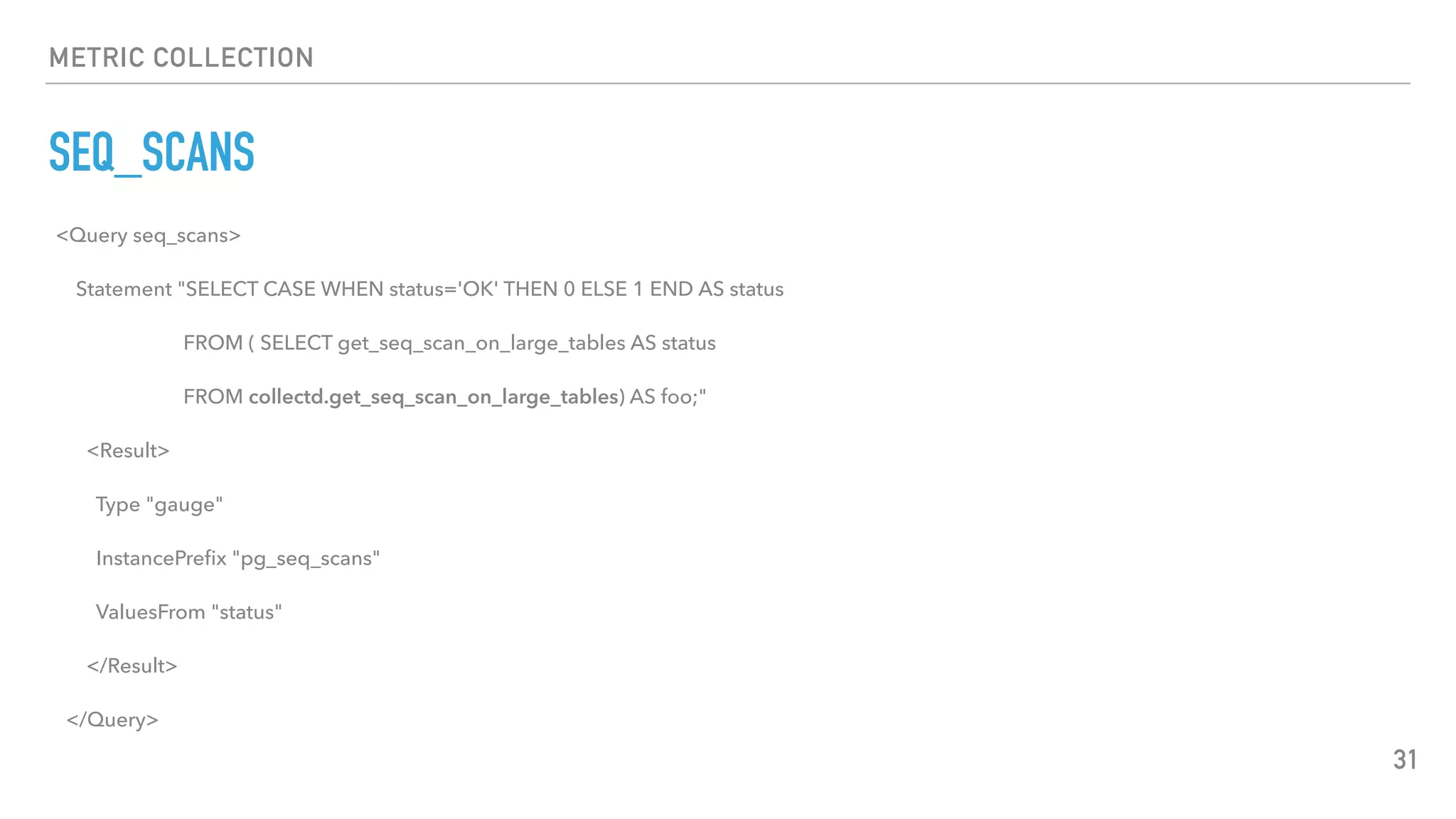

- 31. METRIC COLLECTION SEQ_SCANS 31 <Query seq_scans> Statement"SELECT CASE WHEN status='OK' THEN 0 ELSE 1 END AS status FROM ( SELECT get_seq_scan_on_large_tables AS status FROM collectd.get_seq_scan_on_large_tables) AS foo;" <Result> Type "gauge" InstancePrefix "pg_seq_scans" ValuesFrom "status" </Result> </Query>

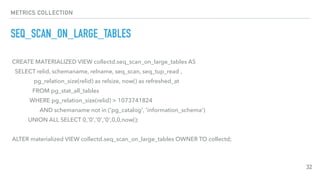

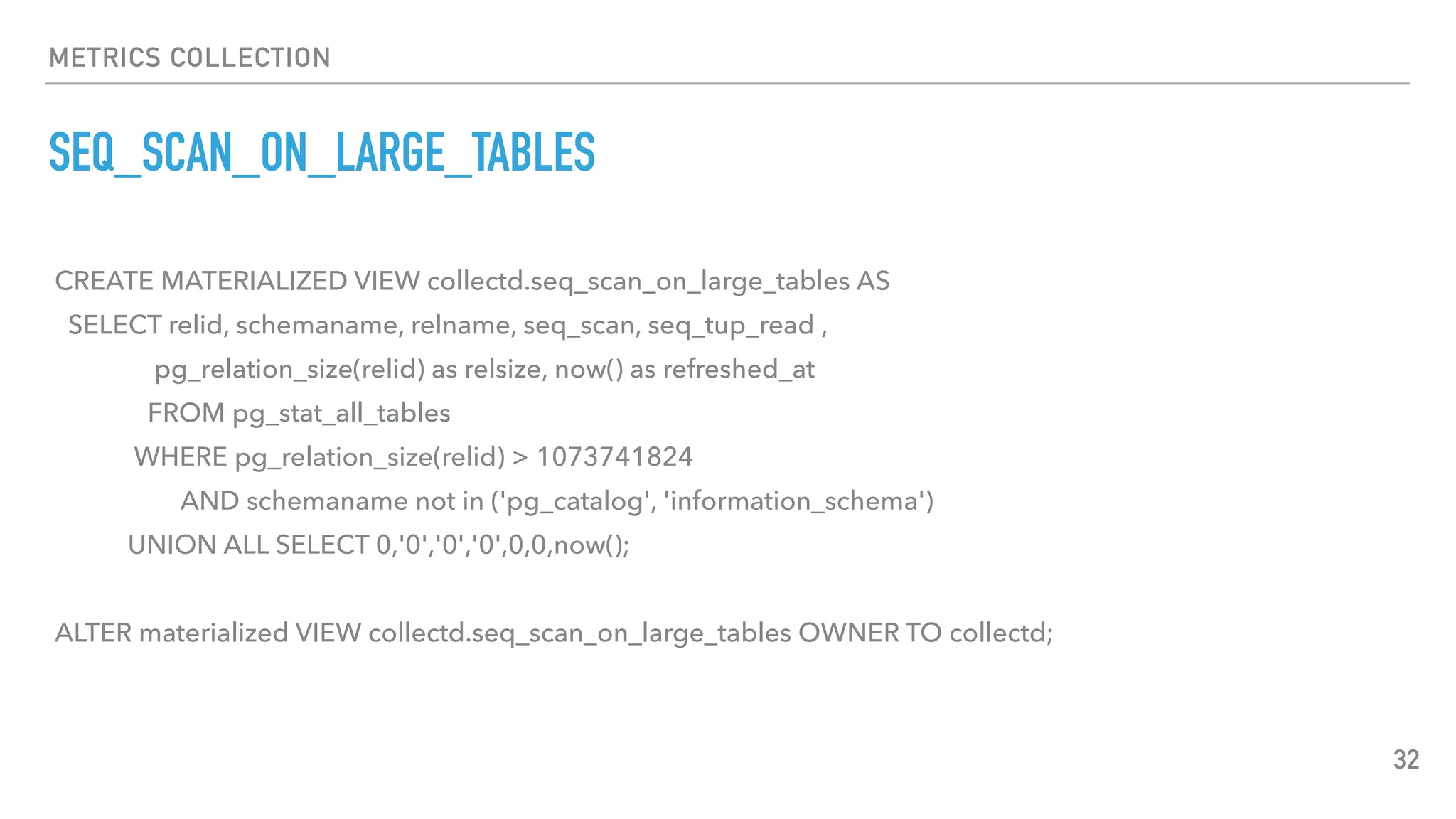

- 32. METRICS COLLECTION SEQ_SCAN_ON_LARGE_TABLES 32 CREATE MATERIALIZEDVIEW collectd.seq_scan_on_large_tables AS SELECT relid, schemaname, relname, seq_scan, seq_tup_read , pg_relation_size(relid) as relsize, now() as refreshed_at FROM pg_stat_all_tables WHERE pg_relation_size(relid) > 1073741824 AND schemaname not in ('pg_catalog', 'information_schema') UNION ALL SELECT 0,'0','0','0',0,0,now(); ALTER materialized VIEW collectd.seq_scan_on_large_tables OWNER TO collectd;

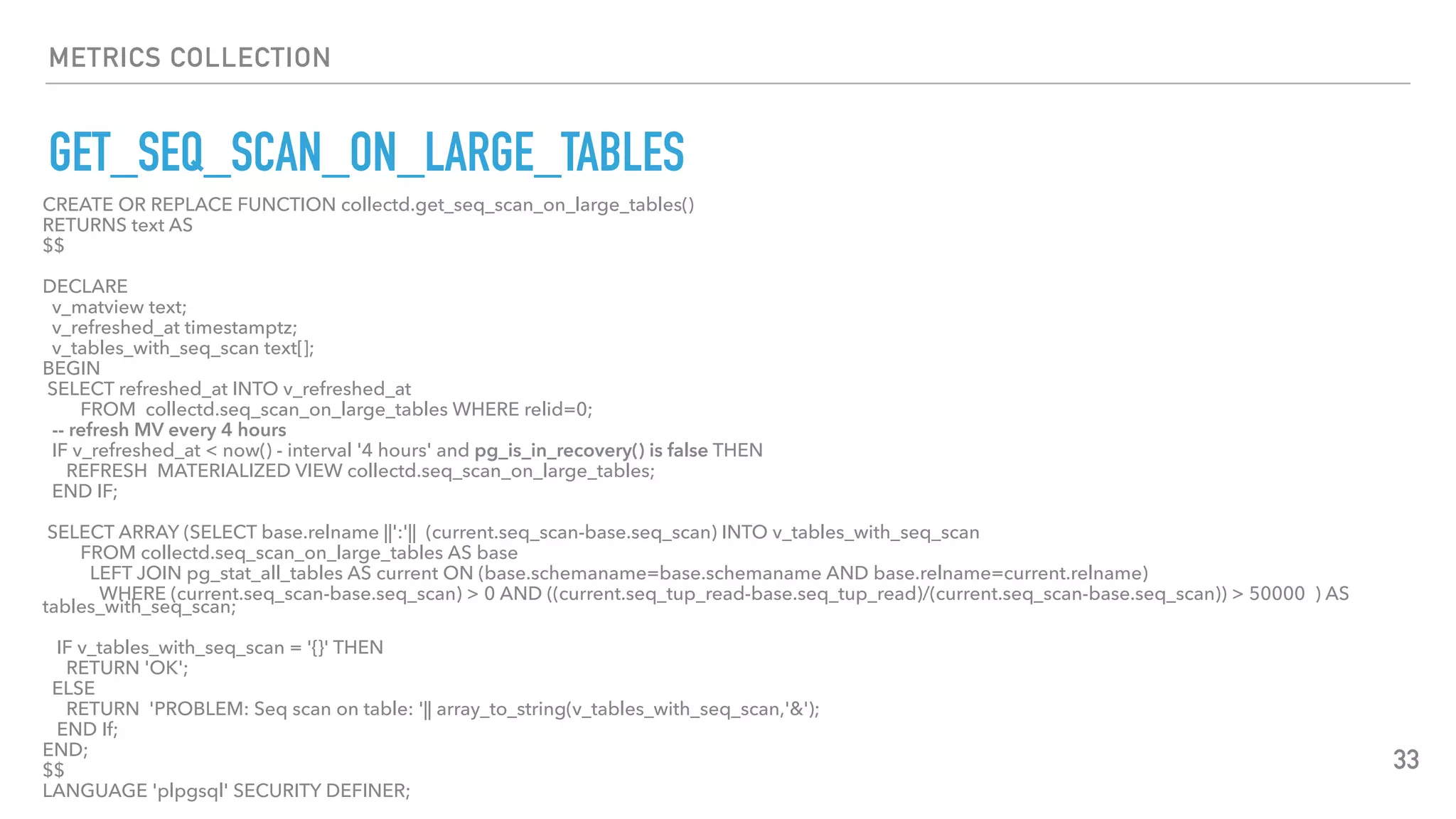

- 33. METRICS COLLECTION GET_SEQ_SCAN_ON_LARGE_TABLES 33 CREATE ORREPLACE FUNCTION collectd.get_seq_scan_on_large_tables() RETURNS text AS $$ DECLARE v_matview text; v_refreshed_at timestamptz; v_tables_with_seq_scan text[]; BEGIN SELECT refreshed_at INTO v_refreshed_at FROM collectd.seq_scan_on_large_tables WHERE relid=0; -- refresh MV every 4 hours IF v_refreshed_at < now() - interval '4 hours' and pg_is_in_recovery() is false THEN REFRESH MATERIALIZED VIEW collectd.seq_scan_on_large_tables; END IF; SELECT ARRAY (SELECT base.relname ||':'|| (current.seq_scan-base.seq_scan) INTO v_tables_with_seq_scan FROM collectd.seq_scan_on_large_tables AS base LEFT JOIN pg_stat_all_tables AS current ON (base.schemaname=base.schemaname AND base.relname=current.relname) WHERE (current.seq_scan-base.seq_scan) > 0 AND ((current.seq_tup_read-base.seq_tup_read)/(current.seq_scan-base.seq_scan)) > 50000 ) AS tables_with_seq_scan; IF v_tables_with_seq_scan = '{}' THEN RETURN 'OK'; ELSE RETURN 'PROBLEM: Seq scan on table: '|| array_to_string(v_tables_with_seq_scan,'&'); END If; END; $$ LANGUAGE 'plpgsql' SECURITY DEFINER;

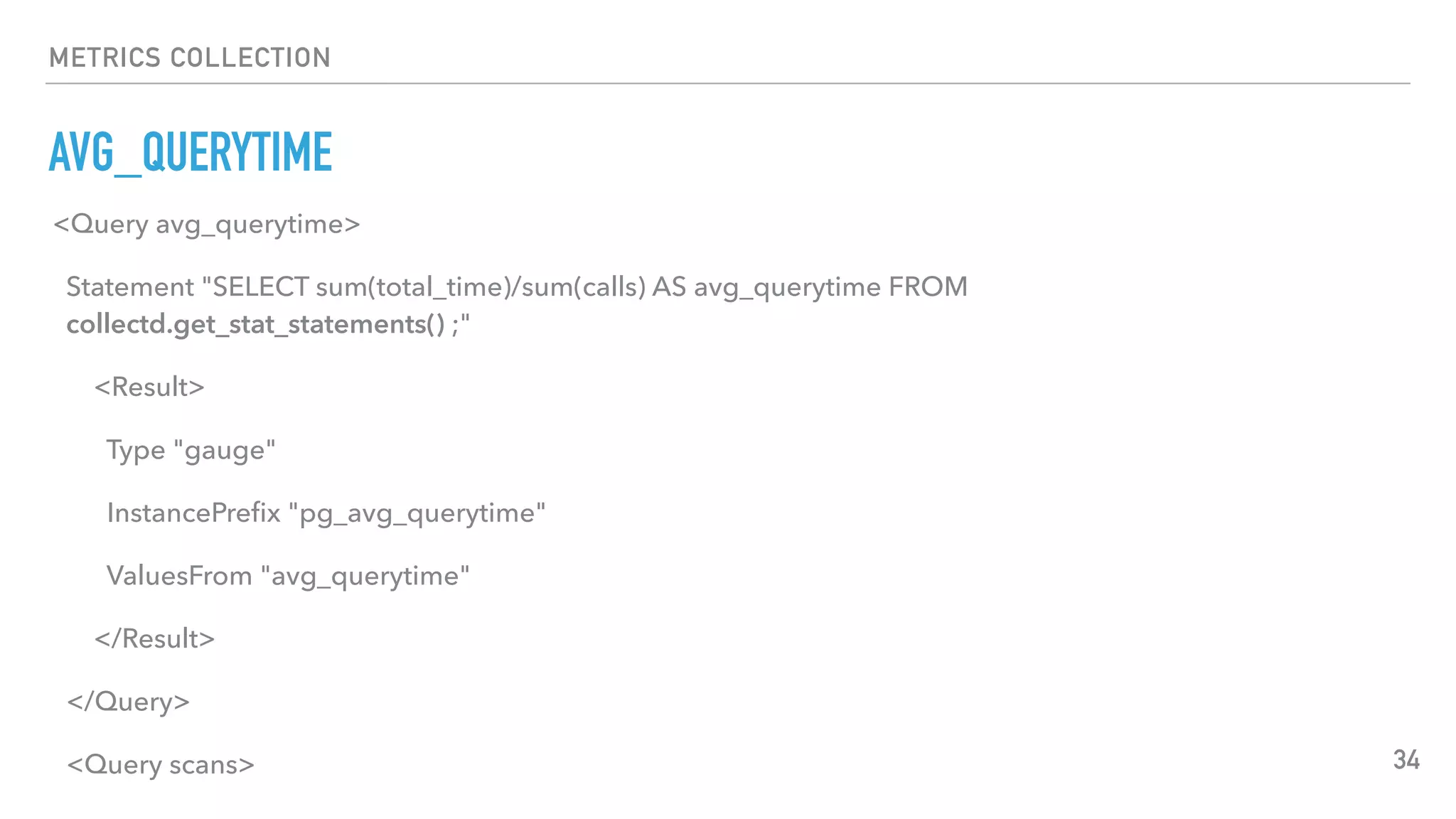

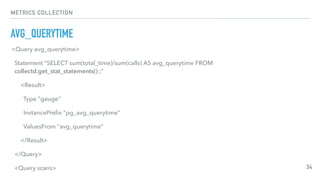

- 34. METRICS COLLECTION AVG_QUERYTIME 34 <Query avg_querytime> Statement"SELECT sum(total_time)/sum(calls) AS avg_querytime FROM collectd.get_stat_statements() ;" <Result> Type "gauge" InstancePrefix "pg_avg_querytime" ValuesFrom "avg_querytime" </Result> </Query> <Query scans>

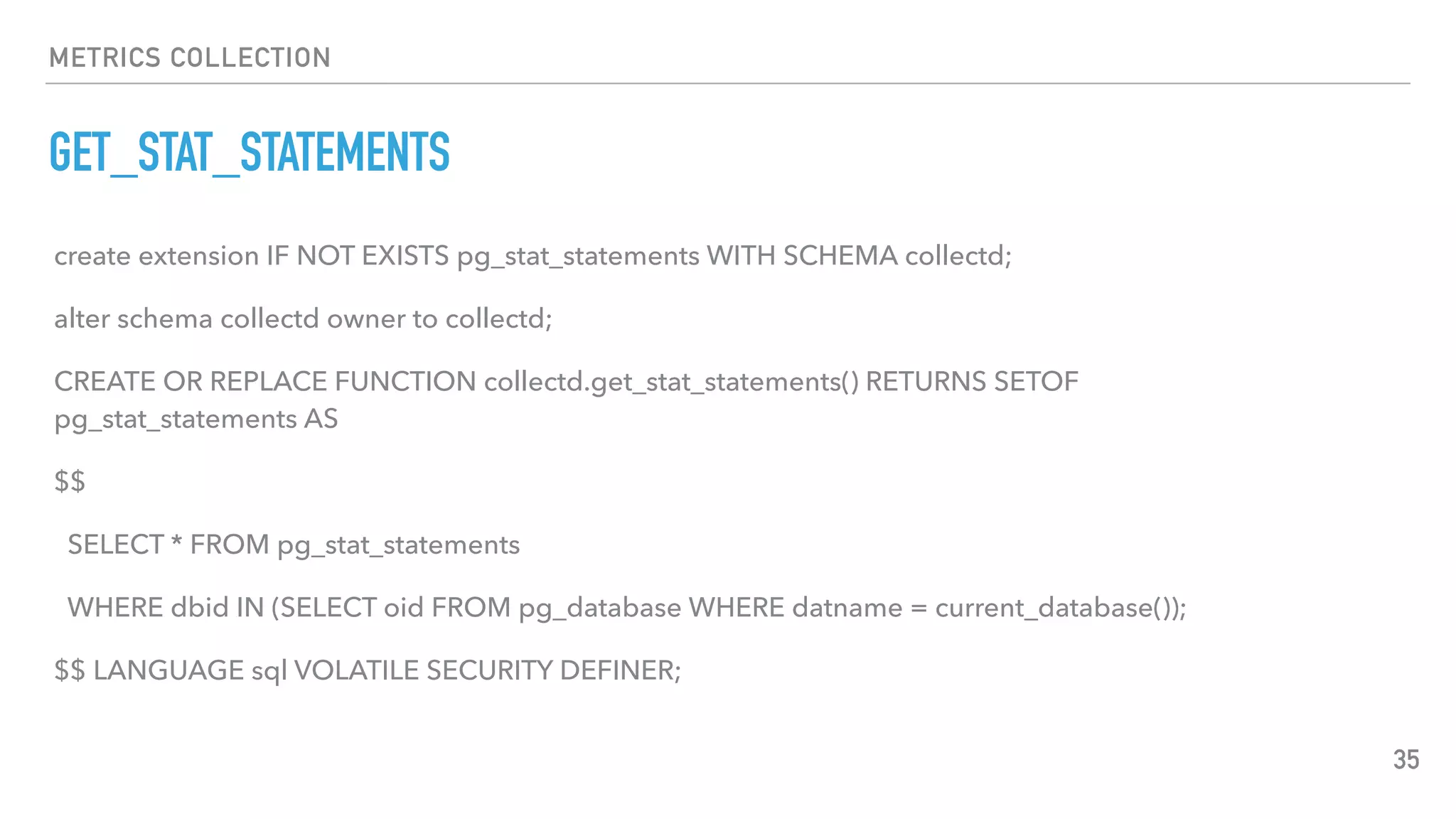

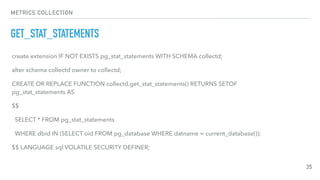

- 35. METRICS COLLECTION GET_STAT_STATEMENTS 35 create extensionIF NOT EXISTS pg_stat_statements WITH SCHEMA collectd; alter schema collectd owner to collectd; CREATE OR REPLACE FUNCTION collectd.get_stat_statements() RETURNS SETOF pg_stat_statements AS $$ SELECT * FROM pg_stat_statements WHERE dbid IN (SELECT oid FROM pg_database WHERE datname = current_database()); $$ LANGUAGE sql VOLATILE SECURITY DEFINER;
- 36.
- 37.

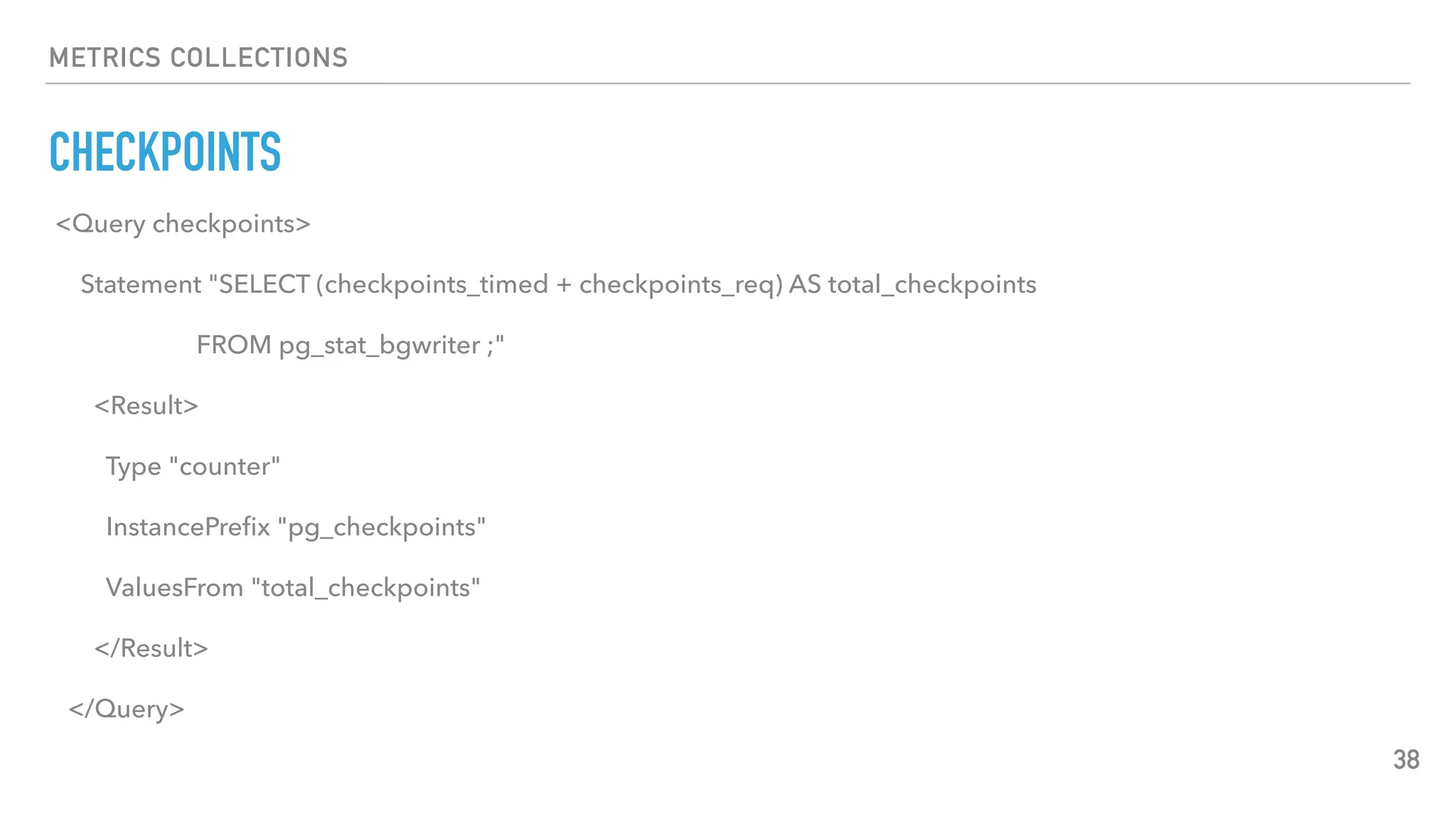

- 38. METRICS COLLECTIONS CHECKPOINTS 38 <Query checkpoints> Statement"SELECT (checkpoints_timed + checkpoints_req) AS total_checkpoints FROM pg_stat_bgwriter ;" <Result> Type "counter" InstancePrefix "pg_checkpoints" ValuesFrom "total_checkpoints" </Result> </Query>

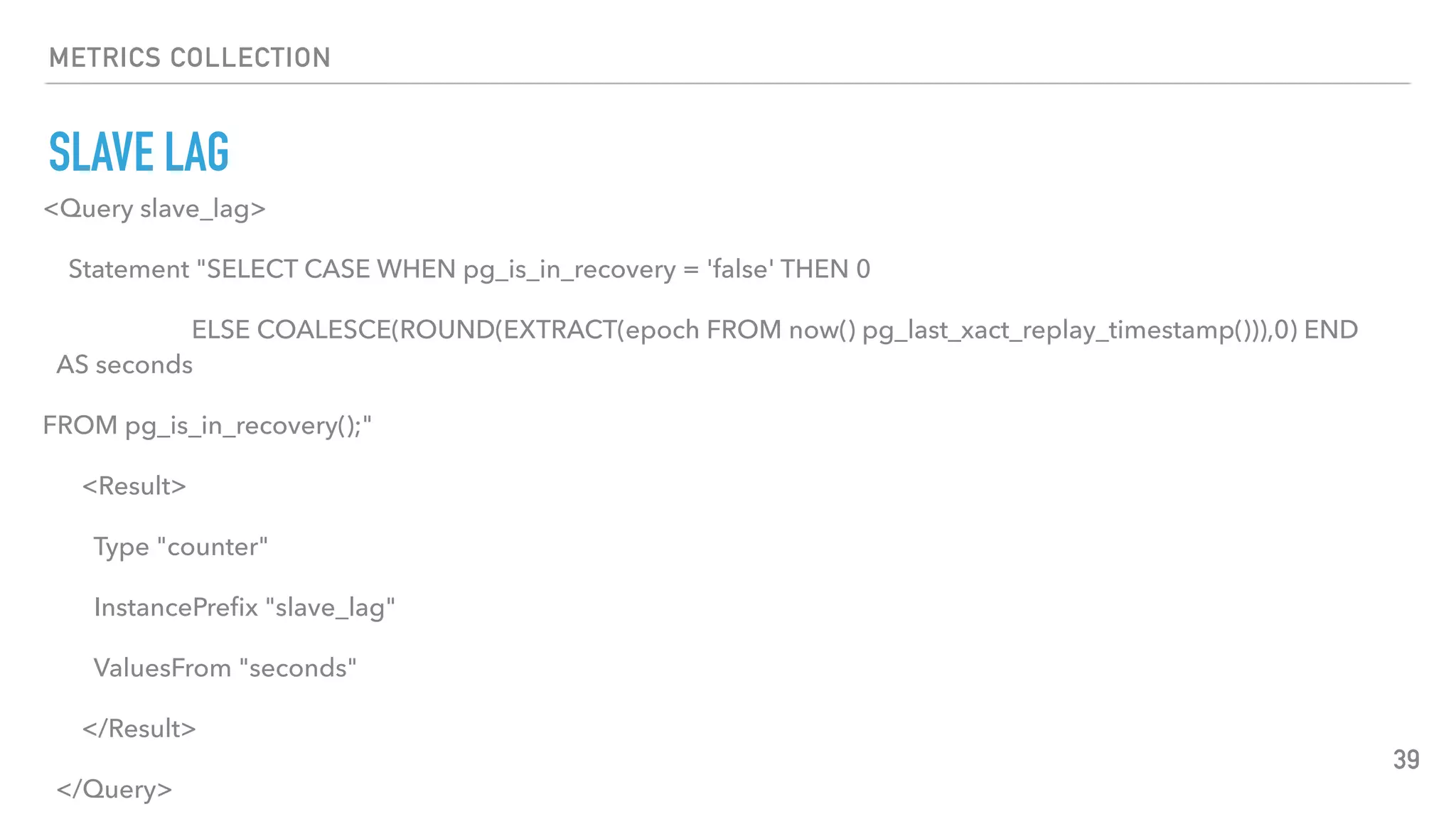

- 39. METRICS COLLECTION SLAVE LAG 39 <Queryslave_lag> Statement "SELECT CASE WHEN pg_is_in_recovery = 'false' THEN 0 ELSE COALESCE(ROUND(EXTRACT(epoch FROM now() pg_last_xact_replay_timestamp())),0) END AS seconds FROM pg_is_in_recovery();" <Result> Type "counter" InstancePrefix "slave_lag" ValuesFrom "seconds" </Result> </Query>

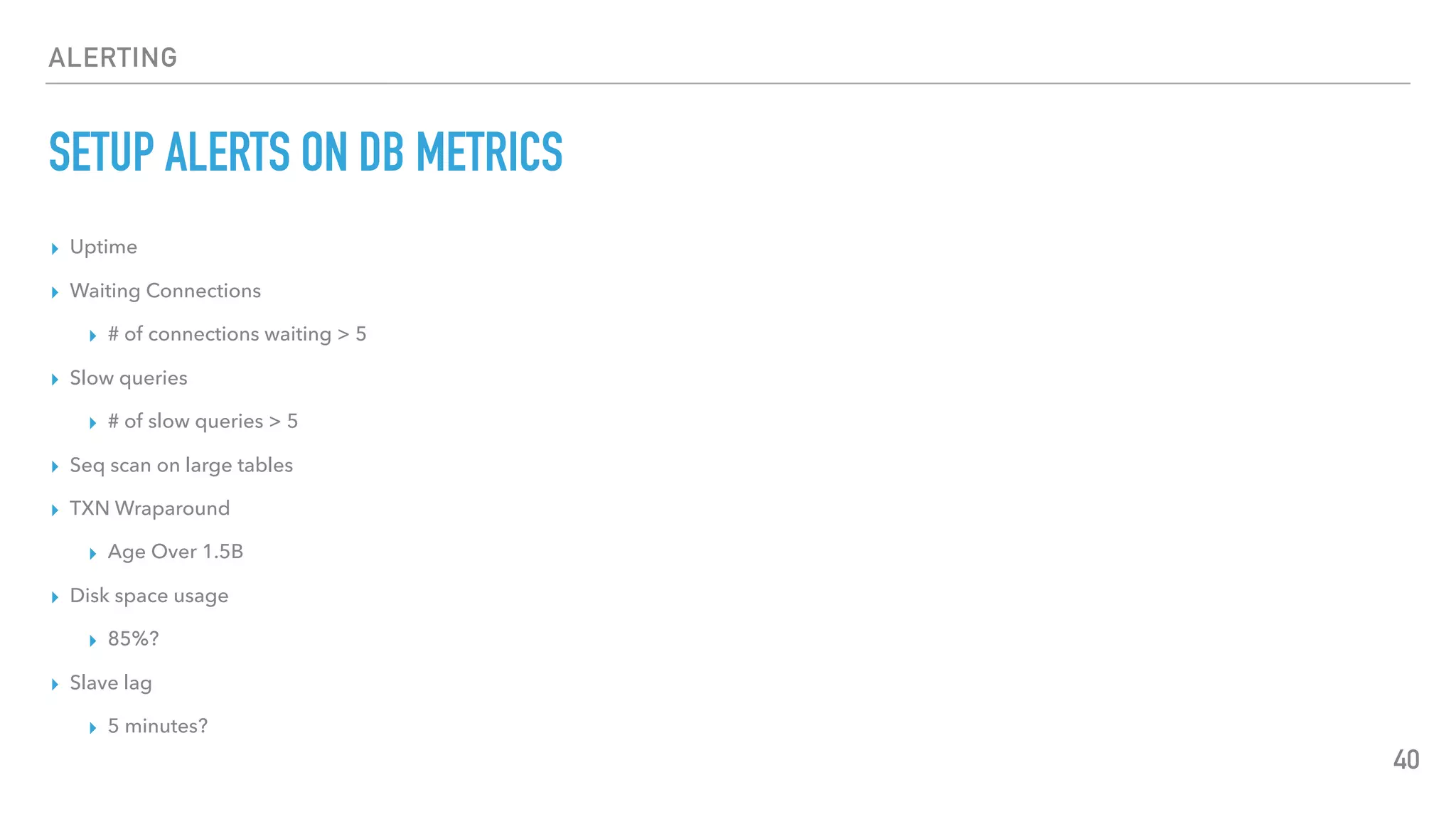

- 40. ALERTING SETUP ALERTS ONDB METRICS ▸ Uptime ▸ Waiting Connections ▸ # of connections waiting > 5 ▸ Slow queries ▸ # of slow queries > 5 ▸ Seq scan on large tables ▸ TXN Wraparound ▸ Age Over 1.5B ▸ Disk space usage ▸ 85%? ▸ Slave lag ▸ 5 minutes? 40

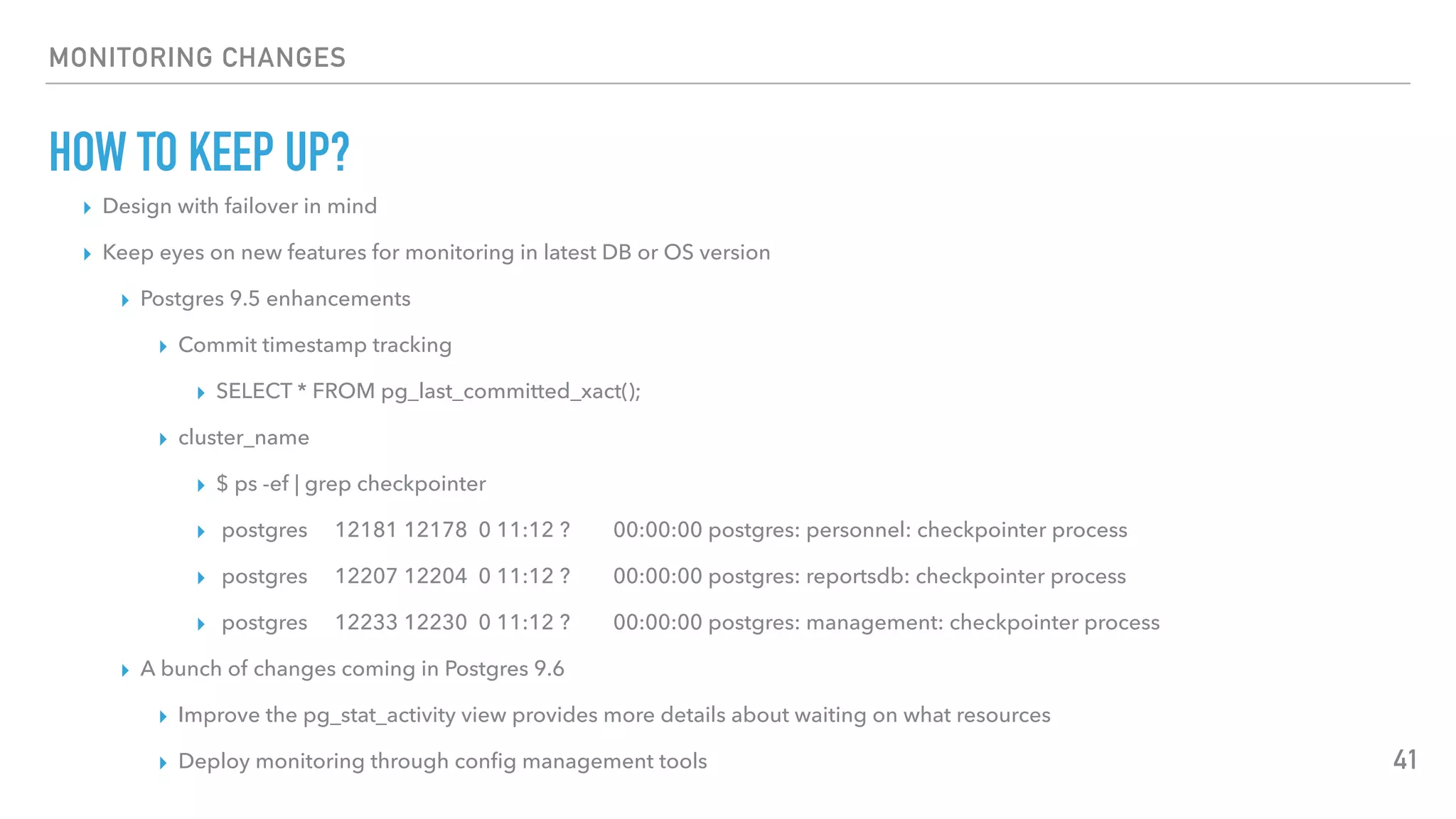

- 41. MONITORING CHANGES HOW TOKEEP UP? ▸ Design with failover in mind ▸ Keep eyes on new features for monitoring in latest DB or OS version ▸ Postgres 9.5 enhancements ▸ Commit timestamp tracking ▸ SELECT * FROM pg_last_committed_xact(); ▸ cluster_name ▸ $ ps -ef | grep checkpointer ▸ postgres 12181 12178 0 11:12 ? 00:00:00 postgres: personnel: checkpointer process ▸ postgres 12207 12204 0 11:12 ? 00:00:00 postgres: reportsdb: checkpointer process ▸ postgres 12233 12230 0 11:12 ? 00:00:00 postgres: management: checkpointer process ▸ A bunch of changes coming in Postgres 9.6 ▸ Improve the pg_stat_activity view provides more details about waiting on what resources ▸ Deploy monitoring through config management tools 41

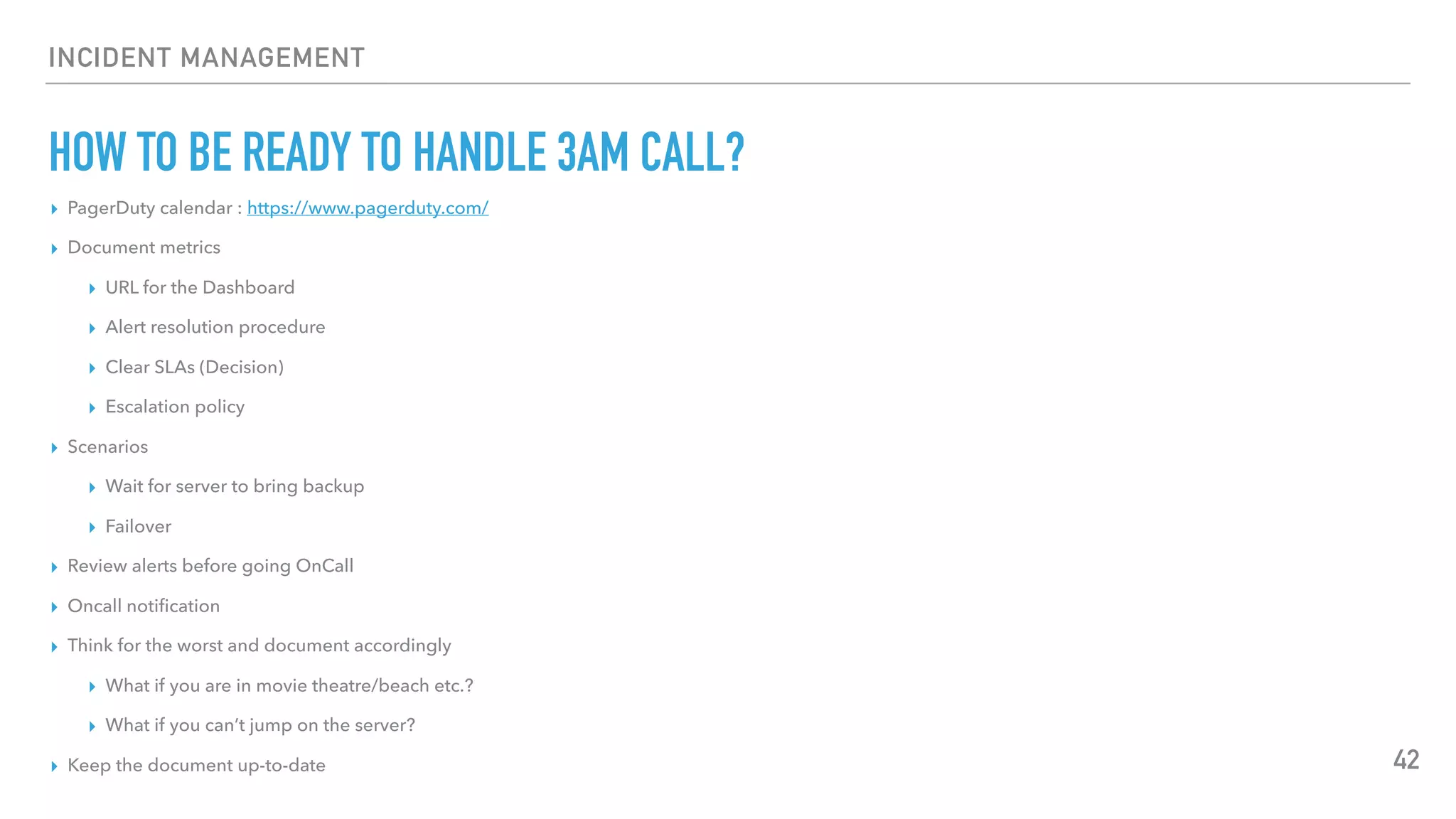

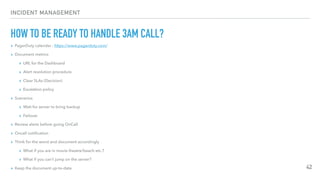

- 42. INCIDENT MANAGEMENT HOW TOBE READY TO HANDLE 3AM CALL? ▸ PagerDuty calendar : https://www.pagerduty.com/ ▸ Document metrics ▸ URL for the Dashboard ▸ Alert resolution procedure ▸ Clear SLAs (Decision) ▸ Escalation policy ▸ Scenarios ▸ Wait for server to bring backup ▸ Failover ▸ Review alerts before going OnCall ▸ Oncall notification ▸ Think for the worst and document accordingly ▸ What if you are in movie theatre/beach etc.? ▸ What if you can’t jump on the server? ▸ Keep the document up-to-date 42
- 43.
- 44. KEEP IN TOUCH THANKS& Q/A ▸ You! ▸ Conference committee ▸ Contact for further Q/A ▸ Twitter: @DenishPatel ▸ pateldenish.com ▸ dpatel@medallia.com ▸ denish.j.patel@gmail.com 44
