High Availability PostgreSQL with Zalando Patroni

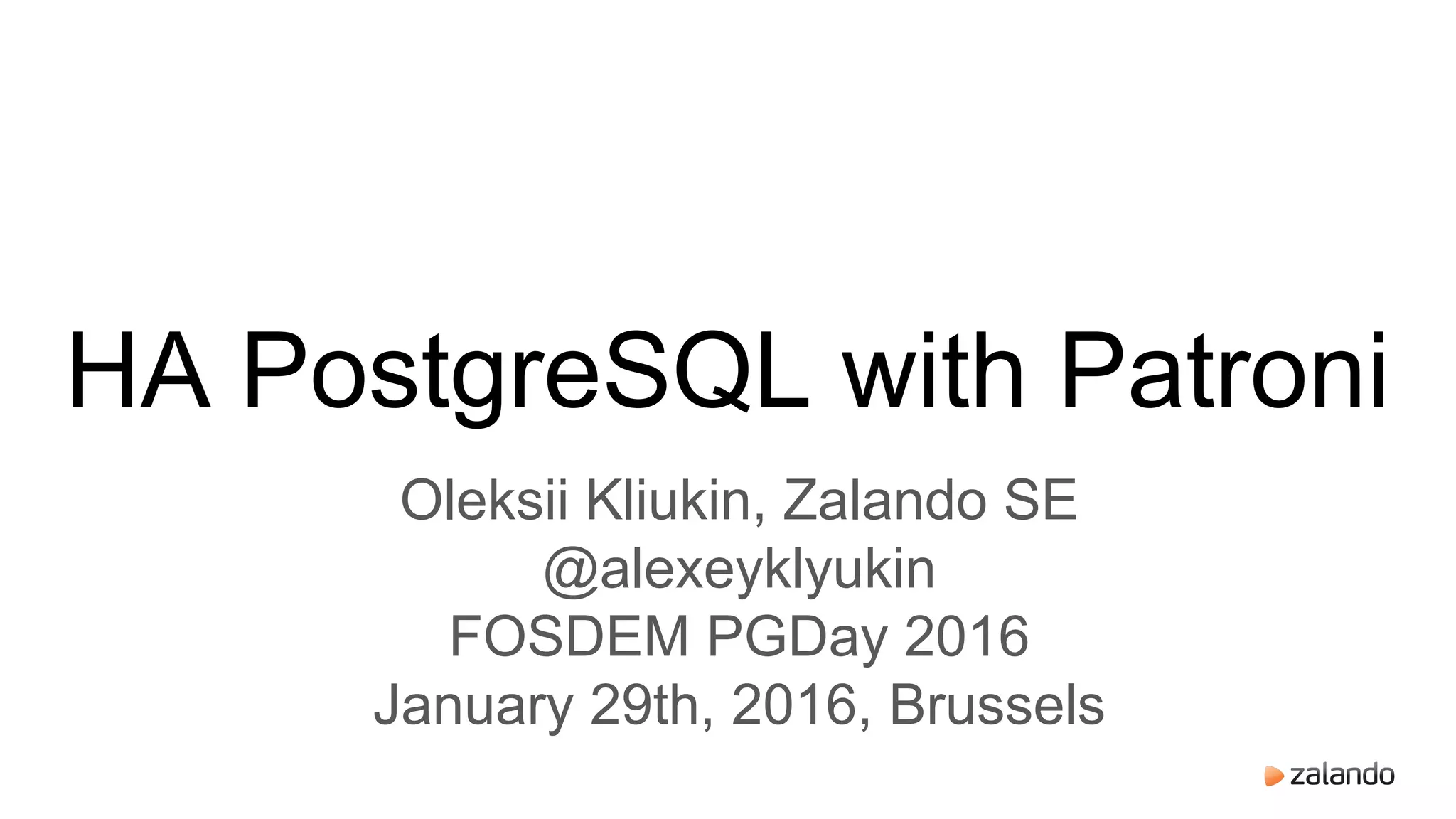

HA PostgreSQL with Patroni
Oleksii Kliukin, Zalando SE
@alexeyklyukin
FOSDEM PGDay 2016
January 29th, 2016, Brussels

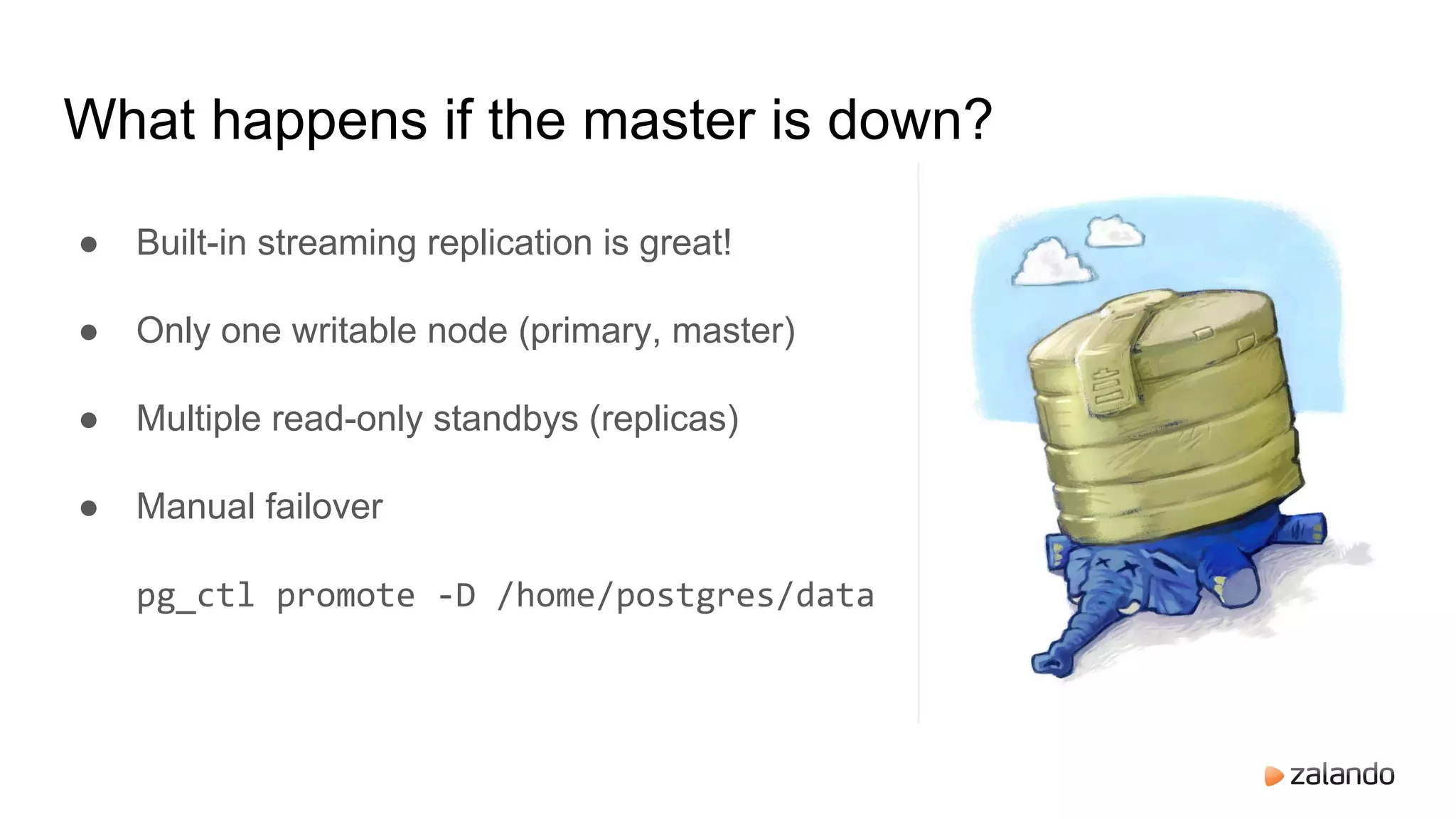

What happens if the master is down?
● Built-in streaming replication is great!
● Only one writable node (primary, master)
● Multiple read-only standbys (replicas)
● Manual failover
pg_ctl promote -D /home/postgres/data

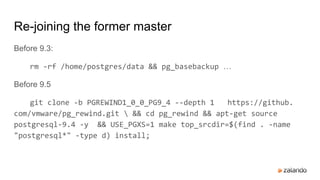

Re-joining the former master
Before 9.3:
rm -rf /home/postgres/data && pg_basebackup …
Before 9.5
git clone -b PGREWIND1_0_0_PG9_4 --depth 1 https://github.
com/vmware/pg_rewind.git && cd pg_rewind && apt-get source
postgresql-9.4 -y && USE_PGXS=1 make top_srcdir=$(find . -name
"postgresql*" -type d) install;

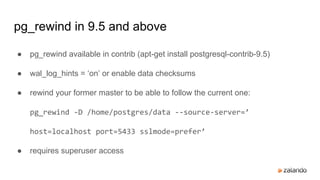

pg_rewind in 9.5 and above
● pg_rewind available in contrib (apt-get install postgresql-contrib-9.5)
● wal_log_hints = ‘on’ or enable data checksums
● rewind your former master to be able to follow the current one:
pg_rewind -D /home/postgres/data --source-server=’
host=localhost port=5433 sslmode=prefer’
● requires superuser access

No fixed address
● Pgbouncer
● Pgpool
● HAProxy
● Floating IP/DNS

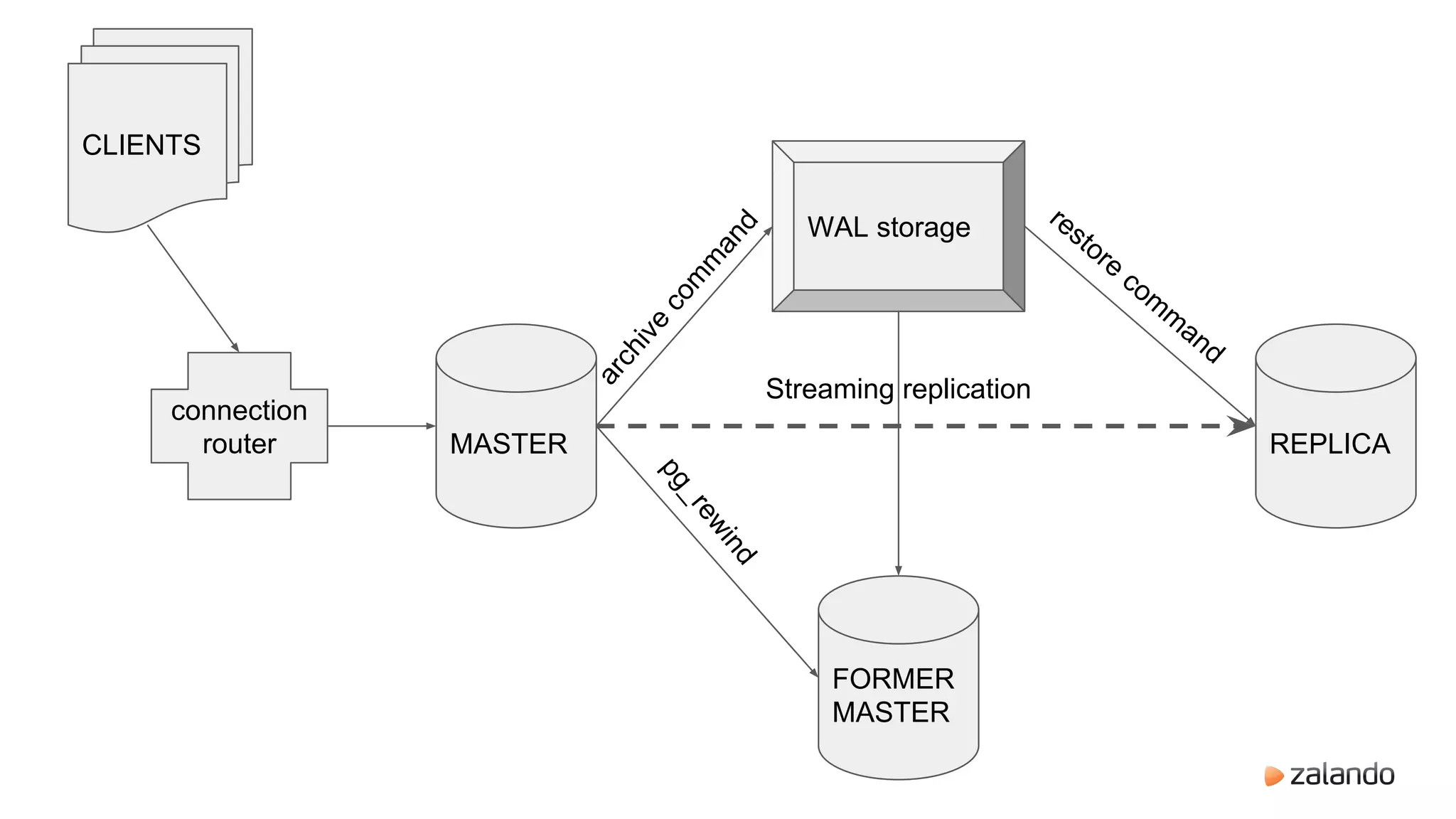

MASTER REPLICA
FORMER
MASTER
WAL storage
connection
router
CLIENTS
Streaming replication
pg_rewind
archive
com
m
and
restore
com
m
and

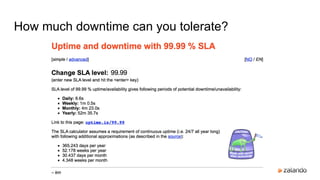

How much downtime can you tolerate?

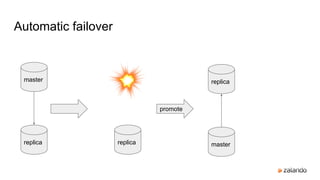

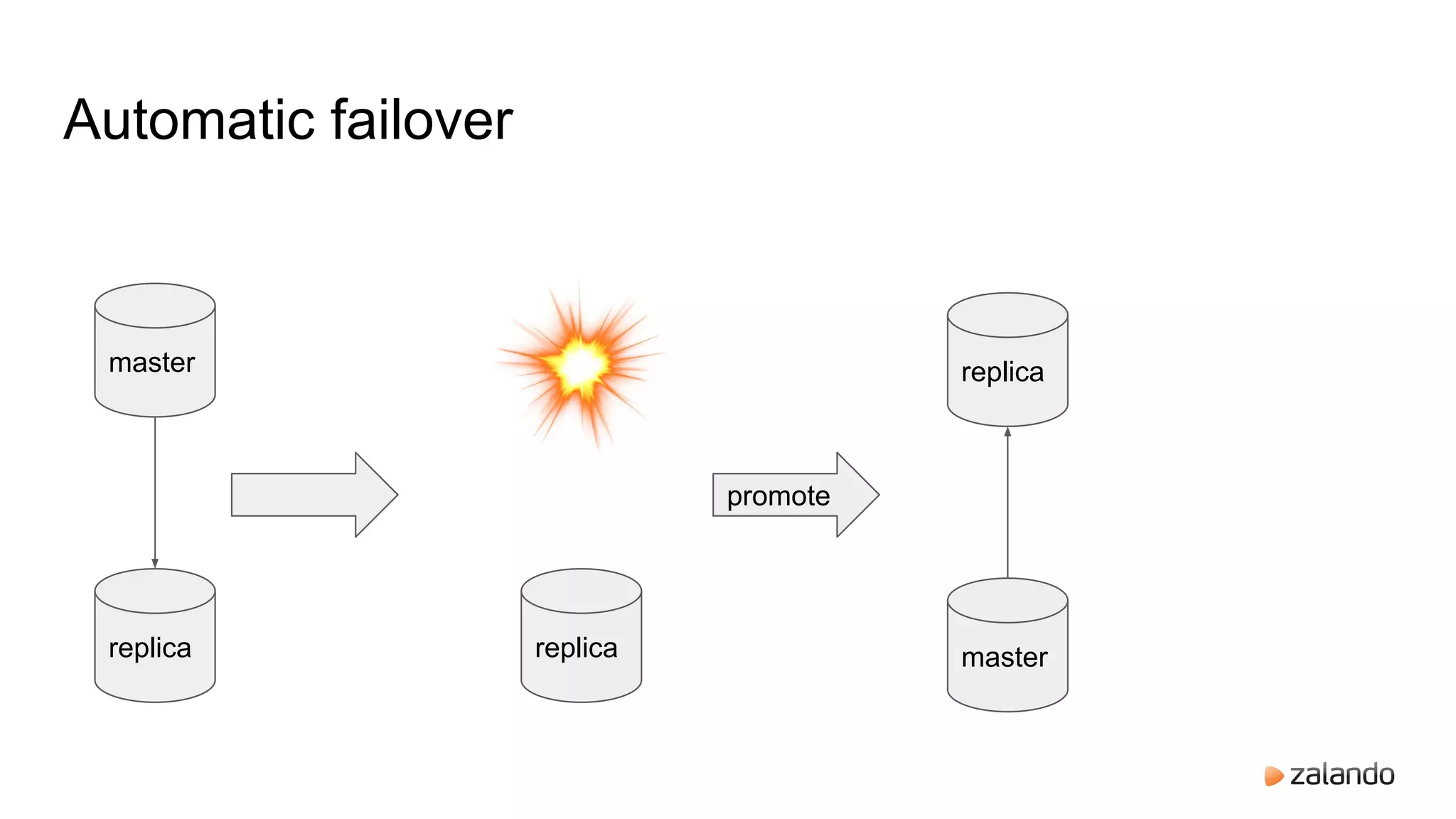

Automatic failover
master
replica
master
replica
promote
replica
master

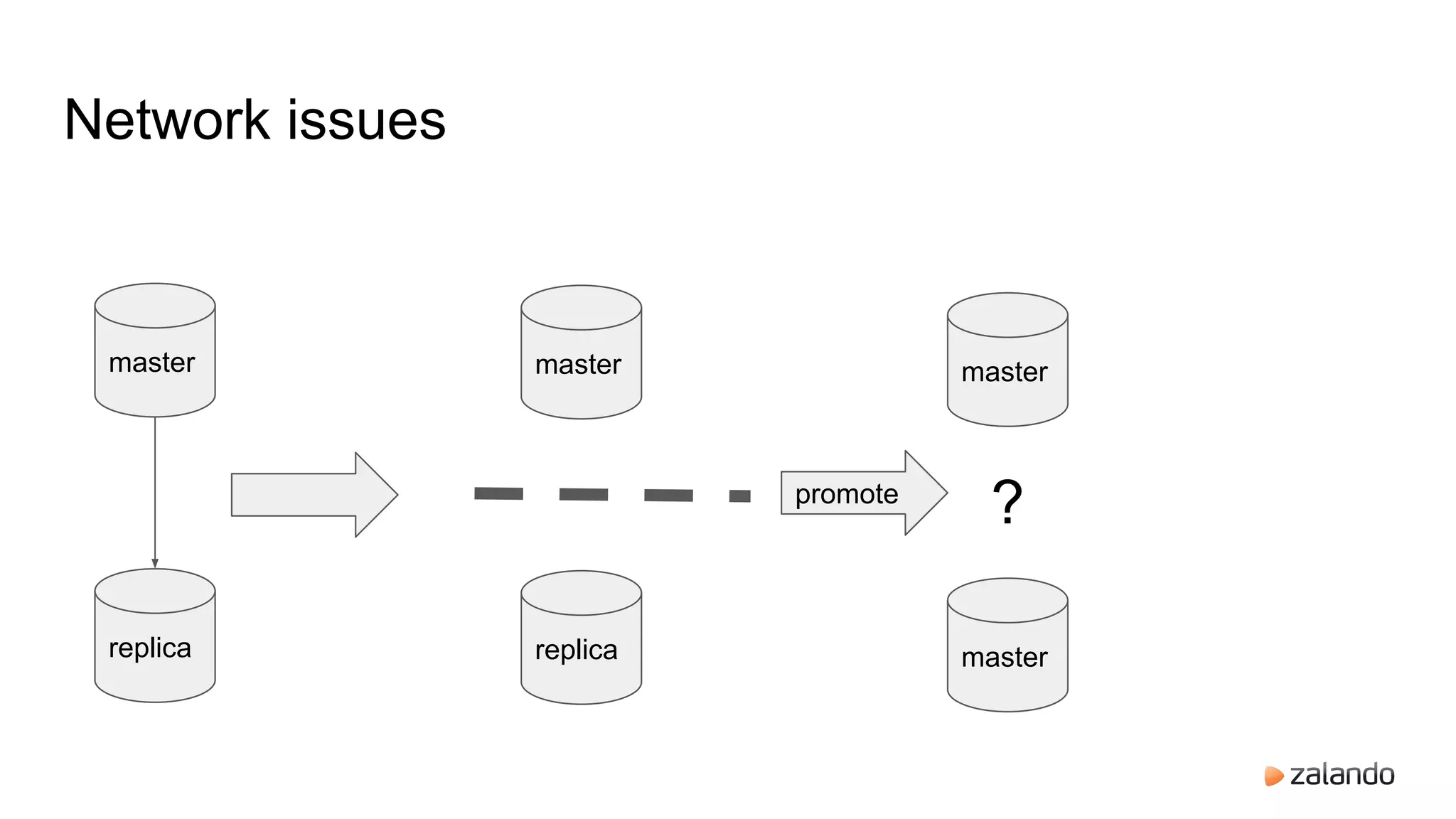

Network issues
master
replica
master
replica
promote
master
master
?

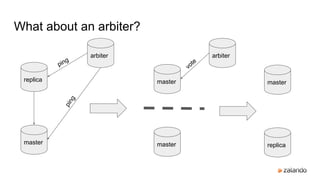

What about an arbiter?
replica
master
arbiter
ping
ping
master
master
arbiter
vote
master
replica

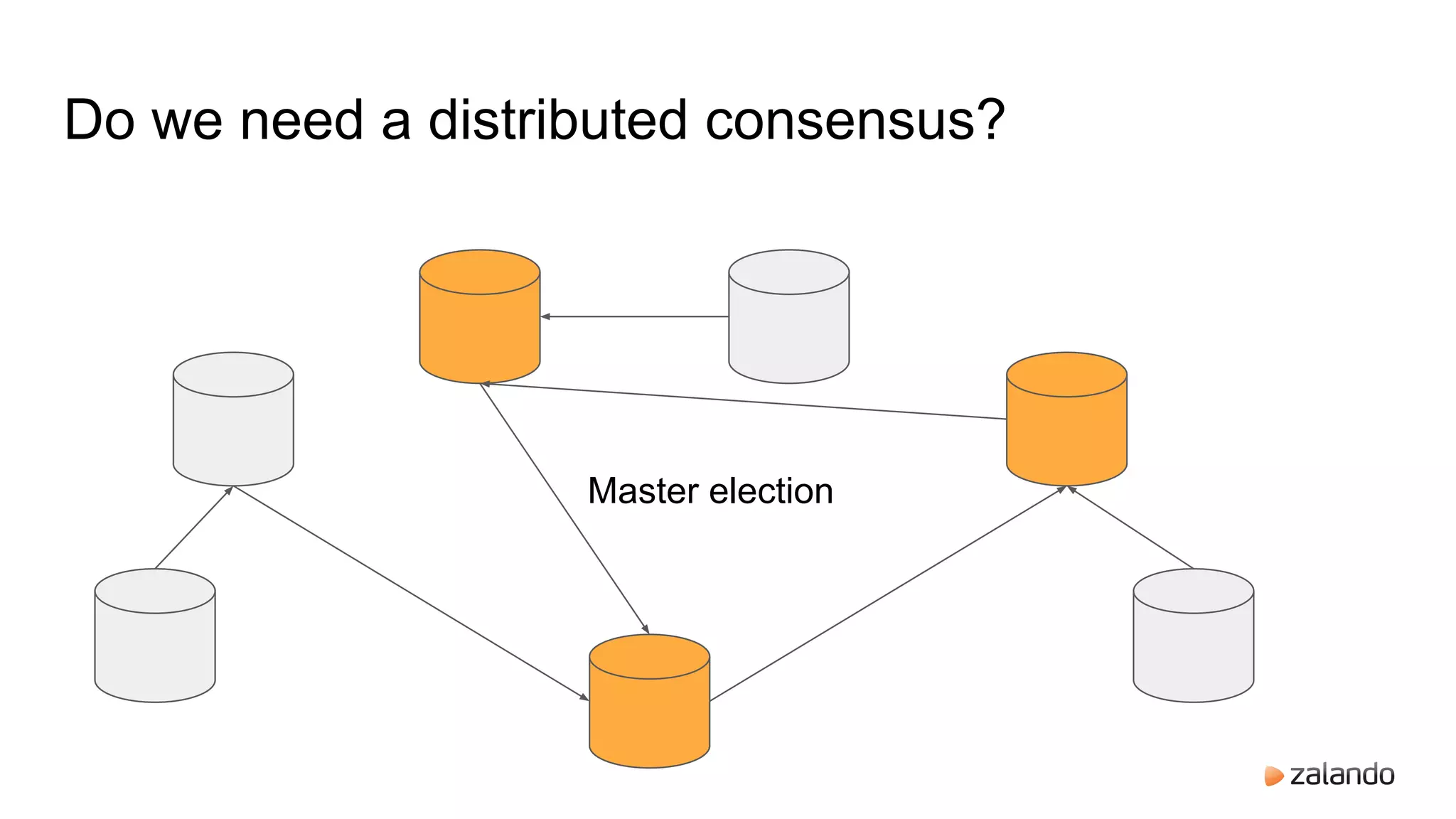

Do we need a distributed consensus?
Master election

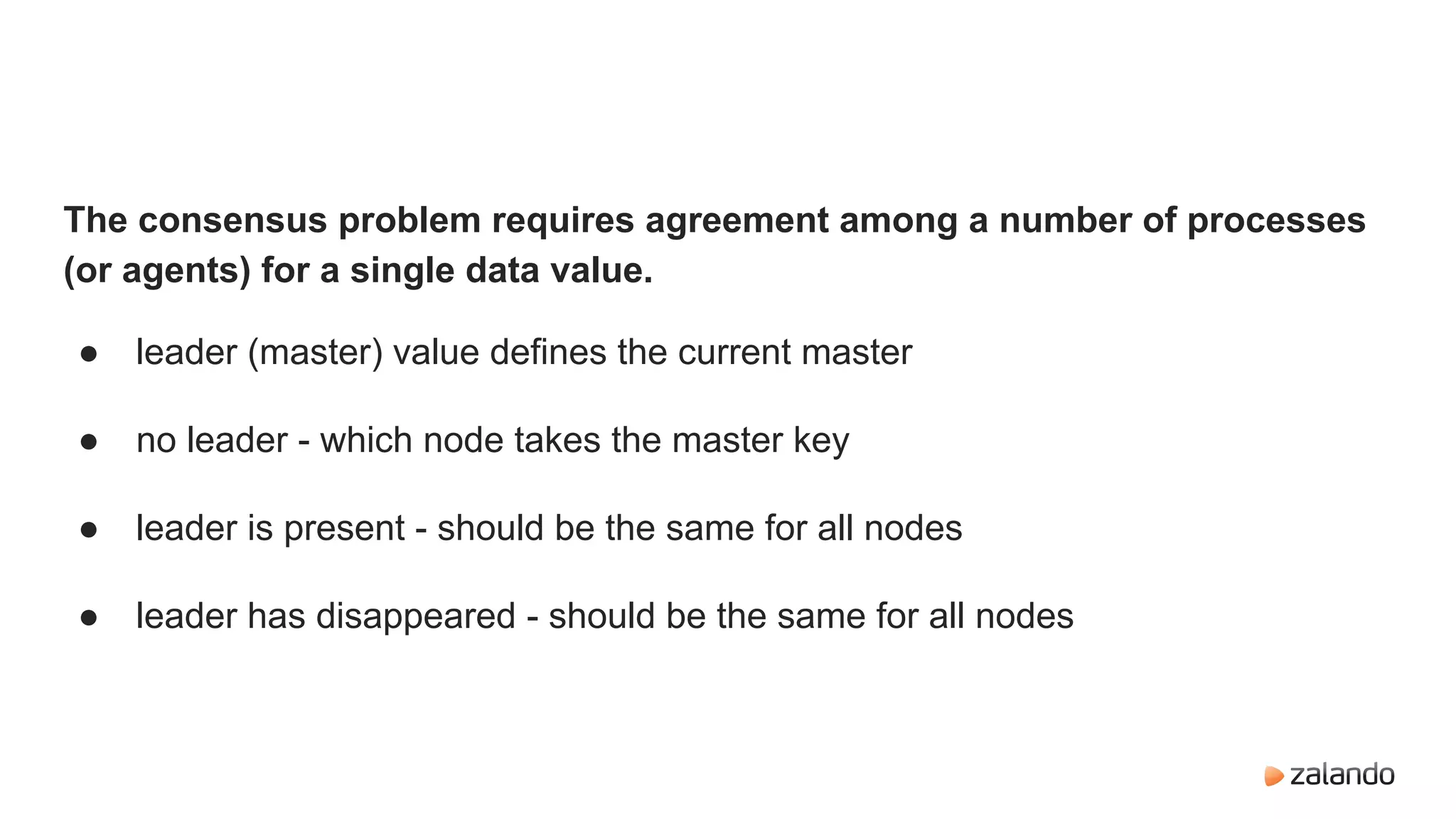

The consensus problem requires agreement among a number of processes
(or agents) for a single data value.
● leader (master) value defines the current master
● no leader - which node takes the master key
● leader is present - should be the same for all nodes
● leader has disappeared - should be the same for all nodes

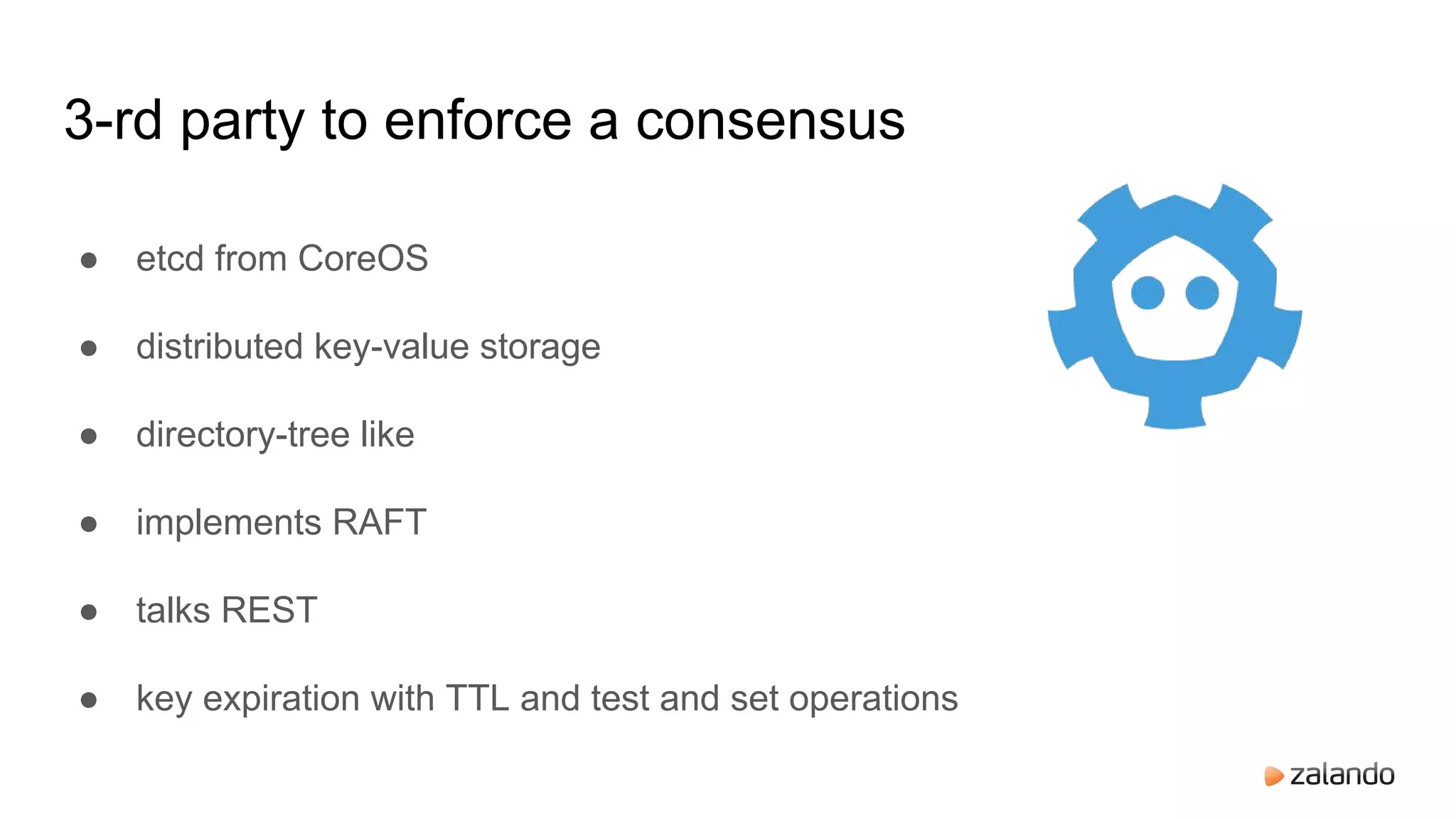

● etcd from CoreOS
● distributed key-value storage
● directory-tree like
● implements RAFT
● talks REST
● key expiration with TTL and test and set operations
3-rd party to enforce a consensus

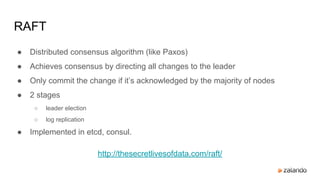

RAFT
● Distributed consensus algorithm (like Paxos)
● Achieves consensus by directing all changes to the leader
● Only commit the change if it’s acknowledged by the majority of nodes
● 2 stages
○ leader election
○ log replication
● Implemented in etcd, consul.
http://thesecretlivesofdata.com/raft/

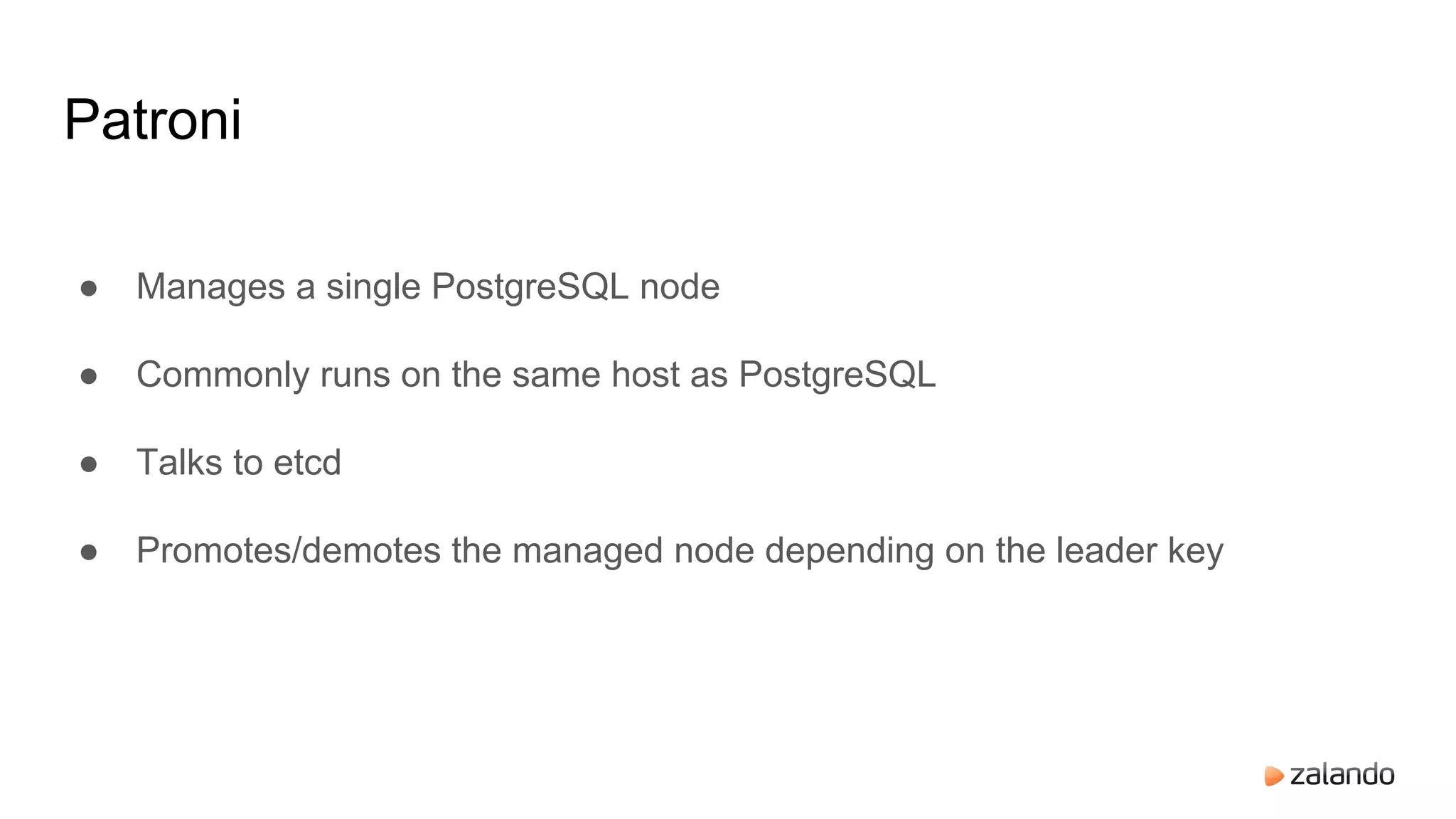

Patroni
● Manages a single PostgreSQL node
● Commonly runs on the same host as PostgreSQL
● Talks to etcd
● Promotes/demotes the managed node depending on the leader key

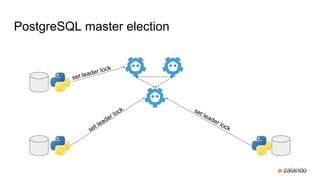

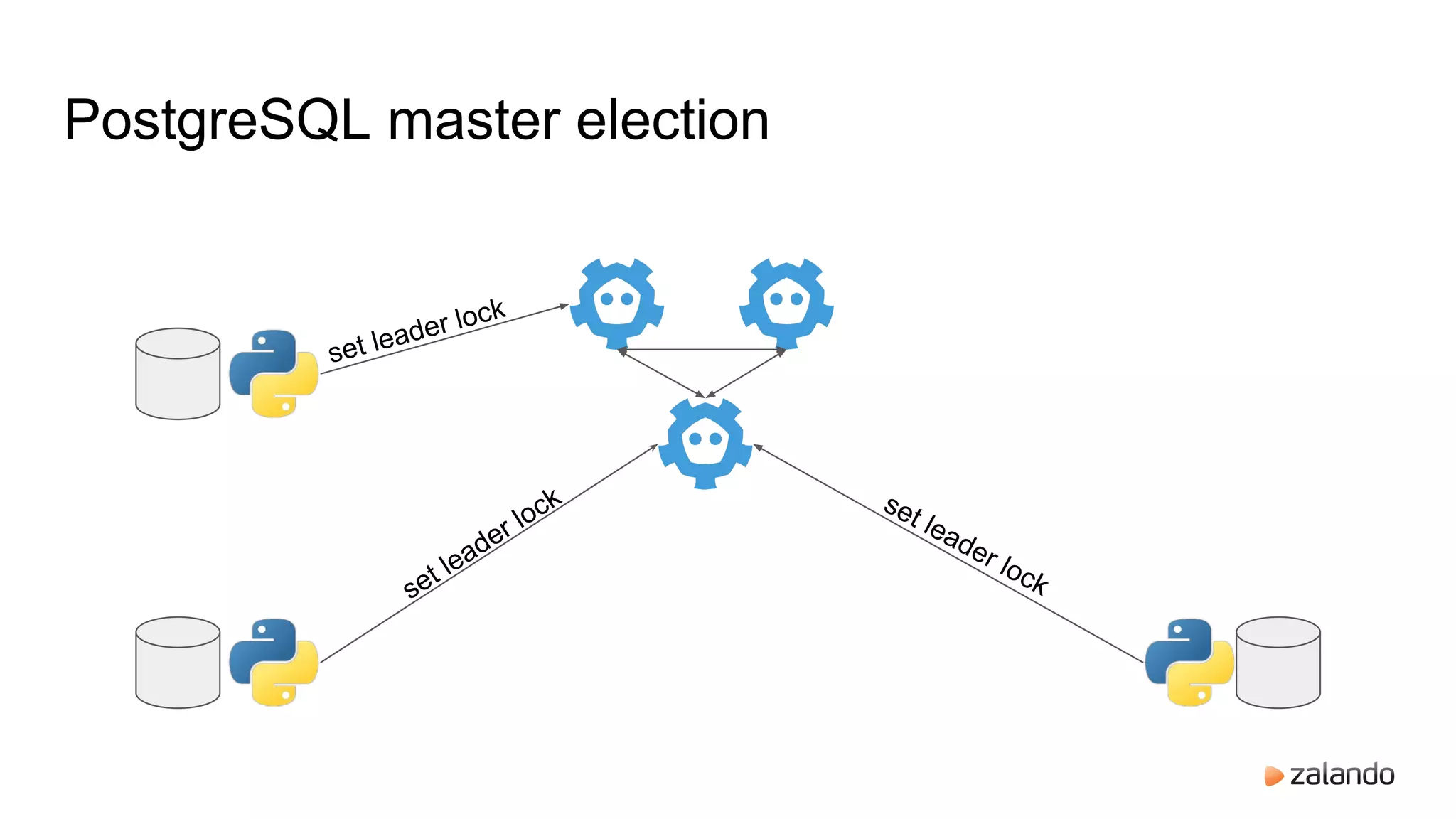

PostgreSQL master election
set leader lock
set leader lock set leader lock

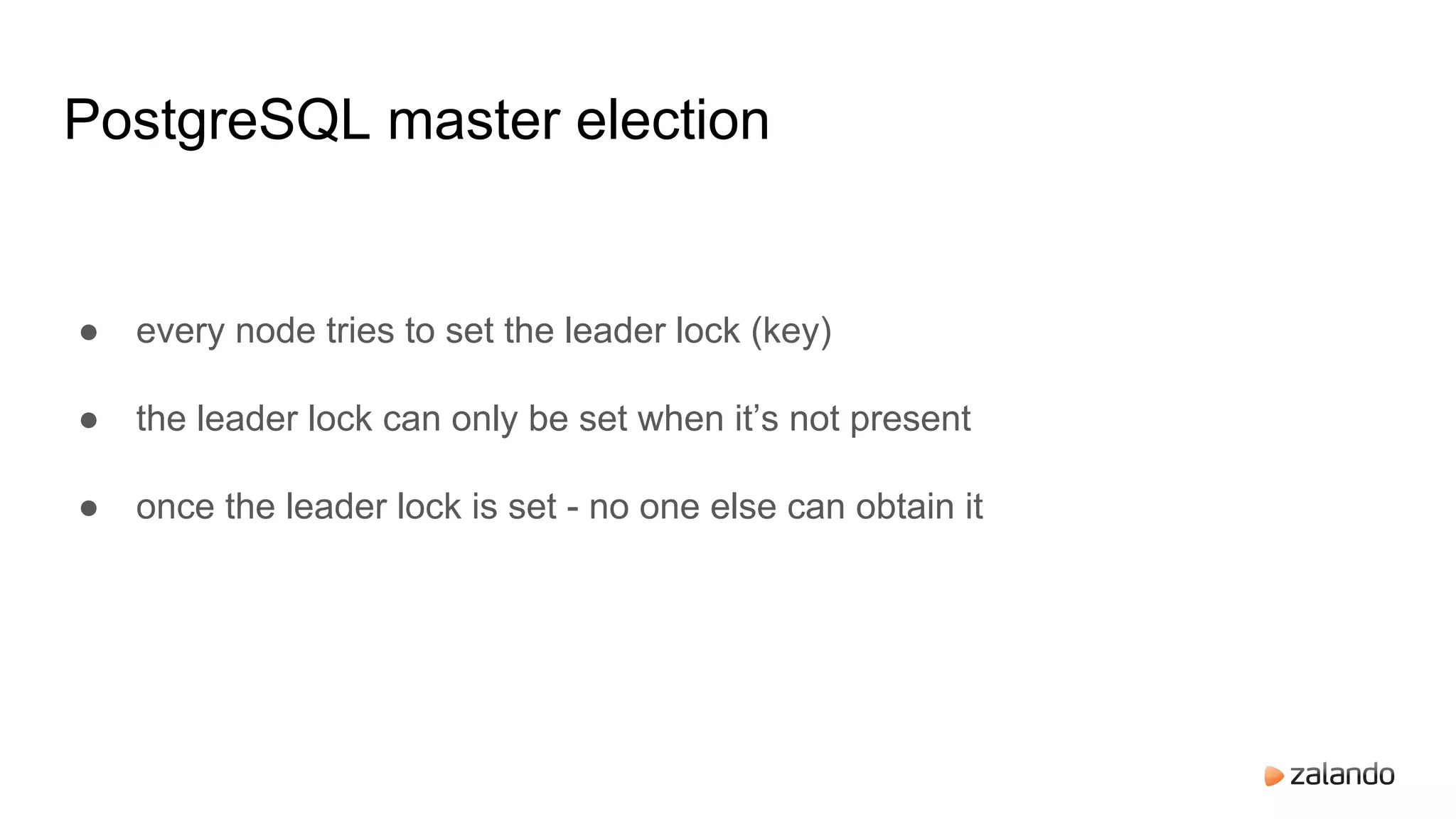

● every node tries to set the leader lock (key)
● the leader lock can only be set when it’s not present
● once the leader lock is set - no one else can obtain it

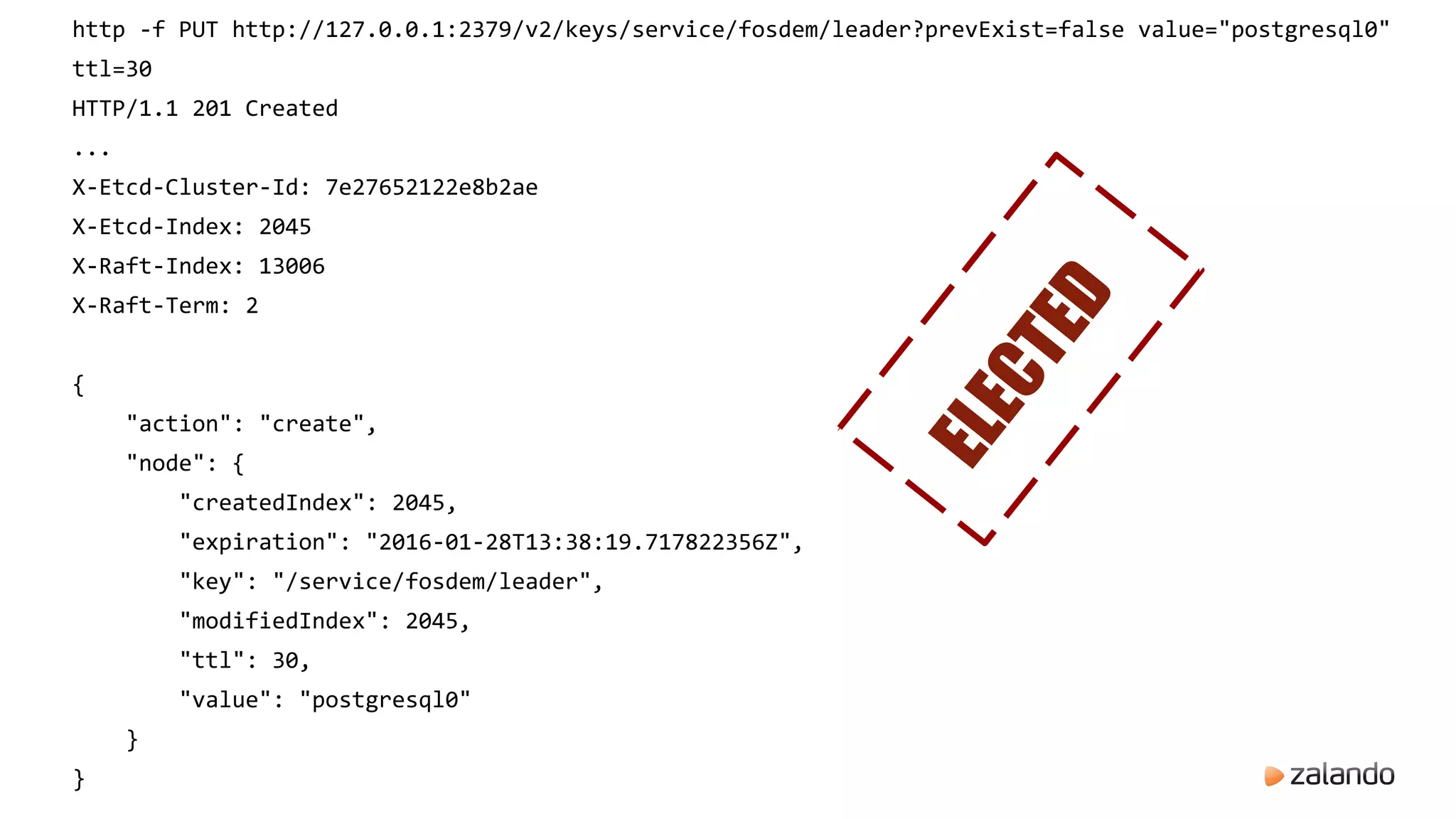

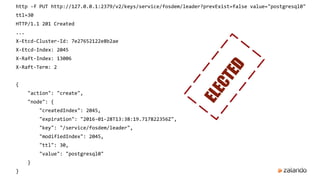

http -f PUT http://127.0.0.1:2379/v2/keys/service/fosdem/leader?prevExist=false value="postgresql0"
ttl=30
HTTP/1.1 201 Created
...
X-Etcd-Cluster-Id: 7e27652122e8b2ae
X-Etcd-Index: 2045
X-Raft-Index: 13006
X-Raft-Term: 2
{
"action": "create",
"node": {
"createdIndex": 2045,
"expiration": "2016-01-28T13:38:19.717822356Z",
"key": "/service/fosdem/leader",
"modifiedIndex": 2045,
"ttl": 30,
"value": "postgresql0"
}
}
ELECTED

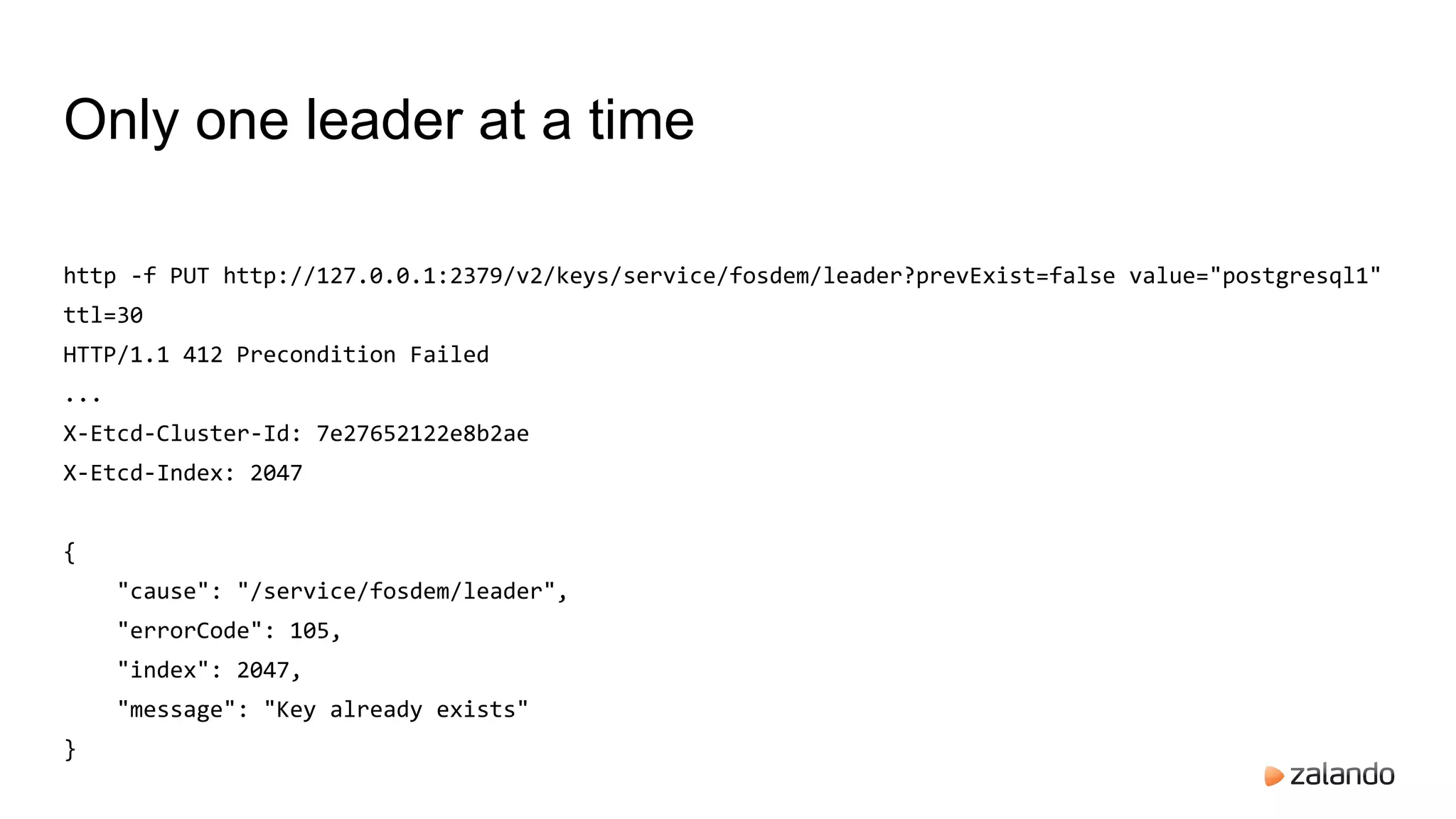

http -f PUT http://127.0.0.1:2379/v2/keys/service/fosdem/leader?prevExist=false value="postgresql1"
ttl=30
HTTP/1.1 412 Precondition Failed
...
X-Etcd-Index: 2047
{
"cause": "/service/fosdem/leader",
"errorCode": 105,
"index": 2047,
"message": "Key already exists"
}

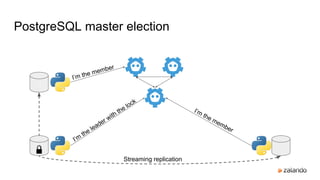

Only one leader at a time

I’m the member
I’m
the leader with the lock
I’m
the member
Streaming replication

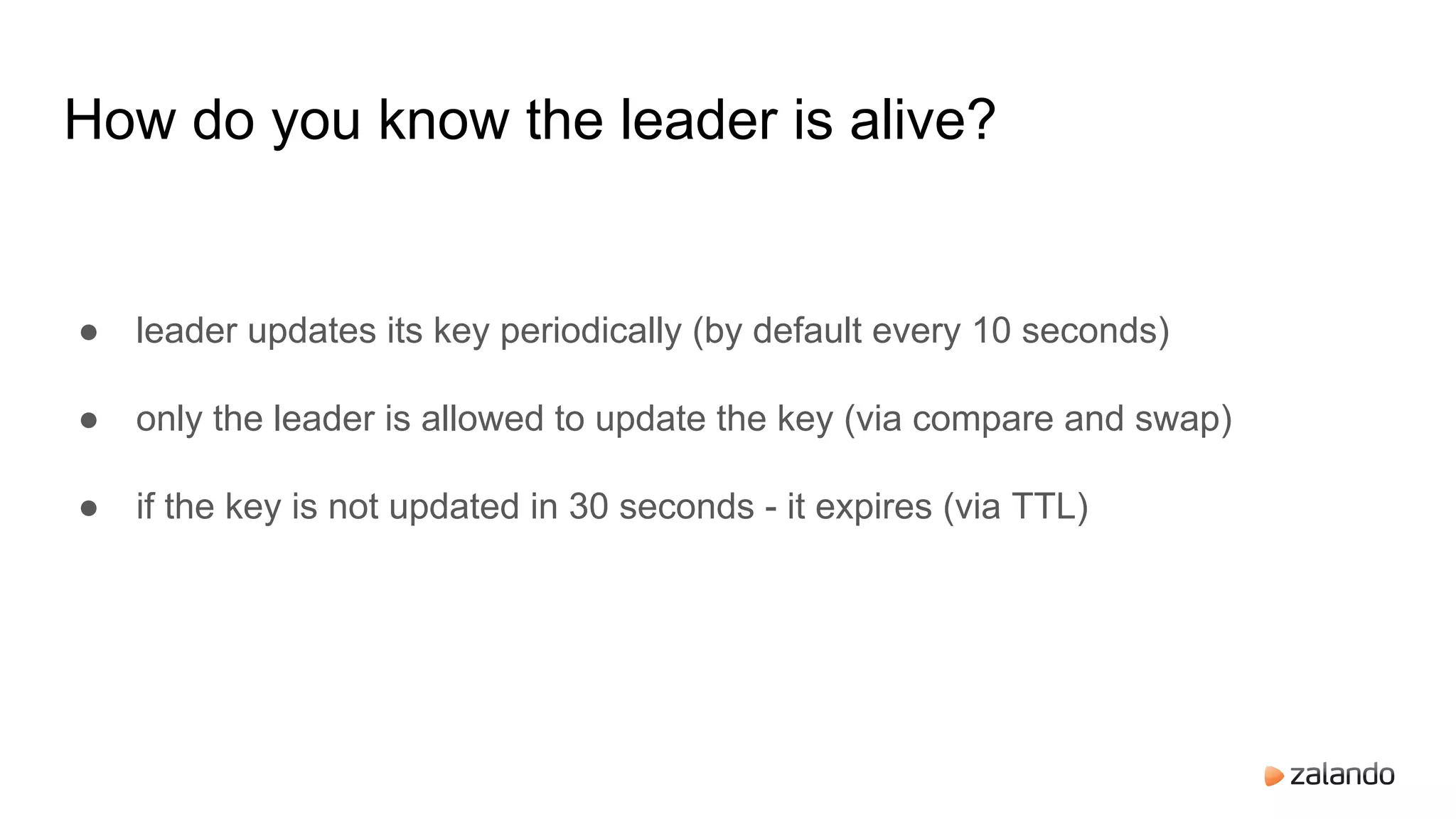

How do you know the leader is alive?
● leader updates its key periodically (by default every 10 seconds)
● only the leader is allowed to update the key (via compare and swap)
● if the key is not updated in 30 seconds - it expires (via TTL)

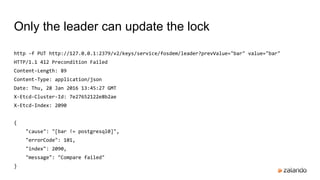

http -f PUT http://127.0.0.1:2379/v2/keys/service/fosdem/leader?prevValue="bar" value="bar"
HTTP/1.1 412 Precondition Failed
Content-Length: 89
Content-Type: application/json
Date: Thu, 28 Jan 2016 13:45:27 GMT
X-Etcd-Index: 2090
{
"cause": "[bar != postgresql0]",
"errorCode": 101,
"index": 2090,
"message": "Compare failed"
}
Only the leader can update the lock

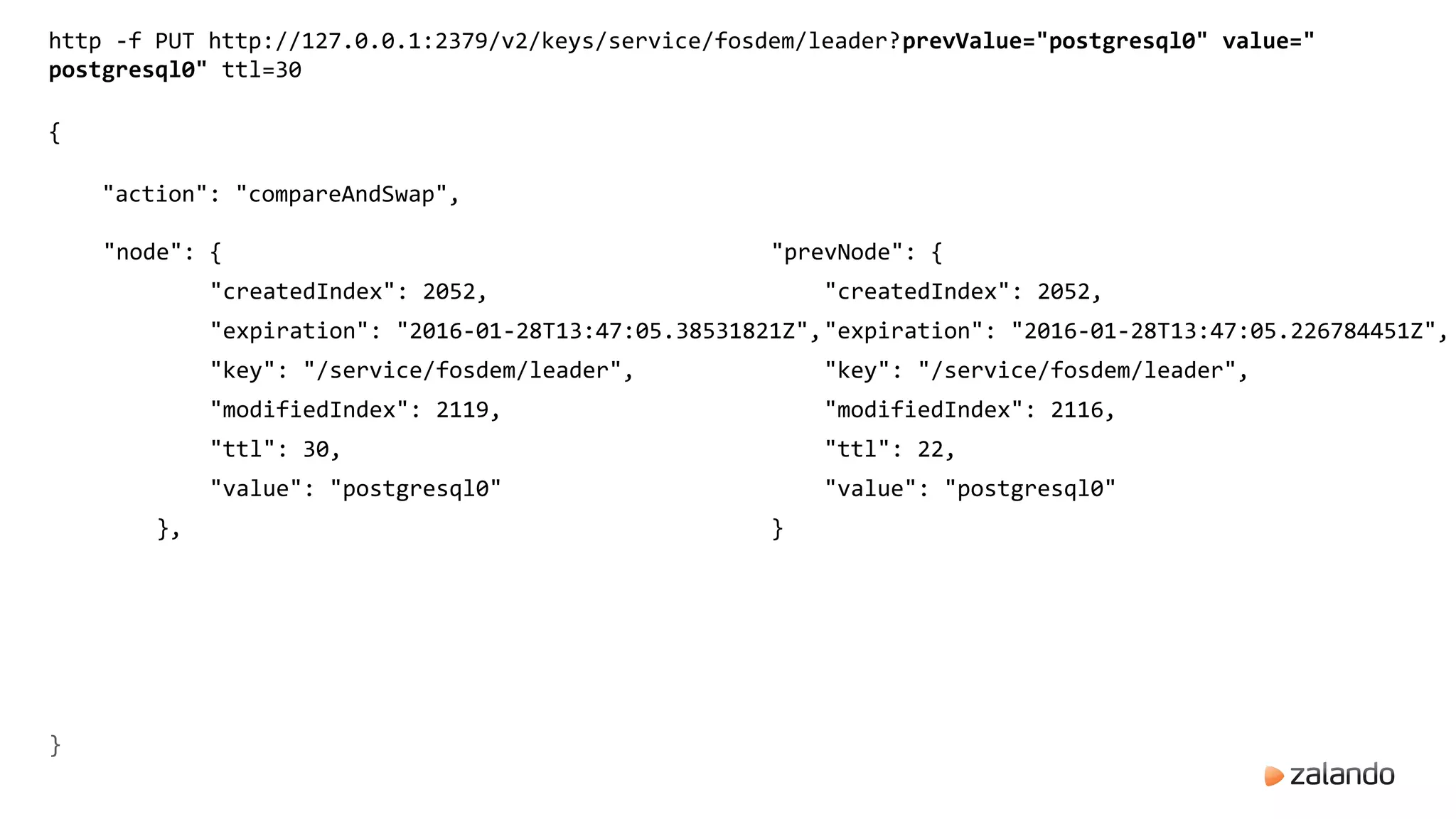

http -f PUT http://127.0.0.1:2379/v2/keys/service/fosdem/leader?prevValue="postgresql0" value="
postgresql0" ttl=30
{
"action": "compareAndSwap",
"node": {
"expiration": "2016-01-28T13:47:05.38531821Z",
"ttl": 30,
},
"prevNode": {
"expiration": "2016-01-28T13:47:05.226784451Z",
"ttl": 22,
}
}

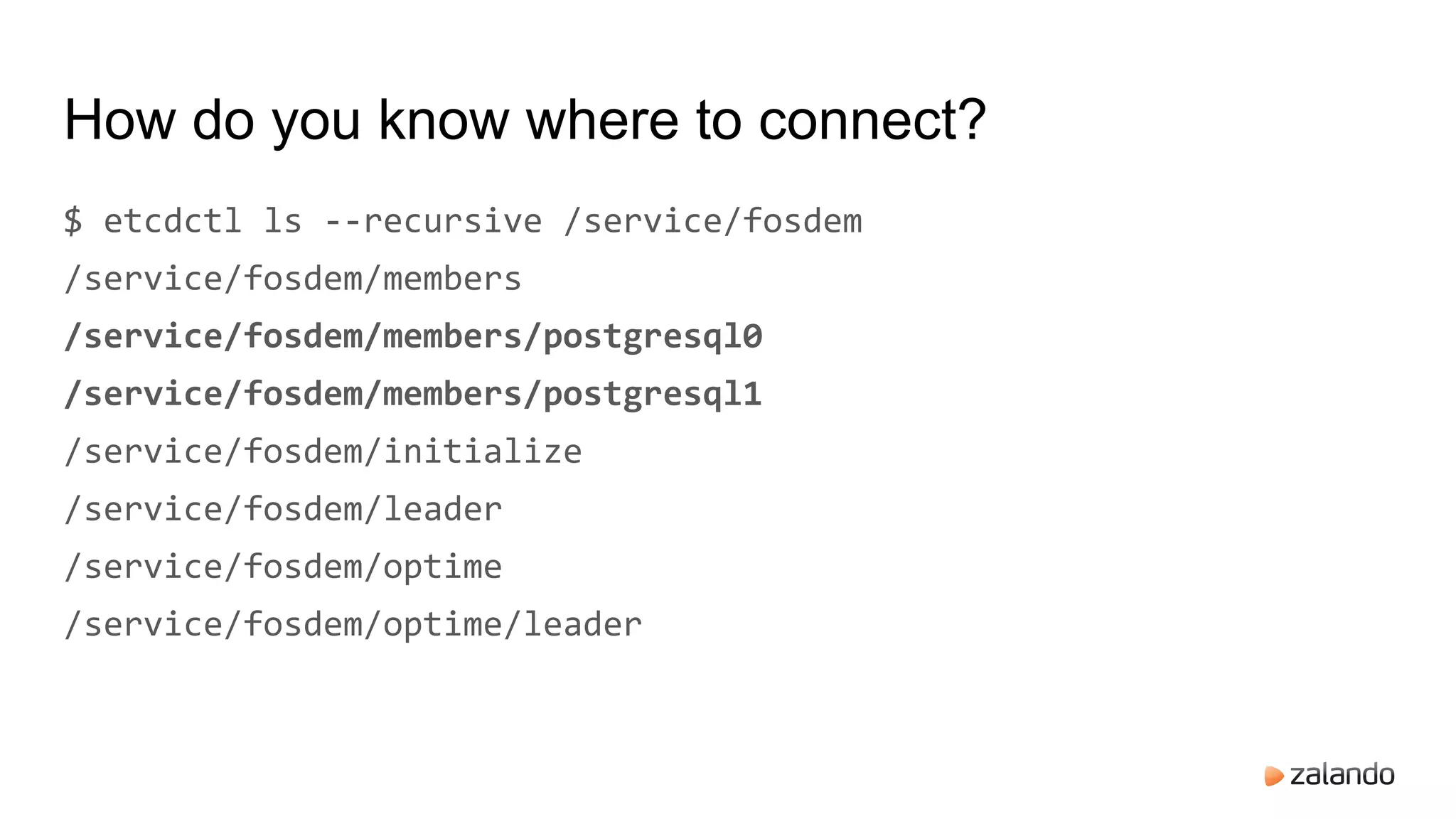

How do you know where to connect?
$ etcdctl ls --recursive /service/fosdem
/service/fosdem/members
/service/fosdem/members/postgresql0
/service/fosdem/members/postgresql1
/service/fosdem/initialize
/service/fosdem/leader
/service/fosdem/optime
/service/fosdem/optime/leader

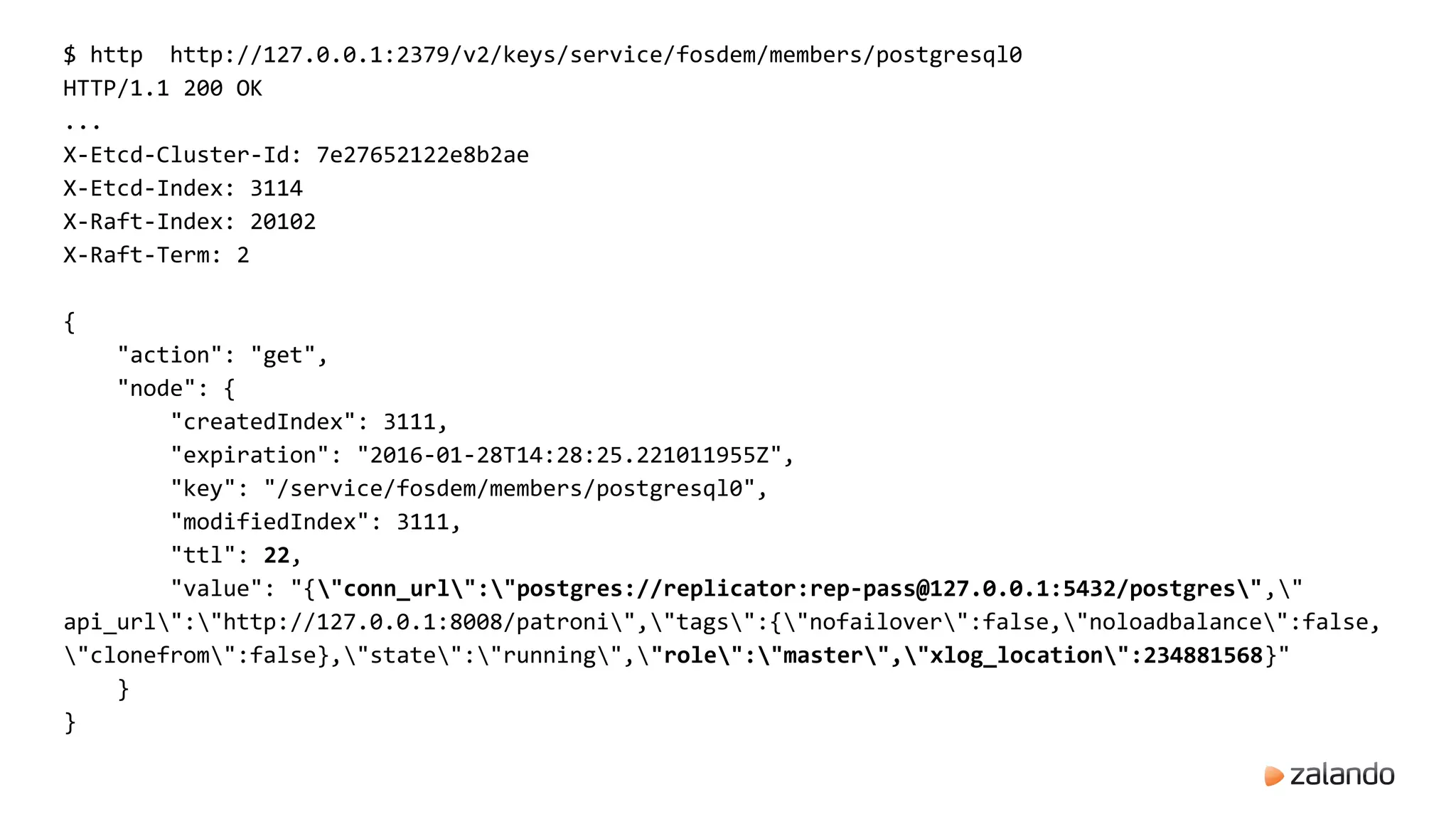

$ http http://127.0.0.1:2379/v2/keys/service/fosdem/members/postgresql0
HTTP/1.1 200 OK
...
X-Etcd-Index: 3114
X-Raft-Index: 20102
X-Raft-Term: 2
{
"action": "get",
"node": {
"expiration": "2016-01-28T14:28:25.221011955Z",
"key": "/service/fosdem/members/postgresql0",
"ttl": 22,
"value": "{"conn_url":"postgres://replicator:rep-pass@127.0.0.1:5432/postgres","
api_url":"http://127.0.0.1:8008/patroni","tags":{"nofailover":false,"noloadbalance":false,
"clonefrom":false},"state":"running","role":"master","xlog_location":234881568}"
}
}

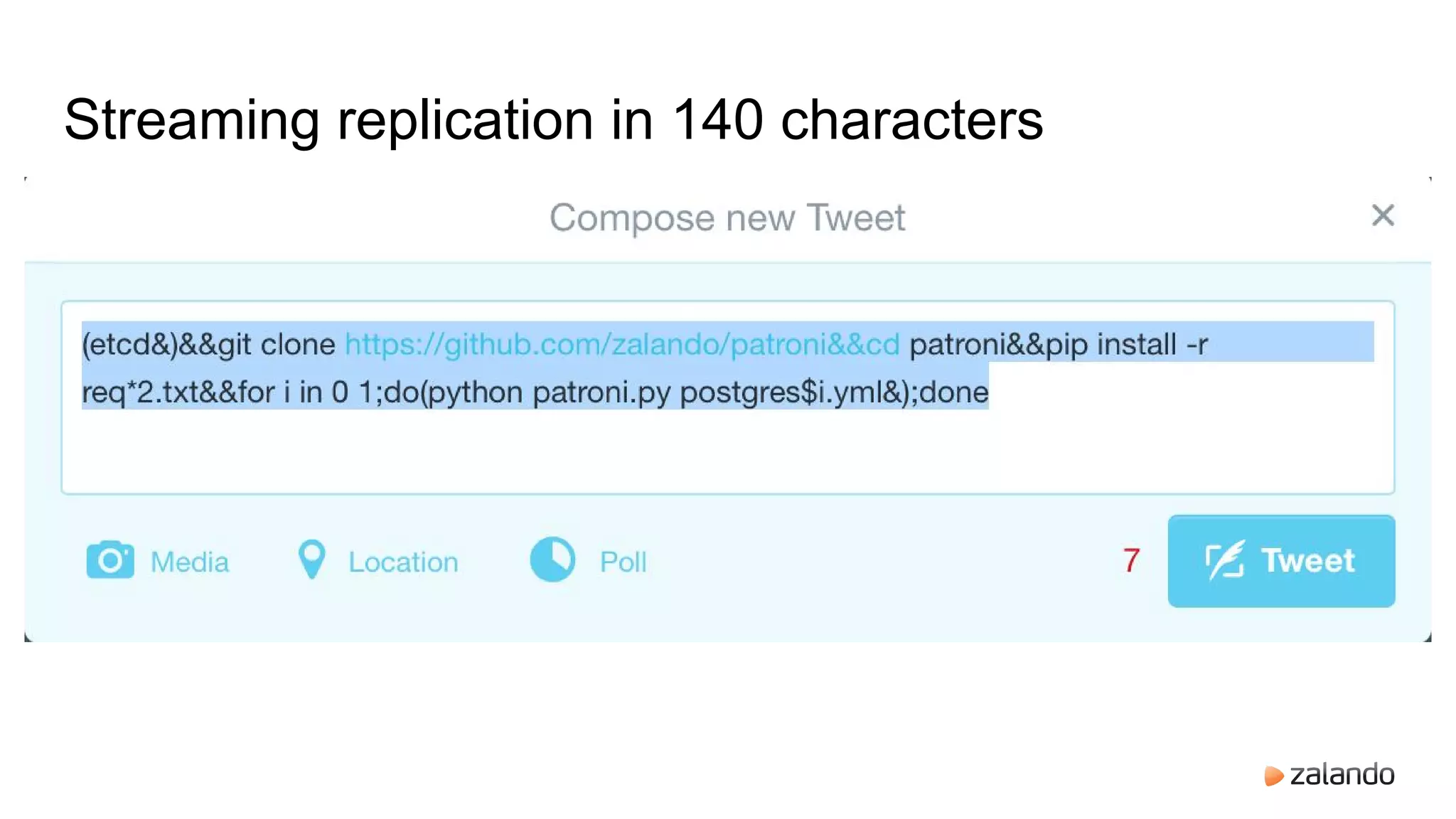

Streaming replication in 140 characters

Patroni configuration parameters
● YAML file with sections
● general parameters
○ ttl: time to leave for the leader and member keys
○ loop_wait: minimum time one iteration of the eventloop takes
○ scope: name of the cluster to run
○ auth: ‘username:password’ string for the REST API
● postgresql section
○ name - name of the postgresql member (should be unique)
○ listen - address:port to listen to (or multiple, i.e. 127.0.0.1,127.0.0.2:5432)
○ connect_address: address:port to advertise to other members (only one, i.e. 127.0.0.5:5432)
○ data_dir: PGDATA (can be initially not empty)
○ maximum_lag_on_failover: do not failover if slave is more than this number of bytes behind
○ use_slots: whether to use replication slots (9.4 and above)

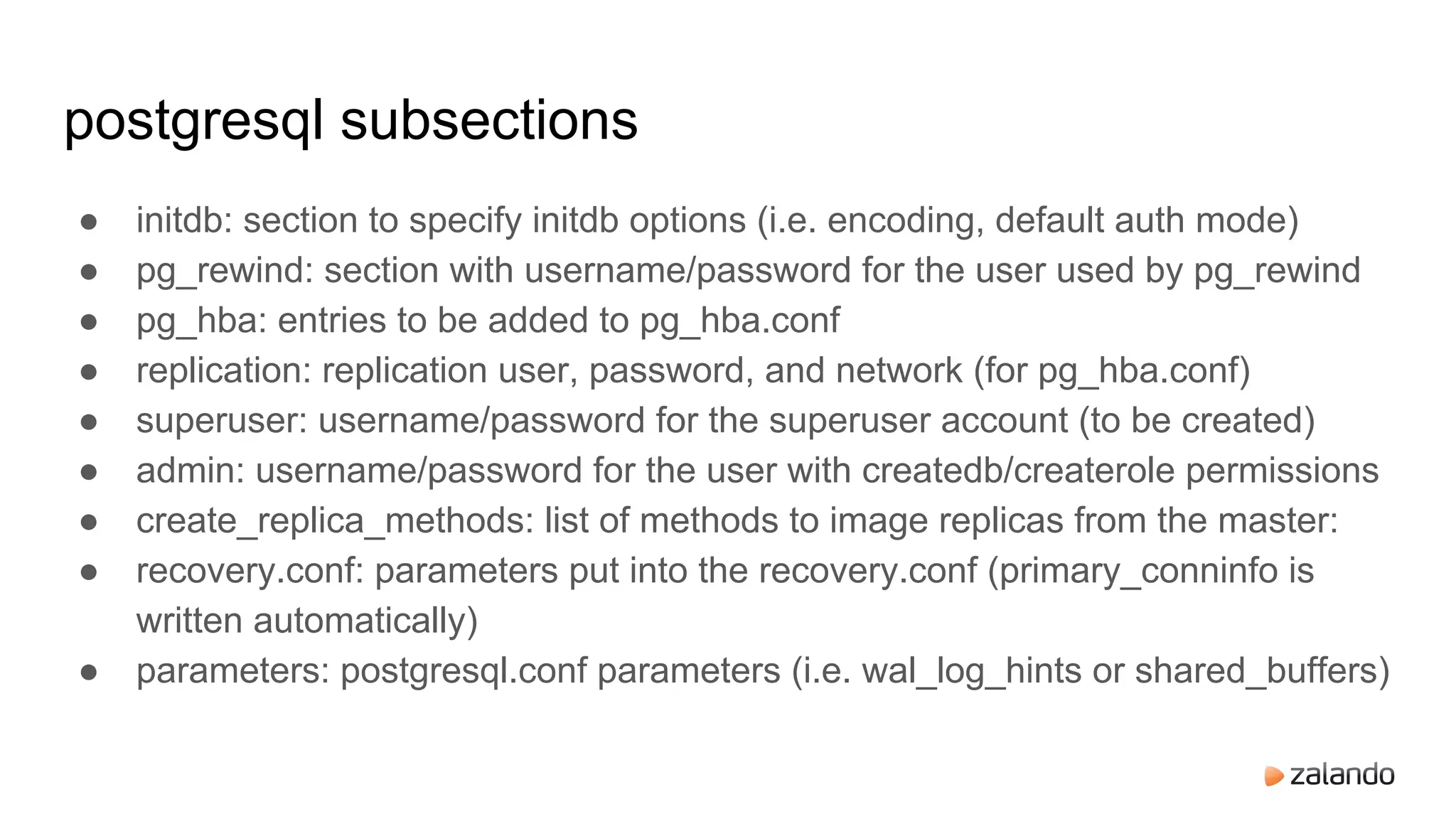

postgresql subsections
● initdb: section to specify initdb options (i.e. encoding, default auth mode)
● pg_rewind: section with username/password for the user used by pg_rewind
● pg_hba: entries to be added to pg_hba.conf
● replication: replication user, password, and network (for pg_hba.conf)
● superuser: username/password for the superuser account (to be created)
● admin: username/password for the user with createdb/createrole permissions
● create_replica_methods: list of methods to image replicas from the master:
● recovery.conf: parameters put into the recovery.conf (primary_conninfo is
written automatically)
● parameters: postgresql.conf parameters (i.e. wal_log_hints or shared_buffers)

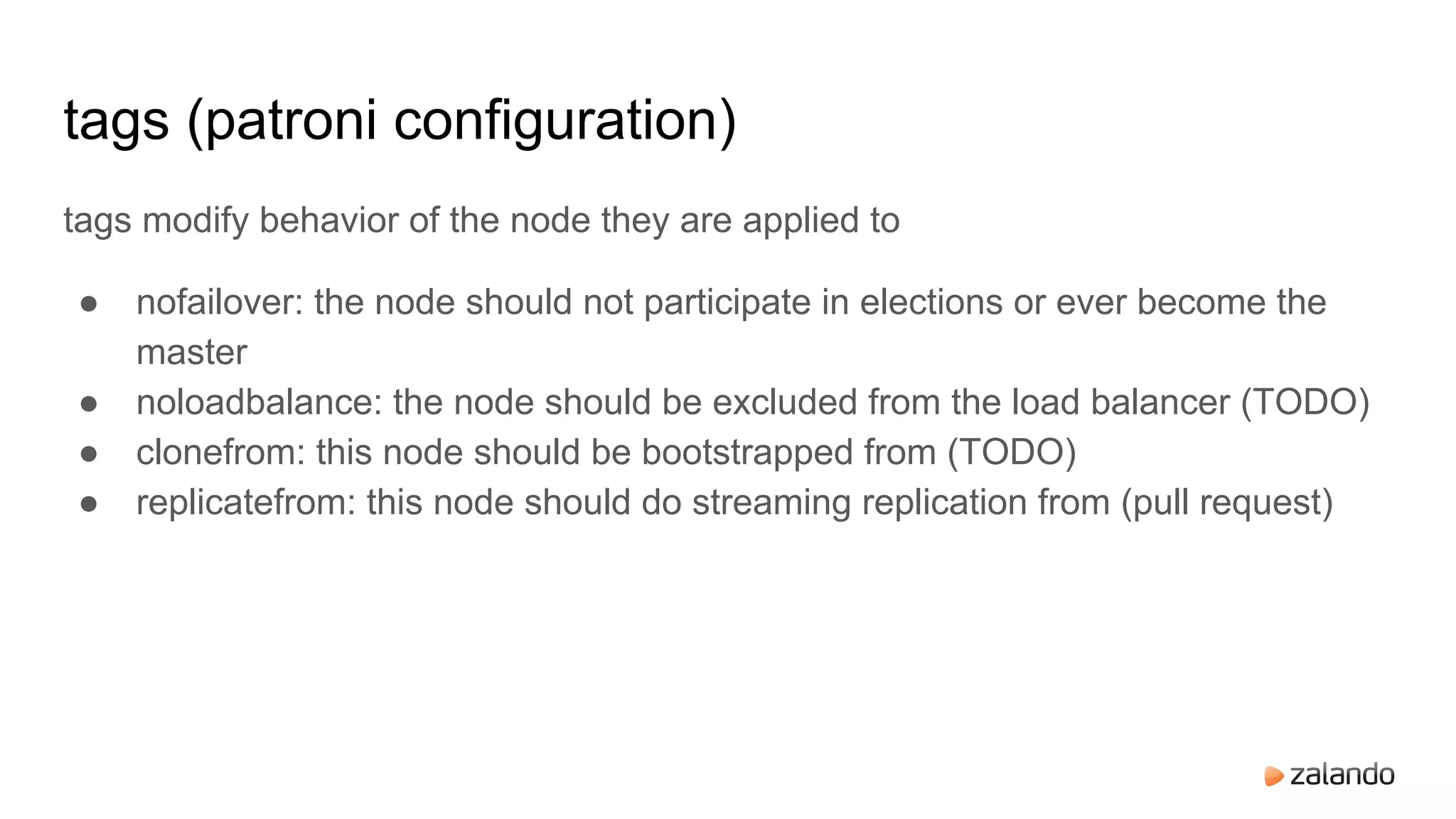

tags (patroni configuration)
tags modify behavior of the node they are applied to
● nofailover: the node should not participate in elections or ever become the
master
● noloadbalance: the node should be excluded from the load balancer (TODO)
● clonefrom: this node should be bootstrapped from (TODO)
● replicatefrom: this node should do streaming replication from (pull request)

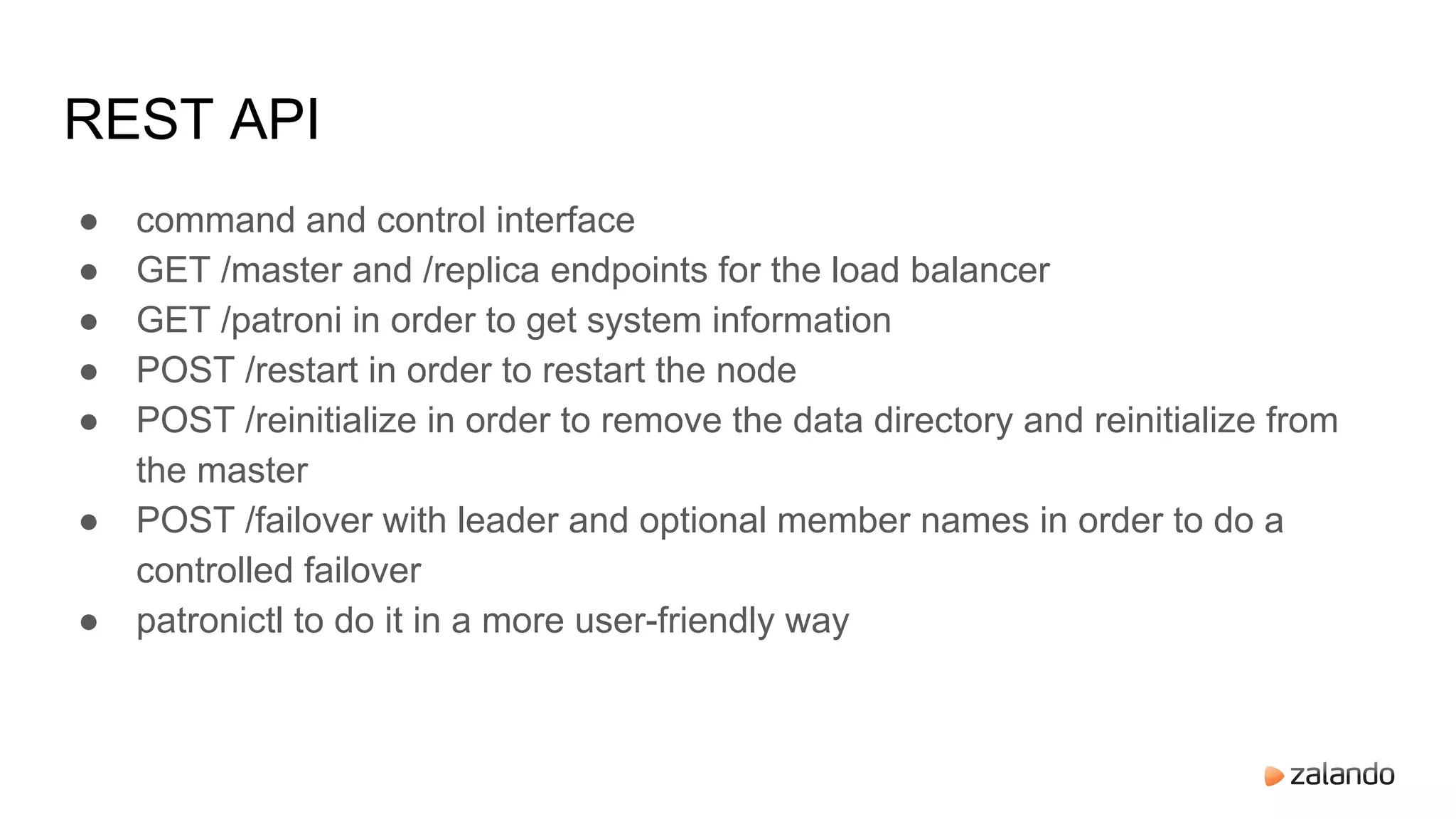

REST API
● command and control interface
● GET /master and /replica endpoints for the load balancer
● GET /patroni in order to get system information
● POST /restart in order to restart the node
● POST /reinitialize in order to remove the data directory and reinitialize from
the master
● POST /failover with leader and optional member names in order to do a
controlled failover
● patronictl to do it in a more user-friendly way

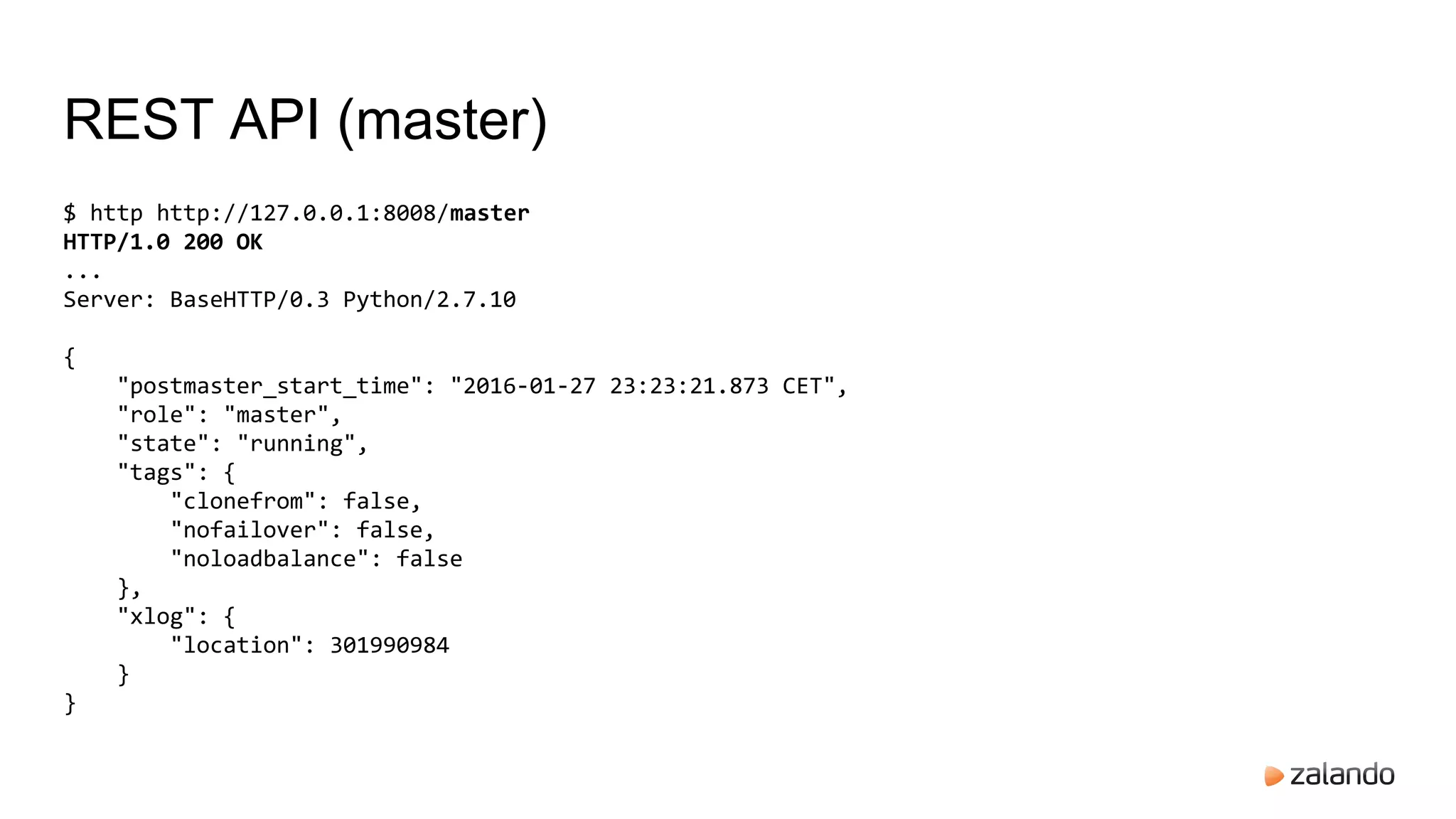

REST API (master)
$ http http://127.0.0.1:8008/master
HTTP/1.0 200 OK
...
Server: BaseHTTP/0.3 Python/2.7.10
{
"postmaster_start_time": "2016-01-27 23:23:21.873 CET",
"role": "master",
"state": "running",
"tags": {
"clonefrom": false,
"nofailover": false,
"noloadbalance": false
},
"xlog": {
"location": 301990984
}
}

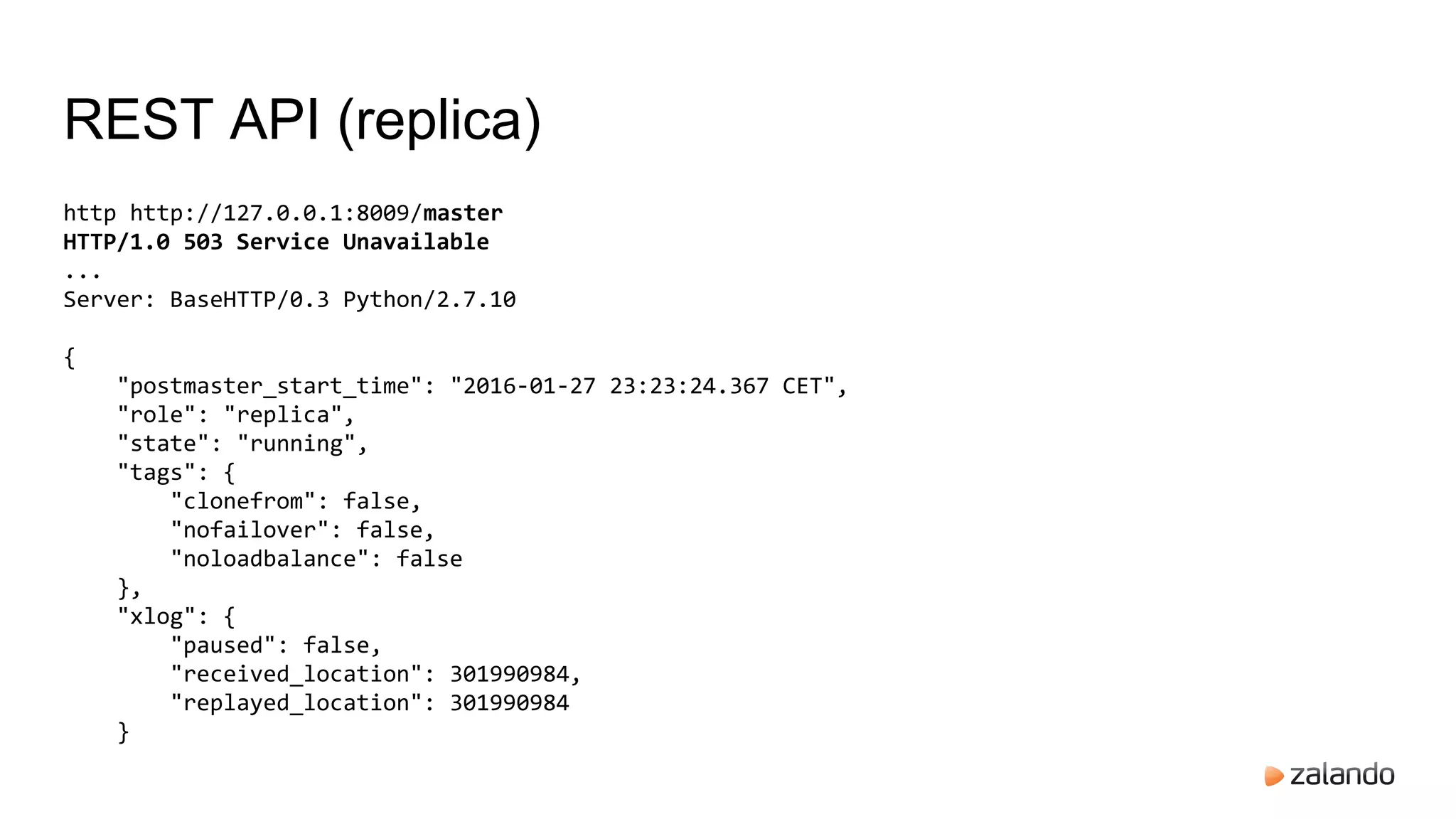

REST API (replica)
http http://127.0.0.1:8009/master
HTTP/1.0 503 Service Unavailable
...
Server: BaseHTTP/0.3 Python/2.7.10
{
"postmaster_start_time": "2016-01-27 23:23:24.367 CET",
"role": "replica",
"state": "running",
"tags": {
"clonefrom": false,
"nofailover": false,
"noloadbalance": false
},
"xlog": {
"paused": false,
"received_location": 301990984,
"replayed_location": 301990984
}

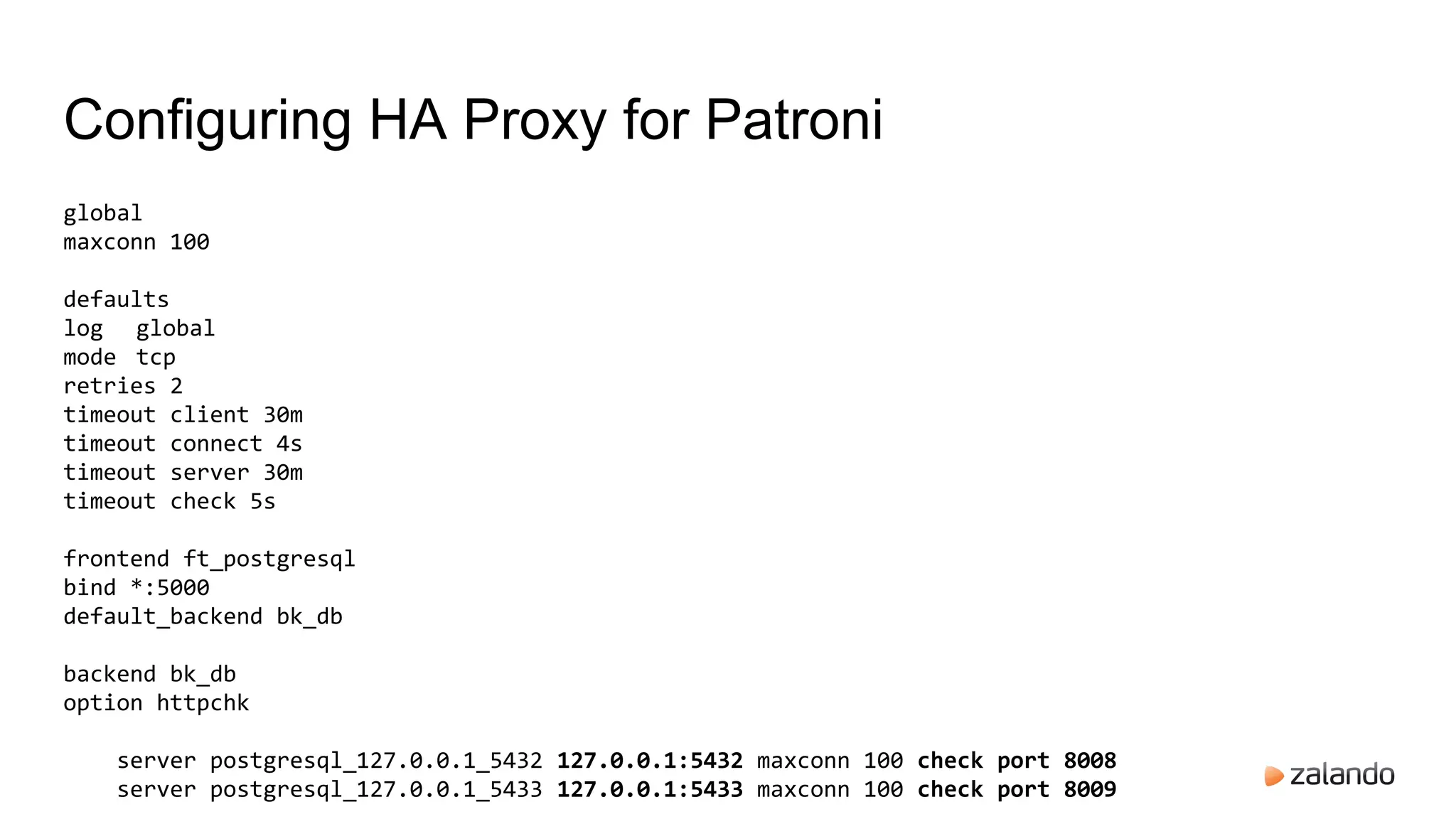

Configuring HA Proxy for Patroni
global
maxconn 100
defaults
log global
mode tcp
retries 2
timeout client 30m
timeout connect 4s
timeout server 30m
timeout check 5s
frontend ft_postgresql
bind *:5000
default_backend bk_db
backend bk_db
option httpchk
server postgresql_127.0.0.1_5432 127.0.0.1:5432 maxconn 100 check port 8008
server postgresql_127.0.0.1_5433 127.0.0.1:5433 maxconn 100 check port 8009

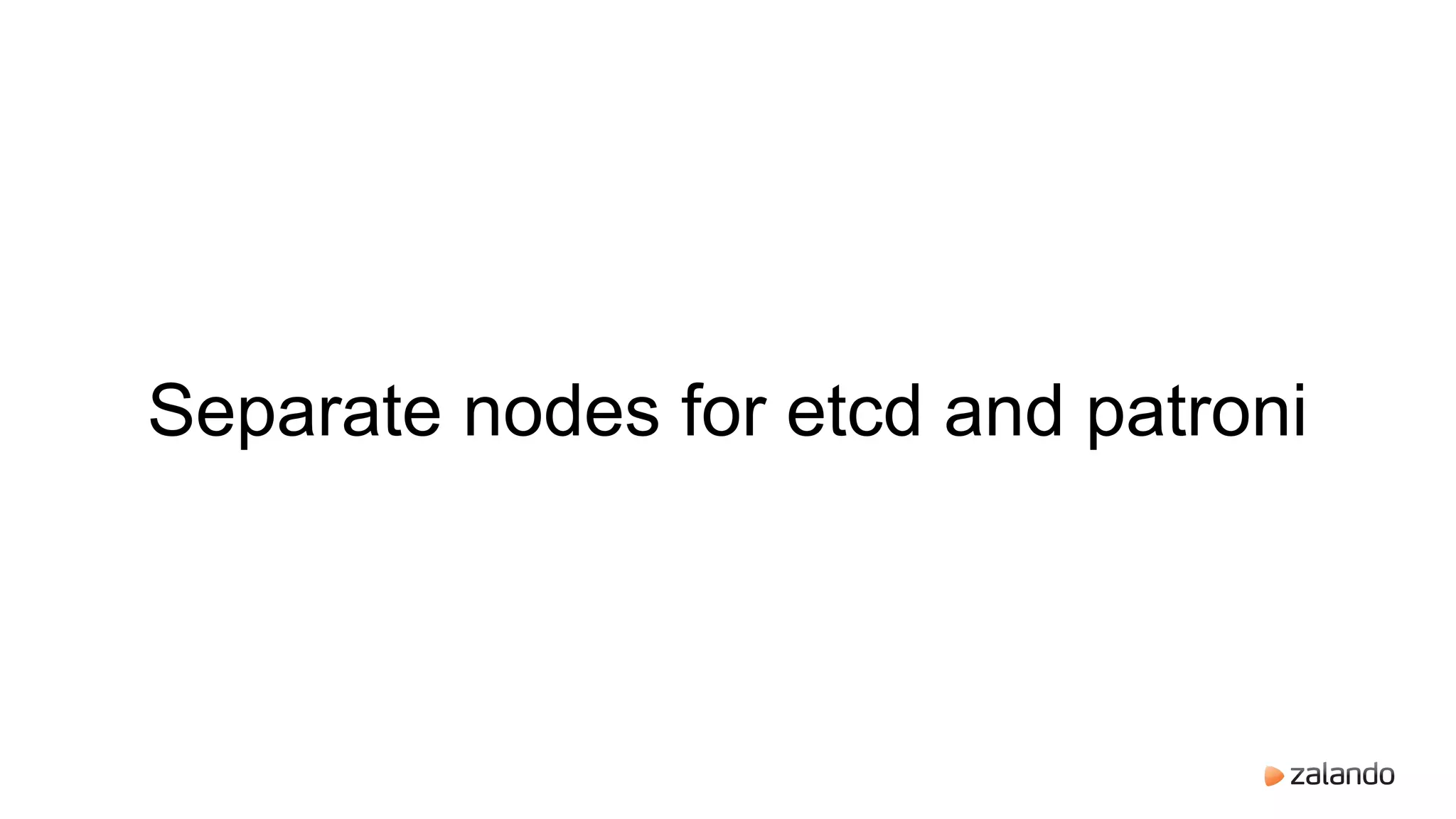

Separate nodes for etcd and patroni

Multi-threading to avoid blocking the
event loop

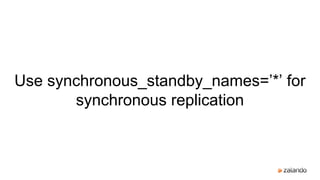

Use synchronous_standby_names=’*’ for
synchronous replication

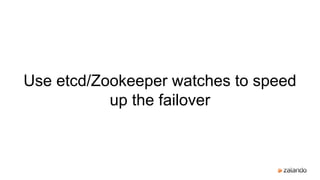

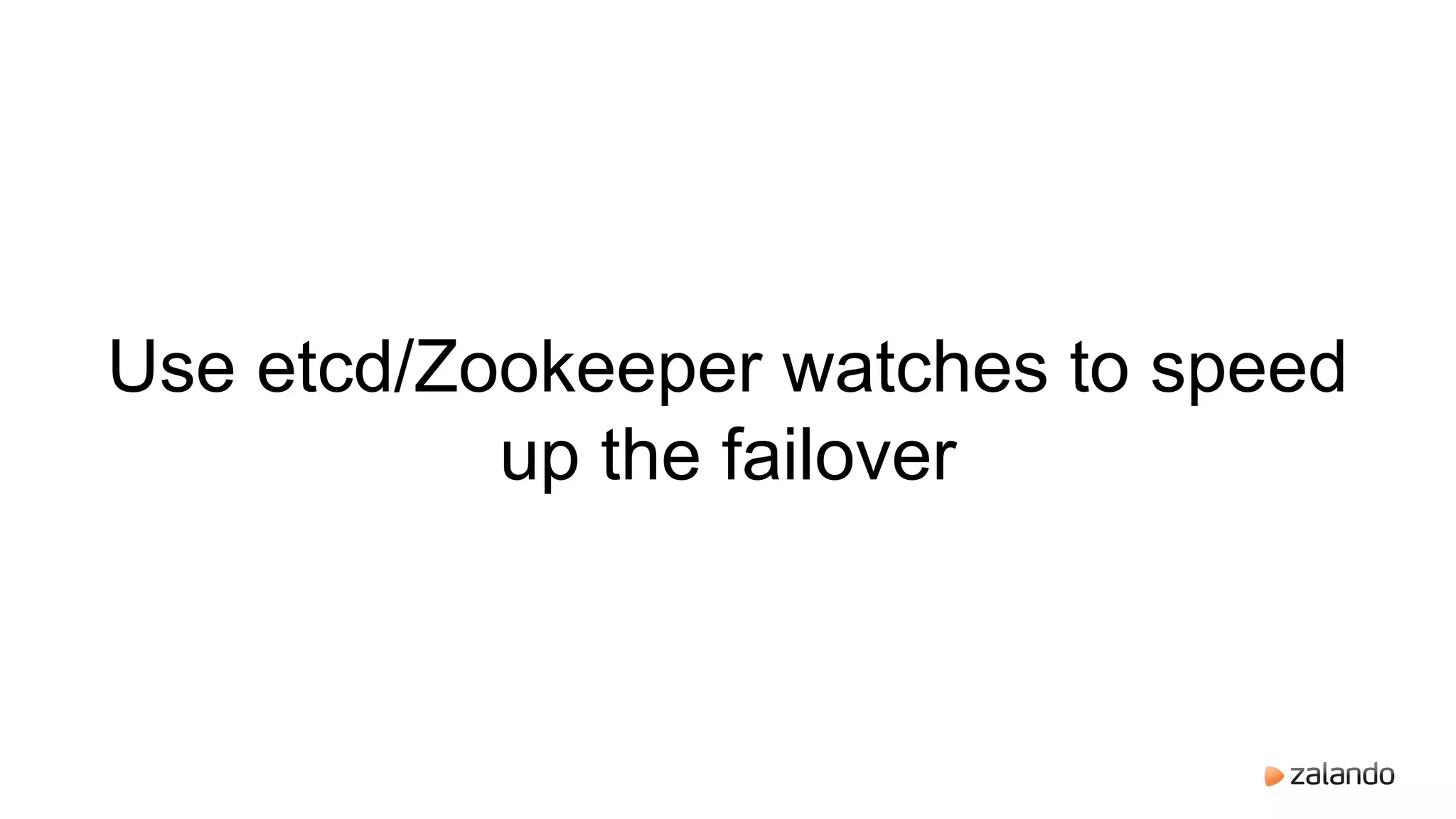

Use etcd/Zookeeper watches to speed
up the failover

Callbacks
Call monitoring code or do some application-specific actions (i.e. change
pgbouncer configuration)
User-defined scripts set in the configuration file.
● on start
● on stop
● on restart
● on change role

pg_rewind support
● remove recovery.conf if present
● run a checkpoint on a promoted master (due to the fast promote)
● remove archive status to avoid losing archived segments to be removed
● start in a single-user mode with archive_command set to false
● stop to produce a clean shutdown
● only if checksums or enabled or wal_log_hints are set (via pg_controldata)

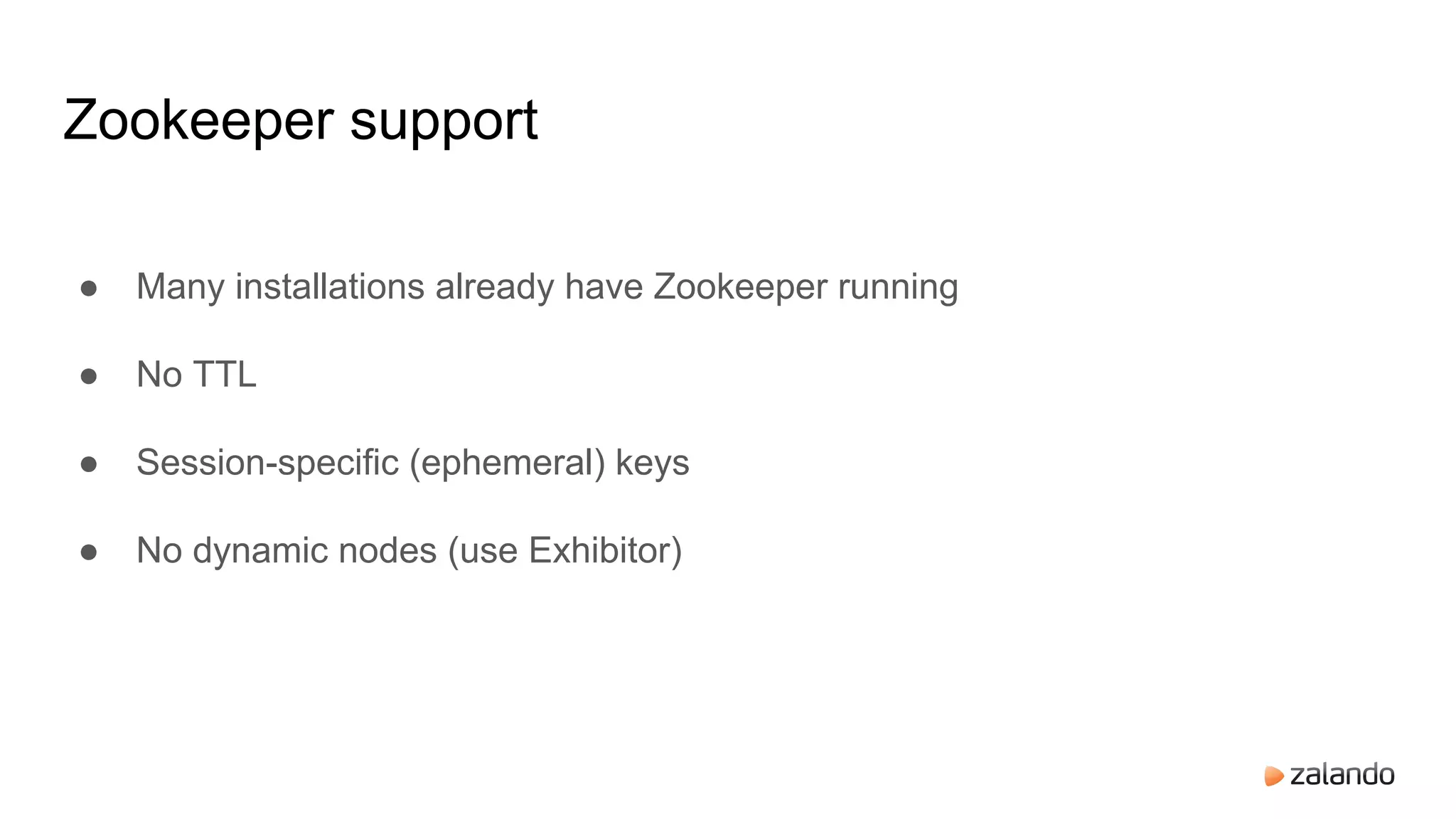

● Many installations already have Zookeeper running
● No TTL
● Session-specific (ephemeral) keys
● No dynamic nodes (use Exhibitor)
Zookeeper support

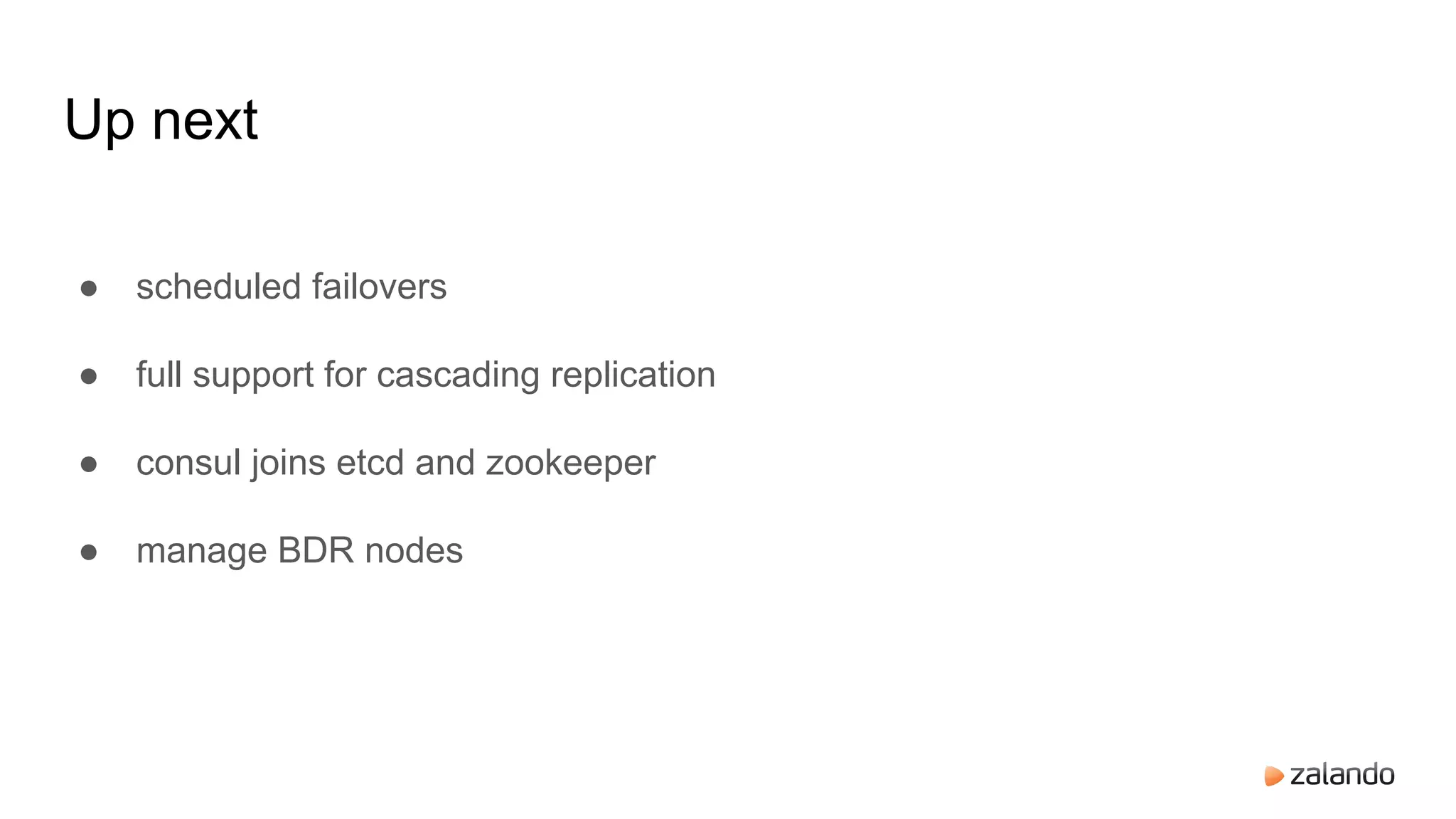

Up next
● scheduled failovers
● full support for cascading replication
● consul joins etcd and zookeeper
● manage BDR nodes

Thank you!
Feedback: @alexeyklyukin
alexk@hintbits.com

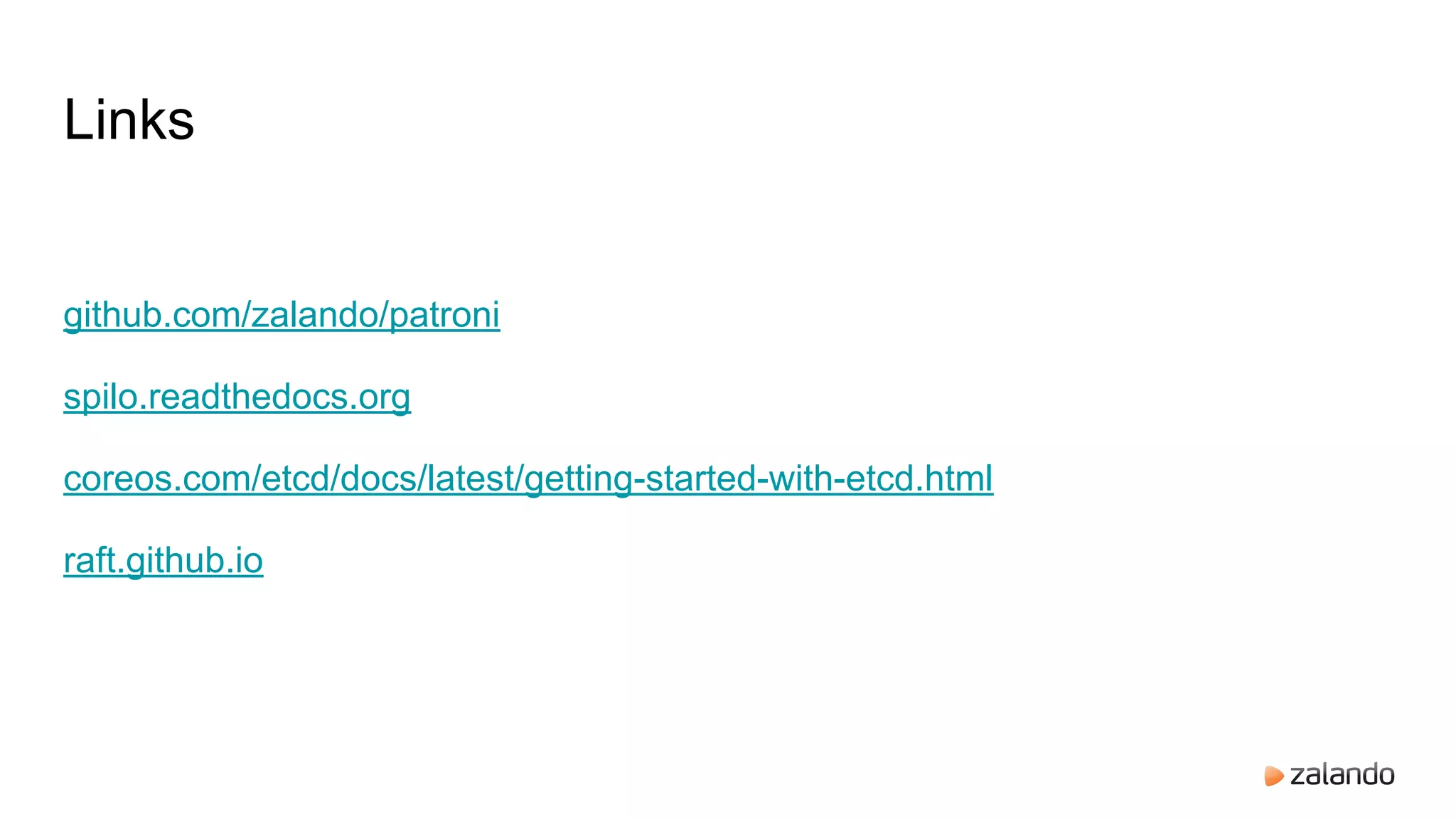

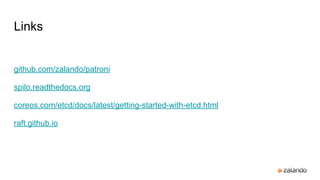

Links
github.com/zalando/patroni
spilo.readthedocs.org
coreos.com/etcd/docs/latest/getting-started-with-etcd.html
raft.github.io
