Analysis Framework, Asymptotic Notations

1

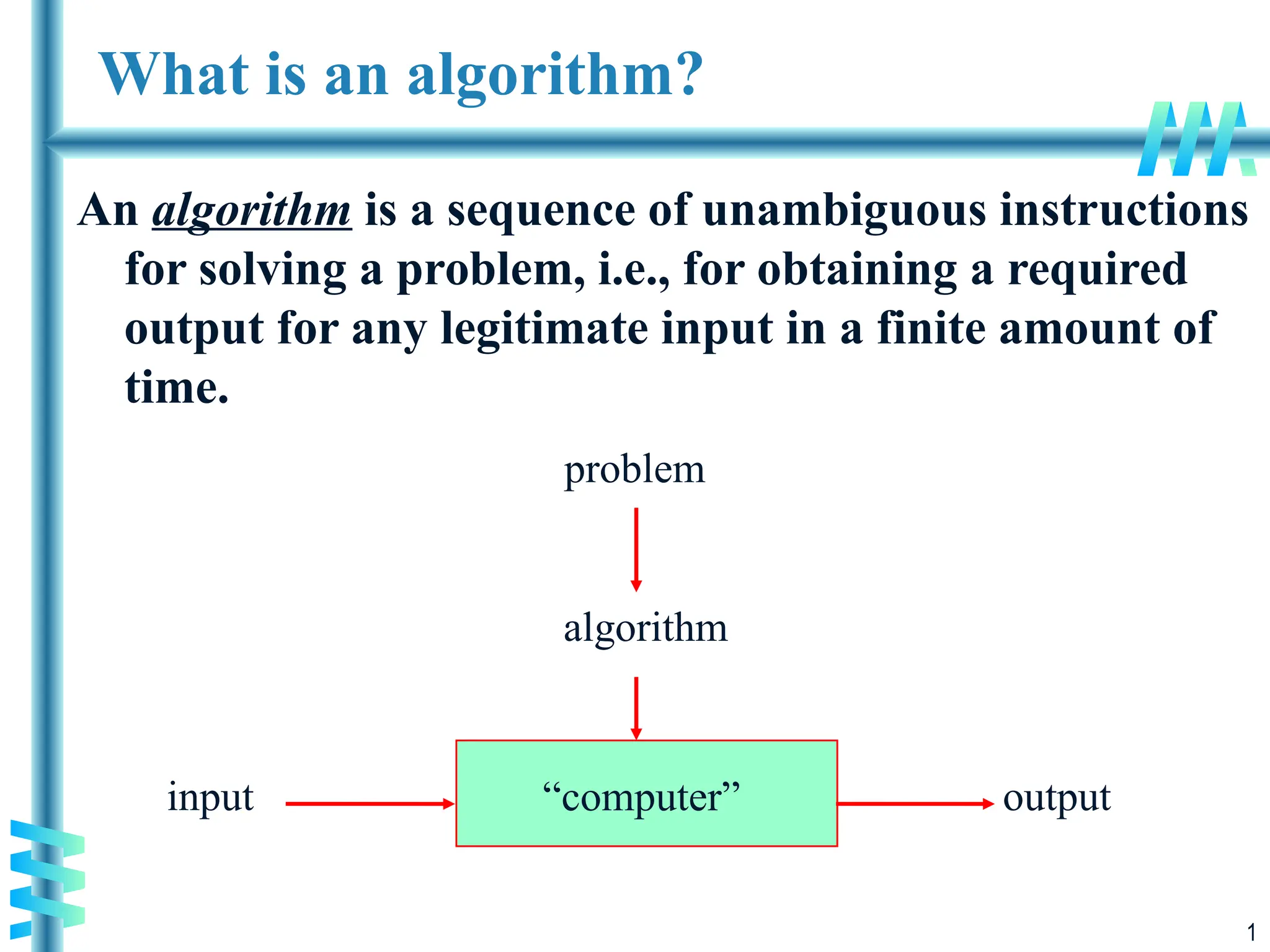

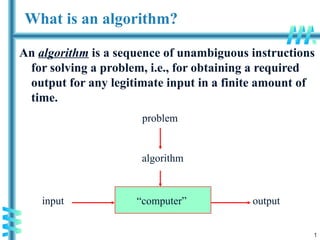

What is an algorithm?
An algorithm is a sequence of unambiguous instructions
for solving a problem, i.e., for obtaining a required
output for any legitimate input in a finite amount of
time.
“computer”
problem
algorithm
input output

2

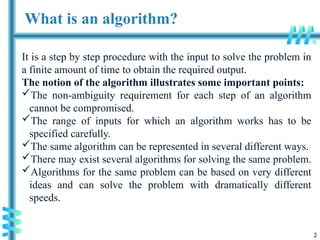

What is an algorithm?
It is a step by step procedure with the input to solve the problem in
a finite amount of time to obtain the required output.
The notion of the algorithm illustrates some important points:
The non-ambiguity requirement for each step of an algorithm
cannot be compromised.
The range of inputs for which an algorithm works has to be
specified carefully.
The same algorithm can be represented in several different ways.
There may exist several algorithms for solving the same problem.
Algorithms for the same problem can be based on very different
ideas and can solve the problem with dramatically different
speeds.

A. Levitin “Introduction to the Design & Analysis of Algorithms,” 3rd
ed., Ch. 1 ©2012
Pearson Education, Inc. Upper Saddle River, NJ. All Rights Reserved. 3

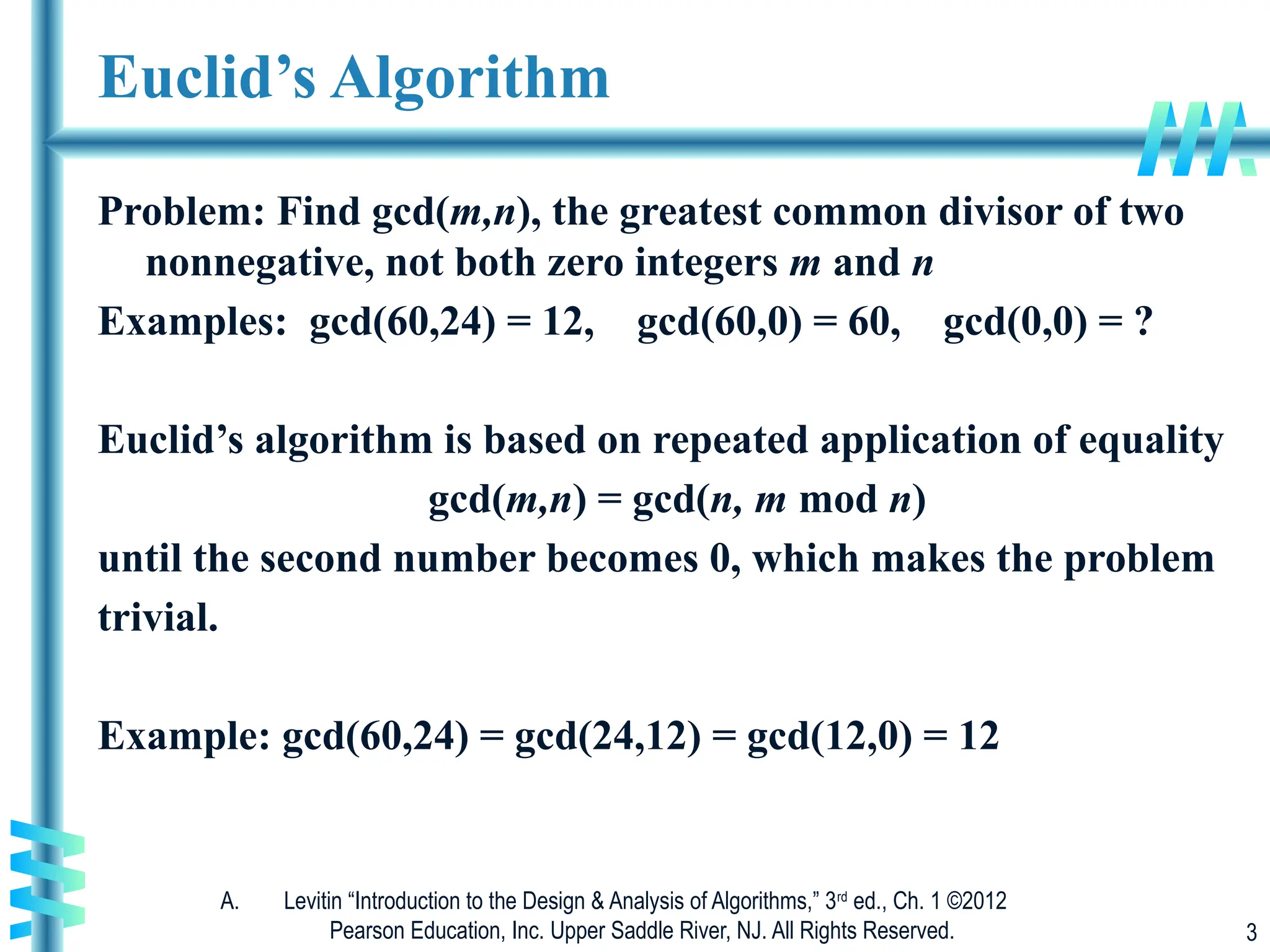

Euclid’s Algorithm
Problem: Find gcd(m,n), the greatest common divisor of two
nonnegative, not both zero integers m and n
Examples: gcd(60,24) = 12, gcd(60,0) = 60, gcd(0,0) = ?
Euclid’s algorithm is based on repeated application of equality
gcd(m,n) = gcd(n, m mod n)
until the second number becomes 0, which makes the problem
trivial.
Example: gcd(60,24) = gcd(24,12) = gcd(12,0) = 12

ed., Ch. 1 ©2012

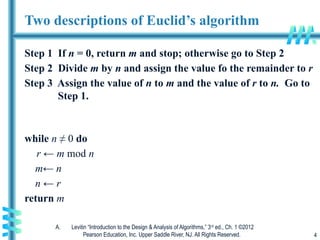

Two descriptions of Euclid’s algorithm
Step 1 If n = 0, return m and stop; otherwise go to Step 2
Step 2 Divide m by n and assign the value fo the remainder to r
Step 3 Assign the value of n to m and the value of r to n. Go to
Step 1.
while n ≠ 0 do
r ← m mod n
m← n
n ← r
return m

ed., Ch. 1 ©2012

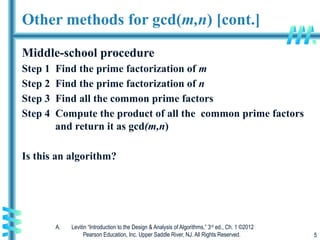

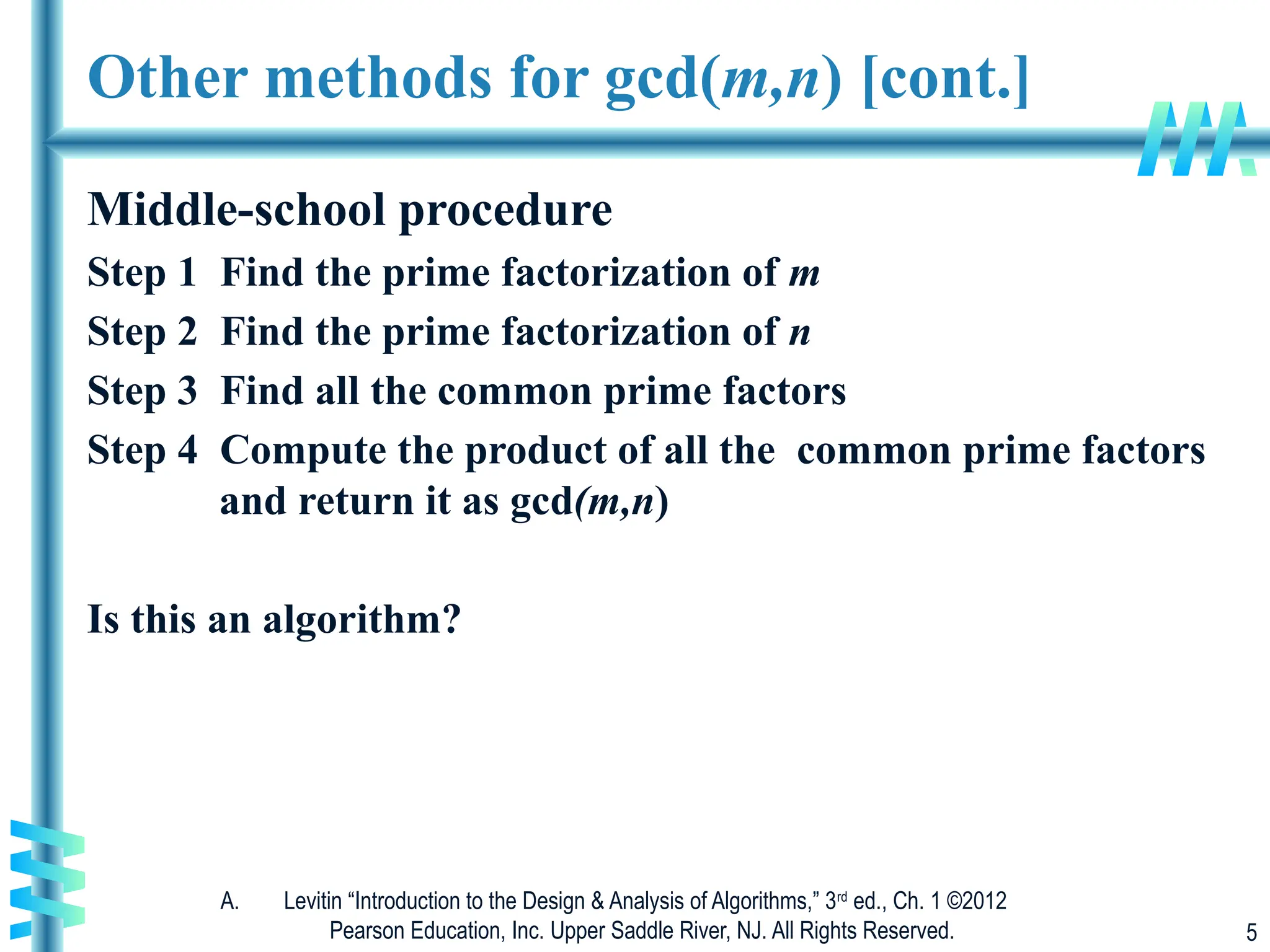

Other methods for gcd(m,n) [cont.]
Middle-school procedure
Step 1 Find the prime factorization of m
Step 2 Find the prime factorization of n
Step 3 Find all the common prime factors
Step 4 Compute the product of all the common prime factors
and return it as gcd(m,n)
Is this an algorithm?

ed., Ch. 1 ©2012

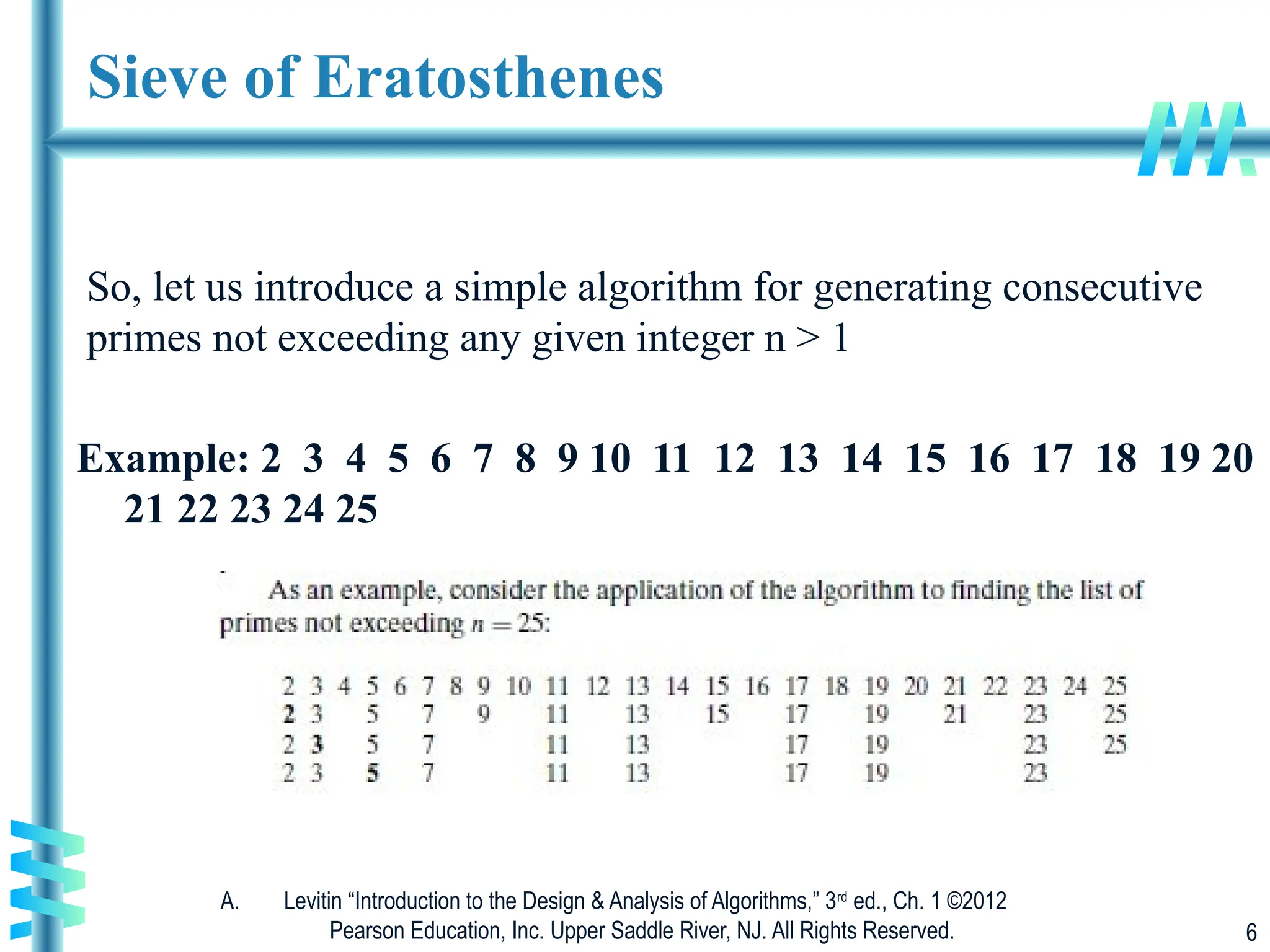

Sieve of Eratosthenes
Example: 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
21 22 23 24 25
So, let us introduce a simple algorithm for generating consecutive
primes not exceeding any given integer n > 1

ed., Ch. 1 ©2012

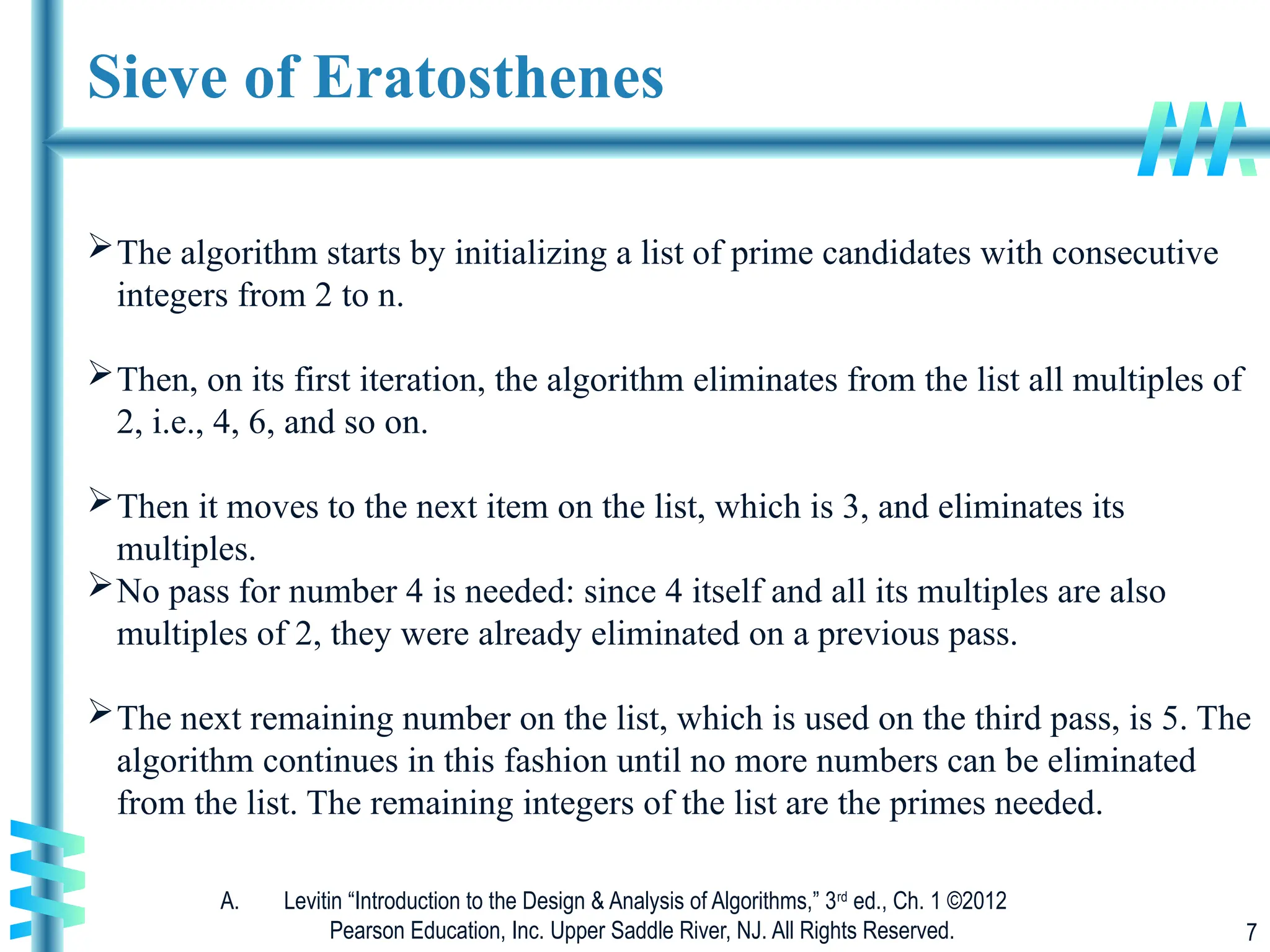

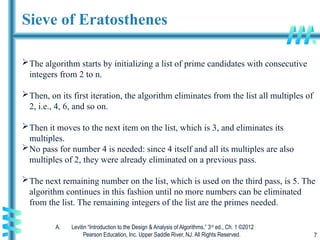

The algorithm starts by initializing a list of prime candidates with consecutive
integers from 2 to n.
Then, on its first iteration, the algorithm eliminates from the list all multiples of
2, i.e., 4, 6, and so on.
Then it moves to the next item on the list, which is 3, and eliminates its
multiples.
No pass for number 4 is needed: since 4 itself and all its multiples are also
multiples of 2, they were already eliminated on a previous pass.
The next remaining number on the list, which is used on the third pass, is 5. The
algorithm continues in this fashion until no more numbers can be eliminated
from the list. The remaining integers of the list are the primes needed.

ed., Ch. 1 ©2012

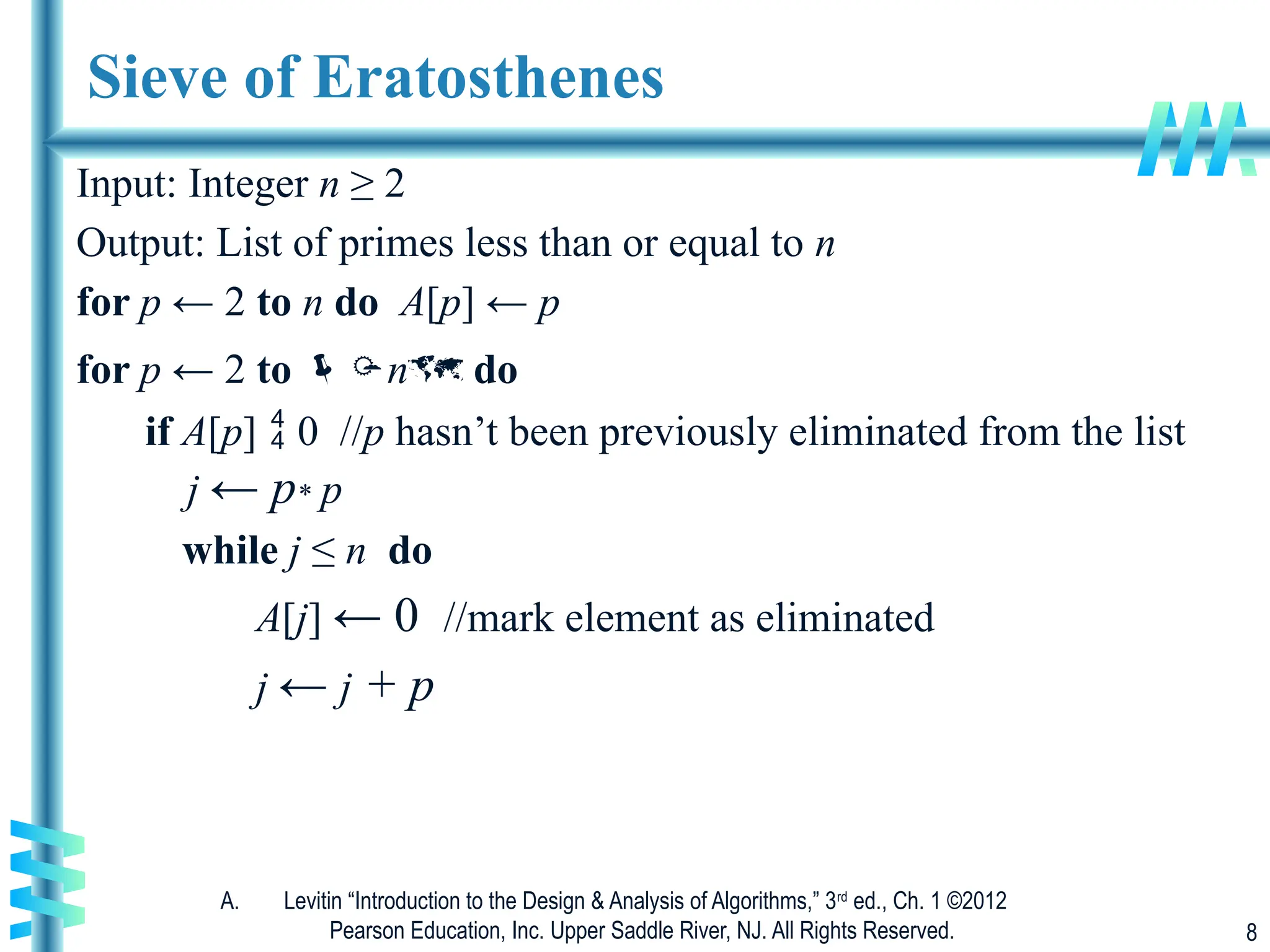

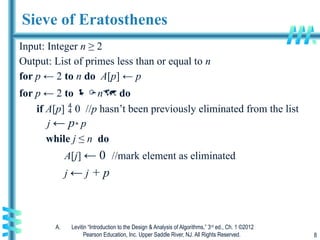

Input: Integer n ≥ 2
Output: List of primes less than or equal to n
for p ← 2 to n do A[p] ← p
for p ← 2 to n do
if A[p]  0 //p hasn’t been previously eliminated from the list
j ← p* p
while j ≤ n do
A[j] ← 0 //mark element as eliminated
j ← j + p

9

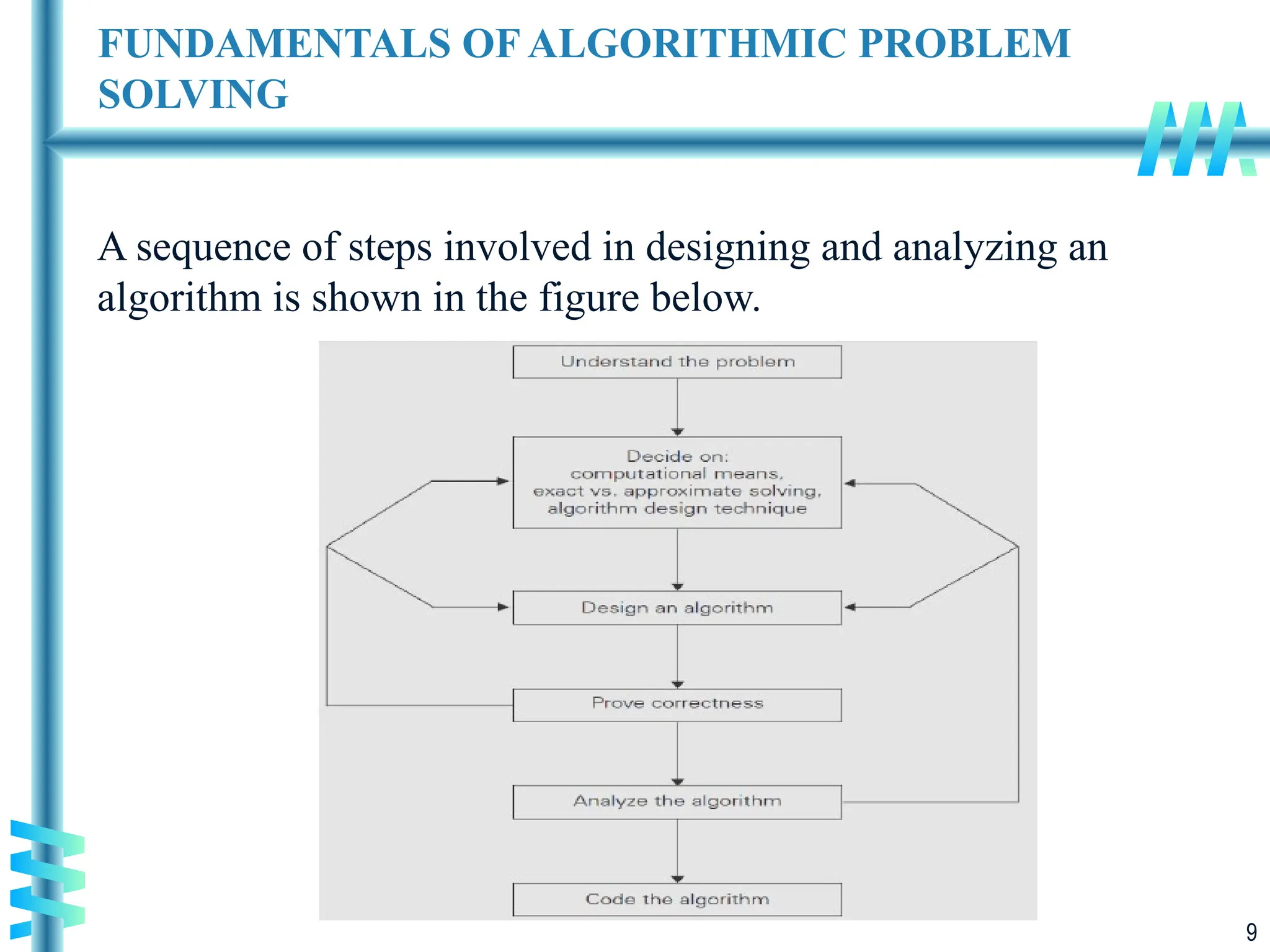

FUNDAMENTALS OF ALGORITHMIC PROBLEM
SOLVING
A sequence of steps involved in designing and analyzing an
algorithm is shown in the figure below.

10

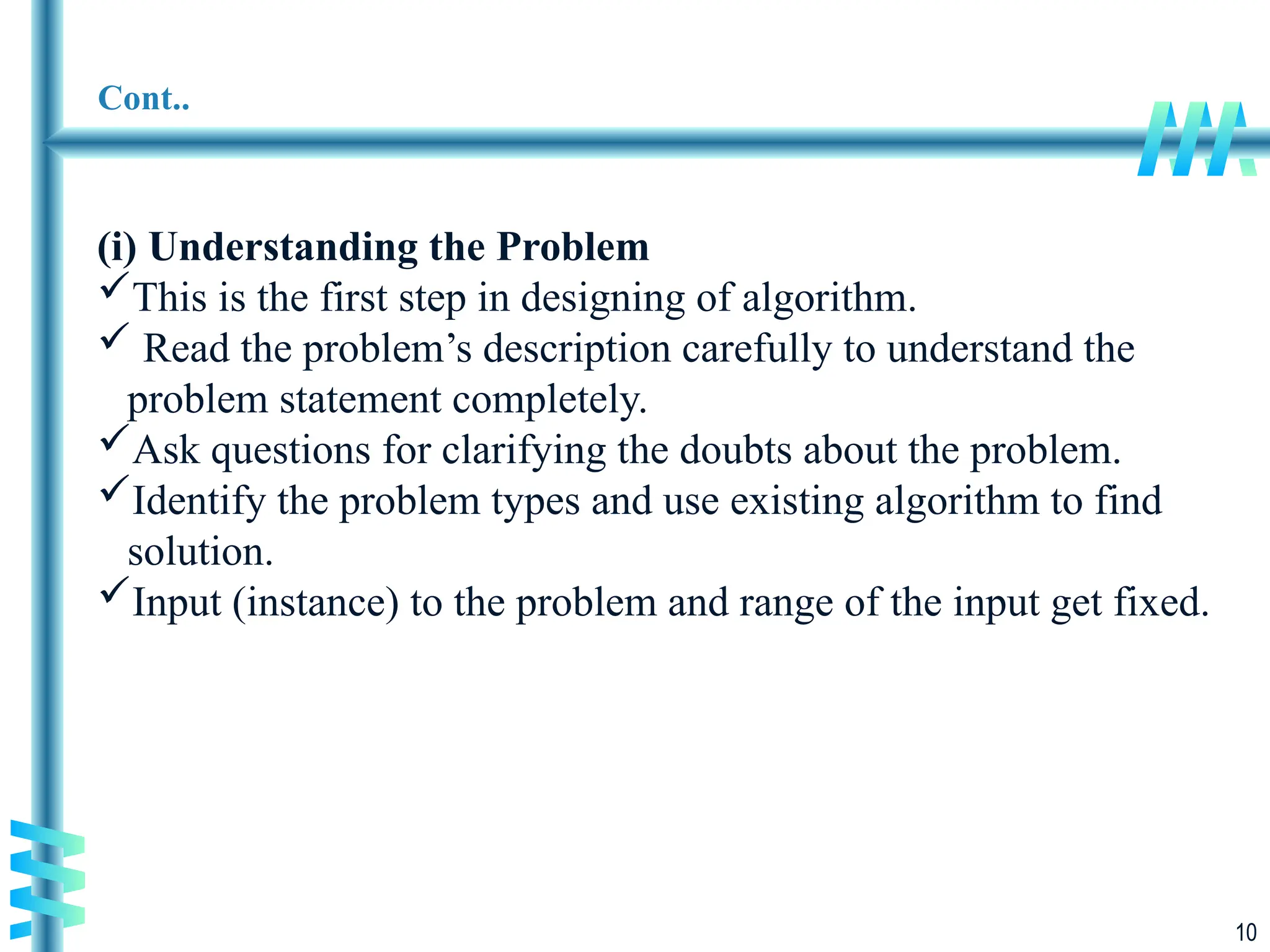

Cont..

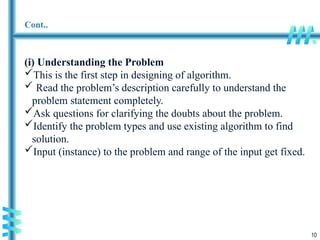

(i) Understanding the Problem
This is the first step in designing of algorithm.
 Read the problem’s description carefully to understand the
problem statement completely.
Ask questions for clarifying the doubts about the problem.
Identify the problem types and use existing algorithm to find
solution.
Input (instance) to the problem and range of the input get fixed.

11

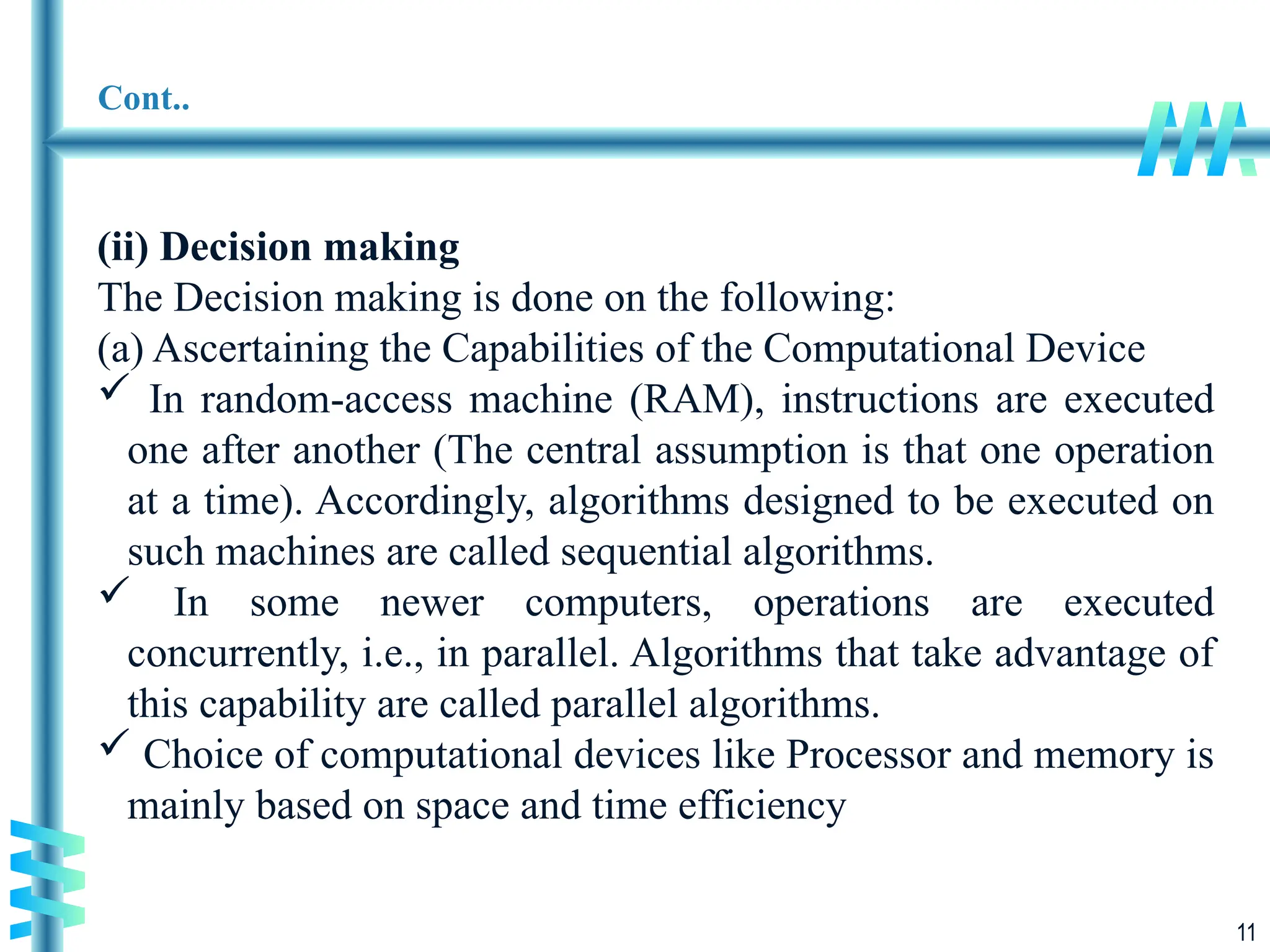

Cont..

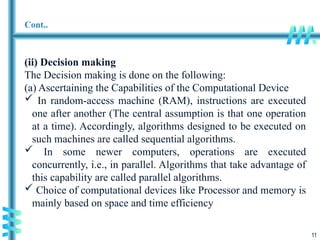

(ii) Decision making
The Decision making is done on the following:
(a) Ascertaining the Capabilities of the Computational Device
 In random-access machine (RAM), instructions are executed
one after another (The central assumption is that one operation
at a time). Accordingly, algorithms designed to be executed on
such machines are called sequential algorithms.
 In some newer computers, operations are executed
concurrently, i.e., in parallel. Algorithms that take advantage of
this capability are called parallel algorithms.
 Choice of computational devices like Processor and memory is
mainly based on space and time efficiency

12
Cont..

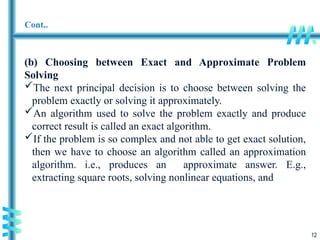

(b) Choosing between Exact and Approximate Problem
Solving
The next principal decision is to choose between solving the
problem exactly or solving it approximately.
An algorithm used to solve the problem exactly and produce
correct result is called an exact algorithm.
If the problem is so complex and not able to get exact solution,
then we have to choose an algorithm called an approximation
algorithm. i.e., produces an approximate answer. E.g.,
extracting square roots, solving nonlinear equations, and

13
Cont..

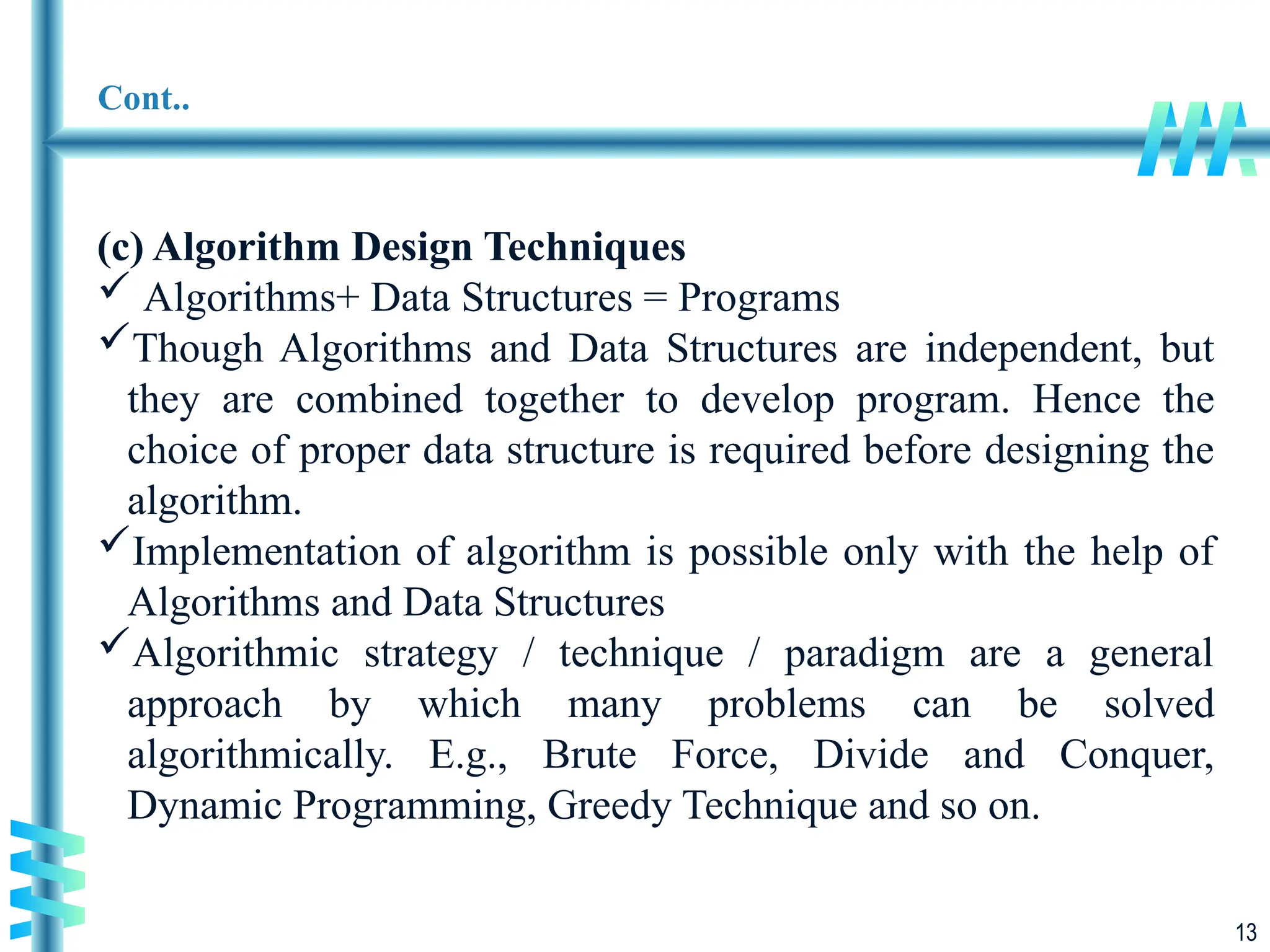

(c) Algorithm Design Techniques
 Algorithms+ Data Structures = Programs
Though Algorithms and Data Structures are independent, but
they are combined together to develop program. Hence the
choice of proper data structure is required before designing the
algorithm.
Implementation of algorithm is possible only with the help of
Algorithms and Data Structures
Algorithmic strategy / technique / paradigm are a general
approach by which many problems can be solved
algorithmically. E.g., Brute Force, Divide and Conquer,
Dynamic Programming, Greedy Technique and so on.

14
Cont..

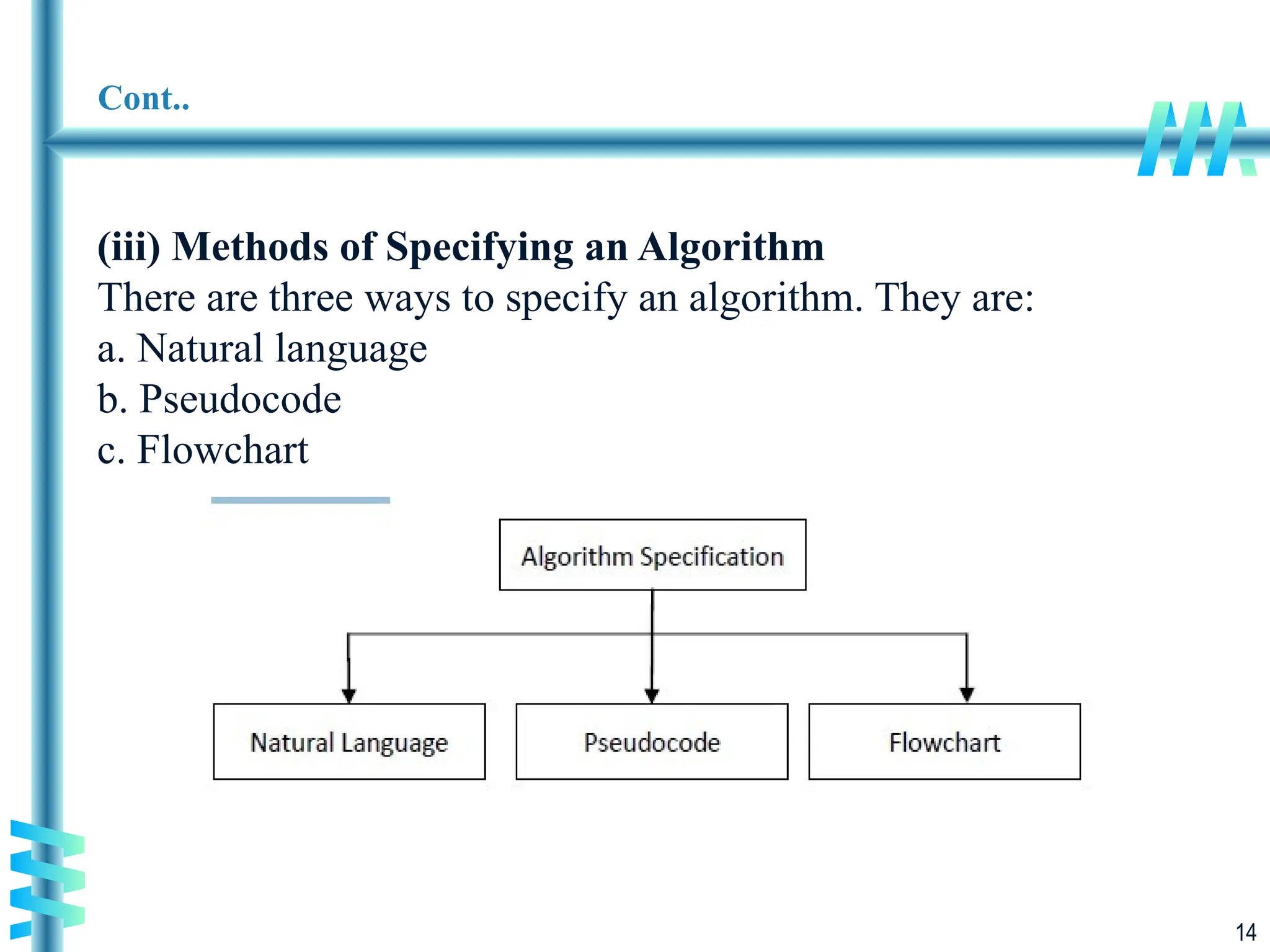

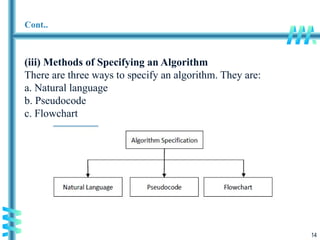

(iii) Methods of Specifying an Algorithm
There are three ways to specify an algorithm. They are:

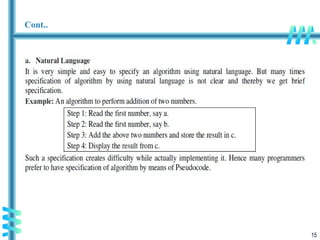

a. Natural language

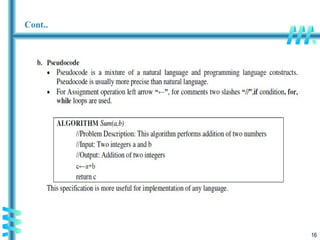

b. Pseudocode

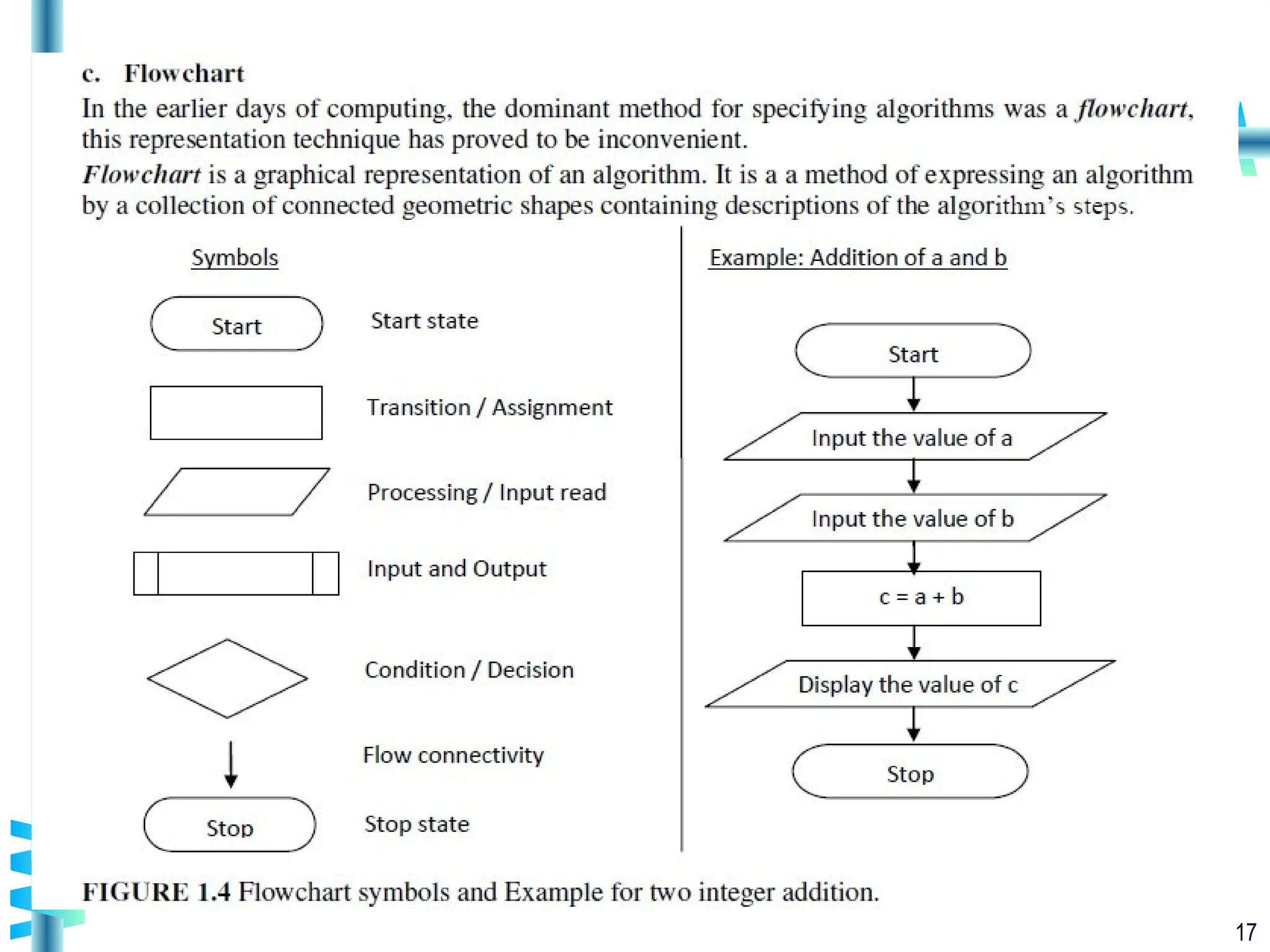

c. Flowchart

18
Cont..

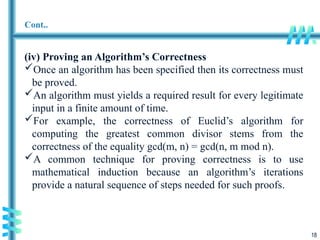

(iv) Proving an Algorithm’s Correctness
Once an algorithm has been specified then its correctness must
be proved.
An algorithm must yields a required result for every legitimate
input in a finite amount of time.
For example, the correctness of Euclid’s algorithm for
computing the greatest common divisor stems from the
correctness of the equality gcd(m, n) = gcd(n, m mod n).
A common technique for proving correctness is to use
mathematical induction because an algorithm’s iterations
provide a natural sequence of steps needed for such proofs.

20
Cont..

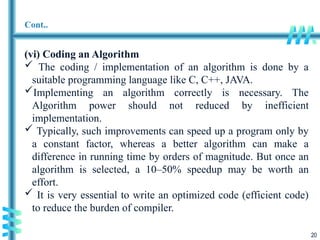

(vi) Coding an Algorithm
 The coding / implementation of an algorithm is done by a
suitable programming language like C, C++, JAVA.
Implementing an algorithm correctly is necessary. The
Algorithm power should not reduced by inefficient
implementation.
 Typically, such improvements can speed up a program only by
a constant factor, whereas a better algorithm can make a
difference in running time by orders of magnitude. But once an
algorithm is selected, a 10–50% speedup may be worth an
effort.
 It is very essential to write an optimized code (efficient code)
to reduce the burden of compiler.

21

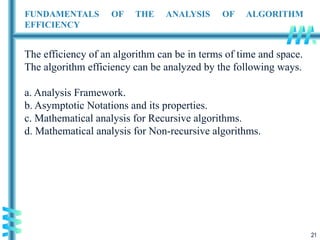

FUNDAMENTALS OF THE ANALYSIS OF ALGORITHM
EFFICIENCY
The efficiency of an algorithm can be in terms of time and space.
The algorithm efficiency can be analyzed by the following ways.
a. Analysis Framework.
b. Asymptotic Notations and its properties.
c. Mathematical analysis for Recursive algorithms.
d. Mathematical analysis for Non-recursive algorithms.

22

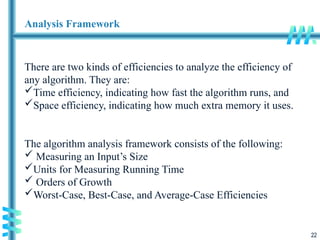

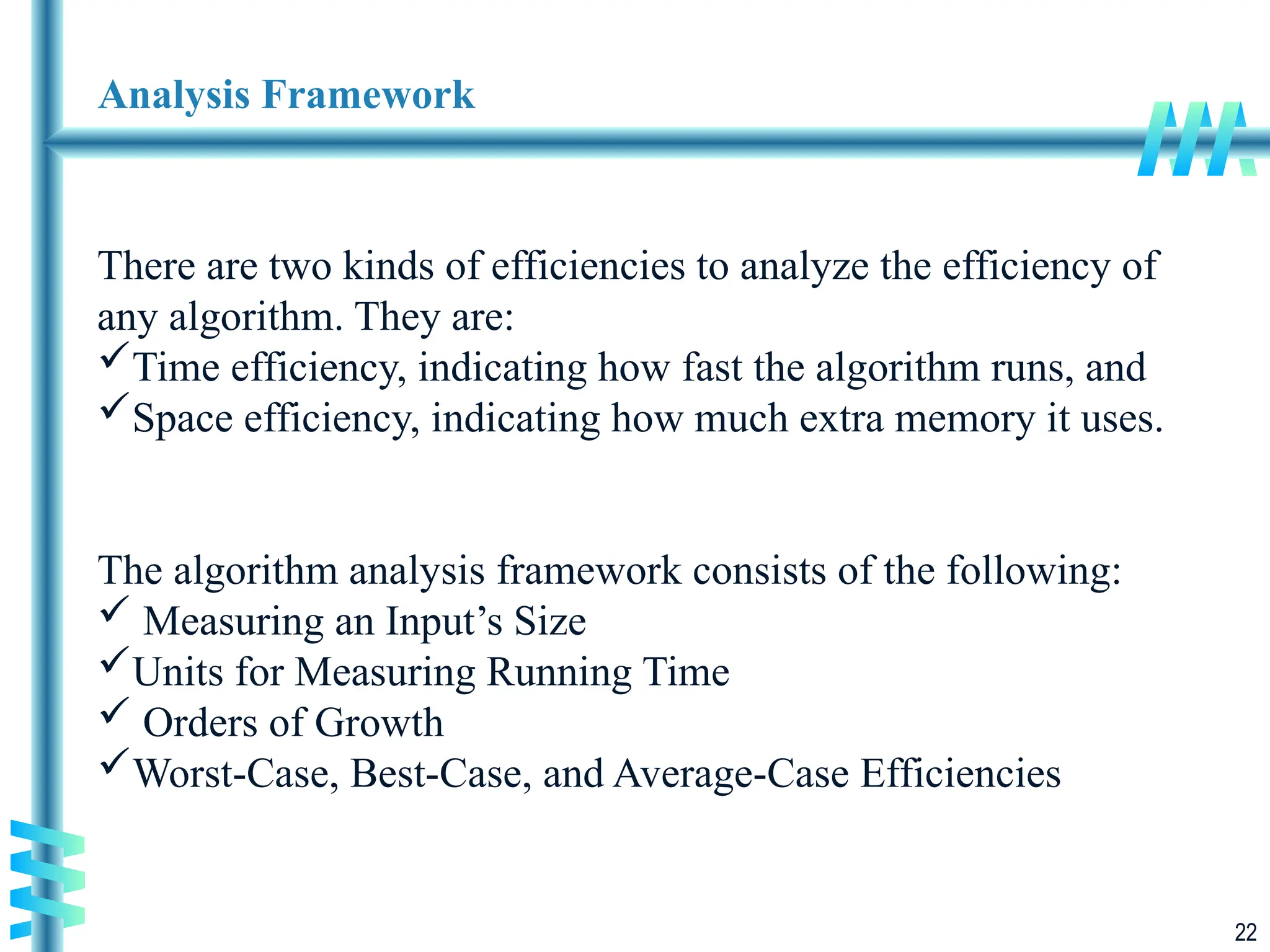

Analysis Framework
There are two kinds of efficiencies to analyze the efficiency of
any algorithm. They are:
Time efficiency, indicating how fast the algorithm runs, and
Space efficiency, indicating how much extra memory it uses.
The algorithm analysis framework consists of the following:
 Measuring an Input’s Size
Units for Measuring Running Time
 Orders of Growth
Worst-Case, Best-Case, and Average-Case Efficiencies

23

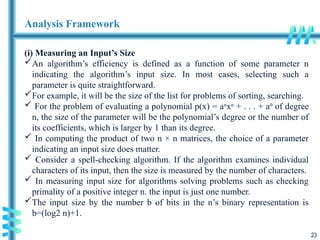

Analysis Framework

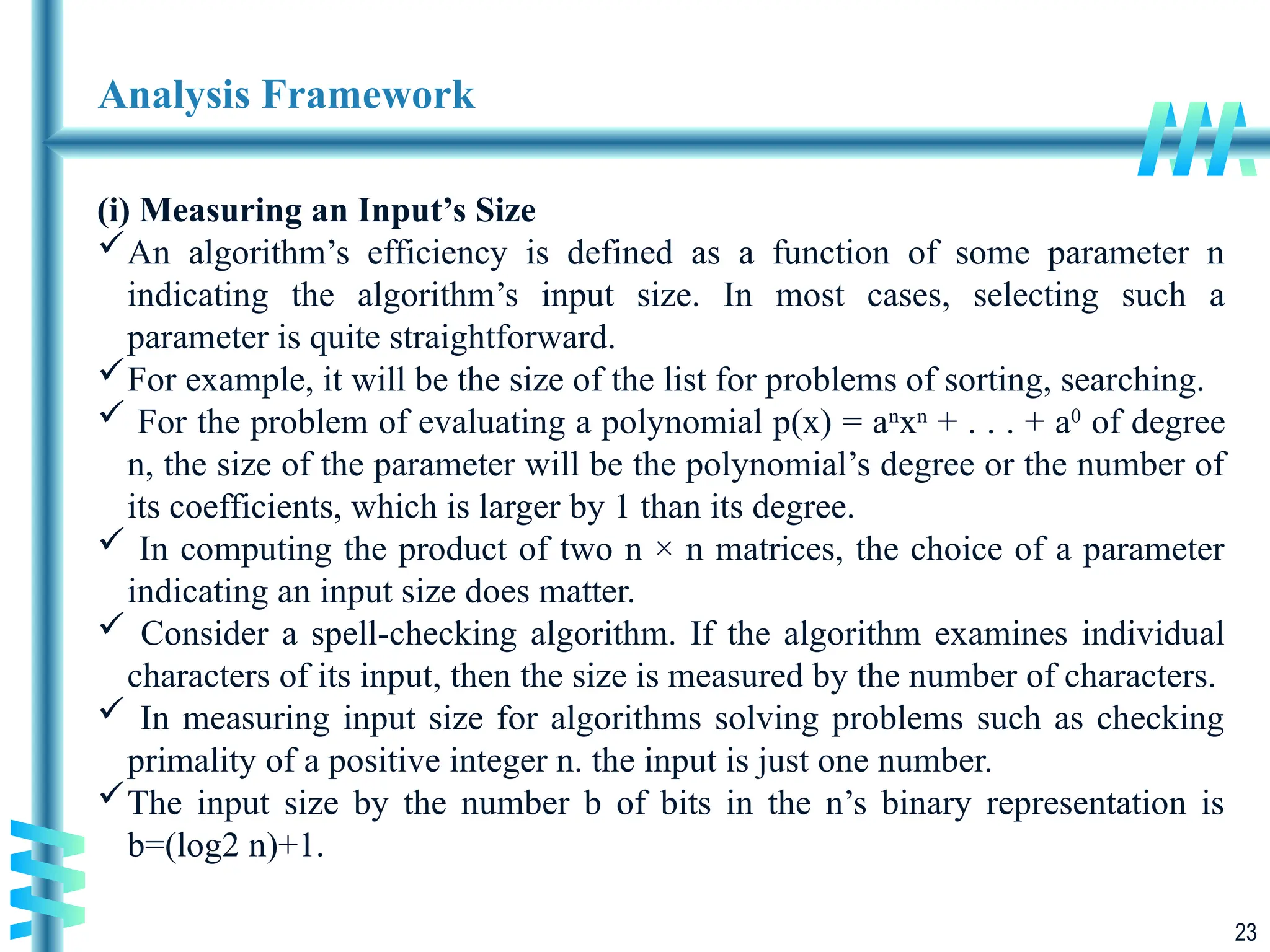

(i) Measuring an Input’s Size
An algorithm’s efficiency is defined as a function of some parameter n
indicating the algorithm’s input size. In most cases, selecting such a
parameter is quite straightforward.
For example, it will be the size of the list for problems of sorting, searching.
 For the problem of evaluating a polynomial p(x) = an
xn
+ . . . + a0
of degree
n, the size of the parameter will be the polynomial’s degree or the number of
its coefficients, which is larger by 1 than its degree.
 In computing the product of two n × n matrices, the choice of a parameter
indicating an input size does matter.
 Consider a spell-checking algorithm. If the algorithm examines individual
characters of its input, then the size is measured by the number of characters.
 In measuring input size for algorithms solving problems such as checking
primality of a positive integer n. the input is just one number.
The input size by the number b of bits in the n’s binary representation is
b=(log2 n)+1.

24
Analysis Framework

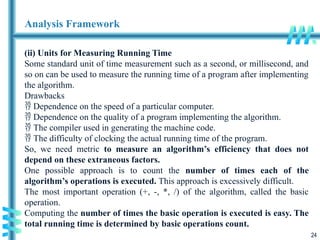

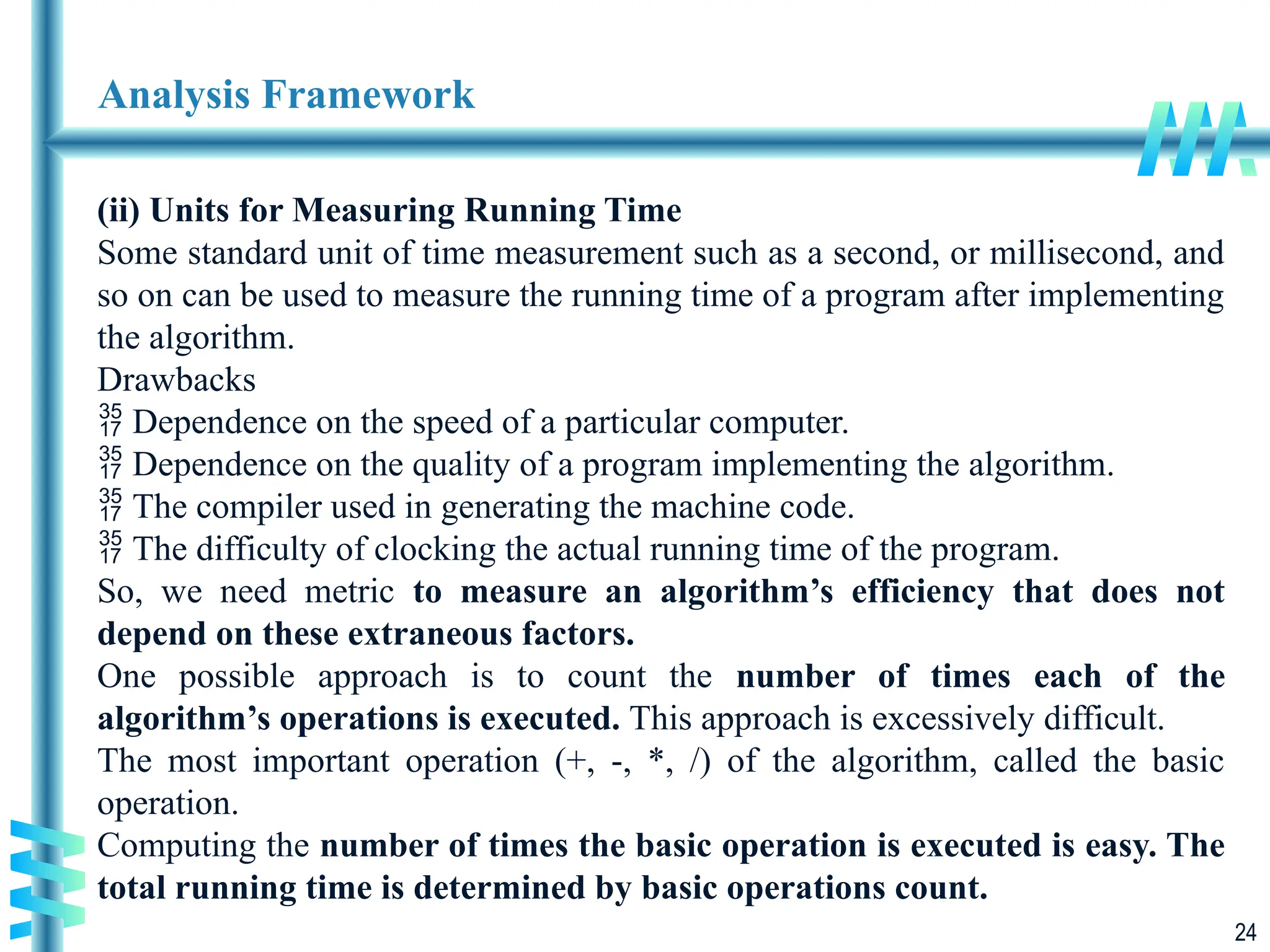

(ii) Units for Measuring Running Time
Some standard unit of time measurement such as a second, or millisecond, and
so on can be used to measure the running time of a program after implementing
the algorithm.
Drawbacks
 Dependence on the speed of a particular computer.
 Dependence on the quality of a program implementing the algorithm.
 The compiler used in generating the machine code.
 The difficulty of clocking the actual running time of the program.
So, we need metric to measure an algorithm’s efficiency that does not
depend on these extraneous factors.
One possible approach is to count the number of times each of the
algorithm’s operations is executed. This approach is excessively difficult.
The most important operation (+, -, *, /) of the algorithm, called the basic
operation.
Computing the number of times the basic operation is executed is easy. The
total running time is determined by basic operations count.

25
Analysis Framework

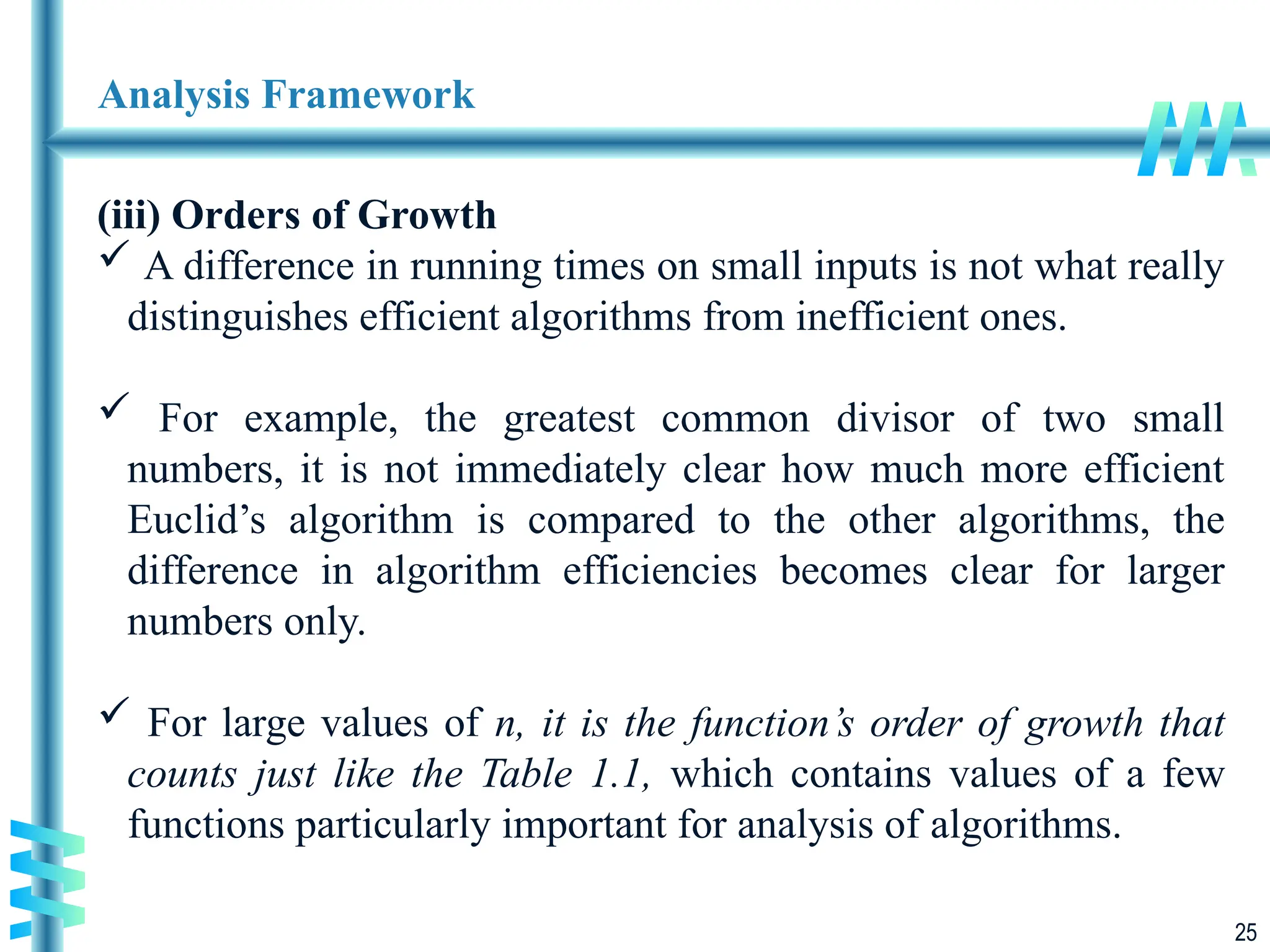

(iii) Orders of Growth
 A difference in running times on small inputs is not what really
distinguishes efficient algorithms from inefficient ones.
 For example, the greatest common divisor of two small
numbers, it is not immediately clear how much more efficient
Euclid’s algorithm is compared to the other algorithms, the
difference in algorithm efficiencies becomes clear for larger
numbers only.

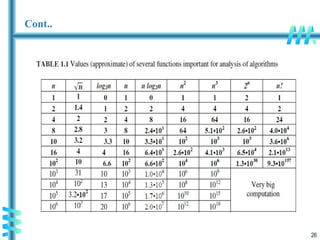

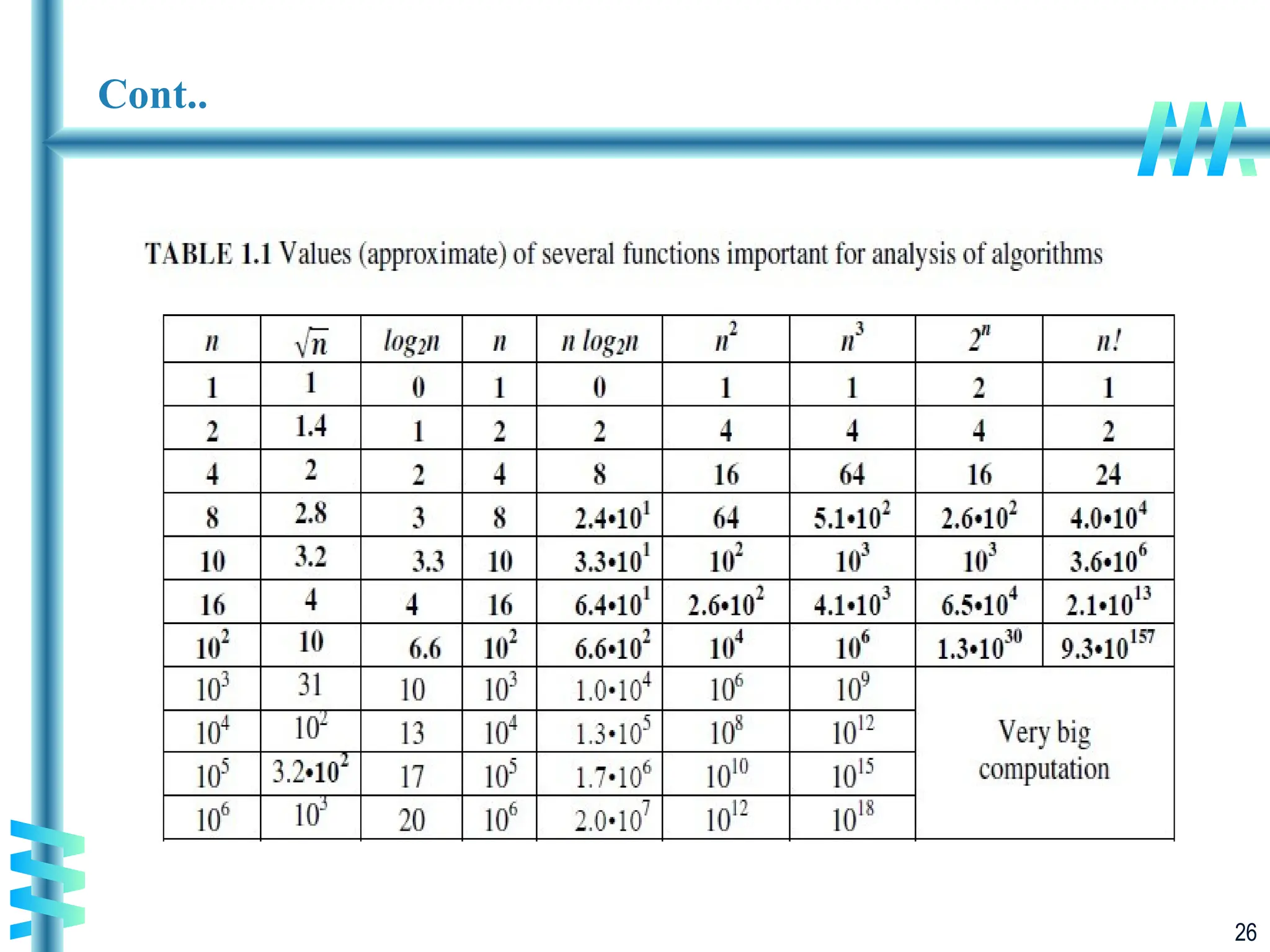

 For large values of n, it is the function’s order of growth that
counts just like the Table 1.1, which contains values of a few
functions particularly important for analysis of algorithms.

30

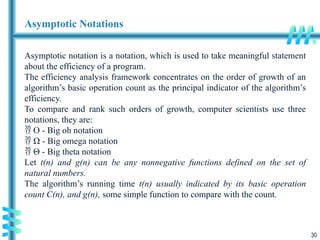

Asymptotic Notations
Asymptotic notation is a notation, which is used to take meaningful statement
about the efficiency of a program.
The efficiency analysis framework concentrates on the order of growth of an
algorithm’s basic operation count as the principal indicator of the algorithm’s
efficiency.
To compare and rank such orders of growth, computer scientists use three
notations, they are:

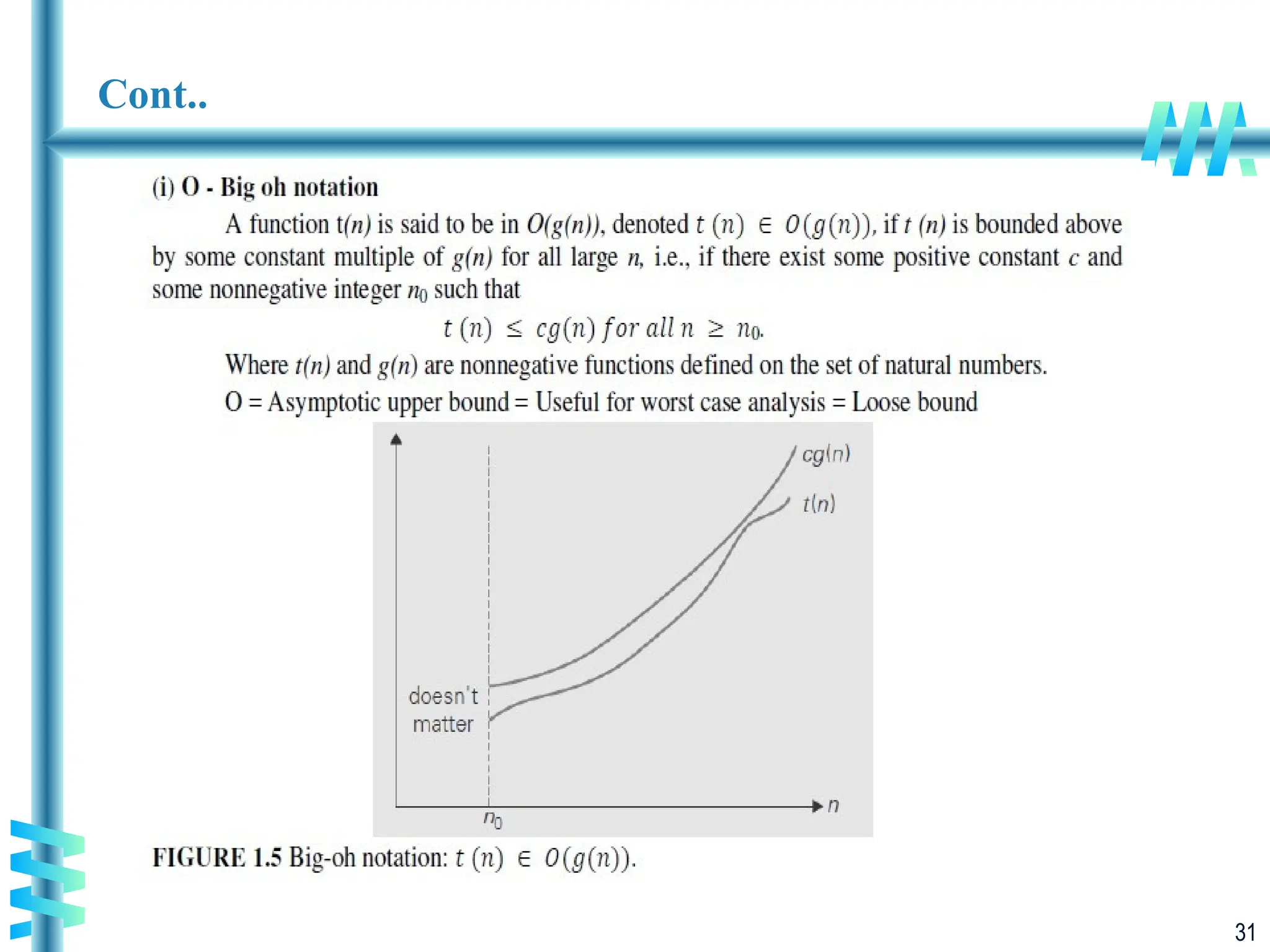

 O - Big oh notation

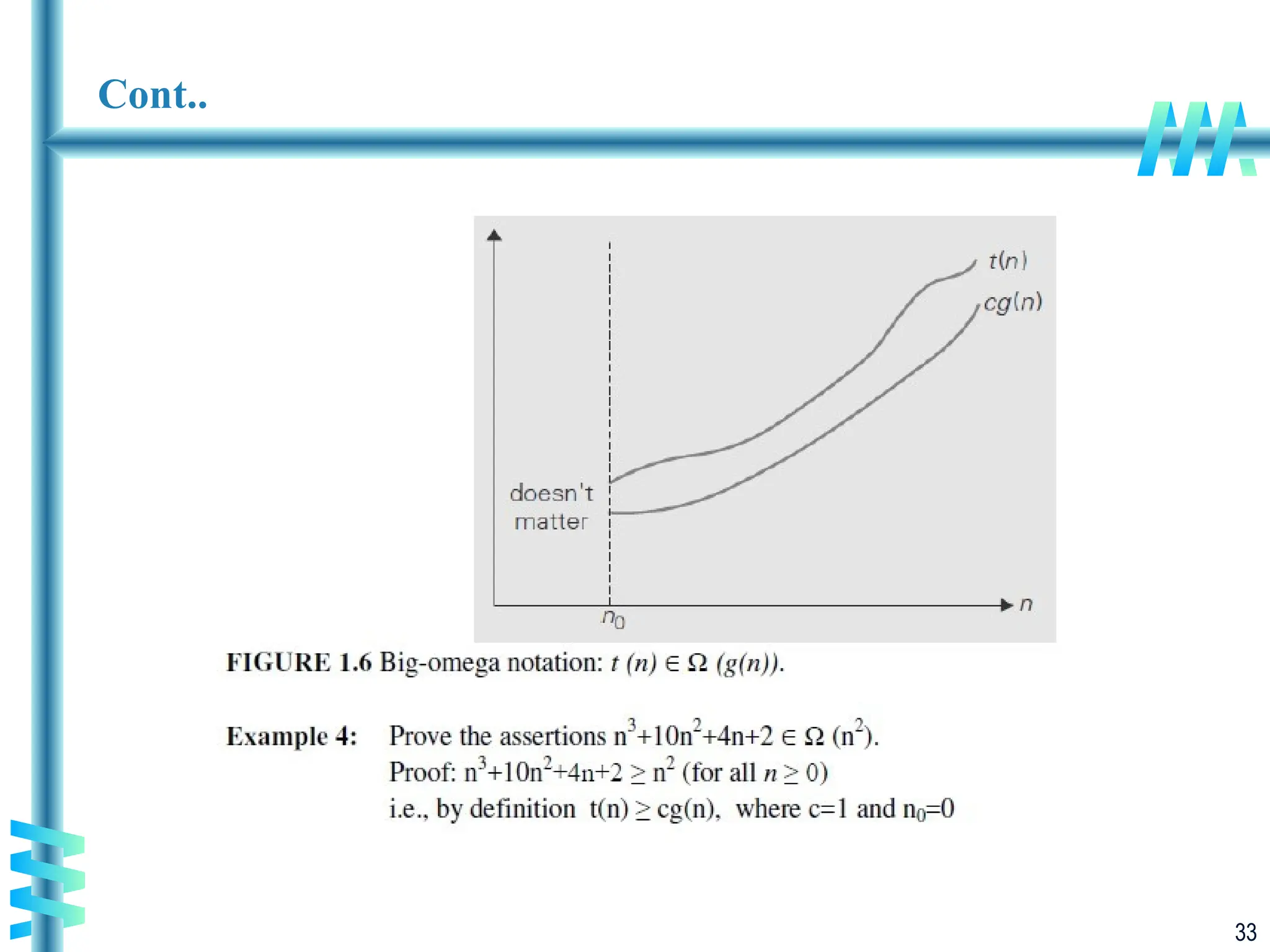

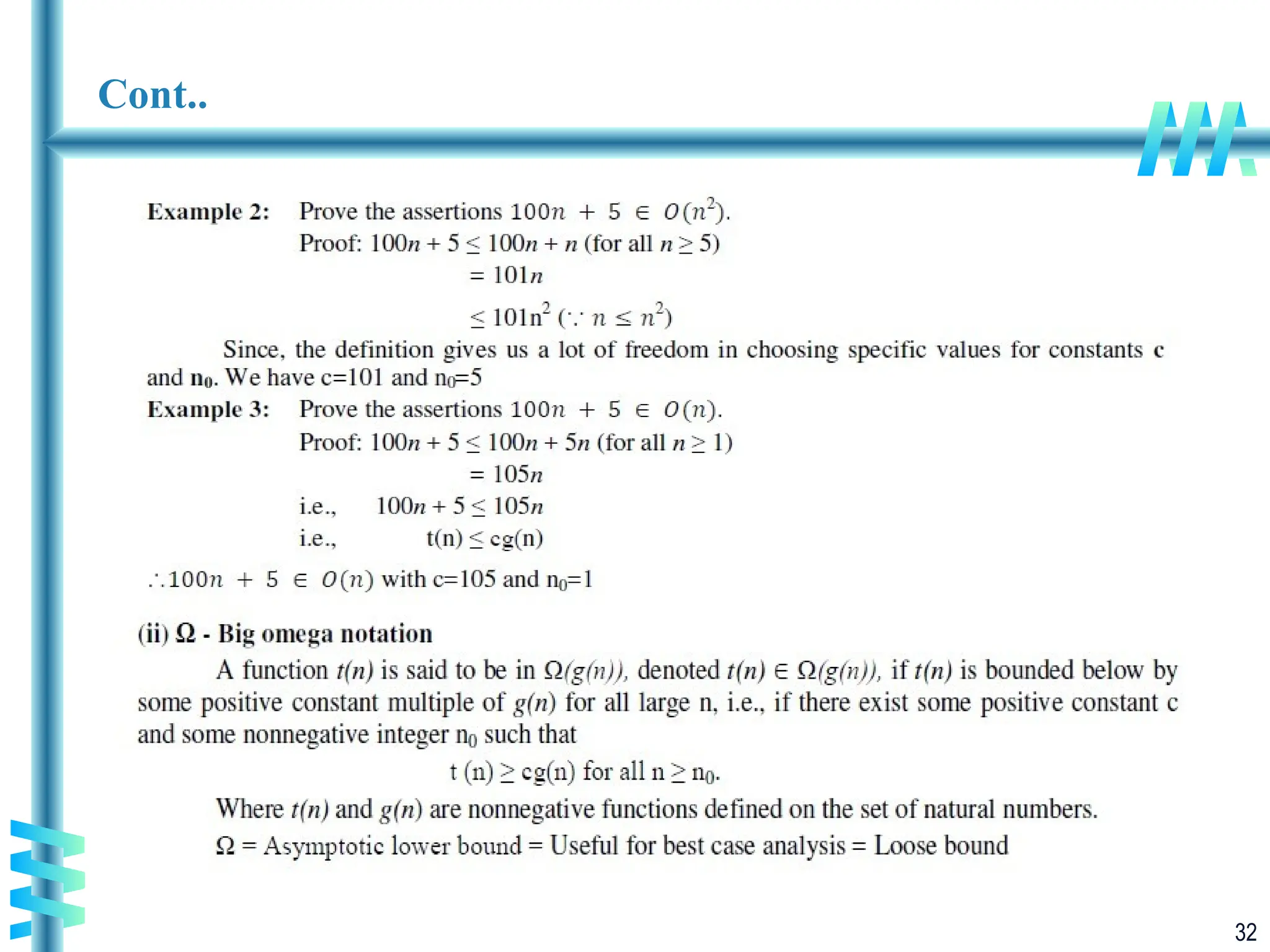

 Ω - Big omega notation

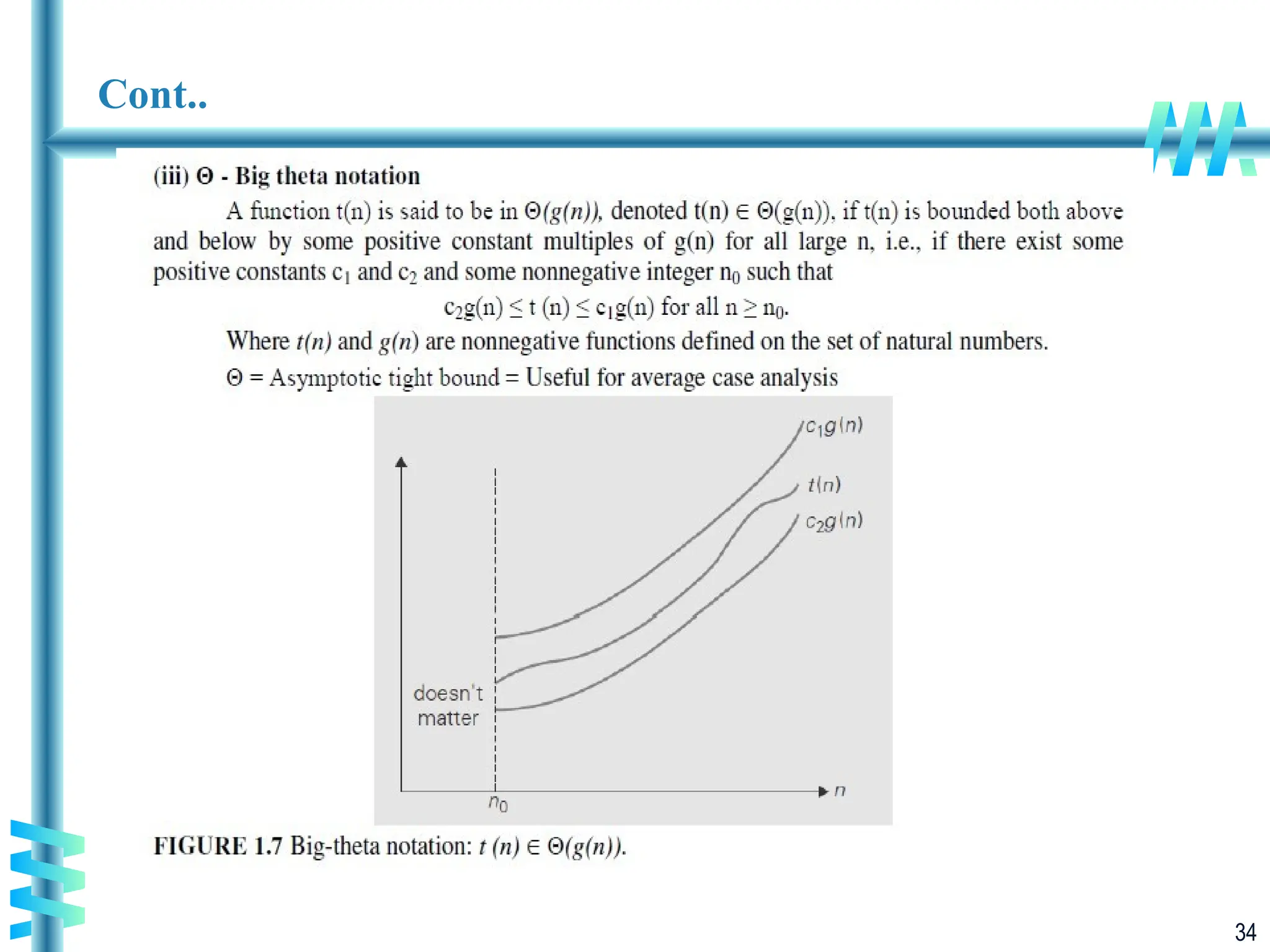

 Θ - Big theta notation
Let t(n) and g(n) can be any nonnegative functions defined on the set of
natural numbers.
The algorithm’s running time t(n) usually indicated by its basic operation
count C(n), and g(n), some simple function to compare with the count.

37

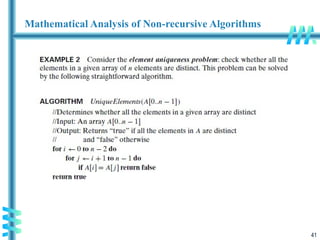

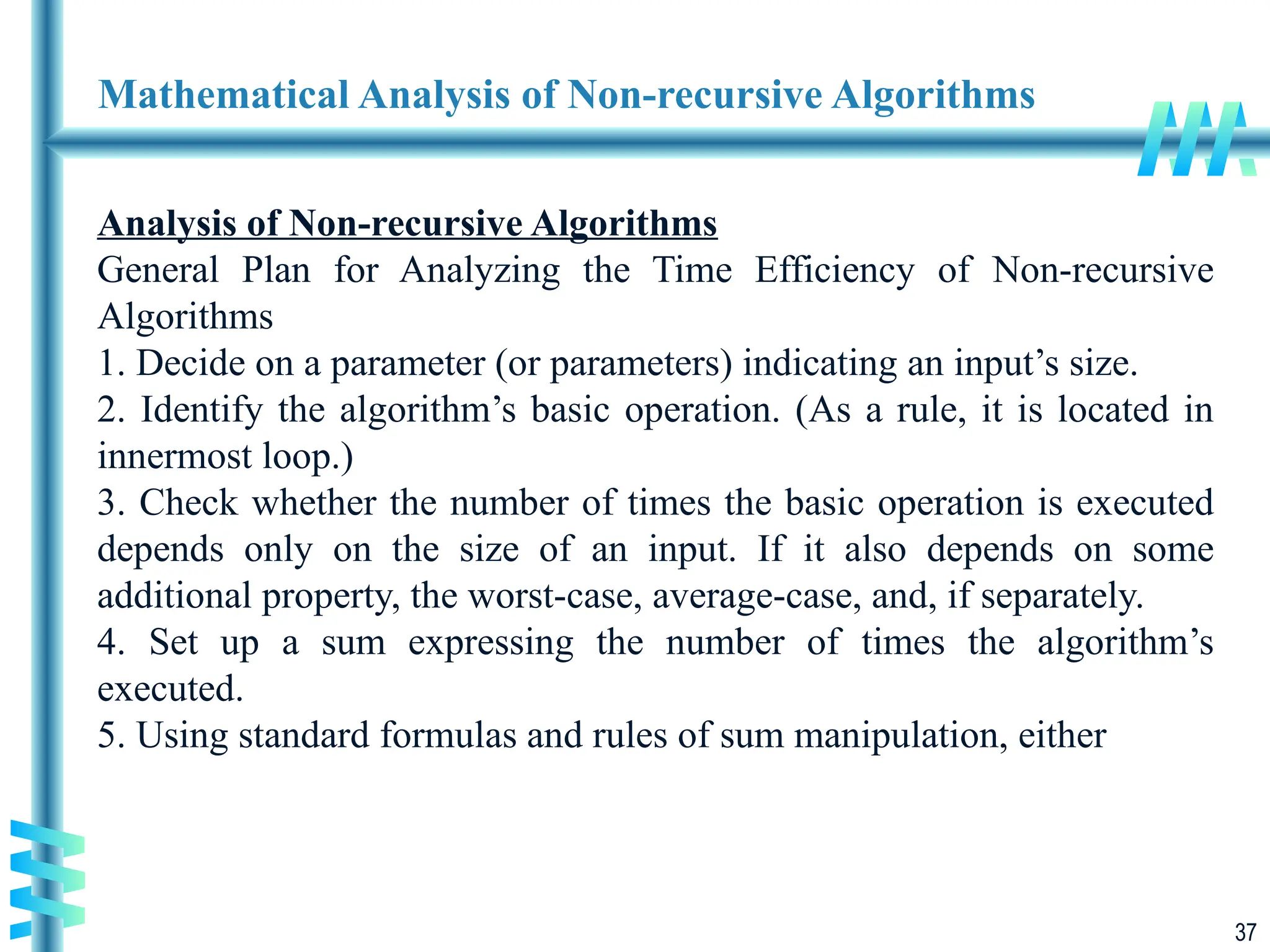

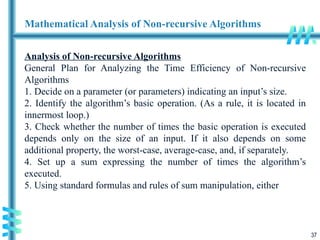

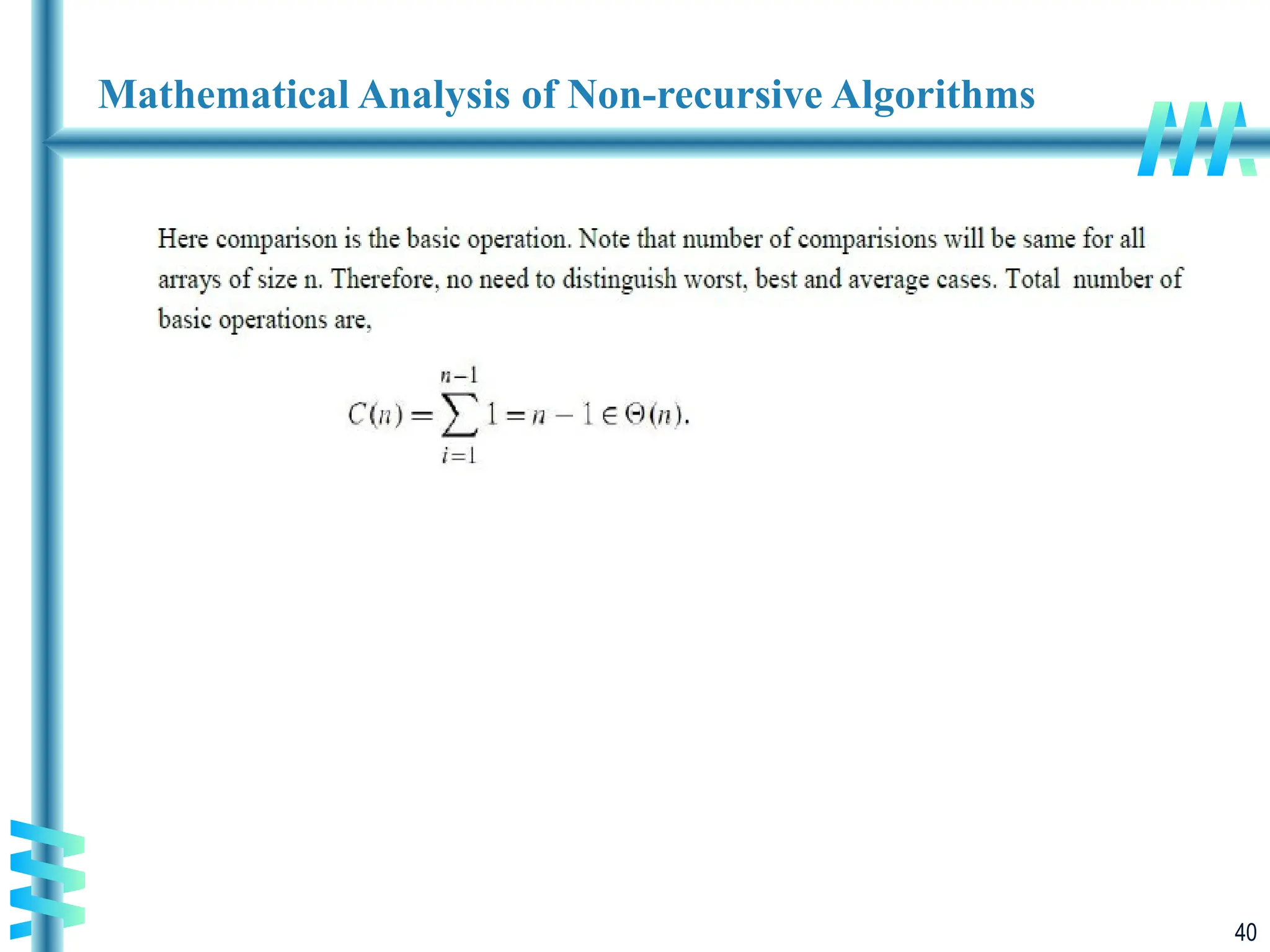

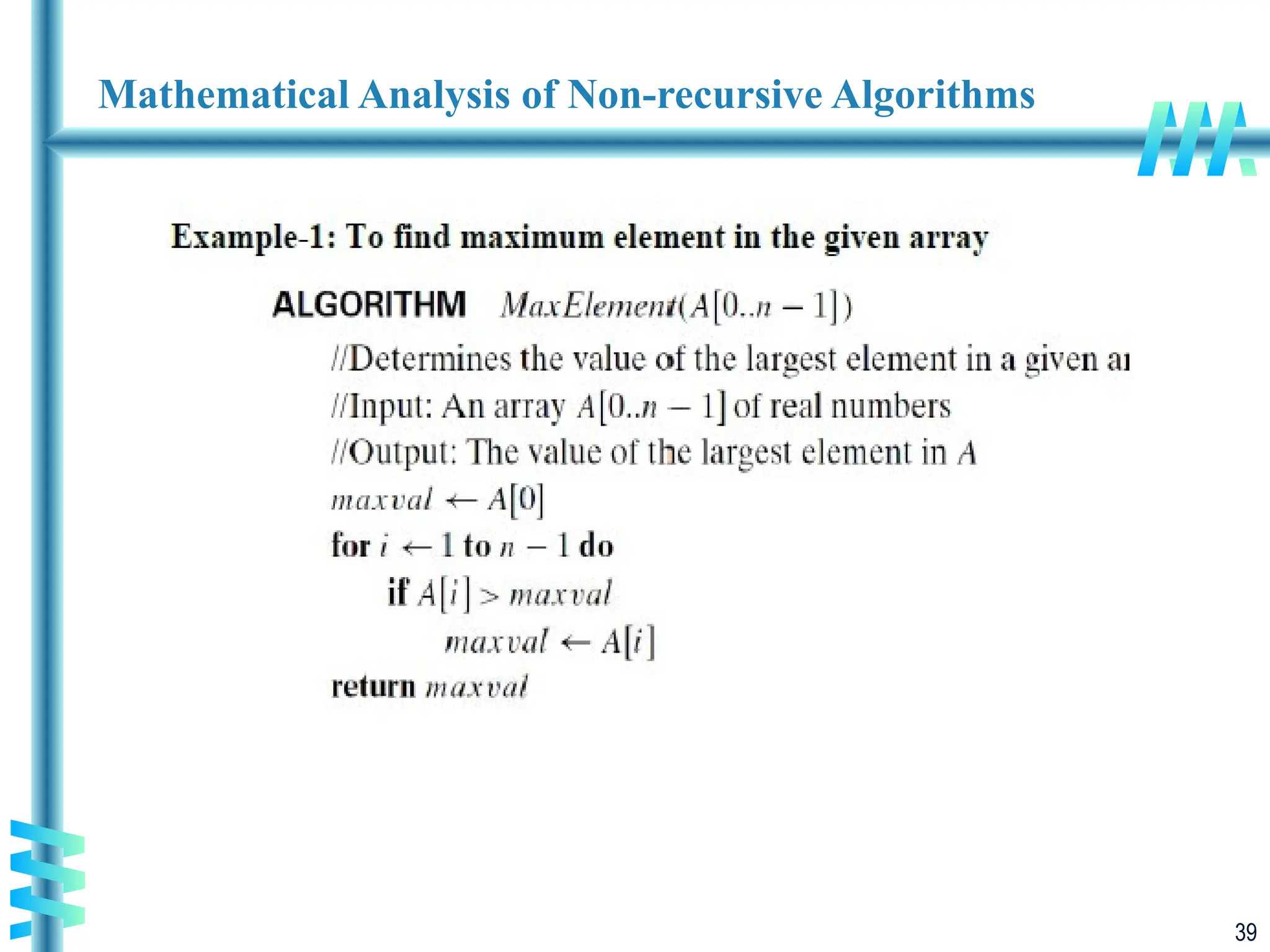

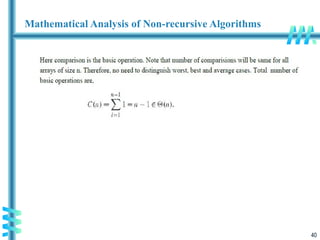

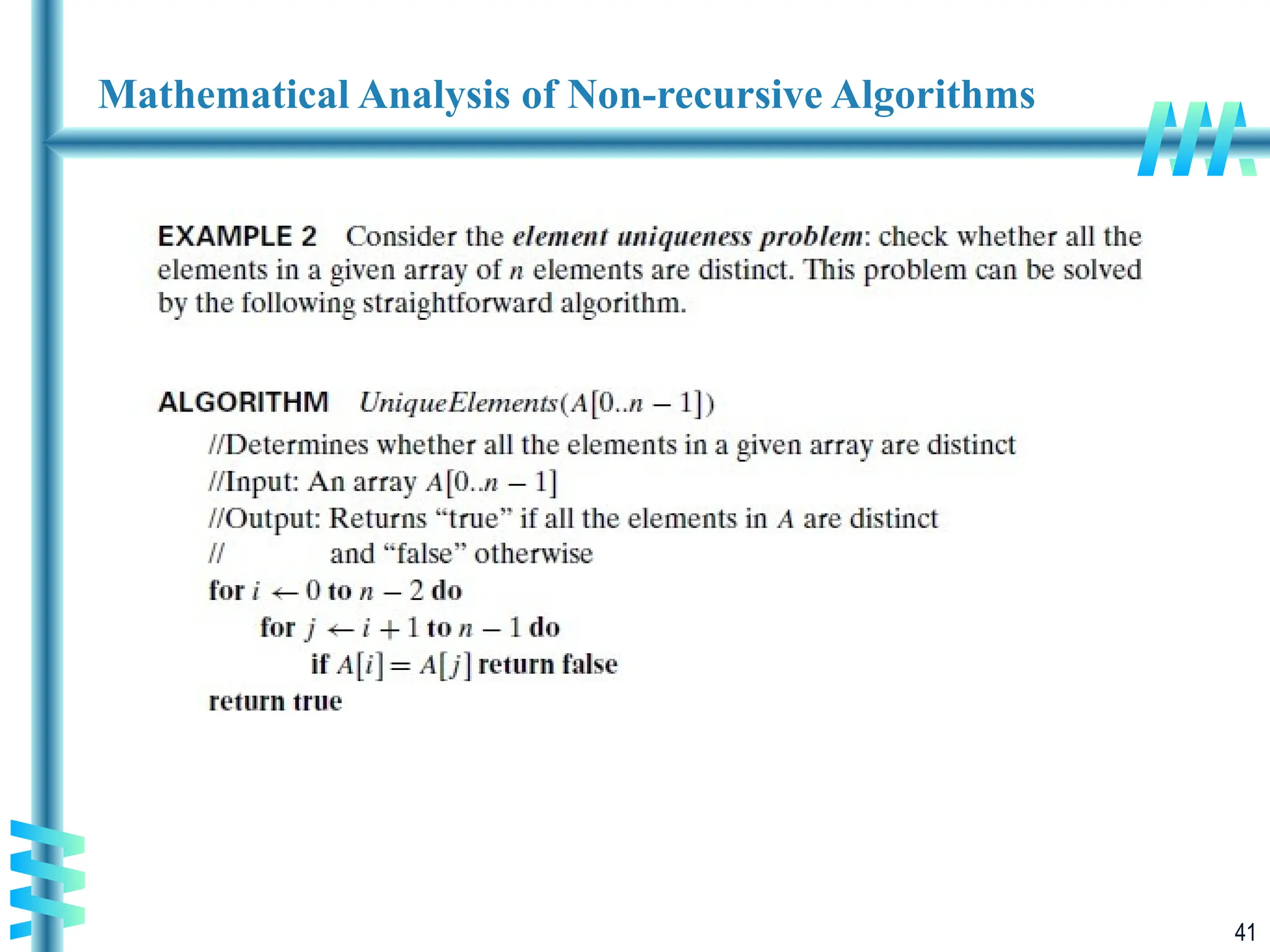

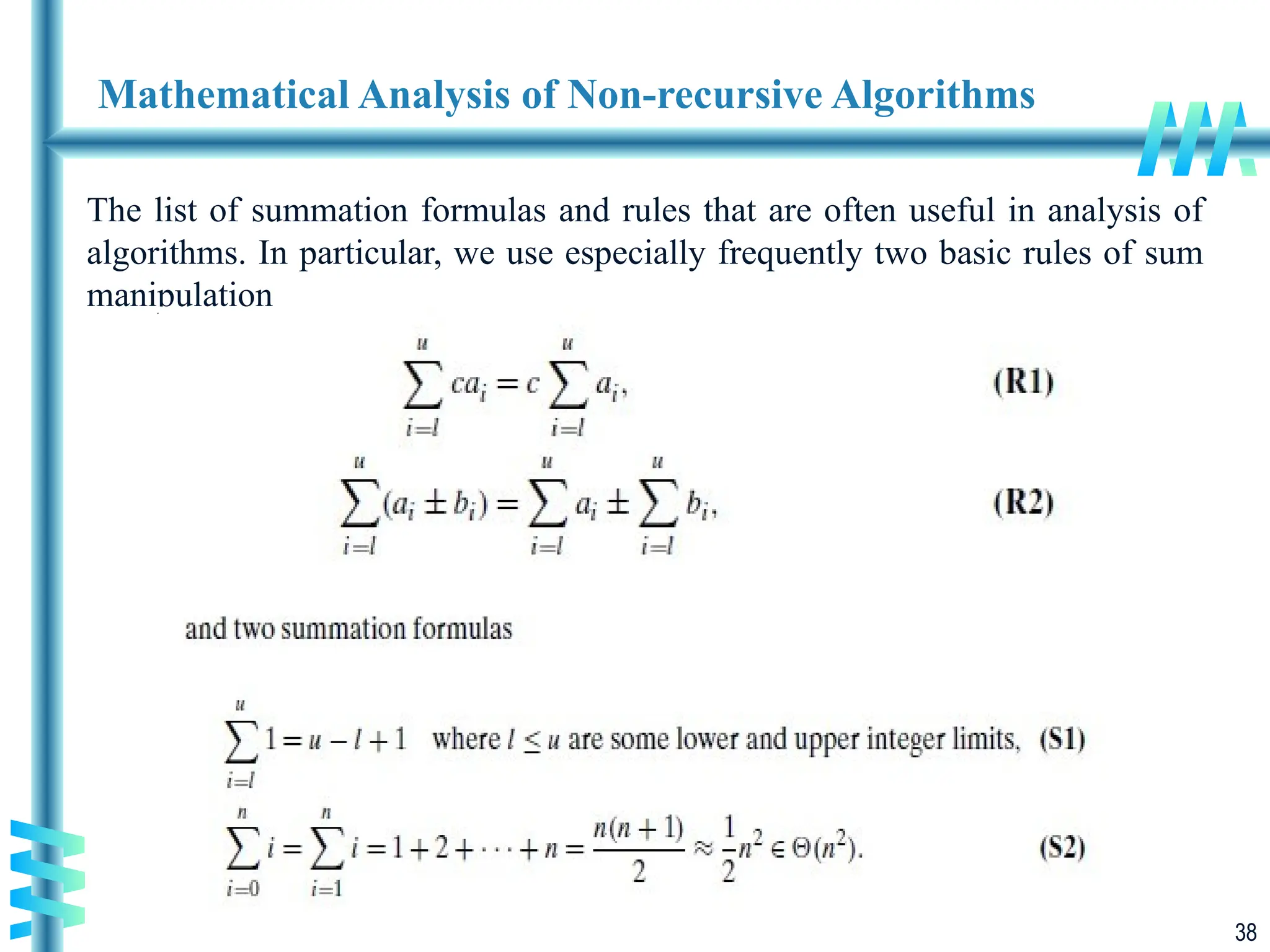

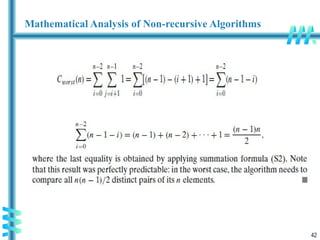

Mathematical Analysis of Non-recursive Algorithms
Analysis of Non-recursive Algorithms
General Plan for Analyzing the Time Efficiency of Non-recursive
Algorithms
1. Decide on a parameter (or parameters) indicating an input’s size.
2. Identify the algorithm’s basic operation. (As a rule, it is located in
innermost loop.)
3. Check whether the number of times the basic operation is executed
depends only on the size of an input. If it also depends on some
additional property, the worst-case, average-case, and, if separately.
4. Set up a sum expressing the number of times the algorithm’s
executed.
5. Using standard formulas and rules of sum manipulation, either

38
The list of summation formulas and rules that are often useful in analysis of
algorithms. In particular, we use especially frequently two basic rules of sum
manipulation

39

40

41

42

43

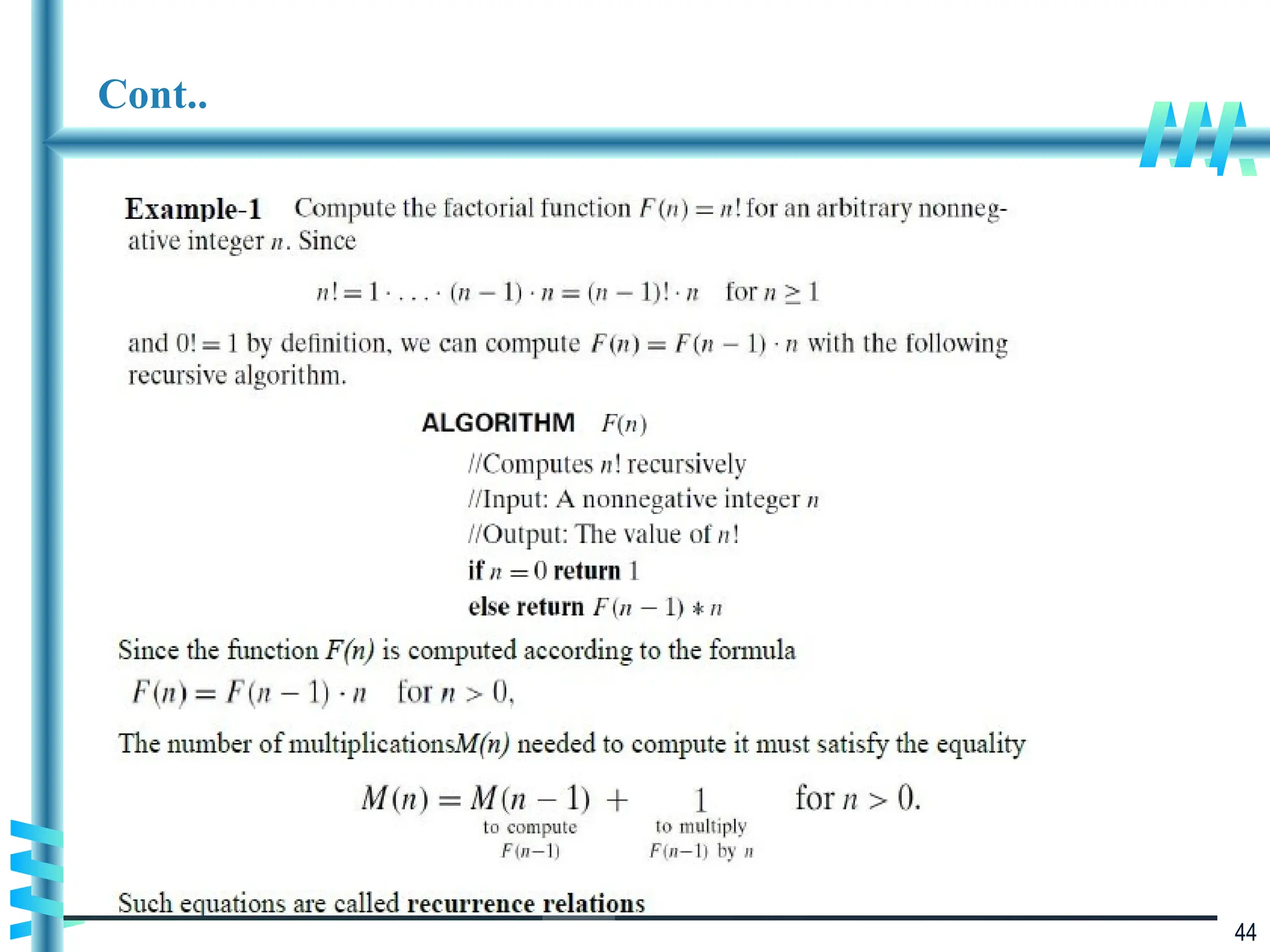

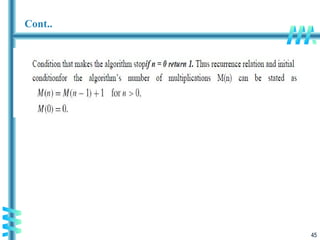

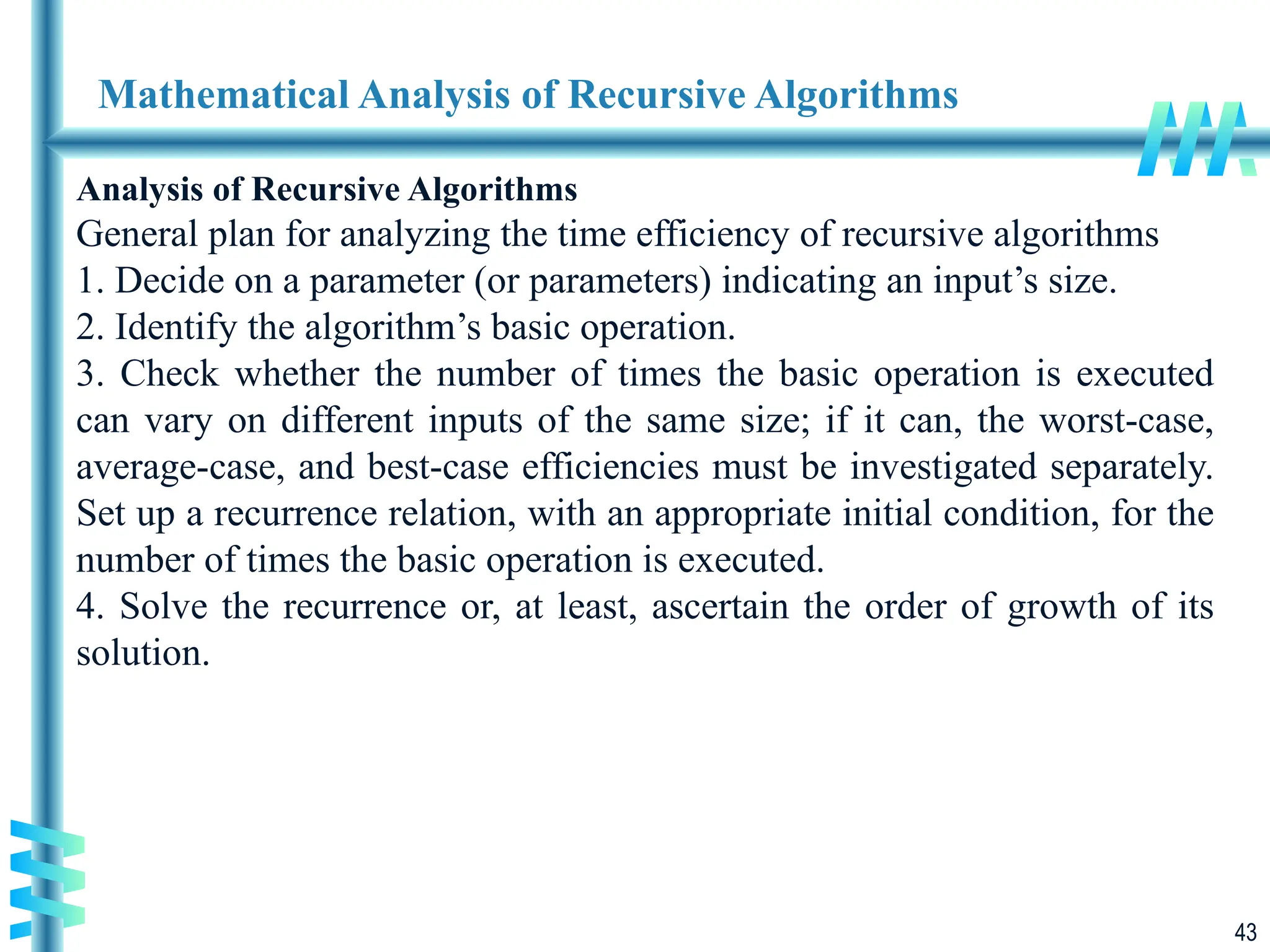

Mathematical Analysis of Recursive Algorithms
Analysis of Recursive Algorithms
General plan for analyzing the time efficiency of recursive algorithms
1. Decide on a parameter (or parameters) indicating an input’s size.
2. Identify the algorithm’s basic operation.
3. Check whether the number of times the basic operation is executed
can vary on different inputs of the same size; if it can, the worst-case,
average-case, and best-case efficiencies must be investigated separately.
Set up a recurrence relation, with an appropriate initial condition, for the
number of times the basic operation is executed.
4. Solve the recurrence or, at least, ascertain the order of growth of its
solution.

46

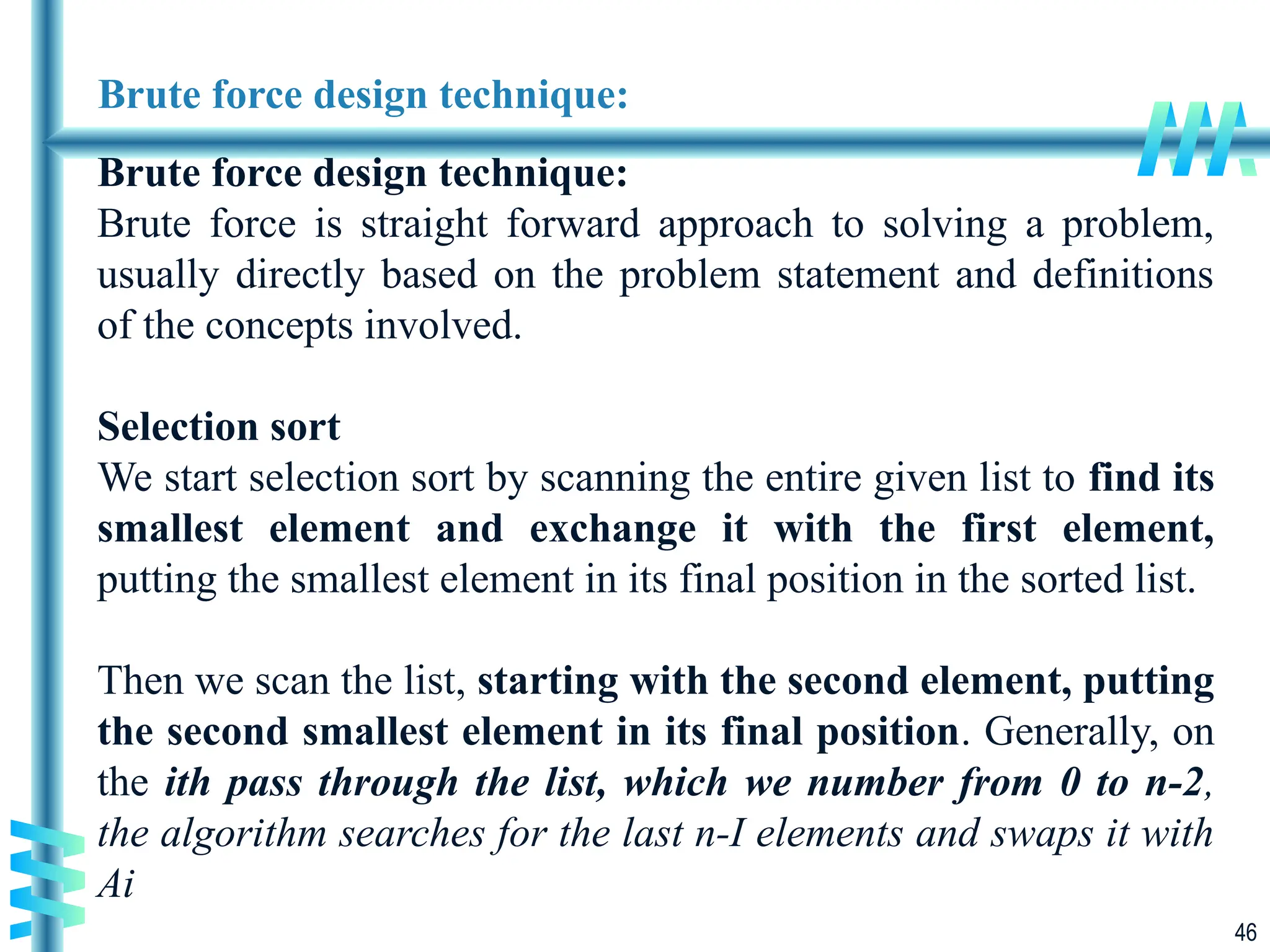

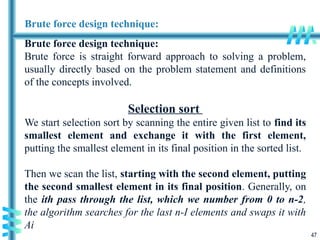

Brute force design technique:
Brute force is straight forward approach to solving a problem,
usually directly based on the problem statement and definitions
of the concepts involved.

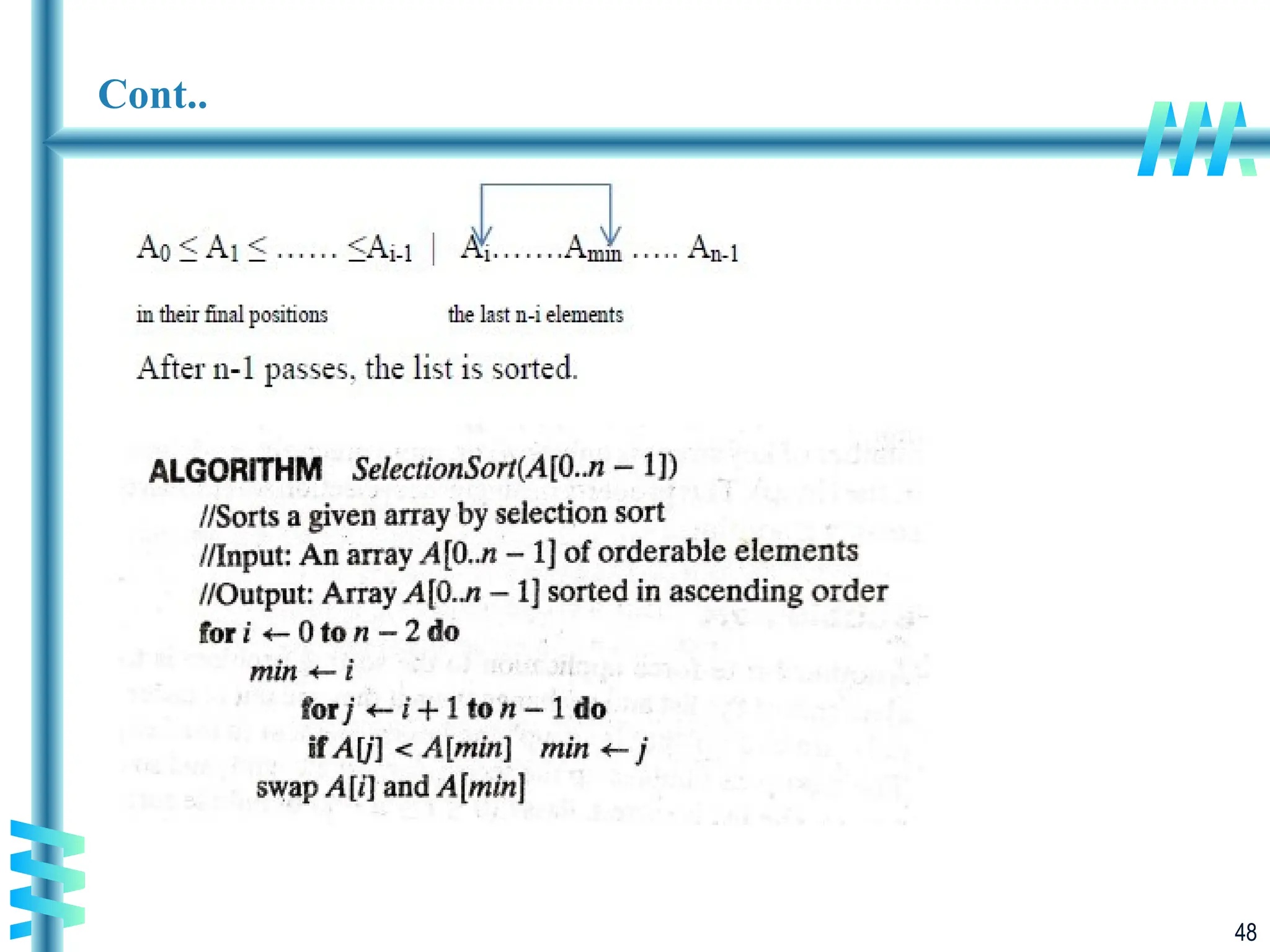

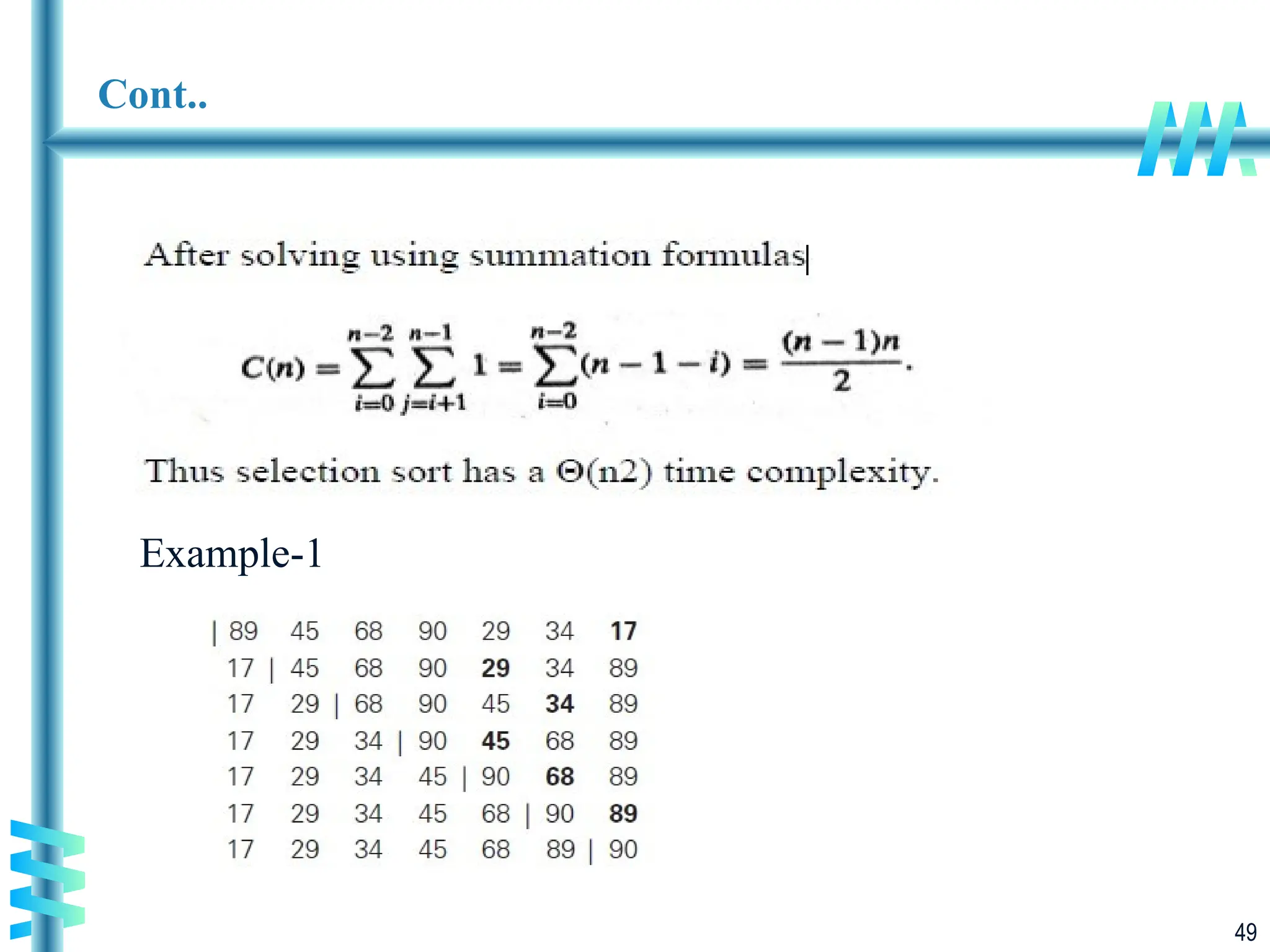

Selection sort
We start selection sort by scanning the entire given list to find its
smallest element and exchange it with the first element,
putting the smallest element in its final position in the sorted list.
Then we scan the list, starting with the second element, putting
the second smallest element in its final position. Generally, on
the ith pass through the list, which we number from 0 to n-2,
the algorithm searches for the last n-I elements and swaps it with
Ai

47
Brute force is straight forward approach to solving a problem,
usually directly based on the problem statement and definitions
of the concepts involved.
Selection sort
We start selection sort by scanning the entire given list to find its
smallest element and exchange it with the first element,
putting the smallest element in its final position in the sorted list.
Then we scan the list, starting with the second element, putting
the second smallest element in its final position. Generally, on
the ith pass through the list, which we number from 0 to n-2,
the algorithm searches for the last n-I elements and swaps it with
Ai

50
Cont..

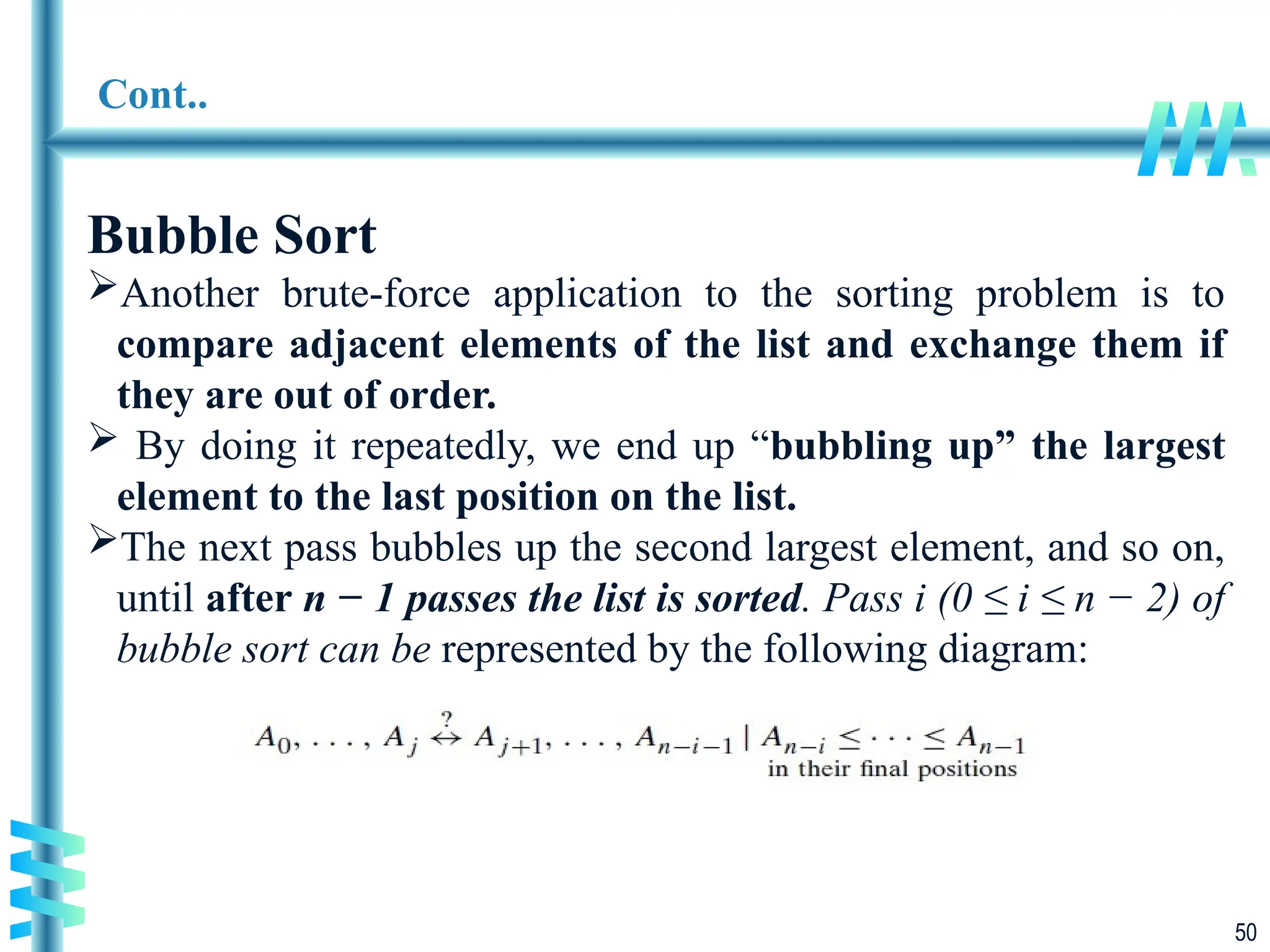

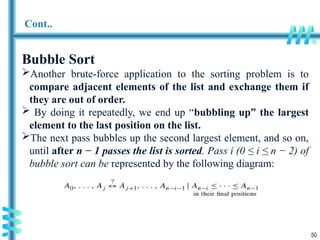

Bubble Sort
Another brute-force application to the sorting problem is to
compare adjacent elements of the list and exchange them if
they are out of order.
 By doing it repeatedly, we end up “bubbling up” the largest
element to the last position on the list.
The next pass bubbles up the second largest element, and so on,
until after n − 1 passes the list is sorted. Pass i (0 ≤ i ≤ n − 2) of
bubble sort can be represented by the following diagram:

51
Cont..

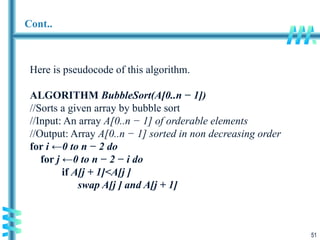

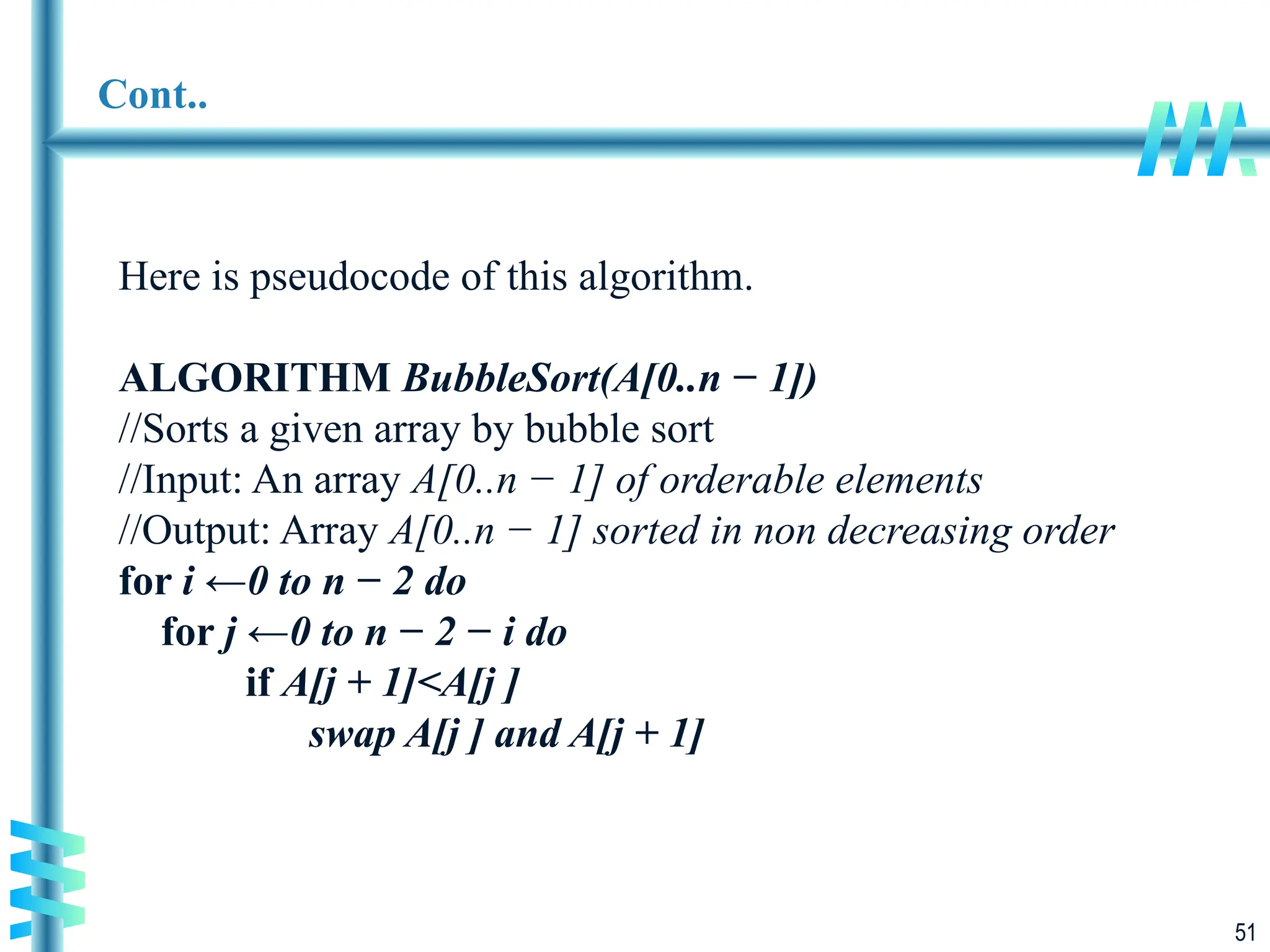

Here is pseudocode of this algorithm.
ALGORITHM BubbleSort(A[0..n − 1])
//Sorts a given array by bubble sort
//Input: An array A[0..n − 1] of orderable elements
//Output: Array A[0..n − 1] sorted in non decreasing order
for i ←0 to n − 2 do
for j ←0 to n − 2 − i do
if A[j + 1]<A[j ]
swap A[j ] and A[j + 1]

53

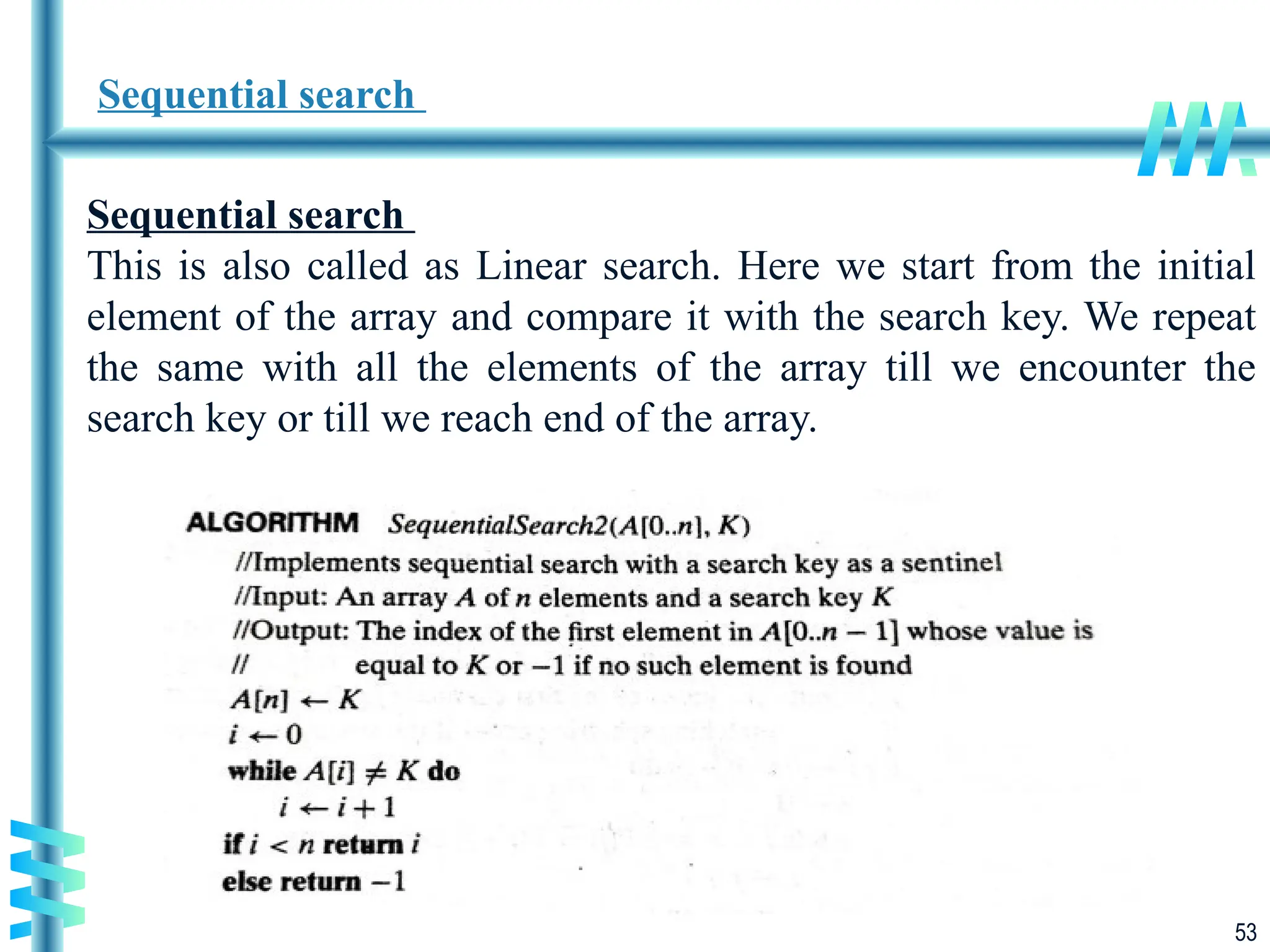

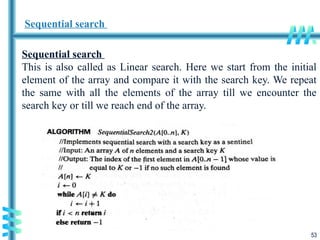

Sequential search
Sequential search
This is also called as Linear search. Here we start from the initial
element of the array and compare it with the search key. We repeat
the same with all the elements of the array till we encounter the
search key or till we reach end of the array.

54

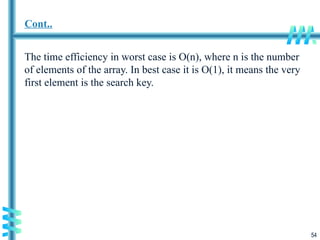

Cont..
The time efficiency in worst case is O(n), where n is the number
of elements of the array. In best case it is O(1), it means the very
first element is the search key.

55

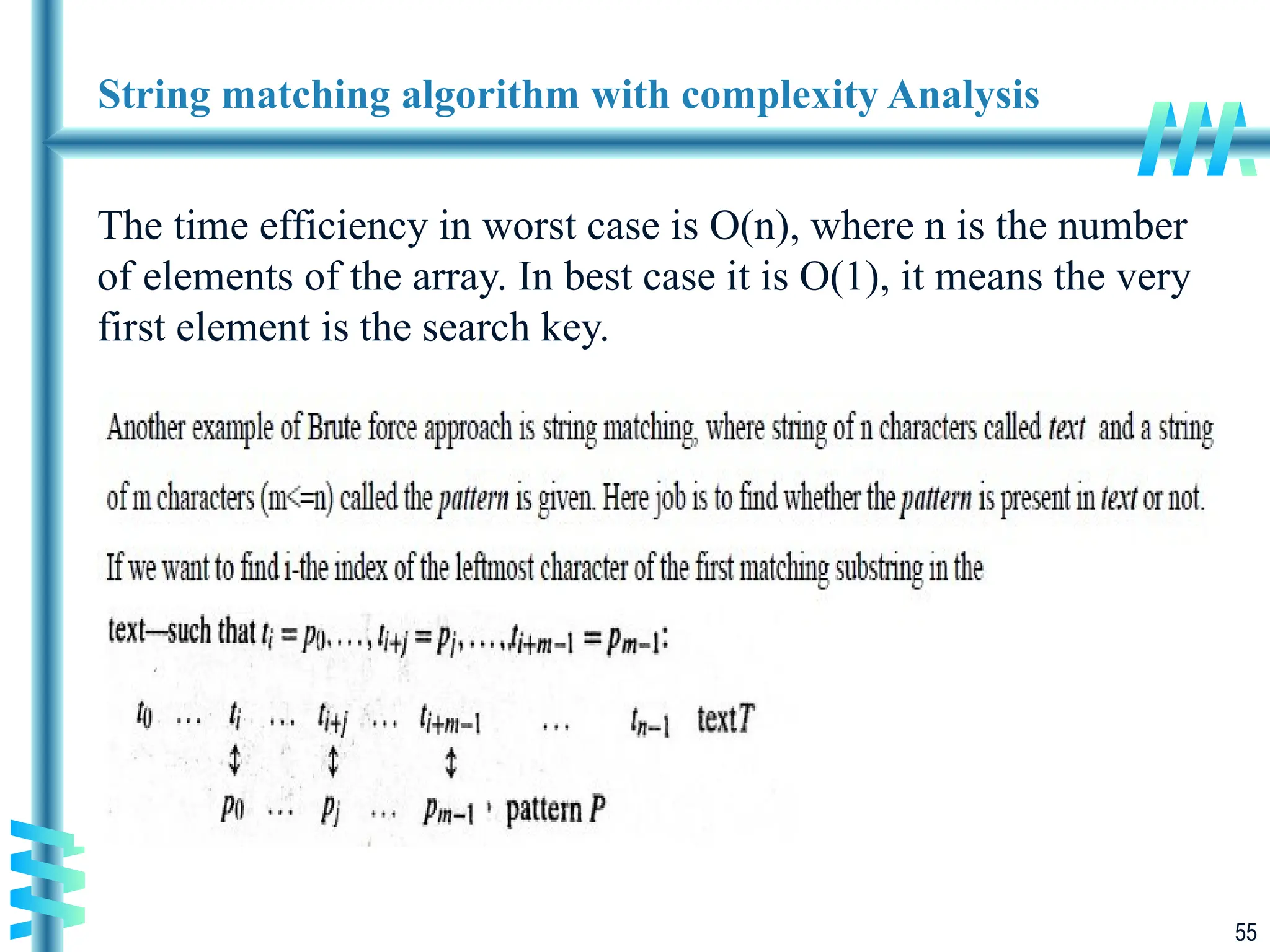

String matching algorithm with complexity Analysis
The time efficiency in worst case is O(n), where n is the number
of elements of the array. In best case it is O(1), it means the very
first element is the search key.

56

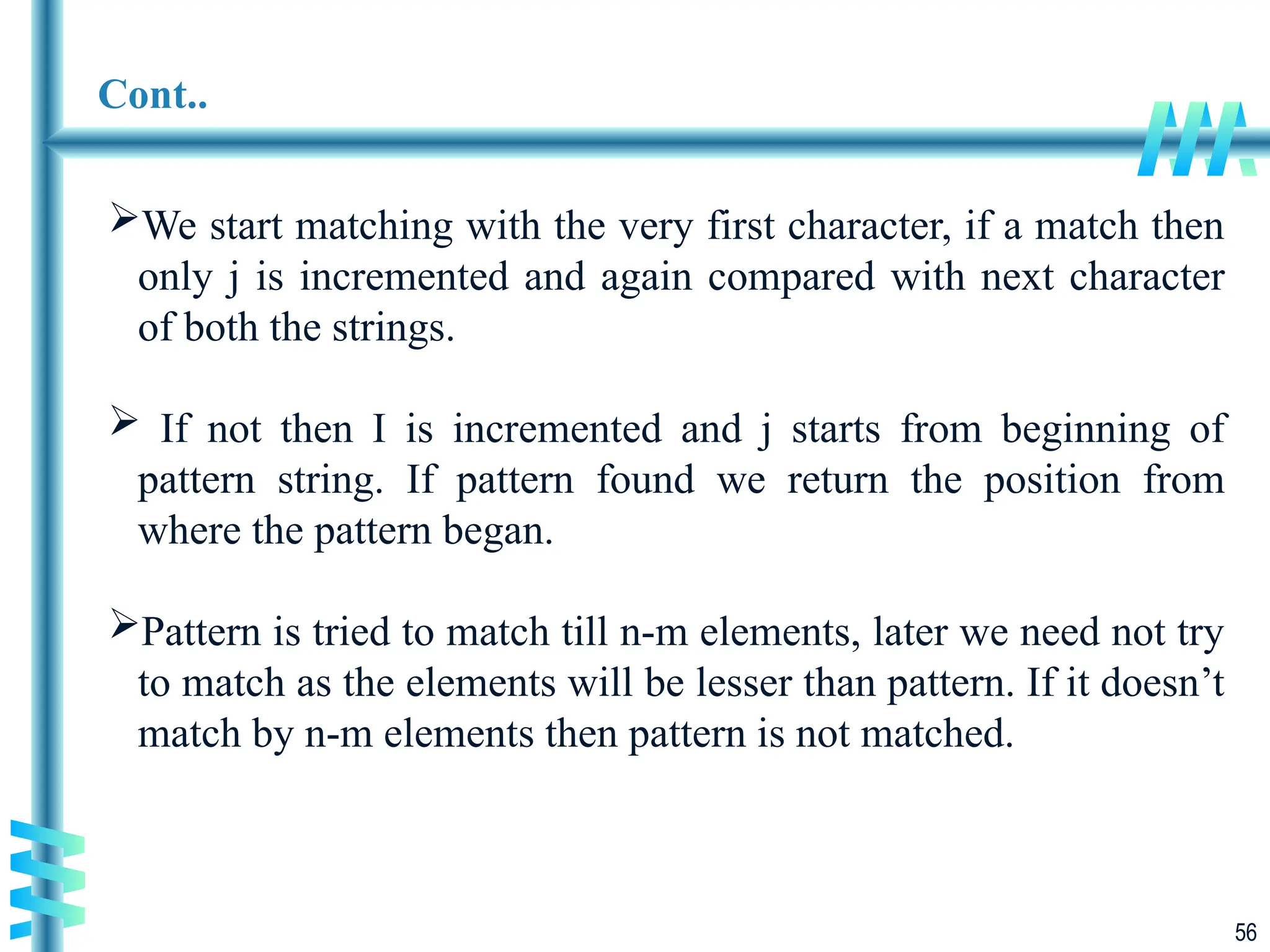

Cont..
We start matching with the very first character, if a match then
only j is incremented and again compared with next character
of both the strings.
 If not then I is incremented and j starts from beginning of
pattern string. If pattern found we return the position from
where the pattern began.
Pattern is tried to match till n-m elements, later we need not try
to match as the elements will be lesser than pattern. If it doesn’t
match by n-m elements then pattern is not matched.

Analysis Framework, Asymptotic Notations

More Related Content

Similar to Analysis Framework, Asymptotic Notations

More from DrSMeenakshiSundaram1

Recently uploaded

Analysis Framework, Asymptotic Notations

Editor's Notes
