Basic object oriented concepts (1)

Basic Object-Oriented Concepts
4-Dec-17

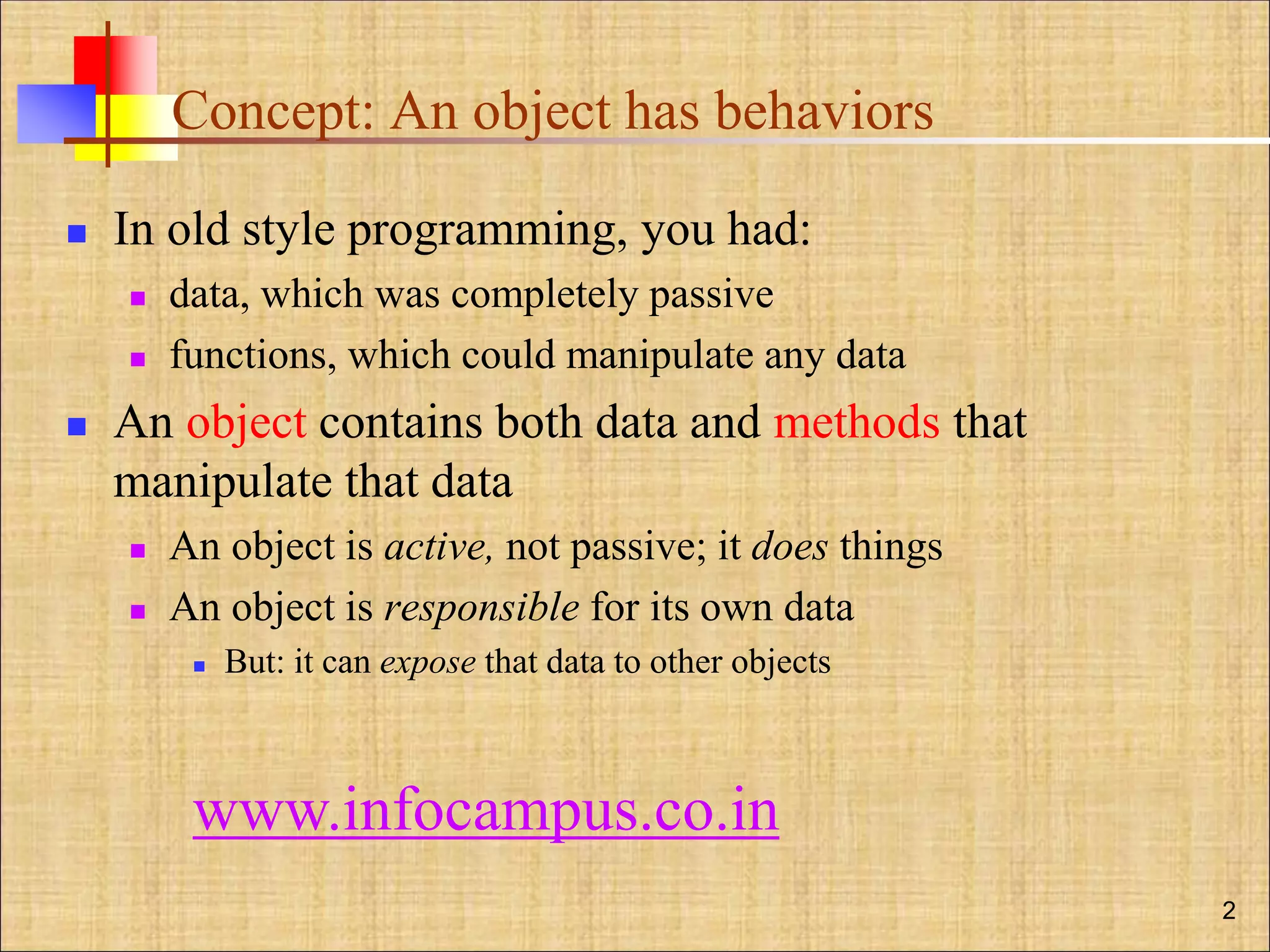

Concept: An object has behaviors
 In old style programming, you had:
 data, which was completely passive
 functions, which could manipulate any data
 An object contains both data and methods that
manipulate that data
 An object is active, not passive; it does things
 An object is responsible for its own data
 But: it can expose that data to other objects
2
www.infocampus.co.in

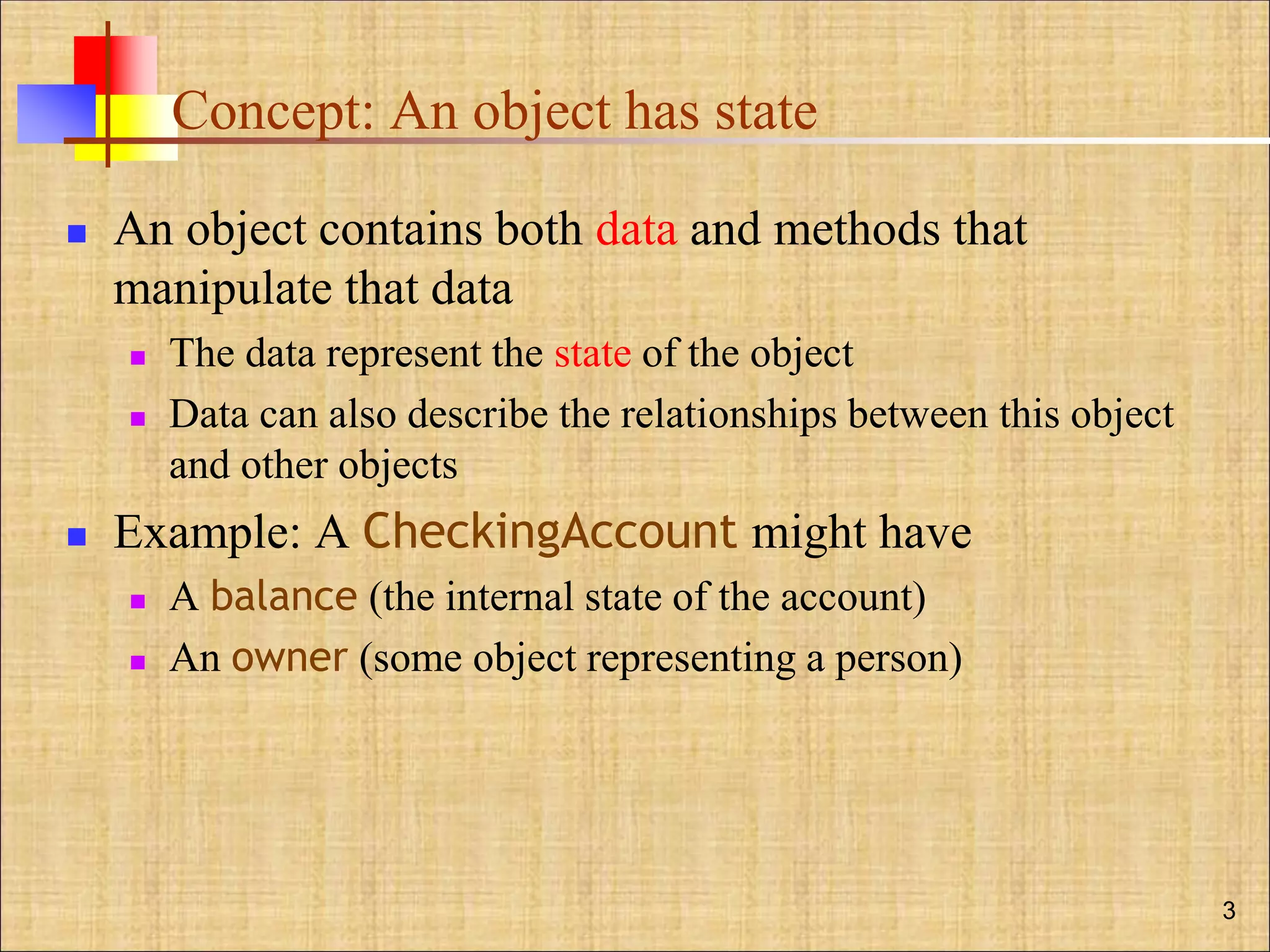

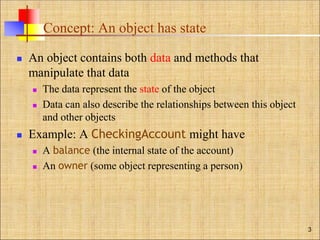

Concept: An object has state
 An object contains both data and methods that
manipulate that data
 The data represent the state of the object
 Data can also describe the relationships between this object
and other objects
 Example: A CheckingAccount might have
 A balance (the internal state of the account)
 An owner (some object representing a person)
3

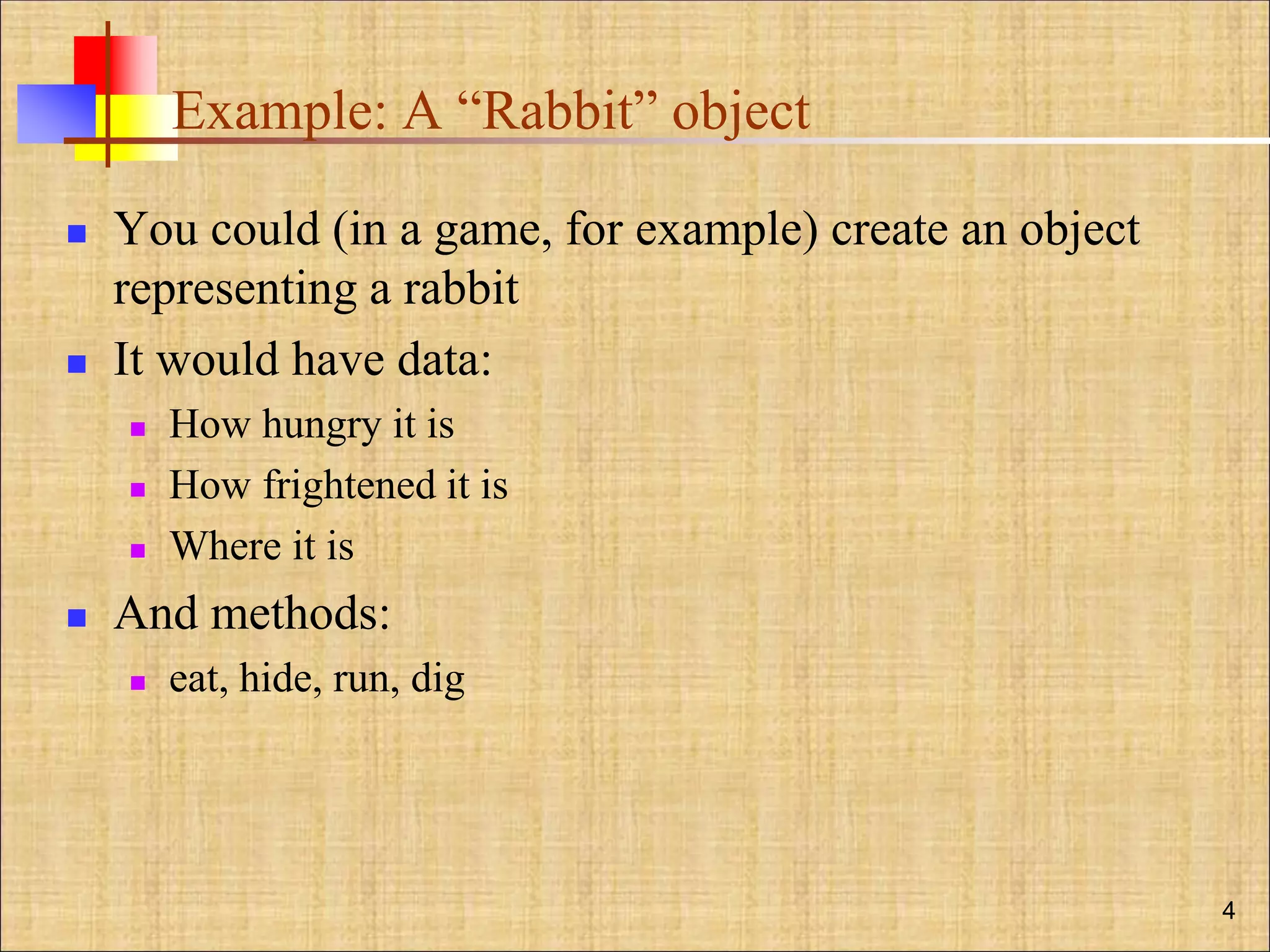

Example: A “Rabbit” object
 You could (in a game, for example) create an object
representing a rabbit
 It would have data:
 How hungry it is
 How frightened it is
 Where it is
 And methods:
 eat, hide, run, dig
4

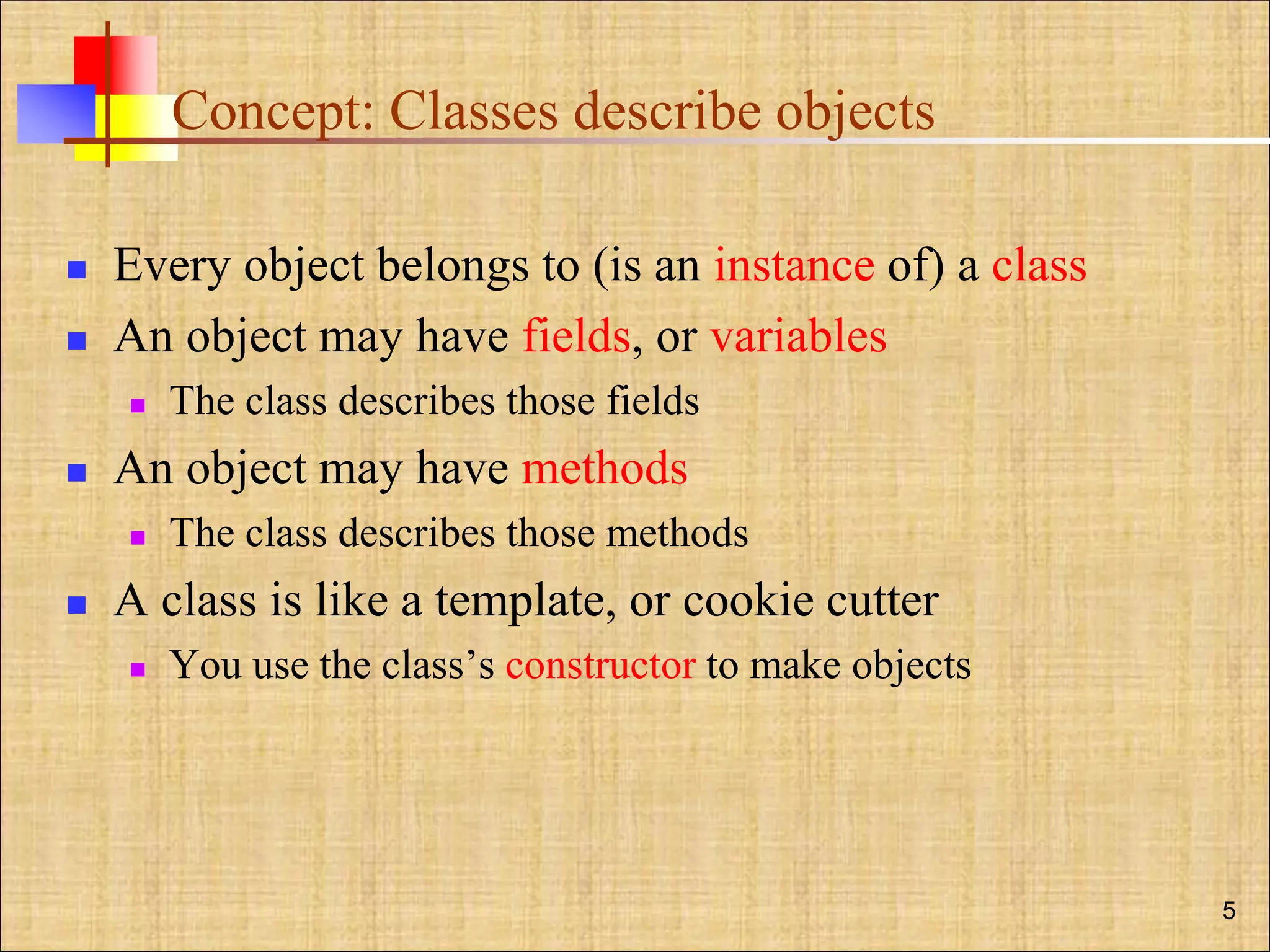

Concept: Classes describe objects
 Every object belongs to (is an instance of) a class
 An object may have fields, or variables
 The class describes those fields
 An object may have methods
 The class describes those methods
 A class is like a template, or cookie cutter
 You use the class’s constructor to make objects
5

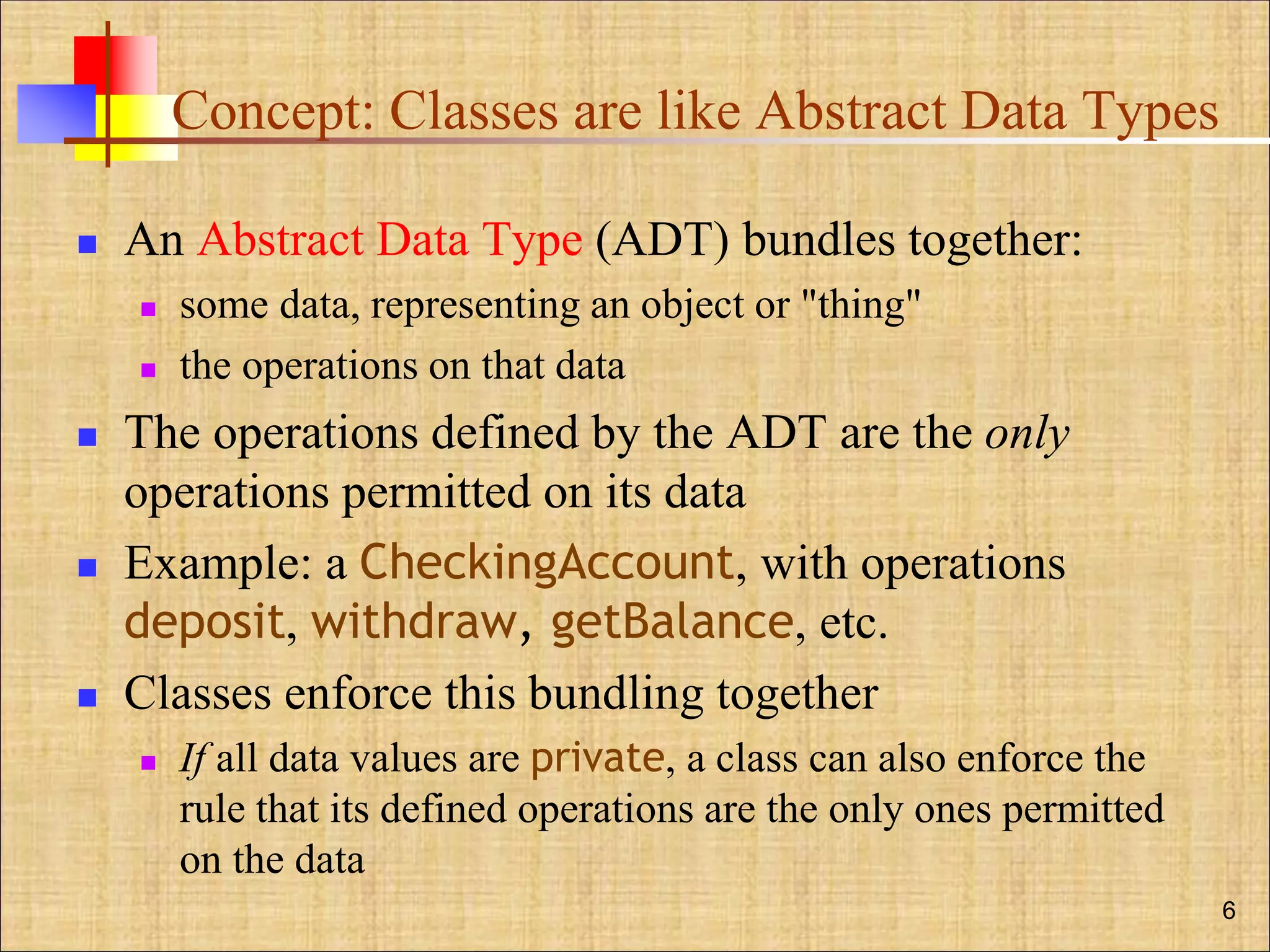

Concept: Classes are like Abstract Data Types
 An Abstract Data Type (ADT) bundles together:
 some data, representing an object or "thing"
 the operations on that data
 The operations defined by the ADT are the only
operations permitted on its data
 Example: a CheckingAccount, with operations
deposit, withdraw, getBalance, etc.
 Classes enforce this bundling together
 If all data values are private, a class can also enforce the
rule that its defined operations are the only ones permitted
on the data
6

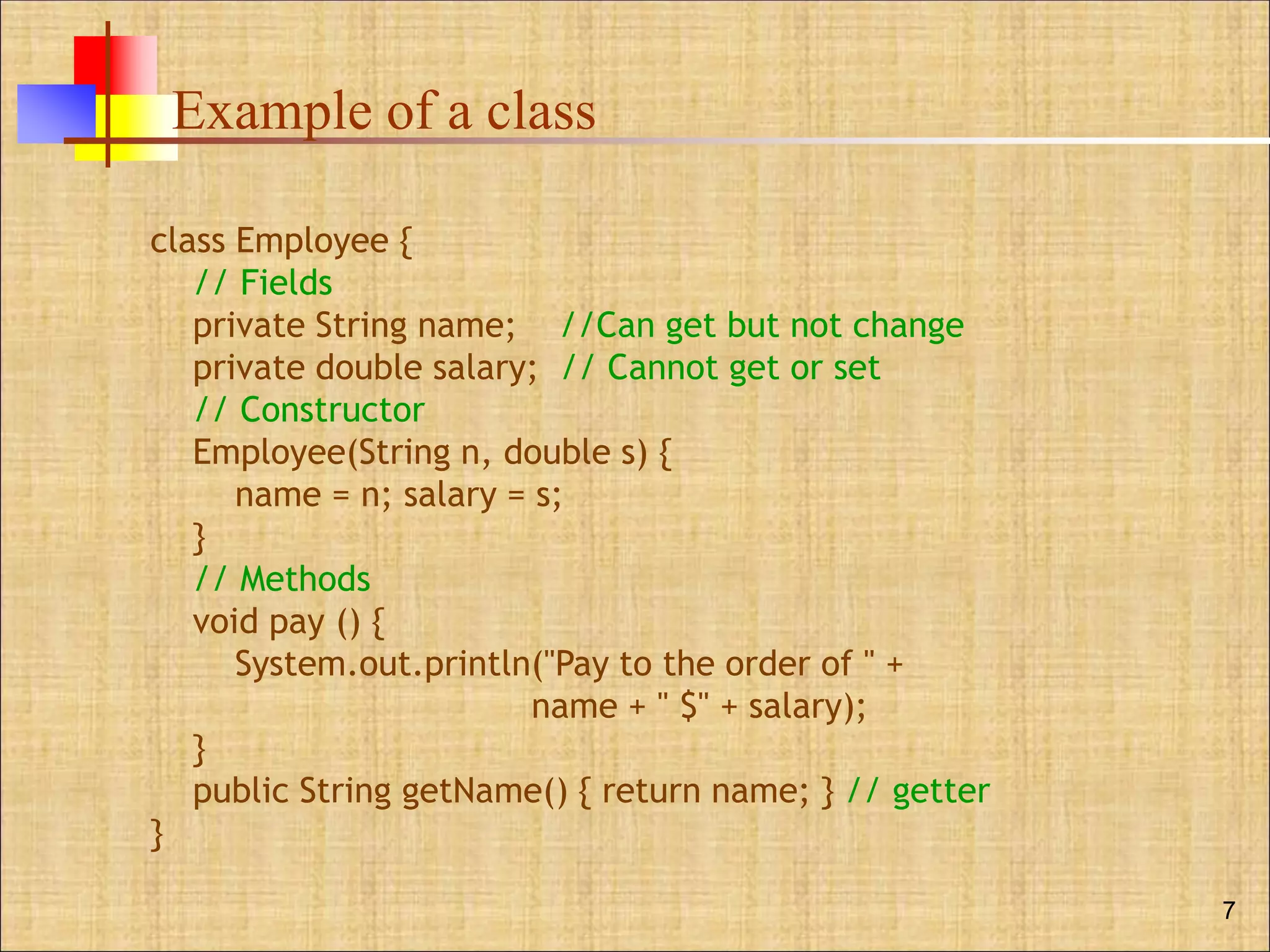

Example of a class
7
class Employee {
// Fields
private String name; //Can get but not change
private double salary; // Cannot get or set
// Constructor
Employee(String n, double s) {
name = n; salary = s;
}
// Methods
void pay () {
System.out.println("Pay to the order of " +
name + " $" + salary);
}
public String getName() { return name; } // getter
}

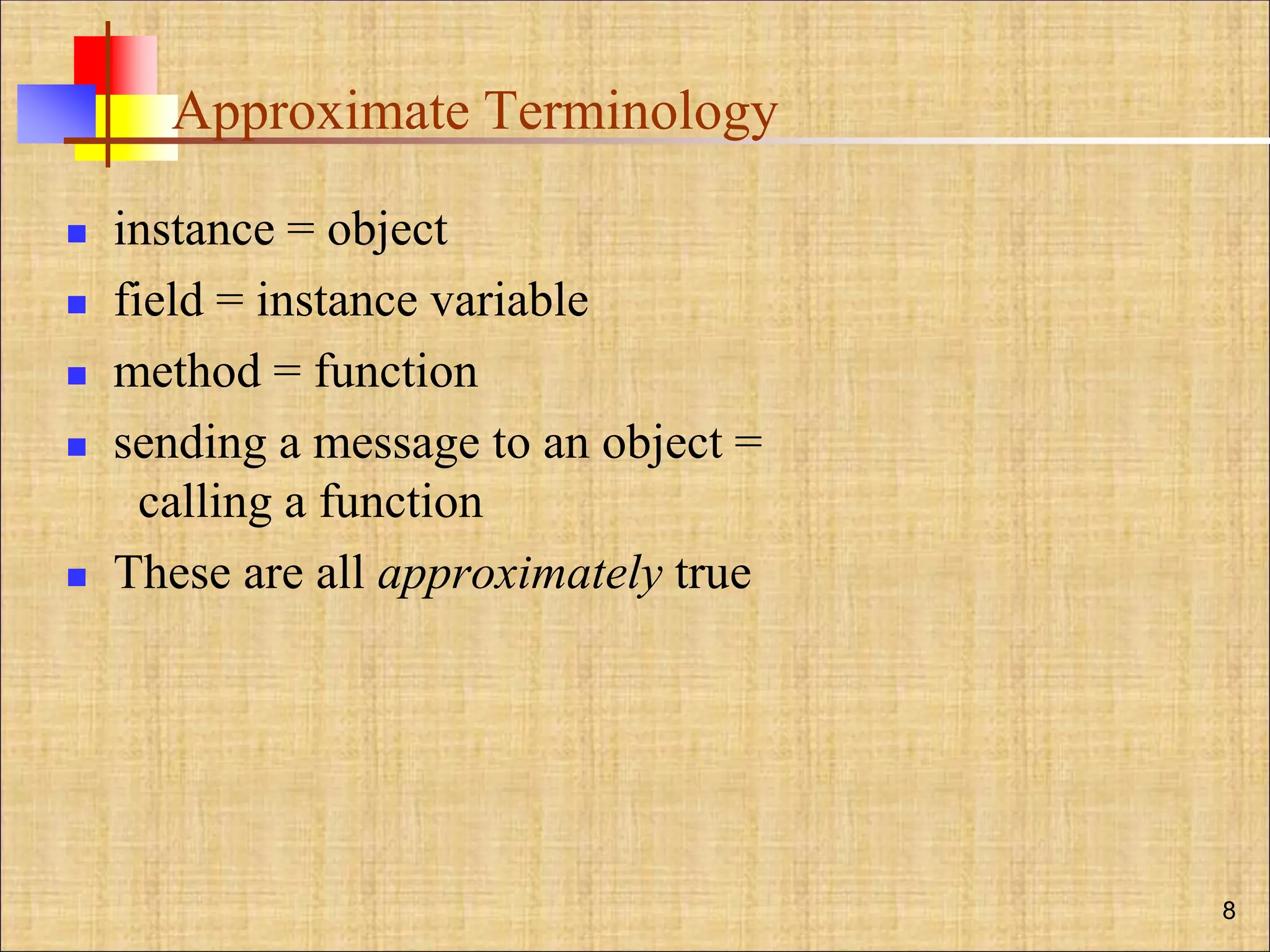

Approximate Terminology
 instance = object
 field = instance variable
 method = function
 sending a message to an object =
calling a function
 These are all approximately true
8

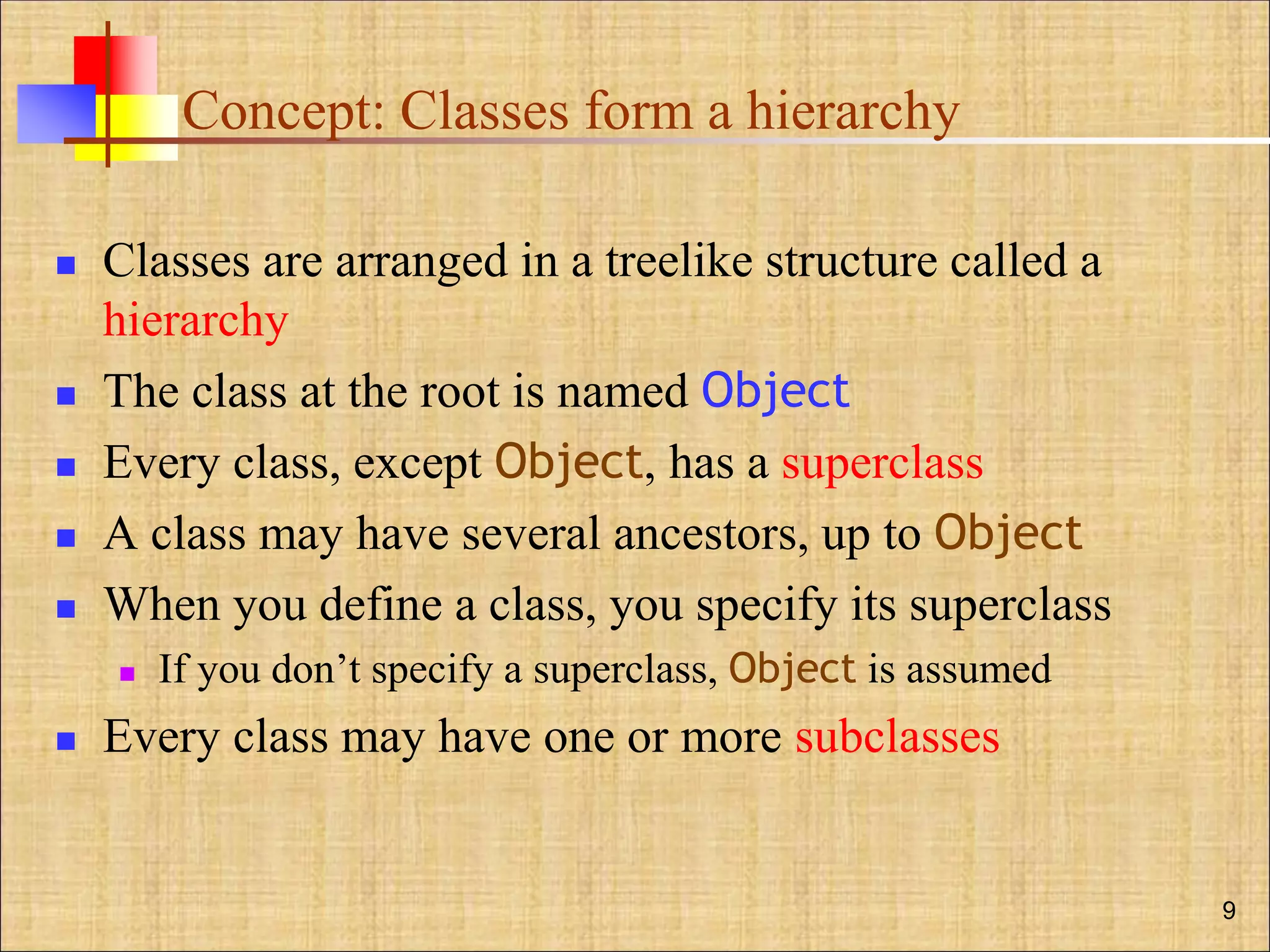

Concept: Classes form a hierarchy
 Classes are arranged in a treelike structure called a
hierarchy
 The class at the root is named Object
 Every class, except Object, has a superclass
 A class may have several ancestors, up to Object
 When you define a class, you specify its superclass
 If you don’t specify a superclass, Object is assumed
 Every class may have one or more subclasses
9

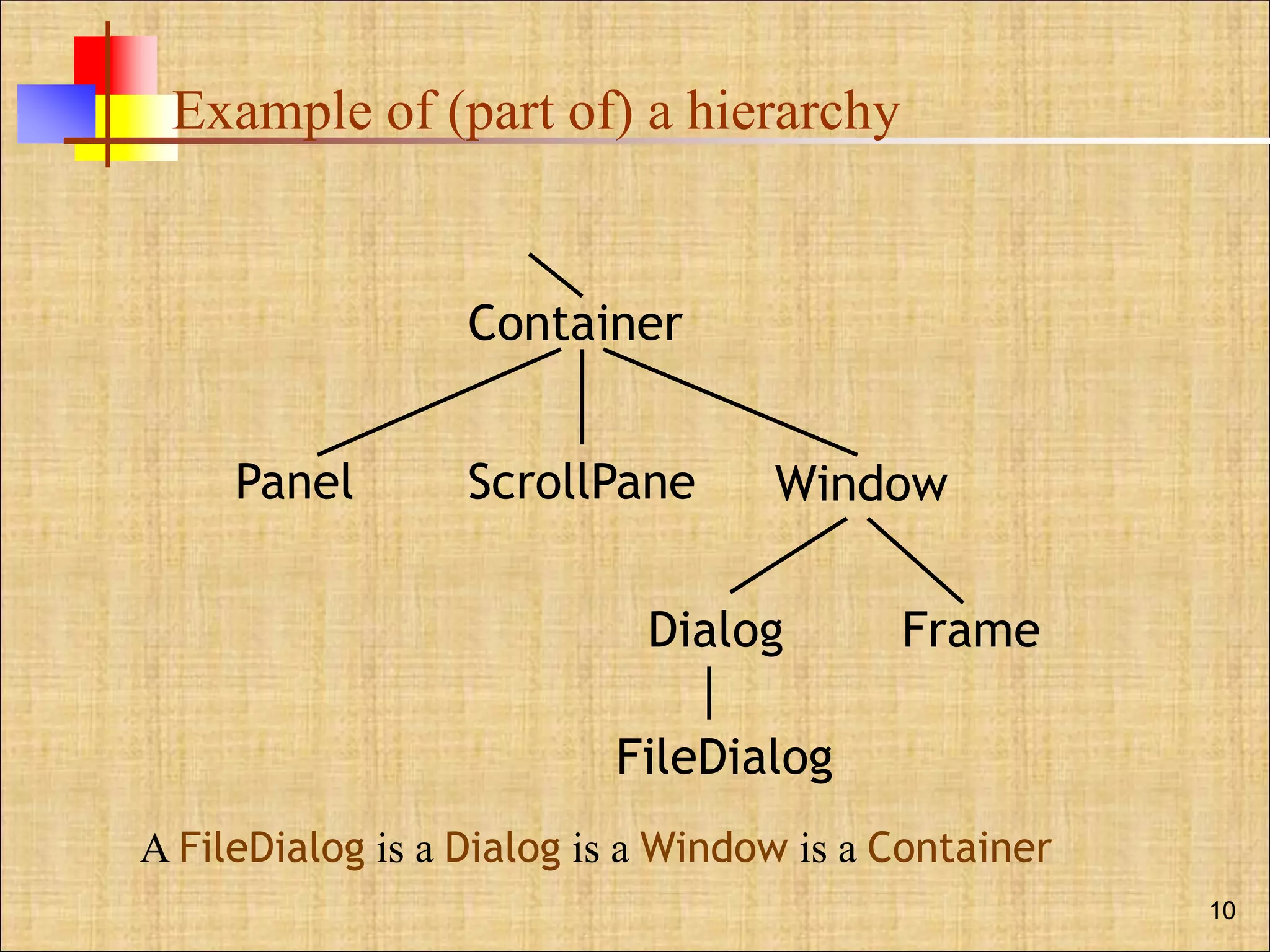

Example of (part of) a hierarchy
10
A FileDialog is a Dialog is a Window is a Container
Container
Panel ScrollPane Window
Dialog Frame
FileDialog

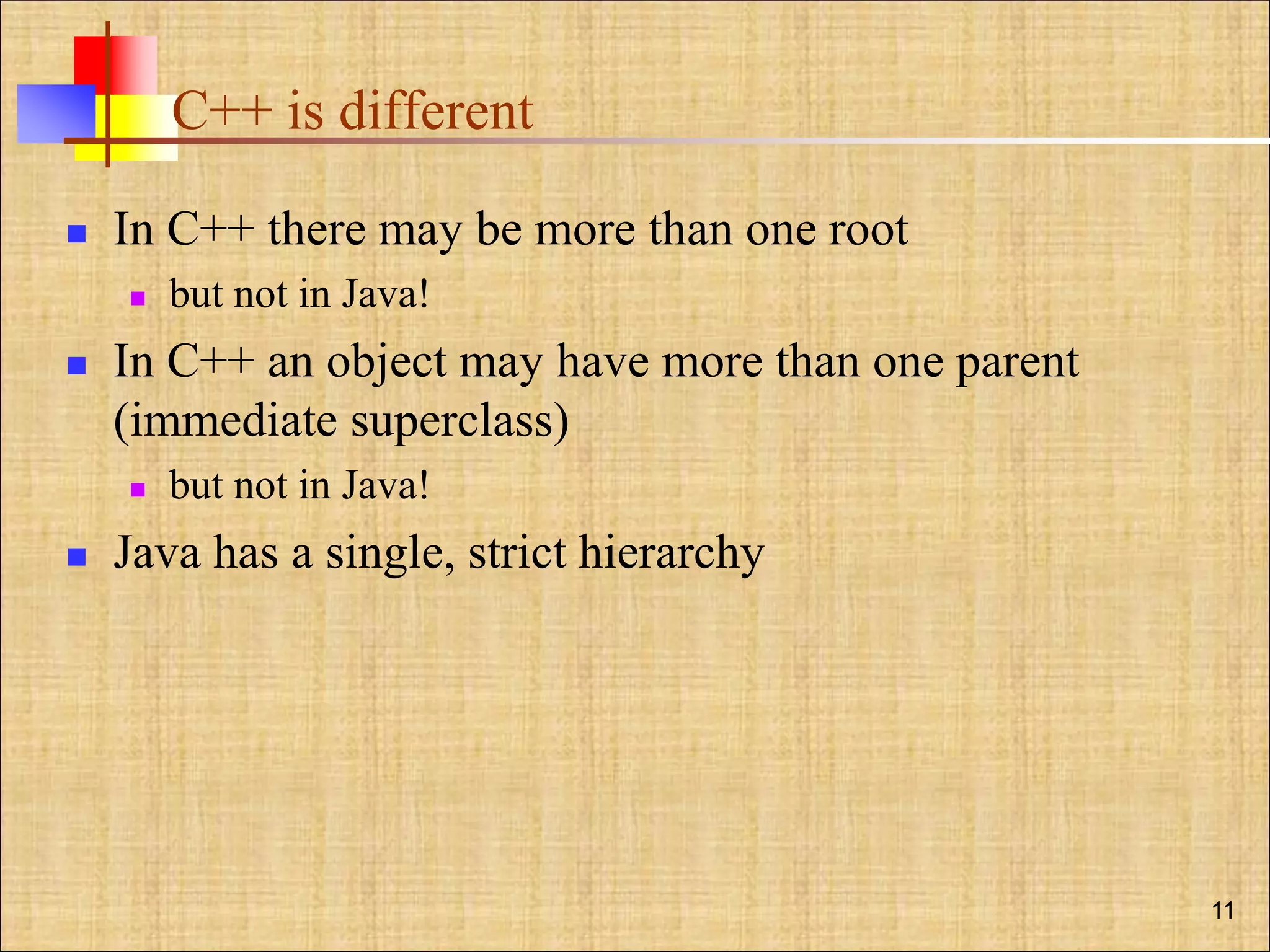

C++ is different
 In C++ there may be more than one root
 but not in Java!
 In C++ an object may have more than one parent
(immediate superclass)
 but not in Java!
 Java has a single, strict hierarchy
11

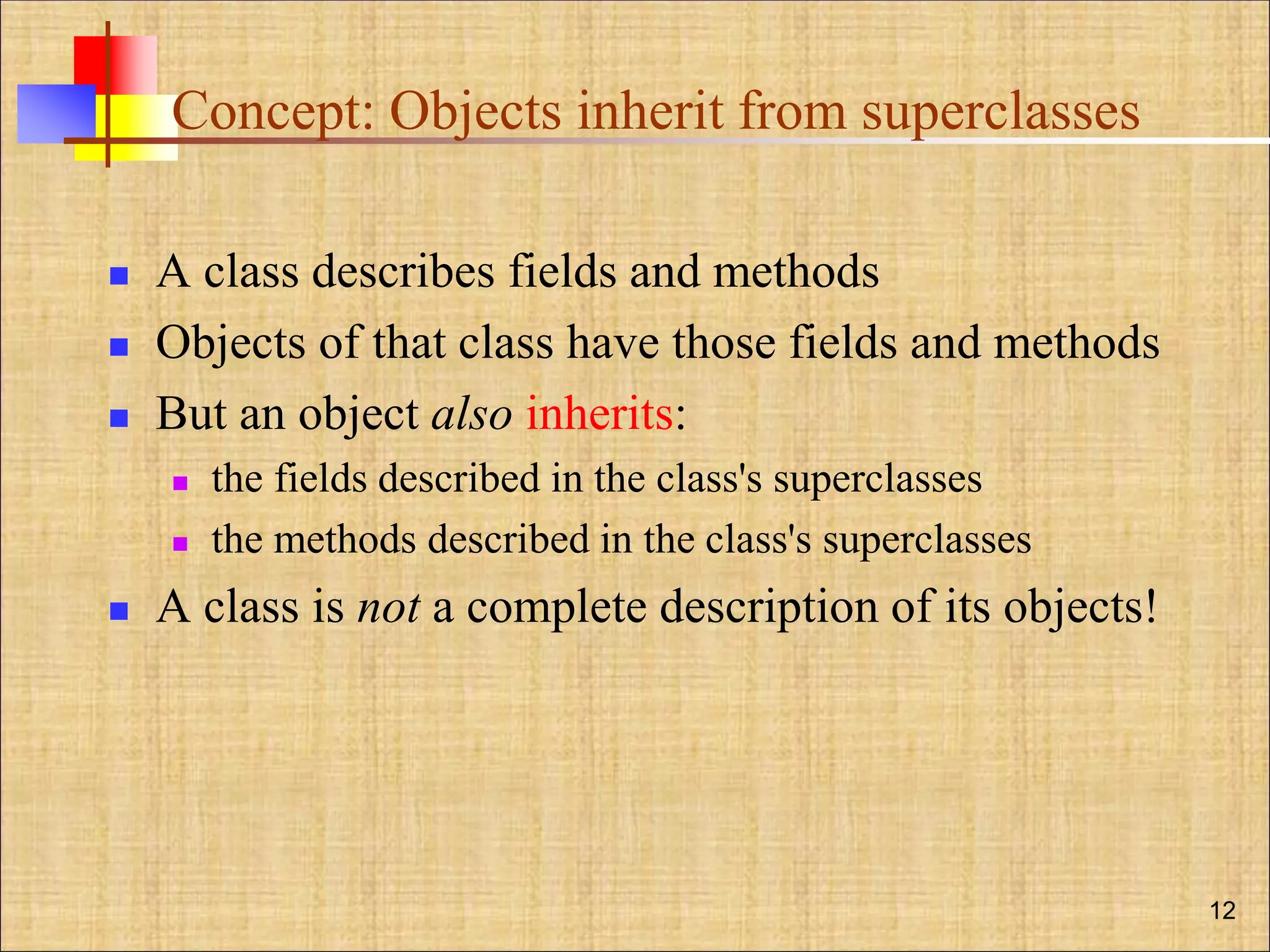

Concept: Objects inherit from superclasses
 A class describes fields and methods
 Objects of that class have those fields and methods
 But an object also inherits:
 the fields described in the class's superclasses
 the methods described in the class's superclasses
 A class is not a complete description of its objects!
12

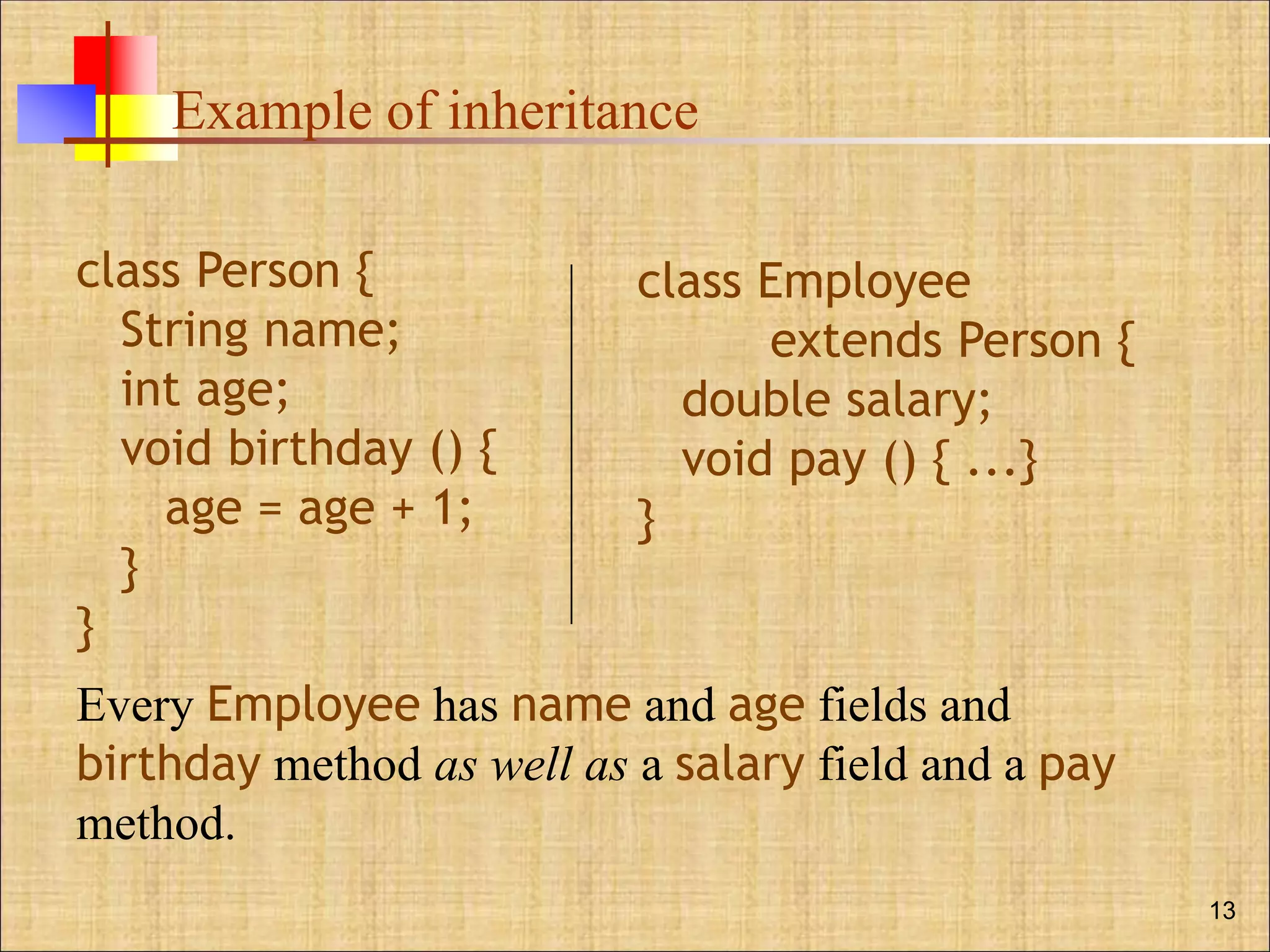

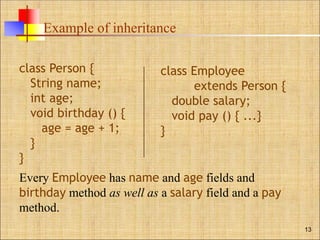

Example of inheritance
13
class Person {
String name;
int age;
void birthday () {
age = age + 1;
}
}
class Employee
extends Person {
double salary;
void pay () { ...}
}
Every Employee has name and age fields and
birthday method as well as a salary field and a pay
method.

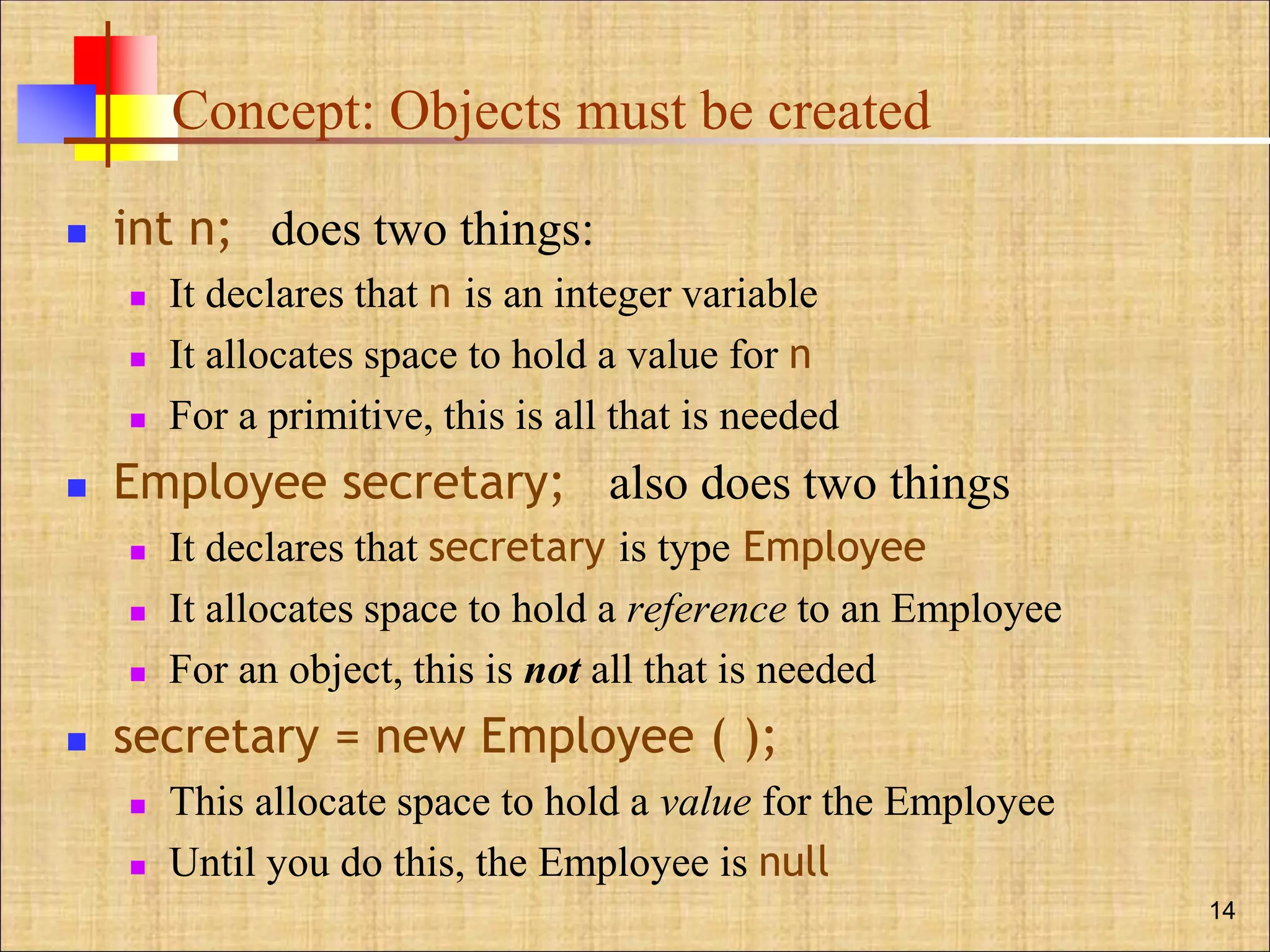

Concept: Objects must be created
 int n; does two things:
 It declares that n is an integer variable
 It allocates space to hold a value for n
 For a primitive, this is all that is needed
 Employee secretary; also does two things
 It declares that secretary is type Employee
 It allocates space to hold a reference to an Employee
 For an object, this is not all that is needed
 secretary = new Employee ( );
 This allocate space to hold a value for the Employee
 Until you do this, the Employee is null
14

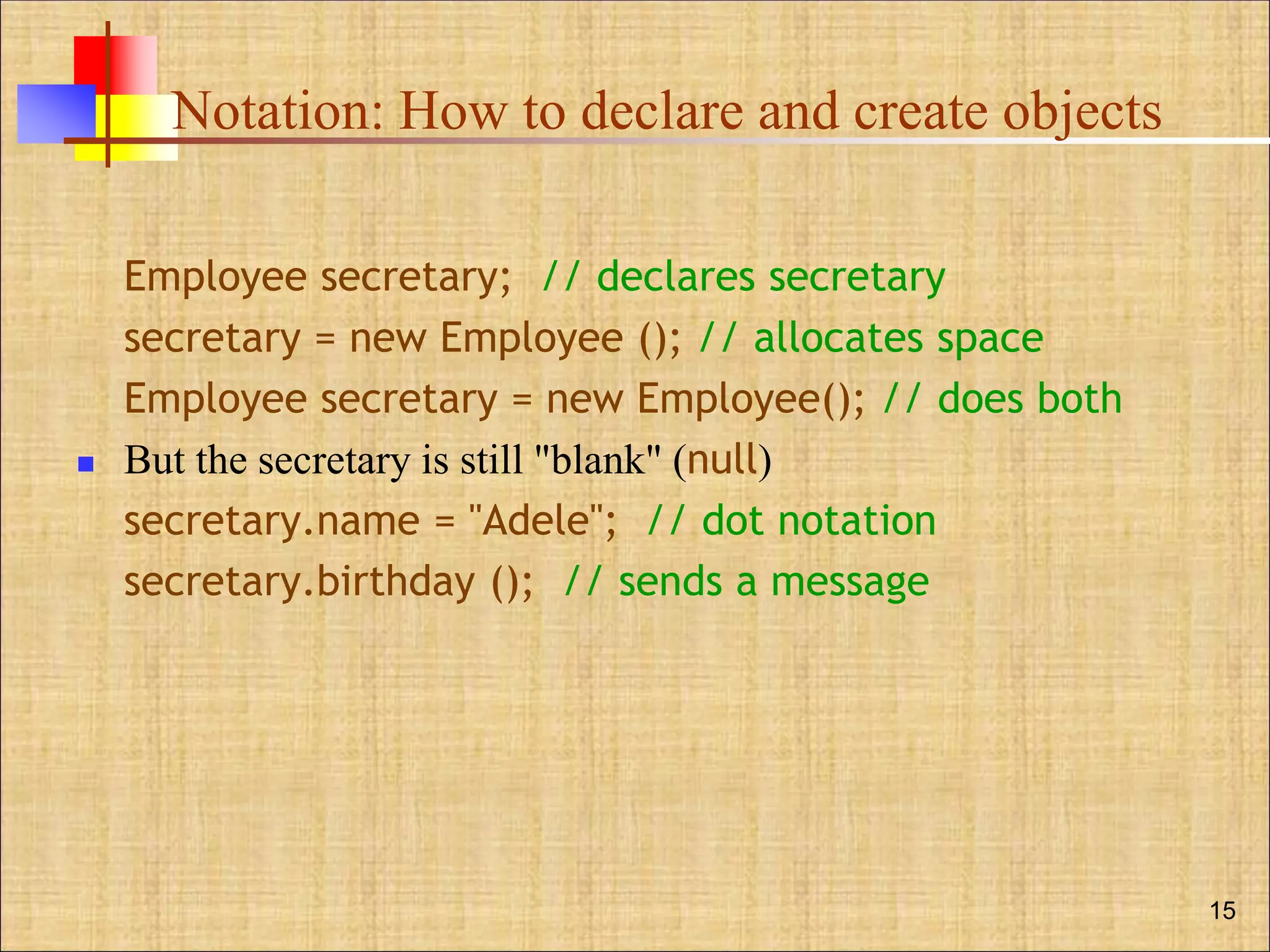

Notation: How to declare and create objects
Employee secretary; // declares secretary
secretary = new Employee (); // allocates space
Employee secretary = new Employee(); // does both
 But the secretary is still "blank" (null)
secretary.name = "Adele"; // dot notation
secretary.birthday (); // sends a message
15

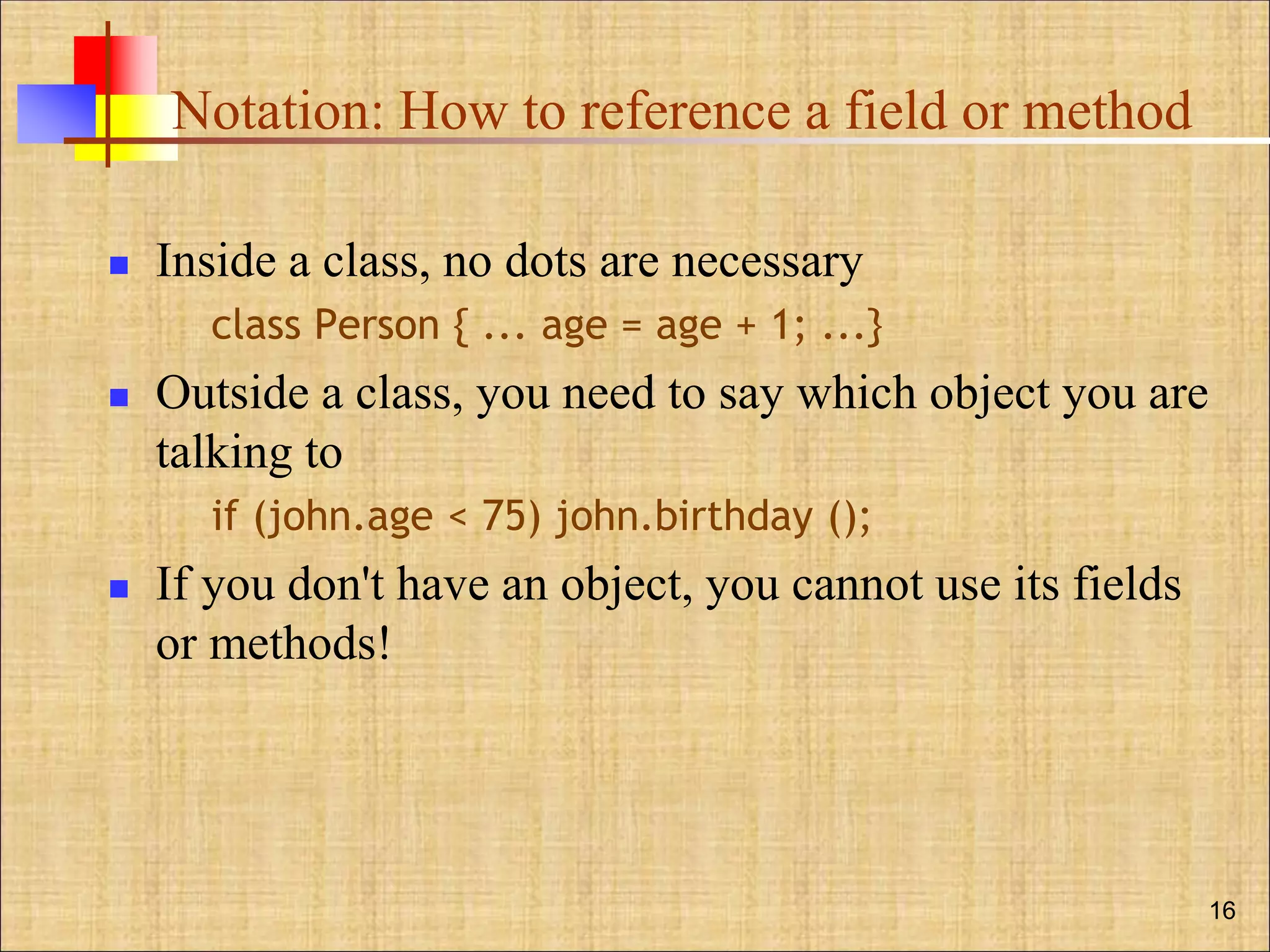

Notation: How to reference a field or method
 Inside a class, no dots are necessary
class Person { ... age = age + 1; ...}
 Outside a class, you need to say which object you are
talking to
if (john.age < 75) john.birthday ();
 If you don't have an object, you cannot use its fields
or methods!
16

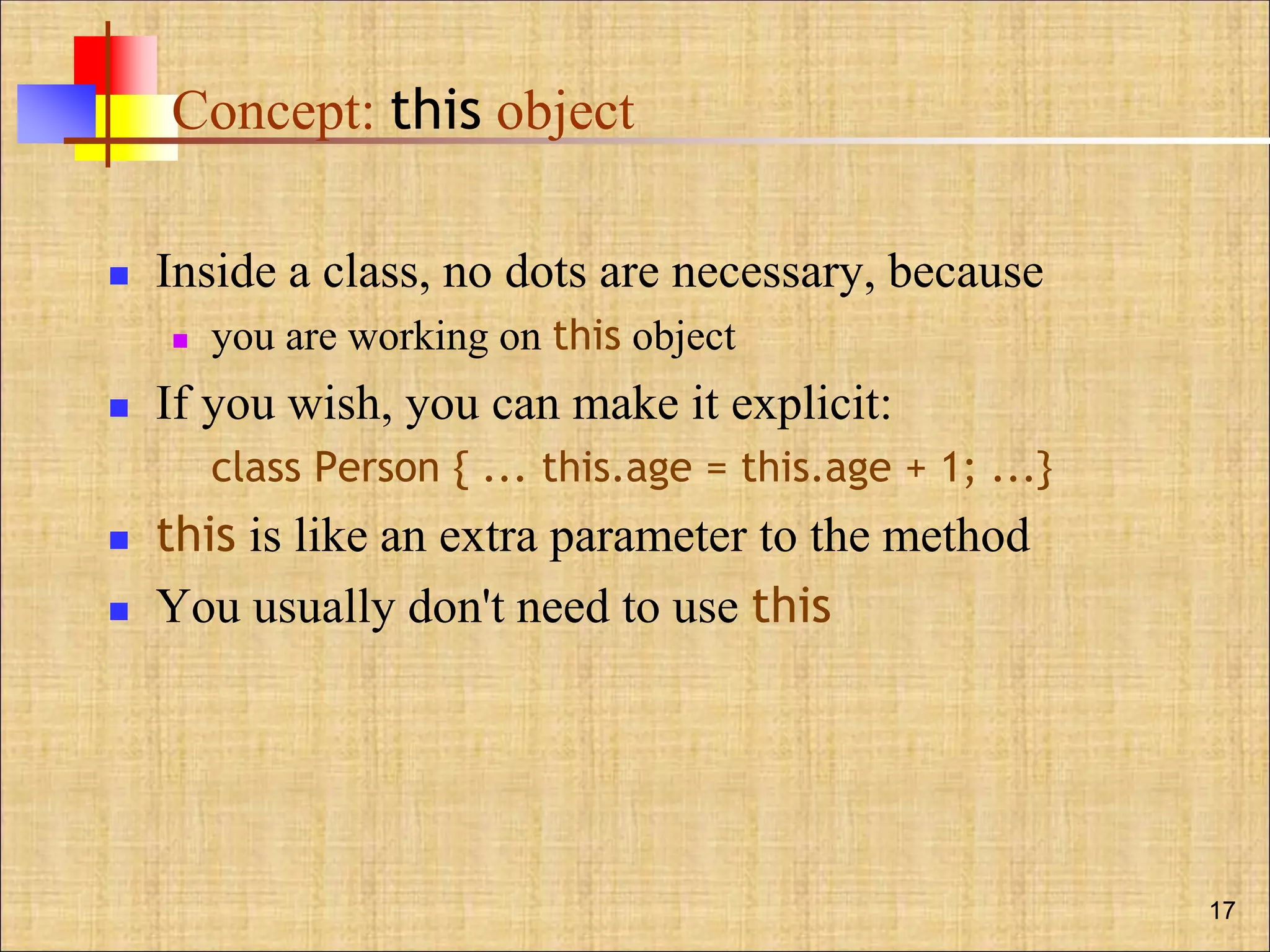

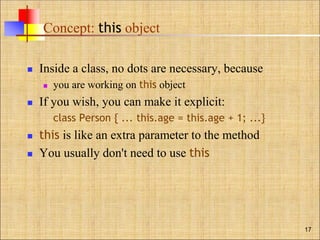

Concept: this object
 Inside a class, no dots are necessary, because
 you are working on this object
 If you wish, you can make it explicit:
class Person { ... this.age = this.age + 1; ...}
 this is like an extra parameter to the method
 You usually don't need to use this
17

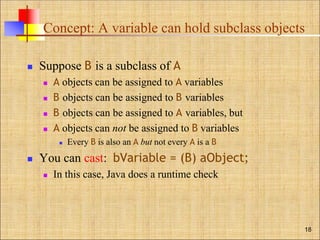

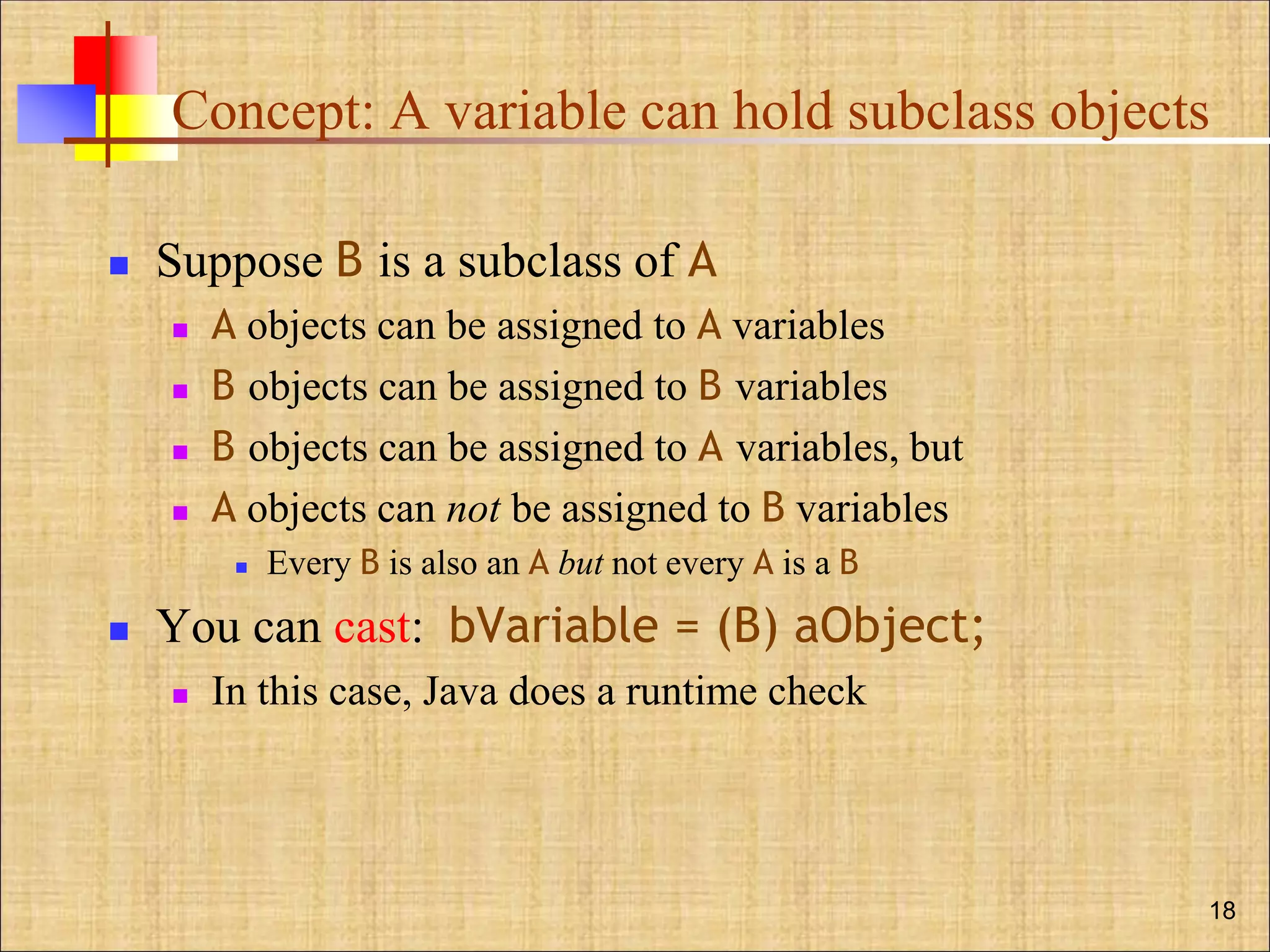

Concept: A variable can hold subclass objects
 Suppose B is a subclass of A
 A objects can be assigned to A variables
 B objects can be assigned to B variables
 B objects can be assigned to A variables, but
 A objects can not be assigned to B variables
 Every B is also an A but not every A is a B
 You can cast: bVariable = (B) aObject;
 In this case, Java does a runtime check
18

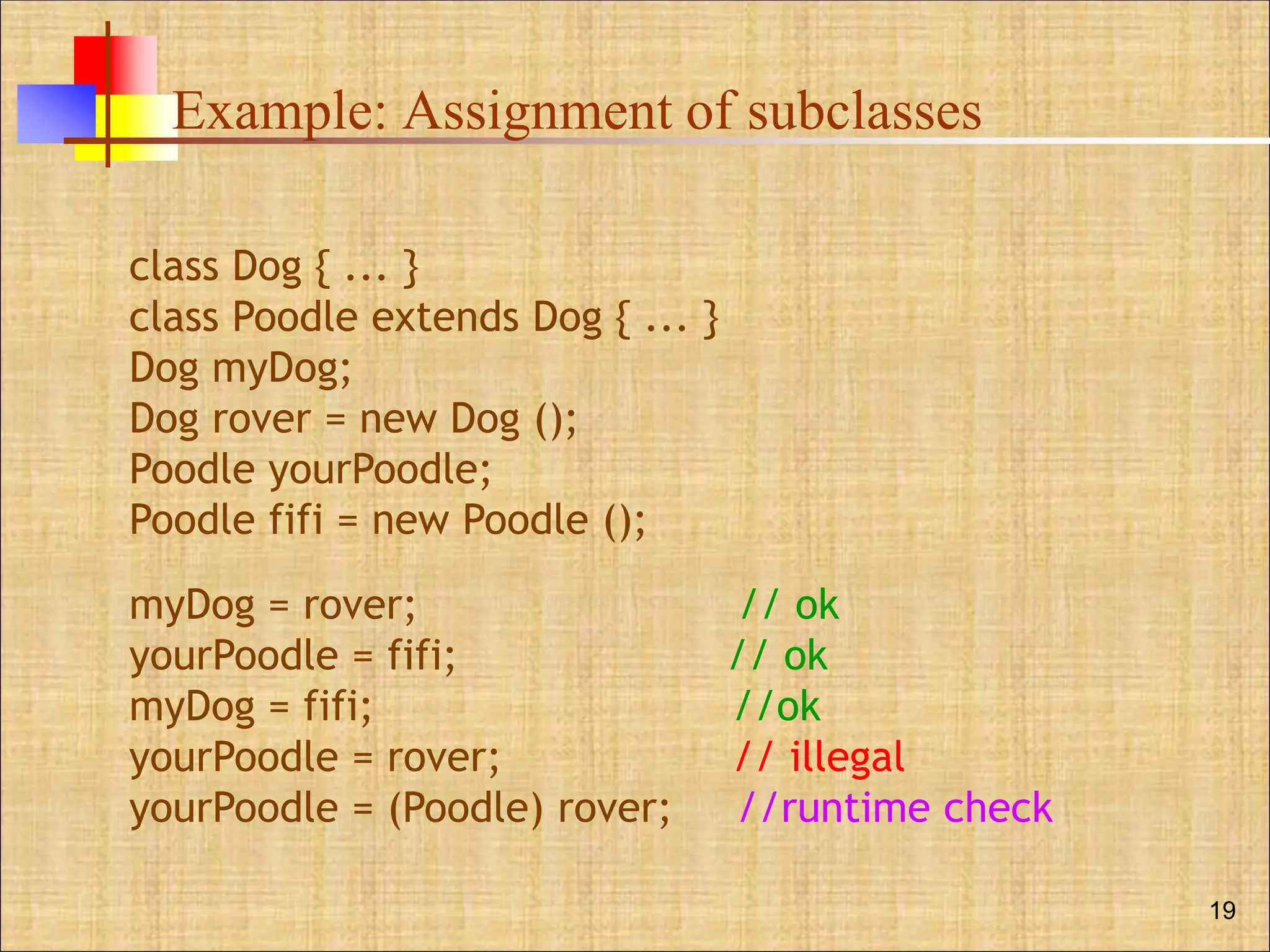

Example: Assignment of subclasses
19
class Dog { ... }
class Poodle extends Dog { ... }
Dog myDog;
Dog rover = new Dog ();
Poodle yourPoodle;
Poodle fifi = new Poodle ();
myDog = rover; // ok
yourPoodle = fifi; // ok
myDog = fifi; //ok
yourPoodle = rover; // illegal
yourPoodle = (Poodle) rover; //runtime check

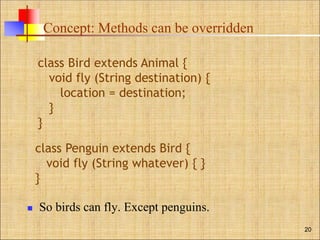

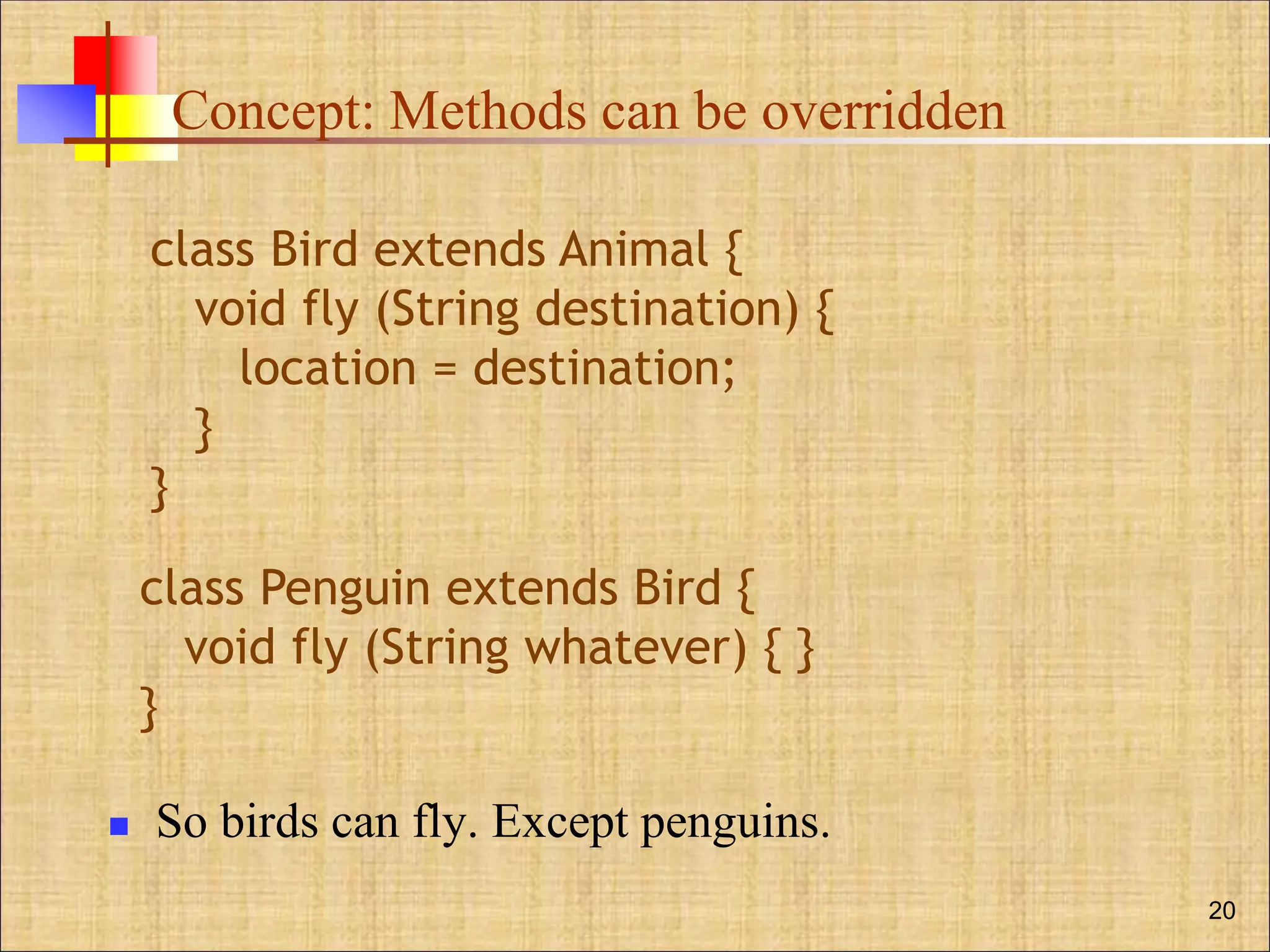

Concept: Methods can be overridden
 So birds can fly. Except penguins.
20
class Bird extends Animal {
void fly (String destination) {
location = destination;
}
}
class Penguin extends Bird {
void fly (String whatever) { }
}

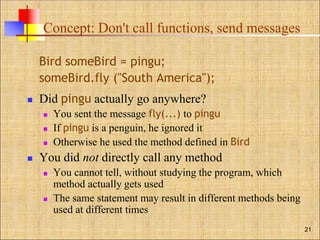

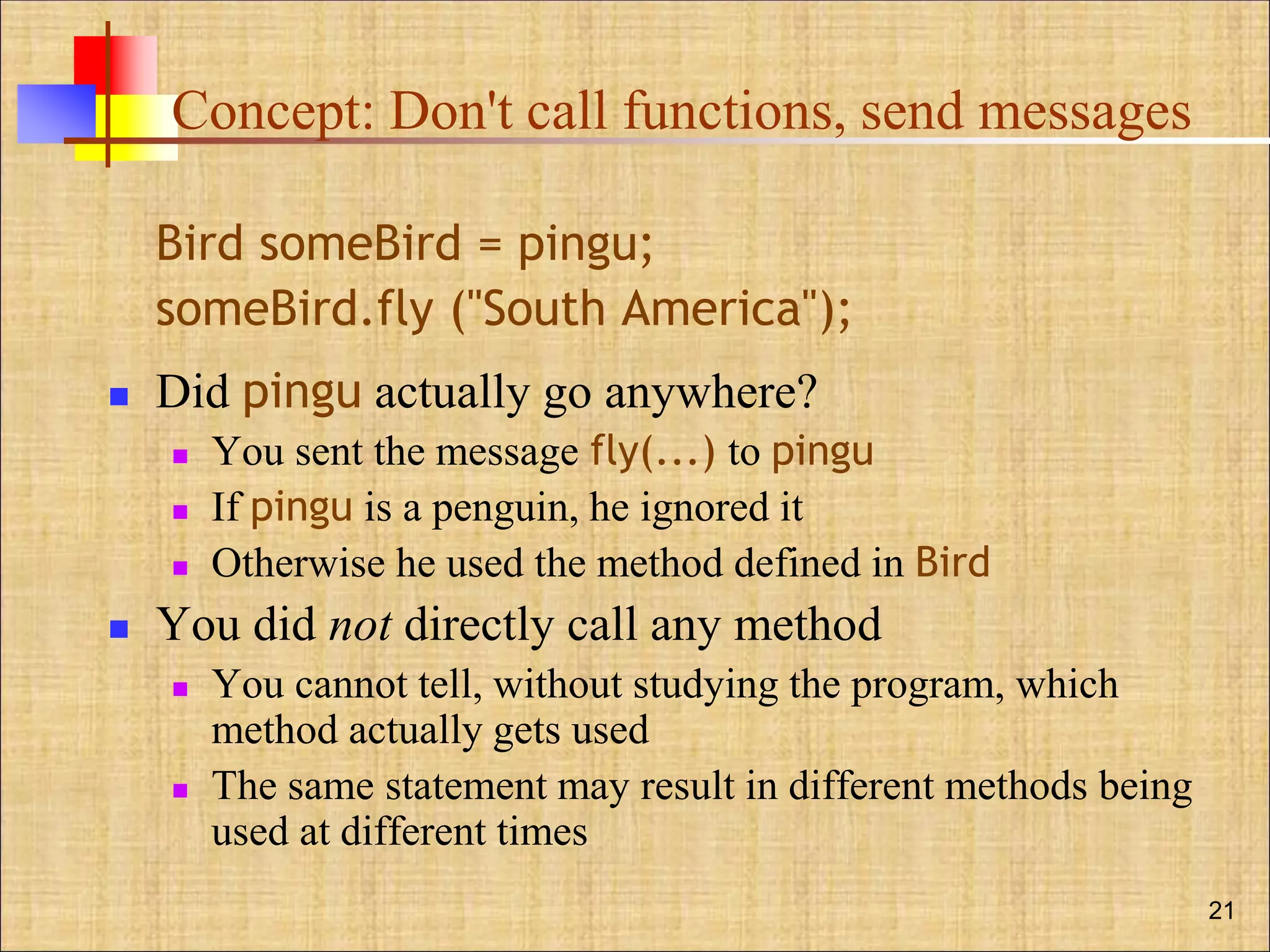

Concept: Don't call functions, send messages
Bird someBird = pingu;
someBird.fly ("South America");
 Did pingu actually go anywhere?
 You sent the message fly(...) to pingu
 If pingu is a penguin, he ignored it
 Otherwise he used the method defined in Bird
 You did not directly call any method
 You cannot tell, without studying the program, which
method actually gets used
 The same statement may result in different methods being
used at different times
21

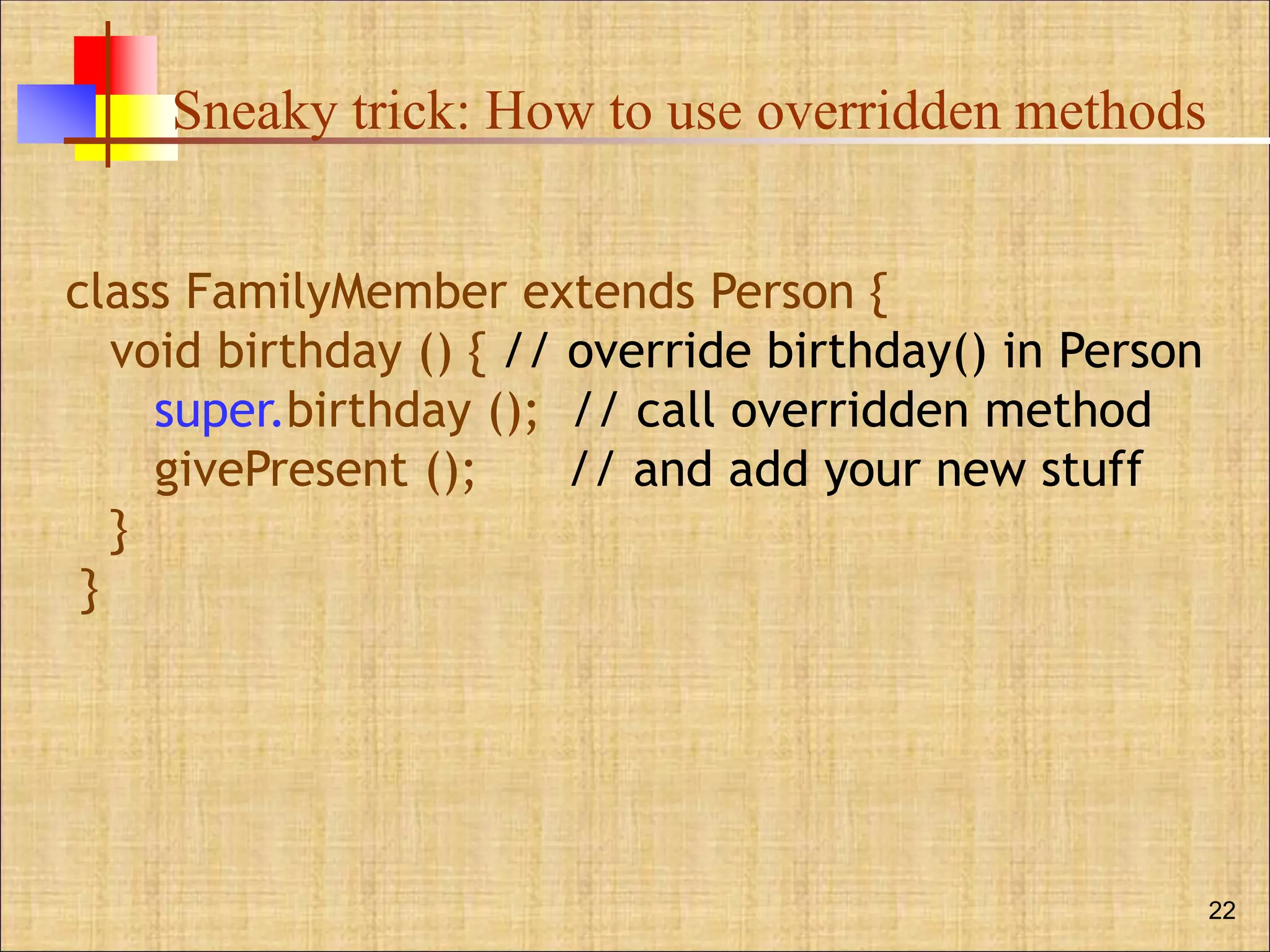

Sneaky trick: How to use overridden methods
22
class FamilyMember extends Person {
void birthday () { // override birthday() in Person
super.birthday (); // call overridden method
givePresent (); // and add your new stuff
}
}

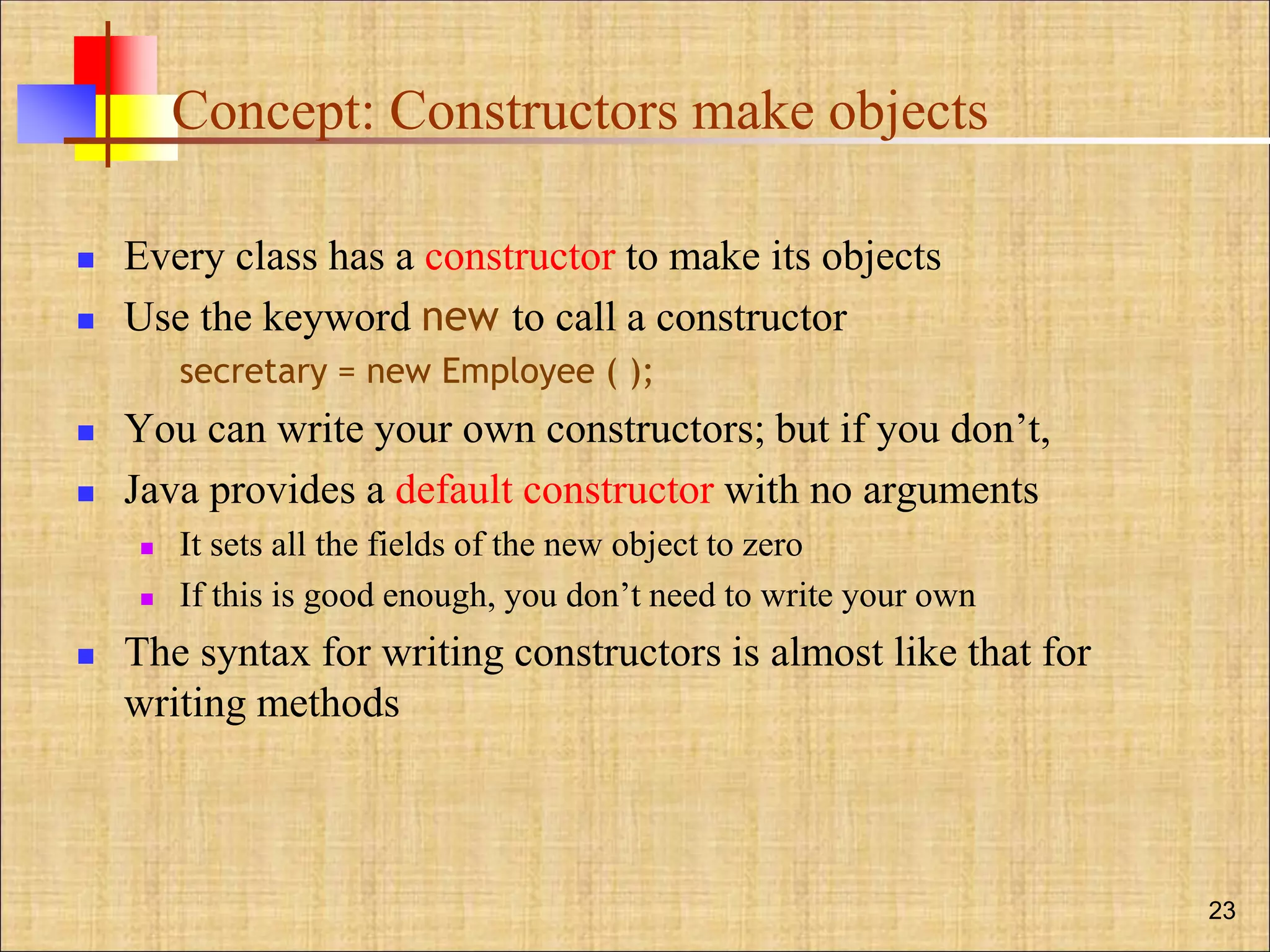

Concept: Constructors make objects
 Every class has a constructor to make its objects
 Use the keyword new to call a constructor
secretary = new Employee ( );
 You can write your own constructors; but if you don’t,
 Java provides a default constructor with no arguments
 It sets all the fields of the new object to zero
 If this is good enough, you don’t need to write your own
 The syntax for writing constructors is almost like that for
writing methods
23

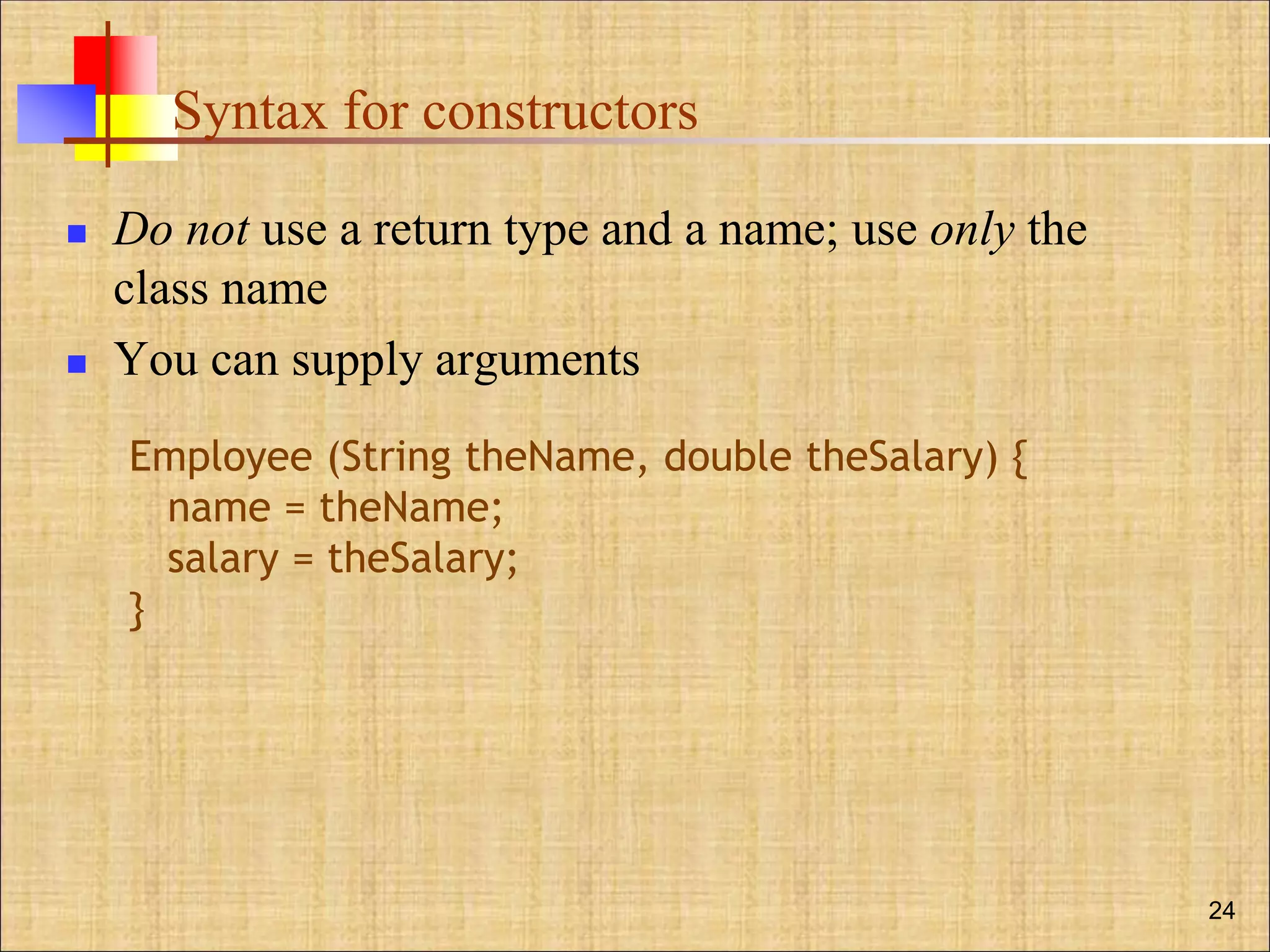

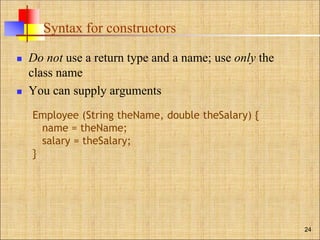

Syntax for constructors
 Do not use a return type and a name; use only the
class name
 You can supply arguments
24
Employee (String theName, double theSalary) {
name = theName;
salary = theSalary;
}

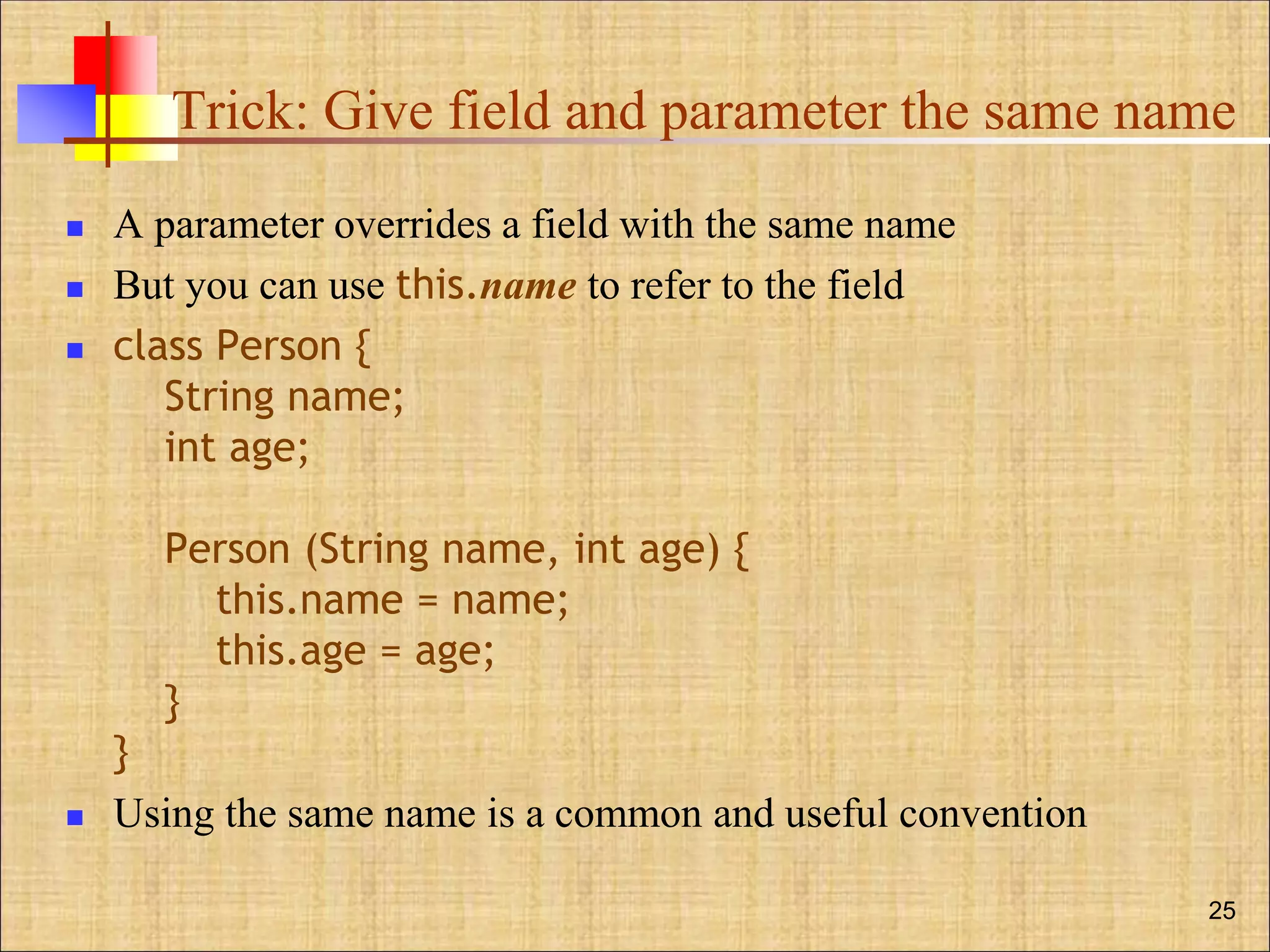

Trick: Give field and parameter the same name
 A parameter overrides a field with the same name
 But you can use this.name to refer to the field
 class Person {
String name;
int age;
Person (String name, int age) {
this.name = name;
this.age = age;
}
}
 Using the same name is a common and useful convention
25

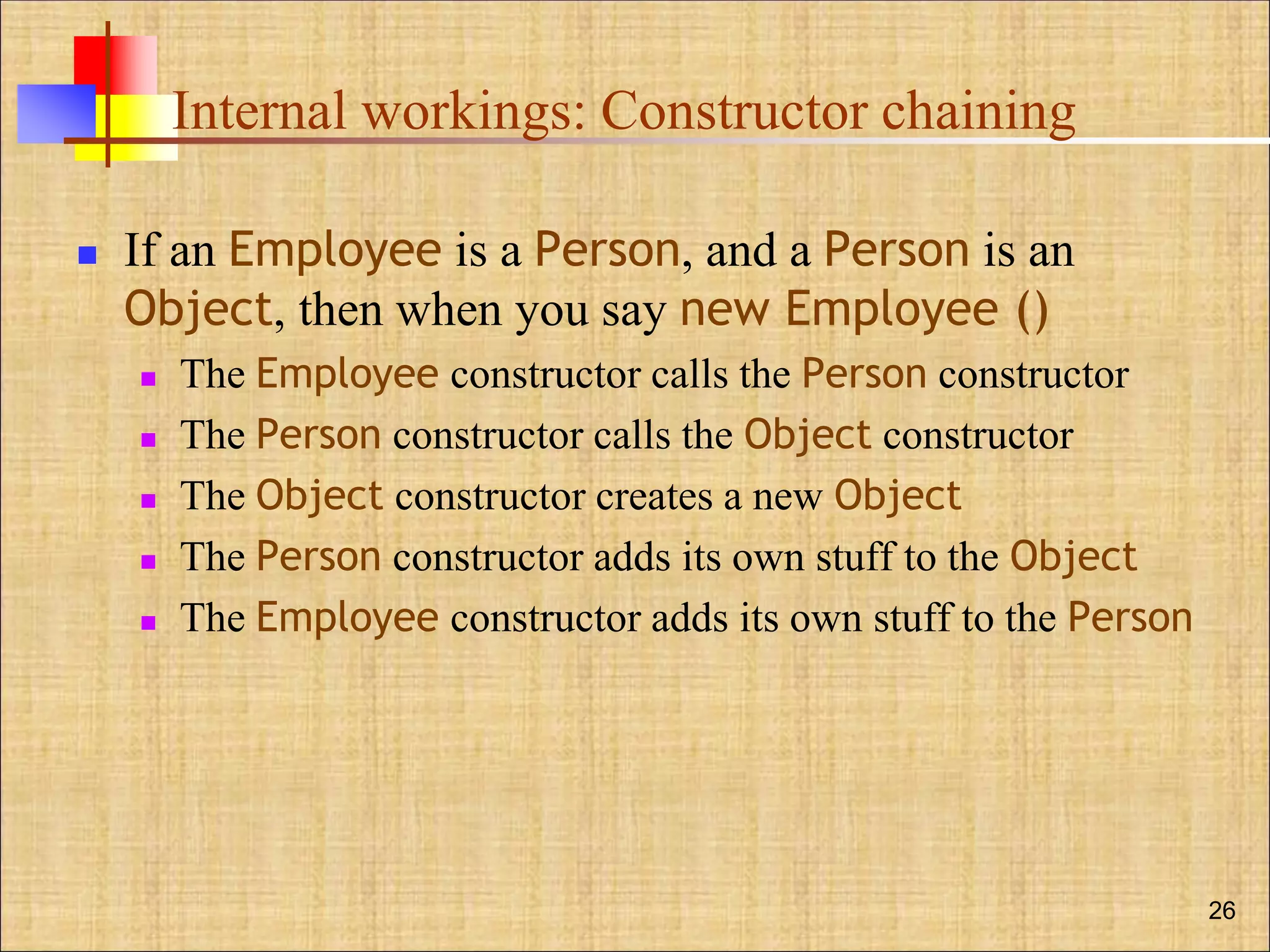

Internal workings: Constructor chaining
 If an Employee is a Person, and a Person is an
Object, then when you say new Employee ()
 The Employee constructor calls the Person constructor
 The Person constructor calls the Object constructor
 The Object constructor creates a new Object
 The Person constructor adds its own stuff to the Object
 The Employee constructor adds its own stuff to the Person
26

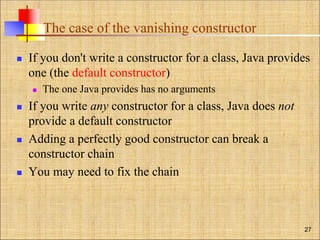

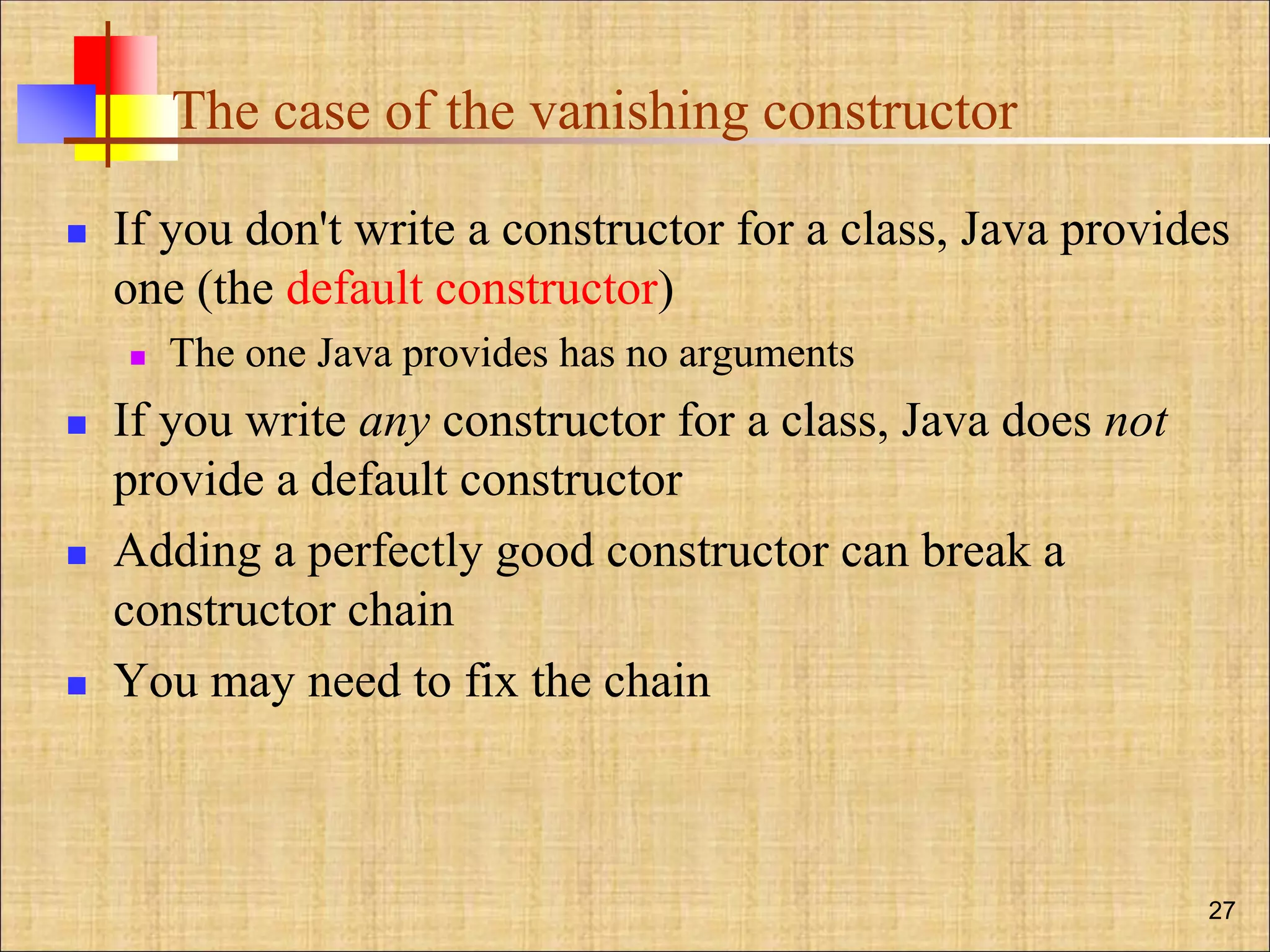

The case of the vanishing constructor
 If you don't write a constructor for a class, Java provides
one (the default constructor)
 The one Java provides has no arguments
 If you write any constructor for a class, Java does not
provide a default constructor
 Adding a perfectly good constructor can break a
constructor chain
 You may need to fix the chain
27

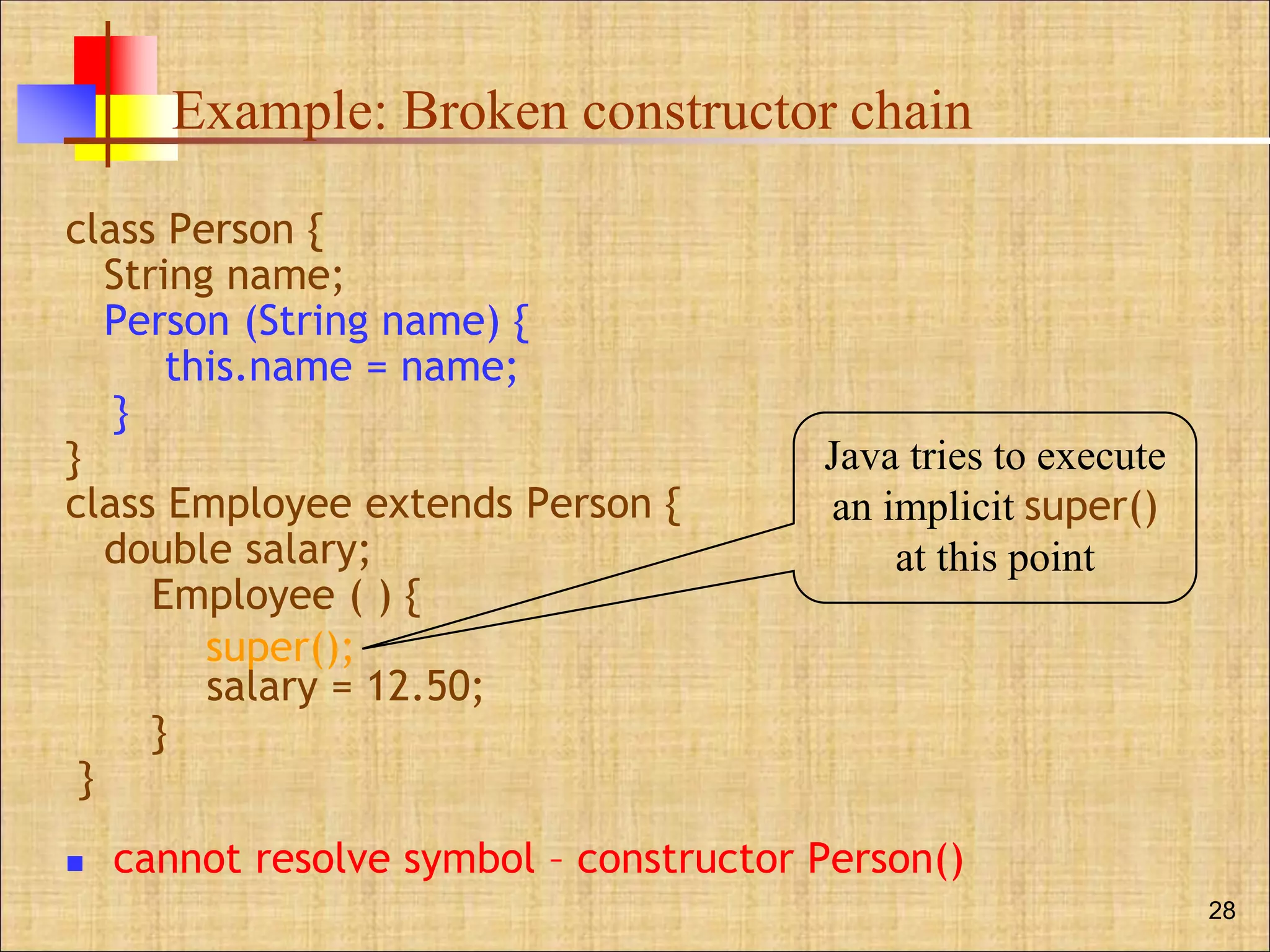

Example: Broken constructor chain
class Person {
String name;
Person (String name) {
this.name = name;
}
}
class Employee extends Person {
double salary;
Employee ( ) {
salary = 12.50;
}
}
 cannot resolve symbol – constructor Person()
28
Java tries to execute
an implicit super()
at this point
super();

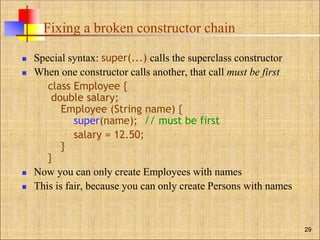

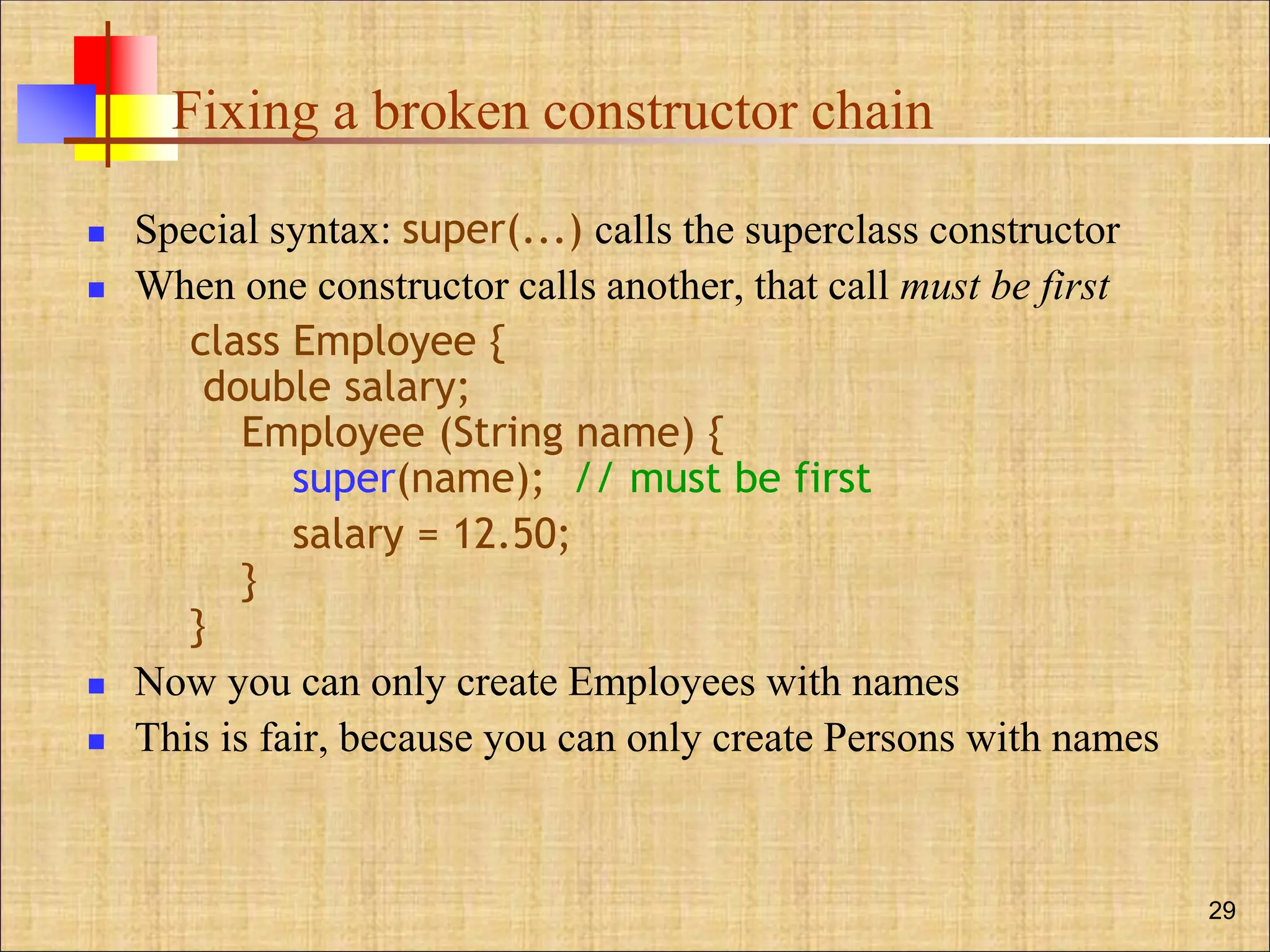

Fixing a broken constructor chain
 Special syntax: super(...) calls the superclass constructor
 When one constructor calls another, that call must be first
class Employee {
double salary;
Employee (String name) {
super(name); // must be first
salary = 12.50;
}
}
 Now you can only create Employees with names
 This is fair, because you can only create Persons with names
29

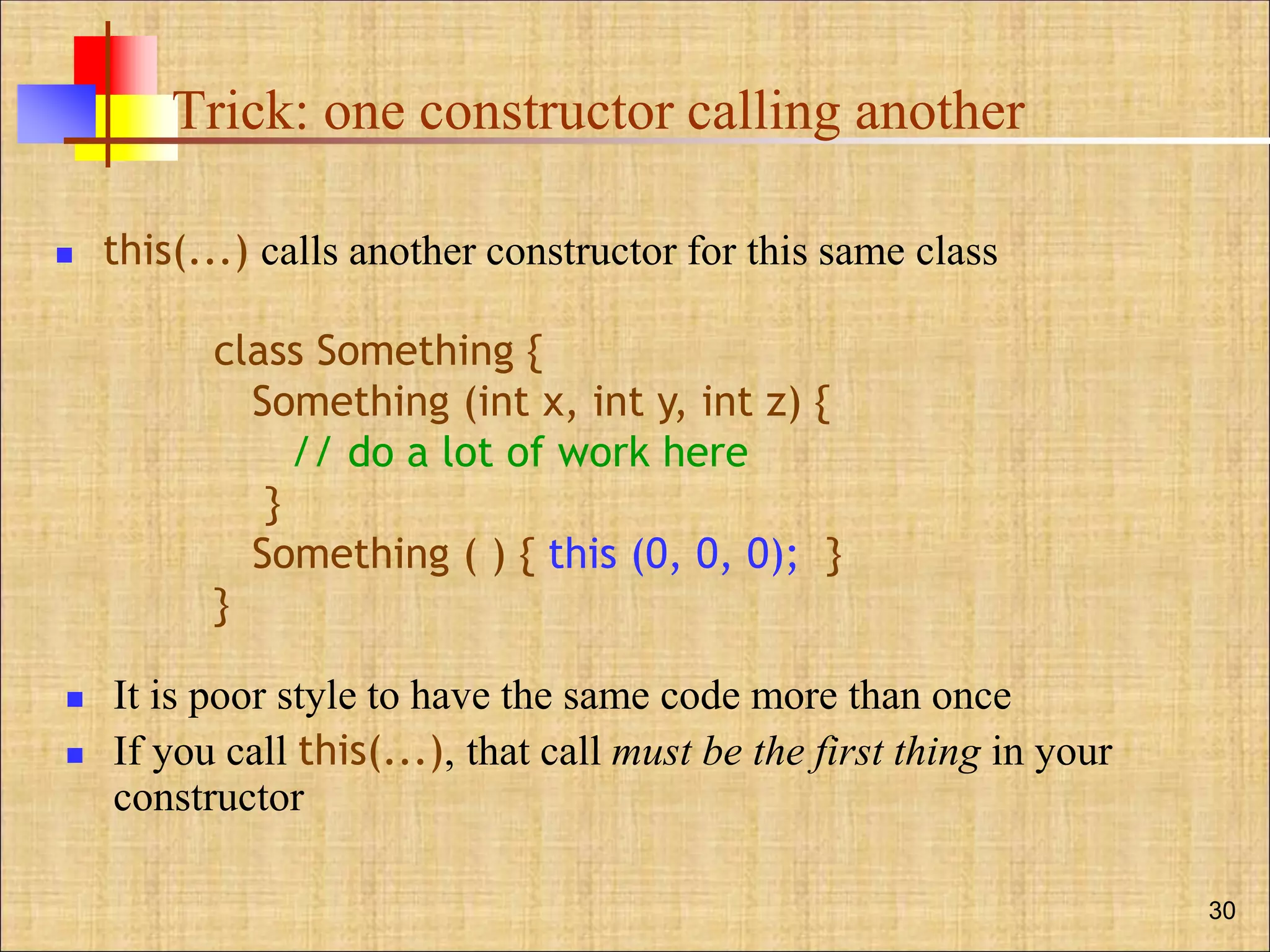

Trick: one constructor calling another
 this(...) calls another constructor for this same class
 It is poor style to have the same code more than once
 If you call this(...), that call must be the first thing in your
constructor
30
class Something {
Something (int x, int y, int z) {
// do a lot of work here
}
Something ( ) { this (0, 0, 0); }
}

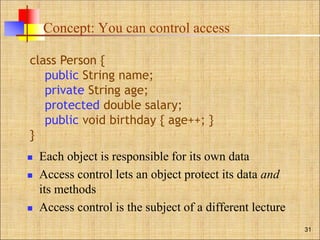

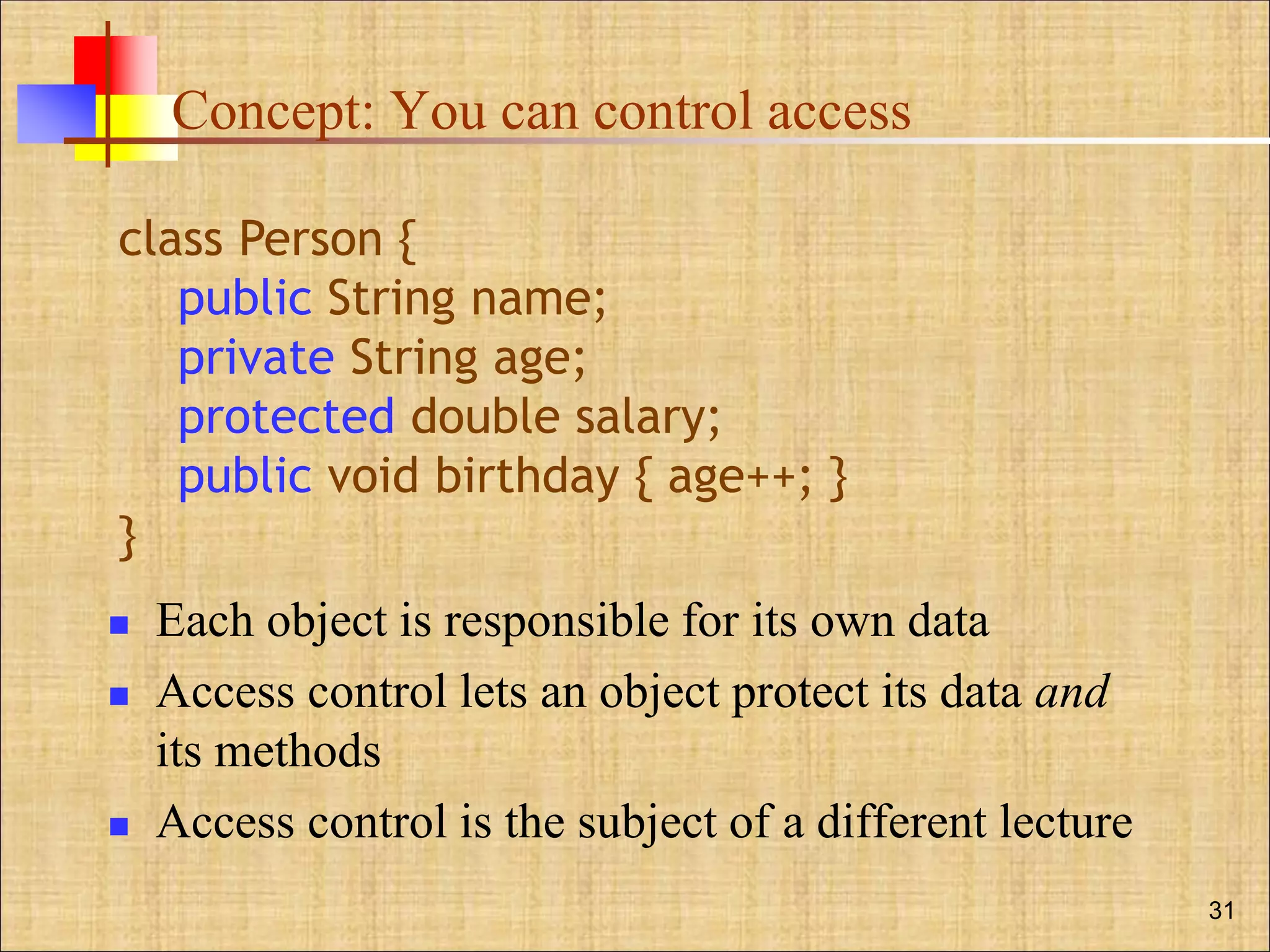

Concept: You can control access
 Each object is responsible for its own data
 Access control lets an object protect its data and
its methods
 Access control is the subject of a different lecture
31
class Person {
public String name;
private String age;
protected double salary;
public void birthday { age++; }
}

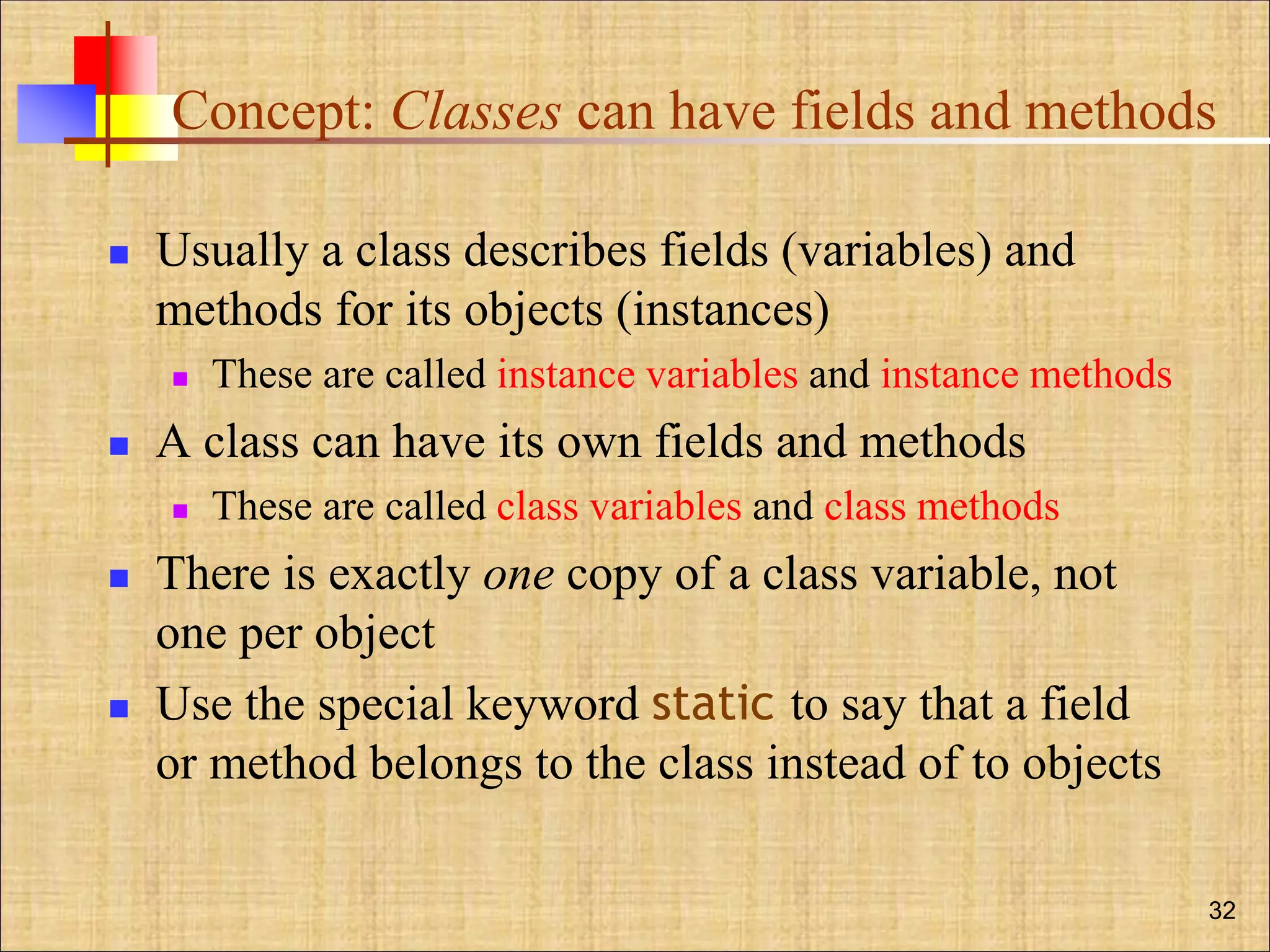

Concept: Classes can have fields and methods
 Usually a class describes fields (variables) and
methods for its objects (instances)
 These are called instance variables and instance methods
 A class can have its own fields and methods
 These are called class variables and class methods
 There is exactly one copy of a class variable, not
one per object
 Use the special keyword static to say that a field
or method belongs to the class instead of to objects
32

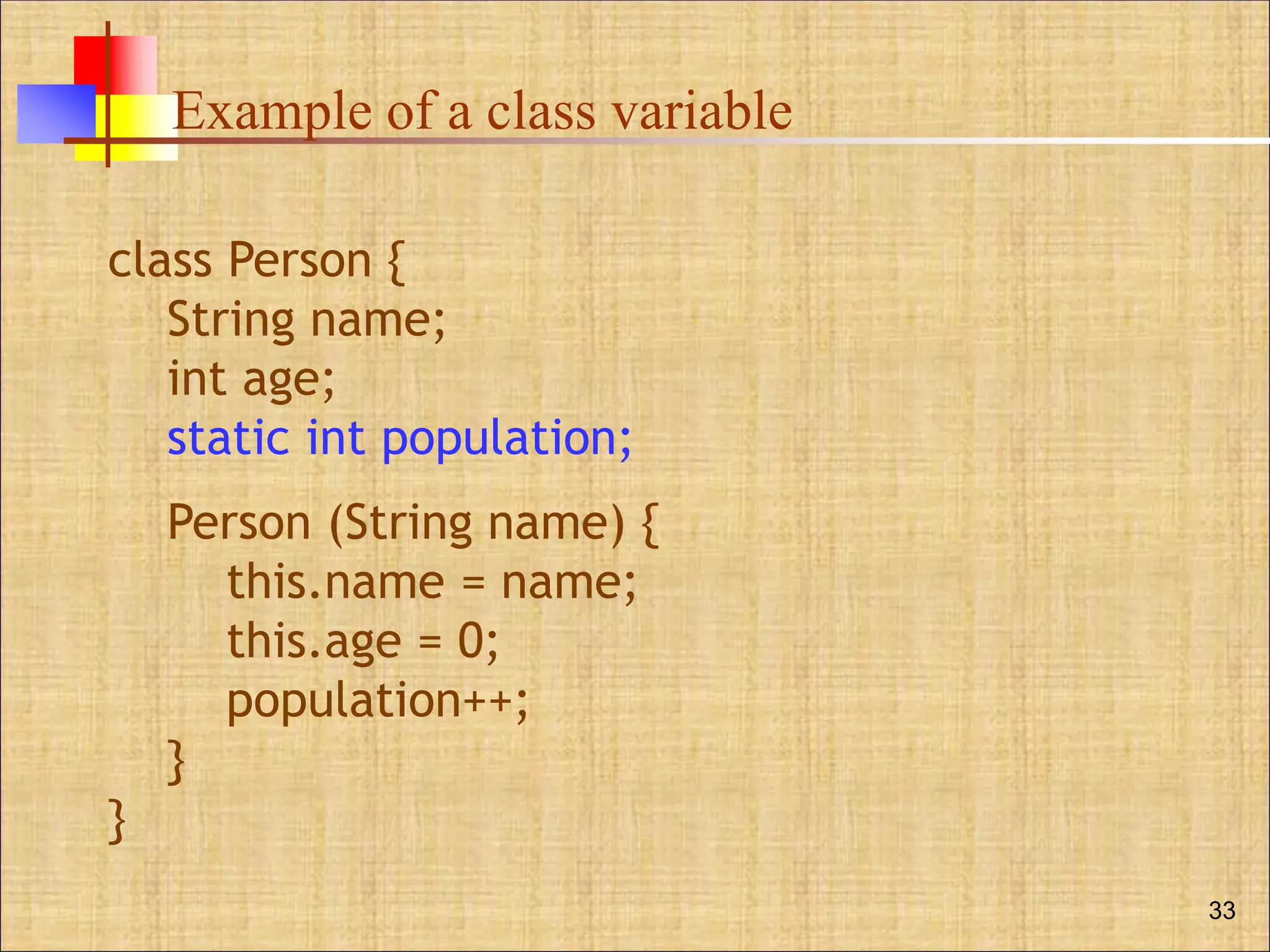

Example of a class variable
33
class Person {
String name;
int age;
static int population;
Person (String name) {
this.name = name;
this.age = 0;
population++;
}
}

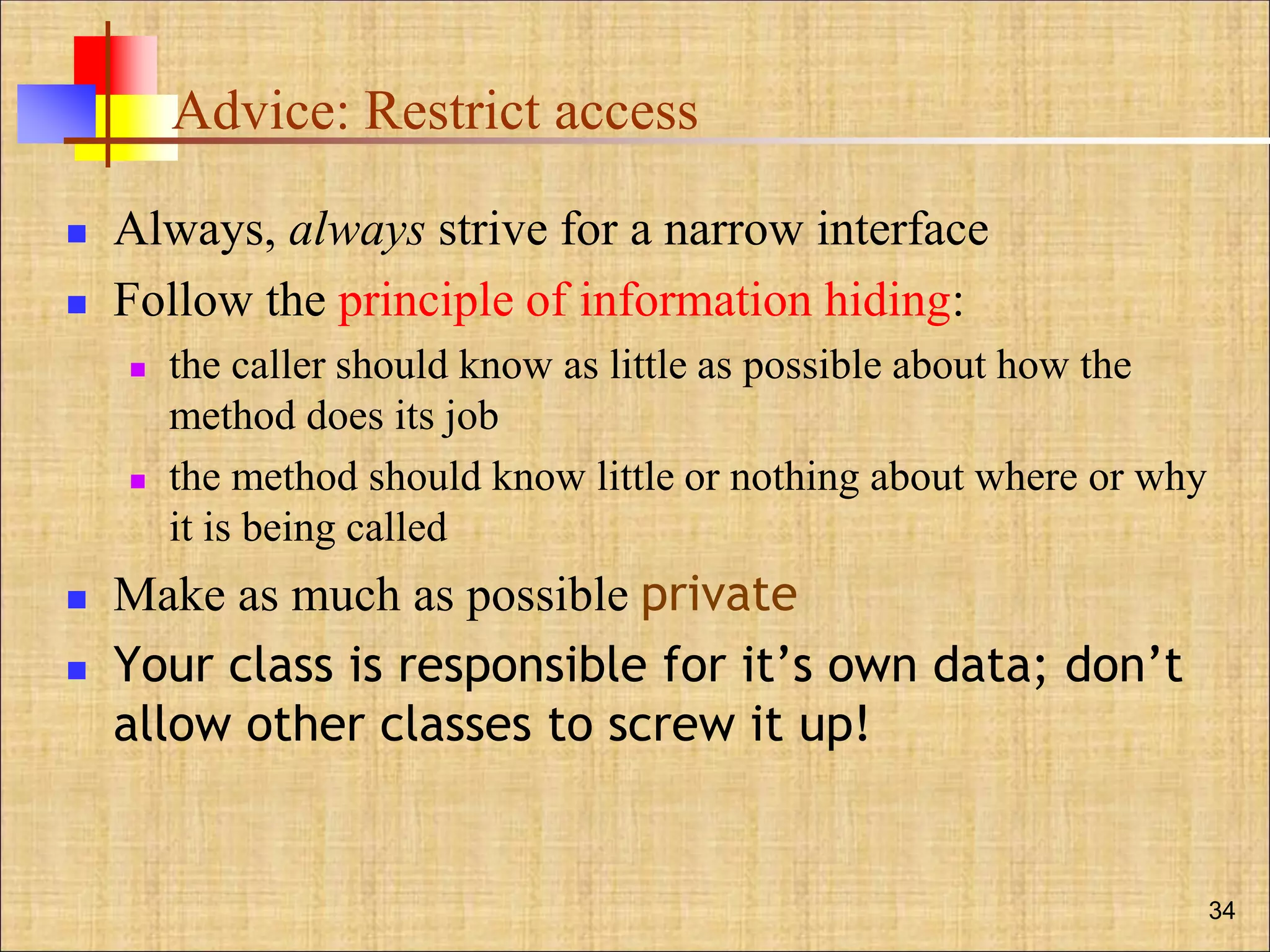

Advice: Restrict access
 Always, always strive for a narrow interface
 Follow the principle of information hiding:
 the caller should know as little as possible about how the
method does its job
 the method should know little or nothing about where or why
it is being called
 Make as much as possible private
 Your class is responsible for it’s own data; don’t
allow other classes to screw it up!
34

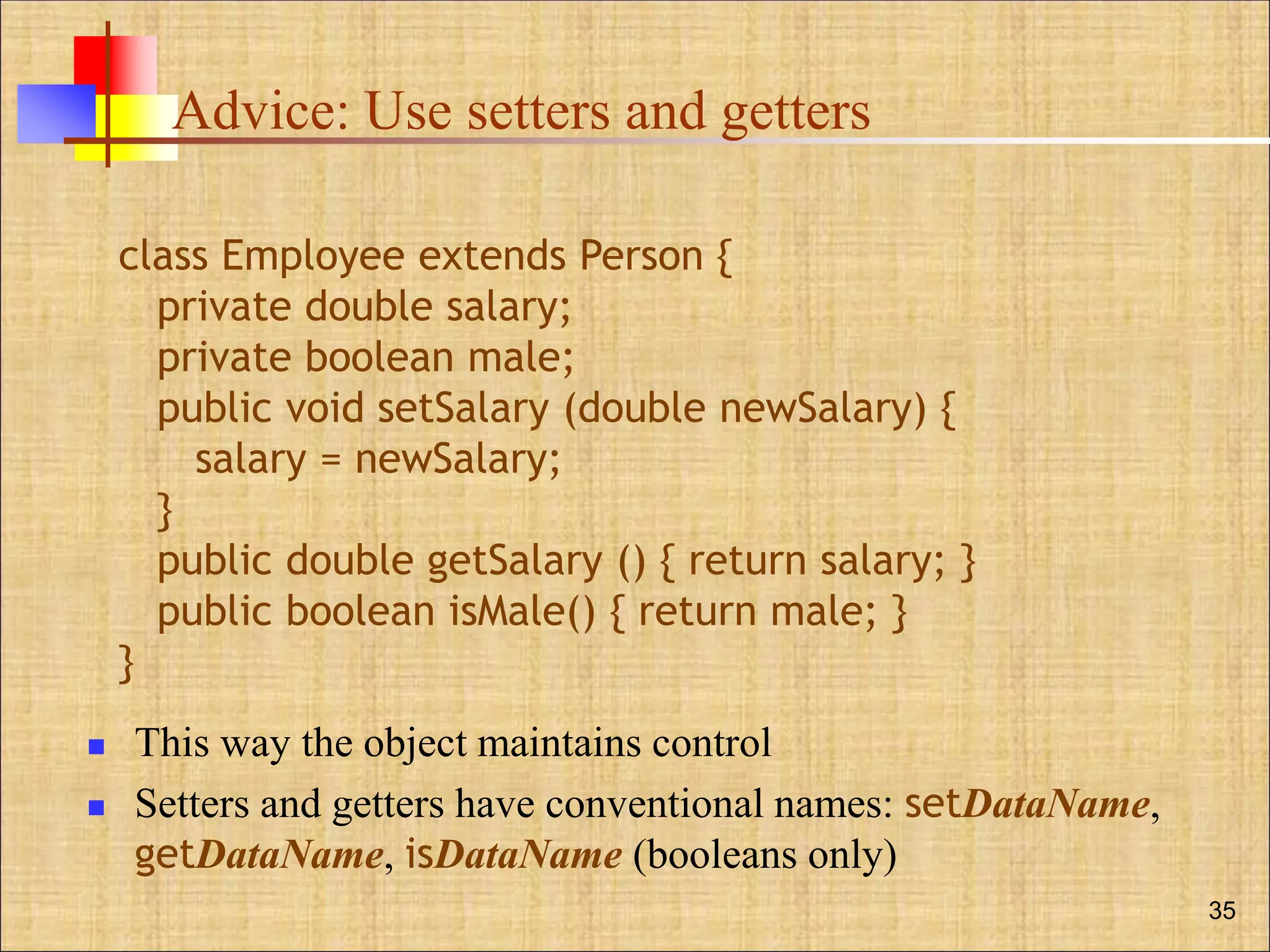

Advice: Use setters and getters
 This way the object maintains control
 Setters and getters have conventional names: setDataName,
getDataName, isDataName (booleans only)
35
class Employee extends Person {
private double salary;
private boolean male;
public void setSalary (double newSalary) {
salary = newSalary;
}
public double getSalary () { return salary; }
public boolean isMale() { return male; }
}

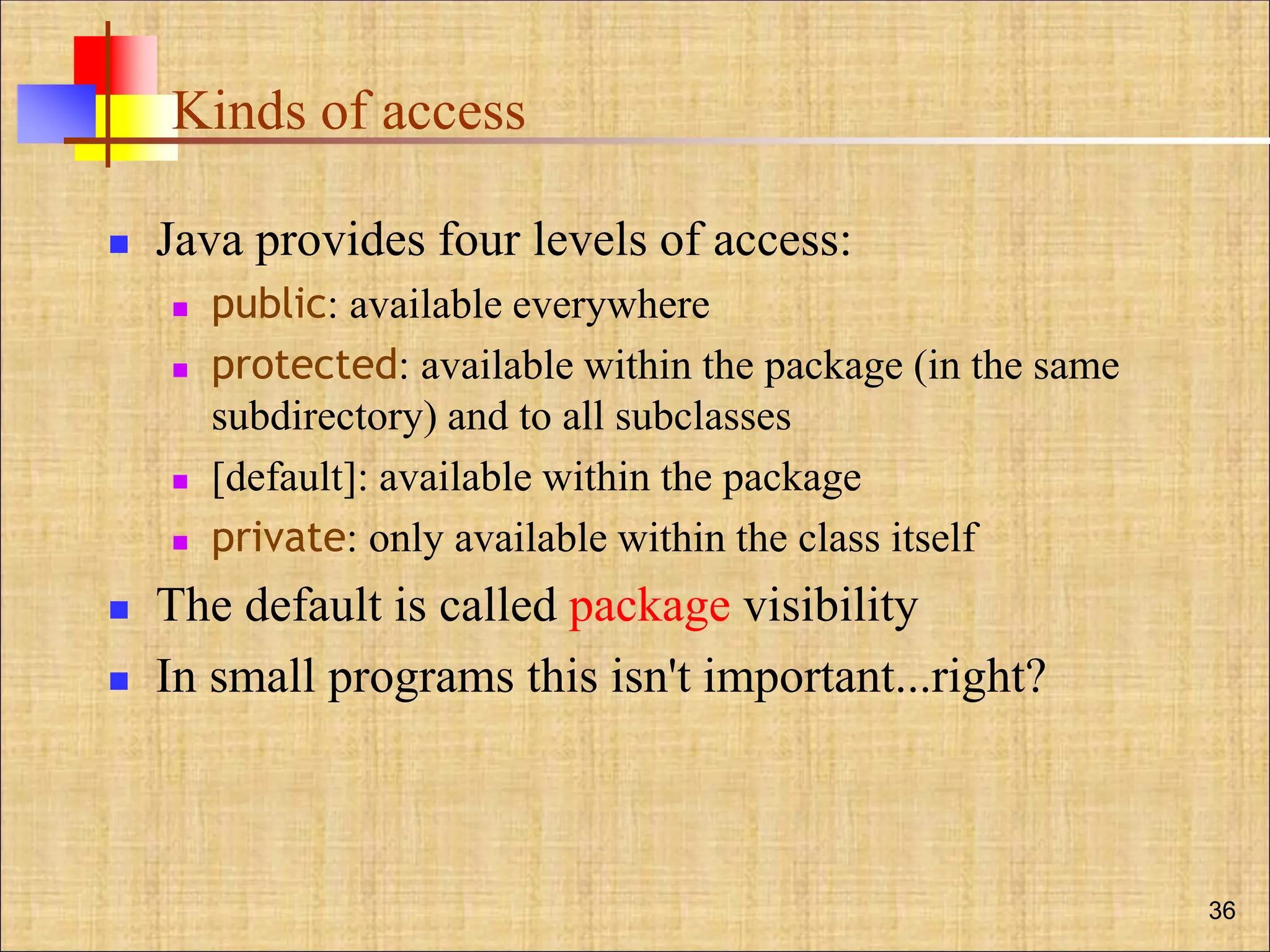

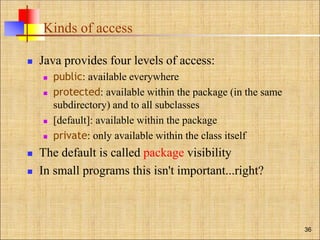

Kinds of access
 Java provides four levels of access:
 public: available everywhere
 protected: available within the package (in the same
subdirectory) and to all subclasses
 [default]: available within the package
 private: only available within the class itself
 The default is called package visibility
 In small programs this isn't important...right?
36

Basic object oriented concepts (1)

More Related Content

What's hot

Similar to Basic object oriented concepts (1)

More from Infocampus Logics Pvt.Ltd.

Recently uploaded

Basic object oriented concepts (1)
