BASICS OF
DATA COMMUNICATIONS
Dr.Y.NARASIMHA MURTHY Ph.D
yayavaram@yahoo.com

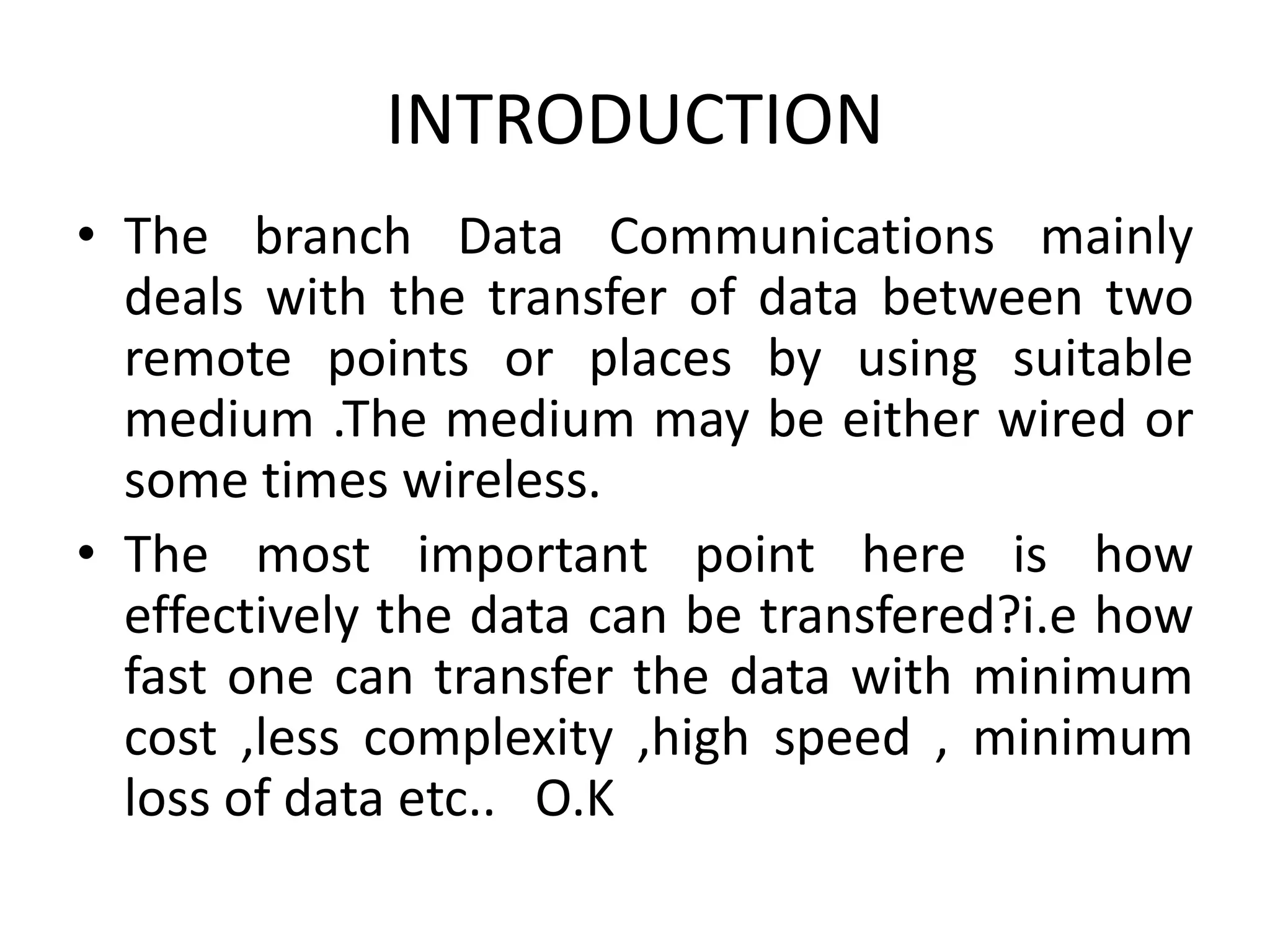

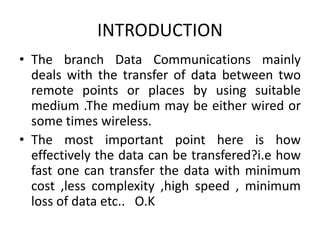

INTRODUCTION
• The branch Data Communications mainly
deals with the transfer of data between two
remote points or places by using suitable
medium .The medium may be either wired or
some times wireless.
• The most important point here is how
effectively the data can be transfered?i.e how
fast one can transfer the data with minimum
cost ,less complexity ,high speed , minimum
loss of data etc.. O.K

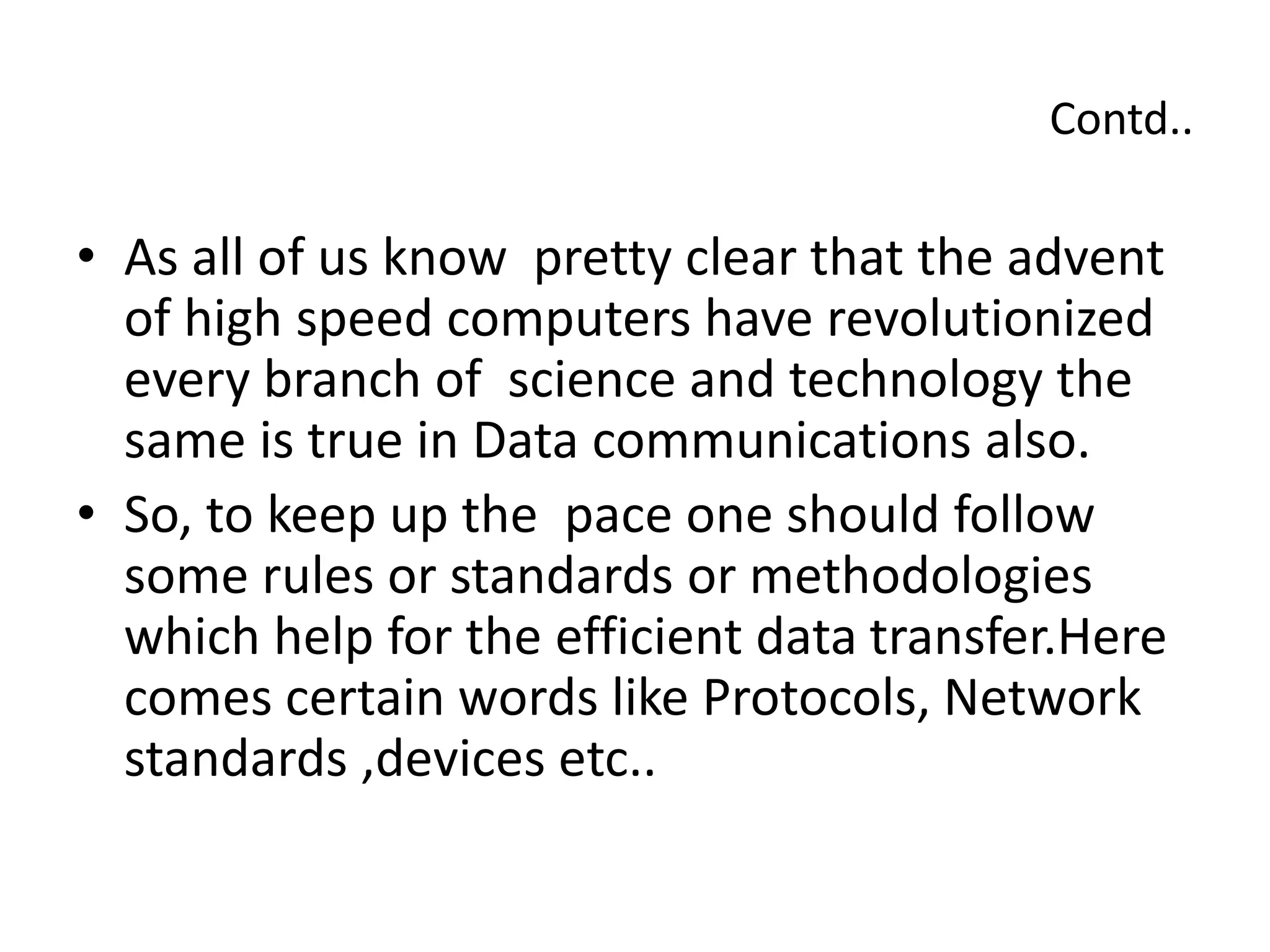

Contd..
• As all of us know pretty clear that the advent
of high speed computers have revolutionized
every branch of science and technology the
same is true in Data communications also.
• So, to keep up the pace one should follow
some rules or standards or methodologies
which help for the efficient data transfer.Here
comes certain words like Protocols, Network
standards ,devices etc..

Contd..

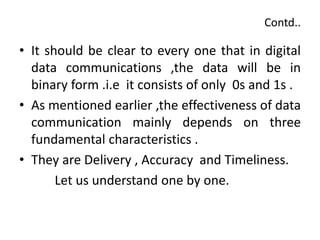

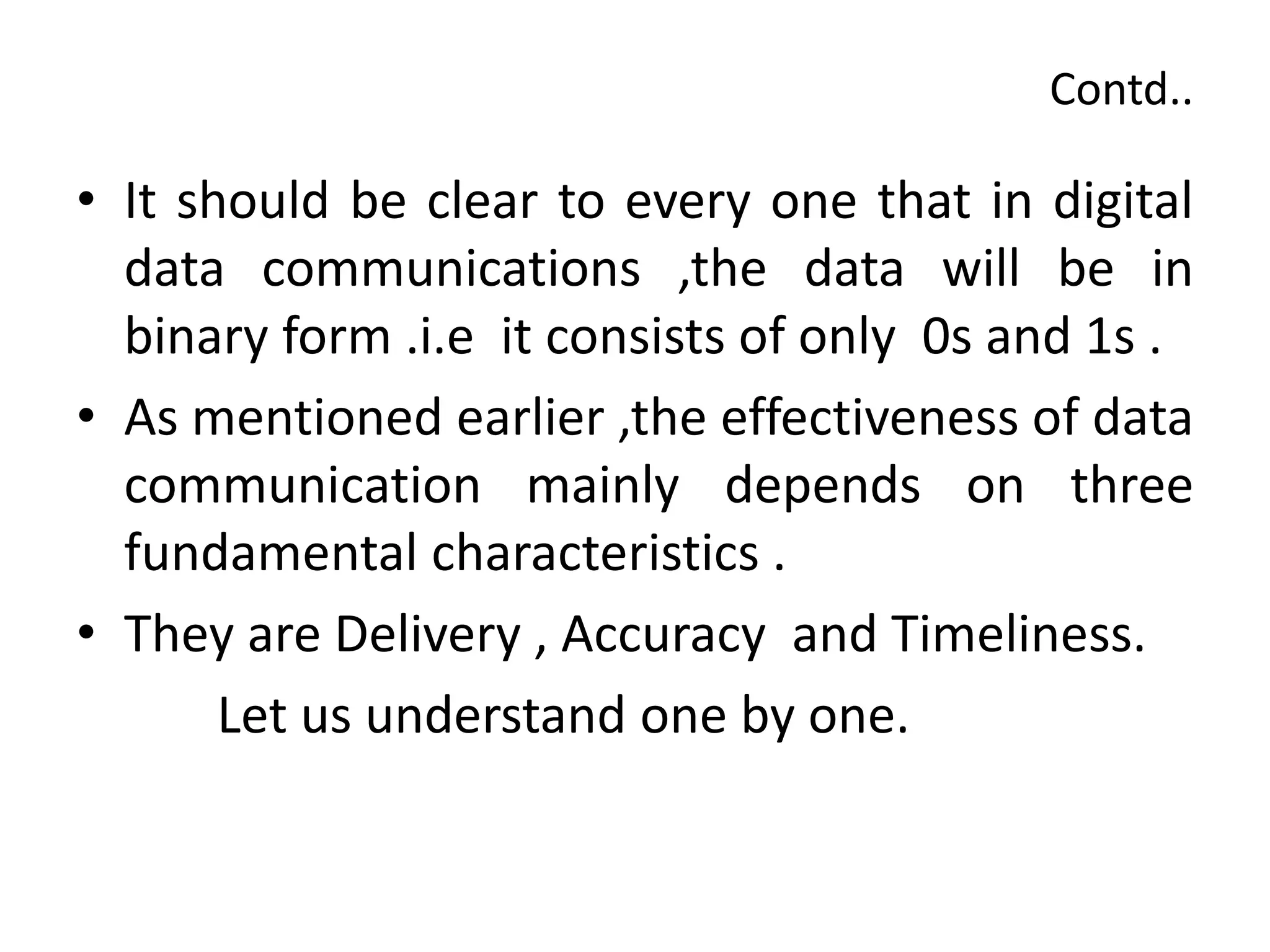

• It should be clear to every one that in digital
data communications ,the data will be in
binary form .i.e it consists of only 0s and 1s .
• As mentioned earlier ,the effectiveness of data
communication mainly depends on three
fundamental characteristics .
• They are Delivery , Accuracy and Timeliness.
Let us understand one by one.

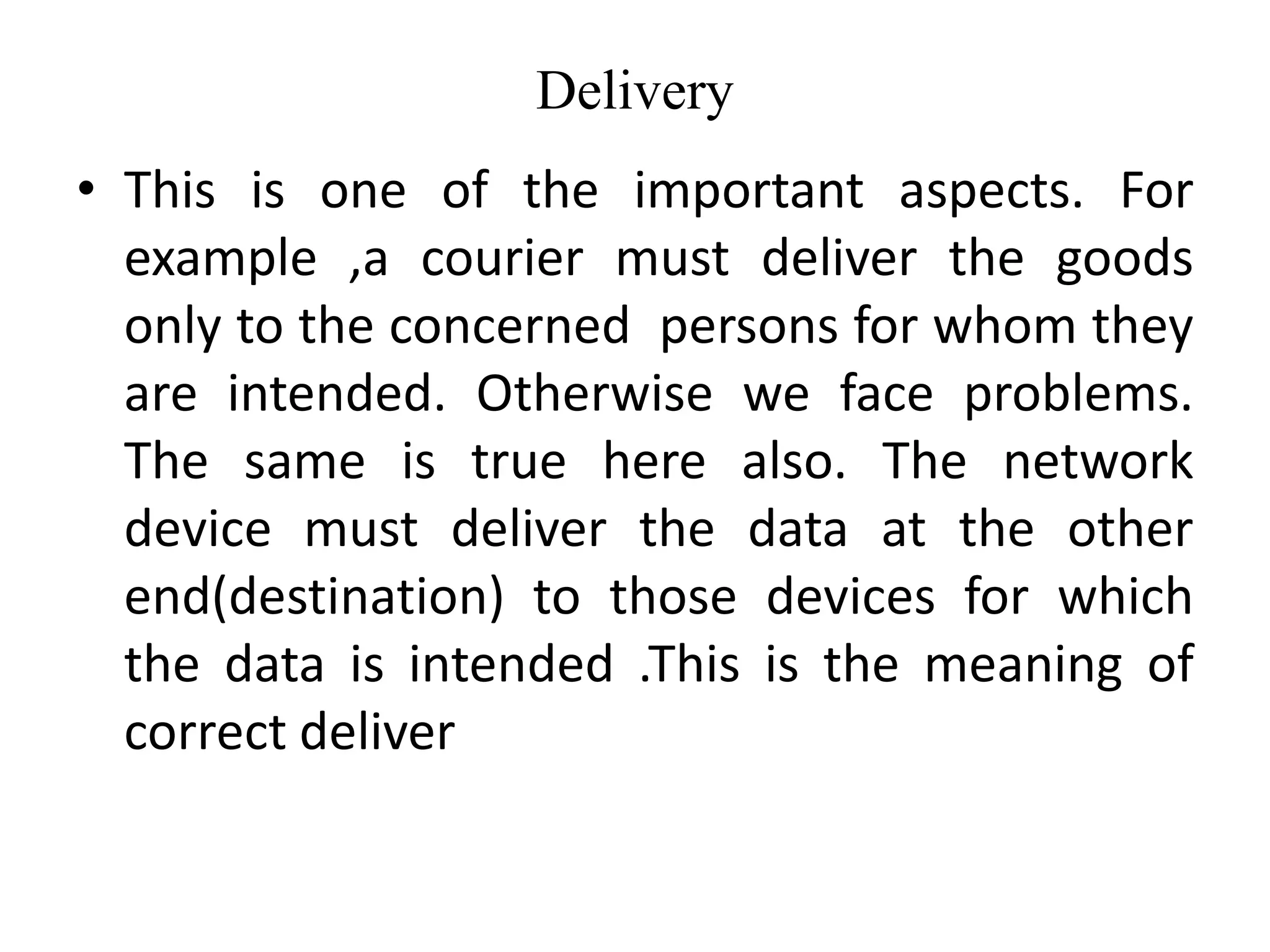

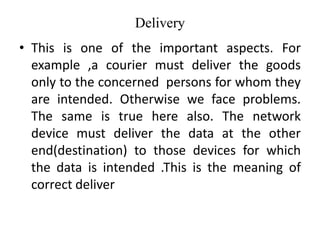

Delivery
• This is one of the important aspects. For
example ,a courier must deliver the goods
only to the concerned persons for whom they
are intended. Otherwise we face problems.
The same is true here also. The network
device must deliver the data at the other
end(destination) to those devices for which
the data is intended .This is the meaning of
correct deliver

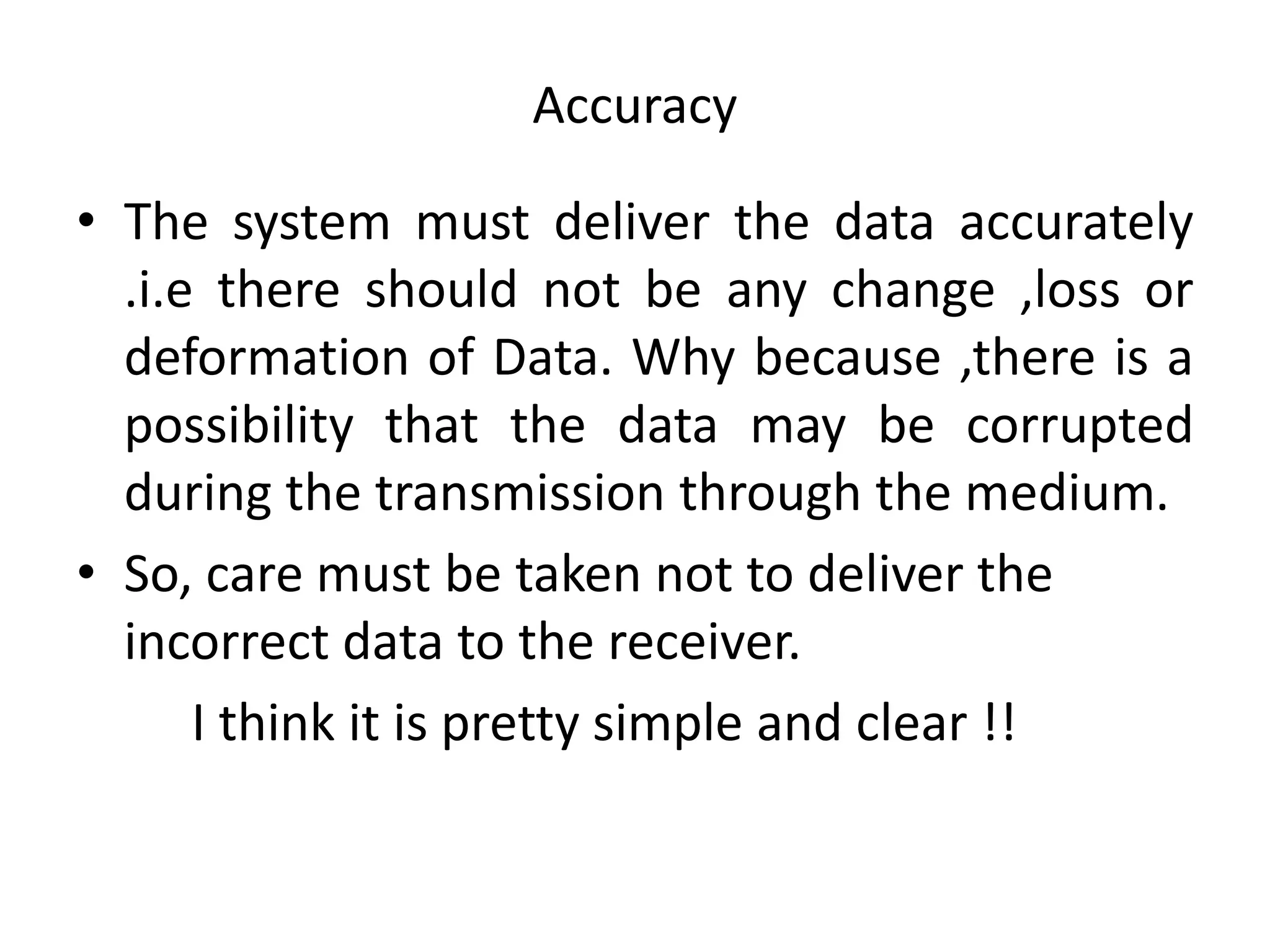

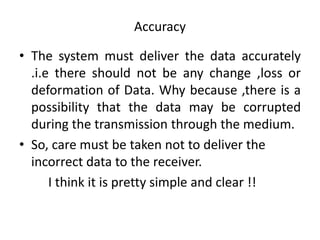

Accuracy
• The system must deliver the data accurately
.i.e there should not be any change ,loss or
deformation of Data. Why because ,there is a
possibility that the data may be corrupted
during the transmission through the medium.
• So, care must be taken not to deliver the
incorrect data to the receiver.
I think it is pretty simple and clear !!

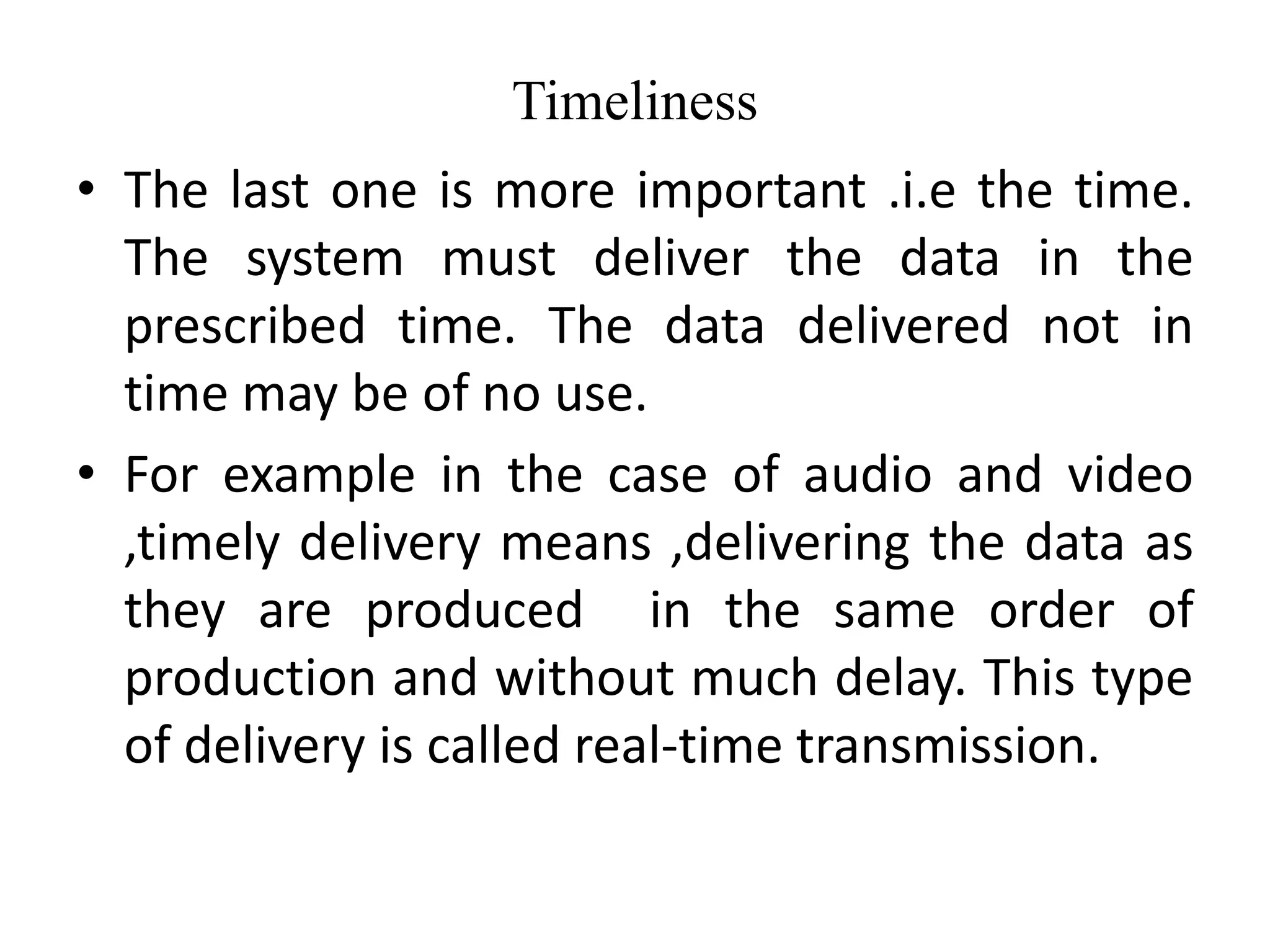

Timeliness
• The last one is more important .i.e the time.
The system must deliver the data in the
prescribed time. The data delivered not in
time may be of no use.
• For example in the case of audio and video
,timely delivery means ,delivering the data as
they are produced in the same order of
production and without much delay. This type
of delivery is called real-time transmission.

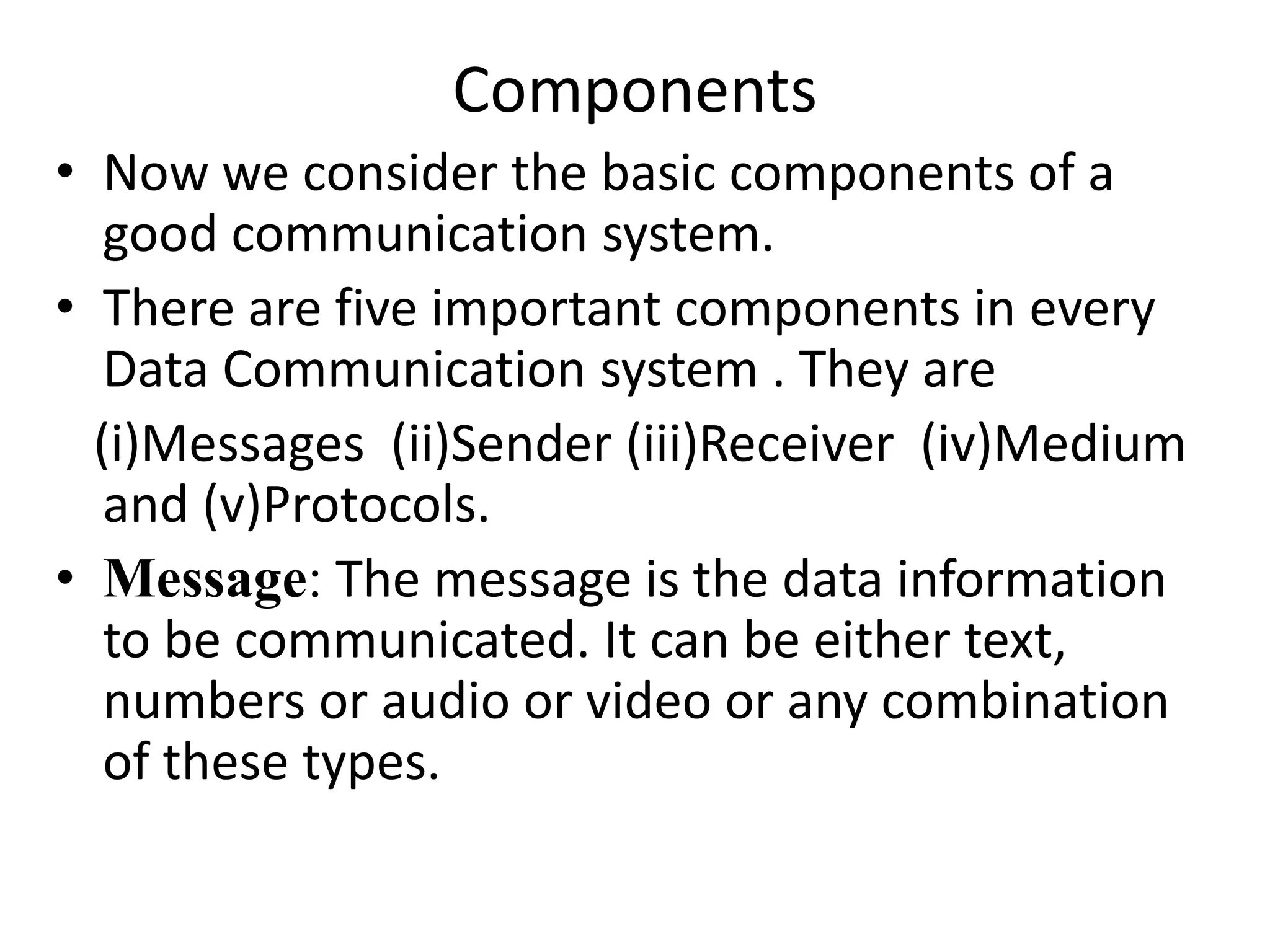

Components
• Now we consider the basic components of a
good communication system.
• There are five important components in every
Data Communication system . They are
(i)Messages (ii)Sender (iii)Receiver (iv)Medium
and (v)Protocols.
• Message: The message is the data information
to be communicated. It can be either text,
numbers or audio or video or any combination
of these types.

Contd..

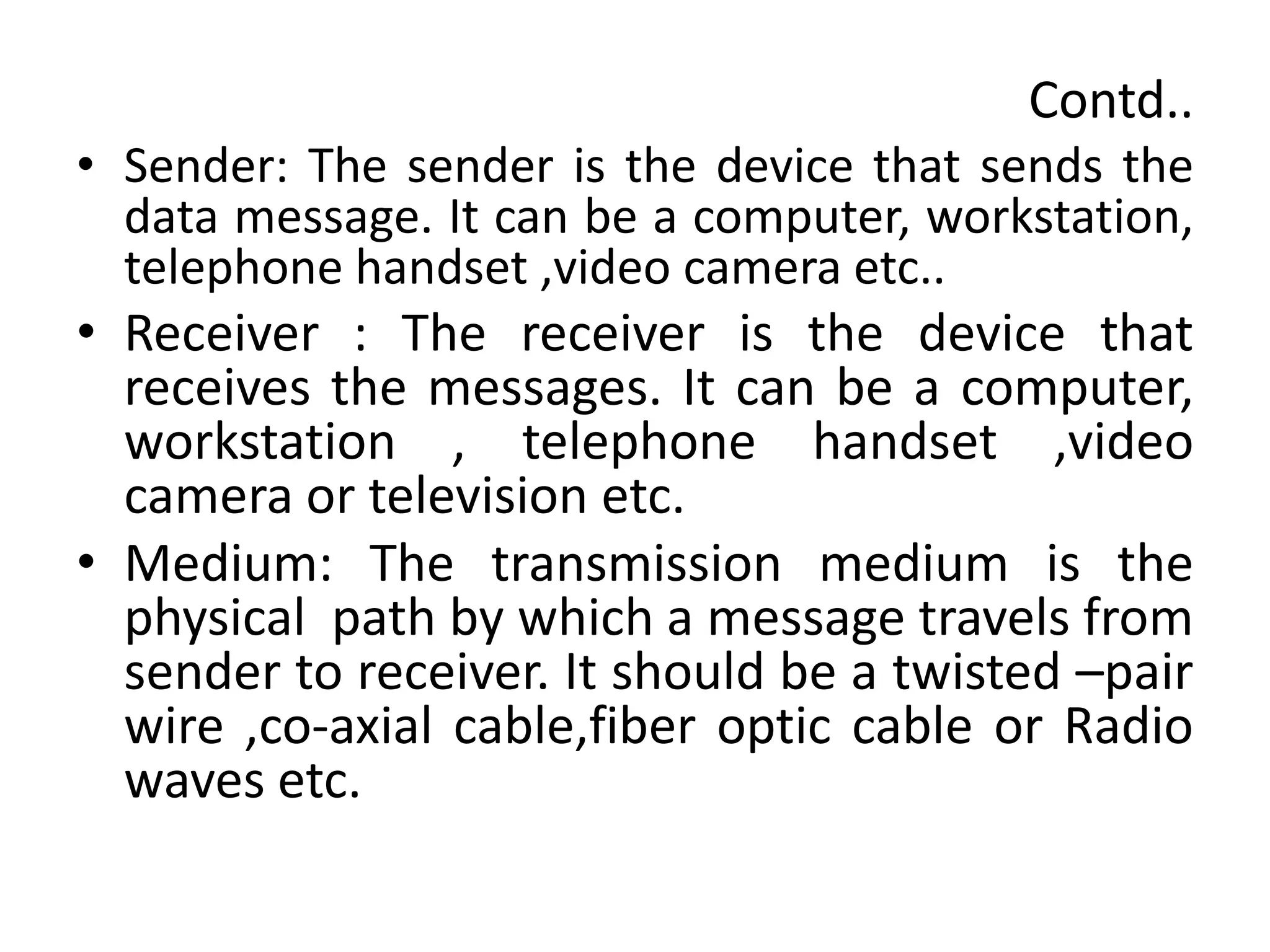

• Sender: The sender is the device that sends the
data message. It can be a computer, workstation,
telephone handset ,video camera etc..
• Receiver : The receiver is the device that
receives the messages. It can be a computer,
workstation , telephone handset ,video
camera or television etc.
• Medium: The transmission medium is the
physical path by which a message travels from
sender to receiver. It should be a twisted –pair
wire ,co-axial cable,fiber optic cable or Radio
waves etc.

Contd..

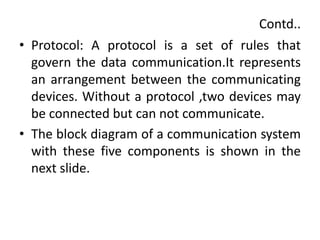

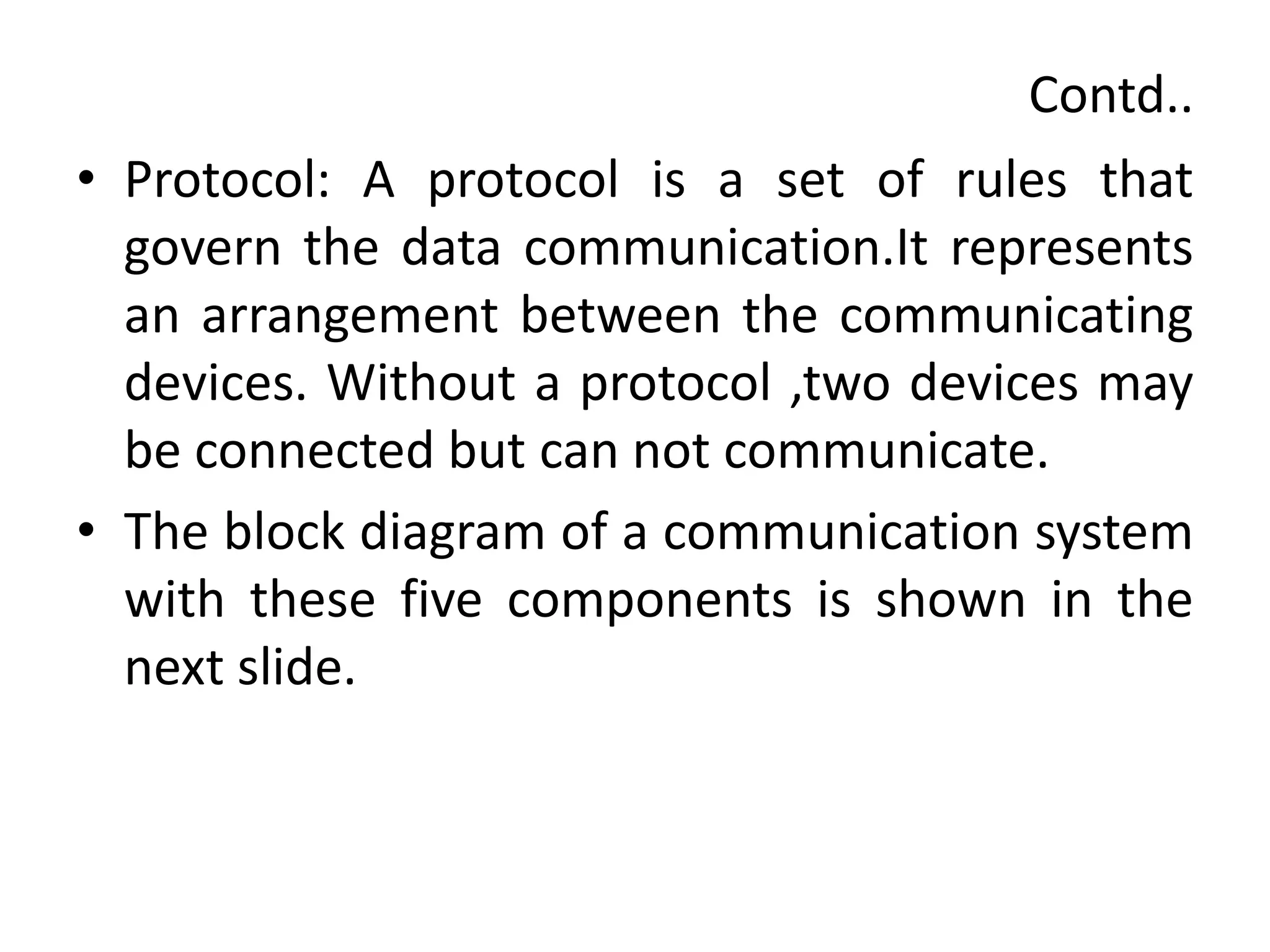

• Protocol: A protocol is a set of rules that
govern the data communication.It represents
an arrangement between the communicating
devices. Without a protocol ,two devices may
be connected but can not communicate.

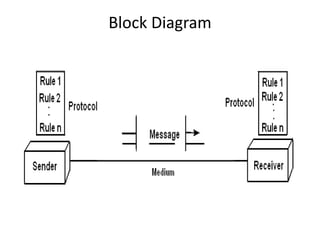

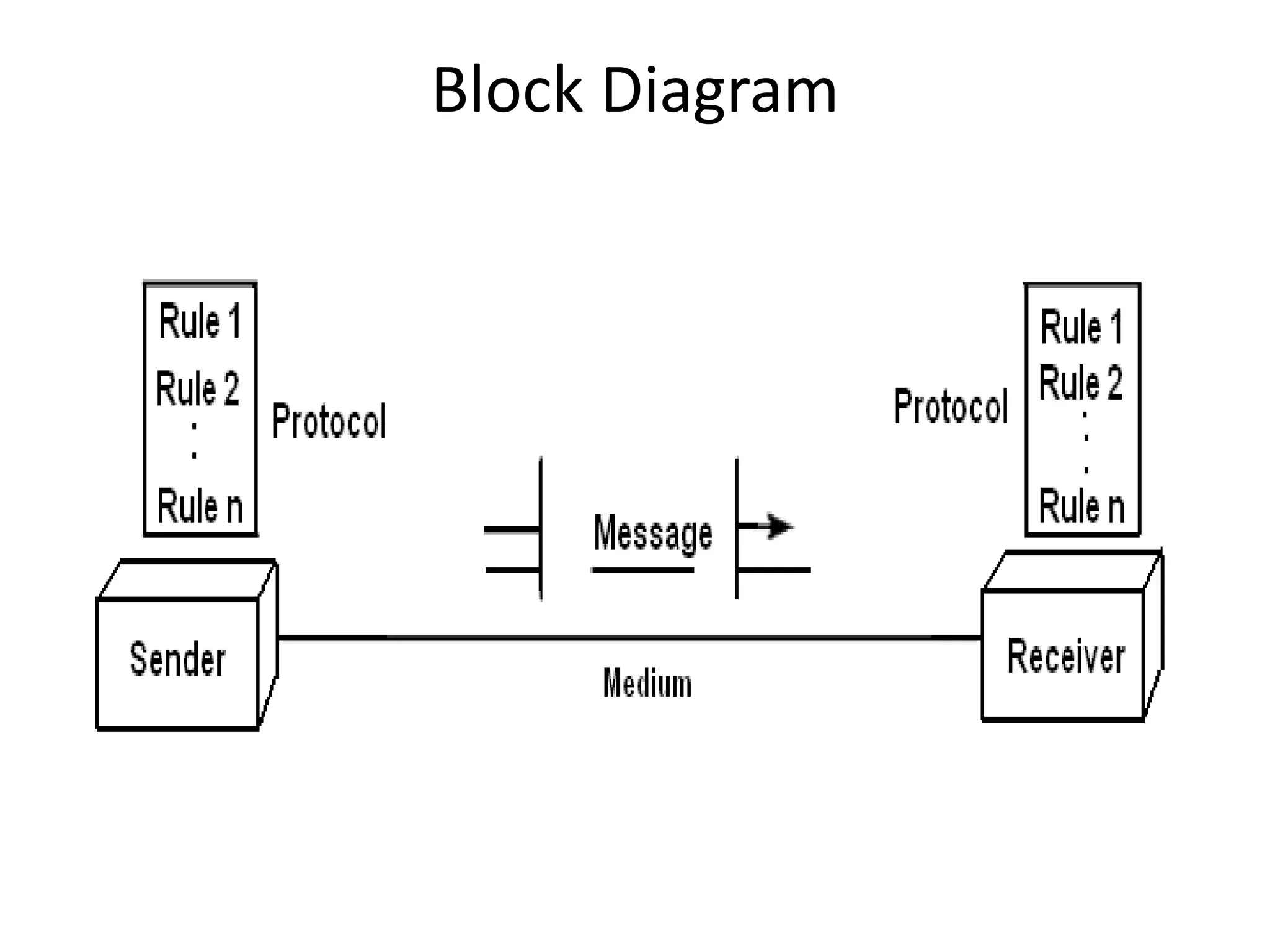

• The block diagram of a communication system
with these five components is shown in the
next slide.

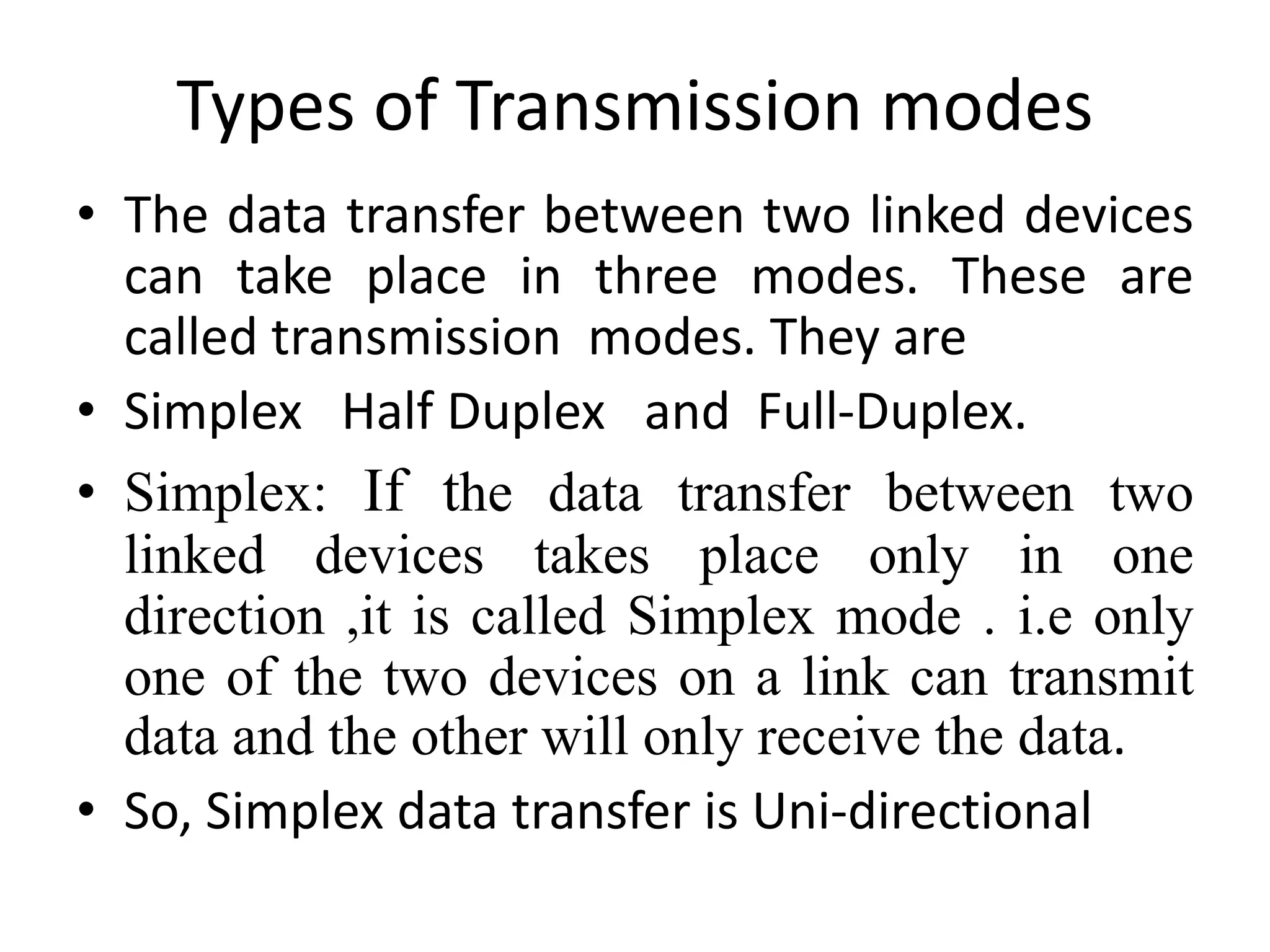

Types of Transmission modes
• The data transfer between two linked devices
can take place in three modes. These are
called transmission modes. They are
• Simplex Half Duplex and Full-Duplex.
• Simplex: If the data transfer between two
linked devices takes place only in one
direction ,it is called Simplex mode . i.e only
one of the two devices on a link can transmit
data and the other will only receive the data.
• So, Simplex data transfer is Uni-directional

Contd..

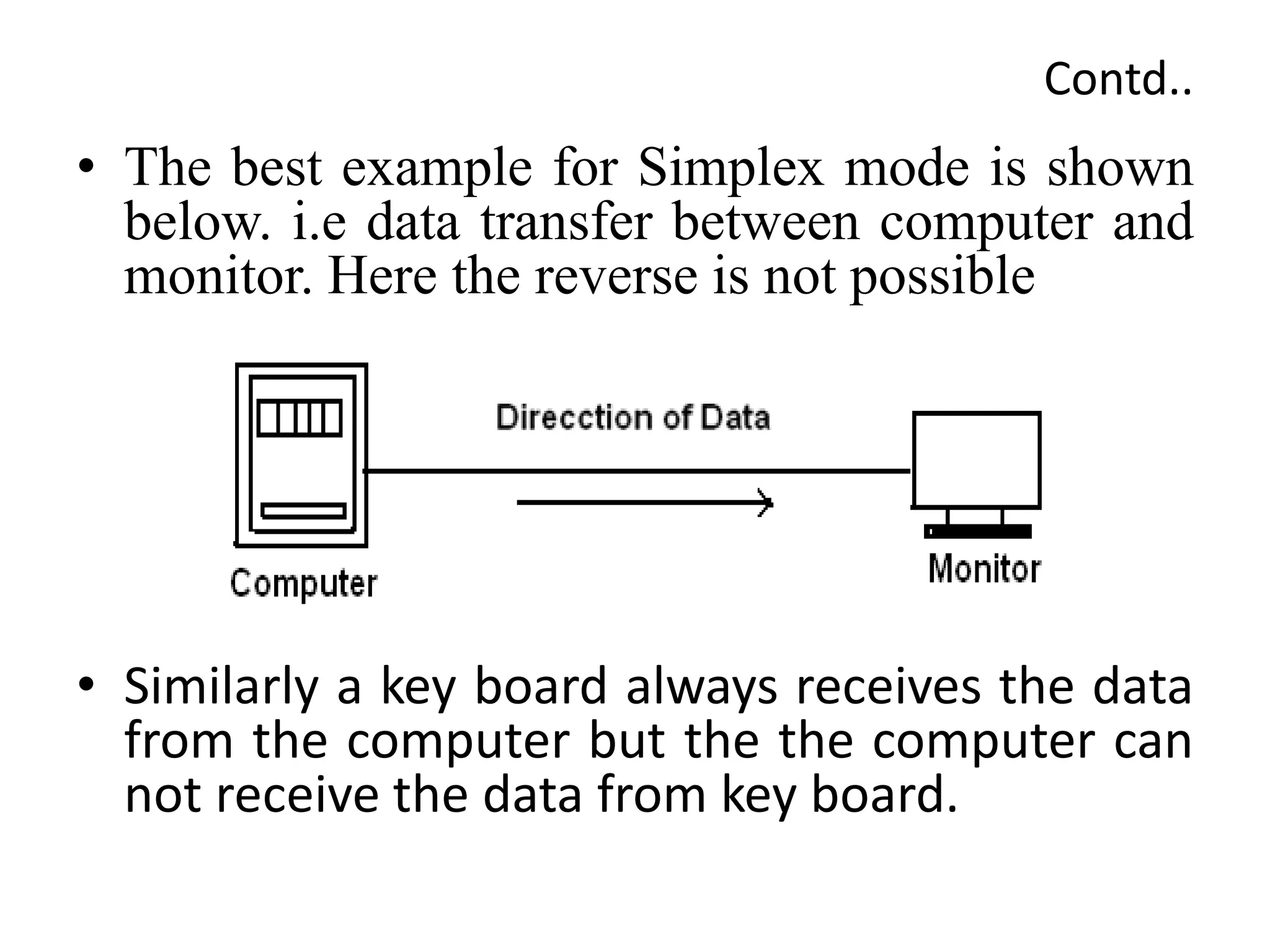

• The best example for Simplex mode is shown
below. i.e data transfer between computer and
monitor. Here the reverse is not possible
• Similarly a key board always receives the data
from the computer but the the computer can
not receive the data from key board.

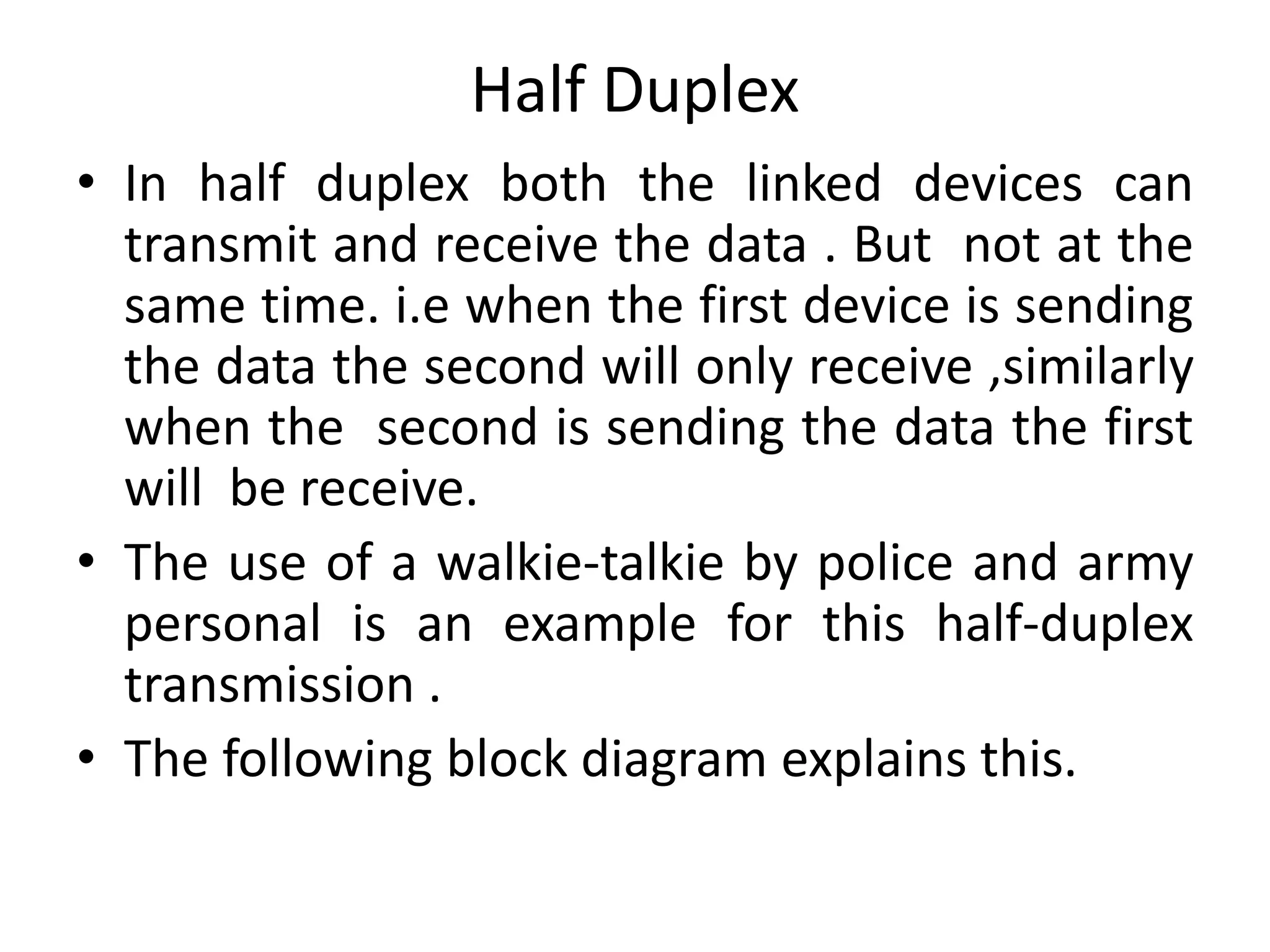

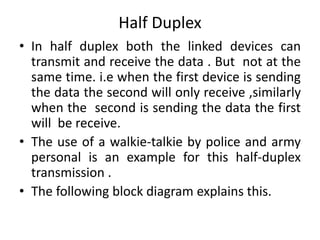

Half Duplex
• In half duplex both the linked devices can
transmit and receive the data . But not at the
same time. i.e when the first device is sending
the data the second will only receive ,similarly
when the second is sending the data the first
will be receive.
• The use of a walkie-talkie by police and army
personal is an example for this half-duplex
transmission .
• The following block diagram explains this.

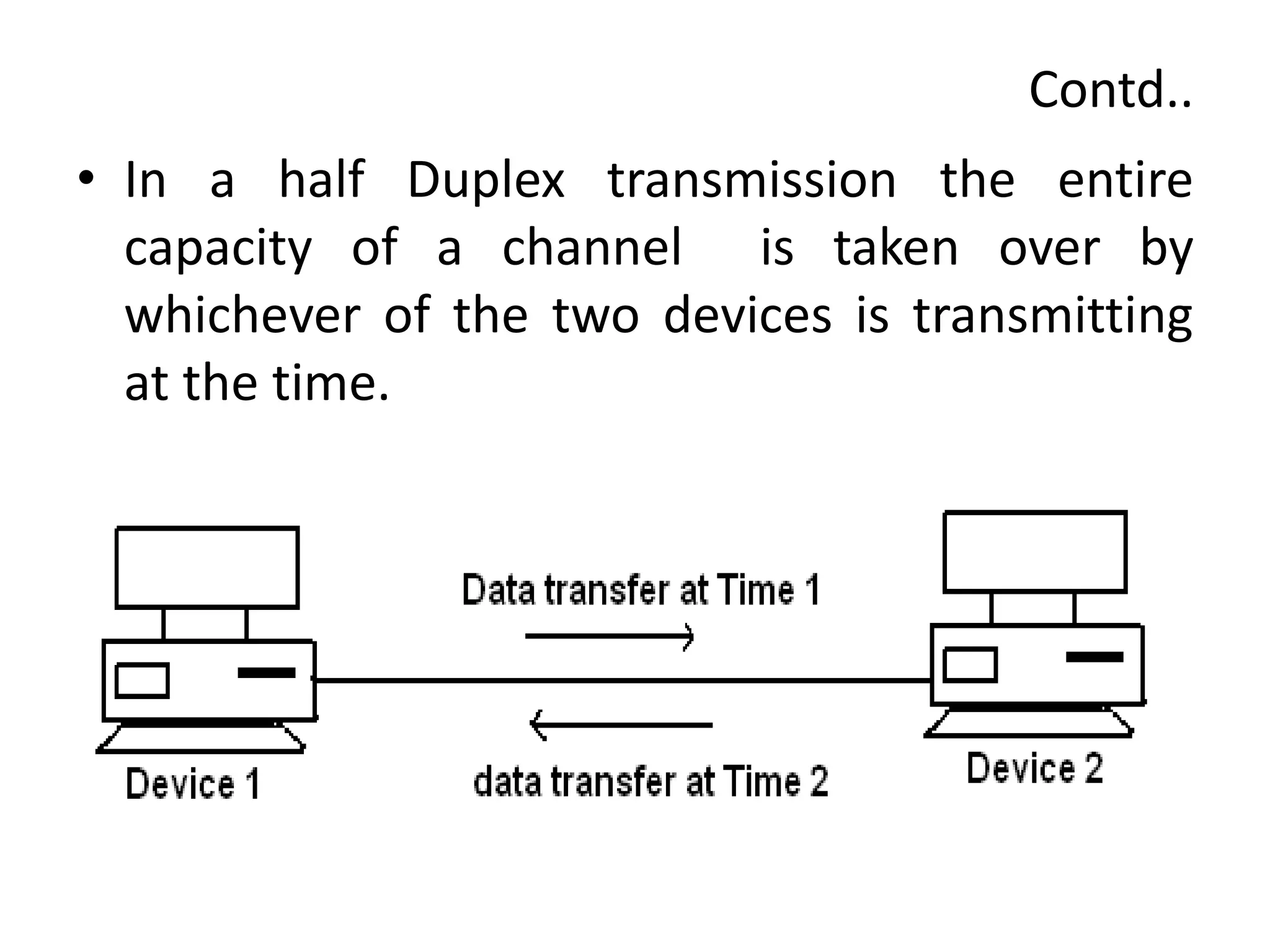

Contd..
• In a half Duplex transmission the entire
capacity of a channel is taken over by
whichever of the two devices is transmitting
at the time.

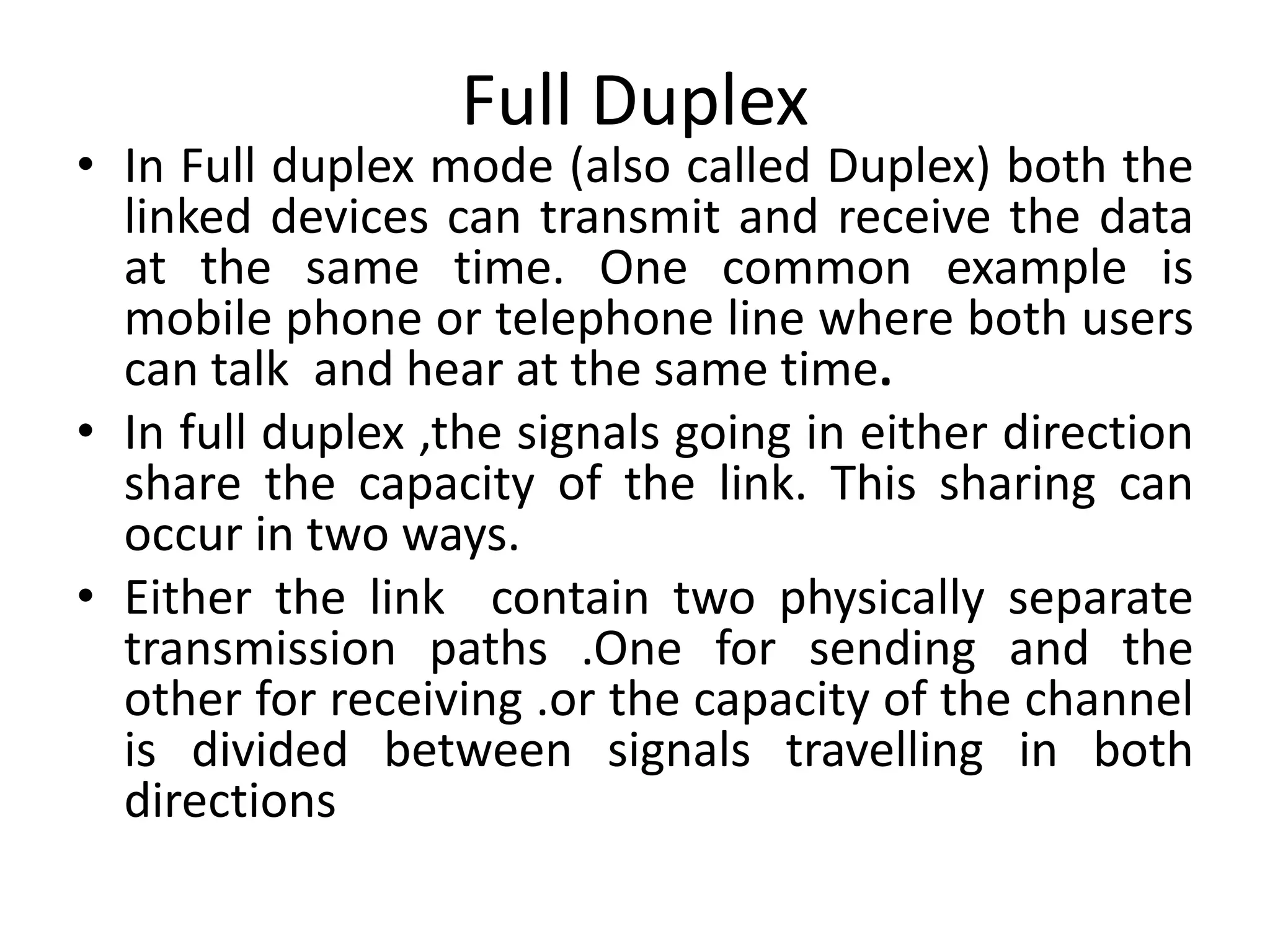

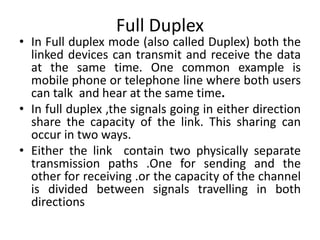

Full Duplex
• In Full duplex mode (also called Duplex) both the
linked devices can transmit and receive the data
at the same time. One common example is
mobile phone or telephone line where both users
can talk and hear at the same time.
• In full duplex ,the signals going in either direction
share the capacity of the link. This sharing can
occur in two ways.
• Either the link contain two physically separate
transmission paths .One for sending and the
other for receiving .or the capacity of the channel
is divided between signals travelling in both
directions

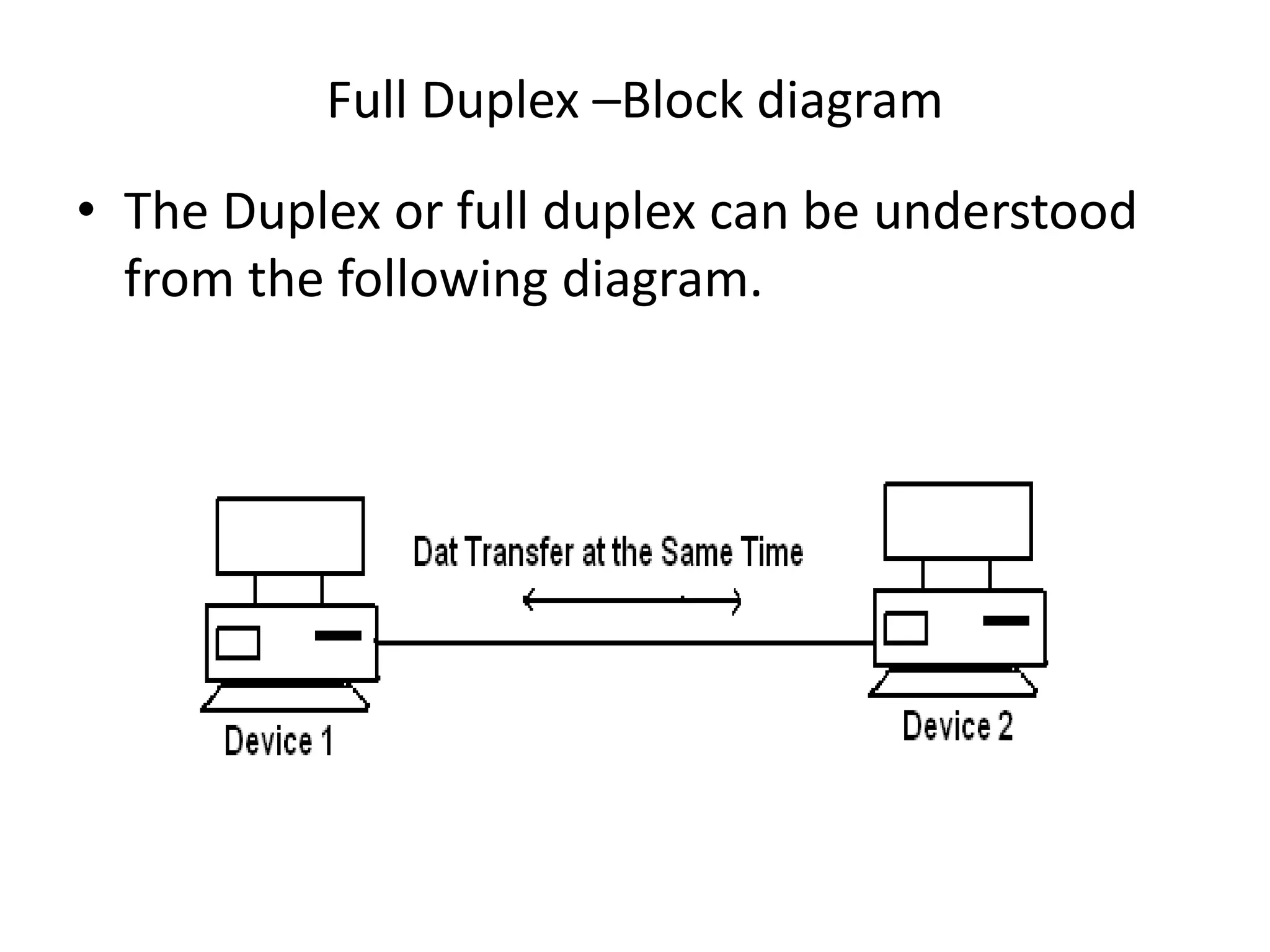

Full Duplex –Block diagram
• The Duplex or full duplex can be understood
from the following diagram.

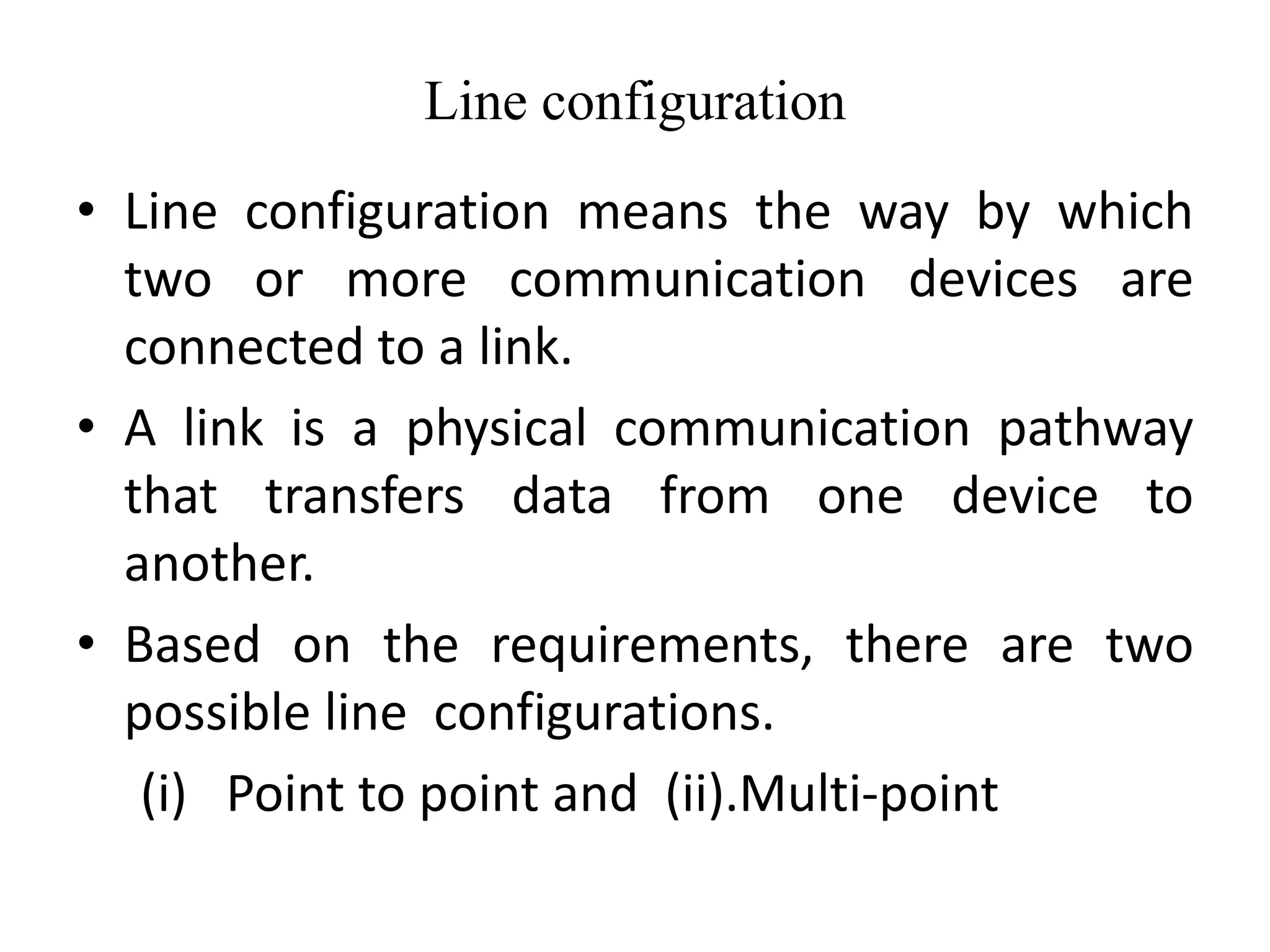

Line configuration
• Line configuration means the way by which
two or more communication devices are
connected to a link.
• A link is a physical communication pathway
that transfers data from one device to
another.
• Based on the requirements, there are two
possible line configurations.
(i) Point to point and (ii).Multi-point

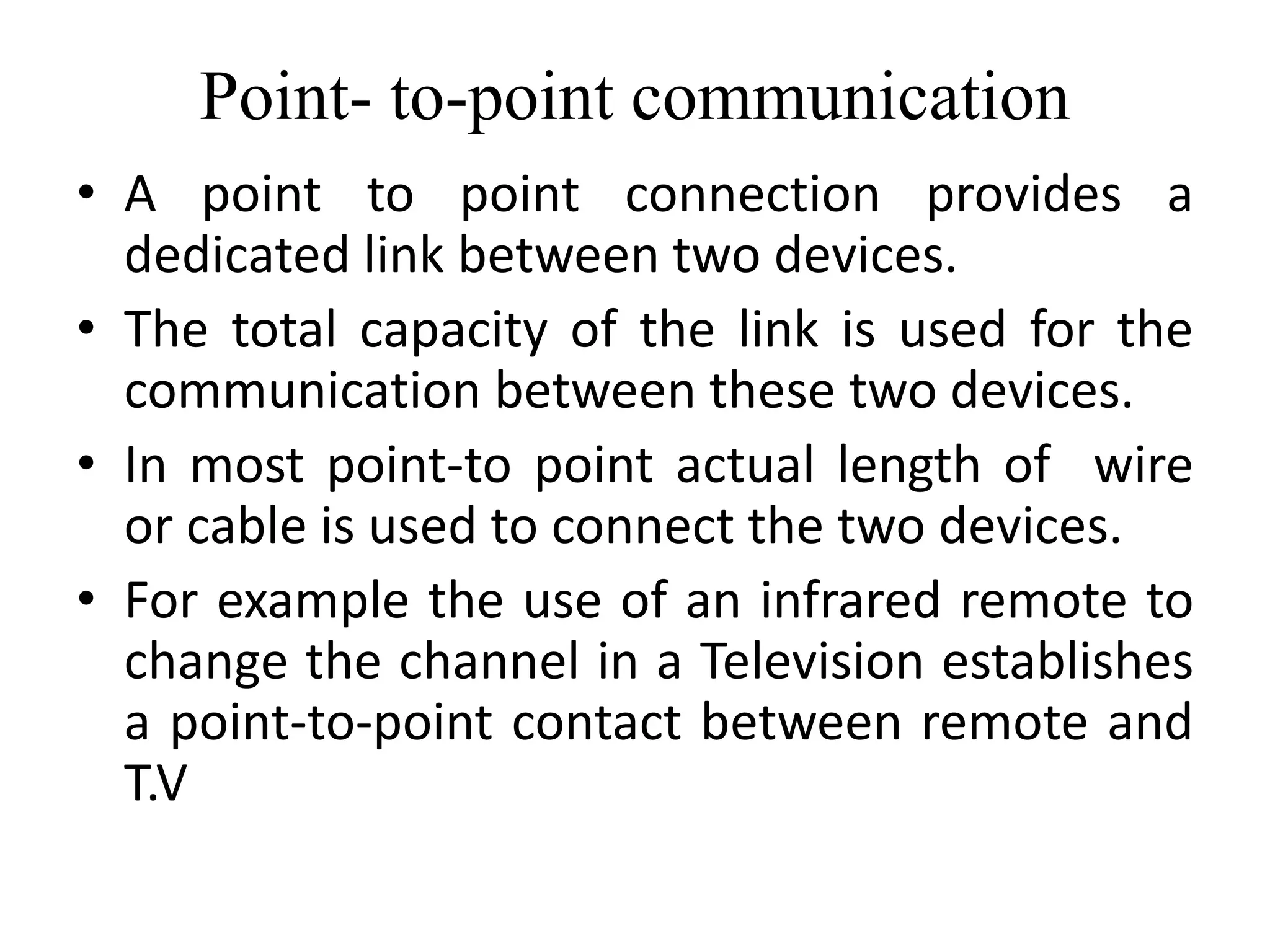

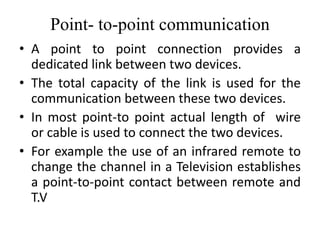

Point- to-point communication
• A point to point connection provides a
dedicated link between two devices.
• The total capacity of the link is used for the
communication between these two devices.
• In most point-to point actual length of wire
or cable is used to connect the two devices.
• For example the use of an infrared remote to
change the channel in a Television establishes
a point-to-point contact between remote and
T.V

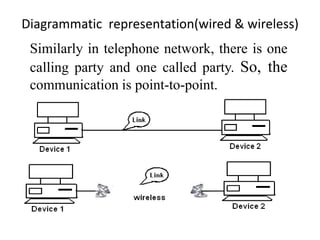

Diagrammatic representation(wired & wireless)
Similarly in telephone network, there is one
calling party and one called party. So, the
communication is point-to-point.

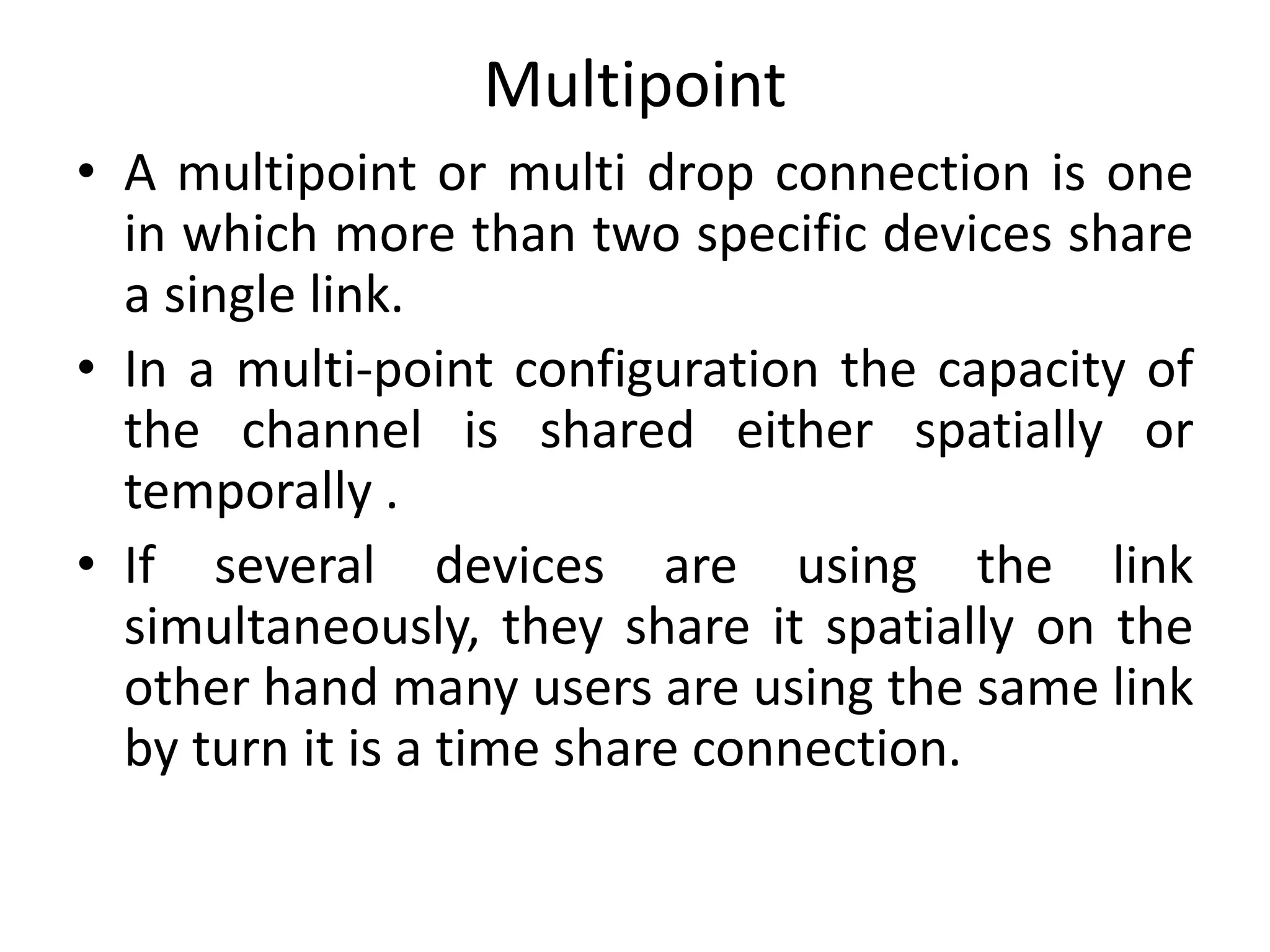

Multipoint
• A multipoint or multi drop connection is one
in which more than two specific devices share
a single link.
• In a multi-point configuration the capacity of
the channel is shared either spatially or
temporally .
• If several devices are using the link
simultaneously, they share it spatially on the
other hand many users are using the same link
by turn it is a time share connection.

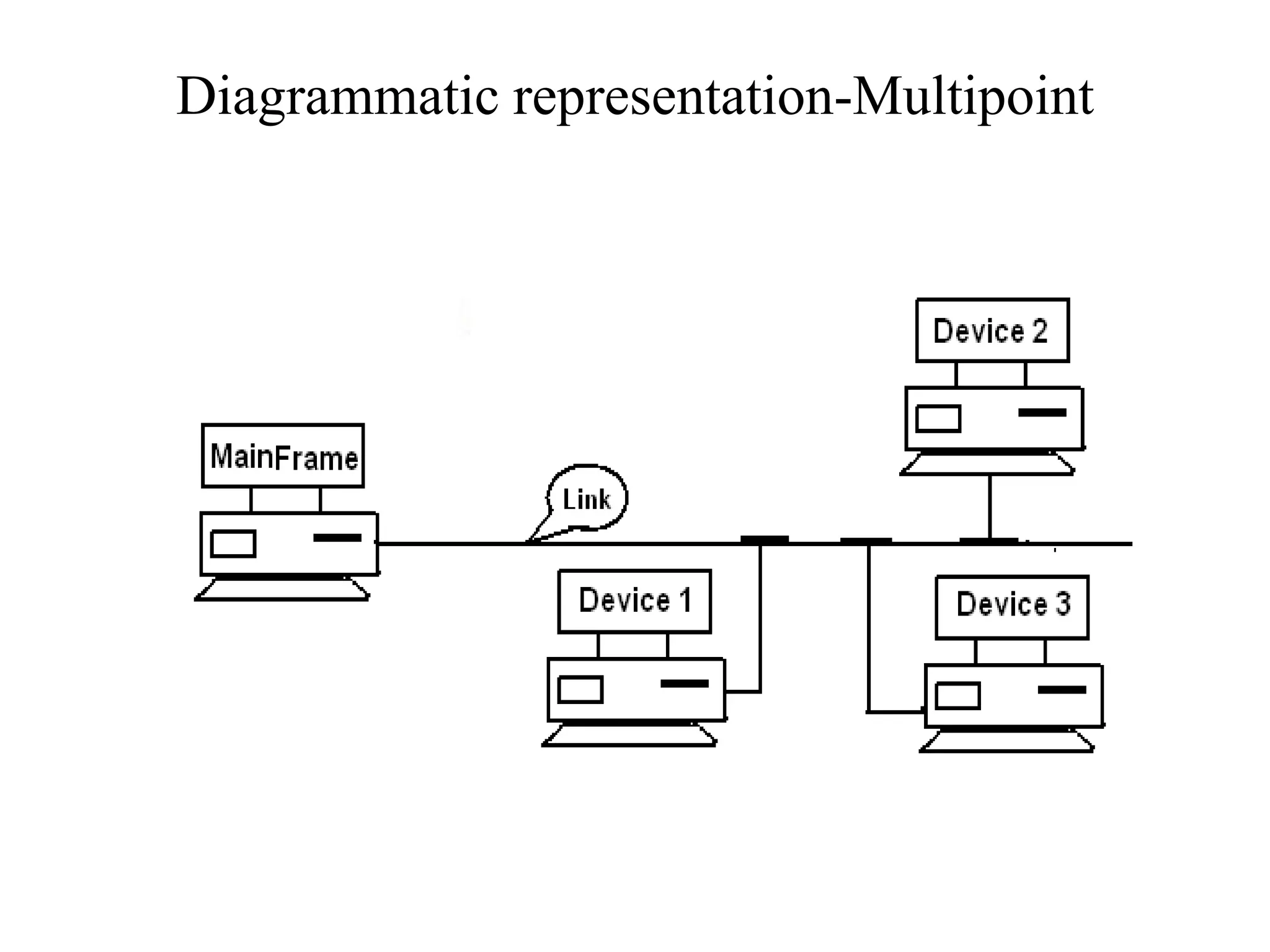

Diagrammatic representation-Multipoint

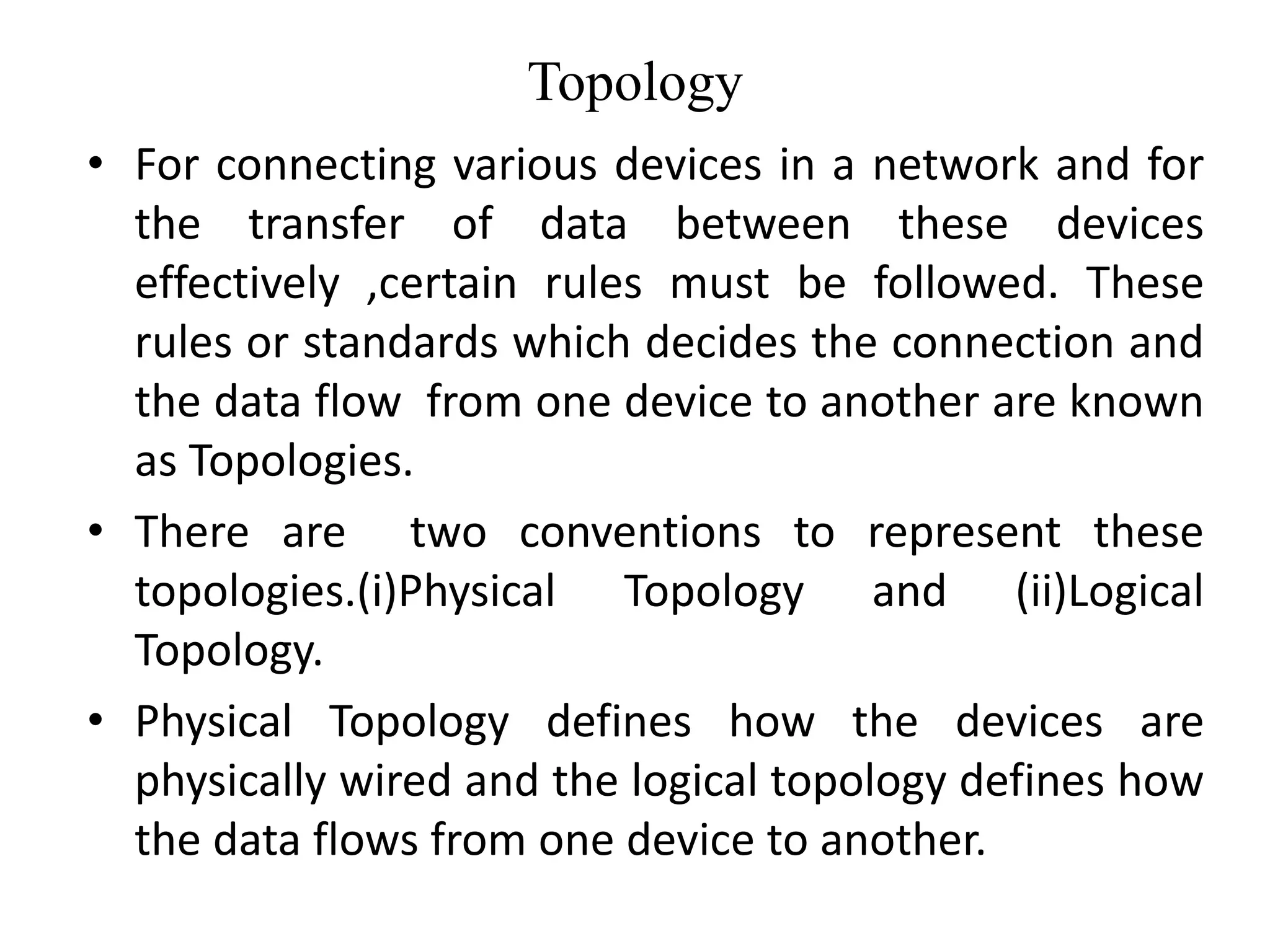

Topology
• For connecting various devices in a network and for
the transfer of data between these devices
effectively ,certain rules must be followed. These
rules or standards which decides the connection and
the data flow from one device to another are known
as Topologies.
• There are two conventions to represent these
topologies.(i)Physical Topology and (ii)Logical
Topology.
• Physical Topology defines how the devices are
physically wired and the logical topology defines how
the data flows from one device to another.

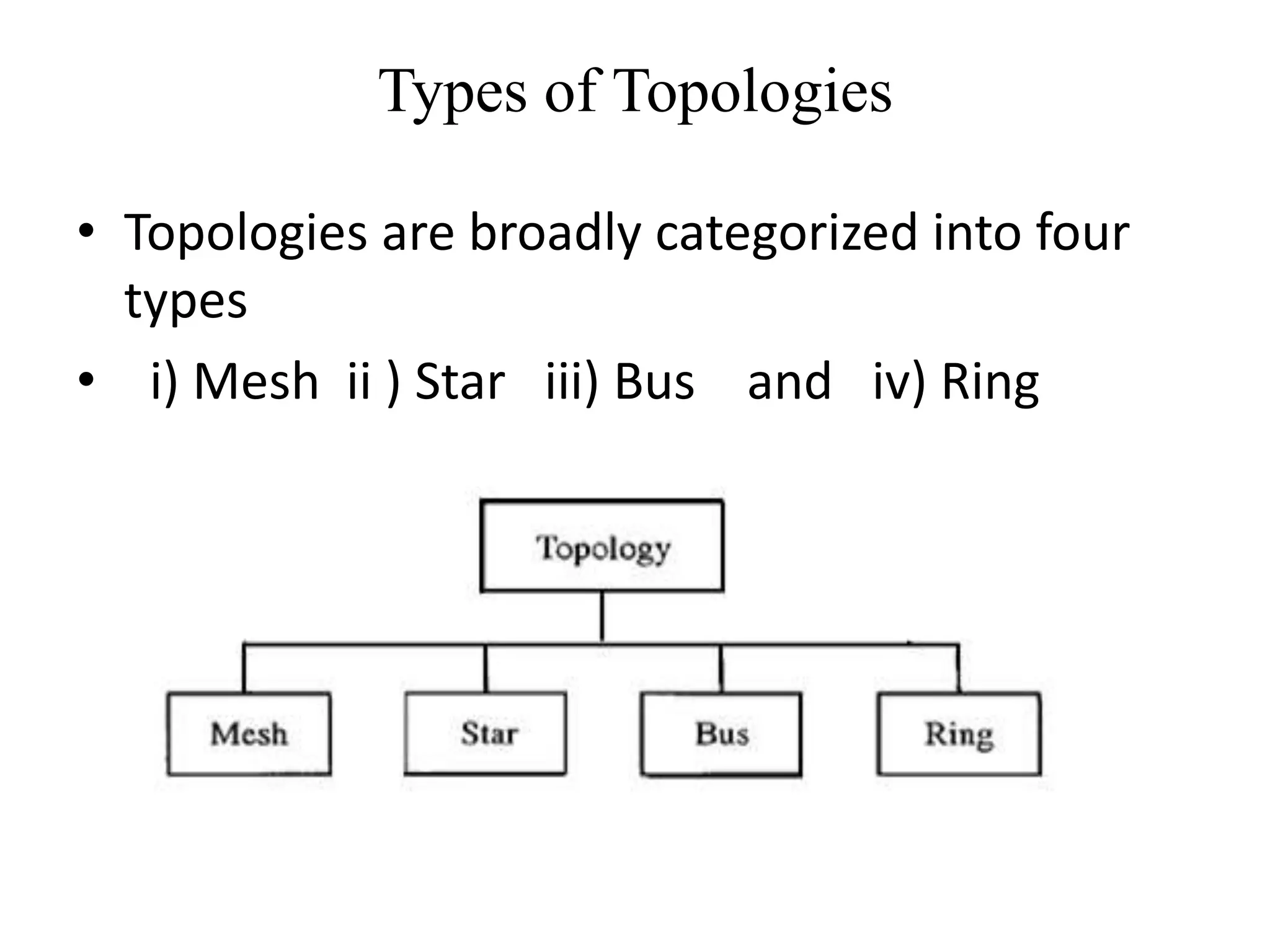

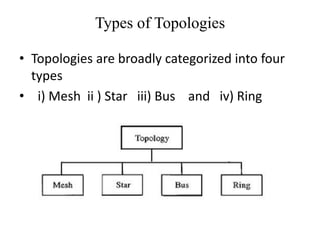

Types of Topologies
• Topologies are broadly categorized into four
types
• i) Mesh ii ) Star iii) Bus and iv) Ring

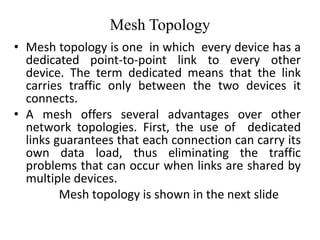

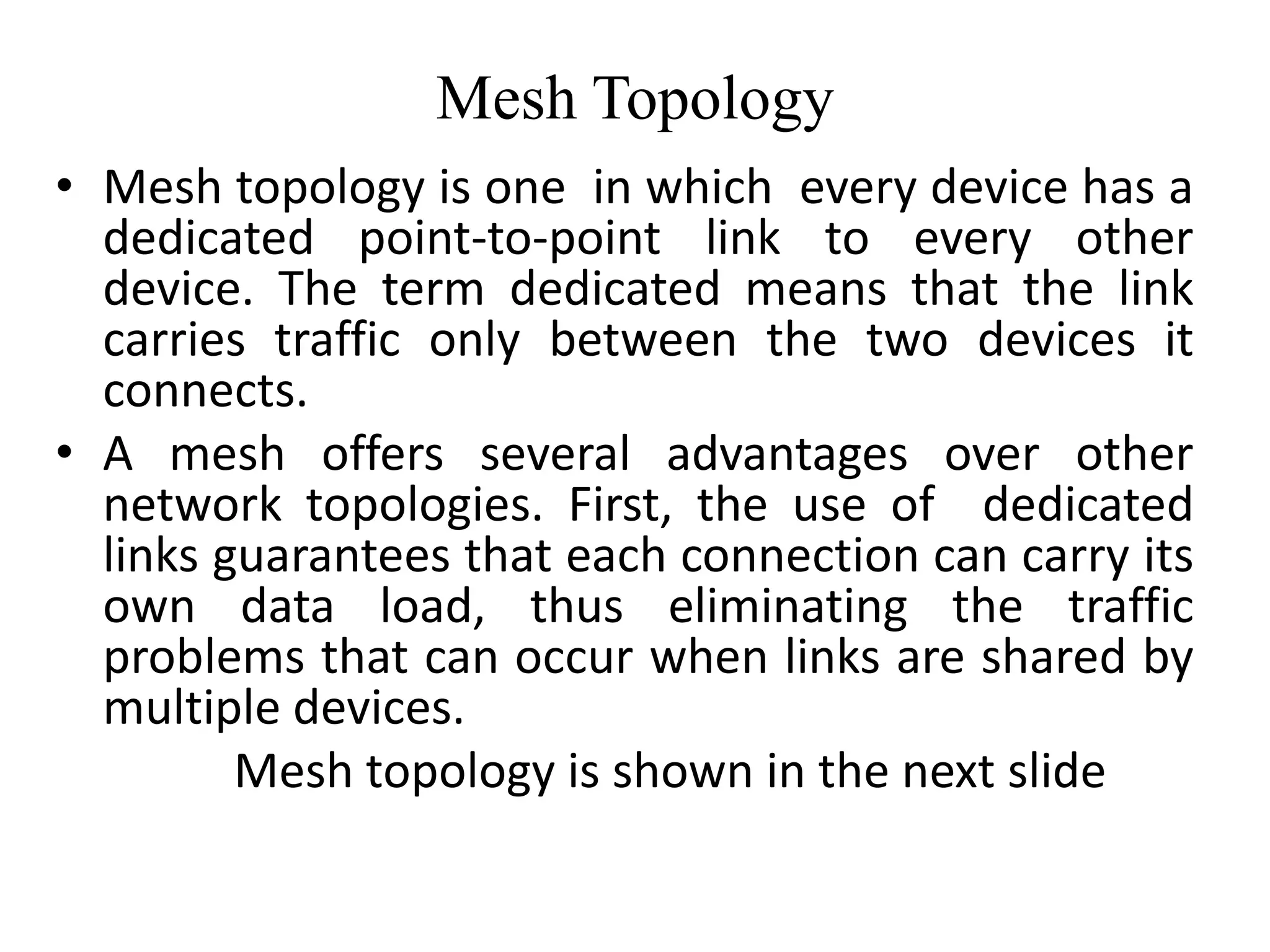

Mesh Topology
• Mesh topology is one in which every device has a
dedicated point-to-point link to every other
device. The term dedicated means that the link
carries traffic only between the two devices it
connects.
• A mesh offers several advantages over other
network topologies. First, the use of dedicated
links guarantees that each connection can carry its
own data load, thus eliminating the traffic
problems that can occur when links are shared by
multiple devices.
Mesh topology is shown in the next slide

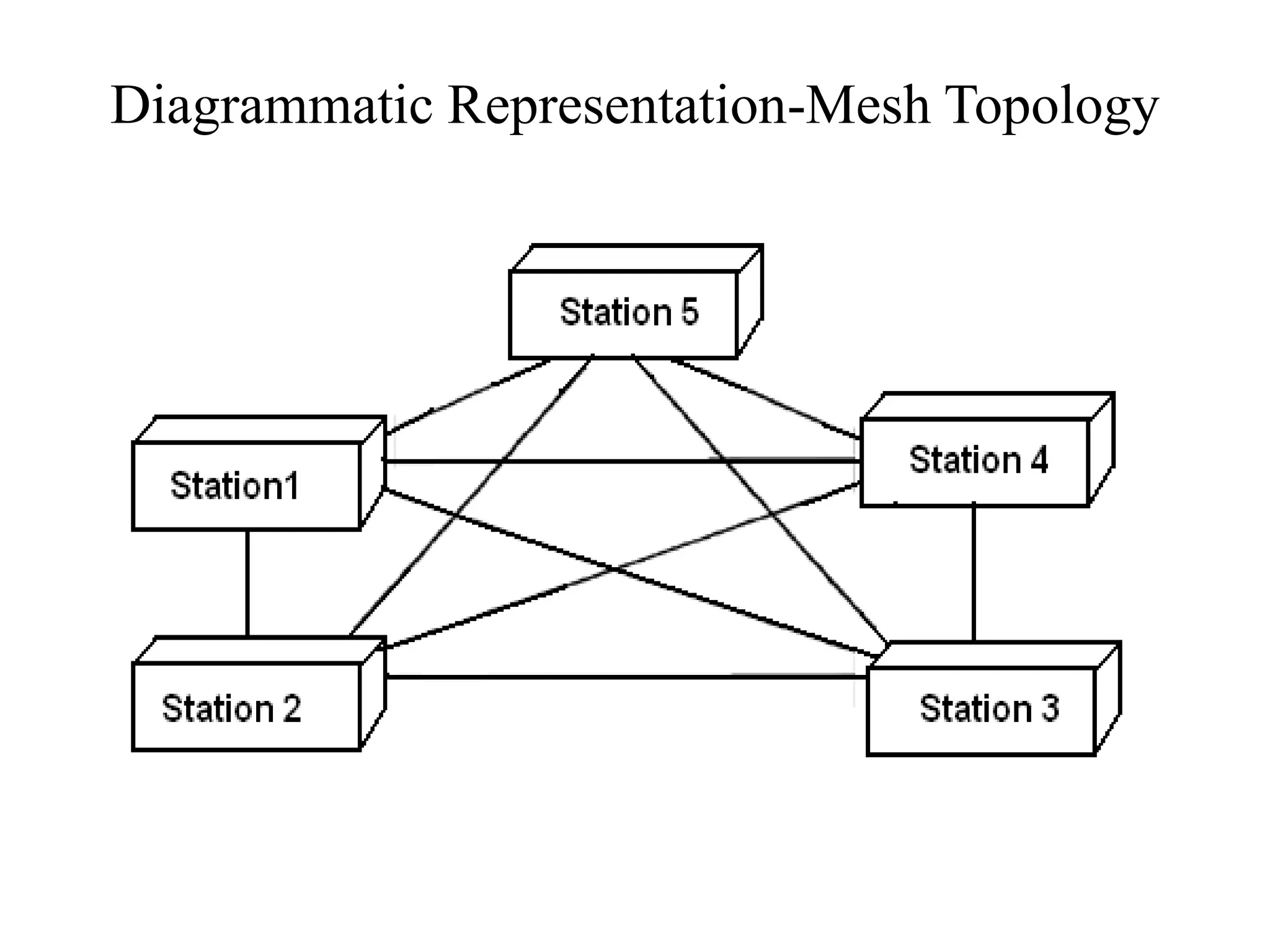

Diagrammatic Representation-Mesh Topology

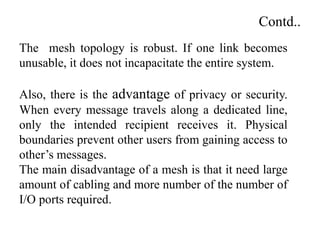

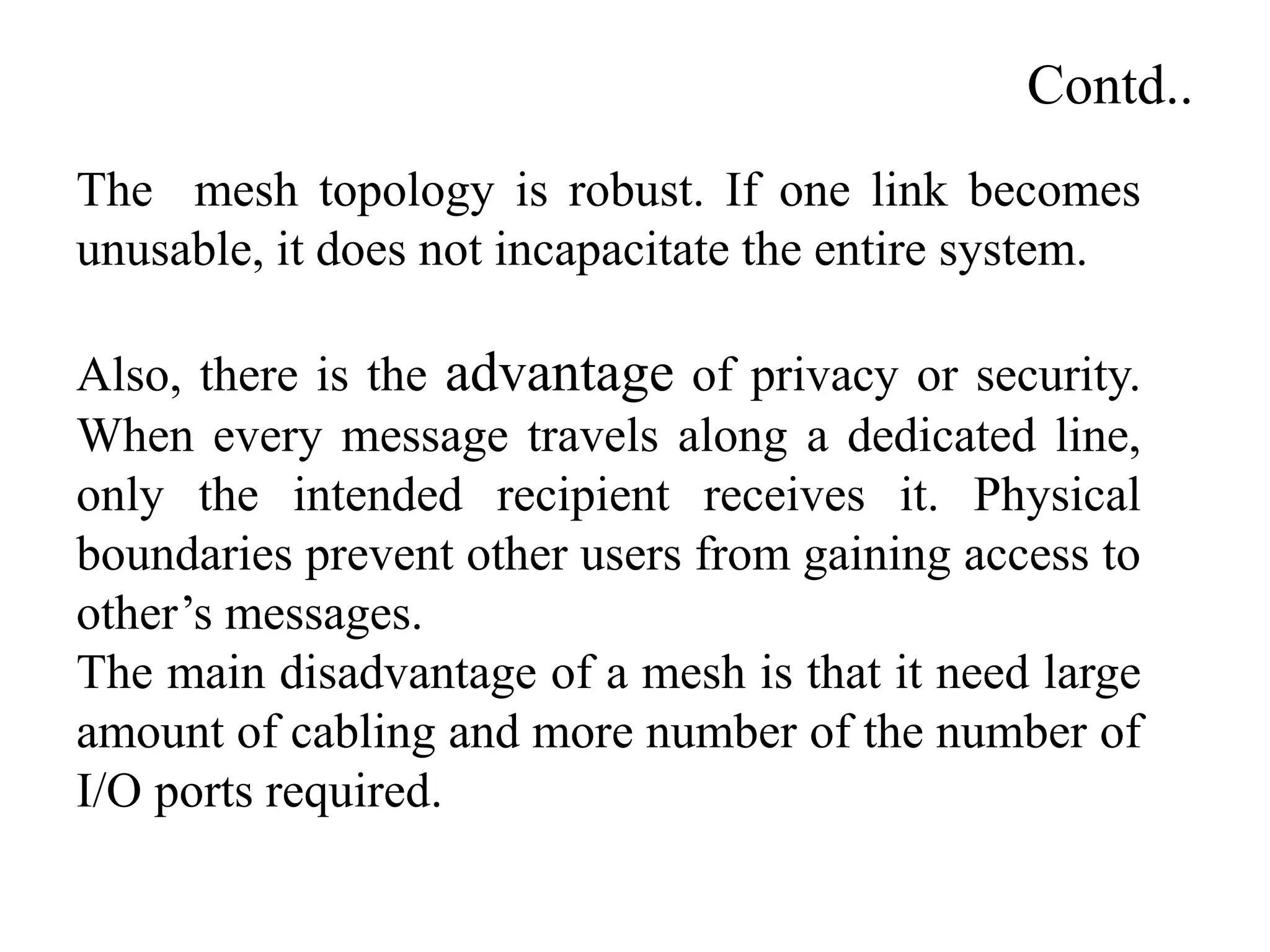

Contd..
The mesh topology is robust. If one link becomes
unusable, it does not incapacitate the entire system.
Also, there is the advantage of privacy or security.
When every message travels along a dedicated line,
only the intended recipient receives it. Physical
boundaries prevent other users from gaining access to
other’s messages.
The main disadvantage of a mesh is that it need large
amount of cabling and more number of the number of
I/O ports required.

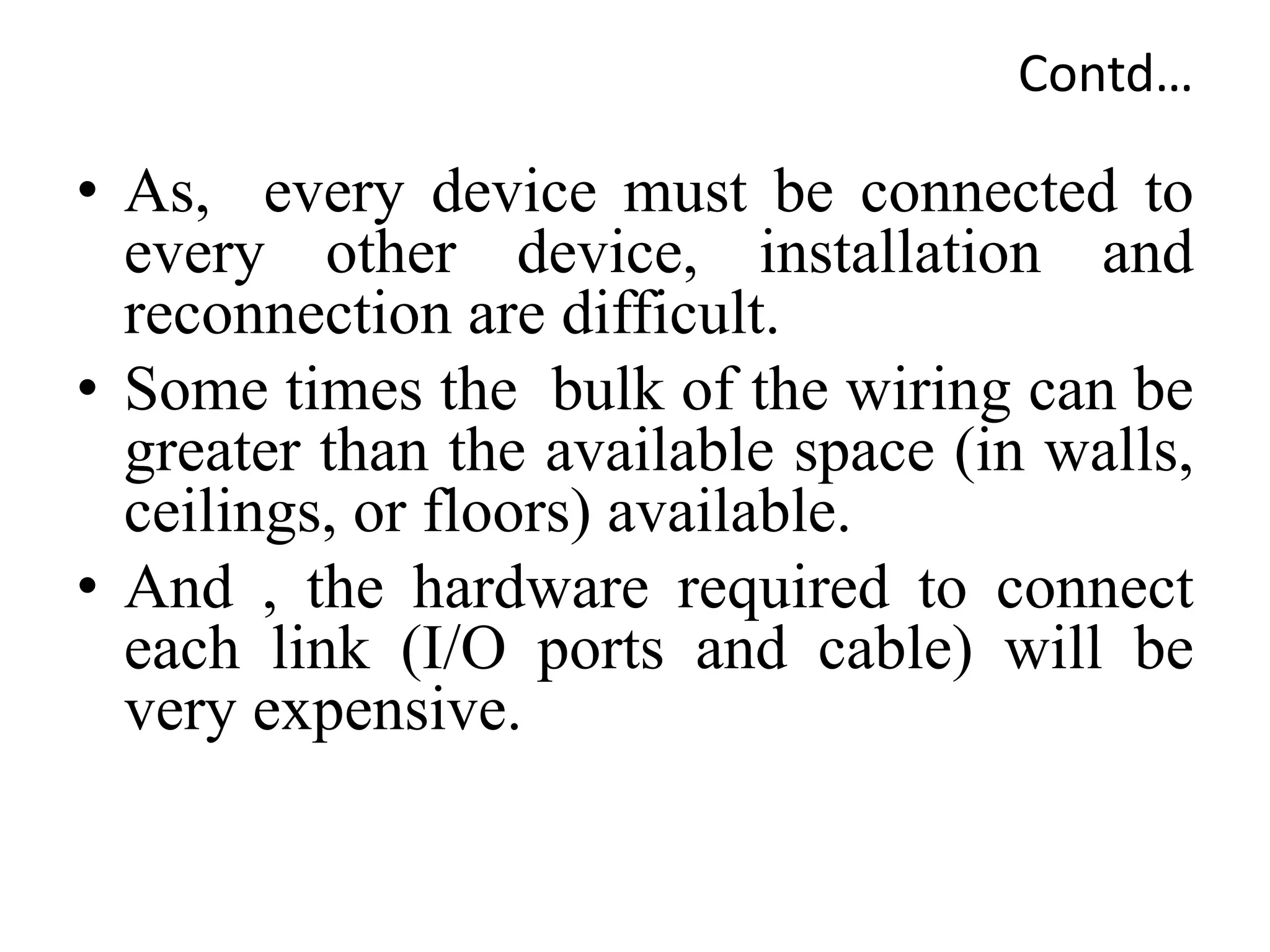

Contd…
• As, every device must be connected to
every other device, installation and
reconnection are difficult.
• Some times the bulk of the wiring can be
greater than the available space (in walls,
ceilings, or floors) available.
• And , the hardware required to connect
each link (I/O ports and cable) will be
very expensive.

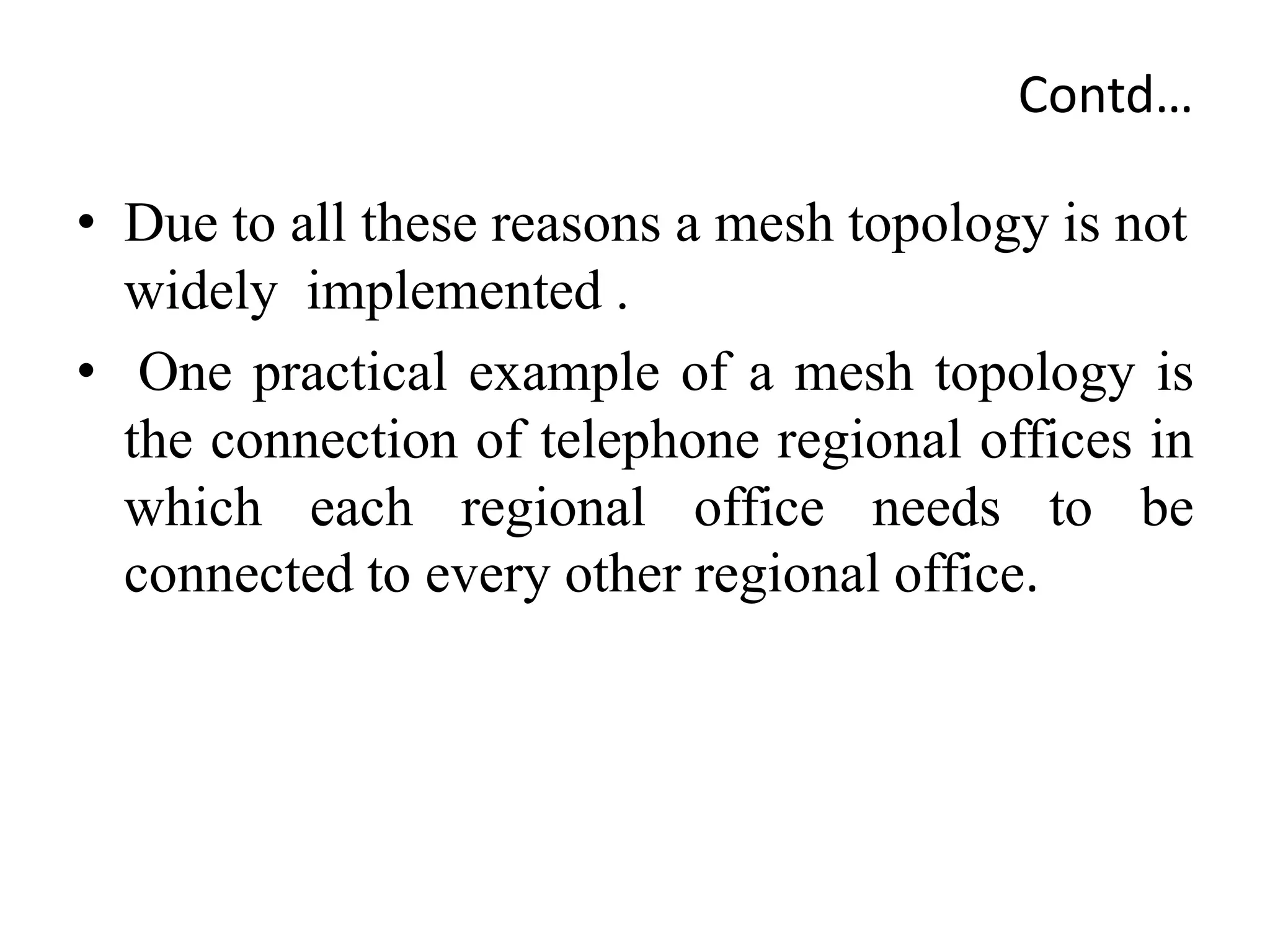

Contd…
• Due to all these reasons a mesh topology is not
widely implemented .
• One practical example of a mesh topology is
the connection of telephone regional offices in
which each regional office needs to be
connected to every other regional office.

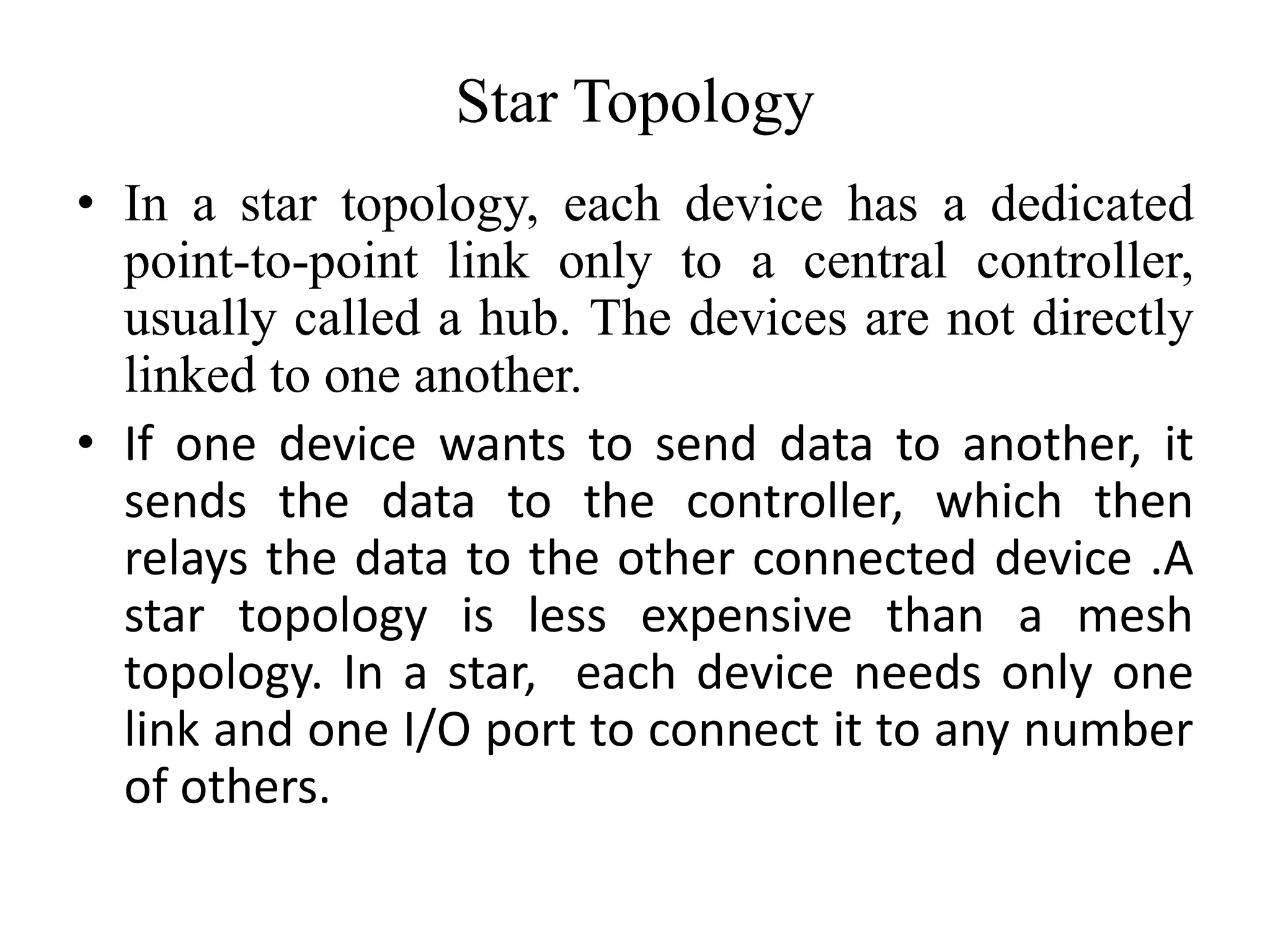

Star Topology
• In a star topology, each device has a dedicated
point-to-point link only to a central controller,
usually called a hub. The devices are not directly
linked to one another.
• If one device wants to send data to another, it
sends the data to the controller, which then
relays the data to the other connected device .A
star topology is less expensive than a mesh
topology. In a star, each device needs only one
link and one I/O port to connect it to any number
of others.

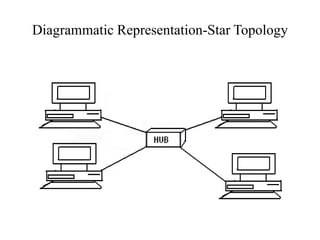

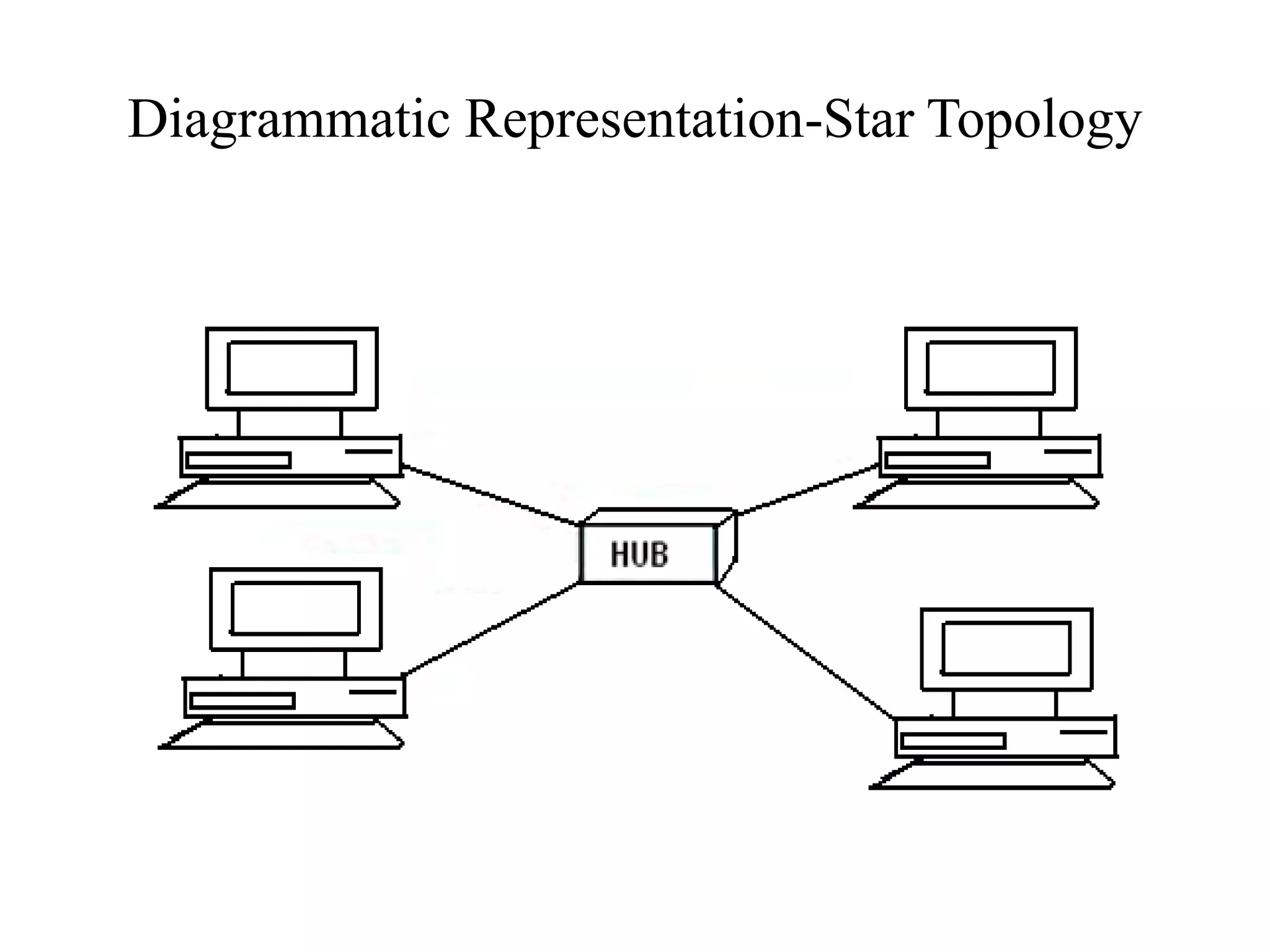

Diagrammatic Representation-Star Topology

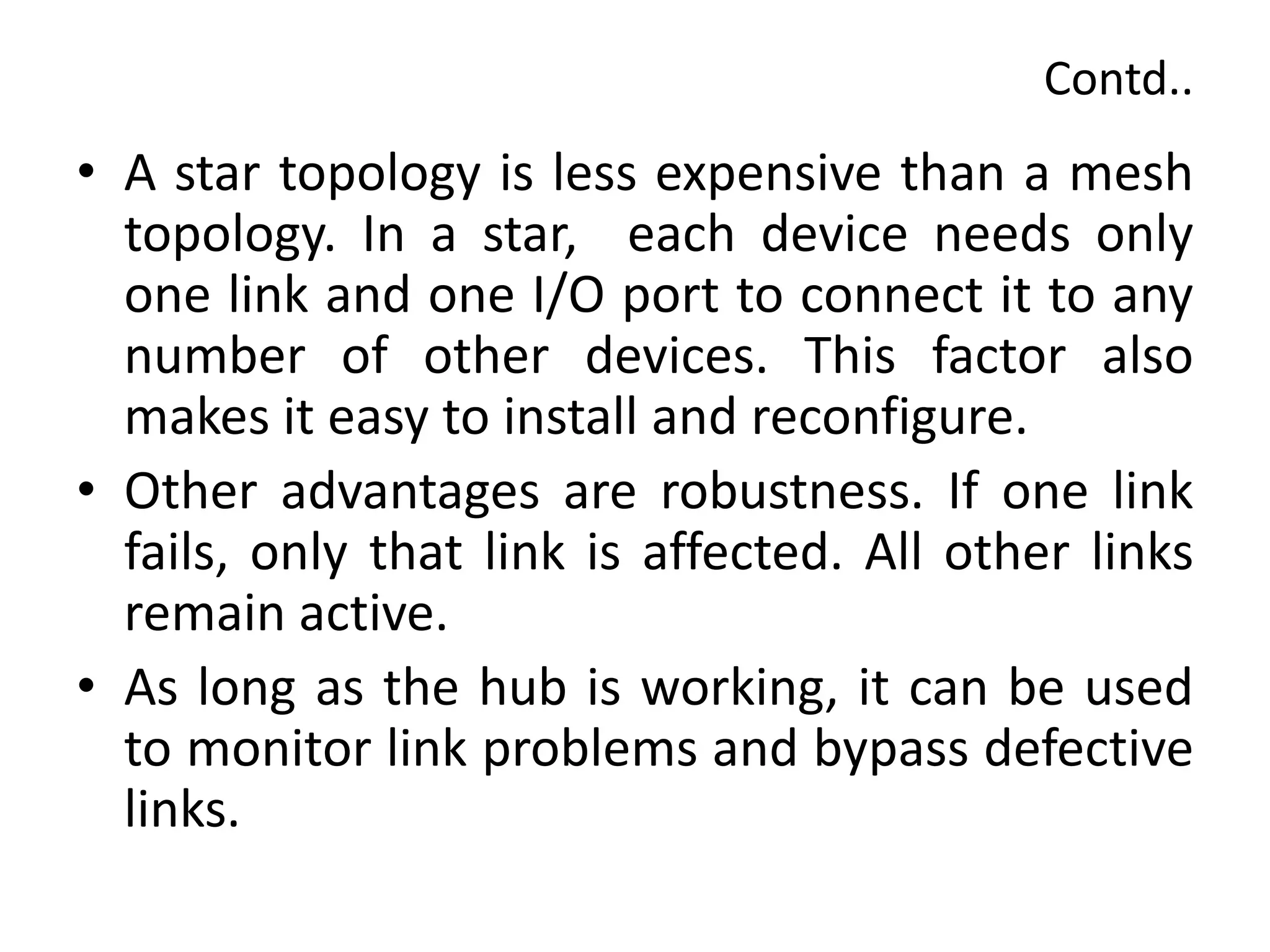

Contd..
• A star topology is less expensive than a mesh
topology. In a star, each device needs only
one link and one I/O port to connect it to any
number of other devices. This factor also
makes it easy to install and reconfigure.
• Other advantages are robustness. If one link
fails, only that link is affected. All other links
remain active.
• As long as the hub is working, it can be used
to monitor link problems and bypass defective
links.

Contd..

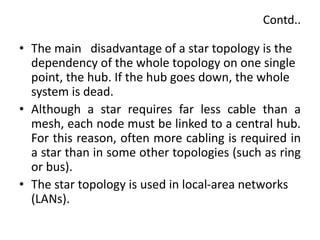

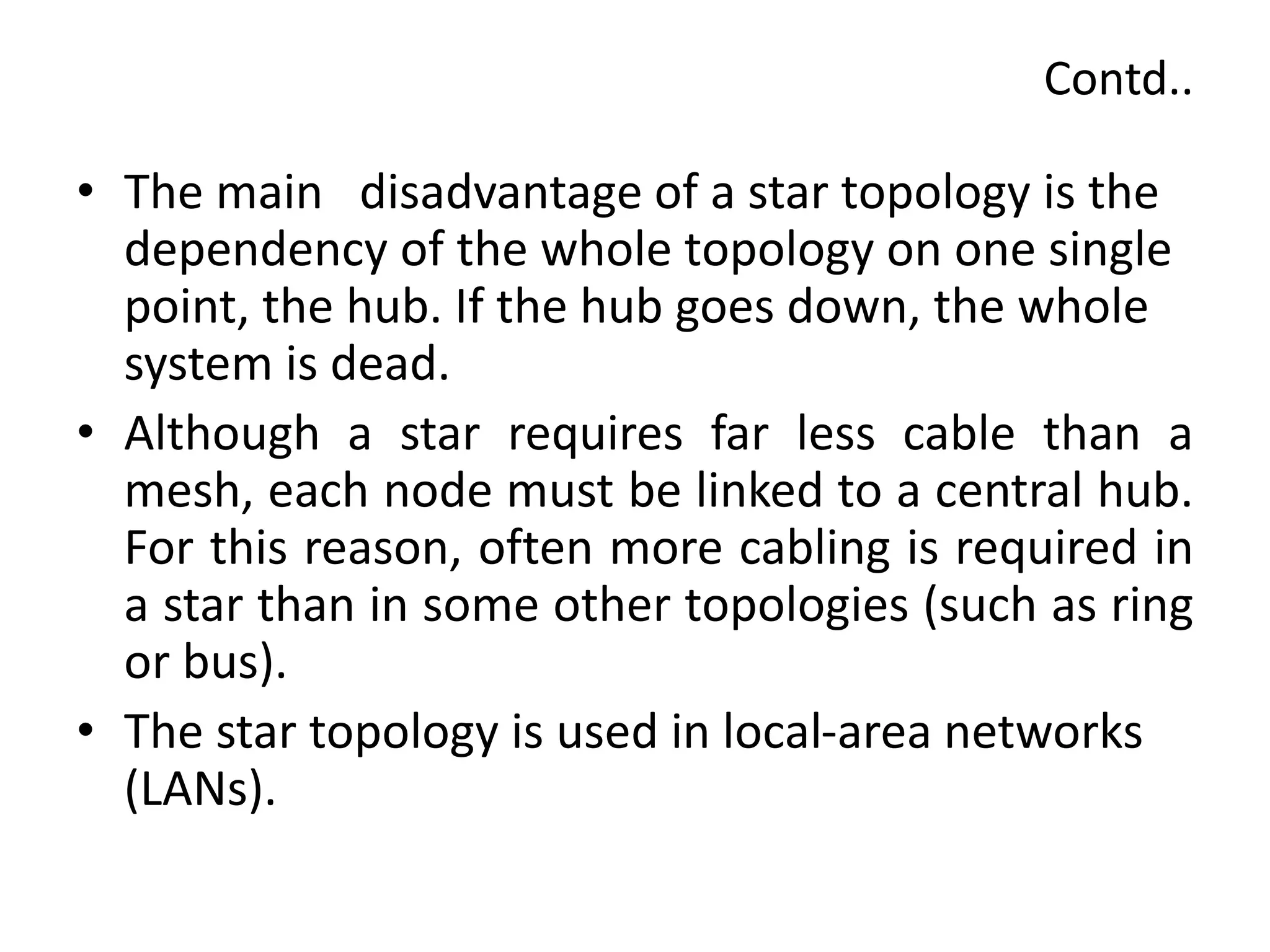

• The main disadvantage of a star topology is the
dependency of the whole topology on one single
point, the hub. If the hub goes down, the whole
system is dead.
• Although a star requires far less cable than a
mesh, each node must be linked to a central hub.
For this reason, often more cabling is required in
a star than in some other topologies (such as ring
or bus).
• The star topology is used in local-area networks
(LANs).

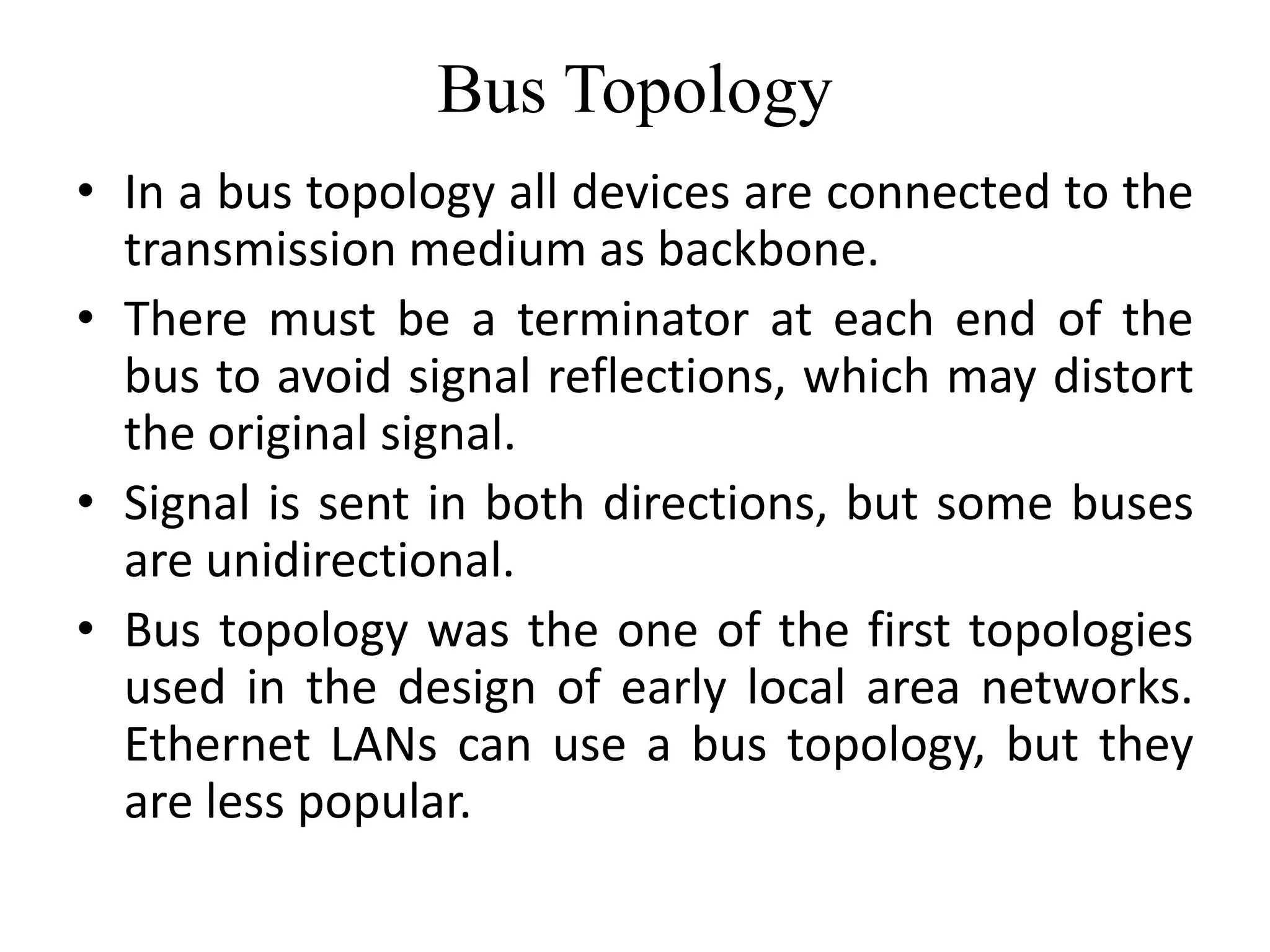

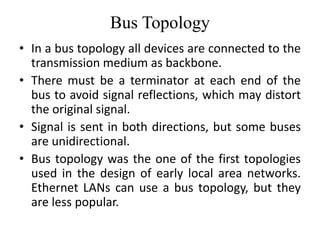

Bus Topology
• In a bus topology all devices are connected to the
transmission medium as backbone.
• There must be a terminator at each end of the
bus to avoid signal reflections, which may distort
the original signal.
• Signal is sent in both directions, but some buses
are unidirectional.
• Bus topology was the one of the first topologies
used in the design of early local area networks.
Ethernet LANs can use a bus topology, but they
are less popular.

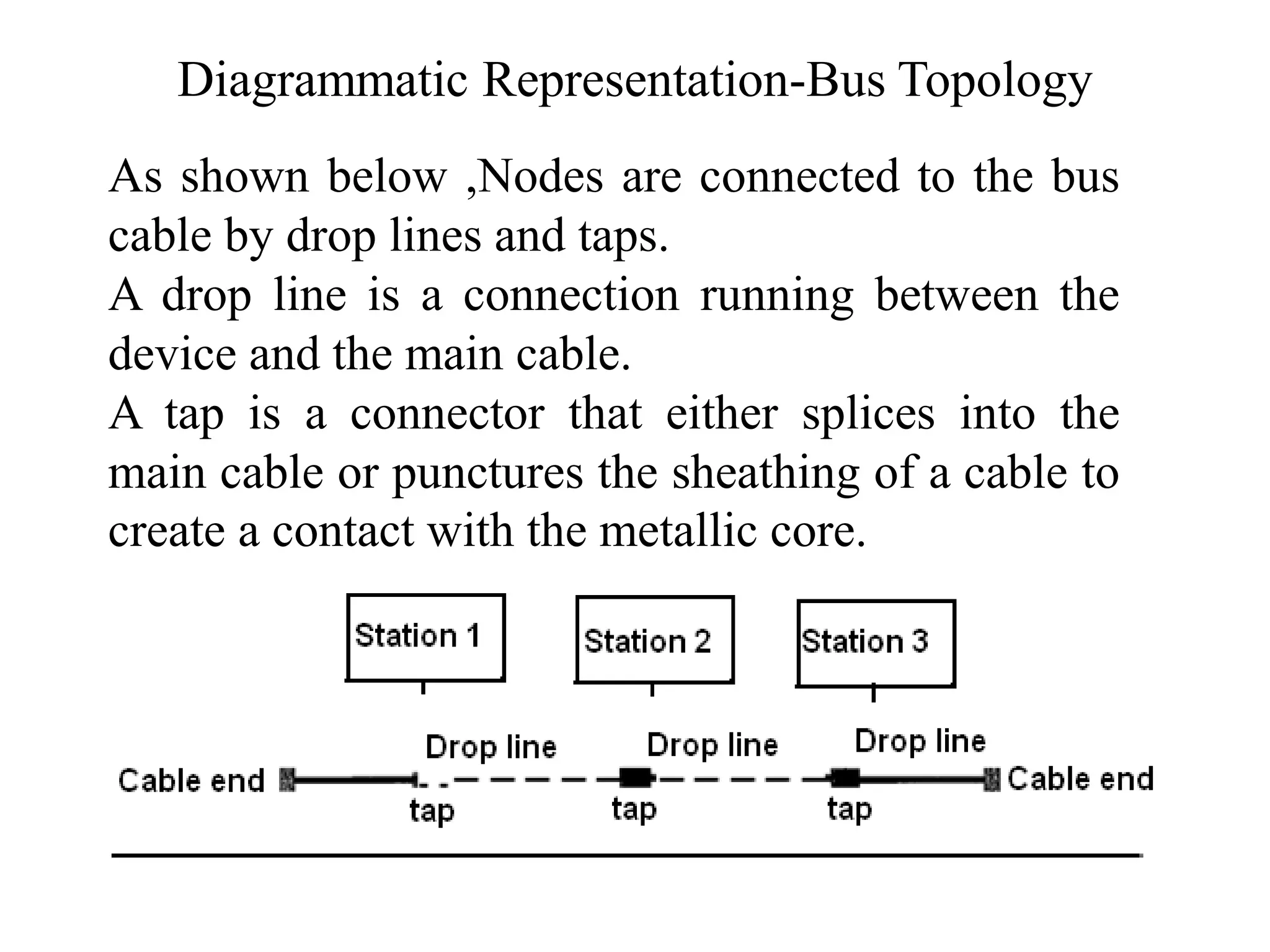

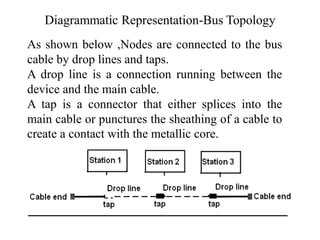

Diagrammatic Representation-Bus Topology
As shown below ,Nodes are connected to the bus
cable by drop lines and taps.
A drop line is a connection running between the
device and the main cable.
A tap is a connector that either splices into the
main cable or punctures the sheathing of a cable to
create a contact with the metallic core.

Contd..

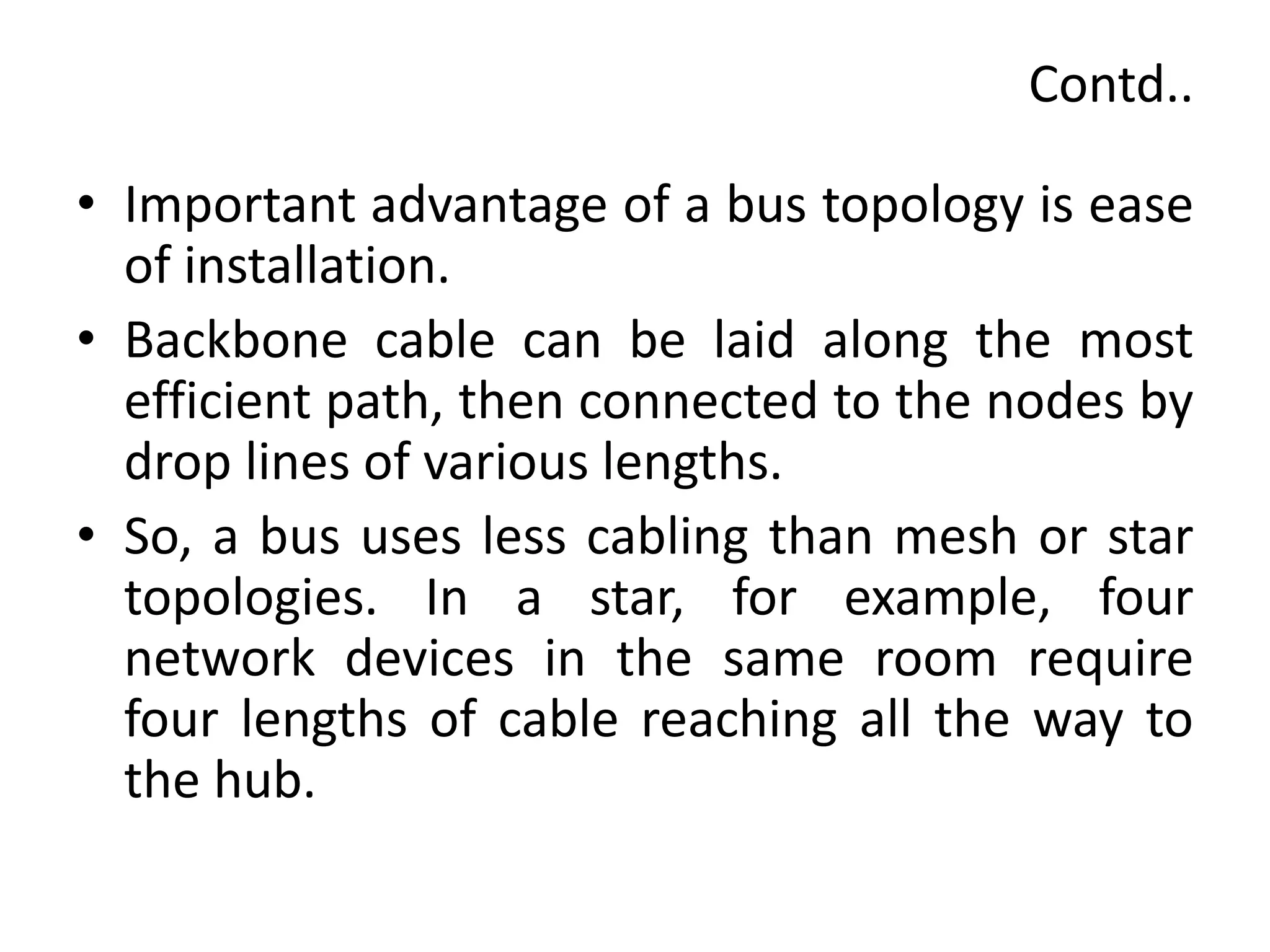

• Important advantage of a bus topology is ease
of installation.
• Backbone cable can be laid along the most
efficient path, then connected to the nodes by
drop lines of various lengths.
• So, a bus uses less cabling than mesh or star
topologies. In a star, for example, four
network devices in the same room require
four lengths of cable reaching all the way to
the hub.

Contd…

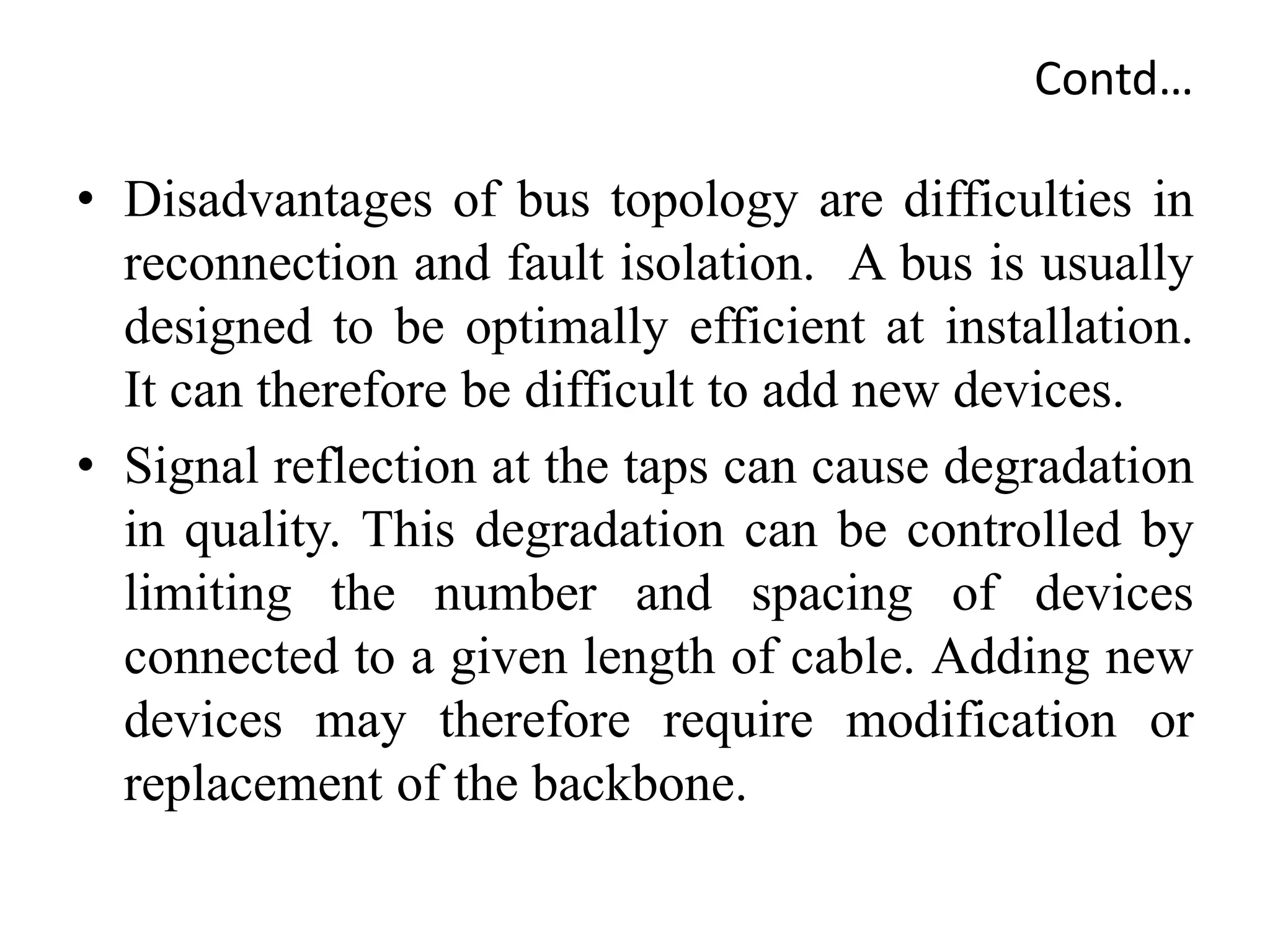

• Disadvantages of bus topology are difficulties in
reconnection and fault isolation. A bus is usually
designed to be optimally efficient at installation.
It can therefore be difficult to add new devices.
• Signal reflection at the taps can cause degradation
in quality. This degradation can be controlled by
limiting the number and spacing of devices
connected to a given length of cable. Adding new
devices may therefore require modification or
replacement of the backbone.

Contd..

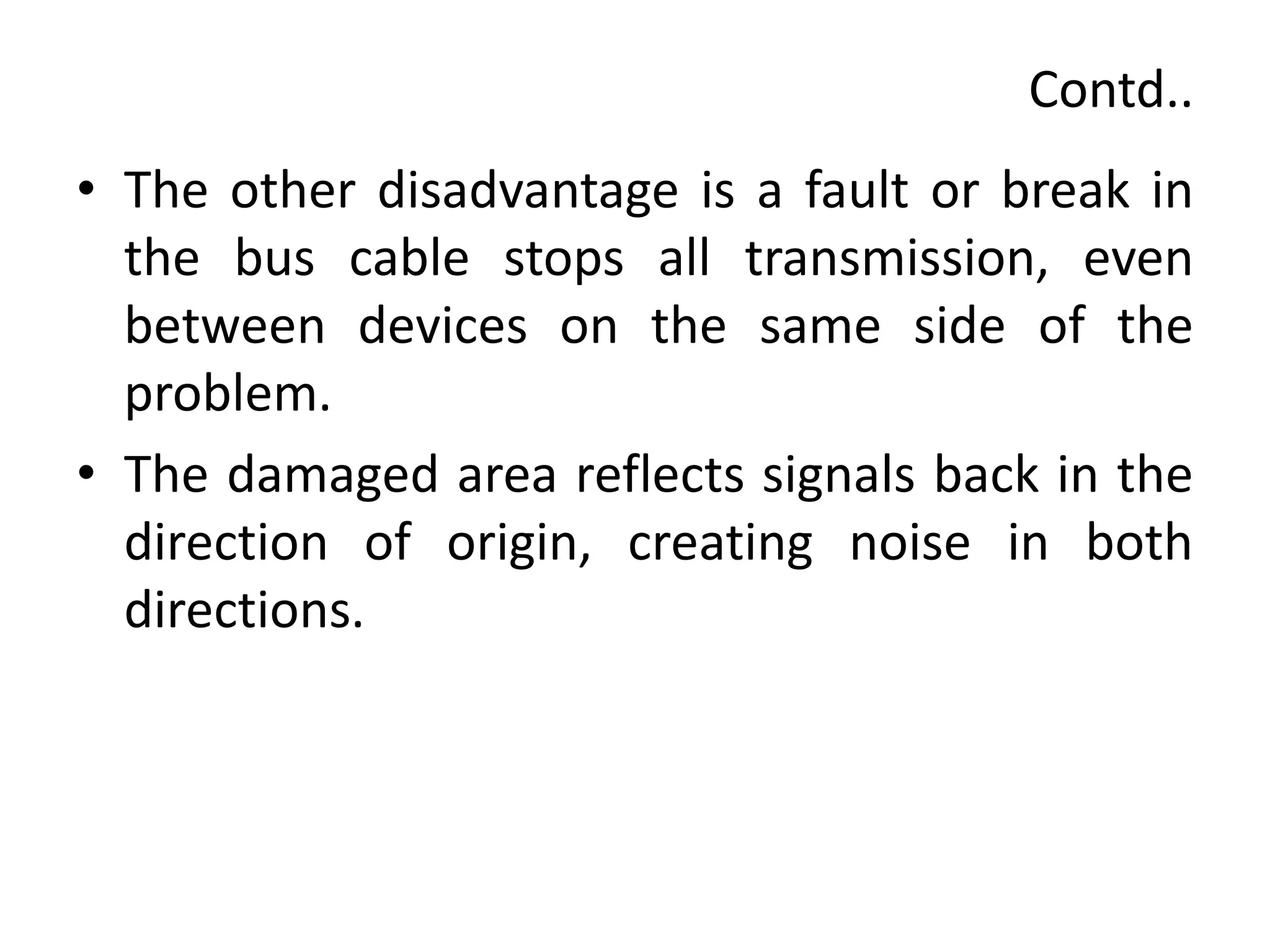

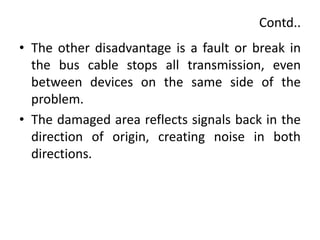

• The other disadvantage is a fault or break in
the bus cable stops all transmission, even
between devices on the same side of the
problem.
• The damaged area reflects signals back in the
direction of origin, creating noise in both
directions.

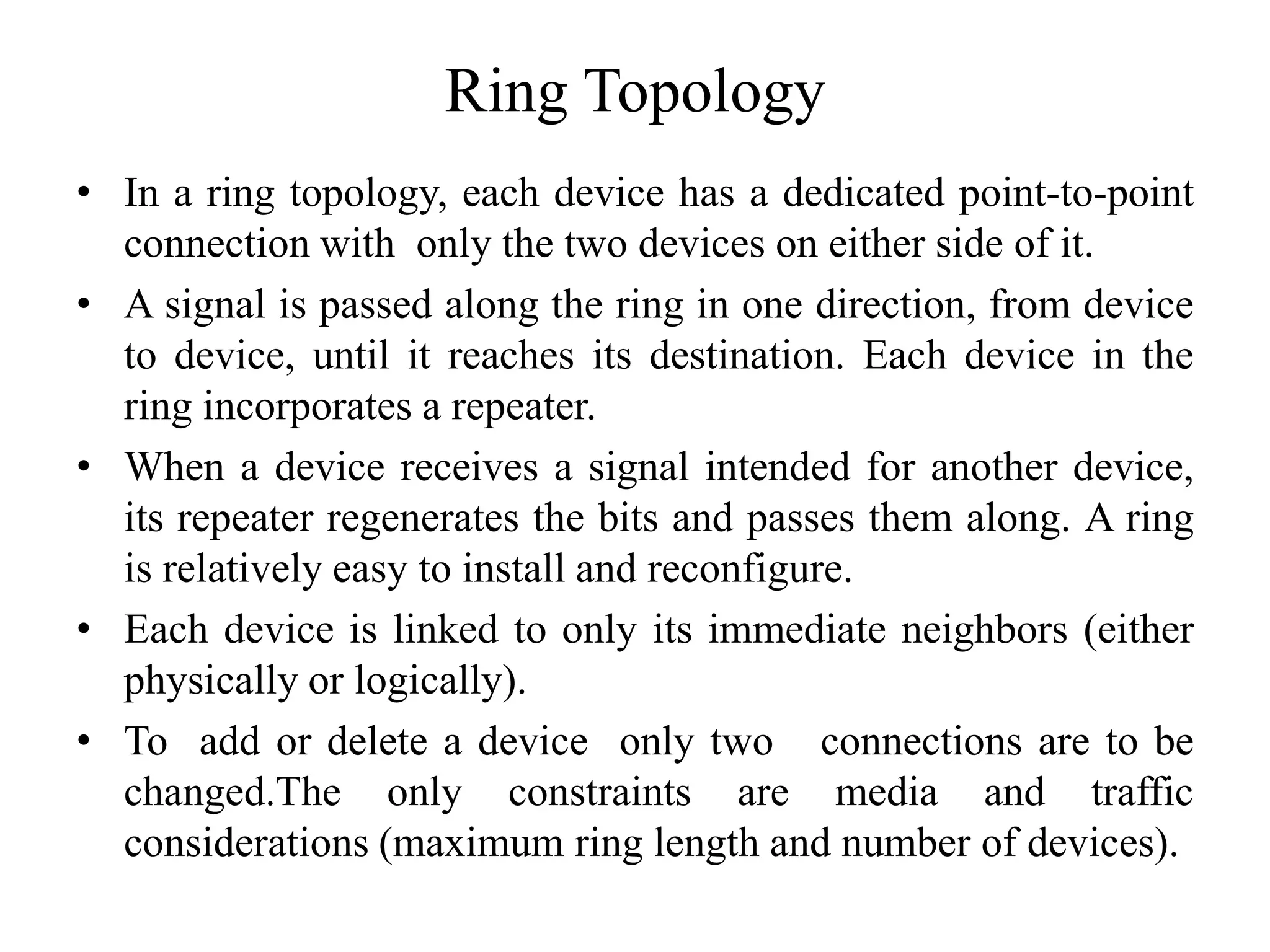

Ring Topology
• In a ring topology, each device has a dedicated point-to-point
connection with only the two devices on either side of it.
• A signal is passed along the ring in one direction, from device
to device, until it reaches its destination. Each device in the
ring incorporates a repeater.
• When a device receives a signal intended for another device,
its repeater regenerates the bits and passes them along. A ring
is relatively easy to install and reconfigure.
• Each device is linked to only its immediate neighbors (either
physically or logically).
• To add or delete a device only two connections are to be
changed.The only constraints are media and traffic
considerations (maximum ring length and number of devices).

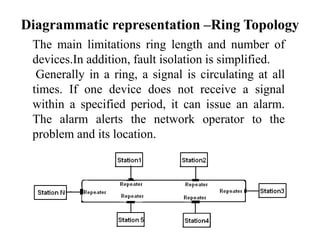

Diagrammatic representation –Ring Topology
The main limitations ring length and number of
devices.In addition, fault isolation is simplified.
Generally in a ring, a signal is circulating at all
times. If one device does not receive a signal
within a specified period, it can issue an alarm.
The alarm alerts the network operator to the
problem and its location.

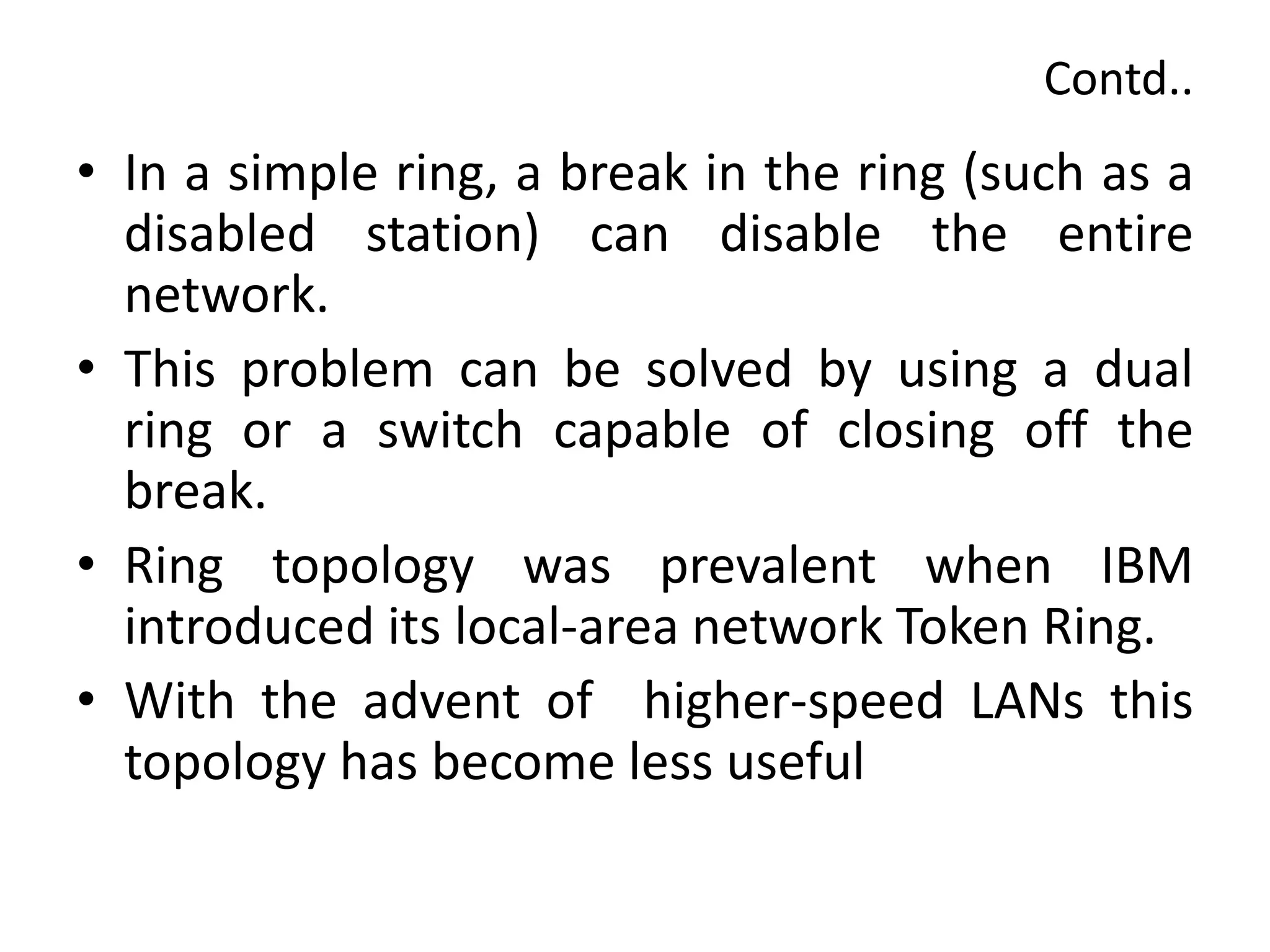

Contd..
• In a simple ring, a break in the ring (such as a
disabled station) can disable the entire
network.
• This problem can be solved by using a dual
ring or a switch capable of closing off the
break.
• Ring topology was prevalent when IBM
introduced its local-area network Token Ring.
• With the advent of higher-speed LANs this
topology has become less useful

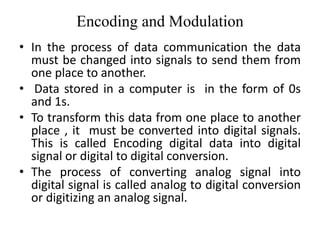

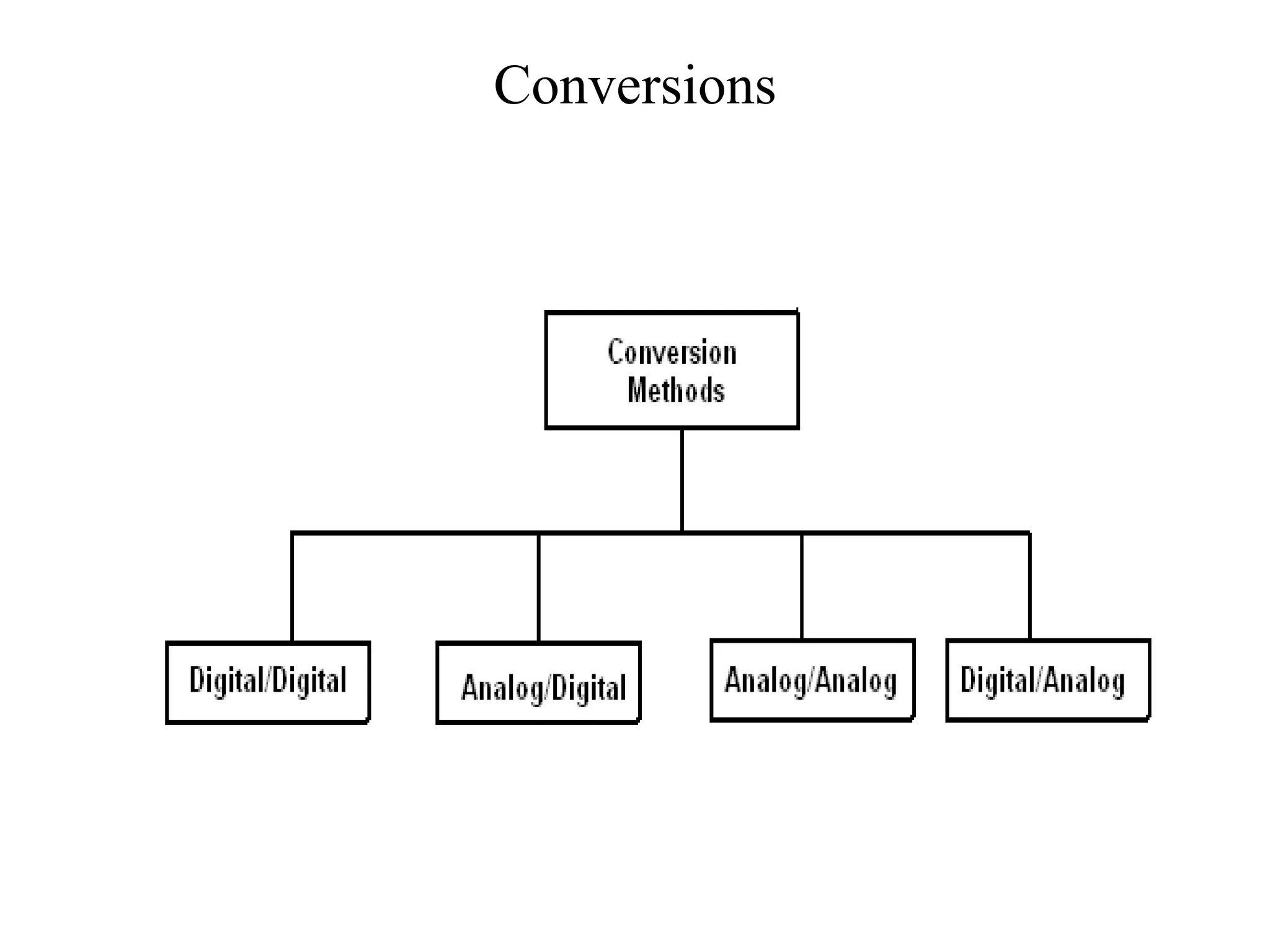

Encoding and Modulation
• In the process of data communication the data
must be changed into signals to send them from
one place to another.
• Data stored in a computer is in the form of 0s
and 1s.
• To transform this data from one place to another
place , it must be converted into digital signals.
This is called Encoding digital data into digital
signal or digital to digital conversion.
• The process of converting analog signal into
digital signal is called analog to digital conversion
or digitizing an analog signal.

Contd..

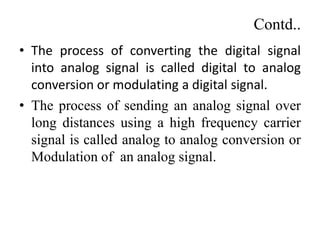

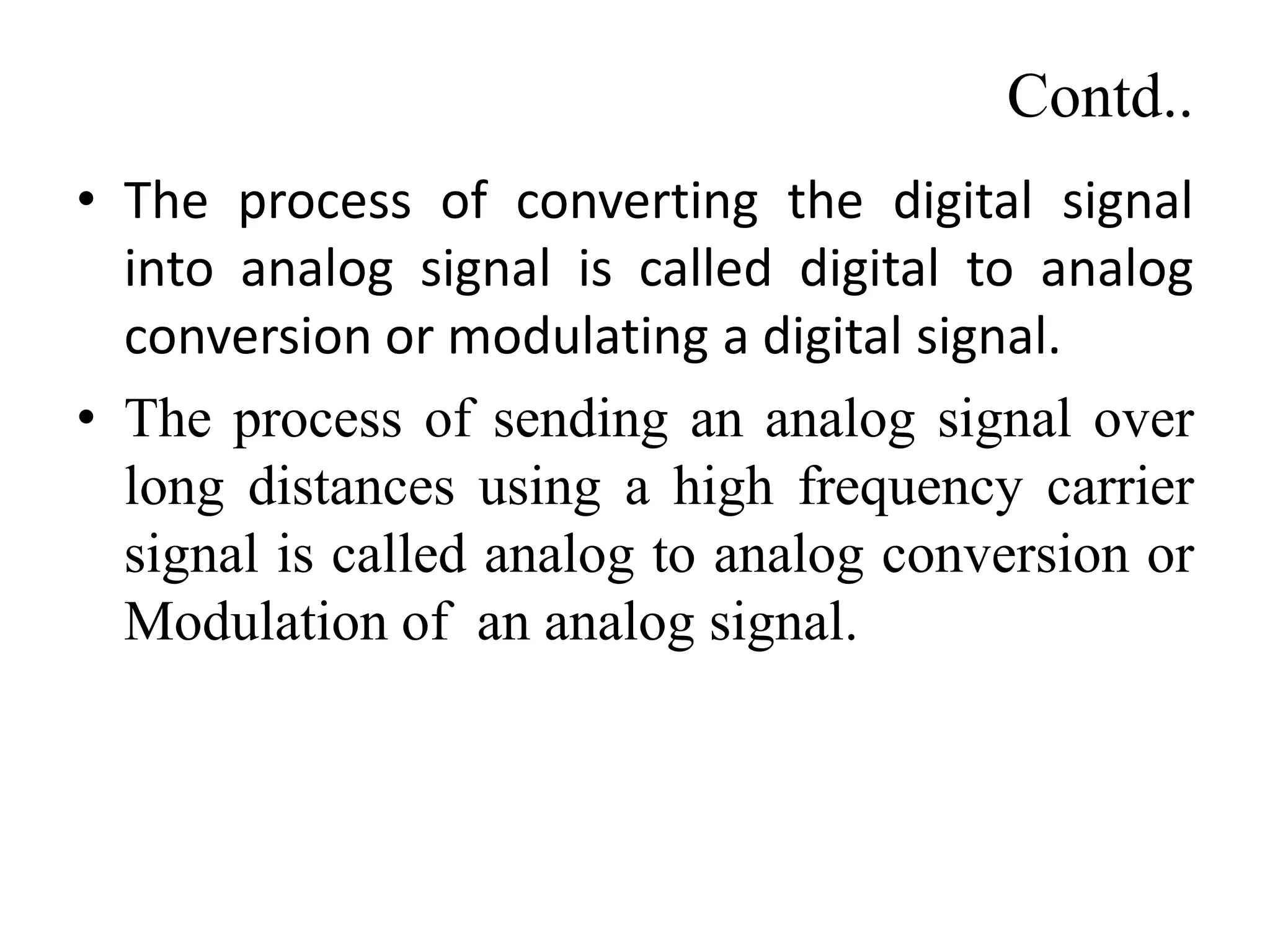

• The process of converting the digital signal
into analog signal is called digital to analog
conversion or modulating a digital signal.
• The process of sending an analog signal over
long distances using a high frequency carrier
signal is called analog to analog conversion or
Modulation of an analog signal.

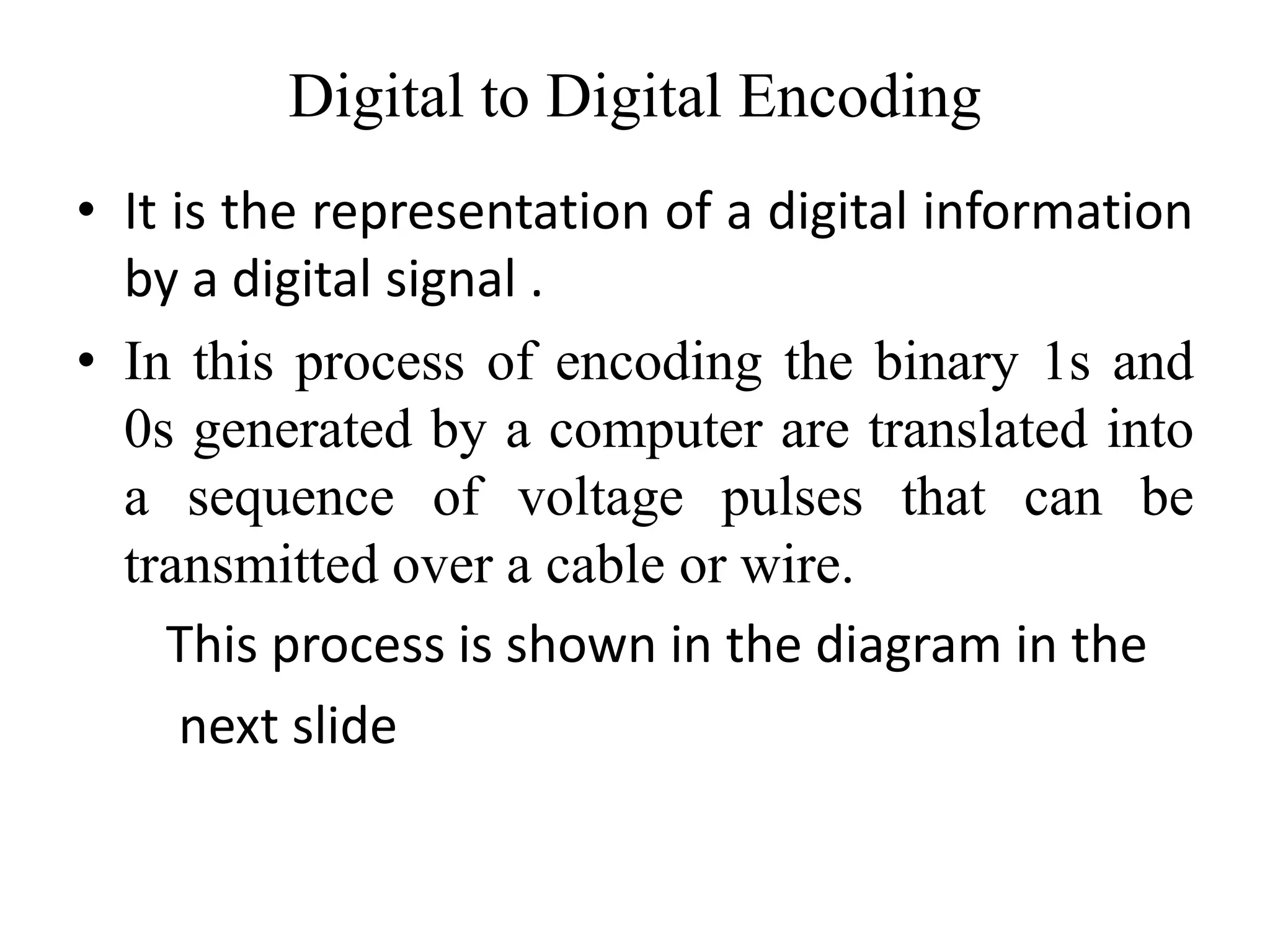

Digital to Digital Encoding
• It is the representation of a digital information
by a digital signal .
• In this process of encoding the binary 1s and
0s generated by a computer are translated into
a sequence of voltage pulses that can be
transmitted over a cable or wire.
This process is shown in the diagram in the
next slide

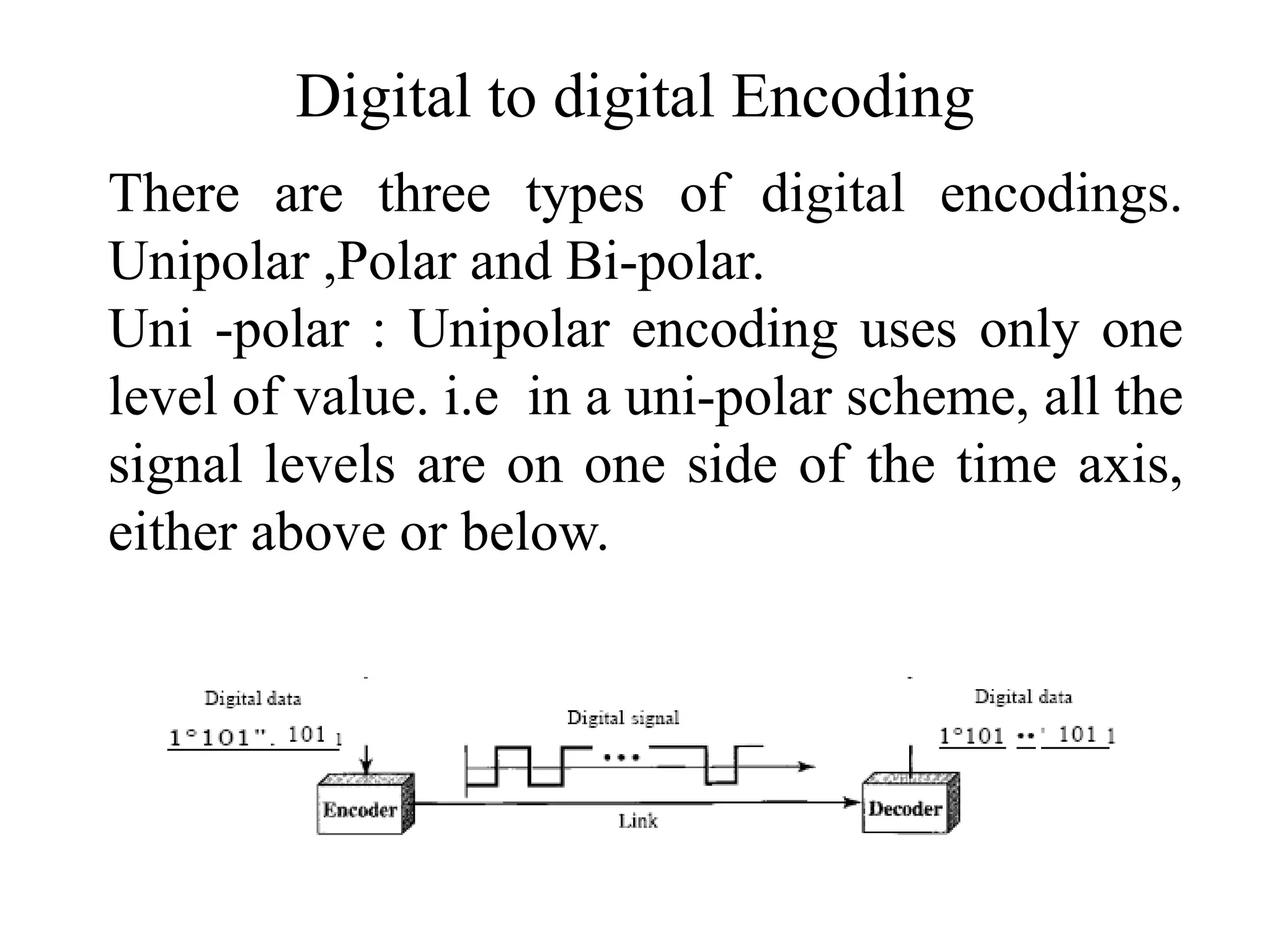

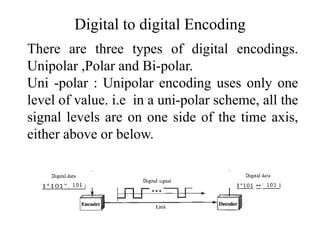

Digital to digital Encoding
There are three types of digital encodings.
Unipolar ,Polar and Bi-polar.
Uni -polar : Unipolar encoding uses only one
level of value. i.e in a uni-polar scheme, all the
signal levels are on one side of the time axis,
either above or below.

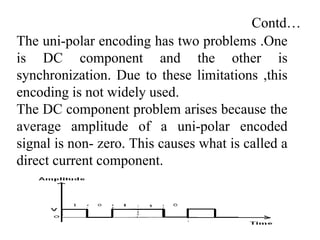

Contd…
The uni-polar encoding has two problems .One
is DC component and the other is
synchronization. Due to these limitations ,this
encoding is not widely used.
The DC component problem arises because the
average amplitude of a uni-polar encoded
signal is non- zero. This causes what is called a
direct current component.

Contd….

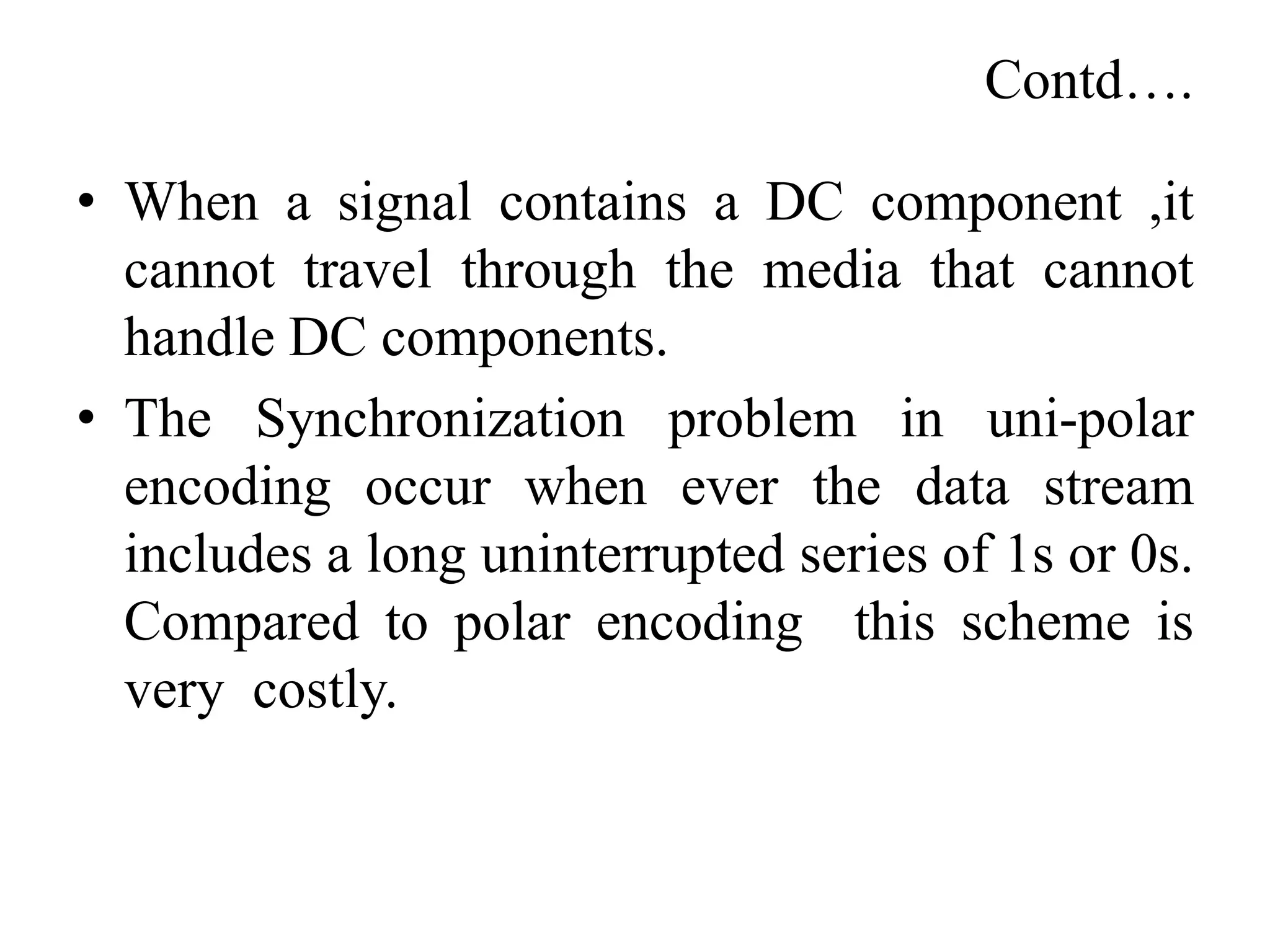

• When a signal contains a DC component ,it
cannot travel through the media that cannot
handle DC components.
• The Synchronization problem in uni-polar
encoding occur when ever the data stream
includes a long uninterrupted series of 1s or 0s.
Compared to polar encoding this scheme is
very costly.

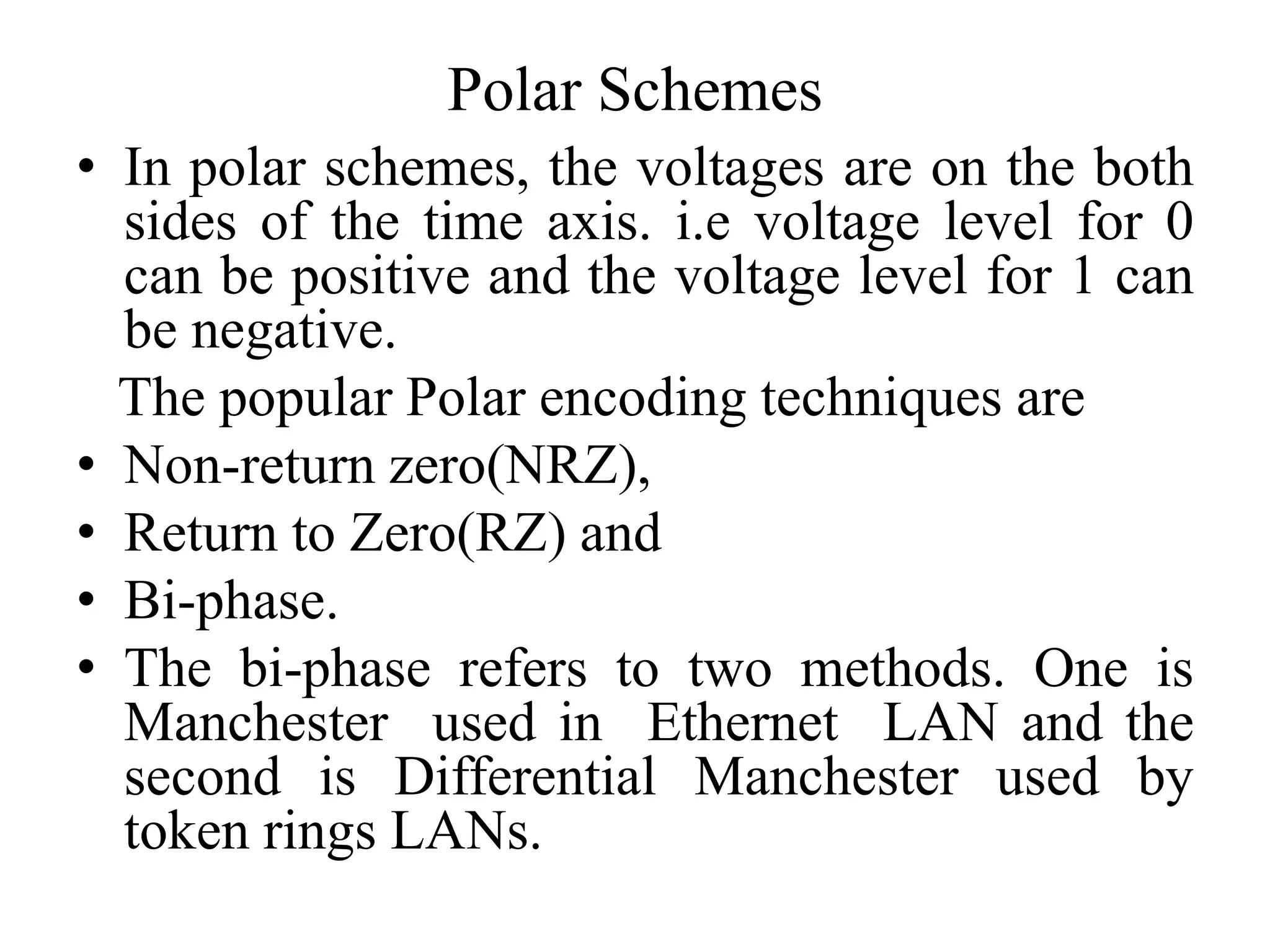

Polar Schemes
• In polar schemes, the voltages are on the both
sides of the time axis. i.e voltage level for 0
can be positive and the voltage level for 1 can
be negative.

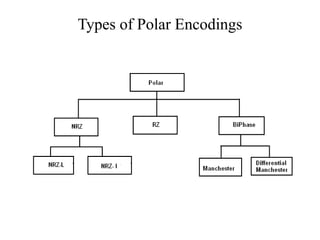

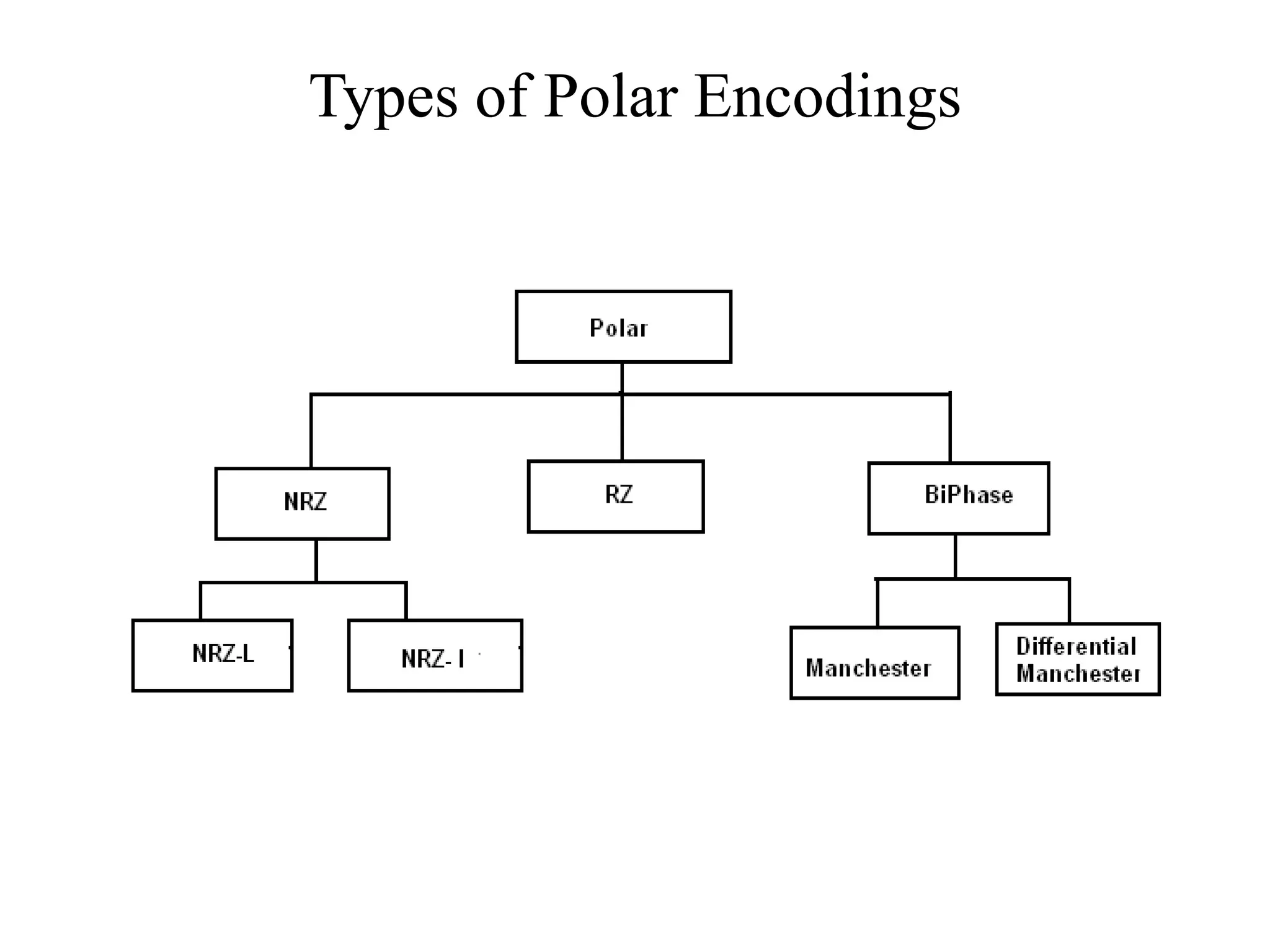

The popular Polar encoding techniques are
• Non-return zero(NRZ),
• Return to Zero(RZ) and
• Bi-phase.
• The bi-phase refers to two methods. One is
Manchester used in Ethernet LAN and the
second is Differential Manchester used by
token rings LANs.

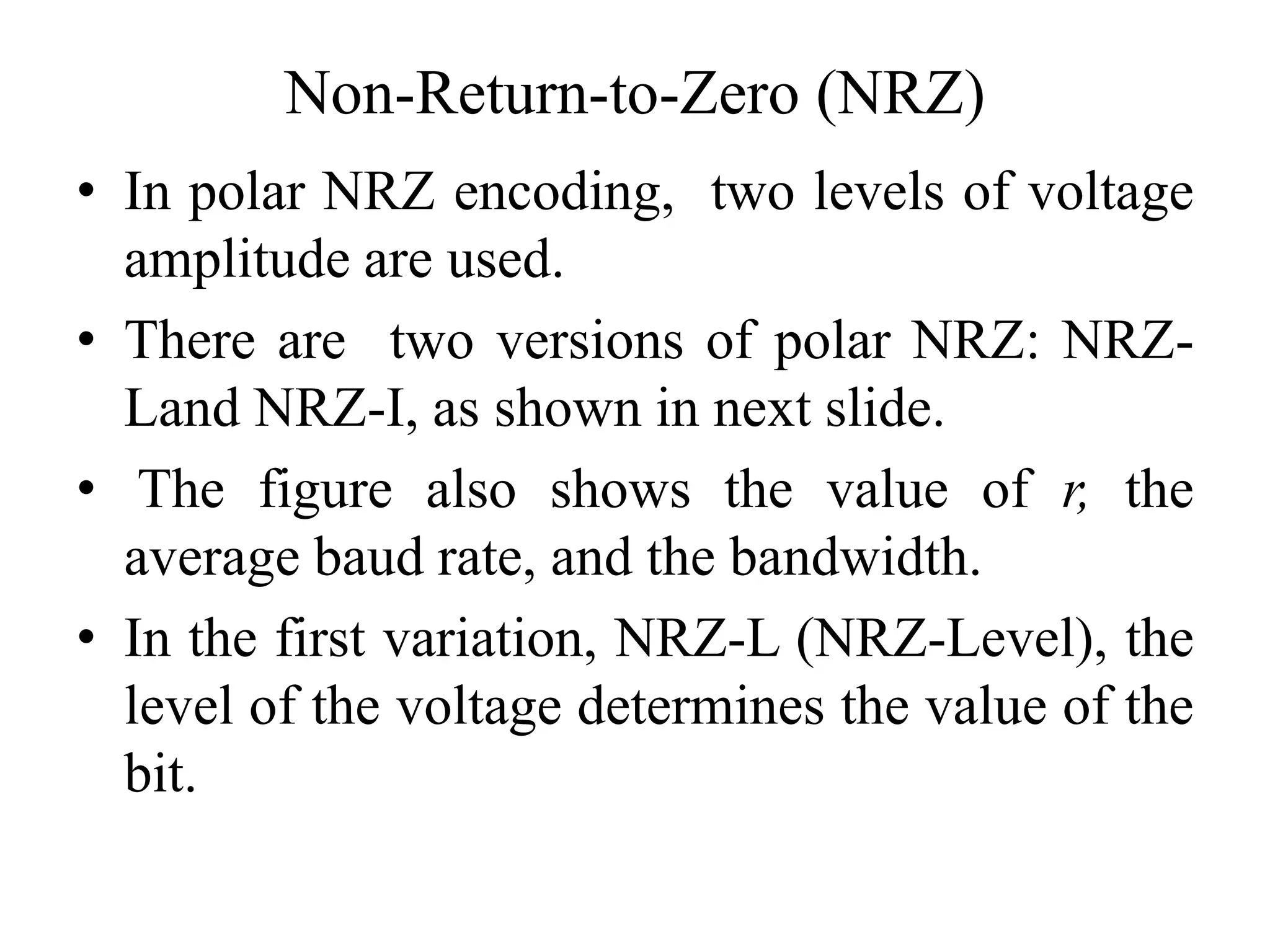

Non-Return-to-Zero (NRZ)
• In polar NRZ encoding, two levels of voltage
amplitude are used.
• There are two versions of polar NRZ: NRZ-
Land NRZ-I, as shown in next slide.
• The figure also shows the value of r, the
average baud rate, and the bandwidth.
• In the first variation, NRZ-L (NRZ-Level), the
level of the voltage determines the value of the
bit.

Contd..

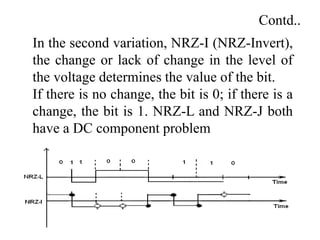

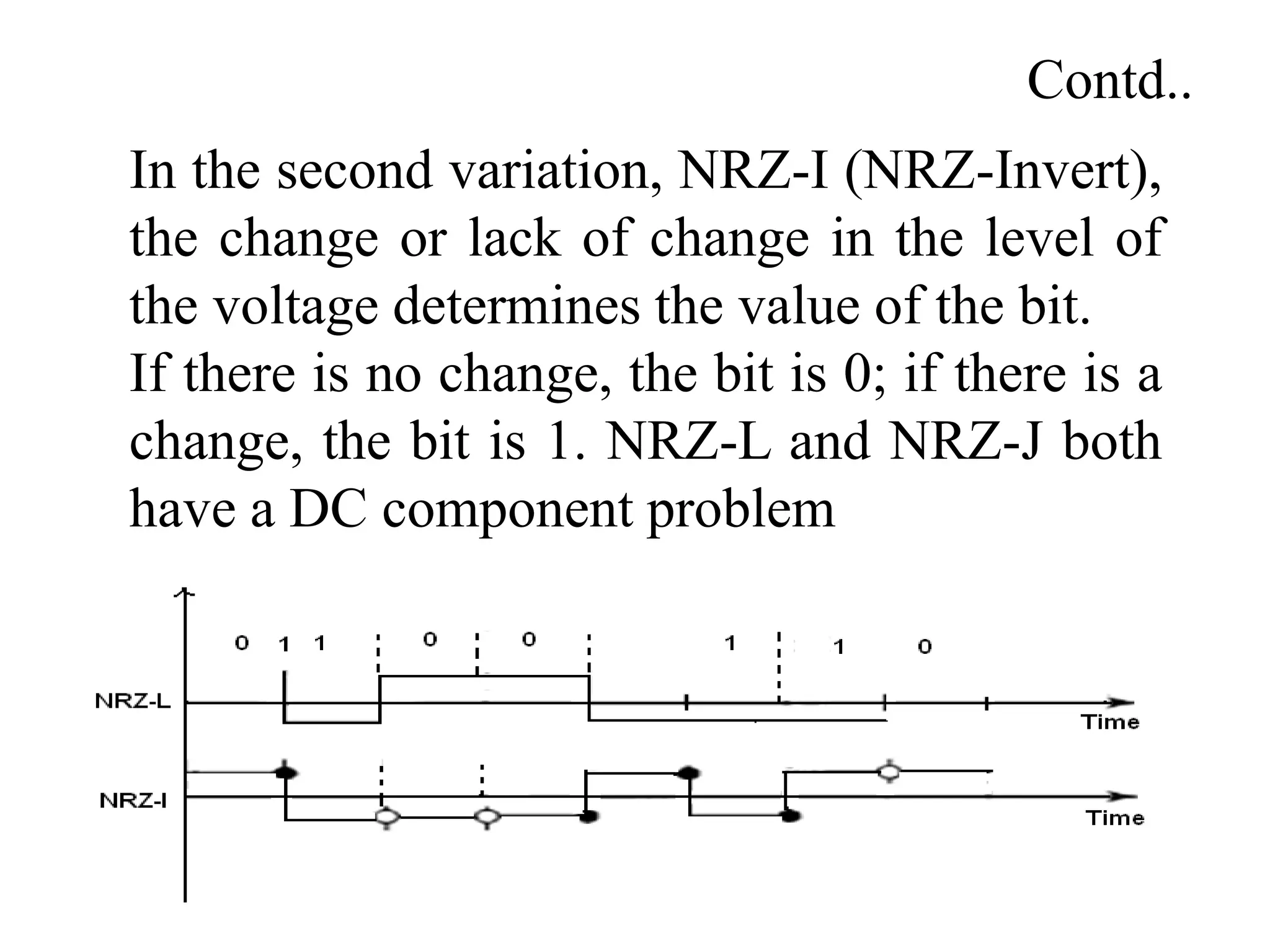

In the second variation, NRZ-I (NRZ-Invert),
the change or lack of change in the level of
the voltage determines the value of the bit.
If there is no change, the bit is 0; if there is a
change, the bit is 1. NRZ-L and NRZ-J both
have a DC component problem

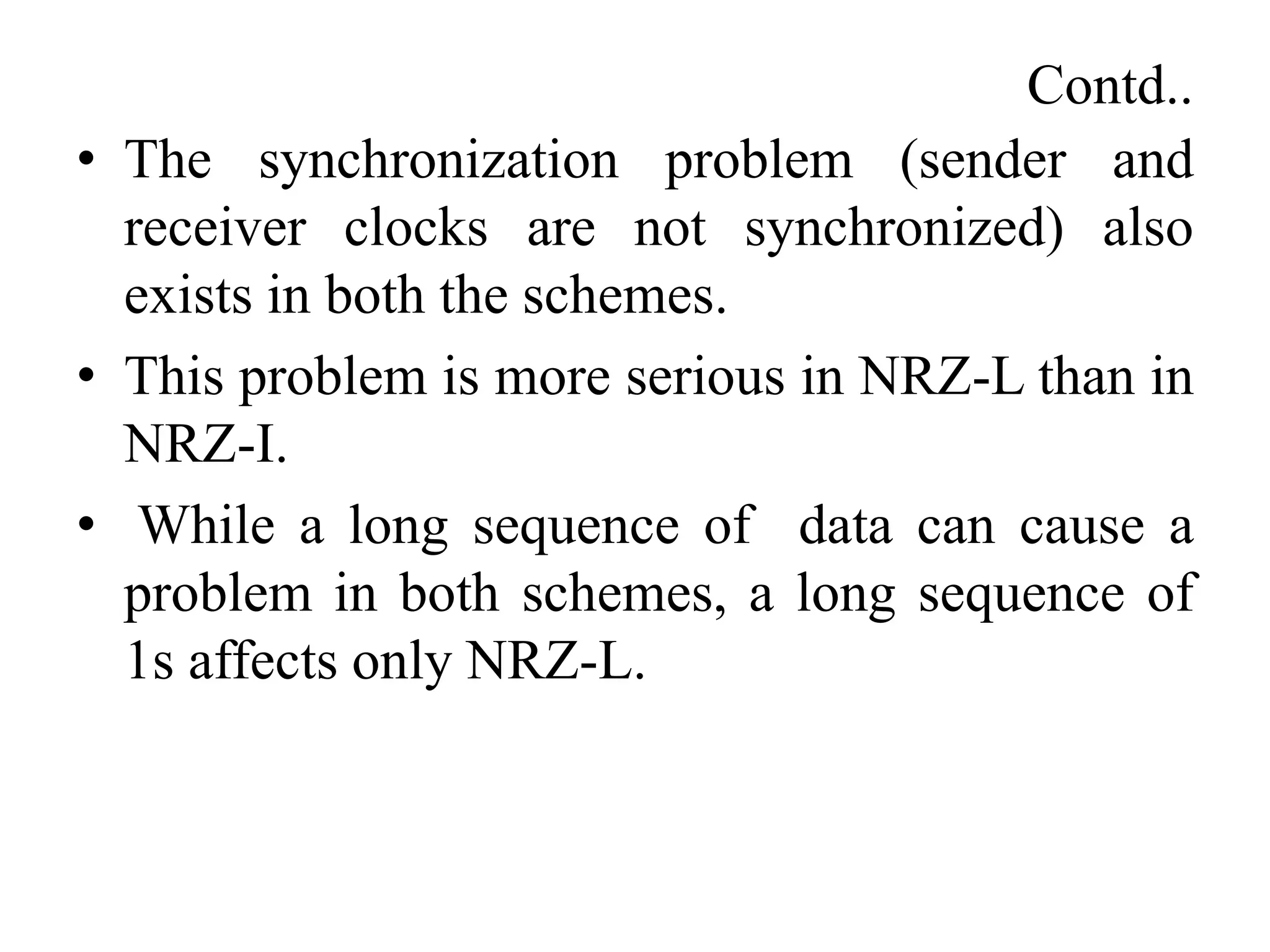

Contd..

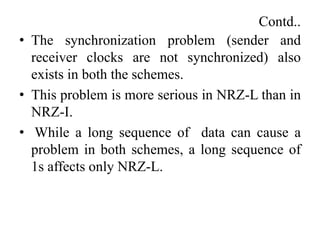

• The synchronization problem (sender and
receiver clocks are not synchronized) also
exists in both the schemes.
• This problem is more serious in NRZ-L than in
NRZ-I.
• While a long sequence of data can cause a
problem in both schemes, a long sequence of
1s affects only NRZ-L.

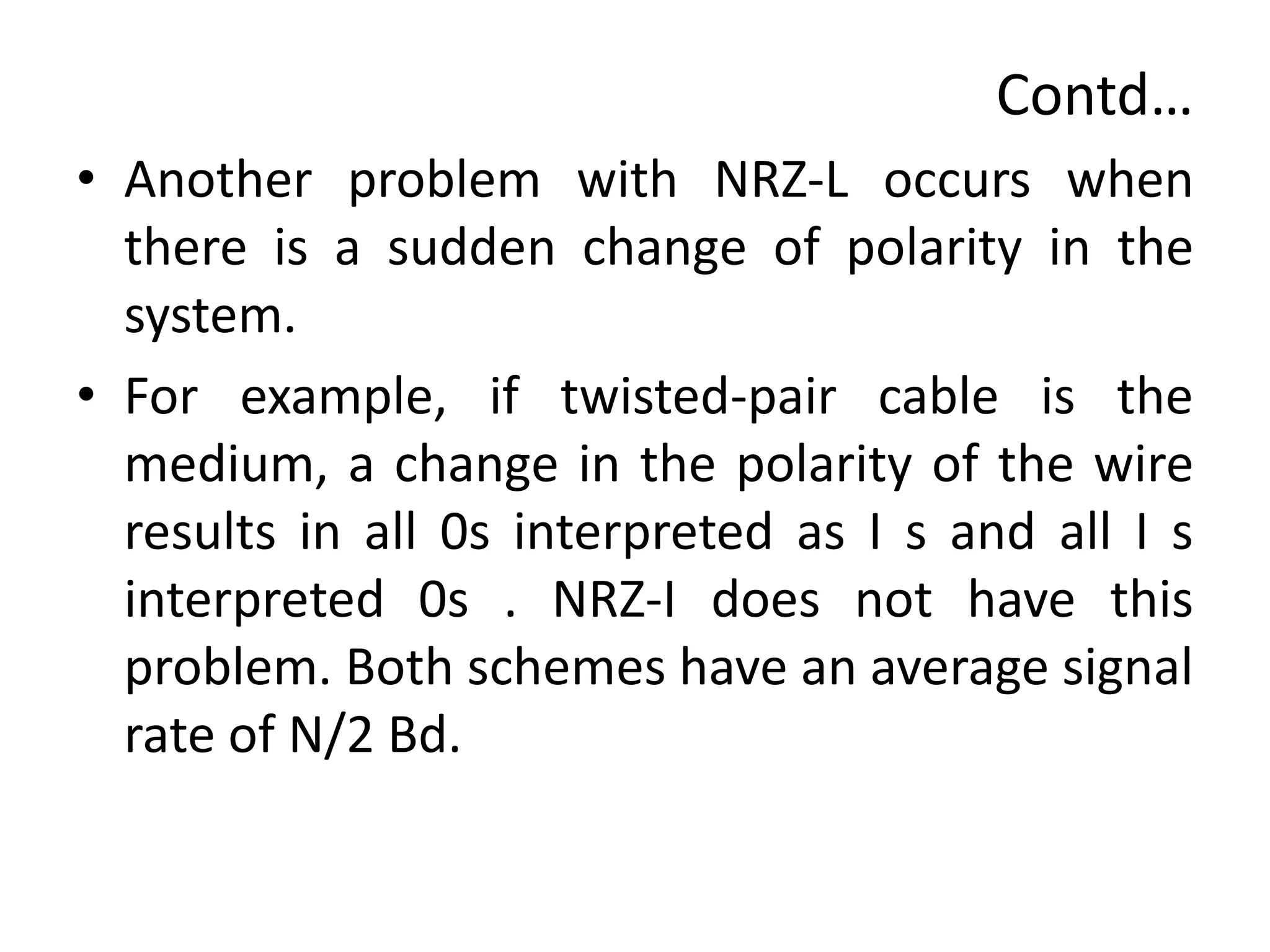

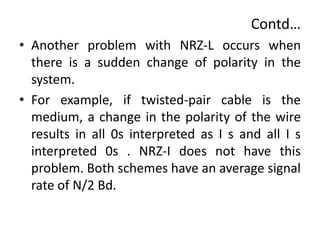

Contd…
• Another problem with NRZ-L occurs when
there is a sudden change of polarity in the
system.
• For example, if twisted-pair cable is the
medium, a change in the polarity of the wire
results in all 0s interpreted as I s and all I s
interpreted 0s . NRZ-I does not have this
problem. Both schemes have an average signal
rate of N/2 Bd.

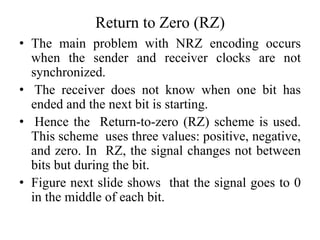

Return to Zero (RZ)
• The main problem with NRZ encoding occurs
when the sender and receiver clocks are not
synchronized.
• The receiver does not know when one bit has
ended and the next bit is starting.
• Hence the Return-to-zero (RZ) scheme is used.
This scheme uses three values: positive, negative,
and zero. In RZ, the signal changes not between
bits but during the bit.
• Figure next slide shows that the signal goes to 0
in the middle of each bit.

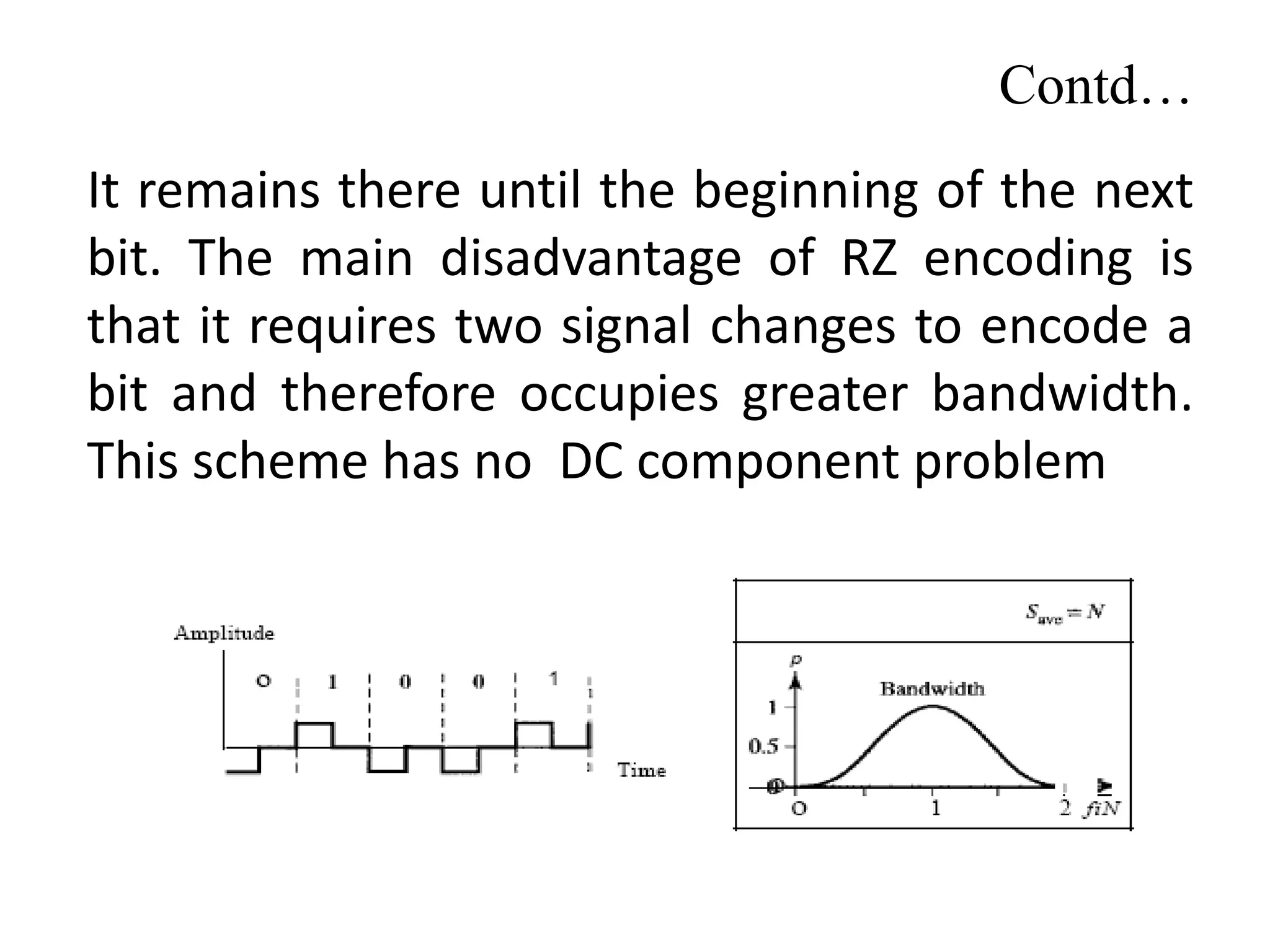

Contd…
It remains there until the beginning of the next
bit. The main disadvantage of RZ encoding is
that it requires two signal changes to encode a
bit and therefore occupies greater bandwidth.
This scheme has no DC component problem

Contd..

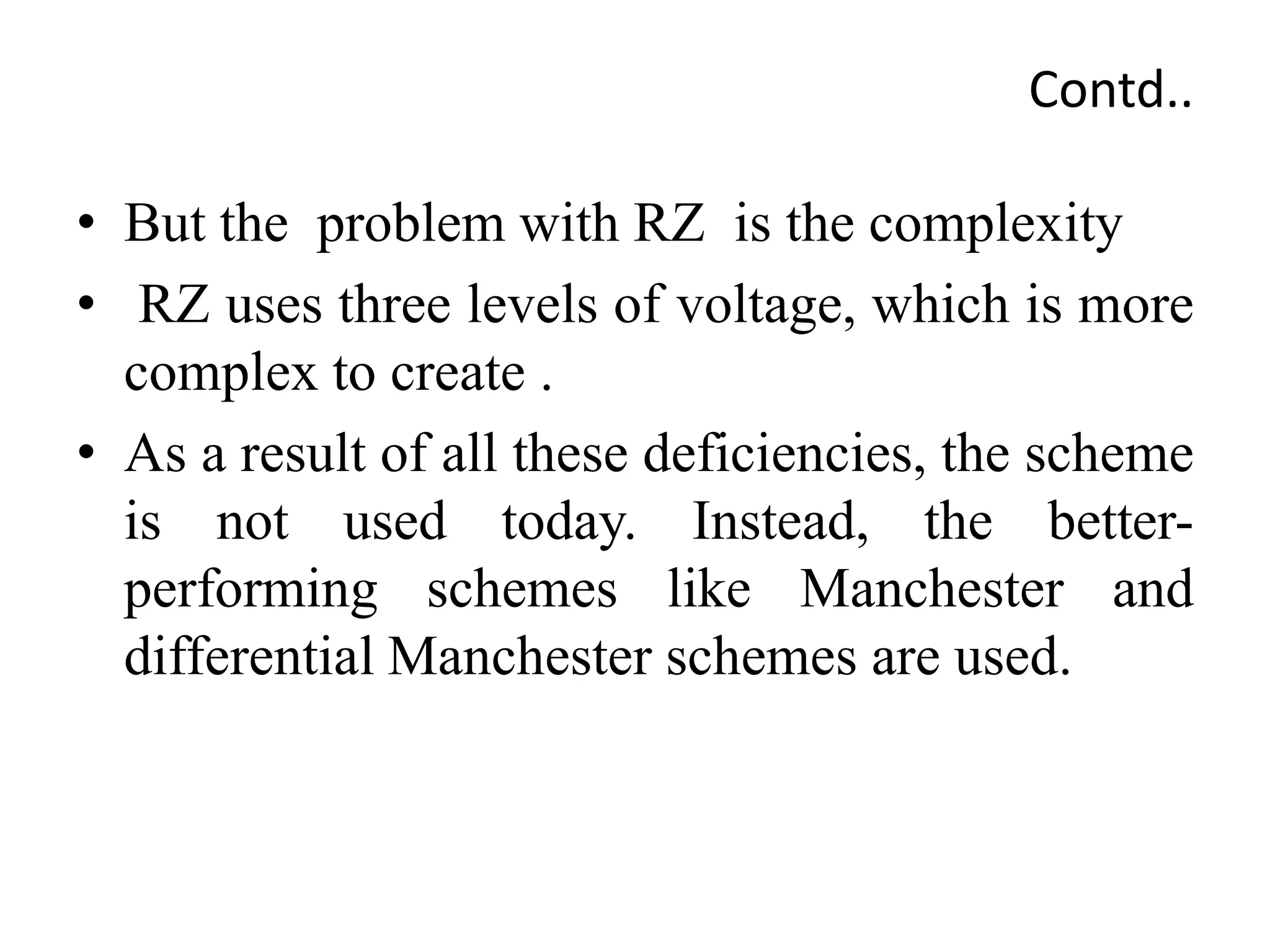

• But the problem with RZ is the complexity
• RZ uses three levels of voltage, which is more
complex to create .
• As a result of all these deficiencies, the scheme
is not used today. Instead, the better-
performing schemes like Manchester and
differential Manchester schemes are used.

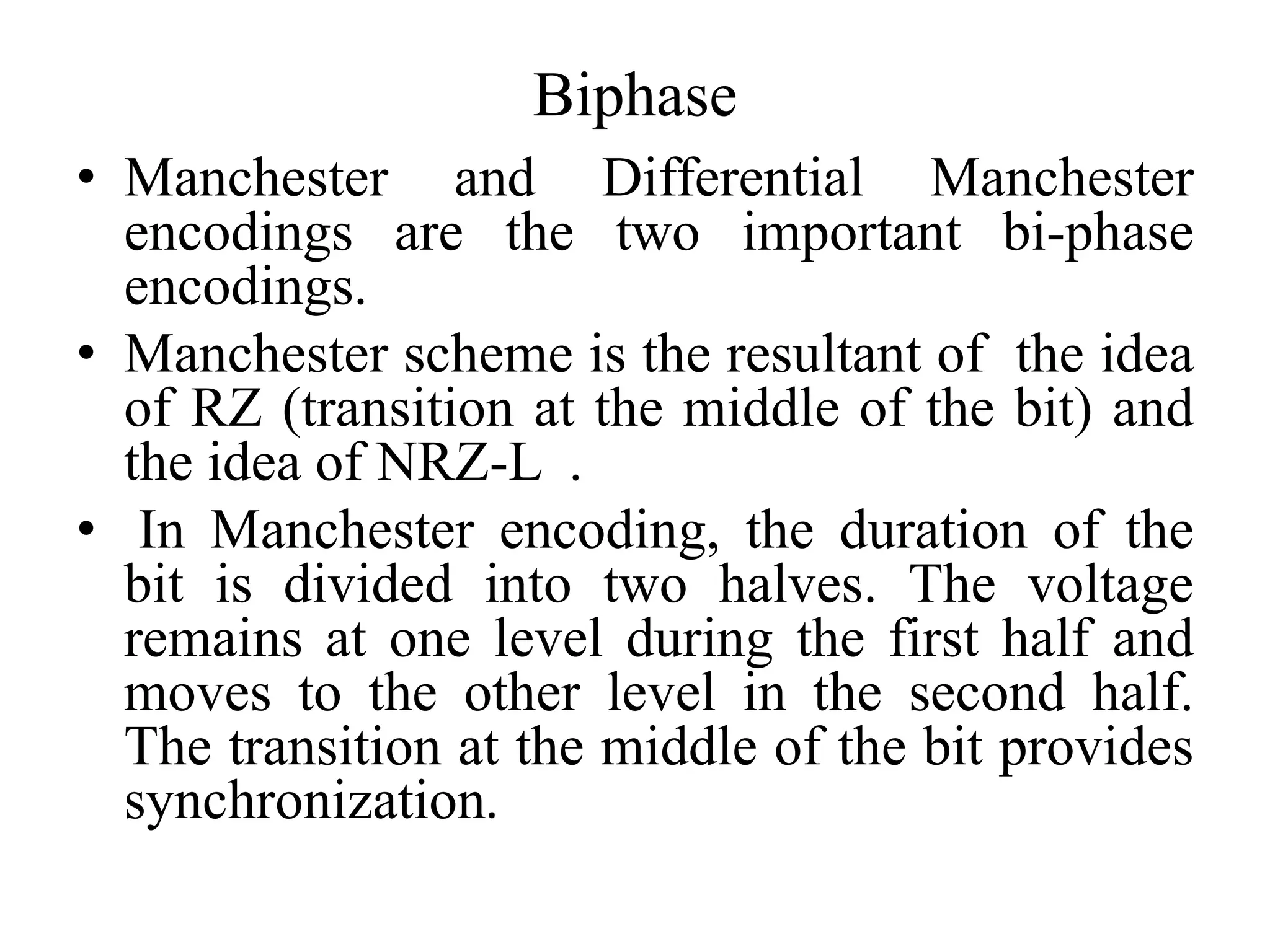

Biphase
• Manchester and Differential Manchester
encodings are the two important bi-phase
encodings.
• Manchester scheme is the resultant of the idea
of RZ (transition at the middle of the bit) and
the idea of NRZ-L .
• In Manchester encoding, the duration of the
bit is divided into two halves. The voltage
remains at one level during the first half and
moves to the other level in the second half.
The transition at the middle of the bit provides
synchronization.

Contd..

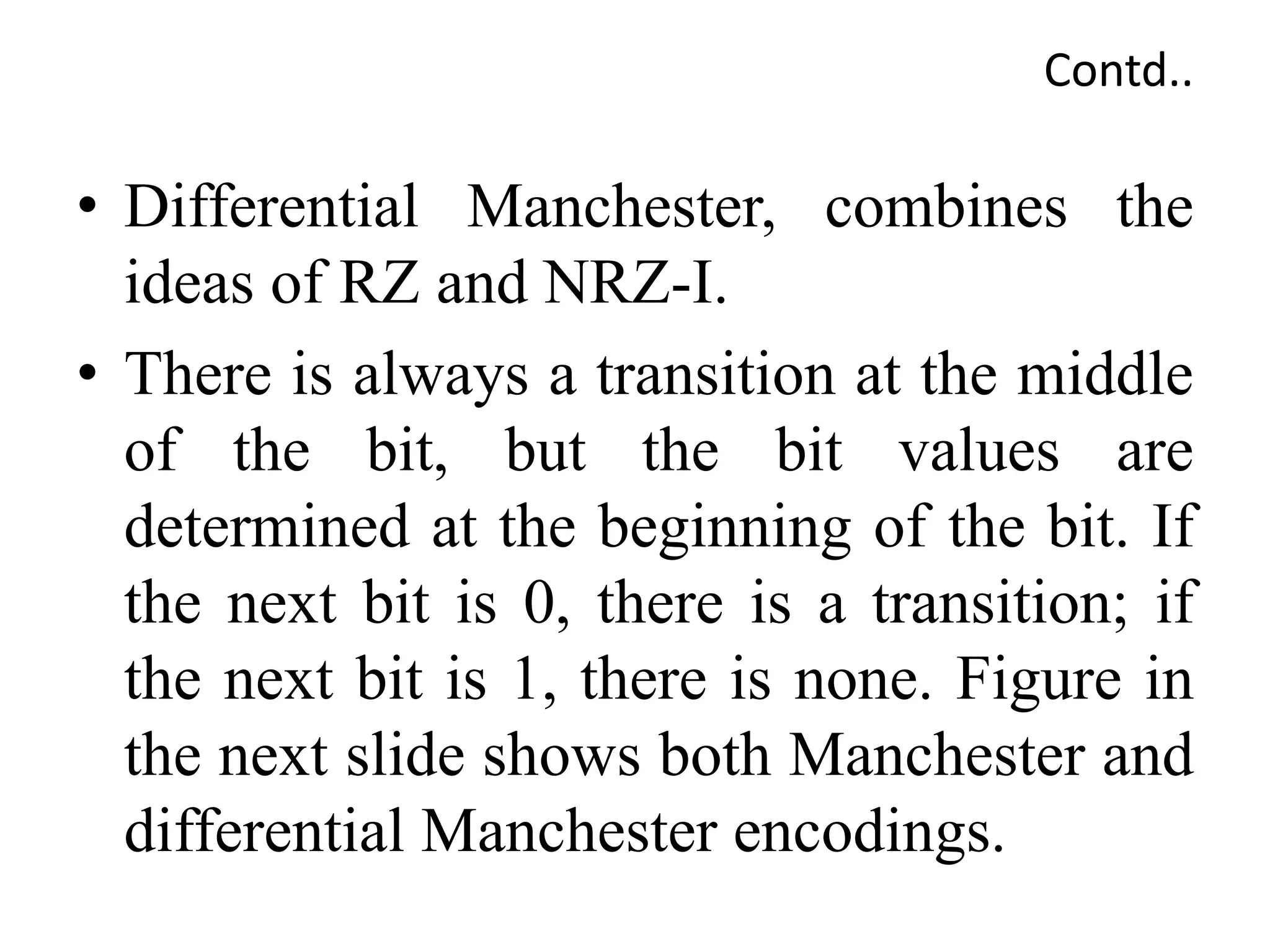

• Differential Manchester, combines the
ideas of RZ and NRZ-I.
• There is always a transition at the middle
of the bit, but the bit values are
determined at the beginning of the bit. If
the next bit is 0, there is a transition; if
the next bit is 1, there is none. Figure in
the next slide shows both Manchester and
differential Manchester encodings.

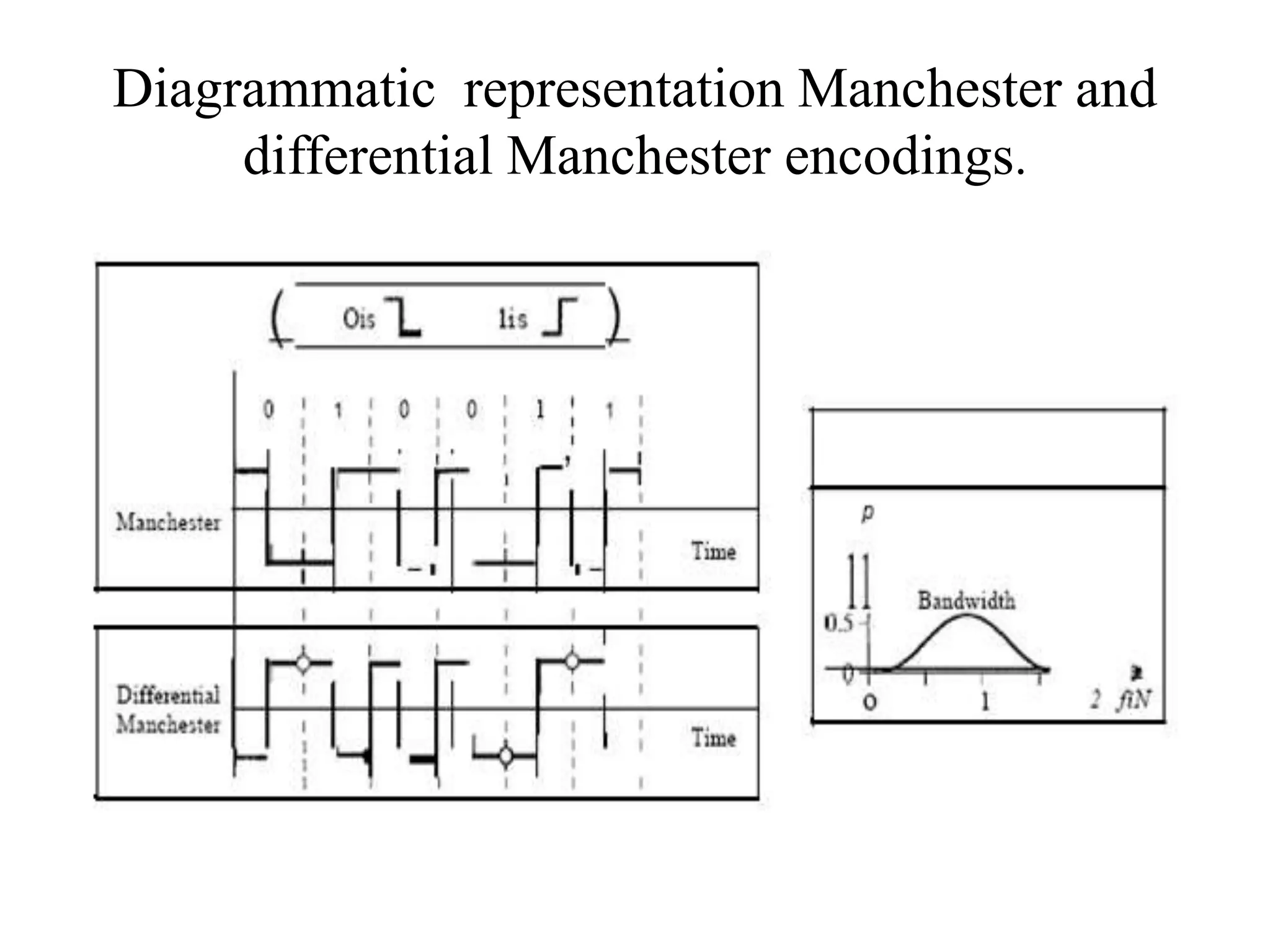

Diagrammatic representation Manchester and
differential Manchester encodings.

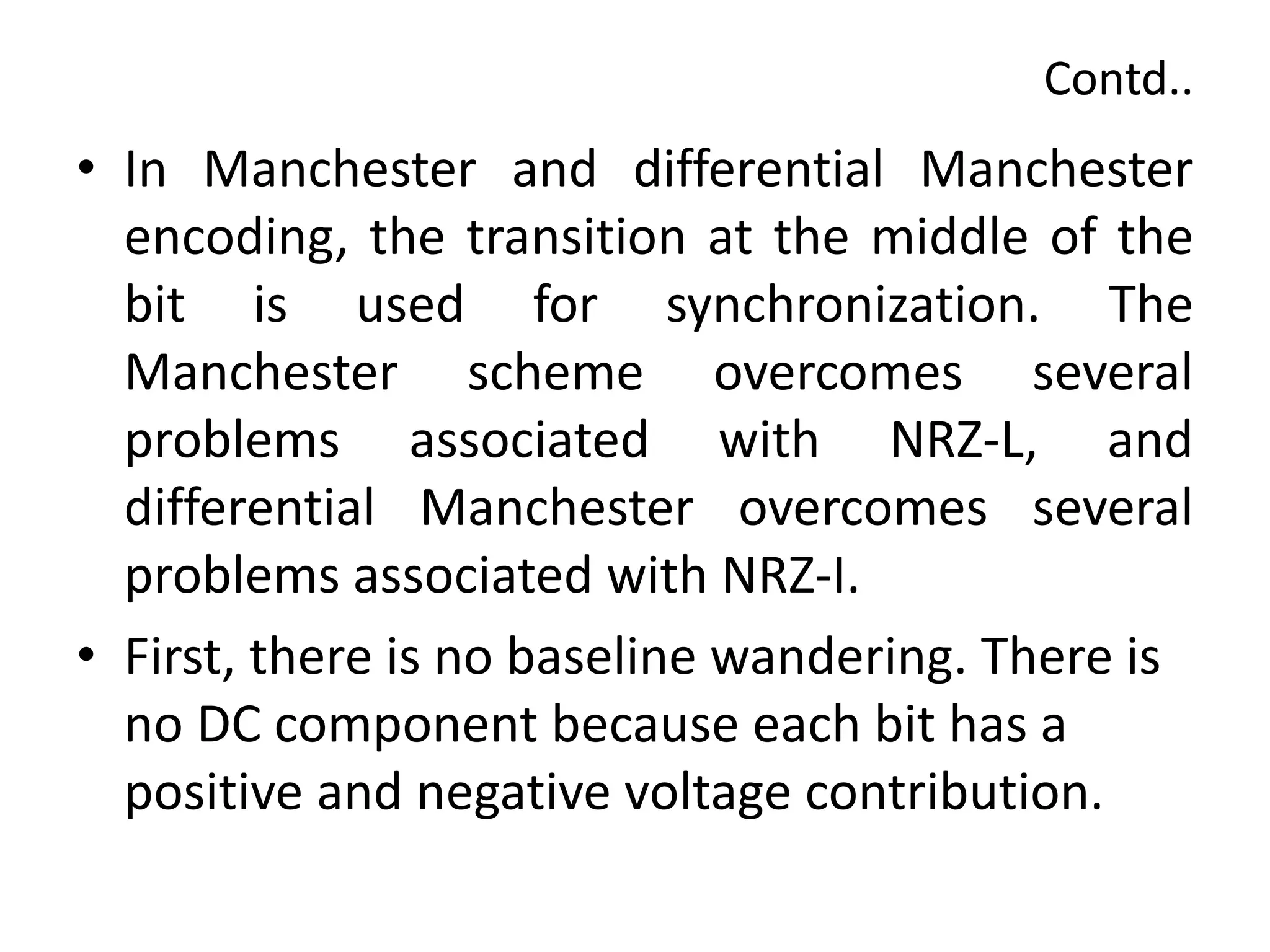

Contd..
• In Manchester and differential Manchester
encoding, the transition at the middle of the
bit is used for synchronization. The
Manchester scheme overcomes several
problems associated with NRZ-L, and
differential Manchester overcomes several
problems associated with NRZ-I.
• First, there is no baseline wandering. There is
no DC component because each bit has a
positive and negative voltage contribution.

Contd…

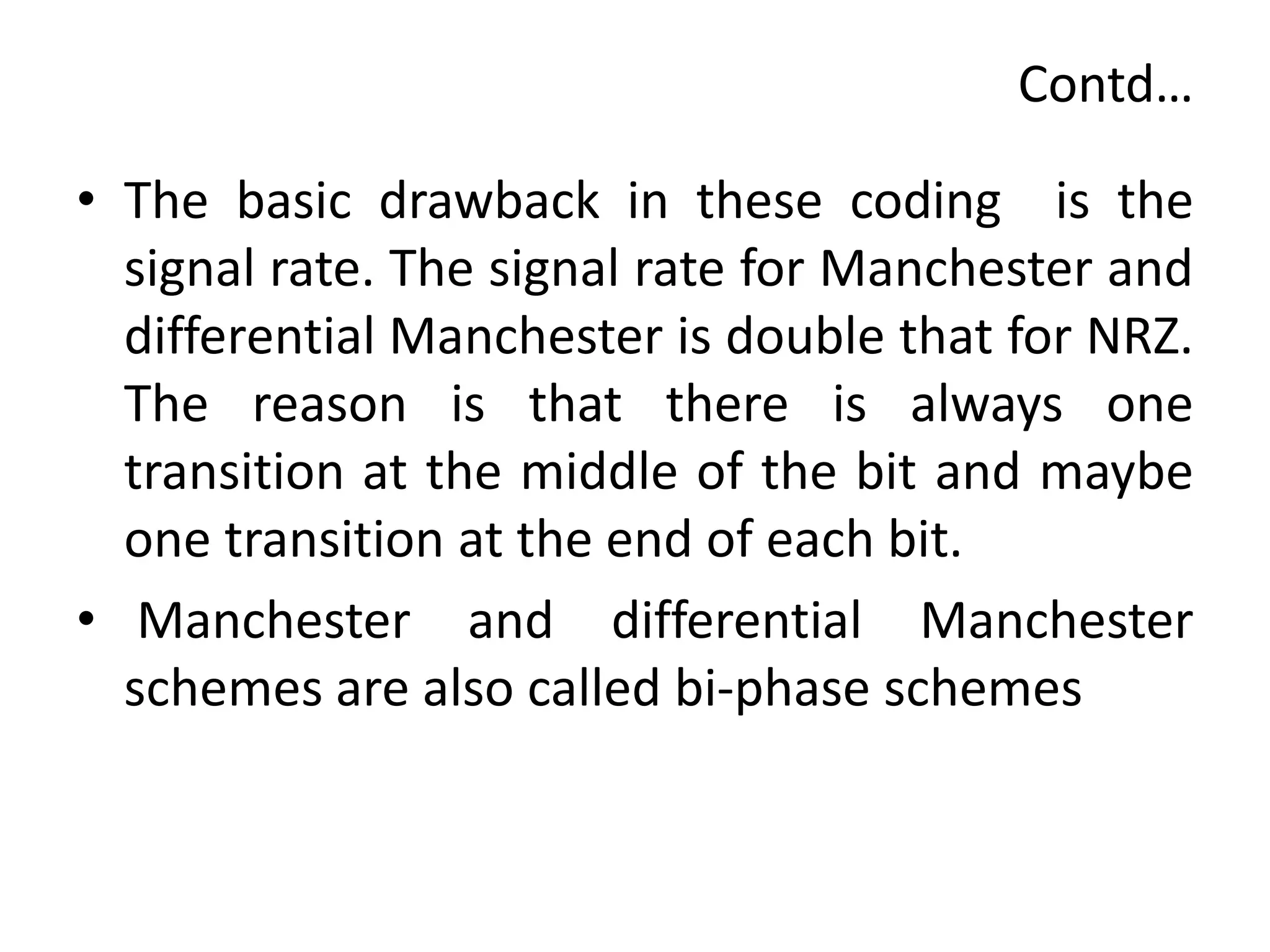

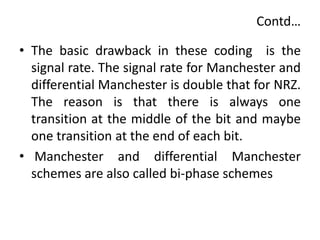

• The basic drawback in these coding is the
signal rate. The signal rate for Manchester and
differential Manchester is double that for NRZ.
The reason is that there is always one
transition at the middle of the bit and maybe
one transition at the end of each bit.
• Manchester and differential Manchester
schemes are also called bi-phase schemes

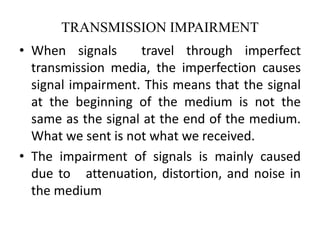

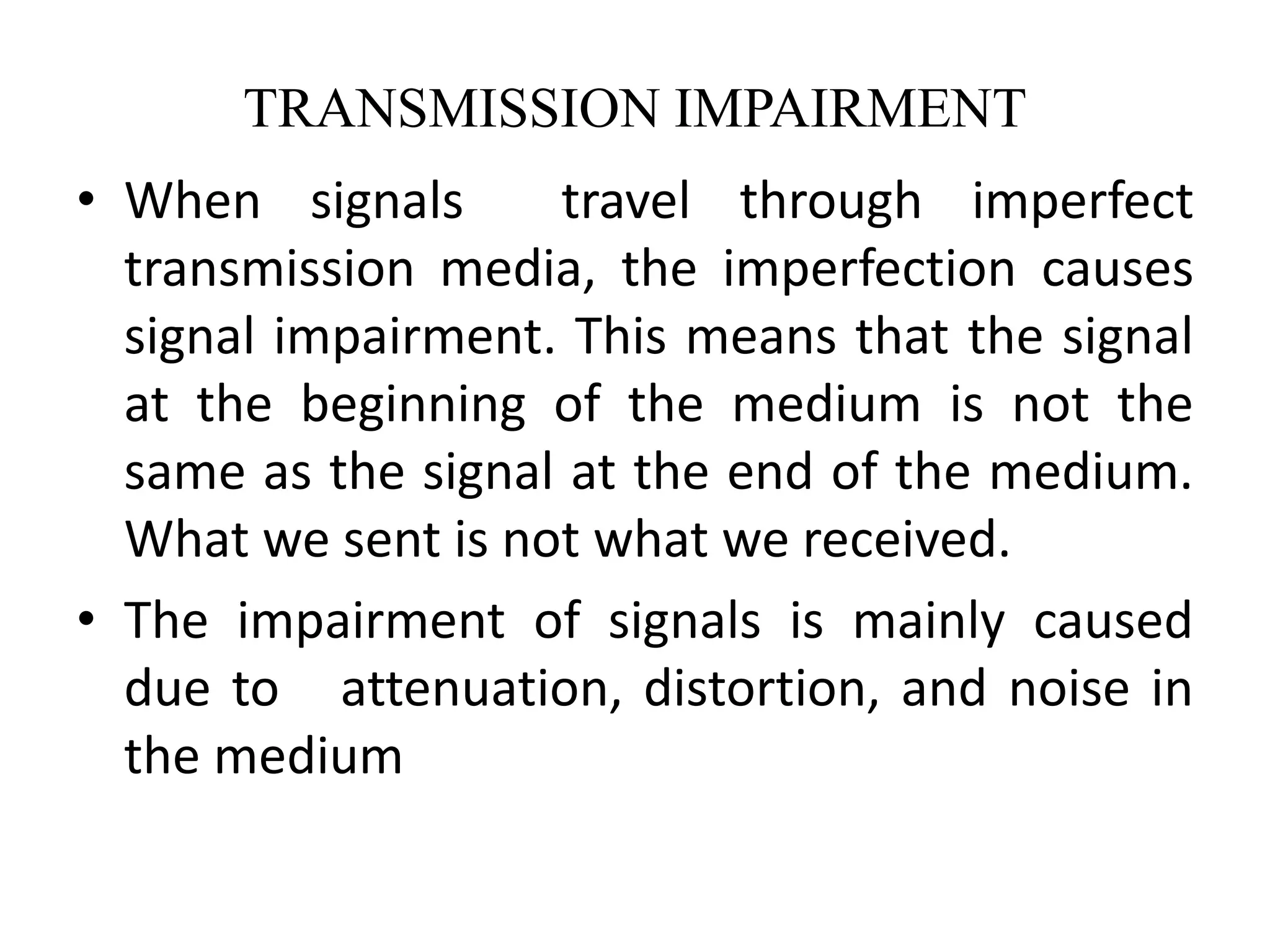

TRANSMISSION IMPAIRMENT
• When signals travel through imperfect
transmission media, the imperfection causes
signal impairment. This means that the signal
at the beginning of the medium is not the
same as the signal at the end of the medium.
What we sent is not what we received.
• The impairment of signals is mainly caused
due to attenuation, distortion, and noise in
the medium

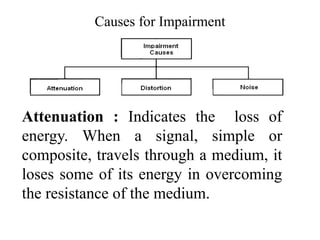

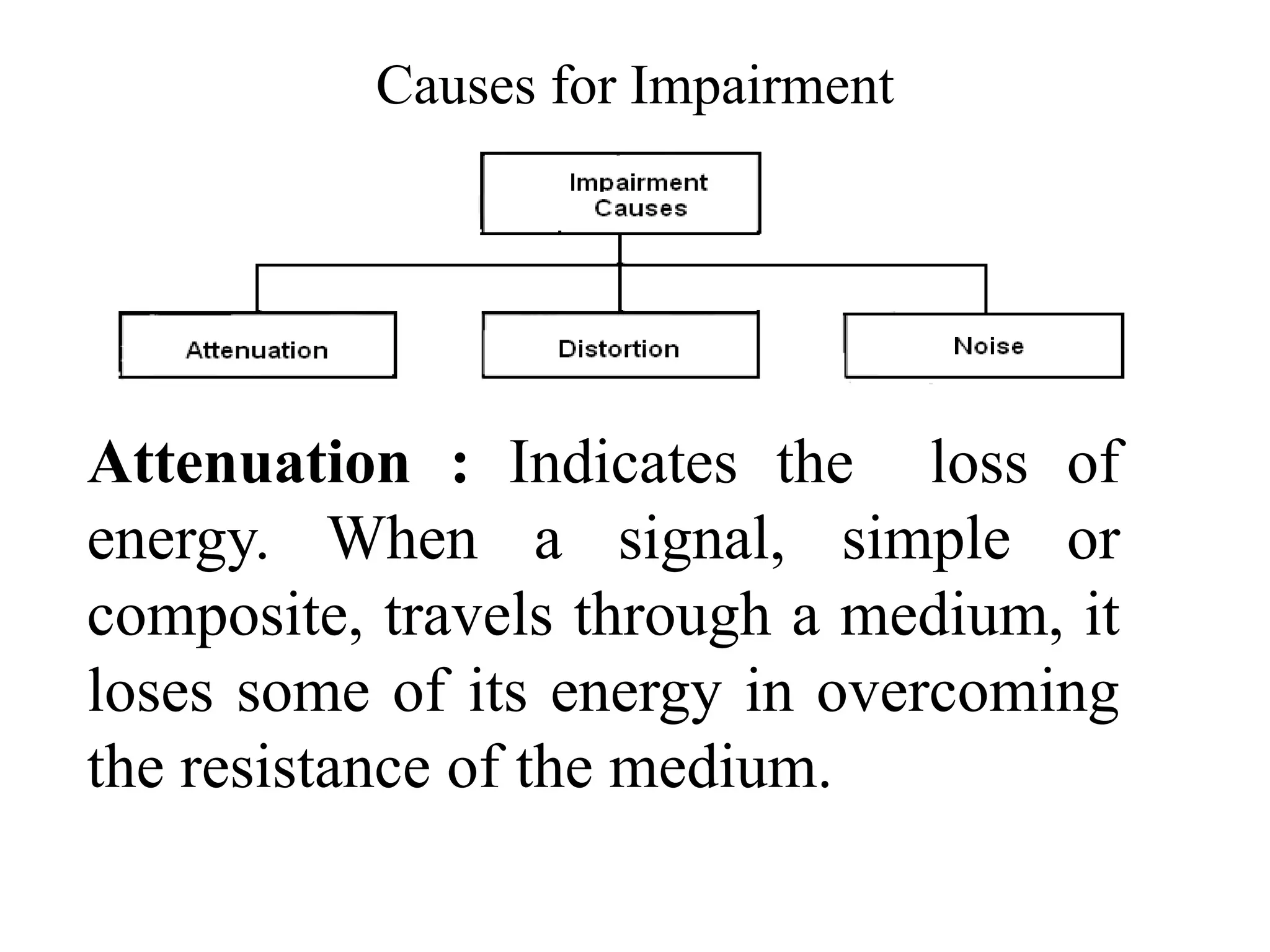

Causes for Impairment
Attenuation : Indicates the loss of
energy. When a signal, simple or
composite, travels through a medium, it
loses some of its energy in overcoming
the resistance of the medium.

Contd..

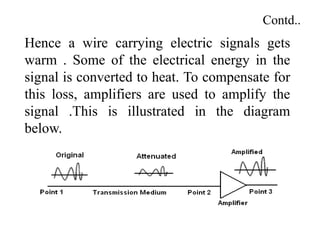

Hence a wire carrying electric signals gets
warm . Some of the electrical energy in the
signal is converted to heat. To compensate for
this loss, amplifiers are used to amplify the
signal .This is illustrated in the diagram
below.

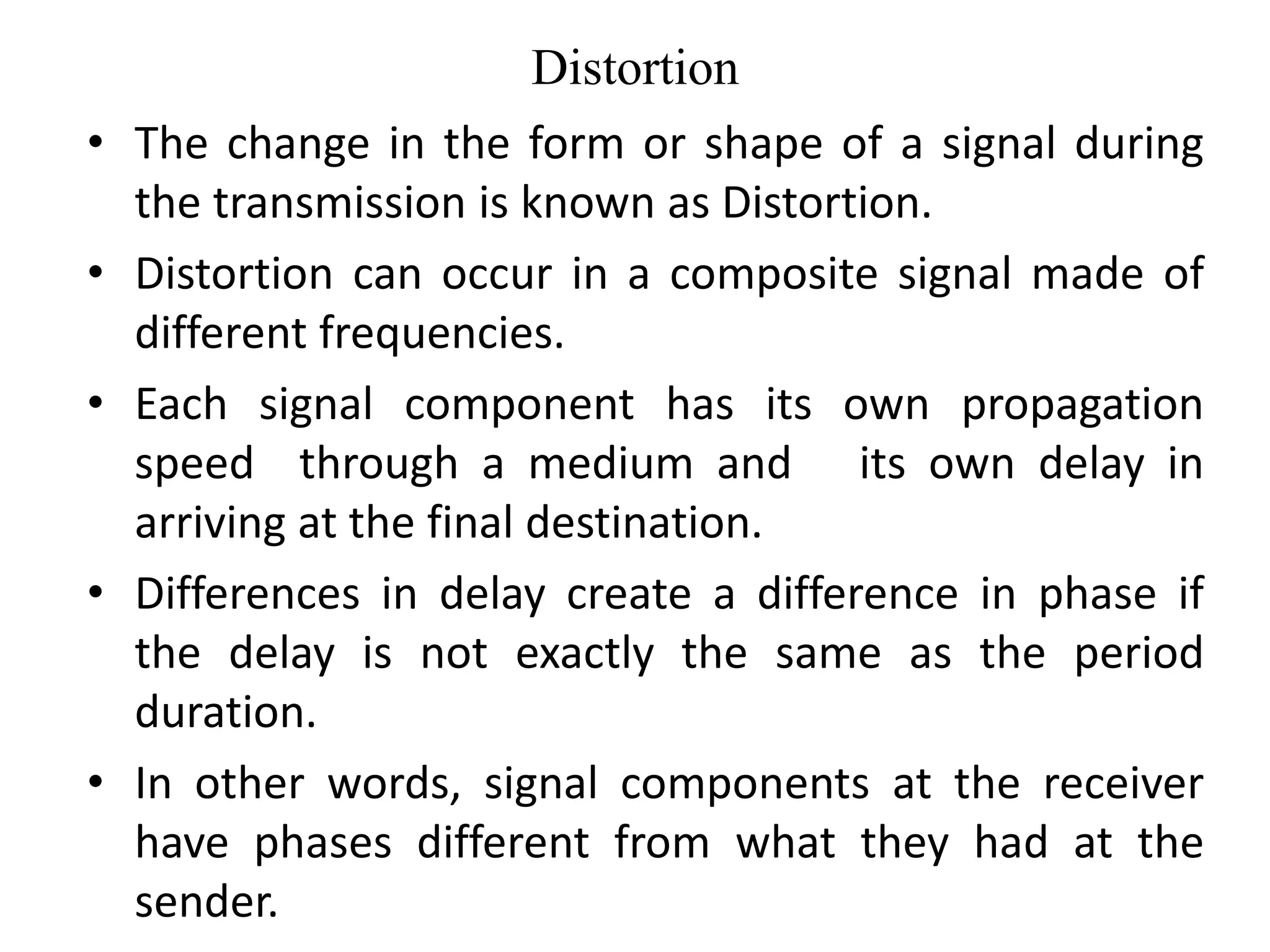

Distortion
• The change in the form or shape of a signal during
the transmission is known as Distortion.
• Distortion can occur in a composite signal made of
different frequencies.
• Each signal component has its own propagation
speed through a medium and its own delay in
arriving at the final destination.
• Differences in delay create a difference in phase if
the delay is not exactly the same as the period
duration.
• In other words, signal components at the receiver
have phases different from what they had at the
sender.

Contd..

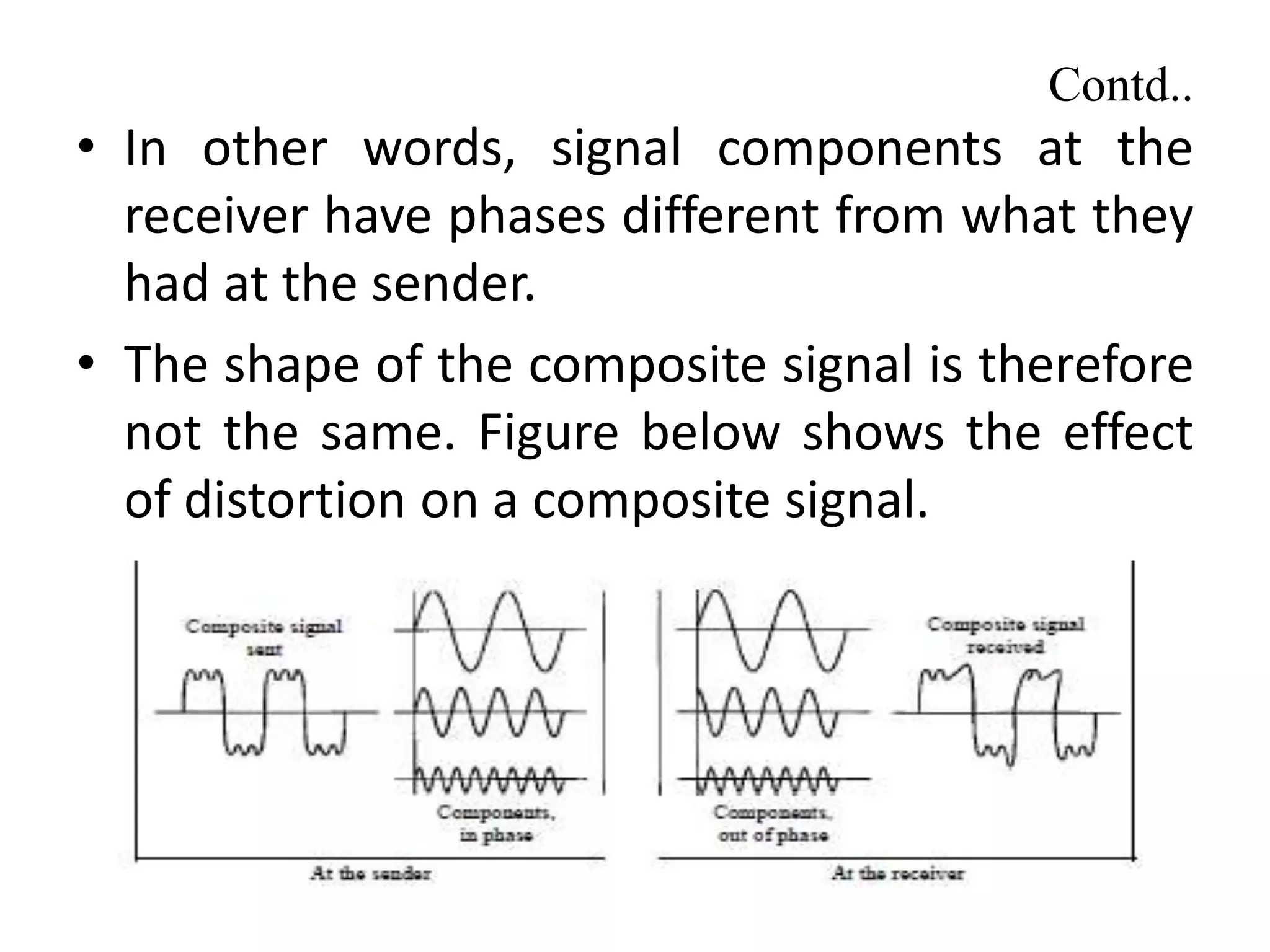

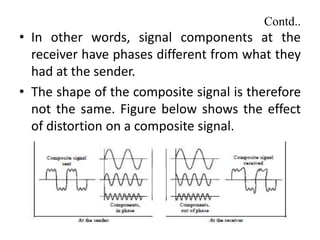

• In other words, signal components at the
receiver have phases different from what they
had at the sender.
• The shape of the composite signal is therefore
not the same. Figure below shows the effect
of distortion on a composite signal.

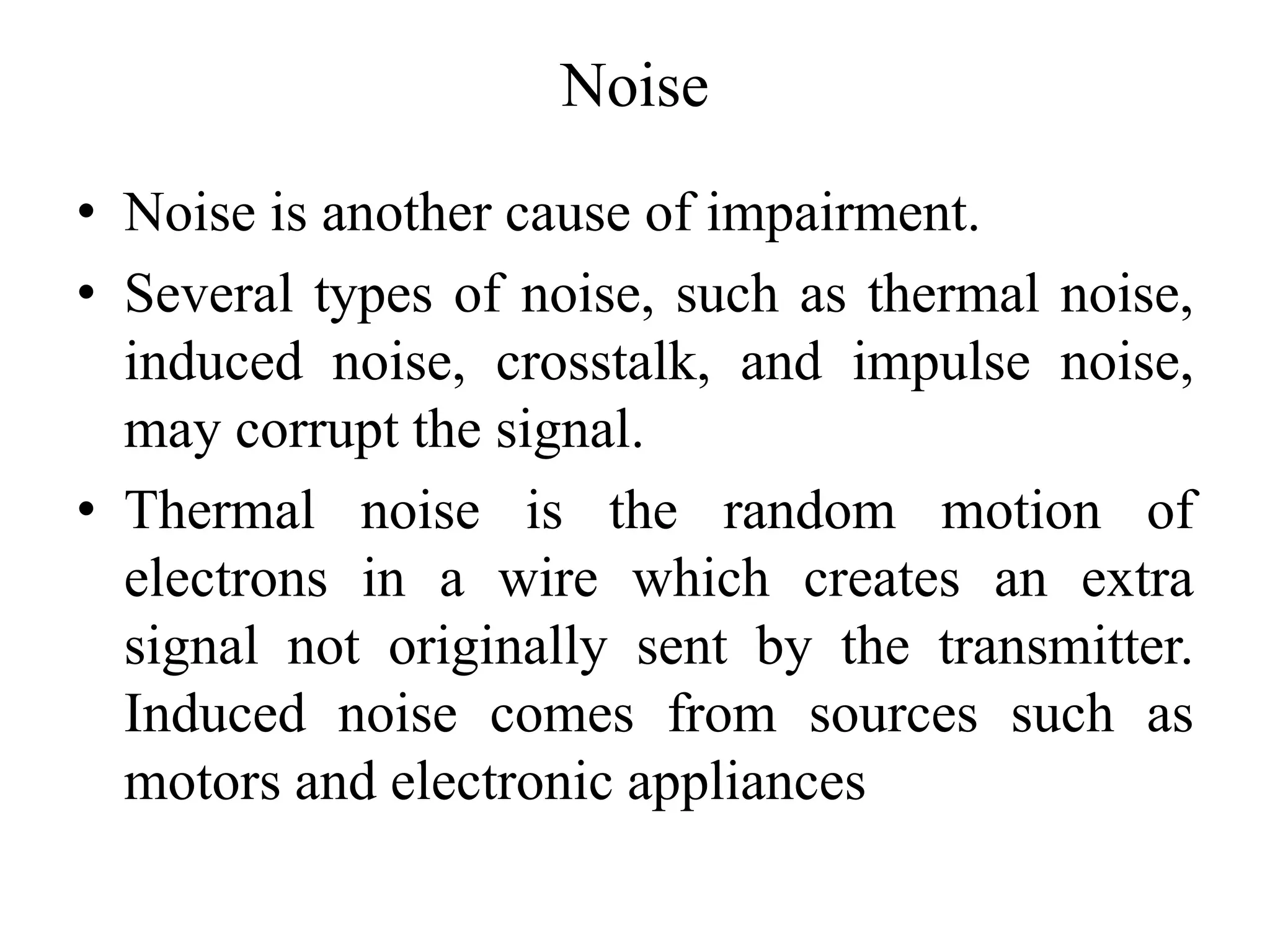

Noise
• Noise is another cause of impairment.
• Several types of noise, such as thermal noise,
induced noise, crosstalk, and impulse noise,
may corrupt the signal.
• Thermal noise is the random motion of
electrons in a wire which creates an extra
signal not originally sent by the transmitter.
Induced noise comes from sources such as
motors and electronic appliances

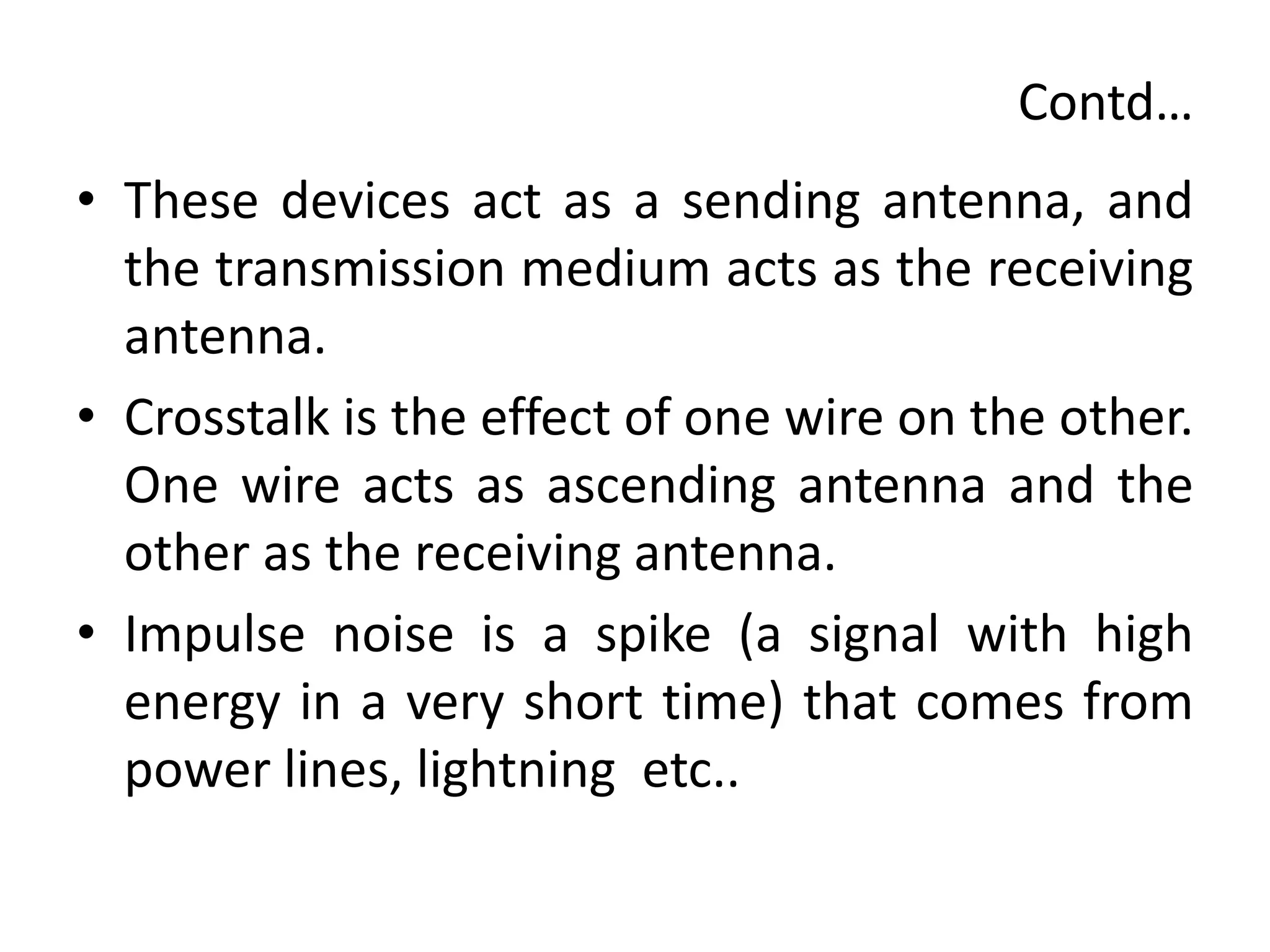

Contd…
• These devices act as a sending antenna, and
the transmission medium acts as the receiving
antenna.
• Crosstalk is the effect of one wire on the other.
One wire acts as ascending antenna and the
other as the receiving antenna.
• Impulse noise is a spike (a signal with high
energy in a very short time) that comes from
power lines, lightning etc..

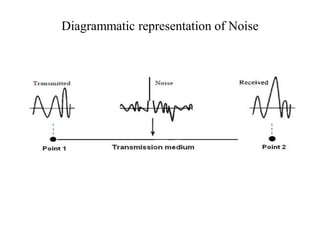

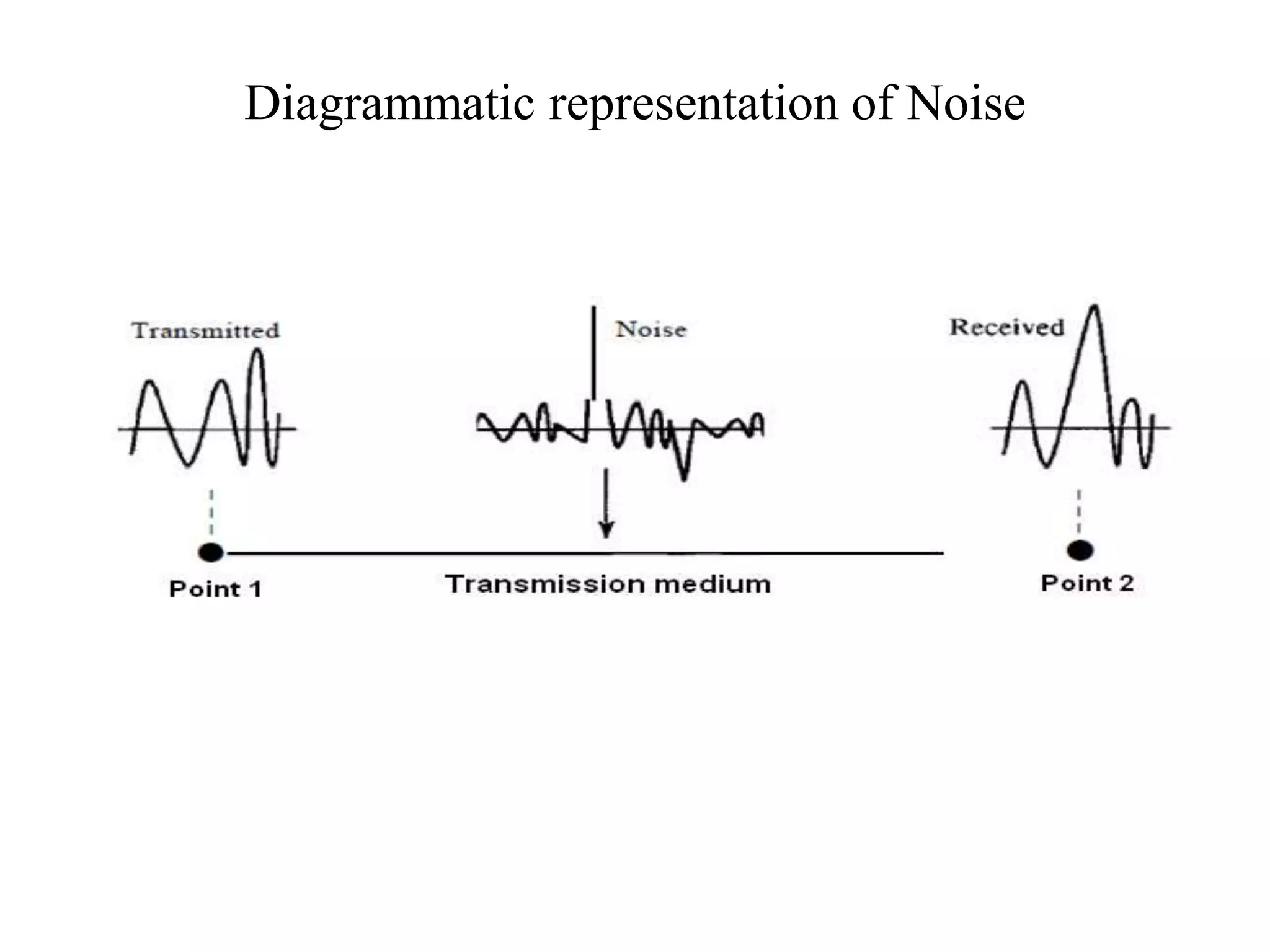

Diagrammatic representation of Noise

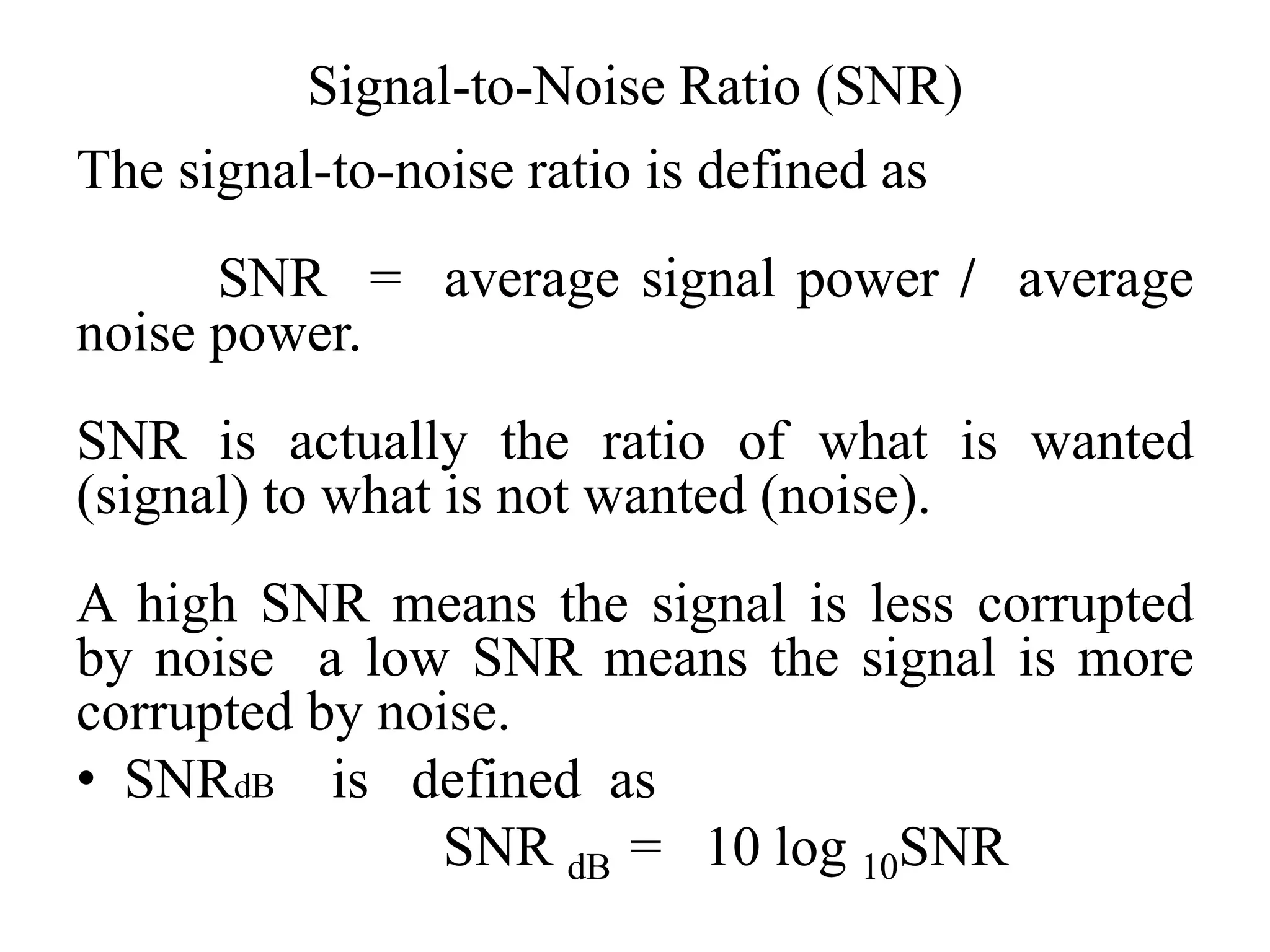

Signal-to-Noise Ratio (SNR)
The signal-to-noise ratio is defined as
SNR = average signal power / average
noise power.
SNR is actually the ratio of what is wanted
(signal) to what is not wanted (noise).
A high SNR means the signal is less corrupted
by noise a low SNR means the signal is more
corrupted by noise.
• SNRdB is defined as
SNR dB = 10 log 10SNR

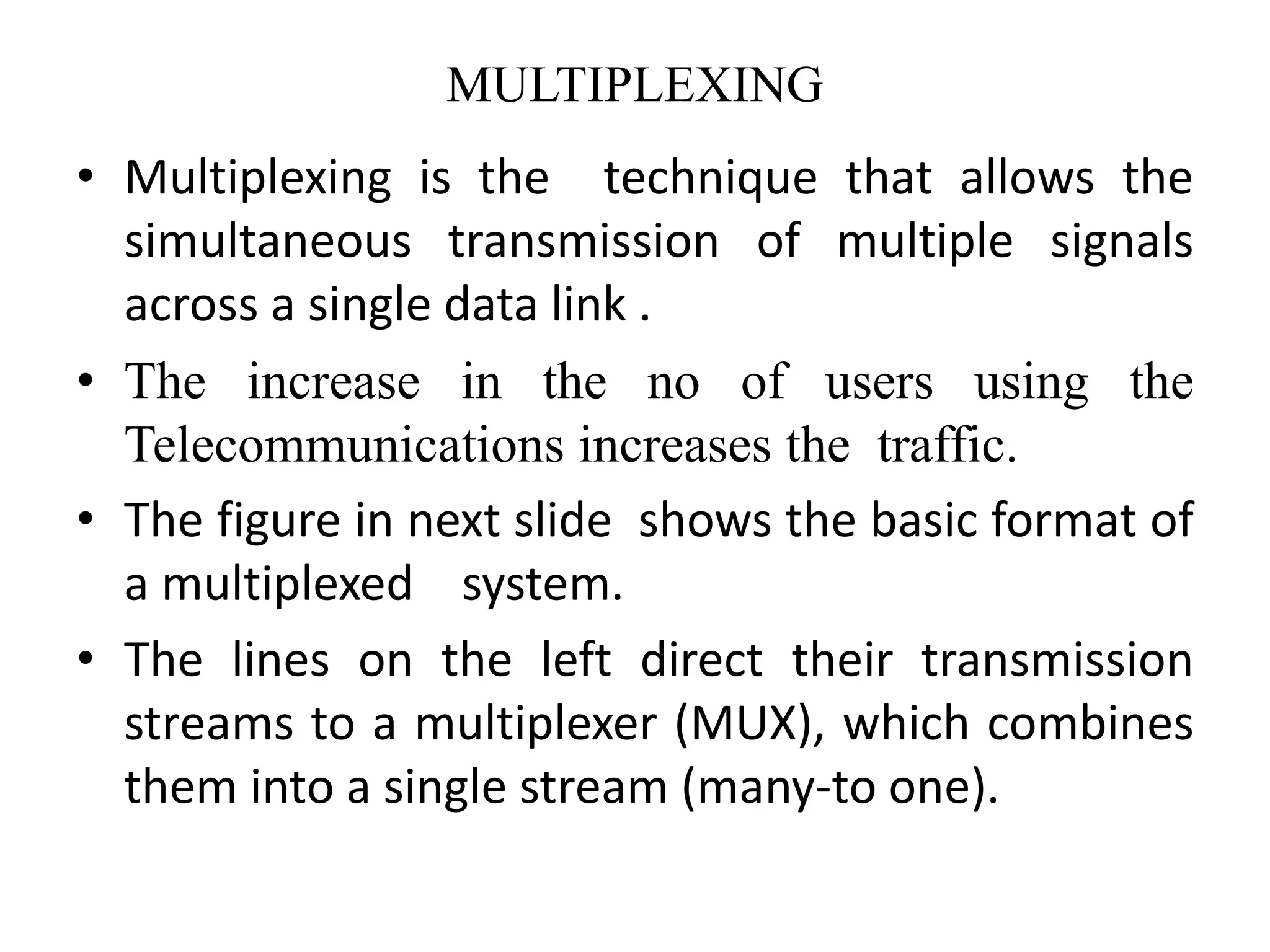

MULTIPLEXING
• Multiplexing is the technique that allows the
simultaneous transmission of multiple signals
across a single data link .
• The increase in the no of users using the
Telecommunications increases the traffic.
• The figure in next slide shows the basic format of
a multiplexed system.
• The lines on the left direct their transmission
streams to a multiplexer (MUX), which combines
them into a single stream (many-to one).

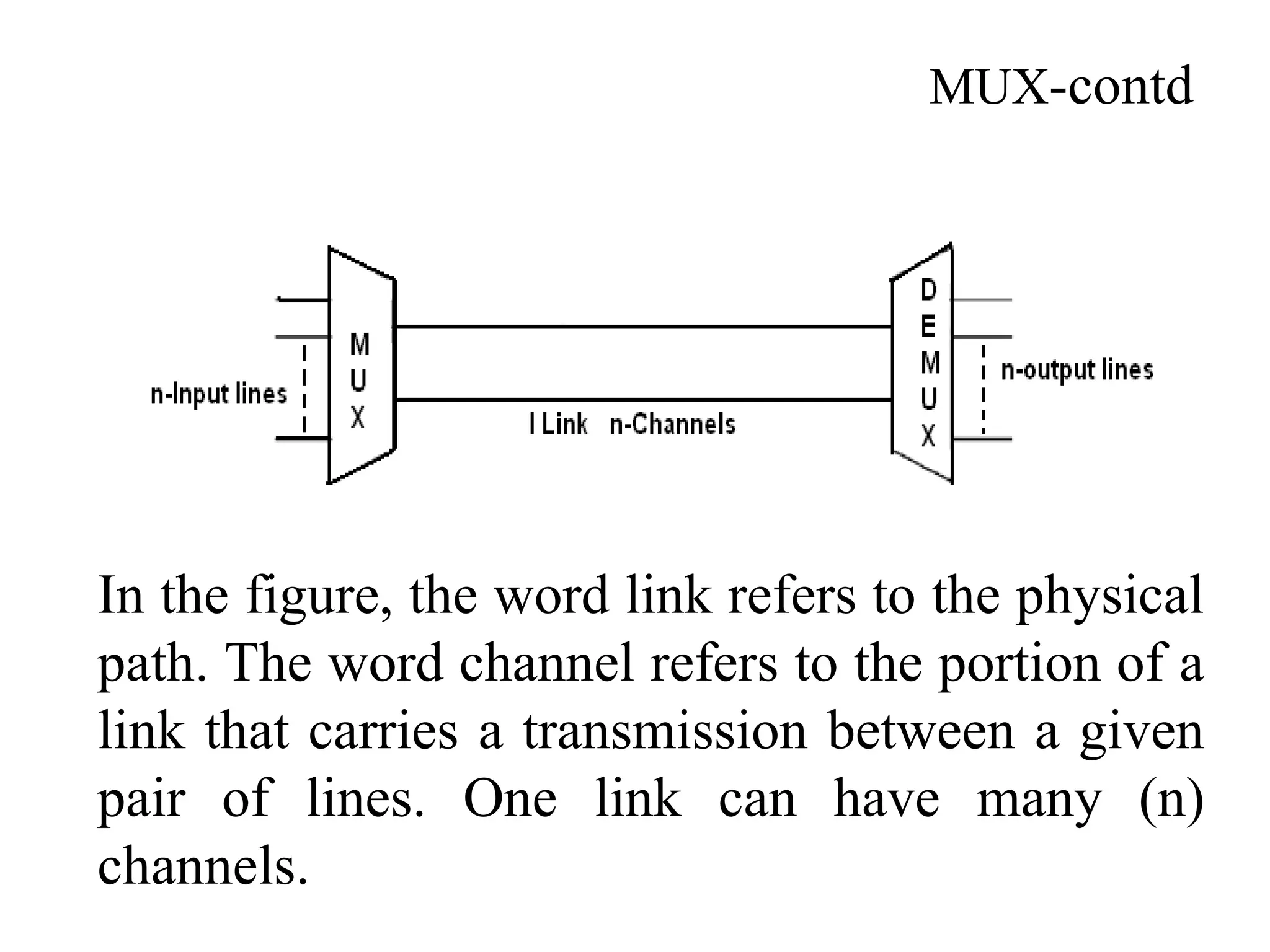

MUX-contd
In the figure, the word link refers to the physical
path. The word channel refers to the portion of a
link that carries a transmission between a given
pair of lines. One link can have many (n)
channels.

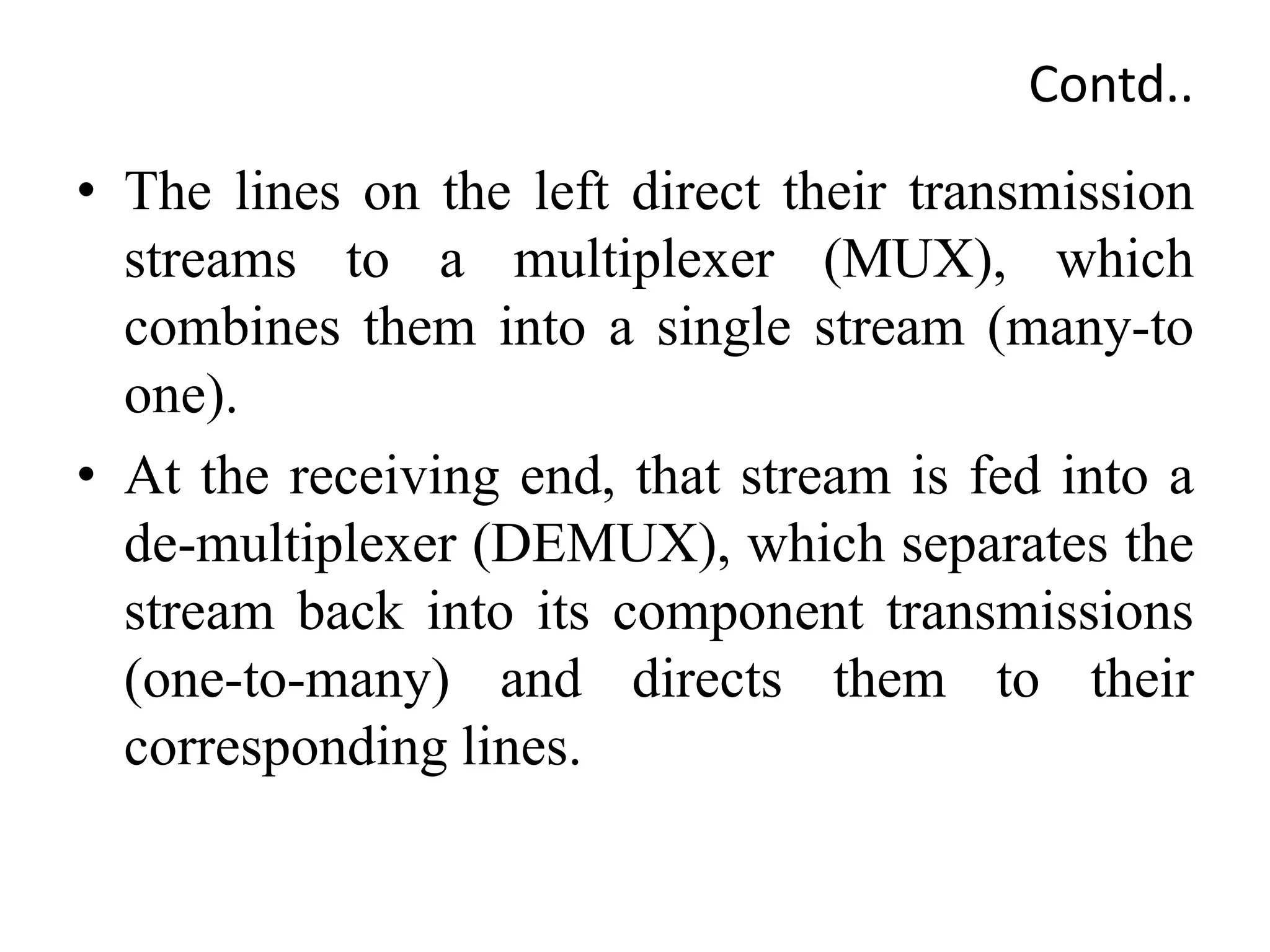

Contd..
• The lines on the left direct their transmission
streams to a multiplexer (MUX), which
combines them into a single stream (many-to
one).
• At the receiving end, that stream is fed into a
de-multiplexer (DEMUX), which separates the
stream back into its component transmissions
(one-to-many) and directs them to their
corresponding lines.

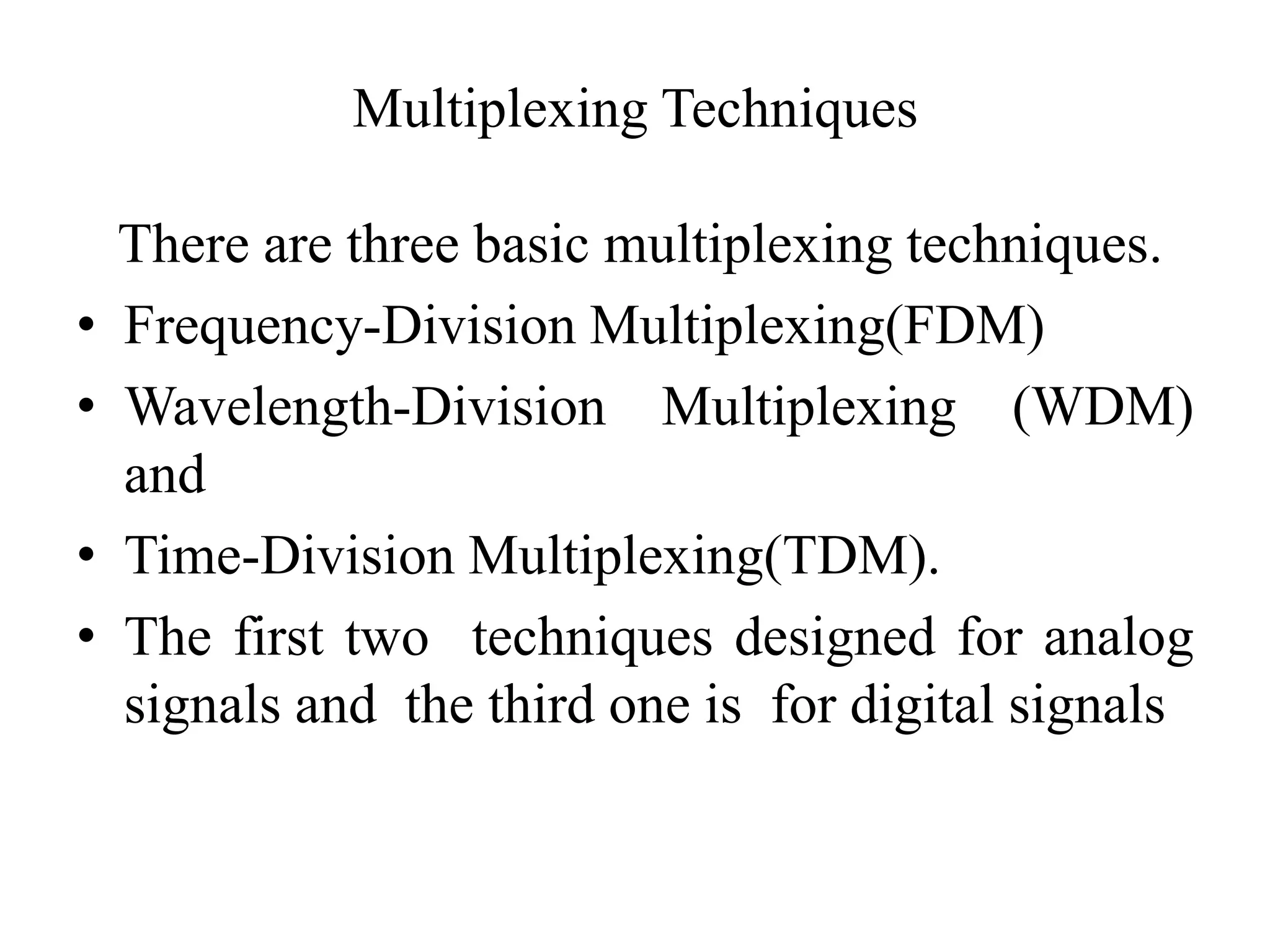

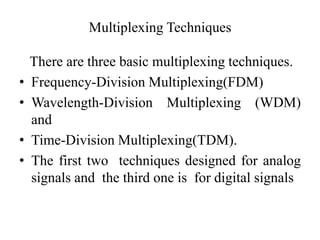

Multiplexing Techniques
There are three basic multiplexing techniques.
• Frequency-Division Multiplexing(FDM)
• Wavelength-Division Multiplexing (WDM)
and
• Time-Division Multiplexing(TDM).
• The first two techniques designed for analog
signals and the third one is for digital signals

Multiplexing Techniques
Frequency-Division Multiplexing :
Frequency-division multiplexing (FDM) is an
analog technique that can be applied when the
bandwidth of a link (in hertz) is greater than the
combined bandwidths of the signals to be
transmitted

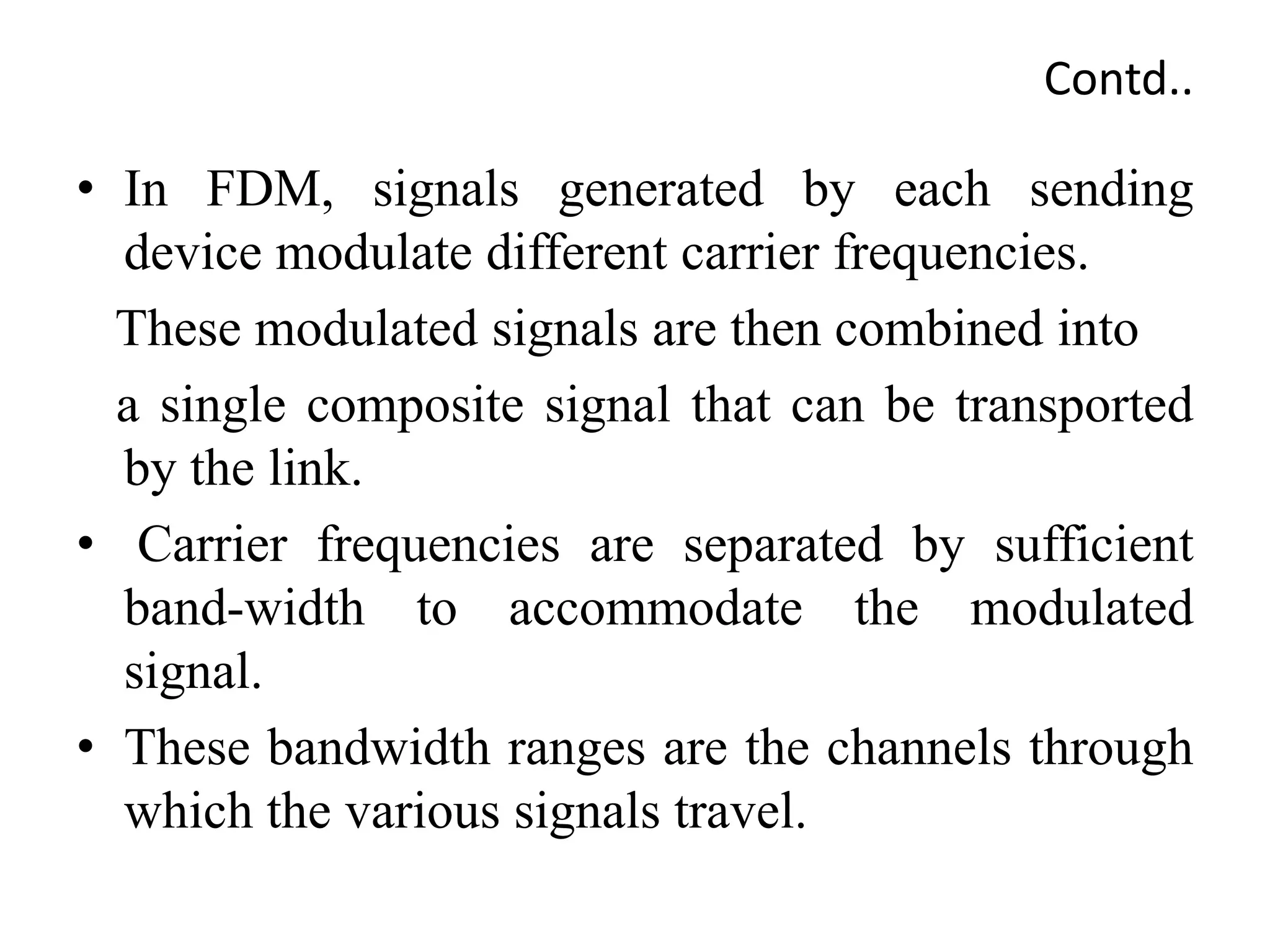

Contd..
• In FDM, signals generated by each sending
device modulate different carrier frequencies.
These modulated signals are then combined into
a single composite signal that can be transported
by the link.
• Carrier frequencies are separated by sufficient
band-width to accommodate the modulated
signal.
• These bandwidth ranges are the channels through
which the various signals travel.

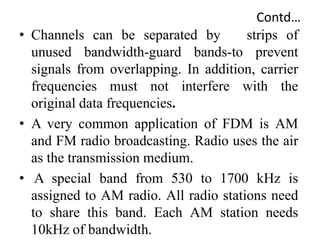

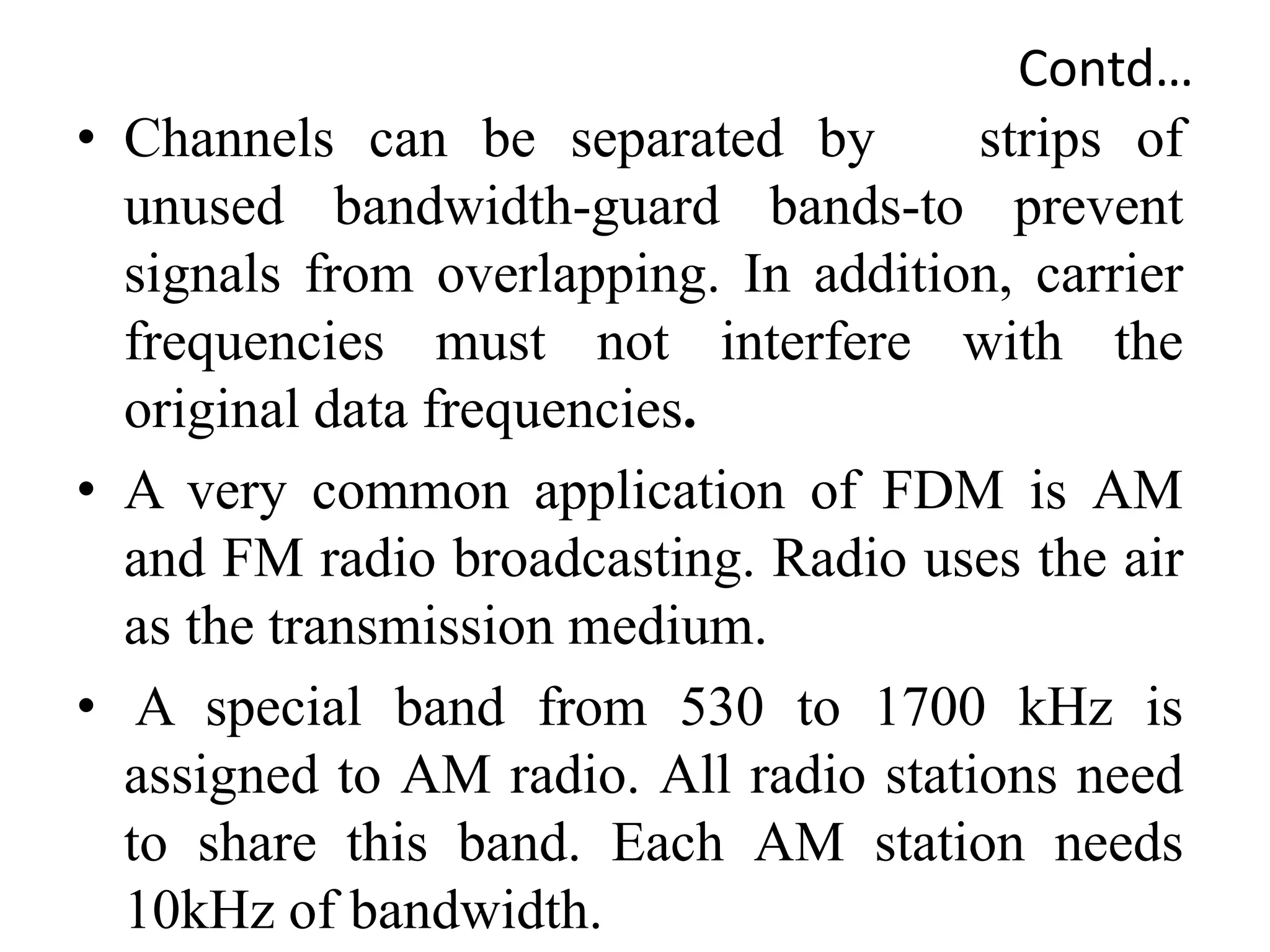

Contd…
• Channels can be separated by strips of
unused bandwidth-guard bands-to prevent
signals from overlapping. In addition, carrier
frequencies must not interfere with the
original data frequencies.
• A very common application of FDM is AM
and FM radio broadcasting. Radio uses the air
as the transmission medium.
• A special band from 530 to 1700 kHz is
assigned to AM radio. All radio stations need
to share this band. Each AM station needs
10kHz of bandwidth.

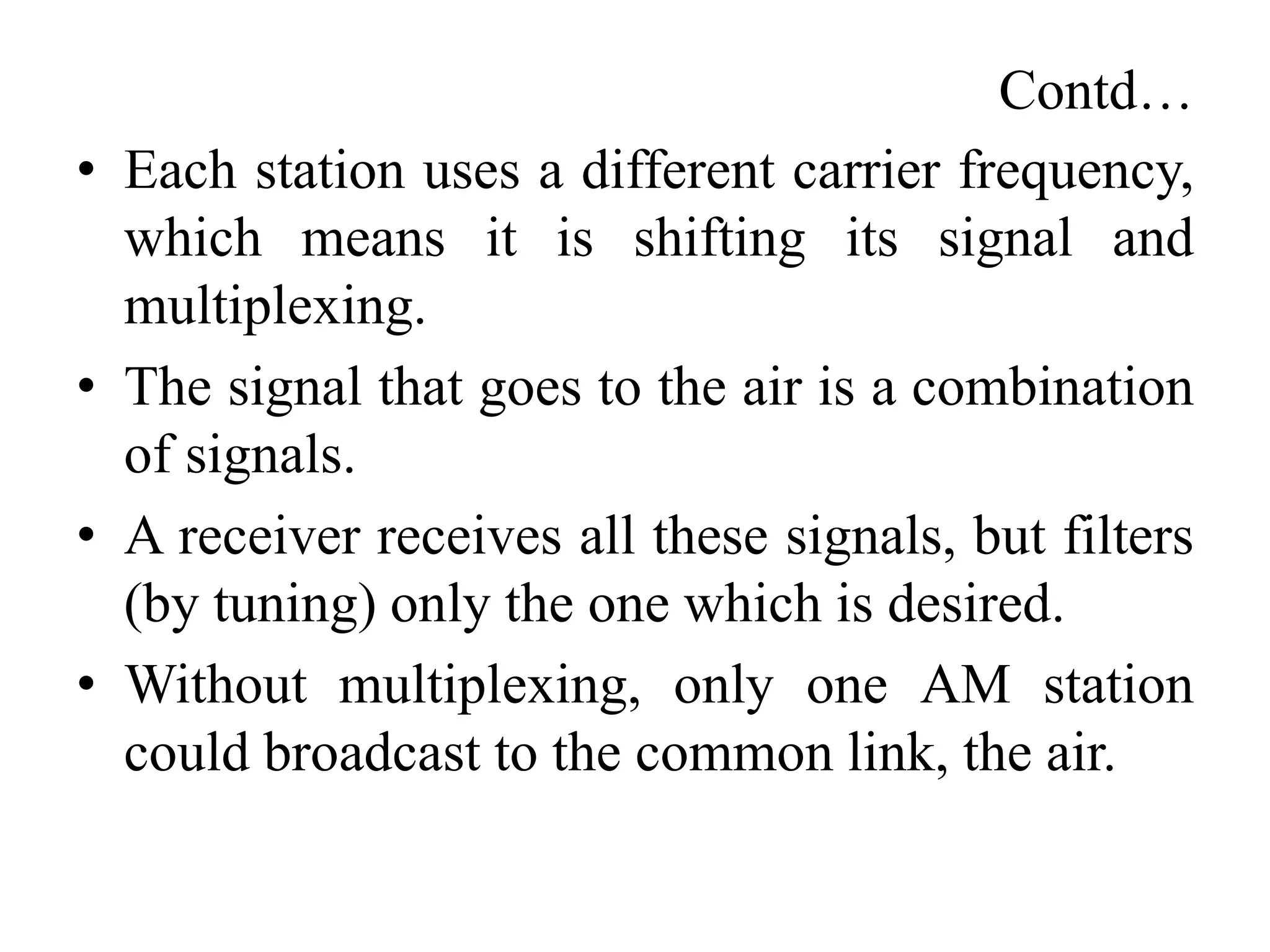

Contd…
• Each station uses a different carrier frequency,
which means it is shifting its signal and
multiplexing.
• The signal that goes to the air is a combination
of signals.
• A receiver receives all these signals, but filters
(by tuning) only the one which is desired.
• Without multiplexing, only one AM station
could broadcast to the common link, the air.

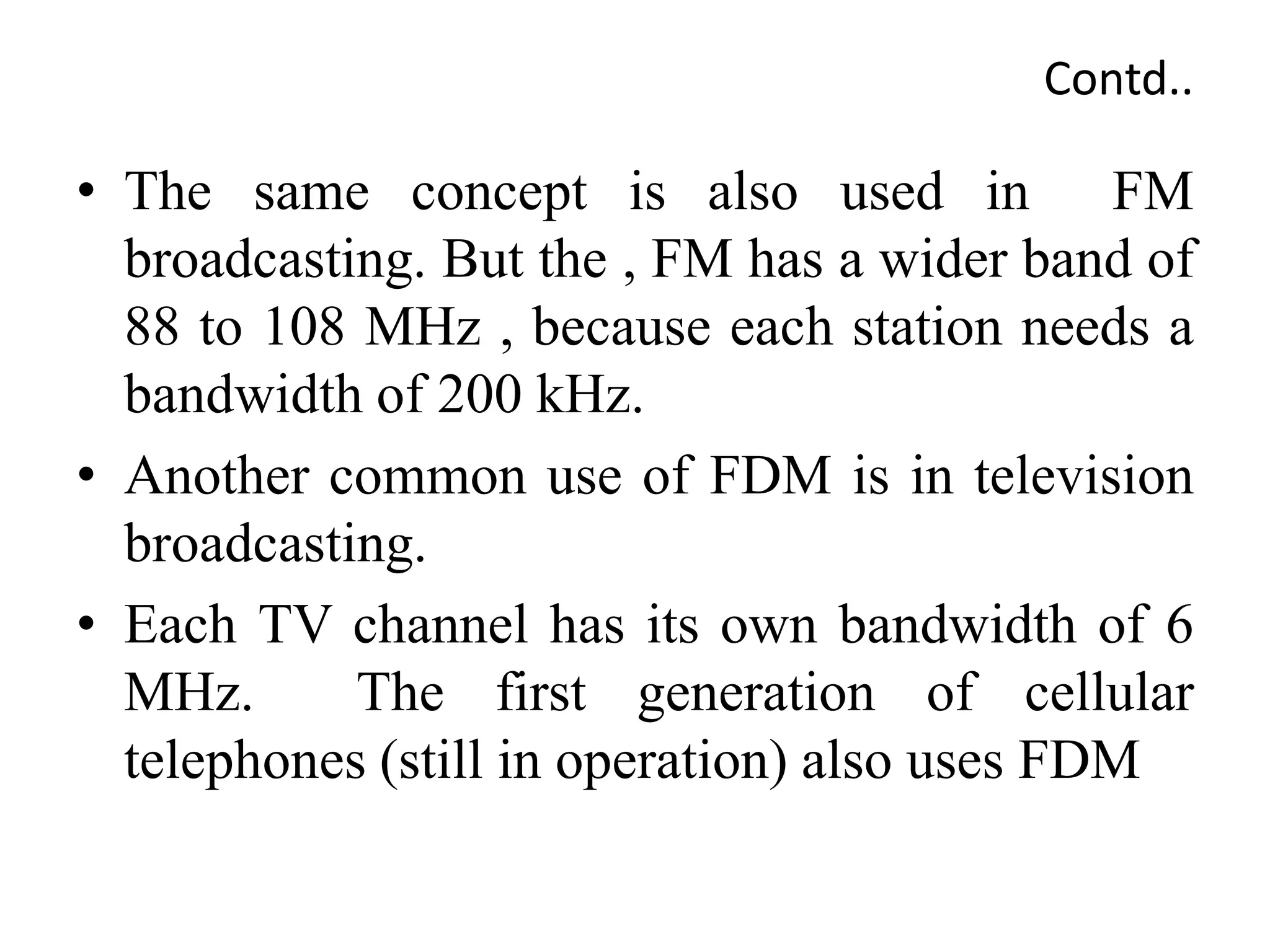

Contd..
• The same concept is also used in FM
broadcasting. But the , FM has a wider band of
88 to 108 MHz , because each station needs a
bandwidth of 200 kHz.
• Another common use of FDM is in television
broadcasting.
• Each TV channel has its own bandwidth of 6
MHz. The first generation of cellular
telephones (still in operation) also uses FDM

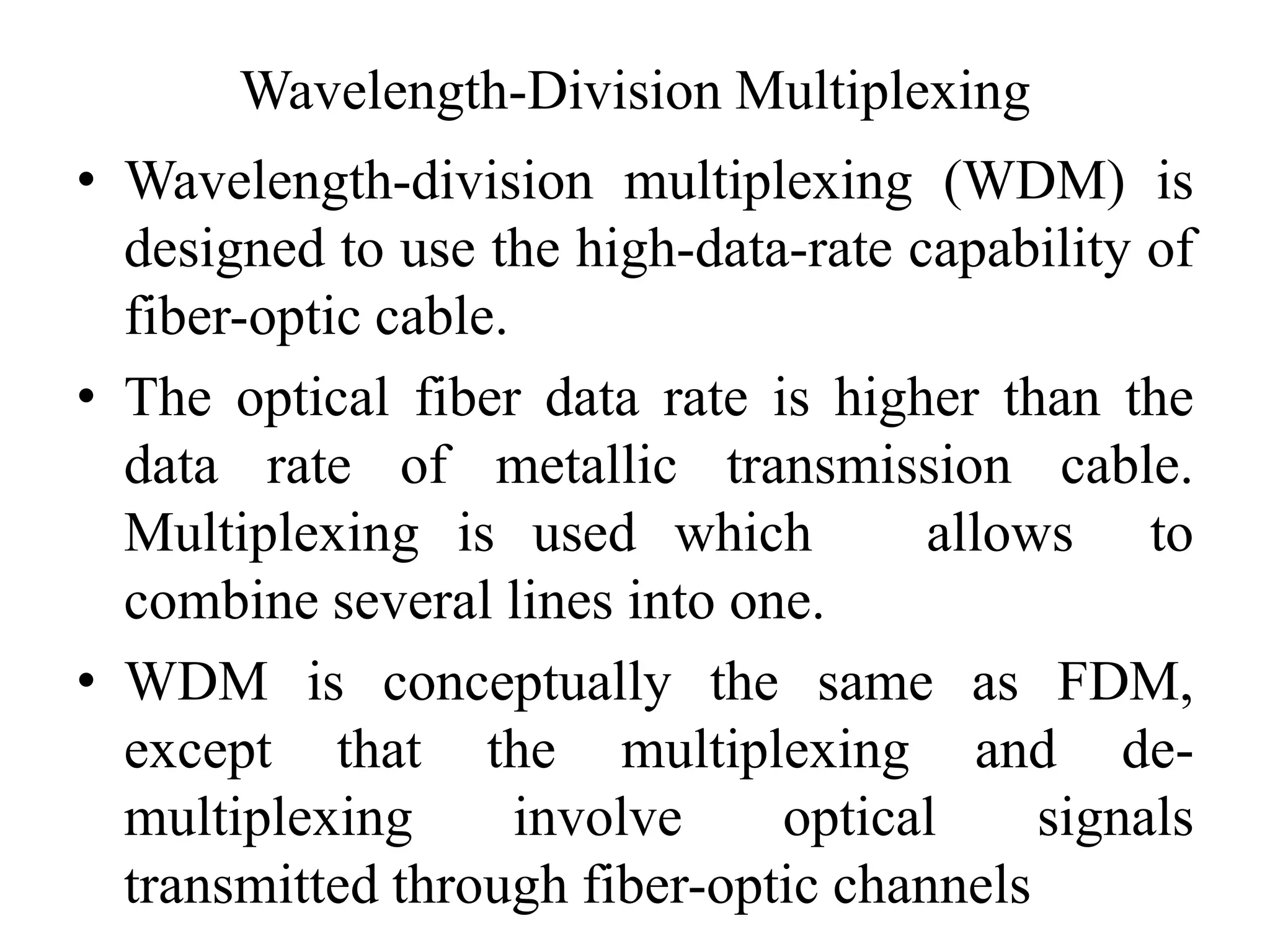

Wavelength-Division Multiplexing
• Wavelength-division multiplexing (WDM) is
designed to use the high-data-rate capability of
fiber-optic cable.
• The optical fiber data rate is higher than the
data rate of metallic transmission cable.
Multiplexing is used which allows to
combine several lines into one.
• WDM is conceptually the same as FDM,
except that the multiplexing and de-
multiplexing involve optical signals
transmitted through fiber-optic channels

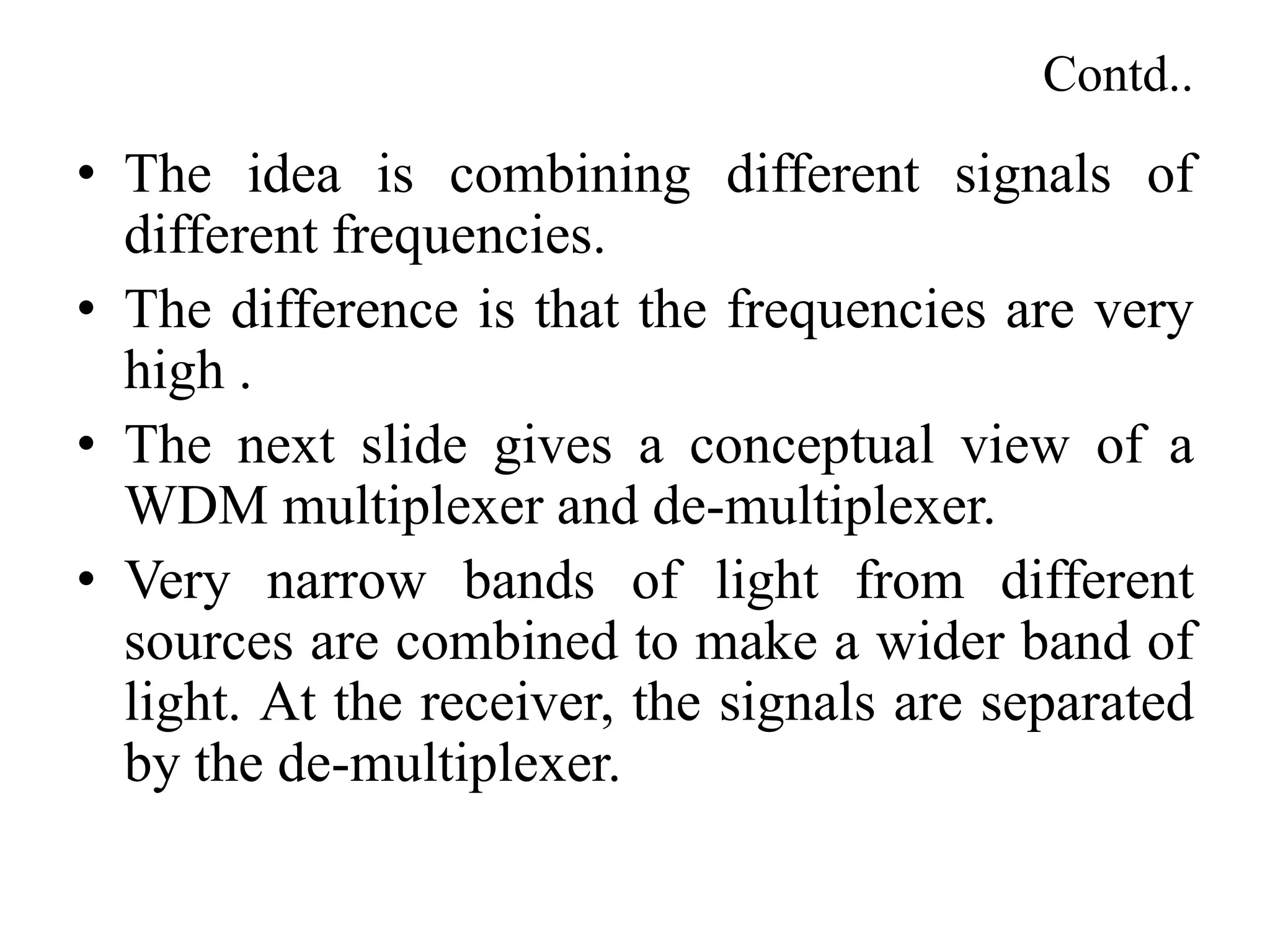

Contd..
• The idea is combining different signals of
different frequencies.
• The difference is that the frequencies are very
high .
• The next slide gives a conceptual view of a
WDM multiplexer and de-multiplexer.
• Very narrow bands of light from different
sources are combined to make a wider band of
light. At the receiver, the signals are separated
by the de-multiplexer.

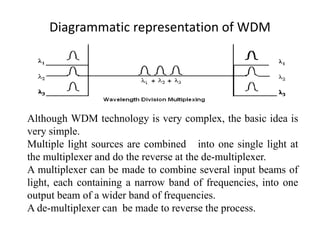

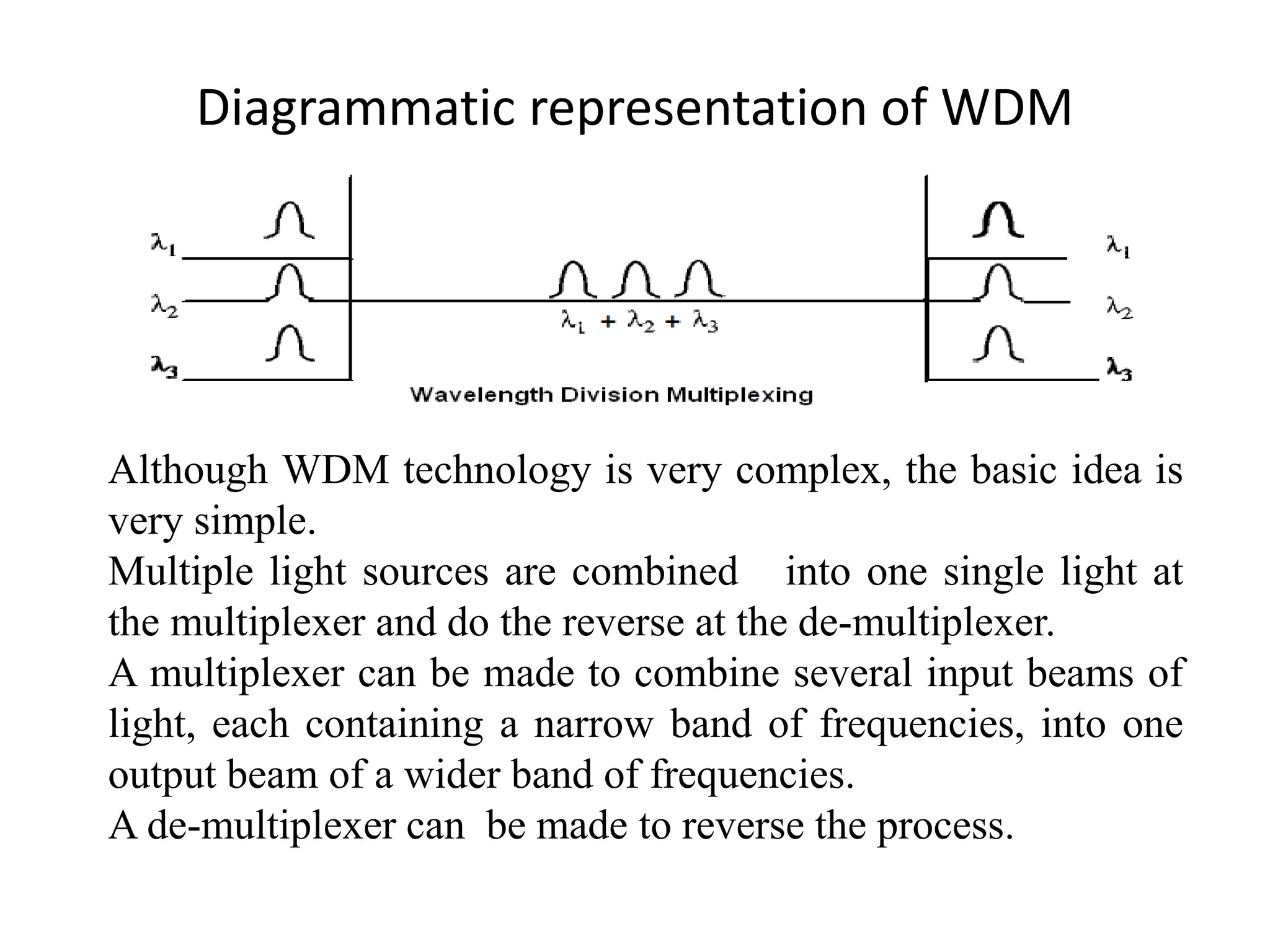

Diagrammatic representation of WDM
Although WDM technology is very complex, the basic idea is
very simple.
Multiple light sources are combined into one single light at
the multiplexer and do the reverse at the de-multiplexer.
A multiplexer can be made to combine several input beams of
light, each containing a narrow band of frequencies, into one
output beam of a wider band of frequencies.
A de-multiplexer can be made to reverse the process.

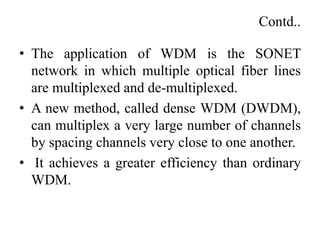

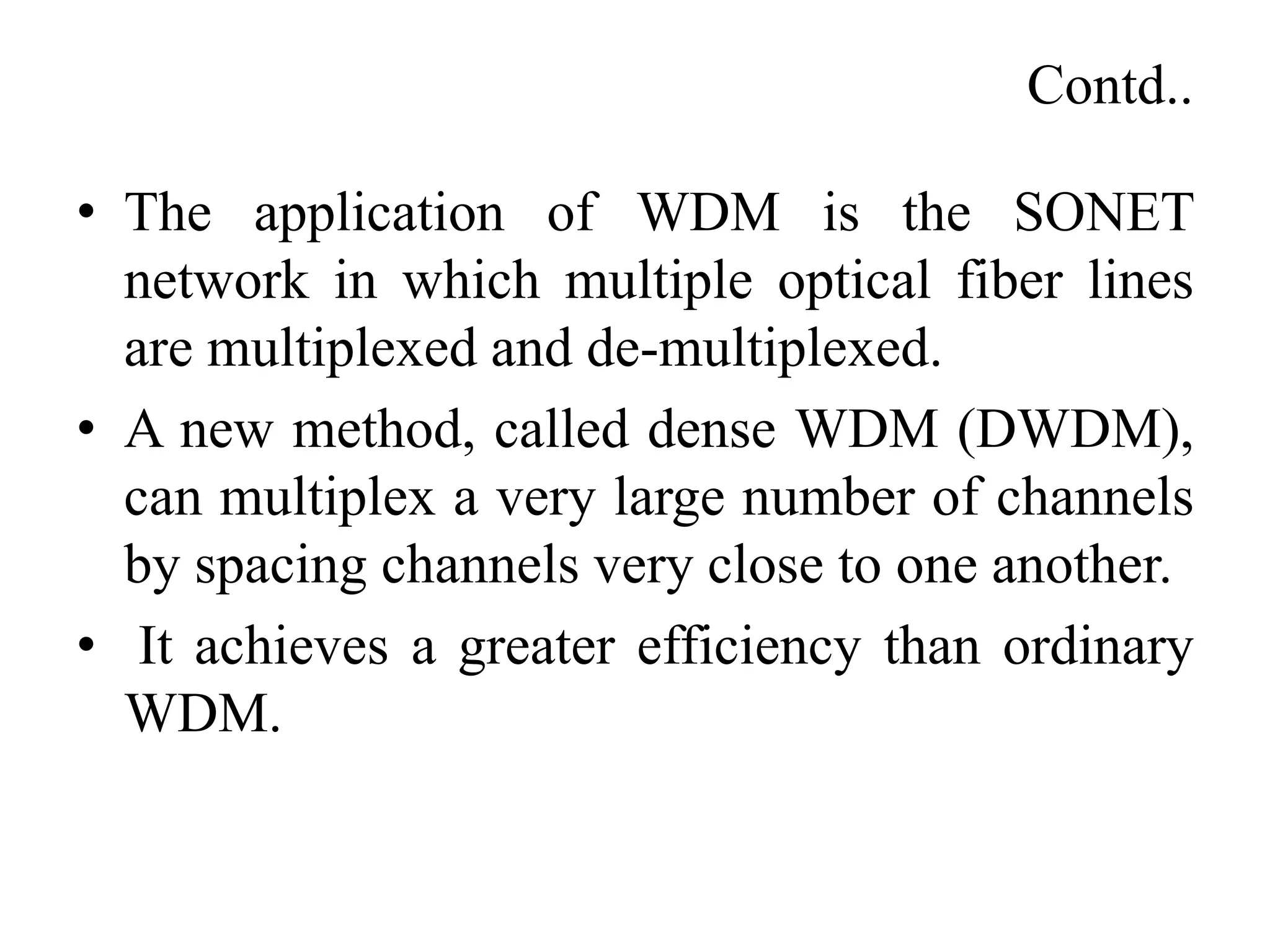

Contd..
• The application of WDM is the SONET
network in which multiple optical fiber lines
are multiplexed and de-multiplexed.
• A new method, called dense WDM (DWDM),
can multiplex a very large number of channels
by spacing channels very close to one another.
• It achieves a greater efficiency than ordinary
WDM.

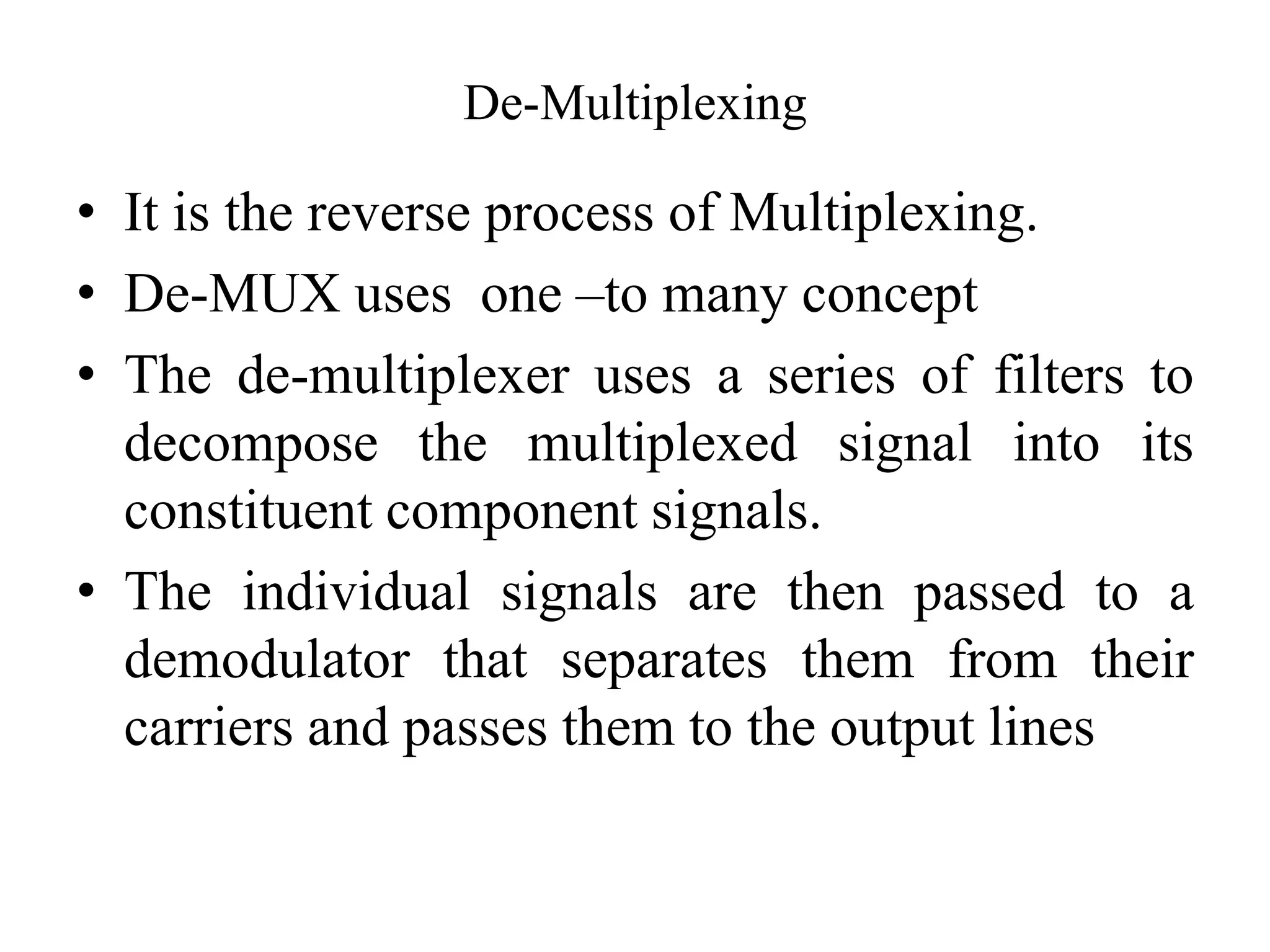

De-Multiplexing
• It is the reverse process of Multiplexing.
• De-MUX uses one –to many concept
• The de-multiplexer uses a series of filters to
decompose the multiplexed signal into its
constituent component signals.
• The individual signals are then passed to a
demodulator that separates them from their
carriers and passes them to the output lines

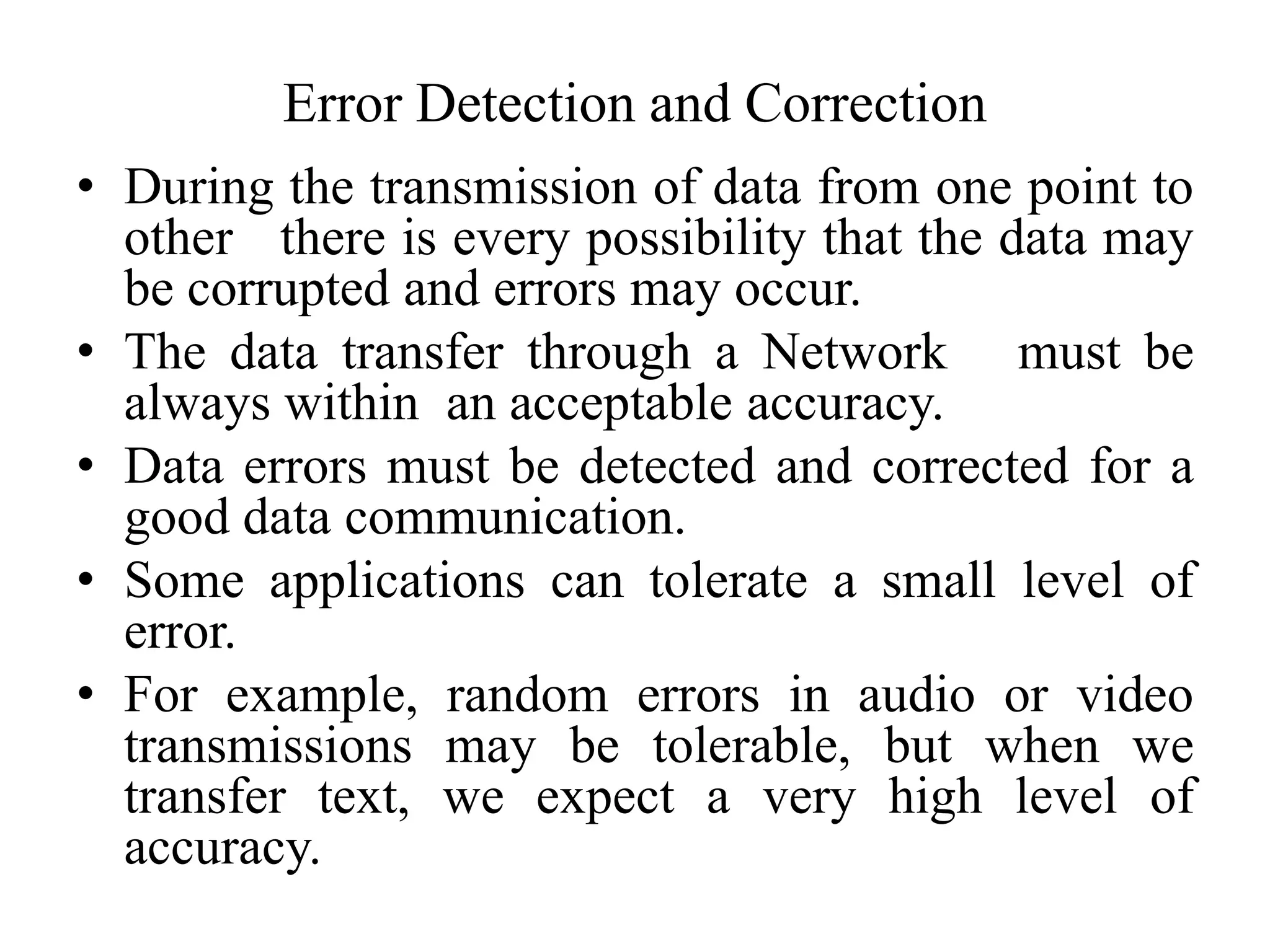

Error Detection and Correction
• During the transmission of data from one point to
other there is every possibility that the data may
be corrupted and errors may occur.
• The data transfer through a Network must be
always within an acceptable accuracy.
• Data errors must be detected and corrected for a
good data communication.
• Some applications can tolerate a small level of
error.
• For example, random errors in audio or video
transmissions may be tolerable, but when we
transfer text, we expect a very high level of
accuracy.

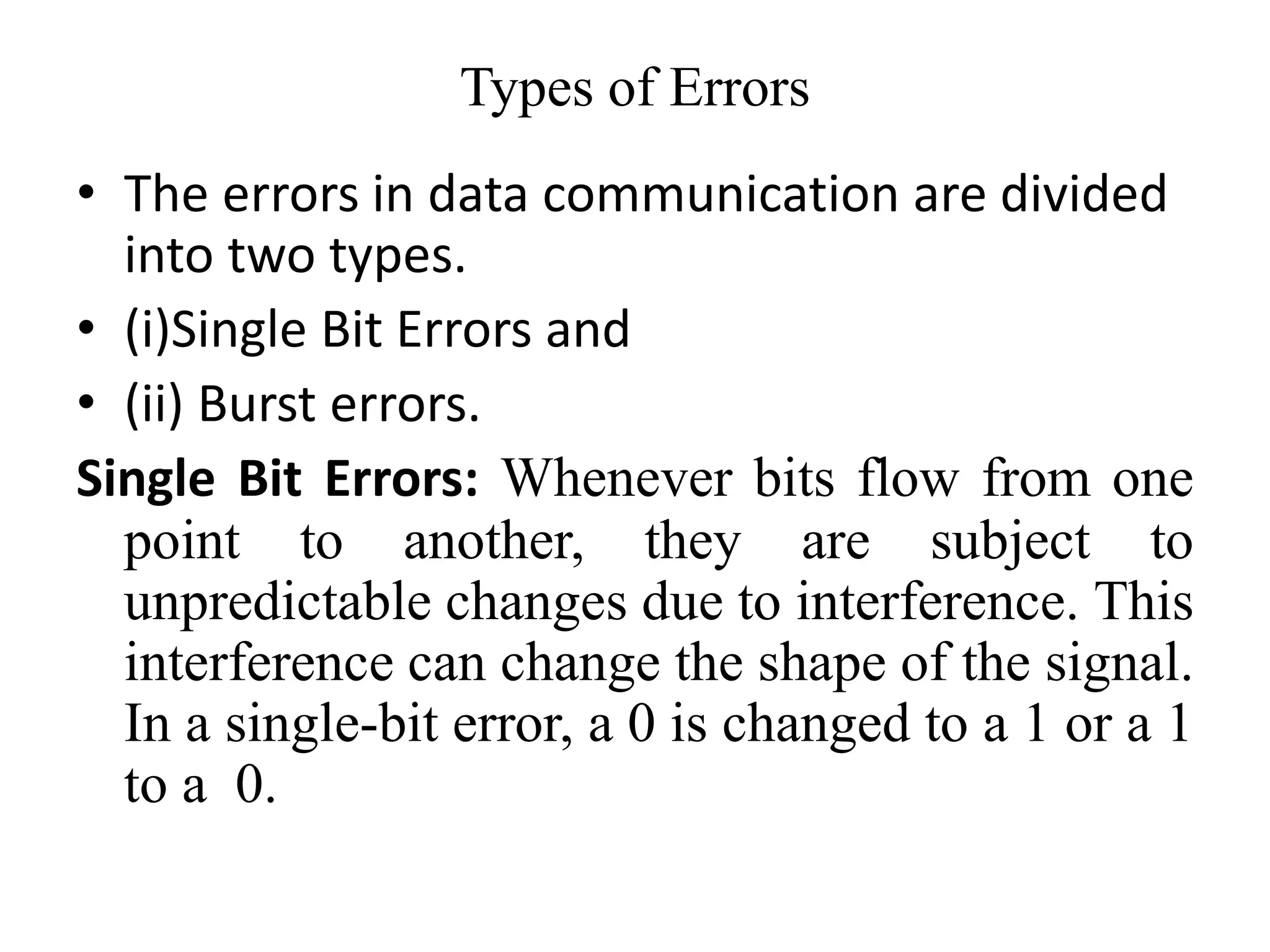

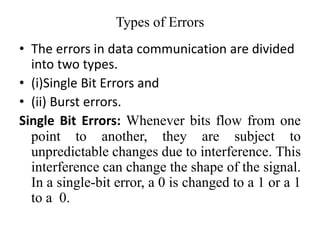

Types of Errors
• The errors in data communication are divided
into two types.
• (i)Single Bit Errors and
• (ii) Burst errors.
Single Bit Errors: Whenever bits flow from one
point to another, they are subject to
unpredictable changes due to interference. This
interference can change the shape of the signal.
In a single-bit error, a 0 is changed to a 1 or a 1
to a 0.

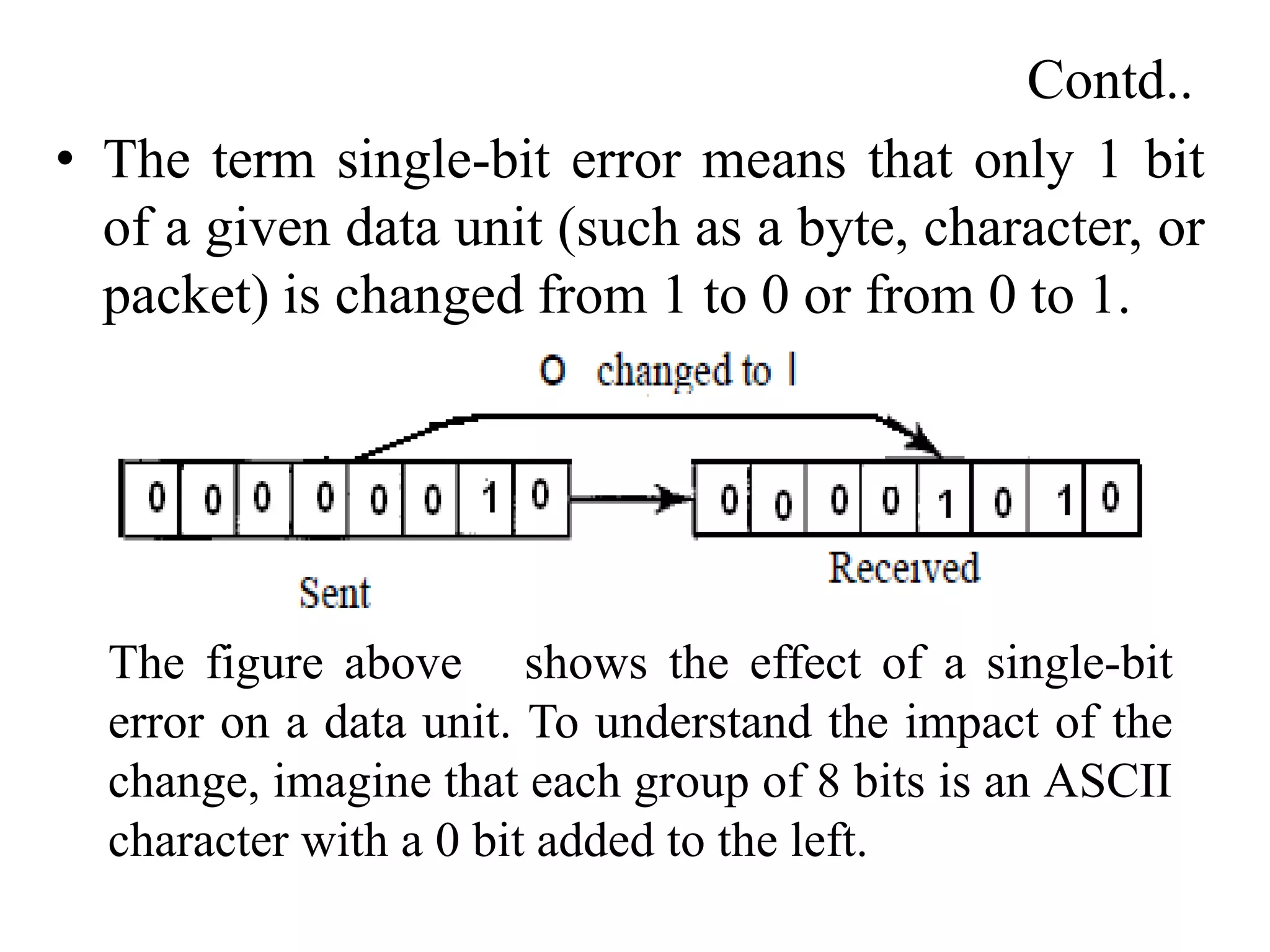

Contd..
• The term single-bit error means that only 1 bit
of a given data unit (such as a byte, character, or
packet) is changed from 1 to 0 or from 0 to 1.
The figure above shows the effect of a single-bit
error on a data unit. To understand the impact of the
change, imagine that each group of 8 bits is an ASCII
character with a 0 bit added to the left.

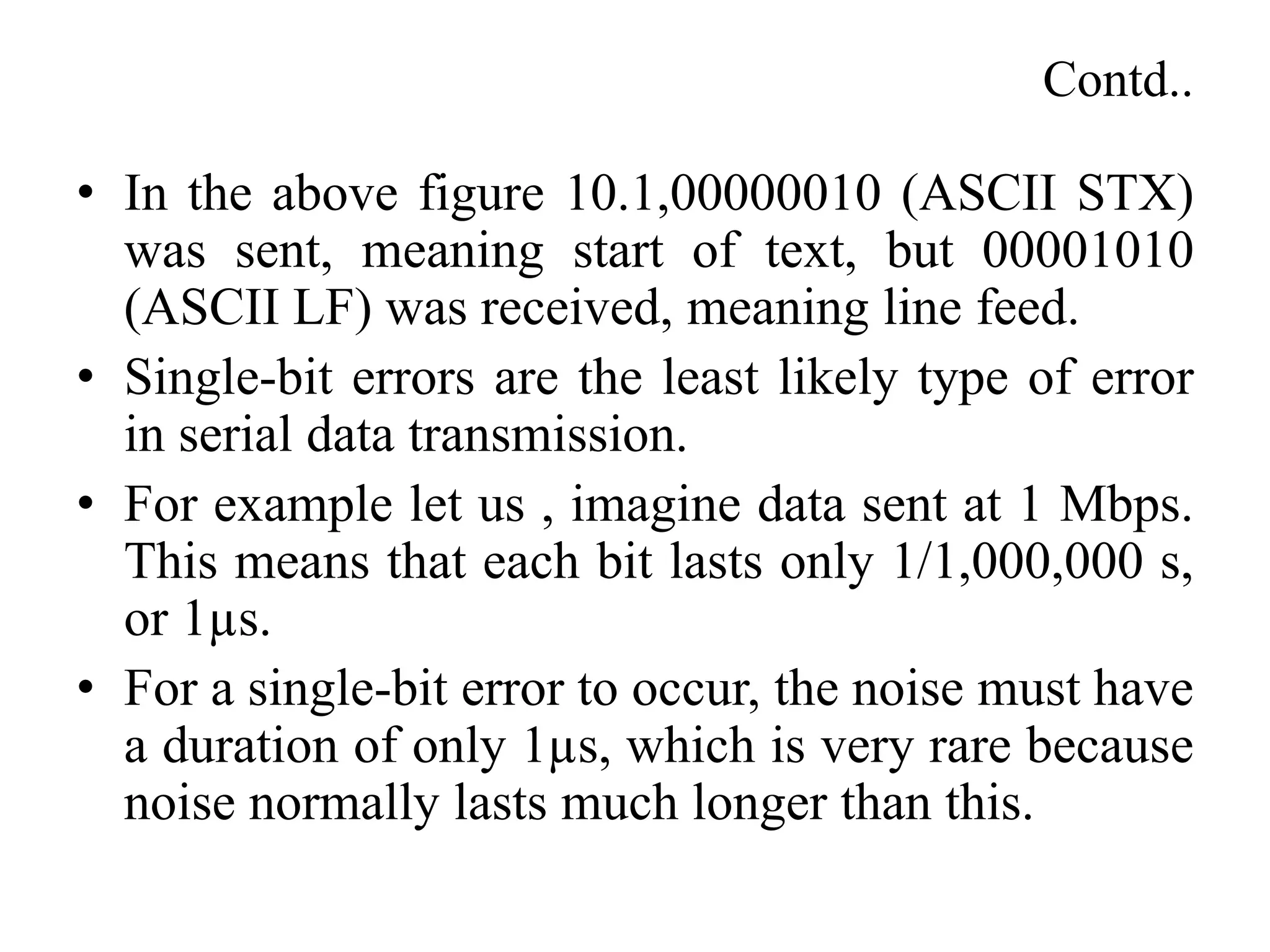

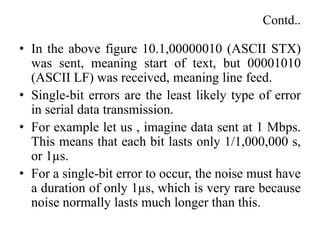

Contd..
• In the above figure 10.1,00000010 (ASCII STX)
was sent, meaning start of text, but 00001010
(ASCII LF) was received, meaning line feed.
• Single-bit errors are the least likely type of error
in serial data transmission.
• For example let us , imagine data sent at 1 Mbps.
This means that each bit lasts only 1/1,000,000 s,
or 1µs.
• For a single-bit error to occur, the noise must have
a duration of only 1µs, which is very rare because
noise normally lasts much longer than this.

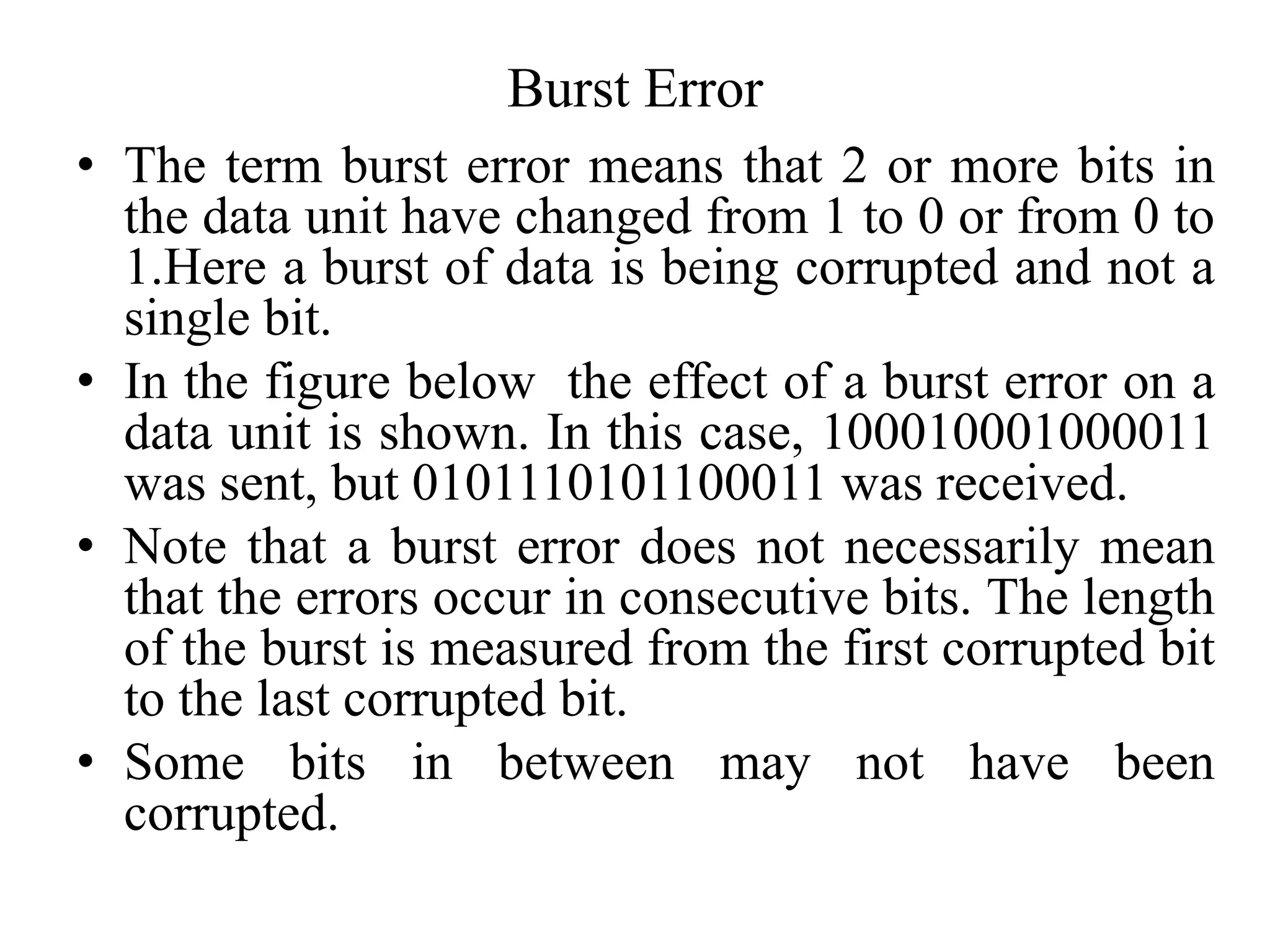

Burst Error
• The term burst error means that 2 or more bits in
the data unit have changed from 1 to 0 or from 0 to
1.Here a burst of data is being corrupted and not a
single bit.
• In the figure below the effect of a burst error on a
data unit is shown. In this case, 100010001000011
was sent, but 0101110101100011 was received.
• Note that a burst error does not necessarily mean
that the errors occur in consecutive bits. The length
of the burst is measured from the first corrupted bit
to the last corrupted bit.
• Some bits in between may not have been
corrupted.

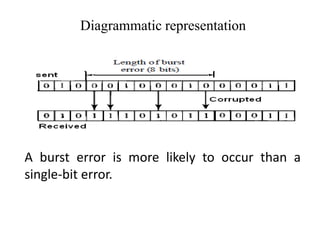

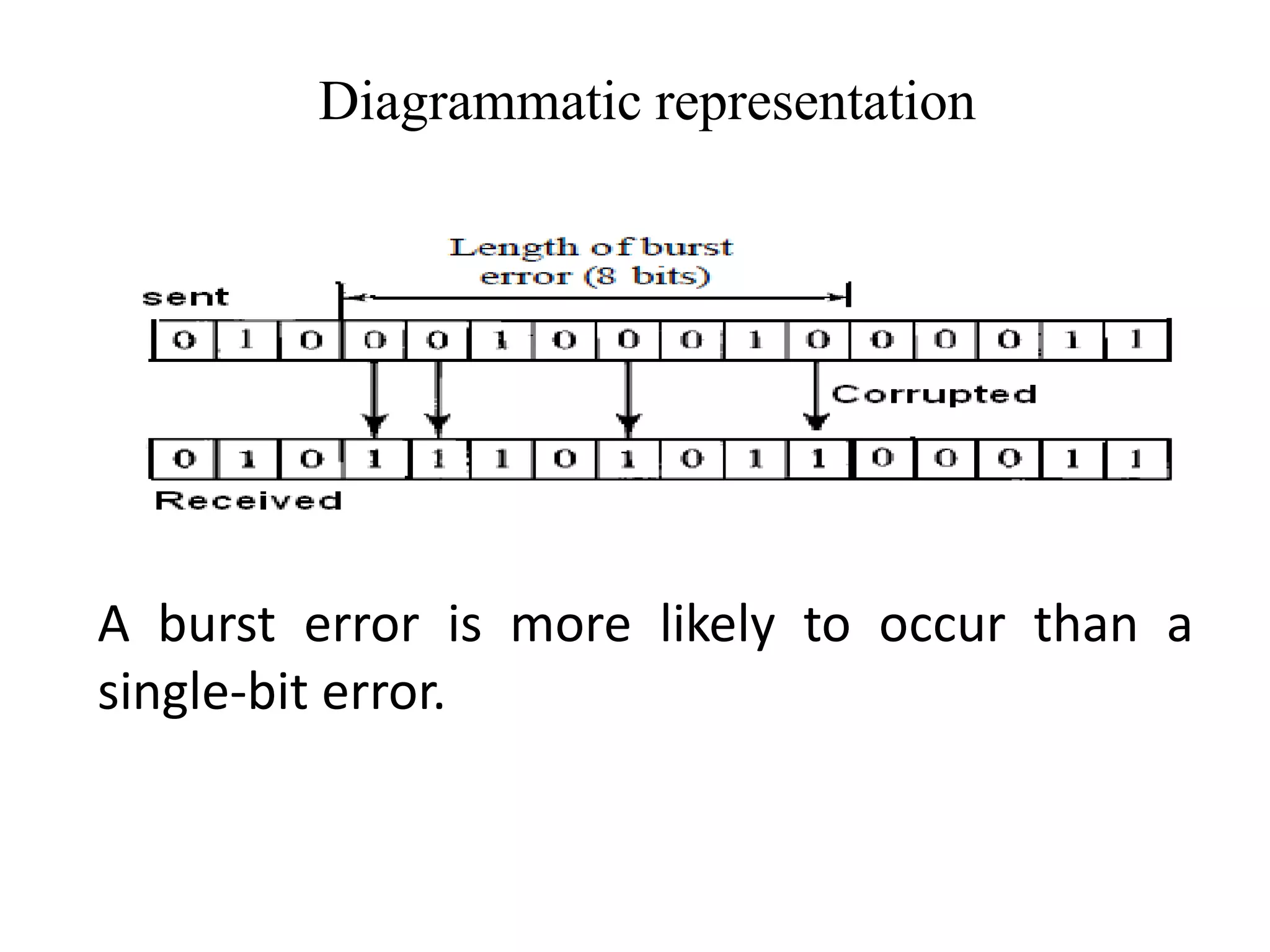

Diagrammatic representation
A burst error is more likely to occur than a
single-bit error.

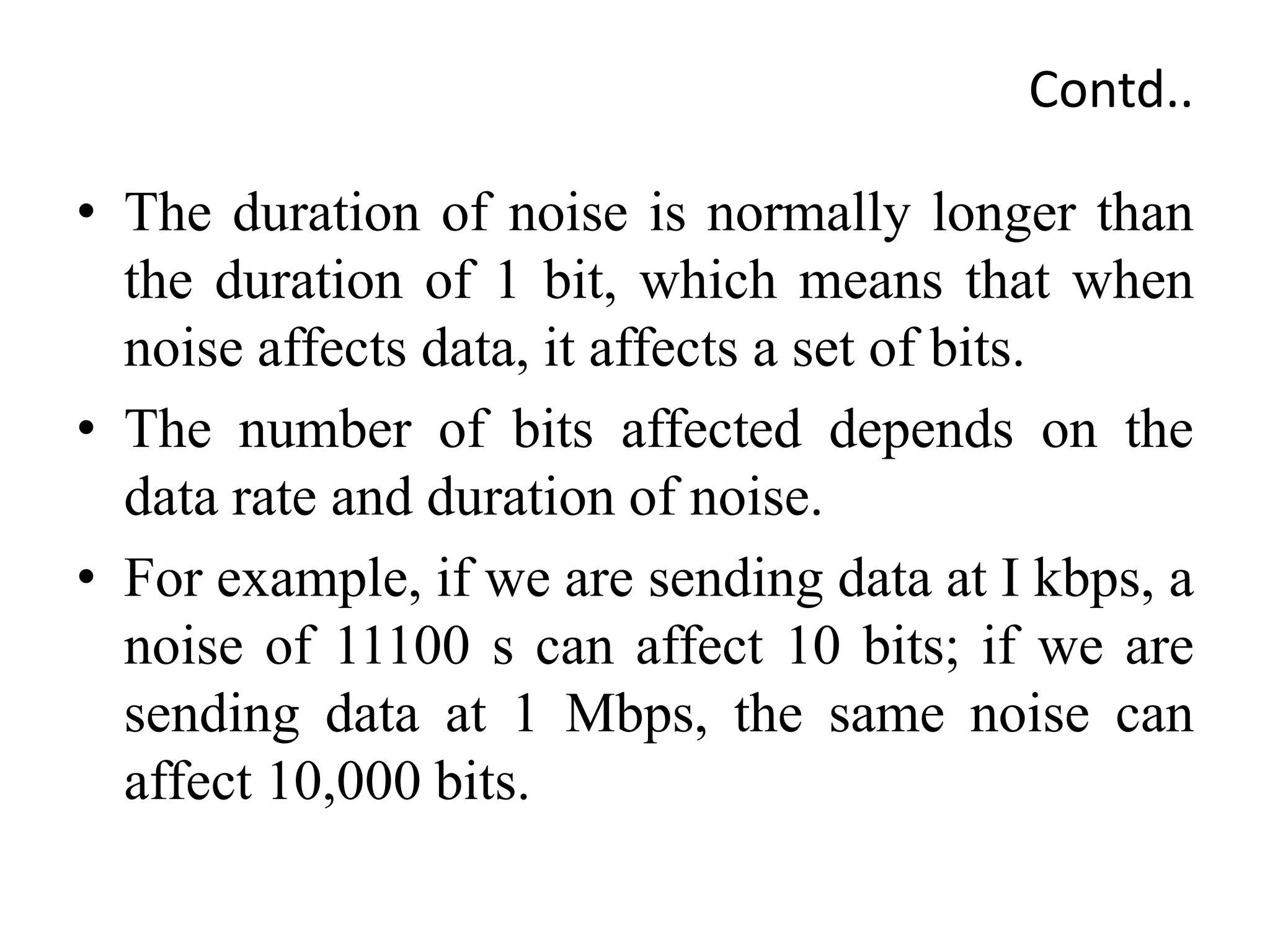

Contd..
• The duration of noise is normally longer than
the duration of 1 bit, which means that when
noise affects data, it affects a set of bits.
• The number of bits affected depends on the
data rate and duration of noise.
• For example, if we are sending data at I kbps, a
noise of 11100 s can affect 10 bits; if we are
sending data at 1 Mbps, the same noise can
affect 10,000 bits.

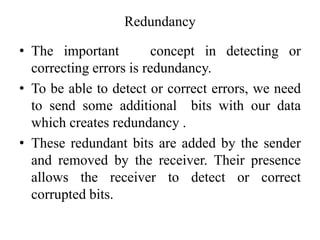

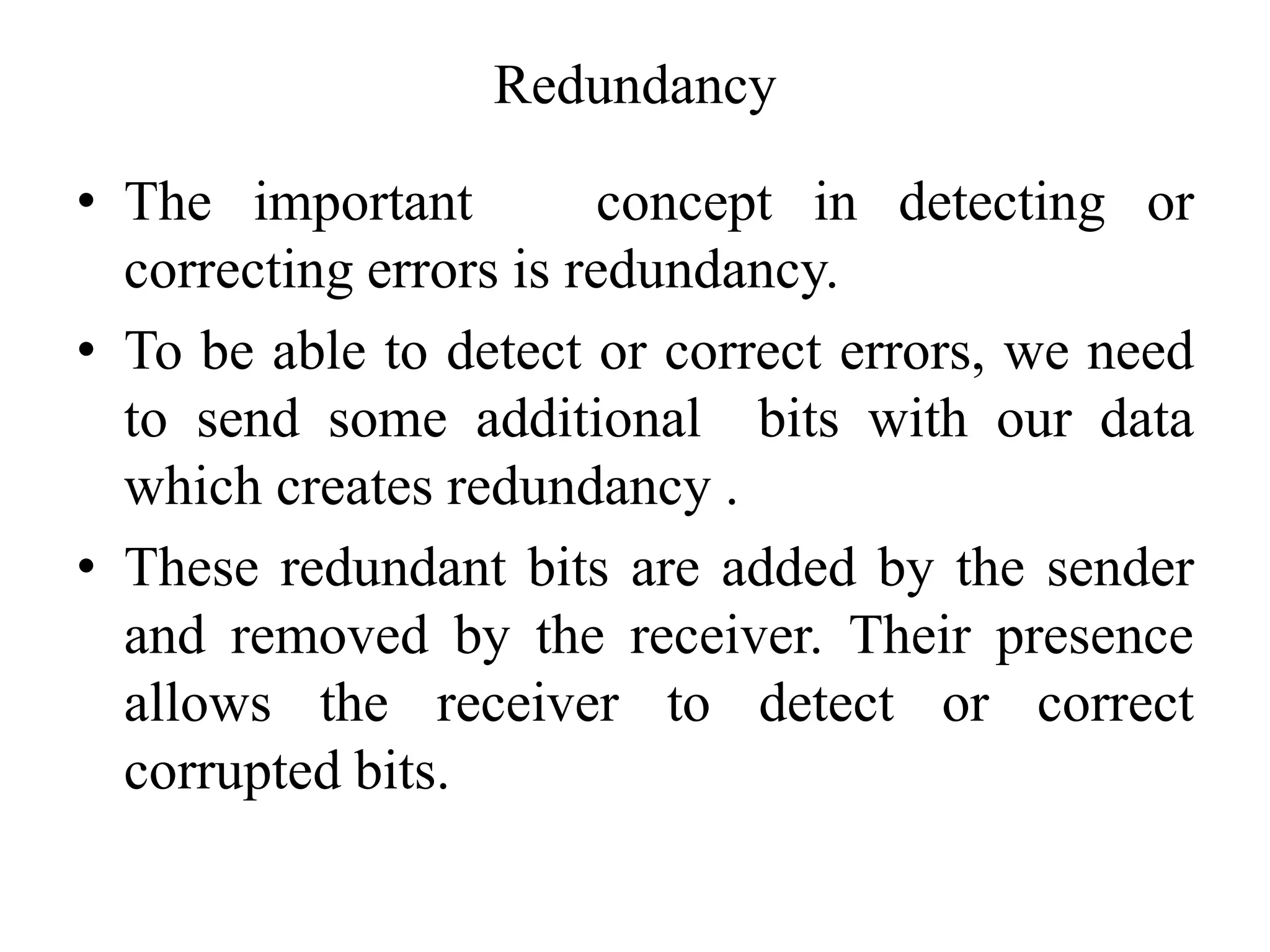

Redundancy
• The important concept in detecting or
correcting errors is redundancy.
• To be able to detect or correct errors, we need
to send some additional bits with our data
which creates redundancy .
• These redundant bits are added by the sender
and removed by the receiver. Their presence
allows the receiver to detect or correct
corrupted bits.

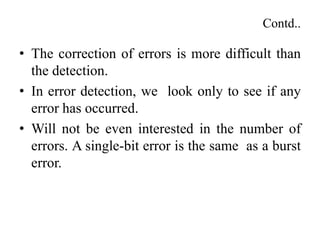

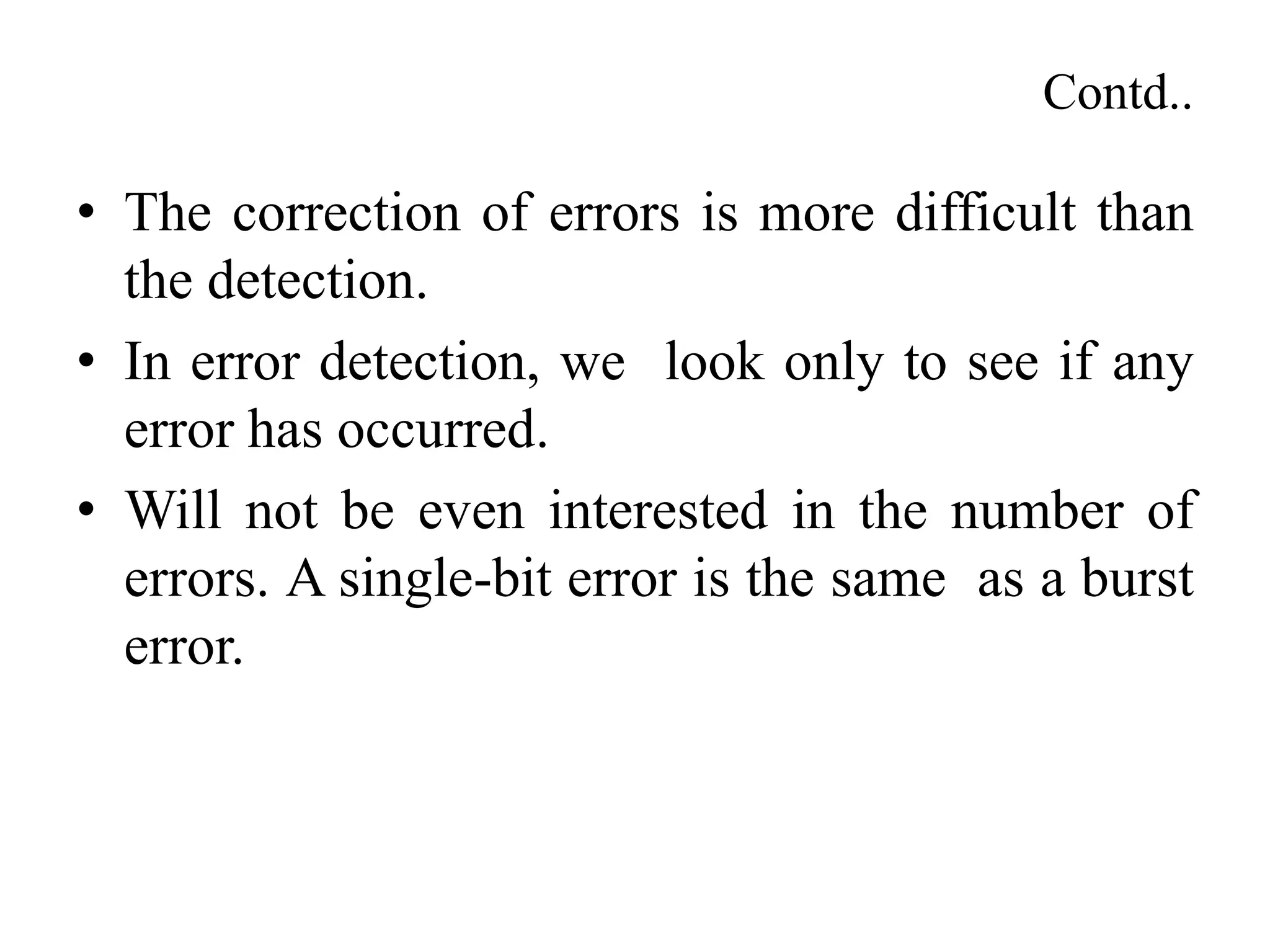

Contd..
• The correction of errors is more difficult than
the detection.
• In error detection, we look only to see if any
error has occurred.
• Will not be even interested in the number of
errors. A single-bit error is the same as a burst
error.

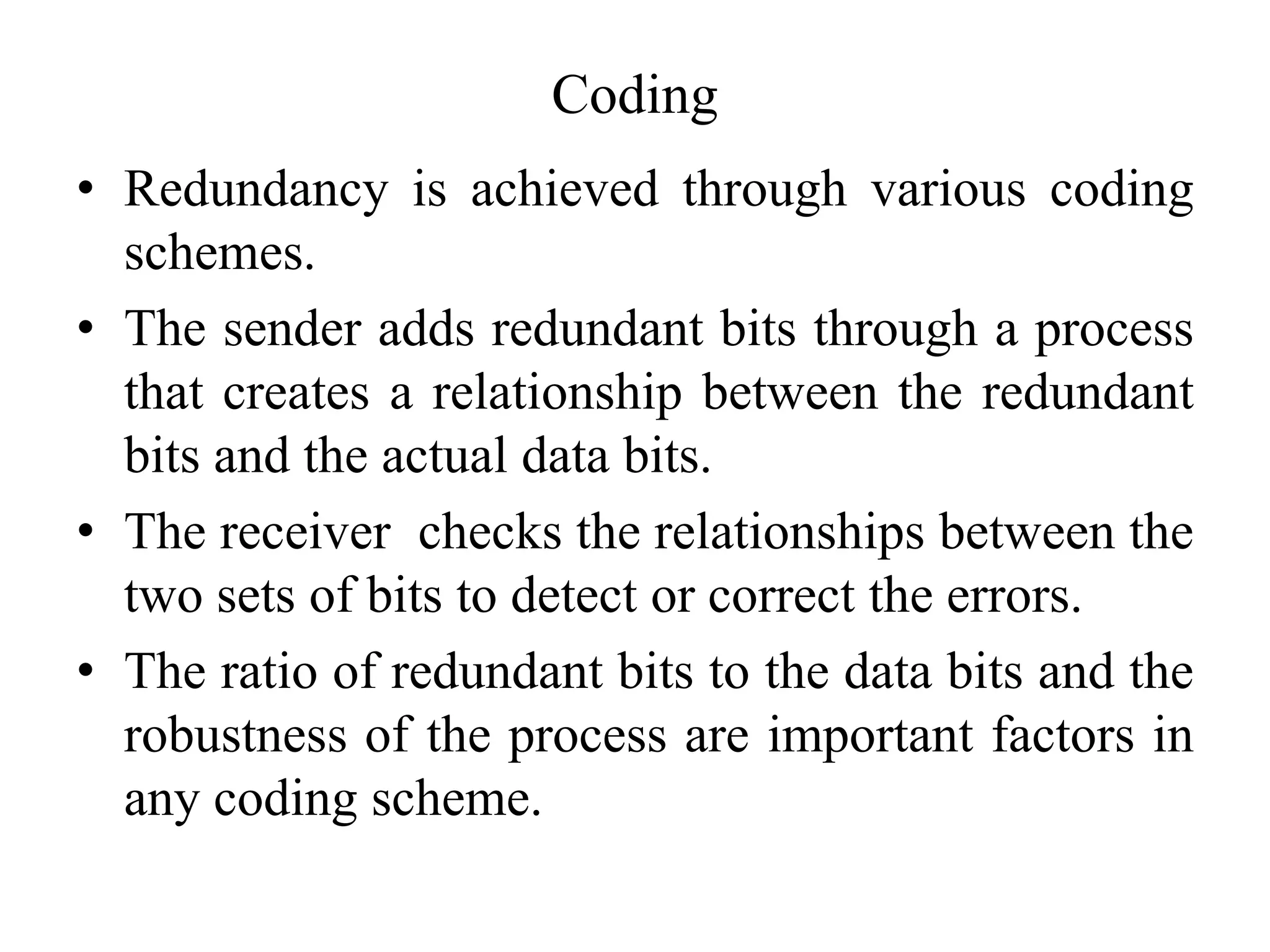

Coding
• Redundancy is achieved through various coding
schemes.
• The sender adds redundant bits through a process
that creates a relationship between the redundant
bits and the actual data bits.
• The receiver checks the relationships between the
two sets of bits to detect or correct the errors.
• The ratio of redundant bits to the data bits and the
robustness of the process are important factors in
any coding scheme.

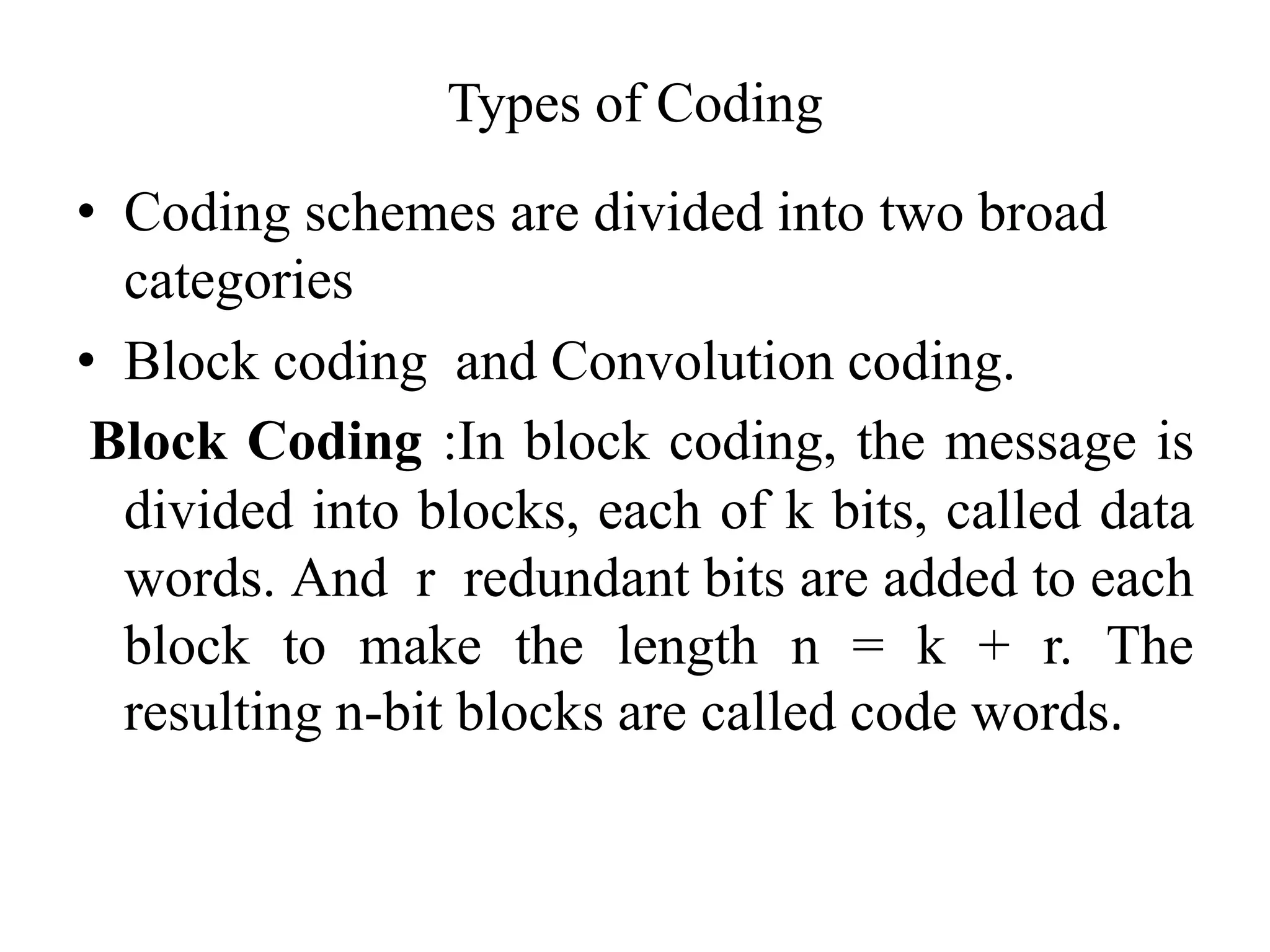

Types of Coding
• Coding schemes are divided into two broad
categories
• Block coding and Convolution coding.
Block Coding :In block coding, the message is
divided into blocks, each of k bits, called data
words. And r redundant bits are added to each
block to make the length n = k + r. The
resulting n-bit blocks are called code words.

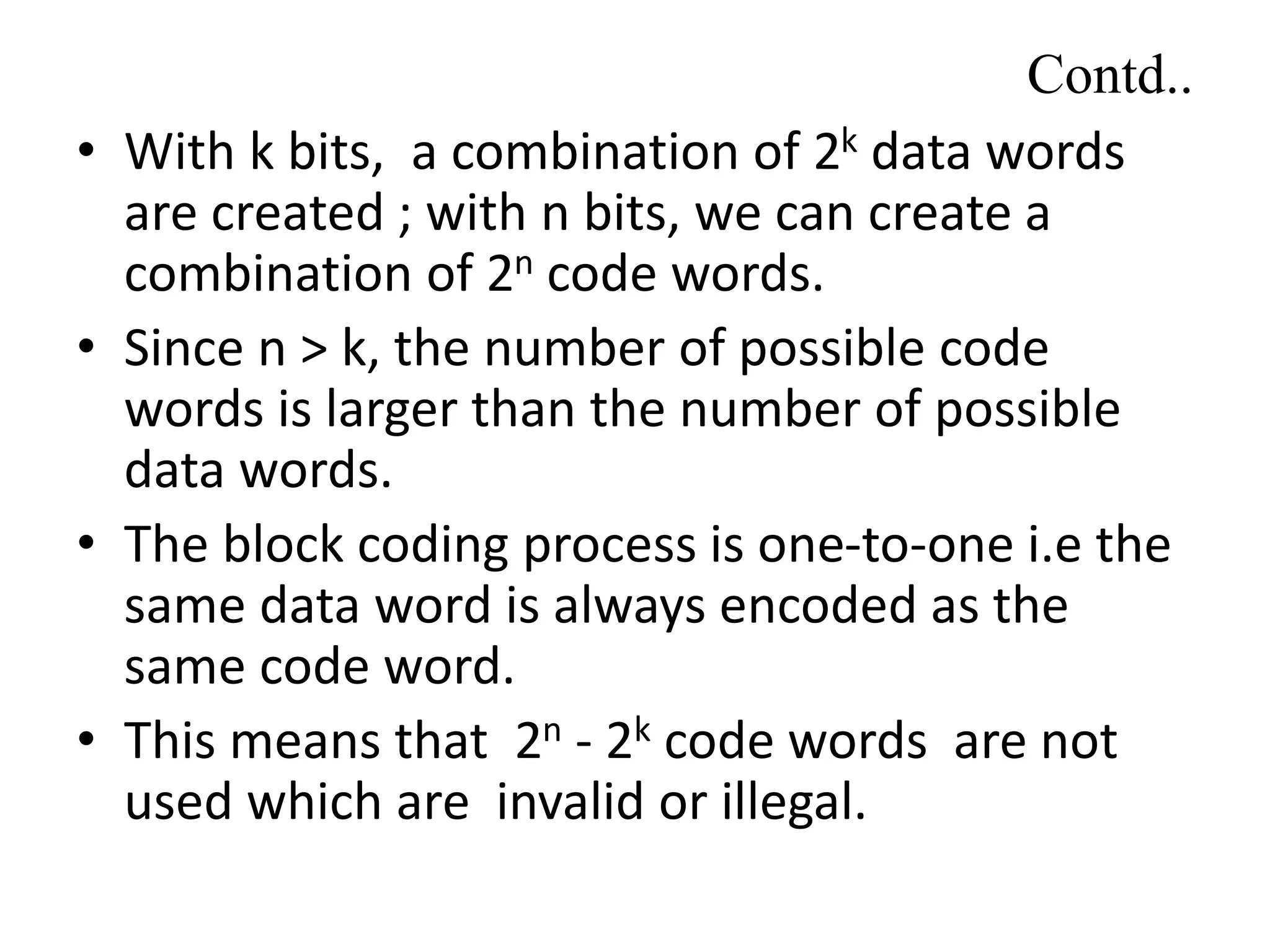

Contd..
• With k bits, a combination of 2k data words
are created ; with n bits, we can create a
combination of 2n code words.
• Since n > k, the number of possible code
words is larger than the number of possible
data words.
• The block coding process is one-to-one i.e the
same data word is always encoded as the
same code word.
• This means that 2n - 2k code words are not
used which are invalid or illegal.

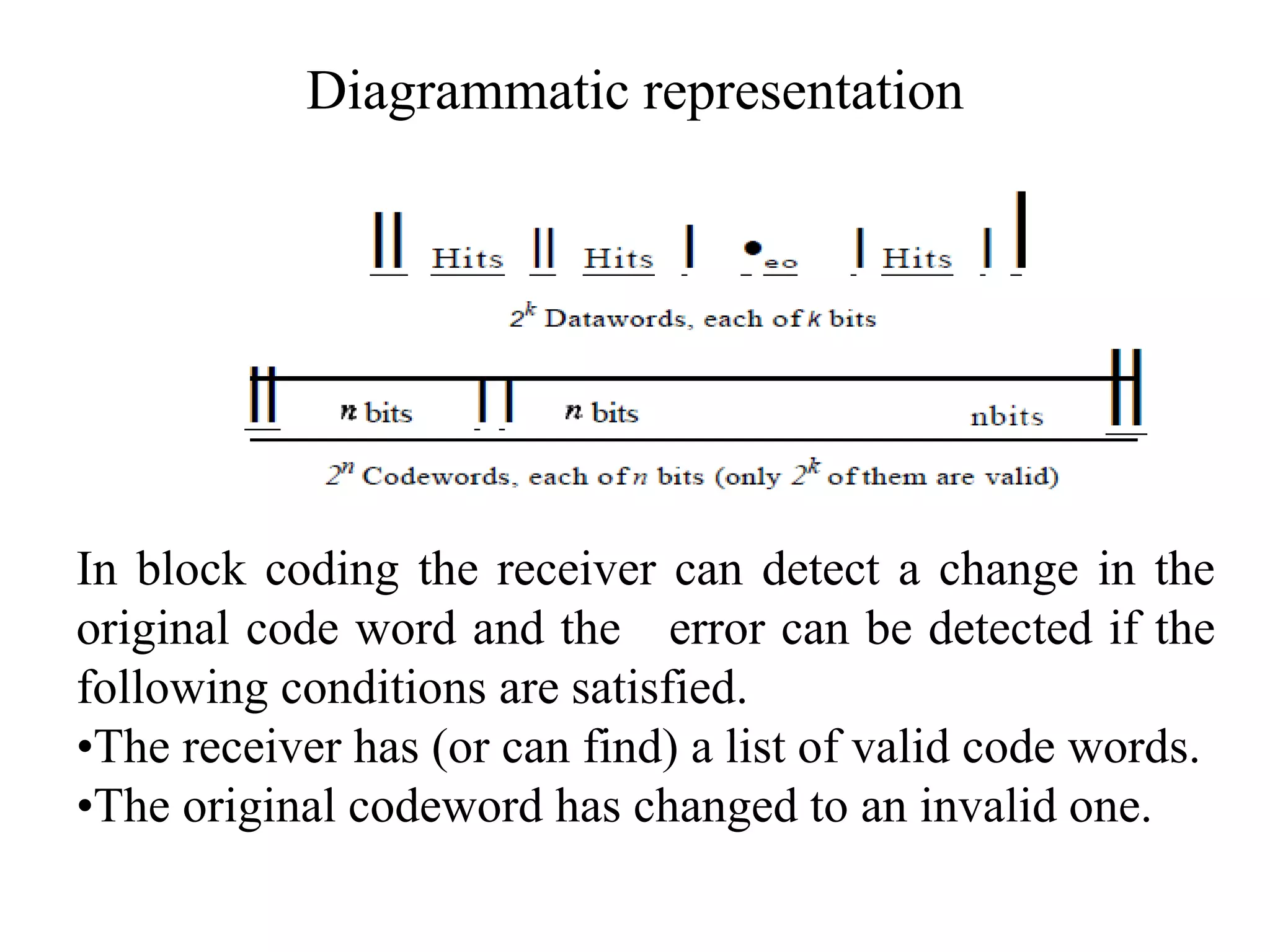

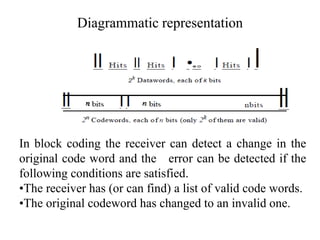

Diagrammatic representation
In block coding the receiver can detect a change in the
original code word and the error can be detected if the
following conditions are satisfied.
•The receiver has (or can find) a list of valid code words.
•The original codeword has changed to an invalid one.

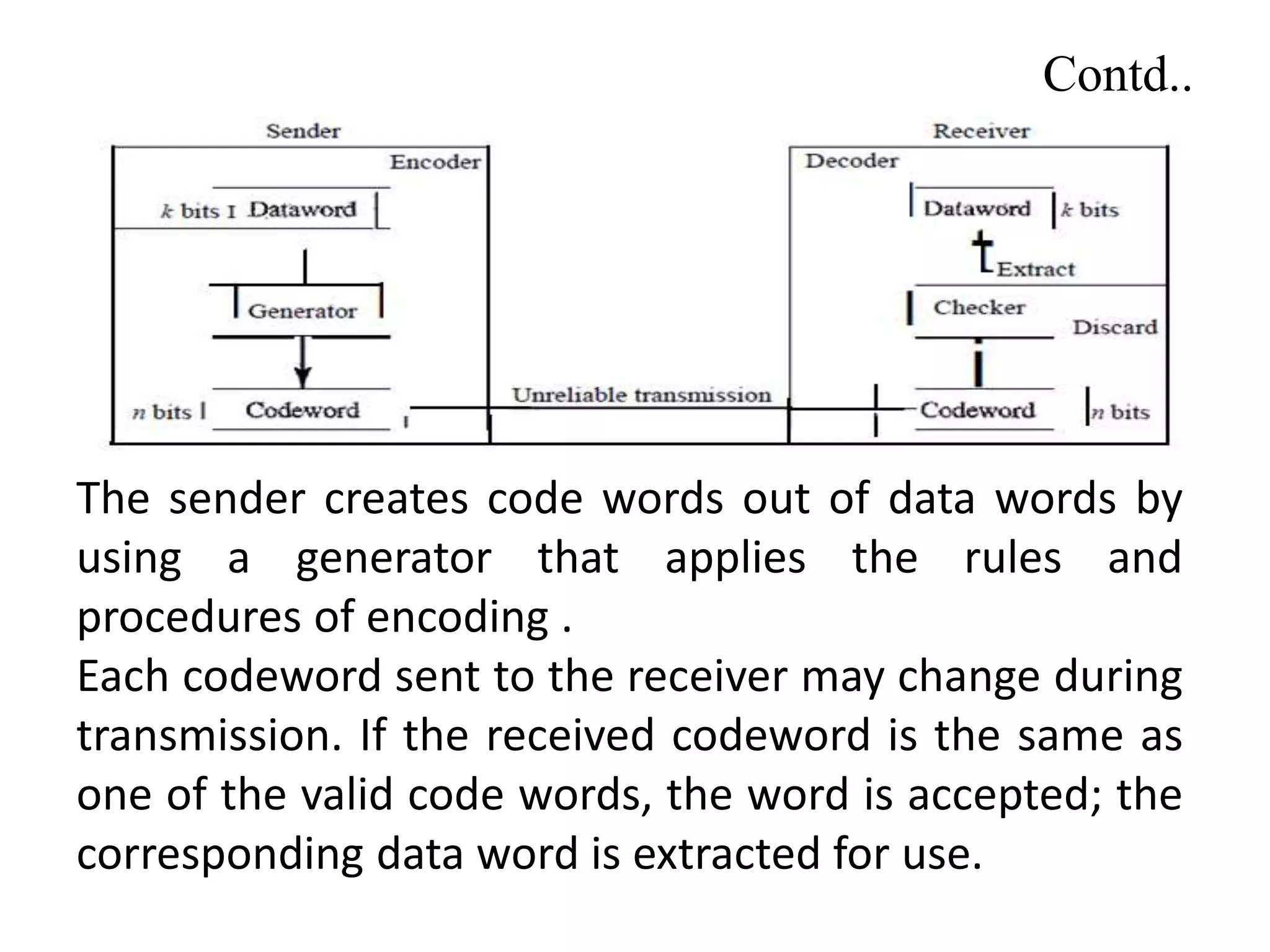

Contd..
The sender creates code words out of data words by
using a generator that applies the rules and
procedures of encoding .
Each codeword sent to the receiver may change during
transmission. If the received codeword is the same as
one of the valid code words, the word is accepted; the
corresponding data word is extracted for use.

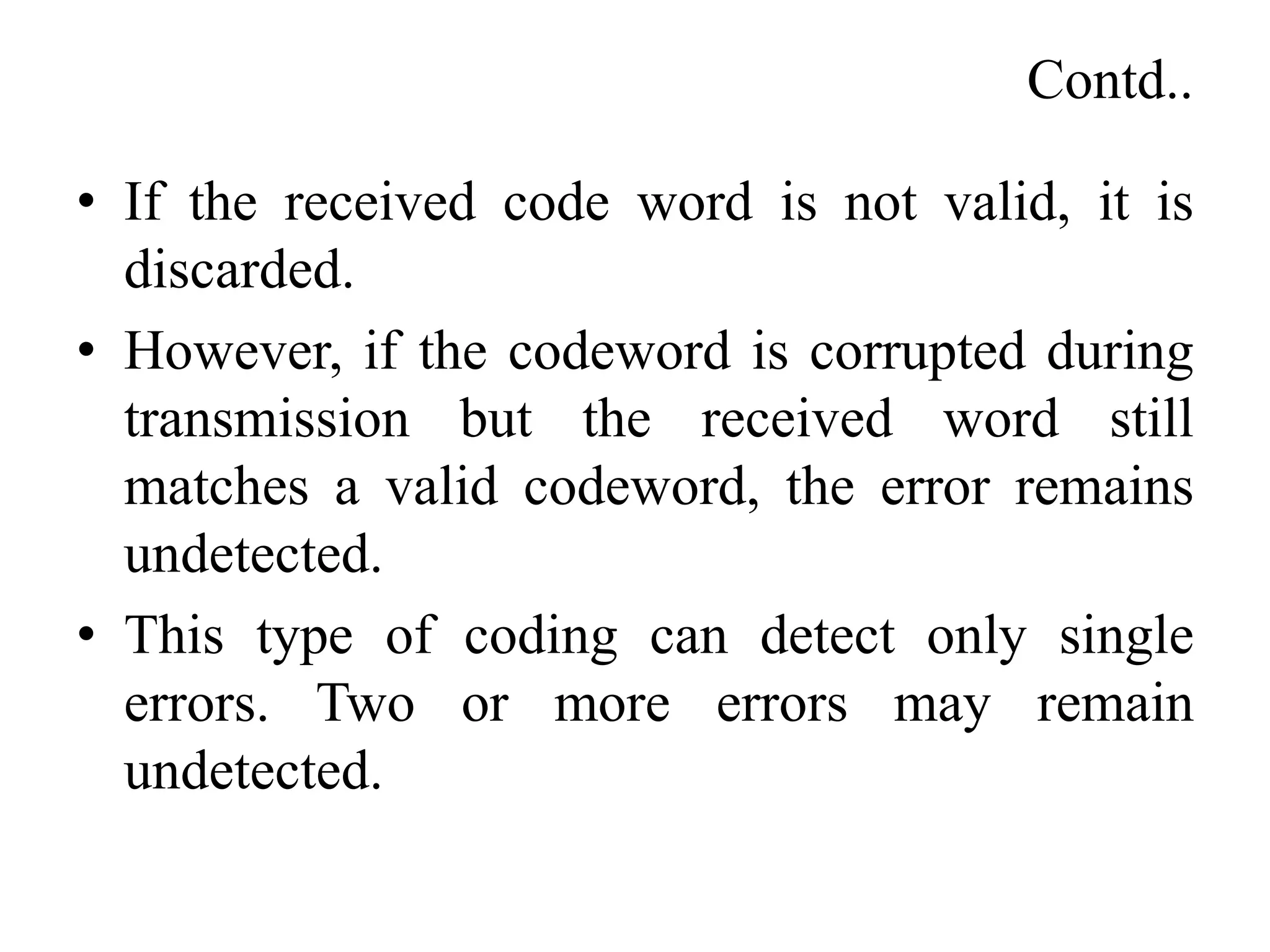

Contd..
• If the received code word is not valid, it is
discarded.
• However, if the codeword is corrupted during
transmission but the received word still
matches a valid codeword, the error remains
undetected.
• This type of coding can detect only single
errors. Two or more errors may remain
undetected.

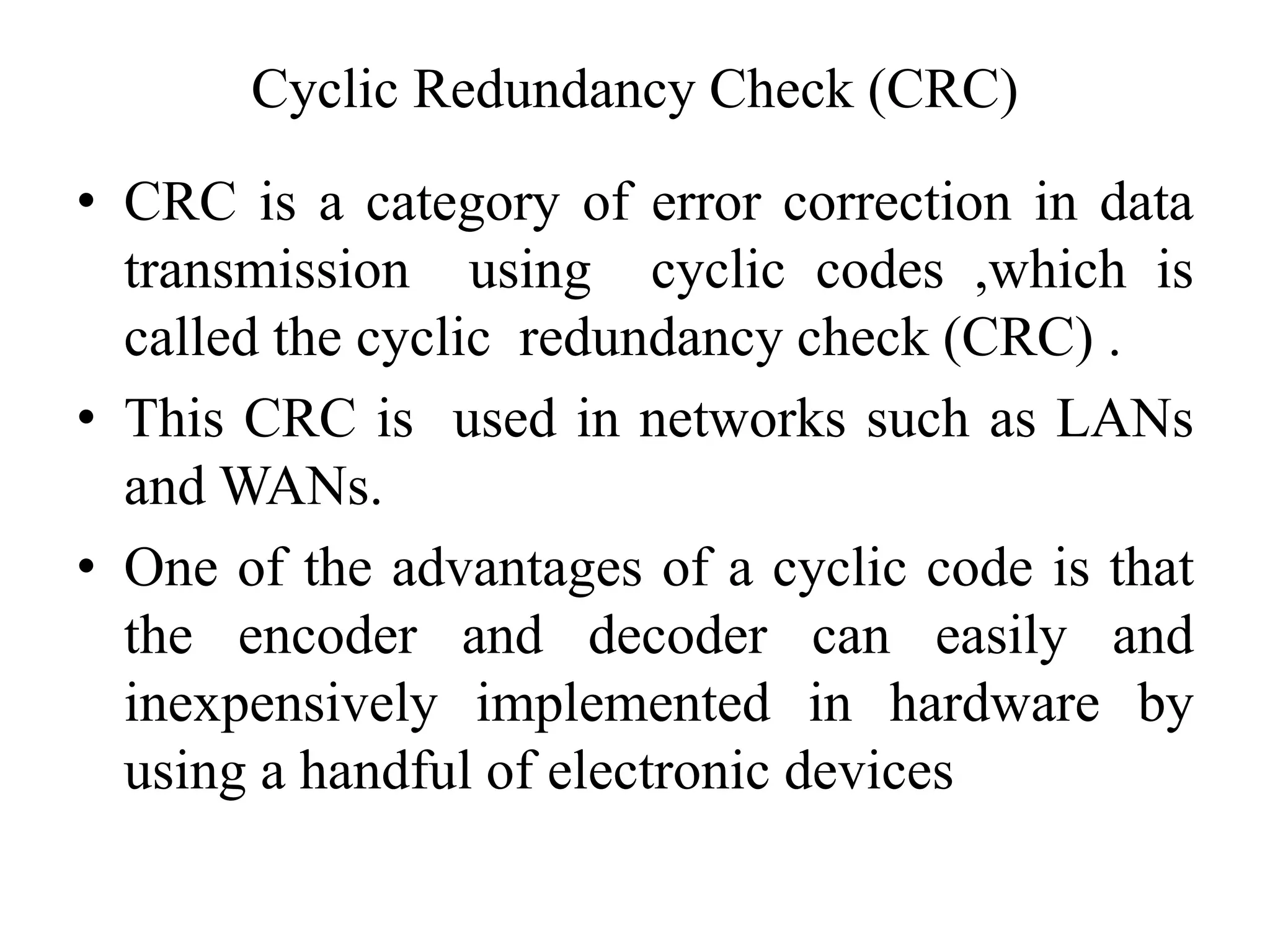

Cyclic Redundancy Check (CRC)
• CRC is a category of error correction in data
transmission using cyclic codes ,which is
called the cyclic redundancy check (CRC) .
• This CRC is used in networks such as LANs
and WANs.
• One of the advantages of a cyclic code is that
the encoder and decoder can easily and
inexpensively implemented in hardware by
using a handful of electronic devices

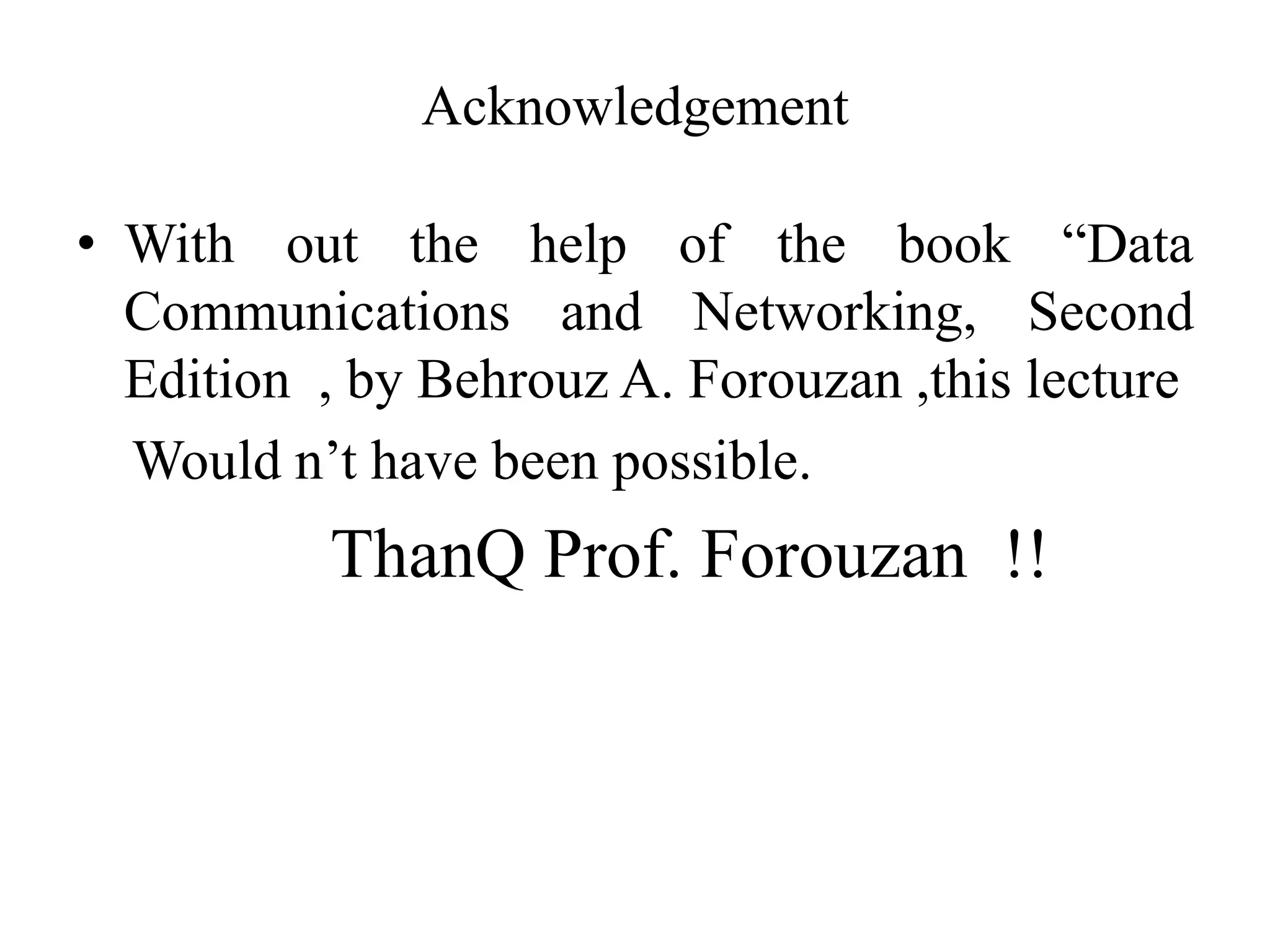

Acknowledgement
• With out the help of the book “Data
Communications and Networking, Second
Edition , by Behrouz A. Forouzan ,this lecture
Would n’t have been possible.
ThanQ Prof. Forouzan !!

Basics of data communications.pptx

More Related Content

Similar to Basics of data communications.pptx

More from Dr.YNM

Recently uploaded

Basics of data communications.pptx
