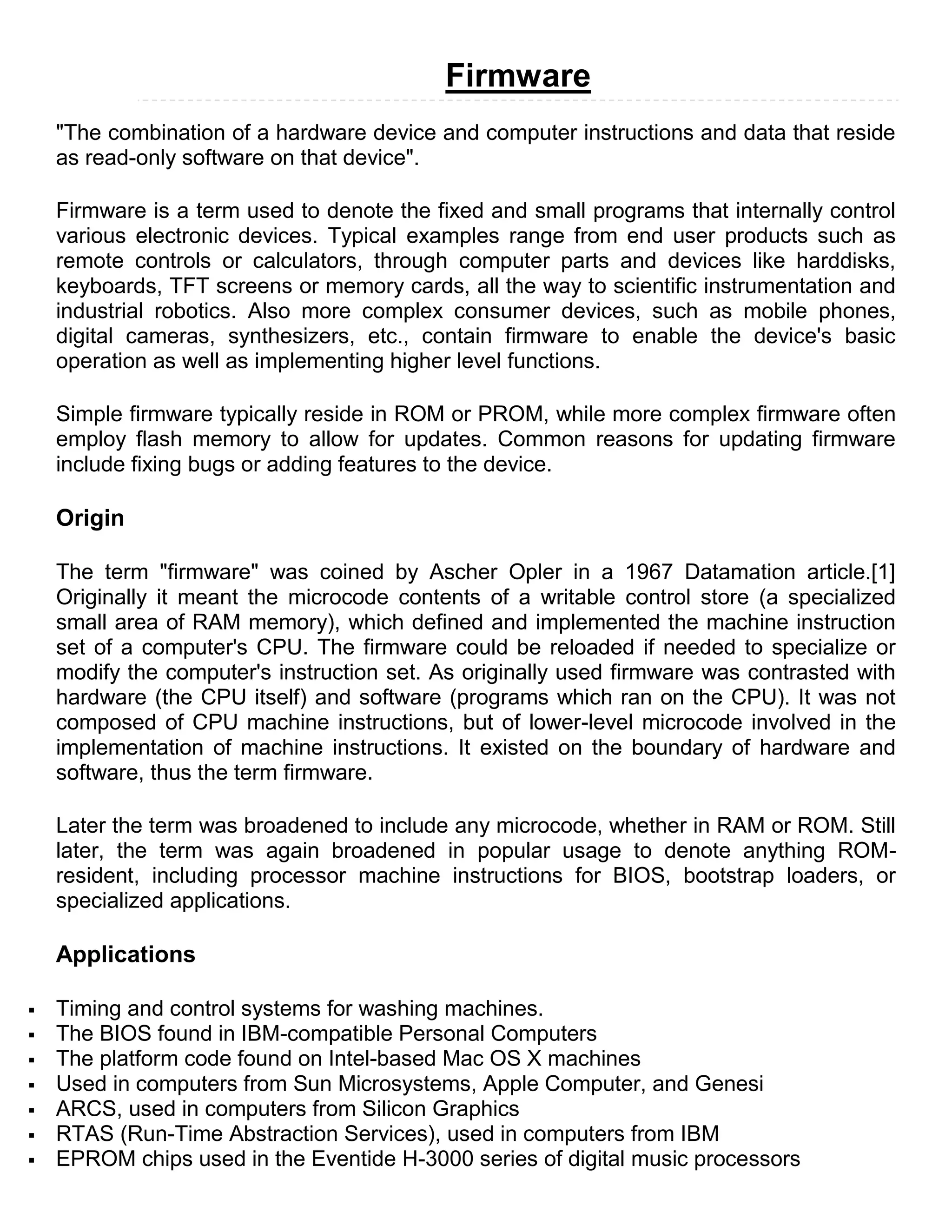

Firmware
"The combination of a hardware device and computer instructions and data that reside
as read-only software on that device".

Firmware is a term used to denote the fixed and small programs that internally control
various electronic devices. Typical examples range from end user products such as
remote controls or calculators, through computer parts and devices like harddisks,
keyboards, TFT screens or memory cards, all the way to scientific instrumentation and
industrial robotics. Also more complex consumer devices, such as mobile phones,
digital cameras, synthesizers, etc., contain firmware to enable the device's basic
operation as well as implementing higher level functions.

Simple firmware typically reside in ROM or PROM, while more complex firmware often
employ flash memory to allow for updates. Common reasons for updating firmware
include fixing bugs or adding features to the device.

Origin

The term "firmware" was coined by Ascher Opler in a 1967 Datamation article.[1]
Originally it meant the microcode contents of a writable control store (a specialized
small area of RAM memory), which defined and implemented the machine instruction
set of a computer's CPU. The firmware could be reloaded if needed to specialize or
modify the computer's instruction set. As originally used firmware was contrasted with
hardware (the CPU itself) and software (programs which ran on the CPU). It was not
composed of CPU machine instructions, but of lower-level microcode involved in the
implementation of machine instructions. It existed on the boundary of hardware and
software, thus the term firmware.

Later the term was broadened to include any microcode, whether in RAM or ROM. Still
later, the term was again broadened in popular usage to denote anything ROM-
resident, including processor machine instructions for BIOS, bootstrap loaders, or
specialized applications.

Applications

 Timing and control systems for washing machines.
 The BIOS found in IBM-compatible Personal Computers
 The platform code found on Intel-based Mac OS X machines
 Used in computers from Sun Microsystems, Apple Computer, and Genesi
 ARCS, used in computers from Silicon Graphics
 RTAS (Run-Time Abstraction Services), used in computers from IBM
 EPROM chips used in the Eventide H-3000 series of digital music processors

 The Common Firmware Environment (CFE)
 Controlling sound and video attributes as well as the channel list in modern TVs

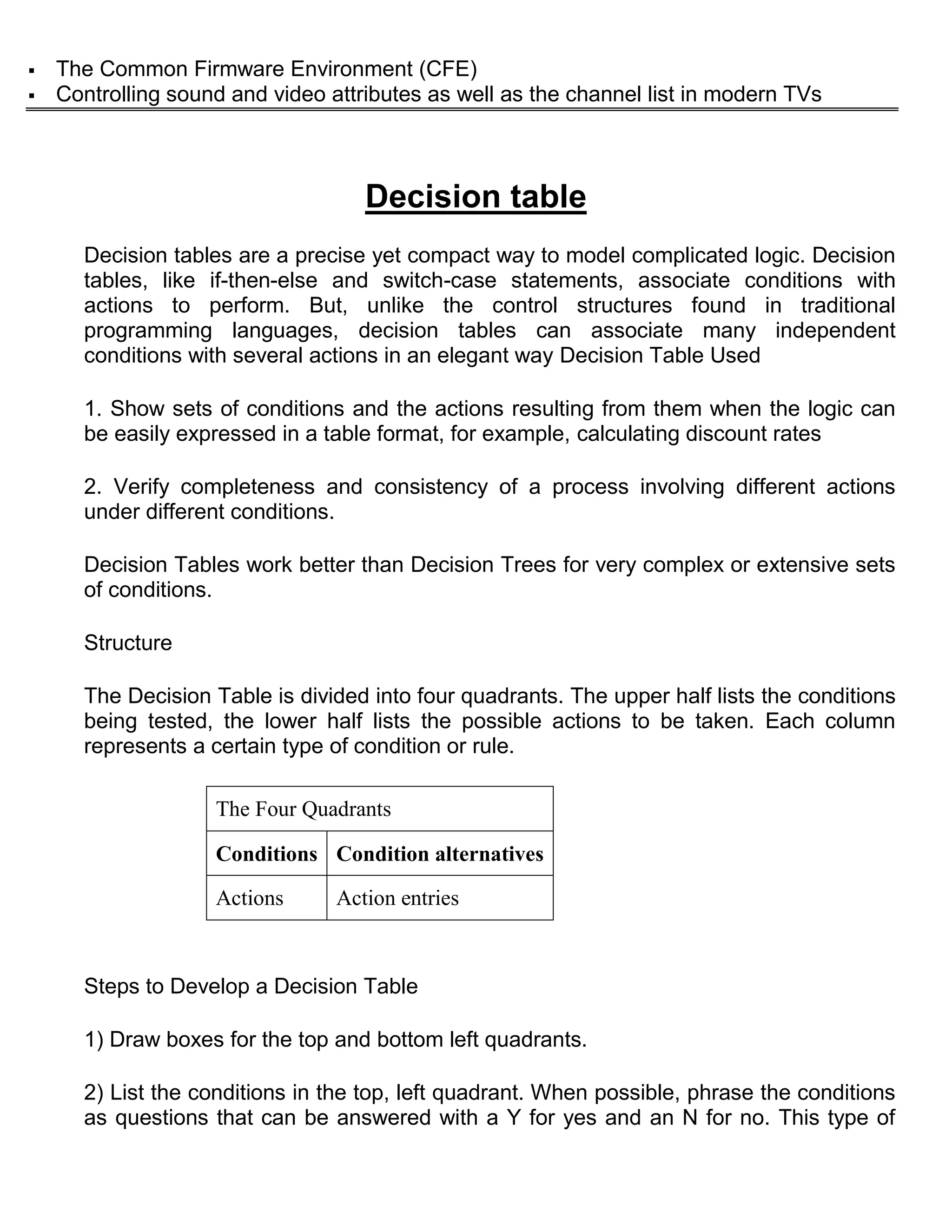

Decision table
Decision tables are a precise yet compact way to model complicated logic. Decision
tables, like if-then-else and switch-case statements, associate conditions with
actions to perform. But, unlike the control structures found in traditional
programming languages, decision tables can associate many independent
conditions with several actions in an elegant way Decision Table Used

1. Show sets of conditions and the actions resulting from them when the logic can
be easily expressed in a table format, for example, calculating discount rates

2. Verify completeness and consistency of a process involving different actions
under different conditions.

Decision Tables work better than Decision Trees for very complex or extensive sets
of conditions.

Structure

The Decision Table is divided into four quadrants. The upper half lists the conditions
being tested, the lower half lists the possible actions to be taken. Each column
represents a certain type of condition or rule.

The Four Quadrants

Conditions Condition alternatives

Actions Action entries

Steps to Develop a Decision Table

1) Draw boxes for the top and bottom left quadrants.

2) List the conditions in the top, left quadrant. When possible, phrase the conditions
as questions that can be answered with a Y for yes and an N for no. This type of

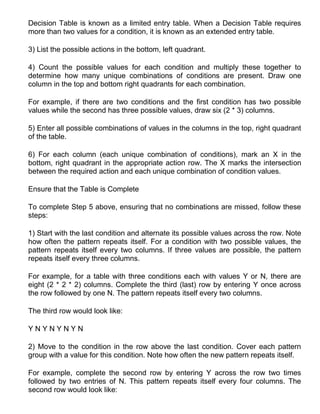

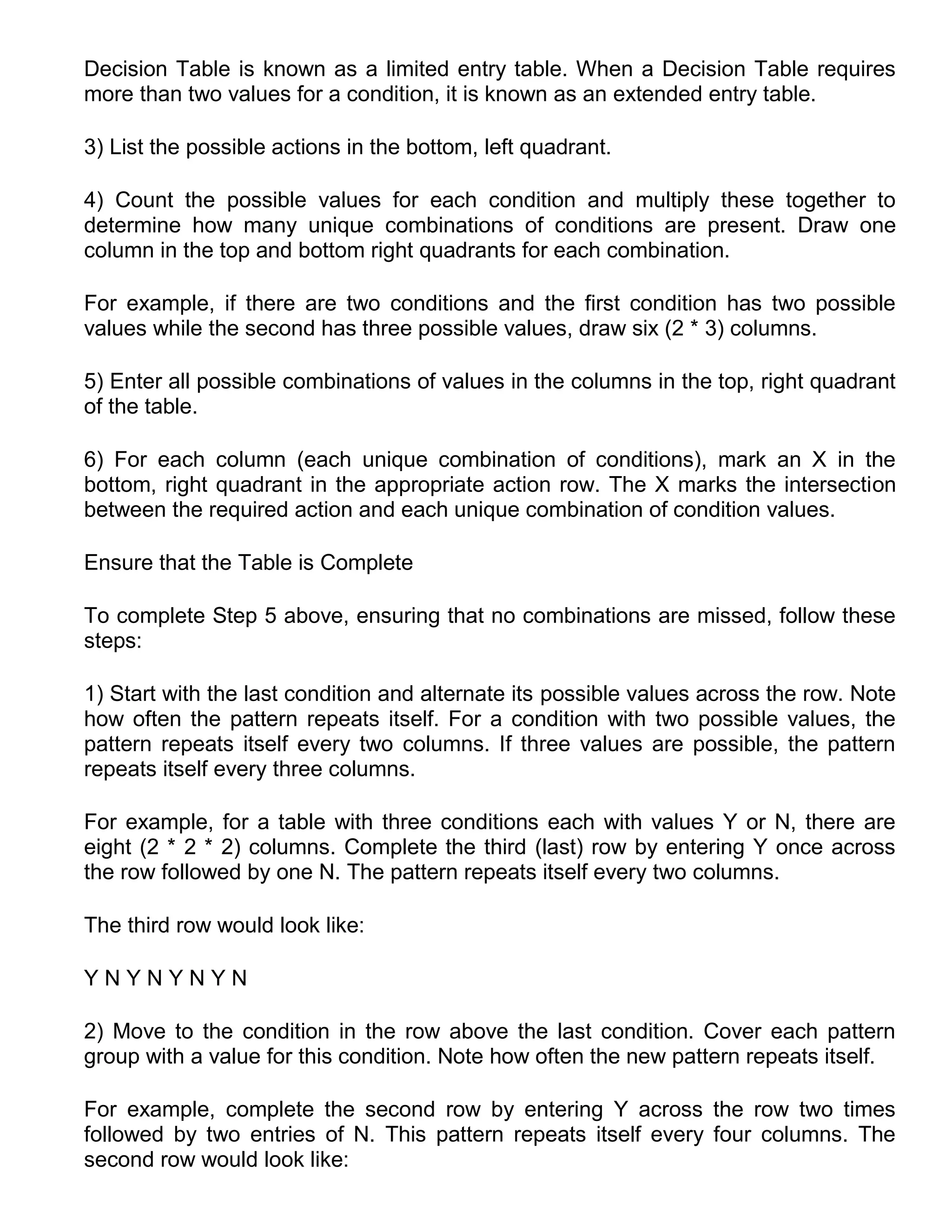

Decision Table is known as a limited entry table. When a Decision Table requires
more than two values for a condition, it is known as an extended entry table.

3) List the possible actions in the bottom, left quadrant.

4) Count the possible values for each condition and multiply these together to
determine how many unique combinations of conditions are present. Draw one
column in the top and bottom right quadrants for each combination.

For example, if there are two conditions and the first condition has two possible
values while the second has three possible values, draw six (2 * 3) columns.

5) Enter all possible combinations of values in the columns in the top, right quadrant
of the table.

6) For each column (each unique combination of conditions), mark an X in the
bottom, right quadrant in the appropriate action row. The X marks the intersection
between the required action and each unique combination of condition values.

Ensure that the Table is Complete

To complete Step 5 above, ensuring that no combinations are missed, follow these
steps:

1) Start with the last condition and alternate its possible values across the row. Note
how often the pattern repeats itself. For a condition with two possible values, the
pattern repeats itself every two columns. If three values are possible, the pattern
repeats itself every three columns.

For example, for a table with three conditions each with values Y or N, there are
eight (2 * 2 * 2) columns. Complete the third (last) row by entering Y once across
the row followed by one N. The pattern repeats itself every two columns.

The third row would look like:

YNYNYNYN

2) Move to the condition in the row above the last condition. Cover each pattern
group with a value for this condition. Note how often the new pattern repeats itself.

For example, complete the second row by entering Y across the row two times
followed by two entries of N. This pattern repeats itself every four columns. The
second row would look like:

YYNNYYNN

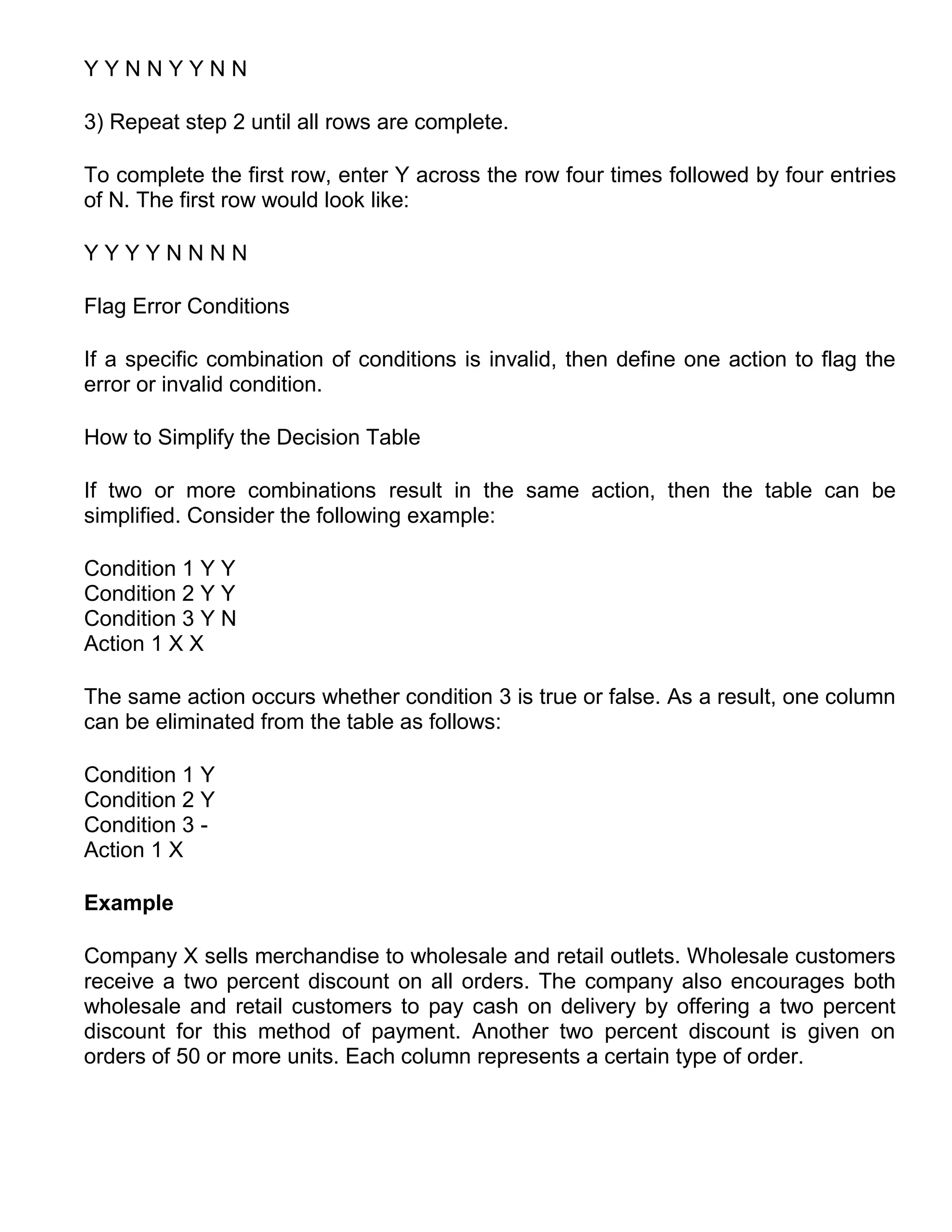

3) Repeat step 2 until all rows are complete.

To complete the first row, enter Y across the row four times followed by four entries
of N. The first row would look like:

YYYYNNNN

Flag Error Conditions

If a specific combination of conditions is invalid, then define one action to flag the
error or invalid condition.

How to Simplify the Decision Table

If two or more combinations result in the same action, then the table can be
simplified. Consider the following example:

Condition 1 Y Y
Condition 2 Y Y
Condition 3 Y N
Action 1 X X

The same action occurs whether condition 3 is true or false. As a result, one column
can be eliminated from the table as follows:

Condition 1 Y
Condition 2 Y
Condition 3 -
Action 1 X

Example

Company X sells merchandise to wholesale and retail outlets. Wholesale customers
receive a two percent discount on all orders. The company also encourages both
wholesale and retail customers to pay cash on delivery by offering a two percent
discount for this method of payment. Another two percent discount is given on
orders of 50 or more units. Each column represents a certain type of order.

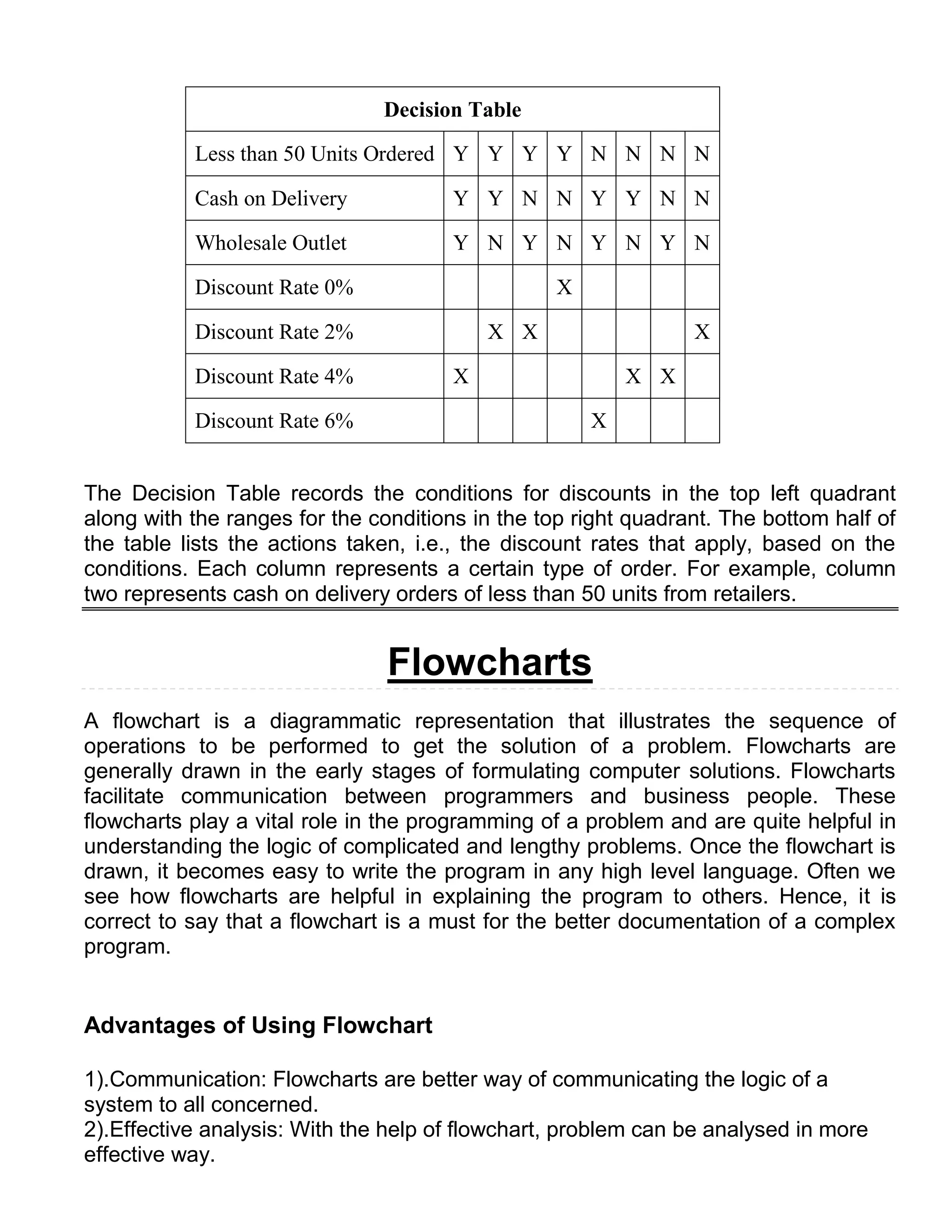

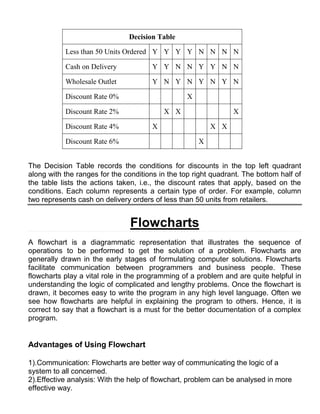

Decision Table

Less than 50 Units Ordered Y Y Y Y N N N N

Cash on Delivery Y Y N N Y Y N N

Wholesale Outlet Y N Y N Y N Y N

Discount Rate 0% X

Discount Rate 2% X X X

Discount Rate 4% X X X

Discount Rate 6% X

The Decision Table records the conditions for discounts in the top left quadrant
along with the ranges for the conditions in the top right quadrant. The bottom half of
the table lists the actions taken, i.e., the discount rates that apply, based on the
conditions. Each column represents a certain type of order. For example, column
two represents cash on delivery orders of less than 50 units from retailers.

Flowcharts
A flowchart is a diagrammatic representation that illustrates the sequence of
operations to be performed to get the solution of a problem. Flowcharts are
generally drawn in the early stages of formulating computer solutions. Flowcharts
facilitate communication between programmers and business people. These
flowcharts play a vital role in the programming of a problem and are quite helpful in
understanding the logic of complicated and lengthy problems. Once the flowchart is
drawn, it becomes easy to write the program in any high level language. Often we
see how flowcharts are helpful in explaining the program to others. Hence, it is
correct to say that a flowchart is a must for the better documentation of a complex
program.

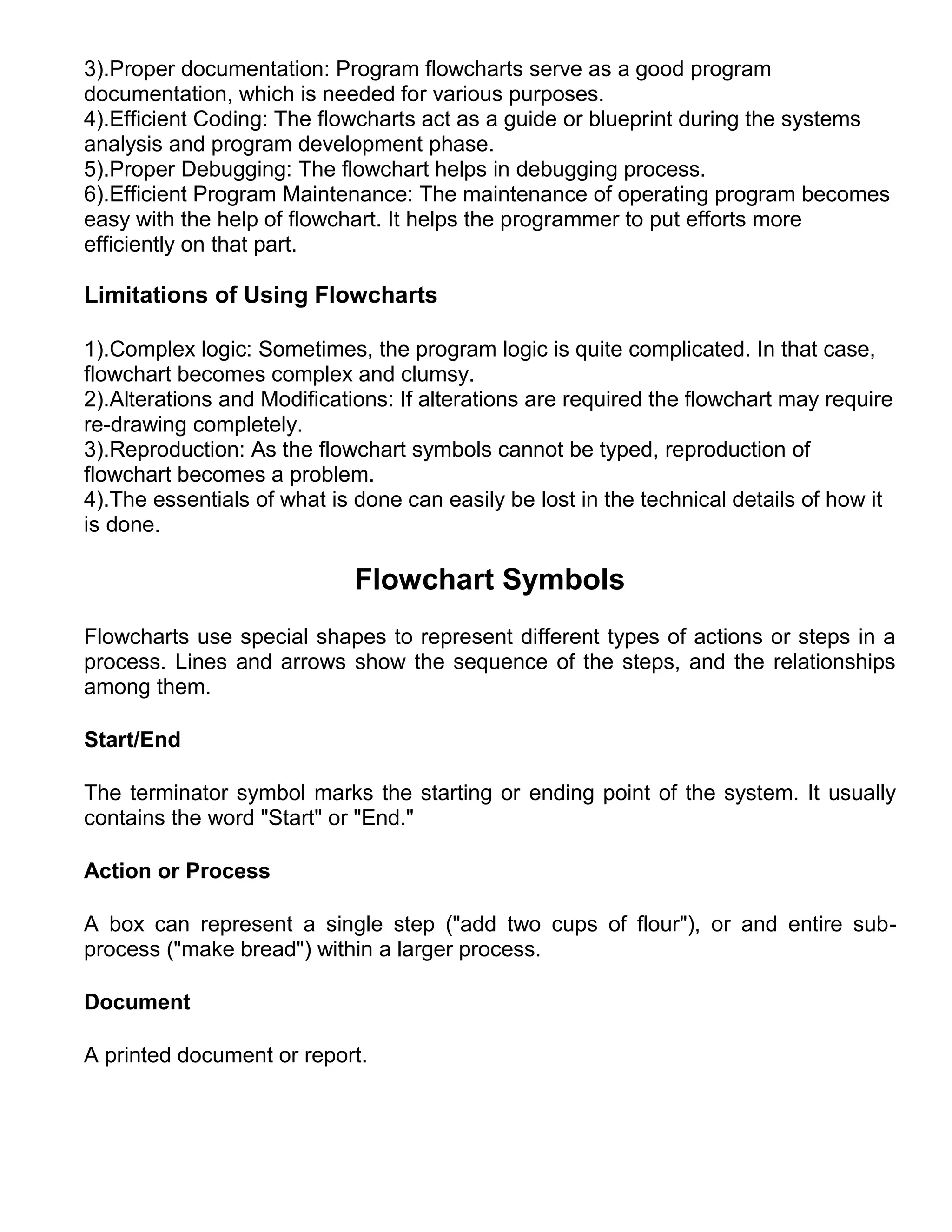

Advantages of Using Flowchart

1).Communication: Flowcharts are better way of communicating the logic of a
system to all concerned.
2).Effective analysis: With the help of flowchart, problem can be analysed in more
effective way.

3).Proper documentation: Program flowcharts serve as a good program
documentation, which is needed for various purposes.
4).Efficient Coding: The flowcharts act as a guide or blueprint during the systems
analysis and program development phase.
5).Proper Debugging: The flowchart helps in debugging process.
6).Efficient Program Maintenance: The maintenance of operating program becomes
easy with the help of flowchart. It helps the programmer to put efforts more
efficiently on that part.

Limitations of Using Flowcharts

1).Complex logic: Sometimes, the program logic is quite complicated. In that case,
flowchart becomes complex and clumsy.
2).Alterations and Modifications: If alterations are required the flowchart may require
re-drawing completely.
3).Reproduction: As the flowchart symbols cannot be typed, reproduction of
flowchart becomes a problem.
4).The essentials of what is done can easily be lost in the technical details of how it
is done.

Flowchart Symbols
Flowcharts use special shapes to represent different types of actions or steps in a
process. Lines and arrows show the sequence of the steps, and the relationships
among them.

Start/End

The terminator symbol marks the starting or ending point of the system. It usually
contains the word "Start" or "End."

Action or Process

A box can represent a single step ("add two cups of flour"), or and entire sub-
process ("make bread") within a larger process.

Document

A printed document or report.

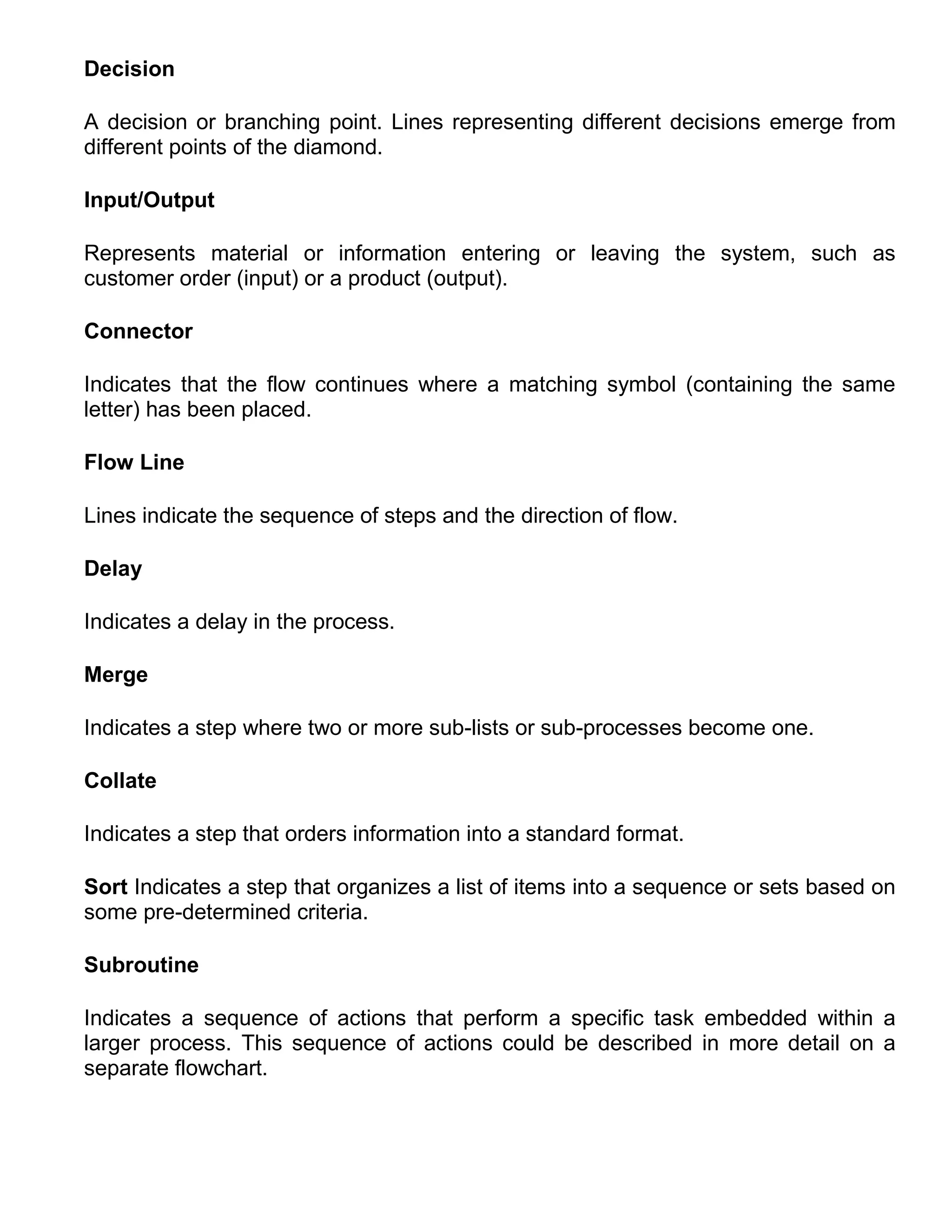

Decision

A decision or branching point. Lines representing different decisions emerge from
different points of the diamond.

Input/Output

Represents material or information entering or leaving the system, such as
customer order (input) or a product (output).

Connector

Indicates that the flow continues where a matching symbol (containing the same
letter) has been placed.

Flow Line

Lines indicate the sequence of steps and the direction of flow.

Delay

Indicates a delay in the process.

Merge

Indicates a step where two or more sub-lists or sub-processes become one.

Collate

Indicates a step that orders information into a standard format.

Sort Indicates a step that organizes a list of items into a sequence or sets based on
some pre-determined criteria.

Subroutine

Indicates a sequence of actions that perform a specific task embedded within a
larger process. This sequence of actions could be described in more detail on a
separate flowchart.

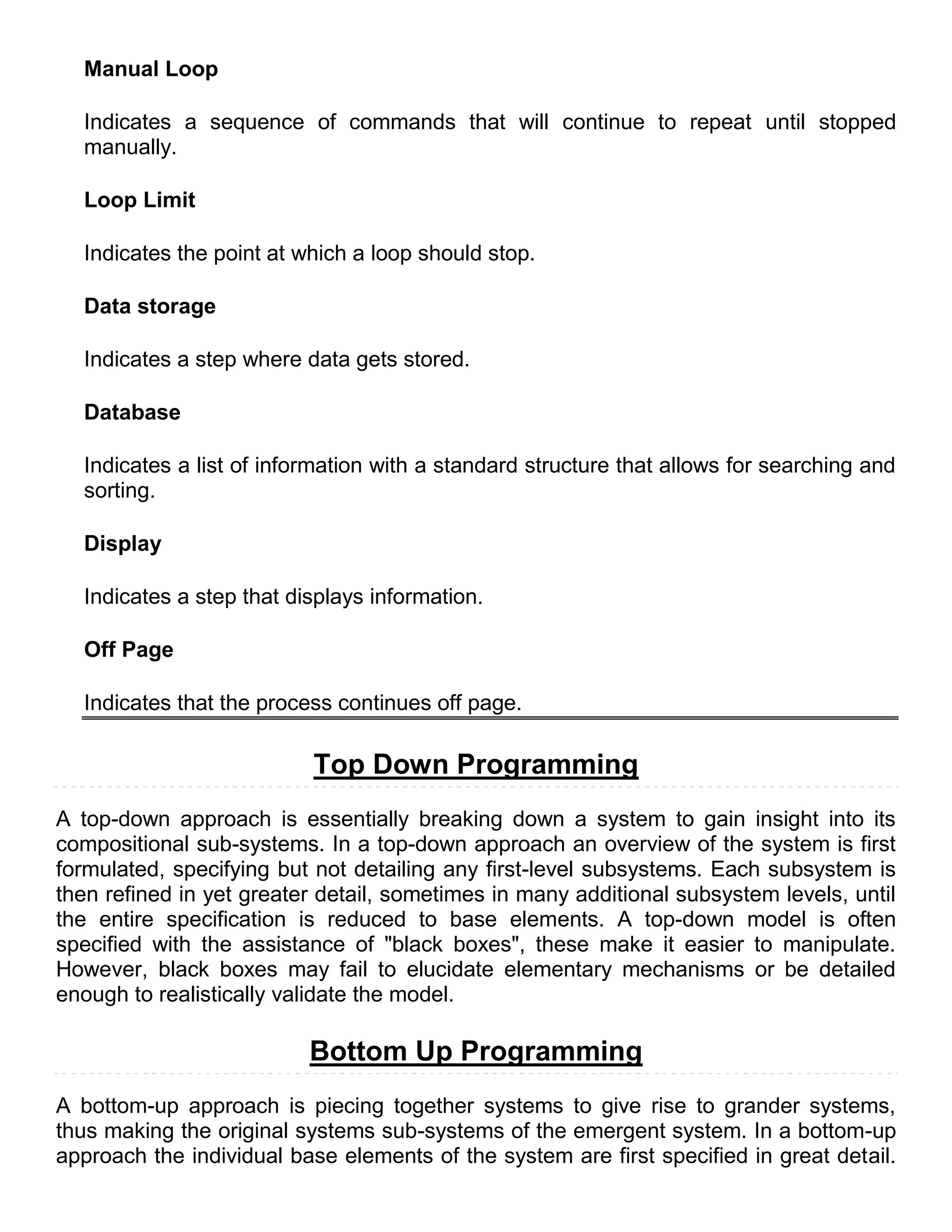

Manual Loop

Indicates a sequence of commands that will continue to repeat until stopped
manually.

Loop Limit

Indicates the point at which a loop should stop.

Data storage

Indicates a step where data gets stored.

Database

Indicates a list of information with a standard structure that allows for searching and
sorting.

Display

Indicates a step that displays information.

Off Page

Indicates that the process continues off page.

Top Down Programming
A top-down approach is essentially breaking down a system to gain insight into its
compositional sub-systems. In a top-down approach an overview of the system is first
formulated, specifying but not detailing any first-level subsystems. Each subsystem is
then refined in yet greater detail, sometimes in many additional subsystem levels, until
the entire specification is reduced to base elements. A top-down model is often
specified with the assistance of "black boxes", these make it easier to manipulate.
However, black boxes may fail to elucidate elementary mechanisms or be detailed
enough to realistically validate the model.

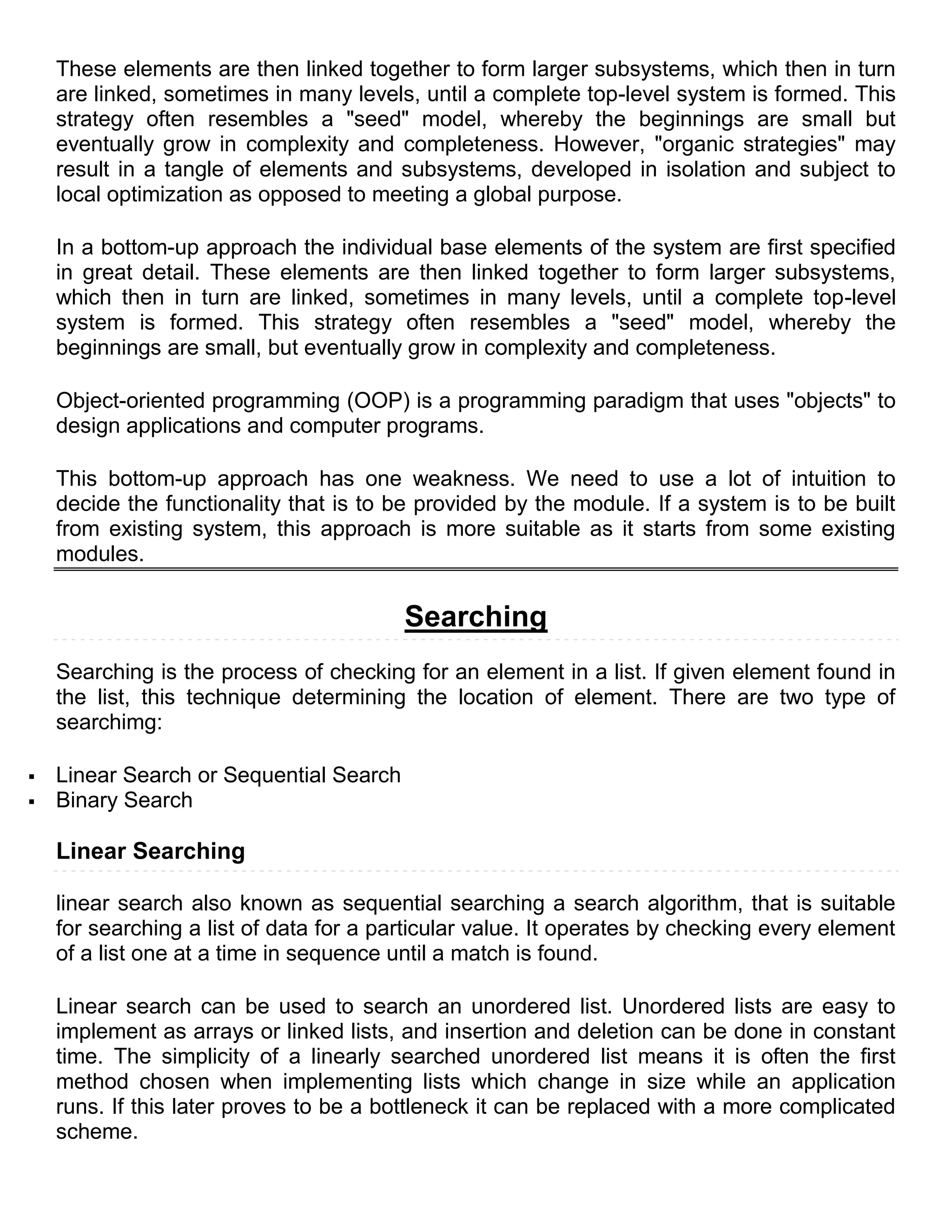

Bottom Up Programming
A bottom-up approach is piecing together systems to give rise to grander systems,
thus making the original systems sub-systems of the emergent system. In a bottom-up
approach the individual base elements of the system are first specified in great detail.

These elements are then linked together to form larger subsystems, which then in turn
are linked, sometimes in many levels, until a complete top-level system is formed. This
strategy often resembles a "seed" model, whereby the beginnings are small but
eventually grow in complexity and completeness. However, "organic strategies" may
result in a tangle of elements and subsystems, developed in isolation and subject to
local optimization as opposed to meeting a global purpose.

In a bottom-up approach the individual base elements of the system are first specified
in great detail. These elements are then linked together to form larger subsystems,
which then in turn are linked, sometimes in many levels, until a complete top-level
system is formed. This strategy often resembles a "seed" model, whereby the
beginnings are small, but eventually grow in complexity and completeness.

Object-oriented programming (OOP) is a programming paradigm that uses "objects" to
design applications and computer programs.

This bottom-up approach has one weakness. We need to use a lot of intuition to
decide the functionality that is to be provided by the module. If a system is to be built
from existing system, this approach is more suitable as it starts from some existing
modules.

Searching
Searching is the process of checking for an element in a list. If given element found in
the list, this technique determining the location of element. There are two type of
searchimg:

 Linear Search or Sequential Search
 Binary Search

Linear Searching

linear search also known as sequential searching a search algorithm, that is suitable
for searching a list of data for a particular value. It operates by checking every element
of a list one at a time in sequence until a match is found.

Linear search can be used to search an unordered list. Unordered lists are easy to
implement as arrays or linked lists, and insertion and deletion can be done in constant
time. The simplicity of a linearly searched unordered list means it is often the first
method chosen when implementing lists which change in size while an application
runs. If this later proves to be a bottleneck it can be replaced with a more complicated
scheme.

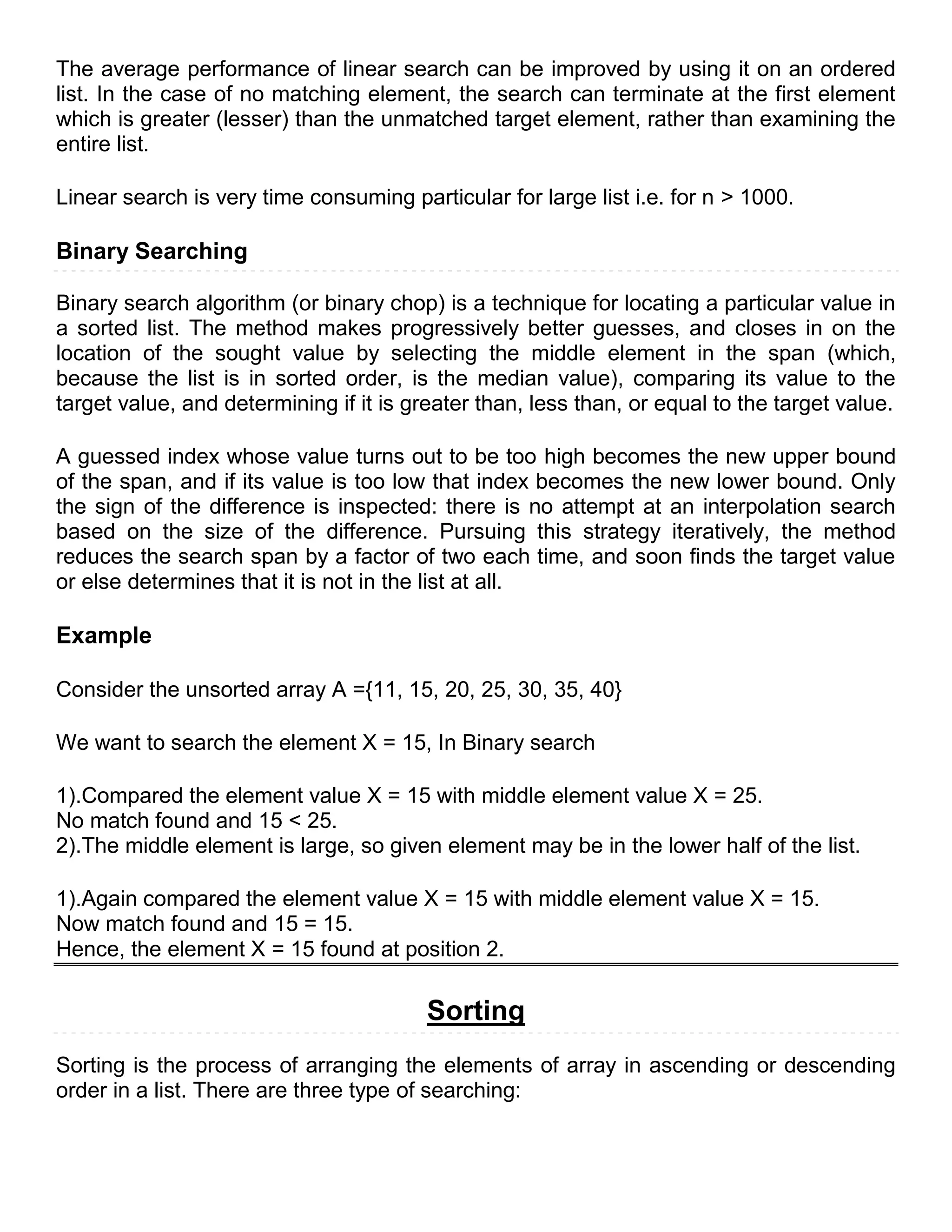

The average performance of linear search can be improved by using it on an ordered
list. In the case of no matching element, the search can terminate at the first element
which is greater (lesser) than the unmatched target element, rather than examining the
entire list.

Linear search is very time consuming particular for large list i.e. for n > 1000.

Binary Searching

Binary search algorithm (or binary chop) is a technique for locating a particular value in
a sorted list. The method makes progressively better guesses, and closes in on the
location of the sought value by selecting the middle element in the span (which,
because the list is in sorted order, is the median value), comparing its value to the
target value, and determining if it is greater than, less than, or equal to the target value.

A guessed index whose value turns out to be too high becomes the new upper bound
of the span, and if its value is too low that index becomes the new lower bound. Only
the sign of the difference is inspected: there is no attempt at an interpolation search
based on the size of the difference. Pursuing this strategy iteratively, the method
reduces the search span by a factor of two each time, and soon finds the target value
or else determines that it is not in the list at all.

Example

Consider the unsorted array A ={11, 15, 20, 25, 30, 35, 40}

We want to search the element X = 15, In Binary search

1).Compared the element value X = 15 with middle element value X = 25.
No match found and 15 < 25.
2).The middle element is large, so given element may be in the lower half of the list.

1).Again compared the element value X = 15 with middle element value X = 15.
Now match found and 15 = 15.
Hence, the element X = 15 found at position 2.

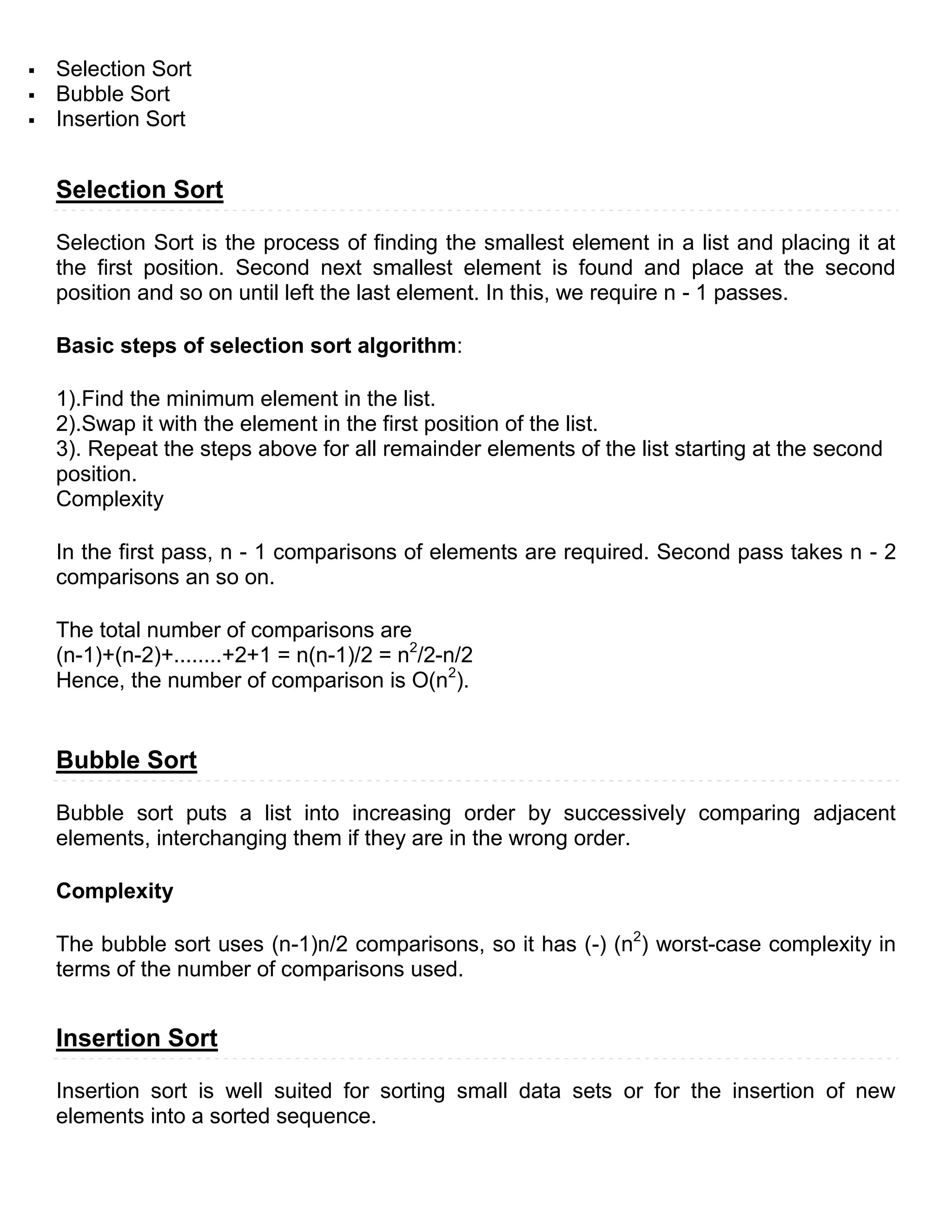

Sorting
Sorting is the process of arranging the elements of array in ascending or descending
order in a list. There are three type of searching:

 Selection Sort
 Bubble Sort
 Insertion Sort

Selection Sort

Selection Sort is the process of finding the smallest element in a list and placing it at
the first position. Second next smallest element is found and place at the second
position and so on until left the last element. In this, we require n - 1 passes.

Basic steps of selection sort algorithm:

1).Find the minimum element in the list.
2).Swap it with the element in the first position of the list.
3). Repeat the steps above for all remainder elements of the list starting at the second
position.
Complexity

In the first pass, n - 1 comparisons of elements are required. Second pass takes n - 2
comparisons an so on.

The total number of comparisons are
(n-1)+(n-2)+........+2+1 = n(n-1)/2 = n2/2-n/2
Hence, the number of comparison is O(n2).

Bubble Sort

Bubble sort puts a list into increasing order by successively comparing adjacent
elements, interchanging them if they are in the wrong order.

Complexity

The bubble sort uses (n-1)n/2 comparisons, so it has (-) (n2) worst-case complexity in
terms of the number of comparisons used.

Insertion Sort

Insertion sort is well suited for sorting small data sets or for the insertion of new
elements into a sorted sequence.

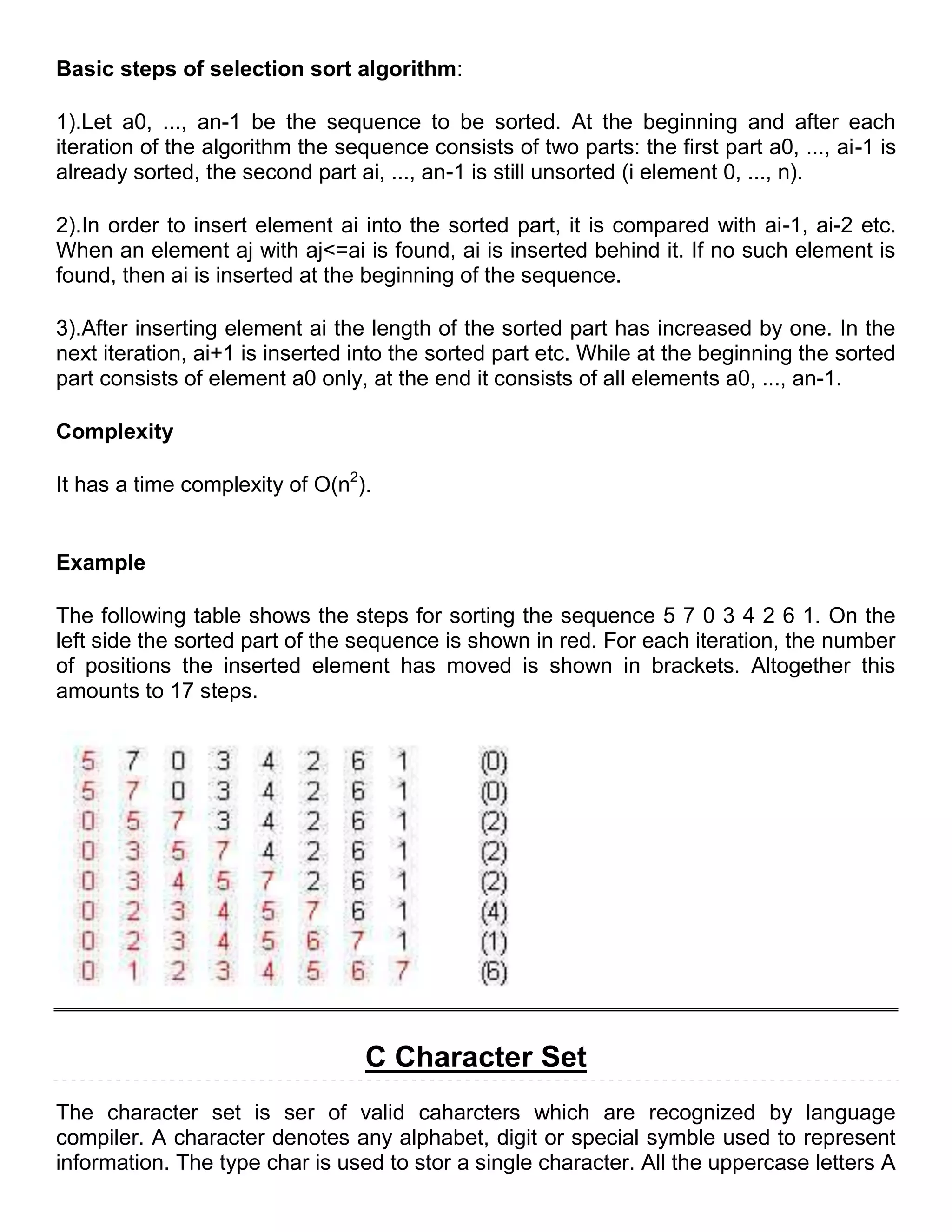

Basic steps of selection sort algorithm:

1).Let a0, ..., an-1 be the sequence to be sorted. At the beginning and after each
iteration of the algorithm the sequence consists of two parts: the first part a0, ..., ai-1 is
already sorted, the second part ai, ..., an-1 is still unsorted (i element 0, ..., n).

2).In order to insert element ai into the sorted part, it is compared with ai-1, ai-2 etc.
When an element aj with aj<=ai is found, ai is inserted behind it. If no such element is
found, then ai is inserted at the beginning of the sequence.

3).After inserting element ai the length of the sorted part has increased by one. In the
next iteration, ai+1 is inserted into the sorted part etc. While at the beginning the sorted
part consists of element a0 only, at the end it consists of all elements a0, ..., an-1.

Complexity

It has a time complexity of O(n2).

Example

The following table shows the steps for sorting the sequence 5 7 0 3 4 2 6 1. On the
left side the sorted part of the sequence is shown in red. For each iteration, the number
of positions the inserted element has moved is shown in brackets. Altogether this
amounts to 17 steps.

C Character Set
The character set is ser of valid caharcters which are recognized by language
compiler. A character denotes any alphabet, digit or special symble used to represent
information. The type char is used to stor a single character. All the uppercase letters A

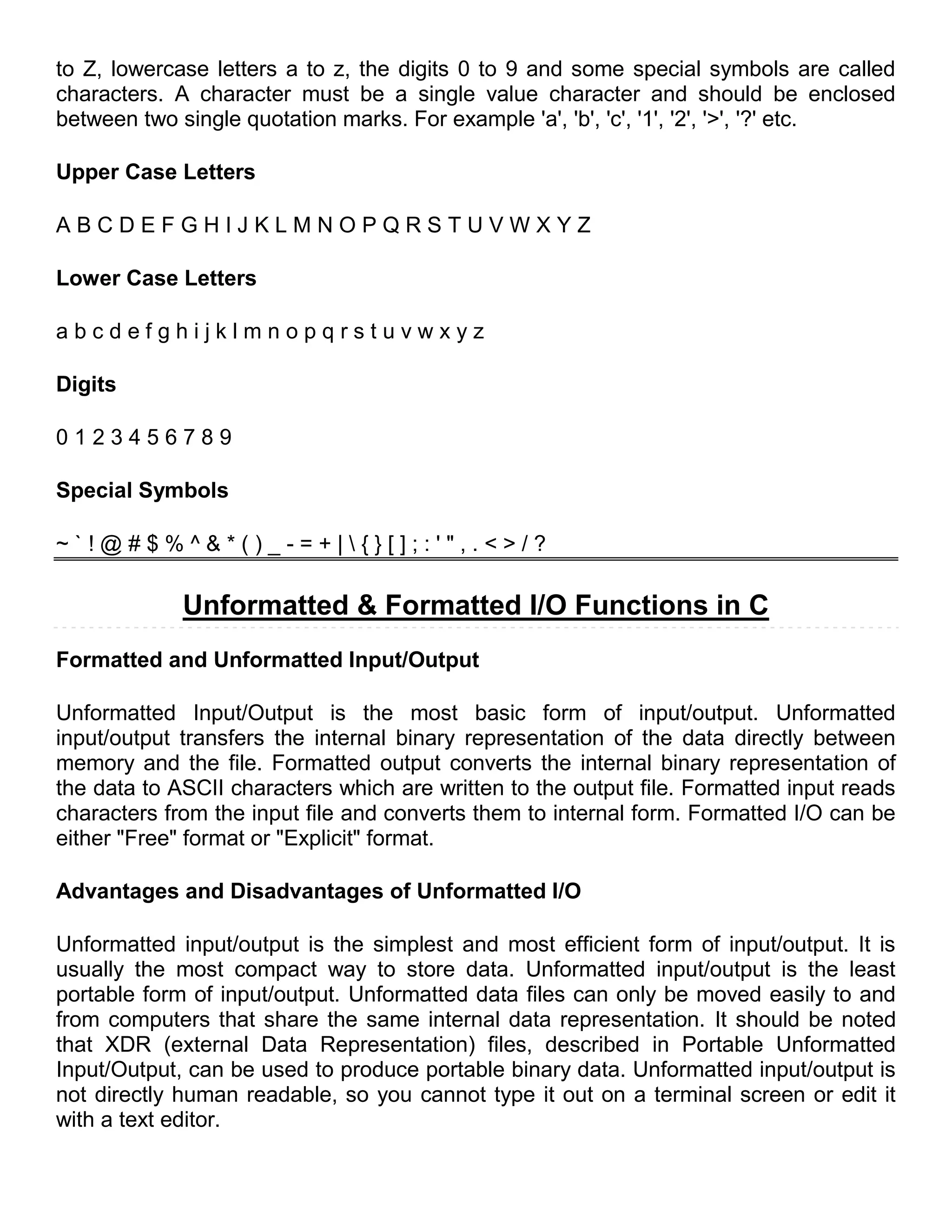

to Z, lowercase letters a to z, the digits 0 to 9 and some special symbols are called
characters. A character must be a single value character and should be enclosed
between two single quotation marks. For example 'a', 'b', 'c', '1', '2', '>', '?' etc.

Upper Case Letters

ABCDEFGHIJKLMNOPQRSTUVWXYZ

Lower Case Letters

abcdefghijklmnopqrstuvwxyz

Digits

0123456789

Special Symbols

~`!@#$%^&*()_-=+|{}[];:'",.<>/?

Unformatted & Formatted I/O Functions in C
Formatted and Unformatted Input/Output

Unformatted Input/Output is the most basic form of input/output. Unformatted
input/output transfers the internal binary representation of the data directly between
memory and the file. Formatted output converts the internal binary representation of
the data to ASCII characters which are written to the output file. Formatted input reads
characters from the input file and converts them to internal form. Formatted I/O can be
either "Free" format or "Explicit" format.

Advantages and Disadvantages of Unformatted I/O

Unformatted input/output is the simplest and most efficient form of input/output. It is
usually the most compact way to store data. Unformatted input/output is the least
portable form of input/output. Unformatted data files can only be moved easily to and
from computers that share the same internal data representation. It should be noted
that XDR (external Data Representation) files, described in Portable Unformatted
Input/Output, can be used to produce portable binary data. Unformatted input/output is
not directly human readable, so you cannot type it out on a terminal screen or edit it
with a text editor.

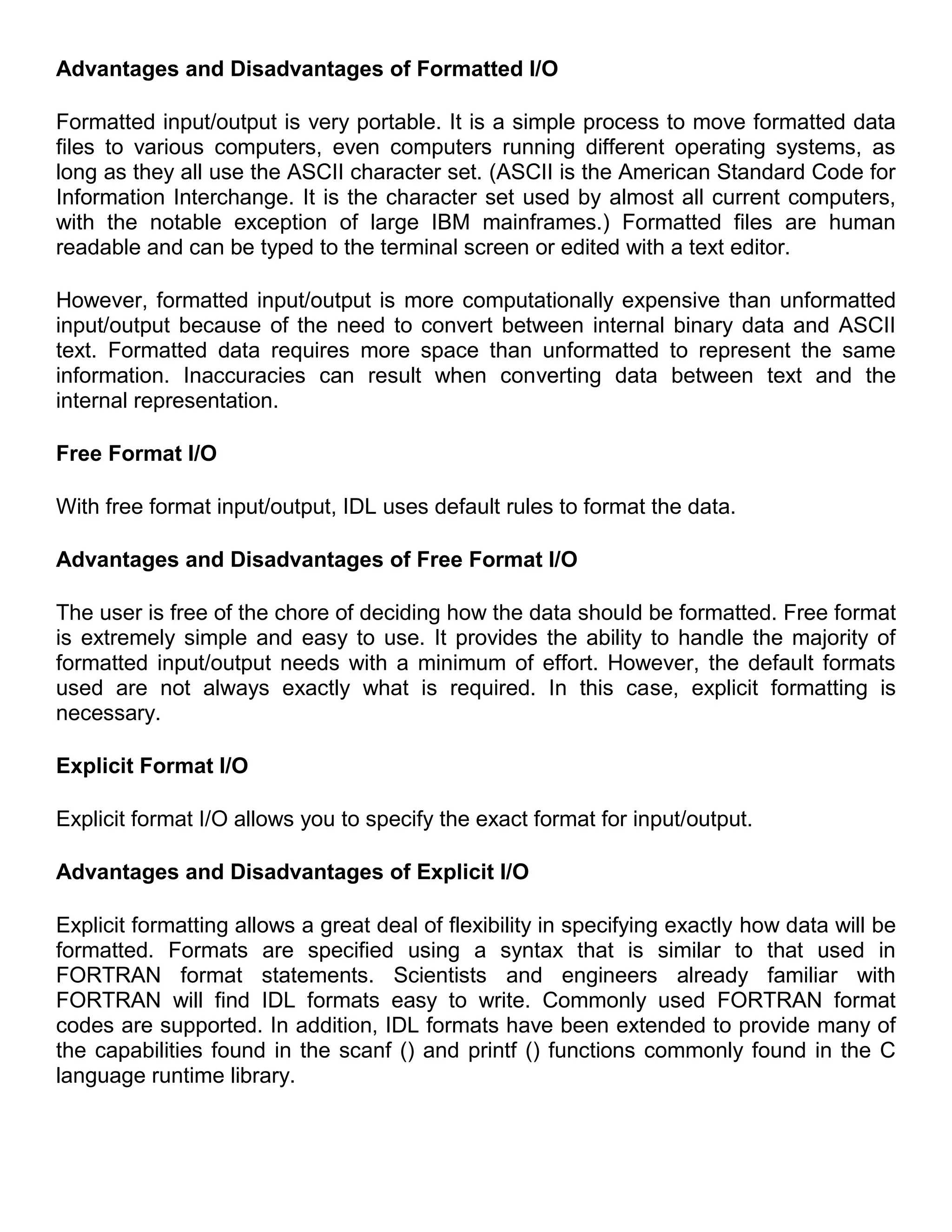

Advantages and Disadvantages of Formatted I/O

Formatted input/output is very portable. It is a simple process to move formatted data
files to various computers, even computers running different operating systems, as
long as they all use the ASCII character set. (ASCII is the American Standard Code for
Information Interchange. It is the character set used by almost all current computers,
with the notable exception of large IBM mainframes.) Formatted files are human
readable and can be typed to the terminal screen or edited with a text editor.

However, formatted input/output is more computationally expensive than unformatted
input/output because of the need to convert between internal binary data and ASCII
text. Formatted data requires more space than unformatted to represent the same
information. Inaccuracies can result when converting data between text and the
internal representation.

Free Format I/O

With free format input/output, IDL uses default rules to format the data.

Advantages and Disadvantages of Free Format I/O

The user is free of the chore of deciding how the data should be formatted. Free format
is extremely simple and easy to use. It provides the ability to handle the majority of
formatted input/output needs with a minimum of effort. However, the default formats
used are not always exactly what is required. In this case, explicit formatting is
necessary.

Explicit Format I/O

Explicit format I/O allows you to specify the exact format for input/output.

Advantages and Disadvantages of Explicit I/O

Explicit formatting allows a great deal of flexibility in specifying exactly how data will be
formatted. Formats are specified using a syntax that is similar to that used in
FORTRAN format statements. Scientists and engineers already familiar with
FORTRAN will find IDL formats easy to write. Commonly used FORTRAN format
codes are supported. In addition, IDL formats have been extended to provide many of
the capabilities found in the scanf () and printf () functions commonly found in the C
language runtime library.

However, there are some disadvantages to using Explicit I/O. Using explicitly specified
formats requires the user to specify more detail—they are, therefore, more complicated
to use than free format.

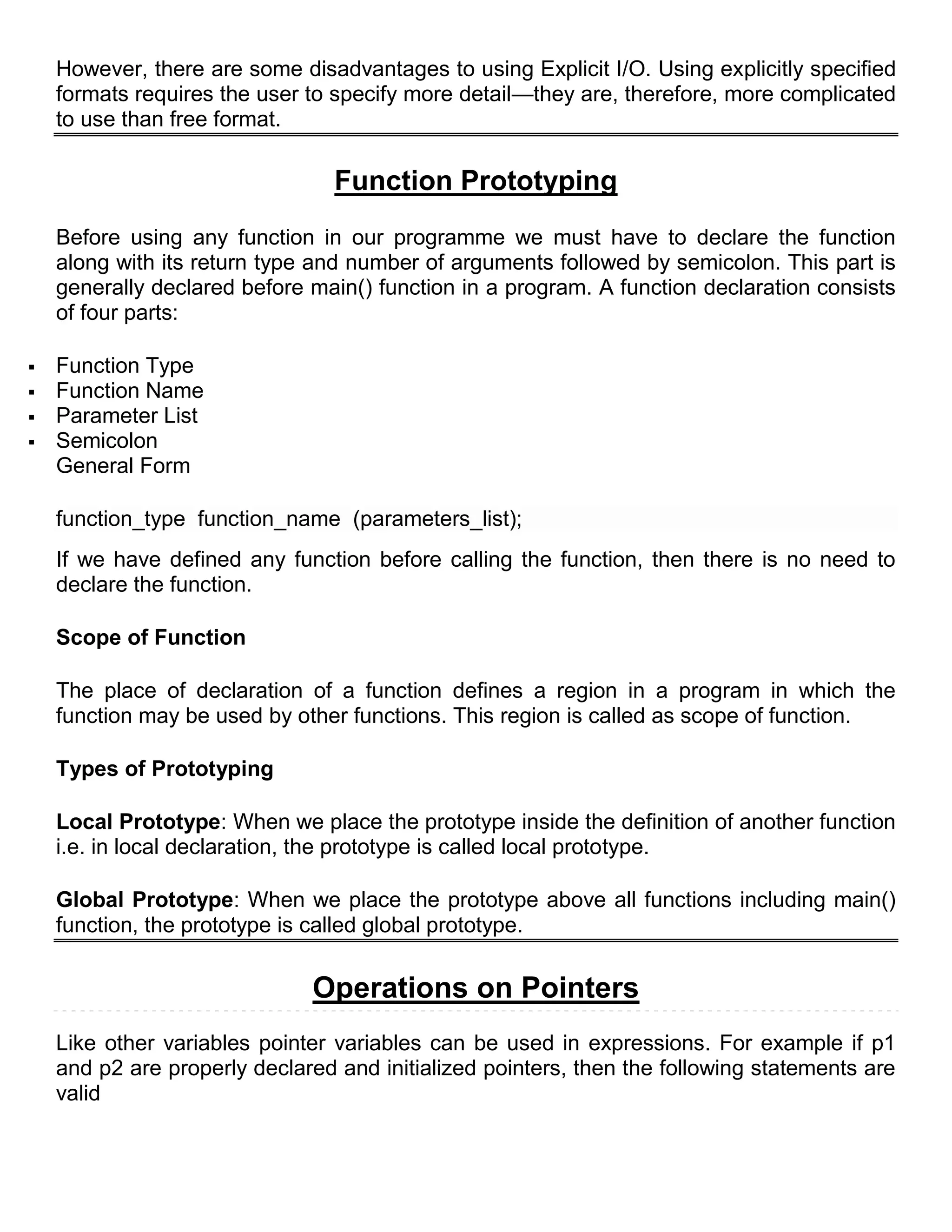

Function Prototyping
Before using any function in our programme we must have to declare the function
along with its return type and number of arguments followed by semicolon. This part is
generally declared before main() function in a program. A function declaration consists
of four parts:

 Function Type
 Function Name
 Parameter List
 Semicolon
General Form

function_type function_name (parameters_list);
If we have defined any function before calling the function, then there is no need to
declare the function.

Scope of Function

The place of declaration of a function defines a region in a program in which the
function may be used by other functions. This region is called as scope of function.

Types of Prototyping

Local Prototype: When we place the prototype inside the definition of another function
i.e. in local declaration, the prototype is called local prototype.

Global Prototype: When we place the prototype above all functions including main()
function, the prototype is called global prototype.

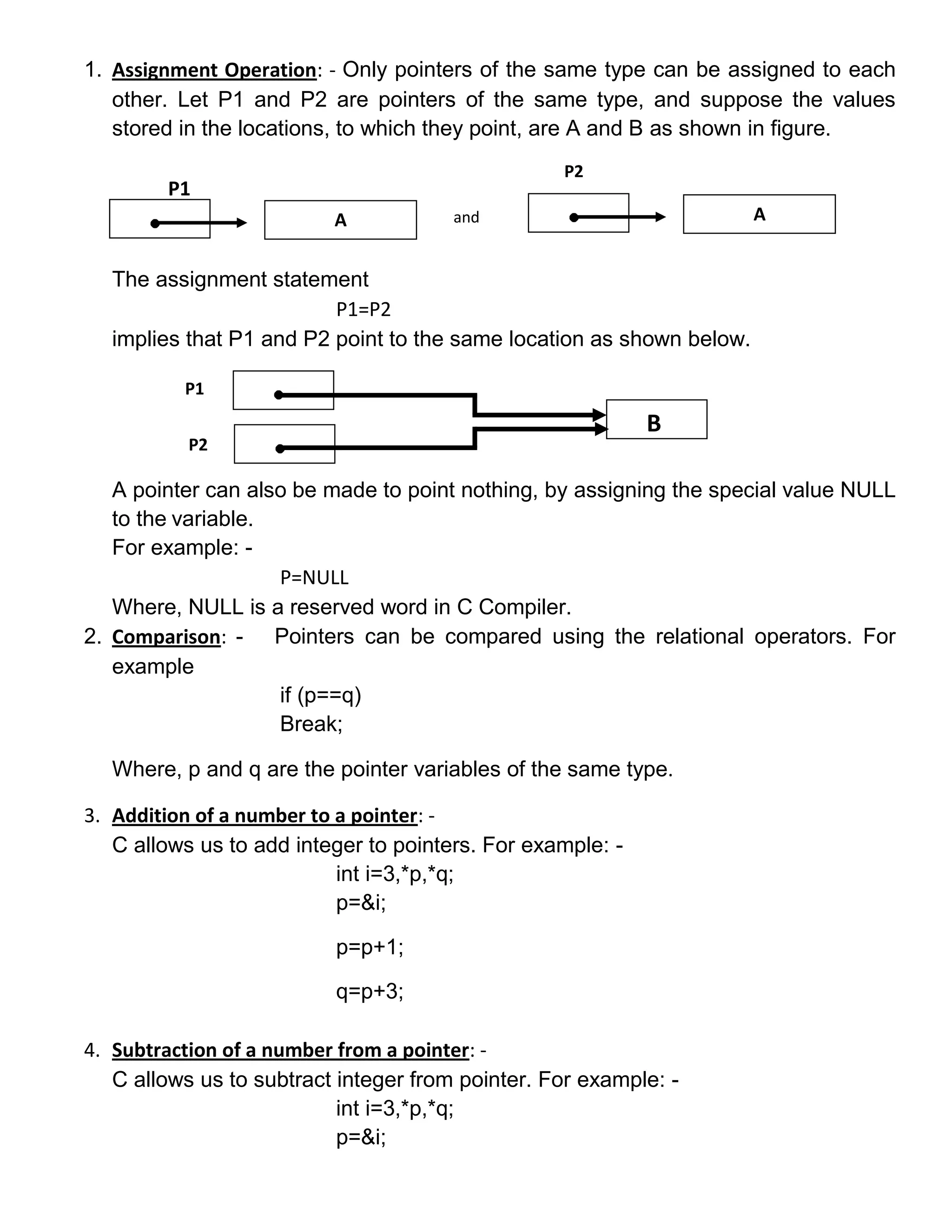

Operations on Pointers
Like other variables pointer variables can be used in expressions. For example if p1
and p2 are properly declared and initialized pointers, then the following statements are
valid

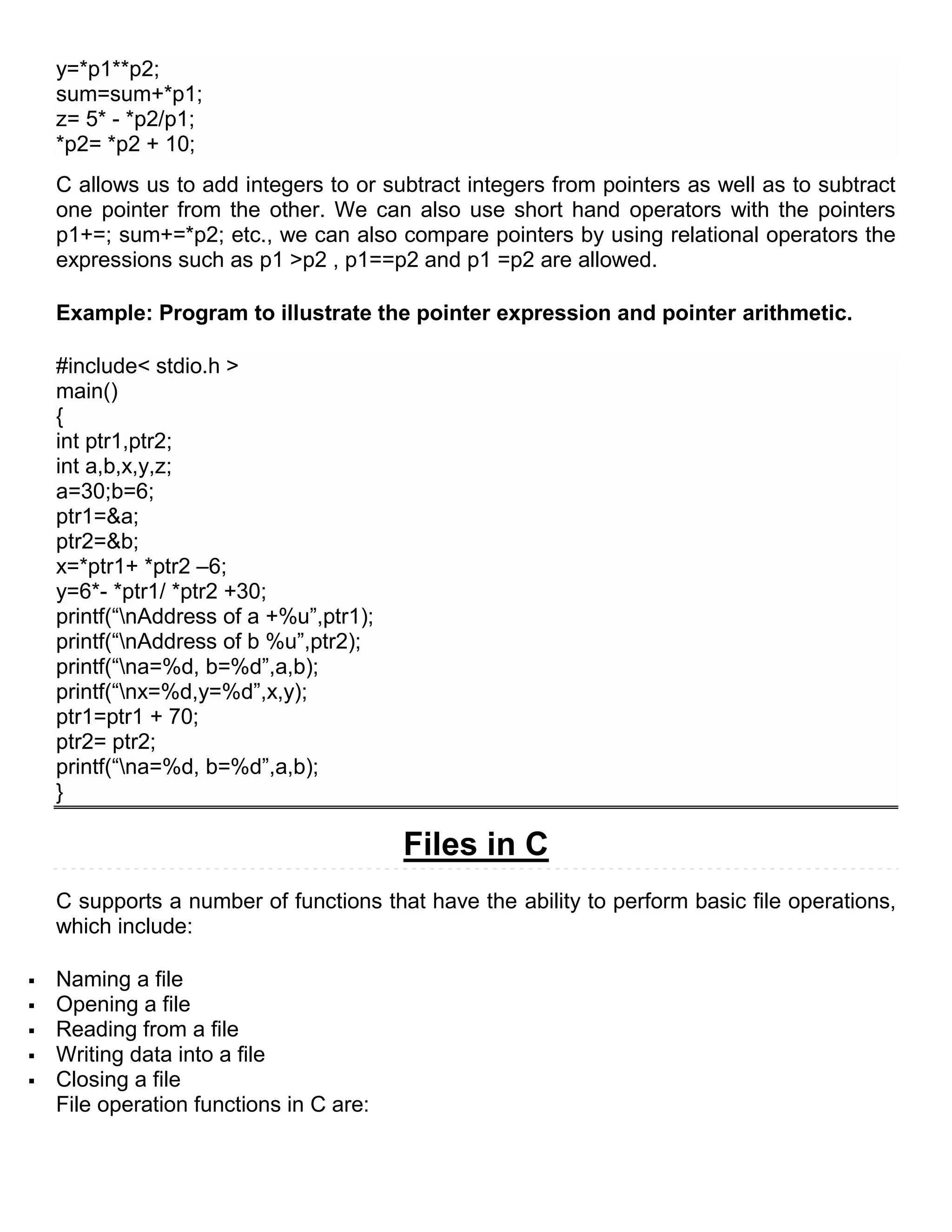

y=*p1**p2;
sum=sum+*p1;
z= 5* - *p2/p1;
*p2= *p2 + 10;
C allows us to add integers to or subtract integers from pointers as well as to subtract
one pointer from the other. We can also use short hand operators with the pointers
p1+=; sum+=*p2; etc., we can also compare pointers by using relational operators the
expressions such as p1 >p2 , p1==p2 and p1 =p2 are allowed.

Example: Program to illustrate the pointer expression and pointer arithmetic.

#include< stdio.h >
main()
{
int ptr1,ptr2;
int a,b,x,y,z;
a=30;b=6;
ptr1=&a;
ptr2=&b;
x=*ptr1+ *ptr2 –6;
y=6*- *ptr1/ *ptr2 +30;
printf(―nAddress of a +%u‖,ptr1);
printf(―nAddress of b %u‖,ptr2);
printf(―na=%d, b=%d‖,a,b);
printf(―nx=%d,y=%d‖,x,y);
ptr1=ptr1 + 70;
ptr2= ptr2;
printf(―na=%d, b=%d‖,a,b);
}

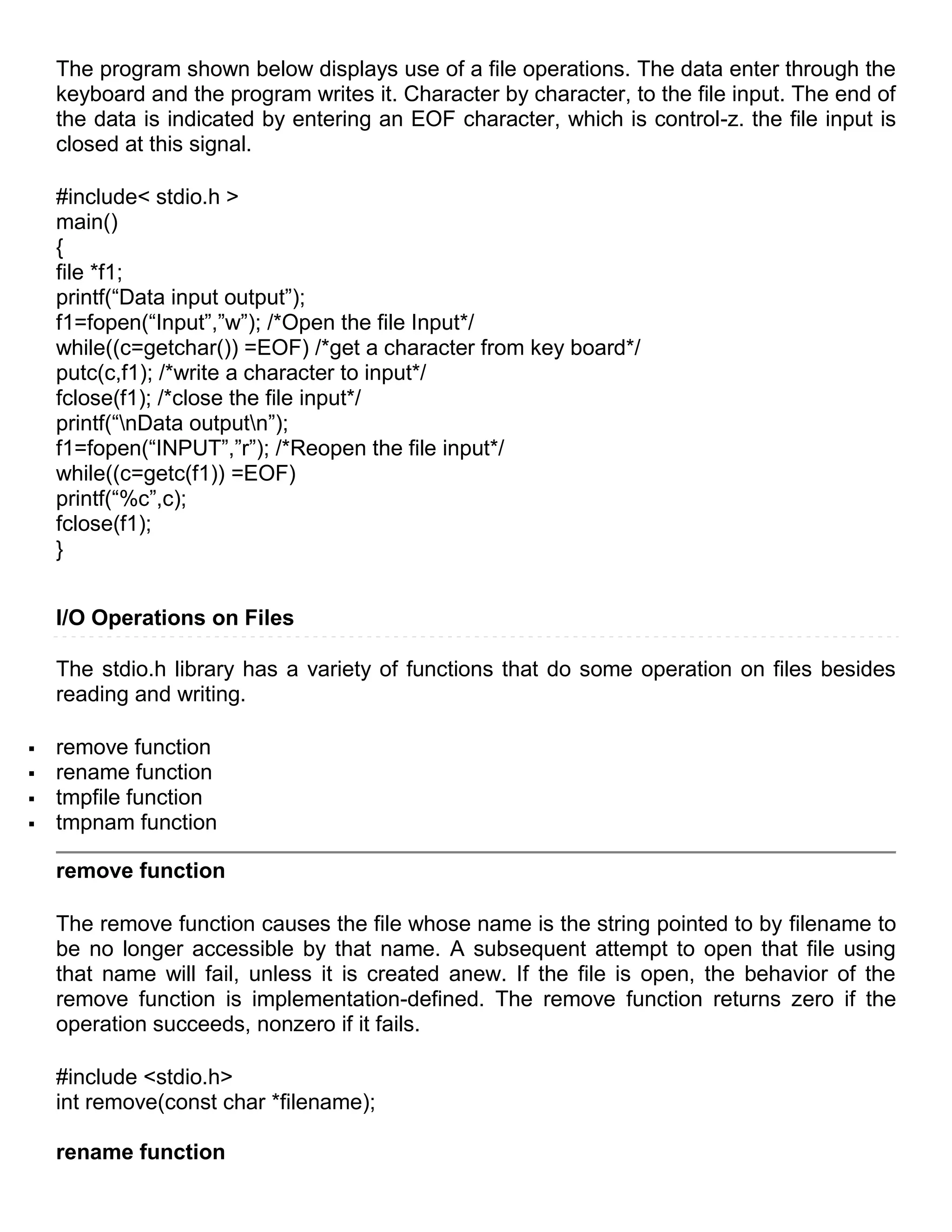

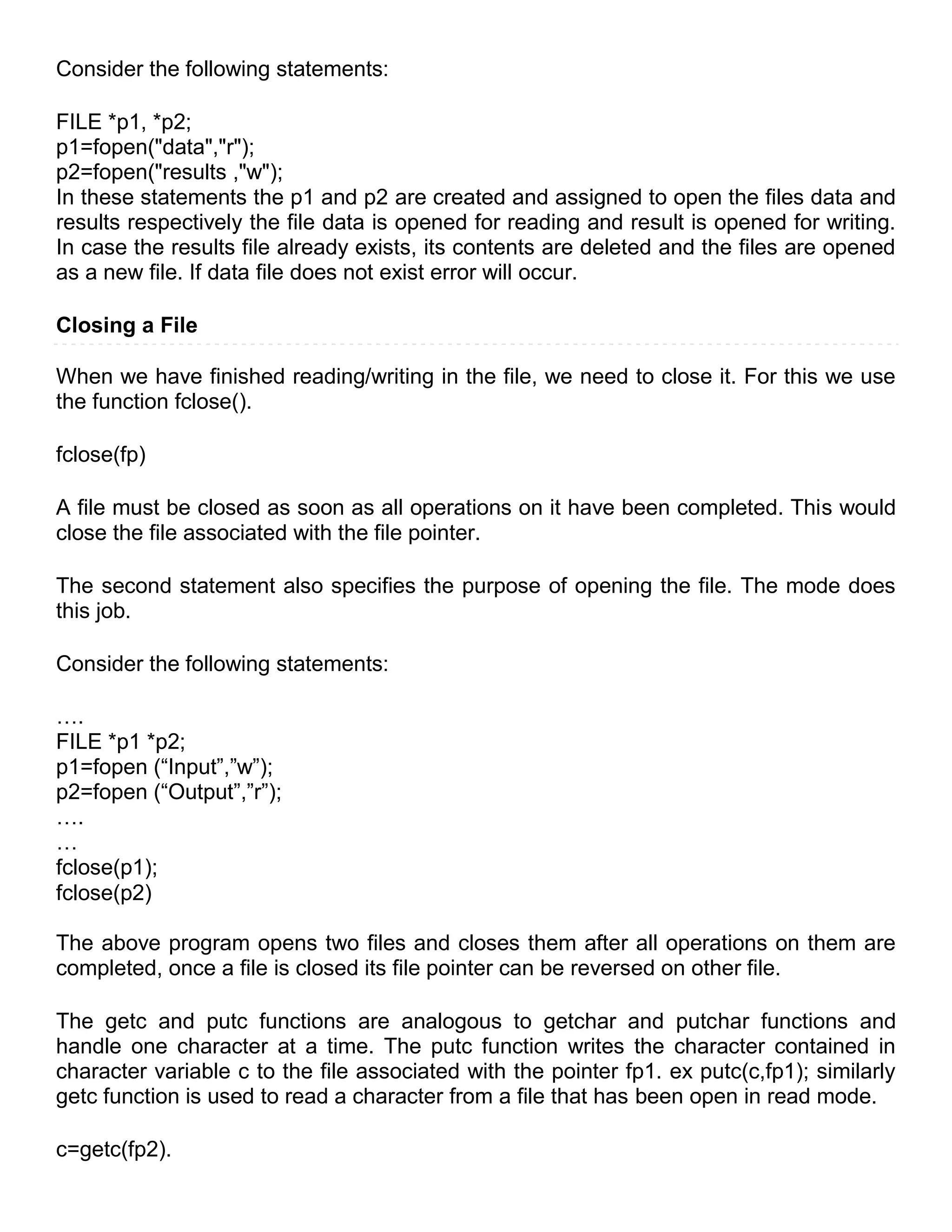

Files in C
C supports a number of functions that have the ability to perform basic file operations,
which include:

 Naming a file
 Opening a file
 Reading from a file
 Writing data into a file
 Closing a file

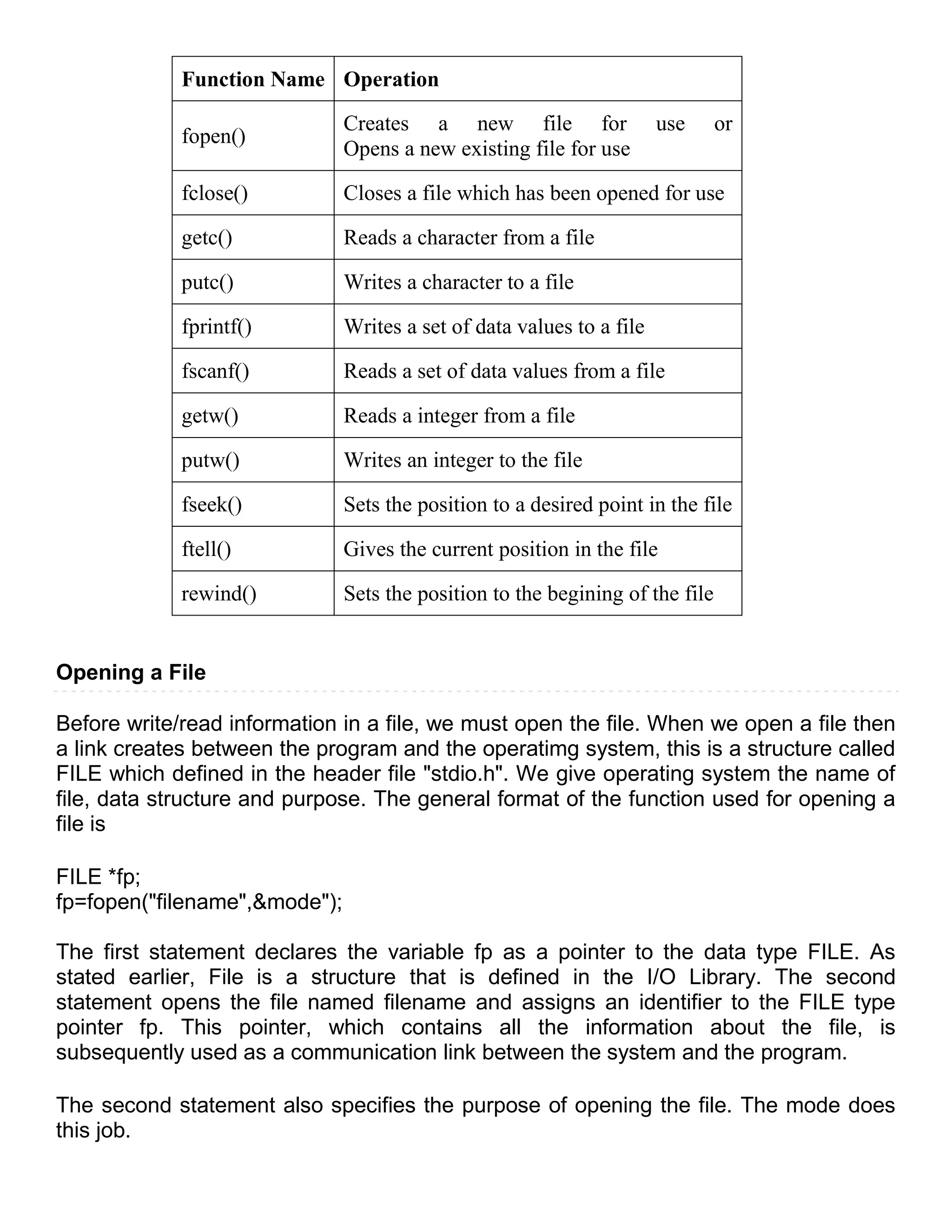

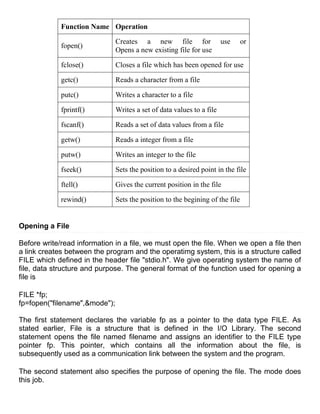

File operation functions in C are:

Function Name Operation

Creates a new file for use or
fopen()
Opens a new existing file for use

fclose() Closes a file which has been opened for use

getc() Reads a character from a file

putc() Writes a character to a file

fprintf() Writes a set of data values to a file

fscanf() Reads a set of data values from a file

getw() Reads a integer from a file

putw() Writes an integer to the file

fseek() Sets the position to a desired point in the file

ftell() Gives the current position in the file

rewind() Sets the position to the begining of the file

Opening a File

Before write/read information in a file, we must open the file. When we open a file then
a link creates between the program and the operatimg system, this is a structure called
FILE which defined in the header file "stdio.h". We give operating system the name of
file, data structure and purpose. The general format of the function used for opening a
file is

FILE *fp;
fp=fopen("filename",&mode");

The first statement declares the variable fp as a pointer to the data type FILE. As
stated earlier, File is a structure that is defined in the I/O Library. The second
statement opens the file named filename and assigns an identifier to the FILE type
pointer fp. This pointer, which contains all the information about the file, is
subsequently used as a communication link between the system and the program.

The second statement also specifies the purpose of opening the file. The mode does
this job.

Consider the following statements:

FILE *p1, *p2;
p1=fopen("data","r");
p2=fopen("results ,"w");
In these statements the p1 and p2 are created and assigned to open the files data and
results respectively the file data is opened for reading and result is opened for writing.
In case the results file already exists, its contents are deleted and the files are opened
as a new file. If data file does not exist error will occur.

Closing a File

When we have finished reading/writing in the file, we need to close it. For this we use
the function fclose().

fclose(fp)

A file must be closed as soon as all operations on it have been completed. This would
close the file associated with the file pointer.

The second statement also specifies the purpose of opening the file. The mode does
this job.

Consider the following statements:

….
FILE *p1 *p2;
p1=fopen (―Input‖,‖w‖);
p2=fopen (―Output‖,‖r‖);
….
…
fclose(p1);
fclose(p2)

The above program opens two files and closes them after all operations on them are
completed, once a file is closed its file pointer can be reversed on other file.

The getc and putc functions are analogous to getchar and putchar functions and
handle one character at a time. The putc function writes the character contained in
character variable c to the file associated with the pointer fp1. ex putc(c,fp1); similarly
getc function is used to read a character from a file that has been open in read mode.

c=getc(fp2).

The program shown below displays use of a file operations. The data enter through the
keyboard and the program writes it. Character by character, to the file input. The end of
the data is indicated by entering an EOF character, which is control-z. the file input is
closed at this signal.

#include< stdio.h >
main()
{
file *f1;
printf(―Data input output‖);
f1=fopen(―Input‖,‖w‖); /*Open the file Input*/
while((c=getchar()) =EOF) /*get a character from key board*/
putc(c,f1); /*write a character to input*/
fclose(f1); /*close the file input*/
printf(―nData outputn‖);
f1=fopen(―INPUT‖,‖r‖); /*Reopen the file input*/
while((c=getc(f1)) =EOF)
printf(―%c‖,c);
fclose(f1);
}

I/O Operations on Files

The stdio.h library has a variety of functions that do some operation on files besides
reading and writing.

 remove function
 rename function
 tmpfile function
 tmpnam function

remove function

The remove function causes the file whose name is the string pointed to by filename to
be no longer accessible by that name. A subsequent attempt to open that file using
that name will fail, unless it is created anew. If the file is open, the behavior of the
remove function is implementation-defined. The remove function returns zero if the
operation succeeds, nonzero if it fails.

#include <stdio.h>
int remove(const char *filename);

rename function

The rename function causes the file whose name is the string pointed to by
old_filename to be henceforth known by the name given by the string pointed to by
new_filename. The file named old_filename is no longer accessible by that name. If a
file named by the string pointed to by new_filename exists prior to the call to the
rename function, the behavior is implementation-defined. The rename function returns
zero if the operation succeeds, nonzero if it fails, in which case if the file existed
previously it is still known by its original name.

#include <stdio.h>
int rename(const char *old_filename, const char *new_filename);

tmpfile function

The tmpfile function creates a temporary binary file that will automatically be removed
when it is closed or at program termination. If the program terminates abnormally,
whether an open temporary file is removed is implementation-defined. The file is
opened for update with "wb+" mode. The tmpfile function returns a pointer to the
stream of the file that it created. If the file cannot be created, the tmpfile function
returns a null pointer.

#include <stdio.h>
FILE *tmpfile(void);

tmpnam function

The tmpnam function generates a string that is a valid file name and that is not the
name of an existing file. The tmpnam function generates a different string each time it
is called, up to TMP_MAX times. (TMP_MAX is a macro defined in stdio.h.) If it is
called more than TMP_MAX times, the behavior is implementation-defined. The
implementation shall behave as if no library function calls the tmpnam function.

#include <stdio.h>
char *tmpnam(char *s);

Error Handling During I/O Operation

We can use following functions for error handling during I/O operation:

 clearerr function
 feof function
 ferror function
 perror function

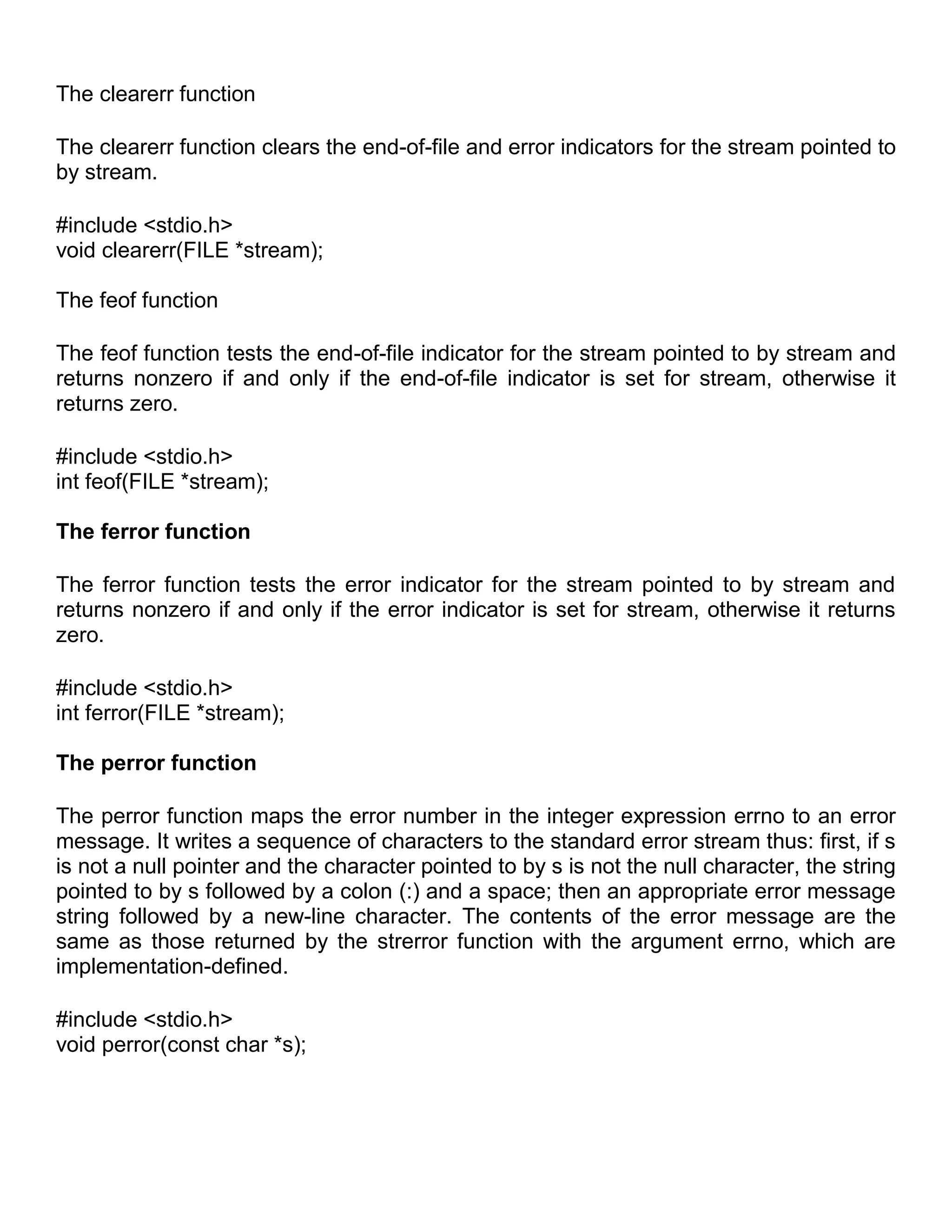

The clearerr function

The clearerr function clears the end-of-file and error indicators for the stream pointed to
by stream.

#include <stdio.h>
void clearerr(FILE *stream);

The feof function

The feof function tests the end-of-file indicator for the stream pointed to by stream and
returns nonzero if and only if the end-of-file indicator is set for stream, otherwise it
returns zero.

#include <stdio.h>
int feof(FILE *stream);

The ferror function

The ferror function tests the error indicator for the stream pointed to by stream and
returns nonzero if and only if the error indicator is set for stream, otherwise it returns
zero.

#include <stdio.h>
int ferror(FILE *stream);

The perror function

The perror function maps the error number in the integer expression errno to an error
message. It writes a sequence of characters to the standard error stream thus: first, if s
is not a null pointer and the character pointed to by s is not the null character, the string
pointed to by s followed by a colon (:) and a space; then an appropriate error message
string followed by a new-line character. The contents of the error message are the
same as those returned by the strerror function with the argument errno, which are
implementation-defined.

#include <stdio.h>
void perror(const char *s);

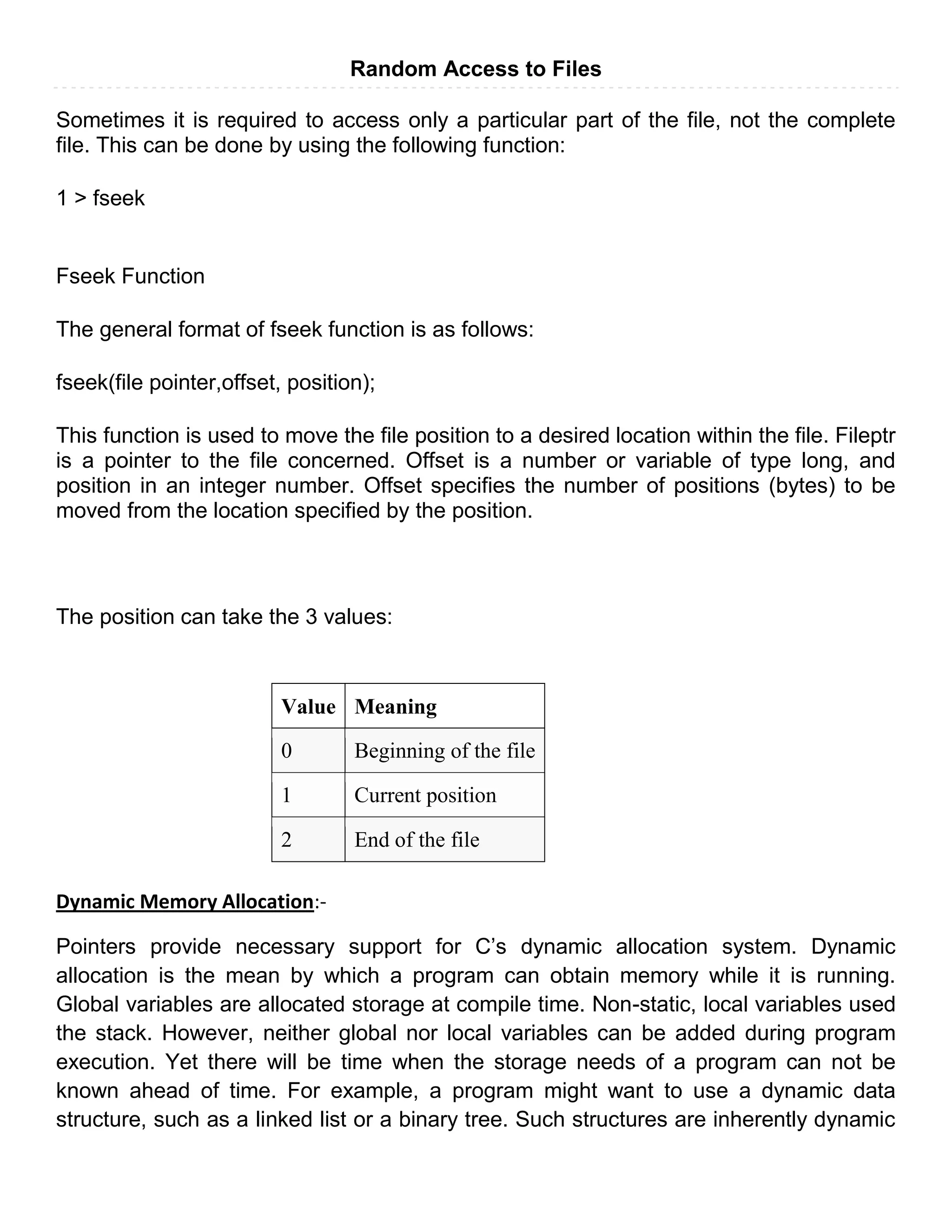

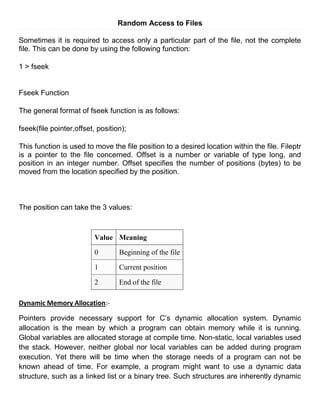

Random Access to Files

Sometimes it is required to access only a particular part of the file, not the complete
file. This can be done by using the following function:

1 > fseek

Fseek Function

The general format of fseek function is as follows:

fseek(file pointer,offset, position);

This function is used to move the file position to a desired location within the file. Fileptr
is a pointer to the file concerned. Offset is a number or variable of type long, and
position in an integer number. Offset specifies the number of positions (bytes) to be
moved from the location specified by the position.

The position can take the 3 values:

Value Meaning

0 Beginning of the file

1 Current position

2 End of the file

Dynamic Memory Allocation:-

Pointers provide necessary support for C’s dynamic allocation system. Dynamic
allocation is the mean by which a program can obtain memory while it is running.
Global variables are allocated storage at compile time. Non-static, local variables used
the stack. However, neither global nor local variables can be added during program
execution. Yet there will be time when the storage needs of a program can not be
known ahead of time. For example, a program might want to use a dynamic data
structure, such as a linked list or a binary tree. Such structures are inherently dynamic

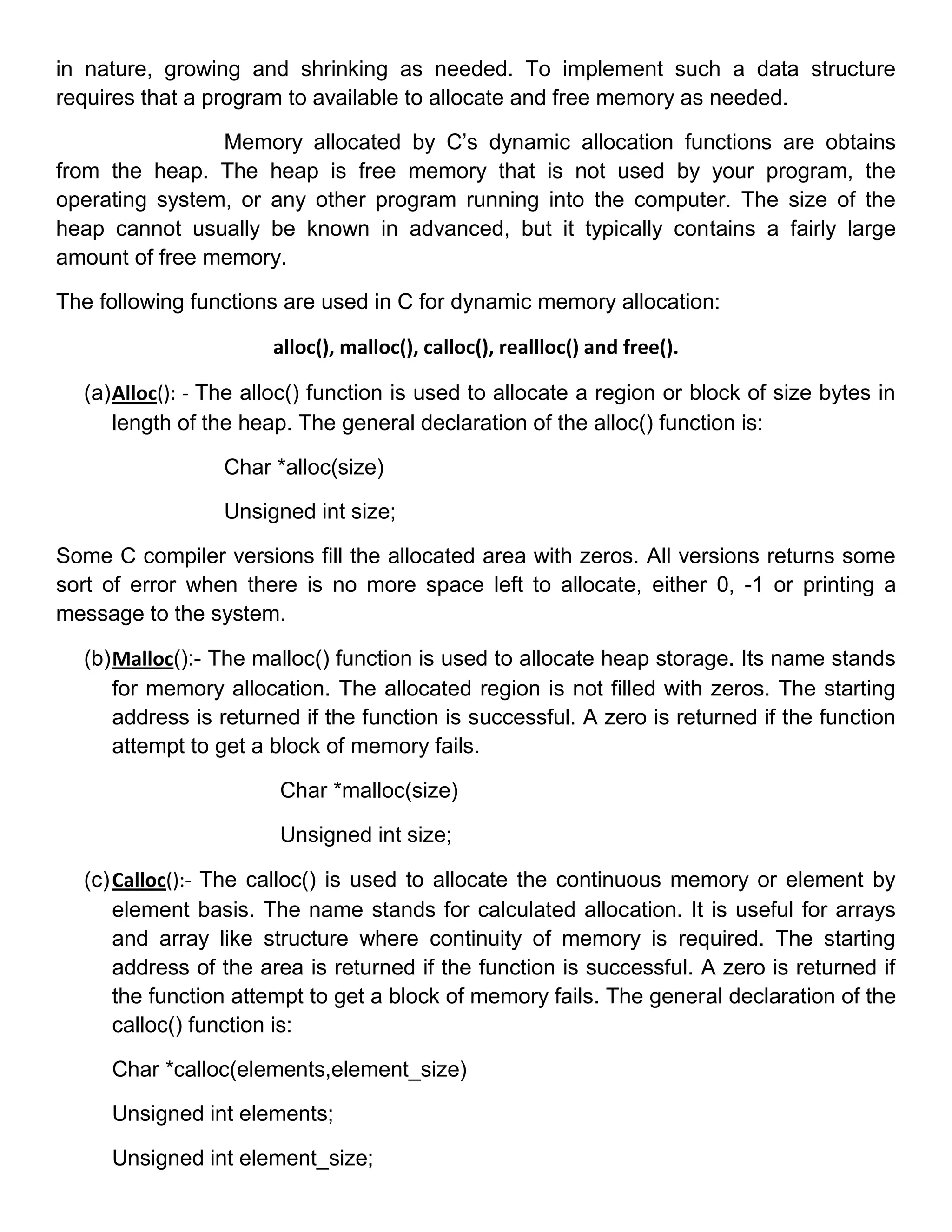

in nature, growing and shrinking as needed. To implement such a data structure
requires that a program to available to allocate and free memory as needed.

Memory allocated by C’s dynamic allocation functions are obtains
from the heap. The heap is free memory that is not used by your program, the
operating system, or any other program running into the computer. The size of the
heap cannot usually be known in advanced, but it typically contains a fairly large
amount of free memory.

The following functions are used in C for dynamic memory allocation:

alloc(), malloc(), calloc(), reallloc() and free().

(a) Alloc(): - The alloc() function is used to allocate a region or block of size bytes in
length of the heap. The general declaration of the alloc() function is:

Char *alloc(size)

Unsigned int size;

Some C compiler versions fill the allocated area with zeros. All versions returns some
sort of error when there is no more space left to allocate, either 0, -1 or printing a
message to the system.

(b) Malloc():- The malloc() function is used to allocate heap storage. Its name stands
for memory allocation. The allocated region is not filled with zeros. The starting
address is returned if the function is successful. A zero is returned if the function
attempt to get a block of memory fails.

Char *malloc(size)

Unsigned int size;

(c) Calloc():- The calloc() is used to allocate the continuous memory or element by
element basis. The name stands for calculated allocation. It is useful for arrays
and array like structure where continuity of memory is required. The starting
address of the area is returned if the function is successful. A zero is returned if
the function attempt to get a block of memory fails. The general declaration of the
calloc() function is:

Char *calloc(elements,element_size)

Unsigned int elements;

Unsigned int element_size;

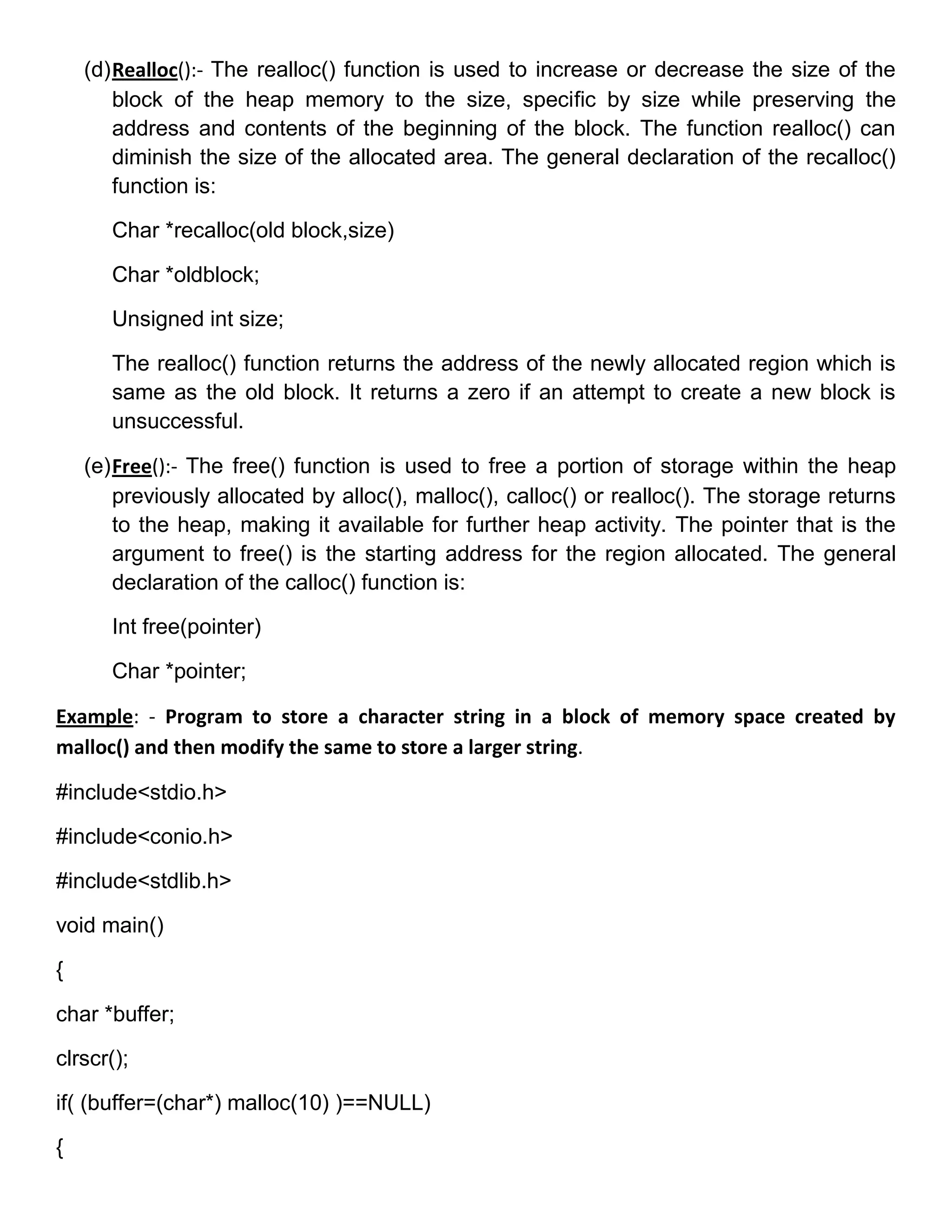

(d) Realloc():- The realloc() function is used to increase or decrease the size of the
block of the heap memory to the size, specific by size while preserving the
address and contents of the beginning of the block. The function realloc() can
diminish the size of the allocated area. The general declaration of the recalloc()
function is:

Char *recalloc(old block,size)

Char *oldblock;

Unsigned int size;

The realloc() function returns the address of the newly allocated region which is
same as the old block. It returns a zero if an attempt to create a new block is
unsuccessful.

(e) Free():- The free() function is used to free a portion of storage within the heap
previously allocated by alloc(), malloc(), calloc() or realloc(). The storage returns
to the heap, making it available for further heap activity. The pointer that is the
argument to free() is the starting address for the region allocated. The general
declaration of the calloc() function is:

Int free(pointer)

Char *pointer;

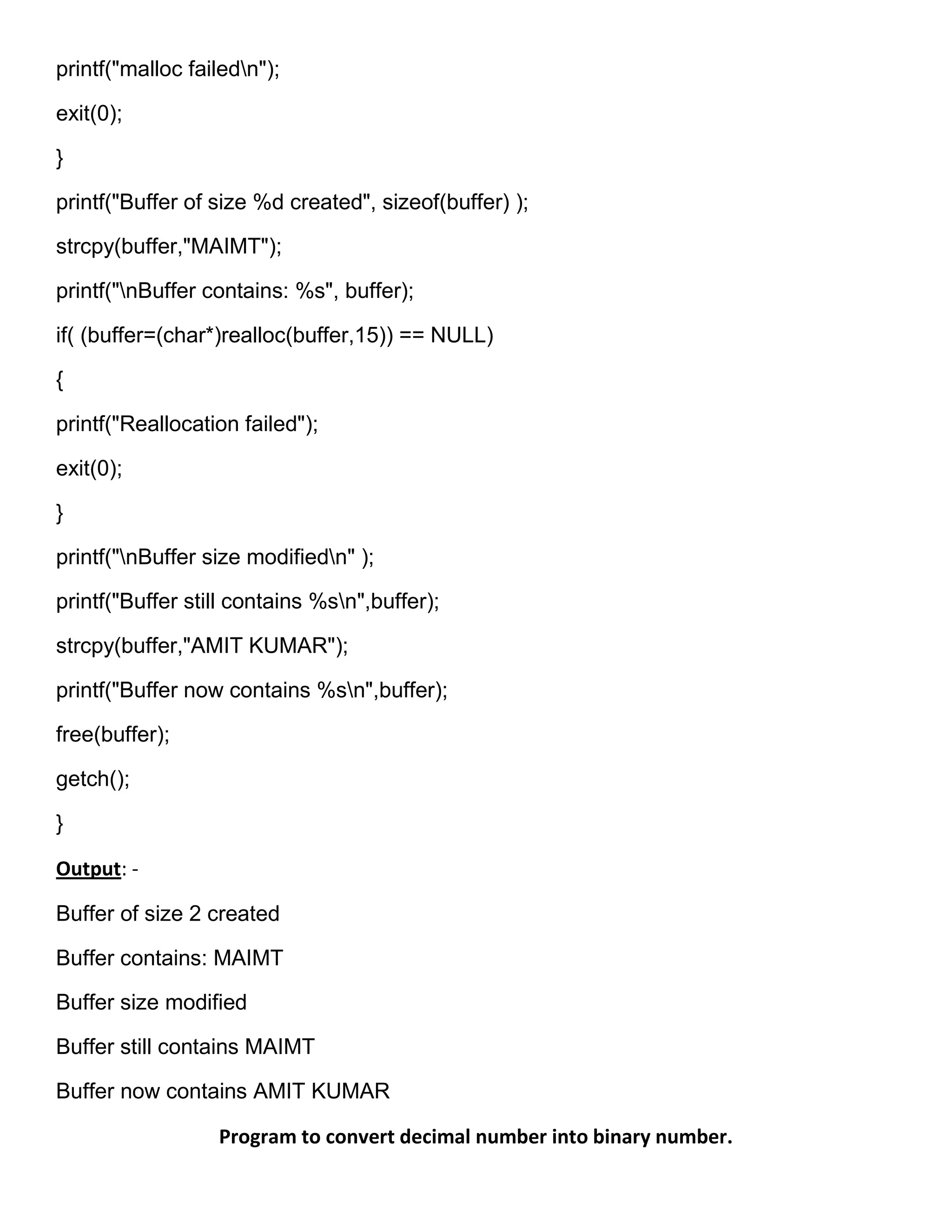

Example: - Program to store a character string in a block of memory space created by
malloc() and then modify the same to store a larger string.

#include<stdio.h>

#include<conio.h>

#include<stdlib.h>

void main()

{

char *buffer;

clrscr();

if( (buffer=(char*) malloc(10) )==NULL)

{

printf("malloc failedn");

exit(0);

}

printf("Buffer of size %d created", sizeof(buffer) );

strcpy(buffer,"MAIMT");

printf("nBuffer contains: %s", buffer);

if( (buffer=(char*)realloc(buffer,15)) == NULL)

{

printf("Reallocation failed");

exit(0);

}

printf("nBuffer size modifiedn" );

printf("Buffer still contains %sn",buffer);

strcpy(buffer,"AMIT KUMAR");

printf("Buffer now contains %sn",buffer);

free(buffer);

getch();

}

Output: -

Buffer of size 2 created

Buffer contains: MAIMT

Buffer size modified

Buffer still contains MAIMT

Buffer now contains AMIT KUMAR

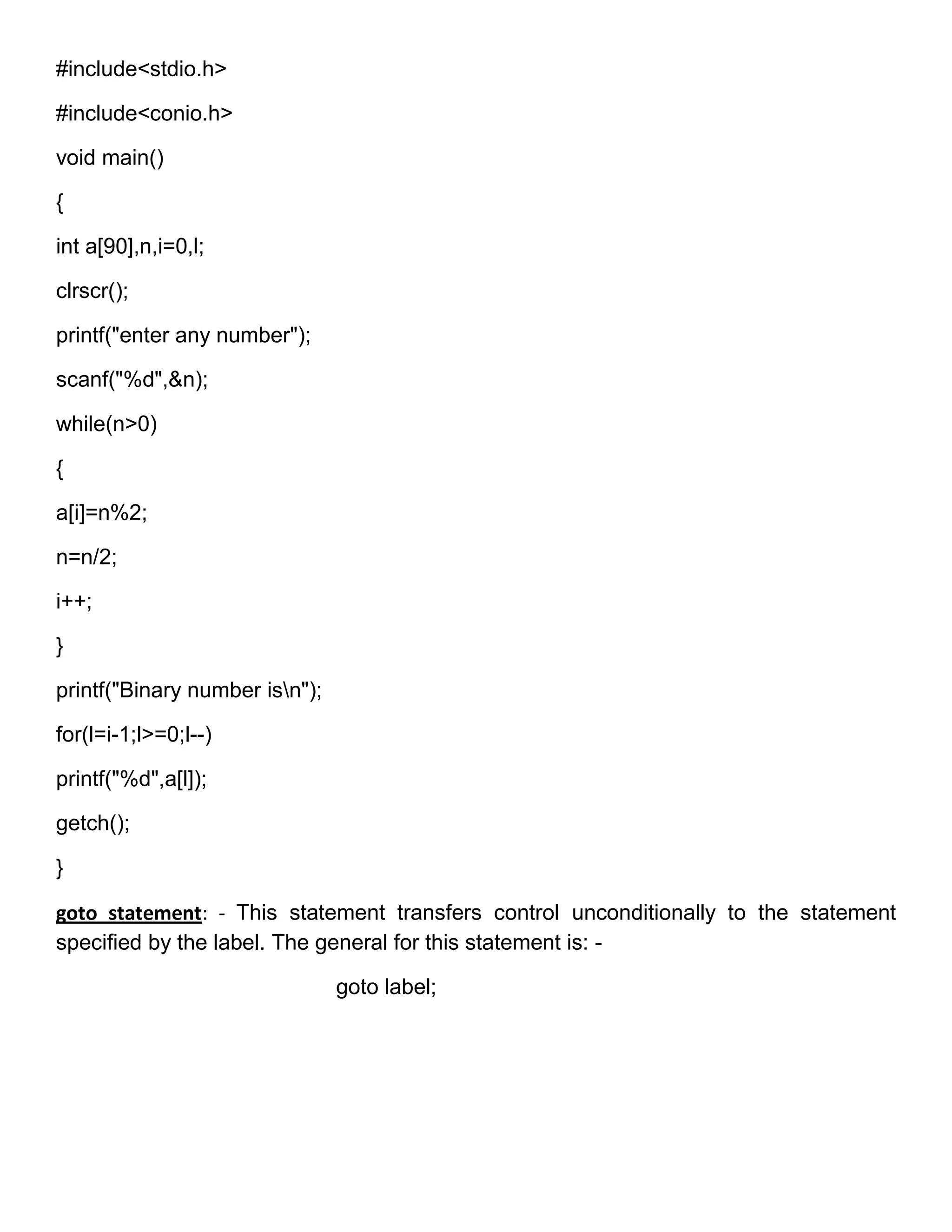

Program to convert decimal number into binary number.

#include<stdio.h>

#include<conio.h>

void main()

{

int a[90],n,i=0,l;

clrscr();

printf("enter any number");

scanf("%d",&n);

while(n>0)

{

a[i]=n%2;

n=n/2;

i++;

}

printf("Binary number isn");

for(l=i-1;l>=0;l--)

printf("%d",a[l]);

getch();

}

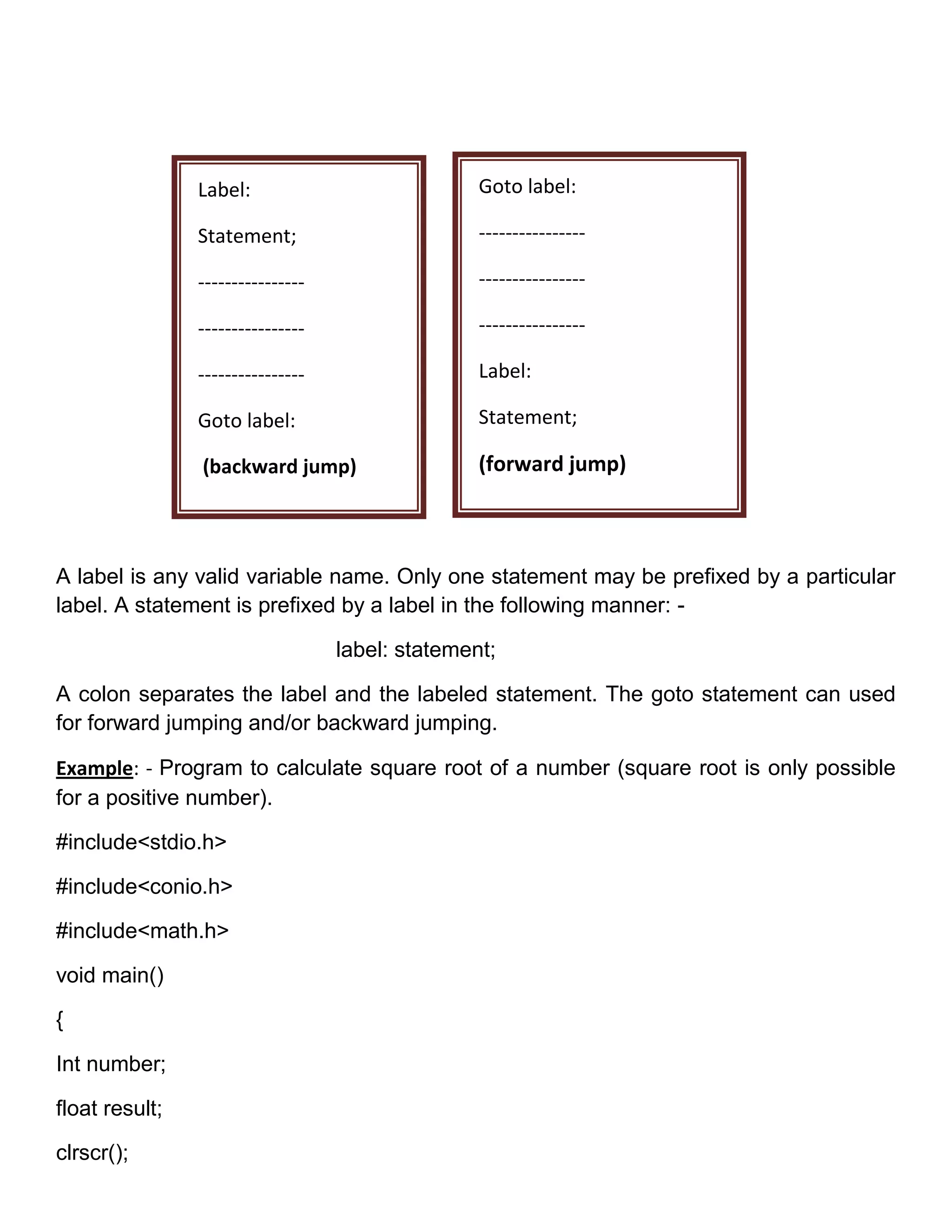

goto statement: - This statement transfers control unconditionally to the statement
specified by the label. The general for this statement is: -

goto label;

Label: Goto label:

Statement; ----------------

---------------- ----------------

---------------- ----------------

---------------- Label:

Goto label: Statement;

(backward jump) (forward jump)

A label is any valid variable name. Only one statement may be prefixed by a particular
label. A statement is prefixed by a label in the following manner: -

label: statement;

A colon separates the label and the labeled statement. The goto statement can used
for forward jumping and/or backward jumping.

Example: - Program to calculate square root of a number (square root is only possible
for a positive number).

#include<stdio.h>

#include<conio.h>

#include<math.h>

void main()

{

Int number;

float result;

clrscr();

read:

printf(―Enter any number‖);

scanf(―%d‖,&number);

if(n<0)

goto read;

else

result=sqrt(number);

printf(―Square root of %d is %f‖,number,result);

getch();

}

Output: -

Enter any number 2

Square root of 2 is 1.414214

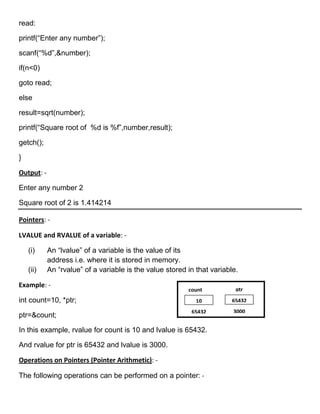

Pointers: -

LVALUE and RVALUE of a variable: -

(i) An ―lvalue‖ of a variable is the value of its
address i.e. where it is stored in memory.
(ii) An ―rvalue‖ of a variable is the value stored in that variable.

Example: -
count ptr
int count=10, *ptr; 10 65432
65432 3000
ptr=&count;

In this example, rvalue for count is 10 and lvalue is 65432.

And rvalue for ptr is 65432 and lvalue is 3000.

Operations on Pointers (Pointer Arithmetic): -

The following operations can be performed on a pointer: -

1. Assignment Operation: - Only pointers of the same type can be assigned to each
other. Let P1 and P2 are pointers of the same type, and suppose the values
stored in the locations, to which they point, are A and B as shown in figure.
P2
P1
A and A

The assignment statement
P1=P2
implies that P1 and P2 point to the same location as shown below.

P1
B
P2

A pointer can also be made to point nothing, by assigning the special value NULL
to the variable.
For example: -
P=NULL
Where, NULL is a reserved word in C Compiler.
2. Comparison: - Pointers can be compared using the relational operators. For
example
if (p==q)
Break;

Where, p and q are the pointer variables of the same type.

3. Addition of a number to a pointer: -
C allows us to add integer to pointers. For example: -
int i=3,*p,*q;
p=&i;

p=p+1;

q=p+3;

4. Subtraction of a number from a pointer: -
C allows us to subtract integer from pointer. For example: -
int i=3,*p,*q;
p=&i;

p=p-1;

q=p-3;
5. Subtraction of one pointer from pointer: -
One pointer variable can be subtracted from another pointer variable provided
both points to the elements of the same data type. For example: -
int i=3,j=12,*p,*q;
p=&i;

q=&j;

printf(―%d‖,q-p);

We may also used shorthand operators with the pointers

p++;

--q;

x+=*p;

The following operations cannot be performed on pointers: -

1. Addition of two pointers
2. Division of a pointer with a constant
3. Multiplication of a pointer with a constant

Call By Value Call By Reference

1. The formal and actual 1. The formal and actual
parameters are two parameters are same,
different variables. though their names may be
2. The formal parameters are different.
not declared as pointers. 2. The formal parameters must
3. Changes done to formal be declared as pointers.
parameters are not 3. Changes done to formal
reflected back to the parameters are reflected
actual parameters. back to the actual
4. Actual parameters may be parameters.
a constant, a variable, or 4. Actual parameters must be a
an expression. variable.
5. Actual parameter is read 5. Actual parameter is read-
only. write.
6. int x; 6. int *x;

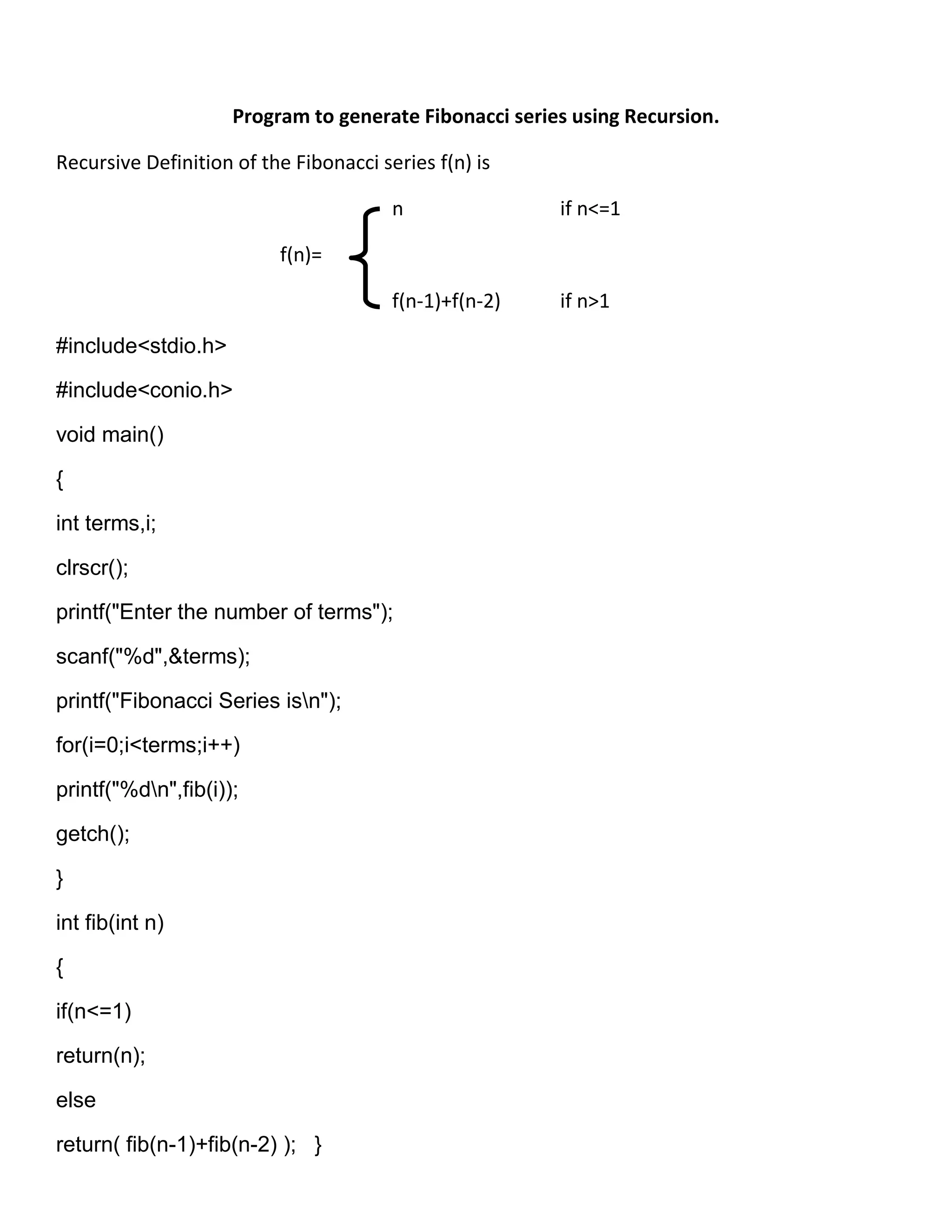

Program to generate Fibonacci series using Recursion.

Recursive Definition of the Fibonacci series f(n) is

n if n<=1

f(n)=

f(n-1)+f(n-2) if n>1

#include<stdio.h>

#include<conio.h>

void main()

{

int terms,i;

clrscr();

printf("Enter the number of terms");

scanf("%d",&terms);

printf("Fibonacci Series isn");

for(i=0;i<terms;i++)

printf("%dn",fib(i));

getch();

}

int fib(int n)

{

if(n<=1)

return(n);

else

return( fib(n-1)+fib(n-2) ); }

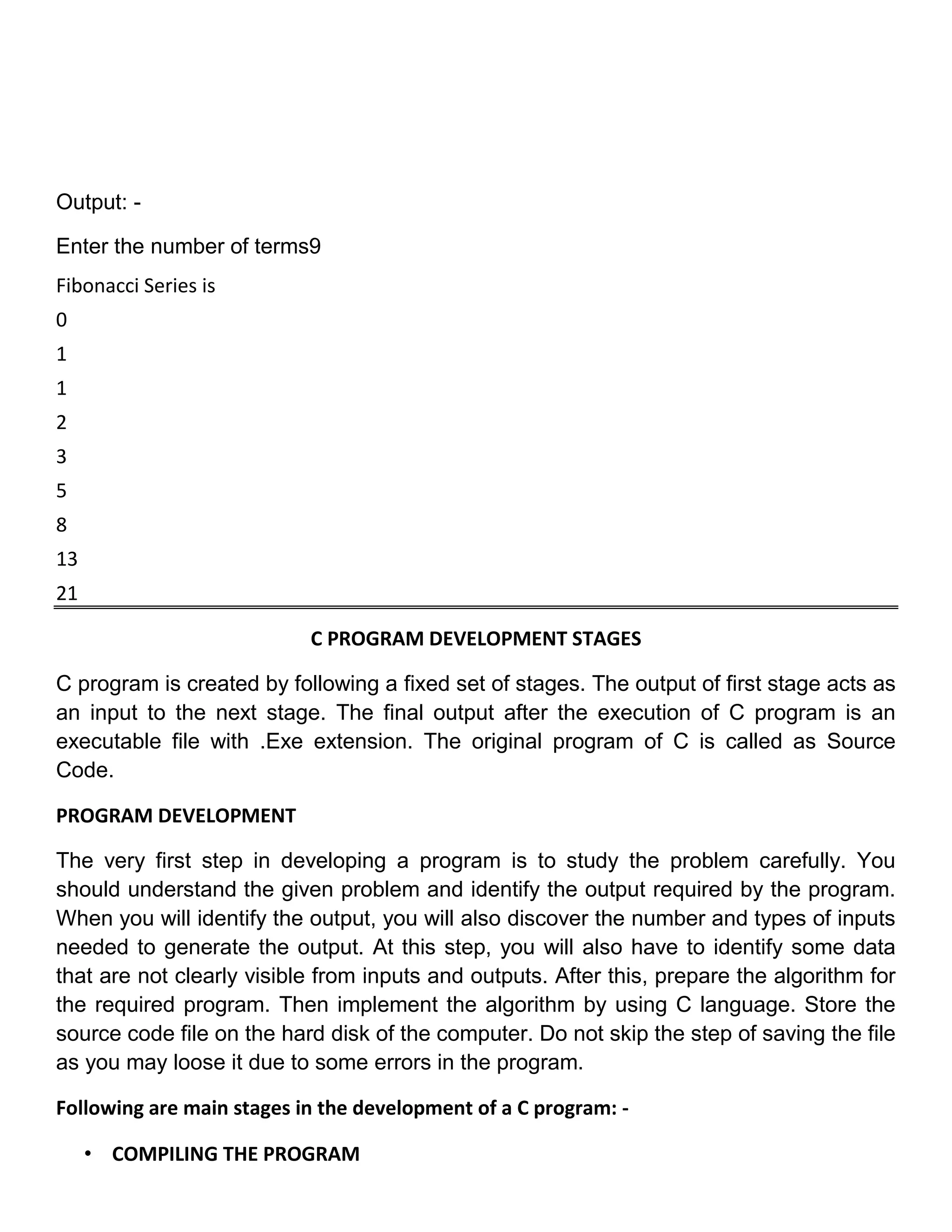

Output: -

Enter the number of terms9
Fibonacci Series is
0
1
1
2
3
5
8
13
21

C PROGRAM DEVELOPMENT STAGES

C program is created by following a fixed set of stages. The output of first stage acts as
an input to the next stage. The final output after the execution of C program is an
executable file with .Exe extension. The original program of C is called as Source
Code.

PROGRAM DEVELOPMENT

The very first step in developing a program is to study the problem carefully. You
should understand the given problem and identify the output required by the program.
When you will identify the output, you will also discover the number and types of inputs
needed to generate the output. At this step, you will also have to identify some data
that are not clearly visible from inputs and outputs. After this, prepare the algorithm for
the required program. Then implement the algorithm by using C language. Store the
source code file on the hard disk of the computer. Do not skip the step of saving the file
as you may loose it due to some errors in the program.

Following are main stages in the development of a C program: -

• COMPILING THE PROGRAM

• LINKING THE PROGRAM

• EXECUTION & TESTING THE PROGRAM

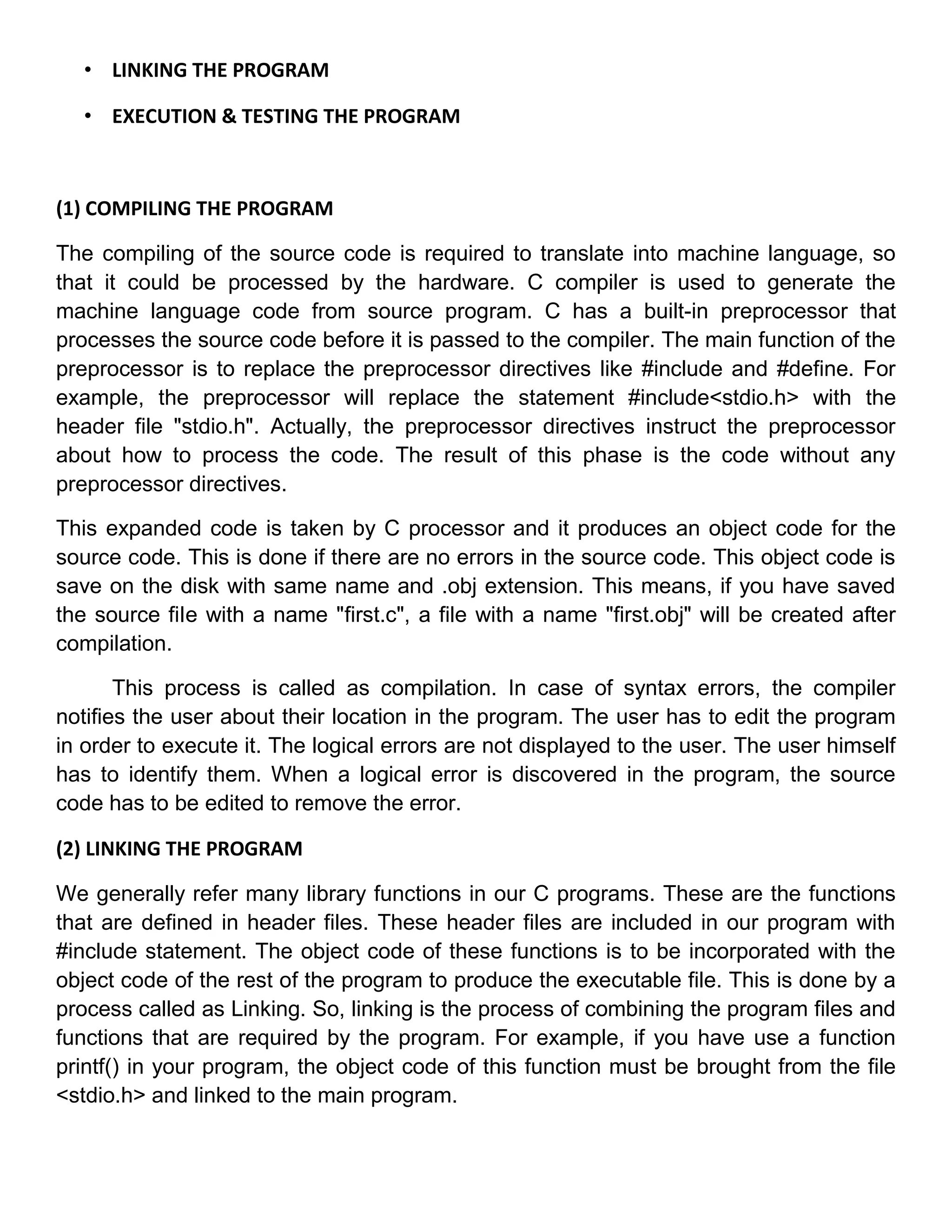

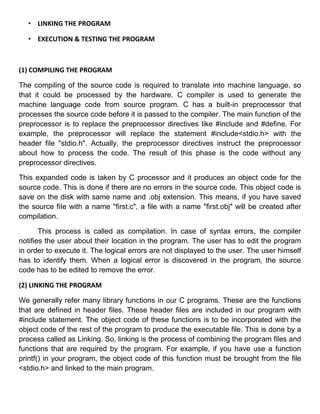

(1) COMPILING THE PROGRAM

The compiling of the source code is required to translate into machine language, so
that it could be processed by the hardware. C compiler is used to generate the
machine language code from source program. C has a built-in preprocessor that
processes the source code before it is passed to the compiler. The main function of the
preprocessor is to replace the preprocessor directives like #include and #define. For
example, the preprocessor will replace the statement #include<stdio.h> with the
header file "stdio.h". Actually, the preprocessor directives instruct the preprocessor
about how to process the code. The result of this phase is the code without any
preprocessor directives.

This expanded code is taken by C processor and it produces an object code for the
source code. This is done if there are no errors in the source code. This object code is
save on the disk with same name and .obj extension. This means, if you have saved
the source fiIe with a name "first.c", a file with a name "first.obj" will be created after
compilation.

This process is called as compilation. In case of syntax errors, the compiler
notifies the user about their location in the program. The user has to edit the program
in order to execute it. The logical errors are not displayed to the user. The user himself
has to identify them. When a logical error is discovered in the program, the source
code has to be edited to remove the error.

(2) LINKING THE PROGRAM

We generally refer many library functions in our C programs. These are the functions
that are defined in header files. These header files are included in our program with
#include statement. The object code of these functions is to be incorporated with the
object code of the rest of the program to produce the executable file. This is done by a
process called as Linking. So, linking is the process of combining the program files and
functions that are required by the program. For example, if you have use a function
printf() in your program, the object code of this function must be brought from the file
<stdio.h> and linked to the main program.

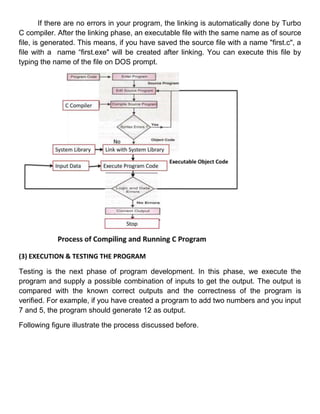

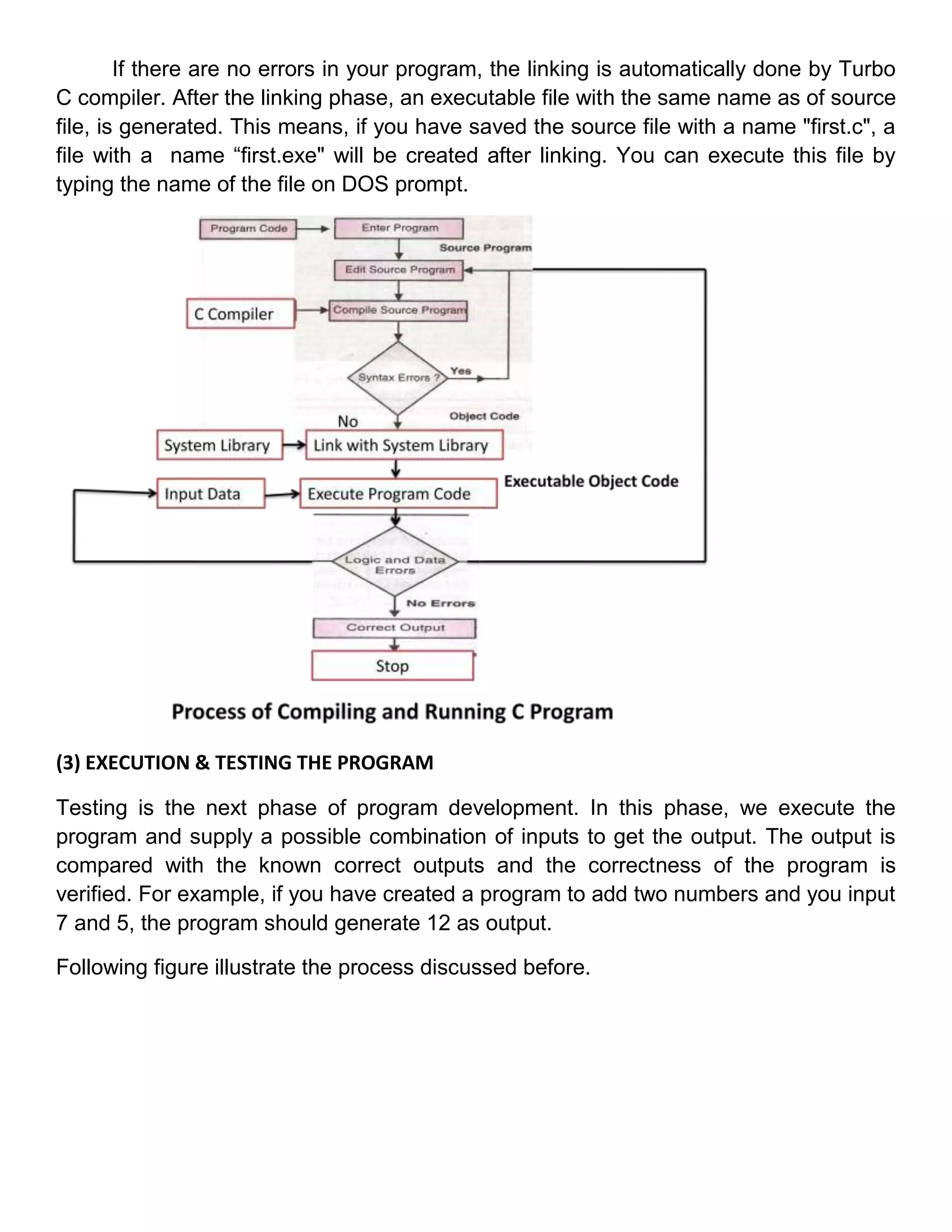

If there are no errors in your program, the linking is automatically done by Turbo
C compiler. After the linking phase, an executable file with the same name as of source
file, is generated. This means, if you have saved the source file with a name "first.c", a
file with a name ―first.exe" will be created after linking. You can execute this file by
typing the name of the file on DOS prompt.

(3) EXECUTION & TESTING THE PROGRAM

Testing is the next phase of program development. In this phase, we execute the
program and supply a possible combination of inputs to get the output. The output is
compared with the known correct outputs and the correctness of the program is
verified. For example, if you have created a program to add two numbers and you input
7 and 5, the program should generate 12 as output.

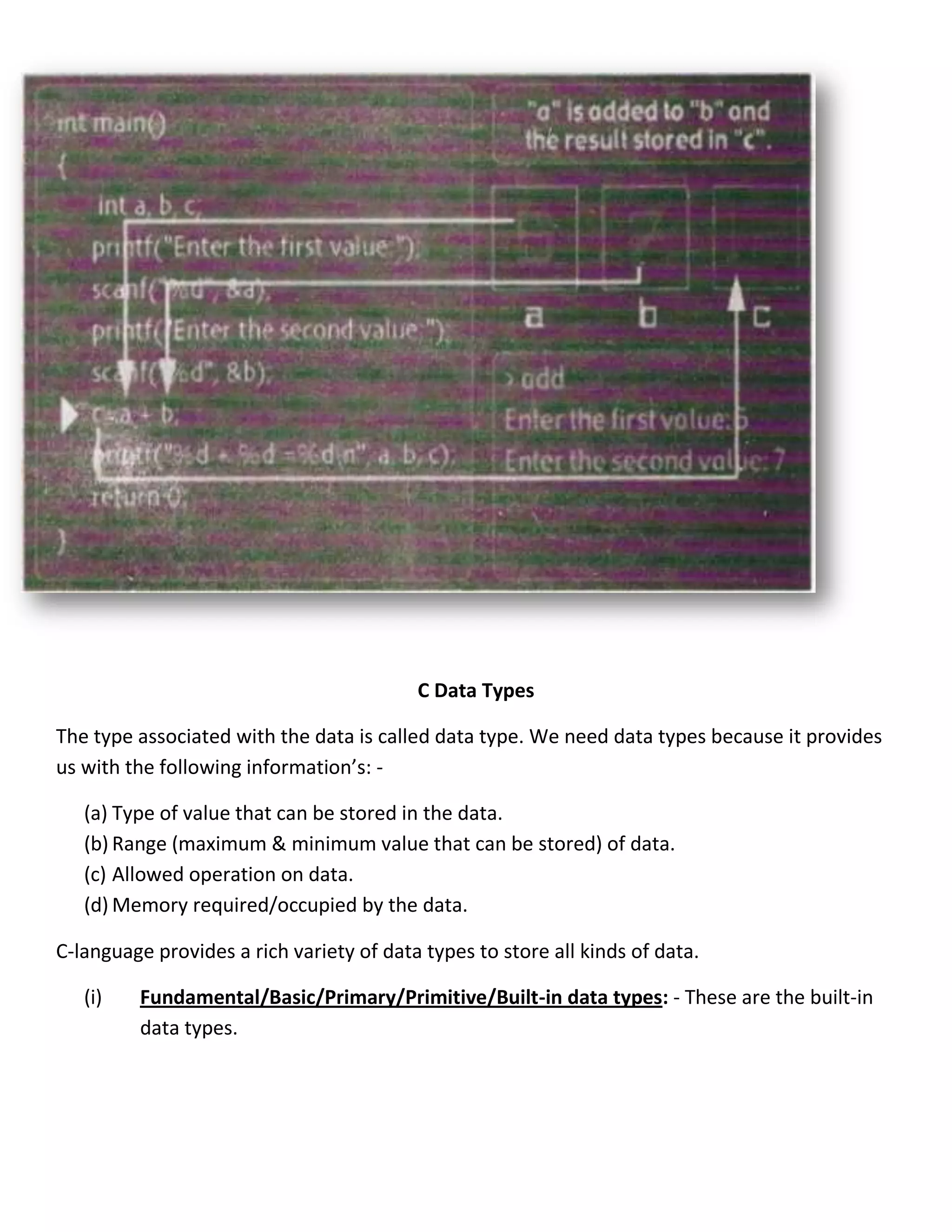

Following figure illustrate the process discussed before.

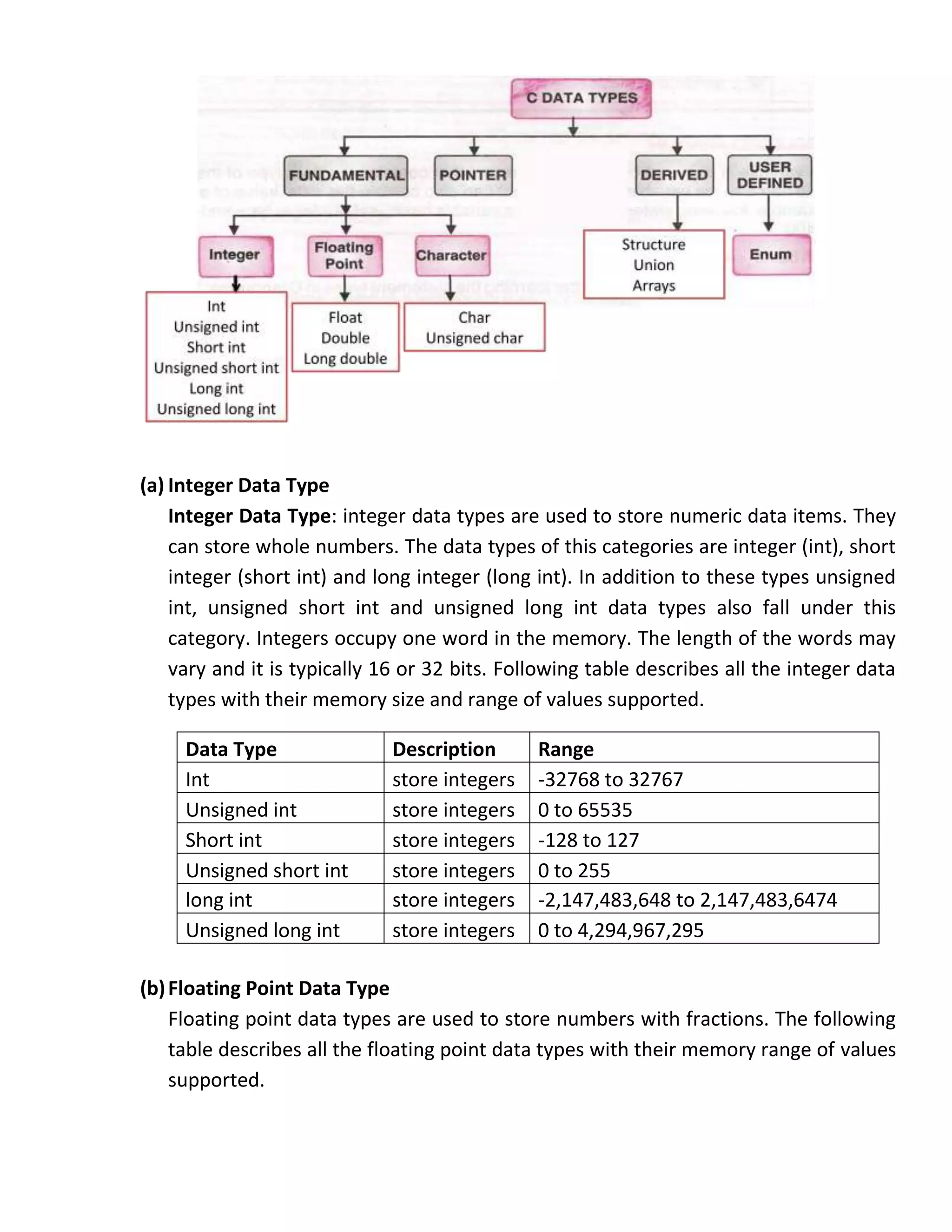

C Data Types

The type associated with the data is called data type. We need data types because it provides
us with the following information’s: -

(a) Type of value that can be stored in the data.
(b) Range (maximum & minimum value that can be stored) of data.
(c) Allowed operation on data.
(d) Memory required/occupied by the data.

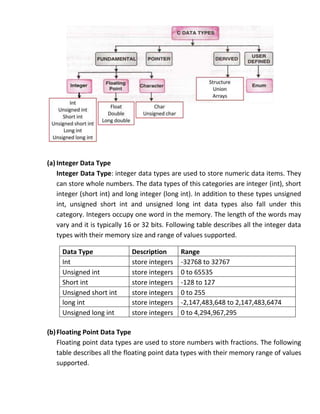

C-language provides a rich variety of data types to store all kinds of data.

(i) Fundamental/Basic/Primary/Primitive/Built-in data types: - These are the built-in
data types.

(a) Integer Data Type
Integer Data Type: integer data types are used to store numeric data items. They
can store whole numbers. The data types of this categories are integer (int), short
integer (short int) and long integer (long int). In addition to these types unsigned
int, unsigned short int and unsigned long int data types also fall under this
category. Integers occupy one word in the memory. The length of the words may
vary and it is typically 16 or 32 bits. Following table describes all the integer data
types with their memory size and range of values supported.

Data Type Description Range
Int store integers -32768 to 32767
Unsigned int store integers 0 to 65535
Short int store integers -128 to 127
Unsigned short int store integers 0 to 255
long int store integers -2,147,483,648 to 2,147,483,6474
Unsigned long int store integers 0 to 4,294,967,295

(b) Floating Point Data Type
Floating point data types are used to store numbers with fractions. The following
table describes all the floating point data types with their memory range of values
supported.

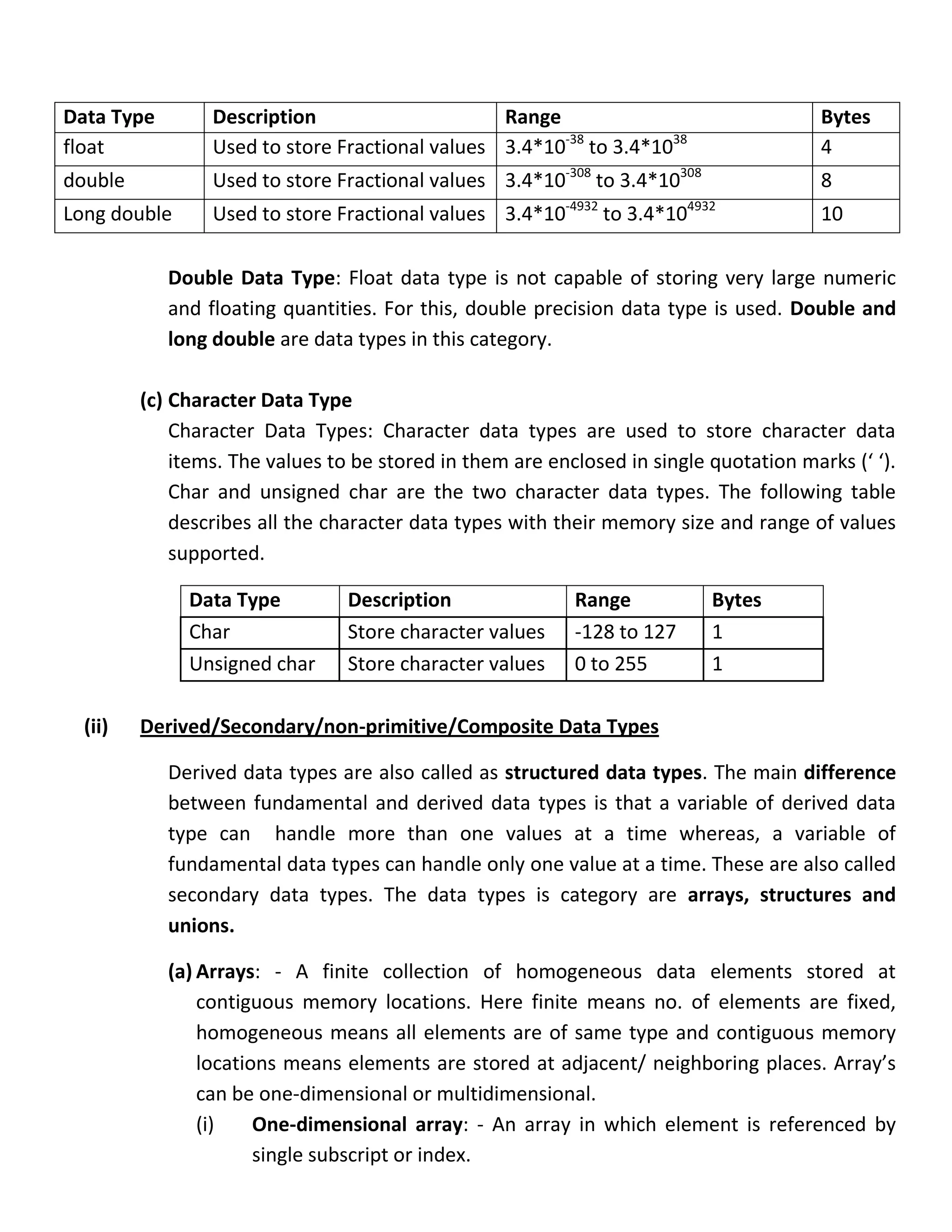

Data Type Description Range Bytes
float Used to store Fractional values 3.4*10-38 to 3.4*1038 4
double Used to store Fractional values 3.4*10-308 to 3.4*10308 8
-4932 4932
Long double Used to store Fractional values 3.4*10 to 3.4*10 10

Double Data Type: Float data type is not capable of storing very large numeric
and floating quantities. For this, double precision data type is used. Double and
long double are data types in this category.

(c) Character Data Type
Character Data Types: Character data types are used to store character data
items. The values to be stored in them are enclosed in single quotation marks (‘ ‘).
Char and unsigned char are the two character data types. The following table
describes all the character data types with their memory size and range of values
supported.

Data Type Description Range Bytes
Char Store character values -128 to 127 1
Unsigned char Store character values 0 to 255 1

(ii) Derived/Secondary/non-primitive/Composite Data Types

Derived data types are also called as structured data types. The main difference
between fundamental and derived data types is that a variable of derived data
type can handle more than one values at a time whereas, a variable of
fundamental data types can handle only one value at a time. These are also called
secondary data types. The data types is category are arrays, structures and
unions.

(a) Arrays: - A finite collection of homogeneous data elements stored at
contiguous memory locations. Here finite means no. of elements are fixed,
homogeneous means all elements are of same type and contiguous memory
locations means elements are stored at adjacent/ neighboring places. Array’s
can be one-dimensional or multidimensional.
(i) One-dimensional array: - An array in which element is referenced by
single subscript or index.

Syntax: datatype var-name[size];
Example: char address[90];
(ii) Multi-dimensional array: - An array in which element is referenced by
more than one subscript or indexes.
Example: Two-dimensional array: - An array in which element is
referenced by two subscripts or indexes.
Syntax: datatype var-name[rows][cols];
Example: int matrix[9][8];

(b) Structures: - Collection of fields generally of different data type related to a
particular record. Example: - Record of a student.
Syntax:
struct structure_name
{ Example:
Field-1; struct student
Field-2;
Field-3; {
. char name[90];
.
. int rollno;
Field-n; };
};
(c) Unions: - Collection of fields generally of different data type related to a
particular record, which share a common memory.

(iii) User defined data types (Enumerated data type):
These are the data types that are defined by the user. They contain user specified
values. “enum” keyword is used to declare data types of this type. An Enumerated
data type consists of an ordered set of distinct constant values defined in a data type
in a program.
The format of enum is:-
enum name
{
value-1,value-2,value-3,…….,value-4;
};
Where,

name is the name of the enumerated data type, also known as tag and value-
1,value-2,value-3,…….,value-n are values that variable of type name can take.
Example: -
enum fruit
{
apple,orange,mango,pineapple;
};
Once the type fruit has been defined then variable of that type can be defined in the
following manner :-
fruit a,b;

(iv) Pointer data type: - A pointer is a data type that handles the data as per its memory
address or in other words a pointer is a data type that is used to store the address of
other variables. Pointer are classified into two types: - (a) & (addressof pointer) , (b)
* (indirection pointer)

(a) & (addressof pointer): -
(b) * (indirection pointer)

Redefining Data Types with typedef
In c, it is possible to redefine the built-in as well as user defined data types. This task
is accomplished by the typedef statement.
Syntax: -
typedef type new_type;

Where, typedef is keyword, type is either built-in data type or user-defined data
type, and new_type is the new name of the type.
Example: -
typedef float real;
This statement redefines the data types float to real. Then to declare x,y and z of
type float, we can also write
real x,y,z;
The compiler will still recognize the statement
float x,y,z; as correct.

User Defined Data Type

“ Enumerated Data Type”

An Enumerated data type consists of an ordered set of distinct constant values defined in a
data type in a program. The syntax of enum is:-

enum name

{

value-1,value-2,value-3,…….,value-4;

};

Where,

name is the name of the enumerated data type, also known as tag and

value-1, value-2,value-3,…….,value-n are values that variable of type name can take.

Example (1): -

enum fruit

{

apple,orange,mango,pineapple;

};

This declaration states that a variable of type fruit can have any of the four values
namely apple, orange, mango and pineapple, but no other value. Once the type fruit has been
defined then variable of that type can be defined in the following manner :-

fruit a,b;

Now, the variable a and b are of type fruit and can assume value from the list : (apple,
orange, mango, pineapple).

Example (2): -

Part-1 enum days

{

mon,tue,wed,thu,fri,sat,sun;

};

Part-2 days holiday,wdays;

The first part defines an enumeration named days. The second part declares the
variables holiday and wdays to be enumeration variable of type days. Thus each variable can
be assigned any one of the constants mon, tue, wed, thu, fri, sat, sun.

The two parts in example-2 can be combined if desired, resulting in

enum days

{


} holiday,wdays;

or without the name(tag), simply

enum

{


} holiday,wdays;

Enumeration constants are automatically assigned equivalent integer values, beginning with 0
for the first constant, with each successive constant increasing by 1. Therefore in example-1,
the enumeration constants will represent the following integer values: -

Mon 0

Tue 1

Wed 2

Thu 3

Fri 4

Sat 5

Sun 6

These automatic assignments can be overridden by assigning explicit integer values which
differ from the default values. Those constants are not assigned explicit values will
automatically be assigned values which increase successively by 1 from the last explicit
assignment. enum days

{

mon=10;

tue=11;

wed=12;

thu=13

fri=20;

sat=21;

sun=50;

};

Operations on Enumerated Data Types: -

1. Assignment

Example: - holiday=sun;

2. Comparing using Relational Operators

Example: -

Consider the enumerated data types defined in previous example: -

expression values

sun<tue false

mon!=fri true

mon<sat sat

Advantages of Enumerated Data Types: -

1. Simplifies the Program.

2. Enhances the readability of the program.

3. Help to locate more errors at the compile time.

4. Helps us to express a program in a more natural way.

C notes mca i sem 2011

More Related Content

Similar to C notes mca i sem 2011

More from Amit Kapoor

Recently uploaded

C notes mca i sem 2011
