Caching in applications still matters
- 1. © 2018 SoftwareAG. All rights reserved. [DEV5935] CACHING IN APPLICATIONS STILL MATTERS ! Anthony Dahanne @anthonydahanne blog.dahanne.net Henri Tremblay @henri_tremblay blog.tremblay.pro

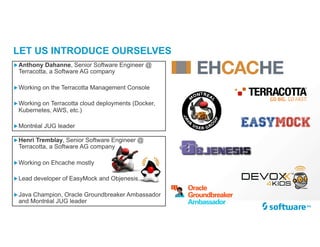

- 2. LET US INTRODUCEOURSELVES „Henri Tremblay, Senior Software Engineer @ Terracotta, a Software AG company „Working on Ehcache mostly „Lead developer of EasyMock and Objenesis „Java Champion, Oracle Groundbreaker Ambassador and Montréal JUG leader „Anthony Dahanne, Senior Software Engineer @ Terracotta, a Software AG company „Working on the Terracotta Management Console „Working on Terracotta cloud deployments (Docker, Kubernetes, AWS, etc.) „Montréal JUG leader

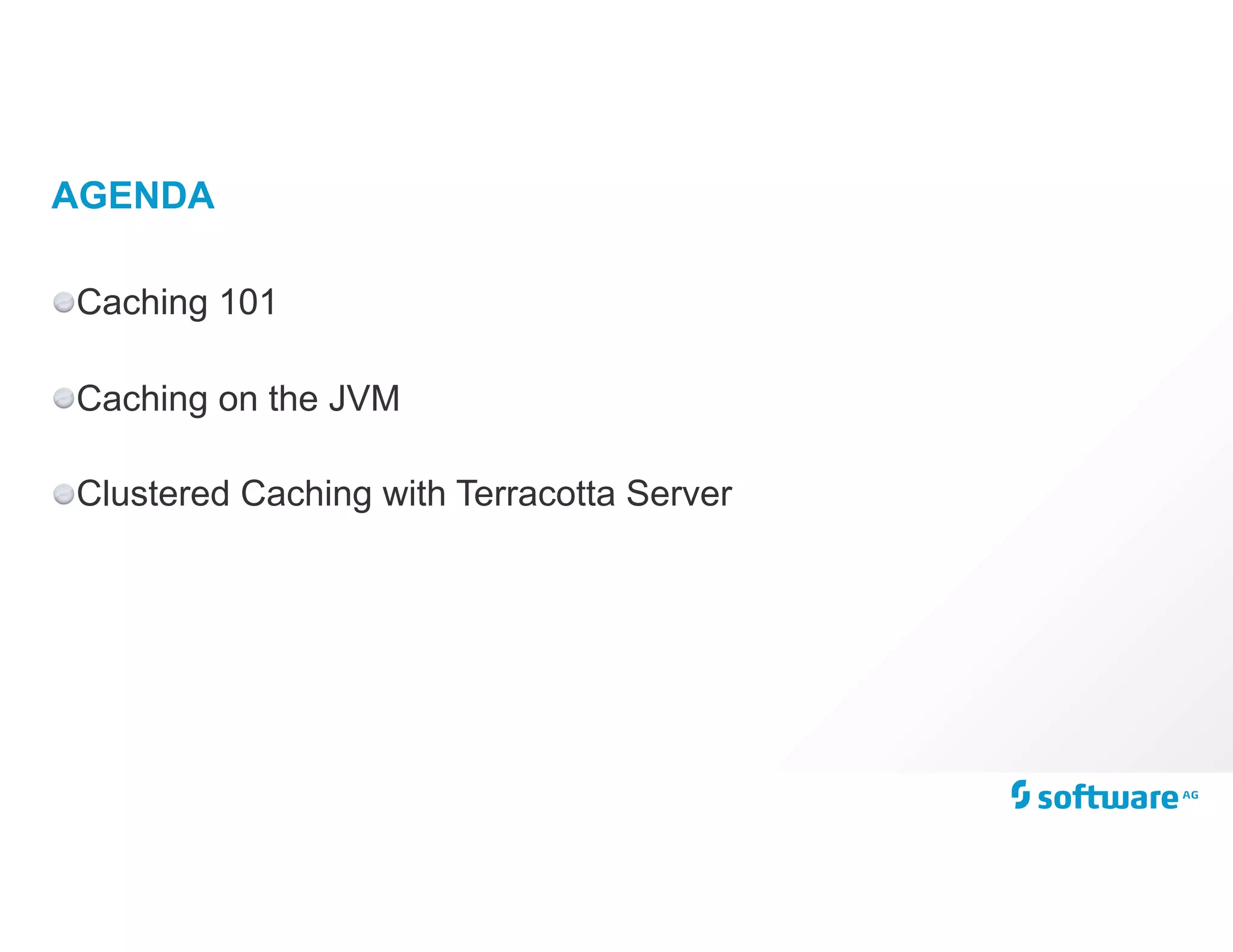

- 3. AGENDA Caching 101 Caching onthe JVM Clustered Caching with Terracotta Server

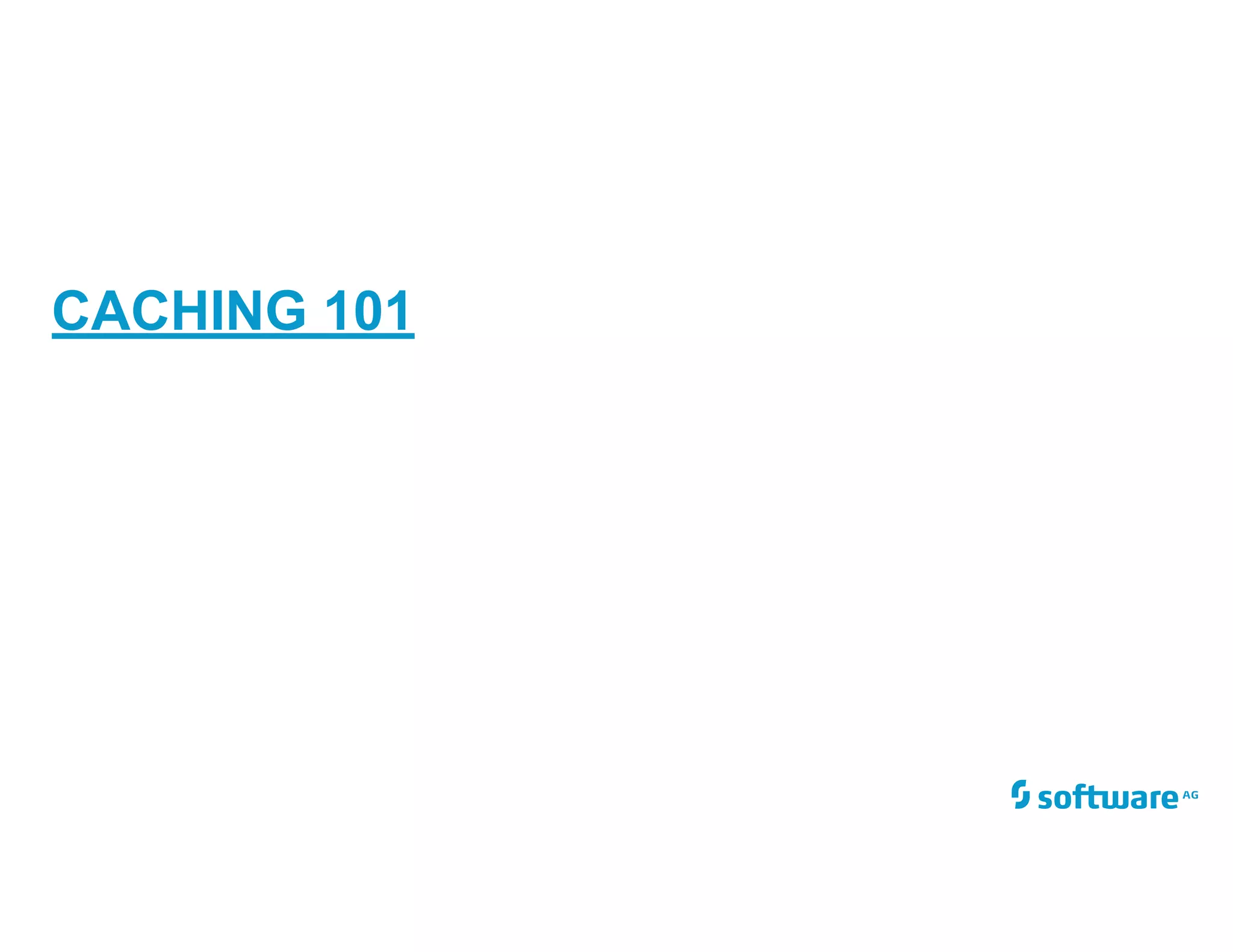

- 4.

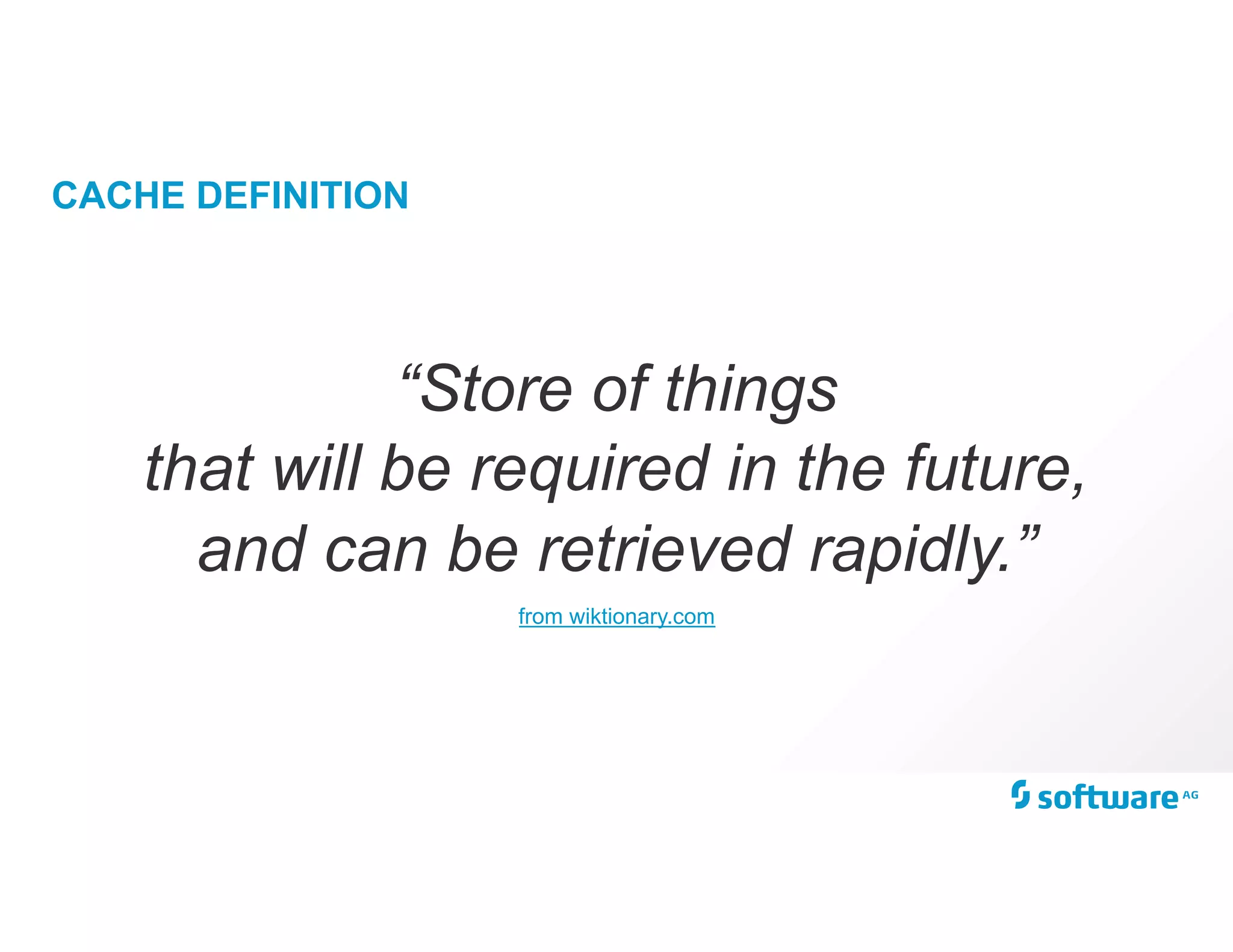

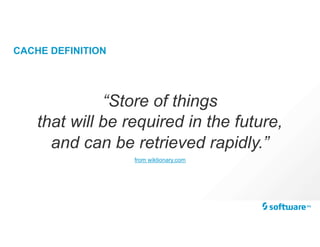

- 5. CACHE DEFINITION “Store ofthings that will be required in the future, and can be retrieved rapidly.” from wiktionary.com

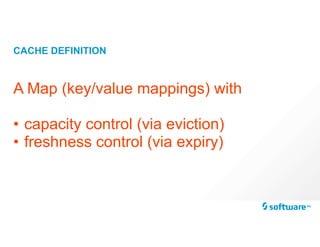

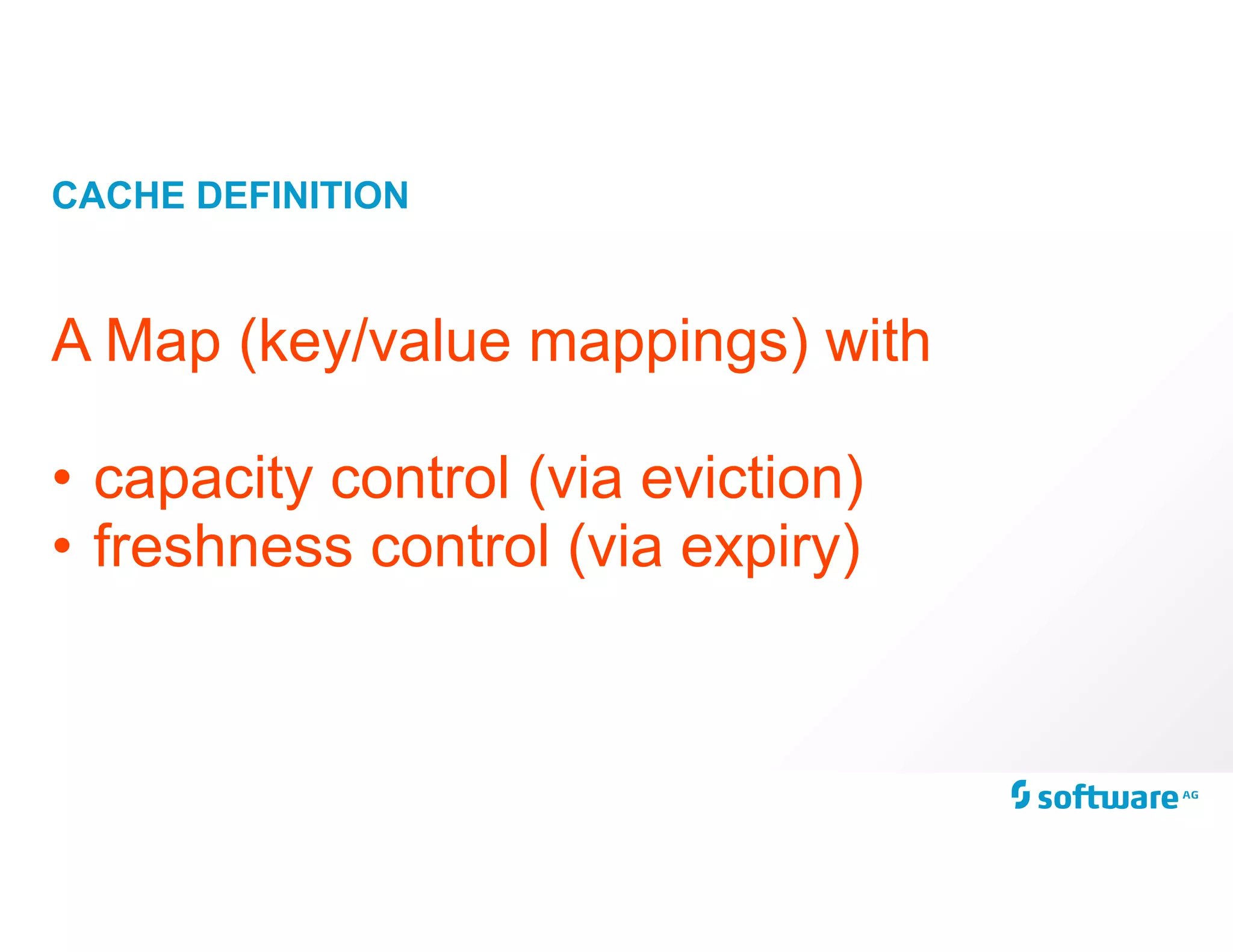

- 6. CACHE DEFINITION A Map(key/value mappings) with • capacity control (via eviction) • freshness control (via expiry)

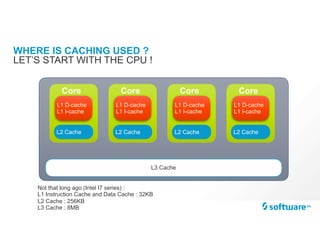

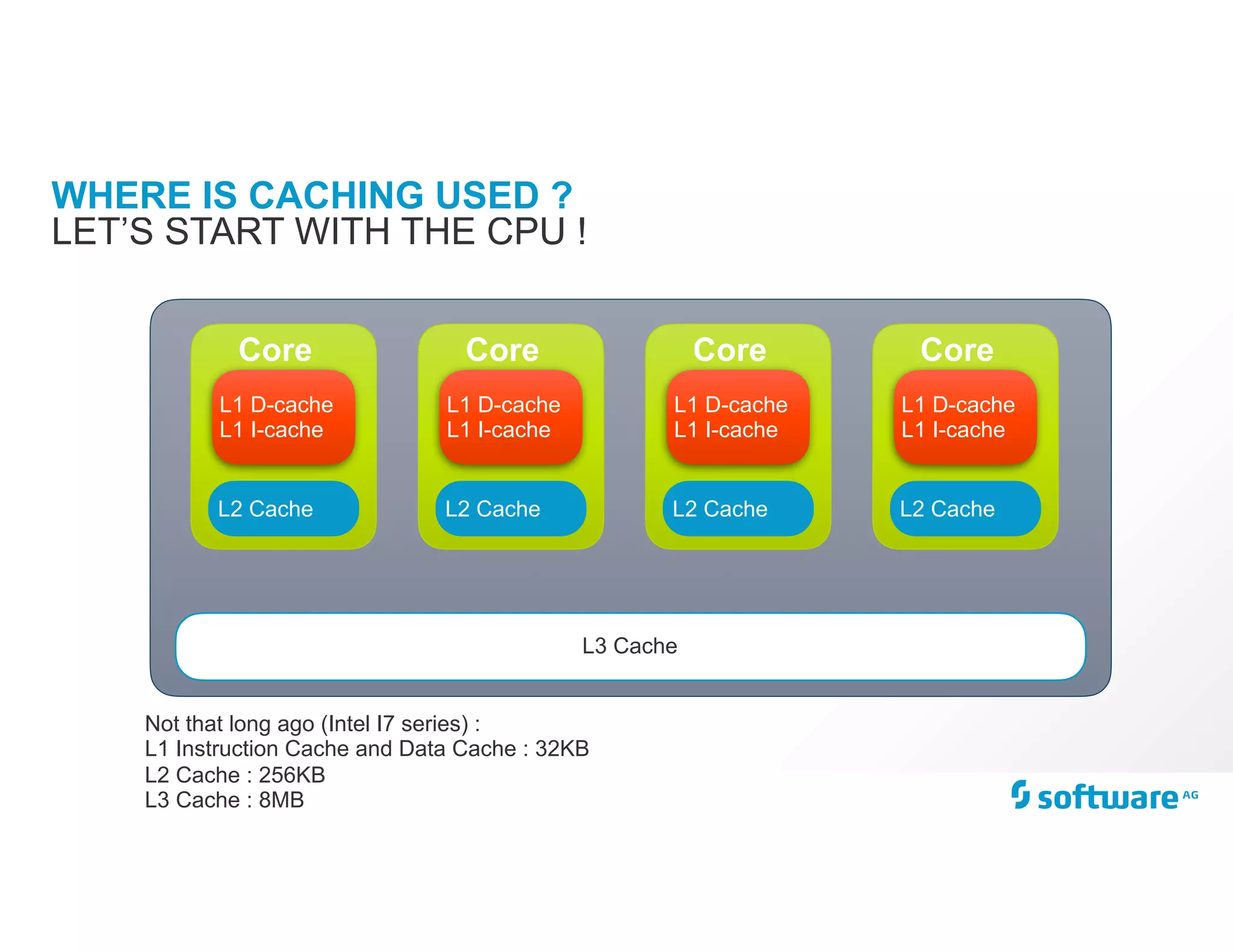

- 7. WHERE IS CACHINGUSED ? LET’S START WITH THE CPU ! Core L1 D-cache L1 I-cache L2 Cache L3 Cache Core L1 D-cache L1 I-cache L2 Cache Core L1 D-cache L1 I-cache L2 Cache Core L1 D-cache L1 I-cache L2 Cache Not that long ago (Intel I7 series) : L1 Instruction Cache and Data Cache : 32KB L2 Cache : 256KB L3 Cache : 8MB

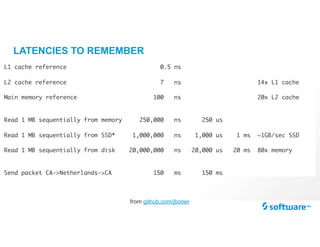

- 8. LATENCIES TO REMEMBER L1cache reference 0.5 ns L2 cache reference 7 ns 14x L1 cache Main memory reference 100 ns 20x L2 cache Read 1 MB sequentially from memory 250,000 ns 250 us Read 1 MB sequentially from SSD* 1,000,000 ns 1,000 us 1 ms ~1GB/sec SSD Read 1 MB sequentially from disk 20,000,000 ns 20,000 us 20 ms 80x memory Send packet CA->Netherlands->CA 150 ms 150 ms from github.com/jboner

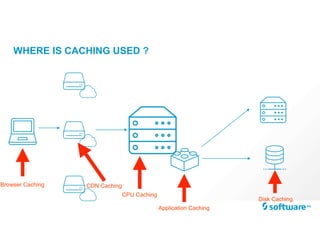

- 9. WHERE IS CACHINGUSED ? Browser Caching CDN Caching CPU Caching Application Caching Disk Caching

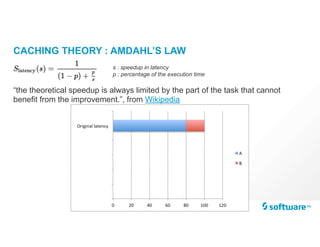

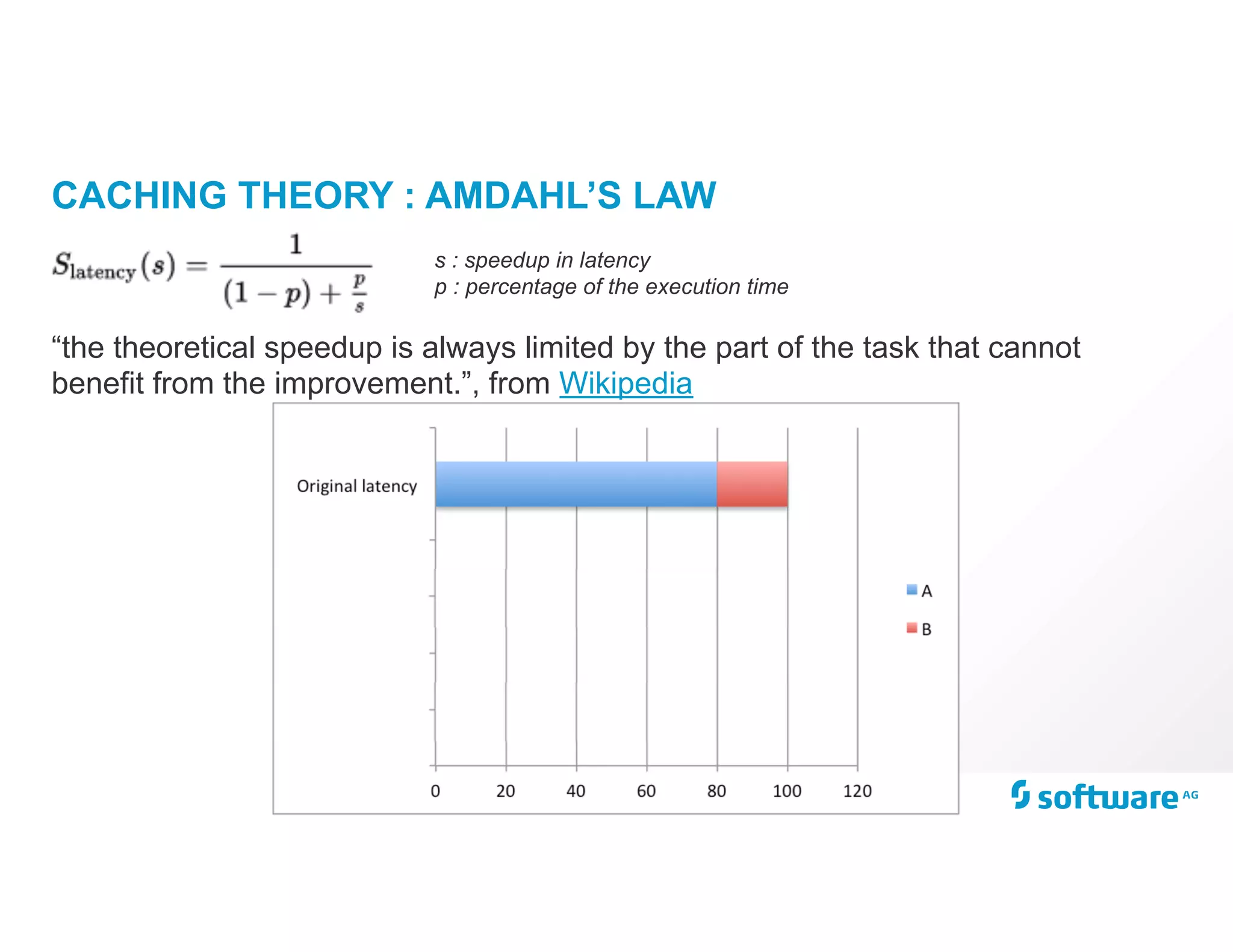

- 10. CACHING THEORY :AMDAHL’S LAW “the theoretical speedup is always limited by the part of the task that cannot benefit from the improvement.”, from Wikipedia s : speedup in latency p : percentage of the execution time

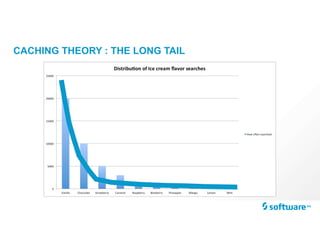

- 11. CACHING THEORY :THE LONG TAIL

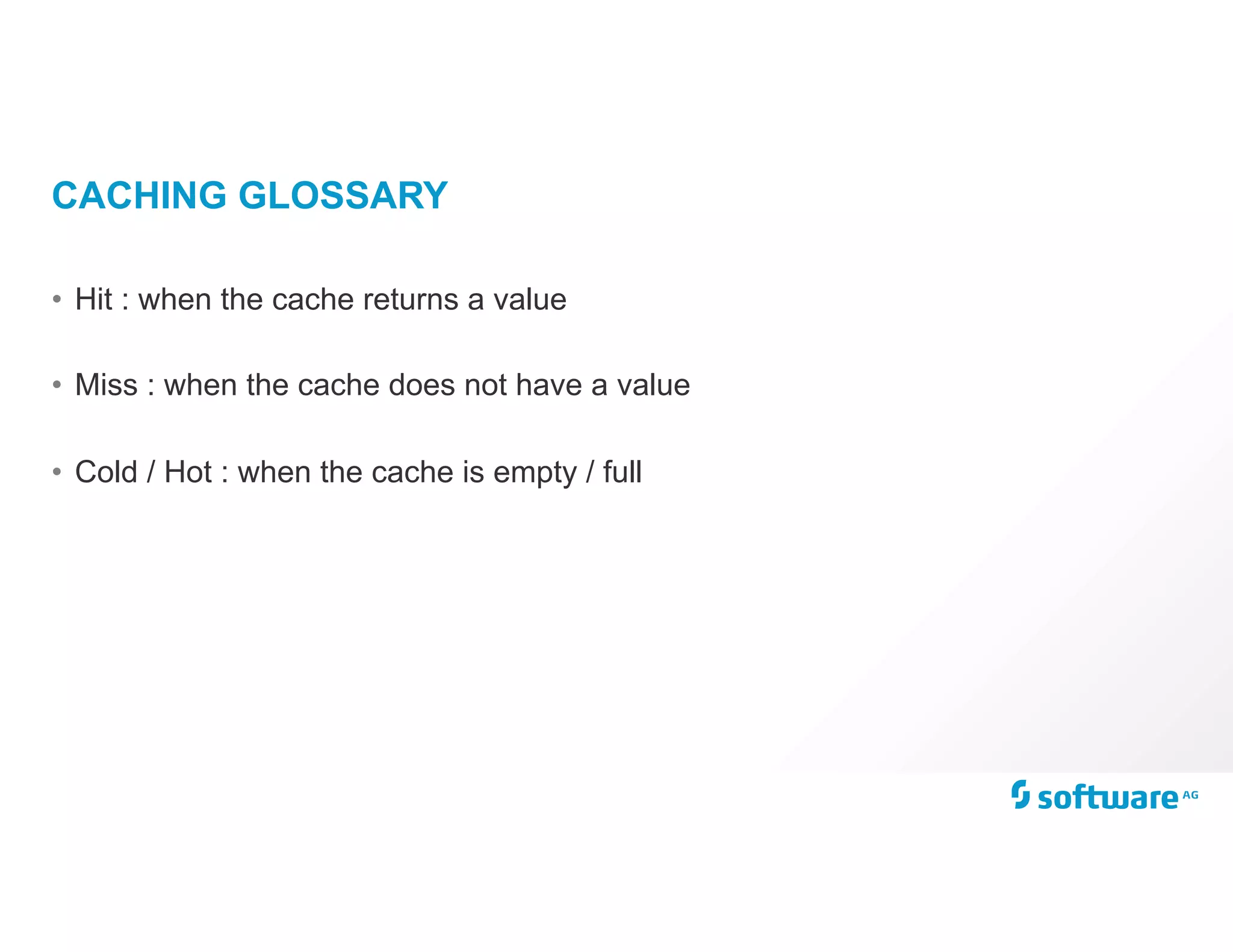

- 12. CACHING GLOSSARY • Hit: when the cache returns a value • Miss : when the cache does not have a value • Cold / Hot : when the cache is empty / full

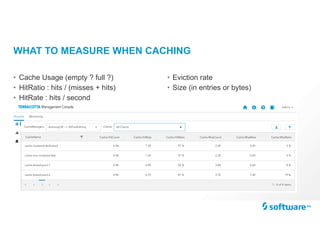

- 13. WHAT TO MEASUREWHEN CACHING • Cache Usage (empty ? full ?) • HitRatio : hits / (misses + hits) • HitRate : hits / second • Eviction rate • Size (in entries or bytes)
- 14.

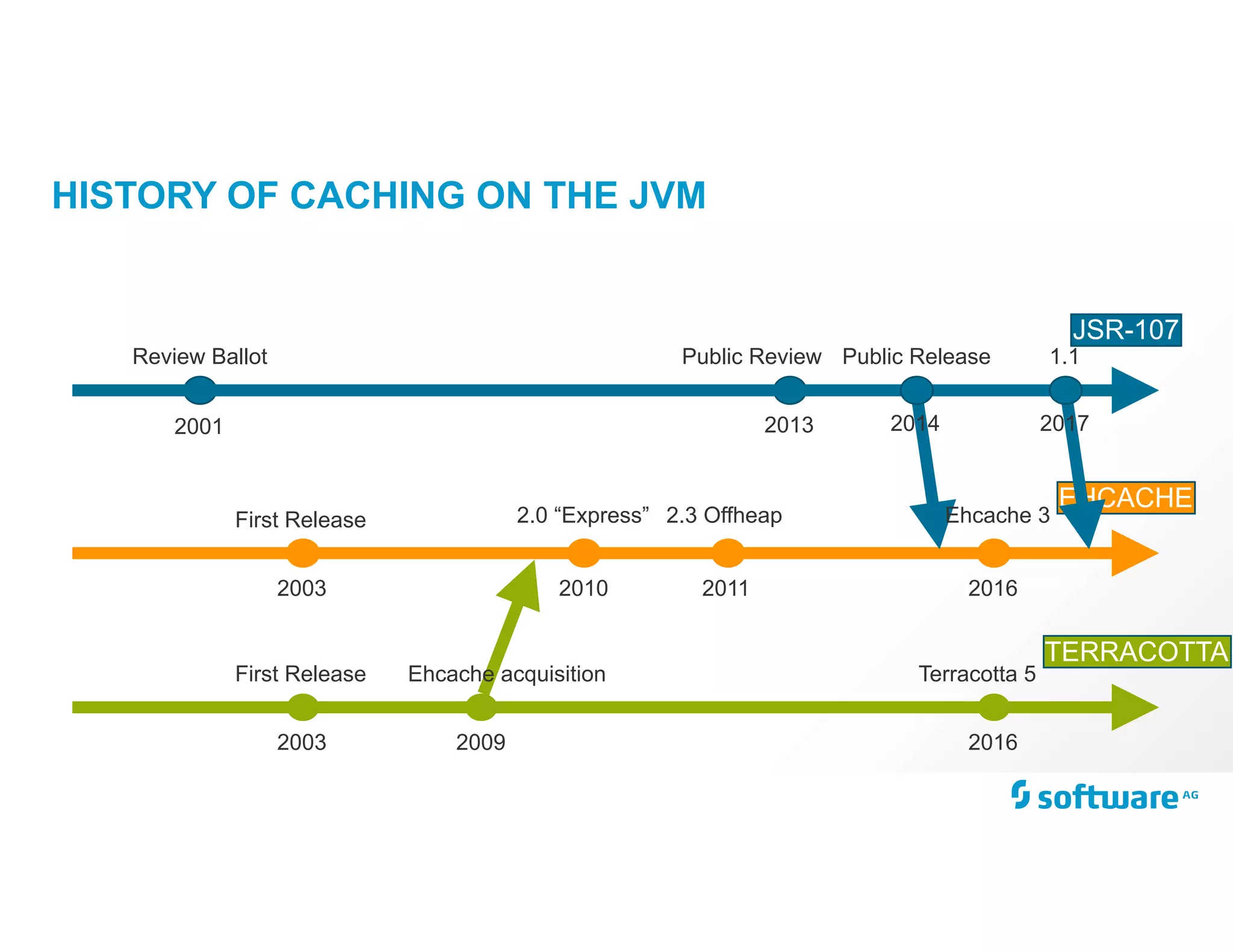

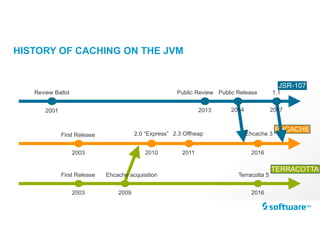

- 15. EHCACHE HISTORY OF CACHINGON THE JVM Review Ballot 2001 Public Review 2013 First Release 2003 2.0 “Express” 2010 2.3 Offheap 2011 JSR-107 First Release 2003 Terracotta 5 2016 TERRACOTTA 2009 Ehcache acquisition Public Release 2014 1.1 2017 Ehcache 3 2016

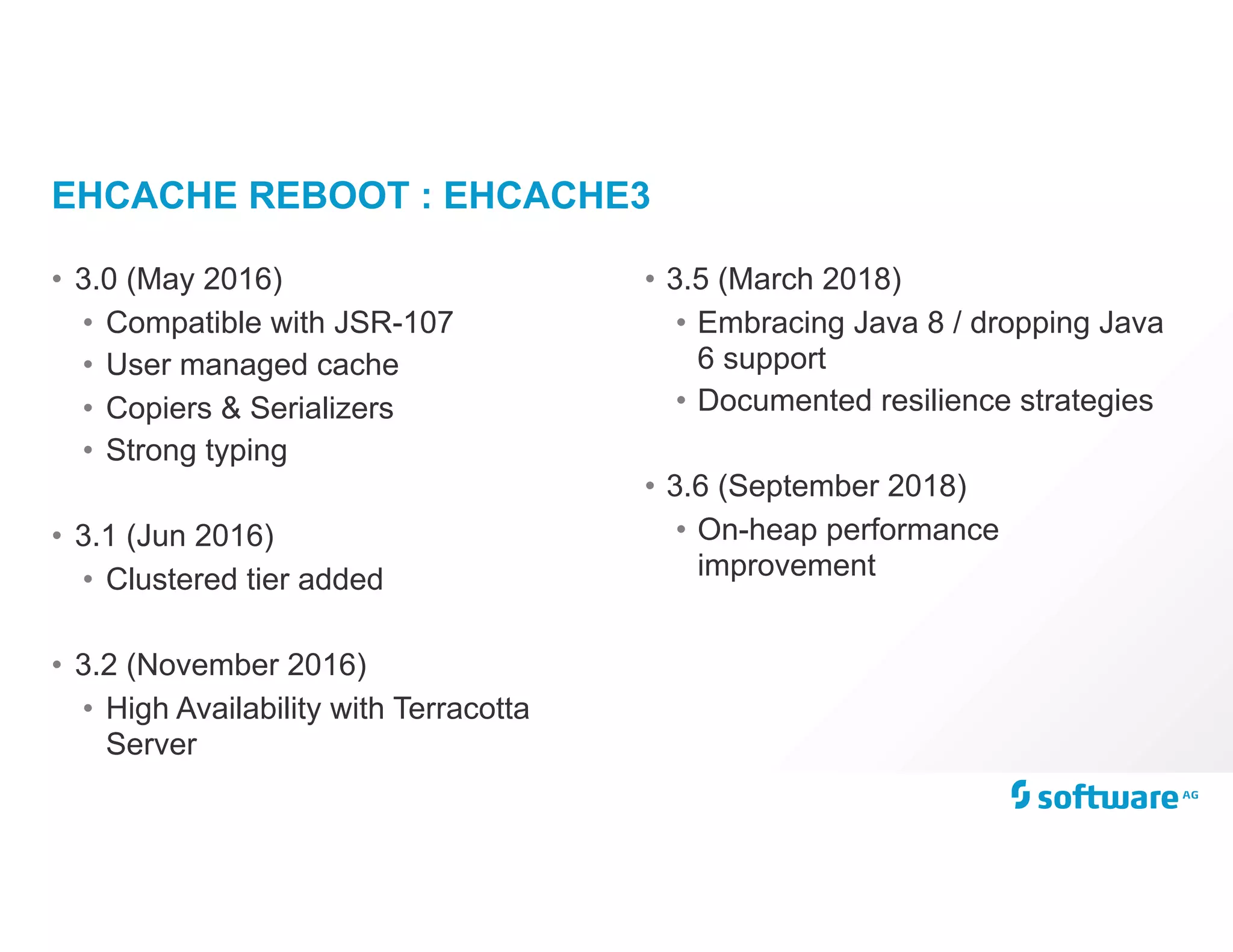

- 16. EHCACHE REBOOT :EHCACHE3 • 3.0 (May 2016) • Compatible with JSR-107 • User managed cache • Copiers & Serializers • Strong typing • 3.1 (Jun 2016) • Clustered tier added • 3.2 (November 2016) • High Availability with Terracotta Server • 3.5 (March 2018) • Embracing Java 8 / dropping Java 6 support • Documented resilience strategies • 3.6 (September 2018) • On-heap performance improvement

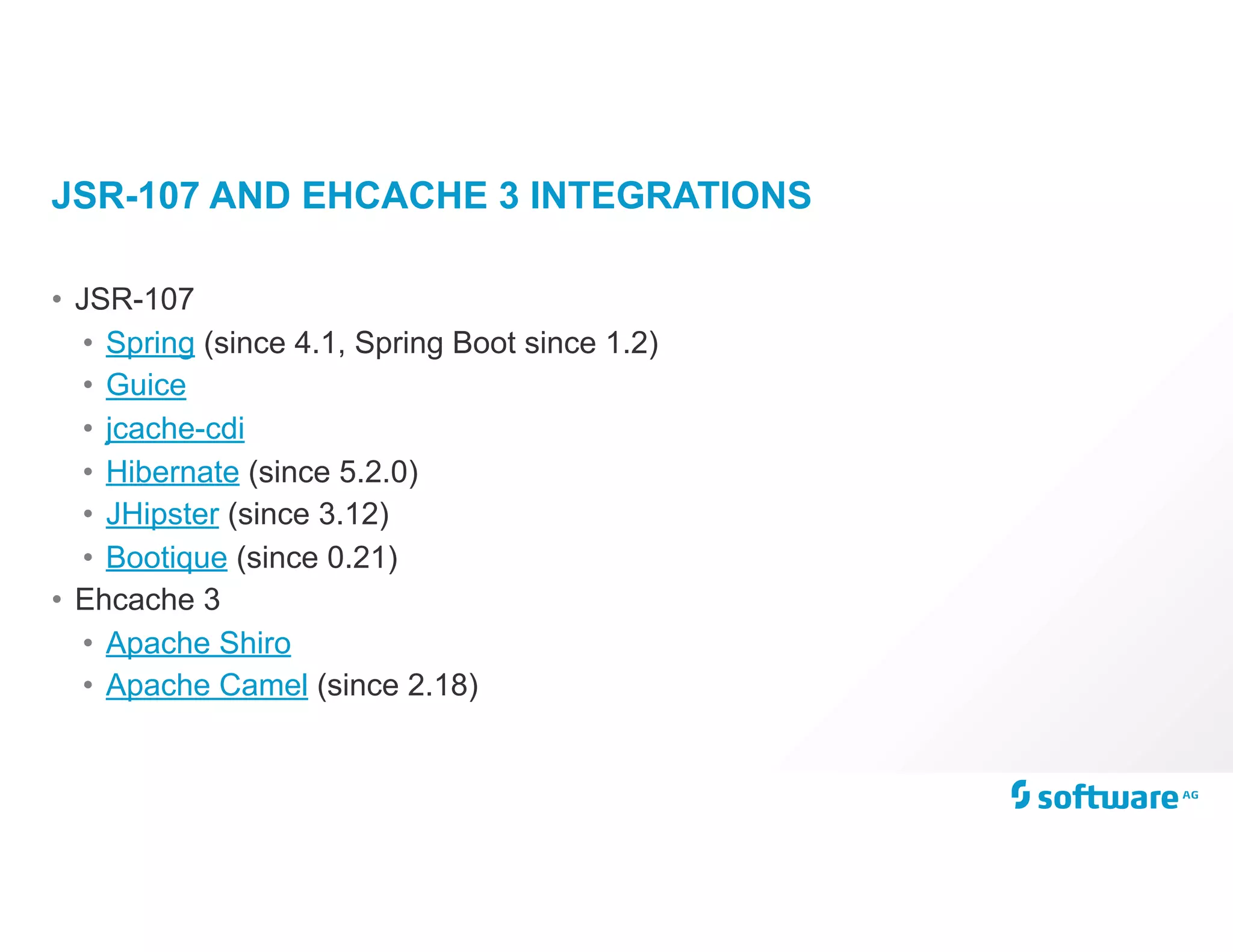

- 17. JSR-107 AND EHCACHE3 INTEGRATIONS • JSR-107 • Spring (since 4.1, Spring Boot since 1.2) • Guice • jcache-cdi • Hibernate (since 5.2.0) • JHipster (since 3.12) • Bootique (since 0.21) • Ehcache 3 • Apache Shiro • Apache Camel (since 2.18)

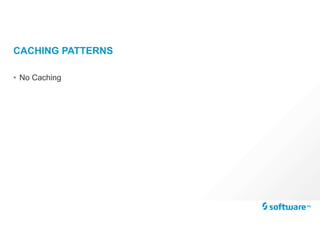

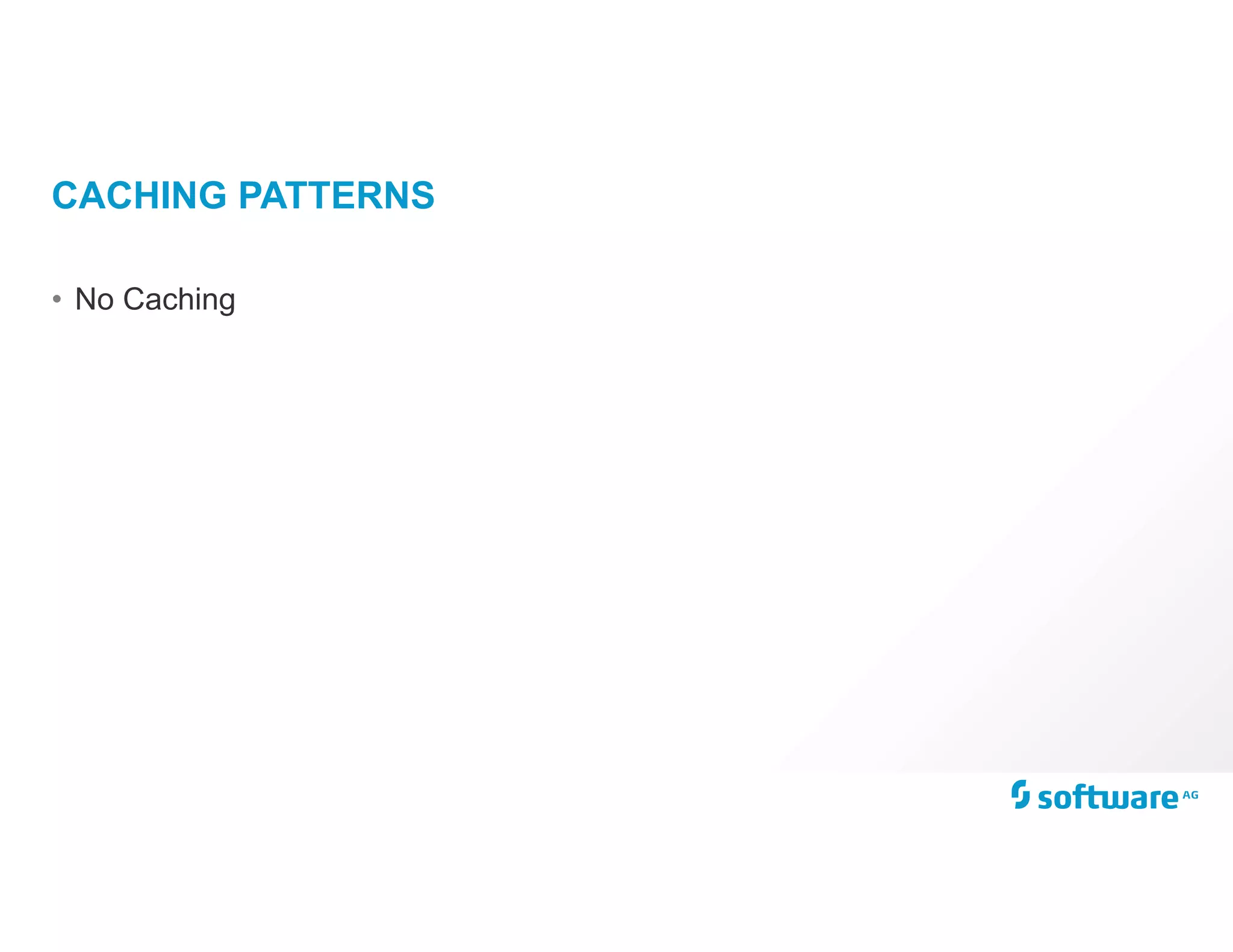

- 18. CACHING PATTERNS • NoCaching

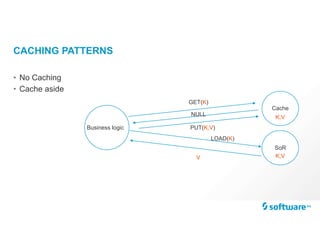

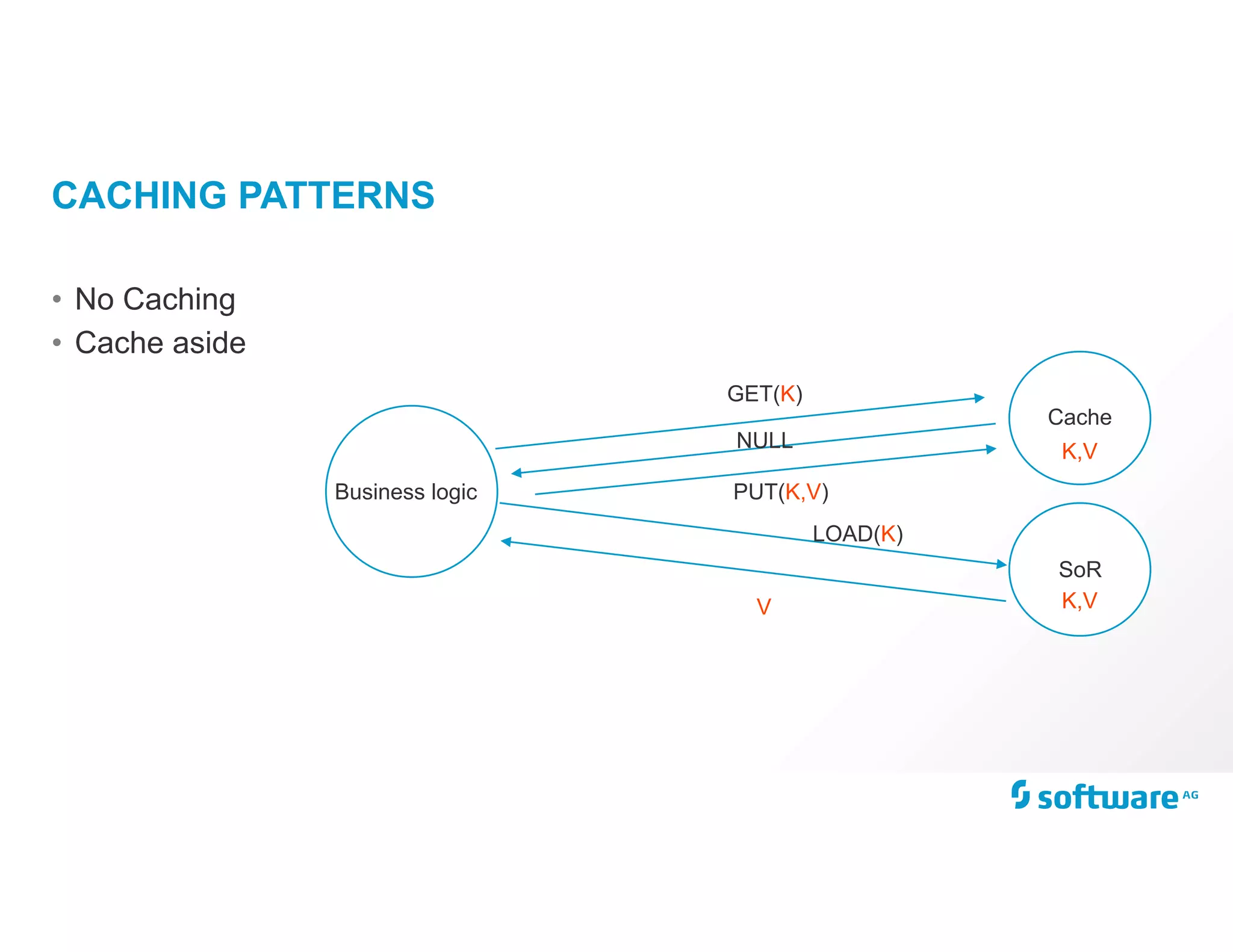

- 19. CACHING PATTERNS • NoCaching • Cache aside Business logic Cache GET(K) PUT(K,V) NULL LOAD(K) SoR K,V K,V V

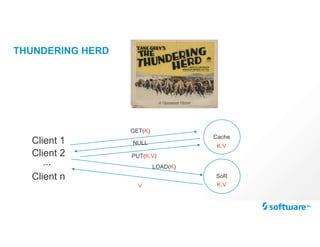

- 20. THUNDERING HERD Client 1 Client2 Client n ... Cache GET(K) PUT(K,V) NULL LOAD(K) SoR K,V K,V V

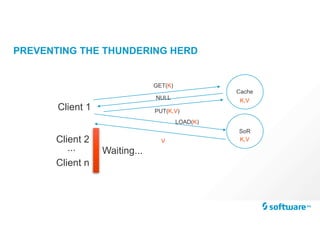

- 21. PREVENTING THE THUNDERINGHERD Client 1 Client 2 Client n ... Cache GET(K) PUT(K,V) NULL LOAD(K) SoR K,V K,V V Waiting...

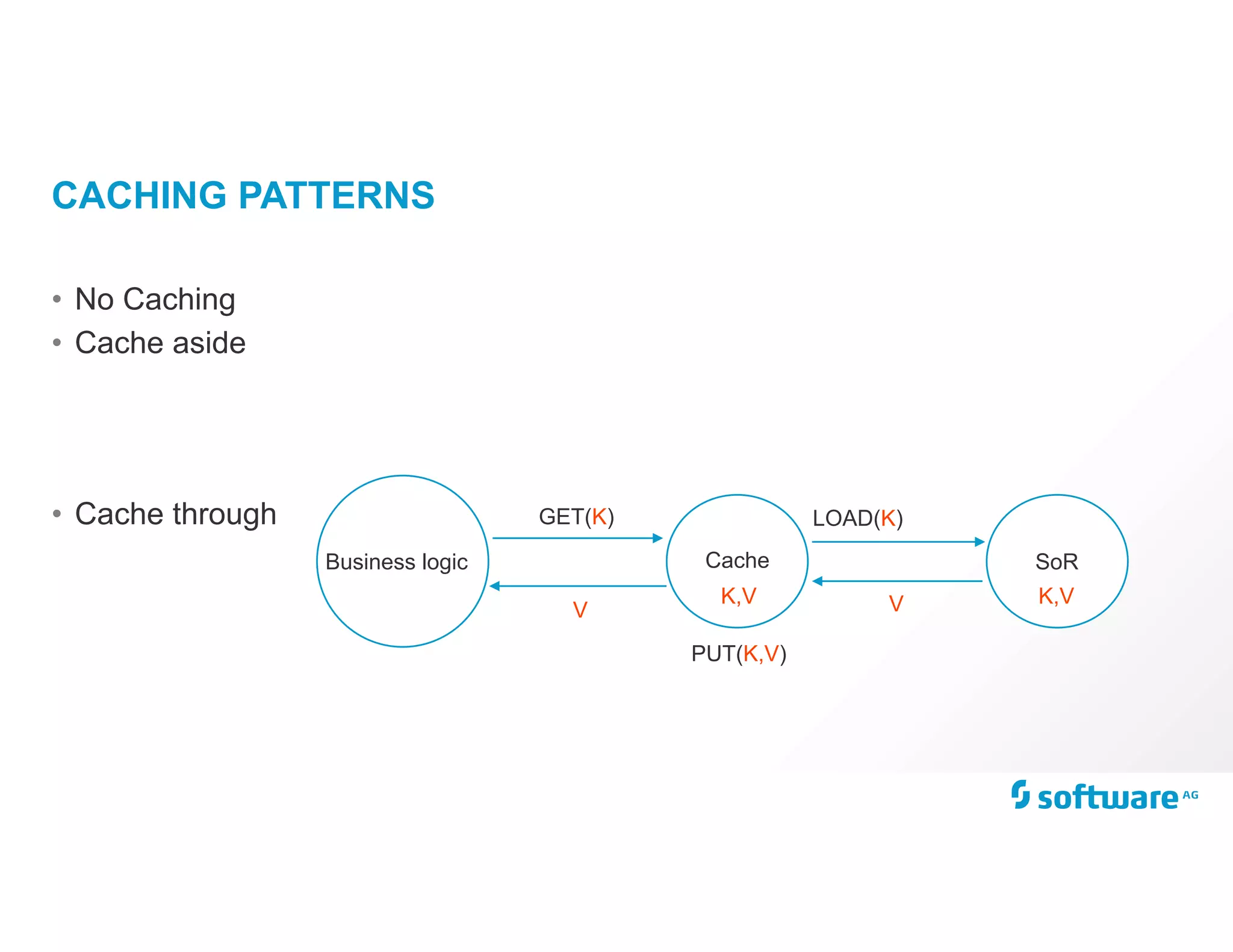

- 22. CACHING PATTERNS • NoCaching • Cache aside • Cache through V Business logic Cache GET(K) LOAD(K) PUT(K,V) K,V SoR K,VV
- 23.

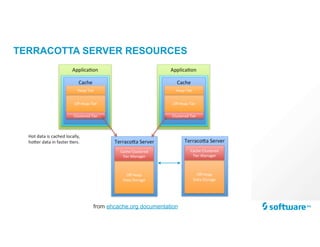

- 24. TERRACOTTA SERVER RESOURCES fromehcache.org documentation

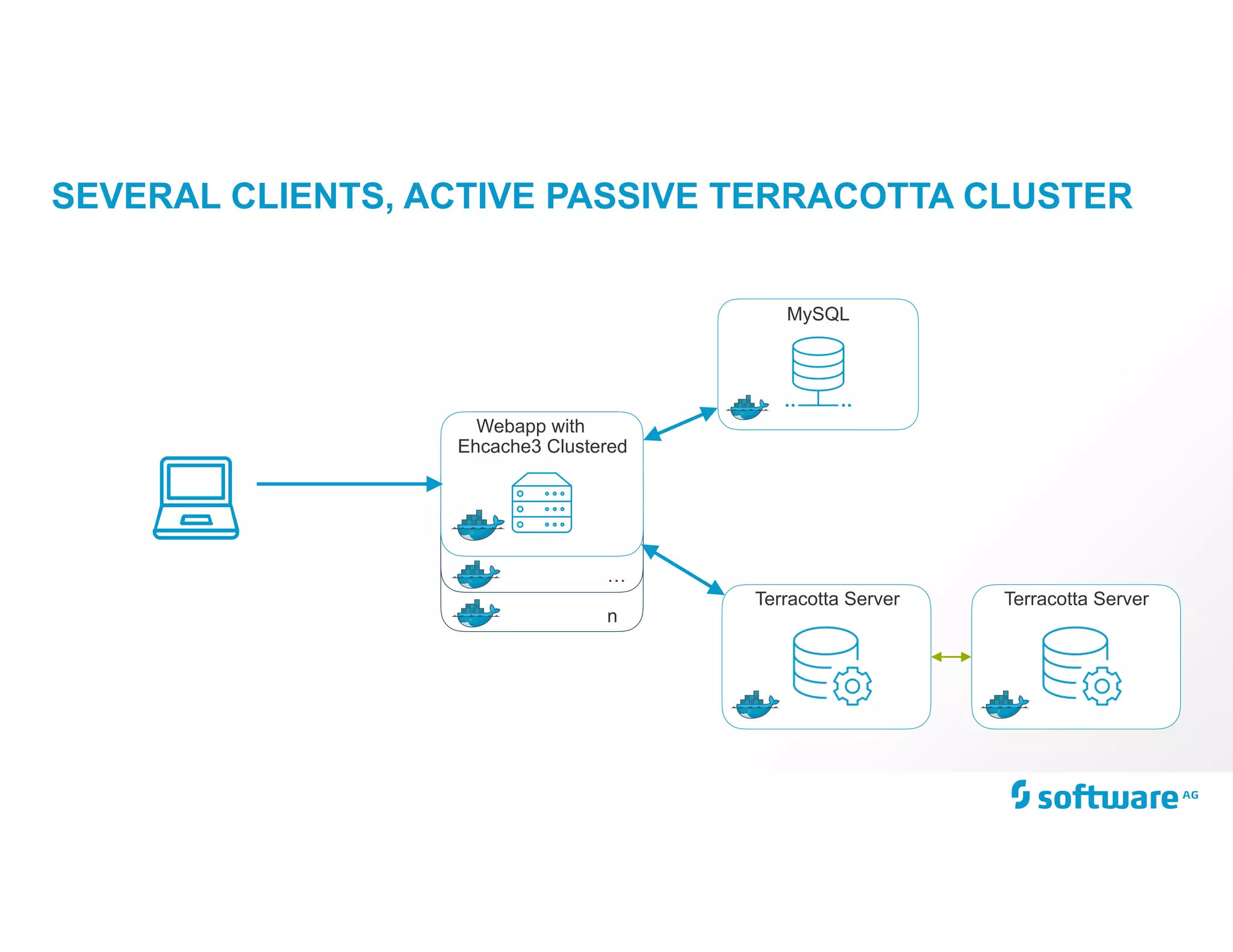

- 25. n … SEVERAL CLIENTS, ACTIVEPASSIVE TERRACOTTA CLUSTER MySQL Webapp with Ehcache3 Clustered Terracotta Server Terracotta Server

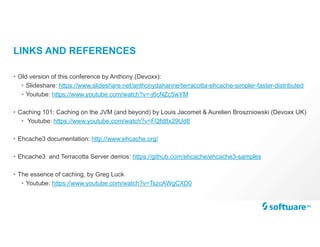

- 26. LINKS AND REFERENCES •Old version of this conference by Anthony (Devoxx): • Slideshare: https://www.slideshare.net/anthonydahanne/terracotta-ehcache-simpler-faster-distributed • Youtube: https://www.youtube.com/watch?v=-j6cNZc5wYM • Caching 101: Caching on the JVM (and beyond) by Louis Jacomet & Aurelien Broszniowski (Devoxx UK) • Youtube: https://www.youtube.com/watch?v=FQfd8x29Ud8 • Ehcache3 documentation: http://www.ehcache.org/ • Ehcache3 and Terracotta Server demos: https://github.com/ehcache/ehcache3-samples • The essence of caching, by Greg Luck • Youtube: https://www.youtube.com/watch?v=TszcAWgCXD0
- 27. WHO HAS LEARNEDSOMETHING TODAY? ?
- 28. © 2018 SoftwareAG. All rights reserved. For internal use only"28 http://ehcache.org @ehcache http://terracotta.org @terracottatech http://montreal-jug.org @montrealjug http://easymock.org @easymock Questions? Anthony Dahanne @anthonydahanne blog.dahanne.net Henri Tremblay @henri_tremblay blog.tremblay.pro
