Docker and java

Docker and java

• 1.
  DOCKER AND JAVA ANTHONYDAHANNE, CONFOO MONTRÉAL, THURSDAY, MARCH 9TH, 2017 @anthonydahanne http://blog.dahanne.net
• 2.
  „Anthony Dahanne, SoftwareEngineer @ Terracotta, a Software AG company „Working on the Terracotta Management Console, and its integration in Terracotta products „And strong Docker supporter :-P , trying to containerize as much as I can ! LET ME INTRODUCE MYSELF
• 3.

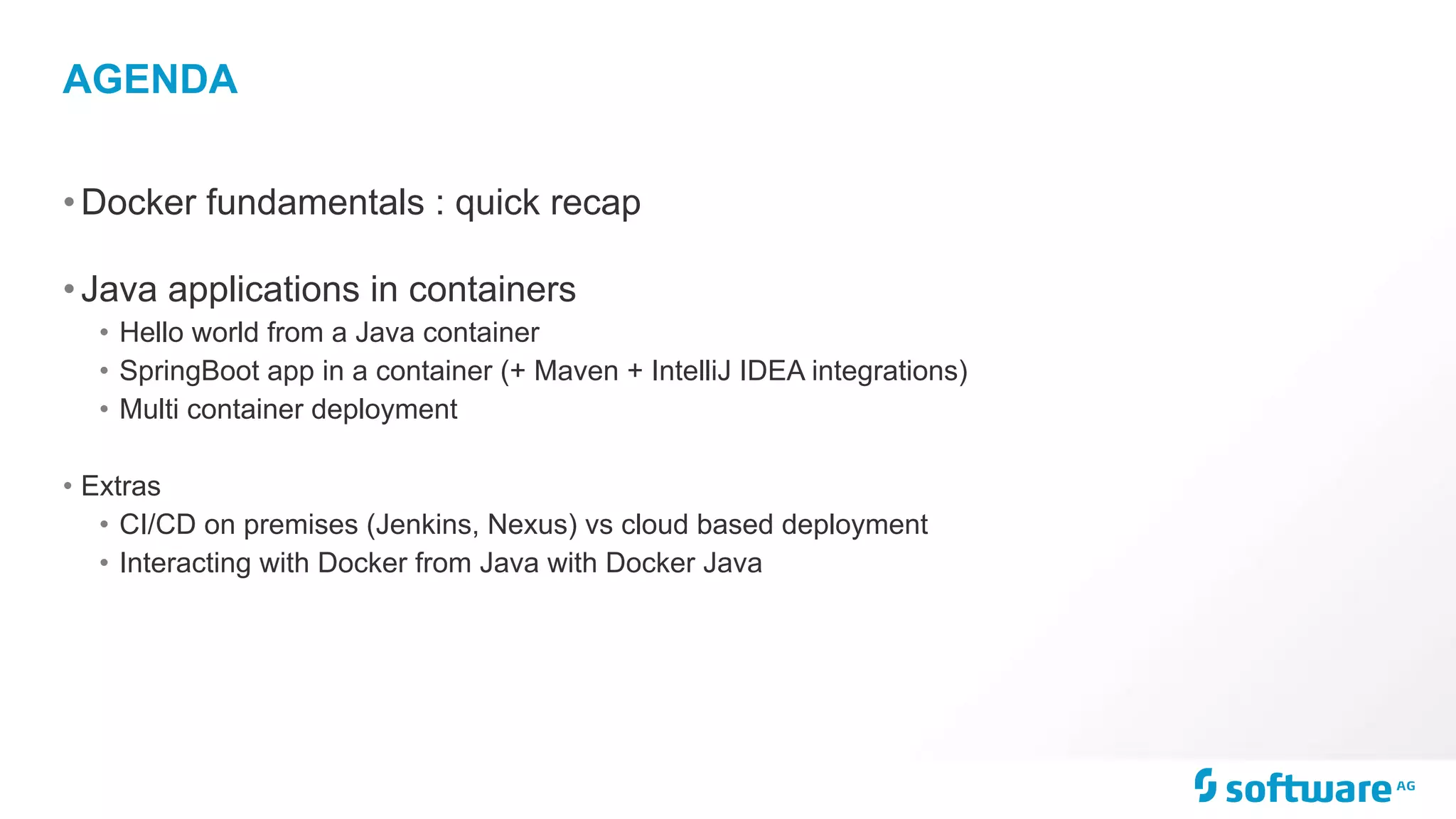

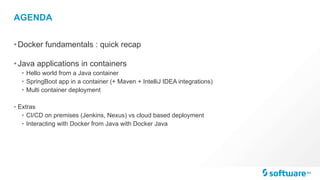

  AGENDA •Docker fundamentals :quick recap •Java applications in containers • Hello world from a Java container • SpringBoot app in a container (+ Maven + IntelliJ IDEA integrations) • Multi container deployment • Extras • CI/CD on premises (Jenkins, Nexus) vs cloud based deployment • Interacting with Docker from Java with Docker Java
• 4.

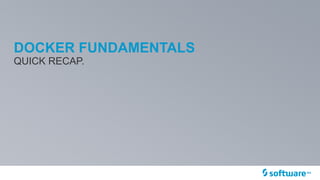

  DOCKER FUNDAMENTALS QUICK RECAP.
• 5.

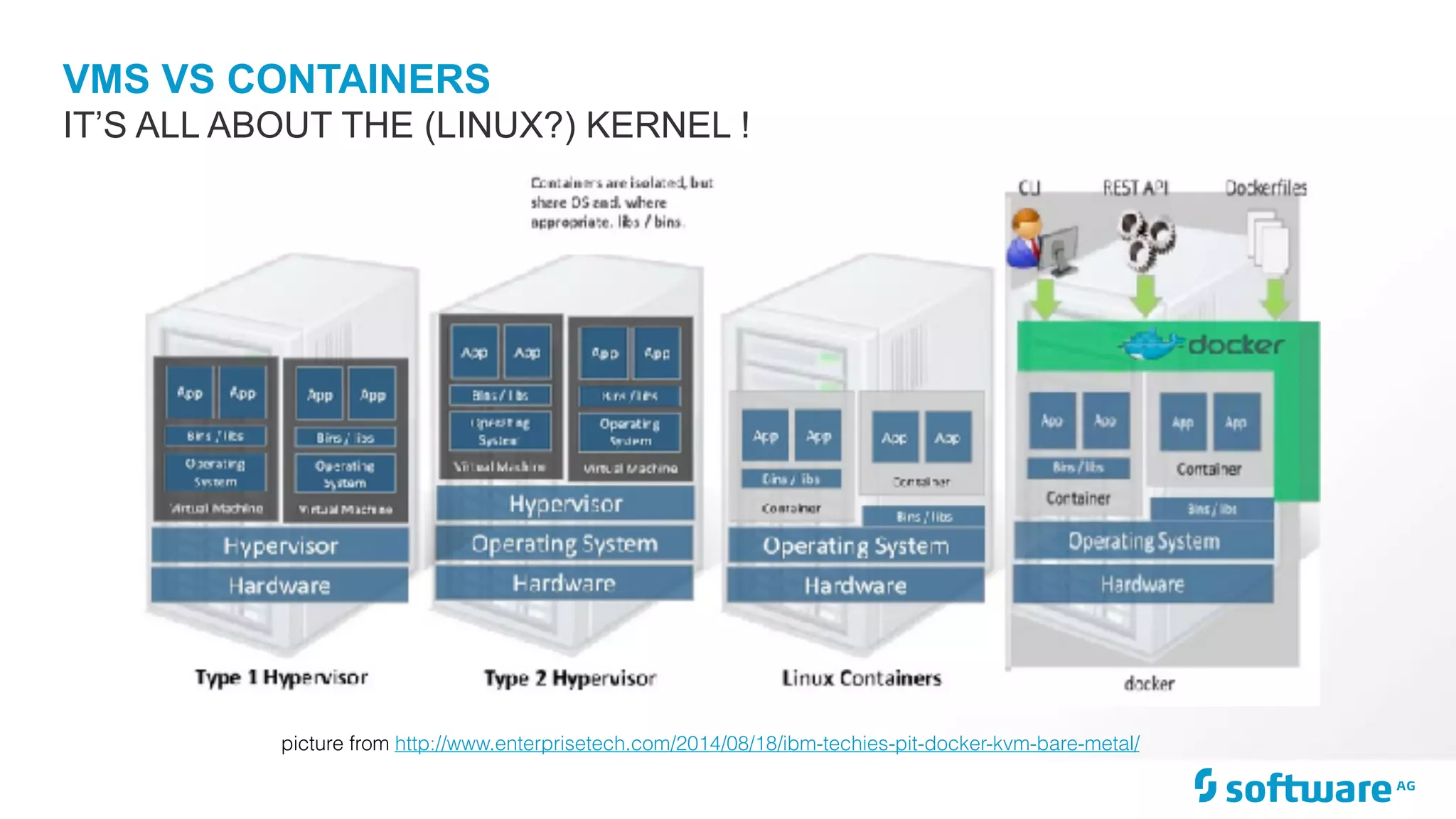

  VMS VS CONTAINERS IT’SALL ABOUT THE (LINUX?) KERNEL ! picture from http://www.enterprisetech.com/2014/08/18/ibm-techies-pit-docker-kvm-bare-metal/
• 6.

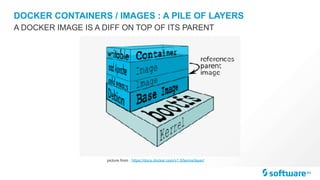

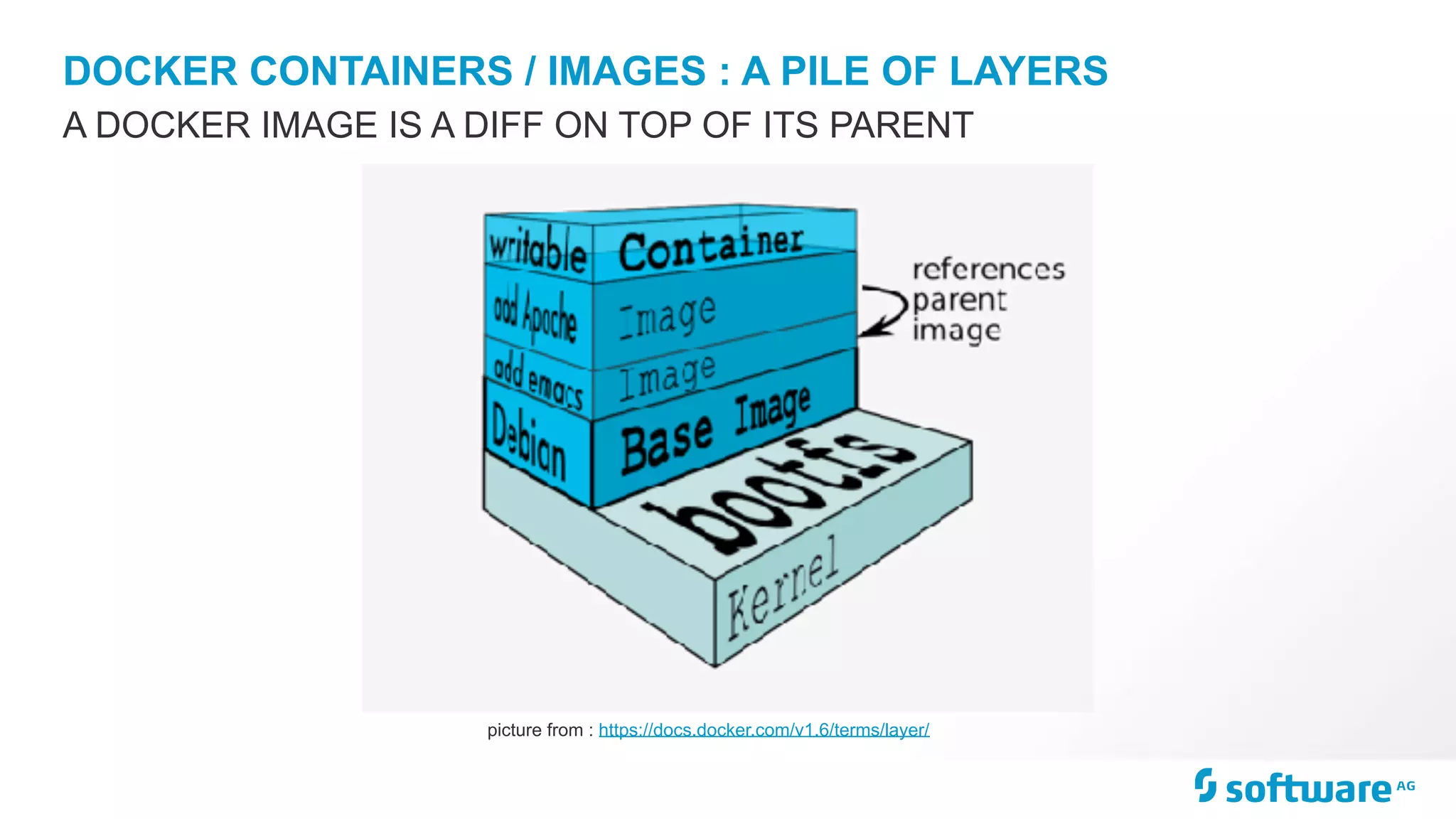

  DOCKER CONTAINERS /IMAGES : A PILE OF LAYERS A DOCKER IMAGE IS A DIFF ON TOP OF ITS PARENT picture from : https://docs.docker.com/v1.6/terms/layer/
• 7.

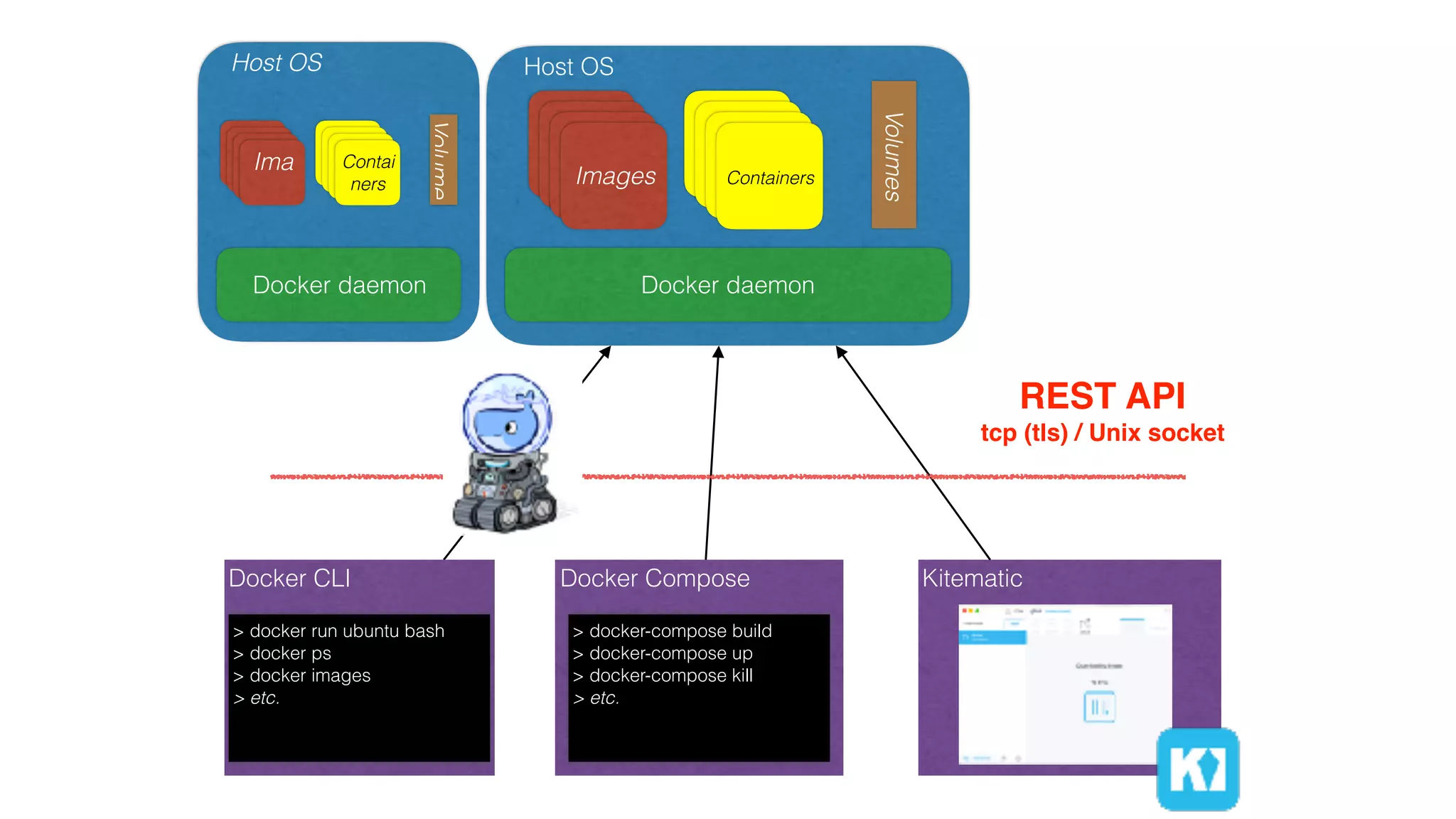

  Host OS Docker daemon ImagesContainers Docker CLI > docker run ubuntu bash > docker ps > docker images > etc. Docker Compose > docker-compose build > docker-compose up > docker-compose kill > etc. Volumes Kitematic REST API tcp (tls) / Unix socket Host OS Docker daemon Ima Contai ners Volume
• 8.

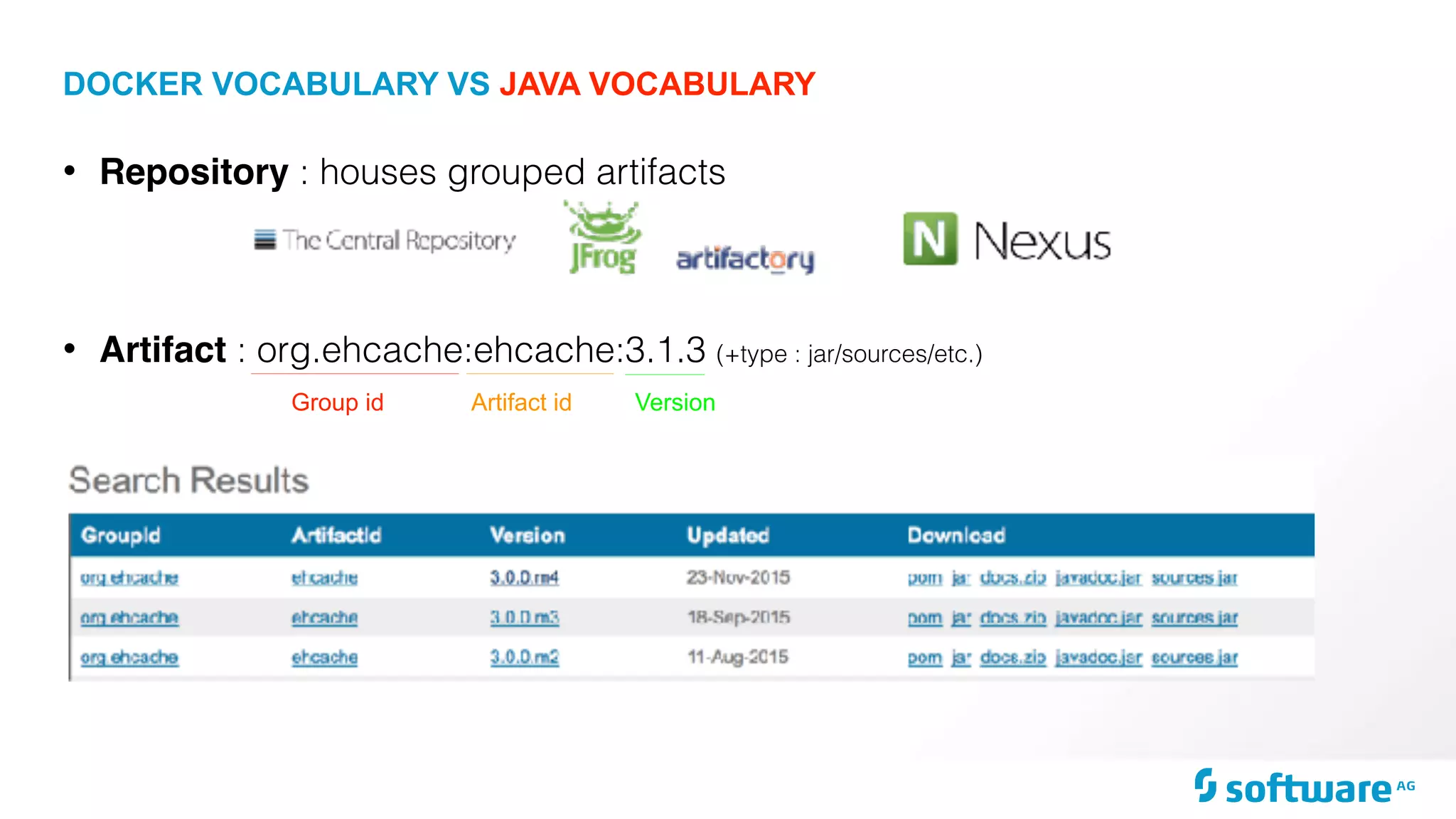

  DOCKER VOCABULARY VSJAVA VOCABULARY • Repository : houses grouped artifacts • Artifact : org.ehcache:ehcache:3.1.3 (+type : jar/sources/etc.) Group id VersionArtifact id
• 9.

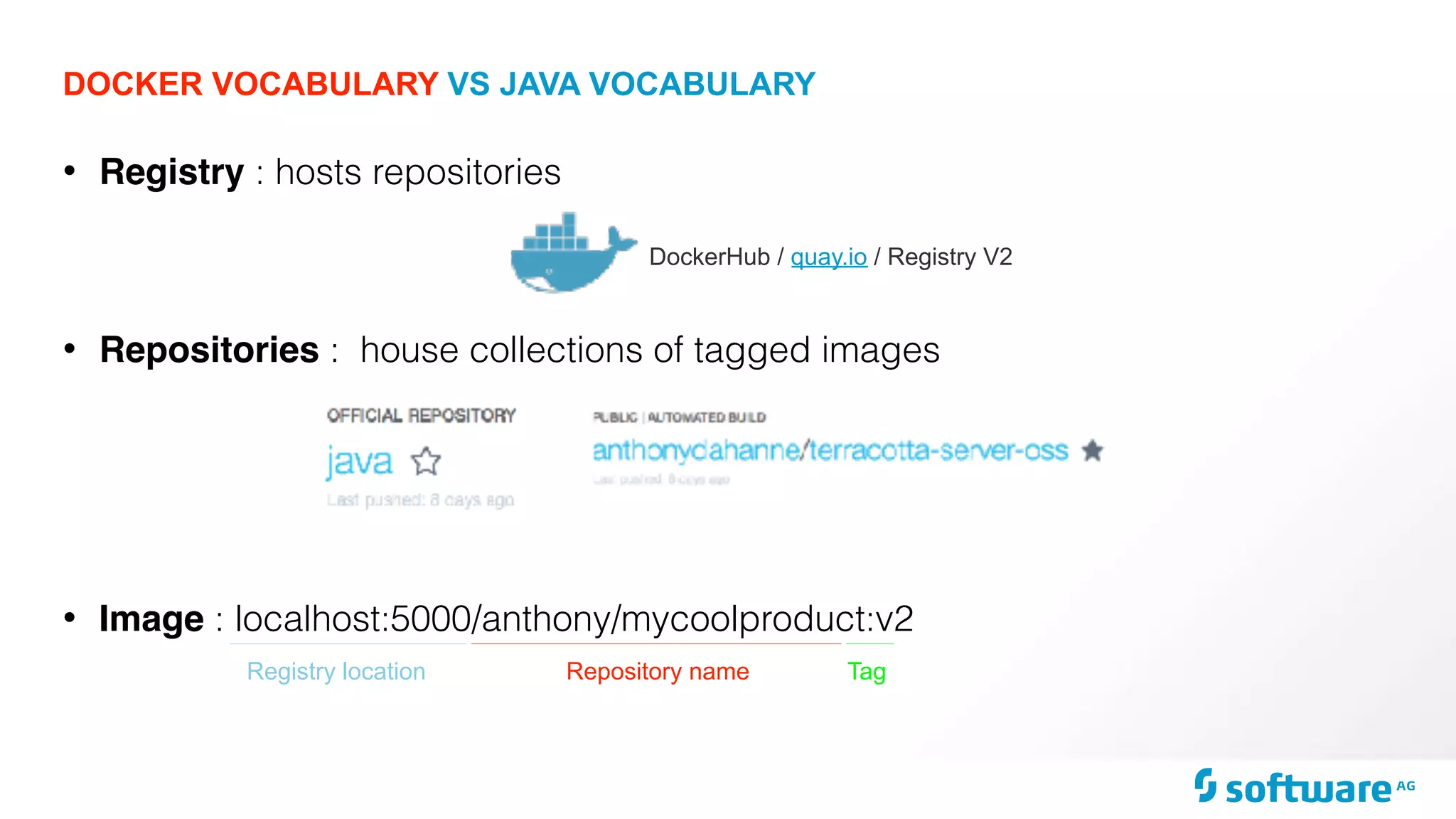

  DOCKER VOCABULARY VSJAVA VOCABULARY • Registry : hosts repositories • Repositories : house collections of tagged images • Image : localhost:5000/anthony/mycoolproduct:v2 DockerHub / quay.io / Registry V2 Registry location Repository name Tag
• 10.

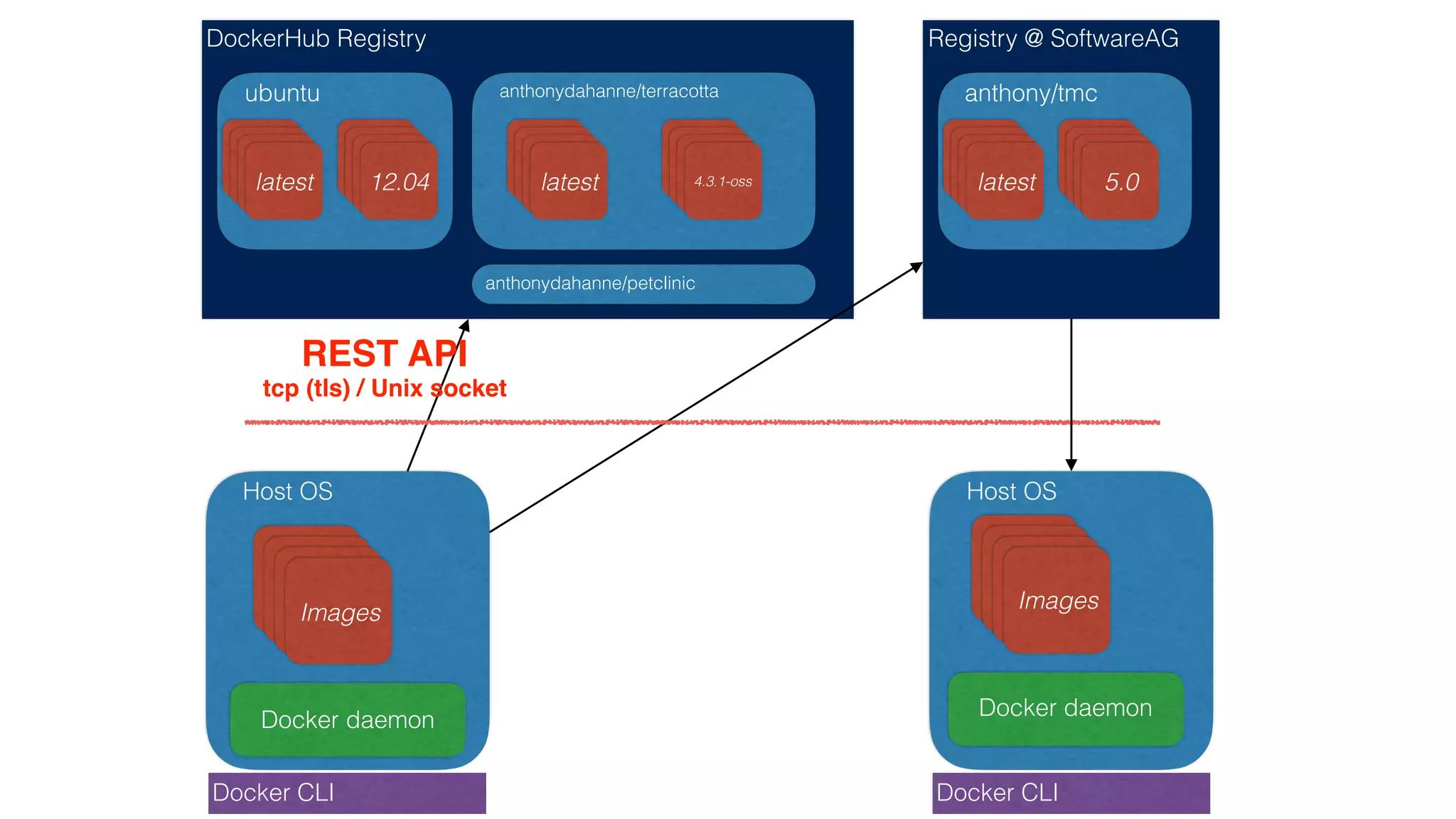

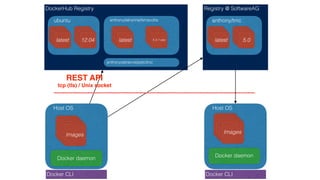

  Host OS Docker daemon Images DockerHubRegistry ubuntu latest 12.04 anthonydahanne/terracotta latest 4.3.1-oss anthonydahanne/petclinic Registry @ SoftwareAG anthony/tmc latest 5.0 Host OS Docker daemon Images Docker CLI Docker CLI REST API tcp (tls) / Unix socket
• 11.
  JAVA APPLICATIONS INCONTAINERS FROM MAIN() TO THE CLOUD !
• 12.

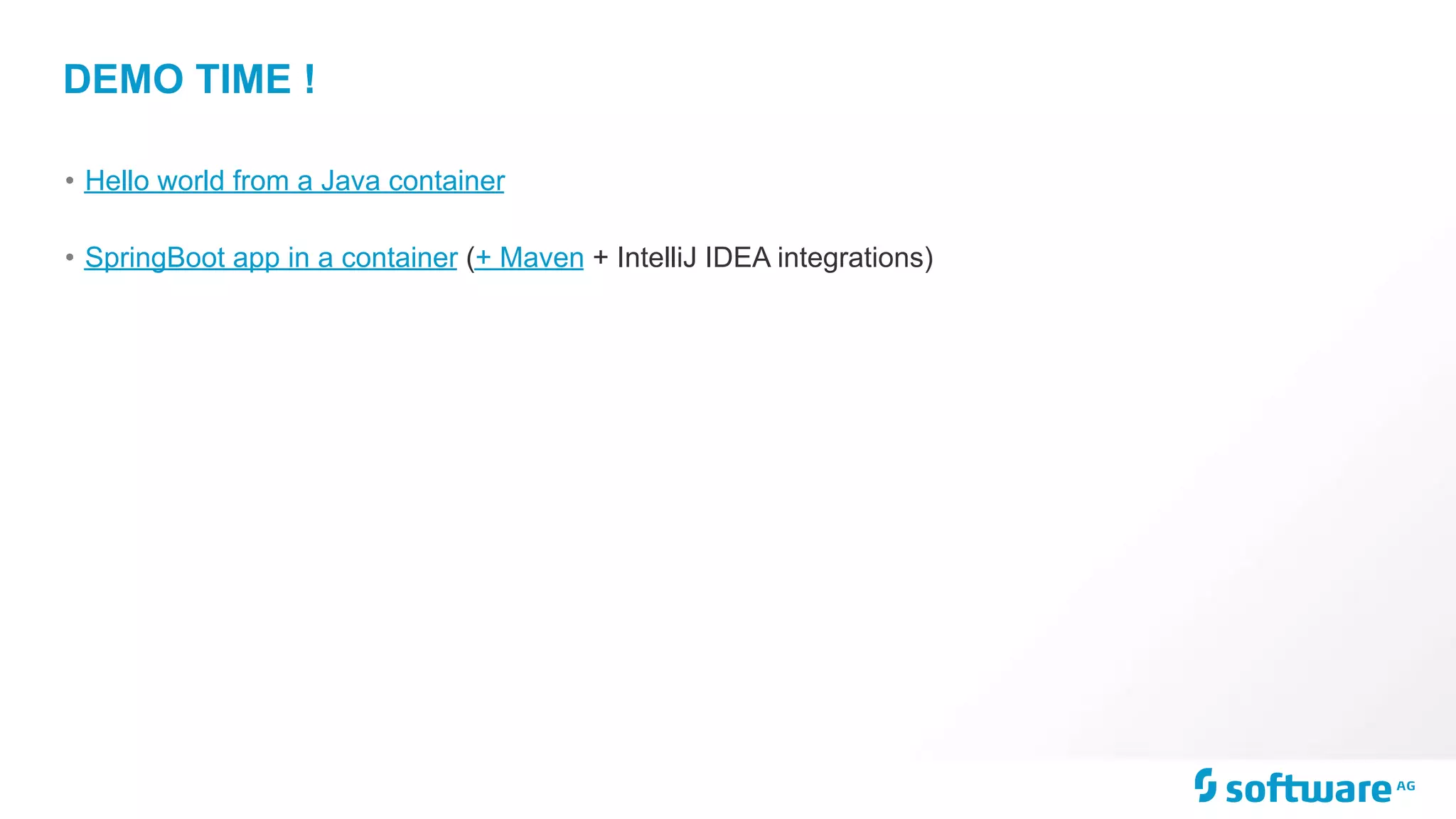

  DEMO TIME ! •Hello world from a Java container • SpringBoot app in a container (+ Maven + IntelliJ IDEA integrations)
• 13.

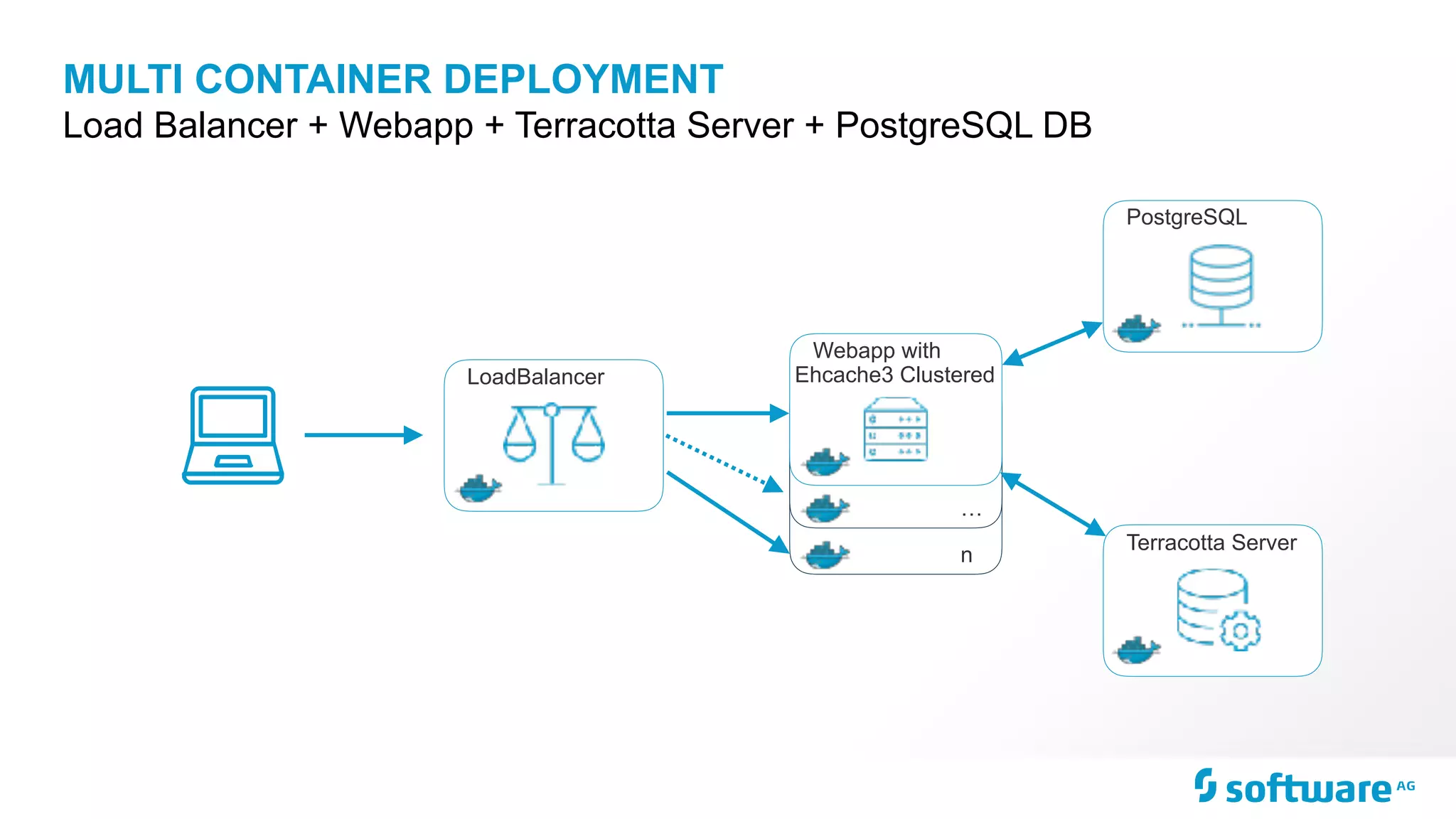

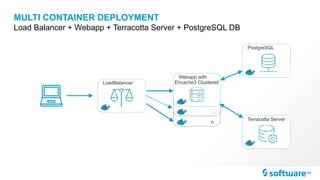

  n … PostgreSQL Webapp with Ehcache3 Clustered TerracottaServer MULTI CONTAINER DEPLOYMENT Load Balancer + Webapp + Terracotta Server + PostgreSQL DB LoadBalancer
• 14.

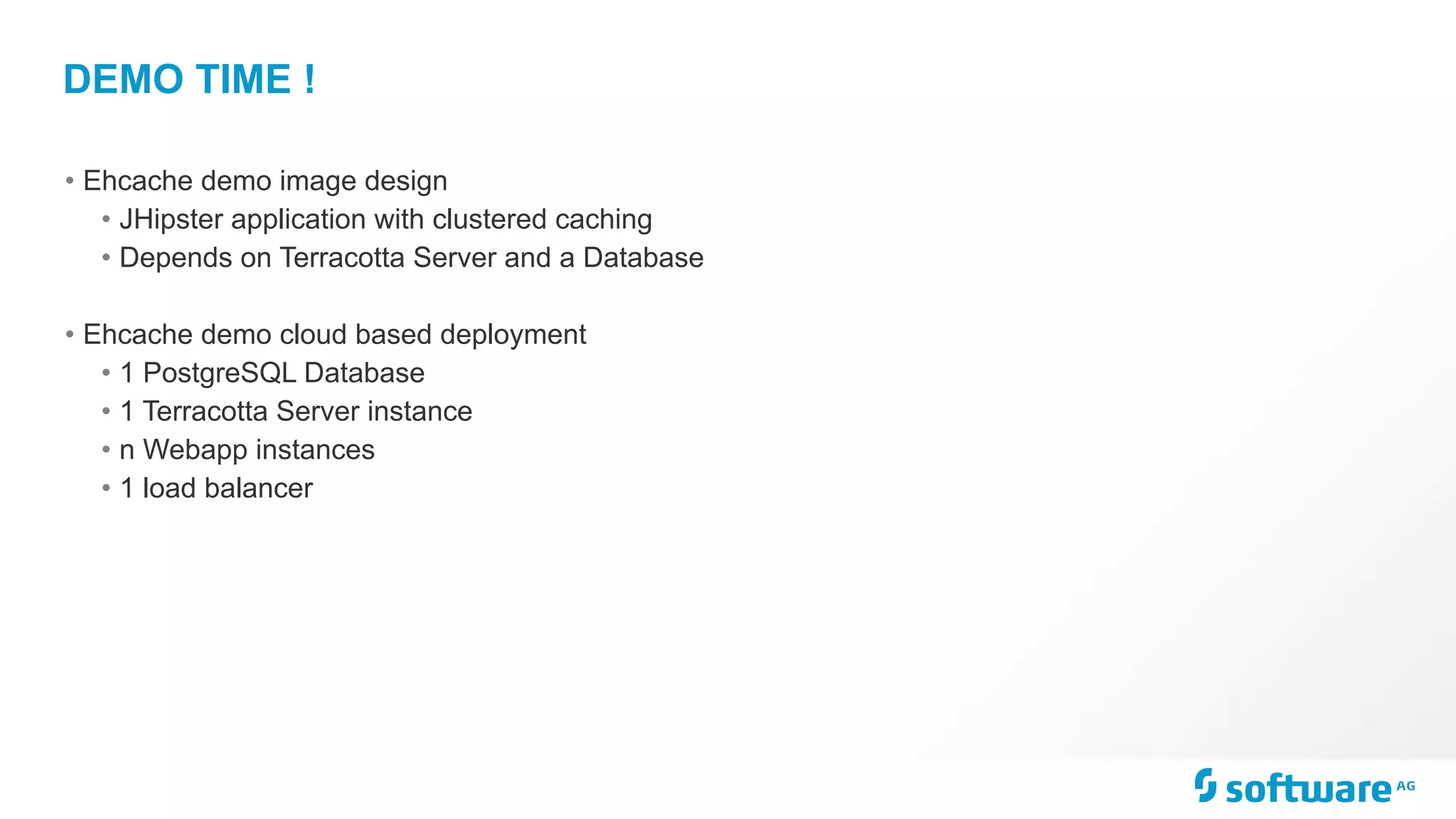

  DEMO TIME ! •Ehcache demo image design • JHipster application with clustered caching • Depends on Terracotta Server and a Database • Ehcache demo cloud based deployment • 1 PostgreSQL Database • 1 Terracotta Server instance • n Webapp instances • 1 load balancer
• 15.
  EXTRAS CI/CD, OTHER JAVAINTEGRATIONS
• 16.

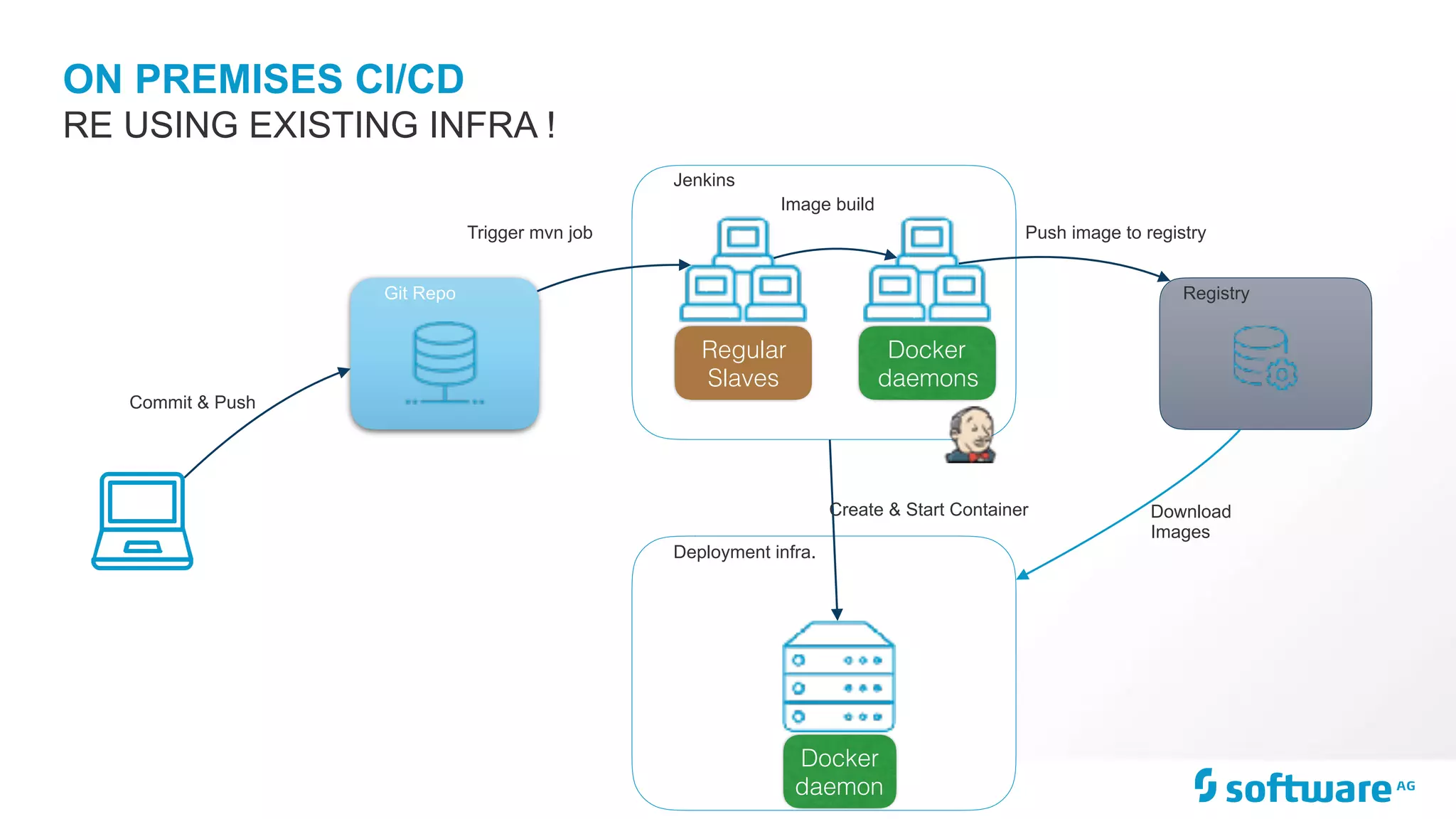

  Deployment infra. ON PREMISESCI/CD RE USING EXISTING INFRA ! Git Repo Jenkins Commit & Push Trigger mvn job Create & Start Container Docker daemons Regular Slaves Registry Image build Push image to registry Docker daemon Download Images
• 17.

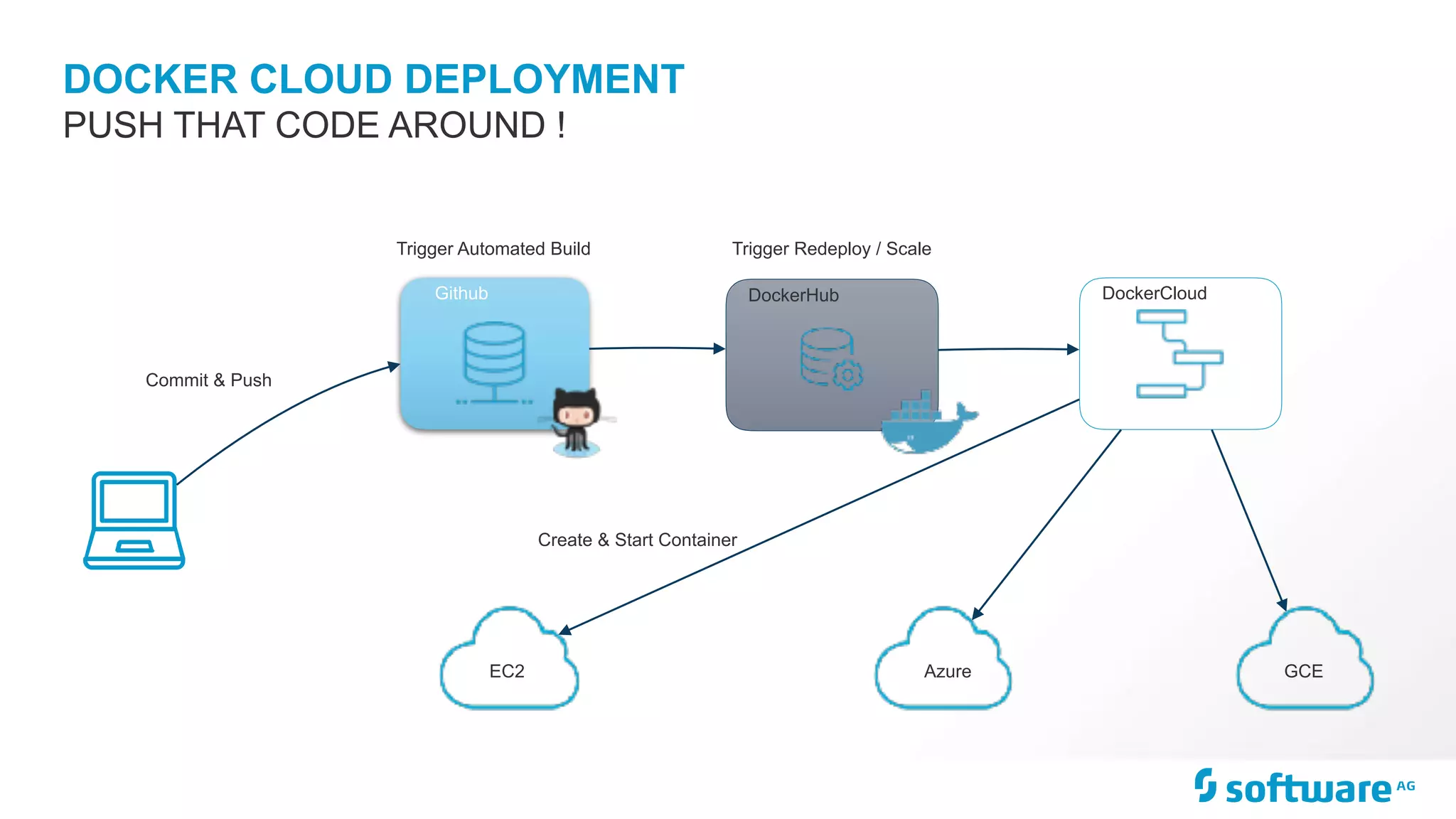

  DOCKER CLOUD DEPLOYMENT PUSHTHAT CODE AROUND ! EC2 Azure GCE DockerCloudGithub DockerHub Commit & Push Trigger Automated Build Trigger Redeploy / Scale Create & Start Container
• 18.

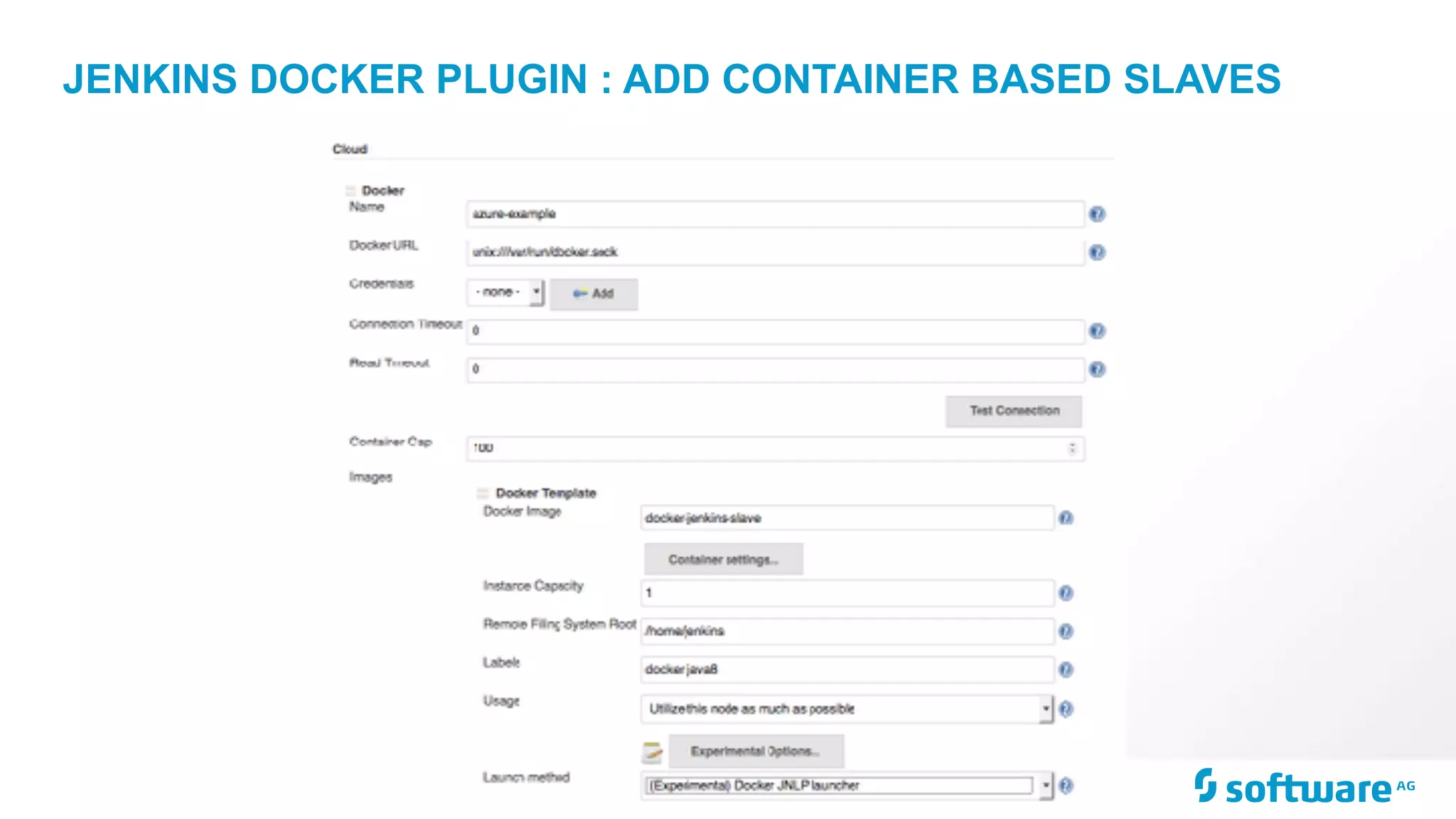

  JENKINS DOCKER PLUGIN: ADD CONTAINER BASED SLAVES
• 19.

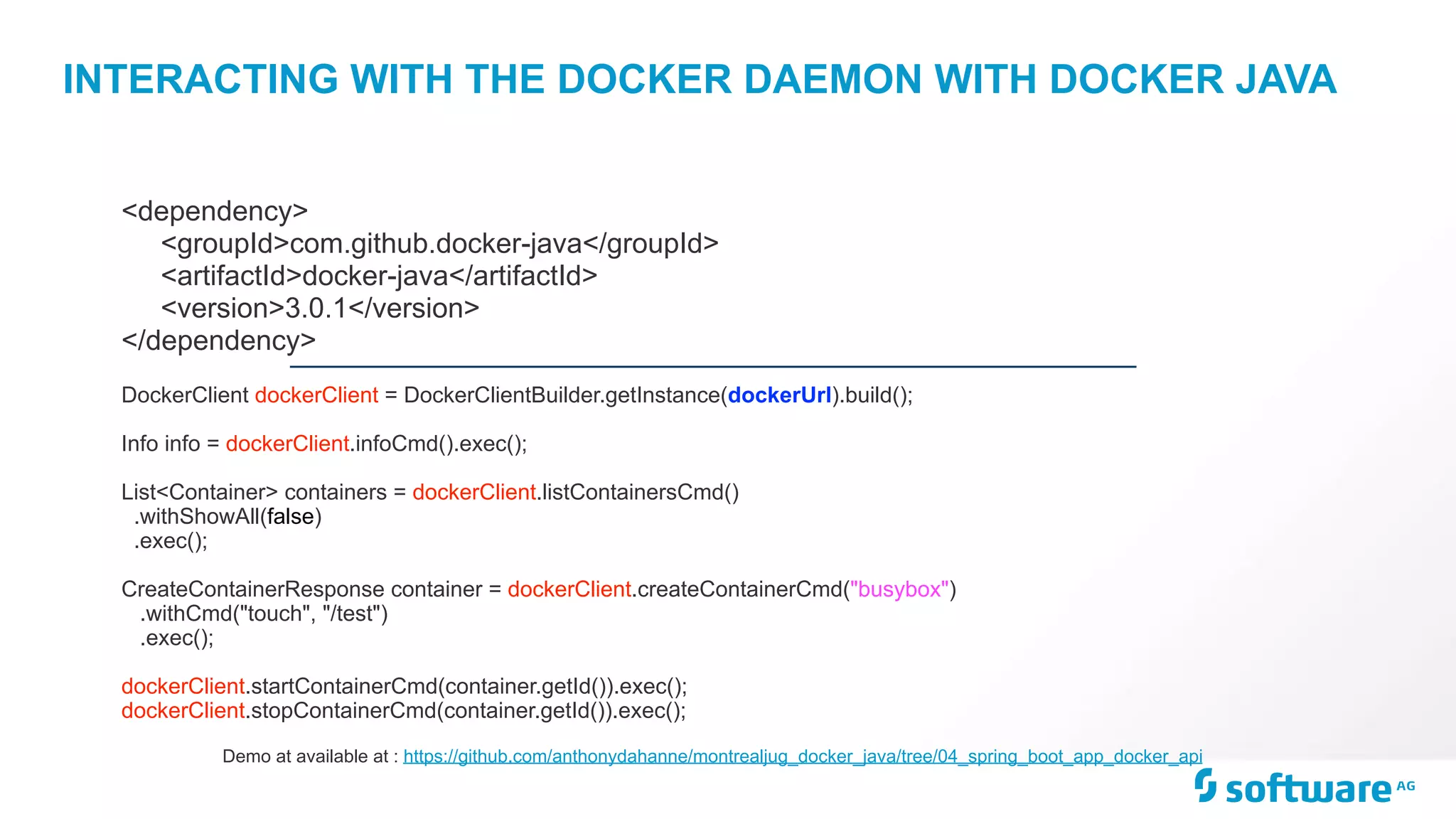

  INTERACTING WITH THEDOCKER DAEMON WITH DOCKER JAVA DockerClient dockerClient = DockerClientBuilder.getInstance(dockerUrl).build();
 Info info = dockerClient.infoCmd().exec();

 List<Container> containers = dockerClient.listContainersCmd() .withShowAll(false) .exec(); CreateContainerResponse container = dockerClient.createContainerCmd("busybox") .withCmd("touch", "/test") .exec(); dockerClient.startContainerCmd(container.getId()).exec(); dockerClient.stopContainerCmd(container.getId()).exec(); <dependency> <groupId>com.github.docker-java</groupId> <artifactId>docker-java</artifactId> <version>3.0.1</version> </dependency> Demo at available at : https://github.com/anthonydahanne/montrealjug_docker_java/tree/04_spring_boot_app_docker_api
• 20.

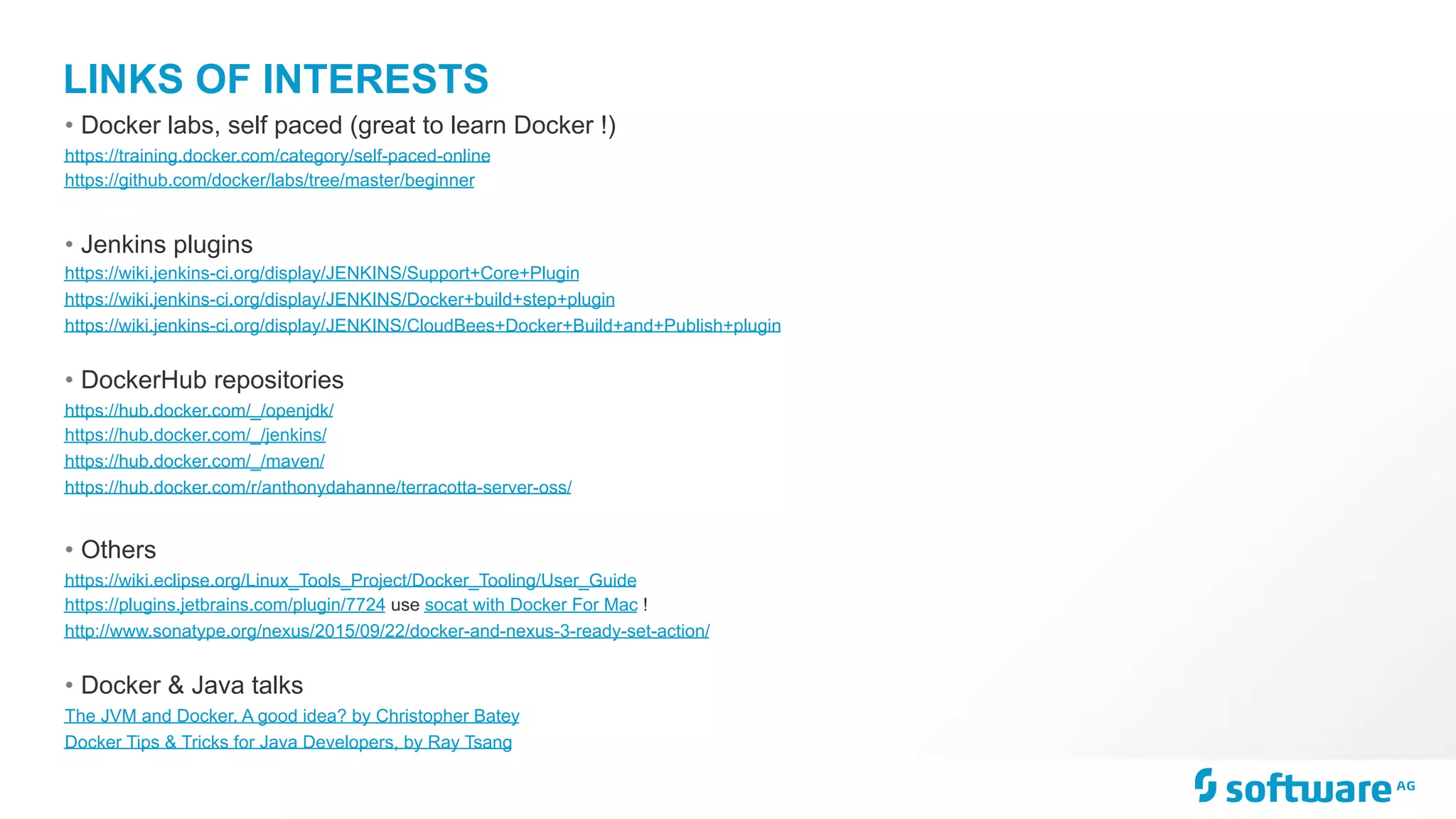

  LINKS OF INTERESTS •Docker labs, self paced (great to learn Docker !) https://training.docker.com/category/self-paced-online https://github.com/docker/labs/tree/master/beginner • Jenkins plugins https://wiki.jenkins-ci.org/display/JENKINS/Support+Core+Plugin https://wiki.jenkins-ci.org/display/JENKINS/Docker+build+step+plugin https://wiki.jenkins-ci.org/display/JENKINS/CloudBees+Docker+Build+and+Publish+plugin • DockerHub repositories https://hub.docker.com/_/openjdk/ https://hub.docker.com/_/jenkins/ https://hub.docker.com/_/maven/ https://hub.docker.com/r/anthonydahanne/terracotta-server-oss/ • Others https://wiki.eclipse.org/Linux_Tools_Project/Docker_Tooling/User_Guide https://plugins.jetbrains.com/plugin/7724 use socat with Docker For Mac ! http://www.sonatype.org/nexus/2015/09/22/docker-and-nexus-3-ready-set-action/ • Docker & Java talks The JVM and Docker. A good idea? by Christopher Batey Docker Tips & Tricks for Java Developers, by Ray Tsang
