Cryptography and Network
Security
Third Edition
by William Stallings
Lecture slides by Lawrie Brown

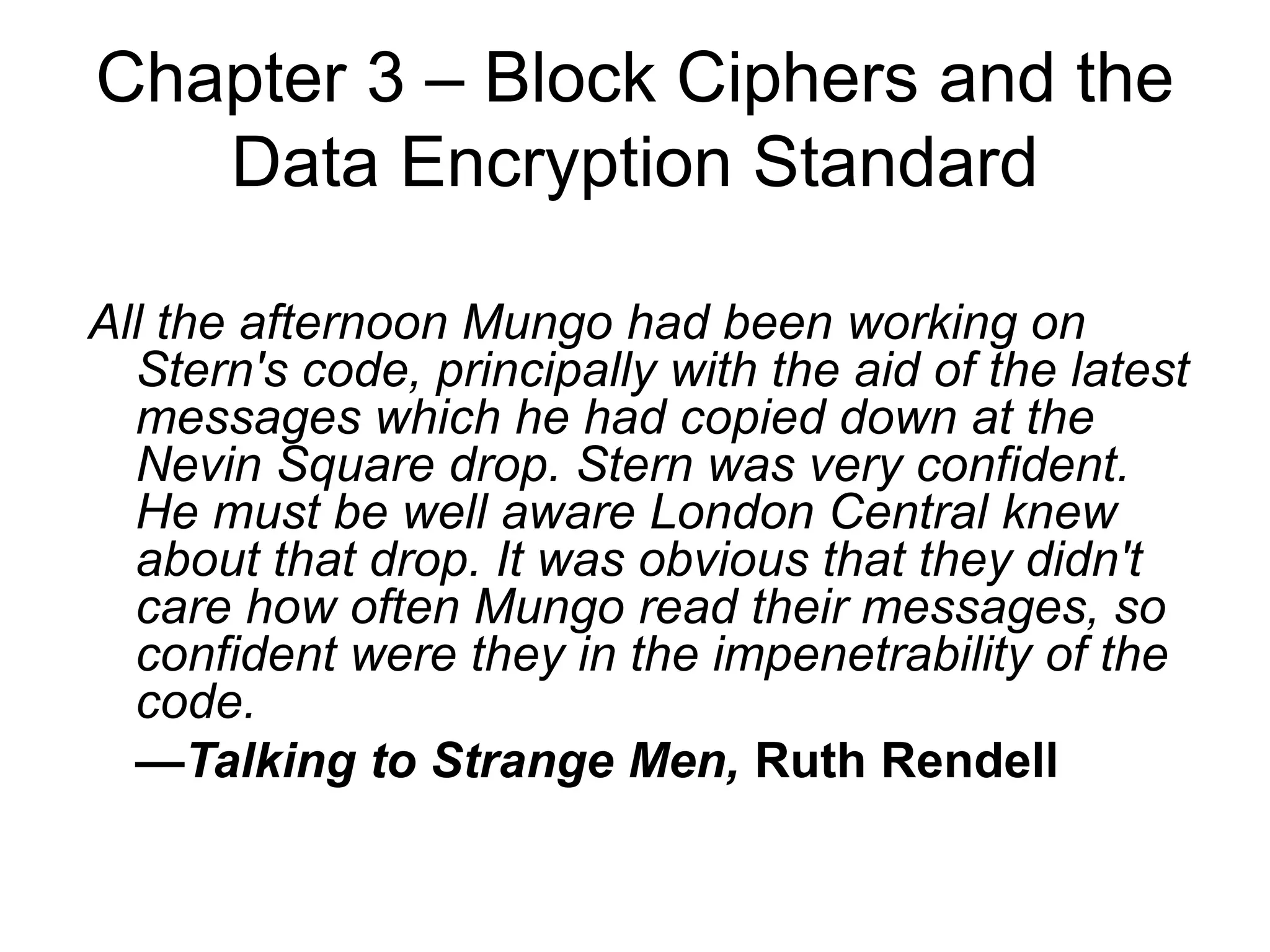

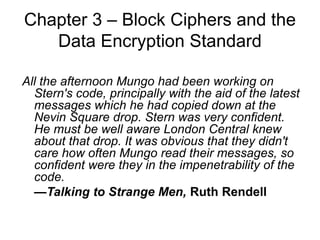

Chapter 3 – Block Ciphers and the
Data Encryption Standard
All the afternoon Mungo had been working on
Stern's code, principally with the aid of the latest
messages which he had copied down at the
Nevin Square drop. Stern was very confident.
He must be well aware London Central knew
about that drop. It was obvious that they didn't
care how often Mungo read their messages, so
confident were they in the impenetrability of the
code.
—Talking to Strange Men, Ruth Rendell

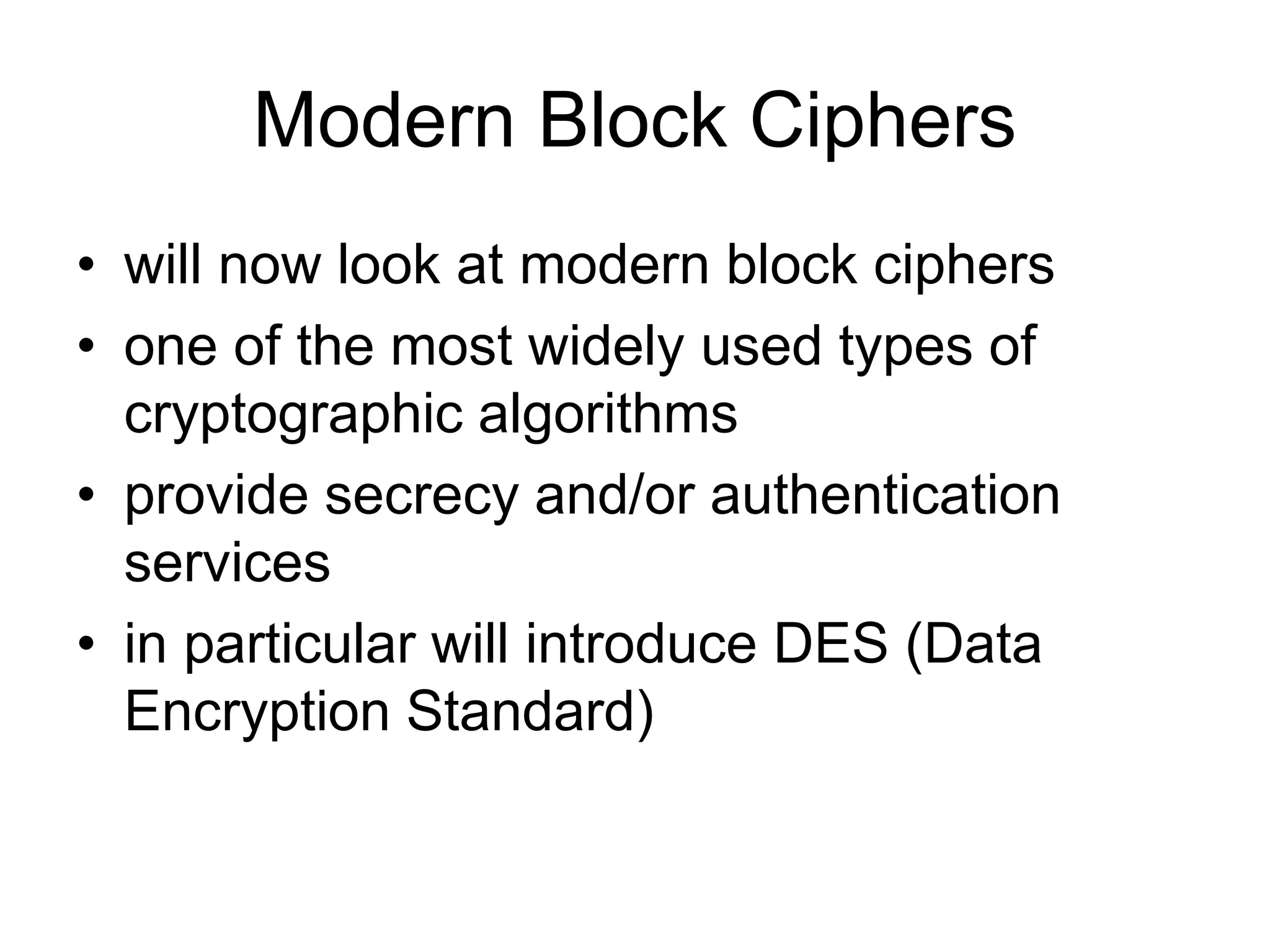

Modern Block Ciphers
• will now look at modern block ciphers
• one of the most widely used types of
cryptographic algorithms
• provide secrecy and/or authentication
services
• in particular will introduce DES (Data
Encryption Standard)

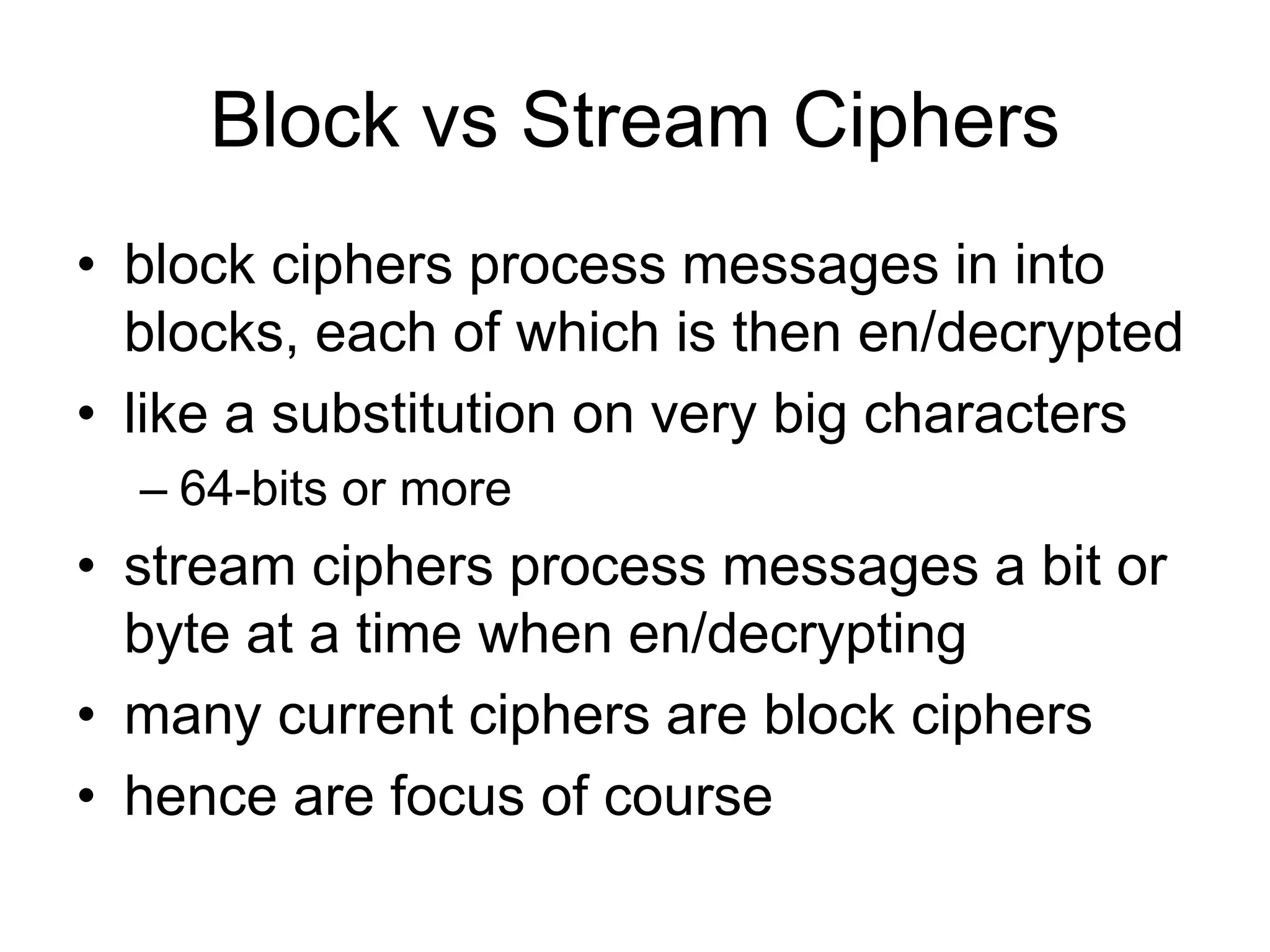

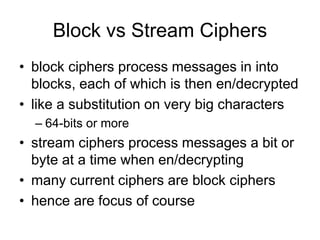

Block vs Stream Ciphers
• block ciphers process messages in into
blocks, each of which is then en/decrypted
• like a substitution on very big characters
– 64-bits or more
• stream ciphers process messages a bit or
byte at a time when en/decrypting
• many current ciphers are block ciphers
• hence are focus of course

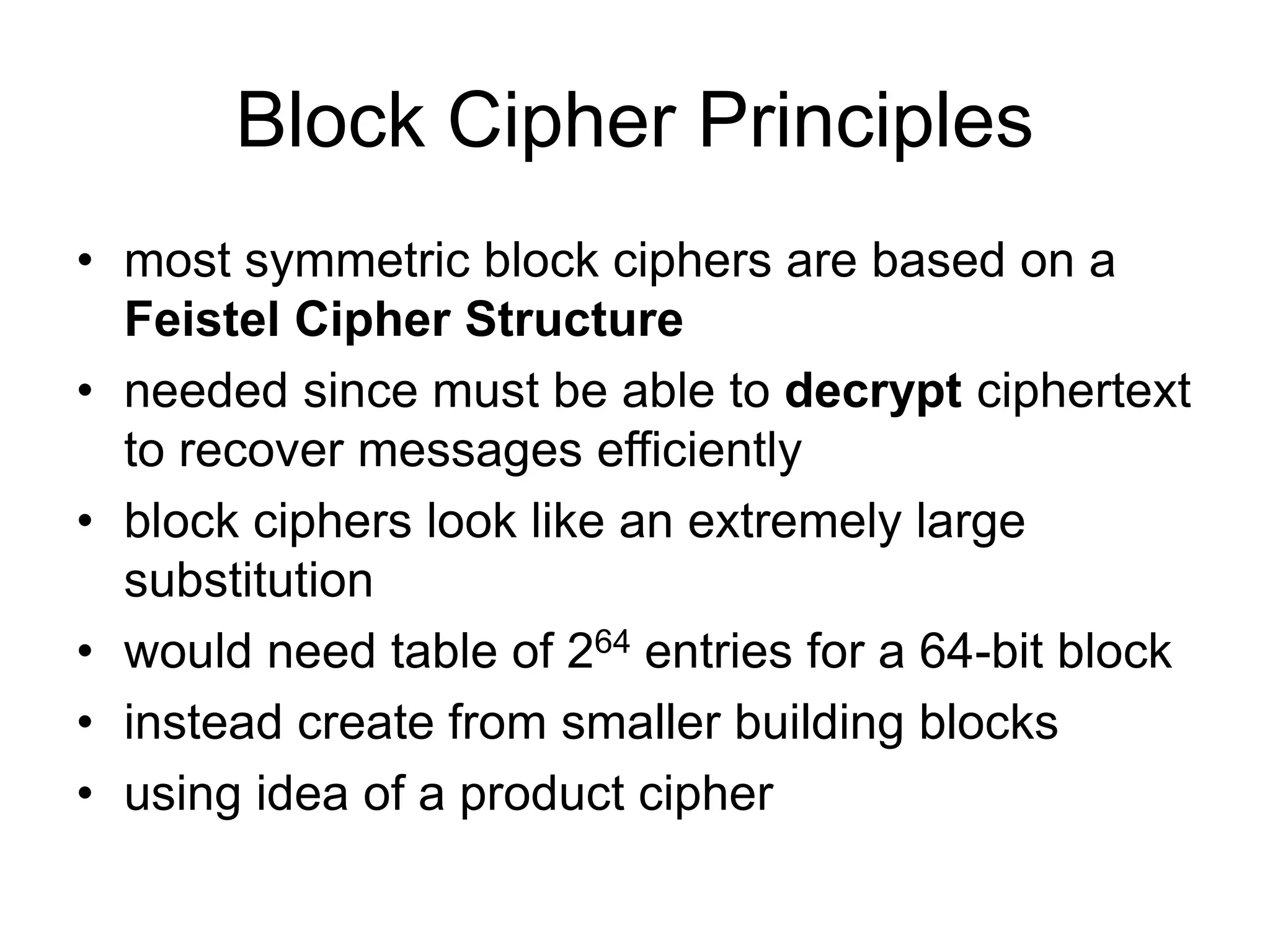

Block Cipher Principles
• most symmetric block ciphers are based on a
Feistel Cipher Structure
• needed since must be able to decrypt ciphertext
to recover messages efficiently
• block ciphers look like an extremely large
substitution
• would need table of 264 entries for a 64-bit block
• instead create from smaller building blocks
• using idea of a product cipher

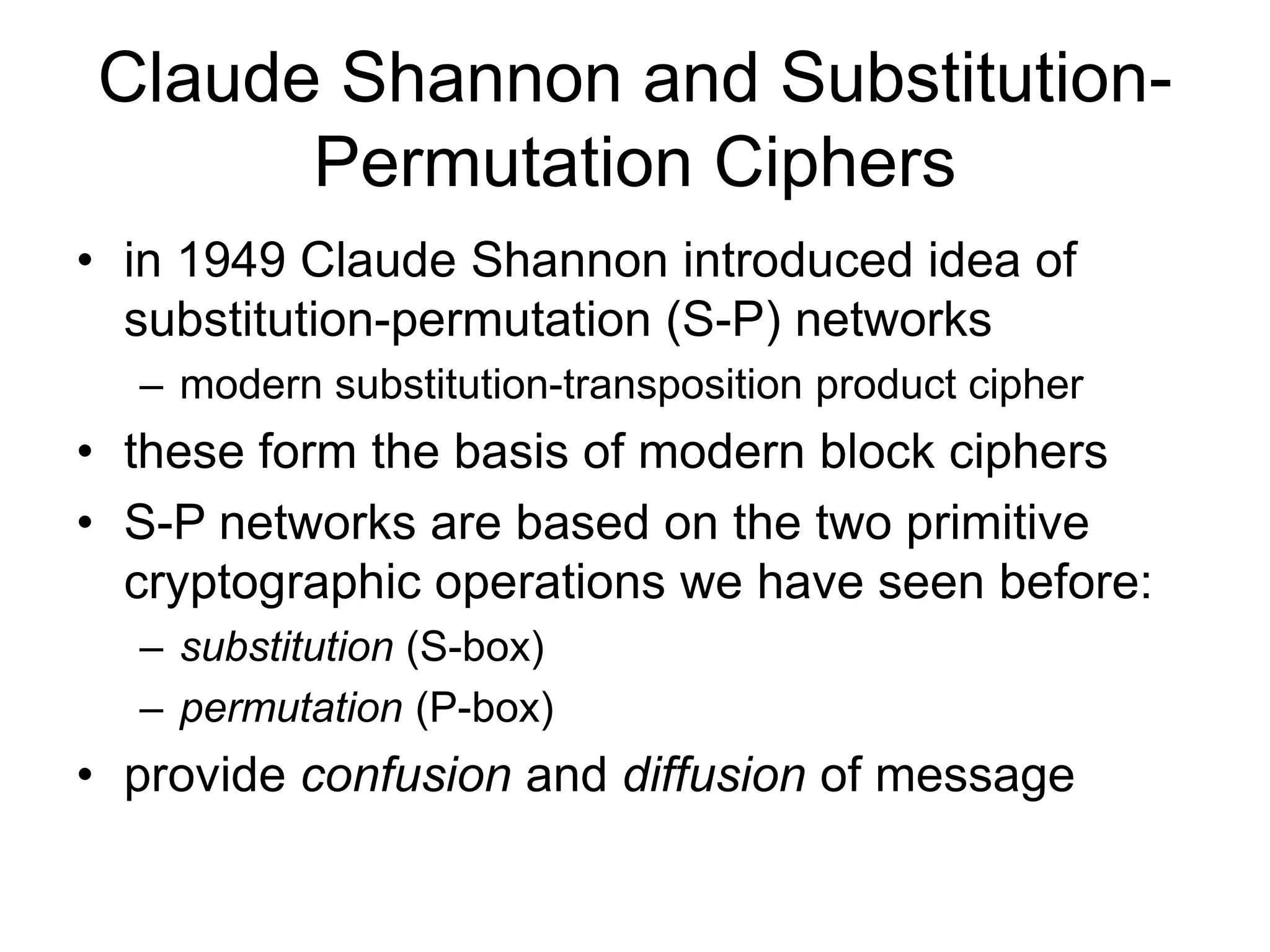

Claude Shannon and Substitution-
Permutation Ciphers
• in 1949 Claude Shannon introduced idea of
substitution-permutation (S-P) networks
– modern substitution-transposition product cipher
• these form the basis of modern block ciphers
• S-P networks are based on the two primitive
cryptographic operations we have seen before:
– substitution (S-box)
– permutation (P-box)
• provide confusion and diffusion of message

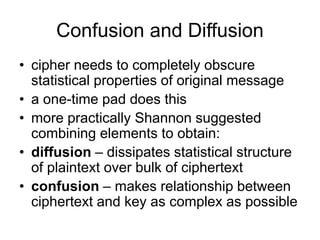

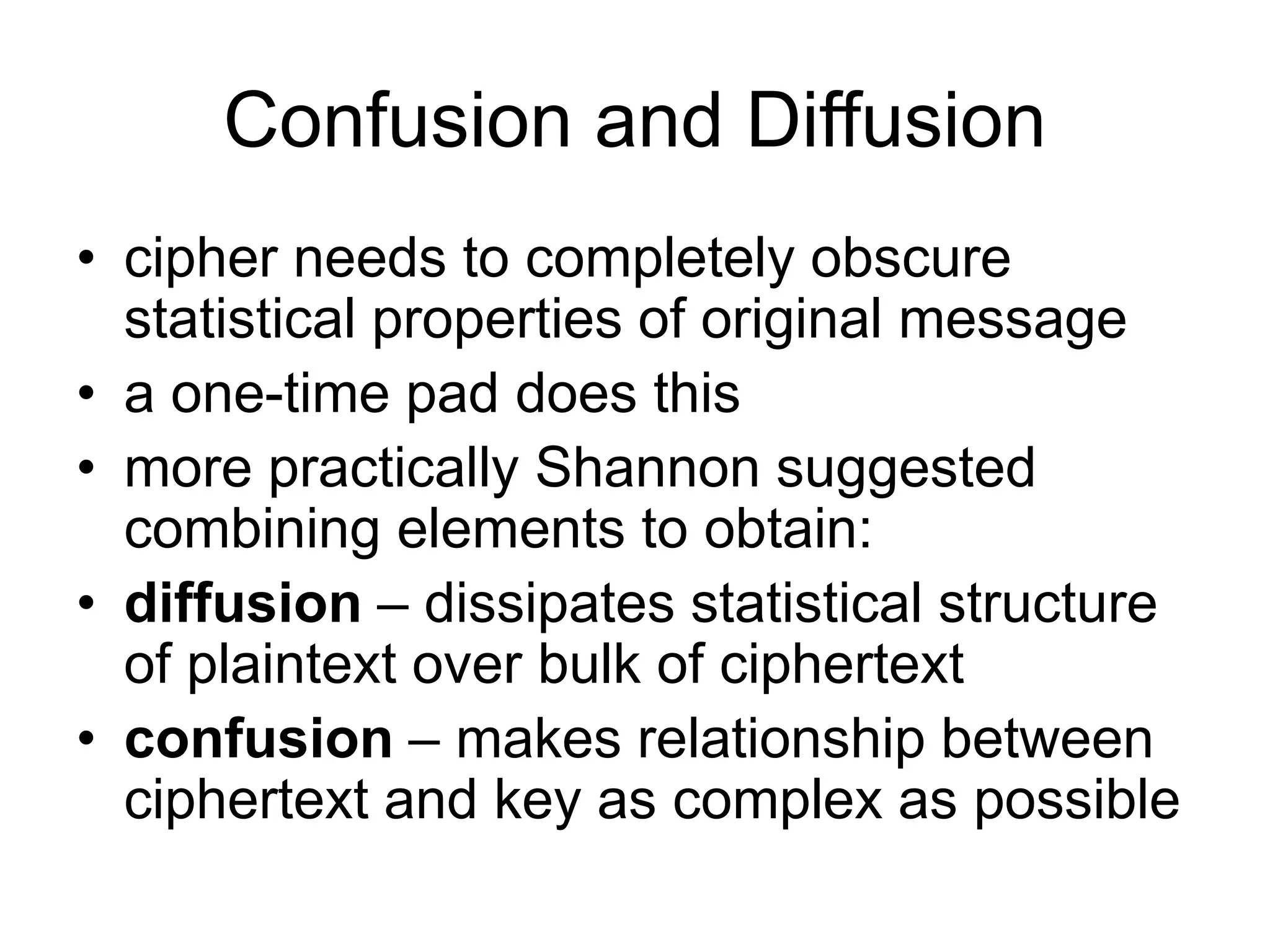

Confusion and Diffusion
• cipher needs to completely obscure
statistical properties of original message
• a one-time pad does this
• more practically Shannon suggested
combining elements to obtain:
• diffusion – dissipates statistical structure
of plaintext over bulk of ciphertext
• confusion – makes relationship between
ciphertext and key as complex as possible

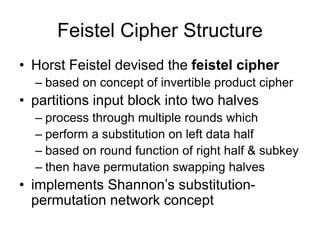

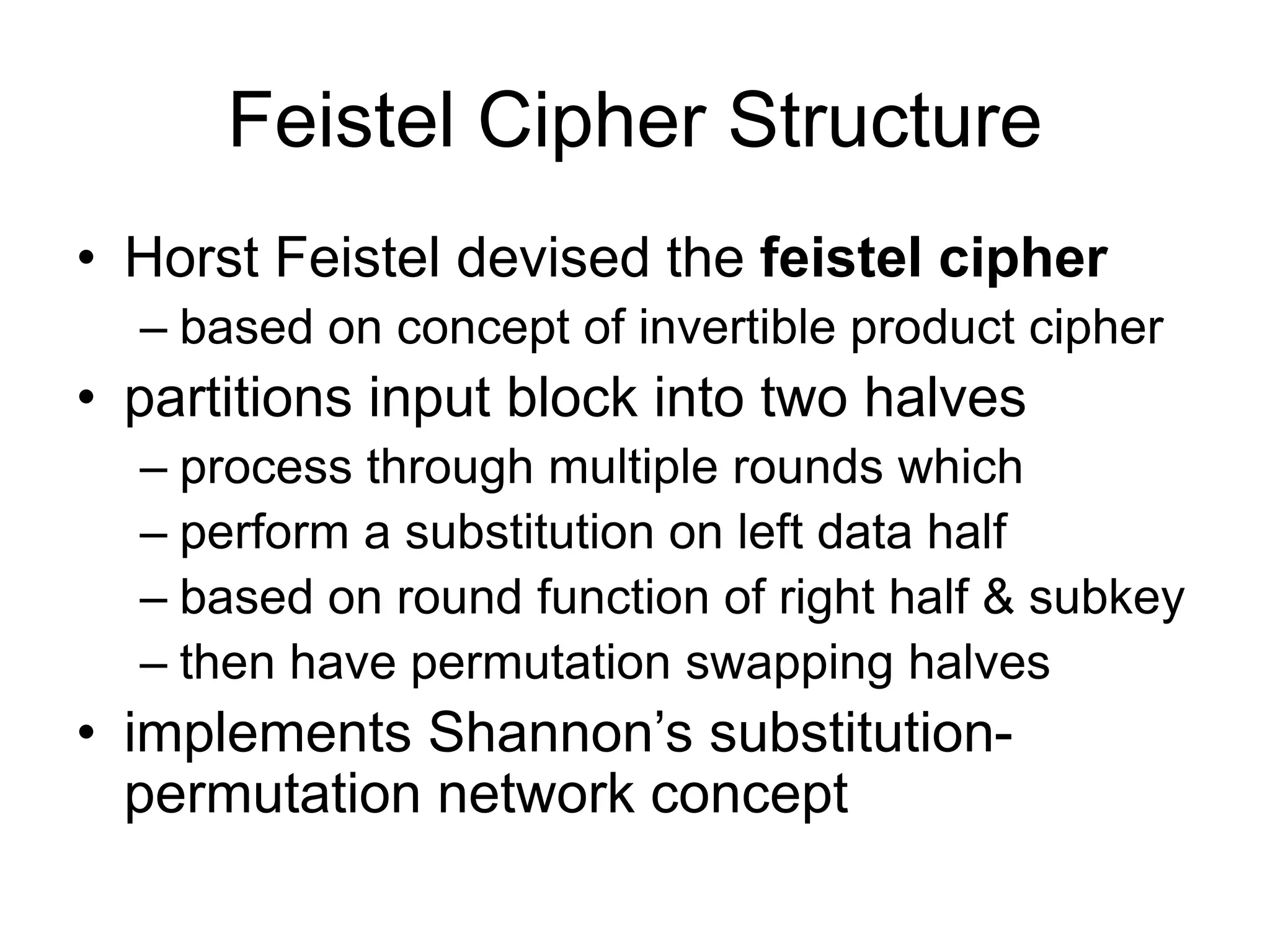

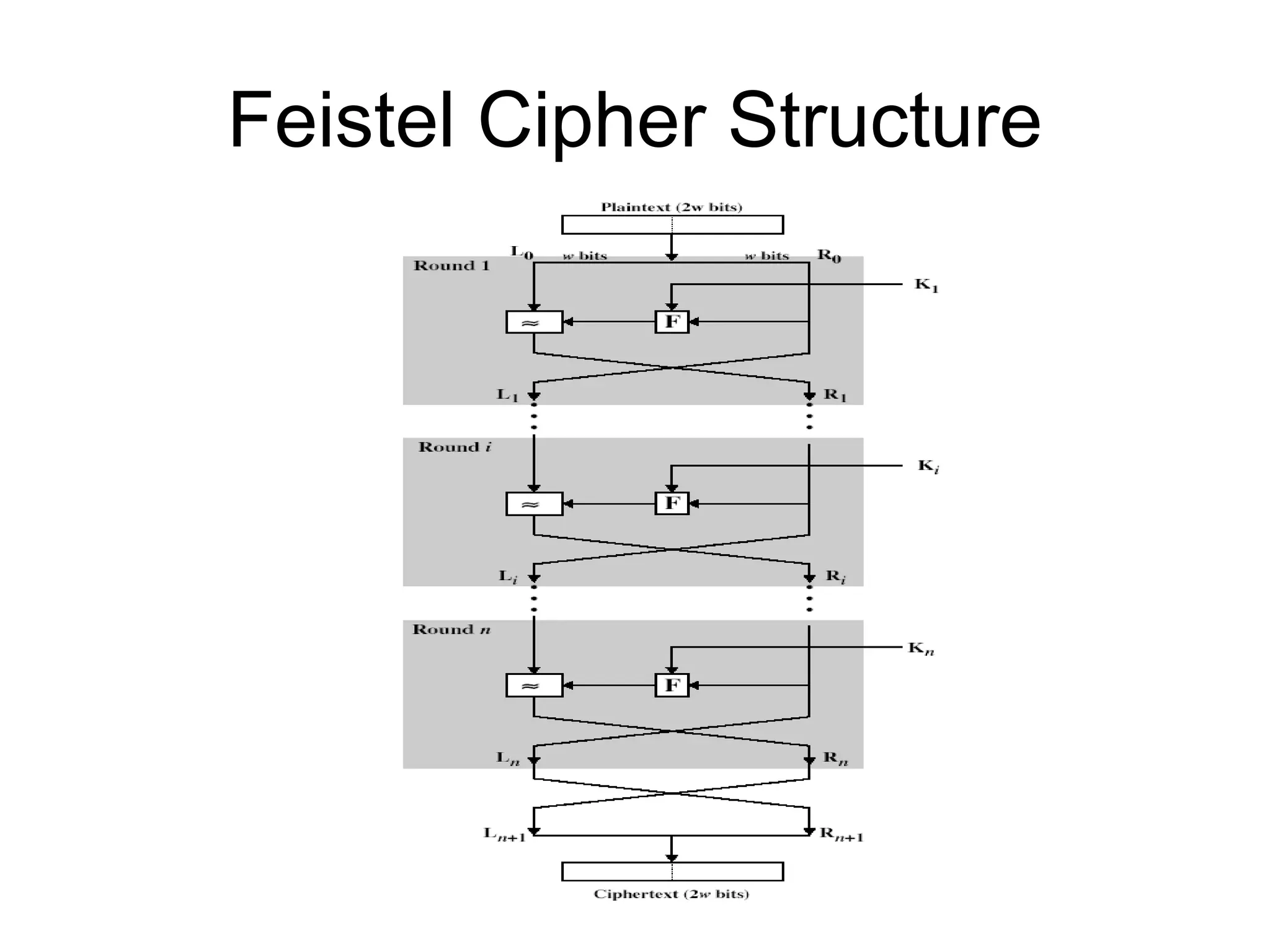

Feistel Cipher Structure
• Horst Feistel devised the feistel cipher
– based on concept of invertible product cipher
• partitions input block into two halves
– process through multiple rounds which
– perform a substitution on left data half
– based on round function of right half & subkey
– then have permutation swapping halves
• implements Shannon’s substitution-
permutation network concept

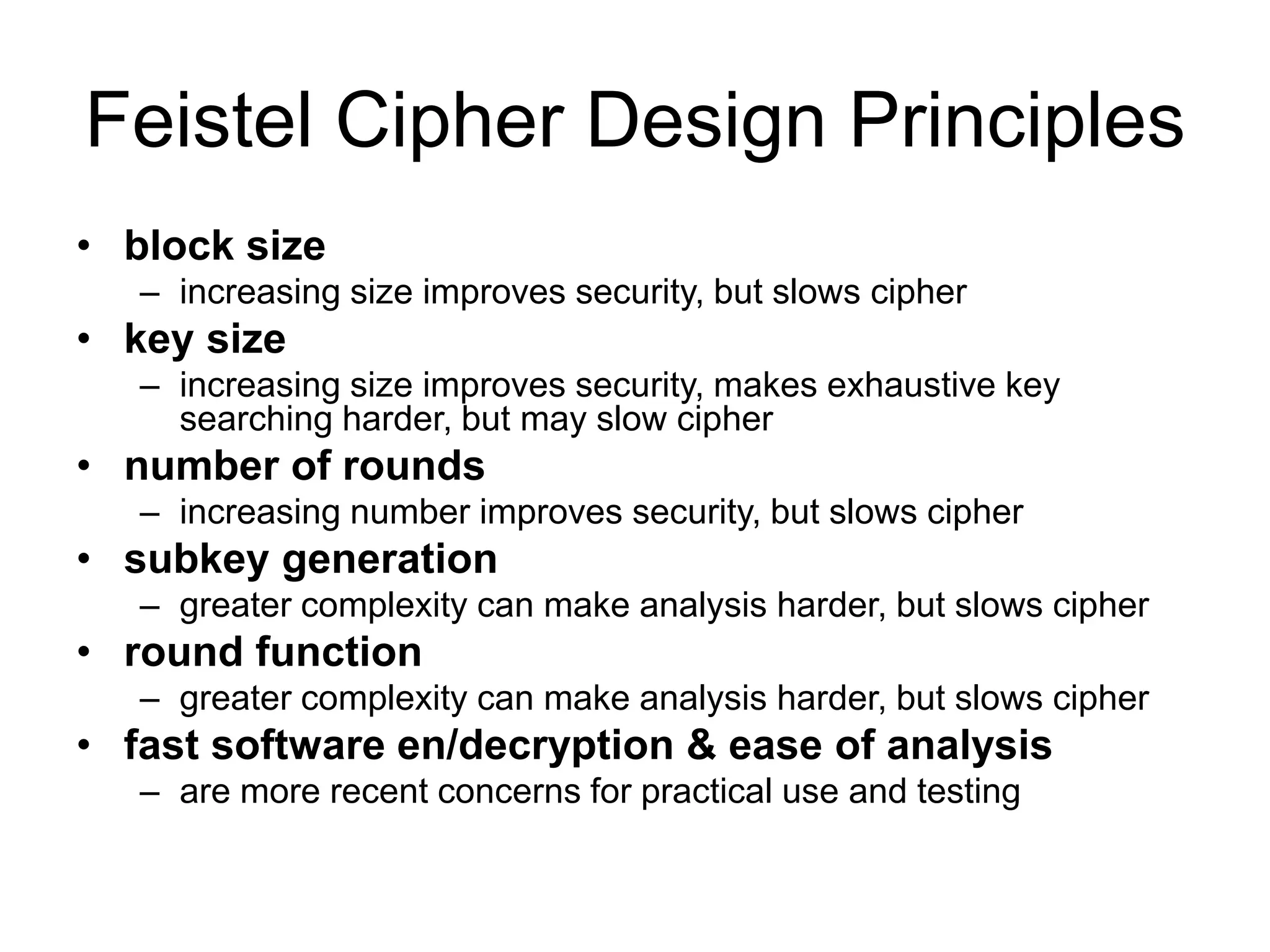

Feistel Cipher Design Principles
• block size
– increasing size improves security, but slows cipher
• key size
– increasing size improves security, makes exhaustive key
searching harder, but may slow cipher
• number of rounds
– increasing number improves security, but slows cipher
• subkey generation
– greater complexity can make analysis harder, but slows cipher
• round function
– greater complexity can make analysis harder, but slows cipher
• fast software en/decryption & ease of analysis
– are more recent concerns for practical use and testing

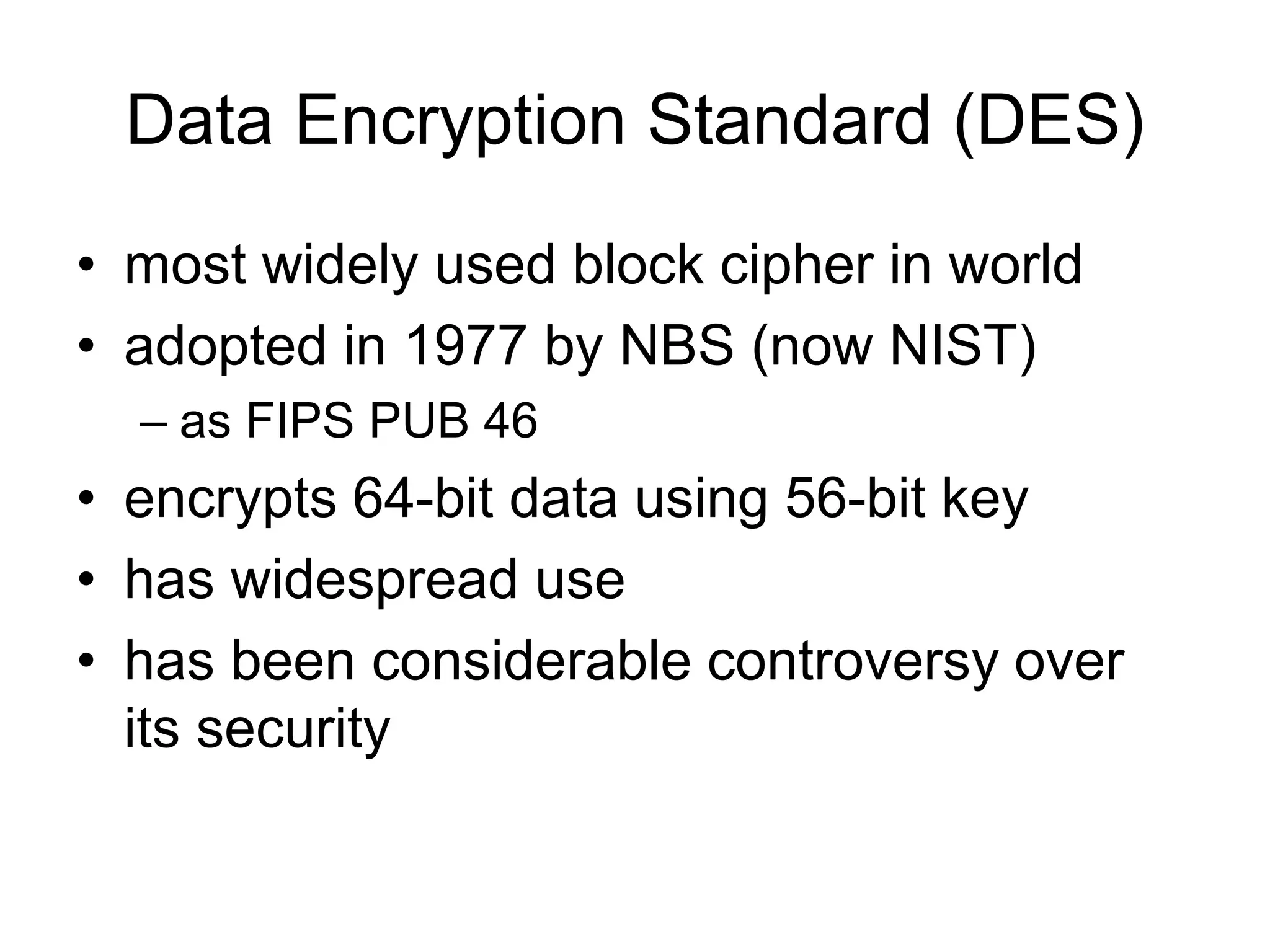

Data Encryption Standard (DES)
• most widely used block cipher in world
• adopted in 1977 by NBS (now NIST)
– as FIPS PUB 46
• encrypts 64-bit data using 56-bit key
• has widespread use
• has been considerable controversy over
its security

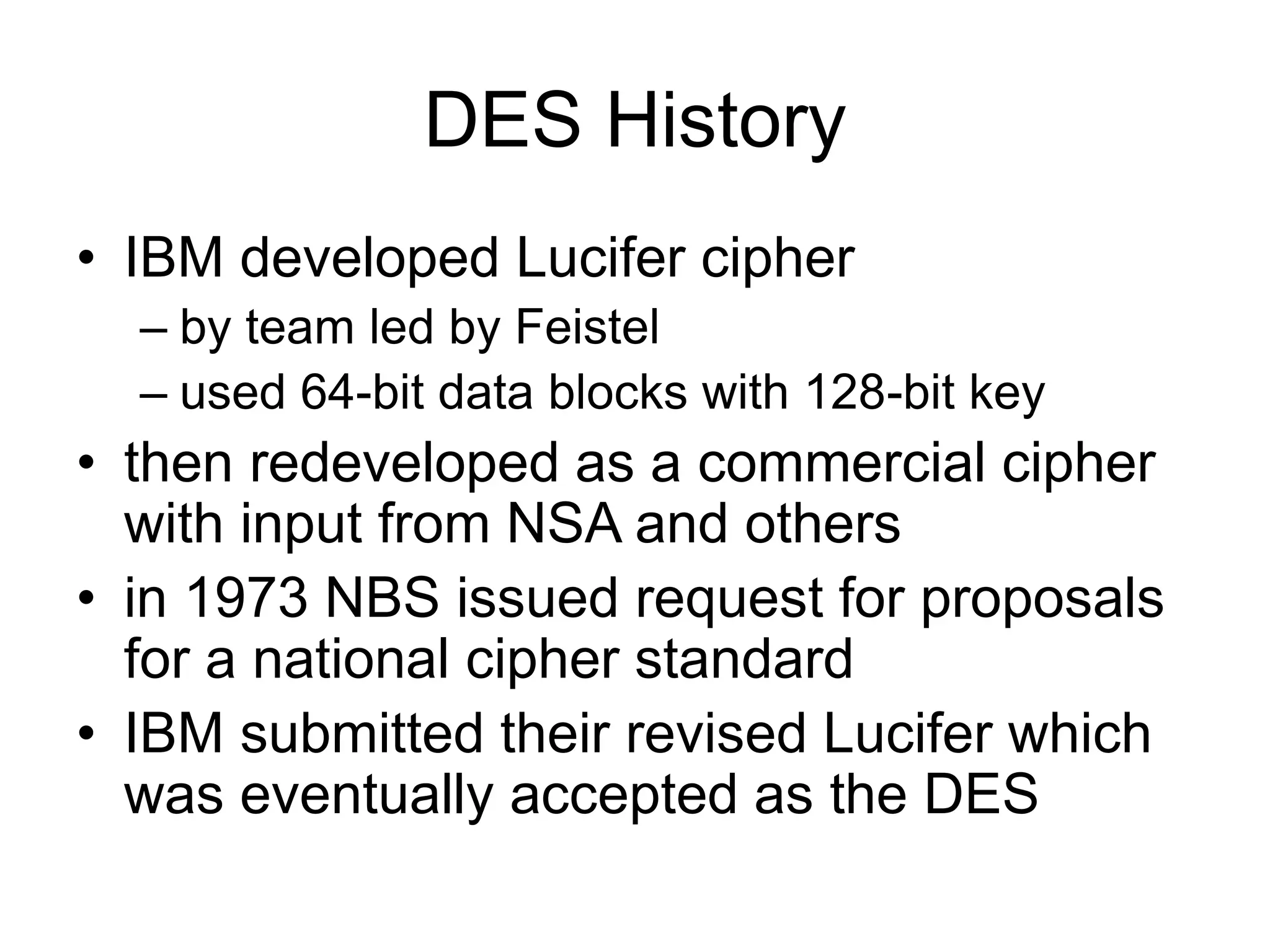

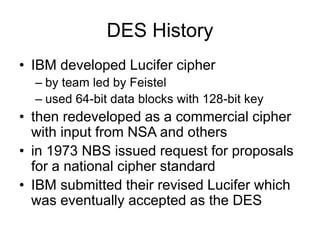

DES History
• IBM developed Lucifer cipher
– by team led by Feistel
– used 64-bit data blocks with 128-bit key
• then redeveloped as a commercial cipher
with input from NSA and others
• in 1973 NBS issued request for proposals
for a national cipher standard
• IBM submitted their revised Lucifer which
was eventually accepted as the DES

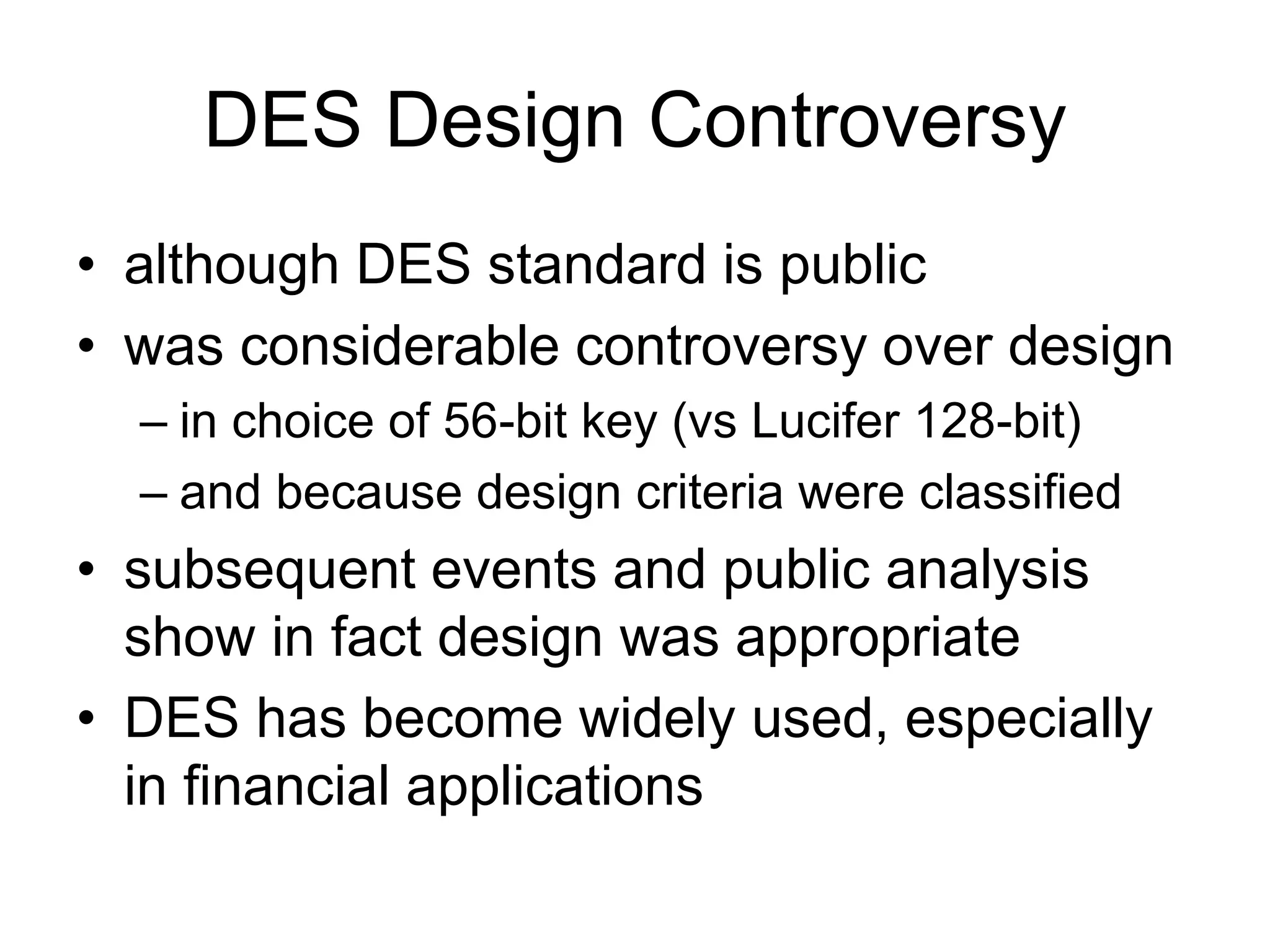

DES Design Controversy
• although DES standard is public
• was considerable controversy over design
– in choice of 56-bit key (vs Lucifer 128-bit)
– and because design criteria were classified
• subsequent events and public analysis
show in fact design was appropriate
• DES has become widely used, especially
in financial applications

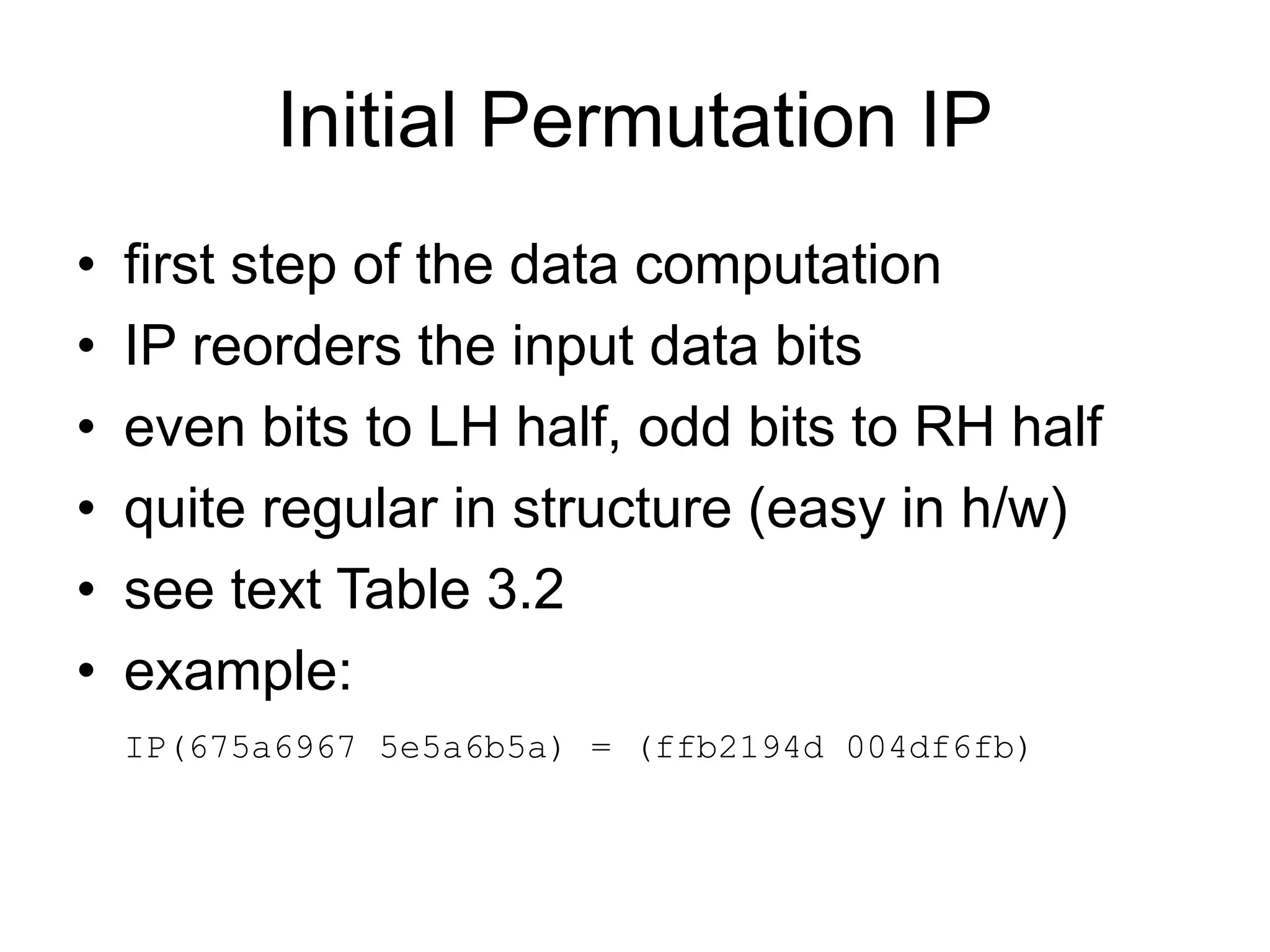

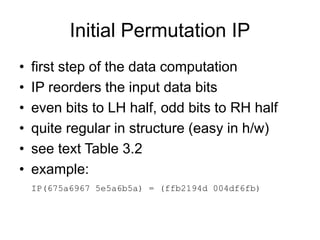

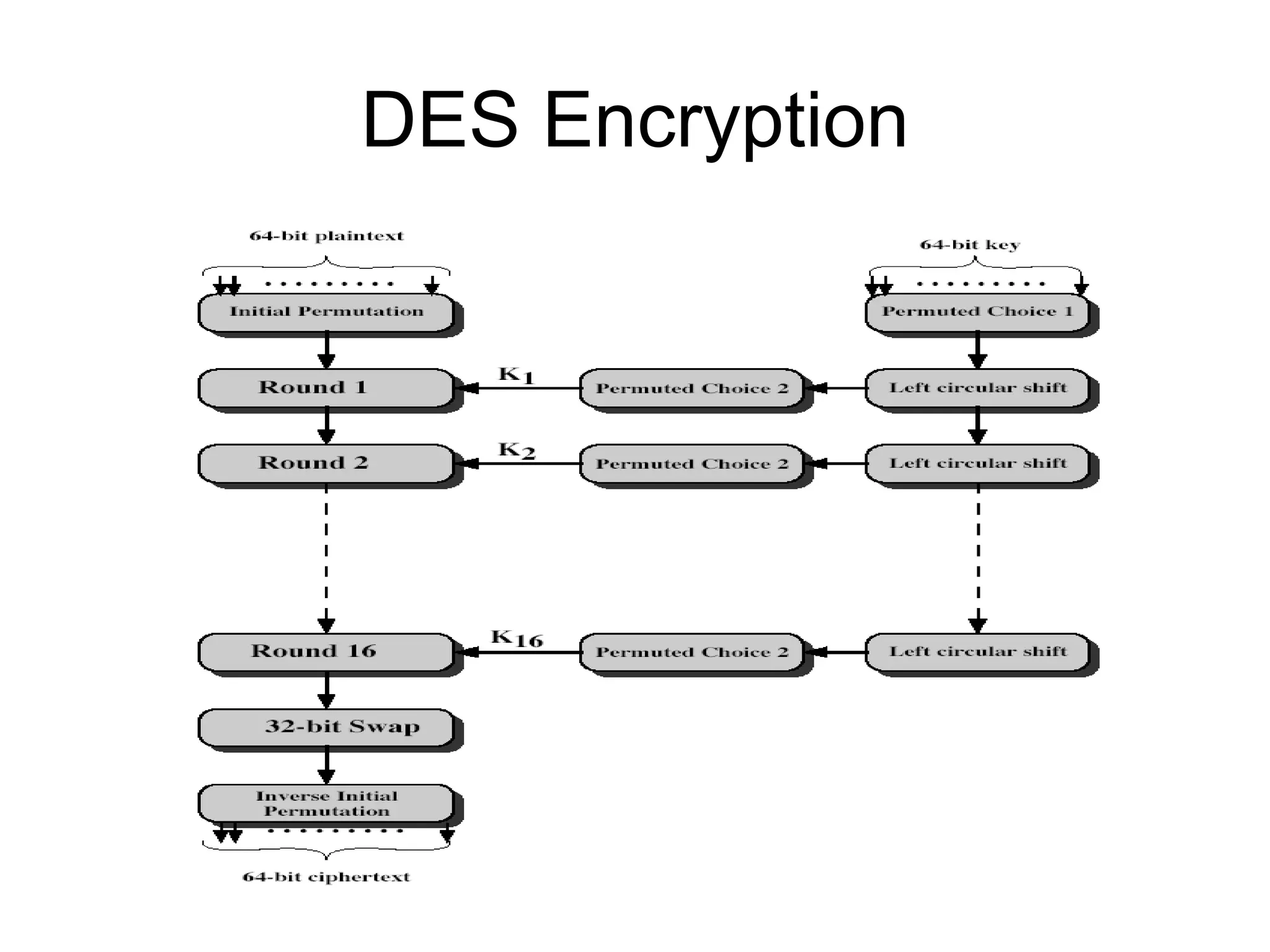

Initial Permutation IP
• first step of the data computation
• IP reorders the input data bits
• even bits to LH half, odd bits to RH half
• quite regular in structure (easy in h/w)
• see text Table 3.2
• example:
IP(675a6967 5e5a6b5a) = (ffb2194d 004df6fb)

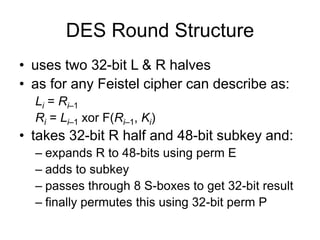

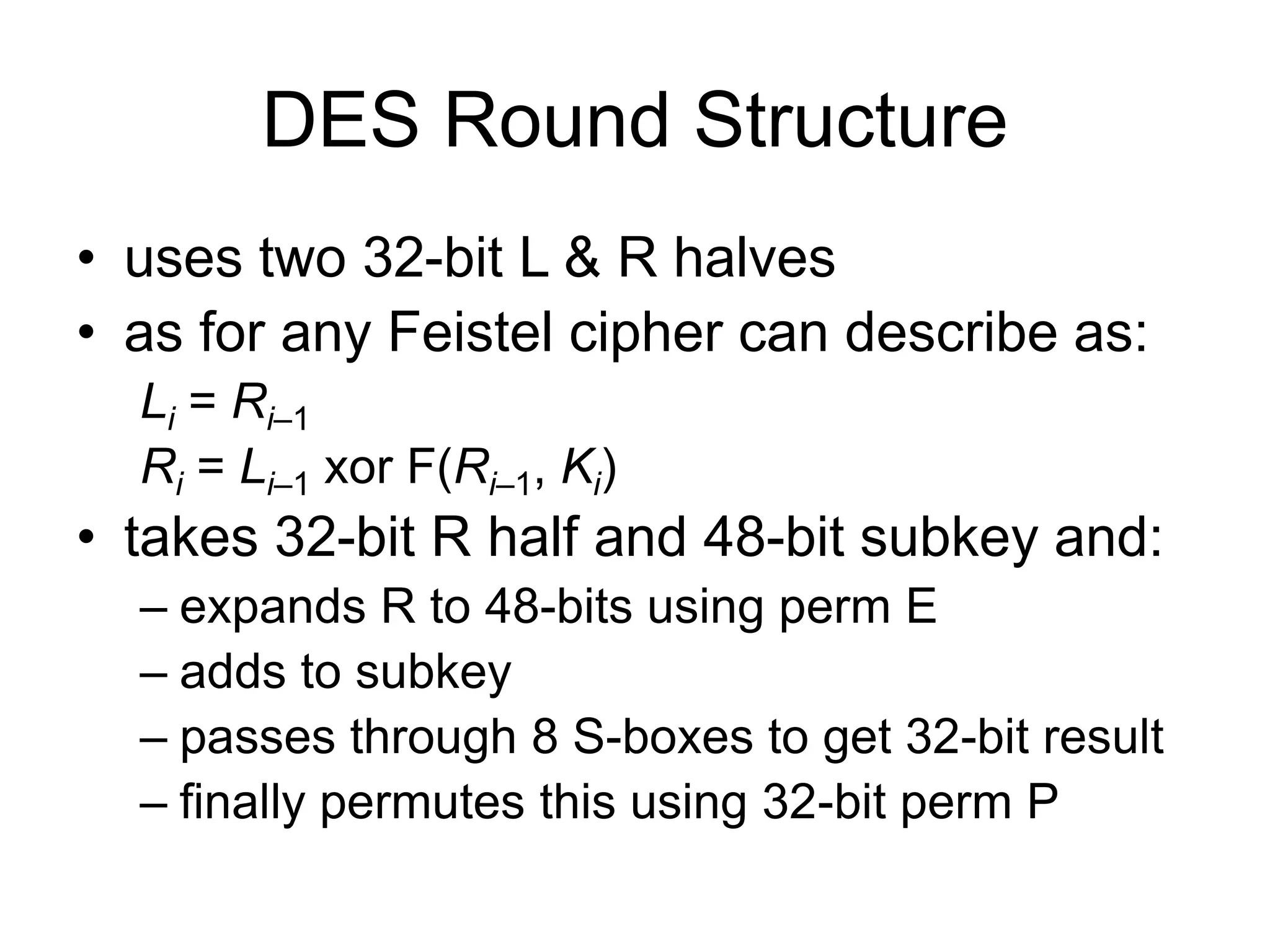

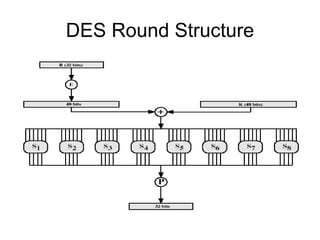

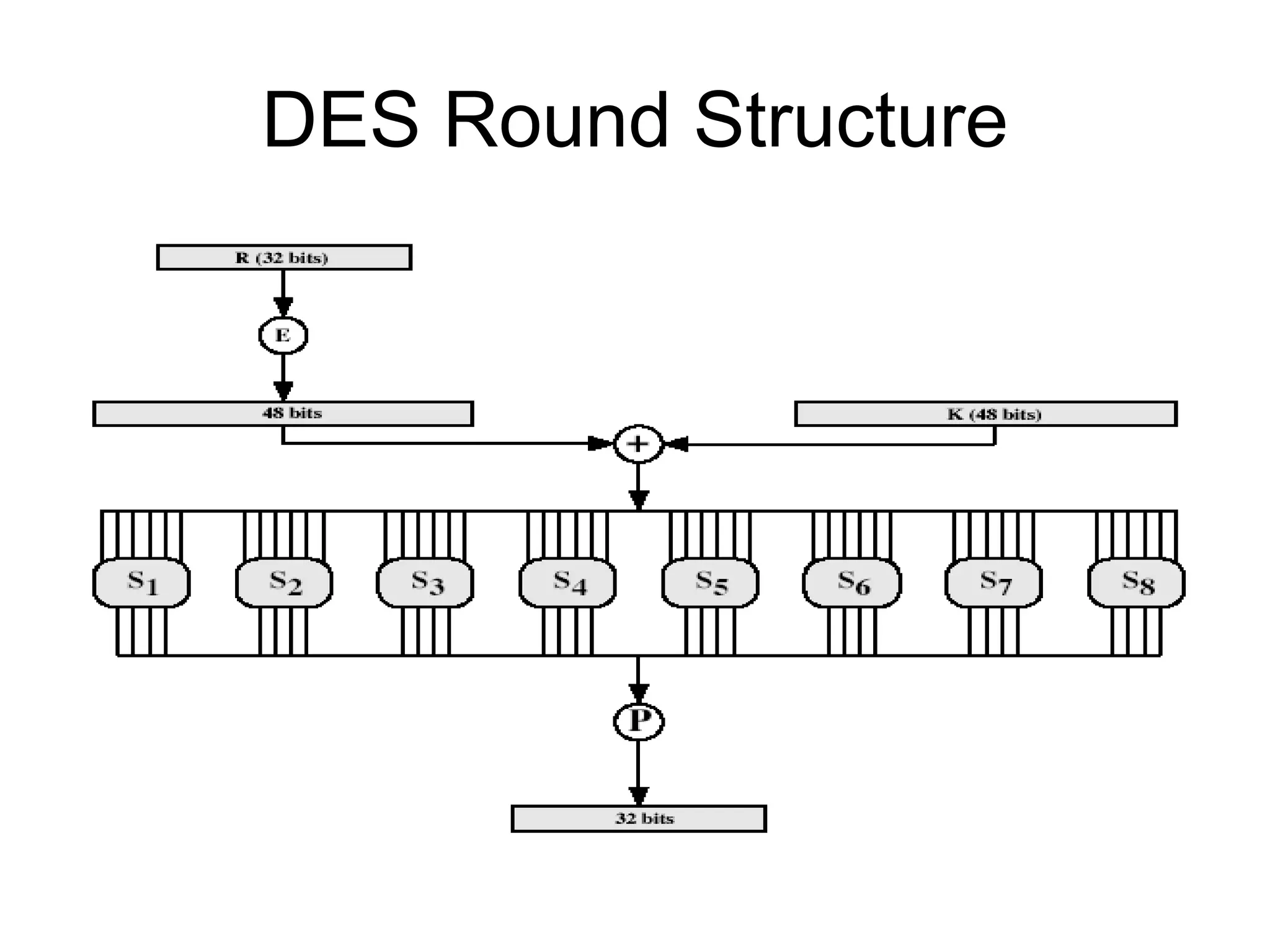

DES Round Structure
• uses two 32-bit L & R halves
• as for any Feistel cipher can describe as:
Li = Ri–1
Ri = Li–1 xor F(Ri–1, Ki)
• takes 32-bit R half and 48-bit subkey and:
– expands R to 48-bits using perm E
– adds to subkey
– passes through 8 S-boxes to get 32-bit result
– finally permutes this using 32-bit perm P

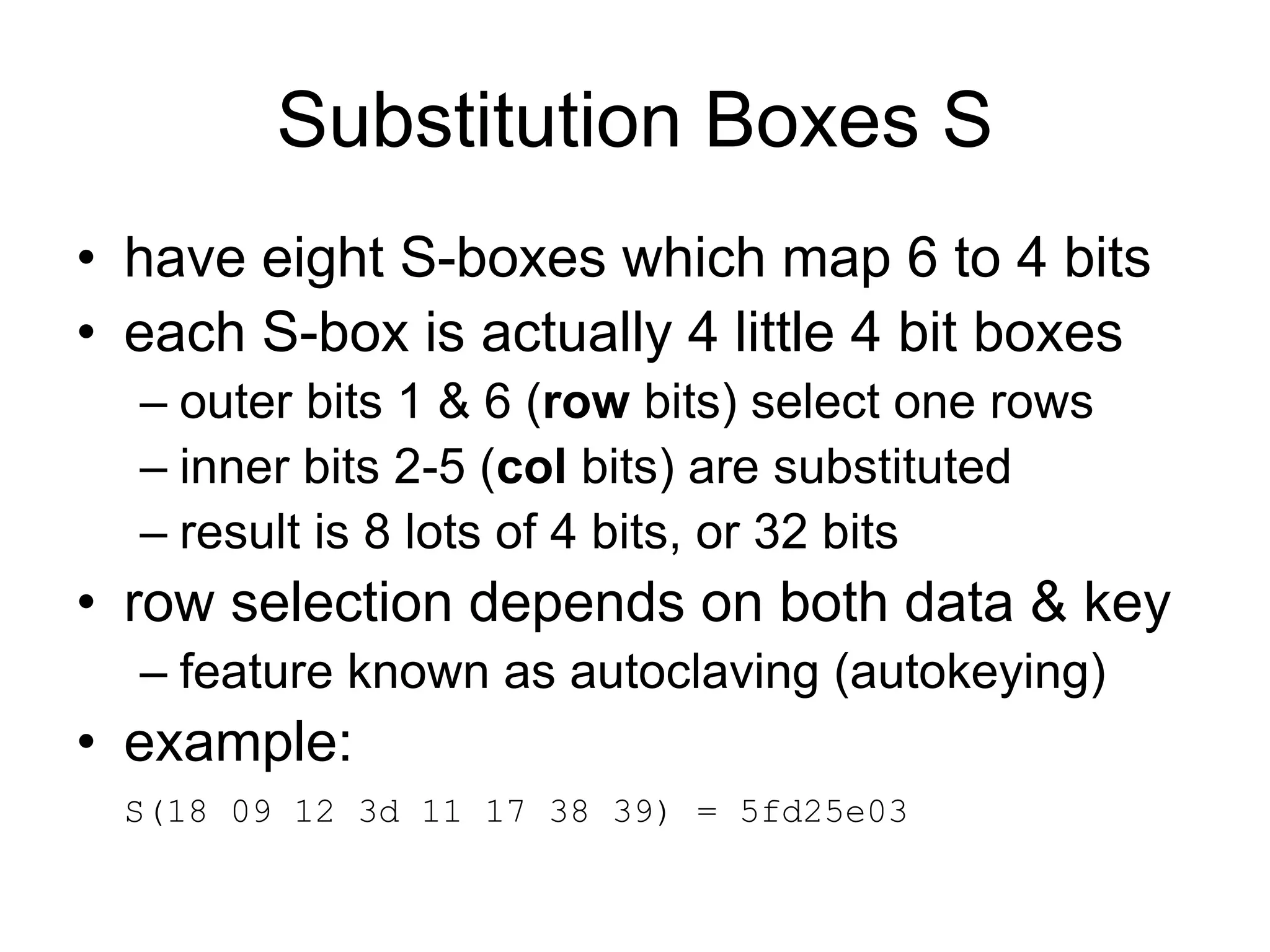

Substitution Boxes S
• have eight S-boxes which map 6 to 4 bits
• each S-box is actually 4 little 4 bit boxes
– outer bits 1 & 6 (row bits) select one rows
– inner bits 2-5 (col bits) are substituted
– result is 8 lots of 4 bits, or 32 bits
• row selection depends on both data & key
– feature known as autoclaving (autokeying)
• example:
S(18 09 12 3d 11 17 38 39) = 5fd25e03

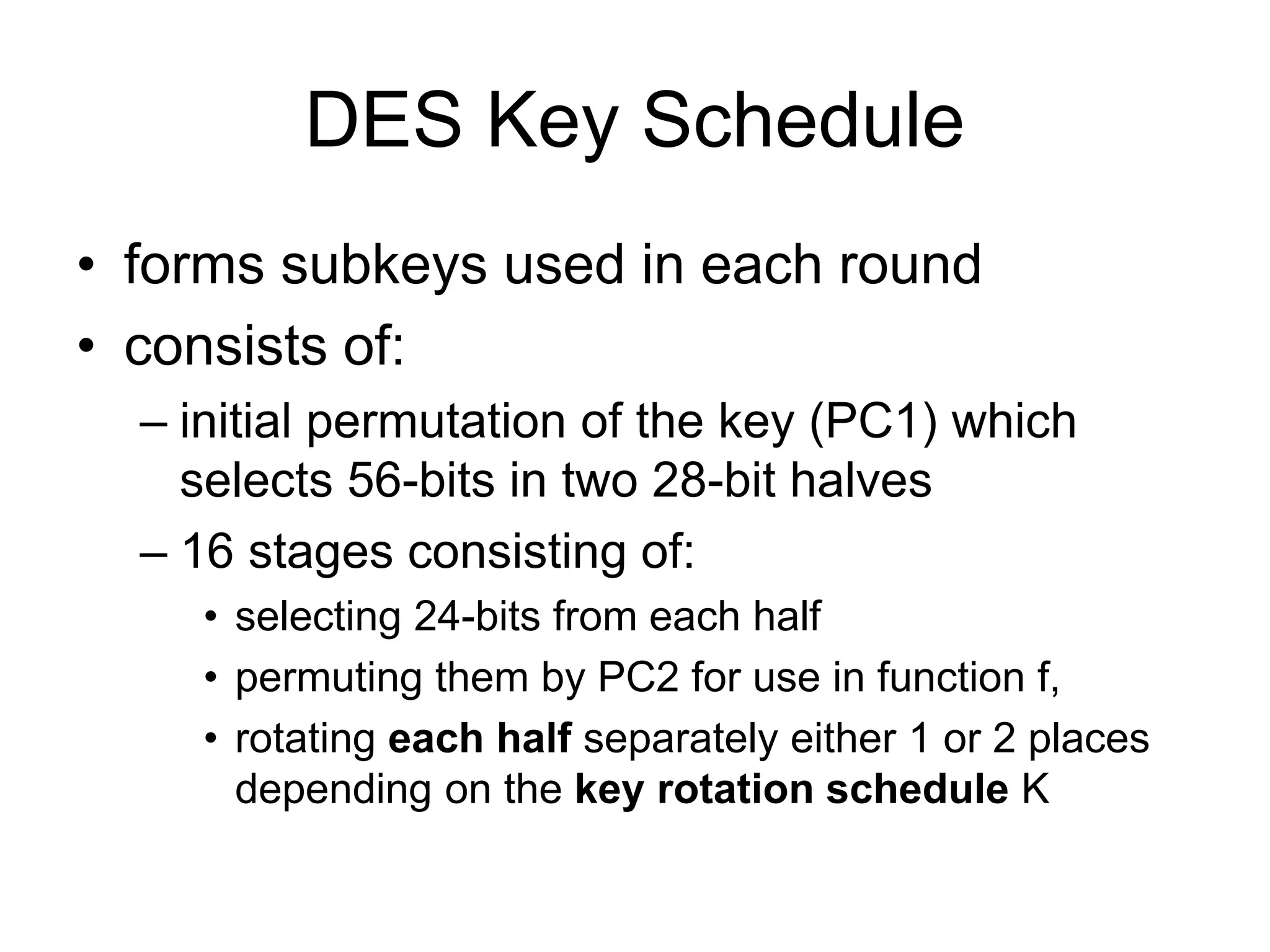

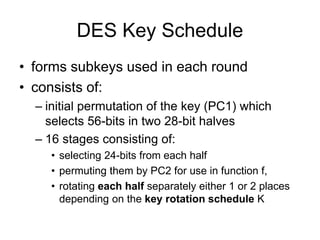

DES Key Schedule
• forms subkeys used in each round
• consists of:
– initial permutation of the key (PC1) which
selects 56-bits in two 28-bit halves
– 16 stages consisting of:
• selecting 24-bits from each half
• permuting them by PC2 for use in function f,
• rotating each half separately either 1 or 2 places
depending on the key rotation schedule K

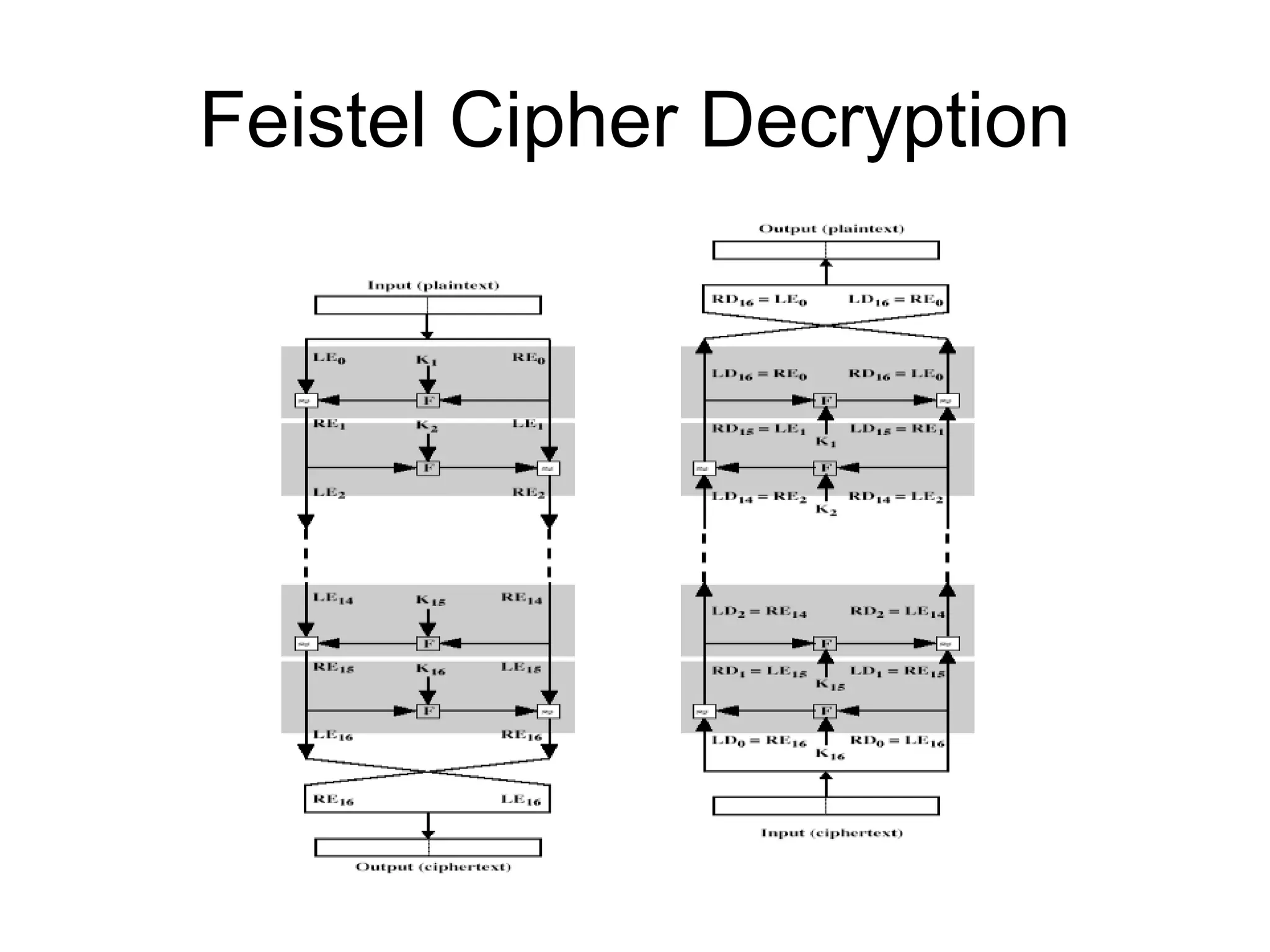

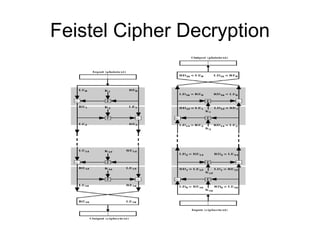

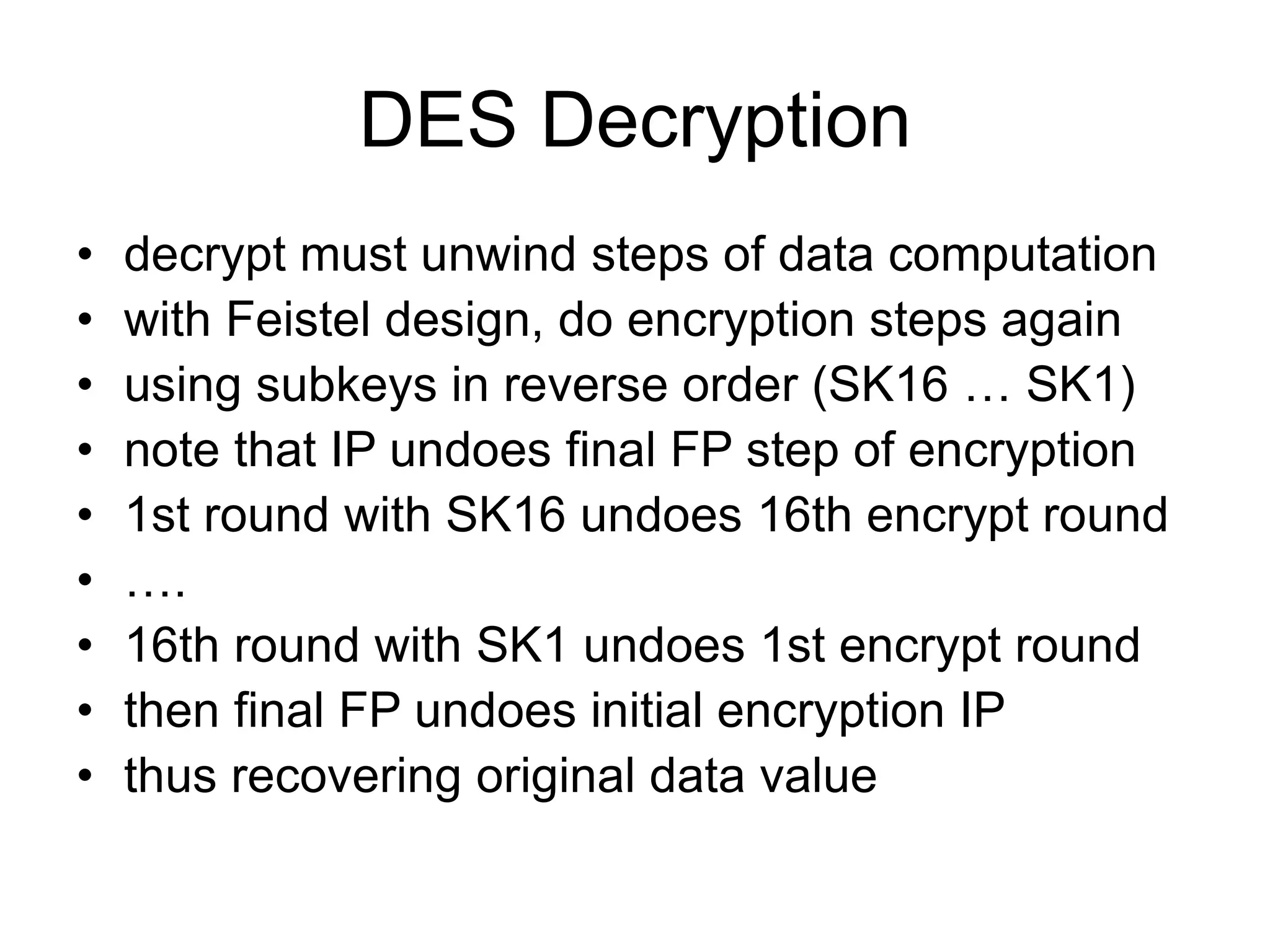

DES Decryption
• decrypt must unwind steps of data computation
• with Feistel design, do encryption steps again
• using subkeys in reverse order (SK16 … SK1)
• note that IP undoes final FP step of encryption
• 1st round with SK16 undoes 16th encrypt round
• ….
• 16th round with SK1 undoes 1st encrypt round
• then final FP undoes initial encryption IP
• thus recovering original data value

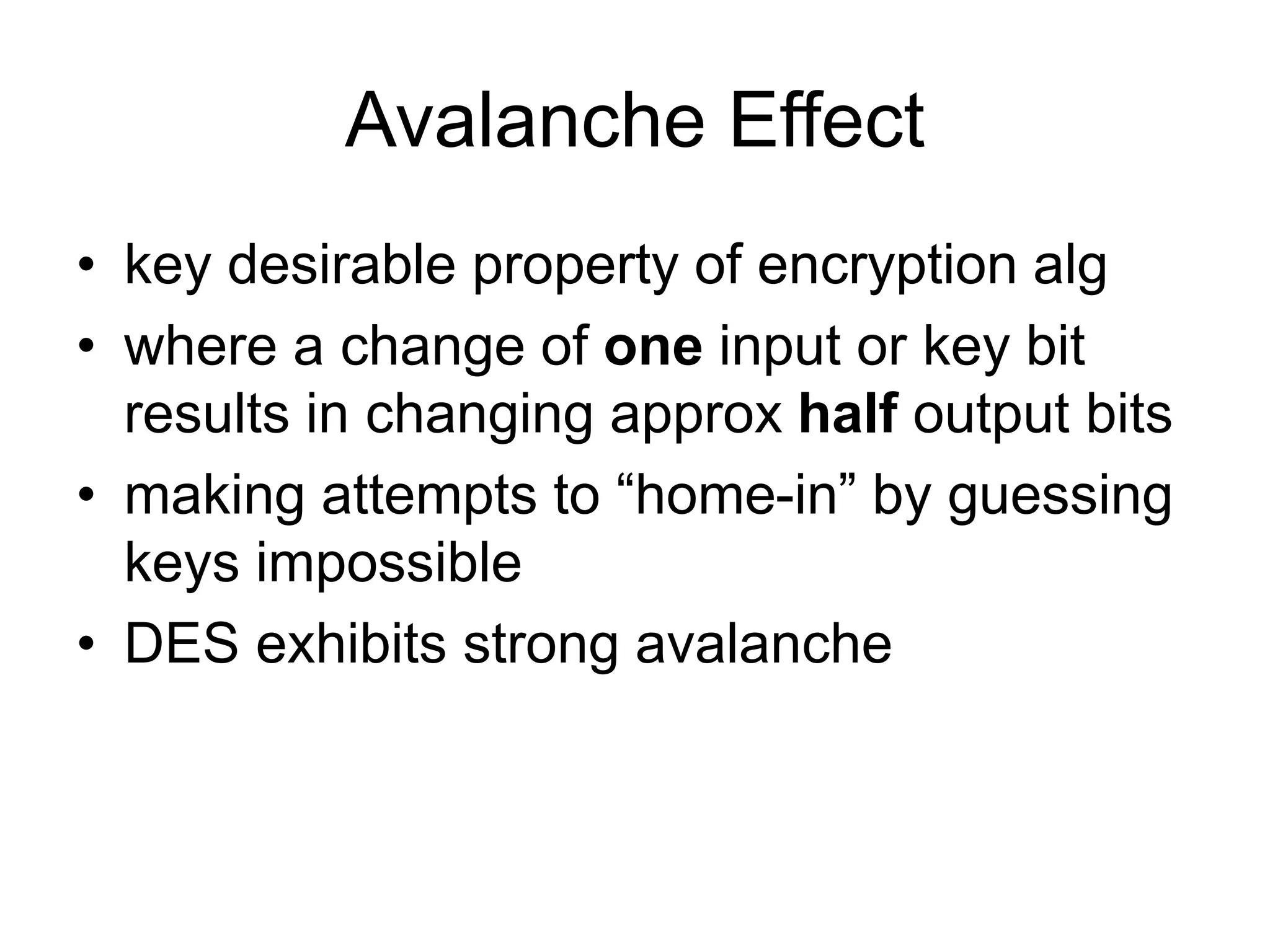

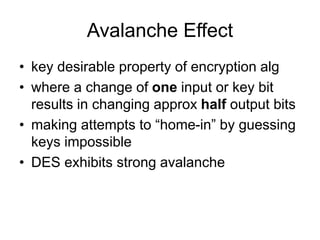

Avalanche Effect
• key desirable property of encryption alg
• where a change of one input or key bit
results in changing approx half output bits
• making attempts to “home-in” by guessing
keys impossible
• DES exhibits strong avalanche

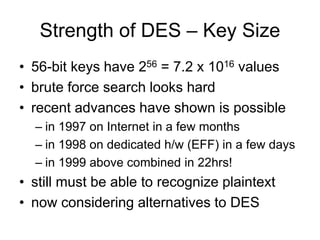

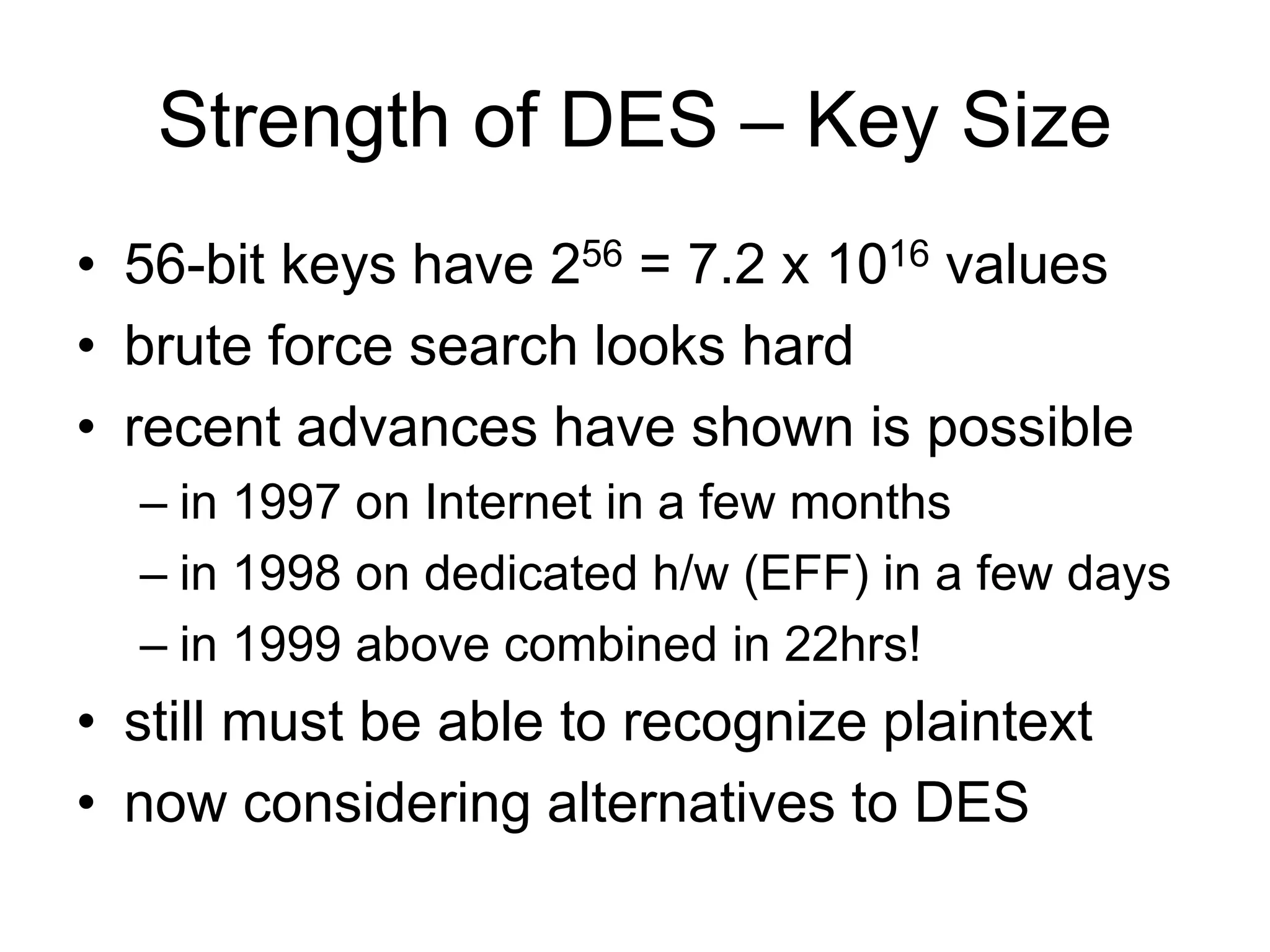

Strength of DES – Key Size
• 56-bit keys have 256 = 7.2 x 1016 values
• brute force search looks hard
• recent advances have shown is possible
– in 1997 on Internet in a few months
– in 1998 on dedicated h/w (EFF) in a few days
– in 1999 above combined in 22hrs!
• still must be able to recognize plaintext
• now considering alternatives to DES

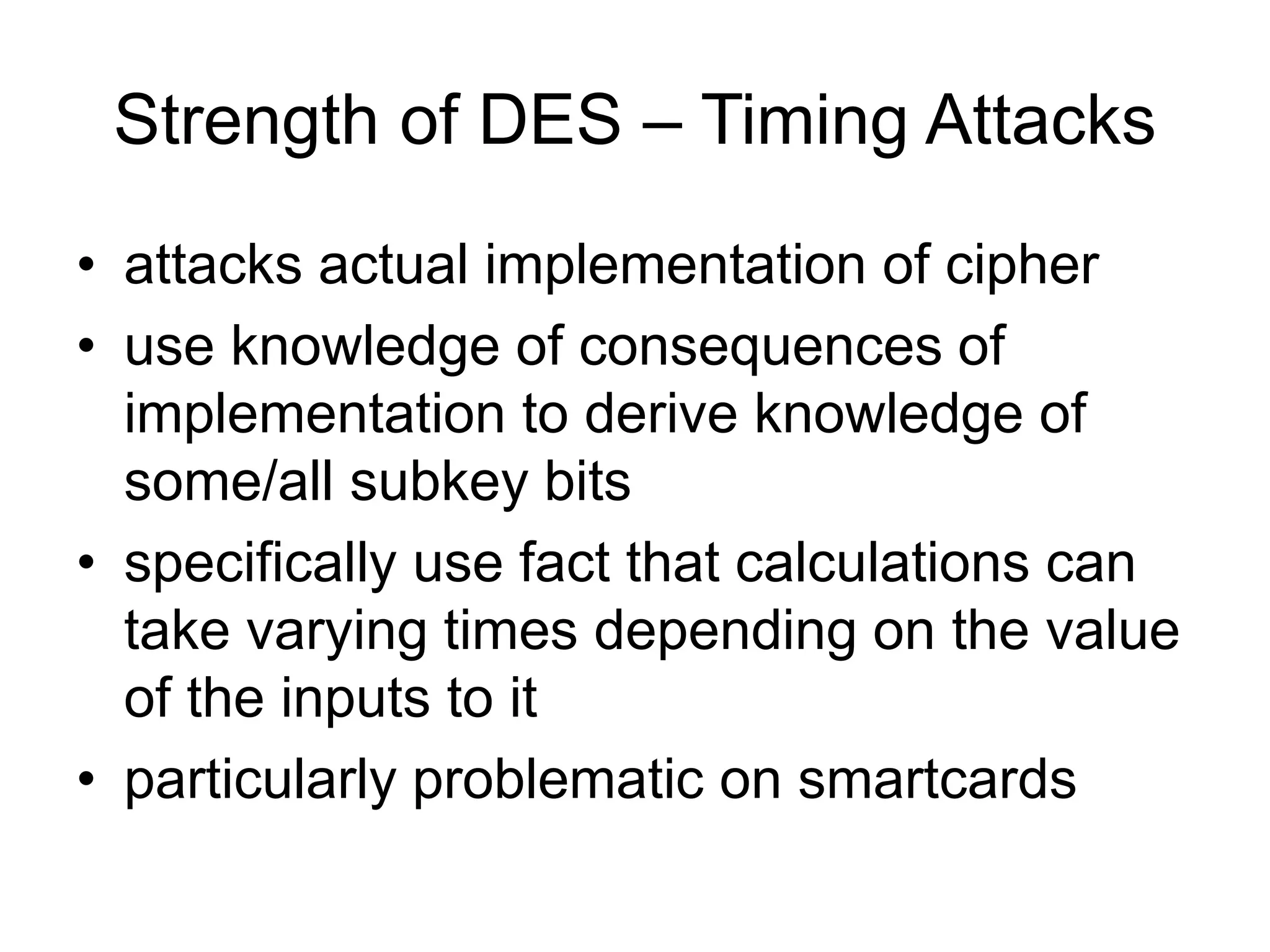

Strength of DES – Timing Attacks
• attacks actual implementation of cipher
• use knowledge of consequences of
implementation to derive knowledge of
some/all subkey bits
• specifically use fact that calculations can
take varying times depending on the value
of the inputs to it
• particularly problematic on smartcards

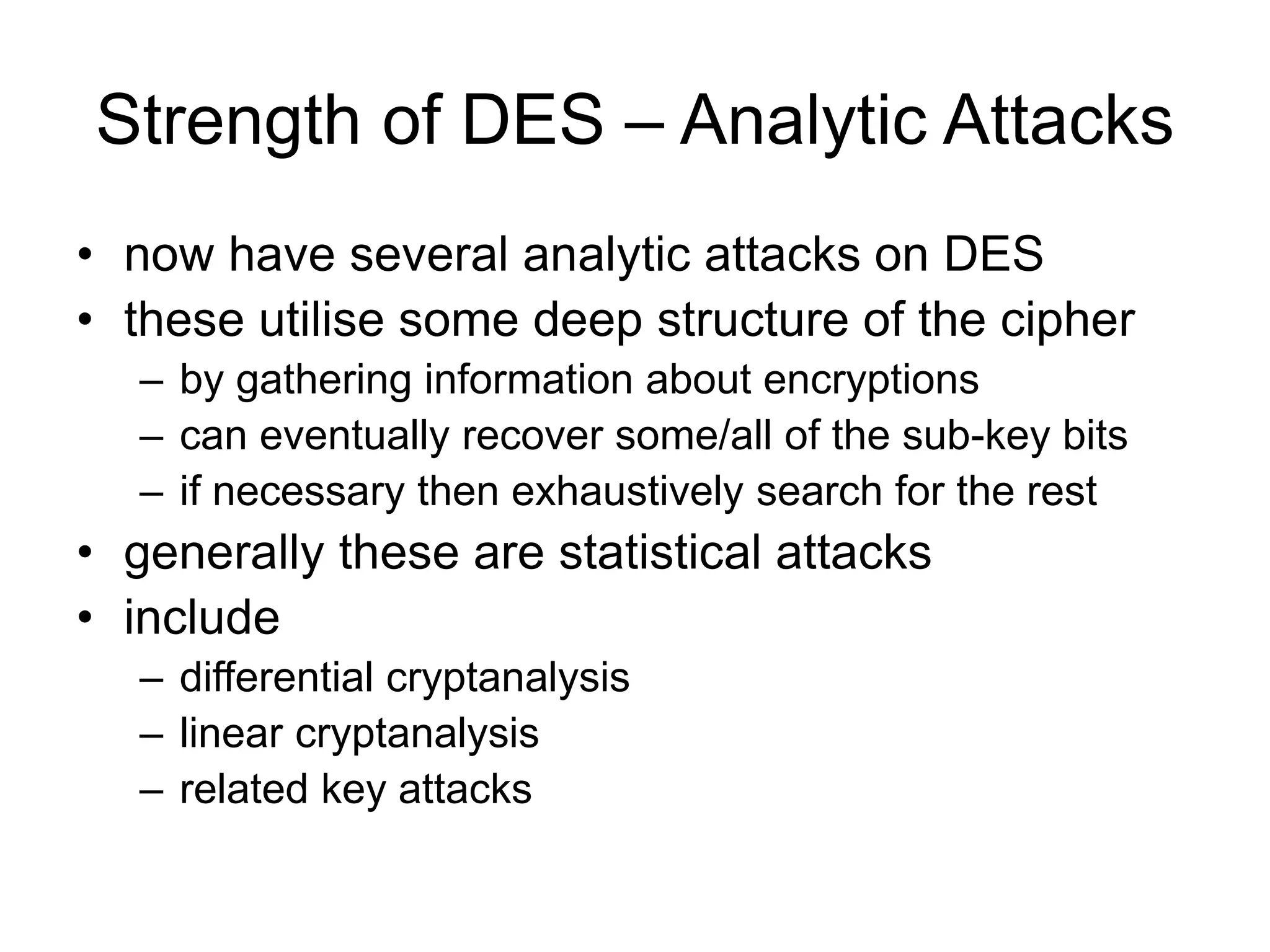

Strength of DES – Analytic Attacks
• now have several analytic attacks on DES
• these utilise some deep structure of the cipher
– by gathering information about encryptions
– can eventually recover some/all of the sub-key bits
– if necessary then exhaustively search for the rest
• generally these are statistical attacks
• include
– differential cryptanalysis
– linear cryptanalysis
– related key attacks

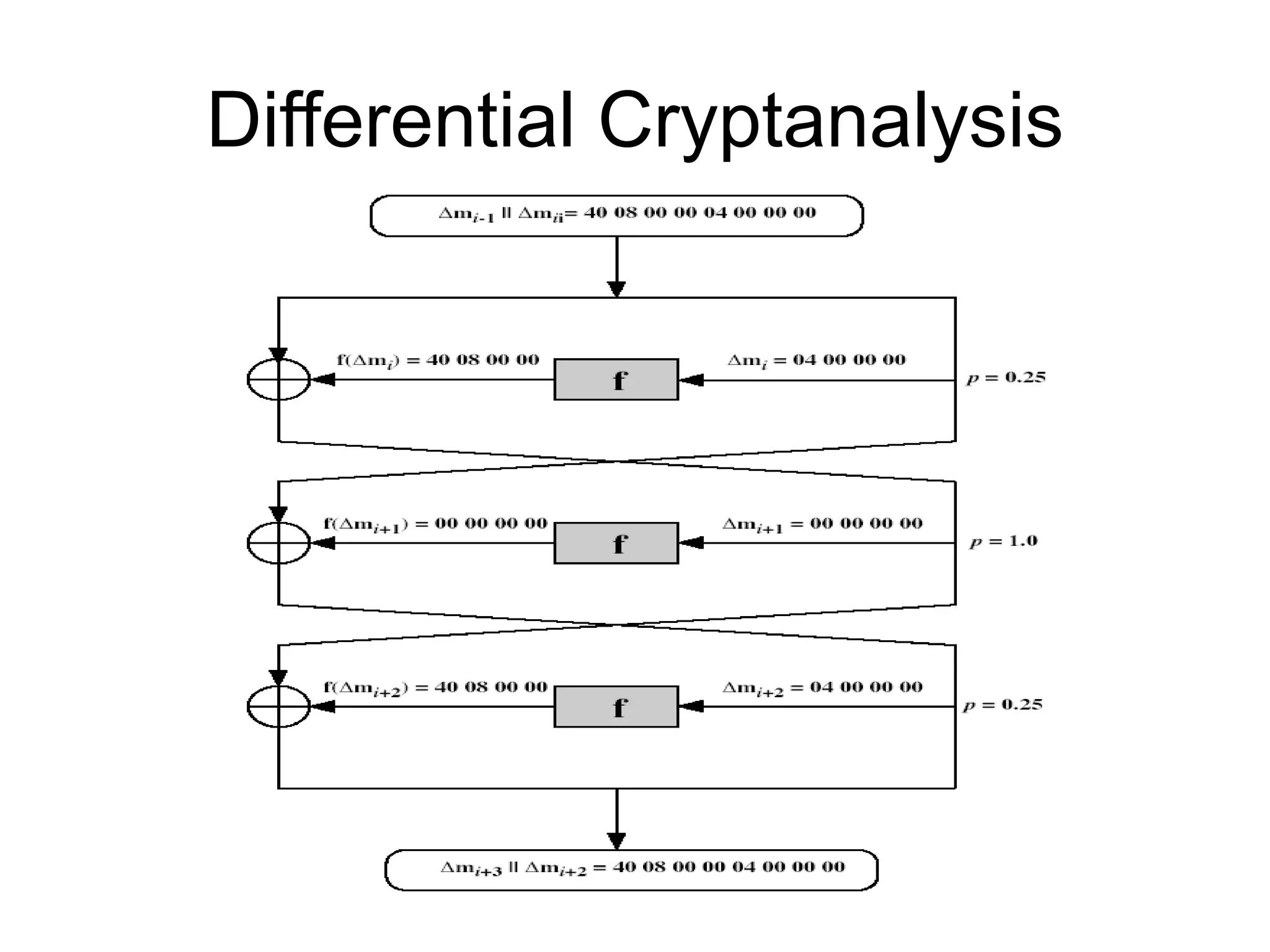

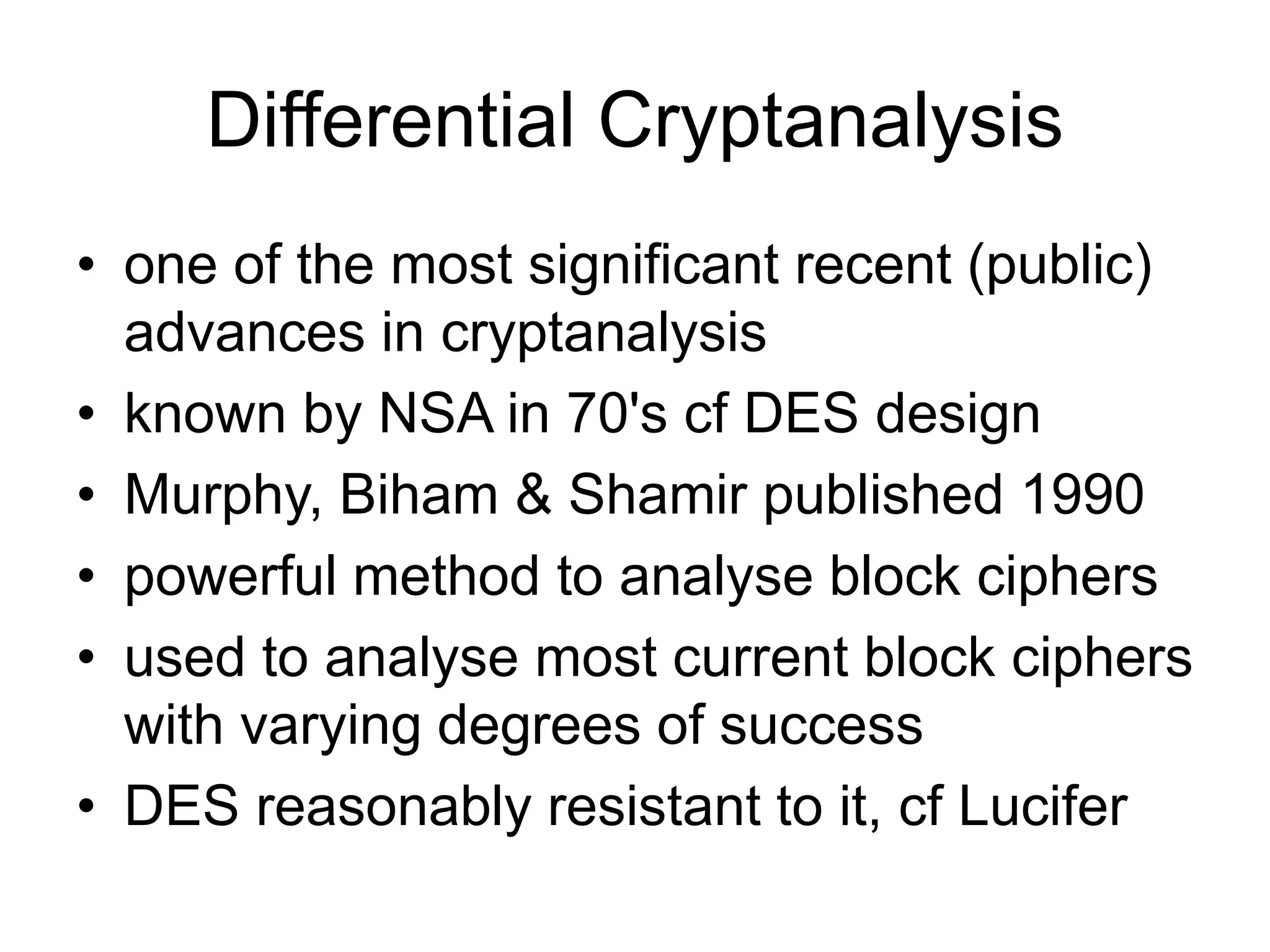

Differential Cryptanalysis
• one of the most significant recent (public)
advances in cryptanalysis
• known by NSA in 70's cf DES design
• Murphy, Biham & Shamir published 1990
• powerful method to analyse block ciphers
• used to analyse most current block ciphers
with varying degrees of success
• DES reasonably resistant to it, cf Lucifer

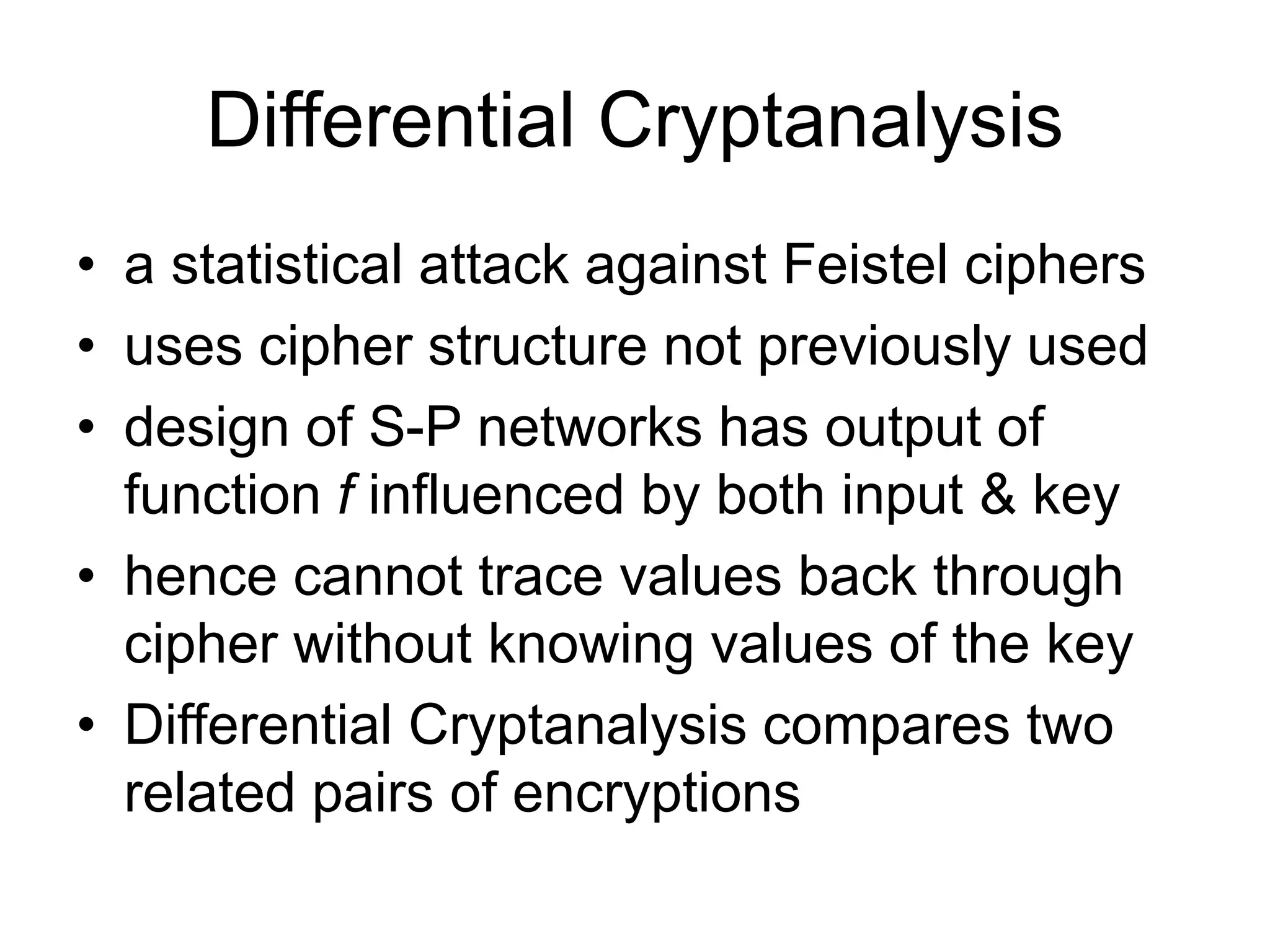

• a statistical attack against Feistel ciphers
• uses cipher structure not previously used
• design of S-P networks has output of
function f influenced by both input & key
• hence cannot trace values back through
cipher without knowing values of the key
• Differential Cryptanalysis compares two
related pairs of encryptions

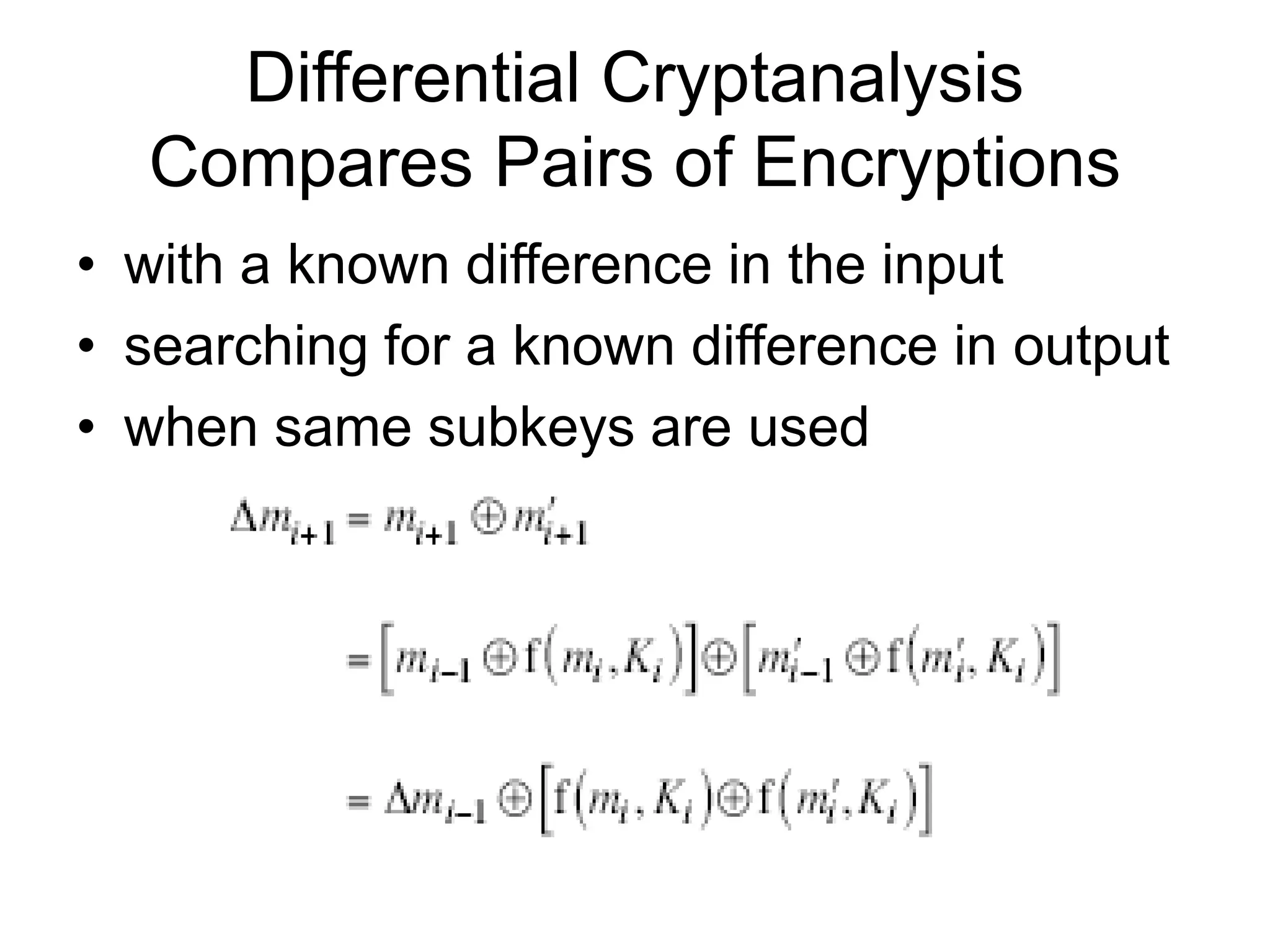

Compares Pairs of Encryptions
• with a known difference in the input
• searching for a known difference in output
• when same subkeys are used

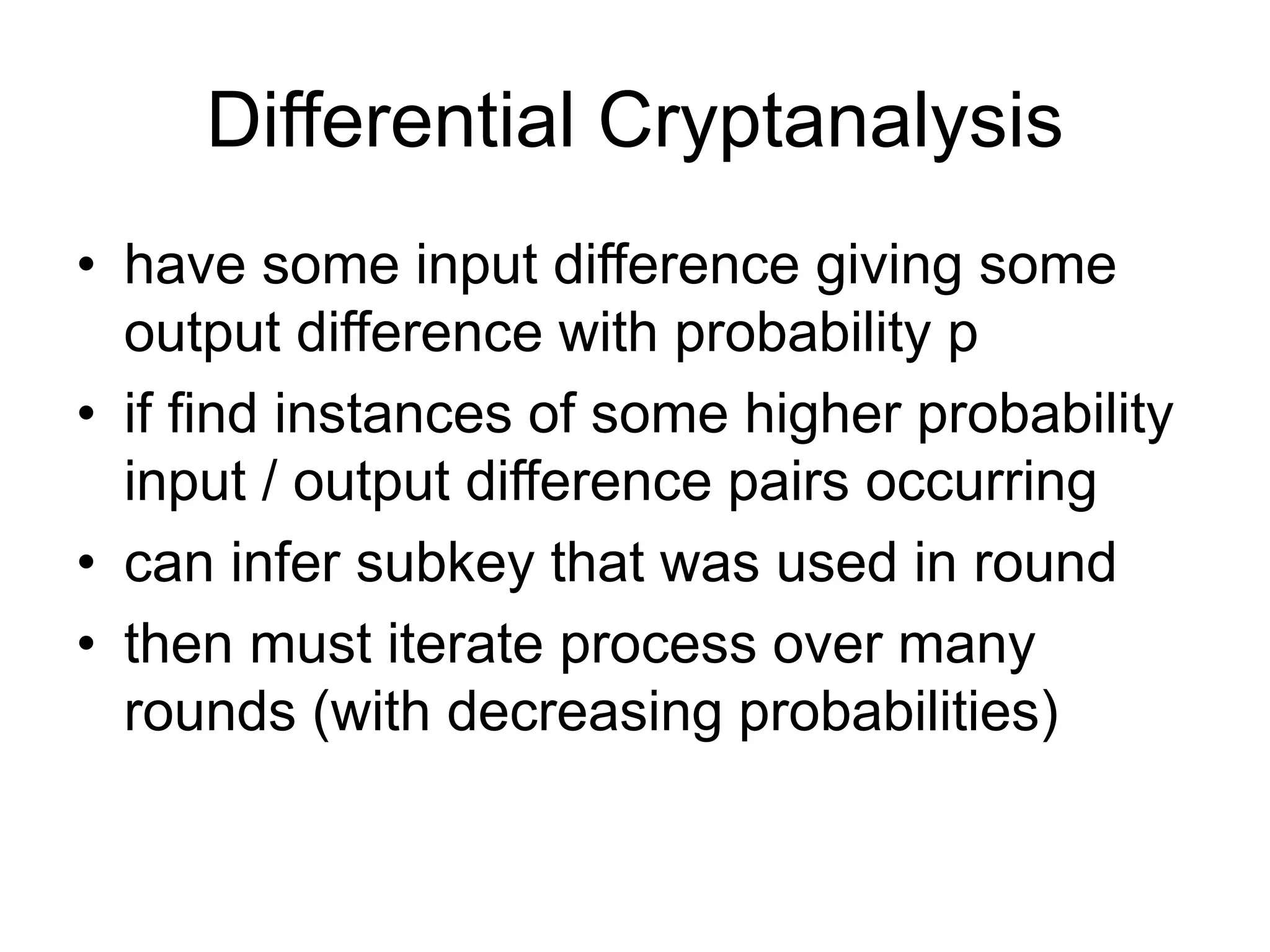

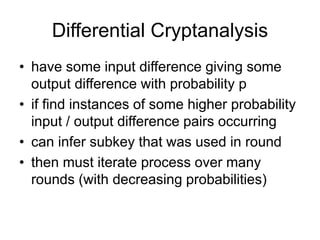

• have some input difference giving some
output difference with probability p
• if find instances of some higher probability
input / output difference pairs occurring
• can infer subkey that was used in round
• then must iterate process over many
rounds (with decreasing probabilities)

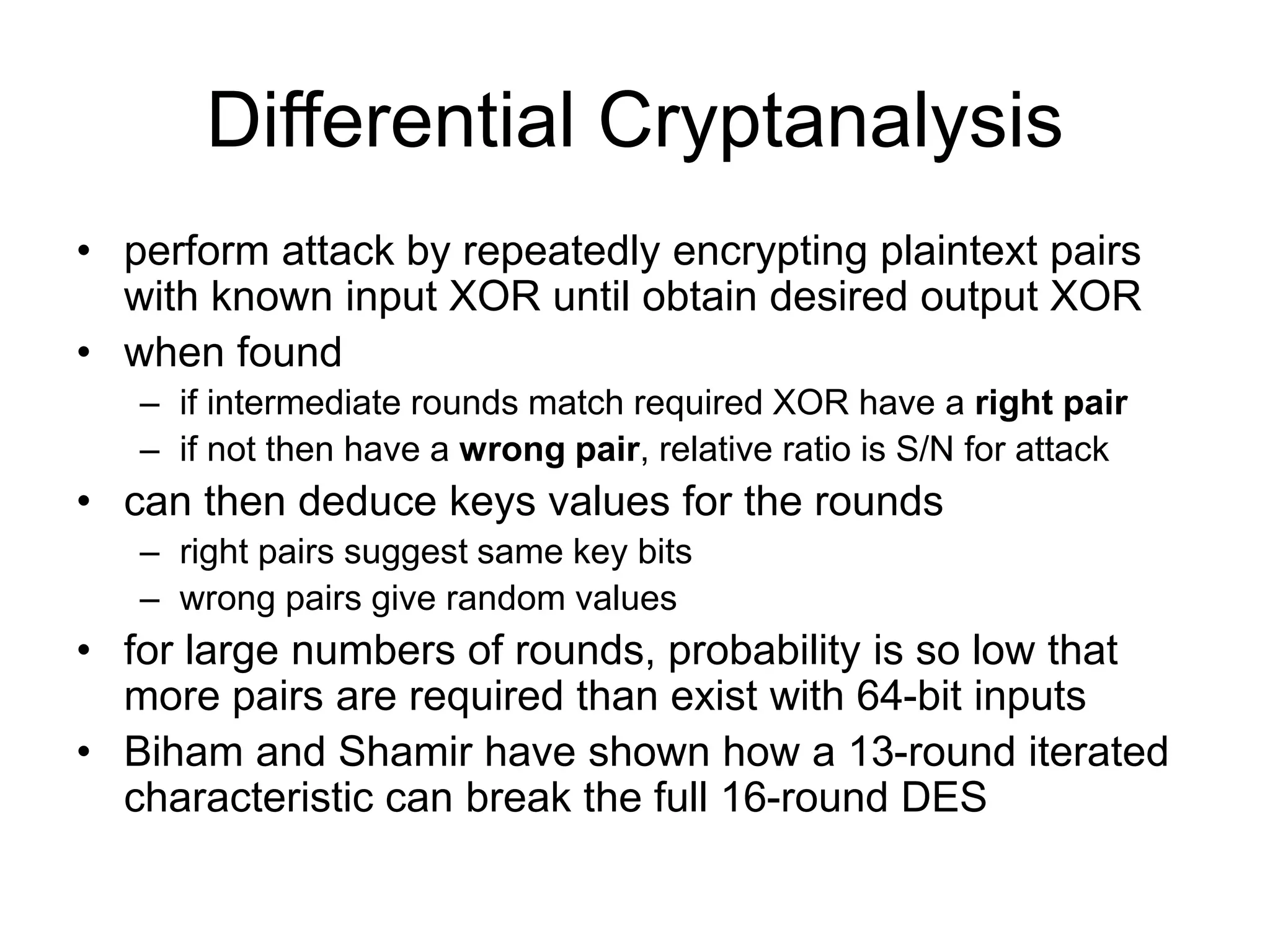

• perform attack by repeatedly encrypting plaintext pairs
with known input XOR until obtain desired output XOR
• when found
– if intermediate rounds match required XOR have a right pair
– if not then have a wrong pair, relative ratio is S/N for attack
• can then deduce keys values for the rounds
– right pairs suggest same key bits
– wrong pairs give random values
• for large numbers of rounds, probability is so low that
more pairs are required than exist with 64-bit inputs
• Biham and Shamir have shown how a 13-round iterated
characteristic can break the full 16-round DES

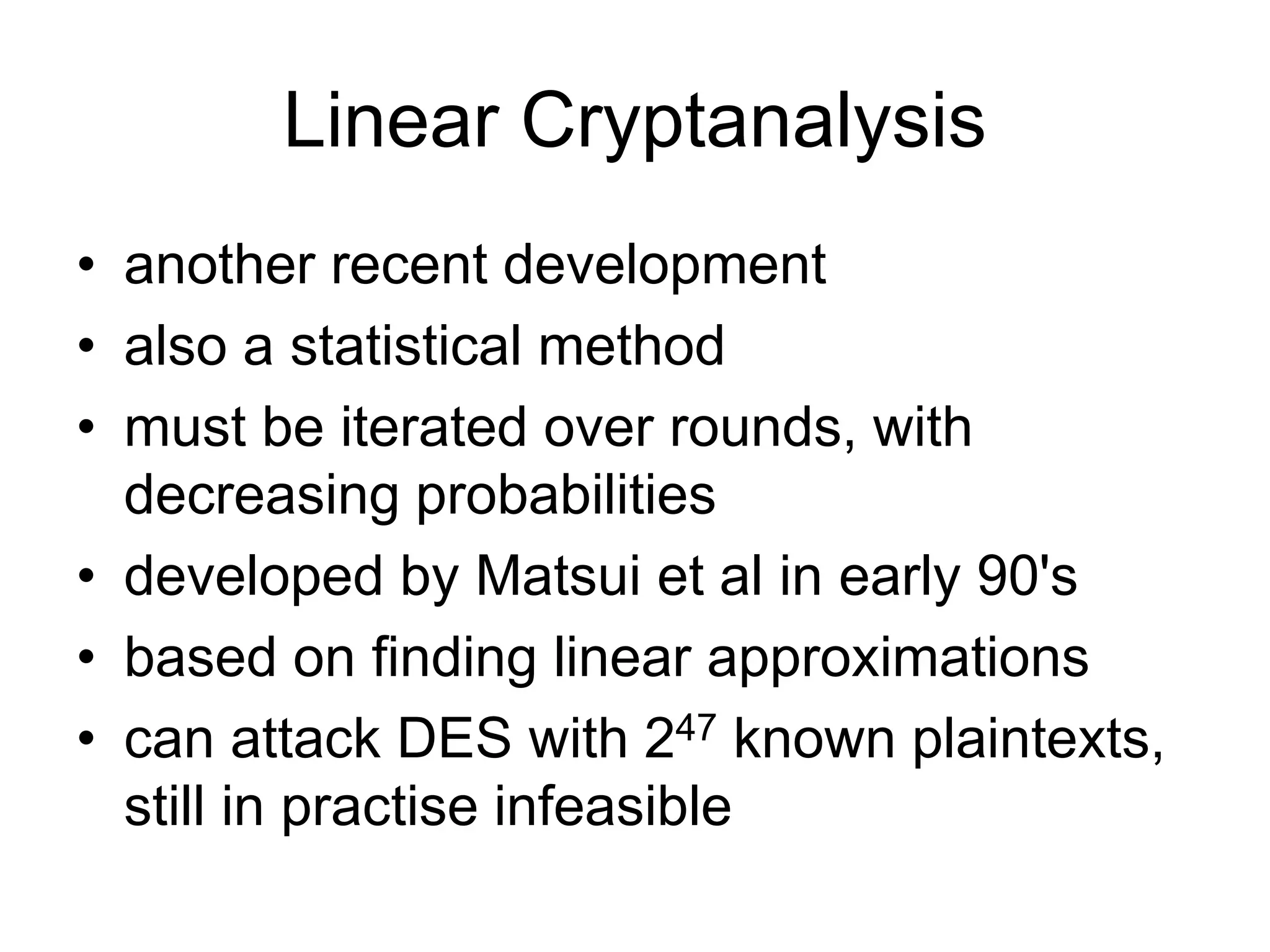

Linear Cryptanalysis
• another recent development
• also a statistical method
• must be iterated over rounds, with
decreasing probabilities
• developed by Matsui et al in early 90's
• based on finding linear approximations
• can attack DES with 247 known plaintexts,
still in practise infeasible

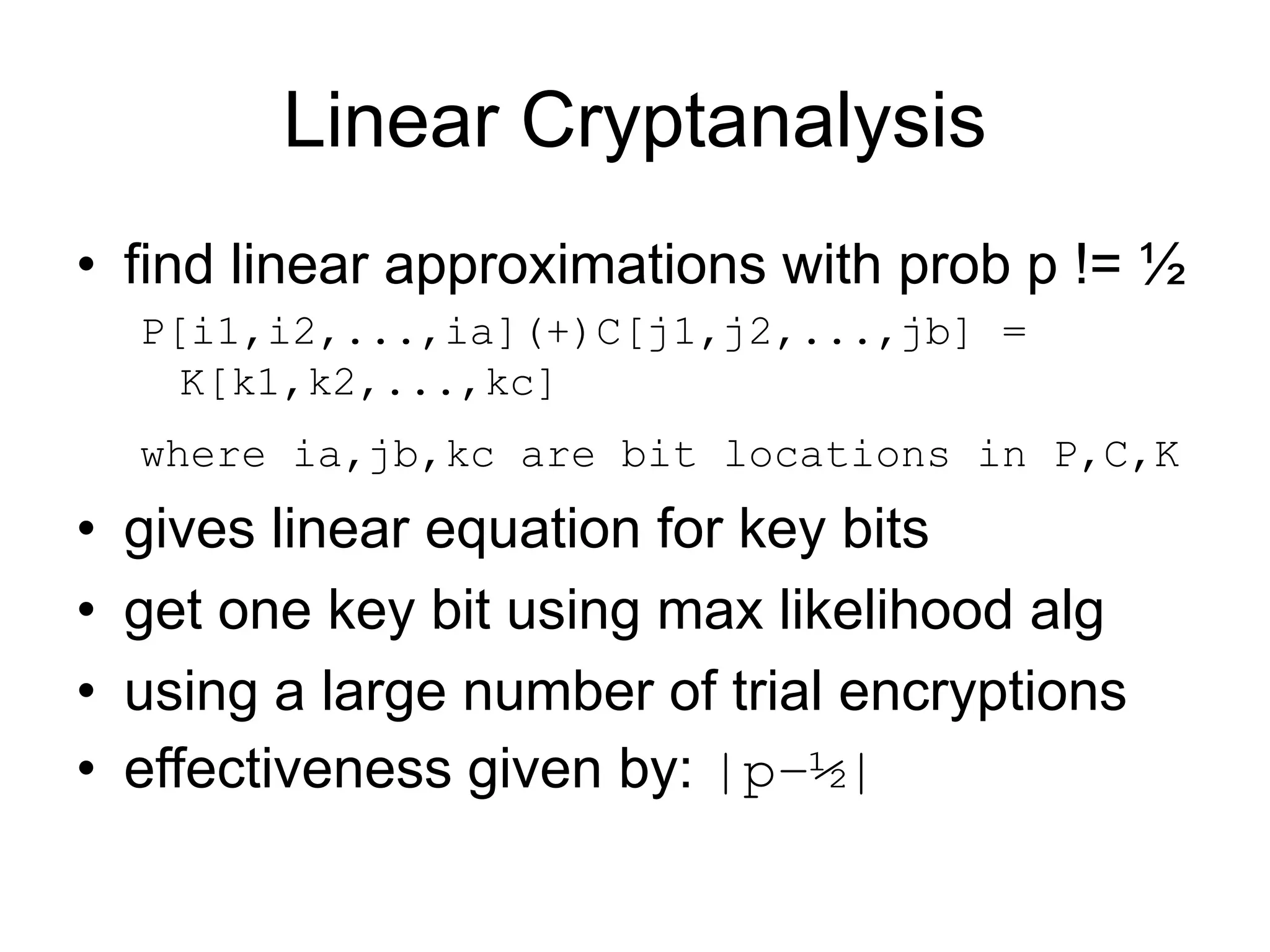

Linear Cryptanalysis
• find linear approximations with prob p != ½
P[i1,i2,...,ia](+)C[j1,j2,...,jb] =
K[k1,k2,...,kc]
where ia,jb,kc are bit locations in P,C,K
• gives linear equation for key bits
• get one key bit using max likelihood alg
• using a large number of trial encryptions
• effectiveness given by: |p–½|

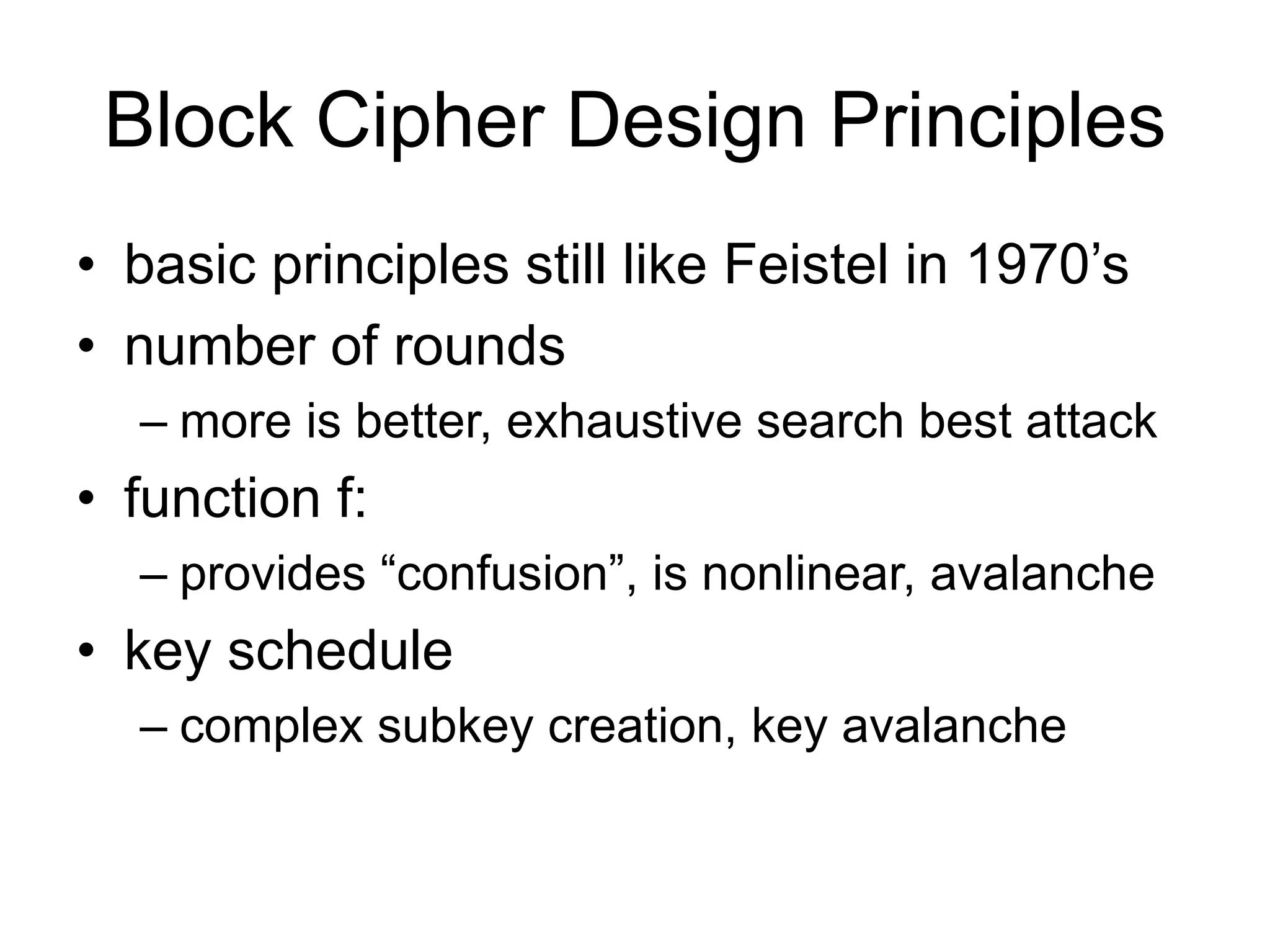

Block Cipher Design Principles
• basic principles still like Feistel in 1970’s
• number of rounds
– more is better, exhaustive search best attack
• function f:
– provides “confusion”, is nonlinear, avalanche
• key schedule
– complex subkey creation, key avalanche

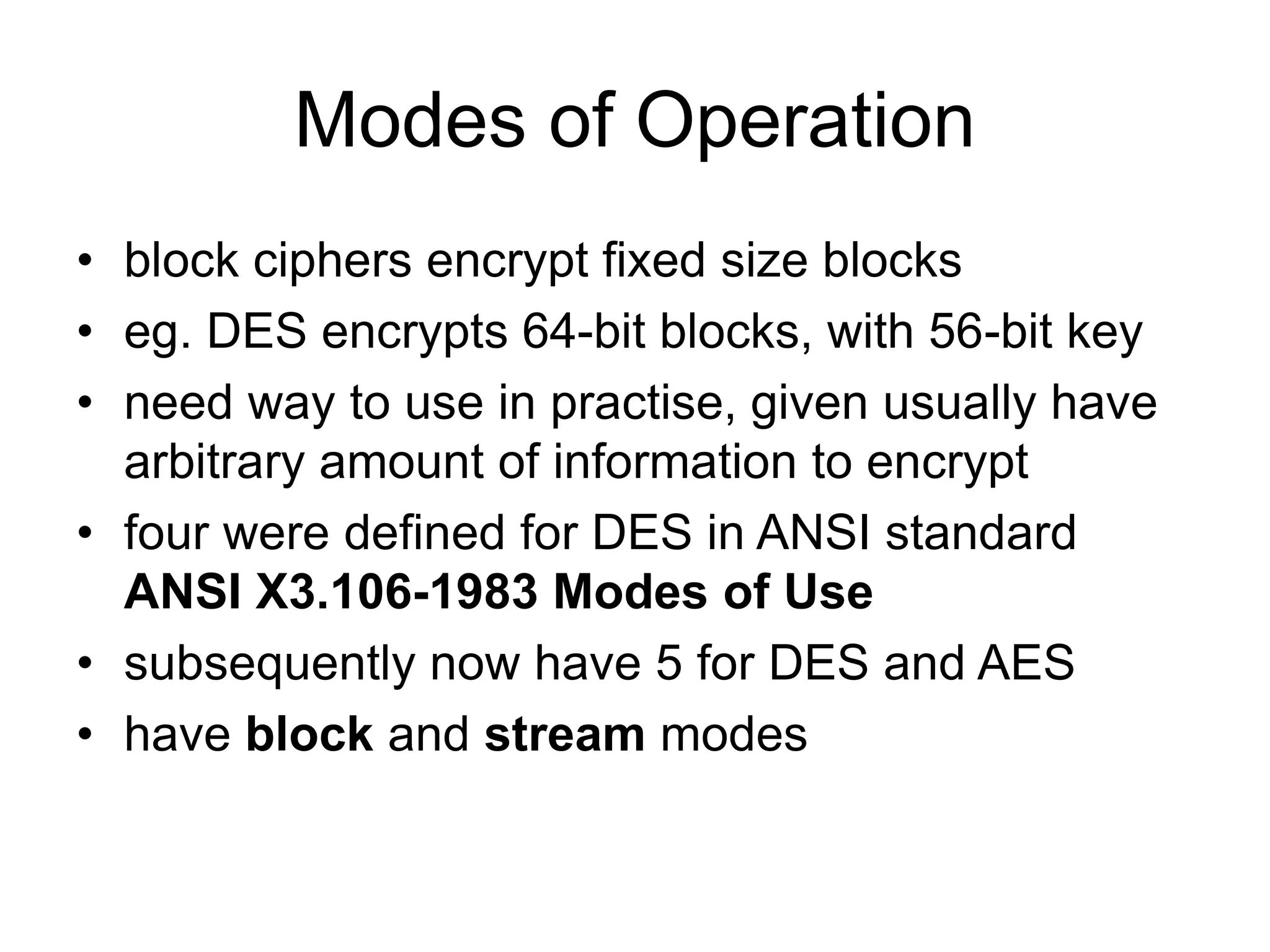

Modes of Operation
• block ciphers encrypt fixed size blocks
• eg. DES encrypts 64-bit blocks, with 56-bit key
• need way to use in practise, given usually have
arbitrary amount of information to encrypt
• four were defined for DES in ANSI standard
ANSI X3.106-1983 Modes of Use
• subsequently now have 5 for DES and AES
• have block and stream modes

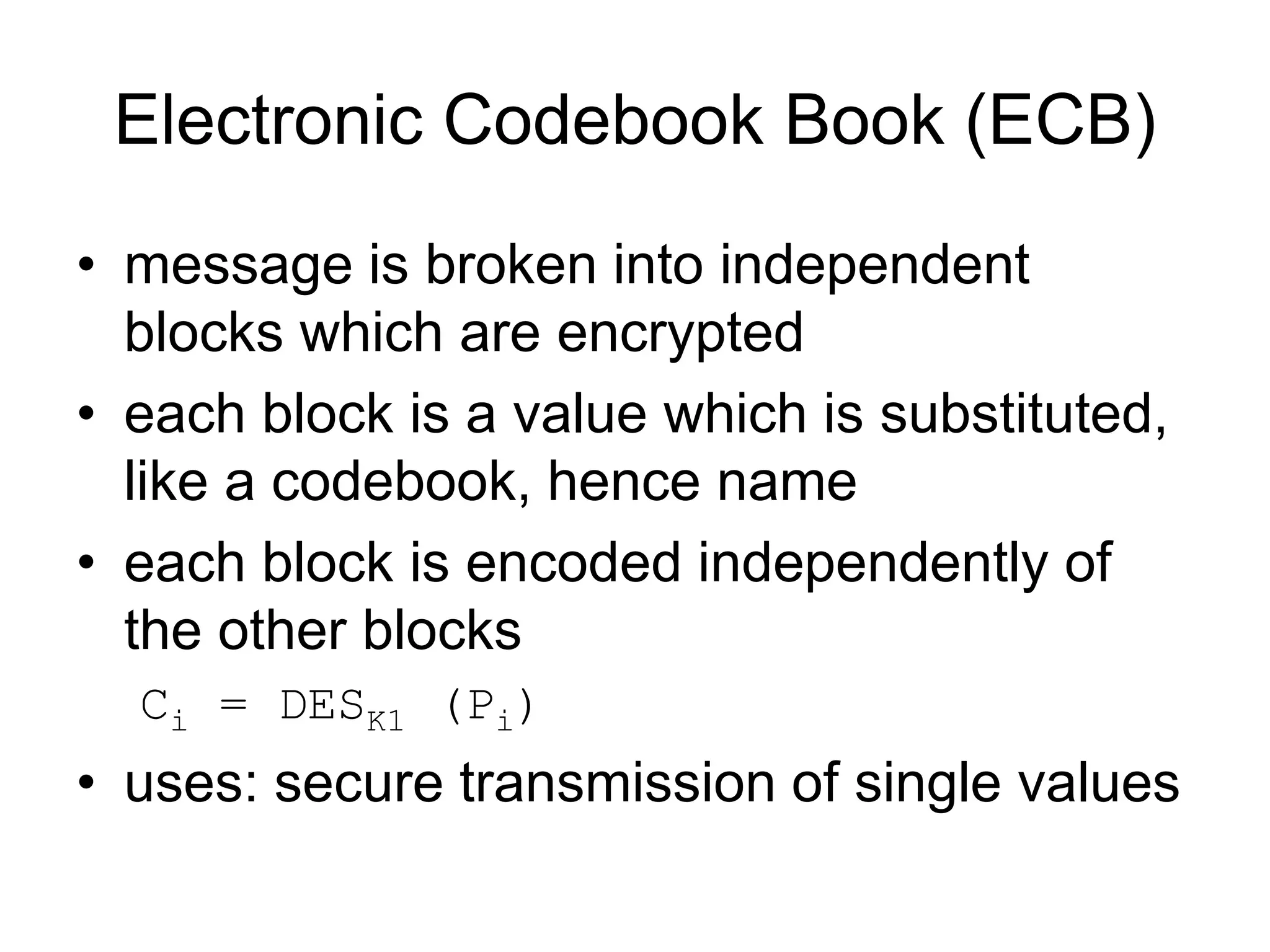

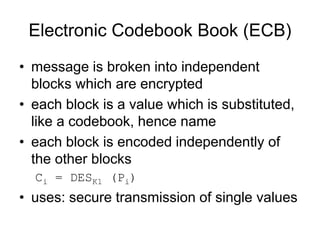

Electronic Codebook Book (ECB)
• message is broken into independent
blocks which are encrypted
• each block is a value which is substituted,
like a codebook, hence name
• each block is encoded independently of
the other blocks
Ci = DESK1 (Pi)
• uses: secure transmission of single values

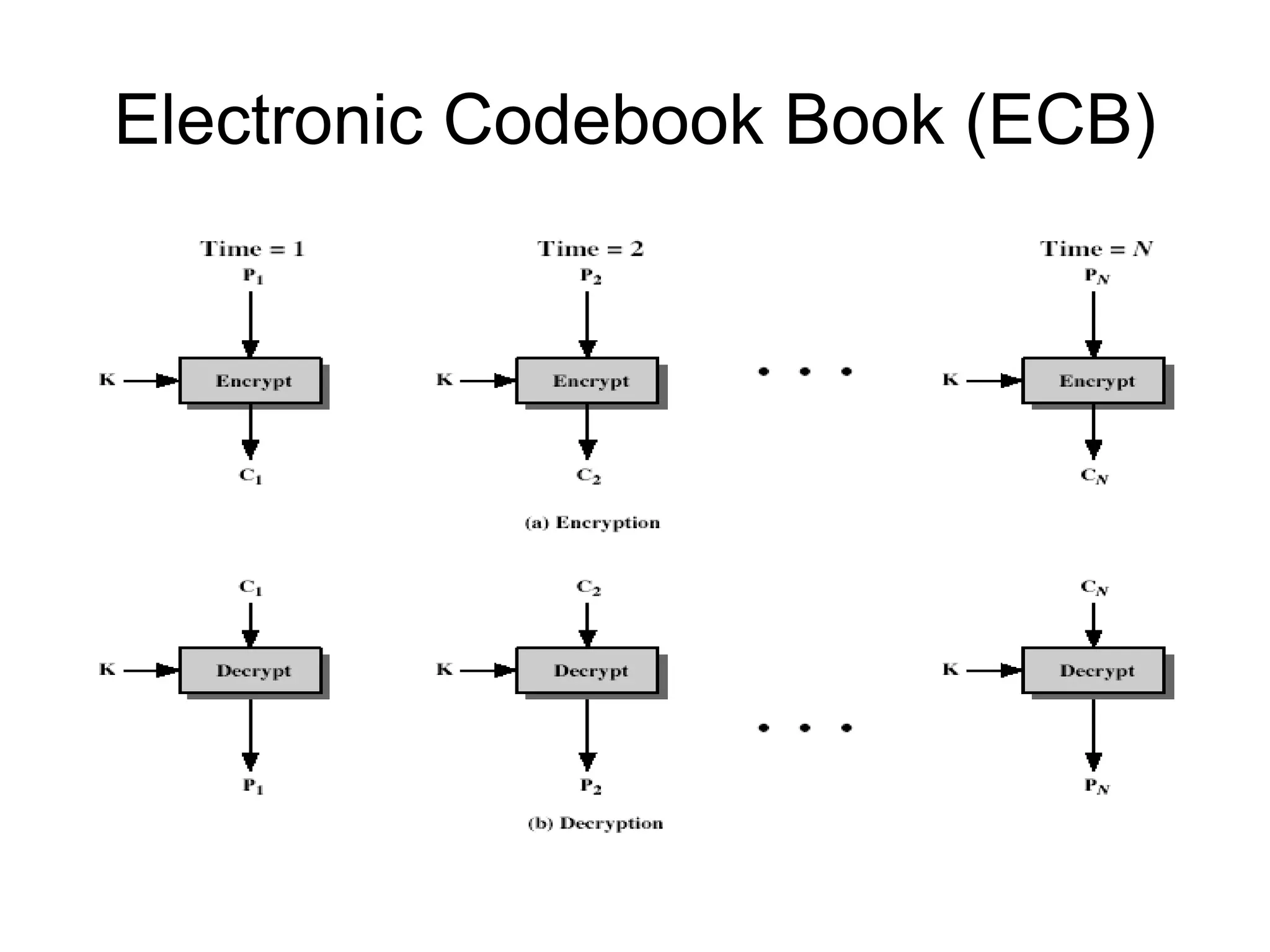

Electronic Codebook Book (ECB)

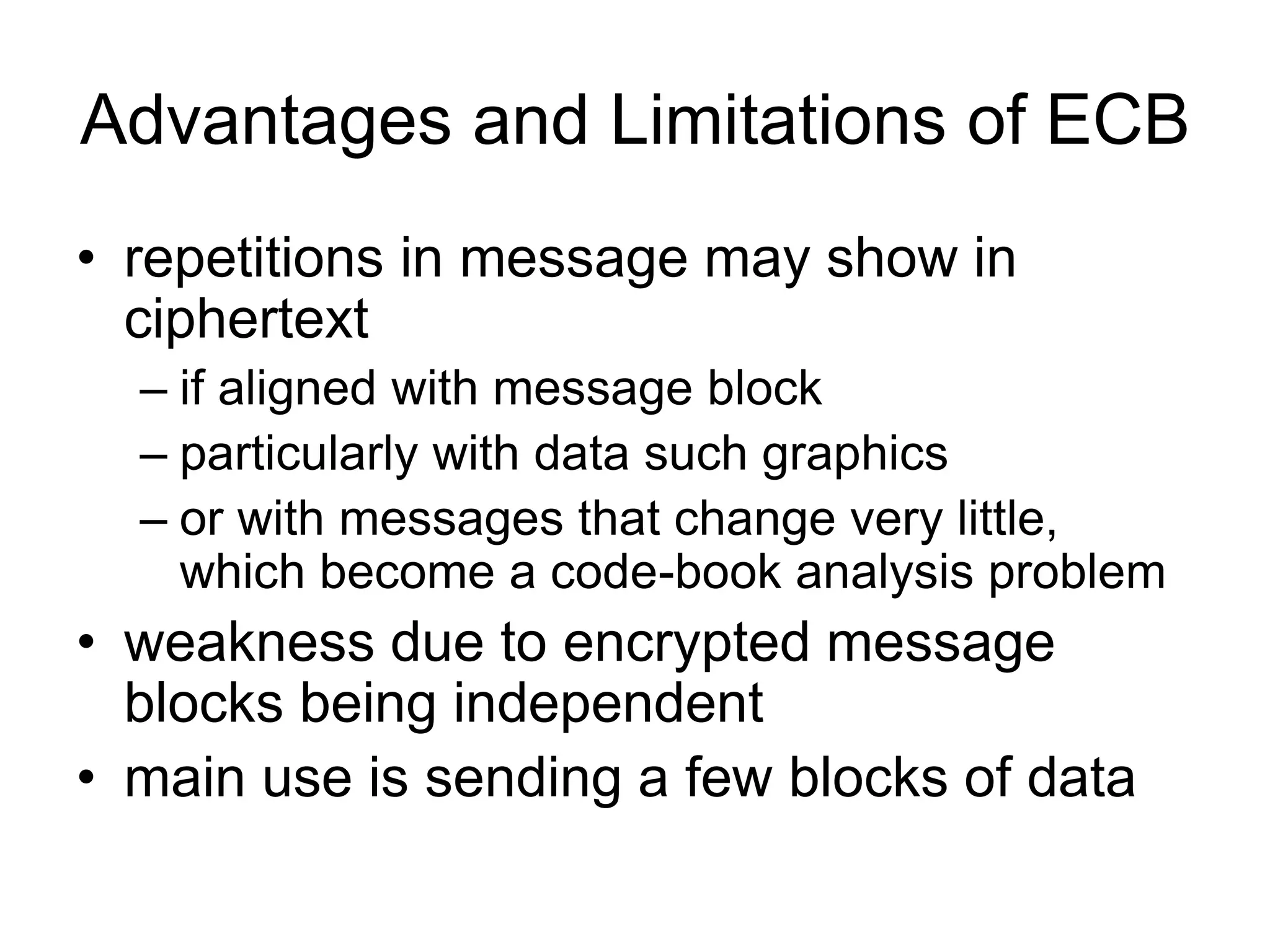

Advantages and Limitations of ECB
• repetitions in message may show in
ciphertext
– if aligned with message block
– particularly with data such graphics
– or with messages that change very little,
which become a code-book analysis problem
• weakness due to encrypted message
blocks being independent
• main use is sending a few blocks of data

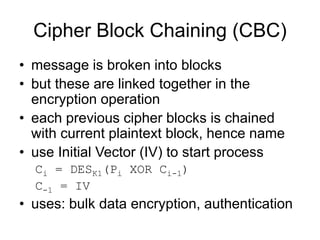

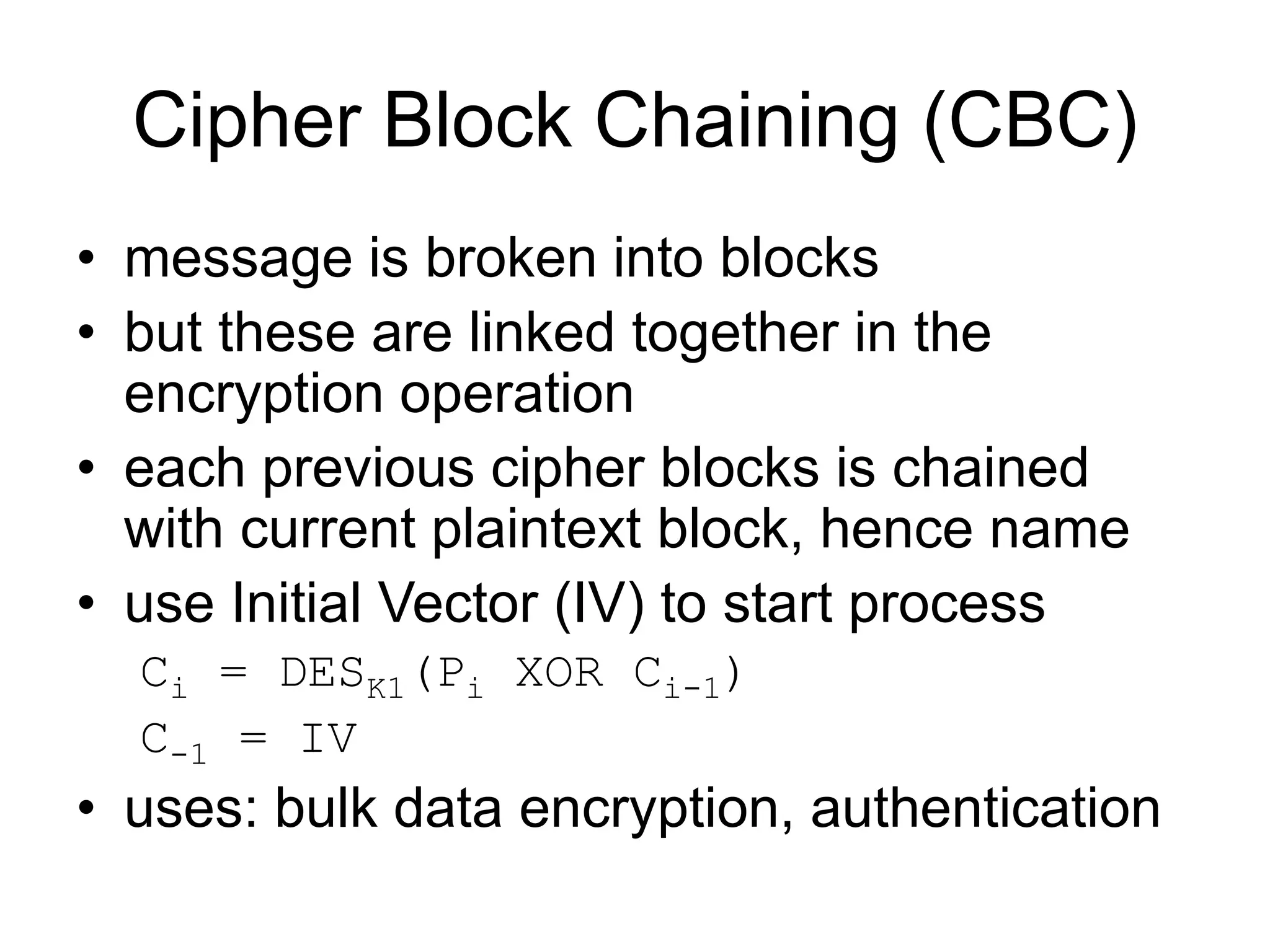

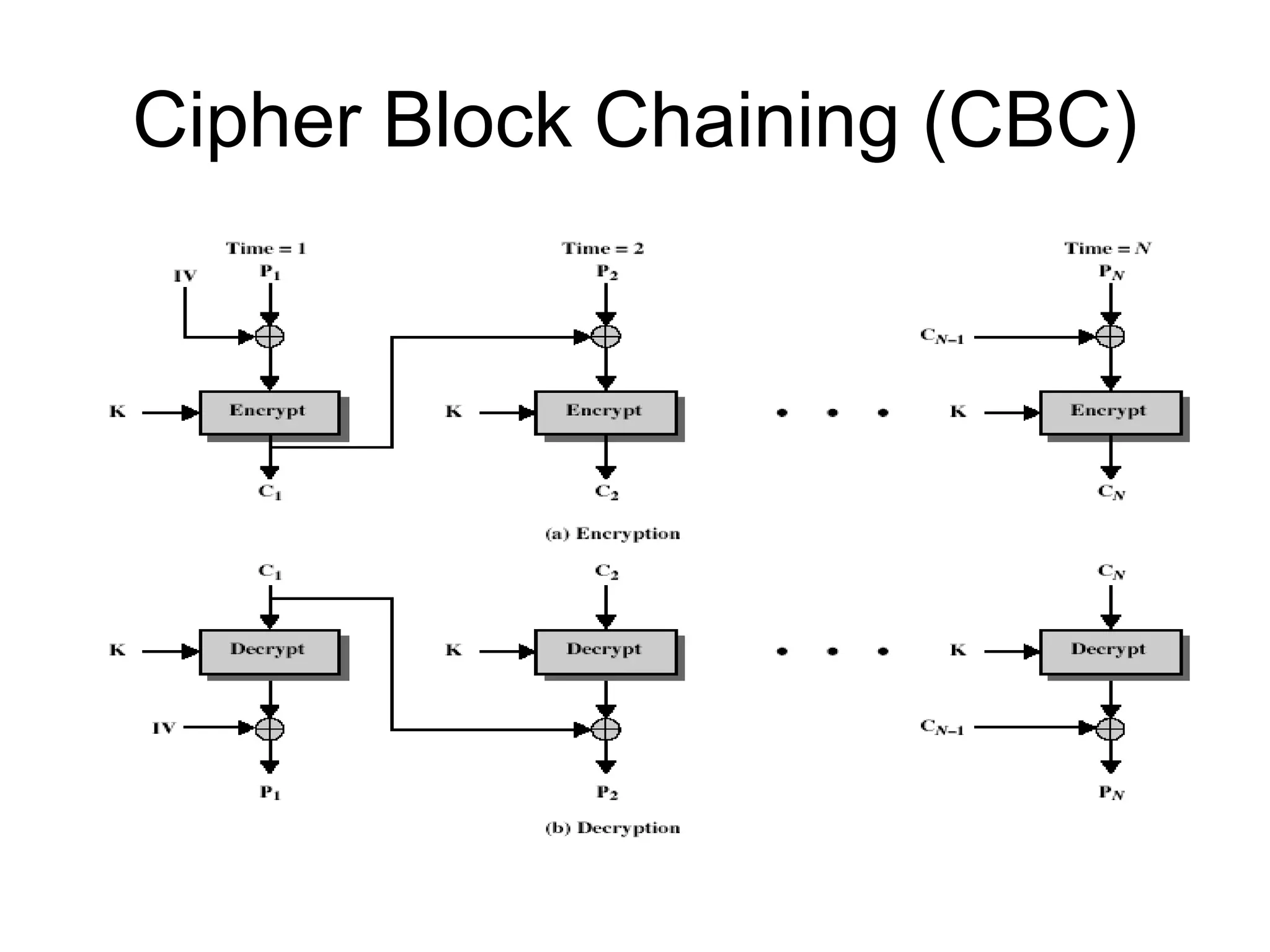

Cipher Block Chaining (CBC)
• message is broken into blocks
• but these are linked together in the
encryption operation
• each previous cipher blocks is chained
with current plaintext block, hence name
• use Initial Vector (IV) to start process
Ci = DESK1(Pi XOR Ci-1)
C-1 = IV
• uses: bulk data encryption, authentication

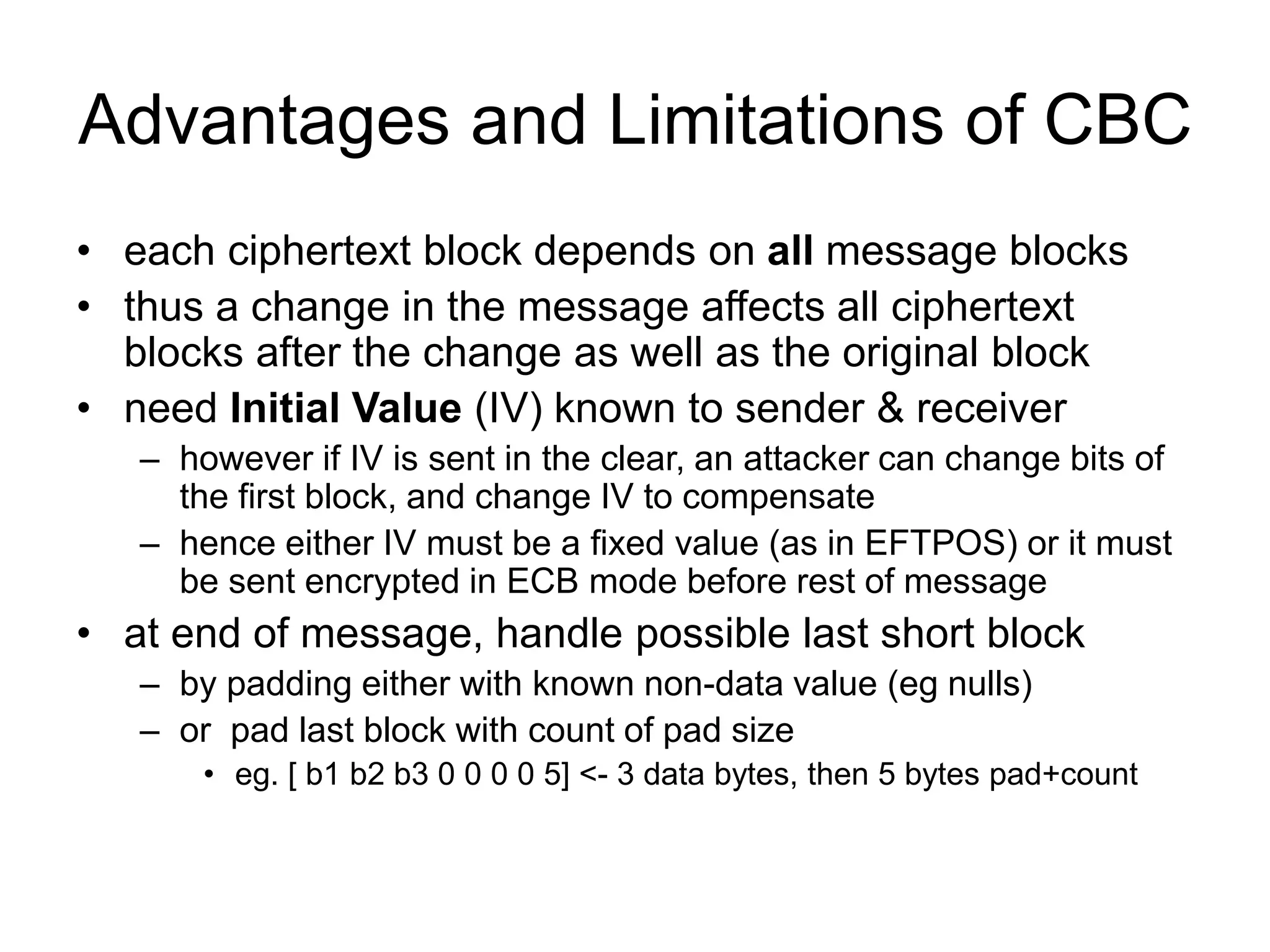

Advantages and Limitations of CBC
• each ciphertext block depends on all message blocks
• thus a change in the message affects all ciphertext
blocks after the change as well as the original block
• need Initial Value (IV) known to sender & receiver
– however if IV is sent in the clear, an attacker can change bits of
the first block, and change IV to compensate
– hence either IV must be a fixed value (as in EFTPOS) or it must
be sent encrypted in ECB mode before rest of message
• at end of message, handle possible last short block
– by padding either with known non-data value (eg nulls)
– or pad last block with count of pad size
• eg. [ b1 b2 b3 0 0 0 0 5] <- 3 data bytes, then 5 bytes pad+count

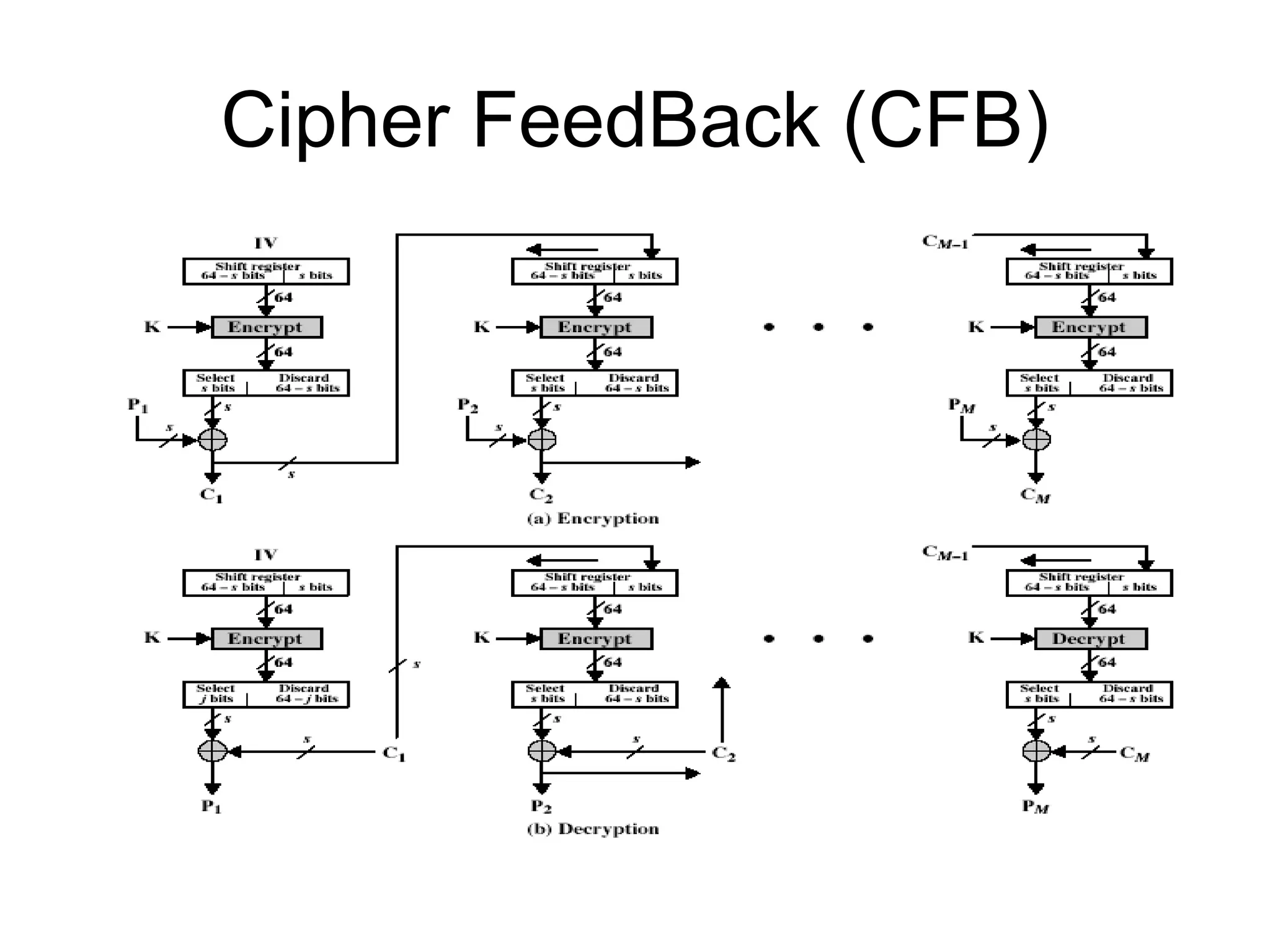

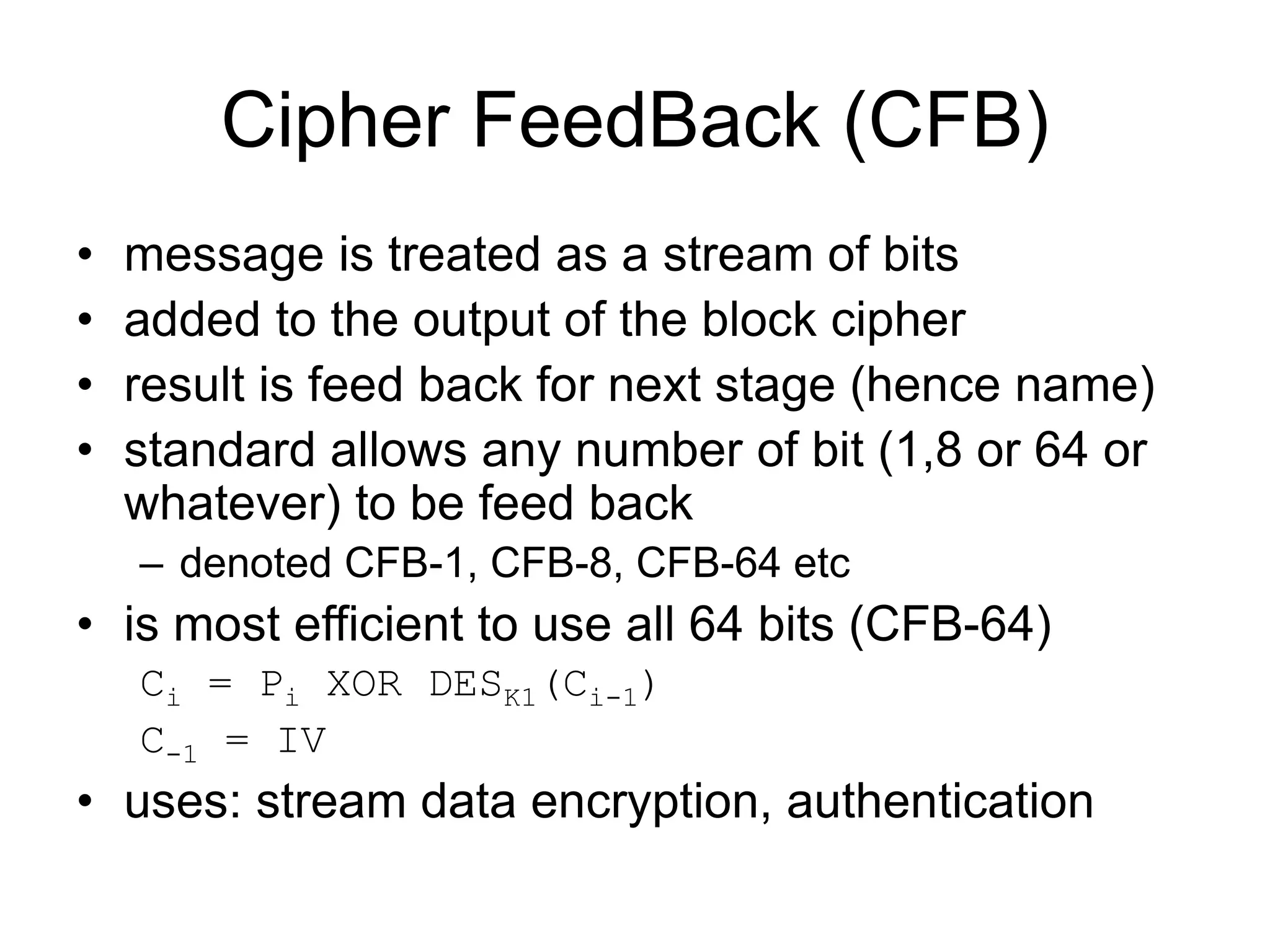

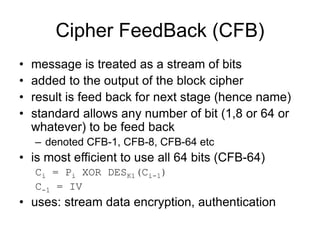

Cipher FeedBack (CFB)
• message is treated as a stream of bits
• added to the output of the block cipher
• result is feed back for next stage (hence name)
• standard allows any number of bit (1,8 or 64 or
whatever) to be feed back
– denoted CFB-1, CFB-8, CFB-64 etc
• is most efficient to use all 64 bits (CFB-64)
Ci = Pi XOR DESK1(Ci-1)
C-1 = IV
• uses: stream data encryption, authentication

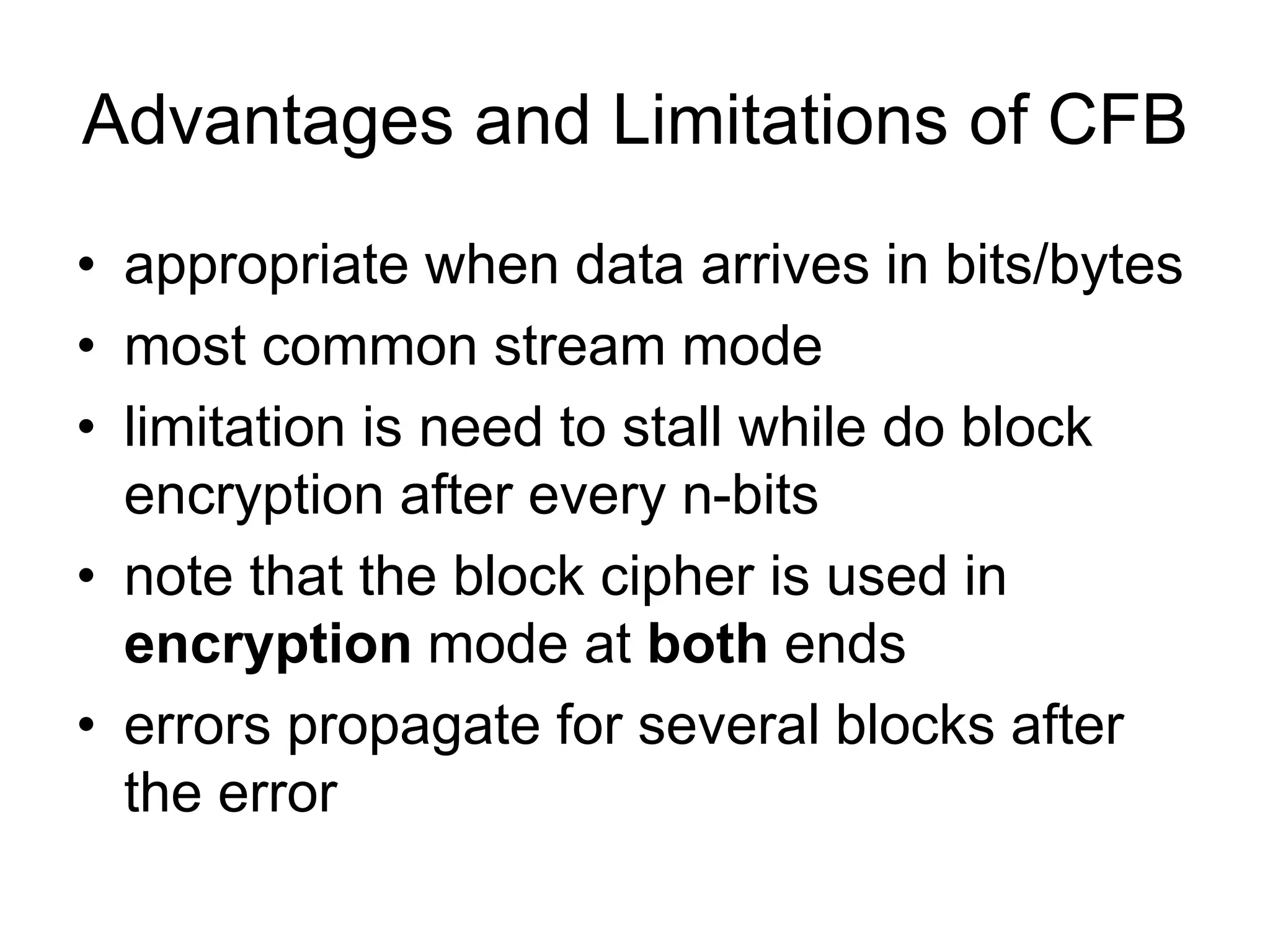

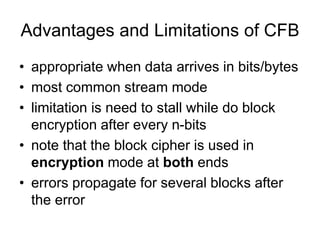

Advantages and Limitations of CFB
• appropriate when data arrives in bits/bytes
• most common stream mode
• limitation is need to stall while do block
encryption after every n-bits
• note that the block cipher is used in
encryption mode at both ends
• errors propagate for several blocks after
the error

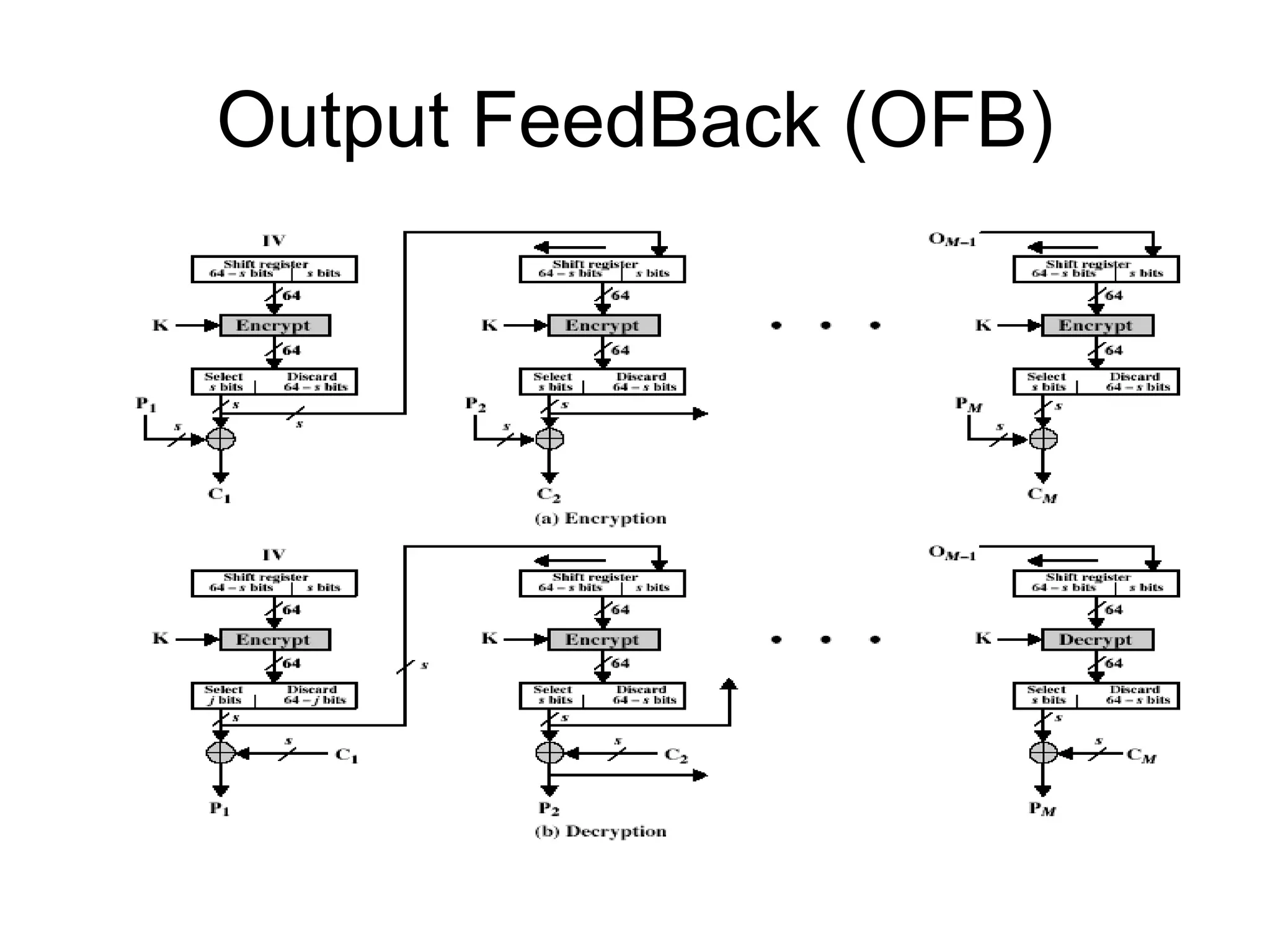

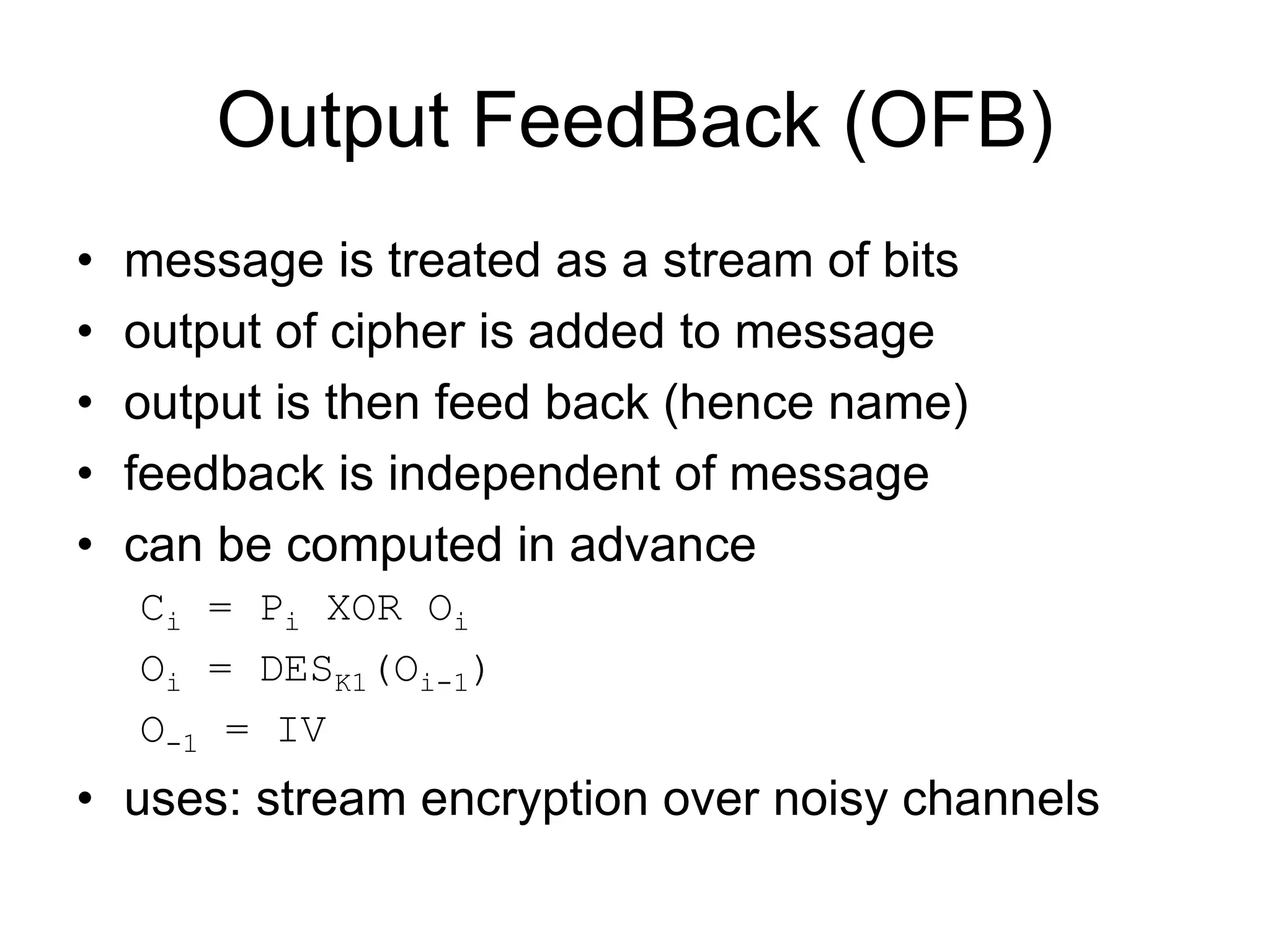

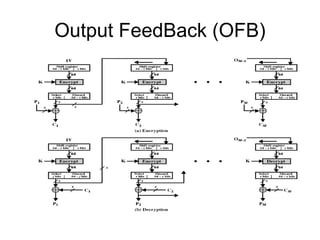

Output FeedBack (OFB)
• message is treated as a stream of bits
• output of cipher is added to message
• output is then feed back (hence name)
• feedback is independent of message
• can be computed in advance
Ci = Pi XOR Oi
Oi = DESK1(Oi-1)
O-1 = IV
• uses: stream encryption over noisy channels

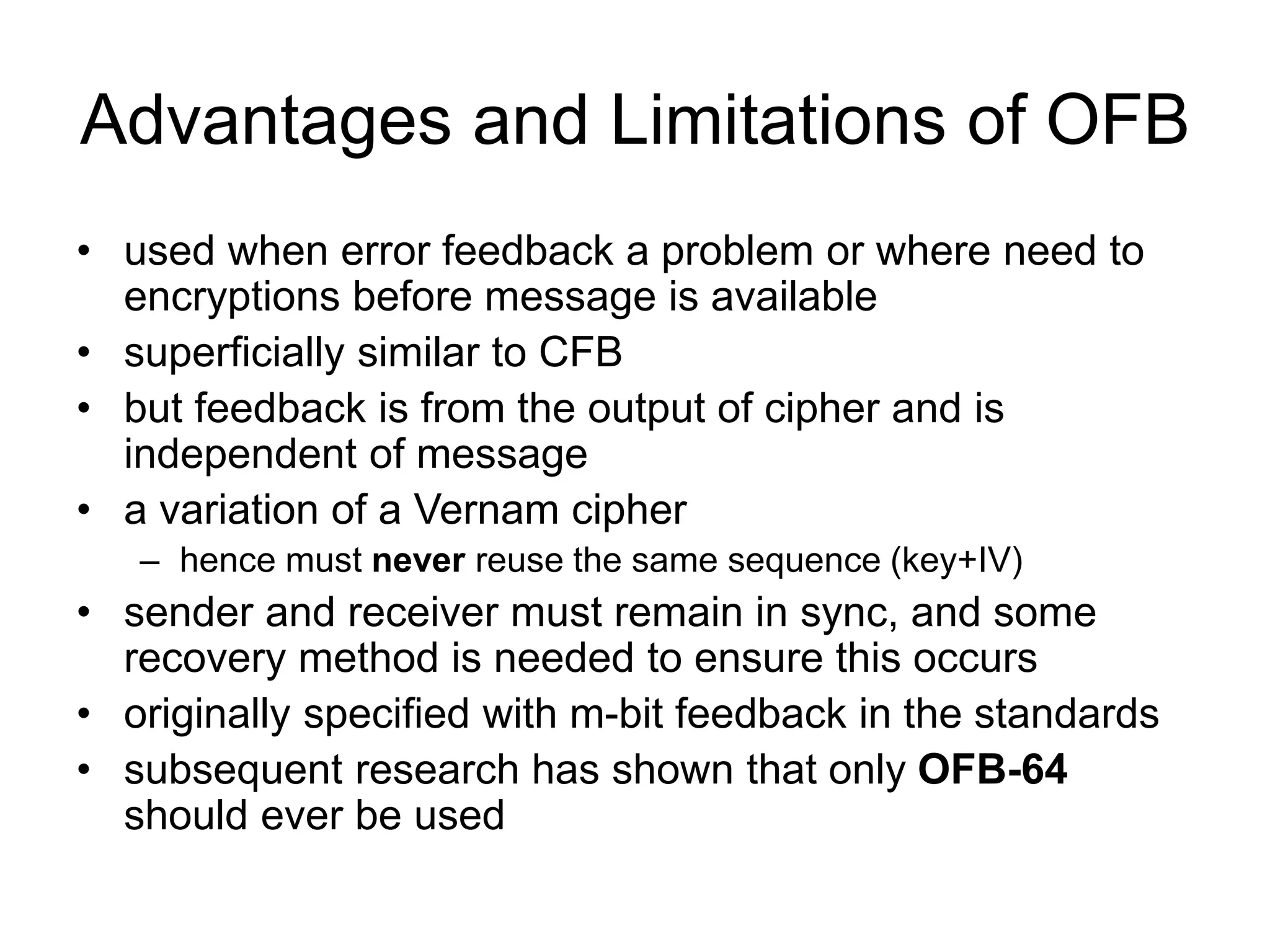

Advantages and Limitations of OFB
• used when error feedback a problem or where need to
encryptions before message is available
• superficially similar to CFB
• but feedback is from the output of cipher and is
independent of message
• a variation of a Vernam cipher
– hence must never reuse the same sequence (key+IV)
• sender and receiver must remain in sync, and some
recovery method is needed to ensure this occurs
• originally specified with m-bit feedback in the standards
• subsequent research has shown that only OFB-64
should ever be used

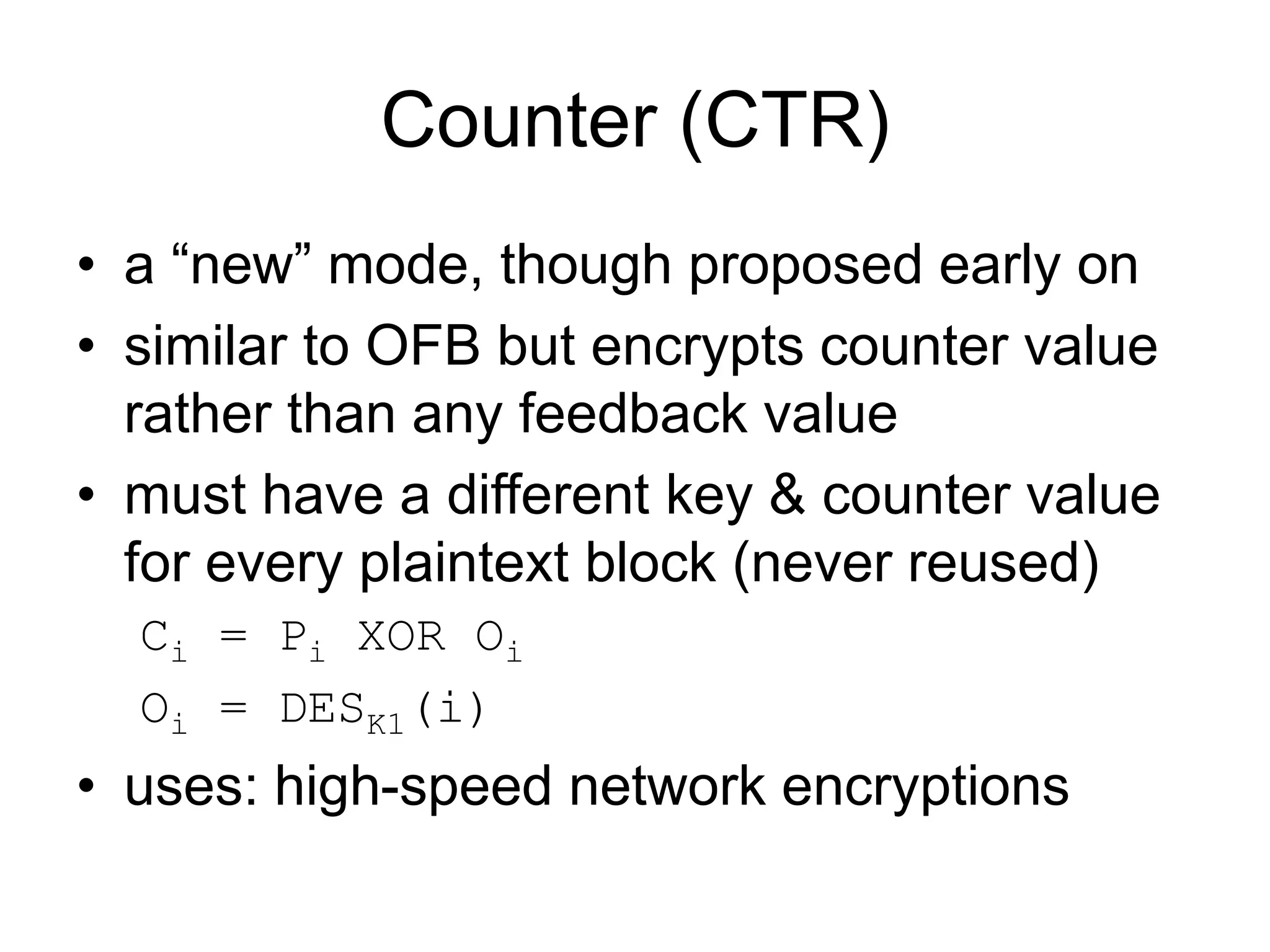

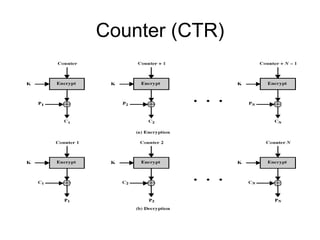

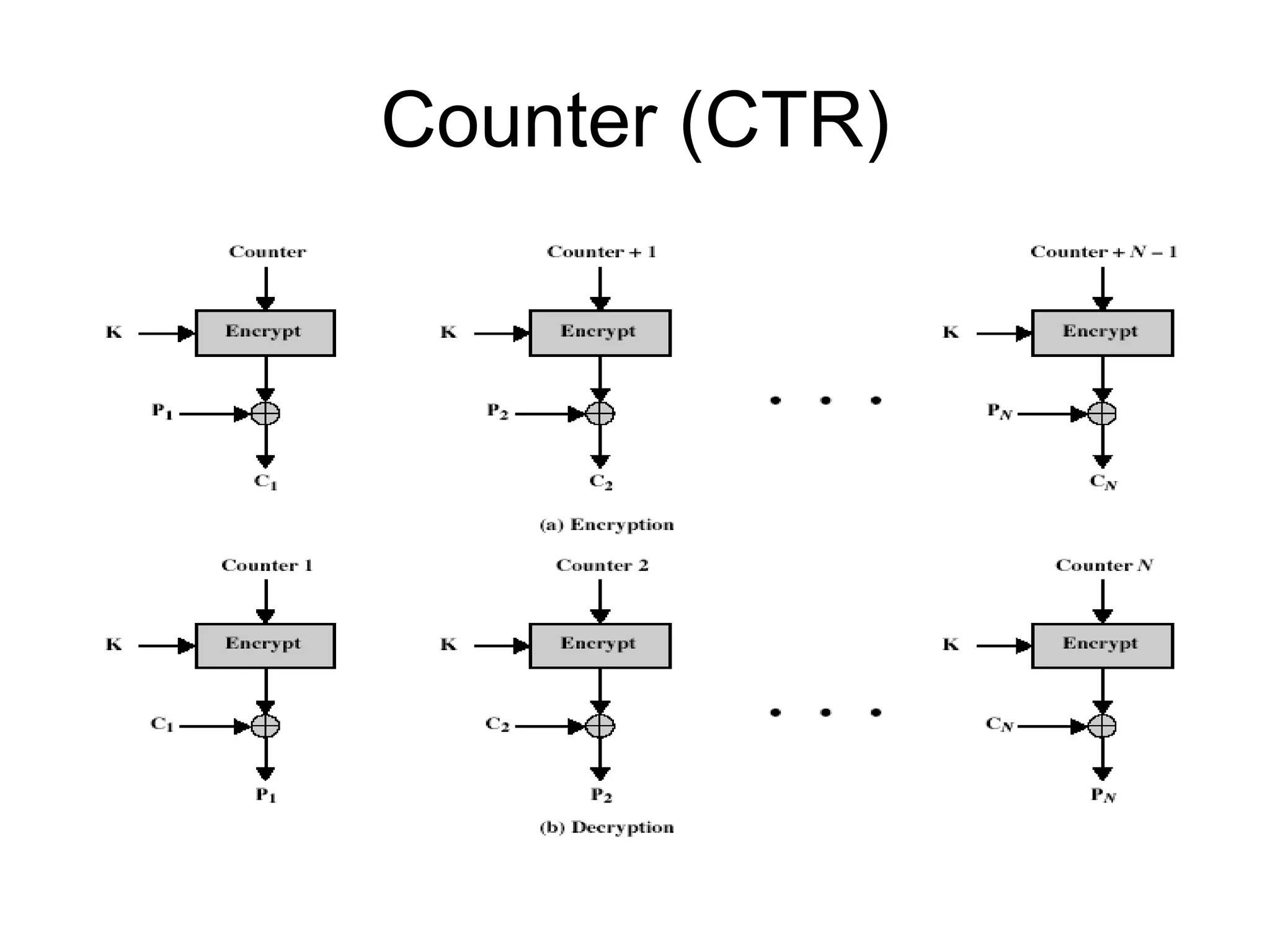

Counter (CTR)
• a “new” mode, though proposed early on
• similar to OFB but encrypts counter value
rather than any feedback value
• must have a different key & counter value
for every plaintext block (never reused)
Ci = Pi XOR Oi
Oi = DESK1(i)
• uses: high-speed network encryptions

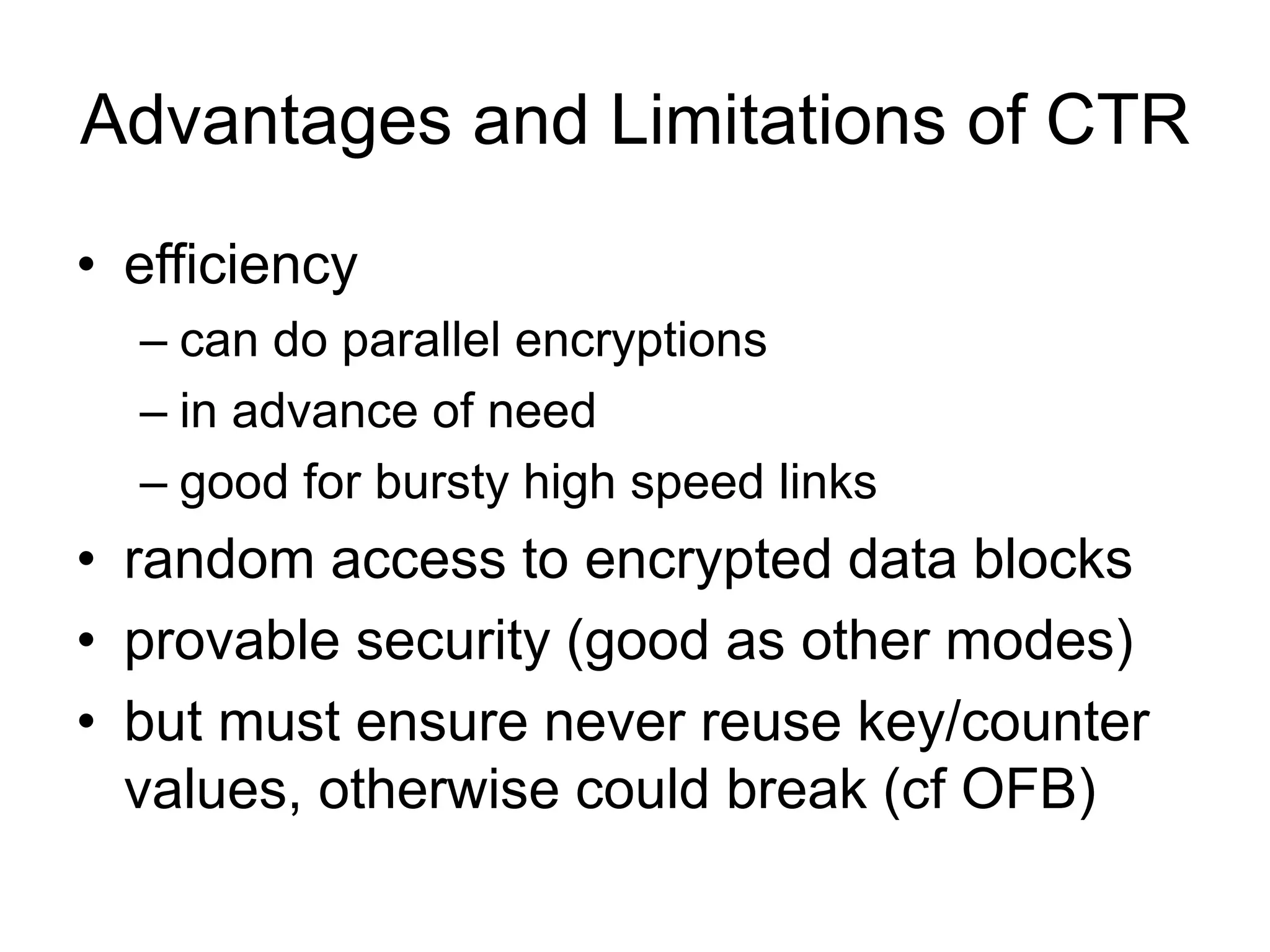

Advantages and Limitations of CTR
• efficiency
– can do parallel encryptions
– in advance of need
– good for bursty high speed links
• random access to encrypted data blocks
• provable security (good as other modes)
• but must ensure never reuse key/counter
values, otherwise could break (cf OFB)

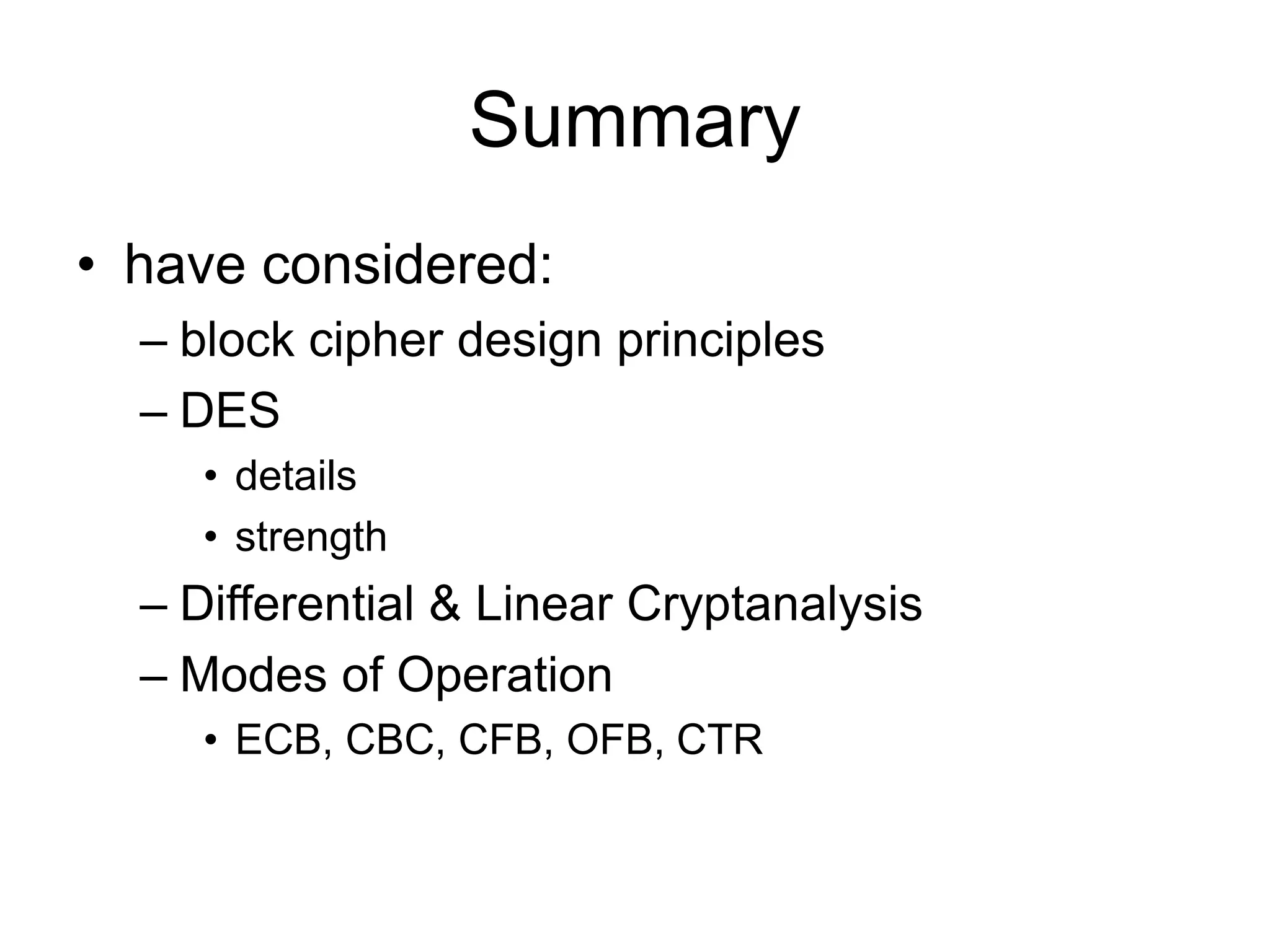

Summary
• have considered:
– block cipher design principles
– DES
• details
• strength
– Differential & Linear Cryptanalysis
– Modes of Operation
• ECB, CBC, CFB, OFB, CTR

Ch03

More Related Content

What's hot

Similar to Ch03

More from ssusere796b3

Recently uploaded

Ch03
