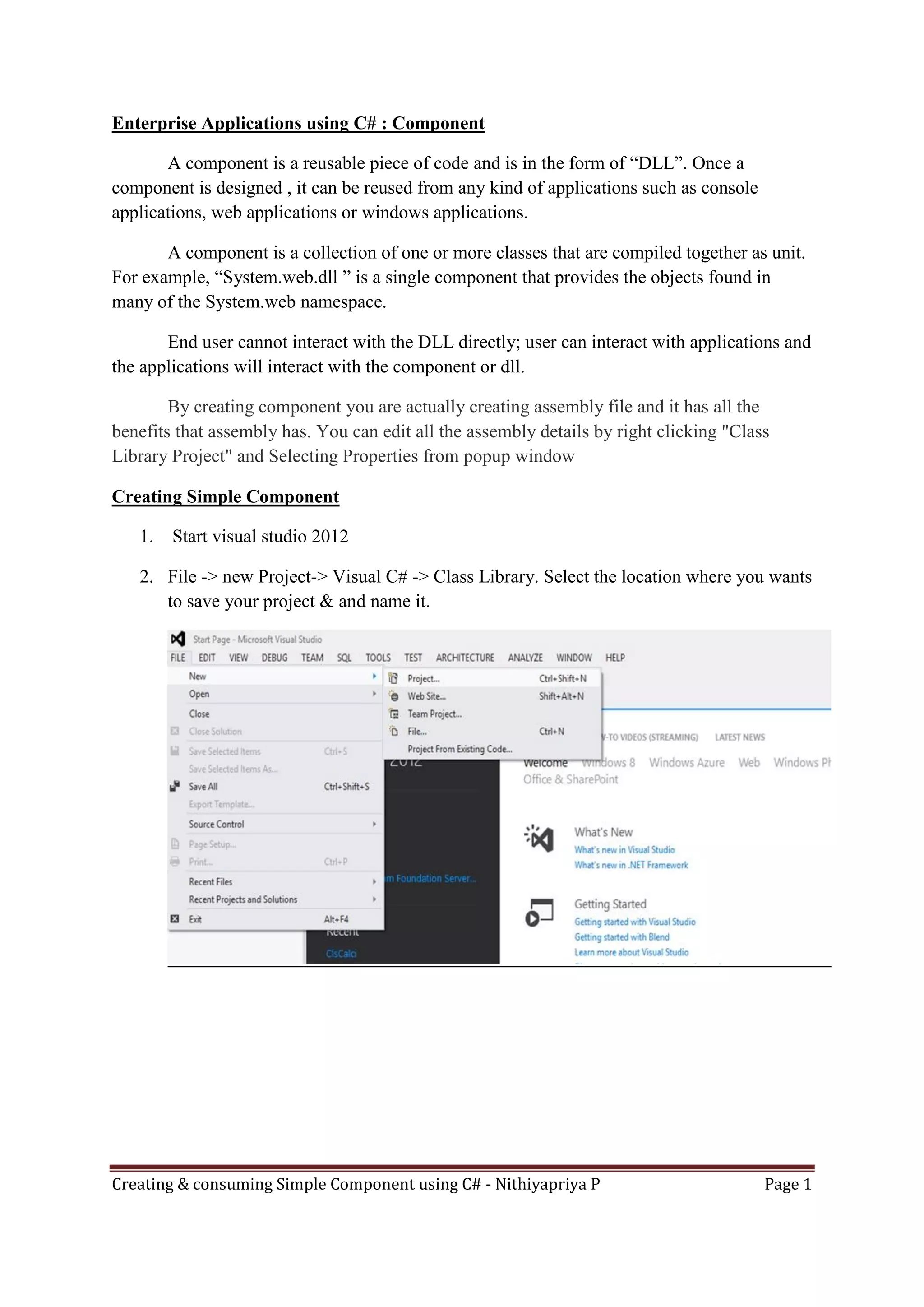

Enterprise Applications using C# : Component
A component is a reusable piece of code and is in the form of “DLL”. Once a
component is designed , it can be reused from any kind of applications such as console
applications, web applications or windows applications.
A component is a collection of one or more classes that are compiled together as unit.
For example, “System.web.dll ” is a single component that provides the objects found in
many of the System.web namespace.
End user cannot interact with the DLL directly; user can interact with applications and
the applications will interact with the component or dll.
By creating component you are actually creating assembly file and it has all the
benefits that assembly has. You can edit all the assembly details by right clicking "Class
Library Project" and Selecting Properties from popup window
Creating Simple Component
1. Start visual studio 2012
2. File -> new Project-> Visual C# -> Class Library. Select the location where you wants
to save your project & and name it.

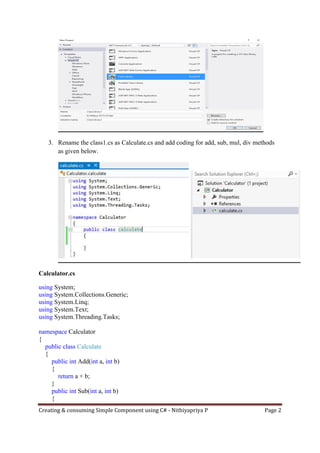

3. Rename the class1.cs as Calculate.cs and add coding for add, sub, mul, div methods
as given below.
Calculator.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace Calculator
{
public class Calculate
{
public int Add(int a, int b)
{
return a + b;
}
public int Sub(int a, int b)
{

return a - b;
}
public int Mul(int a, int b)
{
return a * b;
}
public int Div(int a, int b)
{
return a / b;
}
}
}

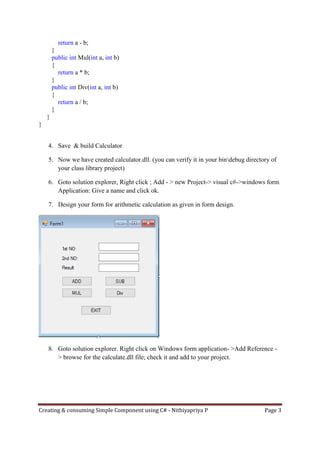

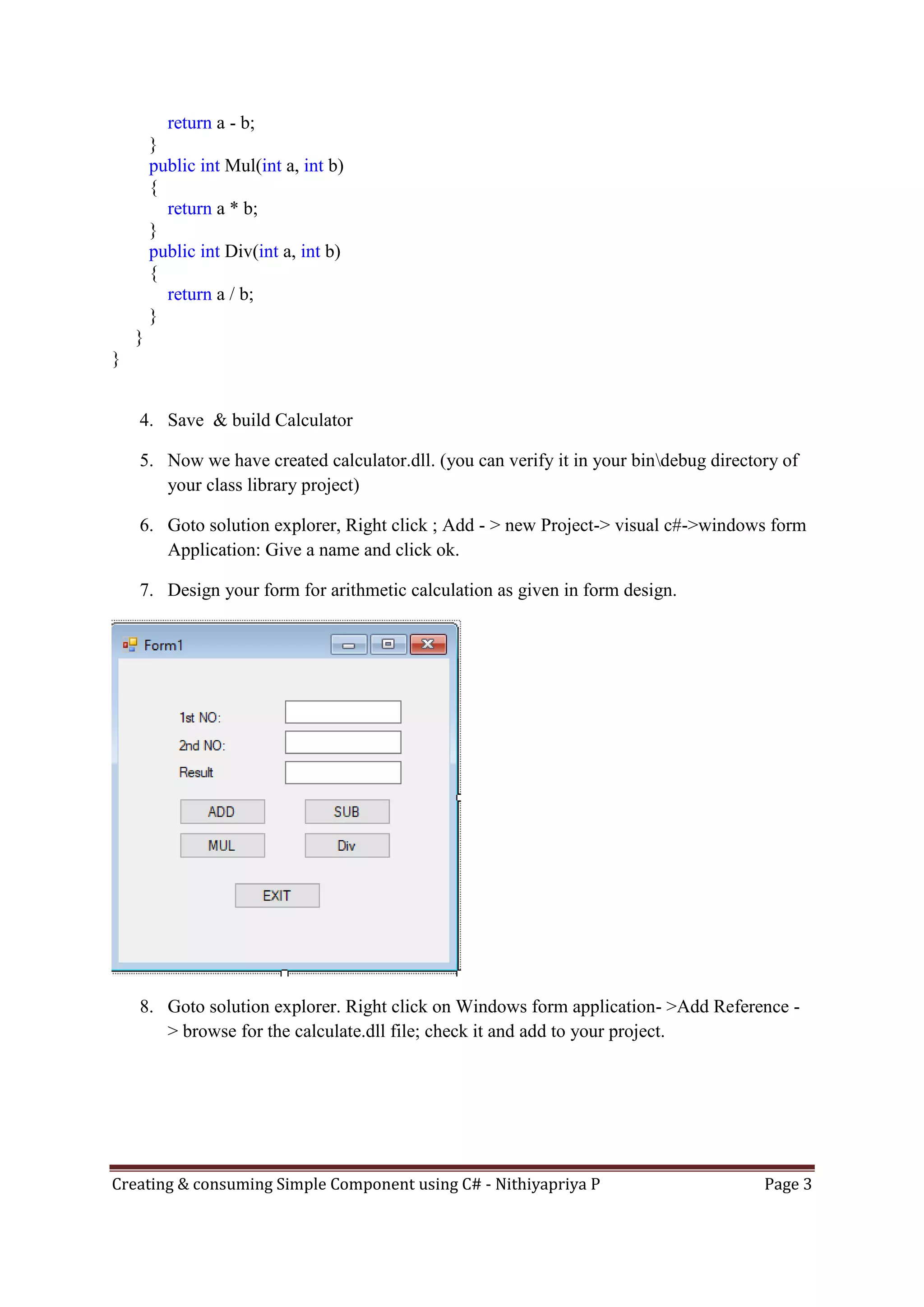

4. Save & build Calculator
5. Now we have created calculator.dll. (you can verify it in your bindebug directory of
your class library project)
6. Goto solution explorer, Right click ; Add - > new Project-> visual c#->windows form
Application: Give a name and click ok.
7. Design your form for arithmetic calculation as given in form design.
8. Goto solution explorer. Right click on Windows form application- >Add Reference -
> browse for the calculate.dll file; check it and add to your project.

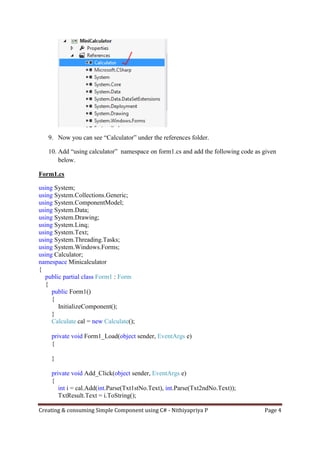

9. Now you can see “Calculator” under the references folder.
10. Add “using calculator” namespace on form1.cs and add the following code as given
below.
Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using Calculator;
namespace Minicalculator
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
Calculate cal = new Calculate();
private void Form1_Load(object sender, EventArgs e)
{
}
private void Add_Click(object sender, EventArgs e)
{
int i = cal.Add(int.Parse(Txt1stNo.Text), int.Parse(Txt2ndNo.Text));
TxtResult.Text = i.ToString();

}

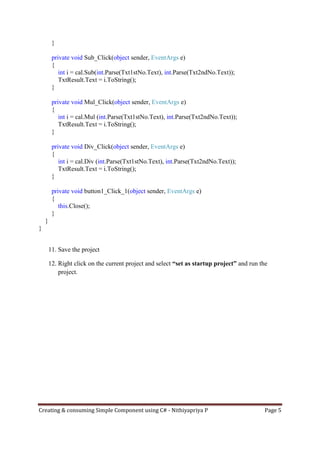

private void Sub_Click(object sender, EventArgs e)
{
int i = cal.Sub(int.Parse(Txt1stNo.Text), int.Parse(Txt2ndNo.Text));
}
private void Mul_Click(object sender, EventArgs e)
{
int i = cal.Mul (int.Parse(Txt1stNo.Text), int.Parse(Txt2ndNo.Text));
}
private void Div_Click(object sender, EventArgs e)
{
int i = cal.Div (int.Parse(Txt1stNo.Text), int.Parse(Txt2ndNo.Text));
}
private void button1_Click_1(object sender, EventArgs e)
{
this.Close();
}
}
}
11. Save the project
12. Right click on the current project and select “set as startup project” and run the
project.
