Creation of simple application using - step by step

Android Studio Lab - Nithiyapriya Pasavaraj

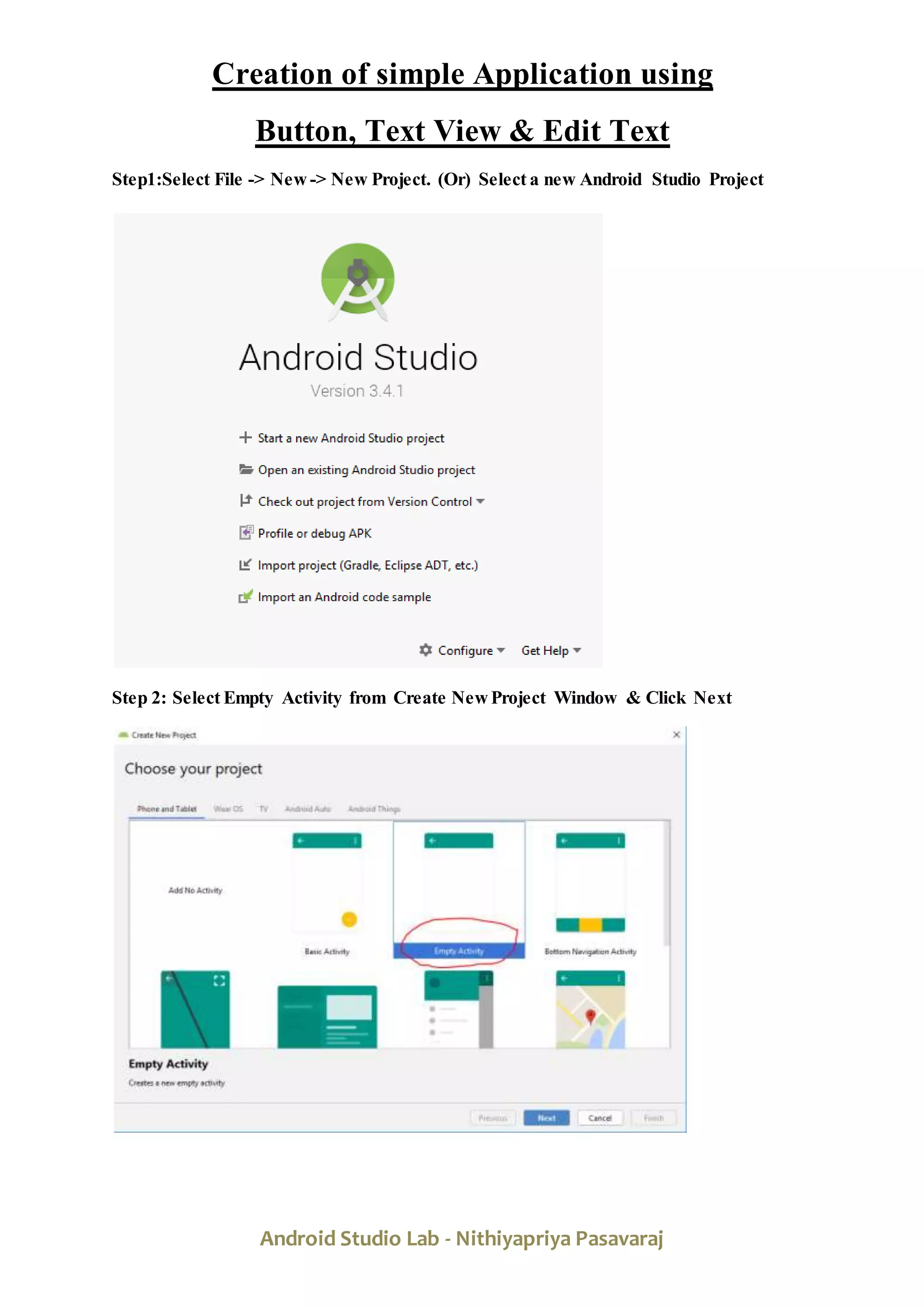

Creation of simple Application using
Button, Text View & Edit Text
Step1:Select File -> New -> New Project. (Or) Select a new Android Studio Project
Step 2: Select Empty Activity from Create New Project Window & Click Next

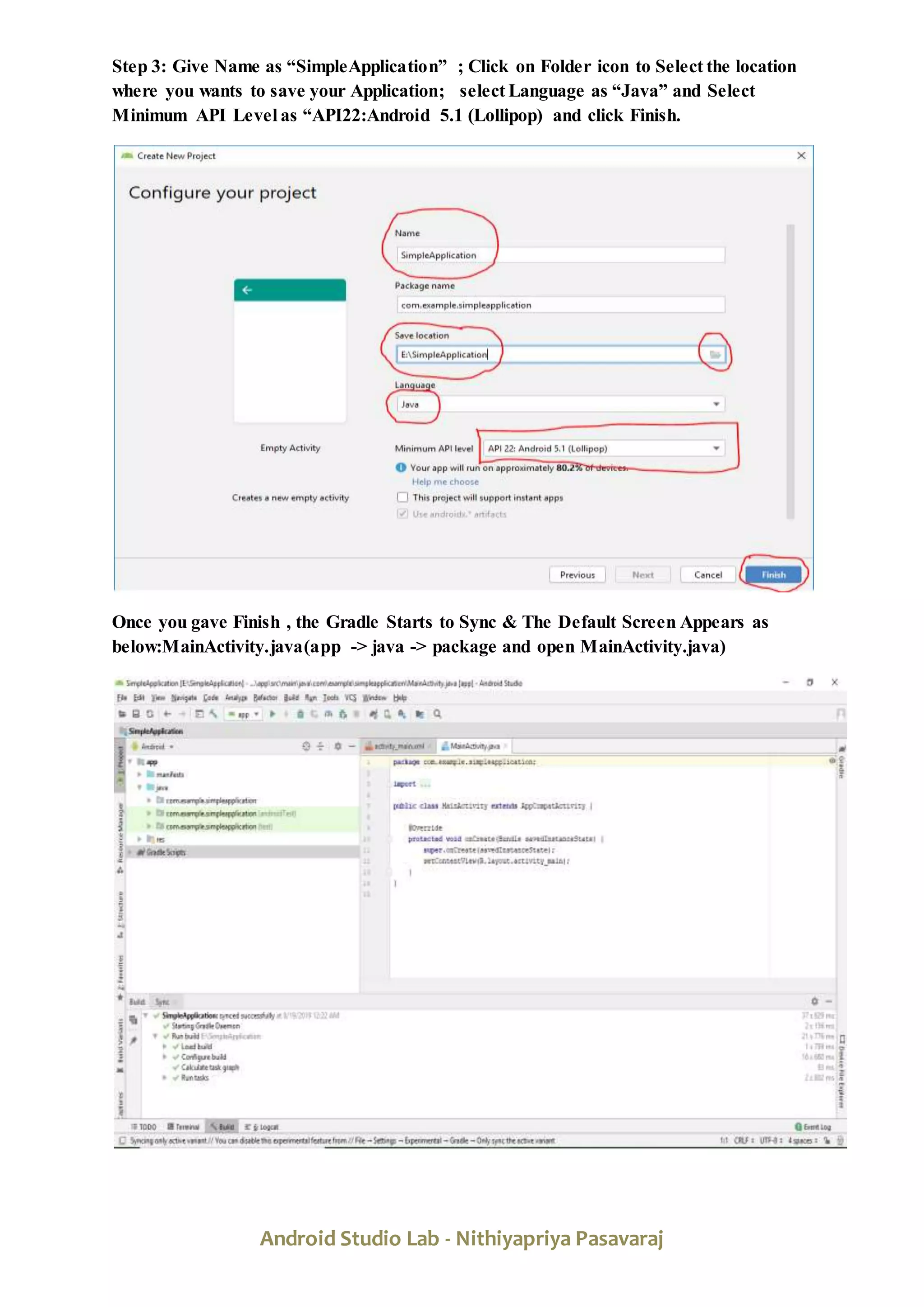

Step 3: Give Name as “SimpleApplication” ; Click on Folder icon to Select the location
where you wants to save your Application; select Language as “Java” and Select
Minimum API Level as “API22:Android 5.1 (Lollipop) and click Finish.
Once you gave Finish , the Gradle Starts to Sync & The Default Screen Appears as
below:MainActivity.java(app -> java -> package and open MainActivity.java)

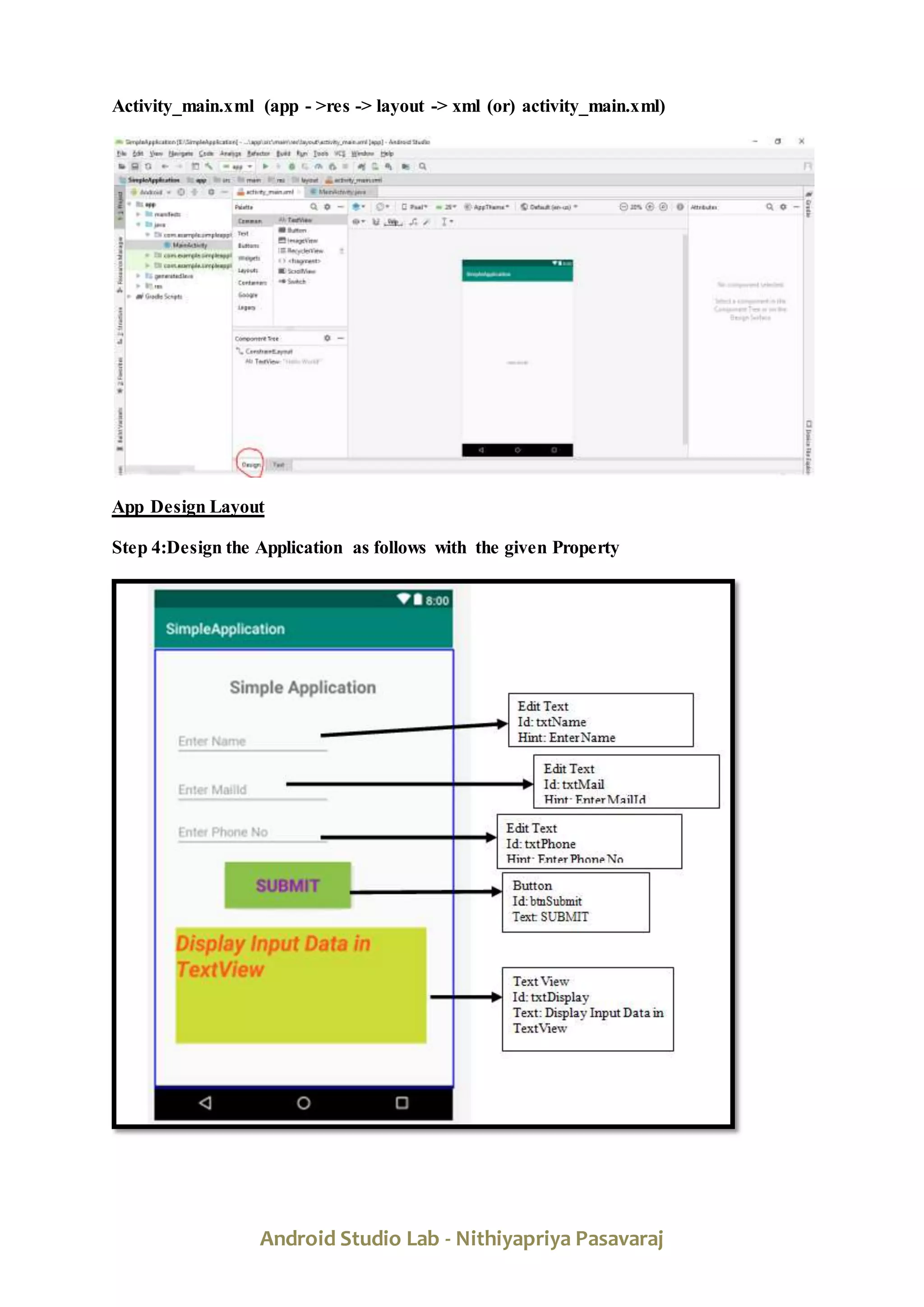

Activity_main.xml (app - >res -> layout -> xml (or) activity_main.xml)
App Design Layout
Step 4:Design the Application as follows with the given Property

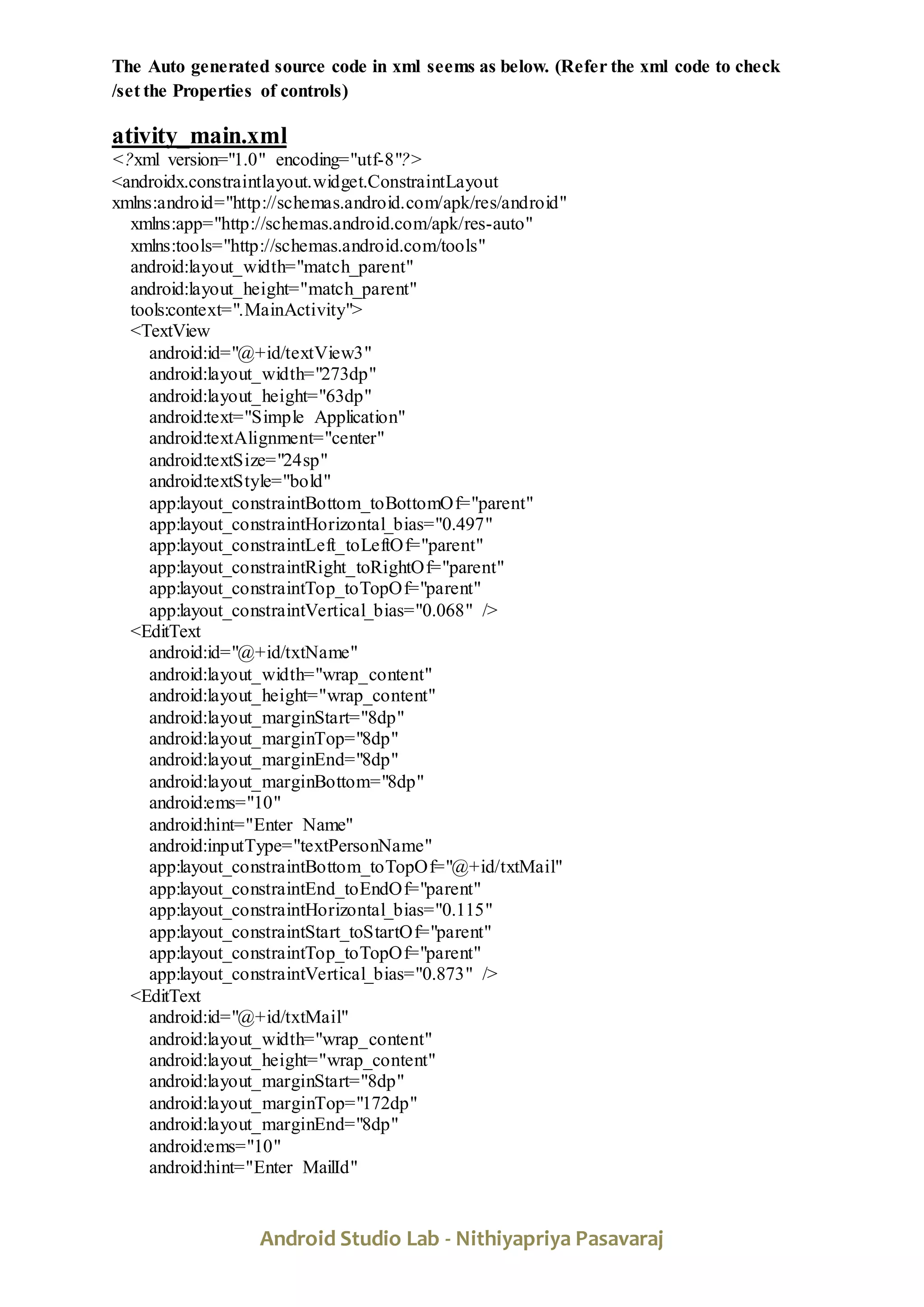

The Auto generated source code in xml seems as below. (Refer the xml code to check
/set the Properties of controls)
ativity_main.xml
<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context=".MainActivity">
<TextView
android:id="@+id/textView3"
android:layout_width="273dp"
android:layout_height="63dp"
android:text="Simple Application"
android:textAlignment="center"
android:textSize="24sp"
android:textStyle="bold"
app:layout_constraintBottom_toBottomOf="parent"
app:layout_constraintHorizontal_bias="0.497"
app:layout_constraintLeft_toLeftOf="parent"
app:layout_constraintRight_toRightOf="parent"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintVertical_bias="0.068" />
<EditText
android:id="@+id/txtName"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginStart="8dp"
android:layout_marginTop="8dp"
android:layout_marginEnd="8dp"
android:layout_marginBottom="8dp"
android:ems="10"
android:hint="Enter Name"
android:inputType="textPersonName"
app:layout_constraintBottom_toTopOf="@+id/txtMail"
app:layout_constraintEnd_toEndOf="parent"
app:layout_constraintStart_toStartOf="parent"
<EditText
android:id="@+id/txtMail"
android:ems="10"
android:hint="Enter MailId"

app:layout_constraintTop_toTopOf="parent" />

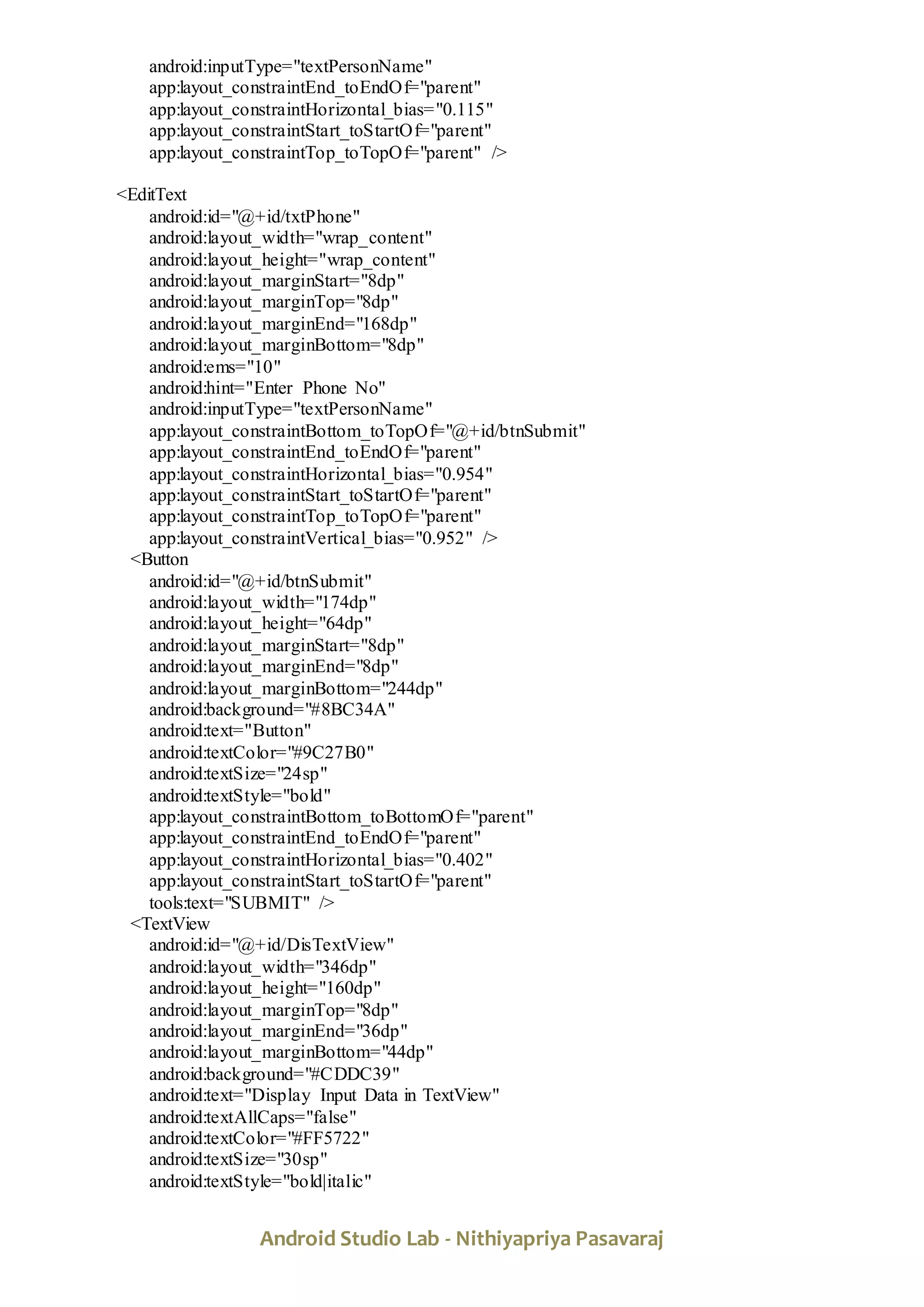

<EditText
android:id="@+id/txtPhone"
android:ems="10"
android:hint="Enter Phone No"
app:layout_constraintBottom_toTopOf="@+id/btnSubmit"
<Button
android:id="@+id/btnSubmit"
android:background="#8BC34A"
android:text="Button"
android:textColor="#9C27B0"
android:textStyle="bold"
tools:text="SUBMIT" />
<TextView
android:id="@+id/DisTextView"
android:background="#CDDC39"
android:text="Display Input Data in TextView"
android:textAllCaps="false"
android:textColor="#FF5722"
android:textStyle="bold|italic"

app:layout_constraintTop_toBottomOf="@+id/btnSubmit"
</androidx.constraintlayout.widget.ConstraintLayout>

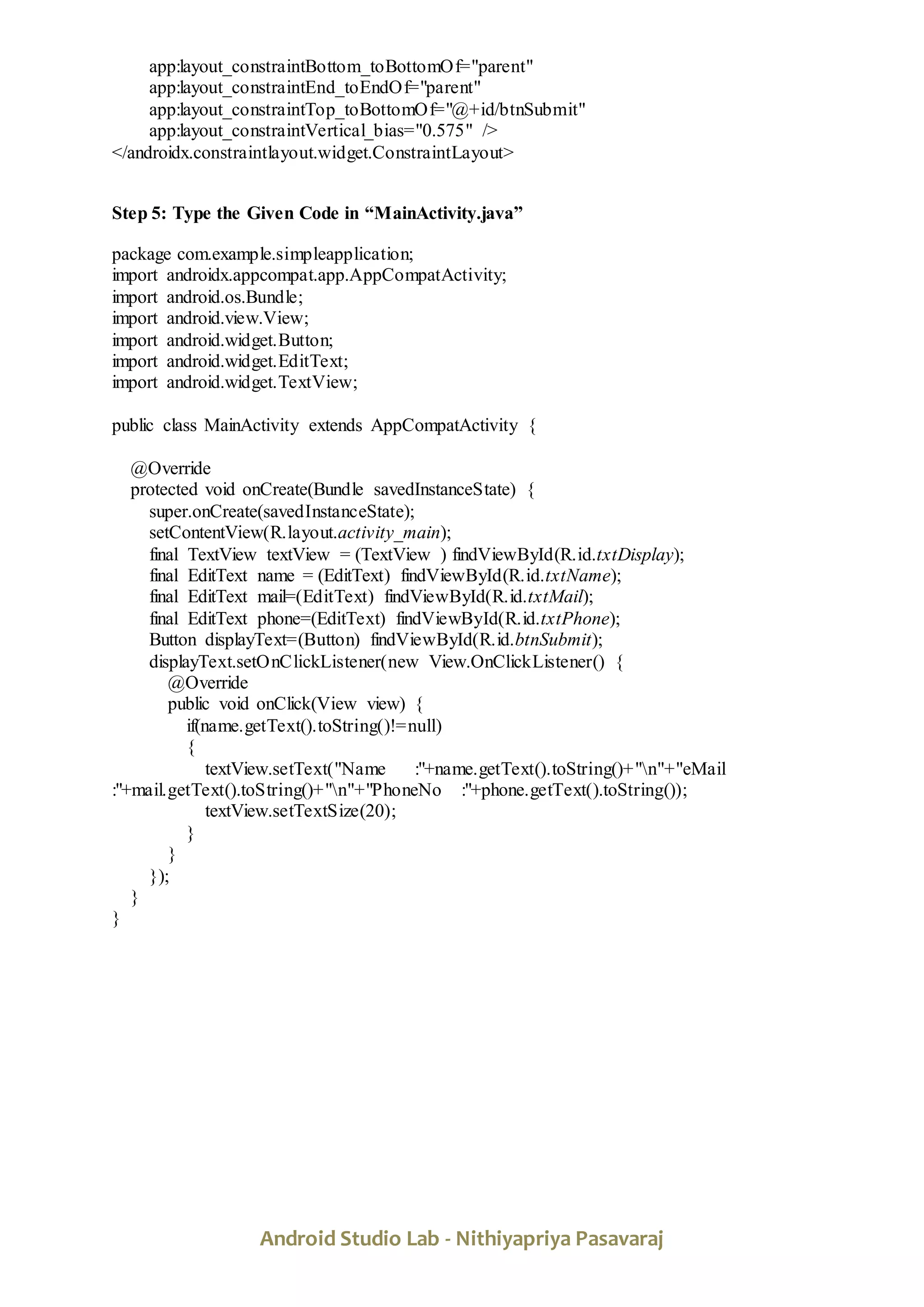

Step 5: Type the Given Code in “MainActivity.java”
package com.example.simpleapplication;
import androidx.appcompat.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
public class MainActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
final TextView textView = (TextView ) findViewById(R.id.txtDisplay);
final EditText name = (EditText) findViewById(R.id.txtName);
final EditText mail=(EditText) findViewById(R.id.txtMail);
final EditText phone=(EditText) findViewById(R.id.txtPhone);
Button displayText=(Button) findViewById(R.id.btnSubmit);
displayText.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View view) {
if(name.getText().toString()!=null)
{
textView.setText("Name :"+name.getText().toString()+"n"+"eMail
:"+mail.getText().toString()+"n"+"PhoneNo :"+phone.getText().toString());
textView.setTextSize(20);
}
}
});
}
}

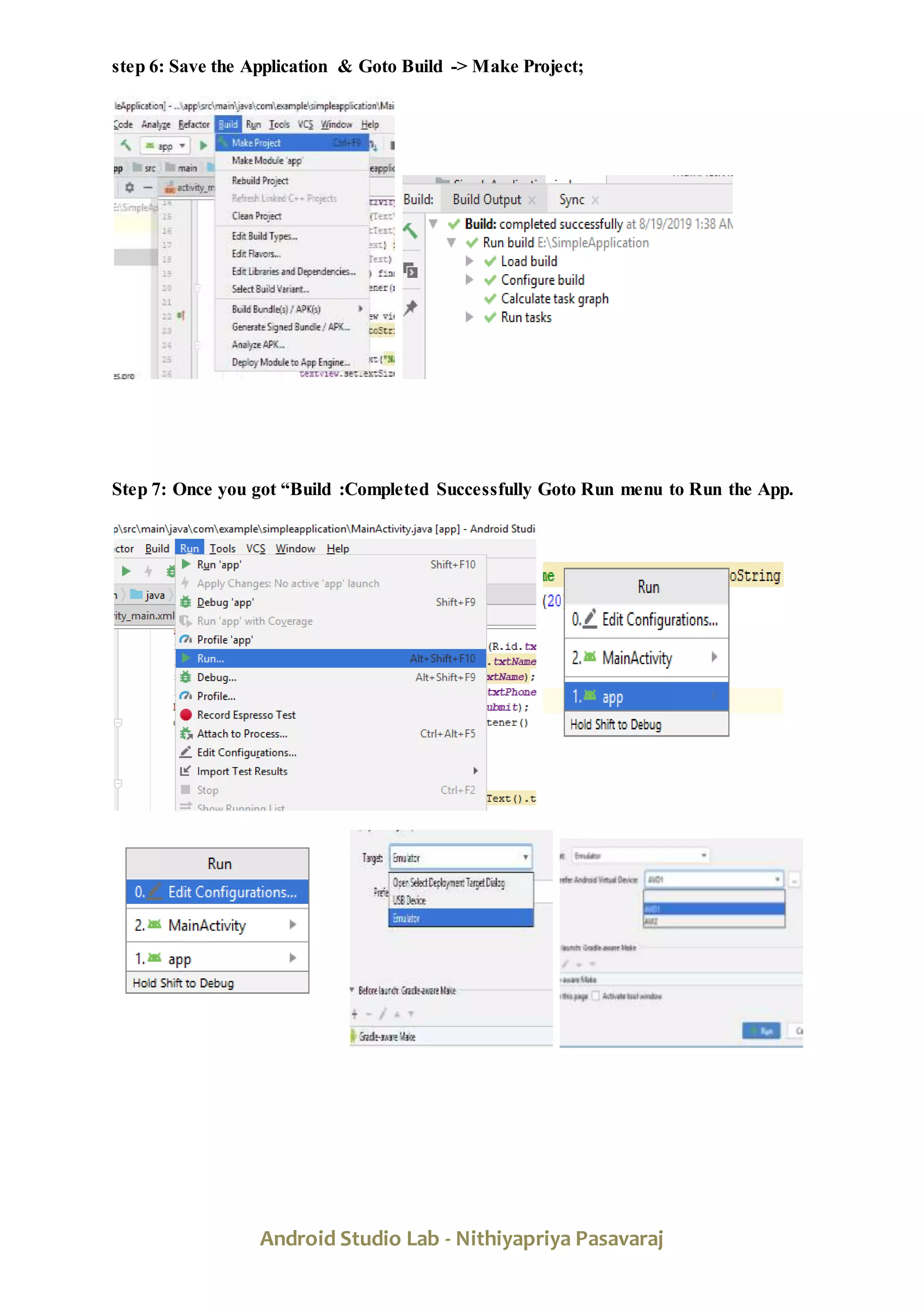

step 6: Save the Application & Goto Build -> Make Project;

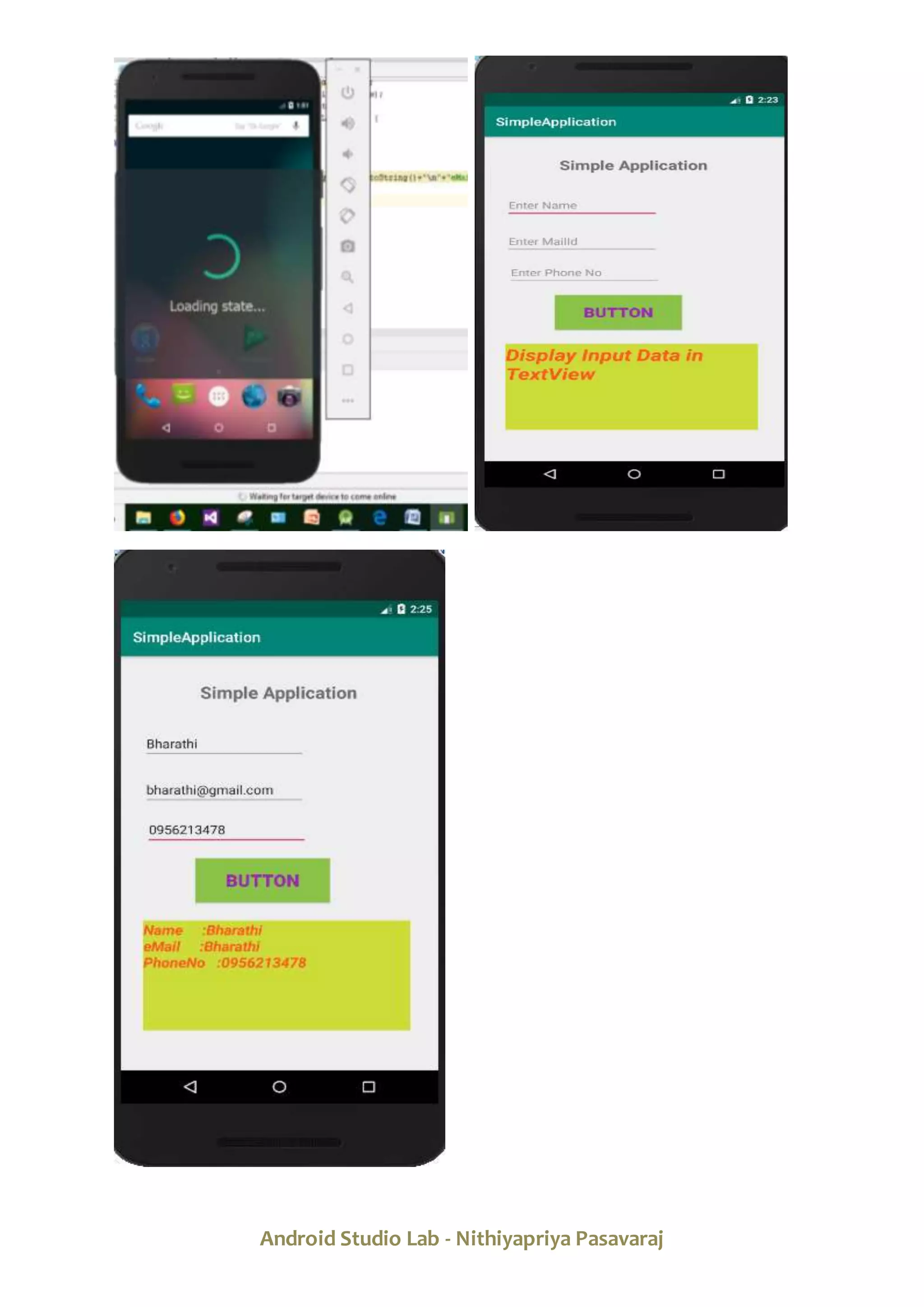

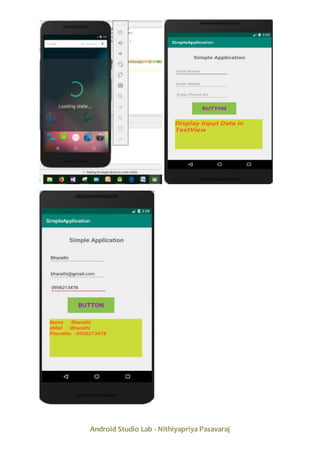

Step 7: Once you got “Build :Completed Successfully Goto Run menu to Run the App.
